Samsung Electronics Co WEP180 Bluetooth Headset User Manual WEP180
Samsung Electronics Co Ltd Bluetooth Headset WEP180
Users Manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-xxxxxA
05/2006. Rev. 1.0
WEP180
1
English
Contents
BEFORE USING YOUR HEADSET
Checking phone compatibility ....................................................3
Your headset overview .............................................................3
Checking the accessories ..........................................................4
Charging the headset ...............................................................4
Storage of the headset .............................................................5
BASIC OPERATIONS
Turning the headset on/off ........................................................6
Pairing with your Bluetooth phone..............................................7
Wearing the headset ................................................................9
Making a call......................................................................... 10
Ending a call ......................................................................... 11
Answering a call .................................................................... 11
Rejecting a call...................................................................... 12
Adjusting the volume ............................................................. 12
Using enhanced features ........................................................ 12
APPENDIX
Frequently asked questions..................................................... 14
Certification .......................................................................... 16
Warranty and parts replacement.............................................. 17
Correct disposal of this product ............................................... 19
2
Thank you for purchasing the Samsung Bluetooth Mono
Headset WEP180, we hope you will be delighted with its
operation.
Please read this user’s guide to get started, and to make the
best use of the headset’s many features.
Driving safety
• When you are driving a car, driving is your first
responsibility.
• When using your headset while driving, follow local
regulations in the country or region you are in.
3
English
BEFORE USING YOUR HEADSET
Your headset is compatible with most Bluetooth phones that are
compliant with Bluetooth version 2.0 and support the headset
and/or hands-free profile(s). Ensure that your phone has
Bluetooth capability by visiting your phone manufacturer’s web
site.
Checking phone compatibility
Your headset overview
Volume control
buttons Indicator light
Multi-Function
button
Hook
Microphone
4
Make sure you have the following items with your headset:
travel adapter, User’s Guide, 2 headset hooks
Your headset uses a rechargeable battery. You must charge the
battery fully before using the headset for the first time.
1
Plug the travel adapter into the jack on the headset.
2
Plug the travel adapter into the electrical outlet.
• Charge the headset until the red light on the headset
turns to blue.
• The headset will be fully charged in approximately 2
hours.
Checking the accessories
Charging the headset
5
English
3
Remove the travel adapter from the headset.
• Always store the headset with the power off and make sure
it is safely protected.
• Avoid storage at high temperatures (above 40°C / 104°F).
such as in a hot vehicle or in direct sunlight. Storage at high
temperatures can damaged performance and reduce battery
life.
• Do not expose the headset or any of its supplied parts to
rain or other liquids.
WARNING
Do not attempt to charge the headset with
anything other than the travel adapter provided.
Using unauthorised travel adapter may damage
the headset.
IMPORTANT
Removing the travel adapter from the headset
during charging will turn the headset off and
stop the charging progress. The headset cannot
be used while charging.
Storage of the headset
6
BASIC OPERATIONS
Meaning of the indicator light
Turning the headset on/off
To Press and hold You will see
turn the
headset on
the Multi-Function button for
3 seconds until you see
4
blue flashes
on the indicator
light.
the indicator light flashes
while the power is on (see
Meaning of the indicator
light
).
turn the
headset off
the Multi-Function button for
3 seconds until you see
3
blue flashes
on the indicator
light.
the indicator light stops
flashing.
Light Status
Flashes in blue
every 8 seconds.
The headset is in Active mode.
• The headset has an active call in progress.
• You can talk up to 4 hours.
*
7
English
Pairing will create a unique and encrypted wireless link between
two Bluetooth enabled devices, such as your Bluetooth phone
and Bluetooth headset.
1
Ensure that the headset is off (see
Turning the headset
on/off
).
Flashes in blue
every 3 seconds.
The headset is in Standby mode.
• The headset is waiting for a call.
• The headset can be in Standby mode up to 70
hours.
*
Flashes in red. The battery of the headset is low.
• There is less than 10% of battery power left.
Recharge the battery.
* Depending on the phone type and usage, the actual time may
vary.
Pairing with your Bluetooth phone
Light Status
8
2

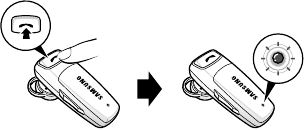

Press and hold the Multi-Function button until the indicator
light turns on in blue (approximately 8 seconds).
3
Set your Bluetooth phone to discover the headset by
following your phone’s guide. Typically, the steps involve
going to a ‘Setting’, ‘Connection’, or ‘Bluetooth’ menu on
your phone and then selecting the option to discover
Bluetooth devices.
4
Your phone will find the Samsung WEP180 headset and ask
if you want to pair with it. Confirm this by pressing the
Yes
or
OK
key.
9
English
5
Enter a passkey or PIN, 0000 (4 zeros), then press the
Yes
or
OK
key.
Wear the headset on your ear. In general,
you will get better performance when there
are no obstructions (including parts of your
body) between the headset and the phone.
Depending on what ear you are going to
wear the headset, simply adjust the hook
accordingly.
IMPORTANT
If pairing was successful, the indicator light will
flash in blue 10 times rapidly before going to
flashing every 3 seconds. If unsuccessful, the
light remains on, and you will need to
re-attempt pairing.
Wearing the headset
▲
Left
▲
Right
10
Making a voice activated call
If the voice recognition feature is on, you can make a voice
activated call.
1
Press the Multi-Function button once. You will hear the
voice-activation tone.
2
Say the name of the person you wish to call.
Depending on your phone, this feature is not supported.
Redialling the last number
When the headset is connected with the phone via the
Handsfree profile:
1
Press the Multi-Function button to access the recent call list.
2
If necessary, press or to scroll to the number you want.
3
Press the Multi-Function button to dial the selected number.
Making a call
11
English
When the headset is connected with the phone via the
Handsfree profile:
Press and hold the Multi-Function button for 2 seconds. When
you release the button, the phone dials the last dialled or
received number.
Press the Multi-Function button once.
After you hear the ring tone, press the Multi-Function button
once.
IMPORTANT
Depending on your phone, how to redial the
last number may vary.
Ending a call
Answering a call
IMPORTANT
Do not hold the Multi-Function button down
too long when making a call with your voice,
ending, or answering a call. This should only
be a quick tap.
12
When you receive a call, press and hold the Multi-Function
button for 2 seconds to reject the call. Depending on your
phone’s setting or type, you may only be able to mute the
ringer or this feature may not be supported.
Press on the side of the headset to increase the volume level
and to decrease the volume level.
Enhanced features are available for phones that support the
hands-free Bluetooth profile and enhanced features.
•
Placing a call on hold
While you are on a call, press and hold the Multi-Function
button for 2 seconds.
To retrieve the call, press and hold the Multi-Function button
for 2 seconds again.
Depending on your phone, this feature is not supported.
Rejecting a call
Adjusting the volume
Using enhanced features
13
English
•
Answering a second call
When your phone notifies you of another incoming call while
you are on a call, press and hold the Multi-Function button
for 2 seconds to place the call on hold. Then press the
Multi-Function button to answer the second call.
You can switch between calls by pressing and holding it for 2
seconds.
Depending on your phone, this feature is not supported.
•
Switching off the microphone
Press and hold or to switch off the headset's
microphone.
To switch it back on, press and hold either one again.
•
Transferring a call from the phone to the headset
If you answer the call with your phone, you can transfer the
call to the headset by pressing the Multi-Function button
14
APPENDIX
Frequently asked questions
How far away from
my phone will the
headset work?
The operating range is typically up to 30 feet
(10 metres).
Will the headset
work with my
cordless phone at
home?
The headset is not designed for use with
cordless phones.
Will the headset
work with laptops,
PCs, and PDAs?
The headset will work with devices that are
compliant with Bluetooth version 2.0 and
support the headset and/or hands-free
profile(s).
Will anything cause
interference with
my conversation
when I’m using the
headset?
Appliances such as cordless phones and wireless
networking equipment may cause interference
with your conversation. To reduce any
interference, keep the headset away from other
devices that use or produce radio waves.
15
English
Will the headset
interfere with my
car’s electronics,
radio, or computer?
The headset produces significantly less power
than a typical mobile phone. It also only emits
signals that are in compliance with the
international Bluetooth standard. Therefore, you
should not expect any interference with
standard consumer-grade electronics
equipment.
Can other
Bluetooth phone
users hear my
conversation?
When you pair the headset to your Bluetooth
phone, you are creating a private link between
only these two Bluetooth devices. The wireless
Bluetooth technology used in the headset is not
easily monitored by third parties, because
Bluetooth wireless signals are significantly lower
in radio frequency power than those produced
by a typical mobile phone.
How do I take care
of the headset?
To clean the headset, use a clean, soft cloth that
is slightly damp.
16
Declaration of Conformity (R&TTE)
For the following product:
Bluetooth Ear-phone
(Product description)
WEP180
(Model name)
Manufactured at:
- Samsung Electronics Co., Ltd, 94-1, Imsoo-Dong, Gumi City, Kyung-Buk, Korea, 730-350
*
(factory name, address)
to which this declaration relates, is in conformity with the following standards and/or other normative documents.
Safety :
EMC :
Radio :
We hereby declare the [all essential radio test suites have been carried out and that] the above named product is in
conformity to all the essential requirements of Directive 1999/5/EC.
The conformity assessment procedure referred to in Article 10 and detailed in Annex[
IV
] of Directive 1999/5/EC has
been followed with the involvement of the following Notified Body(ies):
BABT, Balfour House, Churchfield Road,
Walton-on-Thames, Surrey, KT12 2TD, UK*
Identification mark: 0168
The technical documentation kept at:
Samsung Electronics QA Lab.
which will be made available upon request.
(Representative in the EU)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, UK*
Yong-Sang Park / S. Manager
(place and date of issue) (name and signature of authorised person)
Certification
* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty
card or contact the retailer where you purchased your phone.
17
English
Bluetooth
The Bluetooth
®
word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Samsung is
under license. Other trademarks and trade names are those of
their respective owners.
Samsung warrants this product as free of defects in material,
design and workmanship for the period of one year from the
original date of purchase.
If during the period of warranty this product proves defective
under normal use and service you should return the product to
the retailer from whom it was originally purchased or qualified
service center. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or
replacement of the unit under warranty.
• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is required
for a proper warranty service
Warranty and parts replacement
18
• The warranty is void if the serial number, date code label or
product label is removed, or if the product has been subject
to physical abuse, improper installation modification, or
repair by unauthorised third parties
• The responsibility of Samsung products shall be limited to
the repair or replacement of the product at its sole discretion
• Specifically exempt from any warranty are limited-life
consumable components such as batteries and other
accessories
• Samsung is not liable to for any incidental or consequential
damages arising from the use or misuse of any Samsung
product
• This warranty gives you specific rights and you may have
other rights which vary from area to area
• Unless otherwise instructed in the User Guide, the user may
not, under any circumstances, attempt to perform service,
adjustments or repairs on the unit, whether in or out of
warranty. It must be returned to the purchase point, factory
or authorised service agency for all such work
• Samsung will not assume any responsibility for any loss or
damage incurred in shipping. All repair work on Samsung
products by unauthorised third parties voids any warranty
19
English
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for
details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal.
Correct disposal of this product
20
FCC
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.This
equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
receiver
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician
for help
The device and its antenna must not be co-located or
operating in conjunction with any other antenna or
transmitter.
Users are not permitted to make changes or modify the
device in any way.
Changes or modifications not expressly approved by
Samsung will void the user’s authority to operate the
equipment.
