WEP320 User’s Manual
Thank you for purchasing the Samsung Bluetooth Mono Headset WEP320, we hope you
will be delighted with it's operation.
Please read this user’s guide to get started, and to make the best use of the headset’s
many features.
Driving safety
z When you are driving a car, driving is your first responsibility.
z When using your headset while driving, follow local regulations in the country
or region are in.
BEFORE USING YOUR HEADSET
Checking phone compatibility
Your headset is compatible with most Bluetooth phones that are compliant with
Bluetooth version 2.0 and support the headset and/or hands-free profile(s). Ensure that
your phone has Bluetooth capability by visiting your phone manufacturer’s web site.

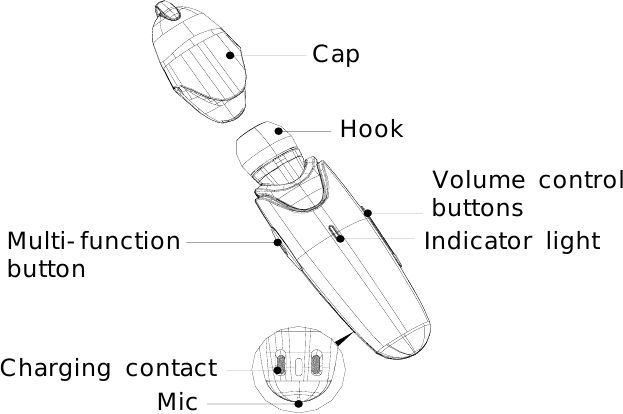

Your headset overview
Checking the accessories
Make sure you have the following items with your headset: Charging case, Travel
adapter, Manual, 2 headset hooks
Charging the headset
Your headset uses a rechargeable battery. You must charge the battery fully before
using the headset for the first time.
1. Put the headset in the supplied charging case and close the cover.
2. Plug the travel adapter into the case’s charging socket.
3. Plug the travel adapter into the electrical outlet.
z Charge the headset until the red light on the headset turns to blue.
z The headset will be fully charged in approximately 2 hours.
4. Remove the travel adapter from the case.
WARNING : Do not attempt to charge the headset with anything other than the travel
adapter provided. Using unauthorized travel adapter may damage the
headset.
IMPORTANT : Removing the travel adapter from the case during charging will turn
the headset off and stop the charging progress. The headset cannot be
used while charging.
Storage of the headset
z Always store the headset with the power off and make sure it is safely
protected.
z Avoid storage at high temperatures (above 40C/104F). such as in a hot
vehicle or in direct sunlight. (Storage at high temperatures can damaged
performance and reduce battery life).
z Do not expose the headset or any of its supplied parts to rain or other
liquids.
BASIC OPERATIONS
Turning the headset on/off
To Press and hold You will hear You will see
Turn the headset
on
The Multi-Function
button for 4 seconds
until you see 4 blue
flashes on the indicator
light, then release.
A tone The indicator light
flashes while the
power is on (see
Meaning of the
indicator light).
Turn the headset
off
The Multi-function
button for 4 seconds
until you see 2 blue
flashes on the indicator
light, then release.
Series 2 tones The indicator light
stops flashing.
Meaning of the indicator light
Light Tone Status
Flashes in blue every
8 seconds
Quick series of 2 tones.(Active
mode starts.)
The headset is in Active
mode.
z The headset has an
active call in progress
z You can talk up to 4
hours. *
Flashes in blue every
3 seconds
Quick series of 2 tones.(Standby
mode starts.)
The headset is in Standby
mode.
z The headset is waiting
for a call.
z The headset can be in
Standby mode up to 70
hours.
Flashes in red instead
of blue.
5 tones every 20 seconds. The battery of the headset
is low.
Recharge the battery.
z There is only 1 minute
of talk time left
* Depending on the phone type and usage, the actual time may vary.
Pairing with your Bluetooth phone
Pairing will create a unique and encrypted wireless link between two Bluetooth enabled
devices, such as your Bluetooth phone and Bluetooth headset.
1. Ensure that the headset is off (see Turning the headset on/off).
2. Press and hold the Multi-Function button until the indicator light turns on in
blue(approximately 8 seconds).
3. Set your Bluetooth phone to discover the headset by following your phone’s
guide. Typically, the steps involve going to a ‘Setup’, ‘Connect’, or ‘Bluetooth’
menu on your phone and then selecting the option to discover Bluetooth devices.
4. Your phone will find the Samsung WEP320 headset and ask if you want to pair
with it. Confirm this by pressing the Yes or OK key.
5. Enter a passkey or PIN, 0000(4 zeros), then press the Yes or OK key.
IMPORTANT : If pairing was successful, the indicator light will flash in blue 10 times
rapidly before going to flashing every 3 seconds. If unsuccessful, the
light remains on, and you will need to re-attempt pairing.

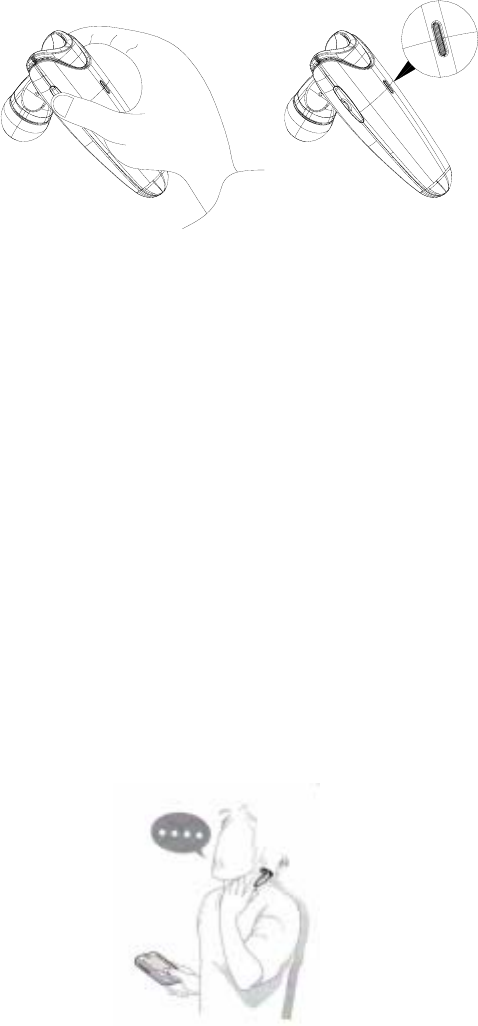

Wearing the headset
Wear the headset on your ear. In general, you will get better performance when there
are no obstructions (including parts of your body) between the headset and the phone.
Depending on what ear you are going to wear the headset, simply adjust the hook
accordingly.
Making a call
Making a voice activated call
If the voice recognition feature is on, you can make a voice activated call.
1. Press the Multi-Function button once. You will hear the voice-activation tone.
2. Say the name of the person you wish to call.
Depending on your phone, this feature is not supported.
Redialing the last number
If the voice recognition feature is off.
Press and hold the Multi-Function button for 2 seconds, twice.
If the voice recognition feature is on,
1. Press the Multi-Function button and listen for the voice-activation tone. When you
hear it, press the button again to cancel the feature.
2. Press and hold the Multi-Function button to access the recent call list.
3. Press and hold the Multi-Function button to make a call to the last number you have
dialed or received.
IMPORTANT : Depending on your phone, you should press the Multi-Function button
briefly or press and hold it to redial the last number.
Ending a call
Press the Multi-Function button once.
Answering a call
After you hear the ring tone, press the Multi-Function button once.
If you answer the call with your phone, you can transfer the call to the headset by
pressing the Multi-Function button.
IMPORTANT : Do not hold the Multi-Function button down too long when making a call
with your voice, ending, or answering a call. This should only be a quick
tap.
Rejecting a call
When you receive a call, press and hold the Multi-Function button for 2 seconds to
reject the call. Depending on your phone’s setting or type, you may only be able to
mute the ringer or this feature is not supported.
Adjusting the volume.
Press []on the side of the headset to increase the volume level and [] to decrease the
volume level.
Using enhanced feature.
Enhanced feature are available for phones that support the hands-free Bluetooth profile
and enhanced features.
Answering a second call(switching between 2 calls)
When your phone notifies you of another incoming call while you are on a call, press
and hold the Multi-Function button for 2 seconds.
You can switch between calls by pressing and holding it for 2 seconds.
Depending on your phone, this feature is not supported.
Placing a call on hold
While you are on a call, press and hold the Multi-Function button for 2 seconds.
To retrieve the call, press and hold the Multi Function button for 2 seconds again.
Depending on your phone, this feature is not supported.
Switching off the microphone
Press and hold the Up volume control button to switch off the headset’s microphone.
To switch it back on, press and hold the button again.
APPENDIX
Frequently asked questions
How far away from my phone will the
headset work ?
The operating range is typically up to 30
feet (10 meters).
Will the headset work with my cordless
phone at home?
The headset is not designed for use with
cordless phones.
Will the headset work with laptops, PCs,
and PDAs?
The headset will work with devices that
are compliant with Bluetooth version 2.0
and support the headset and/or hands-free
profile(s).
Will anything cause interference with my
conversation when I’m using the headset ?
Appliances such as cordless phones and
wireless networking equipment may cause
interference with your conversation. To
reduce any interference, keep the headset
away from other devices that use or
produce radio waves.
Will the headset interfere with my car’s
electronics, radio, or computer?
The headset produces significantly less
power than a typical mobile phone. It also
emits signals that are in compliance with
the international Bluetooth standard.
Therefore, you should not expect any
interference with standard consumer-
grade electronics equipment.
Can other Bluetooth phone users hear my
conversation ?
When you pair the headset to your
Bluetooth phone, you are creating a
private link between only these two
Bluetooth devices. The wireless Bluetooth
technology used in the headset is not
easily monitored by third parties, because
Bluetooth wireless signals are significantly
lower in radio frequency power than those
produced by a typical mobile phone.
How do I take care of the headset? To clean the headset, use a clean, soft
cloth that is slightly damp.
Bluetooth
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by Samsung is under license. Other trademarks and trade names are
those of their respective owners.
Warranty and parts replacement
Samsung warrants that product as free of defects in material, design and workmanship
for the period of one year from the original date of purchase.
If during the period of warranty this product proves defective under normal use and
service you should return the product to the retailer from whom it was originally
purchased or qualified service center. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or replacement of the unit
under warranty.
z The warranty is limited to the original purchaser
z A copy of your receipt or other proof of purchases is required for a proper
warranty service.
z The warranty is void if the serial number, date code label or product label is
removed, or if the product has been subject to physical abuse, improper installation
modification, or repair by unauthorized third parties
z The responsibility of Samsung products shall be limited to the repair or
replacement of the product at its sole discretion.
z Specifically exempt from any warranty are limited-life consumable components
such as batteries and other accessories.
z Samsung is not liable to for any incidental or consequential damages arising from
the use or misuse of any Samsung product
z This warranty gives you specific rights and you may have other rights which vary
from area to area.
z Unless otherwise instructed in the User Guide, the user may not, under any
circumstance, attempt to perform service, adjustments or repairs on the unit,
whether in or out warranty. It must be returned to the purchase point, factory or
authorized service agency for all such work
z Samsung will not assume any responsibility for any loss or damage incurred in
shipping. All repair work on Samsung products by unauthorized third parties voids
any warranty.
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not
be disposed with other household wasted at the end of its working life .
To Prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item
for environmentally safe recyling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
FCC
FCC ID: A3LWEP320
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
The device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
Users are not permitted to make changes or modify the device in any
way. Changes or modifications not expressly approved by Samsung will
void the user’s authority to operate the equipment.
Cautions
Changes or modifications made in the radio phone, not expressly
approved by Samsung, will void the user’s authority to operate the
equipment.Only use approved batteries, antennas and chargers. The use
of any unauthorized accessories may be dangerous and void the phone
warranty if said accessories cause damage or a defect to the phone.
Although your phone is quite sturdy, it is a complex piece of equipment
and can be broken. Avoid dropping, hitting, bending or sitting on it.
