Samsung Electronics Co WEP490 Bluetooth Mono Headset User Manual

Samsung Electronics Co Ltd Bluetooth Mono Headset

User manual

World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-XXXXXAEU A. 08/2009. Rev. 1.0
English ............................................................. 1Français ......................................................... 21Deutsch .......................................................... 41Nederlands ..................................................... 61
English1ContentsGetting startedYour headset overview ....................................................3Button functions .............................................................4Charging the headset ......................................................4Wearing the headset .......................................................7Using your headsetTurning the headset on or off ...........................................8Pairing and connecting the headset ...................................9Using call functions ....................................................... 11AppendixFrequently asked questions ............................................ 13Warranty and parts replacement ..................................... 15Correct disposal of this product ...................................... 16Correct disposal of batteries in this product ...................... 17Specications ............................................................... 18
2Take the time to read through this user manual before using WEP490 Bluetooth Headset.Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: B0XXXXXMore information about Bluetooth is available at www.bluetooth.com.Safety precautionsNever disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible. Bring the headset to an authorised service centre to repair it or replace the battery.When using your headset while driving, follow local regulations in the country or region you are in.Avoid storage at high temperatures (above 50° C/122° F), such as in a hot vehicle or in direct sunlight, as this can damage performance and reduce battery life.Do not expose the headset or any of its supplied parts to rain or other liquids. At very high volumes, prolonged listening to the headset can damage your hearing.••••
English3Getting startedThis section explains the proper use of your Bluetooth headset.Your headset overviewVolume buttonPower switchIndicator lightEar hookMicrophoneTalk buttonCharger jackEarpieceMake sure you have the following items with your headset : Travel adapter, User manual.The items supplied with your headset may vary depending on your region.
4Button functionsButton FunctionPower Slide the switch to turn the headset on or off.Talk Press to make or answer a call.Press to end a call.••/Volume Press to adjust the volume.Charging the headsetThis headset has a rechargeable internal battery which is non-removable. Ensure that you fully charge the battery before using the headset for the rst time. 1 Plug the small end of the travel adapter into the charger jack.
English52 Plug the large end of the travel adapter into a power outlet.During charging, the indicator light will turn red. If charging does not begin, unplug the travel adapter and plug it in again.3 When the headset is fully charged, the indicator light changes to blue. Unplug the travel adapter from the power outlet and the headset.Use only a Samsung-approved travel adapter. Unauthorised travel adapters may cause an explosion or damage to the headset.The battery will gradually wear out while charging or discharging because it is a consumable part.The headset is not able to operate while charging. Try connecting after charging is completed.•••
6Checking the battery levelAt the same time, press and hold the Volume down button and the Talk button. Depending on the battery level, the indicator light ashes 5 times in one of the following colours:Battery level Indicator light colourAbove 80% Blue80 ~20% VioletBelow 20% RedWhen the battery power is lowThe headset beeps and the indicator light ashes red. Recharge the battery. If the headset powers off during a call, the call will be automatically transferred to the phone.
English7Wearing the headsetPlace the headset on your ear. Depending on what ear you are going to wear the headset, simply adjust the ear hook accordingly. Left  Right
8Using your headsetThis section explains how to turn the headset on, pair and connect to the phone, and use various functions. Activated functions and features may differ depending on the types of your phone.Some devices, especially those that are not tested or approved by Bluetooth SIG, may be incompatible with your headset.••Turning the headset on or offSlide the power switch to turn the headset on. The blue indicator light ashes 4 times.Slide the power switch to turn the headset off. Both blue and red indicator lights ash.••
English9Pairing and connecting the headsetPairing will create a unique and encrypted wireless link between two Bluetooth-enabled devices, such as a Bluetooth phone and your Bluetooth headset. To use the headset with other Bluetooth devices, the devices must be paired. When trying to pair the two devices, keep the headset and the phone reasonably close together. After pairing, you can connect the two devices.Pairing and connecting the headset with a phone1 Enter Pairing mode.With the headset turned on, press and hold the Talk button until the indicator light turns blue and stays lit after blinking.When you turn on the headset for the rst time, it automatically enters Pairing mode.2 Activate the Bluetooth feature on your phone and search for the headset (see your phone’s user manual).3 Select the headset (WEP490) from the list of devices found by your phone.••
104 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your phone.Your headset supports the Simple Pairing feature which allows the headset to be paired with a phone without requesting a PIN. This feature is available for phones that are compliant with Bluetooth version 2.1 or higher.Disconnecting the headsetTo disconnect the headset from your phone,Turn off the headsetUse the Bluetooth menu on your phoneReconnecting the headsetWhen the headset is paired with a phone, it will attempt to automatically reconnect each time you turn it on.If the headset does not automatically attempt to reconnect,automatically attempt to reconnect,attempt to reconnect,Press the Talk button. Use the Bluetooth menu on your phone••••
English11Using call functionsMaking a callRedialling the last numberPress the Talk button to redial the last number.For some phones, pressing the Talk button opens the call log list. Press the Talk button again to dial the selected number.Dialling a number by voicePress and hold the Talk button, and then say a name to dial a number by voice.Answering a callWhen you hear incoming call tones, press the Talk button to answer a call.Ending a callPress the Talk button to end a call.Rejecting a callWhen a call comes in, press and hold the Talk button to reject a call.
12Using options during a callYou can use the following functions to control your call:Muting the microphonePress and hold the Volume up or down button to turn the microphone off so that the person with whom you are speaking cannot hear you. When the microphone is turned off, the headset beeps at regular intervals. Press and hold the Volume up or down button again to turn the microphone back on. Transferring a call from the phone to the headsetPress the Talk button to transfer a call from the phone to the headset.Placing a call on holdPress and hold the Talk button to place the current call on hold.Answering a second callWhen you hear call waiting tones, press the Talk button to end the rst call and answer a second call.When you hear waiting tones, press and hold the Talk button to place the rst call on hold and answer a second call.To switch between the current call and a held call, press and hold the Talk button.•••
English13AppendixFrequently asked questionsWill my headset work with laptops, PCs, and PDAs?Your headset will work with devices that support the same Bluetooth version and proles. For specications, see page 18.Why do I hear static or interference while on a call?Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves.Will my headset interfere with my car’s electronics, radio, or computer?Your headset emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard, consumer-grade electronic equipment.

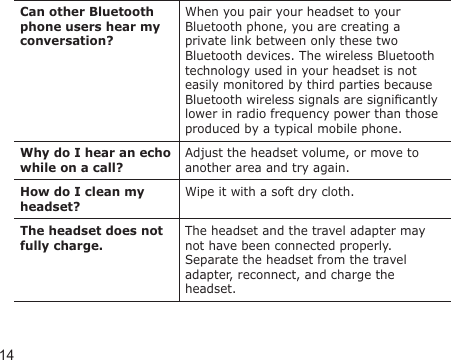

14Can other Bluetooth phone users hear my conversation?When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are signicantly lower in radio frequency power than those produced by a typical mobile phone.Why do I hear an echo while on a call?Adjust the headset volume, or move to another area and try again.How do I clean my headset?Wipe it with a soft dry cloth.The headset does not fully charge.The headset and the travel adapter may not have been connected properly. Separate the headset from the travel adapter, reconnect, and charge the headset.
English15Warranty and parts replacementSamsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.(Depending on your country, the length of warranty may vary.)If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or qualied service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.The warranty is limited to the original purchaserA copy of your receipt or other proof of purchase is required for a proper warranty serviceThe warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modication, or repair by unauthorised third partiesSpecically exempt from any warranty are limited-life consumable components such as batteries and other accessoriesSamsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty•••••

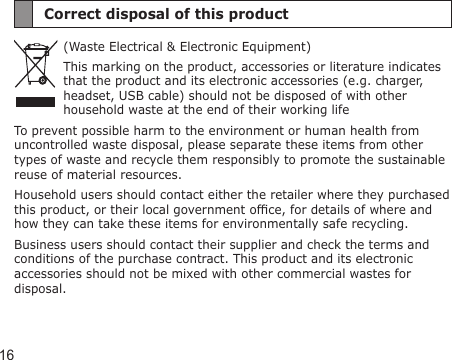

16Correct disposal of this product(Waste Electrical & Electronic Equipment)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working lifeTo prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
English17Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems.)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.
18SpecicationsItem Specications and descriptionBluetooth version 2.1+EDRSupport Prole Headset Prole, Hands-Free ProleOperating range Up to 33 feet (10 metres)Standby time Up to xxx hours*Talk time Up to x hours*Charging time Approximately x hours** Depending on the phone type and usage, the actual time may vary.
English19Declaration of Conformity (R&TTE)We, Samsung Electronicsdeclare under our sole responsibility that the productBluetooth Headset : WEP490to which this declaration relates, is in conformity with the following standards and/or other normative documents.SAFETY EN EMC EN EN RADIO EN We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.which will be made available upon request.(Representative in the EU)Samsung Electronics Euro QA Lab.Blackbushe Business Park, Saxony Way,Yateley, Hampshire, GU46 6GG, UK* 2009.0X.0X Yong-Sang Park / S. Manager(place and date of issue) (name and signature of authorised person)* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.
8FCCFCC ID: A3LWEP490This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment.Industry CanadaIC ID: 649E-WEP490Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must Safety approvals
9Englishaccept any interference, including interference that may cause undesired operation of the device.The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
