Samsung Electronics Co WEP500 Bluetooth Headset User Manual WEP210
Samsung Electronics Co Ltd Bluetooth Headset WEP210
Users Manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-XXXXXA
04/2007. Rev. 1.0
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1
English
Contents
BEFORE USING YOUR HEADSET
Checking phone compatibility....................................................3
Checking the accessories..........................................................4
Your headset overview .............................................................4
Charging the headset...............................................................5
Storage of the headset.............................................................6
BASIC OPERATIONS
Turning the headset on/off........................................................7
Pairing with your Bluetooth phone..............................................8
Wearing the headset..............................................................10
Making a call.........................................................................11
Ending a call.........................................................................12
Answering a call....................................................................12
Adjusting the volume .............................................................13
Switching on the microphone ..................................................13
Transferring a call from the phone to the headset.......................13
Turning the indicator light on or off ..........................................14
Using enhanced features ........................................................14
APPENDIX
Frequently asked questions.....................................................16
Certification and Safety approvals............................................18
UL certified travel adapter.......................................................20
Warranty and parts replacement..............................................21
Correct disposal of this product ...............................................23
2
Thank you for purchasing the Samsung Bluetooth Mono
Headset WEP500. We hope you will be delighted with its
operation.
Please read this user’s guide to get started, and to make the
best use of the headset’s many features.
Safety precautions
• Never disassemble or modify your headset any
reason. Doing this may cause the headset to
malfunction or become combustible. Bring the
headset to an authorized service center to repair it
or replace the battery.
• When you are driving a car, driving is your first
responsibility.
• When using your headset while driving, follow local
regulations in the country or region you are in.
3
English
BEFORE USING YOUR HEADSET
Your headset is compatible with most Bluetooth
*
phones that
are compliant with Bluetooth version 1.1 or higher and support
the Headset and/or Hands-Free Profile(s). Ensure that your
phone has Bluetooth capability by visiting your phone
manufacturer’s web site.
Checking phone compatibility
* Bluetooth is a radio technology developed to connect devices, such as
mobile phones and headsets, without wires or cords over a short
distance of approximately 10 metres. More information is available at
www.bluetooth.com.
Some devices, especially those that are not tested or
approved by Bluetooth SIG, may be incompatible with
your headset.
4
Make sure you have the following items with your headset:
Headset Cradle, Travel Adapter, User’s Guide, 1 Earpiece Cover
Checking the accessories
The items supplied with your headset may vary,
depending on your country or service provider.
Your headset overview
Multi-Function
button
Primary
microphone Charging
contact
Secondary
microphone
Indicator light
Volume Down
button
Earpiece
Volume Up
button
5
English
Your headset uses a rechargeable battery. You must charge the
battery fully before using the headset for the first time.
1
Put the headset in the supplied headset cradle and close the
cover.
2
Plug the adapter into the headset cradle’s charging socket.
• Charge the headset until the red light on the headset
turns to blue.
• The headset will be fully charged in approximately 2
hours.
Charging the headset
When the battery gets very low, the red indicator light on
the headset blinks and then stays on.
6
3
Remove the travel adapter from the headset.
• Always store the headset with the power off and make sure
it is safely protected.
• Avoid storage at high temperatures (above 50° C / 122° F),
such as in a hot vehicle or in direct sunlight. Storage at high
temperatures can damage performance and reduce battery
life.
• Do not expose the headset or any of its supplied parts to
rain or other liquids.
Do not attempt to charge the headset with anything
other than the travel adapter provided. Using
unauthorized travel adapter may damage the headset.
The headset is not able to operate while charging. Try
connecting after charging is completed.
Storage of the headset
7
English
BASIC OPERATIONS
Meaning of the indicator light
Turning the headset on/off
To Press and hold You will hear You will see
turn the
headset on the Multi-Function
button for 4 seconds
until you see
4 blue
flashes
on the
indicator light.
a tone. the indicator light
flashes while the
power is on (see
Meaning of the
indicator light
).
turn the
headset off the Multi-Function
button for 4 seconds
until you see
blue
and red flashes
on
the indicator light.
series of 2
tones. the indicator light
stops flashing.
Light Tone Status
Flashes in
blue every 8
seconds.
Quick series of 2
tones.
(Active mode starts.)
The headset is in Active mode.
• The headset has an active call in
progress.
• You can talk up to 3.5 hours.
*
8
Pairing will create a unique and encrypted wireless link between
two Bluetooth enabled devices, such as your Bluetooth phone
and Bluetooth headset.
1
Ensure that the headset is off (see
Turning the headset
on/off
).
Flashes in
blue every 3
seconds.
Quick series of 2
tones.
(Standby mode
starts.)
The headset is in Standby mode.
• The headset is waiting for a call.
• The headset can be in Standby
mode up to 80 hours.
*
Flashes in
red. 5 tones every 20
seconds. The battery of the headset is low.
• There is less than 10% of battery
power left. Recharge the battery.
* Depending on the phone type and usage, the actual time may vary.
Pairing with your Bluetooth phone
When you turn on your headset for the first time, the
headset proceeds into Pairing mode so that you can
immediately pair it with other devices.
Light Tone Status
9
English
2

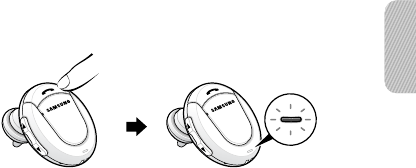

Press and hold the Multi-Function button until the blue
indicator light stays on after blinking.
3
Set your Bluetooth phone to discover the headset by
following your phone’s guide.
Typically, the steps involve going to a ‘Settings,’
‘Connection’, or ‘Bluetooth’ menu on your phone and then
selecting the option to discover Bluetooth devices.
4
Your phone will find the Samsung WEP500 headset and ask
if you want to pair with it. Confirm this by pressing the
Yes
or
OK
key.
10
5
Enter a passkey or PIN, 0000 (4 zeros), then press the
Yes
or
OK
key.
Wear the headset on your ear. In
general, you will get better performance
when there are no obstructions
(including parts of your body) between
the headset and the phone.
• If pairing was successful, the indicator light will flash in
blue 10 times rapidly before going to flashing every 3
seconds. If unsuccessful, the light remains on, and you
will need to re-attempt pairing.
• When you turn on your headset after pairing with the
phone, the headset is automatically connected to the
phone.
• When you turn on your phone after pairing with the
headset, the phone is connected to the headset by
pressing the Multi-Function button.
Wearing the headset
11
English

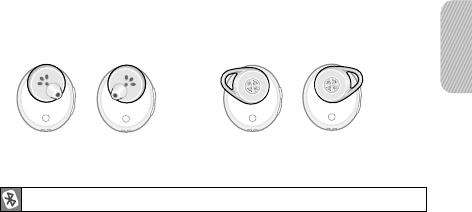

You can replace the original earpiece cover with the supplied
earpiece cover. Depending on what ear you are going to wear
the headset, simply adjust the cover accordingly.
Making a voice activated call
If the voice recognition feature is on, you can make a voice
activated call.
1
Press and hold the Multi-Function button. You will hear the
voice-activation tone.
2
Say the name of the person you wish to call.
Depending on your phone, this feature is not supported.
Making a call
▲
Left
▲
Right
▲
Left
▲
Right
12
Redialing the last number
Press the Multi-Function button. When you release the button,
the phone dials the last dialed or received number.
Press the Multi-Function button.
When a call comes in, the headset sounds the ring tone and
flashes the blue indicator twice. Press the Multi-Function
button.
Depending on your phone, how to redial the last number
may vary.
Ending a call
Answering a call
Do not hold the Multi-Function button down too long
when redialing the last number, ending, or answering a
call. This should only be a quick tap.
13
English
Press [
▲
] on the side of the headset to increase the volume
level and [
▼
] to decrease the volume level.
Your headset has the Auto volume control feature which
changes the volume level you have selected to the most
suitable level automatically according to the noise around you.
Press and hold [
▲
] or [
▼
] to switch off the headset's
microphone. To switch it back on, press and hold either one
again.
If you answer the call with your phone, you can transfer the call
to the headset by pressing the Multi-Function button.
Adjusting the volume
At very high volumes, prolonged listening to the
headset can damage your hearing.
Switching on the microphone
Transferring a call from the phone to the
headset
14
You can deactivate the use of the indicator light in Standby
mode and in Active mode.
Press and hold [
▲
] and [
▼
] to turn the indicator light on or off.
Enhanced features are available for phones that support the
Hands-Free Profile and enhanced features.
•
Rejecting a call
When you receive a call, press and hold the Multi-Function
button.
Depending on your phone’s setting or type, you may only be
able to mute the ringer or this feature may not be
supported.
•
Placing a call on hold
While you are on a call, press and hold the Multi-Function
button.
To retrieve the call, press and hold the Multi-Function button
again.
Depending on your phone, this feature is not supported.
Turning the indicator light on or off
Using enhanced features
15
English
•
Answering a second call
When your phone notifies you of another incoming call while
you are on a call, press and hold the Multi-Function button
to answer the second call. The first call is automatically put
on hold.
You can switch between calls by pressing and holding the
Multi-Function button. Depending on your phone, this
feature is not supported.
Pressing the Multi-Function button quickly to answer the
second call ends the current call and answers the second
call.
16
APPENDIX
Frequently asked questions
How far away from
my phone will the
headset work?
The operating range is typically up to 30 feet
(10 metres).
Will the headset
work with my
cordless phone at
home?
The headset is not designed for use with
cordless phones.
Will the headset
work with laptops,
PCs, and PDAs?
The headset will work with devices that are
compliant with Bluetooth version 1.1 or higher
and support the Headset and/or Hands-Free
Profile(s).
Will anything cause
interference with my
conversation when
I’m using the
headset?
Appliances such as cordless phones and
wireless networking equipment may cause
interference with your conversation. To reduce
any interference, keep the headset away from
other devices that use or produce radio waves.
17
English
Will the headset
interfere with my
car’s electronics,
radio, or computer?
The headset produces significantly less power
than a typical mobile phone. It also only emits
signals that are in compliance with the
international Bluetooth standard. Therefore,
you should not expect any interference with
standard consumer-grade electronics
equipment.
Can other Bluetooth
phone users hear my
conversation?
When you pair the headset to your Bluetooth
phone, you are creating a private link between
only these two Bluetooth devices. The wireless
Bluetooth technology used in the headset is
not easily monitored by third parties, because
Bluetooth wireless signals are significantly
lower in radio frequency power than those
produced by a typical mobile phone.
How do I take care
of the headset?
Wipe it with a soft cloth.
Does not the headset
fully charge?
The headset and the travel adapter may not
have been connected properly.
Separate the headset from the travel adapter
and then reconnect and charge the headset.
18
Bluetooth
The Bluetooth
®
word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Samsung is
under license. Other trademarks and trade names are those of
their respective owners.
Bluetooth QD ID: B0xxxxx
FCC
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The device and its antenna must not be co-located or operating
in conjunction with any other antenna or transmitter.
Users are not permitted to make changes or modify the device
in any way.
Changes or modifications not expressly approved by Samsung
will void the user’s authority to operate the equipment
.
Certification and Safety approvals
19
English
Industry Canada
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must
accept any interference, including interference that may cause
undesired operation of the device.
The term “IC:” before the certification/registration number only
signifies that registration was performed based on a Declaration
of Conformity indicating that Industry Canada technical
specifications were met. It does not imply that Industry Canada
approved the equipment.
20
The travel adapter for this headset has met UL 1310 safety
requirements.
Please adhere to the following safety instructions per UL
guide-lines.
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED
MAY LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
THIS POWER UNIT IS INTENDED TO BE CORRECTLY
ORIENTATED IN A VERTICAL OR HORIZONTAL OR FLOOR
MOUNT POSITION.
UL certified travel adapter
21
English
Samsung warrants this product as free of defects in material,
design and workmanship for the period of one year from the
original date of purchase
*
.
If during the period of warranty this product proves defective
under normal use and service you should return the product to
the retailer from whom it was originally purchased or qualified
service center. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or
replacement of the unit under warranty.
• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is required
for a proper warranty service
• The warranty is void if the serial number, date code label or
product label is removed, or if the product has been subject
to physical abuse, improper installation modification, or
repair by unauthorized third parties
• The responsibility of Samsung products shall be limited to
the repair or replacement of the product at its sole discretion
Warranty and parts replacement
* Depending on your country, the length of warranty may vary.
22
• Specifically exempt from any warranty are limited-life
consumable components such as batteries and other
accessories
• Samsung is not liable to for any incidental or consequential
damages arising from the use or misuse of any Samsung
product
• This warranty gives you specific rights and you may have
other rights which vary from area to area
• Unless otherwise instructed in the User Guide, the user may
not, under any circumstances, attempt to perform service,
adjustments or repairs on the unit, whether in or out of
warranty. It must be returned to the purchase point, factory
or authorized service agency for all such work
• Samsung will not assume any responsibility for any loss or
damage incurred in shipping. All repair work on Samsung
products by unauthorized third parties voids any warranty
23
English
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for
details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal.
Correct disposal of this product
