Samsung Electronics Co WEP870 Bluetooth Mono Headset User Manual

Samsung Electronics Co Ltd Bluetooth Mono Headset

User manual

World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-XXXXXAEU A. 02/2009. Rev. 1.0
Temporary
English ............................................................. 1
English1ContentsGetting startedYour headset overview ....................................................3Button functions .............................................................4Icons ............................................................................5Charging the headset ......................................................6Wearing the headset .......................................................8Using your headsetTurning the headset on or off ...........................................9Pairing and connecting the headset ................................. 10Using call functions ....................................................... 12AppendixFrequently asked questions ............................................ 14Warranty and parts replacement ..................................... 16Correct disposal of this product ...................................... 17Correct disposal of batteries in this product ...................... 18Specications ............................................................... 19

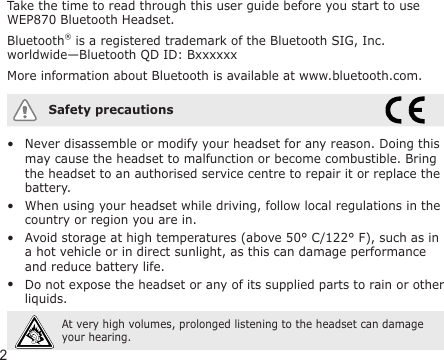

2Take the time to read through this user guide before you start to use WEP870 Bluetooth Headset.Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: BxxxxxxMore information about Bluetooth is available at www.bluetooth.com.Safety precautionsNever disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible. Bring the headset to an authorised service centre to repair it or replace the battery.When using your headset while driving, follow local regulations in the country or region you are in.Avoid storage at high temperatures (above 50° C/122° F), such as in a hot vehicle or in direct sunlight, as this can damage performance and reduce battery life.Do not expose the headset or any of its supplied parts to rain or other liquids. At very high volumes, prolonged listening to the headset can damage your hearing.••••
English3Getting startedThis section explains what to remember for the proper use of your Bluetooth headset.Your headset overviewMake sure you have the following items with your headset : charger and user manual.The items supplied with your headset may vary depending on your region.DisplayVolume buttonEarpiecePower buttonCharger jackTalk buttonEar hookPrimarymicrophoneSecondarymicrophone

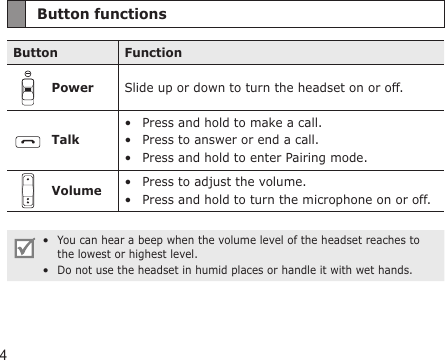

4Button functionsButton FunctionPower Slide up or down to turn the headset on or off.TalkPress and hold to make a call.Press to answer or end a call.Press and hold to enter Pairing mode.•••Volume Press to adjust the volume.Press and hold to turn the microphone on or off.••You can hear a beep when the volume level of the headset reaches to the lowest or highest level.Do not use the headset in humid places or handle it with wet hands. ••

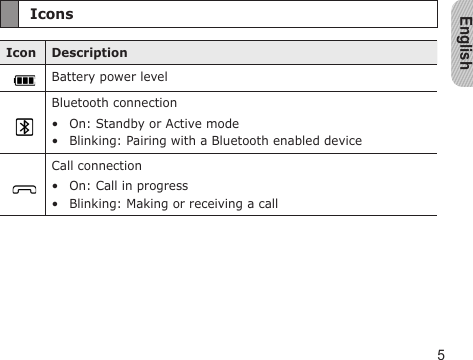

English5IconsIcon DescriptionBattery power levelBluetooth connectionOn: Standby or Active modeBlinking: Pairing with a Bluetooth enabled device••Call connectionOn: Call in progressBlinking: Making or receiving a call••
6Charging the headsetThis headset has a rechargeable internal battery which is non-removable. Ensure that you fully charge the battery before using the headset for the rst time.Using the charger1 Plug the charger into the charger jack on the headset.2 Plug the charger into a power outlet. During charging, the Battery icon will be moving. If charging does not begin, unplug the charger and plug it in again.
English73 When the headset is fully charged, the Battery icon is no longer moving. Unplug the charger from the power outlet and the headset.Use only a Samsung-approved charger. Unauthorised chargers may cause an explosion or damage to the headset. The battery will gradually wear out while charging or discharging because it is a consumable part. You cannot use the headset while charging the battery.•••When the battery power is lowThe headset beeps and the Battery icon is empty and blinking. Recharge the battery. If the headsets powers off during a call, the call will be automatically transferred to the phone.
8Wearing the headsetPlace the headset on your ear. Depending on what ear you are going to wear the headset, simply remove and replace the ear hook. Left  Right
English9Using your headsetThis section explains how to turn the headset on, pair and connect with the phone, and use various functions. Activated functions and features may differ depending on the types of your phone.Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your headset.••Turning the headset on or offTo turn the headset on, slide the power button up until the Battery icon blinks 4 times.To turn the headset off, slide the power button down until the Battery icon disappears.••

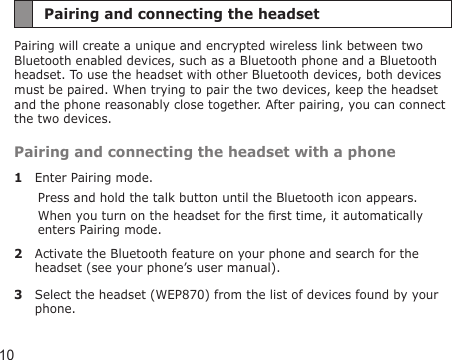

10Pairing and connecting the headsetPairing will create a unique and encrypted wireless link between two Bluetooth enabled devices, such as a Bluetooth phone and a Bluetooth headset. To use the headset with other Bluetooth devices, both devices must be paired. When trying to pair the two devices, keep the headset and the phone reasonably close together. After pairing, you can connect the two devices.Pairing and connecting the headset with a phone1 Enter Pairing mode.Press and hold the talk button until the Bluetooth icon appears.When you turn on the headset for the rst time, it automatically enters Pairing mode.2 Activate the Bluetooth feature on your phone and search for the headset (see your phone’s user manual).3 Select the headset (WEP870) from the list of devices found by your phone.
English114 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your phone.Your headset supports the Simple Pairing feature which allows the headset to be paired with a phone without requesting a PIN. This feature is available when the phone is compliant with Bluetooth version 2.1 or higher.Disconnecting the headsetTo disconnect the headset from your phone,Slide the power button up to turn off the headset.Use the Bluetooth menu of your phone.Reconnecting the headsetWhen the headset is paired with a phone, it will attempt to automatically reconnect each time you turn the power on.If the headset does not attempt to automatically reconnect,Press the talk button.Use the Bluetooth menu of your phone.••••
12Using call functionsMaking a callRedialling the last numberPress the talk button to redial the last number.For some phones, pressing the talk button opens the call log list. Press the talk button to dial the selected number.Dialling a number by voicePress and hold the talk button to dial a number by voice, and say a name.Answering a callPress the talk button to answer a call when you hear incoming call tones.Ending a callPress the talk button to end a call.
English13Rejecting a callPress and hold the talk button to reject a call when a call comes in.Using options during a callYou can use the following functions to control your call during a call.Adjusting the volumePress the volume button up or down to adjust the volume.Transferring a call from the phone to the headsetPress the talk button to transfer a call from the phone to the headset.Placing a call on holdPress and hold the talk button to place the current call on hold.Answering a second callPress the talk button to end the rst call and answer a second call when you hear call waiting tones. Press and hold the talk button to place the rst call on hold and answer a second call when you hear waiting tones.To switch between the current call and the held call, press and hold the talk button.
14AppendixFrequently asked questionsWill my headset work with laptops, PCs, and PDAs?Your headset will work with devices that support your headset’s Bluetooth version and proles. For specications, see page 19.Will anything cause interference with my conversation when I am using my headset?Appliances such as cordless phones and wireless networking equipment may cause interference with your conversation, usually adding a crackling noise. To reduce any interference, keep the headset away from other devices that use or produce radio waves.Will my headset interfere with my car’s electronics, radio, or computer?Your headset produces signicantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.

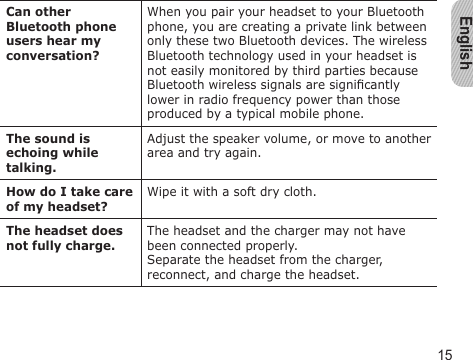

English15Can other Bluetooth phone users hear my conversation?When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are signicantly lower in radio frequency power than those produced by a typical mobile phone.The sound is echoing while talking.Adjust the speaker volume, or move to another area and try again.How do I take care of my headset?Wipe it with a soft dry cloth.The headset does not fully charge.The headset and the charger may not have been connected properly. Separate the headset from the charger, reconnect, and charge the headset.
16Warranty and parts replacementSamsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.(Depending on your country, the length of warranty may vary.)If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or a qualied service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.The warranty is limited to the original purchaserA copy of your receipt or other proof of purchase is required for a proper warranty serviceThe warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modication, or repair by unauthorised third partiesSpecically exempt from any warranty are limited-life consumable components such as batteries and other accessoriesSamsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty•••••
English17Correct disposal of this product(Waste Electrical & Electronic Equipment)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working lifeTo prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling.BBusiness users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
18Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.
English19SpecicationsItem Specications and descriptionBluetooth version 2.1+EDRSupport prole Headset Prole, Hands-Free Prole, Advanced Audio Distribution ProleOperating range Up to 30 feet (10 metres)Standby time Up to xxx hours*Talk time Up to x hours*Charging time Approximately x hours** Depending on the phone type and usage, the actual time may vary.
FCCThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment.Industry CanadaIC ID: 649E-WEP870Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must Safety approvals
accept any interference, including interference that may cause undesired operation of the device.The term “IC:” before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
EnglishDeclaration of Conformity (R&TTE)We, Samsung Electronicsdeclare under our sole responsibility that the productBluetooth Headset : WEP870to which this declaration relates, is in conformity with the following standards and/or other normative documents.SAFETY EN EMC EN EN EN EN RADIO EN We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.which will be made available upon request.(Representative in the EU)Samsung Electronics Euro QA Lab.Blackbushe Business Park, Saxony Way,Yateley, Hampshire, GU46 6GG, UK* 2008.xx.xx Yong-Sang Park / S. Manager(place and date of issue) (name and signature of authorised person)* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.Temporary
