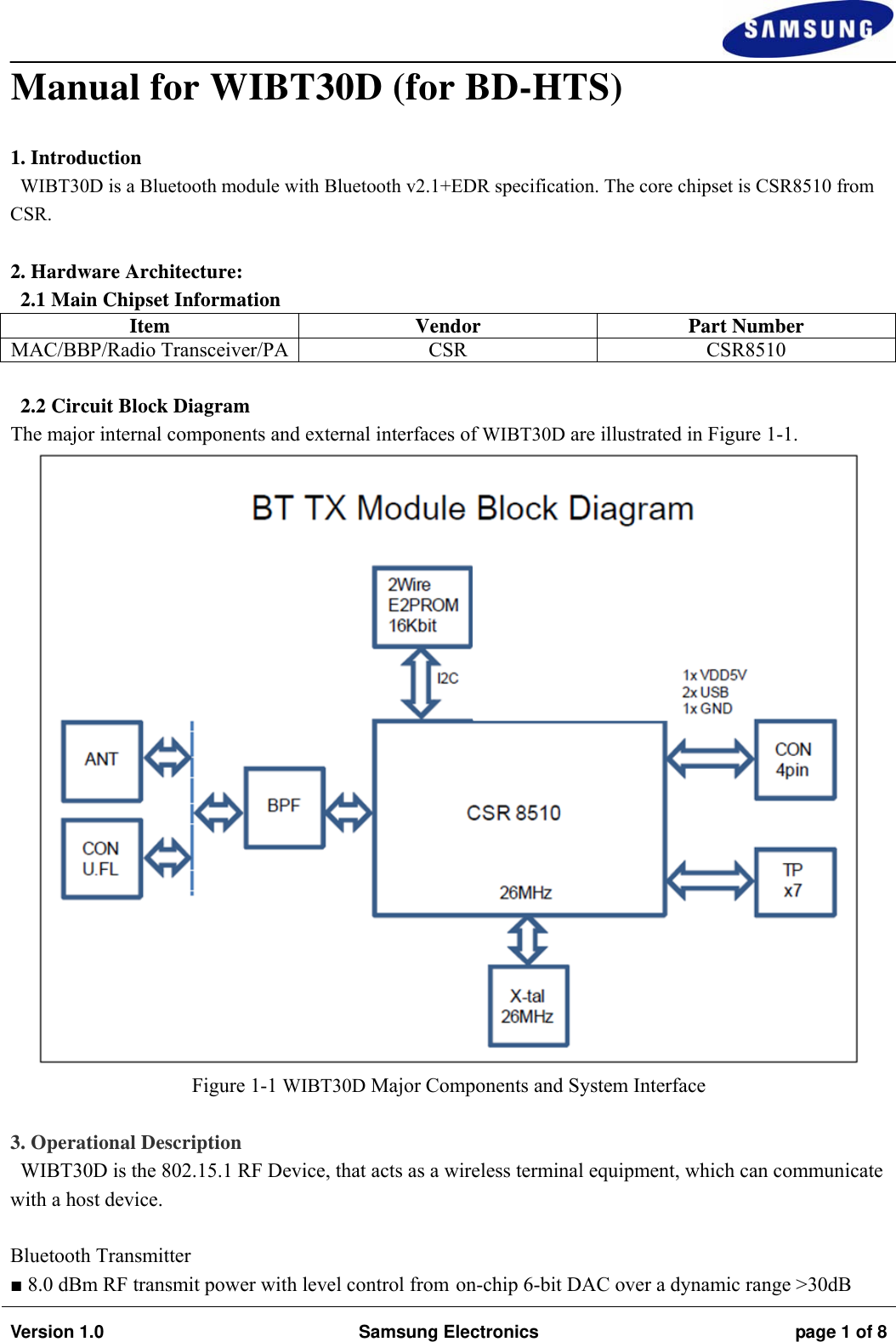

Version 1.0 Samsung Electronics page 1 of 8 Manual for WIBT30D (for BD-HTS) 1. Introduction WIBT30D is a Bluetooth module with Bluetooth v2.1+EDR specification. The core chipset is CSR8510 from CSR. 2. Hardware Architecture: 2.1 Main Chipset Information Item Vendor Part Number MAC/BBP/Radio Transceiver/PA CSR CSR8510 2.2 Circuit Block Diagram The major internal components and external interfaces of WIBT30D are illustrated in Figure 1-1. Figure 1-1 WIBT30D Major Components and System Interface 3. Operational Description WIBT30D is the 802.15.1 RF Device, that acts as a wireless terminal equipment, which can communicate with a host device. Bluetooth Transmitter ■ 8.0 dBm RF transmit power with level control from on-chip 6-bit DAC over a dynamic range >30dB
Version 1.0 Samsung Electronics page 2 of 8 ■ Class 1, Class 2 and Class 3 support without need for external PA or TX/RX switch Bluetooth Receiver ■ Receive sensitivity of -91dBm for basic rate ■ Integrated channel filters ■ Digital demodulator for improved sensitivity and cochannel rejection ■ Real-time digitised RSSI available on HCI interface ■ Fast AGC for enhanced dynamic range ■ Channel classification for AFH Synthesiser ■ Fully integrated synthesiser requires no external VCO varactor diode, resonator or loop filter ■ Compatible with external clock 16MHz to 40MHz and crystal oscillator 16MHz to 32MHz Baseband and Software ■ Internal RAM enables full-speed data transfer, mixed voice and data, and full piconet operation, including all medium rate packet types ■ Logic for forward error correction, header error control, access code correlation, CRC, demodulation, encryption bit stream generation, whitening and transmit pulse shaping. Includes support for eSCO and AFH. Bluetooth Stack CSR's Bluetooth Protocol Stack runs on the on-chip MCU: ■ Support for Bluetooth v2.1 specification features: ■ Master and slave operation ■ Including encryption ■ Software stack in firmware includes: ■ GAP ■ L2CAP - RF Specifications •Receiver RF Specifications are illustrated in Figure 3-1. •Transmitter RF Specifications are illustrated in Figure 3-2.
Version 1.0 Samsung Electronics page 3 of 8
Version 1.0 Samsung Electronics page 4 of 8
Version 1.0 Samsung Electronics page 5 of 8 Figure 3-1 Transmitter RF Specifications Figure 3-2 Receiver RF Specifications
Version 1.0 Samsung Electronics page 6 of 8 4. PIN description 5. Installation This radio module must be installed in a device and not allow the user to replace nor modify it. And the location of installation is as follows Figure 5-1.
Version 1.0 Samsung Electronics page 7 of 8 6. Notice l. This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause undesired operation. This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a different circuit from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. The transmitter must not be co-located or operated in conjunction wit any other antenna or transmitter. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. To satisfy RF exposure requirements, this device and its antenna(s) must operate with a separation distance of at least 20 centimeters from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. LABEL OF THE END PRODUCT:The final end product must be labeled in a visible area with the following " Contains FCC ID: A3LWIBT30D ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
Version 1.0 Samsung Electronics page 8 of 8 IC Statement  This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil num?rique de la classe B est conforme ? la norme NMB-003 du Canada. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following "Contains IC : 649E-WIBT30D".
