Samsung Electronics Co WLM100A Wireless LAN Module User Manual
Samsung Electronics Co Ltd Wireless LAN Module Users Manual
Users Manual
User manual
Product description: IEEE 802.11b/g/n 1x1 USB module
Model name: WLM100A
Version: v1.0
1. Introduction
• CMOS Technology with PA, LNA, RF, Baseband and MAC integrated
• 1T1R Mode with 150Mbps PHY Rate for Both Transmit and Receiving
• Legacy and High Throughput Modes
• 20MHz/40MHz Bandwidth
• Reverse Direction Grant Data Flow and Frame Aggregation
• WEP64/128, WPA, WPA2, TKIP, AES, WAPI
• QoS-WMM, WMM-PS
• WPS, PIN, PBC
• Multiple BSSID support
• USB2.0
• Low Power with Advanced Power Management
• Operating Systems – Windows XP 32/64, 2000, Windows7, Vista32/64, Linux, Macintosh
2. Features
WLM100A is an USB embedded module compliant with IEEE802.11b/g/n. The core
chipset is from Ralink, part number RT5370
3. Hardware
3.1 Main Chipset Information
3.2 Circuit Block Diagram
3.3 Outlook Diagram
Item Vender Part number
MAC/BBP/Radio Transceiver/PA Ralink RT5370
The major internal components and external interfaces of WLM100A are illustrated in below Figure.
Top view Bottom view

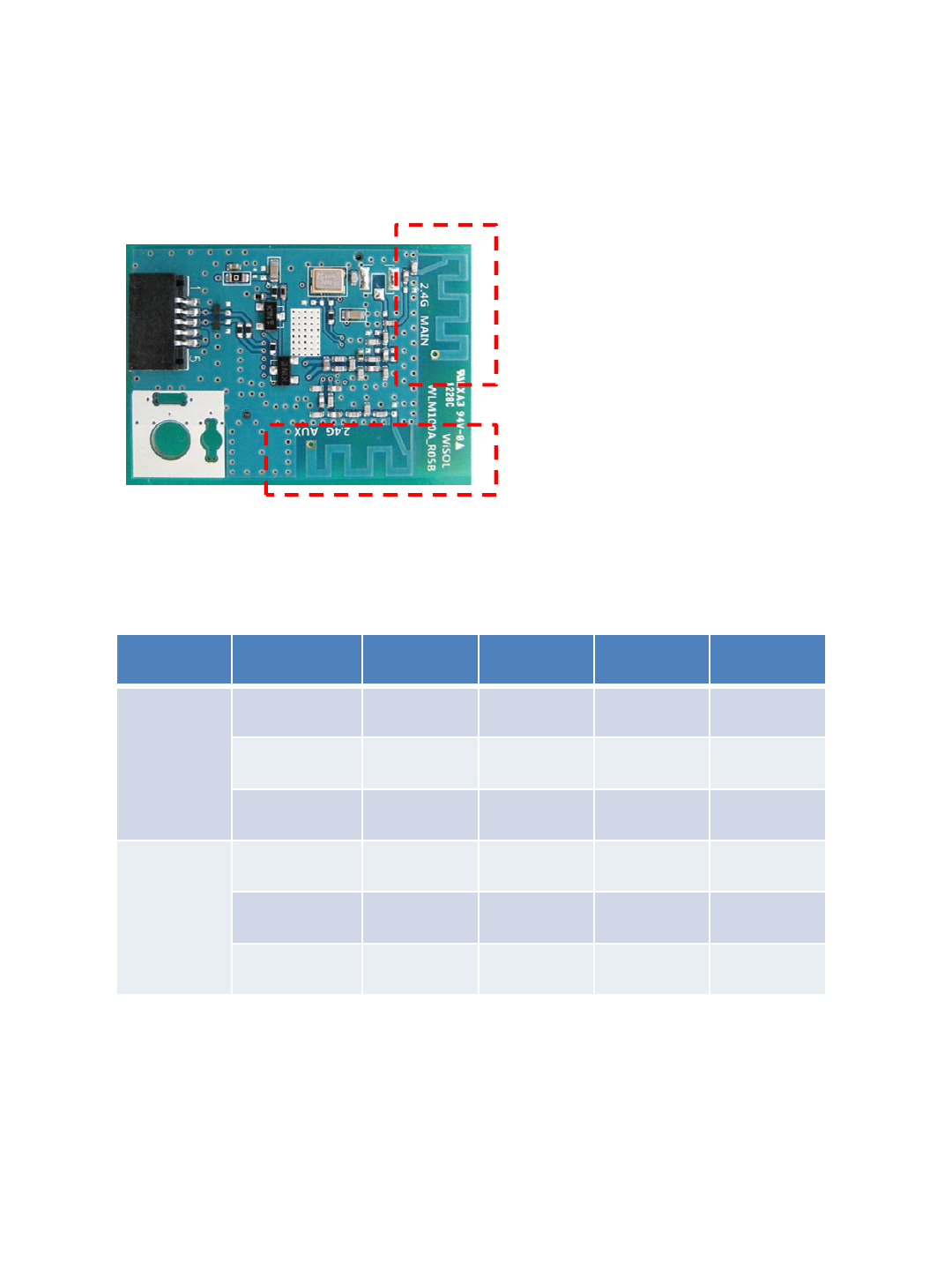

3.4 Antenna Information
Main Antenna (TX/RX)
AUX Antenna (RX Only)
3.4.1 Gain and Efficiency
Frequency MHz 2400 2442 2485
Main
Efficiency % 55.1 65.5 63.2
Avg. Gain dBi -2.6 -1.8 -2.0
Peak Gain dBi 0.6 2.2 2.6
AUX
Efficiency % 38.3 45.5 35.4
Avg. Gain dBi -4.2 -3.4 -4.5
Peak Gain dBi -0.1 1.3 0.6

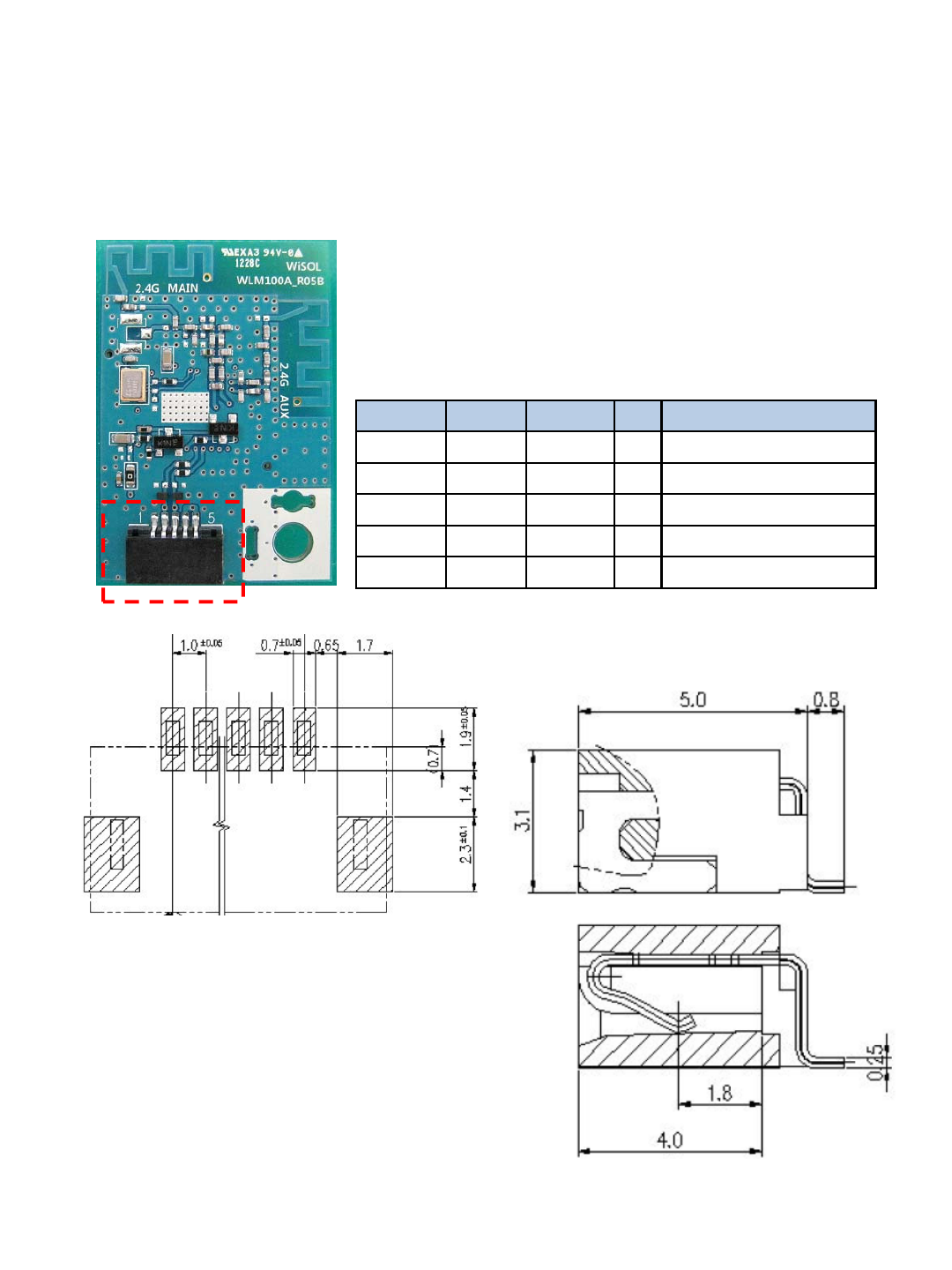

4. Interface
Terminal Name Interface I/O Description
1 GND Analog I Ground
2 USB D- Digital I/O USB Interface negative
3 USB D+ Digital I/O USB Interface positive
4 VCC Analog I 3.3V Power supply input
5 VCC Digital I 3.3V Power supply input
1.00mm pitch 5Pin FPC/FFC Connector
SMT, TOP Contact, Non-ZIF Type
5. Specifications
5.1 Supply Voltage
5.2 Current Consumption
3.3V +/- 5% DC
Symbol Parameter Min Typ. Max Unit
ICC_RX Receiving Current Consumption - 250 - mA
ICC_TX Transmission Current Consumption - 410 - mA
5.3 RF Sensitivity
Typical sensitivity level, 2RX with +/-3dB Tolerance. Unit : dBm
20MHz
Frequency (MHz)
2412 2436 2462
1Mbps -90 -90 -90
2Mbps -90 -90 -90
5.5Mbps -89 -89 -89
11Mbps -86 -86 -86
6Mbps -88 -88 -88
9Mbps -88 -88 -88
12Mbps -85 -85 -85
18Mbps -83 -83 -83
24Mbps -80 -80 -80
36Mbps -77 -77 -77
48Mbps -73 -73 -73
54Mbps -72 -72 -72
MCS0 -87 -87 -87
MCS1 -85 -85 -85
MCS2 -83 -83 -83
MCS3 -80 -80 -80
MCS4 -77 -77 -77
MCS5 -73 -73 -73
MCS6 -71 -71 -71
MCS7 -70 -70 -70
5.4 Environmental Spec.
Symbol Parameter Rating Unit
Temp Operating -20 to 70 ℃
TSTG Storage Temperature -40 to 85 ℃
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This device and its antenna(s) must not be co-located or
operation in conjunction with any other antenna or transmitter.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user
has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the user's authority to
operate this equipment. If the size of the end product is smaller than 8x10cm, then additional
FCC part 15.19 statement is required to be available in the users manual: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains FCC ID:
A3LWLM100A ". If the size of the end product is larger than 8x10cm, then the following FCC
part 15.19 statement has to also be available on the label: This device complies with Part 15
of FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil numérique de la classe B est conforme ála norme NMB-003 du Canada.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users
for the host this module is integrated into. Under such configuration, the IC RSS-102 radiation
exposure limits set forth for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment.
LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with
the following " Contains IC : 649E-WLM100A ".
