Samsung Electronics Co XE500T1C-N Tablet 3G, 802.11 abgn WLAN2.4/5GHz,BT+EDR+LE&NFC; User Manual William eng 120907

Samsung Electronics Co Ltd Tablet 3G, 802.11 abgn WLAN2.4/5GHz,BT+EDR+LE&NFC; William eng 120907

User Manual

User Guide
1Chapter 1 Getting StartedContents Chapter 1. Getting Started3 Before You Start6 Safety Precautions21 Proper Posture During Computer Use24 Overview30 Turning the Computer On and O Chapter 2. Using Windows 8 33 What is Microsoft Windows 8?34 Screen At a Glance36 Using the Charms38 Using Apps42 Windows Hot Key Function Chapter 3. Using the computer44 Using the Touch Screen (For touch screen models only)52 Using the Touch Supporter (For touch screen models only) (Optional)54 Micro SD Card Slot (Optional)56 Connecting an External Display Device59 Adjusting the Volume61 LCD Brightness Control62 Wireless Network (Optional)64 NFC (Near Field Communication) (Optional)66 Using the Keyboard Dock (Optional)72 Using the Multimedia App (Optional)76 Sharing content using the AllShare Play app (Optional)85 Samsung Software Update86 Diagnosing the Computer Status and Troubleshooting87 Battery Chapter 4. Troubleshooting91 Recovering/Backing up the Computer (Optional)92 Q&A Chapter 5. Appendix98 Important Safety Information100 Replacement Parts and Accessories102 Regulatory Compliance Statements118 WEEE Symbol Information119 Samsung Packaging Take-Back Program120 TCO Certied121 Product Specications123 Glossary127 Index
Before You Start 3Safety Precautions 6Proper Posture During Computer Use 21Overview 24Turning the Computer On and O 30Chapter 1. Getting Started
3Chapter 1 Getting StartedBefore You StartBefore reading the User Guide, rst check the following information.Optional items, some devices and software referred to in t the User Guide may not be provided and/or changed by upgrade. Note that the computer environment referred in the User Guide may not be the same as your own environment. The pictures used for the cover and the main body in the t User Manual are those of the representative model of each series and may dier from the actual appearance of the product.This guide decribes procedures for using both the mouse t and the S Pen. In this manual ‘click’ means ‘one press with the S Pen’.The User Guide describes information on the basis of the t touch screen.This manual has been written for the Windows 8 operating t system. The descriptions and gures may dier depending on the installed operating system.The User guide supplied with this computer may vary t depending on your model.Software Usage InstructionsIn the t Start screen, slightly drag the top edge of the screen toward the center. Click the corresponding program in the All Apps menu item. Alternatively, start the program from Quick Starter .You can install t Quick Starter through the SW Update.
4Chapter 1 Getting StartedBefore You StartSafety Precaution NotationsIcon Notation DescriptionWarningFailure to follow instructions marked with this symbol, may cause personal injury and or fatality.CautionFailure to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.Text NotationsIcon Notation DescriptionCaution Content included in this section includes information required about the function.Note Content included in this section includes helpful information to use the function.Copyright© 2012 Samsung Electronics Co., Ltd.Samsung Electronics Co., Ltd. owns the copyright of this manual.No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd. The information in this document is subject to change without notice due to improving the performance of the product.Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.OS and Software Support If you change the product’s factory OS (Operating System) to another OS or if you install software which is not supported by the product’s original factory OS, you will not receive any technical support, product exchange or refund. And a fee will be charged when requesting a service. Please use your computer with the original factory OS. If you install an OS other than the factory OS, data may be deleted or the computer may not start.
5Chapter 1 Getting StartedPerformance Information and RestrictionThis computer automatically maintains the CPU and GPU clock t speed at every moment to control the heating and power consumption of the computer for minimum performance degradation. For best computer performance: 1. Connect the AC adapter. 2. Launch Settings software, and select General > Max. Performance Mode > Activate max. performance mode.Online games and some games(3D,2D) may not be supported t and Full HD video and some high bit rate HD video playback may be slow and stutter on this computer.About the Product Capacity Representation StandardAbout the capacity representation of the storageThe capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the dierence in capacity calculation. (E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)Windows may also display a smaller hard disk capacity due to some hidden functions or software programs such as the Recovery program.About Memory Capacity RepresentationThe memory capacity reported in Windows is less than the actual capacity of memory.This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)Before You Start
6Chapter 1 Getting StartedInstallation RelatedDo not install the product in places exposed to humidity such as a bathrooms.There is a danger of electric shock. Use the product within the operating conditions specied in the Manufacturers User Guide.Keep the plastic bags out of the reach of children.There is a danger of suocation.Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.This may increase the internal temperature of the computer and may cause an injury.Safety PrecautionsDo not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.This increases the risk that a malfunction or damage to the product will occur.Be careful that people are not exposed to the computer’s ventilator, adapter, etc., as they generate heat over a long period of time when your PC is powered on.Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.For your security and to prevent damage, please read the following safety instructions carefully.Since this is commonly applied to Samsung Computers, some pictures may dier from actual products. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Ver 3.2
7Chapter 1 Getting StartedGIf the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.There is a danger of electric shock or re hazard.Do not use a damaged or loose main plug or power cord or power outlet.There is a danger of electric shock or re hazard.Plug the power cord rmly into the power outlet and AC adapter.Failure to do so may cause re hazard.Do not unplug the power cord by pulling the cable only.If the cord is damaged, it may cause electric shock.Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.If the cord is damaged, it may cause electric shock or re.Power RelatedThe power plug and wall outlet gures may dier depending on the country specications and the product model.Do not touch the main plug or power cord with wet hands.There is a danger of electric shock.Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.There is a danger of electric shock or re hazard.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.
8Chapter 1 Getting StartedConnect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.Failure to do so may result in electric shock. When the power supply is ungrounded, the current may leak resulting in electric shock.If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.If the notebook computer has an external type (removable) battery, separate the battery also.Damage to the device within the computer may cause electric shock or re hazard.Keep the power cord or outlet clean so that they are not covered with dust.Failure to do so may result in re.AC Adapter Usage PrecautionsConnect the power cord to the AC adapter rmly.Otherwise, there is a danger of re due to an incomplete contact.Use only the AC adapter supplied with the product.Using another adapter may cause the screen to icker.Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.If the cord is damaged, there is a danger of electric shock or re.Unplug the wall-mount AC adapter (adapter and plug intergrated type) from the wall outlet while holding the body and pulling it in the direction of the arrow.If you unplug the adapter by holding and pulling the cable, the adapter may be damaged and an electric shock, explosive sound or spark may occur as a result. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Safety Precautions
9Chapter 1 Getting StartedBattery Usage RelatedPlease charge the battery fully before using the computer for the rst time.Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.There is a danger of electric shock or choking.Use an authorized battery and AC adapter only.Please use an authorized battery and adapter approved by Samsung Electronics.Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Safety PrecautionsDo not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with oor heating as it may cause the computer to overheat.Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.Do not use the computer in a humid location such as a bathroom or sauna.Please use the computer within the recommended temperature and humidity range (10~32ºC, 20~80% RH).Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.If you put the computer into your bag without turning it o, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.
10Chapter 1 Getting StartedCutting the power to the internal battery (for corresponding models only.)For products with built-in batteries, customers cannot remove t the battery. In the case of ooding, lightning or explosions, you can cut t the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer. Disconnect the AC adapter and insert an object such as a t paper clip into the hole at the bottom of the computer to cut the battery power. In the case of ooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.Never heat the product(or battery) or put the product(or battery) into a re. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.There is a danger of an explosion or re.Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.There is a danger of an explosion or re.To use the computer safely, replace a dead battery with a new, authorized battery.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.
11Chapter 1 Getting StartedSafety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Thereafter, if you connect the AC adapter, the battery power t will be supplied again.Do not cut the battery power under normal t conditions.This may result in data loss or a product t malfunction.The location of the Emergency Hole may dier depending on the model.Usage RelatedDisconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.There is a danger of electric shock or damage to the product.Do not connect a phone line connected to a digital phone to the modem.There is a danger of a electric shock, re or damage to the product.Do not place any container lled with water or chemicals over or near the computer.If water or chemicals enter the computer, this may cause re or electric shock.If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.If the notebook computer has an external type (removable) battery, separate the battery also.Using a broken computer may cause electric shock or re hazard.
12Chapter 1 Getting StartedUpgrade RelatedNever disassemble the power supply or AC adapter.There is a danger of electric shock.When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.There is a danger of choking. If a child has swallowed it, contact a doctor immediately.Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.There is a danger of damaging the product, electric shock or re hazard.Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.Failure to do so, may cause electric shock.Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.There is a danger of a re hazard. The computer may overheat and also present opportunity to thieves.Do not use your computer for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.This may result in harming or burning your skin.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.
13Chapter 1 Getting StartedWhen carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.In this case, place the notebook computer in a separate compartment away from the other objects.Security and Movement RelatedFollow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).Avoid exposing a drive to magnetic elds. Security devices with magnetic elds in-clude airport walk-through devices and se-curity wands.The airport security devices that check car-ry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.
14Chapter 1 Getting StartedSafety PrecautionsInstallation RelatedDo not block the ports (holes), vents, etc. of the product and do not insert objects.Damage to a component within the computer may cause electric shock or re.When using the computer with it lying on its side, place it so that the vents face upwards.Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.Do not place a heavy object over the product.This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.Battery Usage RelatedDispose of worn-out batteries properly.There is a danger of re or explosion.t The battery disposal method may dier depending on t your country and region. Dispose of the used battery in an appropriate way.Do not throw or disassemble the battery and do not put it into water.This may cause an injury, re or explosion.Use only a battery authorized by Samsung Electronics.Failure to do so may cause an explosion.Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.Charge the battery according to the instructions in the manual.Failure to do so, may cause an explosion or re from damage to the product.Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).There is a danger of explosion or re. CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
15Chapter 1 Getting StartedUsage RelatedDo not place a candle, light cigar, etc. over or on the product.There is a danger of re.Use a wall outlet or multi-plug with a grounding part.Failure to do so may cause electric shock hazard.Make sure to have the product tested by a safety service engineer after repairing the product.Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re.In case of lightning, immediately turn the system o, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.There is a danger of electric shock or re.Do not use your computer and AC-Adapter on your lap or soft surfaces.If the computer temperature increases, there is a danger of burning yourself.Connect only permitted devices to the connectors or ports of the computer.Failure to do so, may cause electric shock and re.Close the LCD panel only after checking if the notebook computer is turned o.The temperature may rise and it may cause overheating and deformation of the product.Do not press the Eject Button while the CD-ROM drive is in operation.You might lose data and the disk might be suddenly ejected and could cause an injury.Take care not to drop the product while using it.This may cause personal injury or loss of data.Do not touch the antenna with electricity facility such as the power outlet.There is a danger of electric shock.When handling computer parts, follow the instructions on the manual supplied with the parts.Failure to do so, may cause damage to the product.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
16Chapter 1 Getting StartedIf the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.There is a danger of re.Do not use a damaged or modied CD.There is a danger of damaging the product or personal injury.Do not insert your ngers into the PC Card Slot.There is a danger of injury or electric shock.Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.Failure to do so may cause electric shock or re.Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.There is a danger of injury.Do not place your face close to the Optical Disk Drive tray when it is operating.There is a danger of injury due to an abrupt ejection.Check CDs for cracks and damage prior to use.It may damage the disc and cause disorder of device and injury of user.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
17Chapter 1 Getting StartedUpgrade RelatedTake care when touching the product or parts.The device may be damaged or you may be injured.Take care not to throw or drop a computer part or device.This may cause injury or damage to the product.Make sure to close the computer cover before connecting the power after a reassembly.There is a danger of electric shock if your body touches an internal part.Use parts authorized by Samsung Electronics only.Failure to do so, may cause re or damage the product.Never disassemble or repair the product by yourself.There is a danger of electric shock or re.To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.There is a danger of damaging the product.Security and Movement RelatedWhen moving the product, turn the power o and separate all connected cables rst.The product might be damaged or users may trip over the cables.For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)The battery will be preserved at its best condition.Do not operate or watch the computer while driving a vehicle.There is a danger of a trac accident. Please concentrate on driving.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
18Chapter 1 Getting StartedCautions on Preventing Data Loss (Hard Disk Management)Take care not to damage the data on a hard disk drive.A hard disk drive is so sensitive to external impact that an t external impact may cause loss of data on the surface of the disk.Take extra care, because moving the computer or an impact t on the computer when it is turned on may damage the data of the hard disk drive.The company is not liable for any loss of data on the hard disk t drive.Causes that may damage the data of a hard disk drive and the hard disk drive itself.The data may be lost when an external impact is applied to the t disk while disassembling or assembling the computer.The data may be lost when the computer is turned o or reset t by a power failure while the hard disk drive is operating.The data may be lost and irrecoverable due to a computer virus t infection.The data may be lost if the power is turned o while running a t program.Sudden impact or movement to the computer while the hard t disk drive is operating, may cause les to be corrupted or bad sectors on the hard disk.To prevent data loss due to damage to the hard disk drive, please backup your data frequently.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.
19Chapter 1 Getting StartedSafety PrecautionsUsing the power supply in an airplaneSince the power outlet type diers depending on the type of airplane, connect the power appropriately. Since the representative gures of the power plug and the auto adapter are used, they may dier from the actual parts.When using the AC power plugConnect the power plug pins perpendicular into the center of the power outlet.If the plug pins are not inserted into the center of the holes, the t plug pins are only inserted up to half their length. In this case, reconnect the power plug. You have to insert the power plug into the outlet when the t power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green. Otherwise, the power indicator (LED) is turned o. In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.Wrong Example Good Example 220V Power Plug 110V Power PlugCenter HolesPower Indicator (LED)
20Chapter 1 Getting StartedSafety PrecautionsWhen using the auto adapterWhen the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.Auto AdapterIn-ight Cigar SocketCigar PlugDC PlugWhen using the Airplane Charging ConverterDepending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.Charging Converter 1Connect this end to the auto adapter.Connect the airplane power input jack to the power outlet of the airplane.2
21Chapter 1 Getting StartedProper Posture During Computer UseMaintaining a proper posture during computer use is very important to prevent physical harm.The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.The instructions in this manual have been prepared so that t they can be applied within the coverage of general users. If the user is not included in the coverage, the t recommendation is to be applied according to the user’s needs.Proper PostureAdjust the heights of desks and chairs appropriate to your height.The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.Adjust the height of chair so that your heel is comfortably placed on the oor.Do not use the computer while you are lying down, but only t while you are sitting down.Do not use the computer on your lap. If the computer t temperature increases, there is a danger of burning yourself.Work while keeping your waist straight.t Use a chair with a comfortable back.t Keep the center of your leg weight not on the chair but on t your feet when you are sitting on a chair.To use the computer while talking over the telephone, use a t headset. Using the computer with the phone on your shoulder is bad for posture.Keep frequently used items within a comfortable work range t (where you can reach them with your hands).
22Chapter 1 Getting StartedProper Posture During Computer UseEye PositionKeep the monitor or LCD away from your eyes by at least 50cm.Adjust the height of the monitor and the LCD screen so that its t top height is equal to or lower than your eyes.Avoid setting the monitor and LCD excessively bright.t Keep the monitor and LCD screen clean.t If you wear glasses, clean them before using the computer.t When entering contents printed on a paper into the computer, t use a static paper holder so that the height of the paper is almost equal to that of the monitor.Hand PositionKeep your arm at a right angle as shown by the gure.Keep the line from your elbow to your hand straight.t Do not place your palm over the keyboard while typing.t Do not hold the mouse with excessive force.t Do not press the touch screen with excessive force.t It is recommended connecting an external keyboard and t mouse when using the computer for long periods of time.
23Chapter 1 Getting StartedProper Posture During Computer UseVolume Control (Headphones and Speakers)Check your volume rst to listen to music.Check your volume!Check if the volume is too loud before using headphones.t It is not recommended using headphones for long periods of t time.Any deviation from the equalizer default setting could cause t hearing impairment.The default setting can be changed through software and t driver updates without your intervention. Please check the equalizer default setting before rst usage.t To prevent possible hearing damage, do not listen at high volume levels for long periods.Use Time (Break Time)Take a break for 10 minutes or more after a 50-minute period t when working for more than one hour.IlluminationDo not use the computer in dark locations. The illumination t level for computer use must be as bright so for reading a book.Indirect illumination is recommended. Use a curtain to prevent t reection on the LCD screen.Operation ConditionDo not use the computer in hot and humid locations.t Use the computer within the allowed temperature and t humidity range specied in the User Guide.
24Chapter 1 Getting StartedOverviewFront ViewThe pictures used for the cover and the main body in the User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may dier from the actual appearance of the product depending on the model.3125461Illumination SensorUsing the illumination sensor, the LCD screen brightness is automatically adjusted depending on the ambient illumination. If you cover the illumination sensor with your hand, the LCD screen will become dimmer. Therefore, please take care that you do not cover the sensor when you use the computer.2Camera operating indicator (Optional) This indicates the camera operating status.3Camera (Optional)Using this camera, you can take still pictures and record video.You can take a picture or make a movie using the Charms > Start > Camera.4Speaker A device used to generate sound.5Touch Screen This is a touch screen that shows the output from the computer.6Home button Switches the screen between the Start screen and the currently running app/program. If no app/software is currently running, the Desktop is displayed.
25Chapter 1 Getting StartedOverviewRight View211S Pen (Optional) A pen used to enter information on the touch screen. 2S Pen Slot (Optional) You can keep the S Pen in the S Pen slot.
26Chapter 1 Getting StartedOverviewLeft View121Volume Control Button Controls the volume.2Micro Digital Video / Audio Port (Micro HDMI) (Optional)This is the port for a micro HDMI.You can enjoy digital video and audio by connecting the computer to a TV. You can connect a VGA adapter (optional).
27Chapter 1 Getting StartedOverviewTop View2135 6 7841Ear-set / headset Jack This is the jack for connecting an ear-set or headset.2Microphone You can use the built-in microphone.3Power Button Turns the computer on and o.4Power Button LED When the computer is on, the power button LED is lit.5Rotation Lock Locks the screen rotation so that the screen does not automatically rotate according to the orientation function of the product.6USB 2.0 Port You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.7Micro SD Card Slot This slot is for micro SD cards.8SIM Card Slot (Optional) This slot is for SIM cards.
28Chapter 1 Getting StartedBottom View12 1DC Jack A jack to connect the AC adapter that supplies power to the computer.2Dock Connector (Optional) This connector is for external devices.Overview
29Chapter 1 Getting StartedRear View121Camera (Optional)Using this camera, you can take still pictures and record video.You can take a picture or make a movie using the Charms > Start > Camera.2NFC Antenna (Optional)Provides NFC features for near eld communication for various application services.If you replace the bottom of the product, the model name, serial number and some logos etched into the bottom of the product will no longer be there.For more information, please ask for assistance from the service center.Overview
30Chapter 1 Getting StartedTurning the Computer On and OTurning the computer on1 Connect the AC adapter.2 Press the Power button to turn the computer on.3 Power button LED is lit while the computer is turned on.LEDAbout Windows ActivationWhen you turn the computer on for the rst time, the Windows activation screen appears.Follow the activation procedures according to the instructions on the screen to use the computer.Adjusting the screen brightnessWhen the computer runs on battery power, the LCD brightness is automatically set to low.1 Slightly drag from the right edge of the screen toward the center to display the Charms menu.2 Increase the bar by pressing the Settings > Screen .
31Chapter 1 Getting StartedTurning the computer oSince the procedures to turn the computer o may dier t depending on the installed operating system, please turn the computer o according to the procedures for the purchased operating system.Save all your data before clicking on t Shut down.1 Slightly drag from the right edge of the screen toward the center to display the Charms menu.2 Click Settings > Power > Shut down.If you want to power o your computer when you are logged out, unlock the screen and click Power > Shut down.Turning the Computer On and O
Chapter 2. Using Windows 8What is Microsoft Windows 8? 33Screen At a Glance 34Using the Charms 36Using Apps 38Windows Hot Key Function 42
33Chapter 2 Using Windows 8 What is Microsoft Windows 8?Microsoft Windows 8 (hereafter referred to as Windows) is an operating system that is required for operating a computer.To use your computer optimally, you need to know how to use it properly. Therefore, It is better to learn how to use Windows by utilizing Windows Help and Support.The screen may appear somewhat dierent depending on t the model and the operating system.Since this guide has been prepared based on Windows t 8, some of the instructions may dier depending on the version. It may also be modied without prior notice.Displaying HelpMove the pointer on the screen to the top or bottom right edge of the screen to view the Charm menu.Alternatively, slightly drag the right edge inward with your nger to view the Charm menu.Select Charm menu > Settings > Help.If you are connected to the internet, you can access the most recent online Help.Searching for Help Get StartedYou can view basic instructions on how to use your computer including new function(s) for the Windows OS.Internet & networkingAfter connecting to the network, you can check the Help section required to use the internet.Security, privacy, & accountsYou can check the Help information required to protect your computer and personal information.
34Chapter 2 Using Windows 8 Screen At a GlanceWindows 8 provides both the new Start screen mode and the Desktop mode of the existing OS.Start Screen DesktopStart ScreenWhen you turn on the computer, the Start screen is displayed, which allows you to use the applications (Application, App, hereafter referred to as an App) at the same location. 567433211 Start Screen Refers to the default Start screen of Windows 8.2 App Refers to the apps that are currently installed.3Displaying the CharmsThe Charms is hidden at the right of the screen. Place your mouse pointer at the edge of the top or bottom right of the screen to display the Charms.Alternatively, slightly drag the right edge inward with your nger to view the Charm menu.4 User Account This refers to the currently used user account.5CharmsThis refers to the menu that allows you to use functions such as Search, Share, Start, Device and Settings.6Desktop Switches to Desktop mode.7Camera Allows you to take pictures or make a movie.
35Chapter 2 Using Windows 8 Screen At a GlanceDesktopThis provides similar functions to those provided by the Desktop in prior Windows versions. 342211Desktop Refers to the Desktop.2Displaying the CharmsThe Charms is hidden at the right of the screen. Place your mouse pointer at the edge of the top or bottom right of the screen to display the Charms.Alternatively, slightly drag the right edge inward with your nger to view the Charm menu.3CharmsThis refers to the menu that allows you to use functions such as Search, Share, Start, Device and Settings.4Switching to the Start ScreenClick the corner of the bottom left of the screen to switch to the Start screen.Displaying Documents and FilesClick Windows Explorer in the taskbar on the Desktop to search for documents and les.
36Chapter 2 Using Windows 8 The Charms is a new type of menu that combines the Start menu with the Control Panel of existing Windows. The Charms allows you to quickly congure the device(s) connected to your computer, search for App(s)/le(s), and use the sharing function, etc. Activating the Charms Slightly drag the right edge inward with your nger to view the Charm menu.Alternatively, tap the top or bottom right edge of the screen to view the Charm menu.CharmsDisplaying the Charms MenuDisplaying the Charms MenuSearchIf you want to search for a program or le in the App(s)/Settings/File(s), simply enter a keyword in the Search charm and start Search. You can also search within an App or on the Web.ShareYou can use this menu to transfer a picture or le to another user. You can easily share pictures or les with other users simply by associating multiple Apps with the Share charm.StartYou can move to the Start screen.DeviceAs this allows you to move directly to a desired device, you can handle tasks such as importing pictures from a digital camera, streaming a video to your TV or transferring les to a device on the current screen.SettingsThe Settings charm allows you to perform basic tasks such as adjusting the volume, turning o the PC, etc. If you select the Settings charm while a specic App is running, the settings for the currently running App are displayed.Using the Charms
37Chapter 2 Using Windows 8 Using the CharmsChanging the SettingsFrequently used Windows menus are collected.Click the Charms > Settings.Icon Name Function DescriptionWireless NetworkYou can connect to a wireless network. Select a wireless network to connect to.Adjusting the VolumeYou can adjust the volume or mute the sound.Screen You can adjust the screen brightness.Notice You can set the interval at which an App sends notices.Power You can turn o your computer or select the Power Options.⦽Keyboard You can set the Language or launch Touch keyboard.Change PC settingsYou can change more settings.
38Chapter 2 Using Windows 8 Using AppsAn App refers to an application program (hereafter referred to as an App). In a larger sense, it refers to all the software programs installed on the operating system. Windows 8 provides basic Apps for frequently performed tasks.Starting/Exiting an AppClick on an App in the Start screen to activate it. To exit the App1 Move your mouse pointer to the top of the screen.Your mouse pointer changes to a hand shape.2 Click and hold your mouse button and then drag it to the bottom of the screen. The App moves downward and disappears and exits.12Using AppsYou can use the following function with the mouse.Displaying Currently Running App(s)1 Move your mouse pointer to the top left corner of the screen to display the last run App.2 Then, move your mouse pointer down to display a list of the currently running Apps in order.
39Chapter 2 Using Windows 8 Using Apps 3 Click on an App in that list or drag it to the center of the screen. Now, you can check the selected App which is currently running.Right-click over the App in the list and click Close to exit the App.12Running Two Apps at the Same Time1 Select the Apps in the Start screen.2 Move your mouse pointer to the top of the screen. Your mouse pointer changes to a hand shape.3 If you click and hold your mouse button and move left or right, you can split the screen to display multiple Apps.4 Move the Screen Split Bar to change the screen split ratio. Supported screen split ratios are 3:7 or 7:3.Ex) If you run the Weather App and Store App at the same timeScreen Split Bar Weather App Store App
40Chapter 2 Using Windows 8 Adding/Removing an App to/from the Start ScreenIn the Start screen, slightly drag the top edge of the screen inward.Click All Apps at the bottom of the screen to display all the Apps that are currently installed.1 If you right-click over the App to be added, the relevant menu is activated at the bottom of your screen. 2 Click Pin to start or Unpin from Start .Ex) When removing an App in the Start screen12Using the Windows StoreIf you run the App Store in the Start screen, the Apps in the Windows Store are displayed. However, a Microsoft account is required to purchase App(s) in the Windows Store.Continue after registering your Microsoft Account in the Charms.Using Apps
41Chapter 2 Using Windows 8 Conguring your Microsoft AccountA Microsoft Account allows you to synchronize your settings with other device(s) running Windows 8 online allowing you to share le(s) or settings.You should register a Microsoft Account to download or purchase App(s) from the Store.1 Run the Charms and click Settings > Change PC Settings. 2 Click Users > Your account > Switch to a Microsoft account. 3 Register your account through the following relevant procedures.12Using Apps
42Chapter 2 Using Windows 8 Windows Hot Key FunctionYou can use the following convenient hot keys in Windows 8. You can use the following function when an external-type keyboard is connected.Function Hot Keys Function DescriptionDisplaying the Start Screen Windows Key Switches to Start mode.Displaying the Desktop Windows Key + D Switches to Desktop mode.Running the Charms Windows Key + C Activates the Charms.Locking the Screen Windows Key + L Locks the screen.Opening the Ease of Access Center Windows Key + U Opens the Ease of Access Center conguration.Opening the Second Screen SettingsWindows Key + P Opens the External Monitor Settings menu.Function Hot Keys Function DescriptionOpening the Advanced Management ToolWindows Key + X Opens the Advanced Management Tool.Exit App Alt + F4 Exits the currently running App.
Using the Touch Screen (For touch screen models only) 44Using the Touch Supporter (For touch screen models only) (Optional) 52Micro SD Card Slot (Optional) 54Connecting an External Display Device 56Adjusting the Volume 59LCD Brightness Control 61Wireless Network (Optional) 62NFC (Near Field Communication) (Optional) 64Using the Keyboard Dock (Optional) 66Using the Multimedia App (Optional) 72Sharing content using the AllShare Play app (Optional) 76Samsung Software Update 85Diagnosing the Computer Status and Troubleshooting 86Battery 87Chapter 3. Using the computer
44Chapter 3. Using the computerYou can use the computer using the touch screen only, without using the keyboard and mouse. The touch screen function is only supported for models which have the function installed at the factory.Operate the touch screen using your nger or the S Pen. Other tools such as a ballpoint pen are not recognized and using sharp t objects may damage or scratch the surface of the LCD.If a S Pen (optional) is provided, you can use the S Pen instead.t Since touching the touch screen with a conductive material such as a metallic object may cause a malfunction, take care not to t touch the screen with this kind of object.Using the Touch ScreenThis function is provided by touch screen models running Windows 8 and will only work for some applications.t In addition, note that the supported functions are dependant on the application.t You can use the S Pen (optional) as you use your ngers. The descriptions here are for using your ngers.t Learning basic touch screen operationsYou can easily learn how to use the touch screen conveniently.Touch Operation Function DescriptionDragging from the right edge toward the center Displays the Charms menu which is hidden at the right of the screen.Using the Touch Screen (For touch screen models only)
45Chapter 3. Using the computerUsing the Touch Screen (For touch screen models only)Touch Operation Function DescriptionDragging from the left edge toward the center Displays the last run App.Dragging from the bottom edge upward or from the top edge downwardDisplays the options for the currently running application.Touching slightly (Clicking)Slightly press with your nger to select an item.(If you slightly touch a specic menu, option, application icon, etc. on the screen, the corresponding capability is activated.)Touching twice (Double-clicking) Slightly press twice with your nger to select an item.Touching and dragging Moves the selected target or moves to the next page.You can draw a picture or write some letters with this operation.
46Chapter 3. Using the computerTouch Operation Function DescriptionRotating with more than 2 ngers Rotates the selected target.Spreading 2 ngers widely or bringing them towards each otherZooms in or out of the target.Touching and holding for a while (Right-clicking your mouse)Provides the same function as right-clicking your mouse button.Displays the additional options which can be set for the selected target or more detailed information.Touching and dragging 2 ngers up/down, left/right (Scrolling)Moves up/down, left/right. Provides the same function as scrolling your mouse.Using the Touch Screen (For touch screen models only)
47Chapter 3. Using the computerUsing the S Pen (optional)If a S Pen is supplied with the product, you can operate the computer with the pen instead of your ngers.You can use the S Pen as you would use your ngers.Taking Out the S PenTake out your S Pen toward the right.After using the S Pen, keep it in the S Pen slot.S Pen structure and functionsPen buttonPen tip Pen tipRingPen tip (Use this to perform the role of the left mouse button)This performs the function of your nger tip when you touch the screen.Pen button (Use this to perform the role of the right mouse button.) If you press the pen button when the S Pen tip is on the screen, circles appear around the pointer on the screen. Touch the screen with the S Pen while holding down the pen button.This performs the right-click function.Using the Touch Screen (For touch screen models only)
48Chapter 3. Using the computerUsing the Touch Screen (For touch screen models only)Replacing the pen tipIf the pen tip is damaged, you can replace the pen tip as follows:1 Hold the pen tip by inserting it into the hole of the ring and remove the tip by pulling it out.2 Insert the new pen tip into the S Pen.Take care so that the pen tip does not spring out when taking it out. Screen CalibrationWhen you use the touch screen for the rst time or the pointer on the screen does not precisely match the points you touch, calibrate the touch screen using the Tablet PC Settings menu.The calibration process for the touch screen may dier depending on the operating system and may not be available in some operating systems. The following descriptions assume the Windows 8 operating system.1 Click Charms menu on the Desktop > Settings > Control Panel > Hardware and Sound > Tablet PC Settings > Calibrate.
49Chapter 3. Using the computerUsing the Touch Screen (For touch screen models only)2 Select the screen type to calibrate. If the Calibration screen appears, touch the point represented by the “+” mark and then remove your nger.The “+” mark appears sequentially from the top left to the bottom right of the screen.3 When the Do you want to save the calibration data? window appears, click Yes.The touch screen input points are calibrated.Entering CharactersYou can enter characters using the keyboard and the Tablet PC Input Panel.Entering characters may dier depending on the operating system and is not supported by some operating systems. If you are using your computer for a long period of time, it is recommended using the keyboard.Entering characters is explained using an example with notepad.Using the Tablet PC Input PanelThe Tablet PC Input Panel is an onscreen keyboard provided by Windows.Follow the descriptions and illustrations on how to use the touch keyboard and handwriting mode.1 In the Start screen, slightly drag the top edge of the screen toward the center.Press All Apps > Notepad.2 Put your hand on the Notepad screen to display the cursor.
50Chapter 3. Using the computerUsing the Touch Screen (For touch screen models only)3 On the Desktop, press the at the right of the taskbar to display the Tablet PC Input Panel.Touch KeyboardTouch Keyboard (displays the Numeric Key Pad in the middle.)Handwriting Mode[Input Mode]Entering characters using the Touch KeyboardThe Touch keyboard has the standard keyboard layout which allows you to select keys to enter characters.1 Press the Touch Keyboard icon in the Tablet PC Input Panel.2 Press the keys to enter your characters.
51Chapter 3. Using the computerUsing the Touch Screen (For touch screen models only)Entering characters in Handwriting ModeYou can enter characters by writing them in the Handwriting Mode Input Panel on the touch screen.Handwriting Mode may not be available in some languages.1 Press the Handwriting Mode icon in Tablet PC Input Panel.2 Write characters in the input area of the Handwriting Mode Input Panel on the touch screen.3 Press the Insert button to enter characters.Touch screen use precautionsUse the touch screen with clean and dry hands. In a humid t environment, remove the moisture from your hands and the touch screen surface before use.Avoid directly spraying liquid cleansing solution onto the touch t screen. The liquid solution may enter the touch screen through the bottom edge. When using a liquid cleansing solution, dampen a cloth in the solution and clean the screen with the cloth (a cleansing solution or cloth containing abrasives may damage the touch screen.)Do not apply a severe impact to the touch screen or press the t screen with a sharp object such as a ball-point pen. This may damage the touch screen.If your nger only touches the touch screen slightly, your touch t may not be recognized.If you wish to use a pen, please use the provided S Pen t (optional). Otherwise, the computer may not work properly.Take care that you do not drop the S Pen as this may damage t the pen tip.When pressing the touch screen, press over an item precisely t taking care not to press other items.If the touch screen is contaminated by a foreign substance t such as a bug or water, the touch screen will not work properly.
52Chapter 3. Using the computerUsing the Touch Supporter (For touch screen models only) (Optional)This program helps you to use functions that cannot be easily used with touch operations more easily.The Touch Supporter is not supported in the Start screen. Launching the Touch SupporterIf you touch the screen with three ngers simultaneously the touch support program is launched.Ctrl+C (Copy)Ctrl (Multi Selection)Ctrl+X (Cut)Del (Delete) Magnier SettingsShow/Hide HotkeysCtrl+V (Paste)Ctrl+Z (Undo)Numeric KeypadTo exit the Touch Supporter, click or touch the screen with three ngers again.No. Function Description1Hot keyCtrl (Multi Selection)This has the same function as the Ctrl key on the keyboard. If you touch the Ctrl(Multi Selection) button, the indicator is turned on.While the Ctrl(Multi Selection) key is activated , and you touch various les one by one with your nger, all the pressed les are selected.Ctrl+C (Copy) Copies the selected item.Ctrl+X (Cut) Cuts the selected item.Ctrl+V (Paste) Pastes the copied or cut item.Del (Delete) Deletes the selected item.Ctrl+Z (Undo) Cancels the last operation. 2 MagnierPress the Magnier button to launch the Magnier program. Using this program, you can magnify a selected section.3Numeric KeypadIf you touch the Numeric Keypad button, the number and direction keypad is activated.
53Chapter 3. Using the computerUsing the Touch Supporter (For touch screen models only) (Optional)No. Function Description4SettingsYou can add or move frequently used hot keys by pressing the Settings button.You can register up to 10 hot keys and decide whether to display either the hot key or the function name to represent the hot key information.Using the Numeric Keypad 1 Touch the Numeric Keypad . The Numeric Keypad appears on the screen.2 If you touch the buttons on the Numeric Keypad, the corresponding number or symbol is entered on the screen.Switches the mode between the numeric and the direction key input modesTo select direction key input mode, touch .To select numeric key input mode, touch .
54Chapter 3. Using the computerMicro SD Card Slot (Optional)You can only use the micro SD card slot for micro SD cards.You can use micro SD cards as removable disks and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.You have to additionally purchase a micro SD card with the t necessary capacity depending on your requirements.You can use a micro SD card just like any data storage t device. A copyright protection function is not supported.Since you can lose a card when moving the computer, t keep the card separately.The gures used for the description are of a representative t model. Therefore the gures may dier from the real ones.Using the card1 Open the micro SD card slot cover and insert the micro SD card.Micro SD Card Slot2 The following message appears on the top right. Click to open the folder and click View Files.If a message appears to notify you of any problem, click the corresponding window > Continue without Scanning. You can perform the following process described in No. 3.3 Windows Explorer runs on the Desktop. You can save, move and delete data on the corresponding drive.
55Chapter 3. Using the computerMicro SD Card Slot (Optional)To remove a memory cardPress the card until it pops up, then pull it out by holding the end of the card.To format a memory cardWhen using the memory card for the rst time, you must format the card before using it.Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.1 Click the Windows Explorer icon in the taskbar on the Desktop.2 Right-click over a card drive with the touchpad and select Format.3 Click Start to the formatting.To use a card to exchange data with a digital device such t as a digital camera, formatting the data using the digital device is recommended.When you try to use a card, which is formatted in the t computer, in another digital device, you may have to format the card again in the device.If the write-protect tab is in the t Lock position, you cannot format, write or delete data on the card.Take care when you insert or remove a micro SD card. The t micro SD card may be damaged when not treated carefully.
56Chapter 3. Using the computerConnecting an External Display DeviceIf you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.Connecting to the monitor port (Optional)You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.You can give better presentations by connecting the computer to a projector.The VGA adapter is optional and to be be purchased.1 Open the monitor port and connect the VGA adapter.Connect the VGA cable (15-pin) to the connected VGA adapter and then connect the other end of the VGA cable to the D-SUB port of the monitor or the TV.lExternal Monitor TVProjectorllnVGA Adapter2 Connect the power cord of the connected monitor, TV or projector and turn the power on.Change your TV to external device mode when connecting to the TV.
57Chapter 3. Using the computer3 Select Charms menu > Devices > Second Screen.Select a desired monitor mode.2%UETGGPQPN[The contents are only displayed on the PC monitor (current device).DuplicateThe contents of the current device are displayed on the external device as well. ExtendThe screen of the current device is expanded to the external device. Second screen onlyThe contents are displayed only on the screen of the external device.Alternatively, to set up dual view:Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to t to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.Connecting through the Micro HDMI port (Optional)By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.After connecting a TV through HDMI, you have to congure the screen and sound.You have to additionally purchase the HDMI to micro HDMI cable.1 Connect the HDMI to micro HDMI cable to the HDMI port of the TV.External Monitor TVProjectorHDMI to micro HDMIConnecting an External Display Device
58Chapter 3. Using the computerThis is only supported for models that support a TV output t port (HDMI).When a TV provides more than one HDMI port, connect t the computer to the DVI IN port.When connecting the computer to a TV, switch the t external input mode of the TV to HDMI.2 Select Charms menu > Devices > Second Screen.Select a desired monitor mode.2%UETGGPQPN[The contents are only displayed on the PC monitor (current device).DuplicateThe contents of the current device are displayed on the external device as well. ExtendThe screen of the current device is expanded to the external device. Second screen onlyThe contents are displayed only on the screen of the external device.External Monitor / TV is not supported in the DOS Command Prompt window.Connecting an External Display Device
59Chapter 3. Using the computerAdjusting the VolumeYou can adjust the volume using the volume control button and the volume control program.Adjusting the volume with the buttonsYou can control the volume by pressing the volume control button on the left side of the computer.+-Adjusting the Volume using the Volume Adjustment ProgramClick the Charms menu > Settings > to adjust the control bar.MuteUsing the Sound RecorderThe procedures to record sound using the Windows Recorder are described below.1 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Right-click over the Volume icon on the taskbar and select Recording Device.3 Check if the microphone is set as the default recording device.If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.4 Right-click over the Charms menu > Start to click All Apps > Sound Recorder. Then press Start Recording to record.
60Chapter 3. Using the computerUsing SoundAlive (Optional)The SoundAlive function enables you to experience more stereophonic sound using stereo speakers.SoundAlive is only supported in Windows 8.t The software programs provider may vary, depending on t your computer model. In addition, some pictures may dier from actual product t depending on the computer model and software version. 1 On the Desktop, click the Charms menu > Settings > Control Panel > Hardware and Sound > Sound.2 Right-click over the Speakers and select Properties.3 Select the SoundAlive tab and select one of the modes. Connecting and using a Ear-set / headset JackWhen there is no sound after connecting an earset or headset, congure the settings as follows.1 On the Desktop, click the Charms menu > Settings > Control Panel > Hardware and Sound > Sound > Play tab.2 Select the Speakers (Realtek High Denition Audio), click Set Default and click OK.Adjusting the Volume
61Chapter 3. Using the computerLCD Brightness ControlThe screen brightness is automatically set to the brightest level when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.Controlling the Brightness Using the Keyboard1 Click the Charms menu > Settings > Screen Adjustment icon .2 Adjust the brightness with the screen brightness control bar.Saving battery power consumptiont Decreases the LCD brightness when the computer is running on battery power to save battery power consumption.LCD bad pixels principle of computert Samsung observes the specications regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t aect the computer performance. Therefore Samsung observes and manages the following dot principles: - Bright dot : 2 or less - Black dot : 4 or less - Combination of Bright and Dark : 4 or lessInstructions for Cleaning the LCDClean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction. Cleaning the LCD panel with excessive force can damage the LCD.
62Chapter 3. Using the computerA wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size oce through wireless LAN devices.The screen gures and terms may dier depending on the t model.The descriptions below are for computer models with t a Wireless LAN card or device. A Wireless LAN device is optional. The pictures in this manual may dier from the actual product depending on your wireless LAN device model.If the wireless LAN is turned o, select t Settings > Wireless Network and set it to ON.What is an Access Point (AP)?An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.Wireless Network (Optional)
63Chapter 3. Using the computerWireless Network (Optional)Connecting to a Wireless LANIf there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.1 If you click the Charms menu > Settings > Network Connections icon, a list of available APs appears.If you select an AP to connect to, the Connect button appears.AP List2 Click Connect.If a network key is set for the AP, enter the network key and then click OK.For the network key, please ask your network administrator.3 When the AP connection is completed, Connected is displayed next to the corresponding AP. You can now you can use the wireless network.
64Chapter 3. Using the computerNFC (Near Field Communication) (Optional)About NFC (Near Field Communication)This is a set of standards to establish radio communications t within a short distance (usually no more than 10 centimeters). You can share the contents safely and conveniently without any cumbersome setup process.Various features such as video/photo transfers, P2P games, t mobile payments, reading/writing tags, NFC device communications and so on can be utilized depending on the NFC device. You can use the NFC function on devices that have the NFC t mark.For more information on how to use the device, refer to the User Guide of the device.Simultaneously sharing a website between two computersThis section describes how to connect two NFC computers.You can connect a website displayed on computer A with computer B at the same time.1 Open a website on computer A using Internet Explorer.2 On computer A, select Charm menu > Device > Sent by Tap.3 Put the NFC antenna of the NFC computer B into contact with the NFC antenna of computer A.
65Chapter 3. Using the computerNFC (Near Field Communication) (Optional)4 If the following message appears on the B computer, tap on the screen. 5 Now, the website contents in computer A are delivered to computer B.You can see the computer A’s website on the computer B’s Internet Explorer.Connecting a deviceThis section describes how to connect an NFC-supported Bluetooth speaker.1 Turn the computer on. Turn the Bluetooth speaker on.2 Put the NFC mark of the speaker into contact with the NFC antenna at the back of the computer.3 The device connection conrmation message appears at the top right of the screen. Tap on the message.Connect the device according to the instructions on the screen.4 The device is connected. You can now use the speaker.Select Charm menu > Settings > Change PC Settings > Device to view the connected device.RestrictionsYou can make only one-to-one connection between NFC t devices at a time.

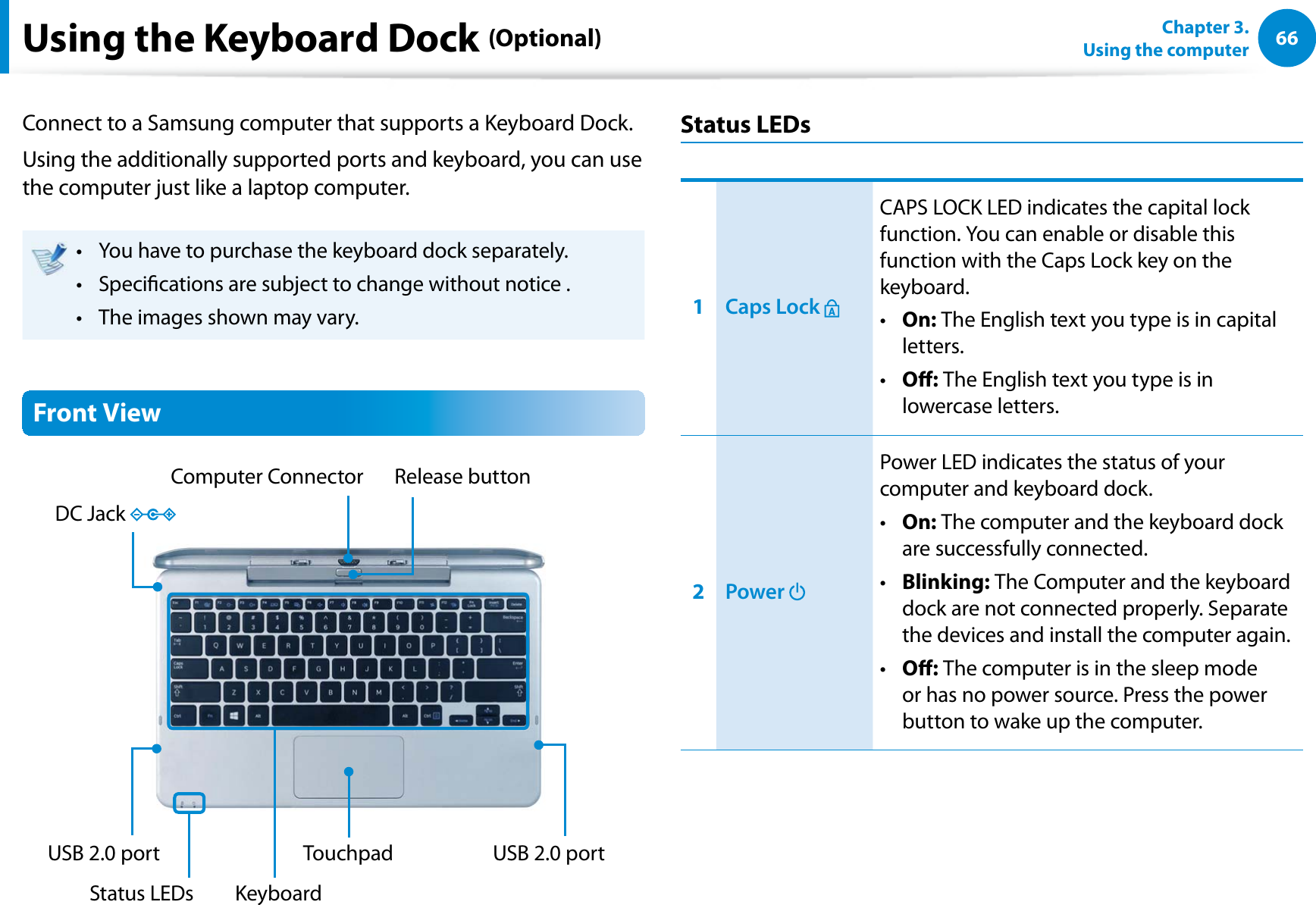

66Chapter 3. Using the computerConnect to a Samsung computer that supports a Keyboard Dock.Using the additionally supported ports and keyboard, you can use the computer just like a laptop computer.You have to purchase the keyboard dock separately.t Specications are subject to change without notice . t The images shown may vary.t Front ViewComputer Connector Release buttonKeyboardUSB 2.0 portUSB 2.0 port TouchpadStatus LEDsDC Jack Status LEDs1Caps Lock CAPS LOCK LED indicates the capital lock function. You can enable or disable this function with the Caps Lock key on the keyboard.On:t The English text you type is in capital letters.O:t The English text you type is in lowercase letters.2Power Power LED indicates the status of your computer and keyboard dock.On:t The computer and the keyboard dock are successfully connected.Blinking:t The Computer and the keyboard dock are not connected properly. Separate the devices and install the computer again.O:t The computer is in the sleep mode or has no power source. Press the power button to wake up the computer.Using the Keyboard Dock (Optional)
67Chapter 3. Using the computerUsing the Keyboard Dock (Optional)Installing/SeparatingAttaching the computer1 Align the keyboard dock’s connectors and the computer and insert the computer into the docking slot.2 When the keyboard dock and the computer are properly connected, the keyboard dock power indicator is turned on.Only when the computer is turned on, is the keyboard dock power indicator turned on.You can also use the keyboard dock using only the battery.Separating the ComputerPull the computer upward by hand while pushing the keyboard dock’s release button with the other hand.If the computer doesn’t work after being connected with the docking station, this may be due to poor contact caused by a foreign substance. Check and remove any substance on the connection.
68Chapter 3. Using the computerUsing the Keyboard Dock (Optional)Shortcut KeysShortcut key functions and procedures are discussed in the following sections.Press both the Fn key and hot key at the same time. Alternatively, press the Fn Lock key as well as a hot key to use the hot key functions more easily.► Method 1Shortcut Keys► Method 21 2 Shortcut Keys
69Chapter 3. Using the computerUsing the Keyboard Dock (Optional)Shortcut Keys Name FunctionSettings The Samsung software control program, the Settings, is launched.Screen Brightness Control Controls the screen brightness.CRT/LCD Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.Touchpad Turns the Touchpad function on or o.When using an external mouse only, you can turn the Touchpad o.Mute Press this button to turn the audio on or o.Volume Control Controls the volume.Wireless network Turns all wireless network devices on or o.(Only for models with a wireless network device.)
70Chapter 3. Using the computerUsing the Keyboard Dock (Optional)TouchpadThe touchpad on this keyboard dock has the same functionality as a typical laptop’s touchpad.In Windows 8, you can use the additional gestures as shown below:Charms Menu Activating Function If you place your nger on the right edge of the touch pad and drag your nger toward the center, the Charms menu appears. Displaying Additional Menu(s) of a Currently Running AppPlace your nger at the edge of the top area on the touch pad and drag your nger toward the center, and the menu of the currently running App appears. Last Run Window Opening FunctionPlace your nger on the left edge of the touch pad and drag your nger towards the center to activate a previously operating program from among the currently running programs.
71Chapter 3. Using the computerThe Scroll FunctionThis function is the same as the scroll area of the Touchpad.If you place two ngers over the Touchpad and move them up, down, left or right, the screen is scrolled up, down, left or right accordingly.orZoom FunctionsIf you place two ngers over the Touchpad together or apart, the current image or text is zoomed in or out.Zoom-outZoom-inorUsing the Keyboard Dock (Optional)
72Chapter 3. Using the computerUsing the Multimedia App (Optional)You can enjoy photo, video and music les with the S Camera, S Gallery and S Player apps.S Camera You can take photos and record videos with the S Camera app, and view them directly in this app.S Gallery Only photos or videos recorded with the S Camera app can be viewed with the S Camera app.S Player You can view the photo, video and music les saved on the computer.Depending on the version of the program, some functions may not be provided or dierent functions may be provided.Third-party software related servicesFor descriptions about and service requests for third-party t software, please contact the relevant manufacturer.Some troubleshooting actions in response to service t requests may not work depending on the software manufacturer.You can launch an app in the Start screen.
73Chapter 3. Using the computerUsing the Multimedia App (Optional)Using the S Camera app1 Tap Charm menu > Start > S Camera.Zoom in/outCamera mode (Photo , Video )Picture previewFront/rearTake a picture/Record a videoPhoto settings2 For a model that provides 2 cameras (one on the front, the other on the back), Press the Front / Rear camera selection button to determine the camera to be used.3 To take a picture, slide the camera mode bar into the Photo position. To make a video recording, slide the camera mode bar to the Video position.4 Tap on Take a picture/Record a video to take a picture or record a video. 5 You can view the picture or video using the Picture preview or S Gallery app. The S Camera app is not available in Desktop mode.Precautions while taking a picture or videoDo not take a picture or video of others without their t consent.Do not take a picture or video in locations where this is not t allowed.Do not take picture or videos in locations where you may t infringe on others’ privacy or condential information may be exposed.
74Chapter 3. Using the computerUsing the Multimedia App (Optional)Using the S Gallery app1 Tap Charm menu > Start > S Gallery.2 You can view the pictures and videos taken by the S Camera. In addition, you can apply special eects to the pictures using the photo editing function. You can take a picture in the S Gallery app by tapping the Camera icon.Editing a photo1 Select Picture preview.Drag it upward slightly from the bottom center.If the options menu appears, select Edit .
75Chapter 3. Using the computerUsing the Multimedia App (Optional)2 Select an eect to be applied to the photo. E.g. If you select DrawCloseUndoLine previewLine thickness SaveColorErase/DrawFrameDrawStampUsing the S Player app1 Tap Charm menu > Start > S Player. My PhotosMy MusicMy VideosMy photo listMusic playlist Slideshow2 Select a menu to enjoy photo, video and music les.Some les may not be played depending on their format.
76Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)AllShare Play is a content sharing service that enables users to share and view photos, and play videos and music les saved on digital devices via the Internet. You can use the web storage service and share data by registering the network-connected devices. If your home appliance supports DLNA (Digital Living Network Alliance), you can also connect it through the home network system.Since the descriptions in this manual are based on t Windows 8, some of the descriptions may dier depending on the operating system or the device.Depending on the country or program version, some t functions may not be provided or dierent functions may be provided.The content and images in this manual are subject to t change for the purpose of performance enhancement.DLNA (Digital Living Network Alliance) is one of the home t networking technologies based on an international standard that enables sharing of digital media between consumer devices such as computers, printers, digital cameras, cell phones, TVs, and other multimedia devices. You can easily share data between the DLNA-compliant digital devices in your house by connecting them.For information on whether your device supports DLNA, t please refer to the user manual of the corresponding device.
77Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)You can learn about data sharing as well as view various tips through the lecture videos and FAQs provided on the AllShare Play website (www.allshareplay.com).AllShare Play is especially useful if you want ton View and play the content saved on your in-house PC with another PC or mobile device outside.l Resume editing presentation documents you created at the oce.W Play photos or videos saved on a PC on a TV’s larger screen.j Copy les saved on a mobile device or digital camera to your PC
78Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)AllShare Play at a GlancenlWjVbnRegistered storageThis is an online storage space where you can store and view les. You need to sign up to an online storage service in partnership and then enable it.lRegistered deviceThis is a PC, laptop, smart phone or tablet that contains les to be shared. You can register a device to AllShare Play by running the AllShare Play app and signing in the service once. If the device is turned on without entering the power-saving mode, you can access the les on the device from a remote site.WNearby devices This is a device found on the home network connected to the same AP (access point). You can search for a DLNA-compliant device such as a smart phone or PC and retrieve and play the les saved on the device.jChange player You can search for playing devices, such as a TV, using the Change player link.VFAQ Frequently asked questions and answers are provided.bSettings Provides additional settings for registering devices and services. You can only search for a device when the device is connected to the AP (access point) and is turned on with the DLNA service running.
79Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)To use the AllShare Play app properly, you need to congure it as follows:1. Sign up on the AllShare Play website.2. Congure PC.3. Use AllShare Play (Play / Transfer / Upload les)Sign up on the AllShare Play websiteSince AllShare Play is an Internet service, a samsung.com account is required to use the AllShare Play service.1 Double-click AllShare Play app on the Windows Start screen to connect to www.allshareplay.com, or you can access it directly from the web browser by entering the AllShare Play address: www.allshareplay.com.2 Select a language at the bottom right of the screen.3 Click on Sign in at the top right and sign-in to the service with your samsung.com account.If you don’t have a samsung.com account, click the Sign up button to create an account.
80Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)4 If you are connecting to the website for the rst time, the software installation screen appears.To use the AllShare Play service, install the PC software.5 Register the current PC with the AllShare Play website according to the instructions on the screen.Since up to 6 PCs can be registered, if 6 PCs have already t been registered, you have to deregister one of the registered PCs in order to register a new one.Up to 5 users can be registered on one PC.t 6 When the device registration process is completed, install the unied codec according to the instructions on the site.7 To use a storage service, click the [+] button and register the storage to use.You can register storage by signing up for a storage service, such as SugarSync, that is aligned with AllShare Play.8 If you register a smart phone or tablet in the AllShare Play service, run AllShare Play on the device and sign in with your Samsung account. Whenever the device is turned on, you can access the les in the device.
81Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)Congure PCSetting the device statusTo remotely access the les saved on a device registered with AllShare Play,1 Disable power-saving mode.The PC must be turned on and should not enter the power-saving mode to use the service: click Settings at the top right of the screen and select the Disable the standby mode of the PC option.2 Need to Keep AllShare Play in signed-in status.Once you sign into AllShare Play on a PC, you can remotely access the PC for up to 15 days even after signing o.If the AllShare Play icon appears in the system tray, it indicates that it is in the signed-in status. Since the AllShare Play service automatically logs out after 15 days, please sign in again. When the AllShare Play service is signed out, the icon will appear gray in color.Sharing lesClick Settings at the top right of the screen to congure the folders to be shared with registered devices. Only the photos, videos, and music les in the folders specied as shared folders are listed in the le list of AllShare Play.You can add up to 10 shared folders.
82Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)Use AllShare Play (Play / Transfer / Upload Files)Playing videos or viewing photos on a TVWith AllShare Play, you can play a le saved on a registered device, nearby device, or Storage on TV. You can search for TVs that satisfy the following 3 conditions:The TV must be connected to the same AP (access point).t The TV must be turned on.t The DLNA service must be running on the TV.t 1 Select the checkbox of the video or photo to be displayed.2 Click Change player at the top of the screen to search for a device.3 If the PC and TV are connected, a message asking you to allow access appears from the TV. Allow access.4 The video or photo slideshow is played on the device.If the les that you want to play are stored in Registered Devices or Registered Storage, playing videos or photo slideshows can be slow when the network connection is unstable.
83Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)Playing a leIn AllShare Play, you can play a le saved on a registered device, nearby device, or Storage.1 Select the checkbox of the video or photo that you want to play.2 Click Play at the top of the screen.A player such as Windows Media Player is launched and the le is played.Set the player settings in the options of Windows Media Player to keep the player on top of other windows to always view Windows Media Player on top of other windows.Transferring a le1 If you select a registered device or nearby device, the les saved on the device are displayed on the screen.2 Select a le (or les), and select a destination from the Transfer menu.You can then copy or move the le(s).
84Chapter 3. Using the computerSharing content using the AllShare Play app (Optional)Uploading a le to a SNS1 Select the checkbox of the le that you want to upload.2 Click Share at the top of the screen and select a SNS (social networking site) website (Facebook, Twitter, Flickr, Picasa, etc.).3 Sign in to the SNS.4 Follow the onscreen instructions to upload the le.Depending on the country, supported SNS services can vary.
85Chapter 3. Using the computerSamsung Software UpdateSW Update is a software program that searches for Samsung software programs and drivers installed when you purchased the computer and helps you update any drivers or programs.You can check updatable les before performing the t update only when you are connected to the internet.SW Update does not provide any updates for device drivers t or software programs installed separately by the user.1 Right-click over the Start screen.Click SW Update in the All Apps menu item.2 If the program is running for the rst time, the User Agreement for personal information use appears. Click Agree.3 The SW Update program runs. Select the items that you want to update before proceeding with the update process.Software UpdateSoftware List
86Chapter 3. Using the computerDiagnosing the Computer Status and TroubleshootingThe Support Center program, which is Samsung’s computer’s troubleshooting guide, supports diagnosing the system and has a FAQ for frequently occurring problem(s). Support Center may not be provided or may be a dierent version depending on the model.1 Right-click over the Start screen.Click Support Center in the All Apps menu item.2 Support Center is activated and starts diagnosing your computer. After the diagnosing process is nished, the System Status menu displays a list of the current problems to be solved as shown.FAQ for computer’s major problemsDiagnosing Computer and TroubleshootingSearching for computer’s problems3 You can solve a problem by clicking the Troubleshoot button for the problem.
87Chapter 3. Using the computerBatteryPlease refer to the following instructions when running the computer on battery power without connecting the AC power. This computer is equipped with an internal battery. PrecautionsUsers cannot remove or replace the internal battery. t To remove or replace the battery, use an authorized t service center in order to protect the product and users. You will be charged for this service.Use only chargers specied in the User Manual.t Never heat the battery pack, put it near or in a re or use at t a temperature higher than 60°C, as this may cause re.Please refer to the system operation environment of t this manual and operate and store the battery at room temperature.Before using the computer for the rst time, make sure to connect the AC adapter and charge the battery completely.The location of the internal batteryCharging the BatteryAn internal battery is embedded. Connect the AC adapter to the power input jack of the computer.The battery will start charging.
88Chapter 3. Using the computerBatteryMeasuring the Remaining Battery ChargeYou can view the battery charge status by completing the following procedures.Conrming the battery charge in the TaskbarDisconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to conrm the remaining battery charge.Battery Usage Time InformationA battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.Extending the Battery Usage TimeDecreasing the LCD Brightness1 Click the Charms menu > Settings > Screen icon.2 Dims the screen.
89Chapter 3. Using the computerBatteryUsing the power management programThis program helps you use the battery more eciently and supports the power mode optimized for the operating environment.1 Click Charms menu on the Desktop > Settings > Control Panel > Hardware and Sound > Power Options.Alternatively, right-click the power measuring device icon in the notication area of the taskbar and select Power Options.2 If the following screen appears, select one of the modes.Extending the Battery Life (Optional)In the Settings program, click Power Management and set the Battery Life Extender to ON or OFF. OFFThis mode maintains 100% of the battery charge when using the computer on AC power. In this case, although the battery use time increases, the battery life is reduced.ONThis mode maintains 80% of the battery charge when using the computer on AC power. In this case, although the battery use time decreases, the battery life is extended.
Chapter 4. TroubleshootingRecovering/Backing up the Computer (Optional) 91Q&A 92
91Chapter 4. TroubleshootingRecovering/Backing up the Computer (Optional)Computer Recovery Function in Windows 8If a problem occurs with your computer, the recovery program allows you to restore your computer to the default settings.1 Click the Charms menu > Settings > Change PC Settings > General.2 Click the Start button for Refresh.... or Remove.....Refresh....If your PC does not work properly, you can restore your PC while keeping your media les such as your photo, video and music les, etc. as well as your personal documents. Remove….If you want to return your PC to the default settings, or start from scratch, you can reset your PC to the factory default. You should back up the les in the following folders before using the PC Recovery function since these les are not kept.\Windows, \Program les, \Program les(x86), \ProgramData, OEM Folder (ex) c:\samsung), \User\<user name>\AppData3 Follow the onscreen instructions to proceed with the recovery process.If the recovery is complete, you can use your computer normally.After reset by this option, you need to re-install all the applications you need.
92Chapter 4. TroubleshootingYou can look for potential problems that may occur with the system and view the relevant solutions. Also, you may look up any reference(s) required while operating the computer.Windows 8 Related3I cannot nd the Start button on the Desktop.# There's no Start button in Windows 8. You can use the Control Panel, PC-running menu(s), etc. by activating the Charms menu.3I cannot nd the computer's Shutdown button.# Click the Charms menu > Settings > Power to display the Power Options menu. Click Shutdown.3The App disappeared in the Start screen.# Click the Charms menu > Search to display all installed Apps. Right-click over the corresponding App to select in a Tile in the Start Screen.3Since I'm familiar with Windows 7, I would like the Desktop screen to appear as it does in Windows 7.# Currently, there is no way to set the Desktop to appear by default. Press the Windows key + D key simultaneously to reveal the Desktop when the Start screen appears. This is currently the only workaround.3How can I install a printer driver?# Run your driver installation le and follow the corresponding instructions. You can install it in the same method as the existing OS.Refer to your printer manual for detailed instructions for each model. Q&A
93Chapter 4. Troubleshooting3How can I uninstall the driver?# On the Desktop, click Charms menu > Settings > Control Panel > Programs and Features.Click the program. Then click uninstall.3How can I change the screen settings, environment settings, type size, color, and so on?# Click Charms menu > Settings > Change PC Settings > Personalization. You can set the OS settings such as the screen design, etc. To congure your computer in detail, click the Charms menu in Desktop > Settings > Control Panel. You can congure your computer in the same way as existing Windows systems.3Active X does not run in Internet Explorer on the Start screen.# Since Internet Explorer on the Start screen complies with the HTML5 web standards, it does not support Active X. However, Internet Explorer on the Desktop supports Active X. ► How to activate Active X: If you right-click over the Internet Explorer, the following window appears. Press the button and click View on the Desktop. Active X is now enabled.Q&A
94Chapter 4. TroubleshootingQ&ADisplay Related3The Desktop displayed on the TV after connecting via the HDMI port does not t the screen.# Go to the Graphics Control Panel to adjust the screen settings. ► For Intel graphics cards Right-click over the Desktop and go to Graphics Properties > Display > General. Adjust the Horizontal Ratio and Vertical Ratio settings to t your screen and click OK. ► For AMD graphics cards 1. Right-click over the Desktop and select Graphics Properties > Desktop and Display > My Digital Flat Panel > Expansion Options (Digital Flat Panel). 2. Adjust the control bar to t the TV corners and click Apply.Sound Related3I cannot hear any sound from the TV after connecting via the HDMI port. # 1. Right-click over the taskbar on the Desktop and click Play Device. 2. Change the option to Digital Audio (HDMI), HDMI device, HDMI Output or another option and click Set as Default. Then click OK.
95Chapter 4. TroubleshootingQ&ATouch screen Related3The screen is abnormally displayed when the touch screen has been rotated.# The screen rotation function may not work properly depending on the application. To x the screen orientation, press the Rotation Lock button.3The letters on the computer screen overlap.# If the font size is set to large, the letters on the screen may overlap. In this case, select Settings > Touch Tuning > DPI Settings and set the text size to Basic.Multimedia App Related3Where are the photos and videos taken by the S Camera saved?# The photos and videos you took are saved in Library > Photo > Camera Roll.3I can only make a recording up to 3 hours with the S Camera.# When you make a recording, the Windows 8 OS asks the application to stop after 3 hours. To make a longer recording, make a recording for 3 hours, stop the recording and then start a new recording. This allows you to make another 3 hour recording. The recording time limit may dier depending on the operating system.3I can play a le saved on an external storage device but cannot add the le to the playlist in the S Player.# The application is designed so that only les in the Library can be added to the playlist.
96Chapter 4. TroubleshootingQ&A3Although I turned the volume up to the maximum in the S Player, the volume is still low.# Click on the Speaker icon in the system tray at the bottom right of the Desktop screen and turn up the volume in the popup window. The volume of the S Player controls the volume of the S Player application only and not the volume of the system sound.
Chapter 5. AppendixImportant Safety Information 98Replacement Parts and Accessories 100Regulatory Compliance Statements 102WEEE Symbol Information 118Samsung Packaging Take-Back Program 119TCO Certied 120Product Specications 121Glossary 123Index 127
98Chapter 5 AppendixSafety InstructionsYour system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.Always follow these instructions to help guard against personal injury and damage to your system.Setting Up your SystemRead and follow all instructions marked on the product and in t the documentation before you operate your system. Retain all safety and operating instructions for future use.Do not use this product near water or a heat source such as a t radiator.Set up the system on a stable work surface.t The product should be operated only with the type of power t source indicated on the rating label.Ensure that the electrical outlet you are using to power your t equipment is easily accessible in case of re or short circuit.If your computer has a voltage selector switch, make sure that t the switch is in the proper position for your area.Openings in the computer case are provided for ventilation. t Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.Ensure that the fan vents on the bottom of the casing are clear t at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.If you use an extension cord with this system, make sure that t the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.For Notebooks with glossy display bezels the user should t consider the placement of the Notebook as the bezel may cause disturbing reections from surrounding light and bright surfaces.Important Safety InformationNB Ver 3.1
99Chapter 5 AppendixCare During UseDo not walk on the power cord or allow anything to rest on it.t Do not spill anything on the system. The best way to avoid t spills is to not eat or drink near your system.Some products have a replaceable CMOS battery on the t system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualied technician performs the task.When the computer is turned o, a small amount of electrical t current still ows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.Unplug the system from the wall outlet and refer servicing to t qualied personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes.The Instruction On Safety Operation of NotePC1.When installing and operating devices please refer to safety requirements in the user guide.2.Devices can be used only with the equipment specied in the technical specications of the devices.3. If any smell of burning or smoke is detected from the computer the unit should be switched o and battery removed. The unit should be checked by a qualied technician before reuse.4.Service and repair of devices should be carried out by authorized service centers.5.Do not allow your portable computer to operate with the base resting directly on exposed skin for extended periods of time. The surface temperature of the base will rise during normal operation (particularly when AC Power is present). Allowing sustained contact with exposed skin can cause discomfort or eventually a burn.Important Safety Information
100Chapter 5 AppendixReplacement Parts and AccessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of re, use only No. 26 AWG or larger telecommunications line cord.Do not use this product in areas classied as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.Battery DisposalDo not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.Follow all local regulations when disposing of old batteries.THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Laser SafetyAll systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classied as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.Laser Safety Note:t Use of controls or adjustments or performance of procedures other than those specied in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.Class 1M laser radiation when operating part is open.t Do not view directly with optical instruments.Class 3B invisible laser radiation when open.t Avoid exposure to the beam.
101Chapter 5 AppendixReplacement Parts and AccessoriesConnect and Disconnect the AC adapterThe socket-outlet shall be installed near the equipment and shall be easily accessible.Do not unplug the power cord by pulling the cable only.Power Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.General RequirementsThe requirements listed below are applicable to all countries:All power cord sets must be approved by an acceptable t accredited agency responsible for evaluation in the country where the power cord set will be used.The power cord set must have a minimum current capacity t of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system. (USA ONLY)The appliance coupler must meet the mechanical conguration t of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector, for mating with appliance inlet on the computer.
102Chapter 5 AppendixRegulatory Compliance StatementsWireless Guidance(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specic countries are listed in the specic country sections (or country group sections). The wireless devices in your system are only qualied for use in the countries identied by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The RF eld strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed on the next page:Radio frequency wireless communication can interfere twith equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned o while traveling in an airplane. 802.11ABGN (also known as wireless Ethernet or Wi) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other tdevices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or ammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has dierent restrictions on the use of twireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded twireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.
103Chapter 5 AppendixRegulatory Compliance StatementsWireless devices are not user serviceable. Do not modify tthem in any way. Modication to a wireless device will void the authorization to use it. Please contact manufacturer for service.Only use drivers approved for the country in which tthe device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.United States of AmericaUSA and Canada Safety Requirements and NoticesDo not touch or move antenna while the unit is transmitting or receiving.Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.Use in specic environments:The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.Explosive Device Proximity WarningDo not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modied to be qualied for such use.
104Chapter 5 AppendixUse On Aircraft CautionRegulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.Other Wireless DevicesSafety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with wireless Ethernet adapters or other devices in the wireless network.The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modication to said product not expressly approved by Intel could void the user’s authority to operate this device.Unintentional Emitter per FCC Part 15This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.t Increase the separation between the equipment and t receiver.Connect the equipment into an outlet on a circuit dierent t from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician t for help.Regulatory Compliance Statements
105Chapter 5 AppendixIf necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may nd the following booklet helpful: “Something About Interference.”This is available at FCC local regional oces. Our company is not responsible for any radio or television interference caused by unauthorized modications of this equipment or the substitution or attachment of connecting cables and equipment other than those specied by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.Intentional emitter per FCC Part 15(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the United States of America if an FCC ID number is on the system label.This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and /or damage this device.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any way.Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.Regulatory Compliance Statements
106Chapter 5 AppendixHealth and safety information Exposure to Radio Frequency (RF) Signals Certication Information (SAR) This product can be embedded a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Council on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientic and engineering experts drawn from industry, government, and academia after extensive reviews of the scientic literature related to the biological eects of RF energy. The exposure limit set by the FCC for wireless devices employs a unit of measurement known as the Specic Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless devices to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the wireless transmitting at its highest certied power level in all tested frequency bands. Although the SAR is determined at the highest certied power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a new model is available for sale to the public, it must be tested and certied to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model are performed in positions and locations (e.g. at the bottom on the body) as required by the FCC.For body worn operation, this model has been tested and meets the FCC RF exposure guidelines when used with a Samsung accessory designated for this product. Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines. SAR information on this and other model can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID number on the outside of the product. Sometimes it may be necessary to remove the battery pack to nd the number. Once you have the FCC ID number for a particular product, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular product.Regulatory Compliance Statements
107Chapter 5 AppendixFCC Part 68 (If tted with a modem device.)This equipment complies with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.This equipment uses the following USOC jacks : RJ11CAn FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to le a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, or procedures that could aect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modications to maintain uninterrupted service.If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.No repairs may be done by the customer.This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state taris.The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the rst page of the transmission, the date and time it is sent and an identication of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)In order to program this information into your fax machine, refer to your communications software user manual.Regulatory Compliance Statements
108Chapter 5 AppendixCanadaUnintentional Emitter per ICES-003This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.Intentional Emitter per RSS 210This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.”L‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.The term “IC” before the equipment certication number only signies that the Industry Canada technical specications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres an de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence.(If tted with 2.4G band or 5G band) Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in Canada if an Industry Canada ID number is on the system label.Regulatory Compliance Statements
109Chapter 5 AppendixWhen using IEEE 802.11a wireless LAN, this product is restricted to indoor use due to its operation in the 5.15- to 5.25-GHz frequency range. Industry Canada requires this product to be used indoors for the frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel mobile satellite systems. High power radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations can cause interference with and/or damage to this device.The maximum allowed antenna gain for use with this device is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to 5.35 and 5.725 to 5.85 GHz frequency range in point-to-point operation.The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.Wireless devices are not user serviceable. Do not modify them in any way. Modication to a wireless device will void the authorization to use it. Contact manufacturer for service.(Si l’appareil est équipé d’une bande 2,4 G ou 5 G)Des dispositifs de basse puissance, de type radio LAN (périphériques de communication sans l par radiofréquence RF) fonctionnant sur une bande de 2.4GHz/5GHz sont peut-être intégrés dans votre appareil. Cette section est applicable uniquement si ces dispositifs sont présents. Consultez l’étiquette du système pour vériez la présence de dispositifs sans l.Les dispositifs sans l qui peuvent être intégrés dans votre système sont uniquement aptes pour une utilisation au Canada si l’étiquette du système présente un nombre d’identication d’Industrie Canada.En cas d’utilisation d’un LAN sans l IEEE 802.11a, ce produit ne peut être utilisé qu’à l’intérieur en raison de son fonctionnement dans une plage des fréquences allant de 5,15 à 5,25 GHz. Industrie Canada exige l’utilisation de ce produit à l’intérieur pour une plage des fréquences allant de 5,15 à 5,25 GHz an de réduire les éventuelles interférences nuisibles avec les systèmes mobiles par satellite du même canal. Le radar de grande puissance est considéré comme l’utilisateur principal des bandes de 5,25 à 5,35 GHz et de 5,65 à 5,85 GHz. Ces stations radar peuvent provoquer des interférences avec ce périphérique et/ou l’endommager.Le gain d’antenne maximum autorisé avec ce périphérique est de 6 dBi an de respecter la limite de P.I.R.E. pour une plage des fréquences de 5,25 à 5,35 GHz et de 5,725 à 5,85 GHz dans un fonctionnement point à point.La sortie de puissance du dispositif sans l (ou des dispositifs) qui peut être intégré dans votre système est bien inférieure aux limites d’exposition de RF établies par Industrie Canada.Regulatory Compliance Statements
110Chapter 5 AppendixSon utilisation est soumise aux deux conditions suivantes : 1) ce dispositif ne peut pas provoquer d’interférences nuisibles et 2 2) ce dispositif doit accepter toute interférence reçue, y compris les interférences qui peuvent provoquer des anomalies dans le système.An de prévenir des interférences de radio au service autorisé, ce dispositif est prévu pour être utilisé à l’intérieur et éloigné des fenêtres pour fournir une protection maximum. Un équipement (ou son antenne de transmission) qui est installé à l’extérieur est sujet à une autorisation.Les dispositifs sans l ne peuvent pas être réparés par l’utilisateur. Ne les modiez en aucune façon. La modication d’un dispositif sans l annulera votre autorisation à son utilisation. Contactez le fabricant pour la réparation.Telecommunications per DOC notice (for products tted with an IC-compliant modem)The Industry Canada label identies certied equipment. This certication means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certied connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.Repairs to certied equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.Regulatory Compliance Statements
111Chapter 5 AppendixTo avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.Déclarations sur les télécommunications selon DOC (pour des produits munis d’un modem homologué par la IC)L’étiquette d’Industrie Canada identie un équipement autorisé. Cette autorisation signie que l’équipement satisfait certaines exigences pour la sécurité, fonctionnement et protection des réseaux téléphoniques. Le département ne garantie pas que l’équipement fonctionne comme le désirerait l’utilisateur.Avant d’installer l’équipement, les utilisateurs doivent s’assurer que leur connexion aux installations de la compagnie de télécommunication locale soit permise.L’équipement doit être également installé selon une méthode acceptable de connexion. Dans certains cas, l’installation électrique associée à un service de ligne individuel peut être rallongé par un connecteur homologué. Le client doit savoir que la conformité aux conditions précédentes ne garantit pas un fonctionnement parfait dans toutes les situations.Les réparations de l’équipement homologué doivent être eectuées dans les installations de maintenance canadiennes autorisées par le fournisseur. Les réparations ou modications eectuées par l’utilisateur sur cet équipement, ou anomalies de l’équipement, peuvent faire que la compagnie de télécommunication demande la déconnexion de l’équipement.Les utilisateurs doivent s’assurer, pour leur propre protection, que les raccordements électriques à la terre, les lignes de téléphone et l’infrastructure de la conduite d’eau, si il y en a, sont connectés ensemble. Cette précaution peut être particulièrement importante dans les zones rurales.An d’éviter une électrocution ou le disfonctionnement de l’équipement, n’essayez pas de faire vous-même les raccordements électriques à la terre. Contactez l’autorité inspectrice adéquate ou un électricien, selon il conviendra.Le Numéro d’équivalence d’appel (REN) attribué à chaque dispositif terminal fourni une indication du nombre maximum de terminales qui peuvent être connectées à une interface téléphonique. Le bout d’une interface peut contenir n’importe quelle combinaison de dispositifs sujets uniquement à la condition que le total des numéros d’équivalence d’appel de tous les dispositifs ne dépasse pas 5.Regulatory Compliance Statements
112Chapter 5 AppendixBrazilEste produto esta homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolucao 242/2000, e atende aos requisitos tecnicos aplicados.Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.European UnionEuropean Union CE Marking and Compliance NoticesProducts intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identied below. This equipment also carries the Class 2 identier.The following information is only applicable to systems labeled with the CE mark .European Directives This Information Technology Equipment has been tested and found to comply with the following European directives:EMC Directive 2004/108/ECt Low Voltage Directive 2006/95/ECt R&TTE Directive 1999/5/ECt Manufacturer InformationSamsung Electronics Co., Ltd.416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, 443-742, KoreaSamsung Electronics Suzhou Computer Co., Ltd.No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, 215021, ChinaTel: +86-512-6253-8988For the web or the phone number of Samsung Service Centre, see the Warranty or contact the retailer where you purchased your product.Regulatory Compliance Statements
113Chapter 5 AppendixEuropean Radio Approval Information (for products tted with EU-approved radio devices)This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz/5GHz band, may be present (embedded) in your notebook system which is intended for home or oce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualied for use in the European Union or associated areas if a CE mark with a Notied Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.The low band 5.15 - 5.35 GHz is for indoor use only.See 802.11b and 802.11g restrictions for specic countries or regions within countries under the heading “European Economic Area Restrictions” below.EU R&TTE Compliance StatementsČesky [Czech]Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.Dansk [Danish]Undertegnede Samsung erklærer herved, at følgende udstyr Notebook PC overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.Deutsch [German]Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.Eesti [Estonian]Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.EnglishHereby, Samsung, declares that this Notebook PC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Español [Spanish]Por medio de la presente Samsung declara que el Notebook PC cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.Regulatory Compliance Statements
114Chapter 5 AppendixΕλληνική [Greek]ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.Français [French]Par la présente Samsung déclare que l’appareil Notebook PC est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Italiano [Italian]Con la presente Samsung dichiara che questo Notebook PC è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.Latviski [Latvian]Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.Lietuvių [Lithuanian]Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Nederlands [Dutch]Hierbij verklaart Samsung dat het toestel Notebook PC in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.Malti [Maltese]Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm d-Dirrettiva 1999/5/EC.Magyar [Hungarian]Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.Polski [Polish]Niniejszym Samsung oświadcza, Ŝe Notebook PC jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.Português [Portuguese]Samsung declara que este Notebook PC está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.Slovensko [Slovenian]Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.Slovensky [Slovak]Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Suomi [Finnish]Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Svenska [Swedish]Härmed intygar Samsung att denna Notebook PC står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Regulatory Compliance Statements
115Chapter 5 AppendixÍslenska [Icelandic]Hér með lýsir Samsung yr því að Notebook PC er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.Norsk [Norwegian]Samsung erklærer herved at utstyret Notebook PC er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.Türkiye [Türkçe]Bu belge ile, Samsung bu Notebook PC’nin 1999/5/EC Yönetmeliğinin temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.To view the EU Declaration of Conformity for this product (in English only), go to: http://www.samsung.com/uk/support/download/supportDownMain.do then search the model number of the product.If the Declaration of Conformity for the model you are interested in is not available on our web-site, please contact your distributor.European Economic Area RestrictionsLocal Restriction of 802.11b/802.11g Radio Usage[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the wireless product.]Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specic countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are congured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.Regulatory Compliance Statements
116Chapter 5 AppendixThe European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows: GeneralEuropean standards dictate maximum radiated transmit power of 100 mW eective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.The low band 5.15 - 5.35 GHz is for indoor use only.BelgiumThe product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.This restriction should be indicated in the manual as follows:Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.FranceFor Metropolitan departments:2.400 - 2.4835 GHz for indoor use.2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:2.400 - 2.4835 GHz for indoor and outdoor use.For Reunion, Guyane:2.400 - 2.4835 GHz for indoor use.2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)The low band 5.15 - 5.35 GHz is for indoor use only.Regulatory Compliance Statements
117Chapter 5 AppendixRegulatory Compliance StatementsEuropean Telecommunication Information (for products tted with EU-approved modems)Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.This equipment has been approved to Council Decision 98/482/EEC - “CTR 21” for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).However, due to dierences between the individual PSTNs provided in dierent countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.RTC CAUTIONCAUTION : Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the Manufacturer’s instruction.Attention: Danger d’explosion si les piles sont mal palcées. Remplacez les piles usagées uniquement par des piles de type identique ou équivalent recommandees par is fabriquant. Otez les piles usagées selon les instructions du fabriquant.Adapter InformationVendor CHICONY DELTACompany Name CHICONY POWER TECHNOLOGY CO.,LTD Delta Electronics, Inc.Adapter Model Name A12-040N1A ADP- 40JD BA
118Chapter 5 AppendixWEEE Symbol InformationCorrect disposal of this product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.India OnlyFor more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers - 18002668282, 180030008282.PbCorrect disposal of batteries in this product(Applicable in countries with separate collection systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material re-use, please separate batteries from other types of waste and recycle them through your local, free battery return system.USA ONLYThis Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA. “Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”Dispose unwanted electronics through an approved recycler.To nd the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278-0799For battery recycling go to call2recycle.org; or call 1-877-723-1297
119Chapter 5 AppendixIn partnering with select recyclers, Samsung oers packaging take-back at no cost to you.Simply call the following number for the locations nearest you.CRT Processing, LLC(877) 278-0799Kathy Severson – Logistics contactDispose unwanted electronics through an approved recycler.To nd the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278-0799Samsung Packaging Take-Back Program
120Chapter 5 AppendixTCO Certied (for corresponding models only)Congratulations!This product is designed for both you and the planet!The product you have just purchased carries the TCO Certied label. This ensures it is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on the climate and our natural environment.TCO Certied is a third party veried program, where every product model is tested by an accredited impartial test laboratory. TCO Certied represents one of the toughest certications for ICT products worldwide.Some of the Usability features of TCO Certied TabletsVisual Ergonomics for image quality is tested to ensure top t performance and reduce sight and strain problems. Important parameters are Resolution, Luminance, Contrast, Reection and Colour characteristicsProducts are tested according to rigorous safety standards at t impartial laboratoriesElectric and Magnetic eld emissions as low as normal t household background levelsWorkload ergonomics to ensure a good physical environmentt Some of the Environmental features of TCO Certied TabletsProduction facilities have an Environmental Management t System (EMAS or ISO 14001)Low energy consumption to minimize climate impactt Mercury freet Restrictions on Chlorinated and Brominated ame retardants, t plasticizers, plastics and heavy metals such as cadmium and lead (RoHS compliance)Both product and product packaging is prepared for recyclingt The brand owner oers take-back optionst Corporate Social ResponsibilityThe brand owner demonstrates the product is manufactured under working practices that promote good labour relations and working conditions.The Criteria Document can be downloaded from our web site. The criteria included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in inuencing the development of IT equipment in a more user and environmentally friendly direction. Our ICT product labeling system began in 1992 and is now requested by users and ICT-manufacturers all over the world.For more information, please visit www.tcodevelopment.com
121Chapter 5 AppendixThe system specications may dier depending on the derived models.For detailed system specications, refer to the product catalogue.CPU (Optional) Intel® ATOM™ ProcessorMain Memory Memory type: LPDDR2 SDRAM on boardStorage Device eMMCGraphics Intel SGX545 GraphicsOperating EnvironmentTemperature: -5~40°C for storage, 10~32°C when operatingHumidity: 5~90% for storage, 20~80% when operatingAC/DC Rating Input: 100-240VAC, 50 ~ 60Hz, Output: 12VDC 3.33APC Rating 12VDC 3.33A (40W)Optional components may not be provided or dierent t components may be provided depending on the computer model.The system specications are subject to change without t notice.The Storage device capacity of a computer in which t Recovery program is installed, is represented as smaller than the product specication.The amount of memory that Windows can use may be t smaller than the actual amount of memory available.Replacing or adding a memory module for this product is t not supported due to the product design.Product Specications
122Chapter 5 AppendixProduct SpecicationsRegistered TrademarksSamsung is a registered trademark of Samsung Co., Ltd.Intel, ATOM are registered trademarks of the Intel Corporation.Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation.The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.All other product or company names mentioned herein are registered trademarks of their respective companies.ENERGY STAR® PartnerAs an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the ENERGY STAR® guidelines for energy eciency.HDMI
123Chapter 5 AppendixGlossaryThe Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.BackupA way to save the current data to restore it later if necessary. A backup is a way to restore computer data when the data or computer is damaged.Chargeable USBThis program enables supplying power to a specic USB port when the system is in power saving mode, hibernation mode or o.ClientThis refers to a computer that uses a shared network resource provided by a server.DDR SDRAM (Double Data Rate Synchronous Dynamic Random Access Memory)DRAM is a memory type whose cells consist of a capacitor and transistor manufactured at a low price. SDRAM is a memory type whose performance has been improved by synchronizing the clock with the external CPU clock. DDR SDRAM is a memory type whose performance has been improved by doubling the operating speed of the SDRAM and is widely used nowadays. This computer uses DDR SDRAM.Device ManagerAn administrative tool used to manage computer devices. You can add or remove hardware or update a device driver using the Device Manager.DHCP (Dynamic Host Conguration Protocol)This refers to automatically allocating IP addresses to the users on the network by the network administrators.Direct XAn application interface developed to enable Windows application programs to access hardware devices at a very high speed. Since the operating speed of graphics, memory and sound cards must be very fast to provide high quality video and sound for games, Direct X enables faster control and interaction between applications and hardware devices. By using Direct X, the multimedia performance of Windows has been hugely improved.DriverSoftware that interacts between the hardware and the operating system. An operating system knows the hardware information and controls the hardware. In general, a driver is supplied with the corresponding hardware device.D-sub (D-subminiature)This is the cable connecting a general CRT monitor and the computer. Analog video is output through this cable.
124Chapter 5 AppendixDVD (Digital Versatile Disk)DVD was developed to replace CD (compact disk). Although the shape and size of the disc are the same as that of a CD, the capacity of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD video is digital unlike VHS (analog) video and supports MPEG2 compression and digital audio. To play a DVD, a DVD drive is required.FirewallA security system used to protect an internal network or intranet from external networks through an authentication procedure.HDMIThis is a digital video / audio interface specication that transmits video and audio signals over a single cable.Hibernation ModeA power mode that saves all data in memory to the hard disk and turns the CPU and hard disk o. When canceling Hibernation Mode, all application programs that were running are restored to their last state.IconThis refers to a small image that represents a le that users can use.IEEE802.XXThis is a set fo specications developed by the 802 committee of IEEE for the LAN connection method called XX.LAN (Local Area Network)A communications network connecting computers, printers and other devices within a local area such as within a building. A LAN enables all connected devices to interact with other devices on the network. The current LAN uses the Ethernet media access control method developed in the early 1980s. To connect to an Ethernet, a network card called a LAN card, Ethernet card or network interface card is required. To exchange data between computers, a protocol is required besides the hardware equipment. Windows uses TCP/IP as the default protocol.LCD (Liquid Crystal Display)There are Passive Matrix and Active Matrix LCD types. This computer uses the Active Matrix type LCD called a TFT LCD. Since an LCD is implemented by transistors instead of a cathode-ray tube unlike a CRT, its size can be slim. And because it does not blink, it reduces eye strain.Glossary
125Chapter 5 AppendixNetworkA group of computers and devices, such as printers and scanners, connected by a communications link. A network can be either small or large and can be connected permanently through cables or temporarily through telephone lines or wireless links. The biggest network is the Internet, a worldwide network.Network AdministratorA user who plans, congures and manages network operations. Sometimes, a network administrator is called a system administrator.Notication AreaThis refers to the right area of the Taskbar including program icons such as the volume control, the power options and the time.PartitionThis refers to the act or practice of dividing the storage space of a hard disk drive into separate data areas known as partitions. If a 100GB hard disk drive is partitioned into 2 x 50GB partitions, the hard disk drive can be used as if there are 2 hard disk drives.PCMCIA( Personal Computer Memory Card International Association) cardThis is an extended card slot specication for mobile computers such as a notebook computer. Not only a memory, device but also most peripherals such as hard disk drives, LAN cards, etc. can be connected to this card slot.ProtocolA protocol is a set of rules used by computers to communicate with each other across a network. A protocol is a convention or standard that controls or enables the connection, communication, and data transfer between computing endpoints. It denes the data transmission procedures and the transmission medium for more ecient network functions.Quick LaunchThis refers to a toolbar that can be congured so that you can launch a program such as Internet Explorer or display the Windows Desktop with one click. You can add any icon to the quick launch area of the Taskbar and launch frequently used program by clicking that icon.ServerIn general, a server refers to a computer that provides shared resources for network users.Glossary
126Chapter 5 AppendixShareThis refers to setting a resource of a computer such as a folder or printer so that other users can also use it.Shared FolderA folder that can be used by other users on the network.Sleep ModeA power mode that enables computers to save power consumption when they are not being used. When a computer is in Sleep Mode, the data on the computer memory is not saved to the hard disk. If the power is turned o, the data in memory will be lost.System FileSystem Files refer to les that are read and used by the Windows operating system. In general, system les must not be deleted or moved.TCP/IPv4This is a 4 byte (32 bit) address system separated into each byte (8 bits) by a dot and each byte is represented as a decimal number.USB (Universal Serial Bus)This refers to a serial interface standard developed to replace the conventional interface standards such as Serial and PS/2. The data transmission specications are one of the interface standards used to connect a computer to peripheral devices. These specications include USB 1.0, 1.1, 2.0 and 3.0. It is appropriate to support peripheral devices that require high data rates such as an AV device, secondary HDD or CD-RW. The higher the version (e.g. USB 3.0), the higher the data rate provided.Windows Media PlayerA multimedia program included with Windows. Using this program, you can play a media le, create an audio CD, listen to a radio broadcast, search and manage media les, and copy les to a portable device, etc.Glossary
127Chapter 5 AppendixIndexAAP 62BBattery 87CCharge 87Click 45DDouble-Click 45Drag 45Dual View 56LLCD Brightness 61MMonitor Connection / Output 56Micro SD Card Slot 54OOverview 24PProduct Specications 121RRecorder 59Recovery 91SSafety Precautions 6Scroll 46Support Center 86SW Update 85VVolume Control 59WWireless Network 62
