Samsung Electronics Co YPG1 Mobile Internet Device User Manual

Samsung Electronics Co Ltd Mobile Internet Device

User manual

Some of the contents in this manual may dier from your device depending on the software of the device or your service provider.www.samsungmobile.com English (EU). 02/2011. Rev. 1.0To install Kies (PC Sync) Download the latest version of Kies from the Samsung 1. website (www.samsung.com/kies) and install it on your PC.Using a PC data cable, connect your device to your PC.2. Refer to the Kies help for more information.
YP-G1user manual
Using this manual2Using this manualThank you for purchasing this Samsung YP-G1. This device will provide you with entertainment based on Samsung’s exceptional technology and high standards.This user manual has been specially designed to guide you through the functions and features of your device.Read me rstPlease read all safety precautions and this manual •carefully before using your device to ensure safe and proper use.The descriptions in this manual are based on the default •settings of your device.Images and screenshots used in this user manual may •dier in appearance from the actual product.Content in this user manual may dier from the product, •or from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsungmobile.com for the latest version of the user manual.Available features and additional services may vary by •device, software, or service provider.Formatting and delivery of this user manual is based •on Google Android operating systems and may vary depending on the user’s operating system.Applications and their functions may vary by country, •region, or hardware specications. Samsung is not liable for performance issues caused by third-party applications.Samsung is not liable for performance issues or •incompatibilities caused by user editing of registry settings.You may upgrade your mobile device’s software by •accessing www.samsungmobile.com.
Using this manual3Note—notes, usage tips, or additional information ►Refer to—pages with related information; for example: ► p.12 (represents “see page 12”)→Followed by—the order of options or menus you must select to perform a step; for example: In Idle mode, open the application list and select Settings →About phone (represents Settings, followed by About phone)[ ] Square brackets—device keys; for example: [] (represents the Power/Lock key)Sound sources, wallpapers, and images provided in this •device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user.Please keep this manual for future reference.•Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or othersCaution—situations that could cause damage to your device or other equipment
Using this manual4TrademarksSAMSUNG and the SAMSUNG logo are registered •trademarks of Samsung Electronics.The Android logo, Google Search• ™, Google Maps™, Google Mail™, YouTube™, Android Market™, and Google Talk™ are trademarks of Google, Inc.Bluetooth• ® is a registered trademark of the Bluetooth SIG, Inc. worldwide.Oracle and Java are registered trademarks of Oracle and/•or its aliates. Other names may be trademarks of their respective owners.Windows Media Player• ® is a registered trademark of Microsoft Corporation.Wi-Fi• ®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.CopyrightCopyright © 2011 Samsung ElectronicsThis user manual is protected under international copyright laws.No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.
Using this manual5ABOUT DIVX VIDEODivX® is a digital video format created by DivX, Inc. This is an ocial DivX Certied® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your les into DivX video.DivX Certied® to play DivX® video up to HD 720p, including premium content.ABOUT DIVX VIDEO-ON-DEMANDThis DivX Certied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.DivX• ®, DivX Certied®, and associated logos are trademarks of DivX, Inc. and are used under licence.All other trademarks and copyrights are the property of •their respective owners.
Contents6ContentsAssembling ........................................... 10Unpack ................................................................ 10Install the battery ............................................. 11Charge the battery ........................................... 12Insert a memory card (optional) ................... 14Attach a hand strap (optional) ...................... 16Getting started ..................................... 17Turn your device on and o ........................... 17Get to know your device ................................. 17Use the touch screen ........................................ 20Lock or unlock the touch screen and keys . . 21Get to know the idle screen ........................... 21Access applications .......................................... 24Customise your device .................................... 26Enter text ............................................................ 28Download applications from Android Market ................................................................. 31Download les from the web ........................ 32Synchronise data .............................................. 32
Contents7Personal information .......................... 58Contacts .............................................................. 58Calendar .............................................................. 61Memo ................................................................... 62Voice Recorder ................................................... 63Web ........................................................ 64Internet ............................................................... 64Maps .................................................................... 67Latitude ............................................................... 69Places ................................................................... 70Navigation .......................................................... 70Google Search ................................................... 71YouTube .............................................................. 71Communication ................................... 34Skype ................................................................... 34Qik Video ............................................................. 34Google Mail ........................................................ 35Email .................................................................... 36Talk ....................................................................... 38Entertainment ...................................... 40Camera ................................................................ 40Videos .................................................................. 49Gallery ................................................................. 50Music .................................................................... 52FMRadio .............................................................. 55
Contents8My Files ................................................................ 87Task Manager ..................................................... 88ThinkFree Oce ................................................ 89Voice Search ....................................................... 90Settings .................................................. 91Access the Settings menu ............................... 91Wireless and network ...................................... 91Sound .................................................................. 92Display ................................................................. 92Location and security ...................................... 94Applications ....................................................... 95Accounts and sync ............................................ 95Privacy ................................................................. 96Samsung Apps .................................................. 73Market ................................................................. 73Connectivity ......................................... 74Bluetooth ............................................................ 74Wi-Fi ..................................................................... 76AllShare ............................................................... 78PC connections .................................................. 80VPN connections ............................................... 81Tools ....................................................... 84Alarm/Clock ........................................................ 84Calculator ............................................................ 86Mini Diary ........................................................... 86
Contents9SD card and device storage ............................ 96Locale and text .................................................. 96Voice input and output ................................... 97Accessibility ........................................................ 98Date and time .................................................... 99About device ...................................................... 99Troubleshooting ................................ 100Safety precautions ............................. 104Index .................................................... 113
Assembling10AssemblingUnpackCheck your product box for the following items:Mobile device•Battery•Travel adapter (charger)•Quick start guide•Use only Samsung-approved software. Pirated or illegal software may cause damage or malfunctions that are not covered by your manufacturer's warranty.The items supplied with your device may vary •depending on the software and accessories available in your region or oered by your service provider.You can obtain additional accessories from your •local Samsung dealer.The supplied accessories perform best for your •device.Accessories other than the supplied ones may not •be compatible with your device.
Assembling11Insert the battery.3 Replace the back cover.4 Install the batteryTo install the battery,If the device is on, press and hold [1 ] and select Power o to turn it o.Remove the back cover.2 Be careful not to damage your ngernails when you remove the back cover.
Assembling12Charge with the travel adapter ›Open the cover to the multifunction jack on the top of 1 the device.Plug the small end of the travel adapter into the 2 multifunction jack.Connecting the travel adapter improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.Charge the batteryBefore using the device for the rst time, you must charge the battery.You can charge the device with the provided travel adapter or by connecting the device to a PC with a PC data cable.Use only Samsung-approved chargers and cables. Unauthorised chargers or cables can cause batteries to explode or damage your device.When your battery is low, the device will emit a warning tone and display a low battery message. The battery icon will also be empty. If the battery level becomes too low, the device will automatically power o. Recharge your battery to continue using your device.
Assembling13When the battery is fully charged (the battery icon is 4 no longer moving), unplug the travel adapter from the device and then from the power outlet.Do not remove the battery before removing the travel adapter. Doing so may cause damage to the device.To save energy, unplug the travel adapter when not in use. The travel adapter does not have a power switch, so you must unplug the travel adapter from the outlet to interrupt the power supply. The travel adapter should remain close to the socket when in use.Charge with the PC data cable ›Before charging, ensure that your PC is turned on.Open the cover to the multifunction jack on the top of 1 the device.Plug the large end of the travel adapter into a power 3 outlet.You can use the device while it is charging, but it •may take longer to fully charge the battery.While the device is charging, the touch screen may •not function due to an unstable power supply. If this happens, unplug the travel adapter from the device.While charging, the device may heat up. This •is normal and should not aect your device’s lifespan or performance.If your device is not charging properly, bring your •device and the charger to a Samsung Service Centre.
Assembling14Samsung uses approved industry standards for memory cards, but some brands may not be fully compatible with your device. Using an incompatible memory card may damage your device or the memory card and can corrupt data stored on the card.Your device supports only the FAT le structure for •memory cards. If you insert a card formatted with a dierent le structure, your device will ask you to reformat the memory card.Frequent writing and erasing of data will shorten •the lifespan of memory cards.When you insert a memory card in your device, •the le directory of the memory card will appear in the sdcard folder. Plug one end (micro-USB) of the PC data cable into the 2 multifunction jack.Plug the other end of the PC data cable into a USB port 3 on a PC.Depending on the type of PC data cable you are using, it may take some time before charging begins.When the battery is fully charged (the battery icon is 4 no longer moving), unplug the PC data cable from the device and then from the PC.Insert a memory card (optional)To store additional multimedia les, you must insert a memory card. Your device accepts microSD™ or microSDHC™ memory cards with maximum capacities of 32 GB (depending on memory card manufacturer and type).
Assembling15Remove the memory card ›Before removing a memory card, rst unmount it for safe removal.In Idle mode, select 1 → Settings → SD card and device storage → Unmount SD card → OK.Remove the back cover.2 Push the memory card gently until it disengages from 3 the device.Pull the memory card out of the memory card slot.4 Remove the memory card.5 Replace the back cover.6 Do not remove a memory card while the device is transferring or accessing information, as this could result in loss of data or damage to the memory card or device.Remove the back cover.1 Insert a memory card with the gold-coloured contacts 2 facing down.Push the memory card in the memory card slot until it 3 locks in place.Replace the back cover.4
Assembling16Attach a hand strap (optional)Remove the back cover.1 Slide a hand strap through the slot and hook it over 2 the small projection.Replace the back cover.3 Format the memory card ›Formatting your memory card on a PC may cause incompatibilities with your device. Format the memory card only on the device.In Idle mode, select → Settings → SD card and device storage → Unmount SD card → OK → Format SD Card → Format SD card → Erase everything.Before formatting the memory card, remember to make backup copies of all important data stored on your device. The manufacturer’s warranty does not cover loss of data resulting from user actions.
Getting started17Getting startedTurn your device on and oTo turn on your device,Press and hold [1 ].If you turn on your device for the rst time, follow the 2 on-screen instructions to set up your device.To turn o your device, press and hold [ ] and select Power o.Follow all posted warnings and directions from •ocial personnel when in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.To use your device's non-network services only, •switch to Flight mode. Press and hold [ ] and select Flight mode.Get to know your deviceDevice layout ›Home keyVolume keyMenu keyProximity sensorLight sensorTouch screenBack keyMouthpieceEarpiece Front camera lens

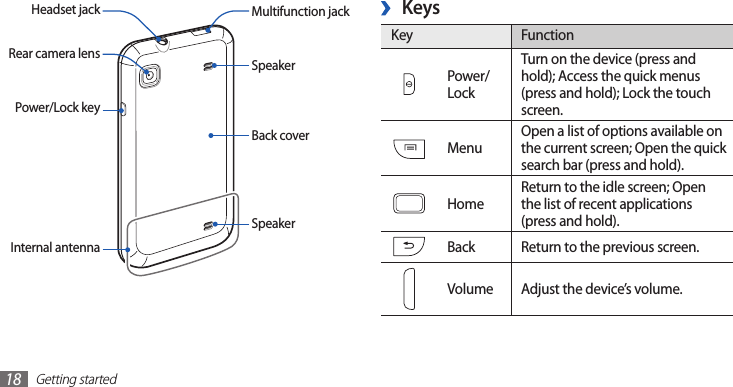

Getting started18Keys ›Key FunctionPower/LockTurn on the device (press and hold); Access the quick menus (press and hold); Lock the touch screen.MenuOpen a list of options available on the current screen; Open the quick search bar (press and hold). HomeReturn to the idle screen; Open the list of recent applications (press and hold).Back Return to the previous screen.Volume Adjust the device’s volume.Back coverSpeakerMultifunction jackSpeakerHeadset jackPower/Lock keyRear camera lensInternal antenna
Getting started19Icon DenitionAlarm activatedEvent noticationSilent mode activatedFlight mode activatedVibration mode activatedMusic playback in progressMusic playback pausedFM radio turned on in the backgroundError occurred or caution requiredBattery power level10:00Current timeIndicator icons ›Icons shown on the display may vary depending on your region or service provider.Icon DenitionWLAN activatedBluetooth activatedBluetooth headset connectedGPS activatedSynchronised with the webUploading dataDownloading dataConnected to PCNew email message
Getting started20For optimal use of the touch screen, remove the •screen protection lm before using your device.Your touch screen has a layer that detects small •electrical charges emitted by the human body. For best performance, tap the touch screen with your ngertip. The touch screen will not react to touches of sharp tools, such as a stylus or pen. Control your touch screen with the following actions:Tap: Touch once with your nger to select or launch a •menu, option, or application.Tap and hold: Tap an item and hold it for more than 2 •seconds to open a pop-up option list.Drag: Tap and drag your nger up, down, left, or right to •move to items on lists.Drag and drop: Tap and hold your nger on an item, and •then drag your nger to move the item.Double-tap: Tap twice quickly with your nger to zoom •in or out while viewing photos or web pages.Use the touch screenYour device’s touch screen lets you easily select items or perform functions. Learn basic actions to use the touch screen.To avoid scratching the touch screen, do not use •sharp tools.Do not allow the touch screen to come into •contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction.Do not allow the touch screen to come into •contact with water. The touch screen may malfunction in humid conditions or when exposed to water.
Getting started21Get to know the idle screenWhen the device is in Idle mode, you will see the idle screen. From the idle screen, you can view your device’s status and access applications.The idle screen has multiple panels. Scroll left or right to a panel of the idle screen. ›Add items to the idle screenYou can customise the idle screen by adding shortcuts to applications or items in applications, widgets, or folders. To add items to the idle screen,Press [1 ] → Add or tap and hold the empty area on the idle screen.Select the item category 2 → an item:Your device turns o the touch screen when you •do not use the device for a specied period.You can adjust the backlight time. In Idle mode, •open the application list and select Settings → Display → Screen timeout.Lock or unlock the touch screen and keysYou can lock the touch screen and keys to prevent any unwanted device operations. To lock, press [ ]. To unlock, turn on the screen by pressing [ ] or the Home key and then ick the grey window with your nger.
Getting started22Remove items from the idle screen ›Tap and hold an item to remove.1 The trash bin appears at the bottom of the idle screen.Drag the item to the trash bin.2 When the item turns red, release the item.3 Use the shortcuts panel ›In Idle mode or while using an application, tap the indicator icons area and drag your nger down to open the shortcuts panel. You can activate or deactivate wireless connection features and access a list of notications, such as new email messages, upcoming events, and processing status. To hide the list, drag the bottom of the list up.Widgets• : Add widgets. Widgets are small applications that provide convenient functions and information on your idle screen.Shortcuts• : Add shortcuts to items, such as applications, bookmarks, and contacts.Folders• : Create a new folder or add folders for your contacts.Wallpapers• : Set a background image.Available items may vary depending on the current idle screen mode.Move items on the idle screen ›Tap and hold an item to move until the item appears 1 grey.Drag the item to the location you want.2
Getting started23 ›Add or remove panels to the idle screenYou can add or remove panels of the idle screen to organise widgets according to your preferences and needs.In Idle mode, press [1 ] → Edit.You can also place your two ngers on the screen and pinch to switch to Edit mode. Add or remove panels by using the following features:2 To remove a panel, tap and hold the thumbnail of a •panel and drag it to the trash bin at the bottom of the screen.To add a new panel, select • .To change the order of the panels, tap and hold the •thumbnail of a panel and drag it to the location you want.When you are nished, press [3 ].From the shortcuts panel, you can use the following options:Wi-Fi• : Activate or deactivate the WLAN connection feature. ► p. 76Bluetooth• : Activate or deactivate the Bluetooth wireless connection feature. ► p. 74GPS• : Activate or deactivate the GPS feature.Silent• : Activate or deactivate Silent mode.Auto rotation• : Activate or deactivate the auto rotation.Available options may vary depending on your region or service provider.
Getting started24Press [4 ] to return to the previous screen; Press the Home key to return to the idle screen.Your device has a built-in motion sensor that detects its orientation. If you rotate the device while using some features, the interface will automatically switch to landscape view. To set the interface to keep the orientation when you rotate the device, select Settings → Display → Auto-rotate screen.Organise applications ›You can reorganise the applications in the application list by changing their order or grouping them into categories to suit your preferences and needs.In the application list, press [1 ] → Edit. Tap and hold an application.2 Access applicationsTo access your device’s applications,In Idle mode, select 1 to access the application list.Scroll left or right to another application screen.2 Select an application.3 When you use applications provided by Google, •you must have a Google account. If you do not have a Google account, sign up for a Google account.You can add a shortcut to an application by •tapping and holding the application icon from the application list. You can move the icon to the location you want on the idle screen.
Getting started25Use the task manager ›Your device is a multitasking device. It can run more than one application at the same time. However, multitasking may cause hang-ups, freezing, memory problems, or additional power consumption. To avoid these problems, end unnecessary programs using the task manager.In Idle mode, open the application list and select 1 Task Manager → Active applications.The list of all the applications currently running on your device appears.To close an application, select 2 End.To close all active applications, select End all.Drag the application icon to the location you want.3 You can move an application icon to another main menu screen.Press [4 ] → Save.To change the order of the main menu screens,In the application list, place your two ngers on the 1 screen and pinch.Tap and hold the thumbnail of a screen and drag it to 2 the location you want.Access recent applications ›Press and hold the Home key to open the list of 1 applications you have accessed recently.Select an application to access.2
Getting started26Adjust the volume of the ringtones ›Press the Volume key up or down to adjust the ringtone volume.Switch to Silent mode ›To mute or unmute your device, do one of the following:Open the shortcuts panel from the top of the screen and •select Silent.Press and hold [• ] and select Silent mode.Activate animation for switching ›windowsIn Idle mode, open the application list and select Settings → Display → Animation → Some animations or All animations.Customise your deviceGet more from your device by customising it to match your preferences.Set the current time and date ›In Idle mode, open the application list and select 1 Settings → Date and time.Set the time and date and change other options.2 Turn on or o the touch tone ›In Idle mode, open the application list and select Settings → Sound → Audible selection.
Getting started27Set a screen lock ›You can lock the touch screen with an unlock pattern or password to prevent unauthorised people from using the device without your permission.Once you set a screen lock, your device will require •an unlock code each time you turn it on or unlock the touch screen.If you forget your PIN or password, bring your •device to a Samsung Service Centre to reset it. Samsung is not responsible for any loss of security •codes or private information or other damages caused by illegal software.Select a wallpaper for the idle screen ›In Idle mode, press [1 ] →Wallpaper → an option.Select an image.2 Select 3 Save or Set wallpaper.Samsung is not responsible for any use of default images or wallpapers provided on your device.Adjust the brightness of the display ›In Idle mode, open the application list and select 1 Settings → Display → Brightness.Clear the check box next to 2 Automatic brightness.Drag the slider3 to adjust the level of brightness.Select 4 OK.The brightness level of the display will aect how quickly the device consumes battery power.
Getting started28Set an unlock passwordIn Idle mode, open the application list and select 1 Settings → Location and security → Set screen lock → Password.Enter a new password (alphanumeric) and select 2 Continue.Enter the password again and select 3 OK.Enter textYou can enter text by selecting characters on the virtual keypad or by inputting handwriting on the screen.You cannot enter text in some languages. To enter text, you should change the writing language to one of the supported languages. ► p. 96Set an unlock patternIn Idle mode, open the application list and select 1 Settings → Location and security → Set screen lock → Pattern.See the on-screen instructions and example patterns 2 and select Next (if necessary).Draw a pattern by dragging your nger to connect at 3 least 4 dots.Select 4 Continue.Draw the pattern again to conrm.5 Select 6 Conrm.
Getting started29You can also use the following keys: 1 2 5 4 6 7 3 Number Function 1 Change case. 2 Switch between Number/Symbol mode and ABC mode. 3 Enter text by voice; This icon is available only when you activate the voice input feature for the Samsung keypad.This feature may be unavailable depending on the selected input language.Change the keyboard type ›You can change the keyboard type. Tap and hold the text input eld and select Input method → a keyboard type.Enter text using the Samsung keypad ›Select 1 → Portrait keypad types and select a text input method.You can select one of key input methods (QWERTY or 3x4 keypads) or handwriting input methods.Enter text by selecting alphanumeric keys or writing 2 on the screen.
Getting started30Copy and paste text ›While you are entering text, you can use the copy and paste feature to use text in other applications.Place the cursor where you want to start.1 Tap and hold the text input eld.2 Select 3 Select text from the option list.Tap on the place where you want to end.4 Tap and hold the highlighted text.5 Select 6 Copy to copy, or Cut to cut the text onto the clipboard.In another application, tap and hold the text input 7 eld.Select 8 Paste to insert the text from the clipboard into the text eld.Number Function 4 Clear your input. 5 Start a new line. 6 Access the keypad settings; Change the text input method (tap and hold). 7 Insert a space; Insert a period (double-tap); Change the input language (scroll left or right).Functions of this key may vary depending on your service provider.If you have text input keyboards downloaded from the web, you can change the keypad type. Tap and hold the text input eld and select Input method → a keypad type.
Getting started31Select an item category 3 → an item.Select 4 Install (for free items) or Buy.If you select Install, select OK to download the item immediately.If you select Buy, you need to enter your credit card information. Follow the on-screen instructions.Uninstall an application ›From the Android Market home screen, press [1 ] → Downloads.Select the item you want to delete.2 Select 3 Uninstall → OK.Download applications from Android MarketBased on the Android platform, your device’s functionality can be extended by installing additional applications. Android Market provides you an easy and quick way to shop for games and mobile applications.This feature may be unavailable depending on •your region or service provider.Your device will save user les from downloaded •applications to the internal memory. Install an application ›In Idle mode, open the application list and select 1 Market.Select 2 Accept when the terms and conditions appear.
Getting started32Synchronise dataYou can synchronise data with various web servers and back up or restore your data.Once the synchronisation is completed, your device stays connected to the web. If any change is made on the web, the updated information will appear on your device and will automatically begin synchronisation, and vice versa.This feature may be unavailable depending on your region or service provider.Set up a server account ›In Idle mode, open the application list and select 1 Settings → Accounts and sync.Select 2 Add account → an account type.Download les from the webWhen you download les or web applications from the web, your device saves them in a memory card.Files you download from the web can include viruses that will damage your device. To lessen your risk, only download les from sources you trust.Some media les include Digital Rights Management to protect copyrights. This protection may prevent you from downloading, copying, modifying, or transferring some les.To download les from the web,In Idle mode, open the application list and select 1 Internet.Search for a le or application and download it.2 To install applications downloaded from websites other than Android Market, you must select Settings →Applications → Unknown sources.
Getting started33Synchronise data manually ›In Idle mode, open the application list and select 1 Settings → Accounts and sync.Select an account.2 Press [3 ] → Sync now. Your device will start synchronising the data you set for synchronisation.Follow the on-screen instructions to complete the 3 account setup.For online community services, such as Facebook or MySpace, enter your user name and password and select Log in.Activate automatic sync ›In Idle mode, open the application list and select 1 Settings → Accounts and sync.Select 2 Auto-sync.Select an account.3 Select the applications you want to synchronise.4 To exclude applications from automatic synchronisation, clear the check boxes next to the applications you want.
Communication34CommunicationSkypeLearn to make calls over the internet.You cannot make a call when a Bluetooth headset is connected.In Menu mode, select 1 Skype.Enter your user name and password, and then select 2 Sign in.If you are launching this application for the rst time, 3 read the terms and conditions and select Accept.Make calls or manage contacts.4 Qik VideoYou can make live video calls and share your videos with others online or by video mail. You can also save videos to show them to your friends and family later.You cannot make a call when a Bluetooth headset is connected.In Menu mode, select 1 Qik Video → Log in.Enter your user name and password and select 2 Log in.Make a video call or share your videos.3
Communication35Enter a name or address in the recipient eld.3 Enter a subject and message.4 To attach an image le, press [5 ] → Attach → a le.Select 6 to send the message.View email messages ›In Idle mode, open the application list and select 1 Google Mail.Select an email message.2 From the message view, use the following options:To reply to the message, select • .To reply to the message including all recipients, select • →Reply all.To forward the message to other people, select • →Forward.Google MailYou can retrieve new email messages from Google Mail™ to your Inbox. When you access this application, the Inbox screen appears. The total number of unread messages displays in the title bar and unread messages display in bold. If you have labelled a message, its label appears in a coloured rectangle on the message.This feature may be unavailable depending on •your region or service provider.This Google Mail menu may be labelled dierently •depending on your service provider.Send an email message ›In Idle mode, open the application list and select 1 Google Mail.Press [2 ] → Compose.
Communication36Add a star to a messageFrom the Inbox screen, tap and hold a message.1 Select 2 Add star. The star icon next to the message is activated.Filter messagesFrom the Inbox screen, press [1 ] → Go to labels.Select the label of the messages you want to view.2 EmailLearn to send or view email messages via your personal or company email account.Set up an email account ›1 In Idle mode, open the application list and select Email.To add a star to the message, select • .To view an attachment, select • Preview. To save it to your memory card, select Download.To archive the message, select • Archive.To delete the message, select • Delete.To move to the previous or next message, select • or .Organise email by labels ›You can organise your email by labelling your messages or adding stars to mark important messages. You can sort messages by label lter.Add a label to a messageFrom the Inbox screen, tap and hold a message.1 Select 2 Change labels.Select a label to add and select 3 OK.
Communication37Select 3 Contacts.You can enter an email address manually or select one from the logs or contact groups by selecting another option.Select contacts and select 4 Done.Select the Cc/Bcc eld and add more recipients.5 Select the subject eld and enter a subject.6 Select the text input eld and enter your email text.7 Select8 Attach and attach a le.You can select a le from the le list or create a new photo, video, or sound.Select 9 Send to send the message.If you are oine, the message will be held in the message thread list until you are online.Enter your email address and password.2 Select 3 Next (for general email accounts) or Manual setup (for other company email accounts).Follow the on-screen instructions.4 When you are nished setting up the email account, the email messages are downloaded to your device. If you have created more than two accounts, you can switch between email accounts; Press [ ] → Accounts and select one you want to retrieve messages from.Send an email message ›1 In Idle mode, open the application list and select Email →an email account.Press [2 ] → Compose.
Communication38To move the message to another folder, press [• ] →Move to.To load images from the message, press [• ] →Show pictures.To view an attachment, select the attachment item. To •save it to your memory card, select .TalkLearn to chat with friends and family via Google Talk™.This feature may be unavailable depending on your region or service provider.Add friends to your friend list ›In Idle mode, open the application list and select 1 Talk.The friend list shows all of your Google Talk contacts at a glance.View an email message ›When you open an email account, you can view previously retrieved emails oine or connect to the email server to view new messages. After retrieving email messages, you can view them oine.In Idle mode, open the application list and select 1 Email → an email account.Press [2 ] → Refresh to update the message list.Select an email message.3 From the message view, use the following options:To reply to the message, press [• ] → Reply.To forward the message to other people, press [• ] → Forward.To delete the message, press [• ] → Delete.
Communication39Press [2 ] → Add friend.Enter an email address of the friend and select 3 Send invitation.When your friend accepts the invitation, the friend is added to your friend list.Start a chat ›In Idle mode, open the application list and select 1 Talk.Select a friend from the friend list. The chat screen 2 opens.Enter your message and select 3 Send.To insert emoticons, press [ ] → More → Insert smiley.To switch between active chats, press [4 ] → Switch chats.To end the chat, press [5 ] → End chat.
Entertainment40EntertainmentCameraLearn how to capture and view photos and videos. You can take photos at resolutions up to 2048 x 1536 pixels (3.2 megapixels) and videos at resolutions up to 720 x 480 pixels.The camera interface appears only in the •landscape orientation.Tap the screen to hide or display icons in the •viewnder. The camera automatically turns o when you do •not use it for a specied period.The memory capacity may dier depending on •the shooting scene or shooting conditions.Capture a photo ›1 In Idle mode, open the application list and select Camera.Rotate the device anti-clockwise to landscape view.2 Aim the lens at the subject and make any necessary 3 adjustments. 7 8 9 2 3 4 5 6 1
Entertainment41Number Function 8 Capture a photo. 9 View the photo you captured last.Press the Volume key to zoom in or out.4 The zoom function may be unavailable when shooting in the highest resolution.Select 5 to take a photo. The photo is saved automatically.After taking photos, select to view the taken photos.To view more photos, scroll left or right.•To zoom in or out, tap the screen and select • or . You can also double-tap the screen to zoom in or out.To send a photo to others, select • Share.To set a photo as wallpaper or an ID image for a contact, •select Set as.To delete a photo, select • Delete.Number Function 1 Check the camera status and settings.• : Resolution• : Exposure metre type• : GPS activated• : Number of photos you can take (according to available memory)• : Storage location 2 Switch between the front and rear camera lenses. 3 Change the shooting mode. 4 Change the scene mode. 5 Adjust the exposure value; Select + to increase or - to decrease. 6 Change the camera settings. 7 Switch to the camcorder.
Entertainment42Capture a photo in Smile shot mode ›Your camera can recognise people’s faces and help you take photos of their smiling faces. In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 →Smile shot.Make any necessary adjustments.4 Select 5 .Aim the camera lens at your subject. 6 Your device recognises people in an image and detects their smiles. When the subject smiles, the device automatically takes a photo.Capture a photo by using preset ›options for various scenesYour camera provides you with predened settings for various scenes. You can simply select the proper mode for your shooting condition and subjects. For example, when you take photos at night, select the night mode that uses an extended exposure. In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 → a scene → .Make any necessary adjustments.4 Select 5 to take a photo.
Entertainment43Capture a panoramic photo ›You can take wide panoramic photos using Panorama shooting mode. This mode is convenient for photographing landscapes.In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 →Panorama.Make any necessary adjustments.4 Select 5 to take the rst photo.Slowly move the device in any direction and align the 6 green frame with the viewnder.When you have aligned the green frame and viewnder, the camera will automatically take the next photo.Repeat step 6 to complete the panoramic photo.7 Capture a series of photos ›You can easily take a series of photos of moving subjects. This is useful when you are photographing children at play or a sporting event.In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 → Continuous.Make any necessary adjustments.4 Tap and hold 5 . The camera will continue to take photos until you release the key.
Entertainment44Select 6 to take the rst photo.The half of the rst photo appears as a transparent guide for the next photo.Make any necessary adjustments with the aid of the 7 guide.Select 8 to take the second photo.The device will automatically combine the half of the rst photo and the other half of the second photo into one photo.Capture a photo of action ›You can capture shots of a moving subject and then combine them into a single photo that shows the action.In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Capture a combined photo ›You can take two photos with the same background and then combine the left and right halves of each photo into one photo. This feature is helpful when you want to take a photo with a friend but there is no one available to take the photo for you.The preview image appears enlarged in this mode, but les are saved and maintained at normal image quality.In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 → Add me.Make any necessary adjustments.4 Tap the left or right side you want to take a photo rst.5
Entertainment45Make any necessary adjustments.4 Select 5 to take a photoCustomise camera settings ›Before taking a photo, select → to access the following options:Option FunctionOutdoor visibilityActivate Outdoor visibility to select an appropriate lighting condition.Macro Activate Macro mode to take close-up photos.Timer Select the length of the delay before the camera takes a photo.Resolution Change the resolution option.White balance Adjust the colour balance according to lighting conditions.Select 3 → Action shot.Make any necessary adjustments.4 Select 5 to capture the rst photo.Move the device to follow the moving subject.6 The device automatically captures the next photos.Continue to follow the subject until the device has 7 captured all the shots necessary for the action photo.Capture a photo in Self shot mode ›You can take photos of yourself conveniently using the front camera lens.In Idle mode, open the application list and select 1 Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 .
Entertainment46Setting FunctionShutter sound Set the camera shutter to make a sound when capturing a photo.Storage Select a memory location for storing captured photos.Reset Reset menus and shooting options.Record a video ›1 In Idle mode, open the application list and select Camera.Rotate the device anti-clockwise to landscape view.2 Select 3 to switch to the camcorder.Option FunctionEects Apply a special eect, such as sepia or black and white tones.ISO Adjust the sensitivity of the camera imaging sensor.Metering Select a type of exposure metre.Image quality Set the quality level for your photos.Adjust Adjust contrast, saturation, and sharpness.Before taking a photo, select → to access the following settings:Setting FunctionGuidelines Display the guidelines on the preview screen.Review Set the camera to display the taken image.
Entertainment47Number Function 2 Adjust the exposure value; Select + to increase or - to decrease. 3 Select the length of the delay before the camera starts recording a video. 4 Change the resolution option. 5 Change the camcorder settings. 6 Switch to the camera. 7 Record a video. 8 View the video you recorded last.Press the Volume key to zoom in or out. 5 The zoom function may be unavailable when recording in the highest resolution.Aim the lens at the subject and make any necessary 4 adjustments. 6 7 8 2 3 4 5 1 Number Function 1 Check the camcorder status and settings.• : Length of video that can be recorded (according to available memory)• : Storage location
Entertainment48Customise camcorder settings ›Before recording a video, select → to access the following options:Option FunctionOutdoor visibilityActivate Outdoor visibility to select an appropriate lighting condition.White balance Adjust the colour balance according to lighting conditions.Eects Apply a special eect, such as sepia or black and white tones.Video quality Set the quality level for your videos.Adjust Adjust contrast, saturation, and sharpness.Select 6 to start recording.Select 7 to stop recording. The video is saved automatically.The camera may not be able to properly record videos to a memory card with a slow transfer speed.After recording videos, select to view the recorded videos.To view more videos, scroll left or right. •To send a video to others, select • Share.To play a video, select • Play.To delete a video, select • Delete.
Entertainment49VideosLearn to use the video player to play various kinds of videos. The video player supports the following le formats: 3gp, mp4, avi, wmv, v, mkv, rm (Codec: MPEG4, H.263, Sorenson H.263, H.264, VC-1, DivX/XviD, Realvideo).Some le formats are not supported depending •on the software of the device.If the le size exceeds the available memory, an •error can occur when you open les. In Idle mode, open the application list and select 1 Videos.Select a video to play.2 Rotate the device anti-clockwise to landscape view.3 Before recording a video, select → to access the following settings:Setting FunctionGuidelines Display the guidelines on the preview screen.Audio recording Turn the audio on or o.Review Set the camera to display the recorded video.Storage Select a memory location for storing recorded videos.Reset Reset menus and shooting options.
Entertainment50GalleryLearn to view photos and play videos saved on your memory card.Supported le formats ›Type FormatImage Extension: bmp, gif, jpg, pngVideoExtension: 3gp, mp4, avi, wmv, v, •mkv, rmCodec: MPEG4, H.263, Sorenson •H.263, H.264, VC-1, DivX/XviD, RealvideoSome le formats are not supported depending •on the software of the device.If the le size exceeds the available memory, an •error can occur when you open les. Control playback with the following icons:4 Icon FunctionChange a ratio of the video screen.Select a sound eect.Skip backward; Scan backward in a le (tap and hold).Pause playback; Select to resume playback.Skip forward; Scan forward in a le (tap and hold).Adjust the volume.Stop playback and return to the playlist.
Entertainment51To delete a photo, select • Menu → Delete.To use additional features, select • Menu → More and select one of the following options:Details - : View photo details.Set as - : Set a photo as wallpaper or a caller image for a contact.Crop - : Crop an image from a photo.Rotate left - : Rotate a photo anti-clockwise.Rotate right - : Rotate a photo clockwise.Play a video ›1 In Idle mode, open the application list and select Gallery.Select a video (with the 2 icon) to play.Rotate the device anti-clockwise to landscape view.3 Control playback with the virtual keys. 4 View a photo ›1 In Idle mode, open the application list and select Gallery.Select a folder.2 To change the view mode, select 3 or at the top right of the screen.Select a photo (with no icon) to view.4 While viewing a photo, use the following options:To view more photos, scroll left or right. •To zoom in or out, select • or . You can also tap the screen with two ngers and spread them apart (move your ngers closer together to zoom out).To start a slideshow in the selected folder, select •Slideshow. Tap the screen to stop the slideshow.To send a photo to others, select • Menu → Share → an option.
Entertainment52You can also play music les in the following •formats if you open them from My Files or the web browser: mid, xmf, rtttl, imy, rtx, ota, amr, wav, mxmf. Some le formats are not supported depending •on the software of the device.If the le size exceeds the available memory, an •error can occur when you open les. Add music les to your memory card ›Start by transferring les to your memory card:Download from the wireless web. • ► p. 64Download from a PC with the optional Samsung Kies. •► p. 80Receive via Bluetooth. • ► p. 75Copy to your memory card. • ► p. 81 Share images or videos ›In Idle mode, open the application list and select 1 Gallery.Select a folder.2 Select an image or video le.3 Press [4 ] → Share or Share video → a sharing option.MusicLearn to listen to your favourite music while on the go with the music player. The music player supports the following le formats: mp3, ogg, aac.
Entertainment53Icon FunctionSkip backwards; Scan backward in a le (tap and hold).Pause playback; Select to resume playback.Skip forward; Scan forward in a le (tap and hold).1. These icons are shown when you tap the player screen.Play music ›After transferring music les to your device or memory card,In Idle mode, open the application list and select 1 Music.Select a music category 2 → a music le.Control playback with the following keys:3 Icon FunctionSelect a sound eect.Adjust the volume.Activate Shue mode.Select a section you want to repeat.Change the repeat mode (o, repeating a le, or repeating all les).111
Entertainment54You can control playback with a headset: Press the •headset button to play or pause playback. You can also press and hold the headset button to launch the music player.SRS CS Headphone• ™ delivers a 5.1 surround sound experience over standard headphones or earbuds when listening to multichannel content, such as DVD movies.WOW HD• ™ signicantly improves the playback quality of audio, delivering a dynamic 3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.Create a playlist ›In Idle mode, open the application list and select 1 Music.Select a category 2 → a music le.Press [3 ] → Add to playlist → Create playlist.Enter a title for your new playlist and select 4 Save.To add more music les to the playlist, play a le and 5 press [ ] → Add to playlist → the new playlist.
Entertainment55FMRadioLearn to listen to music and news on the FM radio. To listen to the FM radio, you must connect a headset, which serves as the radio antenna.Listen to the FM radio ›Plug a headset into the device.1 In Idle mode, open the application list and select 2 FMRadio.The FM radio scans and saves available stations automatically.The rst time you turn on the FM radio, you will be prompted to start automatic tuning.Customise music player settings ›In Idle mode, open the application list and select 1 Music.Select a category 2 → a music le.Press [3 ] →More → Settings.Adjust the following settings to customise your music 4 player:Option FunctionSoundAlive Select a sound eect.Play speed Set the playback speed of a music le.Master EQ Set the master equaliser.Music menu Select music categories to display on the music library screen.Music play screenSelect a visualisation to be displayed during playback.
Entertainment56Number Function 4 Search for an available radio station. 5 Add the current radio station to the favourites list. 6 Turn o or on the FM radio. 7 Open the list of saved radio stations.Save a radio station automatically ›Plug a headset into the device.1 In Idle mode, open the application list and select 2 FMRadio.Press [3 ] → Scan → a scanning option. The FM radio scans and saves available stations automatically.Control the FM radio with the following keys:3 4 6 7 2 1 5 4 3 Number Function 1 Change the frequency by scrolling left or right on the scale bar. 2 Change the sound output (headset or device's speaker). 3 Fine-tune the frequency.
Entertainment57Add a radio station to the favourites list ›Plug a headset into the device.1 In Idle mode, open the application list and select 2 FMRadio.Scroll to the radio station you want.3 Select + to add to the favourites list.4
Personal information58Personal informationContactsLearn to create and manage a list of your personal or business contacts. You can save names, mobile phone numbers, home phone numbers, email addresses, birthdays and more for your contacts. ›Create a contactIn Idle mode, open the application list and select 1 Contacts.Select 2 .Select a memory location.3 If you have more than one account, select an account to which you want to add the contact.Enter contact information.4 To add a new item, select . To delete an item, select .Select 5 Save to add the contact to memory.Find a contact ›1 In Idle mode, open the application list and select Contacts.Scroll up or down on the contact list.2 Select a contact’s name.3 Once you nd a contact, you can:send an email message by selecting an email address.•
Personal information59In Idle mode, open the application list and select1 Contacts.Press [2 ] → Get friends.Select an account.3 Create a group of contacts ›By creating groups of contacts, you can manage multiple contacts and send email to an entire group. Start by creating a group.In Idle mode, open the application list and select 1 Contacts → Groups.Press [2 ] → Create.Enter a name.3 Select 4 Save.Create your namecard ›In Idle mode, open the application list and select 1 Contacts.Press [2 ] → My prole.Enter your own personal details.3 Select 4 Save.You can send your namecard by attaching it to an email or transferring it via the Bluetooth wireless feature.Retrieve contacts from your community ›accountsYou can view the list of community website accounts and select an account to add a contact from the website to your phone contacts.
Personal information60To export contacts from your device to a memory card,In Idle mode, open the application list and select 1 Contacts.Press [2 ] → Import/Export → Export to Internal Memory.Select 3 OK to conrm.View social network activities ›You can view the recent activities of contacts in social network services, such as Facebook, MySpace, and Twitter.In Idle mode, open the application list and select Contacts → Activities.Import or export contacts ›To import contact les (in vcf format) from a memory card to your device,In Idle mode, open the application list and select 1 Contacts.Press [2 ] → Import/Export → Import from Internal Memory.Select a memory location.3 If you have more than one account, select an account to which you want to add the contact.Select an option for importing a single contact le, 4 multiple contact les, or all contact les, and select OK.Select contact les to import and select 5 OK.
Personal information61View events ›To change the calendar view,In Idle mode, open the application list and select 1 Calendar.Select a view mode from the top of the calendar.2 To view events of a specic date,In Idle mode, open the application list and select 1 Calendar.Select a date on the calendar. In month view, days with 2 scheduled events are indicated by a small triangle.To move to a specic day by entering a date manually, press [ ] → Go to, enter the date by selecting + or -, and select Set.To select today's date, press [ ] → Today.CalendarLearn to create and manage daily, weekly or monthly events, and set alarms to remind yourself of important events.To use the calendar application, you need to sign in to your Google account. Create an event ›In Idle mode, open the application list and select 1 Calendar.Press [2 ] → Create.Enter the details of the event as required.3 Select 4 Save.
Personal information62MemoLearn to record important information to save and view at a later date.Create a memo ›In Idle mode, open the application list and select 1 Memo.Select 2 Create memo or press [ ] → Create.Enter your memo text.3 Press [4 ] to hide the keypad.Select a colour to change a background colour.5 Select 6 Save.Select an event to view its details.3 You can send the event to others by pressing [ ] → Send via → an option.Stop an event alarm ›If you set an alarm for a calendar event, the event alarm icon will appear at the specied time.Open the shortcuts panel from the top of the screen.1 Select a reminder to view more details about the 2 event.To snooze or dismiss the reminder, select 3 Snooze all or Dismiss all.
Personal information63Speak into the microphone.3 When you are nished recording a memo, select 4 Stop.Your memo is saved automatically.To record more voice memos, select 5 Record from the bottom of the screen.Play a voice memo ›In Idle mode, open the application list and select 1 Voice Recorder.Select 2 List.Select a voice memo to play.3 You can send the voice memo to others by pressing [] → Share. View memos ›In Idle mode, open the application list and select 1 Memo.Select a memo to view its details.2 You can send the memo to others by tapping and holding the memo and selecting Send via →an option.Voice RecorderLearn to operate your device's voice recorder.Record a voice memo ›In Idle mode, open the application list and select 1 Voice Recorder.Select 2 Record to start recording.
Web64WebWeb services require a data connection. Contact your operator to choose the best data plan.InternetLearn to access and bookmark your favourite web pages.The web browser menu may be labelled •dierently depending on your service provider.Available icons may vary depending on your •region or service provider. ›Browse web pagesIn Idle mode, open the application list and select 1 Internet to launch a specied homepage.To access a specic web page, select the URL input eld, enter the web address of the web page, and select .Navigate web pages with the following keys:2 2 1
Web65To adjust the brightness of the screen, press [• ] →Brightness setting. This feature may be unavailable depending on your region.To reload the current web page, press [• ] → Refresh.To go to the next page in history, press [• ] → Forward.To bookmark the current web page, press [• ] →More → Add bookmark.To add a shortcut to the current web page to the idle •screen, press [ ] →More→Add shortcut to Home.To add the RSS feed, press [• ] →More → Add RSS feeds.To search for text on the web page, press [• ] → More → Find on page.To view web page details, press [• ] → More → Page info.To send the web address of the web page to others, •press [ ] → More → Share page.Number Function 1 Enter the web address of a web page to access. 2 Open a list of saved bookmarks, frequently visited pages and recent internet history.The screen may dier depending on your region or service provider.While browsing the web page, use the following options:To zoom in or out, double-tap the screen. You can also •use the two nger zoom; Place your two ngers on the screen and slowly pinch or spread apart.To open a new window, press [• ] → New window.To view the currently active windows, press [• ] → Windows. You can open multiple pages and switch back and forth between them.
Web66From the bookmark list, tap and hold a bookmark and use the following options:To open the web page in the current window, select •Open.To open the web page in a new window, select • Open in new window.To edit the bookmark details, select • Edit bookmark.To add the bookmark shortcut to the idle screen, select •Add shortcut to Home.To send the web address of the web page to others, •select Share link.To copy the web address of the web page, select • Copy link URL.To delete the bookmark, select • Delete bookmark.To use the web page as your homepage of the browser, •select Set as homepage.To view the download history, press [• ] → More → Downloads.To customise browser settings, press [• ] → More → Settings.Bookmark your favourite web pages ›If you know the web address of a web page, you can manually add a bookmark. To add a bookmark,In Idle mode, open the application list and select 1 Internet.Select 2 →Bookmarks.Select 3 Add or press [ ] → Bookmark last-viewed page.Enter a page title and a web address.4 Select 5 OK.
Web67between buildings, in tunnels or underground passages, •or inside buildingsin poor weather•around high voltage or electromagnetic elds•Do not touch the internal antenna area or cover this area with your hands or other objects while using the GPS functions.This feature may be unavailable depending on your region or service provider.Activate location services to use with ›Google MapsYou must activate location services to nd your location and search the map.In Idle mode, open the application list and select 1 Settings → Location and security.Access the frequently visited pages or ›the recent historyIn Idle mode, open the application list and select 1 Internet.Select 2 → Most visited or History.Select a web page to access.3 You can add a web page to the bookmark list by selecting the star icon on the right.MapsLearn to use Google Maps™ to nd your location, search the map for streets, cities, or countries, and get directions.To receive better GPS signals, avoid using your device in the following conditions:
Web68Search for a specic location ›In Idle mode, open the application list and select 1 Maps.The map will display your current location.If you are launching this application for the rst time, 2 select OK to conrm.Press [3 ] → Search or select .Enter a keyword for the location and select 4 .To search for a place around you, select • .To zoom in or out, select • or .To add layers to the map, select • .To view your current location, select • .To add a star to the location, select the balloon of the location name → .Adjust the following settings to activate location 2 services:Option FunctionUse wireless networksSet to use WLAN and/or mobile networks for nding your location.Use GPS satellitesSet to use the GPS satellite for nding your location.Use sensor aidingUse sensors to enhance pedestrian positioning when the GPS signal is obstructed. There may be variations between the sensor estimates and your actual location.
Web69LatitudeLearn to share your location with your friends and view friends’ locations via Google Latitude™.In Idle mode, open the application list and select 1 Latitude.The device automatically joins Latitude. Press [2 ] → Add friends →Select from Contacts or Add via email address.Select friends you want to add or enter an email 3 address, and select Add friends → Yes .When your friend accepts your invitation, you can share locations.Press [4 ] → See map.Your friends' locations are marked with their photos on the map.Get directions to a specic destination ›In Idle mode, open the application list and select 1 Maps.Press [2 ] → Directions.Enter the addresses of the starting location and the 3 ending location.To enter an address from your contact list or point the location on the map, select → Contacts or Point on map.Select a travel method (car, bus, or walk) and select 4 Go.Select a travel route to view details of your trip (if 5 necessary).Select 6 Show on map.When you are nished, press [7 ] → Clear Map.
Web70NavigationLearn to use the GPS navigation system to nd and show your destination with voice guidance.This feature may be unavailable depending on your region or service provider.In Idle mode, open the application list and select 1 Navigation.If you are launching this application for the rst time, 2 select Accept.Enter your destination by using one of the following 3 methods:Speak Destination• : Speak your destination such as "Navigate to destination."Type Destination• : Enter your destination with the virtual keypad.PlacesLearn to search for a place around you.This feature may be unavailable depending on your region or service provider.In Idle mode, open the application list and select 1 Places.Select a category.2 Your device searches for places around your current location that are related to the category.Select a place name to view its details.3 To view the place on the map, select .
Web71YouTubeLearn to view and upload videos via YouTube.This feature may be unavailable depending on your region or service provider.Watch videos ›In Idle mode, open the application list and select 1 YouTube.Select 2 Accept to conrm, if you are launching this application for the rst time.Select a video from the list.3 Rotate the device anti-clockwise to landscape view.4 Contacts• : Select your destination from addresses of your contacts.Starred Places• : Select your destination from the list of your starred places.Select 4 Install to use voice-guided navigation.To end the navigation, press [5 ] → Exit Navigation.Google SearchYou can search for applications in your device and specic data on the web.In Idle mode, open the application list and select 1 Google Search.Enter a letter or a word of the data to search.2 Select the item's name you want to access.3
Web72Control playback with the following keys:5 2 1 Number Function 1 Move to a point of the le by dragging the bar. 2 Change the quality of the display.Upload videos ›In Idle mode, open the application list and select 1 YouTube.Press [2 ] → Upload and select a video. Skip to 8.If you want to upload new videos, select to turn on the camera.Rotate the device anti-clockwise to landscape view.3 Aim the lens at the subject and make any adjustments.4 Select 5 to start recording.Select 6 to stop recording. Select 7 Save to upload the video that you have recorded.Enter your user name and password and select 8 Sign in.
Web73Samsung AppsSamsung Apps allows you to simply and easily download an abundance of applications directly to your device. Featuring a wealth of games, news, reference, social networking, navigation, health related applications and more, Samsung Apps gives you instant access to a huge choice of mobile experience.Your device gets smarter with fully optimised applications from Samsung Apps. Explore amazing applications and make your mobile life even better. The feature may be unavailable depending on •your region or service provider.For details, please visit www.samsungapps.com.•In Idle mode, open the application list and select 1 Samsung Apps.Search for and download applications as desired.2 MarketYou can download games or other applications from the Android Market. This feature may be unavailable depending on your region or service provider.In Idle mode, open the application list and select 1 Market. Search for a le and download it to the device. 2 ►p. 31
Connectivity74ConnectivityBluetoothBluetooth is a short-range wireless communications technology capable of exchanging information over a distance of about 10 m without requiring a physical connection.You do not need to line up the devices to beam information with Bluetooth. If the devices are within range of one another, you can exchange information between them even if they are located in dierent rooms.Samsung is not responsible for the loss, •interception, or misuse of data sent or received via the Bluetooth wireless feature. Always ensure that you share and receive data •with devices that are trusted and properly secured. If there are obstacles between the devices, the operating distance may be reduced.Some devices, especially those that are not •tested or approved by Bluetooth SIG, may be incompatible with your device. ›Turn on the Bluetooth wireless featureIn Idle mode, open the application list and select 1 Settings → Wireless and network → Bluetooth settings.Select 2 Bluetooth to turn on the Bluetooth wireless feature.
Connectivity75Send data using the Bluetooth wireless ›featureSelect a le or item, such as a contact, memo, or media 1 le, from an appropriate application or My Files.Press [2 ] →Share, Send via, or Send namecard via → Bluetooth.Search for and pair with a Bluetooth-enabled device.3 ›Receive data using the Bluetooth wireless featureIn Idle mode, open the application list and select 1 Settings → Wireless and network → Bluetooth settings → Visible.Your device is visible to other Bluetooth devices for 120 seconds.Find and pair with other Bluetooth- ›enabled devicesIn Idle mode, open the application list and select 1 Settings → Wireless and network → Bluetooth settings → Scan devices.Select a device.2 Enter a PIN for the Bluetooth wireless feature or the 3 other device’s Bluetooth PIN, if it has one, and select OK. Alternatively, select Accept to match the PIN between your device and the device.When the owner of the other device enters the same PIN or accepts the connection, pairing is complete. If the pairing is successful, the device will automatically search for available services.Some devices, especially headsets or hands-free car kits, may have a xed Bluetooth PIN, such as 0000. If the other device has a PIN, you must enter it.
Connectivity76 ›Activate the WLAN featureIn Idle mode, open the application list and select Settings → Wireless and network →Wi-Fi settings →Wi-Fi.An active WLAN running in the background will consume battery power. To preserve battery power, activate the WLAN only when needed.Find and connect to a WLAN ›In Idle mode, open the application list and select 1 Settings → Wireless and network → Wi-Fi settings. The device will automatically search for available WLANs. Select a network under 2 Wi-Fi networks.Enter a password for the network (if necessary).3 Select 4 Connect.When prompted, enter the PIN for the Bluetooth 2 wireless feature and select OK (if necessary). Select 3 Accept to conrm that you are willing to receive data from the device (if necessary).Received data is saved to the bluetooth folder.Wi-FiLearn to use your device’s wireless networking capabilities to activate and connect to any wireless local area network (WLAN) compatible with the IEEE 802.11 b/g/n standards.You can connect to the internet or other network devices anywhere an access point or wireless hotspot is available.Your device uses non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors in France.
Connectivity77In Idle mode, open the application list and select 1 Settings → Wireless and network → Wi-Fi settings.Select 2 WPS button connection.Press a WPS button on the access point within 2 3 minutes.To connect to a WLAN with a WPS PIN,In Idle mode, open the application list and select 1 Settings → Wireless and network → Wi-Fi settings.Select a network indicated by the WPS icon and select 2 WPS PIN.On the access point, enter the PIN and press the start 3 button.Add a WLAN manually ›In Idle mode, open the application list and select 1 Settings → Wireless and network → Wi-Fi settings → Add Wi-Fi network.Enter the SSID for the network and select the security 2 type. Set the security settings depending on the selected 3 security type.Select 4 Save.Connect to a WLAN using a Wi-Fi ›Protected Setup (WPS)Using WPS, you can connect to a secured network. To connect to a WLAN with a WPS button,
Connectivity78Adjust the following settings to customise the DLNA 3 feature:Option FunctionMedia server nameEnter a name for your device as a media server.Share mediaTurn on video sharing, image sharing or music sharing with other DLNA-enabled devices.Access point networkSelect a connection prole to use for DLNA connections.Upload from other devicesSet whether or not to accept the upload from other devices.Default memorySelect the default memory location for saving downloaded media les.AllShareLearn to use the Digital Living Network Alliance (DLNA) service that enables you to share media les between DLNA-enabled devices in your home over a WLAN. You must rst activate the WLAN feature and add a WLAN prole. ► p. 76Customise DLNA settings for sharing ›media lesTo allow other DLNA-enabled devices to access media les on your device, you must activate media sharing. Some les may not play on the DLNA-enabled devices depending on the devices.In Idle mode, open the application list and select 1 AllShare.Select 2 Settings.
Connectivity79Play others’ les on your device ›In Idle mode, open the application list and select 1 AllShare.Select 2 Play le from server on my phone.Your device automatically searches for DLNA-enabled devices.Select a device as the media server—the one that 3 contains media les.Select a media category and a le.4 Select 5 Add to playlist.Control playback using icons of your device.6 Play your les on another DLNA- ›enabled deviceIn Idle mode, open the application list and select 1 AllShare.Select 2 Play le from my phone on another player.Select a media category 3 → a le.Select 4 Add to playlist.Select a player—the one that will play the media le. 5 Playback begins at the selected player.Control playback using icons of your device.6 Playback may be buered, depending on the network connection and the connected server.
Connectivity80PC connectionsLearn to connect your device to a PC with a PC data cable in various USB connection modes. By connecting the device to a PC, you can transfer data to and from your device directly and use the Samsung Kies program. ›Connect with Samsung KiesEnsure that Samsung Kies is installed on your PC. You can download the program from the Samsung website (www.samsung.com/kies).Using a PC data cable, connect the multifunction jack 1 on your device to a PC.Samsung Kies will launch automatically.If Samsung Kies does not automatically launch, double-click the Samsung Kies icon on your PC.Copy les from the PC to the phone.2 Refer to the Samsung Kies help for more information.Play les of one device on the other ›deviceIn Idle mode, open the application list and select 1 AllShare.Select 2 Play le from server on another player via my phone.Your device automatically searches for DLNA-enabled devices.Select a device as the media server—the one that 3 contains media les.Select a media category and a le.4 Select 5 Add to playlist.Select a player—the one that will play the media le. 6 Playback begins at the selected player.Control playback using icons of your device.7
Connectivity81To disconnect the device from the PC, click the USB device icon on the Windows task bar and click the option to safely remove the mass storage device. Then remove the PC data cable from the PC. Otherwise, you may lose data stored on the memory card or damage the memory card.VPN connectionsYou can create virtual private networks (VPN) and connect to your private network securely through a public network, such as the internet.Your device should already be congured with internet access. If you have trouble accessing the internet, you need to edit connections. If you are not sure about the connection information to enter, ask your service provider. ›Connect as a mass storage deviceYou can connect your device to a PC as a removable disk and access the le directory. If you insert a memory card in the device, you can also access the le directory of the memory card by using the device as a memory card reader.The le directory of the memory card will appear as a removable disk, separate from the internal memory.If you want to transfer les from or to a memory card, 1 insert a memory card into the device.Using a PC data cable, connect the multifunction jack 2 on your device to a PC.When connected, select 3 Connect USB storage.Open the folder to view les.4 Copy les from the PC to the memory card.5 When you are nished, select 6 Turn O.
Connectivity82Option FunctionEnable L2TP secretSet to use the L2TP secret password.Set L2TP secret Enter the L2TP secret password.Set user certicateSelect a user certicate that the VPN server uses to identify you. You can import certicates from the VPN server or download from the web.Set CA certicateSelect a certicate authority (CA) certicate that the VPN server uses to identify you. You can import certicates from the VPN server or download from the web.DNS search domainsEnter the domain name server (DNS) address.Set up VPN connections ›In Idle mode, open the application list and select 1 Settings → Wireless and network → VPN settings → Add VPN.Select a VPN type.2 Customise the connection information.3 Available options may vary depending on the VPN type.Option FunctionVPN name Enter a name of the VPN server.Set VPN server Enter the IP address of the VPN server.Enable Encryption Set to encrypt the VPN server.Set IPsec pre-shared key Enter a pre-shared key.
Connectivity83Connect to a private network ›In Idle mode, open the application list and select 1 Settings → Wireless and network → VPN settings.Select a private network to connect.2 Enter the user name and password and select 3 Connect.
Tools84ToolsAlarm/ClockLearn to set and control alarms, and world clocks. You can also use the stopwatch and count-down timer.Set a new alarm ›In Idle mode, open the application list and select 1 Alarm/Clock → Alarm.Select 2 Create alarm or press [ ] → Create.Set alarm details.3 When you are nished, select 4 Save.Stop an alarm ›When the alarm sounds,To stop the alarm, drag • right until it reaches the dot.To repeat the alarm after a specied length of time, drag • left until it reaches the dot.Delete an alarm ›In Idle mode, open the application list and select 1 Alarm/Clock → Alarm.Press [2 ] → Delete.Select alarms to delete.3 Select 4 Delete.
Tools85Select 3 Lap to record lap times.When you are nished, select 4 Stop. Select 5 Reset to clear recorded times.Use the count-down timer ›In Idle mode, open the application list and select 1 Alarm/Clock → Timer.Set the length of time to count down.2 Select 3 Start to begin the countdown.You can now use other functions with the timer counting down in the background. Press the Home key or [ ] and access another application.When the timer expires, drag 4 right until it reaches the dot.Create a world clock ›In Idle mode, open the application list and select 1 Alarm/Clock → World clock.Select 2 Add city or press [ ] → Add. Enter a city name or select one from the city list.3 To select a city in the world map view, select .To add more world clocks, repeat steps 2-3.4 To apply the summer time to the clocks, tap and hold a clock and select DST settings.Use the stopwatch ›In Idle mode, open the application list and select 1 Alarm/Clock → Stopwatch.Select 2 Start to begin the stopwatch.
Tools86View the calculation history ›In Idle mode, open the application list and select 1 Calculator.Perform the calculation.2 Select 3 to close the calculator keypad.The calculation history appears.To clear the history, press [4 ] → Clear history.Mini DiaryLearn to keep a photo diary.CalculatorLearn to perform mathematical calculations directly on your device like a typical hand-held or desktop calculator.Perform the calculation ›In Idle mode, open the application list and select 1 Calculator.Use the keys that correspond to the calculator display 2 to perform basic mathematical operations.Rotate the device anti-clockwise to landscape view to use the scientic calculator. If you deactivate the auto rotation, press [ ] → Scientic calculator.
Tools87View a Mini diary ›In Idle mode, open the application list and select 1 Mini Diary.Select a diary.2 To upload a mini diary to your community website, press [ ] →Publish.My FilesLearn to quickly and easily access all of your images, videos, music, sound clips, and other types of les stored on your memory card. In Idle mode, open the application list and select 1 My Files. Create a Mini diary ›In Idle mode, open the application list and select 1 Mini Diary.If you are launching this application for the rst time, 2 select Add to set a city for weather forecast.If there is a diary saved, select 3 Create diary to create a new entry.Change the today’s date and set the weather (if 4 necessary).Select 5 Tap to add photo and add an image or capture a photo.Select 6 Tap to create memo, and enter text and select Done.Select 7 Save.
Tools88Task ManagerWith the task manager, you can view currently running applications, package size of applications, and memory information, and monitor the RAM memory.In Idle mode, open the application list and select 1 Task Manager.Use the following options:2 Active applications• : View the list of all the applications currently running on your device.Installed package• : View the package size of applications installed on your device.RAM manager• : Check and manage the RAM memory for your device.Summary• : View the used and available memory on your device and memory card.Help• : View help information about extending battery life.Select a folder.2 To move up one level in the le directory, select • Up.To return to the Home directory, select • Home.Select a le to open.3 In a folder, press [ ] to use the following options:To send a le to others via email or the Bluetooth •wireless feature, select Share.To create a new folder, select • Create folder.To delete les or folders, select • Delete.To change the view mode, select • View by.To sort les or folders, select • List by.To use additional features using a le, such as moving, •copying or renaming option, select More.
Tools89Enter a name for the document and select 6 OK.Enter contents in the document by using the tools at 7 the bottom of the screen.When you are nished editing, select 8 on the toolbar or press [ ] → File → Save.View and edit a document on your ›deviceIn Idle mode, open the application list and select 1 ThinkFree Oce.Select 2 My Docs → a document.View and edit the document as desired.3 To zoom in or out, use the two nger zoom; Place •your two ngers on the screen and slowly pinch or spread apart.ThinkFree OceLearn to create and view document les on your device. If you have an account with the ThinkFree web service, you can manage documents online. This application supports the following le formats: txt, doc, docx, xls, xlsx, ppt, pptx, pdf.Create a new document ›In Idle mode, open the application list and select 1 ThinkFree Oce.Select 2 Accept to conrm, if you are launching this application for the rst time.Select 3 Activate now → Close to activate ThinkFree Oce.Select 4 My Docs.Press [5 ] → New → a document type.
Tools90Voice SearchLearn to use the voice command feature to search for locations and information by voice.This feature may be unavailable depending on your region or service provider.In Idle mode, open the application list and select 1 Voice Search.Select 2 Speak now.Say a command into the microphone.3 To watch the video tutorial, select Watch a video from the help screen.To open the toolbar to edit the document (word, •text, or excel le), press [ ] → Edit.To search for text in the document, press [• ] → Find.When you are nished editing, save the document.4 Manage documents online ›In Idle mode, open the application list and select 1 ThinkFree Oce.Select 2 Online.Enter your user name and password to access your 3 account, and then select Sign in.View and manage your documents on the server as 4 desired.
Settings91SettingsAccess the Settings menuIn Idle mode, open the application list and select 1 Settings.Select a setting category and select an option.2 Wireless and networkChange the settings for wireless network connections.Flight mode ›Disable all wireless functions on your device. You can use only non-network services.Wi-Fi settings ›Wi-Fi• : Turn the WLAN feature on or o. ► p. 76Network notication• : Set the device to notify you when an open network is available.WPS button connection• : Connect to a WLAN using a Wi-Fi Protected Setup (WPS) button.Add Wi-Fi network• : Add WLAN APs manually.Bluetooth settings ›Bluetooth• : Turn the Bluetooth wireless feature on or o. ► p. 74Device name• : Set a Bluetooth name for your device.Visible• : Set your device to be visible to other Bluetooth devices.Scan devices• : Search for available Bluetooth devices.
Settings92Audible selection• : Set the device to sound when you select an application or option.Screen lock sounds• : Set the device to sound when you lock or unlock the touch screen.Haptic feedback• : Set the device to vibrate when you touch the keys.Vibration intensity• : Adjust the vibration intensity of the haptic feedback.DisplayChange the settings for the display.Font style• : Change the font type for the display text. You can download fonts from Android Market by selecting Get fonts online.Brightness• : Set the brightness of the display.VPN settings ›Set up and connect to virtual private networks (VPNs). ► p. 81SoundChange the settings for various sounds on your device.Silent mode• : Activate the silent mode to mute all sounds except media sounds and alarm ringtones.Level optimizer• : Set the volume of media les to even level.Vibrate• : Set when the device will vibrate for various events.Volume• : Adjust the volume level for call ringtones, music and videos, alarm ringtones, system sound, and notication ringtones.Notication ringtone• : Select a ringtone to alert you to events, such as incoming messages and missed calls.
Settings93Keep the touch screen or keypad facing up during •calibration.Calibration may take some time, depending on •your location or other circumstances.Calibration may not be possible in areas with •strong magnetic elds. If the calibration fails, move to another area and try again.If you enter an area with strong magnetic elds •after calibration, your device will automatically attempt to recalibrate the geomagnetic sensor.The geomagnetic sensor in your device does •not support the bird’s-eye view, which xes the directions. Therefore, a small error may occur in measuring angles and cause a map to be turned upside-down.Auto-rotate screen• : Set whether or not to rotate the content automatically when the device is rotated.Animation• : Set the device to display animation when you switch between windows.Screen timeout• : Set the length of time the device waits before turning o the display's backlight.Power saving mode• : Activate Power saving mode. In Power saving mode, the device saves power by adjusting the white balance on the display and the brightness level.Horizontal calibration• : Calibrate the geomagnetic sensor when the compass or augment reality application shows incorrect information.
Settings94Visible passwords• : Set the device to display your password as you enter.Select device administrators• : View device administrators installed on your device. You can activate device administrators to apply new policies to your device.Use secure credentials• : Use certicates and credentials to ensure secure use of various applications.Install encrypted certicates from SD card• : Install encrypted certicates that are stored on a memory card.Set password• : Create and conrm a password for accessing credentials.Clear storage• : Erase the credential contents from the device and reset the password.Location and securityChange the settings for securing your device and the SIM or USIM card, and GPS functionality.Use wireless networks• : Set to use WLAN and/or mobile networks for nding your location.Use GPS satellites• : Set to use the GPS satellite for nding your location.Use sensor aiding• : Set to use sensors to enhance pedestrian positioning when the GPS signal is obstructed. There may be variations between the sensor estimates and your actual location.Set screen lock• : Set the unlock security code. When you have set your security code, this option changes to Change screen lock.None - : Disable the screen lock.Pattern - : Set an unlock pattern to unlock the screen.Password - : Set a password (alphanumeric) to unlock the screen.
Settings95Samsung Apps• : Select a network connection (WLAN or packet switched data network) to get application update notication from Samsung Apps.This feature may be unavailable depending on your region or service provider.Accounts and syncChange the settings for the auto sync feature or manage accounts for synchronisation.Background data• : Select this setting to use the auto sync feature. The auto sync will run in the background without opening applications and synchronise data.Auto-sync• : Set the device to synchronise contact, calendar, and email data automatically.ApplicationsChange the settings for managing installed applications.Unknown sources• : Select to download applications from any source. If you do not select this option, you can download applications only from Android Market.Manage applications• : Access the list of the applications installed on the device and check the application information.Running services• : View the services you are using and access them to manage.Development• :USB debugging - : This is for application development. When your device is connected to a PC with a PC data cable, the USB debugging mode will be activated and Samsung Kies will launch automatically. Allow mock locations - : Allow mock locations and service information to be sent to a Location Manager service for testing. This is for application development.
Settings96Locale and textChange the settings for text input. ›Select localeSelect a display language for all menus and applications.Select input method ›Select a default keyboard type for text input.Samsung keypad ›Portrait keypad types• : Select the default input method, such as the QWERTY keyboard, traditional keypad, or handwriting screen.PrivacyChange the settings for managing your settings and data.Back up my data• : Back up your device’s settings to the Google server.Automatic restore• : Set the device to restore applications' data you backed up when they are installed in your device.Factory data reset• : Reset your settings to the factory default values and delete all your data.SD card and device storageCheck memory information of memory cards and your device, and format a memory card.
Settings97Voice input• : Activate the voice input feature to enter text by voice on the Samsung keypad.Auto-full stop• : Set the device to insert a period when you double-tap the space bar.Tutorial• : Learn how to enter text with the Samsung keypad.Voice input and outputChange the settings for the voice recogniser and the text-to-speech feature.Voice recognition settings ›Language• : Select a language for the Google voice recognition.SafeSearch• : Set the device to lter explicit text and/or images from voice search results.Input languages• : Select languages for text input.You cannot enter text in some languages. To enter text, you should change the writing language to one of the supported languages. XT9• : Activate XT9 mode to enter text using Predictive input mode.XT9 advanced settings• : Activate the advanced features of XT9 mode, such as auto completion, auto correction, or auto substitution, and set up your own word list.Keypad sweeping• : Enable or disable the keypad sweeping feature for the text input mode. You can switch between input modes by scrolling left or right on the keypad.Auto-capitalization• : Set the device to automatically capitalise the rst letter after a nal punctuation mark, such as a period, question mark, or exclamation mark.Handwriting settings• : Customise the recognition time in Handwriting mode.
Settings98Speech rate• : Select a speed for the text-to-speech feature.Language• : Select a language for the text-to-speech feature.Engines• : View the text-to-speech engines downloaded from Android Market.AccessibilityChange the settings for accessibility features.Accessibility• : Activate an accessibility application you have downloaded, such as Talkback or Kickback, which provides voice, melody, or vibration feedback.The power key ends calls• : Set the device to end a call when you press [ ].Block oensive words• : Hide oensive words your device recognised from voice search results.Show hints• : Set to show a suggested term or phrase for the voice search feature.Text-to-speech settings ›Listen to an example• : Listen to the spoken text for an example. Install voice data for using the text-to-speech feature.Always use my settings• : Set the device to use the settings you specify in applications rather than the default settings.Default engine• : Set the speech synthesis engine to be used for spoken text.Install voice data• : Download and install voice data for the text-to-speech feature.
Settings99Date and timeAccess and alter the following settings to control how time and date are displayed on your device:Set date• : Set the current date manually.Select time zone• : Set your home time zone.Set time• : Set the current time manually.Use 24-hour format• : Set to the time to be displayed in 24-hour format.Select date format• : Select a date format.About deviceAccess information about your device, check the device’s status, and learn how to use your device.
Troubleshooting100TroubleshootingYour device displays network or service error messagesWhen you are in areas with weak signals or poor •reception, you may lose reception. Move to another area and try again.You cannot access some options without a subscription. •Contact your service provider for more details.The touch screen responds slowly or improperlyIf your device has a touch screen and the touch screen is not responding properly, try the following:Remove any protective covers from the touch screen. •Protective covers may prevent the device from recognising your inputs and are not recommended for touch screen devices.Ensure that your hands are clean and dry when tapping •the touch screen.Restart your device to clear any temporary software •bugs.Ensure that your device software is upgraded to the •latest version.If the touch screen is scratched or damaged, take it to •your local Samsung Service Centre.Your device freezes or has fatal errorsIf your device freezes or hangs, you may need to close programs or reset the device to regain functionality. If your device is frozen and unresponsive, press and hold [ ] for 8-10 seconds. The device will reboot automatically.If this does not solve the problem, perform a factory data reset. In Idle mode, open the application list and select Settings → Privacy → Factory data reset → Device Reset → Erase everything.
Troubleshooting101Your device is hot to the touchWhen you use applications that require more power or use applications on your device for an extended period of time, your device may feel hot to the touch. This is normal and should not aect your device's lifespan or performance.Error messages appear when launching the cameraYour Samsung mobile device must have sucient available memory and battery power to operate the camera application. If you receive error messages when launching the camera, try the following:Charge the battery or replace it with a battery that is fully •charged.Free some memory by transferring les to a PC or •deleting les from your device.Restart the device. If you are still having trouble with •the camera application after trying these tips, contact a Samsung Service Centre.The device beeps and the battery icon ashesYour battery is low. Recharge or replace the battery to continue using the device.The battery does not charge properly or the device turns oThe battery terminals may be dirty. Wipe both gold-•coloured contacts with a clean, soft cloth and try charging the battery again.If the battery will no longer charge completely, dispose •of the old battery properly and replace it with a new battery (refer to your local ordinances for proper disposal instructions).
Troubleshooting102Error messages appear when opening music lesSome music les may not play on your Samsung mobile device for a variety of reasons. If you receive error messages when opening music les on your device, try the following:Free some memory by transferring les to a PC or •deleting les from your device.Ensure that the music le is not Digital Rights •Management (DRM)-protected. If the le is DRM-protected, ensure that you have the appropriate license or key to play the le.Ensure that your device supports the le type.•Error messages appear when launching the FM radioThe FM radio application on your Samsung mobile device uses the headset cable as an antenna. Without a headset connected, the FM radio will be unable to receive radio stations. To use the FM radio, rst ensure that the headset is properly connected. Next, scan for and save the available radio stations.If you still cannot use the FM radio after performing these steps, try accessing your desired station with another radio receiver. If you can hear the station with another receiver, your device may require service. Contact a Samsung Service Centre.
Troubleshooting103Another Bluetooth device is not locatedEnsure that the Bluetooth wireless feature is activated on •your device.Ensure that the Bluetooth wireless feature is activated on •the device you wish to connect to, if necessary.Ensure that your device and the other Bluetooth device •are within the maximum Bluetooth range (10 m).If the tips above do not solve the problem, contact a Samsung Service Centre.A connection is not established when you connect the device to a PCEnsure that the PC data cable you are using is compatible •with your device.Ensure that you have the proper drivers installed and •updated on your PC.
Safety precautions104Safety precautionsTo prevent injury to yourself and others or damage to your device, read all of the following information before using your device.Warning: Prevent electric shock, re, and explosionDo not use damaged power cords or plugs, or loose electrical socketsDo not touch the power cord with wet hands, or disconnect the charger by pulling on the cordDo not bend or damage the power cordDo not use your device while charging or touch your device with wet handsDo not short-circuit the charger or the batteryDo not drop or cause an impact to the charger or the batteryDo not charge the battery with chargers that are not approved by the manufacturerDo not use your device during a thunderstormYour device may malfunction and your risk of electric shock is increased.Do not handle a damaged or leaking Lithium Ion (Li-Ion) batteryFor safe disposal of your Li-Ion batteries, contact your nearest authorised service centre.Handle and dispose of batteries and chargers with careUse only Samsung-approved batteries and chargers specically •designed for your device. Incompatible batteries and chargers can cause serious injuries or damage to your device.Never dispose of batteries or devices in a re. Follow all local •regulations when disposing of used batteries or devices.Never place batteries or devices on or in heating devices, such as •microwave ovens, stoves, or radiators. Batteries may explode when overheated.Never crush or puncture the battery. Avoid exposing the battery to •high external pressure, which can lead to an internal short circuit and overheating.
Safety precautions105Do not use your device near a pacemakerAvoid using your device within a 15 cm range of a pacemaker if •possible, as your device can interfere with the pacemaker.If you must use your device, keep at least 15 cm away from the •pacemaker.To minimise the possible interference with a pacemaker, use your •device on the opposite side of your body from the pacemaker.Do not use your device in a hospital or near medical equipment that can be interfered with by radio frequencyIf you personally use any medical equipment, contact the manufacturer of the equipment to ensure the safety of your equipment from radio frequency.If you are using a hearing aid, contact the manufacturer for information about radio interferenceSome hearing aids may be interfered with by the radio frequency of your device. Contact the manufacturer to ensure the safety of your hearing aid.Turn o the device in potentially explosive environmentsTurn o your device in potentially explosive environments instead of •removing the battery.Always comply with regulations, instructions and signs in potentially •explosive environments.Protect the device, batteries, and chargers from damageAvoid exposing your device and batteries to very cold or very hot •temperatures.Extreme temperatures can cause the deformation of the device and •reduce the charging capacity and life of your device and batteries.Prevent batteries from contacting metal objects, as this can create a •connection between the + and – terminals of your batteries and lead to temporary or permanent battery damage.Never use a damaged charger or battery.•Caution: Follow all safety warnings and regulations when using your device in restricted areasTurn o your device where prohibitedComply with all regulations that restrict the use of a mobile device in a particular area.Do not use your device near other electronic devicesMost electronic devices use radio frequency signals. Your device may interfere with other electronic devices.
Safety precautions106Do not take notes or look up phone numbers. Jotting down a “to do” •list or ipping through your address book takes attention away from your primary responsibility of driving safely.Proper care and use of your mobile deviceKeep your device dryHumidity and all types of liquids may damage device parts or •electronic circuits.When wet, remove the battery without turning on your device. Dry •your device with a towel and take it to a service centre.Liquids will change the colour of the label that indicates water •damage inside the device. Water damage to your device can void your manufacturer’s warranty.Do not use or store your device in dusty, dirty areasDust can cause your device to malfunction.Do not store your device on slopesIf your device falls, it can be damaged.Do not use your device at refuelling points (service stations), near fuels •or chemicals, and at blasting areas.Do not store or carry ammable liquids, gases, or explosive materials in •the same compartment as the device, its parts, or accessories.Turn o your device when in an aircraftUsing your device in an aircraft is illegal. Your device may interfere with the electronic navigation instruments of the aircraft.Electronic devices in a motor vehicle may malfunction due to the radio frequency of your deviceElectronic devices in your car may malfunction due to radio frequency of your device. Contact the manufacturer for more information.Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicleWhile driving, safely operating the vehicle is your rst responsibility. Never use your mobile device while driving, if it is prohibited by law. For your safety and the safety of others, practice good common sense and remember the following tips:Use a hands-free device.•
Safety precautions107Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containersThe battery may leak.•Your device may overheat and cause a re.•Do not drop your device or cause impacts to your deviceThe screen of your device may be damaged.•If bent or deformed, your device may be damaged or parts may •malfunction.Do not use a ash close to the eyes of people or animalsUsing a ash close to the eyes may cause temporary loss of vision or damage to the eyes.Ensure maximum battery and charger lifeAvoid charging batteries for more than a week, as overcharging may •shorten battery life.Over time, unused batteries will discharge and must be recharged •before use.Disconnect chargers from power sources when not in use.•Use batteries only for their intended purposes.•Do not store your device in hot or cold areas. Use your device at -20 °C to 50 °C Your device can explode if left inside a closed vehicle, as the inside •temperature can reach up to 80 °C.Do not expose your device to direct sunlight for extended periods of •time (such as on the dashboard of a car).Store the battery at 0 °C to 40 °C.•Do not store your device with such metal objects as coins, keys and necklacesYour device may become deformed or malfunction.•If the battery terminals are in contact with metal objects, it may cause •a re.Do not store your device near magnetic eldsYour device may malfunction or the battery may discharge from •exposure to magnetic elds.Magnetic stripe cards, including credit cards, phone cards, passbooks, •and boarding passes, may be damaged by magnetic elds.Do not use carrying cases or accessories with magnetic closures or •allow your device to come in contact with magnetic elds for extended periods of time.
Safety precautions108Protect your hearingExcessive exposure to loud sounds can cause hearing •damage.Exposure to loud sounds while driving may distract your •attention and cause an accident. Always turn the volume down before plugging the •earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music.Use caution when using the device while walking or movingAlways be aware of your surroundings to avoid injury to yourself or others.Do not carry your device in your back pockets or around your waistYou can be injured or damage the device if you fall.Use manufacturer-approved batteries, chargers, accessories and suppliesUsing generic batteries or chargers may shorten the life of your device •or cause the device to malfunction.Samsung cannot be responsible for the user’s safety when using •accessories or supplies that are not approved by Samsung.Do not bite or suck on the device or the batteryDoing so may damage the device or cause explosion.•If children use the device, make sure that they use the device properly.•When using the device:Speak directly into the mouthpiece.•Avoid contact with your device’s internal antenna. Touching the •antenna may cause the device to transmit more radio frequency than necessary.Hold the device with a relaxed grip, press the keys lightly, use special •features that reduce the number of keys you have to press (such as predictive text), and take frequent breaks.
Safety precautions109Do not use the device for anything other than its intended useAvoid disturbing others when using the device in publicDo not allow children to use your deviceYour device is not a toy. Do not allow children to play with it as they could hurt themselves and others, or damage the device.Install mobile devices and equipment with cautionEnsure that any mobile devices or related equipment installed in your •vehicle are securely mounted. Avoid placing your device and accessories near or in an air bag •deployment area. Improperly installed wireless equipment can cause serious injury when air bags inate rapidly.Allow only qualied personnel to service your deviceAllowing unqualied personnel to service your device may result in damage to your device and will void your manufacturer’s warranty.Do not disassemble, modify, or repair your deviceAny changes or modications to your device can void your •manufacturer’s warranty. For service, take your device to a Samsung Service Centre.Do not disassemble or puncture the battery, as this can cause •explosion or re.Do not paint or put stickers on your device Paint and stickers can clog moving parts and prevent proper operation. If you are allergic to paint or metal parts of the product, you may experience itching, eczema, or swelling of the skin. When this happens, stop using the product and consult your physician.When cleaning your device:Wipe your device or charger with a towel or a rubber.•Clean the terminals of the battery with a cotton ball or a towel.•Do not use chemicals or detergents.•Do not use the device if the screen is cracked or brokenBroken glass or acrylic could cause injury to your hands and face. Take the device to a Samsung Service Centre to have it repaired.
Safety precautions110Specic Absorption Rate (SAR) certication informationYour device conforms to European Union (EU) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specic Absorption Rate, or SAR) of 2.0 W/kg.During testing, the maximum SAR recorded for this model was 0.xxx W/kg. In normal use, the actual SAR is likely to be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy.The Declaration of Conformity statement at the back of this manual demonstrates your device’s compliance with the European Radio & Terminal Telecommunications Equipment (R&TTE) directive. For more information about the SAR and related EU standards, visit the Samsung website.Handle memory cards with careDo not remove a card while the device is transferring or accessing •information, as this could result in loss of data and/or damage to the card or device.Protect cards from strong shocks, static electricity, and electrical noise •from other devices.Do not touch gold-coloured contacts or terminals with your ngers or •metal objects. If dirty, wipe the card with a soft cloth.Be sure to back up important dataSamsung is not responsible for data loss.Do not distribute copyright-protected materialDo not distribute copyright-protected material that you have recorded to others without the permission of the content owners. Doing this may violate copyright laws. The manufacturer is not liable for any legal issues caused by the user’s illegal use of copyrighted material.
Safety precautions111Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.Correct disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.This EEE is compliant with RoHS.
Safety precautions112CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.” Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device.Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.DisclaimerSome content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.“THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN
Index113Indexairplane mode 17alarmscreating 84deactivating 84stopping 84AllShare 78batterycharging 12installing 11Bluetoothactivating 74nding and pairing with devices 75receiving data 75sending data 75brightness, display 27calculator 86calendarcreating events 61viewing events 61cameracapturing photos 40capturing videos 46customising camcorder 48customising camera 45connectionsBluetooth 74DLNA 78PC 80WLAN 76contactscreating 58nding 58importing 60devicecustomising 26indicator icons 19keys 18layout 17settings 91shortcuts panel 22turning on or o 17DLNAsee AllShare
Index114messagessending email 37setting email accounts 36mini diary 86music playeradding les 52creating playlists 54playing music 53PC connectionsmass storage 81Samsung Kies 80phonebookcreating contacts 58creating groups 59creating your namecard 59nding contacts 58Google Search 71Google Talk 38idle screenadding items 21adding panels 23internetsee web browserlatitude 69memory cardformatting 16inserting 14removing 15memoscreating 62viewing 63menu screenaccessing 24organising applications 24downloadsapplications 31les 32emailsending 37setting accounts 36viewing 38le manager 87FM radiolistening to 55saving stations 56galleryle formats 50playing videos 51viewing photos 51Google Mail 35Google Maps 67
Index115time and date, set 26timer 85touch screenlocking 21using 20unpack 10video player 49, 51videoscapturing 46playing 49, 51voice recorderplaying 63recording 63VPN connectionsconnecting to 83creating 82locale and text 96location & security 94privacy 96SD card & phone storage 96wireless & network 91silent mode 26SIM cardinstalling 11skype 34stopwatch 85synchronisationwith web accounts 32task manager 88text input 28text memos 62ThinkFree Oce 89photoscapturing 40capturing action 44capturing a series 43capturing by scene 42capturing in smile shot 42capturing panoramic 43capturing yourself 45viewing 51qik video 34Samsung Apps 73Samsung Kies 80settingsaccessibility 98accounts and sync 95applications 95date and time 99
Index116web browseradding bookmarks 66browsing web pages 64WLANactivating 76nding and connecting to networks 76world clock 85YouTubeuploading videos 72watching videos 71
ETSI EN 301 489-1 V1.8.1:2008ETSI EN 301 489-17 V2.1.1:2009EN 55022:2006/A1:2007EN 55024:1998/A1:2001/A2:2003EN 55013:2001/A1:2003/A2:2006EN 55020:2007EN 60065:2002+Amd11:2008ETSI EN 300 328 V1.7.1 BTETSI EN 300 328 V1.7.1 WLANRepresentative in the EURepresentative in the EU:Samsung Electronics Euro QA Lab. Blackbushe Business Park Saxony Way, Yateley, Hampshire GU46 6GG, UK01 September 2010 Joong-Hoon Choi / Lab Manager(Place and date of issue) (Name and signature of authorised person)* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.Declaration of ConformityProduct detailsFor the followingProduct : Digital Audio Player(MP3 Player)Model(S) : YP-MB2(Variant Model : YP-M2XX, YP-M2JXX, YP-GB1, YP-G1)Manufactured at:F1: Samsung Electronics Co., Ltd. 416, Maetan 3 Dong, Yeongtong-Gu, Suwon-city, Gyeonggi-Do, KoreaF2: Samsung Electronics Co., Ltd. #94-1, Imsoo-dong, Gumi-city, Gyeongsangbuk-do, KoreaF3: Samsung Electronics Huizhou Co., Ltd. Industral Complex, Chenjiang Town, Huizhou City, Guangdong Province ChinaF4: P.T. Samsung Electronics Indonesia Cikarang Industrial Estate JI, Jababeka Raya Blok F29-33 Cikarang, Bekasi 17530, Indonesia(Factories name and address)Declaration & Applicable standardsWe hereby declare, that the product above is in compliance with the essential requirements of the R&TTE Directive (1999/5/EC), the Low Voltage Directive (2006/95/EC) and the Electromagnetic Compatibility Directive (2004/108/EC) by application of:
FCC ID: A3LYPG1 FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to The following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. RF Exposure Statement FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipmentshould be installed and operated with a minimum distance of 1.5 centimeters between the radiator and your body. And it is restricted to use with belt-clips, holsters or similar accessories that have no metallic components. Part 15.105 (B) Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under FCC rules. IC: 649E-YPG1 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Rapport d'exposition de rayonnement de la IC rf : Cet équipement est conforme aux limites d'exposition de rayonnement de la IC rf déterminées pour un environnement non contrôlé. Ce dispositif et son antenne ne doivent pas n'être coïmplantés ou opération en même temps qu'aucune autre antenne ou émetteur. Cet equipmentshould soit installé et actionné avec une distance minimum de 1.5 centimètre entre le radiateur et votre corps. Et il est limité pour employer avec les ceinture-agrafes, les étuis ou les accessoires semblables qui n'ont aucun composant métallique
