FCC TEST REPORT
EMC compliance Ltd. Page: 1 of 1
480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea
82 31 336 9919 (Main) 82 31 336 4767 (Fax)
This test report shall not be reproduced except in full, Without the written approval.
Appendix 6.
User manual
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 1 of 11
SAM
-
CRM
-
1
2
(
V
alidator
PCI
)
Board
H/W Specification
2012. 11. 05
SAMSUNG SDS
______________________________
Project Manager
___________________________
Approved
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 2 of 11
Revision History
Version Date Author Verifier Description
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 3 of 11
1Overview
SAM-CRM-12(Product name : Uni-Pay) is a PCI-PED Compliant Debit PIN Pad, which
supports as following EMV and PCI PTS V3.1. Mag-stripe function. It has TFT LCD
which can be used for video advertisement, and host interface via RS232, RS422.
1.1 Purpose
It is Debit PIN Pad mainly use for credit card transaction at automatic ticket
vending machine.
1.2 Communication & Operation
HOST server controls this reader via TCP/IP or RS232, RS422. It receives transaction
amount and transaction result from the host.
1.3 Functions
1) Contact Card
2) Magnetic Card
3) BUZZER
4) LCD
5) Touch Screen
6) RS-232 communication
7) TCP/IP communication
1.4 Certifications (Factions)
1) PCI-PTS
The payment card industry (PCI) denotes the debit, credit, prepaid, e-
purse, ATM, and POS cards and associated businesses.
PCI-PTS was specifically designed to protect consumer PIN data from theft.
It is also intended to enforce hardware security of devices that accept
consumer PINs and house secret encryption keys of the acquirer, including
how the PIN Entry Device (PED) is produced, controlled, transported,
stored and used throughout its life cycle.
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 4 of 11
2) EMV
EMV stands for Europay, MasterCard and VISA, a global standard for inter-
operation of integrated circuit cards (IC cards or "chip cards") and IC
card capable point of sale (POS) terminals and automated teller
machines (ATMs), for authenticating credit and debit card transactions.
The EMV standards define the interaction at the physical, electrical, data
and application levels between IC cards and IC card processing devices for
financial transactions. There are standards based on ISO/IEC 7816 for
contact cards, and standards based on ISO/IEC 14443 for contactless cards.
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 5 of 11
2Summary
Following is the power & communication interface of Uni-Pay (SAM-CRM-12).
ITEM Specification Description
Power DC 12V, 1A
IN/OUT
Interface
RS232 2ch, Ethernet 1ch, USB 1ch
Certification EMV, PCI PTS, J/Smart, CE, FCC, UL
Internal Main Board divided to sector, one is User interface and the other is
Pin input & Communication security.
Following is the contents of each sector
2.1 User Interface(LCD)
ITEM Specification Description
Processor 32Bits Microcontroller, ARM Cortex A8, 633MHz Model No. : S5PC100
OS Android 2.1 Linux 2.6.2.9 kernel
Memory SDRAM 256MByte,
NAND Flash 512Mbyte (Bios Area + Application Area)
LCD 4.3 TFT Color LCD, 480*272 pixels
IN/OUT
Interface
RS232 1ch(internal Debug),
RS232 1ch(RF Device) or RS485 1ch(External Device)
USB2.0 1ch(Debug)
I/O Ports for USIP communication
Others Audio Speaker, SD Card Slot
2.2 PIN Input & Communication security (Touch sensor & Smart Card
Control)
ITEM Specification Description
Processor 32Bits Secure Microcontroller, 96MHz
OS Linux
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 6 of 11
Memory SRAM 128KByte,
Flash 256KByte,
OTP 256Byte,
ROM 128KByte
external Flash 16Mbyte,
external SDRAM 32Mbyte
external SRAM 16Mbyte
Touch Touch Panel(SPI)
Smart Card Contact 1 Slot (UART)
IN/OUT
Interface
RS232 2ch(External Device)
Ethernet
SPI for TOUCH I/F
MSR Mag-Stripe Reader (UART)
Battery Lithium Manganese Dioxide Battery For RTC and External
Sensors
Others Buzzer
Certification EMV, PCI PTS, CE, FCC, UL
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 7 of 11

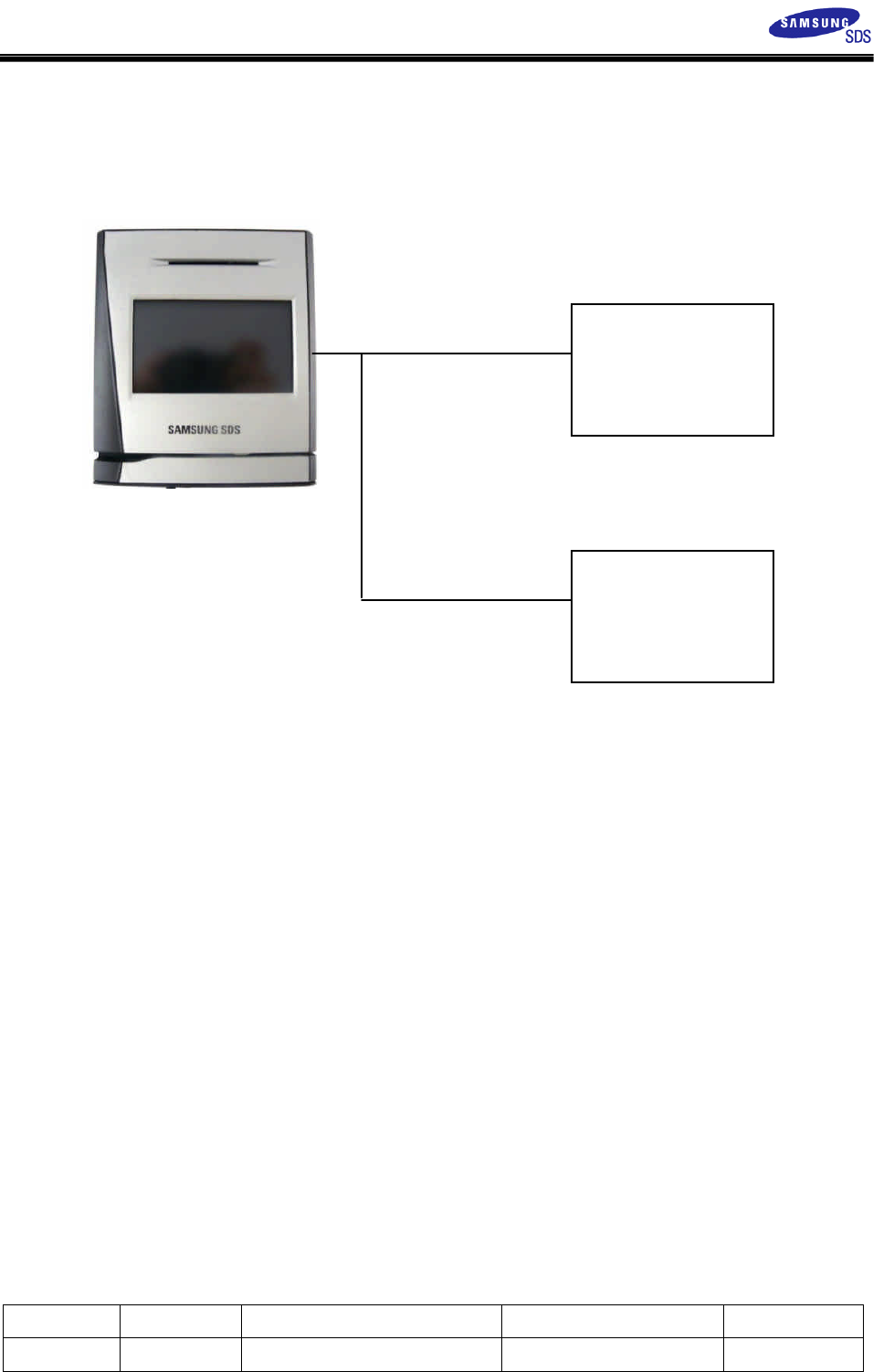

3Structure
The Structure of equipment
Host Controller
RS-232 / RS485
Slave Device
RS-232
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 8 of 11

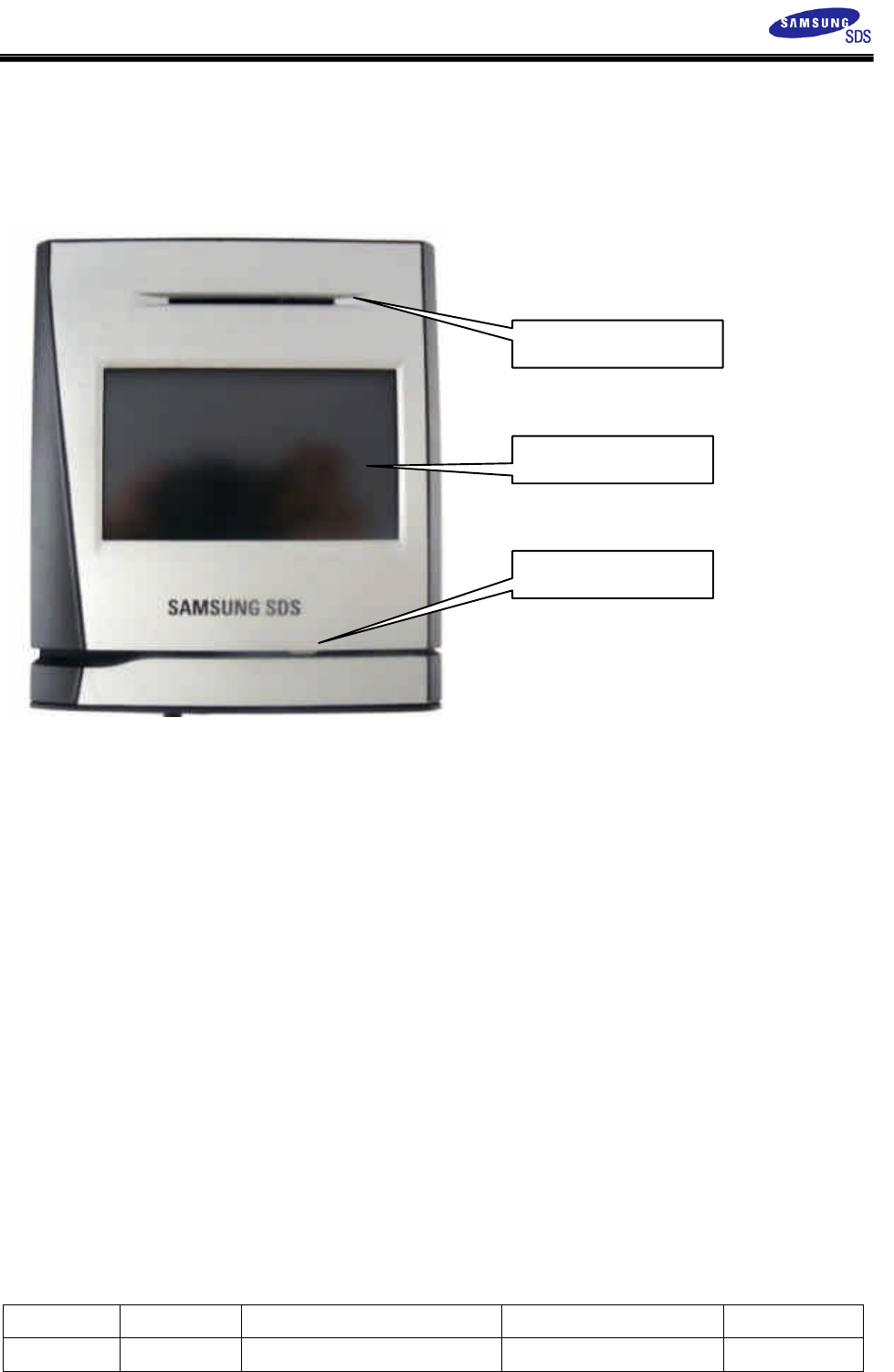

4Description of Surface
The picture of device surface
Communication Cable
LAN or Serial cable
The size of terminal
135.5(W) * 152.7(L) * 26(H)mm
Mag-stripe
Contactcard slot
TFT-LCD
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 9 of 11
5Connector Pin Assignment
5.1 J19 (Connector)
No Description No Description
1 POWER (12V) 2 GND
3 POWER (12V) 4 GND
5 RESET- 6 RS485P
7 RESET+ 8 RS485M
9 TX0_RS232 10 TX1_RS232
11 RX0_RS232 12 RX1_RS232
13 USB D+ 14 GND
15 USB D- 16 USB_POWER(5V)
17 LAN_RDP 18 LAN_TDP
19 LAN_RDM 20 LAN_TDM
5.2 J6– External cable : Serial and Reset
No Description No Description
1 PWR_IN 6 -
2 GND 7 -
3 TX_RS232 8 IO
4 RX_RS232 9 RESET+
5 GND 10 RESET-
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 10 of 11
6Description of Electricity
The Description of power
-Input power : 12V
The using electric current
-Normal 12V, 500mA under
-MAX 12V, 700mA under
The Description of Serial communication
-115200bps, 8 data, no parity, 1 stop bit
7Property
Operating Condition
-Temperature to use : -10 ~ 70 ℃
-Humidity to use : 50 ~ 95 % (relative humidity)
Storage Condition
-Temperature to keep : -30 ~ 80 ℃
-Humidity to use : 30 ~ 90 % (relative humidity)
8Warning and Notice
-For indoor use only.
-This product is affected by an element like metal or Magnetism. So one has to
take precautions.
Revision Date Document Name Document Number Page
A4 2012.11.05 SAM-CRM-12 H/W Spec. 11 of 11
9Certifications
EU
This product is CE marked according to the provision of the R&TTE Directive
(99/5/EC). Here by DUALi Inc. declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
FCC STATEMENT
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected. -- Consult the dealer or an experienced radio/TV
technician for help.
