Samsung SDS SHS-3120XMKEN DIGITAL DOORLOCK User Manual
Samsung SDS Co., Ltd. DIGITAL DOORLOCK
User manual
1

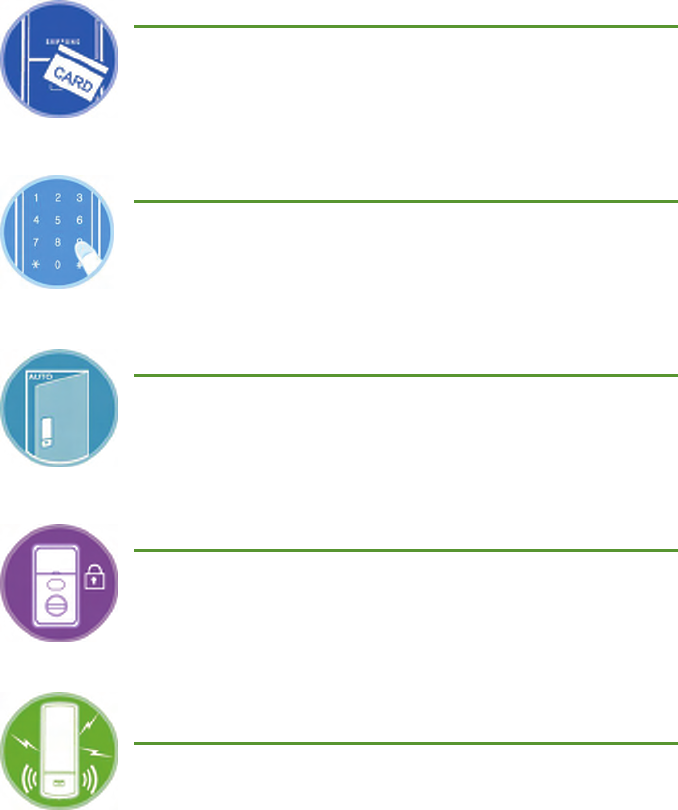

Product Features
The door can be opened with a card.
The door can be opened with a card fit for support standard as well as
a card contained in the product (Support for the ISO14443A-Type, Up
to 70 including the password can be registered).
The door can also be opened with a password.
Once the user's password is registered, the door can be opened
without a key by entering the registered password. (Up to 70 including
cards can be registered)
The door does not have to be locked manually.
Using the automatic locking function, the door is automatically locked
when it closes, eliminating the need to lock it manually.
Double locking function adds security.
The double locking function adds security by preventing the door from
being opened from outside at night or at times when extra security is
needed.
Pranks played by children and juveniles can
be prevented.
When an unregistered card is used, or when an invalid password is
entered 5 or more times consecutively, an alarm sound is generated
and power to the lock is automatically cut off for three minutes.
2
Table of Contents
Product Features 1
Safety Cautions 4
Notes before Operation 7
Product Components................................................................... 7
Outdoor Unit Parts ...................................................................... 8
Indoor Unit Parts ........................................................................ 9
Replacing the Batteries ..............................................................10
Using the Emergency Battery ...................................................... 11
Setting the Left Hand/Right Hand ................................................12
Basic Functions 13
Initialization (Master Password, Password and Card).......................13
Master Password Registration and Change....................................14
Password Registration ................................................................15
Card Registration....................................................................... 17
Deleting the Card and Password Individually
.........................................19
Opening the Door from Outside with a
Master Password or a Password ................................................. 20

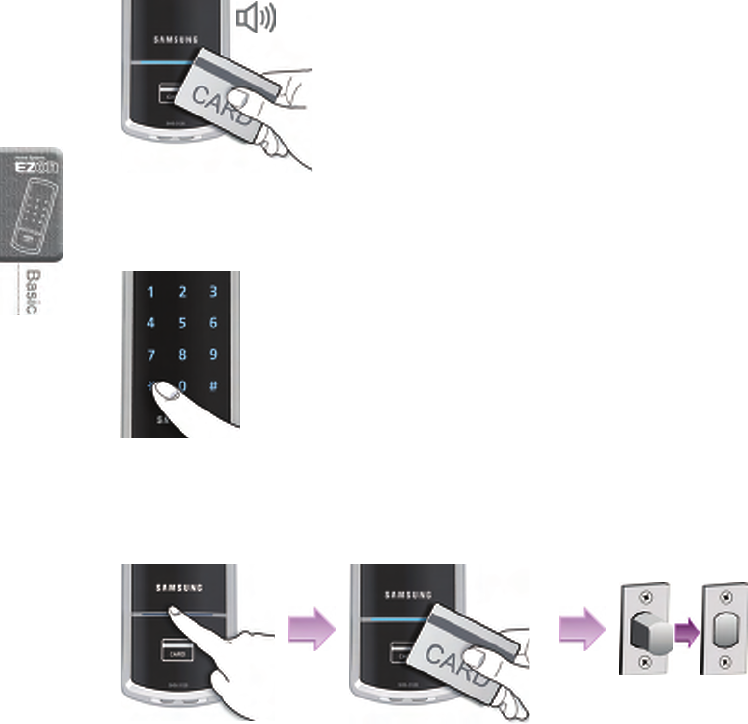

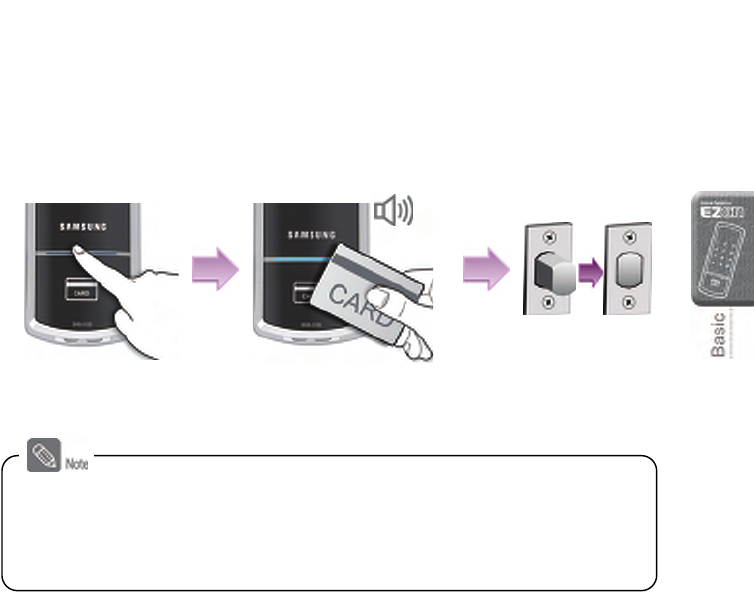

Opening the Door from Outside with a Card
...........................................21

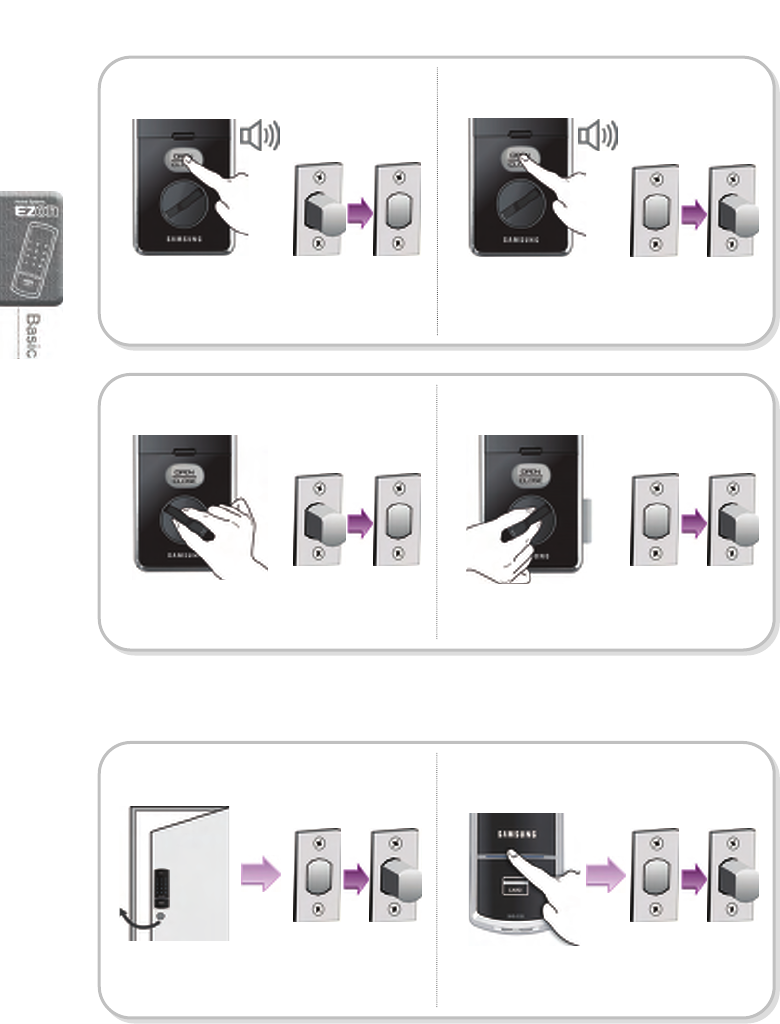

Opening/Locking the Door from Inside ........................................ 22
Locking the Door from Outside ................................................... 22
3
Additional Functions 23
Double Security Mode Setting.....................................................23
Automatic/Manual Locking Setting...............................................24
Sound Setting and Releasing ......................................................25
Alarm Sound/Emergency Sound..................................................26
Troubleshooting 29
Operating Method Summary 31
Product Specifications 33
User Code Registration Table 34
4
Safety Cautions
This section contains important information to ensure the user's safety and prevent
potential damage to property. Please read this section carefully and use the product
accordingly.
Warning, Caution and Note Explained:
Warning
Information given under this heading is information the user must be aware of to
prevent physical harm.
Caution
Information given under this heading is information the user must be aware of to
prevent service problems or system damage.
Note
Information given under this heading provides additional information relating to the
text in this manual.
Description of Symbols
General warning or caution.
Prohibited activity.
Recommended activity.
5

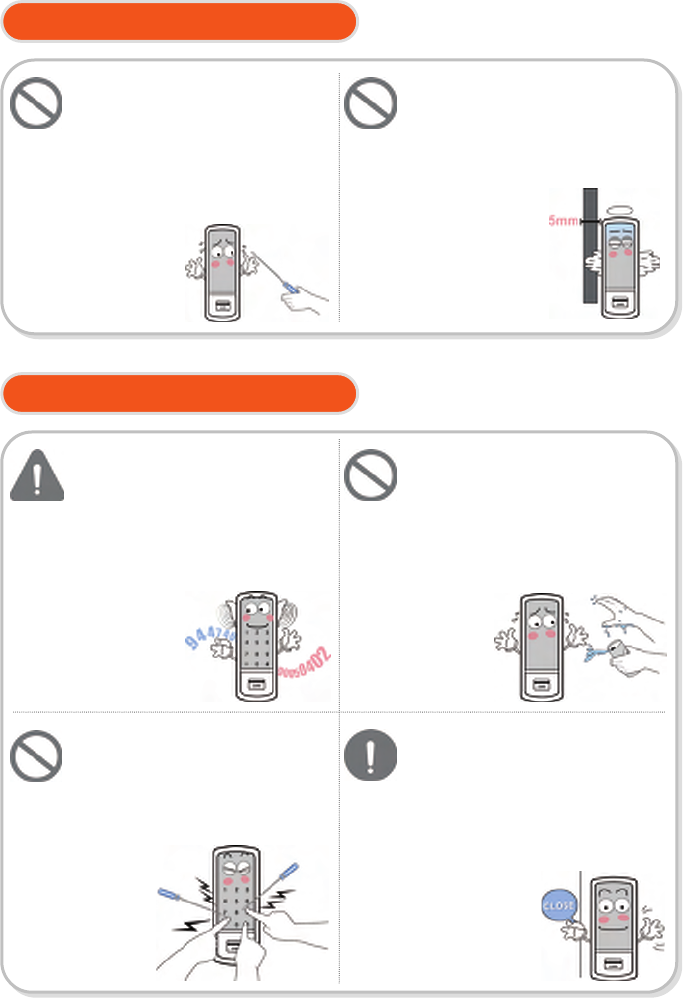

Cautions during Installation
Cautions during Operation
The user shall not install or repair
the product without authorization.
The manufacturer does not assume
the responsibility for damage to the
product resulting from attempts to the
user to install or repair it without
authorization.
Make sure that no unauthorized
person has the access to the
password. To minimize the risk of
burglary, it is recommended that
you periodically change the
password.
Do not operate the product with
wet hands, and keep liquids
such as water or drinks away
from the product, or the product
may malfunction or be damaged.
Do not use the excessive force
or sharp objects to push the
door lock buttons, as this can
damage the product.
Make sure that the door is
completely closed when going
outside.
The manufacturer does assume the
responsibility for any harm caused by
engagement of the lock on an
improperly closed door.
Do not install the product in the
place where the gap between
the door and the frame is 5mm
or more.
If the gap is too wide,
the product may not
function properly.
6
Cautions during Repair or Maintenance
Replace the batteries within 1
week after the battery
replacement alarm sounds.
The product can stop operating if the
batteries are not replaced in time.
Do not use water, benzene or
alcohol when cleaning the
product, as these fluids can
cause product malfunction.
Use a soft and dry cloth instead.
Replace all batteries immediately
after they run out of power, and
never mix new batteries with
used ones.
This can cause reduction of product life
or a malfunction in the product.
Be sure to correctly match the
poles (+/-) when installing the
batteries. Install the batteries with
the correct poles (+/-).
Improperly installed batteries can cause
rupture or battery fluid leakage.
7
Notes before Operation

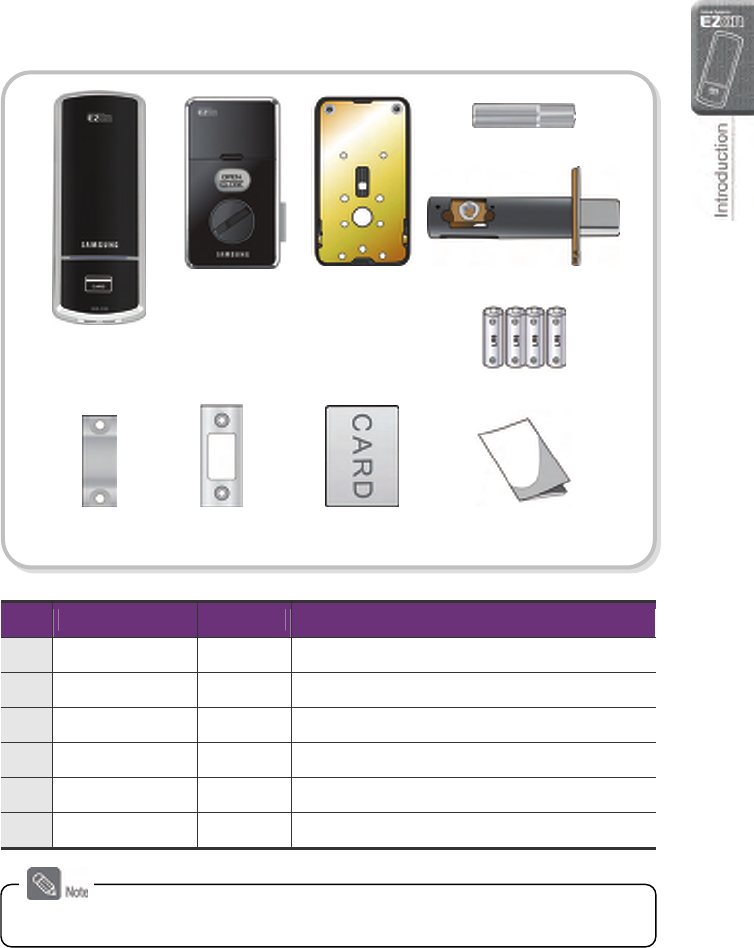

Product Components
No. Screw Quantity Description
1 FH+ M5 x 20 3 Out Housing + Plate In Fastening
2 OH+ M4 x 22 2 Out Housing + Deadbolt + Plate In Fastening
3 FH+ T4 x 25 5 Plate In + Wooden Door Fastening
4 FH+ M3 x 6 4 In Housing + Plate In Fastening
5 FH+ U10-24 x 9 4 Deadbolt, Striker, Iron Door Fastening
6 FH+ T4 x 15 4 Deadbolt, Striker, Wooden Door Fastening
Deadbolt
User Guide
'AA' Batteries (LR6)
Outdoor Unit
Indoor Unit
Tu r n S h aft
Strike
Magnet
Support Panel
Card
The product components used may vary depending on the installation environment.
8
Outdoor Unit Parts
No. Name Description
1 Number Pad
This is used to enter the numbers when registering, changing
or deleting the password. Once registered, users can open the
door by entering the registered password.
2 Display Lamp This lamp displays how the doorlock operates, including
reading a card.
3 [Wake-up] Button This button is used to recognize a card, entering a password,
or finishing the registration mode.
4 Card Reader
The Card Reader is used to recognize a registered card before
opening the door. Touch the [Wake Up] button to operate the
Card Reader.
5 External Power
Contact
Power can be supplied from the emergency battery after the
main batteries have been completely discharged (9V battery).
6 Reset Button This button is used to reset the unit when it stops operating.
The registered data are not deleted.
Number Pad Turned Off
Number Pad Turned On
Number Pad
External Power
Contact
[Wake-up] Button
Card Reader
[Wake Up]
Button Touch
Display Lamp
9

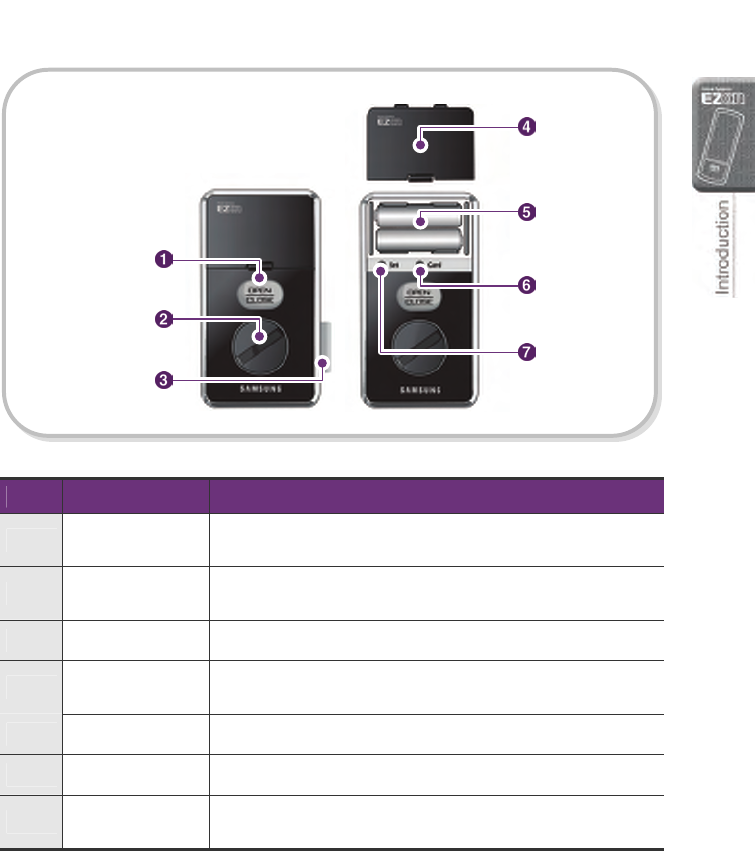

Indoor Unit Parts
No. Name Description
1 [OPEN] Button This is one touch button used to open the locked door. (It is also
used to lock the door from indoor in manual locking mode)
2 Manual Swichgear The Manual Switchgear is used to open or lock the door when
the batteries are completely discharged.
3 Magnetic Sensor This senses door opening and closing.
4 Battery Cover This cover protects the batteries, the [Set] button, and the [Card]
button.
5 Battery Holder This holds the batteries.
6 [CARD] Button This is used to register a card or delete the password/card data.
7 [SET] Button This is used to register the master password or change the
password. It is also used to change the doorlock setting.
Battery Cover
[OPEN] Button
Manual Switchgear
Magnetic Sensor
Battery Holder
[CARD] Button
[SET] Button
10

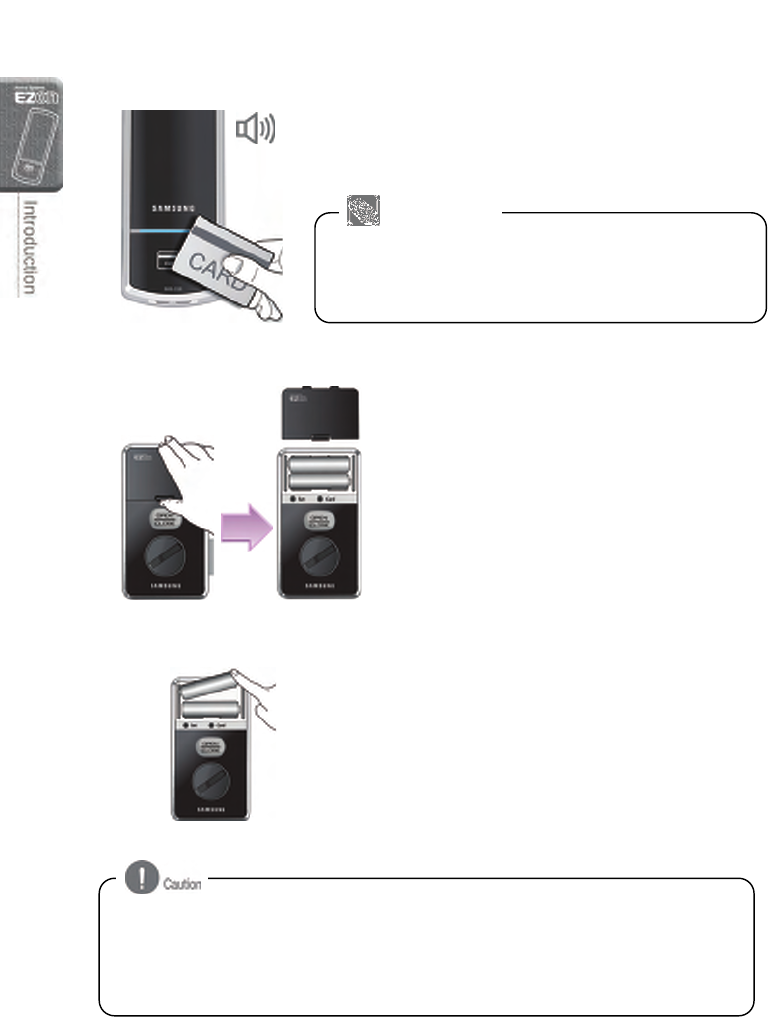

Replacing the Batteries
1. Battery Replacement Alarm Generation
If the melody of "Blues for Elise" sounds
when opening the door using the password
or a card, it is time to replace the batteries.
2. Opening the Indoor Unit Cover
Press on the hook at the bottom of the
battery cover on the indoor unit and pull the
cover upward.
3. Replacing the Battery
Replace all 4 batteries within a week of the first
alarm sound.
- The unit will stop operating if the batteries are not
replaced.
A
lthough actual battery life differs depending on the manu
f
acturer,
date of production and operation environment, four 1.5V AA
alkaline batteries can last for one year, based on an average of
10 uses per day.
Battery Life
4 AA batteries
Melody
- If the poles of the batteries are not placed properly, the door lock will not operate normally.
- Liquid leaks from batteries can damage the product. Check the batteries regularly
(once every 6 months).
- After the battery replacement melody has sounded, password/card information cannot be
registered, changed, deleted, initialized or configured until the batteries are replaced.
11

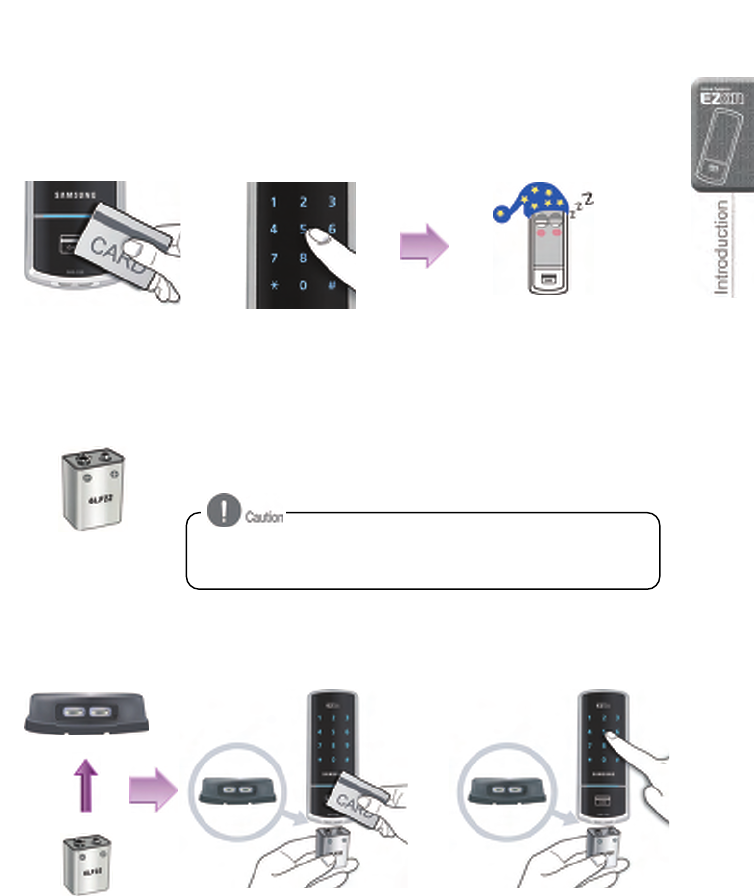

Using the Emergency Battery
1.
When Lock Fails to Operate Due to Discharged AA Batteries
If the batteries are not replaced after their replacement time comes, they will be
completely discharged and the door lock will not operate.
2. Using 9V Battery
Buy an emergency battery (9V) at the
nearest store.
3. Opening the Door Using the Emergency Battery
Place the card on the card reader, or enter the password, while the 9V battery is
connected to the external power contact of the outdoor unit.
Or
Password Entry The door is not opened. Recognition of a Card
Or
A
s the alkaline batteries offer longer life, they are recommended
over the manganese batteries or rechargeable ones.
12

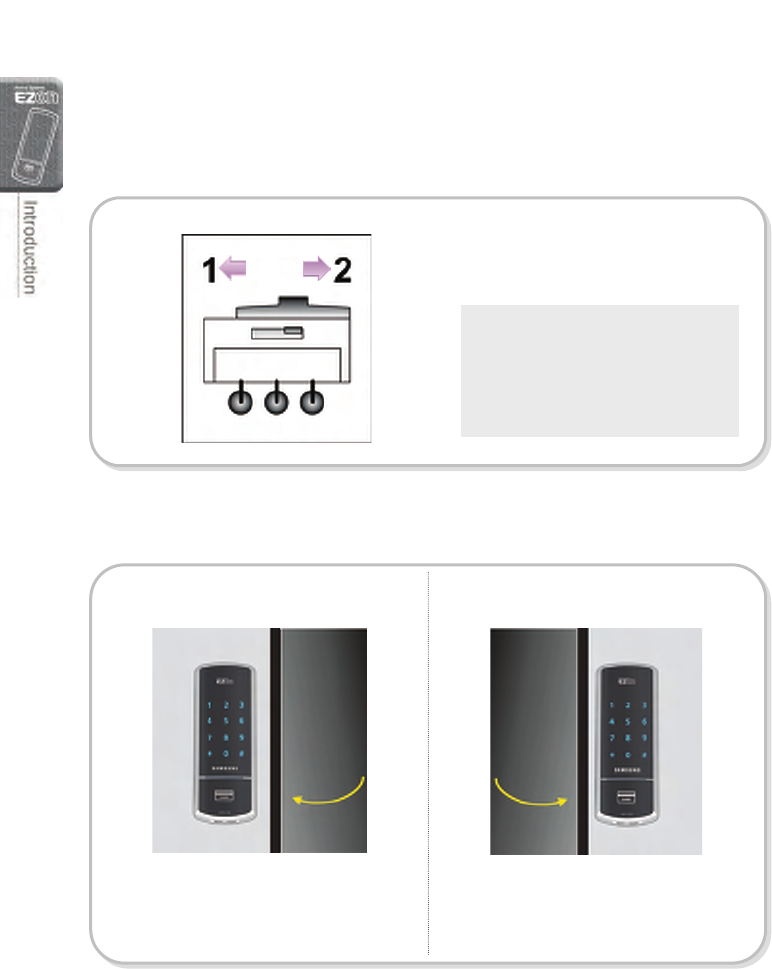

Setting the Left Hand/Right Hand
The opening or locking direction may change depending on the location in which
the unit is installed.
Adjust the [Left Hand/Right Hand] switch according to the location of the outdoor
unit before installing the indoor unit.
Status of Left Hand/Right Hand
The doorlock is installed on the right
of the door when it is viewed from
outside.
The doorlock is installed on the right
of the door when it is viewed from
outside.
Left Hand Right Hand
Left Hand Setting
Set the switch to 2.
Right Hand Setting
Set the switch to 1.
13
Basic Functions
This section describes the ways to initialize the information registered in the door
lock, to register the password and card data, and to open or close the door.
Initialization
(Master Password, Password and Card)
All registered data (master password, password and card) are deleted. After
initialization, the master password is set to '1234', and the registered password and
card data are all deleted.

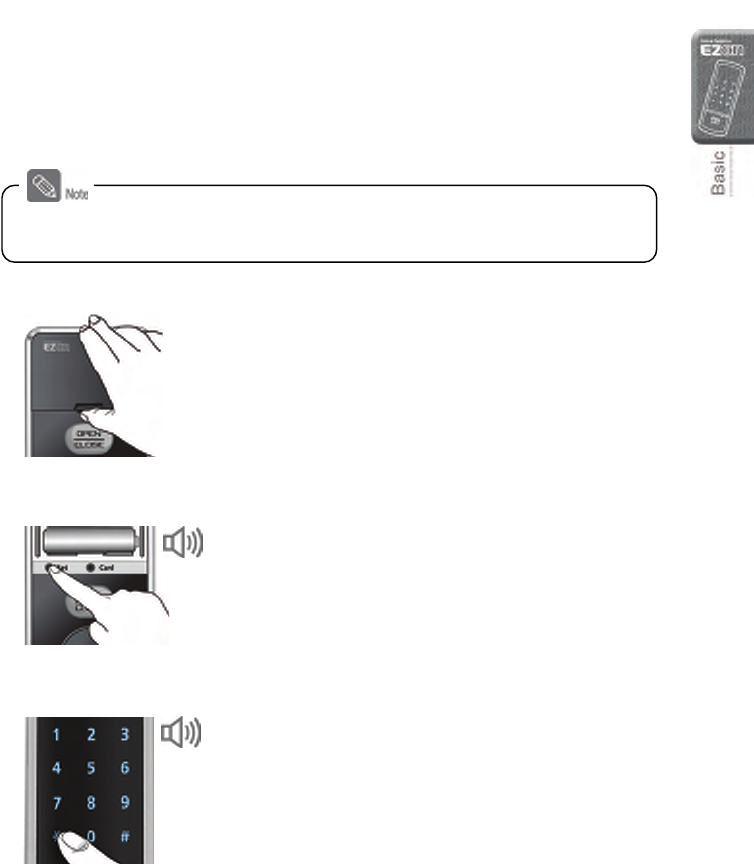

1. Opening the Cover (from inside)
Open the battery cover on the indoor unit.
2. Pressing the [Set] Button (from inside)
Press and hold the [Set] button for 10
seconds or longer.
- Successful: "Toot-->Toot, toot-->Toot, toot, toot,
toot' sounds are generated.

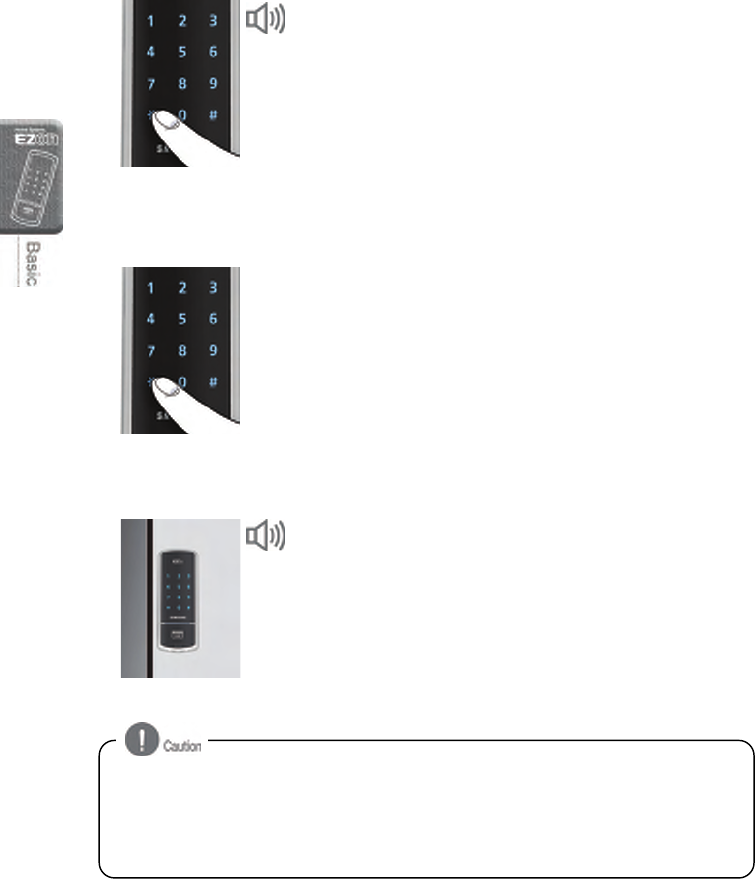

3. Entering the Master Password (from outside)
Enter the master password (press 1234 when
initialized), and then press the [¾] button.
- Successful: "Too~~~t" sound is generated.
- Failed: "Toot~" sound is generated.
A
fter initializing the registered data, reregister the card and password.
Initialization is available while the door is open.
14

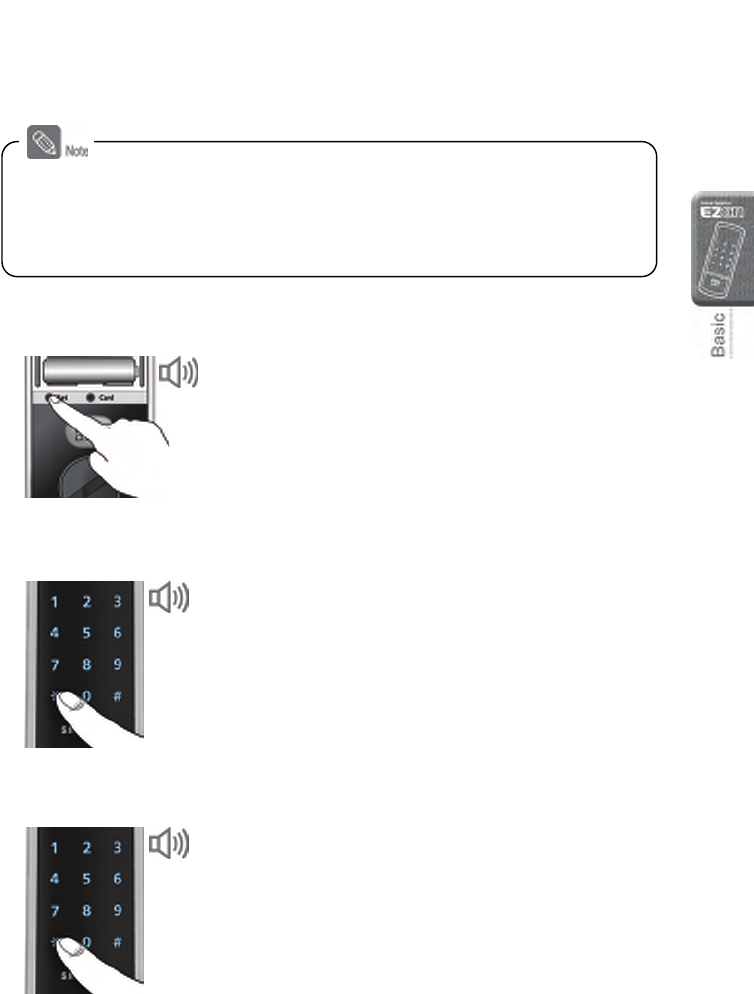

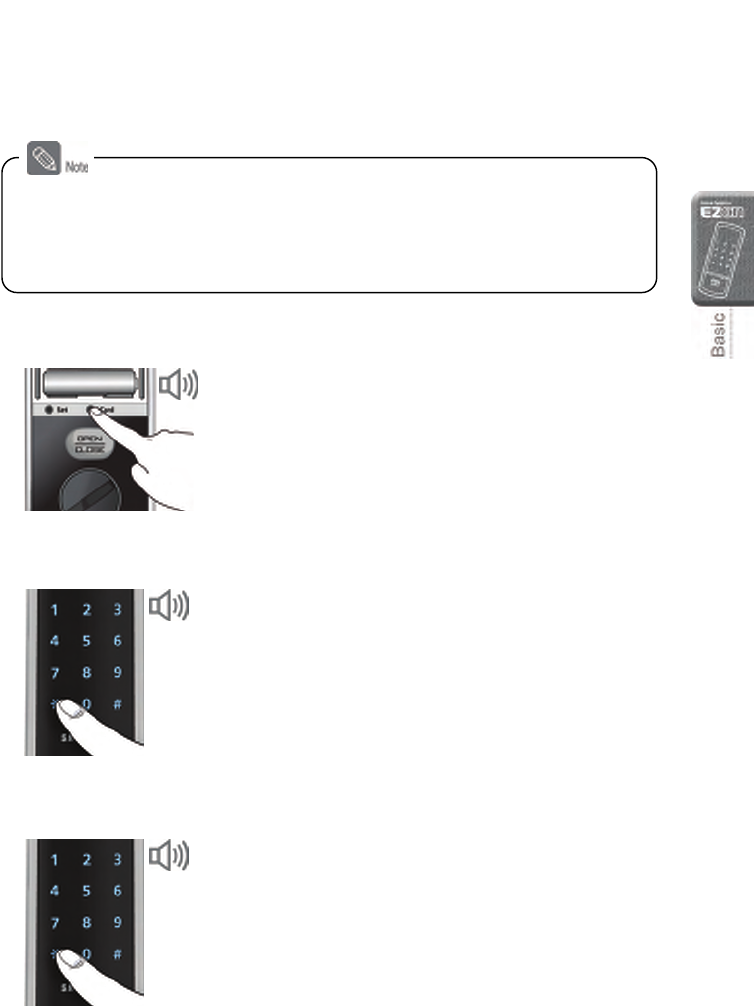

Master Password Registration and Change
The master password can be 4~12 digit number. Only one password can be
registered. Please register a new master password after initialization.

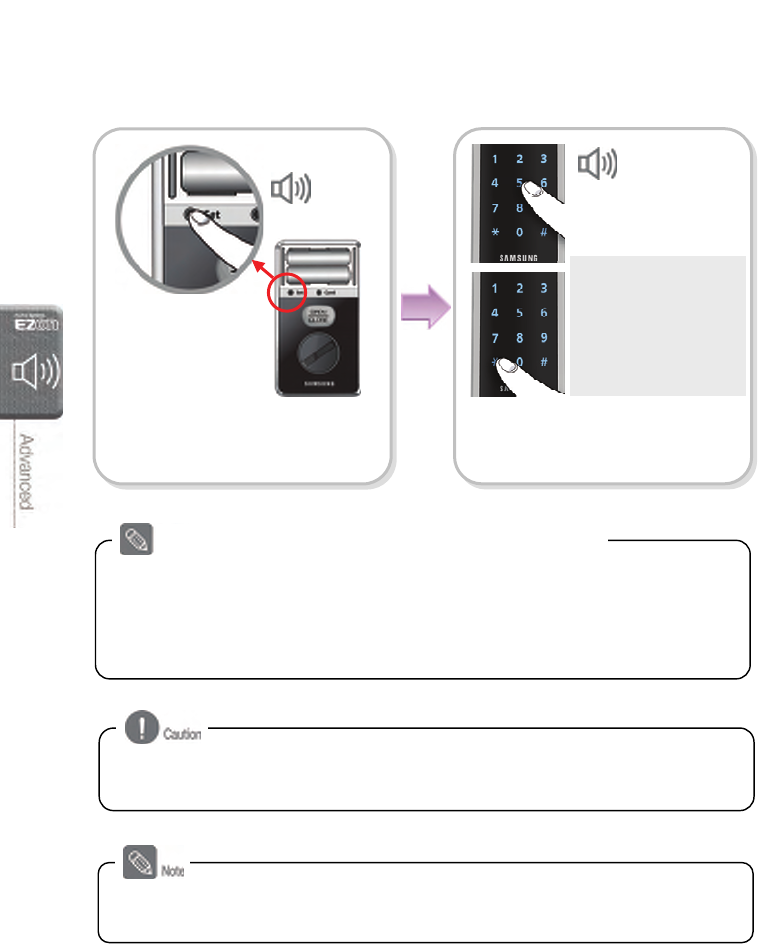

Pressing the [Set] Button (from inside)
Open the battery cover of the indoor unit
and press the [Set] button for 5 seconds.
2. Entering the Previous Master Password (from outside)
Enter the current password ('1234' after
initialization) and press the [¾] button.
3. Entering a New Password (from outside)
Enter a new master password and press the
[¾] button.
- To prevent burglary, it is recommended to use a
password of 6 digits or longer. (Only numbers
between 0 and 9 can be used.)
Successful: Toot~~~t
Failed: Toot~~
Successful: Too~~~t, toot, toot
Failed: Toot~~, toot, toot
Toot -> too, toot
Registering or changing the password is available while the door is open.
15
Password Registration
The password can be 4~12 digit number. Up to 70 including cards can be registered.
Please register a new password after initialization.

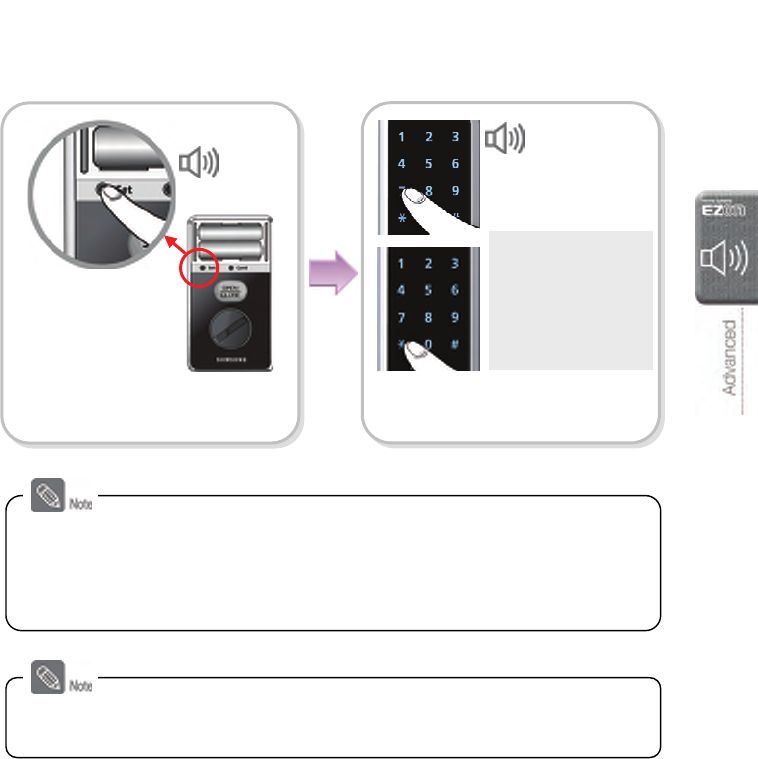

1. Pressing the [Set] Button (from inside)
Open the battery cover of the indoor unit
and briefly press the [Set] button.
2. Entering the Master Password (from outside)
Enter the master password when the
number pad is lighted and press the
[¾] button.
3. Entering the User Code (from outside)
Enter the user code (1 to 70) of the
password to be registered and press the
[¾] button.
- The already registered code is not available.
Successful: Too~~~t, toot, toot
Failed: Toot~~
Successful: Toot, toot
Failed: Toot~~
Toot
- The 70 user codes are allocated to register the password and card information.
- It is required to enter the user code of the registered password or card information to
be deleted in order to delete it. Make sure to manage the user code well when
registering the password or card information.
- Registering the password is available while the door is open.
16
4. Entering a New Password (from outside)
Enter a new password (4 to 12 digits) and
then press the [¾] button.
- To prevent burglary, it is recommended to use a
password of 6 digits or longer. (Only numbers
between 0 and 9 can be used.)
5. Registering in Series and Terminating
Repeat the Steps 3 and 4 to register
additional passwords.
- Press the [Wake Up] button to terminating
registration.
6. Checking New Password Operation (from outside)
To make ensure the password has been
properly registered, check the new password
and close the door.
- Please refer to "Opening the Door from Outside with
a Master Password or a Password" on page 20.
Too~~~t
Successful: Too~~~t
Failed: Toot~~
- Manage your password with care so that unauthorized people will not have access to it.
Regularly changing your password can reduce the risk of it being leaked.
- Check if the new password works properly while the door is open. When the door
opening sensor is pressed and the deadbolt comes out, refer to "Opening the Door from
Outside with a Password".
17
Card Registration
The door can be opened with the dedicated card contained in the product or the
ISO 14443A-Type card. Up to 70 including the password can be registered.
(Support for ISO14443A Type)
1. Pressing the [Card] button (from inside)
Open the battery cover of the indoor unit
and briefly press the [Card] button.
2. Entering the Master Password (from outside)
Enter the master password when the
number pad is lighted and press the
[¾] button.
3. Entering a User Code (from inside)
Enter the user code (1 to 70) of the card to
be registered and press the [¾] button.
- The already registered code is not available.
Successful: Too~~~t, toot, toot
Failed: Toot~~
Successful: Toot, toot
Failed: Toot~~
Toot -> toot, toot
- The 70 user codes are allocated to register the password and card information.
- It is required to enter the user code of the registered password or card information to
be deleted in order to delete it. Make sure to manage the user code well when
registering the password or card information.
- Registering the card is available while the door is open.
18
4. Placing the Card in Contact (from outside)
Place the card to be registered on the card
reader.
5. Registering in a Series and Terminating
Repeat the Steps 3 and 4 to register
additional cards.
- Press the [Wake Up] button to terminating
registration.
6. Checking Card Registration (from outside)
Press the [Wake Up] button and then put the card on the card reader.
- Please refer to "Opening the Door from Outside with a Card" on page 21.
Too~~~t
19
Deleting the Card and Password Individually
Registered cards or passwords can be individually deleted.
1. Pressing the [Card] Button (from inside)
Open the battery cover of the indoor unit
and press and hold the [Card] button for 5
seconds.
2. Entering the Master Password (from outside)
Enter the master password and press the
[¾] button.
3. Entering the User Code (from outside)
Enter the user code (1 to 70) of the
password or card to be deleted and press
the [¾] button.
- The code that is not registered is not deleted.
Successful: Too~~~t, toot, toot
Failed: Toot~~
Successful: Too~~~t
Failed: Toot~~
Toot -> Toot, toot
- Check the user code of he password or card information to be deleted before deleting it.
- Deleting the card is available while the door is open.
- The door cannot be opened with the deleted password or card.
20
Opening the Door from Outside with a
Master Password or a Password
1. Pressing the [Wake Up] button
Press the [Wake Up] button.
2. Entering the Password
Double Security Mode
Enter the password and press the [¾] button
when all the numbers on the pad are lighted.
W
hen any two number buttons are
lighted, press the buttons one by one.
Successful:
Too~~~t
Failed: Toot~
Common Security Mode
Enter the password and press the [¾] button
when all the numbers on the pad are lighted.
Successful: Too~~~t
Failed: Toot~
The double security mode is set when the product is purchased. Please refer to "Double
Security Mode Setting" on page 22 to change the double security mode to the common
security mode.
- The password must be entered while the number pad is lighted. If the light is turned off, press
the [Wake Up] button and reenter the password.
- If the wrong password is entered, press the [#] button to cancel the entry and start from the
beginning.
- If the wrong password is entered 5 times in a row, a "too~t too~t too~t" alarm will sound for 10
seconds and the door lock will stop operating for 3 minutes. While the door is in this inactive
mode, a single "toot" sound is generated every 10 seconds and eight consecutive "toots" will
sound after 3 minutes. Following this, the lock is released from inactive mode
21
Opening the Door from Outside with a Card
The door can be opened from outside using a card. Press the [Wake Up] button
and place the registered card on the card reader.
Placing the Card
The door will be opened
after 1 second.
Place the card
on the card reader.
Pressing the
[Wake Up] button.
Successful: Too~~~t
Failed: Toot~
- The card reader will operate properly when the card is placed within 20mm of the card
reader.
- The recognition distance may differ depending on the card manufacturer.
- A "toot~" alarm sound is generated when an unregistered card is placed or the card is not
recognized.
22

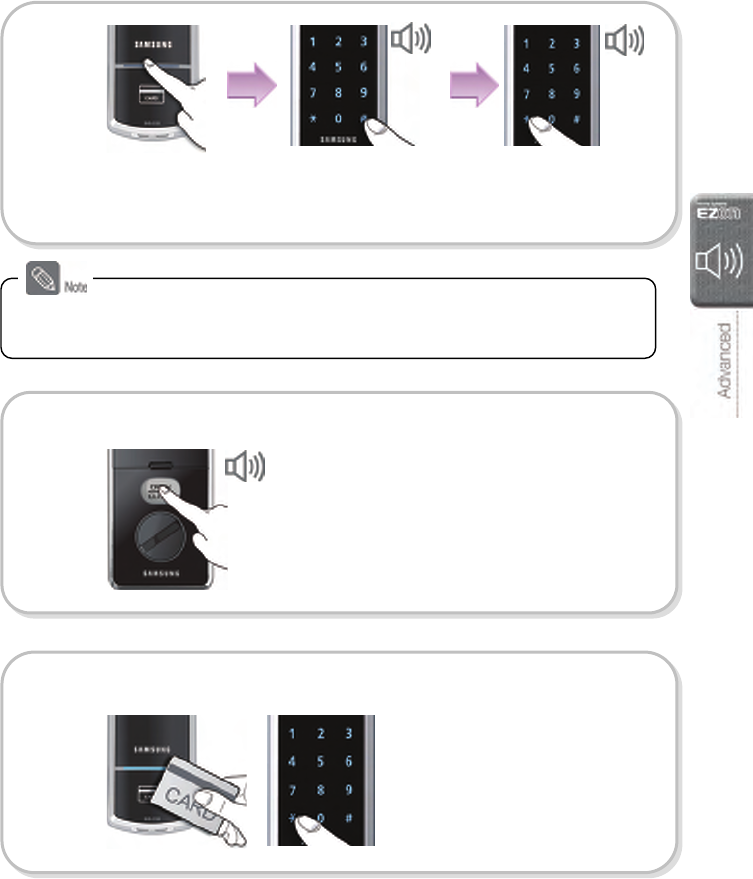

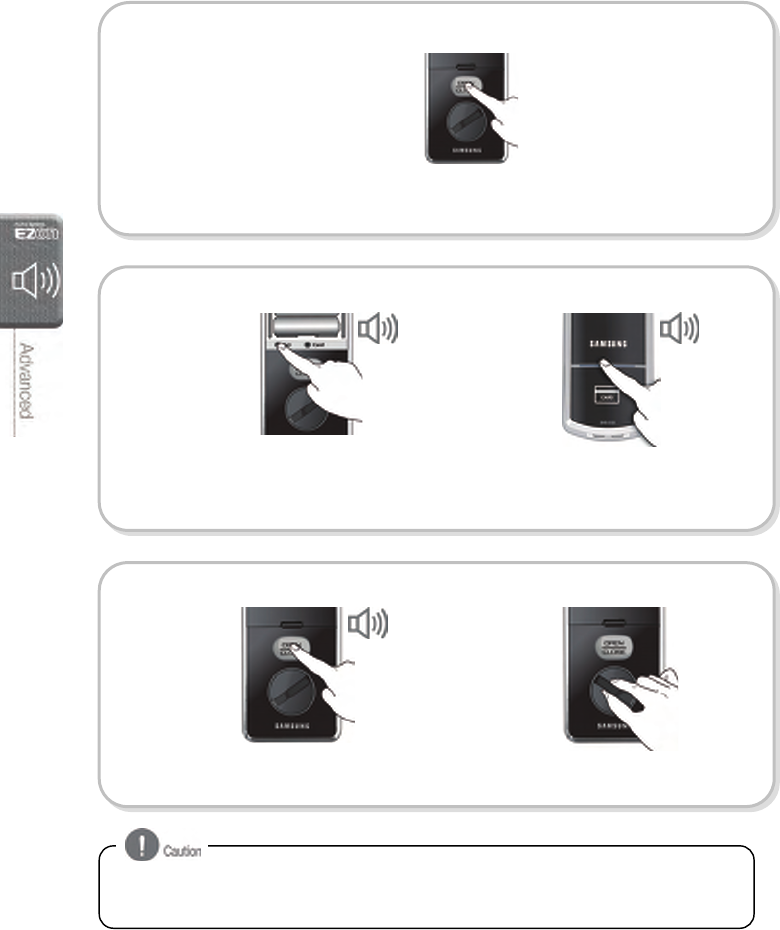

Opening/Locking the Door from Inside
Locking the Door from Outside
Locking the Door Manually Opening the Door Manually
Opening the Door Automatically Locking the Door Automatically
Press the [OPEN] button in the indoor unit
to open the door when it is locked.
Press the [OPEN] button to lock the door
when it is closed in Manual Locking mode.
Turn the manual switchgear to open the door
while the door is locked.
Turn the manual switchgear to close the door
while the door is opened.
W
hen the door is closed, the deadbolt
comes out automatically after 2 seconds.
Press the [Wake Up] button while the
door is closed.
Too~~~t Too~~t
In the Manual Locking Mode In the Automatic Locking Mode
23
Additional Functions
Double Security Mode Setting
When you open the door using a password, you can set an authentication mode.
Press the [7] or [9] buttons, and then press
the [¾] button to set an authentication mode.
Mode Setting
[7] button: Double
Security Mode
[9] button: Common
Security Mode
Too~~~t
Briefly press the [Set] button on the
indoor unit.
Toot
Double Security Mode
- This can prevent the password from being exposed by pressing any two numbers for
authentication before pressing the password.
- Setting the Double Security Mode is available while the door is open.
- The double security mode is set when the product is purchased.
24
Automatic/Manual Locking Setting
Automatic locking mode allows for automatic locking of the door when it is closed.
The automatic locking mode is set when the product is purchased.
Press the [4] or [5] buttons, and then
press the [¾] button to set automatic/
manual locking.
Mode Setting
[4] button: Automatic
Locking Setting
[5] button: Manual
Locking Setting
Too~~~t
Briefly press the [Set] button
on the indoor unit.
Toot
- Automatic Mode: The door is automatically locked 2 seconds after being closed. This mode
is not activated when a magnet is not used or the batteries are completely
discharged.
- Manual Mode: The door is not automatically locked after being closed. It is locked only when
the [Wake Up] button or the [OPEN] button of the indoor unit is pressed.
Difference between Automatic and Manual Modes
- The door is automatically locked again if the closed door is not opened within 7 seconds of
being unlocked using the password or card.
For security reasons, ensure that the door is locked after locking the door in Manual Lock
mode, since it is not automatically locked after being closed.
25
Sound Setting and Releasing
The sound that is generated when the number buttons are pressed, when the door
is locked, or when the locked door is unlocked, can be set according to the user's
preference.

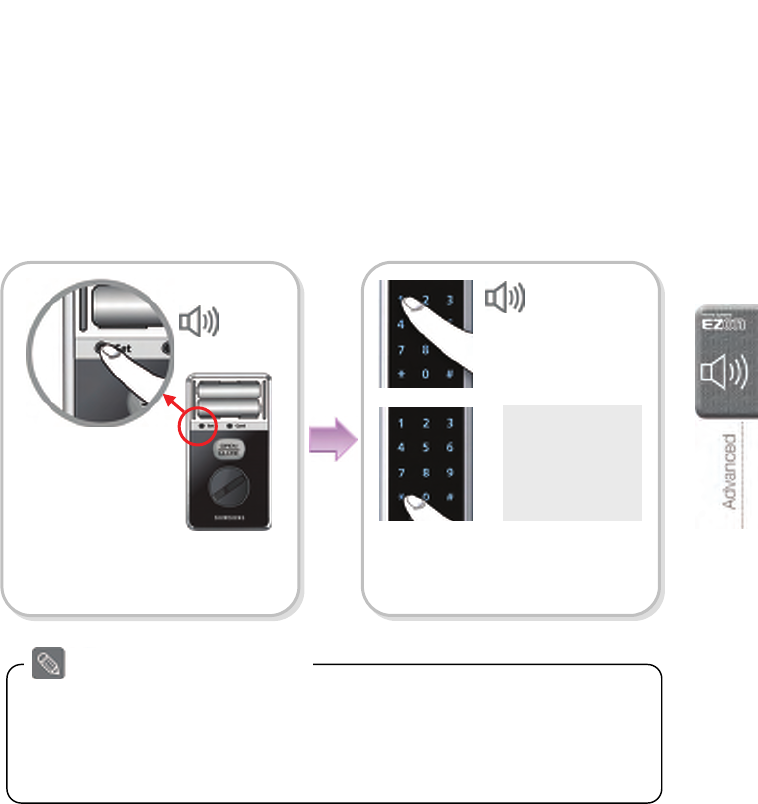

Sound Function Setting
The product is set to generate all sounds at the factory. (Set in 2 steps)
- [0] Button: All sounds except the alarm sound are deactivated.
- [1]~[3] Button: All sounds are activated and the sound gets louder as the step goes up.
- In registration mode, sound is generated regardless of the current setting. The setting is in
effect when registration is completed.
- The sound function is set in two steps after initialization.
Sound Function Operation
The sound function is set when the
[¾] button is pressed after the [0] ~[3]
button is pressed.
Sound Function
[0] Button: Mute
[1] Button: 1 Step
[2] Button: 2 Step
[3] Button: 3 Step
Too~~~t
Briefly press the [Set] button on the
indoor unit.
Toot
26

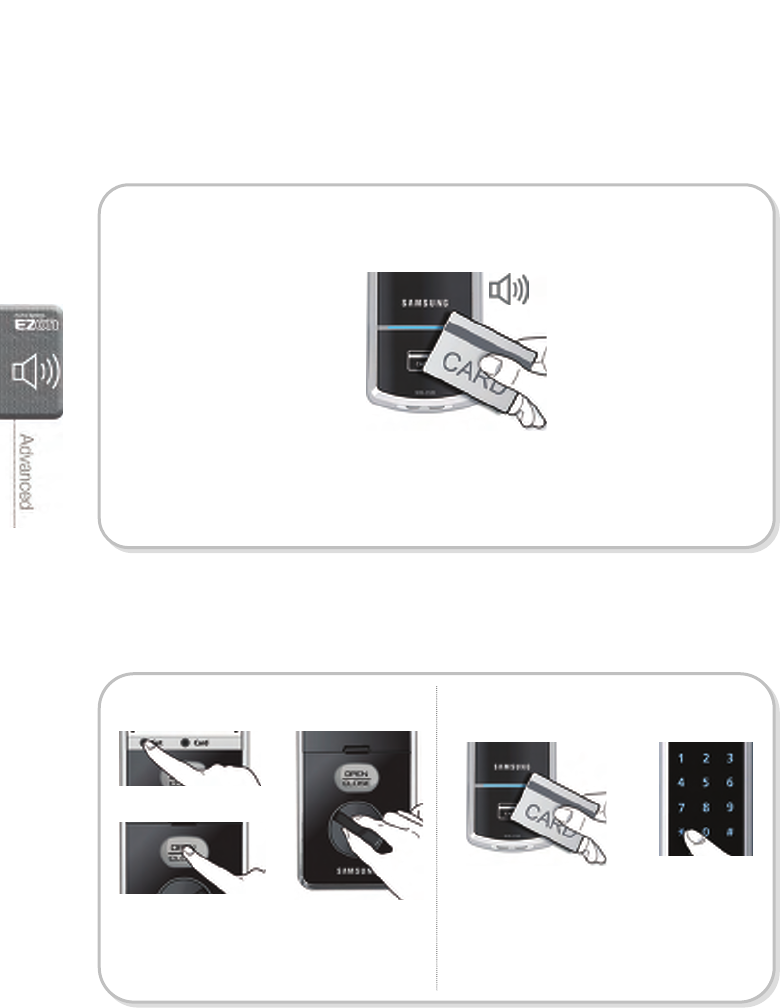

Alarm Sound/Emergency Sound
Alarm Sound (Prank Prevention Function)
This function generates an alarm sound and deactivates door lock operation when
it is improperly handled from outside.
Releasing the Alarm
Card or Password Error
This alarm will sound if an attempt is made to open the door with an unregistered card, or if a
wrong password is entered five times in a row.
(The alarm sound is generated, and the door lock is deactivated for 3 minutes. While the door i
s
in this inactive mode, a single "toot" sound is generated every 10 seconds and eight consecutive
"toots" will sound after 3 minutes. Following this, the lock is released from inactive mode.)
Press the [Set] button, the [Card] button or
the [Open] button on the indoor unit, or turn
the manual switchgear.
Place the registered card to the card reader, o
r
enter the password.
(The alarm must be released within 10 second
s
of its activation.)
[Inside] [Outside]
Too~t too~t too~t
(for 10 seconds)
Or
Or
27
Setting the Security Function
This function prevents intrusion from outside while the residents are out. Once set, it
generates an alarm sound when the door lock is operated from inside.
This alarm sounds if the [OPEN] button
is pressed, or the manual switchgear is
turned while the security function is
being activated.
[Inside]
Setting the
Securit
y
Function
Press and hold the
[Wake Up] button on
the outdoor unit while
the door is locked.
Enter the master password
or password and press the
[¾] button to set the securit
y
function.
Too~~t,
too~~t
Too~~t
Expose the registered card to the card
reader, or enter the password, and then
press the [¾] button.
[Outside]
Press and hold
the [#] button on
the outdoor unit fo
r
3 seconds.
Toot~, toot~, toot~
(for 5 minutes)
Or
The security function is automatically released when the locked door is opened from outside
by entering the registered password or placing the card to the card reader.
Activating the
Securit
y
Function
Releasing the
Securit
y
Function
28
Double Locking
The double locking function prevents opening of a locked door from outside.
Press the [Open] button on the indoor unit
for 5 seconds while the door is locked.
Setting Double Locking
[Inside]
Activating Double Locking
[Inside] [Outside]
The alarm sound is generated when the [Card]
button and the [Set] button are pressed from
inside while the double locking function is set.
W
hen the [Wake Up] button is
pressed, the door cannot be opened
while the alarm sound is generated.
Too~~t,
too~~t
Too~~t,
too~~t
Releasing Double Locking
Press the [Open] button on the indoor unit.
[Inside]
Turn the manual switchgear.
삐
Please be cautious since the door cannot be opened from outside when this function is set.
Particularly be careful of children accidentally setting this function from inside.
29
Troubleshooting
Please refer to the following if the door lock does not operate properly.
If the problem can still not be solved, contact the nearest service center.
Power Source
Problem Solution Remark
There is no power.
- Check to ensure the batteries are in good condition, with
the poles (+/-) correctly placed.
- Check to see if the batteries are discharged, or have
been inserted improperly.
P. 10~11
Master Password/Password/Card
Problem Solution Remark
The master password
cannot be changed.
- This may be a case of delayed password change. The
password must be changed while the number pad is
illuminated. Furthermore, the new password must be
entered within 10 seconds of entering the previous one.
- Replace the batteries if they are discharged.
- Repeat the procedure again, referring to "Master
Password Registration and Change" in the user guide.
P. 14
The password cannot
be registered.
- The code to be registered has another information. Try
again after changing the user code.
- Check if the password has 4-12 digits.
P. 15~16
The card cannot be
registered.
- The code to be registered has another information. Try
again after changing the user code.
- Place the card to be registered within 10 seconds of
entering the user code.
P. 17~18
The door cannot be
opened even after
entering the password
followed by the [¾]
button.
- Check that the registered password has been correctly
entered.
- If number buttons are not lighted while the password is
being entered, then the entry will not be accepted.
Reenter the password from the beginning when the
number pad is lighted after pressing the [Wake Up]
button. (The light on the number pad is automatically
turned off if an entry is not initiated within 5 seconds.)
P. 20
The door cannot be
opened with the card.
- This may be a case of an unregistered card, or of the
card not being recognized. Register the card and try to
open it again.
- The card must be properly placed on the card reader.
P. 21
30
Problem Solution Remark
The door cannot be
opened with the
password or card.
- The door cannot be opened from the outside using
the password or card if the double locking function
has been activated. A "too~~t, too~~t" sound is
generated if the [Wake Up] button is pressed when the
double locking function is activated.
P. 28
The password or card
registration data can be
verified, but the door
cannot be opened.
This could be a malfunction of the door lock. Please call
the nearest service center. -
Automatic Locking
Problem Solution Remark
The door does not
lock automatically after
being closed.
- Check to ensure that Automatic Locking mode has been
set. If the operation mode is set to Manual Locking,
touch the [Wake Up] to lock the door.
- If the door does not automatically lock when in Automatic
Locking mode, then the door lock is installed improperly.
Contact the digital door lock distributor to have it
reinstalled.
- The automatic locking function will not work if the
batteries are completely discharged. Check the batteries.
P. 24
Alarm Sound
Problem Solution Remark
The "too~~t, too~~t"
alarm sound is
generated when the
[Wake Up] button is
pressed.
The alarm sound is generated if the [Wake Up] button is
pressed while the double locking function is activated.
Release the double locking function before using the door
lock.
P. 28
A strange sound
(melody of "Blues for
Elise") occurs when the
door lock operates.
It is notifying you that the batteries need to be replaced.
Please change the batteries within 1 week. P. 10
Malfunction
Problem Solution Remark
There's no response
when the [Wake Up]
button is pressed.
- Press the hole on the right side of the external power
contact on the outdoor unit with a pin.
- If there's still no response after taking the measures
above, please call the nearest service center
-
31
Operating Method Summary
Function Default Setting or Releasing
(Press the buttons in the given order.)
Initialization
(Password and
card all deleted.)
-
Press and hold the [Set] button for 10 seconds
Enter the current password button
※ The master password is set to '1234' after initialization.
Master Password
Registration/
Change
'1234'
Press and hold the [Set] button for 5 seconds
Previous master password entry + button
New master password entry + button
Password
Registration None
Press and hold the [Set] button Master password entry +
button User code entry + button
New password entry + button
Card Registration None Press and hold the [Card] button Master password entry +
button User code entry + button Card recognition
Password/Card
Deletion None Press and hold the [Card] button for 5 seconds Master password
entry + button User code to be deleted entry + button
Opening the Door
from Inside -
Automatic Mode: Press the [Open] button while the door is locked
The door opens.
Manual Mode: Turn the manual switchgear The door opens
Closing the Door
from Inside -
Automatic Mode: Press the [Open] button while the door is opened
The door locks.
Manual Mode: Turn the manual switchgear The door locks
Opening the Door
from Outside
Double
Security
Mode
Card: Press the [Wake Up] button
Place the card to the reader within 5 seconds
Password: Press the [Wake Up] button Enter any two numbers
Enter the password button
Closing the Door
from Outside
Automatic
Locking
Automatic Locking: Close the door.
Manual Locking: Press the [Wake Up] button.
Double Security
Mode Setting
Double
Security
Mode
Press the [Set] button Press or button. + button
Automatic/Manual
Locking Setting
Automatic
Locking Press the [Set] button Press or button + button.
Sound
Setting/Releasing 2 Steps Press the [Set] button Press , , , or +
button
※ Initialization, registration, change and deletion are available while the door is open.
32
Function Default Setting or Releasing
(Press the buttons in the given order.)
Security Function
Setting - Press the [Wake Up] button, and press and hold the button for 3
seconds while the door is locked Password entry + button
Security Function
Release Enter the password or place the card.
Emergency
Sound
Deactivation from
Inside
- Press the [Set] button or the [Card] button.
Emergency
Sound
Deactivation from
Outside
- Enter the password or place the card.
Double Locking
Setting - Press and hold the [Open] button for 5 seconds while the door is
locked.
Double Locking
Release - Press the [Open] button or turn the manual switchgear.
33
Product Specifications
Item Specifications
Voltage 4 AA Alkaline 1.5 Batteries (LR6) (6V)
Emergency Power
Source
1 9V Battery (6LF22) (Separately purchased)
Operating Method Electronic Control Method (Password entry or card reading)
Weight 1.8Kg (including both indoor and outdoor units)
Outdoor Unit 68.7 mm(W)×175.1 mm(H)×21.5 mm(D)
Indoor Unit 69.9 mm(W)×128.0 mm(H)×40.5 mm(D)
Product Dimensions
Card 85.5 mm(W)×54.0 mm(H)×0.9 mm(D)
The content of this manual is subject to change without prior notice to the user in order
to enhance performance of the product.
FCC NOTICE
NOTE : This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION : Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the equipment.
34
User Code Registration Table
User Code Registration Information User Name
35
37
