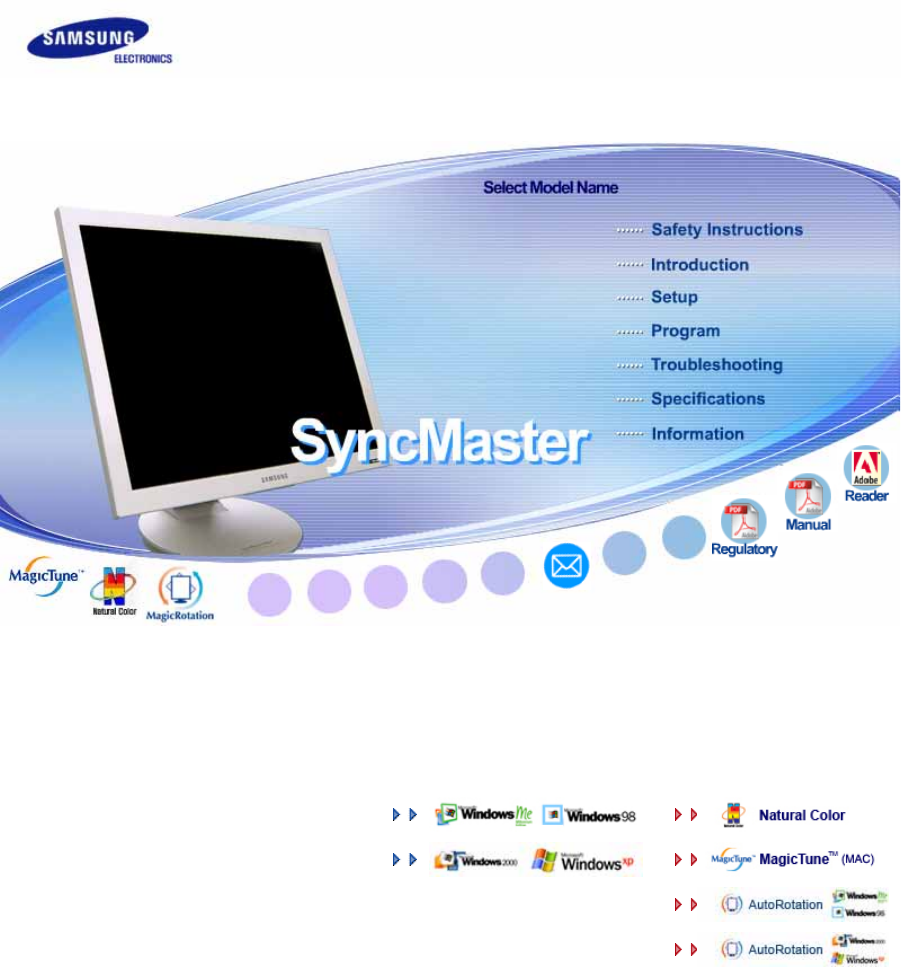

SyncMaster 173P plus/193P plus

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to

equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Grounding to prevent an electric shock

Power

When not used for extended period of time, set your computer to DPMS.

If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.

zThis may cause an electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

zThis may cause an electric shock or fire.

Use only a properly grounded plug and receptacle.

zAn improper ground may cause electric shock or equipment damage.

Insert the power plug firmly so that it does not come loose.

zA bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon

them, which could cause damage.

zThis may cause an electric shock or fire.

Do not connect too many extension cords or plugs to an outlet.

zThis may cause fire.

Installation

Be sure to contact an authorized Service Center when installing your set in a

location with heavy dust, high or low temperatures, high humidity, and

chemical substances, or where it will be operated for 24 hours continuously

such as an airport, train station or etc.

Failure to do so may cause serious damage to your set.

Put your monitor in a location with low humidity and a minimum of dust.

zFailure to do so may cause an electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

zThis may cause damage to the product or human body.

Install the monitor base in a showcase or shelf so that the end of the

base does not project beyond the showcase or shelf.

zDropping the product may cause damage to the product or personal

injury.

Do not place the product on an unstable or small surface area.

zPlace the product on an even, stable surface, as the product may fall

and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

zSomeone, specifically children could trip over it.

Keep any flammable objects such as candles, insecticides or cigarettes

away from the product.

zOtherwise, this may cause a fire.

Keep any heating devices away from the power cable.

zA melted coating may lead to electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a

bookshelf, closet, etc.

zAny increase in internal temperature may cause fire.

Set down the monitor carefully.

zThe monitor could be damaged or broken.

Do not place the monitor face down.

zThe TFT-LCD surface may be damaged.

Installing a wall bracket must be done by a qualified professional.

zInstallation by unqualified personnel may result in injury.

zAlways use the mounting device specified in the owner's manual.

When installing the product, make sure to keep it away from the wall

(more than 10cm/4inch ) for ventilation purposes.

zPoor ventilation may cause an increase in the internal temperature of

the product, resulting in a shortened component life and degraded

performance.

Clean

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with

a slightly moistened, soft fabric.

Do not spray water or detergent directly on the monitor.

zThis may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it

properly with a dry cloth.

zA dirty connector may cause an electric shock or fire.

Make sure to unplug the power cord before cleaning the product.

zOtherwise, this may cause electric shock or fire.

Unplug the power cord from the power outlet and wipe the product using

a soft, dry cloth.

zDo not use any chemicals such as wax, benzene, alcohol, thinners,

insecticide, air freshener, lubricant or detergent.

Contact the Service Center or Customer Center for interior cleaning

once a year.

zKeep the product's interior clean. Dust which has accumulated in the

interior over an extended period of time may cause malfunction or fire.

Others

Do not remove cover (or back).

zThis may cause an electric shock or fire.

zRefer servicing to qualified service personnel.

If your monitor does not operate normally - in particular, if there are any

unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service.

zThis may cause an electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture;

do not install inside a vehicle.

zThis may cause malfunction, an electric shock or fire.

zEspecially avoid operating the monitor near water or outdoors where the

monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off

and unplug the power cord. Then contact the Service Center.

zThe monitor may malfunction, causing an electric shock or fire.

Disconnect the plug from the outlet during storms or lightening or if it is

not used for a long period of time.

zFailure to do so may cause an electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal

cable.

zThis may cause a breakdown, electric shock or fire due to damage to

the cable.

Do not move the monitor right or left by pulling only the wire or the

signal cable.

zThis may cause a breakdown, electric shock or fire due to damage to

the cable.

Do not cover the vents on the monitor cabinet.

zBad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects

on the monitor.

zThis may cause malfunction, an electric shock or fire.

zIf a foreign substance enters the monitor, unplug the power cord and

contact the Service Center .

Keep the product away from combustible chemical sprays or

inflammable substances.

zThis may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

zThis may cause an electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and gimlet or

inflammable objects such as paper and match into the vent, headphone

port or AV ports.

zIt may cause a fire or an electric shock. If an alien substances or water

flows into the product, turn the product off, unplug the power connector

from the wall outlet and contact Service Center.

If you view a fixed screen for an extended period of time, residual image

or blurriness may appear.

zChange the mode to energy save or set a screensaver to moving

picture when you need to be away from the monitor for an extended

period of time.

Adjust the resolution and frequency to the levels appropriate for the

model.

zInappropriate resolution may cause undesirable picture quality.

17 inch - 1280 X 1024

Be careful that adapter should not be in contact with water and

therefore not be wet.

zThis may cause malfunction, an electric shock or fire.

zDo not use adapter by the waterside or outside particularly when it rains

or snows.

zBe careful that adapter should not be wet while cleaning floor with

water.

Keep all power adapters apart.

zFailure to do so may cause fire.

Keep power adapter away from any other heat source.

zFailure to do so may cause fire.

Remove and discard vinyl bag from power adapter before use.

zFailure to do so may cause fire.

Always keep power adapter in well-ventilated area.

Watching the monitor continuously at a too close angle may result in

eyesight damage.

To ease eye strain, take at least a five-minute break after every hour of

using the monitor.

Do not install the product on an unstable, uneven surface or a location

prone to vibrations.

zDropping the product may cause damage to the product or personal

injury. Using the product in a location prone to vibrations may shorten

the lifetime of the product or may catch fire.

When moving the monitor, turn off and unplug the power cord.

Make sure that all cables, including the antenna cable and cables

connected to other devices, are disconnected before moving the

monitor.

zFailure to disconnect a cable may damage it and lead to fire or an

electric shock.

Place the product out of children's reach, as they could damage it by

hanging onto it.

zA falling product could cause physical damage even death.

When not using the product for an extended time period, keep the

product unplugged

zOtherwise, this may cause heat emission from the accumulated dirt or

degraded insulation, leading to electric shock or fire.

Do not place children's favorite objects (or anything else that may be

tempting) on the product.

zChildren may try to climb on the product to retrieve an object. The

product could fall, causing physical damage or even death.

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

to bu

tional items.

Unpacking

Monitor

Manual

Quick Setup Guide

Warranty Card

(Not available in all

locations)

User's Guide,

Monitor Driver,

Natural Color software,

MagicTune™ software,

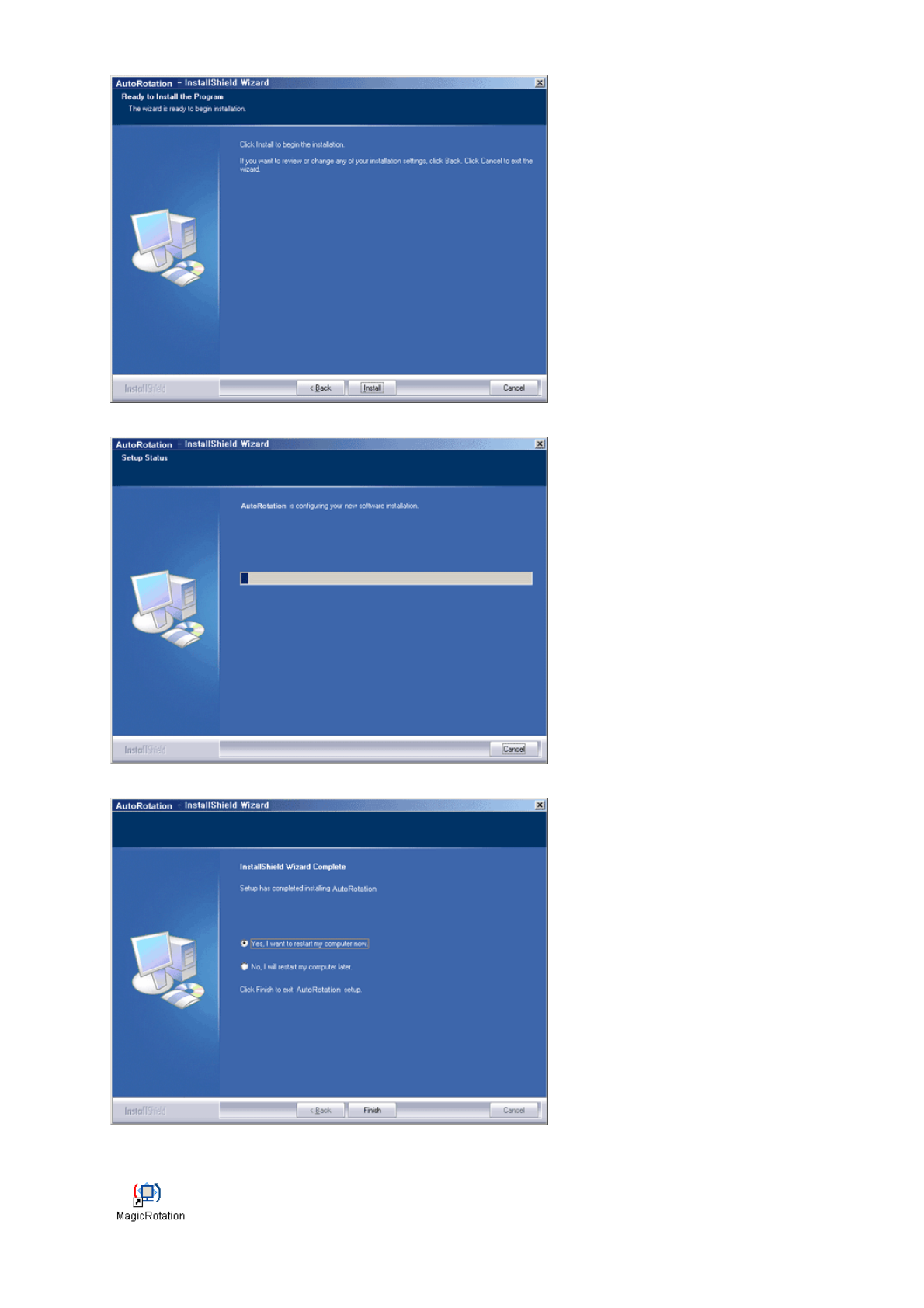

MagicRotation software

Cable

D-Sub Cable Power Cord DC-

ter

Bracket

ESA Mountin

Bracket

Sold se

aratel

DVI Cable

Front

Power indicator

This light glows blue during normal operation, and blinks blue once

as the monitor saves your adjustments.

Power button

Use this button for power the monitor on and off, change the input

source, or perform Auto Adjustment.

Power On/Off : Press the power button and listen for one beep,

to turn the monitor on or off.

Input Source : Press the power button and listen for two beeps,

then release to switch the input source to analog or digital.

Auto adjustment : Press the power button and listen for three

beeps, then release to activate the Auto Adjustment feature.

(Available only with an analog source.)

See PowerSaver described in the manual for further information regarding power saving

functions. For energy conservation, turn your monitor OFF when it is not needed or when

leaving it unattended for long periods.

Rear

(The configuration at the back of the monitor may vary from product to product.)

Power port Connect the DC adapter for your monitor to the power port on the

back of the monitor. Plug the power cord for the monitor into a nearby

outlet.

DVI port Connect the DVI cable to the DVI port on the back of your monitor.

D-sub 15-pin port Connect the signal cable to the 15-pin, D-sub connector on the back

of your monitor.

See Connecting the Monitor for further information regarding cable connections.

1. Connect the DC adapter for your monitor to the power port on the back of the monitor. Plug

the power cord for the monitor into a nearby outlet.

2-1. Using the D-sub (Analog) connector on the video card.

Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.

2-2. Using the DVI (Digital) connector on the video card.

Connect the DVI cable to the DVI port on the back of your monitor.

2-3. Connected to a Macintosh.

Connect the monitor to the Macintosh computer using the D-SUB connection cable.

2-4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac

adapter.

3. Turn on your computer and monitor. If your monitor displays an image, installation is

complete.

You may get a blank screen depending on the type of video card you are using, if you connect

simultaneously both the D-Sub and DVI cables to one computer.

If you properly connect your monitor using the DVI connector but get a blank screen, check to see

if the monitor status is set to analog. Press power button to have the monitor double-check the

input signal source.

Pivot Stand

(When pivoting the monitor, rotation angle is displayed on screen of the monitor.)

0° 90° 180°

Caution : When pivoting the monitor, the corner of the monitor may reach to the floor. Tilt the

monitor backward more than 45 degrees and then pivot it. Failure to do so may damage

the monitor.

Attaching a Base

This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.

VESA Stand

VESA Mounting Bracket

Fold the monitor stand. Turn it so that the side to which the cable is connected faces down. Attach

the VESA Mounting Bracket to the bottom side of the stand. Align the holes of the bracket with

those in the VESA stand, and fasten it tightly in place with four screws.

Caution: The stand is made of aluminum. Keep it from getting nicked or scratched.

Wall Mountin

the Monito

Installin

the Monitor Driver

(

Automatic

)

When prompted by the operating system for the monitor driver, insert the CD-ROM

included with this monitor. Driver installation is slightly different from one operating

system to another. Follow the directions appropriate for the operating system you

have.

Prepare a blank disk and download the driver program file at the Internet web site shown

here.

zInternet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)

http://www.sec.co.kr/monitor (Korea)

http://www.samsungmonitor.com.cn/ (China)

Windows ME

1. Insert CD into the CD-ROM drive.

2. Click "Windows ME Driver".

3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.

5. Monitor driver installation is completed.

Windows XP/2000

1. Insert CD into the CD-ROM drive.

2. Click "Windows XP/2000 Driver"

3. Choose your monitor model in the model list, then click the "OK" button.

4. If you can see following message window, then click the "Continue Anyway" button.

Then click "OK" button.

5. Monitor driver installation is completed.

This monitor driver is under certified MS logo,and this installation doesn't

damage your system.The certified driver will be posted on Samsung

Monitor homepage.

http://www.samsung.com/.

Installin

the Monitor Driver

(

Manual

)

Windows XP | Windows 2000 |Windows Me |Windows NT | Linux

When prompted by the operating system for the monitor driver, insert the CD-ROM

included with this monitor. Driver installation is slightly different from one operating

system to another. Follow the directions appropriate for the operating system you

have.

Prepare a blank disk and download the driver program file at the Internet web site shown

here.

zInternet web site : http://www.samsung.com/ (Worldwide)

http://www.samsung.com/monitor (U.S.A)

http://www.sec.co.kr/monitor (Korea)

http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" icon.

3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".

4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.

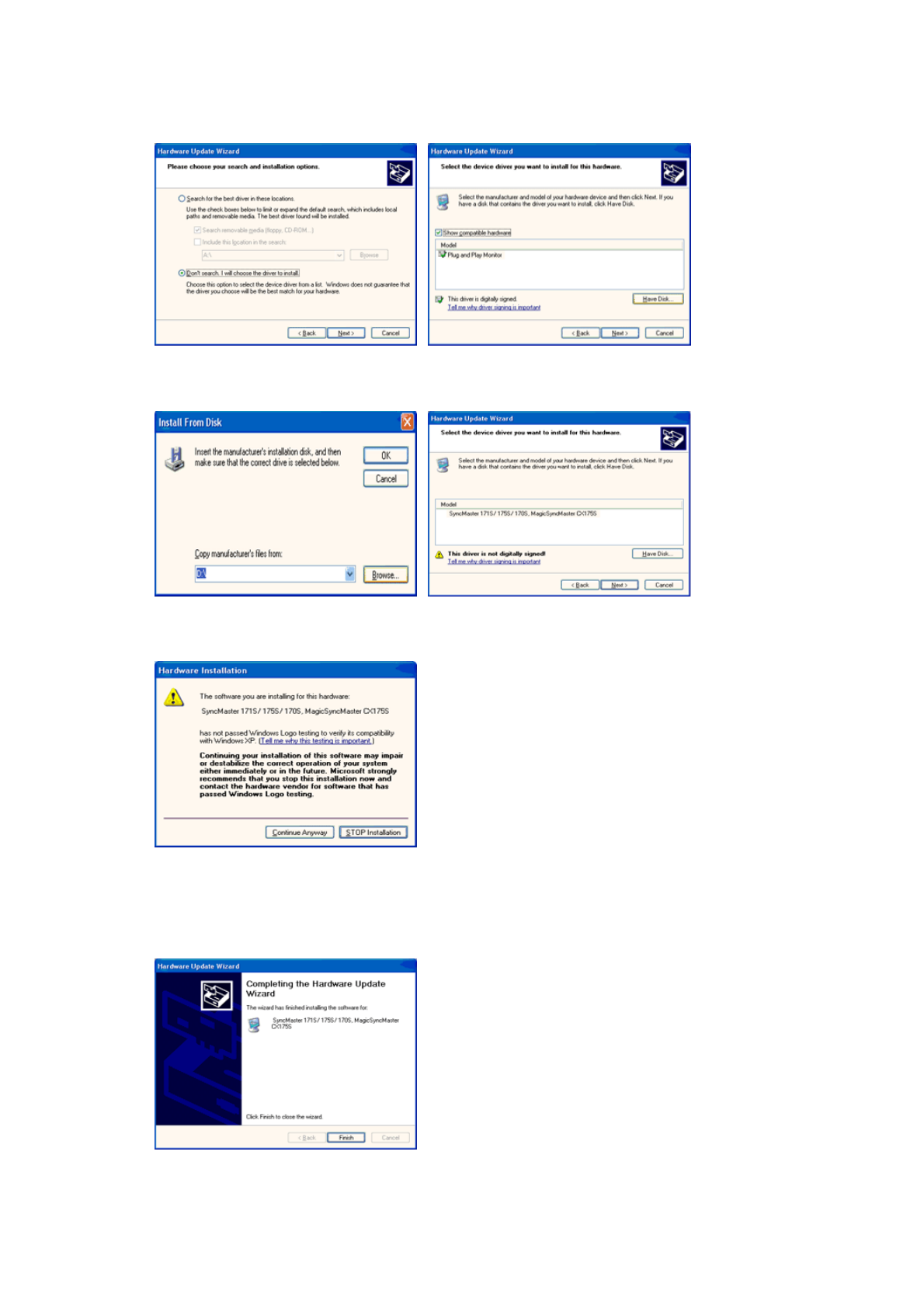

6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".

7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the

model list and click the "Next" button.

8. If you can see following message window, then click the "Continue Anyway" button. Then

click "OK" button.

This monitor driver is under certified MS logo,and this installation doesn't damage your

system.The certified driver will be posted on Samsung Monitor homepage.

http://www.samsung.com/

9. Click the "Close" button then click "OK" button continually.

10. Monitor driver installation is completed.

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "Insert disk" window.

2. Click the "Browse" button on the "File Needed" window.

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "Start" , "Setting" , "Control Panel".

2. Double click the "Display" Icon.

3. Choose the "Settings" tab and then click "Advanced..".

4. Choose "Monitor".

5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.

6. Choose "Display a list of the known drivers for this device so that I can choose a

specific driver" then click "Next" and then click "Have disk".

7. Click the "Browse" button then choose A:(D:\Driver).

8. Click the "Open" button, then click "OK" button.

9. Choose your monitor model and click the "Next" button then click "Next" button.

10. Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes"button.

And click the "Finish" button then the "Close" button.

Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Please stop installation

Case2: If the "Properties" button is active, click the "Properties" button then follow next steps

continually.

Microsoft® Windows® Millennium Operating System

1. Click "Start" , "Setting" , "Control Panel".

2. Double click "Display" icon.

3. Select the "Settings" tab and click "Advanced Properties" button.

4. Select the "Monitor" tab.

5. Click the "Change" button in the "Monitor Type" area.

6. Choose "Specify the location of the driver".

7. Choose "Display a list of all the driver in a specific location.." then click "Next" button.

8. Click the "Have Disk" button

9. Specify A:\(D:\driver) then click "OK" button.

10. Select "Show all devices" and choose the monitor that corresponds to the one you

connected to your computer and click "OK".

11. Continue choosing "Close" button and "OK" button until you close the Display Properties

dialogue box.

Microsoft® Windows® NT Operating System

1. Click Start, Settings, Control Panel, and then double-click Display icon.

2. In Display Registration Information window, click Settings Tab and then click All Display

Modes.

3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)

and then click OK.

4. Click Apply button if you see the screen working normally after clicking Test. If the screen is

not normal, change to a different mode (lower mode of resolution, colors or frequency).

If there is no Mode at All Dis

Modes, select the level of resolution and vertical

frequency by referring to the Preset Timing Modes in the user guide.

Linux Operating System

To execute X-Window, you need to make the X86Config file, which is a type of system setting file.

1. Press Enter at the first and the second screen after executing the X86Config file.

2. The third screen is for setting your mouse.

3. Set a mouse for your computer.

4. The next screen is for selecting a keyboard.

5. Set a keyboard for your computer.

6. The next screen is for setting your monitor.

7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency

directly.)

8. Set a vertical frequency for your monitor. (You can enter the frequency directly.)

9. Enter the model name of your monitor. This information will not affect the actual execution

of X-Window.

10. You have finished setting up your monitor.

Execute X-Window after setting other requested hardware.

Natural Color

Natural Color Software Pro

ram

One of the recent problems in using a computer is that the color of the images printed out by a

printer or other images scanned by a scanner or a digital camera are not the same as those

shown on the monitor.

The Natural Color S/W is the very solution for this problem. It is a color administration system

developed by Samsung Electronics in association with Korea Electronics &

Telecommunications Research Institute (ETRI).

This system is available only for Samsung monitors and makes the color of the images on the

monitor the same as the printed or scanned images.

For more information, refer to Help (F1) in the software program.

How to install the Natural Color software

Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial

screen of the program Natural Color will be executed. Click Natural Color on the initial screen

to install the Natural Color software.

To install the program manually, insert the CD included with the Samsung monitor into the CD-

ROM Drive, click the [Start] button of Windows and then select [Execute].

Enter D:\color\eng\setup.exe and then press the <Enter> key.

(If the drive where the CD is inserted is not D:\, enter the applicable drive.)

How to delete the Natural Color software program

Select "Setting/Control Panel" on the "Start" menu and then double-click "Add/Delete a

program".

Select Natural Color from the list and then click the "Add/Delete" button.

Installation

1. Insert the installation CD into the CD-ROM drive.

2. Click the AutoRotation installation file.

3. Select installation Language, Click "Next".

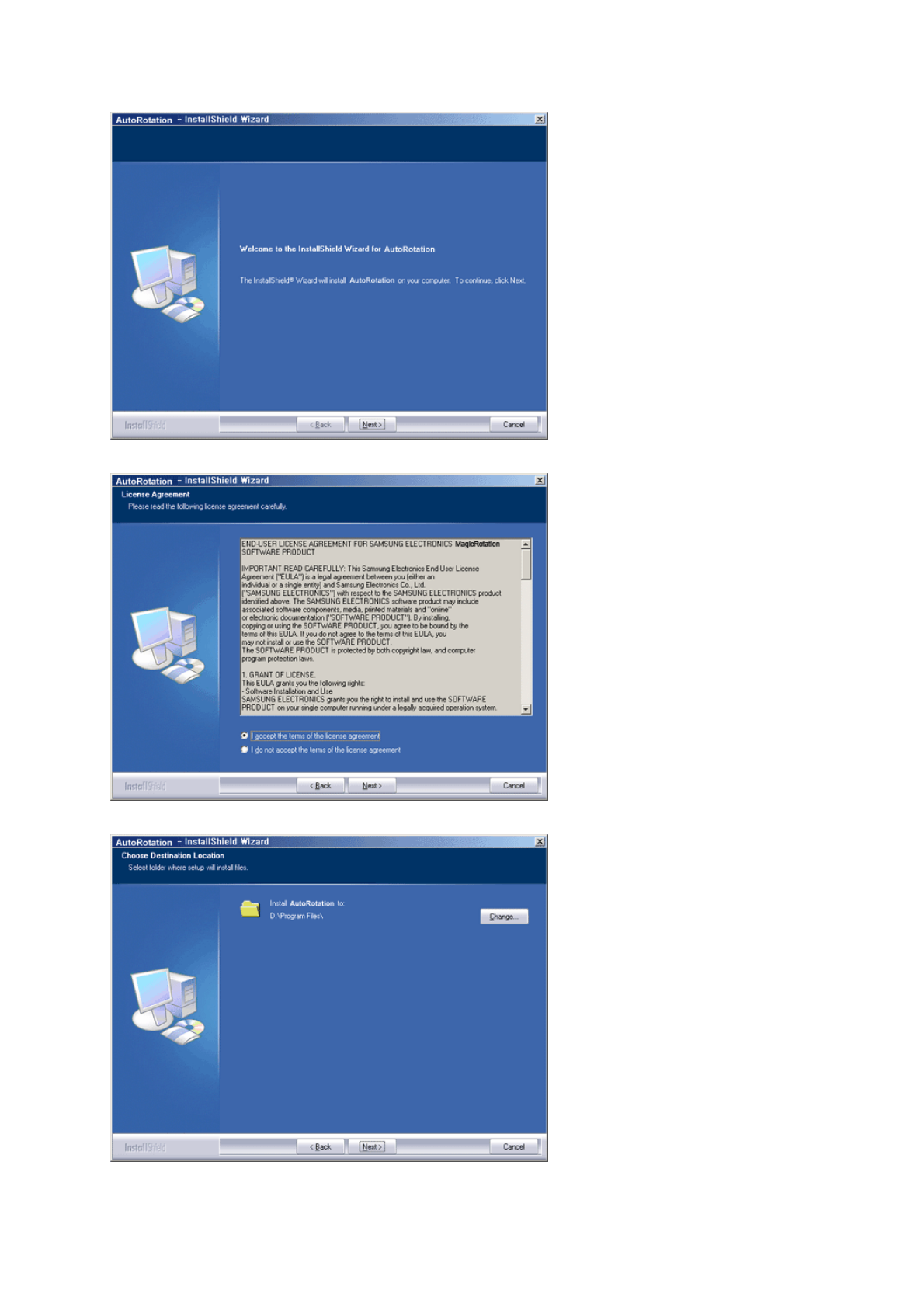

4. When the Installation Shield Wizard window appears, click "Next."

5. Select "I agree to the terms of the license agreement" to accept the terms of use.

6. Choose a folder to install the AutoRotation program.

7. Click "Install."

8. The "Installation Status" window appears.

9. Click "Finish."

10. When the installation is complete, the MagicRotation, MagicTune™ executable icon appears on your

desktop.

Double-click the icon to start the program.

MagicTune™ execution icon may not appear depending on

specification of computer system or monitor.

If that happens, press F5 Key.

Installation Problems

(

icTune™

)

The installation of MagicTune™ can be affected by such factors as the video card, motherboard

and the network environment.

See "Troubleshooting" if you have trouble during installation.

stem Re

uirements

zWindows™ 98 SE

zWindows™ Me

zWindows™ 2000

zWindows™ XP Home Edition

zWindows™ XP Professional

Hardware

z32MB Memory above

z25MB Hard disk space above

* For more information, visit the MagicTune™ website.

It is recommended using MagicTune™ in Windows™ 2000

or later.

Installation Problems

(

icRotation

)

The installation of MagicRotation can be affected by such factors as the video card, motherboard

and the network environment.

See "Troubleshooting" if you have trouble during installation.

Limitation

1. The "Display Driver" should be properly loaded for the MagicRotation to work properly.

The installed "Display Driver" should be the latest driver supplied by the vendor.

2. If some applications like Windows™ Media Player, Real Player, etc. are not displaying

movie files properly in 90, 180 and 270 orientations then do the following :

{Close the application.

{Select the Orientation (90, 180, 270) you want to view the application.

{Relaunch the application.

In most cases this should fix the problem.

3. User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the

orientation mode selected (90, 180, 270).

e.g. 3D games

4. DOS based applications in Full Screen Mode will not function as per the orientation mode

selected (90, 180, 270).

5. Dual is not supported in Windows™ 98, ME, NT 4.0.

6. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality).

7. If you are changing your Graphic Card it is recommended that you uninstall the

MagicRotation Software before doing so.

stem Re

uirements

zWindows™ 98 SE

zWindows™ Me

zWindows™ NT 4.0

zWindows™ 2000

zWindows™ XP Home Edition

zWindows™ XP Professional

Hardware

z128MB Memory above(recommended)

z25MB Free Hard disk space above

Service Packs

zIt is recommended that your System has the latest Service Pack installed.

zFor Windows™ NT 4.0, it is recommended to install Internet Explorer 5.0 and above with

Active Desktop component.

* For more information, visit the MagicRotation website.

* Windows™ is registered trademark of Microsoft Corporation,Inc.

Uninstall

The AutoRotation program can be removed only by using the "Add or Remove Programs" option of

the Windows™ Control Panel.

Perform the following steps remove AutoRotation.

1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program

runs on Windows™ XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add or Remove Programs" icon in Control Panel.

3. In the "Add or Remove Programs" screen, scroll down to find "AutoRotation". Click on it to

highlight it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

Visit the AutoRotation website for technical support for AutoRotation, FAQs (questions and

answers) and software upgrades.

Overview | OSD Mode | Color Calibration | Troubleshooting

Overview

What is Ma

icTune™?

Monitor performance can vary due to the graphics card, host computer lighting conditions and

other environmental factors. In order to get the best image on a monitor requires you to adjust it

for your unique setting. Unfortunately, the manual controls available to tune the image often

prove to be challenging. Proper adjustment (tuning) requires an easy to use program that goes

through a step-by-step process to obtain the best overall picture quality.

In most cases even simple adjustments to Brightness, or Contrast require navigation of the multi-

level, on-screen display (OSD) menus that are not easy to understand. Furthermore, there is no

feedback to assist in correctly setting the controls of the monitor. MagicTune™ is a software

utility that guides you through the tuning process with easy to understand instructions and back

ground patterns designed for each monitor control. The display settings for each user can be

saved, providing an easy way to select display characteristics in a multi-user environme or having

a single user have multiple defined presets based on content and ambient lighting.

Basic Functionalit

MagicTune™ is a software utility that allows monitor adjustment and color tuning using the

Display Data Channel Command Interface (DDC/CI) protocol. All adjustments to the display are

controlled via software to eliminate the need to use the monitor on-screen display (OSD).

MagicTune™ supports Windows™ 98 SE, Me, 2000, XP Home, and XP Professional.

It is recommended using MagicTune™ in Windows™ 2000 or later.

MagicTune™ allows for quick accurate tuning of the display with the ability to easily save and use

monitor configurations that are best suited for you.

OSD Mode

The OSD mode allows easy adjustment of monitor settings without taking pre-defined steps. You

can access the desired menu item to set with ease.

Overview |OSD Modes| Color Calibration | Troubleshooting

MagicTune™ allows for quick accurate tuning of the display with the ability to easily

save and use monitor configurations that are best suited for you.

zOSD mode may appear inconsistent with the explanation in guidance book

depending on specification of each monitor.

zWhen Pivot is functioning, part of MagicTune™ Program may not operate

normally.

zAutoRotation : AutoRotation will automatically pivots the monitor to 0, 90,

180degrees when you pivots the monitor.

To execute Rotation, it should be done as below.

zPlease install both of Rotation program and MagicTune™ 3.6 in your PC.

zLaunch MagicTune™ 3.6

zOption → Preference → click the small box as "V" in enable task tray

menu.

zMagicTune™ control mode will be different according to monitor models.

zThe permitted angle of rotation of the monitor is determined by the model

of the monitor.

OSD Mode

The OSD mode makes the adjustment of settings on all monitors easy. When selected , each tab

on top of the control window displays the general descriptions of the sub-menu items for

adjustment.

When selected, each tab displays a list of menus. For quick adjustment of the monitor settings, the

OSD mode allows easy and convenient access to all tabs and sub-menu items.

Button Tab Definition

Applies any changes made and exits MagicTune™.

Reset

Restores the display settings to the factory settings.

Cancel

Exits MagicTune™ without applying the changes made. If you have not made

any changes in the control window, clicking "Cancel" does not cause any

actions.

Picture Tab Definition

llows the user to adjust the screen settings to the desired values.

Brightness

Makes the entire screen brighter or darker. The detailed data of the images in

the dark areas can be lost if the brightness is not adjusted to the proper level.

Adjust the brightness for best viewing conditions.

Contrast

Adjusts the difference in brightness between the bright and dark areas on

screen. Determines the crispness of the images.

Resolution

Lists all display resolutions supported by the program.

MagicBright™ is a new feature providing the optimum viewing environment

MagicBright™

depending on the contents of the image you are watching. Currently four

different modes are available: Text, Internet,Game, Sport, Movie and Custom.

Each mode has its own pre-configured brightness value. You can easily select

one of six settings by simply pressing MagicBright control buttons.

1. Text: For documentations or works involving heavy text.

2. Internet: For working with a mixture of images such as text and graphics.

3. Game : For watching motion pictures such as a Game.

4. Sport : For watching motion pictures such as a Sport.

5. Movie: For watching motion pictures such as a DVD or Video CD.

6. Custom: Although the values are carefully chosen by our engineers, the

pre-configured values may not be comfortable to your eyes depending on

your taste. If this is the case, adjust the Brightness and Contrast by using

the OSD menu.

MagicBright control mode will be different according to monitor

models.

Some monitor will only support Four modes(Text, Internet,

Entertain, Custom)

Color Tab Definition

djusts the "warmth" of the monitor background or image color.

MagicColor and Gamma will be shown only in the monitor that

supports these functions.

Color Tone

The tone of the color can be changed.

zWarm2 - Warm1 - Cool 1 - Cool 2 - Cool 3 - Cool 4 - Cool 5 - Cool 6 - Cool

zOff

Color Tone mode will be different according to monitor models.

Some monitor will only support Four modes( Warm, Normal, Cool,

Custom)

Color Control

Adjusts of the monitor image color.

You can change the monitor color to your desired color.

zR- G - B

Calibration

The process through which the colors of your choice are optimized and

maintained. You will find MagicTune™ extremely useful if you are one of those

who wish to view images with their full details accurately reproduced - including

web images and ones produced by a digital camera or scanner.

MagicColor is a new technology that Samsung has exclusively developed to

improve digital image and to display natural color more clearly without disturbing

image quality.

1. OFF : Returns to the original mode.

2. DEMO : The screen before applying MagicColor appears on the right and

the screen after applying MagicColor appears on the left.

MagicColor

3. Full : Displays not only vivid natural color but also more realistic natural

skin color with clearness.

4. Intelligent : Displays vivid natural color with clearness.

5. MagicZone

{The MagicZone ensures the clear and sharp display of animated

multimedia or photo images by enhancing the brightness, sharpness,

saturation, Hue of a certain area on the screen. This offers an easy-

to-use interface that highlights the video-playing portion of your

multimedia program by automatically detecting and highlight the

desired area by dragging.

{When the mouse cursor is activated( )and it is necessary to de-

activate it to use it for other tasks, right click your mouse, or put the

activated cursor ( )on the taskbar and click. When de-activated, the

icon on the screen changes back to the one shown before activation.

{Especially, MagicZone is appropriate to using the moving picture.

{Auto Detect : If you run the Movie in some players, MagicZone will

automatically get the play screen highlighted (it will be supported in

players of Gom, Adrenalin, KCP, Window Media, and Power DVD

etc., )Some other players also can be highlighted but could have

some problems.

{Tusk menu

HUE Adjust the tint of the color.

Saturation Adjusts the color saturation.

Brightness Adjusts the Brightness.

Sharpness Adjusts the difference between the lightest and darkest

areas of the display.

Zone Off Turn off the zone that you have captured.

Reset Returns to the the default setting that vendor has set.

zDepending on the monitor models Color Control,

Sharpness, Contrast, Color Tone, Brightness will not be

adjustable in MagicColor mode of Full and Intelligent.

zMagicTune™ will be disappear if you excute MagicZone,

and closing the MagicZone after adjusting, will show the

MagicTune™ again.

(System Tray is Unhecked)

MagicTune™ will be disappear if you excute MagicZone,

and closing the MagicZone after adjusting. will not show

MagicTune™ again.

(System Tray is Checked)

zMagicColor mode will be different according to monitor

models.

MagicZone mode will show if the monitor supports the

function.

Gamma

Gamma correction changes the luminance of the colors with intermediate

luminance.

Gamma mode will be different according to monitor models. Some

monitor will only support Three modes( Mode1, Mode2, Mode3)

Ima

e Tab Definition

djusts the Fine , Coarse and Position values.

Image Setup

zFine : Removes noise such as horizontal stripes.

If the noise persists even after Fine tuning, repeat it after adjusting the

frequency (clock speed).

zCoarse : Removes noise such as vertical stripes.

Coarse adjustment may move the screen image area.

You may relocate it to the center using the Horizontal Control menu.

zAuto Setup : Auto adjustment allows the monitor to self-adjust to the

incoming video signal. The values of fine, coarse and position are adjusted

automatically.

Position

Adjusts the screen location horizontally and vertically.

Sharpness

Changes the clearance of image.

tion Tab Definition

You can configure MagicTune™ using the following options.

Preferences

Loads the Preferences Dialog Box. Preferences in use will have an "V" in the

check box. To turn on or off any Preference, position the cursor over the box and

click.

zEnable task tray menu .

- To access the MagicTune™ menus, click the icon on the [task tray

menu].

The menus are not displayed if the [Enable System Tray] is deselected in

[Options] ' [Basic Settings].

zSelect Language - The language chosen affects only the language of the

OSD.

Source Select

zAnalog

zDigital

ort Tab Definition

Shows the Asset ID and the version number of the program, and allows you to use the Help

feature.

Help

Visit the MagicTune™ website or click to open the Help files (User Manual) if

you need any help installing or running MagicTune™. The User Manual opens

within a basic browser window.

Asset ID

you can use the server to control the Client monitor.

(Server program should be installed to use this program as Client)

User Name

Shows the user name that is registered in PC.

User ID

Shows the user ID that is register in PC.

Server IP

Write down the server IP .

Department

Write down the department.

Location

Write down the location.

Version

Displays the version of MagicTune™.

Overview |OSD Mode| Color Calibration | Troubleshooting

Color Calibration

Color Calibration guides you to get optimal color condition for your monitor.

Proceed following 5steps for getting optimal monitor color condition .

1. Control "Brightness control bar" for matching the brightness of control patch and the

brightness of background pattern

2. When you detect specific color tone on "Control patch", move the control cursor toward to

the direction of the color tone referring to "Color reference Circle".

=> Adjustment is finished properly, you won't detect any color tone on Control patch.

3. When you finish adjustment for step1,Click "Next" button .

4. Repeat 1), 2), 3) procedures for remaining step2 ~ step5.

5. You can easily view the calibration effect through clicking "Preview " button!

How multiple users can use adjusted color values

Definition

When monitor is used by multiple users, color values which are adjusted via Color calibration for

each users can be saved and used. Up to 5 users can use the saved color values.

1. How to save adjusted color values:

Press Next to make it change into Apply and then you can save adjusted color values.

As many as 5 values can be saved.

2. How to apply the saved color values:

Press Multi User button on main screen to select and use one of the saved color values.

Preview

Press "Preview" button on the Color Calibration.

The above picture will be shown.

1. Press "View Calibrated" button to see the calibration effect which you adjusted.

2. Press "View Uncalibrated" button to see the original image.

Overview | OSD Mode | Color Calibration | Troubleshooting

Troubleshooting

The current computing system is not compatible with MagicTune™.

Please press OK and click on the "Shortcut to the MagicTune™ site" to view our

home page for further reference.

An error may occur when your video/graphic card is not in the 'Available' list.

(The latest or oldest video cards may not be compatible.)

Please visit our homepage to see the Troubleshooting section.

An error may occur if the card maker has modified the video card driver or the

graphics chip even when the video card is in the list.

Please visit our homepage to see the Troubleshooting section.

Check if your monitor is manufactured by Samsung.

Products from other manufacturers may cause errors.

Only Samsung products are able to support this feature.

An error may occur even when your monitor is manufactured by Samsung but is

out of date. Check if your monitor is able to support MagicTune™.

This feature is only supported by those monitors that are registered on our

homepage.

Check for the monitor before purchasing it as out-of-date models are not

supported.

An error occurs when no information on EDID (Extended Display Identification

Data) exists for the current monitor.

This happens when from your desktop, Start → Setup → Control Panel → System

→ Hardware → Device Manager → Monitor is selected, the current "Plug-and-play

monitor" is removed and new hardware is searched for but the system couldn't find

any "Plug-and-play monitor".

Please visit our homepage to see the Troubleshooting section.

An error occurs when replacing the monitor with a new one when the system

power is off but the system has not been restarted.

Please restart the system each time the monitor is replaced before using

MagicTune™.

An error occurs when the video card driver is not installed properly.

This happens when the current video card list is not displayed normally. You can

check this via Start → Setup → System → Hardware → Device Manager →

Display Adapter.

Visit the video card maker's homepage and download and install the latest

driver.

For more information about the video card, contact the card manufacturer.

To ensure normal operation, please restart your system.

An error occurs when the system is not restarted after installing MagicTune™.

(This is for Win98SE and WinMe only.)

Restart the system before use.

For the best performance of MagicTune™, adjust to the optimal resolution.

Refer to the User Guide for the optimal resolution.

If you do not adjust to the optimal resolution and perform Color Calibration, the

monitor cannot be adjusted to the optimal condition.

Refer to the manual for the optimal resolution.

This video card does not support MagicTune™.

Please install a new video card driver.

An error occurs when the video card driver is not installed properly.

This happens when the current video card list is not displayed normally. You can

check this from Start → Setup → System → Hardware → Device Manager →

Display Adapter.

Visit the video card manufacturer's homepage and download and install the

latest driver.

For more information about the video card, contact the card manufacturer.

As the Highlight program uses the communication lines,

please exit the Highlight program before you can access MagicTune™.

Some of Samsung CDT monitors support the Highlight feature.

When using both the Highlight feature and MagicTune™ simultaneously, conflicts

occur, which cause errors.

Make sure to turn OFF Highlight before using MagicTune™.

Troubleshooting

zMagicTune™ may not work in case monitor is replaced or driver of graphic card is updated while

MagicTune™ is operating. If so, please restart the system.

Symptom Check List Solutions

Check when

MagicTune™ does MagicTune™ feature

is found only on PC * To check whether your PC is available for

MagicTune™ feature, follow the

not function properly. (VGA) with Window

OS that supports Plug

and Play.

steps below (When Windows™ is XP);

Control Panel → Performance and

Maintenance → System → Hardware →

Device Manager → Monitors → After deleting

Plug and Play monitor, find 'Plug and Play

monitor' by searching new Hardware.

MagicTune™ is an additional software for the

monitor. Some graphic cards may not support

your monitor. When you have a problem with

the graphic card, visit our website to check the

compatible graphic card list provided.

http://www.samsung.com/monitor/magicTune

MagicTune™ doesn't

work properly. Have you changed

your PC or video

graphic card?

Download the latest program. The program

can be downloaded

http://www.samsung.com/monitor/magicTune

zVisit the MagicTune™ website for technical support for MagicTune™, FAQs (questions and

answers) and software upgrades.

zVisit the MagicTune™ website and download the installation software for MagicTune™ MAC.

Overview | Interface | Troubleshooting

Overview

What is Ma

icRotation?

Traditionally, computer displays allowed the user to view only in landscape mode.

In today's information age, more users need to view documents, web pages, emails, etc. in there

day to day life. These types of applications can be better viewed in portrait mode where the entire

contents are available on the screen. This greatly improves the user's productivity allowing him

the flexibility to switch between landscape and portrait modes.

The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation

feature (0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display

screen, better viewing and improved user productivity.

Basic Function

MagicRotation will support Windows™ 98 SE, Me, NT 4.0, 2000, XP Home and XP Professional.

* Windows™ is registered trademark of Microsoft Corporation,Inc.

Overview | Interface | Troubleshooting

zWhen Rotation is functioning, part of MagicTune™ Program may not operate

normally.

zAutoRotation : AutoRotation will automatically AutoRotations the monitor to 0, 90,

180degrees when you AutoRotations the monitor.

* The angle of rotatation may vary depending on your monitor spec.

To execute AutoRotation, it should be done as below.

zPlease install both of Rotation program and MagicTune™ 3.6 in your PC.

zLaunch MagicTune™ 3.6

zOption → Preference → click the small box as "V" in enable task tray menu.

Interface

The Menu on task bar Menu pop up at the mouse right button click.

Rotate : Display will get rotated by the unit of 90 degree

Rotate to 0 : Display will get rotated to 0 degree from the current angle of rotation.

Rotate to 90 : Display will get rotated to 90 degree from the current angle of rotation.

Rotate to 180 : Display will get rotated to 180 degree from the current angle of rotation.

Rotate to 270 : Display will get rotated to 270 degree from the current angle of rotation.

Hot key : Hot Keys are available by default and can be changed by user.

It can be assigned by user directly with keyboard after changing the existing HotKey.

User can create the hot key with the combination of Shift, Ctrl, Alt and general keys.

In case only general key is pressed, it will be assigned in the form of Alt+general key.

Help : It shows the HELP of MagicRotation program.

About : It shows the version and copyright of MagicRotation program.

Exit : It exits from MagicRotation program.

Overview | Interface |Troubleshooting

Troubleshooting

Before You Call Technical Su

ort

zMagicRotation Software works with the installed "Display Driver" supplied by your Graphic

Card Vendor to provide screen rotation capabilities. If the installed "Display Driver" is

working incorrectly or has bugs in it, then these bugs would still exist even after

MagicRotation Software is installed.

Any incorrect/random behaviour resulting due to problems in the installed "Display Driver"

are not due to MagicRotation Software.

In order to verify if a problem exists in the installed "Display Driver" , you can perform the

following diagonostic steps :

1. Check if the problem is occuring in both 0 orientation (Landscape mode) and 90

orientation (Portarit mode).

2. Check if the problem occurs with different color depths (8/16/32 bits per pixel) and

different resolution modes (800 x 600, 1024 x 768).

3. Check if the problem occurs without installing MagicRotation Software.

If the problem is repeating in any/all of the following scenarios then it may be the problem

with your installed "Display Driver" :

In order to correct the problem you need to perform the following steps :

1. Uninstall MagicRotation Software.

2. Obtain the latest "Display Driver" from your Graphic Card Vendor.

The latest "Display Driver" from (ATI, NVIDIA, MATROX, INTEL, etc.) are easily

available for download from their respective websites.

3. Install the latest "Display Driver"

4. Install MagicRotation Software. In most of the cases this should correct the problem.

zMagicRotation may not work in case monitor is replaced or driver of graphic card is updated

while MagicRotation is operating.

If so, please restart the system.

zVisit the MagicRotation website for technical support for MagicRotation, FAQs (questions

and answers) and software upgrades.

Before calling for service, check the information in this section to see if you can remedy any

problems yourself. If you do need assistance, please call the phone number on the

Information section or contact your dealer.

Symptom Check List Solutions

No images on the

screen. I cannot turn

on the monitor.

Is the power cord

connected properly?

Check the power cord connection

and supply.

Can you see "Check

Signal Cable" on the

screen?

(When connecting D-Sub cable)

Check the signal cable connection.

(When connecting DVI cable)

If you still see an error message on

the screen when the monitor is

connected properly, check to see if

the monitor status is set to analog.

Press source button to have the

monitor double-check the input

signal source.

If the power is on,

reboot the computer to

see the initial screen

(the login screen),

which can be seen.

If the initial screen (the login screen)

appears, boot the computer in the

applicable mode (the safe mode for

Windows ME/XP/2000) and then

change the frequency of the video

card.

(Refer to the Preset Timing Modes)

Note: If the initial screen (the login

screen) does not appear, contact

the Service Center or your dealer.

Can you see "Not

Optimum Mode",

"Recommended Mode

1280 x 1024 60Hz" on

the screen?

You can see this message when the

signal from the video card exceeds

the maximum resolution and

frequency that the monitor can

properly handle.

Adjust the maximum resolution and

frequency that the monitor can

properly handle.

There is no image on

the screen.

The monitor is in PowerSaver mode.

Press any key on the keyboard to

activate the monitor and restore the

image on the screen.

If the monitor does not respond,

activate the source conversion

feature located on the front of the

monitor, or try moving the mouse or

pressing a key on the keyboard

again.

Is the monitor

connected using the

DVI cable?

You may get a blank screen if you

boot the system before you connect

the DVI cable, or disconnect and

then reconnect the DVI cable while

the system is running as certain

types of graphic cards do not send

out video signals.

Connect the DVI cable and then

reboot the system.

The screen shows

strange colors or just

black and white.

Is the screen displaying

only one color as if

looking at the screen

through a cellophane

paper?

Check the signal cable connection.

Make sure the video card is fully

inserted in it's slot.

Have the screen colors

become strange after

running a program or

due to a crash between

applications?

Reboot the computer.

Has the video card

been set properly?

Set the video card by referring to the

video card manual.

The screen suddenly

has become

unbalanced.

Have you changed the

video card or the driver?

Adjust screen image position and

size using the OSD.

Have you adjusted the

resolution or frequency

to the monitor?

Adjust the resolution and frequency

at the video card.

(Refer to the Preset Timing Modes).

The screen can be unbalanced due to the cycle of the video card signals.

Readjust position by referring to the OSD.

The screen is out of

focus.

Have you adjusted the

resolution or frequency

on the monitor?

Adjust the resolution and frequency

of the video card.

(Refer to the Preset Timing Modes).

There are only 16

colors shown on the

screen.

The screen colors

have changed after

changing the video

card.

Have the Windows

colors been set

properly?

Windows ME/2000/XP:

Set the colors properly at the

Control Panel → Display →

Settings.

Has the video card

been set properly?

Set the video card by referring to the

video card manual.

There is a message

that reads

"Unrecognized

monitor, Plug & Play

(VESA DDC) monitor

found".

Have you installed the

monitor driver?

Install the monitor driver according

to the Driver Installation Instructions.

See the video card

manual to see if the

Plug & Play (VESA

DDC) function can be

supported.

Check when

MagicTune does not

function properly.

MagicTune feature is

found only on PC (VGA)

with Window OS that

supports Plug and Play.

* To check whether your PC is

available for MagicTune feature,

follow the

steps below (When Windows is

XP);

Control Panel -> Performance and

Maintenance -> System ->

Hardware -> Device Manager ->

Monitors -> After deleting Plug and

Play monitor, find 'Plug and Play

monitor' by searching new

Hardware.

MagicTune is an additional software

for the monitor. Some graphic cards

may not support your monitor. When

you have a problem with the graphic

card, visit our website to check the

compatible graphic card list

provided.

http://www.samsung.com/monitor/magictune

MagicTune™ doesn't

work properly.

Have you changed your

PC or video graphic

card?

Download the latest program. The

program can be downloaded

http://www.samsung.com/monitor/magictune.

Visit our website and download the installation software for MagicTune MAC.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the video cables are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.

(If it does, request an after-service for the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed the adapter

(video) driver and the monitor driver.

4. Check if the scanning ratio of the video screen is set at 56Hz ~ 75Hz.

(Do not exceed 75Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,

remove the Display Adapter at the "Control Panel→System→Device Administrator" and then

reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized service center.

Q & A

Question Answer

How can I change the

frequency?

Frequency can be changed by reconfiguring the video card.

Note that video card support can vary, depending on the version

of the driver used. (Refer to the computer or the video card

manual for details.)

How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control

Panel→Display→Settings.

* Contact the video card manufacturer for details.

How can I set the Power Saving

function?

Windows ME/XP/2000 : Set the function at BIOS-SETUP of the

computer or the screen saver. (Refer to Windows/Computer

Manual).

How can I clean the outer

case/LCD Panel?

Disconnect the power cord and then clean the monitor with a soft

cloth, using either a cleaning solution or plain water.

Do not leave any remains of the detergent nor scratch the case.

Do not allow any water to go inside the monitor.

Self-Test Feature Check

Self-Test Feature Check | Warning Messages | Environment | Useful Tips

our monitor provides a self test feature that allows you to check whether your monitor is

functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or

damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the

monitor.

If your monitor screen remains blank after using the previous procedure, check your video

controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, the message below appears on the screen

or the screen goes blank although the power indicator LED is still on. The message may

indicate that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other

features of the monitor.

1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer

to another room.

2. Remove all electronic devices such as radios, fans, clocks and telephones that are

within 3 feet (one meter) of the monitor.

Useful Tips

zA monitor recreates visual signals received from the computer. Therefore, if there is trouble with

the computer or the video card, this can cause the monitor to become blank, have poor coloring,

noise, video mode not supported, etc. In this case, first check the source of the problem, and

then contact a service center or your dealer.

zJudging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode","Recommended Mode 1280 x

1024 60Hz" message comes up, disconnect the cable from the computer while the monitor is still

powered on.

{If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

{In this case, check the computer for trouble.

General

Model Name SyncMaster 173P plus

LCD Panel

Size 17" Diagonal

Display area 337.92 (H) x 270.336 (V)

Pixel Pitch 0.264mm (H) x 0.264mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16.7M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog , DVI Compliant Digital RGB.

Composite H/V Sync,SOG, 0.7Vp-p Positive at 75 ohms

Separate H/V sync,TTL level positive or negative

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC ±10%, 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-Sub cable, detachable

DVI-D to DVI-D cable (option), detachable

Power Consumption

SyncMaster 173P plus

Less than 40W

Dimensions (WxDxH)/ Weight

382 x 40.5 x 316.5 mm(15.0 x 1.6 x 12.5 inch)

382 x 236.2 x 395.2 mm(15.0 x 9.3 x 15.6 inch) /6,0kg(After installation of Stand)

382 x 99.3 x 316.5 mm(15.0 x 3.9 x 12.5 inch) / 6.0kg(After folding the Stand)

VESA Mounting Interface

75mm x 75mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and

computer systems will provide the best operating conditions and monitor settings. In most cases,

monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy

by switching your monitor into a low-power mode when it has not been used for a certain amount of

time. The monitor automatically returns to normal operation when you press a key on the keyboard. For

energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for

long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in

your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation Power saving mode

EPA/ENERGY 2000 Power off

Power Indicator Blue Black Black

Power Consumption Less than 40W Less than 2W

(Off-mode) Less than 1W

(120Vac)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000

compliant when used with a computer equipped with VESA DPMS

functionality.

As an ENERGY STAR® Partner, SAMSUNG has determined that this

product meets the ENERGY STAR® guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the

screen will be adjusted automatically (Exception : 640 x 480/60Hz, 720 x 400/70Hz, 800 x 600/60Hz)

However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video

card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Display Mode Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz) Sync Polarity

(H/V)

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.00 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 +,-/+,-

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.00 +/+

VESA, 1280 x 960 60.000 60.000 108.00 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+

VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of

the screen horizontally is called Horizontal Cycle and the inverse

number of the Horizontal Cycle is called Horizontal Frequency. Unit:

kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image

many times per second to display an image to the user. The

frequency of this repetition is called Vertical Frequency or Refresh

Rate. Unit: Hz

General

Model Name SyncMaster 193P plus

LCD Panel

Size 19" Diagonal

Display area 376.32 (H) x 301.056 (V)

Pixel Pitch 0.294mm (H) x 0.294mm (V)

Type a-si TFT active matrix

Synchronization

Horizontal 30 ~ 81 kHz

Vertical 56 ~ 75 Hz

Display Color

16.7M Colors

Resolution

Optimum resolution 1280 x 1024@60 Hz

Maximum resolution 1280 x 1024@75 Hz

Input Signal, Terminated

RGB Analog , DVI Compliant Digital RGB.

Composite H/V Sync,SOG, 0.7Vp-p Positive at 75 ohms

Separate H/V sync,TTL level positive or negative

Maximum Pixel Clock

140 MHz

Power Supply

AC 100 ~ 240 VAC ±10%, 60/50 Hz ± 3Hz

Signal Cable

15pin-to-15pin D-Sub cable, detachable

DVI-D to DVI-D cable (option), detachable

Power Consumption

SyncMaster 193P plus

Less than 40W

Dimensions (WxDxH)/ Weight

423 x 44.2 x 351.5 mm(16.7 x 1.7 x 13.8 inch)

423 x 236.2 x 412.7 mm(16.7 x 9.3 x 16.2 inch) / 7.1 kg(After installation of Stand)

423 x 103 x 351.5 mm(16.7 x 4.1 x 13.8 inch) / 7.1 kg(After folding the Stand)

VESA Mounting Interface

75mm x 75mm (for use with Specialty(Arm) Mounting hardware.)

Environmental considerations

Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)

Humidity: 10% ~ 80%, non-condensing

Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)

Humidity: 5% ~ 95%, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and

computer systems will provide the best operating conditions and monitor settings. In most cases,

monitor installation will proceed automatically, unless the user wishes to select alternate settings.

Note: Design and specifications are subject to change without prior notice.

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy

by switching your monitor into a low-power mode when it has not been used for a certain amount of

time. The monitor automatically returns to normal operation when you press a key on the keyboard. For

energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for

long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in

your computer. Use a software utility installed on your computer to set up this feature.

State Normal Operation Power saving mode

EPA/ENERGY 2000 Power off

Power Indicator Blue Black Black

Power Consumption Less than 40W Less than 2W

(Off-mode) Less than 1W

(120Vac)

This monitor is EPA ENERGY STAR® compliant and ENERGY2000

compliant when used with a computer equipped with VESA DPMS

functionality.

As an ENERGY STAR® Partner, SAMSUNG has determined that this

product meets the ENERGY STAR® guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the

screen will be adjusted automatically (Exception : 640 x 480/60Hz, 720 x 400/70Hz, 800 x 600/60Hz)

However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video

card manual and adjust the screen as follows.

Table 1. Preset Timing Modes

Display Mode Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz) Sync Polarity

(H/V)

IBM, 640 x 350 31.469 70.086 25.175 +/-

IBM, 640 x 480 31.469 59.940 25.175 -/-

IBM, 720 x 400 31.469 70.087 28.322 -/+

MAC, 640 x 480 35.000 66.667 30.240 -/-

MAC, 832 x 624 49.726 74.551 57.284 -/-

MAC, 1152 x 870 68.681 75.062 100.00 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 +,-/+,-

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

VESA, 1024 x 768 60.023 75.029 78.750 +/+

VESA, 1152 x 864 67.500 75.000 108.00 +/+

VESA, 1280 x 960 60.000 60.000 108.00 +/+

VESA, 1280 x 1024 63.981 60.020 108.00 +/+

VESA, 1280 x 1024 79.976 75.025 135.00 +/+

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of

the screen horizontally is called Horizontal Cycle and the inverse

number of the Horizontal Cycle is called Horizontal Frequency. Unit:

kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image

many times per second to display an image to the user. The

frequency of this repetition is called Vertical Frequency or Refresh

Rate. Unit: Hz

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products, please

contact the SAMSUNG customer care center.

North America

CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx

U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL 0800-124-421 http://www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) http://www.samsung.com/cl

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

EL SALVADOR 800-6225 http://www.samsung.com/latin

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

JAMAICA 1-800-234-7267 http://www.samsung.com/latin

PANAMA 800-7267 http://www.samsung.com/latin

PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 http://www.samsung.com/latin

TRINIDAD & TOBAGO 1-800-7267-864 http://www.samsung.com/latin

VENEZUELA 1-800-100-5303 http://www.samsung.com/latin

Europe

BELGIUM 02 201 2418 http://www.samsung.com/be

CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz

DENMARK 38 322 887 http://www.samsung.com/dk

FINLAND 09 693 79 554 http://www.samsung.com/fi

FRANCE 08 25 08 65 65 (€ 0,15/min) http://www.samsung.com/fr

GERMANY 01805 - 121213 (€ 0,12/Min) http://www.samsung.de

HUNGARY 06 40 985 985 http://www.samsung.com/hu

ITALIA 199 153 153 http://www.samsung.com/it

LUXEMBURG 02 261 03 710 http://www.samsung.lu

NETHERLANDS 0900 20 200 88 (€ 0.10/Min) http://www.samsung.com/nl

NORWAY 231 627 22 http://www.samsung.com/no

POLAND 0 801 801 881 http://www.samsung.com/pl

PORTUGAL 80 8 200 128 http://www.samsung.com/pt

SLOVAKIA 0850 123 989 http://www.samsung.com/sk

SPAIN 902 10 11 30 http://www.samsung.com/es

SWEDEN 08 585 367 87 http://www.samsung.com/se

U.K 0870 242 0303 http://www.samsung.com/uk

CIS

RUSSIA 8-800-200-0400 http://www.samsung.ru

UKRAINE 8-800-502-0000 http://www.samsung.com/ur

Asia Pacific

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA 800-810-5858, 010- 6475 1880 http://www.samsung.com.cn

HONG KONG 2862 6001 http://www.samsung.com/hk

INDIA 3030 8282, 1600 1100 11 http://www.samsung.com/in

INDONESIA 0800-112-8888 http://www.samsung.com/id

JAPAN 0120-327-527 http://www.samsung.com/jp

MALAYSIA 1800-88-9999 http://www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG (7267864) http://www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (7267864) http://www.samsung.com/sg

THAILAND 1800-29-3232, 02-689-3232 http://www.samsung.com/th

TAIWAN 0800-329-999 http://www.samsung.com/tw

VIETNAM 1 800 588 889 http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA 0860 7267864 (SAMSUNG) http://www.samsung.com/za

U.A.E 800SAMSUNG (7267864) http://www.samsung.com/mea

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the

higher the resolution. The distance between two dots of the same color is called the 'Dot

Pitch'. Unit: mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image

for the user. The frequency of this repetition per second is called Vertical Frequency or

Refresh Rate. Unit: Hz

Example : If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally

is called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal

Frequency. Unit: kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom in order is called the

Non-Interlace method while showing odd lines and then even lines in turn is called the

Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a

clear image. The Interlace method is the same as that used in TVs.

Plug & Play

This is a function that provides the best quality screen for the user by allowing the computer

and the monitor to exchange information automatically. This monitor follows the international

standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called

'resolution'. This number shows the accuracy of the display. High resolution is good for

performing multiple tasks as more image information can be shown on the screen.

Example: If the resolution is 1280 x 1024 , this means the screen is composed of 1280

horizontal dots (horizontal resolution) and 1024 vertical lines (vertical resolution).

For Better Display

1. Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described

below to enjoy the best quality of picture. You can have an uneven quality of picture in the

screen if the best quality of picture is not provided in TFT-LCD.

{Resolution: 1280 x 1024

{Vertical frequency (refresh rate): 60 Hz

2. When you clean the monitor and the panel outside, please apply the recommended small

amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced but

to be scrubbed out softly.

If excessive force is applied, you can have a stain on it.

3. If you are not satisfied with the quality of picture, you can get better quality of picture by

executing "auto adjustment function" in display screen that is appeared as window

termination button is pressed.

If there's still noise after automatic adjustment, use FINE/COARSE adjustment function.

4. If you view a fixed screen for an extended period of time, residual image or blurriness may

appear.

Change the mode to energy save or set a screensaver to moving picture when you need to

be away from the monitor for an extended period of time.

Authority

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics

Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and

Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are

registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and

logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an

ENERGY STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets

the ENERGY STAR® guidelines for energy efficiency. All other product names mentioned herein

may be the trademarks or registered trademarks of their respective owners.

Class B

This device is a Class B digital apparatus. For Safety and EMC compliance guide, you may refer to

"Regulatory" Guide.

MÉXICO

IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V.

Vía Lopez Portillo No. 6, Col. San Fco. Chilpan

Tultitlán, Estado de México, C.P. 54940

Tel: 01-55-5747-5100 / 01-800-726-7864

EXPORTADO POR: Samsung Electronics CO.,LTD.

416, Mae tan-3dong, Yeongtong - gu,

Suwon City, Gyeonggi-do Korea

PRODUCT INFORMATION (Image Retention Free)

LCD Monitors and TVs may have image retention when switching from one image to another

especially after displaying a stationary image for a long time.

This guide is to demonstrate correct usage of LCD products in order to protect them from Image

retention.

Warrant

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

What is Ima

e retention ?

During normal operation of a LCD panel, pixel image retention doesn't occur. However,

if the same image is displayed for a long time, a slight difference in electric charge

accumulates between the two electrodes which encase the liquid crystal. This may

cause the liquid crystal to build up in a certain areas of the display. Thus, the previous

image is retained when switching to a new video image. All display products, including

LCD,are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode

Ex)

zTurn the power off when using a stationary pattern.

zUse a Screen saver if possible

zSet the Monitor to power off with the PC Display Properties Power Scheme.

- Turn the power off for 4 hours after 24 hours in use

- Turn the power off for 2 hours after 12 hours in use

- Screen saver in one color or a moving image is recommended.

estions for s

ecific a

lications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems

We recommend that you follow set up of your display system program as below:

Dis

Information to

ether with Lo

o or Movin

ima

e c

cle.

Ex) Cycle : Display Information for 1 hour followed by a

Display Logo or moving image for 1 minute.

Chan

e the Color Information

eriodicall

(

Use 2 different colors

)

Ex) Rotate the Color Information with 2 colors every 30 minutes.

void using a combination of characters and background color with large

difference in luminance.

void using Grey colors, which can cause Image retention easily.

zAvoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

zRecommended settings: Bright colors with little difference in luminance

- Change the characters color and background color every 30 minutes

Ex)

- Every 30 minutes, change the characters with movement.

Ex)

The best way to protect your monitor from Image retention is to set your PC or

stem to o

erate a Screen Saver

ram when

ou are not usin

it.

Image retention may not occur when a LCD panel is operated under normal conditions.

Normal conditions are defined as continuously changing video patterns. When the LCD

panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be

slight difference in voltage between electrodes that work the liquid crystal (LC) in a

pixel. The voltage difference between electrodes increases with time, forcing the liquid

crystal to lean. When this occurs, the previous image may be seen when the pattern is

changed.

To prevent this, the accumulated voltage difference must be decreased.

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with

separate collection systems)

This marking shown on the product or its literature, indicates that it should not

be disposed with other household wastes at the end of its working life. To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they

can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product should not be mixed with

other commercial wastes for disposal.

Samsung 173P Plus, 193P Plus File User Manual To The 17faaa8d 572a D894 Dd66 28d74595ae64

Navigation menu

Versions of this User Manual:

Views

Navigation
