Samsung 00511E VP D80/D81 UK (01~27) D80I 20030527154720296 D80
User Manual: Samsung VP-D80I Samsung VP-D80I user manual - User Manual (ver.1.0) - CHINESE (CHINA)
Open the PDF directly: View PDF .
Page Count: 88
![](asset-1.png)
ENGLISH
Digital Video Camcorder
Owner’s Instruction Book
Before operating the unit, please read this
instruction book thoroughly, and retain it for
future reference.
This product meets the intent of
Directive 89/336 CEE, 73/23 CEE, 93/68 CEE.
AF Auto Focus
CCD Charge Coupled Device
LCD Liquid Crystal Display
VP-D80/D81
VP-D80i/D81i
ELECTRONICS
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 101
![](asset-2.png)
ENGLISH
Contents
22
Features ........................................................................................................................................................................................................................... 11

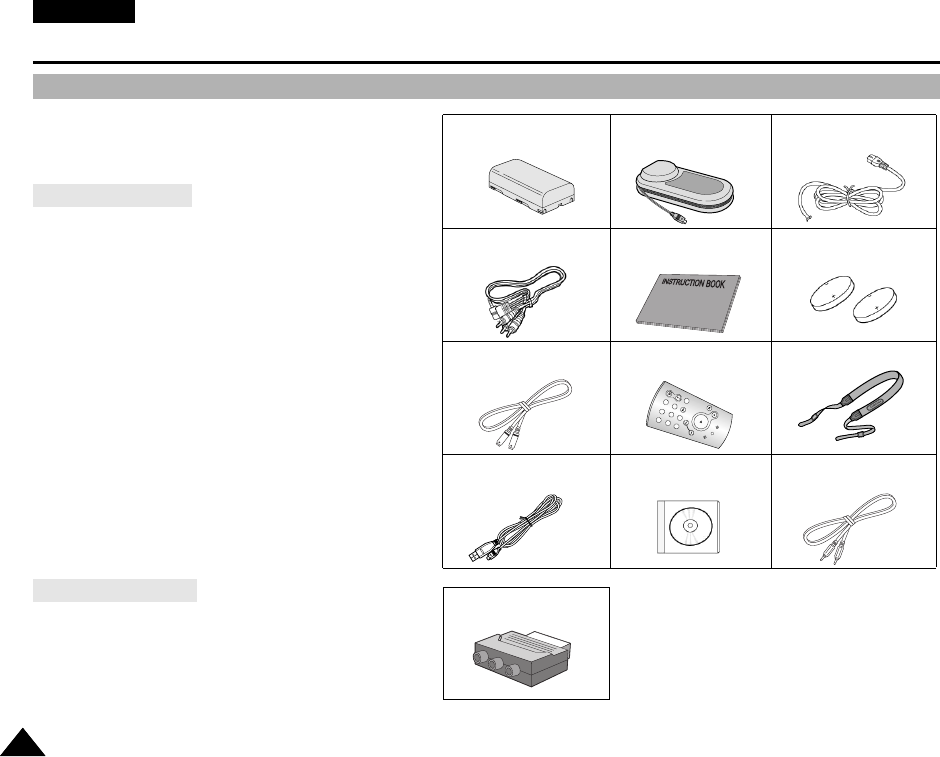

Accessories Supplied with camcorder ............................................................................................................................................................................ 12
Basic Accessories ..................................................................................................................................................................................................... 12
Front & Left View ............................................................................................................................................................................................................. 13
Left Side View .................................................................................................................................................................................................................. 14
Right & Top View ............................................................................................................................................................................................................. 15

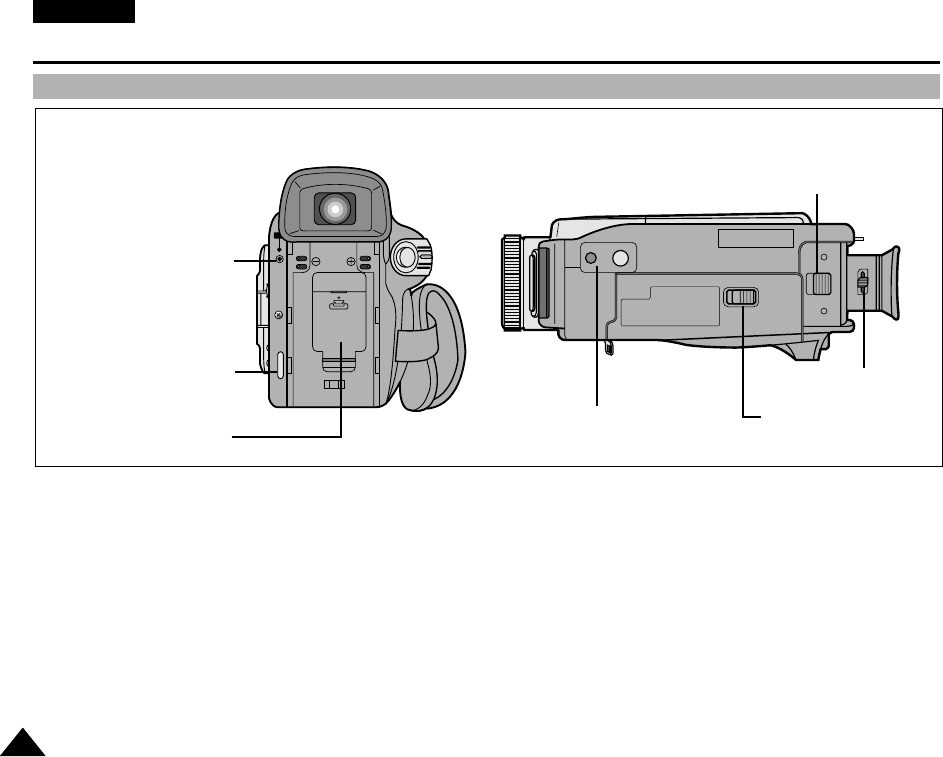

Rear & Bottom View ........................................................................................................................................................................................................ 16

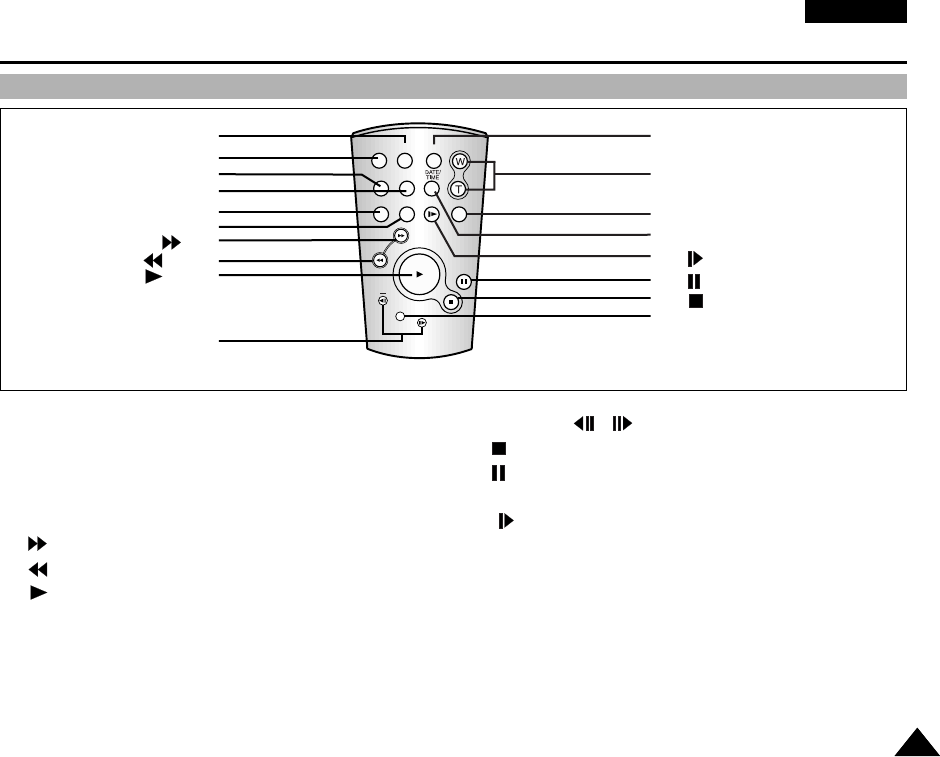

Remote control ................................................................................................................................................................................................................ 17

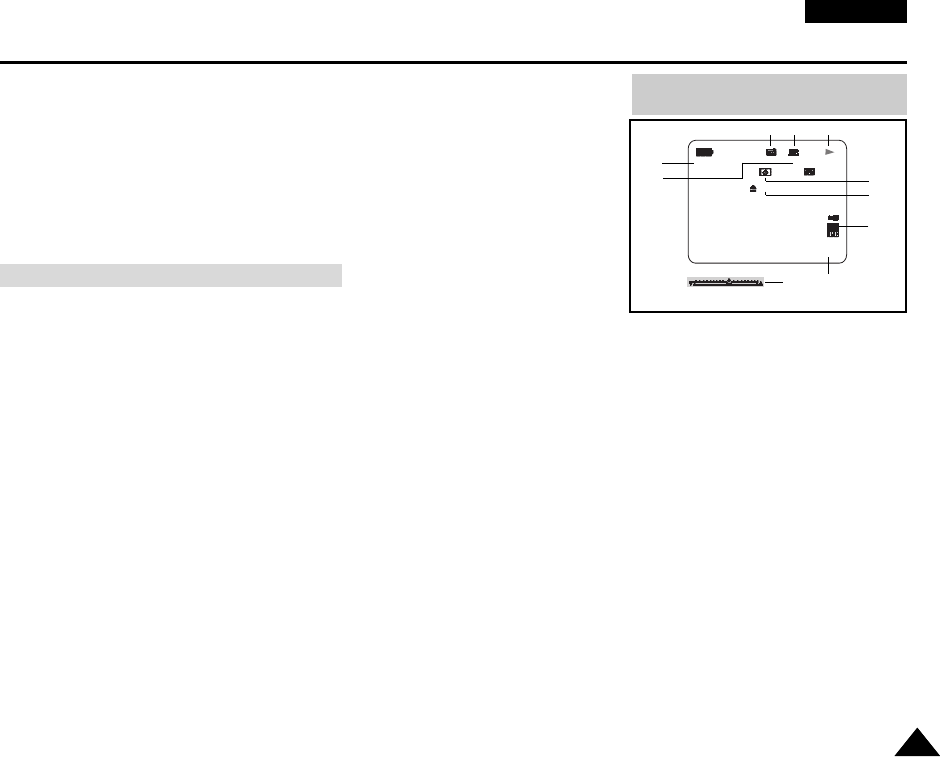

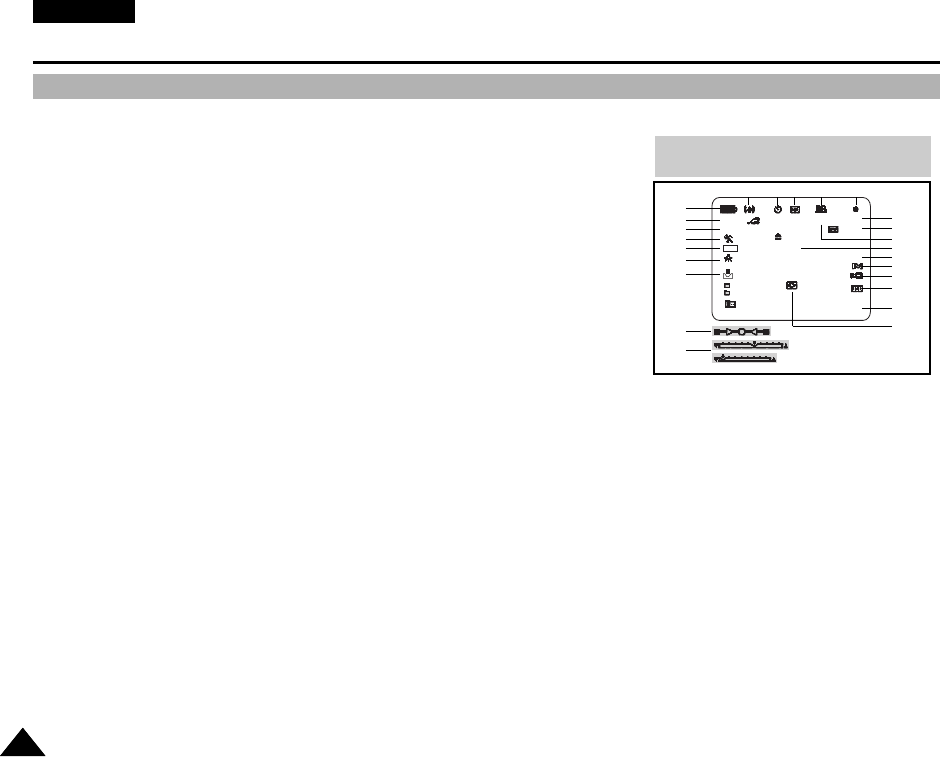

OSD (On Screen Display in CAMERA and PLAYER modes) ....................................................................................................................................... 18
Turning the OSD on/off (On Screen Display) ............................................................................................................................................................ 19
How to use the Remote Control .................................................................................................................................................................................... 20

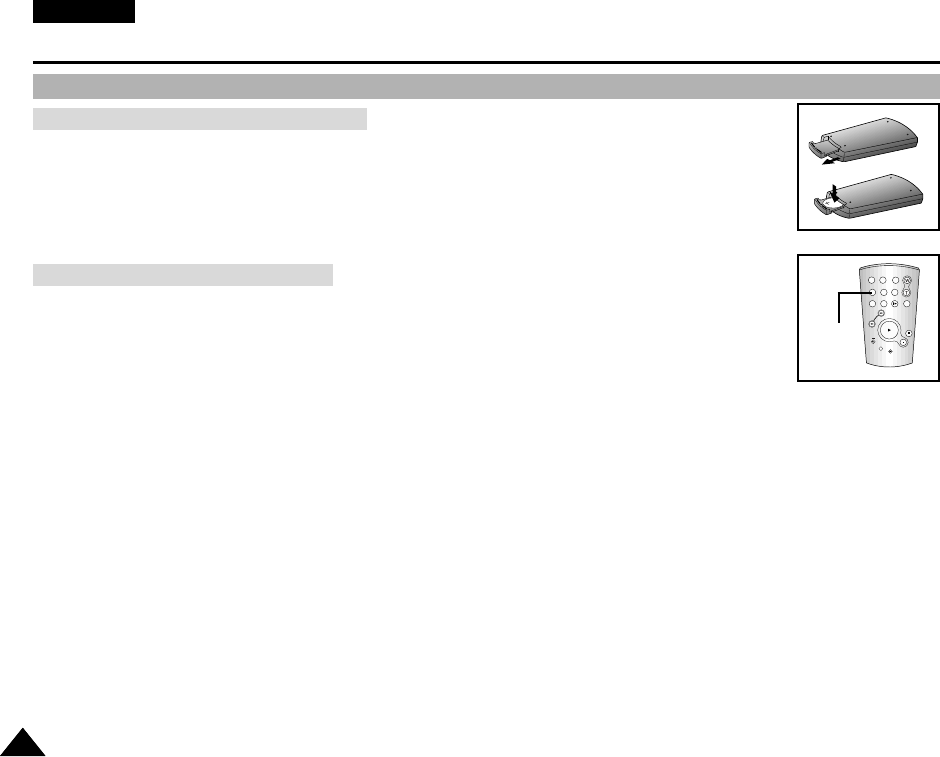

Battery Installation for the Remote Control ............................................................................................................................................................... 20
Self Record using the Remote Control ..................................................................................................................................................................... 20
Lithium Battery Installation ................................................................................................................................................................................................21
Adjusting the Hand Strap ............................................................................................................................................................................................... 22
Hand strap ................................................................................................................................................................................................................. 22
Shoulder strap..............................................................................................................................................................................................................22
Attaching the Ring Hood ...................................................................................................................................................................................................22

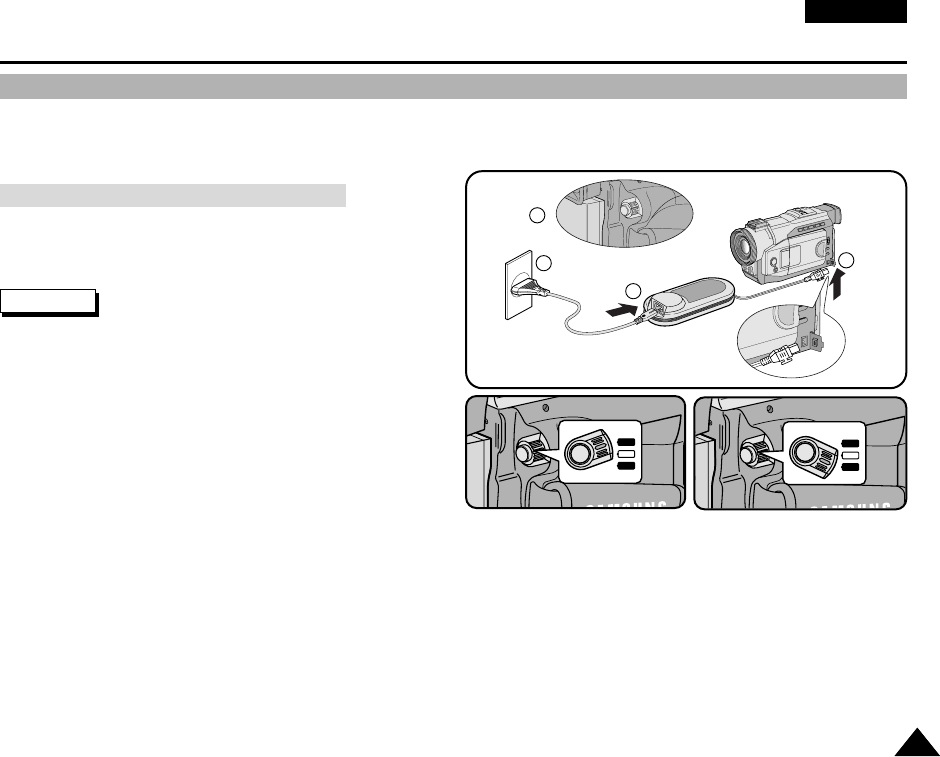

Connecting a Power Source ........................................................................................................................................................................................... 23
To use the AC Power adapter and the DC Cable .................................................................................................................................................... 23
Using the Lithium Ion Battery Pack ............................................................................................................................................................................... 24
Charging the Lithium Ion Battery Pack ..................................................................................................................................................................... 24
Table of continuous recording time based on model and battery type ................................................................................................................... 25

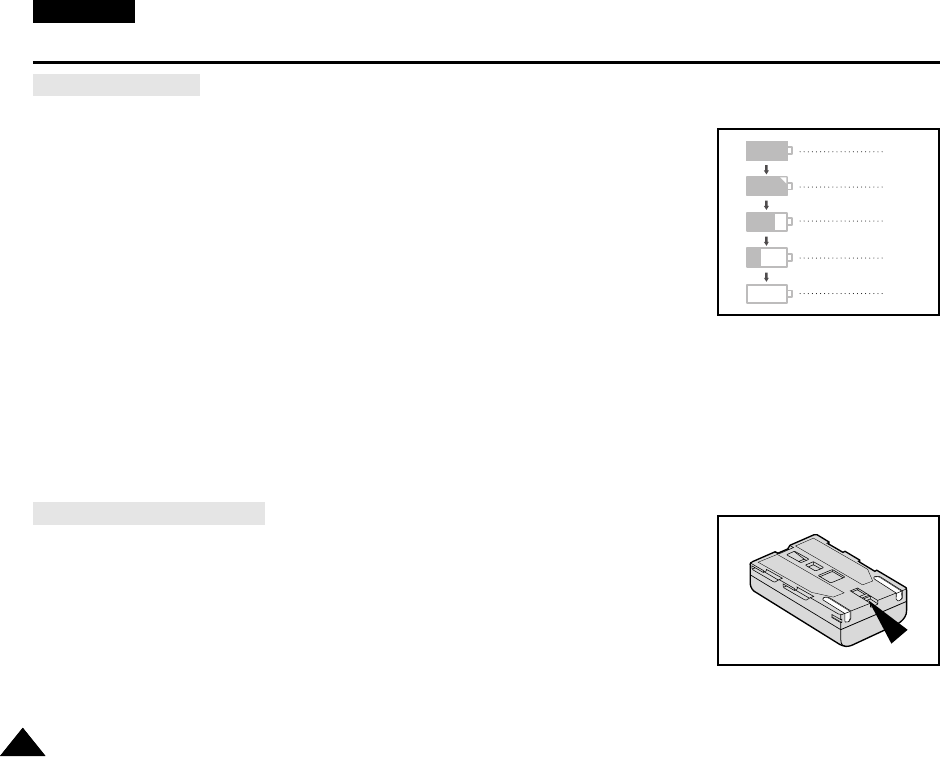

Battery level display ................................................................................................................................................................................................... 26

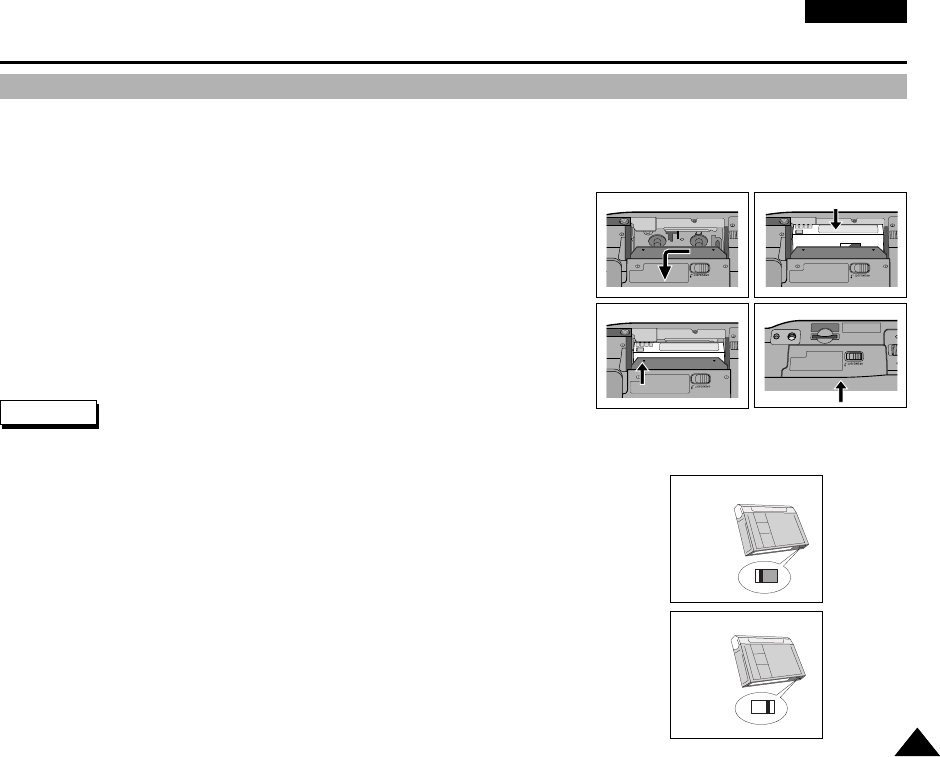

Inserting and Ejecting a Cassette .................................................................................................................................................................................. 27
Making your First Recording ........................................................................................................................................................................................... 28
Record Search .......................................................................................................................................................................................................... 29

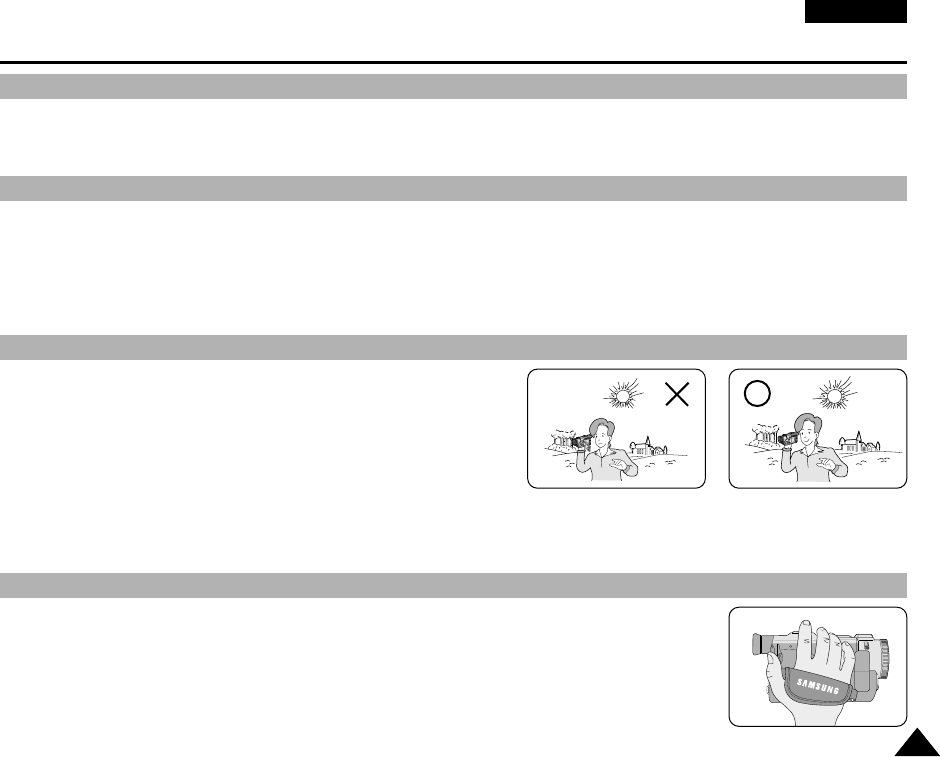

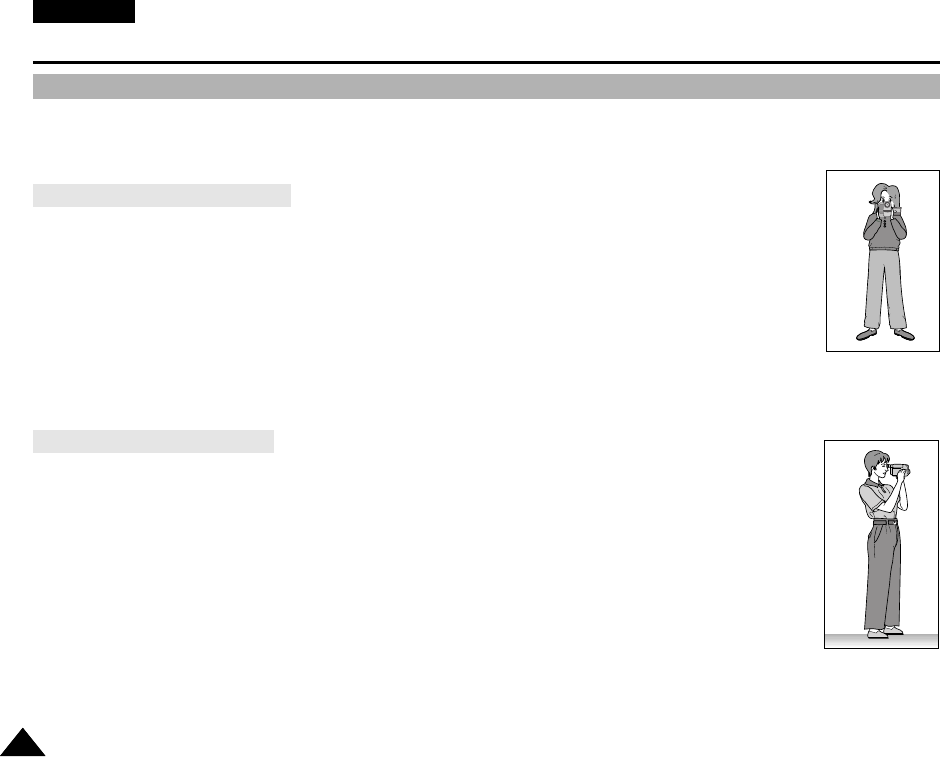

Hints for Stable Image Recording ................................................................................................................................................................................... 30
Recording with the LCD monitor .............................................................................................................................................................................. 30
Recording with the Viewfinder .................................................................................................................................................................................. 30
Preparation
........................................................................................................................................................
20
BASIC Recording
................................................................................................................................................
28
Notes and Safety Instructions .............................................................................................................................. 6
Getting to Know Your Camcorder ...................................................................................................................... 11
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 2
![](asset-3.png)
ENGLISH
Contents
33
Adjusting the LCD .......................................................................................................................................................................................................... 31
Using the VIEWFINDER ................................................................................................................................................................................................ 32
Adjusting the Focus ................................................................................................................................................................................................... 32
Playing back a tape you have recorded on the LCD ...................................................................................................................................................... 33
Adjusting the LCD during PLAY ................................................................................................................................................................................ 34
Controlling Sound from the Speaker ............................................................................................................................................................................. 34
Use of various Functions ................................................................................................................................................................................................. 35
Setting menu items .................................................................................................................................................................................................... 35
Set the camcorder to CAMERA or PLAYER mode .................................................................................................................................................. 35
Availability of functions in each mode ....................................................................................................................................................................... 36
CLOCK SET ............................................................................................................................................................................................................. 37
REMOCON ............................................................................................................................................................................................................... 38
BEEP SOUND ........................................................................................................................................................................................................... 39
DEMONSTRATION .................................................................................................................................................................................................. 40
PROGRAM AE ......................................................................................................................................................................................................... 41
Setting the PROGRAM AE ........................................................................................................................................................................................ 42
WHT. BALANCE (WHITE BALANCE) ....................................................................................................................................................................... 43
Zooming In and Out with DIGITAL ZOOM ................................................................................................................................................................ 44

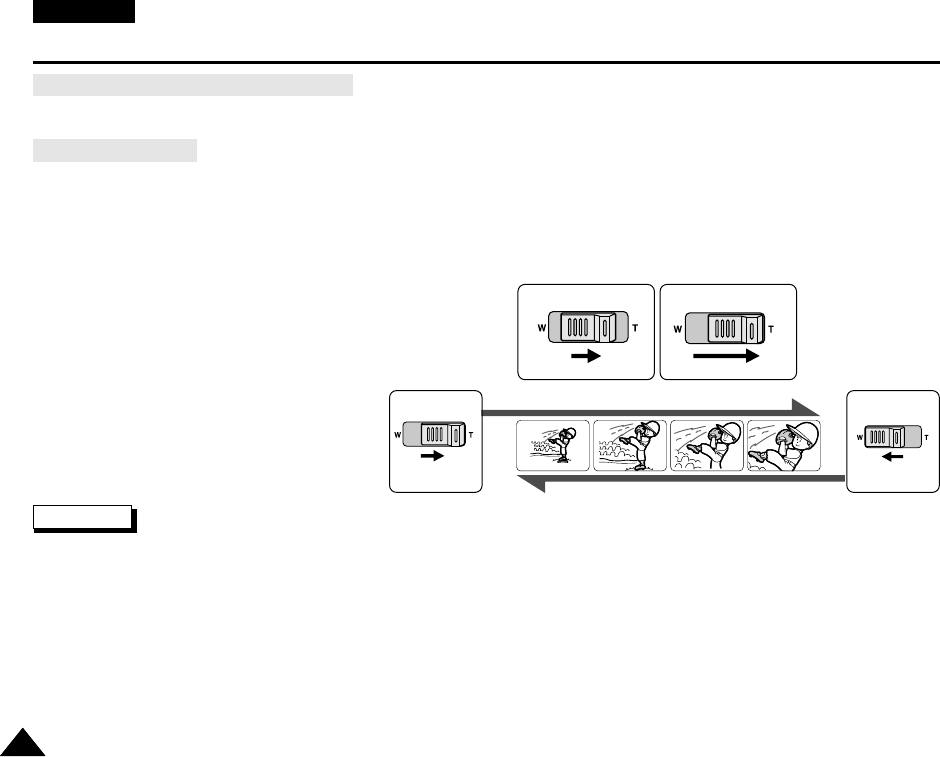

Zooming In and Out ................................................................................................................................................................................................... 44
Digital Zoom .............................................................................................................................................................................................................. 45
EIS (Electronic Image Stabilizer) .............................................................................................................................................................................. 46
DSE (Digital Special Effects) SELECT ..................................................................................................................................................................... 47
Selecting an effect ..................................................................................................................................................................................................... 48
CUSTOM.Q .............................................................................................................................................................................................................. 49
REC MODE .............................................................................................................................................................................................................. 50
AUDIO MODE ........................................................................................................................................................................................................... 51
WIND CUT ................................................................................................................................................................................................................ 52
DATE/TIME ............................................................................................................................................................................................................... 53
TV DISPLAY ............................................................................................................................................................................................................. 54
Using Quick Menu .......................................................................................................................................................................................................... 55
Setting the Quick menu ............................................................................................................................................................................................. 56
SHUTTER SPEED & EXPOSURE .......................................................................................................................................................................... 57
EASY Mode (for Beginners) ............................................................................................................................................................................................ 58
CUSTOM Mode .............................................................................................................................................................................................................. 59
Advanced Recording .......................................................................................................................................... 35
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 3
![](asset-4.png)
ENGLISH
44
MF/AF (Manual Focus/Auto Focus) ................................................................................................................................................................................ 60
Auto Focusing ............................................................................................................................................................................................................ 60
Manual Focusing ....................................................................................................................................................................................................... 60

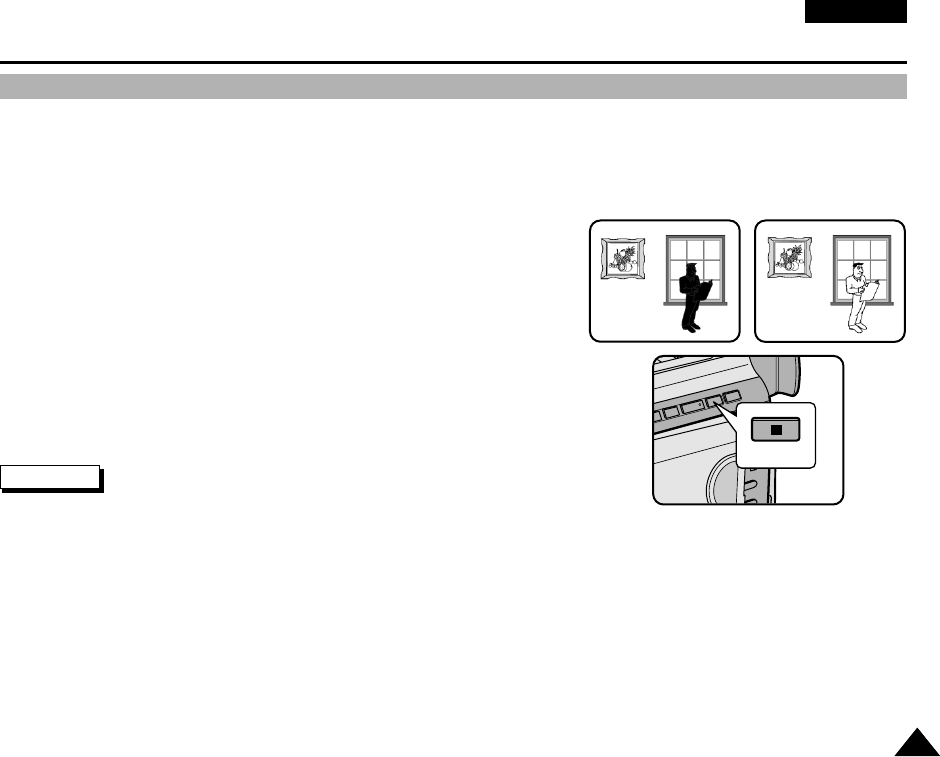

BLC (Back Light Compensation) .................................................................................................................................................................................... 61
Fade In and Out .............................................................................................................................................................................................................. 62
To Start Recording ..................................................................................................................................................................................................... 62
To Stop Recording (use FADE IN / FADE OUT) ....................................................................................................................................................... 62
Audio dubbing ................................................................................................................................................................................................................. 63
Dubbing sound ........................................................................................................................................................................................................... 63
Dubbed Audio Playback ............................................................................................................................................................................................ 64
PHOTO Image Recording ............................................................................................................................................................................................... 65
Searching for a PHOTO picture ................................................................................................................................................................................ 65
NIGHT CAPTURE (0 lux recording) .................................................................................................................................................................................66
Various Recording Techniques ........................................................................................................................................................................................ 67
Tape Playback ................................................................................................................................................................................................................. 68
Playback on the LCD ................................................................................................................................................................................................. 68
Playback on a TV monitor ......................................................................................................................................................................................... 68

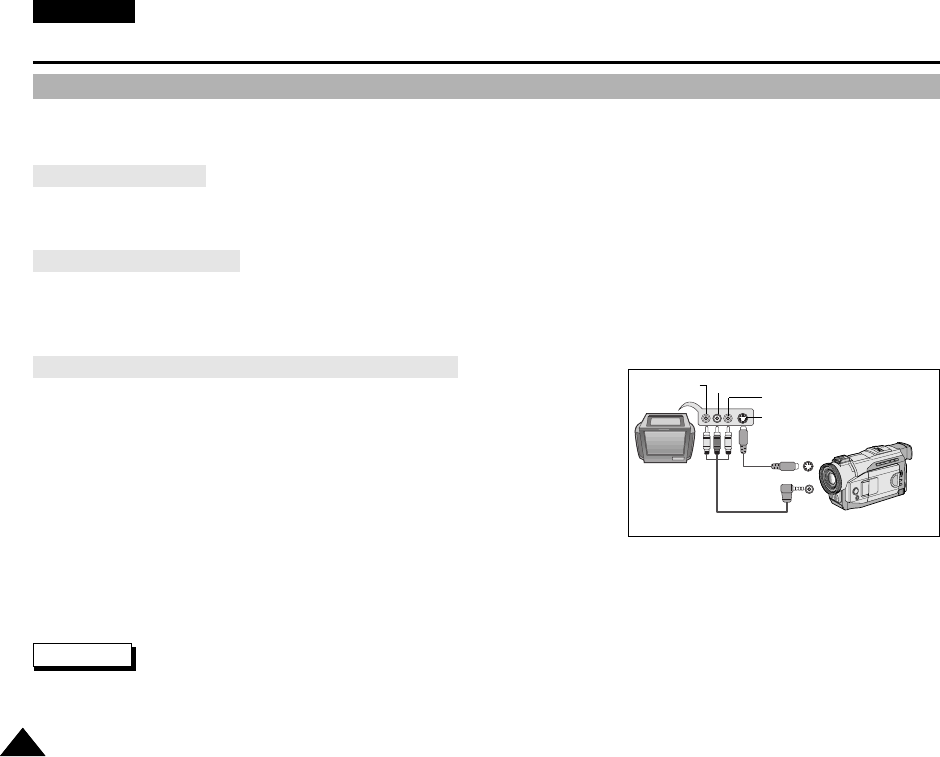

Connecting to a TV which has Audio Video input jacks ........................................................................................................................................... 68
Connecting to a TV which has no Audio and Video input jacks ..................................................................................................................................... 69
Playback ..................................................................................................................................................................................................................... 69
Various Functions while in PLAYER mode ..................................................................................................................................................................... 70
Playback pause ......................................................................................................................................................................................................... 70
Picture search (Forward/Reverse) ............................................................................................................................................................................. 70
Slow playback (Forward/Reverse) ............................................................................................................................................................................. 70
Frame advance (To play back frame by frame) ........................................................................................................................................................ 71
X2 Playback (Forward/Reverse ) ............................................................................................................................................................................... 71
ZERO MEMORY ............................................................................................................................................................................................................ 72
Transferring IEEE1394 (i.LINK)-DV standard data connections .................................................................................................................................... 74
Connecting to a DV device ........................................................................................................................................................................................ 74
Connecting to a PC ................................................................................................................................................................................................... 74
System requirements ................................................................................................................................................................................................. 75
Recording with a DV connection cable (VP-D80i/D81i only) .................................................................................................................................... 75
Contents
Playback ............................................................................................................................................................ 68
Recording in PLAYER mode
(VP-D80i/D81i only)
................................................................................................ 73
IEEE 1394 Data Transfer .................................................................................................................................... 74
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 4
![](asset-5.png)
Transferring a Digital Image through a USB Connection ............................................................................................................................................... 76
System Requirements ..................................................................................................................................................................................................... 76

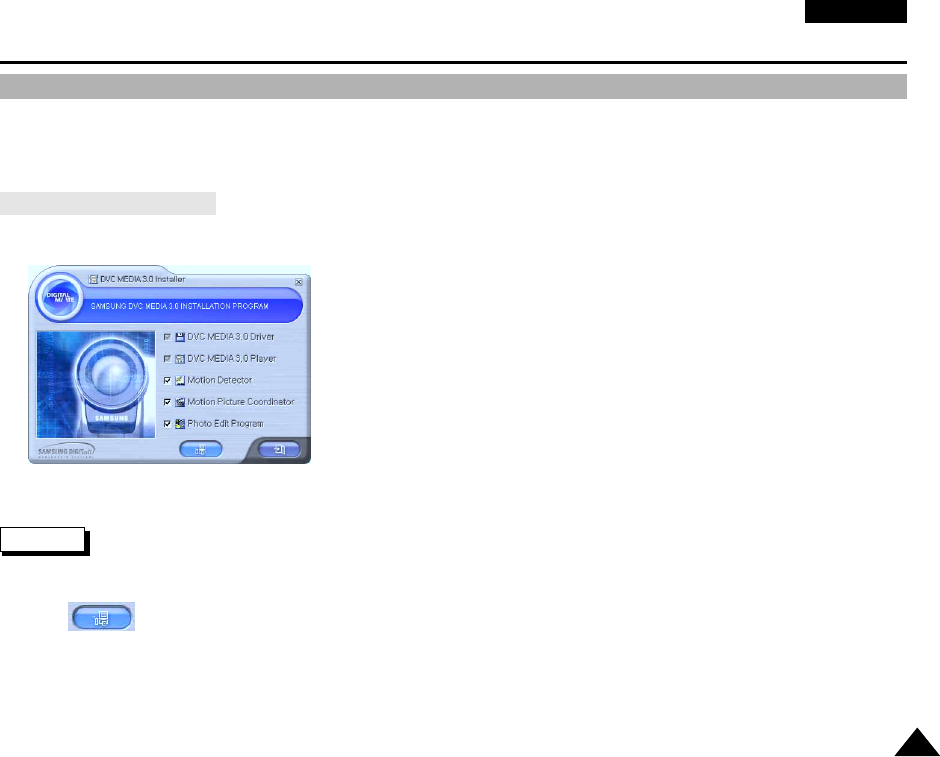

Installing DVC Media Program......................................................................................................................................................................................... 77

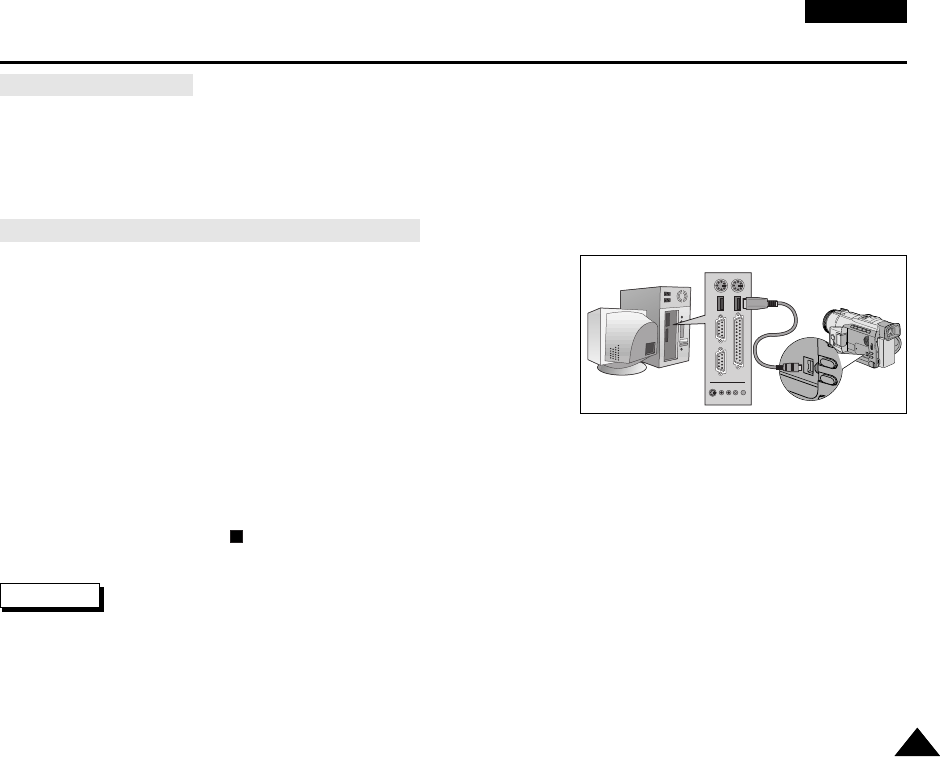

Connecting to a PC ......................................................................................................................................................................................................... 79
After finishing a recording ............................................................................................................................................................................................... 80
Cleaning and Maintaining the Camcorder ....................................................................................................................................................................... 81
Cleaning the VIEWFINDER ....................................................................................................................................................................................... 81
Cleaning the Video Heads ......................................................................................................................................................................................... 81
Using Your Camcorder Abroad ....................................................................................................................................................................................... 82
Power sources ........................................................................................................................................................................................................... 82
Colour system ............................................................................................................................................................................................................ 82
Troubleshooting ............................................................................................................................................................................................................... 83
Self Diagnosis Display ............................................................................................................................................................................................... 83
Moisture Condensation ............................................................................................................................................................................................. 83
ENGLISH
Contents
55
USB interface
(VP-D81/D81i only)
........................................................................................................................ 76
Maintenance ........................................................................................................................................................ 80
Troubleshooting.................................................................................................................................................... 83
Specifications ...................................................................................................................................................... 85
INDEX .................................................................................................................................................................. 86
Power Sources (United Kingdom Only) .............................................................................................................. 87
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 5
![](asset-6.png)
ENGLISH
Notes and Safety Instructions
66

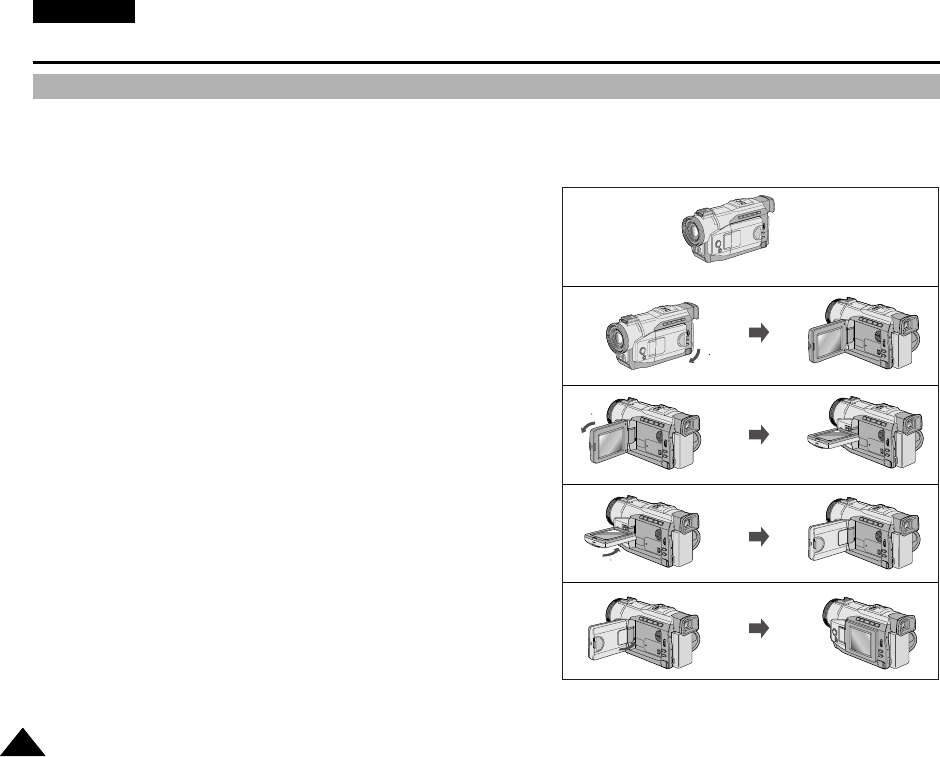

Notes regarding the rotation of the LCD screen
Please rotate the LCD screen carefully as illustrated.
Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.
1. LCD screen closed.
2. Standard recording using the LCD screen.
3. Recording when looking at the LCD screen from the top.
4. Recording when looking at the LCD screen from the front.
5. Recording with the LCD screen closed.
90
90
90
1
2
3
4
5
90
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 6
![](asset-7.png)
Television programs, video tapes, DVD titles, films, and other program materials may be copyrighted.
Unauthorized copying of copyrighted material may be against the law.
1. A sudden rise in atmospheric temperature may cause condensation to form inside the camcorder.
for example:
- When you move the camcorder from a cold location to a warm location (e.g. from outside to inside during winter.)
- When you move the camcorder from a cool location to a hot location (e.g. from inside to outside during the summer.)
2. If the (DEW) protection feature is activated, leave the camcorder for at least two hours in a dry, warm room with the
cassette compartment opened and the battery removed.
1. Do not leave the camcorder exposed to high temperature (above 60°C or 140°F).
For example, in a parked car in the sun or exposed to direct sunlight.
2. Do not let the camcorder get wet.
Keep the camcorder away from rain, sea water, and any other form of moisture. If the camcorder gets wet, it may get
damaged.
Sometimes a malfunction due to exposure to liquids cannot be repaired.
ENGLISH
Notes and Safety Instructions
77
Notes regarding CAMCORDER
Notices regarding COPYRIGHT
Notes regarding moisture condensation
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 7
![](asset-8.png)
ENGLISH
Notes and Safety Instructions
88

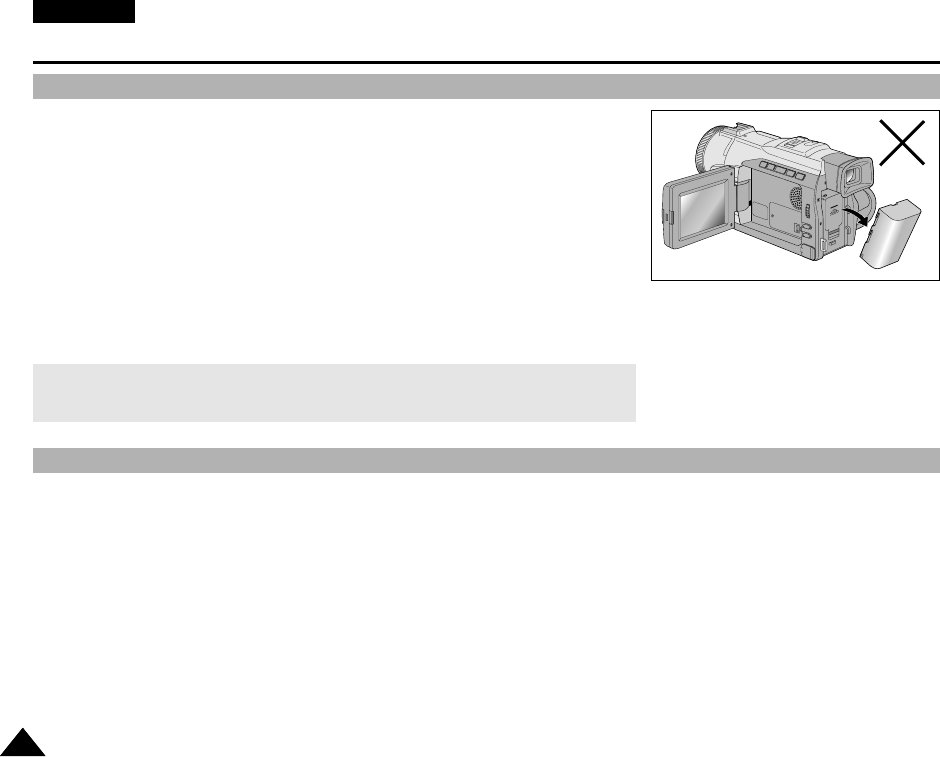

Notes regarding the battery pack
Notes regarding the Video Head Cleaning
- Make sure that the battery pack is fully charged before starting to record.
- To preserve battery power, keep your camcorder turned off when you are not
operating it.
- If your camcorder is in CAMERA mode, and it is left in STBY mode without
being operated for more than 5 minutes with a tape installed, it will
automatically turn itself off to protect against unnecessary battery discharge.
- Make sure that the battery pack is fitted firmly into place.
Dropping the battery pack may damage it.
- A brand new battery pack is not charged.
Before using the battery pack, you need to charge it completely.
- It is a good idea to use the viewfinder rather than the LCD when making long
recording, because the LCD uses up more battery power.
- To ensure normal recording and a clear picture, clean the video heads regularly. If a square block-shape distorts playback,
or only a blue screen is displayed, the video heads may be dirty. If this happens, clean the video heads with a dry type
cleaning cassette.
- Do not use a wet-type cleaning cassette. It may damage the video heads.
* When the battery reaches the end of its life, please contact your local dealer.
The batteries have to be dealt with as chemical waste.
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 8
![](asset-9.png)
ENGLISH
Notes and Safety Instructions
99
- Do not film with the camera lens pointing directly at the sun.
Direct sunlight can damage the CCD(Charge Coupled Device).
1. Do not position the camcorder such that the viewfinder is pointing towards the sun.
Direct sunlight can damage the inside of the viewfinder. Be careful when placing the camcorder under sunlight or near a
window exposed to sunlight.
2. Do not pick up the camcorder from the viewfinder.
3. Over-rotating of the viewfinder may damage it.
1. The LCD display has been manufactured using high precision tech-
nology. However, there may be tiny dots (red, blue or green in color)
that appear on the LCD display.
These dots are normal and do not affect the recorded picture in any
way.
2. When you use the LCD display under direct sunlight or outdoors,
it maybe difficult to see the picture clearly.
If this occurs, we recommend using the viewfinder.
3. Direct sunlight can damage the LCD monitor.
- To ensure a steady picture during filming, check that the hand strap is properly adjusted.
- Do not force your hand into the hand strap as you could damage it.
Note regarding the LENS
Notes regarding electronic viewfinder
Notes regarding ‘Record’ or ‘Playback’ using the LCD
Notes regarding the hand strap
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 9
![](asset-a.png)
ENGLISH
Notes and Safety Instructions
1010

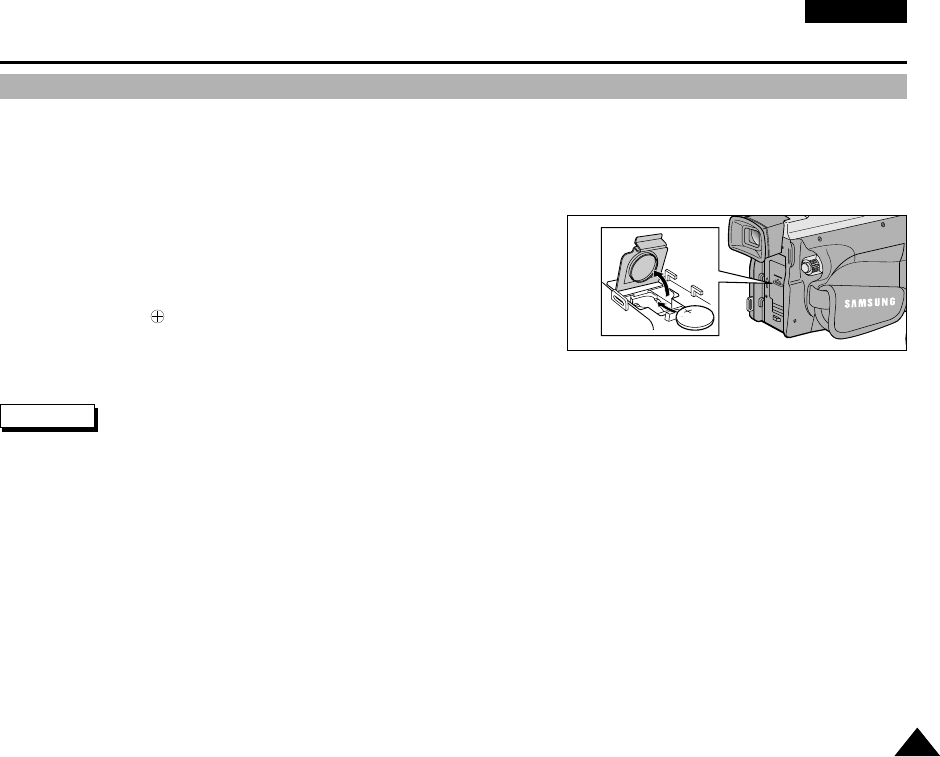

Precautions regarding the Lithium battery
1. The lithium battery maintains the clock function and user settings; even if the battery pack or AC adapter is removed.
2. The lithium battery for the camcorder lasts about 6 months under normal operation from time of installation.
3. When the lithium battery becomes weak or dead, the date/time indicator will flash for about five seconds when you set the
power switch to CAMERA.
In this case, replace the lithium battery with a new one(type CR2025 ).
4. Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Warning: Keep the LITHIUM BATTERY out of reach of children. Should a battery be swallowed, consult a doctor
immediately.
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 10
![](asset-b.png)
ENGLISH
Getting to Know Your Camcorder
1111
Features
• Digital data transfer function with IEEE1394
By incorporating the IEEE 1394 (i.LINK™ : i.LINK is a serial data transfer protocol and interconnectivity system, used to
transmit DV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possible
to produce or edit various images. (VP-DXX is not able to record and receive digital data from another DV Device.)
• USB interface for digital image data transfer (VP-D81/D81i only)
You can transfer still images to a PC using the USB interface without an add-on card.
• PHOTO
The PHOTO function lets you capture an object as a still along with sound, while in Camera mode.
• 400x Digital zoom
Allows you to magnify an image up to 400 times its original size.
• Colour TFT LCD
A high-resolution colour TFT LCD gives you clean, sharp images as well as the ability to review your recordings immediately.
• Electronic Image Stabilizer (EIS)
The EIS compensates for any handshake, reducing unstable images particularly at high magnification.
• Various digital effects
The DSE (Digital Special Effects) allows you to give your films a special look by adding various special effects.
• Back Light Compensation (BLC)
The BLC function compensates for the bright background behind a subject you're recording.
• Program AE
The Program AE enables you to alter the shutter speed and aperture to suit the type of scene/action to be filmed.
• NIGHT CAPTURE
The NIGHT CAPTURE function enables you to record a subject in a dark place.
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 11
![](asset-c.png)
Make sure that the following basic accessories are
supplied with your digital video camera.
Basic Accessories
1. Lithium Ion Battery pack
2. AC Power Adapter
3. AC Cord
4. AUDIO/VIDEO cable
5. Instruction Book
6. Lithium batteries for Remote Control and Clock.
(TYPE: CR2025, 2 EA)
7. S-VIDEO cable
8. Remote Control
9. Shoulder strap
10.USB cable (VP-D81/D81i only)
11.Software CD (VP-D81/D81i only)
12.Audio cable (VP-D81/D81i only)
Optional Accessory
13.Scart adapter
ENGLISH
Getting to Know Your Camcorder
1212
Accessories Supplied with camcorder
1. Lithium Ion Battery pack
3. AC cord
4. AUDIO/VIDEO cable
10. USB cable
(VP-D81/D81i only)
8. Remote Control 9. Shoulder strap7. S-VIDEO cable
5. Instruction Book
2. AC Power Adapter
6. Lithium batteries (2EA)
12.
Audio cable
(VP-D81/D81i only)
13. Scart adapter
11. Software CD
(VP-D81/D81i only)
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 12
![](asset-d.png)
ENGLISH
Getting to Know Your Camcorder
1313

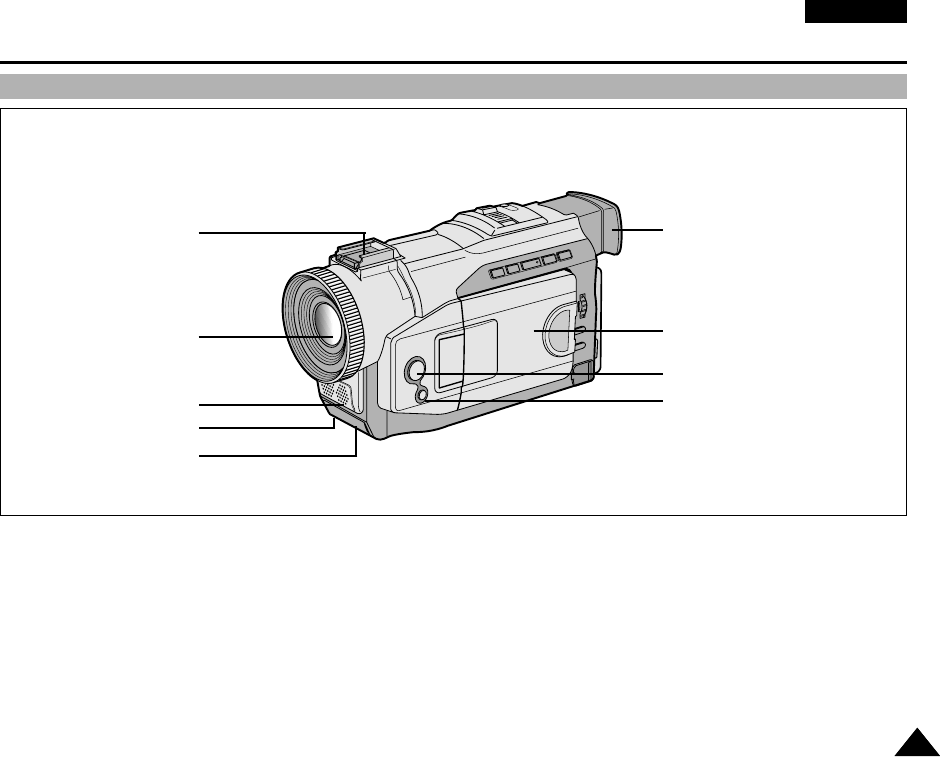

Front & Left View
1. Accessory Shoe
2. Lens
3. Internal MIC
4. IR (Infra Red) light
5. Remote sensor
6. CUSTOM button (see page 59)
7. EASY button (see page 58)
8. TFT LCD monitor
9. Viewfinder (see page 32)
1.
Accessory Shoe
2. Lens
3. Internal MIC
4. IR light
5. Remote Sensor
9. Viewfinder
8.TFT LCD monitor
7. EASY button
6. CUSTOM button
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 13
![](asset-e.png)
ENGLISH
Getting to Know Your Camcorder
1414

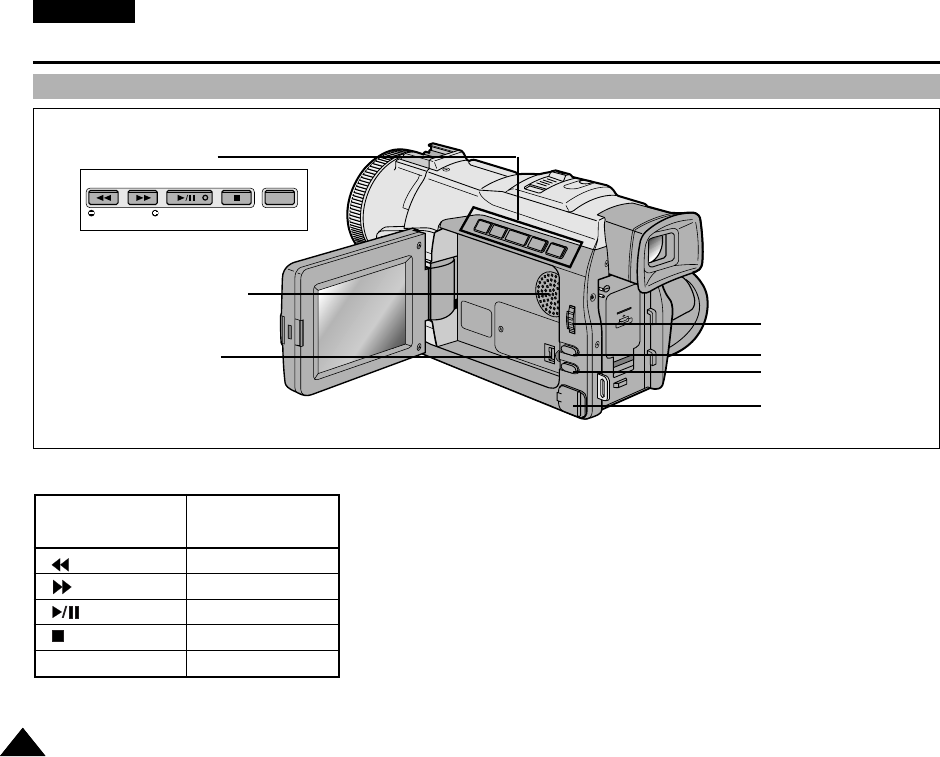

Left Side View
2. Speaker
3. DV OUT: VP-DXX
DV IN/OUT:VP-DXXi
4. DC jack
5. MENU button
6. ENTER button
7. MENU dial
1. Function buttons
1. Function buttons
2. Speaker
3. DV OUT:VP-DXX
DV IN/OUT:VP-DXXi
7. MENU dial
6. ENTER button
5. MENU button
4. DC jack
REC SEARCH FADE BLC DISPLAY
PLAYER CAMERA
: (REW) REC SEARCH –
: (FF) REC SEARCH +
: (PLAY/STILL) FADE
: (STOP) BLC
DISPLAY DISPLAY
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 14
![](asset-f.png)
ENGLISH
Getting to Know Your Camcorder
1515

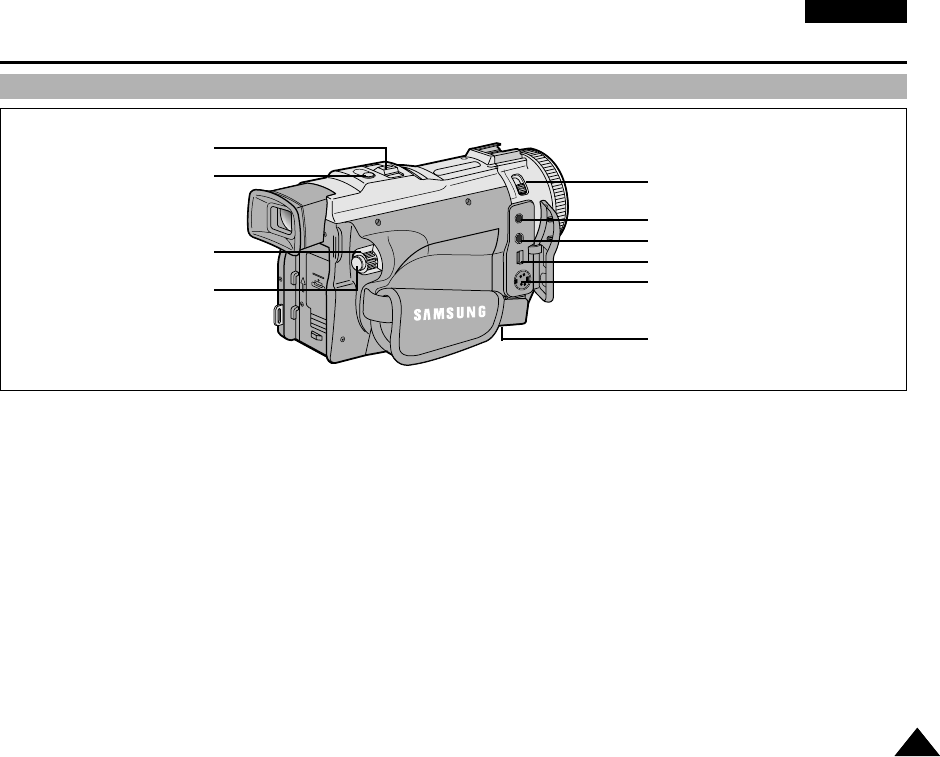

Right & Top View
1. Zoom lever
2. PHOTO button (see page 65)
3. Power switch (CAMERA or PLAYER) (see page 21)
4. START/STOP button
5. Hook for handstrap
6. S-VIDEO jack
7. USB jack (VP-D81/D81i only)
8. Audio/Video jack
9. External MIC in
10.Night Capture
10. Night Capture
9. External MIC in
8. Audio/Video jack
7. USB jack (VP-D81/D81i only)
6. S-VIDEO jack
5. Hook for handstrap
1. Zoom lever
2. PHOTO button
3. Power switch
4. START/STOP button
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 15
![](asset-10.png)
ENGLISH
Getting to Know Your Camcorder
1616
Rear & Bottom View
1. Charging indicator
2. Hook for shoulder strap
3. Lithium battery cover
4. Tripod receptacle
5. TAPE EJECT
6. Focus adjust knob
7. Battery Release
4.Tripod receptacle 5.TAPE EJECT
7. Battery Release
1. Charging indicator
2. Hook for shoulder strap
3. Lithium battery cover
CHARGE
6. Focus adjust knob
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 16
![](asset-11.png)
ENGLISH
Getting to Know Your Camcorder
1717
Remote control
1. PHOTO
2. START/STOP
3. SELF TIMER (see page 20)
4. ZERO MEMORY (see page 72)
5. PHOTO Search
6. (FF)
7. (REW)
8. (PLAY)
9. F. ADV (see page 71)
10. Direction ( , )
11. (STOP)
12. (STILL)
13. A.DUB (see page 63)
14. (SLOW)
15. X2 (see page 71)
16. Zoom
17. Display
18. DATE/TIME
START/
STOP
SELF
TIMER
A.DUB
ZERO
MEMORY
PHOTO DISPLAY
X2
SLOW
F.ADV
SEARCH
+
1. PHOTO
2. START/STOP
3. SELF TIMER
4. ZERO MEMORY
5. PHOTO SEARCH
13. A.DUB
6. (FF)
7. (REW)
8. (PLAY)
10. Direction
17. DISPLAY
16. Zoom
15. X2
18. DATE/TIME
14. (SLOW)
12. (STILL)
11. (STOP)
9. F. ADV
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 17
![](asset-12.png)
ENGLISH
Getting to Know Your Camcorder
1818
OSD (On Screen Display in CAMERA and PLAYER modes)
1. Battery level (see page 26)
2. Custom or Easy mode (see pages 58, 59)
3. DSE (Digital Special Effects) mode (see page 47)
4. Program AE (see page 41)
5. White Balance mode (see page 43)
6. BLC (Back Light Compensation) (see page 61)
7. Manual focus (see page 60)
8. Shutter speed and EXPOSURE (see page 57)
9. Zoom position (see page 44)
10. NIGHT CAPTURE (see page 66)
11. DATE/TIME (see page 53)
12. USB (VP-D81/D81i only)
13. REMOCON
14. WIND CUT (see page 52)
15. Audio recording mode (see page 51)
16. Zero memory indicator (see page 72)
17. Remaining Tape (measured in minutes)
18. Tape counter
19. Operating mode
20. Record speed mode
21. PHOTO mode
22. Self recording and waiting timer (see page 20)
23. EIS (see page 46)
OSD in CAMERA mode
TAPE !
NIGHT CAPTURE
SHUTTER
ZOOM
SHUTTER
EXPOSURE
EXPOSURE
CUSTOM M - 0 : 0 0 : 0 0
5 5 min
1 6 bit
2 0 : 0 0
1 . N O V . 2 0 0 2
REC
BLC
MIRROR
1
2
3
4
6
5
7
9
8
23 22 21 20 19
18
17
16
15
14
13
12
11
10
28
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 18
![](asset-13.png)
ENGLISH
Getting to Know Your Camcorder
1919
24. Volume control (see page 34)
25. Audio playback channel
26. DV IN (VP-DXXi only)
(DV data transfer mode) (see page 75)
27. DEW (See page 7)
28. Message Line
Turning the OSD on/off (On Screen Display)
●Turning OSD on/off
Press the DISPLAY button on the left side panel.
- Each press of the button toggles the OSD function on and off.
- When you turn the OSD off,
In CAMERA mode: The STBY, REC, EASY.Q and CUSTOM.Q modes are always displayed on the OSD, even when the
OSD is turned OFF and the key input is displayed for 3 seconds then turned off.
In PLAYER mode: When you press any Function button, the function is displayed on the OSD for 3 seconds before it
turns off.
●Turning the DATE/TIME on/off
- The DATE/TIME is not affected when the OSD function is switched ON or OFF.
- To turn the DATE/TIME on or off, access the menu and change the DATE/TIME mode. (see page 53)
- You may also use the Quick Menu to turn the DATE/TIME ON or OFF. (see page 55) (only in CAMERA mode)
OSD in PLAYER mode
. . . C
SOUND [ 2 ] M - 0 : 0 0 : 0 0
5 5 min
1 6 bit
1 2 : 0 0
1 . N O V . 2 0 0 2
VOL. [ 1 1 ]
DV
25
28
16 27
21 20 19
26
24 11
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 19
![](asset-14.png)
ENGLISH
Preparation
2020
How to use the Remote Control
Battery Installation for the Remote Control
✤You need to insert or replace the lithium battery when :
- You purchase the camcorder.
- The remote control doesn’t work.
✤Ensure that you insert the lithium cell correctly, following the + and - markings.
✤Be careful not to reverse the polarity of the battery.
Self Record using the Remote Control
When you use the Self Timer function on the remote control, the recording begins
automatically in 10 seconds.
1. Set the camcorder to CAMERA mode.
2. Press the SELF TIMER button until the appropriate indicator is displayed in the viewfinder.
3. Press the START/STOP button to start the timer.
- After a 10 second wait, recording starts.
- Press START/STOP again when you wish to stop recording.
START/
STOP
SELF
TIMER
A.DUB
ZERO
MEMORY
PHOTO DISPLAY
X2
SLOW
F.ADV
SEARCH
DATE/
TIME
Self
Timer
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 20
![](asset-15.png)
ENGLISH
Preparation
2121
✤The lithium battery maintains the clock function and preset contents of the memory; even if the battery pack or AC power
adapter is removed.
✤The lithium battery for the camcorder lasts about 6 months under normal operation from the time of installation.
✤When the lithium battery becomes weak or dead, the date/time indicator flashes for about 5 seconds when you set the power
switch to CAMERA.
In this case, replace the lithium battery with CR2025 type.
1. Open the Lithium battery cover from the camera.
2. Position the Lithium cell in the holder,
with the positive ( ) terminal face outward.
3. Close the lithium battery cover.
Reference The lithium battery must be inserted in the correct direction.
Warning: Keep the LITHIUM BATTERY out of the reach of the children.
Should any battery be swallowed, consult a doctor immediately.
Lithium Battery Installation
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 21
![](asset-16.png)
ENGLISH
Preparation
2222
Adjusting the Hand Strap
It is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording.
The hand strap enables you to :
- Hold the camcorder in a stable, comfortable position.
- Press the Zoom and START/STOP button without having to change the position of your hand.
Hand strap
a. Pull open the Hand Strap cover and release the Hand Strap.
b. Adjust its length and stick it back onto the Hand Strap cover.
c. Close the Hand Strap cover again.
Shoulder Strap
The Shoulder Strap enables you to carry your camcorder around in complete
safety.
1. Insert the end of strap into the Shoulder Strap hook on the camcorder.
Insert the other end of strap into ring inside hand strap.
2. Thread each end into the buckle, adjust the length of the strap and then
pull it tight in the buckle.
12
a
c
b
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 22
![](asset-17.png)
ENGLISH
Preparation
2323
Connecting a Power Source
There are two types of power source that can be connected to your camcorder.
- The AC Power Adapter and AC cord : used for indoor recording.
- The Battery Pack : used for outdoor recording.
To use the AC Power adapter and DC Cable
1. Connect the AC Power adapter to the AC cord.
2. Connect the AC cord to a wall socket.
Reference
The plug and wall socket type may differ according to
your resident country.
3. Connect the DC cable to the DC jack socket of the
camcorder.
4. Set the camcorder to each mode by holding down the tab
on the power switch and turning it to the CAMERA or
PLAYER mode.
1
23
4
Power
Switch
CAMERA
OFF
PLAYER
OFF
PLAYER
CAMERA
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 23
![](asset-18.png)
ENGLISH
Preparation
2424

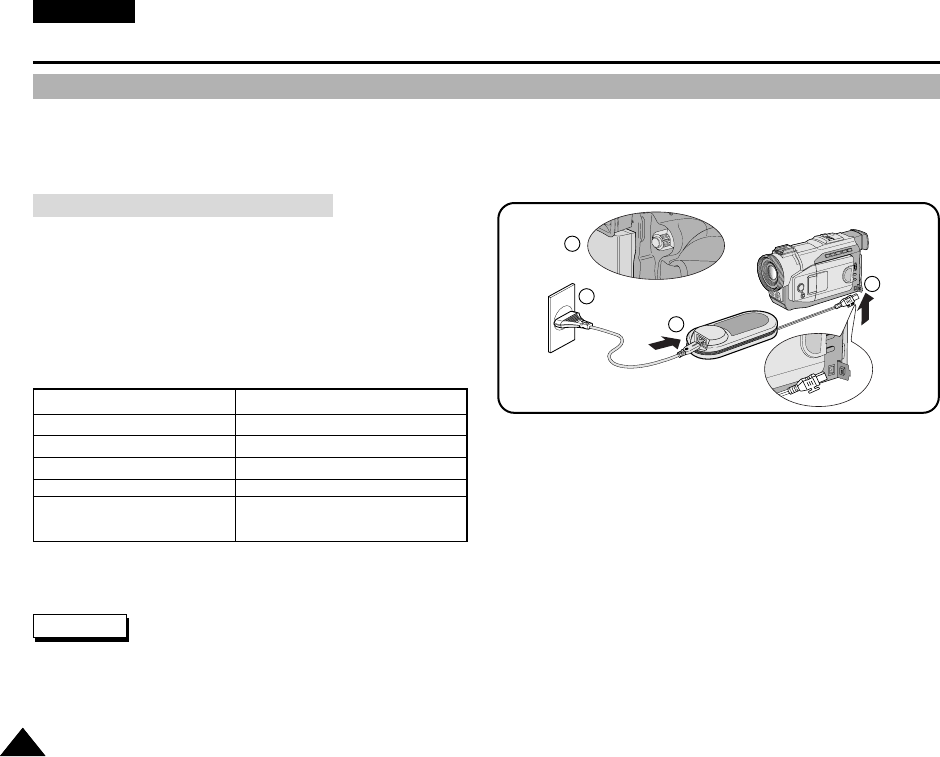

Using the Lithium Ion Battery Pack
✤
The amount of continuous recording time available depends on :
- The type and capacity of the battery pack you are using.
- How often the Zoom function is used.
It is recommended that you have several batteries available.
Charging the Lithium Ion Battery Pack
1. Attach the battery pack to the camcorder.
2. Connect the AC Power adapter to an AC cord and connect
the AC cord to a wall socket.
3. Connect the DC cable to the DC jack socket on the
camcorder.
4. Turn the Camera power switch to off, and the charging
indicator will start to flash, showing that the battery is
charging.
5. When the battery is fully charged, disconnect the battery pack and the AC Power adapter from the camcorder.
■
Even with the power switched off, the battery pack will still discharge if it is left connected to the camcorder.
Reference
■
The battery pack may be charged a little at the time of purchase.
■
To prevent reduction in the life and capacity of the battery pack, always remove it from the camcorder after
it is fully charged.
1
2
3
4
Power
Switch
Blinking time Charging rate
Once per second Less than 50%
Twice per second 50% ~ 75%
Three times per second 75% ~ 90%
Blinking stops and stays on 90 ~ 100%
On for a second and Error - Reset the battery pack and the
off for a second DC cable
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 24
![](asset-19.png)
ENGLISH
Preparation
2525
Using the Lithium Ion Battery Pack
Table of continuous recording time based on model and battery type.
✤If you close the LCD screen, it switches off and the EVF switches on automatically.
✤The continuous recording times given in the table above are approximations.
Actual recording time depends on usage.
Reference
■
The battery pack should be recharged in an environment of between 32°F (0°C) and 104°F (40°C).
■
The battery pack should never be charged in a room temperature that is below 32°F (0°C).
■
The life and capacity of the battery pack will be reduced if it is used in temperatures below 32°F (0°C) or left in temperatures
above 104°F (40°C) for a long period, even when it is fully recharged.
■
Do not put the battery pack near any heat source (fire or flames, for example).
■
Do not disassemble, process, pressure, or heat the Battery Pack.
■
Do not allow the + and - terminals of the battery pack to be short-circuited.
It may cause leakage, heat generation, induce fire and overheating.
Battery
SB-L110
SB-L220
Charging
time
Approx.
2hr
Approx.
3hr 30min
LCD ON EVF ON
Continuous recording time
Time
Approx.
1hr 30min
Approx.
3hr 10min
Approx.
2hr
Approx.
4hr 10min
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 25
![](asset-1a.png)
ENGLISH
Preparation
2626
Battery level display
• The battery level display indicates the amount of power remaining
in the battery pack.
a. Fully charged
b. 20~40% used
c. 40~80% used
d. 80~95% used
e. Completely used (flickers)
(The camcorder will turn off soon, change the battery as soon as possible)
✤Please refer to the table on page 25 for approximate continuous recording times.
✤The recording time is affected by environmental temperature and conditions.
The recording time becomes very short in a cold environment. The continuous recording
times in the operating instructions are measured using a fully charged battery pack at
77°F(25°C). As the environmental temperature and conditions may differ when you
actually use the camcorder, the remaining battery time may not be the same as the
approximate continuous recording times given in these instructions.
Tips for Battery Identification
A charge mark is provided on the battery pack to help you remember whether it has been
charged or not.
Two colours are provided (red and black)-you may choose which one indicates charged and
which indicates discharged.
a
b
c
d
e
00511E VP-D80/D81 UK (01~27) 2/12/03 12:02 PM Page 26
![](asset-1b.png)
ENGLISH
Preparation
2727
Inserting and Ejecting a Cassette
✤When inserting a tape or closing a cassette holder, do not apply excessive force.
This may cause a malfunction.
✤Do not use any tapes other than Mini DV CASSETTES.
1. Connect a power source and slide the TAPE EJECT switch and open
the cassette door.
- The cassette holding mechanism rises automatically.
2. Insert a tape into the cassette holder with the tape window facing outward and
the protection tab toward the top.
3. Press the area labelled PUSH on the cassette holding mechanism until
it clicks into place.
- The cassette is loaded automatically.
4. Close the cassette door.
- Close the door completely until you can hear a “click”.
Reference
When you have recorded something that you wish to keep, you can protect it so that it will not be accidentally erased.
a. Protecting a tape :
Push the safety tab on the cassette so that the hole is uncovered.
b. Removing the tape protection :
If you no longer wish to keep the recording on the cassette, push the write-protect tab
back so that it covers the hole.
•How to keep a tape
a. Avoid places with magnets or magnetic interference.
b. Avoid humidity and dust prone places.
c. Keep the tape in an upright position and avoid storing it in direct sunlight.
d. Avoid dropping or knocking your tapes.
a. SAVE
b. REC
1
3
2
4
push
00511E VP-D80/D81 UK (01~27) 2/12/03 12:03 PM Page 27
![](asset-1c.png)

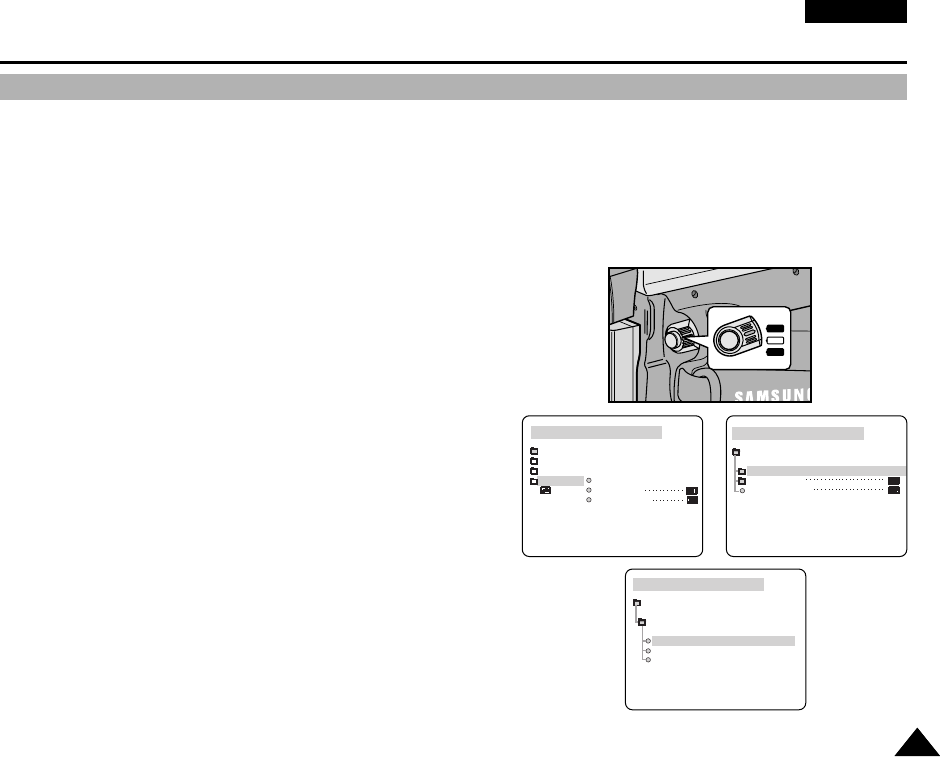

ENGLISH
Basic Recording
2828

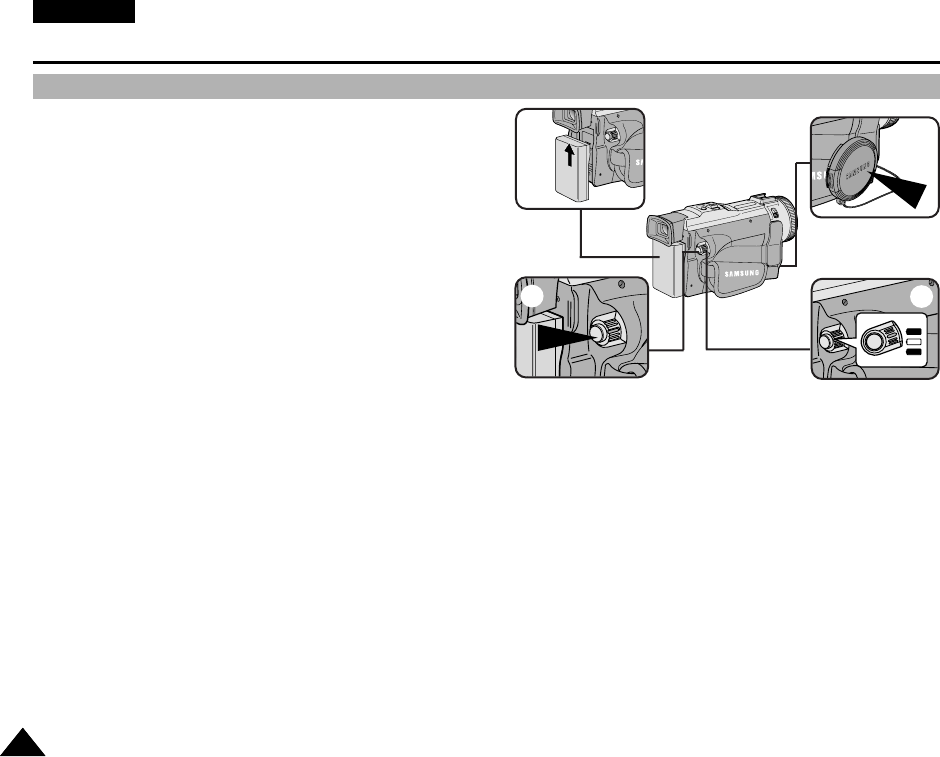

Making your First Recording
1. Connect a Power source to the camcorder. (see page 23)
(A battery pack or a AC power adapter)
■
Insert a cassette. (see page 27)
2. Remove the LENS CAP and hook it onto the hand strap.
3. Set the power switch to the CAMERA position.
■
Open the LCD monitor and make sure that STBY is
displayed.
■
If the protection tab of the cassette is open, STOP and
PROTECTION! will be displayed.
■
Make sure the image you want to record appears in the
LCD monitor or viewfinder.
■
Make sure the battery level indicates that there is enough
remaining power for your expected recording time.
4. To start recording, press the START/STOP button.
■
REC is displayed in the LCD.
To stop recording, press the START/STOP button again.
■
STBY is displayed in the LCD.
CAMERA
OFF
PLAYER
43
2
1
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 28
![](asset-1d.png)
ENGLISH
Basic Recording
2929
When a cassette is loaded and the camcorder is left in the STBY mode for more than 5 minutes without being used,
it will switch off automatically.
To use it again, push the START/STOP button or set the Power switch to OFF and then back to CAMERA.
This Auto Power off feature is designed to save battery power.

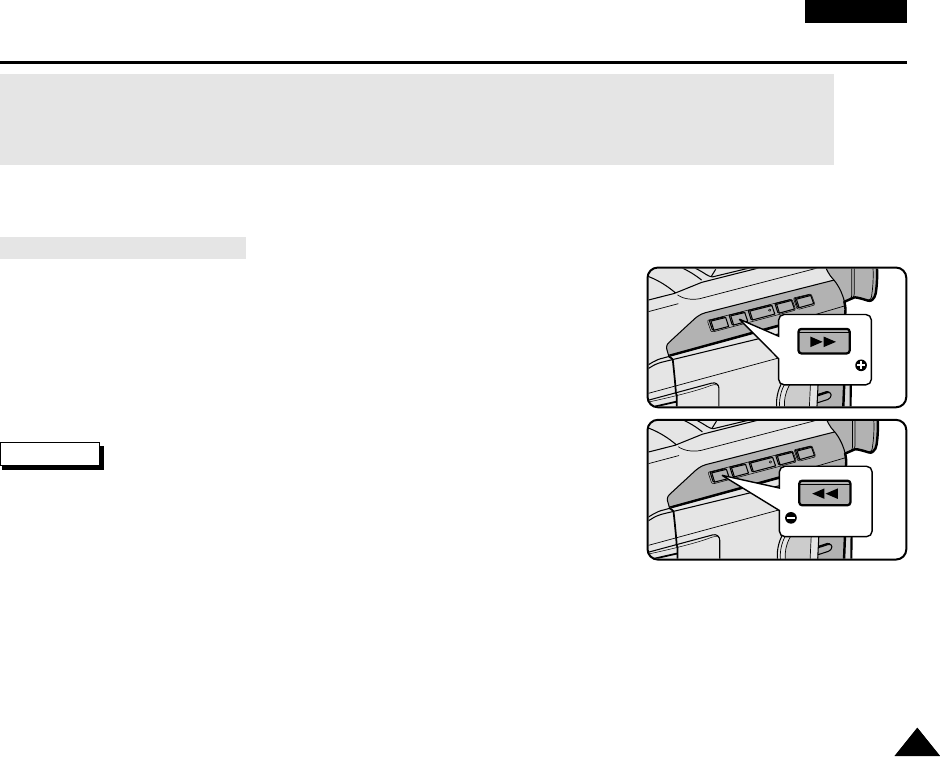

Record Search (REC SEARCH)
✤You can view a recording using the REC SEARCH +, -- function in STBY mode.
REC SEARCH -- enables you to play the recording backwards and
REC SEARCH + enables you to play it forwards, for as long as you keep each
button pressed down.
✤If you press the REC SEARCH -- button in STBY mode, your camcorder
will play in reverse for 3 seconds and return to the original position automatically.
Reference
Mosaic shaped distortion may appear on the screen while in Record Search mode.
REC SEARCH
REC SEARCH
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 29
![](asset-1e.png)
ENGLISH
Basic Recording
3030
■
While recording, it is very important to hold the camcorder correctly.
■
Fix the LENS cap firmly by clipping it to the hand strap. (refer to the figure)
Recording with the LCD monitor
1. Hold the camcorder firmly using the hand strap.
2. Place your right elbow against your side.
3. Place your left hand under or beside the LCD to support and adjust it.
Do not touch the built-in microphone.
4. Choose a comfortable, stable position for the shots that you are taking.
You can lean against a wall or on a table for greater stability.
Do not forget to breathe gently.
5. Use the LCD frame as a guide to determine the horizontal plane.
6. Whenever possible, use a tripod.
Recording with the Viewfinder
1. Hold the camcorder firmly using the hand strap.
2. Place your right elbow against your side.
3. Place your left hand under the camcorder to support it.
Be sure not to touch the built-in microphone.
4. Choose a comfortable, stable position for the shots that you are taking.
You can lean against a wall or on a table for greater stability.
Do not forget to breathe gently.
5. To view an object through the viewfinder, pull it out until you hear the ‘click’ sound.
Excessive force may cause damage to the viewfinder.
6. Place your eye firmly against the viewfinder eyecup.
7. Use the viewfinder frame as a guide to determine the horizontal plane.
8. Whenever possible, use a tripod.
Hints for Stable Image Recording
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 30
![](asset-1f.png)
ENGLISH
Basic Recording
3131
✤Your camcorder is equipped with a 2.5 inch colour Liquid Crystal Display(LCD) screen, which enables you
to view what you are recording or playing back directly.
✤Depending on the conditions under which you are using the camcorder (indoors or outdoors for example),
you can adjust ;
■
BRIGHT SELECT
■
BRIGHT ADJUST
■
COLOUR ADJUST
1. Set the POWER switch to CAMERA position.
■
In the PLAYER mode, you may only setup the LCD while the tape is playing.
2. Open the LCD screen, and the LCD switches on.
3. Press the MENU button.
4. Turn the MENU DIAL so that VIEWER is highlighted and then
press the ENTER button.
5. Turn the MENU DIAL so that LCD ADJUST is highlighted.
6. Press the ENTER button to enter the sub-menu.
7. Turn the MENU DIAL so that it highlights the menu item you want to
adjust (BRIGHT SELECT, BRIGHT ADJUST, COLOUR ADJUST).
CAM MODE
VIEWER SET
LCD ADJUST
DATE / TIME
TV DISPLAY
CAM MODE
INITIAL
LCD ADJUST
DATE/TIME
TV DISPLAY
CAMERA
A/V
VIEWER
CAM MODE
LCD ADJUST
VIEWER SET
BRIGHT SELECT . . . . NORMAL
BRIGHT ADJUST . . . . . . [ 1 8 ]
COLOUR ADJUST . . . . . [ 1 8 ]
Adjusting the LCD
CAMERA
OFF
PLAYER
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 31
![](asset-20.png)
ENGLISH
Basic Recording
3232
8. Press the ENTER button again.
■
You may select NORMAL or SUPER in the BRIGHT SELECT feature and press the ENTER button to save the setting.
■
Use the MENU DIAL to adjust the value of BRIGHT ADJUST and COLOUR ADJUST.
■
You can set values for BRIGHT ADJUST between 00 ~ 35 and COLOUR ADJUST between 00 ~ 35.
9. Press the MENU button to finish the setting.
✤The VIEWFINDER will not work when the LCD is open.

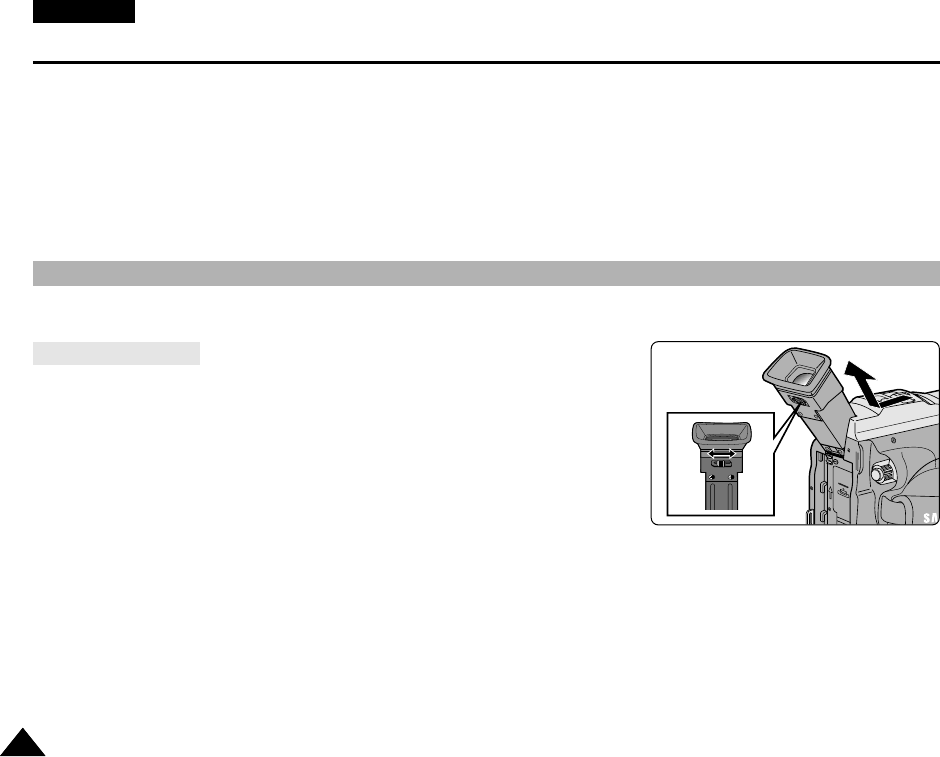

Adjusting the Focus
Use the focus adjustment knob of the VIEWFINDER to focus the picture.
(refer to figure )
Using the VIEWFINDER
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 32
![](asset-21.png)
ENGLISH
Basic Recording
3333

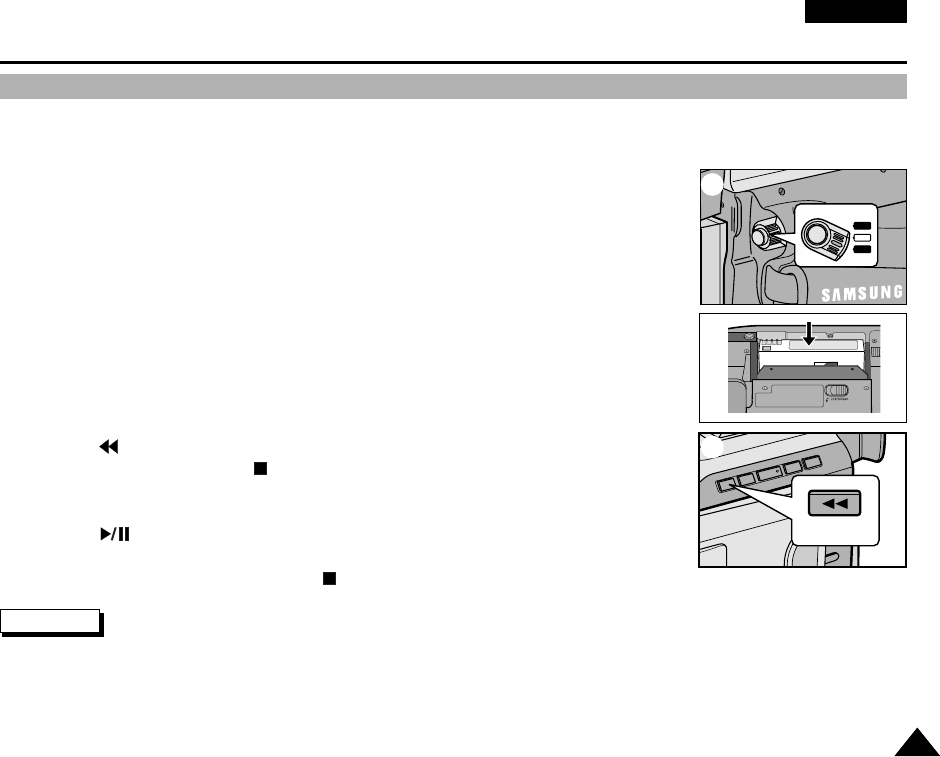

✤You can monitor the playback picture on the LCD monitor.
✤Make sure that the battery pack is in place.
1. Hold down the power switch tab and turn it to the PLAYER position.
2. Insert the tape you wish to view. (see page 27)
3. Open the LCD screen.
Adjust the angle of the LCD screen and set the brightness or colour if necessary.
4. Press the (REW) button to rewind the tape to the starting point.
■
To stop rewinding, press the (STOP) button.
■
The camcorder stops automatically after rewinding is complete.
5. Press the (PLAY/STILL) button to start playback.
■
You can view the picture you recorded on the LCD.
■
To stop the PLAY operation, press the (STOP) button.
Reference
■
You can also view the picture on a TV screen, after connecting the camcorder to a TV or VCR. (see page 68)
■
Various functions are available in playback mode. (see page 70)
Playing back a tape you have recorded on the LCD
REW
OFF
PLAYER
CAMERA
2
1
4
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 33
![](asset-22.png)

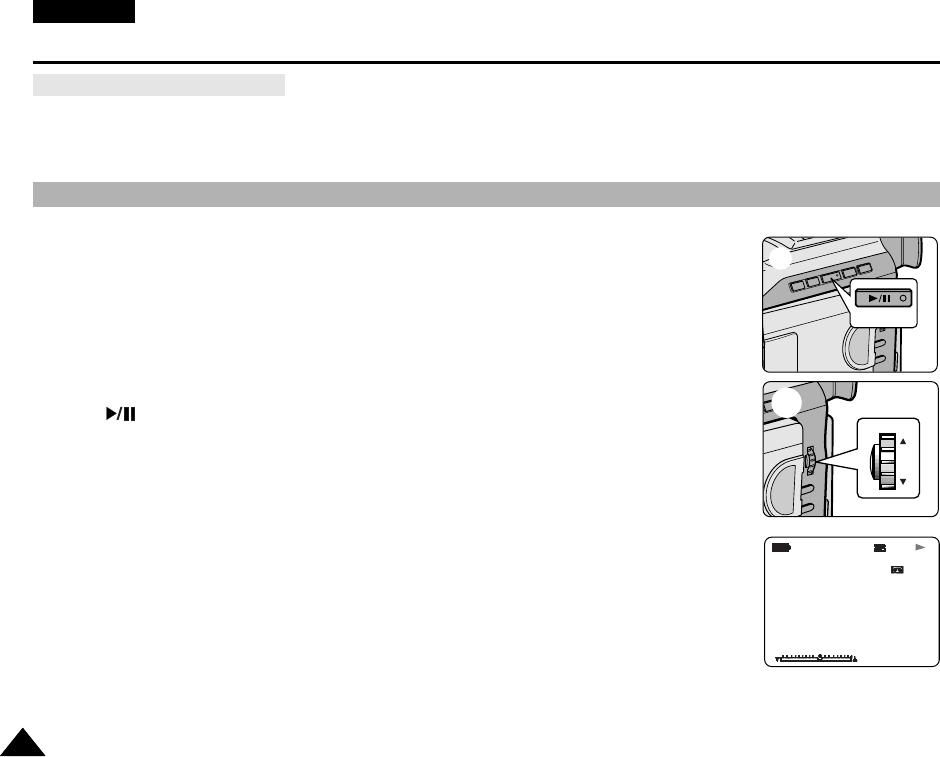

Adjusting the LCD during PLAY
✤ You can adjust the LCD during playback.
✤ The adjustment method is the same procedure as used in CAMERA mode. (see page 31)
The Speaker works in PLAYER mode only.
■
When you use the LCD screen for playback, you can hear the recorded sound from
the built-in Speaker.
- Follow the instructions below to decrease or mute speaker volume in the PLAYER mode.
- Take the following steps to lower the volume or mute the sound while playing a tape
on the camcorder.
1. Set the power switch to PLAYER mode.
2. Press (PLAY/STILL) to play the tape.
3. When you hear sounds once the tape is in play, use the MENU DIAL to adjust the volume.
■
A volume level display will appear on the LCD.
Levels may be adjusted from anywhere between 00 to 19 and you will not hear
any sound when the volume is set on 00.
■
If you close the LCD while playing, you will not hear sound from the speaker.
ENGLISH
Basic Recording
3434
Controlling Sound from the Speaker
PLAY/STILL
0 : 2 3 : 4 7
5 5 min
1 2 : 0 0
1 . N O V . 2 0 0 2
VOL. [ 1 1 ]
2
<3-2>
VOL
3-1
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 34
![](asset-23.png)
ENGLISH
Advanced Recording
3535
●
Setting menu items
●
Set the camcorder to CAMERA or PLAYER mode
1. Press the MENU button.
The MENU OSD is displayed. The cursor ( HIGHLIGHT ) indicates the feature you are currently adjusting.
2. Using the MENU DIAL and press the ENTER button on the left side panel, select and activate the item.
3. You can exit the menu mode by pressing the MENU button.
Use of various Functions
SUB MENU Available mode
CAMERA
PLAYER
MENU
CLOCK SET
REMOCON
BEEP SOUND
DEMONSTRATION
PROGRAM AE
WHT. BALANCE
D. ZOOM
EIS
DSE SELECT
CUSTOM. Q
REC MODE
PHOTO SEARCH
AUDIO MODE
AUDIO SELECT
WIND CUT
LCD ADJUST
DATE/TIME
TV DISPLAY
INITIAL
CAMERA
A/V
VIEWER
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 35
![](asset-24.png)
ENGLISH
Advanced Recording
3636
O : The requested mode will work in this operating mode.
✕:You can not change the requested mode.
: The operating mode will be released and the requested mode will work.
Reference
■
When a menu item on the LCD is marked with an X , that item cannot be activated.
■
When you select an item that cannot be changed, an error message will be displayed.
●
Availability of functions in each mode
EIS
D.ZOOM
Digital Special Effects
NIGHT CAPTURE
Digital functions
Requested
Mode
Operating
Mode
EIS
OOO
OOO
✕✕ ✕
✕
OOO
OOO
D.ZOOM PHOTO
Digital
special
effects
NIGHT
CAPTURE
O
O
O
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 36
![](asset-25.png)
ENGLISH
Advanced Recording
3737
●
CLOCK SET
✤CLOCK setup works in CAMERA and PLAYER modes.
✤The DATE/TIME is automatically recorded onto a tape.
Before recording, please set the DATE/TIME.
1. Press the MENU button.
■
The menu list will appear.
2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
3. Use the MENU DIAL to select CLOCK SET from the submenu.
4. Press the ENTER button to enter SETTING mode.
■
A blinking item indicates the item to be changed. The year will blink first.
5. Using the MENU DIAL, change the year setting.
6. Press the ENTER button.
■
The month will blink.
7. Using the MENU DIAL, change the month setting.
8. Press the ENTER button.
■
The day will blink.
9. You can set the day, hour and minute following the same procedure for setting the year and
month.
10.Press the ENTER button after setting the minutes.
■
The word COMPLETE! will appear, and a few seconds later, the menu screen will
automatically return to the sub menu.
11.To exit, press the MENU button.
CAM MODE
INITIAL CLOCK SET
REMOCON
BEEP SOUND
DEMO
CAMERA
A/V
VIEWER
CAM MODE
INITIAL SET
CLOCK SET
REMOCON
BEEP SOUND
DEMONSTRATION
CAM MODE
INITIAL SET
CLOCK SET
0 0 : 0 0
01. JAN. 2002
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 37
![](asset-26.png)
ENGLISH
Advanced Recording
3838
●

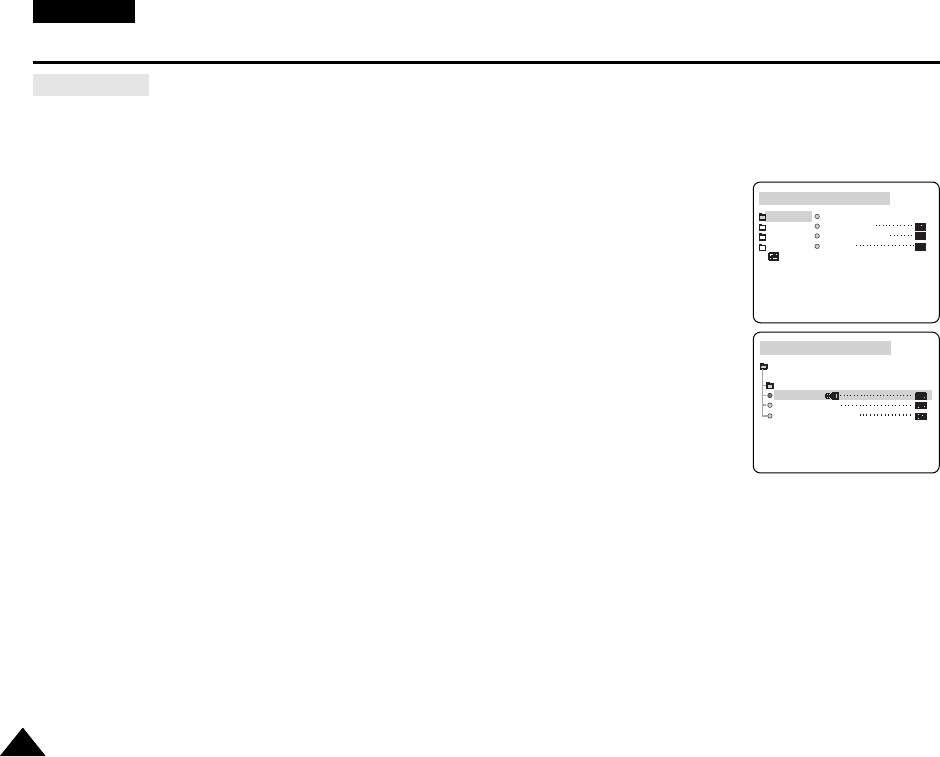

REMOCON
✤THE REMOCON function works in CAMERA and PLAYER modes.
✤The REMOCON option allows you to enable or disable the remote control for use with the camcorder.
1. Press the MENU button.
■
The menu list will appear.
2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
3. Use the MENU DIAL to select REMOCON from the submenu.
4. Press the ENTER button to enable or disable the remote control.
The setting switches between ON/OFF each time you press the ENTER button.
5. To exit, press the MENU button.
■
If you set the remote to OFF in the menu and try to use it, the remote icon will
the remote control icon will blink for 3 seconds and disappear on the LCD.
CAM MODE
INITIAL CLOCK SET
REMOCON
BEEP SOUND
DEMO
CAMERA
A/V
VIEWER
CAM MODE
INITIAL SET
CLOCK SET
REMOCON
BEEP SOUND
DEMONSTRATION
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 38
![](asset-27.png)
ENGLISH
Advanced Recording
3939
●

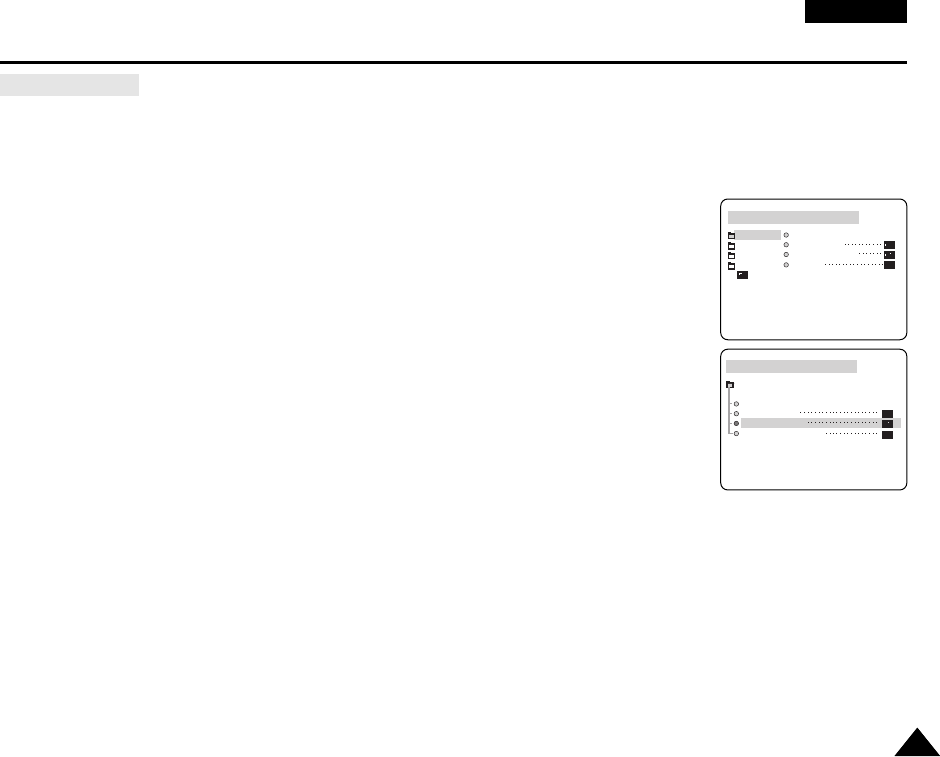

BEEP SOUND
✤THE BEEP SOUND function works in CAMERA and PLAYER modes.
✤Use the MENU to setup the BEEP SOUND function. Select whether or not you want to hear a beep sound whenever you
change a setup value.
1. Press the MENU button.
■
The menu list will appear.
2. Turn the MENU DIAL to highlight INITIAL and press the ENTER button.
3. Use the MENU DIAL to select BEEP SOUND from the submenu.
4. Press the ENTER button to enable or disable the BEEP SOUND.
The setting switches between ON/OFF each time you press the ENTER button.
■
You will hear a Beep Sound when you select the ON setup.
■
When you press the START/STOP button to start recording, the BEEP SOUND is
automatically set to OFF so you can’t hear it any longer.
5. To exit, press the MENU button.
CAM MODE
INITIAL CLOCK SET
REMOCON
BEEP SOUND
DEMO
CAMERA
A/V
VIEWER
CAM MODE
INITIAL SET
CLOCK SET
REMOCON
BEEP SOUND
DEMONSTRATION
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 39
![](asset-28.png)
ENGLISH
4040
Advanced Recording
●
DEMONSTRATION
✤Demonstration automatically shows you the major functions that are included with your camcorder so that you may use
them more easily.
✤The DEMONSTRATION function may only be used in the CAMERA mode without a tape inserted in the camcorder.
✤The demonstration operates repeatedly until the DEMONSTRATION mode switched OFF.
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight INITIAL.
4. Select DEMONSTRATION from the submenu and press the ENTER button.
5. To activate the DEMONSTRATION, set DEMONSTRATION ON.
■
Press the menu button to quit the menu.
■
The demonstration will begin.
6. To end the DEMONSTRATION, set the DEMONSTRATION to OFF.
Reference
■
The DEMONSTRATION function only works without a TAPE installed.
■
The DEMONSTRATION mode is automatically activated when the camcorder is left idle for more than 10 minutes after
switching to the CAMERA mode (no tape is inserted in the camcorder).
■
If you press other buttons (FADE, BLC, PHOTO, EASY, CUSTOM) during the DEMONSTRATION mode,
the DEMONSTRATION stops temporarily and resumes 10 minutes later if you do not operate any other functions.
CAM MODE
INITIAL CLOCK SET
REMOCON
BEEP SOUND
DEMO
CAMERA
A/V
VIEWER
CAM MODE
INITIAL SET
CLOCK SET
REMOCON
BEEP SOUND
DEMONSTRATION
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 40
![](asset-29.png)
ENGLISH
4141
Advanced Recording
●
PROGRAM AE
✤The PROGRAM AE function works in CAMERA mode only.
✤The PROGRAM AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions.
✤They give you creative control over the depth of field.
■
AUTO mode
- Auto balance between the subject and the background.
- To be used in normal conditions.
- The shutter speed automatically varies from 1/50 to 1/250 per second, depending on the scene.
■
SPORTS mode ( )
- For recording people or objects moving quickly.
■
PORTRAIT mode ( )
- For focusing on the background of the subject, when the background is out of focus.
- The PORTRAIT mode is most effective when used outdoors.
- The shutter speed automatically varies from 1/50 to 1/1000 per second.
■
SPOTLIGHT mode ( )
- For recording correctly when there is only light on the subject and not the rest of the picture.
■
SAND/SNOW mode ( )
- For recording when people or objects are darker than the background because of reflected light from sand or snow.
■
HSS(High Speed Shutter) mode ( )
- For recording fast-moving subjects such as players in golf or tennis games.
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 41
![](asset-2a.png)
ENGLISH
4242
Advanced Recording

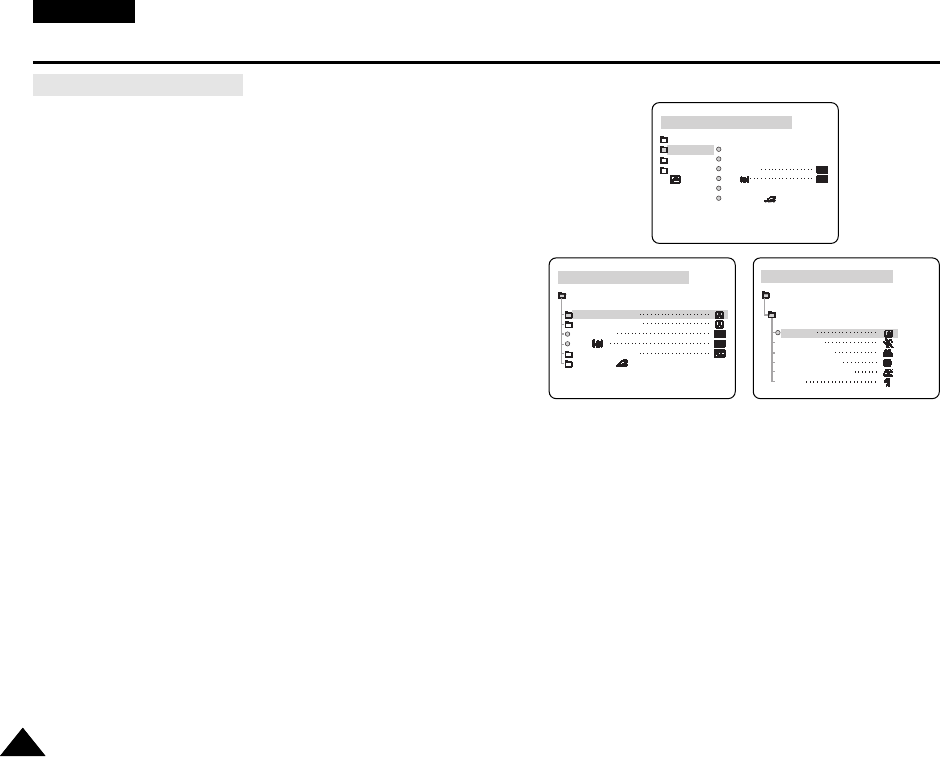

Setting the PROGRAM AE
1. Press the MENU button.
■
The menu list will appear.
2. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.
3. Select PROGRAM AE from the submenu.
4. Press the ENTER button to enter the sub-menu.
5. Using the MENU DIAL, select the PROGRAM AE mode.
■
Press the ENTER button to confirm the PROGRAM AE mode.
6. To exit, press the MENU button.
CAM MODE
PROGRAM AE
AUTO
SPORTS
PORTRAIT
SPOTLIGHT
SAND / SNOW
HSS
CAMERA SET
CAM MODE
PROGRAM AE
WHT.BALANCE
D.ZOOM
EIS
DSE SELECT
CUSTOM
CAMERA SET
CAM MODE
INITIAL PROGRAM AE
WHT. BALANCE
D.ZOOM
EIS
DSE SELECT
CAMERA
A/V
VIEWER
CUSTOM
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 42
![](asset-2b.png)
ENGLISH
4343
Advanced Recording
●
WHT. BALANCE (WHITE BALANCE)
✤The WHITE BALANCE function works in CAMERA mode only.
✤The WHITE BALANCE is a recording function that preserves the unique color of the object in any recording condition.
✤You may select the appropriate WHITE BALANCE mode to obtain good quality color of the image.
■
AUTO ( ) : This mode is generally used to control the WHITE BALANCE automatically.
■
HOLD ( ) :This fixes the current WHITE BALANCE value.
■
INDOOR ( ) : This controls the WHITE BALANCE according to the indoor ambience.
■
OUTDOOR ( ) : This controls the WHITE BALANCE according to the outdoor ambience.
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.
4. Select WHT.BALANCE from the submenu.
5. Press the ENTER button to enter the sub-menu.
6. Using the MENU DIAL, select the WHITE BALANCE mode.
■
Press the ENTER button to confirm the WHITE BALANCE mode.
7. To exit, press the MENU button.
Reference
■
While setting the NIGHT CAPTURE to ON, the WHT.BALANCE function does not work.
■
The WHT.BALANCE function will not operate in EASY mode.
■
Turn the digital zoom off (if necessary) to set a more accurate white balance.
■
If you have set the white balance and lighting conditions changes, reset the white balance.
■
During normal outdoor recording, setting to AUTO may provide better results.
CAM MODE
PROGRAM AE
WHT. BALANCE
D. ZOOM
EIS
DSE SELECT
CUSTOM
CAMERA SET
CAM MODE
INITIAL PROGRAM AE
WHT. BALANCE
D.ZOOM
EIS
DSE SELECT
CAMERA
A/V
VIEWER
CUSTOM
CAM MODE
AUTO
HOLD
WHT. BALANCE
INDOOR
OUTDOOR
CAMERA SET
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 43
![](asset-2c.png)
ENGLISH
4444
Advanced Recording
Zooming In and Out with DIGITAL ZOOM
✤Zoom works in CAMERA mode only.
Zooming In and Out
✤Zooming is a recording technique that lets you change the size of the subject in a scene.
For more professional looking recordings, do not use the zoom function too often.
✤You can zoom using variable zoom speeds.
✤Use these features for different shots. Please note that over-use
of the zoom feature can lead to unprofessional looking results and a reduction of battery usage time.
1. Move the zoom lever slightly for
a gradual zoom, move it further for
a high-speed zoom.
Your zooming is monitored on the OSD.
2. T(Telephoto) side: Subject appears closer.
3. W(Wide angle) side: Subject appears
farther away.
Reference
You can record a subject that is a minimum of 1 m (about 2.65 feet) away from the lens surface in the TELE position,
or about 10 mm (about 0.5 inch) away in the WIDE position.
TELE
WIDE
1-1 1-2
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 44
![](asset-2d.png)
ENGLISH
4545
Advanced Recording

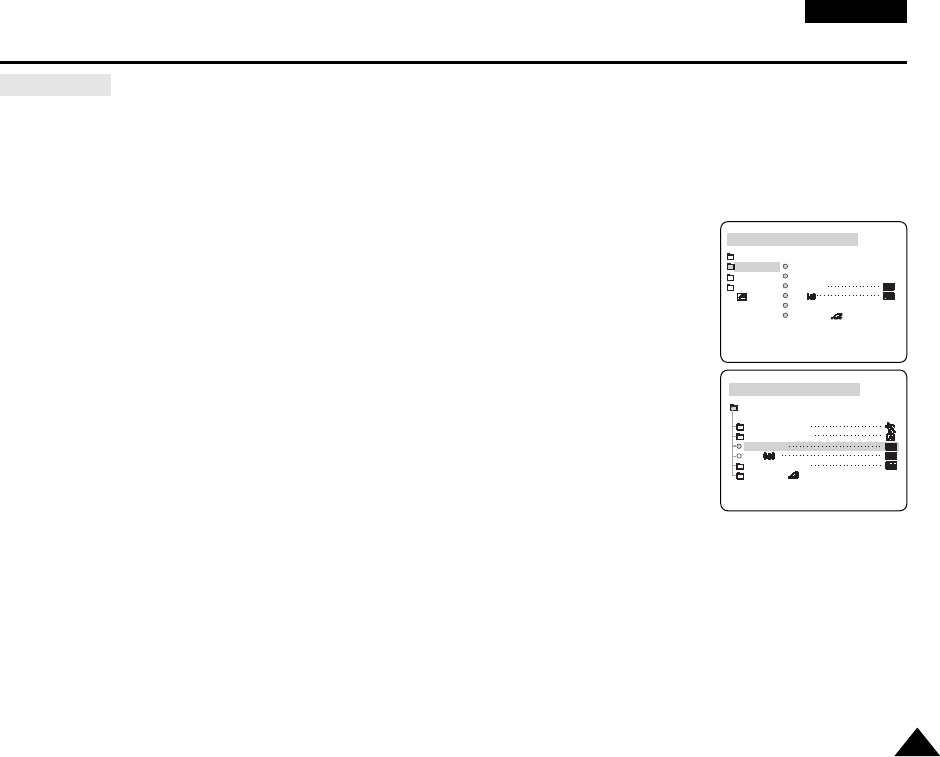

Digital Zoom
✤More than 10x zoom is achieved digitally.
✤The picture quality may deteriorate depending on how
much you zoom in on the subject.
✤We recommend that you use the EIS feature with DIGITAL ZOOM for picture stability. (see page 46)
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to CAMERA and press the ENTER button.
4. Select D.ZOOM from the submenu.
5. Press the ENTER button to setup the 400x digital zoom function or to turn the feature OFF.
6. To exit, press the MENU button.
CAM MODE
PROGRAM AE
WHT. BALANCE
D. ZOOM
EIS
DSE SELECT
CUSTOM
CAMERA SET
CAM MODE
INITIAL PROGRAM AE
WHT. BALANCE
D.ZOOM
EIS
DSE SELECT
CAMERA
A/V
VIEWER
CUSTOM
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 45
![](asset-2e.png)
ENGLISH
4646
Advanced Recording
●
EIS (Electronic Image Stabilizer)
✤The EIS function works in CAMERA mode only.
✤EIS(Electronic Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the
camcorder (within reasonable limits).
✤It provides more stable pictures when:
■
Recording a small object close-up
■
Recording and walking at the same time
■
Recording through the window of a vehicle
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL highlight to CAMERA and press the ENTER button.
■
The sub menu list will appear.
4. Turn the MENU DIAL to activate the EIS function, press the ENTER button.
■
The EIS menu is changed to ON.
■
If you do not want to use the EIS function, set the EIS menu to OFF.
5. To exit, press the MENU button.
Reference
■
It is recommended that you deactivate the shake compensation function when using a tripod.
CAM MODE
INITIAL PROGRAM AE
WHT. BALANCE
D.ZOOM
EIS
DSE SELECT
CAMERA
A/V
VIEWER
CUSTOM
CAM MODE
PROGRAM AE
WHT. BALANCE
D. ZOOM
EIS
DSE SELECT
CUSTOM
CAMERA SET
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 46
![](asset-2f.png)
ENGLISH
4747
Advanced Recording
●

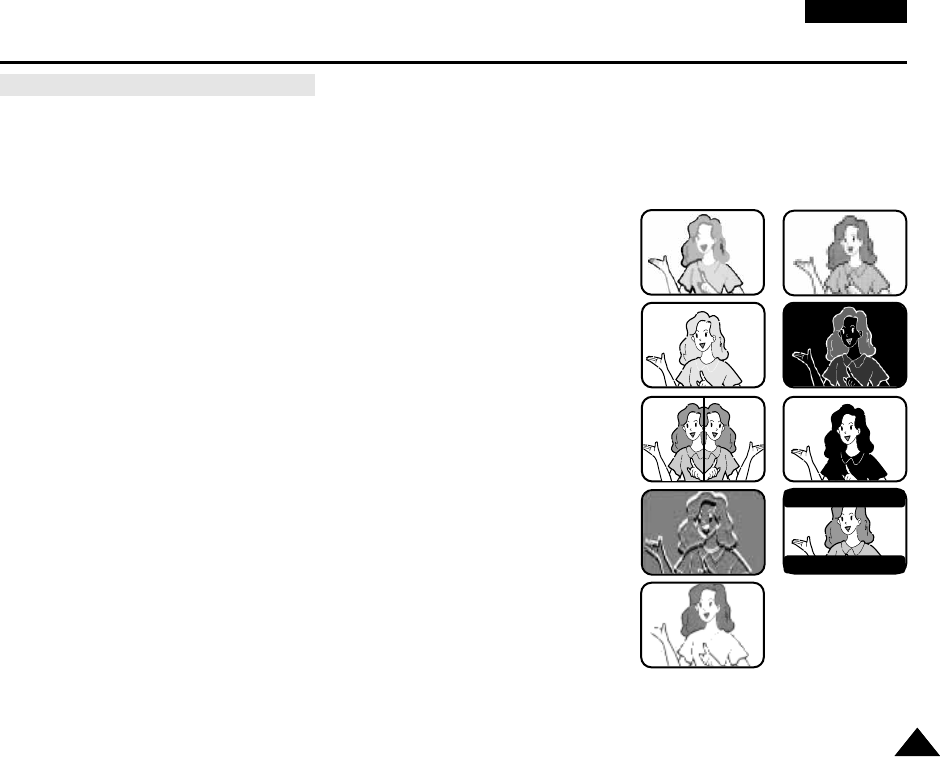

DSE(Digital Special Effects) SELECT
✤The DSE function works in CAMERA mode only.
✤The digital effects enable you to give a creative look to your recording by adding various special effects.
✤Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create.
✤There are 9 DSE modes.
a. ART mode
This mode gives the images a coarse effect.
b. MOSAIC mode
This mode gives the images a mosaic effect.
c. SEPIA mode
This mode gives the images a reddish-brown pigment.
d. NEGA mode
This mode reverses the colours of the images, creating a negative image.
e. MIRROR mode
This mode cuts the picture in half, using a mirror effect.
f. BLK & WHT mode
This mode changes the images to black and white.
g. EMBOSS mode
This mode creates a 3D effect (embossing).
h. CINEMA mode
This mode covers the upper/lower portions of the screen to give a cinematic effect.
i. MAKE - UP mode
This mode allows the images to be selected in red, green, blue or yellow colours.
b
dc
e f
h
g
i
a
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 47
![](asset-30.png)
ENGLISH
4848
Advanced Recording
Selecting an effect
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight CAMERA and press the ENTER button.
4. Select DSE SELECT from the submenu.
5. Press the ENTER button to enter the sub-menu.
6. Using MENU DIAL, select the DSE mode.
■
Press the ENTER button to confirm the DSE mode.
7. To exit, press the MENU button.
Reference
■
While setting the NIGHT CAPTURE to ON, the DSE function does not work.
■
The DSE function will not operate in EASY mode.
CAM MODE
PROGRAM AE
WHT BALANCE
D ZOOM
EIS
DSE SELECT
CUSTOM
CAMERA SET
CAM MODE
INITIAL PROGRAM AE
WHT. BALANCE
D.ZOOM
EIS
DSE SELECT
CAMERA
A/V
VIEWER
CUSTOM
CAM MODE
DSE SELECT
OFF
ART
MOSAIC
SEPIA
CAMERA SET
NEGA
MIRROR
BLK&WHT
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 48
![](asset-31.png)
ENGLISH
4949

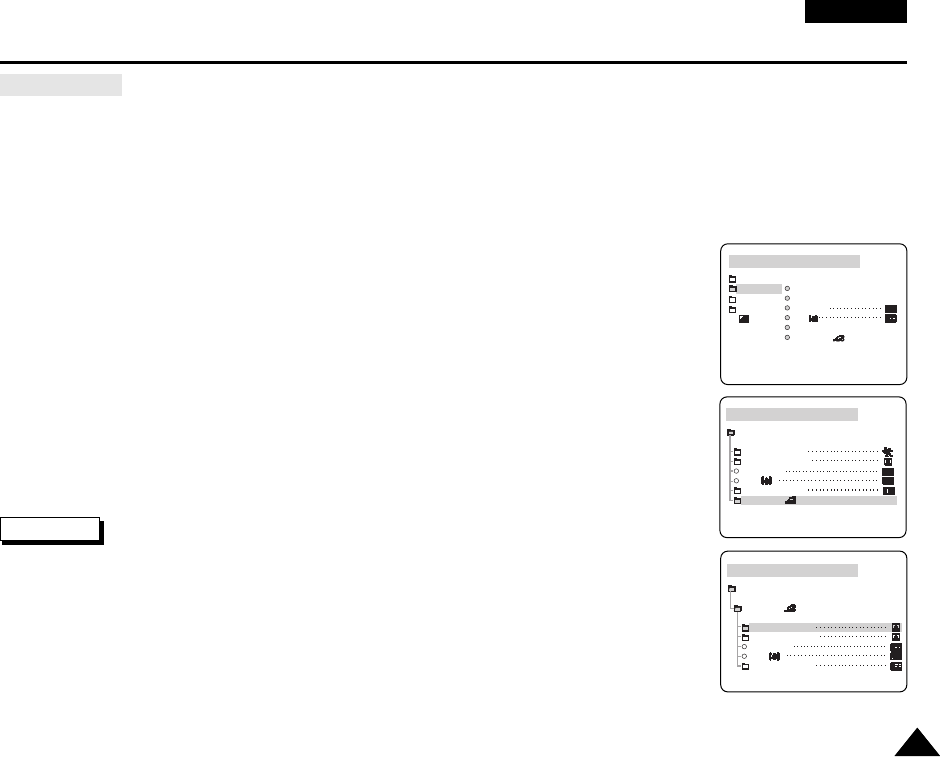

Advanced Recording
●
CUSTOM.Q
✤You can customize settings and save them for future use.
■
The CUSTOM.Q function operates in the CAMERA mode.
✤If you want to use the CUSTOM.Q function (see page 59) correctly, set the status of each item as desired before using
the CUSTOM.Q function.
✤You can set and store the following items:
■
PROGRAM AE, WHT.BALANCE, D.ZOOM, EIS, DSE SELECT
1. Set the power switch to CAMERA mode.
2. Press the MENU button.
■
The MENU list will appear.
3. Turn the MENU DIAL, select CAMERA position and press the ENTER button.
4. Select CUSTOM.Q using MENU DIAL in the submenu and press the ENTER button.
5. Using the MENU DIAL and press the ENTER button, set the status of each item as desired.
6. To exit the menu, press the MENU button.
Reference
■
If you want to activate the CUSTOM.Q function, press the CUSTOM.Q button while
in CAMERA mode.
■
The PROGRAM AE mode is automatically setup when the EXPOSURE is set on manual.
CAM MODE
PROGRAM AE
WHT BALANCE
D.ZOOM
EIS
DSE SELECT
CUSTOM
CAMERA SET
CAM MODE
INITIAL PROGRAM AE
WHT. BALANCE
D.ZOOM
EIS
DSE SELECT
CAMERA
A/V
VIEWER
CUSTOM
CAM MODE
CUSTOM
CAMERA SET
PROGRAM AE
WHT. BALANCE
D. ZOOM
EIS
DSE SELECT
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 49
![](asset-32.png)
ENGLISH
5050
Advanced Recording
●

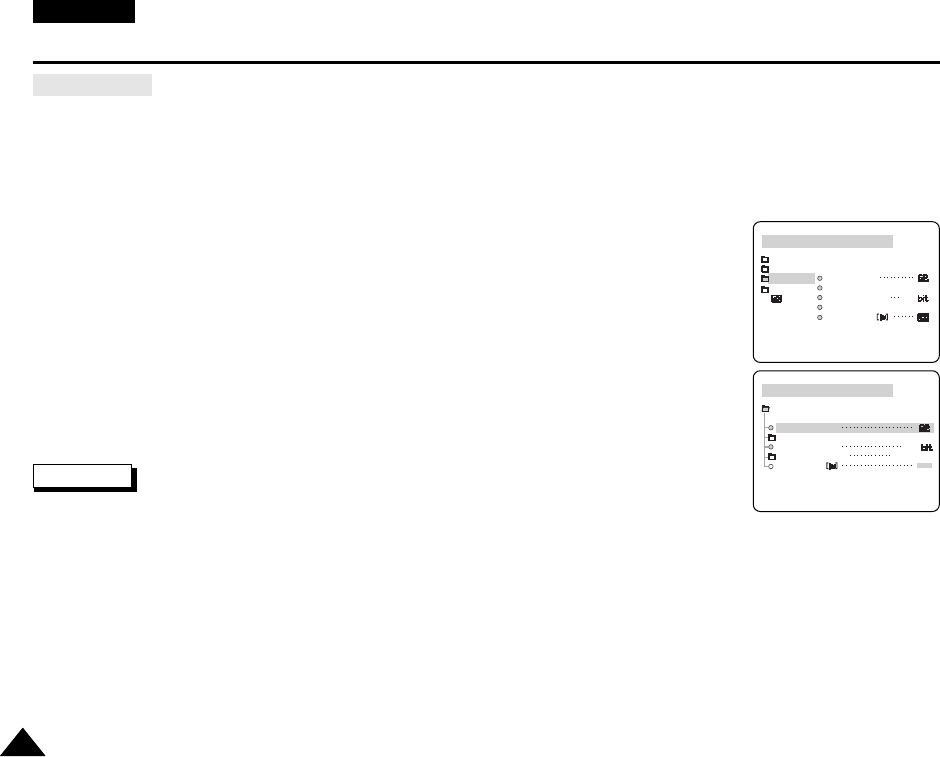

REC MODE
✤The REC MODE function works in both CAMERA and PLAYER modes.
✤This camcorder records and plays back in SP (standard play) mode and in LP (long play) mode.
■
SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.
■
LP (long play): This mode permits 90 minutes of recording time with a DVM60 tape.
1. Set the camcorder to CAMERA or PLAYER mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
4. Select REC MODE from the submenu and press the ENTER button.
■
The REC MODE toggles between SP and LP with each press.
5. To exit, press the MENU button.
Reference
■
We recommend that you use this camcorder to play back any tapes recorded on this camcorder.
Playing back a tape recorded in other equipment may produce mosaic shaped distortion.
■
When you record a tape in SP and LP modes, or LP mode only, the playback picture may be distorted or the time code may
not be written properly between scenes.
■
Record using SP mode for best picture and sound quality.
CAM MODE
INITIAL
WIND CUT
REC MODE
PHOTO SEARCH
AUDIO MODE 12
AUDIO SELECT
CAMERA
A/V
VIEWER
CAM MODE
REC MODE
PHOTO SEARCH
AUDIO MODE 12
SOUND1
AUDIO SELECT
WIND CUT
A / V SET
OFF
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 50
![](asset-33.png)
ENGLISH
5151
Advanced Recording
●

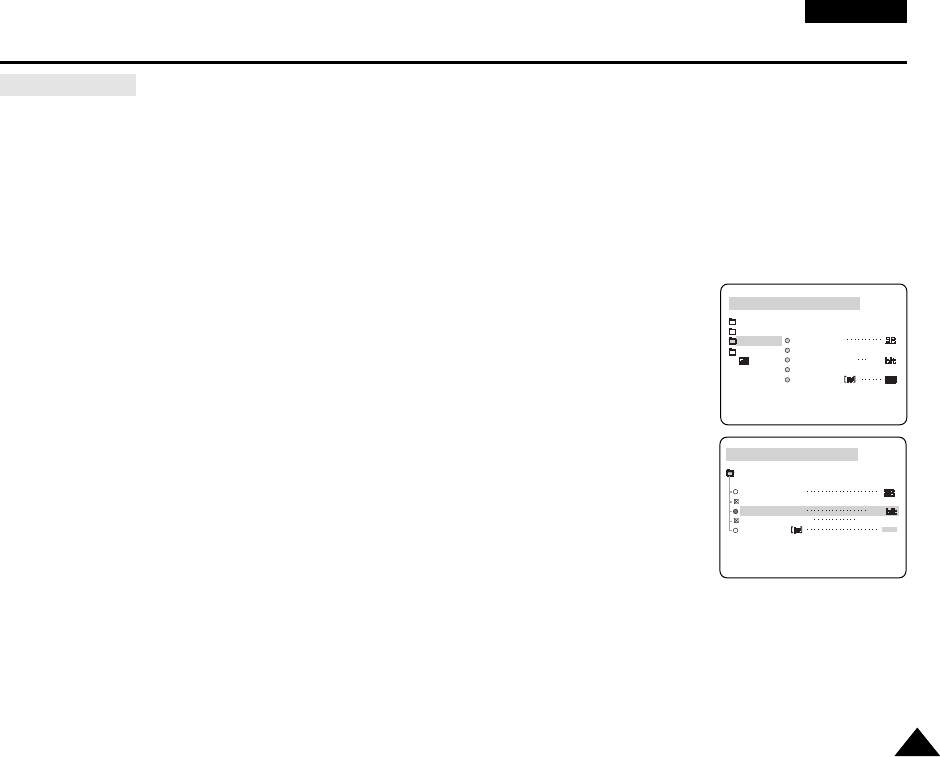

AUDIO MODE
✤The AUDIO MODE function works in CAMERA and PLAYER modes.
✤This camcorder records sound in two ways. (12bit, 16bit)
■
12bit :You can record two 12bit stereo sound tracks.
The original stereo sound can be recorded onto the MAIN (SOUND1) track.
Additional stereo sound can be dubbed onto the SUB (SOUND2) track.
■
16bit :You can record one high quality stereo sound using the 16bit recording mode.
Audio dubbing is not possible when using this mode.
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
4. Select the AUDIO MODE from the menu and press the ENTER button.
■
The AUDIO MODE toggles between 12bit-16bit with each push.
5. To exit, press the MENU button.
CAM MODE
REC MODE
PHOTO SEARCH
AUDIO MODE 12
SOUND1
AUDIO SELECT
WIND CUT
A / V SET
OFF
CAM MODE
INITIAL
WIND CUT
REC MODE
PHOTO SEARCH
AUDIO MODE 12
AUDIO SELECT
CAMERA
A/V
VIEWER
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 51
![](asset-34.png)
ENGLISH
5252
Advanced Recording
●

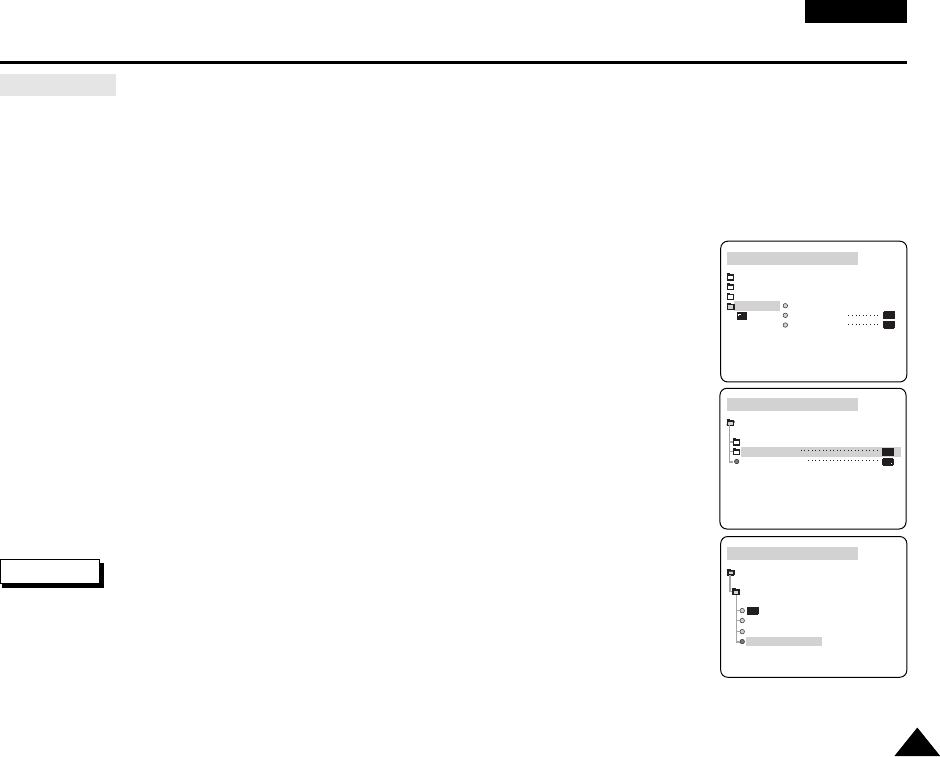

WIND CUT
✤The WIND CUT function works in CAMERA and PLAYER modes.
✤The WIND CUT function minimizes wind noise or other noise while recording.
- When the wind cut is on, some low sounds are eliminated along with the sound of the wind.
1. Set the camcorder to CAMERA mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight A/V and press the ENTER button.
4. Select WIND CUT from submenu.
5. This feature toggles ON/OFF each time you press the ENTER button.
6. To exit, press the MENU button.
Reference
■
Make sure WIND CUT is set to off when you want the microphone to be as sensitive as possible.
■
Use the WIND CUT when recording in windy places such as the beach or near buildings.
CAM MODE
REC MODE
PHOTO SEARCH
AUDIO MODE 12
SOUND1
AUDIO SELECT
WIND CUT
A / V SET
OFF
CAM MODE
INITIAL
WIND CUT
REC MODE
PHOTO SEARCH
AUDIO MODE 12
AUDIO SELECT
CAMERA
A/V
VIEWER
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 52
![](asset-35.png)
ENGLISH
5353
Advanced Recording
●

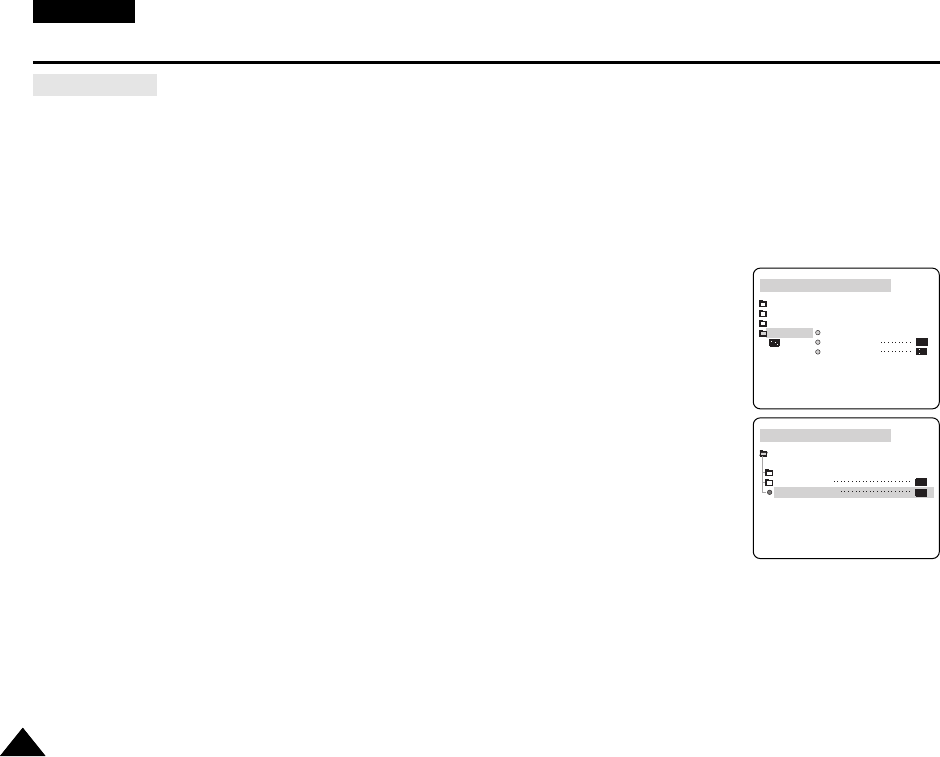

DATE/TIME
✤The DATE/TIME function works in CAMERA and PLAYER modes.
✤The date and time are automatically recorded on a special data area of the tape.
1. Press the MENU button.
■
The menu list will appear.
2. Turn the MENU DIAL to highlight VIEWER and press the ENTER button.
3. Turn the MENU DIAL to highlight DATE/TIME.
4. Press the ENTER button to select the sub-menu.
5. Using the MENU DIAL, select the DATE/TIME mode.
■
You can choose to display - the OFF, DATE, TIME, DATE/TIME
- OFF only
- DATE only
- TIME only
- DATE & TIME
■
To return to the previous menu, highlight the DATE/TIME in the middle of the
and press the ENTER button.
6. To exit, press the MENU button.
Reference
■
The DATE/TIME is not affected by the OSD ON/OFF (DISPLAY) button.
■
The DATE/TIME will read “- - -” in the following conditions.
- During playback of a blank section of a tape.
- If the tape was recorded before setting the DATE/TIME in the Camera’s memory.
- When the lithium battery becomes weak or dead.
■
Before you can use the DATE/TIME function, you must set the Clock.
See CLOCK SET on page 37.
CAM MODE
VIEWER SET
LCD ADJUST
DATE / TIME
TV DISPLAY
CAM MODE
INITIAL
LCD ADJUST
DATE / TIME
TV DISPLAY
CAMERA
A/V
VIEWER
CAM MODE
DATE / TIME
VIEWER SET
DATE
TIME
DATE&TIME
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 53
![](asset-36.png)
ENGLISH
5454
Advanced Recording
●
TV DISPLAY
✤The TV DISPLAY function works in CAMERA and PLAYER modes.
✤You can select the output path of the OSD (On Screen Display).
■
OFF: The OSD appears in the LCD screen only.
■
ON: The OSD appears in the LCD screen, EVF and TV.
■
Use the DISPLAY button located at the left side of the camcorder to turn ON/OFF all of the OSD displayed on the
LCD/EVF/TV.
1. Set the camcorder to CAMERA, PLAYER mode.
2. Press the MENU button.
■
The menu list will appear.
3. Turn the MENU DIAL to highlight VIEWER and press the ENTER button.
4. Select the TV DISPLAY mode in list, press the ENTER button.
■
The DISPLAY mode switches between ON/OFF with each push.
5. To exit, press the MENU button.
CAM MODE
VIEWER SET
LCD ADJUST
DATE / TIME
TV DISPLAY
CAM MODE
INITIAL
LCD ADJUST
DATE / TIME
TV DISPLAY
CAMERA
A/V
VIEWER
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 54
![](asset-37.png)
ENGLISH
5555
Advanced Recording
✤Quick menu is available only in CAMERA mode.
✤Quick menu is used to adjust camera functions by simply using the MENU SELECTOR button.
This feature is useful for when you want to make simple adjustments without having to access the menus and submenus.
■
DATE/TIME
- Each time you select DATE/TIME and press the ENTER button, it will be displayed in the order of
DATE - TIME - DATE/TIME - OFF(See page 53).
■
REMOCON( )
- Each time you select REMOCON and press the ENTER button, the REMOCON is switched to
either enabled ( )or disabled ( ).
■
EIS( )
- Each time you select EIS and press the ENTER button, the EIS icon is displayed or set to OFF.
■
DSE(Digital Special Effect) (see page 47)
- Each time you select DSE and press the ENTER button the DSE preset values are applied or set to OFF.
DSE values will not switch between On and Off if they have not been preset in the menu.
■
PROGRAM AE (see page 41)
- Each time you select PROGRAM AE and press the ENTER button, you can choose between the preset PROGRAM AE
values and AUTO. You can’t choose between Auto and the PROGRAM AE values if the values have not been preset in
the regular menu.
Using Quick Menu
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 55
![](asset-38.png)
ENGLISH

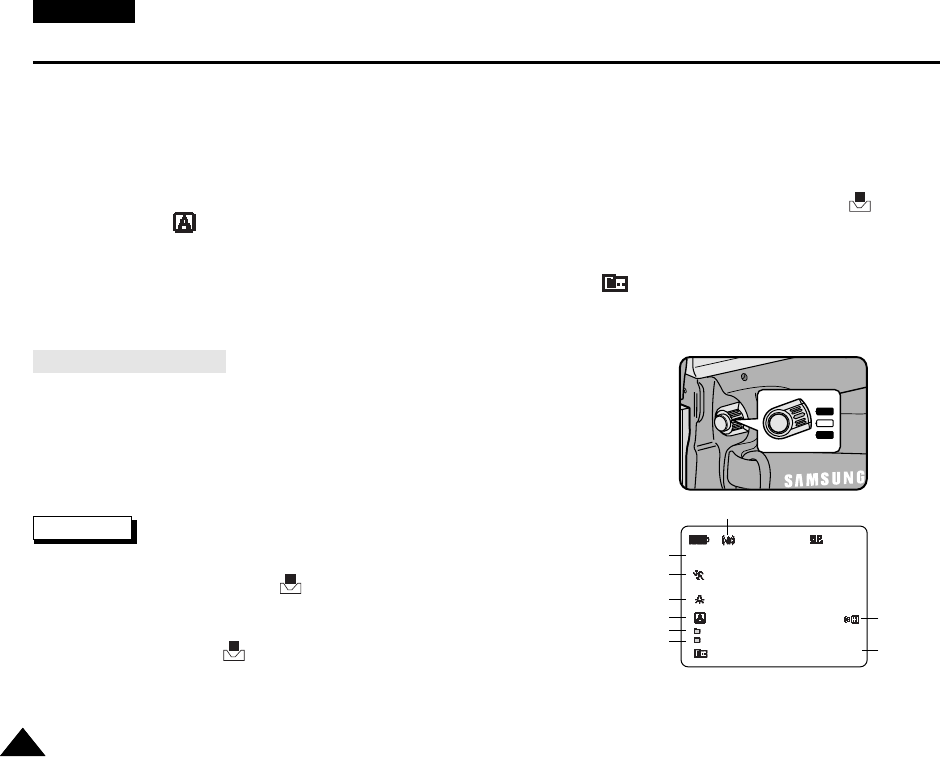

5656
Advanced Recording
■WHT. BALANCE (see page 43)
- Each time you select WHT. BALANCE and press the ENTER button, you can choose between
preset WHT.BALANCE values and AUTO. As in PROGRAM AE, you can't choose between
Auto and WHT.BALANCE values it they have not been preset.
■FOCUS (Manual Focus/Auto Focus) (see page 60)
- Each time you select FOCUS and press the ENTER button, the FOCUS is switched to either Manual Focus ( ) or
Auto Focus ( ).
■SHUTTER SPEED & EXPOSURE
- You can set values for SHUTTER SPEED and EXPOSURE by selecting ( ) icon and pressing the MENU DIAL.
For more information, see the next chapter.
Setting the Quick menu
1. Set the camcorder to CAMERA mode.
2. Turn the MENU DIAL to select a function you want and then press
the ENTER button to change the values.
Reference
■
Quick menu function will not operate in EASY mode.
■
If you are using the M.FOCUS( ) function,
you cannot use the Quick menu.
If you want to use the Quick menu function,
release the M.FOCUS( ) mode.
SHUTTER
EXPOSURE
0 : 0 0 : 0 0
2 0 : 0 0
1 . N O V . 2 0 0 2
STBY
MIRROR
REMOCON
DSE
PROGRAM AE
WHT. BALANCE
FOCUS
SHUTTTER
EXPOSURE
EIS
DATE/TIME
CAMERA
OFF
PLAYER
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 56
![](asset-39.png)
ENGLISH
5757
Advanced Recording
SHUTTER SPEED & EXPOSURE
✤You can set SHUTTER SPEED and EXPOSURE only in CAMERA mode.
✤SHUTTER SPEED and EXPOSURE values can only be set in the Quick Menu.
✤SHUTTER SPEED and EXPOSURE are automatically switched and/or deactivated.
1. Set the power switch to CAMERA mode.
2. Turn the MENU DIAL until you see icon on, and then press the ENTER button.
■
You see a screen on which you can select SHUTTER SPEED and EXPOSURE.
■
Turn the MENU DIAL to select the item you want and then press the ENTER button.
■
SHUTTER SPEED can be set to 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000 or 1/10000.
■
EXPOSURE can be set between 00 and 29.
3. To exit from the setting screen, select the icon and press the ENTER button.
Reference
■
If you want to use the selected shutter speed and exposure value, you should begin the recording with
the shutter speed and the exposure adjustment screens displayed on the LCD.
■
If you manually change the shutter speed and the exposure value when Auto-exposure option is selected,
manual changes are applied first.
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 57
![](asset-3a.png)
ENGLISH
5858
Advanced Recording

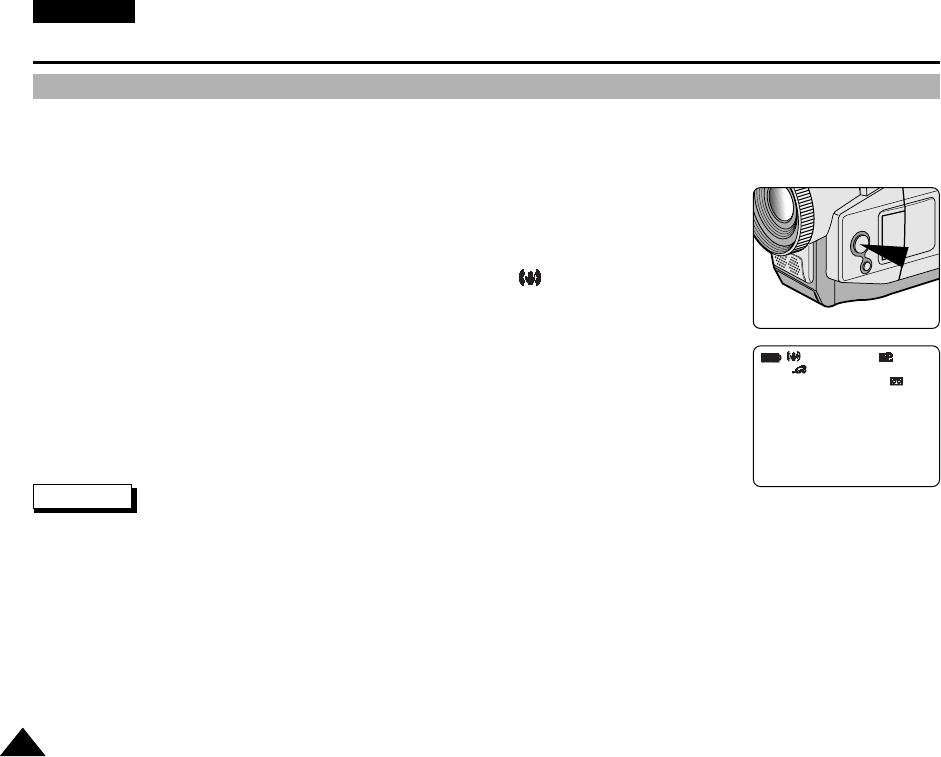

✤The EASY mode allows a beginner to make good recordings easily.
■
The EASY mode only operates in CAMERA mode.
1. Set the power switch to CAMERA mode.
2. By pressing the EASY button, all functions on the camera will be set to off and
the recording settings will be set to the following basic modes:
■
Battery level, recording mode, counter, DATE/TIME, and EIS ( ) will be displayed.
■
The word “EASY.Q” will appear on the LCD at the same time.
However, the DATE/TIME will only be seen if it has been previously set. (see page 53)
3. Press START/STOP to start recording.
■
Recording will begin using the basic automatic settings.
4. Pressing the EASY button again turns the EASY mode off.
■
The camera will return to the settings that were set prior to activating EASY mode.
Reference
■
In EASY mode, certain functions are not available, such as MENU, BLC, MF/AF.
- If you want to use these functions, you must first switch the EASY mode off.
■
The EASY mode settings are deleted when the battery pack is uninstalled from the camcorder and
therefore, they must be reset when a battery pack has been replaced.
EASY
0 : 0 0 : 0 0
53 min
1 2 : 0 0
28 . SEP . 2 0 0 1
STOP
EASY Mode (for Beginners)
EASY
00511E VP-D80/D81 UK (28~59) 2/12/03 12:07 PM Page 58
![](asset-3b.png)
ENGLISH
5959
Advanced Recording

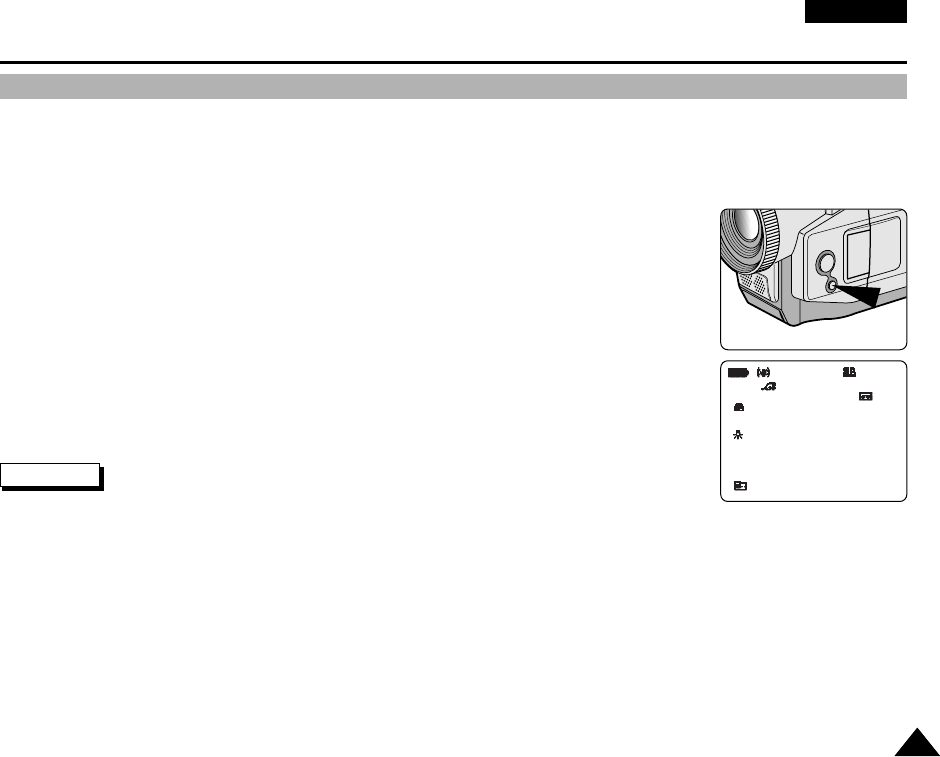

✤You can customize settings and save them for future use.
■The CUSTOM SET function operates in CAMERA mode only.
✤Please set the custom settings before using this function. (see page 49)
1. Set the power switch to CAMERA mode.
2. To activate the CUSTOM function, press the CUSTOM button.
■“CUSTOM.Q” will be displayed on the screen.
3. Press START/STOP to start recording.
■Recording will begin using the CUSTOM settings.
4. To switch CUSTOM mode off, press the CUSTOM button again.
■The camcorder will revert to the settings that were set prior to
custom mode being selected.
Reference
■The CUSTOM mode settings are deleted when a battery pack is uninstalled and
therefore they must be reset when a battery pack has been replaced.
■While setting the NIGHT CAPTURE to ON, the CUSTOM function does not work.
MIRROR
CUSTOM 0 : 0 0 : 0 0
2 0 : 0 0
1 . N O V . 2 0 0 1
STBY
5 3 min
CUSTOM Mode
CUSTOM
00511E VP-D80/D81 UK (28~59) 2/12/03 12:08 PM Page 59
![](asset-3c.png)

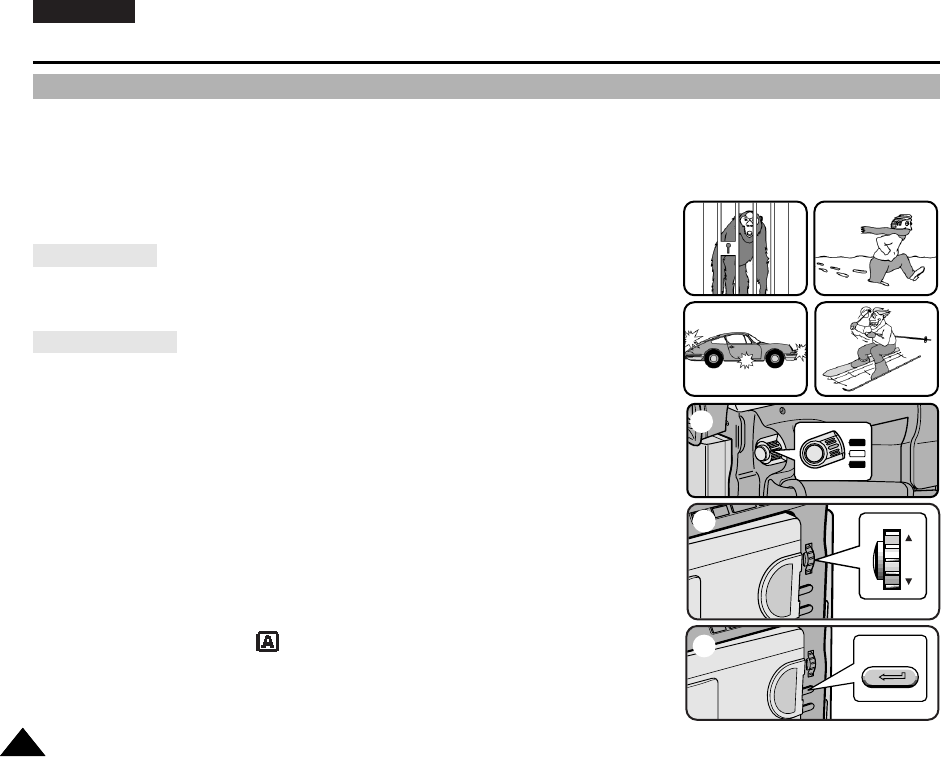

✤The MF/AF function works in CAMERA mode only.
✤In most situations, it is better to use the automatic focus
feature, as it enables you to concentrate on the creative side of your recording.
✤Manual focusing may be necessary under certain conditions that make automatic focusing difficult
and/or unreliable.
Auto Focusing
✤If you are inexperienced in the use of camcorders, we recommend that you make
use of Auto Focus.
Manual Focusing
✤In the following cases you may obtain better results by adjusting the focus manually.
a. A picture containing several objects, some close to the camcorder,
others further away.
b. A person enveloped in fog or surrounded by snow.
c. Very shiny or glossy surfaces like a car.
d. People or objects moving constantly or quickly like an athlete or a crowd.
1. Set the power switch to CAMERA mode.
2. Turn the MENU DIAL and select the FOCUS menu.
3. Press the ENTER button.
4. Turn the MENU DIAL up or down until the object is in focus.
■
Zoom out a little if focusing is difficult.
5. To return to AF(Auto Focus: ), press the ENTER button again.
ENGLISH
Advanced Recording
6060
MF/AF (Manual Focus/Auto Focus)
CAMERA
OFF
PLAYER
1
ENTER
VOL
2
3
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 60
![](asset-3d.png)
ENGLISH
Advanced Recording
6161
✤BLC works in CAMERA mode.
✤Back lighting exists when the subject is darker than the background:
■
The subject is in front of a window.
■
The person to be recorded is wearing white or shiny clothes and
is placed against a bright background; the person’s face is too dark to
distinguish his/her features.
■
The subject is outdoors and the background is overcast.
■
The light sources are too bright.
■
The subject is against a snowy background.
1. Set the power switch to CAMERA mode.
2. Press the BLC button.
■
Normal - BLC - Normal
■
BLC enhances the subject.
Reference
■
While setting the NIGHT CAPTURE to ON, the BLC function does not work.
■
The BLC function will not operate in EASY mode.
* BLC on* BLC off
BLC (Back Light Compensation)
BLC
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 61
![](asset-3e.png)
ENGLISH
Advanced Recording
6262

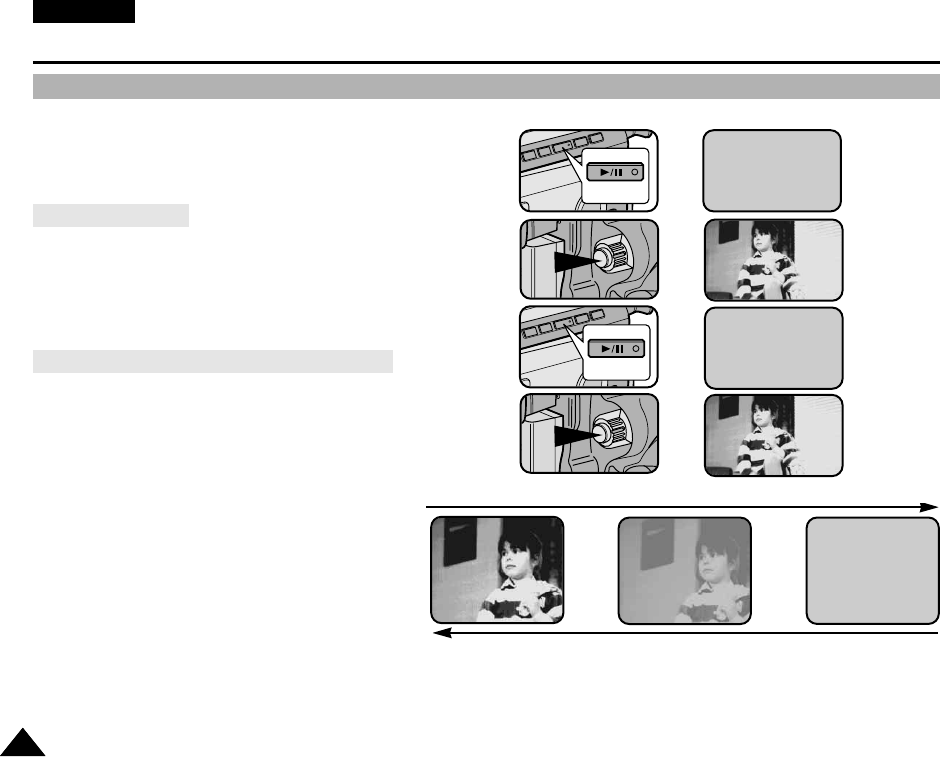

✤The FADE function works in CAMERA mode only.
✤You can give your recordings a professional look by using
special effects such as fading in at the beginning of a
sequence or fading out at the end of a sequence.
To Start Recording
1. Before recording, hold down the FADE button.
The picture and sound gradually disappear (fade out).
2. Press the START/STOP button and at the same time release
the FADE button. Recording starts and the picture and
sound gradually appear (fade in).
To Stop Recording (use FADE IN / FADE OUT)
3. When you wish to stop recording, hold down the
FADE button. The picture and sound gradually
disappear (fade out).
4. When the picture has disappeared,
press the START/STOP button to stop recording.
a. FADE OUT (Approx. 4 seconds)
b. FADE IN (Approx. 4 seconds)
Fade In and Out
Gradual appearance b. FADE IN Release the FADE button
FADE
FADE
➔
➔
REC
0:00:15
REC
0:00:15
STBY
0:00:15
➔
➔
➔
➔
STBY
0:00:00
➔
➔
Press the FADE button a. FADE OUT Gradual disappearance
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 62
![](asset-3f.png)
ENGLISH
Advanced Recording
6363

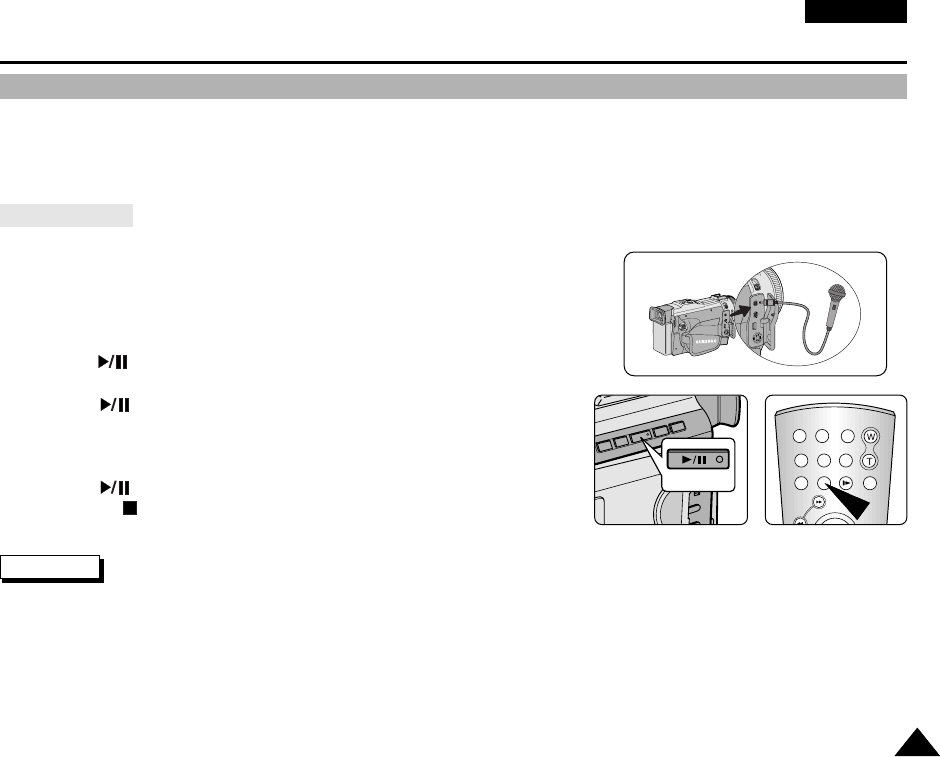

✤The AUDIO DUBBING function only works in PLAYER Mode.
✤You can add sound to the original sound on a pre-recorded tape, recorded in SP mode with 12bit sound.
✤Use the internal and external microphones or other audio equipment.
✤The original sound will not be erased.
Dubbing sound
1. Set the camcorder to PLAYER mode.
■
If you want to use an external microphone, connect the microphone to
the external MIC input jack on the camcorder.
■
When you wish to dub using the External A/V input, connect the
AUDIO/VIDEO cable to the camcorder by inserting the cable jack into the
A/V in/out terminal at the left side of the camcorder.
2. Press the (PLAY/STILL) button and find the timeframe of the scene to
be dubbed.
3. Press the (PLAY/STILL) button to pause the scene.
4. Press the A.DUB button on the Remote Control.
■
A.DUB will be displayed on the LCD.
■
The camcorder is in a ready-to-dub state for dubbing.
5. Press the (PLAY/STILL) button to start dubbing.
■
Press the (STOP) button to stop the dubbing.
Reference
■
You can not use the audio dubbing function while playing a write protected video tape.
■
When you wish to dub using the External A/V input, you must connect the AUDIO/VIDEO cable to the audio system from
which you wish to record.
■
You can not use the audio dubbing function while the A/V cable is connected to TV.
Audio dubbing
PLAY/STILL
START/
STOP
SELF
TIMER
A.DUB
ZERO
MEMORY
PHOTO DISPLAY
X2
SLOW
SEARCH
DATE/
TIME
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 63
![](asset-40.png)
ENGLISH
Advanced Recording
6464
Dubbed audio Playback
1. Insert the dubbed tape and press MENU button.
2. Turn the MENU DIAL to highlight A/V.
3. Press the ENTER button to enter the sub-menu.
4. Use the MENU DIAL to select AUDIO SELECT from the submenu.
5. Press the ENTER button to enter the sub-menu.
6. Using the MENU DIAL, select the AUDIO playback channel.
■
Press the ENTER button to confirm the audio playback channel.
- SOUND1 : play the original sound.
- SOUND2 : play the dubbed sound.
- MIX(1+2) : play back SOUND1 and 2 equally mixed.
7. To exit, press the MENU button.
8. Press the (PLAY/STILL) button to playback the dubbed tape.
Reference
When you playback added sound (SOUND2 or MIX mode), you may experience loss of sound quality.
PLAYER MODE
A / V SET
AUDIO SELECT
SOUND [ 1 ]
SOUND [ 2 ]
MIX [ 1 + 2 ]
PLAYER MODE
REC MODE
PHOTO SEARCH
AUDIO MODE 12
SOUND1
AUDIO SELECT
WIND CUT
A / V SET
OFF
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 64
![](asset-41.png)
ENGLISH
Advanced Recording
6565
1. Press the PHOTO button and hold it.
■
The still picture appears on the LCD monitor.
■
If you do not wish to record, release the button.
2. Release the PHOTO button and press the PHOTO button again in 2 seconds.
■
The still picture is recorded for about 6~7 seconds.
3. After the PHOTO has been recorded, the camcorder returns to STBY mode.

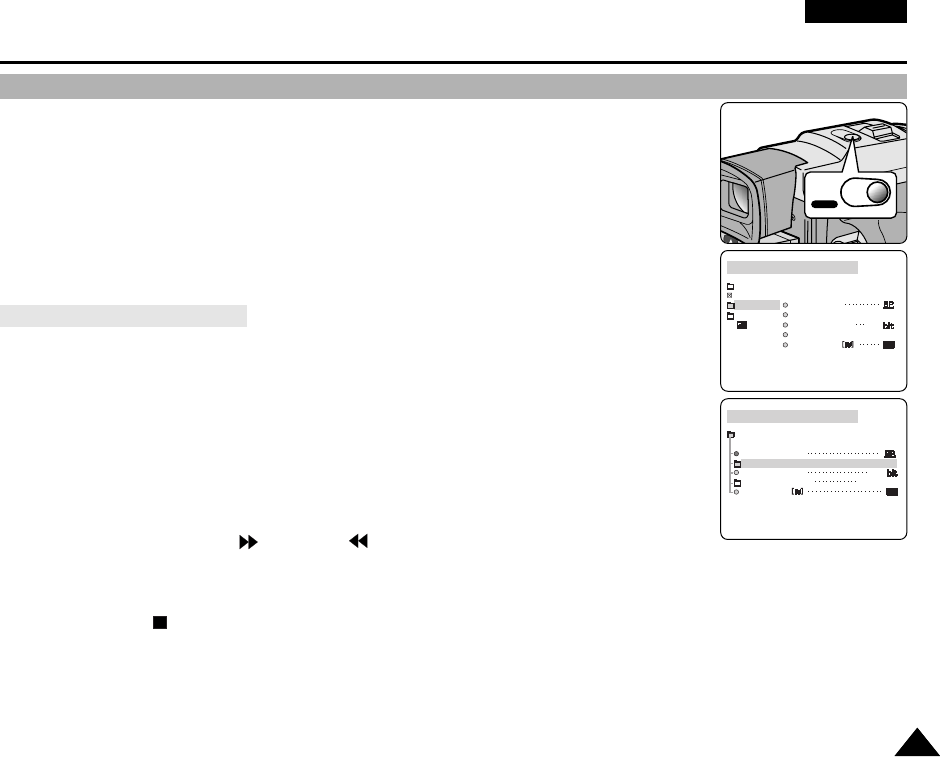

Searching for a PHOTO picture
✤The PHOTO SEARCH works in PLAYER mode only.
1.
■
Press the PHOTO SEARCH button on the Remocon or,
■
Use the MENU.
a. Press the MENU button.
- The MENU list will appear.
b. Turn the MENU DIAL to highlight A/V.
c. Press the ENTER button to enter the sub-menu.
d. Select PHOTO SEARCH from the sub-menu and press the ENTER button.
2. Search the PHOTO using the (FWD) and (REW) buttons.
■
The PHOTO search process appears on the LCD while you are searching.
■
After completing the search, the camcorder displays the still image.
3. To exit, press the (STOP) button.
PLAYER MODE
INITIAL
WIND CUT
REC MODE
PHOTO SEARCH
AUDIO MODE 12
AUDIO SELECT
CAMERA
A/V
VIEWER
PLAYER MODE
REC MODE
PHOTO SEARCH
AUDIO MODE 12
SOUND1
AUDIO SELECT
WIND CUT
A / V SET
PHOTO Image Recording
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 65
![](asset-42.png)
ENGLISH
Advanced Recording
6666

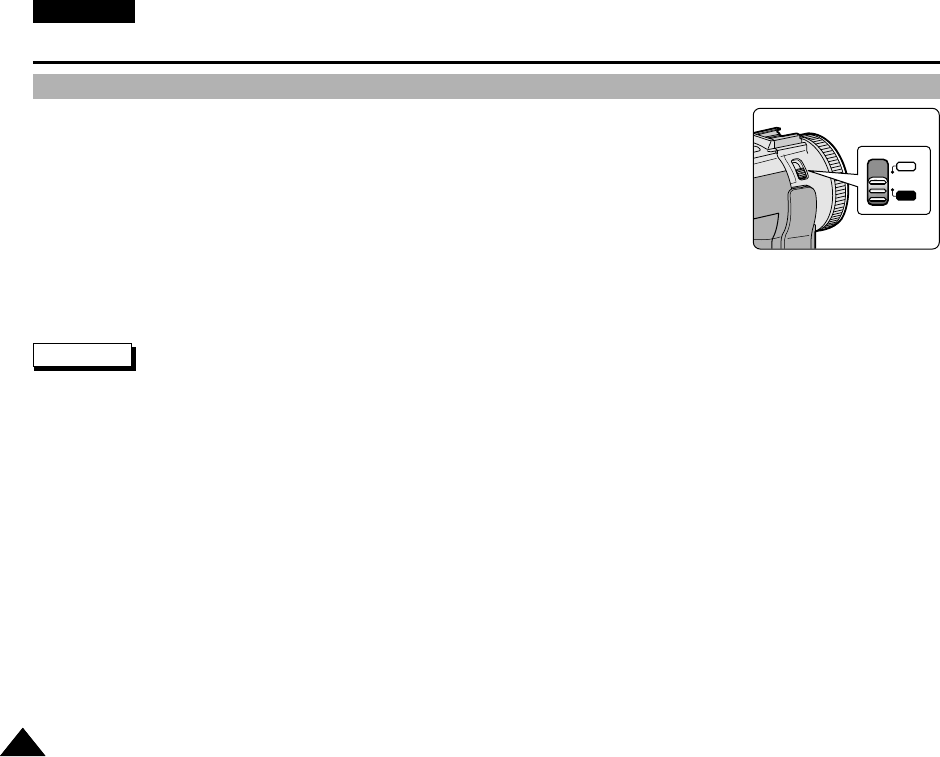

✤The NIGHT CAPTURE function works in CAMERA mode.
✤The NIGHT CAPTURE function enables you to record a subject in darkness.
1. Set the camcorder to CAMERA mode.
2. Slide the NIGHT CAPTURE switch to ON.
■
(Night Capture indicator) appears on the LCD monitor.
■
The infrared(invisible rays) light is turned on automatically.
3. To cancel the NIGHT CAPTURE function, slide the NIGHT CAPTURE switch to OFF.
Reference
■
The maximum recording distance using the infrared light is about 3 m (about 10 feet).
■
If you use the NIGHT CAPTURE function in normal recording situations (ex. outdoors by day), the recorded picture may
contain unnatural colours.
■
In the NIGHT CAPTURE mode, certain functions are not available, such as White Balance, Program AE, DSE, IRIS,
SHUTTER SPEED, BLC, CUSTOM.
NIGHT CAPTURE (0 lux recording)
ON
NIGHT
CAPTURE
OFF
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 66
![](asset-43.png)
ENGLISH
Advanced Recording
6767
✤In some situations different recording techniques may be required for more dramatic results.
Reference
Please rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the
LCD screen to the Camcorder.
1. General recording.
2. Downward recording.
Making a recording with a top view of the LCD screen.
3. Upward recording.
Making a recording viewing the LCD screen from below.
4. Self recording.
Making a recording viewing the LCD screen from the front.
5. Recording with the Viewfinder.
■
In circumstances where it is difficult to use the LCD monitor,
the viewfinder can be used as a convenient alternative.

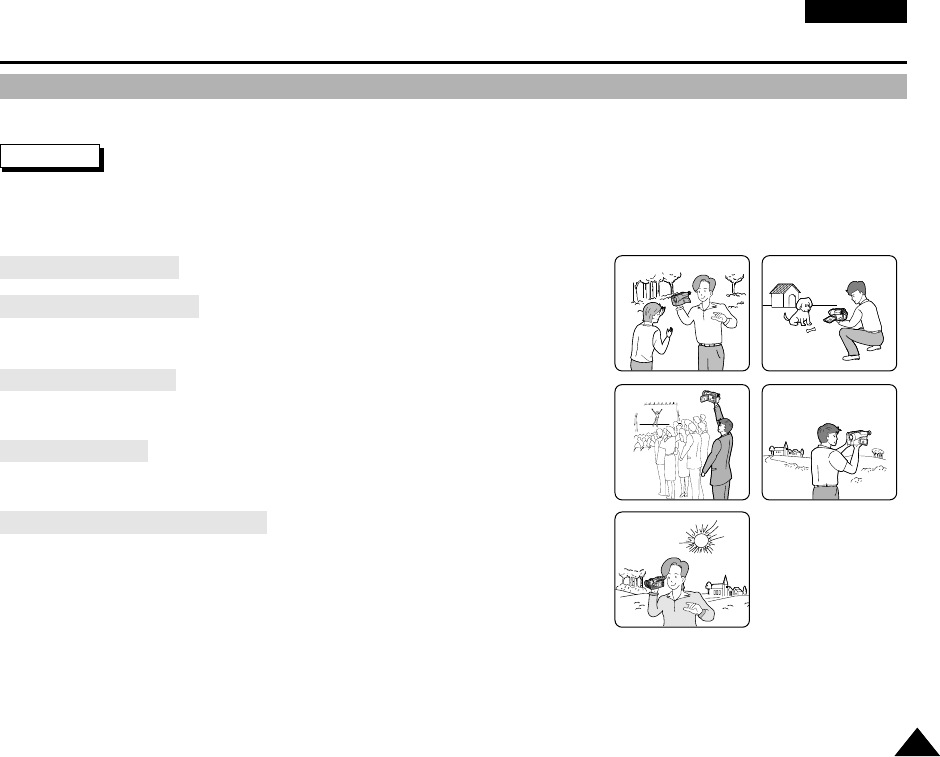

Various Recording Techniques
1 2
3
5
4
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 67
![](asset-44.png)
ENGLISH
6868
Playback
✤ The playback function works in PLAYER mode only.
Playback on the LCD
✤ It is practical to view a tape using the LCD in a car or outdoors.
Playback on a TV monitor
✤ To play back a tape, the television must have a compatible colour system.
✤ We recommend that you use the AC Power Adapter as the power source for the camcorder.
Connecting to a TV which has Audio/Video input jacks
1. Connect the camcorder and TV with the Audio/Video cable.
■
The yellow plug : Video
■
The white plug : Audio(L)
■
The red plug : Audio(R) - STEREO only
- If you connect to a monaural TV or VCR, connect the yellow plug
(Video) to the video input of the TV or VCR and the white plug (Audio L)
to the audio input of the TV or VCR.
✤ You may use the supplied SCART adapter.
2. Set the power switch on the camcorder to PLAYER mode.
3. Turn on the TV and set the TV/VIDEO selector on the TV to VIDEO.
■
Refer to the TV or VCR user’s manual.
4. Play the tape back.
Reference
■
You may use the S-VIDEO cable to obtain better quality pictures if you have a S-VIDEO connector on your TV.
■
Even if you use a S-VIDEO cable, you need to connect an audio cable.
Camcorder
S-VIDEO
A/V
Video input-
Yellow
Audio input
(left)-White
S-VIDEO input
(right)-Red
Audio input
TV
Tape Playback
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 68
![](asset-45.png)
ENGLISH
6969
Playback

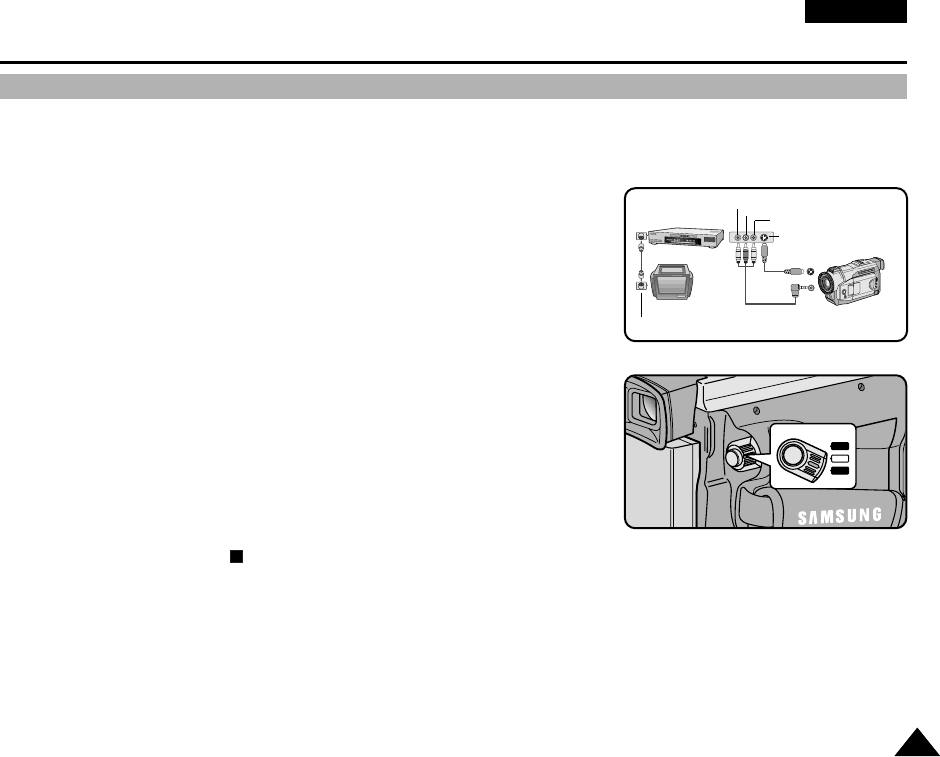

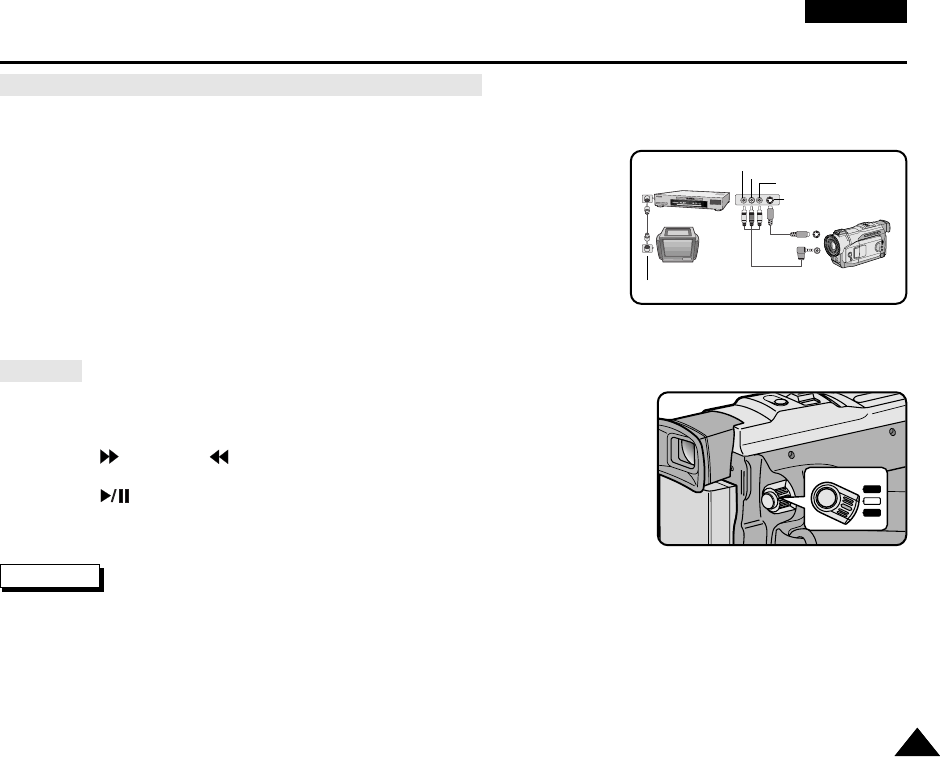

Connecting to a TV which has no Audio and Video input jacks
✤You can connect your camcorder to a TV through a VCR.
1. Connect the camcorder and VCR with the Audio/Video cable.
■
The yellow plug : Video
■
The white plug : Audio(L)
■
The red plug : Audio(R) - STEREO only
2. Connect a TV to the VCR.
3. Set the power switch on the camcorder to PLAYER mode.
4. Turn on both the TV and VCR.
■
Set the input selector on the VCR to LINE.
■
Select the channel reserved for your VCR on the TV set.
5. Play the tape back.
Playback
✤You can play the recorded tape in PLAYER mode.
1. Connect a power source and set the power switch to PLAYER mode.
2. Insert the tape you wish to play back.
3. Using the (FWD) and (REW) buttons, find the first position
you wish to play back.
4. Press the (PLAY/STILL) button.
■
The images you recorded will appear on the TV after a few seconds.
■
If a tape reaches its end while being played back, the tape will rewind automatically.
Reference
■
It is best to decrease the volume of the built-in speaker when your camcorder is connected to the TV.
■
The playback mode (SP/LP) is selected automatically.
ANTENNA
S-VIDEO
S-VIDEO
A/V
TV
VCR
CAMCORDER
VIDEO
AUDIO(L)
AUDIO(R)
OFF
PLAYER
CAMERA
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 69
![](asset-46.png)
ENGLISH
7070
Playback

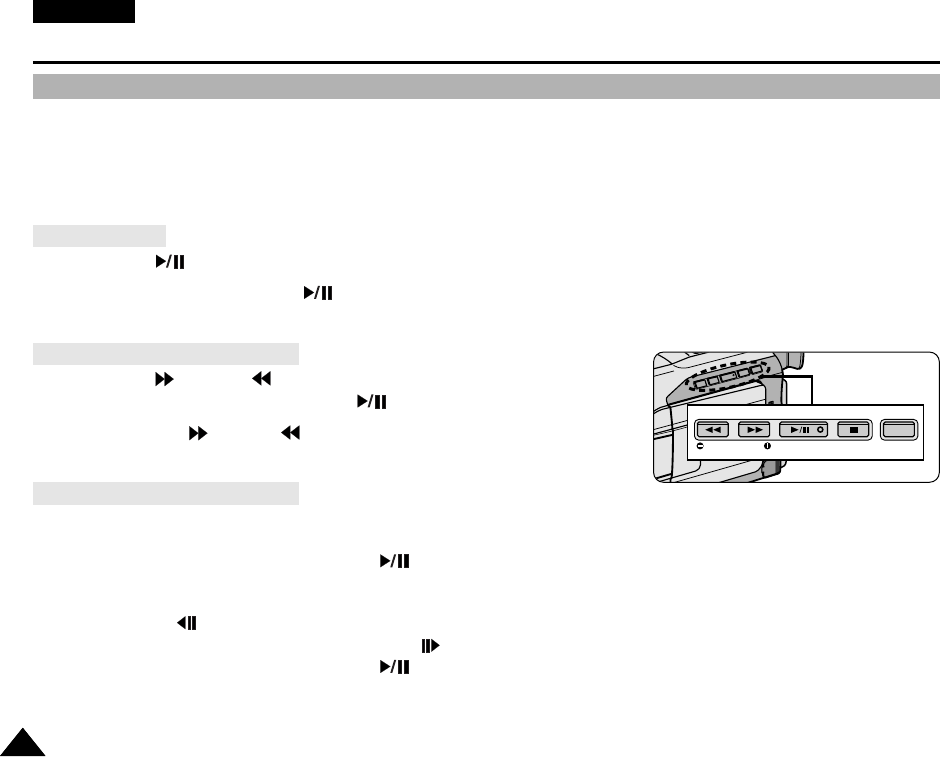

✤The PLAY/STILL, STOP, FWD, REW buttons are located on the camcorder and the Remote Control.
✤The F.ADV(Frame advance), X2, SLOW buttons are located on the Remote Control only.
✤To prevent tape and head-drum wear, your camcorder will automatically stop if it is left in STILL or SLOW modes for more
than 5 minutes.
Playback pause
✤Press the (PLAY/STILL) button during Playback or Slow playback.
✤To resume playback, press the (PLAY/STILL) button.
Picture search (Forward/Reverse)
✤Press the (FWD) or (REW) buttons once during Playback or Still mode.
To resume normal playback, press the (PLAY/STILL) button.
✤Keep pressing (FWD) or (REW) buttons during Playback or Still mode.
To resume normal playback, release the button.

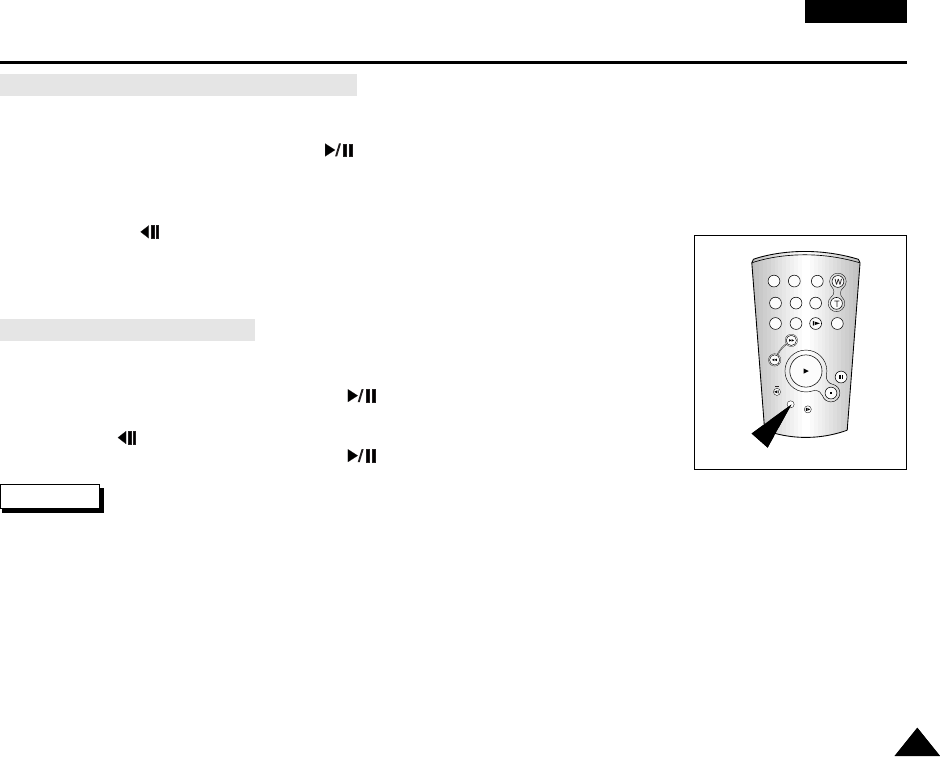

Slow playback (Forward/Reverse)
✤Forward Slow Playback
■
Press the SLOW button on the remote control during Playback.
■
To resume normal playback, press the (PLAY/STILL) button.
✤Reverse slow playback
■
Press the (_) button during Forward Slow Play back.
■
To resume forward slow playback, press the (+) button.
■
To resume normal playback, press the (PLAY/STILL) button.
Various Functions while in PLAYER mode
REC SEARCH FADE BLC DISPLAY
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 70
![](asset-47.png)
ENGLISH
7171
Playback
Frame advance (To play back frame by frame)
●
Press the F.ADV button on the Remote Control while in Still mode.
The F.ADV function works in still mode only.
●
To resume normal playback, press the (PLAY/STILL) button.
✤Forward frame advance
■
Press the F.ADV button on the remote control in Still mode.
✤Reverse frame advance
■
Press (_) the button on the remote control to change the direction in
F.ADV mode.
■
Press the F.ADV button on the remote control.
X2 Playback (Forward/Reverse )
✤Forward X2 Playback
■
Press the X2 button on the Remote Control during Playback.
■
To resume normal playback, press the (PLAY/STILL) button.
✤Reverse X2 Playback
■
Press (_) the button during Forward X2 Playback
■
To resume normal playback, press the (PLAY/STILL) button.
Reference
■
Mosaic shaped distortion may appear on the screen while in some of the various playback modes.
- Mosaic shaped distortion or noise may be experienced when you play back tapes recorded in LP which
contain various playback functions.
■
Sound will only be heard during regular playback.
START/
STOP
SELF
TIMER
A.DUB
ZERO
MEMORY
PHOTO DISPLAY
X2
SLOW
F.ADV
SEARCH
DATE/
TIME
F.ADV
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 71
![](asset-48.png)
ENGLISH
7272
Playback
✤ The MEMORY function works in both CAMERA and PLAYER modes.
✤ You can mark a point on a tape that you want to return to following playback.
1. Press the ZERO MEMORY button on the remote control during playback or recording at the point you wish to return to.
■
The time code is changed to a tape counter that is set to zero memory with the M 0:00:00(Zero memory indicator)
■
If you want to cancel the zero memory function, press the ZERO MEMORY button again.
2. Finding the zero position.
■
When you have finished playback, fast forward or rewind the tape.
- The tape stops automatically when it reaches the zero position.
■
When you have finished recording, press the power switch on the PLAYER and press the (REW) button.
- The tape stops automatically when it reaches the zero position.
3. The tape counter with the M (Zero memory indicator) disappears from the display and the tape counter is
changed to the time code.
Reference
■
In the following situations, ZERO MEMORY mode may be canceled automatically:
- At the end of the section marked with the ZERO MEMORY function.
- When the tape is ejected.
- When you remove the battery pack or power supply.
■
The zero memory may not function correctly where there is a break between recordings on the tape.
■
The ZERO MEMORY will not operate in DV IN mode.
ZERO MEMORY
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 72
![](asset-49.png)
ENGLISH
Recording in PLAYER mode (VP-D80i/D81i only)
7373
✤You can use this camcorder as a recorder.
✤You can record a tape from VCR or TV.
1. Connect the camcorder and VCR or TV with the Audio/Video cable.
2. Set the power switch of the camcorder to PLAYER mode.
3. Turn on the VCR or TV.
4. Insert the blank tape with protection tab closed into the camcorder.
■
If you want to record from the connected VCR,
insert a recorded VHS tape into the VCR.
5. Press the START/STOP button to set the camcorder to REC PAUSE mode.
■
“PAUSE” and picture appear on the LCD monitor.
6. Select the TV program or playback the VHS tape.
7. Press START/STOP button to start recording.
■
If you want to pause recording for a while, press the START/STOP button again.
8. To stop recording, press the (STOP) button.
Recording in PLAYER mode
ANTENNA
S-VIDEO
S-VIDEO
A/V
TV
VCR
CAMCORDER
VIDEO
AUDIO(L)
AUDIO(R)
OFF
PLAYER
CAMERA
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 73
![](asset-4a.png)
ENGLISH
7474
IEEE 1394 Data Transfer
Connecting to a DV device
✤ Connecting with other DV standard products.
■
A standard DV connection is quite simple.
If a product has a DV port, you can transfer data by connecting to the DV port using the correct cable.
!!! Please be careful since there are two types of DV ports, (4pin, 6pin). This camcorder has a 4pin terminal.
✤ With a digital connection, video and audio signals are transmitted in digital format, allowing high quality images
to be transferred.
Connecting to a PC
✤ If you want to transmit data to a PC, you must install a IEEE 1394 add-on card onto the PC. (not supplied)
✤ The frame rate recorded for video capturing is dependent on the capacity of the PC.
Reference
■
When you transmit data from the camcorder to another DV device, some functions may not work.
If this occurs, please reconnect the DV cable or turn the power OFF and ON again.
■
VP-DXXi can receive digital data from another DV device.
■
You can record a picture transferred over a DV connection on VP-DXXi.
Transferring IEEE1394 (i.LINK)-DV standard data connections
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 74
![](asset-4b.png)
ENGLISH
7575
IEEE 1394 Data Transfer
●
System requirements
■
CPU : faster Intel®Pentium III™ 450Mhz compatible.
■
Operating system : Windows®98SE, ME, XP, Mac OS
■
Main memory : more than 64 MB RAM
■
IEEE1394 add-on card or built in IEEE1394 card
Recording with a DV connection cable (VP-DXXi only)
1. Set the power switch to PLAYER mode.
2. Connect the DV cable (not supplied) from the DV IN/OUT port of
the camcorder to the DV IN/OUT port of the other DV device.
■
Make sure that DV IN appears on the screen.
3. Press the START/STOP button to begin REC PAUSE mode.
■
PAUSE is displayed on the OSD.
4. Start playback on the other DV device while you monitor the picture.
5. Press the START/STOP button to start recording.
■
If you want to pause recording momentarily, press the START/STOP button again.
6. To stop recording, press the (STOP) button.
Reference
When using this camcorder as a recorder, the pictures that appear on a monitor may seem uneven,
however recorded pictures will not be affected.
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 75
![](asset-4c.png)
ENGLISH
7676
USB interface (VP-D81/D81i only)
●Transferring a Digital Image through a USB Connection
✤ You can easily transfer a still image from a camera, tape, memory to a PC without additional add-on cards via a USB
connection.
✤ You can transfer an image to a PC via a USB connection.
✤ If you transfer data to a PC, you need to install the software (Driver, Editing software) supplied with the camcorder.
System Requirements
■
CPU : Intel®Pentium II™ 400 processor compatible or better
■
Operating system : Windows®98/98SE/ME/2000/XP
■
RAM : 64 MB or more
■
CD-ROM: 4x CD-ROM drive
■
VIDEO : 65,000-colour or better video display card
■
Available USB port
■
Hard Disc : 4GB (8GB recommended)
Reference
■
Intel®Pentium II™ is a trademark of the Intel Corporation.
■
Windows®is a registered trademark of the Microsoft®Corporation.
■
All other brands and names are property of their respective owners.
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 76
![](asset-4d.png)
ENGLISH
7777
USB interface (VP-D81/D81i only)
✤Do not connect the camcorder to PC before installing the program.
✤If another camera or scanner is connected, please disconnect it in advance.
✤This explanation is based on Windows®98SE OS.
How to install the program
1. The install program automatically operates when the CD is inserted into CD-ROM drive.
Note
■
If the install program does not operate, please double click Install.exe in CD-ROM Drive.
2. Click to install the program.
3. Follow the installation instructions.
Installing DVC Media Program
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 77
![](asset-4e.png)
ENGLISH
7878
USB interface (VP-D81/D81i only)

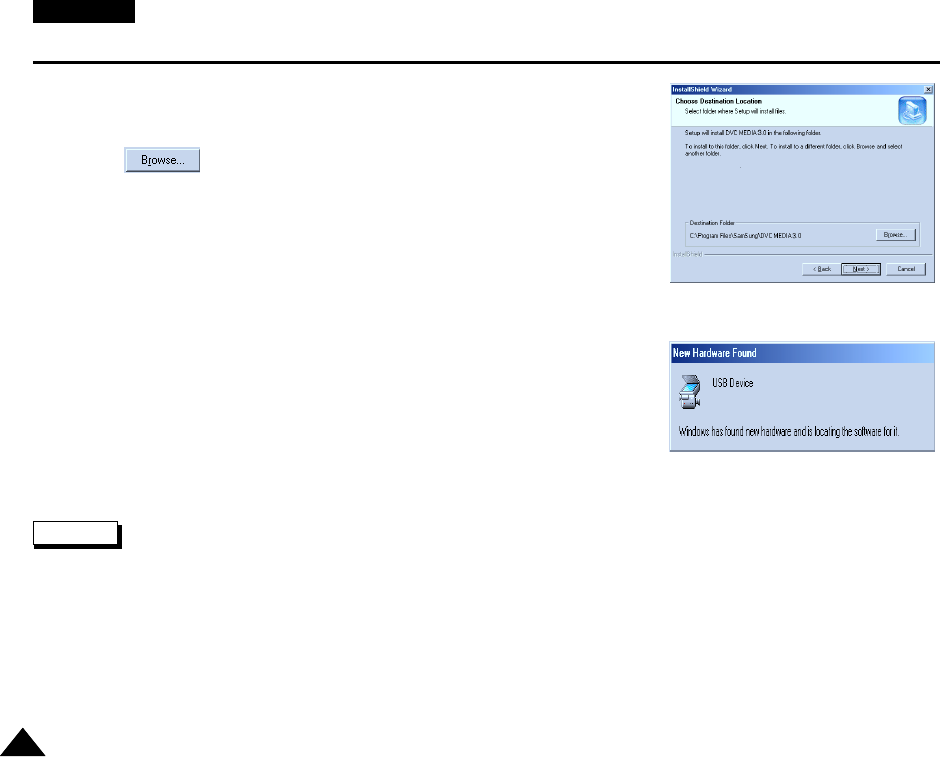

4. The window below displays the folder to install the program.
■
The program is installed in the following folder.
C:\Programfiles\Samsung\DVC Media 3.0
■
Click to change the folder.
5. Connect the camcorder to PC.
6. PC finds new hardware and installs a driver automatically.
7. If the driver is installed, the installation is complete.
8. Execute DVC Media 3.0 player on the Windows wall paper.
Note
■
DVC Media 3.0 User's Manual is included on the accompanying CD in Adobe's Portable Document Format (PDF).
The user's manual can be viewed using Acrobat Reader software, which is also included on the CD.
(The Acrobat Reader is a freeware product of Adobe Systems, Inc.)
4.
6.
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 78
![](asset-4f.png)
ENGLISH
7979
USB interface (VP-D81/D81i only)

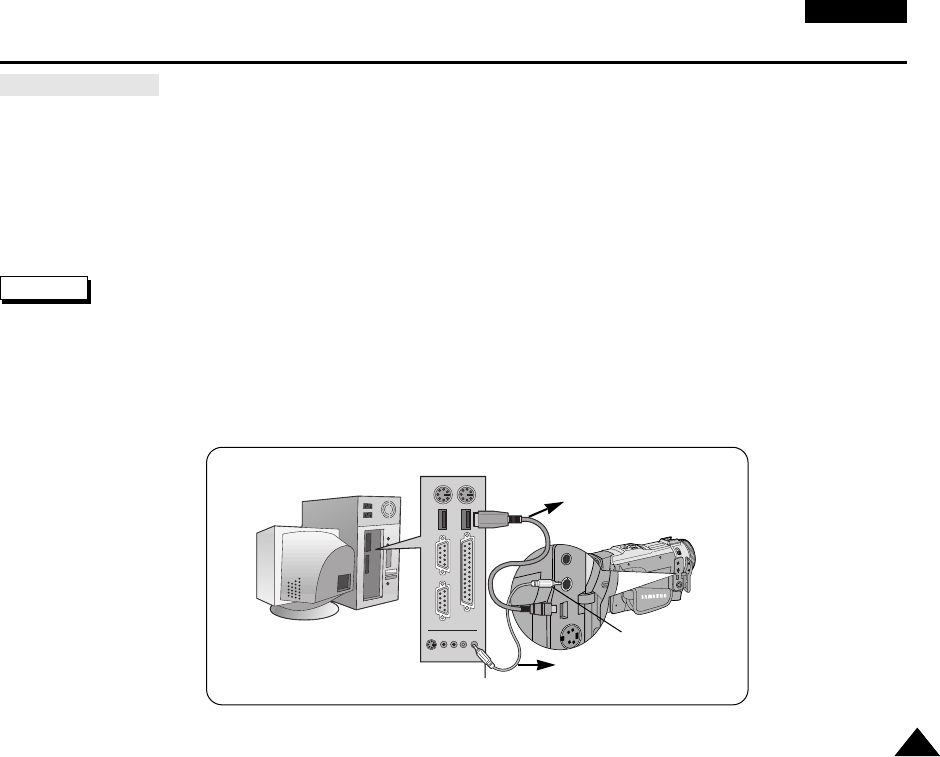

Connecting to a PC
1. Connect a USB cable to the USB port on the PC.
2. Connect the other end of the USB cable into the proper terminal on the camcorder. (USB jack)
3. Connect the audio cable to the Line input jack of the PC.
If the PC has no Line input jack, connect the audio cable to the MIC input jack.
There is a possibility you’ll here some audio noise if you use the MIC jack.
Notes
■
If you disconnect the USB cable from the PC or the camcorder while transferring, the data transmission will stop and
the data may be damaged.
■
If you connect the USB cable to a PC via a USB HUB or simultaneously connect the USB cable along with other USB
devices, the camcorder may not work properly.
- If this occurs, remove all USB devices from the PC and reconnect the camcorder.
USB Cable
AUDIO Cable
(Violet)
(Yellow)
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 79
![](asset-50.png)
ENGLISH
8080

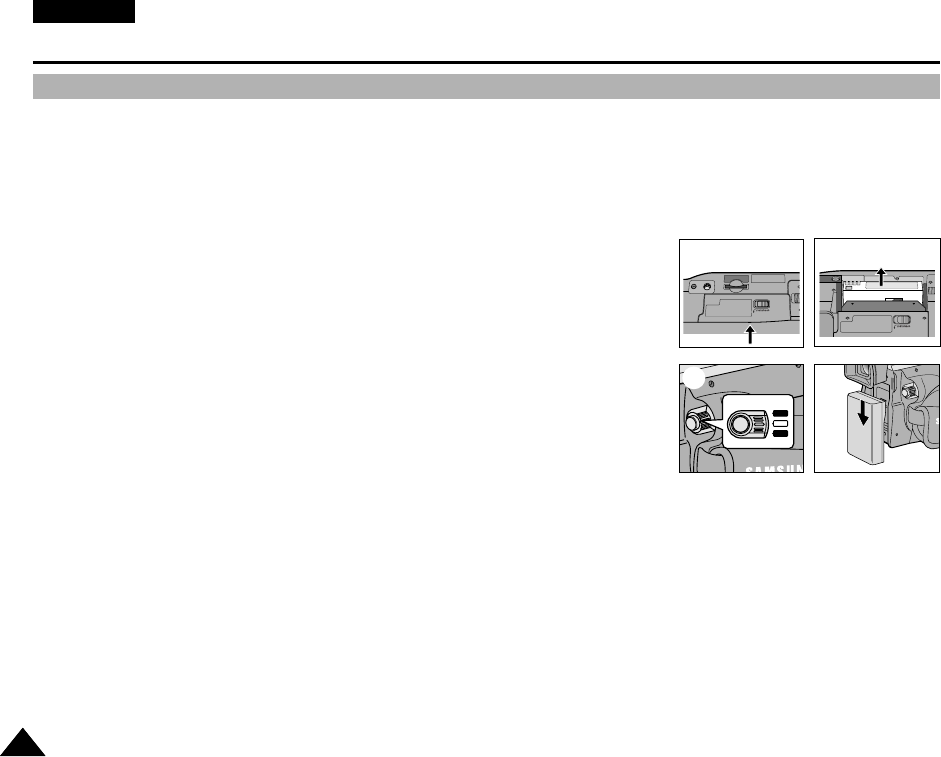

Maintenance
✤ At the end of a recording you must remove the power source.
✤ When recording with a Lithium Ion Battery Pack, leaving the pack on the camcorder can reduce the life span of the battery.
Hence, it should be removed from the camcorder.
1. Slide the TAPE EJECT switch in the direction of the arrow.
■
Opening the cassette door ejects the tape automatically.
■
Please wait while the tape is completely ejected.
2. After removing the tape, close the door and store the camcorder in a dust free
environment.
■
Dust and other foreign materials can cause square-shaped noise or jerky images.
3. Set the power switch to the OFF mode.
4. Disconnect the power source or remove the Lithium Ion Battery Pack.
■
Hold down the BATTERY RELEASE button and slide the battery pack
in the direction of the arrow.
After finishing a recording
CAM
OFF
VCR
3 4
2
1
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 80
![](asset-51.png)
ENGLISH
8181
Maintenance

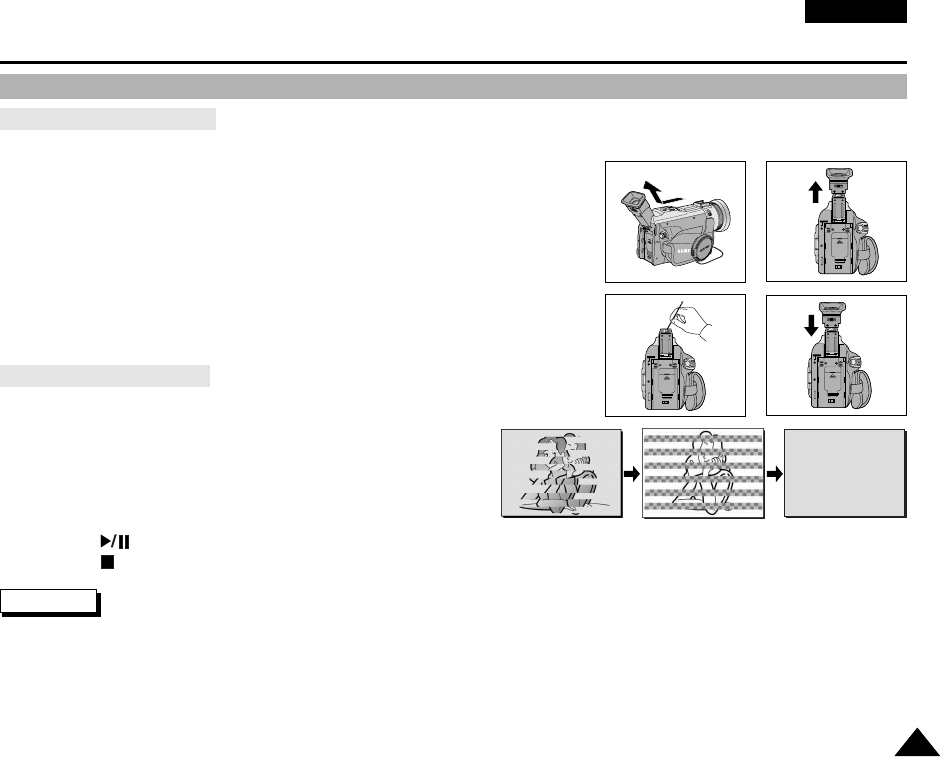

Cleaning the VIEWFINDER
●Releasing the eyecup
1. Pull the VIEWFINDER out and lift it up.
2. Turn the two screws counter-clockwise and pull the EYECUP out.
3. Clean the EYECUP and the VIEWFINDER screen with a soft cloth
and cotton swab or a blower.
●Reattaching the EYECUP
4. Put the EYECUP on the VIEWFINDER.
5. Refit the screws.
Cleaning the Video Heads
To ensure normal recording and clear pictures, clean the video heads
when the playback pictures display square block-shaped noise or
distortion or if only a blue screen appears during playback, as the
video heads may be dirty.
1. Set the power switch to PLAYER mode.
2. Insert the cleaning tape.
3. Press the (PLAY/STILL) button.
4. Press the (STOP) button after 10 seconds.
Reference
■
Check the quality of the picture using a videocassette.
If the picture quality has not improved, repeat the operation.
If the problem continues, contact your local authorized service center.
■
Clean the video heads with a dry type cassette cleaner.
Cleaning and Maintaining the Camcorder
1 2
3 4
00511E VP-D80/D81 UK (62~97) 2/12/03 1:15 PM Page 81
![](asset-52.png)
ENGLISH
8282
Maintenance
✤Each country or region has its own electric and colour systems.
✤Before using your camcorder abroad, check the following items.
Power sources
■
You can use your camcorder in any country or area with the supplied AC Power Adapter within 100V to 240V, 50/60 Hz.
■
Use a commercially available AC plug Adapter, if necessary, depending on the design of the local wall outlet.
Colour system
■
You can view your recording in the viewfinder.
However, to view it on a television or copy it to a videocassette recorder, the television or VCR must be PAL-compatible
and have the appropriate audio/video jacks.
Otherwise, you may need to use a transcoder.
●PAL-compatible Countries/Regions
Australia, Austria, Belgium, Bulgaria, China, CIS, Czech Republic, Denmark, Egypt, Finland, France, Germany, Greece,
Great Britain, Holland, Hong Kong, Hungary, India, Iran, Iraq, Kuwait, Libya, Malaysia, Mauritius, Norway, Romania,,
Saudi Arabia, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Syria, Thailand, Tunisia, etc.
●NTSC-compatible Countries/Regions
Bahamas, Canada, Central America, Japan, Mexico, Philippines, Korea, Taiwan, United States of America, etc.
Reference
You can make recordings with your camcorder and view pictures on the LCD from anywhere in the world.
Using Your Camcorder Abroad
00511E VP-D80/D81 UK (62~97) 2/12/03 1:16 PM Page 82
![](asset-53.png)
ENGLISH
8383
Troubleshooting
✤Before contacting a Samsung authorized service centre, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Self Diagnosis Display
Moisture Condensation
✤If the camcorder is brought directly from a cold place to a warm place, moisture may condense inside the camcorder,
on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or the
unit may not operate correctly.
To prevent possible damage under these circumstances, the camcorder is fitted with a moisture sensor.
✤If there is moisture inside the camcorder, (DEW) is displayed. If this happens, none of the functions except cassette
ejection will work.
Open the cassette compartment and remove the battery.
Leave the camcorder for at least two hours in a dry warm room.
slow
slow
no
slow
slow
slow
slow
the battery pack is almost discharged. Change to a charged one.
When the remaining time on the tape
is about 2 minutes Prepare a new one.
the tape reached its end. Change to a new one.
there is no tape in camcorder. Insert a tape.
the tape is record protected. If you want to record, release
the protection.
moisture condensation has formed in
the camcorder. see below.
the camcorder has some mechanical
fault. 1. Eject the tape.
2. Set to OFF.
3. Detach the battery.
4. Reattach the battery.
* If unresolved contact your
local service representative.
TAPE END!
TAPE END!
TAPE!
PROTECTION!
....D
L
C
R
Display Blinking Informs that... Action
Troubleshooting
00511E VP-D80/D81 UK (62~97) 2/12/03 1:16 PM Page 83
![](asset-54.png)
ENGLISH
8484
Troubleshooting
✤If these instructions do not solve your problem, contact your nearest Samsung authorized service centre.
You cannot switch the
camcorder on.
START/STOP button
does not operate
while recording.
The camcorder goes
off automatically.
The battery pack is
quickly exhausted.
When you see a blue
screen during
playback.
A vertical strip
appears on the screen
when recording a dark
background.
Auto focus does not
work.
Play, FF or REW
button does not work.
Check the battery pack or the AC Power Adapter.
Check the POWER switch is set to CAM.
You have reached the end of the cassette.
Check the record protection tab on the cassette.
You have left the camcorder set to STBY for more
than 5 minutes without using it.
The battery pack is fully exhausted.
The atmospheric temperature is too low.
The battery pack has not been charged fully.
The battery pack is completely dead, and cannot be
recharged, Use another battery pack.
The video heads may be dirty.
Clean the head with a cleaning tape.
The contrast between the subject and the background
is too great for the camcorder to operate normally.
Make the background bright to reduce the contrast or
use the BLC function while you are recording brighter.
The image in the
viewfinder is blurred.
The Viewfinder lens has not been adjusted.
Adjust the viewfinder control lever until the indicators
displayed on the viewfinder come into sharp focus.
Check the M.FOCUS menu.
Auto focus does not work in the Manual Focus mode.
Check the POWER switch. Set the power switch to PLAYER.
You have reached the beginning or end of the cassette.
When you see a
broken block image
during the RECORD
SEARCH.
This is normal operation and it is not a failure or
defect.
Explanation/Solution
Symptom
00511E VP-D80/D81 UK (62~97) 2/12/03 1:16 PM Page 84
![](asset-55.png)
ENGLISH
8585
Specifications
• These technical specifications and design may be changed without notice.
System
Video signal
Video recording system
Audio recording system
Usable cassette
Tape speed
Tape recording time
FF/REW time
Image device
Lens
Filter diameter
LCD monitor/Viewfinder
Size/dot number
LCD monitor Method
Viewfinder
Connectors
Video output
S-video output
Audio output
DV input/output
USB output
External mic
PAL, CCIR standards
2 rotary heads, Helical scanning system
Rotary heads, PCM system
Digital video tape (6.35mm width): Mini DV cassette
SP: approx. 18.83mm/s LP: approx. 12.57mm/s
SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60)
Approx. 180 sec. (using DVM60 tape)
CCD (Charge Coupled Device)
F1.4 10x(Optical), 400x(Digital) Electronic zoom lens
Ø37
2.5inch/112,000
TFT LCD
0.24” B/W LCD
1Vp-p (75Ωterminated)
Y: 1Vp-p, 75Ω, C: 0. 286Vp-p, 75Ω
-7.5dBs (600Ωterminated)
VP-DXXi: 4pin special in/out connector, VP-DXX: out only
Mini-B type connector
Ø3.5 stereo
General
Power source
Power source type
Power consumption
(Recording)
Operating temperature
Storage temperature
External dimension
Weight
Built-in MIC
Remote control
DC 8.4V, Lithium Ion Battery Pack 7.4V
Lithium Ion Battery Pack, Power supply (100V~240V) 50/60Hz
4.9W(LCD), 3.6W(EVF)
0˚~40˚C (32˚F~104˚F)
-20˚C ~ 60˚C (-4˚F ~ 140˚F)
Length 7inches(178mm), Height 3.54inches(90mm), Width 2.48inches(63mm)
1.19lbs(540g) (Except for Lithium Ion Battery Pack and tape)
Omni-directional stereo condenser microphone
Indoors: greater than 49ft(15m) (straight line), Outdoors: greater than 16.4ft(5m) (straight line)
Model name: VP-D80/D80i/D81/D81i
00511E VP-D80/D81 UK (62~97) 2/12/03 1:16 PM Page 85
![](asset-56.png)
ENGLISH
8686
INDEX
Accessories ............................................................................................... 12
Audio dubbing ............................................................................................ 63
AUDIO MODE ........................................................................................... 51
Battery Pack .............................................................................................. 24
BEEP ......................................................................................................... 39
BLC ............................................................................................................ 61
Cassette ..................................................................................................... 27
Cleaning ..................................................................................................... 81
CLOCK SET .............................................................................................. 37
Connecting ................................................................................................. 69
CUSTOM Mode ......................................................................................... 59
CUSTOM.Q ............................................................................................... 49
DATE/TIME ................................................................................................ 53
DC Cable ................................................................................................... 23
DEMONSTRATION ................................................................................... 40
DSE ............................................................................................................ 47
DV .......................................................................................................74, 75
EASY Mode ............................................................................................... 58
Edit Search ................................................................................................ 29
EIS ............................................................................................................ 46
EXPOSURE ............................................................................................... 57
Fade ........................................................................................................... 62
Frame advance .......................................................................................... 71
Functions buttons ...................................................................................... 14
Hand Strap ................................................................................................. 22
IEEE1394 ................................................................................................... 74
LCD ...................................................................................................... 30, 31
MF/AF ........................................................................................................ 60
OSD ..................................................................................................... 18, 19
PHOTO SEARCH ...................................................................................... 65
PROGRAM AE .......................................................................................... 41
Quick Menu ................................................................................................ 55
REC MODE ............................................................................................... 50
REMOCON ................................................................................................ 38
Remote control .................................................................................... 17, 20
SHUTTER SPEED .................................................................................... 57
Sound ......................................................................................................... 34
Speaker ...................................................................................................... 34
TV DISPLAY .............................................................................................. 54
USB ............................................................................................................ 76
Viewfinder ............................................................................................ 30, 32
WHT. BALANCE ........................................................................................ 43
WIND CUT ................................................................................................. 52
ZERO MEMORY ....................................................................................... 72
Zoom .................................................................................................... 44, 45
- A - - L -
- M -
- O -
- P -
- Q -
- R -
- S -
- T -
- U -
- V -
- W -
- Z -
- B -
- C -
- D -
- E -
- F -
- H -
- I -
00511E VP-D80/D81 UK (62~97) 2/12/03 1:16 PM Page 86
![](asset-57.png)
ENGLISH
8787
Power Sources (United Kingdom Only)
The mains lead on the power adapter is supplied with a moulded plug incorporating a fuse.
The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to
BS1362 of the same rating must be used.
Never use the plug with the fuse cover omitted if the cover is detachable.
If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug.
Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point,
you should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug.
Do NOT connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING Do not connect either wire to the earth terminal marked with the letter E or the earth symbol, ,
or coloured GREEN or GREEN and YELLOW.
NOTE This page is applicable to Great Britain only.
00511E VP-D80/D81 UK (62~97) 2/12/03 1:16 PM Page 87
![](asset-58.png)
ENGLISH
ELECTRONICS
*Samsung Electronics’ Internet Home Page
http://www.samsungelectronics.co.uk AD68-00511E
