SyncMaster 243T
User’s Manual
Index
Main Page On-Screen Display
Safety Instructions Troubleshooting
Notational Check List
Power Q & A
Installation Self-Test Feature Check
Cleaning
Other
Introduction Specifications
Unpacking General Specifications
Front PowerSaver
Rear Preset Display Modes
Setup Information
Connecting Your Monitor Service
Installing the Monitor Driver Terms
— Automatic Regulatory
— Manual Natural Color
Installing VESA compliant
mounting For Better Display
Authority
User’s Manual
Safety Instructions
Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.
Notational
Warning/Caution
Notation Conventions
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock
User’s Manual
Safety Instructions
When not used for extended periods of time, set your PC to DPMS. If using a screen saver,
set it to the active screen mode.
•Do not use a damaged or loose plug.
•This may cause an electric shock or fire.
•Do not pull the plug out by the wire nor touch the plug
with wet hands.
•This may cause an electric shock or fire.
•Use only a properly grounded plug and recepticle.
•An improper ground may cause electric shock or equipment damage
•Do not excessively bend the plug and wire nor place
heavy objects upon them, which could cause damage.
•Failure to do so may cause an electric shock or fire.
Power
User’s Manual
Safety Instructions

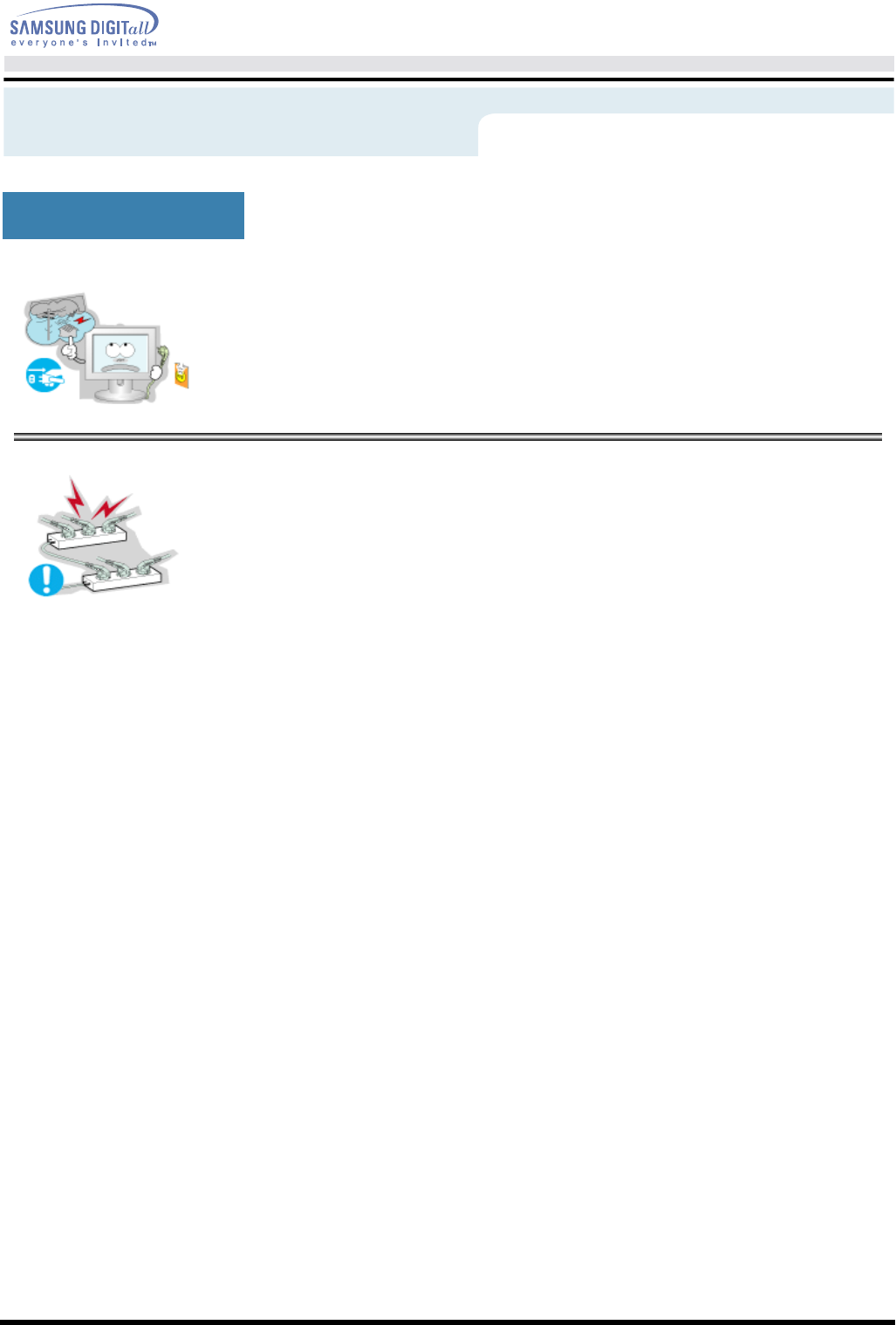

•Disconnect the plug from the outlet during storms or
lightening or if it is not used for a long period of time.
•Failure to do so may cause an electric shock or fire.
•Do not connect too many extension cords or plugs to an
outlet.
•This may cause a fire.
Power
User’s Manual
Safety Instructions

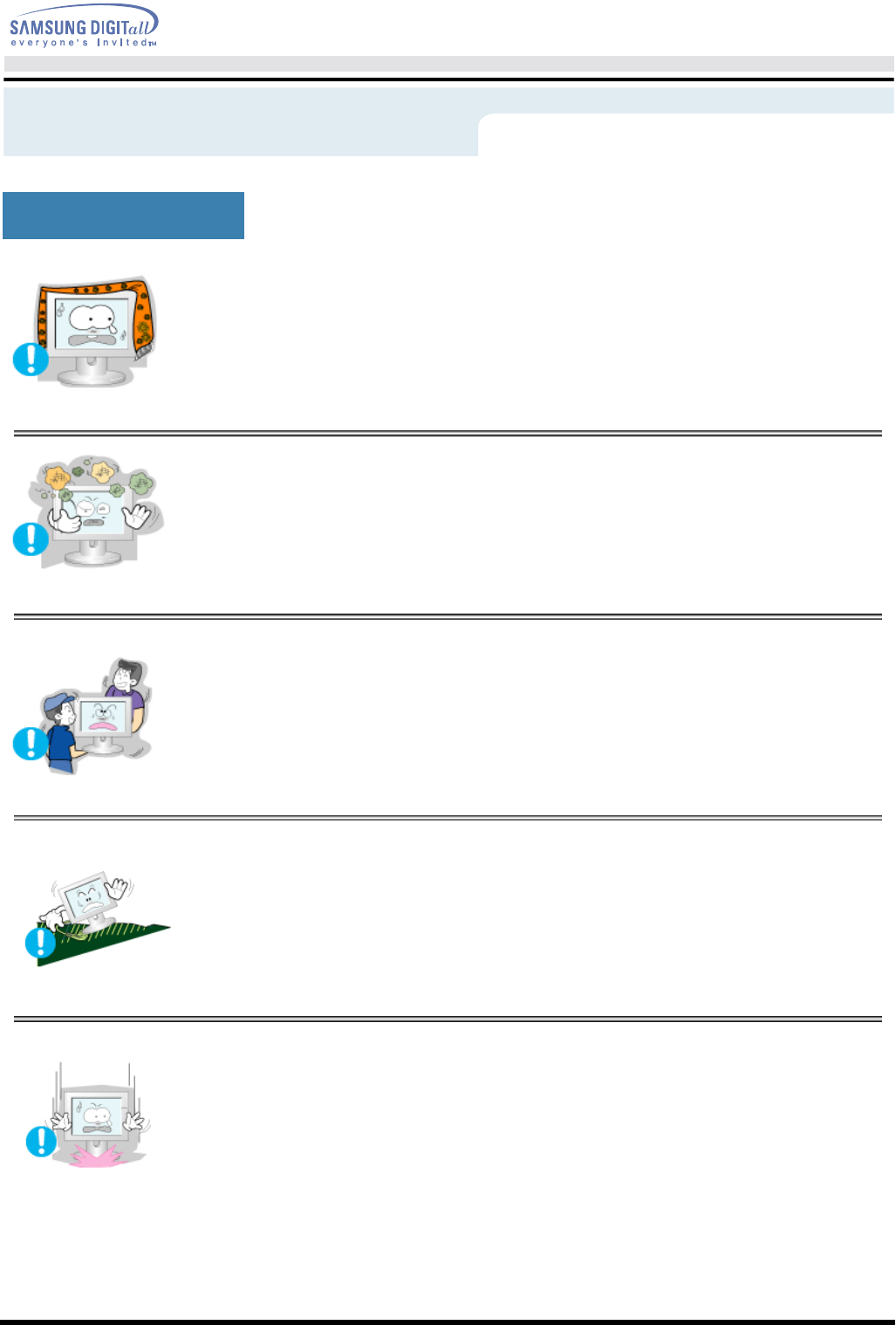

•Do not cover the vents on the monitor cabinet.
•Bad ventilation may cause a breakdown or fire.
•Put your monitor in a location with low humidity and a
minimum of dust.
•An electric shock or fire could result inside the monitor.
•Do not drop the monitor when moving it.
•This may cause damage to the product or human body.
•Place the monitor on a flat and stable surface.
•The monitor can cause injury by falling.
•Set down the monitor carefully.
•It could be damaged or broken.
Installation
User’s Manual
Safety Instructions
•Do not place the monitor face down.
•The TFT-LCD surface may be damaged.
Installation
User’s Manual
Safety Instructions
•Do not spray detergent directly on the monitor.
•Use the recommended detergent with a smooth cloth.
•If the connector between the plug and the pin is dusty or
dirty, clean it properly with a dry cloth.
•A dirty connector can cause an electric shock or fire
•Do not set a glass of water, chemicals or any small metal
objects on the monitor.
•This may cause damage, electric shock or a fire.
•If a foreign substance gets into the monitor, disconnect the plug and
then contact a service center.
Clean
When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly
moistened, soft fabric.
User’s Manual
Safety Instructions

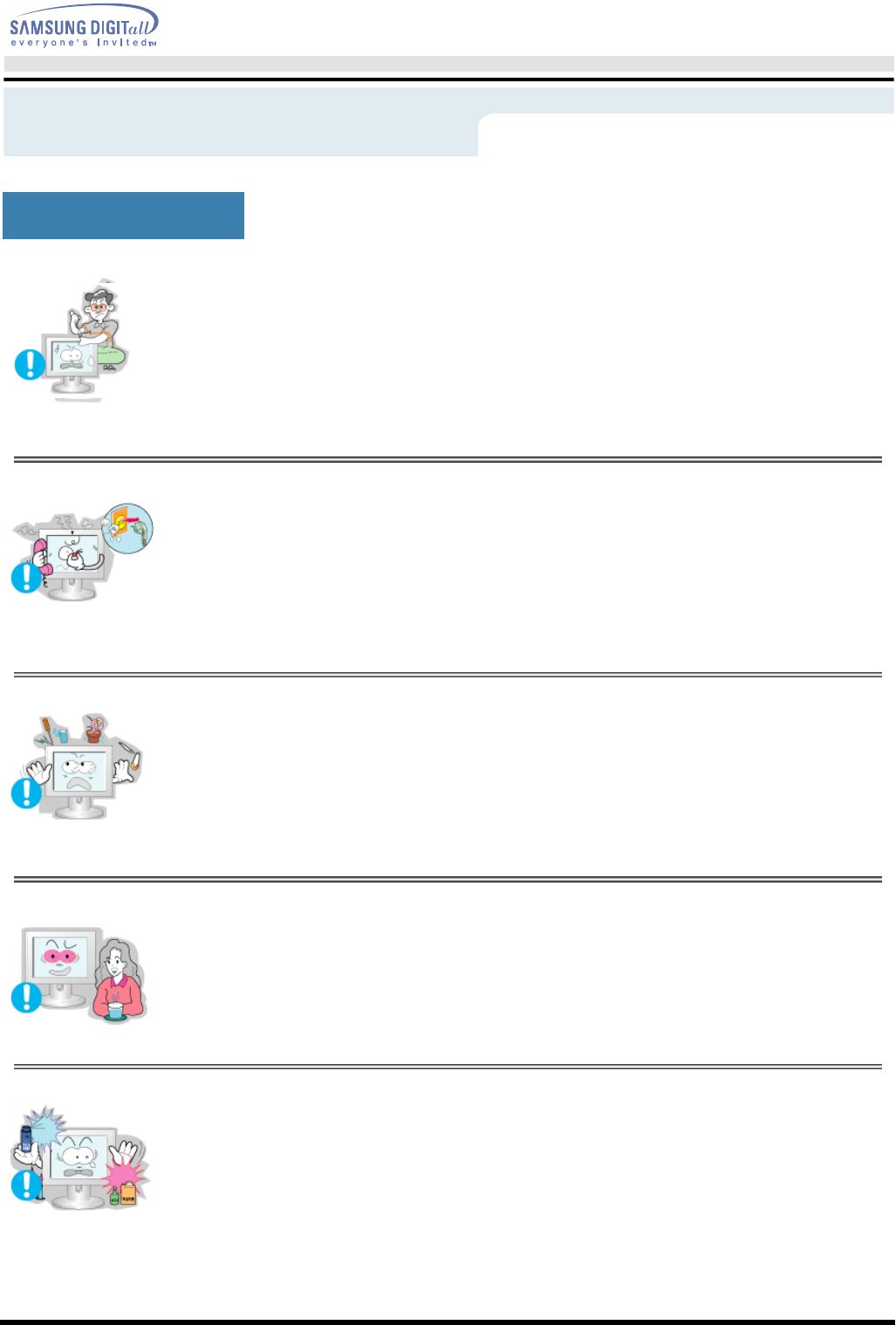

•Do not remove cover(or back). No user serviceable parts
inside.
•This may cause an electric shock or a fire.
•Refer servicing to qualified service personnel.
•If your monitor does not operate normally - in particular,
if there are any unusual sounds or smells coming from
it - unplug it immediately and contact an authorized deal-
er or service.
•This may cause an electric shock or a fire.
•Do not place any heavy objects on the monitor.
•This may cause an electric shock or a fire.
•For each hour of looking at the monitor, you should let
your eyes rest for 5 minutes.
•This will reduce eye fatigue.
•Do not use or store inflammable substances near the
monitor.
•This may cause an explosion or fire.
Other
User’s Manual
Safety Instructions
•Do not try to move the monitor by pulling on the wire or
the signal cable.
•This may cause a breakdown, electric shock or a fire due to damage
to the cable.
•Do not move the monitor right or left by pulling only the
wire or the signal cable.
•This may cause a breakdown, electric shock or a fire due to damage
to the cable.
•Never insert anything metallic into the monitor openings.
•This may cause an electric shock, fire or injury.
Other
If you view a fixed screen for an extended period of time, residual
image or blurriness may appear.
!Change the mode to energy save or set a screensaver to moving
picture when you need to be away from the monitor for an
extended period of time.
User’s Manual
Introduction
Please make sure the following items are included with your monitor. If any items are missing,
contact your dealer.
Unparking
Monitor and Stand
D-Sub Cable Quick Setup Guide
Warranty Card
(Not available in all locations)
Power Cord User's Guide and Driver
Installation CD
PIVOT Installation CD
(Not available in all locations)
DVI Cable(Option)
User’s Manual
Introduction
Front
1. Auto button Use this button to auto adjustment direct access.
2. Exit button
Source button
Use this button to Exit the active menu or the OSD.
When you push the Source button while the OSD is off, the input source
(analog/digital) is alternated. (When you push the Source button to change the
input source or turn on the monitor, a message appears in the center of the
screen displaying the current input source -- analog or digital.)
Note:If you select the Digital mode, you must connect your monitor to the
graphic card with a digital port using the DVI cable.
3. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
4. Menu button Use this button to open the OSD and activate a highlighted menu item.
5. Power button Use this button to turn the monitor on and off.(When the power is turned on, a
message appears in the center of the screen displaying the current mode --
analog or digital input signal.)
6. Power indicator This light glows green during normal operation, and blinks green once as the
monitor saves your adjustments.
Note: See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods.
Rear
User’s Manual
Introduction
(The configuration at the back of the monitor may vary from product to product.)
1. Power port Connect the power cord for your monitor to the power port on the back
of the monitor.
2. DVI port Connect the DVI Cable to the DVI Port on the back of your Monitor.
3. D-Sub port Connect the signal cable to the 15-pin, D-sub connector on the back of
your monitor.
Stand Height Adjustment
1. Press the top side of the stand and then push the button at the rear bottom of the stand.
2. You can adjust the stand height using this button.
Note:
See Connecting Your Monitor for further information regarding cable connections.
User’s Manual
Setup
Connecting Your Monitor
1. Connect the power cord for your monitor to the power port on the back of the monitor. Plug the
power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analogue) connector on the video card.
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI Port on the back of your Monitor.
3. Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adaptor.
5. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
You may get a blank screen depending on the type of video card you are using, if you connect
simultaneously both the D-sub and DVI cables to one computer.
If you connect properly your monitor using the DVI connector but get a blank or fuzzy screen,
check to see if the monitor status is set to analogue. Press Source button to have the monitor
double-check the input signal source.
User’s Manual
Setup
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown here.
?
Internet web site :
http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME
1. Insert CD into the CD-ROM drive.
2. Click "Windows ME Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.
User’s Manual
Setup
Windows XP/2000
1. Insert CD into the CD-ROM drive.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. If you can see following "Message" window, then click the "Continue Anyway"
button. Then
click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/
6. Monitor driver installation is completed.
User’s Manual
Setup
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown here.
?
Internet web site :
http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft® Windows® XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
User’s Manual
Setup

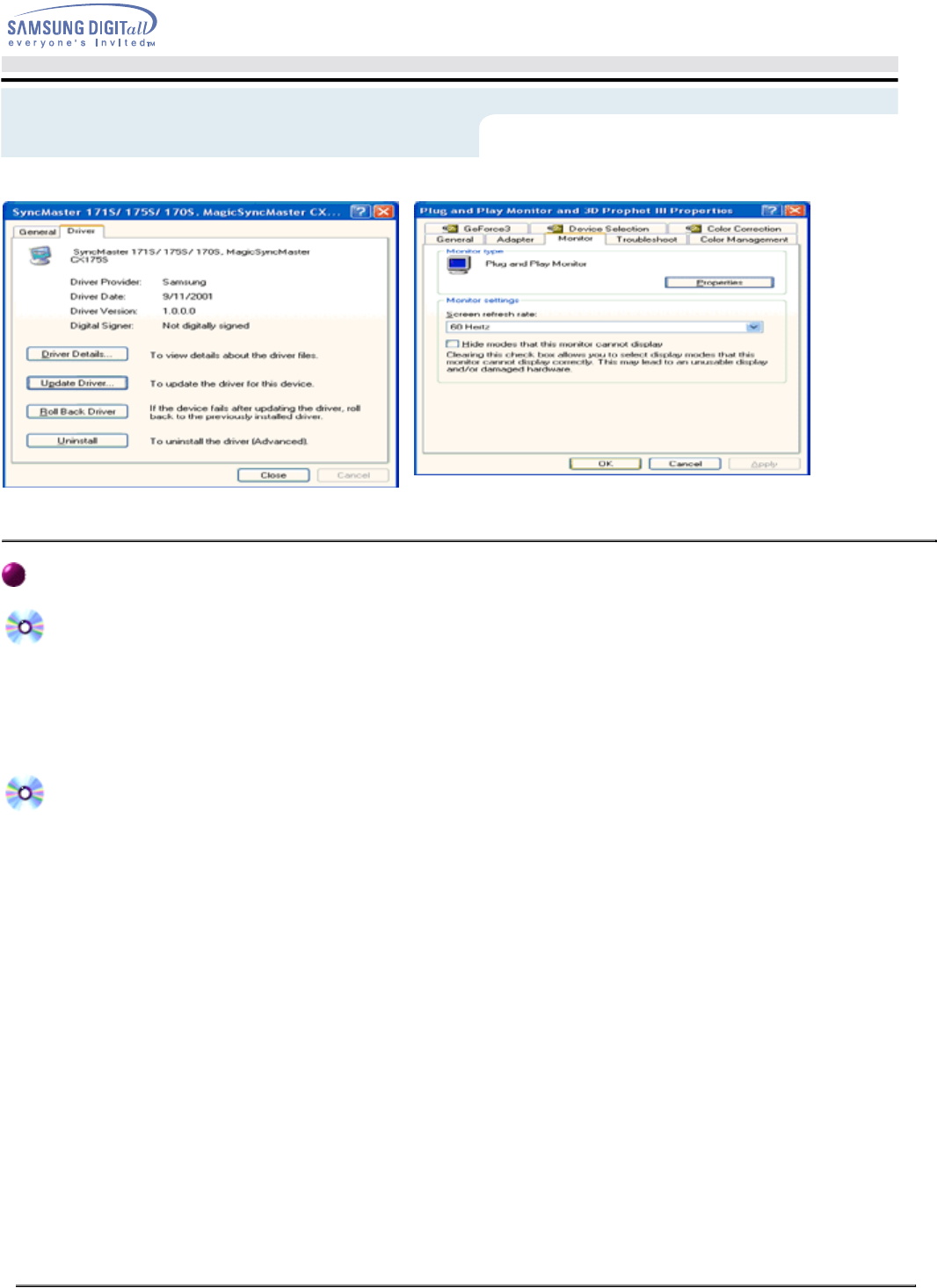

4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse
" button then choose A:(D:\Driver) and choose your monitor model in the model
list and click the "Next" button.
User’s Manual
Setup
8. If you can see following "Message" window, then click the "Continue Anyway
" button. Then click
"OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your system.The
certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/
9. Click the "Close" button then click "OK" button continually.
User’s Manual
Setup
10. Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
1. Click "Start" , "Setting" , "Control Panel".
2. Double click the "Display" Icon.
3. Choose the "Settings" tab and then click "Advanced..".
4. Choose "Monitor".
5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.
6. Choose "Display a list of the known drivers for this device so that I can choose a specific
driver" then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver).
8. Click the "Open" button, then click "OK" button.
9. Choose your monitor model and click the "Next" button then click "Next" button.
10. Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes"button. And
click the "Finish" button then the "Close" button.
Case1: If the "Properties" button is inactive, it means your monitor is properly configured.
Please stop installation
Case2: If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
User’s Manual
Setup
8.
Click the "
Have Disk
" button
9. Specify A:\(D:\driver) then click "OK" button.
10. Select "Show all devices" and choose the monitor that corresponds to the one you
connected to your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties
dialogue box.
(You can get some other screen for warning message or others, then click the appreciate
option for your monitor.)
8.
Click the "
Have Disk
" button
Microsoft® Windows® Millennium Operating System
1. Click "Start" , "Setting" , "Control Panel".
2. Double click "Display" icon.
3. Select the "Settings" tab and click "Advanced Properties" button.
4. Select the "Monitor" tab.
5. Click the "Change" button in the "Monitor Type" area.
6. Choose "Specify the location of the driver".
7. Choose "Display a list of all the driver in a specific location.." then click "Next" button.
Microsoft® Windows® NT Operating System
1. Click Start, Settings, Control Panel, and then double-click Display icon.
2. In Display Registration Information window, click Settings Tab and then click All Display
Modes.
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and
then click OK.
4. Click Apply button if you see the screen working normally after clicking Test. If the screen is
not normal, change to a different mode (lower mode of resolution, colors or frequency).
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1. Press Enter at the first and the second screen after executing the X86Config file.
2. The third screen is for setting your mouse.
3. Set a mouse for your computer.
4. The next screen is for selecting a keyboard.
5. Set a Keyboard for your computer.
6. The next screen is for setting your monitor.
7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency
directly.)
8. Set a vertical frequency for your monitor. (You can enter the frequency directly.)
9. Enter the model name of your monitor. This information will not affect the actual execution
of X-Window.
10. You have finished setting up your monitor.
Execute X-Window after setting other requested hardware.
User’s Manual
Setup
Installing VESA compliant mounting
Removing the base
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
3. Remove the four screws and then remove the Stand from the LCD monitor.
Installing VESA compliant mounting
User’s Manual
Setup
Attaching a base
NOTE: This monitor accepts a 100mm x 100mm VESA-compliant mounting interface pad.
1. Rear cover mounting pad
2. Mounting interface pad
Align the Mounting Interface Pad with the holes in the Rear Cover Mounting Pad and secure it with
the four screws that came with the arm-type base, wall mount hanger or other base.
On Screen Display (OSD)
Adjusting the OSD settings
1. Activate the OSD menu by pushing the Menu button.
2. Make a selection using [ - ] or [ + ] button and then push the Menu button.
3. Adjust the OSD settings using [ - ] or [ + ] button.
Menu
How to adjust
Brightness
- Adjust Brightness.
1. Push the Menu button.
2. Push the Menu button to open the
Brightness adjustment screen.
3. Use the [ + ] button to increase the
brightness or [ - ] button to decrease the
brightness.
Menu
How to adjust
Contrast
- Adjust Contrast.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Contrast screen is displayed.
3. Push the Menu button to open the
Contrast adjustment screen.
4. Use the [ + ] button to increase the
contrast or [ - ] button to decrease the
contrast.
Brightness
Contrast
Menu
How to adjust
Image [Coarse]
- Removes noise such as vertical stripes.
Coarse adjustment may move the screen
image area. You may relocate it to the
center using the Horizontal Control
menu.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Image screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Coarse.
5. Push the Menu button to open the
Coarse adjustment screen.
6. Use the [ - ] or [ + ] buttons to adjust
the coarse.
Menu
How to adjust
Image [Fine]
- Removes noise such as horizontal
stripes. If the noise persists even after
Fine tuning, repeat it after adjusting the
frequency (clock speed).
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Image screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Fine.
5. Push the Menu button to open the
Fine adjustment screen.
6. Use the [ - ] or [ + ] buttons to adjust
the fine.
Menu
How to adjust
Image [H-Position]
- Follow these instructions to change the
horizontal position of the monitor's
entire display.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Image screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the H-Position.
5. Push the Menu button to open the
H-Position adjustment screen.
6. Use the [ - ] or [ + ] buttons to change
the horizontal position of the monitor's
viewing area..
Menu
How to adjust
Image [V-Position]
- Follow these instructions to change the
vertical position of the monitor's entire
display.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Image screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the V-Position.
5. Push the Menu button to open the
V-Position adjustment screen.
6. Use the [ - ] or [ + ] buttons to change
the vertical position of the monitor's
viewing area..
Menu
How to adjust
Image [Image Effect]
- Image being displayed can be made
Sharpen, Medium or Soften.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Image screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Image Effect.
5. Push the Menu button to open the
Image Effect selection screen.
6. Use the [ - ] or [ + ] buttons to select
Sharpen or Medium or Soften.
Menu
How to adjust
Color Control [Bluish]
- Bluish white.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Color Control screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Bluish.
5. Push the Menu button to adjust Bluish
white.
Menu
How to adjust
Color Control [Reddish]
- Reddish white.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Color Control screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Reddish.
5. Push the Menu button to adjust Reddish
white.
Color Control
Menu
How to adjust
Color Control [User Mode]
- Follow these steps to adjust individual
R,G,B color control.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Color Control screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the User Mode.
5. Push the Menu button to open the
User Mode adjustment screen.
6. Use the [ - ] or [ + ] button to select
R(ed), G(reen) or B(lue) and Push the
Menu button.
7. Press the [ - ] or [ + ] button to adjust the
color setting..
Menu
How to adjust
Color Control [Gamma]
- Adjust the gamma value.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Color Control screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Gamma.
5. Push the Menu button to open the
Gamma selection screen.
6. Use the [ - ] or [ + ] button to select
1, 2, 3 to change the gamma value.
Menu
How to adjust
Color Control [Reset]
- Color parameters are replaced with the
factory default values.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Color Control screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Reset.
5. Push the Menu button to open the
Reset screen.
6. Push the [ - ] button or [ + ] button to
select Yes.
If you don't want to reset the monitor,
use the [ - ] button or [ + ] button to
select No.
Menu
How to adjust
Language
- Follow these steps to change the
language used in the menu.
You can choose one of seven languages.
(English, German, Spanish, French,
Italian, Swedish, Russian)
Note : The language chosen affects
only the language of the OSD. It has no
effect on any software running on the
computer.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Language screen is displayed.
3. Push the Menu button to open the
Language selection screen.
4. Use the [ - ] button or [ + ] button to
select the language you would like to
use.
Language
Menu
How to adjust
OSD [H-Position]
- You can change the horizontal position
where the OSD menu appears on your
monitor.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the OSD screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the H-Position.
5. Push the Menu button to open the
H-Position adjustment screen.
6. Use the [ - ] or [ + ] button to change
the horizontal position of the OSD menu.
Menu
How to adjust
OSD [V-Position]
- You can change the vertical position
where the OSD menu appears on your
monitor.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the OSD screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the V-Position.
5. Push the Menu button to open the
V-Position adjustment screen.
6. Use the [ - ] or [ + ] button to change
the vertical position of the OSD menu.
OSD
Menu
How to adjust
OSD [Halftone]
- Change the opaqueness of the
background of the OSD.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the OSD screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Halftone.
5. Push the Menu button to open the
Halftone adjustment screen.
6. Use the [ - ] or [ + ] button to adjust the
opaqueness of the background of the
OSD menu.
Menu
How to adjust
OSD [Duration]
- The menu will automatically turn off if
no adjustments are made for a certain
time period.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the OSD screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Duration.
5. Push the Menu button to open the
Duration adjustment screen.
6. Use the [ - ] or [ + ] button to select the
duration of the OSD menu.
Menu
How to adjust
OSD [Color]
- You can change the color of the
OSD menu.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the OSD screen is displayed.
3. Push the Menu button to open the
sub-menu selection screen.
4. Push the [ - ] button or [ + ] button to
select the Color.
5. Push the Menu button to open the
Color selection screen.
6. Use the [ - ] or [ + ] button to change the
color of the OSD menu.
Menu
How to adjust
Source Select
- Select Auto Source Select for the
monitor to automatically select the
signal source.
Select Manual Source Select to
manually select the signal source using
the Source button.
1. Push the Menu button.
2. Push the [ - ] button or [ + ] button until
the Source Select screen is displayed.
3. Push the Menu button to open the
Source Select screen.
4. Push the [ - ] button or [ + ] button to
select the Auto or Manual..
Source Select
Menu
How to adjust
Auto Adjustment
- Auto adjustment allows the monitor to
self-adjust to the incoming video signal.
The values of fine, coarse and position
are adjusted automatically.
1. Push the Auto button.
To make the automatic adjustment function
sharper, execute the 'AUTO' function while
the AUTO PATTERN is on.
Menu
How to adjust
OSD Lock/Unlock
1. Push and hold in the Menu button for
5 seconds or more to Lock the OSD.
2. Push and hold in the button for 5 seconds
or more to Unlock the OSD.
* You can adjust the Brightness and
Contrast settings even after you locked
the OSD menu.
Auto Adjustment
OSD Lock / Unlock
User’s Manual
Troubleshooting
Check List
Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the warranty
card, the phone number on the Information section or contact your dealer.
Symptom Check List Solutions
No images on the
screen. I cannot turn
on the monitor.
Is the power cord connected
properly?
Check the power cord connection and
supply.
Can you see "No Connection,
Check Signal Cable" on the
screen?
(Connected using the D-sub cable)
Check the signal cable connection.
(Connected using the DVI cable)
If you still see an (error) message on
the screen when the monitor is
connected properly, check to see if the
monitor status is set to analogue.
Press Source button to have the
monitor double-check the input signal
source.
If the power is on, reboot the
computer to see the initial screen
(the login screen), which can be
seen.
If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/2000/XP) and then
change the frequency of the video
card.
(Refer to the Preset Display Modes)
Note: If the initial screen (the login
screen) does not appear, contact a
service center or your dealer.
Can you see "Video mode not
supported" on the screen?
You can see this message when the
signal from the video card exceeds the
maximum resolution and frequency
that the monitor can properly handle.
Adjust the maximum resolution and
frequency that the monitor can
properly handle.
There is no image on the screen.
Is the power indicator on the
monitor blinking at 1 second
intervals?
The monitor is in PowerSaver mode.
Press a key on the keyboard or move
the mouse to activate the monitor and
restore the image on the screen.
If there is still no image, press the
'Source' button. Then press any key
on the keyboard or move the mouse
again to activate the monitor and
restore the image on the screen.
Connected using the DVI cable? You may get a blank screen if you
boot the system before you connect
the DVI cable, or disconnect and then
reconnect the DVI cable while the
system is running as certain types of
graphic cards do not send out video
signals. Connect the DVI cable and
then reboot the system.
I cannot see the On
Screen Display.
Have you locked the On Screen
Display (OSD) Menu to prevent
Unlock the OSD by pressing the
MENU button for at least 5 seconds.
User’s Manual
Troubleshooting
Check List
changes?
The screen shows
strange colors or just
black and white.
Is the screen displaying only one
color as if looking at the screen
through a cellophane paper?
Check the signal cable connection.
Make sure the video card is fully
inserted in it's slot.
Have the screen colors become
strange after running a program
or due to a crash between
applications?
Reboot the computer.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
The screen suddenly
has become
unbalanced.
Have you changed the video card
or the driver?
Adjust screen image position and size
using the OSD.
Have you adjusted the resolution
or frequency to the monitor?
Adjust the resolution and frequency at
the video card.
(Refer to the Preset Display Modes).
The screen can be unbalanced due to the cycle of the video card
signals. Readjust Position by referring to the OSD.
The screen is out of
focus or OSD cannot
be adjusted.
Have you adjusted the resolution
or frequency on the monitor?
Adjust the resolution and frequency of
the video card.
(Refer to the Preset Display Modes).
LED is blinking but
no images on the
screen.
Is the frequency properly
adjusted when checking the
Display Timing on the menu?
Adjust the frequency properly by
referring to the video card manual and
the Preset Display Modes.
(The maximum frequency per
resolution may differ from product to
product.)
There are only 16
colors shown on the
screen. The screen
colors have changed
after changing the
video card.
Have the Windows colors been
set properly?
For Windows ME/2000/XP:
Set the colors properly at the Control
Panel, Display, Settings.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".
Have you installed the monitor
driver?
Install the monitor driver according to
the Driver Installation Instructions.
See the video card manual to see
if the Plug & Play (VESA DDC)
function can be supported.
Install the monitor driver according to
the Driver Installation Instructions.
Check the following items if there is trouble with the monitor.
1. Check if the power cord and the cable are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 75Hz or 85Hz.
(Do not exceed 60Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "Control Panel, System, Device Administrator" and then
reboot the computer to reinstall the adapter (video) driver.
Note: If problems repeatedly occur, contact an authorized service center.
User’s Manual
Troubleshooting
Check List
User’s Manual
Troubleshooting
Q&A
Question Answer
How can I change the frequency? Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the
version of the driver used.
(Refer to the computer or the video card manual for details.)
How can I adjust the resolution? Windows ME/XP/2000: Set the resolution at the
Control Panel, Display, Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function? Windows ME/XP/2000: Set the function at BIOS-
SETUP of the computer or the screen saver. (Refer to
Windows/Computer Manual).
How can I clean the outer case/LCD
Panel? Disconnect the power cord and then clean the monitor with
a soft cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the
case. Do not allow any water to go inside the monitor.
User’s Manual
Troubleshooting
Your monitor provides a self test feature that allows you to check whether your monitor is functioning
properly.
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
.
If the monitor is functioning properly, you will see a box with a border and text inside as
shown in the following illustration:
The three boxes inside the border are red, green and blue.
Failure of any of the boxes to appear indicates a problem with your monitor.
This box also appears during normal operation if the video cable becomes disconnected or damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.
If your monitor screen remains blank after using the previous procedure,
check your video controller and computer system; your monitor is functioning properly.
Self-Test Feature Check
Self-Test Feature Check
User’s Manual
Troubleshooting
If there is something wrong with the input signal, a message appears on the screen or the screen goes blank
although the power indicator LED is still on. The message may indicate that the monitor is out of scan range
or that you need to check the signal cable.
The location and the position of the monitor may influence the quality and other features of the monitor.
1. If there are any woofer speakers near the monitor, unplug and relocate the woofer to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one
meter) of the monitor.
.A monitor recreates visual signals received from the PC. Therefore, if there is trouble with the PC
or the video card, this can cause the monitor to become blank, have poor coloring, noise, Video
mode not supported, etc. In this case, first check the source of the problem, and then contact a
service center or your dealer.
.Judging the monitor's working condition
If there is no image on the screen or an "Video mode not supported" message comes up,
disconnect the cable from the computer while the monitor is still powered on.
.If there is a message coming up on the screen or if the screen goes white, this means the
monitor is in working condition.
.In this case, check the computer for trouble.
Self-Test Feature Check
Werning Messages
Environment
Useful Tips
English > Main > Specification > General
General
PowerSaver
Preset Timing
Modes
General
Model Name SyncMaster 243T
LCD Panel
Size 24 inch diagonal
Display area 518.4(H) x 324(V)
Pixel Pitch 0.27mm(H) x 0.27mm(V)
Type a-si TFT active matrix
Synchronization
Horizontal 30 ~ 81 kHz
Vertical 56 ~ 75 Hz
Display Color
16,777,216 Colors
Resolution
Optimum resolution 1920 x 1200@60Hz
Maximum resolution 1920 x 1200@60Hz
Input Signal, Terminated
RGB Analog, DVI Compliant Digital RGB.
Composite H/V Sync, SOG, 0.7Vp-p Positive at 75 ohms
Separate H/V sync, TTL level positive or negative
Maximum Pixel Clock
165 MHz
Power Supply
AC 90 ~ 264 VAC, 60/50 Hz ± 3Hz
Signal Cable
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
Power Consumption
Less than 75W
Dimensions (WxHxD) / Weight
586.6 x 514.2 x 246.1 mm / 13.0kg (After installation of Stand)
586.6 x 382.4 x 82.2 mm (Without Stand)
VESA Mounting Interface
100mm x 100mm (for use with Specialty(Arm) Mounting hardware.)
Environmental considerations
Operating Temperature: 50°F ~ 104°F(10°C ~ 40°C)
Humidity: 10% ~ 80%, non-condensing
Storage Temperature: -4°F ~113°F (-20°C ~ 45°C)
Humidity: 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of
99.999% above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color
seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality
and you can use it without uneasiness.
z
For example, the number of TFT LCD pixels that is contained in this product are 6,912,000.
Note: Design and specifications are subject to change without prior notice.
English > Main > Specification > PowerSaver
General
PowerSaver
Preset Timing
Modes
This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a certain
amount of time. The monitor automatically returns to normal operation when you move the
computer's mouse or press a key on the keyboard. For energy conservation, turn your monitor OFF
when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPMS compliant video card installed in your computer. Use a software utility
installed on your computer to set up this feature.
State Normal Operation Power saving mode
EPA/ENERGY 2000
Machanical
Power Switch off
Power Indicator Green Green, Blinking Black
Power Consumption Less than 75W Less than 2W 0W
This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant
when used with a computer equipped with VESA DPMS functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this product
meets the ENERGY STAR® guidelines for energy efficiency.
English > Main > Specification > Preset Timing Modes
General
PowerSaver
Preset Timing
Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
IBM, 640 x 350 31.469 70.086 25.175 +/-
IBM, 640 x 480 31.469 59.940 25.175 -/-
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +,-/+,-
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 1024 63.981 60.020 108.00 +/+
VESA, 1280 x 1024 79.976 75.025 135.00 +/+
VESA, 1600 x 1200 75.000 60.000 162.00 +/+
VESA, 1920 x 1200 74.556 59.950 154.000 +/-
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the
screen horizontally is called Horizontal Cycle and the inverse number of
the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called Vertical Frequency or Refresh Rate. Unit: Hz
User’s Manual
Information
Service
Information
Service
U.S.A. :
Samsung Computer Products Customer Service
400 Valley Road, Suite 201, Mt. Arlington, NJ 07856
Tel. : (973)601-6000, 1-800-SAMSUNG
(1-800-726-7864)
Fax. : (973)601-6001
http://samsungusa.com/monitor/
BRAZIL :
Samsung Eletronica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303, Terro B
Chacara Sto. Antonio, CEP : 04719-040
Sao Paulo, SP
SAC : 0800 124 421
http://www.samsung.com.br/
CANADA :
Samsung Electronics Canada Inc.
7037 Financial Drive
Mississauga, Ontario L5N 6R3
Tel. : 1-800-SAMSUNG (1-800-726-7864)
Fax. : (905) 542-1199
http://www.samsung.ca/
COLOMBIA :
Samsung Electronics Colombia
Cra 9 No 99A-02 Of. 106
Bogota, Colombia
Tel.: 9-800-112-112
Fax: (571) 618 - 2068
http://www.samsung-latin.com/
e-mail : soporte@samsung-latin.com
PANAMA :
Samsung Electronics Latinoamerica( Z.L.) S.A.
Calle 50 Edificio Plaza Credicorp, Planta Baja
Panama
Tel. : (507) 210-1122, 210-1133
Tel : 800-3278(FAST)
http://www.samsung-latin.com/
PERU :
Servicio Integral Samsung
Av.Argentina 1790 Lima1. Peru
Tel: 51-1-336-8686
Fax: 51-1-336-8551
http://www.samsungperu.com/
GERMANY :
TELEPLAN Rhein-Main GmbH
Feldstr. 16
64331 Weiterstadt
T. 06151/957-1306
F. 06151/957-1732
* EURO 0,12/Min.
http://www.samsung.de/
AUSTRALIA :
Samsung Electronics Australia Pty Ltd.
Customer Response Centre
7 Parkview Drive, Homebush Bay NSW 2127
Tel : 1300 362 603
http://www.samsung.com.au/
ITALY :
Samsung Electronics Italia S.p.a.
Via C. Donat Cattin, 5
20063 Cernusco s/Naviglio (MI)
Servizio Clienti: 199.153.153
http://www.samsung-italia.com/
ESPAÑA :
Samsung Electronics Comercial Iberica, S.A.
Ciencies, 55-65 (Poligono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : (93) 261 67 00
Fax. : (93) 261 67 50
http://samsung.es/
United Kingdom :
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : (0208) 391 0168
Fax. : (0208) 397 9949
< European Service Center & National Service >
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : (0870) 242 0303
Fax. : (01952) 292 033
http://samsungservice.co.uk/
THAILAND :
HAI SAMSUNG SERVICE CENTER
MPA COMPLEX BUILDING,1st-2nd Floor
175 SOI SUEKSA VIDHAYA SATHON SOI 12
SILOM ROAD ,SILOM,BANGRAK
BANGKOK 10500
TEL : 0-2635-2567
FAX : 0-2635-2556
User’s Manual
Information
SOUTH AFRICA :
Samsung Electronics,5 Libertas Road, Somerset
Office Park,
Bryanston Ext 16. Po Box 70006, Bryanston,2021,
South Africa
Tel : 0027-11-549-1621
Fax : 0027-11-549-1629
http://www.samsung.co.za/
UKRAINE :
SAMSUNG ELECTRONICS REPRESENTATIVE
OFFICE IN UKRAINE
4 Glybochitska str.
Kiev, Ukraine
Tel. 8-044-4906878
Fax 8-044-4906887
Toll-free 8-800-502-0000
http://www.samsung.com.ua/
SWEDEN/DENMARK/NORWAY/FINLAND :
Samsung Electronics AB
Box 713
S-194 27 UPPLANDS VÄSBY
SVERIGE
Besöksadress : Johanneslundsvägen 4
Samsung support Sverige: 020-46 46 46
Samsung support Danmark : 8088-4646
Samsung support Norge: 8001-1800
Samsung support Finland: 0800-118001
Tel +46 8 590 966 00
Fax +46 8 590 966 50
http://www.samsung.se/
HUNGARY :
Samsung Electronics Magyar Rt.
1039, Budapest, Lehel u. 15-17.
Tel: 36 1 453 1100
Fax: 36 1 453 1101
http://www.samsung.hu/
FRANCE :
SAMSUNG ELECTRONICS FRANCE Service
Paris Nord 2
66 rue des Vanesses
BP 50116 Villepinte
95950 Roissy CDG Cedex
Tel : 08 25 08 65 65
Fax : 01 48 63 06 38
http://www.samsungservices.com/
PORTUGAL :
SAMSUNG ELECTRONICA PORTUGUESA S.A.
Rua Mário Dioniso, N º 2 - 1º Drt. 2795-140 LINDA-
A-VELHA
Tel. 214 148 114/100 Fax. 214 148 133/128
Free Line 800 220 120
http://www.samsung.pt/
NETHERLANDS/BELGIUM/LUXEMBOURG :
Samsung Electronics Benelux B. V.
Fleminglaan 12 2289 CP Rijiswijk, NEDERLANDS
Service and informatielijn ;
Belgium :0800-95214, http://www.samsung.be/
Netherlands : 0800-2295214,
http://www.samsung.nl/
CHILE :
SONDA S.A.
Teatinos 550, Santiago Centro, Santiago, Chile
Fono: 56-2-5605000 Fax: 56-2-5605353
56-2-800200211
http://www.sonda.com/
http://www.samsung.cl/
MEXICO :
Samsung Electronics Mexico S.A. de C.V.
Saturno 44 Col. Nueva Industrial Vallejo
Del. Gustavo A. Madero C.P. 07700
Mexico D.F.
Tel. 01 57 47 51 00
Fax. 01 57 47 52 02
RFC: SEM950215S98
http://www.samsung.com.mx/
IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.
SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO
DEL. GUSTAVO A. MADERO C.P. 07700
MEXICO D.F. TEL. 5747-5100
RFC: SEM950215S98
EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
JOONG-ANG DAILY NEWS BLDG.
7 SOON-WHA-DONG CHUNG-KU,
C.P.O BOX 2775, 1144 SEOUL, KOREA
Service
User’s Manual
Information
•Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher
the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm
•Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for
the user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate.
Unit: Hz
Example: If the same light repeats itself 60 times per second, this is regarded as 60 Hz. In this case,
flickering of the screen can be detected. To avoid this problem, there is a Flicker-free Mode using a
vertical frequency over 70 Hz.
•Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is
called Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency.
Unit: kHz
•Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-
Interlace method while showing odd lines and then even lines in turn is called the Interlace method.
The Non-Interlace method is used for the majority of monitors to ensure a clear image. The Interlace
method is the same as that used in TVs.
•Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the
monitor to exchange information automatically. This monitor follows the international standard
VESA DDC for the Plug & Play function.
•Resolution
The number of horizontal and vertical dots used to compose the screen image is called 'resolution'.
This number shows the accuracy of the display. High resolution is good for performing multiple tasks
as more image information can be shown on the screen.
Example: If the resolution is 1024 X 768, this means the screen is composed of 1024 horizontal
dots (horizontal resolution) and 768 vertical lines (vertical resolution).
Terms
Regulatory
User’s Manual
Information
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes the following
warning:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television receptions,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment. If necessary, consult your dealer or an experienced
radio/television technician for additional suggestions. You may find the booklet called How to Identify and
Resolve Radio/TV Interference Problems helpful. This booklet was prepared by the Federal
Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC
20402, Stock Number 004-000-00345-4.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
3351 Michelson Drive,
Suite #290, Irvine, CA92612 USA
Tel) 949-975-7310
Fax) 949-922-8301
Warning
User must use shielded signal interface cables to maintain FCC compliance for the product.
Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be
suitable for connection to any UL Listed personal computer with similar configuration. Before making the
connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor
and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage
rating.
For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type
(parallel blades) plug cap. For 240 Volt applications use only UL Listed Detachable power supply cord with
NEMA configuration 6-15P type (tandem blades) plug cap.
VCCI
This is a Class B product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the equipment according to the instruction
manual.
User’s Manual
Information
•IC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations of ICES-003.
Cet appareil Numérique de classe Brespecte toutes les exigences du Règlemont NMB-03 sur les
équipements produisant des interférences au Canada.
•MPR II Compliance
This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields.
•PCT Notice
Regulatory
European Notice(Europe Only)
Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC),
(93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the
European Community.
Compliance with these directives implies conformity to the following European Norms:
zEN55022:1998+A1:2000 - Radio Frequency Interference
zEN55024:1998 - Electromagnetic Immunity of Information Technology Equipment
zEN61000-3-2:1995+A1/A2:1998 - Power Line Harmonics
zEN61000-3-3:1995 - Voltage Fluctuations
User’s Manual
Information
•TCO'95-Ecological requirements for personal computers (TCO applied model only)
AB general requirements
AB2 Written Eco-document acompanying the products
Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has
provided you with a product developed for professional use. Your purchase has also contributed to reducing
the burden on the environment and to the further development of environmentally-adapted electronic
products.
Why do we have environmentally-labelled monitors?
In many countries, environmental labelling has become an established method for encouraging the
adaptation of goods and services to the environment.The main problem as far as monitors and other
electronic equipment are concerned is that environmentally harmful substances are used both in the products
and during their manufacture. Since it has not been possible so far for the majority of electronic equipment to
be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.
There are also other characteristics of a monitor, such as energy consumption levels, that are important from
both the working and natural environment viewpoints. Since all types of conventional electricity generation
have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.)
it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since
it is often routinely left running continuously.
What does labelling involve?
This product meets the requirements for the TCO'95 scheme, which provides for international environmental
labelling of monitors. The labelling scheme was developed as a joint effort by the TCO (The Swedish
Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature
Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and
magnetic fields, energy consumption and electrical and fire safety.
The environmental demands concern among other things restrictions on the presence and use of heavy
metals, brominated and chlorinated flame retardants, CFCs (freons), and chlorinated solvents. The product
must be prepared for recycling and the manufacturer is obliged to have an environmental plan, which must
be adhered to in each country where the company conducts its operations policy. The energy requirements
include a demand that the monitor after a certain period of inactivity shall reduce its power consumption to a
lower level, in one or more stages. The length of time to reactivate the monitor shall be reasonable for the
user. Labelled products must meet strict environmental demands, for example in respect of the reduction of
electric and magnetic fields, along with physical and visual ergonomics and good usability.
Regulatory
User’s Manual
Information
What does labelling involve?(continue)
TCO Development Unit 1996-11-29
On the page this folder you will find a brief summary of the environmental requirements met by this product.
The complere environmental criteria document may be ordered from:
TCO Development Unit
S-11494 Stockholm
Sweden
Fax: +46 8 782 92 07
E-mail (Internet): development@tco.se
Current information regarding TCO'95-approved and labelled products may also be obtained via the Internet,
using the address:
http://www.tco-info.com/
TCO'95 is a co-operative project between(3 logos)
Environmental Requirements
Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In
turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame
retardant substances. These are related to another group of environmental toxins, PCBs, which are
suspected to give rise to similar harm, including reproductive damage in fish eating birds and mammals, due
to the bioaccumulative processes. Flame retardants have been found in human blood and researchers fear
that disturbances in foetus development may occur. TCO'95 demand requires that plastic components
weighing more than 25 grams must not contain organically bound chlorine and bromine.
Lead
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning. TCO'95 requirement Permits the inclusion of lead since
no replacement has yet been developed.
Cadmium
Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer
displays. Cadmium damages the nervous system and is toxic in high doses. TCO'95 requirement states that
batteries may not contain more than 25 ppm (parts per million) of cadmium. The colour-generating layers of
display screens must not contain any cadmium.
Mercury
Mercury is sometimes found in batteries, relays and switches. Mercury damages the nervous system and is
toxic in high doses. TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per
million) of mercury. It also demands that no mercury is present in any of the electrical or electronics
components concerned with the display unit.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded
foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere,
causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer
(malignant melanoma).
.The relevant TCO'95 requirement: Neither CFCs nor HCFCs may be used during the
manufacturing of the product or its packaging.
Regulatory
User’s Manual
Information
•TCO'99-Ecological requirements for personal computers (TCO applied model only)
Congratulations!
You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a
product developed for professional use. Your purchase has also contributed to reducing the burden on the
environment and also to the further development of environmentally adapted electronics products.
This product meets the requirements for the TCO'99 scheme which provides for an international
environmental and quality labelling labelling of personal computers. The labelling scheme was developed as
a joint effort by the TCO(The Swedish Confederation of Professional Employees),
Svenska Naturskyddsforeningen(The Swedish Society for Nature Conservation),
Statens Energimyndighet(The Swedish National Energy Administration) and SEMKO AB.
The requirements cover a wide range of issuse: environment, ergonomics, usability, reduction of electric and
magnetic fields, energy consumption and electrical safety.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging the
adaptation of goods and services to the environment. The main problem, as far as computers and other
electronics equipment are concerned, is that environmentally harmful substances are used both in the
products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of
electronics equipment, most of these potentially damaging substances sooner or later enter nature.
There are also other characteristics of a computer, such as energy consumption levels, that are important
from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of
electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing
emissions, radioactive waste), it is vital to save energy.
Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.
What does labelling involve?
The environmental demands has been developed by Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use
of heavy metals, brominated and chlorinated flame retardants, CFCs(freons)and chlorinated solvents,
among other things. The product must be prepared for recycling and the manufacturer is obliged to have an
environmental policy which must be adhered to in each country where the company implements its
operational policy.
The energy requirements include a demand that the computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a lower level in one or more stages.
The length of time to reactivate the computer shall be reasonable for the user.
Below you will find a brief summary of the environmental requirements met by this product.
The complete environmental criteria document may be ordered from:
Regulatory
User’s Manual
Information
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): development@tco.se
Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet,
using the address: http://www.tco-info.com/
Environmental requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is
to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of
flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants
are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing
bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive
damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have
been found in human blood and researchers fear that disturbances in foetus development may occur.
The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not
contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the
printed circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer
displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement
states that batteries, the colour-generating layers of display screens and the electrical or electronics
components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in
high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also
demands that mercury is not present in any of the electrical or electronics components associated with the
labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light
system of flat panel monitors as today there is no commercially available alternative. TCO aims on removing
this exception when a Mercury free alternative is available.
CFCs (freons)
The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture
and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs
break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on
earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion
of lead since no replacement has yet been developed.
Regulatory
Congratulations!
The display you have just purchased carries the TCO’03
Displays label. This means that your display is designed,
manufactured and tested according to some of the strictest
quality and environmental requirements in the world. This
makes for a high performance product, designed with the
user in focus that also minimizes the impact on our natural
environment.
Some of the features of the TCO’03 Display requirements:
Ergonomics
• Good visual ergonomics and image quality in order to improve the working environment
for the user and to reduce sight and strain problems. Important parameters are luminance,
contrast, resolution, reflectance, colour rendition and image stability.
Energy
• Energy-saving mode after a certain time – beneficial both for the user and the
environment
• Electrical safety
Emissions
• Electromagnetic fields
• Noise emissions
Ecology
• The product must be prepared for recycling and the manufacturer must have a certified
environmental management system such as EMAS or ISO 14 000
• Restrictions on
o chlorinated and brominated flame retardants and polymers
o heavy metals such as cadmium, mercury and lead.
The requirements included in this label have been developed by TCO Development in co-
operation with scientists, experts, users as well as manufacturers all over the world. Since the
end of the 1980s TCO has been involved in influencing the development of IT equipment in a
more user-friendly direction. Our labelling system started with displays in 1992 and is now
requested by users and IT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
Regulatory
User’s Manual
Information
User’s Manual
Information
•Medical Requirement
Classifications:
In accordance with UL 2601-1/IEC 60601-1, the product is cssified as Continuous duty Class I
equipment, which is not protected against ingress of liquids. The product is not suitable for use in
the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.
EMC
This equipment has been tested and found to comply with the limits for medical devices to the IEC
601-1-2:1994. These limits are designed to provide reasonable protection against harmful
interference in a typical medical installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to other devices in the vicinity. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to other
devices, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving device.
-Increase the separation between the equipment.
-Connect the equipment into an outlet on a circuit different from that to which the other device(s) are
connected.
-Consult the manufacturer or field service technician for help.
Video In / RS 232 / Video Out
Accessories equipment connected to the analog and digital interfaces must be certified to the
respective IEC standards (i.e. IEC 950 for data processing equipment and IEC 601-1 for medical
equipment.) Furthermore all configurations shall comply with the system standard IEC 601-1-1.
Everybody who connects additional equipment to the signal input part or signal output part
configures a medical system, and is therefore, responsible that the system complies with the
requirements of the system standard IEC 601-1-1. If in doubt, consult the technical services
department or your local representative.
Transport and Storage Limitations:
Temperature Range of -40°C to +70°C
Relative Humidity of 10 -95%, non-condensing
* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
Regulatory
User’s Manual
Information
•Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a printer or other
images scanned by a scanner or a digital camera are not the same as those shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system developed by
Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the monitor the
same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the
program installation will be executed. Click Natural Color on the initial screen to install the Natural Color
software. To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM
Drive, click the [Start] button of Windows and then select [Execute].
Enter D:\color\eng\setup.exe and then press the key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
How to delete the Natural Color software program
Select [Setting]/[Control Panel] on the [Start] menu and then double-click [Add/Delete a program].
Select Natural Color from the list and then click the [Add/Delete] button.
Natural Color
User’s Manual
Information
For Better Display
1. Adjust computer resolution and screen injection rate (refresh rate) in control panel of
computer as described below to enjoy the best quality of picture. You can have an uneven
quality of picture in the screen if the best quality of picture is not provided in TFT-LCD.
{ Resolution: 1920 x 1200
{Vertical frequency (refresh rate): 60 Hz
2. TFT LCD panel manufactured by using advanced semiconductor technology with
precision of 99.999% above is used for this product. But the pixels of RED, GREEN, BLUE
and WHITE color seem to be bright sometimes or some of black pixels could be seen.
This is not from bad quality and you can use it without uneasiness.
{ For example, the number of TFT LCD pixels that is contained in this product are
6,912,000.
3. When you clean the monitor and the panel outside, please apply the recommended small
amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced
but to be scrubbed out softly. If excessive force is applied, you can have a stain on it.
4. If you are not satisfied with the quality of picture, you can get better quality of picture by
executing "auto adjustment function" in display screen that is appeared as window
termination button is pressed. If there's still noise after automatic adjustment, use
FINE/COARSE adjustment function.
5. If you view a fixed screen for an extended period of time, residual image or blurriness may
appear.
Change the mode to energy save or set a screensaver to moving picture when you need
to be away from the monitor for an extended period of time.
User’s Manual
Information
Information in this document is subject to change without notice.
® 2003 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of
Samsung Electronics Co., Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are registered
trademarks of Video Electronics Standard Association; the ENERGY STAR name and logo are registered
trademarks of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR Partner,
Samsung Electronics Co., Ltd. has determined that this product meets the ENERGY STAR guidelines for
energy efficiency. All other product names mentioned herein may be the trademarks or registered trademarks
of their respective owners.
Authority
