Instruction Manual
Bedienungsanleitung
Mode d’emploi
Istruzioni per l’uso
Gebruiksaanwijzing

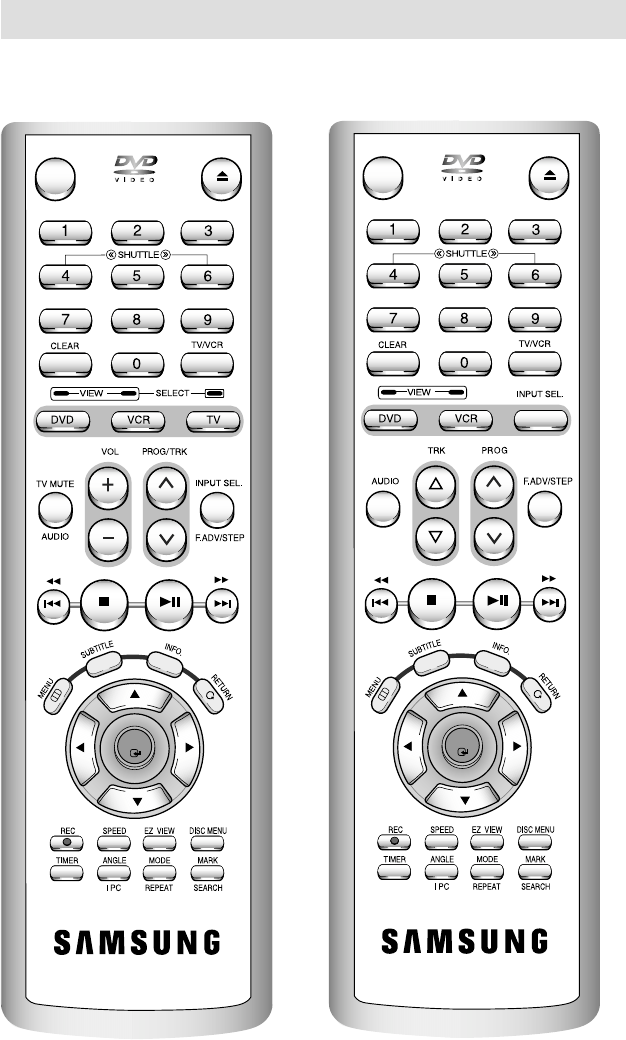

Remote Control Overview
OPEN/CLOSE
STANDBY/ON
OK
OPEN/CLOSE
STANDBY/ON
OK
(SV-DVD440)(SV-DVD540/SV-DVD545)
Contents
Foreword
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . .
3
Disc Type and Characteristics . . . . . . . . . . . . . .
4
DVD-VCR Overviews
Front View of the DVD-VCR . . . . . . . . . . . . . . .
5
Rear View of the DVD-VCR . . . . . . . . . . . . . . . .
6
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Display Indicators . . . . . . . . . . . . . . . . . . . . . . .
7
Connecting Your DVD-VCR
Inserting Batteries in the Remote Control . . . . . .
7
Connecting DVD-VCR to the
TV using the Coaxial Cable . . . . . . . . . . . . . . . .
7
Connecting DVD-VCR to the
TV using the SCART Cable . . . . . . . . . . . . . . . .
8
Connecting DVD-VCR to
a Satellite Receiver or Other Equipment . . . . . .
8
Plug & Auto Set up . . . . . . . . . . . . . . . . . . . . . .
9

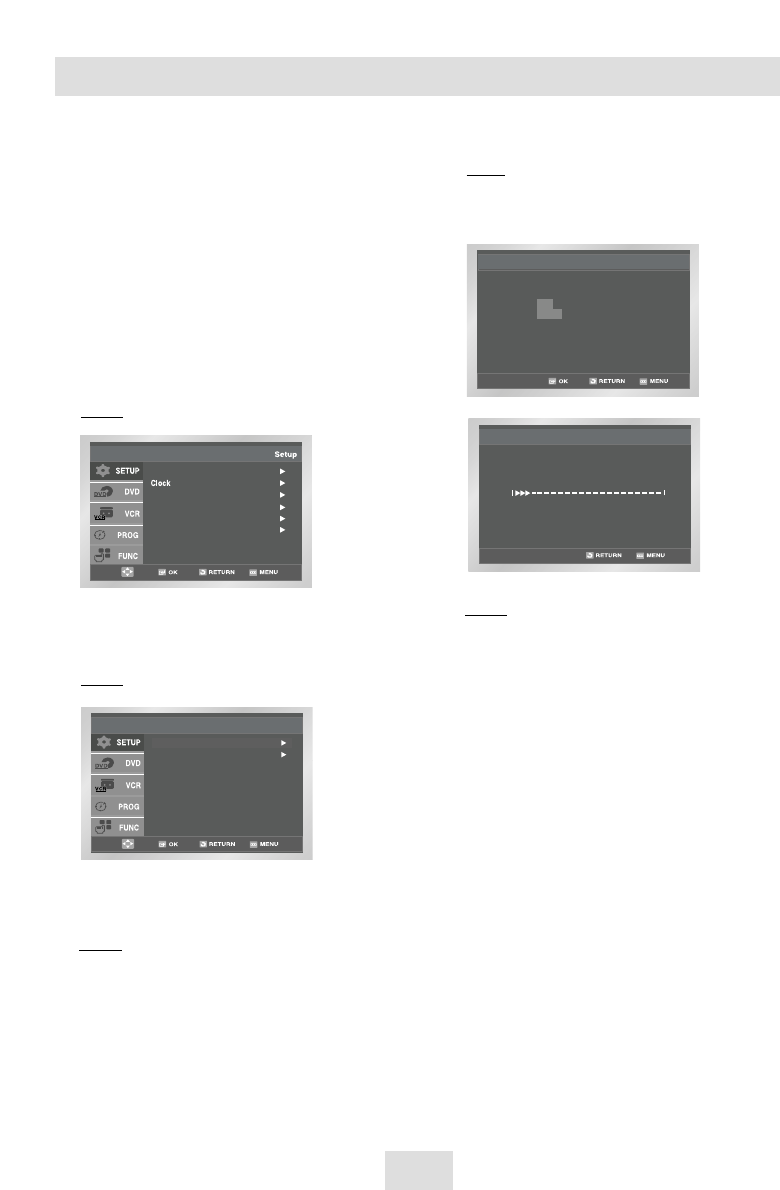

Setting the Date and Time . . . . . . . . . . . . . . . . .
10
Setting the Menu Language . . . . . . . . . . . . . . . .
10
Setting Up Your DVD-VCR
Presetting the Stations Automatically . . . . . . . . .
11
Presetting the Stations Manually . . . . . . . . . . . .
12
Clearing a Preset Station . . . . . . . . . . . . . . . . . .
13
Changing the Preset Station Table . . . . . . . . . . .
13
Selecting the Colour Mode . . . . . . . . . . . . . . . .
14
NICAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
Intelligent Picture Control . . . . . . . . . . . . . . . . . .
15
ShowView Extend
★
(SV-DVD540/SV-DVD545 Only) . . . . . . . . . . .
16
Auto Power off . . . . . . . . . . . . . . . . . . . . . . . . .
16
Screen Messages . . . . . . . . . . . . . . . . . . . . . . .
16
Selecting the Cassette Type . . . . . . . . . . . . . . .
17
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
Recording Television Broadcasts
Selecting the Recording Speed . . . . . . . . . . . . .
17
Protecting a Recorded Cassette . . . . . . . . . . . .
17
Recording a Programme Immediately . . . . . . . .
18
Recording a Programme with Automatic Stop . .
18
Using the ShowView Feature
★
(SV-DVD540/SV-DVD545 Only) . . . . . . . . . . .
19
Modifying ShowView Programming
★
(SV-DVD540/SV-DVD545 Only) . . . . . . . . . . .
20
Using the Timer Programming Feature . . . . . . .
21
Checking a Preset Recording . . . . . . . . . . . . . .
21
Cancelling a Preset Recording . . . . . . . . . . . . .
22
Playing Back
Playing a Cassette . . . . . . . . . . . . . . . . . . . . . .
22
Adjusting Picture Alignment Manually . . . . . . . .
22
Selecting the Audio Output Mode . . . . . . . . . . . .
22
Playing a Cassette in Slow Motion . . . . . . . . . . .
23
Playing a Sequence Frame by Frame . . . . . . . .
23
Playing a Sequence at Variable Speeds . . . . . .
23

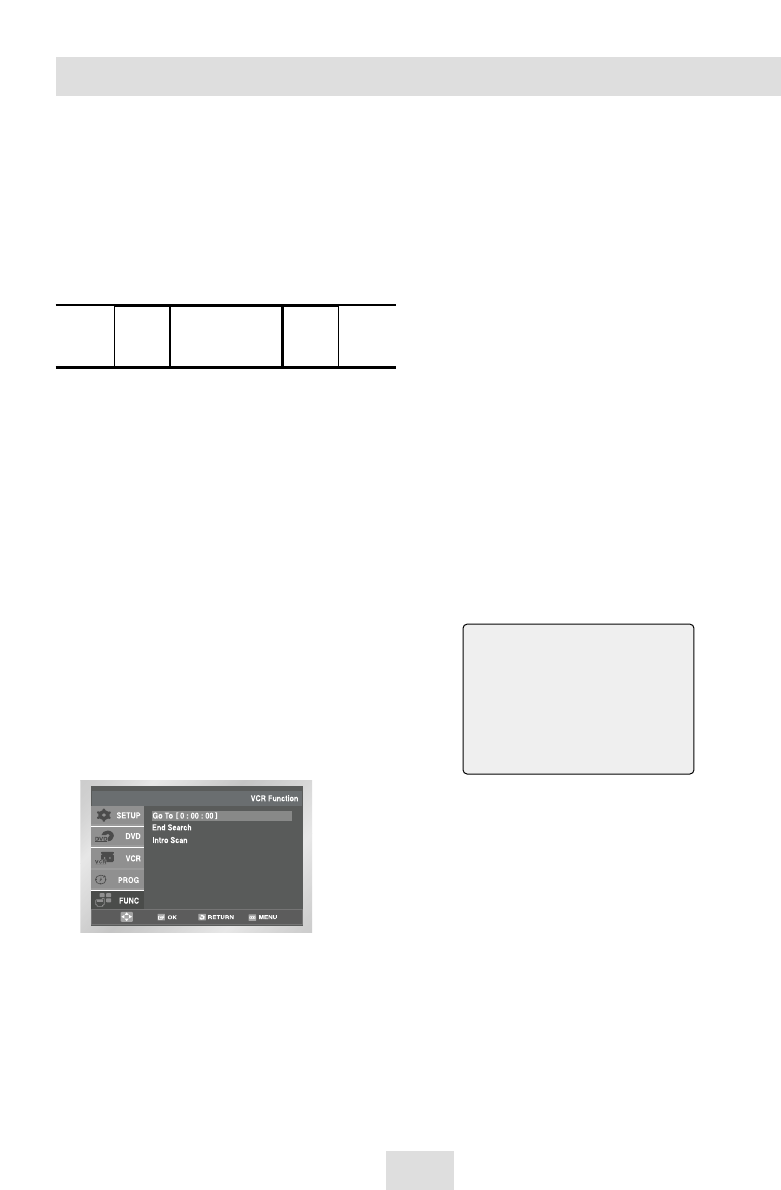

Searching for a Specific Sequence . . . . . . . . . .
24
Using the Tape Counter . . . . . . . . . . . . . . . . . . .
25
Connecting an RCA Audio/Video Input Cable
★
(SV-DVD440/SV-DVD540 Only) . . . . . . . . . . .
26
Using the Assemble Edit Function . . . . . . . . . . .
26
Recording from Another VCR or Camcorder . . .
27
Using the TV Buttons on the Remote Control
★
(SV-DVD540 /SV-DVD545 Only) . . . . . . . . . . .
27
DVD Functions
Choosing a Connection . . . . . . . . . . . . . . . . . . .
28
Setting Up the Language Features . . . . . . . . . .
28

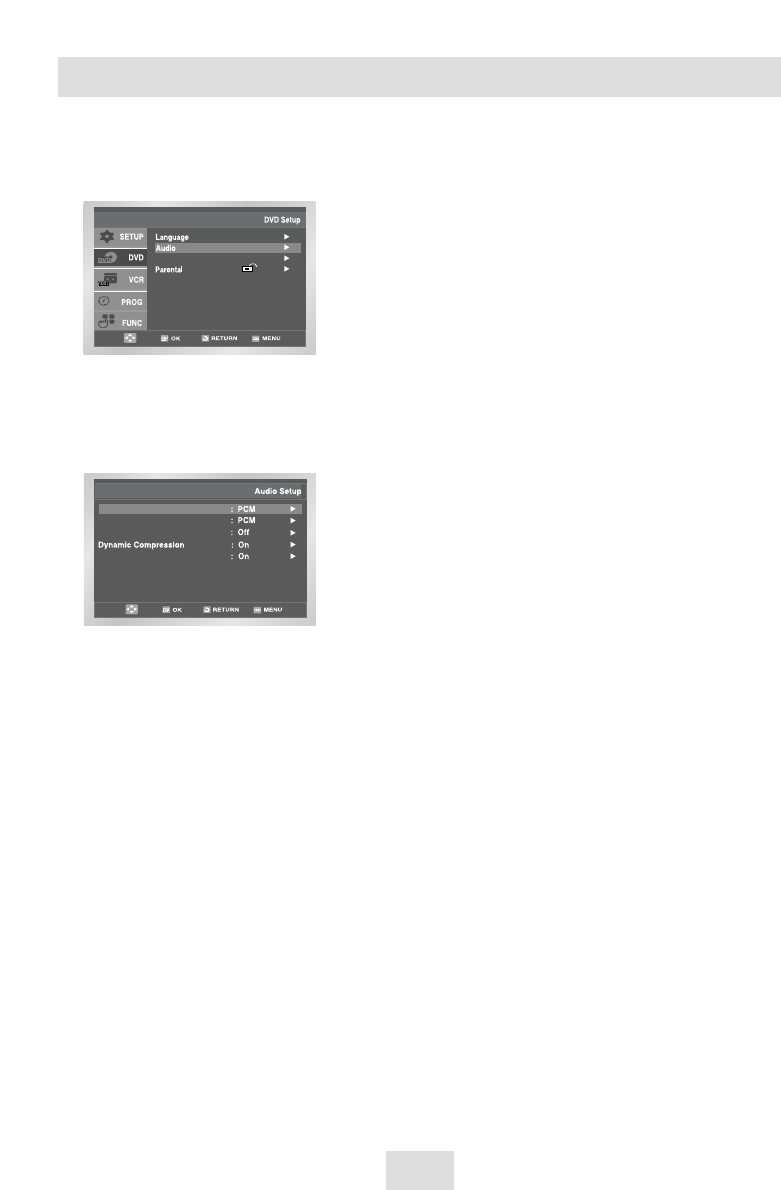

Setting Up the Audio Options . . . . . . . . . . . . . . .
30
Setting Up the Display Options . . . . . . . . . . . . .
31

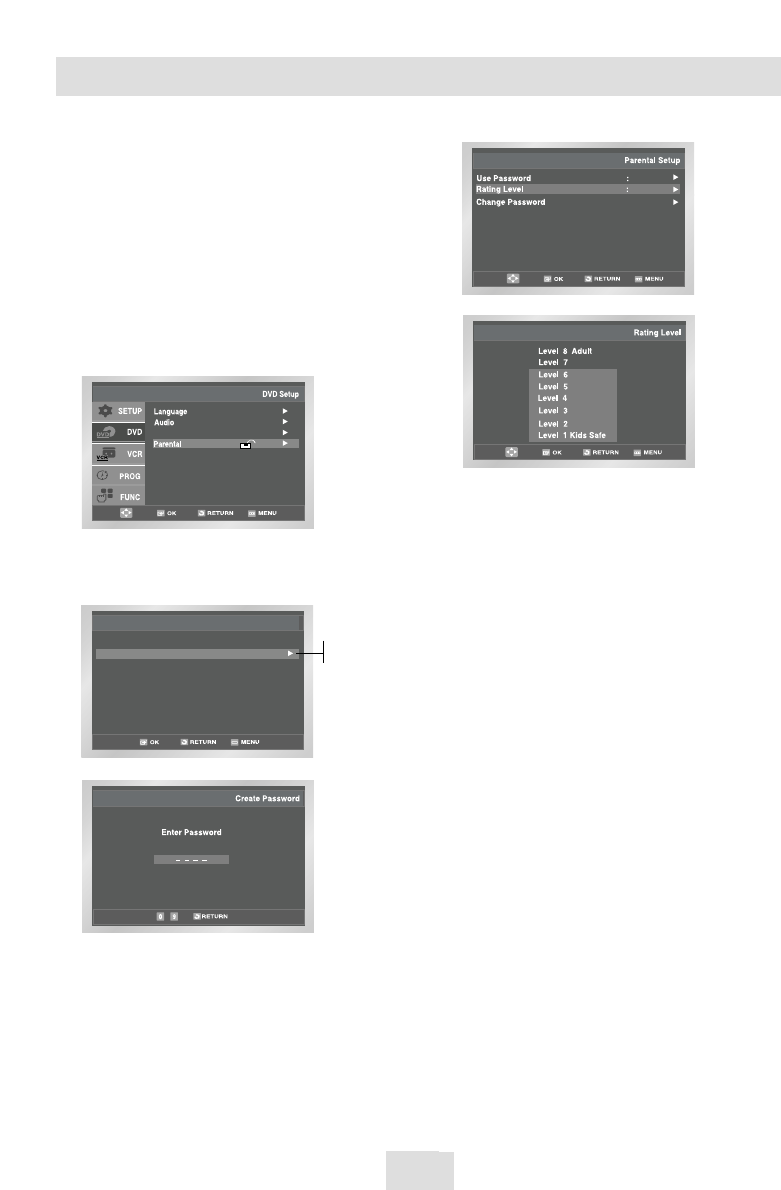

Setting Up the Parental Control . . . . . . . . . . . . .
32
A/V Receiver Connections . . . . . . . . . . . . . . . . .
33
Special Playback Features . . . . . . . . . . . . . . . .
33

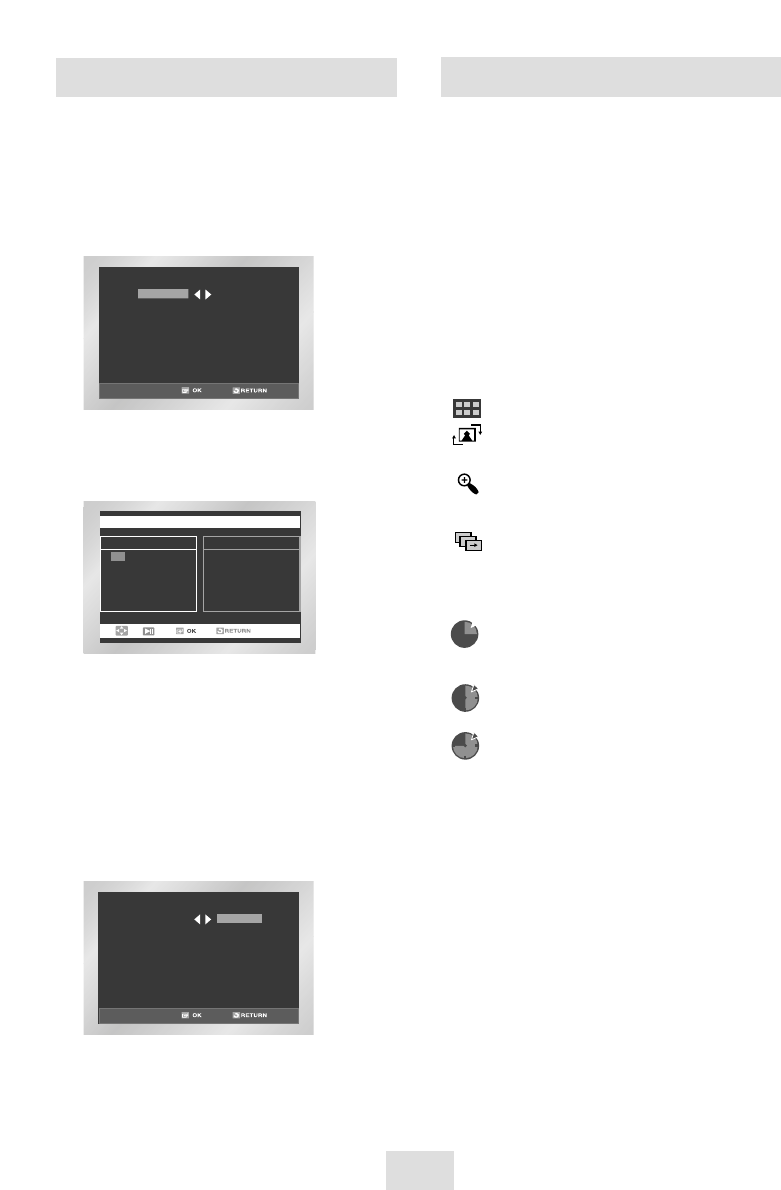

Adjusting the Aspect Ratio (EZ View) . . . . . . . . .
34
Using the Display Function . . . . . . . . . . . . . . . .
35

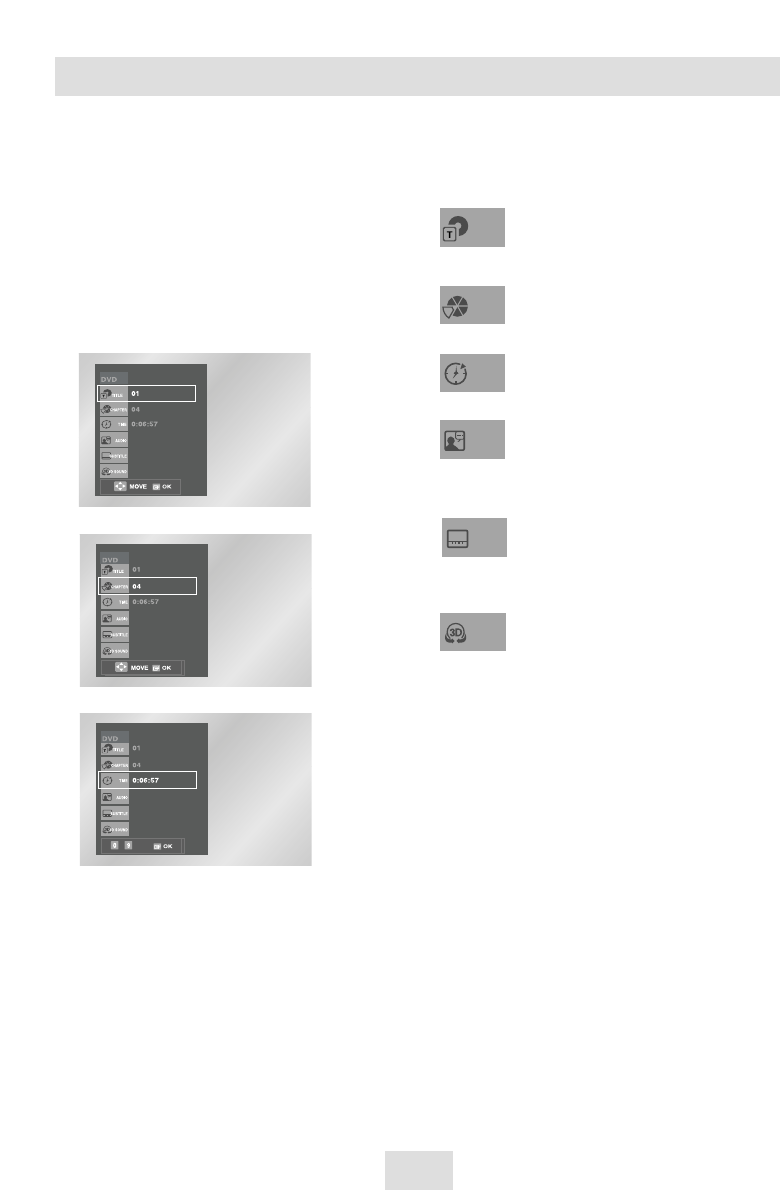

Changing the Camera Angle . . . . . . . . . . . . . . .
36
Selecting the Subtitle Language . . . . . . . . . . . .
36
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . .
37
Selecting the Audio Language . . . . . . . . . . . . . .
37
Using the Mark Function . . . . . . . . . . . . . . . . . .
38
MP3/WMA Play . . . . . . . . . . . . . . . . . . . . . . . . .
38
Program Play & Random Play . . . . . . . . . . . . . .
40
Picture CD Playback . . . . . . . . . . . . . . . . . . . . .
40
Solving Problems
Technical Specifications . . . . . . . . . . . . . . . . . . .
42
Problems and Solutions (VCR) . . . . . . . . . . . . .
43
Troubleshooting Guide (DVD) . . . . . . . . . . . . . .
44
ENG-2
ENG-3

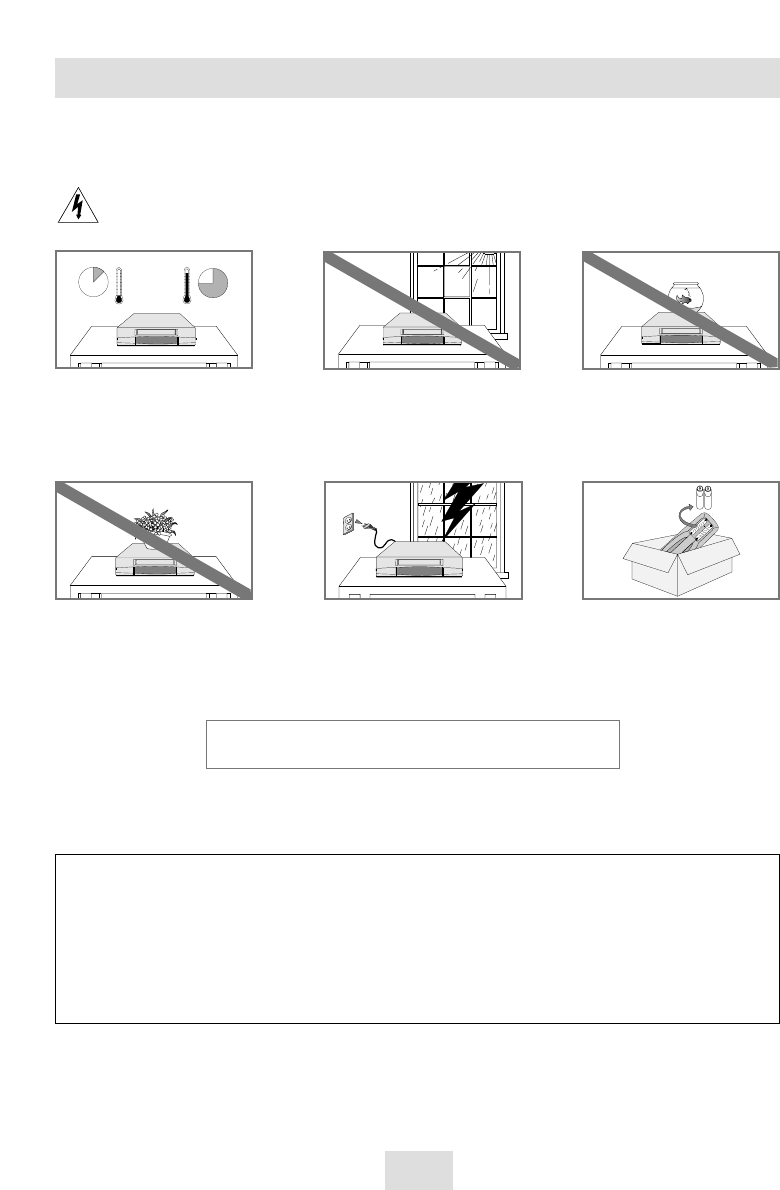

Safety Instructions
The following illustrations represent precautions.
The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.
DO NOT OPEN THE DVD-VCR. Refer to service personnel.
HH
5°C
40°C
10% 75%
Do NOT expose the DVD-VCR to
extreme temperature conditions
(below 5°C and above 40°C) or to
extreme humidity conditions (less
than 10% and more than 75%).
Do NOT expose the DVD-VCR to
direct sunlight. Do NOT expose the DVD-VCR to
any liquids.
Do NOT place any objects on the
DVD-VCR or remote control. During a storm and/or lightning,
unplug the DVD-VCR from the
mains socket and aerial.
If the remote control is not used for
a long period of time, remove the
batteries and store it in a cool, dry
place.
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS
This product incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners.
Use of this copyright protection technology must by authorized by Macrovision Corporized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
ENG-4

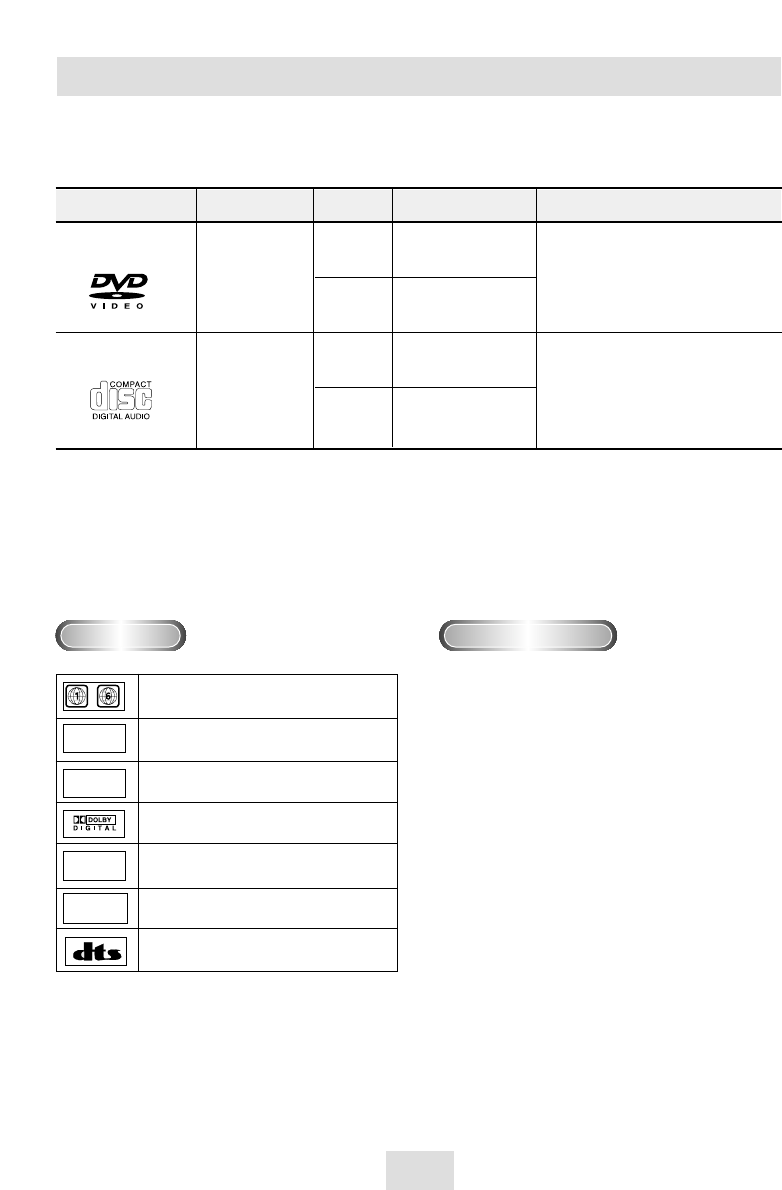

Disc Type and Characteristics
Disc Markings Play Region Number
~
DIGITAL
SOUND
STEREO
NTSC
• Play Region Number
• NTSC broadcast system in U.S.A, Canada,
Korea, Japan, etc.
PAL • PAL colour system in Australia, Newzealand, etc.
• Dolby Digital disc
• Stereo disc
• Digital Audio disc
• DTS disc
Both the DVD player and the discs are coded by
region. These regional codes must match in order for
the disc to play. If the codes do not match, the disc
will not play.
The Region Number for this player is described
on the rear panel of the player.
Disc Types (Logos)
Recording Types
Disc Size Max. Playing Time Characteristics
12 Cm
8 Cm
Single-sided 240 min.
Double-sided 480 min.
Single-sided 80 min.
Double-sided 160 min.
Audio
+
Video
AUDIO-CD
DVD •
DVD contains excellent sound and video
due to Dolby Digital and MPEG-2 system.
•
Various screen and audio functions can
be easily selected through the on-screen
menu.
74 min.
20 min.
12 Cm
8 Cm
Audio
•
An LP is recorded as an analog signal
with more distortion. CD is recorded as a
Digital Signal with better audio quality,
less distortion and less deterioration of
audio quality over time.
* DO NOT play CD-ROM, CD-I and DVD-ROM in this player!
(CDGs play audio only, not graphics.)
* It may not be to play CD-R,CD-RW and DVD-R in all cases due to the type of disc or condition of the recording.
This DVD player is capable of playing the following types of discs with the corresponding logos :
ENG-5

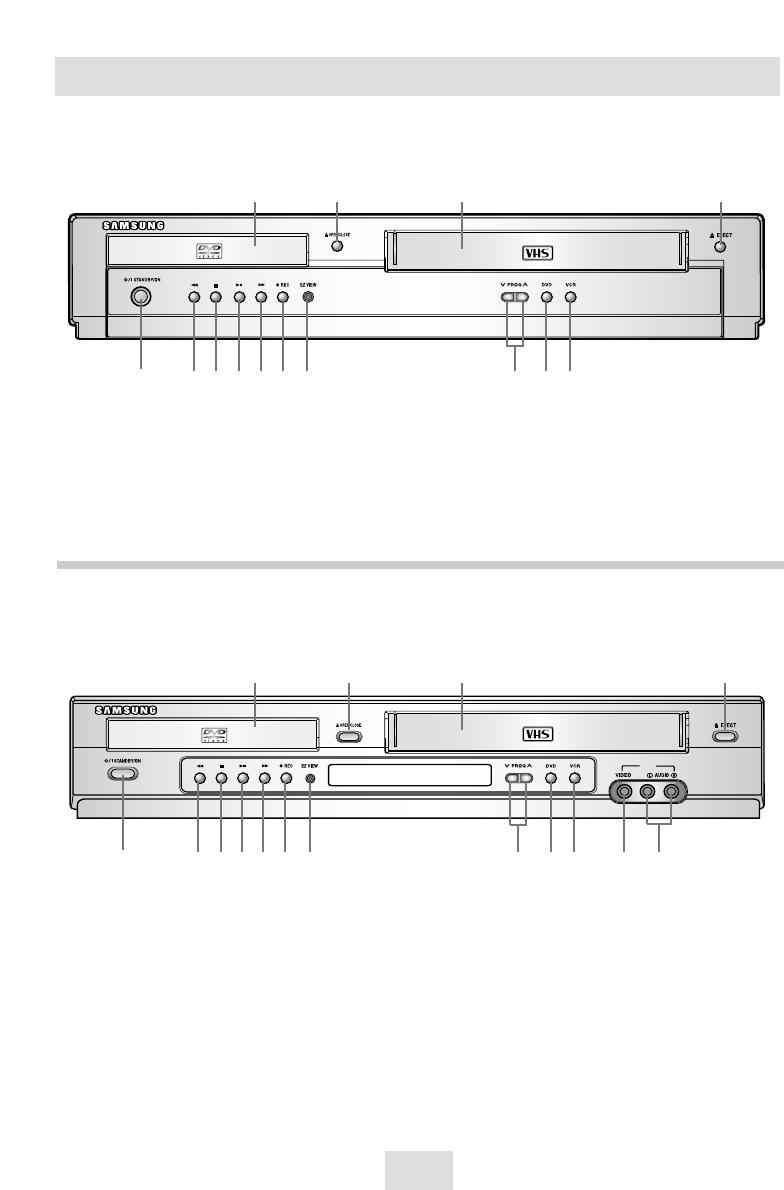

Front View of the DVD-VCR
1 2 3 4
5 6 7 8 9 10 11 12 13 14
1DVD DECK
2OPEN/CLOSE BUTTON
3VIDEO CASSETE COMPARTMENT
4EJECT BUTTON
5STANDBY/ON BUTTON
6REW/SKIP BACK BUTTON
7STOP BUTTON
8PLAY/STILL BUTTON
9F.F / SKIP NEXT BUTTON
10 RECORD BUTTON
11 EZ VIEW BUTTON
12 PROGRAME SELECTION BUTTON
13 DVD SELECT BUTTON
14 VCR SELECT BUTTON
15 AUX VIDEO INPUT JACK
16 AUX AUDIO L, R INPUT JACK
1DVD DECK
2OPEN/CLOSE BUTTON
3VIDEO CASSETE COMPARTMENT
4EJECT BUTTON
5STANDBY/ON BUTTON
6REW/SKIP BACK BUTTON
7STOP BUTTON
8PLAY/STILL BUTTON
9F.F / SKIP NEXT BUTTON
10 RECORD BUTTON
11 EZ VIEW BUTTON
12 PROGRAME SELECTION BUTTON
13 DVD SELECT BUTTON
14 VCR SELECT BUTTON
AUX
1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16
(SV-DVD545)
(SV-DVD440/SV-DVD540)
ENG-6

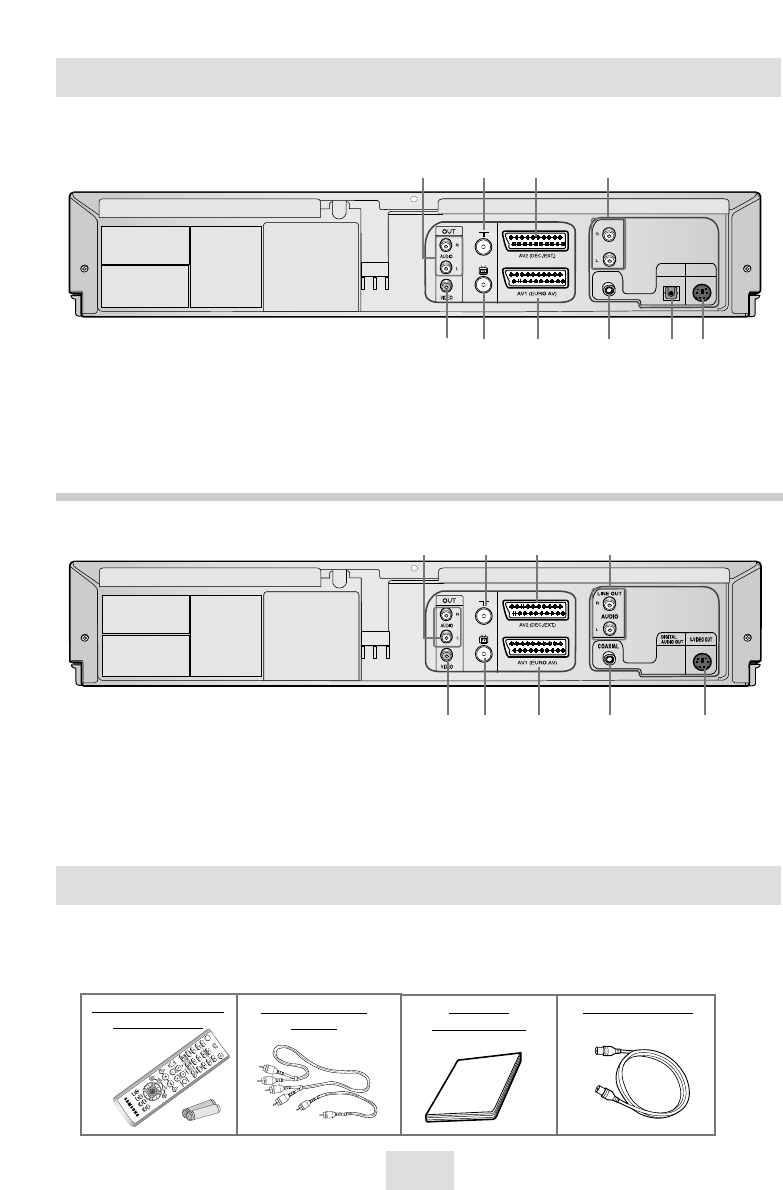

Rear View of the DVD-VCR
You have just purchased a SAMSUNG Video Cassette Recorder (DVD-VCR).
Together with your DVD-VCR, you will find the following accessories in the box.
Accessories
OPEN/CLOSE
STANDBY/ON
REMOTE CONTROL
& BATTERIES AUDIO & VIDEO
CABLE
OWNER’S
INSTRUCTIONS
COAXIAL CABLE
(SV-DVD540/SV-DVD545)
1AUDIO L, R OUT SOCKETS
2AERIAL IN CONNECTOR
3AV2 (DEC./EXT.) SCART
(EURO-21) SOCKET
4AUDIO L, R OUT SOCKETS
(DVD ONLY)
5VIDEO OUT SOCKET
6OUT TO TV CONNECTOR
7AV1 (EURO AV) IN/OUT SCART
(EURO-21) SOCKET
8DIGITAL AUDIO OUT SOCKET
(COAXIAL)
9DIGITAL AUDIO OUT SOCKET
(OPTICAL)★(SV-DVD540/SV-DVD545)
10 S-VIDEO OUT JACK
AUDIO
LINE OUT
COAXIAL
DIGITAL
AUDIO OUT
OPTICAL
S-VIDEO OUT
5 6 7 8 9 10
1 2 3 4
(SV-DVD440)
1AUDIO OUT SOCKETS
2AERIAL IN CONNECTOR
3AV2 (DEC./EXT.) SCART
(EURO-21) SOCKET
4AUDIO L, R OUT SOCKETS
(DVD ONLY)
5VIDEO OUT SOCKET
6OUT TO TV CONNECTOR
7AV1 (EURO AV) IN/OUT SCART
(EURO-21) SOCKET
8DIGITAL AUDIO OUT SOCKET
(COAXIAL)
9S-VIDEO OUT JACK
5 6 7 8 9
1 2 3 4
ENG-7

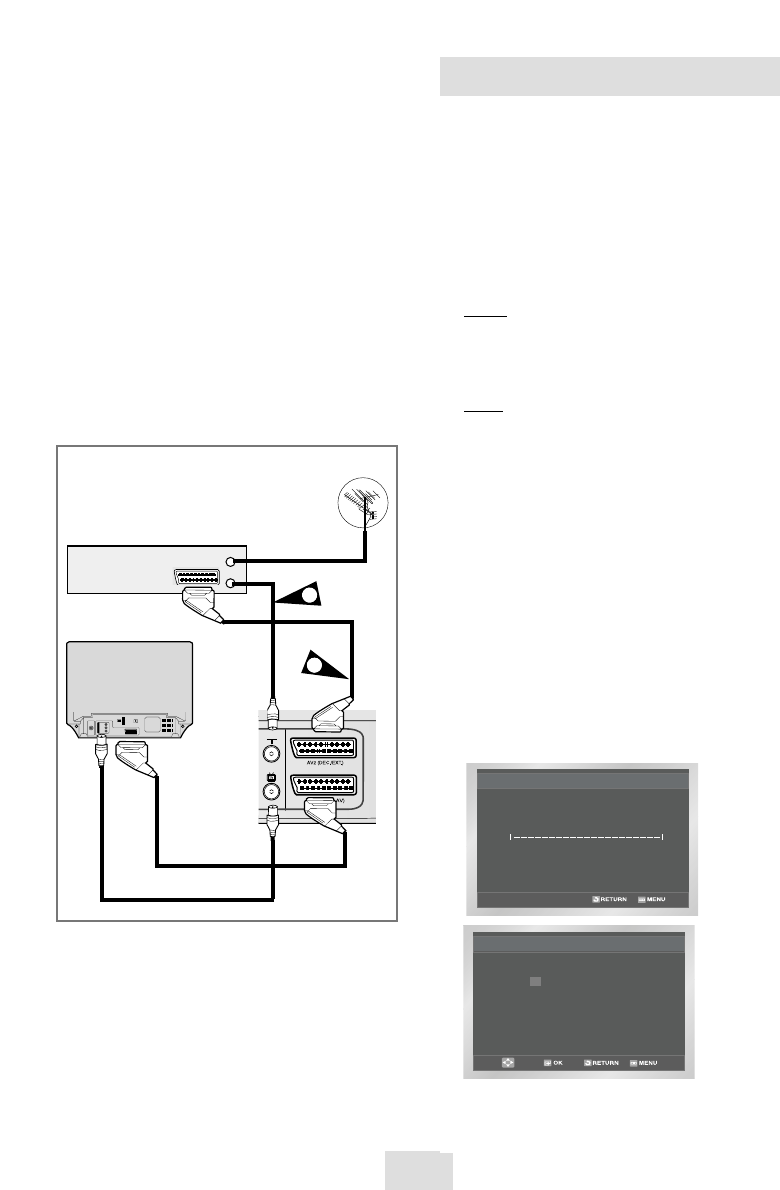

Connecting DVD-VCR to the TV
using the Coaxial Cable
To receive television programmes a signal must be
received from one of the following sources:
◆
An outdoor aerial
◆
An indoor aerial
◆
A cable television network
◆
A satellite receiver
☛
Make sure that both the television and the DVD-
VCR are switched off before connecting the
cables.

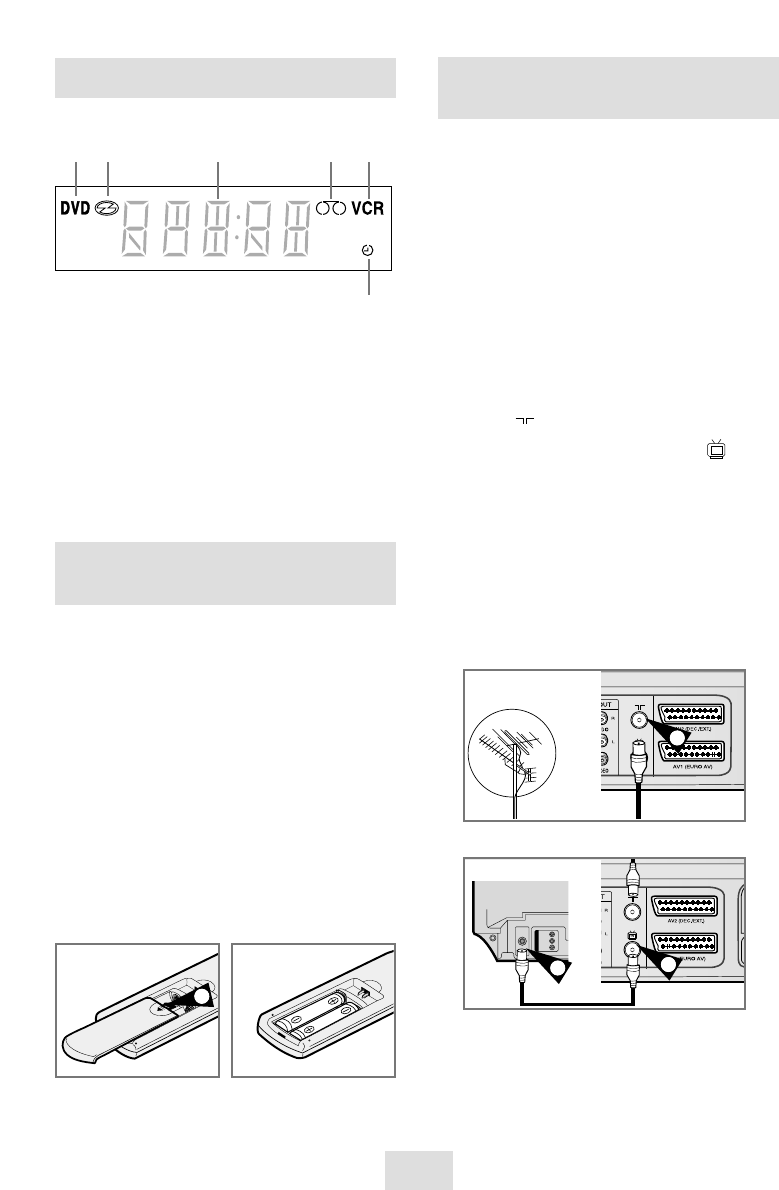

1Remove the aerial or network input cable from the
television.
2Connect this cable to the 75Ωcoaxial socket
marked on the rear of your DVD-VCR.
3Plug the coaxial cable supplied into the socket
on your DVD-VCR.
4Plug the other end of the coaxial cable into the
connector previously used for the aerial on the
television.
5To obtain better quality pictures and sound on your
television, you can also connect your DVD-VCR to
the television via the SCART cable (see next page)
if your television is equipped with this type of
connection.
Inserting Batteries in the Remote
Control
You must insert or replace the batteries in the remote
control when you:
◆
Purchase the DVD-VCR
◆
Find that the remote control is no longer
working correctly
1Push the tab in the direction of the arrow to release
the battery compartment cover on the rear of the
remote control.
2Insert two AAA, RO3 or equivalent batteries, taking
care to respect the polarities:
◆
+ on the battery with + on the remote control
◆
– on the battery with – on the remote control
3Replace the cover by aligning it with the base of
the remote control and pushing it back into place.
➢
Do not mix different battery types (manganese
and alkaline for example).
1
Display Indicators
6
1The DVD Deck is active
2A DVD, CD or SVCD is loaded
3The time, counter position, time remaining or
current deck status is displayed
4VHS tape is inserted
5The VCR Deck is active
6A Timer Recording is programmed or in progress.
1 2 3 4 5
TV
2
43
TV
ENG-8
Connecting DVD-VCR to the TV
using the SCART Cable
Connecting DVD-VCR to a Satellite
Receiver or Other Equipment
You can connect your DVD-VCR to the television using
the SCART cable if the appropriate input is available on
the television. You thus:
◆
Obtain better quality sound and pictures
◆
Simplify the setting up procedure of your
DVD-VCR
☛
Regardless of the type of connection chosen, you
must always connect the coaxial cable supplied.
Otherwise, no picture will be visible on the
screen when the DVD-VCR is switched off.
☛
Make sure that both the television and the DVD-
VCR are switched off before connecting the
cables.
1Connect the coaxial cable as indicated on page 7.

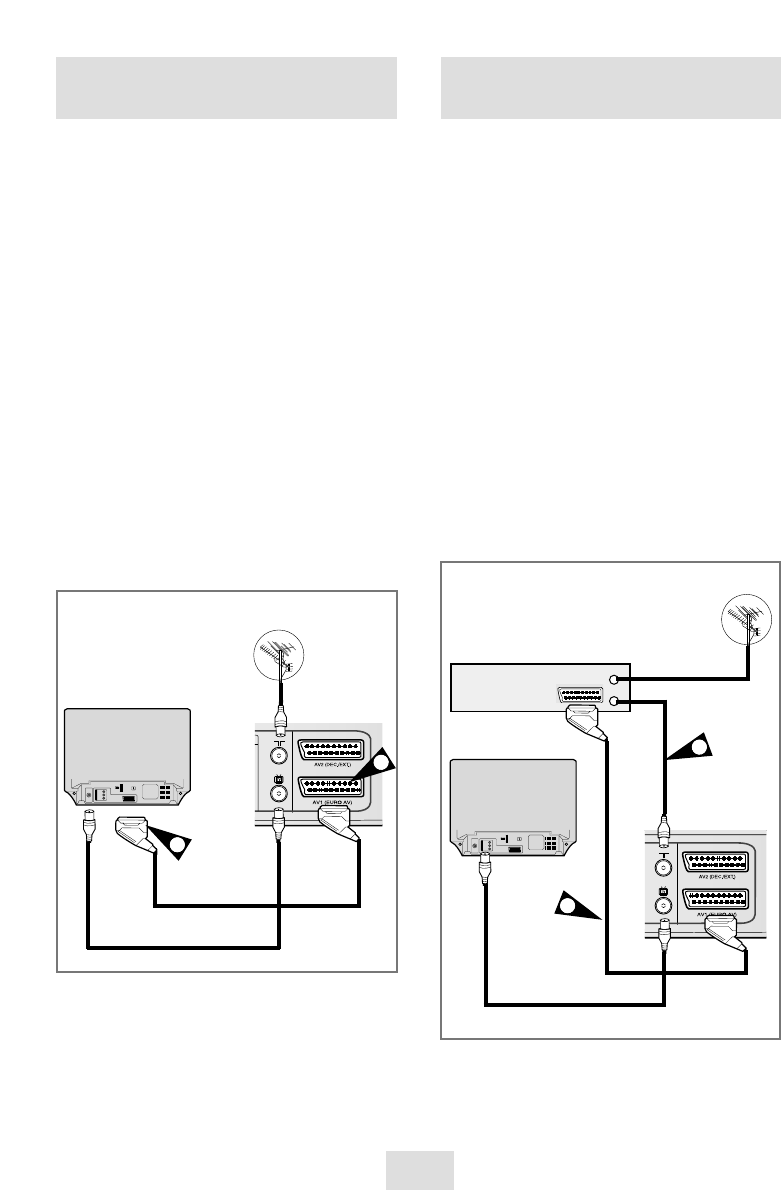

2Connect one end of the SCART cable to the AV1
(EURO AV) socket on the rear of the DVD-VCR.
3Plug the other end into the appropriate connector
on the television.
You can connect your DVD-VCR to a Satellite receiver
or other DVD-VCR using the SCART cable if the
appropriate outputs are available on the equipment
chosen. The following illustrations give a few examples
of the connection possibilities.
1AV1(EURO AV): By means of 21-pin Scart Cable
Plug the SCART Cable with satellite receiver or
other equipment into the AV1 (EURO AV) socket on
the rear of the DVD-VCR.
After making this connection, select the source by
pressing the INPUT SEL. button for the AV1 input
sources.
2By means of RF Coaxial Cable
After making this connection, you must preset the
station received through the satellite tuner.
RF output channel of the satellite receiver should
be adjusted away from channel 36, which is used
by the DVD-VCR, e.g. re-adjust to channel 39.
SCART Cable
TV
RF coaxial cable
3
Aerial
2
SCART Cable
RF coaxial cable
Aerial
1
2
Satellite Receiver or other Equipment
Aerial Connector
TV
ENG-9
Plug & Auto Set up
Your DVD-VCR will automatically set itself up when it
is plugged into the mains for the first time. TV stations
will be stored in memory. The process takes a few
minutes. Your DVD-VCR will then be ready for use.
1Connect the coaxial cable as indicated on page 7.
(Connecting Your DVD-VCR to the TV Using the
Coaxial Cable)
2Plug the DVD-VCR into the mains.
Result : The Language Set menu is displayed.
3Select the required language by pressing the
or
❷
buttons.
4Press OK to store the language selected.
Result: A message appears.
5Press OK button.
6Press the
or
❷
buttons to select your country.
◆
The VCR searches for the stations according to
a preset preference list corresponding to the
country that you have selected.
6Press OK to start the auto scanning.
◆
The number of stations automatically stored by
the VCR depends on the number of stations
that it has found.
7The current time and date are displayed
automatically.
Check the date and time.
if it is :
◆
Correct, Press RETURN button twice to exit the
menu.
◆
incorrect, see page 10.
1AV2 IN: By means of 21-pin Scart Cable
Plug the SCART Cable with satellite receiver or
other equipment into the AV2 (DEC./EXT.) socket
on the rear of the DVD-VCR.
After making this connection, select the source by
pressing the INPUT SEL. button for the AV2 input
sources.
2By means of RF Coaxial Cable
After making this connection, you must preset the
station received through the satellite tuner.
RF output channel of the satellite receiver should
be adjusted away from channel 36, which is used
by the DVD-VCR, e.g. re-adjust to channel 39.
Auto setup
Please wait 00 %
SCART Cable
RF coaxial cable
Aerial
1
2
Satellite Receiver or other Equipment
Aerial Connector
TV
Clock Set
Auto Clock : On
Time Date Year
12 : 00 1 / JAN / 2004 THU
➢
Auto preset can be performed by pressing
■
on
the VCR continuously for 5 seconds or more
with no tape inserted.
Setting the Menu Language
1Open “MENU”
After pressing the MENU, press the OK or
❿
.
2Select “Language”
Use the
or
❷
buttons to highlight Language,
then press the OK or
❿
.
3Set menu Language
Place the selection arrow next to your desired
Language, then press the OK button.
4On completion, press RETURN to exit the menu.
Language : English
User Set
Auto Power Off : Off
Screen Messages : On
Install
Français
Deutsch
Español
Italiano
Nederlands
Language Set
English
ENG-10

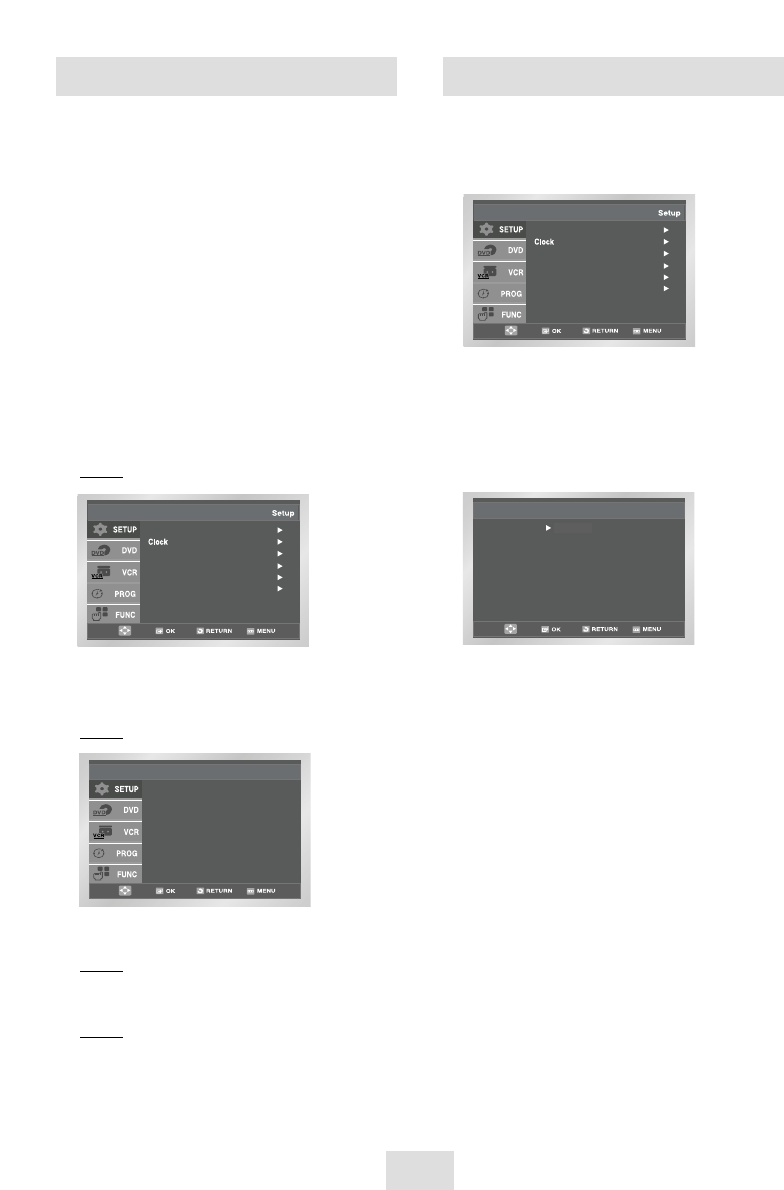

Setting the Date and Time
2Press the corresponding
,
❷
buttons to select
the Clock option.
3Press the OK or
❿
to select this option.
Result: The Clock Set menu is displayed.
4Press
➛
or
❿
to select the hour, minutes, day,
month and year.
Result: The option selected highlight.
5Press the
or
❷
buttons to increase or decrease
the value.
Result: The day of the week is displayed
automatically.
➢
You can hold the
or
❷
buttons down to scroll
more quickly through the values.
6On completion, press RETURN to exit the menu.
Time Date Year
Clock Set
12 : 00 1 / JAN / 2004 THU
Auto Clock : On
Language : English
User Set
Auto Power Off : Off
Screen Messages : On
Install
Your DVD-VCR contains a 24-hour clock and calendar
used to:
◆
Automatically stop programme recording
◆
Preset your DVD-VCR to record a programme
automatically
You must set the date and time when:
◆
You purchase the DVD-VCR
☛◆
The time and date are set automatically
from the broadcast signal. If the signal is
weak or ghosting occurs, the time and
date may not be set automatically.
In this case, they should be set manually.
◆
Do not forget to reset the time when you
change clocks from winter to summer
time and vice versa.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
ENG-11
Presetting the Stations Automatically
☛
You do not need to preset the stations if you
have already set them automatically (see Plug &
Auto Set Up on page 9).
Your DVD-VCR contains a built-in tuner used to receive
television broadcasts.
You must preset the stations received through the tuner.
This can be done:
◆
Plug & Auto Set up (see page 9)
◆
Automatically
◆
Manually (see page 12)
You can store up to 80 stations.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
,
❷
buttons to select
the Install option.
3Press the OK or
❿
to select this option.
Result: The Install menu is displayed.
Language : English
User Set
Auto Power Off : Off
Screen Messages : On
Install
Auto Setup
Manual Setup
Install
4Press the corresponding
or
❷
buttons, until the
Auto Setup is selected.
And then press the OK or
❿
to select this option.
Result: A message appears, indicating that any
channels already preset on your DVD-VCR
will be deleted.
5Press the
or
❷
buttons to select your country.
☛
The VCR searches for the stations
according to a preset preference list
corresponding to the country that you have
selected.
Result:
◆
The Please Wait indication highlight on
the television screen.
◆
The first frequency band is scanned and
the first station found is displayed and
stored.
◆
The DVD-VCR then searches for the
second station and so on.
◆
When the automatic scanning procedure
has finished, the DVD-VCR switches
automatically to programme 1.
➢
The number of stations automatically stored by
the DVD-VCR depends on the number of
stations that it has found.
8If you wish to cancel the auto scanning before the
end, press the MENU button to exit the menu.
➢
◆
The time and date are set automatically from the
broadcast signal. If the signal is weak or ghosting
occurs, the time and date may not be set
automatically. In this case, they should be set
manually (see page 10).
◆
Once the auto scanning procedure has finished,
some stations may have been stored more than
once; select the stations with the best reception
and delete the ones no longer required (see page
13).
Auto Setup
Your date will be lost
Press OK to continue
Menu to exit
Auto Setup
Please Wait
15%
6Press OK button.
Result: A message appears, indicating that any
channels
7Press OK to start the auto scanning.
ENG-12
8Press the
➛
or
❿
buttons to start scanning the
channels.
Result: The frequency band is scanned and the first
station found is displayed.
9Press the
❷
button, until the DECODER is selected.
10 Press the
❿
button to activate or deactivate use of the
decoder for the TV station, if necessary.
11 Press the
or
❷
buttons until the NAME is selected.
The station name is set automatically from the
broadcast signal.
12 To change the programme’s name, press the
❿
button.
Result: The first letter of the name flashes.
13 To... Then...
Select a character Press the
or
❷
button until
the in the namerequired
character is displayed (letters,
numbers or “-” character).
Move to the next or
Press the
➛
or
❿
buttons
previous character
respectively.
14 If you... Then...
Wish to store the
◆
Press the
or
❷
buttons
station displayed until the MFT is selected.
◆
Press the
➛
or
❿
buttons to
adjust the picture, if necessary.
◆
Press OK to store the station
Do not wish to
◆
Press the
or
❷
buttons
store the station until the CH is selected.
displayed
◆
Press the
➛
or
❿
buttons to
go on scanning the
frequency band and display
the next station
◆
Go back to the beginning of
Step 14
15 Repeat this procedure from Step 6onwards, until
all the required stations have been stored.
16 On completion, press the RETURN button three
times to exit the menu.
Presetting the Stations Manually
☛
You do not need to preset the stations manually if
you have already set them automatically.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
,
❷
buttons to select the
Install option.
3Press the OK or
❿
to select this option.
Result: The Install menu is displayed.
Auto Setup
Manual Setup
Install
4Press the corresponding
or
❷
buttons, until the
Manual Setup option is selected.
5Press the OK or
❿
to select a Manual Setup option.
Result: The TV STATION TABLE menu is displayed.
6Press the
or
❷
buttons to select a programme
number as required.
7Press the
❿
button to preset the station.
Result: The MANUAL TUNING menu is displayed.
TV STATION TABLE
SWAPPING : OK
DELETE : CLEAR RETURN
PR CH NAME DEC SYSTEM
1
2
3
4
5
MANUAL TUNING
SYSTEM : L/L'
PR : 1
CH : - - -
MFT : -
DECODER : OFF
NAME : - - - -
MEMORY : OK
RETURN
ENG-13

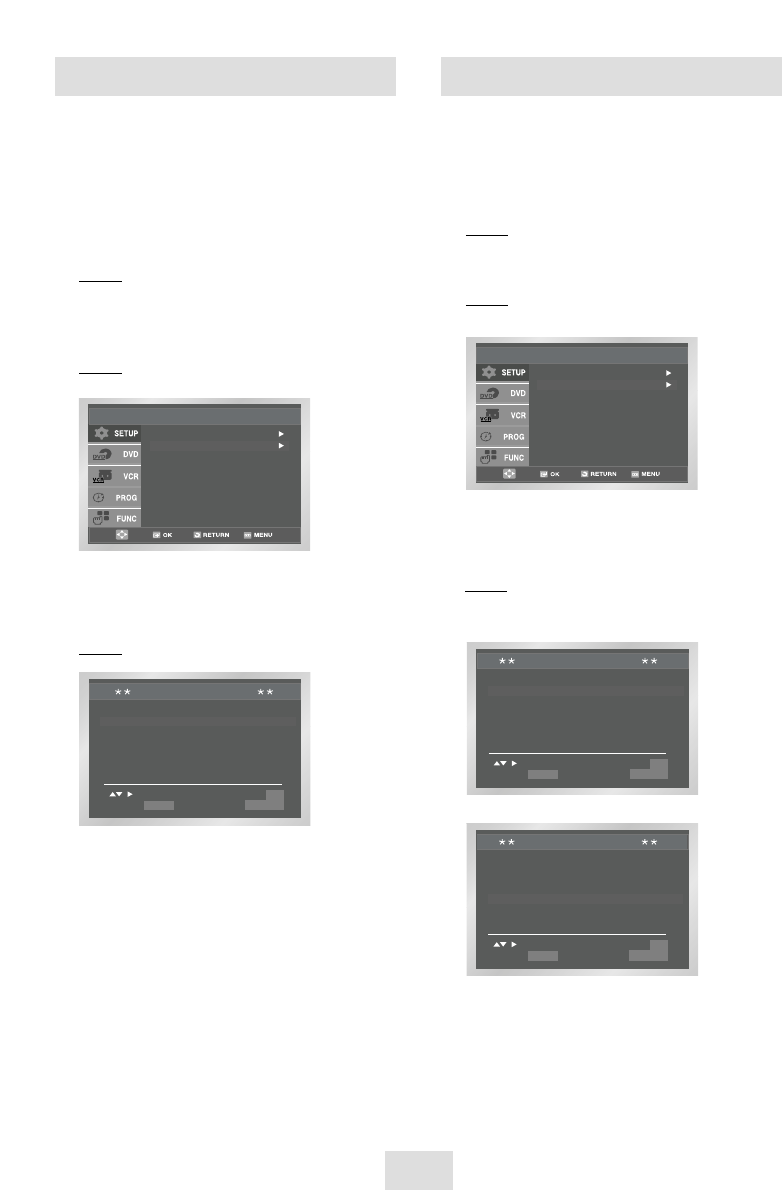

Clearing a Preset Station
☛
If you have stored a TV station:
◆
That you do not require
◆
At the wrong programme position
you can cancel it.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
,
❷
buttons to select
the Install option.
3Press the OK or
❿
to select this option.
Result: The Install menu is displayed.
Auto Setup
Manual Setup
Install
4Press the corresponding
or
❷
buttons, until the
Manual Setup option is selected.
5Press the OK or
❿
to select a Manual Setup option.
Result: The TV STATION TABLE menu is displayed.
6Press the corresponding
or
❷
buttons, until the
required preset TV station (PR) is selected.
7Press the CLEAR button.
8Repeat the same procedure from Step 6onwards
until all the required stations have been cleared.
9On completion, press the RETURN button four
times to exit the menu.
PR CH NAME DEC SYSTEM
1 21
- - - -
OFF L/L'
2
3
4
5
TV STATION TABLE
SWAPPING : OK
DELETE : CLEAR RETURN
Changing the Preset Station Table
You can rearrange the Station Table and give different
programme numbers to the stations listed according to
your own preferences.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
,
❷
buttons to select
the Install option.
3Press the OK or
❿
buttons to select this option.
Result: The Install menu is displayed.
PR CH NAME DEC SYSTEM
1 21
OFF L/L'
2
3
4
5
- - - -
TV STATION TABLE
SWAPPING : OK
DELETE : CLEAR RETURN
PR CH NAME DEC SYSTEM
1
2
3 21
OFF L/L'
4
5
- - - -
TV STATION TABLE
SWAPPING : OK
DELETE : CLEAR RETURN
Auto Setup
Manual Setup
Install
4Press the corresponding
or
❷
buttons, until the
Manual Setup option is selected.
5Press the OK or
❿
button to select this option.
Result: The TV STATION TABLE menu is
displayed.
ENG-14
4Press the corresponding
or
❷
buttons, until the
Colour System option is selected.
5Press the OK or
❿
button to select
Auto
➝
PAL
➝
SECAM
➝
MESECAM
➝
B/W.
Auto When playing back a cassette, the system
standard is automatically selected by the
DVD-VCR.
B/W Black and White
6On completion, press RETURN three time to exit
the menu.
Before recording or playing back a cassette, you can
select the required system standard.
Otherwise, the system automatically selects the
reception standard when you select AUTO.
➢
◆
When playing back a cassette, the standard is
automatically selected by the DVD-VCR.
◆
When you playback an NTSC-recorded tape on
this DVD-VCR make a setting on the colour
system according to your TV. If your TV is a
PAL system only TV, set NTPB.
If your TV is Multi System TV (NTSC 4.43
compatible), set NT4.43 and you can record
NT4.43.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
,
❷
buttons to select
the User Set option.
3Press the OK or
❿
to select this option.
Result: The User Set menu is displayed.
Selecting the Colour Mode
Colour System : Auto
NICAM : On
IPC : On
ShowView Extend : Off
User Set
Auto
PAL
SECAM
MESECAM
B/W
Colour System : Auto
NICAM : On
IPC : On
User Set
Auto
PAL
SECAM
MESECAM
B/W
(SV-DVD540/SV-DVD545)
(SV-DVD440)
6Press the corresponding
or
❷
buttons, until the
required preset TV programme is selected.
Result: The selected station is displayed at the
same time on the television screen.
7To change the programme number assigned to a
station press the OK button on the remote control.
(For example, To move a TV station in programme
1 to programme 3)
8Press the
or
❷
buttons to select required
position. And then press OK again to swap the
position.
9On completion, press the RETURN button four
times to exit the menu.
Changing the Preset Station Table
ENG-15

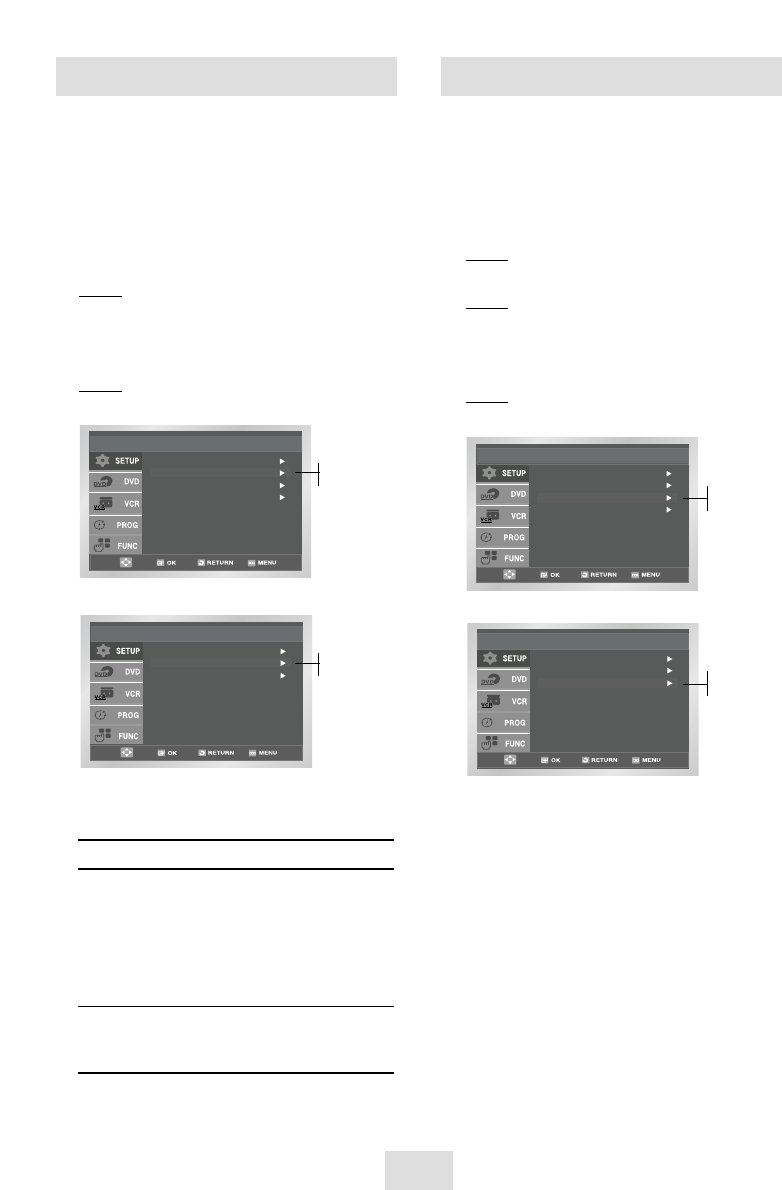

4Press the corresponding
or
❷
buttons, until the
NICAM option is selected.
5To... Press OK or
❿
, until...
Mono mode Off is displayed.
Off: Only set at this position to
record the standard mono
sound during a NICAM
broadcast if the stereo
sound is distorted due to
inferior reception conditions.
NICAM mode On is displayed.
On: Normally set at this
position.
6On completion, press RETURN three times to exit
the menu.
NICAM programmes are divided into 3 types. NICAM
Stereo, NICAM Mono and Bilingual (transmission in
another language).
NICAM programmes are always accompanied by a
standard mono sound broadcast and you can select the
desired sound. Please refer to page 24.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
,
❷
buttons to select
the User Set option.
3Press the OK or
❿
to select this option.
Result: The User Set menu is displayed.
NICAM
Colour System : Auto
NICAM : On
IPC : On
ShowView Extend : Off
User Set
On
Off
Colour System : Auto
NICAM : On
IPC : On
User Set
On
Off
The Intelligent Picture Control Feature allows you to
adjust the sharpness of the image automatically,
according to your own preferences.
1During playback, press the MENU button on the
remote control.
Result: The Setup menu is displayed.
2Press the OK or
❿
.
Result: The Setup menu is displayed.
3Press the corresponding
,
❷
buttons to select
the User Set option.
4Press the OK or
❿
buttons to select this option.
Result: The User Set menu is displayed.
Intelligent Picture Control
Colour System : Auto
NICAM : On
IPC : On
ShowView Extend : Off
User Set
On
Off
Colour System : Auto
NICAM : On
IPC : On
User Set
On
Off
(SV-DVD540/SV-DVD545)
(SV-DVD440)
(SV-DVD540/SV-DVD545)
(SV-DVD440)
5Press the corresponding
or
❷
buttons, until the
IPC option is selected.
6Press the OK or
❿
buttons to select the IPC
(intelligent picture control) option.
➢
When intelligent picture control mode is ON, the
sharpness of the image is adjusted
automatically.
7To adjust the sharpness manually, press the
❷
button to turn the IPC mode OFF.
8Press the
➛
or
❿
buttons until the picture is
displayed according to your preferences.
➢
If you do not press a button within ten seconds,
the PICTURE menu disappears automatically.
9On completion, press RETURN three times to exit
the menu.
ENG-16

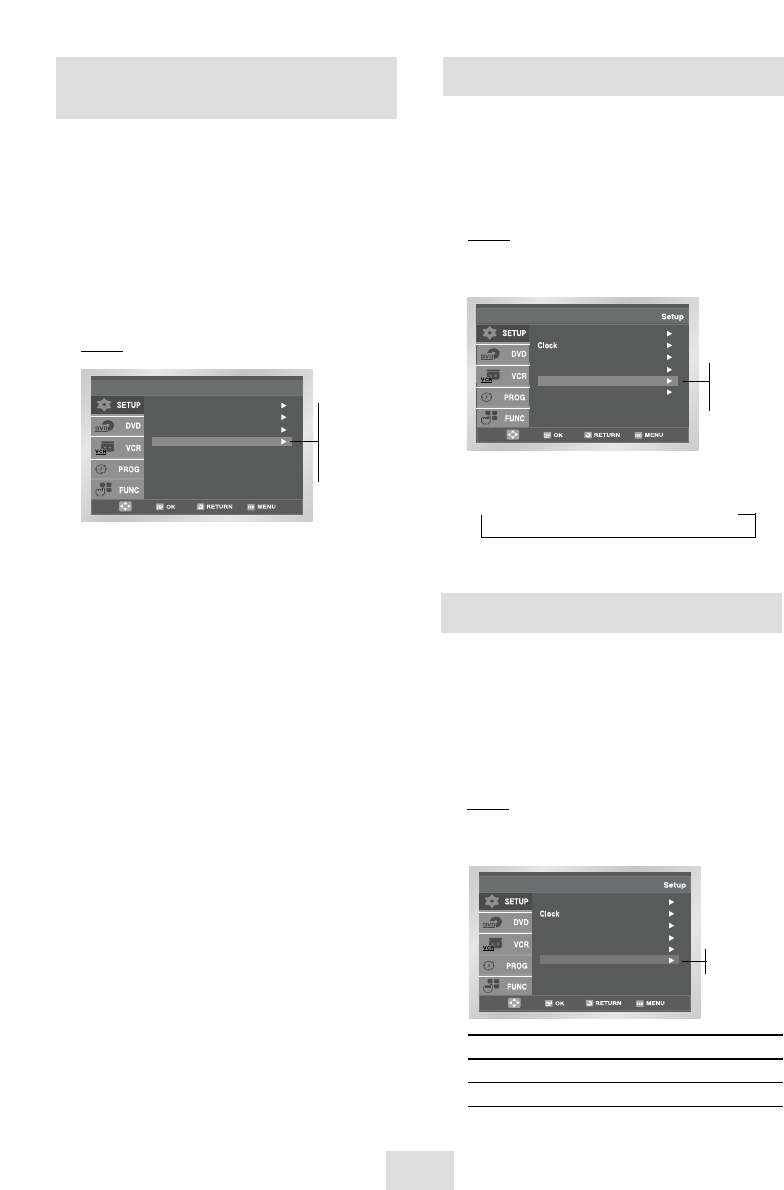

The Auto Power Off feature automatically turns off
your DVD-VCR if no signal is received and you do not
press any button for the selected time.
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
or
❷
buttons, until the
Auto Power Off option is selected.
3Press the OK or
❿
buttons, until you select the time
of Auto Power Off interval.
➝
Off
➝
1Hour
➝
2Hour
➝
3Hour
4On completion, press return twice to exit the menu.
Auto Power off
Language : English
User Set
Screen Messages : On
Install
Auto Power Off : Off
Off
1Hour
2Hour
3Hour
Your DVD-VCR displays most information both on the
DVD-VCR and the television.
You can choose to display or hide this information on
the television screen (except for the SEARCH,
Programming MENU and Timer functions, which
cannot be hidden).
1After pressing the MENU, press the OK or
❿
.
Result: The Setup menu is displayed.
2Press the corresponding
or
❷
buttons, until the
Screen Messages option is selected.
3To... Press OK or
❿
, until...
Display on-screen information On is displayed.
Hide on-screen information Off is displayed.
4On completion, press RETURN twice to exit the menu.
Screen Messages
Language : English
User Set
Auto Power Off : Off
Install
Screen Messages : On
On
Off
To prevent delays or over-runs the VCR has a function
called ShowView EXTEND allowing you to extend the
recording time by up to 60 minutes.
➢
Only use if PDC is not available or set to Off.
1After pressing the MENU, press the OK or
❿
.
2Press the corresponding
,
❷
buttons to select
the User Set option.
3Press the OK or
❿
buttons to select this option.
Result: The User Set menu is displayed.
4Press the corresponding
or
❷
buttons, until the
ShowView Extend option is selected.
5Press the OK or
❿
buttons to set the ShowView
Extend time by increments of 10 minutes.
6To turn off, press OK or
❿
buttons repeatedly until
Off shows.
ShowView Extend
★
(SV-DVD540/SV-DVD545 Only)
Colour System : Auto
NICAM : On
IPC : On
ShowView Extend : Off
User Set
Off
10
20
30
40
50
60
ENG-17

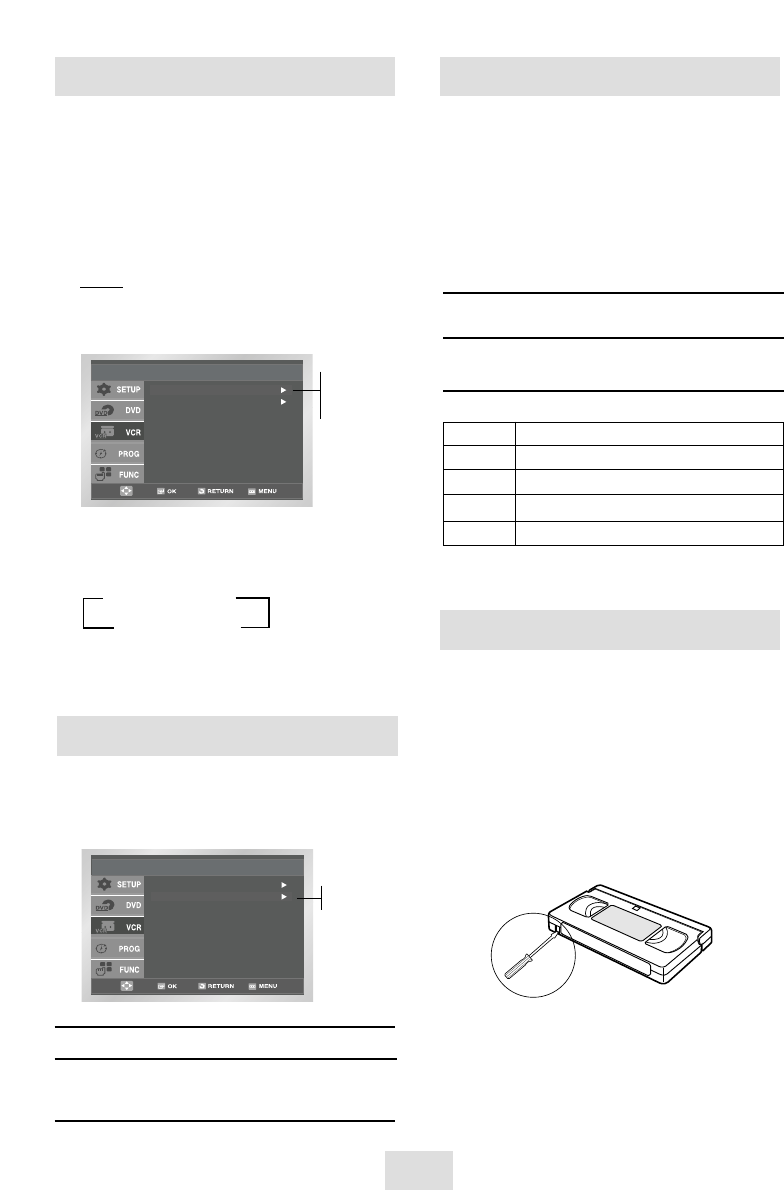

Protecting a Recorded Cassette
Video cassettes have a safety tab to prevent accidental
erasure. When this tab has been removed, you cannot
record on the tape.
1If you wish to protect a cassette, break off the tab
using a small screwdriver.
2To re-record over a protected cassette (safety tab
broken), cover the hole with adhesive tape.
You can record a cassette at two different speeds:
◆
SP (Standard Play)
◆
LP (Long Play)
In Long Play modes:
◆
Each cassette lasts twice as long
◆
The recording is of a slightly lower
quality
To record a cassette... Press the SPEED button on the
remote control, until...
In standard play mode SP is displayed.
In long play mode LP is displayed.
Selecting the Recording Speed
T
ype Recording Time (in SP)
E-180 180 mins. or 3 hours
E-240 240 mins. or 4 hours
E-260 260 mins. or 4 hours and 20 mins.
E-300 300 mins. or 5 hours
Selecting the Cassette Type
Repeat Play
If you wish to use the tape counter to display the time
remaining on a cassette, you must indicate the type of
cassette inserted.
1After pressing the MENU press the corresponding
,
❷
buttons to select the VCR option.
2Press the OK or
❿
buttons to select this option.
Result: The VCR Setup menu is displayed.
3Press the corresponding
or
❷
buttons, until the
Tape Select option is selected.
4Press the OK or
❿
buttons as many times as
required, until the correct cassette length is
displayed.
E180
E240
E 300
E260
5Press RETURN twice to exit the menu.
Repeat Play : Off
VCR Setup
Tape Select : E180
E180
E240
E260
E300
VCR Setup
Tape Select : E180
Repeat Play : Off
Off
On
You can set repeat play to repeat the tape continuously
from beginning to end.
To... Press OK or
❿
, until...
Repeat play On is displayed.
Do not wish to repeat play Off is displayed.
ENG-18
Recording a Programme with
Automatic Stop
This function enables you to record up to nine hours
(LP) of programmes.
Your DVD-VCR stops automatically after the requested
length of time.
1Switch on the television.
2To monitor the programme being recorded, select
the television channel reserved for use with your
DVD-VCR (or the AV input if used).
3Insert the cassette on which the programme is to
be recorded, with the window visible and the safety
tab intact or the opening covered with adhesive tape.
Result: The DVD-VCR is switched on automatically.
4Select:
◆
The station to be recorded using the PROG
( or ) buttons
or
◆
The AV1, AV2 or AUX(SV-DVD440/SV-DVD540
Only) source using the INPUT SEL. button for a
satellite tuner or external video source
Result: The channel number is displayed and the
programme can be seen on the television.
5Select the recording speed by pressing the SPEED
button as many times as required (see page 17).
6Hold the REC button (
●
) down for a while to start
recording.
Result: The record indicator appears on the
television screen and DVD-VCR display.
An index is recorded on the tape
7Press the REC button (
●
) several times to increase
the recording time in:
◆
30-minute intervals up to four hours
◆
1-hour intervals up to nine hours
Result: The length is displayed on the television
displays. The selected programme is
recorded for the length of time requested.
At the end of that time, the DVD-VCR stops
recording automatically and power off.
8If you wish to cancel the recording before the end,
press STANDBY/ON.
☛
If the end of the tape is reached while recording:
◆
The recording stops and power off.
☛
This function is not available in DVD recording
LENGTH 2:30
SET LENGTH :
PRESS REC ●
Recording a Programme
Immediately
Before recording a programme, you must have preset
the corresponding station (unless you are recording via
an external video source). If you have not done so,
refer to pages 11 and 12.
1Switch on the television.
2To monitor the programme being recorded, select
the television channel reserved for use with your
DVD-VCR (or the AV input if used).
3Insert the cassette on which the programme is to be
recorded, with the window visible and the safety tab
intact or the opening covered with adhesive tape.
Result: The DVD-VCR is switched on automatically.
4Select:
◆
The station to be recorded using the PROG
( or ) buttons or
◆
The AV1, AV2 or AUX(SV-DVD440/SV-DVD540
Only) source using the INPUT SEL. button for a
satellite tuner or external video source
Result: The station number is displayed and the
programme can be seen on the television.
5Select the recording speed by pressing the SPEED
button as many times as required (see page 17).
6Hold REC (
●
) down for a while to start recording.
Result: The record indicator appears on the
television and DVD-VCR display. An index
is recorded on the tape (see page 24).
7To stop recording, press
■
once.
➢
◆
If your DVD-VCR ejects the cassette when you
start recording, check to make sure that the
cassette’s safety tab is intact or that the
opening (created by a broken safety tab) is
covered with adhesive tape.
◆
If you reach the end of the tape while
recording, the cassette rewinds automatically.
ENG-19
◆
The programme number or times flash
◆
You wish to modify the programme
4If the programme and times are correct, press the
RETURN button.
5Press the STANDBY/ON button to activate the
timer.
6Refer to page 21~22 if you wish to:
◆
Check that your DVD-VCR has been
programmed correctly
◆
Cancel a preset recording
☛
The numbers next to each TV programme listing
are ShowView code numbers, which allow you to
programme your videorecorder instantly with the
remote control. Tap in the ShowView code for the
programme you wish to record.
™ShowView is a trademark of Gemstar Development
Corporation. The ShowView system is manufactured under
licence from Gemstar Development Corporation.
Using the ShowView Feature
★
(SV-DVD540/SV-DVD545 Only)
3Press the OK button.
Result: The information concerning the programme
is displayed.
☛
When using the ShowView function for the
first time with stored stations, the programme
number flashes. This one time, you must enter
the station number manually by pressing the
or
❷
buttons. Refer to the following page if:
Before presetting your DVD-VCR:
◆
Switch on both the television and your DVD-VCR
◆
Check that the date and time are correct
◆
Insert the cassette on which the programme is to
be recorded (safety tab intact)
Up to six programmes can be preset.
1To enter a ShowView, press the TIMER button.
Press the
or
❷
and OK or
❿
buttons to select
ShowView
Result: A message is displayed to allow you to
enter the ShowView code.
☛
If all six programmes have been set, the
message Timer is full is displayed. Refer to
page 24 if you wish to cancel a preset
recording.
2Press the numeric buttons to enter the code
opposite the programme that you wish to record in
your television magazine.
➢
If you wish to correct the ShowView code that
you are entering:
◆
Press the
➛
button until the digit to be
corrected is cleared
◆
Enter the correct digit
Standard
ShowView
Timer Method
ShowView
Code
Code : 0 - 9
Correct :
ENG-20
Modifying ShowView Programming
★
(SV-DVD540/SV-DVD545 Only)
If you wish to correct the programme displayed or modify certain elements, such as the recording
speed, you can do so before you press RETURN a second time to confirm.
If you wish to... Then...
Select an input source other ◆Press the
➛
or
❿
buttons, until the PR selection mode.
than the tuner (AV1, AV2 or AUX)
◆Press the INPUT SEL. button one or more times to change the
input source selection.
Result: The programme number is replaced by:
•The AV1, AV2 or AUX(SV-DVD540 Only) source
using the INPUT SEL. button for a satellite tuner or
external video source
➢The input source must be selected before changing any other
value.
Record a programme every day ◆Press the
➛
or
❿
buttons, until the DAY selection mode.
(Monday to Sunday) at the same time ◆Press the
or
❷
buttons, until the DLY (Daily) value is
displayed.
Record a programme every week ◆Press the
➛
or
❿
buttons, until the DAY selection mode.
on the same day and at the same time ◆Press the
or
❷
buttons, until the W- (Week) value is
displayed, followed by the required day.
Example: W-SA (Weekly Saturday)
Extend the recording time ◆Press the
➛
or
❿
buttons, until the STOP selection mode.
◆Press the
or
❷
buttons to increase or decrease the stop
time.
Select the recording speed ◆Press the
➛
or
❿
buttons, until the recording speed selection
mode.
◆Press the
or
❷
buttons until the correct indication is
displayed:
•AUTO (Auto Tape Speed Select)
•SP (Standard Play)
•LP (Long Play)
Select the PDC recording ◆Press the
➛
or
❿
buttons, until the PDC off mode.
◆Press the
or
❷
buttons until the “On” indication is displayed.
☛
Do not select PDC unless you are sure the programme you
wish to record is broadcast with PDC. If you do set PDC On
(by selecting “On” in the right - hand column on the screen),
then you must set up the start-time EXACTLY according to
the published TV schedule. Otherwise the timer recording
won’t take place.
ENG-21

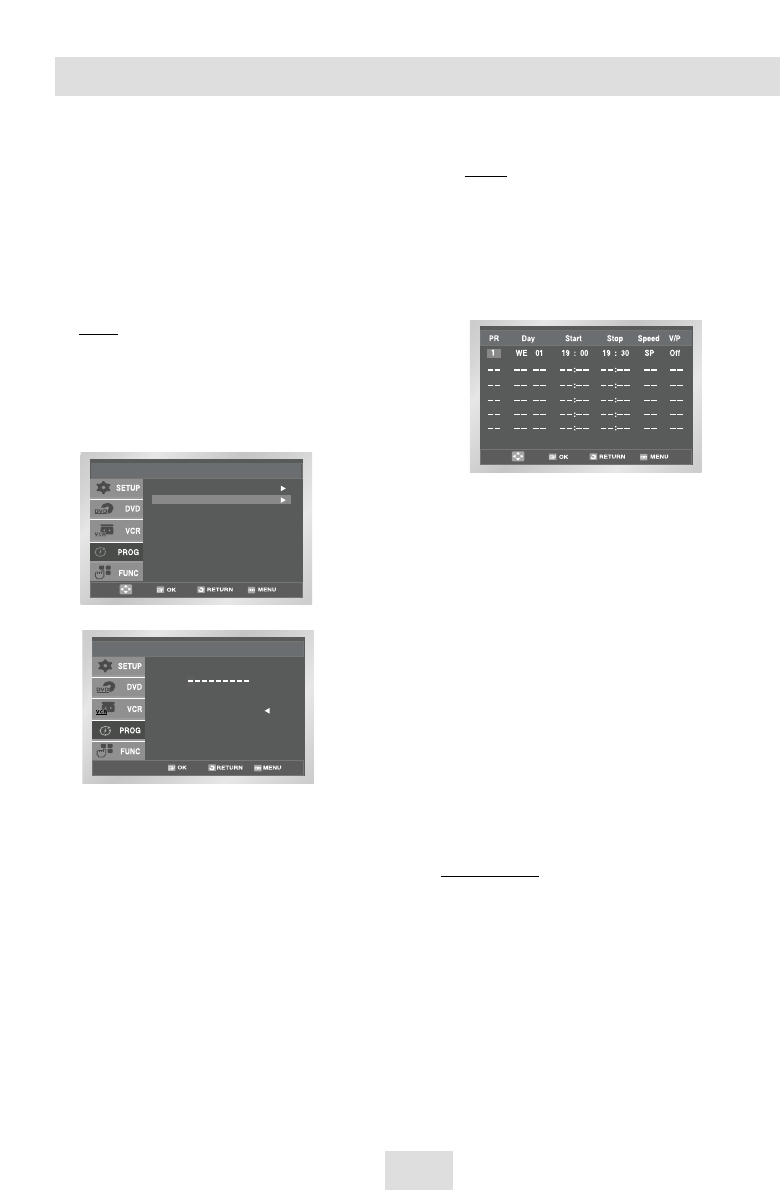

Using the Timer Programming
Feature
The Timer Programming feature allows you to preset
the DVD-VCR to record a programme up to one month
before that programme is to be broadcast. Up to six
programmes can be preset.
☛
Before presetting a recording, check that the
date and time are correct.

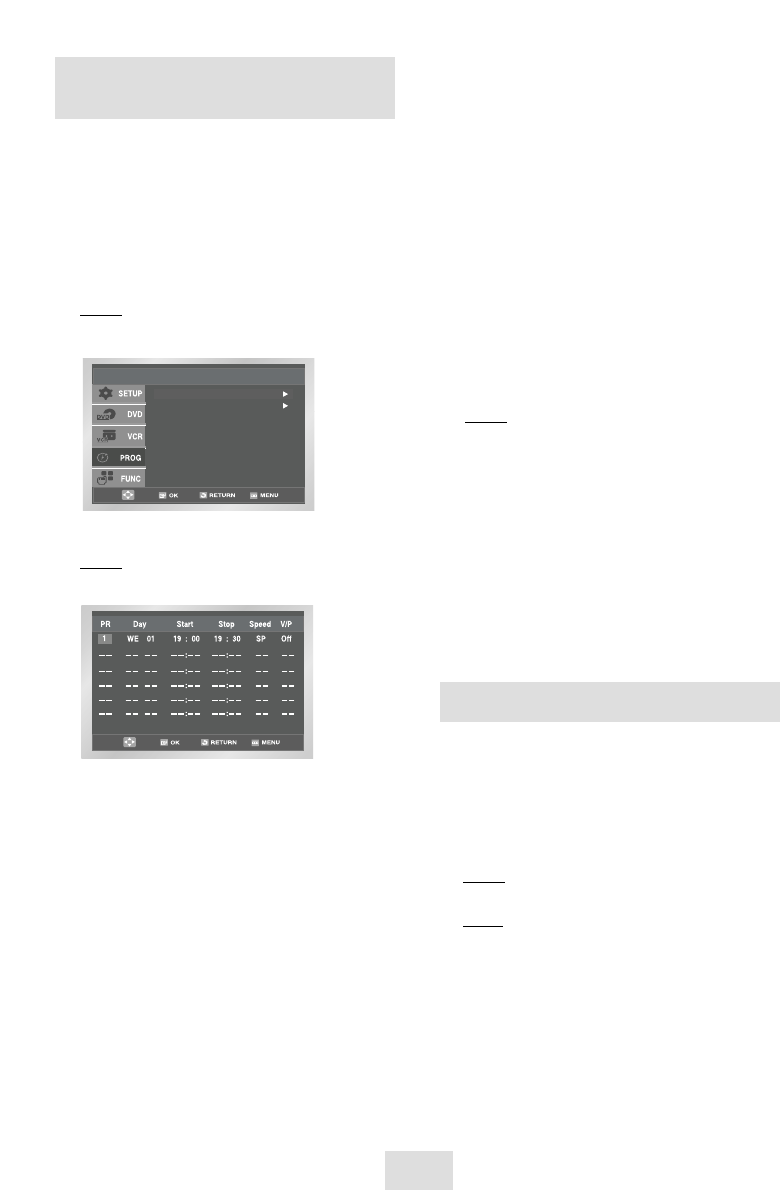

1Insert the cassette and press TIMER on the remote
control.
Result: The Timer method is displayed.
2Press the OK button to select Standard option.
Result: The TIMER PROGRAMMING menu is
displayed.
3Press
❿
to select the input source.
4Select the required station by pressing the
,
❷
buttons or INPUT SEL. to select the AV1, AV2 or
AUX(SV-DVD440/SV-DVD540 Only) input sources.
5Press
❿
to select the recording day.
6Select the required day by pressing the
or
❷
buttons.
7Press
❿
to select the recording start time.
8Select the required hour value by pressing the
or
❷
buttons.
9Press
❿
to select the minutes.
10 Select the required minute value by pressing the
or
❷
buttons.
11 Press
❿
to select the recording stop time.
You can check your preset recordings:
◆
When you have finished presetting the DVD-VCR
◆
If you have forgotten which programmes will be
recorded
1Press TIMER on the remote control.
Result: The timer selection is displayed.
2Press the OK button to select Standard option.
Result: The TIMER PROGRAMMING menu is
displayed.
3Press the
or
❷
buttons to select the required
programme.
4Press the
➛
or
❿
buttons to select and change any
values as required. For more details, refer to the
previous page.
5On completion, press RETURN twice.
Standard
ShowView
Timer Method
12 Select the required recording stop time by pressing
the
or
❷
buttons, following the same procedure
as when selecting the recording start time.
13 Press
❿
to select the recording speed.
14 Press the
or
❷
buttons to select the SP
(Standard Play), LP (Long Play), Auto (Auto Tape
speed Select) recording speeds.
15 Press the
or
❷
buttons to toggle between the
PDC mode (marked On) and the non PDC mode
(marked Off).
16 When you have finished, press the RETURN button.
17 Press the STANDBY/ON button to activate the timer.
Result: Before starting recording, the DVD-VCR
compares the timer duration with the
remaining time on the cassette.
➢
Auto Tape Speed select. The DVD-VCR’s “Auto
Tape Speed select” function compares the
duration of the timer recording to the actual
recording time remaining on the tape loaded.
If there is insufficient tape to complete a timer
recording in AUTO mode, the DVD-VCR
automatically switches to LP mode to record the
whole programme.
Checking a Preset Recording
(SV-DVD540/SV-DVD545)
ENG-22
Playing a Cassette
Cancelling a Preset Recording
You can cancel any programmes that are:
◆
Incorrect
◆
No longer required
1Press TIMER on the remote control.
Result: The timer selection is displayed.
2Press the OK button to select Standard option.
Result: The TIMER PROGRAMMING menu is
displayed.
3Select the programme to be cancelled by pressing
the
or
❷
buttons.
4Press the CLEAR button to cancel the selected
programme.
Result: All the recording information is deleted and
the broadcast will not be recorded.
5On completion, press RETURN twice.
Selecting the Audio Output Mode
You can select the mode in which the sound is
reproduced on the loudspeakers and AV outputs.
The following options are available.
Option Description
L Used to listen to the sound on the left Hi-Fi
channel.
R Used to listen to the sound on the right
Hi-Fi channel.
MIX Used to listen to the mixed sound of the
Hi-Fi and normal channels.
MONO Used to listen to the sound on the normal
mono channel.
L R Used to listen to Hi-Fi stereo sound on the
left and right channels.
➢
When playing back tapes recorded in
Hi-Fi, the sound switches to Hi-Fi after
five seconds of Mono.
To select the sound mode, simply press the AUDIO
button on the remote control until the required option is
displayed.
Adjusting Picture Alignment
Manually
The Picture Adjustment feature allows you to adjust the
alignment manually to obtain the best possible picture.
When noise bars or streaks appear during playback,
adjust alignment manually by pressing the TRK buttons
until the picture is clear and stable.
Result:
◆
The tracking bar appears.
◆
The image is adjusted.
◆
The tracking bar disappears when you
release the button.
This function allows you to play back any pre-recorded
cassette.
1Switch on both the television and your DVD-VCR.
2Insert the video cassette to be played. If the safety
tab on the cassette is intact, press
❿ll
.
Otherwise, the cassette is played automatically.
➢
When a cassette is loaded, the tape position is
optimized automatically to reduce disturbance
(Digital Auto Tracking).
When playing a cassette, if the end of the tape
is reached, the cassette is rewound
automatically.
NTSC tapes can be played back but cannot
be recorded with this DVD-VCR.
3To... Then press...
Stop the playback
■
(STOP).
Eject the cassette (EJECT).
L R MIX
L R MONO
ENG-23
You can play a cassette in slow motion.
➢
No sound is heard when playing back a
cassette in slow motion.
1Press:
◆
❿ll
to start playing the cassette
◆
❿ll
button one more time to make still mode.
◆
❿❿
to start SLOW mode.
◆
➛➛
or
❿❿
button as many times as required to
decrease or increase the speed respectively
◆
To return to the normal speed, press the
❿ll
button twice.
2When playing back in slow motion, picture
interference may occur.
Press the TRK buttons to minimize this effect.
☛
When you have been using the Slow Motion
function for more than about two minutes, the
DVD-VCR will automatically play to protect the:
◆
Cassette
◆
Video heads
Playing a Cassette in Slow Motion
Playing a Sequence at Variable
Speeds
You can vary the playback speed using the Shuttle
function (up to nine times the normal speed).
Example: You wish to analyse a sportsperson’s
technique, movement by movement.
The Shuttle function is available on the Remote control
➢
No sound is heard when playing a sequence at
variable speeds.
1Press:
◆
❿ll
during playback
◆
SHUTTLE (<<) to play the cassette backwards
◆
SHUTTLE (>>) to play the cassette forwards
2Each time you press a SHUTTLE button, the speed
is changed as shown in the following illustration.
Playing a Sequence Frame by
Frame
You can
◆
Stop the cassette at a given frame (image)
◆
Advance one frame at a time
➢
No sound is heard when playing back frame by
frame.
1Press:
◆
❿ll
to start playing the cassette
◆
❿ll
button one more time to make still mode.
◆F.ADV/STEP to advance frame by frame
2To return to normal playback, press
❿ll
.
➢
Vertical stability: When playing back frame by
frame, interference may be seen on the screen.
Press the TRK buttons to minimize this effect.
REVERSE REVERSE REVERSE SLOW SLOW PLAY PLAY PLAY
PLAY PLAY PLAY STILL MOTION MOTION PLAY X3 X5 X9
X9 X5 X3 X1/10 X1/5
ENG-24
Searching for a Specific Sequence
➢
This DVD-VCR uses a standard indexing system
(VISS). As a result, it will recognize any indexes
marked by other VCRs using the same system
and vice versa.
Go To [0:00:00] Stop
Use this feature when you want to search for the
0:00:00 counter position on a cassette. Press the
CLEAR button at the point on the tape where you want
to set the counter to 0:00:00.
The VCR will rewind or fast forward, searching for the
0:00:00 counter position, and then automatically stop at
that position.
1After pressing the SEARCH, press the
corresponding
or
❷
buttons, until the Go To
[0:00:00] option is selected.
2Press the OK or
❿
.
Each time you record a cassette on this DVD-VCR, an
“index” is automatically marked on the tape when
recording starts.
The Search function allows you to fast-forward or
rewind to a specific index and start playback from that
point. Depending on the direction selected, the indexes
are numbered as follows:
21 12
➞
etc.
Prev
Seq.
Seq. being
played
Next
Seq. etc.
End Search
Use this feature when you want to search for a blank
position to record a program on a cassette.
The VCR will fast forward, searching for a blank
position, and then automatically stop at that position.
If the VCR reaches the end of the tape during end
search, the tape will be ejected.
Intro Scan
1After pressing the SEARCH, press the
corresponding
or
❷
buttons, until the Intro Scan
option is selected.
2Press the OK or
❿
.
3Press the
➛➛
or
❿❿
buttons depending on the
direction where your desired programme is located.
4When an Index mark is found the DVD-VCR will
playback the tape for 5 seconds, after which it will
continue searching for the next Index mark.
5If you want to watch the tape from a particular
Index, simply press
❿
II
twice.
INTRO SCAN:
➛➛❿❿
ENG-25
The tape counter:
◆
Indicates the elapsed time in the play and record
modes (hours, minutes and seconds)
◆
Is reset when a cassette is inserted in the DVD-VCR
◆
Allows you to find the beginning of a sequence easily
☛
If the remaining time is to be calculated
correctly, you must indicate the type of cassette
being used.
1Insert a cassette in your DVD-VCR.
2To set the tape counter to zero at the beginning of a
sequence:
◆
Press INFO. twice to display the counter
◆
Press CLEAR when you want to set the tape
counter to zero
3When you are ready,
◆
Start playback or Recording.
◆
Press the
■
button.
◆
To fast-froward or rewind to the sequence at
which the counter was set to zero, press
➛➛
or
❿❿
.
➢
Some DVD-VCR information, such as the counter,
can be displayed on the television screen (unless
you have deactivated the Screen messages mode;
refer to page 16).
Press INFO.:
◆
Once to display the current function,
programme number, recording speed, date,
time and counter
◆
Twice to display the counter only
◆
Three times to display the time remaining on
the cassette
◆
Four times to clear the display
Using the Tape Counter
Index Skip Search
This feature will enable you to fast forward/rewind to a
specific point on a tape: E.g. if you have recorded 3
different programmes on a tape and you have rewound
the tape to the beginning, by using this feature you can
go directly to the start of programme 2 simply by
pressing the SEARCH button.
1After pressing the SEARCH, press the
corresponding
or
❷
buttons, until the Intro
Scan option is selected.
2Press the OK or
❿
.
3Press the
➛➛
or
❿❿
buttons twice more.
This will take you directly to the start of the desired
programme is located.
4These Index searches can be made forwards:
(press
❿❿
) or backwards: (press
➛➛
).
(
➛➛
-20
● ●
0
● ●
+20
❿❿✌
5To cancel an Index search simply press the
❿
II
or
■
button.
Searching for a Specific Sequence
0:00:00
INDEX SEARCH :
➛➛
-06
ENG-26
Using the Assemble Edit Function

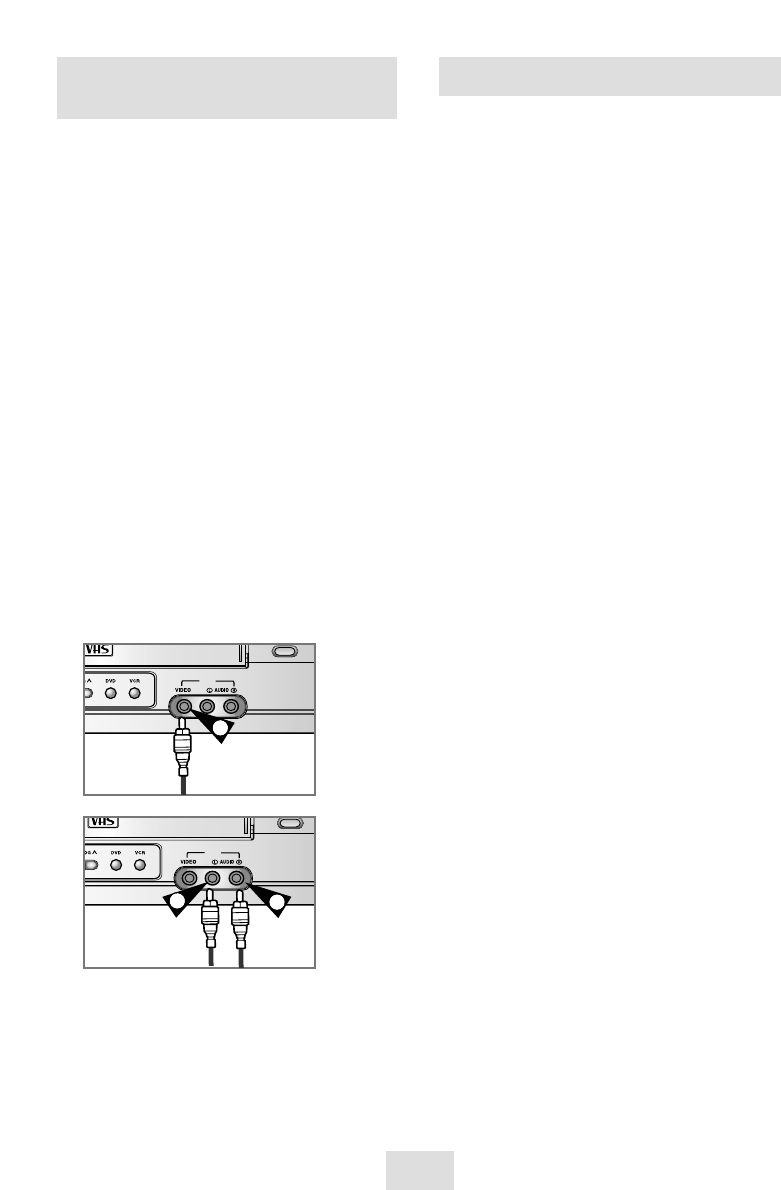

Connecting an RCA Audio/Video
Input Cable
★
(SV-DVD440/SV-DVD540 Only)
You can connect other audio/video equipment to your
DVD-VCR using audio/video cables if the appropriate
outputs are available on the equipment chosen.
Examples:
◆
You wish to copy a video cassette with
the help of a second VCR.
◆
You wish to play back and/or copy
pictures taken with a camcorder .
☛
Make sure that both the television and the DVD-VCR
are switched off before connecting the cables.
1Connect one end of the RCA audio/video cable into
the VIDEO INPUT socket on the front of the DVD-VCR.
2Plug the other end of the audio/video cable into the
appropriate output connector on the other system
(VCR or camcorder).
3Connect one end of the RCA audio cable supplied
into the AUDIO INPUT sockets on the front of the
DVD-VCR.
➢
Take care to respect the colour coding of the
left and right channels.
4Plug the other end of the audio cable into the
appropriate output connectors on the other system
(VCR, camcorder or Hi-Fi sound system).
This function allows you to start a new recording at a
specific position on the cassette while maintaining a
very smooth scene change.
1Insert the cassette to be edited in your DVD-VCR.
2Press the
❿ll
button to start playback.
3When you reach the position from which you wish
to start the new recording, press the
❿ll
button.
4Press the F.ADV/STEP button again as often as
necessary to advance frame by frame, until the
exact recording position is located.
5While the DVD-VCR is in still mode, hold the REC
button
(
●
)
down for a while to activate the
Assemble Edit function.
6Select the source from which you wish to record by
pressing:
◆
The PROG buttons for television channels
◆
The INPUT SEL. button for the AV1, AV2 or
AUX(SV-DVD440/SV-DVD540 Only) input
sources
7Press the
❿ll
button to start recording.
8When you have finished recording, press
■
.
AUX
1
AUX
3
3
ENG-27
Recoding from Another VCR or
Camcorder
Using the TV Buttons on the Remote
Control
★
(SV-DVD540/SV-DVD545 Only)
You can copy a cassette to your DVD-VCR from
another video source, such as another VCR or a
camcorder.
☛
It is an infringement of copyright laws to copy
prerecorded cassettes or to re-record them in any
form without the permission of the owners of the
corresponding copyright.
1Connect the DVD-VCR, from which the cassette is
to be copied, to the appropriate SCART audio and
video input connectors on the rear of your
DVD-VCR, as indicated on page 8.
2Insert a blank cassette in your DVD-VCR.
3Insert the pre-recorded cassette in the other video
source (VCR or camcorder).
4Press the INPUT SEL. button to select the
appropriate input on your DVD-VCR:
◆
AV1, AV2 for the SCART input
◆
AUX(SV-DVD440/SV-DVD540 Only) for the RCA
input
5Start playing back the cassette to be copied.
6Hold REC
(
●
)
down for a while to start recording
on your DVD-VCR.
7When you have finished recording, press
■
on
both VCR and DVD-VCR.
➢
If you wish to view the cassette being copied:
◆
Your DVD-VCR must be connected as usual to
the television (see page 7 for further details)
Your DVD-VCR remote control will work with Samsung
televisions and compatible brands.
To determine whether your television is compatible,
follow the instructions below.
1Switch your television on.
2Point the remote control towards the television.
3Hold down the TV button and enter the two-figure
code corresponding to the brand of your television,
by pressing the appropriate numeric buttons.
Brand Codes Brand Codes
SAMSUNG 01 to 06 PHILIPS 02, 20, 22
AKAI 09, 23 SABA 13, 14, 22 to 24
GRUNDIG 09, 17, 21 SONY 15, 16
LOEWE 02
THOMSON
13, 14, 24
PANASONIC
08, 23 to 27 TOSHIBA 07, 16 to 19, 21
Result: If your television is compatible with the
remote control, it will switch off. It is now
programmed to operate with the remote
control.
‚
➢
If several codes are indicated for your
television brand, try each one in turn until you
find one that works.
☛
When you change the batteries in the remote
control, you must reprogramme the code, following
the same procedure.
You can then control the television using the following
buttons.
Button Function
STANDBY/ON Used to switch the television and
DVD-VCR on and off.
TV or VCR Used to switch between the TV and
VCR modes.
INPUT SEL. Used to select an external source.
VOL + or – Used to adjust the volume of the
television.
PROG/TRK Used to select the required
( or ) programme.
TV MUTE Used to mute the volume of the
television.
➢
The various functions will not necessarily work
on all televisions. If you encounter problems,
operate the television directly.
ENG-28

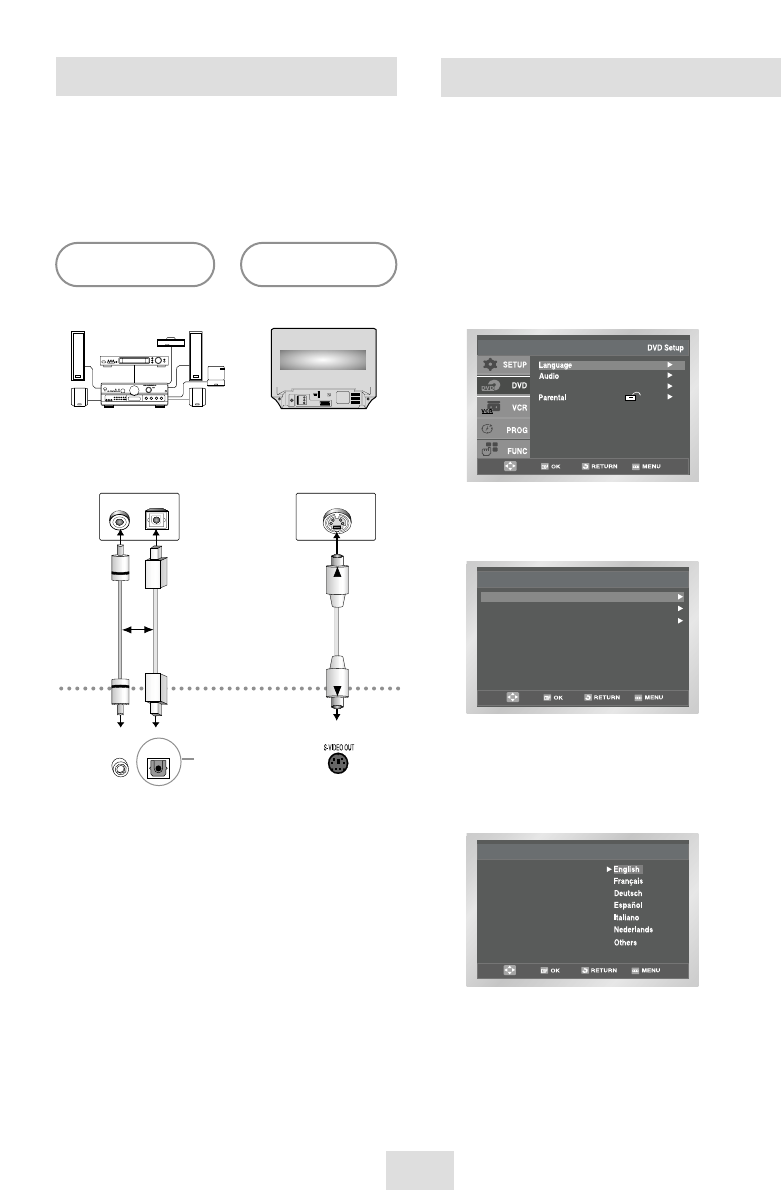

Choosing a Connection
The following show examples of connections commonly
used to connect the DVD -VCR player with a TV and
other components. It is only available for DVD.
The VCR out can not watch by this connection.
Setting Up the Language Features
If you set the player menu, disc menu, audio and
subtitle language in advance, they will come up
automatically every time you watch a movie.
Using the Disc Menu Language
1With the unit in Stop mode, press the MENU button.
2Select DVD using
,
❷
buttons, then OK or
❿
button
3Select Language Setup using
,
❷
buttons, then
press the OK or
❿
button.
4Select Disc Menu using
,
❷
buttons, then press
the OK or
❿
button.
5Use the
,
❷
buttons to select English.
- Select “Others” if the language you want is not listed.
6Press the OK button.
- English is selected and the screen returns to
Language Setupmenu.
Language Setup
Disc Menu : English
Audio : English
Subtitle : Automatic
Disc Menu Language
Disc Menu
Setup
Setup
Setup :
Display Setup
OPTICALCOAXIAL
COAXIAL
OPTICAL
or
Television
Connection to
an Audio System Connection to
a Television
Dolby Digital Decoder
Digital Audio Input Jack
Digital Audio out Jack S-Video Jack
★ SV-DVD540
/SV-DVD545
ENG-29

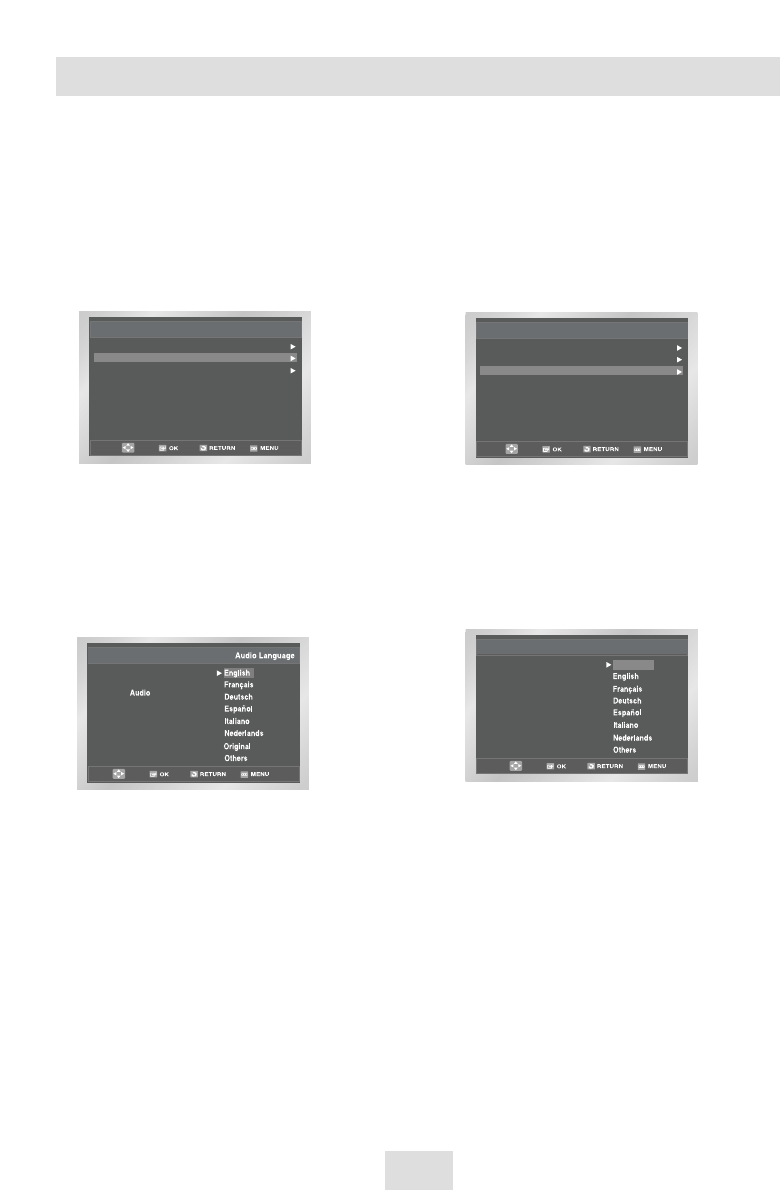

1With the unit in Stop mode, press the MENU button.
2Select DVD using
,
❷
buttons, then OK or
❿
button.
3Select Language Setup using
,
❷
buttons, then
press the OK or
❿
button.
4Select Audio using
,
❷
buttons, then press the
OK or
❿
button.
5Press the
,
❷
buttons to select English.
- Select “Original” if you want the default soundtrack
language to be the original language the disc is
recorded in.
- Select “Others” if the language you want is not listed.
6Press the OK button.
- English is selected and the screen returns to
Language Setup menu.
Using the Audio Language
Language Setup
Disc Menu : English
Audio : English
Subtitle : Automatic
1With the unit in Stop mode, press the MENU button.
2Select DVD using
,
❷
buttons, then OK or
❿
button.
3Select Language Setup using
,
❷
buttons, then
press the OK or
❿
button.
4Select Subtitle using
,
❷
buttons, then press the
OK or
❿
button.
5Use the
,
❷
buttons to select English.
- Select “Automatic” if you want the subtitle
language to be the same as the language selected
as the audio preference.
- Select “Others” if the language you want is not
listed. Some discs may not contain the language
you select as your initial language; in that case the
disc will use its original language setting.
6Press the OK button.
- English is selected and the screen returns to
Language Setup menu.
Using the Subtitle Language
Language Setup
Disc Menu : English
Audio : English
Subtitle : Automatic
Subtitle
Subtitle Language
Automatic
Setting Up the Language Features
ENG-30
Setting Up the Audio Options
1With the unit in Stop mode, press the MENU button.
2Select DVD using
,
❷
buttons, then OK or
❿
button.
3Select Audio Setup using
,
❷
buttons, then press
the OK or
❿
button.
4Use the
,
❷
buttons to select the desired item.
Then press the OK or
❿
button.
Dolby Digital Out
1. PCM : Converts to PCM(2CH) audio.
Select PCM when using the Analog
Audio Outputs.
2. Bitstream : Converts to Dolby Digital Bitstream
(5.1CH). Select Bitstream when using
the Digital Audio Output.
➢
Be sure to select the correct Digital Output or no
audio will be heard.
MPEG-2 Digital Out
1. PCM : Converts to PCM(2CH) audio.
Select PCM when using the Analog
Audio Outputs.
2. Bitstream : Converts to MPEG-2 Digital Bitstream
(5.1CH or 7.1CH).Select Bitstream
when using the Digital Audio Output.
DTS
Dolby Digital Out
MPEG-2 Digital Out
PCM Down Sampling
Setup
Setup
Setup :
Display Setup
DTS
1. Off : Doesn’t output digital signal.
2. On : Outputs DTS Bitstream via digital
output only. Select DTS when
connecting to a DTS Decoder.
Dynamic Compression
1. On : To select dynamic compression.
2. Off : To select the standard range.
PCM Down Sampling
1. On : Select this when the amplifier
connected to the player is not 96KHz
compatible.
In this case, the 96KHz signals will be
down converted to 48KHZ.
2. Off : Select this when the amplifier
connected to the player is 96KHz
compatible.
In this case, all signals will be output
without any changes.
➢
• How to make the SETUP menu disappear or
return to menu screen during set up; Press
RETURN or
➛
button.
• Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Out” are trademarks of
Digital Theater Systems, Inc.
ENG-31

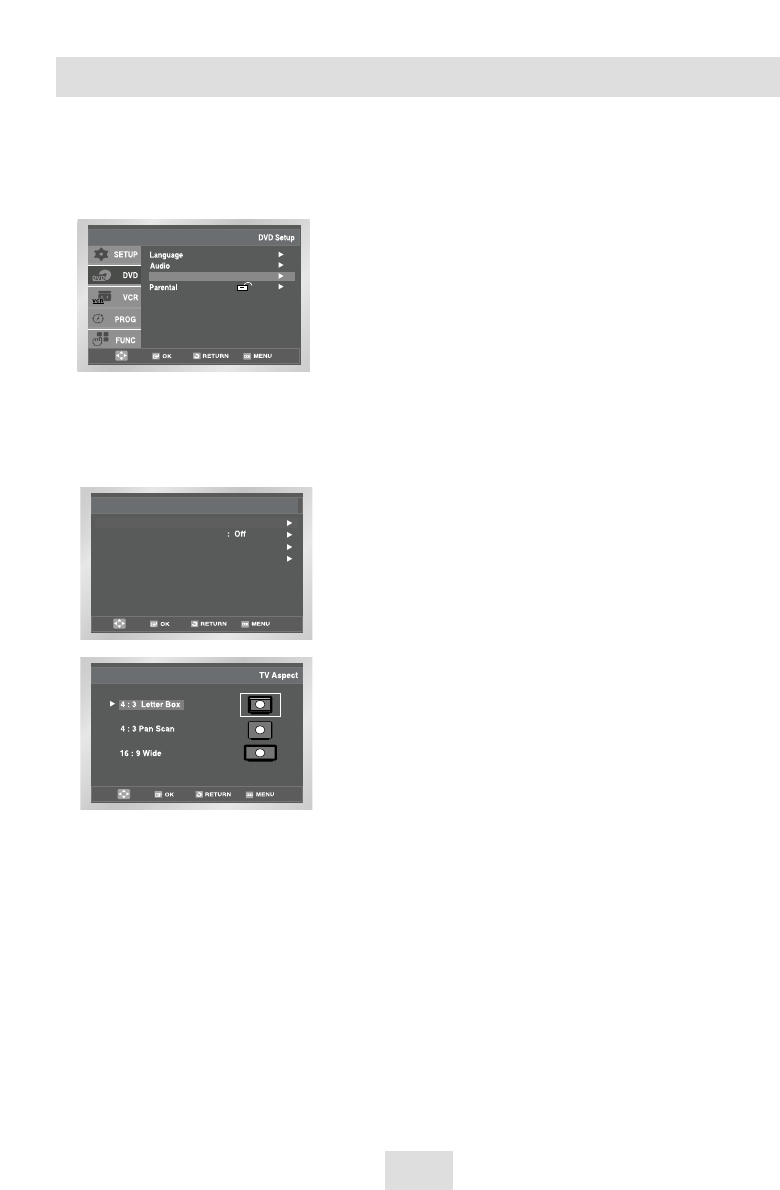

Setting Up the Display Options
1With the unit in Stop mode, press the MENU button.
2Select DVD using
,
❷
buttons, then OK or
❿
button.
3Select Display Setup using
,
❷
buttons, then
press the OK or
❿
button.
4Use the
,
❷
buttons to select the desired item.
Then press the OK or
❿
button.
NTSC Disc Output
DVD Out
TV Aspect
Black Level
Display Setup
: 4:3 L-Box
: PAL60
: RGB
Setup
Setup
Setup :
Display Setup
TV Aspect
Depending on the type of television you have, you
may want to adjust the screen setting (aspect ratio).
1. 4:3 Letter Box : Select when you want to see
the total 16:9 ratio screen DVD
supplies, even though you have
a TV with a 4:3 ratio screen.
Black bars will appear at the top
and bottom of the screen.
2. 4:3 Pan Scan : Select this for conventional size
TVs when you want to see the
central portion of the 16:9
screen. (Extreme left and right
side of movie picture will be cut
off.)
3. 16:9 Wide : You can view the full 16:9
picture on your widescreen TV.
Black Level
Adjusts the brightness of the screen.(On/Off)
NTSC Disc Output
“NTSC” if the screen only has one NTSC-video
entrance. If this is not the case, you can choose
to leave “ PAL60” as is.
DVD Out
RGB : Sends RGB signal from the AV JACK
(SCART terminal).
S-Video : Sends S-VIDEO signal from the AV
JACK (S-Video terminal).
Video : Sends COMPOSITE VIDEO signal
from the AV JACK (SCART terminal).
ENG-32
Setting Up the Parental Control
The Parental Control function works in conjunction
with DVDs that have been assigned a rating - which
helps you control the types of DVDs that your family
watches.
There are up to 8 rating levels on a disc.
1With the unit in Stop mode, press the MENU button.
2Select DVD using
,
❷
buttons, then OK or
❿
button.
3Select Parental Setup using
,
❷
buttons, then
press the OK or
❿
button.
4Use OK or
❿
to select Yes if you want to use a
password. The Enter Password screen appears.
Setup
Setup
Setup :
Display Setup
.
.
Use Password
Parental Setup
: No
~
Yes
8
No
Yes
About the Rating Level ;
The Rating Level will work only when Use Password
is set to Yes. To unlock the player, use
❿
, OK to
select No. Use
or
❷
to select Rating Level. Press
OK.
- Use
,
❷
to select the level(e.g. Level 6) and
press OK. Discs that contain Level 7 will now not
play.
- To cancel the rating level, use
❿
or OK to select
No in Use Password.
About the Change Password ;
- Use
,
❷
to select Change Password.
Press OK. The Change Password screen appears.
- OK your new password. Re-ok the new password
again.
➢
• How to make the SETUP menu disappear or
return to menu screen during set up;
Press RETURN or
➛
button.
• If you have forgotten your password, see Forget
Password in the Troubleshooting Guide.
5Enter your password. The Re-Enter Password
screen appears to confirm the password.
Enter your password again. The Parental Setup
screen appears.
ENG-33

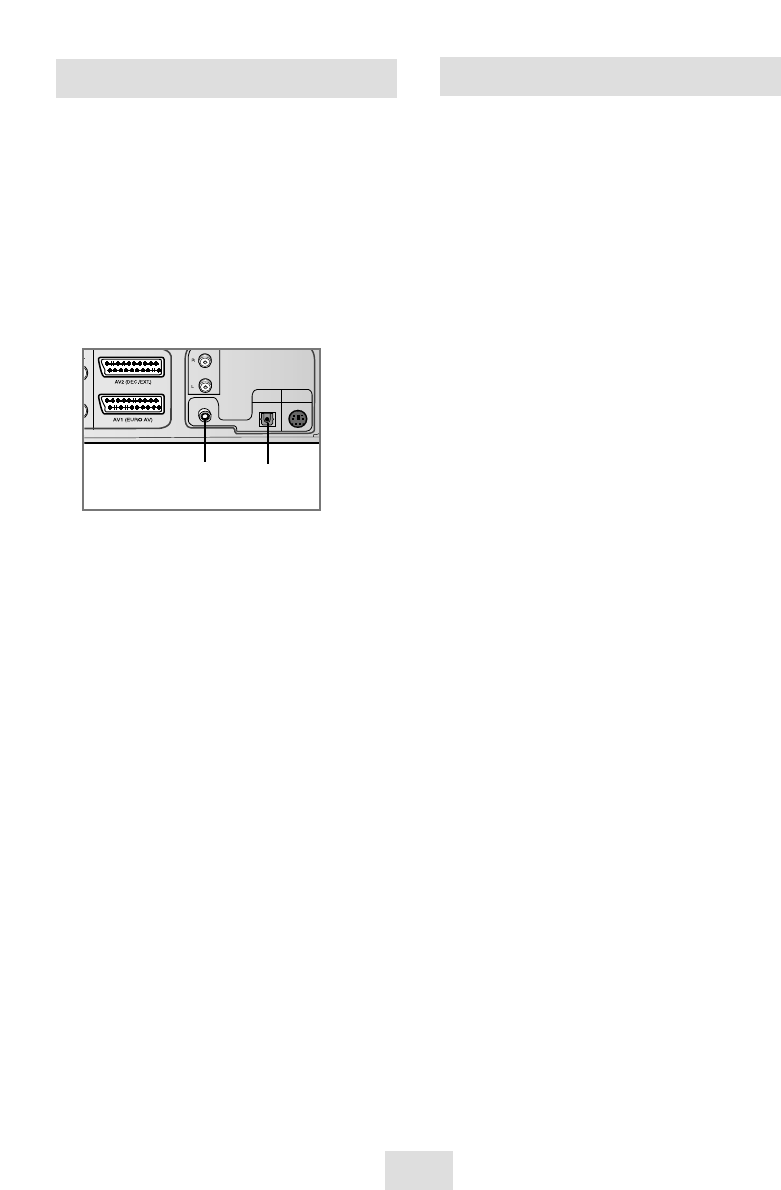

A/V Receiver Connections
To take full advantage of the movie theater experience
that DVD offers, you may want to connect your DVD-
VCR to a complete Surround Sound system, including
an A/V Receiver and six Surround Sound speakers.
Before You Begin...
• If your A/V receiver is equipped with a Dolby
Digital Decoder, you have the option to bypass the
DVD-VCR’s built-in Dolby Digital Decoder. Use the
Digital Audio Out connection below.
1 Digital Audio Out
Connect EITHER an optical cable OR a digital
coaxial cable from the Digital Audio Out jacks on the
back panel of the DVD-VCR to their corresponding
Digital Audio Input jacks on your A/V Receiver:
• Optical
★ (SV-DVD540/SV-DVD545 Only)
• Coaxial
• Use whichever connection is available on your
A/V Receiver.
During DVD/CD playback you can select from the
following special playback options. To resume normal
playback, press the
❿ll
button.
1 Still
Press the
❿ll
button on the remote control during
playback.
• The picture will still and the audio will mute.
• To resume playback, press the
❿ll
button.
• If the player is left in Still mode for 5 minutes, it
will stop automatically.
2 Frame Advance (Step)
While in playback mode, press the F.ADV/STEP
button on the remote control to advance one frame
at a time.
• Audio is muted during Frame Advance mode.
• Press
❿ll
to resume normal playback.
NOTE: Frame Advance operates only in the forward
direction.
3 Skip Forward/Back
While a CD or DVD disc is in Play mode, press the
Skip
l➛➛ /❿❿l
buttons on the remote control or
front panel to jump forward and backward through
disc chapters/tracks.
• Skip Forward will jump to the next chapter/track.
• Skip Back will jump to the beginning of the current
chapter/track.
• Press Skip Back again to jump to the beginning of
the previous chapter/track.
Search Forward/Back
While a disc is in Play mode, press and hold the
➛➛
/
❿❿
buttons on the remote control or front panel
to visually search forward/backward at 2X - 4X - 8X -
16X - 32X - 128X speed. Press
❿ll
button to
resume normal speed.
4 Slow Motion
During playback, press the
❿ll
button Still the
image. Then use the Search
❿❿
to play in slow
motion at variable speeds.
• Each press increases the slow motion speed
playback to 1/8, 1/4 or 1/2 normal speed.
• Audio is muted during slow motion playback.
5 Stop/Resume
• Press the Stop button once to stop playback.
To resume the DVD/CD from the point where the
disc stopped, press the
❿ll
button.
• Press the
■
button twice to completely
stop playback. The next time you press
❿ll
, the
disc will start over from the beginning.
Special Playback Features
AUDIO
LINE OUT
COAXIAL
DIGITAL
AUDIO OUT
OPTICAL
S-VIDEO OUT
To Digital Audio Input of an A/V
Receiver with a Dolby Digital Decoder
OR
ENG-34
Adjusting the Aspect Ratio (EZ View)
1Press the EZ VIEW button.
• The screen size changes when the button is
pressed repeatedly.
• The screen zoom mode operates differently
depending on the screen setting in the initial DVD
menu.
• To ensure correct operation of the EZ VIEW
button, you should set the correct aspect ratio in
the initial setup.
If you are using a 16:9 TV
For 16:9 aspect ratio discs
• Wide Screen
Displays the content of the DVD title in 16:9 aspect
ratio.
• Screen Fit
The top and bottom of the screen are cut off. When
playing a 2.35:1 aspect ratio disc, the black bars at
the top and bottom of the screen will disappear.
The picture will look vertically stretched. (Depending
on the type of disc, the black bars may not
disappear completely.)
• Zoom Fit
The top, bottom, left and right of the screen are cut
off and the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
• Normal Wide
Displays the content of the DVD title in 16:9 aspect
ratio. The picture will look horizontally stretched.
• Screen Fit
The top and bottom of the screen are cut off and the
full screen appears. The picture will look vertically
stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut
off and the central portion of the screen is enlarged.
• Vertical Fit
When a 4:3 DVD is viewed on a 16:9 TV, black bars
will appear at the left and right of the screen in order
to prevent the picture from looking horizontally
stretched.
To play back using aspect ratio (DVD)
For 16:9 aspect ratio discs
• 4:3 Letter Box
Displays the content of the DVD title in 16:9 aspect
ratio.
The black bars will appear at the top and bottom of
the screen.
• 4:3 Pan Scan
The left and right of the screen are cut off and
displays the central portion of the 16:9 screen.
• Screen Fit
The top and bottom of the screen are cut off and the
full screen appears. The picture will look vertically
stretched.
• Zoom Fit
When a 4:3 DVD is viewed on a 16:9 TV, black bars
will appear at the left and right of the screen in order
to prevent the picture from looking horizontally
stretched.
For 4:3 aspect ratio discs
• Normal Screen
Displays the content of the DVD title in 4:3 aspect
ratio.
• Screen Fit
The top and bottom of the screen are cut off and the
full screen appears. The picture would look vertically
stretched.
• Zoom Fit
The top, bottom, left and right of the screen are cut
off and the central portion of the screen is enlarged.
➢
This function may behave differently depending on
the type of disc.
If you are using a 4:3 TV
ENG-35
ENG 5.1CH
ENG
Off
ENG 5.1CH
ENG
Off
~
ENG 5.1CH
ENG
Off
To access the desired title when there is more than
one in the disc. For example, if there is more than
one movie on a DVD, each movie will be identified.
Most of DVD discs are recorded in chapters so that
you can quickly find a specific passage.
Allows playback of the film from a desired time.
You must ok the starting time as a reference.
Refers to the language of the film soundtrack. In the
example, the soundtrack is played in English 5.1CH.
A DVD disc can have up to eight different
soundtracks.
Refers to the subtitle languages available in the disc.
You will be able to choose the subtitles language or,
if you prefer, turn them off from the screen.
A DVD disc can have up to 32 different subtitles.
A surround sound effect is generated using only two
front speakers.
TITLE
CHAPTER
TIME
AUDIO
SUBTITLE
3D SOUND
Using the Display Function
1During play, press the INFO. button on the remote.
2Use the
,
❷
buttons to select the desired item.
3Use the
➛
,
❿
buttons to make the desired setup.
• You may use the number buttons of the remote
control to directly access a title, chapter or to start
the playback from the desired time.
When Playing a DVD/CD
4To make the screen disappear, press the INFO.
button again.
➢
• What is a Chapter?
Each Title on a DVD is usually divided into
chapters (similar to tracks on an audio CD).
• What is a Title?
A DVD may contain several different titles.
For example, if a disc contains four different
movies, each might be considered a title.
ENG-36

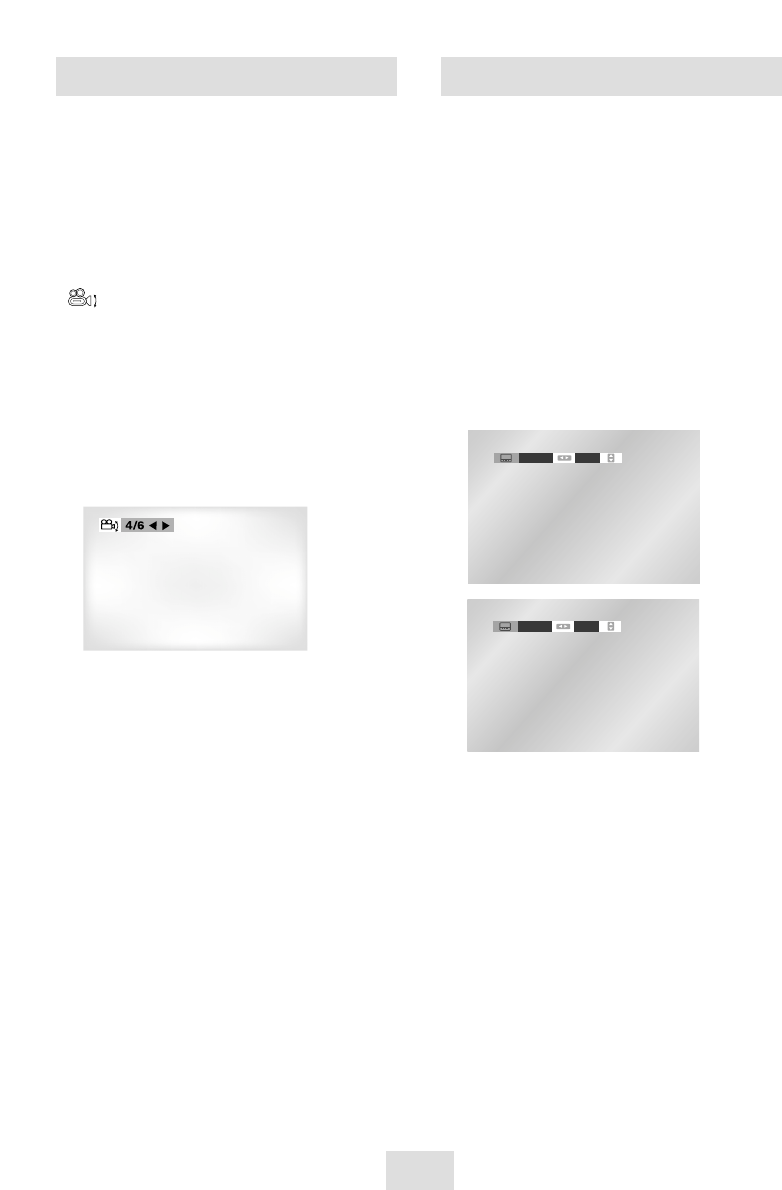

Changing the Camera Angle
When a DVD contains multiple angles of a particular
scene, you can select the Angle function.
Press the ANGLE button to see if an ANGLE
( ) mark is present at the upper Right hand corner
of the screen.
1When an ANGLE mark is shown, press the ANGLE
button, then an ANGLE select icon will appear at the
upper left hand corner of the screen.
2Use the
➛
,
❿
buttons to select the desired screen
angle.
3To turn off the display, press the ANGLE button
again.
Using the ANGLE button
Selecting the Subtitle Language
You can select a desired subtitle quickly and easily with
the subtitle button.
Using the SUBTITLE button
1Press the SUBTITLE button.
2Use the
➛
,
❿
buttons to select the desired subtitle
language.
3Use the
,
❷
buttons to determine whether or not
the subtitle will be displayed.
• The subtitle languages are represented by
abbreviations.
➢
• This function depends on what languages are
encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• How to have the same subtitle language come up
wheneveryou play a DVD; Refer to “Setting Up the
Language Features” on page 29.
ENG On
ENG Off
ENG-37

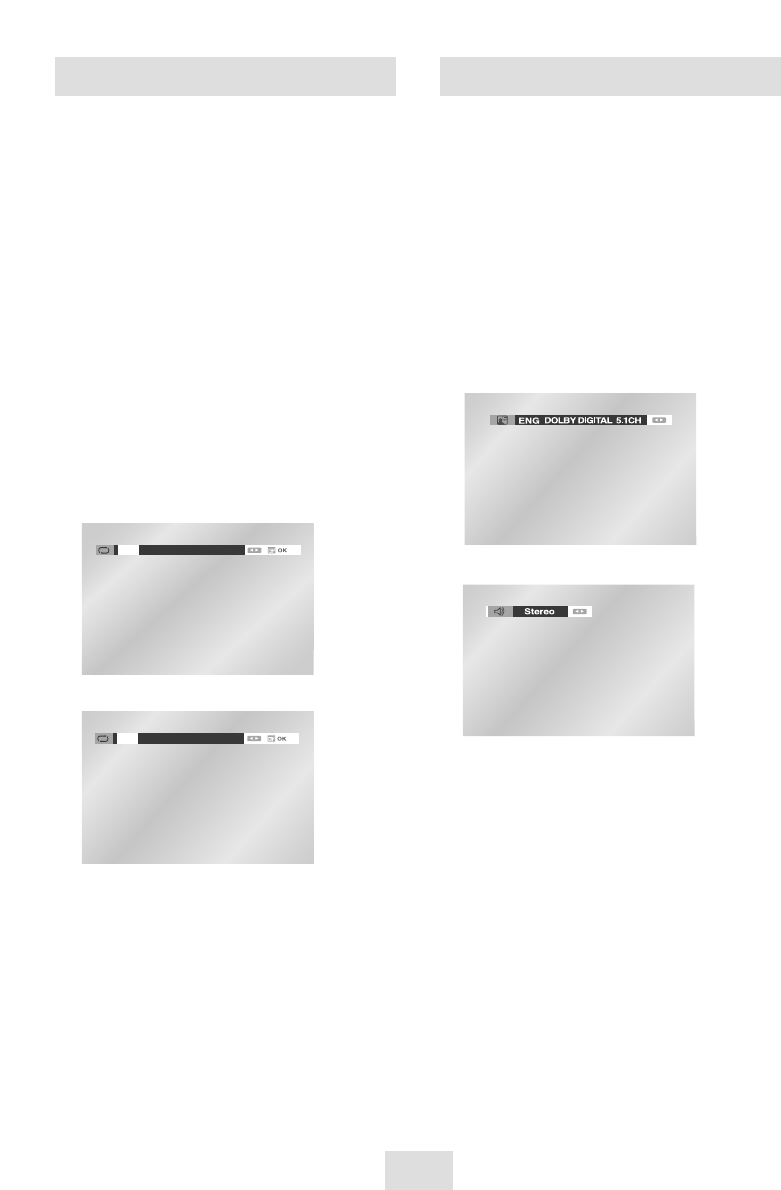

Repeat Play
Repeat the current track, chapter, title, a chosen section
(A-B), or all of the disc.
When playing a DVD
1Press the REPEAT button on the remote.
Repeat screen appears.
2Select Chapter, Title or A-B using the
➛
,
❿
buttons.
• Press the REPEAT button. Select A-B on screen
with the
➛
,
❿
buttons.
• Press OK at the point where you want the repeat
play to start (A). The B is automatically highlighted.
• Press OK at the point where you want the repeat
play to stop (B).
• To terminate the function, press the CLEAR button.
• A-B REPEAT does not allow you to set point (B)
until at least 5 seconds has elapsed after point (A)
has been set.
Off Chapter Title A - B
Off Track Disc A - B
DVD
CD
3Press OK.
4To return to normal play, press REPEAT again, then
press the
➛
,
❿
buttons to select Off and press OK.
• It is available to press CLEAR button on the
remote controller in order to stop REPEAT play.
Selecting the Audio Language
You can select a desired language quickly and easily
with the AUDIO button.
Using the Audio button
1Press the AUDIO button.
2Use the
➛
,
❿
buttons to select the desired language
on a DVD.
- The audio languages are represented by abbreviations.
3Use the
➛
,
❿
buttons to select Stereo,
➛
or
❿
(On CD)
DVD
CD
➢
• This function depends on what languages are
encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 8 audio languages.
• How to have the same audio language come up
whenever you play a DVD ; Refer to “Setting Up
the Language Features” on page 29.
ENG-38

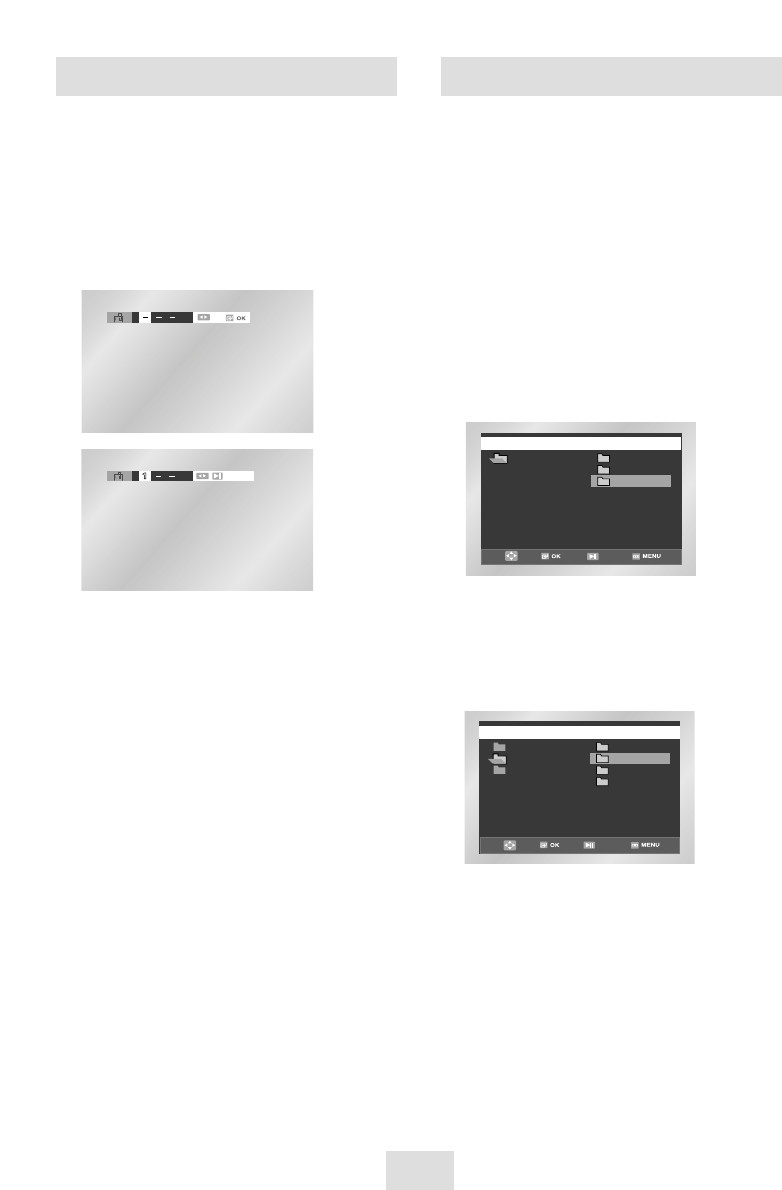

MP3/WMA Play
If you insert an MP3/WMA Disc into the DVD player,
you can see the folder directory.
• Select the desired folder in the root directory.
• Use the OK or
❿ll
button to select the desired
folder.
MP3/WMA Play Function
1Press the OK or
❿ll
button, the selected music file
will be played back.
Up to 8 music folders can be displayed at a time. If
you have more than 8 folders on a disc, press the
❷
button to display them on the screen.
2Use the
,
❷
buttons to select the desired music
folder, then press OK.
Press the
,
❷
buttons again to select a music
file. Press the OK button to begin playback of a
music file.
Total : 1/2
ROOT ROOT
20020822094
MP3
Total : 1/3
ROOT
20020822094
MP3
..
A
B
C
Using the Mark Function
This feature lets you mark sections of a DVD so you can
quickly find them at a later time.
Using the Mark Function (DVD)
1During play, press the MARK button on the remote.
The Mark icons will be displayed.
Recalling a Marked Scene
Clearing a Mark
2Use the
➛
,
❿
buttons to move to the desired Mark
icon.
3When you reach the scene you want to mark, press
the OK button. The icon will change to a number
(1, 2, or 3).
4Press the MARK button to turn off the display.
1During play, press the MARK button on the remote.
2Use the
➛
,
❿
buttons to select a marked scene.
3Press the
❿ll
buttons to skip to the marked scene.
1During play, press the MARK button on the remote.
2Use the
➛
,
❿
buttons to select the mark number
you want to delete.
3Press the CLEAR button to delete a mark number.
Press the MARK button to turn off the display.
➢
• Up to three scenes may be marked at a time.
• Depending on the disc, the mark function may not
work.
CLEAR
ENG-39
MP3/WMA Play
Use a decompression transfer rate of at least
128Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on
the rate of compression/decompression you choose.
Getting audio CD quality sound requires an
analog/digital sampling rate, that is conversion to
MP3 format, of at least 128Kbps and up to 160Kbps.
However, choosing higher rates, like 192Kbps or
more, only rarely give better sound quality.
Conversely, files with decompression rates below
128Kbps will not be played properly.
Use a decompression transfer rate of at least
64Kbps when recording WMA files.
Sound quality with WMA files basically depends on
the rate of compression/decompression you choose.
Getting audio CD quality sound requires an
analog/digital sampling rate, that is conversion to
WMA format, of at least 64Kbps and up to 192Kbps.
Conversely, files with decompression rates below
64Kbps or over 192Kbps will not be played properly.
Do not try recording copyright protected MP3 files.
Certain "securized" files are encrypted and code
protected to prevent illegal copying.
These files are of the following types: Windows
MediaTM (registered trade mark of Microsoft Inc)
and SDMITM (registered trade mark of The SDMI
Foundation). You cannot copy such files.
Important :
The above recommendations cannot be taken as a
guarantee that the DVD player will play MP3
recordings, or as an assurance of sound quality.
You should note that certain technologies and
methods for MP3 file recording on CD-Rs prevent
optimal playback of these files on your DVD player
(degraded sound quality and in some cases,
inability of the player to read the files).
This unit can play a maximum of 500 files and 300
folders per disc.
Program/Random playback
CD-R MP3/WMA discs
1Press the MODE button in STOP mode to switch
between the RANDOM and PROGRAM modes.
➢
•Press the REPEAT button in PLAY mode to hear
only music continuously and press it once again
to release.
When playing CD-R/MP3 or WMA discs, please
follow all the recommendations for CD-R above,
plus the comments below:
Your MP3 or WMA files should be ISO 9660 or
JOLIET format.
ISO 9660 format and Joliet MP3 or WMA files are
compatible with Microsoft's DOS and Windows, and
with Apple's Mac. These two formats are the most
widely used.
When naming your MP3 or WMA files do not
exceed 8 characters, and place ".mp3, .wma" as
the file extension.
General name format of: Title.mp3. or Title.wma.
When composing your title, make sure that you use
8 characters or less, have no spaces in the name,
and avoid the use of special characters including:
(.,/,\,=,+).
PROGRAM RANDOM
ENG-40
Program Play & Random Play
1Press the MODE button.
2Use the
➛
,
❿
buttons to select PROGRAM.
Press the OK button.
3Use the
,
❷
/
➛
,
❿
buttons to select the first
track to add to the program.
Press the OK button. The selection numbers appear
in the Program Order box.
4Press the
❿
II
button.
The disc will be played in programmed order.
RANDOM
PROGRAM
PROGRAM 01PROGRAM 01
Track
05 06 07 08
09 10 11 12
13 14 15 16
- - - - - - - -
- - - - - - - -
- - - - - - - -
- - - - - - - -
- - - - - - - -
Program order
01 02 03 04
CLEAR
Program Play (CD/MP3/WMA)
Random Play (CD/MP3/WMA)
1Press the MODE button.
2Use the
➛
,
❿
buttons to select RANDOM.
Press the OK button.
The disc will be played in random order.
➢
• Depending on the disc, the Program and Random
Play functions may not work.
• To resume normal play, press the CLEAR button.
• This unit can support a maximum of 99
programmed order.
PROGRAM RANDOM

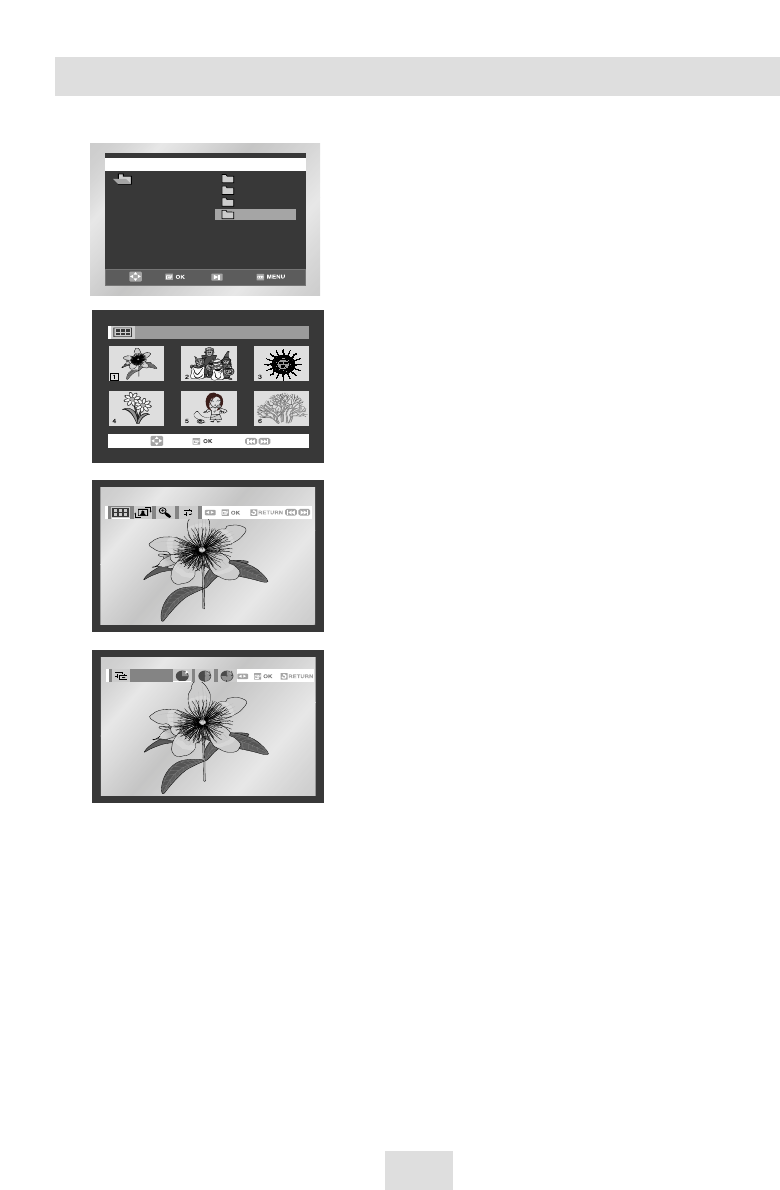

Picture CD Playback
• : Return to the Album Screen.
• : Each time the OK button is pressed, the
picture rotates 90 degrees clockwise.
• : Each time the OK button is pressed, the
picture is enlarged up to 4X.
(Normal
2X
4X
Normal)
• : The unit enters slide show mode.
* Press the RETURN button to return to the album screen.
* Before the Slide Show can begin, the picture interval
must be set.
• : When this icon is selected and OK is
pressed, the pictures change automatically
with about an 6 second interval.
• : The pictures change automatically with about
an 12 second interval.
• : The pictures change automatically with about
an 18 second interval.
* Depending on the file size, each interval between
images may take longer or shorter than the manual
suggests.
1Open the disc tray.
2Load the disc on the tray.
Load the disc with the labeled side up.
3Close the tray.
- The tray closes and you should get a screen that
looks like the one below.
• Use the
,
❷
buttons on the remote controller to
select the picture you want to view and then press
the OK button.
• To see the next 6 pictures, press the
❿❿
l
button.
• To see the previous 6 pictures, press the
l
➛➛
button.
ENG-41
Total : 1/3
ROOT ROOT
20020822094
JPEG
MP3
Timer :
•Only files with the ".jpg" and ".JPG" extensions can be
played.
•If the disc is not closed, it will take longer to start
playing and not all of the recorded files may be
played.
•Only CD-R discs with JPEG files in ISO 9660 or Joliet
format can be played.
•The name of the JPEG file may not be longer than 8
characters and should contain no blank spaces or
special characters (. / = +).
•Only a consecutively written multisession disc can be
played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank
segment.
•A maximum of 500 images can be stored on a single
CD.
•Only Kodak Picture CDs can be played.
•When playing a Kodak Picture CD, only the JPEG
files in the pictures folder can be played.
•Picture discs other than Kodak Picture CD may take
longer to start playing or may not play at all.
•If a number of files in 1 Disc is over 500, only 500
JPEG file can be played.
•If a number of folders in 1 Disc is over 300, only
JPEG files in 300 folders can be played.
➢
• If no buttons on the remote control are pressed for
10 seconds, the menu will disappear.
Press the DISC MENU button on the remote
control to display the menu again.
CD-R JPEG Discs
Picture CD Playback
Photo : 1 /215
Album Photo : 1 /215
ENG-42
Technical Specifications
Rated voltage 220 - 240V, 50Hz
Power consumption 19Watts
Weight 3.9Kg
General Size 430mm X 282mm X 82mm
Operating ambient temperature +5°C ~ +35°C
Installation conditions Operation position : Horizontal,
Relative humidity : Below 75%
Input Video input (Rear) Euro Scart socket : 1.0Vp-p (unbalanced) 75Ω
Audio input (Rear) Euro Scart socket : -8dBm, 47Kohm unbalanced
Audio (DVD, VCR) RCA jack, Euro Scart socket
Output Audio (DVD only) Digital audio out (
OPTICAL; SV-DVD540/SV-DVD545 Only,
COAXIAL, RCA jack).
Video (DVD, VCR) RCA jack, Euro Scart socket
Video (DVD only) S-Video out
RGB out : Euro Scart socket
Tape format VHS type video tape
Colour system PAL, SECAM, MESECAM, NTSC4.43, NTSC PB on PAL
TV
VCR Tuning system SECAM-L, B/G
Video S/N Above 43dB (standard recording)
Resolution Above 240 lines (standard recording)
Audio S/N Above 68dB (Hi-Fi), 39dB (Mono)
Audio frequency characteristics 20Hz - 20KHz (Hi-Fi)
Disc DVD, CD (12cm), CD (8cm),
DVD Audio S/N 95dB
Audio dynamic range 105dB
ENG-43
Problems and Solutions (VCR)
Before contacting the Samsung after-sales service, perform the following simple checks.
Problem Explanation/Solution
No power ◆Check that the power plug is connected to a wall outlet.
◆Have you pressed the STANDBY/ON button?
You cannot insert a video cassette ◆A video cassette can only be inserted with the window
side up and the safety tab facing you.
The television programme was not recorded ◆Check the DVD-VCR aerial connections.
◆Is the DVD-VCR tuner properly set?
◆Check if the safety tab is intact on the cassette.
Timer recording was unsuccessful ◆Was the STANDBY/ON button pressed to activate the timer?
◆Re-check the recording start/stop time settings.
◆If there was a power failure or interruption during timer
recording, the recording will have been cancelled.
No playback picture or the picture ◆Check to see if you are using a prerecorded tape.
is distorted
You cannot see normal broadcasts ◆Check the TUNER/EXTERNAL setting. It should be on TUNER.
◆Check the TV/VCR aerial connections.
Noise bars or streaks on playback ◆Press the TRK ( or ) buttons to minimize this effect.
When the ❿II button is pressed ◆A still picture may have “noise bars”, depending on the
during playback, the still picture condition of the tape. Press the TRK ( or ) buttons
has severe “noise bars” streaks during SLOW motion to minimize this effect.
Video Head Cleaning ◆If poor pictures appear on a variety of cassettes, the video
heads may need cleaning. This is not a common problem
and unless it appears, the heads should not be cleaned.
When cleaning the video heads, read all instructions
provided with the head cleaning cassette. Incorrect head
cleaning can permanently damage the video heads.
If you are unable to solve the problem after reading the above instructions, note:
◆The model and serial number on the rear of your DVD-VCR
◆The warranty information
◆A clear description of the problem
Then contact your nearest SAMSUNG after-sales service.
ENG-44
Troubleshooting Guide (DVD)
Disc does not play.
5.1 channel sound is not
being reproduced.
The icon appears on
screen.
Playback mode differs from
the Setup Menu selection.
The screen ratio cannot be
changed.
No audio.
Forgot password
If you experience other
problems.
◆Ensure that the disc is installed with the label side facing up.
◆Check the region number of the DVD.
◆This player cannot play CD-ROMs, DVD-ROMs, etc. Insert a DVD,
a CD.
◆5.1 channel sound is reproduced only when the following conditions
are met. :
1) The DVD-VCR player is connected with the proper amplifier
2) The disc is recorded with 5.1 channel sound.
◆Check whether the disc being played has the “Dolby 5.1 ch” mark
on the outside.
◆Check if your audio system is connected and working properly.
◆The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is
out of range.
◆Some of the functions selected in the Setup Menu may not work
properly if the disc is not encoded with the corresponding function.
◆The Screen Ratio is fixed on your DVDs.
◆Make sure you have selected the correct Digital Output in the Audio
Options Menu.
◆Press power on from a cold start with no disc in the unit. Press the
➛➛
and
❿❿
buttons simultaneously on the front panel for five
seconds. Switch off and on the DVD-VCR by pressing
STANDBY/ON button. The Parental Mode is now unlocked as
indicated on the display. You can now set your rating level and
change your password to a new number.
◆Go to the contents and find the section of the instruction book that
contains the explanations regarding the current problem, and follow
the procedure once again.
◆If the problem still cannot be solved, please contact your nearest
authorized service center.
Problem Action Page
Before requesting service (troubleshooting)
P4
P28
P30
P28-41
P28-32
P30
P32
P32
ELLAS (GREECE)
Agaphtev pelavth,
Saı eucaristouvme gia thn empistosuvnh pou
deivxate sthn SAMSUNG me thn agorav
authvı thı suskeuhvı.
To proiovn autov thı SAMSUNG eivnai egguh-
mevno gia perivodo dwvdeka (12) mhnwvn apov thn
hmeromhniva agoravı tou gia antallaktikav kai
ergatikav. Sthn perivptwsh pou qa creiasteiv
episkeuhv, to proiovn autov thı SAMSUNG qa
prevpei na staleiv hv na metaferqeiv sto
exousiodothmevno service, me evxoda tou ago-
rasthv.
Exousiodothmevnoi antiprovswpoi kai
exousiodothmevna kevntra service se avlleı
Eurwpaikevı cwvreı, qa apodecqouvn touı ovrouı
thı egguvhshı.
Plhroforiveı gia ta exousiodothmevna kevntra
service sthn Ellavda, mporeivte na pavrete apov
thn
FOURLIS TRADE A.E.B.E.
L. Kruonerivou 112
145 68 Kruonevri, Apikhvı
Thl. 210.629.3100
■Oroi thı egguvhshı
1. H egguvhsh iscuvei eavn kai movno eavn to proiovn
creiavzetai service kai h kavrta egguvhshı
evcei plhvrwı sumplhrwqeiv kai sfragisqeiv
apov to katavsthma agoravı. Epivshı prevpei na
proskomisqeiv kai to timolovgio hv h apovdeixh
lianikhvı pwvlhshı, pavnw sthn opoiva o seiri-
akovı ariqmovı tou proiovntoı prevpei na eivnai
eukrinhvı.
2. H upocrevwsh thıSAMSUNG aforav movno
thn episkeuhv tou proiovntoı
3. H episkeuhv tou proiovntoı prevpei na ana-
tivqetai movno se exousiodothmevna kevntra
service hv exousiodothmevnouı antiproswvpouı
thı SAMSUNG. Kamiva apozhmivwsh den qa
givnei apodekthv gia episkeuhv pou evcei givnei
apov mh exousiodothmevno apov thn SAMSUNG
sunergeivo.
4. To proiovn autov den qa qewrhqeiv
ellatwmatikov sta ulikav hv sthn ergasiva
episkeuhvı eavn qa prevpei na prosarmosteiv,
metatrapeiv hv ruqmisteiv wvste na summor-
fwqeiv me tiı topikevı tecnikevı prodiagrafevı
hv prodiagrafevı pou iscuvoun se cwvra avllh
apov authv gia thn opoiva proorizovtan hv
kataskeuavsthke.
H egguvhsh authv den kaluvptei apozhmiwvseiı
giaÚ
*Kefalevı bivnteo kai kasetofwvnwn
*Kefalevı binteokavmeraı
*Gennhvtrieı aktinwvn Iaser sta CD, DVD
*Thleceiristhvria
*Lucniveı fouvrnwn mikrokumavtwn
*Prosarmogevı, metatropevı hv ruqmivseiı,
anexavrthta an eivnai epituchvı hv
anepituchvı, ouvte opoiadhvpote zhmiva
proevrcetai ex autouv...
5. H egguvhsh authv den kaluvptei kamiva apov tiı
parakavtw periptwvseiıÚ
*Periodikouvı elevgcouı, sunthvrhsh kai
episkeuhv hv antikatavstash merwvn pou
ofeivlontai se fusiologikhv fqorav
*Ta evxoda kai touı kinduvnouı metaforavı
pou scetivzontai me thn egguvhsh autouv
tou proiovntoı
*Zhmiva se autov to proiovn pou proevrcetai
apovÚ
A. Katavcrhsh hv kai kakhv crhvsh, sumper-
ilambanomevnhı allav kai mh perioris-
mevnhı seÚ
Mh crhvsh autouv tou proiovntoı gia
touı skopouvı pou fusiologikav
proorivzetai hv suvmfwna me tiı odhgiveı
crhvsewı gia thn swsthv crhvsh kai
sunthvrhsh autouv tou proiovntoı
Thn egkatavstash kai crhvsh tou
proiovntoı me trovpouı pou antivkeintai
stiı tecnikevı prodiagrafevı asfalei-
vaı pou iscuvoun katav thn crhvsh tou
proiovntoı
B. Episkeuhv pou evgine apov mh
exousiodothmevna sunergeiva service
G. Atuchvmata, qeomhniveı hv opoiadhvpote
aitiva pevra tou elevgcou thı
SAMSUNG, sumperilambanomevnwn
allav mh periorismevnwn twn keraunwvn,
tou nerouv, thı fwtiavı, twn dhmosivwn
anataracwvn, tou kakouv aerismouv klp.
D.H egguvhsh authv den ephreavzei ta
dikaiwvmata tou katanalwthv pou prob-
levpontai apov thn efarmosteva eqnikhv
nomoqesiva pou iscuvei, ouvte ta dikaiwv-
mata twn katanalwtwvvvn enantivon twn
lianopwlhtwvvvvn pou aporrevoun apov thn
suvmbash pwvlhshı.
E. Se perivptwsh pou den upavrcei eqnikhv
nomoqesiva authv h egguvhsh qa eivnai h
monadikhv kai apokleistikhv kavluyh tou
katanalwthv gia kavqe zhmiav.
FOURLIS TRADE A.E.B.E.

Navigation menu
