US
DVD Player
DVD-HD941
AK68-00342Q
HEADQUARTERS
105 Challenger Road
Ridgefield Park, NJ 07660-0511
TEL: 1-800-SAMSUNG
SERVICE DIVISION
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsungusa.com
ENG-3
Important Safety Instructions Precautions
ENG-2
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
13) Unplug this apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates “dangerous volt-
age” inside the product that presents a
risk of electric shock or personal injury.
This symbol indicates important
instructions accompanying the
product.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.
Do not install this equipment in a confined space such as a bookcase or similar unit.
WARNING : To prevent damage which may result in fire or electric shock hazard, do not
expose this appliance to rain or moisture.
CAUTIONS
Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne corre-
spondante de la prise et pousser jusqu au fond.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to
other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televi-
sions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus meets all requirements of the Canadian Interference --
Causing Equipment Regulations.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
ENG-5
Before you start
Install Batteries in the Remote
1. Open the battery cover on the back of the
remote.
2. Insert two AAA batteries. Make sure that the
polarities (+ and -) are aligned correctly.
3. Replace the battery cover.
If remote doesn’t operate properly
• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

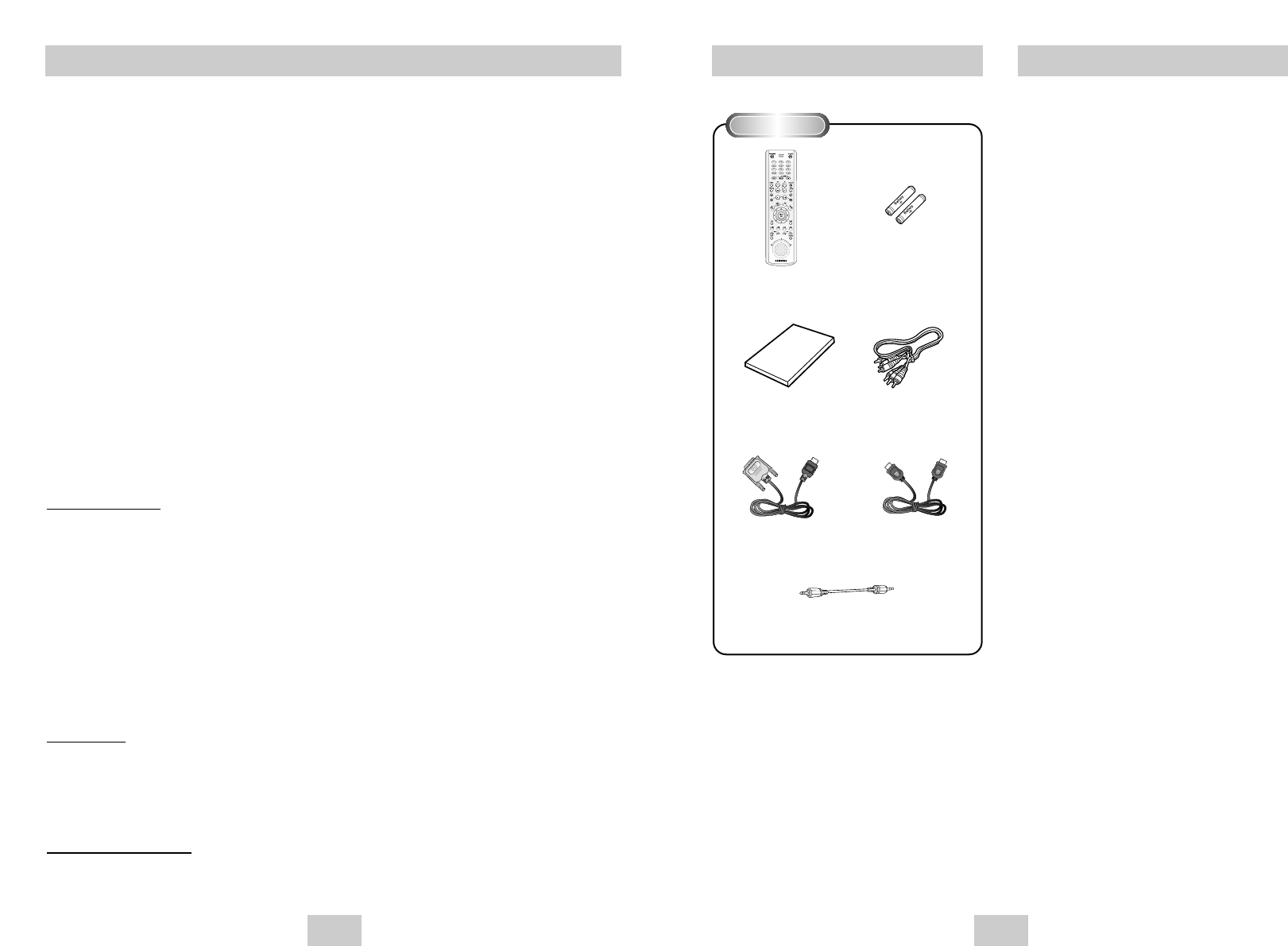

Remote Control
(AK59-00025D)
Batteries for
Remote Control
(AAA Size)
(AC43-12002H)
User’s Manual
(AK68-00342P) Video/Audio Cable
(AC39-42001R)
Table of Contents
Accessories Setup
Important Safety Instructions . . . . . . . . . . . . . .2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before you start . . . . . . . . . . . . . . . . . . . . . . . .5
General Features . . . . . . . . . . . . . . . . . . . . . . .6
Disc Type and Characteristics . . . . . . . . . . . . .7
Description-Front Panel . . . . . . . . . . . . . . . . . .8
Display Indicators . . . . . . . . . . . . . . . . . . . . . .9
Description-Rear Panel . . . . . . . . . . . . . . . . .10
Tour of the Remote Control . . . . . . . . . . . . . .11
Connections
Choosing a Connection . . . . . . . . . . . . . . . . .12
Basic Functions
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . .17
Using the Search & Skip Functions . . . . . . . .18
Using the Display Function . . . . . . . . . . . . . . .18
Using the Disc and Title Menu . . . . . . . . . . . .19
Using the Function Menu . . . . . . . . . . . . . . . .20
Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . .20
Slow Repeat Play . . . . . . . . . . . . . . . . . . . . . .21
Program Play & Random Play . . . . . . . . . . . .21
Advanced Functions
Adjusting the Aspect Ratio (EZ View) . . . . . . .22
Selecting the Audio Language . . . . . . . . . . . .23
Selecting the Subtitle Language . . . . . . . . . . .23
Changing the Camera Angle . . . . . . . . . . . . .24
Using the Instant Replay/Skip Function . . . . .24
Using the Bookmark Function . . . . . . . . . . . .25
Using the Zoom Function . . . . . . . . . . . . . . . .26
Super Audio CD Playback . . . . . . . . . . . . . . .26
DVD AUDIO Playback . . . . . . . . . . . . . . . . . .28
Clips Menu for MP3/WMA/JPEG . . . . . . . . . .29
Folder Selection . . . . . . . . . . . . . . . . . . . . . . .30
MP3/WMA Playback . . . . . . . . . . . . . . . . . . .30
Picture CD Playback . . . . . . . . . . . . . . . . . . .31
Changing Setup menu
Using the Setup Menu . . . . . . . . . . . . . . . . . .32
Setting Up the Language Features . . . . . . . . .33
Setting Up the Audio Options . . . . . . . . . . . . .35
Surround Sound Speaker Setup . . . . . . . . . . .36
Setting Up the Display Options . . . . . . . . . . . .37
Setting Up the Parental Control . . . . . . . . . . .38
Reference
Controlling a TV with the Remote . . . . . . . . . .40
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .41
Specifications . . . . . . . . . . . . . . . . . . . . . . . .43
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
ENG-4
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Note:
• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
• This DVD player is designed and manufactured to respond to the Region Management Information.
If the Region number of a DVD disc does not correspond to the Region number of this DVD player,
the DVD player cannot play the disc.
• The product unit accompanying this user manual is licensed under certain intellectual property rights
of certain third parties. In particular, this product is licensed under the following US patents:
5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992,
6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US
Published Patent Application No. 2001-44713-A1.
This license is limited to private non-commercial use by end-user consumers for licensed contents.
No rights are granted for commercial use. The license does not cover any product unit other than this
product unit and the license does not extend to any unlicensed product unit or process conforming to
ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit.
The license only covers the use of this product unit to encode and/or decode audio files conforming to
the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features
or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
Handling Cautions
• Before connecting other components to this player, be sure to turn them all off.
• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s
internal parts may be damaged.
•Do not put a flower vase filled with water or any small metal objects on the player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this player.
If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the
AC power cord to the AC power outlet. The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long
periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
Disc Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.
Precautions
HDMI - DVI Cable
(AK39-00061A)
Anynet Cable
(AK97-00879A)
HDMI Cable
(MF39-00299A)
ENG-7ENG-6

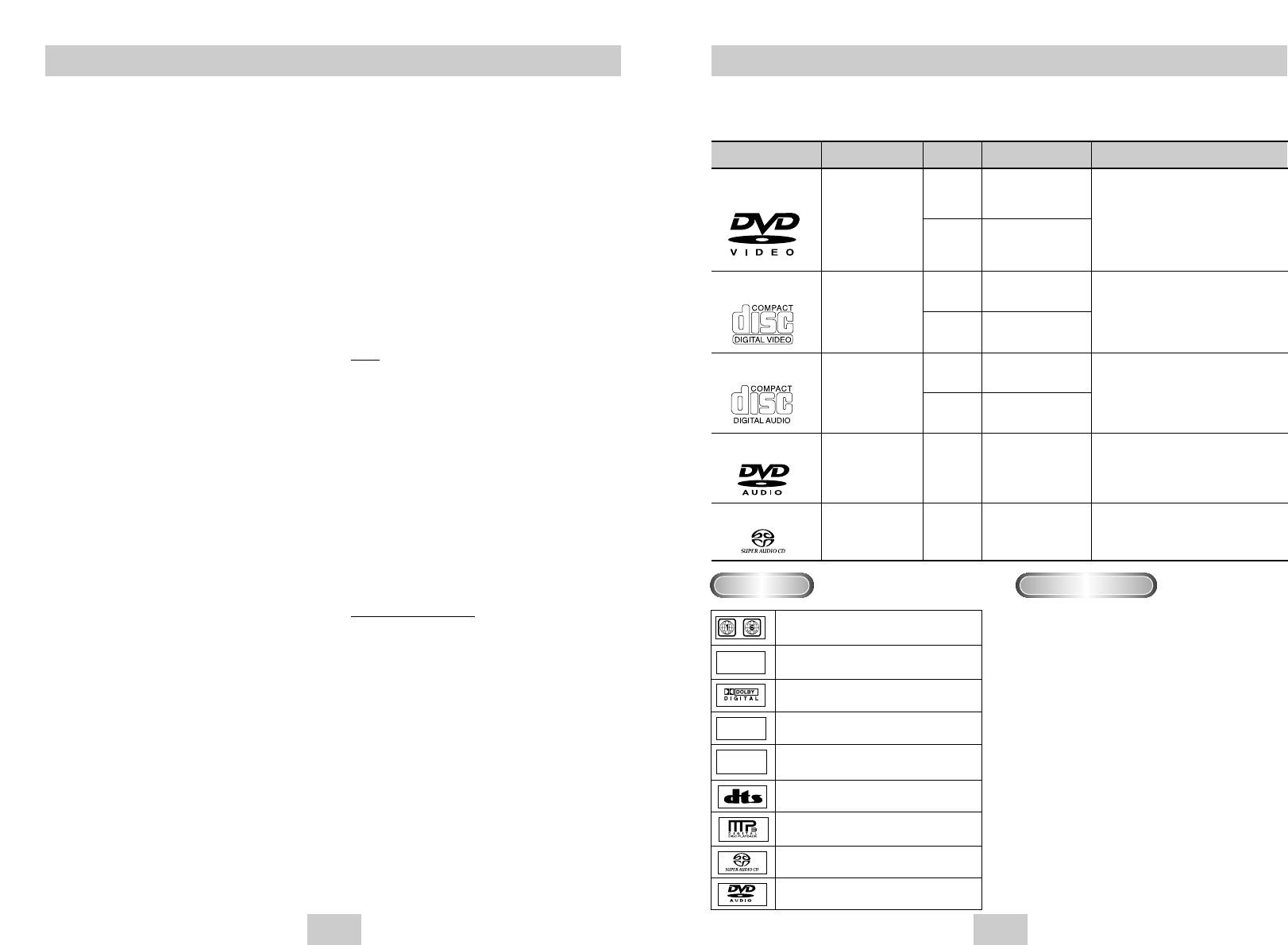

Disc Type and Characteristics
Disc Markings Play Region Number
~
DIGITAL
SOUND
STEREO
NTSC
Play Region Number
NTSC broadcast system in U.S.A, Canada,
Korea, Japan, etc.
Dolby Digital disc
Stereo disc
Digital Audio disc
DTS disc
MP3 disc
Super Audio CD disc
DVD AUDIO disc
Both the DVD player and the discs are coded by region.
These regional codes must match in order for the disc to
play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the
rear panel of the player.
This DVD player is capable of playing the following types of discs with the corresponding logos:Excellent Sound
Dolby Digital, a technology developed by Dolby
Laboratories, provides crystal clear sound
reproduction.
Screen
Both regular and widescreen(16:9) pictures can be
viewed.
Slow Motion
An important scene can be viewed in slow motion.
Programmed Play (CD)
You can program tracks to play in desired order.
Parental Control (DVD)
The parental control allows users to set the level
necessary to prohibit children from viewing harmful
movies such as those with violence, adult subject
matter, etc.
Various On-Screen Menu Functions
You can select various languages (Audio/Subtitle)
and screen angles while enjoying movies.
EZ VIEW (DVD)
Easy View can convert Letter Box images to full
screen viewing on your conventional TV.
Digital Photo Viewer (JPEG)
You can view Digital Photos on your TV.
Repeat
You can repeat a song or movie simply by pressing
the REPEAT button.
MP3/WMA
This unit can play discs created from MP3/WMA
files.
Instant Replay (DVD)
This function is used to replay the previous
10 seconds of a movie from the current position.
Instant Skip (DVD)
This function skips playback ahead 10 seconds.
SACD (Super Audio CD)
Super Audio CD is a high quality audio format with
higher sampling rates and fuller, richer sound as
compared to regular CD.
DVD AUDIO
DVD AUDIO is a format specifically designed to
provide the highest possible audio fidelity capable
on DVD.
HDMI (High Definition Multimedia Interface)
HDMI reduces picture noise by allowing a pure
digital video/audio signal path from the player to
your TV.
ANYNET
Controls all AV equipment from the TV screen with a
TV remote control. But, ANYNET function shall be
provided for this purpose.
Note
* Discs which cannot be played with this player.
• DVD-ROM • DVD-RAM
• CD-ROM • CDV
• CDI
• CDGs play audio only, not graphics.
* Ability to play back may depend on recording
conditions.
• DVD-R, +R • CD-RW
• DVD+RW, -RW
* The unit may not play certain CD-R, CD-RW and
DVD-R due to the disc type or recording
conditions.
COPY PROTECTION
Many DVD discs are encoded with copy
protection. Because of this, you should only
connect your DVD player directly to your TV, not
to a VCR. Connecting to a VCR results in a
distorted picture from copy-protected DVD
discs.
This product incorporates copyright protection
technology that is protected by methods claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners.
Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is
prohibited.
General Features
5"
3
1/2
"
Single-sided 240 min.
Double-sided 480 min.
Single-sided 80 min.
Double-sided 160 min.
Audio
+
Video
• DVD contains excellent sound and
video due to Dolby Digital and
MPEG-2 system.
• Various screen and audio functions
can be easily selected through the
on-screen menu.
Disc Types (Logos) Recording Types Disc Size Max. Playing Time Characteristics
DVD-VIDEO
5"
3
1/2
"
74 min.
20 min.
Audio
+
Video
Audio
+
Video
• Video with CD sound, VHS
quality & MPEG-1 compression
technology.
VIDEO-CD
5"
3
1/2
"
5"
5"
74 min.
20 min.
400 min.
74 min.
Audio
Audio
• CD is recorded as a Digital Signal
with better audio quality, less
distortion and less deterioration of
audio quality over time.
• DVD AUDIO is a format specifically
designed to provide the highest
possible audio fidelity capable on
DVD.
• Super Audio CD is a high quality
audio format with higher sampling
rates and fuller, richer sound as
compared to regular CD.
AUDIO-CD
DVD AUDIO
SACD
ENG-9ENG-8

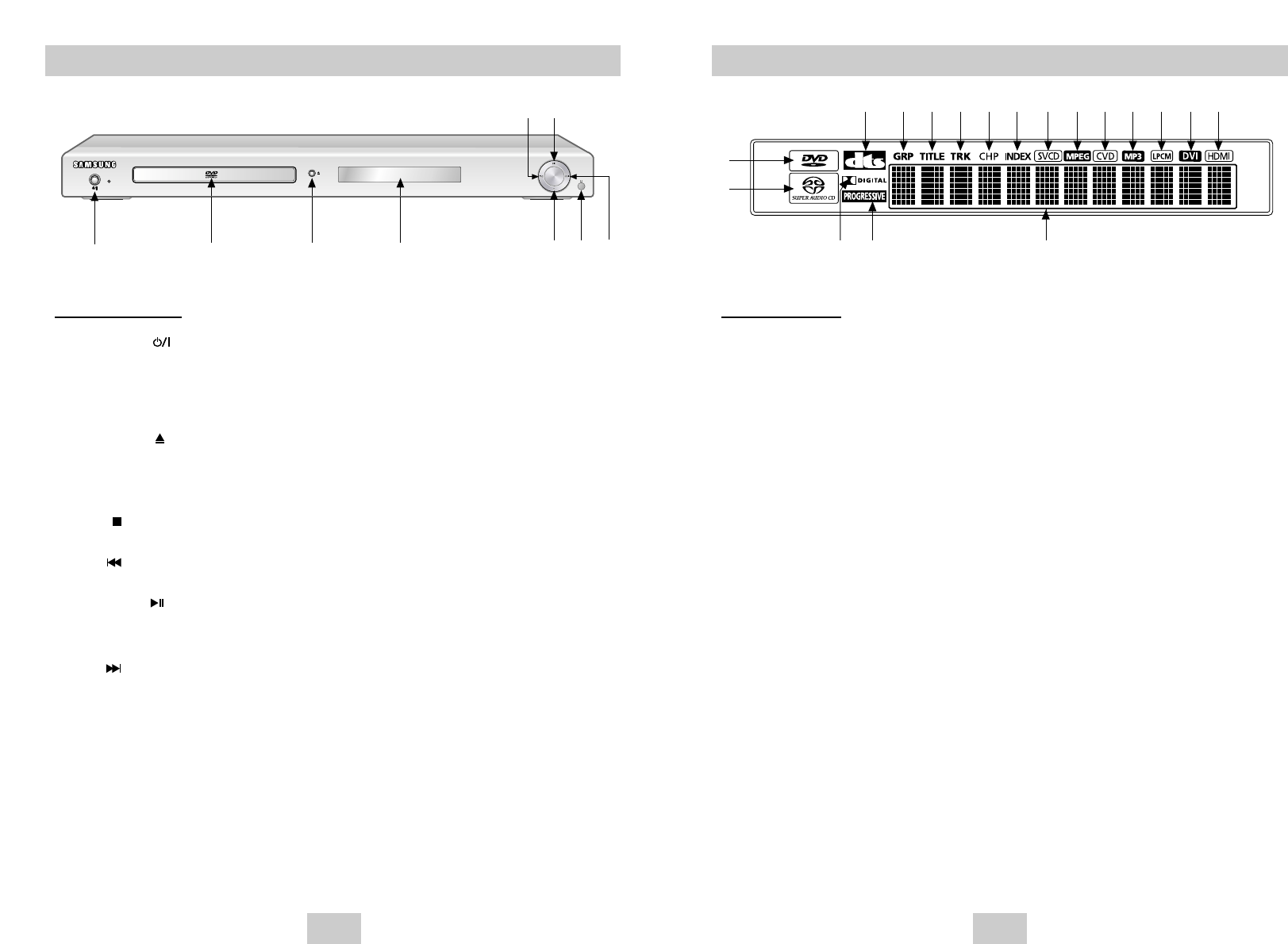

Description-Front Panel
STANDBY
1234 589
67
Front Panel Controls
1. STANDBY/ON ( )
• When the unit is first plugged in, the red indicator lights.
When STANDBY/ON button is pressed on, the blue light appears and the player is turned on.
2. DISC TRAY
• Place the disc here.
3. OPEN/CLOSE ( )
• Press to open and close the disc tray.
4. DISPLAY
• Operation indicators are displayed here.
5. STOP ( )
• Stops disc play.
6. SKIP ( ) / SEARCH
• Use to reverse skip a scene or music.
7. PLAY/PAUSE ( )
• Begin or pause disc play.
8. REMOCON RECEIVER
9. SKIP ( ) / SEARCH
• Use to forward skip a scene or music.
Display Indicators
Front Panel Display
1. DVD : DVD is loaded
Audio : DVD-Audio disc is playing
2. Super Audio CD is loaded
3. DTS (Digital Theater System) output
4. Dolby-Digital Disc
5. Progressive Scan Video output
6. DVD-Audio : Group number
7. DVD-Video : Title number
8. DVD-Audio, CD, Video CD, Super Audio CD :Track number
9. DVD-Video : Chapter number
10. DVD-Audio : Index number
11. Disc type indicators : SVCD, VCD, CD
12. MPEG Audio output
13. CVD Disc indicator
14. MP3 Audio output
15. Linear PCM audio output
16. Lights when the device connected to the HDMI Jack is a DVI device
17. Lights when the device connected to the HDMI Jack is a HDMI device
18. Displays various messages concerning operations such as PLAY, STOP, LOAD ...
no DISC : No disc loaded.
OPEN : The disc tray is open.
LOAD : Player is loading disc information.
1
2
3 6 7 8 9 10 1112131415 1617
1845
ENG-11ENG-10
This remote control can also control most TVs. See page 40.
8. SEARCH Buttons ( / )
• Allow you to search forward/backward through a disc.
9. STOP Button ( )
10. MENU Button
• Brings up the DVD player’s menu.
11. RETURN Button
• Returns to a previous menu.
12. ZOOM Button
• Enlarges DVD picture.
13. AUDIO Button
•
Use this button to access various audio functions on a disc.
14. SUBTITLE Button
15. INDEX Buttons
• Use to skip the INDEX.
16. SACD/CD Button
• Selects SACD or CD playback mode.
17. SHUTTLE DIAL (Search mode)
• Performs fast motion play.
18.TV POWER button
• Turns the TV’s power on or off.
19. CLEAR Button
•
Use to remove menus or status displays from the screen.
20. INSTANT SKIP Button
• This function skips playback ahead 10 seconds.
21. INSTANT REPLAY Button
• This function is used to replay the previous 10
seconds of a movie from the current position.
22. CH / buttons
• Channel selection.
23. OPEN/CLOSE ( ) Button
• To open and close the disc tray.
24. HDMI SEL. Button
• HDMI or DVI Output resolution setup.
25. SKIP Buttons ( / )
• Use to skip the title, chapter, or track.
26. PLAY/PAUSE Button ( )
• Begin/Pause disc play.
27. INFO Button
• Displays the current disc mode.
28. DISC MENU Button
• Brings up the Disc menu.
29. ENTER/DIRECTION Button
(UP/DOWN or LEFT/RIGHT Buttons)
• This button functions as a toggle switch.
30. EZ VIEW Button
• Easy View can convert Letter Box images to full
screen viewing on your conventional TV.
31. ANGLE Button
• Use to access various camera angles on a DVD.
32. REPEAT Button
• Allows you to repeat play a title, chapter, track, or disc.
33. PAGE Buttons
• Use to skip the PAGE.
34. BOOKMARK Button
35. JOG DIAL (Step mode)
• Operates frame by frame play. In CD mode, performs
track search.
DVD Function Buttons
1. DVD POWER Button
• Turns the power on or off.
2. NUMBER Buttons
3. PROG Button
• Allows you to program a specific order.
4. STEP Button
• Advances play one frame at a time.
5. VOL +/- Buttons
• Control volumes.
6.TV/VIDEO Button
• Press to display all of the available video sources
( i.e., TV, Cable, Video)
7. VIDEO SEL. Button
• Selects Video output format.
Tour of the Remote Control
HDMI SEL.
118
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

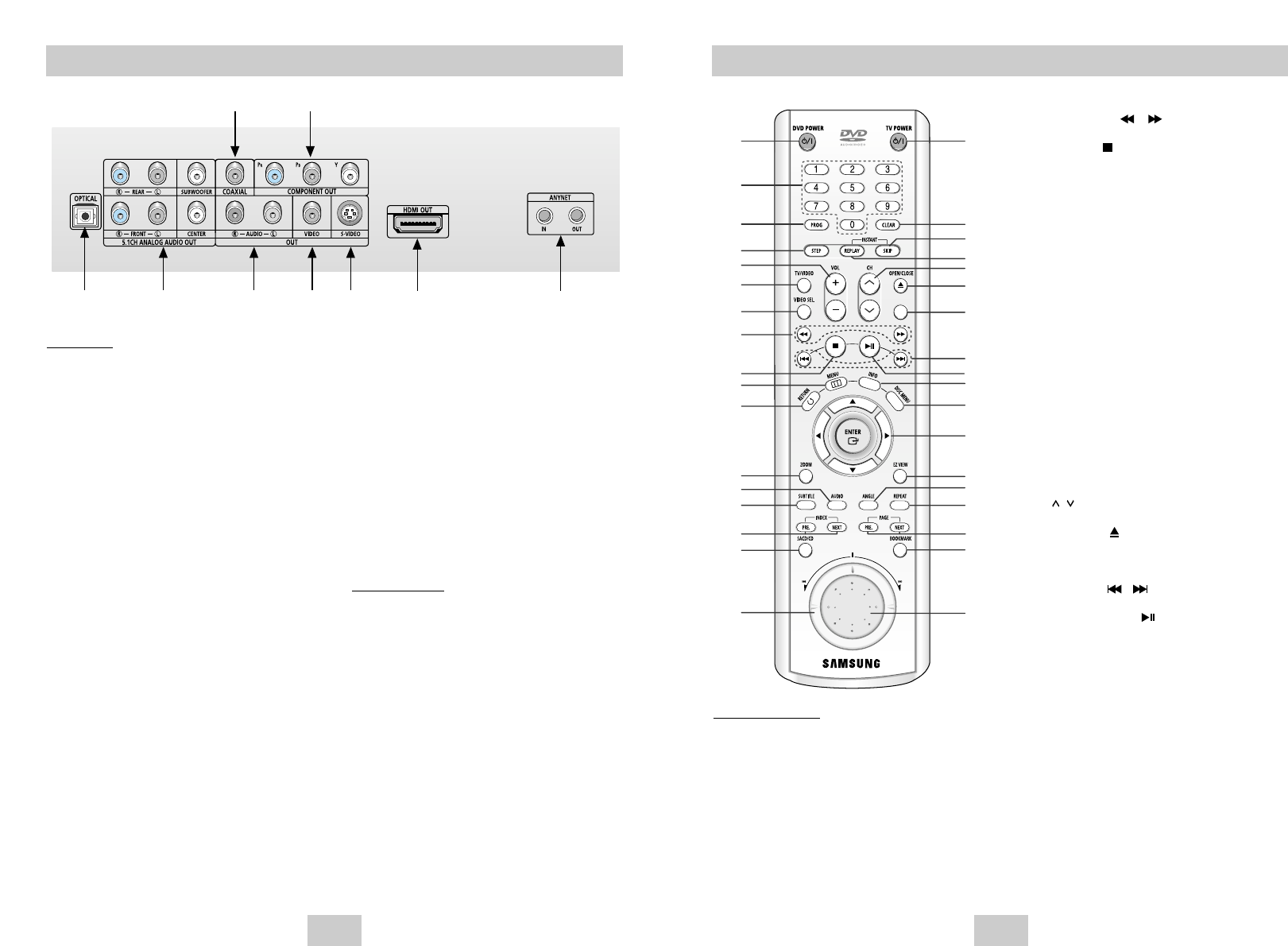

Description-Rear Panel
Rear Panel
1. DIGITAL AUDIO OUT JACKS
• Use an optical or coaxial digital cable to connect
to a compatible Dolby Digital receiver.
Use to connect to an A/V Amplifier that contains
a Dolby Digital or DTS decoder.
2. 5.1CH ANALOG AUDIO OUT JACKS
• Connect to an amplifier with 5.1ch analog input
jacks.
3. AUDIO OUT JACKS
• Connect to the Audio input jacks of your
television, audio/video receiver.
4. VIDEO OUT JACK
• Use a video cable to connect to the Video input
jack on your television.
5. S-VIDEO OUT JACK
• Use the S-Video cable to connect this jack to
the S-Video jack on your television for a higher
quality picture.
• The Video Output in Setup Menu must be set to
S-Video, P-SCAN, or HDMI-DVI.
6. HDMI OUT JACK
• Use the HDMI or HDMI-DVI cable to connect
this jack to the HDMI or DVI jack on your
television for the best quality picture.
• If HDMI cable is connected with TV available for
HDMI output, HDMI mode will work
automatically.
7. COMPONENT OUT JACKS
• Use these jacks if you have a TV with
Component Video in jacks. These jacks provide
Pr, Pb and Y video.
• If Component (P-SCAN) is selected in Setup
Menu, P-SCAN mode will work.
• If Component (I-SCAN) is selected in Setup
Menu, I-SCAN mode will work.
8. ANYNET JACK
• Use these jacks if you have a TV with ANYNET
jack. These jacks provide you with a control this
unit with a TV remote.
Important Note
• Consult your TV User’s Manual to find out if your
TV supports Progressive Scan. If Progressive
Scan is supported, follow the TV User’s Manual’s
instructions regarding Progressive Scan settings in
the TV’s menu system.
• The HDMI output of this unit can be connected to
a DVI jack on a TV or other device using a conver-
sion adapter. In this case, it is necessary to use a
TV or display with an HDCP-compatible DVI input.
• There may be no image output if connected to a
TV or display that is not compatible with the above
format.
• Refer to the instruction manual of the TV or display
to be connected to this unit for detailed information
regarding the HDMI terminal.
• See page 38 to get more information on how to
use the setup menu.
12 34
5
17
68
ENG-13ENG-12

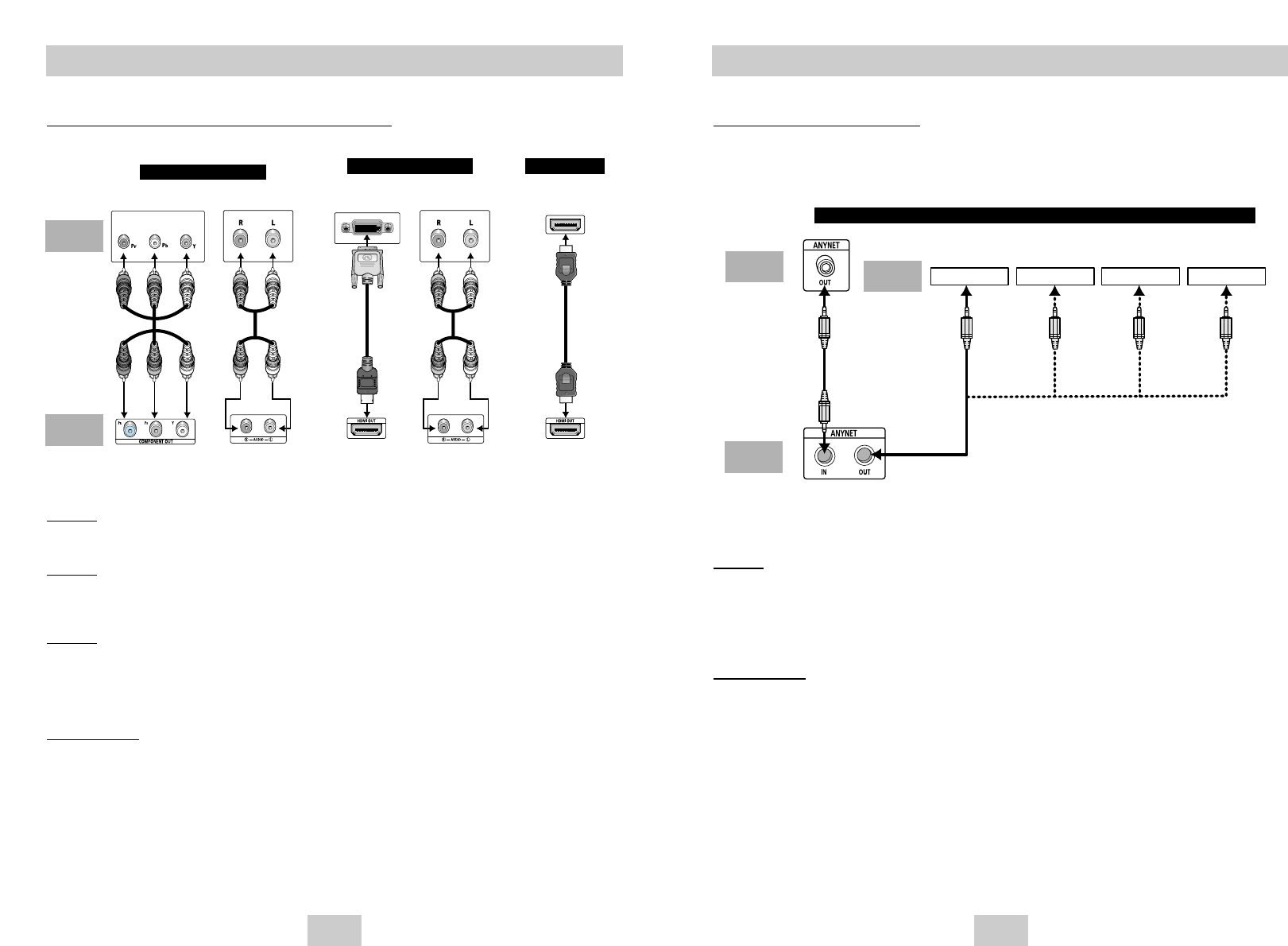

Choosing a Connection
Connection to a TV (For Video)
TV (Normal, Widescreen, Projection, etc..)
1. Connect a cable with the desired method.
2. Turn on your TV and DVD Player.
3. Set your TV the correct video input by pressing TV/VIDEO button on. (See page 40)
4. Select the video output according to the cable connection.
If you use the VIDEO SEL. button, you can change easily video output in no disc mode.
Method 1
DVD Player + TV with Video Input Jack
Method 2
DVD Player + TV with S-Video Input Jack
(The Video Output in Setup Menu must be set to S-Video, P-SCAN or HDMI-DVI.)
Method 3
DVD Player + TV with Component Video Jacks
(The Video Output in Setup Menu must be set to Component (I-SCAN).)
Note
• If you press the VIDEO SEL. button, Video output mode is changed in regular sequence in no disc mode.
(S-Video ➝I-SCAN ➝P-SCAN)
TV
DVD
Player
Method 1 Method 2 Method 3
Basic Audio Video S-Video Interlace scan
Audio Output Jacks
OR OR
AV
Cable
S-Video
Cable
Video
Cables
Video Output Jack S-Video Jack Component Video Jacks
Choosing a Connection
The following shows examples of connections commonly used to connect the DVD player with a TV
and other components.
Before Connecting the DVD Player
• Always turn off the DVD player, TV, and other components before you connect or disconnect any cables.
• If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.
• Refer to the owner’s manual of the additional components you are connecting for more information on those
particular components.
Connection to an Audio System
Note
• DVD-AUDIO only plays back two channel audio through the Digital Audio out. Multi-channel DVD-Audio discs
are output through the Analog outputs.
• Super Audio CD plays back only through the Analog outputs. (See page 35)
Method 1 Method 2
Mixed Audio Output Jaks
(2 Channel)
Analog Audio Output Jacks
(Multi Channel)
Digital Audio Output Jack
2ch Amplifier
Audio Input Jacks
5.1ch Analog Amplifier
Audio Input Jacks
AUDIO
SYSTEM
DVD
Player
Method 3
Dolby Digital Decoder
Digital Audio Input Jack
OR
ENG-15ENG-14
Choosing a Connection Choosing a Connection
Connection to a TV (For Progressive scan, Digital Video)
Method 1
DVD Player + TV with Component Video Jacks.
(The Video Output in Setup Menu must be set to Component (P-SCAN).)
Method 2
DVD Player + TV with DVI Jack.
• Depending on your TV, your hookup for Method 2 may differ from the illustration.
(The Video Input on TV must be set to DVI.)
Method 3
DVD Player + TV with HDMI Jack.
• Depending on your TV, your hookup for Method 3 may differ from the illustration.
(The Video Input on TV must be set to HDMI.)
Important Note
• Consult your TV User’s Manual to find out if your TV supports Progressive Scan, DVI or HDMI.
• If you want to convert Video Output to Progressive Scan, select Component (P-SCAN) in SETUP menu and
then select “Yes ”within 10 seconds. Finally change the TV's external input to Component (480p).
(See Page 37)
• Use the VIDEO SEL. button to easily change the video output in no disc mode. (See page 11)
• If HDMI or HDMI-DVI cable is pluged in TV, the player output is HDMI/DVI out automatically.
• When the Video output is HDMI/DVI, Component (P-SCAN) will not work .
• Refer to your TV user's manual.
Audio Output Jacks Audio Output Jacks Digital Video Out+
Digital Audio Out
TV
DVD
Player
Method 1 Method 2 Method 3
Progressive scan Basic Audio Digital Video DVI Audio Input HDMI Input
Component Jacks HDMI Output Jack
Connection to a TV (For ANYNET)
ANYNET provides you with a convenient control of the DVD Player from your TV.
You shall connect the ANYNET OUT port of the DVD Player with the ANYNET IN port of the AV device to control
all items from your TV.
Method 1
DVD Player + TV with ANYNET jack.
• Depending on your TV, your hookup for Method1 may differ from the illustration.
(Refer to the enclosed User’s Manual for the TV with the ANYNET function for the detailed functional operation
and connection diagram. But, you shall set up ANYNET on your TV first.)
Important Note
• Only the TV with the ANYNET function is applicable.
• Reversed connection between In and Out of the ANYNET ports will disable the ANYNET function.
• The ANYNET ports are light green(IN) or black(OUT).
Please match the ANYNET IN/OUT port with the right cable color.
ANYNET
Input Jack ANYNET
Output Jack
TV The other
AV units
DVD
Player
Method 1
OR OR OR
ENG-17ENG-16

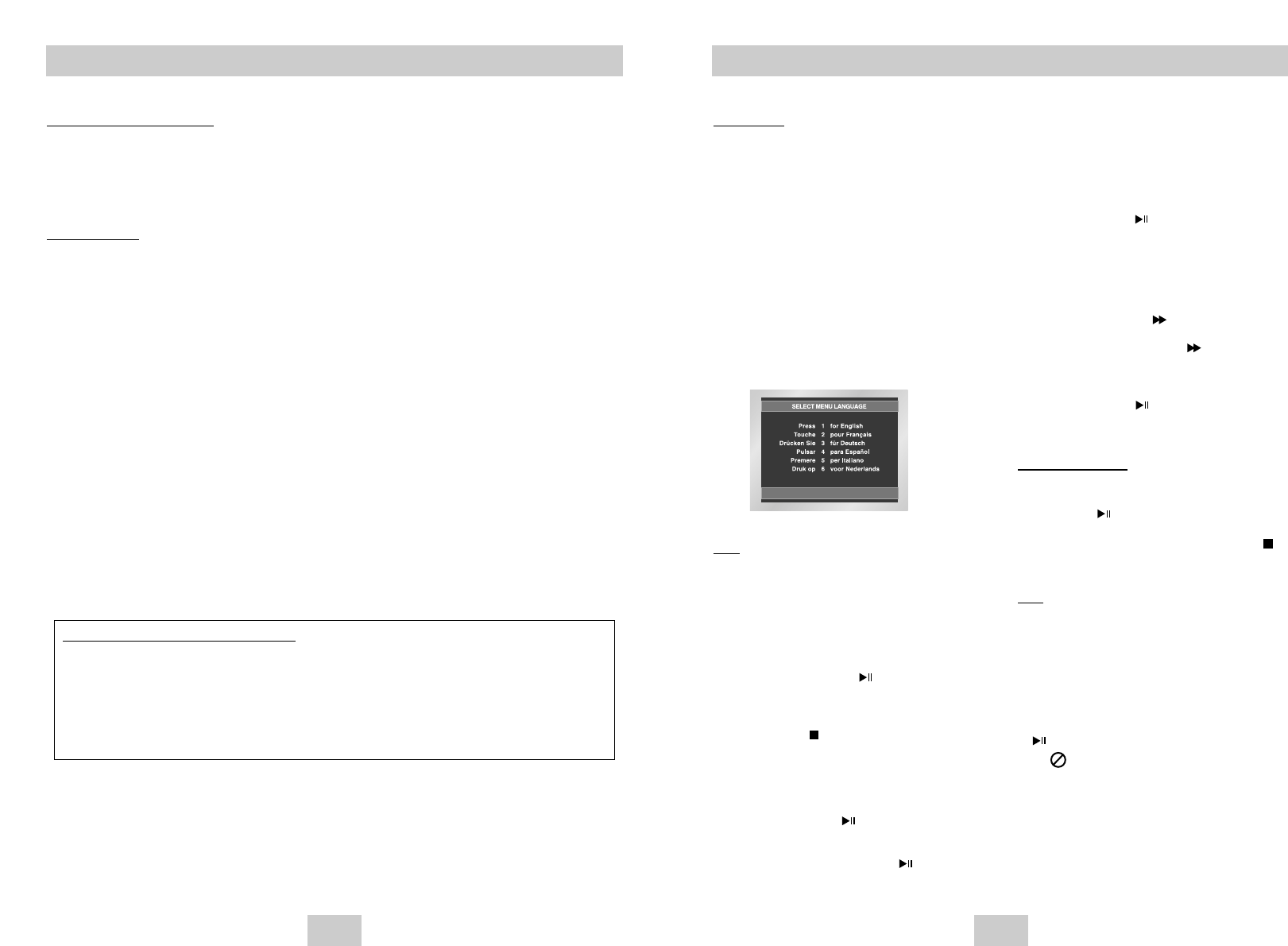

Playing a Disc
Before Play
• Turn on your TV and set it to the correct Video
Input by pressing TV/VIDEO button on the TV
remote control.
• If you connected an external Audio System, turn
on your Audio System and set it to the correct
Audio Input.
After plugging in the player, the first time you press
the DVD POWER button, this screen comes up :
If you want to select a language, press a
NUMBER button. (This screen will only appear
when you plug in the player for the first time.)
If the language for the startup screen is not set,
the settings may change whenever you turn the
power on or off. Therefore, make sure that you
select the language you want to use.
Play
1. Press the OPEN/CLOSE button.
The STANDBY indicator light goes out and the tray
opens.
2. Place a disc gently into the tray with the disc’s
label facing up.
3. Press the PLAY/PAUSE ( ) button or
OPEN/CLOSE button to close the disc tray.
4. Stopping Play
Press the STOP ( ) button during play.
5. Removing Disc
Press the OPEN/CLOSE button.
6. Pausing Play
Press the PLAY/PAUSE ( ) or STEP button on the
remote during play.
- Screen stops, no sound.
- To resume, press the PLAY/PAUSE ( ) button once
again.
7. Step Motion Play
(Except CD/DVD-AUDIO/SACD)
Turn the Jog dial clockwise or press the STEP button on
the remote during play.
- Each time the button is pressed or Jog Dial is turned, a
new frame will appear.
- No sound is heard during STEP mode.
- Press PLAY/PAUSE ( ) button to resume normal
play.
- You can only perform step motion play in the forward
direction.
8. Slow Motion Play
(Except CD/DVD-AUDIO/SACD)
Press the FWD SEARCH ( ) button on the remote
during PAUSE or STEP mode.
- By pressing the FWD SEARCH ( ) button, you can
select slow motion play for 1/8, 1/4 or 1/2 of normal
speed.
- No sound is heard during slow mode.
- Press PLAY/PAUSE ( ) to resume normal play.
- Reverse slow motion play will not work.
RESUME function
When you stop disc play, the player remembers
where you stopped, so when you press
PLAY/PAUSE ( ) button again, it will pick up
where you left off. (unless the disc is removed or the
player is unplugged, or if you press the STOP ( )
button twice.)
Note
• If the player is left for about 5 minutes in pause
mode, it will stop.
• If the player is left in the stop mode for more than
about 30 minutes, the power will automatically shut
off. (Automatic Power-Off Function)
• If the player is left in the stop mode for more than
one minute without any user interaction, a screen
saver will be activated. Press the PLAY/PAUSE
( ) button to resume normal play.
• This icon indicates an invalid button press.
Choosing a Connection
HDMI VIDEO Specifications
When you press the HDMI SEL. button 480p, 720p, 768p, 1080i are selected in order.
The first press of the HDMI SEL. button, brings up the current resolution.
The second press allows you to change the HDMI output resolution.
* The specific resolution of HDMI output may not work depending on your TV.
* Refer to the TV users manual.
Important Note
• HDMI (High Defintion Multimedia Interface)
HDMI is an interface to enable the digital transmission of video and audio data with just a single connector.
Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TV
having a HDMI jack.
• Description of the HDMI connection
HDMI connector - Both uncompressed video data and digital audio data(LPCM or Bit Stream data).
• Though the player uses a HDMI cable, the player outputs only a pure digital signal to the TV.
• If TV does not support HDCP (High-bandwidth Digital content protection), snow noise appears on the screen.
• Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is
digital. Therefore either a digital-to-analog converter(in the dvd player) or an analog-to-digital converter (in the
TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss.
DVI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to
your TV.
• What is the HDCP?
HDCP(High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via DVI
from being copied. It provides a secure digital link between a video source(PC, DVD. etc) and a display
device(TV, projector . etc). Content is encrypted at the source device to prevent unauthorized copies from being
made.
PROGRESSIVE SCAN OUTPUT (525p)
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE
FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE, IN CASE OF 525 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE
‘STANDARD DEFINITION’OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV
SET COMPATIBILITY WITH THIS MODEL 525p DVD PLAYER, PLEASE CONTACT OUR
CUSTOMER SERVICE CENTER.”
ENG-19ENG-18

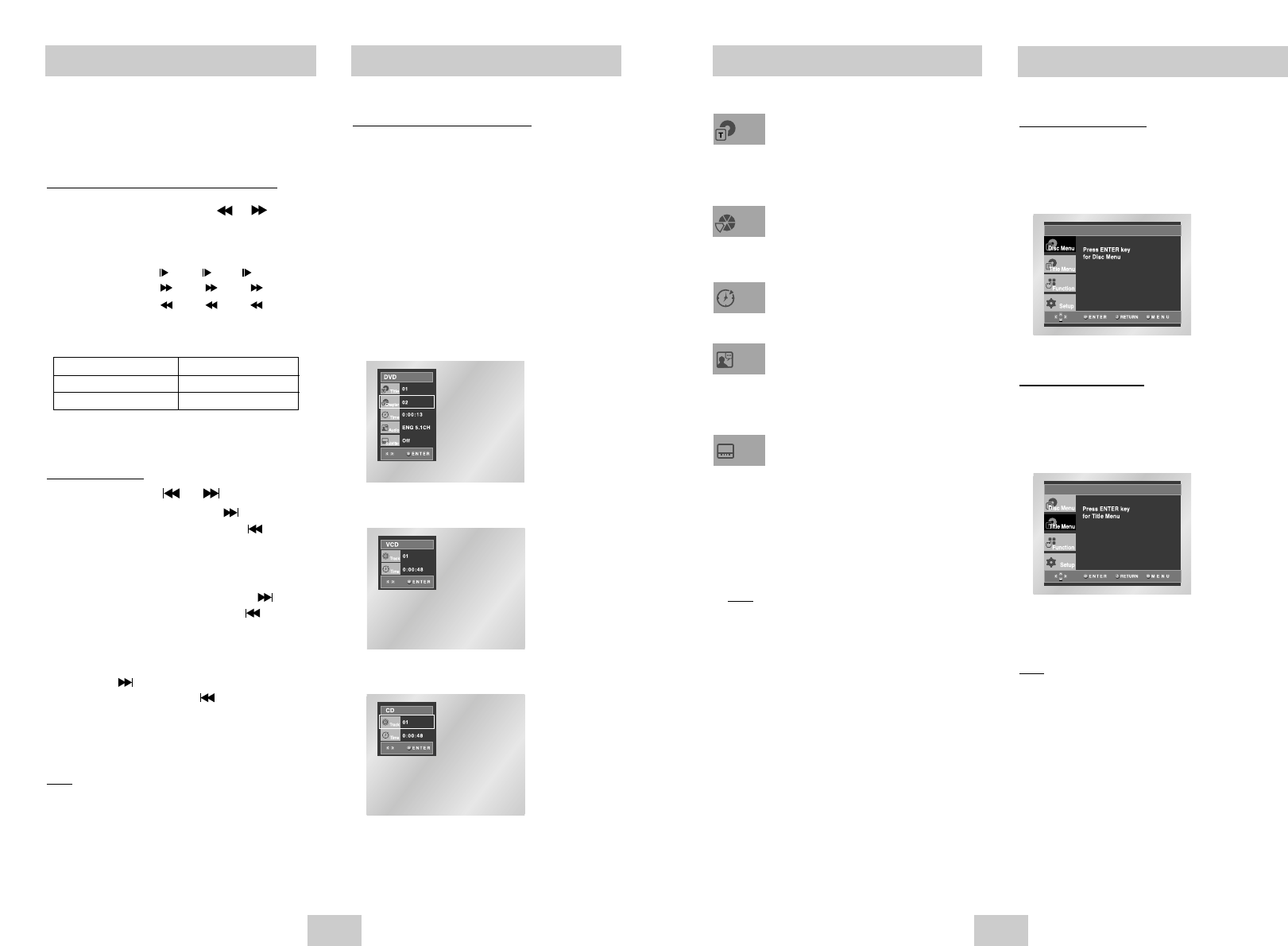

Using the Display Function Using the Disc and Title Menu
Using the Disc Menu
1. During the playback of a DVD disc, press the
MENU button on the remote.
2. Select Disc Menu using the UP/DOWN buttons,
then press the RIGHT or ENTER button.
Using the Title Menu
1. During the playback of a DVD disc, press the
MENU button on the remote.
2. Select Title Menu using the UP/DOWN buttons,
then press the RIGHT or ENTER button.
Note
• Depending on a disc, the Title and Disc Menus
may not work.
• Title Menu will only be displayed if there are at
least two titles in the disc.
• You can also use the Disc Menu, using the DISC
MENU button on the remote.
• In VCD 2.0, the DISC MENU button is used to
select Menu On or Menu Off mode.
To access the desired title when there is
more than one in the disc.
For example, if there is more than one
movie on a DVD, each movie will be
identified.
Most DVD discs are recorded in
chapters so that you can quickly find a
specific passage (similar to tracks on an
audio CD).
Allows playback of the film from a
desired time.You must enter the starting
time as a reference.
Refers to the language of the film
soundtrack. In the example, the
soundtrack is played in English 5.1CH.
A DVD disc can have up to eight
different soundtracks.
Refers to the subtitle languages
available in the disc.
You will be able to choose the subtitle
languages or, if you prefer, turn them off
from the screen.
A DVD disc can have up to 32 different
subtitles.
Note
• When VCD 2.0 is in Menu Off mode only, this
function works. (See page 18)
Title
Chapter
Time
Audio
Subtitle
Using the Display Function
When Playing a DVD/VCD/CD
1. During play, press the INFO button on the remote.
2. Use the UP/DOWN buttons to select the desired
item.
3. Use the LEFT/RIGHT buttons to make the
desired setup and then press ENTER.
• You may use the number buttons of the remote
control to directly access a title, chapter or to
start the playback from the desired time.
4. To make the screen disappear, press the INFO
button again.
Using the Search & Skip Functions
During play, you can search quickly through a
chapter or track or use the skip function to
jump to the next selection.
Searching through a Chapter or Track
During play, press the SERACH ( or )
button and press again to search at a faster speed.
• You can also use the Shuttle dial on the remote by
turning.
- Forward Shuttle dial :
1/8 ➝ 1/4 ➝1/2 ➝ Play ➝
2X ➝ 4X ➝ 8X
- Reverse Shuttle dial :
2X ➝ 4X ➝ 8X
• In case of Super Audio CD, when the clips menu is off,
you can use this function. (See page 27)
Skipping Tracks
During play, press the or button.
• When playing a DVD, if you press the button, it
moves to the next chapter. If you press the button, it
moves to the beginning of the chapter. One more press
makes it move to the beginning of the previous chapter.
• When playing a VCD 2.0 in Menu Off mode, a VCD 1.1,
SACD, DVD-AUDIO or a CD, if you press the button,
it moves to the next track. If you press the button, it
moves to the beginning of the track. One more press
makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and
you press the button, it moves forward 5 minutes, in
menu off mode. If you press the button, it moves
backward 5 minutes.
Note
• When playing a VCD 2.0, you can choose Menu
On or Menu Off by using the DISC MENU
button.
DVD
CD
VCD
DVD
VCD
CD/SACD/DVD-AUDIO
2X, 4X, 64X, 128X
4X, 8X
2X, 4X, 8X
ENG-21ENG-20

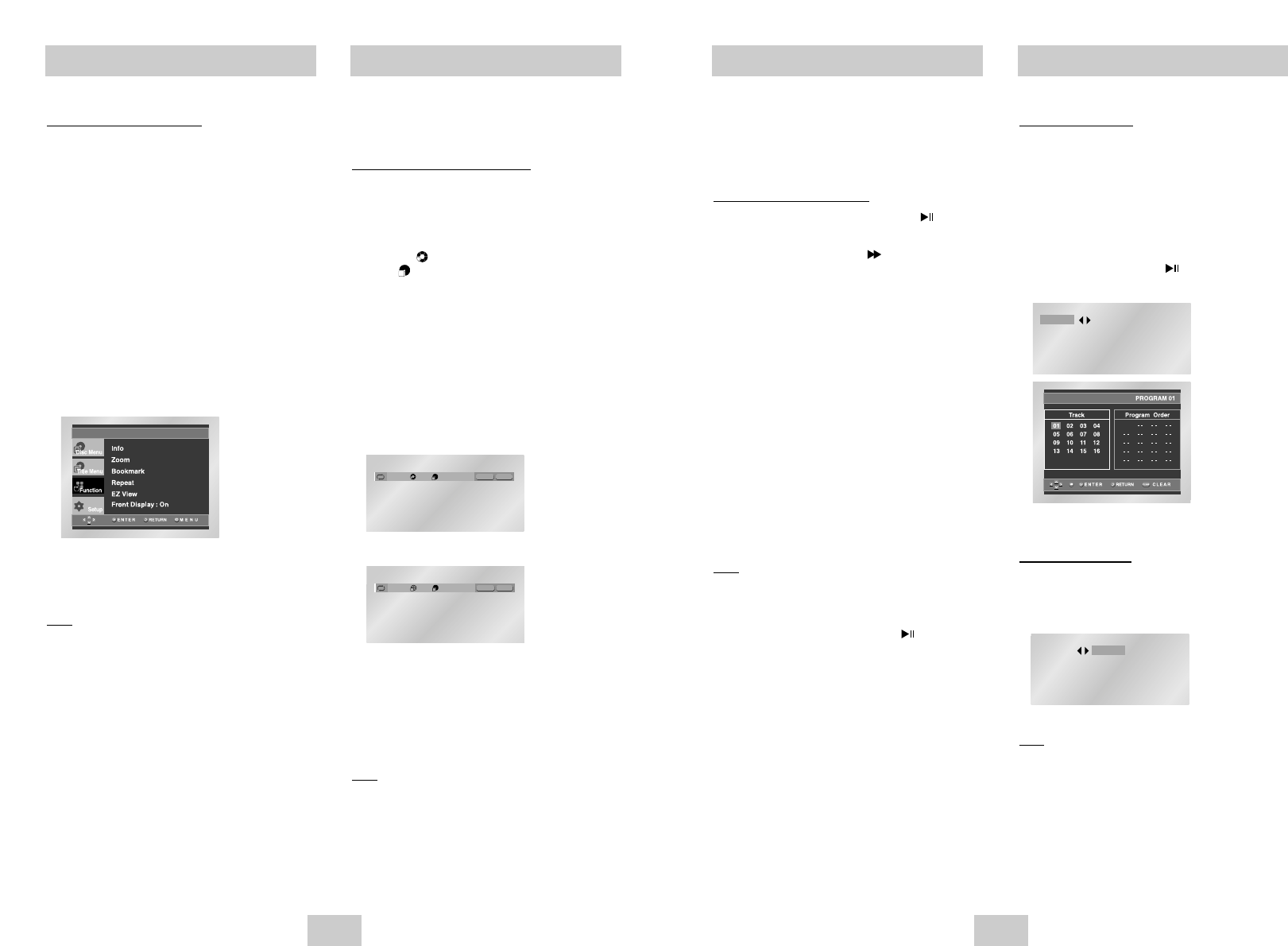

Program Play & Random Play
Program Play (CD)
1. Press the PROG button.
2. Use the LEFT/RIGHT buttons to select
PROGRAM. Press the ENTER button.
3. Use the LEFT/RIGHT/UP/DOWN buttons to select
the first track to add to the program.
Press the ENTER button. The selection numbers
appear in the Program Order box.
4. Press the PLAY/PAUSE ( ) button.
The disc will be played in programmed order.
Random Play (CD)
1. Press the PROG button.
2. Use the LEFT/RIGHT buttons to select RANDOM.
Press the ENTER button.
Note
• Depending on a disc, the Program and Random
Play functions may not work.
• This unit can support a maximum of 20
programmed tracks.
• While in playback mode, press the CLEAR button
on the remote control to cancel Programmed Play
or Random Play.
This feature allows you to slowly repeat
scenes containing sports, dancing, musical
instruments being played etc. so you can
study them more closely.
When playing a DVD/VCD
1. During play, press the PLAY/PAUSE ( )
button.
2. Press the FWD SEARCH ( ) button on the
remote during PAUSE or STEP mode.
3. Press the REPEAT button on the remote.
Repeat screen appears.
4. Select A-B using the LEFT/RIGHT buttons.
5. Press ENTER at the point where you want the
repeat play to start (A).
• A-B REPEAT does not allow you to set point (B) until at
least 5 seconds has elapsed after point (A) has been
set.
6. Press ENTER at the point where you want repeat
play to stop (B).
7. To return to normal play, press REPEAT again,
then press the LEFT/RIGHT buttons to select Off
and press ENTER.
Note
• The disc will play from A to B repeatedly at the
speed you chose.
• To return to normal play, press the CLEAR button
and then press the PLAY/PAUSE ( ) button.
• When VCD 2.0 is in Menu Off mode only, this
function works. (See page 18)
PROGRAM RANDOM
PROGRAM RANDOM
Slow Repeat PlayRepeat Play
Repeat the current track, chapter, title, a
chosen section (A-B), or all of the disc.
When playing a DVD/VCD/CD
1. Press the REPEAT button on the remote.
Repeat screen appears.
2. Select Chapter, Title or A-B using the
LEFT/RIGHT buttons.
• Chapter ( ) : repeats the chapter that is playing.
• Title ( ) : repeats the title that is playing.
• A-B : repeats a segment of the disc that you select.
* A-B REPEAT
• Press ENTER at the point where you want the repeat
play to start (A).
• Press ENTER at the point where you want the repeat
play to stop (B).
• To terminate the function, press the ‘CLEAR’button.
• A-B REPEAT does not allow you to set point (B) until at
least 5 seconds has elapsed after point (A) has been
set.
3. Press ENTER.
4. To return to normal play, press REPEAT again,
then press the LEFT/RIGHT buttons to select Off
and press ENTER.
Note
• DVD repeats play by chapter or title, CD and VCD
repeat play by disc or track.
• Depending on a disc, the Repeat function may not
work.
• When VCD 2.0 is in Menu Off mode only, this
function works. (See page 18)
Using the Function Menu
Using the Function Menu
1. Press the MENU button during playback.
2. Use the UP/DOWN buttons to highlight Function,
then press the RIGHT or ENTER button.
3. Function selection screen appears: Info, Zoom,
Bookmark, Repeat and EZ View and Front
Display.
- Info (See Page 18~19)
- Zoom (See Page 26)
- Bookmark (See Page 25)
- Repeat (See Page 20)
- EZ View (See Page 22)
- Front Display : On
On : Lights when the front display is selected ON.
4. Use the UP/DOWN button to highlight one of the
6 functions. Then press the RIGHT or ENTER
button to access the function.
Note
• You can also directly select these functions using
their respective buttons on the remote.
Off 01 01 A - B
REPEAT
ENTER
T
Off 01 01 A - B
REPEAT
ENTER
TD
DVD
VCD/CD
T
ENG-23ENG-22
Selecting the Audio Language
You can select a desired language quickly and
easily with the AUDIO button.
Using the AUDIO button
1. Press the AUDIO button.
2. The Audio changes when the button is pressed
repeatedly.
- The audio languages are represented by abbreviations.
3. Press the AUDIO button to select Stereo, Right or
Left. (On VCD/CD)
Note
• This function depends on what languages are
encoded on the disc and may not work with all
DVDs.
• A DVD disc can contain up to 8 audio languages.
• How to have the same audio language come up
whenever you play a DVD;
Refer to “Setting Up the Language Features”on
page 34.
Selecting the Subtitle Language
ENG DOLBY DIGITAL 5.1CH AUDIO
Stereo AUDIO
DVD
VCD/CD
You can select a desired subtitle quickly and
easily with the SUBTITLE button.
Using the SUBTITLE button
1. Press the SUBTITLE button.
- The subtitle languages are represented by
abbreviations.
2. The subtitle changes when the button is pressed
repeatedly.
3. To turn off the display, press the CLEAR or
RETURN button.
Note
• This function depends on what languages are
encoded on the disc and may not work with all
DVDs.
• A DVD disc can contain up to 32 subtitle
languages.
• How to have the same subtitle language come
up whenever you play a DVD;
Refer to “Setting Up the Language Features”on
page 34.
Off
SUBTITLE
Adjusting the Aspect Ratio (EZ View)
To play back using aspect ratio (DVD)
Press the EZ VIEW button.
• The screen size changes when the button is
pressed repeatedly.
• The screen zoom mode operates differently
depending on a screen setting in the initial setup
menu.
• To ensure correct operation of the EZ VIEW
button, you should set the correct aspect ratio in
the initial setup (See page 37).
If you are using a 16:9 TV
1. For 16:9 aspect ratio discs
•Wide Screen
Displays the content of the DVD title in 16:9
aspect ratio.
• Screen Fit
The top and bottom of the screen are cut off.
When playing a 2.35:1 aspect ratio disc, the
black bars at the top and bottom of the screen
will disappear. The picture will look vertically
stretched. (Depending on a type of disc, the
black bars may not disappear completely.)
• Zoom Fit
The top, bottom, left and right of the screen are
cut off and the central portion of the screen is
enlarged.
2. For 4:3 aspect ratio discs
• Normal Wide
Displays the content of the DVD title in 16:9
aspect ratio. The picture will look horizontally
stretched.
• Screen Fit
The top and bottom of the screen are cut off
and the full screen appears.
The picture will look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are
cut off and the central portion of the screen is
enlarged.
• Vertical Fit
When a 4:3 DVD is viewed on a 16:9 TV, black
bars will appear at the left and right of the
screen in order to prevent the picture from
looking horizontally stretched.
If you are using a 4:3 TV
1. For 16:9 aspect ratio discs
• 4:3 Letter Box
Displays the content of the DVD title in 16:9
aspect ratio. The black bars will appear at the
top and bottom of the screen.
• 4:3 Pan Scan
The left and right of the screen are cut off and
displays the central portion of the 16:9 screen.
• Screen Fit
The top and bottom of the screen are cut off
and the full screen appears.
The picture will look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are
cut off and the central portion of the screen is
enlarged.
2. For 4:3 aspect ratio discs
• Normal Screen
Displays the content of the DVD title in 4:3
aspect ratio.
• Screen Fit
The top and bottom of the screen are cut off
and the full screen appears.
The picture would look vertically stretched.
• Zoom Fit
The top, bottom, left and right of the screen are
cut off and the central portion of the screen is
enlarged.
Note
• This function may behave differently depending on
a type of disc.
ENG-25ENG-24

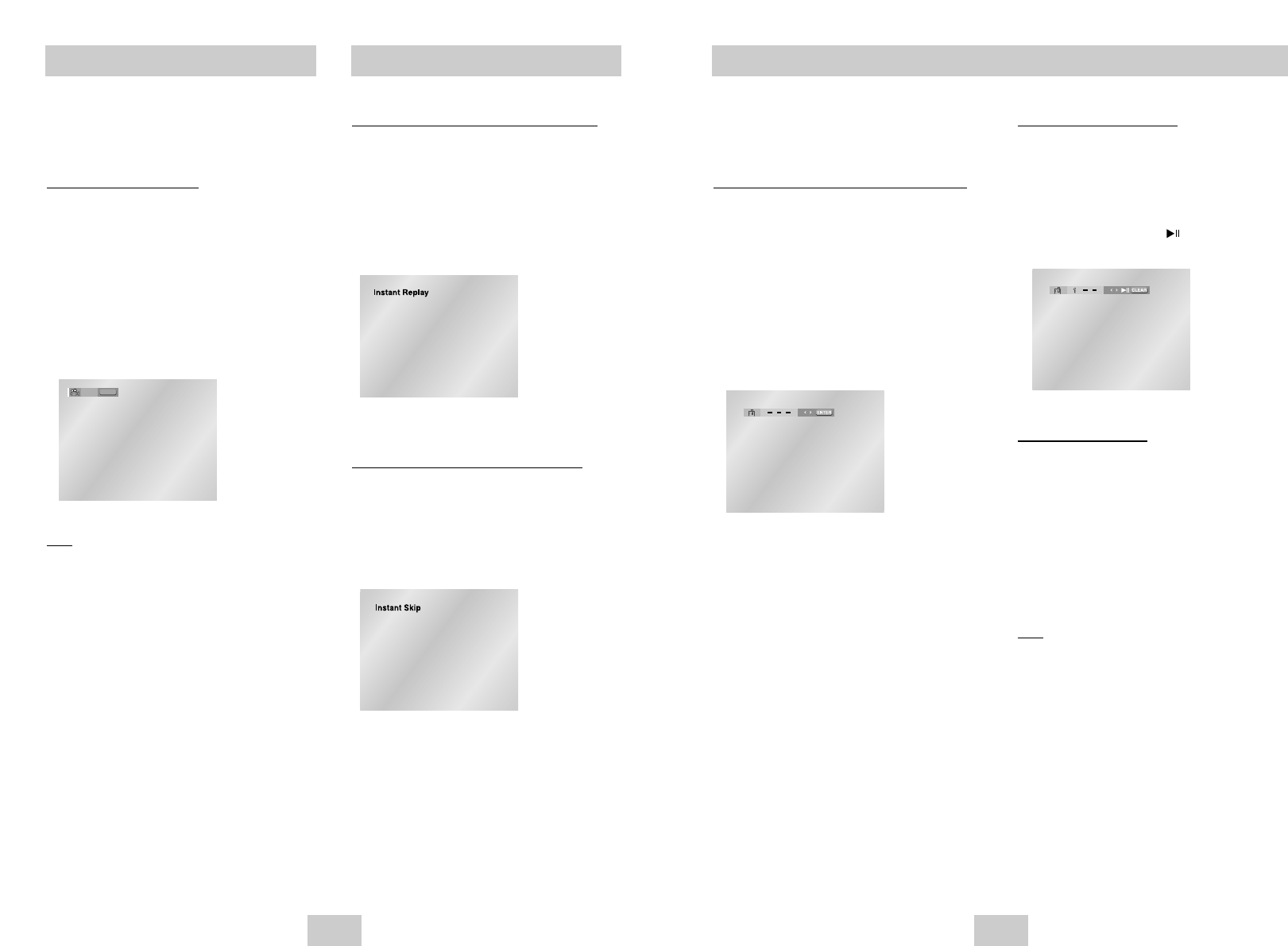

This feature lets you bookmark sections of a
DVD or VCD (Menu Off mode) so you can
quickly find them at a later time.
Using the Bookmark Function (DVD/VCD)
1. During play, press the BOOKMARK button on the
remote.
2. Use the LEFT/RIGHT buttons to move to the
desired bookmark icon.
3. When you reach the scene you want to mark,
press the ENTER button. The icon will change to
a number (1, 2, or 3).
4. Press the BOOKMARK button to turn Off the
display.
Using the Bookmark Function
Recalling a Marked Scene
1. During play, press the BOOKMARK button on the
remote.
2. Use the LEFT/RIGHT buttons to select a marked
scene.
3. Press the PLAY/PAUSE ( ) buttons to skip to
the marked scene.
Clearing a Bookmark
1. During play, press the BOOKMARK button on the
remote.
2. Use the LEFT/RIGHT buttons to select the
bookmark number you want to delete.
3. Press the CLEAR button to delete a bookmark
number. Press the BOOKMARK button to turn Off
the display.
Note
• Up to three scenes may be marked at a time.
• When VCD 2.0 is in Menu Off mode only, this
function works. (See page 18)
• Depending on a disc, the Bookmark function may
not work.
Using the Instant Replay/Skip Function
Changing the Camera Angle
When a DVD contains multiple angles of a
particular scene, you can use the ANGLE
function.
Using the ANGLE button
If the disc contains multiple angles, the ANGLE
mark appears on the screen.
1. Press the ANGLE button, then ANGLE icon will
appear with the current angle number and the
number of angles available.
2. Press the ANGLE button repeatedly to the
desired angle.
3. To remove the ANGLE icon, press the CLEAR or
RETURN button.
Note
• If the disc has only one angle, this feature won’t
work. Currently, very few discs have this feature.
Using the Instant Replay function (DVD)
If you miss a scene, you can see it again using
this function.
If you press the INSTANT REPLAY button, the
current scene moves backward about 10 seconds,
and plays back.
* Depending on a disc, the Instant Replay function may not
work.
Using the Instant Skip function (DVD)
Use this function to skip playback about 10
seconds ahead of the current scene.
Press the INSTANT SKIP button.
- Playback will skip ahead 10 seconds.
- Depending on a disc, this function may not work.
4/6 ANGLE
ENG-27ENG-26

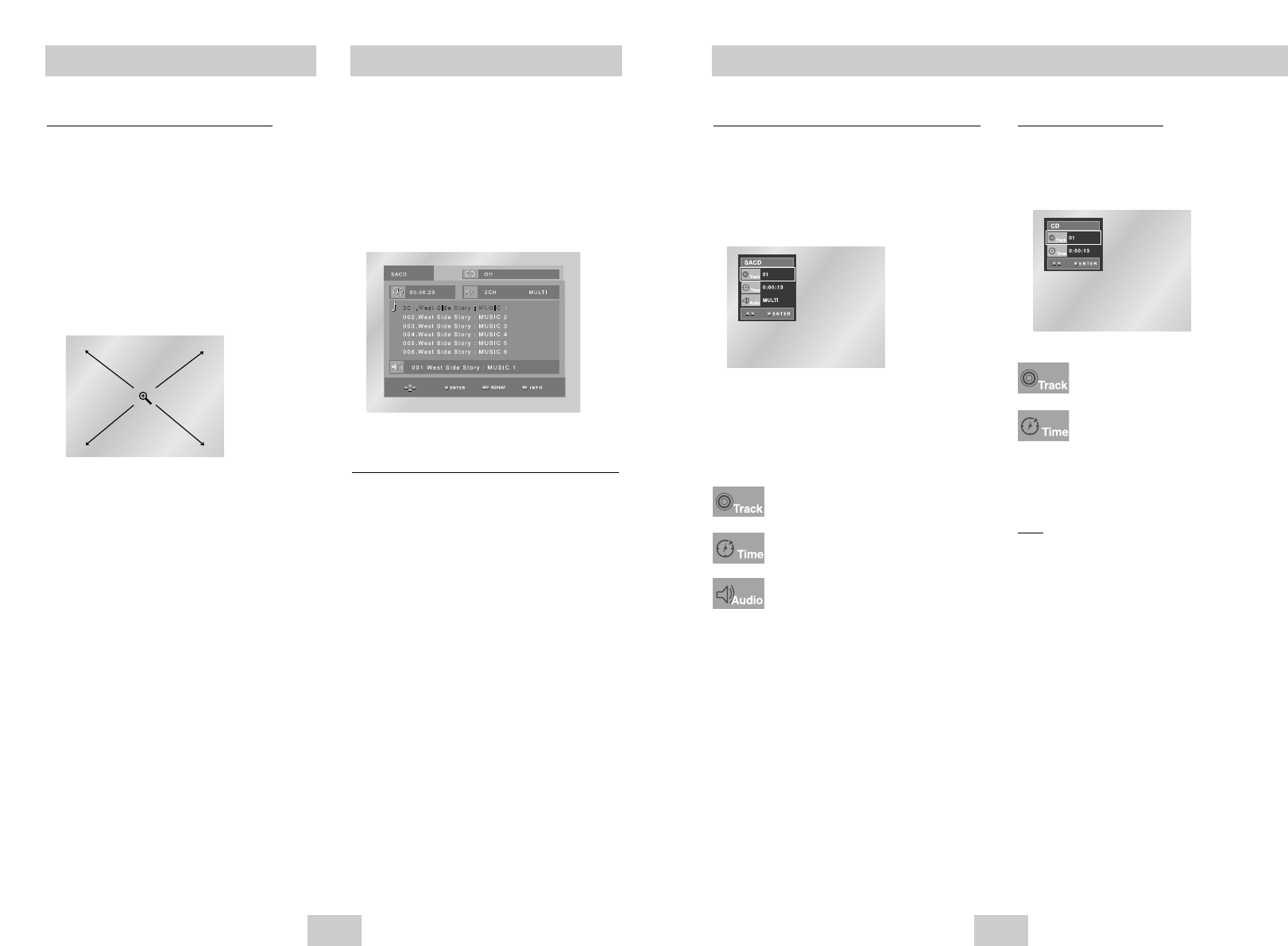

Super Audio CD Playback
Super Audio CD Clips Menu Off Play Function
1. In Stop mode, press the DISC MENU button until
the Clips menu is off.
2. During playback, press the INFO button and the
screen below appears.
3. Use the UP/DOWN buttons to select the desired
item.
4. Use the LEFT/RIGHT buttons to make the
desired setup and then press ENTER.
• You may use the number buttons of the remote
control to directly access a track and to start the
playback from the desired time.
5. To make the screen disappear, press the INFO
button again.
CD Layer Play Function
During Super Audio CD playback, press the
SACD/CD button to playback the CD layer of a dual
layer Super Audio CD disc. (Refer to the page 18 for
setting CD playback Function).
Note
• Some Super Audio CD discs do not include a CD
layer.
• Depending on a disc, this function may not work.
To access the desired Track when there
is more than one in the disc.
Allows playback from a desired time by
using the number buttons.
If you want to change the 2channel or
multi channel in play or stop mode,
press AUDIO button.
- You can use this function when Super
Audio CD disc includes multi channel
and 2 channel audio format.
• 2CH : L, R
• MULTI : F/L, F/R, R/L, R/R, C/T, S/W
To access the desired Track when there
is more than one in the disc.
Allows playback from a desired time.
You must enter the starting time as a
reference.
Using the Zoom Function
Using the Zoom Function (DVD/VCD)
1. During play or pause mode, press the ZOOM
button on the remote.
A Zoom mark will be displayed on screen.
2. Use the UP/DOWN or LEFT/RIGHT buttons to
select the part of the screen you want to zoom in
on.
3. Press the ENTER button.
- During DVD play, press ENTER to zoom in
2X/4X/2X/Normal in order.
- During VCD play, press ENTER to zoom in 2X/Normal
in order.
Super Audio CD Playback
1. Open the disc tray.
2. Place the Super Audio CD disc on the tray.
- Place the Super Audio CD disc with the labeled
side up.
3. Close the tray.
- The tray closes and you should get a screen
that looks like the one below.
Super Audio CD Clips Menu On Play Function
1. Use the UP/DOWN buttons to select a music title.
2. Press the ENTER button to begin playback of the
music title.
- If you want to use the Repeat Function, press the
REPEAT button to change the mode, such as Off,
Track, Disc.
*Off : Normal Playback
*Track : Repeats the current music title.
*Disc : Repeats the music titles in the Super
Audio CD.
- If you want to see information about the Disc title
and Artist, press the INFO button.
- If you want to convert into regular CD mode,
press the SACD/CD button.
- During play or stop mode, you can change the
2CH or MULTI mode by using LEFT/RIGHT
buttons. (You can use this function when Super
Audio CD disc includes multi channel and 2
channel audio format.)
ENG-29ENG-28

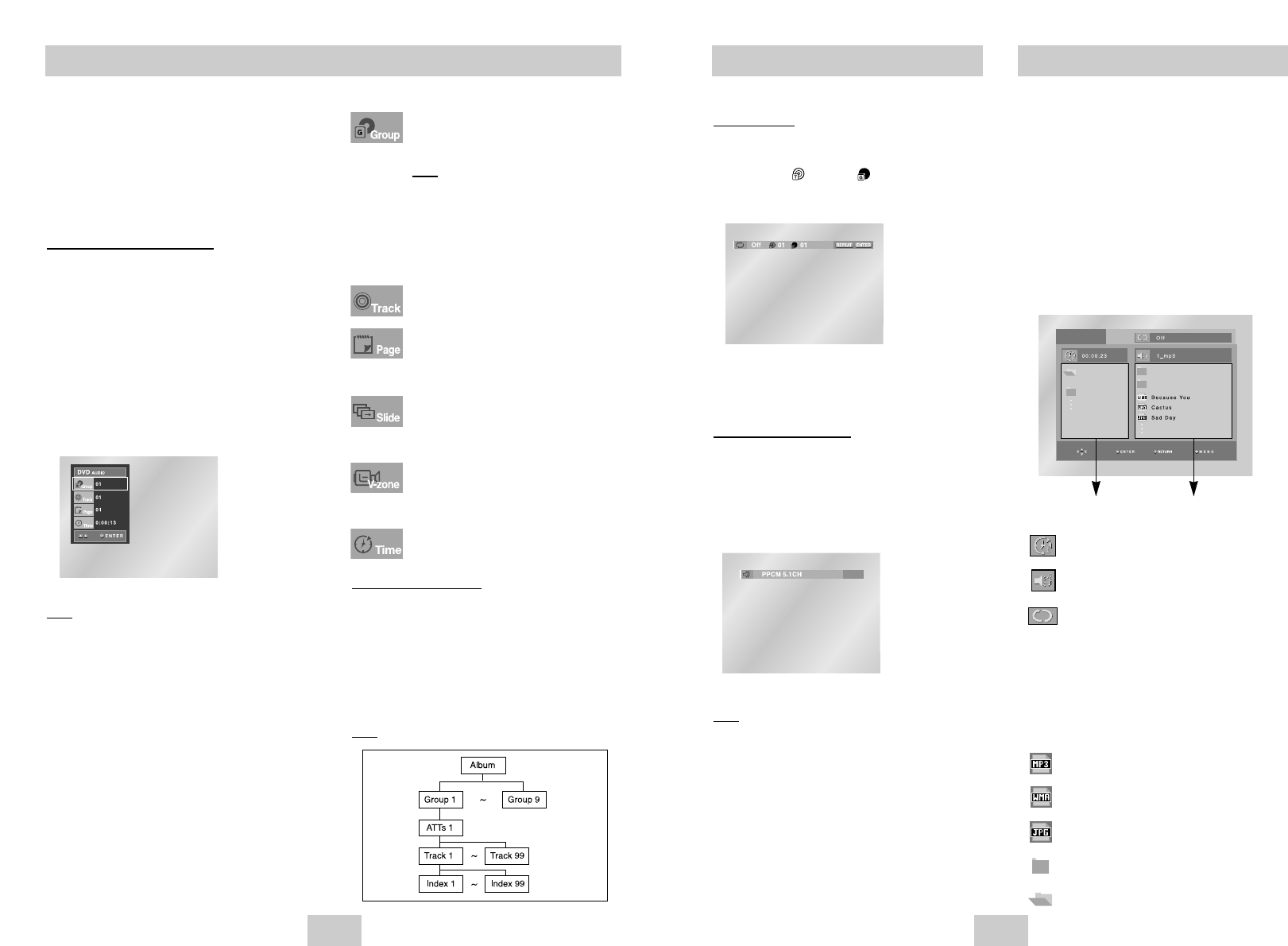

DVD AUDIO Playback
REPEAT Play
1. Press the REPEAT button on the remote during
playback.
2. Select Title ( ), Group ( ) using the
LEFT/RIGHT button.
3. Press ENTER.
AUDIO Format Display
During DVD AUDIO playback, press the AUDIO
button to see AUDIO Format information.
• LPCM : Linear Pulse Code Modulation.
Not compressed Audio data format.
• PPCM : Packet Pulse Code Modulation.
Lossless compressed Audio data format.
Note
Some DVD-AUDIO discs don’t allow audio
down-mixing. These discs always output 5.1ch
analog audio regardless of audio setup.
Clips Menu for MP3/WMA/JPEG
Discs with MP3/WMA/JPEG contain individual
songs or pictures that can be organized into
folders as shown below. They are similar to
how you use your computer to put files into
different folders.
1. Open the disc tray.
2. Place the disc on the tray.
- Place the disc with the labeled side up.
3. Close the tray.
- The tray closes and you should get a screen
that looks like the one below.
• : Name of currently playing file.
• : Current Playback Time.
• : Current Playback Mode : There are 4
modes. They can be selected in order by
pressing the REPEAT button.
- Off : Normal Playback
- Track : Repeats the current track.
- Folder : Repeats the current folder.
- Random : Files in the disc will be played
in random order.
• : MP3 file icon.
• : WMA file icon.
• : JPEG file icon.
• : Folder icon.
• : Current Folder icon.
Parent Folder, Current Folder
and Peer Folders
Folders and Files in
Current Folder
DVD AUDIO Playback
1. Open the disc tray.
2. Place the DVD AUDIO disc on the tray.
-
Place the DVD AUDIO disc with the labeled side up.
3. Close the tray.
- The tray closes and disc plays.
Using the Display Function
1. During play, press the INFO button on the remote.
2. Use the UP/DOWN buttons to select the desired
item.
3. Use the LEFT/RIGHT buttons to make the
desired setup and then press ENTER.
• You may use the number buttons of the remote
control to directly access a Group, Track, Page
or to start the playback from the desired time.
4. To make the screen disappear, press the INFO
button again.
Note
Some DVD-AUDIO discs don’t audio down-mixing.
These discs always output 5.1ch analog audio
regardless of audio setup.
Most DVD AUDIO discs are recorded in
Group, you can change Groups with this
Function.
Note
* Bonus Group playback.
• Some DVD AUDIO discs have Bonus
groups. If you want to play a Bonus
group, you must enter the Bonus
Group code. The code is usually on the
DVD AUDIO disc case.
To access the desired Track when there is
more than one on the DVD AUDIO disc.
If pages are included with the
DVD-AUDIO, you can see this icon.
To access the desired page, you can
use this Function.
If a slide show is included with the
DVD-AUDIO, you can see this icon.
In this case you cannot use PAGE
PRE./NEXT buttons.
If a video zone is included with the
DVD-AUDIO, you can see this icon.
In this case you cannot use PAGE
PRE./NEXT buttons.
Allows playback of the music from a
desired time by using the number buttons.
Page, Index Function
1. Use PAGE PRE./NEXT buttons to Skip the Page
when there is more than one in a group.
• Some DVD-AUDIO discs include a slide show. In
the slide show mode, this function can not use.
• PAGE is still images. You can see the still
images when playback DVD-AUDIO disc.
2. Use INDEX PRE./NEXT buttons to Skip the Index
when there is more than one in a track.
Note
Depending on a disc, this function may not work.
ENG-31ENG-30

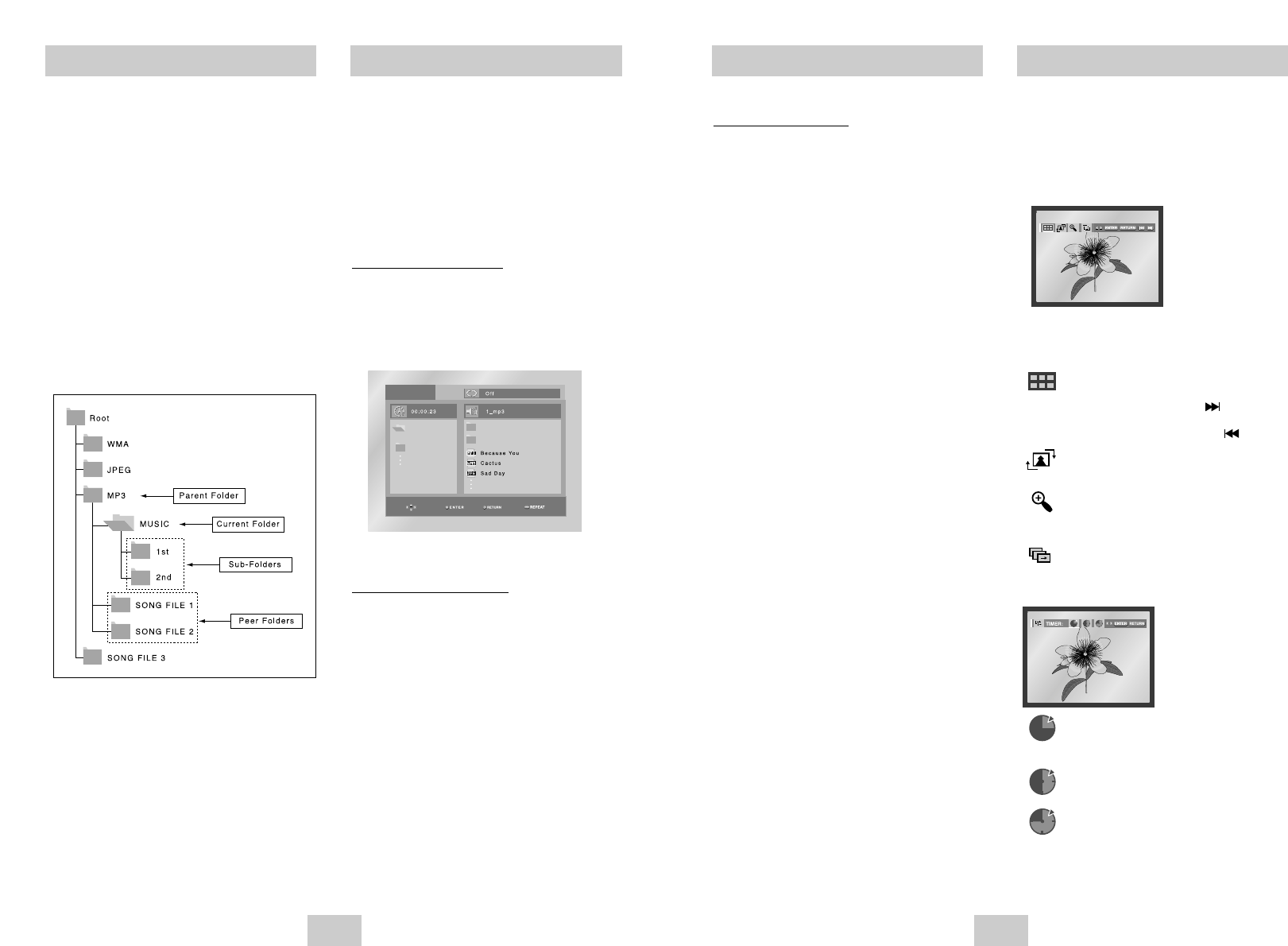

Picture CD Playback
1. Select the desired folder. (See page 30 to select
the folder)
2.
Use the UP/DOWN buttons to select a Picture file in
clips menu and then press the ENTER button.You
should get a screen that looks like the one below.
• Use the INFO button on the remote control to select
the menu you want to view and then press the ENTER
button.
• : Returns to the Album Screen.
• To see the next 6 pictures, press the button.
• To see the previous 6 pictures, press the button.
• : Each time the ENTER button is pressed, the
picture rotates 90 degrees clockwise.
• : Each time the ENTER button is pressed, the
picture is enlarged up to 4X.
(Normal ➝2X ➝4X ➝2X ➝Normal)
• : The unit enters slide show mode.
*Before beginning the Slide Show, the picture interval
must be set.
• : When this icon is selected and ENTER is
pressed, the pictures change automatically
with about a 6 second interval.
• : The pictures change automatically with about
a 12 second interval.
• : The pictures change automatically with about
a 18 second interval.
*
Depending on a file size, the amount of time between
each picture may be different from the manual.
*
If you don’t press any button, the slide show will start
automatically in about 10 seconds by default.
CD-R MP3/WMA discs
When you record MP3 or WMA files on CD-R,
please refer to the following.
• Your MP3 or WMA files should be ISO 9660 or JOLIET
format.
ISO 9660 format and Joliet MP3 or WMA files are
compatible with Microsoft's DOS and Windows, and with
Apple's Mac. This format is the most widely used.
• When naming your MP3 or WMA files, do not exceed 8
characters, and enter “.mp3, .wma”as the file
extension.
General name format of: Title.mp3. or Title.wma.
When composing your title, make sure that you use 8
characters or less, have no spaces in the name, and avoid
the use of special characters including: (.,/,\,=,+).
• Use a decompression transfer rate of at least 128
Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate
of compression/decompression you choose. Getting CD
audio sound requires an analog/digital sampling rate, that
is conversion to MP3 format, of at least 128 Kbps and up
to 160 Kbps. However, choosing higher rates, like 192
Kbps or more, only rarely give better sound quality.
Conversely, files with decompression rates below 128
Kbps will not be played properly.
• Use a decompression transfer rate of at least 64Kbps
when recording WMA files.
Sound quality with WMA files basically depends on the
rate of compression/decompression you choose.
Getting CD audio sound requires an analog/digital
sampling rate, that is conversion to WMA format, of at
least 64Kbps and up to 192Kbps.
Conversely, files with decompression rates below 64Kbps
or over 192Kbps will not be played properly.
•
Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected
to prevent illegal copying. These files are of the following
types: Windows MediaTM (registered trade mark of
Microsoft Inc) and SDMITM (registered trade mark of The
SDMI Foundation).You cannot copy such files.
• Important: The above recommendations cannot be taken
as a guarantee that the DVD player will play MP3
recordings, or as an assurance of sound quality. You
should note that certain technologies and methods for
MP3 file recording on CD-Rs prevent optimal playback of
these files on your DVD player (degraded sound quality
and in some cases, inability of the player to read the files).
• This unit can play a maximum of 3,000 files and 300
folders per disc.
MP3/WMA PlaybackFolder Selection
The folder can only be selected in the Stop
mode.
• To select the Parent Folder
Press the RETURN button to go to parent folder,
or use the UP/DOWN buttons to select “..”and
press ENTER to go to the parent folder.
• To select the Peer Folder
Use the LEFT/RIGHT buttons to highlight left
window. Use the UP/DOWN buttons to select the
desired folder, then press ENTER.
• To select the Sub-Folder
Use the LEFT/RIGHT buttons to highlight right
window. Use the UP/DOWN buttons to select the
desired folder, then press ENTER.
MP3/WMA Playback
1. Open the disc tray.
2. Place the disc on the tray.
- Place the disc with the labeled side up.
3. Close the tray.
- The tray closes and you should get a screen
that looks like the one below.
MP3/WMA Play Function
1. Select the desired folder.
2. Use the UP/DOWN or LEFT/RIGHT buttons to
select a song file.
3. Press ENTER to begin playback of the song file.
Repeat/Random playback
Press the REPEAT button to change playback
mode. There are 4 modes, such as Off, Track,
Folder and Random.
- Off : Normal Playback
- Track : Repeats the current song file.
- Folder : Repeats the song files which have the
same extension in the current folder.
- Random : Song files which have the same
extension will be played in random
order.
* To resume normal play, press the CLEAR button.
ENG-33ENG-32

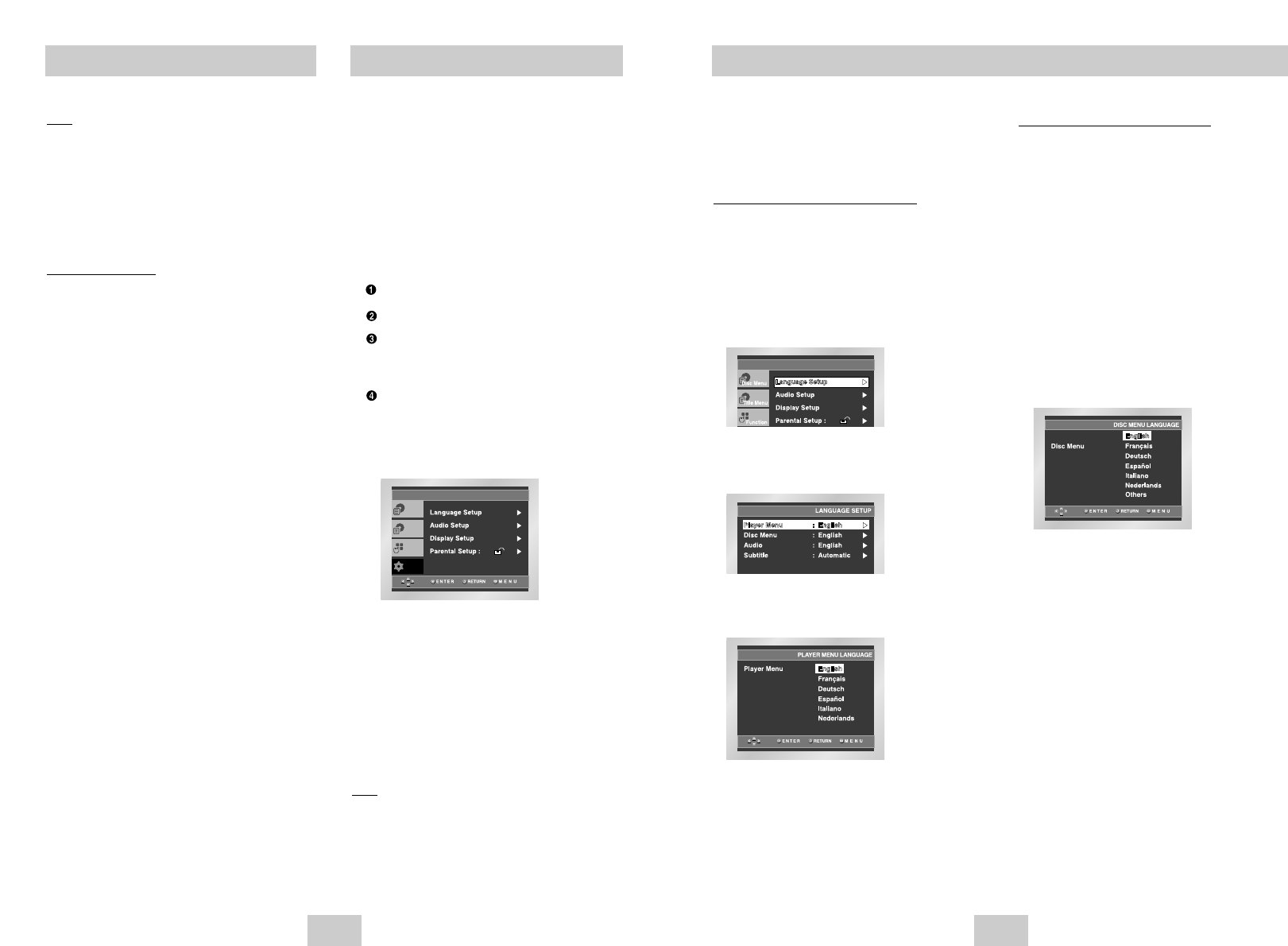

Using the Disc Menu Language
This function changes the text language only on the
disc menu screens.
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN
buttons, then press the RIGHT or ENTER button.
4. Select Disc Menu using UP/DOWN buttons, then
press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired
language.
- Select “Others”if the language you want is not listed.
6. Press the ENTER button.
- The language is selected and the screen returns to
Language Setup menu.
Setting Up the Language Features
If you set the player menu, disc menu, audio
and subtitle language in advance, they will
come up automatically every time you watch a
movie.
Using the Player Menu Language
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN
buttons, then press the RIGHT or ENTER button.
4. Select Player Menu using UP/DOWN buttons,
then press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired
language.
6. Press the ENTER button.
- The language is selected and the screen returns to
Language Setup menu.
- To make the SETUP menu disappear, press the
RETURN or LEFT button.
Picture CD Playback
Note
• If no buttons on the remote control pressed for 10
seconds, the menu will disappear.
Press the INFO button on the remote control to
display the menu again.
• Press the STOP button to return to the clips menu.
• When playing a Kodak Picture CD, the unit
displays the Photo directly, not the clips menu.
CD-R JPEG Discs
• Only files with the ".jpg" and ".JPG" extensions can
be played.
• If the disc is not closed, it will take longer to start
playing and not all of the recorded files may be
played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet
format can be played.
• The name of the JPEG file may not be longer than 8
characters and should contain no blank spaces or
special characters (. / = +).
• Only a consecutively written multisession disc can be
played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank
segment.
• A maximum of 3000 images can be stored on a single
CD.
• Kodak Picture CDs are recommended.
• When playing a Kodak Picture CD, only the JPEG
files in the pictures folder can be played.
• Kodak Picture CD : The JPEG files in the pictures
folder can be played automatically.
• Konica Picture CD : If you want to see the Picture,
select the JPEG files in the clips menu.
• Fuji Picture CD : If you want to see the Picture, select
the JPEG files in the clips menu.
• QSS Picture CD : The unit cannot play QSS Picture
CD.
• If the number of files in 1 Disc is over 3000, only 3000
JPEG files can be played.
• If the number of folders in 1 Disc is over 300, only
JPEG files in 300 folders can be played.
The Setup menu lets you customize your DVD
player by allowing you to select various
language preferences, set up a parental level,
even adjust the player to the type of television
screen you have.
1. With the unit in Stop mode, press the MENU
button on the remote. Select Setup using
UP/DOWN buttons, then press the RIGHT or
ENTER button.
Language Setup : Setup of the Language.
Audio Setup : Setup of the Audio Options.
Display Setup : Setup of the Display Options.
Use to select which type of screen you want to
watch and several display options.
Parental Setup : Setup of the Parental Level.
Allows users to set the level necessary to
prevent children from viewing unsuitable
movies such as those with violence, adult
subject matter, etc.
2. Use the UP/DOWN buttons on the remote to
access the different features.
3. Press the ENTER or RIGHT button to access the
sub features.
To make the setup screen disappear after setting
up, press the MENU button again.
Note
Depending on a disc, some Setup Menu selections
may not work.
Using the Setup Menu
Setup
Disc Menu
Title Menu
Function
ENG-35ENG-34

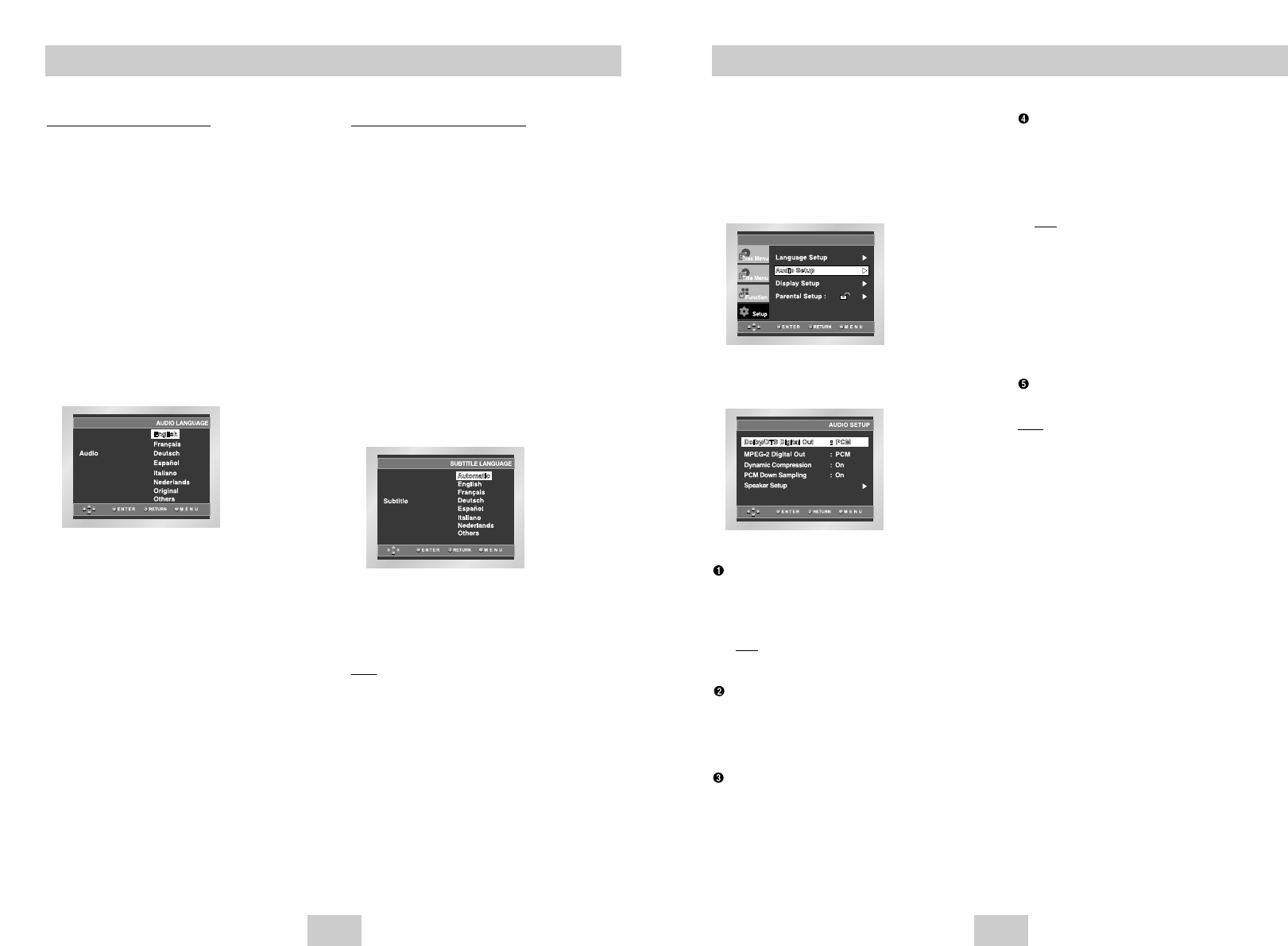

1.
With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Audio Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select the desired
item. Then press the RIGHT or ENTER button.
Dolby/DTS Digital Out
1. PCM : Converts to PCM(2CH) audio.
2. Bitstream : Outputs Dolby Digital or DTS Bitstream via
digital output. Select Bitstream when connecting to a
Dolby digital and DTS Decoder.
Note There is no analog audio output when you play
DTS sound disc.
MPEG-2 Digital Out
1. PCM : Converts to PCM(2CH) audio.
2. Bitstream : Outputs MPEG-2 Bitstream via digital
output. Select Bitstream when connecting to an
MPEG-2 Decoder.
Dynamic Compression
1. On : To select dynamic compression.
2. Off : To select the standard range.
Setting Up the Audio Options
PCM Down Sampling
1. On : Select this when the amplifier connected to the
player is not 96KHz compatible. In this case, the
96KHz signals will be down converted to 48KHZ.
2. Off : Select this when the amplifier connected to the
player is 96KHz compatible. In this case, all
signals will be output without any changes.
Note Even when PCM Down sampling is Off
•Some discs will only output down sampled
audio through the digital outputs.
•High sampling rate DVD-Audio discs (192KHz
or 176.4KHz) always output audio down
sampled to 96KHz or 88.2KHz through the
digital outputs.
•When playing LPCM or PPCM DVD protected
by copyright. If digital audio source is
48KHz/16bit the Digital output is mute.
Speaker Setup (See page 36)
Note
• How to make the SETUP menu disappear or
return to menu screen during set up;
Press RETURN or LEFT button.
• Manufactured under license from Dolby
Laboratories. “Dolby”and the double-D symbol are
trademarks of Dolby Laboratories.
• “DTS”and “DTS Digital Out”are trademarks of
Digital Theater Systems, Inc.
• DVD-AUDIO
- Outputs 2 channel digital audio only.
- Some DVD-AUDIO discs do not downmix, so they
will not output 2 channel digital audio.
- MULTI channel DVD-AUDIO discs play back
through the analog outputs.
• Super Audio CD
- Outputs analog signals only.
• HDMI
- If your TV is not compatible with compressed
multi-channel formats(Dolby Digital, DTS,
MPEG), you should set Digital Audio to PCM.
- If your TV is not compatible with LPCM sampling
rate over 48kHz, you should set PCM Down
Sampling to On.
- SACD audio is only available through the analog
outputs. It is not possible to output SACD audio
via the HDMI output or Digital Audio Output.
Setting Up the Language Features
Using the Audio Language
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN
buttons, then press the RIGHT or ENTER button.
4. Select Audio using UP/DOWN buttons, then
press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired
language.
- Select “Original”if you want the default soundtrack
language to be the original language the disc is
recorded in.
- Select “Others”if the language you want is not listed.
6. Press the ENTER button.
- The language is selected and the screen returns to
Language Setup menu.
Using the Subtitle Language
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Language Setup using UP/DOWN
buttons, then press the RIGHT or ENTER button.
4. Select Subtitle using UP/DOWN buttons, then
press the RIGHT or ENTER button.
5. Use the UP/DOWN buttons to select the desired
language.
- Select “Automatic”if you want the subtitle language to
be the same as the language selected as the audio
preference.
- Select “Others”if the language you want is not listed.
Some discs may not contain the language you select
as your initial language; in that case the disc will use its
original language setting.
6. Press the ENTER button.
- The language is selected and the screen returns to
Language Setup menu.
Note
• If the selected language is not recorded on the
disc, the original pre-recorded language is
selected.
• How to make the SETUP menu disappear or
return to menu screen during set up;
Press RETURN or LEFT button.
ENG-37ENG-36

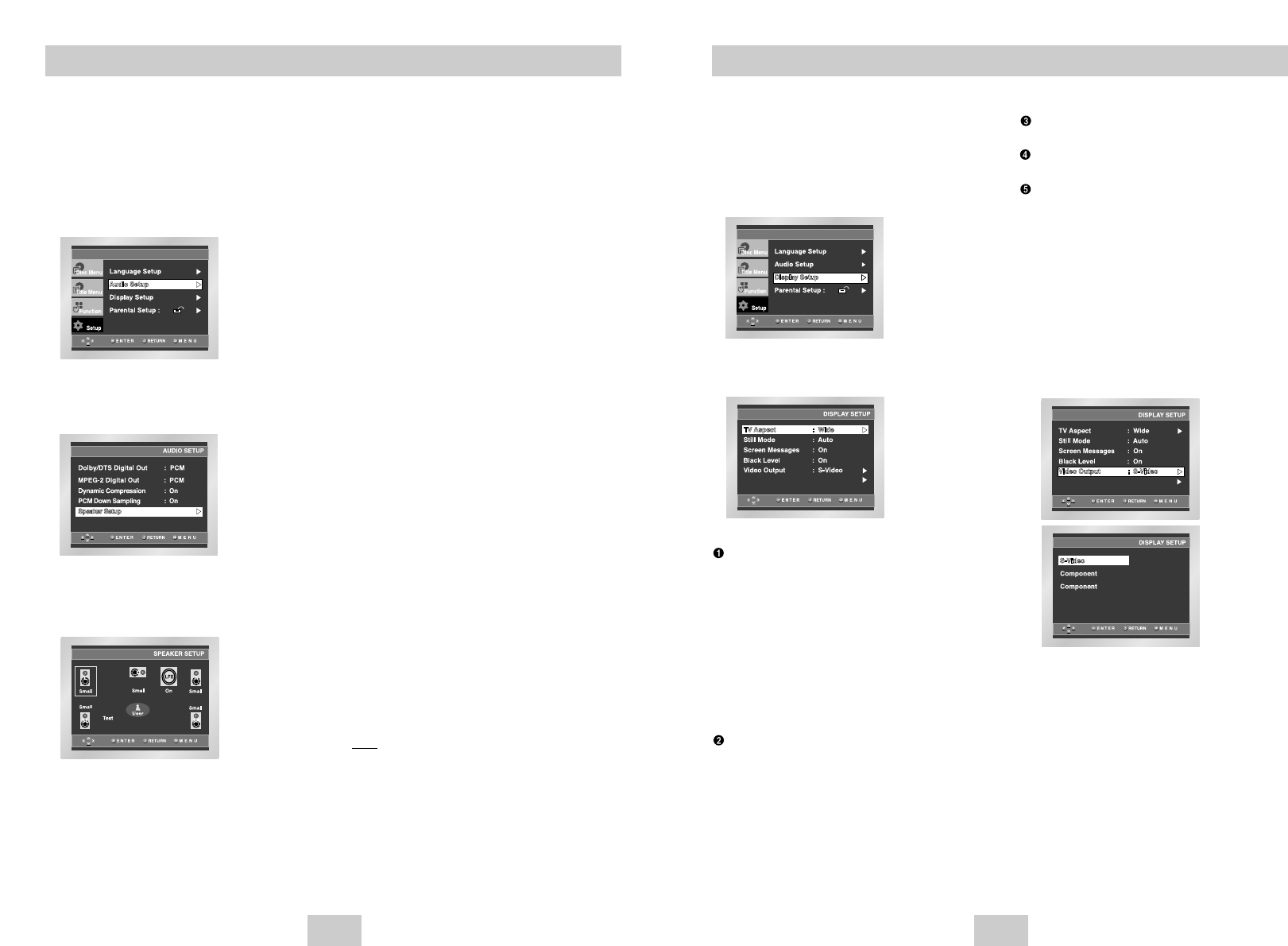

1.
With the unit in Stop mode, press the MENU button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Display Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select the desired
item. Then press the RIGHT or ENTER button.
TV Aspect
Depending on the type of television you have, you may
want to adjust the screen setting (aspect ratio).
1. 4:3 Letter Box : Select when you want to see the total
16:9 ratio screen DVD supplies, even though you have
a TV with a 4:3 ratio screen. Black bars will appear at
the top and bottom of the screen.
2. 4:3 Pan Scan : Select this for conventional size TVs
when you want to see the central portion of the 16:9
screen. (Extreme left and right side of movie picture
will be cut off.)
3. 16:9 Wide :You can view the full 16:9 picture on your
widescreen TV.
Still Mode
These options will help prevent picture shake in still
mode and display small text clearer.
1. Auto : When selecting Auto, Field/Frame mode will be
automatically converted.
2. Field : Select this feature when the screen shakes in
the Auto mode.
3. Frame : Select this feature when you want to see
small letters more clearly in the Auto mode.
Screen Messages
Use to turn on-screen messages On or Off.
Black Level
Adjusts the brightness of the screen.(On/Off)
Video Output
Select Video Output.
1. S-Video : Select when you want to use Video and
S-Video Out.
2. Component (I-SCAN) : Select when you want to use
Video and Component 480i(Interlace) Out
3. Component (P-SCAN) : Select when you want to use
Component 480p(Progressive) Out.
* If you press the VIDEO SEL. button, Video output
mode is changed in regular sequence in no disc mode.
(S-Video ➝ I-SCAN ➝ P-SCAN)
* If the Yes/No selection in the Display Setup sub Menu
is not made within 10 seconds, the screen returns to
the previous menu.
* If an HDMI or HDMI-DVI Cable is plugged in TV, the
player output is HDMI/DVI Out automatically, and then
you cannot change Viedo Out.
If the HDMI or the HDMI-DVI Cable is unplugged in TV,
Video Output can be changed.
Setting Up the Display Options
HDMI/DVI
HDMI/DVI
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Audio Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
4. Use the UP/DOWN buttons to select Speaker
Setup. Then press the RIGHT or ENTER button.
5. Use the UP/DOWN or LEFT/RIGHT buttons to
select the desired item. Then press the ENTER
button.
The default settings : FRONT L, R (Small), CENTER
(Small), SURROUND (Small).
Select the size of the speakers to be connected.
• Front (FL, FR)
- Large: Normally select this.
- Small: When the sound distorts or the surround
sound effects are difficult to hear, select this.
This activates the Dolby Digital bass redirection
circuitry and outputs the bass frequencies of the
speaker from the subwoofer.
• Center
- None: If you do not connect a center speaker,
select this.
- Large: Normally select this.
- Small: When the sound distorts, select this.
This activates the Dolby Digital bass redirection
circuitry and outputs the bass frequencies of the
center speaker from other speakers.
• Surround (SL, SR)
- None: If you do not connect a center speaker,
select this.
- Large (Rear/Side): Normally select either of these
according to the rear speaker’s position.
- Small (Rear/Side): When the sound distorts or the
surround sound effects are difficult to hear, select
either of these according to the rear speaker’s
position. This activates the Dolby Digital bass
redirection circuitry and outputs the bass
frequencies of the rear speaker from other
speakers.
Setting up TEST
The test output signals come clockwise starting from
the Front Speaker(L). Adjust Channel Balance to
match to the volume of test signals memorized in
the system.
FRONT(L) ➝ CENTER ➝ SUBWOOFER ➝
FRONT(R) ➝ SURROUND(R) ➝ SURROUND(L)
Note
How to make the SETUP menu disappear or return
to menu screen during set up. Press RETURN or
LEFT button.
• The subwoofer test output signal is lower than the
other speakers.
• The MPEG Multichannel logo is a trademark
registered by PHILIPS Corporation.
• If you set Front (L, R) “Small”, LFE(Subwoofer) is
set “On”automatically.
Surround Sound Speaker Setup
(I-SCAN)
(P-SCAN)
ENG-39

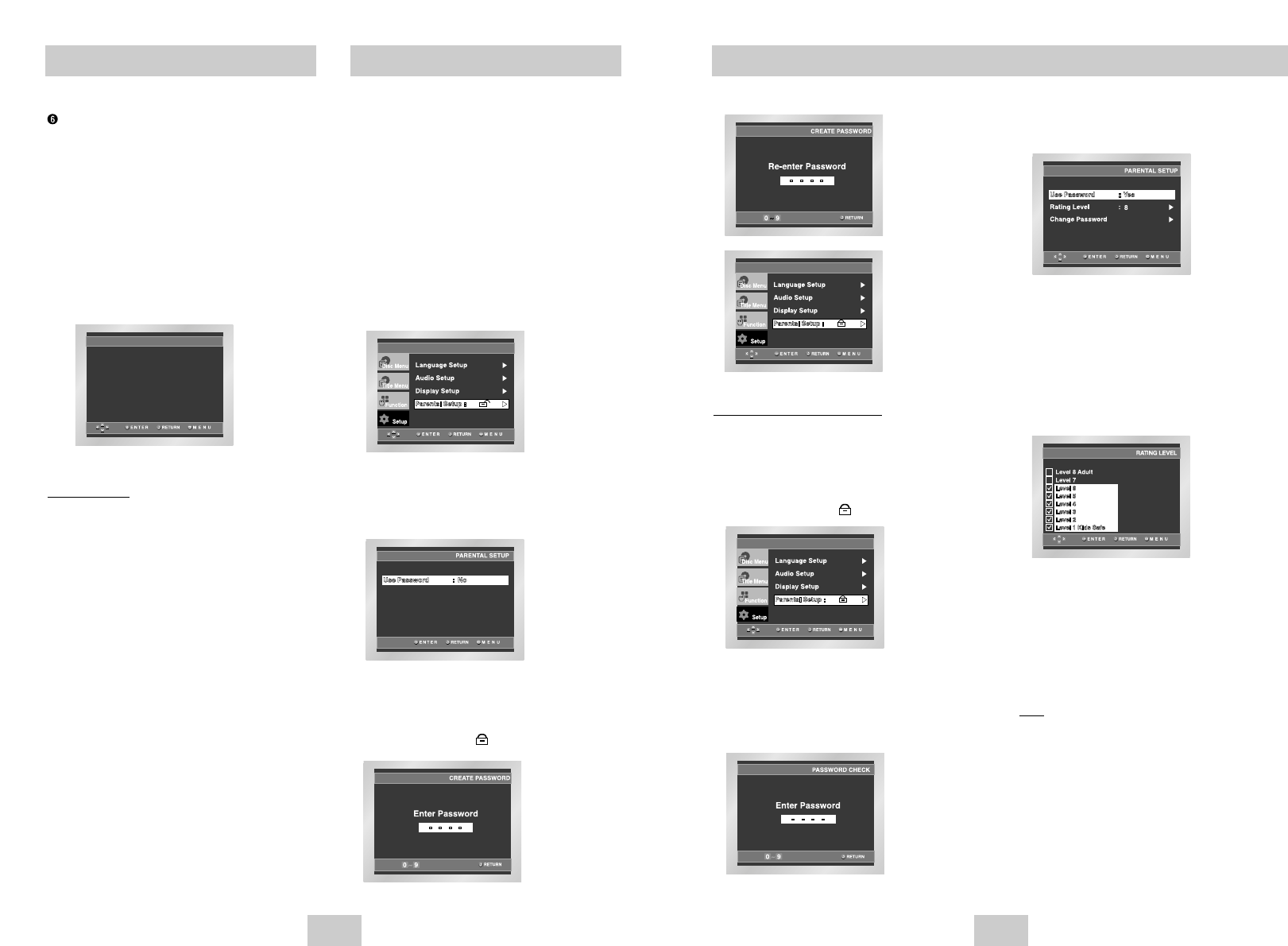

Setting Up the Parental Control
5. Select Rating Level using UP/DOWN buttons,
and press ENTER or RIGHT button.
6. Select the Rating Level you want using
UP/DOWN buttons.
For example, if you select up to Level 6, discs that
contain Level 7, 8 will not play.
- To cancel the Rating Level, select No using RIGHT or
ENTER in Use Password.
About the Change Password
- Highlight Change Password using UP/DOWN buttons.
- Press ENTER button.
The Change Password screen appears.
- Enter your new password. Enter the new password again.
Note
• How to make the SETUP menu disappear or
return to menu screen during set up;
Press RETURN or LEFT button.
• If you have forgotten your password, see page 40.
Setting Up the Rating Level
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
The player is locked ( ).
3. Select Parental Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
4. Enter your password.
The Parental Setup screen appears.
e.g) Setting up in LEVEL6.
The Parental Control function works in con-
junction with DVDs that have been assigned a
rating which helps you control the types of
DVDs that your family watches. There are up
to 8 rating levels on a disc.
1. With the unit in Stop mode, press the MENU
button.
2. Select Setup using UP/DOWN buttons, then
press the RIGHT or ENTER button.
3. Select Parental Setup using UP/DOWN buttons,
then press the RIGHT or ENTER button.
4. Use RIGHT or ENTER to select Yes if you want
to use a password. The Enter Password screen
appears.
5. Enter your password. The Re-enter Password
screen appears to confirm the password.
Enter your password again.
The player is locked ( ).
Setting Up the Parental Control
ENG-38
HDMI/DVI
This setting is used when the unit is connected by HDMI
or DVI with Display devices (TV, projector, etc).
1. Resolution
- 480p : 720 x 480
- 720p : 1280 x 720
- 768p : 1024 x 768
- 1080i : 1920 x 1080
2. DVI Output
You can use this function to DVI output format.
• This function corrects a biased TV screen to secure
a normal view.
• If DVI Output is set incorrectly, the screen can be
biased.
Important Note
• If Video Output is set incorrectly, the screen can be
blocked. (See page 41)
• The resolutions available for HDMI outputs depend
on the connected TV or projector. For details, see
the user’s manual of your TV or projector.
• When the resolution changes, the image may be
corrupted or the output may take longer than
normal.
Resolution : 480p
DVI Output : Mode B
HDMI/DVI SETUP
Setting Up the Display Options
ENG-41ENG-40
Troubleshooting
Before requesting service (troubleshooting), please check the following.
No operations can be
performed with the remote.
The screen ratio cannot
be changed.
No audio.
Play mode differs from the
Setup Menu selection.
Disc Menu doesn’t appear.
The icon appears on
screen.
Forgot password
The screen is blocked
If you experience other
problems.
5.1 channel sound is not
being reproduced.
Disc does not play.
• Check the batteries in the remote. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several
minutes to drain the microprocessor inside the remote to reset it.
Reinstall batteries and try to operate the remote again.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.
• 5.1 channel sound is reproduced only when the following conditions
are met. :
1) The DVD player is connected with the proper amplifier
2) The disc is recorded with 5.1 channel sound.
• Check whether the disc being played has the “Dolby 5.1 ch”mark
on the outside.
• Check if your audio system is connected and working properly.
• In a SETUP Menu, is the Audio Output set to Bitstream?
• The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is
out of range.
• Check if the disc has a Menu.
• Some of the functions selected in the Setup Menu may not work
properly if the disc is not encoded with the corresponding function.
• The Screen Ratio is fixed on your DVDs.
• Make sure you have selected the correct Digital Output in the Audio
Options Menu.
• Press power on from a cold start with no disc in the unit.
Press the button on the front panel for 5 seconds.
The SELECT MENU LANGUAGE display will appear.
Select the number button of the desired language.
• Press power on from a cold start with no disc in the unit.
Press the button on the front panel for 5 seconds.
The SELECT MENU LANGUAGE display will appear. Select the
number button of the desired language. Press the MENU button,
and then press DOWN button to select Setup, then press RIGHT or
ENTER. Press Up or Down to select Parental Setup The Parental
Setup is now unlocked as indicated on the display.
You can change your password.
• Go to the contents and find the section of the instruction book that
contains the explanations regarding the current problem, and follow
the procedure once again.
• If the problem still cannot be solved, please contact your nearest
authorized service center.
Action
Problem Page
P5
P7
P12
P35
P17
P32~39
P37
P35
P37
P38~39
Controlling a TV with the Remote
The remote can also be set up to control most TVs. To program the remote, use the
code that corresponds to your brand.
BRAND CODE
ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18
AIWA 82
BANG&OLUFSEN
57
BLAUPUNKT 71
BRANDT 73
BRIONVEGA 57
CGE 52
CONTINENTAL EDISON
75
DAEWOO 19, 20, 23, 24, 25, 26, 27, 28, 29,
30 , 31, 32, 33, 34
EMERSON 64
FERGUSON 73
FINLUX 06, 49, 57
FORMENTI 57
FUJITSU 84
GRADIENTE 70
GRUNDIG 49, 52, 71
HITACHI 60, 72, 73, 75
IMPERIAL 52
JVC 61, 79
LG 06, 19, 20, 21, 22, 78
LOEWE 06, 69
LOEWE OPTA 06, 57
MAGNAVOX 40
METZ 57
MITSUBISHI 06, 48, 62, 65
MIVAR 52, 77
NEC 83
NEWSAN 68
NOBLEX 66
BRAND CODE
NORDMENDE 72, 73
NOKIA 74
PANASONIC 53, 54, 74, 75
PHILPS 06, 55, 56, 57
PHONOLA 06, 56, 57
PIONEER 58, 59, 73, 74, 75
RADIOLA 06, 56
RADIOMARELLI
57
RCA 45, 46
REX 74
SABA 57, 72, 73, 74, 75
SALORA 74
SAMSUNG 01, 02, 03, 04, 05, 06, 07, 08, 09
SANYO 41, 42, 43, 44, 48
SCHNEIDER 06
SELECO 74
SHARP 36, 37, 38, 39, 48
SIEMENS 71
SINGER 57
SINUDYNE 57
SONY 35, 48
TELEAVA 73
TELEFUNKEN 67, 73, 75, 76
THOMSON 72, 73, 75
THOMSON ASIA
80, 81
TOSHIBA 47, 48, 49, 50, 51, 52
WEGA 57
YOKO 06
ZENITH 63
TV Codes
1. Turn on the TV.
2. Point the DVD’s remote at the TV.
3. While holding the TV POWER button down, enter
the code for your brand.
e.g) For Samsung 2 TVs
While holding down the TV POWER button,
enter 0 and then 1.
4. If the TV turns off, setup is complete.
Enter other codes of the same brand if the first
code does not work.
5. To operate the TV, use the “TV Function Buttons”
described on page 11.
Important Note
• The remote may not be able to control every
model TV of the brands listed.
• If you replace the remote control's batteries, set
the brand code again.
ENG-43ENG-42
Specifications
*: Nominal specification
Power Requirements
Power Consumption
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
DVD
(DIGITAL VERSATILE DISC)
CD : 5"
(COMPACT DISC)
CD : 31/2"
(COMPACT DISC)
VCD : 5"
Composite Video
Component Video
S-VIDEO
HDMI
2 Channel
5.1 Channel
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
AC 120V ~ 60Hz
14 W
5.07 lbs
W 16.93 in x D 9.84 in x H 1.92 in
+41°F to +95°F
10 % to 75 %
Reading Speed : 11.45 ~ 15.09 ft/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 15.75 ~ 18.37 ft/sec.
Maximum Play Time : 74 min.
Reading Speed : 15.75 ~ 18.37 ft/sec.
Maximum Play Time : 20 min.
Reading Speed : 15.75 ~ 18.37 ft/sec.
Maximum Play Time : 74 min. (Video + Audio)
1 channel : 1.0 Vp-p (75 Ωload)
Y : 1.0 Vp-p (75 Ωload)
Pr : 0.70 Vp-p (75 Ωload)
Pb : 0.70 Vp-p (75 Ωload)
Luminance Signal : 1.0 Vp-p (75 Ωload)
Chrominance Signal : 0.286 Vp-p (75 Ωload)
High Definition Multimedia Interface
L(1/L), R(2/R)
F/L, F/R, R/L, R/R, C/T, S/W
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB
100 dB
0.004 %
General
Disc
Video
Output
Audio
Output
• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
Troubleshooting
No HDMI output.
Abnormal HDMI output
screen.
• Check the Video output is HDMI enabled.
• Check the connection between the TV and the HDMI
jack of DVD player.
• See if the TV supports this 480p/720p/768p/1080i DVD player.
• If snow noise appears on the screen, it means
that TV does not support HDCP (High-bandwidth Digital Content
Protection).
• Refer to your TV users manual.
Action
Problem Page
P14~16
P16
ENG-44
Warranty
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAM-
SUNG against manufacturing defects in materials and workmanship for the following limited warranty period:
One (1) Year Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used
in the United States, and does not include transportation, installation, removal or reinstallation. Warranty repairs
must be performed by SAMSUNG’s authorized service center. To receive warranty service, the original dated bill
of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service
center. Transportation to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if
found to be defective during the limited warranty period specified above. The product must be returned during
the warranty period with transportation charges prepaid to SAMSUNG’s designated service center. Prior to
returning any product for warranty service, the purchaser must contact SAMSUNG for problem determination
and service procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is
longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, non-
commercial use of this product and shall not apply to the following, including, but not limited to: damage which
occurs in shipment; applications and uses for which this product was not intended; failures or problems which
are caused by products or equipment not supplied by SAMSUNG; accidents, misuse, abuse, neglect, misappli-
cation, fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations or surges; dam-
age caused by improper or faulty installation; improper connection with any peripheral; product alteration or mod-
ification; improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial num-
bers; failure to follow operating instructions, customer adjustments, maintenance and environmental instructions
that are covered and prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies,
accessories or equipment which damage this product or result in service problems; failures or problems due to
incompatibility with other equipment.

Navigation menu
