3 DVD MINI
COMPONENT SYSTEM
WITH USB HOST
DVD/VCD/CD/MP3-CD/CD-R/RW
PLAYBACK
MAX-DC990
COMPACT
DIGITAL AUDIO
COMPACT
DIGITAL VIDEO
Instruction Manual
AH68-01780B
THIS APPLIANCE IS MANUFACTURED BY:
MONO/ST
12

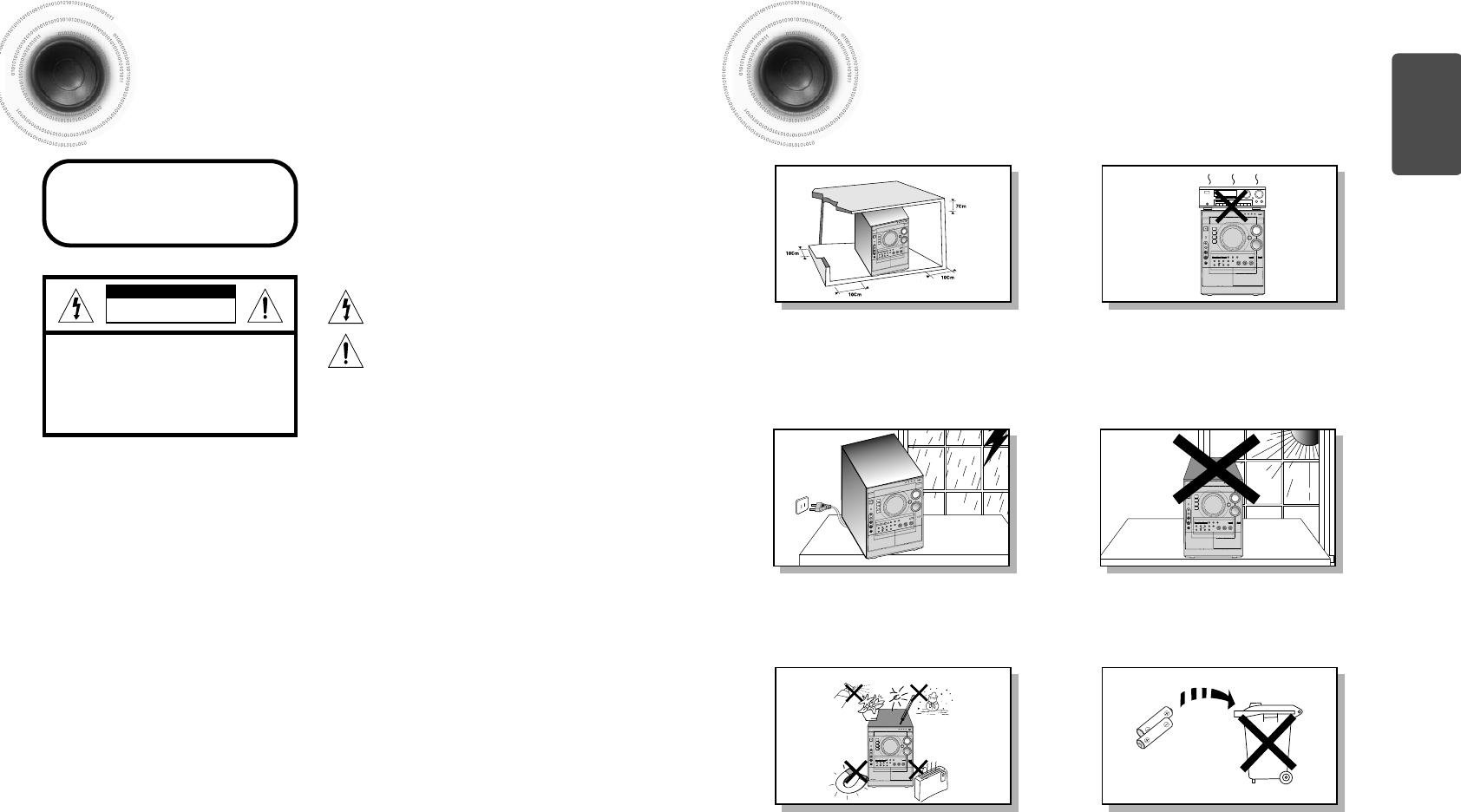

Safety Warnings Precautions
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become
hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to
the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply,
remove the main plug from the wall outlet, especially when left unused for a long period of time.
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic or electric
fields (i.e.speakers...). Disconnect the power cable from the AC supply if
the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
Phones
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
The battery used with this product contain chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household trash.
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUCT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
CAUTION
PREPARATION
PREPARATION CONNECTIONS
OPERATION SETUP
RADIO OPERATION
TAPE DECK
MISCELLANEOUS
(Saudi Arabian Standards Organisation)
THIS APPLIANCE IS FITTED WITH 220V SASO APPROVED PLUG.THE CUSTOMER IS
ENTITLED TO A FREE SASO APPROVED 127V PLUG FROM THE LOCAL DEALER.
Features
3
•
Many DVD discs are encoded with copy protection. Because of this, you should only connect your
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture
from copy-protected DVD discs.
•
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
Copy Protection
4
Contents
PREPARATION
Safety Warnings ............................................................................................................................................................................................1
Precautions....................................................................................................................................................................................................2
Features.........................................................................................................................................................................................................3
Description.....................................................................................................................................................................................................5
CONNECTIONS
Connecting the Speakers ..............................................................................................................................................................................9
Connecting to a TV ........................................................................................................................................................................................11
P.SCAN(Progressive Scan) Function ............................................................................................................................................................12
Connecting External Components .................................................................................................................................................................13
Connecting the FM,AM and SW(option) Antennas........................................................................................................................................14
Setting the Clock............................................................................................................................................................................................15
OPERATION
Disc Playback ................................................................................................................................................................................................16
Bonus Group/Navigating pages ...................................................................................................................................................................18
DivX Playback................................................................................................................................................................................................19
Playing Media Files using the USB feature ...................................................................................................................................................21
Displaying Disc Information ...........................................................................................................................................................................23
Fast/Slow Playback .......................................................................................................................................................................................24
Skipping Scenes/Songs.................................................................................................................................................................................25
Angle Function...............................................................................................................................................................................................26
Repeat Playback............................................................................................................................................................................................27
A-B Repeat playback ....................................................................................................................................................................................29
Zoom Function...............................................................................................................................................................................................30
Selecting Audio/Subtitle Language................................................................................................................................................................31
Moving Directly to a Scene/Song...................................................................................................................................................................32
JPEG File Playback .......................................................................................................................................................................................33
Using Disc Menu............................................................................................................................................................................................35
Using the Title Menu......................................................................................................................................................................................36
SETUP
Setting the Language.....................................................................................................................................................................................37
Language Code List.......................................................................................................................................................................................38
Setting TV Screen type..................................................................................................................................................................................39
Setting Parental Controls (Rating Level) .......................................................................................................................................................41
Setting the Password.....................................................................................................................................................................................42
Setting the Wallpaper ....................................................................................................................................................................................43
DVD Playback Mode .....................................................................................................................................................................................45
AV SYNC Setup ............................................................................................................................................................................................46
Setting the Speaker Mode ............................................................................................................................................................................47
Setting the Test Tone ...................................................................................................................................................................................48
Setting the Delay time ...................................................................................................................................................................................49
Setting the Audio Quality ..............................................................................................................................................................................51
Setting the DRC (Dynamic Range Compression) .........................................................................................................................................53
Dolby Pro Logic I I Mode ..............................................................................................................................................................................55
Dolby Pro Logic I I Effect ..............................................................................................................................................................................56
RADIO OPERATION
Listening to Radio ..........................................................................................................................................................................................57
Presetting Stations.........................................................................................................................................................................................58
TAPE DECK
Listening to a Cassette ..................................................................................................................................................................................59
MISCELLANEOUS
Recording a Compact Disc ............................................................................................................................................................................62
Recording a Radio Program ..........................................................................................................................................................................64
Timer Function...............................................................................................................................................................................................65
Canceling the Timer/SUB WOOFER LEVEL Function ..................................................................................................................................66
P.SURROUND XT AND SOUND MODE Function .......................................................................................................................................67
Sleep Timer Function / Mute Function...........................................................................................................................................................68
DEMO Function / DIMMER Function/ECO Function ....................................................................................................................................69
Bass/Treble Level Function ...........................................................................................................................................................................70
Connecting Headphones/Microphone(option) ...............................................................................................................................................71
Cautions on Handling and Storing Discs .......................................................................................................................................................72
Before Calling for Service ..............................................................................................................................................................................73
Notes on Discs...............................................................................................................................................................................................75
Notes on Terminology....................................................................................................................................................................................76
Specifications.................................................................................................................................................................................................77
USB Feature Supported Player .....................................................................................................................................................................78
TV Screen Saver Function
The MAX-DC990 automatically brightens and darkens the brightness of
the TV screen after 3 minutes in the stop mode.
The MAX-DC990 automatically switches itself into the power saving
mode after 20 minutes in the screen saver mode.
Power Saving Function
The MAX-DC990 automatically shuts itself off after 20 minutes in the stop mode.
Customized TV Screen Display
The MAX-DC990 allows you to select your favorite image during JPEG,
VCD/DVD playback and set it as your background wallpaper.
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
V I D E O
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
1 6
~
Multi-Disc Playback & AM/FM Tuner, TAPE,USB HOST.
The MAX-DC990combines the convenience of multi-disc playback capability,
including DVD-VEDIO, DVD-AUDIO,CD, MP3-CD, CD-R, CD-
RW,VCD,DivX,JPEG and DVD-R/RW, with a sophisticated AM/FM tuner, TAPE,
USB HOST all in a single player.
PREPARATION
—Rear Panel—
OPEN/CLOSE
DISC SKIP ZOOMSLOW
REPEA
TREMAIN SUB TITLE
TUNER
VOLUME
MUTE
MENU
INFO
RETURN
ENTER
TEST TONE
TIMER/CLOCK
TIMER ON/OFF
LOGOSLIDE MODE
EZ/VIEW
NTSC/PAL
CANCELDIGEST
TUNING
TAPE AUX
BAND
SLEEPDIMMER
SOUND EDIT
P
.SCAN
AH59-01379B
Video Cable
FM Antenna
Remote Control
User's Manual
AM Antenna
6
5
Description
Accessories

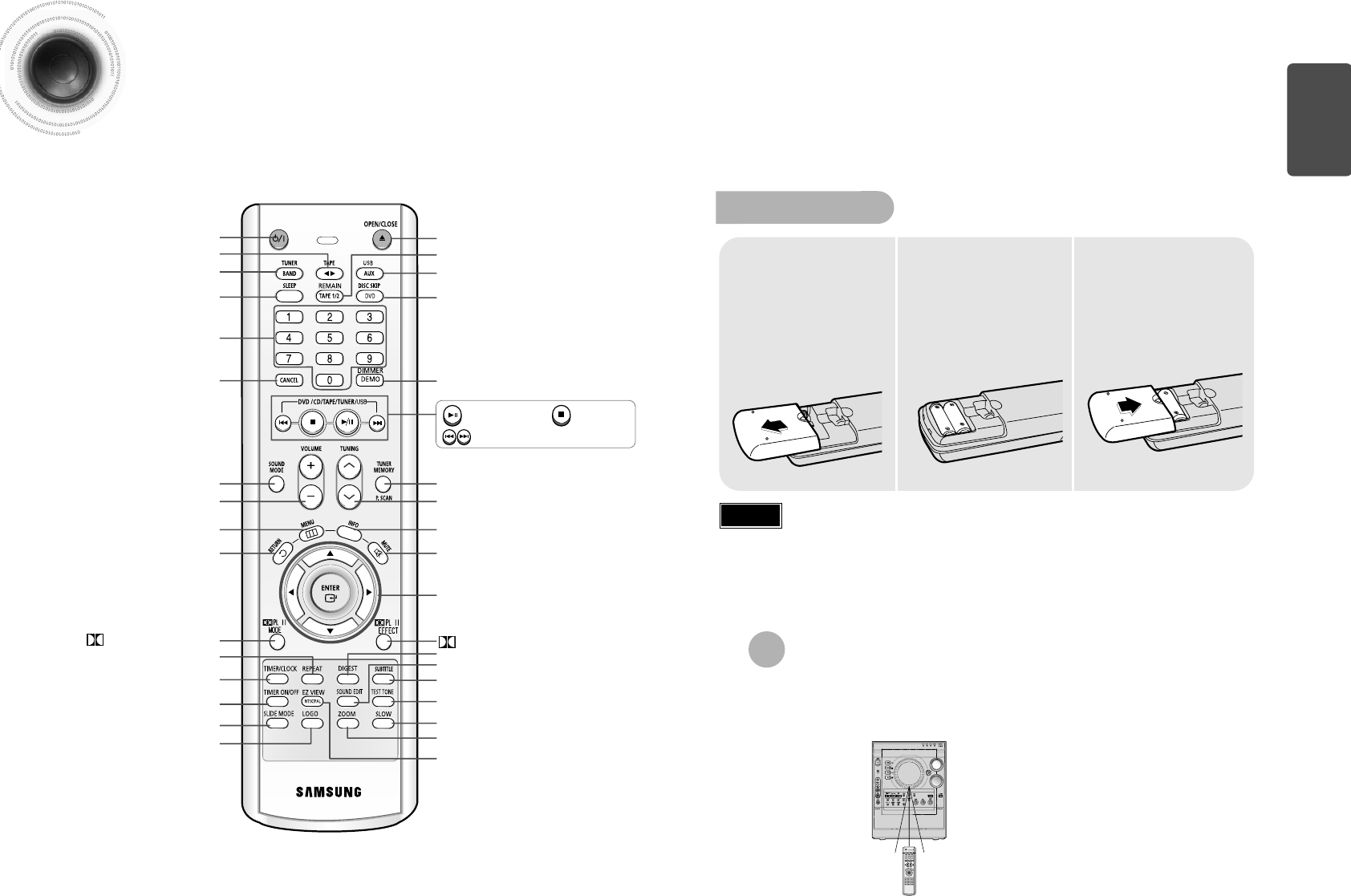

—Front Panel—
PREPARATION
10
4
3
9
8
6
7
5
2
1

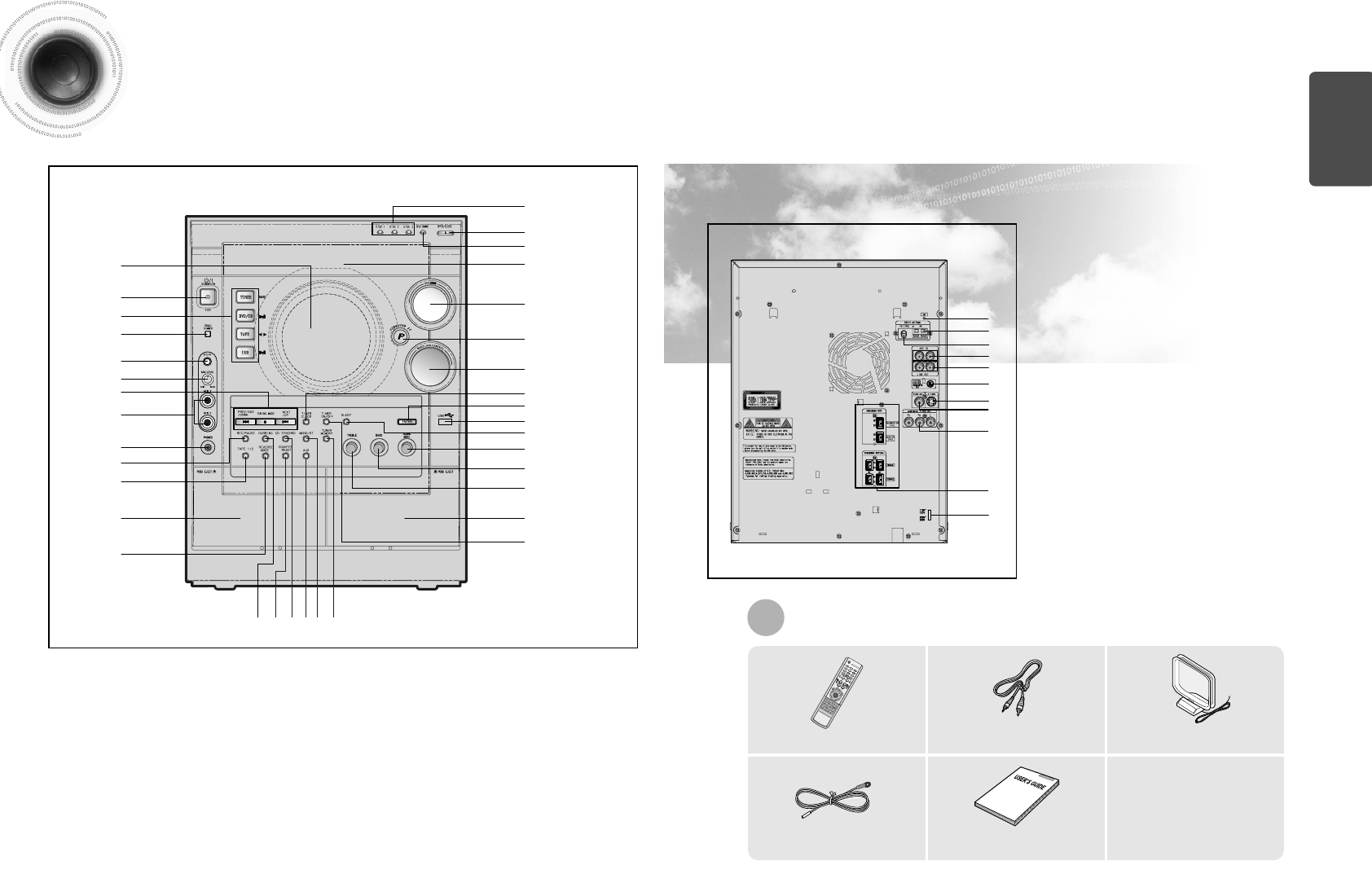

1.
SW Antenna Connector (Option)
2.
AM Antenna Connectors
3.
FM Antenna Connector
4.
AUX-In
5.
LINE OUT
6.
Sub woofer Control Jack
7. S-Video Output Connector
If the TV is equipped with an S-Video input
connector (S-VIDEO IN), connect it to the
player's S-Video output jack.
8. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
9. Component Video Output Connectors
Connect a TV with component vide input jacks to
these jacks.
10.
5.1 Channel Speaker Output
Terminals
11.
Voltage Selector (Option)
Audio Cable
11
5
1. Window Display
2. STANDBY/ON/ECO
3. Function Selection buttons
4. Demo/Dimmer
5. Echo
6. MIC Level
7. Search Function buttons
Tuning Mode or Stop button
8. MIC1,MIC2
9. Headphone Jack Connector
10. Record/Pause (PAL/NTSC)
11. Tape 1/2
12. Cassette Deck 1
13. Tape Reverse Mode
14. Tape Normal Speed Dubbing
15. Tape Counter Reset
16. CD Synchro Recording
17. AUX
18. FM Mono/Stereo
19. Tuner Memory
20. Timer On/Off
21. Cassette Deck 2
22. TREBLE
23. BASS
24. Sound Mode
25. Sleep
26. USB
27. Enter
28. Timer/Clock
29. Multi Jog
30. Power Sourround XT
31. Volume
32. Compact Disc Compartment
33. Disc Change
34. Open/Close
35. Disc Selection buttons
30
31
32
33
34
35
2
1
3
4
5
6
7
8
14
13
16
15 17 19
20
21
23
22
24
25
26
27
29
28
18
9
10
11
12
8
Insert Remote Batteries
The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30°from the remote control
sensor.
Range of Operation of the Remote Control
Remove the battery
cover on the back of
the remote by
pressing down and
sliding the cover in
the direction of the
arrow.
1
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
2
Replace the battery
cover.
3
Follow these precautions to avoid leaking or cracking cells:
•
Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
•
Use the correct type of batteries.Batteries that look similar may differ in voltage.
•
Always replace both batteries at the same time.
•
Do not expose batteries to heat or flame.
—Remote Control—
7
Description
Caution
PREPARATION
SOUND MODE button
VOLUME button
MENU button
POWER STANDBY/ON button OPEN/CLOSE button
TUNER/BAND button
TAPE PLAY button
REPEAT button
MUTE button
PL II MODE buttons
EZ VIEW, NTSC/PAL button
TIMER/CLOCK button
TIMER ON/OFF button
SLEEP button
DIMMER/DEMO button
SUB TITLE button
REMAIN/TAPE 1/2 button
AUX/USB button
INFO button
RETURN button
Direction/Enter button
TUNER MEMORY,P.SCAN button
TUNING button
PL II EFFECT button
TEST TONE button
DIGEST button
SLIDE MODE button
CANCEL button
LOGO button
Play/Pause button
Tuning Preset/CD Skip button
Stop button
DISC SKIP/DVD button
ZOOM button
SLOW,MONO/ST button
Number(0~9) buttons
SOUND EDIT button
910
•
Make sure the colors of the speaker terminals
match the colors of the connecting jacks.
Connect the connecting jacks to
the back of the DVD player.
Back of the Main Unit
C
L
R
SL
SR
SW
Rear Speaker (R)
Front Speaker (R)
Subwoofer
Center Speaker
Rear Speaker (L)
Front Speaker (L)
Blue
Gray
Violet
Red
Green
White
CONNECTIONS
Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
C
L
R
SW
SL SR
Rear Speakers
•
Place these speakers behind your listening position.
•
If there isn't enough room, place these speakers to face each other.
•
Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.
*Unlike the front and center speakers, the rear speakers are used
to handle mainly sound effects and sound will not come from
them all the time.
Subwoofer
•
The position of the subwoofer is not so critical.
Place it anywhere you like.
•
Usually, it is placed by a corner near the front speakers.
Front Speakers
•
Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
•
Place the speakers so that their tweeters will be at
the same height as your ear.
•
Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
Center Speaker
•
It is best to install it at the same height as the front
speakers.
•
You can also install it directly over or under the TV.
Position of the DVD Player
•
Place it on a stand or cabinet shelf, or under
the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
R
L
C
SR
SL
SW
11

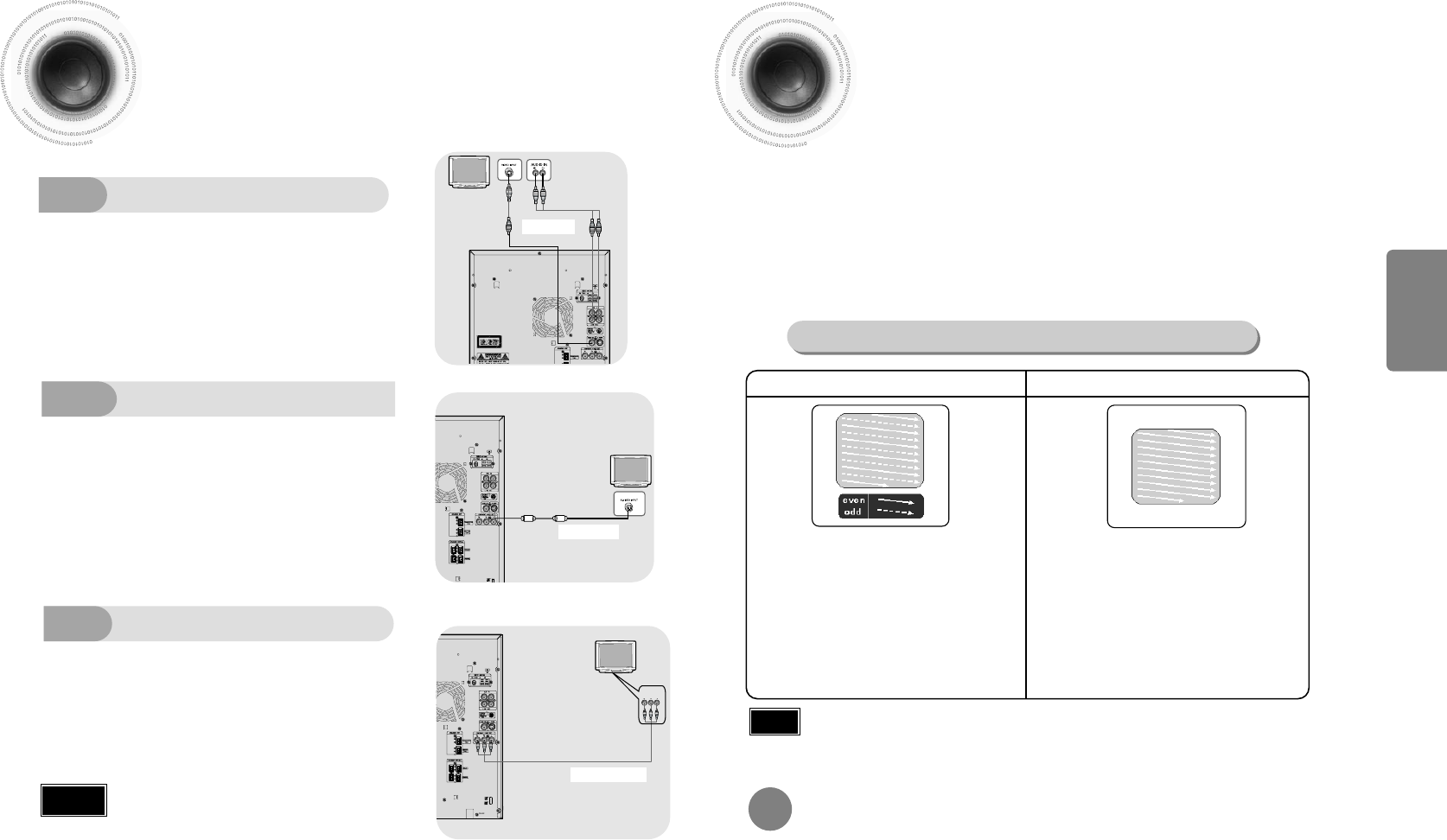

Use this method if your TV have Pr,Pb and Y jacks.
Method 3
Component Video (Best Quality)
If you television is equipped with Component Video inputs,connect a
component video cable from the Pr,Pb and Y jacks on
the back panel of the system to the corresponding jacks on your television.
COMPONENT
IN
Connecting to a TV
Please be sure to turn off the power and unplug the power cord before moving or installing this unit.
Please choose one of three video connection methods.
P.SCAN (Progressive Scan) Function
Unlike regular Interlace Scan, in which two fields of picture information alternate to create the
entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of
information (all lines displayed in one pass) to create a clear and detailed picture without
visible scan lines.
Press and hold P.SCAN button on the remote controller for over 5 seconds in
STOP mode.
•
Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace
Scan" repetitively.
In interlaced-scan video, a frame consists of two
interlaced fields (odd and even), where each field
contains every other horizontal line in the frame.
The odd field of alternating lines is displayed first, and
then the even field is displayed to fill in the alternating
gaps left by the odd field to form a single frame.
One frame, displayed every 1/30th of a second, contains
two interfaced fields, thus a total of 60 fields are
displayed every 1/60th of a second.
The interlaced scanning method is intended for capturing
a still object.
Interlaced Scan (1 FRAME = 2 FIELDS)
The progressive scanning method scans one full frame of
video consecutively down the screen, line by line.
An entire image is drawn at one time, as opposed to the
interlaced scanning process by which a video image is
drawn in a series of passes.
The progressive scanning method is desirable for dealing
with moving objects.
Progressive Scan (FULL FRAME)
What is Progressive (or Non-Interlaced) Scanning?
•
This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that support
Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive
scan TVs.)
•
Depending on the brand and model of your TV, this function may not work.
Note
•
By default, the video format is set to "PAL".
•
Each time the button is pressed, the video format switches between "NTSC" and "PAL".
•
Each country has a different video format standard.
•
For normal playback, the video format of the disc must be the same as the video format of your TV.
Turn off the main unit and then press NTSC/PAL on the Remote Control or REC/PAUSE on the Main Unit.
Selecting the Video Format
CONNECTIONS
12
Use this method if your TV has an S-Video In jack.
Method 1
Using Video Out (Good Quality)
Connect Video Out on the player to Video In on your TV.
1
Connect S-Video Out to S-Video In on your TV.
1
Press the TV/VIDEO button on the remote of TV control to
set the TV to "VIDEO".
2
Press the TV/VIDEO button on the remote control of TV to set
the TV to "S-VIDEO".
2
Method 2
Using S-Video Out (Better Quality )
•
Composite Video: A single video signal that is a composite of
the black-and-white information (Y) and the color information (C).
•
S-Video: A video transmission standard that provides a sharper,
brighter picture than ordinary composite video by separating
brightness and color signals.
Note
Supplied
Not Supplied
Not Supplied
14
13

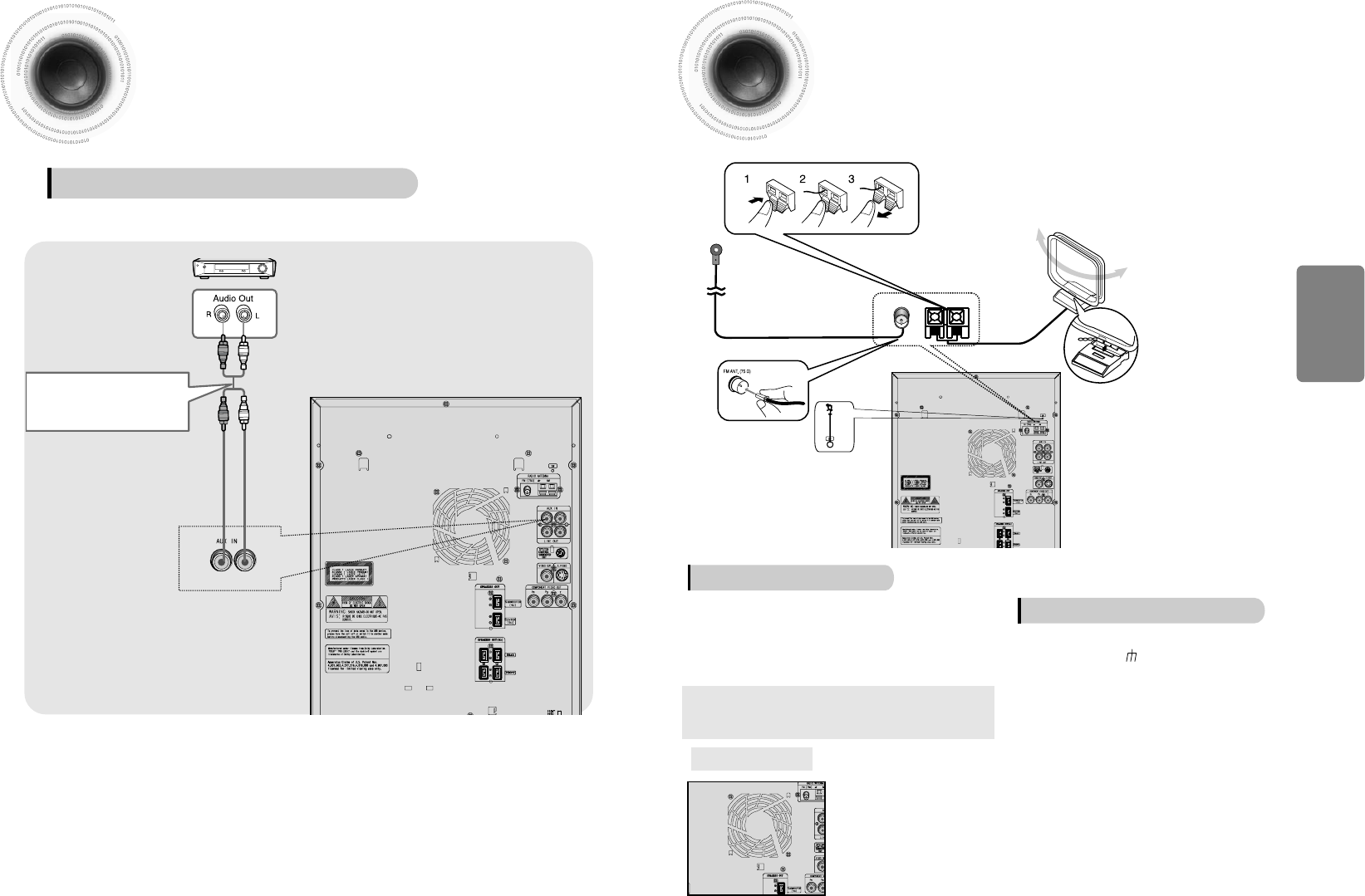

Connect Audio In on the DVD player to Audio Out on the external analog component.
•
Be sure to match connector colors.
1
Example: Analog signal components such as a VCR, Camcorder, and TV.
Connecting an External Analog Component
Connecting External Components
Audio Cable
If the external analog component
has only one Audio Out, connect
either left or right.
Press AUX to select AUX.
•
‘AUX’ appears in the display.
2
Connecting the FM, AM
(
MW
)
and SW(option) Antennas
FM Antenna (supplied)
AM Loop Antenna
(supplied)
If AM reception is poor, connect an
outdoor AM antenna(not supplied).
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.
Spread the SW aerial out and attach the
ends to a wall, in the position providing the
best reception.
If reception is poor (e.g. distance from
transmitter too great, walls blocking the
radio waves, etc.), install an outdoor aerial.
The cooling fan dissipates the heat generated inside the unit so that the unit can be operated
normally. The cooling fan is activated automatically to supply cool air to the unit.
Please observe the following cautions for your safety.
•
Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit
could rise and may damage it.
•
Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)
Cooling Fan
FM antenna connection
AM (MW) antenna connection
1. Connect the FM antenna supplied to the FM 75Ω
COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you
find a location where reception is good, then
fasten it to a wall or other rigid surface.
•
If reception is poor, connect an outdoor antenna.
Before attaching a 75Ωcoaxial cable (with a standard
type connector), disconnect the supplied FM antenna.
1. Connect the AM loop antenna supplied
to the AM and terminals.
2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).
CONNECTIONS
15 16
Disc Playback
•
Depending on the content of the disc, the initial screen may appear different.
•
Depending on the recording mode, some MP3-CDs cannot be played.
•
Table of contents of a MP3-CD varies depending on the MP3 track format recorded
on the disc.
DVD VCD CD
•
Playback starts automatically.
MP3 JPEG
•
Playback starts automatically.
•
If the TV is on, a list of MP3s on
the CD will appear on the TV
screen.
Note
•
To resume playback, press PLAY/PAUSE
button again.
To temporarily pause playback,
press PLAY/PAUSE during playback.
•
If pressed once, “PRESS PLAY” is displayed and the
stop position will be stored in memory. If PLAY/PAUSE
( ) button or ENTER button is pressed, playback
resumes from the stop position. (This function works
only with DVDs.)
•
If pressed twice, “STOP” is displayed, and if
PLAY/PAUSE ( ) button is pressed, playback
starts from the beginning.
To stop playback,
press STOP during playback.
DivX
Setting the Clock
For each step, you have a few seconds to set the required options.
If you exceed this time, you must start again.
•
You can display the time, even
when you are using another
function, by pressing
TIMER/CLOCK once.
•CLOCK is displayed.
2
Press TIMER/CLOCK
twice.
1
Switch the system
on by pressing
POWER button.
•"TIMER" appears in the display.
•The current time is now set.
5
When the correct
time is displayed,
press ENTER.
•Increase the minutes :
•Decrease the minutes :
4
When the correct
hour is displayed,
press ENTER.
The minutes flash.
•Increase the hours :
•Decrease the hours :
3
Press ENTER.
The hour flashes.
Note
Checking the Remaining Time
CHAPTER REMAIN
TITLE REMAIN
CHAPTER ELAPSED
TITLE ELAPSED
TRACK REMAIN
TOTAL ELAPSED
TOTAL REMAIN
TRACK ELAPSED
TRACK REMAIN
TRACK ELAPSED
Each time the REMAIN button is pressed
Press the REMAIN button.
•
For checking the total and remaining time of a title or chapter being played.
DVD
CD
VCD
MP3
To select a specific disc, press the corresponding DISC (1, 2, 3) button on the front panel or
DISC SKIP on the remote control, until the required disc indicator flashes.
Result: All the discs will be played in turn, starting with the one selected.
The CD function is automatically selected when Disc Skip is pushed.
Selecting a CD in the Disc changer
•
If you use the DISC (1, 2, 3) function when listening to the radio or to a tape, the
system switches automatically to the CD mode.
•
If the disc selected is not loaded, the next disc is played automatically.
•You can also use Multi-Jog or button on the panel front
instead of , buttons in step 3,4.
Note
OPERATION
DVD-
AUDIO
TRACK REMAIN
GROUP REMAIN
TRACK ELAPSED
GROUP ELAPSED
DVD-
AUDIO
•
In this manual, the instructions marked with "DVD ( )" are applicable to
DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.
Where a particular DVD type is mentioned, it is indicated separately.
•
Depending on the content of the disc, the initial screen may appear different.
DVD
Note
Groups and tracks (DVD-AUDIO)
•
DVD-audios are divided into several large sections called "groups" and smaller
sections called "tracks". Numbers are allotted to these sections.
These numbers are called "group numbers" and "track numbers".
Titles and chapters (DVD-VIDEO)
•
DVD-videos are divided into several large sections called "titles" and smaller
sections called "chapters". Numbers are allotted to these sections.
These numbers are called "title numbers" and "chapter numbers".
Tracks (Video and music CDs)
•
Video and music CDs are divided into sections called "tracks".
Numbers are allotted to these sections. These numbers are called "track numbers".

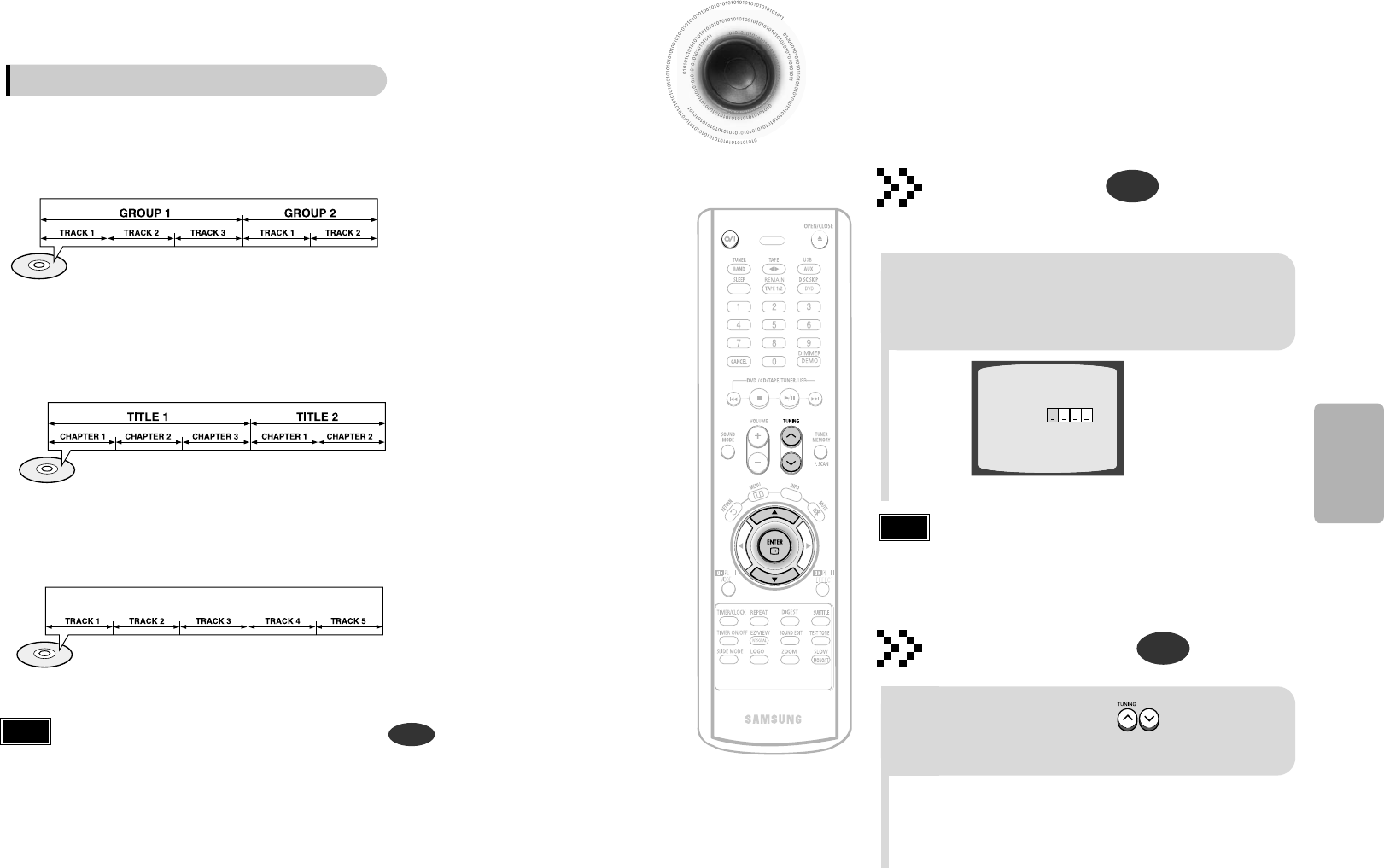

Disc terminology
18
Bonus Group / Navigating Pages
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key
number to access. See the disc packaging for details and the-key number.
Bonus Group
When you play a DVD-Audio disc that has a
bonus group, the key number input screen
appears automatically.
•
You can select the desired image from a DVD-Audio disc containing still images.
•
With some discs, you may not be able to select images depending on how the
disc was manufactured.
•
If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
the key number.
Note
KEY NUMBER :
Navigating Pages
During playback, press the button on the
remote control.
17
DVD-
AUDIO
DVD-
AUDIO
OPERATION
19

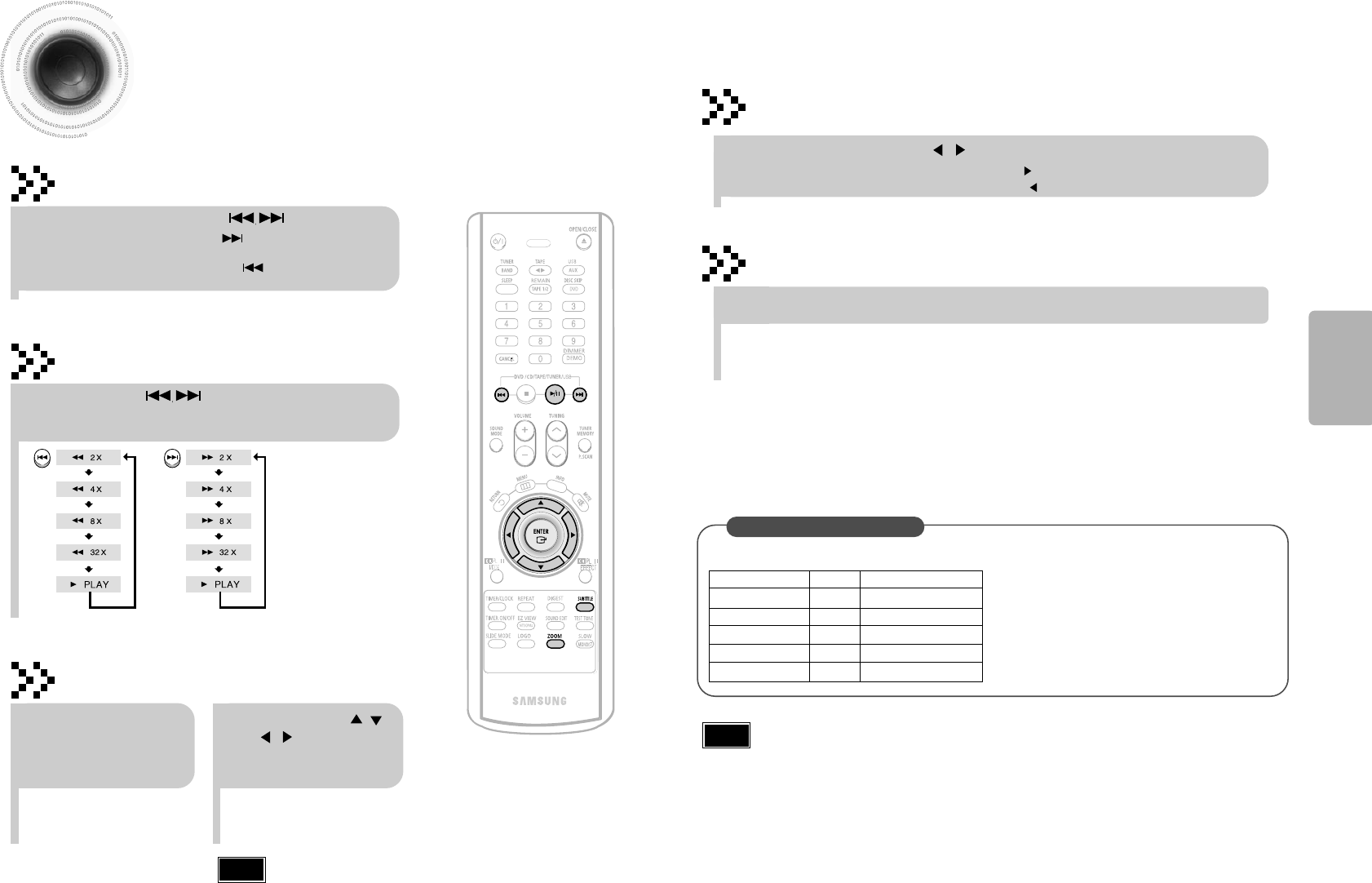

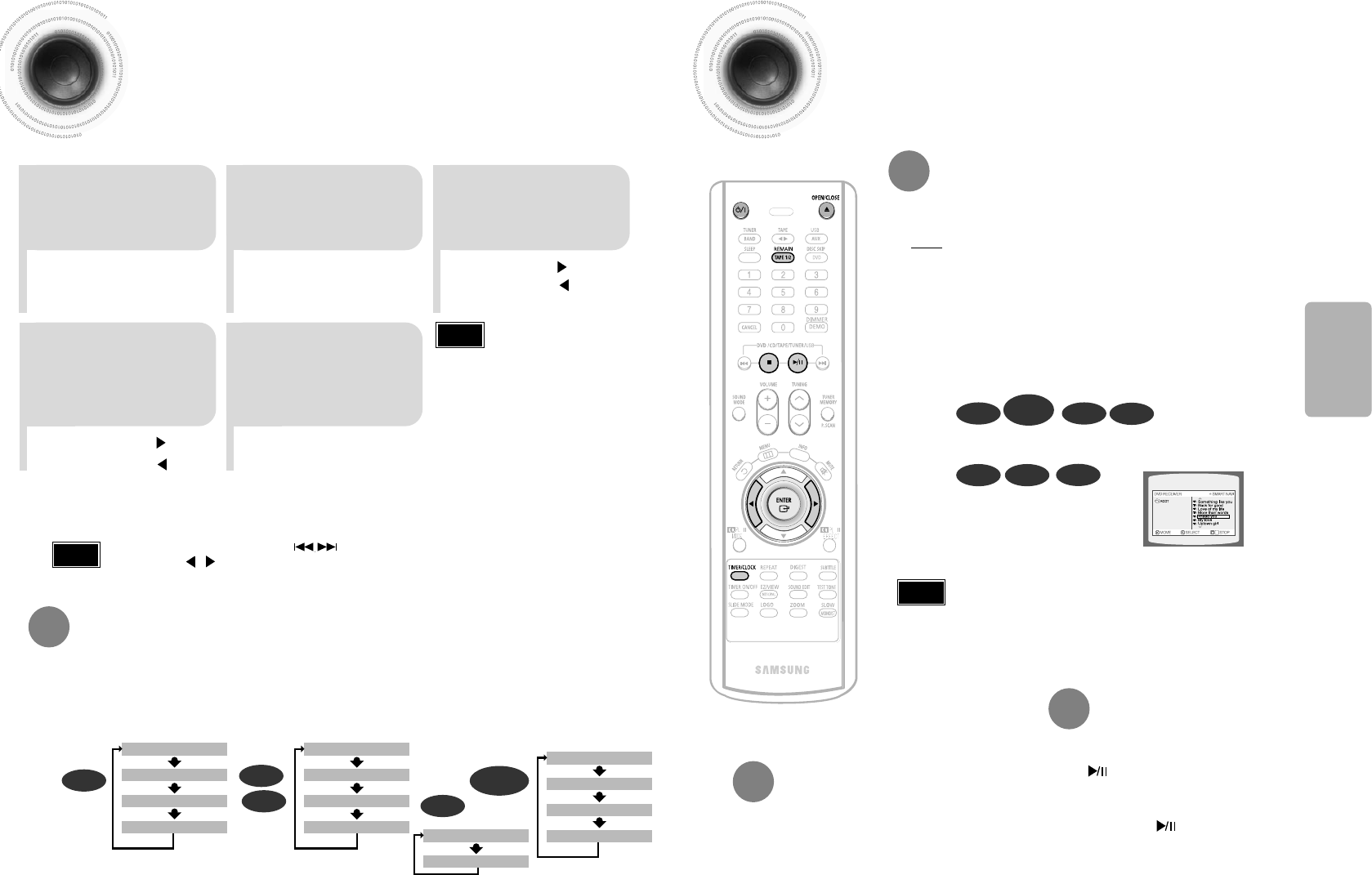

Fast playback
DivX Playback
Skip Forward/Back
During playback, press the button.
•
Go to the next file whenever you press button, if there are over
2 files in the disk.
•
Go to the previous file whenever you press button, if there are over
2 files in the disk.
Press and hold button.
•
Each time the button is held down during playback,
the playback speed changes as follows:
•
DivX files can be played in
Zoom X2 mode only.
Note

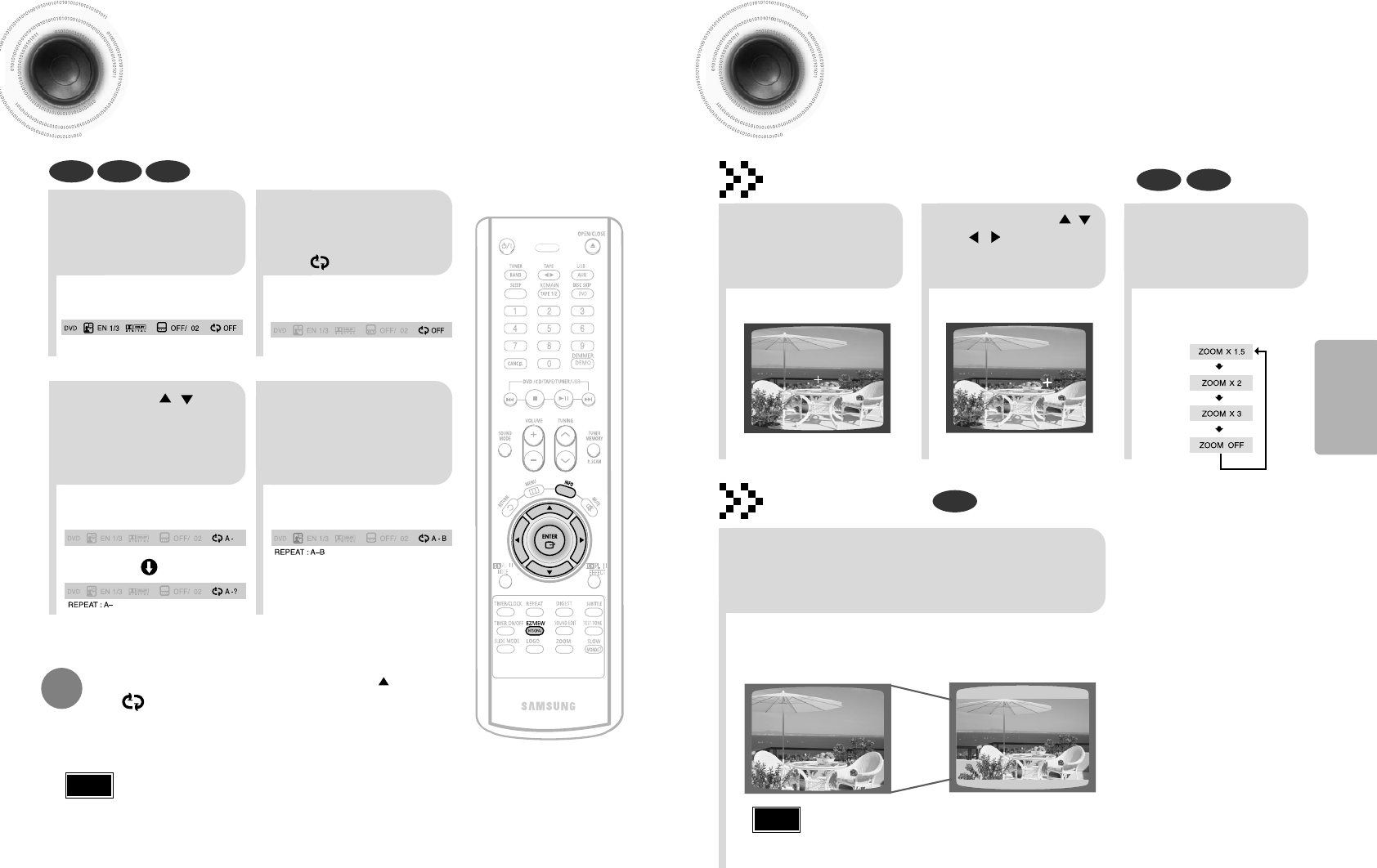

Zoom Function
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
1
Press ZOOM
button.
•
Each time you press the button,
your selection will toggle between
“ZOOM X2” and “ZOOM OFF”.
5 Minute Skip function
•
When playing the DivX disk, you can play the file with extension of AVI only.
•
Among the available DivX audio formats, DTS Audio is not supported.
•
WMV V8 is not supported for WMV files.
•
When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file.
•
Divx Disc does not playing when its sampling frequency is lower than 32KHz.
•
Some of the discs recorded in DivX or XviD depending on the way of recording could be
played back not correctly or couldn’t be played back at all.
•
MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS , SAMPLING FREQ.:
32K/44.1K/48KHz) .
During playback, press the , button.
•
Go to the screen about 5 minutes after whenever you press button.
•
Go to the screen about 5 minutes earlier whenever you press button.
Note
OPERATION
Subtitle Display
Press the SUBTITLE button.
DivX Feature Table
DivX Supported
Avi files are used to contain the audio and video data; these must be stored on CD in the ISO 9660 format.
MPEGs containing DivX can be divided into Video and Audio.
•
Video compatibility : All versions of DivX later than 3.11 (including
the latest 5.1) are supported. In addition, XviD is supported.
For WMV, V1, V2, V3, and V7 formats are possible.
The initial resolution is 720X480 and may support up to 720X576 .
•
Audio compatibility : MP3s encoded at bitrates from 80kbps to
384kbps, AC3s from 128kbps to 384kbps, and WMAs from 56kbps
to 128kbps are supported.
•
In addition, for subtitles, this unit will support Text format (SMI).
SPEC
VIDEO Compatibility DivX3.11 Up to the latest VERSION
WMV WMV V1/V2/V3/V7
AUDIO Compatibility MP3 CBR : 80kbps~384kbps
AC3 CBR : 128kbps~384kbps
WMA CBR : 56kbps~128kbps
•
Each time you press the button, your selection will toggle between “SUBTITLE ON” and “SUBTITLE OFF”.
•
If the disc has only one subtitle file, it will be played automatically.
•
Up to 8 subtitle languages are supported.
20
•
Video files (DivX, WMV, MPEG, etc.) are supported.
•
To prevent the loss of data saved in the USB device, please turn the unit off or
switch it to another mode before disconnecting the USB cable.
•
Music File Icon
•
Image File Icon
•
All File Icon
•
Movie File Icon
Note
2

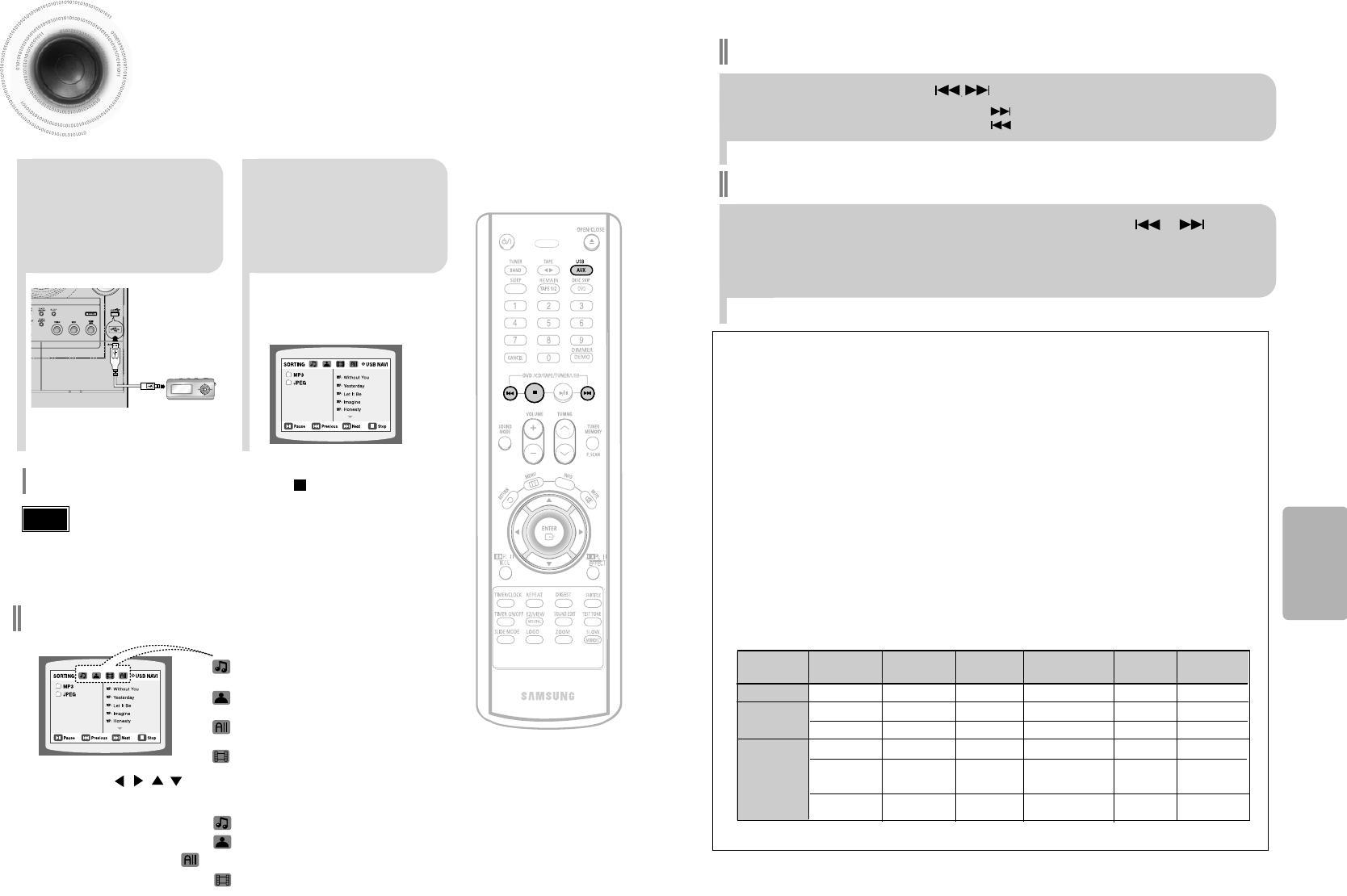

Press the USB button
on the main unit or the
AUX button on the
remote control to
select the USB mode.
•
“USB” appears on the display screen and
then disappear.
•
USB SORTING screen appears on the
TV screen and the saved file is played.
1
connect the USB
cable.
Press the button when it is in stop status and
select a desired icon from the top part of the menu.
•
To play music files only, select the Icon.
•
To view image files only, select the Icon.
•
To select all files select the Icon.
•
To view movie files only, select the Icon.
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory,
etc. using the player's USB function.
To stop playback, press the STOP ( ) button.
To play a file in the USB menu screen,
22
21
Fast playback
Skip Forward/Back
During playback, press the button.
•
When there is more than a file, when you press the button, the next file is selected.
•
When there is more than a file, when you press the button, the previous file is selected.
To playback the disc at a faster speed, press and hold or
during playback.
•
Each time you press and hold either button, the playback speed will change as follows:
2x ➞4x ➞8x ➞32x ➞Normal.
Compatible Devices
1. USB devices that support USB Mass Storage v1.0.
(USB devices that operate as a removable disk in Windows
(2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 player.
3. Digital camera: PTP protocol is not supported.
•
Devices which require additional program installation when you have connected it to a computer, are not
supported.
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
•
You may experience a difference in playback quality when you connect a USB1.1 device.
•
For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader
•
Depending on the manufacturer. the USB card reader may not be supported.
•
If you install multiple memory devices into a multi card reader, you may experience problems.
File name File Bit rate Version Pixel Sampling
extension Frequency
Still Picture JPG .JPG .JPEG ––640*480 –
Music MP3 .MP3 80~384kbps ––44.1kHz
WMA .WMA 56~128kbps V8 –44.1kHz
Movie VCD MPG.MPEG .DAT 1.5Mbps VCD1.1,VCD2.0 320*480 44.1KHz
WMV .WMV 4Mbps V1,V2,V3,V7 720*480 44.1KHz~48KHz
(V9 is not supported)
DivX .AVI,.ASF 4Mbps DivX3.11~DivX5.1,Xvid 720*480 44.1KHz~48KHz
●
Supported Formats
OPERATION
•
A device using NTFS file system is not supported.(Only FAT file system is supported.)
Playing Media Files using the USB feature
The USB host function of this product does not support all USB devices.
For the information on the supported devices,pls see the P78
23
Fast/Slow Playback
Fast Playback
DVD VCD CD MP3
Press and hold .
•
Each time the button is held down during playback,
the playback speed changes as follows:
Press SLOW button.
•
Each time the button is pressed during playback,
the playback speed changes as follows:
Slow Playback
DVD VCD DivX
24

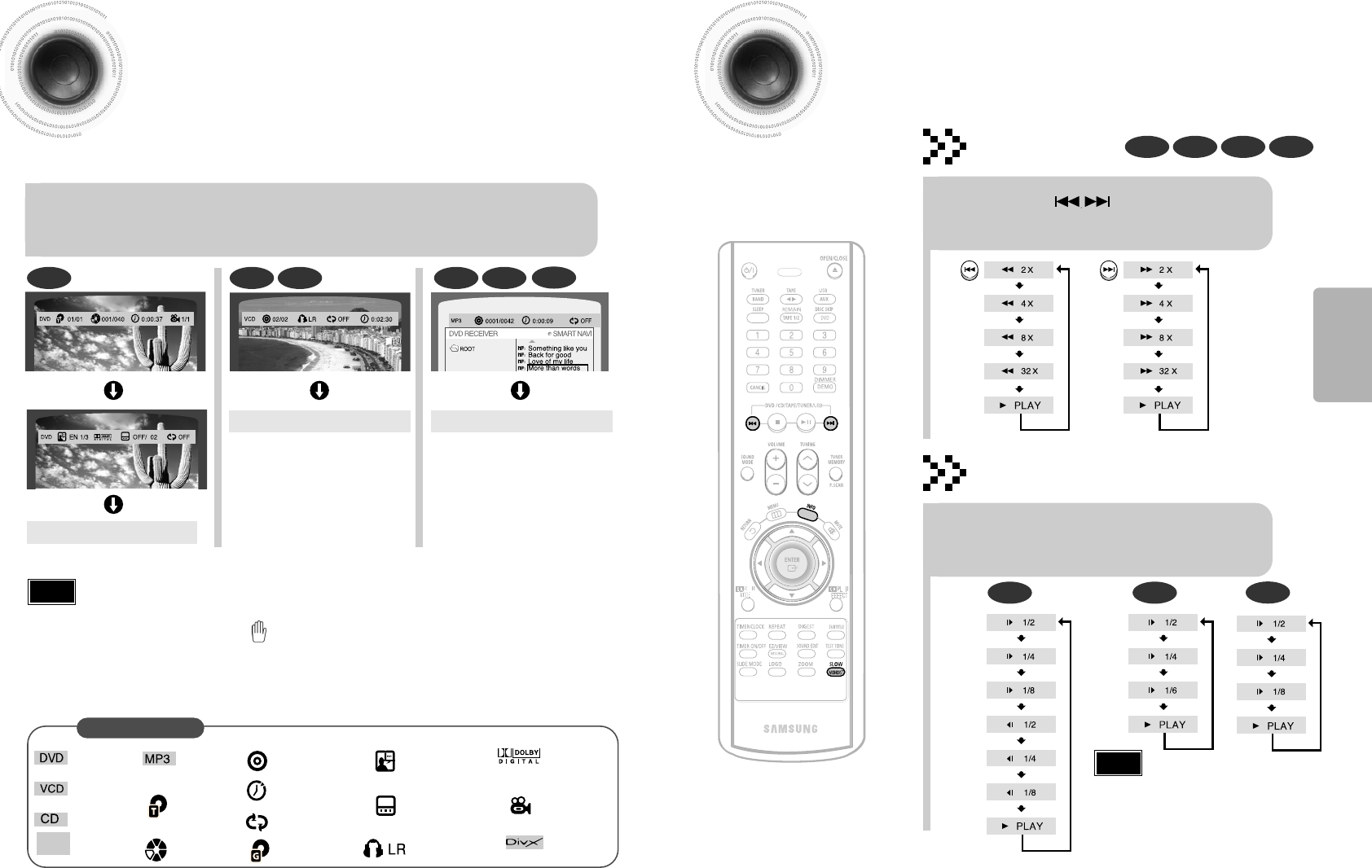

Displaying Disc Information
You can view playback information on the disc on the TV screen.
Press INFO button on the remote control .
•
Each time the button is pressed, the display changes as follows:
DVD
Display disappears
Display disappears Display disappears
VCD CD MP3 JPEG
•
What is a Title?
A movie contained in a DVD disc.
•
What is a Chapter?
Each title on a DVD disc is divided into several smaller sections called "chapters".
•
appears on the TV screen!
If this symbol appears on the TV screen while buttons are being operated, that
operation is not possible with the disc currently being played.
•
What is a Track (File)?
A section of video or a music file recorded on a VCD, CD, or MP3-CD.
Screen Display
DVD display
MP3 CD display
TITLE display
CHAPTER display
TRACK (FILE) display
AUDIO LANGUAGE display
SUBTITLE display
STEREO (L/R) display
DOLBY DIGITAL display
ANGLE display
•
Depending on the disc, the disc
information display may appear different.
•
Depending on the disc, you can also
select DOLBY DIGITAL, or PRO LOGIC.
Note
DivX
DivX display
•
Reverse slow playback does not work with VCDs and DivX.
Note
•
During fast playback of a CD or MP3-CD, sound is heard only at
2x speed, and not at 4x, 8x, and 32x speeds.
•
No sound is heard during slow playback and step motion
playback.
OPERATION
DVD-AUDIO display
DVD
AUDIO
GROUP display
CD display
VCD display
REPEAT PLAYBACK display
TRACK (FILE) display
25
Angle Function
This function allows you to view the same scene in different angles.
DVD
2
Press Cursor
button to move to
ANGLE display.
1
Press INFO button.
•
Each time the button is pressed, the angle changes as follows:
3
Press Cursor , buttons or numeric buttons
to select the desired angle.
•The Angle function works only with discs on which multiple angles
have been recorded.
Note
Skipping Scenes/Songs
DVD VCD MP3
DVD VCD MP3
Briefly press .
•
Each time the button is pressed briefly during playback, the previous or next chapter,
track, or directory (file) will be played.
•
But, you cannot skip chapters consecutively.
•
When watching a VCD with a track
longer than 15 minutes, each time
is pressed, playback
will skip back or forward 5 minutes.
TITLE 01/05 CHAPTER 002/040
TITLE 01/05 CHAPTER 004/040
26
OPERATION
27
DVD
VCD CD
•
For MP3 and JPEG discs, you cannot select Repeat Play
from the information display screen.
•
For VCD Version 2.0 discs, you can select Repeat Play in
PBC off mode.
Note
2Press Cursor button
to move to REPEAT
PLAYBACK display.
1
Press INFO button
twice .
4
Press ENTER
button.
3
Press Cursor
button to select the
desired Repeat
Playback mode.
DVD VCD CD

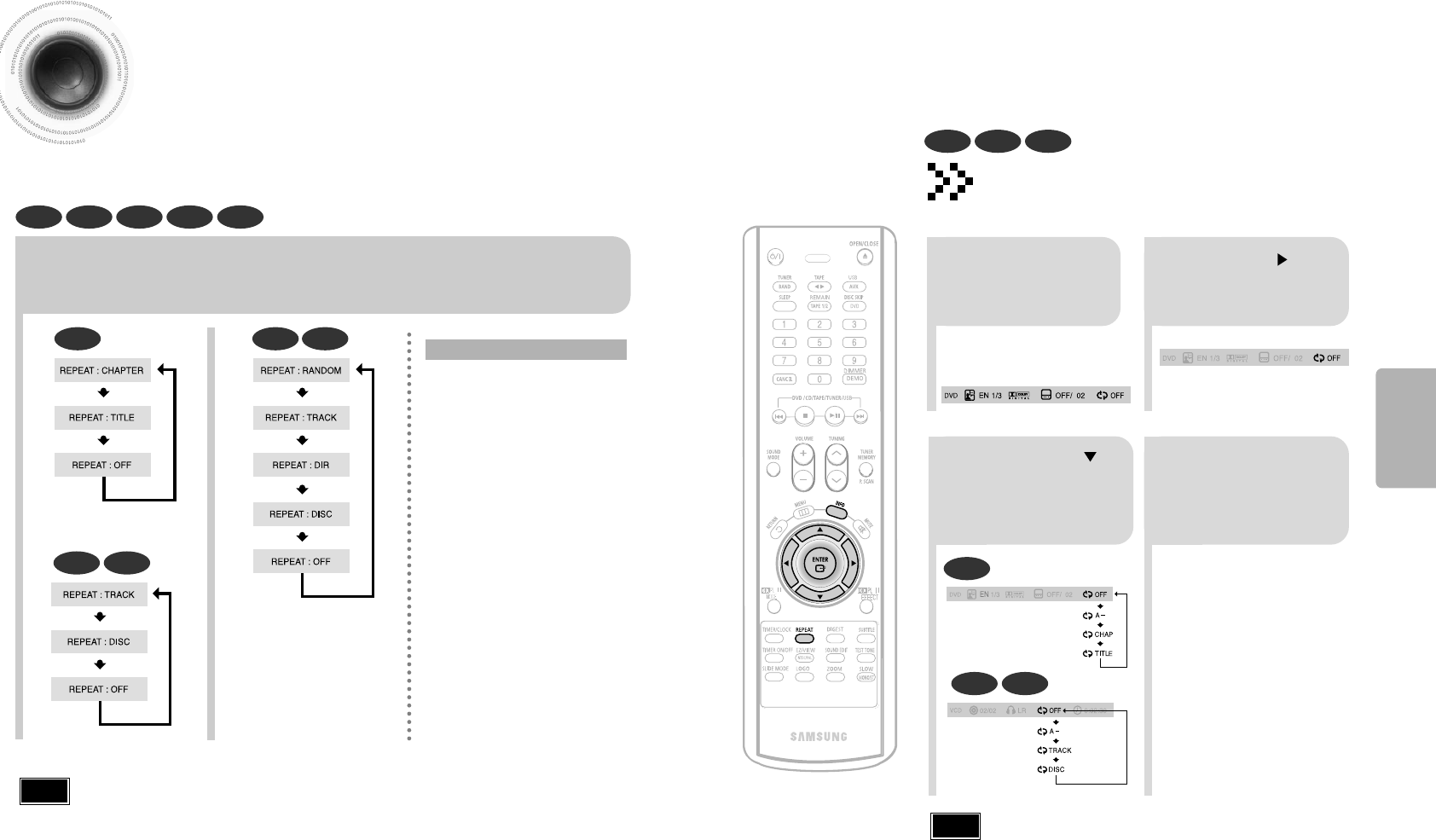

To Select a Repeat Playback Mode
in the Disc Information Screen
•For a VCD or CD,Press INFO
button once.
Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
Press REPEAT button.
•
Each time the button is pressed during playback, the repeat playback mode changes as follows:
DVD
VCD CD
MP3 JPEG
•
Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on.
To use Repeat Playback on a VCD with PBC, you should set the PBC to OFF in the disc menu. (See page 35.)
CHAPTER
Repeatedly plays the selected chapter.
TITLE
Repeatedly plays the selected title.
RANDOM
Plays tracks in random order.
(A track that has already been played
may be played again.)
TRACK
Repeatedly plays the selected track.
DIR
Repeatedly plays all tracks in the
selected folder.
DISC
Repeatedly plays the entire disc.
OFF
Cancels Repeat Playback.
DVD VCD CD MP3 JPEG
Repeat Playback Options
Note
28
OPERATION
29
Zoom Function
This function allows you to enlarge a particular area of the displayed image.
Zoom (Screen Enlarge) Function
DVD VCD
Aspect Ratio
DVD
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
1
Press ZOOM
button.
•
Each time the button is pressed, the
zoom level changes as follows:
3
Press ENTER
button.
Press EZ VIEW button.
•
Each time the button is pressed, the zoom function will switch between On
and Off.
•
When a movie is played in Wide screen format, black bars at the top and
bottom of the TV screen can be removed by pressing the EZ VIEW button.
•
This function will not work if the DVD is recorded with multi-camera angle format.
•
Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
Note
SELECT ZOOM POSITION
A↔B Repeat Playback
30
OPERATION
•
The A-B Repeat function will not work on an MP3 or JPEG disc.
2
Press Cursor
button to move to
REPEAT PLAYBACK
( ) display.
•
For a VCD or CD, press INFO
button once.
1
Press INFO button
twice.
•The specified segment will be played
repeatedly.
4
Press ENTER
button at the end of
the desired
segment.
•When ENTER button is pressed,
the selected position will be stored in
memory.
3
Press Cursor , buttons
to select ‘A-’ and then press
ENTER button at the beginning
of the desired segment.
To return to normal playback, press Cursor , buttons
to select OFF.
DVD VCD CD
Note
EZ VIEW OFFEZ VIEW

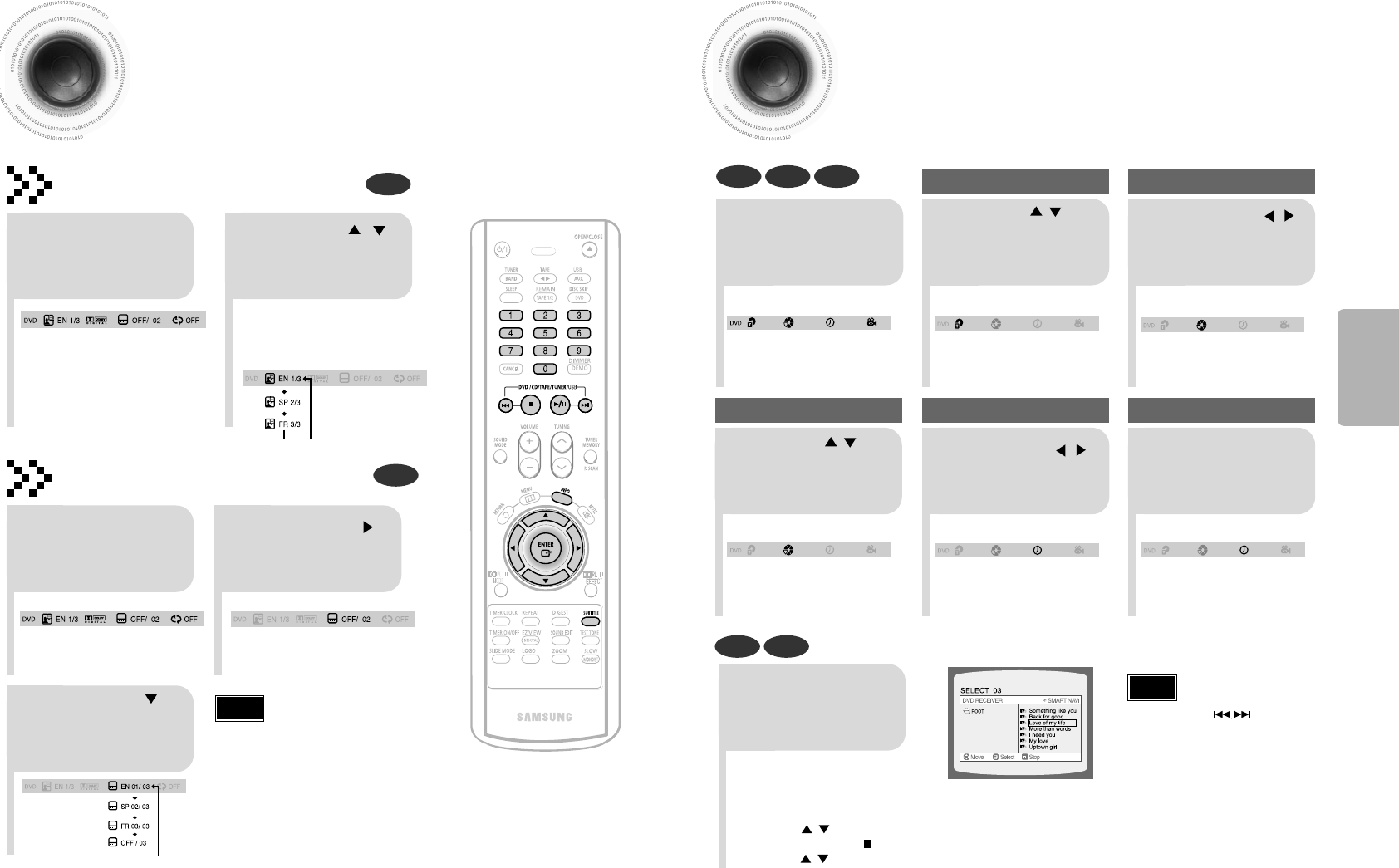

Moving Directly to a Scene/Song
•
The selected file will be played.
•
A MP3 or JPEG disc cannot be moved
from the disc information screen.
•
When playing a MP3 or JEPG disc, you
cannot use , to move a folder.
To move a folder, press (Stop) and
then press , .
DVD VCD CD
MP3 JPEG
2
Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.
1
Press INFO button.
01/05
001/040 0:00:37 1/1
03/05
001/002 0:00:01 1/1
01/05
001/040 0:00:01 1/1
Moving to a Title/Track
4
Press Cursor , buttons
or numeric buttons to select
the desired chapter and
then press ENTER button.
01/05
025/040 0:00:01 1/1
Moving to a Chapter
6
Press the numeric
buttons to select the
desired time and then
press ENTER button.
01/05
028/040 1:30:00 1/1
Moving to a Specific Time
3
Press Cursor ,
buttons to move to
Chapter display.
Moving to a Chapter
01/05
025/040 1:17:30 1/1
5
Press Cursor ,
buttons to move to
time display.
Moving to a Specific Time
Press the numeric
buttons.
•
You can press on the remote
control to move directly to the desired
title, chapter, or track.
•
Depending on the disc, you may not
be able to move to the selected title or
time.
Note
32
OPERATION
31
Selecting Audio Subtitle Language
•
Depending on the number of languages on a
DVD disc, a different audio language (ENGLISH,
SPAIN,JAPANESE, etc.) is selected each time
the button is pressed.
2Press Cursor ,
buttons or numeric
buttons to select the
desired audio language.
1
Press INFO button
twice.
•
You can use the SUBTITLE button on the
remote control to select a subtitle
language.
•
Depending on the disc, the Subtitle and
Audio Language functions may not work.
Audio Language Selection Function
DVD
Subtitle Language Selection Function
DVD
Note
2
Press Cursor
button to move to
SUBTITLE display.
1
Press INFO button
twice.
3
Press Cursor
button or numeric
buttons to select
the desired subtitle.
33

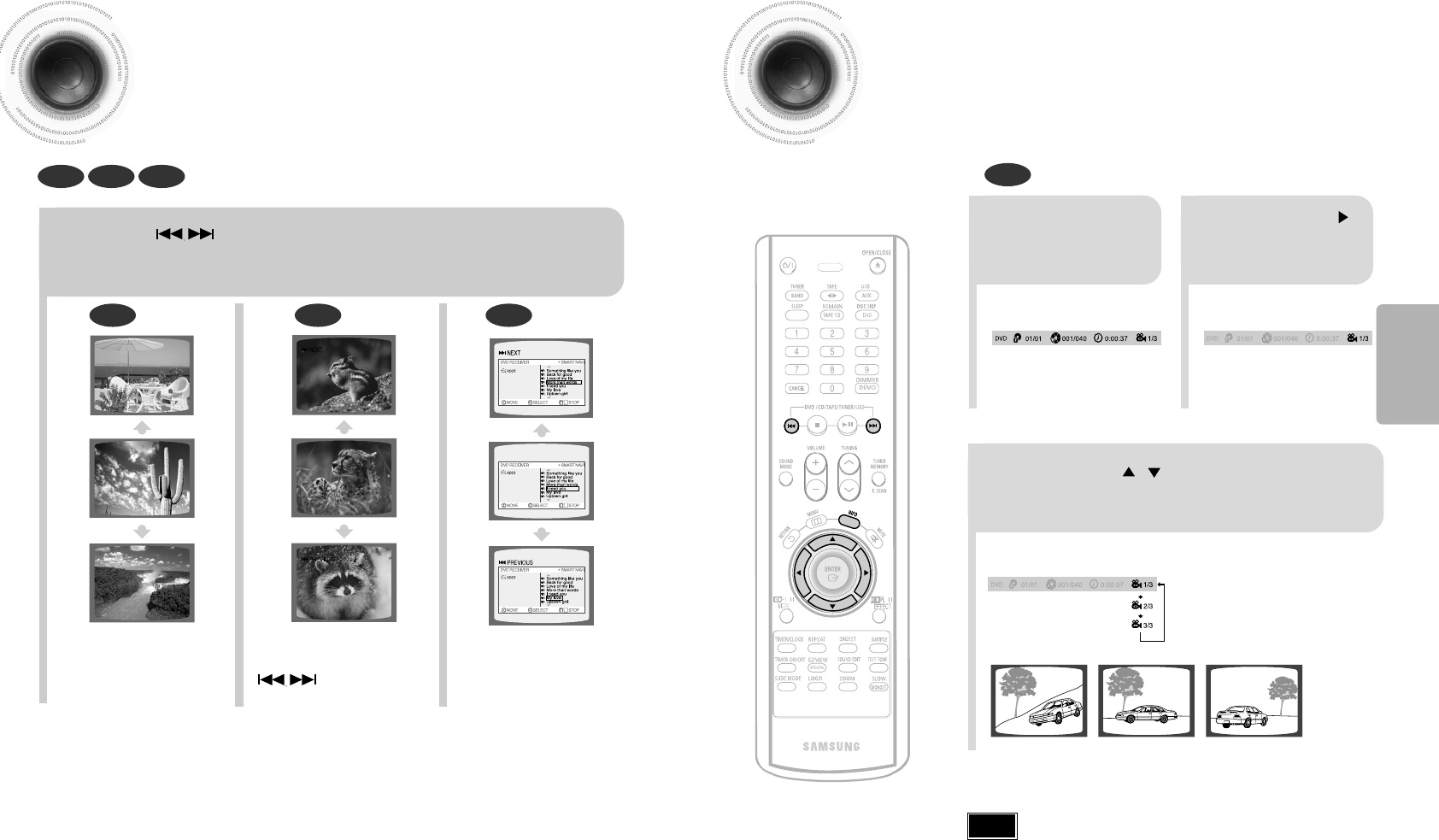

Rotate/Flip Function
button: Flip Vertically
button: Flip Horizontally
button: Rotate 90°
Counterclockwise
button: Rotate 90°Clockwise
Digest Function
2
Press Cursor , , , buttons
to select the desired image and
then press ENTER button.
1
Press DIGEST
button during
playback.
•
JPEG files will be shown in
9 windows.
You can view 9 JPEG images on the TV screen.
•
The selected image is played for 5 seconds before moving to
the next image.
To view the previous or next image with 9 windows, press .
Press Cursor , , , buttons during playback.
Original Image

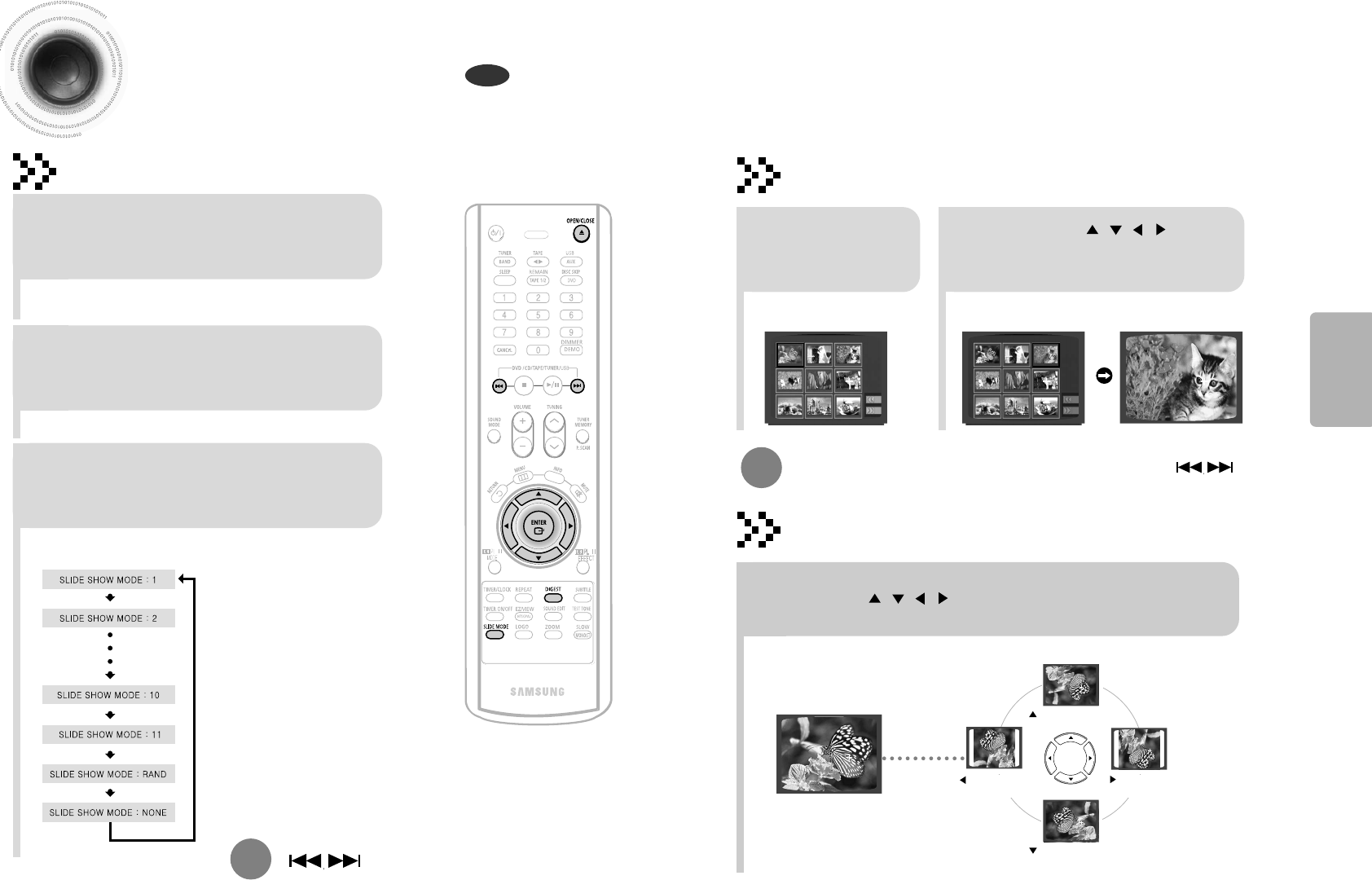

JPEG File Playback
Images captured with a digital camera or camcorder, or JPEG files on a PC can be
stored on a CD and then played back with this DVD player.
Slide Mode
JPEG
Place the JPEG disc on the disc tray.
•
Each time the button is pressed, the slide moves backward or forward.
Press to skip to the next slide.
1
•
Playback starts automatically.
•
Each image is shown for 5 seconds before another image is displayed.
Press the OPEN/CLOSE button.
2
•
Playback starts automatically.
•
Each time the button is pressed, the image makes the transition as follows:
Press SLIDE MODE button.
3
From top to bottom
From bottom to top
Rectangular shape in the center
Vertical curtain shape
Each time a new image is displayed, slide modes
(1~11) will be randomly and automatically be applied.
Cancels the slide mode.
34
OPERATION

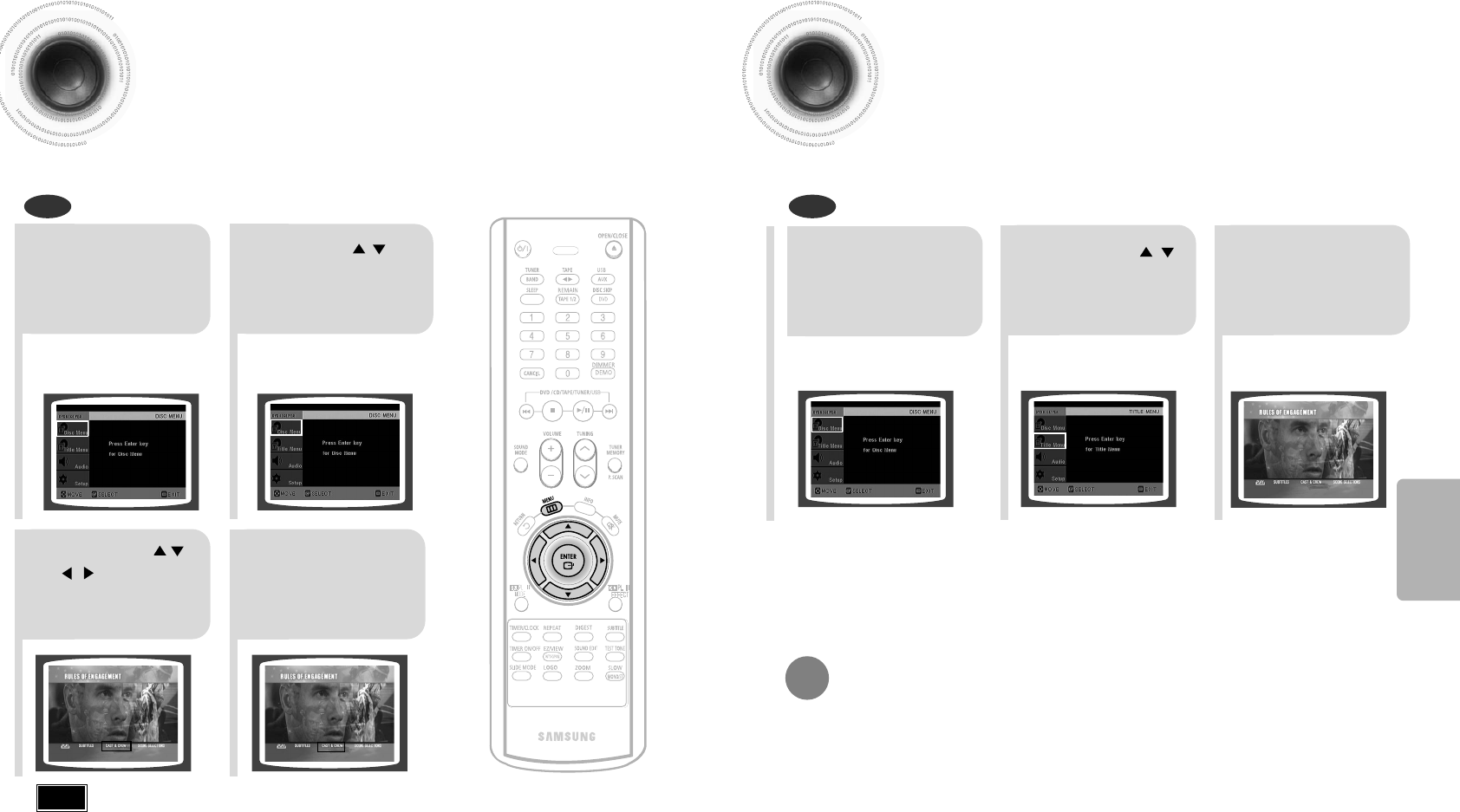

Using the Title Menu
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, this function may either not work at all or may work differently.
2
Press Cursor ,
button to move to
‘Title Menu’.
DVD
1
In stop mode Press
MENU button.
3
Press ENTER button.
•
The title menu appears.
Press MENU button to exit the setup screen.
35
Using Disc Menu
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
DVD
2
•
When playing a VCD (version 2.0),
this toggles between PBC ON and
OFF.
•
When you select the disc menu that is not
supported by the disc, the "This menu is not
supported" message appears on the screen.
1
In stop mode,Press
MENU button.
Press Cursor , buttons
to move to ‘DISC MENU’
and then press ENTER
button.
4
Press ENTER button.
3
Press Cursor , ,
, buttons to select
the desired item.
PBC (Playback Control) Function
When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.
PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may be
disabled. When some functions are disabled, select "PBC OFF" to enable them.
PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.
Note
36
OPERATION
*If the language you selected is
not recorded on the disc, menu
language will not change even
if you set it to your desired
language.

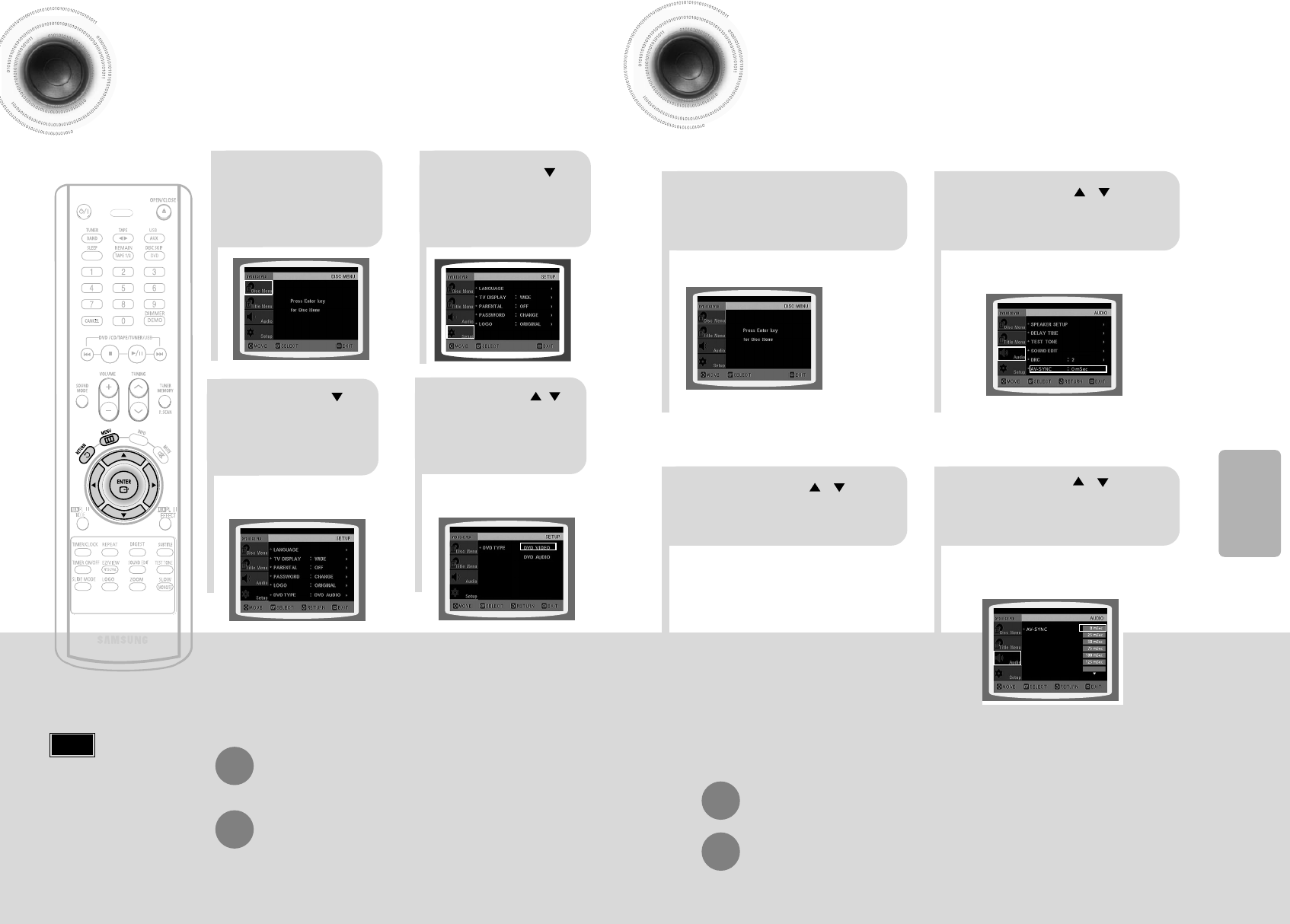

Selecting the
OSD Language
Selecting the
Audio Language
(recorded on the disc)

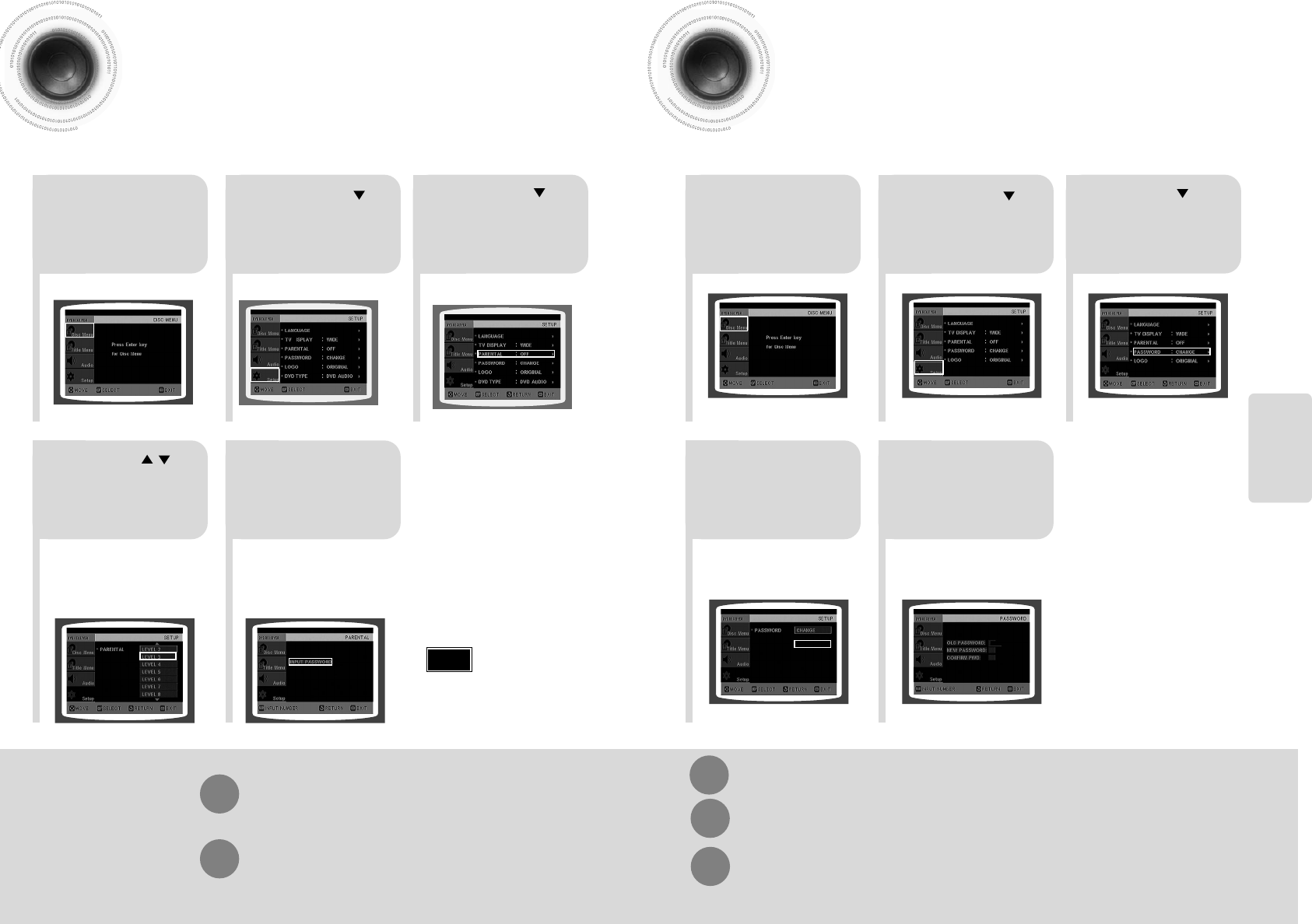

Setting the Language
OSD language is set to English by default.
21
In stop mode,Press
MENU button.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
4
•
Once the setup is complete, if the language was
set to English, OSD will be displayed in English.
3
Selecting the
Subtitle Language
(recorded on the disc)
Selecting the Disc Menu
Language (recorded on the disc)
Press ENTER
button.
5
Press Cursor ,
button to select the
desired item and then
press ENTER button.
Press Cursor ,
button to select the
desired language and then
press ENTER button.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
SETUP
37 38
• To select other language, select OTHER
and enter the language code of your
country.
(See 38 page for language code of
countries)
AUDIO, SUB TITLE and DISC MENU
language can be selected.
Note

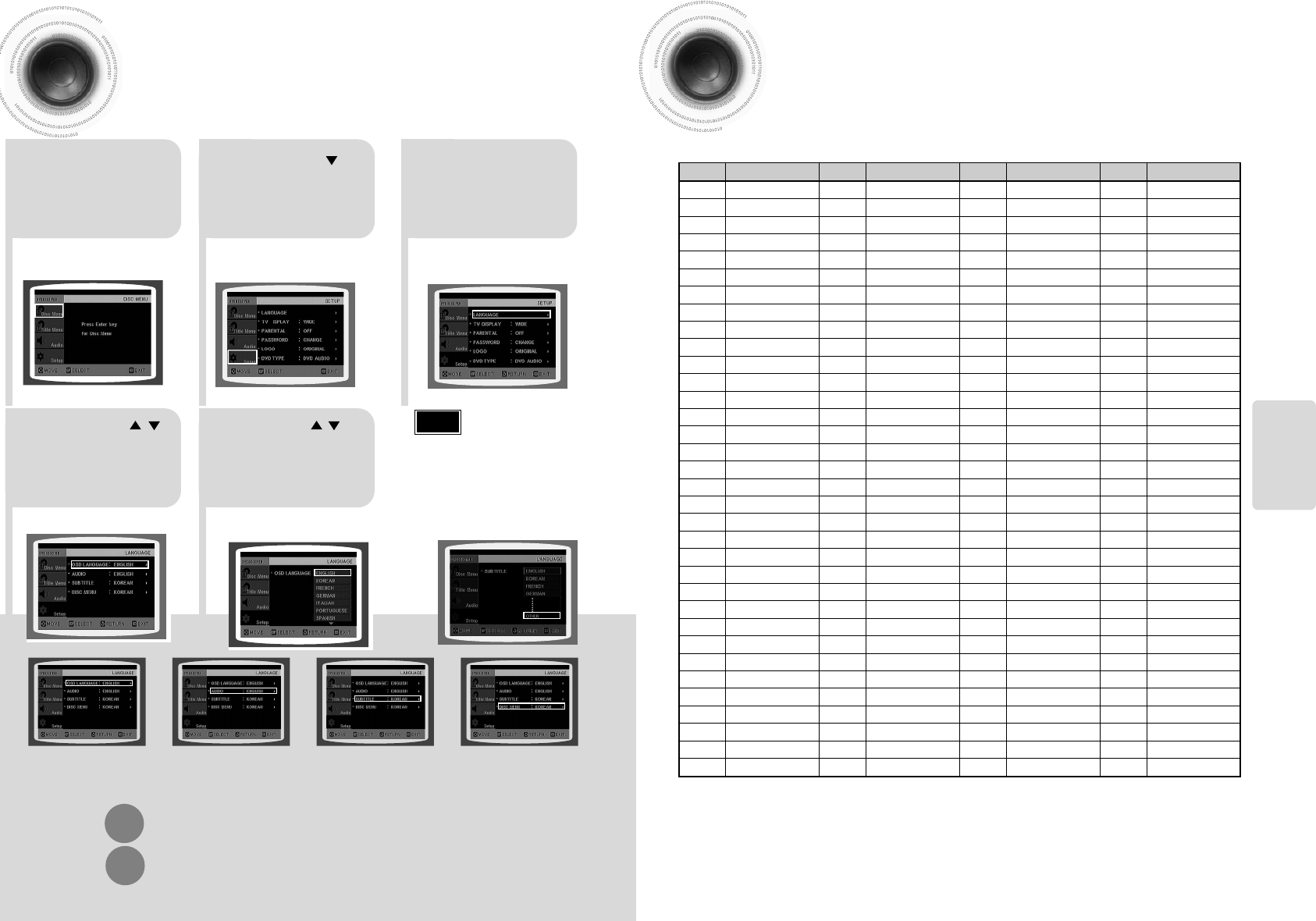

Language Code List
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle”
and/or “Disc Menu” (See page 35).
Code Language Code Language Code Language Code Language
1027 Afar 1181 Frisian 1334 Latvian, Lettish 1506 Slovenian
1028 Abkhazian 1183 Irish 1345 Malagasy 1507 Samoan
1032 Afrikaans 1186 Scots Gaelic 1347 Maori 1508 Shona
1039 Amharic 1194 Galician 1349 Macedonian 1509 Somali
1044 Arabic 1196 Guarani 1350 Malayalam 1511 Albanian
1045 Assamese 1203 Gujarati 1352 Mongolian 1512 Serbian
1051 Aymara 1209 Hausa 1353 Moldavian 1513 Siswati
1052 Azerbaijani 1217 Hindi 1356 Marathi 1514 Sesotho
1053 Bashkir 1226 Croatian 1357 Malay 1515 Sundanese
1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish
1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili
1060 Bihari 1235 Interlingua 1365 Nauru 1521 Tamil
1069 Bislama 1239 Interlingue 1369 Nepali 1525 Tegulu
1066 Bengali; Bangla 1245 Inupiak 1376 Dutch 1527 Tajik
1067 Tibetan 1248 Indonesian 1379 Norwegian 1528 Thai
1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya
1079 Catalan 1254 Italian 1403 (Afan) Oromo 1531 Turkmen
1093 Corsican 1257 Hebrew 1408 Oriya 1532 Tagalog
1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana
1103 Welsh 1269 Yiddish 1428 Polish 1535 Tonga
1105 Danish 1283 Javanese 1435 Pashto, Pushto 1538 Turkish
1109 German 1287 Georgian 1436 Portuguese 1539 Tsonga
1130 Bhutani 1297 Kazakh 1463 Quechua 1540 Tatar
1142 Greek 1298 Greenlandic 1481 Rhaeto-Romance 1543 Twi
1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian
1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu
1149 Spanish 1301 Korean 1489 Russian 1572 Uzbek
1150 Estonian 1305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese
1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk
1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof
1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa
1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba
1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese
1174 French 1332 Lithuanian 1505 Slovak 1697 Zulu
39 40

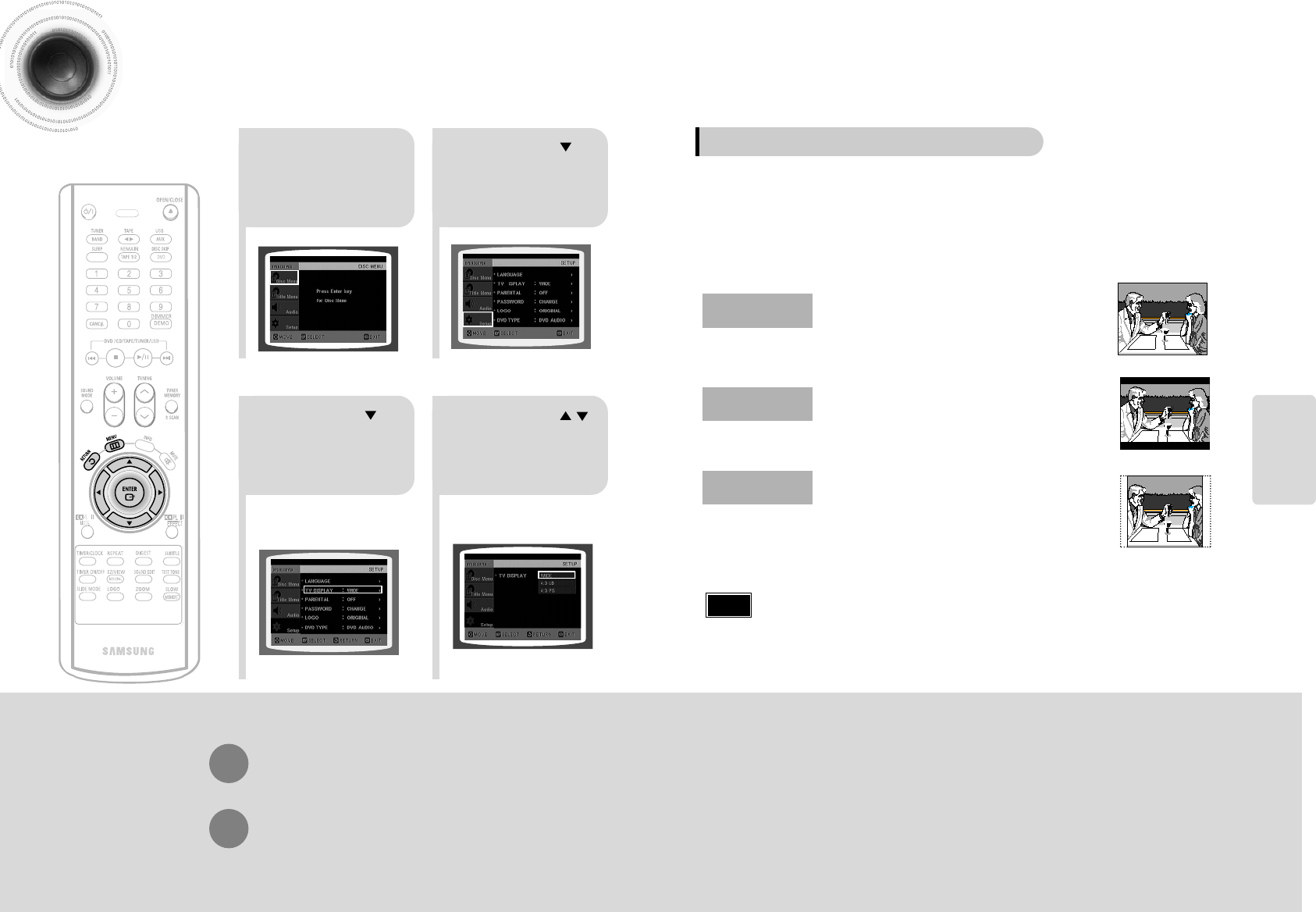

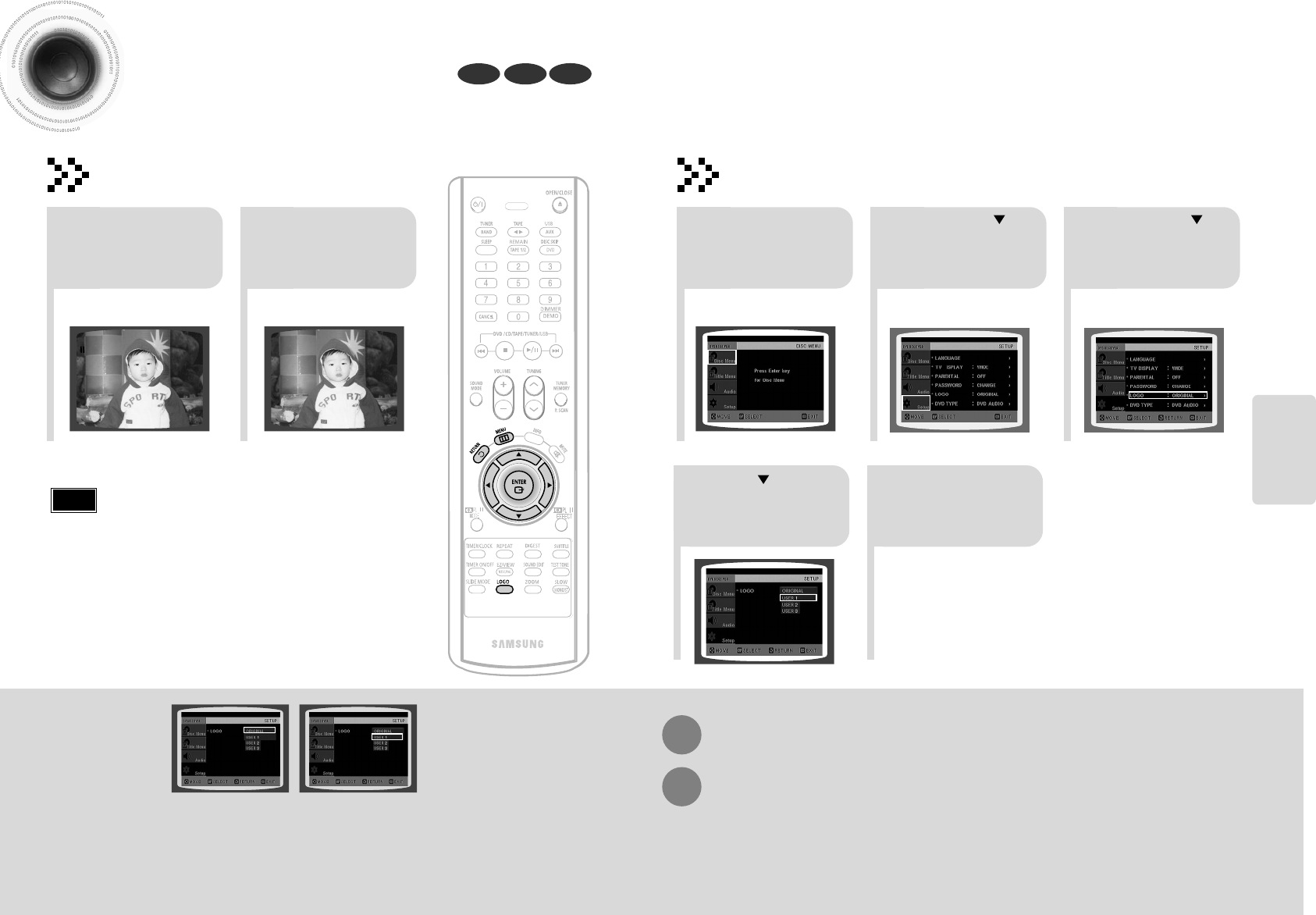

Setting TV Screen type
21
43
In stop mode,Press
MENU button.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
•
Once the setup is complete, you will
be taken to the previous screen.
Press Cursor
button to move to ‘TV
DISPLAY’ and then
press ENTER button.
Press Cursor ,
button to select the
desired item and then
press ENTER button.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen size, you should adjust the aspect ratio to fit your TV or monitor.
✱ For a standard TV, select either "4:3LB" or "4:3PS" option according to
personal preference. Select "16:9" if you have a wide screen TV.
: Select this to view a 16:9 picture in the full-screen
mode on your wide screen TV.
• You can enjoy the wide screen aspect.
: Select this to play a 16:9 picture in the letter box
mode on a conventional TV.
• Black bars will appear at the top and bottom of the screen.
: Select this to play a 16:9 picture in the pan & scan
mode on a conventional TV.
•You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).
4:3LB
(4:3 Letter box)
WIDE
4:3PS
(4:3 Pan&Scan)
• If a DVD is in the 4:3 ratio, you cannot view it in wide screen.
• Since DVD discs are recorded in various image formats, they will look different depending on
the software, the type of TV, and the TV aspect ratio setting.
Note
Adjusting the TV Aspect Ratio (Screen Size)
SETUP
41 42
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
•
This function works only if a DVD disc
contains the rating level information.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
21
in stop mode,Press
MENU button.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
4
•
The password is set to "7890" by default.
•
Once the setup is complete, you will be
taken to the previous screen.
•
If you have selected Level 6, you
cannot view DVDs with Level 7 or
higher.
•
The higher the level, the closer the
content is to violent or adult material.
3
5
Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.
Press Cursor , button
to select the desired rating
level and then press
ENTER button.
Enter the password
and then press
ENTER button.
Note
21
Press MENU button.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
4
•
Enter the old password, a new
password, and confirm new password.
•
The setting is complete.
3
5
Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.
Press ENTER
button.
Enter the password
and then press
ENTER button.
Setting the Password
You can set the password for the Parental (rating level) setting.
SETUP
Press CANCEL button to cancel the error numeric when you inputting password.
SETUP
Setting the Wallpaper
While watching a DVD,,VCD or JPEG CD, you can set the image you like as a wallpaper.
DVDJPEG
21
During playback, press
PLAY/PAUSE button
when the image you
like comes up.
Press LOGO
button.
PAUSE
COPY LOGO DATA
Setting the Wallpaper
21 3
Press MENU
button.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.
To Change the Wallpaper
54
Press MENU
button to exit the
setup screen.
Press to select
the desired ‘USER’,
and then press
ENTER.
Select this to set the
Samsung Logo image as
your wallpaper.
Select this to set the desired
image as your wallpaper.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
43 44
•
“COPY LOGO DATA” will be
displayed on the TV screen.
•
The selected wallpaper will be displayed.
•
You can repeat Steps 1 and 2 to set up to
3 wallpapers.
•
The power will turn off and turn on
automatically and back on the display
mode.
Note
VCD
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
45 46
SETUP
DVD Playback Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
21
Press the MENU
button while the
disc tray is open.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
•
DVD Play mode is set to DVD
Audio as factory default setting.
Note
When Selecting DVD Play Mode:
•
DVD VIDEO : set to play the DVD video
contents contained in DVD
audio disc.
•
DVD AUDIO : set to play the default DVD
audio.
AV SYNC Setup
•
'Audio' menu appears.
21
•
Setup menu appears.
•
AV-SYNC screen appears.
3
Press Cursor , buttons
to move to ‘Audio’ and then
press ENTER button.
4
•
You can set the audio delay time between 0 ms
and 300 ms. Set it to the optimal status.
Press Cursor , buttons
to select the Delay Time of
AV-SYNC and then press the
ENTER button.
Video may look slower than the audio if it is connected with digital TV.
In this case, adjust the delay time of audio to optimal status to fit the video.
Press Cursor , buttons
to move to ‘AV-SYNC’ and
then press ENTER button.
Press the MENU button.
4
3
Press Cursor
button to move to
‘DVD TYPE’ and then
press ENTER button.
Press Cursor ,
button to move to
‘DVD VIDEO’ and then
press ENTER button.
•
Set steps 1 ~ 4 again if you want to
switch to DVD AUDIO Play mode.
Continues to
next page
21
43

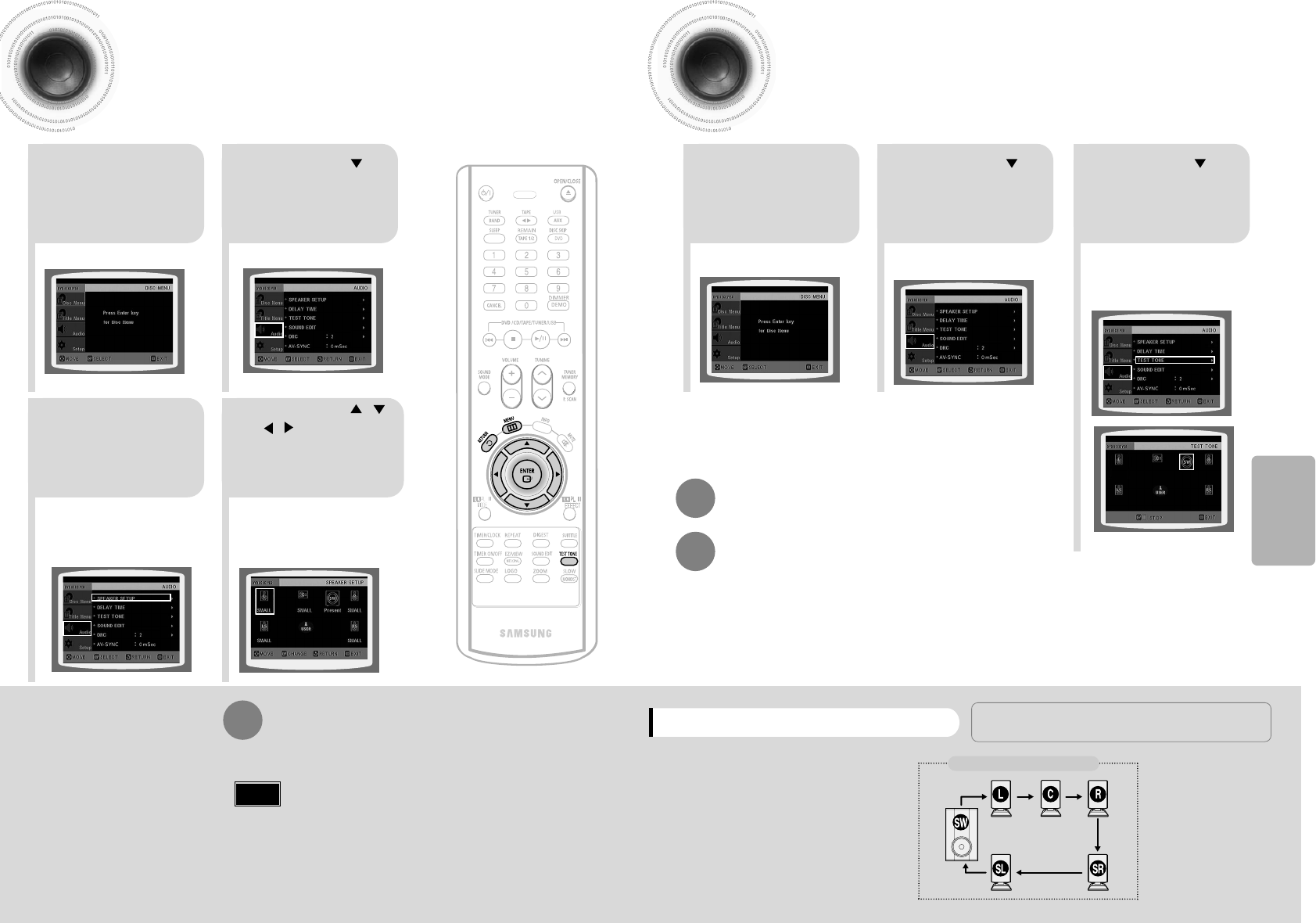

Setting the Speaker Mode
Signal outputs and frequency responses from the speakers will automatically be adjusted
according to your speaker configuration and whether certain speakers are used or not.
Setting the Test Tone
Press the Test Tone to check the speaker connections and to adjust the speaker levels.
In Stop mode,
press MENU
button.
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
In the Speaker
Setup, press the
ENTER button again.
L: Front Speaker (L) C: Center Speaker SW: Subwoofer
R: Front Speaker (R) LS: Rear Speaker (L) RS: Rear Speaker (R)
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
•
For C, LS, and RS, each time the button
is pressed, the mode switches
alternately as follows: SMALL ➝ NONE.
•
For L and R, the mode is set to SMALL.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
47 48
SETUP
SMALL
: Select this when using the speakers.
NONE : Select this when no speakers are installed.
21
In Stop mode,
press MENU
button.
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
3Press Cursor button
to move to ‘TEST
TONE’ and then press
ENTER button.
•
The test tone will be sent to L ➝ C ➝
R ➝ SR ➝ SL ➝ SW in that order.
If the ENTER button is pressed again
at this time, the test tone will stop.
To end the test tone,
press TEST TONE button.
Press TEST TONE button.
•
Test tone will be produced as follows:
When playing a DVD or CD, this will work
only in Stop mode.
•
Use this function to check that each speaker is
correctly connected and that there is no problem.
When manually testing using the TEST TONE button
Multi-Channel Pro Logic Mode
Start
•
Depending on PRO LOGIC and STEREO, the speaker mode may vary.
Note
Setting the Delay Time
If the speakers cannot be placed at equal distances from the listening position, you can adjust the
delay time of the audio signals from the center and rear speakers.
49 50

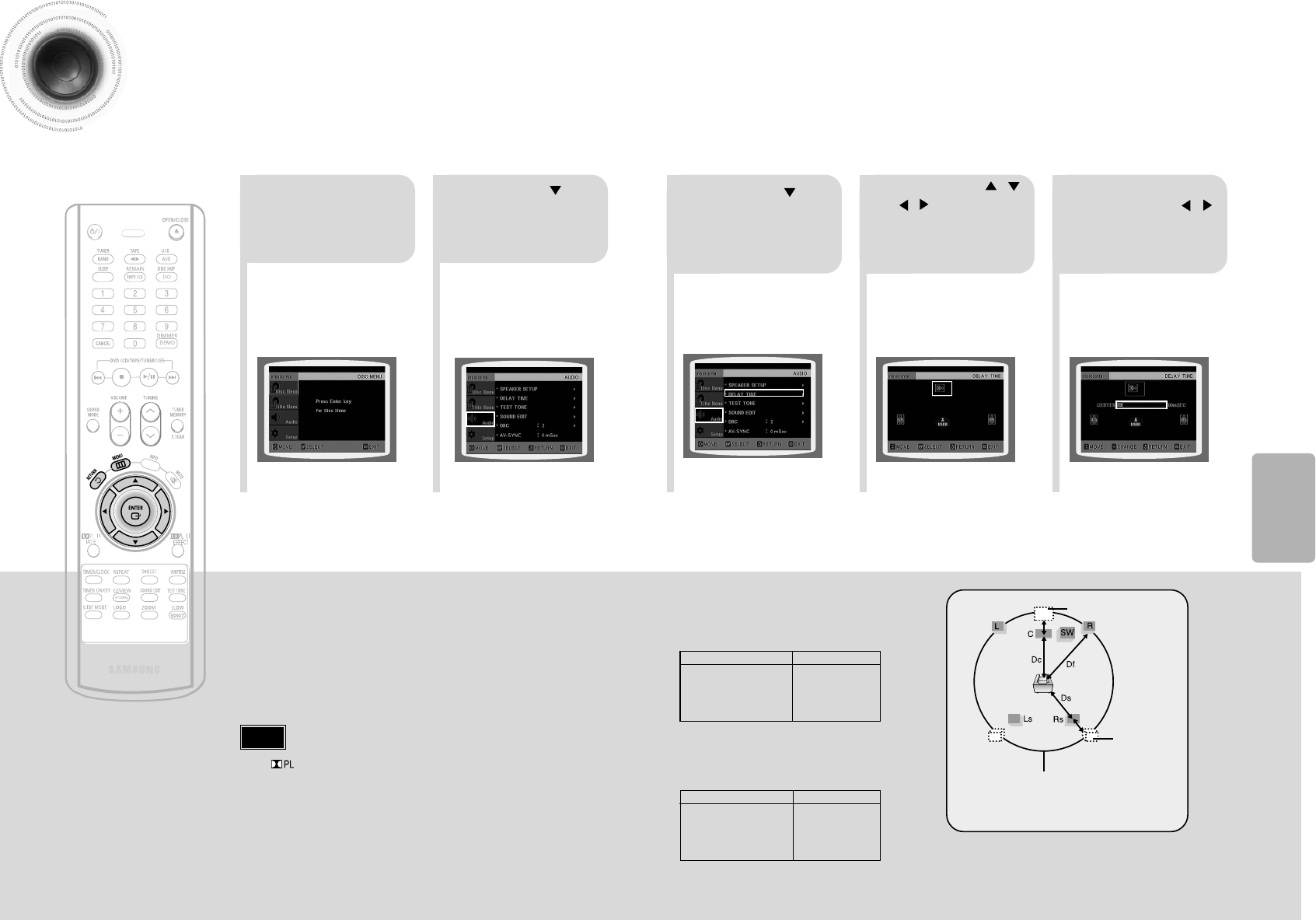

Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center Speaker and Surround Speakers.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SPEAKER
Ideal CENTER
SPEAKER placement
It is desirable to place all speakers within this circle.
Ideal
SPEAKER
placement
SETUP
2
1
In Stop mode,
press MENU
button.
Press Cursor button
to move to ‘Audio’ and
then press ENTER
button.
•
You can set the delay time for C
between 00 and 05mSEC and for
LS and RS between 00 and
15mSEC.
43 5
Press Cursor button
to move to ‘DELAY
TIME’ and then press
ENTER button.
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
Press Cursor ,
to set the Delay
time.
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
• Setting REAR () SPEAKERS
If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms. Otherwise,
change the setting according to the table.
• Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance between Df and Dc Delay Time
Delay Time
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
Distance between Df and Ds
0.00 m
0.34 m
0.68 m
1.02 m
1.36 m
1.70 m
0.00 m
1.02 m
2.04 m
3.06 m
4.08 m
5.10 m
•
With (Dolby Pro Logic II), the delay time may be different for each mode.
•
With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
Note
51

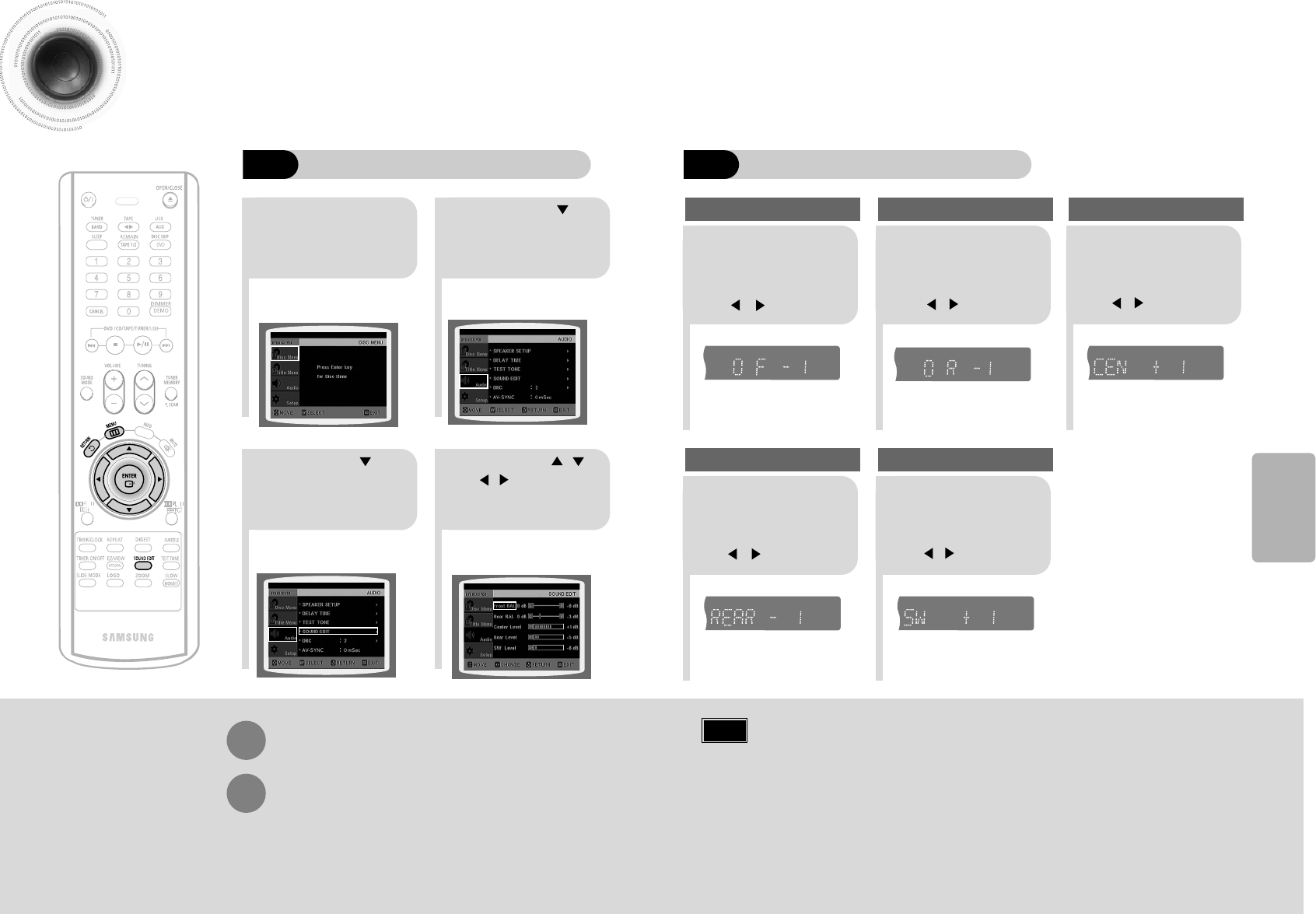

Setting the Audio Quality
You can adjust the balance and level for each speaker.
21
43
In Stop mode,
press MENU
button.
Press Cursor
button to move to
‘Audio’ and then press
ENTER button.
Press Cursor button
to move to ‘SOUND
EDIT’ and then press
ENTER button.
Press Cursor , ,
, buttons to select
the desired item and then
press ENTER button.
Adjusting Front/Rear Speaker Balance
•
You can select between 00 and –06 and OFF.
•
The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
•
The volume level can be adjusted in steps from +6dB to –6dB.
•
The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
Method 1
When adjusting the audio quality using the setup screen
Method 2
When manually adjusting with the SOUND EDIT button
21
Adjusting Front Speaker Balance Adjusting Rear Speaker Balance
Press SOUND
EDIT button and
then press Cursor
, .
3
Adjusting Center Speaker Level
4 5
Adjusting Rear Speaker Level
Adjusting Subwoofer Speaker Level
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
52
Press SOUND
EDIT button and
then press Cursor
, .
Press SOUND
EDIT button and
then press Cursor
, .
Press SOUND
EDIT button and
then press Cursor
, .
Press SOUND
EDIT button and
then press Cursor
, .
Note
SETUP
TITLE
CHAP
PRGM RDS RT
ST
TUNED
kHz
MHz
TITLE
CHAP
PRGM RDS RT
ST
TUNED
kHz
MHz
TITLE
CHAP
PRGM RDS RT
ST
TUNED
kHz
MHz
TITLE
CHAP
PRGM RDS
ST
TUNED
kHz
MHz
TITLE
CHAP
PRGM RDS RT
ST
TUNED
kHz
53 54
Setting the DRC (Dynamic Range Compression)
You can use this function to enjoy Dolby Digital sound when watching movies at
low volume at night.
1
2
In stop mode,Press MENU
button.
Press Cursor button to
move to ‘Audio’ and then
press ENTER button.
34
If “DRC” is selected,
press ENTER.
Press Cursor , to
adjust the ‘DRC’.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
SETUP
•
The Cursor button is pressed, the greater the
effect, and the Cursor button is pressed, the
smaller the effect.
55 56

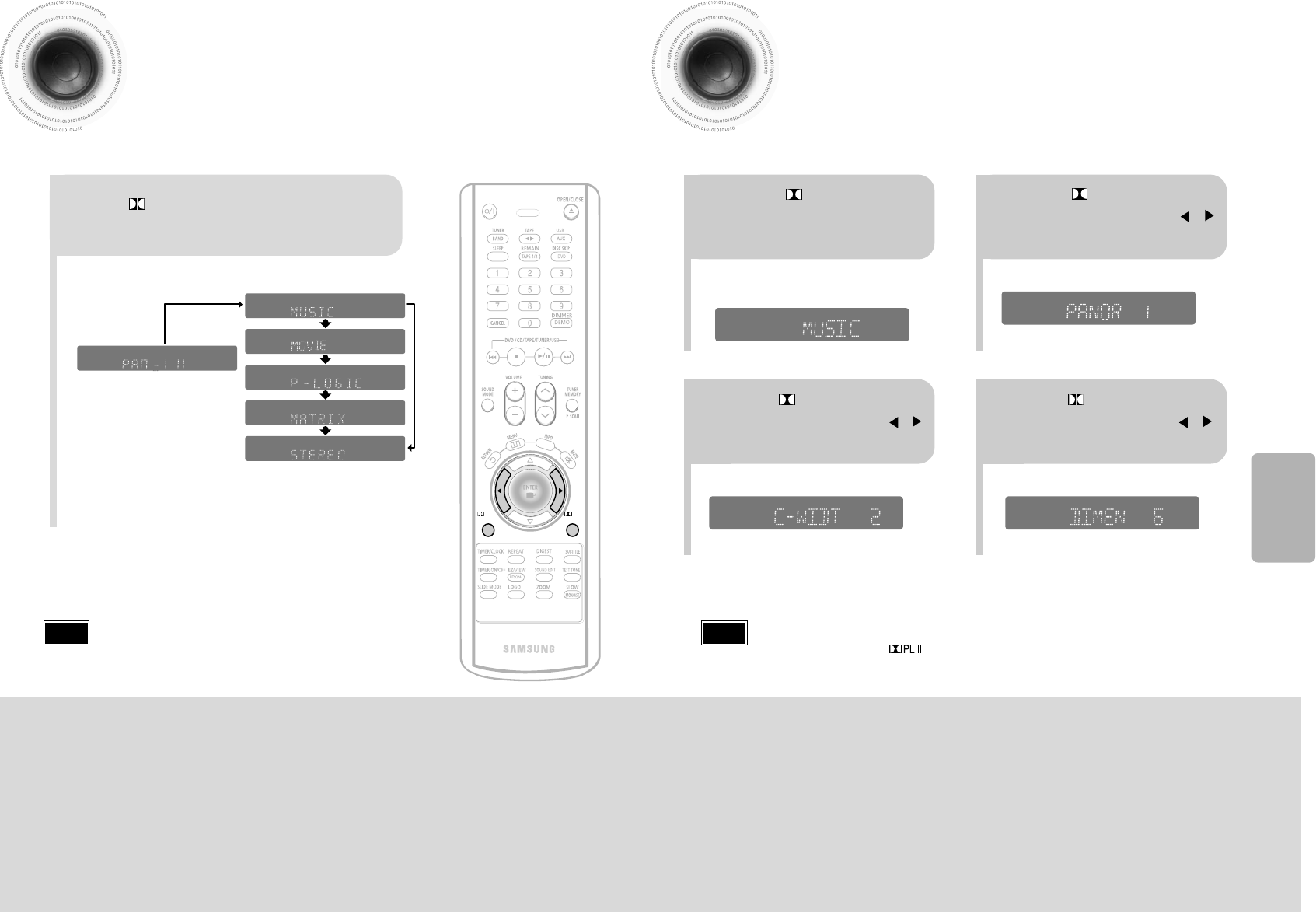

Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic MUSIC mode.
PL II
EFFECT
PL II
MODE
Press PL II MODE button.
PRO LOGIC II
•
MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
•
MOVIE: Adds realism to the movie soundtrack.
•
PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left
and right speakers.
•
MATRIX: You will hear 5.1 channel surround sound.
STEREO: Select this to listen to sounds from the front left and right speakers and the subwoofer only.
12
•
You can select between 0 and 7.
•
You can select between 0 and 6.
34
•
PANORAMA: This mode extends the front stereo image to include the surround speakers for
an exciting "wraparound" effect with side wall imaging.
•
CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakers
produce phantom sound.
•
DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.
•
When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and (Dolby Pro Logic II) button does not work.
•
You can select either 0 or 1.
Press PL II MODE
button to select ‘MUSIC’
mode.
Press
PL II EFFECT button
and then press Cursor ,
buttons to select the mode.
TITLE PBC
CHAP
PRGM RDS RT
TA TUNED
kHz
MHz
ST
CMX
MPEG
TITLE PBC
CHAP
PRGM RDS RT
TA TUNED
kHz
MHz
ST
TITLE PBC
CHAP
PRGM RDS RT
TA TUNED
kHz
MHz
ST
DSP
CMX
MPEG
TITLE PBC
CHAP
PRGM RDS RT
TA TUNED
kHz
MHz
ST
Press
PL II EFFECT button
and then press Cursor ,
buttons to select the mode.
Press
PL II EFFECT button
and then press Cursor ,
buttons to select the mode.
Note
•
When selecting Pro Logic II mode, connect your external device to the
AUDIO INPUT jacks (L and R) on the player. If you connect to only one of
the inputs (L or R), you cannot listen to 5.1 channel surround sound.
Note
SETUP
57 58
Listening to Radio
You can listen to the chosen band (FM, (SW1,2),MW broadcast stations) by using
either the automatic or manual tuning operation.
Presetting Stations
2
1
• The selection toggles back
and forth between "FM
➝
(SW1,2)
➝
MW" each time
the TUNER(BAND) button is
pressed.
Tune in to the
desired station.
Press TUNER/
BAND button.
Manual Tuning
21
Select a broadcast
station.
Press the STOP ( ) button
to select PRESET and then
press button or turn Multi Jog
Knob to select the preset station.
Automatic Tuning 1
Press the TUNER/BAND
button to select the
desired band (FM,
(SW1,2),MW).
Press the STOP
( )
button to
select "AUTO" and then press
button or turn Multi-Jog Knob to
automatically search the band.
Automatic Tuning 2
Press STOP
( )
to select
MANUAL and then briefly
press
or turn Multi Jog Knob
to tune in to a lower or higher frequency.
Manual Tuning
•
Each time the button is pressed, the sound switches between "STEREO" and "MONO".
•
In a poor reception area, select MONO for a clear, interference-free broadcast.
Press MONO/ST button to listen in Mono/Stereo.
(This applies only when listening to an FM station.)
To tune in to a preset station, press on the
remote control to select a channel.
•
Refer to Step 2 on page 41
to automatically or manually
tune in to a station.
21
•
Each time the button is pressed,
the band switches between
"FM
➝
(SW1,2)
➝
MW".
•
“PROGRAM” flashes in the
display.
3
Example: Presetting FM 89.1 in the memory
Press to
select "89.10".
Press the
TUNER(BAND)
button and select
the FM band.
•
Press the TUNER MEMORY button before
‘
PROGRAM
’ disappears from the display.
•
‘
PROGRAM
’ disappears from the display
and the station is stored in memory.
54
•
You can select between 1 and
15.
Press the TUNER
MEMORY button.
Press the TUNER
MEMORY button.
6
To preset another
station, repeat
steps 2 to 5.
Press to
select preset
number.
Press button to select
the preset station.
Press and hold button
to automatically search the band.
Briefly press button to
Automatic Tuning 1
Remote Control Unit
Main Unit
You can store up to:
Automatic Tuning 2
kHz
MHz
kHz
MHz
kHz
PROGRAM
MHz
kHz
PROGRAM
MHz
kHz
MHz
increase or decrease the frequency incrementally.
15 FM stations
5 MW stations or 15 FM stations 15AM stations
5 SW1 stations
5 SW2 stations
RADIO OPERATION
•
When listening AM/SW , (Dolby Pro Logic II)
button does not work.
Note
59
Listening to a Cassette
Always treat your cassettes with care; refer, if necessary, to the section entitled
“Precautions When Using Audio Cassettes” on page 70.
•
Insert a cassette with the
recording/playback side facing
the cassette holder, and then
push the cassette door shut.
21 3
Press TAPE on
the player to
select the Tape
function.
Switch the system
on by pressing
STANDBY ON.
•
Rewind the cassette / DOWN
button.
•
Fast-forward the cassette UP /
button.
54
•
Side A : Tape ( ) button once.
•
Side B : Tape ( ) button twice
Press Tape 1/2 button to select the
cassette to be played.
Press the PUSH
EJECT ( ) of the
cassette deck to open
the cassette door and
insert a cassette.
Press the ,
button if necessary.
6
When you have
finished playback,
press STOP button.
Press the
button. The cassette
starts playing.
60
Press REVERSE MODE until the appropriate
symbol is displayed.
•
: One side of the selected cassette and then stops.
•
: One side of the cassette.
The other side of the cassette and then stops.
•
: Both sides of the cassette indefinitely until you
press stop.
•
Before starting to record a cassette for which you wish to take
note of the counter values at the beginning of each track, reset
the counter by pressing COUNTER RESET .
•
Each cassette deck has a separate counter.
TAPE DECK
Your mini component system has three cassette playback modes which
enable you to listen to both sides of a cassette automatically. .
When playing a cassette in one of the cassette
decks, a counter is displayed to enable you to
take note of the counter value at the start of
each track to start playback at the
beginning of the track to which you wish to
listen.
Selecting the Cassette Playback Mode
Tape Counter
Coping a Cassette(Dubbing)
You can copy a cassette from Tape 1 to Tape 2.
•
Normal speed dubbing in selecting Tape function mode.
•
You do not need to adjust the volume, as it has no effect on the recording.
•
Take care not to insert the tape to be copied in Tape 2, as it will be erased when
you start recording.
21 3
Insert a blank
cassette in Tape 2.
Switch the system
on by pressing
STANDBY/ON.
5
4
Insert the tape to
be copied in Tape 1.
Press
STOP button.
Press DUBBING
button to copy a
cassette.
The appropriate indications are
displayed and the cassette in
Tape 1 is copied to the cassette
in Tape 2.
61
TAPE DECK
Recording a Compact Disc
You can record a compact disc on a cassette in two different ways:
This feature enables you to synchronize the start of the recording with the start of the disc or track of your choice
only on Audio CD.
•
Press the OPEN/CLOSE button ( )
to open the CD door.
•
Insert a CD and press the
OPEN/CLOSE button ( ) to close
the CD door.
•
Press the PUSH/EJECT button ( )
to open the cassette door, insert a
cassette, and then close the cassette
door.
•
Insert the cassette with the safety
tabs.
2
13
Insert a blank
cassette in Tape 2.
Switch the system
on by pressing
STANDBY/ON.
•
When stopped, press the button to
start the recording from the first
piece of music.
•
Press and hold CD SYNCHRO
button during the playback of CD to
start the recording from the first part
of the music being played.
54
•
Use the CD selection ( , )
buttons to select the desired song.
Load a compact
disc.
Press CD SYNCHRO
button.
6
To stop recording,
press button.
Press the DVD/CD
( ) button.
Synchronised recording
Note
•You can use
CD/SYNCHRO
button
only in CD Playback Mode.
62
•In Recoding,DPL II doesn’t work.
Note
•In Recoding,DPL II doesn’t work.
MISCELLANEOUS
•
Press the OPEN/CLOSE button ( )
to open the CD door.
•
Insert a CD and press the
OPEN/CLOSE button ( ) to close
the CD door.
•
Press the PUSH/EJECT button ( )
to open the cassette door, insert a
cassette, and then close the cassette
door.
•
Insert the cassette with the safety
tabs.
21 3
Insert a blank
cassette in Tape 2.
Switch the system
on by pressing
STANDBY/ON.
•
Recording will begin.
•
To stop recording, press button.
54
•
Use the CD selection ( )
buttons to select the desired song.
Load a compact
disc.
Press
REC/ PAUSE
button.
Press the DVD/CD
( ) button.
Direct recording
•
The cassette tape you want to record
on must have the safety tabs intact.
Note
63
The direct recording mode enables you to start recording with any track on the compact disc.
Recording a Radio Program
You can record a radio program of your choice.
You do not need to adjust the volume, as it has no effect on the recording.
2
1 3
Insert a blank
cassette in Deck 2.
Switch the system
on by pressing
STANDBY/ON.
•
REC is displayed in red and
recording starts.
54
Select the
TUNER function
by pressing
TUNER/BAND.
Press(
REC/PAUSE
)
button.
6
To stop recording,
press button.
Select the radio
station that you wish
to record by pressing
/DOWN or UP/
button .
64
•In Recoding,DPL II doesn’t work.
Note
•In Recoding,DPL II doesn’t work.
65 66

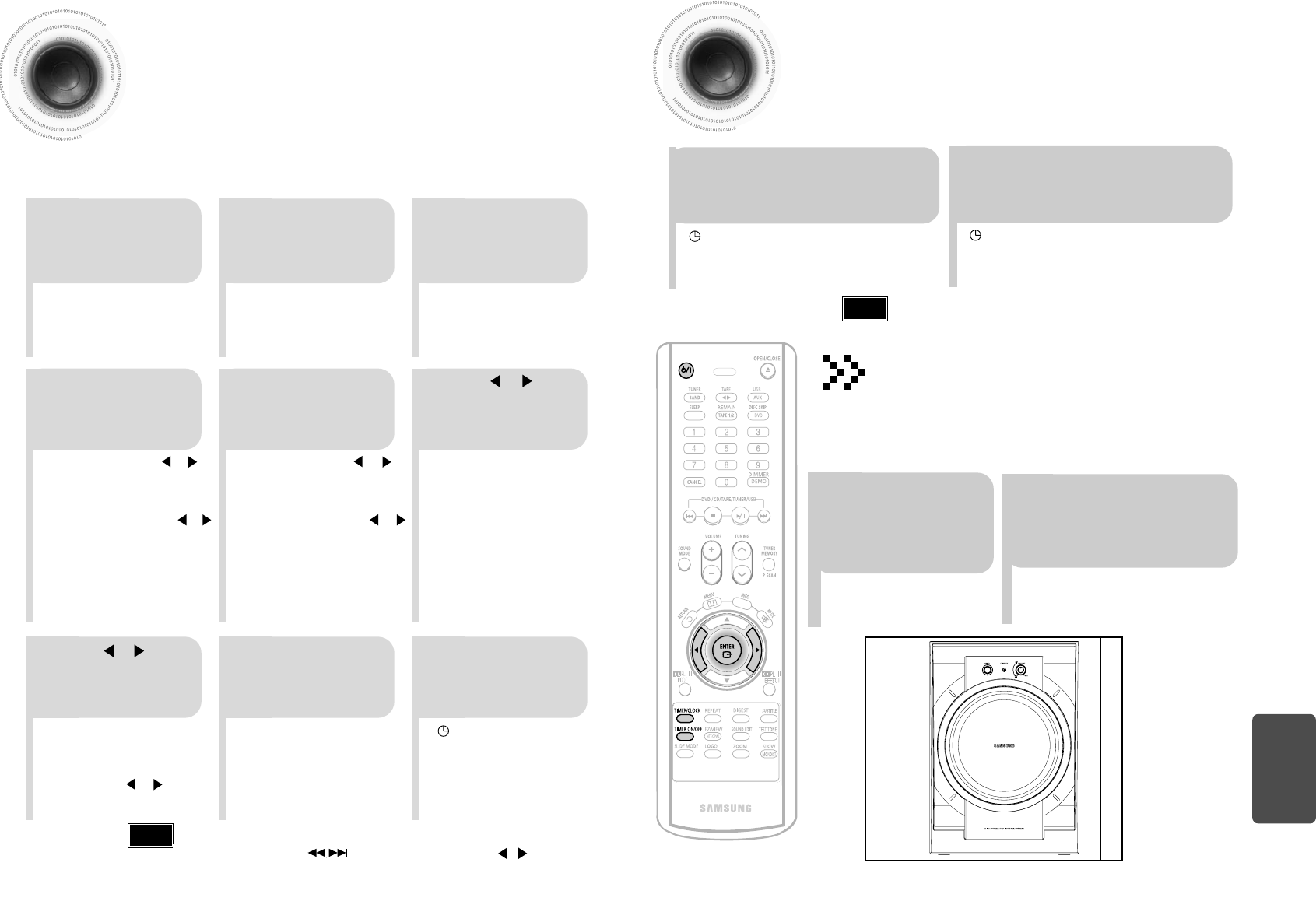

Timer Function
•
The timer enables you to switch the system on or off at specific times.
•
If you no longer want the system to be switched on or off automatically, you must cancel the timer.
•
Before setting the timer, check that the current time is correct.
•
For each step, you have a few seconds to set the required options.
If you exceed this time, you must start again.
Example: You wish to wake up to music every morning.
•
ON TIME is displayed (instead
of the equalizer symbols) for a
few seconds, followed by any
switch-on time already set; you
can set the timer switch-on time.
•
The source to be selected is
displayed.
2
13
Switch the system
on by pressing
STANDBY/ON.
Press
TIMER/CLOCK
until TIMER is
displayed.
Press the ENTER
button.
•
is displayed to the top right of
the time, indicating that the timer
has been set.
•
The system will switch on and off
automatically at the required
times.
87 9
Press or button
to select the source to
be played when the
system switches on.
Press ENTER to
confirm the timer.
Press
STANDBY/ON to
set the system to
standby mode.
54
a. Set the hour by pressing or
button.
b. Press ENTER .
•
The minutes flash.
c. Set the minutes by pressing or
button.
d. Press ENTER.
•
OFF TIME is displayed (instead
of the equalizer symbols) for a few
seconds, followed by any switch-
off time already set; you can now
set the timer switch-off time.
•
TAPE (cassette) : Insert a cassette
tape.
•
TUNER (radio) : aPress ENTER.
bSelect a preset
station by pressing
or .
•
DVD/CD (compact disc) : Load on or
more compact
disc.
•
USB :Insert a USB.
a. Set the hour by pressing or
button.
b. Press ENTER.
•
The minutes flash.
c. Set the minutes by pressing or
button.
d. Press ENTER.
•
VOL 10 is displayed, where 10
corresponds to the volume
already set.
Set the timer
switch-off time.
6
Press or button
to adjust the volume
level and press
ENTER.
Set the timer
switch-on time.
MISCELLANEOUS
Note •
If the timer switch on and off times are identical, the word ERROR is displayed.
•
You can also use Multi Jog or button on the front panel to instead , button on the
remote control in step 4,5,6,7.
Canceling the Timer/SUB WOOFER LEVEL Function
Note
•
You can cancel the timer while the power is on or while the player is in standby.
After having set the timer, it will start automatically as shown by the TIMER indication on the display.
If you no longer wish to use the timer, you must cancel it.
• is no longer displayed.
To cancel the timer, press TIMER
ON/OFF once.
• is displayed again.
To resume the timer, press TIMER
ON/OFF again.
Press the POWER
button to switch on
the subwoofer .
1
Turn the VOLUME
knob to adjust the sub
woofer volume.
2
SUB Woofer Level Function
You can control the sub woofer level with the SUB WOOFER OUT
SYSTEM CONTROL Jack.
67 68
MISCELLANEOUS

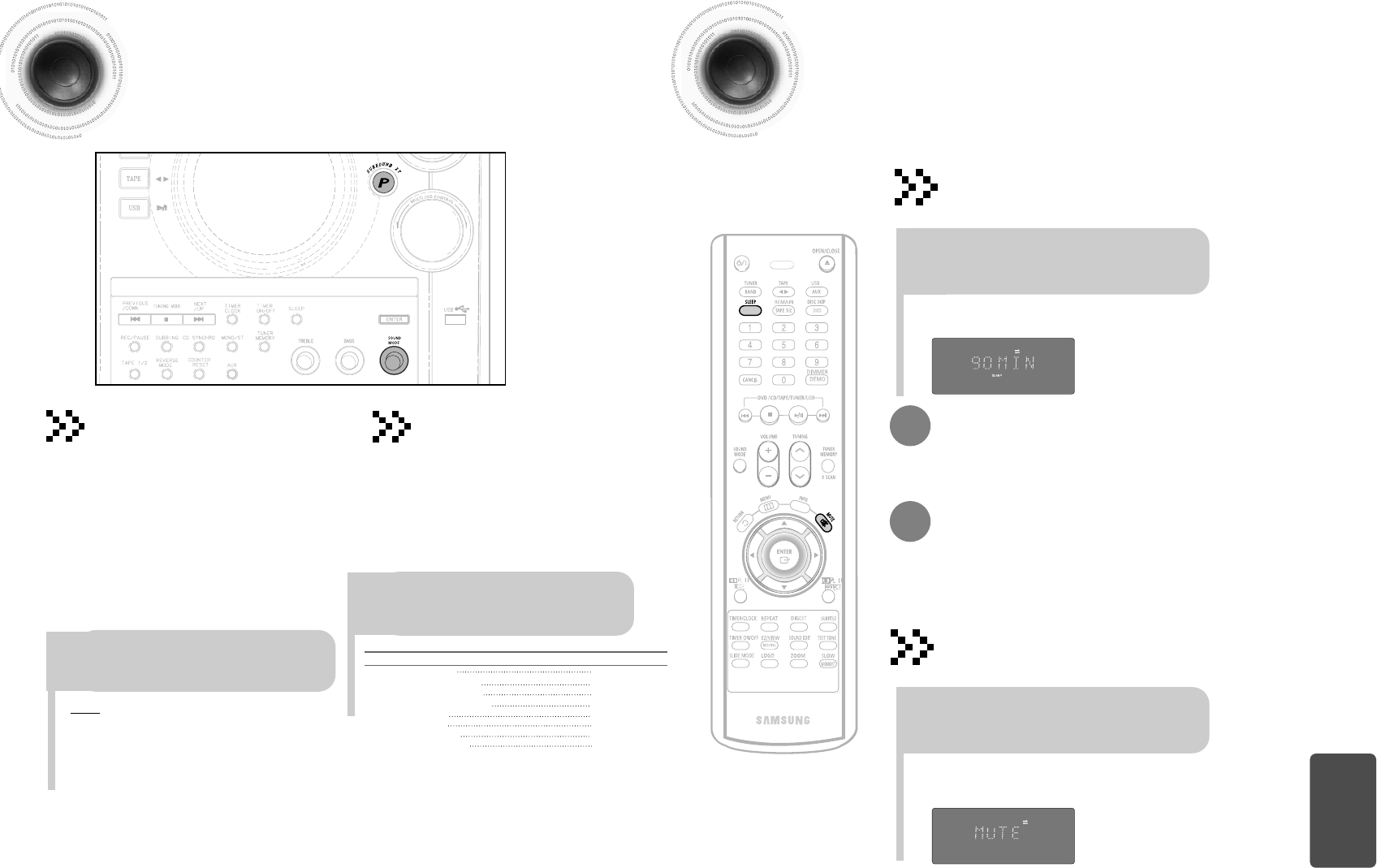

Sleep Timer Function / Mute Function
•The remaining time before the DVD player will shut itself off is displayed.
•Pressing the button again changes the sleep time from what you have set
earlier.
To confirm the sleep timer setting, press SLEEP button.
• Each time the button is pressed, the selection changes as follows:
90 MIN ➝ 60 MIN ➝ 45 MIN ➝ 30 MIN ➝ 15 MIN ➝ OFF.
Press SLEEP button.
Sleep Timer Function
You can set the time that the DVD player will shut itself off.
To cancel the sleep timer, press SLEEP button until
OFF appears on the display.
•
‘MUTE ’ appears in the display.
•
To turn off mute, press the button again.
Mute Function
This is useful when answering a doorbell or telephone call.
Press MUTE button.
kHz
MHz
kHz
MHz
P.SURROUND XT AND SOUND MODE Function
P.SURROUND XT Function
To obtain a... Select...
Normal balance (linear) PASS
Balance suitable for pop music POP
Balance suitable for rock music ROCK
Balance suitable for classic music CLASSIC
Balance suitable for hall HALL
Balance suitable for live LIVE
Balance suitable for cinema CINEMA
Balance suitable for USER EQ USER EQ
Turn SOUND MODE on the front panel or
Press SOUND MODE on the remote control
until the required option is selected.
Selecting SOUND MODE
Your mini-compact system is equipped with a
preset equalizer that allows you to choose the
most appropriate balance between treble and
bass frequencies, according to the type of
music you are listening to.
Your compact system is equipped with the function
of Power Sound/Power Surround/Power Surround
XT.
The Power Surround replaces conventional stereo
sound with a wider and more true-to-life sound. It
creates the feeling of being right at the centre of
the music and being surrounded by total music
sound.
The function of Power Sound amplifies bass and
improves high key or bass twice as much for you to
appreciate powerful real sound.
Press P SURROUND XT button until
the required option is selected.
Result:
Each time the P SURROUND XT button is
pressed, “P.SOUND,P.SURR ,SURR XT, OFF”
is selected.
69 70
MISCELLANEOUS
Bass/Treble Level (USER EQ) Function
BASS Level Function
BASS function stresses low tones providing thudding sound effects.
Turn BASS knob on the front
panel to select from BASS -08
to BASS +08 , total 9 steps.
1
You can select the level of low
tones you desire.
2
TREBLE Level Function
Treble function stresses high tones providing thudding sound effects.
Turn Treble knob on the front
panel to select from TRE -08
to TRE +08 , total 9 steps.
1
You can select the level of
high tones you desire.
2
•
The various functions available are listed in turn on the
display.
•
All these functions are described in detail in this booklet.
For instructions on how to use them, refer to the
appropriate sections.
DEMO Function
You can view the various functions available on
your system.
To cancel this function, press
DEMO/DIMMER again.
Press DEMO/DIMMER button.
DEMO Function / DIMMER Function/
ECO
Function
•
Each time the button is press, the brightness changes as
follows: DIMMER ON(Dim) ➞DIMMER
OFF(Bright).
DIMMER Function
You can adjust the brightness of the display on the main
unit so it won't interfere with your movie viewing.
Press DEMO/DIMMER button.
You can save the power consumption while the unit is turned
off(on standby).
ECO Mode Function
•
To activate the ECO mode,Press STANDBY/ON/ECO while the unit is turned off (on
standby),The display illumination(including the display demonstration) disappears.
•
While ECO mode is activated, the display demonstration is canceled temporarily.
71
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.
•
When cleaning, wipe gently from the inside to the outside of the disc.
Handling discs
Handling and Storing Discs
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause breaks in
playback. Be especially careful not to scratch discs when handling them.
•
Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.
Note
•
Check that the tape in the cassette is sufficiently taut.
•
To prevent erasing a cassette that you wish to keep, remove the safety tab on the upper edge of the
cassette. To record a cassette, where the tab has been broken, simply cover the opening with adhesive
tape.
•
When you have finished playing a cassette, always put it back in its case.
•
Store your cassettes in a clean place, out of direct sunlight, where they will not be exposed to high
temperatures.
•
Avoid using 120-minute cassettes as they place unnecessary strain on the tape mechanism.
Precautions When Using Audio Cassettes
•
The loudspeakers are no longer used to output the sound.
•
Connect the Microphone.
•
Turn the MIC LEVEL knob to adjust the MIC level.
•
Press the ECHO button to select ECHO1,ECHO2, and ECHO OFF.
•
During using the microphone ,you can press the REC/PAUSE button to record your favorite.
Connect the headphones to the PHONES jack on the front panel.
You can connect a set of headphones to your micro component system so that you
can listen to music or radio programmers without disturbing other people in the room.
The earphones must have a 3.5ø jack or an appropriate adapter.
•
Prolonged use of headphones at a high volume may damage your hearing.
Note
Plug the microphone with a 6.3ø MIC jack into microphone terminal.
72
Connecting Headphones/Microphone(option)
MISCELLANEOUS
73
• Audio language and subtitles will not work for DVDs not containing
them. And depending on the disc, they may work differently.
Audio language and
subtitles do not work.
• The TAPE function has not been selected.
• The cassette has not been inserted correctly.
• The cassette player has not been closed.
• The tape is either slack or broken.
The tape does not start
playing
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
The volume falls off
The cassette is not erased correctly
There is excessive wow and flutter
• Are you using a disc that does not contain menus?
Menu screen does not appear even
when the menu function is selected.
• While the player is in “NO DISC”mode, hold the main unit's TUNING
MODE/ button for longer than 5 seconds. “INITIAL” appears on the
display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• Turn off the power and hold the P.SURROUND XT button on the
main unit for longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
The password for rating
level has been forgotten.
•
The main unit is not working.
(Example: The power goes out or
strange noise is heard.)
• The DVD player is not
working normally.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.
Can't receive radio
broadcast.
Symptom Check/Remedy
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.
Aspect ratio cannot be
changed.
Before Calling for Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not
listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact
the nearest authorized dealer or Samsung Electronics Service Center.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
• Make sure that the rating level is correct.
• Are you using a deformed disc or a disc with scratches on
the surface?
• Wipe the disc clean.
Disc tray does not open.
Playback does not start.
Playback does not start
immediately when the
Play/Pause button is pressed.
• No sound is heard during fast playback, slow playback, and step
motion playback.
• Are the speakers connected properly? Is the speaker setup
correctly customized?
• Is the disc severely damaged?
Sound is not produced.
• Was the DVD player suddenly moved from a cold place to a warm
one? When condensation forms inside the player, remove the disc
and let the player stand for 1 or 2 hours with the power on. (You
can use the player again after condensation disappears.)
Picture does not appear, sound
is not produced, or the disc
tray opens 2 to 5 seconds later.
Symptom Check/Remedy
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
• Is the remote control being operated within its operation range of
angle and distance?
• Are the batteries exhausted?
The remote control does
not work.
74
MISCELLANEOUS
75
Notes on Terminology
Recorded onto some DVD discs are scenes which have been simultaneously shot
from a number of different angles (the same scene is shot from the front, from the
left , from the right , etc.).
With such discs, the Angle button can be used to change the angle of view for
specific scenes.
ANGLE
These numbers are recorded on DVD discs. A Title is subdivided into many
sections, each of which is numbered, and specific parts of the video can be
searched quickly using these numbers.
A high-density optical disc on which high-quality pictures and sound have been
recorded by means of digital signals. Incorporating a new video compression
technology (MPEG-2) and high-density recording technology, a DVD disc
comprises two 0.6 mm thick discs bonded together.
An acronym for Pulse Code Modulation - another name for digital audio.
This is recorded on a video CD (version 2.0). Selected scenes or information can
be chosen from the menu displayed on the TV monitor.
Both the DVD player and DVD discs are encoded with a region number.
If the region number on the DVD disc does not correspond to the region number
of the DVD player, the player cannot play the disc.
Translated appearing at the bottom of the screen. A DVD disc can contain up to
32 subtitle languages.
These numbers are recorded on DVD discs. When a disc contains two or more
movies, these movies are numbered as Title 1, Title 2, etc.
These numbers are assigned to the tracks which are recorded on video and
audio CDs. They enable specific tracks to be located quickly.
Contains recordings of pictures and sound whose quality is roughly comparable
to that of video tape.
This player also supports video CDs with playback control (version 2.0).
5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs
recorded as a digital signals (with disc marking). With better sound quality,
dynamic range, and directionality than traditional Dolby surround technology, you
can enjoy dynamic, realistic sound.
CHAPTER
NUMBER
DVD
PCM
PBC
(PLAYBACK
CONTROL)
REGION NUMBER
SUBTITLES
TITLE NUMBER
TRACK NUMBER
VIDEO CD
CD-R Discs
•
Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discs
may not be playable.
•
Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable.
•
If possible, do not use CD-RW (Rewritable) media, as they may not be playable.
•
Only the CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open,
you may not be able to fully play the disc.
CD-R JPEG Discs
•
Only files with the ".jpeg" and ".JPEG" extensions can be played.
•
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
•
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
•
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
•
A maximum of 9,999 images can be stored on a single CD.
•
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
•
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
Disc Recording Format
CD-R MP3 Discs
•
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
•
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
•
If the name of a file is in Korean, the name will be displayed on the TV screen in Korean and * will be shown in the
display of the main unit.
•
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
•
Only files with the ".mp3" and ".MP3" extensions can be played.
•
Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, the
disc can be played only up to the blank segment.
•
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
•
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g.,
32Kbps ~ 320Kbps), the sound may skip during playback.
•
If more than 500 tracks are recorded on a single CD, a maximum of 500 tracks can be played.
•
If more than 300 folders are recorded on a single CD, a maximum of 300 folders can be played.
What is MP3?
MP3 is short for MPEG-1 Audio Layer 3 and MPEG is an acronym for Moving Pictures Experts
Group. MP3 is a file format with compression ratio of 1:12 (128 Kbps*) That is, you can use MP3
format to record about 12 times the usual amount of data on a regular CD.
Notes on Discs
76
MISCELLANEOUS
Specifications
77
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions
(W x H x D)
Weights
S
P
E
A
K
E
R
5.1ch speaker system
Front speaker
Subwoofer speaker
6Ωx 2 4Ω
150Hz~20kHz 30Hz~150Hz
85dB/W/M 85dB/W/M
130W 150W
260W 300W
270 x 370 x 330 mm 250x 370 x 402 mm
8.0 Kg
Rear speaker
6ΩX2
150Hz~20KHz
86dB/W/M
130W
260W
250 x 370 x 402 mm
0.85 Kg
Speaker system
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Usable Sensitivity
S/N Ratio
Distortion
Usable Sensitivity
S/N Ratio
Distortion
Composite Video
S-Video
Component Video
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
S/N Ratio
Channel separation
Input sensitivity
G
E
N
E
R
A
L
T
U
N
E
R
F
M
T
U
N
E
R
A
M
O
U
T
P
U
T
V
I
D
E
O
A
M
P
L
I
F
I
E
R
13Kg
280 x 372 x 390mm
+5°C~+35°C
10%~75%
12dB
55dB
0.8%
60dB
35dB
2%
1.0Vp-p(75Ωload)
Y:1.0Vp-p(75Ωload)
Pr:0.70Vp-p(75Ωload)
Pb:0.70Vp-p(75Ωload)
130W x 2(6Ω)
130W(6Ω)
130W x 2(6Ω)
150W(4Ω)
20Hz~20kHz
70dB
55dB
(AUX)400mV
Center speaker
6Ω
150Hz~20KHz
86dB/W/M
130W
260W
372 x 160 x 235 mm
0.85 Kg
Luminance Signal : 1.0Vp-p(75Ωload)
Color Signal : 0.286Vp-p(75Ωload)
USB Feature Supported Player
PowerShot A70 Canon Digital Camera
A90 Canon Digital Camera
IXY40 Canon Digital Camera
IXY50 Canon Digital Camera
A90 Canon Digital Camera
A95 Canon Digital Camera
G6 Canon Digital Camera
S60 Canon Digital Camera
Exilom Z-40 Casio Digital Camera
QV-R51 Casio Digital Camera
Finepix-A340 Fuji Digital Camera
Finepix-F810 Fuji Digital Camera
Finepix-F610 Fuji Digital Camera
Finepix-f450 Fuji Digital Camera
Finepix S7000 Fuji Digital Camera
Finepix A310 Fuji Digital Camera
Easy Save CX-4300 Kodak Digital Camera
KD-310Z Konica Digital Camera
Finecam SL300R Kyocera Digital Camera
Finecam SL400R Kyocera Digital Camera
Finecam S5R Kyocera Digital Camera
Finecam Xt Kyocera Digital Camera
Dimage-Z1 Minolta Digital Camera
Dimage Z1 Minolta Digital Camera
Dimage X21 Minolta Digital Camera
Coolpix4200 NIKON Digital Camera
Coolpix4300 NIKON Digital Camera
Coolpix 2200 Nikon Digital Camera
Coolpix 3500 Nikon Digital Camera
Coolpix 3700 Nikon Digital Camera
Coolpix 4100 Nikon Digital Camera
Coolpix 5200 Nikon Digital Camera
stylus 410 digital Olympus Digital Camera
300-digital Olympus Digital Camera
u300 Olympus Digital Camera
X-350 Olympus Digital Camera
C-760 Olympus Digital Camera
C-5060 Olympus Digital Camera
X1 Olympus Digital Camera
u-mini Olympus Digital Camera
Lumix-FZ20 Panasonic Digital Camera
DMC-FX7GD Panasonic Digital Camera
Product Company Type
Lumix LC33 Panasonic Digital Camera
LUMIX DMC-F1 Panasonic Digital Camera
Optio-S40 Pentax Digital Camera
Optio-S50 Pentax Digital Camera
Optio 33LF Pentax Digital Camera
Optio 33L Pentax Digital Camera
Optio X Pentax Digital Camera
S¥œ Pentax Digital Camera
Optio MX Pentax Digital Camera
Digimax-420 Samsung Digital Camera
Digimax-400 Samsung Digital Camera
Kenox UX4 Samsung Digital Camera
VPC-AZ1 Sanyo Digital Camera
Not recognize in PC
DSC-F828 Sony Digital Camera
DSC-P73 Sony Digital Camera
DSC-T1 Sony Digital Camera
DSC-F88 Sony Digital Camera
DSC-M1 Sony Digital Camera
DSC-W1 Sony Digital Camera
DSC-T3 Sony Digital Camera
Sora PDR-T30 Toshiba Digital Camera
Coolpix 5900 Nikon Digital Camera
Coolpix S1 Nikon Digital Camera
Coolpix 7600 Nikon Digital Camera
DMC-FX7 Panasonic Digital Camera
DMC-LS1 Panasonic Digital Camera
DMC-LZ2 Panasonic Digital Camera
IXY-Digital600 Canon Digital Camera
S5i Pentax Digital Camera
Dimage Xt Minolta Digital Camera
AZ-1 Olympus Digital Camera
DSC-W5 Sony Digital Camera
Product Company Type
Digital Camera
78
MISCELLANEOUS
80
USB Feature Supported Player
Cruzer Micro SanDisk USB2.0 USB Flash Drive 128M
Cruzer Mini SanDisk USB2.0 128M
Cruzer Mini SanDisk USB2.0 256M
SONY Micro Vault SONY USB2.0 64MB
FLEX DRIVE serotech USB2.0 32MB
AnyDrive A.L tech USB2.0 128MB
XTICK LG USB2.0 128M
Micro Mini IOMEGA USB2.0 128M
iFlash Imation USB2.0 64M
LG XTICK(M) USB2.0 64M
RiDATA EZDrive USB2.0 64M
Product Company Type
USB Flash Disk
UNICORN Unicorn
USB 2.0 7 IN 1 CARD READER UC-601R
USB2.0 Card Reader
Billionton(Taiwan)
USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)
Product Company Type
Multi Card Reader
CUTIE serotech POCKET HARD DISK DRIVE
MOMOBAY UX-2 DVICO USB2.0
Product Company Type
USB External HDD
Memo
79
Creative MuVo NX128M Creative 128 MB MP3 Player
Iriver H320 Iriver 20G HDD MP3 player
YEPP YH-920 SAMUSUNG 20G HDD MP3 PLAYER
YEPP YH-925 samusung 20G HDD MP3 player
I-pod apple HDD MP3 player(40G)
I-pod mini Apple HDD MP3 Player(20G)
YEPP (YP-T7) SAMSUNG MP3 PLAYER
YEPP(YP-MT6) SAMSUNG MP3 PLAYER
YEPP(YP-T6) SAMSUNG MP3 PLAYER
YEPP(YP-53) SAMSUNG MP3 PLAYER
YEPP(YP-ST5) SAMSUNG MP3 PLAYER
YEPP(YP-T5) SAMSUNG MP3 PLAYER
YEPP(YP-60) SAMSUNG MP3 PLAYER
YEPP(YP-780) SAMSUNG MP3 PLAYER
YEPP(YP-35) SAMSUNG MP3 PLAYER
YEPP(YP-55) samsung MP3 Player
iAUDIO U2 COWON(Korea) MP3 Player
iAUDIO G3 COWON(Korea) MP3 Player
iAudio M3 COWON(Korea) HDD MP3 player
SI-M500L SHARP(Japan) 256MB MP3Player
H10 IRIVER(Korea) MP3Player
YEPP YP-T5 VB Samsung(Korea) MP3Player
YEPP YP-53 Samsung(Korea) 256MB MP3Player
Product Company Type
MP3 Player

Navigation menu
