GH68_3XXXXA Printed in Korea
SCH-R970C
ANDROID SMARTPHONE
User Manual
Please read this manual before operating your
phone and keep it for future reference.
CRT_SCH-R970C_UM_Eng_MJ9_CH_111813_F1
Warning!
This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone
System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the
rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain
with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser
General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered
under the open source licenses, please visit:
http://opensource.samsung.com
.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR
ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR
COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR
ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS
OR BENEFITS.
Modification of Software
SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS,
OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR
CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.
Samsung Telecommunications America (STA), LLC
Headquarters:
1301 E. Lookout Drive
Richardson, TX 75082
©2013 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Do you have questions about your Samsung Mobile Phone?
For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:
www.samsung.com/us/support
The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are
registered trademarks and are wholly owned by the Bluetooth SIG.
Nuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications,
Inc., or its affiliates in the United States and/or other countries.
microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association.
Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other
countries.
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
DivX Certified® to play DivX® video up to HD 720p, including premium content.
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
Toll Free Tel: 1.888.987.HELP (4357)
Internet Address:
http://www.samsung.com
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit
www.divx.com
for more information and software tools to convert your files into DivX
videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in License settings under Settings > About
device > Legal information. Go to
vod.divx.com
for more information on how to complete your registration.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.
Swype and the Swype logos are trademarks of Swype, Inc. © 2010 Swype, Inc. All rights reserved.
LTE is a trademark of ETSI.
Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Maps, Google Music, Hangouts, Picasa,
YouTube,and other marks are trademarks of Google Inc.
Polaris® Office is a trademark of Infraware, Inc.
©Samsung Telecommunications America, LLC (“Samsung”). Samsung, Super AMOLED, and Samsung Link are all trademarks of
Samsung Electronics Co., Ltd. and/or its related entities. Other company names, product names and marks mentioned herein are
the property of their respective owners and may be trademarks or registered trademarks. Appearance of device may vary.
1
Table of Contents
Section 1: Getting Started ...........................4
Understanding this User Manual . . . . . . . . . . . .4
Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . 6
Turning Your Phone On . . . . . . . . . . . . . . . . . . 13
Initial Device Configuration . . . . . . . . . . . . . . .14
TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Displaying Your Phone Number . . . . . . . . . . . . 15
Your Google™ Account . . . . . . . . . . . . . . . . . . 16
Creating a Samsung Account . . . . . . . . . . . . .16
Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Securing Your Phone . . . . . . . . . . . . . . . . . . . .17
Section 2: Understanding Your Phone .....18
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Google Search Bar . . . . . . . . . . . . . . . . . . . . . .23
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Motions and gestures . . . . . . . . . . . . . . . . . . .25
Using Multi window . . . . . . . . . . . . . . . . . . . . .27
Notifications . . . . . . . . . . . . . . . . . . . . . . . . . .32
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . .35
Customizing the Home Screen . . . . . . . . . . . . .38
Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . .43
Section 3: Accounts and Contacts ...........50
Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Section 4: Calling ......................................62
Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . .62
Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . .64
Answering a Call . . . . . . . . . . . . . . . . . . . . . . .66
Managing Reject Calls . . . . . . . . . . . . . . . . . . .66
International Calls . . . . . . . . . . . . . . . . . . . . . .67
Pause Dialing . . . . . . . . . . . . . . . . . . . . . . . . .68
Wait Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . .68
2
Multi-party Calling . . . . . . . . . . . . . . . . . . . . . 69
Answering Calls . . . . . . . . . . . . . . . . . . . . . . . 69
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . 71
Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . 71
Section 5: Messaging ............................... 77
Types of Messages . . . . . . . . . . . . . . . . . . . . 77
Text and Multimedia Messaging . . . . . . . . . . . 77
Emergency alerts . . . . . . . . . . . . . . . . . . . . . . 81
Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Hangouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
ChatON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Section 6: Applications and Widgets ....... 86
Accessing Applications . . . . . . . . . . . . . . . . . 86
Applications List . . . . . . . . . . . . . . . . . . . . . . . 88
Camera Options . . . . . . . . . . . . . . . . . . . . . . . 92
Camera and Camcorder Settings . . . . . . . . . . 94
Sharing Pictures . . . . . . . . . . . . . . . . . . . . . . 99
Accessing Widgets . . . . . . . . . . . . . . . . . . . . 134
Section 7: Connections .......................... 138
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . 140
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Enable Downloading for Web Applications . . 142
VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
PC Connections . . . . . . . . . . . . . . . . . . . . . . 143
Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Portable Wi-Fi Hotspot . . . . . . . . . . . . . . . . . 145
Beaming . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Nearby devices . . . . . . . . . . . . . . . . . . . . . . . 149
Screen Mirroring . . . . . . . . . . . . . . . . . . . . . 149
Memory Card . . . . . . . . . . . . . . . . . . . . . . . . 150
Section 8: Settings ..................................151
Accessing Settings . . . . . . . . . . . . . . . . . . . . 151
Connections . . . . . . . . . . . . . . . . . . . . . . . . . 153
My device . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Section 9: Health and Safety
Information .........................................211
Exposure to Radio Frequency (RF) Signals . . 211
Specific Absorption Rate (SAR)
Certification Information . . . . . . . . . . . . . . 216
FCC Part 15 Information to User . . . . . . . . . . 218
3
Commercial Mobile Alerting System (CMAS) .218
Smart Practices While Driving . . . . . . . . . . . .219
Battery Use and Safety . . . . . . . . . . . . . . . . .220
Samsung Mobile Products and Recycling . . .221
UL Certified Travel Charger . . . . . . . . . . . . . . 223
Display / Touch-Screen . . . . . . . . . . . . . . . . . 223
GPS & AGPS . . . . . . . . . . . . . . . . . . . . . . . . .224
Emergency Calls . . . . . . . . . . . . . . . . . . . . . .225
Care and Maintenance . . . . . . . . . . . . . . . . .225
Responsible Listening . . . . . . . . . . . . . . . . . .226
Operating Environment . . . . . . . . . . . . . . . . . 228
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices . . . . . . . . 230
Restricting Children's Access to Your
Mobile Device . . . . . . . . . . . . . . . . . . . . . .232
FCC Notice and Cautions . . . . . . . . . . . . . . . .232
Other Important Safety Information . . . . . . . . 233
Section 10: Warranty Information ..........235
Standard Limited Warranty . . . . . . . . . . . . . . 235
End User License Agreement for Software . . .240
Index .........................................................248
Getting Started 4
Section 1: Getting Started

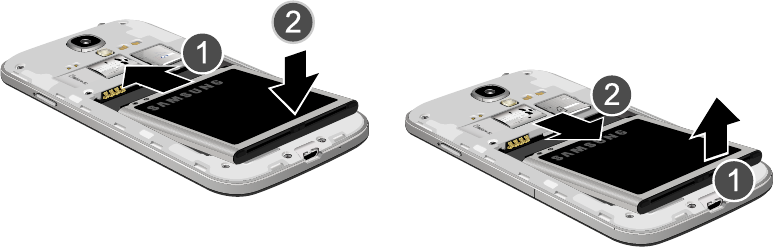

This section allows you to quickly start using your Samsung
SCH-R970C phone by installing the SIM and (optional)
microSD cards, installing and charging the battery, activating
your service, and setting up your voicemail account.
Understanding this User Manual
The sections of this manual generally follow the features of
your phone. A robust index for features begins on page 248.
Also included is important safety information that you should
know before using your phone. Most of this information is
near the back of the guide, beginning on page 211.
This manual gives navigation instructions according to the
default display settings. If you select other settings,
navigation steps may be different.
Unless otherwise specified, all instructions in this manual
assume that you are starting from the Home screen. To get to
the Home screen, you may need to unlock the phone or
keypad. (For more information, refer to “Securing Your
Phone” on page 17.)
Note:
Instructions in this manual are based on default settings,
and may vary from your phone, depending on the
software version on your phone, and any changes to the
phone’s Settings.
Unless stated otherwise, instructions in this User
Manual start with the phone unlocked, at the Home
screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your phone and any changes to the phone’s Settings.
5
Special Text
In this manual, you’ll find text that is set apart from the rest.
These are intended to point out important information, share
quick methods for activating features, to define terms, and
more. The definitions for these methods are as follows:
•
Notes
: Presents alternative options for the current feature, menu,
or sub-menu.
•
Tips
: Provides quick or innovative methods, or useful shortcuts.
•
Example
: Gives an example of the feature or procedure.
•
Important
: Points out important information about the current
feature that could affect performance.
•
Warning
: Brings to your attention important information to
prevent loss of data or functionality, or even prevent damage to
your phone.
Text Conventions
This manual provides condensed information about how to
use your phone. To make this possible, the following text
conventions are used to represent often-used steps:
Example:
“Press
Home
, then touch
Menu
➔
Settings
➔
Connections
➔
Wi-Fi
.”
➔
Arrows are used to represent the sequence of
selecting successive options in longer, or
repetitive, procedures.
Getting Started 6
Setting Up Your Phone
Before using your phone, you need to install the SIM card,
the optional microSD™ card, and the battery.
Important!
Before removing or replacing the battery cover,
make sure the phone is switched off.
Removing the battery cover
1. Locate the cover removal opening.
2. Place your fingernail in the opening and pry the cover
away from the device.
Caution!
Do not bend or twist the back cover excessively.
Doing so may damage the cover.
Installing the battery cover
Align the cover and press it firmly into place, making
sure it snaps into place at the corners.
Installing the SIM Card
When you subscribe to a 4G LTE cellular network, you are
provided with a plug-in SIM card loaded with your
subscription details, such as your PIN, available optional
services, and many others features. This SIM card will only
work with this device.
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Locate the SIM card slot on the top inside of the phone.
7
3. Make sure the gold contacts of the SIM card face
downward and that the notched corner of the card
faces outward to the right (as shown).
4. Carefully slide the SIM card into the SIM card socket
(as shown) until the card locks into place.
Note:
If the SIM card is not inserted correctly, the phone
cannot make a network connection.
Once the SIM card is inserted, do not remove it.
Removing the SIM Card
1. Remove the battery cover.
2. Remove the battery.
3. Firmly press the card into the slot and release it. The
card should pop partially out of the slot.
4. Remove the card from the slot.
5. Replace the battery cover.
Installing a Memory Card
Your device lets you install an (optional) microSD (SD) or
microSDHC memory card to expand available memory to
store images, videos, music, applications, and data.
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Locate the microSD card slot on the top inside of the
phone.
3. With the gold contacts facing down, carefully slide the
memory card into the slot (as shown), pushing gently
until it clicks into place.
Getting Started 8
Important!
Be sure to align the gold contact pins on the
memory card with the phone’s contacts.
Removing a Memory Card
Important!
To prevent damage to information stored on the
memory card, unmount the card before removing it
from the phone.
1. Press
Home
, then touch
Menu
➔
Settings
➔
More
➔
Storage
➔
Unmount SD card
. (For
more information, refer to “Storage” on page 207.)
2. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
3. Firmly press the Memory card into the slot and
carefully release it. The card should pop partially out of
the slot.
4. Remove the card from the slot.
5. Replace the battery cover. For more information, refer
to “Installing the battery cover” on page 6.
9
Battery
Your phone is powered by a rechargeable, standard Li-Ion
battery. A Wall/USB Charger (Charging Head and USB cable)
is included with the phone, for charging the battery.
Note:
The battery comes partially charged. You must fully
charge the battery before using your phone for the first
time. A fully discharged battery requires up to 4 hours of
charge time.
After the first charge, you can use the phone while
charging.
Warning!
Use only Samsung-approved charging devices and
batteries. Samsung accessories are designed to
maximize battery life. Using other accessories may
invalidate your warranty and may cause damage.
Note:
Failure to unplug the wall charger before you remove the
battery, can cause damage to the phone.
Battery Indicator
The battery icon in the Annunciator Line shows battery
power level. Two to three minutes before the battery
becomes too low to operate your phone, the empty battery
icon will flash and a tone will sound. If you continue to
operate the phone without charging the battery, the phone
will power off.
Installing the Battery
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Slide the battery into the compartment (1) so that the
tabs on the end align with the slots at the bottom of the
phone, making sure the connectors align.
Getting Started 10
3. Gently press down to secure the battery (2).
Removing the Battery
1. Remove the battery cover. (See “Removing the battery
cover” on page 6.)
2. Lift the battery up by the slot provided (1).
3. Lift the battery up and out of the phone (2).
11
Charging the Battery
Your phone is powered by a rechargeable Li-ion battery. A
wall charger, which is used for charging the battery, is
included with your phone. Use only approved batteries and
chargers. Ask your local Samsung dealer for further details.
Before using your phone for the first time, you must fully
charge the battery. A discharged battery recharges fully in
approximately 4 hours.
Note:
Verify that the battery is installed prior to connecting the
wall charger. If both the wall charger is connected and
the battery is not installed, the handset will power cycle
continuously and prevent proper operation. Failure to
unplug the wall charger before you remove the battery,
can cause the phone to become damaged.
Important!
It is recommended you fully charge the battery
before using your device for the first time.
1. Insert the USB cable into the device’s Charger/
Accessory jack at the bottom of the device.
Caution!
If the USB cable is incorrectly connected, damage to
the accessory port will occur therefore voiding the
phone’s warranty.
Getting Started 12
2. Connect the USB cable to the charging head.
3. Plug the charging head into a standard AC power
outlet. The device turns on with the screen locked and
indicates both its charge state and percent of charge.
Caution!
While the device is charging, if the touch screen does
not function due to an unstable power supply unplug
the USB power adapter from the power outlet or
unplug the USB cable from the device.
4. When charging is finished, first unplug the charger’s
power plug from the AC wall outlet, then disconnect
the USB cable connector from the device.
Caution!
If your handset has a touch screen display, please
note that a touch screen responds best to a light
touch from the pad of your finger or a non-metallic
stylus. Using excessive force or a metallic object
when pressing on the touch screen may damage the
tempered glass surface and void the warranty.
For more information, refer to “Standard Limited
Warranty” on page 235.
13
Turning Your Phone On
Press and hold the
Power/Lock
key (on
the upper right side of the phone) for three seconds.
While powering on, the phone connects with the
network, then displays the Locked screen and any
active Notification alerts.
Note:
Your phone’s internal antenna is located along the
bottom back of the phone. Do not block the antenna;
doing so may affect call quality or cause the phone to
operate at a higher power level than necessary.
Unlocking Your Phone
1. If needed, press Press
Home
to wake the
screen.
2. If there are no Notification alerts on your phone, swipe
the screen in any direction to unlock it.
If you purchased your phone online, the first time you
power your phone on and unlock the screen, the
Activation Wizard
Welcome
screen displays.
3. Follow the prompts to activate and set-up your phone.
Note:
You can choose to configure lock settings to prevent
unauthorized use of your device. For more information,
refer to “Lock screen” on page 167.
Turning Your Phone Off
1. Press and hold the
Power/Lock
Key
(on
the upper right side of the device) for two seconds.
2. At the prompt, touch
Power off
. The
Power off
pop-up
displays.
3. At the prompt, touch
OK
.
Getting Started 14
Initial Device Configuration
When you first turn on your device, you are asked to set up a
few things. To complete setup, read and follow the
instructions on the screen. You can touch Skip on some
screens, while others require reading or other information
(touch Next). Touch Back to re-display the information. Some
screens display depending on the options you choose.
1. Select a language from the Select language pull down.
2. If required, touch
Accessibility
to change the
accessibility settings and tap
Next
.
3. Touch
Next
when the Activate device screen displays.
4. Configure a Wi-Fi connection if you plan to use the
device with Wi-Fi. For more information, refer to
“Scanning and Connecting to a Wi-Fi Network” on
page 139.
5. Sign in or create a Samsung account, or touch
Skip
.
6. Touch Yes when the
Got Google
screen displays if you
have an account, or touch
No
to cancel.
7. Touch
Get an account
or
Not Now
when the
Make it
Google
screen displays.
8. Select the appropriate check boxes on the Google and
your location screen, then touch
Next
.
9. Enter your name on the
This phone belongs to...
screen
to personalize the phone, and then touch
Done
.
10. Create a Dropbox account or touch
Sign in
, and read
the disclaimer. Or touch
Skip
.
Important!
If you skip setting up the free 50 GB Dropbox
account, your Dropbox account space is limited to
10 GB after initial configuration.
11. Tap each item on the Learn about key features screen
to learn more about the feature, then tap
Next
.
Your Device name and model code display.
12. Enter a new device name in this field if you want to
change the device name.
This information displays when you use Bluetooth,
Wi-Fi Direct, tethering, and other features.
13. Touch
Done
➔
Finish
.
The Home screen displays.
15
TTY Mode
Your phone is fully TTY-compatible, allowing you to connect a
TTY device to the phone’s headset jack. Before you can use
your phone with a TTY device, you’ll need to enable TTY
Mode.
(For more information, refer to “Other call settings” on page
76.)
Voicemail
All unanswered calls to your phone are sent to voicemail,
even if your phone is turned off, so you’ll want to set up your
voicemail and personal greeting as soon as you activate your
phone.
Setting up Voicemail
1. Press
Home
, then touch
Phone
, then touch
and hold .
2. Follow the automated instructions to set up your new
password and record a greeting.
Important!
Always use a password to protect against
unauthorized access.
Checking Voicemail
1. Press
Home
, then touch
Phone
, then touch
and hold .
2. Follow the automated instructions to create a
password, greeting, and a display name.
Tip:
You can also access
Voicemail
by dialing your phone
number from any touch-tone phone.
Displaying Your Phone Number
Press
Home
, then touch
Menu
➔
Settings
➔
More
➔
About device
➔
Status
.
Your phone number displays under
My phone number
.
Getting Started 16
Your Google™ Account
Your new phone uses your Google account to fully utilize its
Android features, including Gmail, Google Maps, Google Talk,
and the Google™ Play apps. When you turn on your phone
for the first time, you should set up a connection with your
existing Google account, or create a new Google account.
1. Press
Home
, then touch
Applications
➔
Gmail
.
The
Add a Google Account
screen displays.
2. Touch
Existing
or
New
to continue.
3. Follow the on-screen instructions to sign in if you
already have a Google account, or to create a Google
Account.
Creating a Samsung Account
An active Samsung account is required to use applications
such as AllShare Play and Media Hub.
1. From the Home screen, touch
Menu
➔
Settings
.
The
Settings
screen displays.
2. Touch
Accounts
➔
Add account
.
3. Follow the on-screen instructions to complete your
account.
Roaming
When you travel outside your home network’s coverage area,
your phone can roam to acquire service on other compatible
digital networks. When Roaming is active, the Roaming icon
( ) displays in the Status Bar of the display. For more
information, refer to “Mobile networks” on page 160.
During roaming, some services may not be available.
Depending on your coverage area and service plan, extra
charges may apply when making or receiving calls.
Note:
Contact your Wireless Provider for more information
about your coverage area and service plan.
17
Securing Your Phone
By default, the phone locks automatically when the screen
times out, or you can lock it manually. You can unlock the
phone using one of the default Unlock screens, or for
increased security, use a personal screen unlock pattern, a
Personal Identification Number (PIN), or a password.
For more information about creating and enabling a Screen
unlock pattern, see “Lock screen” on page 167.
Note:
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
Locking the phone manually
Press the
Power/Lock
key on the top right
side of the phone.
Unlocking the phone
For information on unlocking your phone, see “Unlocking
Your Phone” on page 13.
Unlocking with a Personal Screen Unlock Pattern
1. Press
Home
to wake the screen.
2. Draw your personal unlock pattern on the screen.
For more information, refer to “Lock screen” on page 167.
Unlocking with a Password
1. Press
Home
to wake the screen.
2. Enter your Password.
3. Press
OK
.
Understanding Your Phone 18
Section 2: Understanding Your Phone
Features
•
5.0-inch 1920x1080 Super AMOLED Full HD touch screen
•
CDMA 1X/EV-DO Rev-A /LTE Wireless Technology
•
1.9 gigahertz quad-core processor
•
Android
®
4.3 platform
•
Google Play
™
Store, plus pre-loaded applications
•
SAFE
™
Certified
•
Galaxy Gear™ compliant. For a list of compatible smartphones,
please visit: www.samsung.com/us/galaxygearsupport.
•
Smart Switch™ compliant. For more information, see
www.samsungsmartswitch.com
.
•
Support for Air View® and Air Gestures®.
•
Connections
–
Wi-Fi 802.11 a/b/g/n (2.4 GHz band or 5 GHz band)
–
Portable Wi-Fi Hotspot
–
Bluetooth 4.0
–
Tethering (USB and Bluetooth)
–
VPN
–
NFC
–
Android Beam
–
S Beam
–
Wi-Fi Direct
–
AllShare Cast
–
DLNA
–
USB 2.0
•
WatchON® – Rich TV experience with Infrared (IR) remote
•
Samsung Link™ to share your media content across connected
devices. Cloud connectivity is enabled via the use of an external
Web storage service.
19
•
Messaging Services
–
Text Messaging
–
Picture Messaging
–
Video Messaging
–
Voice Messaging
–
Email
–
Gmail
–
Mobile Instant Messenger (IM)
–
Chat
•
13 Megapixel Camera-Camcorder with LED flash + 2 Megapixel
Front Camera-Camcorder
•
Picture Gallery
•
Video Player (1080p — MP4 and 3GP)
•
DivX Certified
®
to play DivX
®
video up to HD 720p, including
premium content
•
Music Player (AAC, AAC+, eAAC+, MP3, and WMA)
•
Speakerphone
•
Support for microSD™ and microSDHC™ Memory Cards up to
64GB capacity
Understanding Your Phone 20
Front View
1.
Earpiece
:
Use during calls to listen to callers.
2.
LED Indicator
: Flashes or glows to alert you to alert
notifications or phone status.
3.
Menu Key
: Press to display options for the current
screen.
4.
Home Key
: Press to display the Home screen, or Lock
screen if the phone is locked. Press and hold to display
recent applications or to launch Task Manager.
5.
Microphone
: Use during calls to allow callers to hear
your voice, and when recording.
6.
Back Key
: Press to return to the previous screen or
option.
7.
2 Megapixel Front Camera
: Use for taking pictures and
recording video.
8.
Proximity and Light Sensors
: Detect the presence of
nearby objects to control device functions or blank the
screen display, such as when you hold the phone to
your ear during a phone call. Detect ambient light to
determine screen brightness when
Brightness
is set to
Automatic brightness
(see “Brightness” on page 170),
and when taking pictures with the Front camera.
1
2
3
4
6
5
7
8
21
Side Views
1.
Volume Key
: From the Home screen, touch to adjust
Master Volume. During calls or music playback, press
to adjust volume. Press to mute the ringtone of an
incoming call.
2.
USB
Power/Accessory Port
: Connect a USB cable for
charging or to sync music and files.
3.
Power/Lock Key
: Press and hold to turn the phone on or
off. Press to lock the phone, or to wake the screen for
unlocking.
13
2
Understanding Your Phone 22
Back View
1.
Infrared Lens
: Use when controlling media devices
remotely.
2.
13 Megapixel Camera Lens
: Use when taking photos or
recording videos.
3.
Camera Flash
: Use when taking photos.
4.
External Speaker
: Play ringtones, call audio when in
Speakerphone mode, media sounds (music and video),
and other sounds.
5.
3.5mm Headset Jack
: Plug in an optional headset or
TTY equipment.
6.
Noise cancelation microphone
: Captures background
noise that the phone uses to produce a quiet
background during calls and video chats.
1
2
3
4
6
5
23
Google Search Bar
The Google Search Bar provides you an on-screen Internet
search engine powered by Google™.
1. From the main Home screen, tap the Google Search
bar .
2. Use the on-screen keypad to enter the item you want
to search for, then tap .
3. Tap to use Google Voice Search and follow the
prompts.
Navigation
Navigate your phone’s features using the command keys and
the touch screen.
Warning!
Please note that a touch screen responds best to a
light touch from the pad of your finger or a non-
metallic stylus. Using excessive force or a metallic
object when pressing on the touch screen may
damage the tempered glass surface and void the
warranty. (For more information, see “Warranty
Information” on page 235.)
Command Keys
Menu Key
Touch
Menu
to display a context-sensitive menu of
options for the current screen or feature.
Home Key
Press the
Home Key
to display the Home screen.
Press and hold the
Home Key
to launch a menu of
recent applications, or to launch Task Manager.
Back Key
Touch
Back
to return to the previous screen, option or
step.
Finger motions
Touch
Touch items to select or launch them. For example:
•
Touch the on-screen keyboard to enter characters or text.
•
Touch an item to select it.
•
Touch an app icon to launch the application.
Understanding Your Phone 24
Touch and hold
Activate on-screen items by a touch and hold gesture. For
example:
•
Touch and hold a widget or icon on the Home screen to move it.
•
Touch and hold on a field to display a pop-up menu of options.
Swipe
Swipe your finger vertically or horizontally across the screen.
For example:
•
Unlocking the screen
•
Scrolling the Home screen or a menu
•
Combine touch and hold with swipe to drag an item to a new
location.
Pinch
Using two fingers, make a pinch motion on the screen. For
example:
•
Pinch in to zoom in on pictures or screens.
•
Pinch out to zoom out on pictures or screens.
Swipe and Palm Swipe
To swipe, lightly drag your finger vertically or horizontally
across the screen. Use swipe when:
•
Unlocking the screen
•
Scrolling through the Home screen or a menu
To palm swipe, swipe the side of your hand horizontally
across the screen. Use palm swipe when:
•
Capturing the screen
25
Motions and gestures
By activating the various motion and gesture features, you
can access a variety of time saving functions.
Air gestures
Your phone recognizes motion near its screen. You can
control several functions of your phone by moving your hand
near the screen. (To enable Air gestures, see “Motions and
gestures” on page 190.)
•
Quick glance
: When this option is set to On and your phone is
lying on its back with the screen is off, you can see selected
important information (such as the time and date, notification
icons, missed calls, unread messages, battery charge level, and
current music information) by reaching upward toward your
phone’s screen.
•
Air jump
: When this option is set to On, you can scroll web pages
or email messages by moving the edge of your hand up or down
near the screen.
•
Air browse
: When this option is set to On, you can browse
pictures, pages, or music tracks by moving the edge of your hand
left or right near the screen.
•
Air move
: When this option is set to On, you can move app
shortcuts to other home screen panels or Apps screen panels by
touching and holding a shortcut with one hand, then moving the
edge of your hand left or right near the screen.
•
Air call-accept
: When this option is set to On, you can answer
incoming calls by waving your hand left and right parallel to the
screen.
Understanding Your Phone 26
Motions
Your phone can sense when you move it. You can navigate
screens and access features by moving the phone in specific
patterns.
To use motions to control your phone, enable the
Motion
settings. (For more information, see “Motions and gestures”
on page 190.)
•
Pick up
:
–
Direct call
: When this option is set to On, you can lift the phone
to your ear to call a contact displayed in a Messaging, Contacts,
or Call Log screen.
–
Smart alert
: When this option is set to On, you can lift the
phone to be automatically notified of missed calls, messages,
and alerts that occurred while the phone was stationary.
•
Tilt
:
–
Zoom
: When this option is set to On, touching and holding with
your thumbs on the screen while in Gallery or Internet, then
tilting the phone forward and back causes the screen to zoom
in or out.
•
Pan
:
–
Browse an image
: When this option is set to On, moving the
phone in a panning motion while viewing an image moves
focus around in the image.
•
Turn over
:
–
Mute/pause
: When this option is set to On, turning the phone
screen-down automatically mutes incoming call ringtones and
alerts sounds.
Palm motions
Use your hand to swipe across the screen, or cover the
screen.
•
Capture screen
: When this option is set to On, swiping the
screen with the side of your hand (left to right, or right to left)
captures a screen shot.
•
Mute/pause
: When this option is set to On, covering the screen
with your hand mutes or pauses media playback.
27
Using Multi window
This feature allows you to run multiple applications on the
current screen at the same time. This feature works with the
phone in portrait or landscape mode.
Note:
Only applications found within the Multi window tray can
be active atop or beside another application currently
running on the screen.
When running two applications that play multimedia
files (music/video), audio from both applications will be
played at the same time.
Enabling Multi Window
1. Press
Home
, then touch
Menu
➔
Settings
.
2. Touch the
My device
tab. The
My device
menu
displays.
3. Under
Personalization
, touch
Display
, then touch
Multi window
to enable the feature. A check mark
displays in the check box to indicate that the
Multi window
feature is enabled.
Displaying and hiding the Multi window tab
To display the Multi window tab and tray:
1. With Multi window enabled, touch and hold
Back
.
The Multi window tray displays briefly (by default) on
the left side of the screen, then closes, leaving only the
Multi window tab ( ) showing.
2. To open the Multi window tray, touch the tab . You
can now browse and launch the apps.
3. To browse the Multi window apps, Swipe the tray
upwards.
To hide the Multi window tab:
With the Multi window tab showing, touch and hold
Back
. This action hides the Multi window tab
from view.
Understanding Your Phone 28
Using Multi Window to run multiple apps on the
same screen
You can run any of the apps found in the Multi window tray
on the screen at the same time as another app.
Once two apps are running on the same screen, you can then
choose to swap their positions or to maximize a desired app.
Note:
Only apps found in the Multi-window tray can be active
on the screen at the same time as another app.
If you run two apps that play multimedia files (music/
video), sound from both apps will play at the same time.
1. Launch an app.
2. Position the phone in either portrait or landscape
orientation.
3. Display the Multi window tab. (See “To display the
Multi window tab and tray:” on page 27.)
4. Touch the Multi window tab to display the apps tray.
5. Touch and hold the desired app, such as
Maps
,
until it detaches from the tray.
6. Drag the new Multi window app over the currently
running app and drop the new app onto one of the
following screen areas, depending on your phone’s
orientation:
•
Top or bottom area (portrait orientation)
•
Left or right area (landscape orientation)
Note:
Once two applications are running, the device displays a
split screen view, containing both the initial app and the
new Multi window app.
Each app runs independent of the other.
Example:
From the Home screen, touch
Internet
.
29
To swap the locations of the
applications:
1. With the two
applications shown in a
split screen, touch the
Border bar to show the
on-screen icons.
2. Touch the desired
application area (top or
bottom).
3. Touch
Swap apps
.
The current apps swap
places.
To increase the size of a
desired application window:
With the two
applications shown in a
split screen, touch and
hold the Border bar,
then drag it to resize the
desired window.
To seperate the current applications:
1. With the two applications shown in a split screen,
touch the Border bar to show the on-screen icons.
2. Touch the desired application area (top or bottom).
3. Touch
Maximize apps
. The current apps are the
both maximized.
To close an application:
1. With the two applications shown in a split screen,
touch the Border bar to show the on-screen icons.
2. Touch the desired application area (top or bottom).
3. Touch
Close app
. The current apps swap places.
App #1 Max
App #2 Border Swap
apps
bar Close
Understanding Your Phone 30
Moving the Multi Window tab
The Multi window feature has two components: the tab and
the apps tray. You can move the tab along a side or move the
tab to any other side of the screen (top, bottom, left, or right).
This lets you launch the apps tray (containing the scrollable
apps) from any side of the screen.
To move the tab along a side:
1. Display the Multi window tab. (See “To display the
Multi window tab and tray:” on page 27.)
2. Touch and hold the tab for approximately
one-second, then slowly drag it to its new location
along the current
screen edge.
Tip:
This can get the tab out of the way of a button or option
behind it.
To move the tab and tray to another side:
1. Display the Multi window tab. (See “To display the
Multi window tab and tray:” on page 27.)
2. Touch the tab to display the apps tray (containing the
scrollable apps).
Note:
Notice that when the apps are visible, touching and
holding the tab turns it a dark grey. Its only then that you
can move the Multi window tray to another side.
31
3. In a single motion, touch and hold the Multi window
tab for approximately one-second to detach it from
the screen (1), then slowly drag it to its new location
along any other
available screen edge (2). You can
move it to the top, bottom, or either side.
Customizing the Multi Window tray
The applications found within the Multi window tray can be
organized by either being rearranged or removed.
To rearrange the Multi window applications:
1. Activate the Multi window feature.
2. Touch the tab to display the apps tray (containing the
scrollable apps).
3. In a single motion, touch and hold a desired app until it
detaches from the tray, then carefully drag it to a new
location in the list of apps. Lift your finger or stylus off
the screen to let go of the app and drop it into its new
location.
To remove a Multi window application:
1. Activate the Multi window feature.
2. Touch the tab to display the Multi window tray
(containing the scrollable apps).
3. Touch
Edit
(located at the bottom of the list).
4. Follow the prompt to remove apps from the Multi
window tray to the revealed staging area.
5. Tap
Done
once you have completed the removal
process.
Understanding Your Phone 32
To restore a Multi window application:
1. Activate the Multi window feature.
2. Tap the tab to display the apps panel (containing the
scrollable apps).
3. Tap the
Edit
button (located at the bottom of the list) to
reveal the staging area containing any previously
removed apps.
4. Locate the desired application.
5. In a single motion, touch and hold a desired app until it
detaches from the staging area, then carefully drag it
to a new location in the current list of apps.
Notifications
Notifications shows information about connections, alerts
and other items.
1. Touch and drag downward from the top of the screen
to display notifications.
2. Touch an item to open that item, or to launch a related
app or feature.
3. Touch
Clear
to clear all Notifications.
33
Quick Setting Bar
Touch the selected Quick Setting toggles at the top of the
Notifications screen to enable or disable frequently used
settings. The following toggles are the default Quick Setting
toggles:
•
Wi-Fi
: Turn Wi-Fi On or Off. (For more information about using
Wi-Fi, see
“Wi-Fi”
on page 138.)
•
GPS
: Turn Standalone GPS services on or off. (For more
information, see
“Location services”
on page 202.)
•
Sound
: Touch to switch between your sound settings, and the
two Silent modes, Mute and Vibrate. (For more information, see
“Volume”
on page 174.)
•
Screen rotation
: Enable or disable the Auto rotation setting, to
control whether the screen automatically updates when you
rotate the phone. (See
“Auto-rotate screen”
on page 171.)
•
Bluetooth
: Turn Bluetooth On or Off. (For more information about
using Bluetooth, see
“Bluetooth”
on page 140.)
•
Reading mode
: allows you to activate an optimized reading
mode for selected applications. This menu allows you to assign
available applications (such as Calculator, Camera, Contacts,
etc...) for enhancement using the Reader mode.
•
Mobile data
: Activate or deactivate your phone’s access to
mobile data. (For more information, see
“Mobile networks”
on
page 160.)
•
Blocking mode
: Enable or disable the Blocking mode setting, to
control which notifications you receive. (For more information,
refer to
“Blocking mode”
on page 179.)
•
Power saving
: Enable or disable Power saving mode. (For more
information, see
“Power saving mode”
on page 180.)
•
Multi window
: Enable or disable Multi window mode. (For more
information, refer to
“Using Multi window”
on page 27.)
Understanding Your Phone 34
Changing Quick Settings Bar
You view and use all of the available Quick Setting buttons,
and select which buttons appear at the top of the
Notifications screen.
1. Display the notifications panel by touching and
dragging downward from the top of the screen.
2. Touch . The Notifications screen is replaced by an
array of the available Quick Setting buttons.
3. Touch
Edit
.
4. Follow the instructions under
Set the quick setting
buttons
.
Clearing Notifications
1. Sweep your finger downward from the top of the
screen to display Notifications.
2. Touch a notification to clear it, or to launch an app.
– or –
Touch
Clear
to clear all notifications.
35
Home Screen
The Home screen is the starting point for using your phone.
Note:
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your phone and any changes to the phone’s Settings.
1.
Status Bar
: Presents icons to show network status,
battery power, and connection details. (For a list of
icons, see “Status Bar Icons” on page 36.)
2.
Home screen
: The starting point for using your phone.
Place shortcut icons, widgets, and other items to
customize your phone to your needs.
3.
Multi window tab
: Access Multi window tray. (See
“Using Multi window” on page 27.)
4.
Primary Shortcuts
: Shortcuts to your phone’s common
apps. (See “Primary Shortcuts” on page 39.)
5.
Panel Indicator
: Shows what panel of 7 available Home
screen panels displays.
6.
Shortcuts
: Shortcuts to common apps.These shortcuts
are found on the Home screen by default, and you can
add more shortcuts to your favorite apps. (See
“Shortcuts” on page 39.)
7.
Widget
: Apps that run on the Home screen. This widget
is found on the Home screen by default, and you can
add your favorites. (See “Widgets” on page 40.)
1
3
4
5
6
7
2
Understanding Your Phone 36
Status Bar Icons
The Status Bar shows network and battery status and other
details.
Airplane Mode Active
: All wireless communications
are disabled. See “Airplane mode” on page 160.
USB Connected
: The phone is connected to a
computer using a USB cable.
Voice Call
: A voice call is in progress.
Speakerphone
: Speakerphone is enabled.
Missed Call
: Displays when there is a missed call.
Mute
: Voice or playback volume is muted.
Battery Level
: Shown fully charged.
Battery Charging
: Battery is charging.
Device Power Critical
: Battery has very little power
remaining. Charge immediately.
GPS Location Active
: One or more GPS location
services are active. See “Location services” on
page 202.
Missing SIM
: No LTE SIM is installed.
No Network
: No wireless network is available.
3G connection
: Phone is active on a 3G system.
4G LTE Connection
: Phone is active on a 4G LTE
system.
DLNA Active
: Displays when your device is connected
and being used to control streaming media. The
device is connected to a Digital Living Network
Alliance (DLNA) certified device using the Samsung
Link application.
Signal Strength
: Current signal strength. The
greater the number of bars, the stronger the signal.
37
Display settings
You can customize display settings to your preferences. For
more information, see “Display” on page 169.
Extended Home Screen
The Home screen consists of the Home panel, plus up to 5
additional panels that extend beyond the display width to
provide more space for adding shortcuts, widgets and
folders.
Slide your finger horizontally across the screen to scroll to
the left or right side panels. As you scroll, the indicator at the
bottom of the display shows your current position.
New Message
: You have new message(s).
New Voicemail
: You have new voicemail. A number
indicates the number of new messages.
New Email Message
: You have new email.
Silent mode
: All sounds except media and alarms
are silenced, and Vibrate is not active. See
“Volume” on page 174.
Vibrate
: All sounds are silenced, and Vibrate is
active. See “Vibrations” on page 175.
SD Card Ready
: A memory card scan is underway,
to prepare the card for use.
SD Card Removed
: A memory card was un-installed.
Bluetooth Active
: Bluetooth is turned on.
Bluetooth Headset Connected
: Your device is
connected with a Bluetooth headset.
Wi-Fi Active
: Wi-Fi is active, and connected to a Wi-
Fi network.
Wi-Fi Action Needed
: Action needed to connect to
Wi-Fi network. For more information about
configuring Wi-Fi, see “Wi-Fi Settings” on
page 154.
TTY
: TTY Mode is active.
Understanding Your Phone 38
Customizing the Home Screen
Customize the Home screen to suit your preferences.
•
Add Shortcuts
: For more information, see
“Shortcuts”
on
page 39.
•
Add Widgets
: For more information, see
“Widgets”
on page 40.
•
Add Folders
: For more information, see
“Folders”
on page 40.
•
Change the Wallpaper
: For more information, see
“Wallpaper”
on page 41.
Adding and removing Home screen panels
Your phone comes with 5 active Home screen panels. You
can customize the Home screen to include up to the seven
default panels, and set one panel as the Home panel.
1. From the Home screen, touch
Menu
, then touch
Edit page
.
2. Use these controls to configure panels:
3. To change the order the panels appear, touch and drag
each panel you want moved in place of the panel in the
desired sequence.
Tip:
You can also “pinch” the Home screen to display
Edit options.
Remove
: Touch and hold on a panel, then drag
it to
Remove
.
Add
: Touch a previously-removed panel to add
it, up to the maximum of seven.
Home panel set
: Touch to set an available panel
as the Home panel.
39
Primary Shortcuts
Primary Shortcuts appear at the bottom of the display. You
can edit the Primary Shortcuts, except for
Apps
.
Editing the Primary Shortcuts
To add Primary Shortcuts:
1. To a Home screen panel, add a shortcut that you want
to make a Primary Shortcut. (For more information, see
“Shortcuts”.)
2. Touch and hold the added shortcut, then drag it from
the Home screen to the Primary Shortcuts.
If the Primary Shortcuts bar already holds five
shortcuts, adding another shortcut automatically
moves the closest existing Primary Shortcut to the
Home screen.
To remove Primary Shortcuts:
Touch and hold the shortcut until
Remove
displays, then drag the shortcut to the Home screen
panel or to the
Remove
icon.
Shortcuts
Use App shortcuts to launch applications from the Home
screen. Your phone comes with app shortcuts already placed
on the Home screen, and you can add your favorites.
Adding Shortcuts to the Home Screen
Adding shortcuts from the Home screen
1. Press the
Home
key, swipe to the desired Home
Screen panel, then touch and hold on the screen to
display the
Home
screen
menu.
2. Under
Add to Home screen
, touch
Apps and widgets
➔
Apps
tab.
3. Touch and hold on an app until it displays on the Home
screen.
Adding Shortcuts from Apps
1. Press the
Home
key.
2. Touch
Apps
.
3. Touch and hold on an app until it displays on the Home
screen.
Removing Shortcuts
Touch and hold the shortcut until
Remove
displays, then drag the shortcut to the Remove icon.
Understanding Your Phone 40
Widgets
Widgets are self-contained applications that you can place
on the Home screen for quick, direct access.
Adding Widgets to the Home screen
1. Press the
Home
key, swipe to a Home screen
panel, then touch and hold on the screen to display the
Home
screen
menu.
2. Under
Add to Home screen
, touch
Apps and widgets
➔
Widgets
tab.
3. Touch a widget and follow the prompts to place and
configure the widget on the Home screen.
Adding Widgets from Apps
1. Press the
Home
key, and swipe to a Home
screen panel.
2. Touch
Apps
, then touch the
Widgets
tab.
3. Touch a widget and follow the prompts to place and
configure the widget on the Home screen.
Removing Widgets
Touch and hold the widget until
Remove
displays,
then drag the widget to the
Remove
icon.
Folders
Place folders on the Home screen to organize items.
Adding Folders
1. Press the
Home
key.
2. Touch and hold on the screen to display the
Home
screen
menu, then under
Add to Home screen
touch
Folder
.
– or –
Touch
Menu
➔
Create folder
.
3. The folder displays on the Home screen. Touch the
folder to name it.
Removing Folders
Touch and hold the folder until
Remove
displays,
then drag the folder to the Remove icon.
41
Wallpaper
Choose a picture to display in the background of the Home
screen. You can choose from pre-loaded wallpaper images,
or select a picture you’ve taken with the Camera or
downloaded.
1. Press the
Home
key, touch and hold on the
screen to display the
Home
screen
menu, then select
Set wallpaper
➔
Home screen
/
Lock screen
/
Home and
lock screens
.
2. Choose a source:
• Gallery
: Choose a picture stored on your phone or on an
optional installed memory card. Touch a picture to select it,
then use the crop tool to resize the picture, if desired. Touch
Done
to save the picture as wallpaper.
• Live wallpapers
: Choose from pre-loaded animated wallpaper
images. Touch a wallpaper, then touch
Set wallpaper
.
• Wallpapers
: Choose from pre-loaded wallpaper images. Touch
a wallpaper, then touch
Set wallpaper
.
Tip:
You can also set Wallpaper in Settings. (For more
information, see “Wallpaper” on page 169.)
Apps
Apps holds all applications installed on your phone.
Applications that you download and install from the Google
Play™ Store or from the web are also added to Apps.
The Apps screen is like the Home screen, it consists of
panels that extend beyond the display width to provide more
space. Slide your finger horizontally across the screen to
scroll to the left or right side panels. As you scroll, the
indicator at the bottom of the display shows your current
position.
(For more information about applications, see “Applications
and Widgets” on page 86.)
You can place shortcuts to apps on the Home screen, for
quick access to the app. (For more information, see “Adding
Shortcuts from Apps” on page 39.)
1. Press the
Home
key, then touch
Apps
.
2. Slide your finger left or right to scroll the Apps screens.
3. Touch an icon to launch the application.
Understanding Your Phone 42
Customizing the Apps Screens
Choosing a view
By default, app icons appear in Grid view. You can change
the view to list view.
1. Press the
Home
key, then touch
Apps
.
2. Touch
Menu
➔
View type
.
3. Choose an option:
• Customizable Grid
: The default view, which allows you to
touch and hold on apps to move them from screen to screen.
• Alphabetical grid
: Icons are arranged in a grid, in A-Z order.
• Alphabetical list
: Icons display in a list, sorted from A-Z.
Apps screen options
1. Press the
Home
key, then touch
Apps
.
2. Touch
Menu
for options:
•Play Store
: Launch Google Play
™
Store, to browse for new
apps to download.
•Edit
: Touch and hold an app icon for these options:
–
Drag it to a new location.
–
Drag it to to create a new folder to contain the icon.
–
Drag it to to create a new apps screen and place the icon
on it.
–
Drag it to to launch Application manager to view
information about the app. (For more information, refer to
“Application manager”
on page 206.)
–
Drag it to (if available) to Uninstal the app.
•Create folder
: Add folders in which to group your apps.
Note:
The
Uninstall
icon is only available for
your downloaded apps. Pre-loaded apps
cannot be uninstalled.
43
• Uninstall
: Remove an app that you downloaded from your
phone. Pre-loaded apps cannot be un-installed.
• Downloaded applications
: Display all apps you’ve
downloaded.
•View type
: Configure the apps screen.
• Share apps
: Select apps you’ve downloaded (not available for
pre-loaded apps) to share via Bluetooth, ChatON, Dropbox,
Email, Flipboard, Gmail, Google, Google+, Messaging, S
Memo, Wi-Fi Direct.
• Hide applications
/
Show hidden applications
: Control
whether selected apps icons appear on Apps panels. Hiding an
icon does not uninstall the app from your phone.
Entering Text
This sub-section describes how to enter words, letters,
punctuation, and numbers when you need to enter text in a
message, a note, or any other text entry field.
Keyboards and Input Methods
There are three text input methods available:
•
Google Voice typing
: Enter text by speaking.
•
Samsung keyboard
(default): Samsung’s on-screen QWERTY
keypad that can be used in both portrait and landscape
orientation.
•
Swype
: Instead of touching each key, use your finger to trace
over each letter of a word.
(To change the input method, see “Keyboards and input
methods” on page 185.)
Understanding Your Phone 44
Using the Google Voice Typing Feature
You can use your voice to enter text using the Google Voice
typing feature.
1. Touch on the keyboard.
2. At the
Speak now
prompt, speak clearly and distinctly
into the microphone.
3. If the red microphone turns gray, the feature has timed
out. To start again, touch the microphone icon.
The text is displayed in the message as you are
speaking.
4. Touch to return to the keyboard.
Note:
The feature works best when you break up your
message into short segments.
Entering Text Using the Samsung Keyboard
From a screen where you can enter text, rotate your phone
counterclockwise to a Landscape orientation. The on-screen
QWERTY keypad will display.
New
Paragraph
Text Input Mode
Shift
Key Delete
Key
Space Bar
Voice Typing
and Settings
45
Changing the Text Input Mode - Keypad
There are two main keypad layout keys that will change the
on-screen keys within the QWERTY keypad.
The available Text Input modes are:
Symbol/Numeric
and
ABC
.
Note:
When in
Abc
mode, the
Sym
button displays.
When in
Sym
mode, the
ABC
button displays.
Using ABC Mode
1. If desired, rotate your phone counterclockwise to a
Landscape orientation.
2. When you touch a text entry field, such as the
Enter
message
field for a new text message, the following
keyboard image displays:
3. Touch the desired letter or number keys.
Symbol/Numeric Mode
: Activates the number,
symbol, and emoticon keys.
ABC Mode
: Activates the default alphabet keys.
Can also be set to
Abc
or
abc
by using the shift
() key.
Sym
ABC
Note:
The screen initially opens in Abc mode. After
typing the first letter, the shift key ( )
changes to and succeeding letters are
lower case.
Understanding Your Phone 46
4. Touch once to input another upper-case letter
or touch twice to switch to ABC mode. The shift
key will change to . All following letters will be
upper case until you touch the shift key again.
Using Symbol/Numeric Mode
Use Symbol/Numeric Mode to add numbers or symbols.
1. Rotate your phone counterclockwise to a Landscape
orientation.
2. Touch at the bottom of the keyboard. The
following keyboard displays:
3. Touch the desired number or symbol.
4. Touch the button to access additional symbols.
5. Touch to return to Abc mode.
Predictive Text
By using the Predictive Text option, you can have next-letter
prediction and regional error correction, which compensates
for pressing the wrong keys on the QWERTY keyboard.
Note:
Predictive text is turned ON by default.
Turning Predictive Text ON:
1. Touch and hold on the keyboard, then touch .
The Samsung keyboard settings screen displays.
2. Touch the
Predictive text
ON/OFF slider .
Sym
1/2
ABC
47
3. In the text portion of the message screen, begin typing
a word. A list of word options is displayed. Touch one of
the words to replace the word that has already been
typed or scroll the line of words to the left for more
word choices.
4. Continue typing your message. Touch to send the
message or press
Menu
for more options. (For
more information, refer to “Creating and Sending
Messages” on page 77.)
Note:
You can also use Predictive Text mode with your phone
in portrait orientation.
Entering Text Using Handwriting
You can enter text simply by using your finger to handwrite
letters on your screen.
1. Touch and hold on the keyboard, then touch .
2. Use your finger tip to write out each character. You can
print or use cursive.
3. You can write out your entire message using the
Handwriting feature or touch to switch back to
Samsung keyboard mode.
Samsung Keyboard Settings
For information on how you can configure your Samsung
keyboard settings, see “Keyboards and input methods” on
page 185.
Understanding Your Phone 48
Entering Text Using Swype
Swype™ is a text input method that allows you to enter a
word by sliding your finger or stylus from letter to letter,
lifting your finger between words. Swype uses error
correcting algorithms and a language model to predict the
next word. Swype also includes a predictive text system.
The following example shows how to enter the word “This”.
Put your finger down on the “T”, and without lifting, glide it
to the “h”, then to the “i” then over to the “s”.
Swype Text Entry Tips
You can access the SwypeTips application and watch a video
or tutorial on using Swype. You can also use the following
Swype text entry tips.
•
Create a squiggle (like an S shape) to create a double letter (such
as pp in apple).
•
Touch and hold a key to view the punctuation menu then make a
selection.
•
Move your finger or stylus over the apostrophe to enter
contractions.
•
Double-tap on the word you want to change to correct a
misspelled word, then tap the delete key to erase one character.
Touch and hold the delete key to erase an entire word.
49
Enabling and Configuring Swype
The Samsung keyboard is the default text input method, so
to use Swype, you must first change the default keyboard
setting.
To enable Swype:
1. From a screen where you can enter text, touch a text
input field.
2. Touch the Status Bar and drag down the Notifications
screen.
3. Touch
Select input method
. The Select input
method menu pops up.
4. Touch the
Swype
radio button, which turns green.
The Swype keyboard displays.
Swype Settings
For information on how you can configure your Swype
settings, see “Keyboards and input methods” on page 185.
Accounts and Contacts 50
Section 3: Accounts and Contacts
Accounts
Your phone provides the ability to synchronize information,
from a variety of accounts, including Email, Facebook,
Google, and your Samsung account. Depending on the
account, you can choose to synchronize your calendar,
contacts, and other types of content.
Contacts from your accounts appear in your phone’s
Contacts.
With synchronization, you can ensure that information on
your phone is updated with any information that changes in
your accounts.
Setting Up Your Accounts
Set up and manage your accounts with the
Accounts
settings.
(For information about setting up other, non-synchronized
email accounts, see “Configuring Email Accounts” on
page 82.)
Tip:
For more information on setting up your email, contact
your Wireless Provider.
Adding an account
1. From the Home screen, touch
Menu
, then touch
Settings
➔
Accounts
.
2. Touch
Add account
.
3. Select an account type, then follow the prompts to
enter your credentials and sign in.
4. The phone communicates with the provider’s server to
set up your account on the phone.
51
Controlling Synchronization
You can choose to have your phone automatically
synchronize with your accounts, or manually synchronize
each account when you want to check messages.
You may also choose to limit automatic or background
synchronization to extend battery life.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Under
My accounts
, touch the desired account type.
The related account type screen displays.
3. Under
Accounts
, touch the desired account ID. The
Sync settings
screen for the selected account displays
listing some or all of the following synchronization
settings:
•Sync Calendar
•Sync Contacts
• Sync Email
•Sync Gmail
• Sync Google Photos
• Sync Google Play Books
• Sync Google Play Magazines
• Sync Google Play Movies & TV
• Sync Google Play Music
• Sync Internet
• Sync Picasa Web Albums
•Sync Memos
• Sync Tasks
4. Touch these settings to enable/disable synchronization
of the associated file types. When enabled, a check
mark displays in each setting check box.
•
With automatic synchronization enabled, your phone
automatically synchronizes its related files with similar files on
on-line file servers.
•
With automatic synchronization disabled, you can manually
sync accounts by touching
Sync all
in the account type screen
for each account.
Tip:
You can control automatic synchronization using the
Sync
toggle in the Quick Settings menu on the Notifications
screen. (For more information, refer to “Quick Setting
Bar” on page 33.)
Accounts and Contacts 52
Google Account Privacy Settings
Personalize the Privacy settings for Google accounts:
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Google
. The
Google
account type screen
displays.
3. The following options are available:
•Search
: Manage Google accounts location histories and
search histories.
• Location settings
: Choose whether Google apps can access
location information for Google accounts.
• Google+
: Manage Google+ information for Google accounts.
•Ads
: Choose whether to personalize Google and AdMob
advertisements for Google accounts.
Managing accounts
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Under
My accounts
, touch the desired account type.
The related account type screen displays.
3. Under
Accounts
, touch the desired account ID. The
Sync settings
screen for the selected account displays.
(For more information, refer to “Controlling
Synchronization” on page 51.)
4. To enable or disable a synchronization setting, touch it.
When enabled, a check mark displays in the check
box.
5. To invoke the enabled synchronization settings for the
selected account, touch
Sync now
.
6. To remove the selected account from your phone,
touch
Remove account
. A
Remove account?
pop-up
prompts you to confirm the removal.
To remove the selected account, touch
Remove
account
.
53
Contacts
To access Contacts:
From the Home screen, touch
Contacts
.
Contact tips:
•
Swipe your finger left-to-right across a contact to make a call to
the contact.
•
Swipe right-to-left across a contact to create a message
addressed to the contact.
Adding Contacts
1. From the Home screen, touch
Contacts
➔
Add contact
.
•
If you have defined accounts (Google, Samsung, and so on),
the
Save contact to
pop-up displays. Select
Device
or the
account to receive the new Contact entry.
•
If you have not defined any accounts, the
Save contact
pop-
up displays. The following options are available:
–
OK
: Saves your contacts in
“my device contacts”
.
–
Add new account
: Lets you define an account to which your
device will save your contacts. The
Add new account
screen
displays. (For more information, refer to
“Setting Up Your
Accounts”
on page 50.)
2. Touch contact fields to select or enter information:
•
Touch
Add photo ID
to choose a picture to identify the
contact.
•
Touch
Name
to enter a name for the contact. Touch to
enter
Name prefix
,
First
name
,
Middle name
,
Last name,
or
Name suffix
.
•
Touch
Phone number
to enter a phone number, then touch the
Label
button to choose a label, from
Mobile
,
Home
,
Work
,
Work Fax
,
Home Fax
,
Pager
,
Other
,
Custom
, or
Callback
. To
add another number, touch .
•
Touch
Groups
to assign the contact to a group. (For more
information about Groups, see
“Groups”
on page 59.)
•
Touch
Ringtone
to choose a ringtone for the contact.
•
Touch
Message alert
to select the alert tone to be played when
you receive a message from this contact.
•
Touch
Vibration pattern
to choose a vibration pattern to play
when you receive a call or message from this contact.
•
Touch
Add another field
to add more fields, including
Phonetic Name
,
Organization
,
Email
(displays after you set-
up an Email account),
IM
,
Address
,
Notes
,
Nickname
,
Website
,
Events
, or
Relationship
.
Accounts and Contacts 54
3. When you finish selecting and entering information,
touch
Save
.
Creating Contacts from Recent calls
Save a phone number from a recent call to create a new
contact, or update an existing contact.
For more information, refer to “Creating or Updating Contacts
Using Recent calls” on page 65.
Creating Contacts from the Phone Keypad
Enter a phone number with the Phone Keypad, then save it.
1. From the Home screen, touch
Phone
.
2. Touch the digits of the phone number on the
Keypad
.
3. Touch
Add to Contacts
, then select
Create contact
from
the pop-up menu.
4. Continue entering contact information. (For more
information, refer to “Adding Contacts” on page 53.)
Tip:
While entering a phone number, you can add waits or
pauses. Enter the number up to the pause or wait, then
touch
Menu
to select
Add 2-sec pause
or
Add wait
.
Updating Contacts
Make changes to update an existing contact.
1. From the Home screen, touch
Contacts
.
2. Touch a contact to view its information, then touch
Edit
.
– or –
Touch and hold a contact, then select
Edit
from the
menu.
3. Continue entering contact information. (For more
information, refer to “Adding Contacts” on page 53.)
Updating Contacts from the Phone Keypad
Enter a phone number with the Phone Keypad, then save it.
1. From the Home screen, touch
Phone
.
2. Touch the digits of the phone number on the
Keypad
.
3. Touch
Add to Contacts
, then select
Update existing
from
the pop-up menu.
4. Select a contact to update, then continue entering
contact information. (For more information, refer to
“Adding Contacts” on page 53.)
55
Updating Contacts from Recent calls
Save a phone number from a recent call to create a new
contact, or update an existing contact.
For more information, refer to “Creating or Updating Contacts
Using Recent calls” on page 65.
Choosing Contacts to Display
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Contacts to display
:
•
Choose
All contacts
to show all contacts.
•
Touch
Device
to show only show contacts saved to the phone.
•
Choose an account to only display contacts from that account.
•
Choose
Customized list
to select contact types for each
account, or the phone.
Contacts Settings
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Settings
:
•
Select
Only contacts with phones
to show contacts with at
least one stored phone number.
•
Touch
List by
to sort contacts by first or last name.
•
Touch
Display contacts by
to list contacts by first or last name.
•
Touch
Contact sharing settings
to set your preference for
sending contacts namecards to other accounts or devices. (For
more information about sending contacts, see
“Sending
Namecards”
on page 58.)
Accounts and Contacts 56
Other Contacts Options
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display it, then touch
Menu
:
•History
: View calls and messages to and from this contact.
•Edit
: Modify contact information. (For more information, refer to
“Updating Contacts”
on page 54.)
•Delete
: Erase the contact record.
• Join contact
/
Separate contact
: Manage multiple contacts
as one. (For more information, refer to
“Joining Contacts”
on
page 57.)
• Mark as default
: Set a default phone number or other field
(such as IM or email address). Defaults are the contact method
used when creating a message or calling a contact. You can
also set a default by touching and holding on a contact field.
• Share namecard via
: Send the namecard. (For more
information, refer to
“Sending Namecards”
on page 58.)
• Add to reject list
: Mark the contact so that calls or messages
from the contact are rejected automatically. To remove a
contact from the reject list, touch and hold on the contact in the
main contacts screen, then choose
Remove from reject list
.
•Print contact info
: Print the namecard via Bluetooth to a
compatible Samsung Bluetooth-enabled printer.
• Place to home screen
: Add shortcut to this contact to Home
screen.
My Local Profile
My local profile is your own contact record, listed under
ME
in Contacts. You can send My local profile as a vCard via
Bluetooth or as an attachment to messages.
Creating My Local Profile
1. From the Home screen, touch
Contacts
.
2. Under
ME
touch your Google account name or
Set up
profile
.
3. Enter your information in the contact fields.
(
For more
information, refer to “Adding Contacts” on page 53.)
57
Sending My Local Profile
You can send your profile as a vCard via Bluetooth to other
Bluetooth devices, or as an attachment.
1. From the Home screen, touch
Contacts
.
2. Touch your profile to display your contact information.
3. Touch
Menu
, then touch
Share namecard via
.
4. Choose a sending method or app from the
Share
namecard via
pop-up, then follow the prompts to send
the profile.
Joining Contacts
Your phone can synchronize with multiple accounts,
including Google, Corporate, and other providers, plus social
networking sites like Facebook. When you synchronize
contacts from these accounts with your phone, you may have
multiple contacts for one person.
Joining contact records allows you to see all the contact’s
numbers and addresses together. Joining also helps you
keep your contacts updated, because any changes to
information in the respective accounts is automatically
updated the next time you synchronize with the account.
Joining contacts
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display its information.
3. Touch
Menu
, then touch
Join contact
. A list of
available contacts displays.
4. Select a contact to join to the displayed contact. The
joined contact displays.
5. To join another contact, touch the
Connection
field. The
Joined contact screen displays.
Touch
Join another contact
. A list of available contacts
displays.
Select a contact to join to the displayed contact. The
joined contact displays.
Separating contacts
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display its information.
3. Touch the
Connection
field to display joined contacts.
4. Touch to the right of a contact to remove it from
the selected joined contact.
Accounts and Contacts 58
Exporting and Importing Contacts
You can export your contact list to an installed memory card,
or import a list of contacts (previously exported) from a
memory card.
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Import/Export
.
3. Select an option, then follow the prompts to complete
the operation:
• Import from USB storage
: Copy contacts that are saved in
installed mass storage.
• Export to USB storage
: Copy contacts to installed mass
storage.
• Import from SD card
: Copy contacts that are saved on an
installed memory card.
• Export to SD card
: Copy contacts to an installed memory card.
• Share namecard via
: Share contacts as Namecards. (For
more information, refer to
“Sending Namecards”
on page
58.)
Sending Namecards
You can send a contact entry as a namecard using a
Bluetooth connection to another device, or as an attachment
to a Gmail or Email message.
Important!
Not all Bluetooth devices will accept contacts, and
not all devices support transfers of multiple
contacts. Check the target device’s documentation.
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Import/Export
➔
Share
namecard via
.
3. Touch contacts to mark them for sending, or touch
Select all
to mark all contacts. A check mark displays in
the check box for marked contacts.
4. Touch
Done
.
5. Choose a sending method from the
Share namecard via
pop-up, then follow the prompts to send the profile.
59
Favorites
Mark contacts with a
star to identify them as Favorites.
Favorites display on the
Favorites
tab in the
Phone
and
Contacts
screens for fast dialing or messaging, and are
indicated by the .
Creating Favorites
1. From the Home screen, touch
Contacts
.
2. Touch and hold on a contact, then select
Add to
favorites
from the pop-up menu.
– or –
Touch a contact to display it, then touch at the top
right of the screen, it changes color to .
Groups
Assign contacts to Groups to make searching for contacts
faster, or to quickly call or send messages to group
members. Your phone comes with pre-loaded groups you
can use to add your contacts.
Adding a New Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch
Menu
➔
Create
, then enter information:
•
Touch
Group name
to enter a Group Name.
•
Touch
Group ringtone
to choose a ringtone for calls from
members of this group.
•
Touch
Message alert
to choose the tone to play for messages
from members of this group.
•
Touch
Vibration pattern
to choose a vibration to play for calls
from members of this group.
•
Touch
Add member
to select members from Contacts.
3. Touch
Save
to save the new group.
Accounts and Contacts 60
Editing a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it.
3. Touch
Menu
➔
Edit
, then update information for
the group. For more information, see “Adding a New
Group” on page 59.
Deleting a Group
Tip:
You can only delete groups that you have created.
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch
Menu
➔
Delete groups
.
3. Touch a Group to mark it for deletion, or touch
Select all
to mark all groups. When selected, a check mark
displays in the check box. You cannot delete pre-
loaded groups.
4. Touch
Delete
, then choose
Group only
or
Group
and
group members
.
Adding Contacts to a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it, then touch .
3. Touch contact(s) to mark them for addition, or touch
Select all
to mark all contacts. When selected, a check
mark displays in the check box.
4. Touch
Done
to add the selected contact(s).
Removing Contacts from a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it.
3. Touch
Menu
➔
Remove member
.
4. Touch contact(s) to mark them for removal, or touch
Select all
to mark all contacts. When selected, a check
mark displays in the check box.
5. Touch
Done
to remove the selected contact(s).
61
Sending a Message to Group Members
Create a new text or email message, addressed to the
group’s members.
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch and hold a Group, then touch
Send message
or
Send email
.
3. Touch contacts to mark them as recipients for the new
message, then touch
Done
.
4. The new message opens, with the marked contacts as
recipients. Continue creating the message, as desired.
(For more information, refer to “Creating and Sending
Messages” on page 77, or “Composing and Sending
Email” on page 82.)
Speed Dials
Speed dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you
assign to contacts, to allow you to quickly call the contact.
For more information about calling using speed dials, see
“Making Calls using Speed Dials” on page 62.
Note:
Speed dial 1 is reserved for Voicemail, and cannot be
assigned.
Assigning Speed Dials
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Speed dial setting
.
3. A list of speed dials displays.Touch a speed dial, then
touch a contact to assign the speed dial to the contact.
Removing or Reassigning a Speed Dial
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Speed dial setting
.
3. Touch and hold an assigned Speed dial setting, the
following options pop-up:
• Replace
: Touch a new speed dial location to assign it to the
contact.
•Remove
: Un-assign the speed dial from the contact.
Calling 62
Section 4: Calling
Making Calls
Your phone offers multiple ways to make calls:
•
Use the touch screen
Phone Keypad
to enter the phone number
or speed dial.
•
Call a contact from
Contacts
.
•
Call a contact from
Favorites
.
•
Return a call, or call a recent caller, from
Recent
.
•
Voice dial using
Voice Dialer
.
Making Calls Using the Phone Keypad
1. From the Home screen, touch
Phone
.
2. Touch the Keypad tab and then dial the digits of the
telephone number on the
Keypad
.
3. Touch to place the call.
Making Calls using Speed Dials
Speed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you
assign to contacts, to allow you to quickly call the contact.
(For more information about setting speed dials, see “Speed
Dials” on page 61.)
1. From the Home screen, touch
Phone
.
2. Touch the Keypad tab and then touch the digits of the
speed dial number on the
Keypad
, holding the last digit
until the number dials.
63
Making Calls from Contacts
A contact is an entry that you have created to store the
name, numbers, and other information for people or groups
of interest.
(For more information, refer to “Contacts” on page 53.)
1. From the Home screen, touch
Phone
.
2. Touch the
Contacts
tab.
3. Locate the contact and touch it to open the Contact
entry.
4. Touch next to the number to dial.
Making Calls using S Voice
Place a call by speaking the name or number.
1. From the Home screen, touch
Menu
➔
Apps
➔
S Voice
.
– or –
From the Home screen, press
Home
twice in
quick succession.
2. Read and respond to the prompts.
3. Say “Hi Galaxy” to wake up S voice.
4. Follow the prompts to speak a command. You can say
commands such as:
• Call <Name >
: Call an entry in your Contacts list.
• Dial <Phone number>
: Call a spoken phone number.
•Redial
: Repeat a recent call.
Calling 64
Making Calls using Favorites
Favorites are contacts that you designate as favorites by
starring them. (For more information about creating favorites,
see “Favorites” on page 59.)
1. From the Home screen, touch
Phone
.
2. Touch
Favorites
to display favorites.
3. Find the contact and touch it to open the Contact entry.
4. Touch next to the number to dial.
Recent Calls
When you place, answer, or miss a call, a record of the call is
saved in Recent calls.
Accessing Recent calls
From the Home screen, touch
Phone
➔
Recent
to display recent calls.
Making Calls using Recent calls
1. From the Home screen, touch
Phone
.
2. Touch
Recent
to display recent calls.
3. Swipe your finger from left to right across the call to
redial.
– or –
4. Touch next to the number to dial.
65
Sending Messages using Recent calls
1. From the Home screen, touch
Phone
➔
Recent
.
2. Swipe your finger from right to left across the call.
– or –
For a contact call, touch the picture ID icon, then touch
to create a message to the number.
Creating or Updating Contacts Using Recent
calls
1. From the Home screen, touch
Phone
➔
Recent
.
2. Touch and hold on a call, then select
Add to Contacts
from the pop-up menu.
3. Choose
Create contact
or
Update existing
.
4. Continue entering contact information. (For more
information, see “Contacts” on page 53.)
Managing Recent calls
Deleting records
1. From the Home screen, touch
Phone
➔
Recent
.
2. While viewing the calls, touch
Menu
, then touch
Delete
.
3. Touch call records to mark them for deletion, or touch
Select all
. A check indicates marked records.
4. Touch
Delete
to delete marked records.
Filtering records
1. From the Home screen, touch
Phone
➔
Recent
.
2. While viewing the calls, touch
Menu
, then touch
View
.
3. Select a filter type, from
All calls and messages
,
All calls
,
Missed calls
,
Dialed calls
,
Received calls
,
Rejected calls
,
All messages
,
Sent messages
, or
Received messages
.
Calling 66
Answering a Call
When somebody calls you, the phone rings and displays the
incoming call image. The caller's phone number, picture, or
name if stored in Contacts List, displays.
At the incoming call screen:
•
Touch and slide in any direction to answer the call.
•
Touch and slide in any direction to reject the call.
•
Touch and drag the
Reject call with message
tab upward
and tap a predefined rejection message or tap
Create new
message
to create a new custom outgoing response.
Pressing the Volume down button mutes the ringer.
Answering a call with Air Gesture
1. Verify the Air Gestures feature is on and Air call-accept
is active. For more information, refer to “Motions and
gestures” on page 190.
2. At the incoming call screen, wave your hand over the
screen to accept the incoming call.
Managing Reject Calls
This feature allows you to categorize both known and
unknown callers as rejected contacts. These Contacts are
then added to your Rejection list which can be managed for
individual entries from within the Contacts list or as a whole
from the Call rejection screen.
1. From the Home screen, touch .
2. Press
Menu
and then tap
Call settings
➔
Call
rejection
.
67
3. Tap the
Auto reject mode
field to configure your
automatic rejection settings. Rejected calls are routed
automatically to your voicemail. Choose from:
•Off
: disables the auto rejection feature.
• All numbers
: enables the features for all known and unknown
numbers, including those contacts that are not assigned to the
rejection list.
• Auto reject numbers
: automatically rejects all entries assigned
to the Reject list/Blacklist.
Adding numbers to the rejection list
Entries can be added to the list via either the Contacts menu
or via the Auto reject list menu. The Contacts menu option
assigns all numbers for an individual as rejected. The Auto
reject list allows to assign individual numbers.
To assign multiple numbers as rejected via Contacts:
1. From the Home screen, tap (
Contacts
).
2. Locate an entry and tap it to open the Contact
Overview Screen (page 91).
3. Press
Menu
and then tap
Add to reject list
. All
phone numbers associated with this entry are then
added to the reject list.
Viewing call durations
View the length of the Last call, all Dialed calls, all Received
calls, or All calls.
1. From the Home screen, touch
Phone
➔
Recent
.
2. While viewing calls, touch
Menu
, then touch
Call duration
.
International Calls
1. From the Home screen, touch and then touch and
hold until the device displays “+” on the
screen.
2. Use the keypad to enter the country code, area code,
and phone number.
3. Touch once to delete a single digit.
– or –
Touch and hold to delete all digits.
4. Touch .
Calling 68
Pause Dialing
You can dial or save phone numbers with pauses for use with
automated systems, such as voicemail or financial phone
numbers.
•
2-Second Pause
automatically sends the next set of numbers
after a two-second pause. This is indicated in the number string
as a comma (
,
).
1. From the Home screen, touch and then touch the
Keypad
tab.
2. Use the on-screen keypad to enter the phone number.
3. Press
Menu
and then tap
Add 2-sec pause
. This
feature adds an automatic two-second pause.
4. Use the keypad to enter the additional numbers that
will be dialed automatically after the second pause.
Tip:
You can create pauses longer than two seconds by
entering multiple 2 second pauses.
5. Tap .
Wait Dialing
Inserting a Wait into your dialing sequence means that the
phone waits until it hears a dial tone before proceeding with
the next sequence of numbers.
•
Wait
sends the next set of numbers only after tapping
Yes
. This is
indicated in the number string as a semicolon (
;
).
Note:
Do not add multiple Waits (;) to a number string as this
will continue to prompt you after each sequence.
1. From the Home screen, touch and then touch the
Keypad
tab.
1. Use the keypad to enter the phone number.
2. Press
Menu
and then tap
Add wait
. This feature
causes the phone to require your acceptance before
sending the next set of entered digits.
3. Tap .
4. Once prompted to
Send the following tones?
, tap
Yes
to
dial the remaining digits.
69
Multi-party Calling
Use multi-party call features to set up a call between multiple
callers, such as for a conference call.
1. Establish the first call, by answering an incoming call
or making a call.
2. Touch
Add call
. The first call is placed on hold.
3. Make the second call by touching the phone number
digits, then press .
4. Touch
Merge
to merge the calls into one conference
call.
5. To end the call touch
.
Answering Calls
You can answer incoming calls when the phone is locked or
unlocked.
Touch and drag the
Answer
icon to the right.
Tip:
To silence the ringtone for an incoming call, press the
Volume
key Up or Down.
Sending Calls to Voicemail
When your phone alerts you to an incoming call, you can
reject the call to send the caller to voice mail, or reject the
call and send a message to the caller.
Rejecting a call
Touch and drag the
Reject
icon to the left.
Rejecting a call with a message
Touch and drag
Reject call with message
toward the
middle of the screen, then select an existing message,
or
Create new message
.
Calling 70
Answering Call-Waiting Calls
When you receive a call while on a call:
•
Touch and drag the
Answer
icon to the right to answer the
incoming call. The original call is placed on hold, and remains on
hold until you end the second call, or swap calls back to the
original call.
•
Touch
Swap
to place a call on hold and return to the original call.
Options During a Call
While in a call, you can use these features:
•
Personalize call sound
: Apply a sound equalizer to the call
audio, in cases where you might need the sound softer or clear, or
optimized for your right or left ear.
•
Noise reduction
: Enable or disable noise reduction, to improve
call audio quality in noisy environments.
•
Extra volume
: Enable or disable increased volume in the
earpiece. Compensates for low sound from the other caller.
(972) 555-5678
Personalize
call sound
Noise
reduction Extra
volume
71
•
Add call
: Display the Dialer to set up a multi-party call.
•
Keypad
: Display a keypad to enter numbers.
•
End call
: End the phone call.
•
Speaker
: Enable or disable speakerphone.
•
Mute
: Mute or unmute your voice on the call.
•
Headset
: Switch the call’s audio to a Bluetooth headset.
•
Touch
Menu
for options:
–
Contacts
: Launch Contacts.
–
Message
: Launch Messaging to view or create messages.
–
Memo
: Launch S Memo to take notes in text, or create a
drawing.
Ending a Call
Touch .
Call Settings
Configure settings for calling with your phone.
To access Call settings, from the Home screen, touch
Phone
➔
Menu
➔
Call Settings
.
Call rejection
Create and manage a list of phone numbers, to have your
phone automatically reject calls you receive from those
numbers.
From the
Call Settings
screen, touch
Call rejection
for
these options:
• Auto reject mode
: Choose Off, All numbers, or Auto reject
numbers. When set to Auto reject numbers, calls from
numbers on the Auto reject list will be rejected.
• Auto reject list
: Enter telephone numbers to be rejected when
Auto reject mode is set to Auto reject numbers. Touch
Create
,
then follow the prompts to enter numbers to reject, or select
them from Contacts. Touch
Match criteria
to set options for
using the reject number list. Enable
Unavailable
to reject calls
with no caller ID (that is, Unknown callers).
Calling 72
Set up call rejection messages
Create and manage text messages to send to callers when
you select
Reject call with message
in the
Incoming call
screen.
1. From the
Call Settings
screen, touch
Set up call
rejection messages
.
2. Touch
Create
then follow the prompts.
Answering/ending calls
Manage settings for answering and ending calls.
1. From the
Call Settings
screen, touch
Answering/ending
calls
. The following options are available:
• The home key answers calls
: When enabled, you can answer
an incoming call by pressing
Home
.
• Voice control
: When enabled, you can answer calls using the
S Voice wake-up command.
• The power key ends calls
: When enabled, pressing
Power/Lock
ends a call.
Turn off screen during calls
When enabled, the screen automatically turns off during
phone calls, and the proximity sensor on the front of the
phone is used to turn the screen back on when the phone is
moved or brought close to another surface, such as when
you move the phone to your ear.
From the
Call Settings
screen, touch
Turn off screen
during calls
to enable or disable this option.
When this option is enabled, a check mark displays in
the check box.
73
Call alerts
Set options for sounds and vibrations to occur during calls.
From the
Call Settings
screen, touch
Call alerts
. The
following options are available:
• Call vibrations
: Enable
Vibrate on connection to network
to
have your phone vibrate when it connects to the network.
Enable on
Call-end vibration
to have the phone vibrate when
the other caller ends the call.
•Call status tones
: Choose options for sounds to play during
calls. Enable
Call connect tone
to have the phone play a tone
when the other caller answers a call. Enable
Minute minder
to
have a tone play once per minute during a call. Enable
Call end
tone
to have the phone play a tone when the other caller ends
the call.
• Alerts on call
: Enable to have notifications for alarms and new
messages play during phone calls. When disabled, these
notifications will be muted during a call.
Call accessories
Configure headset options for calls.
From the
Call Settings
screen, touch
Call accessories
.
The following options are available:
• Headset settings for incoming calls
:
–
Automatic answering
: When enabled, and you have a
headset connected to the Headset Jack, incoming calls are
answered automatically after a delay, set at Automatic
answering timer.
–
Automatic answering timer
: Choose a time period to delay
before automatically answering an incoming call when
Automatic answering is enabled and a headset is connected to
the phone.
• Bluetooth headset settings
:
–
Outgoing call conditions
: When the phone is paired with a
Bluetooth headset, you can choose to make calls even when the
phone is locked.
Calling 74
Ringtones and keypad tones
Select incoming call ringtone and vibration, and enable or
disable call vibration and keypad tones.
From the
Call Settings
screen, under
Ringtone and
sound settings
, touch
Ringtones and keypad tones
. The
following options are available:
•Ringtones
: Select the ringtone your phone plays to alert you of
incoming calls.
•Vibrations
: Select the vibration pattern your phone uses to alert
you of incoming calls.
• Vibrate when ringing
: Touch to enable/disable use of your
selected
Vibrations
. When enabled, a check mark displays in
the check box.
• Dialing Keypad tone
: Touch to enable/disable playing of DTMF
tones when you enter numbers with the Phone keypad. When
enabled, a check mark displays in the check box.
Personalize call sound
When enabled, you can select a sound profile for use during
calls.
From the
Call Settings
screen, under
Ringtone and
sound settings
, touch
Personalize call sound
and select
Adapt Sound, Soft sound, Clear sound, or Off (sound
set with the Volume key).
Noise reduction
When enabled, the phone uses both of its microphones to
detect background noise from your environment and
suppress it during calls.
From the
Call Settings
screen, under
Ringtone and
sound settings
, touch
Noise reduction
to enable or
disable the option.
75
Increase volume in pocket
When enabled, the phone uses the proximity sensor to detect
when the phone is in a pocket or other close-fitting location
such as a purse or bag, and increases the volume for
incoming call ringtones.
From the
Call Settings
screen, touch
Increase volume in
pocket
to enable or disable the option.
Voicemail
Configure options for voicemail.
From the
Call Settings
screen, under
Voicemail
, the
following options are available:
• Voicemail service
: By default, your phone uses your wireless
service provider’s voicemail service. If you have another option
for voicemail installed, select it here.
• Voicemail settings
: By default, the speed dial for calling
voicemail (speed dial 1) is set to your phone number. If you wish
to use another Voicemail service, touch
Voicemail number
to
set a new one.
•Sound
: Choose sound to play for a voicemail notification.
•Vibrate
: Choose an option for vibration to play for a voicemail
notification.
Calling 76
Other call settings
From the
Call Settings
screen, under
Other call settings
,
the following options are available:
•Auto retry
: When enabled, the phone will automatically redial a
call if it receives a busy signal from the network.
•TTY mode
: Choose a TTY mode to enable TTY mode, for use
with optional TTY equipment.
•DTMF tones
: Set the length of Dual-tone Multi-frequency
tones, which play when you use the keypad during a call, such
as when navigating phone menus.
• Voice privacy
: Enable or disable Enhanced voice privacy, to
improve the security of phone calls.
77
Section 5: Messaging
This section describes how to send and receive messages,
and other features associated with messaging.
Types of Messages
Your phone supports these types of messages:
•
Text messages
: Send and receive simple messages containing
text to other mobile phones or email addresses (also known as
SMS).
•
Multimedia messages
: Send and receive text messages with
pictures, video, and/or sound to other mobile phones or email
addresses (also known as MMS).
•
Mobile IMs
: Exchange Instant Messages with other users of
popular messaging sites.
•
Email
: Send and receive email from your email accounts,
including Corporate mail.
•
Gmail
: Send and receive Gmail from your Google account.
•
Hangouts
: Chat with other Hangout users.
•
ChatON
: Chat, share pictures, videos, animation messages
(Scribbles), audio, Contacts, Calendar entries, and Location
information.
Text and Multimedia Messaging
Your phone can send and receive text and multimedia
messages.
Creating and Sending Messages
1. From the Home screen, touch
Messaging
➔
New message
.
2. Touch
Enter recipient
and enter a name, phone number
or email address, or touch to add recipients from
the following:
•Groups
: to select a recipient from the Group list.
•Favorites
: to select a recipient from the Favorites list.
•Contacts
: to select a recipient from your Contacts list (valid
entries must have a wireless phone number or email address).
•Logs
: to select a recipient from a list of recently sent
messages.
3. If adding a recipient from either Logs, Contacts, or
Group, tap the contact to place a check mark then tap
Done
. The contact displays in the recipient field.
Messaging 78
4. Touch
Enter message
, then enter the message text. The
following options are available (which options are
available depends on whether you include an
attachment):
•
Touch
Attach
to add media (Image, Take a picture, Video,
Record video, Audio, Record audio files) or content (S Memo text,
Calendar events, Locations, Contacts) to the message (converts
the message to MMS).
•
Touch
Menu
for options:
–
Insert smiley
: Add a text emoticon to the message.
–
Add text
: Select text from S Memo, Calendar, Location,
Contacts or Text templates to add.
–
View contact
: Displays contact information.
–
Add slide
/
Remove slide
: Add or remove a slide. Slides hold
pictures or other media (adding a slide converts the message to
MMS).
–
Add subject
: Add a subject field (converts the message to
MMS.)
–
Scheduling
: Select a delivery date and time.
–
Discard
: Erase this message.
–
Translate
: Launches the Translator app.
5. Touch to send the message.
Managing Messages
Messages you send and receive to the same contact, number
or address are grouped together as a “conversation”.
Threads allow you to see all the messages you exchanged
with a recipient in one place.
1. From the Home screen, touch
Messaging
.
2. Message threads display by contact, number, or
address. While viewing message threads, you have
these options:
•
Touch and hold a thread to choose options, including:
–
Delete
: Erase the entire message thread.
–
View Contact
/
Add to Contacts
: View the contact record, or
save the sender/recipient’s information.
–
Add to spam numbers
: Add this number to message reject
list. Messages from this number are automatically placed in the
Spam messages folder.
•
Touch
Menu
for options, including:
–
Search
: Enter characters to search messages and recipients.
79
–
Delete threads
: Touch message threads to mark them for
erasure, or touch
Select all
to mark all message threads.
–
Draft messages
: Messages you have composed and saved for
later reuse and/or to be sent to a recipient.
–
Locked messages
: Messages you have locked to protect
them from accidental deletion.
–
Scheduled messages
: Messages you have set to be delivered
at a selected date and time.
–
Spam messages
: Messages received from numbers you have
registered as spam senders.
–
Settings
: Configure Messaging settings.
Messaging Settings
Configure settings for message storage, delivery, or alerts.
1. From the Home screen, touch
Messaging
.
2. Touch
Menu
, then touch
Settings
for options:
• General settings
:
–
Delete old messages
: When enabled, messages are
automatically erased when storage reaches default limits. When
disabled, the phone will prompt you to delete old messages to
make room.
–
Text message limit
: Set the number of SMS messages per
conversation.
–
Multimedia message limit
: Set the number of MMS
messages per thread.
–
Text templates
: Text templates are phrases that you can add
to your messages. Use a pre-loaded text template, or create
your own.
• Text message (SMS) settings
:
–
Delivery reports
: When enabled, you receive a delivery report
for text messages you send.
Messaging 80
• Multimedia message (MMS) settings
:
–
Group messaging
: When enabled, you can send a single
message to multiple recipients.
–
Delivery reports
: When enabled, you receive a delivery report
for multimedia messages you send.
–
Auto-retrieve
: When enabled, MMS messages download
automatically. When disabled, the phone prompts for download.
–
Roaming auto-retrieve
: When enabled, MMS messages
download and display automatically when roaming. When
disabled, the phone prompts you to download new MMS
messages.
–
MMS alert
: When enabled, alerts you when a message
changes mode to MMS.
•Display
:
–
Bubble style
: Choose the appearance of messages in a
message thread. Touch a bubble style for each side of the
conversation, then touch
Save
.
–
Background style
: Choose the appearance of the screen
behind message threads. Touch a style, then touch
Save
.
–
Use the volume key
: When enabled, you can change the size
of message text while viewing by pressing the Volume Key.
• Notification settings
:
–
Notifications
: When enabled, message alerts display in the
Status bar.
–
Select ringtone
: Choose a sound for message alerts.
–
Vibrate
: Configure vibration for message alerts.
–
Message alert repetition
: Choose to have message alert
repeat Once, Every 2 minutes, or Every 10 minutes.
–
Preview message
: When enabled, a preview of a received
message displays in the Status bar.
• Emergency message settings
:
–
Emergency alerts
: This device is designed to receive Wireless
Emergency Alerts from the Commercial Mobile Alert Service
(CMAS), including Presidential Alerts, Imminent Alerts (Severe or
Extreme), and AMBER Alerts (missing persons). You may choose
not to receive Imminent and AMBER alerts, but Presidential
Alerts cannot be disabled. All alerts are enabled by default
(check mark shown). For more information about Emergency
Alerts see
“Emergency alerts”
on page 81.
–
Emergency notification preview
: Listen to an example of a
Emergency Alert tone (and vibration, if enabled). The Emergency
Alert tone plays at the same volume as your call ringtone.
81
–
Vibrate
: Configure vibration for Emergency Alerts.
–
Alert sound
: When enabled, a sound plays for emergency
alerts.
–
Alert reminder
: Choose whether, and at what interval, your
phone plays a sound to notify you of a Emergency Alert after the
Emergency Alert tone has stopped.
• Signature settings
:
–
Add signature
: When enabled, adds your signature text to the
end of your outgoing messages.
–
Signature text
: Enter text to be added to the end of your
outgoing messages.
• Spam message settings
:
–
Spam settings
: When enabled, the Spam message settings
are activated.
–
Add to spam numbers
: Enter sender numbers whose
messages are blocked automatically.
–
Add to spam phrases
: Enter message text phrases that will
cause messages to be blocked automatically.
–
Block unknown senders
: When enabled, messages from
“Unknown” senders are blocked automatically.
Emergency alerts
This device is designed to receive Wireless Emergency Alerts
from the Commercial Mobile Alert Service (CMAS).
Emergency Alerts are geographically-targeted, and alert
customers of imminent threats to their safety within their
area. There is no charge for receiving an Emergency Alert.
There are four types of Emergency Alerts:
•
Presidential
•
Extreme
•
Severe
•
AMBER Alerts (missing person alert)
You may choose not to receive Extreme Alerts, Sever Alerts,
and AMBER Alerts. Presidential Alerts, however, cannot be
disabled. To disable Extreme and Severe Threat Alerts and
AMBER Alerts, do the following:
1. From the Home screen, touch
Messaging
.
2. Touch
Menu
➔
Settings
➔
Emergency alerts
.
3. All alerts except Emergency alert test message are
enabled by default (check mark showing). To disable
alerts, touch an alert to remove the check mark.
Messaging 82
Email
Send and receive email using popular email services.
Configuring Email Accounts
You can configure Email for most accounts in just a few
steps.
Tip:
For better management of Microsoft Exchange®
ActiveSync email accounts, configure them using the
Accounts
setting. (See “Microsoft Exchange ActiveSync”
on page 199.)
Configuring the first email account
1. From the Home screen, select
Apps
➔
Email
.
2. Touch
account@example.com
to enter your email
address, then touch
Password
or touch
Next
to enter
your password.
3. Touch a setup option:
•Manual setup
: Configure the account manually. Touch
POP3
,
IMAP
or
Exchange
, then enter the account details. (For
account details, contact your Email service provider or your
organization’s IT support.
•Next
:
Connect to the server to set up the account
automatically. Follow the prompts to complete set-up, then
touch
Done
.
Tip:
For more information on setting up your email, contact
your Wireless Provider and your Email Service Provider.
Adding More Email Accounts
For information on adding additional Email accounts, see
“Email” on page 195.
Composing and Sending Email
1. From the Home screen, select
Apps
➔
Email
➔
Compose
.
2. Touch fields to enter recipients and the email text.
3. While composing a message, touch
Menu
for
options.
4. Touch
Attach
to add a file to the message.
5. Touch to save this message as a Draft.
6. Touch
Send
to send the message.
83
Managing Emails
Refreshing Your Email Account
Refresh your account to update your phone from the servers.
1. From the Home screen, select
Apps
➔
Email
.
2. Touch
Refresh
.
Email Account Settings
Use Account settings to configure handling of your email.
Note:
Available settings depend on the email provider.
1. From the Home screen, select
Apps
➔
Email
.
2. Touch an account to view it, then touch
Menu
➔
Settings
➔
General settings
for options.
Gmail
Send and receive emails via Gmail, Google’s web-based
email.
From the Home screen, select
Apps
➔
Gmail
.
Setting Up Your Gmail Account
The first time you launch Gmail, your phone will prompt you
to set up your Google account.
1. From the Home screen, select
Apps
➔
Gmail
.
2. Follow the prompts to sign in, or create a new account.
3. Touch Sync now. The phone communicates with the
Google server to set up your account and synchronize
your email.
Note:
You can use more than one Google account on your
phone. To add another account, from within Gmail, touch
Menu
➔
Settings
➔
ADD ACCOUNT
option.
Messaging 84
Refreshing Your Gmail Account
Refresh your account to update messages on your phone.
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
Refresh
.
Managing Your Gmail Account
Use menu options to manage your Gmail.
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
Menu
for options.
Composing and Sending Gmail
1. From the Home screen, touch
Apps
➔
Gmail
➔
New message
.
2. Touch fields and to compose the message. While
composing, touch
Menu
for options.
3. When your message is complete, touch
Send
.
Hangouts
Previously known as Google Talk™, is an updated free
web-based application for instant messaging offered by
Google. Conversation logs are automatically saved to a Chats
area in your Gmail account. This allows you to search a chat
log and store them in your Gmail accounts.
1. Log on to your Google account if you have not already
done so. (For more information, refer to “Your
Google™ Account” on page 16.)
2. From the Home screen, touch
Menu
➔
Apps
➔
Hangouts
.
3. Press ➔
Help
for more information on using
Hangouts.
85
ChatON
Provides a global service where you can chat with more than
2 buddies using a group chat. Share things such as pictures,
videos, animation messages (Scribbles), audio, Contacts,
Calendar entries, and Location information.
Important!
Your Samsung account manages the access
information (username/password) to several
applications, such as AllShare Play, ChatON, and
Media Hub.
(For more information, visit:
https://web.samsungchaton.com
and see “Accounts” on page 50.)
From the Home screen, touch
Menu
➔
Apps
➔
ChatON
.
Applications and Widgets 86
Section 6: Applications and Widgets
This section contains a description of each application and
widget that is available in the Apps and Widget menus, the
function, and how to navigate through that particular
application or widget. If the application or widget is already
described in another section of this user manual, then a
cross reference to that particular section is provided.
This section contains a description of each application
available in the Apps menu and how to launch it. For
applications provided by Samsung, this section also
describes functions and navigation.
If an application is described in another section of this user
manual, a cross reference to that particular section is
provided.
Note:
This manual only addresses applications that have been
loaded on your device as of the date of purchase.
Information concerning third party applications that you
may choose to download from the Google Play Store or
other sources should be obtained from the application
provider directly and not from Samsung.
Tip:
To open applications quickly, add the icons of frequently-
used applications to one of the Home screens. (For
details, see “Customizing the Home Screen” on page 38.)
You can also add an application icon as a Primary
Shortcut that will display on all Home screens. If you add
an application as a primary shortcut, the application icon
will not be displayed in the Apps menu. (For more
information, refer to “Editing the Primary Shortcuts” on
page 39.)
Accessing Applications
1. From the Home screen, touch
Menu
➔
Apps
. The
Apps
screen displays.
2. Sweep your finger right or left to scroll the Apps
screens.
3. To launch an application, touch the application’s icon.
87
Customizing the Applications Screens
Choosing a view
By default, application icons appear in Customizable grid
view. You can change the view to Alphabetical grid view or
Alphabetical list view.
1. From the Home screen, touch
Menu
➔
Apps
.
2. Touch
Menu
➔
View type
. The available options
are:
• Customizable grid
: Arrange application icons in the order you
prefer.
• Alphabetical grid
: Application icons automatically arranged in
alphabetical order.
• Alphabetical list
: Application icons automatically listed in
alphabetical order.
Moving Application icons
With the
Apps
screen in Customizable grid view, you can
arrange the application icons to suit yourself.
1. From the Home screen, touch
Menu
➔
Apps
.
2. Touch
Menu
➔
Edit
.
Note:
The
Edit
option is not available with the
Apps
screen
View type
set to
Alphabetical list
.
3. Touch and hold an application icon, then drag it to a
new location.
4. Touch
Save
when you are finished.
Applications and Widgets 88
Filtering Application icons
You can select which icons appear in the
Apps
screen.
1. From the Home screen, touch
Menu
➔
Apps
.
2. Touch
Menu
, then touch either of the following
options:
• Downloaded applications
: Shows only those applications you
have downloaded and installed on your phone.
• Hide applications
: Mark those applications you do not want to
appear on the
Apps
screen by touching their icons (check
marks appear in their check boxes), then touch
Done
. The
Apps
screen displays without the hidden applications.
Applications List
Calculator
Use your phone’s Calculator to perform arithmetical
calculations (addition, subtraction, multiplication, and
division).
1. From the Home screen, touch
Menu
➔
Apps
➔
Calculator
.
2. To clear the calculator history, touch
Menu
➔
Clear history
.
3. To change the text size, touch
Menu
➔
Text size
.
Touch Small, Medium, or Large.
4. Rotate your phone to the landscape position to display
the scientific calculator.
Calendar
Record events and appointments to manage your schedule.
Tip:
A Calendar widget is available in Widgets. (For more
information about placing widgets on the Home screen,
see “Widgets” on page 40.)
1. From the Home screen, touch
Menu
➔
Apps
➔
Calendar
.
Important!
You should add an account (Facebook, Microsoft
Exchange ActiveSync, or Google) prior to using the
Calendar.
2. Touch a tab to choose a calendar view:
•Year
: Display the current year and scroll to other years.
•Month
: Display the current month and scroll to other months.
• Week
: Display the current week, and scroll to other weeks.
89
•Day
: Display today’s schedule, and scroll to other days.
•List
: Display events and tasks in a chronological list.
•Task
: Display tasks in a chronological list.
3. Touch
Menu
for these options:
•Go to
: Display a specific date.
•Delete
: Delete an event.
• Delete memo
: Removes a memo saved to a specific calendar
date.
•Search
: Search for calendar events.
•Sync
: Synchronize your phones calendar with your account
calendars. (For more information, refer to
“Setting Up Your
Accounts”
on page 50.)
•Calendars
: Select calendars to display.
• Settings
: Customize the calendar.
Customizing the Calendar
1. From the Home screen, touch
Menu
➔
Apps
➔
Calendar
.
2. Touch
Menu
➔
Settings
to configure these
settings:
•View settings
:
–
View styles
: Choose Month view styles (Calendar view + list,
Calendar view +pop-up), or Week view (Timeline or Analog).
–
First day of week
: Choose a day to begin each week.
–
Hide declined events
: Enable or disable display of events.
–
Lock time zone
: When enabled, sets event times and dates to
a specified time zone, so that times and dates will not change if
you move to another time zone.
–
Select time zone
: When Lock time zone is enabled, specify the
time zone for all events.
–
Show week number
: Display the number of the week (1 – 52)
in a
W
column to the left of
Sun
.
–
Weather
: Displays an Accuweather forecast for the next 5 days
(including the selected day).
Applications and Widgets 90
• Event notification
:
–
Set alerts & notifications
: Choose Alert to receive alerts,
Status bar notification to display notifications in the Status bar, or
Off for no notifications or alerts.
–
Select ringtone
: Choose a ringtone for event notifications, then
touch
OK
.
–
Vibration
: Enable/disable vibration for event notifications.
–
Quick responses
: Pre-composed text to include with email
notifications to meeting attendees, guests, and so on.
Sending Events
Send events as vCalendar files to other compatible devices.
1. From the Home screen, touch
Menu
➔
Apps
➔
Calendar
.
2. Touch an event to display its details.
3. Touch
Menu
➔
Share via
.
4. Select the desired Sharing method from the
Share via
pop-up.
5. Follow the prompts to send a copy of a Calendar event
to another device. (For more information, refer to
“Connections” on page 138.)
Camera
Use your 13.0 megapixel Camera feature to take photos and
save them in JPEG format. Your phone also functions as a
camcorder to record videos and save them in MPEG format.
Note:
When taking a photo in direct sunlight or in bright
conditions, shadows may appear on the photo.
1. From the Home screen, touch
Menu
➔
Apps
➔
Camera
. The Camera view finder screen
displays.
Note:
On your initial activation of the camera, firmware
configuration can take up to 1 minute. This is a one time
process.
91
2. Before you take a picture, use the
Up
and
Down
Volume
keys to zoom in or out. You can magnify the picture up
to x4 (400 percent).
– or –
Pinch the screen to zoom out or pinch outwards to
zoom in.
3. If desired, before taking the photo, touch on-screen
icons to access various camera options and settings.
4. Touch the screen to move the focus to a desired area of
interest.
5. Touch (
Camera
) until the shutter sounds.
Dual Camera
Self-portrait
Effects
Record video
button
Camera mode
Quick Settings
Battery
Charge
Image viewer
Take
Mode (Change)
Viewfinder
Applications and Widgets 92
Camera Options
Options are represented by icons across both sides of the
screen.
1. From the Home screen, touch
Menu
➔
Apps
➔
Camera
.
2. Touch the Mode button to change the mode to
one of the following:
–
Auto
: Use this mode to automatically adjust the exposure, color,
and brightness settings. This mode allows single image shots or
burst shots.
–
Beauty face
: Use this to take photos with lightened faces for
gentler images.
–
Best photo
: Use this to take multiple photos in a short time,
and then choose the best photos among them. Press the
Shutter button to take multiple photos. When Gallery opens,
touch and hold thumbnails of photos to save, and then touch
Done.
–
Best face
: Use this to take multiple group shots at the same
time and combine them to create the best possible image. Press
the Shutter button to take multiple photos. When Gallery opens,
touch the yellow frame on each face, and choose the best
individual face for the subject. After choosing a pose for each
individual, touch Done to merge the images into a single photo,
and touch Save.
–
Sound & shot
: Use this mode to enrich pictures by adding
background sounds for a few seconds. The background sound
is recorded for up to 9 seconds after taking the photo.
–
Drama
: Use this to take a series of photos of a moving object
and then merge them together into one image.
–
Animated photo
: Use this to create a picture in which a few
selected static objects move by animating objects detected by
the device.
–
Rich tone (HDR)
: Use this to take photos with richer colors and
contrasts by merging images taken at different exposure levels.
–
Eraser
: Saves the best of 5 taken pictures and removes any
passers by.
MODE
93
–
Panorama
: Use this to take wide panoramic photos. Press the
Shutter button to take a photo, and then move the camera in
any direction. When the blue frame aligns with the preview
screen, the camera automatically takes another shot in the
panoramic sequence. To stop shooting, press the Shutter button
again.
–
Sports
: Use this to take fast action photos.
–
Night
: Use this to take brighter, clearer pictures in low light
settings without the use of the flash.
3. From the top of the camera, the following shortcuts are
available for the camera:
Focus area
: displays the area of the image used as the
main focus area. If the image is too close, the square
will turn red.
Self portrait
: allows you to set the front camera so
you can take pictures of yourself.
Front Camera/Dual Camera
: allows you to activate
both the front and rear cameras simultaneously. For
more information, refer to “Taking Dual Camera
Photos” on page 94
Quick Settings
: activates the Quick Settings menu
bar from where you can select several additional
settings.
Night detection
:
use this activate/deactivate night
detection.
Image viewer
: allows you to access the Image
viewer and the various viewing options for a
selected picture. The last picture you took, displays as
a thumbnail in the Image viewer icon.
Effects/Downloads
: provides access to pre-installed
and downloaded effects. Default effects include:
No effect, Vignette, Grayscale, Sepia, Vintage,
Faded color, Turquoise, Tint, Cartoon, Moody,
Rugged, Oil pastel, and Fisheye.
Applications and Widgets 94
Taking Dual Camera Photos
With the Dual Camera feature, you can take a picture with
both the front and rear cameras at the same time.
To take a Dual Camera picture:
1. From the Home screen, touch
Menu
➔
Apps
➔
Camera
.
2. Touch
Dual Camera
located at the top left side of
the screen. The camera viewfinder displays an image
from the front-facing camera within a mini picture
frame on top of the main image displayed from the
rear-facing camera.
3. Touch
Camera
until the shutter sounds.
To resize the front camera image:
Touch and hold the mini picture frame until the resize
handles appear, then drag a corner to enlarge the
image.
To reposition the front camera image:
Touch and hold the mini picture frame to detach it and
then place it in a desired location.
Camera and Camcorder Settings
This section describes the different settings that you can
configure on your camera. Not all of the following options are
available in both still camera and video camera modes. The
available options vary by mode.
1. From the Home screen, touch
Menu
➔
Apps
➔
Camera
➔
Quick Settings
➔
Camera Settings
.
Camcorder button
: shoots a video when pressed.
Camera button
: takes a photo when pressed in
Camera mode.
Mode button
: allows you to select from different
camera modes.
MODE
95
2. The follow settings are located under the Camera,
Camcorder, and General tabs. The settings that are
displayed will depend on what camera mode you are
in.
Camera
:
•Photo size
: Select a resolution for photos. Use higher
resolution for higher quality. Higher resolution photos take up
more memory.
• Burst shot
: allows several photographs to be captured in quick
succession by touching and holding the Camera button.
• Face detection
: allows you to adjust the camera focus based
on face detection technology.
• Metering
: allows you to set how the camera measures or
meters the light source: Center-weighted, Matrix, or Spot.
•ISO
: determines how sensitive the light meter is on your digital
camera. Choose from Auto, 100, 200, 400, or 800. Use a
lower ISO number to make your camera less sensitive to light, a
higher ISO number to take photos with less light, or Auto to let
the camera automatically adjust the ISO for each of your shots.
•Anti-shake
: compensates for camera movement.
• Auto night detection
: activates or deactivates the night
detection feature.
• Save as
: allows you to assign rich tone usage to an image.
Camcorder
:
•Video size
: Select a resolution for videos. Use higher resolution
for higher quality. Higher resolution videos take up more
memory.
• Video stabilization
: Activate or deactivate Optical Image
Stabilization.
Settings
:
•Location tag
: attach a GPS location tag to the photo. To
improve GPS signals, avoid shooting in locations where the
signal may be obstructed, such as between buildings or in low-
lying areas, or in poor weather conditions. Your location may
appear on your photos when you upload them to the Internet.
To avoid this, deactivate the GPS tag setting.
•Review
: set this option if you want to view each picture after
you take it. Select a time value.
•Volume key
: assigns a function to the volume key. Choose
from The zoom key, The camera key, or The record key.
Applications and Widgets 96
•Timer
: Use this for delayed-time shots. You can set the timer to
Off, 2 sec, 5 sec, or 10 sec.
• White balance
: Select an appropriate white balance, so
images have a true-to-life color range. The settings are
designed for specific lighting situations. These settings are
similar to the heat range for white-balance exposure in
professional cameras.
•Exposure value
: allows you to adjust the brightness level by
moving the slider.
• Guidelines
: Display viewfinder guides to help composition
when selecting subjects.
•Flash
: activate or deactivate the flash.
• Voice control
: activates/deactivates voice control feature that
allows you to verbally take a photo.
• Contextual filename
: allows you to have your location added
as part of the filename. You must first activate GPS tag
described above.
•Save as flipped
: when set to On, this option allows you to take
and save a mirror-image video when using self-recording
mode.
•Storage
: Select the memory location for storage.
•Shutter sound
: Turn the shutter sound on or off.
• Reset
: Reset the camera settings.
Launching the Camcorder
Tip:
When shooting video in direct sunlight or in bright
conditions, it is recommended that you provide your
subject with sufficient light by having the light source
behind you.
1. From the Home screen, touch
Menu
➔
Apps
➔
Camera
➔
to activate the camera mode.
Note:
The camera may not be able to properly record videos to
a memory card with a slow transfer speed.
2. Using the camera’s main display screen as a
viewfinder, adjust the image by aiming the camcorder
at the subject.
3. Before you take a video, use the Volume control
buttons to zoom in or out. You can magnify the video up
to x4 (400 percent).
97
Note:
Use either the Up and Down volume keys or spread/
pinch the screen to zoom in or out. For more
information, refer to “Navigating Through the Screens”
on page 40
4. Touch the Video key ( ) to begin shooting video.
The red light will blink while recording.
5. Touch anywhere on the screen to re-focus the camera
on that object. The camcorder auto-focuses on the
new target area.
6. To capture an image from the video while recording,
touch . This feature is not available while the
anti-shake feature is activated.
7. Touch the Stop key ( ) to stop the recording and
save the video file to your Camera folder.
– or –
Touch the Pause key ( ) to pause the recording.
8. Once the file has been saved, touch the image viewer,
then touch (
Play
) to playback your video for
review.
9. Press to return to the viewer.
Accessing Videos
When you shoot a video, the file is saved in the Camera
folder. You can view your videos immediately or view them
anytime in the Camera folder.
1. From the Home screen, touch
Menu
➔
Apps
➔
Gallery
.
2. Select a folder location and touch a video icon to begin
video playback.
3. Touch (
Play
) to begin video playback.
– or –
Touch and hold the video icon from the main Gallery to
select the video (indicated by a colored border) and
display the following video menu context options:
•Share via
: allows you to share the video via ChatON,
Add to Dropbox, Bluetooth, Email, Gmail, Google+, Messaging,
Picasa, Wi-Fi Direct, or YouTube.
• Delete
: allows you to delete the current video.
Choose either OK or Cancel.
– or –
Applications and Widgets 98
Touch and hold a listed video file to place a checkmark
alongside and then press for additional options:
–
Slideshow
:
allows you to see your files in a slideshow or
access the slideshow settings.
–
Copy
: allows you to create a duplicate of the currently selected
file.
–
Move
: allows you to move a selected file to a new location.
–
Hide items
: allows you to hide selected items.
–
Show hidden items
: allows you to show selected items that
were previously hidden.
–
Rename
: allows you to rename the filename of the currently
selected video.
–
Details
: displays video file information.
– or –
With the video displayed on-screen (but not playing),
press for additional options:
–
Favorite
: tags the current video as a favorite file
.
–
Slideshow
:
allows you to see your files in a slideshow or
access the slideshow settings.
–
Rename
: allows you to rename the filename of the currently
selected video.
–
Details
: displays video file information.
–
Settings
: provide access to the Galley settings page. From this
page you can configure the SNS data management, Tags, and
Sound & shot.
99
Sharing Pictures
Pictures are the best way of remembering the moment, but
an even better treat is to share them with others.
Two new features allow you to either instantly share a series
of pictures as they are taken or quickly share a picture
without using email or messaging.
•
Share Shot
is a great way to instantly share a series of pictures
among a group of users. The best example for this feature is
having multiple users instantly sharing each others pictures at a
company or family gathering. As each person takes a separate
picture with their own device, they are all pooled together and
instantly appear in each user’s Gallery.
No more “Email your pictures to me later”. Each person walks out
of the event with all the pictures taken by everyone.
This method of image transfer requires that both devices have
Wi-Fi Direct active and be paired prior to use.
Note:
You can only share a shot with other external users who
also have their Wi-Fi Direct feature active.
Enabling Share Shot
Share shot is a Wi-Fi Direct group sharing feature where
multiple users can Wi-Fi connect their devices and then all
share each others pictures in real-time. This is really useful
in group events (ex: family gathering or company party)
where you don’t want to have to email everyone later and
make sure you all can share your pics at a later date.
For more information, refer to “Wi-Fi Direct Setup and
Settings” on page 247
The general process is:
•
Enable Wi-Fi Direct communication
•
Pair your device with other users
•
Enable Share shot
To enable Wi-Fi Direct:
Important!
The target device must already be connected to the
same Wi-Fi and have its Wi-Fi Direct feature active
and scanning before you can your pairing.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
Applications and Widgets 100
2. Touch and slide the
Wi-Fi
slider to the right to turn it on.
The slider color indicates the activation status.
3. Touch
Wi-Fi Direct
.
4. Touch
Scan
and select the single device name to begin
the connection process to another Wi-Fi Direct
compatible device.
– or –
Touch
Multi-connect
➔
Scan
and select all the device
names to begin the connection process to these Wi-Fi
Direct compatible devices.
Note:
The target device must also have Wi-Fi Direct service
active and running before it can be detected by your
device.
5. Touch
Done
. The direct connection is then established.
Confirm appears in the Status bar.
6. When prompted to complete the connection, the
recipient should touch
OK
. Your status field now reads
“Connected” and your connected device is listed within
the Wi-Fi Direct devices listing.
7. Each partner (including yourself) must then touch
Accept
to consent to the new Wi-Fi Direct pairing.
To enable Share shot on Camera:
1. From the Home screen, touch
Menu
➔
Apps
➔
Camera
➔
Quick Settings
➔
Share
➔
Share shot
.
2. If you are prompted to activate your Wi-Fi Direct
connection, touch
OK
and follow the activation
procedures for Wi-Fi Direct.
101
To configure your Share Shot options:
1. Confirm the Share Shot viewfinder is active (
appears at the top of the screen).
2. Touch (
Devices for sharing with
) to display list of
current share shot participants.
•
Stop sharing images with select participants by touching the
entry and removing the green check mark.
3. Touch (
Shooting modes
) to regain access to the
Share menu.
4. Touch ➔
Off
to disable share shot while
maintaining a Wi-Fi Direct connection.
To take share shot images:
1. Touch (
Camera
) until the shutter sounds.
2. From the Home screen, touch
Apps
➔
(
Gallery
) to locate your newly shot images located in
their default storage location.
•
External users will be able to locate their images in either a
downloaded or
RECV
(received) folder.
3. Confirm (
Share shot images delivered/received
)
appears in the Notifications area of the screen.
Using S Beam to Share Pictures
This feature (when activated via NFC) allows you to beam
large files directly to another compatible device that is in
direct contact. These files can be larger, such as Videos, HD
pictures, and other large files.You can beam images and
videos from your gallery, music files from your music player,
and more.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. If not already active, in a single motion touch and slide
the
NFC
slider to the right to turn it on.
3. Touch
S Beam
and make sure the feature is turned on.
4. If not already active, in a single motion touch and slide
the
S Beam
slider to the right to turn it on.
5. On the source device (containing the desired image or
video), touch
Apps
➔
Gallery
.
6. Locate and touch the selected image to open it in the
preview window.
Applications and Widgets 102
Important!
Neither device must be in Lock mode or displaying
the Lock screen. They must both be active and
unlocked. It is recommended that the target device
be on the Home screen.
7. Place the two active NFC-enabled devices back to back
to begin.
Note:
If the
Touch to beam
screen does not appear on the
source device:
- Pull them apart
- Verify the image is visible in the preview window on
the source device (providing the file)
- Place them together again
8. From the
Touch to beam
screen, touch the reduced
image preview to begin the transfer. After a few
seconds (depending on file size) the recipient with then
see the transferred file displayed on their screen.
Taking a Screen Shot
Also known as a screen capture, this feature allows you to
mimic the print screen function on most computers.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
tab➔
Motions and
gestures
.
2. In a single motion touch and slide the
Palm motion
slider to the right to turn it on.
3. Read the on-screen notification and touch
OK
.
Note:
At least one feature must be activated before Palm
motion can be activated.
4. In a single motion, slide a feature’s activation slider to
the on position.
5. With the current screen showing the desired image, in
a single motion, place the side of your palm along the
one side of the device and then slowly swipe it in the
opposite direction over the screen.
103
ChatON
Provides a global service where you can chat with more than
2 buddies using a group chat. Share things such as pictures,
videos, animation messages (Scribbles), audio, Contacts,
Calendar entries, and Location information.
Important!
Your Samsung account manages the access
information (username/password) to several
applications, such as AllShare Play, ChatON, and
Media Hub.
(For more information, visit:
https://web.samsungchaton.com
and see “Accounts” on page 50.)
From the Home screen, touch
Menu
➔
Apps
➔
ChatON
.
Chrome
From the Home screen, touch
Menu
➔
Apps
➔
Chrome
.
Clock
The Clock application includes these features:
•
Alarm
: Create alarms to go off once, or to repeat.
•
World clock
: Display the time and date in any time zone.
•
Stopwatch
: Record lap times.
•
Timer
: Measure elapsed time.
•
Desk clock
: Choose whether the clock calendar and weather
displays, and what outputs are active, when you connect your
phone to an optional dock.
From the Home screen, touch
Menu
➔
Apps
➔
Clock
.
Applications and Widgets 104
Alarm
This feature lets you set an alarm to ring at a specific time.
1. From the Home screen, touch
Menu
➔
Apps
➔
Clock
➔
Alarm
➔
Create alarm
. The following
options are available:
2. Use the arrow symbols to enter adjust the hour, and
minutes, then touch
AM
or
PM
(toggles depending on
which was last selected).
3. Touch the
Alarm repeat
field and touch the number of
times you want this alarm to repeat. Selections are:
day blocks or
Repeat Weekly
. Selected day blocks turn
blue when active.
4. Tap the
Alarm type
field and select one of the following:
Melody
,
Vibration
,
Vibration and melody
, or
Briefing
.
5. Tap the
Alarm tone
field and either select an available
tone or select
Add
to use locate a sound to use as an
alarm ringtone. Tap
OK
to activate the ringtone.
6. Slide the slider bar left or right in the
Alarm volume
field
to decrease or increase the alarm volume. A sample of
the volume level plays.
7. Touch the slider next to one of the following options to
activate the option:
• Location alarm
: When activated, the alarm only sounds when
you are at a specific location. Touch and slide the slider to the
right to turn it on then follow the on-screen
instructions to enter a location.
• Snooze
: Use this option to set Snooze Interval (3, 5, 10, 15, or
30 Minutes) and Snooze repeat (1, 2, 3, 5, or 10 Times). Touch
the ON/OFF slider to activate.
•Smart alarm
: Tracks body movements and calculates the best
time for sounding the alarm. Place the phone somewhere on
your bed then the phone's movement sensor (also known as
accelerometer) is sensitive enough to work from any part of the
bed. Set the Interval and the Tone. Touch the ON/OFF slider to
activate.
8.
Touch
Name
to set a specific name for the alarm. The name displays
on the screen when the alarm activates.
105
Turning Off an Alarm
Touch and slide any direction to stop an alarm
when it sounds.
Setting the Snooze Feature
To activate the Snooze feature after an alarm sounds,
touch and sweep the icon in any direction.
Snooze must first be set in the Alarm settings. (For
more information, refer to “Alarm” on page 104.)
Deleting Alarms
To delete multiple alarms, follow these steps:
1. From the Home screen, touch
Menu
➔
Apps
➔
Clock
➔
Alarm
.
2. Touch
Menu
➔
Delete
.
World Clock
World Clock allows you to view the time of day or night in
other parts of the world. World Clock displays time in
hundreds of different cities, within all 24 time zones around
the world.
1. From the Home screen, touch
Menu
➔
Apps
➔
Clock
➔
World Clock
. The clock for your time
zone displays.
2. Touch
Add city
to add another city to the World Clock.
3. Scroll through the list of cities to find the city to add,
then touch the city name.
4. Press and hold a city, then touch
DST settings
to set
Daylight Savings time.
5. Select
Automatic
,
Off
, or
1 hour
.
6. If Daylight Savings Time is selected, a sun symbol on
the World Clock listing displays.
Stopwatch
You can use this option to measure intervals of time.
1. From the Clock screen, touch
Stopwatch
.
2. Touch
Start
to start the stopwatch and touch
Lap
to
mark a unit of time per lap.
3. Touch
Stop
to stop the stopwatch.
4. Touch
Restart
to continue or touch
Reset
to erase all
times recorded.
Applications and Widgets 106
Timer
You can use this option to set a countdown timer. Use a timer
to count down to an event based on a preset time length
(hours, minutes, and seconds).
1. From the Home screen, touch
Menu
➔
Apps
➔
Clock
➔
Timer
.
2. Tap the
Hours
,
Minutes
, or
Seconds
field and use the
on-screen keypad to enter the hour, minute, or
seconds. The timer plays an alarm at the end of the
countdown.
3. Tap
Start
to start the timer.
4. Tap
Stop
to stop the timer or
Reset
to reset the timer
and start over.
5. Tap
Restart
to resume the timer counter.
Desk clock
You can use the Desk clock when you have a desk dock and
you want your phone to display the time, day, date, location,
and weather conditions when it is docked.
1. From the Home screen, touch
Menu
➔
Apps
➔
Clock
➔
Desk clock
.
The default Desk clock displays.
Note:
You might have to scroll across the tabs to locate the
Desk clock tab at the far right.
107
2. Press
Menu
➔
Settings
to make changes. The
following options are displayed while in full-screen
mode:
•Calendar
: when this is checked, the calendar displays. Tap to
uncheck.
• Weather
: when this is activated, the location, temperature, and
weather condition displays. Touch and slide the slider to the
right to turn it on.
•Dock
: allows you to set your Dock settings such as Dock
sound, Audio output mode, Desk home screen display,
Automatic unlock, and Audio output. For more information,
refer to
“Accessory”
on page 282
3. Tap to display the Desk clock in full-screen mode.
4. To make changes in full screen mode, press
Menu
and then touch:
• Edit shortcuts
: allows you to edit the shortcuts shown at the
bottom of full screen mode.
• Hide/Show shortcuts
: allows you to hide or view the current
on-screen shortcuts located along the bottom of the full screen
mode.
• Settings
: provides access to the Desk clock settings menu
from where you can alter the following: Hide status bar,
Wallpaper, Calendar, Weather, and Dock.
Contacts
Contacts lets you access and manage your Contacts list,
Contacts Groups, Favorites list, and Speed dial settings (see
“Contacts” on page 53).
From the Home screen, touch
Menu
➔
Apps
➔
Contacts
.
For more information, refer to “Accounts and Contacts” on
page 50.
Cricket Navigator
Subscribe to Cricket Navigator to access GPS navigation
information with maps and traffic information. Find local
places of interest, weather, and fuel prices. (For more
information, go to
http://www.mycricket.com/support/topic/how-
to-use-cricket-navigator
.)
From the Home screen, touch
Menu
➔
Apps
➔
Cricket Navigator
.
Applications and Widgets 108
Shop
Shop gives you secure, direct access to your Wireless
Provider’s web site where you can shop for games, ringback
tones, ringtones, and graphics.
Note:
If you are connected to a Wi-Fi network, Shop requires
you to log in for access. If you use your Wireless
Provider’s data network, you are automatically logged
in.
From the Home screen, touch
Menu
➔
Apps
➔
Shop
.
Cricket Data Connect
Data Connection Optimizer is a free service that runs in the
background to automatically connect your phone to Wi-Fi
hotspots.
From the Home screen, touch
Menu
➔
Apps
➔
Data Connect
.
Downloads
View and manage files and other items you download to your
phone.
1. From the Home screen, touch
Menu
➔
Apps
➔
Downloads
.
2. Touch an item to open it (if an appropriate application
is installed.)
Note:
Applications you download from Google Play™ Store
are managed with the Play Store app, and do not appear
in
Downloads
.
Dropbox
Dropbox is a “cloud” file storage service. The Dropbox app
lets you create an account with Dropbox or link with your
existing Dropbox account. (For more information, refer to
https://www.dropbox.com/
.)
From the Home screen, touch
Menu
➔
Apps
➔
Dropbox
.
109
Email
Send and receive email using popular email services. (For
more information, see “Email” on page 82.)
From the Home screen, touch
Menu
➔
Apps
➔
Email
.
Flipboard
This application creates a personalized digital magazine out
of everything being shared with you. Access news stories,
personal feeds, and other related material.
(For more information, go to
http://flipboard.com/
.)
1. From the Home screen, touch
Menu
➔
Apps
➔
Flipboard
.
2. Touch
Get started
, select some on-screen categories
and touch
Done
to create a new profile.
– or –
Touch
Tap to sign in
to log into your previously created
profile.
3. Follow the on-screen instructions.
Gallery
The Gallery is where you can view your photos and videos.
You can also perform basic editing tasks, view your photos
and/or videos as a slideshow, set photos as wallpaper or as
contact images, and share your pictures and videos in
multimedia messages.
Note:
You can increase Gallery photo and video storage by
installing a memory card. (For more information, refer to
“Installing a Memory Card” on page 7.)
Tip:
If your device indicates that memory is full when you
access Gallery, use the
My files
app to delete some of
the files, and try again. (For more information, refer to
“My Files” on page 123.)
1. From the Home screen, touch
Menu
➔
Apps
➔
Gallery
.
All of the
Albums
that hold your pictures and videos
display with folder name(s) and number of files.
2. Touch an Album and thumbnails of the contents
display.
Applications and Widgets 110
3. Touch to change the Gallery view. The following
options are available:
•Albums
: Lists the Albums in your Gallery.
•All
: Shows thumbnails of all the photos and videos in your
Gallery.
•Time
: Lists photo and video thumbnails in order of when they
were take or recorded.
•Locations
: Launches Maps app to show where all your photos
and videos saved with location information were taken.
•People
: Lets you take pictures and tag the people in them.
•Favorites
: Lists thumbnails of photos and videos you’ve
marked as your favorites.
•Spiral
: Shows photo and video thumbnails in a spiral.
4. For additional options, touch
Menu
.
• Select album
: Lets you mark an Album to Share it, attach it to
a Message, Delete it, or view it as a Slideshow.
•Slideshow
: View photo and video thumbnails as a slide show.
• Content to display
: Choose whether to display All content,
Content in your device, Content in your Dropbox account,
Content in your Facebook account, and/or Content in your
Picasa account.
• Scan for nearby devices
: Scan for other devices with which
you can share your Gallery contents.
•Settings
:
Configure your Accounts Sync settings, choose whether
to sync pictures and videos only over a Wi-Fi connection, and/or
configure Tags to include Weather information, Location
information, Person information, Date information, and/or Face tag
information.
•Help
: View explanations of Gallery functions.
111
Viewing Pictures
1. From the Home screen, touch
Menu
➔
Apps
➔
Gallery
.
2. Select an album, then touch a picture to view it.
3. While viewing a picture, touch on the screen for
options:
•
Touch
Gallery
to return to the album view.
•
Touch
Change player
to share this picture with Group
Play.
•
Touch
Share
to send the picture using ChatON, Group
Play, Bluetooth, Dropbox, Email, Flipboard, Gmail, Google+,
Messaging, Picasa, S Memo, or Wi-Fi Direct.
•
Touch
Delete
to erase the picture.
•
Touch
Camera
to take additional pictures or videos.
•
Touch
Menu
for the following additional options:
–
Edit
: Launches photo editor to Rotate, Crop, adjust the Color
balance, apply a selected color Effect, apply a selected Portrait
effect, Sticker, Drawing, or Frame.
–
Favorite
: Add your photo as a favorite.
–
Slideshow
: View all of your pictures as a slideshow.
–
Photo frame
: Add a selected frame to your photo.
–
Photo note
: Add text note(s) to the ‘back” of your photo.
–
Copy to clipboard
: Copy the picture to your device’s clipboard
memory for pasting into messages, notes, and so on.
–
Print
: Print the picture to a printer connected to your device over
the same Wi-Fi hotspot, using Wi-Fi Direct, or using a USB
connection.
–
Rename
: Change the picture’s file name.
–
Buddy photo share
: Send the picture to the Contacts whose
Contact photos match faces in the picture.
–
Rotate left
/
Rotate right
: Change the picture’s orientation.
–
Crop
: Change the picture’s size and/or remove portions of the
picture.
–
Detect text
: Launches Optical Reader to recognize text in a
photo. You can Share the resulting text.
–
Set as
: Assign the picture as a Contact photo, or as wallpaper.
–
Details
: View information about the picture.
–
Settings
: Configure your Accounts Sync settings, choose
whether to sync pictures and videos only over a Wi-Fi
connection, and/or configure Tags to include Weather
information, Location information, Person information, Date
information, and/or Face tag information.
Applications and Widgets 112
Editing a Photo
You can edit your photos using the built-in Photo editor
application on your device. The photo editor application
provides basic editing functions for pictures that you take on
your phone. Along with basic image tuning like brightness,
contrast, and color it also provides a wide variety of effects
used for editing the picture.
1. From the Home screen, touch
Apps
➔
Gallery
.
2. Select a folder location and touch a file to open it.
3. With the image displayed, press and then touch
Edit
.
•Edit
: allows you to edit the current image. Launches the Photo
Editor application.
Note:
To select the picture area, touch and hold the current
picture.
4. Select an image area by touching and holding the
image and then selecting an available option:
• Selection mode
: provides several on-screen selection options
such as: Select area, Inverse selection, Selection size, and
Selection mode (Magnetic, Lasso, Brush, Round, and Square),
Select all, and Clipboard.
• Select all
: select the entire area of the current image.
• Clipboard
: copies the currently selected are to your device’s
clipboard.
5. Use the following editor controls to edit your picture:
Previous
: lets you undo the current
operation.
Next
: lets you redo the previous
operation.
Cancel/Delete
: exits the current photo
editing session.
Save
: stores the currently edited photo.
113
6. Press to access the following options:
• Save as
: allows you to rename your current image and save it
to your gallery.
•Select image
: allows you to select a new image for editing.
• Take picture
: allows you to activate the camera and take a
new image for editing.
•Share via
: allows you to share your saved photo via Add to
Dropbox, Bluetooth, ChatON, Email, Flipboard, Gmail, Google+,
Group Play, Hangouts, Messaging, Picasa, S Memo, or
Wi-Fi Direct.
•Set as
: assigns the currently saved image as either a: Contact
photo, Home and lock screens, Home screen, or Lock screen.
Rotate
: allows you to rotate a photo in
all 4 directions. You can also mirror
image a photo.
Crop
: allows you to crop (cut-out) an
area of a photo.
Color
: allows you to Auto adjust color,
Brightness, Contrast, Saturation,
Adjust RGB, Temperature, Exposure,
and Hue of a photo.
Effects
: allows you to add various
effects to your photo.
Portrait
: allows you to apply various
face correction effects such as: Red-
eye fix, Airbrush face, Face brightness,
Out-of-focus, Beauty face, Face
reshaping, or Spot healing.
Sticker
: allows you to place various
pre-created on-screen stickers atop
your current image.
Drawing
: allows you to add draw
directly on your current picture by
using either a brush/pen or eraser.
Frame
: places a pre-created border
style atop your current image.
Applications and Widgets 114
Viewing Videos
1. From the Home screen, touch
Menu
➔
Apps
➔
Gallery
.
2. Select an album. A matrix or list of available videos
displays.
3. To play a video, touch its thumbnail or list entry.
4. While viewing a video, touch on the screen for options:
•
Touch
Gallery
to return to the album view.
•
Touch
Share
to send the picture using ChatON, Bluetooth,
Dropbox, Email, Gmail, Google+, Messaging, Picasa, Wi-Fi
Direct, or YouTube.
•
Touch
Trim
to remove selected frames from the video.
•
Touch
Delete
to erase the picture.
•
Touch
Menu
for the following additional options:
–
Favorite
: Add this video to your Favorites.
–
Rename
: Change the video’s filename.
–
Scan for nearby devices
: Scan for in-range devices that can
be connected with and sent the current image.
–
Details
: View information about the video.
–
Settings
: Select an Account for synchronization, enable/disable
Sync only via Wi-Fi, turn Tag Buddy ON or OFF, and/or enable/
disable Face tag.
Sharing Using S Beam
You can also share Gallery photos and videos with
compatible devices using S Beam. (For more information,
refer to “S Beam” on page 148.)
Gmail
Send and receive emails via Gmail, Google’s web-based
email.
(For more information, see “Gmail” on page 83.)
From the Home screen, touch
Menu
➔
Apps
➔
Gmail
.
115
Google
Use Google to search the Web.
Tip:
The Google Search Widget is available by default on the
Home screen. (For more information, see “Adding Widgets
to the Home screen” on page 40.)
1. From the Home screen, touch
Menu
➔
Apps
➔
Google
.
2. Enter search criteria. Search results display
automatically. Touch a search result to display it in a
browser window.
Google Settings
Google Settings lets you quickly and easily change shared
settings to tailor a number of Google apps at the same time
to suit your needs.
From the Home screen, touch
Menu
➔
Apps
➔
Google Settings
.
Google+
Google+ makes messaging and sharing with your friends a
lot easier. You can set up Circles of friends, visit the Stream
to get updates from your Circles, use Messenger for fast
messaging with everyone in your Circles, or use Instant
Upload to automatically upload videos and photos to your
own private album on Google+.
From the Home screen, touch
Menu
➔
Apps
➔
Google+
.
Group Play
Using Group Play, you can share documents or photos you
are viewing, or music you are listening to, with other devices
connected to the same Wi-Fi network with your device.
1. From the Home screen, touch
Menu
➔
Apps
➔
Group Play
. The
Welcome to Group Play!
screen
displays.
2. Touch
Next
for Group Play instructions.
Applications and Widgets 116
Hangouts
Previously known as Google Talk™, is an updated free
web-based application for instant messaging offered by
Google. Conversation logs are automatically saved to a Chats
area in your Gmail account. This allows you to search a chat
log and store them in your Gmail accounts.
Note:
You must sign up for and log in to a Gmail account
before using this application.
From the Home screen, touch
Menu
➔
Apps
➔
Hangouts
.
Help
Use Help to read or view brief instructions or videos on how
to use the features and settings available with your phone.
1. From the Home screen, touch
Menu
➔
Apps
➔
Help
.
The
Help
screen displays.
2. Select a topic from the menu.
3. Read or view the selected topic information.
Internet
Your phone is equipped with a full HTML Browser, which lets
you browse web sites on the internet.
Tip:
Internet displays as a Primary Shortcut on the Home
screen. (For more information, refer to “Primary
Shortcuts” on page 39.)
From the Home screen, touch
Menu
➔
Apps
➔
Internet
. Your Wireless Provider’s mobile home
page displays in the Internet screen.
Knox
Samsung KNOX is a comprehensive enterprise mobile
solution for use with both work and play. With the increasing
use of smartphones in businesses, Samsung KNOX
addresses the mobile security needs of enterprise IT without
invading the privacy of its employees. This application must
be downloaded to the device before use.
For more information, go to:
www.samsung.com/knox
.
1. From the Home screen, touch
Apps
➔
KNOX
.
117
2. Tap
Install
and read the on-screen Terms and
Conditions, agree to the terms and touch
Confirm
.
3. Follow the prompts.
Maps
Use Google Maps to find your current location, get directions,
and other location-based information. The Google Maps
shortcut displays by default on the Home screen.
Note:
You must enable location services to use Maps, and
some features require Standalone or Google location
services. (For more information, see “Location services”
on page 202.)
1. From the Home screen, touch
Menu
➔
Apps
➔
Maps
.
2. For more information, touch
Menu
➔
Help
.
Messaging
Messaging lets you exchange text and multimedia messages
with compatible device users. (For more information, refer to
“Messaging” on page 77.)
From the Home screen, touch the
Messaging
shortcut.
– or –
From the Home screen, touch
Menu
➔
Apps
➔
Messaging
.
Applications and Widgets 118
Mobile Web
Mobile Web gives you secure, direct access to your Wireless
Provider’s portal web site to purchase content, access Mobile
Web services, and review your account information.
Note:
If you are connected to a Wi-Fi network, Mobile Web
requires you to log in for access. If you use your
Wireless Provider’s data network, you are automatically
logged in.
1. From the Home screen, touch
Menu
➔
Apps
➔
Mobile Web
.
2. Follow the prompts to log in to your Mobile Web
account.
Music
Music is an application that can play music files. Music
supports files with extensions AAC, AAC+, eAAC+, MP3,
WMA, 3GP, MP4, and M4A. Using Music you can navigate
through your music library, play songs, and create playlists.
Categories
Shuffle
Playback
Controls
Song
Album
Graphic
119
Playing Music
1. From the Home screen, touch
Menu
➔
Apps
➔
Music
. Music’s
Songs
screen displays.
2. If desired, touch another music category tab at the top
of the screen (Songs, Playlists, Albums, Artists, Music
square, or Folders) to view the available music files.
3. Scroll through the list of songs and touch an entry to
begin playback.
Tip:
When you return to the Home scree, Music playback
continues in the background. Playback controls are
available on the Notifications panel. (For more
information, see “Notifications” on page 32.)
Music full-screen player
Music provides a full-screen player that allows you more
control over your music playback.
1. From a Music listing screen (Songs/Playlists/Albums/
Artists/Folders), touch a song to begin playback.
2. Touch the song’s album graphic to launch the full-
screen player.
Volume
Shuffle
Favorite
Playback
Controls
Repeat
Applications and Widgets 120
Music playback controls
Use any of the following Music player controls:
To access additional options, follow these steps:
From a Music player screen, touch
Menu
. The
follow options are available:
• Via Bluetooth
: Scans for devices and pairs with a Bluetooth
headset.
• Delete
: Allows you to delete songs or albums.
•Search
: Search the phone for music files.
• Scan for nearby devices
: Search for nearby Wi-Fi devices for
sharing your music (available when Wi-Fi is turned On). (For
more information, refer to
“Turning Wi-Fi On”
on page 138.)
•Settings
: Change your Music Player settings. For more
information, refer to
“Music Player Settings”
on page 121.
•End
: Close the Music Player app.
Pause the song.
Start the song after pausing.
Press and hold to rewind the song. Tap to go to
previous song.
Press and hold to fast-forward the song. Tap to
go to next song.
Volume control and SoundAlive.
Volume control showing volume muted.
Plays the entire song list once.
Replays the current list when the list ends.
Repeats the currently playing song.
Shuffles the current list of songs randomly.
Songs play in order and are not shuffled.
Lists the current playlist songs.
Returns the user to the music category screen.
Assign the current song as a Favorite.
Streams the current music file to another device
via Samsung Link.
121
Music Player Settings
The Music Player Settings menu allows you to set
preferences for the music player such as whether you want
the music to play in the background, sound effects, and how
the music menu displays.
1. From the Home screen, touch
Menu
➔
Apps
➔
Music
.
2. Touch a music file to play back.
3. While in Music playback, touch
Menu
➔
Settings
.
The follow settings are available:
• Music menu
: Select which categories you want to display in
the Music menu. Choices are: Albums, Artists, Genres, Music
square, Folders, Composers, Years, Most played, Recently
played, or Recently added.
•SoundAlive
: Set a type of equalization such as Normal, Pop,
Rock, Jazz, Dance, Classic, etc.
• Adapt Sound
: Adjust the sound playback characteristics to
match your headphones.
• Play speed
: Set the play speed anywhere between 0.5X and
2.0X using the slider.
• Music auto off
: When activated, music will automatically turn
off after a set interval.
•Lyrics
: When activated, the lyrics of the song are displayed if
available.
• Smart volume
: When enabled, automatically adjusts volume of
each track to a common level.
• Voice control
: When enabled, you can use voice commands to
control music playback.
Using Playlists
Playlists are used to assign songs to a list of preferred media
which can then be grouped into a list for later playback.
These Playlists can be created via either the handset’s Music
Player options menu or from within a 3rd party music
application (such as Windows Media Player) and then
downloaded to the handset.
Creating a Playlist
1. From the Home screen, touch
Menu
➔
Apps
➔
Music
.
2. Touch the
Playlists
tab.
3. Touch
Menu
➔
Create playlist
.
4. Enter a name for this playlist in the field and touch
OK
.
Applications and Widgets 122
Adding Music to a Playlist
To add files to the playlist:
1. From the Home screen, touch
Menu
➔
Apps
➔
Music
.
2. Touch the
Playlists
tab.
3. Touch the playlist name in which to add music.
4. Touch
Add music
.
5. Touch a music file, or touch
Select all
to add all the
music tracks to this playlist then touch
Done
.
Removing Music from a Playlist
To remove music files from a playlist:
1. From the Home screen, touch
Menu
➔
Apps
➔
Music
Player
.
2. Touch the
Playlists
tab.
3. Touch the playlist name in which to delete music.
4. Touch
Menu
➔
Remove
.
5. Touch the check box to the left of each track you want
to remove from this playlist, or touch
Select all
to
remove all the music tracks from this playlist, then
touch
Remove
.
Editing a Playlist Name
Besides adding and removing music files in a playlist, you
can also rename the playlist.
To edit a playlist:
1. From the Home screen, touch
Menu
➔
Apps
➔
Music
Player
.
2. Touch
Playlists
.
3. Touch
Menu
➔
Edit title
, then touch the playlist
you want to rename.
4. In the
Edit title
window, enter a new name for the
playlist, then touch
OK
.
For information on downloading music for your phone, see
“Connecting as a Storage Device” on page 143.
Setting a Song as Options
You can set a song as a ringtone for all voice calls, for calls
from an individual contact, or as an alarm tone.
While in Music playback, touch
Menu
➔
Set as
and choose from these options:
• From the beginning
: When enabled, your ringtone plays from
the beginning.
123
• Auto recommendations
: When enabled, only the best part of
your ringtone plays.
• Phone ringtone
: Set the song as the default ringtone for all
incoming voice calls.
• Caller ringtone
: Choose a contact to set the song as the
ringtone for calls from the contact.
•Alarm tone
: Set the song as the alarm ringtone for a new
alarm, or for an existing alarm.
Muve Music
Create playlists, Ringtones and more, and edit them all right
on the phone. Browse or download playlists and share music
with your friends.
Songs are stored locally on your phone or memory card.
1. From the Home screen, touch
Menu
➔
Apps
➔
Muve Music
.
2. Touch Accept to accept Google’s terms of service.
3. Touch a category to get started and follow the prompts.
My Account
My Account gives you direct access to your wireless account.
(For more information, go to
http://www.mycricket.com/
community/videos/list/How-To:-My-Account
.)
1. From the Home screen, touch
Menu
➔
Apps
➔
My Account
.
2. Follow the prompts to sign in to your account.
My Files
Find, view and manage files stored on an installed memory
card. If the file is associated with an application on your
phone, you can launch the file in the application.
1. From the Home screen, touch
Menu
➔
Apps
➔
My Files
.
2. Touch a folder and scroll down or up until you locate
a file.
3. Touch a file to launch it in the associated application (if
the file is associated with an application).
4. Use these controls while browsing files:
•
Touch
Home
to go back to the root directory.
•
Touch
Up
to go back up to a higher directory.
•
Touch
Menu
for options.
Applications and Widgets 124
My Backup
This is a fast and secure way to automatically back u all of
your phone’s important contact information. Access
mybackup.mycricket.com
to view and edit all of your contacts
any time.
1. From the Home screen, touch
Menu
➔
Apps
➔
My Backup
.
2. Follow the prompts to backup contacts.
Optical Reader
Use Optical Reader to scan printed text into a Note.
From the Home screen, touch
Menu
➔
Apps
➔
Optical Reader
.
Phone
The Phone application allows you to access the dialer
keypad, call logs, and favorites. (For more information, refer
to “Calling” on page 62.)
From a Home screen, touch the
Phone
shortcut.
– or –
From the Home screen, touch
Menu
➔
Apps
➔
Phone
.
Play Books
Google Books is now Google Play™ Books. Discovering your
favorite books and authors has never been easier. With
Google Play Books, you can shop the world's largest
selection of ebooks and read them anywhere you like - on a
tablet, phone, ereader, or the Web.
From the Home screen, touch
Menu
➔
Apps
➔
Play Books
.
Play Games
This application takes you directly to the Play Store Games
area from where you can make purchases.
From the Home screen, touch
Menu
➔
Apps
➔
Play Games
.
Play Magazines
With Google Play Magazines, you can subscribe to your
favorite magazines and have them available to read on your
phone at any time or any place.
From the Home screen, touch
Menu
➔
Apps
➔
Play Magazines
.
125
Play Movies & TV
With Google Play Movies, you can rent thousands of different
movies. You can watch instantly, or download your movie for
offline viewing at a later time.
1. From the Home screen, touch
Menu
➔
Apps
➔
Play Movies & TV
.
2. Log on to your Google account if you have not already
done so.
3. Following the on-screen instructions for renting and
viewing movies.
Play Music
With Google Play Music, you can play music that you have
added to your music file as well as any music you copied
from your PC. While offline, you can listen to music you have
copied from your PC.
1. From the Home screen, touch
Menu
➔
Apps
➔
Play Music
.
2. Follow the on-screen instructions to locate and play
music.
Play Store
Android Market is now Google Play™ Store, where all your
favorite books, movies, apps, and games are all in one place
that’s accessible from the Web and your Android device.
You’ll need to have a Google account set up on your phone to
download a new application.
1. From the Home screen, touch
Menu
➔
Apps
➔
Play Store
.
2. The first time you open Play Store, read the Terms of
Service, then touch
Accept
to continue.
3. Browse for applications to download, then follow the
prompts.
Polaris Office 5.0
From the Home screen, touch
Menu
➔
Apps
➔
Polaris Office 5.0
.
S Health
From the Home screen, touch
Menu
➔
Apps
➔
S Health
.
Applications and Widgets 126
S Memo
The S Memo application allows you to create memos using
the keypad, your finger, or both. You can add images,
handwriting, voice recordings, and typewritten text all in one
place.
1. From the Home screen, touch
Menu
➔
Apps
➔
S Memo
.
2. Touch
Menu
➔
Help
to learn more about S Memo.
S Translator
Use S Translator to translate text speech composed of any of
9 written or spoken languages to or from UK English or US
English.
From the Home screen, touch
Menu
➔
Apps
➔
S Translator
.
S Voice
S Voice provides plain language voice recognition control of
various features and applications on your phone.
1. From the Home screen, touch
Menu
➔
Apps
➔
S Voice
.
– or –
From the Home screen, press
Home
twice in
quick succession.
2. Read and respond to the prompts.
3. Say “Hi Galaxy” to wake up S voice.
4. Speak the command into the phone and follow the
on-screen instructions.
127
Samsung Apps
Samsung Apps allows you to easily download many different
types of applications to your phone. You can download
games, news, reference, social networking, navigation, and
other applications.
1. From the Home screen, touch
Menu
➔
Apps
➔
Samsung Apps
.
2. Read the Disclaimer, Terms and conditions, and Privacy
policy and touch
Accept
to continue.
3. Follow the on-screen instructions to use Samsung
Apps.
Samsung Hub
Browse and purchase Music, Video, Books, or Games using
Samsung Hub.
Samsung Hub Notices
Any media item (Media Content) may be rented or purchased
after you create an account in Samsung Hub.
You must have an active Samsung Account to purchase and
rent content via Samsung Hub.
•
Media Content that is purchased and downloaded may be viewed
concurrently on up to five (5) devices with Samsung Hub (or "the
service") that are also registered to the same account.
•
You may remove a device from your account no more than once
every 90 days.
•
You may remove Media Content from a device as many times as
you'd like. You will have the ability to re-download the Media
Content later subject to content re-download availability and
content provider permissions.
•
You may need network coverage to access Media Content you
have acquired through the Service.
•
You can use 3G, 4G, or Wi-Fi connectivity to download Media
Content.
Applications and Widgets 128
•
Unlike purchased Media Content, rented Media Content will be
viewable on only 1 device in your account at a time.
•
Media Content is downloaded and saved to your authorized
device's SD card. No SD Card included out of box.
•
Your Media Content may pause/stop or not download in networks
where there is a weak signal.
•
You may begin watching downloaded Media Content as soon as a)
license acquisition has occurred and b) sufficient amount of the
Media Content has been buffered.
•
You must finish watching Media Content within the time limit set
out for each piece of content (which may be as short as 24
consecutive hours).
•
Stopping, pausing or restarting rented Media Content does not
extend the available viewing time.
•
In no event will rented Media Content be available for a period of
more than thirty (30) days (or shorter on a title-by-title basis) after
the Media Content has been rented (e.g., if you begin viewing
rented Media Content on the 29th day after the rental transaction,
but do not finish viewing the entire title, that rented Media
Content may not be available for the entire twenty-four (24)
consecutive hour period if such period would extend the viewable
time beyond the thirty (30) day rental window).
•
Unless otherwise restricted by the Content Providers, you can
download Media Content to your TV using HDMI connections;
otherwise, you cannot play Media Content downloaded from your
mobile device output.
1. From the
Apps
screen, touch
Samsung Hub
.
2. Select Music, Video, Books, or Games from the
Samsung Hub screen.
3. Select from the following available pages:
•MUSIC
: displays featured Music content available for purchase/
stream from the Music store & Radio. This page also allows you
to search for new content, or navigate directly to the Music
store page by clicking on the "Music” link at the top of the
page.
129
•MOVIES
: displays featured film and TV content available for
purchase/rent from the video store. This page also allows you
to search for new content, or navigate directly to the Movie &
TV store page by clicking the "Video" link a the top of the page.
•BOOKS
: displays featured Book content available for purchase
from the Book store. This page also allows you to search for
new content, or navigate directly to the Book store page by
clicking the "Books" link a the top of the page.
•GAMES
: displays featured Game content available from the
Game store. This page also allows you to search for new
content, or navigate directly to the Game store page by clicking
the "Games" link a the top of the page.
4. Tap on content to purchase or view featured content in
detail.
5. Purchase, rent, or stream the content directly from the
product detail page, depending on the content.
6. Choose a payment method and follow the prompts.
7. Press
Menu
➔
Help
for more information.
Samsung Link
Samsung Link is a smart remote that allows you to use your
phone to control your TV and other devices.
1. From the Home screen, touch
Menu
➔
Apps
➔
Samsung Link
.
2. Touch
Sign in
to sign in to Samsung Link.
3. Touch
Sign in
again and sign in to your Samsung
account.
4. Follow the on-screen instructions.
Settings
Configure your phone to your preferences. For more
information, see “Settings” on page 151.
From the Home screen, touch
Menu
➔
Apps
➔
Settings
.
Story Album
Create an album with your story on one timeline.
From the Home screen, touch
Menu
➔
Apps
➔
Story Album
.
Applications and Widgets 130
TripAdvisor
TripAdvisor allows you to access traveler reviews and
opinions on hotels, restaurants and more. You can also
compare prices and check availability on hotels, flights, car
rentals and more.
Note:
This application requires a Samsung account sign in to
access its features.
From the Home screen, touch
Menu
➔
Apps
➔
TripAdvisor
.
Video
Video identifies and plays video files (3GP or MP4) stored on
your phone or on an optional microSD Memory card.
1. From the Home screen, touch
Menu
➔
Apps
➔
Video
.
2. Select a video from those listed, if any. (For information
on downloading videos from Samsung Hub, see
“Samsung Hub” on page 127.)
3. Touch
Menu
for additional options.
Voice Recorder
Record your voice or other sounds, and share recordings via
Bluetooth, Messaging, or Gmail.
From the Home screen, touch
Menu
➔
Apps
➔
Voice Recorder
.
Voice Search
Voice Search offers voice-activated Google searches. If you
agree, Voice Search uses your location to improve search
results and offer other services.
From the Home screen, touch
Menu
➔
Apps
➔
Voice Search
.
131
VPN Client
VPN Client lets you define multiple Virtual Private Networks
(VPNs) to your device and connect to them as needed by
simply selecting a connection from the VPN Client list.
From the Home screen, touch
Menu
➔
Apps
➔
VPN Client
.
WatchON
Use the Samsung WatchON application to use your phone as
a remote control for your TV, set top box, DVR, Blu-Ray/DVD,
stereo or other device.
Important!
Before initiating use, verify you have an active
Internet connection available (either mobile
network or Wi-Fi connection).
For more information, refer to
www.samsungwatchon.com
.
1. Turn off your television.
2. From the Home screen, touch
Menu
➔
Apps
➔
WatchON
.
3. Connect to a Wi-Fi connection. For more information,
refer to “Wi-Fi” on page 138.
4. Configure these options:
• Select a country
and touch
Next
.
• Enter your zip code
: The zip code must match your current
location. Touch
Done
.
5. Select a service provider from the
Find your TV service
screen.
6. From the
Personalize
screen, you can either follow the
on-screen prompts to personalize your desired content
or touch
Skip
to continue without customizing your
content.
7. Read the on-screen Peel Disclaimer agreement and
touch
Agree
to complete the set up process.
Applications and Widgets 132
Configure your Device as a Remote
1. Touch
Remote Control
➔
Continue
.
2. Touch
Set up now
at the prompt.
3. Select your TV’s manufacturer name from the
Select
your TV Brand
screen.
– or –
Touch the
Show other brands
or
I have a projector
button if you own a TV brand or projector other than
those listed.
4. Aim your device at the TV and touch
Power
to turn
on your TV with the remote.
5. Touch
Yes, this code works
if the TV is turned on.
– or –
Touch
No, text next code
, or
Send this code again
if the
TV did not turn on.
6. Select your current channel control method:
•Set-top Box
: selected when changing channels through a
receiver box. Channels are not changed using the TV remote
but rather through the receiver/box.
• My XXX TV
: selected when a signal is fed directly into the TV
without using a box. Channels are changed directly on the TV
by using the TV remote.
Note:
Try matching your current channel selection method.
7. Select the Satellite Box Brand from the available list.
For example, DirectTV®.
8. Touch
Show other brands
if your brand does not display in the
list, and follow the displayed instructions.
Important!
You must configure your set top box for IR
communication with your device. If you do not
select
More info
below and follow the on-screen
instructions you may not be able to properly use
the application.
9. Touch
More info
at the prompt to learn how to configure
your set top box to receive and respond to IR controls.
10. If prompted, place a check mark in the
Notification
Panel
field and touch
Done
. This allows you to pin a
shortcut to your remote on the Notification Panel.
11. Press (
Back
).
133
Note:
This IR programming is a one-time process and if
successful, you should not be repeated.
12. Follow the displayed instructions (if prompted) to
personalize your experience.
YouTube
Access your YouTube™ account, and view and upload
YouTube videos, right from your phone.
From the Home screen, touch
Menu
➔
Apps
➔
YouTube
.
PEN.UP
This is a social network dedicated to sharing inspiring
artworks created by clever people using the S Pen. Join the
PEN.UP community through your Samsung, or Facebook
account, or just enjoy the various artworks by browsing
through the posts and view the artwork.
From the Home screen, touch
Menu
➔
Apps
➔
PEN.UP
.
Slacker
Slacker offers free, internet radio for mobile phones.
From the Home screen, touch
Menu
➔
Apps
➔
Slacker
.
Important!
You must register and create a free account prior to
using this service.
Applications and Widgets 134
Accessing Widgets
1. Press
Home
, then Sweep your finger right or
left to scroll to a particular Home screen panel.
– or –
From the Home screen, touch
Menu
➔
Apps
, then the
Widgets
tab. The
Widgets
screen
displays.
– or –
Touch and hold on the displayed
Home screen
panel
until the Home screen menu pops-up, then touch
Apps
and widgets
, then the
Widgets
tab. The
Widgets
screen
displays.
2. Sweep your finger right or left to scroll through the
Widgets screens and find the desired widget.
3. To place a widget on the selected Home screen panel,
touch and hold the widget’s image or icon, then
position the widget on the Home screen panel.
4. If needed, follow any prompts to configure the widget.
Widgets List
The following widgets are available for executing on your
Home screen:
•
Active Apps Manager 1 x 1
: Shows the number of active apps.
Touch to launch the Apps Manager
Active applications
screen.
•
Adapt Sound 1 x 1
: Touch to adapt your phone’s sound to suit a
headset or headphones.
•
Alarm 4 x 1
: Add, view, and manage alarms you set using this
widget or using the Clock application.
•
Assistive Light 2 x 1
: Use your phone’s flash as a flashlight.
•
Book 1 x 1
: Directly access one of your downloaded electronic
books from
Play Books
.
•
Bookmark 1 x 1
: Directly access a selected Internet browser
bookmark.
•
Bookmarks 3 x 2
: Directly access any of four selected Internet
browser bookmarks.
•
Briefing 4 x 2
: View and directly access events scheduled for
today.
•
Calendar 2 x 3
View your Calendar events scheduled for today.
•
Calendar (mini today) 4 x 2
: View and access your Calendar
events scheduled for today.
135
•
Calendar (month) 4 x 4
: View and access your scheduled
Calendar events, one month at a time.
•
Clock (digital) 4 x 1
: View a digital clock-calendar.
•
Clock (digital) 2 x 1
: View a digital clock-calendar.
•
Contact 1 x 1
: Directly access a selected contact for calls or
messaging.
•
Cricket Navigator 1 x 1
: Directly access directions to a selected
destination.
•
Direct Dial 1 x 1
: Immediately call a selected contact.
•
Direct Message 1 x 1
: Immediately send a message to a
selected contact.
•
Directions1 x 1
: Immediately obtain directions to a selected
location.
•
Dropbox Folder 1 x 1
: Directly access one of your Dropbox
folders.
•
Dual clock (digital) 2 x 2
: View digital clock-calendar displays
for two selected locations.
•
Email 4 x 4
: View and directly access email messages in your
Combined email box.
•
Exercise mate 4 x 1
: Set and track exercise goals with S Health.
•
Flipboard (Medium) 4 x 2
: View a medium image of your
Flipboard “magazine”.
•
Flipboard (Small) 4 x 1
: View a small image of your Flipboard
“magazine”.
•
Food tracker 4 x 1
: View your current caloric input today, and
access your S Health food intake goal.
•
Gmail 3 x 3
: View and directly access your Gmail messages.
•
Gmail label 1 x 1
: Directly access Gmail messages with a
selected Gmail label.
•
Google Now 4 x 4
: View and directly access the current version
of your selected navigation, weather, and stock information.
•
Google Play Books 2 x 3
: Directly access your Google books.
•
Google Play Music 4 x 1
: Directly access and play a selected
music playbook.
•
Google Search 4 x 1
(transparent background): Perform and
manage Internet searches.
•
Google Search 4 x 1
(opaque background): Perform and manage
Internet searches.
•
Google+ posts 4 x 2
: View the latest postings from your Circle of
Friends.
Applications and Widgets 136
•
Google+ User Location 4 x 2
: Creates a business page for each
location.
•
Messaging 4 x 3
: View and access your latest messages.
•
Music 4 x 1
: Play your music purchased and downloaded from
Music.
•
Music playlist 1 x 1
: Play a selected music playlist.
•
Muve Music 4 x 2
: Directly access Muve Music to
create
playlists, Ringtones and edit them on the phone.
•
Picture frame 2 x 2
: Directly access your photos and images.
•
Play - My Library 4 x 4
: Access your Google content (ebooks,
music, magazines, and videos).
•
Play Recommendations 4 x 2
: View recommendations from
Google Play Store.
•
Play Store 2 x 2
: View recommendations from and access Google
Play Store.
•
S Bookmarks 2 x 2
: View selected bookmarks and directly
access the related web sites.
•
S Memo 2 x 2
: View and access a stored memo.
•
Samsung Apps 4 x 4
: View and access recommended apps.
•
Samsung Hub 4 x 4
: View recommendations and directly access
Samsung Music, Samsung Video, Samsung Books, and Samsung
Games.
•
Samsung Music 4 x 1
: Directly access and play your music.
•
Settings Shortcut 1 x 1
: Directly access selected settings for
your phone.
•
Slacker Radio 4 x 1
: Accesses
internet radio for mobile
phones.
•
Software update 1 x 1
: Directly access your device software
status information and access
Software update
.
•
Story Album 4 x 3
: Directly access you albums according to your
timeline.
•
Travel 4 x 2
: View travel recommendations.
•
Video 2 x 1
: Directly access and play one or more selected
videos.
•
Walking mate 4 x 1
: Track and view how many steps you take
each day.
•
Weather 4 x 2
: View current and forecast temperature and
weather conditions for a selected location.
137
•
Yahoo! Finance 4 x 3
: View current prices for selected stocks
and/or commodities and directly access additional financial
information.
•
Yahoo! News 4 x 2
: View news headlines and access full news
articles.
•
YouTube 3 x 2
: Receive and view suggested videos. Directly
access your YouTube account.
Connections 138
Section 7: Connections
Wi-Fi
Wi-Fi is a wireless networking technology that provides
access to local area networks.
Wi-Fi communication requires access to an existing Wi-Fi
network. Wi-Fi networks can be Open (unsecured), or
Secured (requiring you to provide login credentials).
Your phone supports the 802.11 a/b/g/n Wi-Fi protocols.
Configuring Wi-Fi Settings
Configure your phone’s Wi-Fi settings. (For more information,
see “Wi-Fi Settings” on page 154.)
Turning Wi-Fi On or Off
When you turn Wi-Fi service on, your phone automatically
searches for available, in-range “hotspots” [also termed
WAPs (Wireless Access Points)].
Turning Wi-Fi On
1. From the top of the Home screen, sweep your finger
downward to display the Notifications screen.
2. At the top of the Notifications screen, touch
Wi-Fi
to turn Wi-Fi On.
– or –
3. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
.
Turning Wi-Fi Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
.
2. Touch and slide the Wi-Fi slider to turn it Off.
139
Scanning and Connecting to a Wi-Fi Network
1. Turn Wi-Fi on (see “Turning Wi-Fi On” on page 138).
Your phone scans for available hotspots and pops-up a
list of any it finds.
2. To connect to a hotspot, touch it on the pop-up list.
•
If the Wi-Fi network is open, you will be automatically
connected.
•
If the Wi-Fi network is secured, enter the password at the
prompt to connect.
Adding a Wi-Fi Network Manually
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
.
2. The
Wi-Fi
options screen displays. (For more
information, refer to “Accessing Settings” on page
151.)
3. Touch
Wi-Fi
to turn on Wi-Fi.
4. Touch
Add Wi-Fi network
, then enter the following
values:
• Network SSID
: Enter the name of the WAP (Wireless Access
Point).
• Security
: Select the type of security used by the WAP.
• Password
: If the WAP is secured, enter the password or key.
5. Tap
Connect
.
Connections 140
Wi-Fi Direct
Wi-Fi Direct allows devices to connect to each other directly
via Wi-Fi, without a Wi-Fi network or hotspot, and without
having to set up the connection. For example, some printers
support Wi-Fi Direct, and you could print from your phone via
Wi-Fi Direct.
Establishing Wi-Fi Direct Connections
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
.
2. Touch
Wi-Fi Direct
.
The
Wi-Fi Direct
screen displays, and your phone scans
for available Wi-Fi Direct devices and lists them under
Available devices
.
3. To connect to a single Wi-Fi Direct device, touch its
name in the list.
4. To connect to multiple Wi-Fi Direct devices, touch
Multi-connect
, next touch
Select all
or individual
devices, then touch
Done
.
Bluetooth
Note:
For Hearing Aid Compatibility Information, see page 211.
Bluetooth is a short-range wireless communications
technology for exchanging information over a distance of
about 30 feet.
You don’t need to line up the devices to send information
with Bluetooth. If the devices are in range, you can exchange
information between them, even if they are in different
rooms.
Configuring Bluetooth Settings
Configure your phone’s Bluetooth settings. For more
information, see “Bluetooth settings” on page 157.
Note:
Bluetooth profiles are specifications for services
supported by individual devices. For a list of profiles your
phone supports, see “Bluetooth profiles” on page 156.
141
Turning Bluetooth On or Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. Touch and slide the
Bluetooth
slider to turn it
On.
– or –
From the Home screen, sweep your finger from the top
of the screen downward to display Notifications.
•
Touch
Bluetooth
to turn Bluetooth On.
•
Touch
Bluetooth
to turn Bluetooth Off.
Pairing with a Bluetooth Device
Search for a Bluetooth device and pair with it, to exchange
information between your phone and the device.
After pairing, your phone and the target device will connect
with each other and exchange information without a
passcode or PIN.
Note:
When connected, the
Bluetooth connected
icon
displays in the Status Bar. If you receive a new request
for connection while connected with a Bluetooth
headset, a new Bluetooth icon displays at the left of the
Status bar and Notifications displays the connection
request.
1. Activate the target device’s discoverable mode.
2. From the Bluetooth settings page, tap the
Visibility
field
(shown by the device name).
The device must be visible to pair with an external
device.
3. Tap
Scan
. Your device displays a list of discovered in-
range Bluetooth devices.
4. Tap a device from the list to initiate pairing.
5. Enter the passkey or PIN code, if needed, and tap
OK
.
6. The external device must accept the connection and
enter your device’s PIN code.
Tip:
Some devices use a default passcode of 0000. Refer to
the target device’s user manual for more information.
Connections 142
•
When prompted to connect with the target device, touch
OK
to
complete the connection, touch
Cancel
to retain the pairing
only.
Enable Downloading for Web
Applications
Important!
Before you can download a web application you
must insert an SD into the phone and enable the
Unknown sources
feature (enables downloading).
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
➔
Security
➔
Unknown sources
check box.
2. Tap
OK
to allow install of non-Play Store applications.
Tap again to remove the check mark and disable the
installation of non-Play Store applications.
Warning!
Not all web applications are safe to download. In
order to protect your phone and data, use the Play
Store to install web applications.
VPN
You can use your phone’s VPN (Virtual Private Network)
feature to connect to VPNs.
Configuring VPN Settings
For information about configuring your phone’s VPN settings,
see “VPN” on page 164.
Accessing a VPN
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
VPN
.
2. Enter a password for credential storage.
3. Touch
a VPN and follow any prompts to access the
network.
143
PC Connections
You can connect your device to a PC using an optional PC
data cable using various USB connection modes.
Media device (MTP)
: allows you to transfer media files in
Windows, or using an Android file transfer on a Mac.
Camera (PTP)
: allows you to transfer photos using the camera
software, and transfer any files onto a PC that does not
support MTP.
Note:
To sync your device to your computer it is highly
recommended that you install Samsung Kies which is
available at
http://www.samsung.com/kies
(for Windows/
Mac).
If you are a Windows XP user, ensure that you have
Windows XP Service Pack 3 or higher installed on your
computer. Also, ensure that you have Samsung Kies 2.0
or Windows Media Player 10 or higher installed on your
computer.
Connecting as a Storage Device
You can connect your device to a personal computer, have
your device appear as a removable disk, and access your
device’s file directory. If you insert a memory card in the
device, you can also access the files directory on the
memory card by using the device as a memory card reader.
Note:
The file directory of the memory card displays as a
removable disk, separate from the internal memory.
1. Connect the USB cable to the device and connect the
cable to the computer. After a few seconds, a pop-up
displays on the PC.
2. Open the folder to view files.
3. Copy files from the PC to the memory card.
Tethering
Use Tethering to share your phone’s internet connection with
a computer that connects to your device via USB cable, or by
Bluetooth.
Connections 144
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
. The
Tethering and portable hotspot
screen displays.
2. Choose a tethering method:
• USB tethering
: Connect the computer to the phone via USB
cable, then touch
USB Tethering
to turn tethering On or Off.
When On, a check displays in the check box.
• Bluetooth tethering
: Pair your phone with the computer via
Bluetooth. Consult the computer’s documentation for more
information about configuring your computer to pair via
Bluetooth. Touch
Bluetooth Tethering
to turn tethering On or
Off. When On, a check displays in the check box.
•Help
: Provides helpful Portable Wi-Fi hotspot, USB tethering,
and Bluetooth tethering information.
Note:
Using Tethering requires a subscription to your Wireless
Provider’s mobile data service.
To connect using USB Tethering:
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
.
2. Plug in the USB cable between your computer and your
device.
3. Tap
USB tethering
from the Tethering menu. This places
a green check mark next to the entry and activates the
feature. A Tethering or HotSpot active notification
briefly appears on the screen.
4. Read the on-screen notification regarding data use and
tap
OK
.
145
Portable Wi-Fi Hotspot
Use Portable Wi-Fi Hotspot to share your phone’s internet
connection with a PC or other device through Wi-Fi, using
your phone as the mobile hotspot.
Note:
Portable Wi-Fi Hotspot requires a subscription to the
applicable service to use the application.
Portable Wi-Fi Hotspot consumes battery power and
uses data service. While the Portable Wi-Fi Hotspot is
active, your phone’s applications will use the Portable
Wi-Fi Hotspot data feature allowance.
Configuring Portable Wi-Fi Hotspot Settings
Configure your phone’s Portable Wi-Fi Hotspot settings,
including your phone’s name and password, and set the
visibility of your phone’s Wi-Fi hotspot.
Tip:
By default, your device’s mobile hotspot has no security
applied, and any device can connect. (For more
information about configuring your mobile hotspot, see
“Portable Wi-Fi Hotspot” on page 161.)
Activating Portable Wi-Fi Hotspot
Activate your phone’s Portable Wi-Fi Hotspot application to
allow other devices to use your phone’s internet connection.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
.
2. Touch
Portable Wi-Fi Hotspot
and follow the
prompts to turn Portable Wi-Fi Hotspot On.
Connections 146
Connecting a Device via Portable Wi-Fi Hotspot
Use the other device’s Wi-Fi control to connect to your
phone’s Portable Wi-Fi Hotspot.
1. Activate Portable Wi-Fi Hotspot on your phone. (For
more information, see “Activating Portable Wi-Fi
Hotspot” on page 145.)
2. Activate Wi-Fi on the other device, using that device’s
Wi-Fi control.
3. Scan for Wi-Fi hotspots, and select your phone from
the list. (To find your phone’s name, see “Configuring
Portable Wi-Fi Hotspot” on page 162.)
4. At the prompt, enter your phone’s Portable Wi-Fi
Hotspot password.
By default, the password is your phone’s telephone
number. (For information on changing your phone’s
Portable Wi-Fi Hotspot password, see “Configuring
Portable Wi-Fi Hotspot” on page 162.)
Beaming
NFC
NFC (Near Field Communication) allows data exchange when
you touch your device with another compatible device. This
is used for applications such as Android Beam and S Beam.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. Touch the
NFC
slider to enable or disable NFC.
Note: NFC
must be turned on to use
Android Beam
or
S Beam
.
147
Android Beam
When Android Beam is activated, you can beam application
content to another NFC-capable device by holding the
devices close together. You can beam browser pages,
YouTube videos, contacts, and more.
Turning Android Beam On or Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. Turn
NFC
ON. (For more information, see “NFC”.)
3. Touch
NFC
.
•
Touch the
Android Beam
slider to turn Android
Beam ON.
•
Touch the
Android Beam
slider to turn Android
Beam OFF.
Using Android Beam
1. Turn
Android Beam
ON. (See “Turning Android Beam On
or Off” on page 147.)
2. Launch the desired feature or application or browse to
the desired web page (See “Applications and Widgets”
on page 86.)
3. Place your phone back-to-back with the device to
receive your “beamed” content, then touch the screen
on your phone. The receiving device prompts the user
to accept your “beamed” content.
4. Once the user of the receiving device accepts your
“beamed” content, it displays on the screen of that
device.
Connections 148
S Beam
When S Beam is activated, you can beam files to another
NFC-capable device by holding the devices close together.
You can beam images and videos from your gallery, music
files from your music player, and more.
Turning S Beam On or Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. Under
Connect and Share
, touch
NFC
to enable
NFC. NFC must be enabled to use S Beam. When
enabled, a check mark displays in the check box.
3. Touch
S Beam
to turn S Beam On, or
touch
SBeam
to turn S Beam Off.
Using S Beam
1. Turn
S Beam
On. (See “Turning S Beam On or Off” .)
2. Launch
Camera
,
Music
, or
Gallery
(see
“Applications and Widgets” on page 86). When using
Gallery, you can select multiple files to S Beam.
3. Place your phone back-to-back with the device to
receive your “beamed” content, then touch the screen
on your phone. The receiving device prompts the user
to accept your “beamed” content.
4. Once the user of the receiving device accepts your
“beamed” content, it displays on the screen of that
device.
149
Nearby devices
Share files with nearby DLNA certified devices over Wi-Fi.
(For information on configuring Nearby devices, For more
information, refer to “Nearby devices” on page 166.)
Note:
To use Nearby devices for sharing, you must have set up
a connection with another Wi-Fi device that supports
DLNA.
1. Connect your phone and another DLNA certified device
to the same Wi-Fi network. (For more information, refer
to “Wi-Fi” on page 138.)
2. On your phone press
Home
, then touch
Menu
➔
Settings
➔
Connections
.
3. Touch
Nearby devices
. The
Nearby devices
screen
displays.
4. Touch
File sharing
to turn file sharing via DLNA On or
Off. When On, a check mark displays in the check box.
Screen Mirroring
Screen Mirroring lets your phone share the contents of its
display with other Digital Living Network Alliance (DLNA)
certified devices, such as Smart televisions.
Note:
To view more information about DLNA certified products
visit
http://www.dlna.org/home
.
1. Connect your phone and another DLNA certified device
to the same Wi-Fi network. (For more information, refer
to “Wi-Fi” on page 138.)
2. On your phone press
Home
, then touch
Menu
➔
Settings
➔
Connections
.
3. If not already on, tap the
Screen Mirroring
and then
move the slider to the right to turn it on. The slider
color indicates the activation status.
4. Touch the desired device to establish a connection. You
can now view the contents of your phone’s display on
the connected device.
Connections 150
Memory Card
Your phone supports removable microSD™ or microSDHC™
memory cards of up to 64GB capacity, for storage of music,
pictures, videos, and other files.
Installing and Removing a Memory Card
(For more information about installing and removing a
memory card, see “Installing a Memory Card” on page 7.)
Important!
To prevent damage to information stored on the
memory card, unmount the card before removing it
from the phone.
Formatting a Memory Card
Use the Erase SD card setting to remove all content from an
installed memory card.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
.
2. Touch
Storage
.
3. Touch
Unmount SD card
.
4. After unmounting the SD card, touch
Format SD card
,
then follow the prompts to confirm the deletion of
information from the card.
151
Section 8: Settings
Accessing Settings
From the Home screen, touch
Menu
➔
Settings
.
– or –
From the Home screen, touch
Apps
➔
Settings
.
– or –
Pull down the Notifications screen, then touch
Settings
. (For more information, refer to
“Notifications” on page 32.)
The
Settings
menu displays.
Note:
This section does not include information about Call
settings. (For Call settings information, see “Call
Settings” on page 71.)
Settings Tabs
Your phone’s Settings are divided into 4 main groups. When
the Settings screen displays, the following 4 tabs are located
at the top of the screen:
Connections
: Wi-Fi, Bluetooth, Data usage, More
networks, NFC, S Beam, Nearby devices, and
Screen Mirroring.
My device
: Lock screen, Display, LED indicator,
Sound, Home screen mode, Call, Blocking mode,
Hands-free mode, Power saving mode, Accessory,
Accessibility, Language and input, Motions and
gestures, Smart screen, Air view, and Voice
control.
Accounts
: My accounts (Dropbox, Google,
Samsung account, and Add account) and Backup
options (Cloud and Backup and reset).
More
: Location services, Security, Application
manager, Battery, Storage, Date and time, and
About device.
Settings 152
Using Setting Sliders
To enable or disable a setting, touch the setting slider
as shown.
Accessing Additional Options
To access additional setting options, touch the setting
label.
153
Connections
To access your phone’s Connections settings:
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab. The
Connections
screen displays.
Wi-Fi
Set up and manage your phone’s connections to Wi-Fi
networks. Your phone supports Wi-Fi a/b/g/n.
(For more information about using Wi-Fi, see “Wi-Fi” on
page 138.)
Turning Wi-Fi On or Off
Turn your phone’s Wi-Fi service on or off. When you turn Wi-
Fi service on, your phone automatically searches for nearby
available Wi-Fi networks.
Tip:
When you turn Wi-Fi service on, your phone automatically
searches for available networks and displays them.
You can also turn Wi-Fi On or Off from the Notifications
panel.
Turn Wi-Fi On:
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
.
– or –
From the Home screen and others, touch and swipe the
Status Bar downward, then touch
Wi-Fi
.
Turn Wi-Fi Off:
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
.
– or –
From the Home screen and others, touch and swipe the
Status Bar downward, then touch
Wi-Fi
.
Settings 154
Wi-Fi Settings
Configure and manage connections to Wi-Fi access points.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
. The
Wi-Fi
options screen displays.
2. Touch options to configure:
• Add Wi-Fi network
: Connect to a new Wi-Fi network (see
“Adding a Wi-Fi Network Manually”
on page 139).
•Scan
: Search for available Wi-Fi networks.
• Wi-Fi Direct
: Access Wi-Fi Direct settings (see
“Wi-Fi Direct”
on page 155.)
3. Touch
Menu
to access the following additional
options:
• Advanced
: View and configure your phone’s Advanced Wi-Fi
settings.
• WPS push button
: Record/send the signal from the Wi-Fi
Protected Set-up push button on your Wi-Fi router.
• WPS PIN entry
: Record/send the Wi-Fi Protected Set-up
Personal Identification Number for your Wi-Fi router.
•Help
: Provides on-line assistance to perform Wi-Fi interface
tasks.
Advanced Wi-Fi settings
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab, under
Network connections
➔
Wi-Fi
➔
Menu
➔
Advanced
.
2. Configure settings:
• Network notification
: When enabled, your phone notifies you
of nearby Wi-Fi networks when you launch a high data-usage
application.
•Passpoint
: When set to ON, your phone automatically
connects to passpoint-enabled hotspots.
•Sort by
: allows you to sort by alphabet or Signal strength.
• Keep Wi-Fi on during sleep
: Specify when to switch from
Wi-Fi to mobile data for data communications, when the phone
goes to sleep (when the backlight goes out). This setting can
affect your data usage, and the behavior of devices you
connect to your phone, such as when tethering or using Mobile
Hotspot.
• Always allow scanning
: Allows the Google location service
and other apps to scan for networks, even when Wi-Fi is
turned off.
155
• Auto network switch
: Allows the device to automatically
switch between a Wi-Fi network or a cellular network.
• Install certificates
: Allows you to install security certificates
•
that you have on a MicroSD card.
•MAC address
: (Not configurable) View your phone’s MAC
address, needed for connecting to some secured networks
(only shows when Wi-Fi is active).
•IP address
:
(Not configurable) View your phone’s IP address
(only shows when connected to a Wi-Fi network).
Wi-Fi Direct
Wi-Fi Direct allows devices to connect to each other directly
via Wi-Fi, without a Wi-Fi network or hotspot, and without
having to set up the connection. For example, some printers
support Wi-Fi Direct, and you could print from your phone via
Wi-Fi Direct.
Turning Wi-Fi Direct On or Off
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Wi-Fi
➔
Wi-Fi Direct
.
The
Wi-Fi Direct
screen displays, and your phone scans
for available Wi-Fi Direct devices and lists them under
Available devices
.
(For information on connecting your phone to other
Wi-Fi Direct devices, see “Establishing Wi-Fi Direct
Connections” on page 140.)
Settings 156
Bluetooth
Your phone supports Bluetooth® 4.0.
Bluetooth profiles
Bluetooth profiles are specifications for services supported
by individual devices. Profiles improve the ability of different
devices to work together. Your phone supports these
Bluetooth profiles:
•
Headset
: HSP v1.2 profile supports use of compatible Bluetooth
headsets for mono voice.
•
Handsfree
: HFP v1.5 profile supports Bluetooth headsets, and
may also support other compatible Bluetooth devices with
speakerphone capabilities.
•
Stereo
: A2DP v1.2, AVRCP v1.0, GAVDP 1.2, AVCTP 1.3 and
AVDTP 1.2 profiles support delivery of stereo audio to compatible
Bluetooth devices.
•
Object Exchange
: OPP v1.0 profile allows sending and receiving
of contact name cards (vCard 2.1) and calendar events
(vCalendar) between devices. PBAP v1.2 supports exchange of
Phone Book Objects.
•
Human Interface Devices
: HID v1.0 profile supports certain
interface devices.
•
Personal Area Networking
: PAN 1.0 supports exchange of data
with other devices.
•
Message Access Profile
: MAP 1.0 allows exchange of messages
between devices, such as with an automotive hands-free device.
Turning Bluetooth On or Off
Turn Bluetooth On:
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Bluetooth
.
Turn Bluetooth Off:
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Bluetooth
.
Tip:
You can also turn Bluetooth On or Off at the Notifications
Panel.
157
Bluetooth settings
Pair and connect with other Bluetooth devices, manage your
Bluetooth connections, and control your device’s visibility to
other devices.
Note:
Bluetooth must be turned On to access Bluetooth
settings.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Bluetooth
.
2. Touch a setting to configure Bluetooth:
•
Touch
Bluetooth
to turn Bluetooth On,
or touch
Bluetooth
to turn Bluetooth Off.
•
Under
My device
, touch your phone’s name to enable/disable
its visibility to other devices’ Bluetooth searches. Available
when Bluetooth is ON.
•
Touch
Scan
to search for visible Bluetooth devices. Touch a
detected device to pair with it (see
“Pairing with a Bluetooth
Device”
on page 141).
•
Touch
Menu
to access the following options:
–
Visibility timeout
: Select how long your phone will remain
visible to other devices.
–
Received files
: Lists files received from other devices over
Bluetooth connections.
–
Help
: Provides on-line instructions for using your phone’s
Bluetooth interface.
Settings 158
Data usage
Control your device’s connection to your Wireless Provider’s
data service, and monitor your data usage.
Setting a mobile data limit
Setting a mobile data limit causes your phone to
automatically disable the Mobile data connection when the
limit is reached. You can set a warning threshold, to have
your device alert you when data usage nears your set limit.
Data usage is measure by your device, and your service
provider may account for usage differently, so you may want
to consider using a conservative limit. Contact your service
provider for more information on actual data usage.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Data usage
. The
Data usage
screen displays.
2. Touch
Mobile data
to enable it.
159
3. Touch
Set mobile data limit
to enable the limit. A red
limit line displays in the
Data usage
screen.
4. Touch and drag the vertical usage cycle lines left or
right on the graph to adjust the mobile
Data usage
cycle
.
5. Touch and drag the horizontal
warning
line up or down
on the graph to adjust the mobile data usage warning
level.
6. Touch and drag the horizontal
limit
line up or down on
the graph to adjust the mobile data usage limit level.
Viewing data usage by app or process
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Data usage
. The
Data usage
screen displays.
2. Scroll down the page to see the top three processes or
apps using mobile data service. Touch a process or
app to see data usage for the process or app, and to
configure specific settings.
Settings 160
More Wireless and Network Settings
Airplane mode
When airplane mode is enabled, all your phone’s wireless
connections are disabled, and you cannot make or receive
calls [except for Emergency (E911) calls] or messages. You
can, however, make Wi-Fi and Bluetooth connections.
While in airplane mode, you can use other features of your
phone, such as playing music, watching videos, or using
other applications.
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Airplane mode
to enable or disable airplane
mode.
Mobile networks
Set options for network selection, data service, and roaming
behavior.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Mobile networks
. The
Mobile networks
screen displays.
2. Set these options:
• Mobile data
: Enable or disable your phone’s connection to the
mobile data network.
• Data roaming
: Enable or disable connection to data services
when your device is roaming on another network. (For more
information about roaming, see
“Roaming”
on page 16.)
Tip:
You can also enable or disable
Mobile data
at
the
Notifications
panel. (For more information,
refer to “Notifications” on page 32.)
161
•Network mode
: Configure roaming for CDMA, LTE, and EV-DO
networks.
–
LTE/CDMA
: Lets your phone automatically access LTE, CDMA,
and/or EV-DO mobile networks when available.
–
CDMA
: Restricts your phone to CDMA mobile networks.
• System select
: Configure CDMA roaming mode.
–
Home only
: Restricts your phone to your Wireless Provider’s
network.
–
Automatic
: Permits your phone to automatically roam to
networks other than that provided by your Wireless Provider.
Portable Wi-Fi Hotspot
Use Portable Wi-Fi Hotspot to share your phone’s internet
connection with up to 5 other devices, through Wi-Fi.
You can control whether devices connect to your Portable Wi-
Fi Hotspot with the Allowed device list.
(For more information about using your phone as a mobile
hotspot, see “Portable Wi-Fi Hotspot” on page 145.)
Note:
Using Portable Wi-Fi Hotspot requires a subscription to
data service. For more information, contact your
Wireless Provider.
Using your phone as a mobile hotspot consumes battery
power and uses data service. While Portable Wi-Fi
Hotspot is active, your phone’s applications will use your
Wireless Provider’s data service. Roaming while using
your phone as a mobile hotspot will incur extra data
charges.
Settings 162
Turning Portable Wi-Fi Hotspot On or Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
➔
Portable
Wi-Fi hotspot
.
2. Touch
Portable Wi-Fi hotspot
and follow the
prompts to turn Portable Wi-Fi Hotspot On, or touch
Portable Wi-Fi hotspot
to turn Portable Wi-Fi
Hotspot Off.
Note:
Using your phone as a mobile hotspot consumes battery
power and uses data service. While Portable Wi-Fi
Hotspot is active, your phone’s applications will use your
Wireless Provider’s data service. Roaming while using
your phone as a mobile hotspot will incur extra data
charges.
Configuring Portable Wi-Fi Hotspot
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
➔
Portable
Wi-Fi hotspot
. The
Portable Wi-Fi hotspot
screen
displays.
2. Touch
Configure
to access the following options:
• Network SSID
: View and change the name of your Mobile
Hotspot.
• Hide my device
: When enabled, your Portable Wi-Fi Hotspot is
not visible to other Wi-Fi devices during a scan. Other devices
can still connect to your Portable Wi-Fi Hotspot, but will have to
set up the connection manually with your Network SSID and
Password.
•Security
: Choose the security level for your Portable Wi-Fi
Hotspot.
•Password
: If you choose a security level that uses a password,
enter the password. By default, the password is your mobile
telephone number.
• Show password
: Enable to make the Password field visible.
• Show advanced options
: Enable to access advanced options,
including Broadcast channel, to specify the channel your device
uses for Portable Wi-Fi Hotspot.
163
Allowed Device List
Control whether devices connect to your Portable Wi-Fi
Hotspot with the Allowed device list. After you add devices to
the list, they can scan for your device and connect using your
device’s Wi-Fi hotspot name (SSID) and password.
Note:
Using your phone as a mobile hotspot consumes battery
power and uses data service. While Portable Wi-Fi
Hotspot is active, your phone’s applications will use your
Wireless Provider’s data service. Roaming while using
your phone as a mobile hotspot will incur extra data
charges.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
➔
Portable
Wi-Fi hotspot
. The
Portable Wi-Fi hotspot
screen
displays.
2. Touch
Allowed devices
➔
Add
, then enter the other
device’s Device name and MAC address.
3. Touch
OK
to add the device to the
Allowed devices
list.
Tip:
For information about connecting to your Portable Wi-Fi
Hotspot, see “Connecting a Device via Portable Wi-Fi
Hotspot” on page 146.
Tethering
Use Tethering to share your phone’s internet connection with
a computer that connects to your device via USB cable, or by
Bluetooth.
(For more information about connecting computers to your
phone via Tethering, see “Tethering” on page 143.)
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
Tethering and portable hotspot
. The
Tethering and portable hotspot
screen displays.
2. Choose a tethering method:
• USB tethering
: Connect the computer to the phone via USB
cable, then touch
USB Tethering
to turn tethering On or Off.
When On, a check displays in the check box.
Settings 164
• Bluetooth tethering
: Pair your phone with the computer via
Bluetooth. Consult the computer’s documentation for more
information about configuring your computer to pair via
Bluetooth. Touch
Bluetooth Tethering
to turn tethering On or
Off. When On, a check displays in the check box.
•Help
: Provides helpful Portable Wi-Fi hotspot, USB tethering,
and Bluetooth tethering information.
Note:
Using Tethering requires a subscription to your Wireless
Provider’s mobile data service.
VPN
Set up and manage Virtual Private Networks (VPNs). For more
information about using VPNs, see “VPN” on page 142.
Adding a VPN
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
More
networks
➔
VPN
.
Note:
You must enable at least Pattern security before setting
up a VPN. If you have not yet enabled security, you are
prompted to do so the first time you launch VPN
settings.
2. Touch
Add VPN network
to set up a connection to
a VPN, using the following settings:
•Name
: Enter a name for the VPN connection.
•Type
: Choose the type of VPN.
• Server address
: Enter the IP address of the VPN server.
• PPP encryption (MPPE)
: Touch to enable or disable
encryption.
• Show advanced options
: Touch to show more options.
Available options depend on the type of VPN you are adding.
165
NFC
Use NFC (Near Field Communication) to share information
between your phone and another NFC device by touching the
devices together, typically back-to-back.
(For more information about sharing information with NFC,
“S Beam” on page 166.)
From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab and touch the
NFC
slider
to turn NFC ON.
•
Touch the
NFC
slider
to turn NFC OFF.
Android beam
Android Beam uses your phone’s NFC (Near Field
Communication) feature to send, or “beam”, application
content to another NFC device, by holding the devices close
together.
Android Beam works in the background. Use the sharing
options from your favorite apps to select content to share via
Android Beam. You can beam browser pages, YouTube
videos, contacts, and more.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. Touch the
Android Beam
slider to turn Android
Beam ON.
– or –
Touch the
Android Beam
slider
to turn Android
Beam OFF.
Note:
NFC must be turned on to use S Beam.
Note:
NFC must be turned on to use Android Beam or
S Beam.
Settings 166
S Beam
S Beam uses your phone’s NFC (Near Field Communication)
to send, or “beam”, content to other NFC and Wi-Fi Direct
devices, by holding the devices close together.
S Beam works in the background. To share pictures or videos
from Gallery, videos from Video player, or songs from Music
player. Just bring the devices together (typically back-to-
back), then touch the screen.
Turning S Beam On or Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab.
2. Touch
Back
, to return to the
Connections
tab, then
under
Connect and share
:
3. Touch the
S Beam
slider
to turn S Beam ON.
– or –
Touch the
S Beam
slider
to turn S Beam OFF.
Nearby devices
Share files with nearby devices via DLNA (Digital Living
Network Alliance) over Wi-Fi.
Note:
To use Nearby devices for sharing, you must have set up
a connection with another Wi-Fi device that supports
DLNA.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab. The
Nearby
devices
screen displays.
2. Touch the
Nearby devices
slider
to turn Nearby
devices ON.
3. Touch
OK
At the Nearby devices prompt.
4. Touch
Shared contents
, then check the media you
would like to share and tap
OK
.
5. Touch
Allowed devices list
:
Lists Wi-Fi devices allowed to
access your phone.
6. Touch
Not-allowed devices list
:
Lists Wi-Fi devices blocked
from accessing your phone.
7. Touch
Download to
,
Choose a location to save downloaded
content, from USB storage or the SD card.
Note:
NFC must be turned on to use Android Beam or
S Beam.
167
8. Touch
Upload from other devices
:
Choose how to handle
incoming files from other devices, from
Always accept
,
Always
ask
, or
Always reject
.
Screen Mirroring
AllShare Cast lets your phone share the contents of its
display with other Digital Living Network Alliance (DLNA)
certified devices, such as Smart televisions.
(For more information, refer to “Screen Mirroring” on page
149.)
Note:
To view more information about DLNA certified products
visit
http://www.dlna.org/home
.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
tab
➔
Screen
Mirroring
. The
Screen Mirroring
screen displays.
Note:
This feature requires the optional AllShare Cast dongle
which is available as an accessory. See your Customer
Service Representative for more information.
2. Connect the dongle to the HDMI device using an HDMI
A-to-A cable.
3. Press
Menu
➔
Help
for information on using
Screen Mirroring.
My device
From the Home screen, touch
Menu
➔
Settings
➔
My device
. The
My device
screen displays.
Lock screen
Choose settings for locking and unlocking your phone.
For more information about using the lock and unlock
features, see “Securing Your Phone” on page 17.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Lock screen
.
Touch the following options to access additional
options:
• Screen lock
: Touch one of the following options to select it as
your custom screen lock/unlock method:
–
Swipe
: When enabled, you unlock the phone by swiping your
finger across the screen. This is the default screen lock, and
offers no security.
Settings 168
–
Face unlock
: When enabled, you unlock the phone by looking
at the screen. This option offers low security, because someone
who looks similar to you could unlock your phone. Touch the
option for more information, and to set up Face unlock.
–
Face and voice
: When enabled, you unlock the phone by
looking at the screen and saying the S Voice wake up phrase.
This option offers low security, because someone who looks
similar to you and knows the S Voice wake up phrase could
unlock your phone. Touch the option for more information, and
to set up Face and voice unlock.
–
Pattern
: When enabled, you draw a pattern, which you create,
on the screen to unlock the phone. Touch the option, then follow
the prompts to create or change your screen unlock pattern.
–
PIN
: When enabled, you enter a numeric PIN (Personal
Identification Number), which you create, to unlock the phone.
–
Password
: When enabled, you enter an alphanumeric
password, which you create, to unlock the phone.
–
None
: Disable all custom screen lock settings, to use the default
swipe unlock screen.
• Lock screen widgets
: Touch this option and the
Lock screen
widgets
screen displays with the following additional options
available:
–
Favoirte apps or Camera
: Touch
Favoirte apps or Camera
to enable the Favoirte
apps widget or Camera shortcut on the Lock screen.
–
Clock or personal message
: Choose whether the Clock
widget or a personal message text entry displays on the Lock
screen.
–
Edit personal information
: Customize the personal message
text on the Lock screen.
•Shortcuts
: When enabled, application shortcuts appear on the
lock screen. Swipe an icon to launch the associated
application.
Touch
Shortcuts
to enable lock screen shortcuts.
Touch
Shortcuts
to disable lock screen shortcuts.
Touch
Shortcuts
to add/remove lock screen shortcuts.
• Unlock effect
: Touch this option to enable/disable showing a
Ripple or Light effect on the lock screen, provided the lock
screen wallpaper is not “live”.
169
•Help text
: Touch this option to enable/disable showing text
explanations of lock screen features. When enabled, a check
mark displays in the check box.
• Wake up in lock screen
: Touch this option to enable/disable
unlocking your phone by saying the S Voice wake-up
command. When enabled, a check mark displays in the check
box. (For more information about S Voice, see
“S Voice”
on
page 126.)
• Set wake-up command
: Touch this option and to change the
Wake up S Voice command, and to configure Wake-up
functions 1 through 4. (For more information about S Voice, see
“S Voice”
on page 126.)
Display
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
,
➔
Display
. The
Display
menu displays.
General
Wallpaper
Select wallpaper(s) for the Home and Lock screens.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
➔
General
➔
Wallpaper
.
2. Touch the screen for which you want to select
wallpaper. (Options are:
Home screen
,
Lock screen
, and
Home and lock screens
.)
3. Touch the source of the wallpaper(s) you want to use.
[Options are:
Gallery
,
Live wallpapers
(not for the Lock
screen), and
Wallpapers
.)
4. Touch the desired image or wallpaper.
Settings 170
Notification panel
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
➔
General
, and touch
Notification panel
. The
Notification panel
screen displays. The following
options are available:
• Brightness adjustment
: When enabled, a Brightness
adjustment slider displays in the Notification panel, under the
Quick Setting buttons.
• Set the quick setting buttons
: Follow the on-screen
instructions to select the quick setting buttons you want to
appear at the top of the Notification panel.
Multi window
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
➔
General
, and touch
Multi window
to enable or
disable the Multi window tray. (For more information,
refer to “Using Multi window” on page 27.)
Screen
Screen mode
Set the screen color balance and contrast mode.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
➔
General
and touch
Screen mode
.
2. For automatic optimization of the screen, touch the
Adapt display
option to enable it. A check mark
displays in the check box.
3. To manually select a screen mode, disable the
Adapt
display
option, then touch
Dynamic
,
Standard
,
Professional photo
, or
Movie
.
4. Touch
Save
.
Brightness
Set the default screen brightness.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
, and touch
Brightness
.
2. Touch and drag the slider to set the brightness, or
touch
Automatic brightness
to allow the phone to adjust
brightness in response to light conditions.
171
3. Touch
OK
to save the setting.
Auto-rotate screen
When enabled, the screen’s orientation automatically
changes when you rotate the phone.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
➔
and touch
Auto-rotate screen
to enable or
disable the feature.
When enabled, a check mark displays in the check
box.
Tip:
You can also set Auto rotate on the Notifications panel
with the
Screen rotation
setting. (For more information,
refer to “Notifications” on page 32 and “Quick Setting
Bar” on page 33.)
Screen timeout
Set the length of delay between the last key press or screen
touch and the automatic screen timeout (dim and lock).
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
, and touch
Screen timeout
.
2. Touch a setting to select it.
Daydream
When set to ON, this option lets you control your phone’s
reactions to being placed in an optional desk or vehicle dock,
being connected to a charger, and/or sleeping.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
, and touch:
•
Touch the
Daydream
slider
to turn Daydream ON.
•
Touch the
Daydream
slider
to turn Daydream OFF.
2. Touch
Daydream
to select Daydream wallpaper from
Colors, Flipboard, Photo Frame, or Photo Table.
For additional Flipboard, Photo Frame, or Photo Table
settings, touch .
•
Touch
Start now
to preview the effects of your Daydream
settings.
•
Touch
Enable daydream
, then select
While docked
,
While
charging
, or
All
.
Settings 172
Font
Font style
Set the font for screen displays.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
, and touch
Font style
.
2. Select a font, or touch
Get fonts online
to browse and
download a new font.
Font size
Set the font size for screen displays.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
, and touch
Font size
.
2. Select a font size (
Tiny
,
Small
,
Normal
,
Large
, or
Huge
).
More settings
Touch key light duration
Set the length of time keys light when you touch them.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
, and touch
Touch key light duration
.
2. Select
1.5 seconds
,
6 seconds
,
Always off
, or
Always on
.
Display battery percentage
When enabled, the battery’s charge level displays in the
Status bar next to the Battery icon.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Display battery percentage
to enable/
disable the setting.
173
Edit after screen capture
When enabled, after you capture a screen (by sweeping
across the screen or by pressing Home and Power together),
the Gallery Picture Editor automatically launches.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Edit after screen capture
to enable/
disable the setting.
Auto adjust screen tone
When turned enabled, your phone automatically analyzes the
screen and adjusts screen tone to save power.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Auto adjust screen tone
to enable/
disable the setting.
High touch sensitivity
When enabled, your phone’s screen sensitivity increases to
let you interact with your phone while wearing gloves.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
High touch sensitivity
to enable/
disable the setting.
LED indicator
Select which alerts cause the LED indicator (upper left corner
of your phone) to come on while your phone’s screen is off.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
LED indicator
. The following options
are available:
•Charging
: When enabled, LED indicator lights red while your
phone’s battery is being charged.
•Low battery
: When enabled, LED indicator lights red when
your phone’s battery charge level becomes low.
• Notifications
: When enabled, LED indicator flashes blue when
you have missed calls, new messages, or application events.
• Voice recording
: When enabled, LED indicator lights blue
when you are recording a voice note.
Settings 174
Sound
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
. The
Sound
menu displays.
Volume
Set the system volume level, and set default volumes for call
ringtones, notifications, and media playback.
Note:
You can also set System volume from the Home screen
by pressing the
Volume
key Up or Down.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
..
2. Touch
Volume
. The
Volume
menu pops-up.
3. Touch and drag the sliders for:
• Music, video, games, and other media
: Set the default
volume level for audio playback. You can also adjust volume
from this default inside the apps.
•Ringtone
: Set the volume for incoming call ringtones.
• Notifications
: Set the volume for notifications, such as new
messages and event reminders.
• System
: Set the volume for all other system sounds, such as
keytones played for screen touches. You can control whether
tones play for screen touches with other sound settings.
4. Touch
OK
to save your settings.
Vibration intensity
Set the level for vibration to accompany ringtones and
notifications.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
..
2. Touch
Vibration intensity
. The
Vibration intensity
menu
pops-up.
3. Touch and drag the sliders for:
• Incoming call
: Set the vibration level for incoming call
ringtones.
• Notification
: Set the vibration level for notifications, such as
new messages and event reminders.
• Haptic feedback
: Set the vibration level vibrations to
accompany screen touches.
4. Touch
OK
to save your settings.
175
Ringtones
Choose a ringtone for incoming calls.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
..
2. Touch
Ringtones
. The
Ringtones
menu pops-up.
3. Touch a ringtone to select it. When you touch a
ringtone, a sample plays, unless you have a Silent
mode enabled.
4. To add a sound or music file to the Ringtones list, touch
Add
.
5. Touch
OK
to save your selection.
Tip:
You can also set songs as ringtones for all calls, or for a
selected contact. (For more information, refer to “Music”
on page 118.)
Vibrations
Choose a vibration pattern to use when vibration is enabled.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
.
2. Touch
Vibrations
. The
Vibrations
menu pops-up.
3. Touch a vibration pattern to select it. When you touch a
pattern, a sample plays.
4. To create your own pattern, touch
Create
. Touch
Tap to
create
in the pattern, then touch
Stop
. Touch
Save
to
save your pattern.
5. Touch
OK
to save your selection.
Settings 176
Notifications
Choose a default sound to play for notifications, such as for
new messages and event reminders.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
..
2. Touch
Notifications
. The
Notifications
menu pops-up.
3. Touch a sound to select it. When you touch a sound, a
sample plays.
4. Touch
OK
to save your selection.
Tip:
You can also set songs as ringtones. (For more
information, refer to “Music” on page 118.)
Vibrate when ringing
When enabled, vibration is played at the same time as
sounds for calls and alerts.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
..
2. Touch
Vibrate when ringing
to enable or disable the
feature.
When
Vibrate when ringing
is enabled, a check mark
displays in the check box.
Dialing keypad tone
Dialing keypad tones are sounds that play when you touch
keys on the Phone keypad.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
.
2. Touch
Dialing keypad tones
to enable or disable key
sounds.
When
Dialing keypad tones
is enabled, a check mark
displays in the check box.
177
Touch sounds
Touch sounds play when you touch items on the screen, such
as when making a selection.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
.
2. Touch
Touch sounds
to enable or disable touch sounds.
When
Touch sounds
is enabled, a check mark displays
in the check box.
Screen lock sound
Screen lock sound plays when you lock or unlock the screen.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
.
2. Touch
Screen lock sound
to enable or disable the
Screen lock sound.
When
Screen lock sound
is enabled, a check mark
displays in the check box.
Haptic feedback
When turned On, the phone vibrates to indicate screen
touches and other interactions.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
.
2. Touch
Haptic feedback
to turn touch vibrations On or
Off.
Settings 178
Emergency tone
You can set your phone to play an alert tone or vibrate during
an emergency call (for example, calls to 911).
Caution!
When you are endangered by intruders, you should
disable Emergency tone before placing an
Emergency Call.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Personalization
➔
Display
and touch
Sound
.
2. Touch
Emergency tone
.
3. Touch
Alert
or
Vibrate
, or touch
Off
for no emergency
tone.
Adapt Sound
You can select the sound most suitable to you for allerting
you to calls while listening to music and video files.
1. From the
Sound
menu, under
More settings
, touch
Adapt Sound
.The
Adapt Sound
screen displays.
2. Read the instructions provided.
3. To begin selecting your personal sound, touch
Start
.
Home screen mode
Select the Home screen layout that best suits your needs.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Home screen mode
. The
Home screen mode
screen displays.
3. Select the desired Home screen mode (a preview
image of your selection displays):
• Standard mode
: A conventional layout for apps and widgets
on the Home screen panels.
• Easy mode
: A simplified apps and widgets layout for first time
smartphone users.
4. To save your selection, touch
Apply
.
Call
Note:
This section does not include information about Call
settings. (For Call settings information, see “Call
Settings” on page 71.)
179
Blocking mode
When enabled, Blocking mode lets you select which
notifications you receive.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Blocking mode
to enable this feature.
3. Touch the
Blocking mode
tab to access the following
options:
•Features
:
–
Disable incoming calls
: Blocks incoming calls from everyone
except
Allowed contacts
.
–
Disable notifications
: Blocks notifications from playing an
alert tone.
–
Disable alarm and timer
: Blocks notifications from Clock and
Calendar alarms, and from timers.
–
Disable LED indicator
: Stops LED indicator from lighting.
•Set time
:
–
Always
: When enabled, Blocking mode stays active until you
turn it off.
–
From
: With
Always
disabled, select the time when Blocking
mode will come on.
–
To
: With
Always
disabled, select the time when Blocking mode
will go off.
•Allowed contacts
:
–
Allowed contacts
: Select contacts from whom your phone is
to accept incoming calls. [Options are: None, All contacts,
Favorites, Custom (selecting this option enables
Allowed
contact list
).]
–
Allowed contact list
: Add and remove contacts from whom
your phone accepts calls when Blocking mode is on.
4. Select the desired option to enable/disable it.
Hands-free mode
When Hands-free mode is enabled, incoming calls and
notifications will be read out automatically.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Hands-free mode
.
3. Tap the
OFF / ON
icon next to
Driving mode
to the right
to turn it on .
Confirm that the Driving mode active icon
displays in the Status bar.
Settings 180
All incoming calls and notifications will be read out
automatically.
4. The following options are available:
• Incoming call
: read out callers’ information when receiving
incoming calls.
•ChatON
: read out callers’ information when receiving incoming
ChatON messages.
• Air call-accept
: wave your hand over the screen to accept
incoming calls.
• Message
: read out senders’ information when receiving
incoming calls.
•Alarm
: read out alarm information when alarms sound.
• Schedule
: read out scheduled alarm information when alarms
sound.
5. You can disable Driving mode by saying “Driving mode
off” while in S voice, or by accessing the Settings
menu and sliding the Hands-free mode slider to the off
position or by using the Notification panel.
Power saving mode
Configure Power saving settings to conserve battery power.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Power saving mode
. The
Power saving mode
screen displays.
3. Touch
Power saving mode
to enable or disable the
option:
•
Touch
Power saving mode
to enable Power
saving.
•
Touch
Power saving mode
to disable Power
saving.
Power saving mode
must be enabled ( ) to
configure the
Power saving mode settings
.
181
4. Touch the following
Power saving mode settings
to
enable or disable them. (When an option is enabled, a
check mark displays in its check box.):
• CPU power saving
: When enabled, the phone’s maximum
performance is limited. This does not affect normal usage,
such as browsing and video playback.
• Screen power saving
: When enabled, the screen uses
reduced frame refresh rate and lower brightness.
• Turn off haptic feedback
: When enabled, no vibration plays
when you touch the screen.
5. Under
Power saving tips
, touch
Learn about power saving
mode
to read information about Power saving options.
Accessory
Configure your phone’s behavior when you connect it to
optional accessories (not included).
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Accessory
. The
Accessory
screen displays.
Dock
Configure your phone’s behavior when it is connected to an
optional Dock (not included).
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Accessory
and touch the check box next to each
of the following options to enable it: (When enabled, a
check mark displays in the check box.)
• Dock sound
: When enabled, a sound plays when you insert
and remove the phone from the Dock.
• Audio output mode
: When enabled, audio plays through the
Dock speakers when the phone is docked.
• Desk home screen display
: When enabled, displays a special
screen when the phone is docked.
Settings 182
S View Cover
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Accessory
and touch the check box next to
Automatic unlock
to enable/disable unlocking your
phone’s screen by flipping the cover open, provided the
secure lock is disabled: (When enabled, a check mark
displays in the check box.)
HDMI
Configure your phone’s behavior when you connect it to an
HD television or an amplifier using an optional HDTV Adapter
(not included).
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Accessory
. The following option is available:
•Audio output
: Select the quality of sound to be produced
(Stereo or Surround).
Accessibility
Your phone offers features to make using the phone easier
for those with certain physical disabilities. Use the
Accessibility settings to activate these services.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Accessibility
. To enable/disable each of the
following options, touch the check box next to it: (When
enabled, a check mark displays in the check box.)
• Auto-rotate screen
: The screen’s orientation automatically
changes when you rotate the phone.
You can also set Auto rotate on the Notifications panel with the
Screen rotation setting.
• Screen timeout
: Set the length of delay between the last key
press or screen touch and the automatic screen timeout (dim
and lock).
• Speak passwords
: When enabled, your phone reads out your
password entries.
• Answering/ending calls
: Touch this option to access the
following call answering and ending settings:
183
–
The home key answers calls
: When enabled, you can
answer calls by pressing
Home
.
–
Answers calls by tapping
: When enabled, you can answer
calls by touching the Accept call button on the Incoming Call
screen.
–
Voice control
: When enabled, you can use your voice to
answer calls.
–
The power key ends calls
: Lets you can end voice calls by
pressing the
Power/Lock
key.
• Show shortcuts
: Adds an
Accessibility settings
option to the
Device options
menu (displays when you press and hold the
Power/Lock
key. This provides quick access to
the
Accessibility
settings, to make changes as you use the
phone.
• Manage accessibility
: Save and update your accessibility
settings, or share them with another device.
–
Export
: Save your accessibility settings in a file.
–
Update
: Update your accessibility settings by importing the
saved file.
–
Share via
: Share your accessibility settings using Bluetooth,
Dropbox, Email, Gmail, or Wi-Fi Direct.
–
Android Beam
: Send your accessibility settings to another
device using Android Beam and NFC.
Services
Enable or disable accessibility services.
TalkBack
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch the following option:
•TalkBack
: When enabled in the
TalkBack
screen, recites
menu options, application titles, contacts, and other items
when scrolling and making selections, according to the
Settings
values you select.
Settings 184
Vision
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch the check box next to each of the following
options to enable it: (When enabled, a check mark
displays in the check box.)
•Font size
: Set the font size for screen displays (Tiny, Small,
Normal, Large, Huge).
• Maginfication gestures
: Touch
Maginfication gestures
to turn ON tripple-tap to
zoom, tripple-tap and hold to zoom temporarily, pan, and adjust
zoom level gestures.
• Negative colors
: Reverses the colors on the screen.
• Color adjustment
: to turn ON and adjust screen
colors for better readability.
• Accessibility shortcut
: Touch
Accessibility shortcut
to turn ON quick access to
the
Accessibility
settings, to make changes as you use the
phone, by pressing and holding the
Power/
Lock
key.
• Text-to-speech options
: Select Preferred TTS engine, Speech
rate, and Driving mode.
• Enhance web accessibility
: Does not allow / Allows apps to
install scripts from Google that make their Web content more
accessible.
Hearing
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch the check box next to each of the following
options to enable it: (When enabled, a check mark
displays in the check box.)
• Sound balance
: Lets you adjust media player sound balance
when you are using a stereo headset or stereo headphones.
• Mono audio
: Delivers monophonic sound to support listening
with a wired or Bluetooth headset with one earphone.
• Turn off all sounds
: Disables all sounds, including the voice
portion of calls.
• Flash notification
: The Camera flash blinks when you receive
a notification.
185
Mobility
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch the following options:
• Assistant menu
: Touch
Assistant menu
to turn ON
options to change the Dominant hand setting and to Edit menu
buttons.
• Tap and hold delay
: Select the length of time the phone
considers a screen touch before interpreting a touch as touch-
and-hold (Short, Medium, Long).
Recognition
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch the following option:
• Interaction control
: Touch
Interaction control
to let
you enable/disable S motions and/or screen timeout, block
touch interaction on screen areas while in an application,
disable Auto-rotate and hardkey functions.
To launch
Interaction control
, press
Home
and the
Volume down
key at the same time.
Language and input
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Language and input
. The
Language and input
screen displays.
Language
Select the language used in your phone’s screens.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Language and
input
.
2. Touch
Language
to select the language used in your
phone’s screens.
Keyboards and input methods
Configure text entry options to your preferences.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Language and input
.
3. Under
Keyboards and input methods
, touch the check
box next to each of the following options to enable it.
(When enabled, a check mark displays in the check
box.):
Settings 186
•Default
: Review the default method for manually entering text.
• Google voice typing
: Lets you vocally dictate the text entered
into a field. Touch beside Google voice typing to configure
the following options:
–
Choose input languages
: Select languages for Google voice
typing. Select
Automatic
to use the Default language
exclusively, or choose other language(s).
–
Block offensive words
: When enabled, words many people
find offensive are not shown in results of Google voice searches.
Offensive words are replaced in results with a placeholder
(####).
–
Download offline speech recognition
: Enables voice input
using Google voice typing while your phone is offline.
• Samsung keyboard
: Touch beside Samsung keypad to
configure the following options.
–
Portrait keyboard types
: Choose the default keypad when the
screen is in portrait mode, from Qwerty or 3x4 keyboard (similar
to a phone keypad).
–
Input languages
: Select languages for the Samsung
keyboard.
–
Predictive text
: When enabled, T9 suggests words matching
your text entries and optionally, complete common words
automatically. Touch
Predictive text
to turn ON T9
predictive text, touch
Predictive text
to turn OFF T9
predictive text. Touch
Predictive text
to configure the following
options:
Personalized data
: When enabled, Predictive text uses
personal language data you have entered.
Learn from Facebook
: Log in to let your device learn from
your Facebook entries.
Learn from Gmail
: Log in to let your device learn from your
Gmail messages.
Note:
This option cannot be changed.
Note:
This option cannot be disabled.
Tip:
When you have more than one language
selected, you can slide your finger on the
space bar while entering text to switch
languages.
187
Learn from Twitter
: Log in to let your device learn from your
“tweets”.
Learn from Messaging
: Update to let your device learn from
your message text entries.
Learn from Contacts
: Update to let your device learn from
your Contacts style.
Clear remote data
: Remove your anonymous data from the
personalization server.
Clear personalized data
: Remove all the personal language
data you have entered.
–
Continuous input
: When enabled, you can sweep your finger
over keypad letters to enter words. When you lift your finger, a
word matching your sweep is entered automatically. Available
when Predictive text is turned On.
–
Cursor control
: When enabled, you can move the cursor by
sliding your finger across the keyboard.
–
Handwriting
: When in Handwriting mode, Samsung keyboard
recognizes on-screen tracing of words. Touch
Handwriting
to
configure the following options:
Recognition type
: Select Stroke recognition or Complete
recognition.
Recognition time
: Select 100 ms, 300 ms, 500 ms,
1000 ms, or 2000 ms.
Pen thickness
: Select 1 pixel, 3 pixels, 5 pixels, 7 pixels, or
9pixels.
Pen color
: Select Black, Red, Blue, Green, or Brown.
About
: Lists the Build, DHWR, and DioWord+ release versions.
–
Advanced
:
Auto-capitalization
: When enabled, T9 automatically
capitalizes words in your text based on common usage, such as
at the beginning of sentences.
Auto spacing
: When enabled, this option automatically inserts
spaces between words.
Auto-punctuate
: When enabled, a period and space are
automatically entered to end a sentence, when you touch the
space bar twice.
Character preview
: When enabled, characters available on
the key you touch display briefly as you enter text.
Key-tap vibration
: When enabled, a vibration plays for your
key touches.
Key-tap sound
: When enabled, a sound plays for your key
touches.
–
Help
: View help information for using T9 predictive text.
–
Reset settings
: Touch to reset Samsung keyboard settings to
the defaults, except for My word list and the Auto substitution
list.
Settings 188
•Swype
: Touch beside Swype to configure the following
options.
–
How to Swype
: Learn Swype through quick, easy-to-use
steps.
–
Gestures
: Learn about the gestures you can use to simplify
accessing Swype features.
–
Preferences
:
Vibrate on keypress
: When enabled, the phone vibrates on
text entry.
Sound on keypress
: When enabled, plays sounds as you
enter text.
Show helpful tips
: When enabled, displays a flashing indicator
for quick help as you enter text.
Auto-spacing
: When enabled, inserts spaces automatically
when you pause entering text.
Auto-capitalization
: When enabled, automatically capitalizes
the first letter of the first word in a sentence.
Show complete Trace
: Choose whether to display the
complete Swype path.
Pop-up on keypress
: Characters pop-up when you type them.
Next word prediction
: When enabled, suggests possible
matching words as you enter text.
Reset Swype’s dictionary
: Delete all words you’ve added.
Version
: View the current Swype software version.
–
Language Options
:
English
: Change current language.
Living language
: When enabled, automatically updates Swype
with popular new words.
Download languages
: Select and download languages
besides US English.
Active
: Enable or disable installed languages.
–
Swype Connect
:
Register now
: Register your Swype Backup & Sync account.
Backup & Sync
: When enabled, your device automatically
downloads popular, new words based on language and location;
backs up your Swype dictionary, and synchronizes your Swype
dictionary across multiple devices.
Contribute usage data
: When enabled, Nuance collects
usage data to provide better word predictions.
Cellular data
: When enabled, Swype features can use your
phone’s cellular network connection to download updates,
languages, and so on.
189
–
Personalization
:
Edit Dictionary
: Add and/or remove words in your personal
dictionary.
Facebook
: Sign in to add contact names to your personal
dictionary.
Twitter
: Sign in to add user names and new words from your
public twitter feed to your personal dictionary.
Gmail
: Sign in to add recipient names to your personal
dictionary.
–
Updates
: Check for updates and download them to your
device.
Speech
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Language and input
.
3. Under
Speech
, the following options are available:
• Voice search
: Configure how
Voice search
reacts to your
speech.
–
Language
: Choose a language for voice searching.
–
Speech output
: Choose whether Speech is Always available or
available with Hands-free only.
–
Block offensive words
: When enabled, words many people
find offensive are not shown in results of Google voice searches.
Offensive words are replaced in results with a placeholder
(####).
–
Hot word detection
: When enabled, say “Google” to launch
voice search.
–
Download offline speech recognition
: Enables voice input
while off-line.
–
Personalized recognition
: Train
Voice search
to more
accurately recognize your voice.
–
Google Account dashboard
: Manage data collected under
your Google account.
Settings 190
–
Bluetooth headset
: Records audio through a Bluetooth
headset, when available.
• Text-to-speech options
: Provides audible readout of text, for
example, the contents of text messages, and the Caller ID for
incoming calls.
–
Preferred TTS engine
: Select
Samsung text-to-speech
engine
or
Google Text-to-speech Engine
.
–
General
:
Speech rate
: Choose a rate at which text readouts are spoken.
Listen to an example
: Play a sample of speech synthesis.
Mouse/trackpad
Customize the response of your screen swipes.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Language and input
.
3. Under
Mouse/trackpad
, touch
Pointer speed
, then touch
and drag along the scale to set the pointer speed.
Motions and gestures
Motion lets you control a number of your phone’s functions
by moving your hand or finger across the screen in a
particular pattern or by moving the phone itself in a particular
way.
Note:
For more information about using Motion, see “Motions
and gestures” on page 25.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Motions and gestures
. The following options are
available (to enable your phone’s ability to recognize
each gesture, touch the related slider :
3. Touch
Air gesture
for these options:
–
Quick glance
: When set to ON and the screen is off, you can
reach toward your phone to receive a quick display of selected
information (Time & Date, Notification icons, Missed calls,
Unread messages, Battery power, and/or Current music info).
–
Air jump
: When set to ON, you can “page through” a web page
by sweeping your hand up or down near the screen.
191
–
Air browse
: When set to ON, you can display previous or next
web pages by sweeping your hand left or right near the screen.
–
Air move
: When set to ON, you can move a shortcut from one
Home screen panel to another by sweeping your hand left or
right near the screen.
–
Air call-accept
: When set to ON, you can moving your hand
first left and then right near the front of your phone. (You can
also elect to have your phone answer calls in Speakerphone
mode.
4. Touch
Motion
for these options:
–
Direct call
: When enabled, you can lift the phone to your ear
while viewing a contact to dial the contact’s phone number.
–
Smart alert
: When enabled, the phone will automatically notify
you to missed calls and alerts that occurred while the phone
was stationary.
–
Zoom
: When enabled, tilting the phone while in Gallery or
Internet causes the screen to zoom in or out.
–
Browse an image
: When enabled, moving the phone in a
panning motion while viewing an image moves focus around in
the image.
–
Mute/pause
: When enabled, turning the phone screen-down
automatically mutes incoming call ringtones and alerts sounds
and pauses media playback.
5. Touch
Palm motion
for these options:
–
Capture screen
: When enabled, swiping your hand left or right
across the display captures an image of the current screen.
–
Mute/pause
: When enabled, covering the screen with your
hand pauses media while playing or mutes sounds playing on
your phone.
Smart screen
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Smart screen
. The following options are
available:
•Smart stay
: When enabled, this feature prevents screen
timeout, if you are using the phone.
Example:
The phone uses the front camera to
identify your eyes, and keeps the screen
bright for continued viewing.
Settings 192
• Smart rotation
: When enabled, this feature adjusts screen
images to match your angle of sight.
• Smart pause
: When enabled, this feature pauses video
playback when it detects your face turning away from the
screen.
• Smart scroll
: When set to ON, this feature detects your face
with the front camera and scrolls web pages or email message
content. By touching the Smart scroll tab, you can adjust the
scrolling Speed, enable/disable Visual Feedback display,
enable/disable Smart scrolling for web pages an/or for email
messages content.
Air view
This feature lets you preview the contents or view
information in pop-up windows by holding your finger above
You can scroll through panels or lists by moving your finger
to an edge (top/bottom/left/right) of the screen.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Air view
to set the
Air view
feature to
ON.
193
Air view options
Use these options to choose what will appear when you
hover your finger over areas of the display.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch
Air view
. The
Air view
screen displays.
3. Touch the following option sliders to set them to ON:
• Information preview
: When set to ON, you can
preview extended text or enlarged images.
• Progress preview
: When set to ON, you can preview
a video scene or show elapsed time.
• Speed dial preview
: When set to ON, you can
preview Contact names assigned to Speed dial numbers by
hovering over the Phone keypad keys.
• Webpage magnifier
: When set to ON, you can view
a portion of a web page magnified.
4. Touch
Sound and haptic feedback
to enable sound and
vibration feedback when you hover your finger over
areas of the display. (When enabled, a check mark
displays in the check box.)
Voice control
This feature lets you control selected features of your phone
using just your voice.
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
.
2. Touch the
Voice control
slider to turn on Voice
control.
3. Touch
Voice control
then touch following options:
4. Touch the following options to enable/disable them:
• Incoming calls
: When enabled, you can answer or reject calls
by saying “Answer” and “Reject”. Your phone with answer the
calls in Speakerphone mode.
•ChatON
: When enabled, you can answer or reject ChatON calls
by saying “Answer” and “Reject”. Your phone with answer the
ChatON calls in Speakerphone mode.
•Alarm
: When enabled, you can stop an alarm or set it to
snooze by saying “Stop” and “Snooze”.
•Camera
: When enabled, you can take pictures by saying
“Smile”, “Cheese”, “Capture” and “Shoot”.
Settings 194
•Music
: When enabled, you can control the Music Player by
saying “Next”, “Previous”, “Pause”, “Play”, “Volume Up”, and
“Volume Down”.
When these options are enabled, a check mark
displays in each of their check boxes.
Accounts
Set up and manage accounts, including your Samsung,
Email, Google, and social networking accounts.
From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
, then,
under
My accounts
, touch
the desired account type.
The related account type screen displays.
Samsung account
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
tab.
2. Touch
Add account
➔
Samsung account
. The
Samsung
account
screen displays.
3. Touch
Account settings
. The following options are
available:
•Profile
(password protected): Change password and view
Email address, Date pf birth, Name prefix, First name,
Lastname, Zip code, Nickname, and Receive newsletter status
for your account.
• Terms and conditions
: Review Country or region, Terms and
conditions, and Privacy policy information.
•Help
: Find your email address or password, Contact us with a
text message, or review Customer support information [My
questions, FAQ (Frequently Asked Questions), or Contact us].
4. Touch
Storage usage
. The following options are
available:
•Total used
: Indicates the total amount of storage used for files
synchronized with your Samsung account.
• Personal data management
: Lists current amounts of storage
used by Memo, S Memo, S Note, Calendar, Internet, and
Contacts apps and the amount of storage used for Backed up
data.
5. Touch
Backup
. The following options are available:
–
Auto backup
: When enabled for at least an hour and
connected to a Wi-Fi network and with the screen off and the
device charging, your data is backed up automatically.
195
–
Logs
: When enabled, tracks device backup activity to your
Samsung account.
–
Messages (Text message)
: When enabled, your Text
messages (SMS) are backed up to your Samsung account.
–
Messages (Multimedia message)
: When enabled, your
Multimedia messages (MMS) are backed up to your Samsung
account.
–
Wallpaper
: When enabled, your Wallpaper images (not the
pre-loaded images) are backed up to your Samsung account.
–
Back up now
: Touch to immediately back up the selected data
to your Samsung account.
6. Touch
Restore
to immediately restore backed-up data
to your device.
ChatON
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Add account
➔
ChatON
. The
ChatON
screen
displays.
3. Follow the prompts to set up a ChatON account or a
link to an existing account.
Dropbox
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Add account
➔
Dropbox
. The
Welcome to
Dropbox!
screen displays.
3. Follow the prompts to set up a Dropbox account or a
link to an existing account.
Email
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
<
Email account
>. The
Email
account screen
displays.
3. Set up a new email account. For more information,
refer to “Email” on page 82.
4. Configure the Common settings:
• Common settings
:
–
Settings
: Touch an account to configure the account-specific
settings. Settings vary depending on the Email account type.
5. Touch the email account name and configure the
specific email account settings.
Settings 196
Google
Adding Google account
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Add account
➔
Google
. The
Add a Google Account
screen displays.
3. Touch
Existing
or
New
.
4. Follow the prompts to set up a Google account link.
Account Synchronization settings
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Google
. The
Google
screen displays.
3. Under
Accounts
, touch the desired Google account. The
Sync settings
screen displays listing the following
options:
•Sync App Data
: Synchronize your Google applications’ data
with your on-line Google account.
•Sync Calendar
: Synchronize your phone’s calendar with your
on-line calendar.
•Sync Contacts
: Synchronize your phone’s contacts list with
your on-line contacts list.
•Sync Gmail
: Synchronize your phone’s Gmail inbox with your
on-line Gmail inbox.
• Sync Google Photos
: Synchronize your phone’s gallery photos
with your on-line Google Photos.
• Sync Google Play Books
: Synchronize your phone’s ebooks
library with your on-line ebooks library.
• Sync Google Play Magazines
: Synchronize your phone’s
emagazines library with your on-line emagazines library.
• Sync Google Play Movies & TV
: Synchronize your phone’s
movies & TV library with your on-line movies & TV library.
• Sync Google+
: Synchronize your Google+ contacts.
• Sync Google+ Photos
: Automatically synchronizes Google+
photos with your Google+ account.
• Sync People details
: Synchronize all of your contact/people
information from your various Google apps and Microsoft
Exchange account(s) for use by Google People.
• Sync Picasa Web albums
: Synchronize your phone’s Gallery
folders and files with your on-line Picasa Web albums.
197
General settings
1. Press
Home
, then touch
Apps
, and the
Apps
tab. The
Apps
screen displays.
2. Touch
Gmail
. The Gmail
Inbox
screen displays.
3. Touch
Menu
➔
Settings
➔
General settings
. The
following options are available:
• Archive & delete actions
: Configures how to display archived
or deleted email.
• Swipe to archive
: When enabled, swipe a conversation to
archive it.
•Sender image
: When enabled, displays an image next to the
name in the conversation list.
•Reply all
: When enabled, your message replies are
automatically sent to all original message recipients.
• Auto-fit messages
: When enabled, messages are shrunk to fit
your phone’s screen. Zoom is also enabled.
• Auto-advance
: When enabled, the conversation list is
automatically updated and displayed after you delete or archive
messages or conversations.
• Message actions
: Allows you to configure how display
message actions. Choose from: Always show, Only show in
portrait, and Don’t show.
• Confirm before deleting
: When enabled, prompts you to
confirm deletions of conversations or messages.
• Confirm before archiving
: When enabled, prompts you to
confirm movement of conversations or messages to archive.
• Confirm before sending
: When enabled, prompts you to
confirm sending of messages.
• Swiping conversation list
: Set Swiping conversation list as
Has no effect on Gmail conversations, Archives or deletes
Gmail conversations, or Always deletes Gmail conversations.
Settings 198
Account settings
1. Press
Home
, then touch
Apps
, and the
Apps
tab. The
Apps
screen displays.
2. Touch
Gmail
. The Gmail
Inbox
screen displays.
3. Touch
Menu
➔
Settings
and select an account.
The following options are available:
•Inbox type
: Select the inbox type: Default Inbox or Priority
Inbox.
•Inbox categories
: Select and configure the categories of email
to display in the Inbox. Primary (Person-to-person
conversations), Social, Promotions, Updates, Forums. When
Include starred in Primary is selected changes display after
sychronization.
• Notifications
: When enabled, notifications for new email
displays in the Notifications Panel.
• Inbox sound & vibrate
: Select Sound (ringtone) to play when
new messages arrive, whether to Vibrate to alert you to new
messages, and whether to Notify you once for new email
messages.
•Signature
: Create a text signature to add to outgoing
messages.
• DATA USAGE
:
–
Sync Gmail
: Enable or disable automatic synchronization,
change synchronization settings for this account, remove this
account (unless it is the only Gmail account), or add an account.
–
Days of mail to sync
: Choose the number of days worth of
Gmail messages to synchronize.
–
Manage labels
: Choose which Gmail labels are synchronized,
and access
Sound & vibrate
settings.
–
Download attachments
: When enabled, automatically
downloads attachments to recent messages, but only when
your device is connected to a Wi-Fi network.
LDAP
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Add account
➔
LDAP
. The
Set up an LDAP account
screen displays.
3. Follow the prompts to set up an LDAP account link.
199
Microsoft Exchange ActiveSync
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Microsoft Exchange ActiveSync
. The
Microsoft
Exchange ActiveSync
screen displays.
3. Touch
Settings
. The
Settings
screen displays.
4. Touch an account. Options vary depending on the
selected account:
• Sync settings
: Touch each option to synchronize.
–
Sync Email
Synchronize email when you synchronize the
account.
–
Sync schedule
Choose your email automatic synchronization
schedule.
–
Period to sync email
: Choose the number days worth of email
messages the phone and server will synchronize. Choose from:
All, 1 day
,
3 days
,
1 week
,
2 weeks
, or
1 month
.
–
Size to retrieve emails
: Choose how much of each message
your phone retrieves before you view it.
•Signature
: Create an email signature.
• Out of office settings
: Enable/disable your account’s out of
office settings, choose the start/end dates, and enter/change
your outgoing messages.
•Default account
: Sends email from this account by default.
• Password
: Update your password to match the email server.
• Notification settings
:
–
Email notifications
: Enable or disable display of a new email
icon in the Annunciator line when new mail arrives.
–
Select ringtone
: Assign a ringtone for new email notifications.
–
Vibrate
: Enable or disable vibration with new email notifications.
•More settings
: Configure Common settings, Data usage, and
Exchange ActiveSync settings.
–
Account name
: Enter a name to identify the account.
–
Always Cc/Bcc myself
: Adds your email address to None of
send email messages or to Cc or Bcc field of send email
messages.
–
Show images
: When enabled, images included in messages
automatically display, without a confirmation pop-up.
Settings 200
• Data usage
:
–
Auto download attachments
: When enabled, automatically
downloads attachments to recent messages, but only when
your device is connected to a Wi-Fi network.
–
Auto resend times
.: Choose the number of times to
automatically resend a message before marking it un-sent.
• Exchange ActiveSync settings
:
–
Folder sync settings
: Choose email automatic synchronization
schedules for individual folders.
–
Period to sync Calendar:
Choose the period of time for your
phone to synchronize calendar events (
2 weeks, 1 month
,
3months
,
6 months
, or
All calendar
).
–
Empty server trash
: Delete your email account’s trash bin
remotely.
–
In case of Sync Conflict
: Choose whether your Device has
priority or the Server has priority during automatic
synchronization.
–
Security options
: Configures advanced email security options.
–
Sync contacts
:
Synchronize your phone’s contacts list with
the Exchange server’s contacts list.
–
Sync Calendar
:
Synchronize your phone’s calendar with the
Exchange server’s calendar.
–
Sync Task
:
Synchronize your phone’s Task list with the
Exchange server’s Task list.
–
Exchange server settings
: Change the server link settings on
your device.
Sync apps with Facebook
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Add account
➔
Sync apps with Facebook
. The
Setu up Facebook accout
screen displays.
3. Follow the prompts to set up a Facebook account or to
add a link to an existing account.
Add a Twitter account
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Add account
➔
Twitter
. The Playstore launches
the Twitter Install. Install Twitter and then follow the
prompts to configure the account.
201
Backup options
Cloud
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Cloud
. The
Cloud
screen displays. The following
options are available:
• Personal data management
:
–
Storage usage
: Lists Total used storage and provides Personal
data management options to clear selected used storage for
reuse.
–
Sync settings
: Sync your phones Calendar, Contacts, Internet
bookmarks, Internet opened pages, and Memos with your Cloud
account.
–
Backup
: Choose whether to enable Auto backup of your Logs,
Messages (SMS), Messages (Multimedia message), and/or
downloaded Wallpaper; or to touch Back up now for manual
backup.
–
Restore
: Restore your backed up information to your phone.
• Content sync (with Dropbox)
: Link to your Dropbox account to
sync your pictures, videos, and documents.
Backup and reset
1. From the Home screen, touch
Menu
➔
Settings
➔
My device
➔
Accounts
.
2. Touch
Backup and reset
. The
Backup and reset
screen
displays. The following options are available [touch the
check box next to each of the options to enable it
(When enabled, a check mark displays in the check
box.)]:
• Back up and restore
:
–
Back up my data
: When enabled,
backs up app data, Wi-Fi
passwords, and other phone settings to the backup account
server(s).
–
Backup account
:
Select or set-up an account your phone
will use to backup your app data, Wi-Fi passwords, and
other phone settings.
–
Automatic restore
: When enabled,
automatically restores
app data, Wi-Fi passwords, and other phone settings from
your automatic backup.
Settings 202
•Personal data
:
–
Factory data reset
: Returns all settings to their default values,
and removes all data (yours and apps) from the phone.
More
Location services
Location services control your device's use of GPS signals.
Some apps may require one or more location services be
turned On for full app functionality.
GPS signals may be affected by your surroundings, including:
•
Buildings
•
Tunnels or underground structures
•
Weather conditions
•
High-voltage or electromagnetic fields
•
Tinted windows
1. From the Home screen, touch
Menu
➔
Settings
➔
More
.
2. Touch
Locations services
. The
Location services
screen
displays.
3. Touch
Access to my location
to activate the
Location sources
settings.
4. Touch the following
Location sources
options to enable/
disable them. (When an option is enabled, a check
mark displays in its check box.):
Important!
Settings and data erased in a
Factory
data reset
cannot be recovered. To
save your settings, you can use
Back
up my data
settings before a reset.
203
Note: Use GPS satellites
must be enabled to use some
applications. You can also enable or disable
GPS
from
the Notifications panel. (For more information, refer to
“Notifications” on page 32.)
• Use GPS satellites
: When enabled, lets applications use GPS
to pinpoint your location.
Important!
By selecting
Use GPS satellites
, you are allowing
access to all location information by any third party
through web access or any software or peripheral
components you choose to install, download, add,
or attach to the device or any other means.
• Use wireless networks
: When enabled, lets applications use
data from mobile networks and Wi-Fi to help determine your
location.
• My places
: Save your favorite locations (
Home
,
Office
, and
Car
) for use with services that require location information.
Security
From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Security
. The
Security
screen displays.
Encryption
As a security measure, you can encrypt the contents of your
phone or an installed memory card, and require a password
each time you turn on the phone or access the memory card.
Encryption may take an hour or more to complete. Start with
a charged battery, and attach the charger until encryption is
complete. Loss of power or other interruption may cause the
loss of some or all data.
Once your information is encrypted you will be prompted to
enter your decryption password each time you turn your
phone on.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Security
.
2. Touch the following options to encrypt your
information:
• Encrypt device
: Touch this option to encrypt accounts,
settings, downloaded applications and data, media files, and
more under a password you specify.
Settings 204
•Encrypt external SD card
: Touch this option to encrypt
selected information stored on a microSD memory card under
a password you specify. The following additional
Encryption
settings
are available:
–
Encrypt
: When enabled, new files on the memory card will be
encrypted as they are added.
–
Full encryption
: When enabled, all files on the memory card
will be encrypted.
–
Exclude multimedia files
: When enabled, multimedia files on
the memory card will not be encrypted.
SIM card lock
Password protect access to your SIM card contents.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
Security
.
2. Touch
Set up SIM card lock
. The following options are
available:
•Lock SIM card
: When enabled, you must enter a PIN (Personal
ID Number) to use the information on your SIM card.
• Change SIM PIN
: Touch this option and follow the prompts to
change the PIN used to access the information on your SIM
card.
Passwords
When enabled, password characters display briefly as you
enter them.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
Security
.
2. Touch the following option to enable/disable it: (When
the option is enabled, a check mark displays in the
check box.)
• Make passwords visible
: When enabled, briefly displays
password characters as you enter them.
Device administration
View or disable device administrators. Some applications,
such as corporate Email, may require you allow access to
your device by device administrators in certain
circumstances, such as if your phone is lost or stolen.
Some features a device administrator might control include:
•
Setting the number of failed password attempts before the phone
is restored to factory settings.
•
Automatically locking the phone.
•
Restoring factory settings on the phone.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
Security
.
205
2. Touch the following options to enable/disable them:
(When an option is enabled, a check mark displays in
its check box.)
• Device administrators
: View, add, or remove device
administrators.
• Unknown sources
: When enabled, you can install applications
from sources other than Google Play
®
.
•Verify apps
: When enabled, you are blocked or warned before
installing apps that may harm your phone’s firmware, software,
and/or data.
• Change security level
: Select
High
or
Normal (default)
.
Security update service
When you activate this feature, your phone will automatically
check for changes to the security policy and download any
updates to improve service.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
Security
.
2. Touch the following options to activate the feature:
• Auto update security
: Automatically checks for changes to the
security policy and downloads any updates to improve security
and service.
• Via Wi-Fi only
: Only updates the security policy automatically
when your device is connected to a Wi-Fi network.
Warning!
Because this device can be configured
with system software not provided by or
supported by Google or any other
company, end-users operate these
devices at their own risk.
Settings 206
Credential storage
You can install credentials with an application, from device
storage, or from an installed memory card, and use the
Credential storage
settings to allow applications to access the
secure certificates and other credentials.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
Security
.
2. Touch
Storage type
and select a type.
3. Touch the following options to enable/disable them.
(When an option is enabled, a check mark displays in
its check box.):
• Trusted credentials
: View, enable, or disable trusted CA
certificates.
• Install from device storage
: Install encrypted certificates from
an installed memory card.
• Clear credentials
: Clear stored credentials and reset the
password.
Application manager
You can download and install applications from the Google
Play™ Store, or create applications using the Android SDK
and install them on your phone. Use Application manager to
manage applications on your phone.
Warning!
Because this device can be configured with system
software not provided by or supported by Google or
any other company, end-users operate these devices
at their own risk.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Device manager
➔
Application manager
. The
Application manager
screen
displays.
Note:
To use this feature, you must first install a
memory card containing encrypted
certificates.
Note:
This setting is only available if you have
already installed certificates.
207
2. Touch
DOWNLOADED
,
SD CARD
,
RUNNING
, or
ALL
to list
the statuses of applications and services. The graph at
the bottom of the
DOWNLOADED
tab displays used and
free Device memory. The
SD CARD
tab displays used
and free SD CARD memory. The graph at the bottom of
the
RUNNING
tab shows used and free RAM.
Battery
See how much battery power is being used by device
activities.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Device manager
➔
Battery
. The
Battery
screen displays.
2. View battery usage for applications and services
currently running.
The battery level displays in percentage. The amount
of time the battery was used also displays. Battery
usage displays in percentages per application.
3. Touch
Screen
,
Android OS
,
Android System
, or any other
listed feature or application to view how it is affecting
battery use.
Note:
Other applications may be running that affect battery
use.
4. Touch
Show battery percentage
to display the
percentage on the battery status indicator.
Storage
Manage the use of memory resources in your phone’s Device
memory, and on an installed memory card.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Device manager
➔
Storage
. The
Storage
screen displays. The following
options are available:
• Device memory
: View usage for, and manage, your phone’s
internal memory (For detailed information and to manage
storage in use, touch any item except
Total space
or
Available
space
.):
–
Total space
: Shows the total installed device memory.
–
System memory
: Displays the minimum amount of storage
space required to run the system.
–
Used space
: Displays the amount of storage space currently
being used.
Settings 208
–
Cached data
: Displays the amount of cached data in MB.
–
Miscellaneous files
: Displays the total device memory
currently used to store various application data and system data
files.
–
Available space
: Displays the total device memory available
for use.
•SD card
: View usage for, and manage, storage space on an
optional memory card.
–
Mount SD Card
: Displays when the SD card is not inserted or
mounted.
–
Total space
: Displays the total card memory.
–
Available space
: Displays the total card memory available for
use.
–
Unmount SD card
: Deactivates the memory card so that you
can safely remove it or format it. (For more information, see
“Installing and Removing a Memory Card”
on
page 150.
)
–
Format SD card
: Deletes all data from the memory card,
including music, videos, and photos. (For more information, see
“Formatting a Memory Card”
on page 150.)
2. Touch an app or service to display the
App info
or
Active app
screen which provides more detailed
storage usage information, and lets you Stop/Force
stop or Uninstall/Report and app or service. For
Downloaded apps, you can also Clear data, Clear
cache, and/or Clear defaults.
Date and time
By default, your phone receives date and time information
from the wireless network. When you are outside network
coverage, you may want to set date and time information
manually using the Date & time settings.
From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Device manager
➔
Date and time
. The
Date and time
screen displays.
3. Touch a setting to configure:
• Automatic date and time
: When enabled, the phone takes
date and time updates from the wireless network (disables Set
date, Set time, and Select time zone).
•Set date
: Enter the current date (only available when Automatic
date and time is disabled).
•Set time
: Enter the current time (only available when Automatic
date and time is disabled).
209
• Automatic time zone
: When enabled, the phone uses the
network-provided time zone.
• Select time zone
: Choose your local time zone (only available
when Automatic date and time is disabled).
• Use 24-hour format
: Set the format for time displays.
• Select date format
: Set the format for date displays.
About device
View information about your phone, including status, legal
information, hardware and software versions, and a tutorial.
Software Update
Software Update lets your phone connect to the network and
download any new phone software directly to your phone.
The phone automatically updates with the latest available
software when you access this option.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Device manager
➔
About device
➔
Software update
. You are prompted to
select your current country.
2. Select a Country, then touch
OK
. A Terms and
Conditions screen displays.
3. To proceed to Software Update, touch
I accept all the
terms above
, then touch
Confirm
. Your device registers
itself with your Wireless Provider’s Software Update
service, connects with your Wireless Provider’s server,
and scans for software updates.
4. At the
Software update
prompt, touch
OK
to continue.
5. The phone automatically updates the software (if
available), otherwise, when the
The latest updates have
already been installed
prompt is displayed, touch
OK
.
6. When updating software, once the update file is
downloaded, you can delay the update on the start
screen by postponing it for a certain period of time. If
you want to resume the update before the selected
time, touch
Continue update
.
Settings 210
Details
Touch options to view details:
• Status
: View Battery status, Battery level, Network, Signal
strength, Mobile network type, Service state, Roaming, Mobile
network state, My phone number, MIN, PRL version, MEID,
IMEI, ICCID, IP address, Wi-Fi MAC address, Bluetooth
address, Serial number, Up time, and Device status.
• Legal information
: Display open source licenses, configure
license settings, including your DivX VOD registration, and
Google info.
•Device name
: View and/or change the device name you
assigned to your device during intial set-up.
• Model number
: View your phone’s model number.
• Android version
: View the firmware version of your phone.
• Baseband version
: View the baseband version of your phone.
• Kernel version
: View the kernel version of your phone.
• Build number
: View the build number of your phone.
•SELinux status
: View the status of SELinux on your phone.
• Hardware version
: View the hardware version of your phone.
211
Section 9: Health and Safety Information
This device is capable of operating in Wi-Fi
™
mode in the
2.4 and 5 GHz bands. The FCC requires that devices
operating within 5.15-5.25 GHz may only be used indoors,
not outside, in order to avoid interference with Mobile
Satellite Services (MSS). Therefore, this device is restricted
from being used outdoors when operating in frequencies
between 5.15-5.25 GHz.
This section outlines the safety precautions associated with
using your phone. The terms “mobile device” or “cell phone”
are used in this section to refer to your phone.
Read this
information before using your mobile device
.
Exposure to Radio Frequency (RF)
Signals
The U.S. Food and Drug Administration (FDA) has published
information for consumers relating to Radio Frequency (RF)
exposure from wireless phones. The FDA publication
includes the following information:
Do cell phones pose a health hazard?
Many people are concerned that cell phone radiation will
cause cancer or other serious health hazards. The weight of
scientific evidence has not linked cell phones with any health
problems.
Cell phones emit low levels of Radio Frequency (RF) energy.
Over the past 15 years, scientists have conducted hundreds
of studies looking at the biological effects of the radio
frequency energy emitted by cell phones. While some
researchers have reported biological changes associated
with RF energy, these studies have failed to be replicated.
The majority of studies published have failed to show an
association between exposure to radio frequency from a cell
phone and health problems.
The low levels of RF cell phones emit while in use are in the
microwave frequency range. They also emit RF at
substantially reduced time intervals when in the stand-by
mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not
produce heating effects causes no known adverse health
effects.
Health and Safety Information 212
The biological effects of radio frequency energy should not
be confused with the effects from other types of
electromagnetic energy.
Very high levels of electromagnetic energy, such as is found
in X-rays and gamma rays, can ionize biological tissues.
Ionization is a process where electrons are stripped away
from their normal locations in atoms and molecules. It can
permanently damage biological tissues including DNA, the
genetic material.
The energy levels associated with radio frequency energy,
including both radio waves and microwaves, are not great
enough to cause ionization of atoms and molecules.
Therefore, RF energy is a type of non-ionizing radiation.
Other types of non-ionizing radiation include visible light,
infrared radiation (heat), and other forms of electromagnetic
radiation with relatively low frequencies.
While RF energy does not ionize particles, large amounts can
increase body temperatures and cause tissue damage. Two
areas of the body, the eyes and the testes, are particularly
vulnerable to RF heating because there is relatively little
blood flow in them to carry away excess heat.
Research Results to Date: Is there a connection
between RF and certain health problems?
The results of most studies conducted to date say no. In
addition, attempts to replicate and confirm the few studies
that have shown a connection have failed.
The scientific community at large therefore believes that the
weight of scientific evidence does not show an association
between exposure to Radio Frequency (RF) from cell phones
and adverse health outcomes. Still the scientific community
has supported additional research to address gaps in
knowledge. Some of these studies are described below.
Interphone Study
Interphone is a large international study designed to
determine whether cell phones increase the risk of head and
neck cancer. A report published in the International Journal
of Epidemiology (June, 2010) compared cell phone usage for
more than 5,000 people with brain tumors (glioma and
meningioma) and a similar number of healthy controls.
Results of this study did NOT show that cell phones caused
brain cancer. In this study, most people had no increased risk
of brain cancer from using cell phones. For people with the
heaviest use of cell phones (an average of more than ½ hour
per day, every day, for over 10 years) the study suggested a
213
slight increase in brain cancer. However, the authors
determined that biases and errors prevented any conclusions
being drawn from this data. Additional information about
Interphone can be found at
http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.
Interphone is the largest cell phone study to date, but it did
not answer all questions about cell phone safety. Additional
research is being conducted around the world, and the FDA
continues to monitor developments in this field.
International Cohort Study on Mobile Phone Users
(COSMOS)
The COSMOS study aims to conduct long-term health
monitoring of a large group of people to determine if there
are any health issues linked to long-term exposure to radio
frequency energy from cell phone use. The COSMOS study
will follow approximately 300,000 adult cell phone users in
Europe for 20 to 30 years. Additional information about the
COSMOS study can be found at
http://www.ukcosmos.org/index.html
.
Risk of Brain Cancer from Exposure to Radio
Frequency Fields in Childhood and Adolescence
(MOBI-KIDS)
MOBI-KIDS is an international study investigating the
relationship between exposure to radio frequency energy
from communication technologies including cell phones and
brain cancer in young people. This is an international
multi-center study involving 14 European and non-European
countries. Additional information about MOBI-KIDS can be
found at
http://www.creal.cat/programes-recerca/en_projectes-creal/
view.php?ID=39.
Surveillance, Epidemiology, and End Results (SEER)
Program of the National Cancer Institute
The National Cancer Institute (NCI) actively follows cancer
statistics in the United States to detect any change in rates of
new cases for brain cancer. If cell phones play a role in risk
for brain cancer, rates should go up, because heavy cell
phone use has been common for quite some time in the U.S.
Between 1987 and 2005, the overall age-adjusted incidence
of brain cancer did not increase. Additional information about
SEER can be found at
http://seer.cancer.gov/
.
Health and Safety Information 214
Cell Phone Industry Actions
Although the existing scientific data do not justify FDA
regulatory actions, the FDA has urged the cell phone industry
to take a number of steps, including the following:
•
Support-needed research on possible biological effects of RF
for the type of signal emitted by cell phones;
•
Design cell phones in a way that minimizes any RF exposure to
the user; and
•
Cooperate in providing users of cell phones with the current
information on cell phone use and human health concerns.
The FDA also is working with voluntary standard-setting
bodies such as the Institute of Electrical and Electronics
Engineers (IEEE), the International Commission on
Non-Ionizing Radiation Protection (ICNIRP), and others to
assure that safety standards continue to adequately protect
the public.
Reducing Exposure: Hands-Free Kits and Other
Accessories
Steps to Reduce Exposure to Radio Frequency Energy
If there is a risk from being exposed to radio frequency
energy (RF) from cell phones - and at this point we do not
know that there is - it is probably very small. But, if you are
concerned about avoiding even potential risks, you can take
a few simple steps to minimize your RF exposure.
•
Reduce the amount of time spent using your cell phone;
•
Use speaker mode or a headset to place more distance between
your head and the cell phone.
Hands-Free Kits
Hands-free kits may include audio or Bluetooth® headsets
and various types of body-worn accessories such as
belt-clips and holsters. Combinations of these can be used to
reduce RF energy absorption from cell phones.
Headsets can substantially reduce exposure because the
phone is held away from the head in the user's hand or in
approved body-worn accessories. Cell phones marketed in
the U.S. are required to meet RF exposure compliance
requirements when used against the head and against the
body.
215
Because there are no known risks from exposure to RF
emissions from cell phones, there is no reason to believe that
hands-free kits reduce risks. Hands-free kits can be used for
convenience and comfort. They are also required by law in
many states if you want to use your phone while driving.
Cell Phone Accessories that Claim to Shield the Head
from RF Radiation
Because there are no known risks from exposure to RF
emissions from cell phones, there is no reason to believe that
accessories which claim to shield the head from those
emissions reduce risks. Some products that claim to shield
the user from RF absorption use special phone cases, while
others involve nothing more than a metallic accessory
attached to the phone.
Studies have shown that these products generally do not
work as advertised. Unlike “hands-free” kits, these so-called
“shields” may interfere with proper operation of the phone.
The phone may be forced to boost its power to compensate,
leading to an increase in RF absorption.
Children and Cell Phones
The scientific evidence does not show a danger to any users
of cell phones from RF exposure, including children and
teenagers. The steps adults can take to reduce RF exposure
apply to children and teenagers as well.
•
Reduce the amount of time spent on the cell phone;
•
Use speaker mode or a headset to place more distance between
the head and the cell phone.
Some groups sponsored by other national governments have
advised that children be discouraged from using cell phones
at all. For example, The Stewart Report from the United
Kingdom made such a recommendation in December 2000.
In this report, a group of independent experts noted that no
evidence exists that using a cell phone causes brain tumors
or other ill effects. Their recommendation to limit cell phone
use by children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
Additional information on the safety of RF exposures from
various sources can be obtained from the following
organizations (updated 10/1/2010):
•
FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/.
Health and Safety Information 216
•
Environmental Protection Agency (EPA):
http://www.epa.gov/radtown/wireless-tech.html.
•
Occupational Safety and Health Administration (OSHA):
http://www.osha.gov/SLTC/radiofrequencyradiation/
.
(Note: This web address is case sensitive.)
•
National Institute for Occupational Safety and Health (NIOSH):
http://www.cdc.gov/niosh/.
•
World Health Organization (WHO):
http://www.who.int/peh-emf/en/.
•
International Commission on Non-Ionizing Radiation Protection:
http://www.icnirp.de.
•
Health Protection Agency:
http://www.hpa.org.uk/Topics/Radiation/.
•
US Food and Drug Administration:
http://www.fda.gov/Radiation-EmittingProducts/
RadiationEmittingProductsandProcedures/
HomeBusinessandEntertainment/CellPhones/default.htm.
Specific Absorption Rate (SAR)
Certification Information
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the exposure
limits for Radio Frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. Government.
These FCC RF exposure limits are derived from the
recommendations of two expert organizations: the National
Council on Radiation Protection and Measurement (NCRP)
and the Institute of Electrical and Electronics Engineers
(IEEE). In both cases, the recommendations were developed
by scientific and engineering experts drawn from industry,
government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF
energy.
The RF exposure limit set by the FCC for wireless mobile
phones employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR is a measure of the
rate of absorption of RF energy by the human body
expressed in units of watts per kilogram (W/kg). The FCC
requires wireless phones to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg).
217
The FCC SAR limit incorporates a substantial margin of safety
to give additional protection to the public and to account for
any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its
highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum reported value.
This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base
station antenna, the lower the power output of the phone.
Before a new model phone is available for sale to the public,
it must be tested and certified to the FCC that it does not
exceed the SAR limit established by the FCC. Tests for each
model phone are performed in positions and locations (e.g. at
the ear and worn on the body) as required by the FCC. For
body-worn operation, this phone has been tested and meets
FCC RF exposure guidelines when used with an accessory
that contains no metal and that positions the mobile device a
minimum of 1.0 cm from the body.
Use of other accessories may not ensure compliance with
FCC RF exposure guidelines. The FCC has granted an
Equipment Authorization for this mobile device with all
reported SAR levels evaluated as in compliance with the FCC
RF exposure guidelines. This mobile phone has a FCC ID
number: A3LSCHR970C [Model Number: SCH-R970C] and
the specific SAR levels for this mobile phone can be found at
the following FCC website:
http://www.fcc.gov/oet/ea/
.
The SAR information for this device can also be found on
Samsung’s website:
http://www.samsung.com/sar
.
SAR information on this and other model phones can be
accessed online on the FCC's website through
http://
transition.fcc.gov/oet/rfsafety/sar.html
. To find information that
pertains to a particular model phone, this site uses the phone
FCC ID number which is usually printed somewhere on the
case of the phone. Sometimes it may be necessary to
remove the battery pack to find the number. Once you have
the FCC ID number for a particular phone, follow the
instructions on the website and it should provide values for
typical or maximum SAR for a particular phone. Additional
Health and Safety Information 218
SAR information can also be obtained at
http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-
cellular-telephones
.
FCC Part 15 Information to User
Pursuant to part 15.21 of the FCC Rules, you are cautioned
that changes or modifications not expressly approved by
Samsung could void your authority to operate the device.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Commercial Mobile Alerting System
(CMAS)
This device is designed to receive wireless emergency alerts
from the Commercial Mobile Alerting System ("CMAS";
which may also be known as the Personal Localized Alerting
Network ("PLAN")). If your wireless provider has chosen to
participate in CMAS/PLAN, alerts are available while in the
provider's coverage area. If you travel outside your provider's
coverage area, wireless emergency alerts may not be
available. For more information, please contact your wireless
provider.
219
Smart Practices While Driving
On the Road - Off the Phone
The primary responsibility of every driver is the safe
operation of his or her vehicle.
Responsible drivers understand that no secondary task
should be performed while driving whether it be eating,
drinking, talking to passengers, or talking on a mobile phone
- unless the driver has assessed the driving conditions and is
confident that the secondary task will not interfere with their
primary responsibility.
Do not engage in any activity while
driving a moving vehicle which may cause you to take your
eyes off the road or become so absorbed in the activity that
your ability to concentrate on the act of driving becomes
impaired
. Samsung is committed to promoting responsible
driving and giving drivers the tools they need to understand
and address distractions.
Check the laws and regulations on the use of mobile devices
and their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas. For example, only hands-free use
may be permitted in certain areas.
Before answering calls, consider your circumstances. Let the
call go to voicemail when driving conditions require.
Remember, driving comes first, not the call!
If you consider a call necessary and appropriate, follow these
tips:
•
Use a hands-free device;
•
Secure your phone within easy reach;
•
Place calls when you are not moving;
•
Plan calls when your car will be stationary;
•
Do not engage in stressful or emotional conversations;
•
Let the person with whom you are speaking know that you are
driving and will suspend the call if necessary;
•
Do not take notes or look up phone numbers while driving;
Notice regarding legal restrictions on mounting this device in
an automobile:
Laws in some states may prohibit mounting this device on or
near the windshield of an automobile. In other states, the law
may permit mounting this device only in specific locations in
the automobile. Be sure to consult the state and local laws or
ordinances where you drive before mounting this device in
an automobile. Failure to comply with these restrictions could
result in fines, penalties, or other damages.
Health and Safety Information 220
Never mount this device in a manner that will obstruct the
driver's clear view of the street and traffic.
Never use wireless data services such as text messaging, Web
browsing, or e-mail while operating a vehicle.
Never watch videos, such as a movie or clip, or play video
games while operating a vehicle.
For more information, go to
http://www.ctia.org
.
Battery Use and Safety
Important! Handle and store batteries properly to avoid injury or
damage
. Most battery issues arise from improper
handling of batteries and, particularly, from the
continued use of damaged batteries.
•
Do not disassemble, crush, puncture, shred, or otherwise
attempt to change the form of your battery
. Do not put a high
degree of pressure on the battery. This can cause leakage or an
internal short-circuit, resulting in overheating.
•
Do not let the phone or battery come in contact with liquids.
Liquids can get into the phone's circuits, leading to corrosion.
Even when the phone appears to be dry and appears to operate
normally, the circuitry could slowly corrode and pose a safety
hazard. If the phone and/or battery get wet, have them checked
by your service provider or contact Samsung, even if they appear
to be working properly.
•
Do not place your battery in or near a heat source
. Excessive
heating can damage the phone or the battery and could cause the
phone or the battery to explode. Do not dry a wet or damp battery
with an appliance or heat source such as a microwave oven, hair
dryer, iron, or radiator. Avoid leaving your phone in your car in
high temperatures.
•
Do not dispose of the phone or the battery in a fire
. The phone
or the battery may explode when overheated.
•
Do not handle a damaged or leaking battery
. Do not let leaking
battery fluid come in contact with your eyes, skin or clothing. For
safe disposal options, contact your nearest Samsung-authorized
service center.
221
•
Avoid dropping the cell phone
. Dropping the phone or the
battery, especially on a hard surface, can potentially cause
damage to the phone and battery. If you suspect damage to the
phone or battery, take it to a service center for inspection.
•
Never use any charger or battery that is damaged in any way
.
•
Do not allow the battery to touch metal objects
. Accidental
short-circuiting can occur when a metallic object (coin, key,
jewelry, clip, or pen) causes a direct connection between the +
and - terminals of the battery (metal strips on the battery), for
example when you carry a spare battery in a pocket or bag.
Short-circuiting the terminals may damage the battery or the
object causing the short-circuiting.
Important!
Use only Samsung-approved batteries, and
recharge your battery only with
Samsung-approved chargers which are
specifically designed for your phone.
WARNING!
Use of a non-Samsung-approved battery or charger may
present a risk of fire, explosion, leakage, or other hazard
.
Samsung's warranty does not cover damage to the phone
caused by nonSamsung-approved batteries and/or chargers.
•
Do not use incompatible cell phone batteries and chargers
.
Some websites and second-hand dealers not associated with
reputable manufacturers and carriers, might be selling
incompatible or even counterfeit batteries and chargers.
Consumers should purchase manufacturer or
carrier-recommended products and accessories. If unsure about
whether a replacement battery or charger is compatible, contact
the manufacturer of the battery or charger.
•
Misuse or use of incompatible phones, batteries, and
charging devices could result in damage to the equipment
and a possible risk of fire, explosion, or leakage, leading to
serious injuries, damages to your phone, or other serious
hazard
.
Samsung Mobile Products and
Recycling
Samsung cares for the environment and encourages its
customers to recycle Samsung mobile devices and genuine
Samsung accessories.
Proper disposal of your mobile device and its battery is not
only important for safety, it benefits the environment.
Batteries must be recycled or disposed of properly.
Health and Safety Information 222
Recycling programs for your mobile device, batteries, and
accessories may not be available in your area.
We've made it easy for you to recycle your old Samsung
mobile device by working with respected take-back
companies in every state in the country.
Drop It Off
You can drop off your Samsung-branded mobile device
and batteries for recycling at one of our numerous
Samsung Recycling Direct (SM) locations. A list of these
locations may be found at:
http://pages.samsung.com/us/recyclingdirect/
usactivities_environment_samsungrecyclingdirect_locations.
jsp
.
Samsung-branded devices and batteries will be accepted
at these locations for no fee.
Consumers may also recycle their used mobile device or
batteries at many retail or carrier-provided locations
where mobile devices and batteries are sold. Additional
information regarding specific locations may be found at:
http://www.epa.gov/epawaste/partnerships/plugin/cellphone/
index.htm
or at
http://www.call2recycle.org/
.
Mail It In
The Samsung Mobile Take-Back Program will provide
Samsung customers with a free recycling mailing label.
Just go to
http://fun.samsungmobileusa.com/recycling/index.jsp
and
follow the instructions to print out a free pre-paid postage
label and then send your old mobile device or battery to
the address listed, via U.S. Mail, for recycling.
Dispose of unwanted electronics through an approved
recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect
Or call, (877) 278-0799.
Follow local regulations regarding disposal of mobile
devices and batteries
Dispose of your mobile device and batteries in accordance
with local regulations. In some areas, the disposal of these
items in household or business trash may be prohibited. Help
us protect the environment - recycle!
Warning!
Never dispose of batteries in a fire because they may
explode.
223
UL Certified Travel Charger
The Travel Charger for this phone has met applicable UL
safety requirements. Please adhere to the following safety
instructions per UL guidelines:
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY
LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN NORTH
AMERICA, USE AN ATTACHMENT PLUG ADAPTOR
OF THE PROPER CONFIGURATION FOR THE
POWER OUTLET.
THIS POWER UNIT IS INTENDED TO BE
CORRECTLY ORIENTED IN A VERTICAL OR
HORIZONTAL OR FLOOR MOUNT POSITION.
Display / Touch-Screen
Please note the following information when using your
mobile device:
WARNING REGARDING DISPLAY
The display on your mobile device is made of glass or
acrylic and could break if your mobile device is
dropped or if it receives significant impact. Do not use
if screen is broken or cracked as this could cause
injury to you.
WARRANTY DISCLAIMER: PROPER USE OF A
TOUCH-SCREEN MOBILE DEVICE
If your mobile device has a touch-screen display,
please note that a touch-screen responds best to a
light touch from the pad of your finger or a non-metallic
stylus. Using excessive force or a metallic object when
pressing on the touch-screen may damage the
tempered glass surface and void the warranty. For
more information, please refer to the “Standard
Limited Warranty”.
Health and Safety Information 224
GPS & AGPS
Certain Samsung mobile devices can use a Global Positioning
System (GPS) signal for location-based applications. A GPS
uses satellites controlled by the U.S. Government that are
subject to changes implemented in accordance with the
Department of Defense policy and the 2008 Federal Radio
navigation Plan (FRP). Changes may affect the performance
of location-based technology on your mobile device.
Certain Samsung mobile devices can also use an Assisted
Global Positioning System (AGPS), which obtains information
from the cellular network to improve GPS performance. AGPS
uses your wireless service provider's network and therefore
airtime, data charges, and/or additional charges may apply in
accordance with your service plan. Contact your wireless
service provider for details.
Your Location
Location-based information includes information that can be
used to determine the approximate location of a mobile
device. Mobile devices which are connected to a wireless
network transmit location-based information. Additionally, if
you use applications that require location-based information
(e.g. driving directions), such applications transmit
location-based information. The location-based information
may be shared with third-parties, including your wireless
service provider, applications providers, Samsung, and other
third-parties providing services.
Use of AGPS in Emergency Calls
When you make an emergency call, the cellular network may
activate AGPS technology in your mobile device to tell the
emergency responders your approximate location.
AGPS has limitations and
might not work in your area
.
Therefore:
•
Always tell the emergency responder your location to the best of
your ability; and
•
Remain on the mobile device for as long as the emergency
responder instructs you.
Navigation
Maps, directions, and other navigation-data, including data
relating to your current location, may contain inaccurate or
incomplete data, and circumstances can and do change over
time. In some areas, complete information may not be
available. T
herefore, you should always visually confirm that
the navigational instructions are consistent with what you see
before following them. All users should pay attention to road
conditions, closures, traffic, and all other factors that may
impact safe driving or walking. Always obey posted road signs
.
225
Emergency Calls
This mobile device, like any wireless mobile device, operates
using radio signals, wireless and landline networks, as well
as user-programmed functions, which cannot guarantee
connection in all conditions, areas, or circumstances.
Therefore, you should never rely solely on any wireless
mobile device for essential communications (medical
emergencies, for example). Before traveling in remote or
underdeveloped areas, plan an alternate method of
contacting emergency services personnel. Remember, to
make or receive any calls, the mobile device must be
switched on and in a service area with adequate signal
strength.
Emergency calls may not be possible on all wireless mobile
device networks or when certain network services and/or
mobile device features are in use. Check with local service
providers.
To make an emergency call:
1. If the mobile device is not on, switch it on.
2. From the Home screen, touch to launch the Phone
Dialer.
3. Key in the emergency number for your present location
(for example, 911 or other official emergency number).
Emergency numbers vary by location.
4. Touch to place the call.
Care and Maintenance
Your mobile device is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for many
years:
Keep your Samsung Mobile Device away from:
Liquids of any kind
Keep the mobile device dry. Precipitation, humidity, and
liquids contain minerals that will corrode electronic
circuits. If the mobile device does get wet, do not
accelerate drying with the use of an oven, microwave, or
dryer, because this may damage the mobile device and
could cause a fire or explosion.
Do not use the mobile device with a wet hand. Doing so
may cause an electric shock to you or damage to the
mobile device.
Health and Safety Information 226
Extreme heat or cold
Avoid temperatures below 0°C / 32°F or above 45°C /
113°F.
Microwaves
Do not try to dry your mobile device in a microwave oven.
Doing so may cause a fire or explosion.
Dust and dirt
Do not expose your mobile device to dust, dirt, or sand.
Cleaning solutions
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the mobile device. Wipe it with a soft
cloth slightly dampened in a mild soap-and-water
solution. If the mobile device has a retractable camera
lens, do not use soap and water to clean the lens. Use a
blower or brush or lens cleaning paper dampened in a
lens cleaning solution.
Shock or vibration
Do not drop, knock, or shake the mobile device. Rough
handling can break internal circuit boards.
Paint
Do not paint the mobile device. Paint can clog the
device’s moving parts or ventilation openings and prevent
proper operation.
Responsible Listening
Caution! Avoid potential hearing loss
.
Damage to hearing occurs when a person is exposed to loud
sounds over time. The risk of hearing loss increases as
sound is played louder and for longer durations. Prolonged
exposure to loud sounds (including music) is the most
common cause of preventable hearing loss. Some scientific
research suggests that using portable audio devices, such as
portable music players and cell phones, at high volume
settings for long durations may lead to permanent
noise-induced hearing loss.
This includes the use of headphones (including headsets,
earbuds, and Bluetooth® or other wireless devices).
Exposure to very loud sound has also been associated in
some studies with tinnitus (a ringing in the ear),
hypersensitivity to sound, and distorted hearing. Individual
susceptibility to noise-induced hearing loss and potential
227
hearing problem varies. Additionally, the amount of sound
produced by a portable audio device varies depending on the
nature of the sound, the device settings, and the headphones
that are used. As a result, there is no single volume setting
that is appropriate for everyone or for every combination of
sound, settings, and equipment.
You should follow some common sense recommendations
when using any portable audio device:
•
Always turn the volume down before plugging the earphones into
an audio source.
•
Set the volume in a quiet environment and select the lowest
volume at which you can hear adequately.
•
Be aware that you can adapt to higher volume settings over time,
not realizing that the higher volume may be harmful to your
hearing.
•
When using headphones, turn the volume down if you cannot
hear the people speaking near you or if the person sitting next to
you can hear what you are listening to.
•
Do not turn the volume up to block out noisy surroundings. If you
choose to listen to your portable device in a noisy environment,
use noise-cancelling headphones to block out background
environmental noise. By blocking background environment noise,
noise cancelling headphones should allow you to hear the music
at lower volumes than when using earbuds.
•
Limit the amount of time you listen. As the volume increases, less
time is required before you hearing could be affected.
•
Avoid using headphones after exposure to extremely loud noises,
such as rock concerts, that might cause temporary hearing loss.
Temporary hearing loss might cause unsafe volumes to sound
normal.
•
Do not listen at any volume that causes you discomfort. If you
experience ringing in your ears, hear muffled speech, or
experience any temporary hearing difficulty after listening to your
portable audio device, discontinue use and consult your doctor.
You can obtain additional information on this subject from the
following sources:
Health and Safety Information 228
Operating Environment
Remember to follow any special regulations in force in any
area, and always switch your mobile device off whenever it is
forbidden to use it, or when it may cause interference or
danger. When connecting the mobile device or any accessory
to another device, read its user's guide for detailed safety
instructions. Do not connect incompatible products.
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: (800) 222-2336
Email: info@audiology.org
Internet:
http://www.audiology.org/Pages/
default.aspx
National Institute on Deafness and Other
Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD 20892-2320
Email: nidcdinfo@nih.gov
Internet:
http://www.nidcd.nih.gov/
National Institute for Occupational Safety
and Health (NIOSH)
395 E Street, S.W., Suite 9200
Patriots Plaza Building
Washington, DC 20201
Voice: 1-800-35-NIOSH
(1-800-356-4674)
1-800-CDC-INFO (1-800-232-4636)
Outside the U.S. 513-533-8328
Email: cdcinfo@cdc.gov
Internet:
http://www.cdc.gov/niosh/topics/noise/
default.html
1-888-232-6348 TTY
229
Using Your Mobile Device Near Other Electronic
Devices
Most modern electronic equipment is shielded from Radio
Frequency (RF) signals. However, certain electronic
equipment may not be shielded against the RF signals from
your wireless mobile device. Consult the manufacturer to
discuss alternatives.
Implantable Medical Devices
A minimum separation of six (6) inches should be maintained
between a handheld wireless mobile device and an
implantable medical device, such as a pacemaker or
implantable cardioverter defibrillator, to avoid potential
interference with the device.
Persons who have such devices:
•
Should ALWAYS keep the mobile device more than six (6) inches
from their implantable medical device when the mobile device is
turned ON;
•
Should not carry the mobile device in a breast pocket;
•
Should use the ear opposite the implantable medical device to
minimize the potential for interference;
•
Should turn the mobile device OFF immediately if there is any
reason to suspect that interference is taking place;
•
Should read and follow the directions from the manufacturer of
your implantable medical device. If you have any questions about
using your wireless mobile device with an implantable medical
device, consult your health care provider.
For more information see:
http://www.fcc.gov/oet/rfsafety/rf-
faqs.html#
.
Other Medical Devices
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able
to assist you in obtaining this information. Switch your
mobile device off in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your vehicle
before using your mobile device in a motor vehicle. You
should also consult the manufacturer of any equipment that
has been added to your vehicle.
Health and Safety Information 230
Posted Facilities
Switch your mobile device off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your mobile device off when in any area with a
potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an explosion
or fire resulting in bodily injury or even death. Users are
advised to switch the mobile device off while at a refueling
point (service station).
Users are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting
operations are in progress. Areas with a potentially explosive
atmosphere are often, but not always, clearly marked. They
include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as
propane or butane), areas where the air contains chemicals
or particles, such as grain, dust, or metal powders, and any
other area where you would normally be advised to turn off
your vehicle engine. Vehicles using liquefied petroleum gas
(such as propane or butane) must comply with the National
Fire Protection Standard (NFPA-58). For a copy of this
standard, contact the National Fire Protection Association.
When your Device is Wet
Do not turn on your device if it is wet. If your device is
already on, turn it off and remove the battery immediately (if
the device will not turn off or you cannot remove the battery,
leave it as-is). Then, dry the device with a towel and take it
to a service center.
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices
The U.S. Federal Communications Commission (FCC) has
established requirements for digital wireless mobile devices
to be compatible with hearing aids and other assistive
hearing devices.
When individuals employing some assistive hearing devices
(hearing aids and cochlear implants) use wireless mobile
devices, they may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others
to this interference noise, and mobile devices also vary in the
amount of interference they generate.
231
The wireless telephone industry has developed a rating
system for wireless mobile devices to assist hearing device
users find mobile devices that may be compatible with their
hearing devices. Not all mobile devices have been rated.
Mobile devices that are rated have the rating on their box or
a label located on the box.
The ratings are not guarantees. Results will vary depending
on the user's hearing device and hearing loss. If your hearing
device happens to be vulnerable to interference, you may not
be able to use a rated mobile device successfully. Trying out
the mobile device with your hearing device is the best way to
evaluate it for your personal needs.
M-Ratings
: Wireless mobile devices rated M3 or M4 meet
FCC requirements and are likely to generate less interference
to hearing devices than mobile devices that are not labeled.
M4 is the better/higher of the two ratings. M-ratings refer to
enabling acoustic coupling with hearing aids that do not
operate in telecoil mode.
T-Ratings
: Mobile devices rated T3 or T4 meet FCC
requirements and are likely to generate less interference to
hearing devices than mobile devices that are not labeled. T4
is the better/higher of the two ratings. T-ratings refer to
enabling inductive coupling with hearing aids operating in
telecoil mode.
Hearing devices may also be rated. Your hearing aid
manufacturer or hearing health professional may help you
find this rating. Higher ratings mean that the hearing device
is relatively immune to interference noise.
Under the current industry standard, American National
Standards Institute (ANSI) C63.19, the hearing aid and
wireless mobile device rating values are added together to
indicate how usable they are together. For example, if a
hearing aid meets the M2 level rating and the wireless
mobile device meets the M3 level rating, the sum of the two
values equals M5.
Under the standard, this should provide the hearing aid user
with normal use while using the hearing aid with the
particular wireless mobile device. A sum of 6 or more would
indicate excellent performance.
However, these are not guarantees that all users will be
satisfied. T ratings work similarly.
Health and Safety Information 232
The HAC rating and measurement procedure are described in
the American National Standards Institute (ANSI) C63.19
standard.
HAC for Newer Technologies
This phone has been tested and rated for use with hearing
aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies
used in this phone that have not been tested yet for use with
hearing aids.
It is important to try the different features of this phone
thoroughly and in different locations, using your hearing aid
or cochlear implant, to determine if you hear any interfering
noise. Consult your service provider or the manufacturer of
this phone for information on hearing aid compatibility. If you
have questions about return or exchange policies, consult
your service provider or phone retailer.
Restricting Children's Access to Your
Mobile Device
Your mobile device is not a toy. Do not allow children to play
with it because they could hurt themselves and others,
damage the mobile device, or make calls that increase your
mobile device bill.
Keep the mobile device and all its parts and accessories out
of the reach of small children.
FCC Notice and Cautions
FCC Notice
The mobile device may cause TV or radio interference if used
in close proximity to receiving equipment. The FCC can
require you to stop using the mobile device if such
interference cannot be eliminated.
Cautions
Any changes or modifications to your mobile device not
expressly approved by Samsung could void your warranty for
this equipment and void your authority to operate this
M3 + M2 = 5
T3 + T2 = 5
233
equipment. Only use approved batteries, antennas, and
chargers. The use of any unauthorized accessories may be
dangerous and void the mobile device warranty if said
accessories cause damage or a defect to the mobile device.
Although your mobile device is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid dropping,
hitting, bending, or sitting on it.
Other Important Safety Information
•
Only qualified personnel should service the mobile device or
install the mobile device in a vehicle. Faulty installation or service
may be dangerous and may invalidate any warranty applicable to
the device.
•
Ensure that any mobile devices or related equipment installed in
your vehicle are securely mounted.
•
Check regularly that all wireless mobile device equipment in your
vehicle is mounted and operating properly.
•
When using a headset in dry environments, static electricity can
build up in the headset and cause a small quick static electrical
shock. To minimize the risk of electrostatic discharge from the
headset avoid using the headset in extremely dry environments or
touch a grounded unpainted metal object to discharge static
electricity before inserting the headset.
•
Do not store or carry flammable liquids, gases, or explosive
materials in the same compartment as the mobile device, its
parts, or accessories.
•
For vehicles equipped with an air bag, remember that an air bag
inflates with great force. Do not place objects, including installed
or portable wireless equipment near or in the area over the air
bag or in the air bag deployment area. If wireless equipment is
improperly installed and the air bag inflates, serious injury could
result.
•
Switch your mobile device off before boarding an aircraft. The use
of wireless mobile devices in aircraft is illegal and may be
dangerous to the aircraft's operation. Check with appropriate
authorities before using any function of a mobile device while on
an aircraft.
•
Failure to observe these instructions may lead to the suspension
or denial of cell phone services to the offender, or legal action, or
both.
•
While using your device, leave some lights on in the room and do
not hold the screen too close to your eyes.
Health and Safety Information 234
•
Seizures or blackouts can occur when you are exposed to flashing
lights while watching videos or playing games for extended
periods. If you feel any discomfort, stop using the device
immediately.
•
Reduce risk of repetitive motion injuries. When you repetitively
perform actions, such as pressing keys, drawing characters on a
touch screen with your fingers, or playing games, you may
experience occasional discomfort in your hands, neck, shoulders,
or other parts of your body. When using your device for extended
periods, hold the device with a relaxed grip, press the keys lightly,
and take frequent breaks. If you continue to have discomfort
during or after such use, stop use and see a physician.
•
If your device has a camera flash or light, do not use the flash or
light close to the eyes of people or pets. [122011]
235
Section 10: Warranty Information
Standard Limited Warranty
What is covered and for how long?
SAMSUNG TELECOMMUNICATIONS AMERICA, LLC
(“SAMSUNG”) warrants that SAMSUNG’s handsets and
accessories (“Products”) are free from defects in material
and workmanship under normal use and service for the
period commencing upon the date of purchase by the first
consumer purchaser and continuing for the following
specified period of time after that date:
*If applicable.
What is not covered?
This Limited Warranty is conditioned upon proper use of the
Product.
This Limited Warranty does not cover: (a) defects or damage
resulting from accident, misuse, abnormal use, abnormal
conditions, improper storage, exposure to liquid, moisture,
dampness, sand or dirt, neglect, or unusual physical,
electrical or electromechanical stress; (b) scratches, dents
and cosmetic damage, unless caused by SAMSUNG;
(c) defects or damage resulting from excessive force or use
of a metallic object when pressing on a touch screen;
(d) equipment that has the serial number or the
enhancement data code removed, defaced, damaged,
altered or made illegible; (e) ordinary wear and tear;
(f) defects or damage resulting from the use of Product in
conjunction or connection with accessories, products, or
ancillary/peripheral equipment not furnished or approved by
SAMSUNG; (g) defects or damage resulting from improper
testing, operation, maintenance, installation, service, or
adjustment not furnished or approved by SAMSUNG;
(h) defects or damage resulting from external causes such as
collision with an object, fire, flooding, dirt, windstorm,
lightning, earthquake, exposure to weather conditions, theft,
blown fuse, or improper use of any electrical source;
(i) defects or damage resulting from cellular signal reception
Device 1 Year
Battery(ies)* 1 Year
Case/Pouch/Holster* 90 Days
Other Device
Accessories*
1 Year
Warranty Information 236
or transmission, or viruses or other software problems
introduced into the Product; or (j) Product used or purchased
outside the United States. This Limited Warranty covers
batteries only if battery capacity falls below 80% of rated
capacity or the battery leaks, and this Limited Warranty does
not cover any battery if (i) the battery has been charged by a
battery charger not specified or approved by SAMSUNG for
charging the battery; (ii) any of the seals on the battery are
broken or show evidence of tampering; or (iii) the battery has
been used in equipment other than the SAMSUNG phone for
which it is specified.
What are SAMSUNG’s obligations?
During the applicable warranty period, provided the Product
is returned in accordance with the terms of this Limited
Warranty, SAMSUNG will repair or replace the Product, at
SAMSUNG’s sole option, without charge. SAMSUNG may, at
SAMSUNG’s sole option, use rebuilt, reconditioned, or new
parts or components when repairing any Product, or may
replace the Product with a rebuilt, reconditioned or new
Product.
Repaired/replaced cases, pouches and holsters will be
warranted for a period of ninety (90) days. All other repaired/
replaced Products will be warranted for a period equal to the
remainder of the original Limited Warranty on the original
Product or for ninety (90) days, whichever is longer. All
replaced Products, parts, components, boards and
equipment shall become the property of SAMSUNG. Except to
any extent expressly allowed by applicable law, transfer or
assignment of this Limited Warranty is prohibited.
What must you do to obtain warranty service?
To obtain service under this Limited Warranty, you must
return the Product to an authorized phone service facility in
an adequate container for shipping, accompanied by the
sales receipt or comparable proof of sale showing the
original date of purchase, the serial number of the Product
and the seller’s name and address.
To obtain assistance on where to deliver the Product, please
call SAMSUNG Customer Care at 1-888-987-4357. If
SAMSUNG determines that any Product is not covered by this
Limited Warranty, you must pay all parts, shipping, and labor
charges for the repair or return of such Product.
You should keep a separate backup copy of any contents of
the Product before delivering the Product to SAMSUNG for
warranty service, as some or all of the contents may be
deleted or reformatted during the course of warranty service.
237
What are the limits on SAMSUNG’s liability?
THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF
SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE
REMEDY REGARDING THE PRODUCTS.
ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT
SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT
LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF
USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL,
PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR
DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE
PRODUCT. SOME STATES AND JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
AND DISCLAIMERS MAY NOT APPLY TO YOU.
SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO
THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE
OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR
EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR
THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR
EQUIPMENT WITH THE PRODUCT, WHETHER SUCH
THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH
THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE.
RESPONSIBILITY FOR THE QUALITY, CAPABILITIES,
OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY
SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS
SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER
OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT.
Nothing in the Product instructions or information shall be
construed to create an express warranty of any kind with
respect to the Products. No agent, employee, dealer,
representative or reseller is authorized to modify or extend
this Limited Warranty or to make binding representations or
claims, whether in advertising, presentations or otherwise,
on behalf of SAMSUNG regarding the Products or this Limited
Warranty.
This Limited Warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
Warranty Information 238
What is the procedure for resolving disputes?
ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM
THIS LIMITED WARRANTY OR THE SALE, CONDITION OR
PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED
EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION,
AND NOT BY A COURT OR JURY.
Any such dispute shall not be combined or consolidated with
a dispute involving any other person’s or entity’s Product or
claim, and specifically, without limitation of the foregoing,
shall not under any circumstances proceed as part of a class
action. The arbitration shall be conducted before a single
arbitrator, whose award may not exceed, in form or amount,
the relief allowed by the applicable law. The arbitration shall
be conducted according to the American Arbitration
Association (AAA) Commercial Arbitration Rules applicable to
consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State
of Texas, without reference to its choice of laws principles,
shall govern the interpretation of the Limited Warranty and all
disputes that are subject to this arbitration provision. The
arbitrator shall decide all issues of interpretation and
application of this arbitration provision and the Limited
Warranty.
For any arbitration in which your total damage claims,
exclusive of attorney fees and expert witness fees, are
$5,000.00 or less (“Small Claim”), the arbitrator may, if you
prevail, award your reasonable attorney fees, expert witness
fees and costs as part of any award, but may not grant
SAMSUNG its attorney fees, expert witness fees or costs
unless it is determined that the claim was brought in bad
faith. In a Small Claim case, you shall be required to pay no
more than half of the total administrative, facility and
arbitrator fees, or $50.00 of such fees, whichever is less, and
SAMSUNG shall pay the remainder of such fees.
Administrative, facility and arbitrator fees for arbitrations in
which your total damage claims, exclusive of attorney fees
and expert witness fees, exceed $5,000.00 (“Large Claim”)
shall be determined according to AAA rules. In a Large Claim
case, the arbitrator may grant to the prevailing party, or
apportion among the parties, reasonable attorney fees,
expert witness fees and costs. Judgment may be entered on
the arbitrator’s award in any court of competent jurisdiction.
This arbitration provision also applies to claims against
SAMSUNG’s employees, representatives and affiliates if any
such claim arises from the Product’s sale, condition or
performance.
239
You may opt out of this dispute resolution procedure by
providing notice to SAMSUNG no later than 30 calendar days
from the date of the first consumer purchaser’s purchase of the
Product. To opt out, you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: “Arbitration
Opt Out.” You must include in the opt out e-mail (a) your name
and address; (b) the date on which the Product was purchased;
(c) the Product model name or model number; and (d) the IMEI
or MEID or Serial Number, as applicable, if you have it (the IMEI
or MEID or Serial Number can be found (i) on the Product box;
(ii) on the Product information screen, which can be found
under “Settings;” (iii) on a label on the back of the Product
beneath the battery, if the battery is removable; and (iv) on the
outside of the Product if the battery is not removable).
Alternatively, you may opt out by calling 1-888-987-4357 no
later than 30 calendar days from the date of the first consumer
purchaser’s purchase of the Product and providing the same
information. These are the only two forms of notice that will be
effective to opt out of this dispute resolution procedure. Opting
out of this dispute resolution procedure will not affect the
coverage of the Limited Warranty in any way, and you will
continue to enjoy the benefits of the Limited Warranty.
Severability
If any portion of this Limited Warranty is held to be illegal or
unenforceable, such partial illegality or unenforceability shall
not affect the enforceability of the remainder of the Limited
Warranty.
Precautions for Transfer and Disposal
If data stored on this device is deleted or reformatted using
the standard methods, the data only appears to be removed
on a superficial level, and it may be possible for someone to
retrieve and reuse the data by means of special software.
To avoid unintended information leaks and other problems of
this sort, it is recommended that the device be returned to
Samsung’s Customer Care Center for an Extended File
System (EFS) Clear which will eliminate all user memory and
return all settings to default settings. Please contact the
Samsung Customer Care Center
for details.
Important!
Please provide warranty information (proof of
purchase) to Samsung’s Customer Care Center in
order to provide this service at no charge. If the
warranty has expired on the device, charges may
apply.
Warranty Information 240
Samsung Telecommunications America, LLC
1301 E. Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
No reproduction in whole or in part allowed without prior
written approval. Specifications and availability subject to
change without notice. [111611]
End User License Agreement for
Software
IMPORTANT. READ CAREFULLY: This End User License
Agreement ("EULA") is a legal agreement between you
(either an individual or a single entity) and Samsung
Electronics Co., Ltd. ("Samsung") for software, owned by
Samsung and its affiliated companies and its third party
suppliers and licensors, that accompanies this EULA, which
includes computer software and may include associated
media, printed materials, "online" or electronic
documentation in connection with your use of this device
("Software").
This device requires the use of preloaded software in its
normal operation. BY USING THE DEVICE OR ITS PRELOADED
SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU
DO NOT ACCEPT THESE TERMS, DO NOT USE THE DEVICE OR
THE SOFTWARE.
1.
GRANT OF LICENSE
. Samsung grants you the following
rights provided that you comply with all terms and conditions
of this EULA: You may install, use, access, display and run
one copy of the Software on the local hard disk(s) or other
permanent storage media of one computer and use the
Software on a single computer or a mobile device at a time,
and you may not make the Software available over a network
where it could be used by multiple computers at the same
time. You may make one copy of the Software in machine
readable form for backup purposes only; provided that the
backup copy must include all copyright or other proprietary
notices contained on the original.
Certain items of the Software may be subject to open source
licenses. The open source license provisions may override
some of the terms of this EULA. We make the applicable
open source licenses available to you on the Legal Notices
section of the Settings menu of your device.
241
2.
RESERVATION OF RIGHTS AND OWNERSHIP
. Samsung
reserves all rights not expressly granted to you in this EULA.
The Software is protected by copyright and other intellectual
property laws and treaties. Samsung or its suppliers own the
title, copyright and other intellectual property rights in the
Software. The Software is licensed, not sold.
3.
LIMITATIONS ON END USER RIGHTS
. You may not reverse
engineer, decompile, disassemble, or otherwise attempt to
discover the source code or algorithms of, the Software
(except and only to the extent that such activity is expressly
permitted by applicable law not withstanding this limitation),
or modify, or disable any features of, the Software, or create
derivative works based on the Software. You may not rent,
lease, lend, sublicense or provide commercial hosting
services with the Software.
4.
CONSENT TO USE OF DATA
. You agree that Samsung and its
affiliates may collect and use technical information gathered
as part of the product support services related to the
Software provided to you, if any, such as IMEI (your device’s
unique identification number), device number, model name,
customer code, access recording, your device’s current SW
version, MCC (Mobile Country Code), MNC (Mobile Network
Code). Samsung and its affiliates may use this information
solely to improve their products or to provide customized
services or technologies to you and will not disclose this
information in a form that personally identifies you. At all
times your information will be treated in accordance with
Samsung’s Privacy Policy, which can be viewed at:
http://account.samsung.com/membership/pp
.
5.
SOFTWARE UPDATES
. Samsung may provide to you or
make available to you updates, upgrades, supplements and
add-on components (if any) of the Software, including bug
fixes, service upgrades (parts or whole), products or devices,
and updates and enhancements to any software previously
installed (including entirely new versions), (collectively
“Update”) after the date you obtain your initial copy of the
Software to improve the Software and ultimately enhance
your user experience with your device. This EULA applies to
all and any component of the Update that Samsung may
provide to you or make available to you after the date you
obtain your initial copy of the Software, unless we provide
other terms along with such Update. To use Software
provided through Update, you must first be licensed for the
Software identified by Samsung as eligible for the Update.
After the Update, you may no longer use the Software that
formed the basis for your Update eligibility. The updated
Software version may add new functions and, in some
limited cases, may delete existing functions.
Warranty Information 242
While the Update will be generally available, in some limited
circumstances, the Software updates will only be offered by
your network carrier, and such Software updates will be
governed by your contractual relationship with your network
carrier.
With the “Automatic Update” function enabled (as in the
default setting in the System Update menu in the Setting),
your device downloads some Updates automatically from
time to time. Your device will, however, ask for your consent
before installing any Update If you choose to disable the
“Automatic Update” function, then you can check the
availability of new Updates by clicking on the “Check
Update” menu in the Setting. We recommend that you check
availability of any new Updates periodically for optimal use of
your device. If you want to avoid any use of network data for
the Update downloads, then you should choose the “Wi-Fi
Only” option in the Setting. (Regardless of the option you
choose, the “Automatic Update” function downloads Updates
only through Wi-Fi connection.)
6. Some features of the Software may require your device to
have access to the internet and may be subject to
restrictions imposed by your network or internet provider.
Unless your device is connected to the internet through Wi-Fi
connection, the Software will access through your mobile
network, which may result in additional charges depending
on your payment plan. In addition, your enjoyment of some
features of the Software may be affected by the suitability
and performance of your device hardware or data access.
7.
SOFTWARE TRANSFER
. You may not transfer this EULA or
the rights to the Software granted herein to any third party
unless it is in connection with the sale of the mobile device
which the Software accompanied. In such event, the transfer
must include all of the Software (including all component
parts, the media and printed materials, any upgrades, this
EULA) and you may not retain any copies of the Software.
The transfer may not be an indirect transfer, such as a
consignment. Prior to the transfer, the end user receiving the
Software must agree to all the EULA terms.
8.
EXPORT RESTRICTIONS
. You acknowledge that the
Software is subject to export restrictions of various countries.
You agree to comply with all applicable international and
national laws that apply to the Software, including all the
applicable export restriction laws and regulations.
9.
TERMINATION
. This EULA is effective until terminated. Your
rights under this License will terminate automatically without
notice from Samsung if you fail to comply with any of the
243
terms and conditions of this EULA. Upon termination of this
EULA, you must cease all use of the Software and destroy all
copies, full or partial, of the Software.
10.
DISCLAIMER OF WARRANTY
. UNLESS SEPARATELY STATED
IN A WRITTEN EXPRESS LIMITED WARRANTY
ACCOMPANYING YOUR DEVICE, ALL SOFTWARE PROVIDED
BY SAMSUNG WITH THIS MOBILE DEVICE (WHETHER
INCLUDED WITH THE DEVICE, DOWNLOADED, OR
OTHERWISE OBTAINED) IS PROVIDED "AS IS" AND ON AN
"AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND
FROM SAMSUNG, EITHER EXPRESS OR IMPLIED. TO THE
FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE
LAW, SAMSUNG DISCLAIMS ALL WARRANTIES EXPRESS,
IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY
QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A
PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY,
ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON
INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER
VIOLATION OF RIGHTS. SOME JURISDICTIONS DO NOT
ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED
WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS
MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION,
WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM
SAMSUNG OR ITS AFFILIATES SHALL BE DEEMED TO ALTER
THIS DISCLAIMER BY SAMSUNG OF WARRANTY REGARDING
THE SOFTWARE, OR TO CREATE ANY WARRANTY OF ANY
SORT FROM SAMSUNG.
11.
THIRD-PARTY APPLICATIONS
. Certain third party
applications may be included with, or downloaded to this
mobile device. Samsung makes no representations
whatsoever about any of these applications. Since Samsung
has no control over such applications, you acknowledge and
agree that Samsung is not responsible for the availability of
such applications and is not responsible or liable for any
content, advertising, products, services, or other materials
on or available from such applications. You expressly
acknowledge and agree that use of third party applications is
at your sole risk and that the entire risk of unsatisfactory
quality, performance, accuracy and effort is with you. It is up
to you to take precautions to ensure that whatever you select
to use is free of such items as viruses, worms, Trojan horses,
and other items of a destructive nature. References on this
mobile device to any names, marks, products, or services of
any third-parties are provided solely as a convenience to you,
and do not constitute or imply an endorsement, sponsorship,
or recommendation of, or affiliation with the third party or its
products and services. You agree that Samsung shall not be
Warranty Information 244
responsible or liable, directly or indirectly, for any damage or
loss, including but not limited to any damage to the mobile
device or loss of data, caused or alleged to be caused by, or
in connection with, use of or reliance on any such third party
content, products, or services available on or through any
such application. You acknowledge and agree that the use of
any third-party application is governed by such third party
application provider's Terms of Use, License Agreement,
Privacy Policy, or other such agreement and that any
information or personal data you provide, whether knowingly
or unknowingly, to such third-party application provider, will
be subject to such third party application provider's privacy
policy, if such a policy exists. SAMSUNG DISCLAIMS ANY
RESPONSIBILITY FOR ANY DISCLOSURE OF INFORMATION OR
ANY OTHER PRACTICES OF ANY THIRD PARTY APPLICATION
PROVIDER. SAMSUNG EXPRESSLY DISCLAIMS ANY
WARRANTY REGARDING WHETHER YOUR PERSONAL
INFORMATION IS CAPTURED BY ANY THIRD PARTY
APPLICATION PROVIDER OR THE USE TO WHICH SUCH
PERSONAL INFORMATION MAY BE PUT BY SUCH THIRD
PARTY APPLICATION PROVIDER.
12.
SAMSUNG APPLICATIONS
. Certain Samsung applications
and services may be included with, or downloaded to, this
mobile device. Many of them require Samsung Services
membership registration (“Samsung Account”), and your
rights and obligations will be set forth in separate Samsung
Account terms and conditions and privacy policies. There are
non-Samsung Account applications and services that require
your consent to their separate terms and conditions and
privacy policies. You expressly acknowledge and agree that
your use of such applications and services will be subject to
the applicable terms and conditions and privacy policies.
13.
LIMITATION OF LIABILITY
. SAMSUNG WILL NOT BE LIABLE
FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR
RELATING TO THE USE OR THE INABILITY TO USE THE
SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS
CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED
TO DAMAGES CAUSED BY OR RELATED TO ERRORS,
OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN
OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE
TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES,
AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF
SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. NOTWITHSTANDING
245
THE FOREGOING, SAMSUNG ELECTRONIC CO.'S TOTAL
LIABILITY TO YOU FOR ALL LOSSES, DAMAGES, CAUSES OF
ACTION, INCLUDING BUT NOT LIMITED TO THOSE BASED ON
CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF YOUR
USE OF THE SOFTWARE OR THIRD PARTY APPLICATIONS ON
THIS MOBILE DEVICE, OR ANY OTHER PROVISION OF THIS
EULA, SHALL NOT EXCEED THE AMOUNT PURCHASER PAID
SPECIFICALLY FOR THIS MOBILE DEVICE OR ANY SUCH
THIRD PARTY APPLICATION THAT WAS INCLUDED WITH THIS
MOBILE DEVICE. THE FOREGOING LIMITATIONS,
EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 10,
11, 12 AND 13) SHALL APPLY TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY
FAILS ITS ESSENTIAL PURPOSE.
14.
U.S. GOVERNMENT END USERS RESTRICTED RIGHTS
. The
Software is licensed only with "restricted rights" and as
"commercial items" consisting of "commercial software"
and "commercial software documentation" with only those
rights as are granted to all other end users pursuant to the
terms and conditions herein. All Products are provided only
with "restricted rights" with only those rights as are granted
to all other end users pursuant to the terms and conditions
herein. All Software and Products are provided subject to
Federal Acquisition Regulation (FAR) 52.227.19.
15.
APPLICABLE LAW
. This EULA is governed by the laws of
the jurisdiction where you are a resident or, if a resident of
the United States, by the laws of the state of Texas, without
regard to its conflict of law provisions. This EULA shall not be
governed by the UN Convention on Contracts for the
International Sale of Goods, the application of which is
expressly excluded.
16.
DISPUTE RESOLUTION
.
(a) Non-United States residents. If a dispute, controversy or
difference arising in any way from this EULA or your use of
the Software is not amicably settled, it shall be subject to the
non-exclusive jurisdiction of the courts of the jurisdiction
where you are a resident. Notwithstanding the foregoing,
Samsung may apply for injunctive remedies (or an equivalent
type of urgent legal relief) in any jurisdiction.
(b) United States residents. ALL DISPUTES WITH SAMSUNG
ARISING IN ANY WAY FROM THIS EULA OR YOUR USE OF THE
SOFTWARE SHALL BE RESOLVED EXCLUSIVELY THROUGH
FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR
JURY. Any such dispute shall not be combined or
consolidated with any other person’s or entity’s claim or
dispute, and specifically, without limitation of the foregoing,
shall not under any circumstances proceed as part of a class
Warranty Information 246
action. The arbitration shall be conducted before a single
arbitrator, whose award may not exceed, in form or amount,
the relief allowed by the applicable law. The arbitration shall
be conducted according to the American Arbitration
Association (AAA) Commercial Arbitration Rules applicable to
consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State
of Texas, without reference to its choice of laws principles,
shall govern the interpretation of the EULA and all disputes
that are subject to this arbitration provision. The arbitrator
shall decide all issues of interpretation and application of this
arbitration provision and the EULA. For any arbitration in
which your total damage claims, exclusive of attorney fees
and expert witness fees, are $5,000.00 or less ("Small
Claim"), the arbitrator may, if you prevail, award your
reasonable attorney fees, expert witness fees and costs as
part of any award, but may not grant Samsung its attorney
fees, expert witness fees or costs unless it is determined that
the claim was brought in bad faith. In a Small Claim case,
you shall be required to pay no more than half of the total
administrative, facility and arbitrator fees, or $50.00 of such
fees, whichever is less, and Samsung shall pay the
remainder of such fees. Administrative, facility and arbitrator
fees for arbitrations in which your total damage claims,
exclusive of attorney fees and expert witness fees, exceed
$5,000.00 ("Large Claim") shall be determined according to
AAA rules. In a Large Claim case, the arbitrator may grant to
the prevailing party, or apportion among the parties,
reasonable attorney fees, expert witness fees and costs.
Judgment may be entered on the arbitrator's award in any
court of competent jurisdiction. This arbitration provision also
applies to claims against Samsung’s employees,
representatives and affiliates if any such claim arises from
the licensing or use of the Software. You may opt out of this
dispute resolution procedure by providing notice to Samsung
no later than 30 calendar days from the date of the first
consumer purchaser’s purchase of this device. To opt out,
you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: "Arbitration
Opt Out." You must include in the opt out e-mail (a) your
name and address; (b) the date on which the device was
purchased; (c) the device model name or model number; and
(d) the IMEI or MEID or Serial Number, as applicable, if you
have it (the IMEI or MEID or Serial Number can be found (i) on
the device box; (ii) on the device information screen, which
can be found under "Settings;" (iii) on a label on the back of
the device beneath the battery, if the battery is removable;
and (iv) on the outside of the device if the battery is not
247
removable). Alternatively, you may opt out by calling
1-888-987-4357 no later than 30 calendar days from the
date of the first consumer purchaser's purchase of the
device and providing the same information. These are the
only two forms of notice that will be effective to opt out of
this dispute resolution procedure. Opting out of this dispute
resolution procedure will not affect your use of the device or
its preloaded Software, and you will continue to enjoy the
benefits of this license.
17.
ENTIRE AGREEMENT; SEVERABILITY
. This EULA is the
entire agreement between you and Samsung relating to the
Software and supersedes all prior or contemporaneous oral
or written communications, proposals and representations
with respect to the Software or any other subject matter
covered by this EULA. If any provision of this EULA is held to
be void, invalid, unenforceable or illegal, the other provisions
shall continue in full force and effect. [050113]
248
Index
A
Abc mode 45
Accessibility settings
services 183
Accounts
adding a Google account 50
setting up 50
Add 2 Sec Pause 68
Air Call-Accept 66
Air Gesture
Answering a Call 66
Airplane mode 160
Alarm 104
Answering a Call 66
Applications 41
downloading new 125
KNOX 116
World Clock 105
Auto Reject
Configuration 67
B
Back key 23
Battery
charging 11
cover, installing 6
cover, removing 6
indicator 9
installing 9
removing 10
Wall Charger 11
Battery Use & Safety 220
Bluetooth
pairing with a device 141
profiles 156
settings 157
turning on or off 141
Burst Shots 92
C
Calculator 88
Calendar 88
Call
Settings 66
Call Functions
Answering 66
Answering w Gestures 66
Pause Dialing 68
Wait Dialing 68
Call log
creating/updating contacts 65
managing 65
sending messages 65
Call Rejection 66
Calls
answering 69
call-waiting 70
ending 71
from Contacts 63
from Favorites 64
in-call options 70
recent 64
rejecting 69
sending to voicemail 69
settings 71
silencing a ringer 69
three-way 69
using the Keypad 62
249
Camcorder
Accessing the Video Folder 97
Settings 94
Camera
Camera Options 92
Enabling Share Shot 99
Settings 94
Care and Maintenance 225
Children and Cell Phones 215
Clock 103
Commercial Mobile Alerting
System (CMAS) 218
Contacts
creating 53
creating from Call log 54
creating from the Keypad 54
exporting and importing 58
groups 59
joining 57
My Profile 56
namecards 58
speed dials 61
starred contacts 59
updating 54
updating from Call log 55, 65
updating from Keypad 54
Creating a Playlist 121
D
Display / Touch-Screen 223
Display settings
brightness 170
font style and size 172
screen timeout 171
Do cell phones pose a health
hazard? 211
Dual Camera 94
Relocate 94
Resize 94
Dual View
see Dual Camera 94
E
Editing a Picture 112
Email
account settings 83
combined Inbox 83
composing and sending 82
configuring accounts 82
refreshing your accounts 83
Emergency Calls 225
Entering Text
Changing the Text Entry Mode 45
Using 123Sym Mode 46
Using Abc Mode 45
Using Swype 47, 48
Using Symbol/Numeric Mode 46
Exposure to Radio Frequency (RF)
Signals 211
F
FCC Hearing Aid Compatibility
(HAC) Regulations for Wireless
Devices 230
FCC Notice and Cautions 232
G
Gallery
viewing pictures and video 111
viewing videos 114
Getting Started
Setting Up Your Phone 6
Gmail
composing and sending 84
configuring your account 83
managing your account 84
250
refreshing your account 84
Google
Gmail 83
managing an account 52
Maps 117
Play Store 125
setting up an account 50
your account 16
YouTube 133
Google Talk
see Hangouts 84, 116
Google Voice Typing 44
GPS & AGPS 224
Groups
adding contacts 60
creating 59
sending a message 61
H
Hand motions 26
Handwriting feature 47
HDMI Port 22
HDR 92
Health and Safety Information 211
Home key 23
Home screen 35
adding shortcuts 39
adding widgets 40
customizing 38
folders 40
primary shortcuts 39
wallpaper 41
I
Icons
Status Bar 36
International Call 67
International Calls
Making 67
Internet 116
K
Keypad
Changing Text Input 45
L
Landscape 44
Locking and Unlocking
unlocking the keypad 13, 17
M
Making
International Calls 67
Maps 117
Memory Card
erasing 150
installing 7
removing 8
Memory card
installing 7
removing 8
Memory settings
internal phone storage 207
Menu
key 23
Messages
creating and sending 77
email 82
Gmail 83
managing 78
settings 79
types 77
Messaging
Handwriting 47
251
microSDHC card 7
Mobile Hotspot
using your phone as a hotspot 145
Mobile networks
settings 160
Motions 26
Multi Window
Activate/Deactivate 27
Customizing 31
Increase App Window Size 29
Maximize App 29
Rearrange Apps 31
Removing Apps 31
Restoring Apps 32
Running Multiple Apps 28
Switch Arrangement 29
Tab and Tray Relocation 30
Tab Repositioning 30
Using 27
Music
Music Player 118
setting a song as a ringtone 122
Music File Extensions
3GP 118
AAC 118
AAC+ 118
eAAC+ 118
M4A 118
MP3 118
MP4 118
WMA 118
Music Player
adding music 122
creating a playlist 121
Playlists 121
removing music 122
My Files 123
My Profile 56
sending 57
N
Namecards
sending 58
Navigation 23
command keys 39
touch gestures 23
Notification Panel 32
O
Operating Environment 228
Other Important Safety Information
233
Out of Office
Message 199
P
Pairing with Bluetooth 141
Palm Motion
On 102
Pause Dialing 68
PC Connections 143
Personal Localized Alerting Network
(PLAN) 218
Phone settings
language 185
Editing 112
Photos
Options 97
Sharing 97
Color Correction 113
Face Corrections 113
Frame 113
252
Pictures
Instant Sharing 99
Sharing 99, 101
Play Store 125
Powering On and Off 13
Q
QWERTY keypad 44
R
Red Eye
Correction 113
Reducing Exposure
Hands-Free Kits and Other
Accessories 214
Reject Calls
Managing 66
Reject List
Add To 67
Rejection List
Assigning Multiple Numbers 67
Responsible Listening 226
Restricting Children's Access to Your
Mobile device 232
Ringtones
setting a song as a ringtone 122
Roaming 16
S
S Beam
On 101
Sharing Pictures 101
Samsung Mobile Products and
Recycling 221
scientific calculator 88
Screen Capture
Taking a Screen Shot 102
Screen Mirroring
On 149
Security
locking and unlocking 17
locking the phone 17
Security settings
credential storage 206
Settings 94, 151
Share Shot 99
Configuring 101
Enabling 100
Stop Sharing 101
Taking Images 101
SIM card
installation 7
Installing 6
removing 7
Smart Practices While Driving 219
Snooze 105
Software Update 209
Specific Absorption Rate (SAR)
Certification Information 216
Speed Dials
assigning 61
removing or reassigning 61
Standard Limited Warranty 235
Stopwatch 105
SWYPE
entering text using 47, 48
Swype Settings 49
Symbol/Numeric mode 46
T
Text Input
Abc mode 45
Methods 43
numeric mode 46
symbol mode 46
253
Text settings
default 186
Google voice typing 186
Samsung keyboard 186
Timer 106
Transferring Large Files 101
TTY Mode 15
Turning Your Phone On and Off 13
U
UL Certified Travel Charger 223
Unlocking
using an unlock pattern 17
USB Power/Accessory Port 21
USB settings
mass storage device 143
USB Tethering
Activating 144
V
Voicemail
checking 15
setting up 15
Volume
key 21
VPN
accessing 142
settings 164
W
Wait 68
Wait dialing 68
Warranty Information 235
Web applications
enable downloading 142
Widgets 40
Wi-Fi
adding a connection manually
139
scanning and connecting 139
settings 153
turning on or off 138
using your phone as a hotspot 145
Wi-Fi Direct
On 100
Wireless Networking
Bluetooth 140
VPN 142
Wi-Fi 138
World clock 105
Y
YouTube 133

Navigation menu
