Electric Dryer
Owner's Manual
Register your product at
www.samsung.com/global/register
Code No.: DC68-02347B-05_EN
Extra Large Capacity
Ultra washing and drying are at your fingertips! Now you can do extra-large loads in both the washer
and dryer. Plus our ultra-large 7.3 cu.ft, capacity dryer circulates more air through your clothes getting
them dry faster, for a wrinkle-free result.
Various Drying Cycles& Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 11 automatic drying cycles, including normal, hea Wduty
and towels. Or let Fuzzy Logic Control measure the degree of dampness and automatically set the
drying time. Precision drying never got easier than with Samsung.
Freshen Up Cycle
Want to freshen up a garment that doesn't need washing, but could deserve a little help after last night's
party. Our Freshen Up Cycle removes odors, adding that extra freshness to give more mileage to your
clothes.
Time Saving
Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in less time...
just 44 minutes! Giving you time for more important things in life.
Energy Saving
Samsung dryers are super energy efficient, using only 3.01 kWh per pound of laundry. And both the
large capacity and Fuzzy Logic Control save energy by automatically drying your clothes the most
efficient way.
EasyReversible Door
Our dryers will fit just about anywhere and without a door conflict.The direction of our easy reversible
door can be changed with just four screws.
Slanted Control Panel
You can see what your laundry is doing from any direction you'd like with our easy-to-read slanted
control panel.
Stacking
Washer and Dryer can be stacked to maximize usable space.
Notice : Dryer legs need to be removed to stackWasher and Dryer.
Safety Precautions
Congratulations on your new Samsung Dryer.This manual contains valuable information on the
installation, use, and care of your appliance. Please take the time to read this manual to take full
advantage of your dryer's many benefits and features.
What you need to know about Safety instructions
Warnings and Important Safety instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when
installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
RECOGNIZESAFETYSYMBOLS,WORDS, LABELS
l_ WARN[NG-
_CAUTION-
_iL WARNING-
Hazards or unsafe practices that COULD result in severe personal injury or
death.
Hazards or unsafe practices that COULD result in minor personal injury or
property damage.
Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.

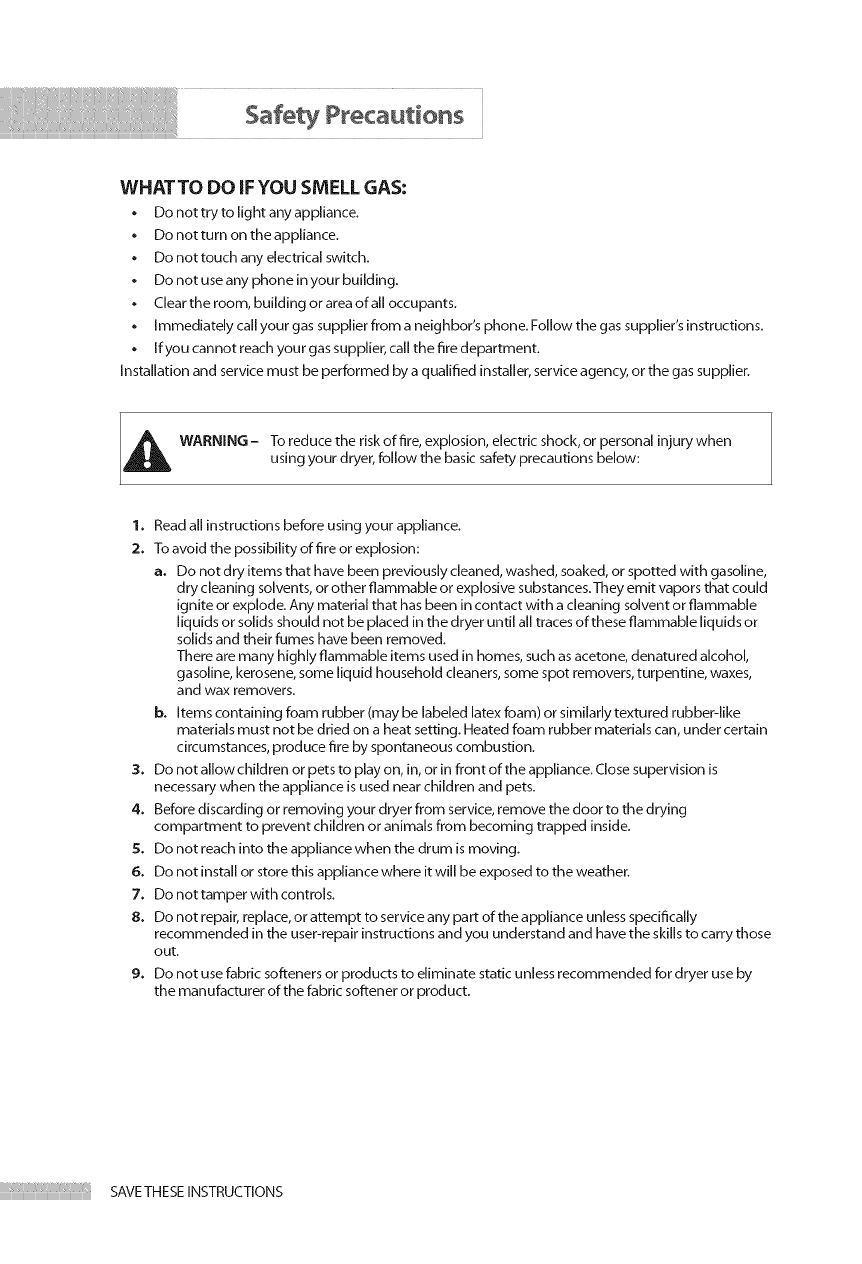

Safety Precautions
WHATTO DO IFYOU SMELL GAS:
•Do not try to light any appliance.
Do not turn on the appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
_WARNING - To reduce the risk of fire, explosion, electric shock, or personal injury when
using your dryer, follow the basic safety precautions below:
1. Read all instructions before using your appliance.
2. To avoid the possibility of fire or explosion:
a. Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline,
dry cleaning solvents, or other flammable or explosive substances.They emit vapors that could
ignite or explode. Any material that has been in contact with a cleaning solvent or flammable
liquids or solids should not be placed in the dryer until all traces of these flammable liquids or
solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured alcohol,
gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes,
and wax removers.
b. Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like
materials must not be dried on a heat setting. Heated foam rubber materials can, under certain
circumstances, produce fire by spontaneous combustion.
3. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is
necessary when the appliance is used near children and pets.
4. Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
5. Do not reach into the appliance when the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions and you understand and have the skills to carry those
out.
9. Do not use fabric softeners or products to eliminate static unless recommended for dryer use by
the manufacturer of the fabric softener or product.
SAVETHESE INSTRUCTIONS
Safety Precautions
I O.Clean the lint screen before or after each load.
11. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
12.The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
13.This appliance must be properly grounded. Never plug the power cord into a receptacle that is not
grounded adequately and in accordance with local and national codes. See installation instructions
for grounding this appliance.
14. Do not sit on top of the dryer.
NO'[E: Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For compJete details, see the Installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
15. Ensure pockets are free from small irregularJy shaped hard objects, foreign material, etc. ie. coins,
knives, pins, etc. These objects could damage your dryer.
16. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.
_lk WARNING - Gas leaks may occur in your system, resulting in a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas
detector.
Install and use in accordance with the manufacturer's instructions.
_1i WARNING - Do not place items in your dryer that have been spotted or soaked with
vegetable oil or cooking oil. Even after being washed, these items may contain
significant amounts of these oils.
The residual oil can ignite spontaneously.The potential for spontaneous combustion increases when
the items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer
can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this
heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these
kinds of items may prevent heat from escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing
these items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use
the Cool Down cycle for these items to reduce their temperature. Never remove these items from the
dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never
_ile or stack these items when they are hot.
SAVETHESEINSTRUCTIONS
Table of Contents
installation instructions .............................................. A-1
Tools needed for installation ............................................ A-I
See Exhaust Requirements .............................................. A-I
DUCTING REQUIREMENTS .............................................. A-2
IMPORTANTTO INSTALLER .............................................. A-3
LOCATION CONSIDERATIONS ............................................ A-3
ALCOVE OR CLOSET INSTALLATION ........................................ A-3

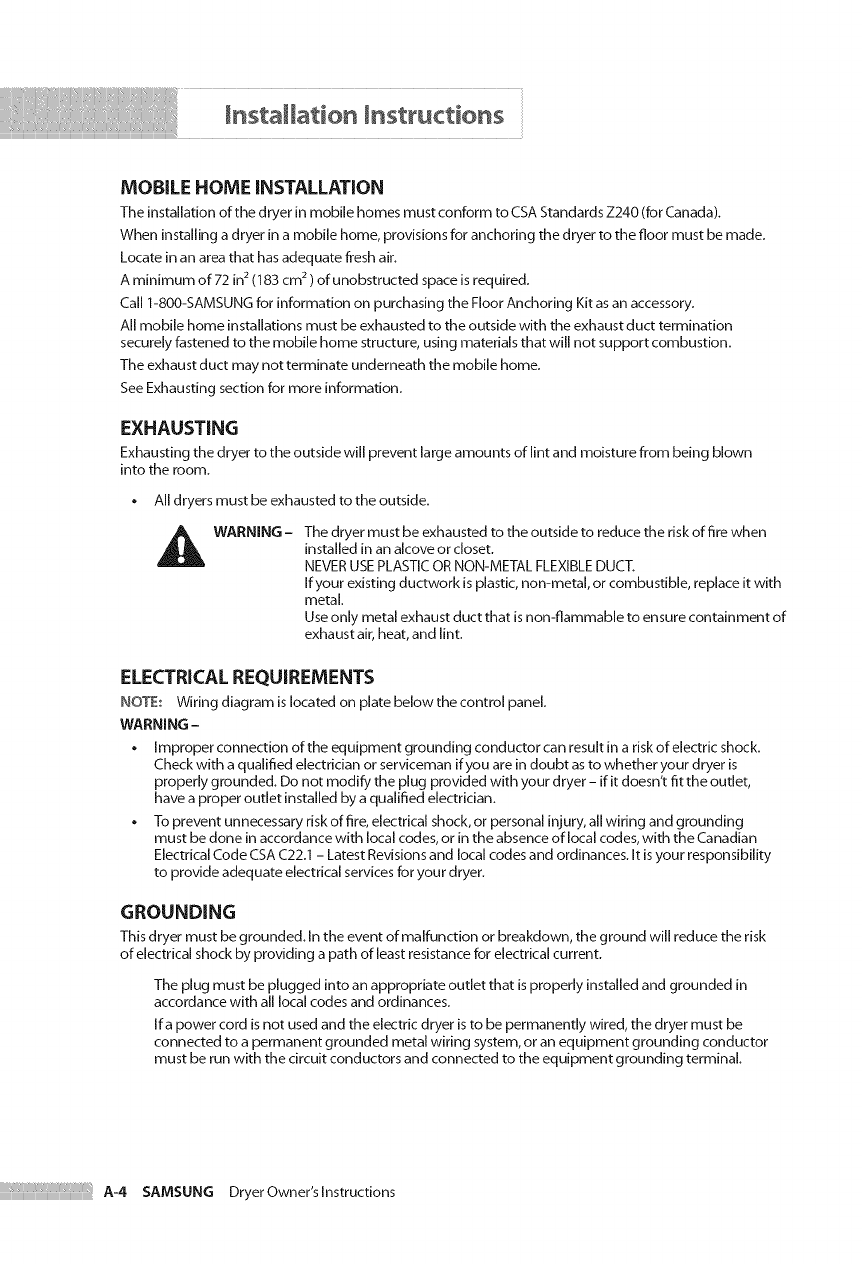

MOBILE HOME INSTALLATION ........................................... A_4
EXHAUSTING ....................................................... A_4
ELECTRICAL REQUIREMENTS ............................................ A_4
GROUNDING ....................................................... A_4

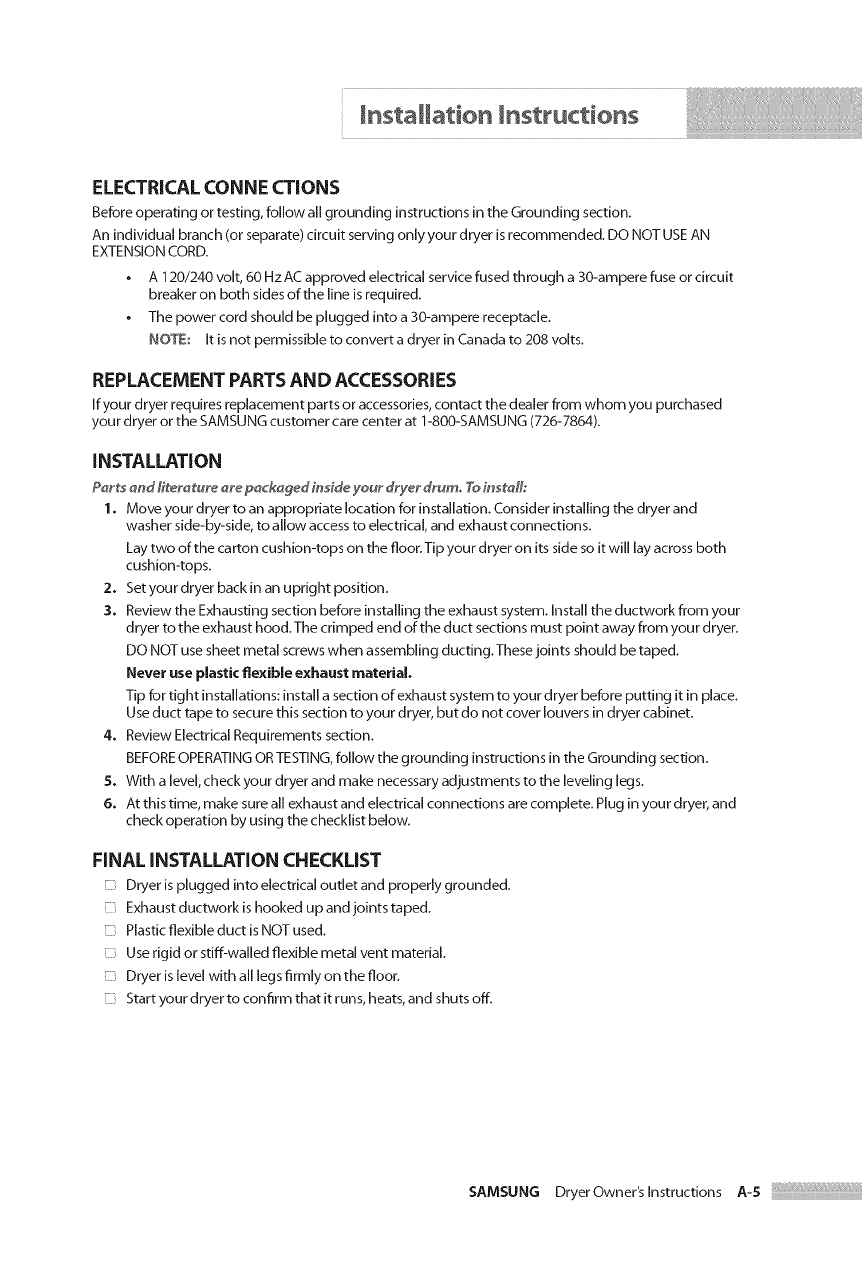

ELECTRICAL CONNECTIONS ............................................ A-5
REPLACEMENT PARTS AND ACCESSORIES ................................... A-5
INSTALLATION ...................................................... A-5
FINAL INSTALLATION CHECKLIST ......................................... A-5
Dryer Exhaust_ps ................................................... A-6

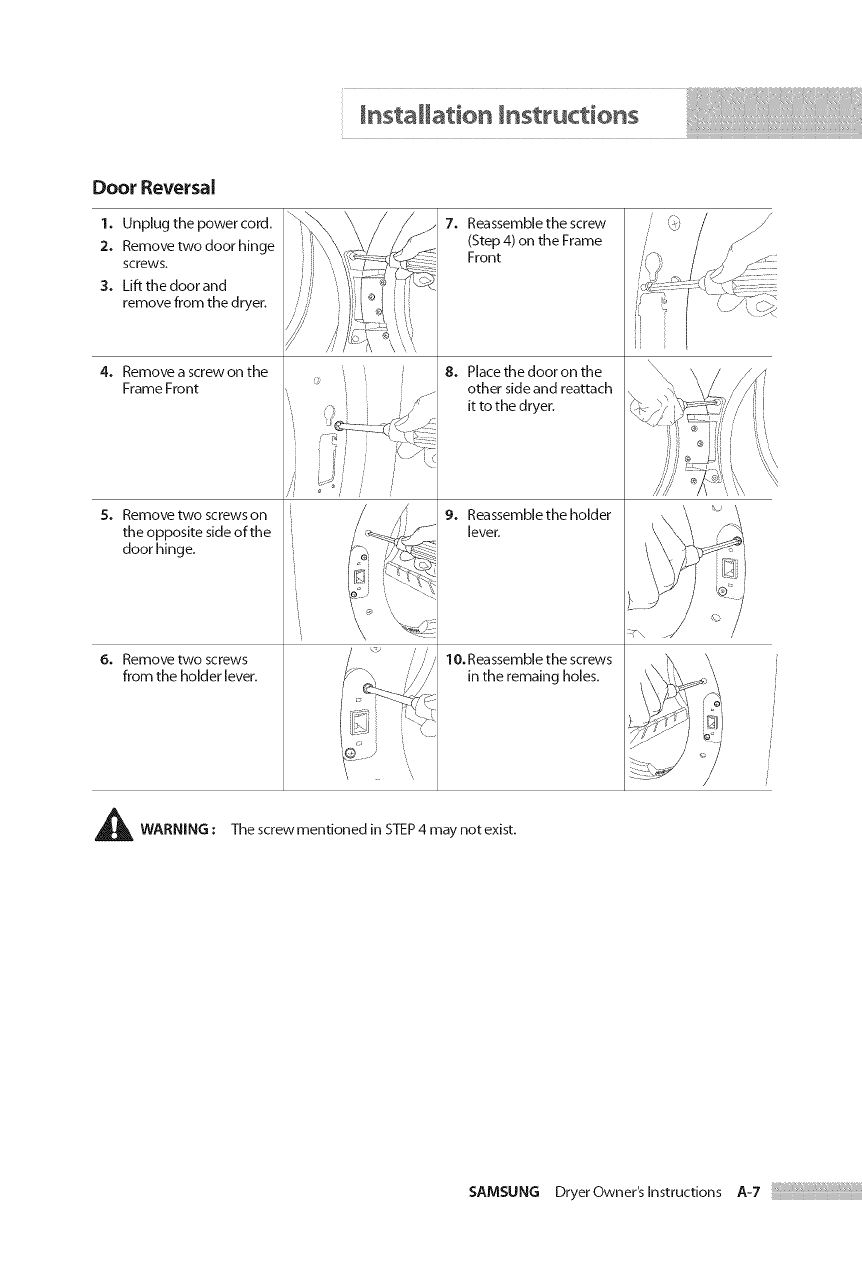

Door Reversal ....................................................... A-7
Operating Instructions, Tips ............................................ B-1
OVERVIEW OFTHE CONTROL PANEL ........................................ B-1
CHILD LOCK......................................................... B_4
MY CYCLE .......................................................... B_4

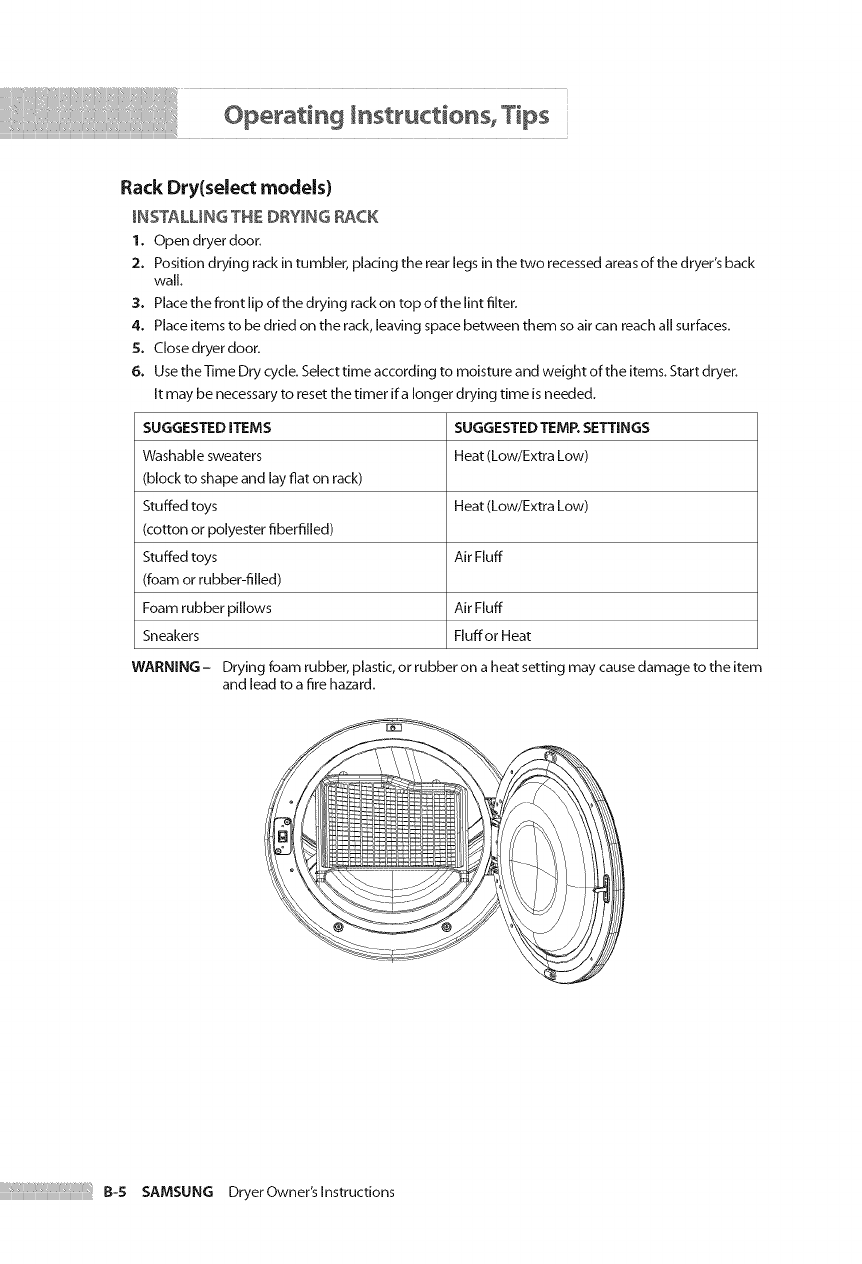

Rack Dry(select models) ................................................ B-5

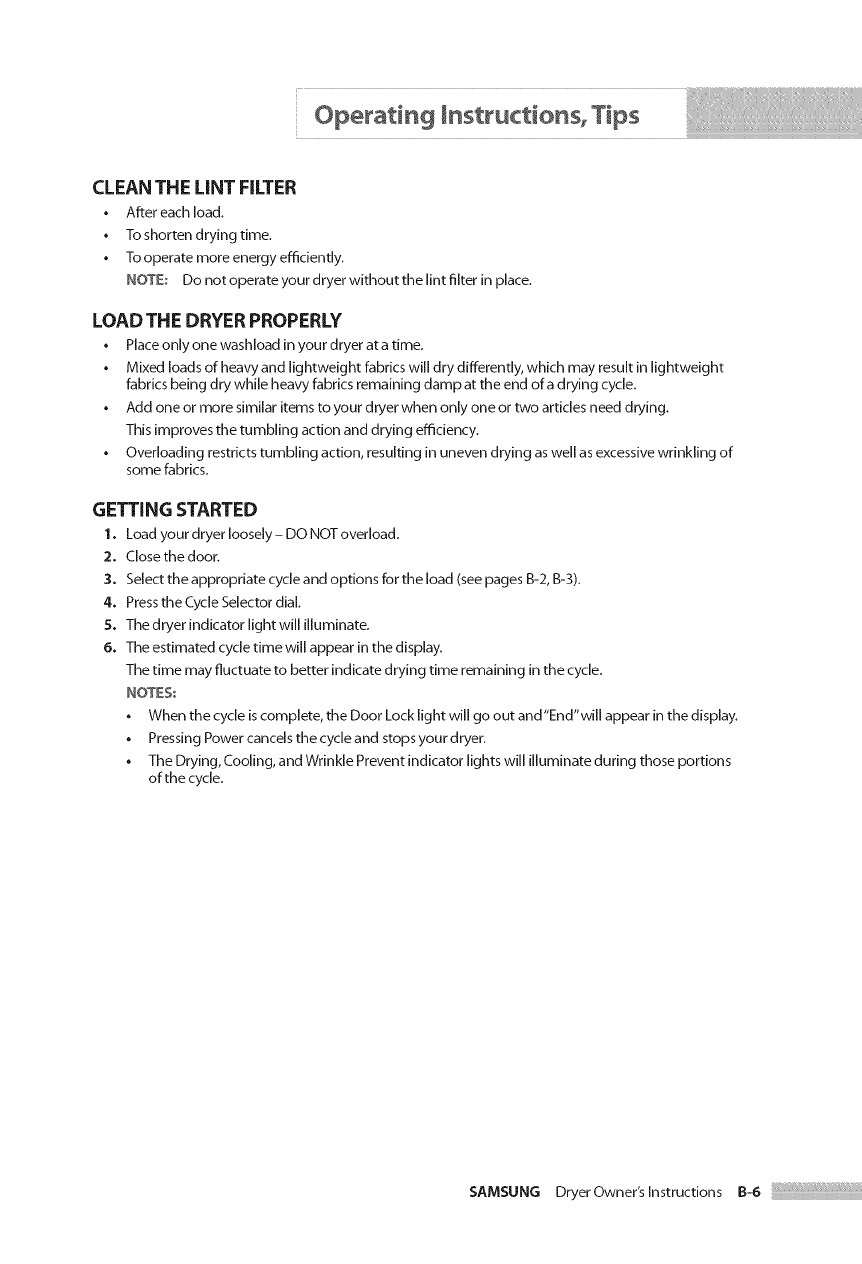

CLEAN THE LINT FILTER ................................................. B-6
LOAD THE DRYER PROPERLY ............................................. B-6
GETTING STARTED .................................................... B-6
Care and Cleaning ................................................... C-1
Control Panel ........................................................ C-1
Tumbler ........................................................... C-]
Stainless Steel Tumbler (select models) ...................................... C-]
Dryer Exterior ........................................................ C-]
Dryer Exhaust System .................................................. C-]
THINGS TO AVOID : ................................................... D-1
Troubleshooting .................................................... E-1
CHECKTHESE POINTS IFYOUR DRYER......................................... E-1
INFORMATION CODES .................................................. E-2
Appendix ......................................................... F-1
FABRIC CARE CHART ................................................... F-1
PROTECTING THE ENVIRON MENT .......................................... F-2
DECLARATION OF CONFORMITY .......................................... F-2
SPECIFICATION ....................................................... F-2

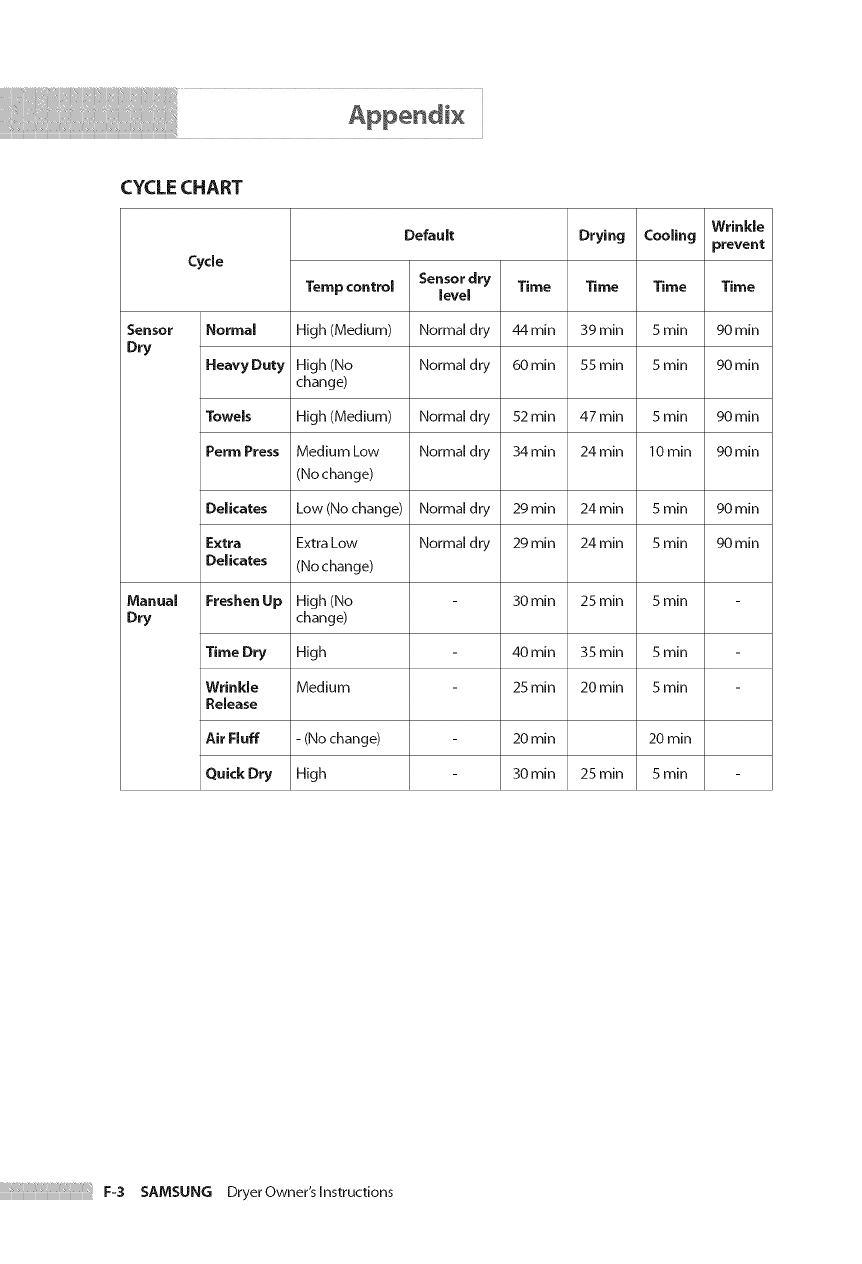

CYCLE CHART ....................................................... F-3

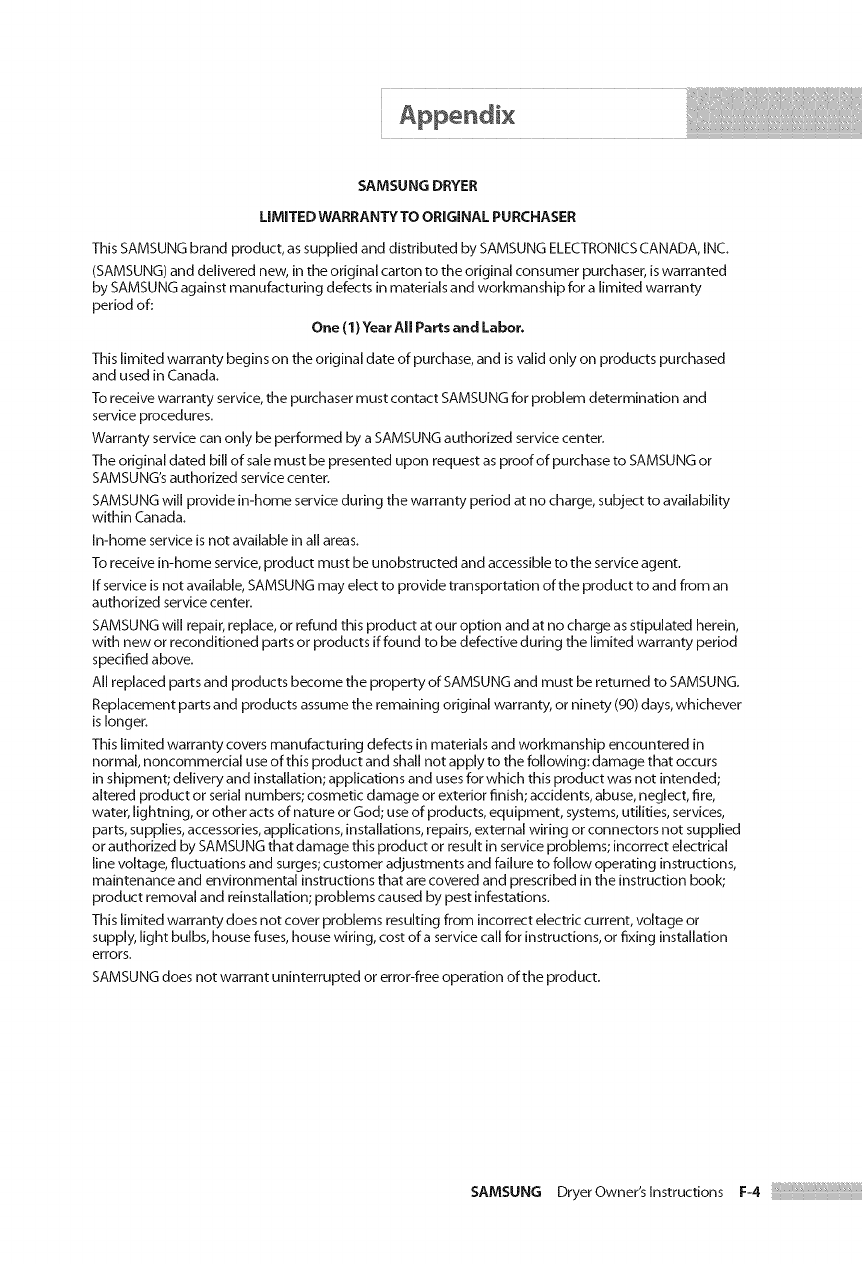

WARRANTY INFORMATION .............................................. F_4

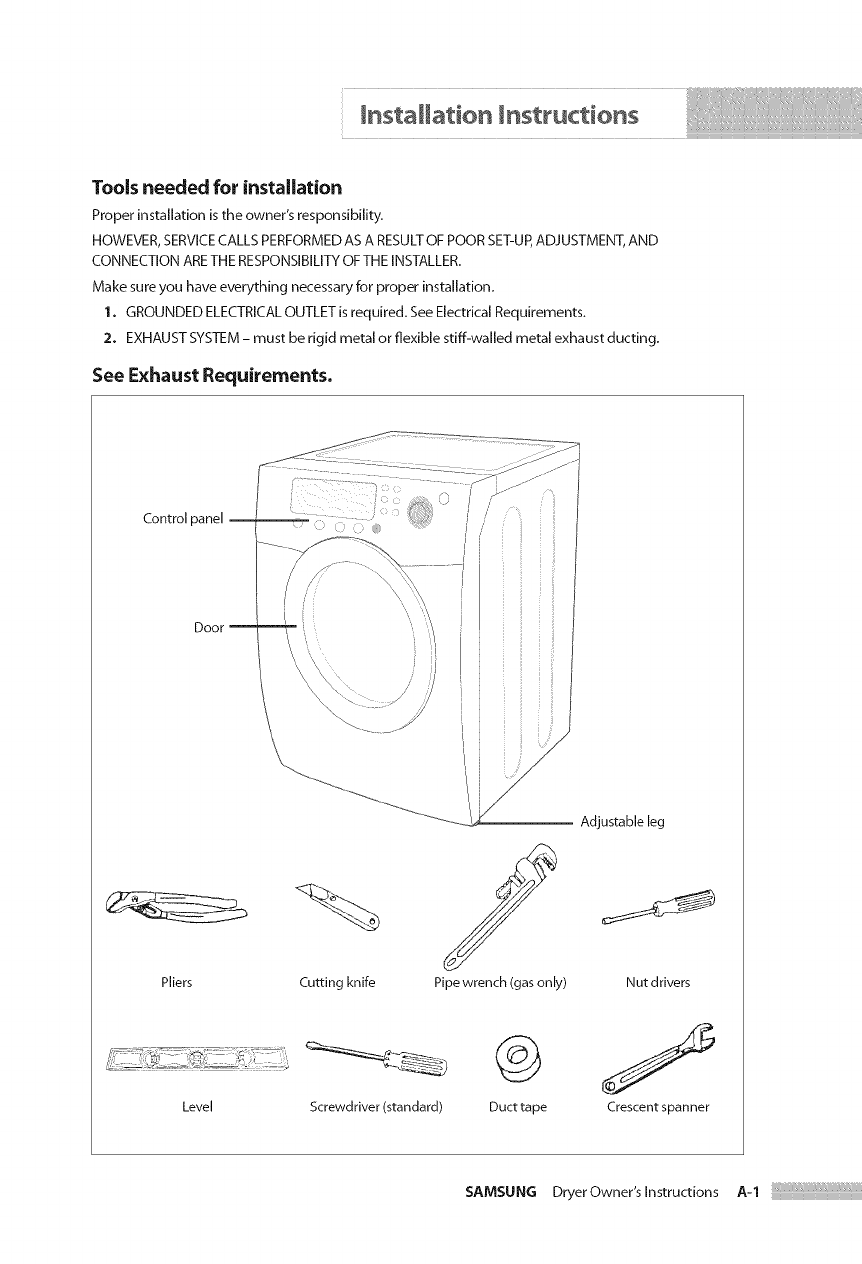

installation mnstructions
Tools needed for installation
Proper installation is the owner's responsibility.
HOWEVER, SERVICECALLS PERFORMED AS A RESULT OF POOR SET-UP,ADJUSTMENT, AND
CONNECTION ARE THE RESPONSIBILITY OF THE INSTALLER.
Make sure you have everything necessary for proper installation.
1. GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.
2. EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.
See Exhaust Requirements.
Control panel
Door
Pliers
Level
{(
Cutting knife
i i ii i i¸
/
Pipe wrench (gas only)
Screwdriver (standard)
©
Duct tape
Adjustable leg
Nut drivers
Crescent spanner
SAMSUNG DryerOwner'slnstructions A-I
installation [nstructions
DUCTING REQUIREMENTS
•Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible
duct with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
Keep exhaust duct as straight and short as possible.
Secure joints with duct tape. Do not use screws.
•DO NOT EXHAUST DRYER INTO ANY WALL CEILING, CRAWL SPACE, OR CONCEALED SPACEOF A
BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BYTHE DRYER.
Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect
dryer operation.
Exhaust systems longer than recommended can extend drying times, affect machine operation,
and may collect lint.
The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back
drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper.
The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood
and the ground or other obstruction.The hood opening should point down.
Never install a screen over the exhaust outlet.
To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a
house or porch.
If exhaust ductwork must run through an unheated area, the duct should be insulated and slope
slightly down towards the exhaust hood to reduce condensation and lint buildup.
Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord
before cleaning.
Check frequently to be sure the exhaust hood damper opens and closes freely.
Check once per month, and clean at least one time per year. Note: If clothes are not getting dry,
then check ducting for obstructions.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended Use only for short-run installation
4,,(10.16cm/__ (_ 2.5,,(6.35cm)_
No. of 90 °
elbows Rigid Metallic Flexible _ Rigid Metallic Flexible _
0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)
1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m(62 ft.) 8.8 m (29 ft.)
2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m(51 ft.) 7.6 m (25 ft.)
3 14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m(41 ft.) 6.5 m (21 ft.)
Do not use non-metallic flexible duct.
A-2 SAMSUNG DryerOwner'slnstructions
Installation Instructions
[f new dryer' is installed iHto an e×isting exhaust system you must make sure:
The exhaust system meets all local, state, and national codes.
That flexible plastic duct is not used.
Inspect and clean all lint buildup from inside the existing duct.
The duct is not kinked or crushed.
The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than O.
This can be measured with the dryer running with a manometer at the point where the exhaust duct
connects to the dryer. A no-heat setting should be used.The dryer tumbler should be empty and the lint
filter clean.
IMPORTANTTO iNSTALLER
Please read the following instructions carefully before installing the dryer.These instructions should be
kept for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A
CHILD SUFFOCATING.
LOCATIONCONSIDERATIONS
The dryer should be located where there is enough space in front for loading the dryer, and enough
space behind for the exhaust system.This dryer is factory-ready for rear exhaust.To exhaust out the
bottom or the left, use the accessory exhaust kit. Instructions are included with the kit. It's important
to make sure the room has enough fresh air.The dryer must be located where there is no air-flow
obstruction.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE ITWILL BE EXPOSEDTO WATER
AND/OR WEATHER.THE DRYER AREA ISTO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS, GASOLINE,
AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE LINT.THE AREA
AROUNDTHE DRYER SHOULD BE KEPT LINT-FREE.
ALCOVEOR CLOSETINSTALLATION
_IL WARNING - The dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
No other fuel-burning appliance should be installed in the same closet as the dryer.
WARNING:To reduce the risk of fire, this dryer MUST BE EXHAUSTED TO THE OUTDOORS.
See EXHAUST INFORMATION section.
Minimum clearances between the dryer and adjacent walls or other surfaces are:
2" in front, 17" on top, 1" on either side, and 2.375"in the back.
Closet front must have two unobstructed air openings for a combined minimum total area of
72 in2with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space
clearance is acceptable.
SAMSUNG DryerOwner's Instructions A-3
installation [nstructions
MOBILE HOME iNSTALLATiON
The installation of the dryer in mobile homes must conform to CSA Standards Z240 (for Canada).
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
Locate in an area that has adequate fresh air.
A minimum of 72 in2 (183 cm 2 ) of unobstructed space is required.
Call 1-800-SAMSUNG for information on purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination
securely fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown
into the room.
All dryers must be exhausted to the outside.
_ WARNING - The dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
NEVER USE PLASTIC OR NON-METAL FLEXIBLE DUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with
metal.
Use only metal exhaust duct that is non-flammable to ensure containment of
exhaust air, heat, and lint.
ELECTRICALREQUIREMENTS
NOTE: Wiring diagram is located on plate below the control panel.
WARNING -
Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet,
have a proper outlet installed by a qualified electrician.
To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be clone in accordance with local codes, or in the absence of local codes, with the Canadian
Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It isyour responsibility
to provide adequate electrical services for your dryer.
GROUNDING
This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk
of electrical shock by providing a path of least resistance for electrical current.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Ifa power cord is not used and the electric dryer is to be permanently wired, the dryer must be
connected to a permanent grounded metal wiring system, or an equipment grounding conductor
must be run with the circuit conductors and connected to the equipment grounding terminal.
A-4 SAMSlJNG DryerOwner'slnstructions
Installation Instructions
ELECTRICALCONNE CTIONS
Before operating or testing, follow all grounding instructions in the Grounding section.
An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN
EXTENSION CORD.
*A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or circuit
breaker on both sides of the line is required.
The power cord should be plugged into a 30-ampere receptacle.
NOTE_ It is not permissible to convert a dryer in Canada to 208 volts.
REPLACEMENTPARTSAND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased
your dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).
INSTALLATION
Par _sand/#erature are packaged #'_de your dryer drum° To in_a_k
1. Move your dryer to an appropriate location for installation. Consider installing the dryer and
washer side-by-side, to allow access to electrical, and exhaust connections.
Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both
cushion-tops.
2. Set your dryer back in an upright position.
3. Review the Exhausting section before installing the exhaust system. Install the ductwork from your
dryer to the exhaust hood.The crimped end of the duct sections must point away from your dryer.
DO NOT use sheet metal screws when assembling ducting.These joints should be taped.
Never use plastic flexible exhaust material
Tip for tight installations: install a section of exhaust system to your dryer before putting it in place.
Use duct tape to secure this section to your dryer, but do not cover louvers in dryer cabinet.
4. Review Electrical Requirements section.
BEFORE OPERATING OR TESTING, follow the grounding instructions in the Grounding section.
S. With a level, check your dryer and make necessary adjustments to the leveling legs.
6. At this time, make sure all exhaust and electrical connections are complete. Plug in your dryer, and
check operation by using the checklist below.
FINAL INSTALLATION CHECKLIST
Dryer is plugged into electrical outlet and properly grounded.
Exhaust ductwork is hooked up and joints taped.
Plastic flexible duct is NOT used.
Use rigid or stiff-walled flexible metal vent material.
Dryer is level with all legs firmly on the floor.
Start your dryer to confirm that it runs, heats, and shuts off.
SAMSUNG DryerOwner's Instructions A-5
Installation Instructions
Dryer ExhaustTips
WARNING: Plastic or non-metal flexible duct presents a potential fire hazard.
3
1. Let your dryer exhaust the air easily.
2. Use 4"diameter rigid metal duct.Tape all joints, including at the dryer.
Never use lint-trapping screws.
3. Keep ducts as straight as possible.
4. Clean all old ducts before installing your new dryer.
Be sure vent flap opens and closes freely.
Inspect and clean the exhaust system annually.
Don't _eta poo_ exhaust syste_ s_ow d_ying by_
1. Restricting your dryer with a poor exhaust system.
2. Using a plastic, thin foil, or non-metal flexible duct.
3. Using unnecessarily long duct runs with many elbows.
4. Allowing crushed or clogged ducts and vent.
A-6 SAMSUNG Dryer Owner's lnstructions
Installation Instructions
Door Reversal
I. Unplug the power cord.
2. Remove two door hinge
screws.
3. Lift the door and
remove from the dryer.
4. Remove a screw on the
Frame Front
5. Remove two screws on
the opposite side of the
door hinge.
6. Remove two screws
from the holder lever.
A
//
7. Reassemble the screw
(Step 4) on the Frame
Front
8. Place the door on the
other side and reattach
it to the dryer.
9. Reassemblethe holder
lever.
I0. Reassemble the screws
in the remaing holes.
f
i
, /
,_ WARNING : The screw mentioned in STEP 4 may not exist.
SAMSUNG DryerOwner's Instructions A-7
ODerat[n9 Instructions, T[Ds
* Control Features vary by model.
OVERVIEW OF THECONTROL PANEL
Dry Level Temp
veau de s_chage Temp#rature
.......... oo.
............ _k "1 /_/ )ff ............... Ik
Penr_ P_ess A_r Fluff
Ind_]lls ns chaleur
Delkates X_'% ,//
©o©
Dry Level Temp Time Signal Wrinkle Prevent
Niveau de s_chage Terap6_atu e Temps Signal ?r6vention des faLx p_s
.... D [YlLe_'e_...... r_e_r_ture T_l_I/_s Si_r,alS.....
B-1 SAMSUNG DryerOwner'slnstructions
1. Digita_GraphicDisp_ay
The display window shows the estimated time remaining in the cycle after the Cycle Selector dial is
pressed.The estimated time remaining may fluctuate as the cycle progresses.
The Drying light will illuminate and remain lit until the cycle is complete.
When your dryer is in the cool-clown phase, the Cooling light will illuminate.
When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will illuminate.
When the cycle is complete,'END"will appear in the display panel until the dryer door is opened or
Power key is pushed.
If your dryer is paused during a cycle, the indicator lights will blink until the Cycle Selector dial is
pressed.
2. D_y Leve_ Selection Button
To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles, press the Dry Level
button. An indicator light will illuminate next to the desired dryness level.
Press the button repeatedly to scroll through the settings. Larger or bulkier loads may require the
Very Dry (select models) or More Dry setting for complete dryness.
The Less Dry setting is best suited for lightweight fabrics or for leaving some moisture in the
clothing at the end of the cycle. Damp Dry (select models) is designed to partially dry items.
Use for items that lay flat or hang to dry.
3. Te_p Selection Bu_on
To select the correct temperature for the load, press theTemp button. An indicator light will
illuminate next to the desired temperature. Press the button repeatedly to scroll through the
settings.
High - For sturdy cottons or those labeled Tumble Dry.
Medium - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry
Medium.
Medium Low - For lower heat than Medium to dry synthetic or washable knit fabrics.
Low - For heat sensitive items labeled Tumble Dry Low or Tumble DryWarm.
Extra Low- Provides the lowest heated dry temperature possible.
4. Time Selection Button
When using Manual Dry cycles, time can be adjusted by pressing time selection button.
During the Sensory Dry cycle, the time light indicator is off because exact drying times are
determined by fluctuating humidity levels.
S. Signa[Se_ection Button
When the cycle is complete, a chime will sound.
When the Wrinkle Prevent option is selected, the chime will sound intermittently.
Adjust the volume of the chime or turn it off by pressing the Signal button.
Press the button repeatedly to scroll through the choices.
6. Wrinkle Prevent Selection Button
Wrinkle Prevent provides approximately 90 minutes of intermittent tumbling in unheated air at the
end of the cycle to reduce wrinkling. Press the Wrinkle Prevent button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle Prevent is selected.
Chasing lights appear in the display when the Wrinkle Prevent option is selected. The load is dry,
and can be removed at any time during the Wrinkle Prevent cycle.
SAMSUNG Dryer Owner's lnstructions B-2
ODerat[n9 instructions, T[Ds
7. Select Cycle Optior_
Adjust Time -Time can be added or subtracted from the automatically set times in the Manual
Dry cycles (-time Dry, Freshen Up, Delicates, Wrinkle Release, or Air Fluffcycles).
To add or subtract time from the cycle, press the Adjust Time arrow pad up or clown until the
desired time is displayed.
My Cycle - Choose your favorite cycle including cycle, temp, dry level option, etc. (See page B4 for
detail.)
Rack Dry- Rack Dry is available at-time Dry cycle.Temperature will be set only to Extra Low. (See
page B5 for detail.)
8. Cyde Selector
To select a cycle, rotate the Cycle Selector dial to the desired cycle.
The indicator light by the cycle name will illuminate.The Normal, Heavy Duty, Towels, Perm Press
and Delicates cycles are Sensor Dry cycles.
Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the selected
dryness level (very dry to damp dry) is reached.
Normal -Dry loads such as cotton, underwear, and linens use this cycle to get various levels of
heat for drying.
Heavy Duty - Use this cycle to get high heat for heavy fabrics such as jeans, corduroys, or work
clothes.
Towels - Dry loads such as bath towels.
Perm Press - Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics
automatically.The cycle minimizes wrinkling by providing a longer unheated cool-clown period at
the end of the cycle.
Delkates -The Delicates cycle is designed to dry heat-sensitive items at a low drying temperature.
Freshen Up -This cycle removes odors and freshens garments.
Time Dry- Time Dry allows you to select the desired cycle time in minutes.
Turn the Cycle Selector dial toTime Dry, then press the Adjust Time up arrow to set the drying time.
Press the arrow repeatedly to scroll through the time settings.
Wrinkle Release -The Wrinkle Release cycle will release wrinkles from items that are clean, dry,
and only slightly wrinkled, such as clothes from a crowded closet, suitcase or items that have been
in the dryer too long after the cycle has ended. Wrinkle Release can be used with any temperature
selection.
Air Fluff- The Air Fluff cycle tumbles the load in room temperature air.
9. Start/PauseSemection Button
Press to pause and restart programs.
10. Power Button
Press once to turn your dryer on, press again to turn it off. If your dryer is left on for more than 10
minutes without any buttons being touched, the power automatically turns off.
B-3 SAMSIJNG DryerOwner'slnstructions
CHILD LOCK
A function to prevent children from playing with your dryer.
SETT_NG/R£L£AS_NG
If you want to set or release Child Lock, press both the-time and Signal buttons at the same time
for 3 seconds.
How to Set:
1. it can be set while your dryer is running.
2. Once you set the Child Lock function, no button, except for the Power button, can be
controlled until you release the Child Lock function.
3. The Child Lock indicator will be lit.
Notice:
1. If the power is on again, the Child Lock function remains unchanged.
2. To release that function, follow the instructions above.
Notice:
When other buttons, except for the Power button, do not respond, check the Child Lock
indicator.
MY CYCLE
Lets you activate your customized cycle that includes Dry Level, Temp,-time option, etc.
By pushing the My Cycle button, you activate the settings used during the previous My Cycle mode.
(Default : Normal Cycle)
If My Cycle mode is activated, My Cycle lamp will be lit.
You _t_ ._dec_ aH o_tiot_s ir_ My Cycle mode a_ fo_/ow_o
1. Select cycle using Cycle Selector dial.
2. After cycle selection, set each option.
Note: At this time, the option will follow as per each cycle's default option selection.
3. Then, you can start My Cycle by pushing the Start/Pause button in My Cycle mode.The cycle
and options you select will be displayed next time you choose My Cycle.
Note : You can change My Cycle setting by repeating same process above.
The last used setting will be displayed at next time you choose My Cycle.
SAMSUNG DryerOwner'slnstructions B-4
Operating instructions, Tips
Rack Dry(select models)
_NSTALUNGTHE DRYING RACK
I. Open dryerdoor.
2. Position drying rack in tumbler, placing the rear legs in the two recessed areas of the dryer's back
wall.
3. Place the front lip of the drying rack on top of the lint filter.
4. Place items to be dried on the rack, leaving space between them so air can reach all surfaces.
S. Close dryer door.
6. Use the_me Dry cycle. Select time according to moisture and weight of the items. Start dryer.
It may be necessary to reset the timer ifa longer drying time is needed.
SUGGESTED ITEMS SUGGESTED TEMP. SETTINGS
Washable sweaters Heat (Low/Extra Low)
(block to shape and lay fiat on rack)
Stuffed toys Heat (Low/Extra Low)
(cotton or polyester fiberfilled)
Stuffed toys Air Fluff
(foam or rubber-filled)
Foam rubber pillows Air Fluff
Sneakers Fluffor Heat
WARNING - Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the item
and lead to a fire hazard.
B-S SAMSUNG DryerOwner'slnstructions
CLEANTHE LINT FILTER
•After each load.
• To shorten drying time.
• To operate more energy efficiently.
NOTE: Do not operate your dryer without the lint filter in place.
LOADTHE DRYERPROPERLY
•Place only one washload in your dryer at a time.
Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight
fabrics being dry while heavy fabrics remaining damp at the end of a drying cycle.
Add one or more similar items to your dryer when only one or two articles need drying.
This improves the tumbling action and drying efficiency.
Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of
some fabrics.
GETTING STARTED
1. Load your dryer loosely- DO NOT overload.
2. Close the door.
3. Select the appropriate cycle and options for the load (see pages B-2, B-3).
4. Press the Cycle Selector dial.
S. The dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display.
The time may fluctuate to better indicate drying time remaining in the cycle.
NOTES_
• When the cycle is complete, the Door Lock light will go out and"End" will appear in the display.
• Pressing Power cancels the cycle and stopsyour dryer.
• The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions
of the cycle.
SAMSUNG DryerOwner'slnstructions g-6
Care and C[eanin 9
Control Panel
Clean with a soft, damp cloth. Do not use abrasive substances.
Do not spray cleaners directly on the panel.
The control panel finish could be damaged by some laundry pre-treatment soil and stain remover
products.
Apply such products away from your dryer and wipe up any spills or overspray immediately.
Tumbler
Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an
all-purpose cleaner.
Then tumble old towels or rags to remove any excess stain or cleaning substance.
Once these steps are done, stains may still be visible, but should not transfer to subsequent loads.
Stainless Steel Tumbler (select models)
To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for
stainless steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
Dryer Exterior
Clean with a soft, damp cloth. Do not use abrasive substances.
Protect the surface from sharp objects.
Dryer Exhaust System
Should be inspected and cleaned yearly to maintain optimum performance.
The outside exhaust hood should be cleaned more frequently to ensure proper operation.
C-I SAMSUNG Dryer Owner's lnstructions
Speda[ Laundry Tips
Please follow the care label or manufacturer's instructions for drying special items. If care label
instructions are not available, use the following information as a guide.
Bedspreads & Comforters
Blankets
Curtains & Draperies
Cloth Diapers
Down-filled Items
(jackets, sleeping bags,
comforters, etc.)
Foam Rubber
(rug backs, stuffed toys,
shoulder pads, etc.)
Pillows
o
o
o
o
o
o
o
o
o
o
Follow the care label instructions or dry on the Normal cycle and
High temperature.
Make sure the item is thoroughly dry before using or storing.
May require repositioning to ensure even drying.
Use Normal and dry only one blanket at a time for best tumbling
action.
Make sure the item is thoroughly dry before using or storing.
Use the Perm Press cycle and Low or Extra Low temperature to
help minimize wrinkling.
Dry these in small loads for best results and remove as soon as
possible.
Use the Normal cycle and the High temperature setting for soft,
fluffy diapers.
Use the Normal cycle and the Low or Extra Low temperature
setting.
Place a clean pair of sneakers in your dryer with the item to fluff
the clown comforters, etc. Adding a couple of dry towels shortens
drying time and absorbs moisture.
*DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).
WARNING - Drying a rubber item with heat may damage it or be
a fire hazard.
o
Plastics *Use the Air Fluff cycle or the _me Dry cycle and the Low or
(shower curtains, outdoor Extra Low temperature setting depending on the care label
furniture covers, etc.) instructions.
Use the Normal cycle.
Add a couple of dry towels and a pair of clean sneakers to help
the tumbling action and to fluff the item.
DO NOT dry kapok or foam pillows in dryer.
THINGS TO AVOID :
*Fiberglass items (curtains, draperies, etc.).
*Woolens, unless recommended on the label.
*Vegetable or cooking oil-soaked items.
SAMSUNG DryerOwner'slnstructions D-I
CHECKTHESEPOINTS iFYOUR DRYER...
doesn't run.
doesn't heat.
doesn't dry.
is noisy.
dries
unevenly.
has an odor.
*Be sure the door is latched shut.
*Be sure the power cord is plugged into a live electrical outlet.
*Check the home's circuit breaker and fuses.
*Press the Cycle Selector dial again if the door isopened during the cycle.
*Check the home's circuit breaker and fuses.
*Select a heat setting other than Air Fluff.
*Clean the lint filter and exhaust duct.
*Dryer may have moved into the cool-down phase of the cycle.
Check all of the above, plus...
Be sure the exhaust hood outside the home can open and close freely.
Check exhaust system for lint buildup. Ducting should be inspected and
cleaned annually.
Use 4"rigid metal exhaust duct.
Do not overload. 1 wash load = 1 dryer load.
Sort hea Witems from lightweight items.
Large, bulky items like blankets or comforters may require repositioning to
ensure even drying.
Check that the washer is draining properly to extract adequate water from
the load.
Load may be too small to tumble properly. Add a few towels.
*Check the load for objects such as coins, loose buttons, nails, etc. Remove
promptly.
It is normal to hear the dryer gas valve or heating element cycle on and off
during the drying cycle.
*Be sure the dryer is leveled properly as outlined in the installation instruction.
It is normal for the dryer to hum from the high velocity of air moving through
the dryer drum and exhaust system.
Seams, pockets, and other similarly heavy areas may not be completely
dry when the rest of the load has reached the selected dryness level.This is
normal. Select theVery Dry setting if desired.
If one heavy item isdried with a lightweight load, such as one towel with
sheets, it is possible that the heavy item will not be completely dry when the
rest of the load has reached the selected dryness level. Sort heavy items from
lightweight items for best drying results.
Household odors from painting, varnishing, strong cleaners, etc. may enter
the dryer with the surrounding room air.This is normal as the dryer draws
the air from the room, heats it, pulls it through the tumbler, and exhausts it
outside.
*When these odors linger in the air, ventilate the room completely before
using the dryer.
shuts off * Dryer load is too small. Add more items or a few towels and restart the cycle.
before load *Dryer load is too large. Remove some items and restart the dryer.
is dry
E-1 SAMSUNG DryerOwner'slnstructions
iNFORMATiON CODES
Information codes may be displayed to help you better understand what is occurring with the dryer.
Code
Symbol Meaning Solution
[Z I_==_ Heater temperature control Ca[[ for service. See below.
problem.
i==_[In Door open sensing problem. Call for service. See below.
I--
|--'I_| Door open error Be sure the door is latched shut. If problem
When the door is open, the dryer continues, call for service. See below.
will not operate.
For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG).
SAMSUNG DryerOwner%Instructions E-2
FABRICCARECHART
The following symbols provide garment care directions without words.The care label will include, in
order, four symbols: washing, bleaching, drying, and ironing (or dry cleaning when necessary).The use
of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow
care label directions to maximize c
Wash Cycle
Normal
Permanent Press/Wrinkle
Resistant/Wrinkle Control
_ entle/Delicates
HandWash
Water Temperature _
Hot
Wa rm
Cold
o®®
00
Q
Bleach
[] Any Bleach (when needed)
Only Non-Chlorine
(color-safe)
Bleach(when needed)
07 Tumble Dry Cycle
Normal
0----7 Permanent Press/Wrinkle
Resistant/Wrinkle Control
_Gentle/Delicates
arment life and reduce laundering problems.
Special Instructions Warning Symbols for Laundering
[] Line Dry/Hang ::_ Do Not Wash
to Dry
[] Drip Dry D_ Do Not Wring
[] Dry Flat _ Do Not Bleach
Heat Setting _ Do Not Tumble Dry
High NoSteam (added to iron)
Medium _ Do Not Iron
Low
O Any Heat
O No Heat/Air
Iron-Dry or Steam Temperatures [] Line Dry/Hang to Dry
High [] Drip Dry
f_ Medium
/_ Low
Dryclean
O Dry Clean
Do Not Dry Clean
[] Dry Flat
ee The dot symbols represent appropriate wash water temperatures for various items.The
temperature range for Hot is 105 ° -125 ° F/41 ° - 52 ° C,for Warm 85 ° - 105 ° F/29 °-41 °C and for
Cold 60 ° - 85 ° F/16 °- 29° C. (Wash water temperature must be a minimum of 60 ° F/16 ° C for
detergent activation and effective cleaning.)
F-1 SAMSUNG DryerOwner'slnstructions
PROTECTINGTHE ENVIRONMENT
This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
DECLARATIONOF CONFORMITY
This appliance complies with UL2158.
SPECIFICATION
TYPE FRONT LOADING DRYER
DIMENSION Div Inches (cm) Div Inches (cm)
A. Height 38"(96.5) C. Depth with 49" (124.5)
door open 90 °
B.Width 27" (68.6) D. Depth 30.25" (77.0)
WEIGHT 56.8 kg
HEATER RATING 5300 W
POWER NO HEAT 268 W
CONSUMPTION HEATING 5445 W
SAMSUNG DryerOwner's Instructions F-2
CYCLECHART
Cycle
Wrinkle
Default Drying Cooling prevent
Temp control
High (Medium)
High (No
change)
High (Medium)
Medium Low
(No change)
Low (No change)
Extra Low
(No change)
High (No
change)
High
Medium
Sensor dry Time Time Time Time
level
Sensor Normal Normal dry 44 min 39 min 5 min 90 min
Dry
Heavy Duty Normal dry 60 min 55 min 5 min 90 min
Towels Normal dry 52 min 47 min 5 min 90 min
Perm Press Normal dry 34 min 24 min 10 min 90 min
Delicates Normal dry 29 min 24 min 5 min 90 min
Extra Normal dry 29 min 24 min 5 min 90 min
Delicates
Manual Freshen Up 30 min 25 min 5 min
Dry
Time Dry 40 min 35 min 5 min
Wrinkle 25 min 20 min 5 min
Release
Air Fluff - (No change) 20 min 20 min
Quick Dry High 30 min 25 min 5 min
F-3 SAMSUNG DryerOwner'slnstructions
SAMSUNG DRYER
UMITED WARRANTYTO ORiGiNAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted
by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty
period of:
One (1) Year All Parts and Labor.
This limited warranty begins on the original date of purchase, and is valid only on products purchased
and used in Canada.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and
service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or
SAMSUNG's authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability
within Canada.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to and from an
authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,
with new or reconditioned parts or products if found to be defective during the limited warranty period
specified above.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever
is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that occurs
in shipment; delivery and installation; applications and uses for which this product was not intended;
altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire,
water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services,
parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical
line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
maintenance and environmental instructions that are covered and prescribed in the instruction book;
product removal and reinstallation; problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current, voltage or
supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation
errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
SAMSUNG DryerOwner'slnstructions F-4
EXCEPTASSETFORTHHEREIN,THEREARENOWARRANTIESONTHISPRODUCTEITHEREXPRESSOR
IMPLIED,ANDSAMSUNGDISCLAIMSALLWARRANTIESINCLUDING,BUTNOTLIMITEDTO,ANYIMPLIED
WARRANTIESOFMERCHANTABILITY,INFRINGEMENTORFITNESSFORAPARTICULARPURPOSE.
NOWARRANTYORGUARANTEEGIVENBYANYPERSON,FIRM,ORCORPORATIONWITHRESPECTTO
THISPRODUCTSHALLBEBINDINGONSAMSUNG.
SAMSUNGSHALLNOTBELIABLEFORLOSSOFREVENUEORPROFITS,FAILURETOREALIZESAVINGSOR
OTHERBENEFITS,ORANYOTHERSPECIAL,INCIDENTALORCONSEQUENTIALDAMAGESCAUSEDBYTHE
USE,MISUSE,OR INABILITY TO USETHIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE
CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNTTHAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,
DAMAGE, OR INJURYTO PURCHASER AND PURCHASER'S PROPERTY ANDTO OTHERS AND THEIR
PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITYTO USETHIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATESYOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply
to you.This warranty gives you specific rights, and you may also have other rights, which vary from state
to state.
To obtain warranty service, please contact SAMSUNG at:
SAMSUNG ELECTRONICS CANADA, INC.-CONSUMER ELECTRONICS CUSTOMER SERVICE
SS STANDISH COURT, MISSISSAUGA, ON LSR 482
1-800-SAMSUNG (1-800-726-7864)
www..sarnsu ng.ca
F-S SAMSUNG DryerOwner'slnstructions

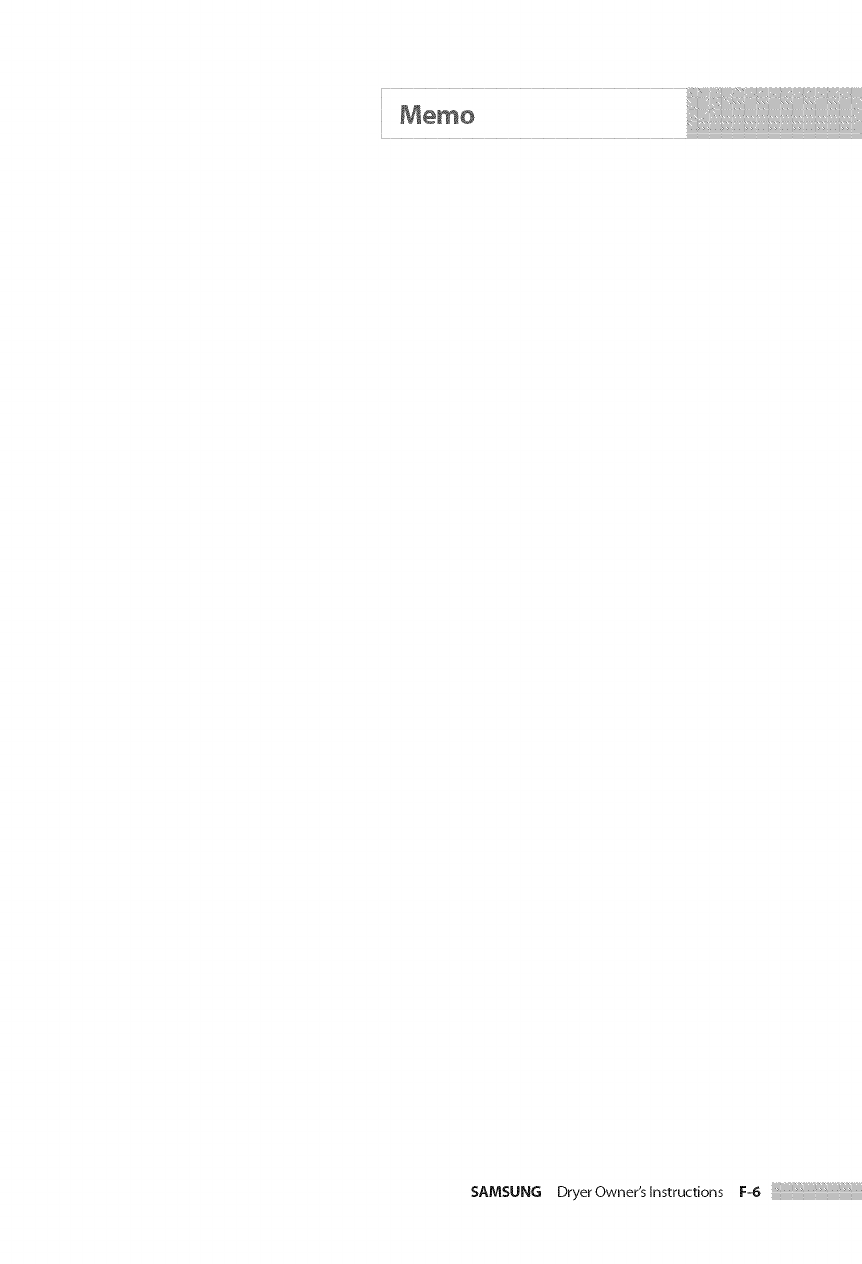

SAMSUNG DryerOwner's Instructions F-6
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care center.
Samsung Electronics Canada, Inc.
1-800-SAMSUNG (726-7864)
www.samsung.ca

Navigation menu
