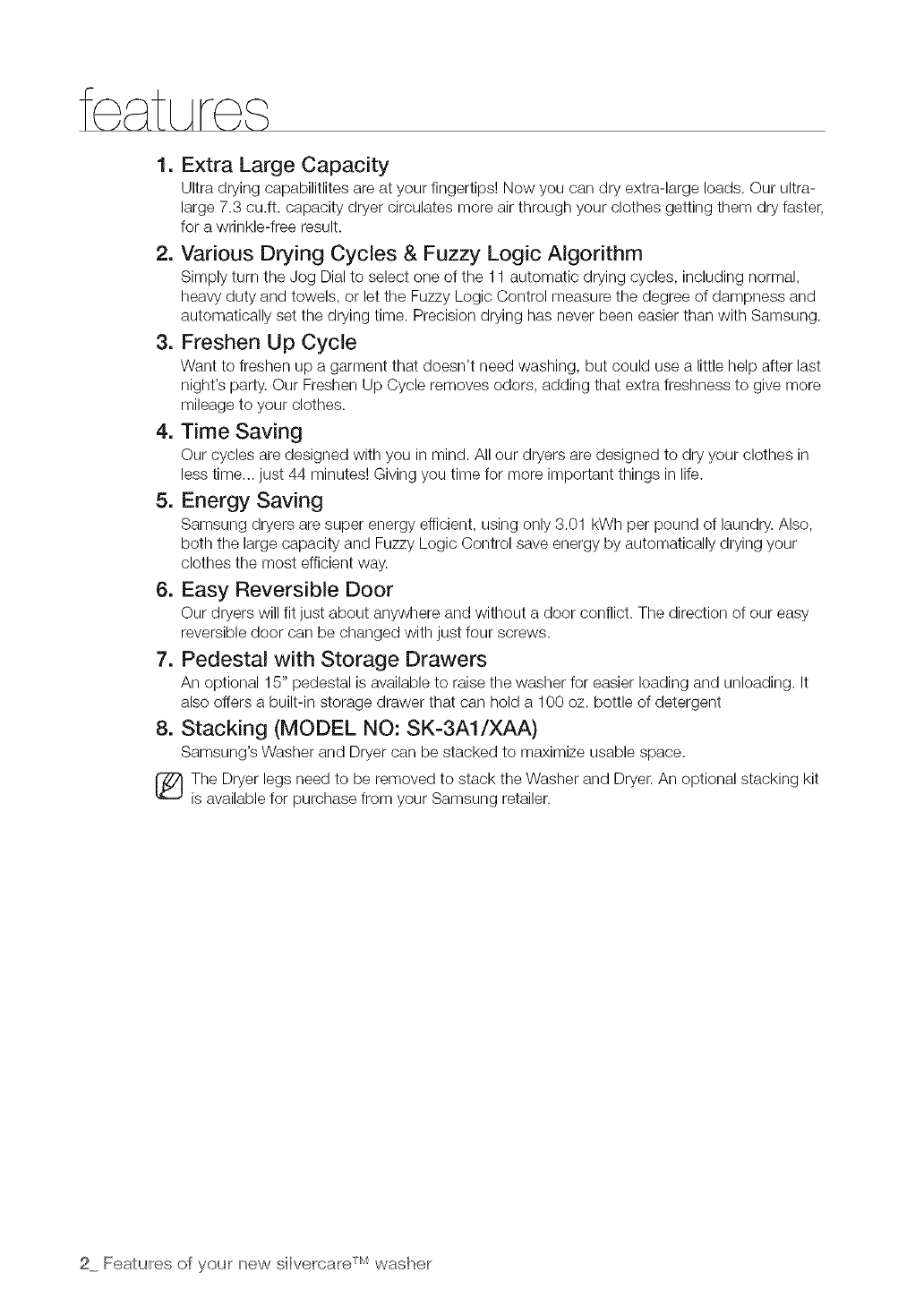

featLAFes
1. Extra Large Capacity
Ultra drying capabilitlites are at your fingertips! Now you can dry extra-large loads. Our ultra-
large 7.3 eu.ft, capacity dryer circulates more air through your clothes getting them dry faster,
for a wrinkle-free result.
2. Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 11 automatic drying cycles, including normal,
heavy duty and towels, or let the Fuzzy Logic Control measure the degree of dampness and
automatically set the drying time. Precision drying has never been easier than with Samsung.
3. Freshen Up Cycle
Want to freshen up a garment that doesn't need washing, but could use a little help after last
night's party. Our Freshen Up Cycle removes odors, adding that extra freshness to give more
mileage to your clothes.
4. Time Saving
Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in
less time.., just 44 minutes! Giving you time for more important things in life.
5. Energy Saving
Samsung dryers are super energy efficient, using only 3.01 kWh per pound of laundry. Also,
both the large capacity and Fuzzy Logic Control save energy by automatically drying your
clothes the most efficient way.
6. Easy Reversible Door
Our dryers will fit just about anywhere and without a door conflict. The direction of our easy
reversible door can be changed with just four screws.
7. Pedestal with Storage Drawers
An optional 15" pedestal is available to raise the washer for easier loading and unloading. It
also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent
8. Stacking (MODEL NO: SK-3A1/XAA)
Samsung's Washer and Dryer can be stacked to maximize usable space.
_The Dryer legs need to be removed to stack the Washer and Dryer. An optional stacking kit
is available for purchase from your Samsung retailer.
o" TM & /
2 Features of your new otlvercare A,asher
![](asset-3.png)

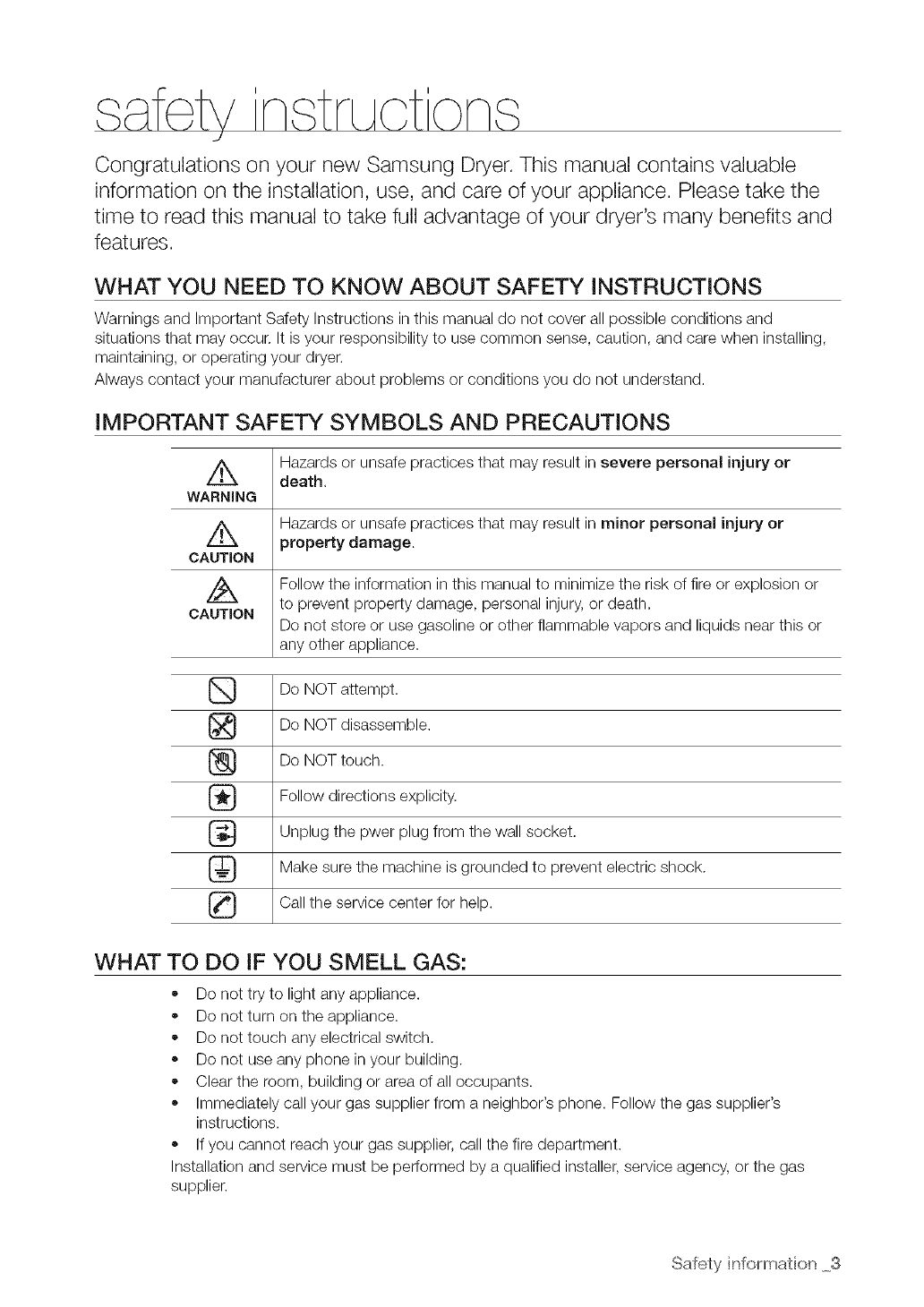

Congratulations on your new Samsung Dryer. This manual contains valuable
information on the installation, use, and care of your appliance. Please take the
time to read this manual to take full advantage of your dryer's many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
Hazards or unsafe practices that may result in severe personal injury or
death.
WARNING
Z_ Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
Z_ Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
CAUTION Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
Do NOT attempt.
[_ Do NOT disassemble.
[_ Do NOT touch.
Follow directions explicity.
Unplug the pwer plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
Do not turn on the appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
Safety rfformation 3
![](asset-4.png)

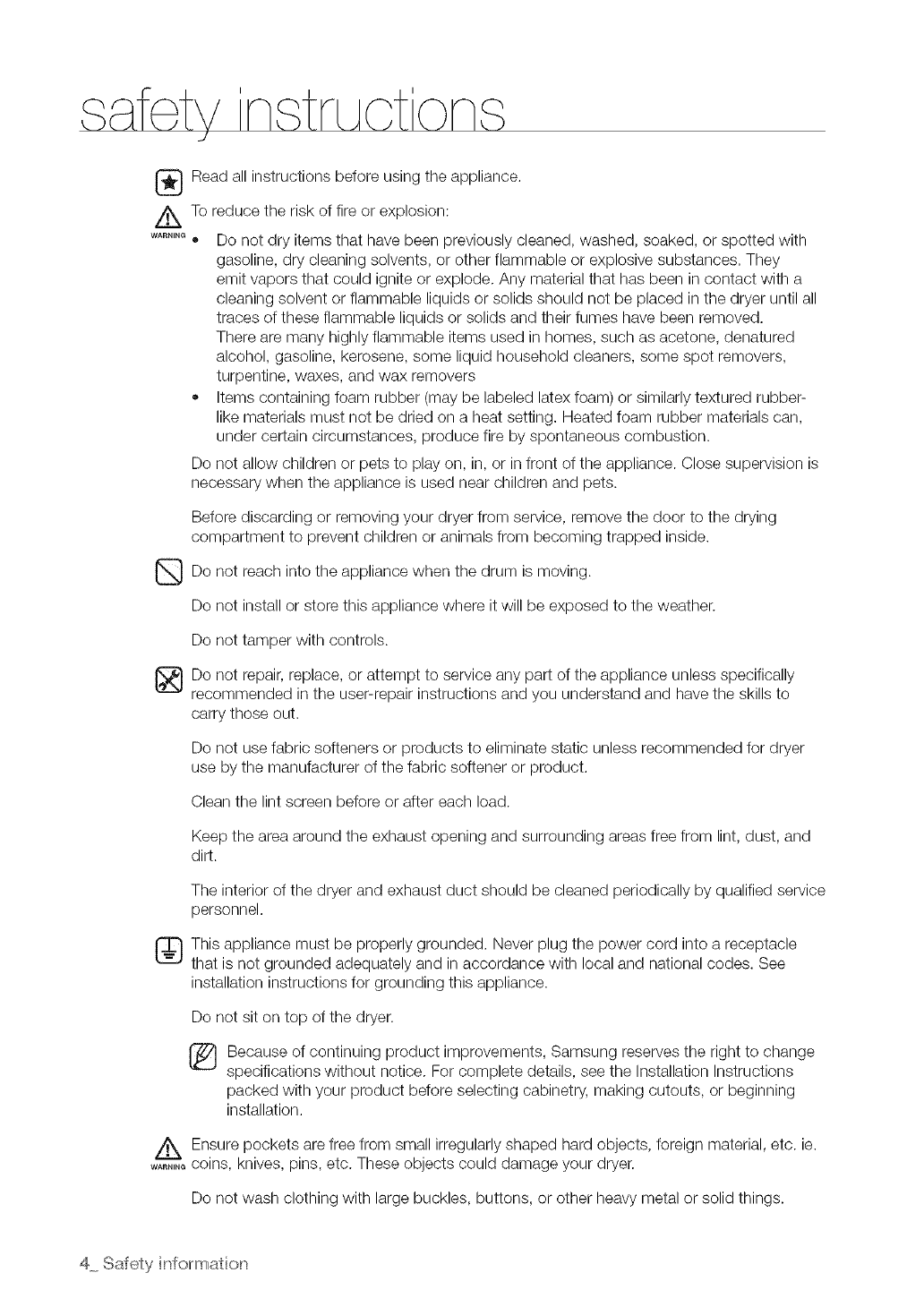

safety nstrL]oti©ns
_Read all instructions before using the appliance.
A To reduce the risk of fire or explosion:
....... • Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other flammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or flammable liquids or solids should not be placed in the dryer until all
traces of these flammable liquids or solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers
Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-
like materials must not be dried on a heat setting. Heated foam rubber materials can,
under certain circumstances, produce fire by spontaneous combustion.
Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is
necessary when the appliance is used near children and pets.
@
Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
Do not reach into the appliance when the drum is moving.
Do not install or store this appliance where it will be exposed to the weather.
Do not tamper with controls.
_} Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions and you understand and have the skills to
carry those out.
Do not use fabric so[teners or products to eliminate static unless recommended for dryer
use by the manufacturer of the fabric softener or product.
Clean the lint screen before or after each load.
Keep the area around the exhaust opening and surrounding areas free from lint, dust, and
dirt.
The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
_This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
Do not sit on top of the dryer.
Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For complete details, see the installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
Z_ Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.
....... coins, knives, pins, etc. These objects could damage your dryer.
Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.
4 Safety rffofrmation
![](asset-5.png)
Gas leaks may occur in your system, resulting in a dangerous situation.
WARNINQ
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with the manufacturer's instructions.
Do not place items in your dryer that have been spotted or soaked with vegetable oil or
cooking oil. Even after being washed, these items may contain significant amounts of these
oils.
The residual oil can ignite spontaneously. The potential for spontaneous combustion
increases when the items containing vegetable oil or cooking oil are exposed to heat. Heat
sources such as your dryer can warm these items, allowing an oxidation reaction in the
oil to occur, Oxidation creates heat. If this heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from
escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous. Washing these items in hot water with extra detergent will reduce, but not
eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying cycle until
the items have run through the Cool Down cycle. Never pile or stack these items when they
are hot.
Safety rffofrmation 5
![](asset-6.png)
cont nt,s
iNSTALLiNG YOUR DRYER
OPERATING iNSTRUCTiONS, TiPS
!
CARE AND CLEANING
SPECIAL LAUNDRY TiPS
7 Tools needed for installation
7 See Exhaust Requirements
8 Ducting requirements
9 Important to installer
9 location considerations
9 Alcove or closet installation

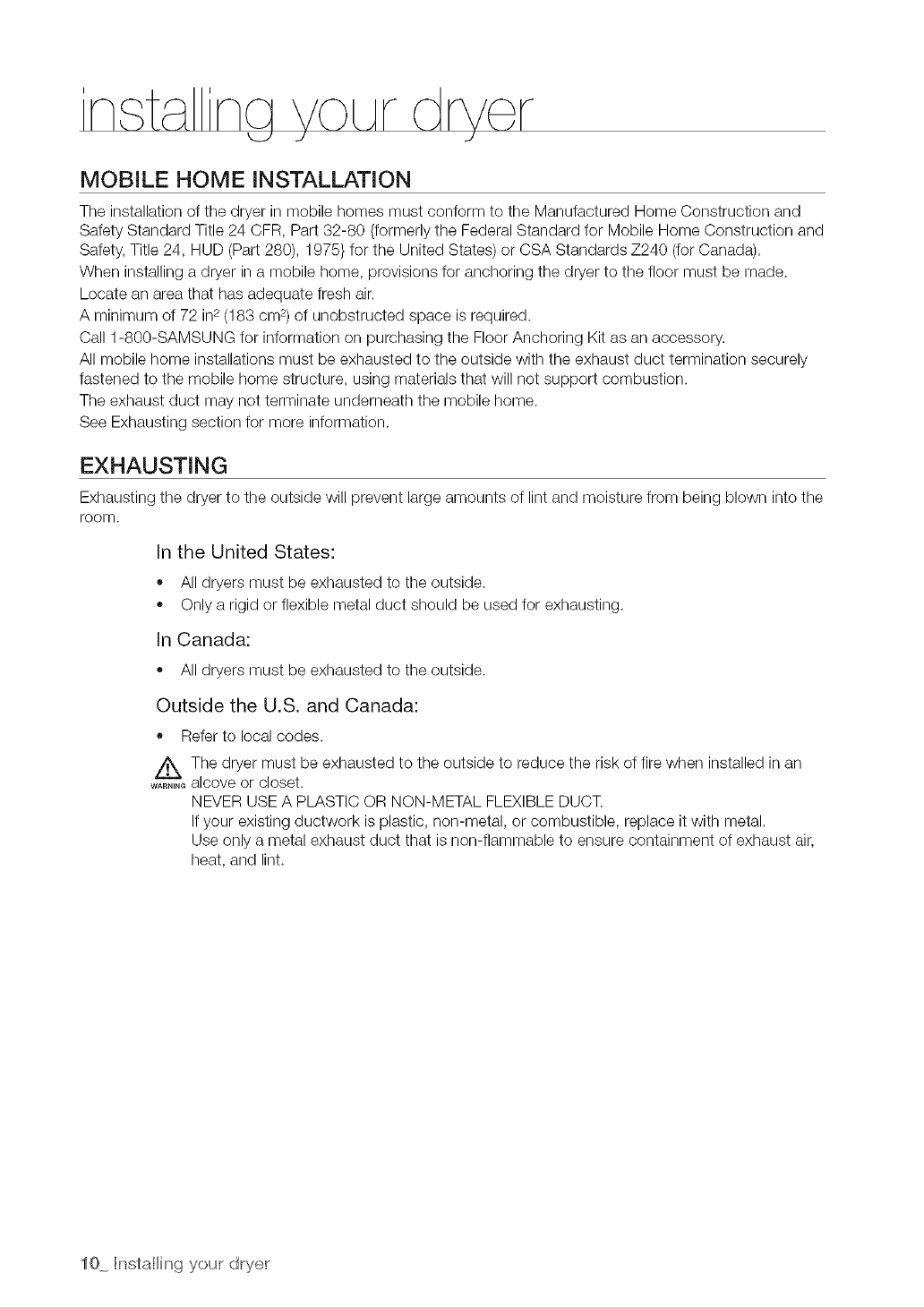

10 Mobile home installation
10 Exhausting

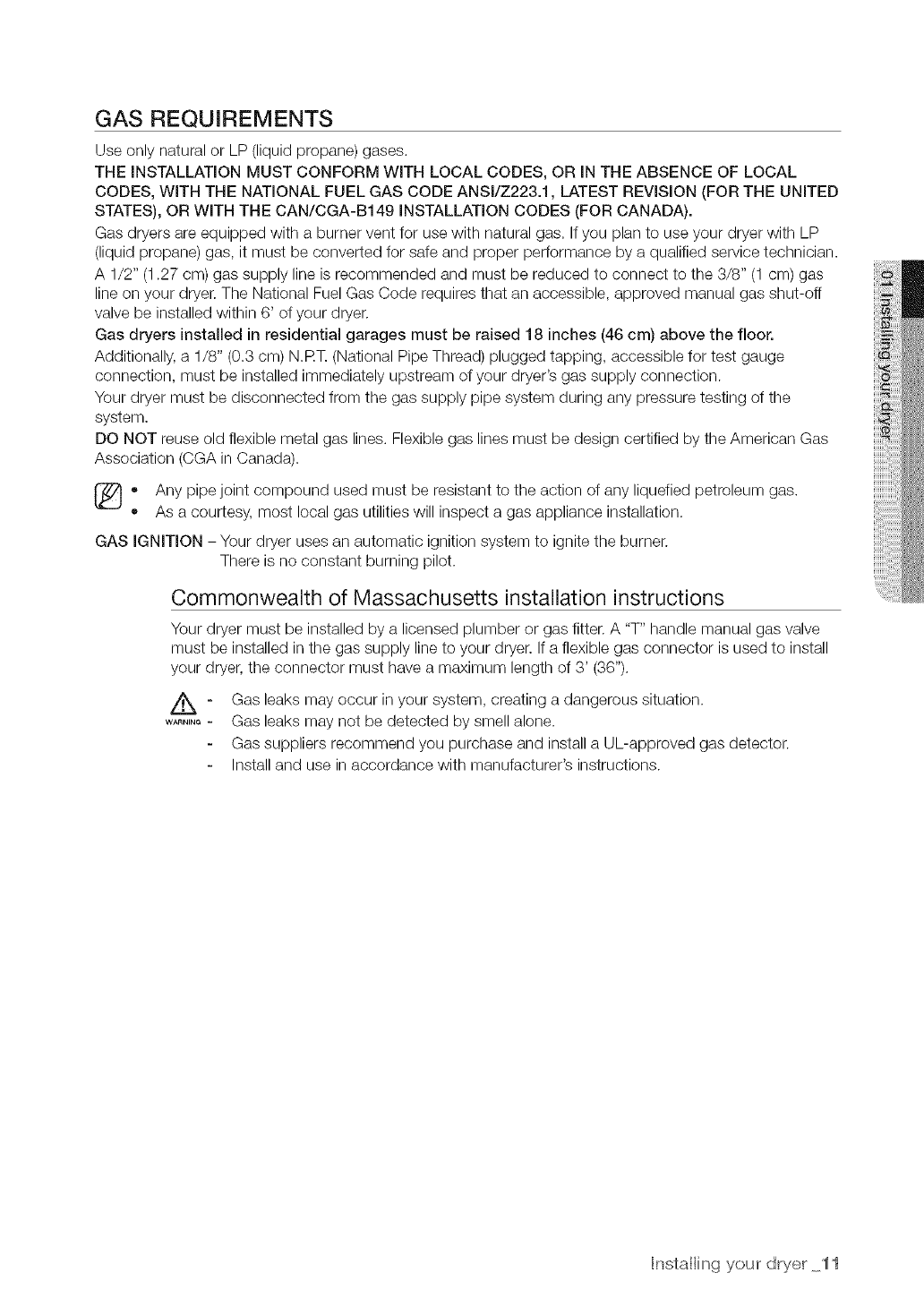

11 Gas requirements

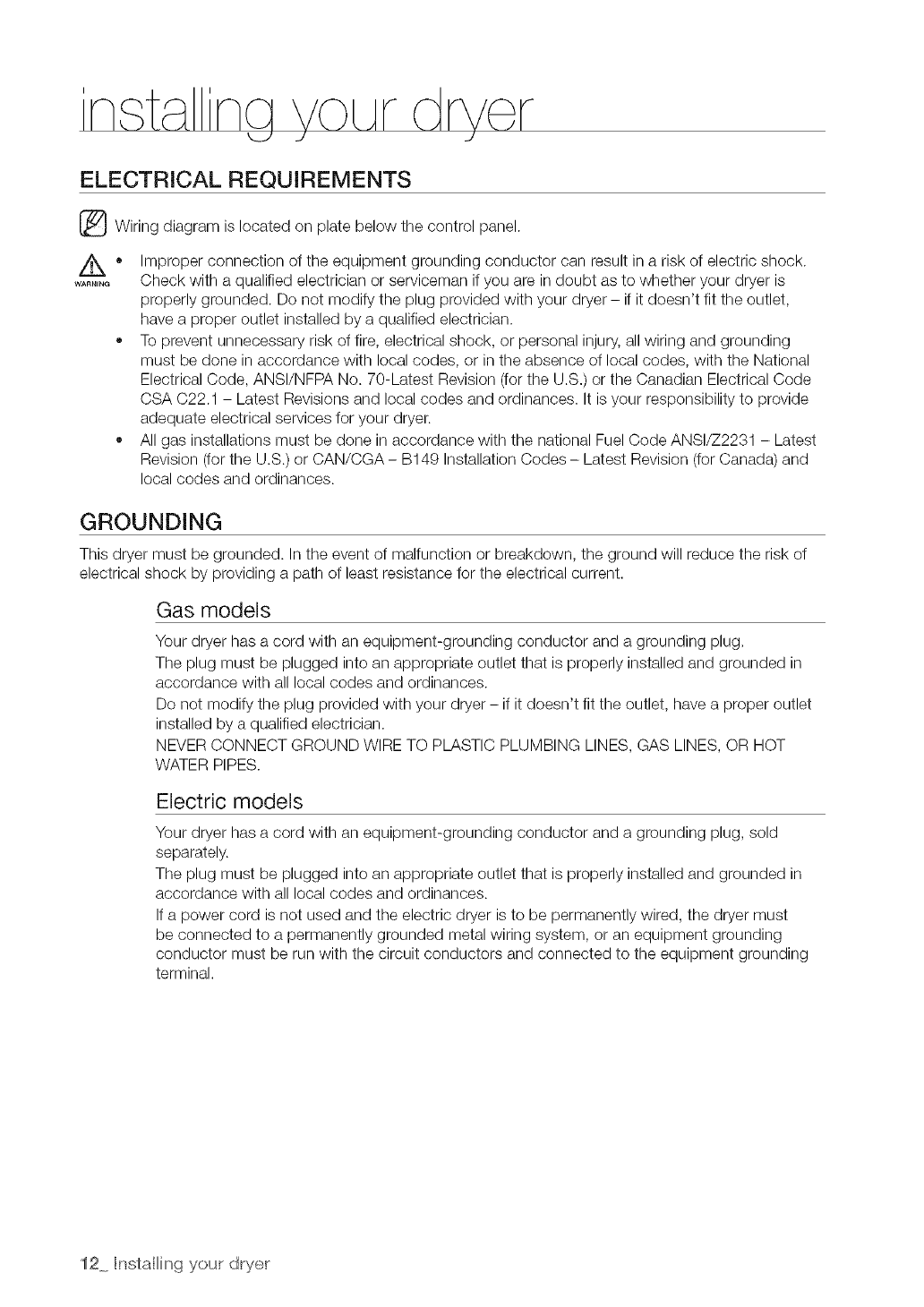

12 Electrical requirements
12 Grounding

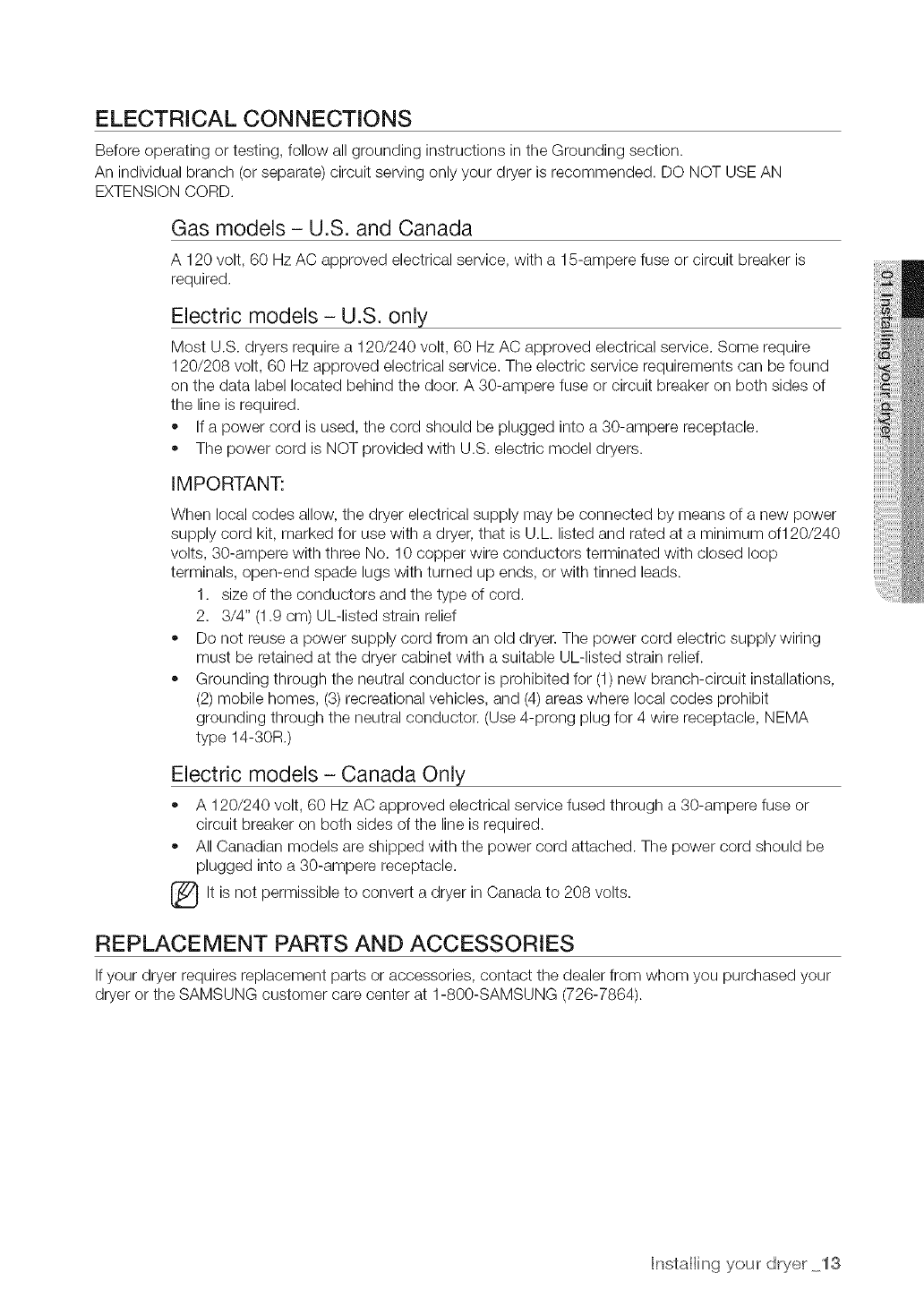

13 Electrical connections
13 Replacement parts and accessories

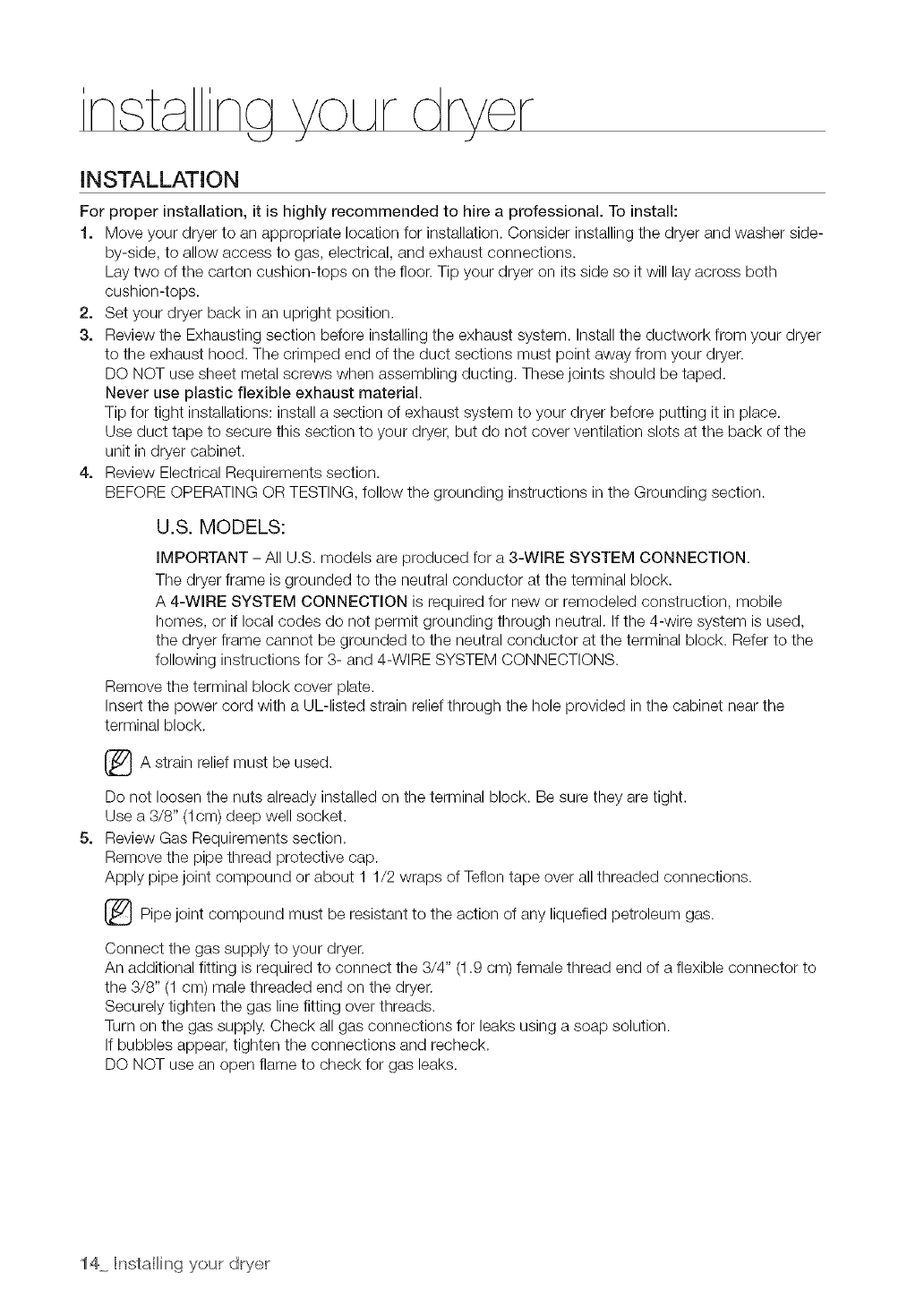

14 Installation

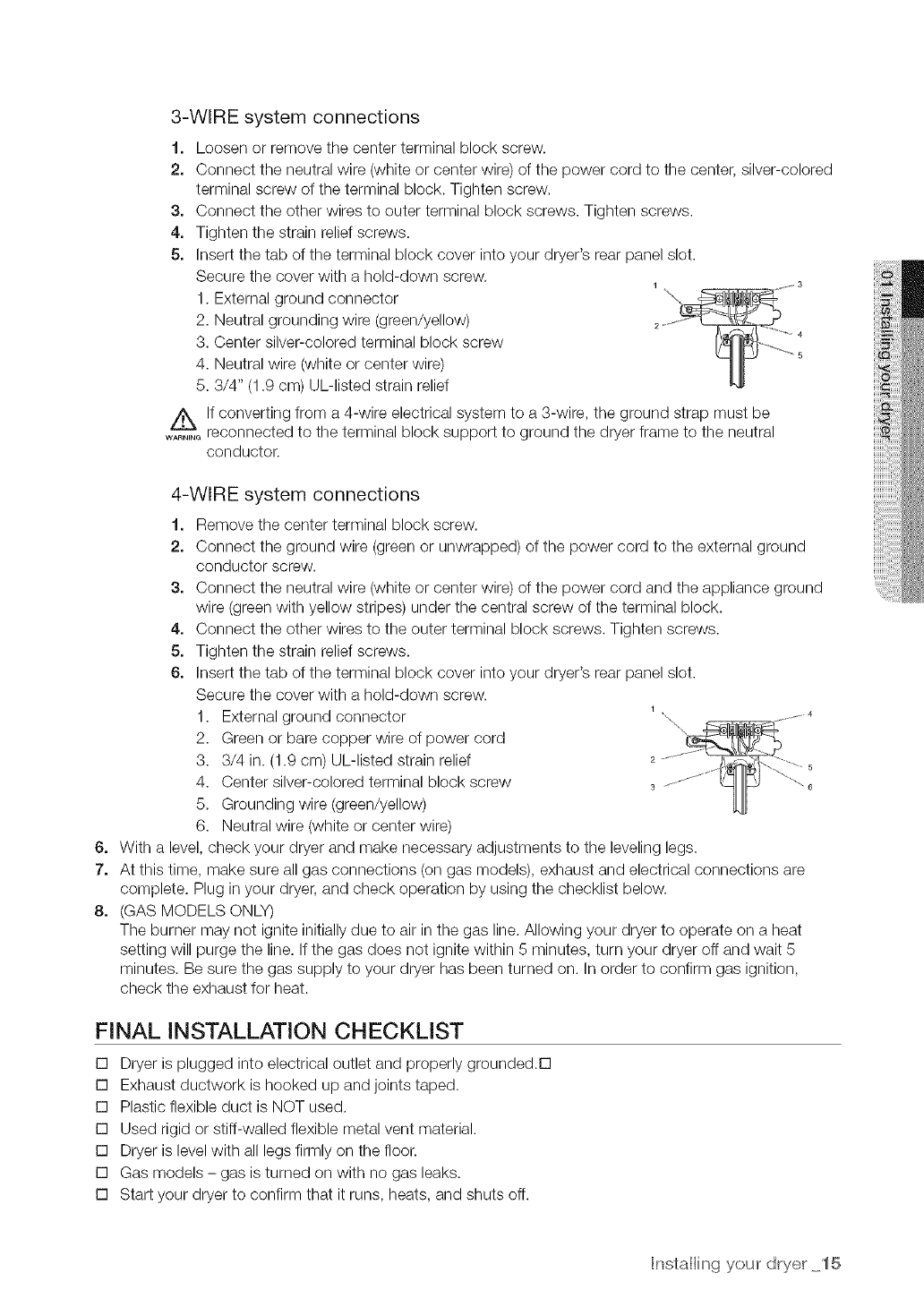

15 Final installation checklist

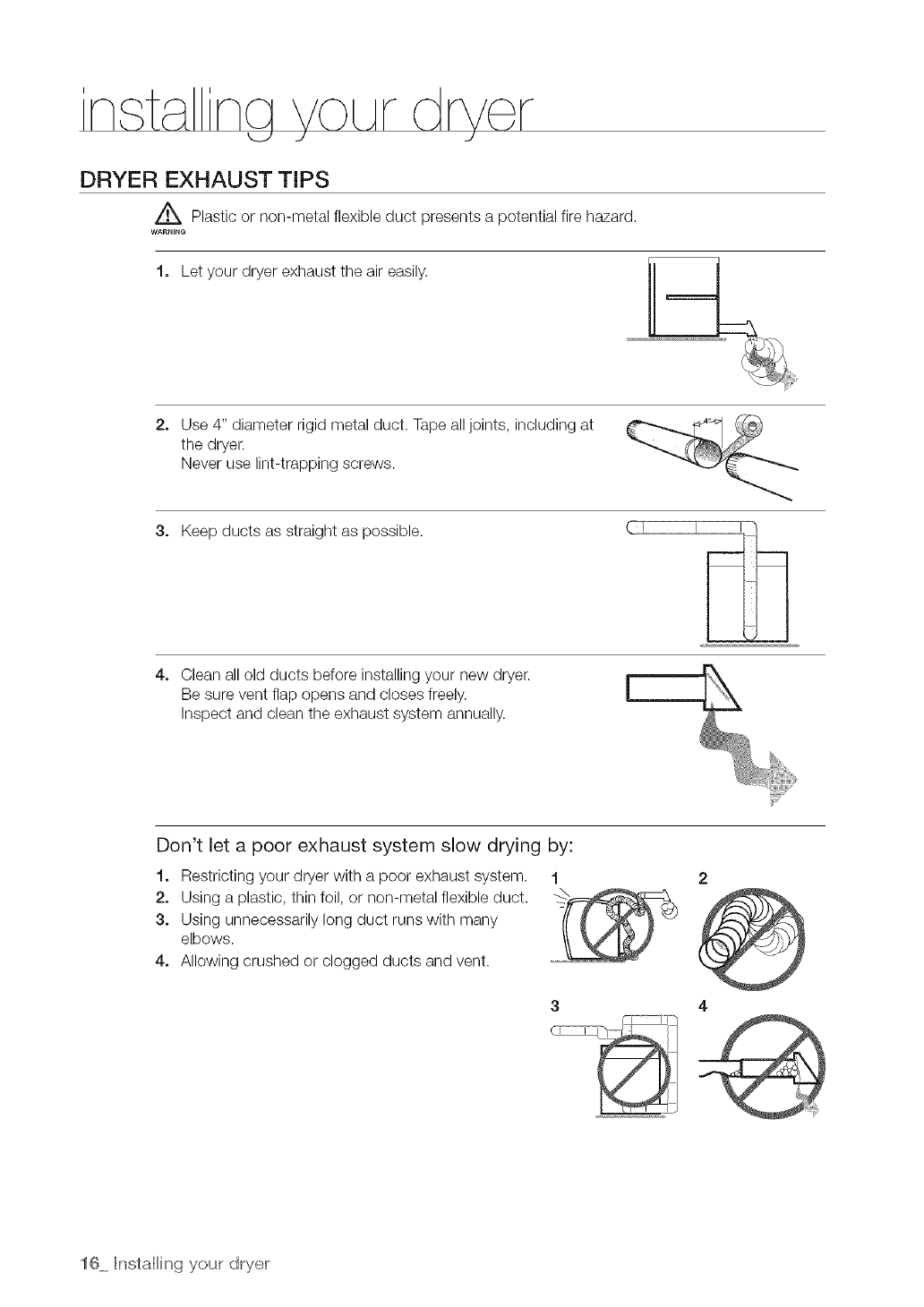

16 Dryer Exhaust Tips

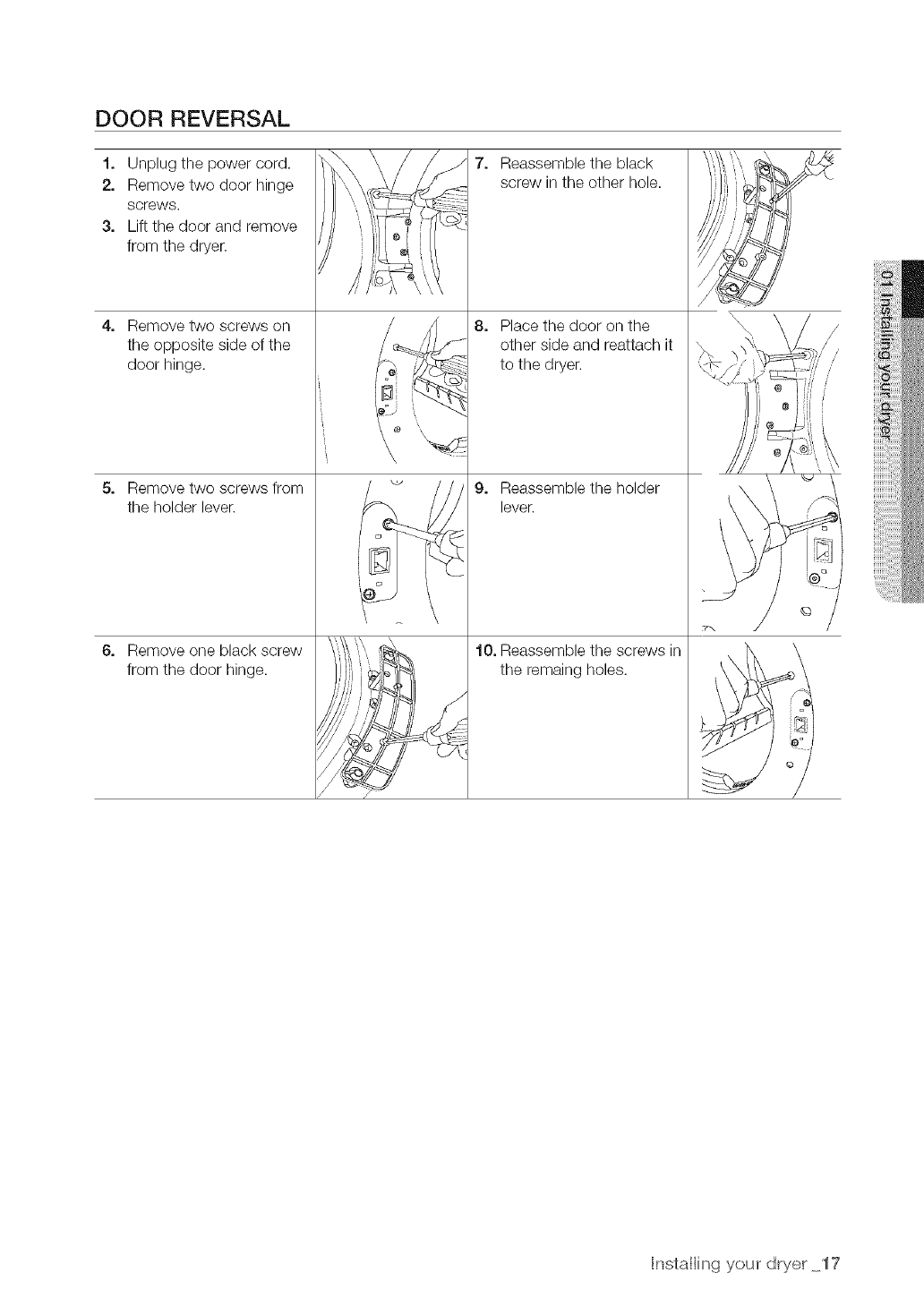

17 Door Reversal

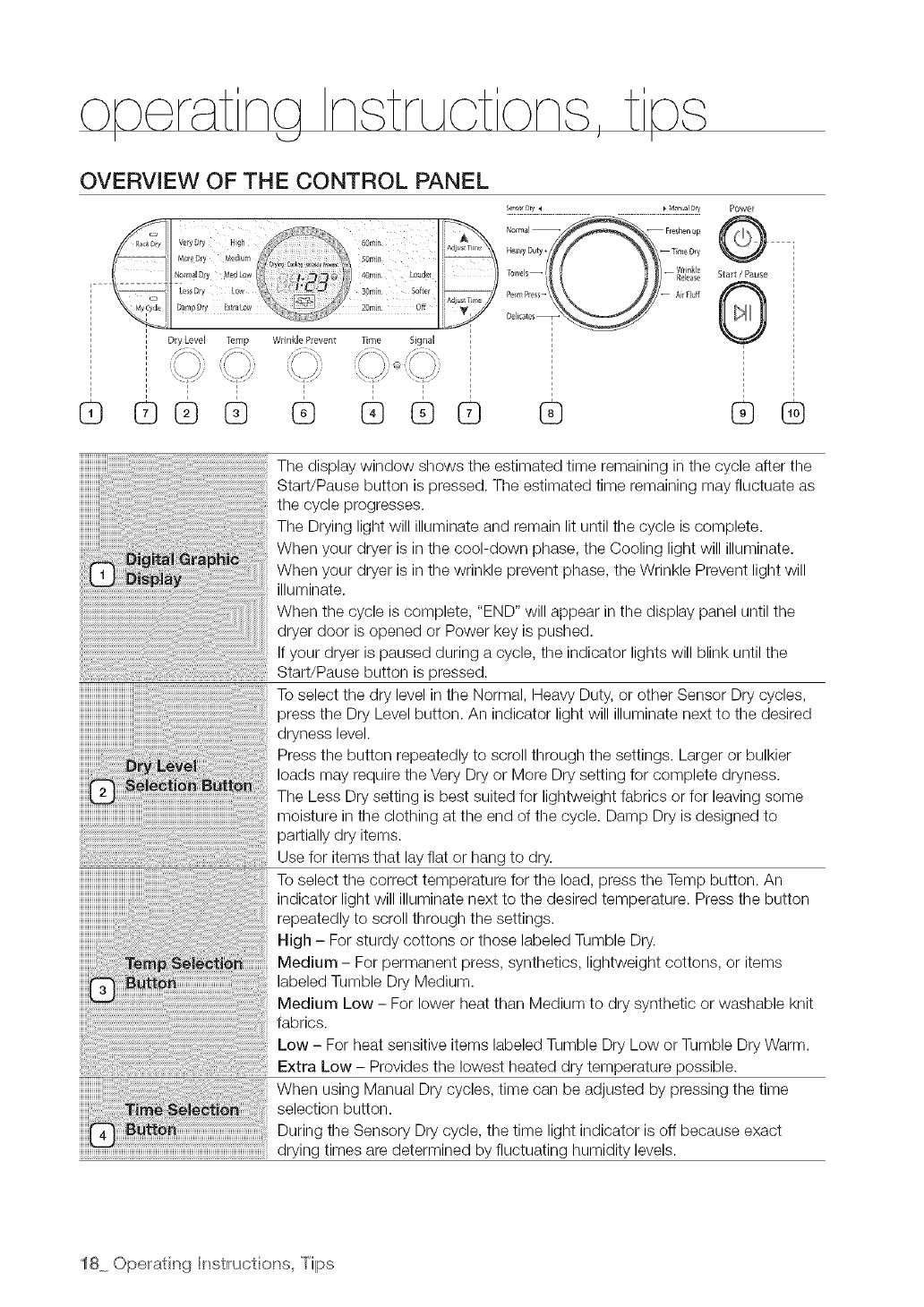

18 Overview of the control panel
20 Child lock
20 My cycle
21 Rack Dry
22 Clean the lint filter
22 Load the dryer properly
22 Getting started
23 Control Panel
23 Tumbler
23 Stainless Steel Tumbler
23 Dryer Exterior
23 Dryer Exhaust System

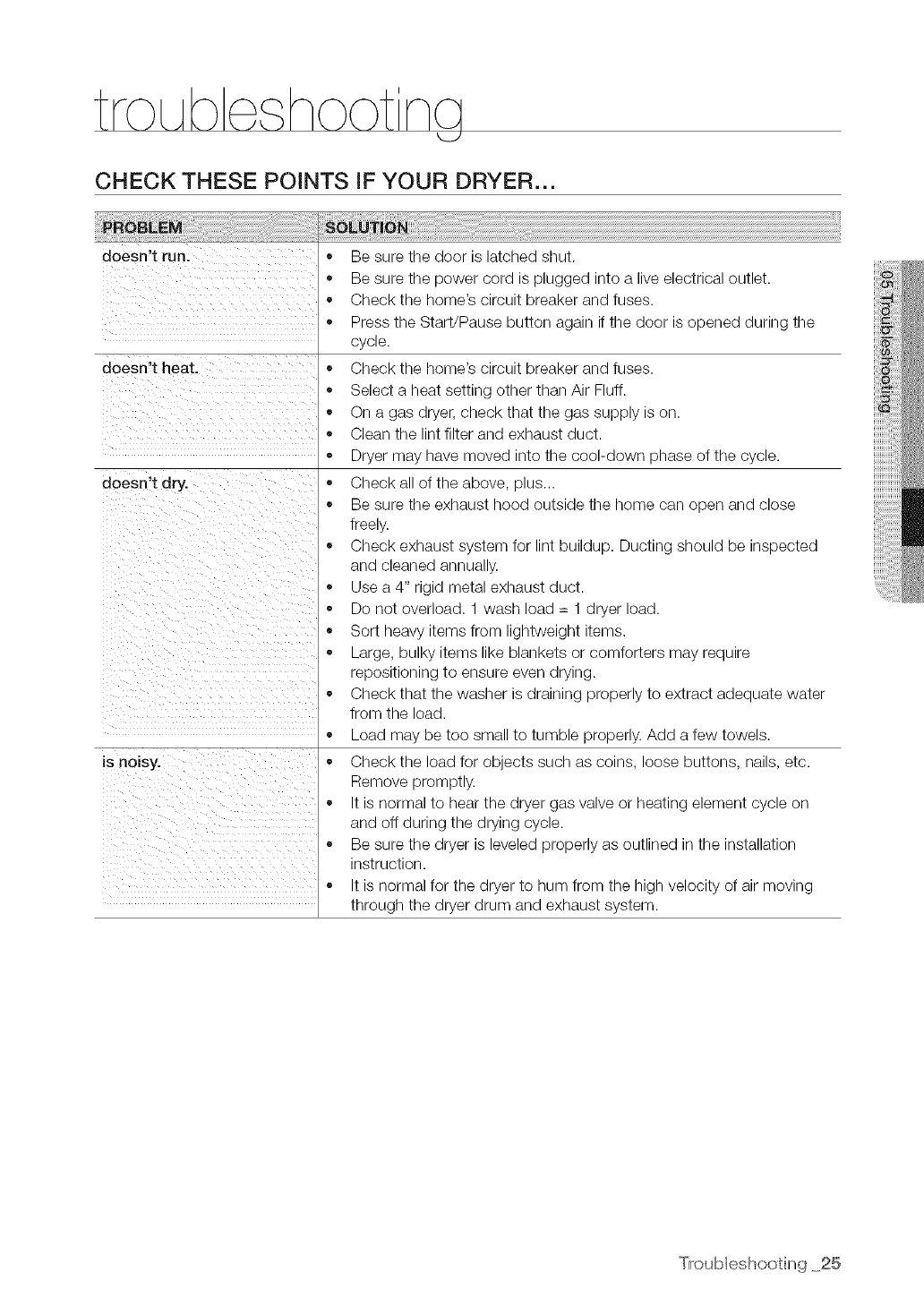

TROUBLESHOOTING 25 Check these points if your dryer...
26 Information codes
APPENDIX
i

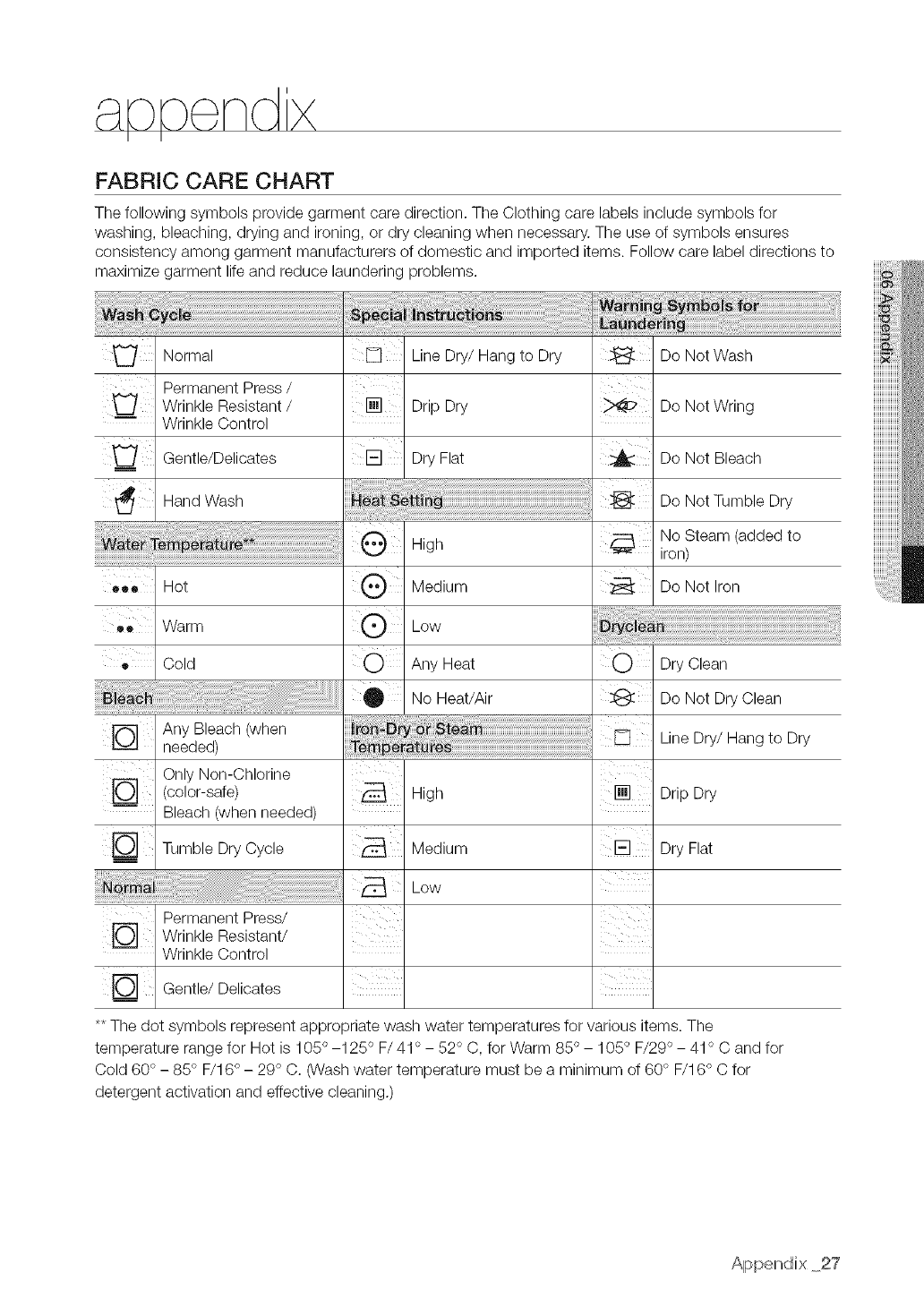

27 Fabric care chart

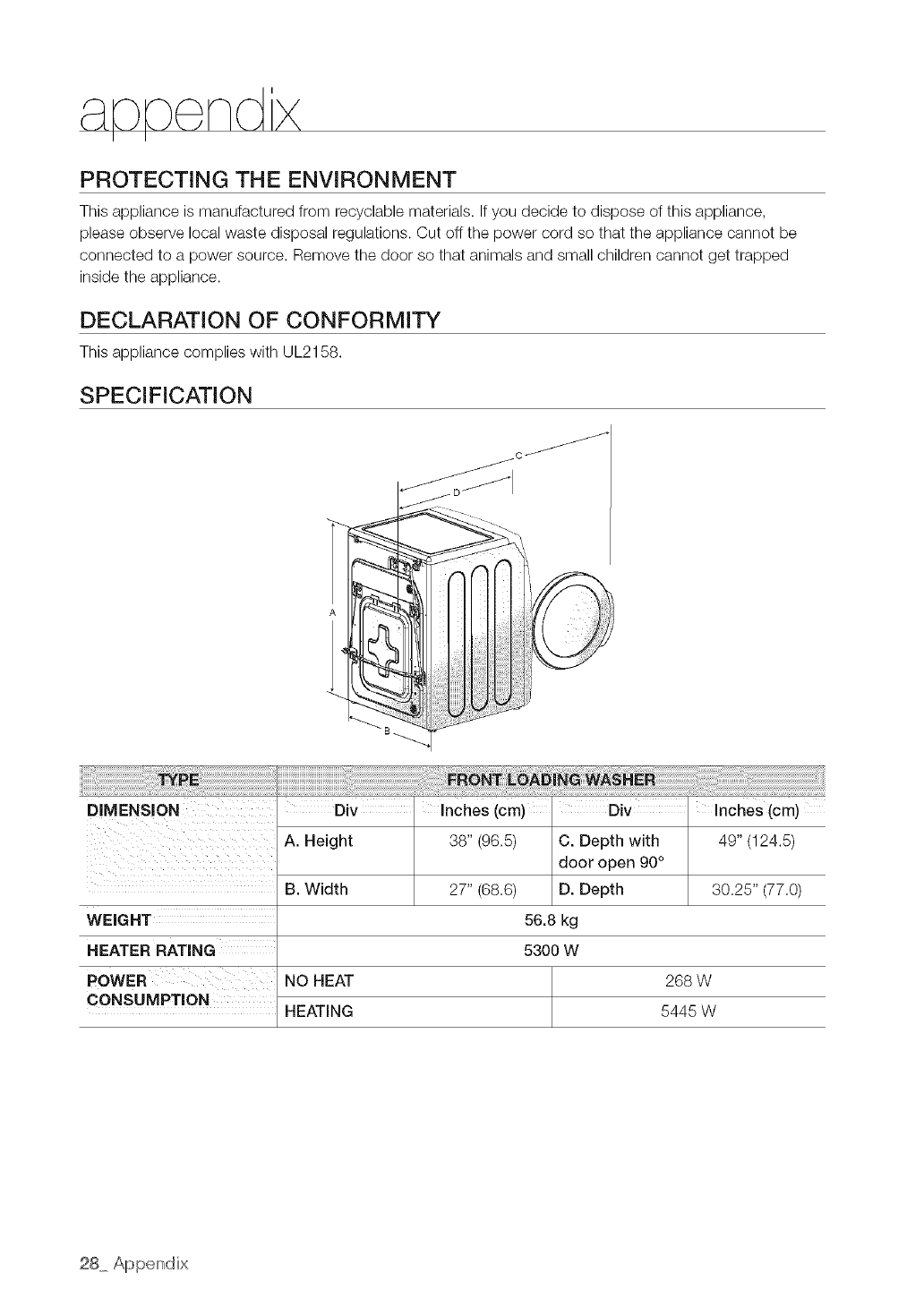

28 Protecting the environment
28 Declaration of conformity
28 Specification

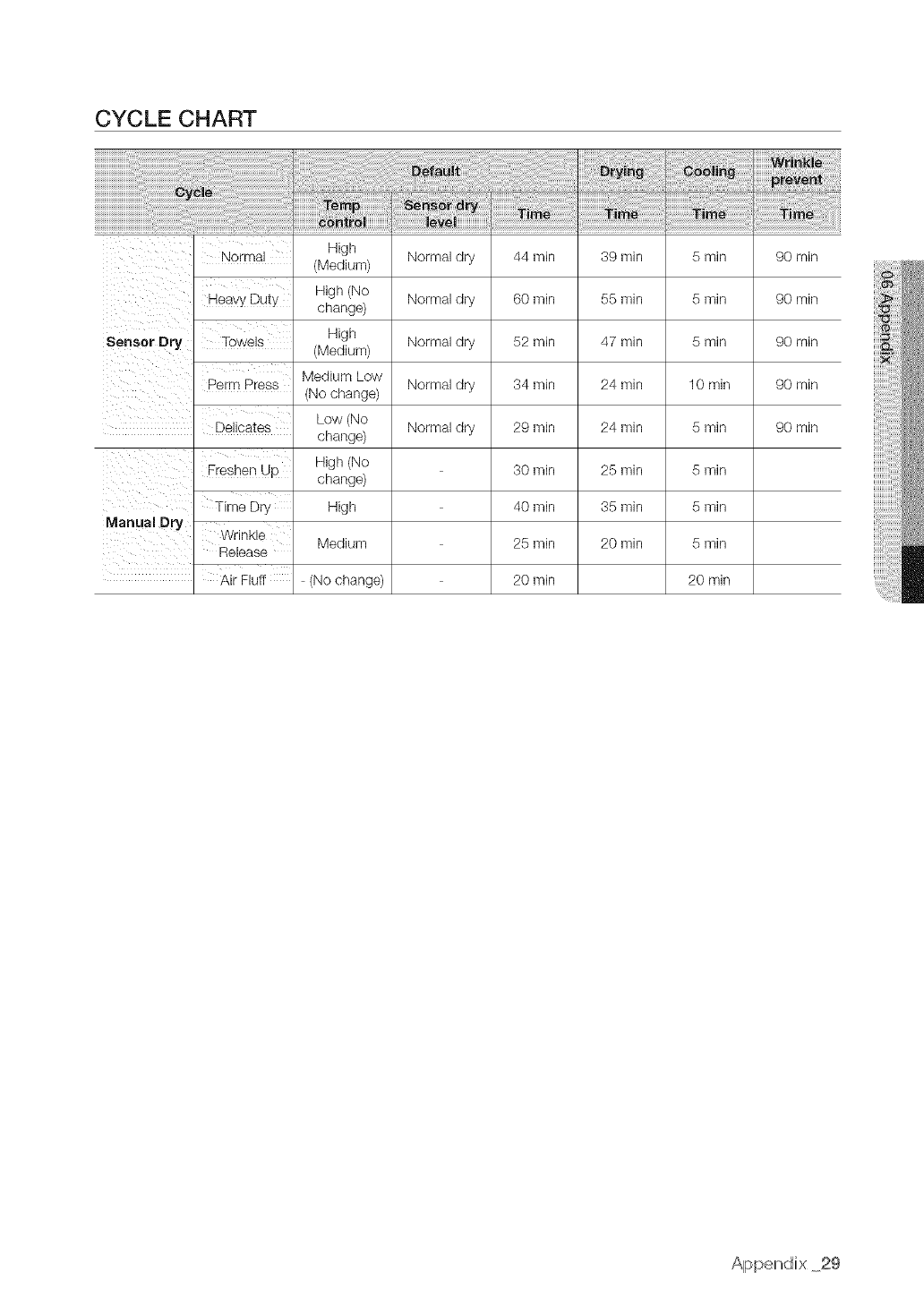

29 Cycle chart
Contents
![](asset-7.png)

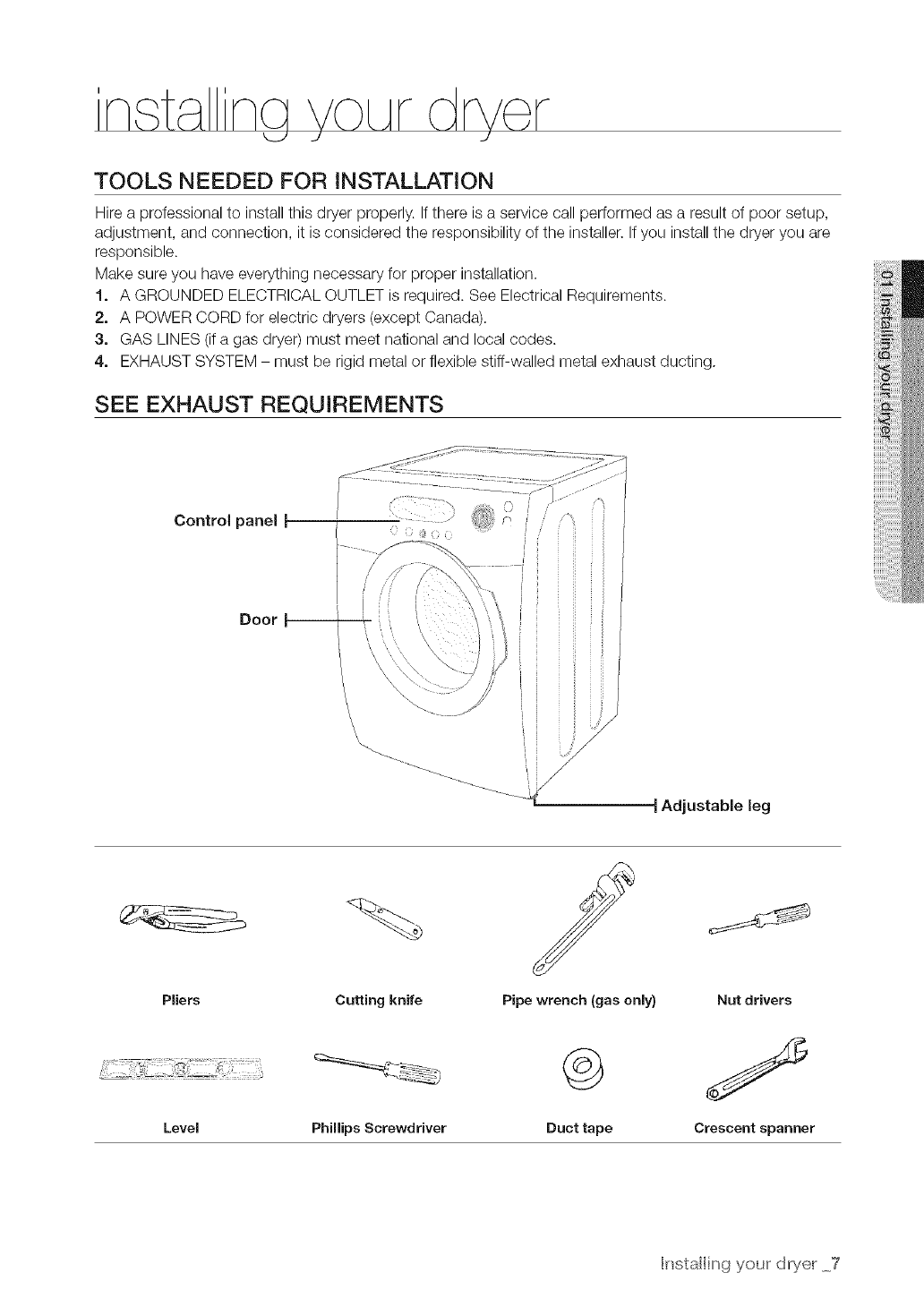

TOOLS NEEDED FOR INSTALLATION
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are
responsible.
Make sure you have everything necessary for proper installation.
1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.
2. A POWER CORD for electric dryers (except Canada).
3. GAS LINES (if a gas dryer) must meet national and local codes.
4. EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.
SEE EXHAUST REQUIREMENTS
[
J
Door I , , i
Adjustable leg
Pliers Cutting knife
Level Phillips Screwdriver
/
Pipe wrench (gas only)
©
Duct tape
Nut drivers
Crescent spanner
trtstalI n9 your dryer _7
![](asset-8.png)

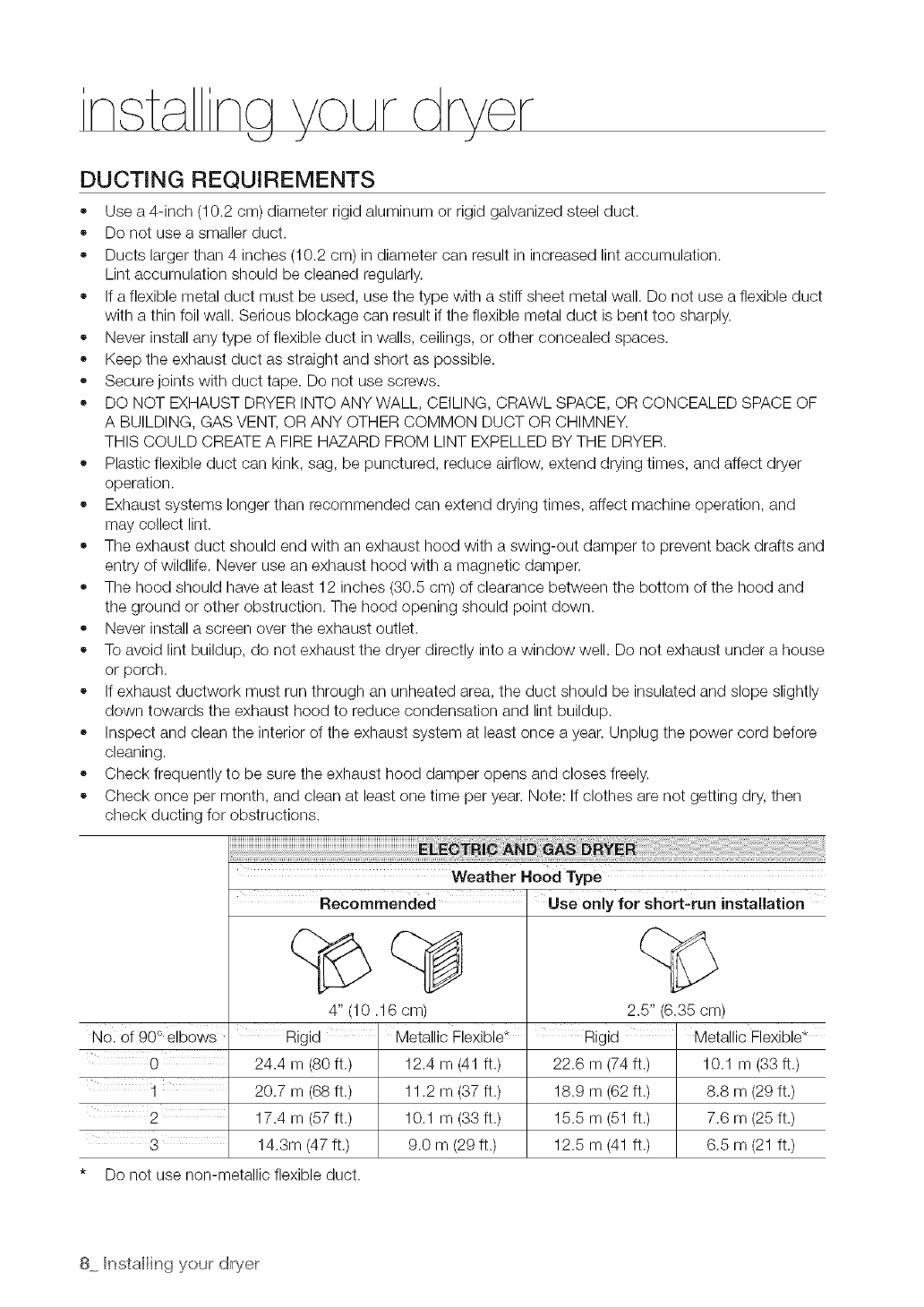

DUCTING REQUIREMENTS
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct
with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
Keep the exhaust duct as straight and short as possible.
Secure joints with duct tape. Do not use screws.
DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF
A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer
operation.
Exhaust systems longer than recommended can extend drying times, affect machine operation, and
may collect lint.
The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and
entry of wildlife. Never use an exhaust hood with a magnetic damper.
The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and
the ground or other obstruction. The hood opening should point down.
Never install a screen over the exhaust outlet.
To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house
or porch.
If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly
down towards the exhaust hood to reduce condensation and lint buildup.
Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before
cleaning.
Check frequently to be sure the exhaust hood damper opens and closes freely.
Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then
check ducting for obstructions.
Weather Hood Type
I
Recommended Use only for short-run installation
4" (10.16 cm) 2.5" (6.35 cm)
N01 of 90 ° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*
0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)
20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ff.) 8.8 m (29 ff.)
2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)
14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)
* Do not use non-metallic flexible duct.
8_ trtstaII ng your dryer
![](asset-9.png)
If the new dryer is installed into an existing exhaust system you must make
sure:
• The exhaust system meets all local, state, and national codes.
That a flexible plastic duct is not used.
To Inspect and clean all lint buildup from inside the existing duct.
The duct is not kinked or crushed.
The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be
less than 0.
This can be measured with the dryer running with a manometer at the point where the exhaust
duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be
empty and the lint filter clean.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
w,_,. REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
LOCATION CONSIDERATIONS
The dryer should be located where there is enough space in front for loading the dryer, and enough space
behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or
the leR, use the accessory exhaust kit. Instructions are included with the kit. It's important to make sure the
room has enough fresh air. The dryer must be located where there is no air-flow obstruction.
On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air
for combustion and proper dryer operation.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE IT WILL BE EXPOSED TO
WATER AND/OR WEATHER. THE DRYER AREA IS TO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE
LINT. THE AREA AROUND THE DRYER SHOULD BE KEPT LINT-FREE.
ALCOVE OR CLOSET INSTALLATION
Z_ The dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or
wA_.,._closet.
No other fuel-burning appliance should be installed in the same closet as the dryer.
WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED TO THE OUTDOORS.
See EXHAUST INFORMATION section.
Minimum clearances between the dryer and adjacent walls or other surfaces are:
2" in front, 17" on top, 1" on either side, and 2.375" in the back.
The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2
with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is
acceptable.
trtstaII ng your dryer _9
![](asset-a.png)
MOBILE HOME INSTALLATION
The installation of the dryer in mobile homes must conform to the Manufactured Home Construction and
Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
Locate an area that has adequate fresh air,
A minimum of 72 in2 (183 cm 2)of unobstructed space is required.
Call 1-800-SAMSUNG for information on purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination securely
fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the
room.
In the United States:
• All dryers must be exhausted to the outside.
Only a rigid or flexible metal duct should be used for exhausting.
In Canada:
All dryers must be exhausted to the outside.
Outside the U.S. and Canada:
Refer to local codes.
_The dryer must be exhausted to the outside to reduce the risk of fire when installed in an
WAR.,._alcove or closet.
NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,
heat, and lint.
![](asset-b.png)
GAS REQUIREMENTS
Use only natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL
CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED
STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP
(liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.
A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas
line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off
valve be installed within 8' of your dryer.
Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.
Additionally, a 1/8" (0.3 cm) N.RT. (National Pipe Thread) plugged tapping, accessible for test gauge
connection, must be installed immediately upstream of your dryer's gas supply connection.
Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the
system.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas
Association (CGA in Canada).
Go Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
® As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION -Your dryer uses an automatic ignition system to ignite the burner.
There is no constant burning pilot.
Commonwealth of Massachusetts installation instructions
Your dryer must be installed by a licensed plumber or gas fitter. A "T" handle manual gas valve
must be installed in the gas supply line to your dryer. If a flexible gas connector is used to install
your dryer, the connector must have a maximum length of 3' (38").
WARNING -
Gas leaks may occur in your system, creating a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with manufacturer's instructions.
tnstatIing your dryer 11
![](asset-c.png)
ELECTRICAL REQUIREMENTS
Wiring diagram is located on plate below the control panel.
o
WARNING
Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet,
have a proper outlet installed by a qualified electrician.
To prevent unnecessary risk of fire, electrical shock, or personal injury, aii wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSi/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code
CSA C22.1 - Latest Revisions and local codes and ordinances, it is your responsibility to provide
adequate electrical services for your dryer.
All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest
Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and
local codes and ordinances.
GROUNDING
This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk of
electrical shock by providing a path of least resistance for the electrical current.
Gas models
Your dryer has a cord with an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet
installed by a qualified electrician.
NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT
WATER PIPES.
Electric models
Your dryer has a cord with an equipment-grounding conductor and a grounding plug, sold
separately.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If a power cord is not used and the electric dryer is to be permanently wired, the dryer must
be connected to a permanently grounded metal wiring system, or an equipment grounding
conductor must be run with the circuit conductors and connected to the equipment grounding
terminal.
![](asset-d.png)
ELECTRICAL CONNECTIONS
Before operating or testing, follow all grounding instructions in the Grounding section.
An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN
EXTENSION CORD.
Gas models - U.S. and Canada
A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is
required.
Electric models - U.S. only
Most U.S. dryers require a 120/240 volt, 60 Hz AC approved electrical service. Some require
120/208 volt, 60 Hz approved electrical service. The electric service requirements can be found
on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of
the line is required.
• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
The power cord is NOT provided with U.S. electric model dryers.
IMPORTANT:
When local codes allow, the dryer electrical supply may be connected by means of a new power
supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240
volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop
terminals, open-end spade lugs with turned up ends, or with tinned leads.
1. size of the conductors and the type of cord.
2. 3/4" (1.9 cm) UL-listed strain relief
Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring
must be retained at the dryer cabinet with a suitable UL-listed strain relief.
Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,
(2)mobile homes, (3) recreational vehicles, and (4)areas where local codes prohibit
grounding through the neutral conductor. (Use 4-prong plug for 4 wire receptacle, NEMA
type 14-30R.)
Electric models - Canada Only
A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or
circuit breaker on both sides of the line is required.
All Canadian models are shipped with the power cord attached. The power cord should be
plugged into a 30-ampere receptacle.
[_lt is not permissible to convert a dryer in Canada to 208 volts.
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your
dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).
Installing your dryer 13
![](asset-e.png)
INSTALLATION
For proper installation, it is highly recommended to hire a professional. To install:
t. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-
by-side, to allow access to gas, electrical, and exhaust connections.
Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both
cushion-tops.
2. Set your dryer back in an upright position.
3. Review the Exhausting section before installing the exhaust system. Install the ductwork from your dryer
to the exhaust hood. The crimped end of the duct sections must point away from your dryer.
DO NOT use sheet metal screws when assembling ducting. These joints should be taped.
Never use plastic flexible exhaust material.
Tip for tight installations: install a section of exhaust system to your dryer before putting it in place.
Use duct tape to secure this section to your dryer, but do not cover ventilation slots at the back of the
unit in dryer cabinet.
4. Review Electrical Requirements section.
BEFORE OPERATING OR TESTING, follow the grounding instructions in the Grounding section.
U.S. MODELS:
IMPORTANT - All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION.
The dryer frame is grounded to the neutral conductor at the terminal block.
A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile
homes, or if local codes do not permit grounding through neutral. If the 4-wire system is used,
the dryer frame cannot be grounded to the neutral conductor at the terminal block. Refer to the
following instructions for 3- and 4-WIRE SYSTEM CONNECTIONS.
Remove the terminal block cover plate.
Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near the
terminal block.
(_A strain relief must be used.
Do not loosen the nuts already installed on the terminal block. Be sure they are tight.
Use a 3/8" (1cm) deep well socket.
5. Review Gas Requirements section.
Remove the pipe thread protective cap.
Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.
_Pipe joint compound must be resistant to the action of any liquefied petroleum gas.
Connect the gas supply to your dryer.
An additional fitting is required to connect the 3/4" (1.9 cm) female thread end of a flexible connector to
the 3/8" (1 cm) male threaded end on the dryer.
Securely tighten the gas line fitting over threads.
Turn on the gas supply. Check all gas connections for leaks using a soap solution.
If bubbles appear, tighten the connections and recheck.
DO NOT use an open flame to check for gas leaks.
![](asset-f.png)
3-WIRE system connections
t. Loosen or remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power cord to the center, silver-colored
terminal screw of the terminal block. Tighten screw.
3. Connect the other wires to outer terminal block screws. Tighten screws.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your dryer's rear panel slot.
Secure the cover with a hold-down screw.
1. External ground connector
2. Neutral grounding wire (green/yellow)
3. Center silver-colored terminal block screw
4. Neutral wire (white or center wire)
5.3/4" (1.9 cm) UL-listed strain relief
_lf converting from a 4-wire electrical system to a 3-wire, the ground strap must be
....... reconnected to the terminal block support to ground the dryer frame to the neutral
conductor.
6,
7.
4-WIRE system connections
t. Remove the center terminal block screw.
2. Connect the ground wire (green or unwrapped) of the power cord to the external ground
conductor screw.
3. Connect the neutral wire (white or center wire) of the power cord and the appliance ground
wire (green with yellow stripes) under the central screw of the terminal block.
4. Connect the other wires to the outer terminal block screws. Tighten screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover into your dryer's rear panel slot.
Secure the cover with a hold-down screw.
1. External ground connector
2. Green or bare copper wire of power cord
3. 3/4 in. (1.9 cm) UL-listed strain relief
4. Center silver-colored terminal block screw
5. Grounding wire (green/yellow)
6. Neutral wire (white or center wire)
1 4
With a level, check your dryer and make necessary adjustments to the leveling legs.
At this time, make sure all gas connections (on gas models), exhaust and electrical connections are
complete. Plug in your dryer, and check operation by using the checklist below.
(GAS MODELS ONLY)
The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat
setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5
minutes. Be sure the gas supply to your dryer has been turned on. In order to confirm gas ignition,
check the exhaust for heat.
FINAL INSTALLATION CHECKLIST
[] Dryer is plugged into electrical outlet and properly grounded.r1
[] Exhaust ductwork is hooked up and joints taped.
[] Plastic flexible duct is NOT used.
[] Used rigid or stiff-walled flexible metal vent material.
[] Dryer is level with all legs firmly on the floor.
[] Gas models - gas is turned on with no gas leaks.
[] Start your dryer to confirm that it runs, heats, and shuts off.
tnstatBng youfr dryer 15
![](asset-10.png)
DRYER EXHAUST TiPS
/_ Plastic or non-metal flexible duct presents a potential fire hazard.
WARNING
1. Let your dryer exhaust the air easily.
2. Use 4" diameter rigid metal duct. Tape all joints, including at
the dryer.
Never use lint-trapping screws.
3. Keep ducts as straight as possible.
4o Clean all old ducts before installing your new dryer.
Be sure vent flap opens and closes freely.
Inspect and clean the exhaust system annually.
Don't let a poor exhaust system slow drying by:
1. Restricting your dryer with a poor exhaust system.
2. Using a plastic, thin foil, or non-metal flexible duct.
3. Using unnecessarily long duct runs with many
elbows.
4. Allowing crushed or clogged ducts and vent.
1
3
2
@
4
@
![](asset-11.png)
DOOR REVERSAL
1. Unplug the power cord.
2. Remove two door hinge
screws.
3. Lift the door and remove
from the dryer.
4° Remove two screws on
the opposite side of the
door hinge.
5. Remove two screws from
the holder lever.
6°
7. Reassemble the black
screw in the other hole.
8. Place the door on the
other side and reattach it
to the dryer.
Remove one black screw
from the door hinge.
ii _ '\
ii'i '
9. Reassemble the holder
lever.
10. Reassemble the screws in
the remaing holes.
©
tnstatling your dryer 17
![](asset-12.png)
©Kberatno nstr(]ot ©ns tiKbs
I U J I
OVERVIEW OF THE CONTROL PANEL
Dry Level Temp WrinkUePrevent
I
I I I
@ e®@ ® @
Time SignaU
I I
@ @
Se,_o, Dry I _ _am,al Dry POWer
Normal -- -- Freshen up
HeavyDuty • -- _me Dry
I
1
I
® e e
The display window shows the estimated time remaining in the cycle after the
Start/Pause button is pressed. The estimated time remaining may fluctuate as
the cycle progresses.
The Drying light will illuminate and remain lit until the cycle is complete.
When your dryer is in the cool-down phase, the Cooling light will illuminate.
When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will
illuminate.
When the cycle is complete, "END" will appear in the display panel until the
dryer door is opened or Power key is pushed.
if your dryer is paused during a cycle, the indicator lights will blink until the
Start/Pause button is pressed.
To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles,
press the Dry Level button. An indicator light will illuminate next to the desired
dryness level.
Press the button repeatedly to scroll through the settings. Larger or bulkier
loads may require the Very Dry or More Dry setting for complete dryness.
The Less Dry setting is best suited for lightweight fabrics or for leaving some
moisture in the clothing at the end of the cycle. Damp Dry is designed to
partially dry items.
Use for items that lay flat or hang to dry.
To select the correct temperature for the load, press the Temp button. An
indicator light will illuminate next to the desired temperature. Press the button
repeatedly to scroll through the settings.
High - For sturdy cottons or those labeled Tumble Dry.
Medium - For permanent press, synthetics, lightweight cottons, or items
labeled Tumble Dry Medium.
Medium Low - For lower heat than Medium to dry synthetic or washable knit
fabrics.
Low - For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.
Extra Low - Provides the lowest heated dry temperature possible.
When using Manual Dry cycles, time can be adjusted by pressing the time
selection button.
During the Sensory Dry cycle, the time light indicator is off because exact
drying times are determined by fluctuating humidity levels.
18 C)perrating k_strructons, Tips
![](asset-13.png)
iiiiiiiiii!i! ii!ii! ! i!!i! i! i! i! i! i! i! i! i! i! i! i! i! i!iiiiiii !iiiiiiiiiiiiiiiiiiii iiii i iiii iiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii!i!iiiiiiiiiiiiiiiiiiiiiiii i i i ! ! ! ! !!!!!!!!i!i!i!ii!ii!ii!ii!ii!ii!i!!!!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!ii!ii!ii!ii!ii!ii!ii!ii!ii!i!!!!!i!! ! i ! ! i ! !!i!iiii!i!!!!!i!ii i!iWhenthecyc,eiseomp,ete,achimewi,,sound
WhentheWr,nk,ePreventoption,sse,eete*theoh,mew,,sound
intermittently.
Adjust the volume of the chime or turn it off by pressing the Signal button.
Press the button repeatedly to scroll through the choices.
Wrinkle Prevent provides approximately 90 minutes of intermittent tumbling
in unheated air at the end of the cycle to reduce wrinkling. Press the Wrinkle
Prevent button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle Prevent is
selected.
The load is dry, and can be removed at any time during the Wrinkle Prevent
cycle.

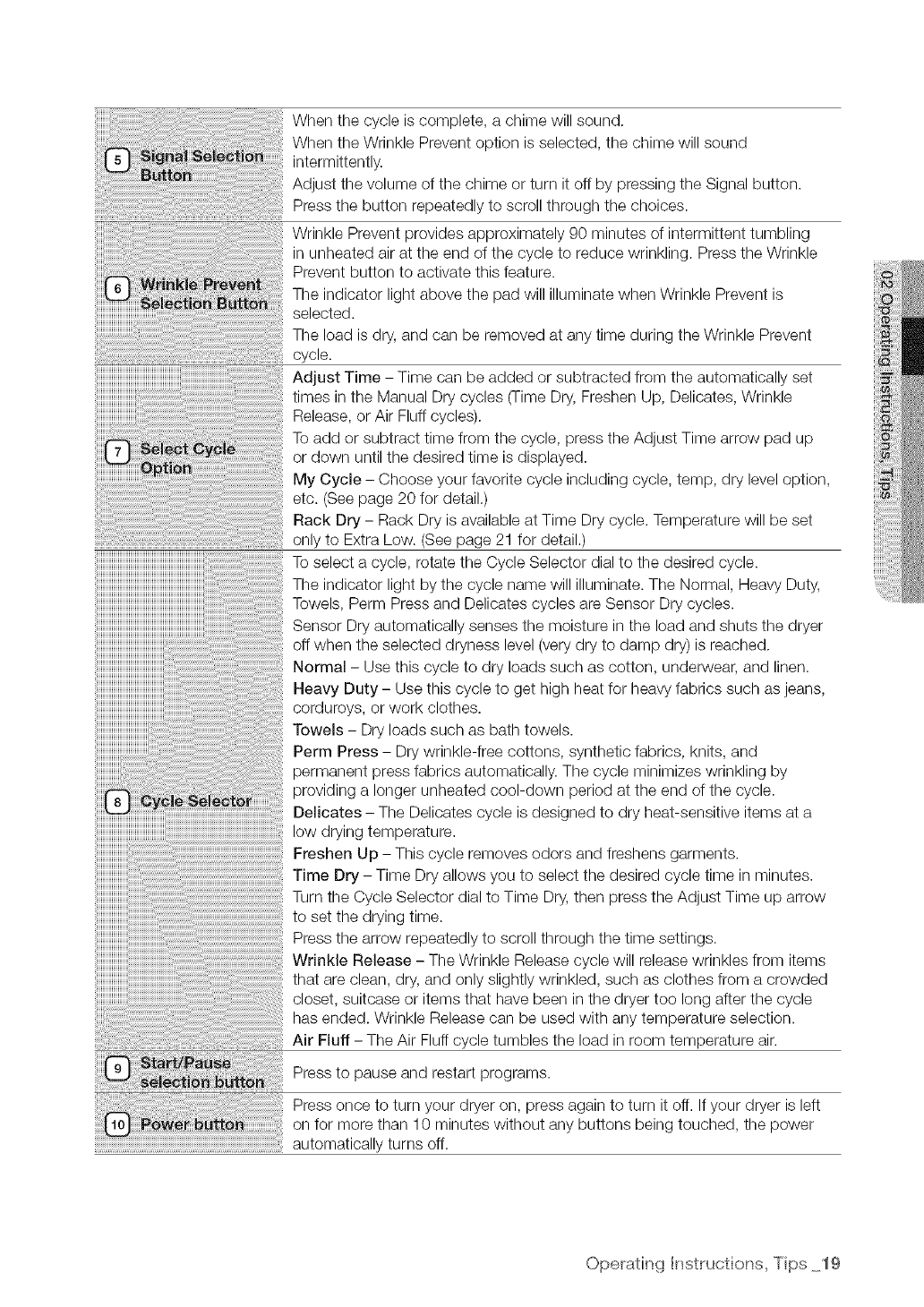

Adjust Time - Time can be added or subtracted from the automatically set
times in the Manual Dry cycles (Time Dry, Freshen Up, Delicates, Wrinkle
Release, or Air Fluff cycles).
To add or subtract time from the cycle, press the Adjust Time arrow pad up
or down until the desired time is displayed.
My Cycle - Choose your favorite cycle including cycle, temp, dry level option,
etc. (See page 20 for detail.)
Rack Dry - Rack Dry is available at Time Dry cycle. Temperature will be set
only to Extra Low. (See page 21 for detail.)
To select a cycle, rotate the Cycle Selector dial to the desired cycle.
The indicator light by the cycle name will illuminate. The Normal, Heavy Duty,
Towels, Perm Press and Delicates cycles are Sensor Dry cycles.
Sensor Dry automatically senses the moisture in the load and shuts the dryer
off when the selected dryness level (very dry to damp dry) is reached.
Normal - Use this cycle to dry loads such as cotton, underwear, and linen.
Heavy Duty - Use this cycle to get high heat for heavy fabrics such as jeans,
corduroys, or work clothes.
Towels - Dry loads such as bath towels.
Perm Press - Dry wrinkle-free cottons, synthetic fabrics, knits, and
permanent press fabrics automatically. The cycle minimizes wrinkling by
providing a longer unheated cool-down period at the end of the cycle.
Deiicates - The Delicates cycle is designed to dry heat-sensitive items at a
low drying temperature.
Freshen Up - This cycle removes odors and freshens garments.
Time Dry - Time Dry allows you to select the desired cycle time in minutes.
Turn the Cycle Selector dial to Time Dry, then press the Adjust Time up arrow
to set the drying time.
Press the arrow repeatedly to scroll through the time settings.
Wrinkle Release - The Wrinkle Release cycle will release wrinkles from items
that are clean, dry, and only slightly wrinkled, such as clothes from a crowded
closet, suitcase or items that have been in the dryer too long after the cycle
has ended. Wrinkle Release can be used with any temperature selection.
Air Fluff - The Air Fluff cycle tumbles the load in room temperature air.
Press to pause and restart programs.
Press once to turn your dryer on, press again to turn it off. If your dryer is left
on for more than 10 minutes without any buttons being touched, the power
automatically turns off.
Ope_x_tinglnstructons, Tips 19
![](asset-14.png)
CHILD LOCK
A function to prevent children from playing with your dryer.
Setting/Releasing
If you want to set or release the Child Lock, press both the Time and Signal buttons
simultaneously for 3 seconds.
How to Set:
1. It can be set while your dryer is running.
2. Once you set the Child Lock function, no button, except for the Power button, can be
controlled until you release the Child Lock function.
3o The Child Lock indicator will be lit.
1. If the dryer is powered on again, the Child Lock function stays on.
2. To release that function, follow the instructions above.
When other buttons, except for the Power button, do not respond, check the Child Lock
indicator.
MY CYCLE
Lets you activate your customized cycle that includes Dry Level, Temp, Time option, etc.
By pushing the My Cycle button, you activate the settings used during the previous My Cycle mode.
(Default : Normal Cycle)
If My Cycle mode is activated, My Cycle lamp will be lit.
You can select all options in My Cycle mode as follows.
t. Select cycle using Cycle Selector dial.
2. After cycle selection, set each option.
Each cycle has certain default options that are automatically set.
To see these default options, go to page F-3.
3. Then, you can start My Cycle by pushing the Start/Pause button in My Cycle mode. The cycle and
options you select will be displayed the next time you choose My Cycle.
[_?} You can change the My Cycle settings by repeating same process above.
The last used setting will be displayed the next time you choose My Cycle.
20 Operating lnstructons, Tips
![](asset-15.png)

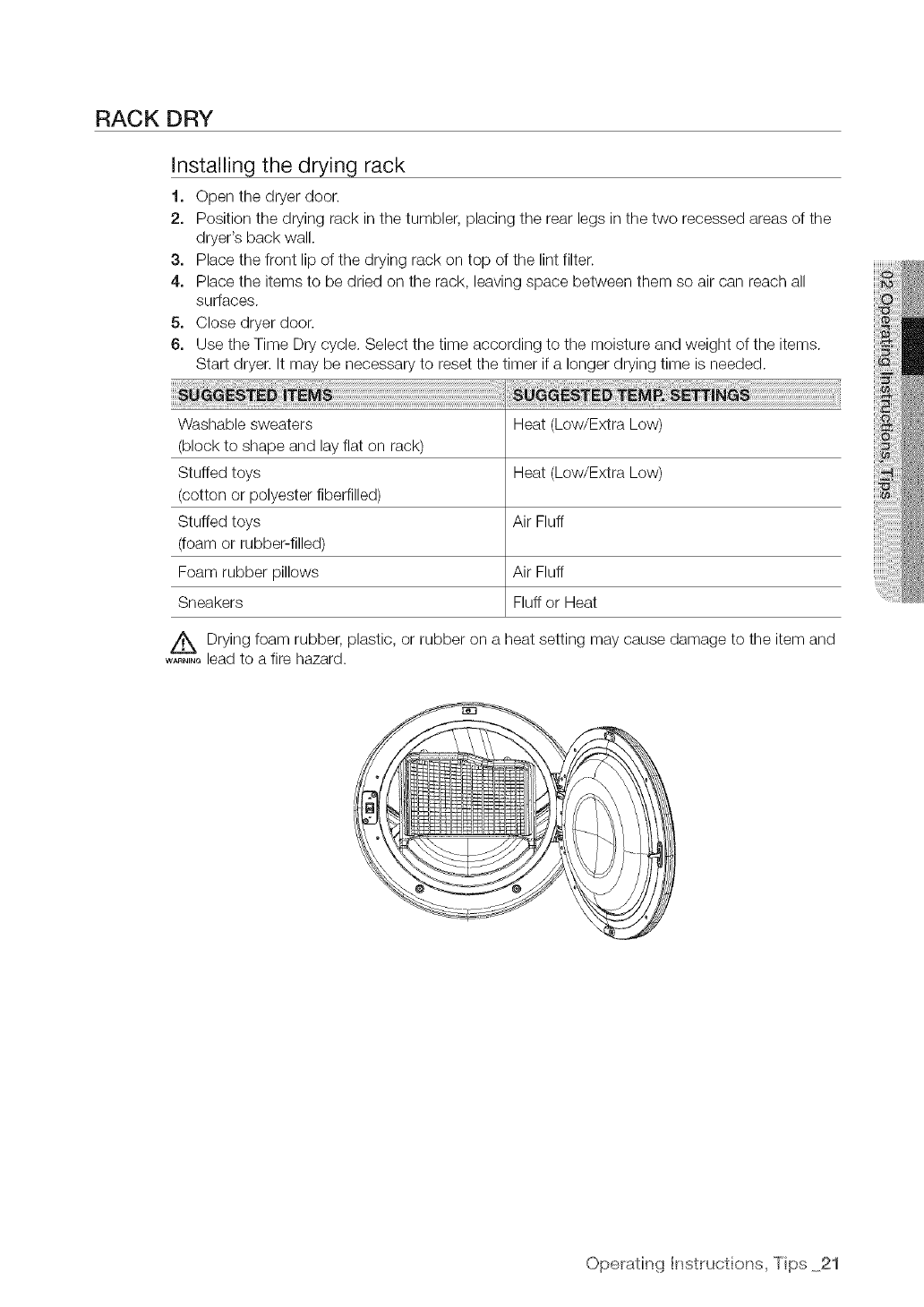

RACK DRY
Installing the drying rack
t. Open the dryer door.
2. Position the drying rack in the tumbler, placing the rear legs in the two recessed areas of the
dryer's back wall.
3. Place the front lip of the drying rack on top of the lint filter.
4. Place the items to be dried on the rack, leaving space between them so air can reach all
surfaces.
5. Close dryer door.
6. Use the Time Dry cycle. Select the time according to the moisture and weight of the items.
Start dryer. It may be necessary to reset the timer if a longer drying time is needed.
Washable sweaters Heat (Low/Extra Low)
(block to shape and lay flat on rack)
Stuffed toys Heat (Low/Extra Low)
(cotton or polyester fiberfilled)
Stuffed toys Air Fluff
(foam or rubber-filled)
Foam rubber pillows Air Fluff
Sneakers Fluff or Heat
Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the item and
....... lead to a fire hazard.
Ope_ting lnstructons, Tips 21
![](asset-16.png)
©Kberatno nstr(]ot ©ns tiKbs
I U J I

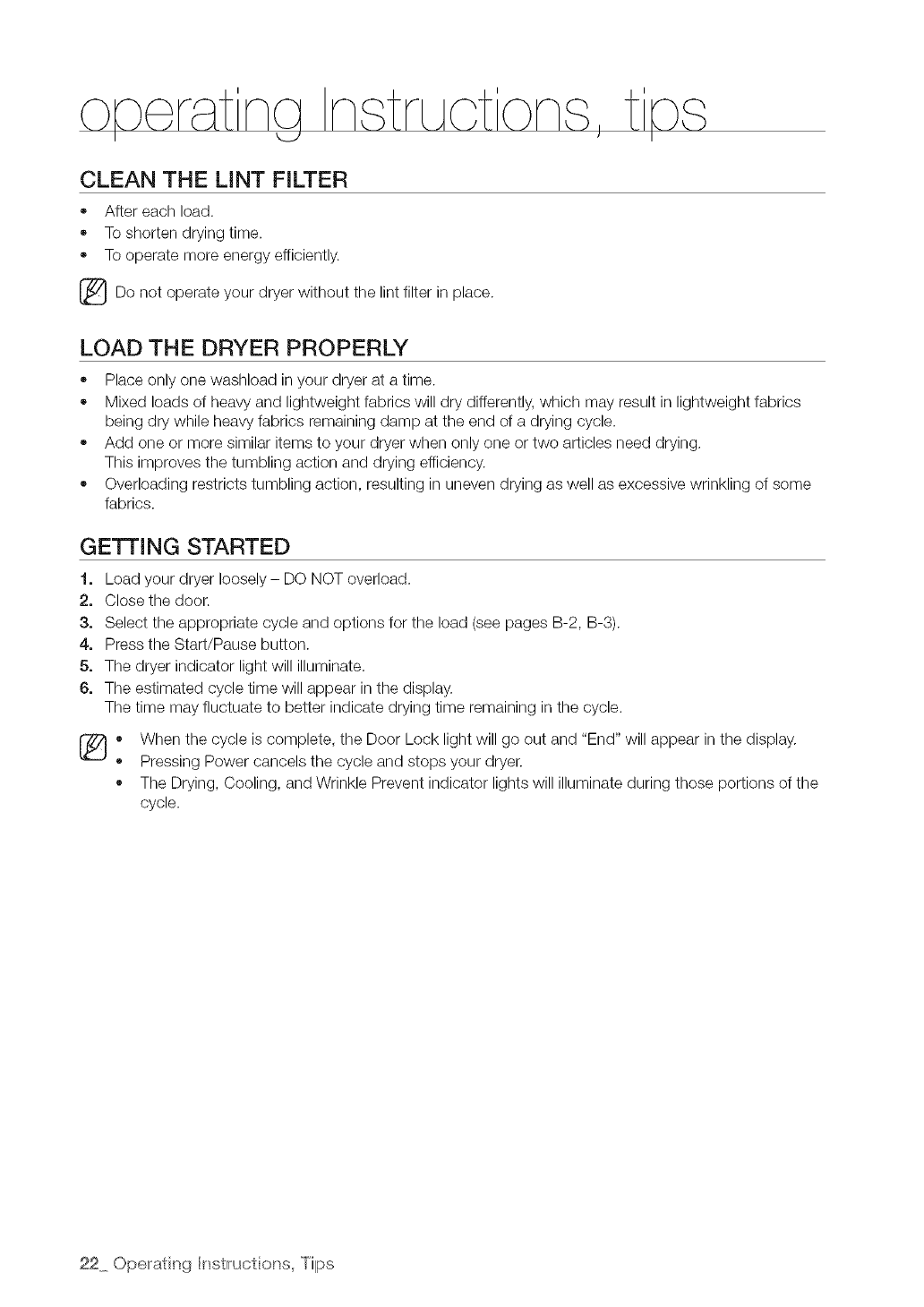

GLEAN THE LINT FILTER
•After each load.
•To shorten drying time.
•To operate more energy efficiently.
Do not operate your dryer without the lint filter in place.
LOAD THE DRYER PROPERLY
•Place only one washload in your dryer at a time.
•Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight fabrics
being dry while heavy fabrics remaining damp at the end of a drying cycle.
•Add one or more similar items to your dryer when only one or two articles need drying.
This improves the tumbling action and drying efficiency.
•Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some
fabrics.
GETTING STARTED
t. Load your dryer loosely - DO NOT overload.
2. CIosethe door.
3. Select the appropriate cycle and options for the load (see pages B-2, B-3).
4. Press the Start/Pause button.
5. The dryer indicator light will illuminate.
6. The estimated cycle time will appear in the display.
The time may fluctuate to better indicate drying time remaining in the cycle.
o
o
When the cycle is complete, the Door Lock light will go out and "End" will appear in the display.
Pressing Power cancels the cycle and stops your dryer.
The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the
cycle.
22 Operating lnstructons, Tips
![](asset-17.png)

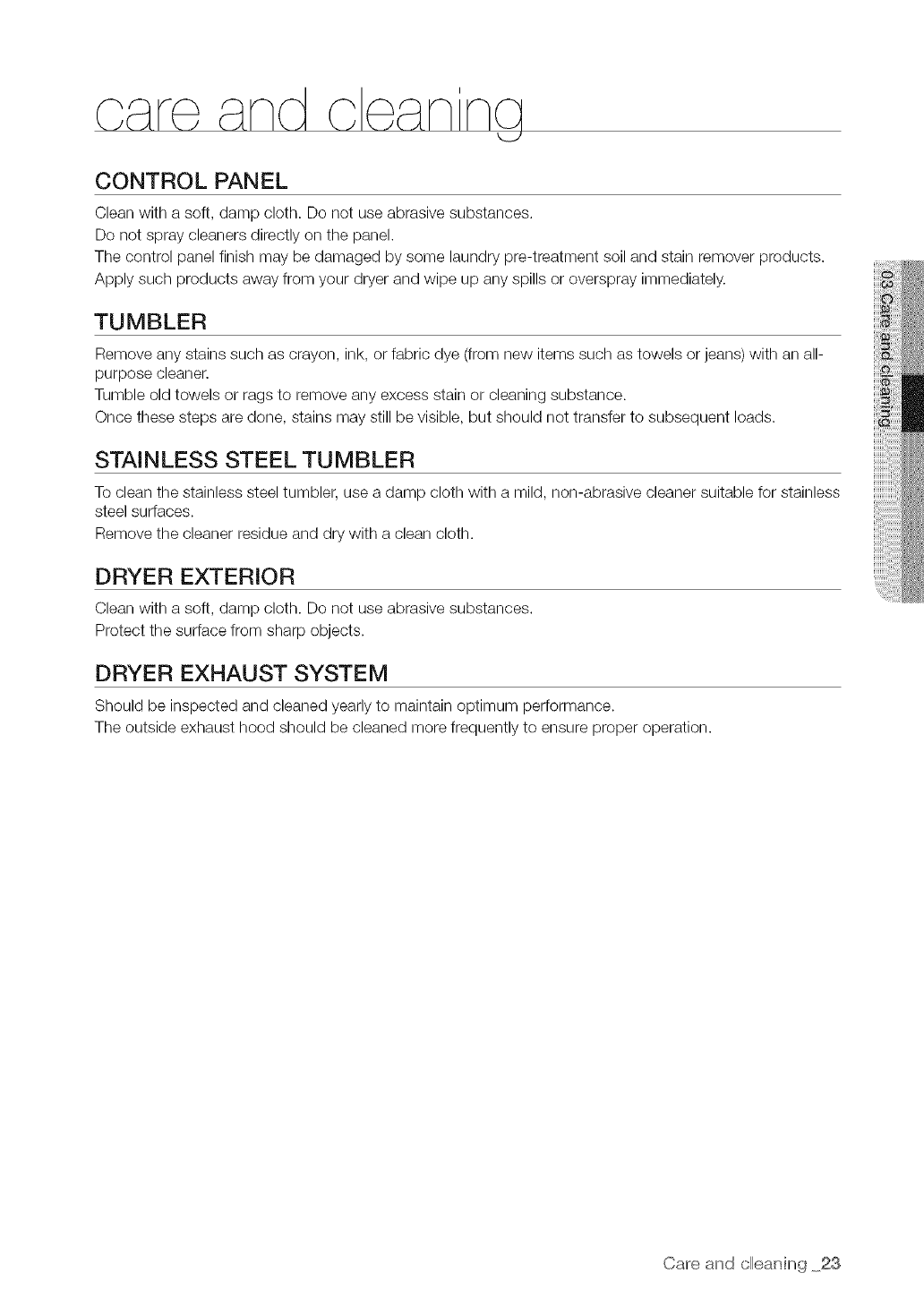

care and c ean nG
CONTROL PANEL
Clean with a soft, damp cloth. Do not use abrasive substances.
Do not spray cleaners directly on the panel.
The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products.
Apply such products away from your dryer and wipe up any spills or overspray immediately.
TUMBLER
Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an all-
purpose cleaner.
Tumble old towels or rags to remove any excess stain or cleaning substance.
Once these steps are done, stains may still be visible, but should not transfer to subsequent loads.
STAINLESS STEEL TUMBLER
To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless
steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
DRYER EXTERIOR
Clean with a soft, damp cloth. Do not use abrasive substances.
Protect the surface from sharp objects.
DRYER EXHAUST SYSTEM
Should be inspected and cleaned yearly to maintain optimum performance.
The outside exhaust hood should be cleaned more frequently to ensure proper operation.
Care and clleaning 25
![](asset-18.png)

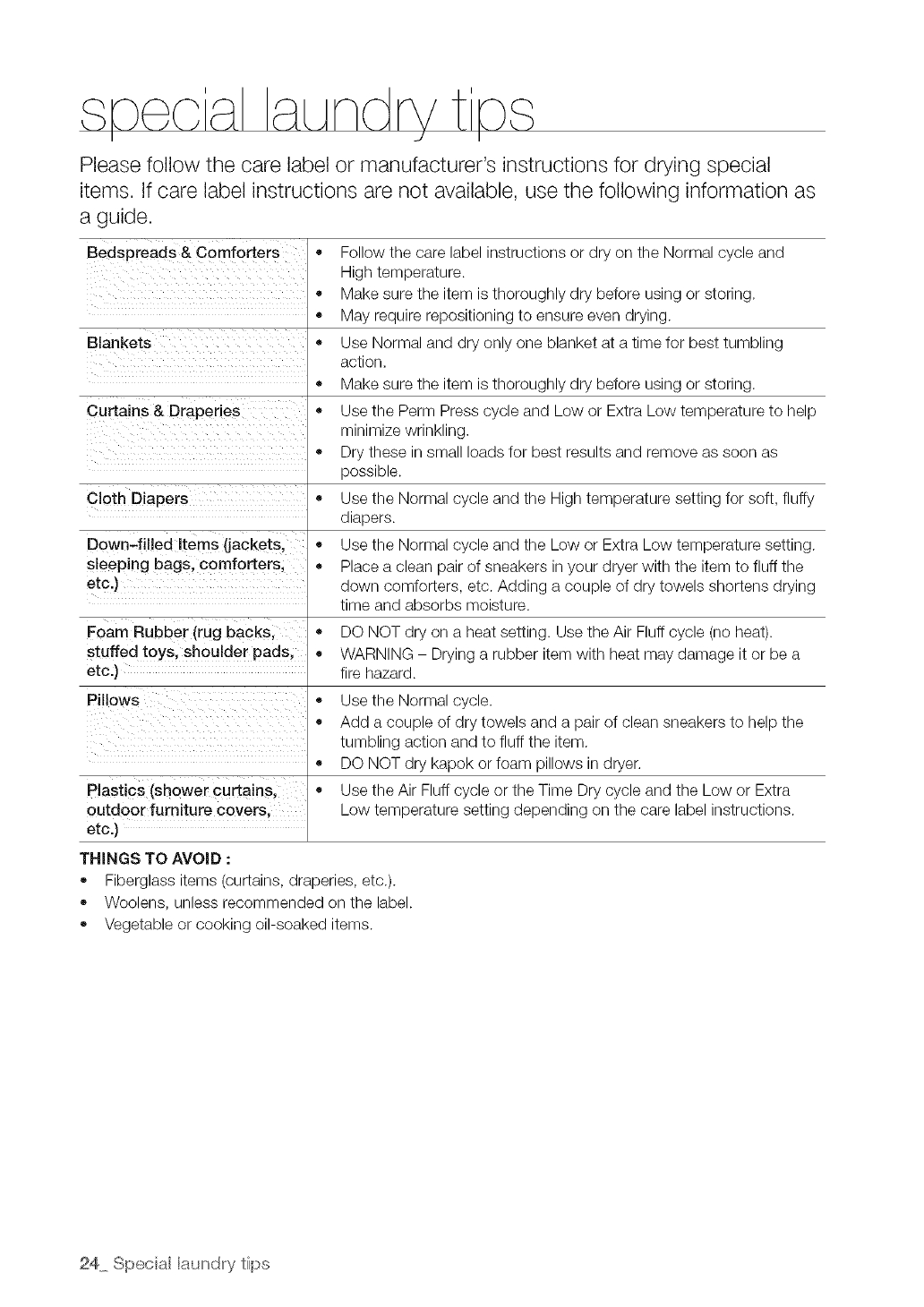

Please follow the care label or manufacturer's instructions for drying special
items. If care label instructions are not available, use the following information as
a guide.
Bedspreads & Comforters
Blankets
o
o
o
o
o
Curtains & Draperies •
o
Cloth Diapers +
Down-filled Items (jackets,
sleeping bags, comforters,
etc.)
Foam Rubber (rug backs,
stuffed toys, shoulder pads, +
etc.)
Pillows
o
o
Plastics (shower curtains,
outdoor furniture covers,
etc.)
THINGS TO AVOID :
o
Follow the care label instructions or dry on the Normal cycle and
High temperature.
Make sure the item is thoroughly dry before using or storing.
May require repositioning to ensure even drying.
Use Normal and dry only one blanket at a time for best tumbling
action.
Make sure the item is thoroughly dry before using or storing.
Use the Perm Press cycle and Low or Extra Low temperature to help
minimize wrinkling.
Dry these in small loads for best results and remove as soon as
possible.
Use the Normal cycle and the High temperature setting for soft, fluffy
diapers.
Use the Normal cycle and the Low or Extra Low temperature setting.
Place a clean pair of sneakers in your dryer with the item to fluff the
down comforters, etc. Adding a couple of dry towels shortens drying
time and absorbs moisture.
DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).
WARNING - Drying a rubber item with heat may damage it or be a
fire hazard.
Use the Normal cycle.
Add a couple of dry towels and a pair of clean sneakers to help the
tumbling action and to fluff the item.
DO NOT dry kapok or foam pillows in dryer.
Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra
Low temperature setting depending on the care label instructions.
Fiberglass items (curtains, draperies, etc.).
Woolens, unless recommended on the label.
Vegetable or cooking oil-soaked items.
24 SpecaI +aundry tnps
![](asset-19.png)
tr©LAbesh©©tnG
CHECK THESE POINTS IF YOUR DRYER...
doesn't run.
doesn't heat.
doesn't dry.
isnoisy.
• Be sure the door is latched shut.
Be sure the power cord is plugged into a live electrical outlet.
Check the home's circuit breaker and fuses.
Press the Start/Pause button again if the door is opened during the
cycle.
Check the home's circuit breaker and fuses.
Select a heat setting other than Air Fluff.
On a gas dryer, check that the gas supply is on.
Clean the lint filter and exhaust duct.
Dryer may have moved into the cool-down phase of the cycle.
Check all of the above, plus...
Be sure the exhaust hood outside the home can open and close
freely.
Check exhaust system for lint buildup. Ducting should be inspected
and cleaned annually.
Use a 4" rigid metal exhaust duct.
Do not overload. 1 wash load = 1 dryer load.
Sort heavy items from lightweight items.
Large, bulky items like blankets or comforters may require
repositioning to ensure even drying.
Check that the washer is draining properly to extract adequate water
from the load.
Load may be too small to tumble properly. Add a few towels.
Check the load for objects such as coins, loose buttons, nails, etc.
Remove promptly.
It is normal to hear the dryer gas valve or heating element cycle on
and off during the drying cycle.
Be sure the dryer is leveled properly as outlined in the installation
instruction.
It is normal for the dryer to hum from the high velocity of air moving
through the dryer drum and exhaust system.
![](asset-1a.png)
driesunevenly.
has an odo_
shuts off before load is dry •
o
• Seams, pockets, and other similarly heavy areas may not be
completely dry when the rest of the load has reached the selected
dryness level. This is normal. Select the Very Dry setting if desired.
• If one heavy item is dried with a lightweight load, such as one towel
with sheets, it is possible that the heavy item will not be completely
dry when the rest of the load has reached the selected dryness level.
Sort heavy items from lightweight items for best drying results.
• Household odors from painting, varnishing, strong cleaners, etc.
may enter the dryer with the surrounding room air. This is normal as
the dryer draws the air from the room, heats it, pulis it through the
tumbler, and exhausts it outside.
• When these odors linger in the air, ventilate the room completely
before using the dryer.
Dryer load is too small. Add more items or a few towels and restart
the cycle.
Dryer load is too large. Remove some items and restart the dryer.

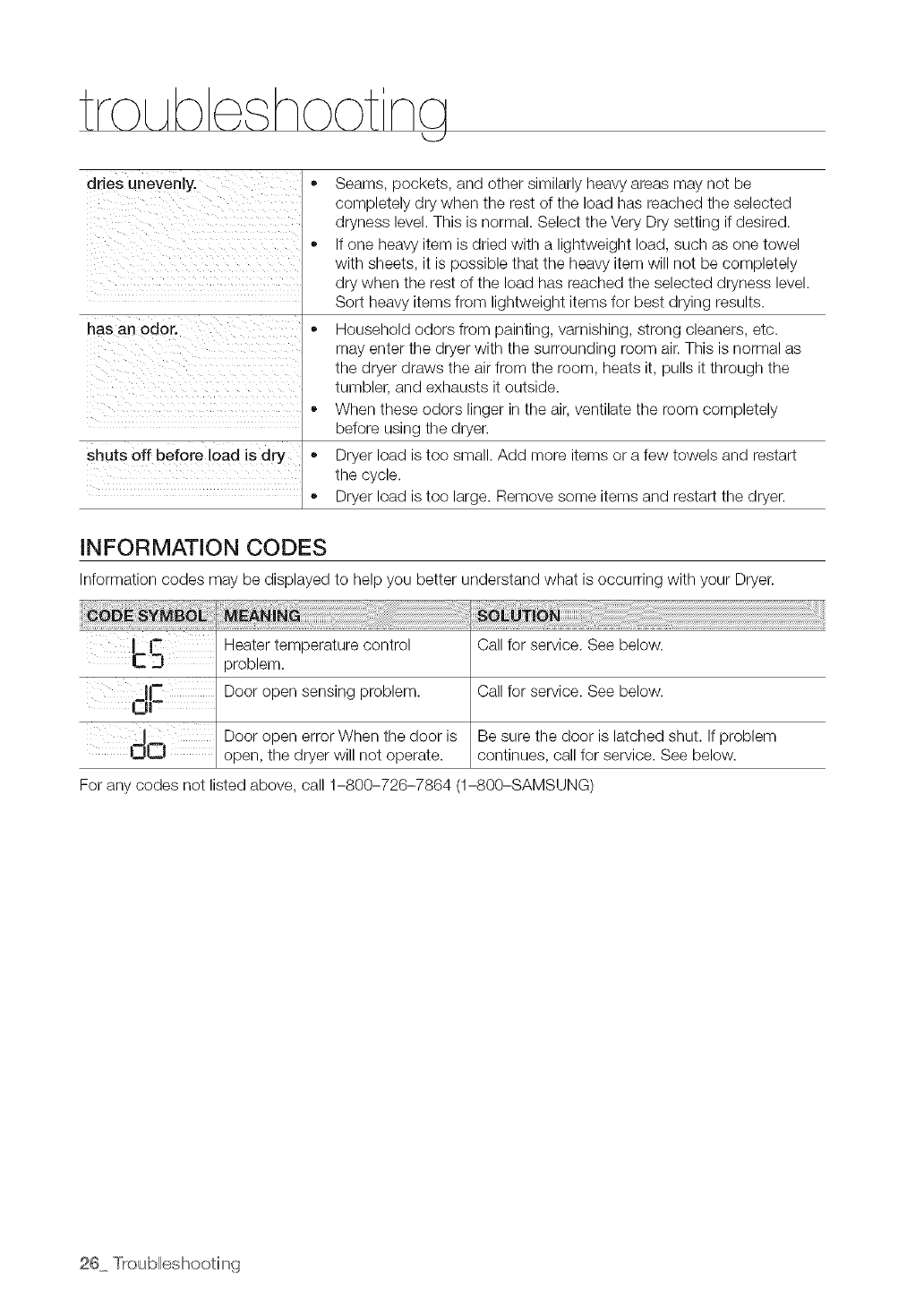

INFORMATION CODES
Information codes may be displayed to help you better understand what is occurring with your Dryer.
5
II"
Of-
do
Heater temperature control
problem.
Door open sensing problem.
Door open error When the door is
open, the dryer will not operate.
Call for service. See below.
Call for service. See below.
Be sure the door is latched shut. If problem
continues, call for service. See below.
For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG)
![](asset-1b.png)
FABRIC CARE CHART
The following symbols provide garment care direction. The Clothing care labels include symbols for
washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures
consistency among garment manufacturers of domestic and imported items. Follow care label directions to
maximize garment life and reduce laundering problems.
Normal
Permanent Press /
Wrinkle Resistant /
Wrinkle Control
Gentle/Delicates
' Hand Wash
Any Bleach (when
needed)
Only Non-Chlorine
/color-safe/
Bleach (when needed)
Tumble Dry Cycle
_[_ Permanent Press/
Wrinkle Resistant/
Wrinkle Control
Gentle/Delicates
Line Dry/Hang to Dry
[] IDrip Dry
Dry Flat
_...l I High
Medium
Low
Any Heat
I High
i
0 1
I
Do Not Wash
Do Not Wring
Do Not Bleach
Do Not Tumble Dry
No Steam (added to
iron)
Do Not Iron
Dry Clean
Do Not Dry Clean
Line Dry/Hang to Dry
Drip Dry
Medium
Low
[] IDry Flat
i
** The dot symbols represent appropriate wash water temperatures for various items. The
temperature range for Hot is 105 ° -125 ° F/41 o_ 52° C, for Warm 85 ° - 105° F/29° - 41 o C and for
Cold 60 ° - 85° F/16 ° - 29° C. (Wash water temperature must be a minimum of 60° F/16 ° C for
detergent activation and effective cleaning.)
![](asset-1c.png)
PROTECTING THE ENVIRONMENT
This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
DECLARATION OF CONFORMITY
This appliance complies with UL2158.
SPECIFICATION
I i
DIMENSION Div ' Inches (cm) Div
A. Height 38" (96.5) C. Depth with
door open 90 °
B. Width
WEIGHT
HEATER RATING
POWER NO HEAT
CONSUMPTION HEATING
Inches (cm)
49" (124.5)
27" (68.6) D. Depth 30.25" (77.0)
56.8 kg
5300 W
268 W
5445 W
![](asset-1d.png)
CYCLE CHART
High
(Medium)
High (No
change)
Sensor Dry High
(Medium)
Medium Low
(No change)
Low (No
Delicates change)
, Freshen Up High (No
change)
High
Manual Dry
, Wrinkle Medium
Release
Normal
Heavy Duty
Towels
Perr'n Press
Normal dry
Normal dry
Normal dry
Normal dry
Normal dry
44 rain
60 rain
52 min
34 rain
29 rain
iiiiiiiiiiiiiiiiii_i{iii_i_i_ii_iiii!iiiii!_ii{{{{{_i_iiiiiiiiiiiiiiii_i_iiiiiiiiiiii'i;i_i_i_i_il{i_ili!iiiiiiiiiii_i!i{{iiiilililililililililililili
39 rain 5 min
55 rain 5 min
47 min 5 rain
24 min 10 min
24 rain 5 rain
(No change)
30 rain
40 min
25 min
20 rain
25 min
35 min
20 min
5 min
5 rain
5 min
20 rain
i!!!!!!!!!!!!!!!!iiiiiiiiiiiiii_%!_i_iiii!!iiii!iiiiii_i_iiii,!ii_i{_i{_
90 rain
90 rain
90 rain
90 rain
90 rain
![](asset-1e.png)

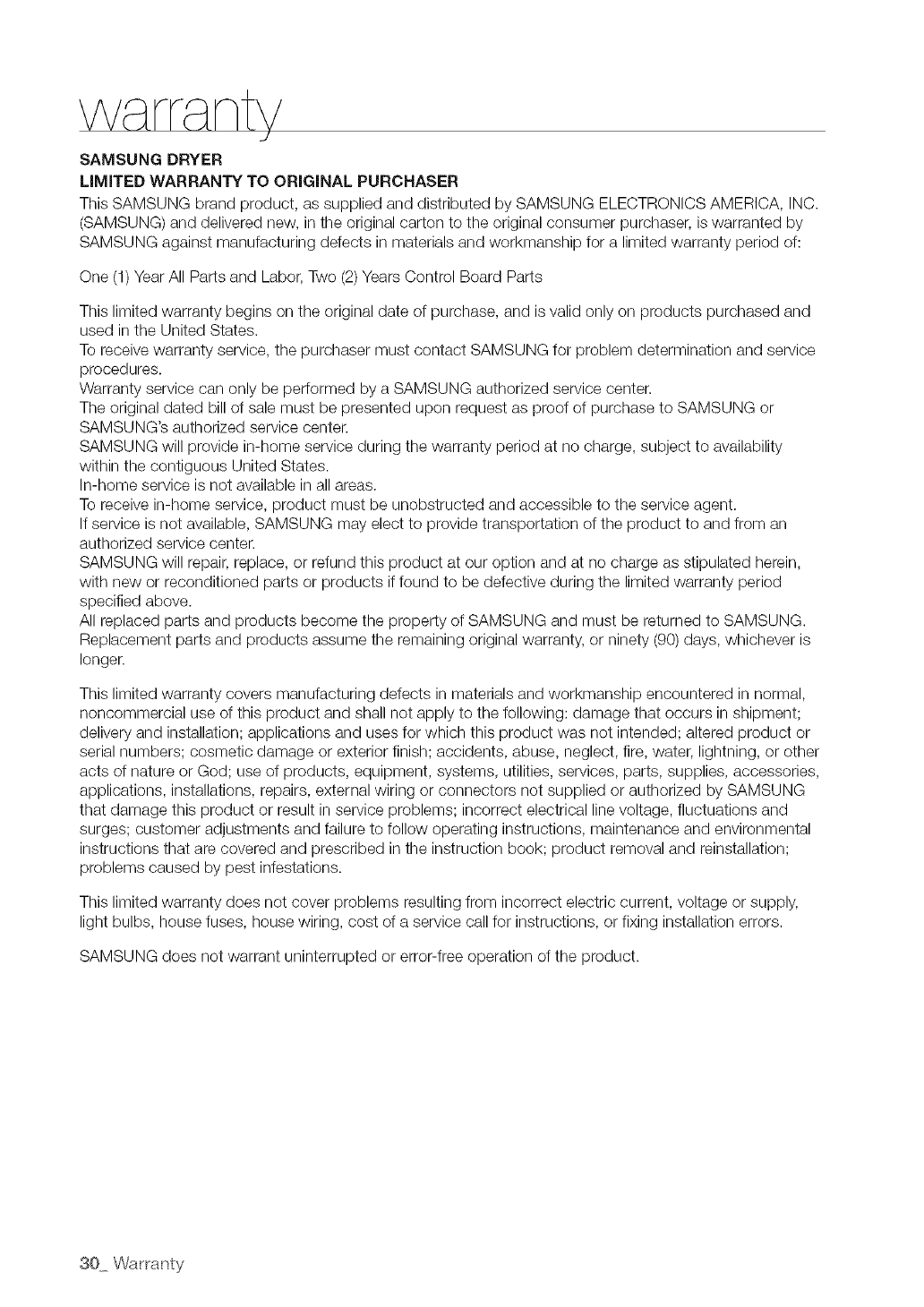

w rr nt7
SAMSUNG DRYER
LiMiTED WARRANTY TO ORiGiNAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by
SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year All Parts and Labor, Two (2) Years Control Board Parts
This limited warranty begins on the original date of purchase, and is valid only on products purchased and
used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service
procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or
SAMSUNG's authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability
within the contiguous United States.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to and from an
authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,
with new or reconditioned parts or products if found to be defective during the limited warranty period
specified above.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is
longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;
delivery and installation; applications and uses for which this product was not intended; altered product or
serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other
acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,
applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG
that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and
surges; customer adjustments and failure to follow operating instructions, maintenance and environmental
instructions that are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply,
light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
![](asset-1f.png)
EXCEPTASSETFORTHHEREIN,THEREARENOWARRANTIESONTHISPRODUCTEITHEREXPRESS
ORIMPLIED,ANDSAMSUNGDISCLAIMSALLWARRANTIESINCLUDING,BUTNOTLIMITEDTO,ANY
IMPLIEDWARRANTIESOFMERCHANTABILITY,INFRINGEMENTORFITNESSFORAPARTICULAR
PURPOSE.
NOWARRANTYORGUARANTEEGIVENBYANYPERSON,FIRM,ORCORPORATIONWITHRESPECT
TOTHISPRODUCTSHALLBEBINDINGONSAMSUNG.
SAMSUNGSHALLNOTBELIABLEFORLOSSOFREVENUEORPROFITS,FAILURETOREALIZE
SAVINGSOROTHERBENEFITS,ORANYOTHERSPECIAL,INCIDENTALORCONSEQUENTIAL
DAMAGESCAUSEDBYTHEUSE,MISUSE,ORINABILITYTOUSETHISPRODUCT,REGARDLESSOF
THELEGALTHEORYONWHICHTHECLAIMISBASED,ANDEVENIFSAMSUNGHASBEENADVISED
OFTHEPOSSIBILITYOFSUCHDAMAGES.
NORSHALLRECOVERYOFANYKINDAGAINSTSAMSUNGBEGREATERINAMOUNTTHANTHE
PURCHASEPRICEOFTHEPRODUCTSOLDBYSAMSUNGANDCAUSINGTHEALLEGEDDAMAGE.
WITHOUTLIMITINGTHEFOREGOING,PURCHASERASSUMESALLRISKANDLIABILITYFORLOSS,
DAMAGE,ORINJURYTOPURCHASERANDPURCHASER'SPROPERTYANDTOOTHERSANDTHEIR
PROPERTYARISINGOUTOFTHEUSE,MISUSE,ORINABILITYTOUSETHISPRODUCT.
THISLIMITEDWARRANTYSHALLNOTEXTENDTOANYONEOTHERTHANTHEORIGINAL
PURCHASEROFTHISPRODUCT,ISNONTRANSFERABLEANDSTATESYOUREXCLUSIVEREMEDY.
Somestatesdonotallowlimitationsonhowlonganimpliedwarrantylasts,ortheexclusionorlimitation
ofincidentalorconsequentialdamages,sotheabovelimitationsorexclusionsmaynotapplytoyou.This
warrantygivesyouspecificrights,andyoumayalsohaveotherrights,whichvaryfromstatetostate.
Toobtainwarrantyservice, please contact SAMSUNG at:
SAMSUNG ELECTRONICS AMERICA, INC. - CONSUMER ELECTRONICS CUSTOMER SERVICE
400 Valley Read, Suite 201, Mt. Arlington, NJ 07856
1=800-SAMSUNG (1=800=726-7864)
www.samsung.cow|
![](asset-20.png)
QUESTIONS OR COMMENTS?
1 800 SAMSUNG
IN THE USA (726 7864) www.samsung.com Samsung Electronics America, Inc.
Code No. DC68-02453A-02 EN
