Imagine the possibilities

Thank you foJ"puJ'chasing this Samsung p_'oduct.

[_, ' ,'1 [/,@1 ,,,[-' [_%bl 1-[,11 -[ [_, --, 1 ,[,I _[,I[/L_I_I L'I4L ' L_144'

ontent

INSTALLING YOUR DRYER 7 Unpacking your dryer

7 Basic requirments

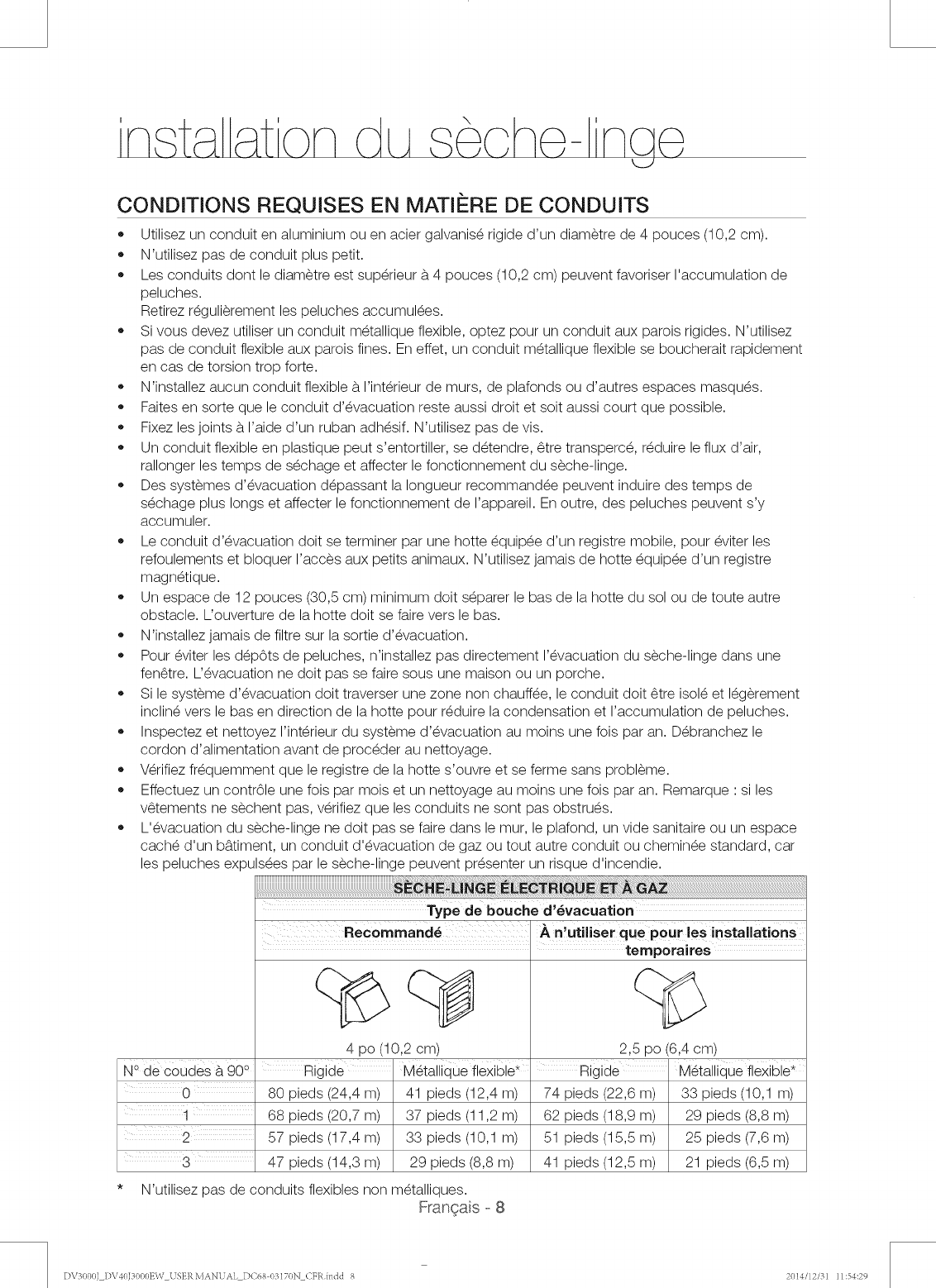

8 Ducting requirements

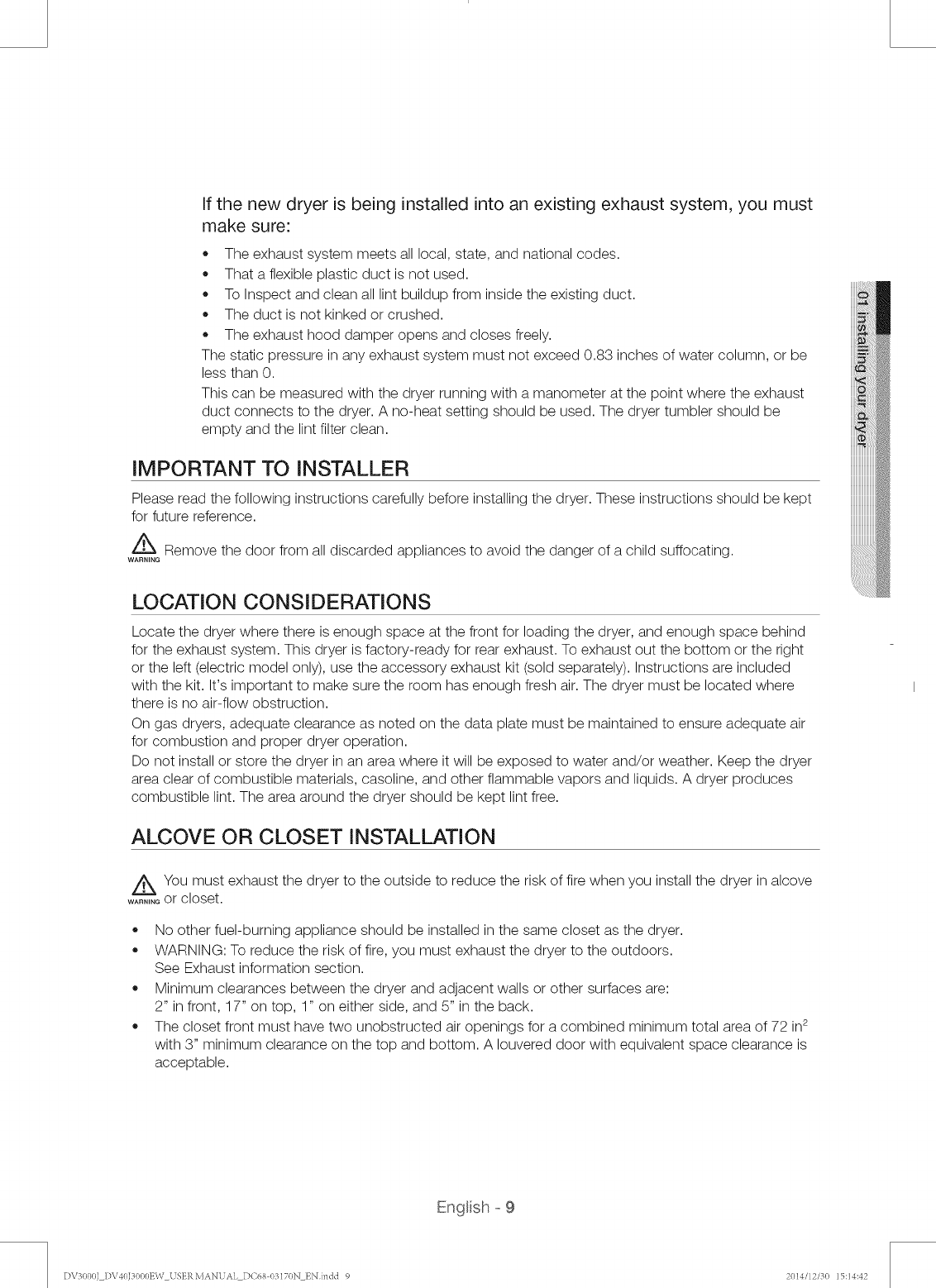

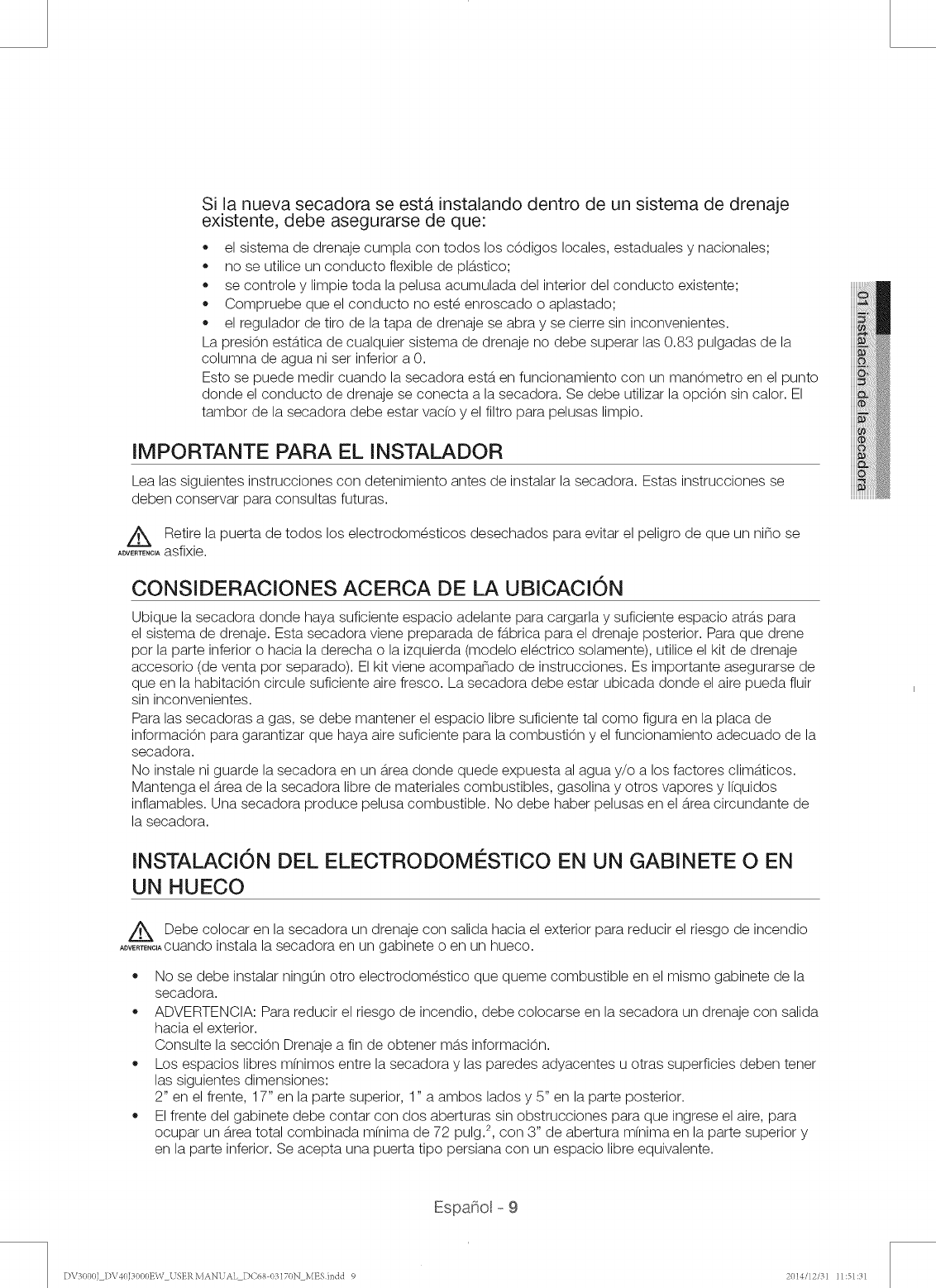

9 Important to installer

9 Location considerations

9 Alcove or closet installation

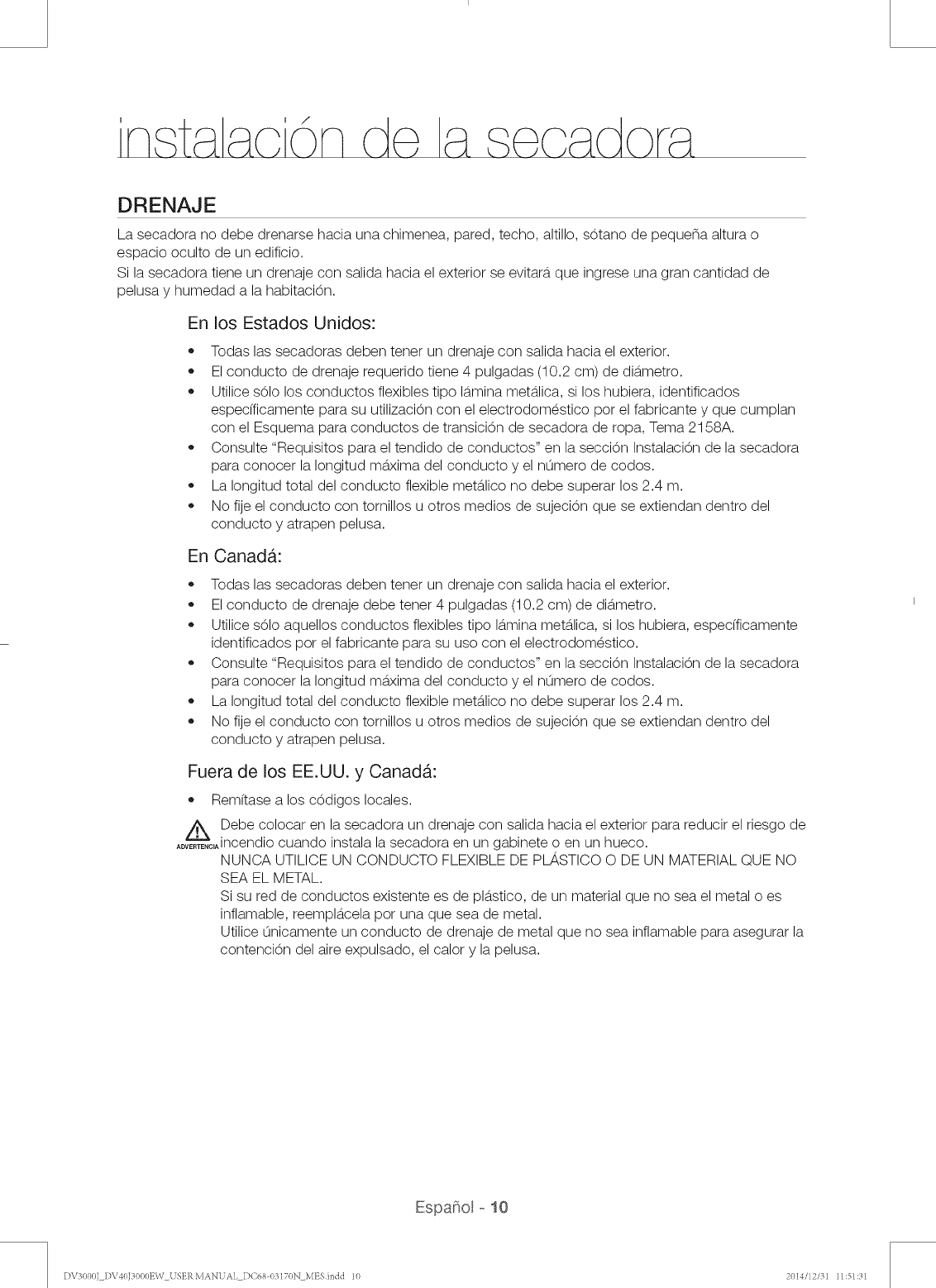

10 Exhausting

11 Gas requirements

11 Commonwealth of Massachusetts

installation instructions

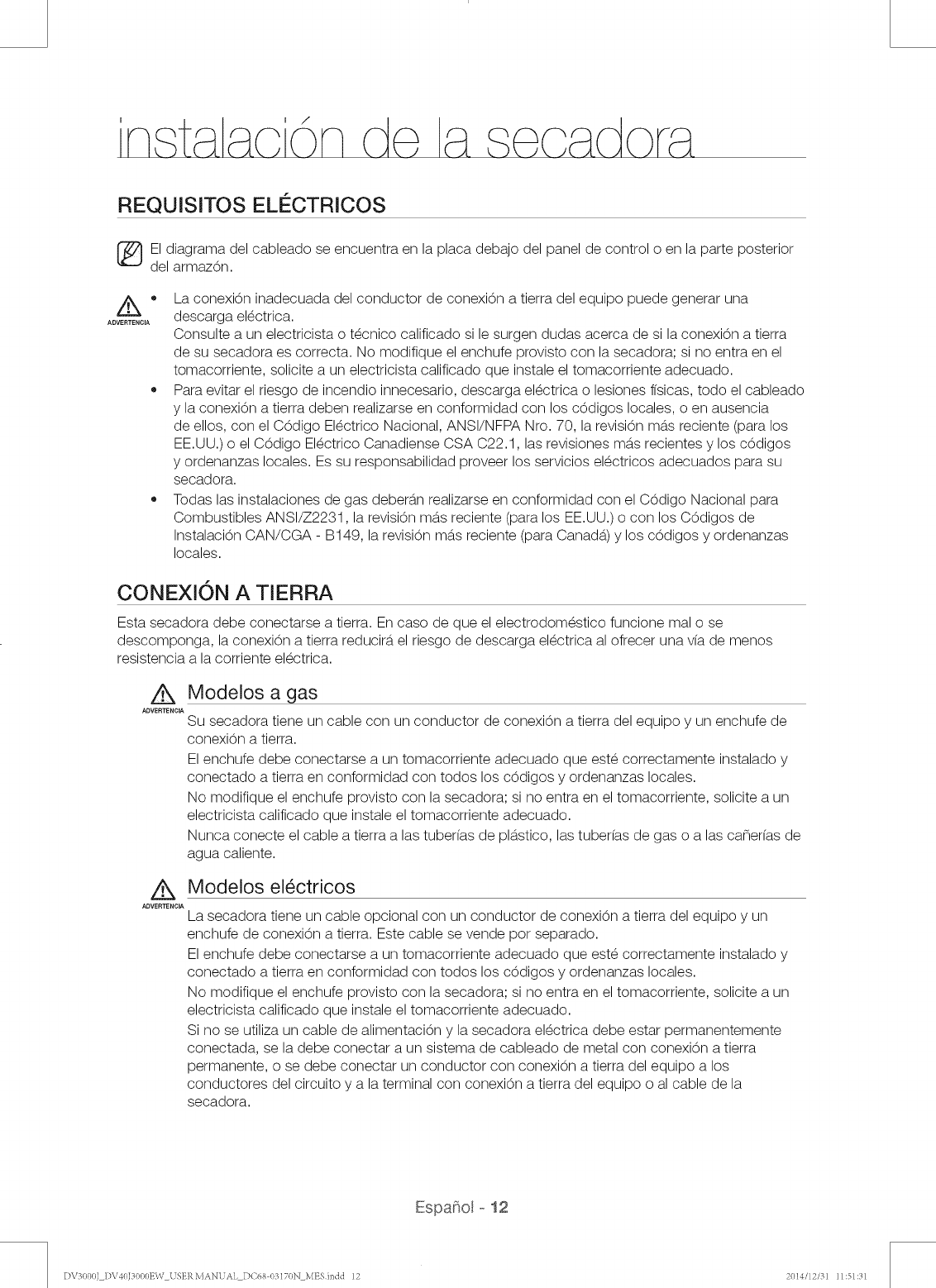

12 Electrical requirements

12 Grounding

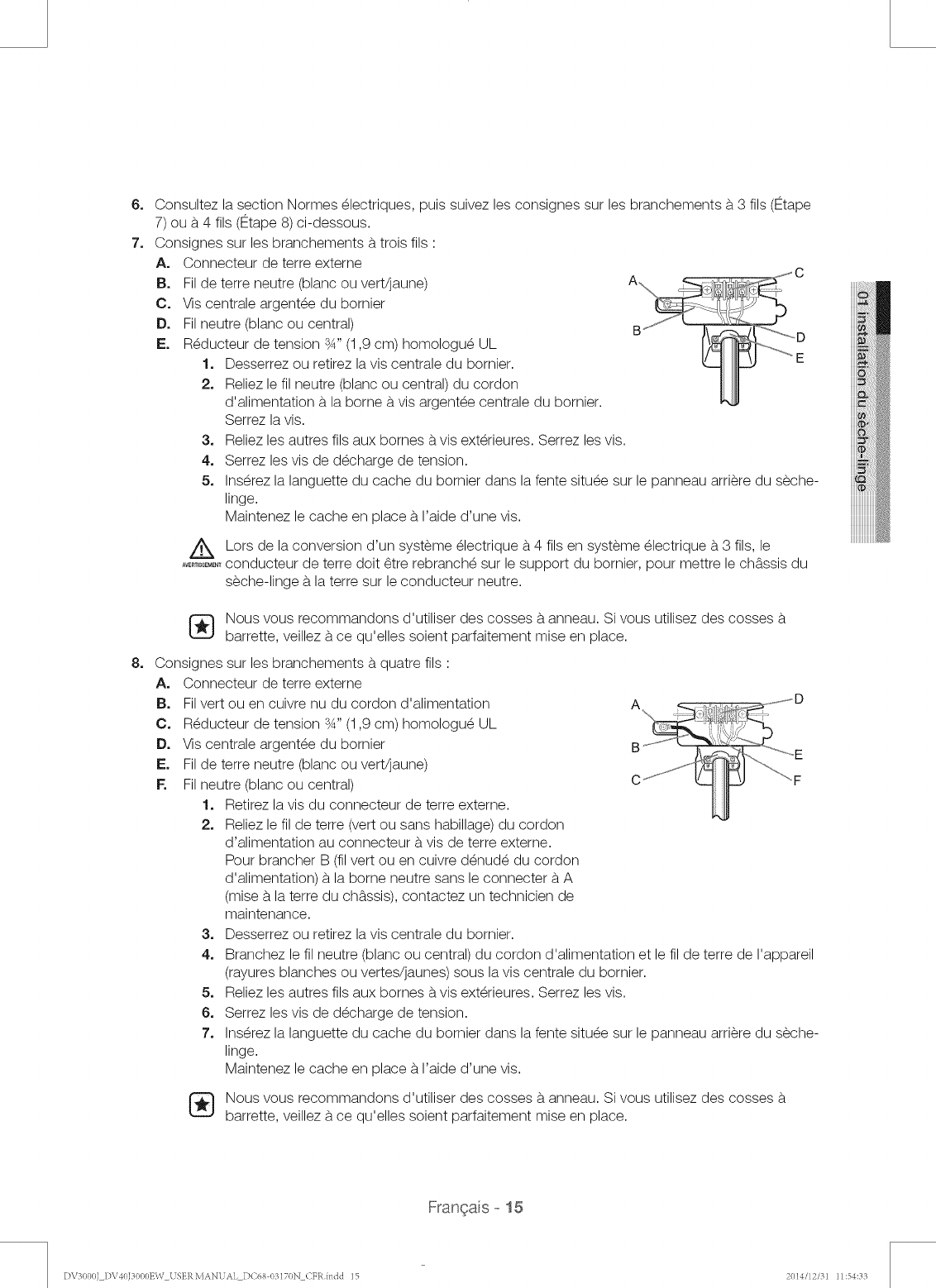

13 Electrical connections

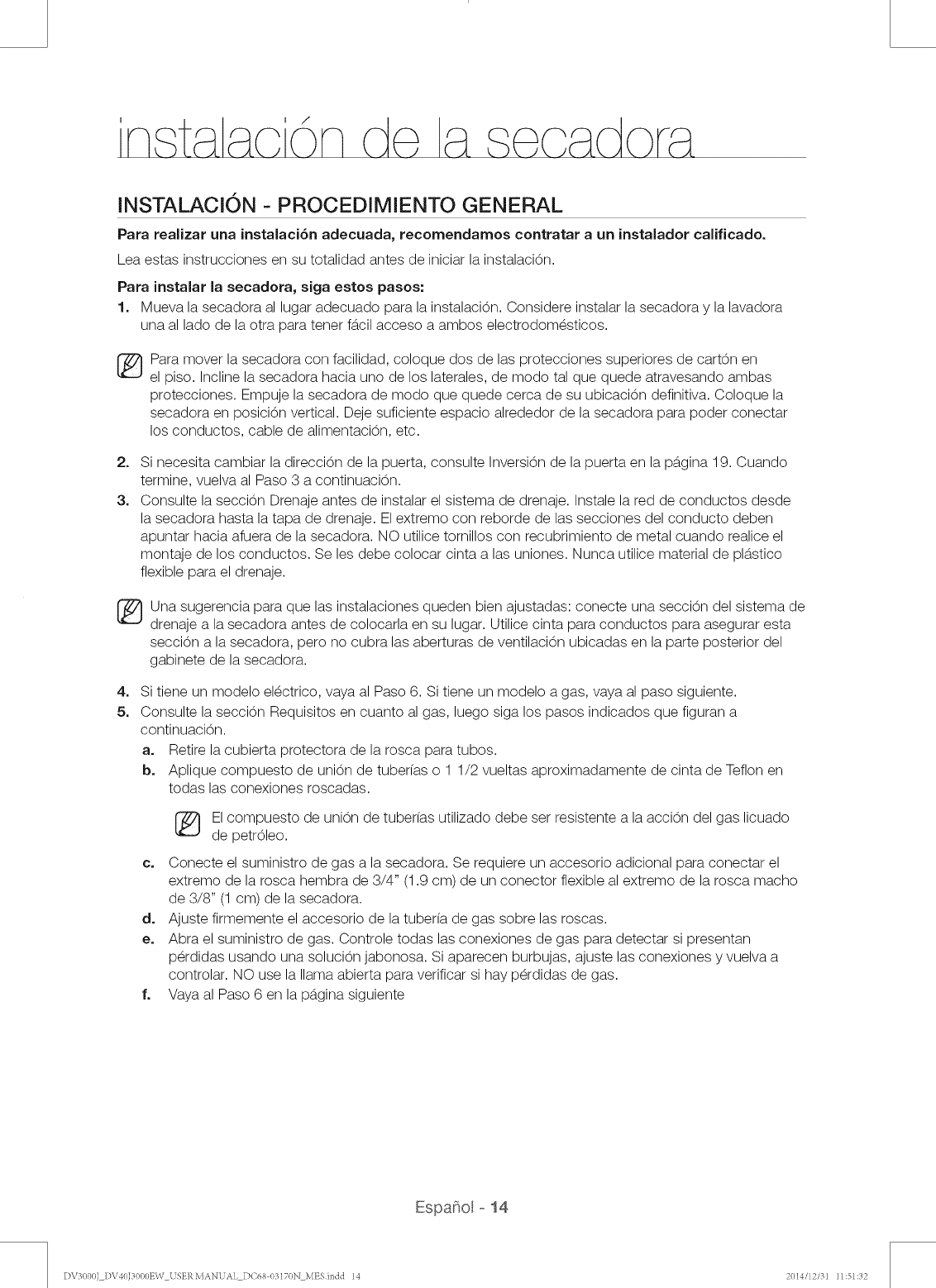

14 Installation - General procedure

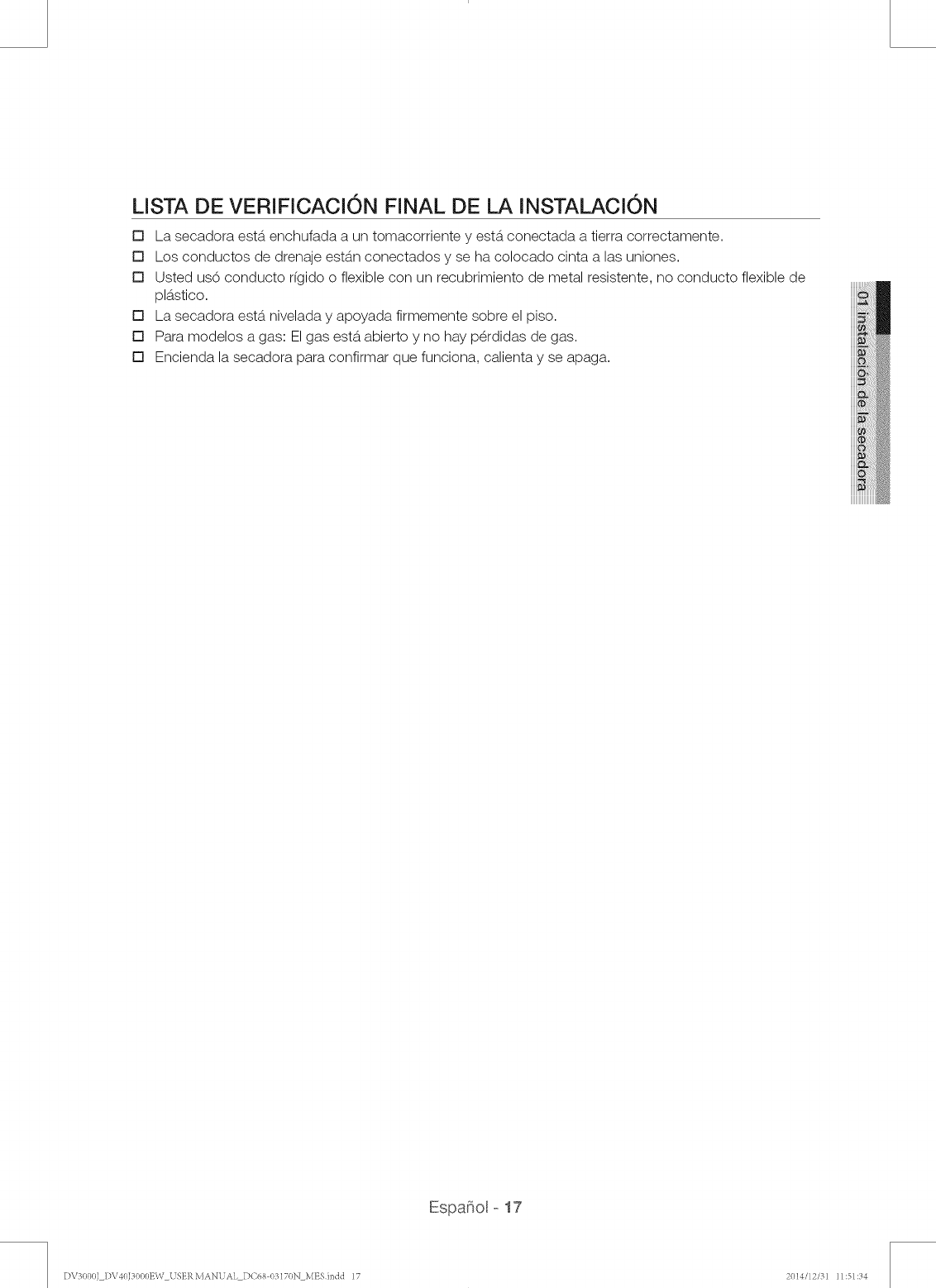

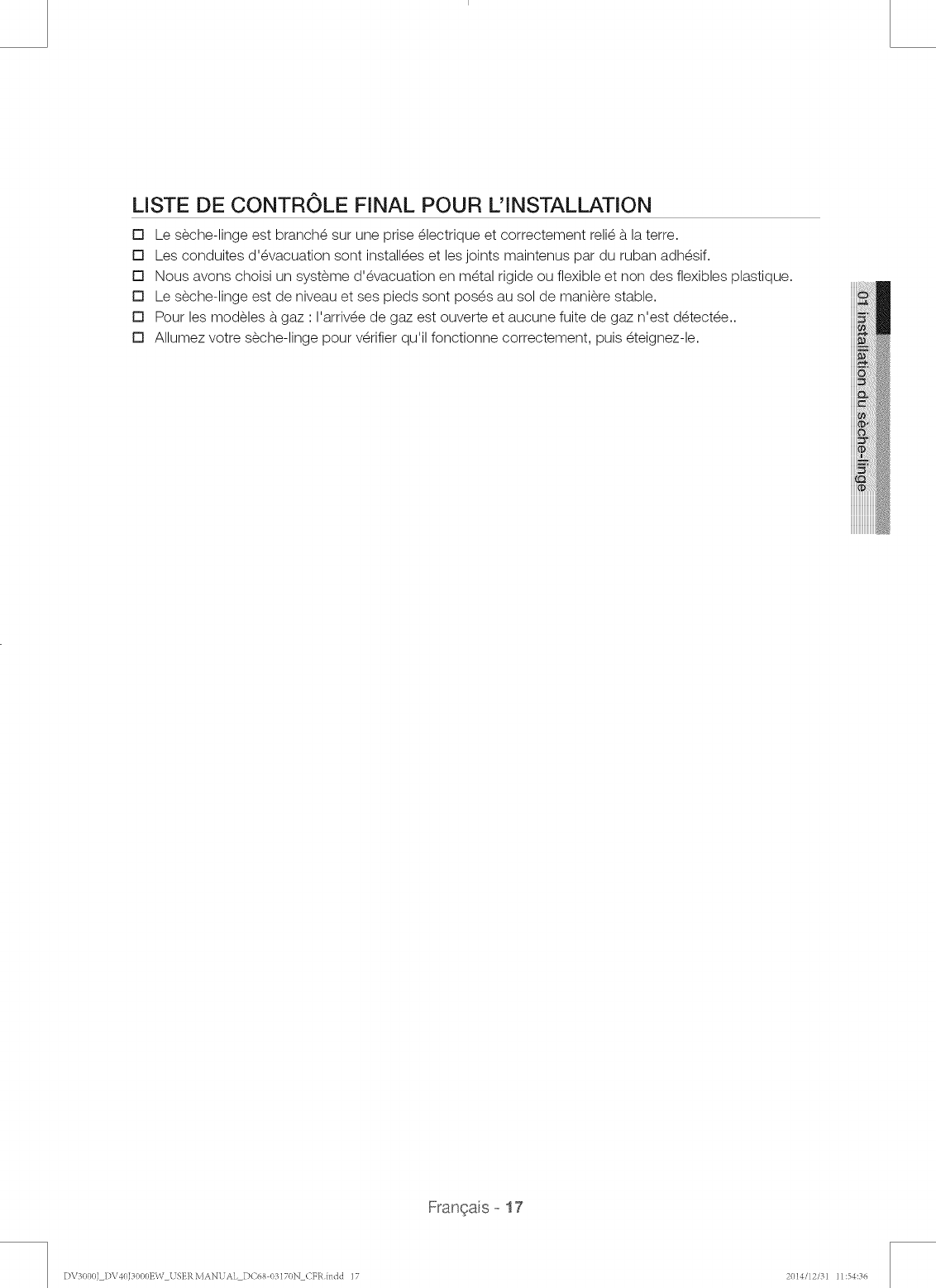

17 Final installation check list

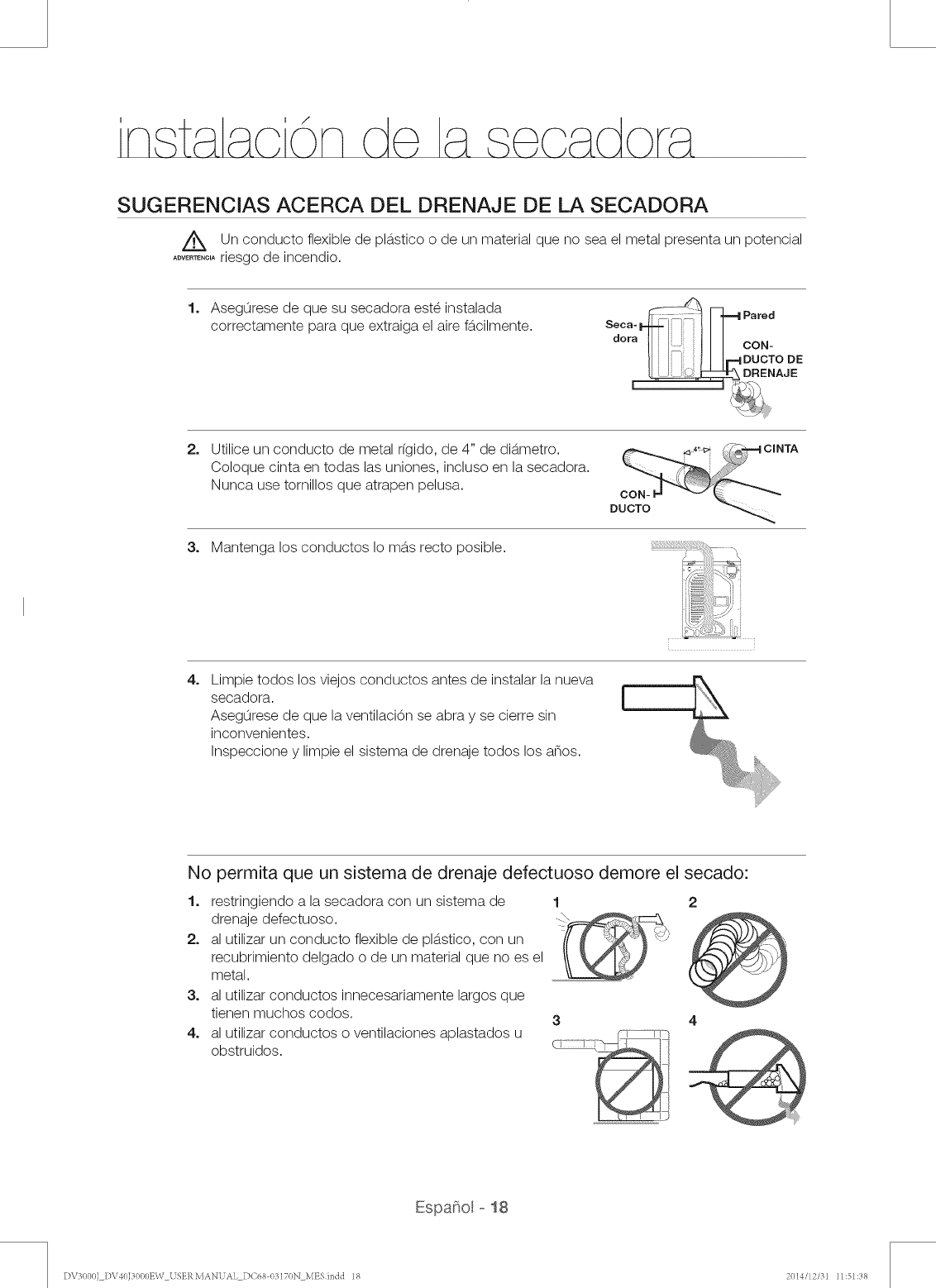

18 Dryer Exhaust Tips

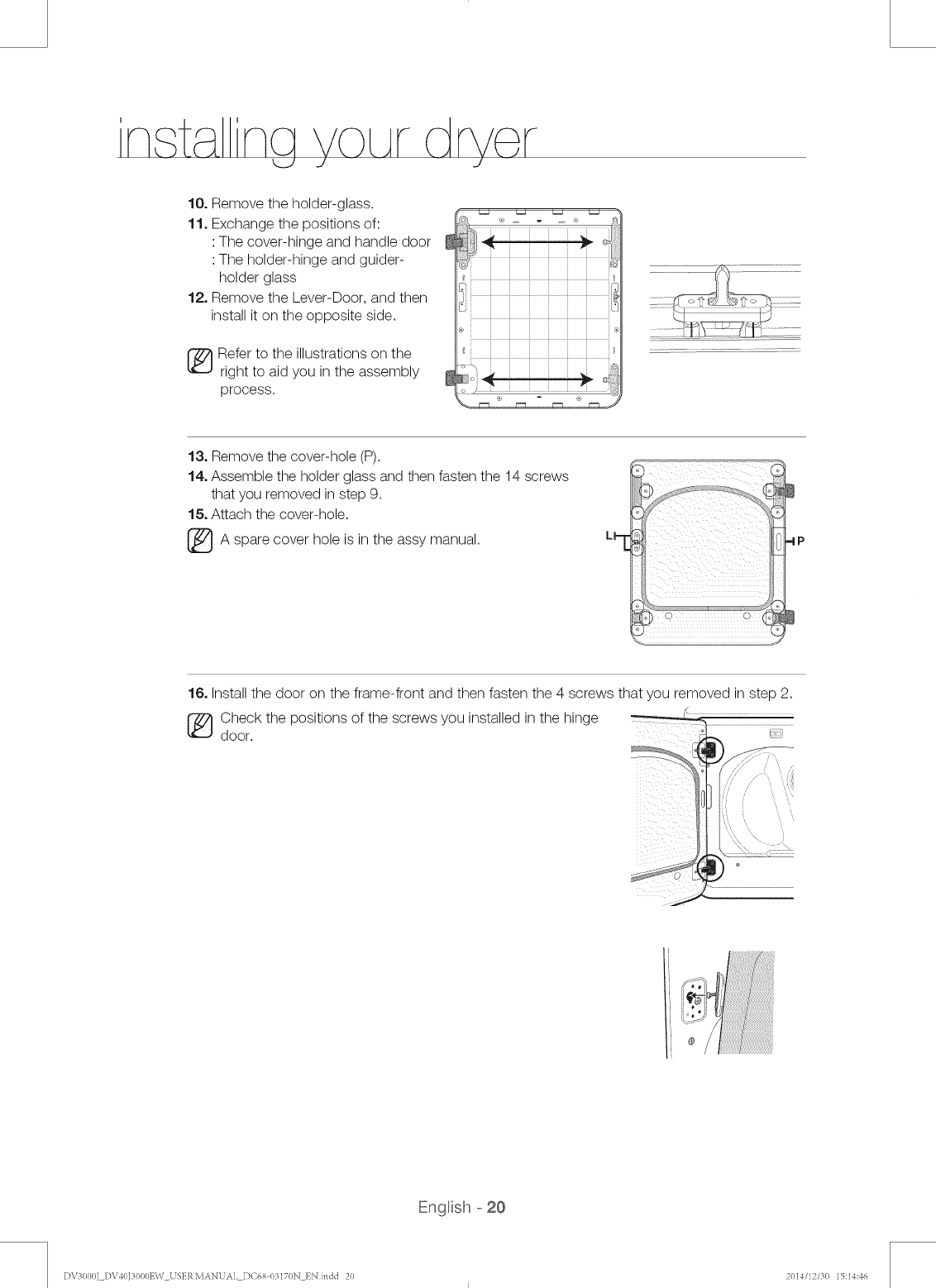

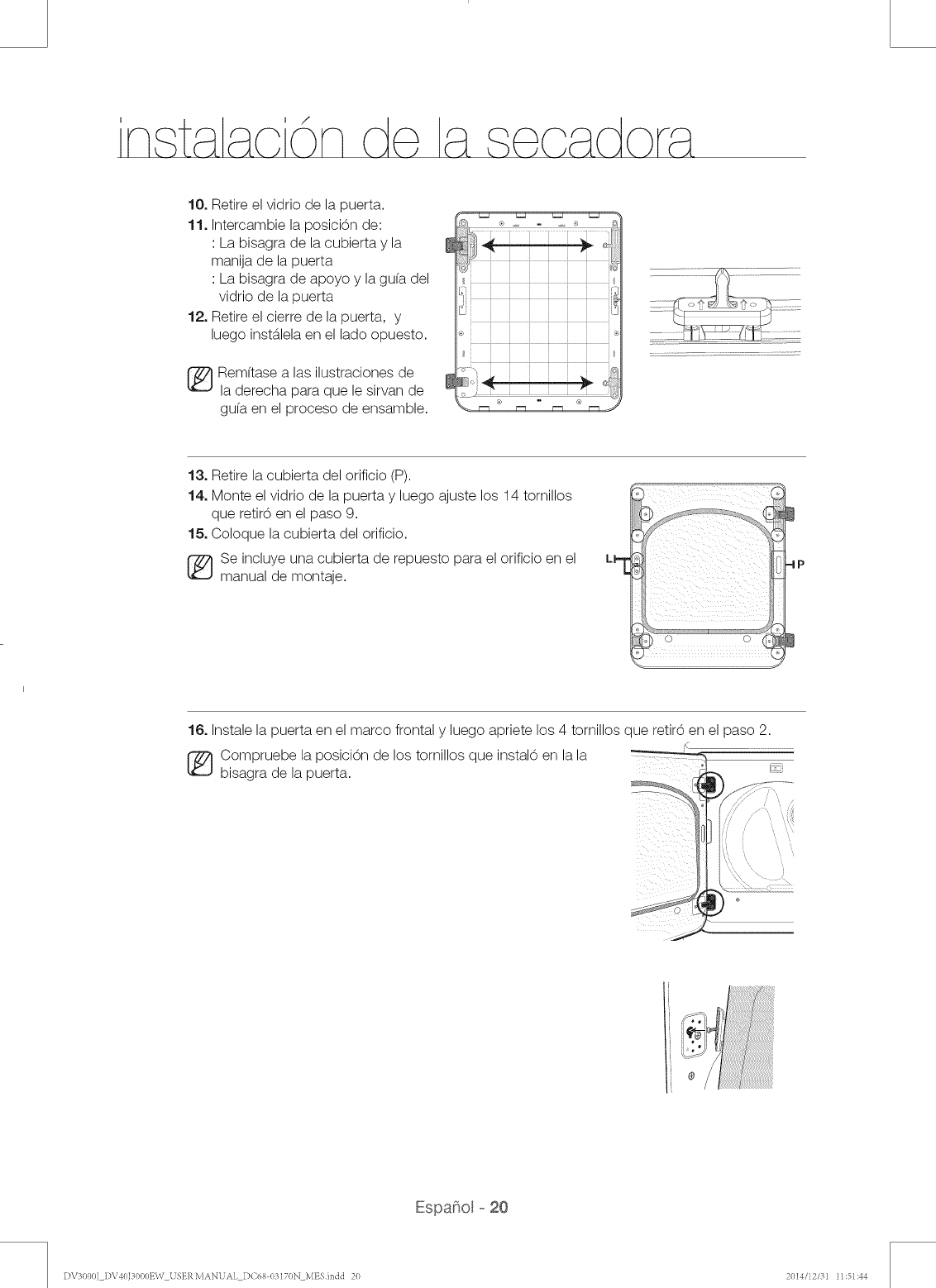

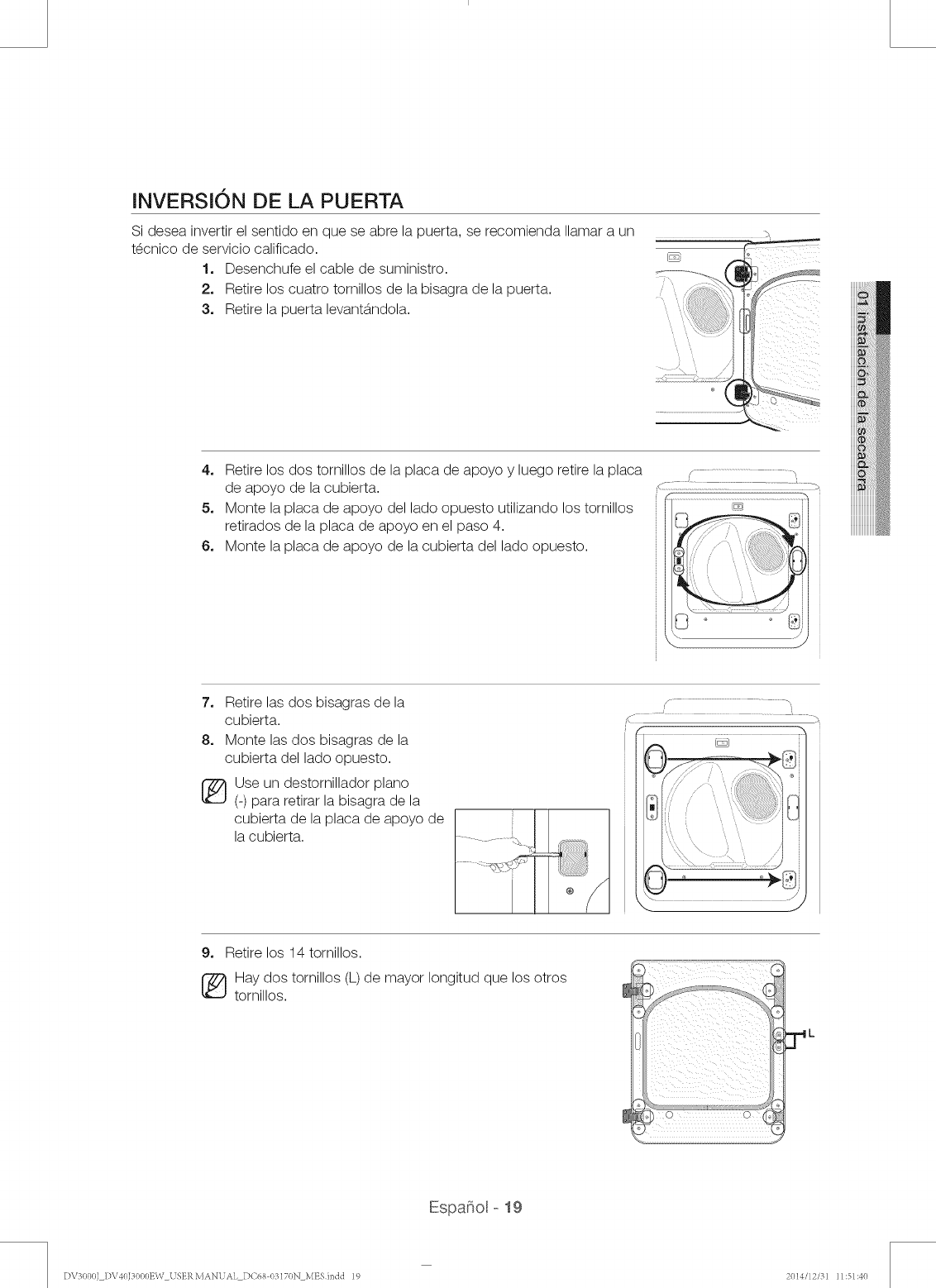

19 Door Reversal

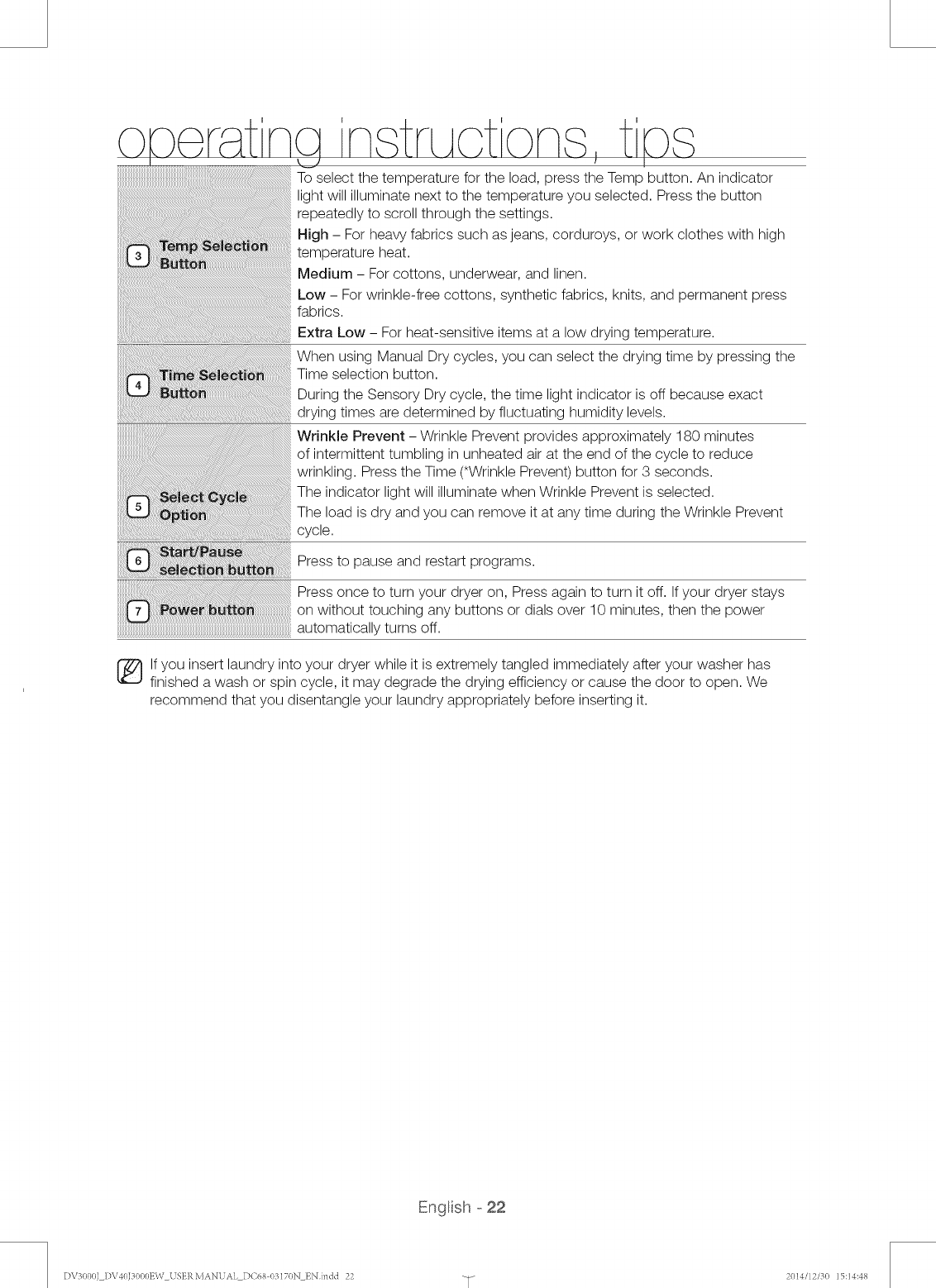

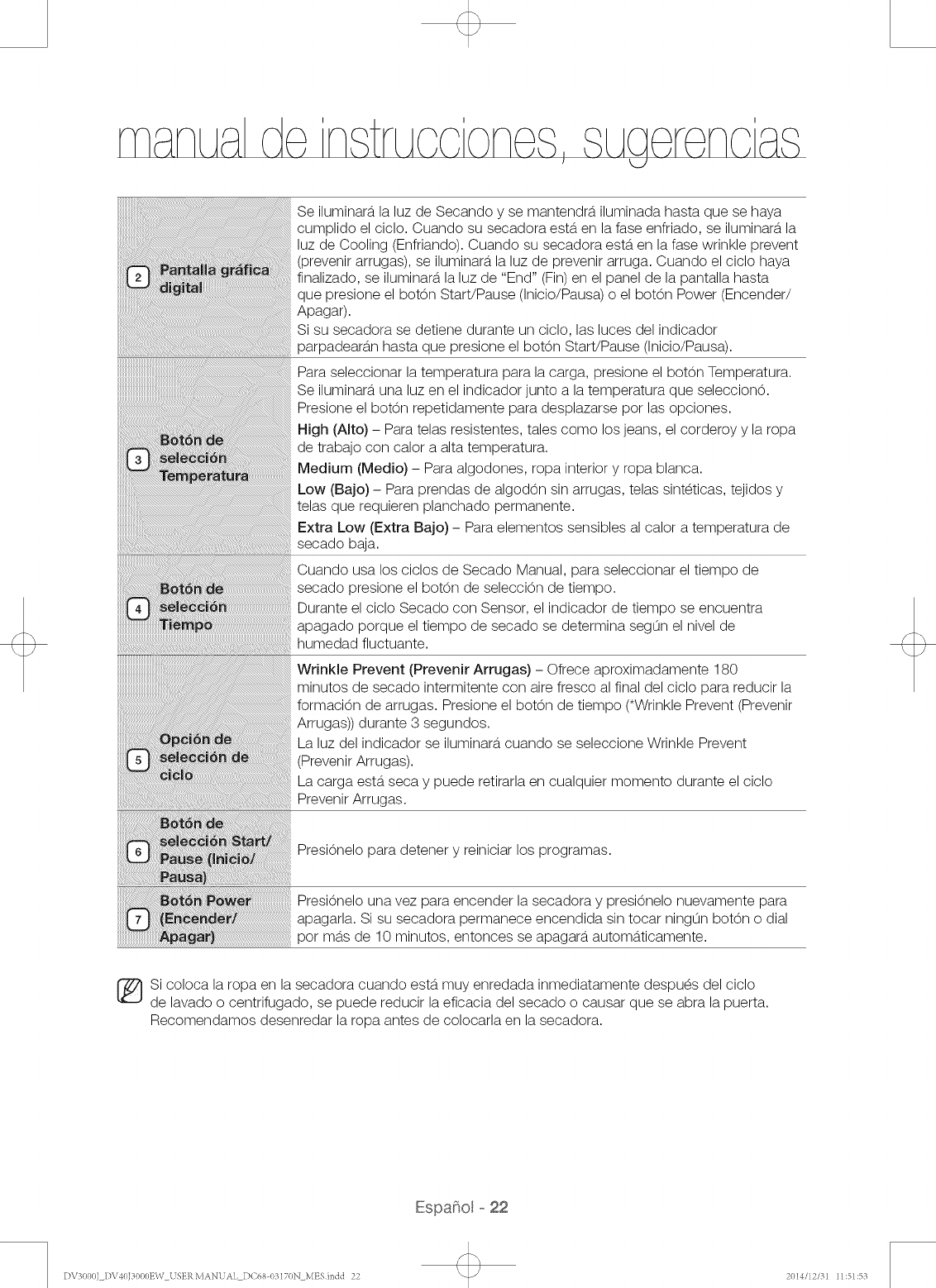

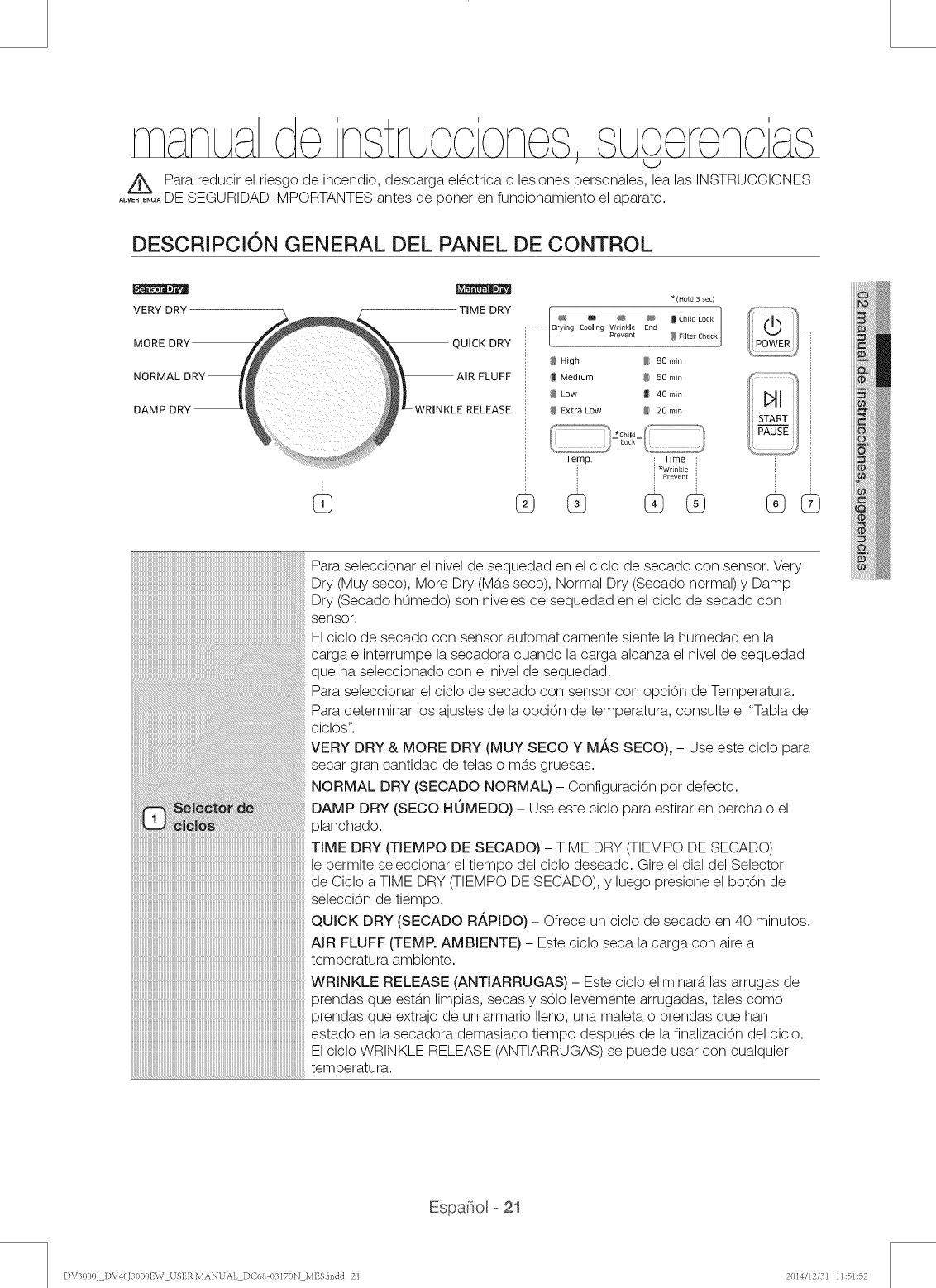

OPERATING INSTRUCTIONS, TIPS 21 Overview of the control panel

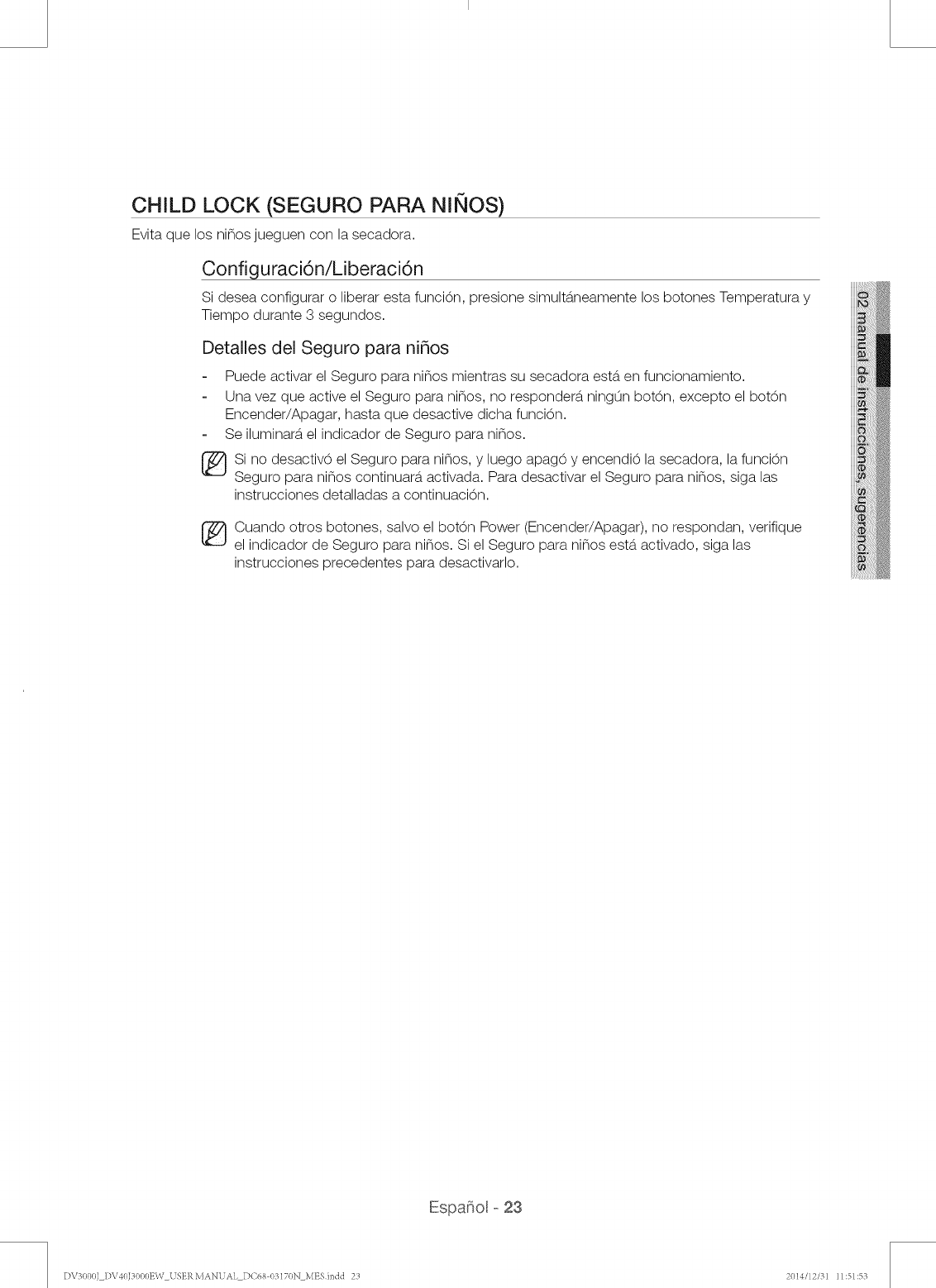

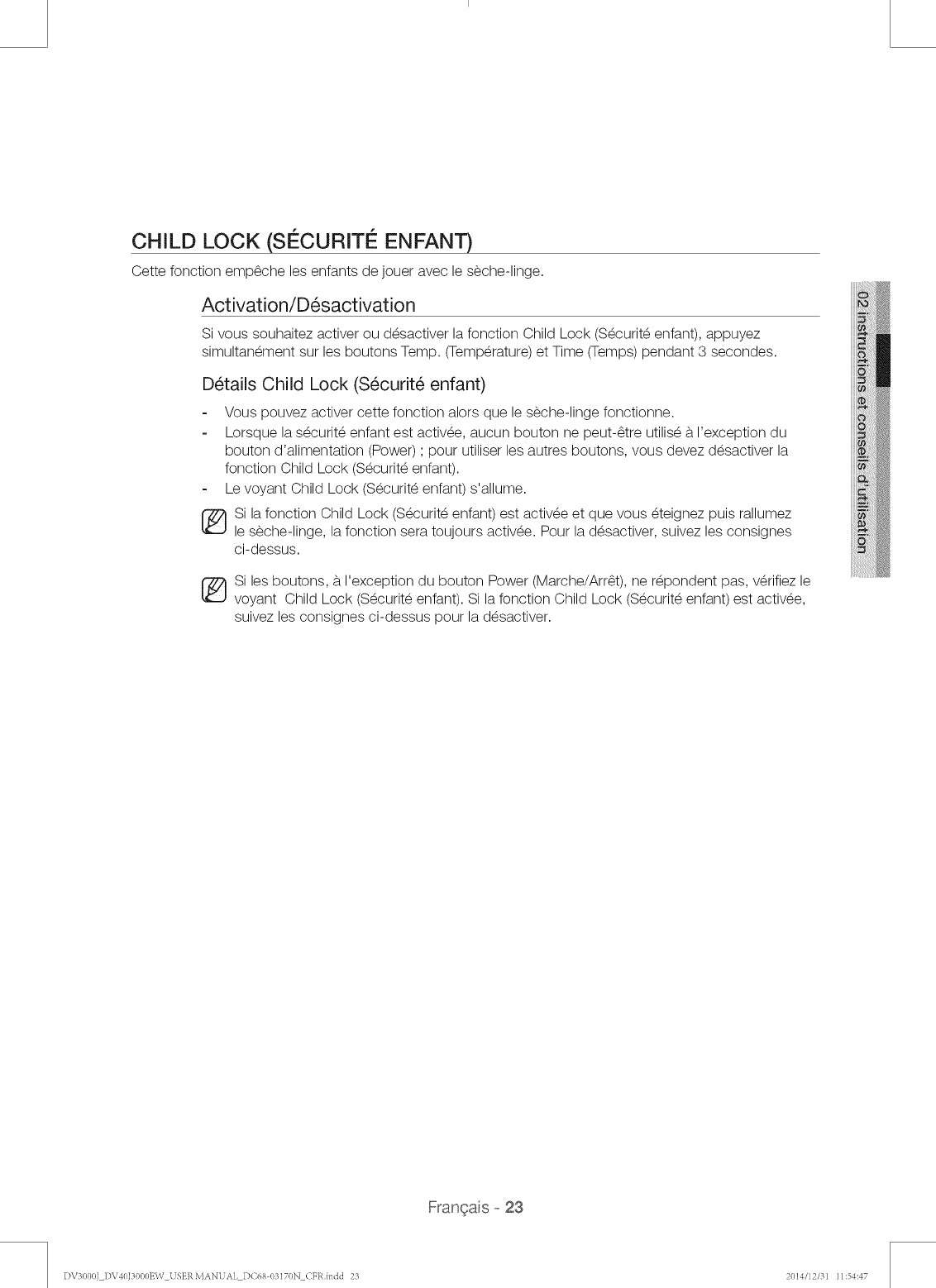

23 Child lock

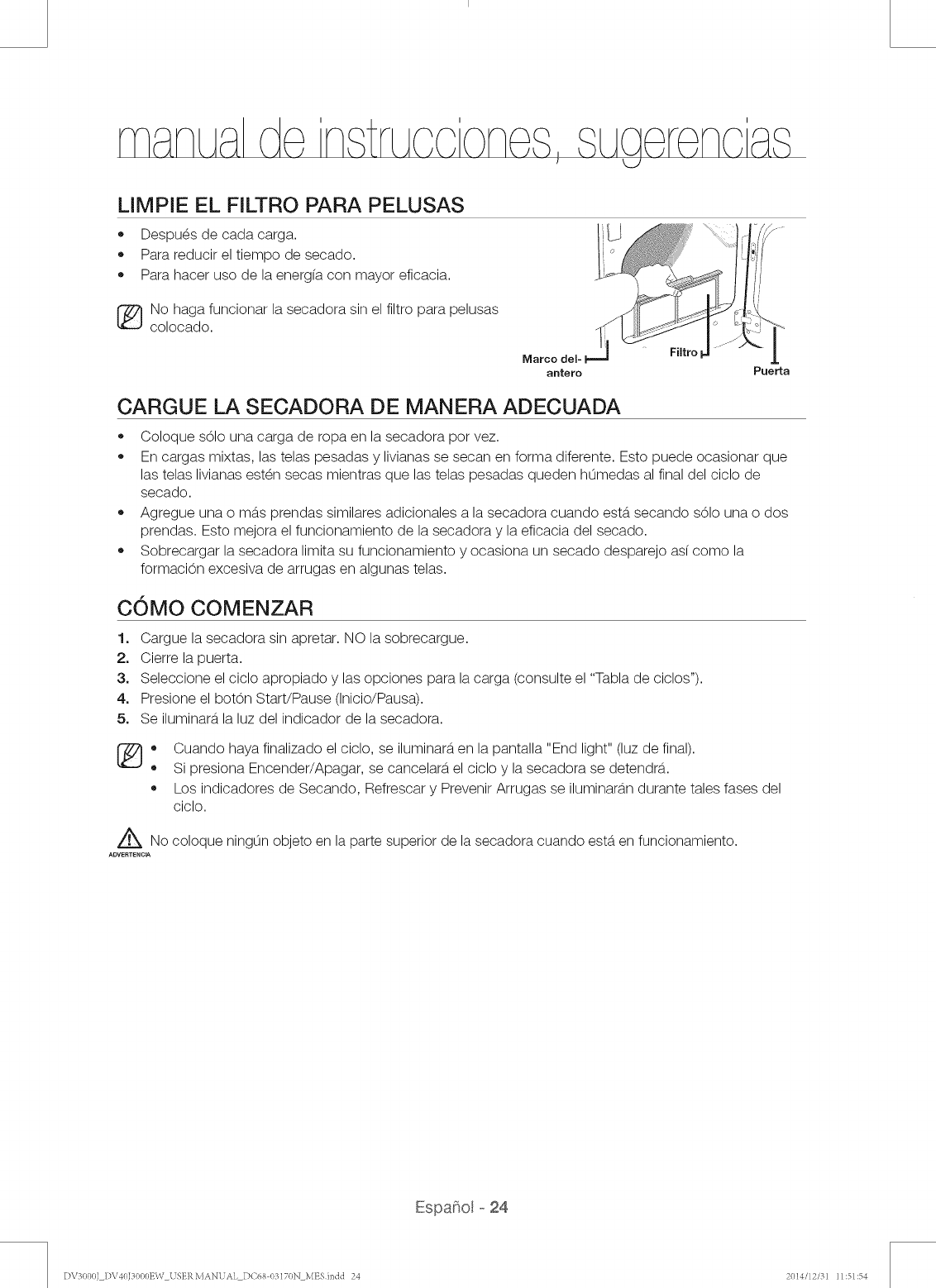

24 Clean the lint filter

24 Load the dryer properly

24 Getting started

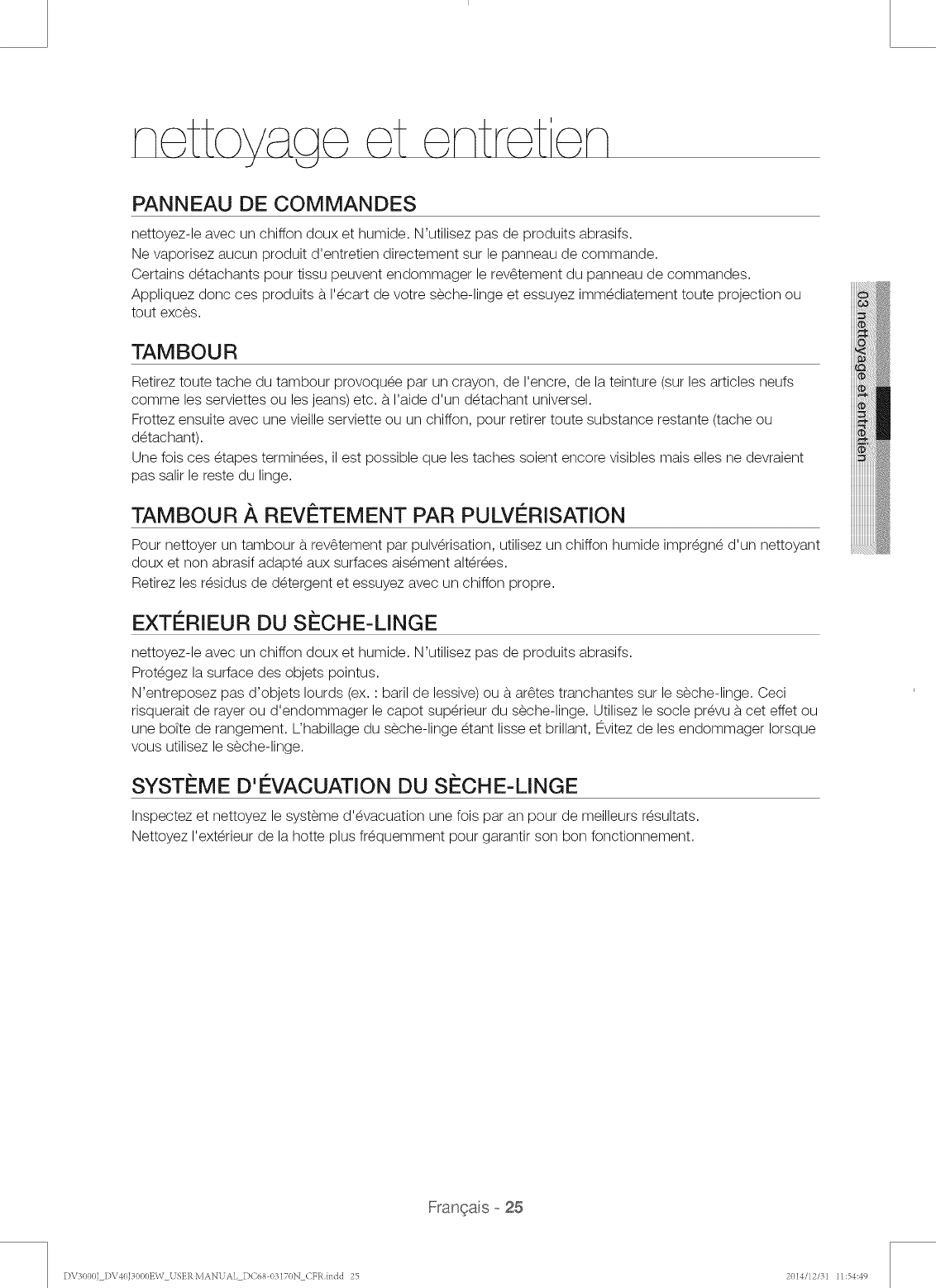

CARE AND CLEANING

SPECIAL LAUNDRY TIPS

25 Control Panel

25 Tumbler

25 Powder Coated Tumbler

25 Dryer Exterior

25 Dryer Exhaust System

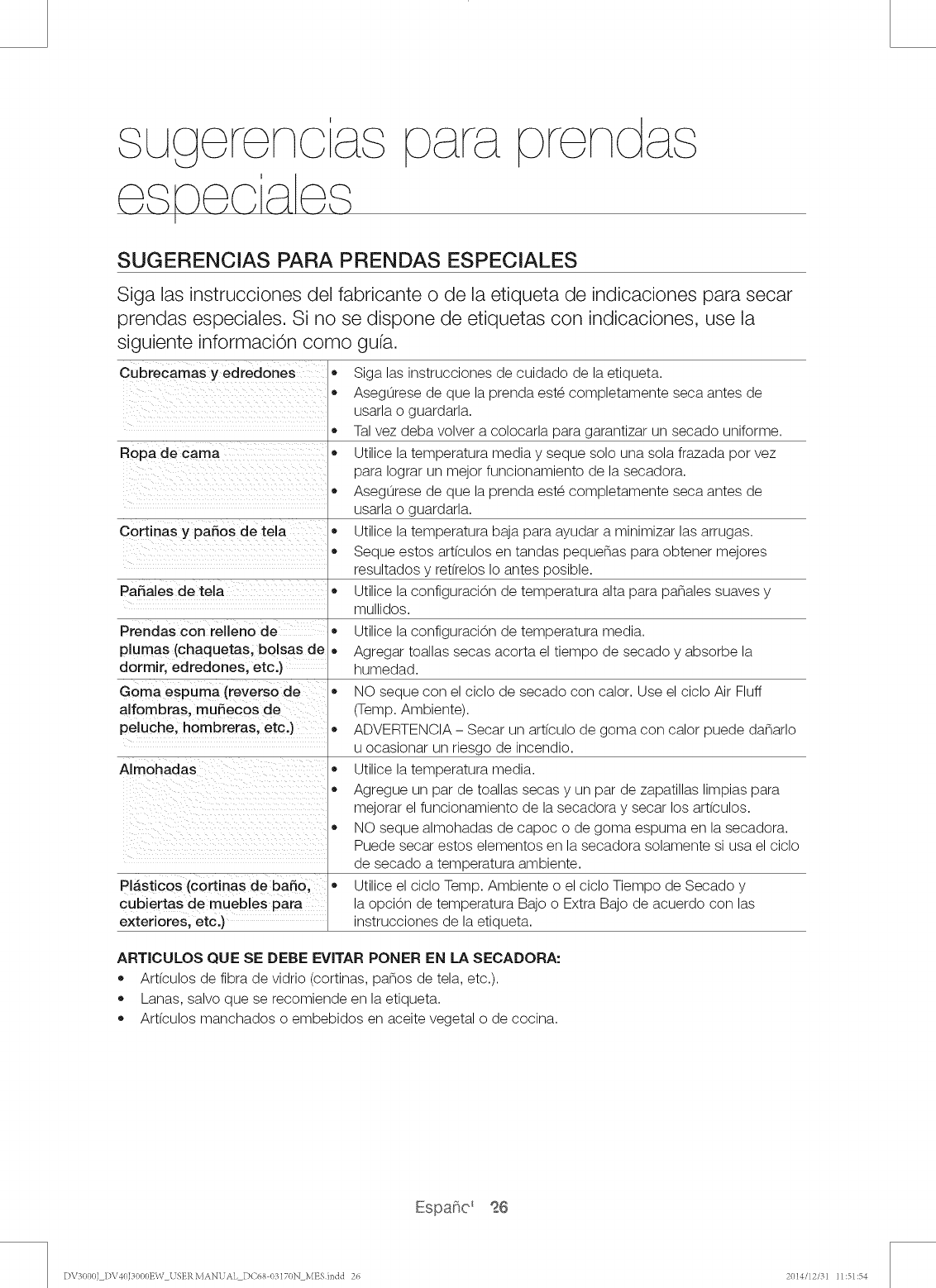

26 Special laundry tips

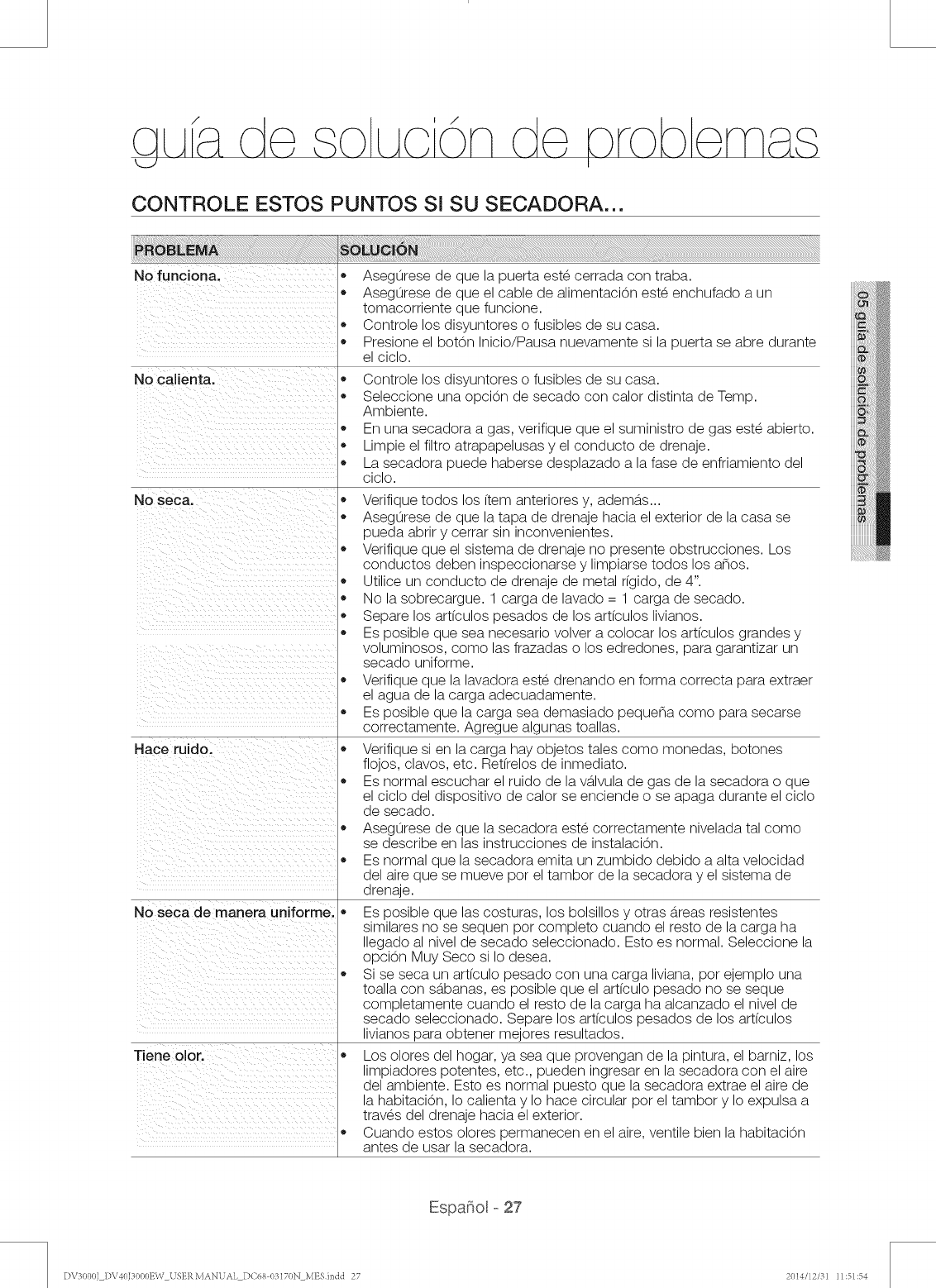

TROUBLESHOOTING 27 Check these points if your dryer.,.

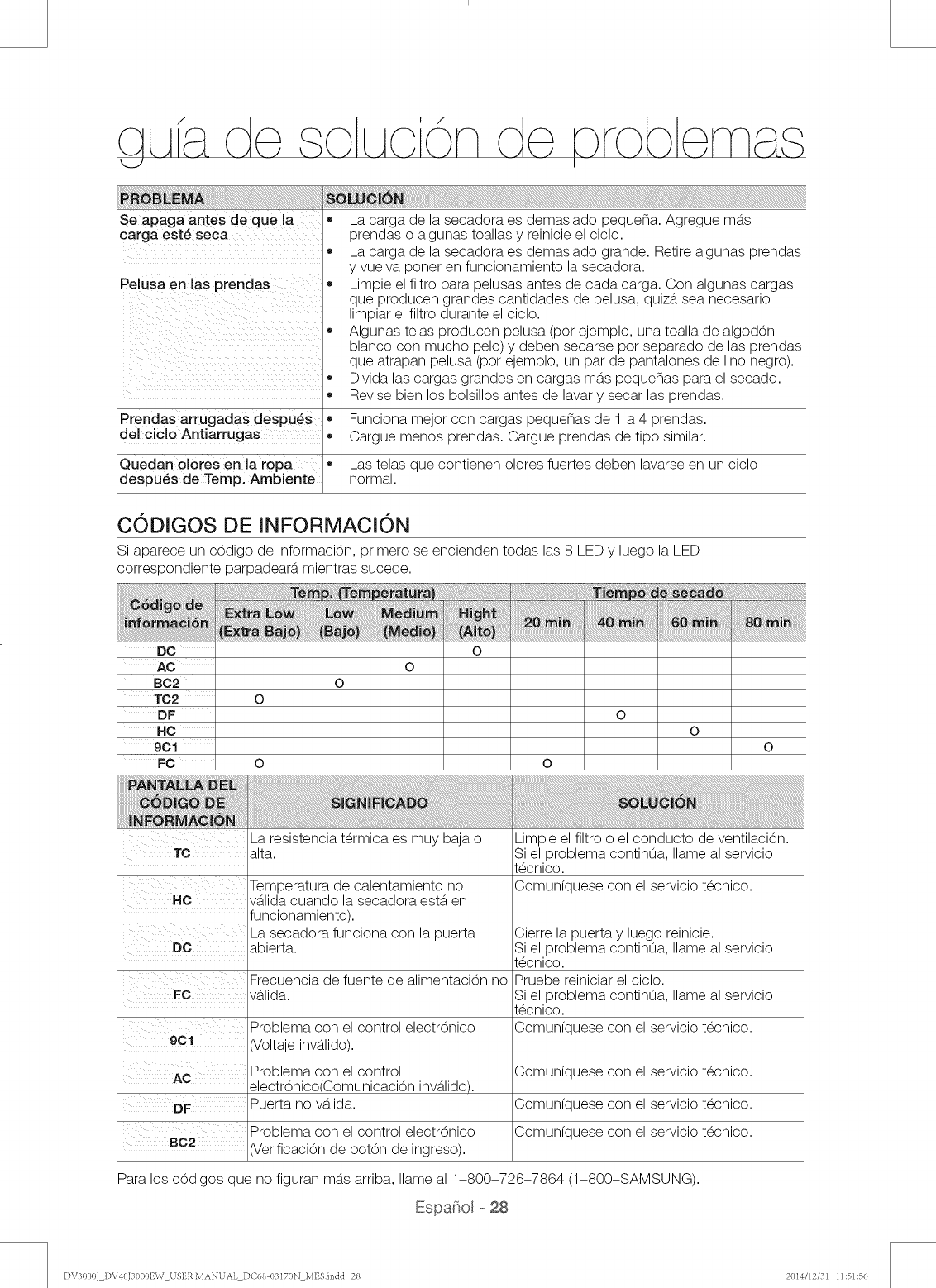

28 Information codes

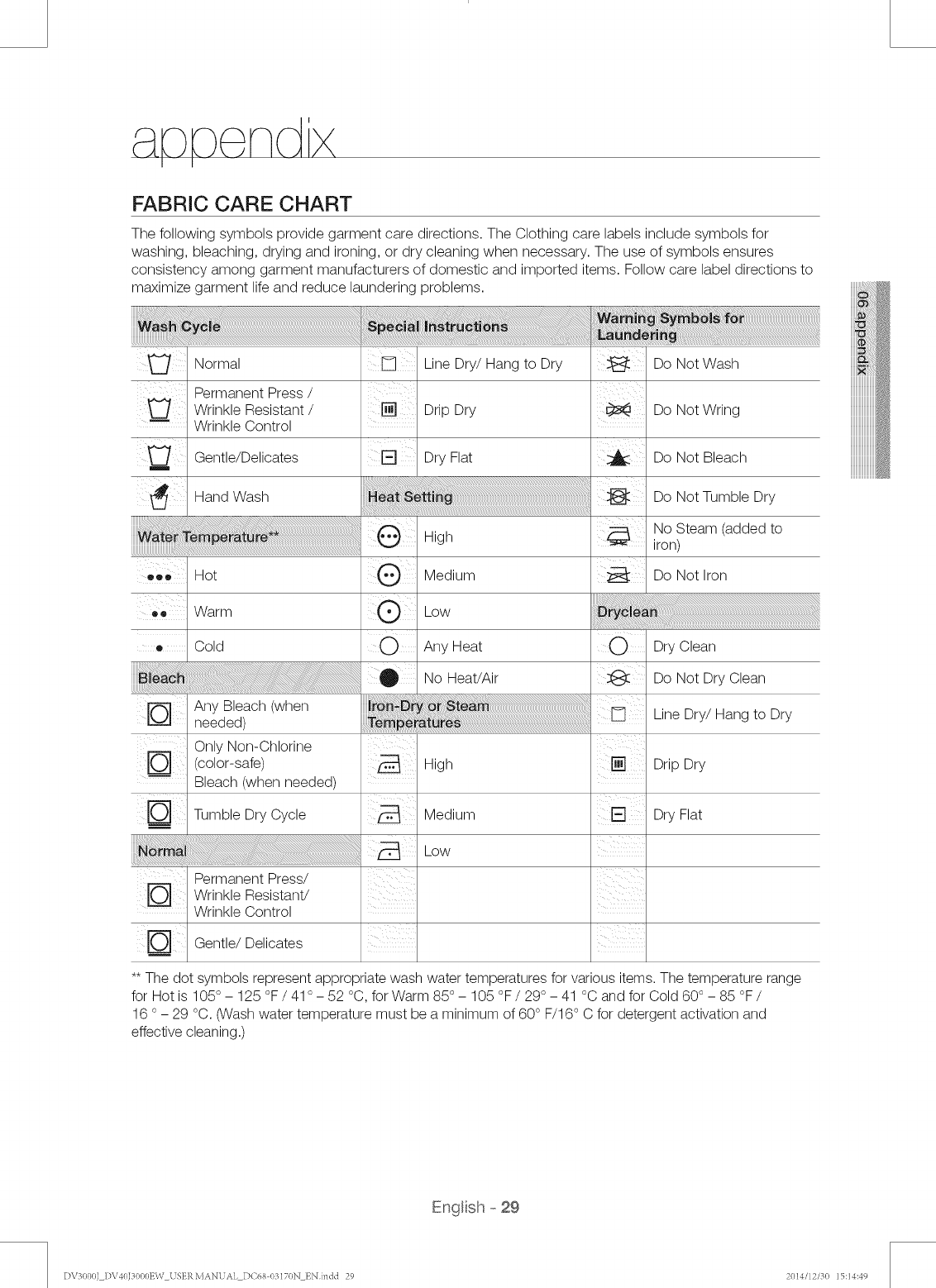

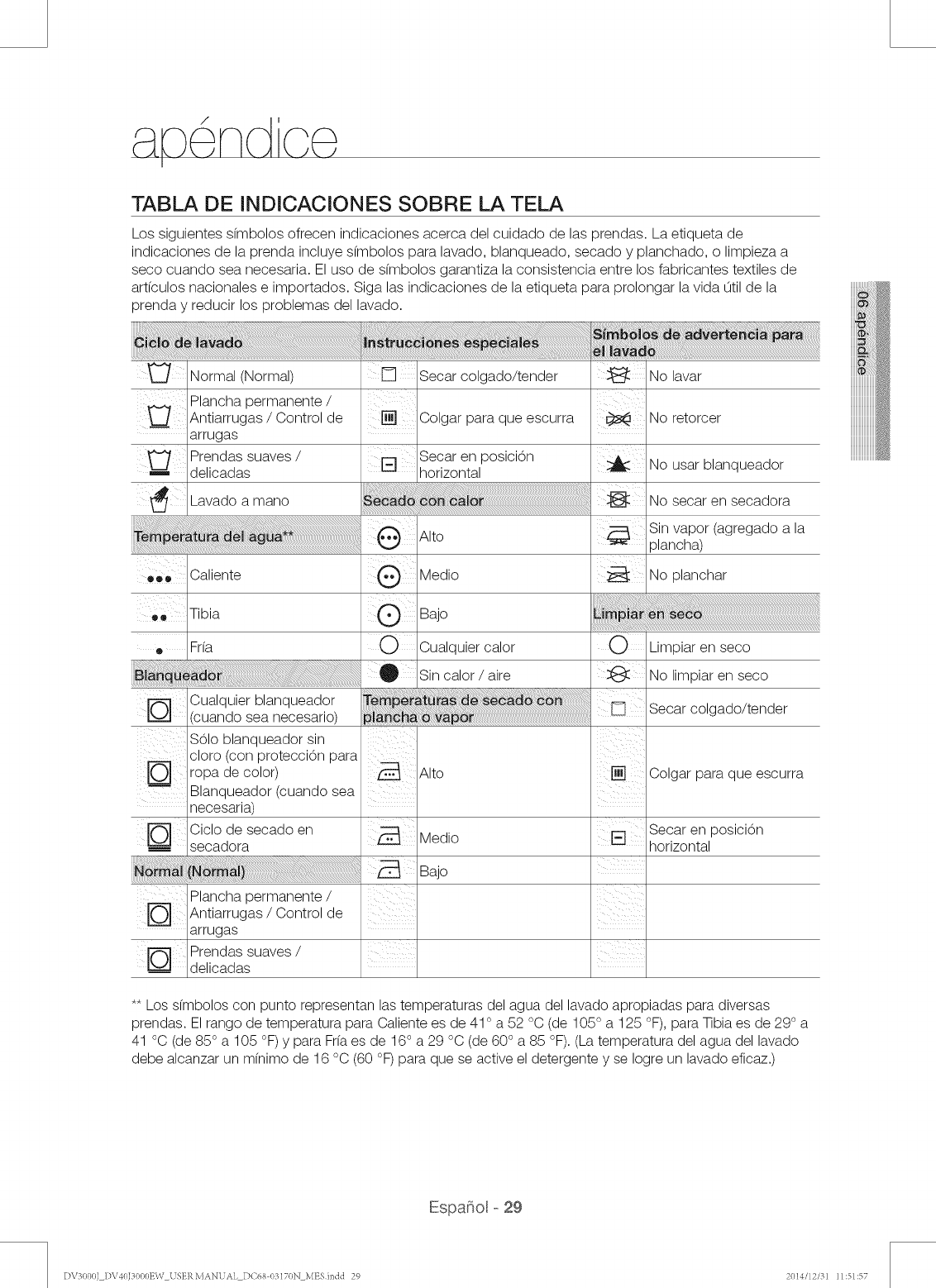

APPENDIX 29 Fabric care chart

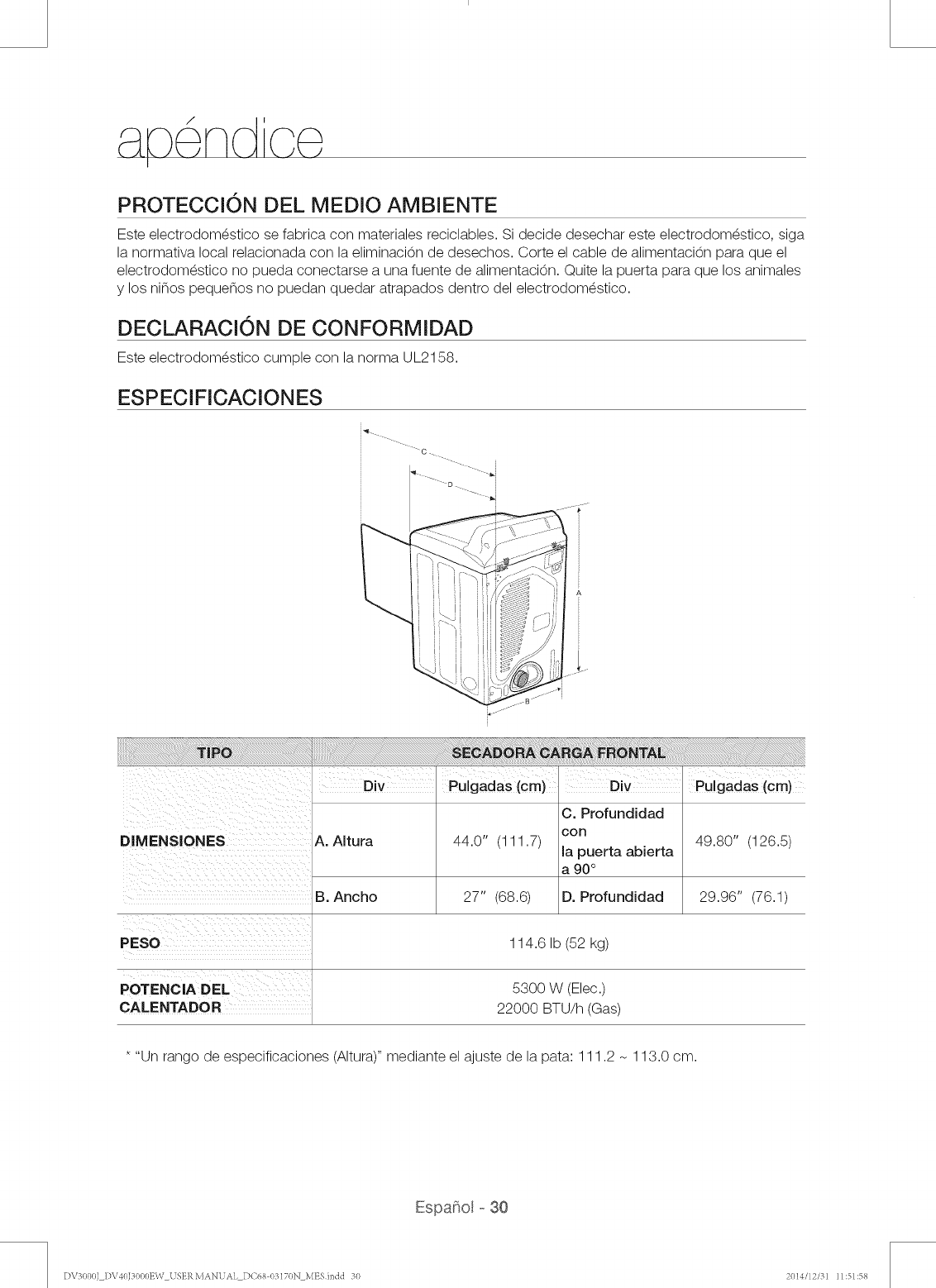

30 Protecting the environment

30 Declaration of conformity

30 Specifications

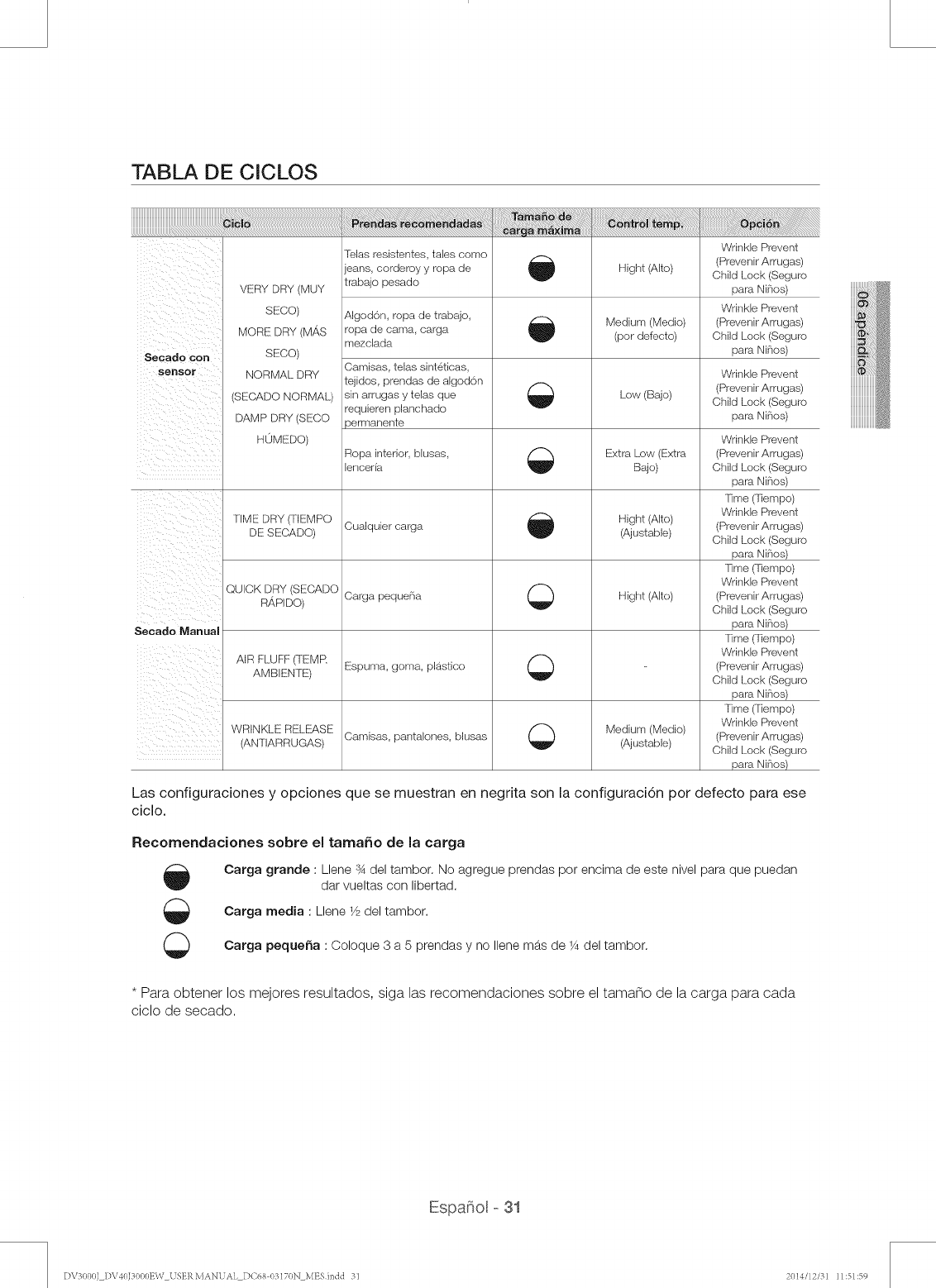

31 Cycle chart

Engl sh- 2

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 2 2014/12/30 15:14:4(}

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer's many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury

or death.

Follow the information in this manual to minimize the risk of fire or

explosion or to prevent property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids near

this or any other appliance.

Z_ Hazards or unsafe practices that may result in minor personal injury or

CAUTION property damage.

Do NOT attempt.

[_ Do NOT disassemble.

[_ Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning icons are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

_Read all instructions before the

using appliance.

Engl sh - 3

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 I)3170N ENindd 3 2014/12/30 15:14:4(}

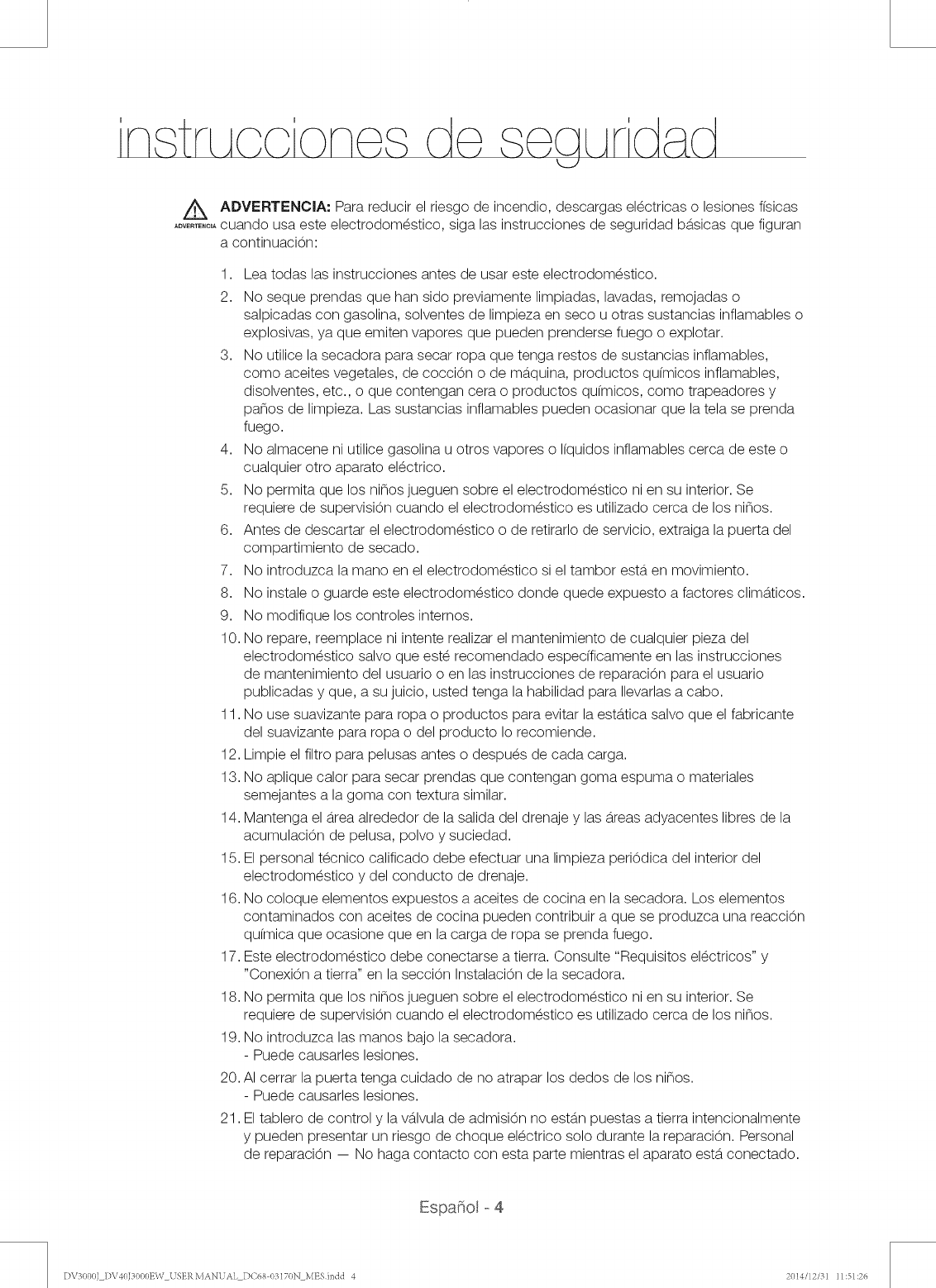

A WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

....... appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any flammable substance,

such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or

anything containing wax or chemicals, such as mops and cleaning cloths. Flammable

substances may cause the fabric to catch fire by itself.

4. Do not store or use gasoline or other flammable vapors and liquids near this or any

other appliance.

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

6. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

10. Do not repair or replace any part of the appliance or attempt any service unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15. The interior of the appliance and exhaust duct should be cleaned periodically by

qualified service personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

17. This appliance must be grounded. See "Electrical requirements" and "Grounding" in

installing your dryer section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

- This may result in injury.

20. Take care that children's fingers are not caught in the door when closing it.

- This may result in injury.

21. Control board and inlet valve are intentionally not grounded and may present a risk of

electric shock only during servicing. Service personnel -- Do not contact this part while

appliance is energize.

Engl sh- 4

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 4 2(}14/12/3(} 15:14:4(}

WARNING -Risk of Fire

,, Clothes dryer installationmust be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

,, Do not install a clothes dryer with flexible plastic venting materials. If flexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

/_To

WARNING

reduce the risk of fire or explosion:

Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers.

Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

/f_ What to do if you smell gas:

WARNING

Do not try to lightany appliance.

Do not turn on the appliance.

,, Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

,, If you cannot reach your gas supplier, call the fire department.

,, Installation and service must be performed by a qualified installer, service agency, or the

gas supplier.

_ Gas Appliances:

WARNING WARNING: This product contains chemicals known to the State of California to cause

cancer and reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances,

including but not limited to, benzene, carbon monoxide, formaldehyde and soot,

substances resulting from the incomplete combustion of natural gas or LP fuels.

Engl sh - 5

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 I)3170N ENindd 5 2014/12/30 15:14:4(}

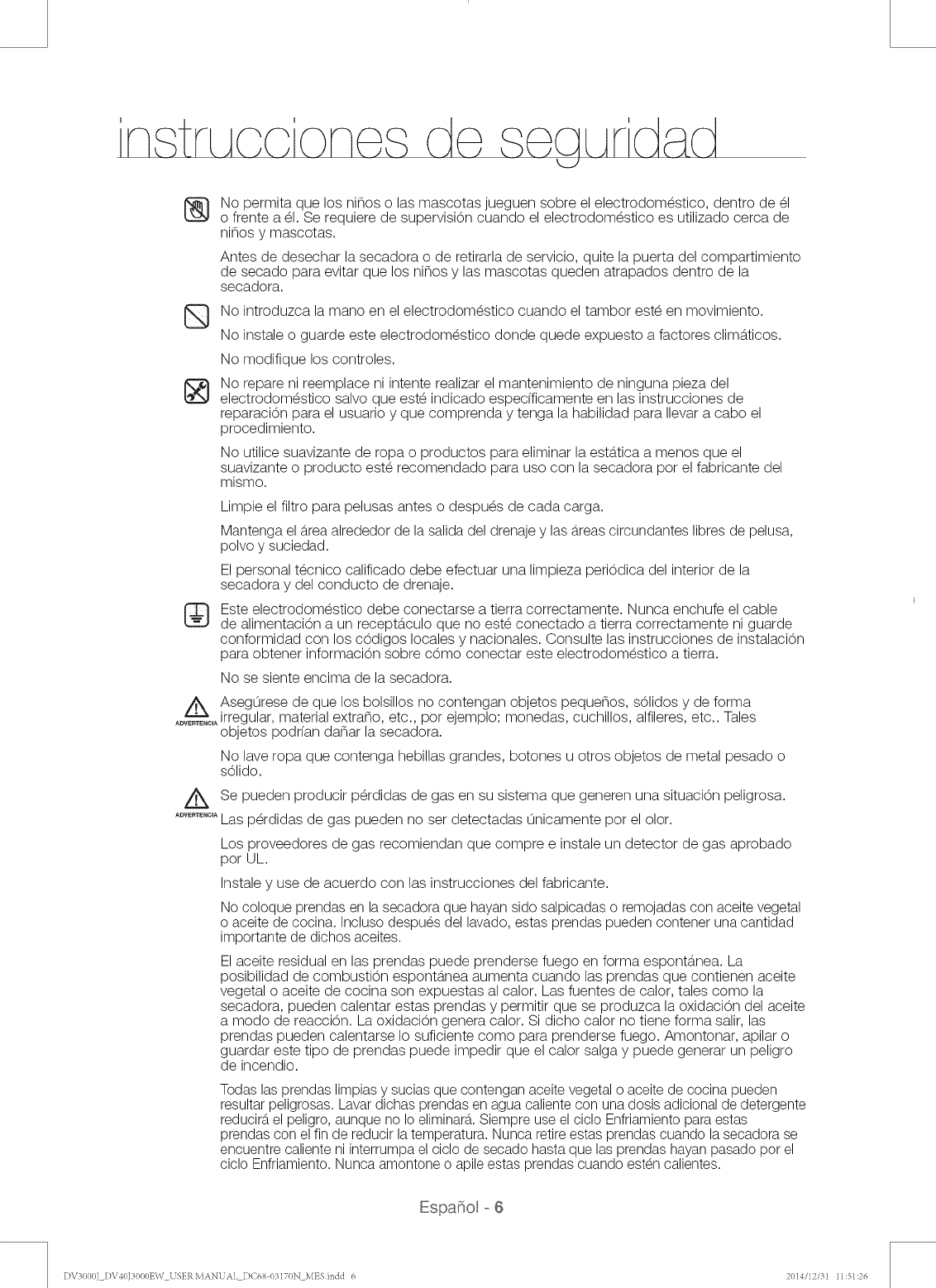

/t,,

WARNING

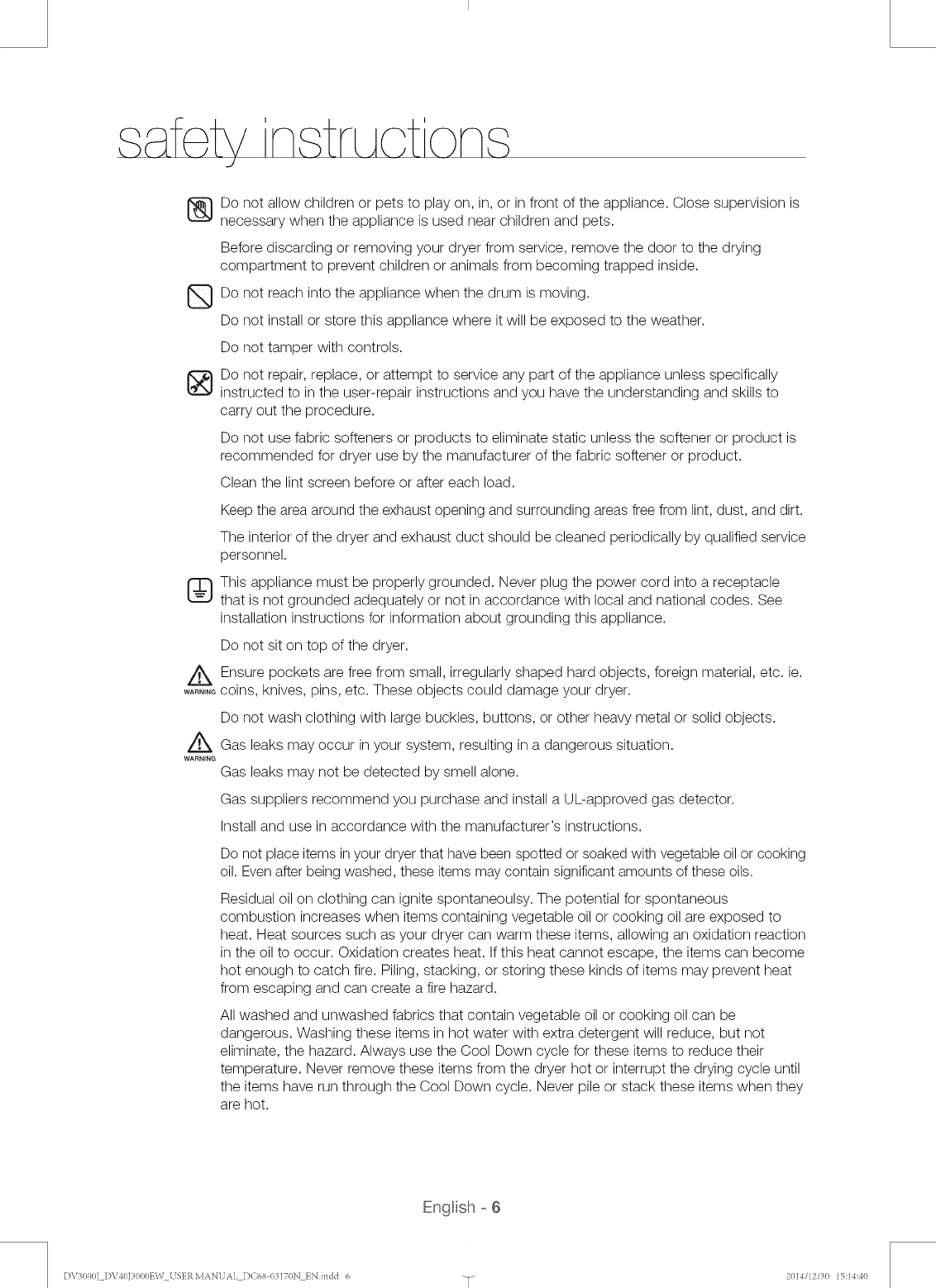

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

instructed to in the user-repair instructions and you have the understanding and skills to

carry out the procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for dryer use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately or not in accordance with local and national codes. See

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Ensure pockets are free from small, irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking

oil. Even after being washed, these items may contain significant amounts of these oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

Engl sh- 6

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 6 -_ 2014/12/30 15:14:4(}

UNPACKING YOUR DRYER

Unpack your dryer and inspect it for shipping damage. Make sure you have received all of the items

shown below. If your dryer was damaged during shipping, or you do not have all of the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the dryer.

Z_ Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

....... etc.) well out of children's reach.

Z_ Do not move the product while holding the front part of the top cover of the dryer.

....... This may cause the cover to be separated and result in injury.

Control panel

Top Cover

[ BACK ]

'ii

Door

Filter

IFrame Front

Duct Exhaust

_olsneeded

Pliers Cutting knife Pipe wrench (gas only) Nut drivers

Level PhilJipsScrewdriver Duct tape Wrench

BASIC REQUIRMENTS

Make sure you have everything necessary for proper installation

A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

A POWER CORD for electric dryers (except in Canada).

GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes.

EXHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.

Engl sh- 7

DV3000] [)V40J3000E\\T USE]_.\IANUAL DC68 03170N ENindd 7 2014/12/30 15:14:41

na VOLArdryer

J J

DUCTING REQUIREMENTS

Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

Do not use a smaller duct.

Ducts larger than 4 inches (10.2 cm)in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

Keep the exhaust duct as straight and short as possible.

Secure joints with duct tape. Do not use screws.

Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and

the entry of wildlife. Never use an exhaust hood with a magnetic damper.

The hood should have at least 12 inches (30.5 era) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

Never install a screen over the exhaust outlet.

To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

Check frequently to be sure the exhaust hood damper opens and closes freely.

Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

Do not exhaust dryer into any wall, ceiling, crawl space, or concealed space of a building, gas vent, or

any other common duct or chimney. This could create a fire hazard from lint expelled by the dryer.

Weather Hood Type

Recommended I use only for short.run installation

4" (10.2 cm) 2.5" (6.4 cm)

N01 of 90° elbows Rigid MetalliC Flexible* I Rigid ' Metallic Flexible*

80 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)

68 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)

57 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)

47 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)

Do not use non-metallic flexible duct.

Engl sh- 8

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 8 2(}14/12/3(} 15:14:42

If the new dryer is being installed into an existing exhaust system, you must

make sure:

The exhaust system meets all local, state, and national codes.

That a flexible plastic duct is not used.

To Inspect and clean all lint buildup from inside the existing duct.

The duct is not kinked or crushed.

The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be

less than 0.

This can be measured with the dryer running with a manometer at the point where the exhaust

duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be

empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

Z_ Remove the door from all discarded appliances to avoid the danger of a child suffocating.

WARNING

LOCATION CONSIDERATIONS

Locate the dryer where there is enough space at the front for loading the dryer, and enough space behind

for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the right

or the left (electric model only), use the accessory exhaust kit (sold separately). Instructions are included

with the kit. It's important to make sure the room has enough fresh air. The dryer must be located where

there is no air-flow obstruction.

On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air

for combustion and proper dryer operation.

Do not install or store the dryer in an area where it will be exposed to water and/or weather. Keep the dryer

area clear of combustible materials, casoline, and other flammable vapors and liquids. A dryer produces

combustible lint. The area around the dryer should be kept lint free.

ALCOVE OR CLOSET INSTALLATION

z_You must exhaust the dryer to the outside to reduce the risk of fire when you install the dryer in alcove

WARN,NGor closet.

No other fuel-burning appliance should be installed in the same closet as the dryer.

WARNING: To reduce the risk of fire, you must exhaust the dryer to the outdoors.

See Exhaust information section.

Minimum clearances between the dryer and adjacent walls or other surfaces are:

2" in front, 17" on top, 1" on either side, and 5" in the back.

The closet front must have two unobstructed air openings for a combined minimum total area of 72 in2

with 3" minimum clearance on the top and bottom. A Iouvered door with equivalent space clearance is

acceptable.

Engl sh - 9

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 I)3170N ENindd 9 2014/12/30 15:14:42

na VoLArdryer

J J

EXHAUSTING

The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed

space of a building.

Exhausting the dryer to the outside will prevent large amount of lint and moisture from being blown into the

room.

the United States:

All dryers must be exhausted to the outside.

The required exhaust duct is 4 inches (10.2 cm) in diameter.

Use only those foil-type flexible ducts, if any, specifically identified for use with the appliance

by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct,

Subject 2158A shall be used.

See "Ducting Requirements" in installing your dryer section for the maximum duct length and

number of bends shall be used.

The total length of flexible metal duct shall not exceed 2.4 m.

Do not assemble the duct with screws or other fastening means that extend into the duct

and catch lint.

Canada:

All dryer must be exhausted to the outside.

The exhaust duct should be 4 inches(10.2 cm ) in diameter.

Use only those foil-type flexible ducts, if any, specifically indentified for use with the appliance

by the manufacturer shall be used.

See "Ducting Requirements" in installing your dryer section for the maximum duct length and

number of bends.

The total length of flexible metal duct shall not exceed 2.4 m.

Do not assemble the duct with screws or other fastening means that extend into the duct

and catch lint

Outside the U.S. and Canada:

Refer to the local codes.

A You must exhaust the dryer to the outside to reduce the risk of fire when you install the

wAR'N,,dryer in an alcove or closet.

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.

Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,

heat, and lint.

Engl sh - 10

D\_3000] D\_40J3000EW USER.\IANUAL DC68 03170N ENindd 10 2014/12/30 15:14:42

GAS REQUIREMENTS

Use only natural or LP (liquid propane) gases.

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL

CODES, WITH THE NATIONAL FUEL GAS CODE ANSVZ223.1, LATEST REVISION (FOR THE UNITED

STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).

Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP

(liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.

A 1/2" (1.27 era) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas

line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off

valve be installed within 6" of your dryer.

Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.

Additionally, a 1/8" (0.3 era) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge

connection, must be installed immediately upstream of your dryer's gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the

system.

DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas

Association (CGA in Canada).

* ny pipe joint compound used must be resistant to the action of any liquefied petroleum gas.

As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner.

There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION

INSTRUCTIONS

Your dryer must be installed by a licensed plumber or gas fitter. A "T" handle manual gas valve must be

installed in the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the

connector can be no longer than 3' (36").

Z_* Gas leaks may occur in your system, creating a dangerous situation.

....... _ Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Engl sh - 11

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 11 _ 2(}14/12/3(} 15:14:42

na VOLArdryer

J J

ELECTRICAL REQUIREMENTS

The Wiring diagram is located on the plate below the control panel or frame back.

Z_, Improperly connecting the equipment grounding conductor can result in a risk of electric shock.

....... Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is

properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet,

have a proper outlet installed by a qualified electrician.

• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding

must be done in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code

CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide

adequate electrical services for your dryer.

• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 - Latest

Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and

local codes and ordinances.

GROUNDING

This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk of

electrical shock by providing a path of least resistance for the electrical current.

Gas models

WARNING

Your dryer has a cord with an equipment-grounding conductor and a grounding plug.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet

installed by a qualified electrician.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Electric models

Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug,

This cord is sold separately.

The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet

installed by a qualified electrician.

If a power cord is not used and the electric dryer is to be permanently wired, the dryer must

be connected to a permanently grounded metal wiring system, or an equipment grounding

conductor must be run with the circuit conductors and connected to the equipment grounding

terminal or lead on the dryer.

Engl sh - 12

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 12 2014/12/30 15:14:42

ELECTRICAL CONNECTIONS

Before operating or testing, follow all grounding instructions in the Grounding section.

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN

EXTENSION CORD.

WARNING

Gas models- U,S, and Canada

A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is

required.

Electric models - U,S, Only

Most U.S. dryers require a 120 /240 volt, 60 Hz AC approved electrical service. Some require

120 /208 volt, 60 Hz approved electrical service. The electric service requirements can be found

on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of

the line is required.

If a power cord is used, the cord should be plugged into a 30-ampere receptacle.

The power cord is NOT provided with U.S. electric model dryers.

Risk of Electric Shock

When local codes allow, the dryer electrical supply may be connected by means of a new power

supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240

volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop

terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring

must be supported at the dryer cabinet by a suitable UL-listed strain relief.

,, Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,

(2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit

grounding through the neutral conductor. (Use a 4-prong plug for a 4 wire receptacle, NEMA

type 14-30R.)

Electric models - Canada Only

A 120 /240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or

circuit breaker on both sides of the line is required.

All Canadian models are shipped with the power cord attached. The power cord should be

plugged into a 30-ampere receptacle.

It is not to convert in Canada to 208 volts.

permissible adryer

Engl sh- 13

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 03170N ENindd 13 2014/12/30 15:14:42

n ta nq VOLArdrvor

J J

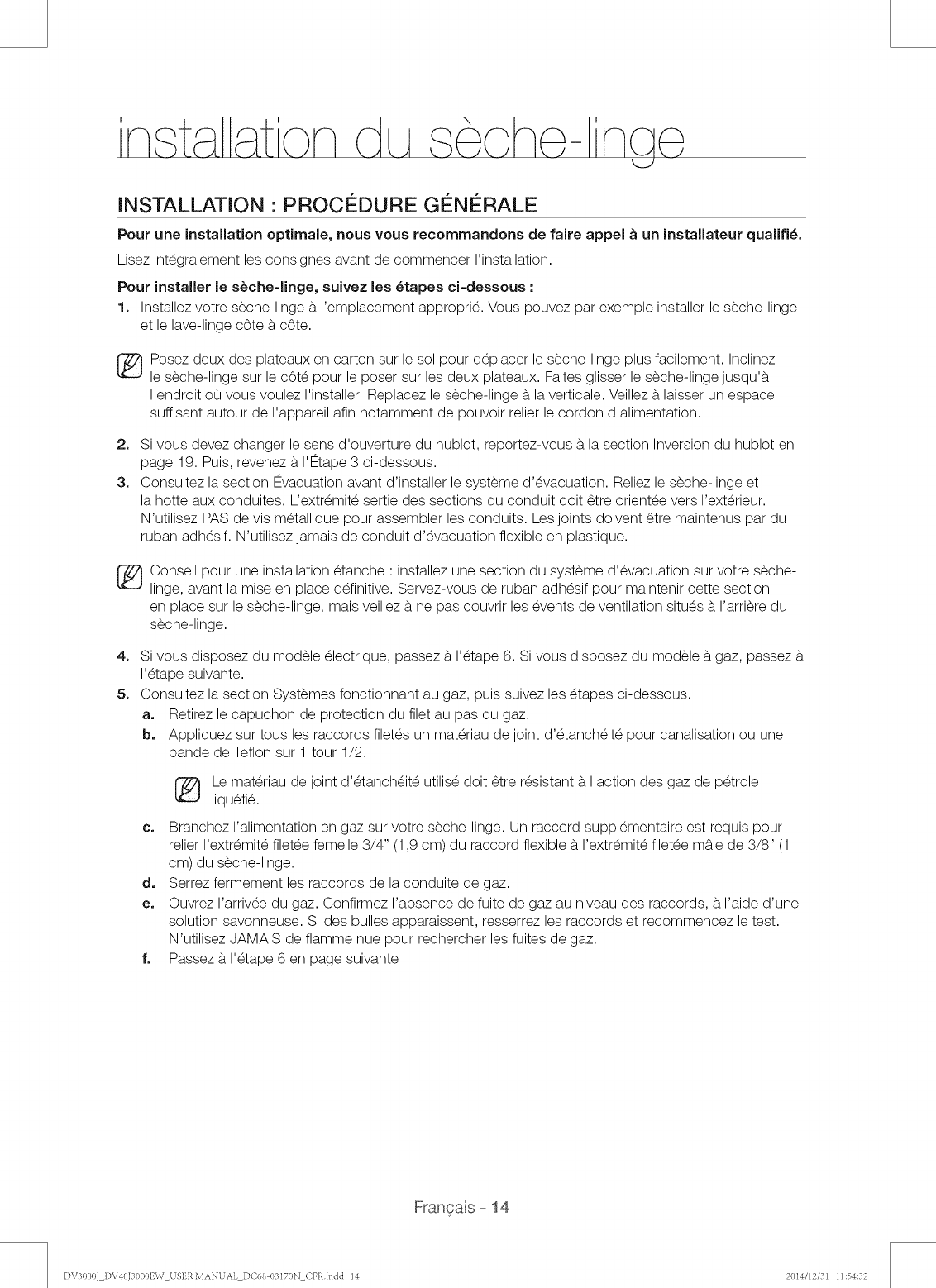

INSTALLATION - GENERAL PROCEDURE

For proper installation, we recommend that you hire a qualified installer.

Read these instructions completely before you begin the installation.

To install the dryer, follow these steps:

1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-

by-side so you have easy access to both appliances.

To move the dryer easily, lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it

lies across both cushion-tops. Push the dryer so that it is near its final location. Set your dryer upright.

Leave enough room around the dryer so you can attach the duct work, power cord, etc.

If you need to change the direction of the door, go to Door Reversal on page 19. When done, return to

Step 3 below.

Review the Exhausting section before installing the exhaust system. Install the duct work from your

dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer. DO

NOT use sheet metal screws when assembling ducting. These joints should be taped. Never use plastic

flexible exhaust material.

A tip for tight installations: Attach a section of the exhaust system to your dryer before putting it in

place. Use duct tape to secure this section to your dryer, but do not cover the ventilation slots at the

back of the dryer cabinet.

If you have an electric model, skip to Step 6. If you have a gas model, go to the next step.

Review the Gas Requirements section, then follow the lettered steps below.

a. Remove the pipe thread protective cap.

b. Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.

The pipe joint compound must be resistant to the action of liquefied petroleum

any gas.

c. Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm)

female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer.

d. Securely tighten the gas line fitting over the threads.

e. Turn on the gas supply. Check all gas connections for leaks using a soap solution. If bubbles

appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.

f. Go to Step 6 on the next page

Engl sh - 14

D\r3000] [)\r40J3000E\\T USE]_.\IANUAL DC68 03170N ENindd 14 2014/12/30 15:14:42

Review the Electrical Requirements section, then follow the 3 Wire system connection instructions (Step

7) or 4 Wire system instructions (Step 8) below.

Three Wire system instructions:

A, External ground connector

B. Neutral grounding wire (white or green/yellow)

O, Center silver-colored terminal block screw

D, Neutral wire (white or center wire)

E, 3_,,(1.9 cm) UL-listed strain relief

1, Loosen or remove the center terminal block screw. E

2, Connect the neutral wire (white or center wire) of the power

cord to the center, silver-colored terminal screw of the

terminal block. Tighten screw.

3, Connect the other wires to outer terminal block screws. Tighten screws.

4, Tighten the strain relief screws.

5, Insert the tab of the terminal block cover into your Dryer's rear panel slot.

Secure the cover with a hold-down screw.

WARNING

If converting from a 4-wire electrical system to a 3-wire, you must connect the ground strap

to the terminal block support to ground the dryer frame to the neutral conductor.

Four

[_ e recommend using Ring terminals. If you use Strap terminals, please ensure you install

them perfectly.

Wire System instructions:

External ground connector

Green or bare copper wire of power cord

3_,,(1.9 cm) UL-listed strain relief

Center silver-colored terminal block screw

Neutral Grounding wire (white or green/yellow)

Neutral wire (white or center wire)

1, Remove the External ground connector screw.

2, Connect the ground wire (green or unwrapped) of the

power cord to the external ground connector screw. If you

want to connect B (Green or bare copper wire of power

cord) to the Neutral Post without connecting it to A (cabinet

ground), call a service technician.

3, Loosen or remove the center terminal block screw.

4, Connect the neutral wire (white or center wire) of the power cord and the appliance ground

wire (white or green/yellow stripes) under the central screw of the terminal block.

5, Connect the other wires to the outer terminal block screws. Tighten screws.

6, Tighten the strain relief screws.

7, Insert the tab of the terminal block cover into your Dryer's rear panel slot.

Secure the cover with a hold-down screw.

We recommend using Ring terminals. If you use Strap terminals, please ensure you install

them perfectly.

Engl sh- 15

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 15 2(}14/12/3(} 15:14:43

na VOLArdryer

J J

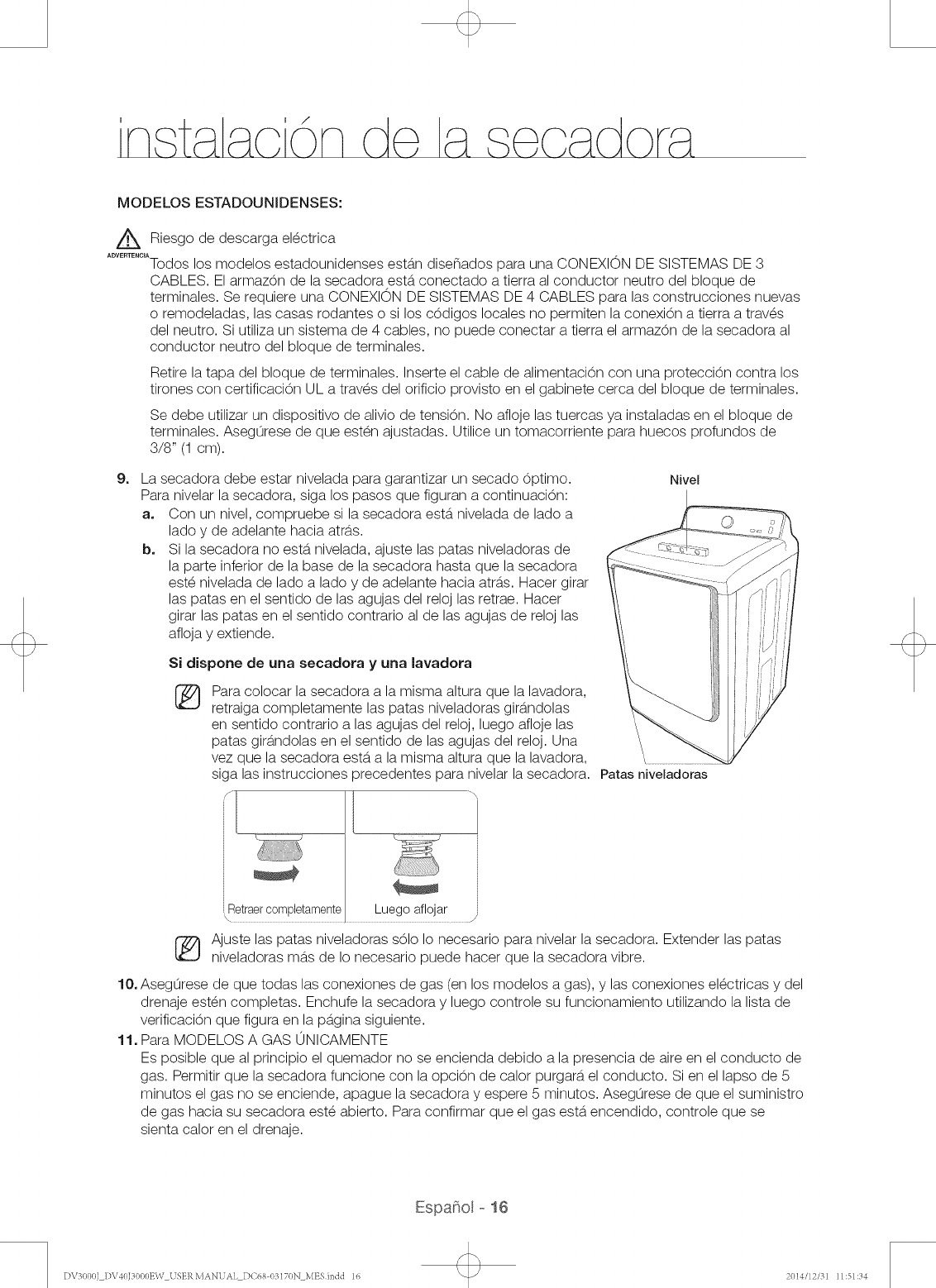

U.S. MODELS:

Z_ Risk Of Electric Shock

WARNING

All U.S.models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to

the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or

remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. If

you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal

block.

Remove the terminal block cover plate. Insert the power cord with a UL-listed strain relief through the

hole provided in the cabinet near the terminal block.

A strain relief must be used. Do not loosen the nuts already installed on the terminal block. Be sure

they are tight. Use a 3/8" (lcm) deep well socket.

To ensure that the dryer provides optimal drying performance, it must

be level. To level the dryer, follow the lettered steps below:

a. Using a level, check if the dryer is level side to side and then front

to back.

b. If the dryer is not level, adjust the leveling feet on the bottom of

the dryer until the dryer is level side to side and back to front.

Turning the feet clockwise retracts the feet. Turning the feet

clockwise loosens and extends them.

Level

If you have a dryer and washer

®To set the dryer to the same height as the washer, fully

retract the leveling feet by turning them counterclockwise,

then loosen the feet by turning them clockwise. Once

the dryer is the same height as the washer, follow the

directions above to level the dryer.

Retractfully

\ ............................................................. Then loosen

....................................................................J

Leveling feet

Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling

feet more than necessary can cause the dryer to vibrate.

10. Make sure all gas connections (on gas models) and exhaust, and electrical connections are complete.

Plug in your dryer, and then check its operation by using the checklist on the next page.

11. For GAS MODELS ONLY

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat

setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5

minutes. Be sure the gas supply to your dryer has been turned on. To confirm gas ignition, check the

exhaust for heat.

Engl sh - 16

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 I)3170N ENindd 16 2014/12/30 15:14:43

FINAL INSTALLATION CHECK LIST

[] The dryer is plugged into an electrical outlet and grounded properly.

[] The exhaust ductwork is hooked up and the joints are taped.

[] You have used rigid or stiff-walled flexible metal duct material, not plastic flexible duct.

[] The dryer is level and is sitting firmly on the floor.

[] For gas models: The gas is turned on and there are no gas leaks.

[] Start your dryer to confirm that it runs, heats, and shuts off.

Engl sh - 17

DV3000] DV40J3000EW USERXANUAL DC68 03170N ENindd 17 _ 2(}14/12/3(} 15:14:43

na VoLArdryer

J J

DRYER EXHAUST TiPS

/_ Plastic or non-metal flexible duct presents a potential fire hazard.

WARNING

1. Make sure your dryer is installed properly so it exhausts air

easily.

2, Use 4" diameter rigid metal duct. Tape all joints, including at

the dryer.

Never use lint-trapping screws.

3, Keep ducts as straight as possible.

4, Clean all old ducts before installing your new dryer.

Be sure the vent flap opens and closes freely.

Inspect and clean the exhaust system annually. i

Don't let a poor exhaust system slow drying by:

1. Restricting your dryer with a poor exhaust system. 1

2. Using a plastic, thin foil, or non-metal flexible duct.

3, Using unnecessarily long ducts that have many

elbows.

4, Using crushed or clogged venting or ducts.

Engl sh -18

D\_3000] DV40J3000EW USER.\IANUAL DC68 I)3170N ENindd 18 2014/12/30 15:14:44

DOOR REVERSAL

If you want to reverse the direction of the door, it is recommended calling a

qualified service technician.

1, Unplug the power cord.

2. Remove the four hinge screws from the door

3o Remove the door by lifting it

4. Remove the two screws from the holder-lever, and then remove

the cover-holder.

5o Assemble the holder-lever on the opposite side using the screws

that were removed from the holder-lever-in Step 4.

6, Assemble the cover-holder on the opposite side.

:::: TTTTT?;;-b

7o Remove the two cover-hinges.

8o Assemble the two cover-hinges

on the opposite side.

Use a flat head screwdriver(-)

to remove the cover-holder's

cover-hinge.

k. J

9, Remove the 14 screws.

_Two screw (L) are longer than the other screws.

Engl sh- 19

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 19 2014/12/30 15:14:45

na VOLArdryer

J J

10, Remove the holder-glass.

11, Exchange the positions of:

: The cover-hinge and handle door

:The holder-hinge and guider-

holder glass

12, Remove the Lever-Door, and then

install it on the opposite side.

_ Refer to the illustrations on the

right to aid you in the assembly

process.

13. Remove the cover-hole (P).

14, Assemble the holder glass and then fasten the 14 screws

that you removed in step 9.

15, Attach the cover-hole.

_A cover hole is in the manual.

spare assy ill'-

16oInstall the door on the frame-front and then fasten the 4 screws that you removed in step 2.

_ Check the positions of the screws you installed in the hinge <

door. c::_

Engl sh - 20

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 03170N ENindd 20 2014/12/30 15:14:46

na n tnAct one, t

I _ J I

A To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY

....... INSTRUCTIONS before operating this appliance.

OVERVIEW OF THE CONTROL PANEL

*(HOld 3 sec)

VERY DRY TIME DRY _ Child Lock]

MORE DRY UIEK DRY @FilterCheck

High _ 80 mm

NORMAL i! Medium _ 60 rnin

LOW _ 40 rnin

DAMP DRY RELEASE 8 Extra Low _ 20 rain

Temp.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

To select dryness level in Sensor Dry cycle. Very Dry, More Dry, Normal Dry

and Damp Dry are dryness level in Sensor Dry cycle.

Sensor Dry cycle automatically senses the moisture in the load and shuts

the dryer off when the load reaches the dryness level you have selected with

Dryness level.

To select Sensor Dry cycle with Temperature option.

Corresponding setting of the temperature option, refer to the "cycle chart"

VERY DRY & MORE DRY - Use this cycle to dry such a large or bulkier

fabrics.

NORMAL DRY- Default setting.

DAMP DRY - Use this cycle for flat by hanger or ironing.

TIME DRY - TIME DRY allows you to select the desired cycle time. Turn the

Cycle Selector dial to TIME DRY, and then press the Time selection button.

QUICK DRY - Provides a 40 minute drying cycle.

AIR FLUFF - The AIR FLUFF cycle tumbles the load at room temperature air.

WRINKLE RELEASE - The WRINKLE RELEASE cycle will release wrinkles

from items that are clean, dry, and only slightly wrinkled, such as clothes from

a crowded closet, suitcase or items that have been in the dryer too long after

the cycle has ended. WRINKLE RELEASE can be used with any temperature

selection.

The Drying light will illuminate and remain lit until the cycle is complete. When

your dryer is in the cool-down phase, the Cooling light will illuminate, When your

dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will illuminate.When the cycle is complete, End light will illuminate in the display panel and until

you push the Start/Pause button or the Power button.

If your dryer is paused during a cycle, the indicator lights will blink until you press

the Start/Pause button.

Engl sh- 21

D\_3000] D\_40J3000EW USER.\IANUAL DC68 03170N ENindd 21 2014/12/30 15:14:48

To select the temperature for the load, press the Temp button. An indicator

light will illuminate next to the temperature you selected. Press the button

repeatedly to scroll through the settings.

High - For heavy fabrics such as jeans, corduroys, or work clothes with high

temperature heat.

Medium - For cottons, underwear, and linen.

Low - For wrinkle-free cottons, synthetic fabrics, knits, and permanent press

fabrics.

Extra Low - For heat-sensitive items at a low drying temperature.

When using Manual Dry cycles, you can select the drying time by pressing the

Time selection button.

During the Sensory Dry cycle, the time light indicator is off because exact

drying times are determined by fluctuating humidity levels.

Wrinkle Prevent - Wrinkle Prevent provides approximately 180 minutes

of intermittent tumbling in unheated air at the end of the cycle to reduce

wrinkling. Press the Time (*Wrinkle Prevent) button for 3 seconds.

The indicator light will illuminate when Wrinkle Prevent is selected.

The load is dry and you can remove it at any time during the Wrinkle Prevent

cycle.

Press to pause and restart programs.

Press once to turn your dryer on, Press again to turn it off. If your dryer stays

on without touching any buttons or dials over 10 minutes, then the power

automatically turns off.

lf you insert laundry into your dryer while it is extremely tangled immediately after your washer has

finished a wash or spin cycle, it may degrade the drying efficiency or cause the door to open. We

recommend that you disentangle your laundry appropriately before inserting it.

Engl sh - 22

D\_3000] D\_40J3000E\\T USER.\IANUAL DC68 03170N ENindd 22 -_ 2014/12/30 15:14:48

nq nstnActons, t

I _ J I

CHILD LOCK

Prevents children from playing with your dryer.

Setting/Releasing

If you want to set or release the Child Lock, press the Temp. and Time buttons simultaneously

for 3 seconds.

Child Lock Details

- You can turn Child Lock on while your dryer is running.

- Once you turn Child Lock on, no button, except for the Power button, will respond until you

turn off the Child Lock function.

- The Child Lock indicator will be lit.

If you have not turned off Child Lock, and then turned the dryer off and on, the Child Lock

function will still be on. To turn off Child Lock, follow the instructions above.

When other buttons, except for the Power button, do not respond, check the Child Lock

indicator. If Child Lock is on, follow the instructions above to turn Child Lock off.

Engl sh- 23

D\_3000] D\_40J3000EW USER.\IANUAL DC68 03170N ENindd 23 2014/12/30 15:14:48

CLEAN THE LINT FILTER

• After each load.

To shorten drying time.

To operate more energy efficiently.

_Do not dryer without the lint filter in place.

operate your

LOAD THE DRYER PROPERLY

Place only one washload in your dl'yer at a time.

Frame Front FiRer

Door

In mixed loads, heavy and lightweight fabrics will dry differently. This may result in lightweight fabrics

being dry while heavy fabrics remain damp at the end of a drying cycle.

Add one or more additional similar items to your dryer when you are drying only one or two items. This

improves the tumbling action and drying efficiency.

Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some

fabrics.

GETTING STARTED

1. Load your dryer loosely- DO NOT overload.

2. Close the door.

3, Select the appropriate cycle and options for the load (Refer to "Cycle chart").

4, Press the Start/Pause button.

5, The dryer indicator light will illuminate.

When the cycle is complete, "End light" will illuminate in the display.

Pressing Power cancels the cycle and stops your dryer.

The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions of the

cycle.

ADo not place anything on top of your dryer while it is running.

WARNING

Engl sh - 24

D\r3000] [)\r40J3000E\\T USE]_.\IANUAL_DC68 03170N ENindd 24 2014/12/30 15:14:49

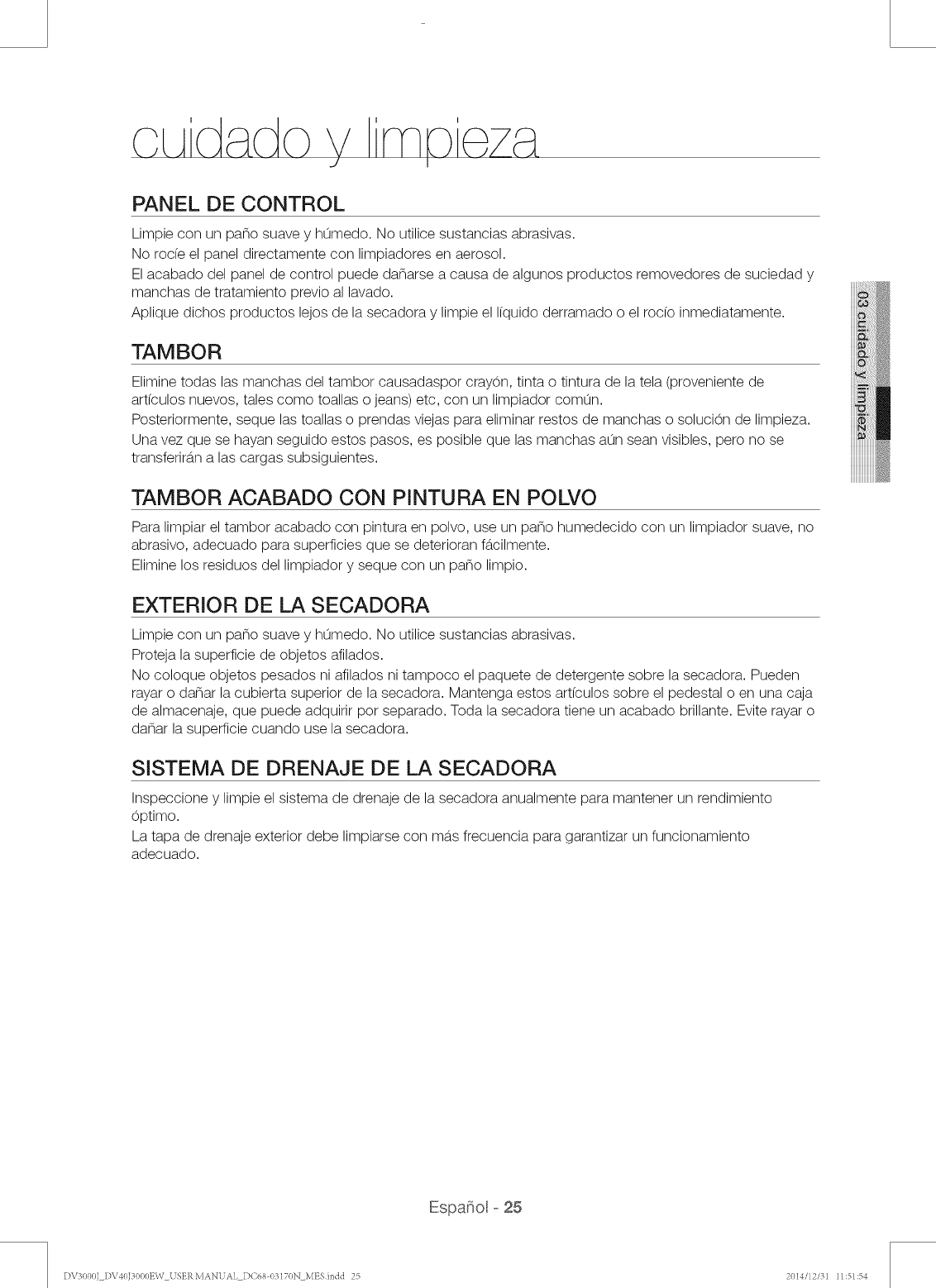

CONTROL PANEL

Clean with a soft, damp cloth. Do not use abrasive substances.

Do not spray cleaners directly on the panel.

The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products.

Apply such products away from your dryer and wipe up any spills or overspray immediately.

TUMBLER

Remove any stains from the tumbler caused by crayon, ink, fabric dye (from new items such as towels or

jeans) and so on with an all-purpose cleaner.

Tumble old towels or rags to remove any remaining stain or cleaning substance.

Once these steps are followed, stains may still be visible, but should not transfer to subsequent loads.

POWDER COATED TUMBLER

To clean the powder coated tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable easily

marred surfaces.

Remove cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

Clean with a soft, damp cloth. Do not use abrasive substances.

Protect the surface from sharp objects.

Do not place any heavy or sharp objects or a detergent box on the dryer. They can scratch or damage the

top cover of the dryer. Keep these items in the separately purchased pedestal or in a separate storage box.

The entire dryer has a high-gloss finish. Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

Inspect and clean the dryer exhaust system yearly to maintain optimum performance.

The outside exhaust hood should be cleaned more frequently to ensure proper operation.

En91sh- 25

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 25 _ 2(}14/12/3(} 15:14:49

IJI

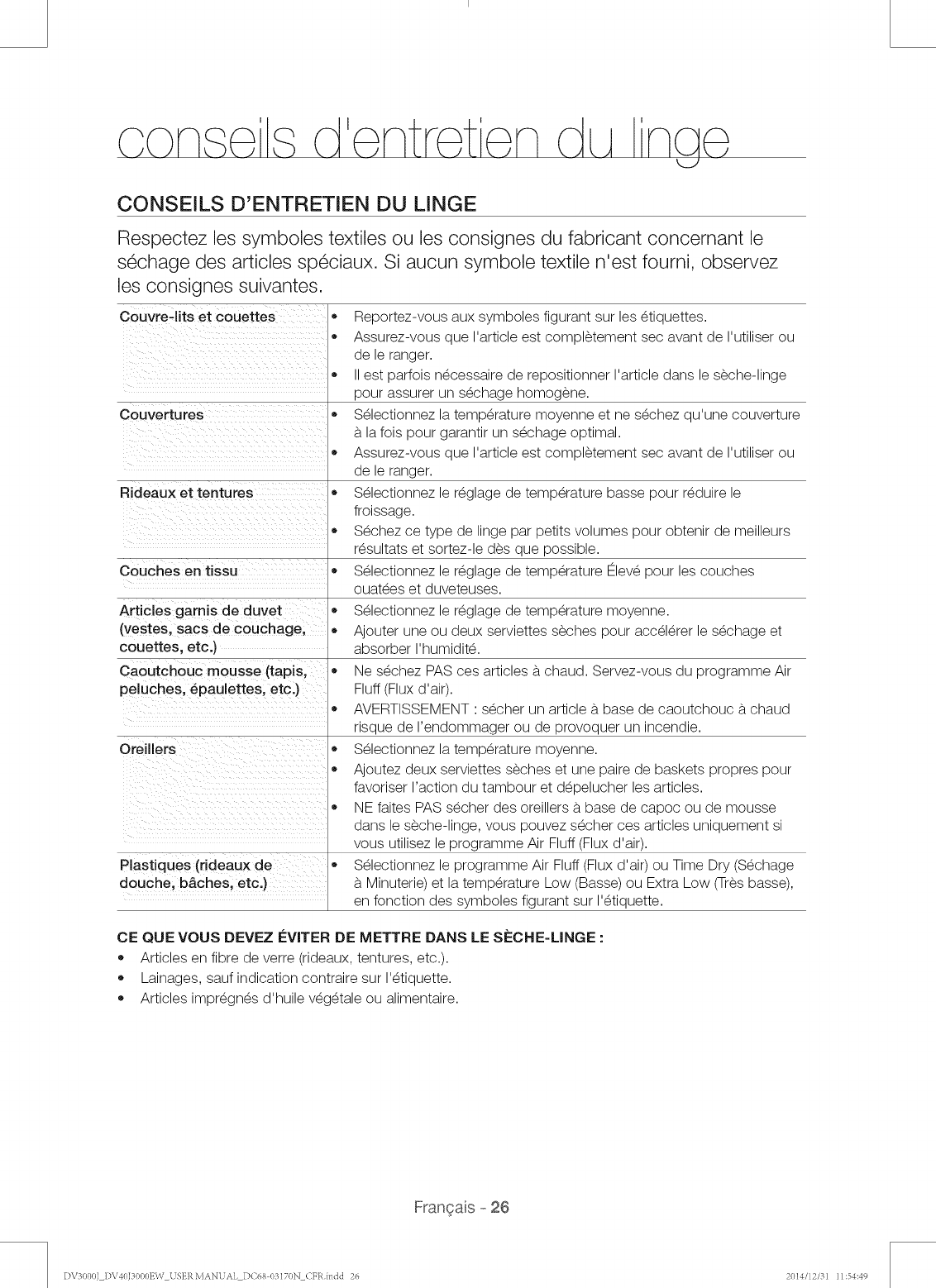

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer's instructions for drying special

items. If care label instructions are not available, use the following information as

a guide,

Bedspreads & Comforters

Blankets

Curtains & Drapenes

Cloth Diapers

Down-filled Items (jackets,

sleeping bags, comforters,

etc.)

Foam Rubber (rug backs,

stuffed toys, shoulder pads,

etc.)

Pillows

Plastics (shower curtains,

outdoor furniture covers,

etc.)

Follow the care label instructions.

Make sure the item is thoroughly dry before using or storing.

May require repositioning to ensure even drying.

Use the medium temperature and dry only one blanket at a time for

best tumbling action.

Make sure the item is thoroughly dry before using or storing.

Use the low temperature to help minimize wrinkling.

Dry these in small loads for best results and remove as soon as

possible.

Use the High temperature settings for soft, fluffy diapers.

Use the medium temperature setting.

Adding a couple of dry towels shortens drying time and absorbs

moisture.

DO NOT dry on a heat setting. Use the Air Fluff cycle.

WARNING - Drying a rubber item with heat may damage it or create

a fire hazard.

Use the medium temperature.

Add a couple of dry towels and a pair of clean sneakers to help the

tumbling action and to fluff the items.

DO NOT dry kapok or foam pillows in the dryer. You can dry these

items in the dryer only if you use the Air Fluff cycle.

Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra

Low temperature settings depending on the care label instructions.

THINGS TO AVOID PUTTING IN THE DRYER :

Fiberglass items (curtains, draperies, etc.).

Woolens, unless recommended on the label.

Items spotted or soaked with vegetable or cooking oils.

En91sh - 26

D\_3000] D\_40J3000E\V USER.\IANUAL DC68 I)3170N ENindd 26 2014/12/30 15:14:49

CHECK THESE POINTS IF YOUR DRYER...

PROBLEM

Doesn't run.

Doesn't heat.

Doesn't dry.

Is noisy.

Dries unevenly.

____________@_((((((((((}_3__________,_,_,__________s___,________s___,,_i_i_i_i_i_i_i_i_i__'_8_'_'_{__}_}_}_}___,{,_,{,_,____,______________________________s____,_:_'_{_i_i_i_i_i_i_i___}_}_3_}___,___,_,_:_:_:_:_:_:_:___,_i_?_{_}___,___i,i________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

,, Make sure the door is latched shut.

,, Be sure the power cord is plugged into a live electrical outlet.

• Check your home's circuit breakers or fuses.

,, Press the Start/Pause button again if the door is opened during the

cycle.

Check your home's circuit breakers or fuses.

,, Select a heat setting other than Air Fluff.

,, On a gas dryer, check that the gas supply is on.

,, Clean the lint filter and exhaust duct.

,, Dryer may have moved into the cool-down phase of the cycle.

Check all of the above, plus...

,, Be sure the exhaust hood outside the home can open and close

freely.

,, Check the exhaust system for lint buildup. Ducting should be

inspected and cleaned annually.

,, Use a 4" rigid metal exhaust duct.

Do not overload. 1 wash load = 1 dryer load.

Sort heavy items from lightweight items.

Large, bulky items like blankets or comforters may require

repositioning to ensure even drying.

Check that the washer is draining properly to extract adequate water

from the load.

,, Load may be too small to tumble properly. Add a few towels.

,, Check the load for objects such as coins, loose buttons, nails, etc.

Remove promptly.

,, It is normal to hear the dryer gas valve or heating element cycle on

and off during the drying cycle.

Be sure the dryer is leveled properly as outlined in the installation

instruction.

It is normal for the dryer to hum due to the high velocity of air moving

through the dryer drum and exhaust system.

,, Seams, pockets, and other similarly heavy areas may not be

completely dry when the rest of the load has reached the selected

dryness level. This is normal. Select the Very Dry setting if desired.

,, If one heavy item is dried with a lightweight load, such as one towel

with sheets, it is possible that the heavy item will not be completely

dry when the rest of the load has reached the selected dryness level.

Sort heavy items from lightweight items for best drying results.

Household odors from paint, varnish, strong cleaners, etc. may enter

the dryer with the surrounding room air. This is normal as the dryer

draws the air from the room, heats it, pulls it through the tumbler, and

exhausts it outside.

When these odors linger in the air, ventilate the room completely

before using the dryer.

Has an odoc

Engl sh- 27

DV3000] DV40J3000EW USERXANUAL DC68 03170N ENindd 27 2(}14/12/3(} 15:14:49

ROBLEM SOLUTION

Shuts off before load is dry • The dl'yer load is too small. Add more items or a few towels and

Lint on clothes

Garments still wrl nkled after

Wrinkle Release

Odors remain in clothing

after Air Fluff.

restart the cycle.

The dryer load is too large. Remove some items and restart the dryer.

Make sure the lint filter is cleaned before every load. With some loads

that produce high amounts of lint, it may be necessary to clean the

filter during the cycle.

Some fabrics are lint producers (for example, a fuzzy white cotton

towel) and they should be dried separately from clothes that are lint

trappers (for example, a pair of black linen pants).

Divide larger loads into smaller loads for drying.

Check pockets thoroughly before washing and drying clothes.

Small loads of 1 to 4 items work best.

Load fewer garments. Load similar-type garments.

Fabrics containing strong odors should be washed in a normal cycle.

INFORMATION CODES

If an information code occurs, first all 8 LEDs turn ON and next the corresponding LED will be blinked while

it happens.

BC2

TO2

901

O O

Clean the screen or vent.

TO If the problem continues, call for service.

HC Call for service.

Close the door and then restart.

If the problem continues, call for service.

Try restarting the cycle.

If the problem continues, call for service.

Call for service.

9Cl

BC2

The thermistor resistance is very low

or high.

Invalid heating Temp in running the

dryer).

Running the dryer with door open.

Invalid power source Frequency.

Electronic Control Problem

(Invalid Voltage).

Electronic Control Problem

(Invalid Communication).

Invalid door.

Electronic Control Problem

(Button Key Input Check).

Call for service.

For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG).

Engl sh - 28

D\_3000] D\_40]3000E\\_ USER.\IANUAL DC68 03170N ENindd 28 2014/12/30 15:14:49

appendx

FABRIC CARE CHART

The following symbols provide garment care directions. The Clothing care labels include symbols for

washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures

consistency among garment manufacturers of domestic and imported items. Follow care label directions to

maximize garment life and reduce laundering problems.

Normal Line Dry/Hang to Dry

Permanent Press /

Wrinkle Resistant/ [] Drip Dry

Wrinkle Control

Gentle/Delicates Dry Flat

HandWash

High

**, Hot Medium

oo Warm Low

• Cold O Any Heat O

No Heat/Air

Any Bleach (when

needed)

Only Non-Chlorine

(color-safe)

Bleach (when needed)

Tumble Dry Cycle

High

Medium

OIP_JPermanentPress/

Wrinkle Resistant/

Wrinkle Control

Gentle/Delioates

Low

[]

_iii[] _

i i

Do Not Wash

Do Not Wring

Do Not Bleach

Do Not Tumble Dry

No Steam (added to

iron)

Do Not Iron

Dry Clean

Do Not Dry Clean

Line Dry/Hang to Dry

Drip Dry

Dry Flat

** The dot symbols represent appropriate wash water temperatures for various items. The temperature range

for Hot is 105° - 125 °F /41o_ 52 °C, for Warm 85 ° - 105 °F /29° - 41 °C and for Cold 60° - 85 °F /

16 o _ 29 °C. (Wash water temperature must be a minimum of 60° F/16° C for detergent activation and

effective cleaning.)

Engl sh- 29

D\_3000] DV40J3000EW USER.\IANUAL DC68 03170N ENindd 29 2014/12/30 15:14:49

appondx

PROTECTING THE ENVIRONMENT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please

observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected

to a power source. Remove the door so that animals and small children cannot get trapped inside the

appliance.

DECLARATION OF CONFORMITY

This appliance complies with UL2158.

SPECIFICATIONS

i_iiiiiiiiiiiiiiiiiiiiiil¸i!_!i!!i_!i_!ii!i_i_i_i_i_i_i_i_ii_iiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!!!!!i!iiiiiii_g__

DIMENSIONS A. Height 44.0" (111.7) C. Depth with 49.80" (126.5)

door open 90°

B. Width 27" (68.6) D. Depth 29.96" (76.1)

WEIG HT

HEATER RATING

114.6 Ib (52 kg)

5300 W (Elec.)

22000 BTU/hr (Gas)

* "A (Height)" Spec range through the Leg adjustment ' 111.2 - 113.0 cm.

Engl sh - 30

D\_3000] DV40J3000E\V USER.\IANUAL DC68 I)3170N ENindd 30 2014/12/30 15:14:5(}

CYCLE CHART

iiii iii i _ i

ii_ i _ i

Sensor Dry

VERY DRY

MORE DRY

NORMAL DRY

DAMP DRY

Heavy Fabrics such as

jean, corduroys, Lea W

work clothes

Cottons, Work clothes,

Linen, Mixed Loads

Shirts, Synthetic Fabrics,

Knits, Wrinkle-free cottons,

Permanent press fabrics

Underwear, Blouses,

Lingerie

High

Medium

(default)

Low

Extra Low

Wrinkle Prevent

Child Lock

Wrinkle Prevent

Child Lock

Wrinkle Prevent

Child Lock

Wrinkle Prevent

Child Lock

Time

High

TIME DRY Any load (adjustable) Wrinkle Prevent

Child Lock

Time

QUICK DRY Small loads (_ High Wrinkle Prevent

-- Child Look

Manual Dry

lime

AIR FLUFF Foam, Rubber, Plastic (") Wrinkle Prevent

Child Lock

Time

_) Medium

WRINKLE RELEASE Shirts, T?ouser, Blouses (adjustable) Wrinkle Prevent

Child Lock

Settings and options shown in bold are default setting for that cycle.

Load Size Recommendations

Medium load : Fill the drum to about 1/2full.

(W) Small load : Fill the drum with 3-5 items, not more than 1Afull.

* For best results, follow the load size recommendations for each dry cycle.

Large load : Fill the drum to about ,_s4full. Do not add items over this level as they need to tumble

freely.

Engl sh- 31

D\_3000] D\_40J3000EW USER.\IANUAL DC68 03170N ENindd 31 2014/12/30 15:14:50

SAMSUNG DRYER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor

Two (2) Years Control Board Parts (Part Only)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the United States.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent.

If service is not available, SAMSUNG may elect to provide transportation of the product to and from an

authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,

with new or reconditioned parts or products if found to be defective during the limited warranty period

specified above.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is

longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,

noncommercial use of this product and shall not apply to the following: damage that occurs in shipment;

delivery and installation; applications and uses for which this product was not intended; altered product or

serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other

acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories,

applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG

that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and

surges; customer adjustments and failure to follow operating instructions, maintenance and environmental

instructions that are covered and prescribed in the instruction book; product removal and reinstallation;

problems caused by pest infestations.

This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply,

light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors.

SAMSUNG does not warrant uninterrupted or error-free operation of the product.

Engl sh - 32

DV3000] DV40]3000EW USERXANUAL DC68 03170N ENindd 32 2(}14/12/3(} 15:14:5(}

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS

OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR

PURPOSE.

NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT

TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.

SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE

SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF

THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,

DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT.

THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL

PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This

warranty gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

Samsung Electronics America, inc.

85 Challenger Road

Ridgefield Park, NJ 07660

1-800-SAMSUNG (726-7864)

www.samsung.com/us/support

Visits by a Service Engineer to explain functions, maintenance or installation is not

covered by warranty.

Please contact your Samsung call agent for help with any of these issues.

Engl sh- 33

DV3000] DV40]3000EW USERMANUAL DC68 03170N ENindd 33 2(}14/12/3(} 15:14:5(}

SAMSUNG DRYER

LiMiTED WARRANTY TO ORiGiNAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) year part and labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and

used in the Canada.

To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service

procedures.

Warranty service can only be performed by a SAMSUNG authorized service center.

The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or

SAMSUNG's authorized service center.

SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability

within the Canada.
