Dryer
User manual
DVE(G)52M775**
DV7750M-03170Y-01_EN.indd 1 2017-03-15  11:49:29
Contents
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Warnings 8
Cautions 8
Installation requirements 10
Key installation requirements 10
Location considerations 10
Ducting requirements 11
Exhausting requirements 12
Gas requirements 13

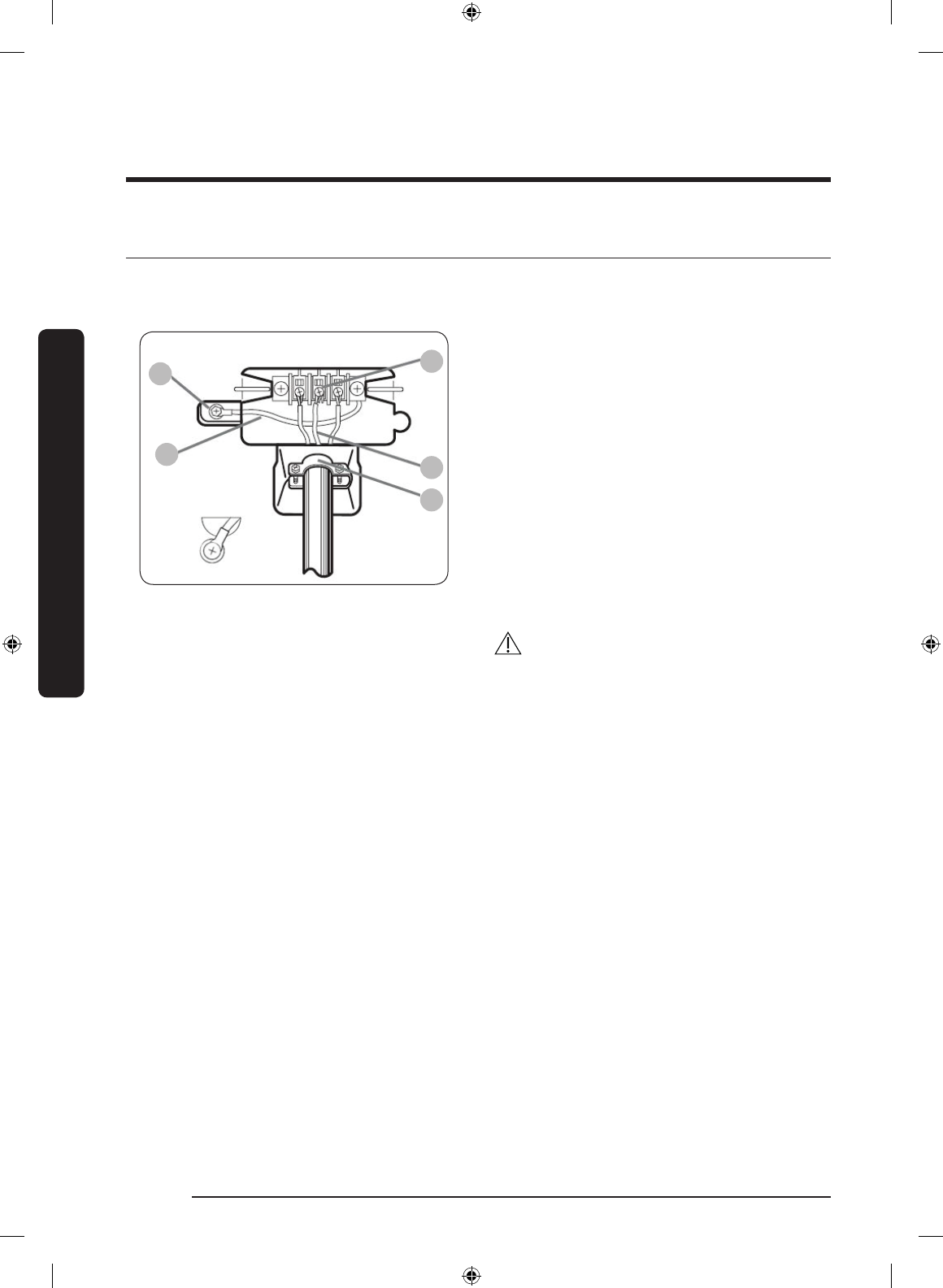

Electrical requirements 14
Installation 17
What’s included 17
Step-by-step installation 19
Vent blockage test 25
Exhaust ducting guide 27

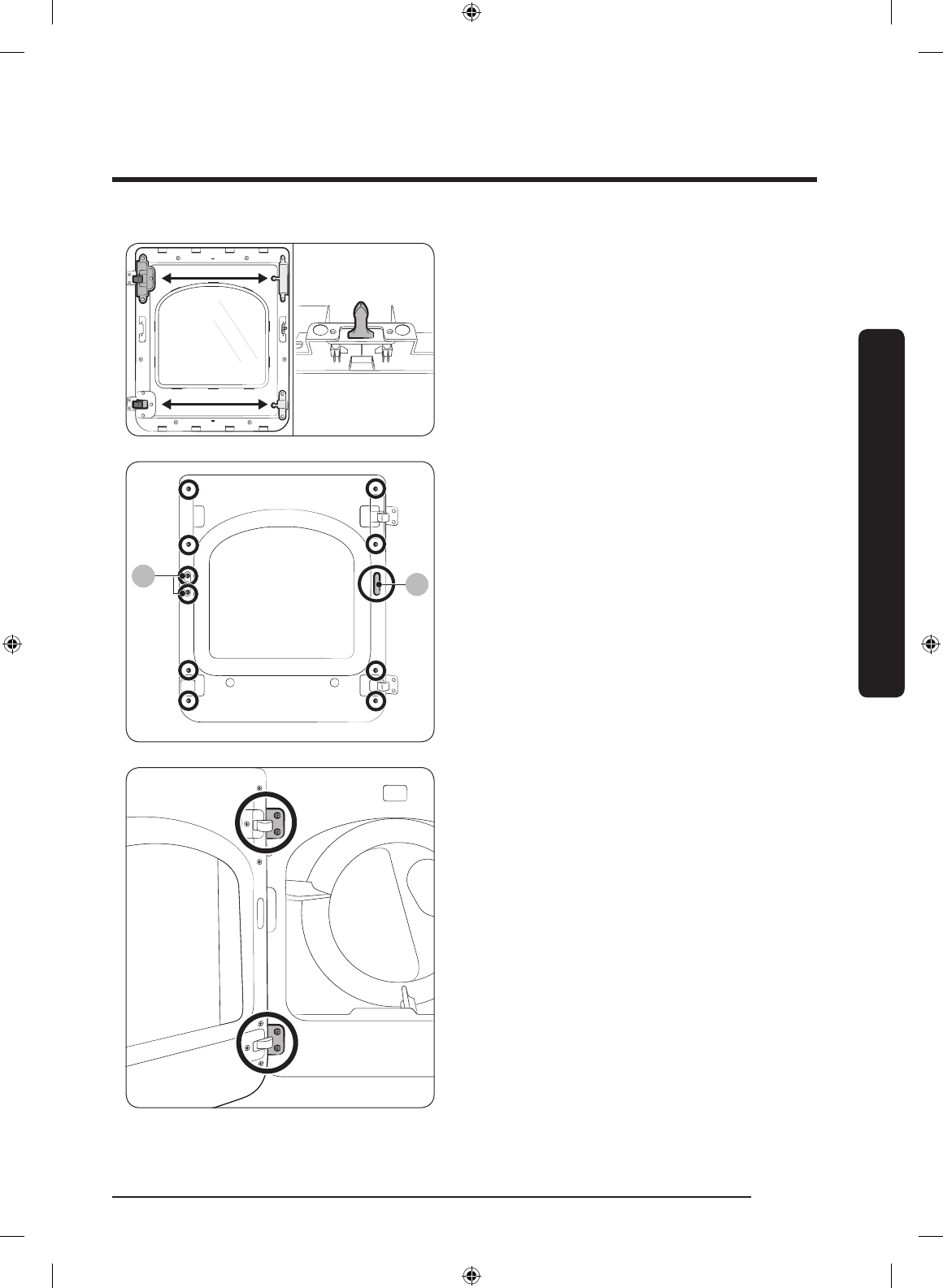

Switching the door position 27
Before you start 30
Sort and load 30
Functional prerequisite 30
Operations 31
Feature panel 31
Simple steps to start 34
Cycle overview 35
Cycle guide 36
Special features 37
DV7750M-03170Y-01_EN.indd 2 2017-03-15  11:49:29
Contents
English 3
Maintenance 39
Vent sensor (applicable models only) 39
Cleaning 40
Troubleshooting 41
Checkpoints 41
Information codes 43
Specications 45
Fabric care chart 45
Protecting the environment 46
Specication sheet 47
Cycle chart 48
DV7750M-03170Y-01_EN.indd 3 2017-03-15  11:49:29
Safety information
SAVE THESE INSTRUCTIONS
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of
your dryer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
DV7750M-03170Y-01_EN.indd 4 2017-03-15  11:49:29
Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 5
WARNING - Gas Appliances:
State of California Proposition 65 Warnings (US only)
This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
Gas appliances can cause low-level exposure to Proposition 65 listed substances,
including but not limited to, benzene, carbon monoxide, formaldehyde and soot,
substances resulting from the incomplete combustion of natural gas or LP fuels.
WARNING - Risk of Fire
Clothes dryer installation must be performed by a qualied installer.
Install the clothes dryer according to the manufacturer’s instructions and local codes.
Do not install a clothes dryer with exible plastic venting materials. If exible metal
(foil type) duct is installed, it must be of a specic type identied by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airow and increase the risk of re.
To reduce the risk of severe injury or death, follow all installation instructions.
Save these instructions.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not use the dryer to dry clothes which have traces of any ammable substance,
such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner, etc.,
or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable
substances may cause the fabric to catch re by itself.
4. Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
DV7750M-03170Y-01_EN.indd 5 2017-03-15  11:49:29
Safety information
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English6
5. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
6. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
7. Do not reach into the appliance if the drum is moving.
8. Do not install or store this appliance where it will be exposed to the weather.
9. Do not tamper with internal controls.
10. Do not repair or replace any part of the appliance or attempt any service unless
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
11. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
12. Clean the lint screen before or after each load.
13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like
materials.
14. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
15. The interior of the appliance and exhaust duct should be cleaned periodically by
qualied service personnel.
16. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch re.
17. This appliance must be grounded. See “Electrical requirements” and “Grounding” in
Installation” section.
18. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
19. Do not insert your hand under the dryer.
This may result in injury.
20. Take care that children’s ngers are not caught in the door when closing it.
This may result in injury.
21. Control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Do not contact this part while appliance is energized.
DV7750M-03170Y-01_EN.indd 6 2017-03-15  11:49:29
Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 7
WARNING - To reduce the risk of re or explosion:
Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other ammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or ammable liquids or solids should not be placed in the dryer until
all traces of these ammable liquids or solids and their fumes have been removed.
There are many highly ammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, wpees, and wpe removers.
Items containing foam rubber (may be labeled latex foam) or similarly textured
rubberlike materials must not be dried on a heat setting. Heated foam rubber
materials can, under certain circumstances, produce re by spontaneous combustion.
WARNING - What to do if you smell gas:
Do not try to light any appliance.
Do not turn on the appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the re department.
Installation and service must be performed by a qualied installer, service agency, or
the gas supplier.
DV7750M-03170Y-01_EN.indd 7 2017-03-15  11:49:29
Safety information
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English8
Warnings
WARNING
Ensure pockets are free from small, irregularly shaped hard objects, foreign material,
etc. ie. coins, knives, pins, etc. These objects could damage your dryer.
Gas leaks may occur in your system, resulting in a dangerous situation.
Cautions
CAUTION
Do not allow children or pets to play on, in, or in front of the appliance. Close
supervision is necessary when the appliance is used near children and pets.
Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
Do not reach into the appliance when the drum is moving.
Do not install or store this appliance where it will be exposed to the weather.
Do not tamper with controls.
Do not repair, replace, or attempt to service any part of the appliance unless
specically instructed to in the user-repair instructions and you have the
understanding and skills to carry out the procedure.
Do not use fabric softeners or products to eliminate static unless the softener or
product is recommended for dryer use by the manufacturer of the fabric softener or
product.
Clean the lint screen before or after each load.
Keep the area around the exhaust opening and surrounding areas free from lint, dust,
and dirt.
The interior of the dryer and exhaust duct should be cleaned periodically by qualied
service personnel.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately or not in accordance with local and national codes. See
installation instructions for information about grounding this appliance.
Do not sit on top of the dryer.
Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with the manufacturer’s instructions.
DV7750M-03170Y-01_EN.indd 8 2017-03-15  11:49:30
Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 9
Do not place items in your dryer that have been spotted or soaked with vegetable oil
or cooking oil. Even after being washed, these items may contain signicant amounts
of these oils.
Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed
to heat. Heat sources such as your dryer can warm these items, allowing an oxidation
reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items
can become hot enough to catch re. Piling, stacking, or storing these kinds of items
may prevent heat from escaping and can create a re hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate,
the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying
cycle until the items have run through the Cool Down cycle. Never pile or stack these
items when they are hot.
DV7750M-03170Y-01_EN.indd 9 2017-03-15  11:49:30
Installation requirements
English10
Installation requirements
Read through the following instructions before installing the dryer, and keep this manual
for future reference.
WARNING
Control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Service personnel - Do not contact this part while appliance is energized.
Key installation requirements
A grounded electrical outlet.
A power cord for electric dryers (except
in Canada).
Gas lines (for gas models) that must
meet national and local regulations.
An exhaust system made of rigid metal
or exible stiff-walled metal exhaust
ducting.
WARNING
Remove the door from all discarded
appliances to prevent a child from
suffocating.
Location considerations
Adequate clearances between the dryer
and adjacent walls or other surfaces.
Adequate air circulation for ventilation
and gas combustion.
Away from water and weather.
WARNING
Make sure to exhaust the dryer
outdoors to reduce the risk of re.
Keep the dryer area clear of
combustible materials, gasoline, and
other ammable vapors and liquids.
Do not install other fuel-burning
appliances around or in the same place
as the dryer.
Alcove or closet installation
Minimum clearances between the dryer
and adjacent walls or other surfaces are:
2” in front, 17” on top, 1” on either side,
and 5” in the back.
The closet front must have two
unobstructed air openings for a combined
minimum total area of 72 in² with 3”
minimum clearance on the top and bottom.
A louvered door with equivalent space
clearance is acceptable.
DV7750M-03170Y-01_EN.indd 10 2017-03-15  11:49:30
Installation requirements
English 11
Ducting requirements
Recommended Use only for short-run installation
Weather hood
type
4” (10.2 cm) 2.5” (6.4 cm)
No. of 90°
elbows Rigid Metallic
exible* Rigid Metallic
exible*
080 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)
168 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)
257 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)
347 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)
NOTE
* Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct.
If you integrate the dryer’s vent system with an existing exhaust system, make
sure:
The exhaust system meets all applicable local, state, and national regulations.
Not to use a exible plastic duct.
To regularly check and clean all lint buildup from inside the existing ducts.
The duct is not kinked or crushed.
The exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system must not exceed 0.83 inches of water column
or be less than 0. Note that these values are measured with the dryer running with a
manometer presented to the exhaust duct that connects to the dryer. The dryer tumbler
must be empty and lint lter clean.
DV7750M-03170Y-01_EN.indd 11 2017-03-15  11:49:30
Installation requirements
Installation requirements
English12
Exhausting requirements
The dryer must not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building.
Exhausting the dryer to the outside will
prevent large amounts of lint and moisture
from being blown into the room.
In the United States and Canada
All dryers must be exhausted to the
outside.
The required exhaust duct is 4 inches
(10.2 cm) in diameter.
See “Ducting requirements” in the
Installation” section for the maximum
duct length and number of bends that
can be used.
The total length of exible metal duct
must not exceed 7’ 101/2” (2.4 m).
Do not assemble the duct with screws
or other fastener means that extend
into the duct and catch lint.
For the United States only: Use only
those foil-type exible ducts, if any,
specically identied for use with the
appliance by the manufacturer and that
comply with the Outline for Clothes
Dryer Transition Duct. Use Subject
2158A.
Outside the United States and Canada
Refer to the local codes.
WARNING
You must exhaust the dryer to the
outside to reduce the risk of re when
you install the dryer in an alcove or
closet.
Do not use a plastic or non-metal
exible duct.
If your existing ductwork is plastic, non-
metal, or combustible, replace it with
metal.
Use only a metal exhaust duct that is
non-ammable to ensure containment
of exhaust air, heat, and lint.
DV7750M-03170Y-01_EN.indd 12 2017-03-15  11:49:30
Installation requirements
English 13
Gas requirements
WARNING
Use only natural or LP (liquid propane)
gases.
THE INSTALLATION MUST CONFORM
WITH LOCAL CODES, OR IN THE
ABSENCE OF LOCAL CODES, WITH
THE NATIONAL FUEL GAS CODE ANSI/
Z223.1, LATEST REVISION (FOR THE
UNITED STATES), OR WITH THE CAN /
CGA-B149 INSTALLATION CODES (FOR
CANADA).
Gas dryers are equipped with a burner
vent for use with natural gas. If you
plan to use your dryer with LP (liquid
propane) gas, it must be converted
for safe and proper performance by a
qualied service technician.
A 1/2” (1.27 cm) gas supply line is
recommended and must be reduced to
connect to the 3/8” (1 cm) gas line on
your dryer. The National Fuel Gas Code
requires that an accessible, approved
manual gas shut-off valve be installed
within 6” of your dryer.
Gas dryers installed in residential
garages must be raised 18 inches
(46 cm) above the oor.
Additionally, a 1/8” (0.3 cm) N.P.T.
(National Pipe Thread) plugged tapping,
accessible for test gauge connection,
must be installed immediately upstream
of your dryer’s gas supply connection.
Your dryer must be disconnected from
the gas supply pipe system during any
pressure testing of the system.
Do not reuse old exible metal gas
lines. Flexible gas lines must be
design certied by the American Gas
Association (CGA in Canada).
NOTE
Your dryer uses an automatic ignition
system to ignite the burner. There is no
constant burning pilot.
Any pipe joint compound used must be
resistant to the action of any liqueed
petroleum gas.
As a courtesy, most local gas utilities
will inspect a gas appliance installation.
Commonwealth of Massachusetts
installation instructions
Your dryer must be installed by a licensed
plumber or gas tter. A “T” handle manual
gas valve must be installed in the gas
supply line to your dryer. If a exible gas
connector is used to install your dryer, the
connector can be no longer than 3’ (36”).
WARNING
Gas leaks may occur in your system,
creating a dangerous situation.
Gas leaks may not be detected by smell
alone.
Gas suppliers recommend you purchase
and install a UL-approved gas detector.
Install and use in accordance with the
manufacturer’s instructions.
DV7750M-03170Y-01_EN.indd 13 2017-03-15  11:49:30
Installation requirements
Installation requirements
English14
Electrical requirements
The wiring diagram is located on the plate
under the control panel or rear frame.
WARNING
Improperly connecting the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether your
dryer is properly grounded. Do not
modify the plug provided with your
dryer – if it doesn’t t the outlet, have
a proper outlet installed by a qualied
electrician.
To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with local codes, or in the
absence of local codes, in accordance
with the National Electrical Code, ANSI/
NFPA No. 70-Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA
C22.1 – Latest Revisions and local codes
and ordinances. It is your responsibility
to provide adequate electrical service
for your dryer.
All gas installations must be done in
accordance with the national Fuel Code
ANSI/Z2231 – Latest Revision (for the
U.S.) or CAN/CGA – B149 Installation
Codes – Latest Revision (for Canada)
and local codes and ordinances.
Grounding
This dryer must be grounded. In the event
of malfunction or breakdown, the ground
will reduce the risk of electrical shock by
providing a path of least resistance for the
electrical current.
Gas models
WARNING
Your dryer has a cord with an
equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
Do not connect the ground wire to
plastic plumbing lines, gas lines, or hot
water pipes.
DV7750M-03170Y-01_EN.indd 14 2017-03-15  11:49:30
Installation requirements
English 15
Electric models
WARNING
Your dryer has an optional cord with
an equipment-grounding conductor
and a grounding plug. This cord is sold
separately.
The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
If a power cord is not used and the
electric dryer is to be permanently
wired, the dryer must be connected to
a permanently grounded metal wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dryer.
Electrical connections
Before operating or testing, follow all
grounding instructions in the “Grounding
section. An individual branch (or separate)
circuit serving only your dryer is
recommended.
Do not use an extension cord.
Gas models – U.S. and Canada
A 120 volt, 60 Hz AC approved electrical
service with a 15-ampere fuse or circuit
breaker is required.
Electric models – U.S. only
Most U.S. dryers require a 120 / 240 volt,
60 Hz AC approved electrical service.
Some require 120 / 208 volt, 60 Hz
approved electrical service. The electric
service requirements can be found on
the data label located behind the door.
A 30-ampere fuse or circuit breaker on
both sides of the line is required.
If a power cord is used, the cord
should be plugged into a 30-ampere
receptacle.
The power cord is not provided with
U.S. electric model dryers. This cord is
sold separately.
WARNING
Risk of Electric Shock
When local codes allow, you can connect
the dryer’s electrical supply with a new
power supply cord kit, marked for use with
a dryer, that is U.L. listed and rated at a
minimum of 120 / 240 volts, 30-amperes
with three No. 10 copper wire conductors
terminated with closed loop terminals,
open-end spade lugs with turned up ends,
or with tinned leads.
Do not reuse a power supply cord from
an old dryer. The power cord electric
supply wiring must be supported at the
dryer cabinet by a suitable UL-listed
strain relief.
Grounding through the neutral
conductor is prohibited for (1) new
branch-circuit installations, (2) mobile
homes, (3) recreational vehicles, and
(4) areas where local codes prohibit
grounding through the neutral
conductor. (Use a 4-prong plug for a
4 wire receptacle, NEMA type 14-30R.)
DV7750M-03170Y-01_EN.indd 15 2017-03-15  11:49:30
Installation requirements
Installation requirements
English16
Electric models – Canada Only
A 120 / 240 volt, 60 Hz AC approved
electrical service fused through a
30-ampere fuse or circuit breaker on
both sides of the line is required.
All Canadian models are shipped
with the power cord attached. The
power cord should be plugged into a
30-ampere receptacle.
NOTE
In Canada, you may not convert a dryer to
208 volts.
DV7750M-03170Y-01_EN.indd 16 2017-03-15  11:49:31
Installation
English 17
Installation
This dryer must be installed by a qualied technician. The installer is responsible for
connecting the dryer to the main power while observing the relevant safety regulations of
your area.
What’s included
Make sure all the parts are included in the product package. If you have a problem with
the dryer or the accessories, contact a local Samsung customer center or the retailer.
01
02
03
04
05

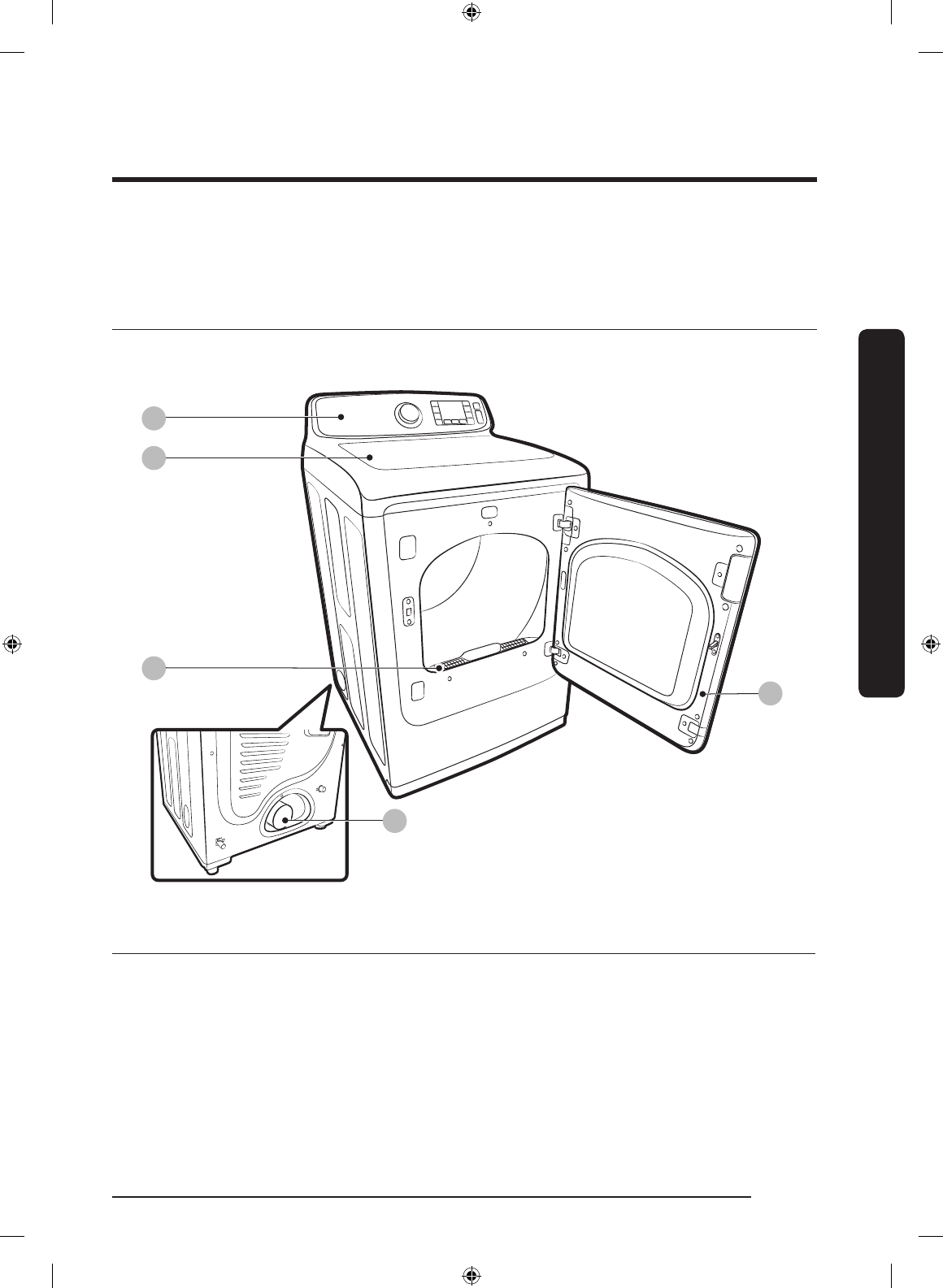

Dryer at a glance
01 Control panel 02 Worktop 03 Filter
04 Door 05 Exhaust duct
DV7750M-03170Y-01_EN.indd 17 2017-03-15  11:49:31
Installation
Installation
English18
Accessories & tools
Provided accessories
Y connector Water hose
(Canadian elec.
models only)
Short water hose
Required tools
Pliers Cutting knife Pipe wrench (gas
models only)
Nut driver
Level Philips screwdriver Duct tape Wrench
WARNING
Packing materials can be dangerous to children. Keep all packing materials (plastic bags,
polystyrene, etc.) out of children’s reach.
DV7750M-03170Y-01_EN.indd 18 2017-03-15  11:49:33
Installation
English 19
Step-by-step installation
Make sure you have a qualied technician install the dryer. Step by step installation
instructions start below.
STEP 1 Install the exhaust system
1. Select a location and move the dryer to the site. For easy access, we recommend you
install the dryer in the same location as your washer.
2. To change the door direction, see “Switching the door position”.
3. Install the exhaust system as instructed in the “Exhaust ducting guide” section.
NOTE
To move the dryer easily, lay two of the carton cushion-from the packaging on the
oor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that
it is near its nal location, and then set the dryer upright.
Secure room around the dryer to facilitate ducting and wiring.
STEP 2 Connect the gas line
First, read through the “Gas requirements” section, and follow these steps.
1. Remove the protective cap from the gas pipe.
2. Apply a LPG (Liqueed Petroleum Gas)-safe compound or 1.5 wraps of Teon tape to
all threaded connections.
3. Connect the gas supply to the dryer. An additional tting is required to connect the 3/4
(1.9 cm) female thread end of a exible connector to the 3/8” (1 cm) male threaded end
on the dryer. Tighten up the tting over all threads.
4. Turn on the gas supply, and check for any leaks using a soap solution. If a leak is found,
tighten the connections and try again. DO NOT use an open ame to check for gas
leaks.
DV7750M-03170Y-01_EN.indd 19 2017-03-15  11:49:33
Installation
Installation
English20
STEP 3 Connect the electrical wiring
First, read through the “Electrical requirements” section, and follow these steps.
3-wire system
A
B
E
C
D
A. External ground connector
B. Neutral grounding wire (white)
C. Center silver-colored terminal block
screw
D. Neutral wire (white or center wire)
E. 3/4” (1.9 cm) UL-listed strain relief
1. Loosen or remove the center terminal
block.
2. Connect the neutral wire (white or
center wire) of the power cable to the
center, silver-colored terminal screw of
the terminal block. Tighten the screws.
3. Connect the other wires to outer
terminal block screws. Tighten the
screws.
4. Tighten the strain relief screws.
5. Insert the terminal block cover into the
rear panel of the dryer. Then, secure the
cover with a hold-down screw.
CAUTION
To convert from the 4-wire system
to 3-wire system, connect the ground
strap to the terminal block support to
ground the dryer frame to the neutral
conductor.
Ring-type terminals are recommended.
If using strap terminals, make sure they
are tightened.
DV7750M-03170Y-01_EN.indd 20 2017-03-15  11:49:33
Installation
English 21
4-wire system
B
C
D
F
E
A
A. External ground connector
B. Green or bare copper wire of power
cord
C. 3/4” (1.9 cm) UL-listed strain relief
D. Center silver-colored terminal block
screw
E. Neutral grounding wire (white)
F. Neutral wire (white or center wire)
1. Remove the external ground connector’s
screw, and connect the ground wire
(green or unwrapped) of the power cable
to the screw.
CAUTION
To connect the ground wire to the
neutral position without through
contact A (cabinet ground), contact
a technician. This is not user
serviceable.
Ring-type terminals are
recommended. If using strap
terminals, make sure they are
tightened.
2. Loosen or remove the screws from the
center terminal block.
3. Connect the neutral wire (white or
center wire) and ground wire (white) to
the center screw of the terminal block.
Tighten the screw.
4. Connect the other wires to the outer
terminal block screws. Tighten the
screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover
into the rear slot of the dryer. Secure the
cover with a hold-down screw.
WARNING
All U.S. models are designed for a 3-wire system connection. The dryer frame is
grounded to the neutral conductor at the terminal block. A 4-wire system connection
is required for new or remodeled construction, mobile homes, or if local codes do not
permit grounding through neutral. If you use the 4-wire system, you cannot ground the
dryer frame to the neutral conductor at the terminal block.
Remove the terminal block cover plate. Insert the power cord with a UL-listed strain
relief through the hole provided in the cabinet near the terminal block.
A strain relief must be used. Do not loosen the nuts already installed on the terminal
block. Be sure they are tight. Use a 3/8” (1 cm) deep well socket.
DV7750M-03170Y-01_EN.indd 21 2017-03-15  11:49:34
Installation
Installation
English22

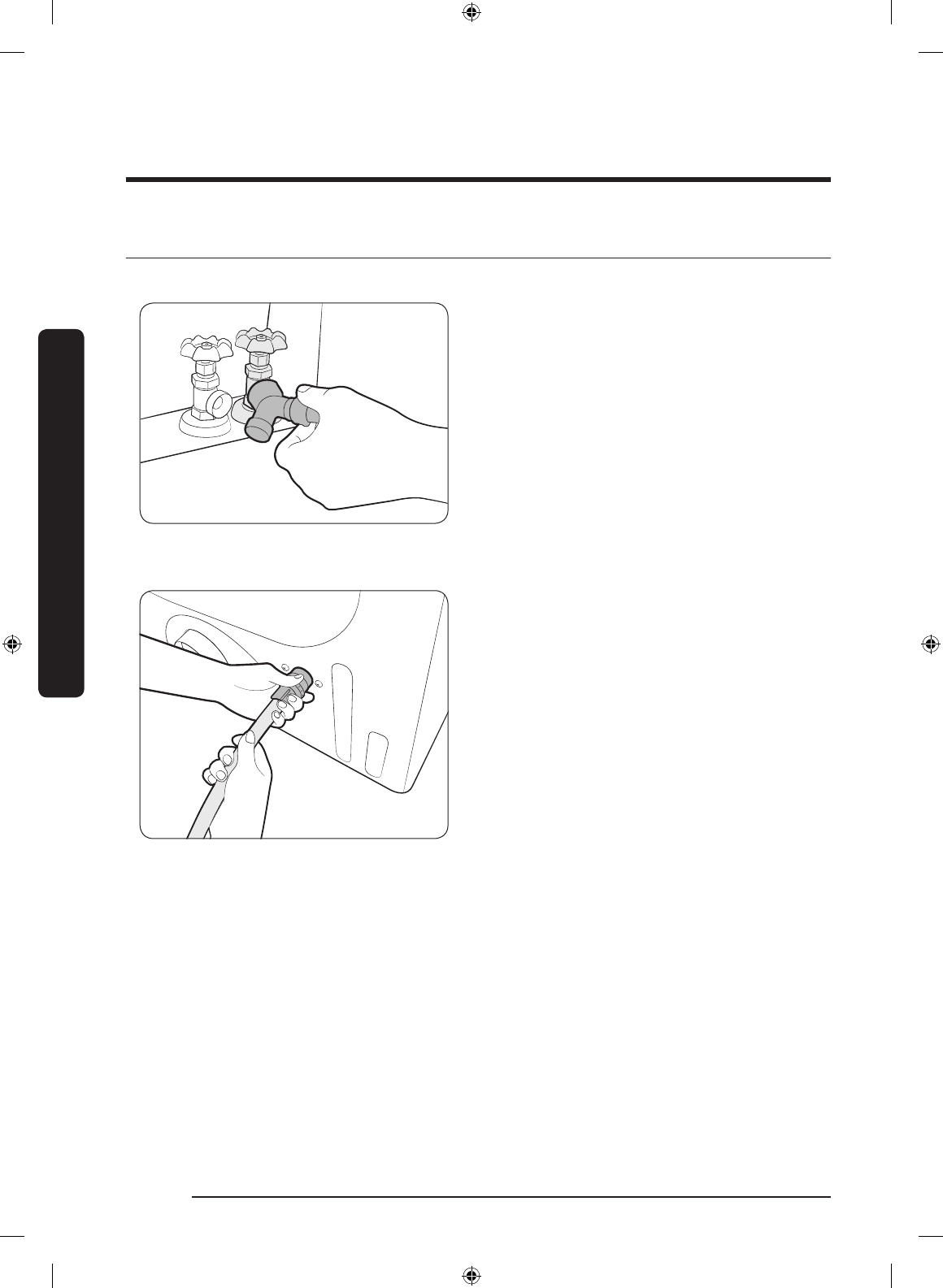

STEP 4 Connect the water hose
The dryer must be connected to a cold water tap using the provided water hoses.
1. Close the cold water tap. If you have a
washer cold water hose attached to the
cold water faucet, unscrew and remove
the hose. Then, connect the female end
of the Y connector to the cold water
tap.
2. Connect the straight end of the water
hose to the Y connector.
3. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten because the coupling may
be damaged.
4. Connect the angled end of the water
hose to the lling valve at the bottom
of the rear frame. Turn the coupling
manually until it is tight.
5. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten because the coupling may
be damaged.
6. If you detached the cold water hose
from your washer, attach the hose
to the open end of the Y connector,
tighten the coupling until it is tight,
and then, using a pliers, tighten an
additional two-thirds turn.
7. Open the cold water tap, and then check
for any leaks.
If the Y connector cannot be directly connected to the cold water tap, use the short hose
as shown on the following page.
DV7750M-03170Y-01_EN.indd 22 2017-03-15  11:49:34
Installation
English 23
Using the short hose as an extension
B
A
C
1. Close the cold water tap. If you have
a washer cold water hose attached to
the cold water faucet, unscrew and
remove the hose. Then, connect the
short hose (B) to the cold water tap.
Turn the coupling manually until it is
tight.
2. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten because the coupling may
be damaged.
3. Connect the Y connector (A) to the brass
male end of the short hose. Turn the
coupling manually until it is tight.
4. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten because the coupling may
be damaged.
5. Connect the angled end of the water
hoses (C) to the lling valve at the
bottom of the rear frame. Turn the
coupling manually until it is tight.
6. Using pliers, tighten the coupling an
additional two-thirds turn. Do not
overtighten because the coupling may
be damaged.
7. If you detached the cold water hose
from your washer, attach the hose to
the free end of the Y connector, tighten
the coupling until it is tight, and then,
using a pliers, tighten an additional
two-thirds turn.
8. Open the cold water tap, and then check
for any leaks.
DV7750M-03170Y-01_EN.indd 23 2017-03-15  11:49:34
Installation
Installation
English24
STEP 5 Level the dryer
To ensure optimal performance, the dryer must be level.
A
B
1. Using a level (A), check if the dryer
is level side to side and then front to
back. If the dryer is not level, adjust the
leveling feet (B) at the bottom of the
dryer. Then, check if the dryer is level
again.
A B
NOTE
To set the dryer to the same height
as your washer, fully retract (A)
the leveling feet by turning them
counterclockwise, then loosen (B) the
feet by turning them clockwise. Once
the dryer is the same height as the
washer, follow the directions above
to level the dryer.
Adjust the leveling feet only as much
as necessary to level the dryer.
Extending the leveling feet more
than necessary can cause the dryer
to vibrate.
DV7750M-03170Y-01_EN.indd 24 2017-03-15  11:49:34
Installation
English 25
STEP 6 Power on (Gas models)
Make sure all gas connections, the exhaust line, and all wiring is connected correctly. Then,
plug the power cord into a power source and check the dryer’s installation and operation
using the nal checklist in Step 7 below.
STEP 7 Final check
When installation is complete, conrm that:
The dryer is plugged into an electrical outlet and grounded properly.
The exhaust ductwork is connected and the joints are taped.
You have used rigid or stiff-walled exible metal duct material, not plastic exible duct.
The dryer is level and is sitting rmly on the oor.
The dryer starts, runs, heats, and shuts off properly.
For gas models:
The gas is supplied properly with no leaks.
CAUTION
The burner may not ignite initially due to air in the gas line. Allowing your dryer to
operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes,
turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been
turned on. To conrm gas ignition, check the exhaust for heat.
Vent blockage test
After the dryer is installed, start the Vent Blockage Test to check if the duct system is
properly installed. The Vent Blockage Test automatically detects the status of the ducts
and reports any blockage or problems. Proper ducting can reduce drying time and save
energy.
NOTE
The Vent Blockage Test must run with the dryer in a cool state. If the dryer warms up
after the installation check, run the AIR FLUFF cycle for several minutes to reduce its
internal temperature.
DV7750M-03170Y-01_EN.indd 25 2017-03-15  11:49:35
Installation
Installation
English26
Running the vent blockage test
1. Make sure the drum is empty, and then close the door.
(If there are any clothes or other items in the drum, the test will not give accurate
results.)
2. Press the POWER button to turn the dryer on, then simultaneously press and hold the
Adjust Time and Dry Level buttons for 3 seconds. “InS or In” appears in the dryer’s
display. (If you have started other procedures before the Vent Blockage Test, the dryer
will not enter the Vent Blockage Test mode.)
3. Press the START/PAUSE button. The Vent Blockage Test starts immediately. During the
test, the number indicator makes a circle in 6 clockwise steps. The test takes about 2
minutes. Do not open the door during the test.
4. After 2 minutes, when the test is complete, the results is displayed and the dryer
sounds a tone.
If status of the duct system is normal, “End or 0” appears and the dryer sounds a
completion tone.
If the duct system can not exhaust properly, “CLg or Cg” appears and the dryer sounds
an alarm tone.
If there are any other problems, an information code appears in the display. For
information about the code, see “Information codes” section on page 43.
To stop or cancel the Vent Blockage Test, press the POWER button to turn off your
dryer.
During the test, if “dc” appears in the display, make sure the door is closed. If “C1” is
displayed, see if there is laundry inside drum. If there is, stop the test and remove it.
Then, start the test again.
The results remain on the display for about 5 minutes and then automatically turn
off. You can turn the result off immediately by pressing the POWER button.
NOTE
During or after the test, the internal drum is hot. Use caution to prevent burns.
The Vent Blockage Test is used to check for problems to the current duct system when
the dryer is installed for the rst time.
If the test result displays “CLg or Cg” (the duct system is blocked ), refer to the “Ducting
requirements” section on page 11 and the “Exhaust ducting guide” section below, and
then take proper measures to correct any problems.
If the test is suspended, it could result in incorrect results. Follow the proper
procedures when testing the dryer.
Even if the test result is normal (“End or 0”), the duct system could be blocked slightly.
Properly install all duct work according to the installation instructions in this manual.
DV7750M-03170Y-01_EN.indd 26 2017-03-15  11:49:35
Installation
English 27
Exhaust ducting guide
Ducting
1. Make sure the dryer is installed properly so the air exhausts freely.
2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection.
Never use lint-trapping screws.
3. To facilitate the exhaust, keep the ducts as straight as possible.
Cleaning
Clean all old ducts before installing the dryer, and make sure the vent ap opens and
closes freely. We recommend that you to clean the exhaust system annually or on a
regular basis.
WARNING
To prevent re, do not use plastic, thin-foil, or non-metal exible ducts of any kind.
Do not use a poor exhaust system because it slows down the dryer’s performance.
Do not use excessively long ducts that have multiple elbows.
Do not use crushed or clogged venting or ducts.
Switching the door position
To reverse the direction of the door, we
recommend that you contact a qualied
technician. It is recommended to put a soft
rug on the oor to prevent scratches on
the door.
1. Unplug the power cord of the dryer.
2. Remove the four hinge screws from
the door, and then remove the door by
lifting it up slightly.
DV7750M-03170Y-01_EN.indd 27 2017-03-15  11:49:35
Installation
Installation
English28
3. Remove the two screws from the lever
holder, and then remove the holder
cover.
4. Put the lever holder on the other side
as shown, and then tighten the screws.
Install the holder cover on the opposite
side as shown.
5. Use a at-head screwdriver to remove
the two hinge covers from the original
side. Install the hinge covers on the
opposite side as shown.
B
6. Locate and remove the 10 screws as
shown. Note that screw B (x2) is longer
than the others.
DV7750M-03170Y-01_EN.indd 28 2017-03-15  11:49:35
Installation
English 29
7. Remove the glass holder, and switch
the positions of:
a. the hinge cover and the door handle.
b. the hinge holder and the glass-guide
holder
8. Remove the door lever, and then move
it to the other side as shown.
BC
9. Remove the hole cover (C), and then
insert and tighten the glass holder using
the removed 10 screws.
10. Install the hole cover on the opposite
side as shown.
11. Reinstall the door on the front frame,
and then carefully insert and tighten
the 4 hinge screws.
DV7750M-03170Y-01_EN.indd 29 2017-03-15  11:49:36
Before you start
English30
Before you start
Here are a few things you should know before starting your dryer.
Sort and load
Put one wash load in the dryer at a
time.
Do not mix heavy and lightweight items
together.
To improve drying efciency for one or
two items, add a dry towel to the load.
For best results, untangle items before
inserting them into the dryer.
Overloading reduces the tumbling
performance, resulting in uneven
drying and wrinkling.
Unless recommended on the care label,
do not dry woolens or berglass items.
Avoid drying unwashed items.
Do not dry items soiled with oil, alcohol,
gasoline, etc.

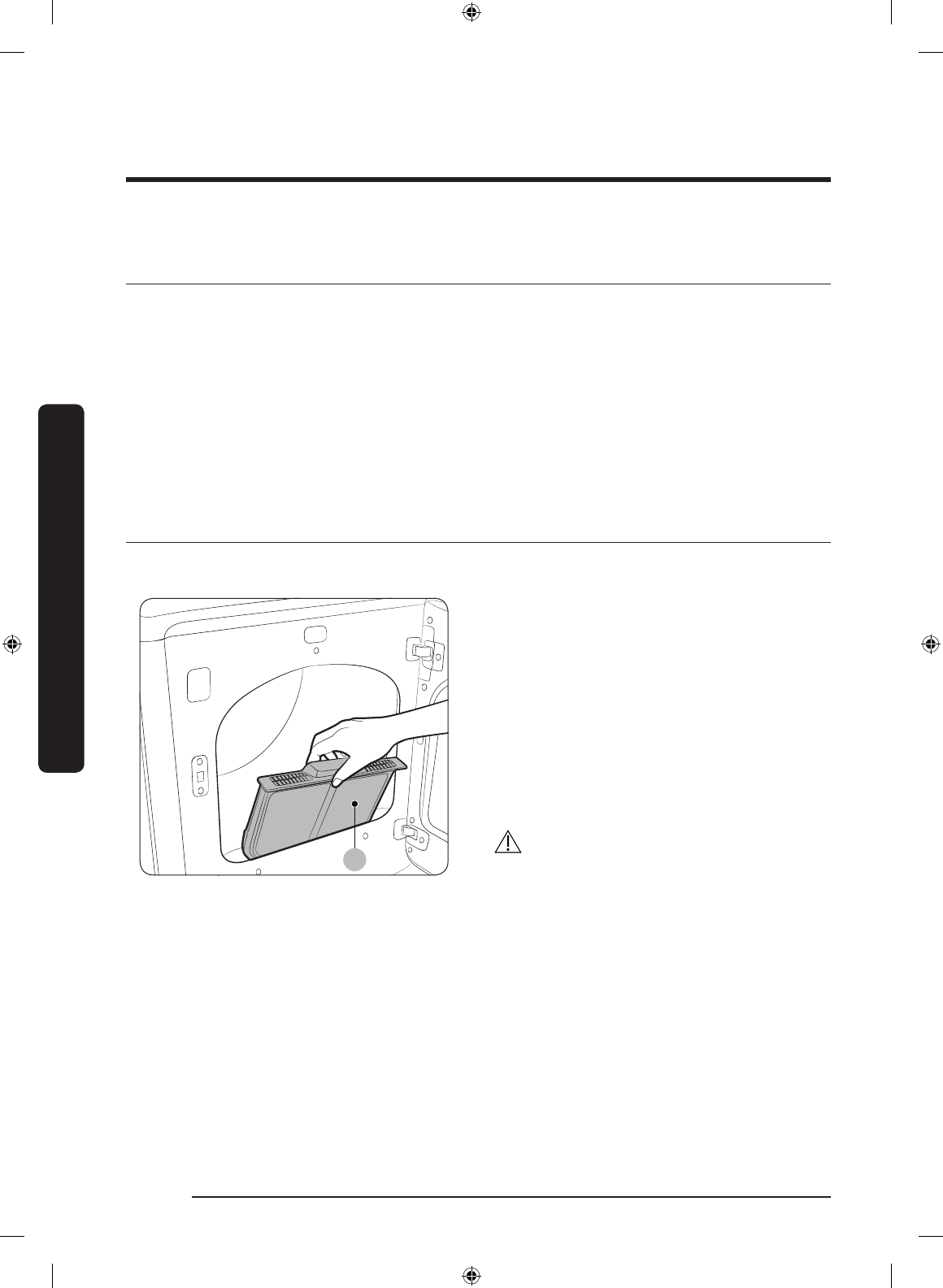

Functional prerequisite
Lint lter
A
To prevent a risk of re, make sure to
clean the lint lter before or after every
load.
1. Turn off the dryer.
2. Open the door, and pull out the lint
lter (A) from inside the tumbler.
3. Remove the lint that has accumulated,
and then clean the lint lter.
4. Reinsert the lint lter, and then close
the door.
CAUTION
Do not operate the dryer without the
lint lter in place.
Do not use a damaged or broken lint
lter. This may reduce performance
and/or cause re.
DV7750M-03170Y-01_EN.indd 30 2017-03-15  11:49:36
Operations
English 31
Operations
WARNING
To reduce the risk of re, electric shock, or injury to persons, read the “Safety information
before operating this appliance.
Feature panel
DVE(G)52M7750*
01
05
02 03 04
06
07
08
09
11
10
12
13
14
DVE(G)52M7755*
01
05
02 03 04
06
07
08
09
11
10
12
13
14
01 Cycle Selector Turn the cycle selector to select a desired cycle. When a cycle is
selected, the cycle indicator lights up.
DV7750M-03170Y-01_EN.indd 31 2017-03-15  11:49:36
Operations
Operations
English32
02 Dry Level
Press to adjust the dryness in the Sensor Dry and Steam Cycles.
The corresponding indicator turns on.
Larger or bulkier loads may require Very Dry or More Dry for
complete dryness.
Less Dry is best suited for lightweight fabrics or for leaving
some moisture in the clothing at the end of the cycle.
Damp Dry is designed to partially dry items. Use for items that
lay at or hang to dry.
NOTE
This option is not available with STEAM SANITIZE, and ACTIVE
WEAR.
03 Temp.
Press to change the temperature of the current cycle.
High: For sturdy cottons or those labeled Tumble Dry.
Medium: For permanent press, synthetics, lightweight cottons,
or items labeled Tumble Dry Medium.
Med Low: For heat lower than Medium. Use to dry synthetic or
washable knit fabrics.
Low: For heat sensitive items labeled Tumble Dry Low or
Tumble Dry Warm.
Extra Low: Provides the lowest heated drying temperature
possible.
04 Time
Press to adjust the drying time for the Manual Dry cycles. This
is not available with the Sensor Dry cycles because the dryer
determines the drying time by sensing the current moisture level
of the load.
05 Digital Graphic
Display
Displays all cycle information, including the cycle time,
information code, and operating status.
06 Eco Dry
This function is available with NORMAL and TIME DRY.
With the Eco Dry activated, drying takes a longer time but the
power consumption is reduced.
The drying time can be extended by up to 3 times depending on
the temperature and load. The Eco Dry function is enabled by
default.
DV7750M-03170Y-01_EN.indd 32 2017-03-15  11:49:36
Operations
English 33
07 Mixed Load Bell
The Mixed Load Bell noties you when the average dry level in
a load is damp dry (80 % dried). This lets you take items that you
don’t want fully dried or that dry quickly out of the dryer early
while letting others continue to dry.
You can select this option in all Sensor Dry cycles except for
STEAM SANITIZE, and ACTIVE WEAR. Available dry levels are
Normal Dry, More Dry, and Very Dry.
08 Anti Static
Reduces static electricity that occurs from clothing friction. This is
done by spraying steam in a later stage of the drying cycle.
NOTE
The Anti Static function is only available with NORMAL, HEAVY
DUTY, PERM PRESS, DELICATES, and TIME DRY.
09 Wrinkle Prevent
Wrinkle Prevent provides approximately 180 minutes of
intermittent tumbling in unheated air at the end of the cycle to
reduce wrinkling. Press Wrinkle Prevent to activate this feature.
The load is dry, and can be removed at any time during the
Wrinkle Prevent cycle.
10 My Cycle Choose your favorite cycle including the cycle time, temperature,
and dry level. See “My Cycle” for details.
11 Adjust Time
You can change the set time in the Manual Dry cycles (TIME DRY,
QUICK DRY, or AIR FLUFF) and WRINKLE AWAY. To change the
cycle time, press or until the desired time is displayed.
12 Sound
Press Sound to turn on or off the dryer’s notication beeps and
melodies.
NOTE
This function remains active even after you restart the dryer.
13 POWER Press to turn on/turn off the dryer.
14 START/PAUSE Press to start or stop operation.
NOTE
Extremely tangled items nished by the washer may degrade the drying efciency or
cause the door to open. We recommend that you untangle the items before drying.
DV7750M-03170Y-01_EN.indd 33 2017-03-15  11:49:36
Operations
Operations
English34
Simple steps to start
1. Press POWER to turn on the dryer.
2. Turn the Cycle Selector to select a cycle.
3. Change the cycle settings (Dry Level
and Time) as necessary.
4. Optionally, you can activate options
available by pressing the relevant
button (Mixed Load Bell, Anti Static,
Wrinkle Prevent, and/or Eco Dry).
5. Press START/PAUSE. The dryer indicator
turns on with an estimated cycle time
on the display.
To change the cycle during operation
1. Press START/PAUSE to stop operation.
2. Select a different cycle.
3. Press START/PAUSE again to start the
new cycle.
DV7750M-03170Y-01_EN.indd 34 2017-03-15  11:49:36
Operations
English 35
Cycle overview
Sensor Dry
Sensor Dry cycles sense moisture in the load and stop the dryer when the load reaches
the dryness level you have selected with Dry Level.
Cycle Description
NORMAL
For most fabrics including cottons and linens.
If NORMAL is selected, the Eco Dry function is enabled by default.
For more information, see Eco Dry in the “Feature panel“ section.
HEAVY DUTY For drying items made out of heavy fabrics, such as jeans,
corduroys, or work clothes, with high temperature heat.
BEDDING For bulky items such as blankets, sheets, and comforters.
PERM PRESS Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent
press fabrics automatically.
DELICATES For heat-sensitive items at a low drying temperature.
TOWELS For bath towels and similar items
ACTIVE WEAR
For exercise wear and outdoor wear such as sports jerseys,
training pants, water-repellent jackets, and other performance
clothing.
Thick fabrics like a zipper or velcro closure of a jacket, or training
socks may not be completely dried.
Manual Dry
You can change the drying settings manually to your preference.
Cycle Description
TIME DRY
You can specify a cycle time in minutes.
If TIME DRY is selected, the Eco Dry function is enabled by
default. For more information, see Eco Dry in the “Feature panel
section.
QUICK DRY A quick drying cycle running for 30 minutes
AIR FLUFF Tumbles the load in room temperature air.
DV7750M-03170Y-01_EN.indd 35 2017-03-15  11:49:37
Operations
Operations
English36
Steam Cycles
Use steam to reduce wrinkling and odors on items.
Cycle Description
REFRESH
Use to smooth out wrinkles and reduce odors in loads of one to
four items. With this cycle selected, a small amount of water is
sprayed into the dryer drum after several minutes of tumbling
with heat. Conrm that the laundry load is dry.
WRINKLE AWAY
For best results, load 2-3 items at once. You can extend the
drying time by a minimum of 20 minutes, depending on the item
type or load. Conrm that the laundry load is dry.
STEAM SANITIZE
Use to sanitize items by applying steam and high-temperature
heat to the fabric. This cycle can make items soft and reduce
smells. Conrm that the laundry load is wet or partially wet.
Cycle guide
The best way to dry items is to follow the instructions on the care label. If no drying
instructions are provided, see the following table for reference.
Item Description
Bedspreads &
Comforters
Follow the care label instructions or dry using BEDDING.
Make sure the item is thoroughly dry before using or storing.
May require repositioning in the drum to ensure even drying.
Blankets
Use NORMAL and dry only one blanket at a time for best
tumbling action.
Make sure blankets are is thoroughly dry before using or
storing.
Curtains & Draperies
Use PERM PRESS and the Medium temperature setting to help
minimize wrinkling.
Dry curtains and draperies in small loads for best results and
remove as soon as possible.
Cloth Diapers
Use NORMAL and the medium temperature setting for soft, uffy
diapers.
Down–lled Items
(jackets, sleeping
bags, comforters,
etc.)
Use NORMAL and the Medium temperature setting.
Add a couple of dry towels to absorb moisture and shorten
drying time.
DV7750M-03170Y-01_EN.indd 36 2017-03-15  11:49:37
Operations
English 37
Item Description
Foam Rubber (rug
backs, stuffed toys,
shoulder pads, etc.)
Do not dry on a heat setting. Use AIR FLUFF.
WARNING
Drying a rubber item with heat may damage it or cause a re.
Pillows
Use NORMAL.
Add a couple of dry towels and a pair of clean sneakers to help
the tumbling action and to uff the items.
Do not dry kapok or foam pillows using a heated drying cycle.
You can dry these items in the dryer only if you use AIR FLUFF.
Plastics (shower
curtains, outdoor
furniture covers, etc.)
Use AIR FLUFF or TIME DRY and the Low or Extra Low
temperature settings depending on the care label instructions.
WARNING
Do not dry:
Fiberglass items (curtains, draperies, etc.)
Woolens, unless recommended on the label
Items spotted or soaked with vegetable or cooking oils
Special features
Child Lock
Child Lock prevents children from
playing with the dryer. When Child Lock
is activated, all buttons except for the
POWER button are disabled.
To activate/deactivate Child Lock,
simultaneously press and hold Dry Level.
and Temp. for 3 seconds.
NOTE
Once Child Lock is activated, it will remain
active even after you restart the dryer.
If other buttons, except for the POWER
button, do not respond, check the Child
Lock indicator. If the indicator is on, follow
the instructions above to turn Child Lock
off.
Drum Light
To turn on the drum light while the
dryer is running, press and hold Time for
3 seconds.
NOTE
After 5 minutes of inactivity, the drum
light automatically turns off.
DV7750M-03170Y-01_EN.indd 37 2017-03-15  11:49:37
Operations
Operations
English38
Sound On/Off
To turn off the dryer’s notication
beeps and melodies, press and hold
Sound button.
To unmute the dryer, press and hold
Sound button.
NOTE
This function remains active even after
you restart the dryer.
My Cycle
You can create your own cycle that
contains your preferred settings, and use it
at your convenience.
1. Turn the Cycle Selector to select a cycle.
The cycle indicator turns on.
2. Set or change the settings (Dry Level,
Temp., Time, etc) and/or options as
necessary. Each corresponding indicator
blinks.
3. Press and hold My Cycle for 3 seconds.
The dryer stores the selected cycle with
its settings.
To use My Cycle, press and hold My Cycle
for 3 seconds.
Smart Care
If the dryer displays an information
code, you can use Smart Care to check
the status of the dryer on a smartphone.
To use Smart Care, you must have the
Samsung Smart Care app installed on your
smartphone.
NOTE
Smart Care is optimized for Samsung
Galaxy and Apple iPhones. (Not compatible
with some models).
Download the Samsung Smart Care app
from the Google Play Store or Apple App
store (Search word: “Samsung Smart
Washer/Dryer”), and install it on your
smartphone.
If an information code appears on the
dryer, follow these steps:
1. Press and hold Sound for 3 seconds to
activate Smart Care. The Smart Care
indicator turns on.
2. Open the Smart Care app on your
smartphone.
3. Put the smartphone’s camera close
to the display of the dryer. The
app automatically recognizes the
information code, and displays
suggestions on your smartphone.
4. If the smartphone fails to recognize the
information code more than twice, type
the information code manually into the
Smart Care app.
CAUTION
If light is reected on the display of
the dryer, the smartphone may not
recognize the information code.
If you hold the smartphone at an angle
to the dryer’s display, the dryer may
not recognize the information code.
For best results, hold the smartphone
so that the front of the panel and the
smartphone are parallel or nearly
parallel.
After you use this function, the dryer
will delete delete the record of the
information code from its code log.
DV7750M-03170Y-01_EN.indd 38 2017-03-15  11:49:37
Maintenance
English 39
Maintenance
Keep the dryer clean to prevent decreased performance and to lengthen its life cycle.
WARNING
The control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Service personnel - Do not contact this part while the dryer is energized.
Vent sensor (applicable models only)
The dryer features a vent sensor that detects and noties you when it is time to clean the
ductwork. The indicator lets you know the status of the duct.
Level Indicator Status Action
0Off The ductwork is not clogged.
1On
The duct or lint lter is
clogged.
The pressure applied to
the duct is high because
the duct is too long or
bent.
Check the lint lter or duct
and clean if necessary.
Check the duct connections
and shorten or straighten
the duct if necessary.
2Blinking
The duct or lint lter is
severely clogged.
The pressure applied
to the duct is very high
because the duct is too
long or bent.
Check and clean the lint
lter or duct and make
sure they are not clogged.
Check the duct connections
and shorten or straighten
the duct work.
If the dryer is in the Level 2 state, the indicator blinks for 3 hours after the completion
of the current cycle. If you press POWER or open the door, the dryer powers off
immediately.
NOTE
For duct installation, see “Exhaust ducting guide”.
The dryer may keep running even if the duct is clogged, but the drying time will be
extended.
If the indicator turns on for the rst time and is solid (not blinking), check and clean the
lint lter and/or duct.
If the indicator turns on again later, it is because the duct is installed or connected with
some restrictions (it’s too long or has too many bends). This is not a system failure.
However, drying time may be extended or the drying performance may be degraded.
DV7750M-03170Y-01_EN.indd 39 2017-03-15  11:49:37
Maintenance
Maintenance
English40
Cleaning
Feature panel
Clean with a soft, damp cloth. Do not
use abrasive substances.
Do not spray liquid cleaning agents
directly on the display of the dryer.
Some laundry pre-treatment soil and
stain removers may damage the feature
panel.
When using liquid cleaning agents,
apply them to the cleaning cloth. Do not
apply them directly to the dryer. Wipe
up any spills or overspray immediately.
Tumbler
Remove any stains from the tumbler
with an all-purpose cleaner.
Tumble old towels or rags to remove
any remaining stains or cleaning
substances. Stains may be still visible,
but will not affect subsequent loads.
Powder coat tumbler
To clean the powder coat tumbler, use
a damp cloth with a mild, non-abrasive
cleaner suitable for easily marred surfaces.
Remove cleaner residue and dry with a
clean cloth.
Dryer exterior
Clean with a soft, damp cloth. Do not
use abrasive substances.
Protect the surface from sharp objects.
Do not place any heavy or sharp
objects or a detergent container on the
dryer. They can scratch or damage the
top cover of the dryer.
The dryer has a high-gloss nish on the
entire surface. Be careful not to scratch
or damage the surface.
Exhaust system
Check and clean the exhaust system on
a yearly or regular basis to maintain
optimum performance.
The external exhaust hood must be
cleaned more frequently to ensure a
proper air ow.
DV7750M-03170Y-01_EN.indd 40 2017-03-15  11:49:37
Troubleshooting
English 41
Troubleshooting
Checkpoints
If the dryer operates abnormally, rst check the list of problems in the table below and
try the suggested actions.
Problem Action
Does not run.
Make sure the door is latched shut.
Make sure the power cord is plugged into a live electrical
outlet.
Check your home’s circuit breakers or fuses.
Press or tap START/PAUSE again if the door is opened during
a cycle.
Clean the lint lter.
Does not heat.
Check your home’s circuit breakers or fuses.
Some cycles do not require heating. Check the selected cycle
again.
For a gas dryer, make sure the gas supply is on.
Clean the lint lter and exhaust duct.
The dryer may have moved into the cool-down phase of the
cycle.
Does not dry.
Check all of the above, plus...
Make sure the exhaust hood outside your home can open and
close freely.
Check the exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
Use a 4” rigid metal exhaust duct.
Do not overload. 1 wash load = 1 dryer load.
Dry heavy items and light weight items separately.
Large, bulky items, such as blankets or comforters, may
require repositioning to ensure even drying.
Make sure that your washer is draining properly and
extracting adequate water from the load.
The load may be too small to tumble properly. Add a few
towels and restart the dryer.
The load may be too large to tumble properly. Remove some
items and restart the dryer.
Clean the lint lter.
DV7750M-03170Y-01_EN.indd 41 2017-03-15  11:49:37
Troubleshooting
Troubleshooting
English42
Problem Action
Is noisy.
Check the load for objects such as coins, loose buttons, nails,
etc. Remove promptly.
It is normal to hear the dryer gas valve or heating element
cycle on and off during the drying cycle.
Make sure the dryer is leveled properly as outlined in the
installation instructions.
It is normal for the dryer to hum due to the high velocity of
air moving through the dryer drum, fan, or exhaust system.
Dries unevenly.
Seams, pockets, and other similarly heavy areas may not
be completely dry when the rest of the load has reached
the selected dryness level. This is normal. You can choose
a higher dryness level or a cycle that involves a higher
dryness level.
If one heavy item is dried with a light weight load, such as
one towel with sheets, it is possible that the heavy item will
not be completely dry when the rest of the load has reached
the selected dryness level.
For the best drying results, dry heavy items and light weight
items separately.
Has odors.
Household odors from paint, varnish, strong cleaners, etc.
may enter the dryer with the surrounding room air. This is
normal as the dryer draws the air from the room, heats it,
pulls it through the tumbler, and exhausts it outside.
When these odors linger in the air, completely ventilate the
room before using the dryer.
Use a cycle featuring the Refresh function. If odors persist,
wash and dry the item again.
Lint on clothes.
Make sure the lint lter is cleaned before every load. For
clothes that naturally build up lint, clean the lter during the
cycle.
Some fabrics are lint producers (for example, a fuzzy white
cotton towel) and they must be dried separately from clothes
that are lint trappers (for example, a pair of black linen
pants).
Divide larger loads into smaller loads for drying.
Check pockets thoroughly before drying, then dry clothes.
Remove lint inside the drum before drying.
DV7750M-03170Y-01_EN.indd 42 2017-03-15  11:49:37
Troubleshooting
English 43
Problem Action
Items still wrinkled
after WRINKLE
PREVENT
(WRINKLE-CARE,
WRINKLE RELEASE).
Small loads of 1 to 4 items work best.
Load fewer items. Load similar-type items.
Take out the items immediately after drying is complete.
Water drips from the
nozzle when STEAM
CARE starts.
This is steam condensation. The dripping water will stop after
a short time.
Sprayed water is not
visible during STEAM
CARE.
Sprayed water is difcult to see when the door is closed.
Extended time.
Sensor Dry automatically senses the moisture in the load
and shuts the dryer off when the selected dryness level is
reached.
The drying time can change according to the type and
amount of laundry. See the cycle chart for reference.
If a problem persists, contact a local Samsung service center.
Information codes
If the dryer fails to operate, you may see an information code on the display panel.
To determine what you should do, check the list codes in the table below and try the
suggested actions.
Code Action
dC
Operating the dryer with the door open.
Make sure the door is properly closed.
Make sure laundry is not caught in the door.
FC
Invalid power source frequency
Try restarting the cycle.
If this information code remains, contact a Samsung customer
service center.
AC Electronic control problem (Invalid Communication).
Contact a Samsung a customer service center.
DV7750M-03170Y-01_EN.indd 43 2017-03-15  11:49:37
Troubleshooting
Troubleshooting
English44
Code Action
3C Malfunction is detected in the motor relay circuit.
Contact a Samsung customer service center.
HC High temperature heating check
Clean the lint lter.
If this information code remains, contact a Samsung customer
service center.(enter the line test mode)
HC4
9C1
The electronic control needs to be checked.
Check if power is supplied properly.
If the information code remains, contact a customer service
center.
tC
The Thermistor1 resistance is very low or high.
Check for a clogged lint screen
Check if the vent system is restricted.
If this information code remains, contact a Samsung customer
service center.
tC5
The Thermistor2 resistance is very low or high.
Check for a clogged lint screen.
Check if the vent system is restricted.
If this information code remains, contact a Samsung customer
service center.
dF Incorrect door switch.
Contact a Samsung customer service center.
If any information code keeps appearing on the screen, contact a local Samsung service
center.
DV7750M-03170Y-01_EN.indd 44 2017-03-15  11:49:37
Specications
English 45
Specications
Fabric care chart
The following symbols provide garment
care direction. The clothing care labels
include symbols for drying, bleaching,
drying and ironing, or dry cleaning when
necessary. The use of symbols ensures
consistency among garment manufacturers
of domestic and imported items. Follow
care label directions to optimize garment
life and reduce laundering problems.
Wash cycle
Normal
Permanent press/Wrinkle
resistant/Wrinkle control
Gentle/Delicates
Hand wash
Water temperature
Hot
Warm
Cold
NOTE
This represents appropriate wash water
temperatures for various items. The
temperature range for Hot is 41-52 °C,
for Warm 29-41 °C and for Cold 16-29 °C.
(Wash water temperature must be a
minimum of 16 °C for detergent activation
and eff ective cleaning.)
Bleach
Any bleach (when needed)
Only non-chlorine (color-safe)
bleach (when needed)
Tumble dry
Normal
Permanent press/Wrinkle
resistant/Wrinkle control
Gentle/Delicates
Special instructions
Line dry/Hang to dry
Drip dry
Dry at
Heat setting
High
Medium
Low
Any heat
No heat / Air
DV7750M-03170Y-01_EN.indd 45 2017-03-15  11:49:39
Specications
Specications
English46
Iron dry or steam temperatures
High
Medium
Low
Warning symbols for laundering
Do not wash
Do not wring
Do not bleach
Do not tumble dry
No steam (added to iron)
Do not iron
Dry-clean
Dry-clean
Do not dry-clean
Line dry / Hang to dry
Drip dry
Dry at
Protecting the environment
This appliance is manufactured from
recyclable materials. If you decide to
dispose of this appliance, please observe
local waste disposal regulations. Cut off
the power cord so that the appliance
cannot be connected to a power source.
Remove the door so that animals and small
children cannot get trapped inside the
appliance.
DV7750M-03170Y-01_EN.indd 46 2017-03-15  11:49:40
Specications
English 47
Specication sheet
E
A
B
C
D
NOTE
“A. Height” Spec can vary from 46 to
46.5 inches (116.8-118.0 cm) depending
on the leveling feet adjustment.
Type Front loading dryer
Model name DVE(G)52M775**
Dimensions
A. Height Product - inches (cm) 46.0 (116.8)
Required for Installation - inches 48.0
B. Width Product - inches (cm) 27.0 (68.6)
Required for Installation - inches 29.0
C. Depth Product - inches (cm) 30.0 (76.3)
Required for Installation - inches 35.0
D. Depth with
door open 90°
Product - inches (cm) 49.80 (126.5)
Required for Installation - inches 54.82
E. Width with
door open 130°
Product - inches (cm) 46.47 (118.0)
Required for Installation - inches 51.47
Water pressure - psi (kPa) 20-116 (137-800)
NET weight Electric - lb (kg) 127.9 (58)
Gas - lb (kg) 130.1 (59)
Heater rating Electric (W) 5300
Gas (BTU/hr) 22000
DV7750M-03170Y-01_EN.indd 47 2017-03-15  11:49:41
Specications
Specications
English48

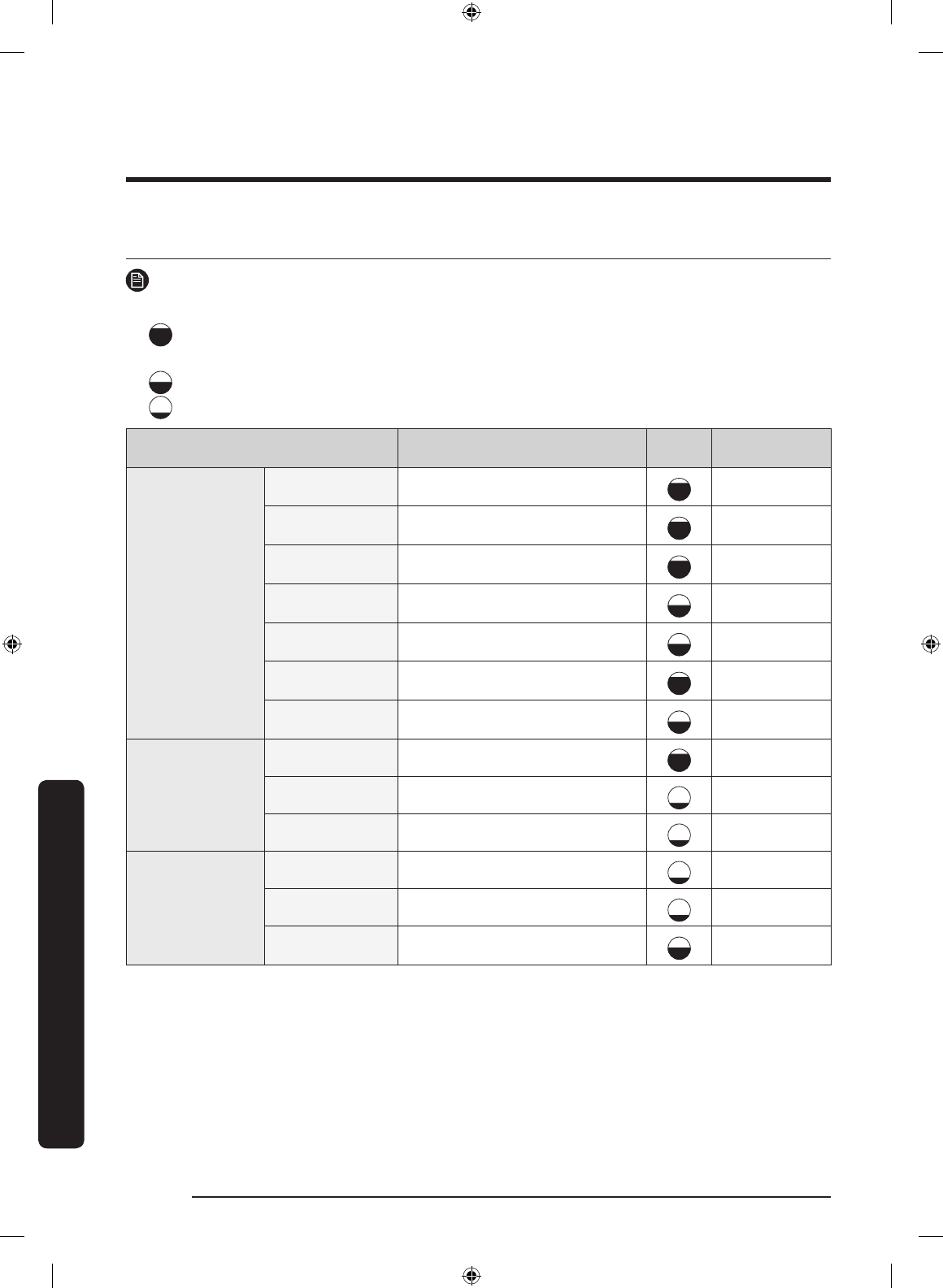

Cycle chart
NOTE
For best results, follow the load size recommendations for each dry cycle.
Large load: Fill the drum to about 3/4 full. Do not add items over this level as they
need to tumble freely.
Medium load : Fill the drum to about 1/2 full.
Small load : Fill the drum with 3-5 items, not more than ¼ full.
Cycle Recommended items Load
size Dry Level
Sensor Dry
NORMAL Cottons, work clothes, linens, mixed
loads
Normal Dry
(Adjustable)
HEAVY DUTY Heavy Fabrics such as jeans,
corduroys, heavy work clothes
Normal Dry
(Adjustable)
BEDDING Bulky items such as blankets, sheets,
comforters, pillows
Normal Dry
(Adjustable)
PERM PRESS Shirts, synthetic fabrics, knits,
wrinkle-free cottons, permanent press
Normal Dry
(Adjustable)
DELICATES Underwear, blouses, lingerie Normal Dry
(Adjustable)
TOWELS Bath towels and similar items Normal Dry
(Adjustable)
ACTIVE WEAR Water-repellent wear, performance
clothes, sports wear (Maximum: 4 lbs)
Normal Dry
(No change)
Manual Dry
TIME DRY Any load -
QUICK DRY Small loads -
AIR FLUFF Foam, rubber, plastic -
Steam Cycles
REFRESH Shirts, trousers, comforters, pillows -
WRINKLE AWAY Shirts, trouser, blouses -
STEAM SANITIZE Bedding, curtains, children’s clothing Very Dry
(No change)
DV7750M-03170Y-01_EN.indd 48 2017-03-15  11:49:41
Specications
English 49
NOTE
: factory setting, : can be selected
Cycle
Temperature setting Time
setting
High Medium Med Low Low Extra
Low
Sensor Dry
NORMAL
HEAVY DUTY
BEDDING
PERM PRESS
DELICATES
TOWELS
ACTIVE WEAR
Manual Dry
TIME DRY 
QUICK DRY
AIR FLUFF
Steam Cycles
REFRESH
WRINKLE AWAY
STEAM SANITIZE
Cycle
Options
Eco Dry Mixed Load
Bell Anti Static Wrinkle
Prevent Adjust Time
Sensor Dry
NORMAL 
HEAVY DUTY 
BEDDING  
PERM PRESS 
DELICATES 
TOWELS  
ACTIVE WEAR
Manual Dry
TIME DRY 
QUICK DRY  
AIR FLUFF  
Steam Cycles
REFRESH
WRINKLE AWAY  
STEAM SANITIZE
DV7750M-03170Y-01_EN.indd 49 2017-03-15  11:49:41
English50
Warranty (U.S.A)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
One (1) Year All Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject
to availability within the contiguous United States.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to
and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective
during the limited warranty period specied above.
All replaced parts and products become the property of SAMSUNG and must be returned
to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90)
days, whichever is longer.
DV7750M-03170Y-01_EN.indd 50 2017-03-15  11:49:41
English 51
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage that occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts
of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and
failure to follow operating instructions, maintenance and environmental instructions that
are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for
instructions, or xing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND
EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE
REMEDY.
DV7750M-03170Y-01_EN.indd 51 2017-03-15  11:49:41
Warranty (U.S.A)
English52
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you. This warranty gives you specic rights, and you may
also have other rights, which vary from state to state.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
Visits by a Service Engineer to explain functions, maintenance or installation is not
covered by warranty.
Please contact your Samsung call agent for help with any of these issues.
DV7750M-03170Y-01_EN.indd 52 2017-03-15  11:49:41
English 53
Warranty (CANADA)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
One (1) year part and labor
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the Canada.
To receive warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject
to availability within the Canada.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to
and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective
during the limited warranty period specied above.
All replaced parts and products become the property of SAMSUNG and must be returned
to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90)
days, whichever is longer.
DV7750M-03170Y-01_EN.indd 53 2017-03-15  11:49:41
Warranty (CANADA)
English54
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage that occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts
of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and
failure to follow operating instructions, maintenance and environmental instructions that
are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for
instructions, or xing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE.
