Contact 8AM$UNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care center.

Contacte con SAMSUNG WORLDWIDE

Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atenci6n al

Cliente.

Samsung Electronics Canada Inc., Customer

Service 55 Standish Court Mississauga,

Ontario L5R 4B2 Canada

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca Samsung Electronique Canada Inc.,

Service a la Clientele 55 Standish Court

Mississauga, Ontario L5R 4B2 Canada

Samsung Electronics America, Inc.

U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us 105 Challenger Road

Ridgefield Park, NJ 07660-0511

BNGS=01691A-02

imagine the possibilities

Thank you for purchasing this Samsung product

To "eceive more complete service, please register

your product at

www,samsung.com/global/register

Model Serial ",io.

important Warranty Regarding Viewing

information Television Format

Wide screen format LCD Displays(16:9, the aspect ratio of the screen width to height)are primarilydesigned to view wide screen format

full-motion video. The images displayedon them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if

your modeloffers this feature and the images areconstantly moving. Displayingstationarygraphics and images on screen, such as the dark

sidebars on nonexpandedstandard format televisionvideo and programming,should be limited to no more than 5% of the total television

viewing perweek.

Additionally,viewing other stationary images and text suchas stock market reports,video game displays, station Iogos,web sites or computer

graphics and patterns, should be limitedas describedabove for att televisions. Displayingstationary images that exceed the above guidelines

can cause uneven agingof LCDDisplaysthat leave subtle, but permanentburned-inghost images in the LCD picture. Toavoid this, vary the

programmingand images,and primarilydisplay fult screenmoving images, not stationarypatterns or dark bars.

On LCDmodels that offer picture sizing features, use these controls to view differentformats as a futt screen picture.

Be careful in the selection and duration of televisionformats used for viewing. Uneven LCD agingas a result of format selection and use,as

wetl as burned-in images,are not covered by your Samsunglimited warranty.

U.S.A Only

The product unit accompanyingthis user manual is licensed under certain intellectual propertyrights of certain third parties. In particular,

this product is licensedunder the following US patents: 5,991,715, 5,740,317,4,972,484, 5,214,678, 5,323,396,5,539,829, 5,606,618,

5,530,655,5,777,992,6,289,308,5,610,985,5,481,643,5,544,247,5,960,037,6,023,490, 5,878,080,and under US Published Patent

Application No. 2001-44713-A1.

Thislicense is limited toprivate non-commercialuse by end-user consumersfor licensedcontents. No rights are grantedfor commercial

use.The license does not cover any product unit other than this productunit and the license does not extend to any unlicensedproduct unit

or processconforming to ISO/IEC 11172-3or ISO/IEC 13818-3 usedor sotd in combinationwith this productunit. The license ontycovers

the use of this product unitto encodeand/or decodeaudio files conformingto the ISO/IEC 11172-3or ISO/IEC 13818-3. No rights are

granted under this license for product featuresor functions that do not conform to the ISO/IEC 11172-3or ISO/IEC 13818-3.

Other countries

The product unit accompanyingthis user manual is licensed under certain intellectual propertyrights of certain third parties. This license is

limitedto privatenon-commercialuse by end-user consumersfor licensed contents.No rightsare granted for commercial use.The license

doesnot coverany product unitother than this productunit and the licensedoes not extend to any unlicensed productunit or process

conformingto ISO/tEC 11172-3or ISO/IEC 13818-3used orsold in combinationwith this product unit.The license ontycovers the useof

this product unitto encodeand/or decode audiofiles conforming to the ISO/IEC 11172-3or ISO/IEC 13818-3. No rightsare granted under

this licensefor productfeatures or functions that do not conformto the ISO/IEC 11172-3or ISO/IEC 13818-3.

]

8AMSUNGELECTRONICSNORTHAMERICANLIMITEDWARRANTYSTATEMENT

Subject to the requirements,conduons. exclusionsand limitationsof the original LimitedWarrantysupplied with SamsungElectronics

(SAMSUNG)products, and the requirements,conditions,exclusions and limitationscontained herein. SAMSUNGwill additionallyprovide

Warramy RepairService in the Un,tedStates on SAMSUNGproducts purchased in Canada.and in Canadaor SAMSUNGproducts

purcnased in the UnitedStates for the warranty period onglnally specified,and to the OriginalPurchaseronly.

The abovedescnDeawarramy repairsmust be performedby a SAMSUNGAuthorizedService Center.Alongwith this Statement.the

Original LimitedWarranty Statementann a dated Bittof Sale as Proof of Purchase must be presentedto the ServiceCenter. Transportation

to and from the Service Center isthe responsibilityof the purchaser.

Conditions coveredare limitedonly to manufacturingdefectsin material orworkmanship, ard only thoseencountered in normal use of the

product.

Excluded.but not limitedto. are anyoriginally specified provisionsfor. in-homeor on-siteservices, minimumor maximumrepair times,

exchanges or reulacements, accessories,options, upgraaes,or consumables.

Forthe location of a SAMSUNGAuthorized ServiceCenter, please call toll-free:

In the United States : 1-800-8AMSUNG (t.800-726-7864) inCanada : 1-8O0-$AM$UNG

>- See the warranty card for more information on warranty terms.

• Do not disp!ay a stil! image on the LCD panel for more than 2 hours as it can cause screen image retention. This image

retention is a!s° known as "screen burn,, To avoid such image retention, reduce th e degree of brightn ess and contrast of the

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the !eft,

right and center of the screen caused by the difference of light emission on the screen.

Playing a DVD or a game console may cause a similar effect to the screen.

Damages cause d by the above effect are not covered by the Wz

• Displaying still images from Video games andPC for longer than a certain period of time may produce partia ! after-!mages:

To prevent this effect; reduce the tbrightnessl and !contrast _when displaying still images.

(D2008 Samsung Electronics Co., Ltd. All rights reserved.

Contents

= List of Features ............................................................. 3 = Managing Channels .................................................... 46

= Accessories .................................................................. 3 = Clearing Scrambled Channels- Digital............................ 53

Viewing the Control Panel ................................................ 4 = :ine Tuning Analog Channels .......................................... 53

Viewing the Connection Panel ........................................... 5 = Checking the Digital-Signal Strength ............................... 54

Remote Control ............................... ?

= Mini Remote Control.......................................................... 8

Installing Batteries in the Remote Control .................... 8

LJsingthe Remote Control Backlight Buttons .................... 9

•Connecting VHF and UHF Antennas .................................9

Connecting Cable TV .................................................. 10

•, Connecting a DVD1Blu-Ray player or Cable BoxlSatellite

"eceiver (Set-Top Box) via HDMI ..................................... 11

Connecting a DVD1Blu-Ray player or Cable BoxlSatellite

"eceiver (Set-Top Box) via DV( ........................................ 11

Connecting a DVD/Blu-Ray player or Cable BoxlSatellite

receiver (Set-Top Box) via Component cables ................12

= Connecting a Camcorder ................................................. 12

Connecting a VCR ...................................................... 13

Connecting a Digital Audio System ............................ 14

.Connecting an AmplifierlDVD Home Theater .................14

= Using Your TV as a Computer (PC) Display.................... 55

=Display Modes................................................................. 55

Setting up the TV with your PC ....................................... 56

= Setting the Clock ............................................................. 58

m Selecting a Menu Language ............................................ 62

Using the V-Chip.......................................................... 62

•, Viewing Closed Captions (On-Screen Text Messages)

- Analog ...................................................................... 69

Viewing Closed Captions (On-Screen Text Messages)

- Digital ................................................................... 70

= Connecting a PC ............................................................. t5 = Adjusting the TV On!Off Melody Sound........................... 71

Setting the Light Effect .................................................. 71

Setting the Entertainment mode ...................................... 72

Using the Energy Saving Feature.................................... 72

Turning the TV On and Off ......................................... 16 = Upgrading the Software ................................................... 73

Plug & Play Feature ..................................................... t6 = Selfdiagnosis .............................................................. 74

Changing Channels ......................................................... 18

Adjusting the Volume ....................................................... 18

R Viewing the Display .................................................... 19

m Viewing the Menus .................................................................... the WISELINK Pro Function .............................. 75

= Using the TOOLS Button ................................................. 20 ,, Using the Photo List ...................................................... 77

= Memorizing the Channels ............................................ 20

•, Setting UpYour Remote Control ................................ 22

Remote Control Codes ............................................... 24

To Select the Source .................................................. 27

To Edit the Input Source Name ........................................ 27

Changing the Picture Standard ....................................... 28

Customizing the UictureSettings .....................................28

= Sorting Photo List ................................................... 78

Viewing a Photo or Slide Show .................................. 83

Using the Music List ................................................... 87

Sorting Music List ....................................................... 88

Playing a Music File......................................................... 92

Using the Movie List .................................................... 94

Sorting Movie Ltst............................................................ 95

Playing a Movie File .................................................. 98

m Picture/Music Settings Using WISELINK ....................... 100

Using the Setup Menu ................................................... 100

= Adjusting the Detailed Settings ........................................ 29

Resetting the Picture Settings to the Factory Defaults ....32

Configuring Picture Options................................. 33

Viewing Picture-in-Picture ............................................... 38

Changing the Sound Standard ........................................ 40

Customizing the Sound ............................................... 40

Setting the TruSurround XT ..................................... 41

Choosing Preferred Language ........................................ 42

Choosing a Multi-Channel Sound MTS) track ................42

Automatic Volume Control ............................................... 43

= Selecting the SpeaKer............................................... 43

= Listening to the Sound of the Sub (PIP) Picture ..............44

Resetting the Sound Settings to the Factory Defaults.....45

Connecting Headphones (Sold separately) .....................45

•, Setting the DLNA Network ......................................... 102

Installing the DLNAApplication ..................................... 103

Using the DLNAApplication ........................................... 104

Using the DLNA Function .......................................... 109

= Using the Content Lib-ary.............................................. 111

Using the TV Memory Contents ................................... 112

Using Additiona Content Using External USB Memory

Storage ...................................................................... 117

Eng))sh _

Network Connection - Cable ...................................... 118 _ Troubleshooting ........................................................ 136

Network Connection - Wireless ..................................... 120 m installing the Stand .................................................... 138

m Network selection ..................................................... t20 _ Disconnecting the Stand................................................ 138

m Cable Network Setup ..................................................... 121 _ Auto WalI-Mount Adjustment (Sold separately) ............139

m Wireless Network Setup ................................................ 123 _ Wall Mount Kit Specifications VESA) ....................... 140

•, Using lnfoLink .................... 126 _ Using the Anti-Theft Kensington Lock ........................... 141

i nfoLink Setup............................................................ t29 _ Securing the TV to the Wall ........................................... 142

m Product Guide ................................................................ 130 _ Specifications ............................................................ 143

3imensions .................................................................... 144

Whal is Anynet+? ........................................................... 131

m Connecting Anynet+ Devices ........................................ 131

E Setting UpAnynet ............................................... t32

Scanning and Switching between Anynet+ Devices ......133 ...........

Recording ...................................................................... 134

Listening through a Receiver (Home theater} ................134

•, Troubleshooting forAnynet+ ................................... 135

A

m

Symbol Press Note One-Touch Button

Eng|)sh ._'_2

General information

List of Features

•Adjustable picture settings that can be stored in the TV's memory.

• Automatic timer to turn the TV on and off.

• A special sleep timer.

• Excellent Digital Interface & Networking :

With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver

(Set-Top Box) needed.

• You can view News, Weather, and Stock information over the network (SAMSUNG InfoLink's Service).

• You can listen to music files and view pictures on USB Mass Storage Class (MSC) devices.

• HDIV!I/DVI connection of your PC to this TV.

• Excellent Picture Quality

-DNle technology provides life-like clear images.

• SRS TruSurround XT

-SRS TruSurround XT provides a virtual surround system.

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries Mini Remote Oontrol& Warranty Card /

(AAA x 2) Lithium battery (3V x lea) RegistrationCard/Program CD

Safety Guide Manual (BN59-00726A)

(BN59-00700A) (BN59-00788B) (Not availablein all locations)

Power Cord Cleaning Cloth

(3903-000144) (BN63-01798B) Owner's Instructions

Cover-Bottom

(LN46A850S1F LN46A860S2F: BN63-04822B)

(LN52A850S1F LN52A860S2F: BN63-04822B)

>- The items color and shape may vary depending on the model.

Viewing the Control Panel

Buttons on the Lower=Right Part of the Panel

The buttons on the lower-right panel control your TV's basic features, including the on-screen menu.

To use the more advanced features, you must use the remote control.

.......................................................................................................

f

S_PaSUN8 .... °.....

i

_ ____ Front Panel buttons

SOURCE []_ MENU -- voL+ v CN^ _ Touch each button to

operate.

O SOURCE

Toggles between all the available input sources

(TV, AVl, AV2, S-Video, Component1, Component2,

PC, HDMI1, HDMI2/DVl, HDMI3, HDMI4). In the on-

screen menu, use this button as you would use the

ENTER _ button on the remote control.

OMENU

Press to see an on-screen menu of your TV's features.

=VOL +

Press to increase or decrease the volume.

In the on-screen menu, use the - VOL + buttons as you

would use the 4 and I_ buttons on the remote control.

O vCH^

Press to change channels.

In the on-screen menu, use the v OH ^ buttons as

you would use the • and A buttons on the remote

control.

O (b (Power)

Press to turn the TV on and off.

OPOWER iNDICATOR

Blinks and turns off when the power is on and lights up

in stand-by mode.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

O SPEAKERS

Viewing the Connection Panel

Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD/Blu-Ray

players or a VCR. For more information on connecting equipment, see pages 9~15.

........................................................................................................

[LN46A86051 F, LN52A85081F]

[TV Side Panel'

[TV Rear Panel]

vii

Q

[LN46A86082F, LN52A86082F]

The product color and shape may vary depending on the model.

oQ

oQ

@

@

O AUDIO OUT

Connects to the audio input jacks on your Amplifier/Home theater.

DIGITAL AUDIO OUT (OPTICAL)

Connects to a Digital Audio component.

O PC IN [PC] /[AUDIO]

Connects to the video and audio output jacks on your PC.

O HDMI IN 1, 2, 3, 4/DVl IN(HDMI2)[R-AUDIO-L]

Connects to the HDMI jack of a device with an HDMI output.

- No sound connection is needed for an HDMI to HDMI connection. Use the HDMI IN 2 jack for DVI connection to an

external device. Use aDVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection and the DVI iN

(HDMI2) [R-AUDIO-L] jacks for audio.

- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

OANTIN

Connects to an antenna or cable TV system.

O WISELINK

Connect a USB mass storage device to view movies and photos and listen to music files.

You can connect to Samsung's network wirelessly using the Wireless Infolink adapter (Sold separately).

AVIN2

Video and audio inputs for external devices, such as a camcorder or VCR.

O _ (HEADPHONE)

Connects a set of external headphones for private listening.

O POWER INPUT

Connects the supplied power cord.

_) S-VIDEO

Connects an S-Video signal from acamcorder or VCR.

- Use theAV IN 1 JR-AUDIO-L] jacks for audio.

COMPONENT IN 1, 2 /AV IN 1

Connects Component video/audio. The COMPONENT IN 1 jack is also used as the AV IN 1 jack.

- Connect the video cable to the COMPONENT IN 1 [Y/VIDEO] jack and the audio cable to the COMPONENT IN 1

JR-AUDIO-L] jacks.

eLAN

Connect a LAN cable to this port to connect to the Network (SAMSUNG InfoLink's Service). (See pages 118~119)

_) EX-LINK

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using

your remote control.

_) KENSINGTON LOCK

The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. If you want to

use a locking device, contact the dealer where you purchased the TV.

>- The location of the Kensington Lock may be different depending on its model.

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV. When using the remote, always point it

directly at the TV. You can also use your remote control to operate your VCR, DVD/Blu-Ray player or Cable Box/Satellite

receiver (Set-Top Box)

O POWER

Turns the TV on and off.

O TV

Selects the TV mode directly.

0 NUMERIC BUTTONS

Press to directly select the

channel.

PRE-CH

Tunes to the previous channel.

O CHv/CHA

Press to change channels.

O SOURCE

Press to display and select the

available video sources.

O{2_ @

Press to select additional

channels (digital and analog)

being broadcast by the same

station. For example, to select

channel "54-3", press "54", then

press "[_}" and "3".

0 _(MUTE)

Press to temporarily cut off the _)

sound.

VOL - /VOL +

Press to increase or decrease

the volume.

O CH LIST _)

Used to display Channel Lists

on the screen.

Q TOOLS

Use to quickly select frequently

used functions.

O INFO

Press to display information on

the TV screen.

_) COLOR BUTTONS

Use these buttons in the

Channel list, WISELINK Pro,

etc.

_) cc

Controls the caption decoder.

t_) E.MODE

Press to select the preset

display and sound modes for

sports, cinema and games.

_) Use these buttons in the DMA,

WISELINK Pro and Anynet +

modes.

({_}: This remote can be

used to control recording on

Samsung recorders with the

Anynet + feature)

_) SET

Sets the remote to control your

TV, VCR, DVD or Set-Top Box

@

@

@

@

MODE

Press to operate your TV, DVD,

STB or VCR (See pages 22~26)

_ ON/OFF _)

Press to backlight the buttons

on the remote. This function is

convenient for using at night or

when the room is dark. (Using

the remote control with the @

ON/OFF light button set to On

will reduce the battery usage

time.) (See page 9)

W.LINK (WISELINK Pro)

This function enables you to

view and play photo, music and

movie files from an external

device. (Refer to pages 77

(Photo), 87 (Music) and 94

(Movie))

MENU

Displays the main on-screen

menu.

RETURN

Returns to the previous menu.

UPA /DOWNT /LEFT4 /

RIGHTI_ /ENTER

Press the Up/Down/Left!Right

sections of the wheel button

and Enter to select on-screen

menu items and change menu

values.

You can navigate up and down

the menu, switch channels and

adjust the volume by turning

the wheel button. (See pages

18~19)

EXIT

Press to exit the menu.

DMA (Digital Media Adapter)

Use this when connecting

a SAMSUNG DMA device

through an HDMI interface and

switching to DMA mode.

For more information on the

operating procedures, refer to

the user manual of the DMA.

This button is available when

"Anynet+(HDMI-CEC) " is "On".

(see page 132)

INFO.L

Press to use the News, Stock

Market and Weather Forecast

information services available

over Samsung's network.

(see page 126)

FAV.CH

Press to switch to your favorite

channels. (see page 48)

CONTENT

This function enables you to

view "Content Library".

(see page 111 )

RESET

When your remote does not

work, change the batteries and

press the RESET button for 2-3

seconds before use.

POWER

TV

TV VCR DVD STB

OOOO

/

MODE ON/OFF

>- The performance of the remote control may be affected by bright light.

Mini Remote Control

The Mini Remote Control is a simplified remote control that consists of the power, channel

and volume buttons only.

O Television Standby button

O

0

0

> This button only works when you press it for longer than 1.5 seconds.

v : Next channel

^ : Previous channel

+: Volume increase

= : Volume decrease

IrDA transmitter

Use the Mini Remote Control so that this part faces the TV.

Installing Batteries in the Remote Control

Normal Remote Control

1, Lift the cover at the back of the remote control upward as shown in the figure.

2, Install twoAAAsize batteries.

>- Make sure to match the "+" and "-" ends of the batteries with the diagram inside the

compartment.

3= Replace the cover.

>- Remove the batteries and store them in a cool, dry place if you won't be using the

remote control for a long time.

The remote control can be used up to about 23 feet from the TV.

(Assuming typical TV usage, the batteries should last for about one year.)

>- Using the remote control with the !_ ON/OFF light button set to On will reduce the

battery usage time.

Mini Remote Control

1, Turn the battery cover counterclockwise to unlock it and then separate the battery cover.

2, Insert the corresponding 3V Lithium battery.

3, Place the battery cover into the remote control aligning it with the grooves and then turn the

battery cover clockwise to lock the cover.

If the remote control doesn't work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Using the Remote Control Backlight Buttons

Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.

1. Press the [_ ON/OFF light button.

>- Pressing the _ ON/OFF light button toggles between ON and OFF.

>- When ON, the button backlight is turned on for a moment.

>- Pressing a remote control button when the remote control is on turns the button backlight on for a moment. If

you touch or move the remote control and the motion is detected by the sensor of the remote control, the button

backlight will be turned on for a moment.

>- Since there is a vibrating device inside the remote control, shaking the remote control will result in a sound

generated by the device.

>- The button backlight will not be turned on when the remote control is turned off.

Connections

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see "Antennas

with 300 _ Flat Twin Leads" below.

If your antenna has one lead that looks like the diagram to the right, see "Antennas with

75 _ Round Leads".

If you have two antennas, see "Separate VHF and UHF Antennas".

Antennas with 300 Q Fiat Twin Leads

If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300

twin flat leads, follow the directions below.

1. Place the wires from the twin leads under the screws on a 300-75 _ adapter (not

supplied). Use a screwdriver to tighten the screws.

2. Plug the adaptor into the ANT IN terminal on the back of the TV.

Antennas with 75 Q Round Leads

1, Plug the antenna lead into the ANT IN terminal on the back of the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before

connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics

shops).

1. Connect both antenna leads to the combiner.

2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

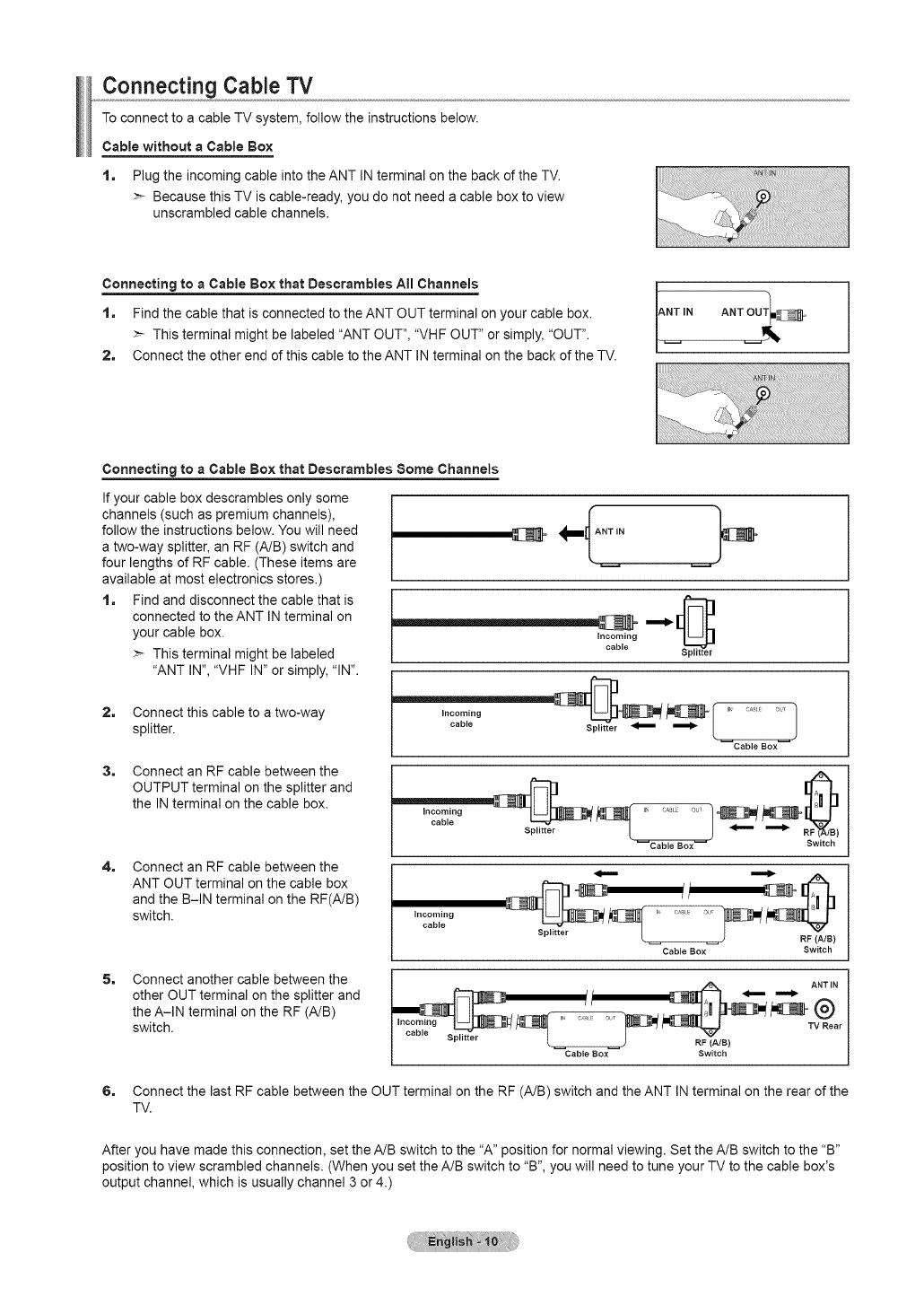

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.

Cable without aCable Box

1, Plug the incoming cable into the ANT iN terminal on the back of the TV.

>- Because this TV is cable-ready, you do not need a cable box to view

unscrambled cable channels.

Connecting to a Cable Box that Descrambles All Channels

1, Find the cable that is connected to the ANT OUT terminal on your cable box.

>- This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".

2, Connect the other end of this cable to the ANT IN terminal on the back of the TV.

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some

channels (such as premium channels),

follow the instructions below. You will need

a two-way splitter, an RF (A!B) switch and

four lengths of RF cable. (These items are

available at most electronics stores.)

1, Find and disconnect the cable that is

connected to the ANT IN terminal on

your cable box.

>- This terminal might be labeled

"ANT IN", "VHF IN" or simply, "IN".

2, Connect this cable to a two-way

splitter.

3,

4,

5,

,,.{ANTi

Incoming

cable

Incoming

cable Splitter _J

Cable Box

Connect an RF cable between the

OUTPUT terminal on the splitter and

the IN terminal on the cable box.

Splitter

Switch

Connect an RF cable between the

ANT OUT terminal on the cable box

and the B-IN terminal on the RF(A/B)

switch. Incoming

cable

S litter RF (NB)

Cable Box Switch

Connect another cable between the

other OUT terminal on the splitter and

the A-IN terminal on the RF (A/B)

switch.

RF (AIB)

Cable Box Switch

6, Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN terminal on the rear of the

TV.

After you have made this connection, set the A!B switch to the "A" position for normal viewing. Set the A/B switch to the "B"

position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box's

output channel, which is usually channel 3 or 4.)

Connectinga DVDiBlu.RayplayerorCableBo×/Satellitereceiver(Set.TopBox)via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.

1, Connect an HDMI Cable

between the HDMI IN

(1, 2, 3 or 4) jack on

the TV and the HDMI

jack on the DVD/Blu-

Ray player or Cable

Box/Satellite receiver

(Set-Top Box).

DVD/Btu-Ray player or Cable Box/Satellite

receiver (Set-Top Box) Rear Panel

TV Rear Panel

TV Side Panel

>- What is HDMI?

• HDMl(High-Definition Multimedia Interface), is an interface that enables the

transmission of digital audio and video signals using a single cable.

• The difference between HDMI and DVI is that the HDMI device is smaller in size and

has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed. DVI

also requires a separate audio connection (see below).

>- Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different

back panel configuration.

>- The TV may not output sound and pictures may be displayed with abnormal color when

DVD/Blu-Ray players/Cable Boxes/Satellite receivers supporting HDMI versions older

than 1.3 are connected. When connecting an older HDMI cable and there is no sound,

connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN

(HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company

that provided the DVD/Blu-Ray player/Cable Box/Satellite receiver to confirm the HDMI

version, then request an upgrade.

>- HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

Connecting a DVD/Blu-Rayplayer or CableBox/Satellite receiver(Set-TopBox) via DVl

This connection can only be made if there is a DVI Output connector on the external device.

1, Connect a DVl to HDMI

Cable or DVI-HDMI

Adapter between the

HDMI IN 2 jack on the

TV and the DVI jack on DVD/Blu-RayplayerorCable Box/

the DVD/Blu-Ray player Satellite receiver (Set-Top Box)

or Cable Box/Satellite

receiver (Set-Top Box).

2, Connect Audio Cables

between the DVI IN

(HDMI 2)[R-AUDIO-L]

jack on the TV and the

DVD/Blu-Ray player

or Cable Box/Satellite

receiver (Set-Top Box).

TV Rear Panel

>- Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different

back panel configuration.

>- When connecting a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),

match the color of the connection terminal to the cable.

>- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

Connectinga DVD/Blu.RayplayerorCableBo×/Satellitereceiver(Set.TopBox)viaComponentcables

The rear panel jacks on your TV make it easy to connect a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) to

your TV.

1. Connect a Component

Cable between the

COMPONENT IN

(1 or 2) [V, PB, PR]

jacks on the TV and the

COMPONENT

[V, PB, PR] jacks on the

DVD/Blu-Ray player

or Cable Box/Satellite

receiver (Set-Top Box).

2. Connect Audio Cables

between the

COMPONENT IN(1 or 2)

[R-AUDIO-L] jacks on

the TV and the AUDIO

OUT jacks on the DVD/

Blu-Ray player or Cable

Box/Satellite receiver

(Set-Top Box).

DVD/Blu-Ray player or Cable Box /

Satellite receiver (Set-Top Box)

TV Rear Panel

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and

Pr (Red) for enhanced video quality.

Be sure to match the component video and audio connections.

For example, if connecting a Component video cable to COMPONENT IN 1, connect

the audio cable to COMPONENT IN 1 also.

>- Each DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box) has a different

back panel configuration.

>- When connecting a DVD/Blu-Ray player or Cable Box/Satellite receiver (Set-Top Box),

match the color of the connection terminal to the cable.

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV.

They allow you to view the camcorder tapes without using a VCR.

1. Connect a Video Cable

between the AV IN 2

[VIDEO] jack on the TV

and the VIDEO OUT

jack on the camcorder.

2. Connect Audio Cables

between the AV IN 2

[R-AUDIO-L] jacks on Camcorder

the TV and the AUDIO

OUT jacks on the

camcorder.

[_i_ Video Cable (Not supplied)

2} Audio Cable (Not supplied)

TV Side Panel

>- Each Camcorder has a different back panel configuration.

>- When connecting a Camcorder, match the color of the connection terminal to the cable.

Connecting aVCR

Video Connection

These instructionsassume that you have already connected your TV to an antenna or a cable TV system (according to the

instructions on pages 9~10). Skip step 1 if you have not yet connected to an antenna or a cable system.

1, Unplug the cable or

antenna from the back

of the TV.

2= Connect the cable or

antenna to the ANT IN

terminal on the back of

the VCR.

3, Connect an RF Cable

between the ANT OUT

terminal on the VCR

and the ANT IN terminal

on the TV.

4, Connect a Video Cable

between the VIDEO

OUT jack on the

VCR and the AV IN 1

[Y/VIDEO] orAV IN 2

[VIDEO] jack on the TV.

5. Connect Audio Cables

between the AUDIO

OUT jacks on the VCR

and theAV IN 1 (orAV

IN 2) [R-AUDIO-L] jacks

on the TV.

VCR Rear Panel

_5 Audio Cable (Not supplied)

_ Video Cable (Not supplied)

_ ;o_

TV Rear Panel TV Side Panel

_ o o

i

Follow the instructions in "Viewing a VCR or Camcorder Tape" to view your VCR tape.

>- Each VCR has a different back panel configuration.

>- When connecting a VCR, match the color of the connection terminal to the cable.

>- When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not

match the color of the video cable (Yellow).

>- If you have a "mono" (non-stereo) VCR, use a Y-connector (not supplied) to connect to

the right and left audio input jacks of the TV. Alternatively, connect the cable to the "R"

jack. If your VCR is stereo, you must connect two cables.

8=Video Connection

Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture as compared

to a standard VCR.)

1. To begin, follow steps

1-3 in the previous

section to connect the

antenna or cable to your

VCR and your TV.

2. Connect an S-Video

Cable between the

S-VIDEO OUT jack on

the VCR and the

[S-VIDEO] jack on the

TV.

3. Connect Audio Cables

between the AUDIO

OUT jacks on the VCR

and theAV IN 1

[R-AUDIO-L] jacks on

the TV.

TV Rear Panel

VCR Rear Panel

An S-Video cable may be included with a VCR. (If not, check your local electronics store.)

>- Each VCR has a different back panel configuration.

>- When connecting a VCR, match the color of the connection terminal to the cable.

Connecting aDigital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.

1.

Digital Audio System TV Rear Panel

Connect an Optical Cable

between the "DIGITAL AUDIO

OUT (OPTICAL)" jacks on

the TV and the Digital Audio

Input jacks on the Digital Audio

System.

When a Digital Audio System

is connected to the "DIGITAL

AUDIO OUT (OPTICAL)" jack:

Decrease the volume of the

TV and adjust the volume

level with the system's volume

control.

]

Optical Cable (Not supplied)

5.1CH audio is possible when the TV is connected to an external device

supporting 5.1CH.

Each Digital Audio System has a different back panel configuration.

When the receiver (home theater) is set to On, you can hear sound output from

the TV's Optical jack. When the TV is displaying a DTV(air) signal, the TV will

send out 5.1 channel sound to the Home theater receiver. When the source is

a digital component such as a DVD and is connected to the TV via HDMI, only

2 channel sound will be heard from the Home Theater receiver. If you want to

hear 5.1 channel audio, connect the DIGITALAUDIO OUT (OPTICAL) jack on

the DVD/Blu-Ray player or Cable/Satellite Box directly to an Amplifier or Home

Theater, not the TV.

Connecting an Amplifier/DVD Home Theater

1, Connect Audio Cables

between the AUDIO OUT

[R-AUDIO-L] jacks on the TV

and AUDIO IN JR-AUDIO-L]

jacks on the Amplifier/DVD

Home Theater.

When an audio amplifier is

connected to the "AUDIO OUT

[R-AUDIO-L]" jacks: Decrease

the volume of the TV and

adjust the volume level with

the Amplifier's volume control.

AmplifiedDVD Home Theater

Audio Cable (Not supplied)

TV Rear Panel

>- Each Amplifier/DVD Home Theater has a different back panel configuration.

>- When connecting an Amplifier/DVD Home Theater, match the color of the

connection terminal to the cable.

Connecting a PC

Using the D-Sub Cable

1, Connect a D-Sub Cable

between PC IN [PC] connector

on the TV and the PC output

connector on your computer.

2. Connect a PCAudio Cable

between the PC IN [AUDIO]

jack on the TV and the Audio

Out jack of the sound card on

your computer.

PC

TV Rear Panel

Using the HDMI/DVl Cable

1,

2=

Connect an HDMI/DVI cable

between the HDMI IN 2 jack

on the TV and the PC output

jack on your computer.

Connect a 3.5 mm Stereo mini-

plug/2RCA Cable between the

DVI IN(HDMI2)[R-AUDIO-L]

jack on the TV and the Audio

Out jack of the sound card on

your computer.

TV Rear Panel

PC

_ii 3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)

_i'ii HDMt/DVI Cable (Not supplied)

Each PC has a different back panel configuration.

When connecting a PC, match the color of the connection terminal to the cable.

When using an HDMI/DVI cable connection, you must use the HDMI IN 2

terminal.

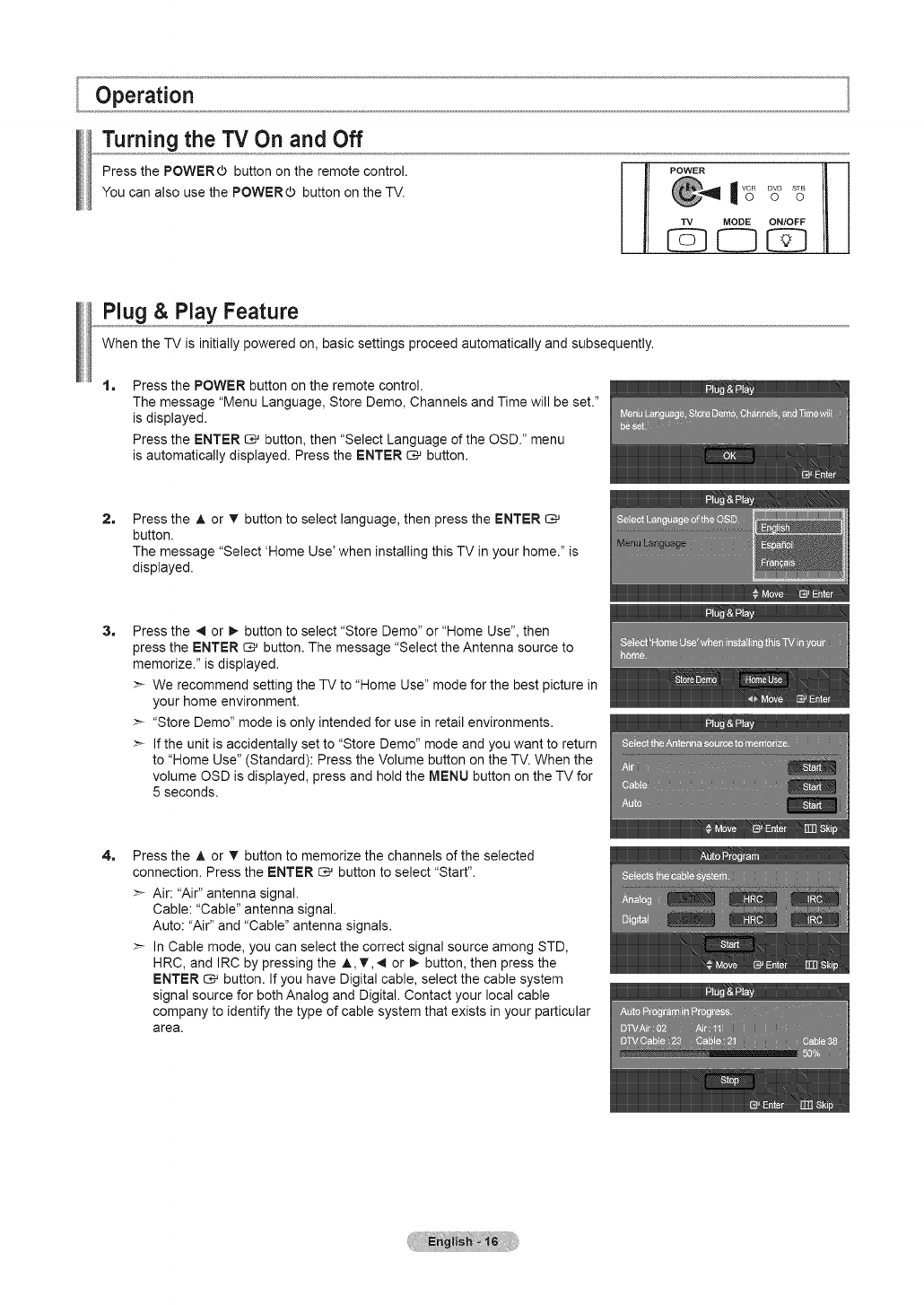

Operation

Turning the TV On and Off

Press the POWER(b button on the remote control.

You can also use the POWER_ button on the TV.

POWER

TV MODE ON/OFF

Plug &Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

1= Press the POWER button on the remote control.

The message "Menu Language, Store Demo, Channels and Time will be set."

is displayed.

Press the ENTER 13_button, then "Select Language of the OSD." menu

is automatically displayed. Press the ENTER _ button.

2= Press the ,i, or • button to select language, then press the ENTER C*_

button.

The message "Select 'Home Use' when installing this TV in your home." is

displayed.

3= Press the _1or I_ button to select "Store Demo" or "Home Use", then

press the ENTER _ button. The message "Select the Antenna source to

memorize." is displayed.

>- We recommend setting the TV to "Home Use" mode for the best picture in

your home environment.

>- "Store Demo" mode is only intended for use in retail environments.

>- If the unit is accidentally set to "Store Demo" mode and you want to return

to "Home Use" (Standard): Press the Volume button on the TV. When the

volume OSD is displayed, press and hold the MENU button on the TV for

5 seconds.

4= Press the A or _!' button to memorize the channels of the selected

connection. Press the ENTER _ button to select "Start".

>- Air: "Air" antenna signal.

Cable: "Cable" antenna signal.

Auto: "Air" and "Cable" antenna signals.

>- In Cable mode, you can select the correct signal source among STD,

HRC, and IRC by pressing the A, 'V, 4 or i_ button, then press the

ENTER _ button. If you have Digital cable, select the cable system

signal source for both Analog and Digital. Contact your local cable

company to identify the type of cable system that exists in your particular

area.

5_ The TV will begin memorizing all of the available channels.

To stop the search before it has finished, press the ENTER _ button with

"Stop" selected.

After all the available channels are stored, it starts to remove scrambled

channels (see page 53). And then, the Auto program menu reappears. Press

the ENTER _ button when channel memorization is complete. The message

"Set the Clock Mode." is displayed.

6. Press the ENTER _ button.

Press the A or ?' button to select "Auto", then Press the ENTER _ button.

The message "Set to daylight saving time." is displayed.

If you select "Manual", "Set current date and time" is displayed.

(See page 58)

7. Press the ,A or V button to select "Off', "On" or "Auto", then press the

ENTER _ button. The message "Select the time zone in which you live." is

displayed.

8. Press the A or V button to highlight the time zone for your local area. Press

the ENTER C*-'button. If you have received a digital signal, the time will be

set automatically. If not, see page 58 to set the clock.

9. The message "Enjoy your watching." is displayed.

When you have finished, press the ENTER _ button.

If you want to reset thi_ feature...

1. Press the MENU button to display the menu.

Press the A or V button to select "Setup", then press the ENTER _ button.

2. Press the ENTER _ button again to select "Plug & Play".

For further details on setting up options, refer to the pages 16~17.

:_ The "Plug & Play" feature is only available in the TV mode.

Changing Channels

Using the Channel Buttons

1= Press the CH v or OH ^ button to change channels.

When you press the OH v or CH ^ button, the TV changes channels in

sequence.

You will see all the channels that the TV has memorized. (The TV must

have memorized at least three channels). You will not see channels that

were either erased or not memorized. See page 20 to memorize channels.

To increase the channel number, turn the wheel clockwise when the

Channel Display is displayed. To decrease the channel number, turn the

wheel counterclockwise.

Using the Number Buttons

1, Press the number buttons to go directly to a channel. For example, to select

channel 27, press 2, then 7.

> For quick channel change, press the number buttons, then press the

ENTER _ button.

Using the _ Button

The [_ button is used to select stations that broadcast a digital signal.

1, For example, for Channel 7-1, press 7, then [_, then 1.

HD indicates the TV is receiving a Digital High Definition signal.

SD indicates the TV is receiving a Standard Definition signal.

For quick channel change, press the number buttons, then press the

ENTER _ button.

Using the PRE=CH Button to select the Previous Channel

1, Press the PRE-OH button. The TV will switch to the last channel viewed.

> To quickly switch between two channels that are far apart, tune to one

channel, then use the number button to select the second channel.

Then use the PRE-OH button to quickly alternate between them.

Adjusting the Volume

Using the Volume Button

1, Press the VOL -or VOL+ button to increase or decrease the volume.

To turn the volume up, turn the wheel clockwise when the Volume

Control window is displayed. To turn the volume down, turn the wheel

counterclockwise.

Using the MUTE button

At any time, you can cut off the sound using the MUTE button.

1, Press MUTE button and the sound cuts off.

"_" is displayed on the screen.

2, To turn mute off, press the MUTE button again or simply press the

VOL = or VOL+ button.

Viewing the Display

The display identifies the current channel and the status of certain audio-video

settings.

1, Press the INFO button on the remote control.

The TV will display the channel, the type of sound, and the status of certain

picture and sound settings.

>- Press the INFO button once more or wait approximately 10 seconds and

the display disappears automatically.

Viewing the Menus

t= With the power on, press the MENU button.

The main menu appears on the screen.

The menu's left side has icons: Picture, Sound, Channel, Setup, Input,

Application.

2= Press the A or • button to select one of the icons.

Then press the ENTER _ button to access the icon's sub-menu.

> To move to a lower menu, turn the wheel clockwise when the menu Display

is displayed. To move to a higher menu, turn the wheel counterclockwise.

3= Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu changes

depending on which external input mode you are viewing.

1, Press the TOOLS button. The "Tools" menu will appear. ____ _

2, Press the • or V' button to select a menu.

3, Press the A/_'/,,_/I_,/ENTER _ buttons to display, change, or use the selected

items. For a more detailed description of each function, refer to the corresponding

page.

- Anynet+ (HDMI-CEC): see page 132

- Multi-Track Sound: see page 42

- Picture Size: see page 33

- Picture Mode: see page 28

- Sound Mode: see page 40

• Sleep Timer: see page 60

- Add to Favorite: see page 48

-Switch to Cable (or Switch to Air): see page 20

- PIP: see page 39

• Auto Adjustment: see page 56

Memorizing the Channels

Your TV can memorize and store all of the available channels for both "off-air" (Air) and "Cable" channels. After the available

channels are memorized, use the CH v or CH/,, button to scan through the channels. This eliminates the need to change

channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source,

memorizing the channels (automatic) and adding or deleting channels (Channel Lists).

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you must

specify the type of signal source that is connected to the TV (i.e. an Air or a Cable

system).

1, Press the MENU button to display the menu.

Press the A or • button to select "Channel", then press the ENTER

button.

2= Press the ENTER c:_ button to select "Antenna".

Press the A or T button to select "Air" or "Cable", then press the ENTER CC_

button.

Press the EXIT button to exit.

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or T button to select "Switch to Cable (or Switch to Air)".

3, Press the ENTER _ button to switch "Cable" (or "Air").

Storing Channels in Memory (Automatic Method)

1, Press the MENU button to display the menu.

Press the A or • button to select "Channel", then press the ENTER

button.

2, Press the A or T button to select "Auto Program", then press the ENTER

button.

3= Press the A or T button to select the antenna connection, then press the

ENTER _ button.

Air: "Air" antenna signal.

Cable: "Cable" antenna signal.

Auto: "Air" and "Cable" antenna signals.

4= When selecting the Cable TV system:

Press the ENTER _ button to start the auto program.

Press the A, T, 4 or I_ to select the correct analog signal cable system

source among "STD", "HRC", and "IRC".

Press the A or _' button to select "Start", then press the ENTER _ button.

If you have Digital cable TV, select the cable system signal source for both

Analog and Digital.

>- STD, HRC and IRC identify various types of cable TV systems. Contact

your local cable company to identify the type of cable system that exists in

your particular area. At this point the signal source has been selected.

5= The TV begins memorizing all available stations.

After all the available channels are stored, it starts to remove scrambled

channels (see page 53). The Auto program menu then reappears.

If you want to stop Auto Programming, press the ENTER _ button.

The "Stop Auto Program?" message will be displayed. Select "Yes" by

pressing the 4 or 1_ button, then press the ENTER C*-'button.

Press the EXIT button to exit.

Setting Up Your Remote Control

After the television has been set up properly, your remote control can operate in

different modes: TV, VCR, DVD, Set=Top Box. Pressing the corresponding

button on the remote control allows you to switch between these modes and

control whichever piece of equipment you choose.

>- The remote control might not be compatible with all DVD Players, VCRs, and Set-

Top Boxes.

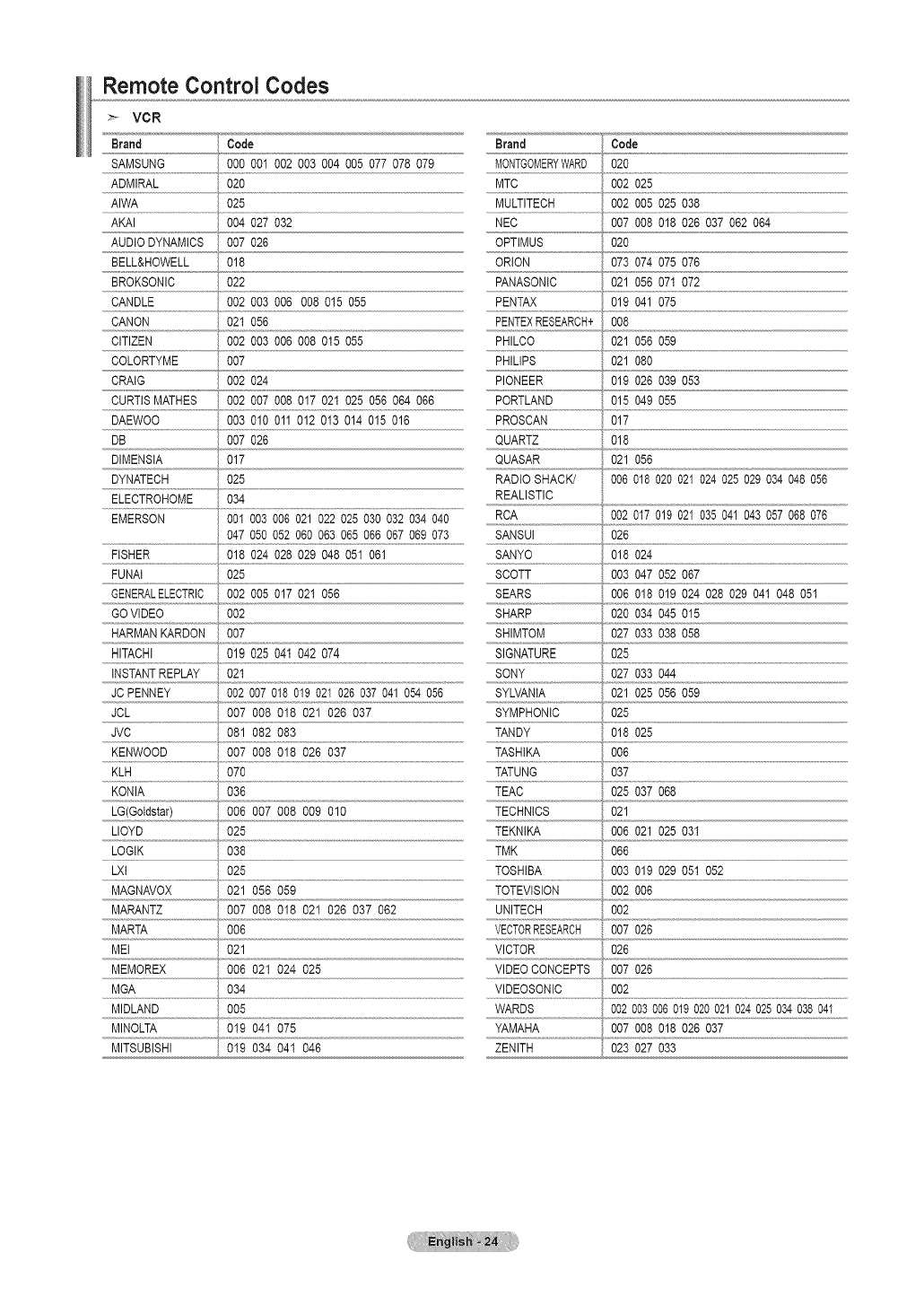

Setting Up the Remote to Operate Your VCR

1. Turn off your VCR.

2. Press the MODE button and make sure that the VCR LED is illuminated.

3. Press the SET button on your TV's remote control.

4. Using the number buttons on your remote control, enter three digits of the VCR

code listed on page 24 of this manual for your brand of VCR. Make sure you enter

three digits of the code, even if the first digit is a "0".

(If more than one code is listed, try the first one.)

5. Press the POWER(b button on the remote control.

Your VCR should turn on if your remote is set up correctly.

If your VCR does not turn on after set up, repeat steps 2, 3 and 4, but try one of

the other codes listed for your brand of VCR.

If no other codes are listed, try each VCR code, 000 through 080.

>_Note on Using Remote Control Modes: VCR

When your remote control is in VCR mode, the volume buttons still control your

TV's volume.

POWER

S v_R0;0s;_

Setting Up the Remote to Operate Your DVD

1. Turn off your DVD.

2. Press the MODE button and make sure that the DVD LED is illuminated.

3. Press the SET button on your TV's remote control.

4. Using the number buttons on your remote control, enter three digits of the DVD

code listed on pages 25 of this manual for your brand of DVD.

Make sure you enter three digits of the code, even if the first digit is a "0".

(If there is more than one code listed, try the first one.)

5. Press the POWER(b button on the remote control.

Your DVD should turn on if your remote is set up correctly.

If your DVD does not turn on after set up, repeat steps 2, 3 and 4, but try one of i

the other codes listed for your brand of DVD. [...... J

If no other codes are listed, try each code, 000 through 141. •.......

>- Note on Using Remote Control Modes: DVD

When your remote control is in DVD mode, the volume buttons still control your

TV's volume.

POWER

r---c_.W2J-P2.2_-_ .........

0 sF 0 RE_T

.................

Setting Up the Remote to Operate Your 8TB

1. Turn off your STB.

2. Press the MODE button and make sure that the STB LED is illuminated.

3. Press the SET button on your TV's remote control.

4. Using the number buttons on your remote control, enter three digits of the STB

code listed on page 26 of this manual for your brand of STB.

Make sure you enter three digits of the code, even if the first digit is a "0".

(If there is more than one code listed, try the first one.)

5. Press the POWERO button on the remote control.

Your STB should turn on if your remote is set up correctly.

If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try one of

the other codes listed for your brand of STB.

(If no other codes are listed, try each code, 000 through 074.)

Note on Using Remote Control Modes: STB

When your remote control is in STB mode, the volume buttons still control your

TV's volume.

POWER

_ v&Ro&os_

P

r-T-, _q MUTE_ q i

..........LZ..I. .LC_LJ.....J

........... _ 1_ -rc_c_C3-.........

CE3CE3

OsF ORES_

..................

Setting Up the Remote to Operate Your Cable Box

1. Turn off your Cable Box.

2. Press the MODE button and make sure that the STB LED is illuminated.

3. Press the SET button on your TV's remote control.

4. Using the number buttons on your remote control, enter three digits of the cable

box code listed on page 26 of this manual for your brand of cable box. Make sure

you enter three digits of the code, even if the first digit is a "0". (If there is more

than one code listed, try the first one.)

5. Press the POWERO button on the remote control.

Your cable box should turn on if your remote is set up correctly.

If your cable box does not turn on after set up, repeat steps 2, 3 and 4, but try one

of the other codes listed for your brand of cable box. If no other codes are listed,

try each code, 000 through 046.

Note on Using Remote Control Modes: STB

When your remote control is in STB mode, the volume buttons still control your

TV's volume.

POWER

P

...............J

...........C.._Z2"_-_ .........

OsF ORES_

..................

Remote Control Codes

VCR

_' Code

Brand Code Brand

SAMSUNG 000 001 002 003 004 005 077 078 079 MONTGOMERYWARD 020

ADMIRAL MTC 1,0£2,025

AIWA 025 MULTITECH 002 005 025 038

AKAI 004 027 032 NEC 007 008 018 026 037 062 064

AUDIO DYNAMICS 007 026 OPTIMUS

BELL&HOWELL 018 ORION

BROKSONIC 022 PANASONIC 021 056 071 072

.......CXNDI_E PENT/O<

_y

CANON 021 056 PENTEXRESEARCH+ 008

CITIZEN _ 002 003 006 008 015 055 PHILCO 021 056 059

COLORTYME 007 PHILIPS 021 080

CRAIG 002 024 PIONEER 019 026 039 053

CURTISMATHES 002 007 008 017 021 025 056 064 066 PORTLAND 015 049 055

DAEWOO 003 010 011 012 013 014 015 016 PROSCAN 017

DB 007 026 QUARTZ 018

DIMENSIA 017 QUASAR 021 056

DYNATECH 025 RADIO SHACK/ 006 018 020 021 024 025 029 034 048 056

ELECTROHOME 034 REALISTIC

EMERSON 001 003 006 021 022 025 030 032 034 040 RCA 002 017 019 021 035 041 043 057 068 076

047 050 052 060 063 065 066 067 069 073 SANSUI 026

FISHER 018 024 028 029 048 051 061

FUNAI 025

GENERALELECTRIC 002 005 017 021 056

GOVIDEO 002

HARMAN KARDON 007

HITACHI 019 025 041 042 074

INSTANTREPLAY 021

JC PENNEY 002 007 018 019 021 026 037 041 054 056

JCL 007 008 018 021 026 037

JVC 081 082 083

SANYO

SCOTT

SEARS

SHARP

SHIMTOM

SIGNATURE

SONY

SYLVANIA

SYMPHONIC

TANDY

018 024

003 047 052 067

i 006 018 019 024 028 029 041 048 051

020 034 045 015

027 033 038 058

025

027 033 044

021 025 056 059

025

018 025

KENWOOD 007 008 018 026 037 TASHIKA 006

KLH 070 TATUNG 037

KONIA 036 TEAC 025 037 068

.............................................................................. 9,

LG(Goldstar) ,_006o,007o,o008o,o009o010 TECHNICS ,i,,021

LLOYD 025 TEKNIKA 006 021 025 031

LOGIK 038 TMK 066

LXI 025 TOSHIBA 003 019 029 051 052

MAGNAVOX 021 056 059 TOTEVISION 002 006

MARANTZ 007 008 018 021 026 037 062

MARTA i 006

MEI 021

MEMOREX 006 021 024 025

MINOLTA 019 041 075

MITSUBISHI 019 034 041 046

UNITECH

VECTORRESEARCH

VICTOR 026

VIDEO CONCEPTS 007 026

002

YAMAHA ,i 007 008 018 026 037

ZENITH 023 027 033

8AMSUNG DVD

Product Code Product Code

l*

DVD 000 001 002 022 Home TheaterVCRCOMBO 014 015 016

DVDR 003 004 HDD Recorder COMBO 017

BD Record.....................................,£05006 TWiN TRAY COMBO 018

VCR COMBO 007 008 009 010 011 STB DVD COMBO 019

VCR Record 012 DVD Receiver 020

DHR COMBO 013 AV Receiver ' 021

:_ DVD

Brand Code

ANAM 030

Brand _ Code

......._O_CE_T..................................048049o_o

AUDiOLOGiC 085

ANABA 072 NANTAUS 144

APEX DIGITAL 070 071 074 086 083 084 088 111 112 MESA 074

AIWA 114 0PTOMEDIAELEOTRONICS105

BROKSONIC 062 OPTIVlEW 072

BLAUPUNKT 074 ONKYO 076 092 119

B&K 122 123 PHILCO 044 045

CURTIS MATHES 027 PRINCETON 046 047

CYBER HOME 077 078 079 082 PROSCAN 023

CLARION 080 125 PANASONIC 024 034 124 134 136 137 138

.......C_RRUs o8! PHNPS o_6o7_

CYBER HOME PIONEER 037 143

CINEVISION ROTEL 117 118

DAEWOO RIO 120

DEMON RCA 023 035 074 075 131 132

FARENHEIT RAiTE 073

FISHER ROWA 038

f_

GPX SAMPO 104

GOVlDEO 061 089 133 135 SONY 026 029 126 127 128 129 130 141

GE 069 074 SHERWOOD 039 041

GREENHILL 074 SVA 042

HITACHI 064 113 SYLVANIA 043 093

HITEKER 071 SHARP i40

065

O95

066

146

067 068

090

060

HOYO 073

HARMAN/KARDON 091 110

IRT 089

INTEGRA 092

JBL 091

JVC 022 033 115 116

JATON 073

KENWOOD 051 108 109

SANSUI 062

SANYO 062 090

SHiNSONiC 094

THOMSON 145

TOSHIBA 028 062 076

TECHNICS 139

TViEW 072

TOKAI 073

KISS 073 TEAC 096

K(3"_IKA "05; 100 106 107 .......T_iCHWOOD................ 097

.......kL_H......................................................................(J:_4oig ........................................................................................................................................................TREDEX .......................................................................................................

LG(Goidstar) 025 031 URBAN CONCEPTS 076

LOEWE 057 VENTURER 075

LASONIC 058 VOCOPRO 102

MOBILEAUTHORITY 054 YAMAHA 032 063

MEMOREX 055 YAMAKAWA 040 073

MALATA 056 XWAVE 103

MAGNAVOX 076 093 ZENITH 076 12

MINTEK 074 094

MONYKA 073

SAMSUNG SET-TOP BOX

Product Code

Ground wave STB 000 001 002 008 013

CABLE STB 000 004 008 009 010 011 012 013 014

075 076 077 078 079 080 081 082

Satellite STB 000 003 008 013

>- SET-TOP BOX, CABLE BOX

Brand Code

ALPHASTAR 023

ANAM i 043

CHANNEL MASTER 018 034

CROSSDIGITAL 019

CHAPARRAL 035

DIRECTTV 015 016 017 019 022 045 060 061 062

065 066 067 068

DAEWOO 074

DISHNETW0RKSYSTEM 069 070

DISHPRO 069

DRAKE _ 018 024 032

DXANTENNA 027

Brand [ Code

OAK 101

PHILIPS 015 016 017 021 033 036 038 039 040

041 042 067 094 096 098 103

PIONEER 093 095 079 119

PRIMESTAR 046 049 050 063

PANASONIC 058 059 061 062 078 097 102 112 119

PAYSAT 016

PROSCAN 065 066

RCA 051 052 053 065 066 089 097 115

RADIOSHACK 064

REALISTIC 057

REGAL 078

ECHOSTAR 025 069 070 071 REGENCY 090 098

EXPRESSVU 069 SA 117 118

GE 065 SANSUNG 000 001 002 003 004 008 009 010 011

012 013 014 075080 078 079 081 082

GENERALINSTRUMENT 046 047 048 063 O64 076 077

HUGHESNETWORK

IQ

IQ PRISM

JANEIL

JERROLD

JVC

GOI 069

HAMLIN 078 099 106

HTS i 069

HOME CABLE 056

HITACHi 022 100 105

015 017

020

020

059

063 113 114

069 070

LG(Gotdstar) 044 073

MAGNAVOX 016 021 036 038 039 040 041 042 084

098 103

MEMOREX 016

MOTOROLA 064

MACON 018 100 105

MITSUBISHI 015

NEXT LEVEL 047 048 064

STAR TRAK

STS

SKY

SKY LIFE

SHACK

STAR CHOICE

SONY

SPRUCER

STARGATE2000

SYLVANIA

TEXSCAN

TOCOM

026

020 027

031

005 006 007

064

064

054 060

097

111

091

091

107

TOSHIBA 015 017 028 029 030 072

ULTIMATETV 060 066

UNIDEN 016 021 037 055 056 057

UNIVERSAL 108 109

VlEWSTAR 094 096 098 103

WAMERAMEX 121

ZENITH 024 031 068 092 104 110 112 120

To Select the Source

Use to select TV or other external input sources such as DVD players or Cable

Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input

source of your choice.

1. Press the MENU button to display the menu.

Press the A. or • button to select "Input", then press the ENTER _ button.

2. Press the ENTER _ button to select "Source List".

Press the ,i, or T button to select signal source, then press the ENTER

button.

>- Available signal sources: TV, AV1, AV2, S-Video, Component1,

Component2, PC, HDMI1, HDMI2/DVl, HDMI3, HDMI4, USB, DLNA.

>- You can choose only those external devices that are connected to the TV.

In the "Source List", connected inputs will be highlighted and sorted to the

top. Inputs that are not connected will be sorted to the bottom.

>- If each USB device is connected to 2 WISELINK jacks, each is shown as

"USBI", "USB2" in order of reading.

>- Using the Color buttons on the remote with the Source list

•Red {Refresh); RefreSheS the €onnecting extema! devices I

. TOOLS (Option): Displays the "Edit Name '_and _'lnformation" menus.

(_ Press the SOURCE button on the remote control to view an external signal

source.

To Edit the input Source Name

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.

Press the A or _' button to select "Input", then press the ENTER _ button.

Press the A or T button to select "Edit Name", then press the ENTER

button.

2. Press the A. or T button to select "AVI", "AV2", "S-Video", "Component1",

"Component2", "PC", "HDMII", "HDMI2/DVI", "HDMI3", "HDMI4" input jack,

then press the ENTER _ button.

3= Press the A or T button to select "VCR", "DVD", "Cable STB",

"Satellite STB", "PVR STB", "AV Receiver", "Game", "Camcorder", "PC",

"TV", "IPTV", "Blu-Ray", "HD DVD", "DMA" input source, then press the

ENTER _ button.

Press the EXIT button to exit.

>- When a PC with a resolution of 1920 x 1080@60Hz is connected to the

HDMI IN 2 port, you should set the "HDMI2/DVI" mode to "PC" in the "Edit

Name" of the "Input" mode.

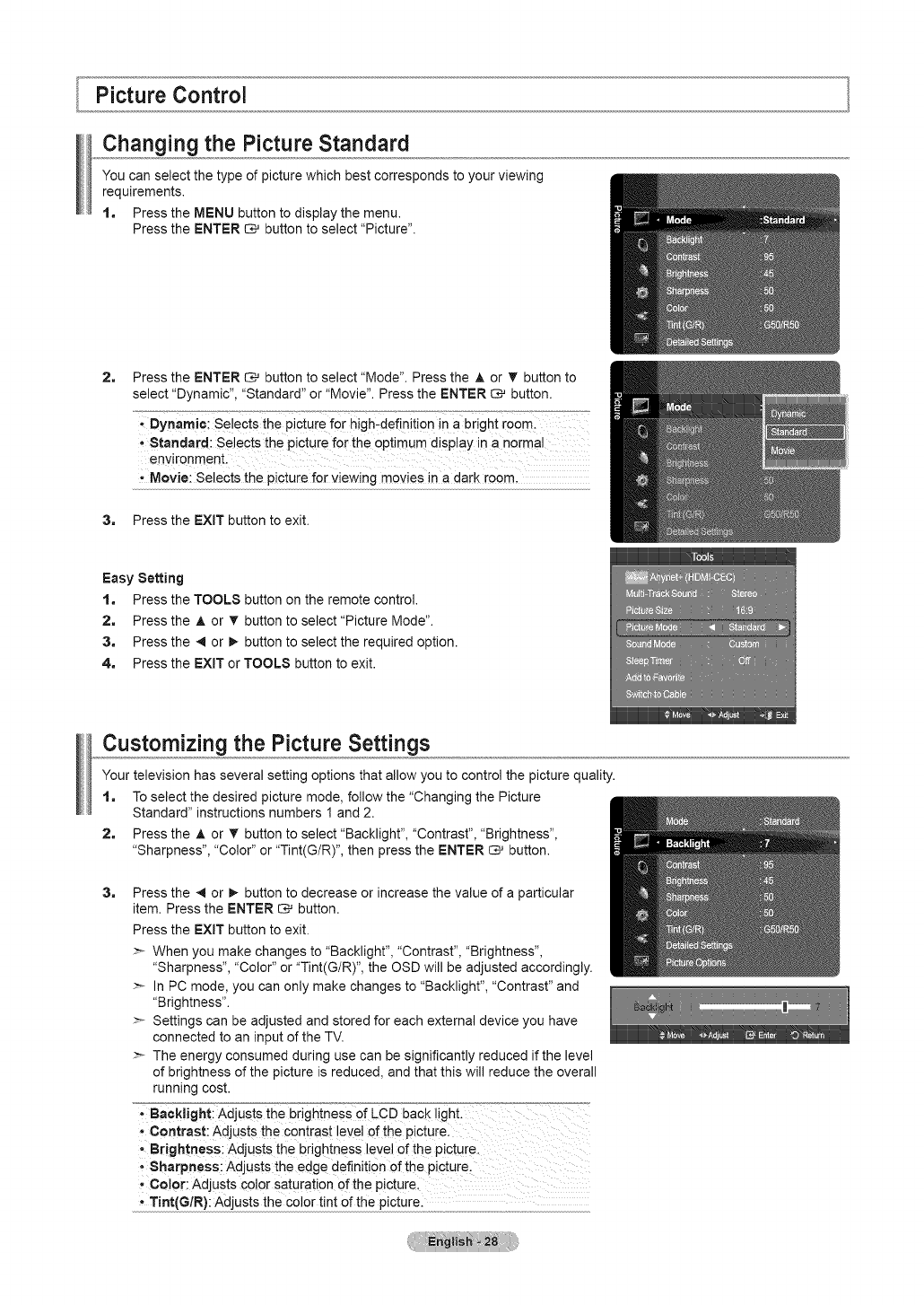

Picture Control

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing

requirements.

1. Press the MENU button to display the menu.

Press the ENTER I:_ button to select "Picture".

2= Press the ENTER _ button to select "Mode". Press the A or 'V button to

select "Dynamic", "Standard" or "Movie". Press the ENTER _ button.

*Dynami¢i selects the picture for high'definition in a biight r0Oml

,standard: Selects the picture for the optimum display in a normal

environment.

Movie: Selects the picture for viewing movies in a dark room.

3, Press the EXIT button to exit.

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or _' button to select "Picture Mode".

3, Press the 4 or I_ button to select the required option.

4, Press the EXIT or TOOLS button to exit.

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality.

1. To select the desired picture mode, follow the "Changing the Picture

Standard" instructions numbers 1 and 2.

2. Press the A or _' button to select "Backlight", "Contrast", "Brightness",

"Sharpness", "Color" or "Tint(G/R)", then press the ENTER G# button.

3= Press the 4 or I_ button to decrease or increase the value of a particular

item. Press the ENTER _ button.

Press the EXIT button to exit.

>- When you make changes to "Backlight", "Contrast", "Brightness",

"Sharpness", "Color" or "Tint(G/R)", the OSD will be adjusted accordingly.

>- In PC mode, you can only make changes to "Backlight", "Contrast" and

"Brightness".

>- Settings can be adjusted and stored for each external device you have

connected to an input of the TV.

>- The energy consumed during use can be significantly reduced if the level

of brightness of the picture is reduced, and that this will reduce the overall

running cost.

' Backlight: Adjusts the brightness of LCD back light.

' Contrast: Adjusts the Contrast level Ofthe pbturel

'BrightneSs: Adjusts the brightness level of the picturel

i 8harpnessi Adjusts the edge definition of the picture:

co!or: Adjusts color saturation of the p!cture,

*Tint(G/R): Adjusts the color tint of the picture.

Adjusting the Detailed Settings

Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust

detailed picture settings.

Activating Detailed Settings

1, Press the MENU button to display the menu.

Press the ENTER _ button to select "Picture".

2, Press the ENTER _ button to select"Mode".

Press the A or T button to select "Standard" or "Movie", then press the

ENTER _ button.

>- "Detailed Settings" is available in "Standard" or "Movie" mode.

3= Press the A or T button to select "Detailed Settings", then press the

ENTER _ button.

>- In PC mode, you can only make changes to "Dynamic Contrast",

"Gamma" and "White Balance" from among the "Detailed Settings" items.

Setting the Black adjust

You can select the black level on the screen to adjust the screen depth.

4, Press the A or T button to select "Black adjust", then press the ENTER

button.

5. Press the A. or T button to select "Off", "Low", "Medium" or "High".

Press the ENTER _ button.

" Off; Turns offthe black adjustmeni functionl

;Low: Sets the black color depth to loW.

,Medium: Sets the black color depth to medium.

, High: Sets the black color depth to highl

Setting the Dynamic Contrast

You can adjust the screen contrast so that the optimal contrast is provided.

6, Press the A or T button to select "Dynamic Contrast", then press the

ENTER _ button.

7, Press the A. or T button to select "Off", "Low", "Medium" or "High".

Press the ENTER _ button.

, Low: Sets the dynamic contrast t0 low,

,Medium: Sets the dynamic contrast to medium.

, High: Sets the dynamic contrast to highl

Adjusting theGamma

You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3)

8. Press the A or • button to select "Gamma", then press the ENTER

button.

9. Press the _ or I_ button to decrease or increase the value.

Press the ENTER _ button.

Setting the Color Space

Color space is a color matrix composed of red, green and blue colors.

Select your favorite color space to experience the most natural color.

10. Press the A. or T button to select "Color Space", then press the ENTER C*-'

button.

1 t. Press the ENTER _ button again to select "Color Space".

12. Press the A or T button to select "Auto", "Native" or "Custom".

Press the ENTER _ button.

' Auto: Auto Color Space automatically adjusts tOihe most natural color

tone based on program sources.

,NatiVe: Native Color Space offers deep and rich color tone .

o Custom:Adjusts the color range to suit your preference.

(see "Customizing the Color Space '_)

Customizing the Color Space

13, Press the A or T button to select "Color", then press the ENTER _ button.

>- "Color" is available when "Color Space" is set to "Custom".

14, Press the A or T button to select "Red", "Green", "Blue", "Yellow", "Cyan" or

"Magenta". Press the ENTER _ button.

15, Press the _, or T button to select "Red", "Green", or "Blue" to change it.

Press the ENTER _ button.

16, Press the ,q or I_ button to decrease or increase the value of a particular

item. Press the ENTER C_ button.

>- In "Color", you can adjust the RGB values for the selected color.

>- To reset the adjusted RGB value, select "Reset".

' Red: Adjusts the red saturation level of the selected.............................................................................color. ..........

,Green: Adjusts the green saturation leve! of the selected color.

, Blue; Adjusts the blue saturation love I of the selected color,

,Reset: Resets the color space to the default values.

>- Changing the adjustment value will refresh the adjusted screen.

>- Settings can be adjusted and stored for each external device you have

connected to an input of the TV. For example, if you have a DVD player

connected to HDMI 1 and it is currently selected, settings and adjustments

will be saved for the DVD player.

Adjusting the White Balance

You can adjust the color temperature for more natural picture colors.

17, Press the A or T button to select "White Balance", then press the

ENTER _ button.

18, Select the required option by pressing the A or _r button, then press the

ENTER _ button.

19, Press the 4 or I_ button to decrease or increase the value of a particular

item. Press the ENTER _ button.

- R-Offset: Adjusts the red color darkness.

• G-Offset: Adjusts the green color darkness.

- B-Offset: Adjusts the blue color darkness.

R-Gain: Adjusts the red color brightness.

- G-Gain: Adjusts the green color brightness.

• B-Gain: Adjusts the blue color brightness.

Reset: The previously adjusted white balance will be reset to the

factory defaults.

>- Changing the adjustment value will refresh the adjusted screen.

Adjusting the Flesh Tone

You can emphasize the pink 'flesh tone' in the picture.

20, Press the A or • button to select "Flesh Tone", then press the ENTER C,-'

button.

2t, Press the 4 or I_ button to decrease or increase the value.

Press the ENTER _ button.

Changing the adjustment value will refresh the adjusted screen.

Setting the Edge Enhancement

You can emphasize object boundaries in the picture.

22, Press the A or T button to select "Edge Enhancement", then press the

ENTER _ button.

23, Press the A or T button to select "Off' or "On". Press the ENTER _ button.

Setting the xvYCC

Setting the xvYCC mode to "On" increases detail and color space when watching

movies from an external device (ie. DVD player) connected to the HDMI or

Component IN jacks.

24, Press the A or • button to select "xvYCC", then press the ENTER

button.

25, Press the A or T button to select "Off" or "On".

Press the ENTER _ button.

:_ "xvYCC" is available when the picture mode is set to "Movie", and the

external input is set to "HDMF or "Component" mode.

Resetting the Picture Settings to the Factory Defaults

t, To select the desired picture mode, follow the "Changing the Picture

Standard" instructions numbers 1 and 2. (see page 28)

2, Press the A or T button to select "Picture Reset", then press the ENTER E_

button.

3_ Press the ,1,or T button to select "Reset Picture Mode" or "Cancel", then

press the ENTER _ button.

Press the EXIT button to exit.

,, Reset Picture MQde; A!l picture Values in the cu[rent picture mode

return to defau!t settings;

, Cancel: Does not perform a screen [eset.

:_ Each mode can be reset.

Configuring Picture Options

Activating Picture Options

1=

2,

Press the MENU button to display the menu.

Press the ENTER _ button to select "Picture".

Press the A or • button to select "Picture Options", then press the ENTER

button.

Press the A or T button to select a particular item. Press the ENTER C;_

button.

When you are satisfied with your setting, press the ENTER _ button.

In PC mode, you can only make changes to the "Color Tone" and "Size" from

among the items in "Picture Options".

Setting the Color Tone

1, Follow the "Activating Picture Options" instructions numbers 1 and 2.

2, Press the A or T button to select "Color Tone", then press the ENTER

button.

3= Press the A or T button to select "Cool2", "Coo11", "Normal", "Warm1" or

"Warm2". Press the ENTER _ button.

> "Warm1" or "Warm2" is only activated when the picture mode is "Movie".

> Settings can be adjusted and stored for each external device you have

connected to an input of the TV.

Setting the Screen Size

Occasionally, you may want to change the size of the image on your screen. Your

TV comes with six screen size options, each designed to work best with specific

types of video input. Your cable box or satellite receiver may have its own set of

screen sizes as well. In general, though, you should view the TV in 16:9 mode as

much as possible.

1, Follow the "Activating Picture Options" instructions numbers 1 and 2.

2, Press the A or T button to select "Size", then press the ENTER _ button.

3, Press the A. or T button to select the screen format you want.

Press the ENTER {3_ button.

Press the EXIT button to exit.

-16:9 : Sets the picture to 16:9 wide mode.

• Zoom1: Magnifies the size of the picture on the screen.

-Zoom2: Magnifies the size of the picture more than "Zoom1".

Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.

•4:3 : Sets the picture to 4:3 normal mode.

-Just Scan: Use the function to see the full image without any cutoff

when HDMI (720p!1080ii1080p), Component (1080i/1080p) or DTV

(1080i) signals are input.

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or _' button to select "Picture Size".

3, Press the 4 or _ button to select the required option.

4, Press the EXIT or TOOLS button to exit.

>-WhenDouble([_, r"m ) mode has been set in PIP, the Picture Size cannot be set.

>- Temporary image retention may occur when viewing a static image on the set for more than two hours.

After selecting "Zoom1", "Zoom2" or "Wide Fit":

Press the _ or I_ button to select "Position", then press the ENTER

button. Press the _, or _' button to move the picture up and down.

Reset: Press the _ or I_ button to select "Reset", then press the

ENTER _ button. You can initialize the setting.

>After selecting "Just Scan" in HDMI (1080i/1080p) or Component

(1O8Oi/1080p) mode:

Press the _ or I_ button to select "Position", then press the ENTER

button. Press the _,, T, _ or I_ button to move the picture.

Reset: Press the _ or I_ button to select "Reset", then press the

ENTER _ button. You can initialize the setting.

>- HD (High Definition)

16:9 -1080i/1080p (1920x1080), 720p (1280x720)

>- Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Input Source

ATV, AV, S-Video, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3

DTV(1080i), Component (1080i, 1080p), HDMI (720p, 1080i, 1080P) 16:9, 4:3, Wide Fit, Just Scan

PC 16:9, 4:3

16:9

Sets the picture to 16:9 wide mode.

Wide Fit 4:3

Enlarges the aspect ratio of the

Zoom1_

Magnifies the size of the picture on

the screen.

Zoom2

Magnifies the size of the picture more

than "Zoom1 ".

picture to fit the entire screen

Just Scan

Sets the picture to 4:3 normal mode. Use the function to see the ful

image without any cutoff when HDM

(720pt1080i11080p), Component

(1080i11080p) or DTV (1080i) signals

are input.

Setting the Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital

Noise Reduction feature to help reduce any static and ghosting that may appear

on the screen.

1, Follow the "Activating Picture Options" instructions numbers 1 and 2.

(Refer to page 33)

2, Press the A or • button to select "Digital NR", then press the ENTER

button.

3, Press the A or T button to select "Off", "Low", "Medium", "High" or "Auto".

Press the ENTER _ button.

"Off: Turns the screen noise reduction function off.

- Low: Reduces screen noise at a low level:

,, Medium: Reduces screen noise at a medium level.

High: Reduces screen noise at a high leve !.

- Auto: Automatically recognizes and reduces screen noise.

Press the EXIT button to exit.

Setting the DNle (Digital Natural Image engine)

This TV includes the DNle function to provide high visual quality. If you set DNle

to on, you can view the screen with the DNle feature activated.

1, Follow the "Activating Picture Options" instructions numbers 1 and 2.

(Refer to page 33)

2, Press the A or T button to select "DNle", then press the ENTER

button.

3, Press the A or _r button to select "Off" or "On", then press the ENTER

button.

. Onl Switches on the DNIe mode.

Press the EXIT button to exit.

>- DNle TM (Digital Natural Image engine)

This feature brings you a more detailed image with 3D noise reduction

and detail, contrast and white enhancement.

>- "DNle" is only available in "Dynamic" mode.

Setting the HDMI Black Level

You can select the black level on the screen to adjust the screen depth.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2.

(Refer to page 33)

2. Press the A. or T button to select "HDMI Black Level", then press the

ENTER _ button.

3. Press the ,i, or T button to select "Normal" or "Low", then press the

ENTER _ button.

,Low: The screen gets darker.

>- This function is active only when an external device is connected to the

TV via HDMI. "HDMI Black Level" function may not be compatible with

all external devices.

Press the EXiT button to exit.

Setting the Film Mode

The TV can be set to automatically sense and process film signals from all

sources and adjust the picture for optimum quality.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2.

(Refer to page 33)

2, Press the A or T button to select "Film Mode", then press the ENTER

button.

3= Press the A or T button to select "Off', "Auto1" or "Auto2", then press the

ENTER _ button.

; Off: Turn the Film Mode function 0ft.

, Auto1: AutomatiCally adjusts the picture foi the best quality when

watching a fi!m.

-Auto2: Automatically optimizes the video text when watching a film.

Press the EXiT button to exit.

"Film mode" is supported in TV, AV, S-Video, Component (480i /1080i)

and HDMI (480i/1080i).

Setting the Blue Only Mode

This function is for AV device measurement experts. This function displays the

blue signal only by removing the red and green signals from the video signal so

as to provide a Blue Filter effect that is used to adjust the Color and Tint of video

equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Color and Tint to preferred values

appropriate to the signal level of each video device using the Red/Green/Blue/

Cyan/Magenta/Yellow Color Bar Patterns, without using an additional Blue Filter.

1. Follow the "Activating Picture Options" instructions numbers 1 and 2.

(Refer to page 33)

2. Press the A or T button to select "Blue Only Mode", then press the

ENTER _ button.

3, Press the A or T button to select "Off' or "On", then press the ENTER

button.

Press the EXiT button to exit.

>- "Blue Only Mode" is available when the picture mode is set to "Movie" or

"Standard".

Setting the Auto Motion Plus 120Hz

2=

3,

Removes drag from fast scenes with a lot of movement to provide a clearer

picture.

1, Follow the "Activating Picture Options" instructions numbers 1 and 2.

(Refer to page 33)

Press the A or T button to select "Auto Motion Plus 120Hz", then press the

ENTER _ button.

Press the A or _' button to select "Off', "Low", "Medium", "High" or "Demo",

then press the ENTER _ button.

'Off: switches Auto Motion Plus 120Hz off.

,Low: Sets Auto Motion Plus 120Hz to minimum.

Medium: sets Auto Motion PlUS i20Hz to mediuml

Highl Sets Auto Motion P!US120Hz to maximu m.

Demo; Displays the difference between Auto Motion Plus 120Hz on and

Off modesl Th e screen after app!ying !iAuto Motion P!us 120Hz' I appears

on the left:

Press the EXiT button to exit.

>- If you enable "Auto Motion Plus 120Hz", noise may appear on the

screen. If this occurs, set "Auto Motion Plus 120Hz" to "Off'.

Viewing Picture-in-Picture

You can use the PIP feature to simultaneously watch the TV tuner and one external video source. (See page 44 to select

the PIP picture sound.) This product has one built-in tuner, which does not allow PIP to function in the same mode. Please

see 'PIP Settings' below for details.

>- While V-Chip (See page 62) is in operation, the PIP function cannot be used.

Activating Picture-in-Picture

1, Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

Press the A or • button to select "PIP", then press the ENTER E_ button.

2= Press the ENTER _ button again.

Press the A or T button to select "On", then )ress the ENTER C_ button.

>- If you turn the TV off while watching in PIP mode and turn it on again, the

PIP window will disappear.

>- You can view TV broadcasts on the PIP screen (sub-picture) when the

main picture is from an external device connected to HDMI 1,

HDMI/DVl 2, HDMI 3, HDMI 4, Component1,2 or PC.

>PiP Settings

Component 1, 2

HDMI 1, HDMI/DVI 2, HDMI 3, HDMI 4 TV

PC

Changing the Size of the PiP Window

3= Press the A or _' button to select "Size", then press the ENTER _ button.

Press the _, or _I' button to select the required option, then press the

ENTER _ button.

>- You may notice that the picture in the PIP window becomes slightly

unnatural when you use the main screen to view a game or karaoke.

Changing the Position of the PiP Window

4= Press the ,t, or T button to select "Position", then press the ENTER

button.

Press the A or T button to select the required option, then press the ENTER

button.

>- In Double Window ( [_ ) and Double Wide ( r=T_) modes, "Position"

cannot be selected.

Changing the PiP Channel

5.

6,

Press the A or • button to select "Air/Cable", then press the ENTER C3_

button.

Press the A or T button to select "Air" or "Cable", then press the ENTER C*-'

button.

7, Press the A or T button to select "Channel", then press the ENTER

button.

8, Press the A. or T button to select the desired channel in the PIP window.

Press the ENTER _ button.

Press the EXiT button to exit.

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or T button to select "PIP", then press the ENTER C_ button.

3, Press the 4 or I_ button to select "On".

4, Press the A or T button to select a particular item.

5, Press the 4 or I_ button to select the required option.

6, Press the EXiT or TOOLS button to exit.

Sound Control

Changing the Sound Standard

You can select the sound mode to best suit the programming you're watching.

1. Press the MENU button to display the menu.

Press the A or • button to select "Sound", then press the ENTER _ button.

2= Press the ENTER _ button to select "Mode". Press the A or V button to

select "Standard", "Music", "Movie", "Speech", or "Custom" sound setting,

then press the ENTER _ button.

Press the EXIT button to exit.

' Standard: selecti ............"

the no[real sound mode.

' Musi¢i Emphasizes music over voicesl

,, Movie: Provides the best sound for movies

speech i Emphasizes voic e over other Sounds;

,Custom: Recalls your customized sound settings:

(see ,Customizing the Soundi')

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or _' button to select "Sound Mode".

3, Press the 4 or I_ button to select the required option.

4, Press the EXIT or TOOLS button to exit.

Customizing the Sound

The sound settings can be adjusted to suit your personal preference.

1. Press the MENU button to display the menu.

Press the A or _' button to select "Sound", then press the ENTER _ button.

2. Press the A or T button to select "Equalizer", then press the ENTER

button.

3, Press the ENTER _ button to select"Mode".

Press the A or T button to select "Standard", "Music", "Movie", "Speech", or

"Custom" sound setting, then press the ENTER _ button.

4= Press the A or T button to select a particular frequency to adjust.

Press the 4 or I_ button to increase or decrease the level of the particular

frequency.

_Medei Se!ects thes0und mode among the predefined Settjngs_ .....................

t Ba!ance UR: Adjust s the balance between the dght and left sPeake[.

•Bandwidth Adjustment (t 00Hz, 300Hz, IkHz, 2kHz, 3kHz, 10kHz):

To adjust the level of different bandwidth frequencies:

Resetting the Equalizer Settings to the Factory Defaults

5. Press the A or • button to select "Reset", then press the ENTER _ button.

>- The equalizer resets to the factory defaults.

Press the EXIT button to exit.

Setting the TruSurround XT

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two

speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system,

including internal television speakers. It is fully compatible with all multichannel formats.

1, Press the MENU button to display the menu.

Press the A or _' button to select "Sound", then press the ENTER _ button.

2, Press the A or T button to select "SRS TruSurround XT", then press the

ENTER _ button.

3, Press the A or T button to select "Off' or "On", then press the ENTER

button.

Press the EXIT button to exit.

SR_(_ TruSurround XT, SRS and (e) Symbol are trademarks of SRS Labs, Inc.

I_ TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Choosing Preferred Language

The digitaI-TV transmission system is capable of simultaneous transmission of many audio tracks (for example,

simultaneous translations of the program into foreign languages).

Select the language you would like to hear the audio track in.

1, Press the MENU button to display the menu.

Press the A or • button to select "Sound", then press the ENTER _ button.

2. Press the A or T button to select "Preferred Language", then press the

ENTER _ button.

3. Press the A. or T button to choose the language (English, Spanish or

French) you want, then press the ENTER _ button.

Press the EXIT button to exit.

>- "Preferred Language" is available only in Digital TV mode.

>- You can only select the language from among the actual languages being

broadcast.

Choosing a Multi-Channel Sound (MTS) track

1, Press the MENU button to display the menu.

Press the A or V button to select "Sound", then press the ENTER _ button.

2, Press the A or T button to select "Multi-Track Sound", then press the

ENTER _ button.

3= Press the A or _' button to select a setting you want, then press the

ENTER _ button. Press the EXIT button to exit.

,Mono; Choose for channels that are broadcasting in mono or if you are

having difficulty receiving a stereo signal.

.Stereo; Choose for channels that are broadcasting in stereo.

,SAP: Choose to listen to the Separate Audio Program, which is usually

a foreign-language translation.

>- "Multi-Track Sound" is available only in Analog TV mode.

>- Depending on the particular program being broadcast, you can listen to

"Mono", "Stereo" or "SAP".

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or _' button to select "Multi-Track Sound".

3, Press the 4 or I_button to select the required option.

4, Press the EXIT or TOOLS button to exit.

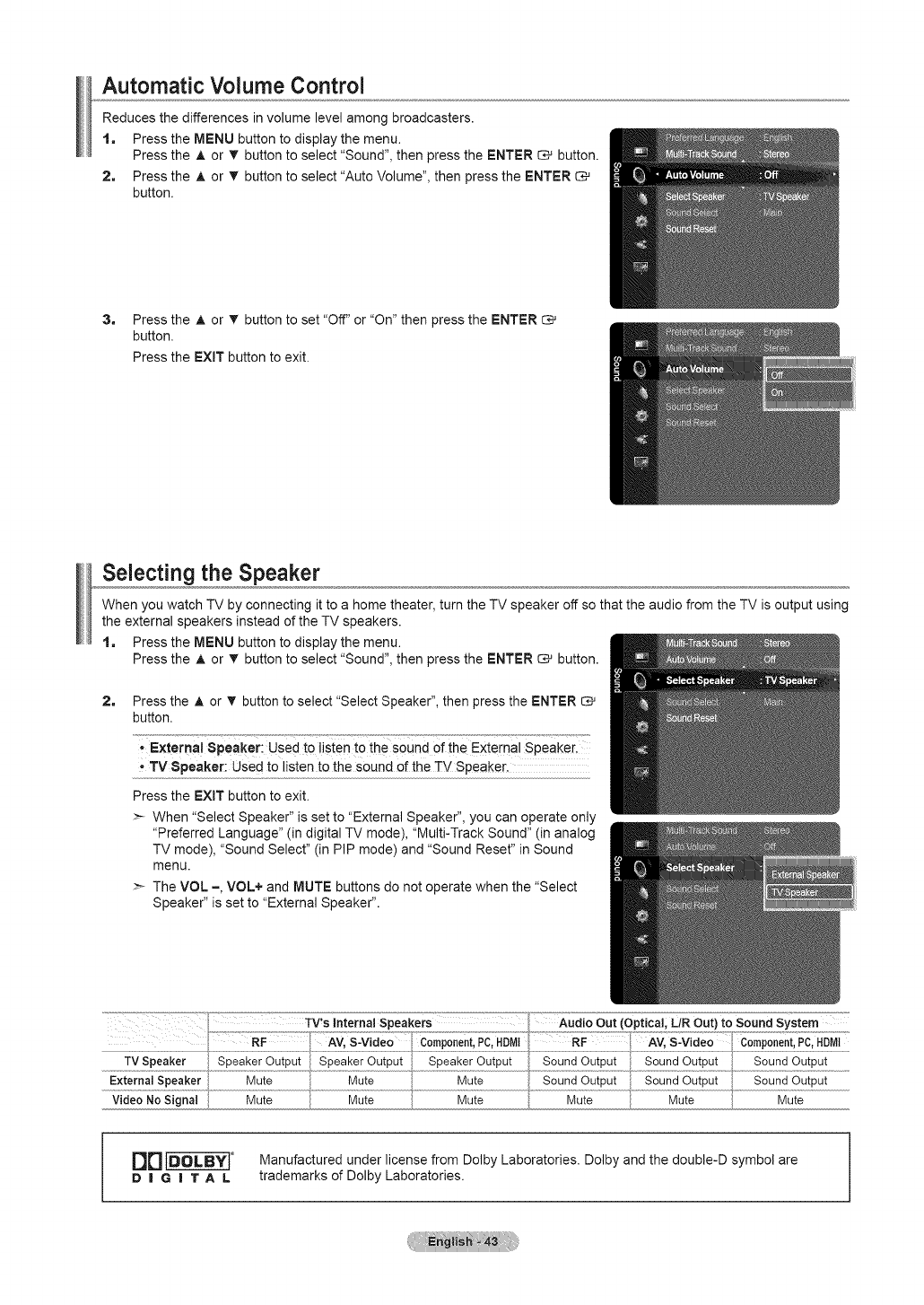

Automatic Volume Control

Reduces the differences in volume level among broadcasters.

1, Press the MENU button to display the menu.

Press the A or _' button to select "Sound", then press the ENTER _ button.

2, Press the A or • button to select "Auto Volume", then press the ENTER

button.

3, Press the A or T button to set "Off" or "On" then press the ENTER

button.

Press the EXIT button to exit.

Selecting the Speaker

When you watch TV by connecting it to a home theater, turn the TV speaker off so that the audio from the TV is output using

the external speakers instead of the TV speakers.

1, Press the MENU button to display the menu.

Press the A or T button to select "Sound", then press the ENTER _ button.

2= Press the A or _' button to select "Select Speaker", then press the ENTER

button.

, External Speaker: Used to listen to the SoUnd of the External Speaker -'_

TV Speaker: Used to listen to the sound of the TV Speaker.

Press the EXiT button to exit.

>- When "Select Speaker" is set to "External Speaker", you can operate only

"Preferred Language" (in digital TV mode), "Multi-Track Sound" (in analog

TV mode), "Sound Select" (in PIP mode) and "Sound Reset" in Sound

menu.

>- The VOL -, VOL+ and MUTE buttons do not operate when the "Select

Speaker" is set to "External Speaker".

TVSpeaker SpeakerOutput SpeakerOutput SpeakerOutput Sound Output SoundOutput SoundOutput

NN _ Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are

D!G! T A Ltrademarks of Dolby Laboratories.

Listening to the Sound of the Sub (PIP) Picture

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

1. Press the MENU button to display the menu.

Press the A or _' button to select "Sound", then press the ENTER _ button.

2. Press the A or • button to select "Sound Select", then press the ENTER

button.

3. Press the A or T button to select "Main" or "Sub", then press the ENTER

button.

Press the EXiT button to exit.

- Sub:Used to listen to the sound of the sub picture.

>- You can select this option when "PIP" is set to "On". (See page 38)

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the A or _' button to select "PIP".

3. Press the 4 or I_ button to select "On".

4. Press the A or _' button to select "Sound Select".

5. Press the 4 or I_ button to select the required option.

6. Press the EXiT or TOOLS button to exit.

Resetting the Sound Settings to the Factory Defaults

You can restore the Sound settings to the factory defaults.

1. Press the MENU button to display the menu.

Press the A or _r button to select "Sound", then press the ENTER _ button.

2. Press the A or • button to select "Sound Reset", then press the ENTER 1_

button.

Press the EXiT button to exit.

3. Press the _ or I_ button to select "ResetAIl", "Reset Sound Mode" or

"Cancel" then press the ENTER _ button.

Press the EXiT button to exit.

,Reset Sound Mode: Cur[ent sound values return to default settings.

Cancel: Select the sound reset option&

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the

room.

>- When you insert the headphone's plug into the headphone jack, you can TVSidePanel

operate only "Preferred Language" (in digital TV mode), "Multi-Track Sound"

(in analog TV mode), "Auto Volume", "Sound Select" (in PIP mode) and "Sound

Reset" in Sound menu.

>- Prolonged use of headphones at a high volume may damage your hearing.

>- You will not hear sound from the speakers when you connect headphones to

the TV.

>- The headphone volume and TV volume are adjusted separately.

Channel Control

Managing Channels

Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts.

Viewing All Channels

Show all currently available channels.

To use the Channel List function, first run "Auto Program" (see page 21 ).

1, Press the MENU button.

Press the A or • button to select "Channel", then press the ENTER

button.

Press the A or T button to select "Channel List", then press the ENTER 1:_

button.

2, Press the 4 button to select "Added Channels".

3, Press the A or T button to select "All Channels".

>- Shows all currently available channels.

Press the ENTER _ button.

4, Press the A or _I' button to select a channel to view, then press the

ENTER _ button. You can watch the selected channel.

[_ Press the CH LIST button on the remote control to bring up the channel lists. @1__.,, M__ _1

Using the Color buttons on the Remote with the Channel List

*Red(Antenna):

' Green(Zoom): Enlaiges or Shrinks a channe! number.

*Yellow (Select): selects multiple channel lists:

,TOOLS(Option): DisPlays the 'iAdd" (or !'Delete"), t'Add to Favoritd'(or

i!De!ete from Favoritdl),!!TimerViewing",_iChannel Name Edit't; itSelect A!]",

"Deselect All" and "Auto Program" menus. (The Options menus may differ

depending on the situation.)

>- A gray-colored channel indicates the channel has been deleted.

The "Add" menu only appears for deleted channels.

>- A channel marked with the "v" mark means the channel has been set as a Favorite.

The "Delete from Favorite" menu only appears for channels with the "v" mark.

II

Erasing and Adding Channels

You can delete or add a channel to display the channels you want.

1. Press the MENU button.

Press the A. or • button to select "Channel", then press the ENTER

button.

Press the • or T button to select "Channel List", then press the

ENTER _ button.

2. Press the 4 button to select "Added Channels".

3. Press the ,i, or T button to select "All Channels".

>- Shows all currently available channels.

Press the ENTER _ button.

4. Press the A or T button to select a channel to delete, then press the

TOOLS button.

5. Press the ENTER _ button to select"Delete".

>- All deleted channels will be shown on "All Channels" menu.

6. Press the EXIT button to exit.

>- You can also delete a channel to the "Added Channels" menu in the same

manner.

>- A channel must be deleted before it can be added back to the "Added

Channels" list.

>- To Add (Restore) a channel back to the All Channel List, follow steps

1-3 above, press the A or T button to select a channel to add, the press

the TOOLS button. Press the ENTER _ button to select Add.

[_ Press the OH LIST button on the remote control to bring up the channel

lists.

Setting Your Favorite Channels

You can set channels you watch frequently as favorites.

1. Press the MENU button.

Press the A. or • button to select "Channel", then press the ENTER

button.

Press the • or T button to select "Channel List", then press the

ENTER _ button.

2. Press the 4 button to select "Added Channels".

3. Press the ,_ or T button to select "All Channels".

>- Shows all currently available channels.

Press the ENTER 13_button.

4. Press the A or T button to select a channel as a favorite channel.

>Adding multiple channels to Favorites

Press the A or T button to select the desired channel in the channel

list. Then press the yellow button. Repeat the above operation to select

multiple channels. The _/mark appears to the left of the selected

channels.

5. Press the TOOLS button.

6. Press the A or _' button to select "Add to Favorite", then press the

ENTER _ button. The "v" symbol will be displayed and the channel will be

set as a favorite.

7. To cancel your favorite channel selection, press the TOOLS button when a

favorite channel is selected.

Press the A or _I' button to select "Delete from Favorite", then press the

ENTER _ button.

The channel is deleted from "Favorites" and the "v" mark also disappears.

Press the EXIT button to exit.

:_ You can also Add or Delete a channel from Favorites in the "Added

Channels" menu in the same manner.

:_ All favorite channels will be shown in the "Favorite" menu.

[_ Press the CH LIST button on the remote control to bring up the channel

lists.

(_ To select the favorite channels you have set up, press the FAV.CH button

on the remote control.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the A or T button to select "Add to Favorite" (or "Delete from

Favorite"), then press the ENTER _ button.

>- The current channel is added to (or deleted from) Favorites.

Reserving aProgram (Timer Viewing)

If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel

List; even when you are watching another channel.

To reserve a program, set the current time first. See pages 58~59. Reserved channels can only be set if they are in the

"Channel List" (See page 50).

t, Press the MENU button.

Press the A or T button to select "Channel", then press the ENTER _ button.

Press the A or _r button to select "Channel List", then press the ENTER C#

button.

2, Press the A or _r button to select a channel, then press the TOOLS button.

3, Press the _, or T button to select "Timer Viewing", then press the ENTER 13_

button. The Reserve a Program (Timer Viewing) screen appears.

4, Press the _,/T/_/_ buttons to reserve a program and then press the

ENTER _ button. Reserving a program has been completed.

Press the EXIT button to exit.

>- You can also reserve a program in the "All Channels" or "Favorite" menus using

the same procedures.

>- For information on how to confirm a viewing reservation, refer to page 50.

Only memorized channels can be reserved.

>- You can set the channel, month, day, year, hour and minute directly by pressing

the number buttons on the remote control.

[_ Press the OH LIST button on the remote control to bring up the channel lists.

Digital Program Guide and Viewing Reservation

When a digital channel is selected, and you press the I_ button, the Program Guide

for the channel appears. You can reserve a program according to the procedures

described above.

:A program currently being broadcast.

@ :A reserved program

Confirming aViewing Reservation

You can view, modify or delete a reservation.

1. Press the MENU button.

Press the A. or • button to select "Channel", then press the ENTER

button.

Press the A or T button to select "Channel List", then press the

ENTER _ button.

2. Press the 4 button to select "Added Channels".

3. Press the ,_ or T button to select "Programmed".

>- Shows all current reserved programs.

Press the ENTER _ button.

Modifying aviewing reservation

4. To select a reservation item to be modified, press the A or _r button and

then press the TOOLS button.

5. Press the ENTER [:_ button to select "Change Info".

6. Press the A/T/_I/I_ buttons to change a reservation setting and then

press the ENTER _ button. The reservation modification is applied.

Canceling areservation

4. To select a reservation item to be canceled, press the A or _r button, and

then press the TOOLS button.

5. Press the A or T button to select "Cancel schedules", then press the

ENTER _ button.

6, Press the _ or _ button to select "OK", then press the ENTER _ button.

The viewing reservation has been canceled.

Press the EXIT button to exit.

Programmed Option

Cancel scheduleS; Select to cance! a viewing[eservation.

Information: Select to view a viewing reservation.

. Select All: Se!ect a!! reserved programs,

[_ Press the OH LIST button on the remote control to bring up the channel

lists.

Labeling Channels - Analog

Channels can labeled so that their call letters appear whenever the channel is selected.

1, Press the MENU button.

Press the A or • button to select "Channel", then press the ENTER

button.

Press the A or T button to select "Channel List", then press the ENTER [:_

button.

2, Press the A or _!' button to select the channel to be assigned a new name,

then press the TOOLS button.

3, Press the A or T button to select "Channel Name Edit", then press the

ENTER _ button.

4. Press the =,/_r/_t/l_ button to select a letter, then press the ENTER [3_

button.

5=

oRed button: You can switch between English and Characters:

, Green button! You can delet e an already entered character.

Yellow button: You can enter a blank space.

- Blue button:Press this button to finish renaming a channel.

When you have finished, press the blue button to assign the new name.

Press the EXIT button to exit.

>- The names of digital broadcasting channels are automatically assigned

and cannot be labelled.

Selecting and Deselecting All Channels

1= Press the MENU button.

Press the A or • button to select "Channel", then press the ENTER

button.

Press the A or T button to select "Channel List", then press the ENTER I:_

button.

2, Press the A or T button to select a channel, then press the TOOLS button.

3, Press the A or T button to select "Select All" or "Deselect All", then press the

ENTER _ button.

You can select(or Deselect) all channel in the channel list.

The _/mark appears to the left of the selected channels.

Storing Channels in Memory (Auto Program)

1, Press the MENU button.

Press the A or T button to select "Channel", then press the ENTER

button. Press the A or _r button to select "Channel List", then press the

ENTER _ button.

2, Press the A or _' button to select a channel, then press the TOOLS button.

3, Press the A or T button to select "Auto Program", then press the ENTER C,-'

button.

>- For further details on setting up options, refer to page 21.

Clearing Scrambled Channels - Digital

The "Clear Scrambled Channel" function is used to filter out scrambled channels after "Auto Program" is completed.

This process may take up to 20~30 minutes.

1, Press the MENU button to display the menu.

Press the A or • button to select "Channel", then press the ENTER

button.

2= Press the A or T button to select "Clear Scrambled Channel", then press the

ENTER _ button. It searches scrambled channels, which are to be removed

from the list.

>- To stop searching scrambled channels;

Press the ENTER C,_ button to select "Stop".

Press the 4 button to select "Yes", then press the ENTER _ button.

3= When the scrambled channel searching is completed, press the ENTER

button.

Press the EXIT button to exit.

>- This function is only available in "Cable" mode.

Fine Tuning Analog Channels

Use fine tuning to manually adjust a particular channel for optimal reception.

1, Press the MENU button to display the menu.

Press the _, or _' button to select "Channel", then press the ENTER

button.

2, Press the A or T button to select "Fine Tune", then press the ENTER

button.

3, Press the _ or I_ button to adjust the fine tuning.

To store the fine tuning setting in the TV's memory, press the ENTER

button.

>- If you do not store the fine-tuned channel in memory, adjustments are not

saved.

4, To reset the fine tuning setting, press the V' button to select "Reset", then

press the ENTER _ button.

Press the EXIT button to exit.

>- .....will appear next to the name of fine-tuned channels.

>- Only analog TV channels can be fine tuned.

Checking the Digital-Signal Strength

Unlike analog channels, which can vary in reception quality from "snowy" to clear, digital (HDTV) channels have either

perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune adigital

channel. You can, however, adjust your antenna to improve the reception of available digital channels.

1. Press the MENU button to display the menu. Press the A or V button to

select "Channel", then press the ENTER _ button.

2. Press the _, or T button to select "Signal Strength", then press the

ENTER _ button.

If the signal strength meter indicates that the signal is weak, physically adjust

your antenna to increase the signal strength.

Continue to adjust the antenna until you find the best position with the

strongest signal.

Press the EXIT button to exit.

PC Display

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be

different, depending upon your particular version of Windows and your particular video card. However, even if your actual

screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer

manufacturer or Samsung Dealer.)

1, First, click on "Control Panel" on the Windows start menu.

2, When the control panel window appears, click on "Appearance and Themes" and

a display dialog-box will appear.

3, When the control panel window appears, click on "Display" and a display dialog-

box will appear.

4, Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution)

Optimum: 1920 X 1080 pixels

If a vertical-frequency option exists on your display settings dialog box, the

correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

If the signal from the system equals the standard signal mode, the screen is adjusted automatically. If the signal from the

system doesn't equal the standard signal mode, adjust the mode by referring to your videocard user guide; otherwise there

may be no video. For the display modes listed below, the screen image has been optimized during manufacturing.

D-Sub input

IBM

VEBA

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

1024 x 768

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

1360 x 768

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

47.712

"i* .......... .......... °_......

1600 x 1200 75.000

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

60.015

60.000

25.175 -/-

31.500 -/-

31.500 -/-

40.000 +/+

50.000 +/+

49.500 +/+

65.000 -/-

75.000 -/-

78.750 +/+

108.000 +/+

135.000 +/+

85.500 +/+

162.000 +/+

............................................................................................................._................................................................_..........................................................................................................................................

CVT 1920 x 1080RB 66.587 59.934 138.500 + /-

HDMI/DVI Input

Moae I _eso u_ on I

! / Frequency (kHz) Frequency (Hz)

..........................................i.........................................................................................................................

800 x 600 i 37.879 60.317

1024 x 768 i 48.363 60.004

VESA 1280 x 1024 l 63.981 60.020

1360 x 768 l 47.712 60.015

1600 x 1200 75.000 60.000

Pixel Clock

, FrequencY,! H=!.....

25.175

40.000

85.000

108.000

85.500

162.000

Sync Polarity

(H/V)

-/-

+/+

-/-

+/+

+/+

+/+

+/+

Setting up the TV with your PC

How to Auto Adjust

Use the Auto "Adjust function" to have the TV set automatically adjust the video

signals it receives. The function also automatically fine-tunes the settings and

adjusts the frequency values and positions.

This function does not work in DVI-Digital mode.

Preset: Press the SOURCE button to select PC mode.

1, Press the MENU button to display the menu.

Press the A or • button to select "Picture", then press the ENTER

button.

2, Press the A or T button to select "Auto Adjustment", then press the

ENTER _ button.

Press the EXIT button to exit.

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the A or T button to select "Auto Adjustment", then press the

ENTER _ button.

Adjusting the Screen Quality

The purpose of the picture quality adjustment is to remove or reduce picture noise.

If the noise is not removed by fine tuning alone, then make the vertical frequency

adjustments on your PC and fine tune again. After the noise has been reduced,

re-adjust the picture so that it is aligned on the center of the screen.

Preset: Press the SOURCE button to select PC mode.

1, Press the MENU button to display the menu.

Press the A or T button to select "Picture", then press the ENTER

button.

2, Press the A or T button to select "Screen", then press the ENTER C,-'

button.

3= Press the _, or _' button to select "Coarse" or "Fine", then press the

ENTER _ button. Press the 4 or _ button to adjust the screen quality.

Vertical stripes may appear or the picture may be blurry.

Press the ENTER (_ button.

Press the EXIT button to exit.

Changing the Screen Position

Adjust the PC's screen positioning if it does not fit the TV screen.

>- Preset: Press the SOURCE button to select PC mode.

1, Press the MENU button to display the menu.

Press the A or • button to select "Picture", then press the ENTER

button.

2, Press the A or T button to select "Screen", then press the ENTER C_

button.

3=

4,

Press the A or T button to select "PC Position", then press the ENTER

button.

Press the A or _' button to adjust the V-Position.

Press the 4 or I_ button to adjust the H-Position.

Press the ENTER _ button.

Press the EXiT button to exit.

Initializing the Screen Position, Coarse and Fine

You can replace all image settings with the factory default values.

>- Preset: Press the SOURCE button to select PC mode.

1, Press the MENU button to display the menu.

Press the A or T button to select "Picture", then press the ENTER

button.

2, Press the A or T button to select "Screen", then press the ENTER C,-'

button.

3, Press the A or T button to select "Image Reset", then press the ENTER

button.

Press the EXiT button to exit.

Time Setting

Setting the Clock

Setting the clock is necessary in order to use the various timer features of the TV.

Also, you can check the time while watching the TV. (Just press the iNFO button.)

Option 1: Setting the Clock Manually

1, Press the MENU button to display the menu.

Press the A or _ button to select "Setup", then press the ENTER _ button.

Press the A or T button to select "Time", then press the ENTER 13_button.

2, Press the ENTER C_ button to select"CIock".

3, Press the ENTER _ button to select"CIock Mode".

Press the A or T button to select "Manual", then press the ENTER

button.

4, Press the A or T button to select "Clock Set", then press the ENTER

button.

5= Press the 4 or I_ button to move to "Month", "Day", "Year", "Hour", "Minute",

or "am/pro". Set the date and time you want by pressing the A or T button,

then press the ENTER _ button.

Press the EXIT button to exit.

>- The current time will appear every time you press the INFO button.

>- You can set the month, day, year, hour and minute directly by pressing the

number buttons on the remote control.

Option 2: Setting the Clock Automatically

The Clock can be set automatically if you are receiving a digital signal.

1, Press the MENU button to display the menu.

Press the A or _ button to select "Setup", then press the ENTER _ button.

Press the A or T button to select "Time", then press the ENTER _ button.

2, Press the ENTER _ button to select"CIock".

3, Press the ENTER _ button to select"CIock Mode".

Press the A or T button to select "Auto", then press the ENTER _ button.

4, Press the A or T button to select "Time Zone", then press the ENTER

button.

5. Press the _, or T button to highlight the time zone for your local area, then

press the ENTER _ button.

6_ Press the ,i, or T button to select "DST" (Daylight Saving Time), then press

the ENTER _ button. Press the A or _' button to select "Off", "On" or

"Auto", then press the ENTER _ button.

Press the EXIT button to exit.

> Depending on the broadcast station and signal, the auto time may not be

set correctly. If this occurs, set the time manually.

> The Antenna or cable must be connected in order to set the time

automatically.

Setting the Sleep Timer

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).

1. Press the MENU button to display the menu.

Press the A or _ button to select "Setup", then press the ENTER _ button.

Press the A or T button to select "Time", then press the ENTER _ button.

2. Press the A or T button to select "Sleep Timer", then press the ENTER

button.

3. Press the A or T button to select the minute, then press the ENTER

button.

To cancel the set sleep timer:

Press the A or T button to select "Off", then press the ENTER _ button.

4. Press the EXIT button to exit.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the A or T button to select "Sleep Timer".

3. Press the 4 or I_ button to select the minute.

4. Press the EXIT or TOOLS button to exit.

Setting the On/Off Timer

1= Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER

button.

Press the A or T button to select "Time", then press the ENTER [:_ button.

2, Three different On/Off Timer Settings can be made.

Press the ,1,or _' button to select "Timer 1", "Timer 2" or "Timer 3", then

press the ENTER _ button.

3= Press the 4 or I_ button to select the desired item below.

Press the A or T button to adjust the setting.

- On Time: Set the Hour. Minute, am/pro, and Activation!Inactivation.

(To activate timer with the setting you've chosen, set to "Activate".)

o Off Time: Set the Hour. Minute, am/pro, and Activation!Inactivation.

(To activate timer with the setting you've chosen, set to "Activate".)

- Volume: Set the desired volume level

* Contents: When the "On Time" is active, you can turn on a specific

channel or play back contents such as photo or audio files.

- TViUSB: Select TV or USB. (Make sure that an USB device is

connected to your TV.)

- Antenna: Select "Air" or "Cable.

- Channel: Select the desired channel

- Music: Select the folder containing MP3 files on the USB device.

- Photo: Select the folder containing JPEG files on the USB device.

- Repeat: Select "Once". "Everyday", "Mon~Fri". "Mon~Sat". "Sat~Sun".

or "Manual".

>- When "Manua ' is selected, press the I_ button to select the

desired day of the week. Press the ENTER _ button over the

desired day and the _/mark will appear.

Press the EXiT button to exit.

>- You can set the hour, minute and channel by pressing the number

buttons on the remote control.

Auto Power Off

When you set the timer On, the television will eventually turn off, if no

controls are operated for 3 hours after the TV was turned on by the

timer. This function is only available in timer On mode and prevents

overheating, which may occur if a TV is on for too long time.

>- When executing automatic power- on with scheduling a time and 2 USB

devices that have same manufacturer and folder name one another are

simultaneously connected, Other USB device can be read.

Function Description

Selecting aMenu Language

1, Press the MENU button to display the menu.

Press the A or _ button to select "Setup", then press the ENTER _ button.

Press the A or T button to select "Language", then press the ENTER

button.

2, Press the A or T button to select "English", "EspaSoF or "Fran9ais".

Press the ENTER _ button.

Press the EXiT button to exit.

Using the V-Chip

The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN

(personal ID number) before any of the V-Chip restrictions are set up or changed.

>- "V-Chip" function is not available in HDMI, Component or PC mode.

U.$.A Only

This product is covered by the following U.S.patents: US4, 930, 158, US4, 930, 160.

Setting Up Your Personal ID Number (PIN)

1=

2,

Press the MENU button to display the menu.

Press the A or T button to select "Setup", then press the ENTER _ button.

Press the A or T button to select "V-Chip", then press the ENTER

button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

>- The default PIN number of a new TV set is "0-0-0-0".

3= The "V-Chip" screen will appear.

Press the A or _' button to select "Change PIN", then press the ENTER

button. The Change PIN screen will appear. Choose any 4 digits for your

PIN and enter them. As soon as the 4 digits are entered, the "Confirm New

PIN" screen appears. Re-enter the same 4 digits. When the Confirm screen

disappears, your PIN has been memorized.

Press the EXIT button to exit.

>- If you forget the PIN, press the remote-control buttons in the following

sequence, which resets the pin to 0-0-0-0 : Power Off. --_Mute _ 8 _ 2

4 _ Power On.

How to Enable/Disable the V=Chip

1. Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

2. Press the A or • button to select "V-Chip", then press the ENTER 1:_

button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

3= The "V-Chip" screen will appear.

To enable the V-Chip feature, press the ENTER _ button so that the "V-Chip

Lock" field is "On". (Pressing the A or _r button will alternate between "On"

and "Off".)

Press the ENTER 1:_ button.

Press the EXIT button to exit.

How to Set up Restrictions Using the TV Parental Guidelines

First, set up a personal identification number (PIN) and enable the V-Chip. (See previous section.) Parental restrictions can

be set up using either of two methods: The TV guidelines or the MPAA rating.

1. Press the MENU button to display the menu.

Press the • or • button to select "Setup", then press the ENTER _ button.

2. Press the A or _' button to select "V-Chip", then press the ENTER

button. The message "Enter PIN" will appear. Enter your 4 digit PIN number.

3. The "V-Chip" screen will appear. Press the A or _' button to select "TV

Parental Guidelines", then press the ENTER _ button.

4. The "TV Parental Guidelines" screen will appear.

Press the A or T button to select one of the six aged based categories:

oTV,YT: Children 7and over - TV-14: Viewers 14 and over

*TV-G: General audience , TV-MA: Mature audience

5. At this point, one of the TV-Ratings is selected.

Press the ENTER C_ button. Depending on your existing setup, the "Y_"

symbol will be selected. (Blank = Unblocked, '_ = Blocked)

While "Y_j" is selected, press the ENTER _ button to block or unblock the

category. To select a different TV-Rating, press the A or _r button and then

repeat the process.

>- Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

>- The TV-Y, TV-Y7, TV-G, TV-PG, TV-14 and TV-MA have additional

options. See the next step to change any of the following sub-ratings:

ALL/FV/V/S/L/D

>- The V-Chip will automatically block certain categories that are "more

restrictive". For example, if you block "TV-Y" category, then TV-Y7 will

automatically be blocked. Similarly, if you block the TV-G category,

then all the categories in the "young adult" group will be blocked (TV-G,

TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together

similarly. (See next section.)

6. How to set the FV, D, L, S and V sub-ratings.

First, select one of these TV-Ratings: TV-Y, TV-Y7, TV-G, TV-PG, TV-14 or

TV-MA (See Step 4) and press the I_ button.

The" _1" symbol will be displayed for each sub-rating. While" }" is

selected, press the ENTER c_ button to go to a sub rating. Press ENTER

C# to block the sub rating. To select a different TV-Rating, press the A or T

button and then repeat the process.

7_

" FV; Eantasy Vio!ence 'LiAdult Language

,, v: Violence D: sexually suggestive Dialog

>- The V-chip will automatically block certain categories that are "More

restrictive". For example, if you block "L" sub-rating in TV-PG, then the "L"

sub-ratings in TV-14 and TV-MA will automatically be blocked.

Press the EXIT button to clear all the screens. (Or proceed to the next

section, and set up additional restrictions based on the MPAA codes.)

>- These categories consist of two separate groups: TV-Y and TV-Y7 (young

children through age 7) and TV-G through TV-MA (everybody else).

The restrictions for these two groups work independently: If a household

includes very young children as well as young adults, the TV guidelines

must be set up separately for each age group. (See next step.)

How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR

The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for

movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings

(either MPAA or TV-Ratings).

1, Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "V-Chip", then press the ENTER I_

button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

3, The "V-Chip" screen will appear. Press the A or _r button to select "MPAA

Rating", then press the ENTER _ button.

4= The "MPAA Rating" screen will appear. Repeatedly press the A or T button

to select a particular MPAA category. Pressing the A or V button will cycle

through the MPAA categories:

,, GI Gene[a! audience (n0 restricti0ns ).

PG; Parenta I guidanc e Suggested.

,, PG=13: Parents Strongly cauti0ned.

,,R; Restricted. Children under 17 should be accompanied by an adult,

,N0..17: No children under age 17:

, X: Adults only.

- NR: Not rated.

>- Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

>- While a particular category is selected, press the ENTER _ button to

activate it. The "F} ,,symbol will be displayed. Press the ENTER

button to block or unblock the category.

>- The V-Chip will automatically block any category that is "More restrictive".

For example, if you block the "PG-13" category, then "R", "NC-17" and "X"

will automatically be blocked also.

Press the EXiT button to exit.

How to Set up Restrictions Using the Canadian English

1. Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "V-Chip", then press the ENTER I:_

button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

3, The "V-Chip" screen will appear. Press the A or _r button to select

"Canadian English", then press the ENTER _ button.

4_ Press the _, or T button to select a appropriate restriction.

Press the ENTER I:_ button to activate the restriction selected. The "'t"

symbol is indicated.

Press the EXiT button to exit.

>- Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

-C: Programming intended for children under age 8.

,08+: Programming generally considered acceptable for children 8

years and over to watch on their own.

,G: General programming, suitable for all audiences.

,PG: Parental Guidance.

-14+: Programming contains themes or content which may not be

suitable for viewers under the age of 14.

-18+: Adult programming.

>- The V-Chip will automatically block any category that is "More restrictive".

For example, if you block G category, then PG, 14+ and 18+ will

automatically be blocked also.

How to Set up Restrictions Using the Canadian French

1. Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

2. Press the A or T button to select "V-Chip", then press the ENTER

button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

3. The "V-Chip" screen will appear. Press the A or T button to select

"Canadian French", then press the ENTER _ button.

4= Press the A or T button to select an appropriate restriction. Press the

ENTER _ button to activate the restriction selected. The" _it" symbol is

indicated.

Press the EXiT button to exit.

:_ Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

.8 arts+; Programming general!y cons!dered acceptable for children 8

years and over to watch on their own.

,13 arts÷: Programming may not be suitable for children under the age

of 13:

,16 arts+; Programming isnot suitable for chi!dren under the age0f 16.

,18 arts÷: Programming restricted to adults.

:_ The V-Chip will automatically block any category that is "More restrictive".

For example, if you block 8 arts+ category, then 13 arts+, 16 arts+ and 18

arts+ will automatically be blocked also.

Using the V=Chip for Digital channels

Parental restriction information can be used while watching DTV channels.

1, Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

2=

3=

Press the A or T button to select "V-Chip", then press the ENTER

button.

The message "Enter PIN" will appear. Enter your 4 digit PIN number.

The "V-Chip" screen will appear. Press the A or _r button to select

"Downloadable U.S. Rating", then press the ENTER G? button.

>- If information is not downloaded from the broadcasting station, the

Downloadable U.S. rating menu is deactivated.

>- Parental restriction information is automatically downloaded while

watching DTV channels. It may take several seconds.

>- The Downloadable U.S. rating menu is available for use after information

is downloaded from the broadcasting station. However, depending on the

information from the broadcasting station, it may not be available for use.

4= Press the A or _' button to select a appropriate restriction. Press the ENTER

C,,_button to activate the restriction selected. The" P:_"symbol is indicated.

Press the EXIT button to exit.

>- Allow all: Press to unlock all TV ratings.

Block all: Press to lock all TV ratings.

>- Parental restriction levels differ depending on the broadcasting station.

>- The default menu name and Downloadable US rating changes depending

on the downloaded information.

>- Even if you set the On-screen display to your desired language, the

"Downloadable U.S. Rating" menu will appear in English only.

>- The rating will automatically block certain categories that are more

restrictive.

>- The rating titles (For example: Humor Level..etc) and TV ratings (For

example: DH, MH, H..etc) may differ depending on the broadcasting

station.

Rating title

The number of current The number of all

rating information rating information

How to Reset the TV after the V=Chip Blocks a Channel ("Emergency Escape")

If the TV is tuned to a restricted channel, the V-Chip will block it. The screen

will go blank and the following message will appear:

1, Enter your PIN.

To resume normal viewing, tune to a different channel using CH v or

CH ^ button. Under certain conditions (depending on the rating of the local

TV programs) the V-Chip might lock out all the channels. In this case, use the

V-Chip function for an "emergency escape":

>- If you forget the PIN, press the remote-control buttons in the following

sequence, which resets the pin to 0-0-0-0 : Power Off. -_ MUTE -_ 8 _ 2

4 _ Power On.

Viewing Closed Captions (On-Screen Text Messages) -Analog

The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external

device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.)

1, Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "Caption", then press the ENTER

button.

3, Press the ENTER _3_button to select "Caption". Press the A or T button to

select "On", then press the ENTER _ button.

4= Press the A or T button to select "Caption Mode", then press the ENTER

button. Press the A or T button to select submenu (Default, CC1~CC4 or

Textl~Text4) you want, the press the ENTER _ button.

Press the EXIT button to exit.

o The default is "CCl".

oCOl: The Primary Synchronous Caption Service. These are captions

in the primary language that must be in sync with the sound, preferably

matched to a specific frame.

- CC2: The Special Non-Synchronous Use Captions. This channel

carries data that is intended to augment information carried in the

program.

oCC3: Secondary Synchronous Caption Service. Alternate program-

related caption data, typically secona language captions.

oCC4: Special Non-Synchronous Use Captions. Similar to CC2.

- Text1: First Text Service. This may be various non-program related

data.

- Text2: Second Text Service. Additional data. usually not program

related.

- Text3/Text4: Third and Fourth Text Services. These data channels

should be used only if Text1 and Text2 are not sufficient.

>- The Caption feature doesn't work in Component, HDMI or PC modes.

>- The availability of captions depends on the program being broadcast.

[_ Press the CC button on the remote control to turn the Caption "On" or "Off'.

Viewing Closed Captions (On-Screen Text Messages) - Digital

The Digital Captions function operates on digital channels.

1, Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

2, Press the A or • button to select "Caption", then press the ENTER

button.

3, Press the ENTER 13_button to select"Caption".

Press the A or T button to select "On", then press the ENTER C# button.

4= Press the A or T button to select "Caption Mode", then press the

ENTER _ button. Press the A or T button to select submenu (Default,

Service1 ~Service6, CC1~CC4 or Text1~Text4) you want, then press the

ENTER _ button.

5=

6=

Press the _, or _' button to select "Digital Caption Options", then press the

ENTER _ button.

"Digital Caption Options" are available only when "Default" and "Service

1~Service 6" can be selected in "Caption Mode".

Service1~6 in digital caption mode may not be available depending on the

broadcast.

Press the A or _' button to select "Size", then press the ENTER _ button.

Press the _, or T button to select the desired Caption option, then press the

ENTER _ button. Press the A or _' button to select the desired sub-menu

options (see options below), then press ENTER C:;,,_ button.

Press the EXIT button to exit.

>- The availability of captions depends on the program being broadcast.

"Default" means to follow the standard set by the broadcaster.

>- Foreground and Background cannot be set to have the same color.

>- "Foreground Opacity" and "Background Opacity" cannot be both set to

Transparent.

-Size: This option consists of "Default". "Small". "Standard" and 'Large".

The default is "Standard".

oFont Style: This option consists of "Default". "Style0 ~ Style 7". You can

change the font you want. The default is "Style 0".

oForeground Color: This option consists of "Default". "White". "Black".

"Red". "Green". "Blue". "Yellow". "Magenta" and "Cyan". You can

change the color of the letter. The default is "White".

,Background Color: This option consists of "Default". "White". "Black".

'Red". "Green". "Blue". "Yellow". "Magenta" and "Cyan". You can

change the background color of the caption. The defaull is "Black".

oForeground Opacity: This option consists of "Default". "Transparent",

'Translucent". "Solid" and "Flashing". You can change the opacity of the

letter.

• Background Opacity: This option consists of "Default". "Transparent".

"Translucent". "Solid" and "Flashing". You can change the background

opacity of the caption.

- Return to Default: This option sets each of "Size". "Font Style",

'Foreground Color". "Background color", "Foreground Opacity" and

"Background Opacity" to itsdefault.

[_ Press the CO button on the remote control to turn the Caption "On" or "Off". [---II_pp,,_ _ _ I

I

Adjusting the "iV On/Off IVlelodySound

A melody sound can be set to come on when the TV is powered On or Off.

1. Press the MENU button to display the menu.

Press the • or _' button to select "Setup", then press the ENTER _ button.

2. Press the A or T button to select "External Settings", then press the

ENTER _ button.

3= Press the A or • button to select "Melody", then press the ENTER 1_

button.

Press the A or T button to select "Off", "Low", "Medium" or "High", then

press the ENTER _ button.

, Medium: Sets th e melody volume tO medium.

High: Sets the melody volume to high.

Press the EXiT button to exit.

The Melody does not play

- When no sound is output from the TV because the MUTE button has been

pressed.

- When no sound is output from the TV because the volume has been

reduced to minimum with the VOL -button.

-When the TV is turned off by Sleep Timer function.

Setting the Light Effect

You can turn the LED on the front of TV on/off.

1, Press the MENU button to display the menu.

Press the ,_.or _' button to select "Setup", then press the ENTER _ button.

2, Press the _, or T button to select "External Settings" then press the

ENTER _ button.

3= Press the A or T button to select "Light Effect", then press the

ENTER _ button.

Press the A. or _' button to select "Off", "In Standby", "Watching TV" or

"Always", then press the ENTER _ button.

- Off: LED will not come on.

*In Standbyi Turns the LED On in standby

*watchirig TVl Turns the LED on while watching Tv.

- Always: LED will come on after you turn the TV off.

Press the EXIT button to exit.

>- Set the "Light Effect" to "Off" to reduce power consumption.

J

I

................................i I

..... _/! LED

Setting the Entertainment mode

The "Entertainment" mode enables you to select the optimal display and sound for sports, cinema and games.

1. Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

2. Press the ,t, or T button to select "Entertainment", then press the ENTER

button.

3. Press the A or T button to select "Off", "Sports", "Cinema" or "Game", then

press the ENTER _ button.

-Sports; provides the Optima! p!cture and sound qualjty fo[ sports,

• Cinema; Prey!des the optima! picture and sound quality for movie

watch!ng. You can experience a ricberp!cture and enhan ced sou nd`

, Game: provides the optimal picture and SOUndquality for games. This

mode accelerates the playing speed when using an externa! game

console connected to the TV.

Press the EXIT button to exit.

:_ If you set any of the three "Entertainment" modes to On, the settings will

be locked and can not be adjusted. If you want to make Picture and Sound

mode adjustments, the "Entertainment" mode must be turned off.

The "Entertainment" settings are saved for each input source.

If you set any of the three "Entertainment" modes to On, "SRS TruSurround

XT" function is not available.

In PC mode, This function is not available.

[_ You can press the E.MODE button on the remote control repeatedly to

change the "Entertainment" setting.

Using the Energy Saving Feature

This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the

"Energy Saving" mode option to "High" to reduce eye fatigue as well as power consumption.

1, Press the MENU button to display the menu.

Press the A or T button to select "Setup", then press the ENTER _ button.

2= Press the A or _' button to select "Energy Saving", then press the ENTER

C_ button. Select the required option (Off, Low, Medium, High, Auto) by

pressing the A or T button.

Press the ENTER _ button.

, Low: Sets the TV to low energy saving mode.

,Medium: Sets the TVto medium energy saving mode.

'High! Sets th e TVto high energy saving mode_

,Auto: Automatically adjusts the brightness of the TV screen in

accordance with the scenes.

Press the EXIT button to exit.

Upgrading the Software

Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG

(726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by

connecting aUSB drive to the USB port located on your TV.

1, Insert aUSB drive containing the firmware upgrade into the WISELINK port

on the side of the TV. TVSidePanel

>" Software can not be upgraded through the LAN connection.

>- Please connect a single USB device having upgrade file.

USB Drive

2,

3,

4,

5,

Press the MENU button to display the menu.

Press the A or • button to select "Setup", then press the ENTER _ button.

Press the A or T button to select "Software Upgrade", then press the

ENTER _ button.

Press the ENTER _ button.

The message "Scanning for USB... It may take up to 30 seconds." is

displayed.

The message "Upgrade version XXXX to version XXXX? The system would

be reset after upgrade." is displayed.

Press the 4 or I_ to select the "OK", then press the ENTER _ button.

[LN46A850S1E LN52A850S1F]

TV Side Panel

USB Drive

'LN46A860S2E LN52A860S2F]

Please be careful to not disconnect the power or remove the USB drive while

upgrades are being applied. The TV will turn off and turn on automatically

after completing the firmware upgrade. Please check the firmware version

after the upgrades are complete. When software is upgraded, video and

audio settings you have made will return to their default (factory) settings. We

recommend you write down your settings so that you can easily reset them

after the upgrade.

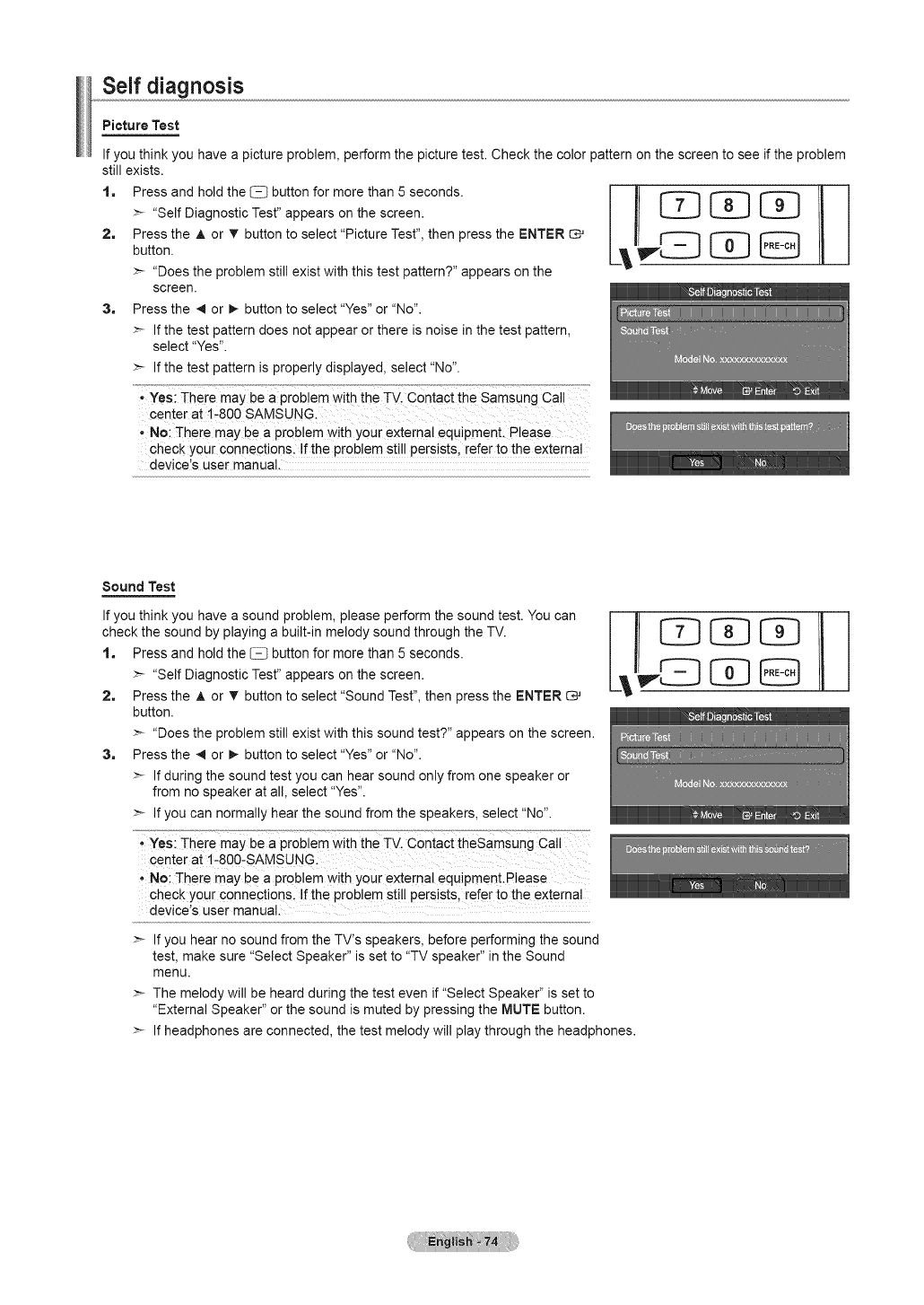

Self diagnosis

Picture Test

If you think you have a picture problem, perform the picture test. Check the color pattern on the screen to see if the problem

still exists.

, ess dhodt e utto ,o oeth ,seoo ds

:_ "Self Diagnostic Test" appears on the screen. _ [_]

2, Press the A or • button to select "Picture Test", then press the ENTER _ _

button.

:_ "Does the problem still exist with this test pattern?" appears on the

screen.

3, Press the ,,qor I_ button to select "Yes" or "No".

>- If the test pattern does not appear or there is noise in the test pattern,

select "Yes".

>- If the test pattern is properly displayed, select "No".

*Yesi There may be a problem wit h the TV. Contact the Samsung Cal!

center at 1'800 SAMSUNG.

, No: There may be a problem with your external equipment. Please

check your connections. If the problem still persists, refer tothe external

device's user manual,

Sound Test

If you think you have a sound problem, please perform the sound test. You can

check the sound by playing a built-in melody sound through the TV.

1,

2,

3,

Press and hold the _ button for more than 5 seconds.

:_ "Self Diagnostic Test" appears on the screen.

Press the ,_ or T button to select "Sound Test", then press the ENTER

button.

:_ "Does the problem still exist with this sound test?" appears on the screen.

Press the 4 or I_ button to select "Yes" or "No".

>- If during the sound test you can hear sound only from one speaker or

from no speaker at all, select "Yes".

:_ If you can normally hear the sound from the speakers, select "No".

i YeS: Theie may be a problem with the TV. contact theSamsung Call

center at I'800-SAMSUNG!

-No; There may be a problem with your external equipment.Please

check your connections, If the problem still persists, refer to the external

device's user manual!

>- If you hear no sound from the TV's speakers, before performing the sound

test, make sure "Select Speaker" is set to "TV speaker" in the Sound

menu.

:_ The melody will be heard during the test even if "Select Speaker" is set to

"External Speaker" or the sound is muted by pressing the MUTE button.

>- If headphones are connected, the test melody will play through the headphones.

WISELINK Pro

Using the WISELINK Pro Function

Connecting aUSB Device

>- LN46A850S1F and LN52A850S1F only have one USB port.

>- LN46A860S2F and LN52A860S2F have two USB ports.

You can view movies and photos and listen to music files stored on a USB Mass

Storage Class (MSC) device.

1, Press the POWER button on the remote control or front panel.

>- The TV is powered on.

2, Connect a USB device containing JPEG, MP3 and/or Movie files to the

WlSELINK jack (USB jack) on the side of the TV.

WISELINK

TV Side Panel

USB Drive

>- If you enter the WISELINK Pro mode with no USB device connected the

message "No external storage device found. Check the connection status."

will appear. In this case, insert the USB device, exit the screen by pressing

the W.LINK button on the remote control and enter the WISELINK Pro screen

again.

>- MTP (Media Transfer Protocol) is not supported.

>- The file system only supports FAT16/32 (The NTFS file system is not

supported).

>- Certain types of USB Digital camera and audio devices may not be

compatible with this TV.

>- WlSELINK Pro only supports USB Mass Storage Class devices (MSC). MSC

is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are

Thumb drives and Flash Card Readers (Both USB HDD and HUB are not

supported.)

>- Please connect directly to the USB port of your TV. If you are using a

separate cable connection, there may be a USB compatibility problem.

>- Before connecting your device to the TV, please back up your files to prevent

[LN46A850S1 F, LN52A850S1 F]

TV Side Panel USB Drive

'LN46A860S2E LN52A860S2F]

them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

>- Do not disconnect the USB device while it is loading.

>- MSC supports MP3 and JPEG files, while a PTP device supports JPEG files only.

>- The sequential jpeg format is supported.

>- Photo and audio files must be named in English, French or Spanish. If not, the files can not be played. Change the file

names to English, French or Spanish if necessary.

>- The higher the resolution of the image, the longer it takes to display on the screen.

>- The maximum supported JPEG resolution is 15360X8640 pixels.

>- For unsupported or corrupted files, the "Not Supported File Format" message is displayed.

>- If the number of photo files exceeds 4000 (or the number of music files exceeds 3000), any files exceeding the 4000

limit may not be displayed in the Photo List (or Music List).

>- MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation of content, the distribution and management of the content in an

integrated and comprehensive way, including the protection of the rights and interests of the content providers, the

prevention of the illegal copying of contents, as well as managing billings and settlements.

>- If more than 2 PTP devices are connected, you can only use one at a time. (Applicable to models LN46A860S2F,

LN52A860S2F only)

>- If more than one MSC device is connected, some of them may not be recognized. If a device requires high power

(more than 500mA or 5V), the USB device may not be supported. (Applicable to models LN46A860S2F, LN52A860S2F

only)

Using the Remote Control Sutton in WISELINK Pro Menu

Operations

Wheel Move the cursor and select an item.

(AITI411_)

Select the currently selected item.

ENTER _ While playing a slide show, movie, or music file:

- Pressing the ENTER _ button during play pauses play.

- Pressing the ENTER _ button during pause resumes play.

[_/[_ Play or pause the Slide Show, Music or Movie file.

........................................................RETURN....................................................

TOOLS Run various functions from the Photo, Music and Movie menus.

Stop the current slide show, Music or Movie file.

[_/[_ Jump to previous group /Jump to next group.

INFO Show file information.

W.LINK Exit WISELINK Pro mode.

OH via

PRE.CH /FAY.OH /OH.LIST Stop WISELINK Pro mode and Returns to TV mode.

EXIT Stop the current function and return to the WISELINK Pro main menu.

SOURCE Stop WISELINK Pro mode and show the source list.

Using the WISELINK Pro Menu

1, Press the MENU button. Press the A or _r button to select "Application",

then press the ENTER _ button.

2, Press the A or T button to select "WISELINK Pro", then press the

ENTER _ button.

>- The "WISELINK Pro" menu is displayed.

or

o,[_ Press the W.LINK button on the remote control to display the "WISELINKPro" menu. I @__,_1_________

(_ Press the SOURCE button on the remote control repeatedly to select I I v'_°'l _ _ I"USB", then press the ENTER _ button.

3, Press the Red button, then press the A or _' button to select the

corresponding USB Memory Device (i.e. if connected through a hub, or if you have two USB devices connected

(LN46A860S2F, LN52A860S2F only)).

Press the ENTER _ button.

>- This function differs depending on the USB Memory Device connected to TV.

>- The selected USB device name appears at the bottom left of the screen.

>- If you have two USB devices connected simultaneously (LN46A860S2F, LN52A860S2F) they will be shown by

name in the order they were inserted.

4, Press the 4 or I_ button to select an icon (Photo, Music, Movie, Setup), then press the ENTER _ button.

>- To exit "WISELINK Pro" mode, press the W.LINK button on the remote control.

Using the Photo List

This menu shows Photo files saved on an USB memory device.

Photo List

1=

2,

Press the W.UNK button on the remote control to display the "WISELINK

Pro" menu.

Press the 4 or I_ button to select "Photo", then press the ENTER

button.

>- Photo files are displayed.

>- This menu only shows files whose file extension isjpg. Files of other

formats such as bmp or tiff will not be displayed.

>- Press the _ (Play) /ENTER C_ button to start the Slide Show.

:_ To move to the previous /next group, press the 1_ (REW) or

(FF) button.

:_ When moving to a photo, loading may take a few seconds. At this

point, the loading icon will appear on the screen.

:_ It may take some time to load photo files as Thumbnail images.

Screen Display

OCurrently selected photo

Shows the currently selected photo.

OCurrent Sort Standard

Press the A or T button to change the standard for sorting photos. ("Monthly", "Timeline", "Color", "Composition",

"Folder", "Preference")

The item that is selected as the sorting standard is highlighted in the Photo Information Window.

O View Groups

Shows the sorting groups. The sorting group including the currently selected photo is highlighted.

OCurrent Device

Shows the currently selected device name. Press the Red button to select a device.

Item Selection Information

Shows the number of photos that are selected by pressing the Yellow button.

OHelp Items

Green(Favorites Setting) button; Changes the favorites setting for the selected photo. Press this button

[epeatedly unti! the desired Value appears, (Referto Page 81)

Ye!!ow(S elect) button; Selects photos from the photo listl Selected photos are marke d with a symbol _/on the !eft,

, _i !_ (Jump) button: Jumps to the previous sorting group/Jumps to the next sorting group.

,TOOLS(Option) button: DisplaYs the f'Slide Show'!, !'P!ay Current Group", '!Rotate,; ,De!eWi, !'Change Group lnfo!'

(in iiCo!o¢' or !iCompositionll group),"lnformationi' Or !'Safe Remove" menusl

Sorting Photo List

You can sort photos in the Photo List by a particular standard.

t. Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2. Press the _1 or I_ button to select "Photo", then press the ENTER

button.

>- Photo files are displayed.

3. Press the ,i_ or _!' button to select a sorting standard.

("Monthly", "Timeline", "Color", "Composition", "Folder", "Preference")

>- The photos are sorted according to the newly selected sorting

standard.

4. Press the ENTER _ button to start the Slide Show in the order selected

by the user.

>- WISELINK Pro identifies the color and composition of images and

groups them accordingly by analyzing the images on the USB device.

>- The "Composition" and "Color" information extracted from a photo file

may be different from what you selected.

>- Photo information is automatically set. You can change the "Color",

"Composition", and "Favorite".

>- Photos for which information cannot be displayed are set as

"Unclassified".

>- PTP does not support folder sort mode.

Monthly

You can sort and play photos by month.

>- It sorts and shows photos in the file by month. It sorts only by month (from

January to December) regardless of year.

1. Select "Monthly" as the sorting standard in the Photo List.

2. Press the 4 or I_ button to select from the sublist of photos grouped by

Month.

>- To move to the previous /next month group, press the (REW) or

[_ (FF) button.

3. Press the TOOLS button. Press the A or _r button to select "Play Current

Group".

4. Press ENTER _ to play the selected group of photo files from the sublist.

Timeline

You can sort and play photos by timeline.

>- It sorts and shows photos by date. It sorts by year and month from the

earliest photo.

1. Select "Timeline" as the sorting standard in the Photo List.

2. Press the 4 or I_ button to select from the sublist of photos grouped by

Timeline.

>- To move to the previous /next timeline group, press the [_ (REW)

or [_ (FF) button.

3. Press the TOOLS button. Press the A or _r button to select "Play Current

Group".

4. Press ENTER c:_ to play the selected group of photo files from the sublist.

Color

You can sort and play photos by color.

1. Select "Color" as the sorting standard in the Photo List.

2. Press the 4 or I_ button to select from the sublist of photos grouped by

color.

>- To move to the previous /next color group, press the _ (REW) or

[_ (FF) button.

3. Press the TOOLS button. Press the A or _r button to select "Play Current

Group".

4. Press ENTER _ to play the selected group of photo files from the sublist.

Changing the color information of a selected photo

>- You can change a selected photo file's (or group of files) color information

in order to move it from one color group to another.

>- This does not change the actual color of the photo.

1. Select "Color" as the sorting standard in the Photo List and press the

,_ or _ button to select a photo.

>Changing the information of multiple photos

Press the _ or I_ button to select the desired photo in the Photo list.

Then press the yellow button.

Repeat the above operation to select multiple photos.

The _' mark appears to the left of the selected photo.

2. Pressthe TOOLS button.

3. Press the _, or • button to select "Change Group Info".

Press the ENTER [:_ button.

4. Press the _ or t_ button to select the desired color option, then press the

ENTER _ button.

>- The group information of the current file is updated and the photos are

moved to the new color group.

>- "Color" options: Red, Yellow, Green, Blue, Magenta, Black, Gray,

Unclassified.

Composition

You can sort and play photos by composition.

1. Select "Composition" as the sorting standard in the Photo List.

2. Press the 4 or _ button to select from the sublist of photos grouped by

compositon.

To move to the previous /next composition group, press the [_

(REW) or [_ (FF) button.

3. Press the TOOLS button. Press the A or _r button to select "Play

Current Group".

4. Press ENTER [3_ to play the selected group of photo files from the

sublist.

Changing the composition information of aselected photo

> You can change a selected photo file's (or group of files) composition

information in order to move it from one composition group to another.

1. Select "Composition" as the sorting standard in the Photo List and press

the ,_ or _ button to select a photo.

>Changing the information of multiple photos

Press the _ or _ button to select the desired photo in the Photo list.

Then press the yellow button.

Repeat the above operation to select multiple photos.

The Vmark appears to the left of the selected photo.

Press the TOOLS button.2=

3,

4=

Press the _, or • button to select "Change Group Info".

Press the ENTER _ button.

Press the 4 or I_ button to select the composition option, then press the

ENTER _ button.

The group information of the current file is updated and the photos

are moved to the new composition group.

> "Composition" options: _ (horizontal), i111(vertical), Ill (object),

m (perspective), _ (pattern), Unclassified

Folder

You can sort and play photos by folder.

If there are many folders in USB, the photos files are shown in order in

each folder. The photo file in the Root folder is shown first and the others

are shown in alphabetical order by name.

1, Select "Folder" as the sorting standard in the Photo List.

2, Press the 4 or I_ button to select from the sublist of photos grouped by

folder.

>- To move to the previous /next folder group, press the (REW) or

(FF) button.

3, Press the TOOLS button. Press the A or _r button to select "Play

Current Group".

4, Press ENTER _ to play the selected group of photo files from the

sublist.

Preference

You can sort and play photos by preference. (Favorite)

1. Select "Preference" as the sorting standard in the Photo List.

2. Press the 41or I_ button to select from the sublist of photos grouped by

preference.

>- To move to the previous /next preference group, press the I_ (REW) or

(FF) button.

3. Press the TOOLS button. Press the A or _r button to select "Play Current

Group".

4. Press ENTER _ to play the selected group of photo files from the sublist.

Changing the Favorites setting

>- You can change a selected photo file's (or group of files) preference

information in order to move it from one preference group to another.

1. Press the 41or I_ button to select the desired photo in the Photo list.

2. Press the Green button repeatedly until the desired setting appears.

>- Favorites settings change completed.

>- "Favorite" options: IJll, _, IIi_1,

>- Users can select the number of stars (up to 3) according to their

preference.

>- The stars are for grouping purposes only. For example, the 3 star setting

does not have any priority over the one star setting.

Rotating the Photo file

1. Press the 41or 1_ button to select the desired photo in the Photo list.

2. Press the TOOLS button.

3. Press the A or T button to select "Rotate", then press the ENTER C,_ button.

Press the 41or I_ button repeatedly to rotate the photo by the desired

amount.

>- Whenever you press the 41 button, it rotates by 270 °, 180 °, 90 °, and 0 °.

>- Whenever you press the I_ button, it rotates by 90 °, 180 °, 270 °, and 0 °.

>- The Rotating function information icon is displayed.

90 ° Rotating (90°) This rotates a photo by 90 degrees

180° Rotating (180°) This rotates a photo by 180 degrees

270 ° Rotating (270 °) This rotates a photo by 270 degrees

Deleting the Photo file

1. Press the 4 or _ button to select the desired photo in the Photo list.

2. Pressthe TOOLS button.

3. Press the A or • button to select "Delete", then press the ENTER

button.

The "Delete this file?" message appears.

4. Press the 4 or _button to select "OK", then press the ENTER _ button.

The photo is deleted.

When a read-only file is deleted, the "Read-only file(s). Delete the

file(s)?" message appear.

If you select "Cancel", the deletion is cancelled.

5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

You cannot remove the PTP-connected digital camera picture files.

While removing files, don't remove the USB memory device.

You cannot recover a deleted photo file.

Deleting Multiple Photos

1. Press the _l or _ button to select the desired photo in the Photo list.

Then press the yellow button.

Repeat the above operation to select multiple photos.

The _' mark appears to the left of the selected photo.

2. Pressthe TOOLS button.

3. Press the A or T button to select "Delete selected File", then press the

ENTER _ button.

> The "Delete the selected file(s)?" message appears.

4. Press the 4 or _ button to select "OK", then press the ENTER _ button.

The selected photos are deleted.

> If you select "Cancel", the deletion is cancelled.

5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

> You cannot remove the read-only files from the selected ones.

> You cannot recover a deleted photo file.

Viewing the Photo information

The photo file information including the order of the file in the current directory,

the name, the size, the resolution, the date modified and the path is displayed.

1. Press the 4 or _ button to select the desired photo in the Photo list.

2. Pressthe TOOLS button.

3. Press the A or T button to select "Information", then press the

ENTER _ button.

> The information on the selected photo appears.

(_ Press the INFO button to viewing the information.

Viewing aPhoto or Slide Show

Viewing aSlide Show

1. Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2. Press the 4 or I_ button to move to "Photo", then press the ENTER

button.

>- Photo files are displayed.

3. Press the 4 or i_ button to select the desired photo in the Photo list.

4. Press the TOOLS button.

5. Press the J, or 'V button to select "Slide Show", then press the

ENTER _ button.

:_ All files in the photo list will be used for the Slide Show.

>- During the slide show, files are displayed in order from the currently

shown file.

>- The Slide Show progresses in the order sorted in the Photo list.

>- Music files can be automatically played during the Slide Show if the

"Background Music" is set to "On". (Refer to page 85).

[_ While a photo list is displayed, press the _ (Play) /ENTER

button on the remote control to start the Slide Show.

To perform a81ideShow with only the selected files

1. Press the _ or I_ button to select the desired photo in the Photo list.

Then press the yellow button. Repeat the above operation to select multiple photos.

>- The _' mark appears to the left of the selected photo.

>- If you select one file, the SlideShow will not be performed.

2, Press the [_ (Play) /ENTER _ button.

:_ The selected files will be used for the Slide Show.

:_ If you have selected files, only the selected files will be used for the Slide Show.

Playing current group

1. Press the Aor _" button to select a sorting standard.

("Monthly", "Timeline", "Color", "Composition", "Folder", "Preference")

2. Press the 4 or I_ button to select the desired photo in the Photo list.

>- To move to the previous /next group, press the (REW) or

[_ (FF) button.

3. Press the TOOLS button.

4. Press the A. or T button to select "Play Current Group", then press the

ENTER _ button. Only the photos in the sorting group including the

selected files will be used for the Slide Show.

5. To exit "WISELINK Pro" mode, press the W.UNK button on the remote

control.

Slide show function information icon (Displayed at the top left of the screen)

You can pause a Slide Show by pressing the _ (Pause)/ENTER 1:_ button

II Photo Pause on the remote control during a Slide Show.

To resume the Slide Show, press the _ (Play)/ENTER C# button on the

remote control again.

Viewing aphoto

1=

2,

Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

Press the 4 or I_ button to move to "Photo", then press the ENTER

button.

>- Photo files are displayed.

3, Press the 4 or I_ button to select the desired photo in the Photo list.

Then Press the Yellow button to select only one file.

4, Press the ENTER 13_button over a photo icon.

>- The currently selected photo is displayed in full screen.

Using the option menu during a slide show (or Viewing aPhoto)

1, During a slide show(or viewing a photo), press the TOOLS button to set the option.

2, Press the A or • button to select the desired option. Then press the ENTER _ button.

Start Slide Show (or Stop Slide Show)

You can start or stop a Slide Show.

Press the A or _' button to select "Start Slide Show" (or "Stop Slide Show"),

then press the ENTER 13_button.

Rotate

You can rotate images in full screen mode.

Press the A or T button to select "Rotate", then press the ENTER _ button.

Press the 4 or I_ button repeatedly to rotate the photo by the desired amount.

>- Whenever you press the _ button, it rotates by 270 °, 180 °, 90 °, and 0 °.

>- Whenever you press the _ button, it rotates by 90 °, 180 °, 270 °, and 0 °.

>- If you have selected "Zoom", the "Rotate" deactivated.

>- The rotated file is not saved.

>- The Rotating function information icon is displayed at the top right of the

screen

ic;n_v_v_/ CurrentOSD[_unction

This rotates a photo to its original

90 ° Rotating (90 °) This rotates a photo by 90 degrees

Zoom

You can zoom into images in full screen mode.

Press the A or _!' button to select "Zoom", then press the ENTER _ button.

Press the 4 or I_ button repeatedly to increase or decrease the Zoom effect.

(xl _ x2 _ x4)

To move the enlarged photo image, press the ENTER _ button, then press

the A/_F/_/I_ buttons.

>- Note that when the enlarged picture is smaller than the original screen

size, the location change function doesn't work.

>- The enlarged file is not saved.

>- If you have selected "Rotate", the "Zoom" deactivate

>- Zoom function information icon is displayed at the top right of the screen.

Icon" __iCurrent OSD Function

Zoom (x 2) Zoom-into a photo at 2x.

PanDown Pan down to view the lower part of a

Pan Up Pan up to view the upper part of a

zoomed-in photo.

Pan Right Pan right to view the right side of a

zoomed-in photo.

Pan Left Pan left to view the left side of a

zoomed-in photo.

Slide Show Speed

You can select the slide show speed.

Press the A or T button to select "Slide Show Speed".

Press the 4 or I_ button to select the desired option. (Fast --_Slow --_ Normal)

>- You can select the SlideShow speed only during a slide show.

>- You can also change the speed of the Slide Show by pressing the

(REW) or_ (FF) key during the Slide Show.

Background Music

If you set "Background Music" to On, the background music will be played

when viewing photos one by one or in a Slide Show.

Press the _, or _' button to select "Background Music".

Press the 4 or I_ button to select "On" or "Off".

>- If you set "Background Music" to On, a screen appears immediately where

you can set the Background Music.

' On: When the background music is availablel ifyou select Qnl the music

is played back. To use this feature, there must be music and photo files

stored on the USB device.

Off: Background music is not played.

Background Music Setting

You can set the background music.

Press the A or T button to select "Background Music Setting", then press the

ENTER _ button.

>- If you turn off the "Background Music", even if the "Background Music

Settings" have been set up, the background music will not be played.

Music files must be loaded and playing to change the BGM mode.

"Background Music setting" menu is displayed.

Press the 4 or I_ button to select the desired BGM (Background music)

mode. (Shuffle, Selected file, Mood)

, Shuffle IPlays music files in random 0rdeil

,Selected f!!ei play s a selected music filel

- Mood: Plays music files of a particular mood only.

Selecting the background music file

Press the 4 or _,-button to set "BGM Mode" to "Selected file".

Press the _, or _ button to select "Select Music File", then press the

ENTER _ button.

Press the A or T button to select a music file, then press the yellow

button.

The _/mark appears to the left of the selected music.

Repeat the above operation to select multiple music files.

Press the ENTER _ button.

Selecting the background music file mood

Press the 4 or I_ button to set "BGM Mode" to Mood".

Press the J, or T button to select "BGM Mood". Then press 4 or

button to select the desired BGM mood. Press the ENTER _ button.

BGM mode option: Energetic, Rhythmical, Sad, Exciting, Calm

>- WISELINK Pro identifies and analyzes the mood the of music files on

the USB device and groups them accordingly.

Picture Setting

You can set the Picture mode. (Refer to page 100)

Sound Setting

You can set the Sound mode. (Refer to page 100)

information

The photo file information including the order of the file in the current directory, the name, the size, the resolution, the date

modified and the path is displayed. (Refer to page 82)

Safe Remove

You can remove the device safely from the TV.

Press the A or T button to select "Safe Remove", then press the ENTER _ button.

Remove the USB device from the TV.

Using the Music List

This menu shows MP3 files from among the files saved on a USB memory

device.

1, Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2= Press the 4 or I_ button to select "Music", then press the ENTER

button.

>- Music files are displayed.

>- Press the _ (Play) /ENTER 1:_ button over a music icon to play

the music.

>- To move to the previous /next group, press the [_ (REW) or

(FF) button.

Screen Display

OCurrently selected music

Shows the currently selected music.

OCurrent Sort Standard

Press the A or T button to change the standard for sorting music files.

("Title", "Artist", "Mood", "Genre", "Folder", "Preference")

View Groups

Shows the sorting groups. The sorting group including the currently selected music file is highlighted.

OCurrent Device

Shows the currently selected device name. Press the Red button to select a device.

O ItemSelectioninformation

ShowsthenumberofmusicfliesthatareselectedbypressingtheYellowbutton.

O Helpitems

-Red(Device! button: Selects a connected device.

. Green(Favorites Setting) button: Changes the favorites setting for the selected musJc. Press this button

repeatedly until the desired value appears. (Refer to page 90)

-Yellow(Select) button: Selects music files from the music list. Selected music files are marked with asymbol Von

the left.

_ _ (Jump) button: Jumps to the previous sorting group /Jumps to the next sorting group.

• TOOLS(Option) button: Displays the "Play Current Group", "Delete", "Change Group lnfo" (in "Mood" group),

'information" or "Safe Remove" menus.

Sorting Music List

You can sort music files in the Music List by a particular standard.

1. Press the W.LINK button on the remote control to display the WISELINK

Pro menu.

2. Press the 4 or I_ button to select "Music", then press the ENTER

button.

>- Music files are displayed.

3. Press the A or _ button to select a sorting standard.

("Title", "Artist", "Mood", "Genre", "Folder", "Preference")

>- Music files are sorted according to the newly selected sorting

standard.

4. Press the ENTER _ button to start playing music in the order selected by

the user.

_-- Music information is set automatically and you can change the

Favorite information.

>- Music files for which information cannot be displayed are set to

"Unclassified".

>- If there is no title information for a music file, the filename is displayed.

>- If no information is available for the Genre, Artist, Album, or Year, the

corresponding item is displayed as blank.

Title

You can sort and play music files by title.

>- It sorts and displays the Music titles in alphabetical order.

1. Select "Title" as the sorting standard in the Music List.

2. Press the 4 or I_ button to select from the sublist of music files grouped

in alphabetical order.

>- To move to the previous /next title group, press the [_ (REW) or

[_ (FF) button.

3. Press the TOOLS button.

4. Press the A or T button to select "Play Current Group".

5. Press ENTER _ to play the selected group of music files from the

sublist.

Artist

You can sort and play music files by artist.

It sorts the music file by artist in alphabetical order.

1. Select "Artist" as the sorting standard in the Music List.

2. Press the 4 or _ button to select from the sublist of music files grouped

in alphabetical order.

>- To move to the previous /next artist group, press the _ (REW) or

[_ (FF) button.

3. Press the TOOLS button.

4. Press the A or _' button to select "Play Current Group".

5. Press ENTER [3_ to play the selected group of music files from the sublist.

Mood

You can sort and play music files by mood.

1, Select "Mood" as the sorting standard in the Music List.

2, Press the 4 or I_ button to select from the sublist of music files grouped

by mood.

>- To move to the previous /next mood group, press the _ (REW) or

[_ (FF) button.

3, Press the TOOLS button.

4, Press the A or • button to select "Play Current Group".

5, Press ENTER _ to play the selected group of music files from the

sublist.

Changing the Mood information of a selected music file

>- You can change a selected music file's (or group of files) mood

information in order to move it from one mood group to another.

1, Select "Mood" as the sorting standard in the Music List and press the

or _ button to select a music file.

Changing the information of multiple music files

Press the _ or I_ button to select the desired music in the Music list.

Then press the yellow button.

Repeat the above operation to select multiple music files.

The _/mark appears to the left of the selected music file.

2=

3,

4=

Press the TOOLS button.

Press the A or _' button to select "Change Group Info". Press the

ENTER _ button.

>- WISELINK Pro identifies the mood of the music files and groups them

accordingly by analyzing the music files on the USB device.

>- "Mood" information extracted from amusic file may not always match

the Mood option. For example, afile you think is "Energetic" may be

extracted to the "Exciting" mood option.

Press the 4 or I_ button to select the desired mood option, then press the ENTER _ button.

>- The group information is updated and the music files are moved to the new mood group.

>- "Mood" options: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassified

Genre

You can sort and play music files by genre.

1. Select "Genre" as the sorting standard in the Music List.

2. Press the _1or I_ button to select from the sublist of music files grouped

by Genre.

>- To move to the previous /next genre group, press the [_ (REW) or

[_ (FF) button.

3. Press the TOOLS button.

4. Press the A or _' button to select "Play Current Group".

5. Press ENTER _ to play the selected group of music files from the sublist.

Folder

You can sort and play music files by folder.

>- If there are many folders in USB, the files are shown in order in each

folder. The music file in the Root folder is shown first and the others are

shown in alphabetical order by name.

1. Select "Folder" as the sorting standard in the Music List.

2. Press the _ or I_ button to select from the sublist of music files grouped

by Folder.

>- To move to the previous /next folder group, press the _[";_7 (REW) or

(FF) button.

3. Press the TOOLS button.

4. Press the A or • button to select "Play Current Group".

5. Press ENTER _ to play the selected group of music files from the sublist.

Preference

You can sort and play music files by preference. (Favorite)

t. Select "Preference" as the sorting standard in the Music List.

2. Press the 4 or I_ button to select from the sublist of music files grouped

by Preference.

>- To move to the previous /next preference group, press the

(REW) or _ (FF) button.

3, Press the TOOLS button.

4, Press the ,t, or _' button to select "Play Current Group".

5. Press ENTER c_ to play the selected group of music files from the sublist.

Changing the Favorites setting

>- You can change a selected music file's (or group of files) preference

information in order to move it from one preference group to another.

1. Press the _l or I_ button to select the desired music in the music list.

2. Press the Green button repeatedly until the desired setting appears.

>- Favorites settings change completed.

>- "Favorite" options: _, _, _,

>- Users can select the number of stars (up to 3) according to their

preference.

>- The stars are for grouping purposes only. For example, the 3 star

setting does not have any priority over the one star setting.

Deleting the Music file

1. Press the 4 or I_ button to select the desired music file in the music list.

2. Pressthe TOOLS button.

3. Press the A or • button to select "Delete", then press the ENTER

button.

The (for example) "Delete this file?" message appears.

4. Press the 4 or 1_ button to select "OK", then press the ENTER _ button.

:_ The music is deleted.

When a read-only file is deleted, the "Read-only file(s). Delete the

file(s)?" message appear.

:_ If you select "Cancel", the deletion is cancelled.

5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

While removing files, don't remove the USB memory device.

You cannot recover deleted music files.

Deleting Multiple Music files

1. Press the 4 or I_ button to select the desired music in the music list.

Then press the yellow button.

> Repeat the above operation to select multiple music files.

> The V' mark appears to the left of the selected music files.

2. Pressthe TOOLS button.

3. Press the A or T button to select "Delete selected File", then press the

ENTER _ button.

> The "Delete the selected file(s)?" message appears.

4. Press the _ or I_ button to select "OK", then press the ENTER _ button.

:_ The selected music files are deleted.

:_ If you select "Cancel", the deletion is cancelled.

5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

> You cannot remove the read-only files from the selected ones.

> You cannot restore the deleted music files.

Viewing the Information

The music file information including the order of the file in the current directory,

the name, the size, the date modified and the path is displayed.

1. Press the 4 or I_ button to select the desired music in the music list.

2. Pressthe TOOLS button.

3. Press the _, or T button to select "Information", then press the

ENTER _ button.

> The information on the selected file appears.

(_ Press the INFO button to viewing the information. III III

Playing a Music File

Playing amusic file

1=

2,

3=

4=

Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

Press the 4 or I_ button to select "Music", then press the ENTER

button.

>- Music files are displayed.

Pressing the 4 or I_ button to select a music file to be played, then press

the ENTER C_ button.

>- This menu only shows files with the MP3 file extension. Files with

other file extensions are not displayed, even if they are saved on the

same USB device.

>- Press the _ (Play) /ENTER _ button over a music icon to play

the music.

>- _ (REW) or _ (FF) buttons do not function during play.

Press the _ (Pause) /ENTER _ button while playing a music file

to pause the file. Press the _ (Stop) button to exit Play mode.

>- The selected file is displayed at the top with its playing time.

>- To adjust the music volume, press the VOL = or VOL +button on the

remote control. To mute the sound, press the MUTE button on the

remote control.

>- The playing duration of a music file may be displayed as '00:00:00' if

its playing time information is not found at the start of the file.

To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

Playing the music group

1=

2,

3=

4,

5.

Press the W.LINK button on the remote control to display the WISELINK

Pro menu.

Press the 4 or I_ button to select "Music", then press the ENTER

button.

>- To move to the previous /next group, press the (REW) or

[_ (FF) button.

Press the 4 or t_ button to select the desired music file.

Press the TOOLS button.

Press the A or T button to select "Play Current Group", then press the

ENTER _ button.

>- The music files in the sorting group including the selected file are played.

6. To exit "WISELINK Pro" mode, press the W.LINK button on the remote control.

Playing the selected music files

1=

2,

3,

Press the W.LINK button on the remote control to display the WISELINK

Pro menu.

Press the 4 or I_ button to select "Music", then press the ENTER

button.

Press the 4 or I_ button to select the desired music file, then press the

yellow button. Repeat the above operation to select multiple music files.

>- The _/mark appears to the left of the selected music file.

4. Press the _ (Play) /ENTER _ button.

>- Only the selected file is played.

>- Press the I_ (Stop) button while playing to stop the current item and

to return to the music list.

5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

Music function information icon (DispJayed at the top Jeff of the screen)

(Music) Once

I_ /II (Music) Play/Pause

When all music files in the folder(or the selected file) are repeated.

(Music) Repeat

When all music files in the folder(or the selected file) are played once.

"Repeat Mode" is "Off".

When pressing the [_ (Play)/_ (Pause)/ENTER _ button on the

remote control while music is playing.

Repeating Music Play

1. While a Music file is playing, press the TOOLS button.

2. Press the _, or _' button to select "Repeat Mode".

3. Press the 4 or I_ button to select "On" or "Off'.

On: plays back al! music files in the iolder(or theselected fi!e}

. off: Doesnlt play back repeatedly.

4. To exit "WISELINK Pro" mode, press the W.UNK button on the remote

control.

Picture Setting

You can set the Picture mode. (Refer to page 100)

Sound Setting

You can set the Sound mode. (Refer to page 100)

information

The Music file information including the order of the file.

Safe Remove

You can remove the device safely from the TV.

Press the A or _' button to select "Safe Remove", then press the ENTER _ button.

Remove the USB device from the TV.

Using the Movie List

This menu shows Movies files and folders saved on an USB memory device.

Movie List

1=

2,

Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

Press the _ or !_ button to select "Movie", then press the ENTER E3_

button.

>- Movie files are displayed.

>- Press the _ (Play) /ENTER I:_ button over a movie icon to play

the movie.

When moving to a movie, loading may take a few seconds. At this

point, the loading icon will appear on the screen.

You can watch exciting gaming multimedia files, but the gaming

function is not supported.

Movie doesn't support subtitles. (for example, not support smi, srt and

sub files, etc and not support subtitles included in movie files)

Supported Video Formats

! ............................... .....

Video Decoder Resolution Audio €odec

PCM

Xvid 800X600 ......................................................

ADPCM

H.264 MP 1920XI080 AC3

avi PCM

MPEG4 SP 800X600 ...........................................................

ADPCM

...................................................................; .....................................................................z.......................................................................

MPEG4 ASP 800X600 ADPCM

MJPEG 800X600 PCM

mp4

mpg

vro

vob MPEG2 1920X1080 AC3

\Screen Display

OCurrently selected movie

Shows the currently selected movie.

OCurrent Sort Standard

Press the A or _r button to change the standard for sorting Movies.

("Title", "Timeline", "Folder", "Preference")

0 ViewGroups

Shows the sorting groups. The sorting group including the currently selected movie is highlighted.

OCurrent Device

Shows the currently selected device name. Press the Red button to select a device.

O Item Selection Information

Shows the number of movie files that are selected by pressing the Yellow button.

Help Items

•Green(Favorites Setting) button: Changes the favorites setting for the selected movie. Press this button

repeatedly Unt I the desired value appears. (Refer to page 96)

,YeUow(Select} button Selects movies from the movie !iSt,selected movies are marked With a Symbol _on the

left.

,_ _ (Jump) button: Jumps to the previous sorting group !Jumps to the next sorting group:

, TOOLS(Option) button: Displays the ilPlay Current Group,, _'De!ete,, _'lnformation" or !'Safe Remove, menus:

Sorting Movie List

You can sort movies in the Movie List by a particular standard.

1. Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2. Press the 4 or I_ button to select "Movie", then press the ENTER C,--'

button.

>- Movie files are displayed.

3. Press the A or • button to select a sorting standard.

("Title", "Timeline", "Folder", "Preference")

>- The movies are sorted according to the newly selected sorting

standard.

>- Movie information is automatically set. You can change the "Favorite".

Title

You can sort and play movie files by title.

>- It sorts and displays the Movie titles in alphabetical order.

1. Select "Title" as the sorting standard in the Movie List.

2. Press the 4 or I_ button to select from the sublist of movie files grouped

by Title.

>- To move to the previous /next title group, press the [_ (REW) or

(FF) button.

3. Press the TOOLS button. Press the A or _r button to select "Play

Current Group".

4. Press ENTER 1:_ to play the selected group of movie files from the

sublist.

Timeline

You can sort and play movie files by timeline.

It sorts and shows movies by date. It sorts by year and month from the

earliest movie.

1. Select "Timeline" as the sorting standard in the Movie List.

2. Press the .,qor I_ button to select from the sublist of movie files grouped

by Timeline.

To move to the previous /next timeline group, press the (REW)

or _ (FF) button.

3. Press the TOOL8 button. Press the A or T button to select "Play Current

Group".

4. Press ENTER c:_ to play the selected group of movie files from the

sublist.

Folder

You can sort and play movie files by folder.

>- If there are many folders in USB, the movies files are shown in order in

each folder. The movie file in the Root folder is shown first and the others

are shown in alphabetical order by name.

1. Select "Folder" as the sorting standard in the Movie List.

2. Press the 4 or I_ button to select from the sublist of movie files grouped

by folder.

>- To move to the previous /next folder group, press the [_ (REW) or

(FF) button.

3. Press the TOOL8 button. Press the A or T button to select "Play Current

Group".

4. Press ENTER _ to play the selected group of movie files from the sublist.

Preference

You can sort and play movie files by preference. (Favorite)

1. Select "Preference" as the sorting standard in the Movie List.

2. Press the 4 or I_ button to select from the sublist of movie files grouped

by preference.

>- To move to the previous /next preference group, press the

(REW) or _ (FF) button.

3. Press the TOOL8 button. Press the A or T button to select "Play Current

Group".

4. Press ENTER 1:_ to play the selected group of movie files from the

sublist.

Changing the Favorites setting

>- You can change a selected movie file's (or group of files) preference

information in order to move it from one preference group to another.

1. Press the 4 or I_ button to select the desired movie in the movie list.

2. Press the Green button repeatedly until the desired setting appears.

>- Favorites settings change completed.

>- "Favorite" options: mmM, _, Imn_,

>- Users can select the number of stars (up to 3) according to their

preference.

>- The stars are for grouping purposes only. For example, the 3 star

setting does not have any priority over the one star setting.

Deleting aMovie file

1. Press the 4 or I_ button to select the desired movie in the Movie list.

2. Press the TOOLS button.

3. Press the A or • button to select "Delete", then press the ENTER

button.

>- The "Delete this file?" message appears.

>- When a read-only file is deleted, the "Read-only file(s). Delete the

file(s)?" message appear.

4. Press the 4 or I_button to select "OK", then press the ENTER

button.

>- The movie is deleted.

>- If you select "Cancel", the deletion is cancelled.

5. To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

>- While deleting files, don't remove the USB memory device.

>- You cannot recover a deleted Movie file.

Deleting Multiple Movie files

1. Press the _1or I_ button to select the desired movie in the movie list.

Then press the yellow button.

>- Repeat the above operation to select multiple movie files.

>- The _/mark appears to the left of the selected movie files.

2. Press the TOOLS button.

3. Press the ,l, or _I' button to select "Delete selected File", then press the

ENTER _ button.

:_ The "Delete the selected file(s)?" message appears.

4. Press the 4 or I_ button to select "OK", then press the ENTER _ button.

:_ The selected movie files are deleted.

:_ If you select "Cancel", the deletion is cancelled.

5. To exit "WISELINK Pro" mode, press the W.UNK button on the remote

control.

>- You cannot remove read-only files.

:_ You cannot restore the deleted Movie files.

Viewing the Movie Information

The movie file information including the order of the file in the current directory,

the name, the size, the date modified and the path is displayed.

1. Press the 4 or i_ button to select the desired movie in the movie list.

2. Press the TOOLS button.

3. Press the ,& or T button to select "Information", then press the

ENTER _ button.

:_ The information on the selected movie appears.

[_ Press the INFO button to viewing the information.

Playing a Movie File

Playing amovie file

t, Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2, Press the 4 or I_ button to select "Movie", then press the ENTER

button.

3, Pressing the 4 or _ button to select a movie to be played, then press the

ENTER _ button.

> The selected file is played.

> Press the [_ (Play) /ENTER _ button over a movie icon to play

the movie.

> Press the [_)(Pause) /ENTER _ button while playing a movie file

to pause the file. Press the [_ (Stop) button to exit Play mode.

> The selected file is displayed at the top with itsplaying time.

> The playing duration of a movie file may be displayed as '00:00:00' if

its playing time informationis not found at the start of the file.

> Press the _l button while playing avideo file to rewind by 20 seconds

> Press the I_ button to fast forward by 20 seconds.

4, To exit "WISELINK Pro" mode, press the W.UNK button on the remote

control.

Playing the movie group

t, Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2, Press the 4 or I_ button to select "Movie", then press the ENTER

button.

3, Press the _ or _ button to select the desired movie file.

4, Press the TOOLS button.

5, Press the A or T button to select "Play Current Group", then press the

ENTER _ button.

> The movie files in the sorting group including the selected file are

played.

6, To exit "WISELINK Pro" mode, press the W.UNK button on the remote control.

Playing the selected movie files

t, Press the W.LINK button on the remote control to display the "WISELINK

Pro" menu.

2, Press the 4 or I_ button to select "Movie", then press the ENTER

button.

3, Press the _ or I_ button to select the desired movie file, then press the

yellow button. Repeat the above operation to select multiple movie files.

> The _/mark appears to the left of the selected movie file.

4, Press the [_ (Play) /ENTER _ button.

> Only the selected file is played.

> Press the _ (Stop) button while playing to stop the current item and

to return to the movie list.

5, To exit "WISELINK Pro" mode, press the W.UNK button on the remote

control.

Playing movie continuously

If you exit playing movie, playing it continuously later is possible•

With 'Play continuously' function, you can watch movie without watching again

from beginning or bothering searching•

t, Select movie file you want to 'Play continuously' by pressing 41 or I_

button from the Movie List.

2, Press the [_ (Play) /ENTER _ button.

3, Select 'Play continuously' by pressing Blue button.

Movie will begin to play from where it was stopped being played•

If "Continuous Movie Play Help" function was set "On", a pop-up

message will appear when you play movie file you want to "Play

continuously"• (Refer to page 101)

4, To exit "WISELINK Pro" mode, press the W.LINK button on the remote

control.

Movie function information icon (Displayed at the top left of the screen)

C*

I_/11

_x2

When all movie files in the folder(or the selected file) are repeated.

(Movie) Repeat "Repeat Mode" is "On".

When all movie files in the folder(or the selected file) are played once.

(Movie) Once "Repeat Mode" is "Off".

(Movie) Play!Pause When pressing the [_ (Play)/[_](Pause) tENTER E_ button on the

remote control while movie is playing.

(Movie) x2 Play When pressing the _ (FF) button on the remote control while movie is

playing.

Repeating Movie Play

i, While a Movie file is playing, press the TOOLS button.

2, Press the A or T button to select "Repeat Mode".

3, Press the 4 or _ button to select "On" or "Off'.

'Oni plays back all movie files in the folder(or the selected file)

repeatedly,

'Off: Doesn't play back repeatedly.

4, To exit "WISELINK Pro" mode, press the W.UNK button on the remote

control.

Picture Setting

You can set the Picture mode. (Refer to page 100)

Sound Setting

You can set the Sound mode• (Refer to page 100)

Picture Size

• Fit: Play video to fit the TV's screen size.

• Original: Play video at the original size.

Information

The Movie file inforrnation includingthe order of the file.

Safe Remove

You can remove the device safely from the TV.

Press the A or • button to select "Safe Remove", then press the ENTER _ button.

Remove the USB device from the TV.

Picture/Music Settings Using WISELINK

When watching a SlideShow or listening to music using WISELINK, you can set the picture and sound.

Picture Setting

1. Press the TOOLS button during a Slide Show or while music is playing.

2. Press the A or _' button to select "Picture Setting".

3. Press the 4 or IP-button to select the "Picture Mode" ("Dynamic",

"Standard", or "Movie").

4. Press the A or T button to move to an item. ("Contrast", "Brightness",

"Color", "Dynamic Contrast", "Black Adjust", "Auto Motion Plus 120Hz" or

"Reset")

>- Select "Reset" to initialize the picture settings.

5. Press the 4 or IP-button to adjust the settings.

>- For more information on the picture settings, refer to pages 28~32.

Sound Setting

1. Press the TOOLS button during a Slide Show or while music is playing.

2. Press the A or T button to select "Sound Setting".

3. Press the 4 or I_ button to select the "Sound Mode". ("Standard",

"Music", "Movie", "Speech", or "Custom")

4. Press the A or _ button to move to an item.

>- Select "Reset" to initialize the sound settings.

5. Press the 4 or I_ button to adjust the settings.

>- For more information on the sound settings, refer to pages 40~41.

Using the Setup Menu

Setup displays the user settings of the WISELINK Pro menu.

1. Press the W.LINK button on the remote control to display the WISELINK

Pro menu.

2. Press the 4 or I_ button to select "Setup", then press the ENTER

button.

3. Press the A or T button to select the desired option.

(Slide Show Speed, Music Repeat Mode, Movie Repeat Mode, Screen

Saver Run Time, information, Safe Remove)

4. Press the 4 or I_ button to select the option, then press the ENTER

button.

>- To exit WISELINK Pro mode, press the W.LINK button on the remote

control.

Slide Show Speed

Select to control the slide show speed.

Press the A or _!' button to select "Slide Show Speed".

Press the 4 or I_ button to select "Fast", "Normal" or "Slow".

Music Repeat Mode

Select to repeatedly play music files.

Press the A or _' button to select "Music Repeat Mode".

Press the 4 or I_ button to select "On" or "Off'.

Movie Repeat Mode

Select to repeatedly play movie files.

Press the A or _' button to select "Movie Repeat Mode".

Press the 4 or I_ button to select "On" or "Off'.

Continuous Movie Play Help

Select to display the help pop-up message for continuous movie playback.

Press the A or _!' button to select "Continuous Movie Play Help".

Press the 4 or I_button to select "On" or "Off".

Screen Saver Run Time

Select to set the waiting time before the screen saver appears.

Press the A or _' button to select "Screen Saver Run Time".

Press the 4 or I_ button to select "1 rain", "3 rain" or "5 min".

information

Select to viewing the information of the connected device.

Press the A or • button to select "Information", then press the ENTER

button.

Safe Remove

You can remove the device safely from the TV.

Press the A or _' button to select "Safe Remove", then press the ENTER _ button.

Remove the USB device from the TV.

WISELINK Pro-DLNA

Setting the DLNA Network

DLNA allows you to watch videos and pictures saved on your PC on your TV through a network connection in Wiselink Pro

mode. This removes the need to copy them to a USB storage device and then connect the device to your TV. To use DLNA,

the TV must be connected to the network and the DLNA application must be installed on your PC.

Network Connections Diagram

TV Rear Panel

[iil LAN Cable

PC

.....i Modem Cable

_ii LAN Cable

The Modem Port on

the Wall

1. Connect the [LAN] port

on the rear panel of the

TV to the external modem

with a LAN Cable.

2. Connect the PC to which

the "DLNA PC Share

Manager" program will be

installed and the external

modem using a LAN

cable.

3. Connect the LAN port on

the wall and the external

modem with a Modem

Cable.

Connecting to the Network

1. When connecting to the network is complete, set up the network on the TV (see page 121).

A Wireless Internet connection does not support DLNA.

The first 3 digits (subnet address) of the IP addresses of the TV and the PC must be the same (e.g. IP Address:

123.456.789.XX )

2. Run a "Network Test" to check the network settings (see page 122).

Installing the DLNA Application

To play content on the PC on the TV, you have to first install the application.

System Requirements

1. Insert the Program CD supplied with this TV into your PC.

2. 20MB of free hard disk space is needed for the program installation.

> If you share files, up to 20MB of hard disk drive space is required for each 100 files.

> If you cancel file sharing, the hard disk drive space used for the thumbnail information is also freed.

Supported Formats

1. Image : JPEG (jpg, jpeg)

2. Audio: MP3(mp3)

3. Video : MPEGI(mpg, mpeg), MPEG2 PS/TS(mpg, mpeg, trp, ts, tp), divx(mpg, mpeg, avi), MPEG4 /H.264 (mpg, mpeg)

Install the application

1. Run the Setup.exe file on the Program CD supplied with the product.

Alternatively, you can download the file from www.samsung.com.

2. Install the SAMSUNG PC Share Manager as shown in the figures below.

V

V

V

V

3. When the installation is complete, the PC Share Manager icon appears on your Desktop.

Double-click the icon to run the program.

Using the DLNA Application

The Program Screen Layout

1. Menus: The following application menus are provided : "File", "Share", "Server", and "Help".

2. Click to share the selected PC server folder (see page 106)

3. Click to cancel sharing (see page 106)

4. Click to refresh the PC folder and files.

5. Click to synchronize the share status (see page 107)

6. The folders and files of the PC to be shared are listed.

7. Folders shared by the user are listed.

File

Property: Shows information on the selected file or folder.

Method 1: Select a file or folder and select the "File" menu and

then select the "Property" sub-menu.

Method 2: Select a file or folder, right-click over the selected file

or folder and then select "Property" from the pop-up

menu.

Exit: Exits the DLNA application.

If you select "Exit" without applying the changes after

changing the shared status, a message will appear asking

if you want to apply the changed settings to the PC. Select

"Yes" to apply the changes and exit the application.

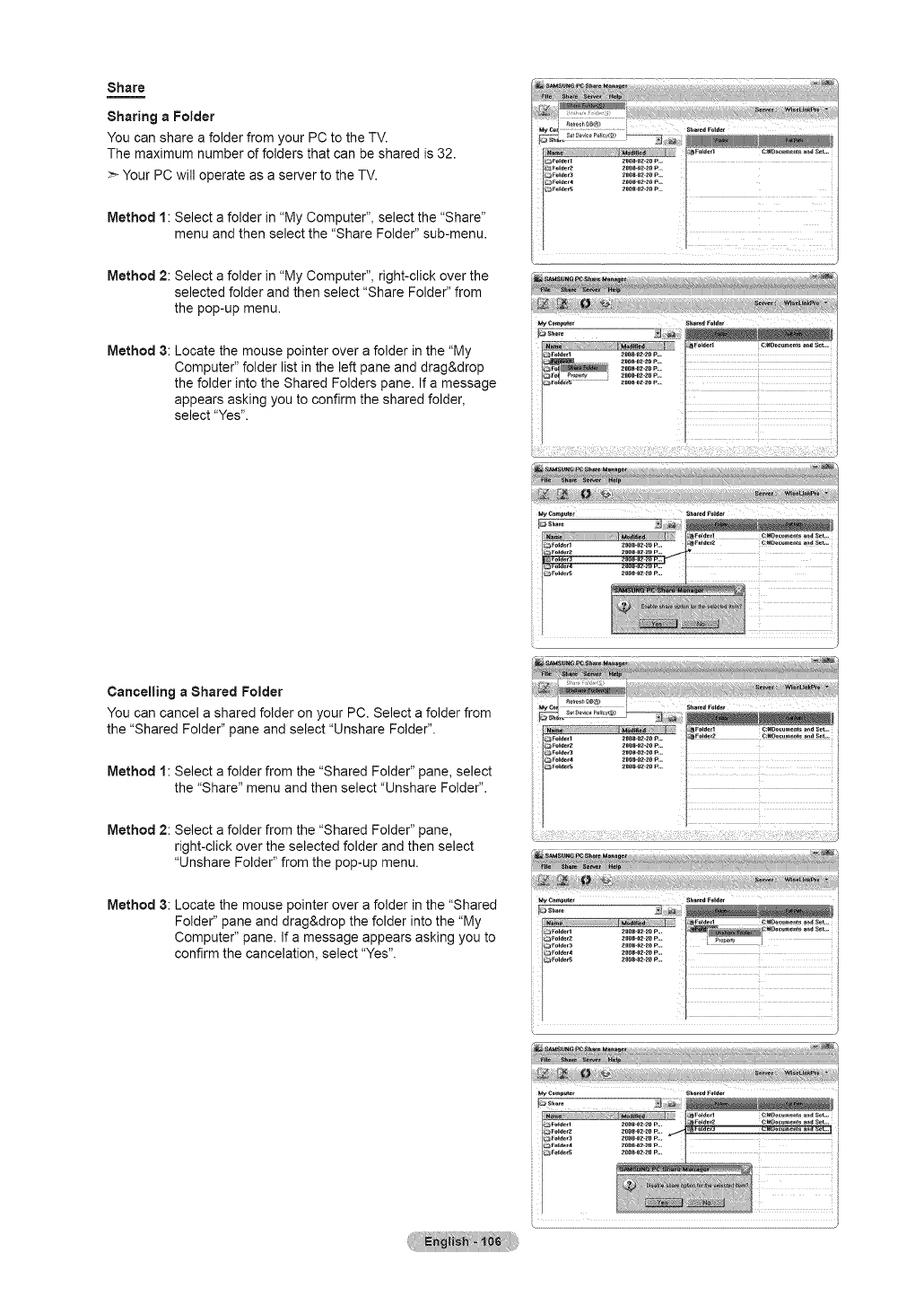

Share

Sharing a Folder

You can share a folder from your PC to the TV.

The maximum number of folders that can be shared is 32.

>- Your PC will operate as a server to the TV.

Method 1: Select a folder in "My Computer", select the "Share"

menu and then select the "Share Folder" sub-menu.

Method 2: Select a folder in "My Computer", right-click over the

selected folder and then select "Share Folder" from

the pop-up menu.

Method 3: Locate the mouse pointer over a folder in the "My

Computer" folder list in the left pane and drag&drop

the folder into the Shared Folders pane. If a message

appears asking you to confirm the shared folder,

select "Yes".

Cancelling aShared Folder

You can cancel a shared folder on your PC. Select a folder from

the "Shared Folder" pane and select "Unshare Folder".

Method 1: Select a folder from the "Shared Folder" pane, select

the "Share" menu and then select "Unshare Folder".

Method 2: Select a folder from the "Shared Folder" pane,

right-click over the selected folder and then select

"Unshare Folder" from the pop-up menu.

Method 3: Locate the mouse pointer over a folder in the "Shared

Folder" pane and drag&drop the folder into the "My

Computer" pane. If a message appears asking you to

confirm the cancelation, select "Yes". _Folaer4 zO_-O_-_O P

Applying the Current Settings

Perform this when synchronization is necessary due to a new

shared folder or canceling a shared folder. The "Set Changed

State" menu applies changes to shared folders to the data

saved with the PC share program.

Since applying changes to the internal data is a time-consuming

process, this function enables users to apply changes to the

data only when required.

Until the "Set Changed State" menu is selected, the changed

state of the shared folder is not applied to the server.

Changes to the shared folders are not applied to your PC until

you select the "Set Changed State" menu.

Method 1: Select the "Share" menu and select the "Refresh DB"

sub-menu.

Method 2: Click the "Set Changed State" icon.

Setting the Access Permission

To enable the TV to find your PC, the TV must be set to "Set

Device Policy" in the Access Permission Settings window. In

addition, the PC server and the TV must be on the same subnet.

Method: Select the "Share" menu and select "Set Device

Policy".

>Rejected items are represented in gray.

>You can change the access permissions by using the

Allow "Accept'/'Deny" button.

To delete an item, select the item and select "Delete

Item".

Server

Server

You can run or stop using your PC as a server,

Start Server at Windows start

You can determine whether to start the PC server automatically

when Windows starts.

Change server name

You can rename the PC server. Enter a new name and click "OK".

The new name will appear at the top right of the window and will

appear on the TV.

J

Hel===_p

Version

The programversion informationmessagebox appears.

_L_LL LL LL L _LL_LL L_ L___

Using the DLNA Function

Using the DLNA Menu

DLNA (Digital Living Network Alliance)

enables content saved on a DLNA server

(usually your PC) connected to your TV or

over a network to be played.

Wiselink Pro enables playing content

saved on a USB memory device connected

to the TV, while DLNA enables playing

content saved on a DLNA server (your PC)

connected to your TV or over the network.

The procedures to use the content are the

same as those for WISELINK Pro.

>- If you install the PC share manager

program supplied with the TV onto a PC,

you can have the PC perform the role of a

DLNA server over the network.

1,

2.

Press the W.LINK button on the remote control to display the "DLNA"

menu.

Press the _ or I_button to select an icon (Photo, Music, Movie, Setup),

then press the ENTER _ button.

>- To exit "DLNA" mode, press the W.LINK button on the remote control.


_,Photo List

- Sorting Photo List: Refer to page 78

- Viewing the Information: Refer to page 82

- Rotating the Photo file: Refer to page 81

- Viewing a Slide Show: Refer to page 83

_,During a Slide Show

- Play & Pause: Refer to page 83

- Slide Show Speed: Refer to page 85

- Zoom: Refer to page 85

- Rotate: Refer to page 84

>- If the user has rotated the photo, the orientation of the photo will return

to its original state when the user exits the DLNA application or exits

WISELINK Pro mode.

Music

_,Music List

- Sorting Music List: Refer to page 88

- Viewing the Information: Refer to page 91

- Playing a music file: Refer to page 92

_,While Playing a Music File

- Play & Pause: Refer to page 93

- Repeat Mode: Refer to page 93

Movie

_,Movie List

- Sorting Movie List: Refer to page 95

- Viewing the Information: Refer to page 97

- Playing a Movie file: Refer to page 98

_,While Playing a Movie File

- Play & Pause: Refer to page 99

- Repeat Mode: Refer to page 99

Setup

- Slide Show Speed: Refer to page 101

- Music Repeat Mode: Refer to page 101

- Movie Repeat Mode: Refer to page 101

- Screen Saver Run Time: Refer to page 101

- Information: Refer to page 101

DLNA does not support the following functions.

- The Background Music and Background Music Setting functions.

- Sorting files by preference in the Photo, Music, and Movie folders.

- The Change Group Info function.

- The Delete function.

- The Safe Remove function.

- The REW/FF (_ /_) key functions while a movie is playing.

- Function to watch continuously when playing movie.

The Skip (_/1_ keys) or Pause function may not work while a movie

is playing for the DLNA of other manufacturers, depending on the

corresponding content information,

>- The playing time may not be displayed while a movie is playing.

Content Library

Using the Content Library

The "Content Library" enables you to view or play the built-in contents on the TV or stored on your USB device.

The Delete, Move and Update functions will not work with the built-in content on the TV.

Usin_the Content Library Menu

1. Press the MENU button. Press the A or _r button to select "Application",

then press the ENTER _ button.

2. Press the A or _ button to select "Content Library", then press the

ENTER _ button.

The "Content Library" main menu is displayed.

PresstheCONT°NT uttonontheremoteoontrotodsp ytheContentL r rymenu

3= Press the 4 or _ button to select an icon (Gallery, Cooking, Game,

Children, Fitness), then press the ENTER _ button.

> To return to TV mode, press the CH v/^ button on the remote control.

> If you press the Volume or MUTE button, no OSD is displayed, but the

function operates accordingly.

Using the Remote Control Button in Content Library Menu

Wheel Move the cursor and select an item.

(Z_l'_l_l_)

ENTER _ Select the currently selected item.

RETURN Return to the previous menu.

EXIT Stop the current function and return to the "Content Library" main menu.

OH v/^

PRE.CH /FAV.CH /Stop Content Library mode and Returns to TV mode.

CH.UST

Color button Keys that provide functions are described on the corresponding page.

VOL via

CONTENT Exit Content Library mode.

Using the TV Memory Contents

The built-in contents of the "Content Library" are composed of the following sub-categories: "Gallery", "Cooking", "Game",

"Children", and "Fitness".

Gallery

This function plays a SlideShow with high resolution images and background music

and produces various atmospheres.

Using the Gallery function of the TV,you can change your home atmosphere.

1, Press the 4 or !_ button to select "Gallery" in the "Content Library" main

menu.

Then press the ENTER _ button.

2= Press the _, or T button to select "Art", "Relaxation" or "Party", then press

the ENTER E_ button.

>- The selected slide show is played.

>- There is default music for each for the "Art", "Relaxation", and "Party"

options.

3= Press the yellow button to playback all images.

>- To return to "Content Library" main menu, press the EXIT button.

>- To exit "Content Library" mode, press the CH via button on the remote control.

' Art: You of the impressionist__"Sincudin_g_Van

Goghl Monet, Degas, cezannel etcl

, Relaxation You can view beautiful and serene images of nature

, Party; You can 'view images that ca n produce a cheerfu I and

exciting atmosphere.

>- The copyrights of the "Gallery" contents and all issues related to them are reserved by Gallery Player, Inc.

>- For additional "Gallery" contents, check for information through www.samsung.com. Please refer to the "Using

Additional Content Using External USB Memory Storage" section (page 117) to see how to play additional imagery.

CONTENT LIBRARYCONTAINSTEXT,GRAPHICS, IMAGES,MULTIMEDIA,AND OTHERMATERIALSFOR INFORMATIONALAND

PROMOTIONALPURPOSESONLY.MATERIALSIN CONTENTLIBRARY HAS BEEN MODIFIEDAND KEEPS BEING REVISEDAND

UPDATED.THE MATERIALSIN THECONTENT LIBRARYMAYNOT BE SUITABLEFORALLAUDIENCES.

INFORMATIONIN THECONTENT LIBRARY IS PROVIDED"AS IS." ALTHOUGHTHE INFORMATIONPROVIDEDTO YOU INTHE

CONTENT LIBRARYIS OBTAINEDOR COMPLIEDFROM SOURCESWE BELIEVETO BE RELIABLE,SAMSUNGCANNOTAND

DOES NOT GUARANTEETHEACCURACY,VALIDITY,TIMELINESS OR COMPLETENESSOF ANY INFORMATIONOR DATAMADE

AVAILABLETO YOU FORANY PARTICULARPURPOSE.UNDER NO CIRCUMSTANCES,INCLUDINGNEGLIGENCE,SHALL

SAMSUNGBE HELD LIABLE,WHETHER IN CONTRACTOR TORT,FORANY DIRECT,INDIRECT,INCIDENTAL,SPECIALOR

CONSEQUENTIALDAMAGES,ATTORNEYFEES,EXPENSES,ORANY OTHER DAMAGESWHATSOEVERARISlNGOUT OF,OR

IN CONNECTIONWITH, ANY INFORMATIONCONTAINEDIN, OR THE USEOF,THE CONTENT LIBRARY,EVEN IFADVISED OF

THE POSSIBILITYOF SUCH DAMAGES.

Cooking

You can view various recipes that you can then easily follow step by step. Enjoy these contents which give you great ideas for

meals.

1, Press the 4 or !_ button to select "Cooking" in the "Content Library" main

menu.

Then press the ENTER _ button.

2= Press the A or • button to select "Starters", "Main Courses" or "Dessert",

then press the ENTER _ button.

; 8tatters: selection of light meals and starters to bring your appetitel

tMain Courses; Most popular recipes of Chickenl Seafood,

Vegetablesl and Gri!!.

,, Dessertsi Wide Choice of sweet treats and fancy beverages.

>- The recipes introduced in the "Cooking" contents on the Samsung TV

are based on recipes published by Anness Publishing.

>- The copyrights of the "Cooking" contents and all issues related to them

are reserved by Practical Pictures.

3=

4=

5=

Press the A or T button to select a particular item.

Press the ENTER _ button.

Press the A, T, _ or !_ button to select a recipe you want to use.

Then press the ENTER _ button.

Press the A, T, 4 or !_ button to use a recipe.

>- To return to "Content Library" main menu, press the EXIT button.

>- To exit "Content Library" mode, press the OH v/^ button on the

remote control.

Game

This category provides entertainment games for the whole family.

1, Press the 4 or I_ button to select "Game" in the "Content Library" main

menu.

Then press the ENTER _ button.

2= Press the A or _' button to select "Dynamic Bowling", "Minimini Cook",

"Mini Game Pack", "IQ Academy" or "Sudoku+', then press the

ENTER _ button.

>- For the buttons used in the games, refer to the directions on the

screen.

>- To return to "Content Library" main menu, press the EXIT button.

>- To exit "Content Library" mode, press the OH via button on the

remote control.

, Dynamic Bowling: A realistic bowling game enjoyable on your TV. To achieve victory select the best position and

power that enables you to hit a strike.

-Minimini Cook: A cooking game that allows you to cook delic4ous foods. If you play all the mini-games for each

type of food, the food is completely cooked and a customer character eats the food. The greater

the number offailures during the mini-games, the worse the reaction displayed by the customer

character. If you avoid failure completely, the customer character eats your finished food!

• Mini Game Pack: This is a collection of one-button games that you can play with the ENTER _ button only. Since

operating the game is easy, the whole family can enjoy this game. Each game will give you a

different delight.

• IQ Academy: A brain training game the whole family can enjoy. This game improves your power to think fast.

memorize and calculate by letting you solve problems within a specified time. The problems start

at the elementary school level. You have to take examinations whenever your score exceeds the

threshold. If you pass the examination, you change to a higher grade. If you graduate from university.

you have completed the game.

• 8udoku+: Now you can enjoy world-famous Sudoku (Magic Square) on the TV. The objective is to fill a 9x9 grid so

that each column, each row. and each of the nine 3x3 boxes contains digits 1 to 9.

>- For the 5 embedded games, the copyrights and all issues related to them are reserved bythe corresponding game

providers.

>- More detail instructions on how to play a game is given at the beginning of each game page.

>- Mini Game Pack, IQ Academy and Sudoku+ are trial versions. You can purchase a full version or additional games

at www.samsung.com or www.nurisam.com

Color Buttons for Games

Red

Green

Yellow

Press to move to the game home screen

Press to pause the game

Blue Press to exit the game

Children

This is educational and interactive content that children can watch repeatedly. Enjoy existing stories, songs and games with the

Boowa and Kwala characters.

1, Press the 4 or I_ button to select "Children" in the "Content Library" main

menu.

Then press the ENTER _ button.

2, Press the A or T button to select "Story", "Song" or "Play", then press the

ENTER _ button.

,Song: You can enjoy Sing Along content with the Boowa and Kwala

characters.

_ Play; You can enjoy exciting and fun interactive games using the

remote control.

>- The copyrights of the "Children" contents and issues related to them

are reserved by UpToTen.

3, Press the A or • button to select an item to play. Press the ENTER

button.

The selected content is played.

>- To return to "Content Library" main menu, press the EXIT button.

>-- To exit "Content Library" mode, press the CH VIA button on the

remote control.

Fitness

This is beneficial health management content that provides stretching and massage

exercises that can be enjoyed by the whole family.

1, Press the 4 or I_ button to select "Fitness" in the "Content Library" main

menu.

Then press the ENTER _ button.

2= Press the _, or • button to select "Basic Stretches" or "Massage", then

press the ENTER _ button.

•Basic Stretchesi FoIIowi-hestretching exercises provided by

detailed descriptions and s ow motion images

step by step.

•Massagel Manage your health and release your stress through the

easy to follow massages:

>- The "Basic Stretches" contents for the Samsung TV are based on the

book Stretching by Suzanne Martin which is published by DK and the

"Massage" contents are based on the books published by Anness

Publishing."

>- The copyrights to "Basic Stretches" are reserved by the DK Publishing

Company. The copyrights to the "Massage" content are reserved by

Practical Pictures. All issues related to copyrights are reserved by the

corresponding company.

3= Press the 4, I_, A or T button to select an item to view.

Press the ENTER 1:_ button.

The "Basic Stretches" contents are automatically played so that

you can easily follow the movements on the screen. To move to

the previous or next operation, press the 4 or I_ button to view the

required step.

>- The selected item is displayed on the screen.

>- To return to "Content Library" main menu, press the EXIT button.

>- To exit "Content Library" mode, press the CH via button on the

remote control.

Using the Remote Control Button in Fitness menu

View to previous step /View to next step

1'

Play or pause (in Basic Stretches)

Setup

Select to set the waiting time before the screen saver appears.

1, Press the yellow button to select "Setup" in the "Content Library" main

menu.

2. Press the 4 or I_button to select "Off', "4 hour", "8 hour", "10 hour".

Using Additional Content Using External USB Memory Storage

You can download contents onto a USB memory device and play them on your TV.

(The contents on the external USB device are played directly without being copied to the built-in Flash memory of the TV.)

Playing and Exiting New Content

1, Press the Red button in the "Content Library" main menu.

>- The USB Browser main screen is displayed.

>- A list of files saved on the USB device is displayed.

2, Press the A or Vbutton to move to the file (or folder) you want to play. Press

the ENTER _ button.

>- The selected content is played.

>- The use of contents is the same as in using the TV memory contents.

>- To return to the USB browser main screen, press the EXIT button.

To exit "Content Library" mode, press the CH v/^ button on the remote

control.

>- "Content Library" only supports USB Mass Storage Class devices (MSC),

MSC is a Mass Storage Class Bulk-Only Transport device. Examples of

MSC are Thumb drives and Flash Card Readers (Both USB HDD and

HUB are not supported.)

Playing a game using an external USB memory device will allow you to

save your game (depending on the game).

Take care as removing the USB memory device while saving data to the

USB memory device may cause the data to be lost.

Downloading New Contents

New content other than the built-in contents will be provided via the Samsung.com

website with or without charge.

Downloading Content

1, Visit the www.samsung.com website and open the Content Library

page.

2. Enter the product number (UDN, Unique Device Number).

3. Select a content item in the Contents Download page.

4. Download the contents onto the USB memory device.

>- "Content Library" only supports USB Mass Storage Class devices

(MSC). MSC is a Mass Storage Class Bulk-Only Transport device.

Examples of MSC are Thumb drives and Flash Card Readers (Both

USB HDD and HUB are not supported.)

5. Go to "Content Library" main menu by pressing "Contents" button or

choosing "Content Library" (Menu_Application_"Content Library")

6. Plug the USB memory into USB port on the side of the TV.

Finding aproduct number (Unique Device Number, UDN)

1, Insert the USB memory into the USB port on the side of the TV.

2. In the USB Browser main screen, press the Green button (Show UDN).

3, The 18-digit number on the screen is the product code.

Provided Content

Additional contents are available on www.samsung.com

The Remote Control Buttons Used in the USB "Content Library"

BUttOn Operations

Red Return to the main menu of the TV Memory "Content Library".

e reen S howth e pr oductn umbe riu nique device numi_er i oft h e TV use diodo wnl oadc onienifr o m.....

the website.

EXIT Stop the current function and return to the "Content Library" main menu.

OH v/^ /PRE.CH /

FAV.CN /ON.LIST Stop Content Library mode and Returns to TV mode.

Network Settings and infoLink

To access Samsung's Infolink network feature, you must make one of the connections on the following pages.

Network Connection -Cable

LAN Connection for aDHCP Environment

The procedures to set up the network using Dynamic Host Configuration Protocol (DHCP) are described below. Since an

IP address, subnet mask, gateway, and DNS are automatically allocated when DHCP is selected, you do not have to enter

them manually.

The Modem Port

on the Wall External Modem

(ADSL/VDSL/Cable TV)

Modem Cable

....LAN

_] Cable

TV Rear Panel 1. Connectthe

[LAN] port on

the rear panel of

the TV and the

external modem

with a LAN Cable.

2. Connect the LAN

port on the wall

and the external

modem with a

Modem Cable.

You can connect the LAN via a Sharer (Router).

IP Sharer TV Rear Panel

External Modem

The Modem Port

on the Wail (ADSL/VDSL/

Cable TV)

Cable

Modem Cable

You can connect the LAN port and the TV directly depending on your network status.

TV Rear Panel

The LAN Port

on the Wall

LAN Cable

>- The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer.

>- If the IP address allocation by the DHCP server has failed, turn the external modem off, turn it on again after at least 10

seconds and then try again.

>- For the connections between the external modem and the Sharer (Router), refer to the owner's manual of the

corresponding product.

>- You can connect the TV to the LAN directly without connecting it through a Sharer (Router)

>- You cannot use a manual-connection-type ADSL modem because it does not support DHCR You have to use an

automatic-connection-type ADSL modem.

LAN Connection for Static iP Environment

The procedures to set up the network using a static IP address are described below. You have to manually enter the IP

address, subnet mask, gateway, and DNS that are provided by your Internet Service Provider (ISP).

The LAN Port

on the Wall

__ili LAN Cable

TV Rear Panel 1= Connect the [LAN]

port on the rear

panel of the TV

and the LAN port

on the wall using

the LAN cable.

You can connect the LAN via a Sharer (Router).

The LAN Port on

the Wall IP Sharer

•ANCabl;_le

TV Rear Panel

>- The terminals (the position of the port and the type) of the external device may differ depending on the manufacturer.

>- If you are using a static IP address, your ISP will inform you of the IP address, subnet mask, gateway, and DNS.

You must enter these values to complete the network settings. If you do not know the values, ask your network

administrator.

>- For the information on how to configure and connect a Sharer (Router), refer to the owner's manual for the

corresponding product.

>- You can connect the TV to the LAN directly without connecting it through a Sharer (Router).

>- If you use an IP Sharer (IP Router) that supports DHCP, you can set up the device as either DHCP or static IR

>- For the procedures to use a static IP address, ask your Internet Service Provider.

Network Connection - Wireless

You can connect to the Samsung's Infolink network wirelessly through a wireless IP sharer.

[LN46A850SIF, LN52A850S1F]

The LAN Port on

the Wall Wireless tP sharer

TV Side Panel t, Connect the Samsung

Infolink Wireless adapter

into the Wiselink terminal

of the TV.

[LN46A860S2F, LN52A860S2F]

The LAN Port on

the Wall Wireless tP sharer

---)_i .... 2 -._- __

LAN Cable j

I r_e_le _WI_ELI_,

ss LAN Adapter

for InfoLink

>- You must use the Samsung Wireless LAN Adapter for InfoLink(WlS-08BG) to use a wireless network.

>- The Samsung Wireless LAN Adapter for InfoLink is sold separately. Contact a Samsung Electronics agent or service

center for purchasing.

>- To use a wireless network, your TV must be connected to a wireless IP sharer.

>- If the wireless IP sharer supports DHCP, you TV can use a DHCP or static IP address to connect to the wireless

network.

>- You must use a wireless IP sharer that supports IEEE 802.11 B or IEEE 802.11G.

>- If the wireless IP sharer allows you to turn on/off the Ping connection function, turn it on.

>- Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.

>- Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

is currently being used by another device nearby, this will result in interference and communications may fail.

>- When applying the security key for the AP (wireless IP sharer), only the following is supported.

• 1)Authentication Mode: WEP, WPAPSK, WPA2PSK

• 2) Encryption Type : WEP, TKIP, AES

If you apply a security system other than the systems listed above, it will not work with the TV.

>- If connecting 2 Wireless LAN Adapters for InfoLink, the adaptor read at first is executed.

Network selection

Select Cable or Wireless as the method to connect to the Samsung's Infolink network.

1, Press the MENU button to display the menu.

Press the _, or _' button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "Network selection", then press the

ENTER _ button.

3. Press the _, or T button to select "Cable" or "Wireless", then press the

ENTER _ button.

, Cable; Connec t to samsung's lnf01ink network Using a cable.

- Wireless: Connect to Samsung's lnfolink network wirelessly.

>- The menu is activated only if the Samsung Wireless LAN Adapter for

InfoLink is connected.

Cable Network Setup

>- First, the "Network selection" must be set to "Cable". (See page 120)

Auto Setup

If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP) Settings are automatically configured.

>- Please check if the LAN cable is connected. (See page 118)

1, Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

2, Press the A. or T button to select "Cable Network Setup", then press the

ENTER _ button.

3=

4,

Press the ENTER _ button to select "lnternet Protocol Setup".

Press the A or • button to select "Auto Setup", then press the ENTER

button.

>- The Internet Protocol is set automatically.

>- Select "Network Test" to check the network connectivity.

(Refer to page 122)

Press the EXiT button to exit.

Manual Setup

To connect the TV to the LAN using a static IP address, you must set up the

Internet Protocol (IP).

>- Please check if the LAN cable is connected. (See page 119)

1, Press the MENU button to display the menu.

Press the _, or _' button to select "Setup", then press the ENTER _ button.

2, Press the _, or T button to select "Cable Network Setup", then press the

ENTER _ button.

3, Press the ENTER _ button to select "lnternet Protocol Setup".

4, Press the A or T button to select "Manual Setup", then press the ENTER

button.

5. Press the _,, T, 4 or 1_ button to move to an item, and press the numeric

button to configure the selected item. Press the ENTER 1:_ button.

>- Select "Network Test" to check the network connectivity.

(Refer to page 122)

Press the EXiT button to exit.

Network Test

You can test or confirm the network connection status after setting up the network.

1, Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "Cable Network Setup", then press the

ENTER _ button.

3= Press the A or • button to select "Network Test", then press the ENTER

button.

>- The current network settings will appear.

Press the EXIT button to exit.

When unable to connect to a wired network

1. If your lnternet service provider has registered the MAC address of the

device used to connect to the Internet for the first time and authenticates

the MAC address each t_me you connect to the lnternet, your TV may not

be able to connect to the Internet as the MAC address differs from that of

the device (PC) used to connect to the Internet the first time. In this case.

ask your Internet service provider about the procedures to connect devices

other than your PC (such as your TV) to the Internet.

2. If your Internet service provider requires an ID or password to connect to

the lnternet (network), your TV may not be able to connect to the qternet.

In this case, you have to enter your ID or password when connecting to the

lnternet using an Internet Sharer (Router).

3. The internet connection may fail due to a firewall problem, n this case.

contact your Internet service provider.

If you cannot connect to the qternet even if you have followed the procedures

of your Internet service provider, please contact a Samsung Electronics

Service Center.

Wireless Network Setup

The menu is activated only if the Samsung Infolink Wireless adapter is connected. (See page 120)

Auto Setup

>- If you connect the LAN cable and it supports DHCP, the Internet Protocol (IP)

Settings are automatically configured.

>- The wireless IP sharer to be connected to this product must support DHCR

1, Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "Wireless Network Setup", then press the

ENTER _ button.

3=

4,

Press the ENTER _ button to select "lnternet Protocol Setup".

Press the A or • button to select "Auto Setup", then press the ENTER

button.

>- The Internet Protocol is set automatically.

>- Select "Access Point Select" to check the network connectivity.

(Refer to page 124)

Press the EXIT button to exit.

Manual Setup

1, Press the MENU button to display the menu.

Press the A or T button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "Wireless Network Setup", then press the

ENTER _ button.

3, Press the ENTER _ button to select "lnternet Protocol Setup".

4, Press the A or T button to select "Manual Setup", then press the ENTER C#

button.

5= Press the _,, T, 41 or 1_ button to move to an item, and press the numeric

button to configure the selected item. Press the ENTER _ button.

>- If you want to use a static IP address, refer to the user manual of your

wireless IP sharer.

>- Select "Access Point Select" to check the network connectivity. (Refer to

page 124)

Press the EXIT button to exit.

Access Point Select

You can select the IP sharer to use when using a wireless network.

1, Press the MENU button to display the menu.

Press the _, or _' button to select "Setup", then press the ENTER _ button.

2, Press the • or T button to select "Wireless Network Setup", then press the

ENTER _ button.

3_ Press the A or T button to select "Access Point Select", then press the

ENTER _ button.

>- The wireless Access Points that exist in you area are searched and

displayed in the Access Point List.

4_ Press the A or T button to select the Access Point to use. Then press the

ENTER _ button.

>- If a wireless Access Point is not in the Access Point list, press the Red

button.

>- When the connection is made, you will be returned to the screen

automatically.

>- If you selected an Access Point that requires security authentication, enter

the security key.

>- You can enter up to characters for a security key.]

>- The character set may differ and the red button may not appear

depending on the Access Point.

if you have selected an Access Point with a security authentication:

- The Security Key input screen appears.

- Enter the security key and press the ENTER _ button.

- Using the Remote Control Buttons on the Security Key Input Screen

Button oper t!ons.....................................

Wheel

(A/T/_/I_) Moves the selection up/down/left/right.

ENTER _ .....Enters (!nputs) !he. se!ected character; ..............

Switch between Upper- and Lower-Case

RED Letters

You can delete an already entered

GREEN character.

Press this button to finish entering the

BLUE security key.

Network Test

You can test or confirm the network connection status after setting up the network.

1, Press the MENU button to display the menu.

Press the A or _' button to select "Setup", then press the ENTER _ button.

2, Press the A or T button to select "Wireless Network Setup", then press the

ENTER _ button.

3= Press the A or • button to select "Network Test", then press the ENTER

button.

>- The current network settings will appear.

>- If no "Access Point Select" is set up, the test cannot be completed. (See

page 124)

Press the EXIT button to exit.

When unable to connect to a wireless network

1. Your TV may fail to locate an AP that is configured as a private SSID type.

In this case, please change the AP settings and try again

2. If your lnternet service provider has registered the MAC address of the

device used to connect to the Internet for the first time and authenticates

the MAC address each time you connect to the lnternet, your TV may not

be able to connect to the Internet as the MAC address differs from that of

the device (PC) used to connect to the Internet the first time. In this case.

ask your Internet service provider about the procedures to connect devices

other than your PC (such as your TV, to the Intemet.

If you cannot connect to the Internet even if you have followed the procedures

of your Intemet service provider, please contact 1-800-SAMSUNG

Using InfoLink

You can view news, stock market and weather information services using SAMSUNG's InfoLink service.

>- Set up the network. (Refer to pages 118~125)

Activating InfoLink

1, Press the MENU button to display the menu.

Press the A or • button to select "Application", then press the ENTER

button.

2, Press the A or T button to select "lnfoLink", then press the ENTER

button.

3= Press the 4 or _ button to select a service ("Weather", "News", "Stocks" or

"Setup") and press the ENTER _ button.

>- You can select and view more than one service at the same time only for

'News (without detailed information)', 'Weather-Today's Weather', and

'Stocks-Favorite Stocks, Market Summary'.

Press the EXIT button to exit.

t°'s 'theI--!

ALL THE MATERIALS AVAILABLE THROUGH INFOLINK ["INFOLINK CONTENT'] ARE THE PROPERTY OF THE ORIGINATOR

OF THE CONTENT ["CONTENT OWNER'] AND/OR ITS AFFILIATES OR LICENSORS, AND ARE PROTECTED BY COPYRIGHT,

TRADEMARK, AND OTHER INTELLECTUAL PROPERTY LAWS. ALL INFOLINK CONTENT IS PROVIDED SOLELY FOR YOUR

PERSONAL NONCOMMERCIAL USE. YOU MAY NOT USE ANY INFOLINK CONTENT IN A MANNER THAT CONSTITUTES AN

INFRINGEMENT OF THE CONTENT OWNERS' RIGHTS OR THAT HAS NOT BEEN AUTHORIZED BY THE CONTENT OWNER.

MORE SPECIFICALLY, UNLESS EXPLICITLY AUTHORIZED IN THIS DISCLAIMER OR BY THE CONTENT OWNER, YOU MAY NOT

MODIFY, COPY, REPRODUCE, REPUBLISH, UPLOAD, POST, TRANSMIT, TRANSLATE, SELL, CREATE DERIVATIVE WORKS,

EXPLOIT, OR DISTRIBUTE IN ANY MANNER OR MEDIUM (INCLUDING BY EMAIL OR OTHER ELECTRONIC MEANS) ANY

INFOLINK CONTENT ORANY OTHER MATERIAL FROM THE INFOLINK SERVICE. CONTENT PROVIDED CONTENT OWNERS IN

CONNECTION WITH THE INFOLINK SERVICE MAY BE TIME-DELAYED AS SPECIFIED BY THE CONTENT OWNERAND/OR ITS

AFFILIATES.

INFOLINK IS PROVIDED THROUGH AGREEMENT BETWEEN SAMSUNG AND THE CONTENT OWNER. INFOLINK MAY

BE TERMINATED OR INTERUPTED ATANY TIME BY EITHER SAMSUNG OR THE CONTENT PROVIDER OR THROUGH

TERMINATION OF THE AGREEMENT BETWEEN THEM. UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL

SAMSUNG OR THE CONTENT PROVIDER BE HELD LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT,

INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, ORANY OTHER

DAMAGES WHATSOEVERARISlNG OUT OF, OR IN CONNECTION WITH, SUCH TERMINATION OR INTERUPTION. SINCE

CONTENT TRANSMITTED VIA INFOLINK IS RECEIVED BY MEANS OF NETWORKS AND TRANSMISSION FACILITIES OVER

WHICH SAMSUNG HAS NO CONTROL, SAMSUNG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FORANY

INTERRUPTION OR SUSPENSION OF INTERLINK SERVICE OR FOR THE ABSENCE OF CONTENT RESULTING THEREFROM.

INFORMATION IN THE INFOLINK IS PROVIDED "AS IS,"AND CONSEQUENTLY, SAMSUNG DOES NOT WARRANT THE

INFORMATION SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FORANY PARTICULAR PURPOSE; AND SAMSUNG

EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS,

LEGALITY, OR COMPLETENESS OF ANY INFORMATION OR DATA MADE AVAILABLE THROUGH INFOLINK FOR ANY

PARTICULAR PURPOSE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE HELD LIABLE,

WHETHER IN CONTRACT OR TORT, FORANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,

ATTORNEY FEES, EXPENSES, ORANY OTHER DAMAGES WHATSOEVERARISlNG OUT OF, OR IN CONNECTION WITH, ANY

INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF INFOLINK BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES.

Using the Weather Service

1, Press the INFO.L button on the remote control.

2. Press the _ or i_ button to move to the "Weather" service and press the

ENTER _ button.

Set up the Region

3. Press Yellow button. Input the postal (zip) code of the region by pressing the

number buttons on the remote, then press the ENTER _ button.

>- You can check the weather of the selected region.

Set up Weather Option

4. Press the Red button while using the service to change the "Weather" service

option.

5. Press A or _r button and select "Weather" option.

>- To exit the "Weather" service, press the Blue button.

>- To exit the "lnfoLink" service, press the EXIT button.

Using the News Service

>- The news provider may be changed in the future.

1. Press the INFO.L button on the remote control.

2. Press the 4 or I_ button to move to the "News" service and press the

ENTER _ button.

>- Press the ENTER _ button to view the detailed article.

>- Press the A or _r button to view the previous or next article.

3. Press the Red button while using the service to change the "News" service

Option.

4. Press A or _r button and select "News" service option.

>- The News service option changes depending on the provided web service.

>- To exit the "News" service, press the Blue button.

>- To exit the "lnfoLink" service, press the EXIT button.

Using the Stock Service

1, Press the INFO.L button on the remote control.

2. Press the _ or _ button to move to the "Stocks" service and press the

ENTER _ button.

3. Press the Red button while using the service to change the "Stocks" service

option.

4. Press A or _r button and select "Stocks" service option, then press the

ENTER _ button.

set up the Favorite Stocks by pressing the Ye!!ow buttonl

, Market Summary: Dow Jones; Nasdaq and S&P 500 are toggled and

o

the entire index, amount of up or down, and Yoare displayed.

, Stocks & News: The Favorite stock information and Dow Jones,

NASDAQ and S&P 500 index and Financial news are displayed.

>- Stock quotes delayed at least 15 minutes.

>- To exit the "Stocks" service, press the Blue button.

>- To exit the "lnfoLink" service, press the EXIT button.

Setting Favorite Stocks items

1. Press the Yellow button when "Favorite Stocks" or "Stocks & News" is

selected. The Set Favorite Stocks screen appears.

2. Press the 4 button to move to the Category. Press the A or • button to

select a Category. Press the ENTER _ button.

3. Press the A or T button to select a stock item and press the ENTER

button.

>- The selected stock is set as a Favorite Stock.

>- The _/mark will appear to the left of the stock name.

>- Press the ENTER C,,_ button again to cancel the setting. The _/mark will

disappear.

>- To cancel all selections, press the Green button.

>- Pressing the Red button toggles between NYSE and NASDAQ.

4. To finish the settings, press the RETURN button.

InfoLink Setup

t. Press the INFO.L button on the remote control.

2. Press the 4 or I_ button to select "Setup", then press the ENTER _ button.

3,

4,

Press the A or • button to select the desired option. ("Auto Launch",

"Display Time", "Font Size", "Background Color", "lnfoLink's Position")

Press the A or T button to select an option, then press the ENTER _ button.

,, Auto Launch: Determines Whether to !aunch !nfoLink automatica!ly

when the TV isturned on: You ca n select either !!0_! Or !!Onii: :

• Display Time: Determines the time to display the news service on

the TV screen. You can se!ect !!4Hours", "8 Hoursi:_ !!10 Hoursi!, 0r

"A!ways:!_ ....

,, Font Bize; You can select letter size ,Standard " or :'La[ge'! thEough

lnfoLink service.

-Background Color: You can select the Background Color of InfoLink

service. ]h e color is app!ied to each serv!ce, oPtiCn and setup window.

•InfoLink!s position:You can set the position of each lnfoLink service

on the screen: You can select from six preset !nfoLink positions

('!Position 1i:~'_Position6,).

To exit the "Setup" service, press the RETURN button.

To exit the "lnfoLink" service, press the EXIT button.

InfoLink's Position

Position 1 Position2 Position3

Position_ Position 5 Position 6

Product Guide

The Product Guide gives you informationon the most importantfeatures of this TV.

1=

2=

Press the MENU button to display the menu.

Press the A or • button to select "Application", then press the ENTER

button.

Press the _, or T button to select "Product Guide", then press the ENTER

button.

3= Press the _ or I_ button to select a Guide ("Picture Quality",

"Entertainment" or "Connectivity") and press the ENTER 1:_ button.

4, You can navigate the Product Guide screen by using the ,_ and _ buttons.

HD 1080p

.......Auto Motion Plus 120 Hz

Content Library

Entertainment Mode

...................DLNA

.............4HDMI

Anynet+

6, Press the EXIT button to exit.

Using the Remote Control Button in Product Guide Menu

Yellow Button Shows the contents of the Product Guide sequentially. (AutoPlay)

Wheel Move the cursor and select an item.

(_/_,)

ENTER _ Select the currently selected item.

RETURN Return to the previous menu.

EXIT Stop the current function and return to the "Product Guide" main menu.

CHV/A

PRE.CH /FAV.CH Stop Product Guide mode and Returns to TV mode

About Anynet +

What is Anynet+?

Anynet + is a function that enables you to control all connected Samsung devices that support Anynet + with your Samsung

TV's remote.

Connecting Anynet+ Devices

The Anynet + system can be used only with Samsung devices that have the Anynet + feature. To be sure your Samsung

device has this feature, check if there is an Anynet + logo on it.

To connect to a TV

TV Rear Panel

Anynet +Device 1 Anynet + Device 2 Anynet + Device 3 Anynet +Device 4

Connect the [HDMI 1], [HDMI 2], [HDMI 3] or [HDMI 4] jack on the TV and the HDMI OUT jack of the corresponding Anynet +

device using an HDMI cable.

To connect to Home Theater

TV Rear Panel t, Connect the

[HDMI 1], [HDMI

2], [HDMI 3] or

[HDMI 4] jack on

the TV and the

HDMI OUT jack of

the corresponding

Anynet + device

using an HDMI

cable.

2, Connect the

HDMI IN jack of

the home theater

and the HDMI

OUT jack of the

corresponding

Anynet + device

using an HDMI

cable.

>- Connect the Optical cable between the Digital Audio Out (Optical) jack on your TV and the Digital Audio Input on the

Home Theater.

>- When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from

the Home Theater's Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect

the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD/Blu-Ray player or Cable/Satellite Box (ie Anynet Device 1 or 2)

directly to the Amplifier or Home Theater, not the TV.

>- Connect only one Home Theater.

>- You can connect an Anynet + device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet + functions.

>- Anynet + works when the AV device supporting Anynet + is in the Standby or On status.

>- Anynet + supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

Setting Up Anynet+

The following settings help set the Anynet + functions.

To use the Anynet+ Function, Anynet + (HDMI-CEC) must be set to On

1, Press the MENU button. Press the A or _r button to select "Application",

then press the ENTER _ button.

2, Press the _, or T button to select "Anynet + (HDMI-CEC)", then press the

ENTER _ button.

3, Press the A or _' button to select "Setup", then press the ENTER _ button.

4, Press the A or T button to select "Anynet + (HDMI-CEC)", then press the

ENTER _ button.

5, Press the _, or • button to select "On", then press the ENTER O,-'button.

> The "Anynet + (HDMI-CEC)" function is enabled.

> If you select Off, "Anynet + (HDMI-CEC)" is disabled.

> When the "Anynet + (HDMI-CEC)" function is disabled, all the Anynet +

related operations are deactivated.

Setting an Anynet +Device to turn Off Automatically when the TV is Turned Off

1, Press the A or T button to select "Auto Turn Off', then press the ENTER

button.

2, Press the _, or T button to select "Yes", then press the ENTER _ button.

The "Auto Turn Off" function is enabled.

If you select "No", the "Auto Turn Off' function is canceled.

Press the EXIT button to exit.

The active source on the TV remote must be set to TV to use the Anynet +

function.

If you set "Auto Turn Off' to "Yes", connected external devices are also turned

off when the TV is turned off. If an external device is still recording, it may or

may not turn off.

Easy Setting

1, Press the TOOLS button on the remote control.

2, Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".

> The Anynet+ (HDMI-CEC) menus appear on the screen.

Scanning and Switching between Anynet+ Devices

t, Press the TOOLS button.

Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".

2, Press the A or • button to select "Device List", then press the ENTER

button.

3=

>- Anynet+ devices connected to the TV are listed.

If you cannot find a device you want, press the red button to scan for

devices.

>- Only when you set "Anynet+ (HDMI-CEC)" to On in the "Setup" menu, the

"Device List" menu appears.

Press the A or T button to select to a particular device and press the

ENTER _ button. It is switched to the selected device.

>- Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching

operation.

>- The time required to scan for devices is determined by the number of connected devices.

>- When the device scan is complete, the number of devices found are not displayed.

>- Although the TV automatically searches the device list when the TV is turned on via the power button, devices

connected to the TV when the TV is on or under some conditions are not automatically displayed in the device list.

Press the red button to search for the connected device.

If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet + function. Make

sure to switch to an Anynet + device by using the "Device List"

Anynet + Menu

(device_name) Menu

(device_name) Operation

Record: (*recorder)

(*recorder) Reserve Recording

Stop Recording: (*recorder)

Receiver

The Anynet + menu changes depending on the type and status of the Anynet + devices connected to the TV.

View TV Anynet+ mode changes to TV broadcast mode.

Device List Shows the Anynet+ device list.

Shows the connected device menus.

E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.

Shows the play menu of the connected device.

E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear.

Starts recording immediately using the recorder. (This is only available for devices that

support the recording function.)

Enables reserving a recording for the recorder. (This is only available for devices that

support the recording reservation function.)

Stops recording.

Sound is played through the receiver.

>- If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is

connected, it will be represented as (*device_name).

TV Remote Control Buttons Available in Anynet + Mode

Device Type I Operating Status Available Buttons

After switching to the device, when the Numeric buttons

menu of the corresponding device is _,/T/4/I_/ENTER _ buttons

Anynet + Device displayed on the screen. Color buttons /EXIT button

After switching to the device, while I_ (Backward search) /I_ (Forward search)

playing a file _ (Stop) /_ (Play) /I_ (Pause)

Dev cew th bu t- n Tuner ..... ' OH v /OH ^ button

are wa[cnlng a _v program

z.................................................................................................................................................._ .....................................................................................................................................................

Audio Device When Receiver is activated VOL = /VOL + /MUTE button

The Anynet function only works when the active source on the TV remote control is set to TV.

>- The _ button works only while in the recordable state.

>- You cannot control Anynet + devices using the buttons on the TV. You can control Anynet + devices only using the TV

remote control.

>- The TV remote control may not work under certain conditions. In this case, reselect the Anynet + device.

The Anynet functions do not operate with other manufacturers' products.

>- The 1_, _ operations may differ depending on the device.

Recording

You can make a recording of a TV program using a Samsung recorder.

1. Press the TOOLS button.

Press the ENTER 1:_ button to select "Anynet+ (HDMI-CEC)".

2. Press the A or _' button to select "Recording: (device_name)", then press

the ENTER C,--'button. Recording begins.

When multiPle recording devices are connected, the recording devices are

listed. Press the A or T button to select a recording device and press the

ENTER _ button: Recording begins

When the recording device is not disp!ayed

Select "Device List"and press the red button to search device&

Press the EXIT button to exit.

>- You can record the source streams by selecting "Recording: (device_name)".

>- Pressing the _ button will record whatever you are currently watching. If you are watching video from another

device, the video from the device is recorded.

>- Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect

an antenna to a recording device, refer to the recording device's users manual.

Listening through a Receiver (Home theater)

You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button.

Press the ENTER _ button to select "Anynet+ (HDMI-CEC)".

2. Press the _, or _' button to select "Receiver".

Press the 4 or I_ button to select "On" or "Off'.

3. Press the EXIT button to exit.

>- If your receiver supports audio only, it may not appear in the device list.

>- The receiver will work when you have properly connected the Optical INjack

of the receiver to the Optical Out jack of the TV.

>- When the receiver (home theater) is set to On, you can hear sound output

from the TV's Optical jack. When the TV is displaying a DTV(air) signal, the

TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a

DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.

>- When using the WISELINK Pro feature, sound may not output properly through the receiver.

>- When listening through the receiver, there are restrictions for using the PIP and audio-related (MTS, Preferred

language) menus.

>- If there is a power interruption to the TV when the "Receiver" is set to "On" (by disconnecting the power cord or a

power failure), the "Select Speaker" may be set to "External Speaker" when you turn the TV on again. (see page 43)

Troubleshooting for Anynet+

Anynet + does not work. •Check if the device is an Anynet + device. The Anynet + system supports Anynet +

devices only.

•Connect only one receiver (home theater).

•Check if the Anynet + device power cord is properly connected.

•Check the Anynet + device's Video/Audio/HDMI 1.3 cable connections.

• Check whether Anynet + (HDMI-CEC) is set to On in the Anynet + setup menu.

•Check whether the TV remote control is in TV mode.

•Check whether it is Anynet + exclusive remote control.

•Anynet + doesn't work in certain situations. (Searching channels, Operating

WlSELINK Pro, Plug & Play, etc.)

•When connecting or removing the HDMI 1.3 cable, please make sure to search

devices again or turn your TV off and on again.

•Check if the Anynet + Function ofAnynet + device is set on.

Iwant to start Anynet +. •Check if the Anynet + device is properly connected to the TV and check if the

i"

iwant to exit Anynet +. •

o

o

Anynet + (HDMI-CEC) is set to On in the Anynet + Setup menu.

Press the TV button on the TV remote control to switch to TV. Then press the

TOOLS button to show the Anynet + menu and select a menu you want.

Select View TV in the Anynet + menu.

Press the SOURCE button on the TV remote control and select a device other

than Anynet + devices.

Press CH, OH LIST, PRE-CH, and FAV.CH to change the TV mode.

(Note that the channel button operates only when a tuner-embedded Anynet +

device is not connected.)

The message Connecting to •You cannot use the remote control when you are configuring Anynet + or

Anynet + device.., appears on the switching to a view mode.

screen. ,Use the remote control when the Anynet + setting or switching to view mode is

complete.

The connected device is not •Check whether or not the device supports Anynet + functions.

displayed. , Check whether or not the HDMI 1.3 cable is properly connected.

•Check whether Anynet + (HDMI-CEC) is set to On in the Anynet + setup menu.

•Search Anynet + devices again.

•You can connect an Anynet + device using the HDMI 1.3 cable only. Some HDMI

cables may not support Anynet + functions.

• If it is terminated by an abnormal situation such as disconnecting the HDMI cable

or power cord or a power failure, please repeat the device scan.

The TV program cannot be Check whether the antenna jack on the recording device is properly connected.

recorded.

The TV sound is not output Connect the optical cable between TV and the receiver.

through the receiver.

Appendix

Troubleshooting

If the TV seems to have a problem, first try this list of possible problems and solutions.

If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG.

Problem Possible Solution

Poor picture. Try another channel.

Adjust the antenna.

Check all wire connections.

Poor sound quality.

No picture or sound.

No sound or sound is too low at

maximum volume.

Picture rolls vertically.

There is a problem with the picture

There is a problem with the sound

The TV operates erratically.

The TV won't turn on.

Remote control malfunctions.

'Check signal cable' message.

'Not Supported Mode' message.

Digital broadcasting screen problem.

The image is too light or too dark.

Black bars on the screen.

Picture has a Red/Green or Pinktint.

Closed Captioning not working.

Snowy picture.

Ghosting on picture.

Horizontal bars appear to flicker, jitter

or shimmer on the image.

Try another channel.

Adjust the antenna.

Try another channel.

Press the SOURCE button.

Make sure the TV is plugged in.

Check the antenna connections.

First, check the volume of units connected to your TV (digital broadcasting

receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV

volume accordingly.

Check all wire connections.

Run the Picture test in the Self diagnostic menu

Run the Sound test in the Self diagnostic menu

Unplug the TV for 30 seconds, then try operating it again.

Make sure the wall outlet is working.

Replace the remote control batteries.

Clean the upper edge of the remote control (transmission window).

Check the battery terminals.

Ensure that the signal cable is firmly connected to the PC source.

Check the maximum resolution and connected device's Video frequency.

Compare these values with the data in the Display Modes.

Please check the digital signal strength and input antenna.

Adjust the Brightness and Contrast.

Adjust the Fine tuning.

Make sure the broadcast you're receiving is High Definition (HD).

HD channels sometimes broadcast Standard Definition (SD) programming,

which can cause black bars.

Set your cable/satellite box to stretch or widescreen mode to eliminate the bars.

Make sure the Component cables are connected to the correct jacks.

If you are using a Cable/Satellite box, you must set Closed Captioning on the

box, not your TV.

Your cable box may need a firmware upgrade. Please contact your Cable

company.

This is sometimes caused by compatibility issues with your cable box.

Try connecting Component cables instead.

Adjust the Coarse tuning and then adjust the Fine tuning.

Vertical bars appear to flicker, jitter or Adjust the Coarse tuning and then adjust the Fine tuning.

shimmer on the image.

Problem

Screen is black and power indicator

light blinks steadily.

Image is not stable and may appear

to vibrate when you have a computer

connected to the PC input.

Possible Solution

On your computer check: Power, Signal Cable.

The TV is using its power management system.

Move the computer's mouse or press any key on the keyboard.

If the setting is not correct, use your computer utility program to change the

display settings.

>- Your TV supports multlscan display functions within the following

frequency domain:

Horizontal frequency (kHz) 30~60

Vertical frequency (Hz) 60~75

PC Maximum refresh rate (at 60 Hz) 1920 x 1080

Image is not centered on the screen.

The picture appears distorted in the

corner of the screen.

The 'Resets all settings to the default

values' message appears.

You may see small particles if you

look closely at the edge of the beze

Adjus_ the horizontal and vertical position.

The screen position must be aajusted on the output source (i.e. STB) with a

digital signal.

If "Just Scan" is selected with some external devices, the picture may appear

distorted in the corner of the screen. This symptom is caused by the external

devices not TV.

This appears when you press and hold the EXIT button for a while. The product

settings are reset to the factory defaults.

This is part of ti_e product's design and is not a defect.

This TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce.

However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of

the product.

installing the Stand

\

1, Attach your LCD TV to the stand.

>- Two or more people should carry the TV.

>- Make sure to distinguish between the front and back of the stand when attaching it.

>- To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the

upper left of right sides of the TV.

2, Fasten two screws at position O and then fasten three screws at position 0.

>- Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to

one side.

Disconnecting the Stand

1, Remove five screws from the back of the TV.

2, Separate the stand from the TV.

>- Two or more people should carry the TV.

3, Cover the bottom hole with the cover.

Auto Wall-Mount Adjustment (Sold separately)

Once the auto wall mount is installed, your TV's position can be easil adjusted.

Auto Wail-Mount

TV Rear Panel

Entering the menu

t, Press the A, V', 4 or 1_ button on your remote control.

>- The Wall Mount Adjustment screen is displayed.

>- If the Wall Mount Adjustment screen is not displayed when clicking on

a direction button while watching your TV, use the menu to display that

screen.

• Press the MENU button to display the menu. Press the A or T button to select

"Setup", then press the ENTER _ button.

• Press the A or T button to select "External Settings", then press the ENTER C_

button.

• Press the A or T button to select "Wall-Mount Adjustment", then press the

ENTER C*_ button.

Remembering the Position

2, Adjust to the desired position using the A,T,4,_ buttons.

>- If you press an arrow button when no OSD is displayed on the TV screen,

the Adjustment screen appears.

then press the ENTER _ button. The position is initialized to the default

setting.

3, Pressthe Blue button.

Press the A and T buttons to select a save mode from either Position 1,

Position 2 or Position 3 in order to save the current position.

>- To not save the current position, press the RETURN button.

>- When selecting a save mode, you cannot use the Color buttons.

4, Press the ENTER I:_ button to save.

>- When Position1 is selected, the message "Current position saved as

Position1" is displayed.

5, Pressthe ENTER _ button.

>- The saved Position appears on the left side of the OSD.

Moving to the remembered position

t.

2,

Complete Step 1 of "Entering the menu".

Pressing a Color (Red, Green, Yellow) button moves the auto wall mount to

the saved position.

>- You can move the wall mount to one of the 3 pre-set positions by pressing

the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.

>- If you adjust the position after moving to a pre-set position, the position display will disappear.

>- For installation, refer to the Installation Manual provided with the wall mount.

>- For product installationand the installationand moving of the wall mount, make sure to consult a specialized

installation company.

>- This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building

materials, please contact your nearest dealer.

>- The auto wall mount will not work when Anynet + or WISELINK Pro is operating.

>- LN46A850S1F and LN46A860S2F models are not compatible with the old electrically powered wall mount model

(WMN5090A).

Wall Mount Kit Specifications (VESA)

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact

your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury•

LN46A850S1 F,

LN4eA860S2F,

LCD-TV LN52A850S1 F, 400 * 400

LN52A860S2F 4

• ...................................................................M8

57 700* 400 (No VESA)

.................................. 7:7o 800*400

80 ~ 1400 * 800

.....................................;oo: 0o 4

PDP-TV M8 6

80~

Standard dimensions for wall mount kits are shown in the table above.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws longer than the standard dimension, as they may cause damage

to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications,

the length of the screws may differ depending on their specifications•

Do not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too strongly, this may damage the product or cause the

product to fall, leading to personal injury.Samsung is not liable for these kinds of

accidents•

Samsung is not liable for product damage or personal injury when a non-VESA

or non-specified wall mount is used or the consumer fails to follow the product

installation instructions•

Our 57" and 63" models do not comply with VESA Specifications. Therefore, you

should use our dedicated wall mount kit for this model.

Do not exceed 15 degrees tilt when mounting this TV.

I/_ Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric

shock.

Using the Anti-Theft Kensington Lock

The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and

locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the

Kensington Lock for proper use. The locking device has to be purchased separately.

Cable

Figure 2

Figure 1

<Optional>

1,

2,

3,

The location of the Kensington Lock may be different depending on its model.

Insert the locking device into the Kensington slot on the LCD TV (Figure 1) and turn it in the locking direction

(Figure 2).

Connect the Kensington Lock cable.

Fix the Kensington Lock to a desk or a heavy stationary object.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TVto fall. in particular, ensure Your children do not

hang over or destabilize the TV; doing so may cause the rv to tip over, causing serious injuriesor death, Follow

a!l safety precautions provided on the included Safety Flyer, Eor added stability, install the anti-fa!! device f0r safety

purposes, as fo!!ow&

To secure the TV:

1= Put the screws into the clamps and firmly fasten them onto the wall.

Confirm that the screws have been firmly installed onto the wall.

>- You may need additional material such as an anchor depending on

the type of wall.

>- Since the necessary clamps, screws, and string are not supplied,

please purchase them separately.

2= Remove the screws from the center back of the TV, put the screws into

the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please

purchase the screws of the following specifications.

Screw Specifications

- For a 17 ~ 29 Inch LCD TV: M4 X 15

- For a 32 ~40 Inch LCD TV: M6 X 15

3=

4=

Connect the clamps fixed onto the TV and the clamps fixed onto the

wall with a strong cable.

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the cable so that the clamps fixed on the wall

are equal to or lower than the clamps fixed on the TV.

Remove the cable before moving the TV.

Verify all connections are properly secured. Periodically check

connections for any sign of fatigue or failure. If you have any doubt

about the security of your connections,contact a professional installer. /

Wall

Specifications

ModelName

Screen Size

(Diagonal)

PC Resolution

Sound

Output

DimensJons(WxDxH)

Body

With stand

Weight

With Stand

Without Stana

Environmental Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

Stand Swivel

(Left /Right',

46 inches 52 inches

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

10WX2 10WX2

44.1 X 1.9 X 27.3 inches

(1 119.0 X 48.4 X 692.5 mm)

44.1 X 11.1 X29.3 inches

(1 119.0 X 283.0 X 745.1 ram)

55.0 Ibs (25.0 kg)

46.1 Ibs (20.9 kg)

49.7 X 1.9 X 30.7 inches

(I 263.1 X48.4 X 779.3 ram)

49.7 X 12.4 X 32.7 inches

(1 263.1 X 314.0 X 831.7 ram)

68.8 Ibs (31.2 kg)

59.1 Ibs (26.8 kg)

50°Fto 104°F(10°Cto 40°C)

10%to 80%, non-condensing

-4°Fto 113°F(-20°Cto 45°C)

5% to 95%,non-condensing

_20o ~ 20 °

>- Design and specifications are subject to change without prior notice.

>- This device is a Class B digital apparatus.

>- For the power supply and Power Consumption, refer to the label attached to the product.

Dimensions

LN46A850S1F, LN46A86082F

!II

// I \\

L _ I

TOP VIEW

_J_l_e_/_

JACK PANEL DETAIL 3.7"(H) X 9.1"(W)

44.1

40.1 '_

22.6

................................................................................................................................................................................................................................! ................................................

I I

i24.8 _t

1.9

29.3

FRONT ViEW /SiDE ViEW

15.7(400 mm)_Z

15.7(400 mm) o

REAR VIEW

NOTE: All drawings are not necessarily to scale.

Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your TV.

Not responsible for typographical or printed errors.

© 2008 Samsung Electronics America, Inc.

Dimensions

LN62A850S1F, LN82A86082F

!II

// I \\

L l I

TOP VIEW

_,/_ _l_e_l _

JACK PANEL DETAIL 3.7"(H) X 9.1"(W)

49.7

45.5 "

25.7

................................................................................................................................................................................................................................! ................................................

I I

i24.8 _t

1.9

32.7

FRONT ViEW /SiDE ViEW

1_15.7 (400 mm)_

. o

15.7 (400 mm)

REAR VIEW

NOTE: All drawings are not necessarily to scale.

Some dimensions are subject to change without prior notice.

Refer to the dimensions prior to performing installation of your TV.

Not responsible for typographical or printed errors.

© 2008 Samsung Electronics America, Inc.

= ThisproductusespartsofthesoftwarefromtheIndependentJPEGGroup.

,,, This product uses parts of the software owned by the Freetype Project (www.freetype.org).

,,, This product uses some software programs which are distributed under the GPL/LGPL license. Accordingly, the

following GPL and LGPL software source codes that have been used in this product can be provided after asking to

vdswmanager@samsung.com.

GPL software: Linux Kernel, Busybox, Binutils

LGPL software: Glibc, Libusb, Libgphoto2, SDL

The GNU General Public License (GPL)

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General

Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all

its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose

authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License

instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure

that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source

code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and th at you know you

can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the

rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that

you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they

know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to

copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is nowarranty for this

free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not

the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free

program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear

that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFiCATiON

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be

distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work

based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the

Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is

included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of

running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on

the Program (independent of having been made by running the Program). Whether that is true depends on what the Program

does.

I. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you

conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all

the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of

this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange

for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy

and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or

any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for

such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice

and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the

program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is

interactive but does not normally print such an announcement, your work based on the Program is not required to print an

announcement.)

Theserequirementsapplytothemodifiedworkasawhole.Ifidentifiablesectionsofthatworkarenotderivedfromthe

Program,andcanbereasonablyconsideredindependentandseparateworksinthemselves,thenthisLicense,andits

terms,donotapplytothosesectionswhenyoudistributethemasseparateworks.Butwhenyoudistributethesame

sectionsaspartofawholewhichisaworkbasedontheProgram,thedistributionofthewholemustbeonthetermsofthis

License,whosepermissionsforotherlicenseesextendtotheentirewhole,andthustoeachandeverypartregardlessof

whowroteit.

Thus,itisnottheintentofthissectiontoclaimrightsorcontestyourrightstoworkwrittenentirelybyyou;rather,theintent

istoexercisetherighttocontrolthedistributionofderivativeorcollectiveworksbasedontheProgram.

Inaddition,mereaggregationofanotherworknotbasedontheProgramwiththeProgram(orwithaworkbasedonthe

Program)onavolumeofastorageordistributionmediumdoesnotbringtheotherworkunderthescopeofthisLicense.

3.YoumaycopyanddistributetheProgram(oraworkbasedonit,underSection2)inobjectcodeorexecutableform

underthetermsofSections1and2aboveprovidedthatyoualsodooneofthefollowing:

a)Accompanyitwiththecompletecorrespondingmachine-readablesourcecode,whichmustbedistributedunderthe

termsofSections1and2aboveonamediumcustomarilyusedforsoftwareinterchange;or,

b)Accompanyitwithawrittenoffer,validforatleastthreeyears,togiveanythirdparty,forachargenomorethanyour

costofphysicallyperformingsourcedistribution,acompletemachine-readablecopyofthecorrespondingsourcecode,

tobedistributedunderthetermsofSections1and2aboveonamediumcustomarilyusedforsoftwareinterchange;

or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This

alternative is allowed only for noncommercial distribution and only if you received the program in object code or

executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work,

complete source code means all the source code for all modules it contains, plus any associated interface definition files,

plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source

code distributed need not include anything that is normally distributed (in either source or binary form) with the major

components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component

itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering

equivalent access to copy the source code from the same place counts as distribution of the source code, even though third

parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any

attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights

under this License. However, parties who have received copies, or rights, from you under this License will not have their

licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission

to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this

License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your

acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or

works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a

license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may

not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for

enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent

issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions

of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy

simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not

distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by

all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License

would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is

intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of

any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which

is implemented by public license practices. Many people have made generous contributions to the wide range of software

distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if

he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. Ifthe distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted

interfaces, the original copyright holder who places the Program under this License may add an explicit geographical

distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus

excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9.TheFreeSoftwareFoundationmaypublishrevisedand/ornewversionsoftheGeneralPublicLicensefromtimeto

time.Suchnewversionswillbesimilarinspirittothepresentversion,butmaydifferindetailtoaddressnewproblemsor

concerns.

Eachversionisgivenadistinguishingversionnumber.IftheProgramspecifiesaversionnumberofthisLicensewhich

appliestoitand"anylaterversion",youhavetheoptionoffollowingthetermsandconditionseitherofthatversionorofany

laterversionpublishedbytheFreeSoftwareFoundation.IftheProgramdoesnotspecifyaversionnumberofthisLicense,

youmaychooseanyversioneverpublishedbytheFreeSoftwareFoundation.

10.IfyouwishtoincorporatepartsoftheProgramintootherfreeprogramswhosedistributionconditionsaredifferent,write

totheauthortoaskforpermission.ForsoftwarewhichiscopyrightedbytheFreeSoftwareFoundation,writetotheFree

SoftwareFoundation;wesometimesmakeexceptionsforthis.Ourdecisionwillbeguidedbythetwogoalsofpreserving

thefreestatusofallderivativesofourfreesoftwareandofpromotingthesharingandreuseofsoftwaregenerally.

NOWARRANTY

11.BECAUSETHEPROGRAMIS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM,

TO THE EXTENT PERMITTED BYAPPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE

COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF

ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME

THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BYAPPLICABLE LAW ORAGREED TO IN WRITING WILLANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED

ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT

NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR

THIRD PARTIES ORA FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH

HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this

is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most

effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where

the full notice is found.

One line to give the program's name and a brief idea of what it does.

Copyright (C) <year> <name of author>

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public

License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later

version.

This program is distributed in the hope that it will be useful, but WITHOUTANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License

for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free

Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY;

for details type "show w'. This is free software, and you are welcome to redistribute it under certain conditions; type

"show c' for details.

The hypothetical commands "show w' and "show c' should show the appropriate parts of the General Public License. Of

course, the commands you use may be called something other than "show w' and "show c'; they could even be mouse-

clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for

the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program "Gnomovision' (which makes passes at

compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a

subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what

you want to do, use the GNU Library General Public License instead of this License.

GNU Lesser General Public License (LGPL)

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License,

version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU

General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the

software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries-

-of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think

carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular

case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to

make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you

receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs;

and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to

surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if

you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that

we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library,

you must provide complete object files to the recipients, so that they can relink them with the library after making changes to

the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives

you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is

modified by someone else and passed on, the recipients should know that what they have is not the original version, so that

the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company

cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we

insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in

this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the

GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General

Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally

speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such

linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria

for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the

ordinary General Public License. It also provides other free software developers Less of an advantage over competing

non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries.

However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so

that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent

case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting

the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a

large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more

people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a

program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of

the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference

between a "work based on the library" and a "work that uses the library". The former contains code derived from the library,

whereas the latter must be combined with the library in order to run.

TERMS AND CONDiTiONS FOR COPYING, DISTRiBUTiON AND MODiFiCATiON

0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright

holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also

called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application

programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work

based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing

the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language.

(Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source

code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts

used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The

act of running a program using the Library is not restricted, and output from such a program is covered only if its contents

constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true

depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium,

provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of

warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of

this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and

copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these

conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any

change.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program

that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith

effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and

performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of

the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function

must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Library, and can be reasonably considered independent and separate works in themselves, then this License, and its

terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same

sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms

of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part

regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the

Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the

Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General

Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public

License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these

notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License

applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable

form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-

readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used

for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to

copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties

are not compelled to copy the source along with the object code.

5.AprogramthatcontainsnoderivativeofanyportionoftheLibrary,butisdesignedtoworkwiththeLibrarybybeing

compiledorlinkedwithit,iscalleda"workthatusestheLibrary".Suchawork,inisolation,isnotaderivativeworkofthe

Library,andthereforefallsoutsidethescopeofthisLicense.

However,linkinga"workthatusestheLibrary"withtheLibrarycreatesanexecutablethatisaderivativeoftheLibrary

(becauseitcontainsportionsoftheLibrary),ratherthana"workthatusesthelibrary".Theexecutableisthereforecovered

bythisLicense.Section6statestermsfordistributionofsuchexecutables.

Whena"workthatusestheLibrary"usesmaterialfromaheaderfilethatispartoftheLibrary,theobjectcodeforthework

maybeaderivativeworkoftheLibraryeventhoughthesourcecodeisnot.Whetherthisistrueisespeciallysignificantif

theworkcanbelinkedwithouttheLibrary,oriftheworkisitselfalibrary.Thethresholdforthistobetrueisnotprecisely

definedbylaw.

Ifsuchanobjectfileusesonlynumericalparameters,datastructurelayoutsandaccessors,andsmallmacrosandsmall

inlinefunctions(tenlinesorlessinlength),thentheuseoftheobjectfileisunrestricted,regardlessofwhetheritislegallya

derivativework.(ExecutablescontainingthisobjectcodeplusportionsoftheLibrarywillstillfallunderSection6.)

Otherwise,iftheworkisaderivativeoftheLibrary,youmaydistributetheobjectcodefortheworkunderthetermsof

Section6.AnyexecutablescontainingthatworkalsofallunderSection6,whetherornottheyarelinkeddirectlywiththe

Libraryitself.

6.AsanexceptiontotheSectionsabove,youmayalsocombineorlinka"workthatusestheLibrary"withtheLibraryto

produceaworkcontainingportionsoftheLibrary,anddistributethatworkundertermsofyourchoice,providedthatthe

termspermitmodificationoftheworkforthecustomer'sownuseandreverseengineeringfordebuggingsuchmodifications.

YoumustgiveprominentnoticewitheachcopyoftheworkthattheLibraryisusedinitandthattheLibraryanditsuseare

coveredbythisLicense.YoumustsupplyacopyofthisLicense.Iftheworkduringexecutiondisplayscopyrightnotices,you

mustincludethecopyrightnoticefortheLibraryamongthem,aswellasareferencedirectingtheusertothecopyofthis

License.Also,youmustdooneofthesethings:

a)Accompanytheworkwiththecompletecorrespondingmachine-readablesourcecodefortheLibraryincluding

whateverchangeswereusedinthework(whichmustbedistributedunderSections1and2above);and,ifthework

isanexecutablelinkedwiththeLibrary,withthecompletemachine-readable"workthatusestheLibrary",asobject

codeand/orsourcecode,sothattheusercanmodifytheLibraryandthenrelinktoproduceamodifiedexecutable

containingthemodifiedLibrary.(Itisunderstoodthattheuserwhochangesthecontentsofdefinitionsfliesinthe

Librarywillnotnecessarilybeabletorecompiletheapplicationtousethemodifieddefinitions.)

b)UseasuitablesharedlibrarymechanismforlinkingwiththeLibrary.Asuitablemechanismisonethat(1)usesat

runtimeacopyofthelibraryalreadypresentontheuser'scomputersystem,ratherthancopyinglibraryfunctionsinto

theexecutable,and(2)willoperateproperlywithamodifiedversionofthelibrary,iftheuserinstallsone,aslongas

themodifiedversionisinterface-compatiblewiththeversionthattheworkwasmadewith.

c)Accompanytheworkwithawrittenoffer,validforatleastthreeyears,togivethesameuserthematerialsspecified

inSubsection6a,above,forachargenomorethanthecostofperformingthisdistribution.

d)Ifdistributionoftheworkismadebyofferingaccesstocopyfromadesignatedplace,offerequivalentaccessto

copytheabovespecifiedmaterialsfromthesameplace.

e)Verifythattheuserhasalreadyreceivedacopyofthesematerialsorthatyouhavealreadysentthisuseracopy.

Foranexecutable,therequiredformofthe"workthatusestheLibrary"mustincludeanydataandutilityprogramsneeded

forreproducingtheexecutablefromit.However,asaspecialexception,thematerialstobedistributedneednotinclude

anythingthatisnormallydistributed(ineithersourceorbinaryform)withthemajorcomponents(compiler,kernel,andso

on)oftheoperatingsystemonwhichtheexecutableruns,unlessthatcomponentitselfaccompaniestheexecutable.

Itmayhappenthatthisrequirementcontradictsthelicenserestrictionsofotherproprietarylibrariesthatdonotnormally

accompanytheoperatingsystem.SuchacontradictionmeansyoucannotuseboththemandtheLibrarytogetherinan

executablethatyoudistribute.

7.YoumayplacelibraryfacilitiesthatareaworkbasedontheLibraryside-by-sideinasinglelibrarytogetherwithother

libraryfacilitiesnotcoveredbythisLicense,anddistributesuchacombinedlibrary,providedthattheseparatedistribution

oftheworkbasedontheLibraryandoftheotherlibraryfacilitiesisotherwisepermitted,andprovidedthatyoudothesetwo

things:

a)AccompanythecombinedlibrarywithacopyofthesameworkbasedontheLibrary,uncombinedwithanyother

libraryfacilities.ThismustbedistributedunderthetermsoftheSectionsabove.

b)GiveprominentnoticewiththecombinedlibraryofthefactthatpartofitisaworkbasedontheLibrary,and

explainingwheretofindtheaccompanyinguncombinedformofthesamework.

8.Youmaynotcopy,modify,sublicense,linkwith,ordistributetheLibraryexceptasexpresslyprovidedunderthisLicense.

Anyattemptotherwisetocopy,modify,sublicense,linkwith,ordistributetheLibraryisvoid,andwillautomaticallyterminate

yourrightsunderthisLicense.However,partieswhohavereceivedcopies,orrights,fromyouunderthisLicensewillnot

havetheirlicensesterminatedsolongassuchpartiesremaininfullcompliance.

9.YouarenotrequiredtoacceptthisLicense,sinceyouhavenotsignedit.However,nothingelsegrantsyoupermissionto

modifyordistributetheLibraryoritsderivativeworks.TheseactionsareprohibitedbylawifyoudonotacceptthisLicense.

Therefore,bymodifyingordistributingtheLibrary(oranyworkbasedontheLibrary),youindicateyouracceptanceofthis

Licensetodoso,andallitstermsandconditionsforcopying,distributingormodifyingtheLibraryorworksbasedonit.

10.EachtimeyouredistributetheLibrary(oranyworkbasedontheLibrary),therecipientautomaticallyreceivesalicense

fromtheoriginallicensortocopy,distribute,linkwithormodifytheLibrarysubjecttothesetermsandconditions.Youmay

notimposeanyfurtherrestrictionsontherecipients'exerciseoftherightsgrantedherein.Youarenotresponsiblefor

enforcingcompliancebythirdpartieswiththisLicense.

11.If,asaconsequenceofacourtjudgmentorallegationofpatentinfringementorforanyotherreason(notlimited

topatentissues),conditionsareimposedonyou(whetherbycourtorder,agreementorotherwise)thatcontradictthe

conditionsofthisLicense,theydonotexcuseyoufromtheconditionsofthisLicense.Ifyoucannotdistributesoasto

satisfysimultaneouslyyourobligationsunderthisLicenseandanyotherpertinentobligations,thenasaconsequenceyou

maynotdistributetheLibraryatall.Forexample,ifapatentlicensewouldnotpermitroyalty-freeredistributionoftheLibrary

byallthosewhoreceivecopiesdirectlyorindirectlythroughyou,thentheonlywayyoucouldsatisfybothitandthisLicense

wouldbetorefrainentirelyfromdistributionoftheLibrary.

Ifanyportionofthissectionisheldinvalidorunenforceableunderanyparticularcircumstance,thebalanceofthesectionis

intendedtoapply,andthesectionasawholeisintendedtoapplyinothercircumstances.

Itisnotthepurposeofthissectiontoinduceyoutoinfringeanypatentsorotherpropertyrightclaimsortocontestvalidityof

anysuchclaims;thissectionhasthesolepurposeofprotectingtheintegrityofthefreesoftwaredistributionsystemwhich

isimplementedbypubliclicensepractices.Manypeoplehavemadegenerouscontributionstothewiderangeofsoftware

distributedthroughthatsysteminrelianceonconsistentapplicationofthatsystem;itisuptotheauthor/donortodecideif

heorsheiswillingtodistributesoftwarethroughanyothersystemandalicenseecannotimposethatchoice.

ThissectionisintendedtomakethoroughlyclearwhatisbelievedtobeaconsequenceoftherestofthisLicense.

12.Ifthedistributionand/oruseoftheLibraryisrestrictedincertaincountrieseitherbypatentsorbycopyrightedinterfaces,

theoriginalcopyrightholderwhoplacestheLibraryunderthisLicensemayaddanexplicitgeographicaldistribution

limitationexcludingthosecountries,sothatdistributionispermittedonlyinoramongcountriesnotthusexcluded.Insuch

case,thisLicenseincorporatesthelimitationasifwritteninthebodyofthisLicense.

13.TheFreeSoftwareFoundationmaypublishrevisedand/ornewversionsoftheLesserGeneralPublicLicensefromtime

totime.Suchnewversionswillbesimilarinspirittothepresentversion,butmaydifferindetailtoaddressnewproblemsor

concerns.

Eachversionisgivenadistinguishingversionnumber.IftheLibraryspecifiesaversionnumberofthisLicensewhich

appliestoitand"anylaterversion",youhavetheoptionoffollowingthetermsandconditionseitherofthatversionorofany

laterversionpublishedbytheFreeSoftwareFoundation.IftheLibrarydoesnotspecifyalicenseversionnumber,youmay

chooseanyversioneverpublishedbytheFreeSoftwareFoundation.

14.IfyouwishtoincorporatepartsoftheLibraryintootherfreeprogramswhosedistributionconditionsareincompatible

withthese,writetotheauthortoaskforpermission.ForsoftwarewhichiscopyrightedbytheFreeSoftwareFoundation,

writetotheFreeSoftwareFoundation;wesometimesmakeexceptionsforthis.Ourdecisionwillbeguidedbythetwo

goalsofpreservingthefreestatusofallderivativesofourfreesoftwareandofpromotingthesharingandreuseofsoftware

generally.

NOWARRANTY

15.BECAUSETHELIBRARYISLICENSEDFREEOFCHARGE,THEREISNOWARRANTYFORTHELIBRARY,

TOTHEEXTENTPERMITTEDBYAPPLICABLELAW.EXCEPTWHENOTHERWISESTATEDINWRITINGTHE

COPYRIGHTHOLDERSAND/OROTHERPARTIESPROVIDETHELIBRARY"ASIS"WITHOUTWARRANTYOFANY

KIND,EITHEREXPRESSEDORIMPLIED,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF

MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.THEENTIRERISKASTOTHEQUALITYAND

PERFORMANCEOFTHELIBRARYISWITHYOU.SHOULDTHELIBRARYPROVEDEFECTIVE,YOUASSUMETHE

COSTOFALLNECESSARYSERVICING,REPAIRORCORRECTION.

16.INNOEVENTUNLESSREQUIREDBYAPPLICABLELAWORAGREEDTOINWRITINGWILLANYCOPYRIGHT

HOLDER,ORANYOTHERPARTYWHOMAYMODIFYAND/ORREDISTRIBUTETHELIBRARYASPERMITTED

ABOVE,BEMABLETOYOUFORDAMAGES,INCLUDINGANYGENERAL,SPECIAL,INCIDENTALOR

CONSEQUENTIALDAMAGESARISINGOUTOFTHEUSEORINABILITYTOUSETHELIBRARY(INCLUDINGBUT

NOTLIMITEDTOLOSSOFDATAORDATABEINGRENDEREDINACCURATEORLOSSESSUSTAINEDBYYOUOR

THIRDPARTIESORAFAILUREOFTHEMBRARYTOOPERATEWITHANYOTHERSOFTWARE),EVENIFSUCH

HOLDEROROTHERPARTYHASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it

free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or,

alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to

most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to

where the full notice is found.

<one line to give the library's name and an idea of what it does.> Copyright (C) <year> <name of author>

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public

License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later

version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied

warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public

License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the

Free Software Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for

the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library "Frob' (a library for tweaking knobs) written by

James Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

That's all there is to it!
