Safety Warnings
Contents
INSTALLING YOUR MINI-COMPACT SYSTEM
VCD/CD-PLAYER
TUNER
TAPE DECK
OTHER FUNCTIONS
RECOMMENDATIONS FOR USE

Instruction Manual

THREE-CD CHANGER

VIDEO-CD

MINI-COMPACT SYSTEM

MP3-CD/CD-R/RW PLAYBACK

MAX-VL45

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 1

Safety Warnings

Use of controls, adjustments or performance of procedures other

than those specified herein may result in hazardous radiation

exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN

AND INTERLOCKS DEFEATED, AVOID EXPO-

SURE TO BEAM.

This symbol indicates that dangerous voltage which

can cause electric shock is present inside this unit.

This symbol alerts you to important operating and

maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not

expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE REAR COVER. NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified

as a CLASS 1 LASER product.

CAUTION

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 2

Press Push Important Note

Symbols

Contents

AFETY

ARNINGS

.................................................................................................................................................................................... 2

NSTALLING

OUR

INI

-C

OMPACT

YSTEM

Front Panel View...................................................................................................................................................................................... 4

Remote Control ........................................................................................................................................................................................ 5

Rear Panel View ...................................................................................................................................................................................... 6

Where to Install Your Mini-Compact System............................................................................................................................................ 7

Connecting your System to the Power Supply ........................................................................................................................................ 7

Inserting Remote Control Batteries.......................................................................................................................................................... 7

Connecting to an External Source .......................................................................................................................................................... 8

Connecting the Loudspeakers ................................................................................................................................................................ 8

Connecting the AM (MW)/LW Aerial ........................................................................................................................................................ 9

Connecting the FM Aerial ........................................................................................................................................................................ 9

Connecting the SW Aerial(Option) .......................................................................................................................................................... 9

Connecting the equipment ...................................................................................................................................................................... 9

Viewing the Various Functions on Your System ...................................................................................................................................... 10

Setting the Clock...................................................................................................................................................................................... 10

VCD/CD-P

LAYER

Loading and Changing Compact Discs.................................................................................................................................................... 11

To replay the CD/MP3-CD........................................................................................................................................................................ 11

Selecting a CD in the Disc changer ........................................................................................................................................................ 12

What is MP3? .......................................................................................................................................................................................... 12

MP3-CD Playback.................................................................................................................................................................................... 12

Selecting a Track...................................................................................................................................................................................... 13

Shuffle Play Function .............................................................................................................................................................................. 14

Repeating One or All Tracks on the Compact Discs................................................................................................................................ 14

Programming the Order of Playback........................................................................................................................................................ 15

Checking or Changing Programmed Tracks ............................................................................................................................................ 15

Video CD Player Playback ...................................................................................................................................................................... 16

Search Functions .................................................................................................................................................................................... 16

When adjusting play speed .................................................................................................................................................................... 17

NTSC/PAL Selection Method .................................................................................................................................................................. 17

Sound Select Function ............................................................................................................................................................................ 17

KEY CONTROL Function ........................................................................................................................................................................ 17

VCD View Function.................................................................................................................................................................................. 18

ZOOM Function........................................................................................................................................................................................ 18

Last Memory Function ............................................................................................................................................................................ 18

UNER

Searching for and Storing the Radio Stations ........................................................................................................................................ 19

Selecting a Stored Station........................................................................................................................................................................ 19

Improving Radio Reception...................................................................................................................................................................... 19

APE

ECK

Listening to a Cassette ............................................................................................................................................................................ 20

CD Synchro Record Feature.................................................................................................................................................................... 20

Recording a Compact Disc ...................................................................................................................................................................... 20

Recording a Radio Programme................................................................................................................................................................ 21

Copying a Cassette (Dubbing) ................................................................................................................................................................ 21

Tape Counter............................................................................................................................................................................................ 21

Selecting the Cassette Playback Mode (Deck 2 Only) ............................................................................................................................ 21

THER

UNCTIONS

Timer Function ........................................................................................................................................................................................ 22

Cancelling the Timer ................................................................................................................................................................................ 23

Mute Function .......................................................................................................................................................................................... 23

Selecting an Equalizer Preset.................................................................................................................................................................. 23

Power Sound Function ............................................................................................................................................................................ 23

Setting the System to Switch off Automatically........................................................................................................................................ 24

Super Bass Sound .................................................................................................................................................................................. 24

Connecting Headphones.......................................................................................................................................................................... 24

Microphone Function................................................................................................................................................................................ 24

ECOMMENDATIONS FOR

Safety Precautions .................................................................................................................................................................................. 25

Cleaning Your Mini-Compact System ...................................................................................................................................................... 25

Precautions When Using Compact Discs ................................................................................................................................................ 26

Precautions When Using Audio Cassettes .............................................................................................................................................. 26

Before Contacting the After-Sales Service .............................................................................................................................................. 26

Technical Specifications .......................................................................................................................................................................... 27

Thank you for buying this

SAMSUNG mini-compact system.

Please take time to read these instructions.

They will allow you to operate your

system with ease and take full advantage

of its features.

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 3

1. Compact Disc Compartment

2. Demo

3. Timer/Clock

4. On/Standby

5. Timer On/Off

6. Deck 1/2

7. REV Mode

8. AI Sleep

9. Repeat

10. Cassette Deck 1

11. TAPE Normal Dubbing

12. TAPE Hi-Speed Dubbing

13. Multi Jog

14. Return

15. Program

16. EQ

17. Cassette Deck 2

18. REC/Pause (PAL/NTSC)

19. S.Bass

20. CD Synchro Recording

21. Headphone Jack Connector

22. Shuffle

23. CD Open/Close

24. Power Sound

25. Disc Change

26. Volume

27. Disc Selection buttons

28. Function Selection buttons

29. Search Function buttons

30. Stop button

31. Skip Function buttons

MIC Mixing ,MIC 1, MIC 2

Front Panel View

11 13 1415 16

2829

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 4

Remote Control

1. On/Standby

2. Number Buttons

3. TUNER Band

4. +10/0

5. Timer On/Off

6. AI Sleep

7. TAPE Rewind

8. TAPE Fast-Forward

9. CD Stop

10. CD Track or Radio Station Search

11. Volume Decrease

12. Tuning Mode (MANUAL/PRESET)

13. Volume Increase

14. CD Play/Pause

15. TAPE Stop

16. TAPE Play

17. Counter Reset

18. Deck 1/2

19. FM Mono/ST./VCD Zoom

20. Key Control

21. Sound

22. Slow

23. Time Search( Last memory)

24. Disc View

25. CD Repeat

26. Return

27. Disc Number Skip

28. Mute

On/Standby

123

456

789

TAPE

Timer

On/Off

AI Sleep Deck 1/2

Counter

Reset

ReturnCD Repeat

Disc

View

Time

SlowSound

Key Control

Band

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 5

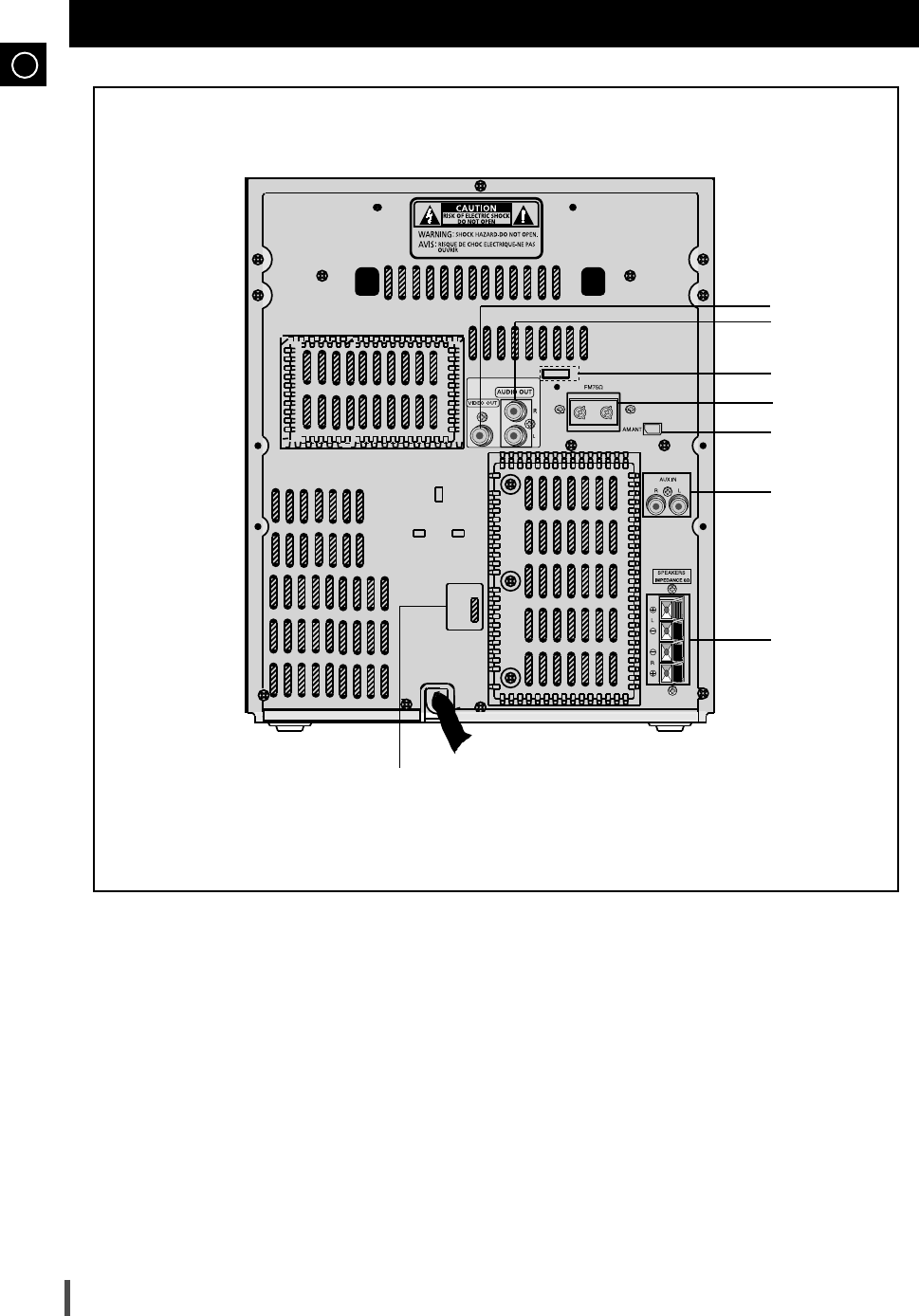

Rear Panel View

1. Video (DISC) Output

2. Audio (DISC) Output

3. SW Aerial Connector Terminal(option)

4. FM Aerial Connector Terminals

5. AM Aerial Connector Terminal

6. AUX-Input

7. Loudspeaker Connector Terminals

8. Voltage Selector(option)

SW ANT.

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 6

To take full advantage of your new mini-compact system, follow these

installation instructions before connecting the unit.

Install the system on a flat, stable surface.

Never place this unit on carpeting.

Never place this unit in an outdoor area.

Maintain an open space of approximately 6 inches (15 cm) on the sides

and rear of the system, for ventilation purposes.

Make sure that you have enough room to open the compact disc com-

partment easily.

Place the loudspeakers at a reasonable distance on either side of the

system to ensure good stereo sound.

Direct the loudspeakers towards the listening area.

For optimum performance, make sure that both speakers are placed at

an equal distance above the floor.

Where to Install Your

Mini-Compact System

Connecting your System to the

Power Supply

Insert or replace remote control batteries when you:

Purchase the mini-compact system

Find that the remote control is no longer operating correctly

When replacing the batteries, use a new set of batteries and never

mix alkaline and manganese batteries.

Place your thumb on the position marked on the battery

compartment cover (rear of the remote control) and push the cover in

the direction of the arrow.

Insert two AAA, LR03 or equivalent batteries, taking care to respect

the polarities:

+ on the battery against + in the battery compartment

– on the battery against – in the battery compartment

Replace the cover by sliding it back until it clicks into position.

If you will not be using the remote control for a long time, remove the

batteries to prevent corrosion.

Inserting Remote Control Batteries

The main lead must be plugged into an appropriate socket.

Before plugging your system into a main socket, you must check the volt-

age.

Check the position of the voltage selector on the rear of the system

(OPTIONAL).

Plug the main lead (marked AC Cord on the rear of the system) into an

appropriate socket.

Press the On/Standby button to switch your mini-compact system on.

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 7

The auxiliary input can be used to take advantage of the sound quality

of your mini-compact system when listening to other sources.

Examples: A television

A video disc player

A Hi-Fi stereo video cassette recorder

To connect the external source, the source must have an audio out-

put. In addition, you need an RCA connection cable.

Set the system to standby mode and disconnect it and the external

source from the main.

Connect the audio cable to the rear of the mini-compact system.

Connect the... To the connector marked...

Red jack R (right)

White jack L (left)

For optimum sound quality, do not invert the right and left

channels.

Plug the system back into the main socket and press On/Standby to

switch it on.

Select the AUX source by pressing AUX.

Result: AUX is displayed.

Switch the external source on.

Adjust the volume and balance as required:

Volume Equalizer

Example: You can watch a film and take advantage of stereo sound

provided that the original sound track is in stereo (as if you

were in a cinema).

Connecting to an External Source

Directions in Installing Speaker

Installation in a place near heating apparatus, under direct lay of

light or with high humidity may cause performance degradation

of the speaker.

Do not install on the wall or on a high place of pole or other

unstable place to prevent any safety accident caused by falling

of the speaker.

Do not take the speaker apart from TV or computer monitor.

The speaker near the TV or computer monitor may influence the

quality of the screen display.

The loudspeaker connector terminals are located on the rear of the

system.

Press and hold the clamp of the speaker terminal on the rear of the

unit.

Insert the end of the speaker cord into the terminal.

Match the polarity (colors): Red (+) to red (+) and black (–) to black

(–).

Release the finger from the clamp.

Use only speakers with the same speaker impedance as indicated by

Connecting the Loudspeakers

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 8

The AM aerial (for long and medium waves) can be:

Placed on a stable surface

Fixed to the wall (you must first remove the base)

The AM aerial connector terminals are located on the rear of the system

and are marked AM .

To avoid noise interference, check that the loudspeaker wires do not

run close to the aerial wires.

Always keep them at least 2 inches (5 cm) away.

Connecting the AM (MW)/LW Aerial

Connecting the FM Aerial

SW ANT.

Connecting the SW Aerial (option)

How to connect a WIRE TYPE aerial.

Spread the SW aerial out and attach the ends to a wall, in the position

providing the best reception.

If reception is poor (e.g. distance from transmitter too great, walls blocking

the radio waves, etc.), install an outdoor aerial.

SW ANT.

There are two types of aerial, (depending on option chosen).

How to connect a SCREW TYPE aerial.

The FM aerial connector terminals are located on the rear of the

system and marked FM (75Ω).

Spread the T.form FM aerial out and attach the ends to a wall,

in the position providing the best reception.

Using the Audio Cord, Connect the Audio Output Terminals (Left, Right)

of the System with the Audio Input Terminals (Left, Right) of the Video

Input Cassette Recorder, so as to Record VCD.

Using the Video Cord, Connect the Video Output Terminal of the system

with the Video Input Terminal of TV.

Turn on the TV and Select the Video mode by pressing the TV/VIDEO

SELECT button to the VIDEO Position.

Please Pay Attention not to Connect the Audio Output Terminals (left,

right) of the System with the Audio Input Terminal of TV.

Connecting to the Equipment

SW ANT

AMPLIFIER

AUDIO INPUT

VIDEO INPUT

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 9

Your system is equipped with a clock which allows you to turn your

system on and off automatically. You should set the clock:

When you purchase the mini-compact system

After a power failure

After unplugging the unit

Remember to reset the time when the clock changes from

winter to summer time and vice verse.

For each step, you have a few seconds to set the required options.

If you exceed this time, you must start again.

Switch the system on by pressing On/Standby.

Press Timer/Clock twice.

Result: CLOCK is displayed.

Press Return only on the front panel.

Result: The hour flashes.

To... Turn the Multi Jog knob to the...

Increase the hours Right

Decrease the hours Left

When the correct hour is displayed, press Return only on the front

panel.

Result: The minutes flash.

To... Turn the Multi Jog knob to the...

Increase the minutes Right

Decrease the minutes Left

When the correct time is displayed, press Return only on the front

panel.

Result: The clock starts and is displayed, even when the system is in

standby mode.

You can display the time, even when you are using another

function, by pressing Timer/Clock once.

You can also use / buttons to instead Multi Jog

knob in step 4, 6.

You can view the various functions available on your system.

Press the Demo button.

Result: The various functions available are listed in turn on the dis-

play.

All these functions are described in detail in this booklet.

For instructions on how to use them, refer to the appropriate sec-

tions.

To cancel this function, press Demo again.

Setting the Clock

4,6 3,5,7

4,6 4,6

Viewing the Various Functions on Your

System

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 10

The CD disc changer can contain up to three 12 cm or 8 cm compact

discs without using an adapter.

Never force the compact disc carrousel when opening and

closing the compartment.

Never press down or place objects on the carrousel.

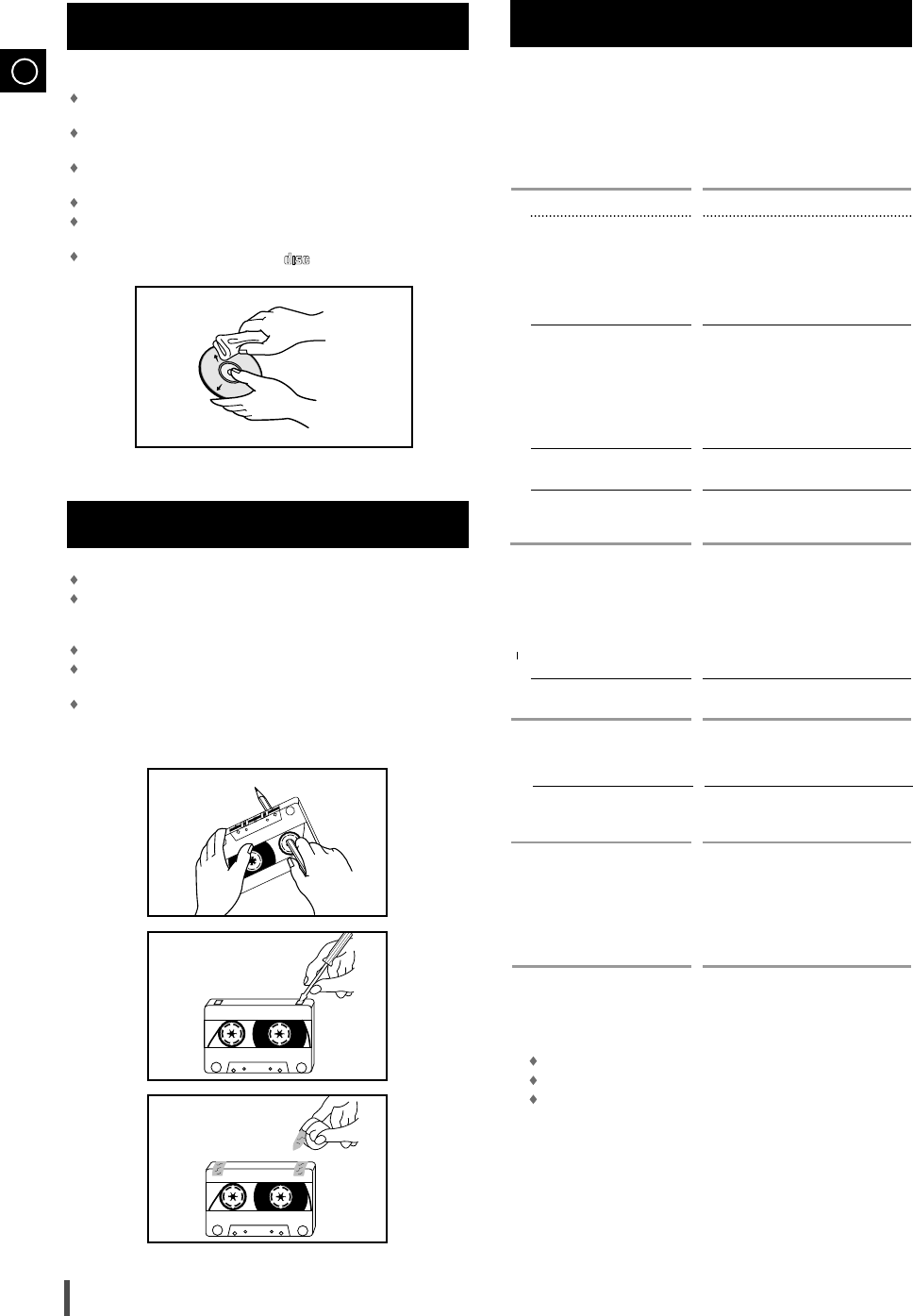

Always treat your compact discs with care; refer, if necessary, to the

section entitled “Precautions When Using Compact Discs” on page

26.

Switch the system on by pressing On/Standby.

Press the Open/Close( ) button on the front panel.

Result: The compartment opens.

Place one or two discs in the front slots of the carrousel, with the

label on the discs facing upwards.

Check that the compact disc has been correctly inserted in the

holder before closing the compartment.

If you wish to load a third compact disc, press the Disc Change

button on the front panel (or Disc Skip on the remote control).

Result: The carrousel rotates by 120°.

Close the compartment by pressing the Open/Close( ) button

again. If you wish to start playing a disc directly, you can also pro-

ceed as follows.

To play... Press...

Disc 1 VCD/CD ( ) or Disc 1

Disc 2 Disc 2

Disc 3 Disc 3

Result: The compartment closes automatically and the disc selected

starts playing.

To change or unload the compact disc changer, repeat Steps 2to 5.

Keep the compartment closed whenever you are not using it,

to prevent dust from entering.

You can load or unload compact discs when the radio, tape

or auxiliary source function is selected.

The function will be automatically entered VCD/CD from

the other source when you press CD Open/Close button.

Loading and Changing Compact

Discs

2,5

This is a player that enables the playback of audio CD, CD-R, CD-RW

and MP3-CD and does not possess the function that saves MP3 files.

Do not use CDs of irregular shapes like heart or octagon shapes.

The performance of the player may be degraded.

At least more than one CD should be inserted for playbacks.

Press the On/Standby button to switch on the power.

Press the VCD/CD( ) of the main unit to select the CD function.

Insert more than one CD or a MP3-CD.

Press the VCD/CD( ) button of the main unit or the button of

the remote control.

If there is more than one CD or an MP3-CD inserted,

replays are then processed in order.

Your CD Player will take a few moments to scan through all

the tracks recorded on a particular MP3-CD.

The English name of the song may be indicated on the display only

if directly downloaded from the PC or if the purchased MP3-CD is

sorted according to titles(directory). (Other

languages besides English may not be indicated.)

The English name of the track may not be indicated

depending on the characteristics of the MP3-CD.

Adjust the volume according to needs with the following procedures.

Turn the Volume control of the main unit.

Press the VOL. + or

–

button of the remote control.

If it is desired to stop while the playback is processing, press the

VCD/CD( ) button.

Press the VCD/CD( ) button once again to playback again.

To stop playback, press the button.

A new disc may be inserted in the remaining two compartments

excluding the CD which is being played back. Press the Disc

Changer button to open the CD tray. The revolving part does not

turn during playbacks.

If there is not even one CD inserted in the CD tray, it is

indicated as “NO DISC”.

If the CD Repeat function is not selected, 3 CDs are played back

which automatically stops.

To replay the CD/MP3-CD

2,4,6

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 11

HOW TO PLAYBACK MP3-CD directly

 I

: MP3 File display

7 tracks on the PAL TV screen every time;

5 tracks on the NTSC TV screen every time.

Select the No of song on the remote control Digits button

and you can enjoy the Music.

MP3 TOTAL: 150

PAGE 003/030

TR : 017 0 : 02 : 39

016 PBAY  I

017 DON’T FOR  I

After inserting MP3-CD in the Set, Press the select but-

ton or Number button after Reading.

You can see the information of Disc on the TV.

Track No Song name

HOW TO PLAYBACK MP3-CD on MENU MODE

After inserting MP3-CD in the Set, Press the “DISC

VIEW”button.

Select the Number of Directory.

You can see the following Display.

Select the No of song on the remote control Digits

button and you can enjoy the Music.

MP3 TOTAL: 150

PAGE 001/003

TR : 000 0 : 00 : 00

1 DIRECTORY NAME

2 ABC

3 KBG

4 CDEG123

You can see the following information of Disc

on the TV.

Directory No Directory name

MP3 TOTAL: 150

PAGE 001 / 004

TR : 000 0 : 00 : 00

DIRECTORY NAME

1 DIRECTORY NAME  I

2 ABC  I

3 KBG  I

4 CDEG123  I

MP3-CD P

layback

The CD function is automatically selected when Disc Skip is pushed.

To select a specific disc, press the corresponding Disc (1, 2, 3) button on

the front panel or Disc Skip on the remote control, until the required disc

indicator flashes.

Result: All the discs will be played in turn, starting with the one selected.

If you wish to play the current disc only, press Repeat on the front

panel one or more times, until 1 CD is displayed.

If you use the Disc (1, 2, 3) function when listening to the radio or

to a tape, the system switches automatically to the

CD mode.

If the disc selected is not loaded, the next disc is played

automatically.

Selecting a CD in the Disc changer

What is MP3?

MP3 means MPEG1 Layer 3, the global standard for audio

signal compression technology. It uses digital compression technol-

ogy to compress original sound data by up to 12 times without

sound quality degradation.

File Compatibility

The unit will playback files created in MP3 format

(Mpeg1.Layer3) with *.mp3 as their extension.

Files created in MP2 format (Mpeg1.Layer2) with *.mp2 as

their extension can also be played back.

How many MP3 files can a CD-R or CD-RW disc record?

The maximum capacity of one CD-R or CD-RW disc is

680MB.

Normally, one MP3 file has a capacity of 4MB, therefore

approximately 170 files can be recorded on a single disc.

Regarding the playback of CD-R/RW

In the case of an original CD-R(Recordable) recorded in

audio CD format, CD-RW(Rewritable) and editing by the

user, playback is processed on the respective

completed status. (The player may not be played back

according to the characteristics of the CD or recorded sta-

tus.)

The CD-RW is comparably less reflexive than CD which

causes more time delay to read.

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 12

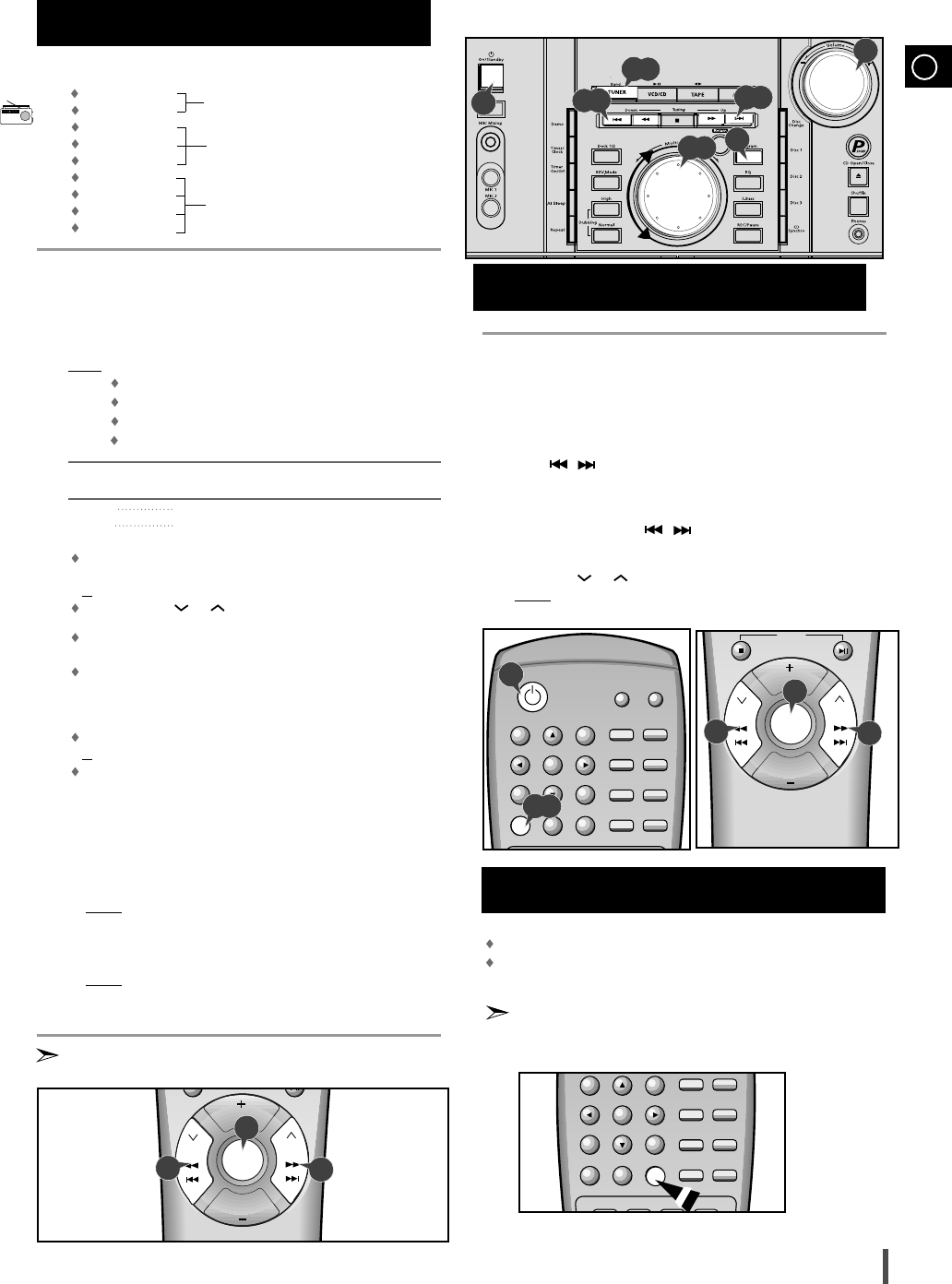

When listening to a compact disc, you can quickly search for a specif-

ic music passage on a track.

It is recommended that you turn the volume down before using this

function.

To search through the tracks... Press and hold down...

Forwards for at least one second

Backwards for at least one second

You can also press and hold down / on the front panel to auto

search through the tracks.

Searching for a Specific Music

Passage on a CD

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

Press the +10/0 button briefly while playing back a

CD and VCD. The track 10 tracks after the current one will then

be played back.

Example:

If you want to select track 43 during playback of track 15,

press the +10/0 button three times, and then press the

button three times or Digit 3 button once.

Function to skip through 10

tracks at a time

In selecting a track on MP3-CD, digit “0” will be entered if the button

of +10/0 is pressed.

Example:

If you want to select a track 40 during the

playback of a certain track, press both buttons of 4

and +10/0.

➝

+10/0 +10/0 +10/0

NEXT NEXT NEXT

On/Standby

123

456

789

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Timer

Counter

Disc

View

Time

Band

You can select the track you wish to listen to, either when the com-

pact disc player is stopped or when a disc is playing.

To start playback at the beginning of the... Turn the Multi Jog knob...

Next track One notch to the right

Current track One notch to the left

Previous track Two notches to the left

Track of your choice The appropriate number of

notches to the right or to the left

You can also use the and buttons on the front panel, or

the and buttons on the remote control to select a track.

Selecting a Track

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 13

You can listen to the tracks on a compact disc in a different order

each time, as the various tracks will be selected

automatically in a random sequence.

Press the Shuffle button.

Result: The Shuffle indication appears and all the tracks are played in a random

order. Both the track number and the playing time are displayed.

If this button is pressed when the CD is being played back or stopped,

any track recorded in the CD may be selected to playback again.

The CD plays back without repetitions and in the case of the MP3-CD,

a track once played back may also be played back again repeatedly.

When playing tracks in a random order, you can:

Move on to the next track (selected at random) by pressing

/ or turning Multi Jog one notch to the right

Search quickly for a specific point in the current track by pressing

/ or turning Multi Jog one notch to the left

When you have finished the random playback, press or press the

Shuffle button again.

The Repeat and CD Synchro function is not supported from the

Shuffle playback mode.

Playback of video CD Version 2.0

– When pressing the Shuffle button during the playback,

the operation will stop.

–

When pressing the Shuffle button during the stop, the playback will

operate with reading the video CD Version 2.0 as a Version 1.1.

You can repeat indefinitely:

A specific track on a compact disc.

All tracks on the compact disc selected.

All discs loaded in the carrousel

To repeat... Press CD Repeat on the Front

Panel one or more times until...

The current track indefinitely REPEAT 1 is displayed

The selected disc REPEAT 1 CD is displayed

All discs loaded REPEAT ALL CD is displayed

When you wish to stop the Repeat function, press CD Repeat until ALL

CD or 1 CD is displayed, or press .

Repeating One or All Tracks

on the Compact Discs

Shuffle Play Function

1,3

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 14

You can check or change your selection of tracks at any time.

Press once if you have started listening to the selection.

Press Program.

Result: The following indications are displayed:

(C = Check, 01=Program No, DI = Disc No, – – – = Track No on the disc)

If you have already programmed 30 tracks, Cis displayed

instead of Pwhen you press Program.

Press Program again.

Result: The first track selected is displayed, together with the letter C(Change).

Press Program one or more times until the track to be changed is displayed.

If necessary, press the corresponding Disc (1, 2, 3) button to change discs.

Press and or turn Multi Jog to select a different track.

Press Program to confirm your change.

Press VCD/CD ( ) to start listening to the selection.

Result: The first track selected is played.

When selecting the tracks of numbers larger than 3 digit figures (figures

from the number 100), please use the Digit buttons.

Checking or Changing Programmed

Tracks

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

You can decide:

The order in which you listen to the tracks on the discs loaded

Which tracks you do not wish to listen to

A maximum of up to 30 order of tracks desired to listen may be programmed.

Before selecting the track, the VCD player should be stopped.

This function may be used simultaneously with the CD Repeat function.

If the CD function is selected, stop the player by pressing .

Load the selected CDs.

Press Program.

Result: The following indications are displayed:

(01 = Programme No, DI = Disc No, – – = Track No on the disc)

If necessary, select the disc containing the required track by pressing

the corresponding Disc (1, 2, 3) button.

Select the required track by turning the Multi Jog knob:

To the left to move back through the tracks

To the right to move forward through the tracks

Press Program to confirm your selection.

Result: The selection is stored and is displayed.

To select other tracks, repeat Steps 4to 6.

Press VCD/CD ( ) to listen to the track selection in the order pro-

grammed.

To... Turn the Multi Jog knob...

Listen to the current track again One notch to the left

Listen to the previous track Two notches to the left

Listen to the next track One notch to the right

Skip forwards or backwards one The appropriate number of

or more tracks notches to the right or to the left

To cancel the selection, press .

Once if the compact disc player is stopped

Result: PRGM is no longer displayed.

If you open the compartment, the selection is cancelled.

If you select the number of a disc which is not loaded or a track

which does not exist on the CD, the selection skips to the next

programmed track.

You can also use the / buttons to select the required

tracks in step 5, 9.

Programming the Order of Playback

5,9 1,10

3,6

5,9

2,3,4,7

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 15

In order to playback video VIDEO-CD(‘S), make sure that your unit is

connected to your TV set.

This unit is designed for playback of video CD(‘S), version 1.1 and 2.0.

Only with version 2.0, is it possible to call up the on screen menu function.

This unit will not play back any other video VIDEO-CD(‘S) other than 1.1

and 2.0 versions.

Turn on the On/Standby switch and set the VCD mode.

Press the Open/Close ( ) button on the unit, to open the CD tray.

Result: “OPEN” is displayed and CD tray slides open.

Load a video-CD(’S) with the label facing upwards in the tray.

Press the Open/Close ( ) button again to close the CD tray.

To playback:

In version 1.1, press the button for direct access to the film,

as there is no menu-on-screen.

In version 2.0, load a video CD, “Video CD2.0”, and “MENU ON”

are displayed on the TV screen. Press the button and the

menu is displayed on the TV screen.

Select a number from the menu using Digits button on the remote

control or Multi Jog knob and press the VCD/CD( ) button.

To return to the previous menu, press the Return button .

When playing a video-CD(‘S) version 2.0, reading time on the

display may take longer, depending on the disc’s contents.

Press button on the remote control to receive a still picture.

Result: Pause is displayed, a still picture appears and the sound is

muted.

To return to normal playback, press VCD/CD( ) button.

Press the Stop ( ) button to stop playback.

Please make sure that the VIDEO-CD(‘S) to be played is not

flawed optically, as this may cause a distorted sound or the unit to

malfunction.

Video CD Player Playback

You can find a certain passage faster during playback.

This function is possible in CD or VCD Ver 1.1 or Ver 2.0 menu off

mode.

To... Press and hold down...

Scan forwards

Scan backwards

Release the Skip/Search buttons when the desired passage has

been found.

In the video CD version 1.1, where the disc’s contents are over 15

minutes long, you can scan up or down by intervals of five minutes.

To... Press...

Scan forwards by 5 minute intervals

Scan backwards by 5 minute intervals

Result: The picture is still, and the disc’s contents are forwarded or

reversed by 5 minute intervals. Playback then resumes from

this new position.

In the SKIP/SEARCH or SCAN mode, the sound can only be partially

heard and the picture scenes will change sporadically, until the required

passage has been found.

Search Functions

Volume

Tuning

Mode

Volume

PREV NEXT

Please use this function for reproducing a desired track in a certain

time of playback.

Press the Time Search button.

Set a desired time by pressing the Digit buttons.

Press the Play ( ) button.

Time Search Function

(This function is available only during the playback of a CD/VCD)

On/Standby

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

VCD / CD

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

2,4

5,6,7

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 16

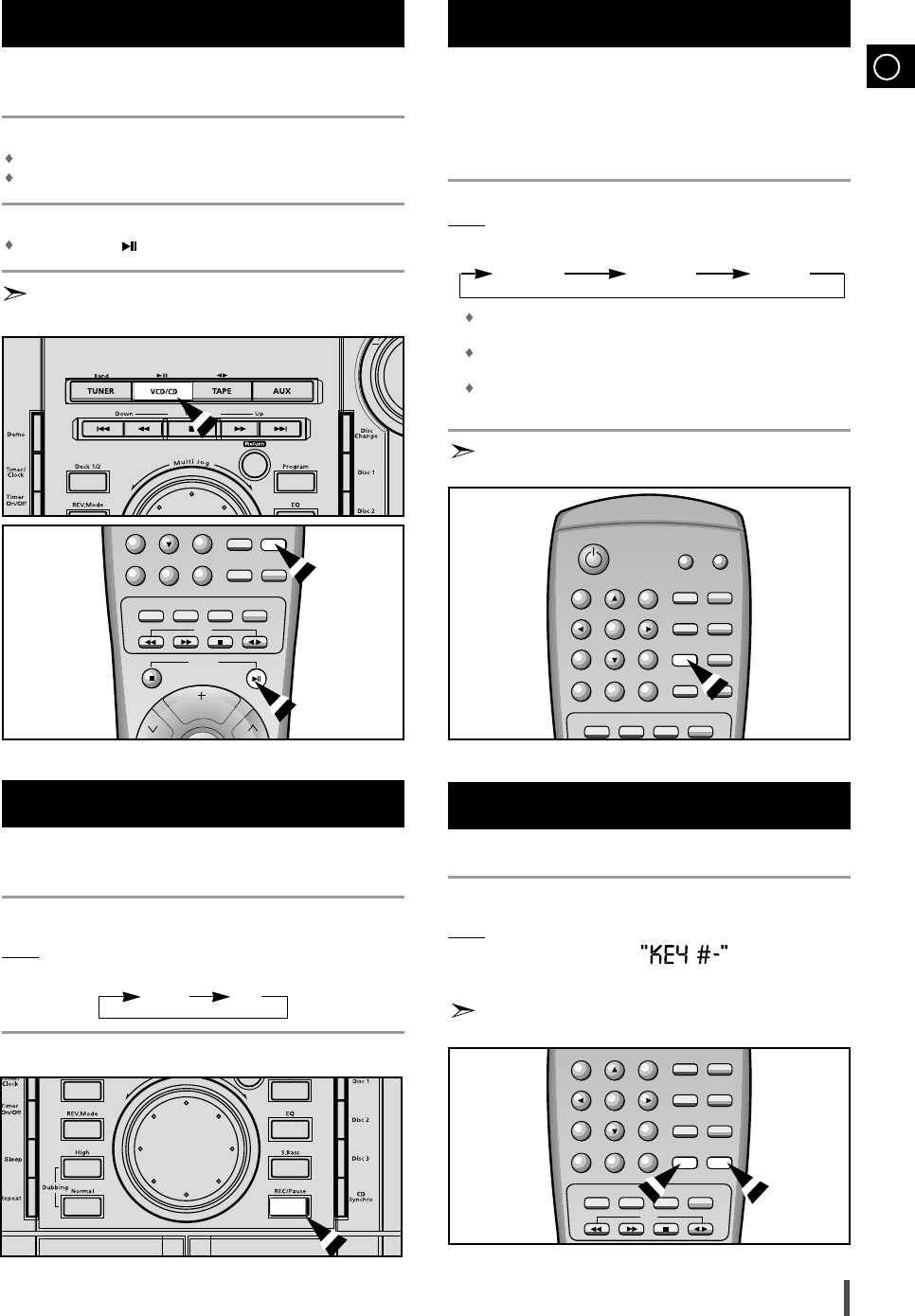

Turn on the TV and set video mode.

Press the Slow button on the remote controller when the play function is on.

Voices do not come out when the Slow button is pressed.

Slow playing is 1/2, 1/4, 1/8 the normal playing speed.

To return to normal operation.

Press the

VCD/CD ()

button.

When the slow mode or frame mode is selected a disc will only forward

operation.

When adjusting play speed

With this function, you can playback video CD’s that provide 2-chan-

nel tone(bilingual) in the original language. Similarly, with karaoke

video CD’s, you can select between the channel for music without

vocals for sing-along purpose, or the channel complete with music

and vocals.

During playback, press the Sound button on the remote control.

Result: Each time the Sound button is pressed, the following appears in

the display and on the TV screen:

Lch MONO : Only the left channel (instrumental parts) is played back

through both the right and left speakers.

Rch MONO : Only the right channel (vocal parts) is played back

through both the right and left speakers.

STEREO : Cancels the Multiplex Sound (normal stereo playback

resumes).

You can select between listening to the tone from the left channel,

the right channel or both channels.

Sound Select Function

789

TAPE

AI Sleep Deck 1/2

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Volume

VCD / CD

Timer

On/Off

Counter

Reset

Band

On/Standby

123

456

789

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

Lch MONO Rch MONO STEREO

( L-CH ) ( R-CH )

This function can work only at VCD mode when microphone is connected.

Press the Key Control button to adjust the key to your voice. (the 15 step

key control you can select )

Result: Each time the Key Control #, bbutton is pressed, the following

appears on the TV screen:

b : Low-Pitched Key

# : High-Pitched Key

Key control function and VCD slow playing function do not work at

the same time .

KEY CONTROL Function

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

NTSC/PAL Selection Method

According to a DISC or TV, Press the REC/Pause button on the front

panel.

Set the system to standby(power off) mode, press the REC/Pause button

on the front panel.

Result: Each time the REC/Pause button is pressed, the following appears

in the display:

NTSC PAL

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 17

This function can be used conveniently to search a desired track in a VCD.

This

function is possible in VCD Ver 1.1 and Ver 2.0 menu off mode.

Press the Disc View button in the stop state.

Result: "TRACK VIEW" menu is displayed on the screen.

The screen is split into 9 with each screen picture being

reproduced for 4 seconds.

– Press NEXT( ) button to see the rest tracks.

– Press PREV.( ) button to see the previous tracks.

Select a track by pressing the Digits buttons.

Press the VCD/CD

()

button.

Result: The picture that you selected is displayed in full screen.

When you wish to stop the DISC VIEW function, press the button.

When using more than 10 tracks :

Press the Digits and +10/0 button, select the desired track

number(Reference page 13).

– Press NEXT( ) button to see the next track.

– Press PREV.( ) button to see the previous track.

VCD VIEW function

Press Zoom button during playback.

Result: The picture being reproduced will be enlarged twice as large

as the previous one.

Press Zoom button once more in the state of double sized zoom.

Result: The picture being reproduced is enlarged four times as large

as the initial one.

Press Zoom button in the state of four times sized zoom.

Result: The picture will return to the initial size.

During operating the zoom function, if you want to move the

picture upward/downward/leftward/rightward, please press the

respective Digits button (2,4,6,8).

ZOOM Function

When you want to select a track

On/Standby

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

This function is convenient to search a desired scene as it

displays a track reproduced by time.

Reproduce the pictures by pressing

()

button.

Press the Disc View button.

Result: "INDEX VIEW" menu is displayed on the screen.

The screen is split into 9 with each screen picture being

reproduced for 4 seconds.

Reproduce the pictures by pressing a desired Digits button.

Result: The one of nine picture is displayed in full screen.

When you want to select an INDEX

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

VCD / CD

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

On/Standby

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Volume

Tuning

PREV NEXT

VCD / CD

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

1,2,3

When CD playback is selected again after your CD player has

been stopped or turned off, this function allows playback from the

start of the track that you last listened to.

Last Memory Function

On/Standby

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

TRACK VIEW

INDEX VIEW

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 18

You can store up to:

15 FM stations (option)

15 AM stations

15 FM stations

8 MW stations (option)

7 LW stations

15 FM stations

5 MW stations (option)

5 SW1 stations

5 SW2 stations

Switch the system on by pressing On/Standby.

Select the TUNER function by pressing TUNER .

Select the required frequency band by pressing TUNER (Band) again

on the front panel or TUNER (Band) on the remote control.

Result: The appropriate indication is displayed:

FM Frequency Modulation

AM(MW) Medium Wave

LW(OPTION) Long Wave

SW1, SW2(OPTION) Short Wave

To search for a Press Tuning Mode

station...

Manually One or more times until MANUAL is displayed.

Preset One or more times until PRESET is displayed.

Select the station to be stored by:

Turning the Multi Jog knob to the right or to the left to increase or

decrease the frequency respectively

Pressing Tuning or on the remote control

To scroll through the frequencies faster when searching manually,

hold down the Tuning Down or Up buttons.

The automatic search procedure may stop on a frequency that does

not correspond to a radio station. If this happens, use the manual

search mode.

Adjust the volume by:

Turning the Volume knob on the front panel

Pressing the VOL. + or –buttons on the remote control

Select the FM stereo or mono mode by pressing Mono/ST. on the

remote control.

If you do not want to store the radio station found, revert to Step 4 and

search for another station.

Otherwise:

aPress Program.

Result: The PRGM is displayed for a few seconds.

bPress Tuning Down and Up or turn Multi Jog to assign a

programme number between 1 and 15.

cPress Program to store the radio station.

Result: PRGM is no longer displayed and the station is stored.

To store any other radio frequencies required, repeat Steps 3to 8.

The PROGRAM function can be used to assign a new station to an

existing programme number

You can listen to a stored radio station as follows:

Switch the system on by pressing On/Standby.

Select the TUNER function by pressing TUNER .

Select the required frequency band by pressing TUNER (Band) on the

remote control or TUNER (Band) again on the front panel.

Press /button on the front panel of the unit, or the Tuning

Mode button on the remote control until “PRESET” is displayed.

Turning Multi-jog on the front panel left or right until the desired

station is found or press /to select the desired station.

Select the desired station by pressing the station number stored, using

the Tuning or button on the remote control.

Result: The desired station is now received.

You can improve the quality of radio reception by:

Rotating the FM or AM(MW) aerial

Testing the positions of the FM and AM(MW) aerials before fixing them per-

manently

If reception from a specific FM radio station is poor, press Mono/ST. on

the remote control to switch from stereo mode to mono.

The quality of the sound will be improved.

Searching for and Storing the Radio

Stations

2,3

5, 8

Volume

Tuning

Mode

Volume

PREV NEXT

Tuning

Mode

Selecting a Stored Station

On/Standby

123

456

789

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Disc

View

Time

Band

2,3

Volume

Tuning

Mode

Volume

PREV NEXT

VCD / CD

Tuning

Mode

Improving Radio Reception

123

456

789

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

MAX-VL45GB-1~18 11/12/02 1:43 PM Page 19

GBGB

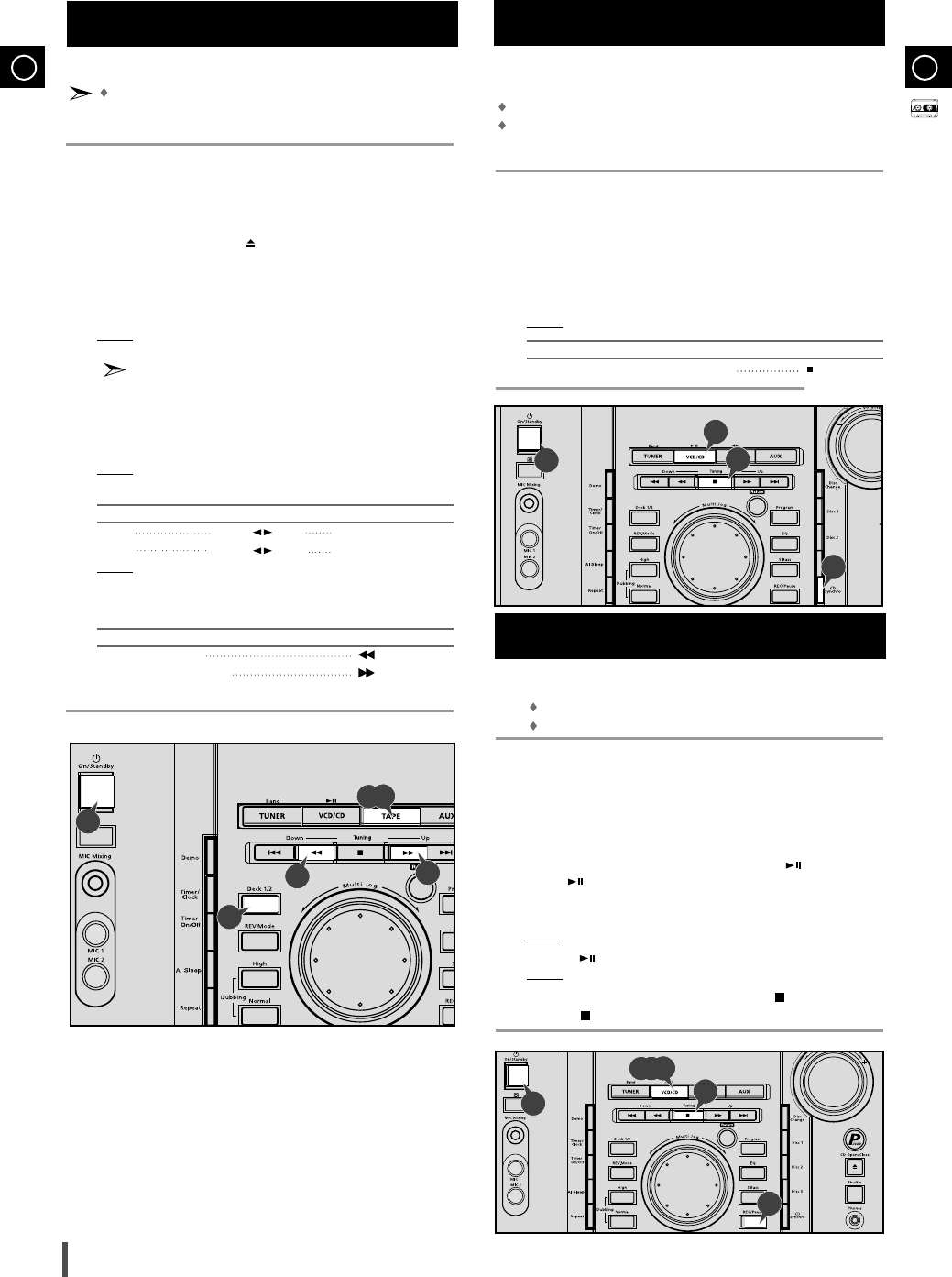

Always treat your cassettes with care; refer, if necessary, to

the section entitled “Precautions When Using Audio Cassettes”

on page 26.

Switch the system on by pressing the On/Standby button.

Select the TAPE function by pressing TAPE.

Open either cassette deck 1 or 2 by pushing and releasing the deck

cover where PUSH EJECT ( ) is written.

Insert the pre-recorded cassette with the open edge of the tape

facing downward.

Close the deck by pushing on it until it clicks into place.

Result: Depending on the deck selected, the 1or 2indication is

displayed in front of the counter number.

If you insert a cassette in both decks, the system selects the

deck in which you inserted the second cassette.

If you have inserted two cassettes, press Deck 1/2 on the front panel

or directly the Deck 1/2 button on the remote control to select the

cassette to be played.

Result: Depending on the deck selected, the TAPE 1 or TAPE 2

indication is displayed.

To listen to... Press ...

Side A TAPE ( )once DECK 1 and DECK 2

Side B TAPE ( )twice DECK 2 only

Result: The cassette starts playing.

When the cassette is stopped, select one of the following functions

as required.

To... Press ...

Rewind the cassette

Fast-forward the cassette

You can record a compact disc on a cassette in two different ways:

Synchronised recording

Direct recording

This feature enables you to synchronize the start of the

recording with the start of the disc or track of your choice.

Switch the system on by pressing On/Standby.

Insert a blank cassette in Deck 2.

Select the CD function by pressing VCD/CD on the front panel.

Load a compact disc.

Select the required disc.

Select the required track and press CD Synchro or press CD

Synchro directly to start recording at the beginning of the disc.

Result: “REC” and “CD SYNC” are displayed and recording starts.

To stop... Press ...

Recording and playing the compact disc

The direct recording mode enables you to start recording with

any track on the compact disc.

You can only record on cassettes in Deck 2.

You do not need to adjust the volume, as it has no effect on the recording.

Switch your system on by pressing On/Standby.

Insert a blank cassette in Deck 2.

Select the CD function by pressing VCD/CD on the front panel.

Load the compact disc.

Select the required disc.

Select the required track on the compact disc and press on the front

panel or on the remote control to set the compact disc player to Pause

mode.

Press the REC/Pause.

Result: REC is displayed .

Press the to start playing the track.

Result: The track is recorded on the cassette.

When you have finished recording, press TAPE on the remote

control or on the front panel to stop recording.

Recording a Compact Disc

Listening to a Cassette

2,7

3,6,8

CD Synchro Record Feature

MAX-VL45GB-19~27 11/12/02 11:38 AM Page 20

You can record a radio programme of your choice.

You can only record on cassettes in Deck 2.

You do not need to adjust the volume, as it has no effect on

the recording.

Switch the system on by pressing On/Standby.

Insert a blank cassette in Deck 2.

Select the TUNER function by pressing TUNER .

Select the radio station that you wish to record by pressing Tuning

or on the remote control or by press the Tuning Down or

Up on the front panel.

Press REC/Pause.

Result: REC is displayed in red and recording starts.

When you have finished recording, press the TAPE on the

remote control or on the front panel to stop recording.

You can copy a cassette from Deck 1 to Deck 2. Two options

are available:

Normal speed dubbing

High-speed dubbing

You do not need to adjust the volume, as it has no effect on the

recording.

Take care not to insert the tape to be copied in Deck 2, as it will

be erased when you start recording.

Switch your system on by pressing On/Standby.

Insert a blank cassette in Deck 2.

Insert the tape to be copied in Deck 1.

To copy a cassette at... Press...

Normal speed Normal

High speed High

Result: The appropriate indications are displayed and the cassette in

Deck 1 is copied to the cassette in Deck 2.

Press on the front panel or TAPE on the remote control when

you have finished recording.

Your mini-compact system has three cassette playback modes

which enable you to listen to both sides of a cassette

automatically.

Press REV. Mode until the appropriate symbol is displayed.

When the display indicates... The mini-compact system plays back...

One side of the selected cassette and

then stops.

One side of the cassette.

The other side of the cassette and then

stops.

Both sides of the cassette indefinitely until

you press stop.

Recording a Radio Programme

Copying a Cassette (Dubbing) Selecting the Cassette Playback

Mode (Deck 2 Only)

When playing a cassette, a counter is displayed to enable you to

take note of the counter value at the start of each track and thus

start playback at the beginning of the track to which you wish to

listen.

The counter is only displayed when a cassette is being

played.

Before starting to record a cassette for which you wish to take note

of the counter values at the beginning of each track, reset the

counter by pressing Counter Reset.

Tape Counter

TAPE

AI Sleep Deck 1/2

Zoom

VCD / CD

Timer

On/Off

Counter

Reset

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 21

The timer enables you to switch the system on or off at

specific times.

Example: You wish to wake up to music every morning.

If you no longer want the system to be switched on or off

automatically, you must cancel the timer.

Before setting the timer, check that the current time is correct.

For each step, you have a few seconds to set the required

options. If you exceed this time, you must start again.

Switch the system on by pressing On/Standby.

Press Timer/Clock until TIMER is displayed.

Press Return only on the front panel.

Result: ON TIME is displayed (instead of the equalizer symbols) for

a few seconds, followed by any switch-on time already set;

you can set the timer switch-on time.

Set the timer switch-on time.

aSet the hour by tuning the Multi Jog knob to the right or to the left.

b Press Return only on the front panel.

Result: The minutes flash.

c Set the minutes by tuning the Multi Jog knob to the right or to

the left.

dPress Return only on the front panel.

Result: OFF TIME is displayed (instead of the equalizer symbols)

for a few seconds, followed by any switch-off time already

set; you can now set the timer switch-off time.

Set the timer switch-off time.

aSet the hour by tuning the Multi Jog knob to the right or to the left.

bPress Return only on the front panel.

Result: The minutes flash.

cSet the minutes by tuning the Multi Jog knob to the right or to

the left.

dPress Return only on the front panel.

Result: VOL XX is displayed, where XX corresponds to the vol-

ume already set.

Press Tuning Down and Up to adjust the volume level and press

Return only on the front panel.

Result: The source to be selected is displayed.

Turn the Multi Jog knob to select the source to be played when the

system switches on.

If you select... You must also...

TAPE (cassette) Insert a recorded cassette in one of the

decks before setting the system to standby.

TUNER (radio) a Press Return only on the front panel.

b Select the FM or AM frequency band by

tuning the Multi Jog knob to the right or

to the left.

c Press Return only on the front panel.

d Select a preset station by tuning the

Multi Jog knob to the right or to the left.

CD (compact disc) a Load one or more compact discs.

b Select the required disc.

Press Return only on the front panel to confirm the timer .

Press On/Standby to set the system to standby mode.

Result: is displayed to the bottom left of the time, indicating that

the timer has been set. The system will switch on and off

automatically at the required times.

If the timer switch on and off times are identical, the word ERROR is

displayed.

Timer Function

4,5,7

1,9 6

To set the timer function

You may use Multi Jog or

/ buttons to adjust

in step 4, 5, 6, 7.

3,4,5,6,7,8

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 22

After having set the timer, it will start automatically as shown

by the TIMER indication on the display. If you no longer wish

to use the timer, you must cancel it.

You can stop the timer at any time (system on or in standby mode).

To... Press Timer On/Off...

Cancel the timer Once.

Result: is no longer displayed.

Restart the timer Twice.

Result: is displayed again.

You can turn the sound off temporarily on your system.

Example: You wish to answer a telephone call.

Press Mute.

To switch the sound back on (at the same volume as before), press

Mute again or the Volume buttons.

Your mini-compact system is equipped with a preset equalizer

that allows you to choose the most appropriate balance

between treble and bass frequencies, according to the type of

music you are listening to.

Press EQ on the front panel until the required option is selected.

To obtain a... Select...

Normal balance (linear) PASS

Balance suitable for pop music POP

Balance suitable for rock music ROCK

Balance suitable for classic music CLASSIC

Your mini-compact system is equipped with the function

of Power Sound .

The function of Power Sound amplifies bass and improves

high key or bass twice as much for you to appreciate

powerful real sound.

To select Power Sound

Press Power Sound button on the front panel, “P,SOUND” is

displayed.

To cancel this function, press Power Sound button again and

“OFF” is displayed for a few seconds.

Mute Function

Cancelling the Timer

Power Sound Function

Selecting an Equalizer Preset

On/Standby

123

456

789

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

On/Standby

123

456

789

TAPE

AI Sleep Deck 1/2

ReturnCD Repeat

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

Mute Disc Skip

Timer

On/Off

Counter

Reset

Disc

View

Time

Band

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 23

While listening to a compact disc or a cassette, you can

set the system to switch off automatically

Example: You wish to go to sleep to music.

Press AI Sleep.

Result: playback starts and the following indications are displayed:

Press AI Sleep one or more times to indicate how long the system

should continue playing before it switches off:

At any time, you can:

Check the remaining time by pressing AI Sleep

Change the remaining time by repeating Steps 1and 2

Press AI Sleep one or more times until AI SLEEP is displayed.

Result: The system will automatically switch off at the end of disc or

cassette.

To cancel SLEEP function, press AI Sleep one or more times until

OFF is displayed.

Your mini-compact system has a bass amplification function

called S.Bass (Super Bass Sound). This function makes the

sound more powerful and real.

Press the S. Bass button on the front panel.

Result: S. BASS is displayed and “SBS ON” is displayed for a few

seconds.

To cancel this function, press S. Bass again.

You can connect a set of headphones to your mini-compact

system so that you can listen to music or radio programmers

without disturbing other people in the room. The earphones

must have a 3.5 mm jack or an appropriate adapter.

Connect the headphones to the Phones jack on the front panel.

Result: The loudspeakers are no longer used to output the sound.

Prolonged use of headphones at a high volume may damage

your hearing.

Setting the System to Switch off

Automatically

Super Bass Sound

Connecting Headphones

90 MIN

Microphone Function

The microphone enables the user to mix in his or her vocals

to sing-along with the music.

Preparation

Plug the microphone with a 6.3mm mic jack into microphone terminal.

Turn the MIC Mixing knob to adjust the mic volume.

789

TAPE

AI Sleep Deck 1/2

SlowSound

Key Control

Zoom

+10/0 Mono/ST.

VCD / CD

Timer

On/Off

Counter

Reset

Band

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 24

The following diagrams illustrate the precautions to be taken

when using or moving your mini-compact system.

Safety Precautions

Ambient operating conditions:

Ambient temperature 5°C-35°C

Humidity 10-75%

Do not expose the unit to direct sun

radiation or other heat sources.

This could lead to overheating and

malfunction of the unit.

VOLUME

DOWN

Remove the batteries from the

remote control, if not used for any

extended periods.

Leaking batteries can cause serious

damage to the remote control.

When using headphones, take care

not to listen at excessive volumes.

Extended use of headphones at

high volumes will lead to hearing

damage.

Do not place heavy items on the

main lead. Main cable damage can

lead to damage of the equipment (fire

hazard) and can cause electric

shock.

Do not remove any equipment panels.

The inside of the unit

contains live components, which

cause electric shock.

Do not place potted plants or vases

on top of the unit. Moisture entering

the unit could lead to dangerous

electric shock and can cause

equipment damage. In such events

immediately disconnect the main

plug from the socket.

During thunderstorms, disconnect

the main plug from the socket.

Main voltage peaks due to light-

ning could damage the unit.

To obtain the best possible results from your mini-compact

system, you must clean the following elements regularly:

The outer casing

The compact disc player

The cassette players (heads, rollers and drive capstans)

Always unplug the system from the wall outlet:

Before cleaning it

If you are not going to be using it for a long time

Outer Casing

Clean the outer casing regularly using a soft cloth and a light detergent. Do

not use abrasive powders, liquids or aerosol cleaners. Never let any liquids

get into the system.

Compact Disc Player

Before playing a compact disc, clean it with a special CD cleaning

agent. Do not use the same cleaning agents as for vinyl LP records.

Carefully wipe the disc from the centre outward.

Regularly clean the player with a special cleaning disc (available from

your local dealer).

Tape Decks

Press PUSH EJECT( ) to open the cassette deck.

Use a cotton bud and a special cassette cleaning agent to clean the:

Head (1)

Rollers (2)

Drive capstans (3)

If you will not be using the remote control for a long time,

remove the batteries to prevent corrosion.

Although your system is very hard-wearing, it should not be

used in an excessively dusty environment or subjected to

shocks or extreme heat (close to heating appliances or in

direct sunlight, etc.).

If the unit emits an unpleasant odor when in use, unplug it

from the main supply and contact the after-sales service.

Cleaning Your Mini-Compact

System

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 25

It always takes a little time to become familiar with a new appliance.

If you have any of the problems listed below, try the solutions given.

They may save you the time and inconvenience of an unnecessary

service call.

If the above guidelines do not allow you to solve the problem, take a note of:

The model and serial numbers, normally printed on the rear of the system

Your warranty details

A clear description of the problem

Then contact your local dealer or SAMSUNG after-sales service.

Check that the tape in the cassette is sufficiently taught.

To prevent erasing a cassette that you wish to keep, remove the safety

tab on the upper edge of the cassette. To record a cassette, where the

tab has been broken, simply cover the opening with adhesive tape.

When you have finished playing a cassette, always put it back in its case.

Store your cassettes in a clean place, out of direct sunlight, where

they will not be exposed to high temperatures.

Avoid using 120-minute cassettes as they place unnecessary strain

on the tape mechanism.

Handle your compact discs with care. Always hold them by the

edges to avoid leaving fingerprints on the shiny surface.

When you have finished playing a compact disc, always put it back

in its case.

Do not fix paper or adhesive tape to the discs and do not write on

the label.

Clean them with a special-purpose cloth.

Store your compact discs in a clean place, out of direct sunlight,

where they will not be exposed to high temperatures.

Always use compact discs marked .

Before Contacting the After-Sales

Service

Precautions When Using Compact

Discs

COMPACT

DIGITAL AUDIO

Precautions When Using Audio

Cassettes

Problem

The system does not work

There is no sound

The Timer does not work

In case it does not work, even the

action is taken as above.

The compact disc player does not

start playing

The mp-3 CD player cannot be

played.

The tape does not start playing

The volume falls off

The cassette is not erased correctly

There is excessive wow and flutter

Reception is poor or no radio sta-

tions are received at all

Checks/Explanation

• The main lead is not correctly plugged into

a wall socket or the wall socket is not

switched on.

• The remote control batteries need replacing

or the polarity has not been respected.

• The On/Standby button has not been

pressed.

• The volume has been completely turned

down.

• The correct function (TUNER, CD, TAPE,

AUX) has not been selected.

• You have connected a set of earphones.

• The loudspeaker wires have been

disconnected.

• The Mute button has been pressed.

• The timer has been stopped by pressing

Timer On/Off.

• Press the S.Bass button for 5 seconds in

power ‘OFF’(standby), then it is returned the

original position (RESET)

• The CD function has not been selected.

• The disc has been inserted face down or is

either dirty or scratched.

• The laser sensor is dirty or dusty.

• The system has not been installed on a flat,

horizontal surface.

• Condensation has formed in the player;

leave the system in a warm, airy room for at

least one hour.

• Use the PC to confirm if the extension is

*.mp3.

• The TAPE function has not been selected.

•

The cassette has not been inserted correctly.

• The cassette player has not been closed.

• The tape is either slack or broken.

• The audio heads are dirty.

• The rollers or drive capstans are dirty.

• The tape is worn.

• The TUNER function has not been selected.

• The radio frequency has not been correctly

selected.

• The aerial has been disconnected or is not

facing the right way. Turn it until you find the

best orientation.

• You are in a building that blocks radio

waves; you must use an outside aerial.

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 26

SAMSUNG strives to improve its products at all times. Both the design specifications and these user

instructions are thus subject to change without notice.

Technical Specifications

RADIO

LW(option)

Usable sensitivity 60 dB

SW(option)

Usable sensitivity 40 dB

AM (MW)

Signal/noise ratio 40 dB

Usable sensitivity 54 dB

Total harmonic distortion 2 %

Signal/noise ratio 62 dB

Usable sensitivity 10 dB

Total harmonic distortion 0.3 %

COMPACT DISC PLAYER

Capacity 3 discs

Frequency range 20 Hz - 20 KHz (± 1 dB)

Signal/noise ratio 90 dB (at 1 KHz) with filter

Distortion 0.05 % (at 1 KHz)

Channel separation 74 dB

Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm

TAPE DECK

Frequency range 125 Hz ~ 8 KHz

Signal/noise ratio 40 dB

Channel separation 35 dB

Erasing effect 60 dB

AMPLIFIER

Output power (6 Ω) 2 x40 Watts RMS (total harmonic distortion: 10 %)

Channel separation 45 dB

Signal/noise ratio 75 dB

GENERAL

Dimensions 270 (W) x 317 (H) x 370 (D) mm

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 27

ELECTRONICS

THIS APPLIANCE IS MANUFACTURED BY:

AH68-00935B

MAX-VL45GB-19~27 11/12/02 11:39 AM Page 20

Samsung Ah68 00935B Users Manual

MAX-VL45 to the manual 2e99631c-7806-4d69-a565-ec301b913532

Navigation menu

Versions of this User Manual:

Views

Navigation
