CLP-510 Series
- Setup Guide
- User's Guide

ETUP

UIDE

CONTENTS

Step 1. Unpacking ............................................. 3

Step 2. Understanding Your Printer ................... 5

Step 3.

Installing the Transfer Belt and Toner Cartridges 7

Step 4. Loading Paper ..................................... 14

Step 5. Connecting a Printer Cable .................. 17

For Local Printing ......................................17

For Network Printing ..................................18

Step 6. Turning the Printer On ........................ 19

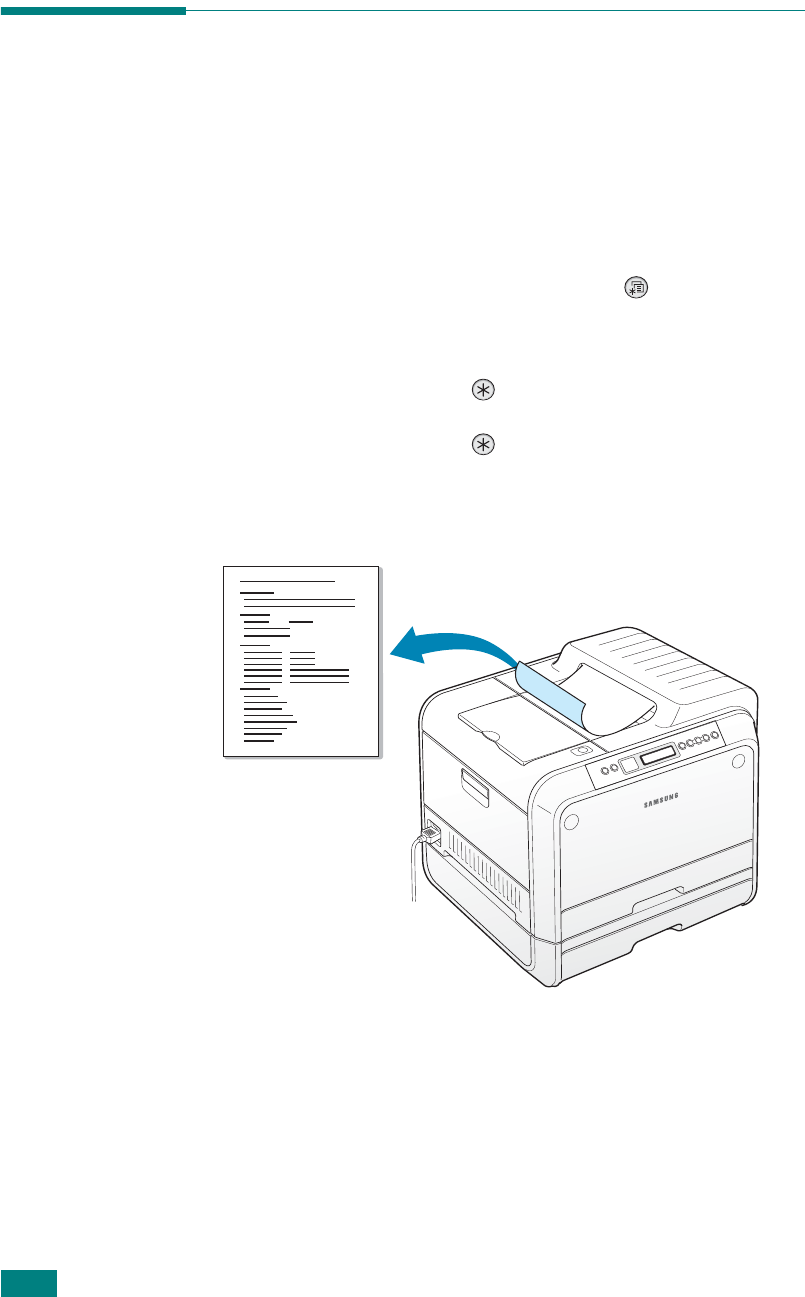

Step 7. Printing a Demo Page .......................... 20

Step 8. Changing the Display Language .......... 20

Step 9. Installing the Printer Software ............ 21

Installing Printer Software in Windows ..........22

Reinstalling Printer software ........................26

Removing Printer Software .........................27

Changing the Display Language ...................28

Step 10. Viewing the User’s Guide ................... 29

In Windows ..............................................29

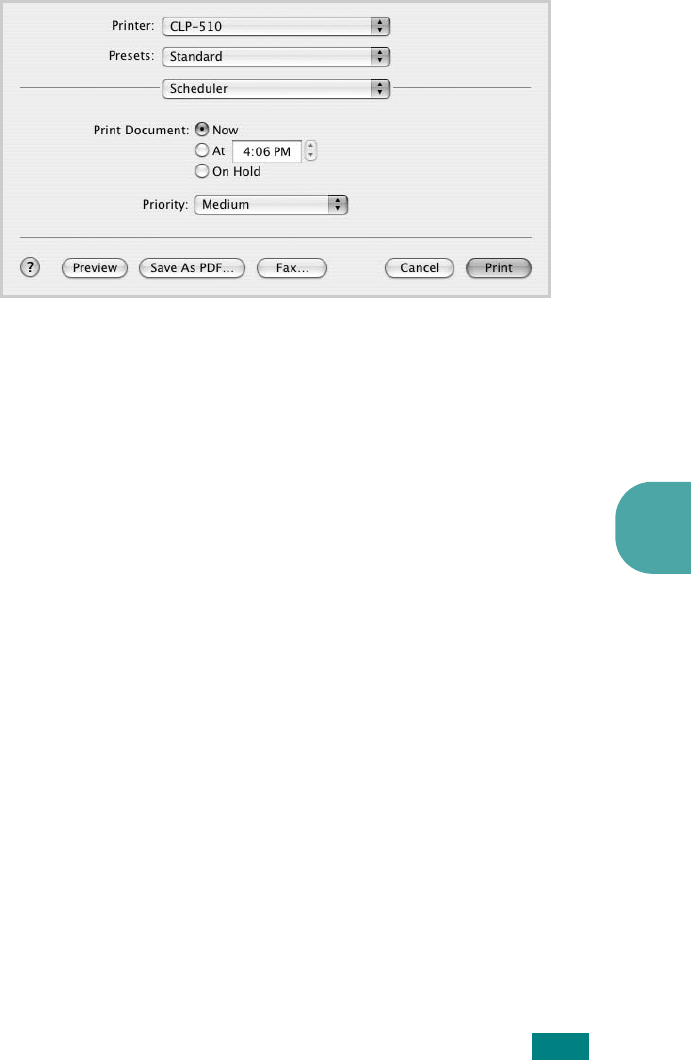

In Macintosh .............................................29

In Linux ...................................................30

ETUP

UIDE

English

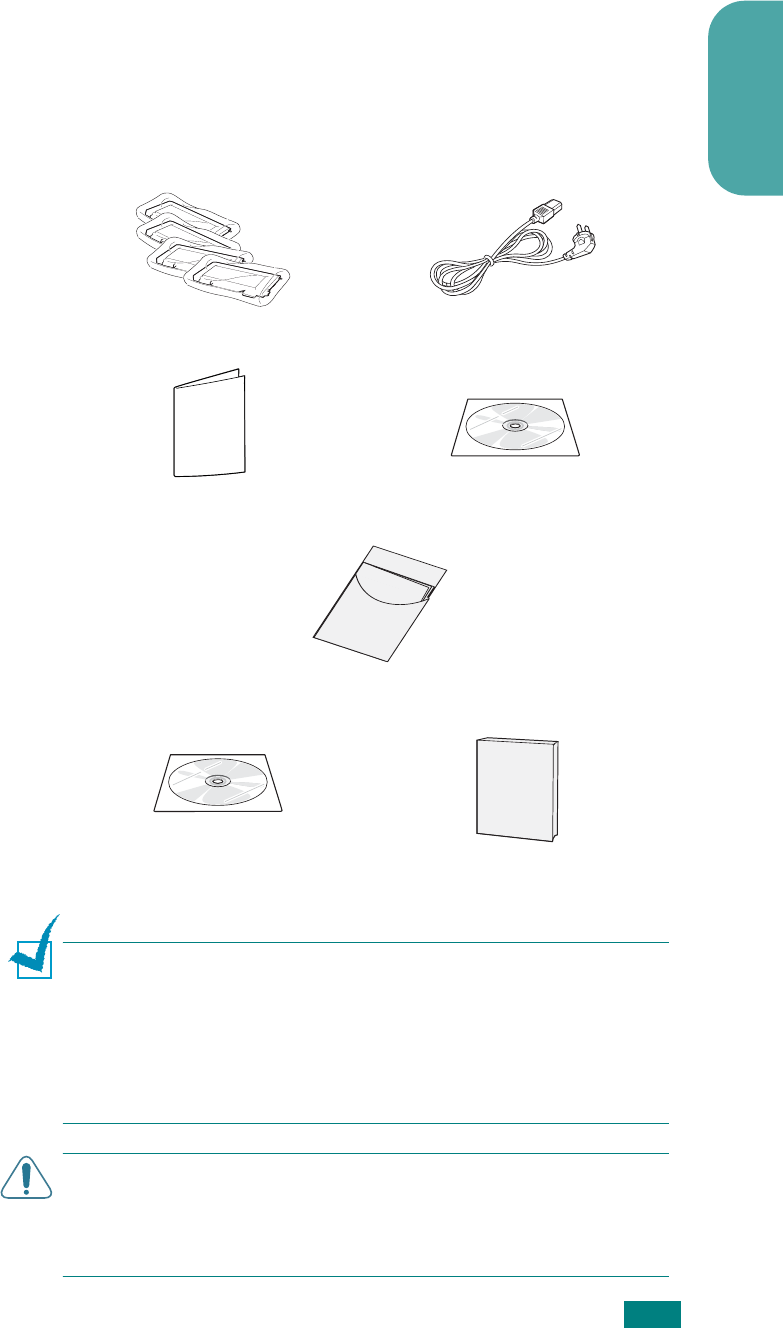

Step 1. Unpacking

Remove the printer and all of the accessories from the

packing carton. Make sure that the printer has been packed

with the following items:

OTES

• If any items are missing or damaged, notify your dealer

immediately.

• Components may differ from one country to another.

• The CD-ROM contains the printer driver, the User’s Guide, and

the Adobe Acrobat Reader program.

• The power cord may be different depending on your country.

AUTION

This printer weighs 32kg including developer cartridge

and cassette. Use safe lifting and handling techniques. If you need

to move the printer it should be moved by two people. Use the

lifting handles located, as shown in the diagram (see page 5). Back

injury could result if a single person attempts to lift the printer.

Toner Cartridges Power Cord

Quick Install Guide CD-ROM

Optimum Setup Guide

SyncThru CD-ROM

(CLP-510N only) SyncThru Quick Guide

(CLP-510N only)

ETUP

UIDE

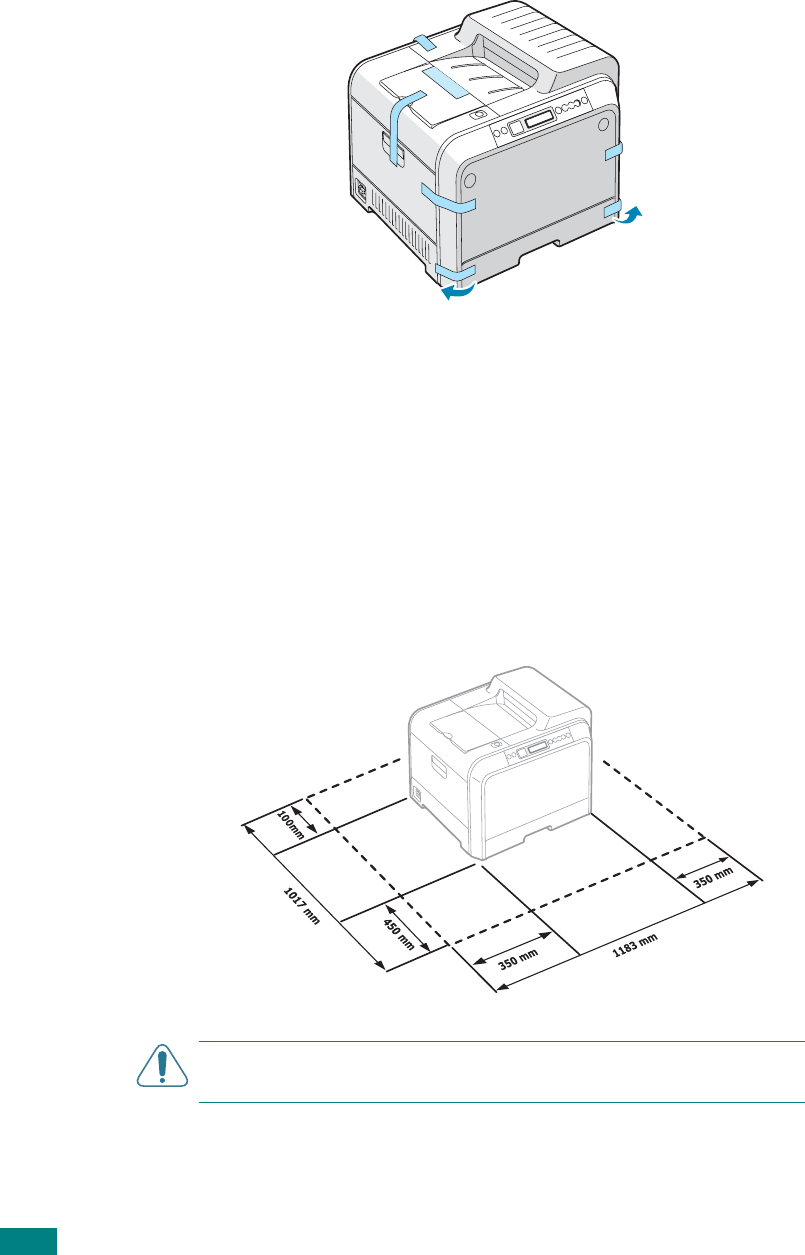

Carefully remove all of the packing tape from the printer.

Pull the paper tray out of the printer and remove the

packing tape from the tray.

Select a location for the printer:

•Leave enough room to open the printer trays, covers, and

to allow for proper ventilation.

•Provide the proper environment:

– A firm, level surface

– Away from direct airflow of air conditioners, heaters, or

ventilators

– Free of temperature, sunlight, and humidity extremes or

fluctuations

– Clean, dry, and free of dust

AUTION

You must place your printer on a level surface. If you

do not, print quality problems can occur.

ETUP

UIDE

English

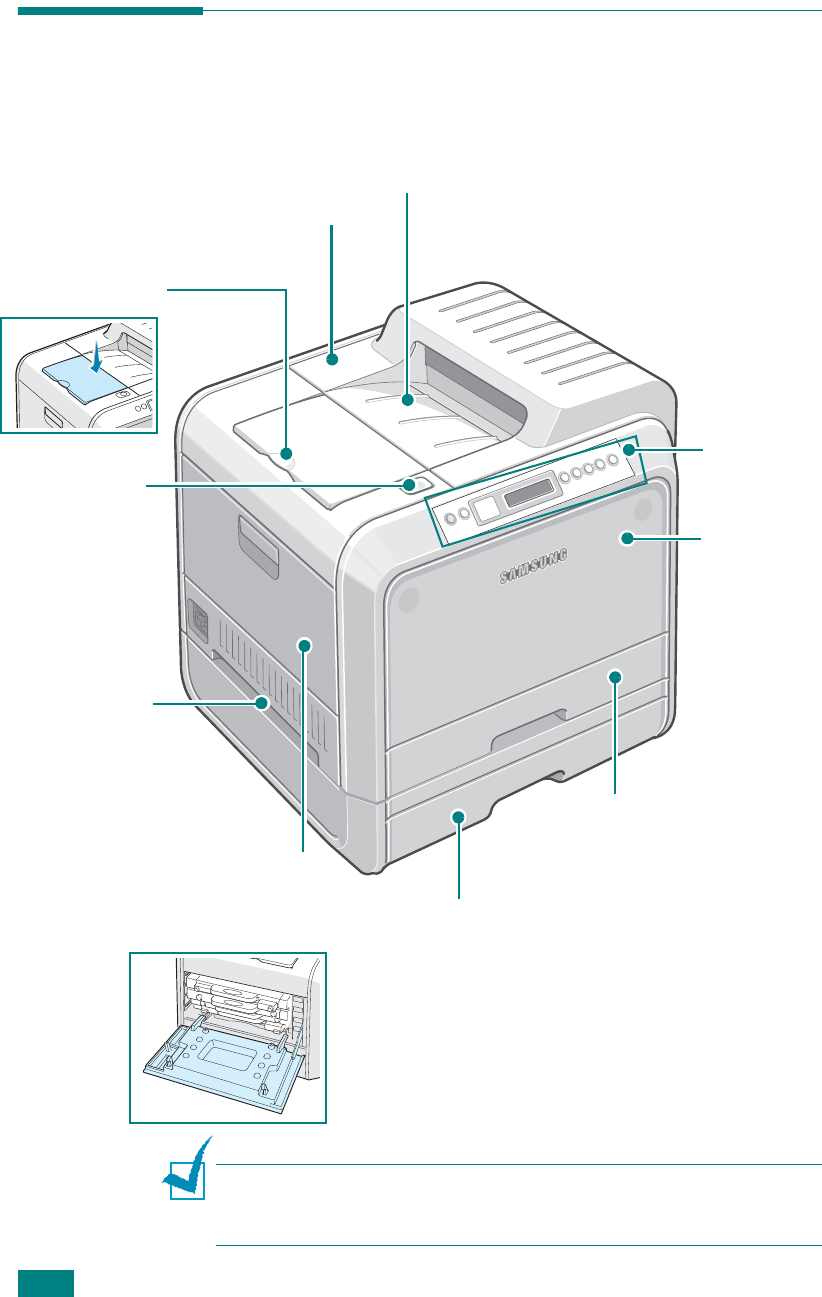

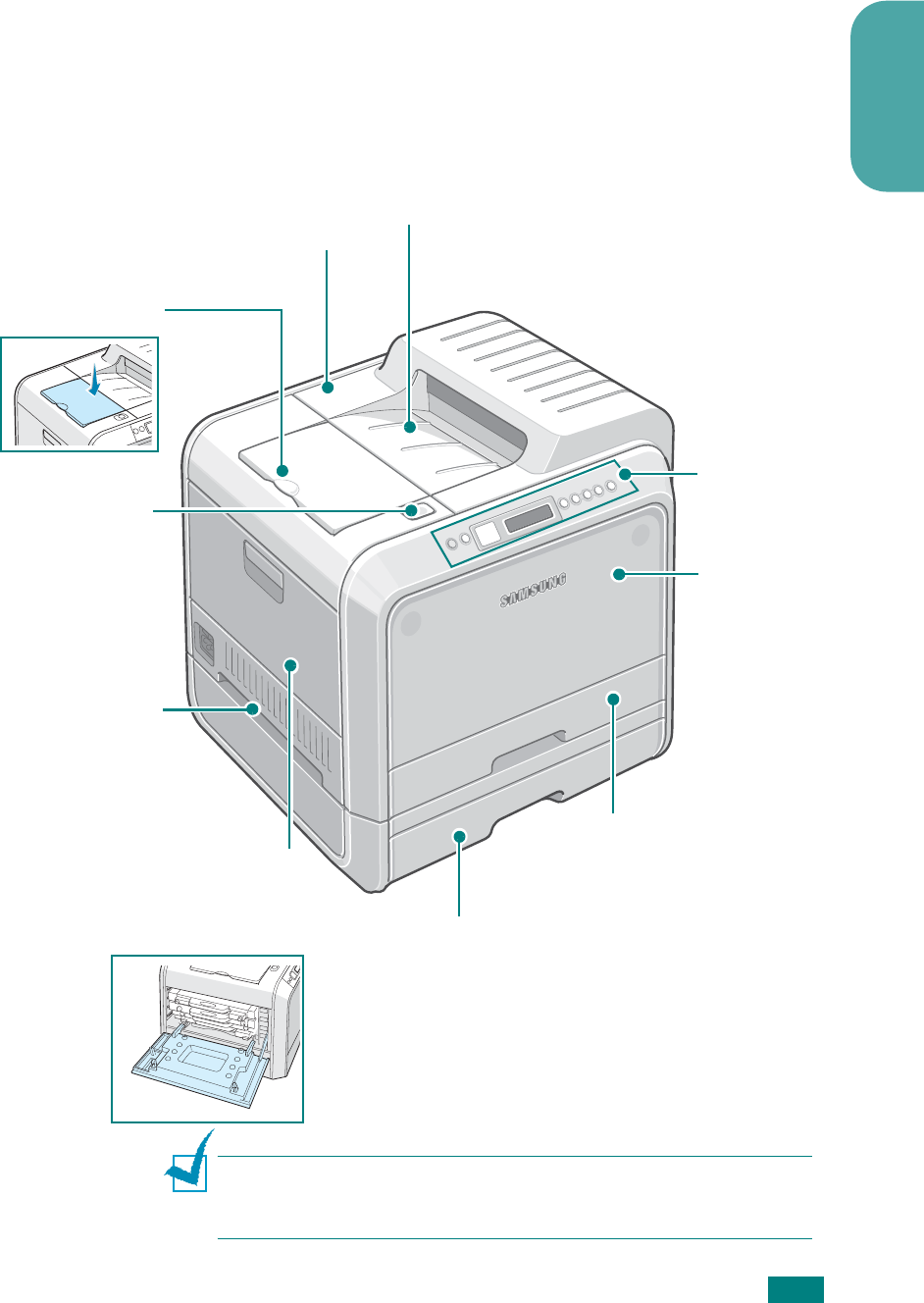

Step 2. Understanding Your Printer

These are the main components of your printer:

OTE

The surface of the output tray may become hot if you print

a large number of pages at once. Please make sure that you don’t

touch the surface, and prevent children from approaching it.

Top Cover

(Open to install the

transfer belt.)

Output Support

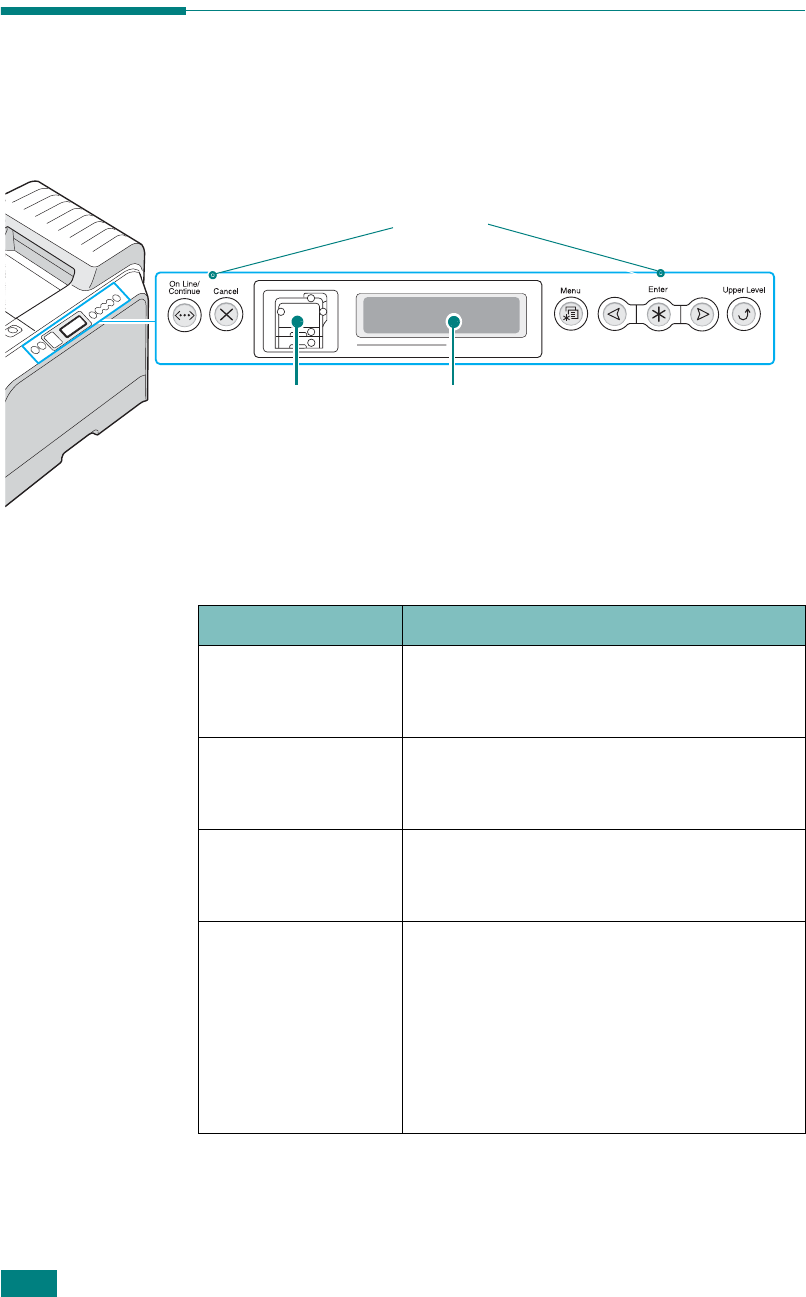

Control Panel

(Refer to

Chapter 2 in the

User’s Guide on

the CD-ROM.)

Paper Output Tray

Front Cover

(Open to replace

the waste toner

container.)

Left Cover

(Open fully to install toner

cartridges and to press the top

cover release button.)

Tray 1

(250-sheet paper feeder)

Top Cover

Release Button

Optional Tray 2

(500-sheet paper feeder)

Handle

(Use it to lift the

printer.

Lifting handles are

located at the lower

edge of both sides

of the printer.)

ETUP

UIDE

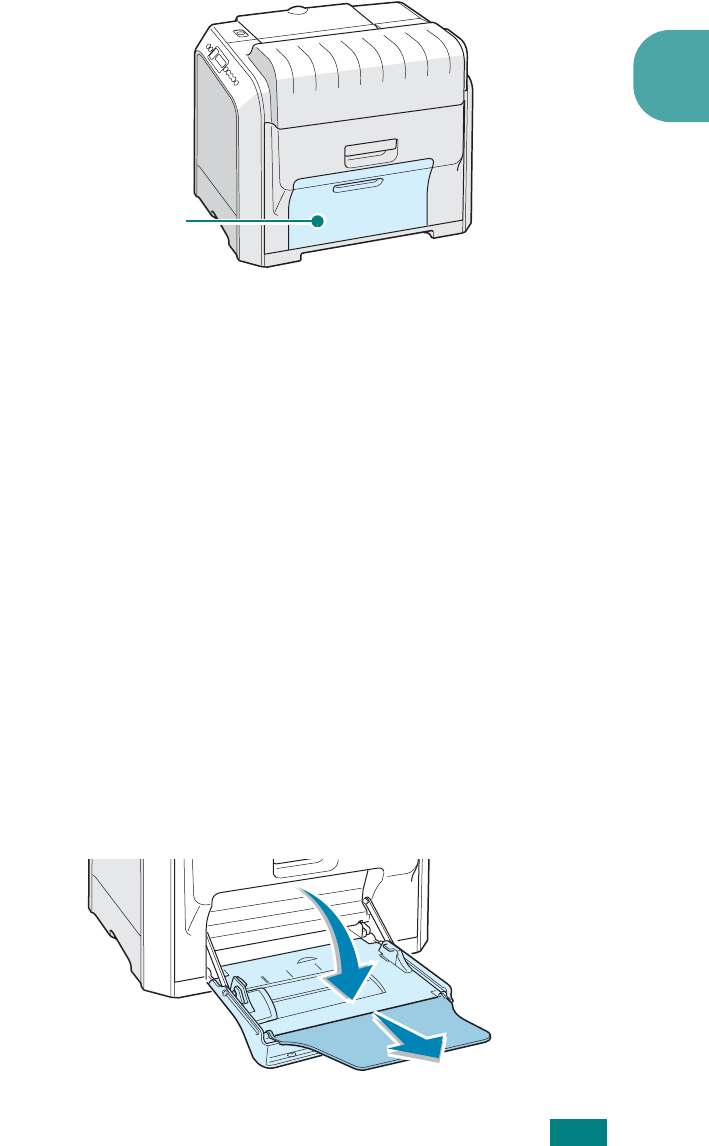

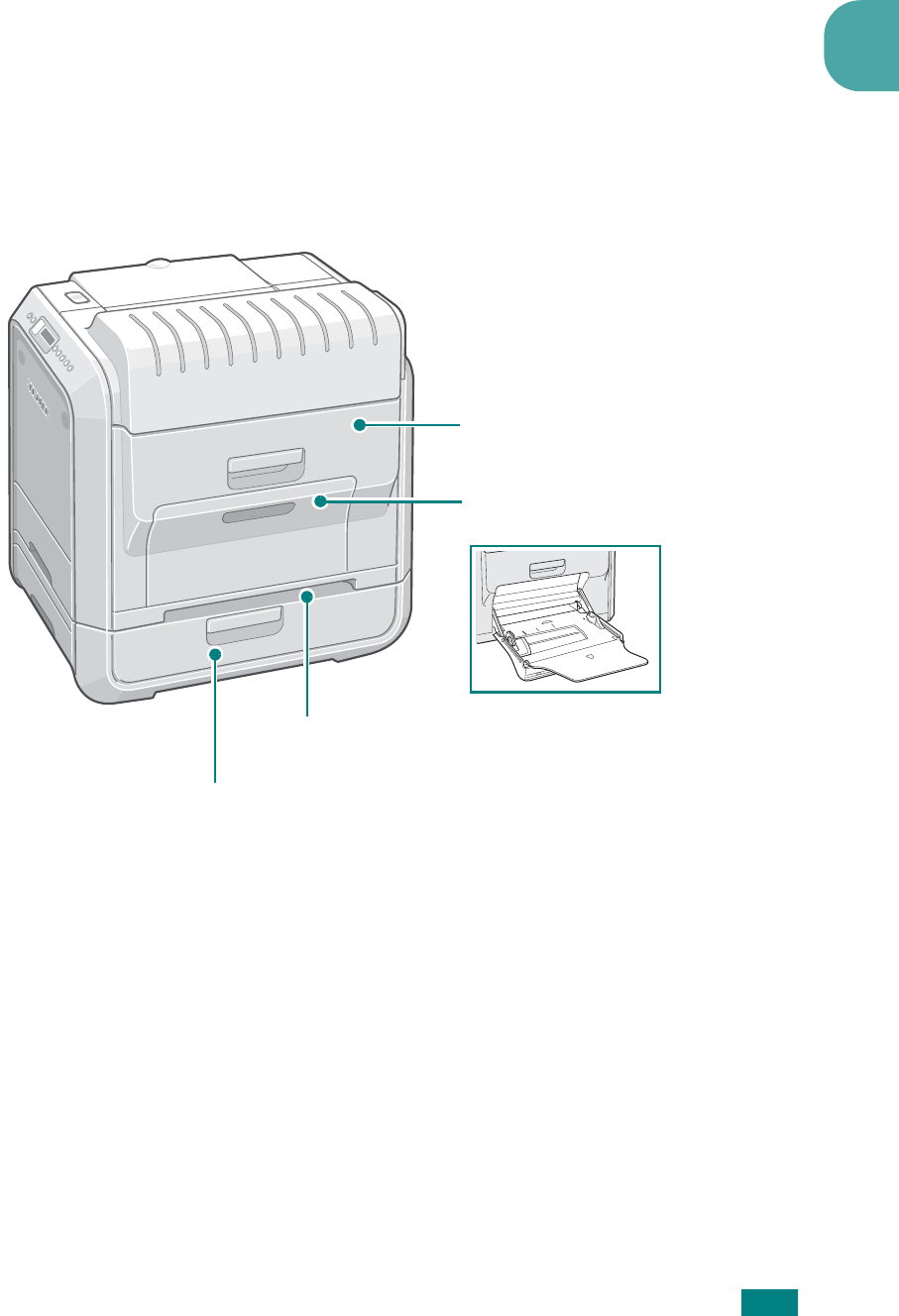

Optional Tray 2 Jam Cover

(Open to remove jams from the optional tray 2.)

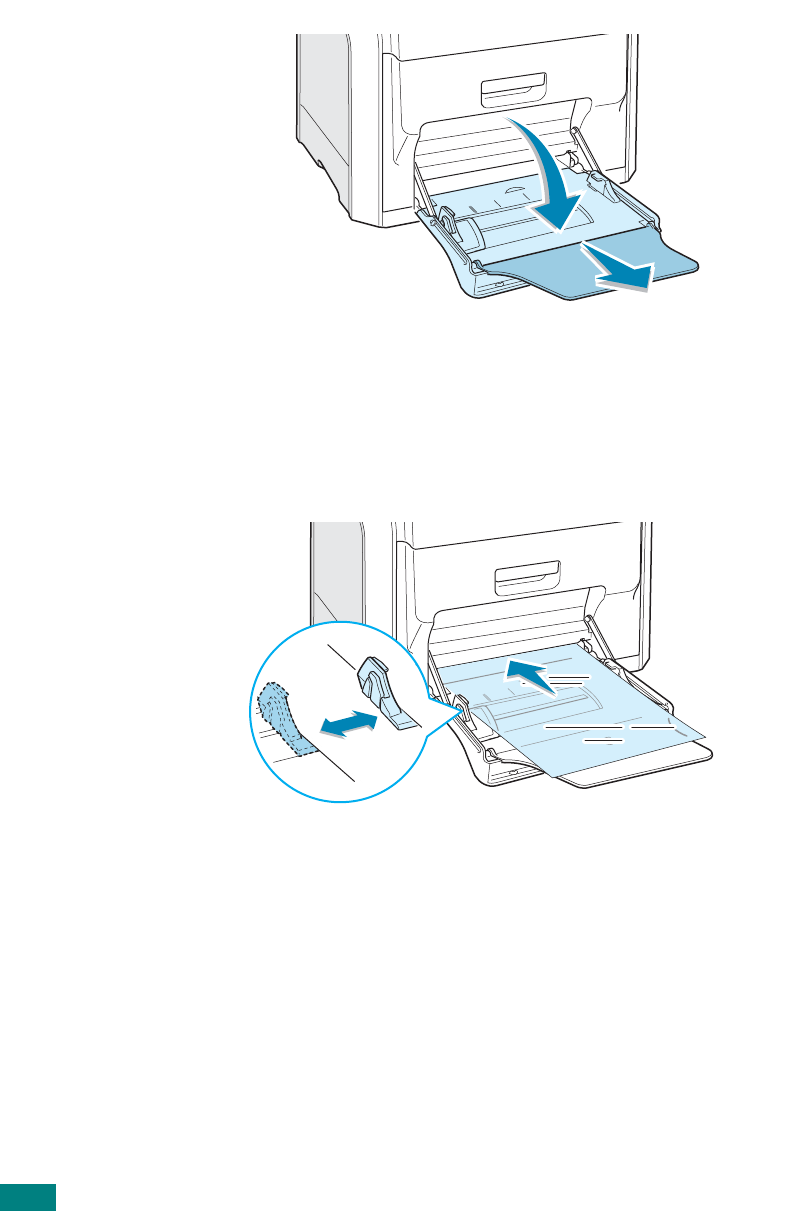

Muti-purpose Tray

(Open to load special print materials.)

Right Cover

(Open to remove paper jams.)

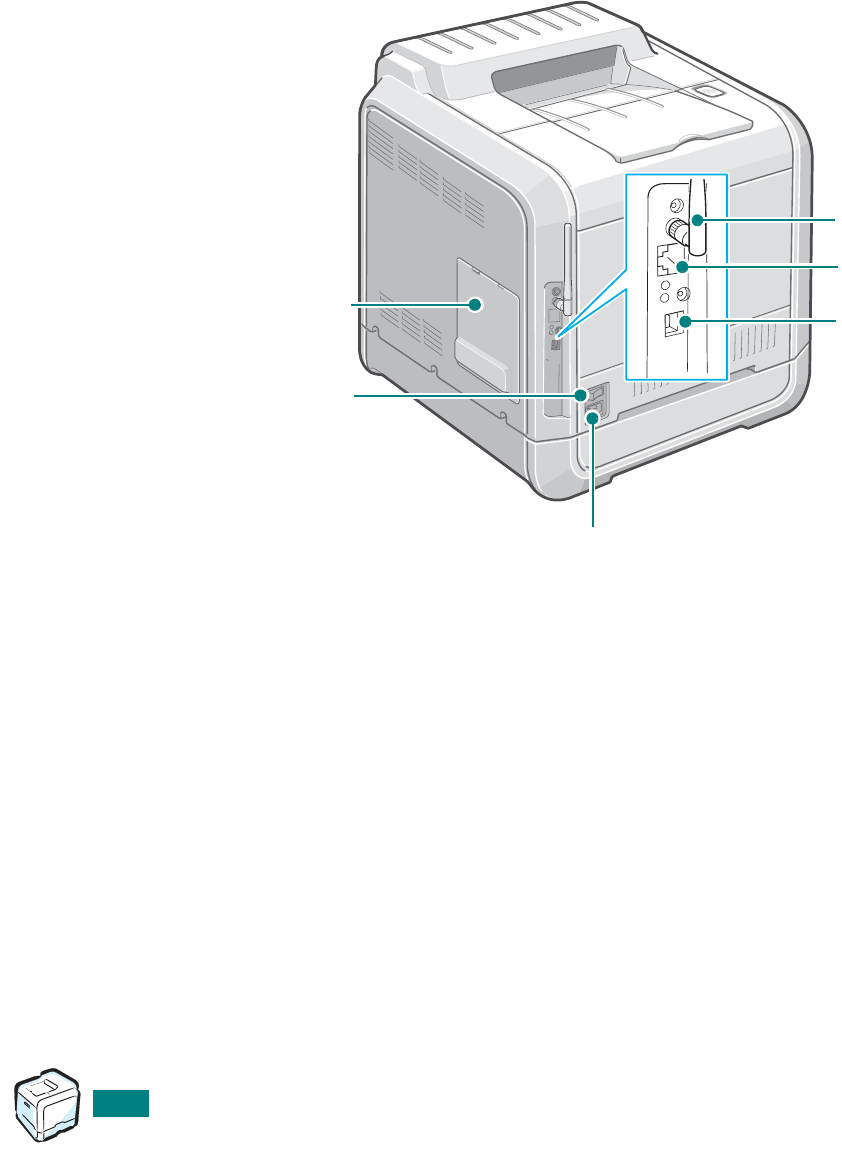

Power Switch

USB Port

Power Receptacle

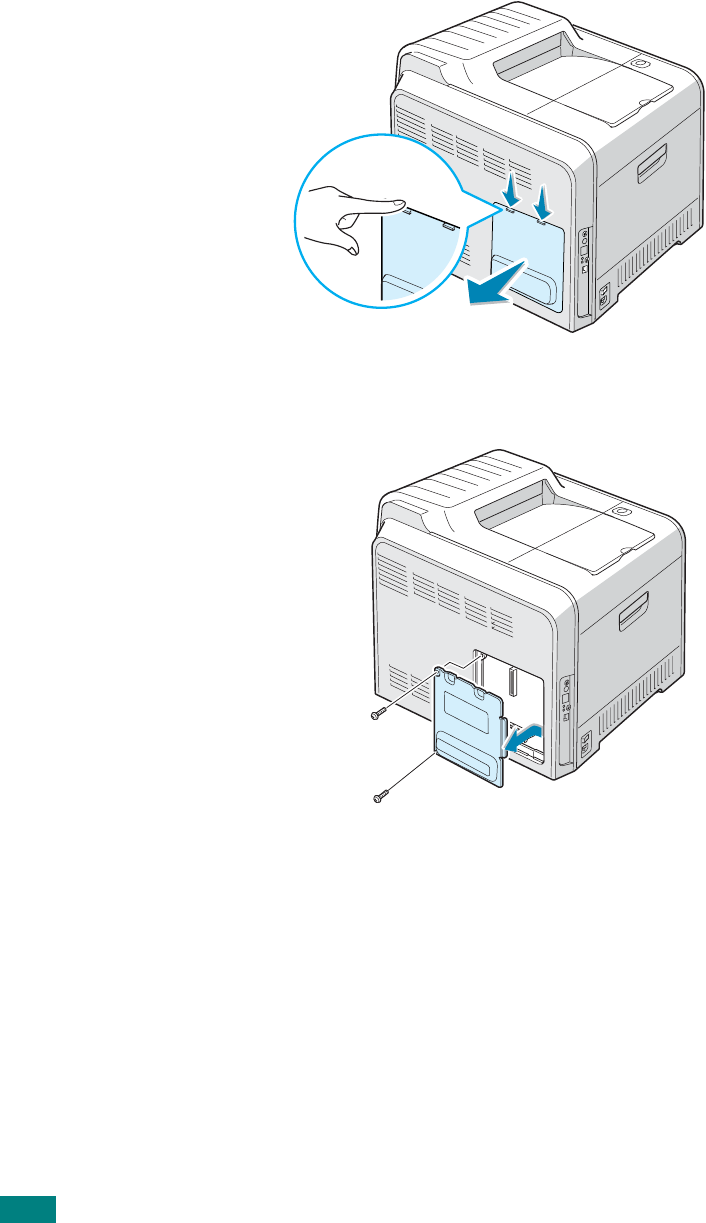

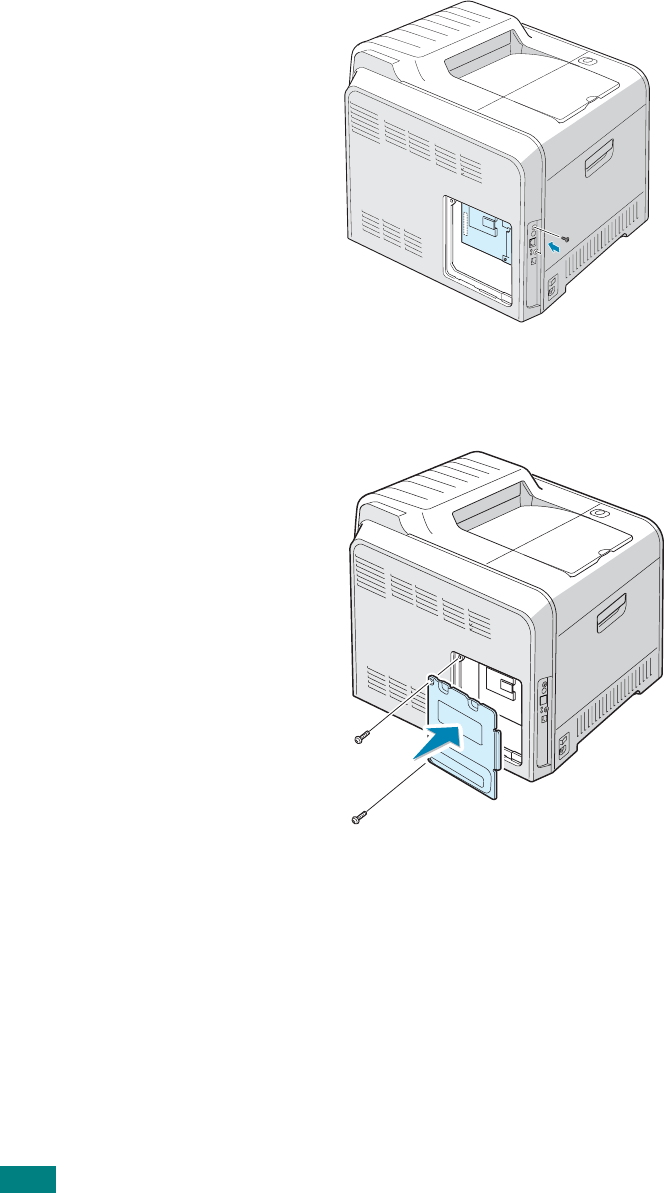

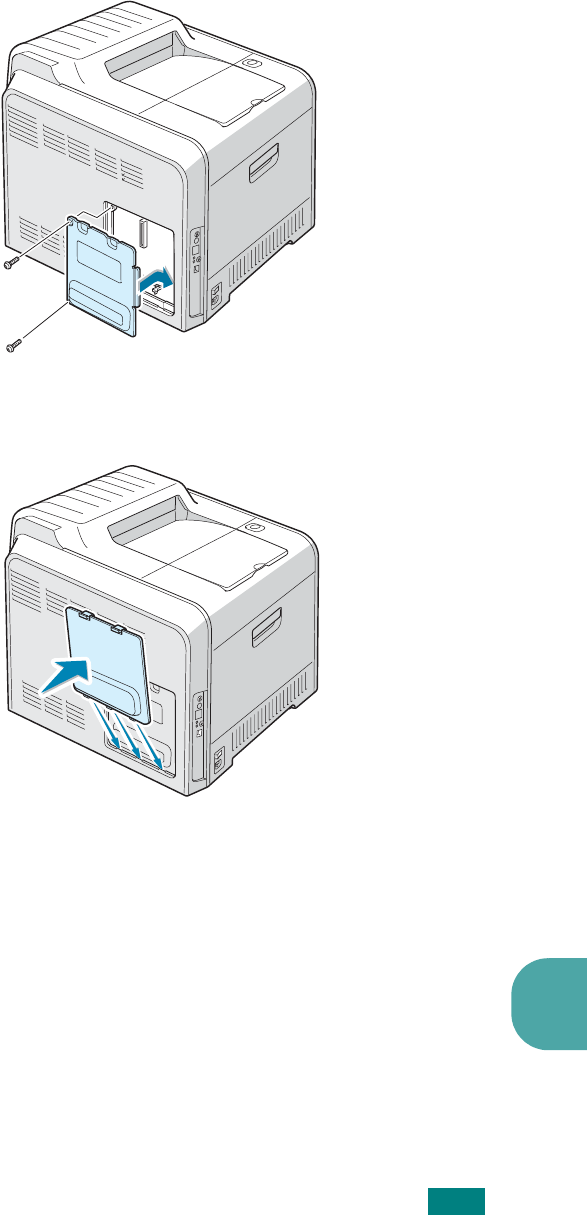

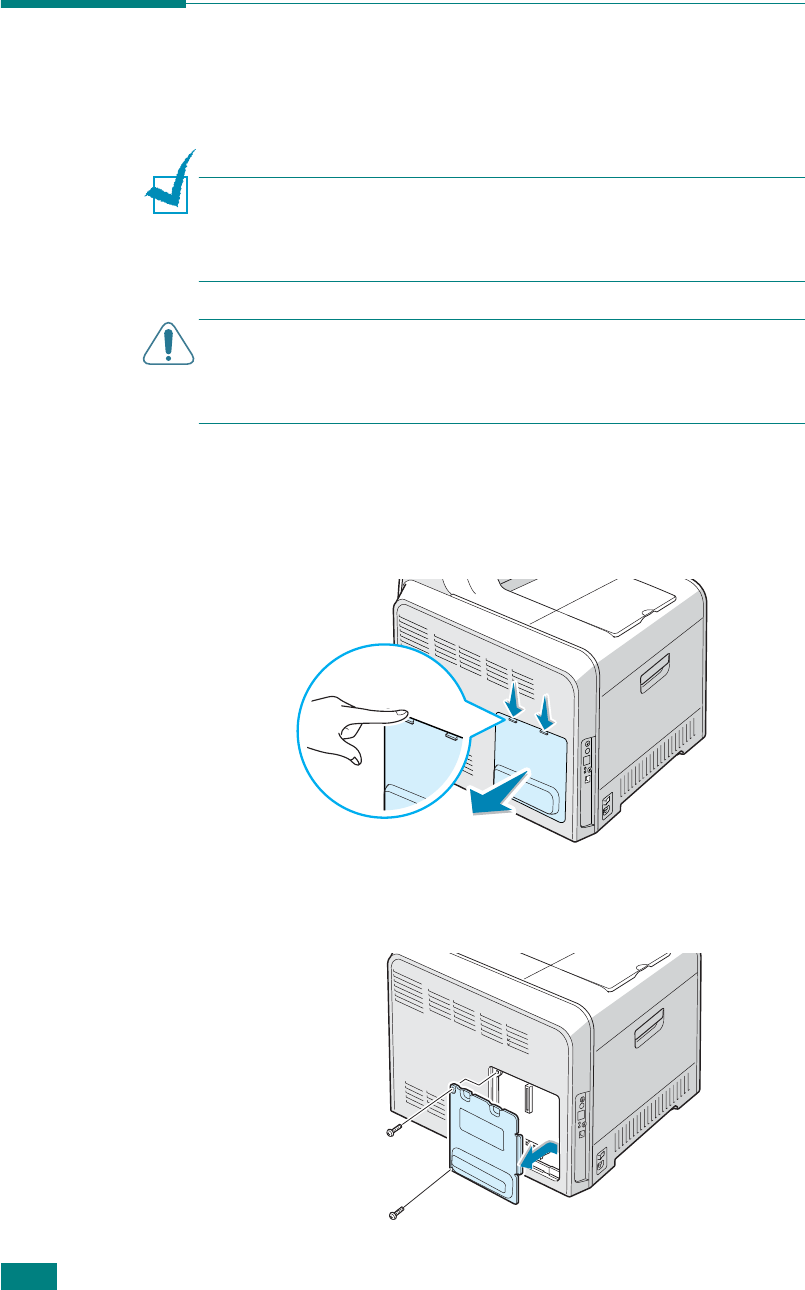

Control Board

Cover

(Open to install optional

accessories.)

Wireless Network

Antenna

Network Port

* A wireless network card is not supplied with the printer. It is an option that must be purchased and

installed separately.

** The network port is fitted as standard on the CLP-510N. CLP-510 users can purchase and install an

optional network card separately. For details, see the User's Guide of the printer in the CD-ROM.

Handle

(Use it to lift the printer.)

ETUP

UIDE

English

Step 3.

Installing the Transfer Belt and Toner

Cartridges

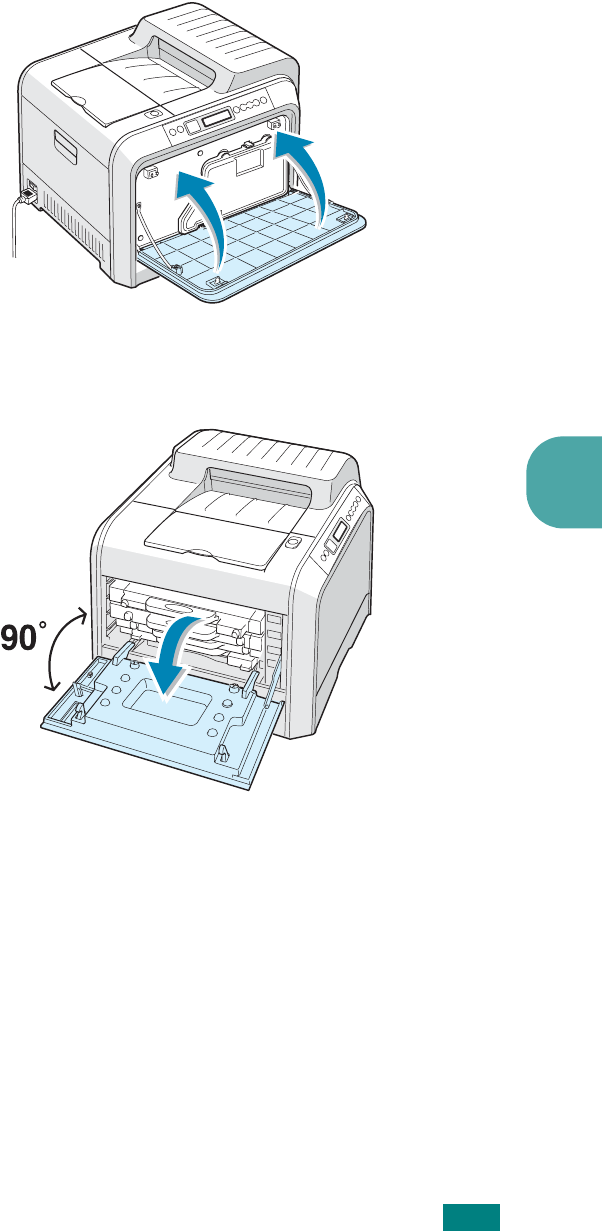

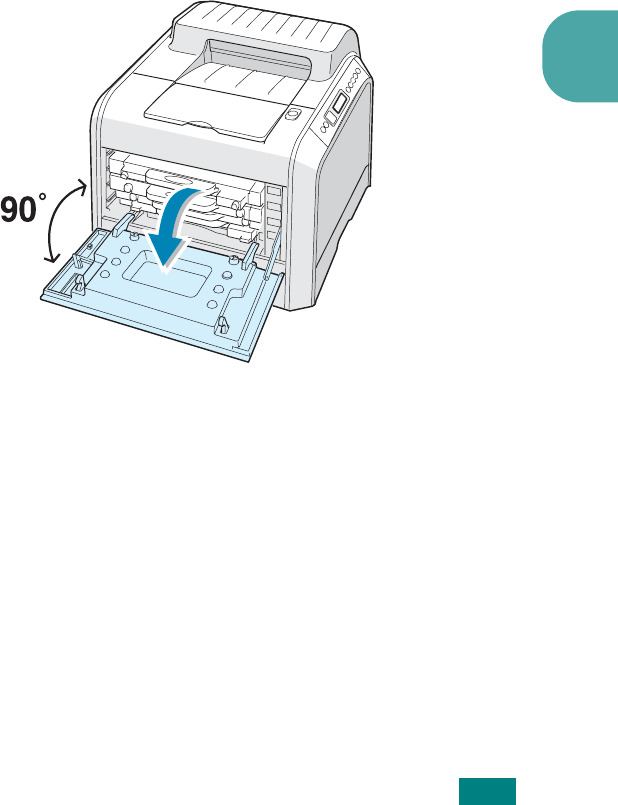

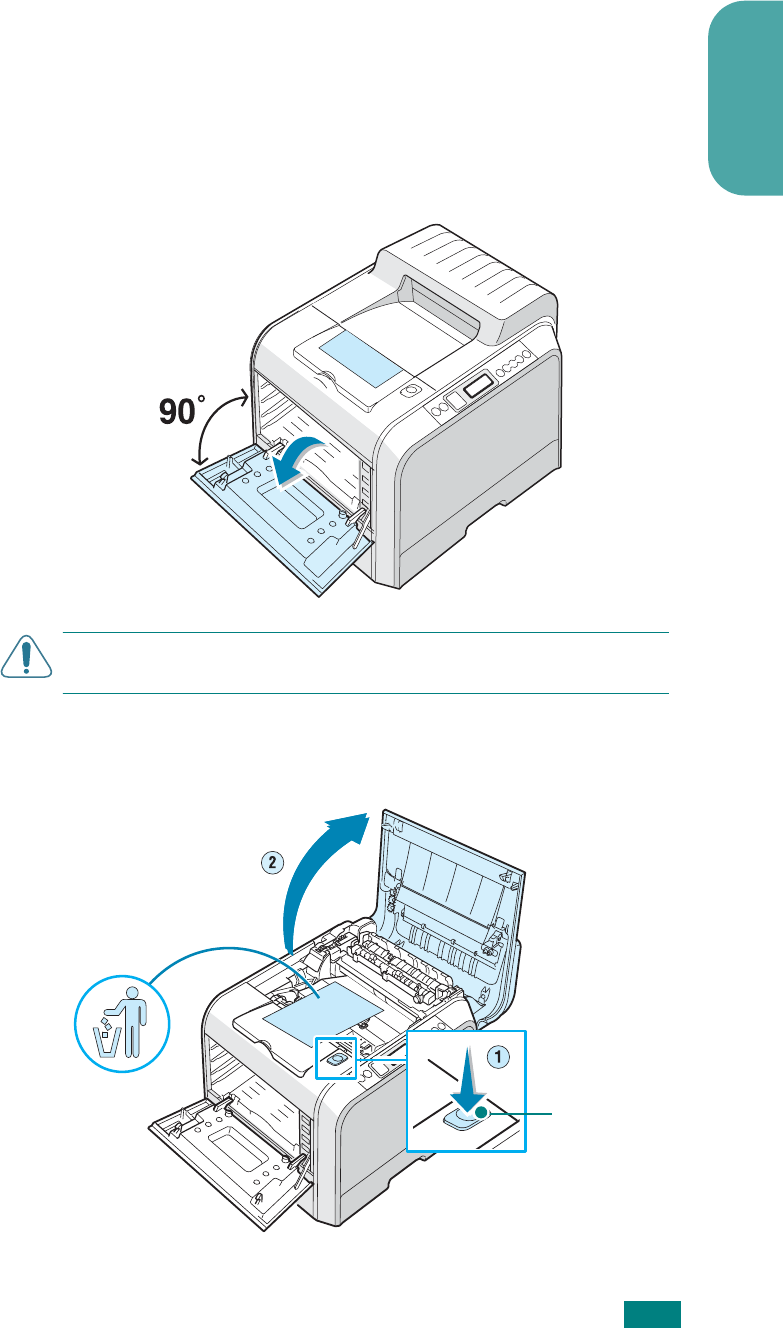

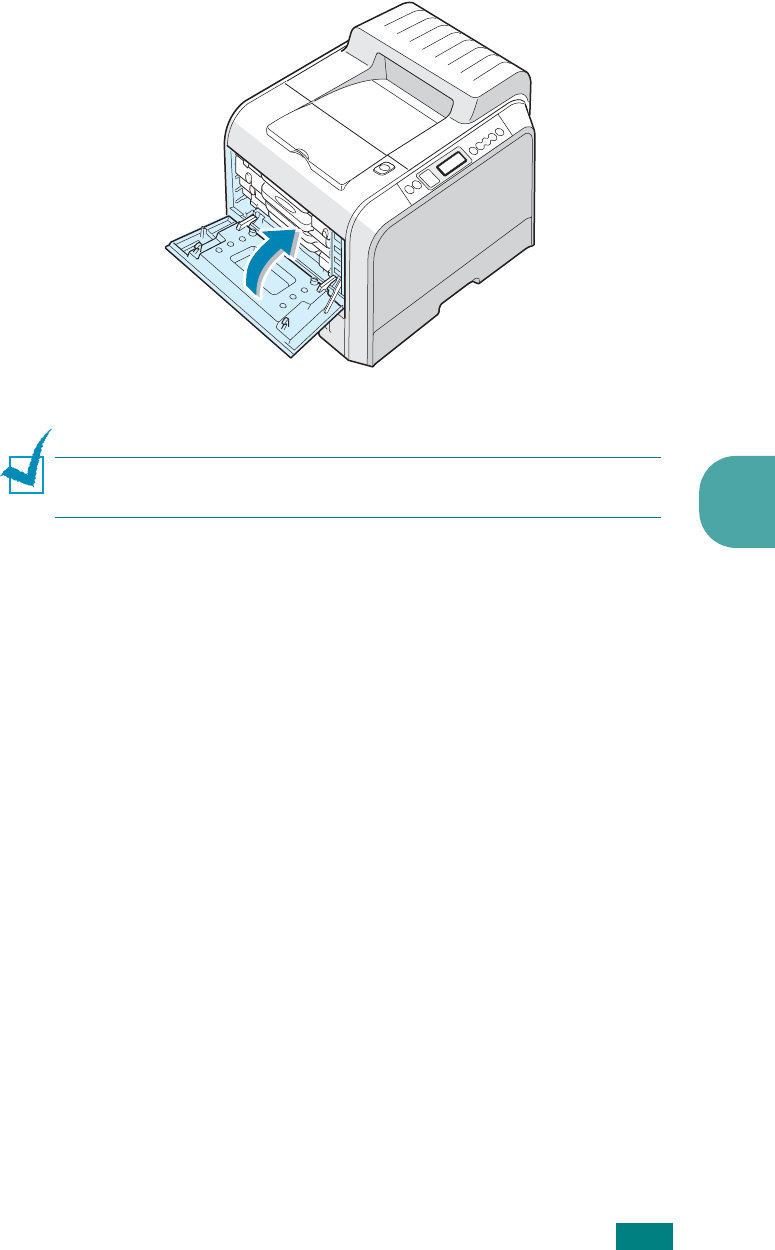

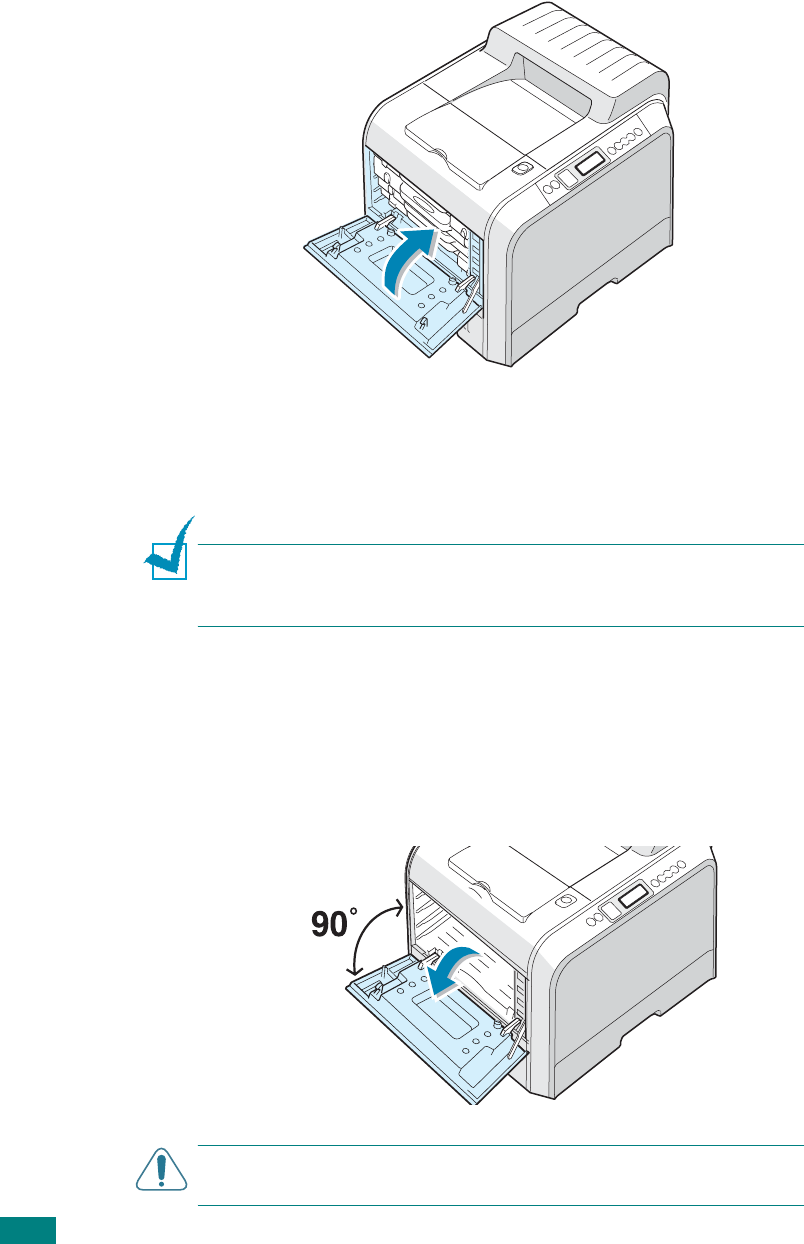

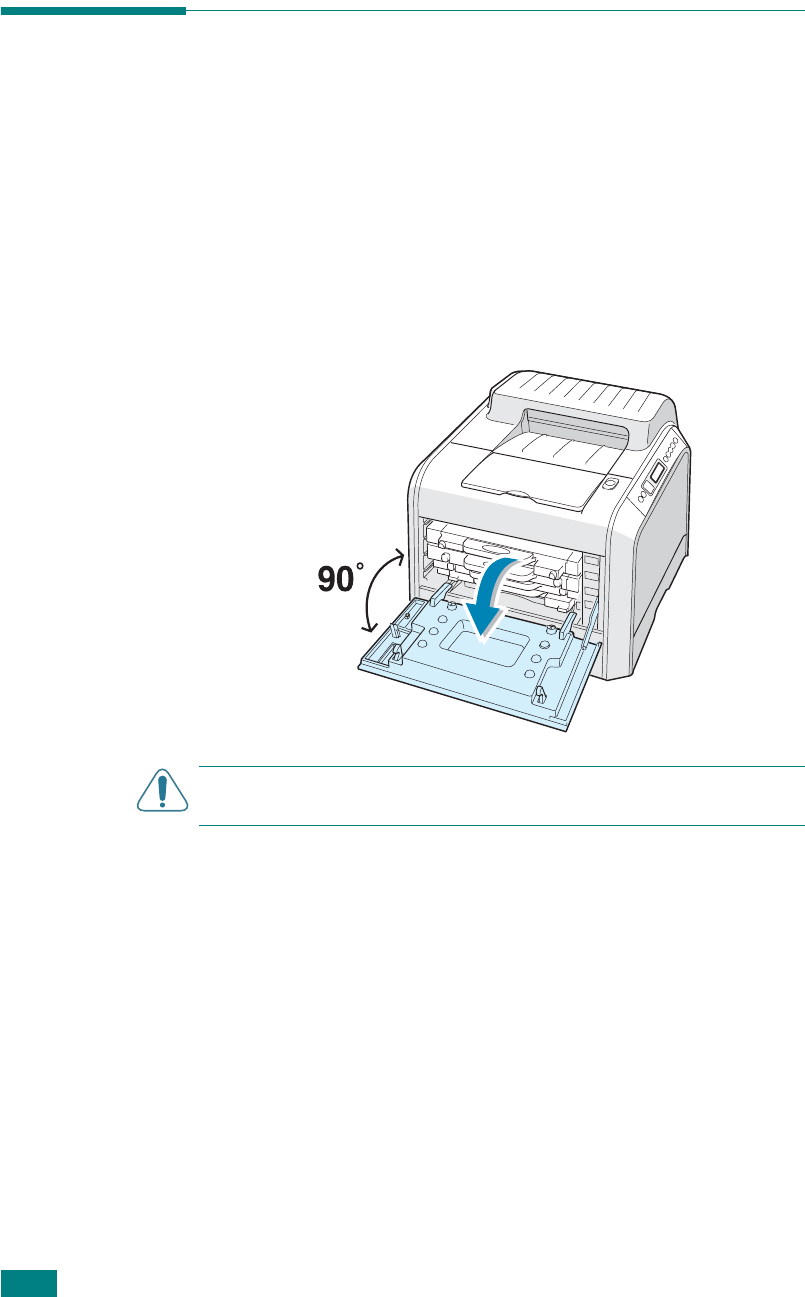

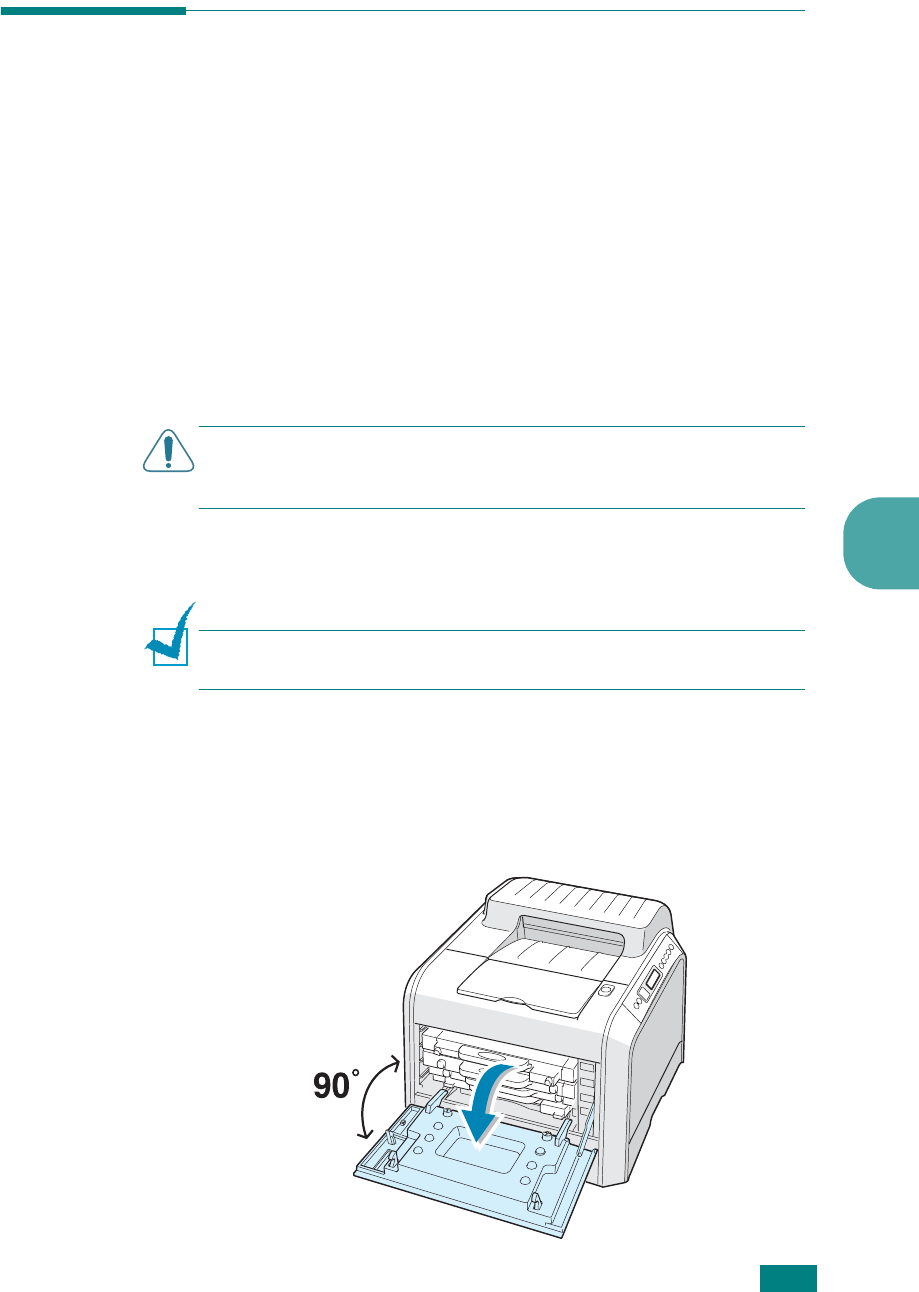

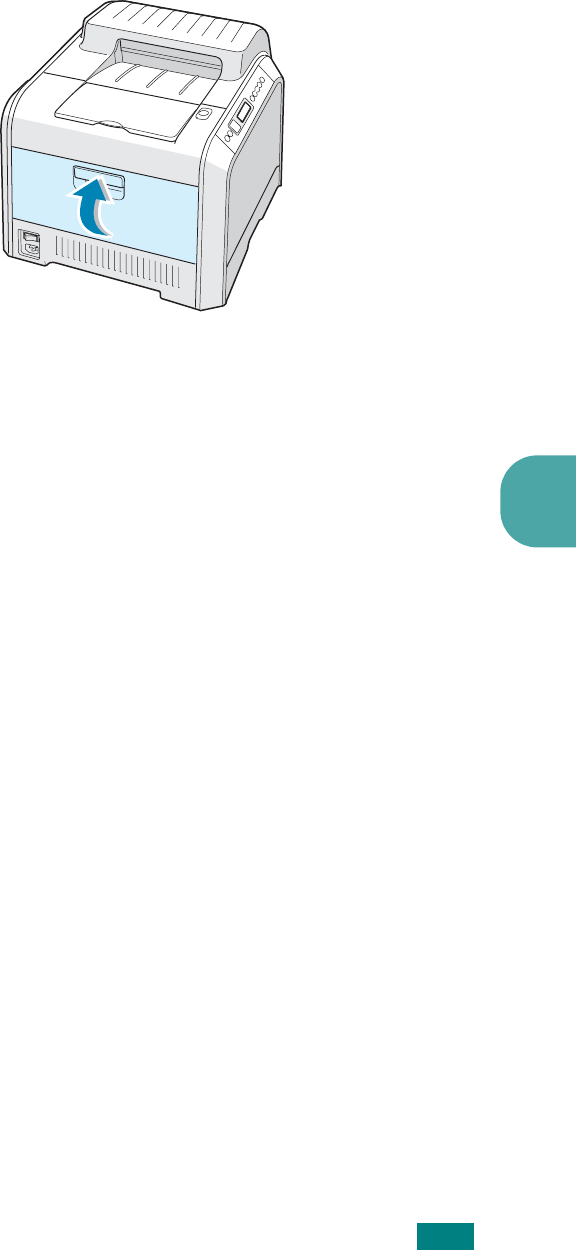

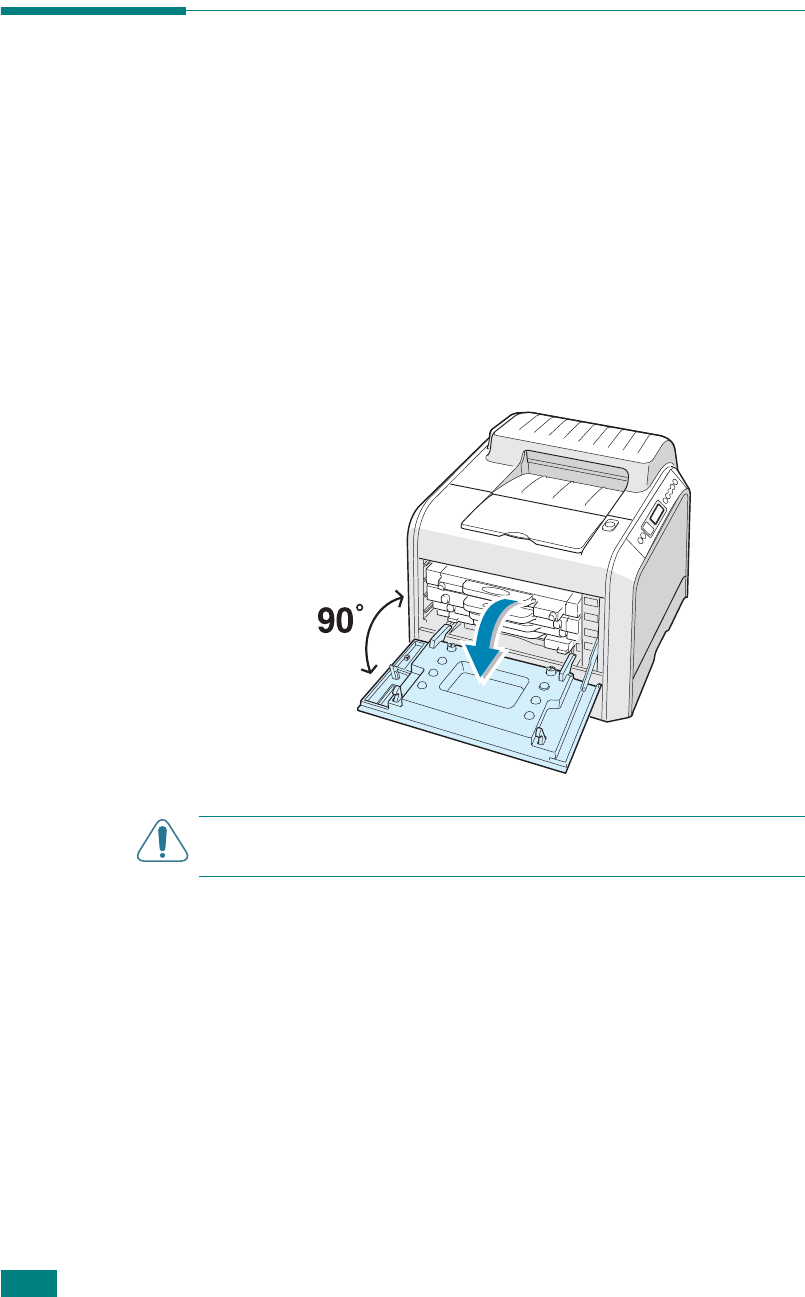

Using the handle, completely open the left cover until it is at

right angles to the main frame.

AUTION

If the left cover is not completely open, the top cover

release button will remain locked.

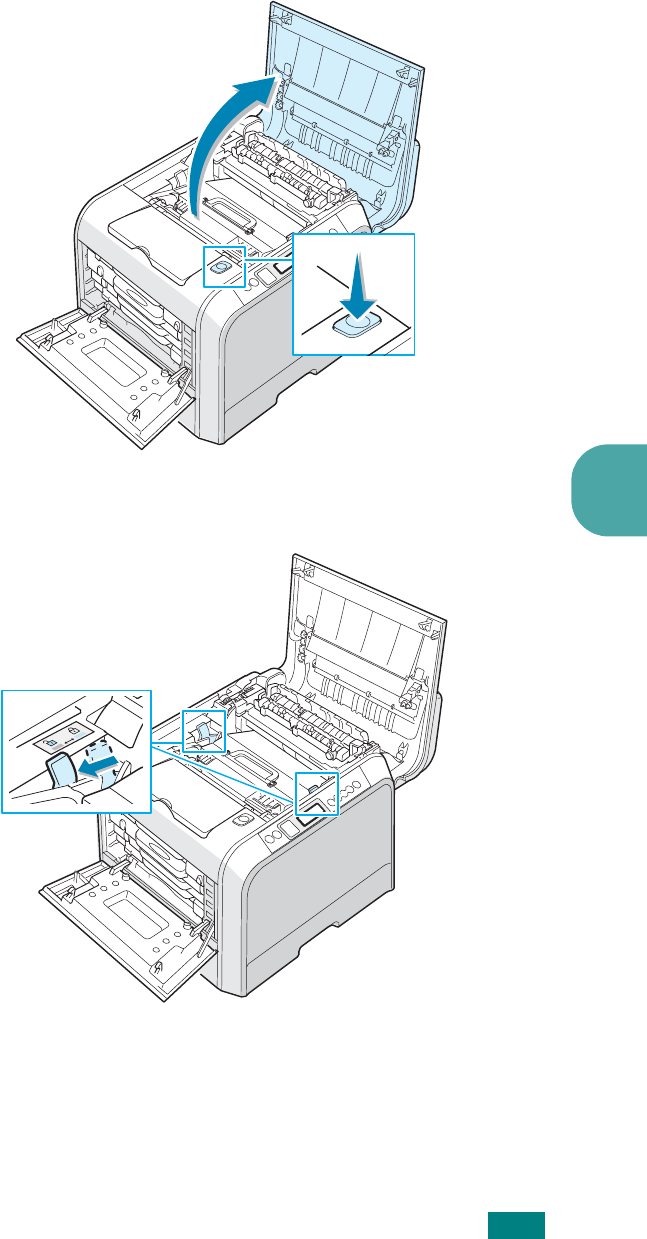

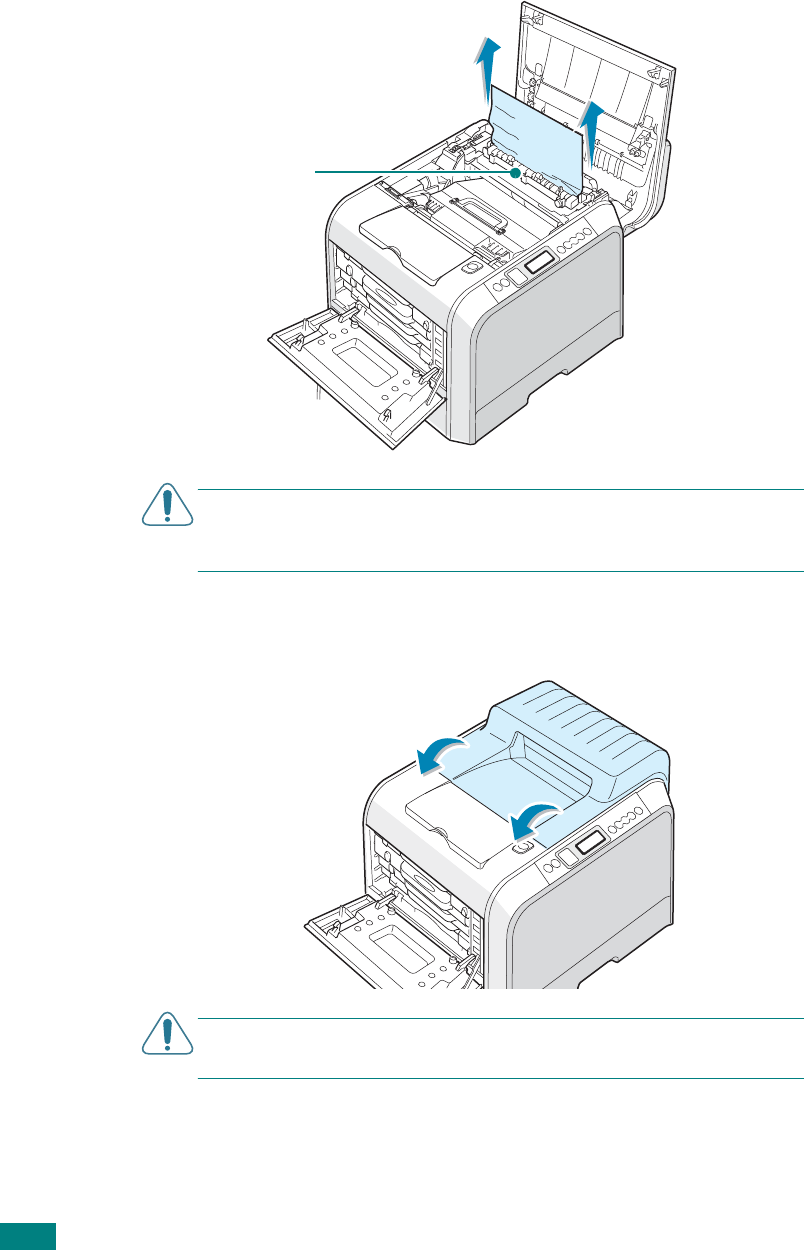

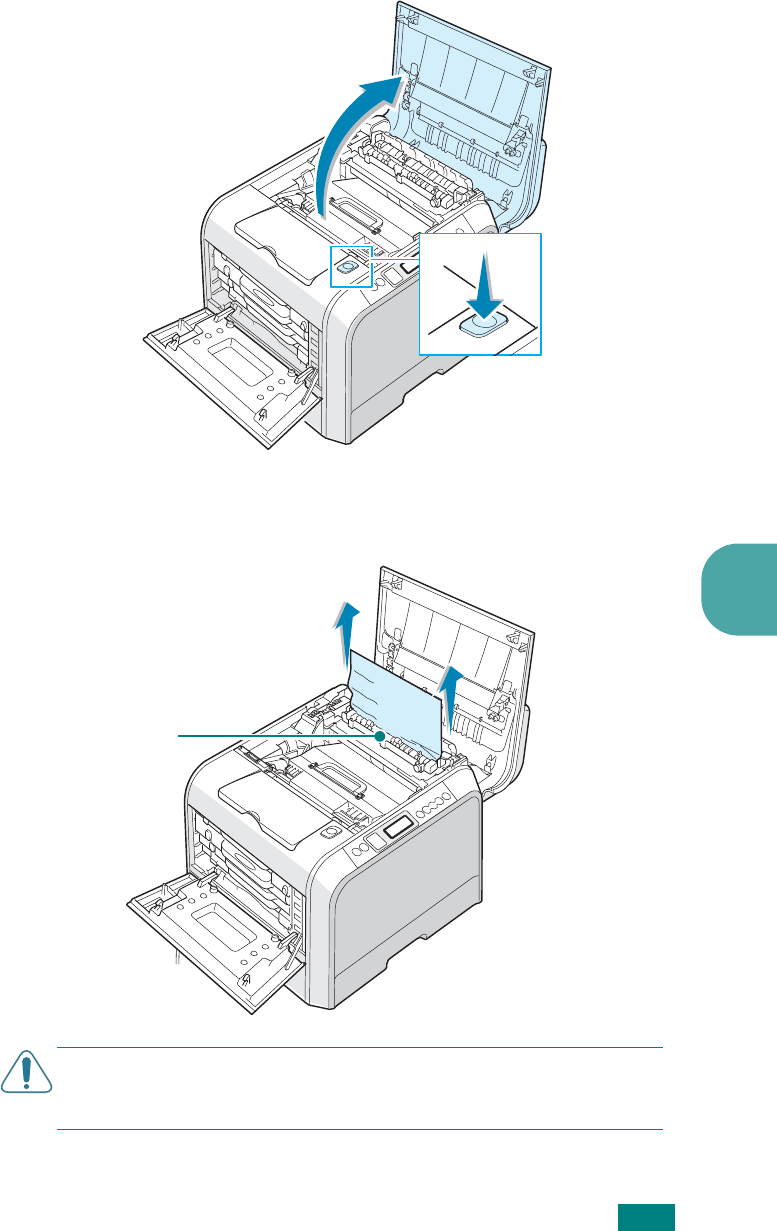

Press the top cover release button to unlatch the top cover and

open it all the way. Remove the label on the transfer belt.

Top cover

release

button

ETUP

UIDE

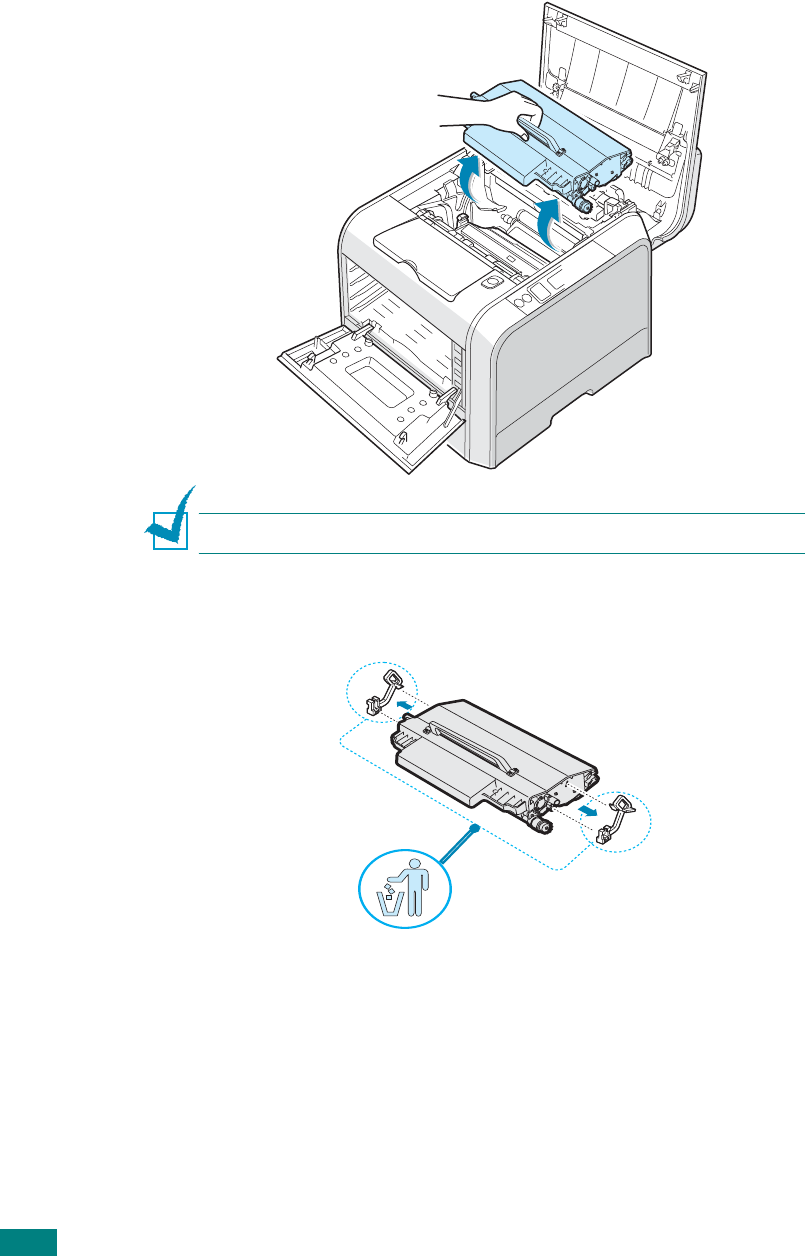

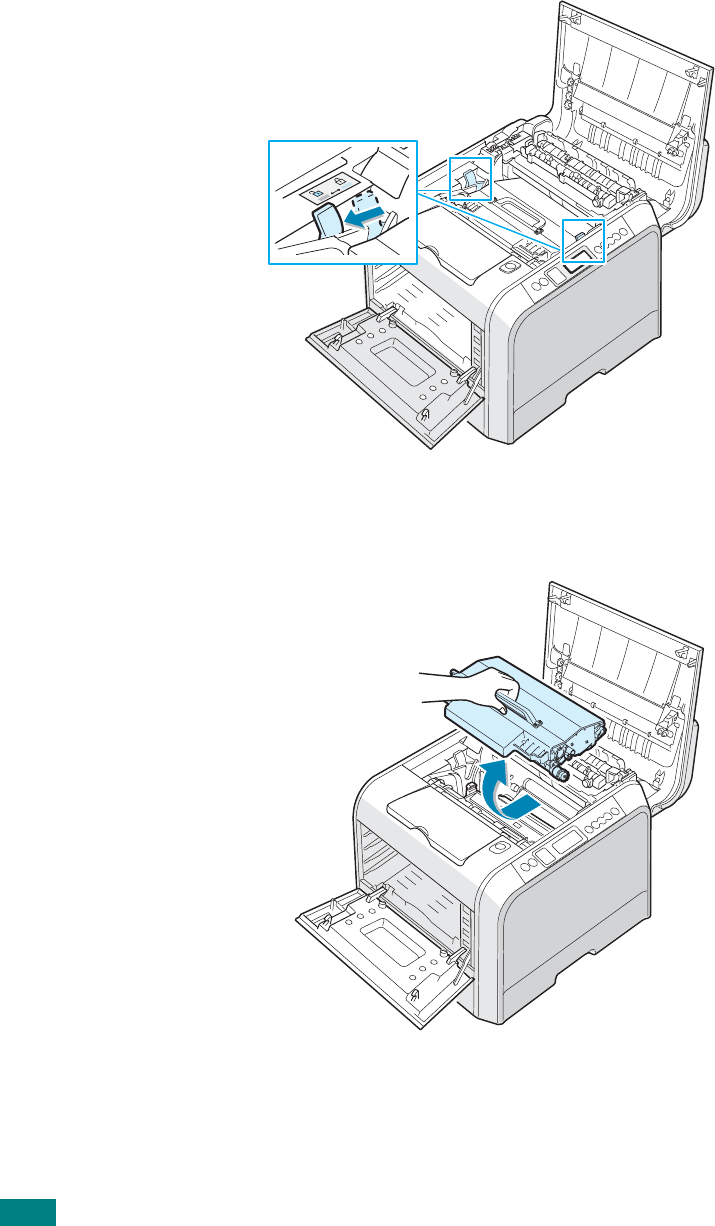

Take the transfer belt out of the printer.

OTE

: The image unit is already installed in your printer.

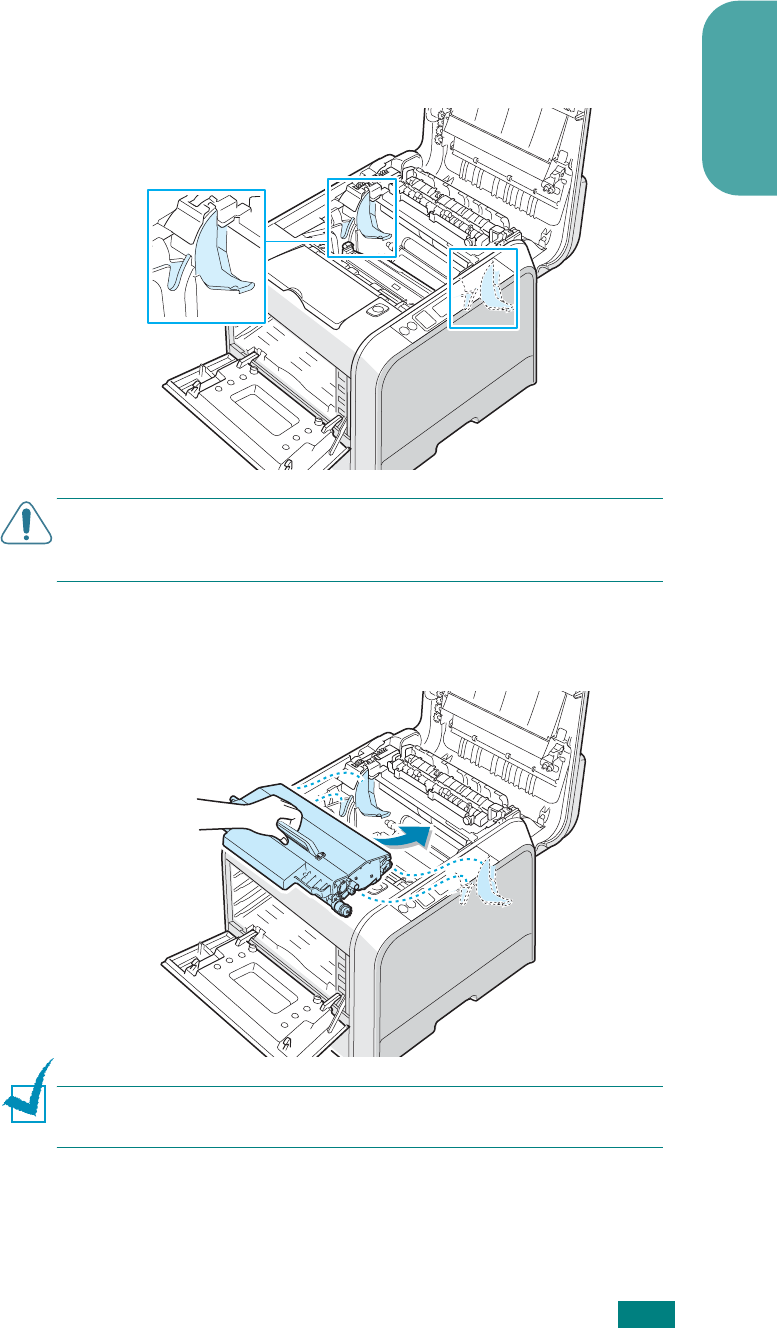

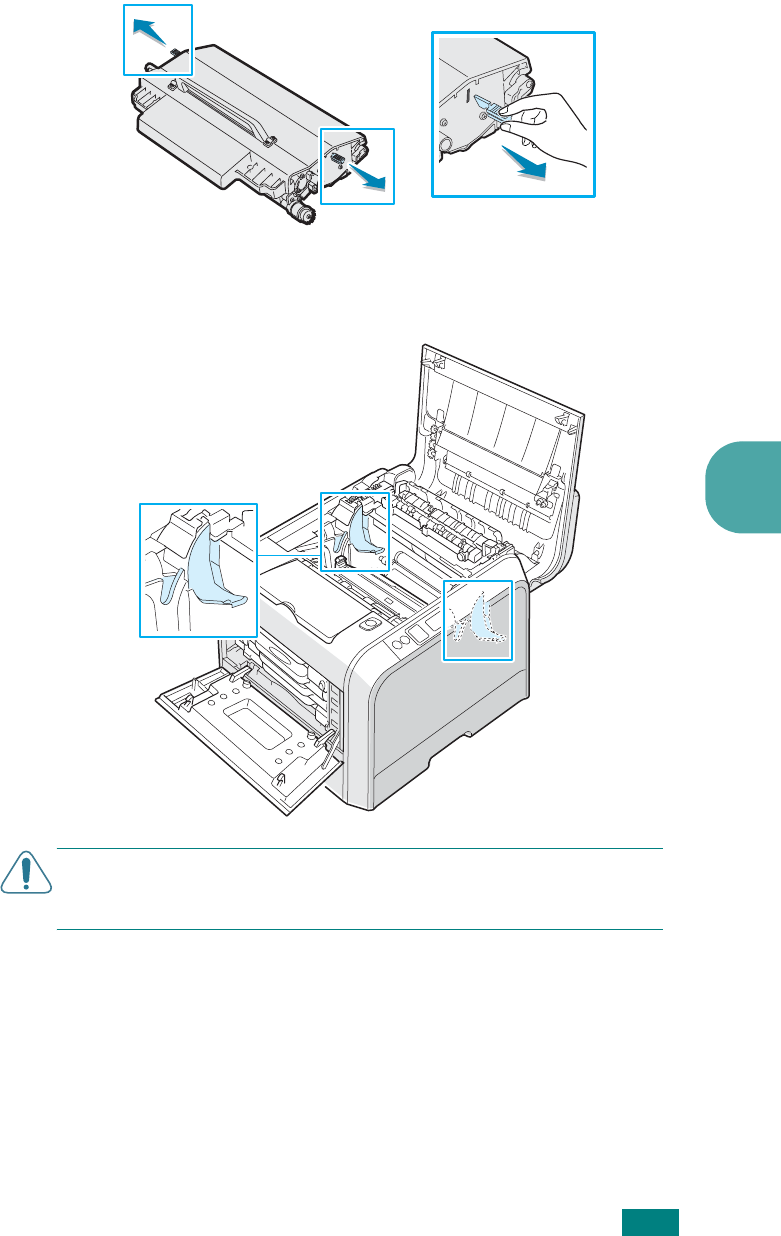

Remove the protective devices on both side of the transfer

belt.

ETUP

UIDE

English

Locate the transfer belt slots inside the printer, one on each

side.

AUTION

To prevent damage, do not expose the imaging unit to

light for more than a few minutes. Close the top and left covers

should the insallation need to be halted for any reason.

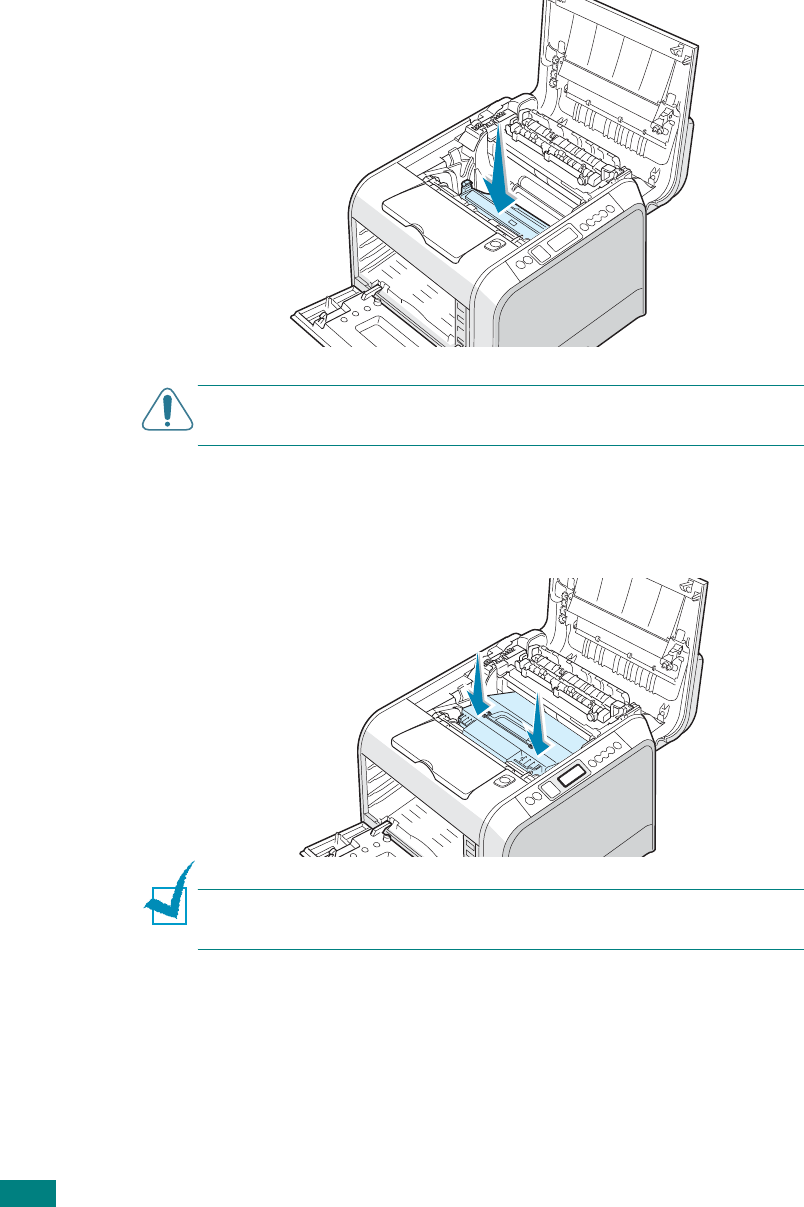

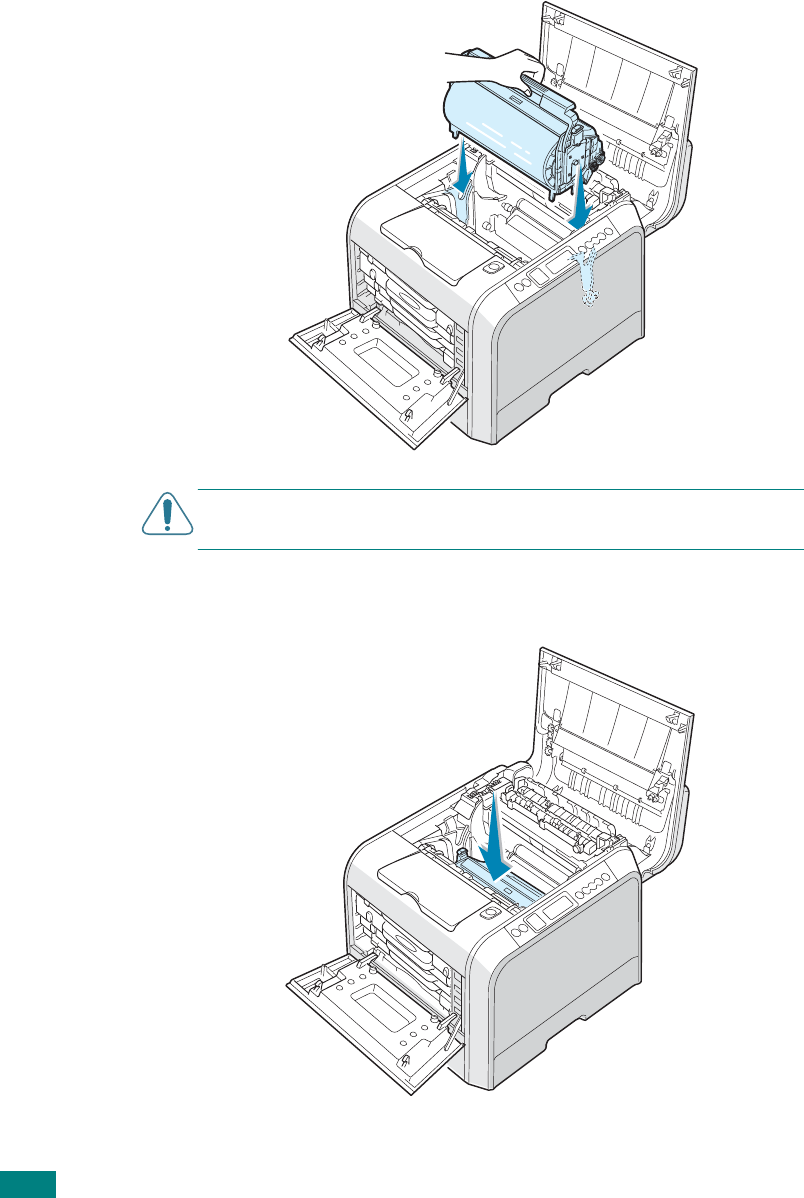

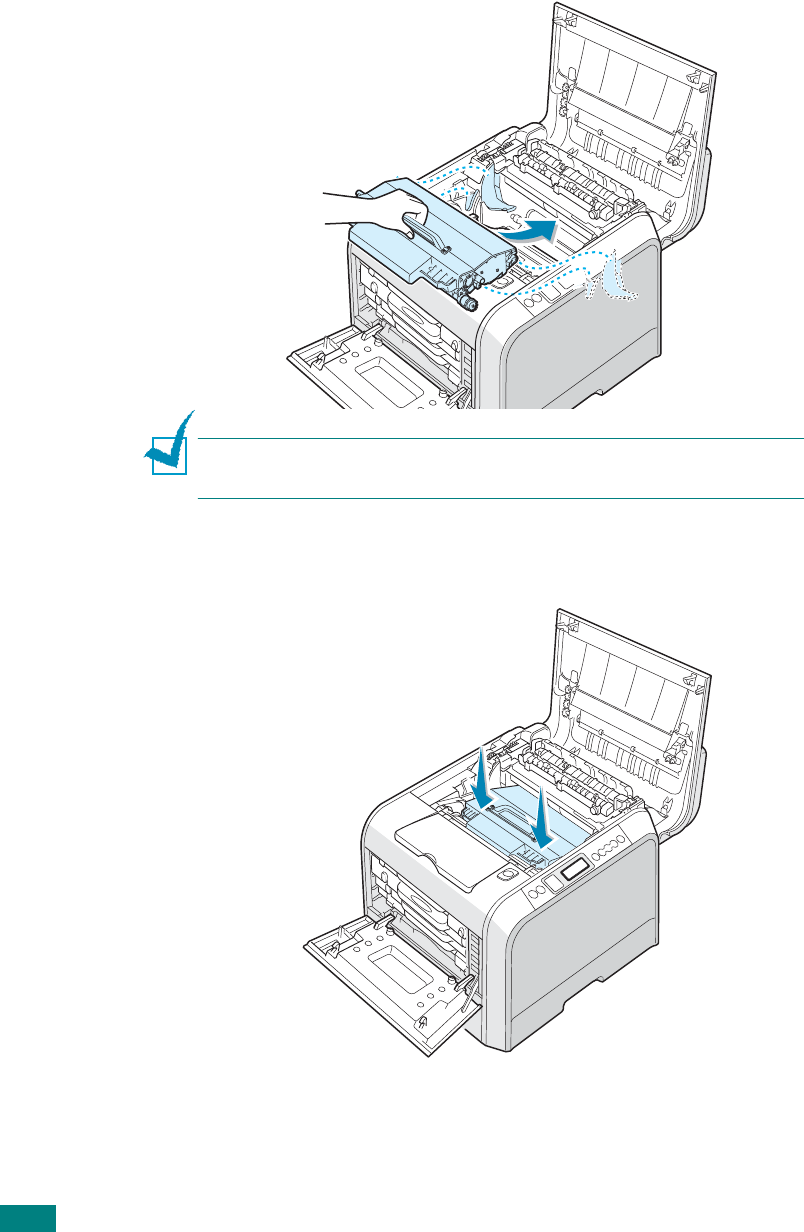

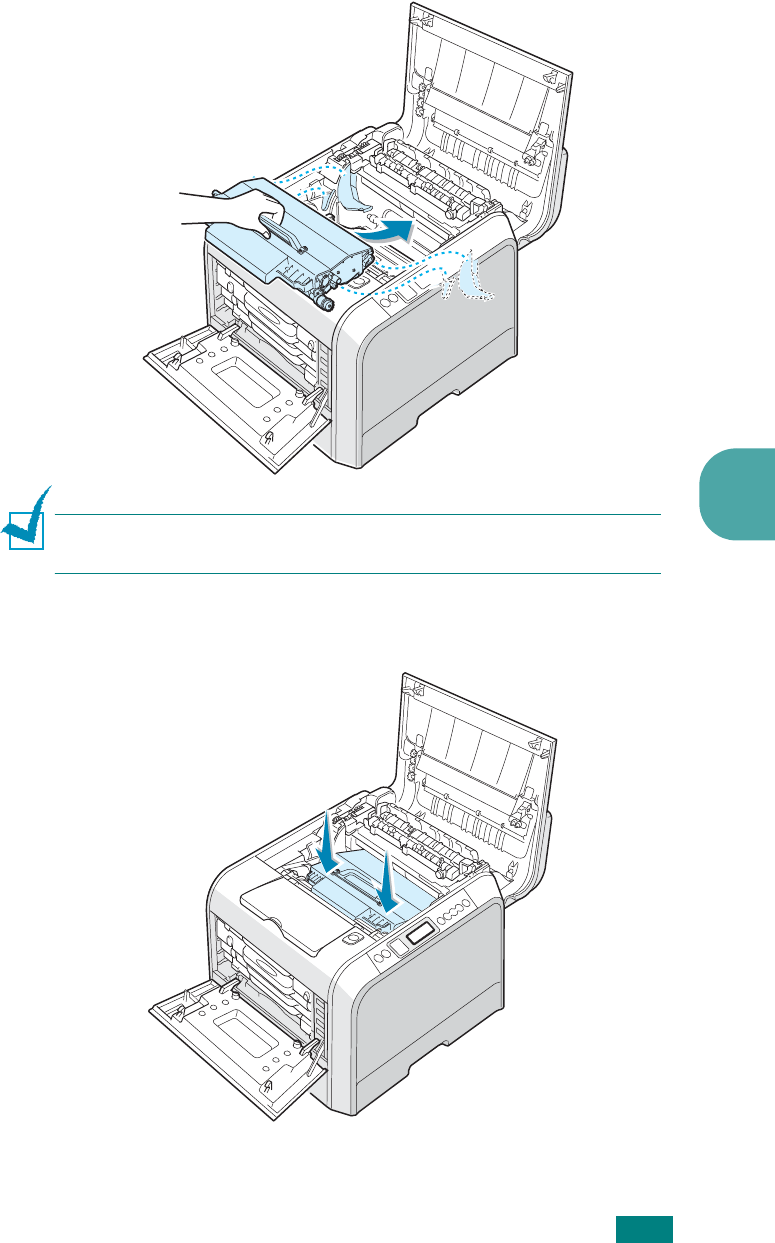

Holding the handle on the transfer belt, align it with the

slots on either side of the inside of your printer.

OTE

: Keep the transfer belt level. Do not turn the transfer belt

over, or loose toner may be spilled.

ETUP

UIDE

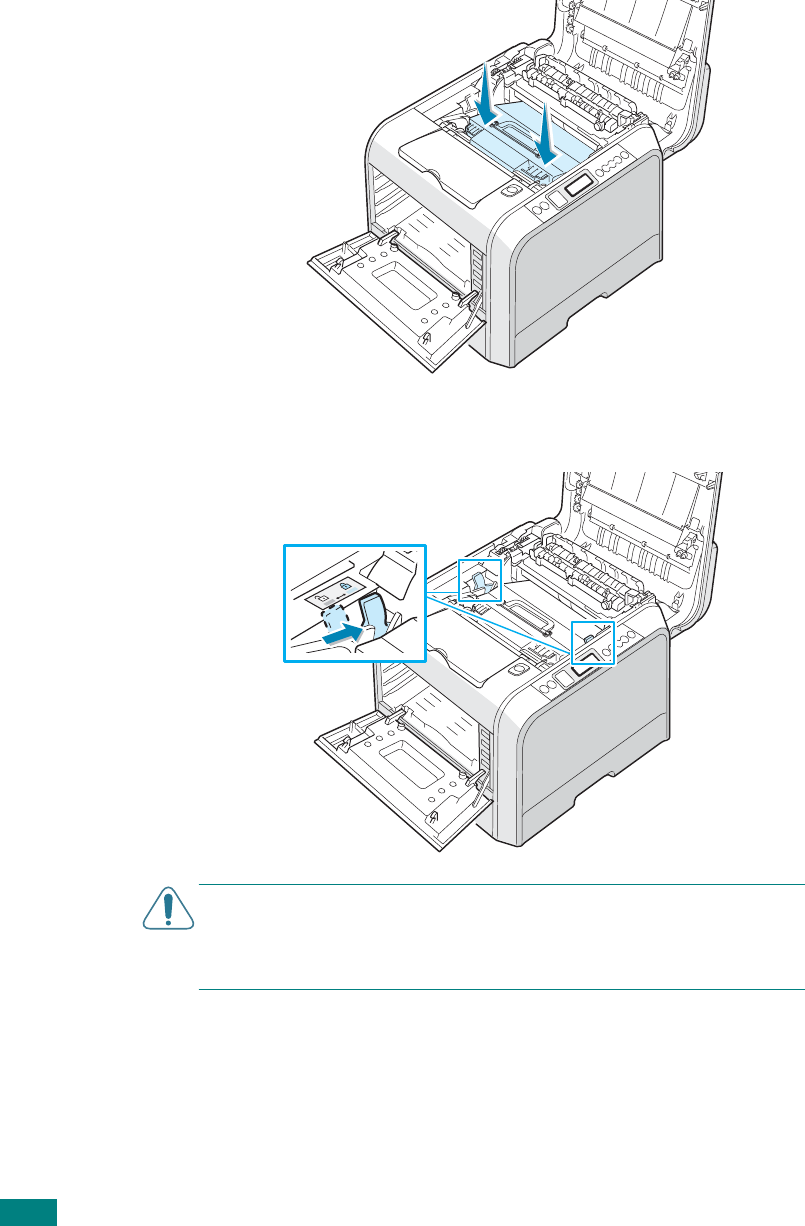

Slide the transfer belt down into the printer and press it

firmly into place.

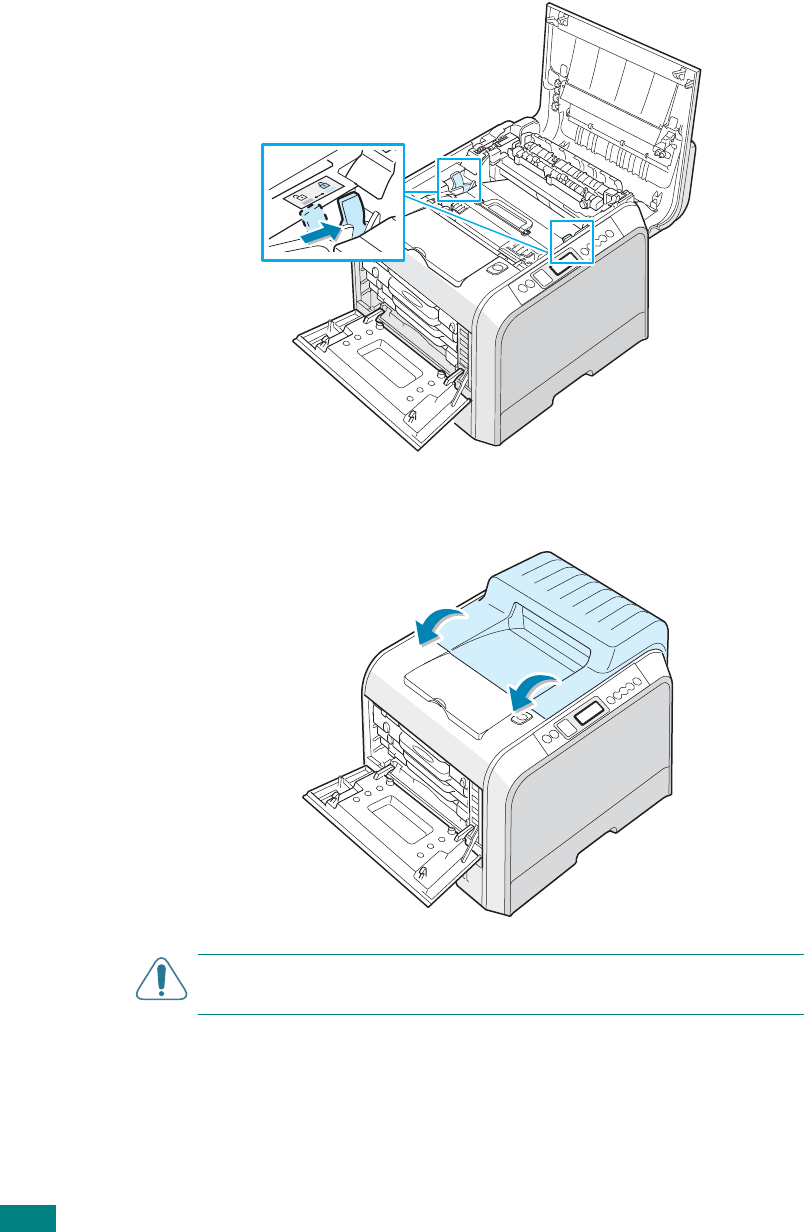

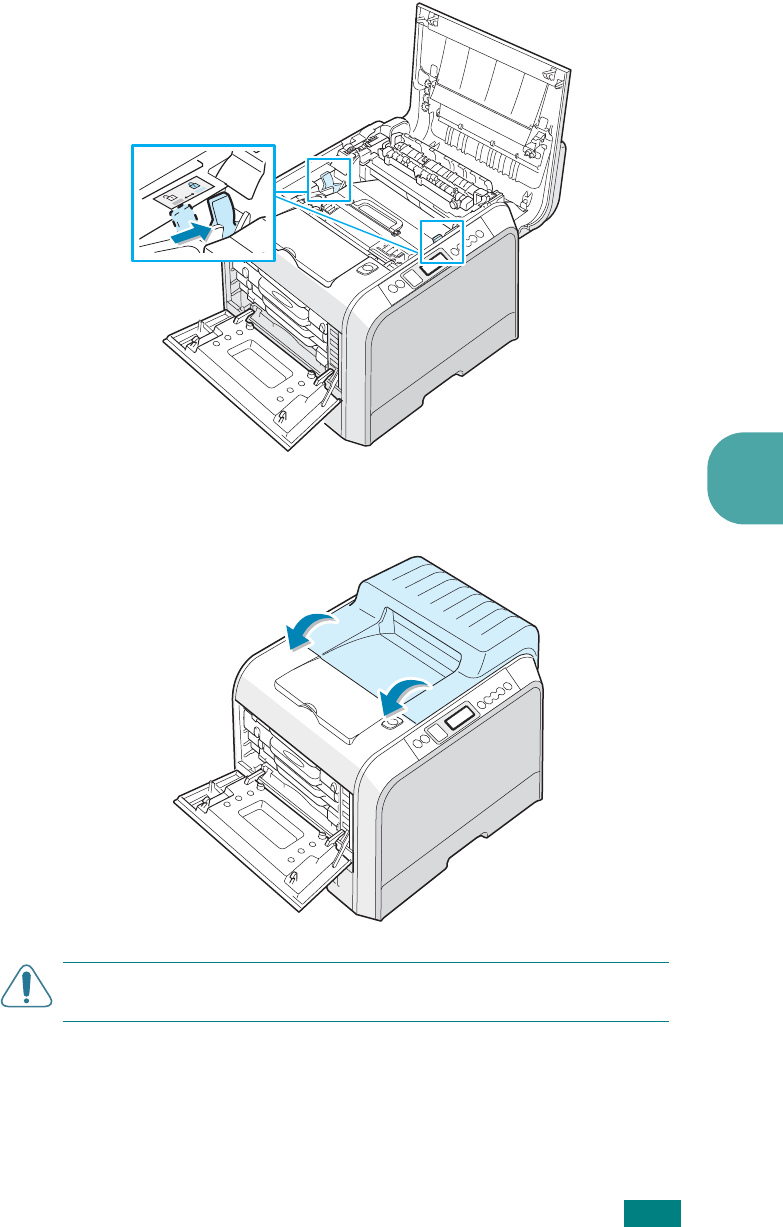

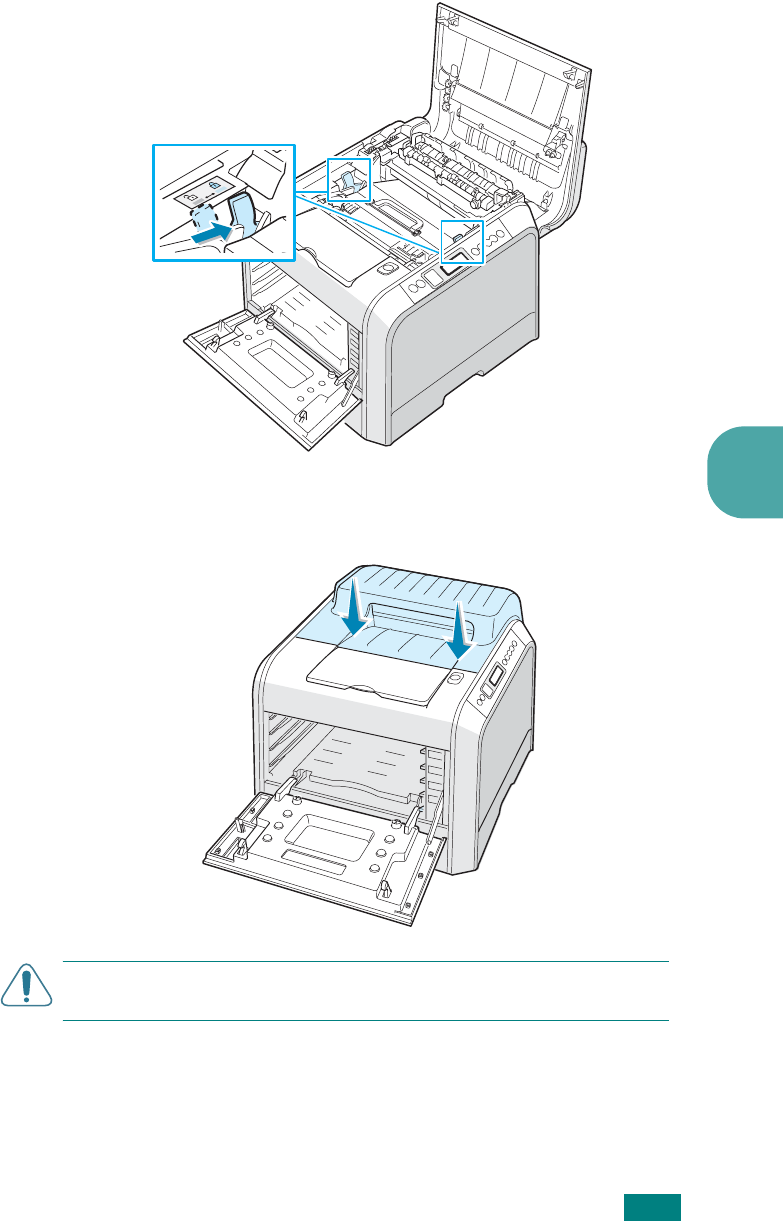

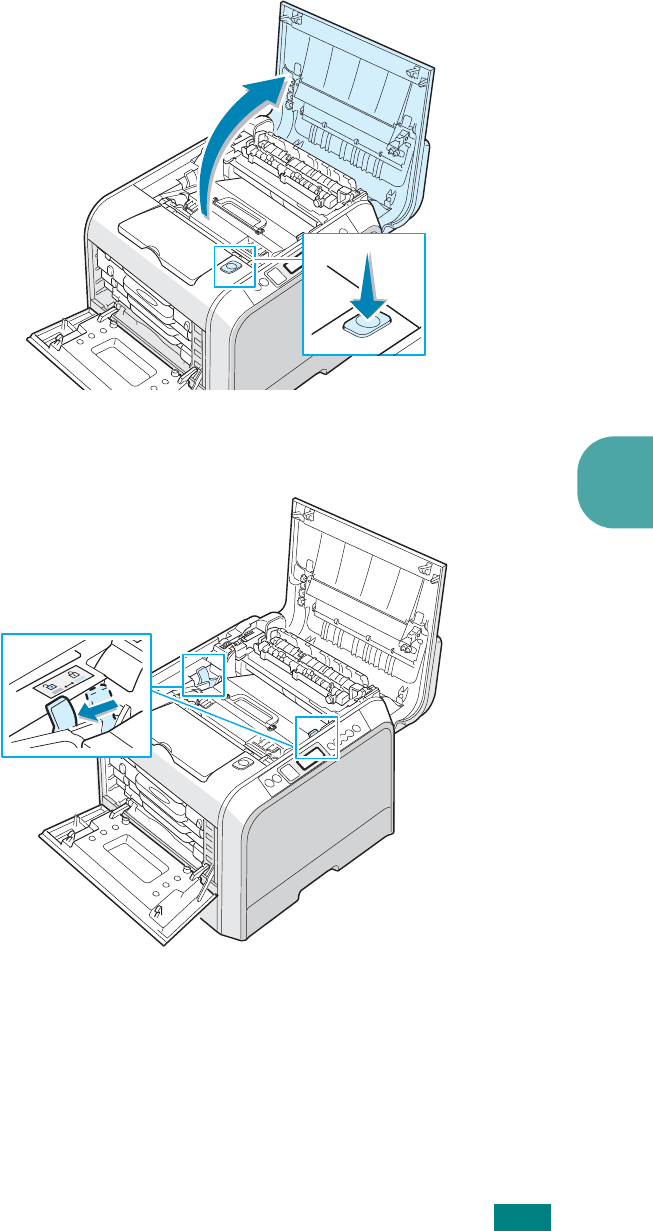

Firmly push the lock levers on each side toward the top

cover, as shown below, to lock the transfer belt into place.

AUTION

If you leave the left cover open for more than a few

minutes, the imaging unit can be exposed to light. This causes

damage to the imaging unit. Close the left cover should the

installation need to be halted for any reason.

ETUP

UIDE

English

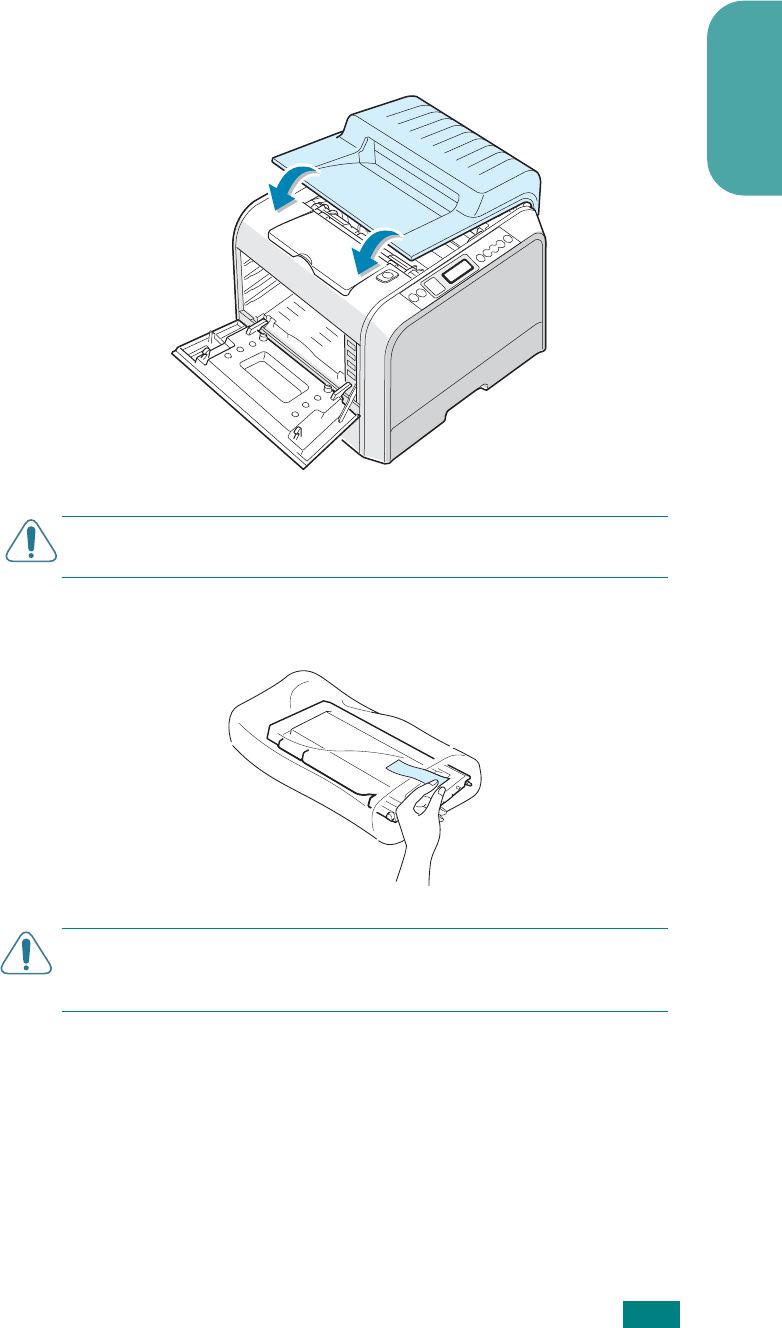

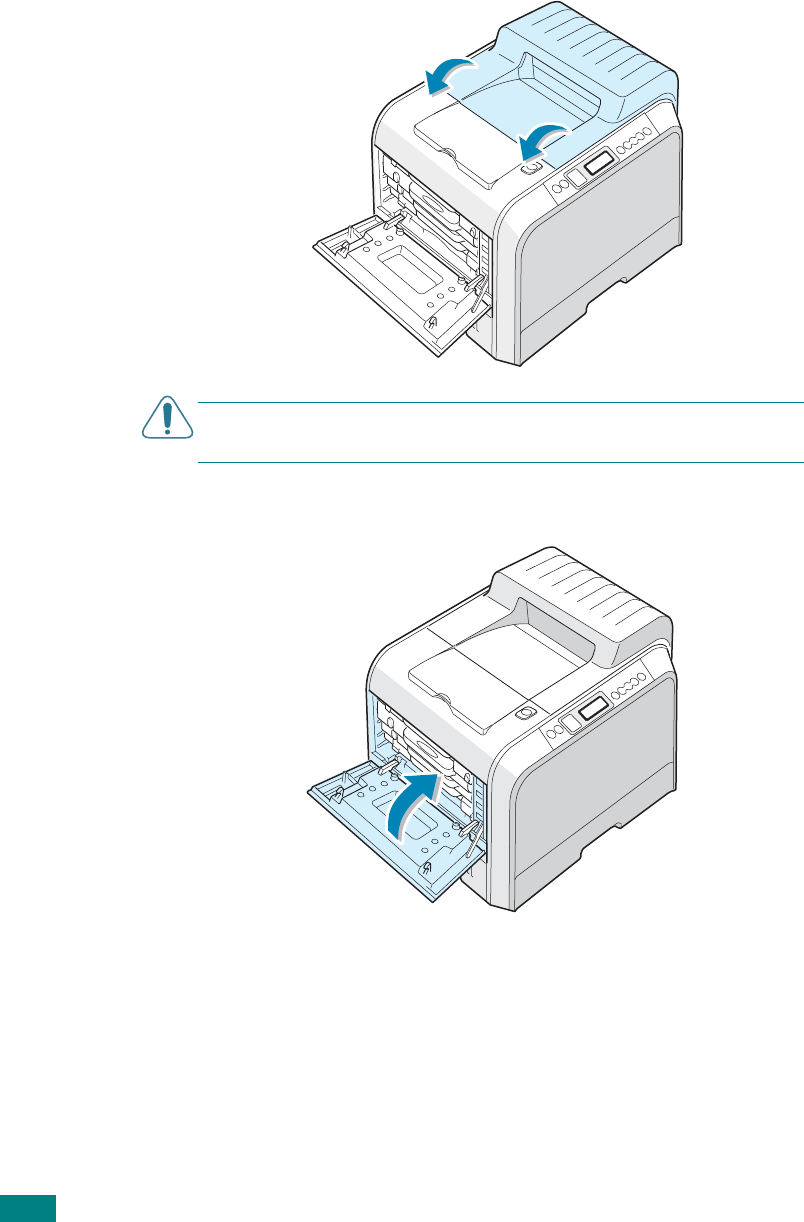

After making sure that the left cover is open, close the top

cover. Make sure that it is securely latched.

AUTION

Do not try to close the left cover with the top cover

open. This may cause damage to the printer.

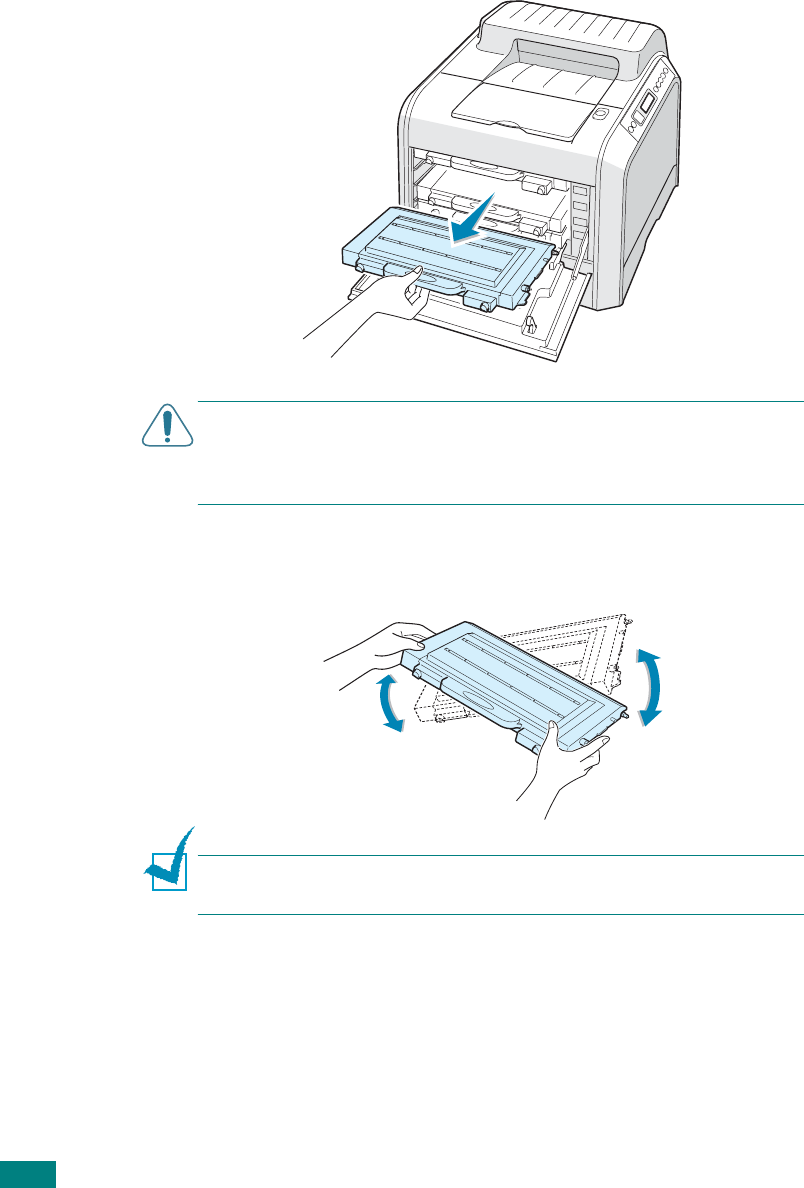

Take the toner cartridges out of their packages.

AUTION

Do not use sharp objects, such as a knife or scissors,

to open the toner cartridges packages. You could damage the

surface of the toner cartridges.

ETUP

UIDE

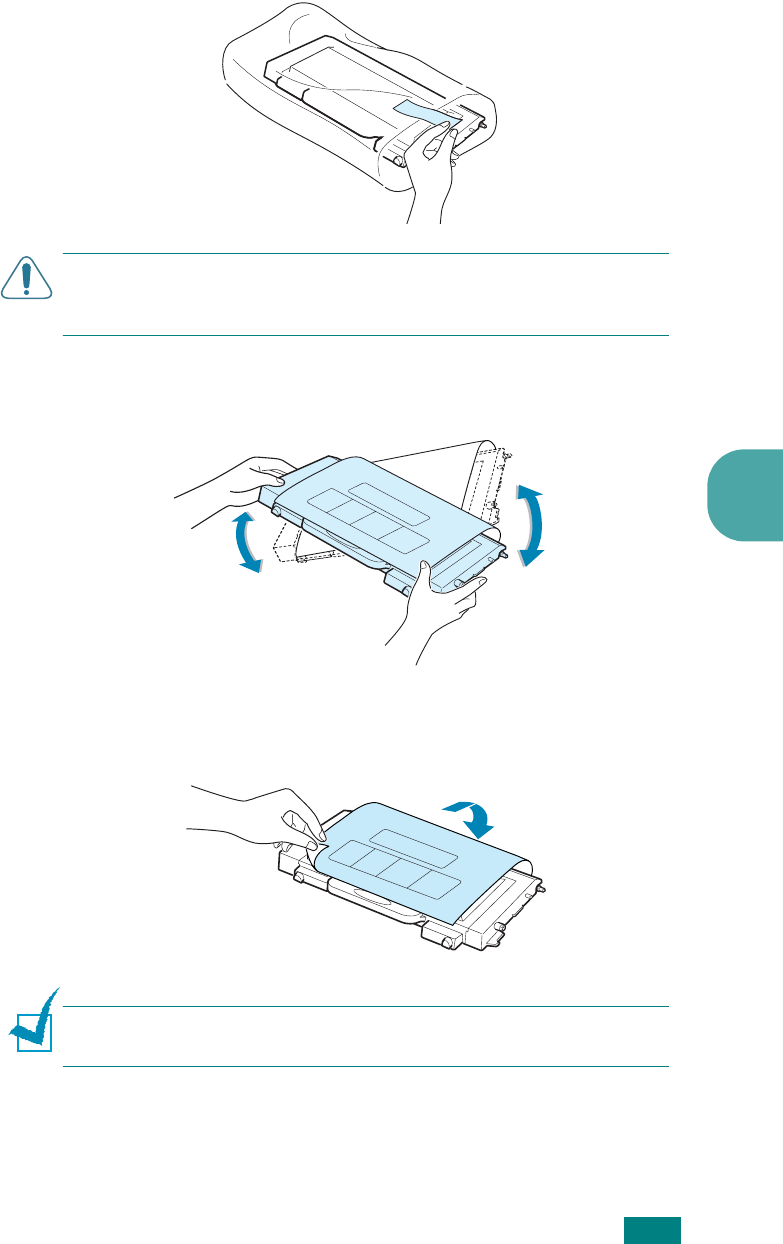

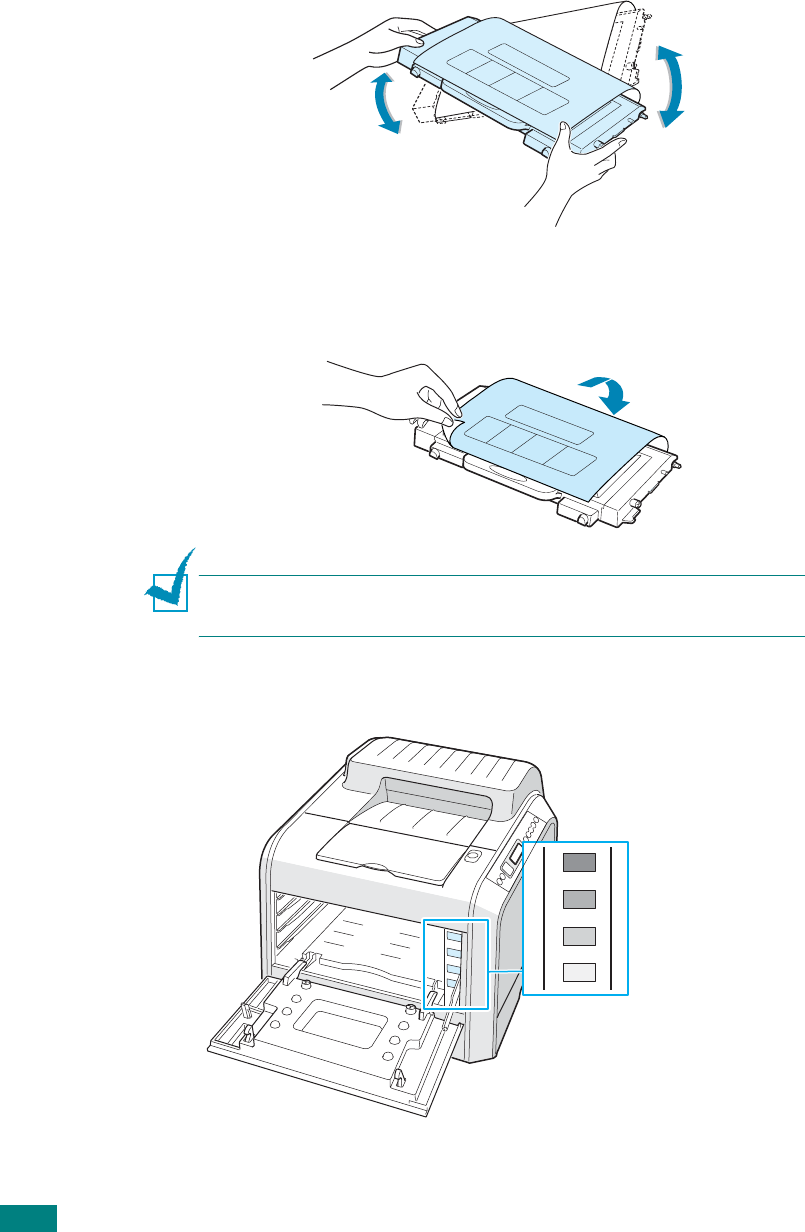

Holding both sides of each of the toner cartridges, gently

roll them from side to side to evenly distribute the toner.

Place the toner cartridges on a flat surface, as shown, and

remove the paper covering the toner cartridge by removing

the tape.

OTE

: If toner gets on your clothing, wipe it off with a dry cloth

and wash it in cold water. Hot water sets toner into fabric.

On the right hand side of the toner cartridge slot is a label

that identifies which color cartridge goes into each slot.

Black

Yellow

Magenta

Cyan

ETUP

UIDE

English

Holding each toner cartridge with both hands, insert them

into their corresponding positions in the following order:

Cyan, Magenta, Yellow, and then Black. Then use the

handle to fully slide the cartridge in.

When the toner cartridges are correctly installed, the yellow

and black cartridges will not be fully inserted. These will

automatically move into place when you close the left cover.

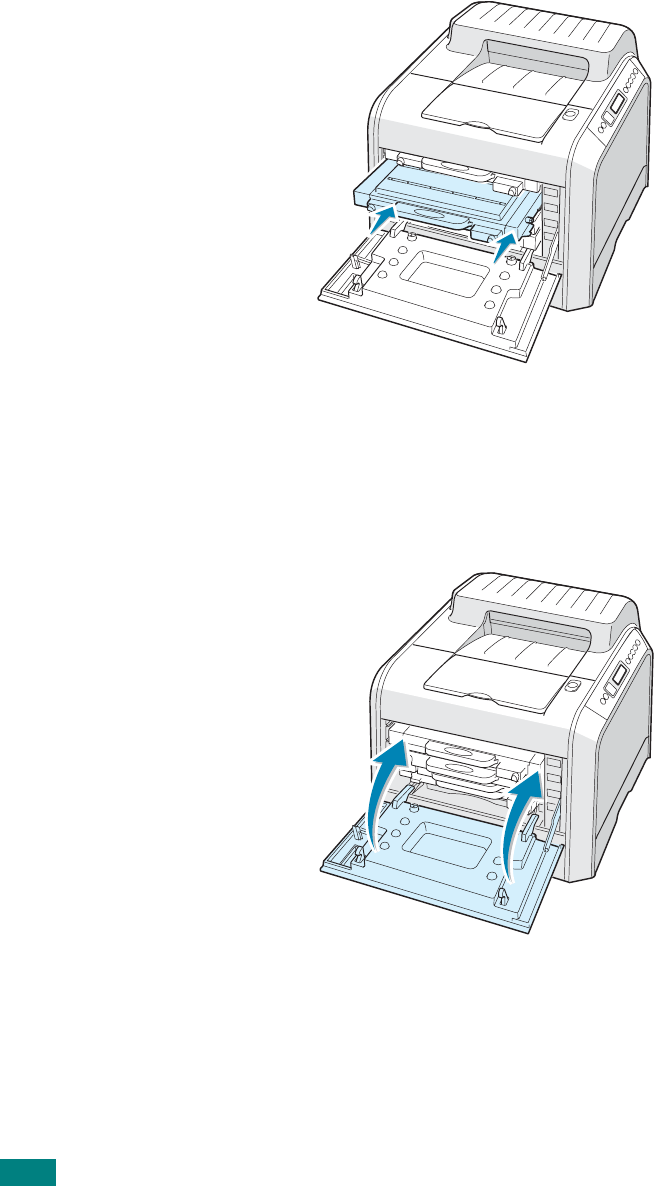

Close the left cover. Make sure that it is securely latched.

If you have installed the toner cartridges incorrectly, the left

cover will not close properly. Check again to make sure the

cartridge colors correspond to those marked on the right

hand side. Never force the cover closed.

OTE

: When printing text at 5% coverage, you can expect a toner

cartridge life of about 3,000 pages or 7,000 pages for black and

2,000 pages or 5,000 pages for color. However, the toner cartridge

that is shipped with the printer prints 3,000 pages for black and

white, 2,000 pages for color.

Grip here.

ETUP

UIDE

Step 4. Loading Paper

The tray (Tray 1) can hold a maximum of 250 sheets of plain

paper. You can use A4 and letter-sized paper.

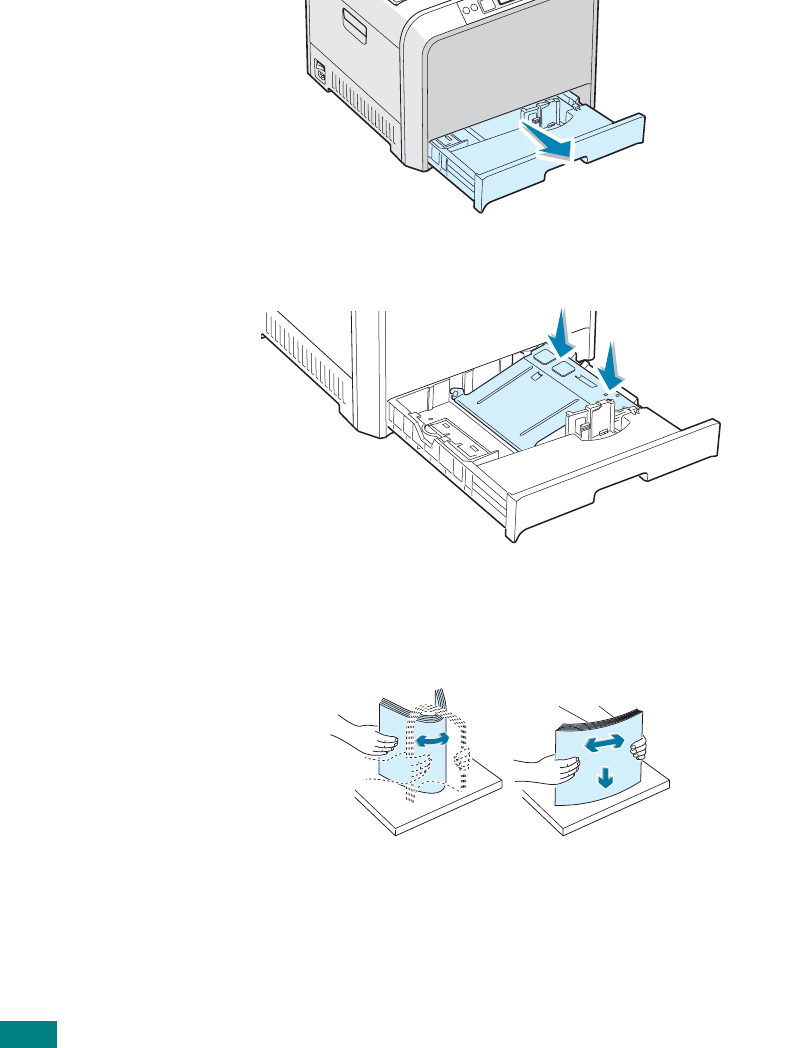

To load paper:

Pull the tray out of the printer.

Push down on the metal plate until it locks into position.

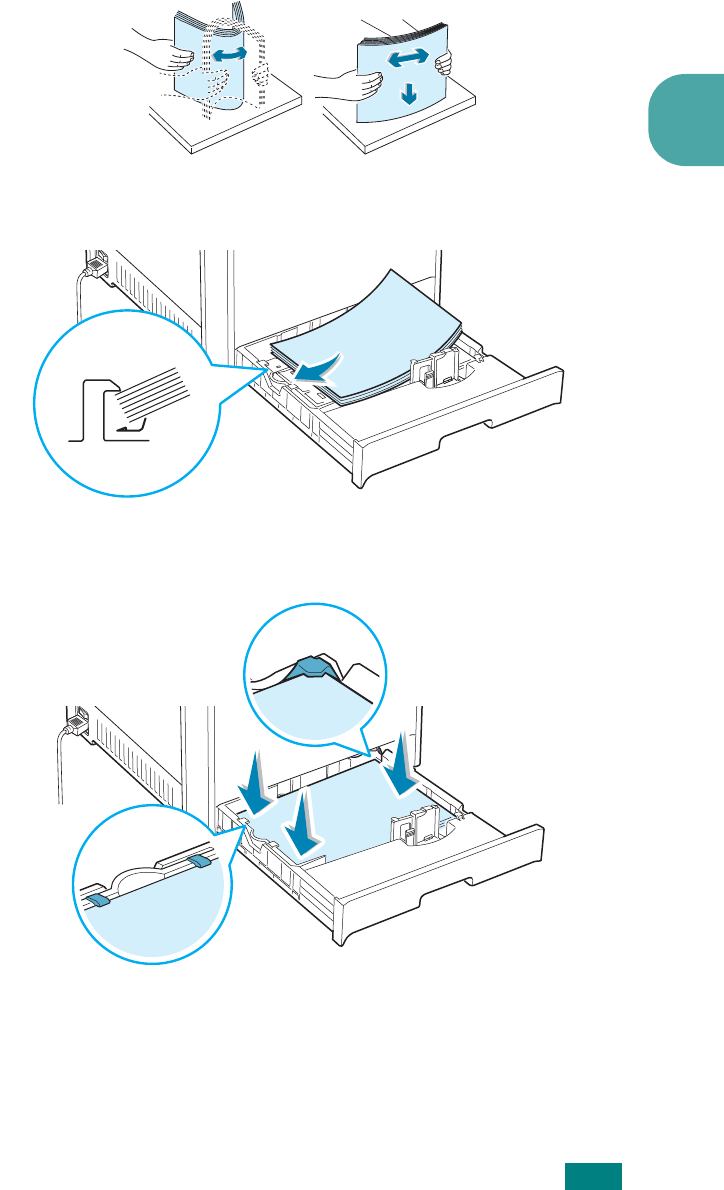

Flex the paper sheets back and forth to separate the pages

and then fan them while holding one edge. Tap the edges of

the stack on a flat surface to even it up.

ETUP

UIDE

English

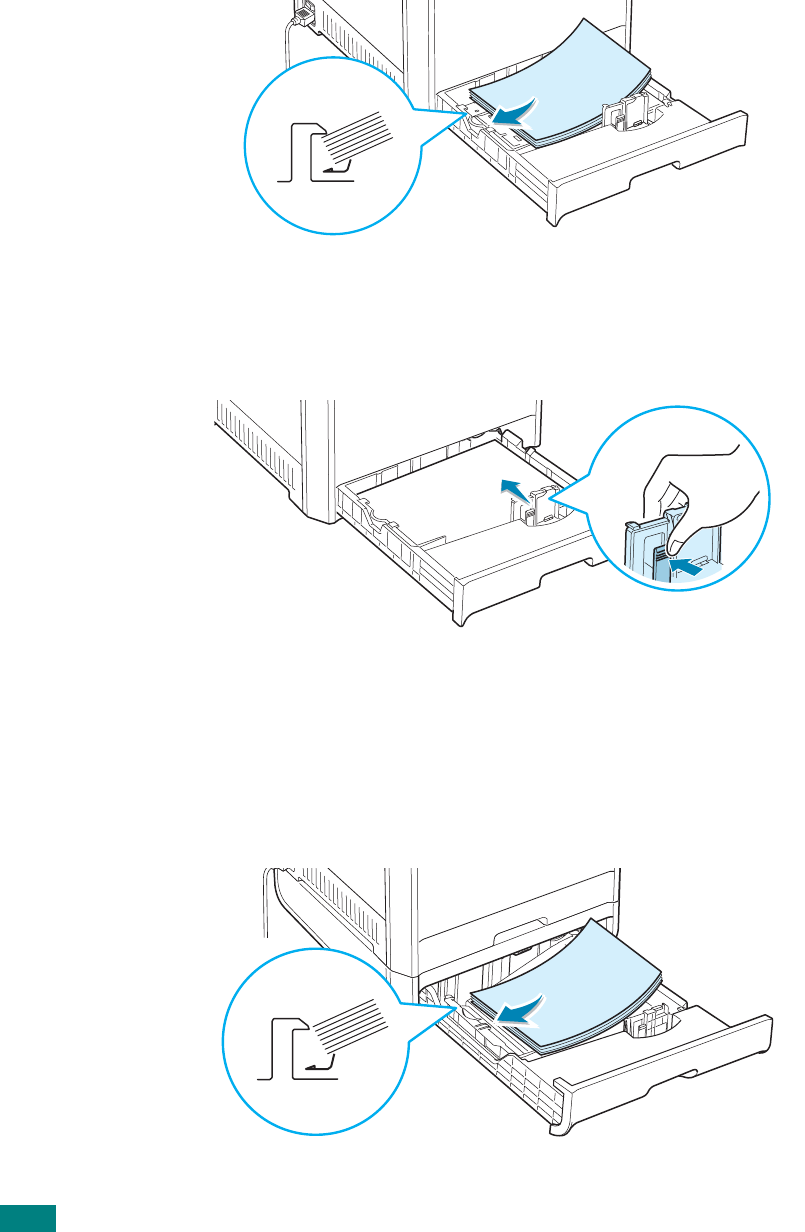

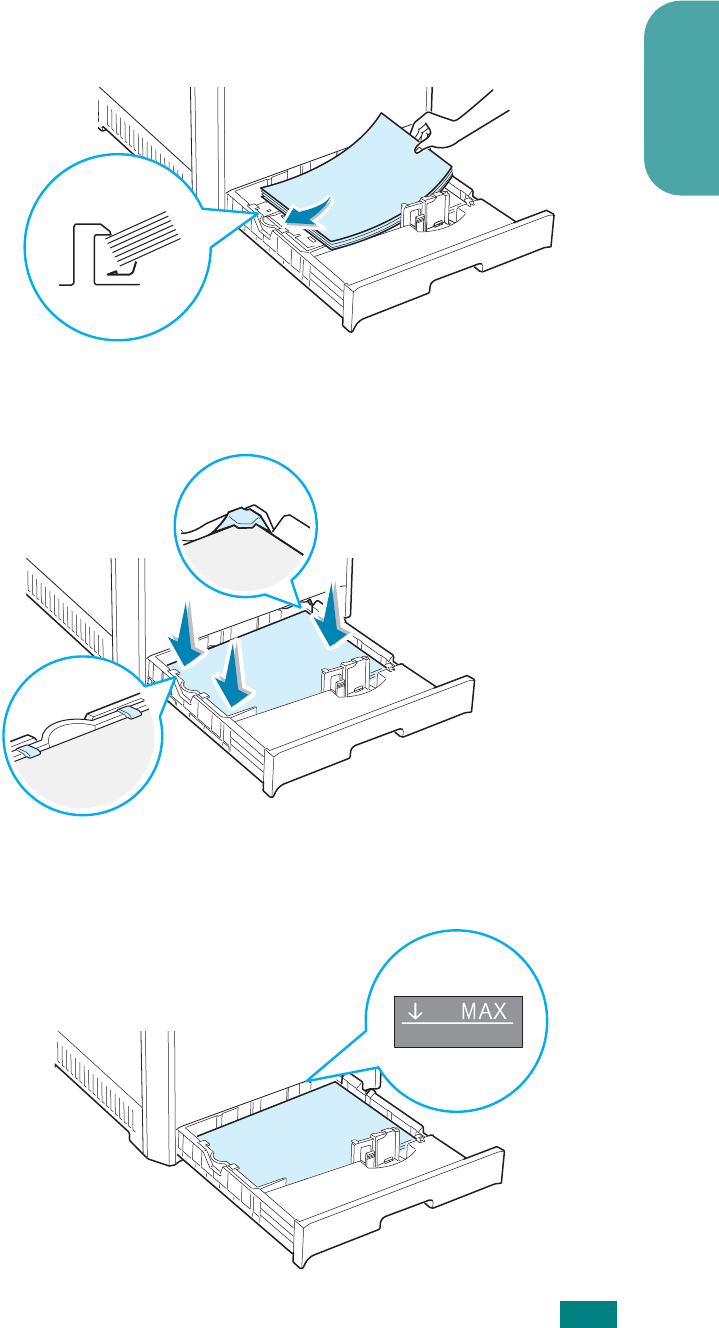

Load paper

with the

print side facing up

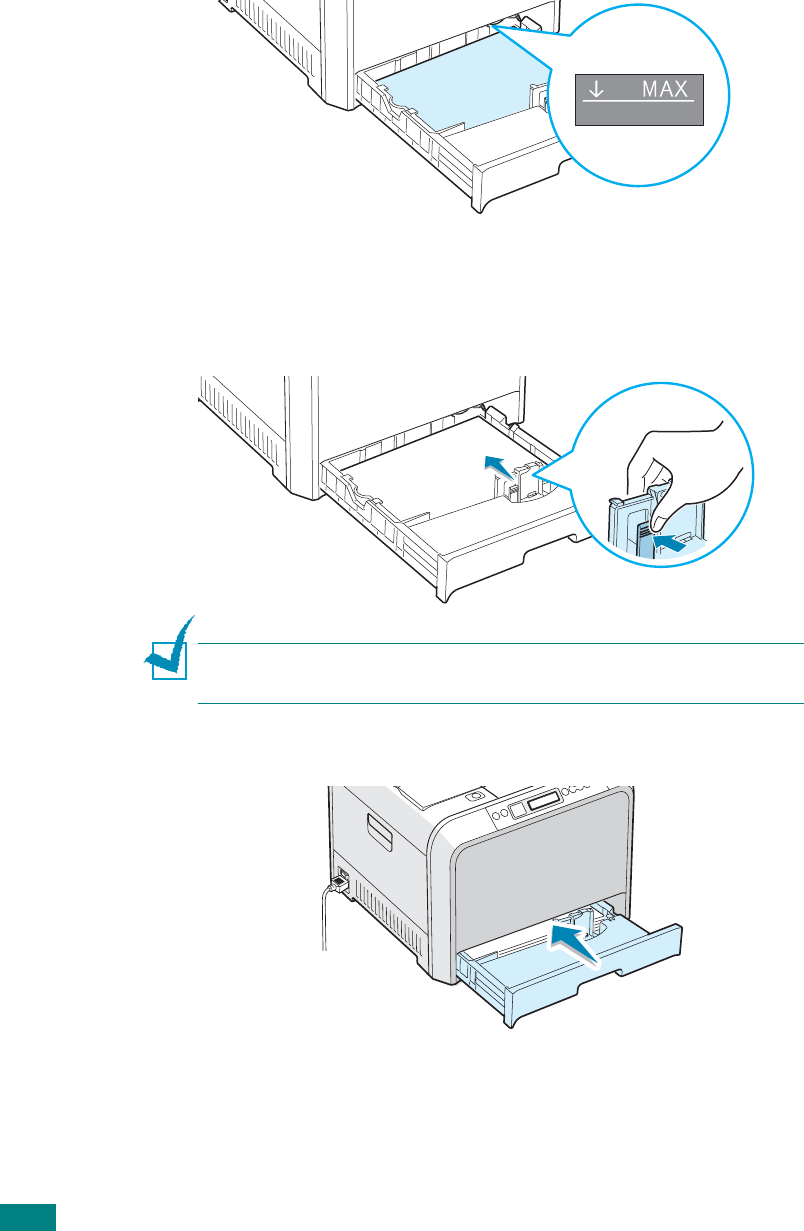

Make sure that all four corners are flat in the tray and under

the corner brackets, as shown below.

Do not exceed the maximum stack height. Overfilling the

tray may cause a paper jam.

ETUP

UIDE

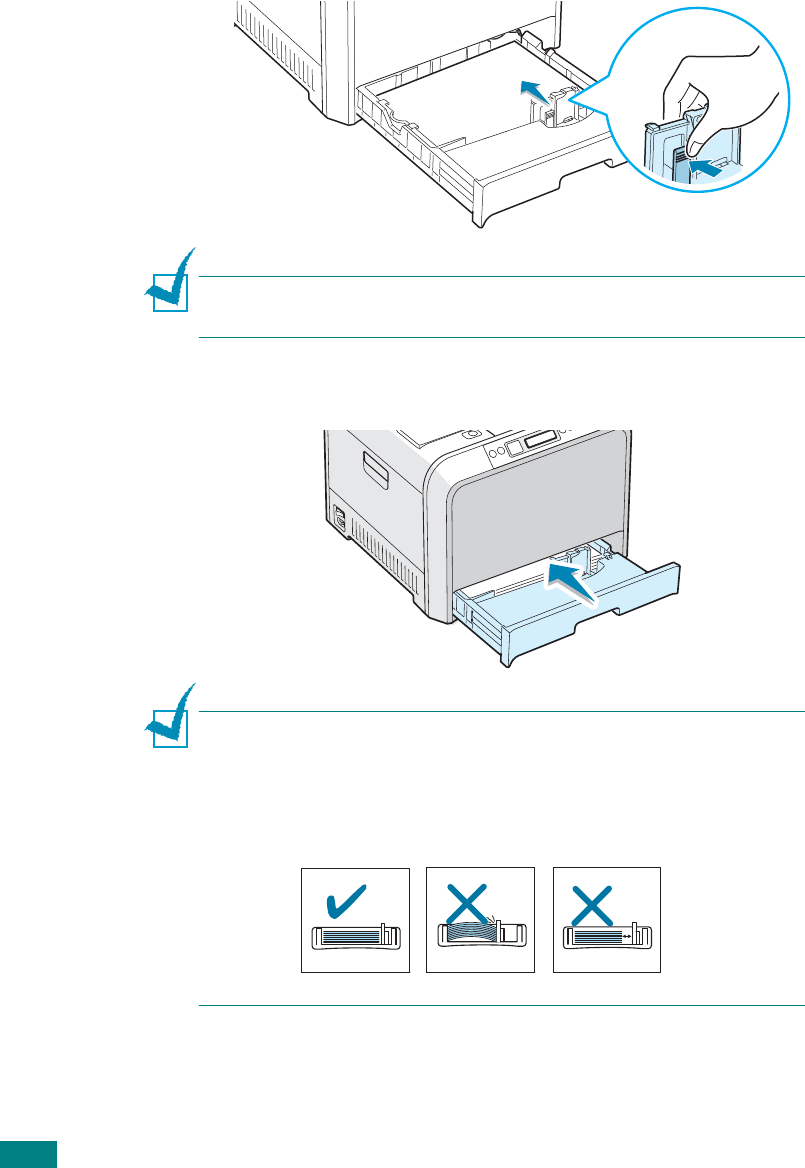

Squeeze the paper guide, as shown, and side it to the stack

of paper until it lightly touches the side of the stack. Do not

press the guide too tightly against the edge of the paper as

it will cause the paper to bend.

OTE

If you want to change the size of the paper in the tray,

refer to your printer’s User’s Guide on the CD-ROM.

Slide the tray back into the printer.

OTES

• Do not push the width guide far enough to cause the material to

warp.

• If you do not correctly adjust the width guide, it may cause a

paper jam.

ETUP

UIDE

English

Step 5. Connecting a Printer Cable

For Local Printing

To print from your computer in a local environment, you need to

connect your printer to the computer with a Universal Serial Bus

(USB) cable.

OTE

: Connecting the printer to the USB port of the computer

requires a certified USB cable. You will need to buy a USB 2.0

compliant cable that is 3m or less in length.

Make sure that both the printer and the computer are

turned off.

Plug the USB printer cable into the connector on the back of

the printer.

Connect the other end of the cable to the USB port on your

computer.

See your computer’s User’s Guide, if you need help.

OTE

To print using the USB interface, you must run Windows

98/Me/2000/2003/XP. See “Installing Printer Software in Windows”

on page 22.

ETUP

UIDE

For Network Printing

You can attach your CLP-510 or CLP-510N printer to a network

using an Ethernet cable (UTP cable with RJ.45 connector).

The CLP-510N has a built-in network interface card. If you are a

CLP-510 user, you need to install an optional network interface card.

If you want to use the printer in both wired and wireless network

environments, you need to install an optional wired/wireless

network interface card. For details about installing the card, see

your printer’s User’s Guide on the CD-ROM.

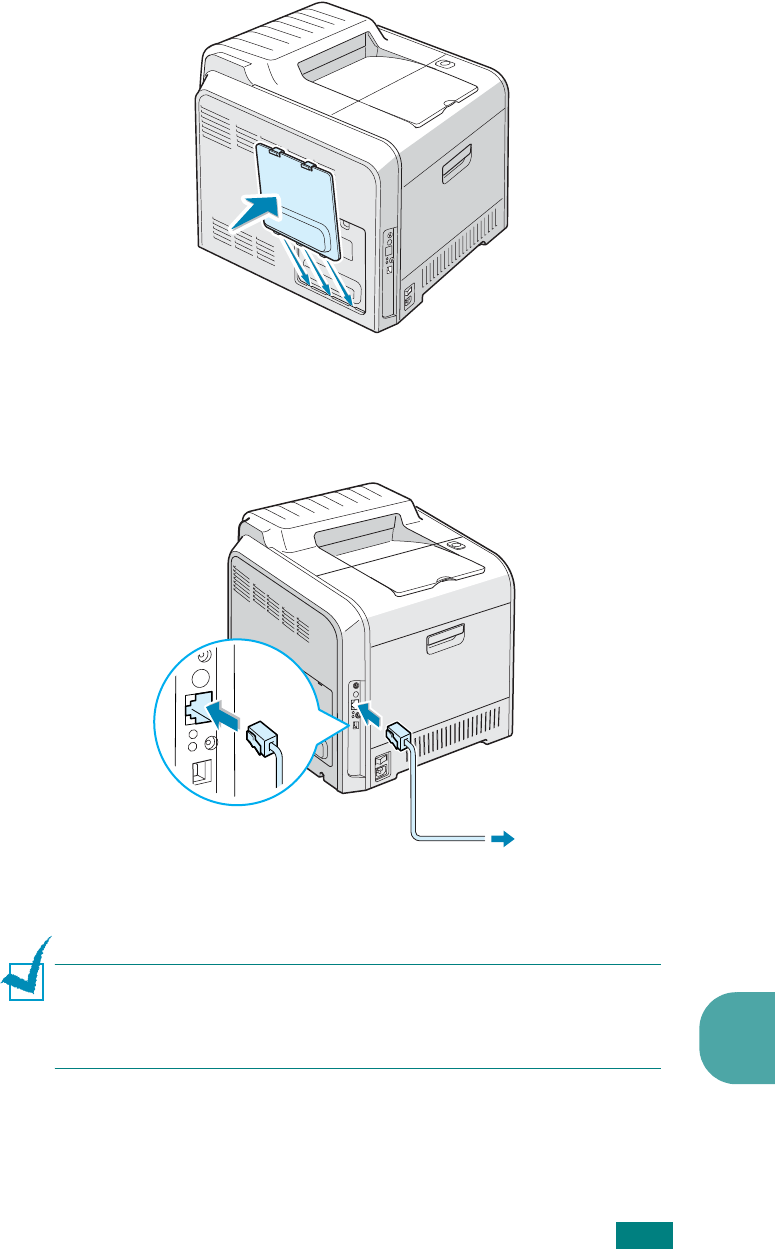

Using an Ethernet cable

Make sure that both the printer and the computer are

turned off.

Plug one end of the Ethernet cable into the Ethernet

network port on the printer.

Plug the other end of the cable into a network LAN

connection.

For details about installing a network card, see your

printer’s User’s Guide on the CD-ROM.

To the network

LAN connection

ETUP

UIDE

English

Using a network antenna

If you install a wired/wireless network card, you can use your

printer in a wireless environment.

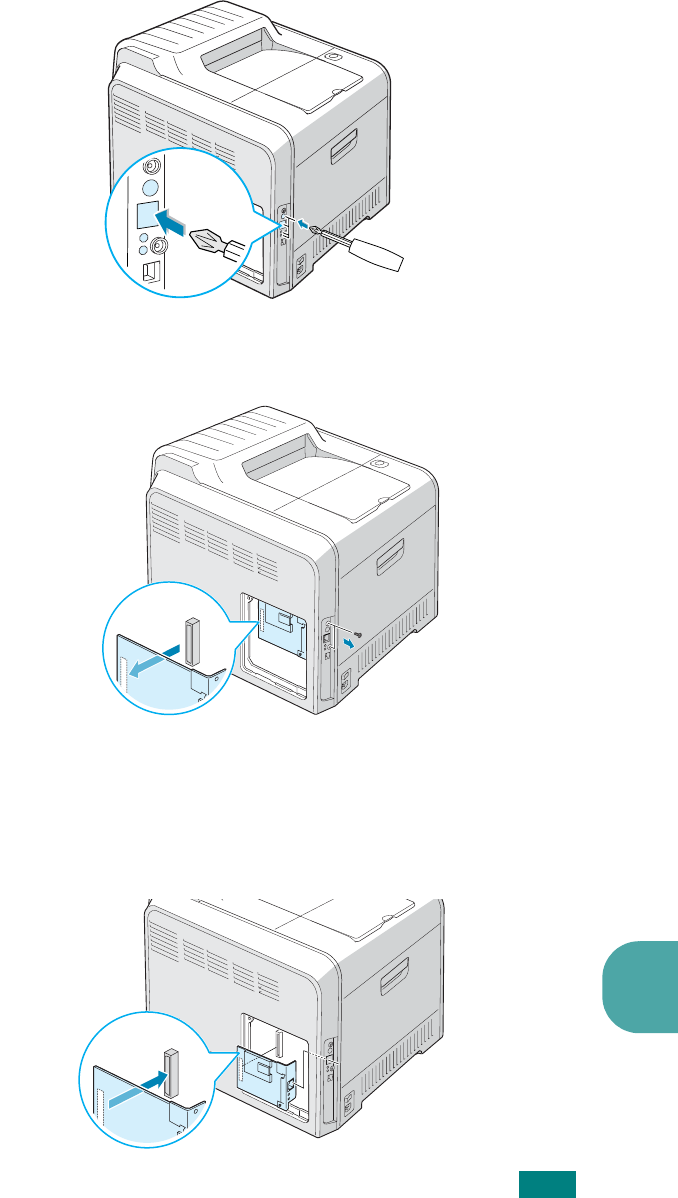

For details about installing a wired/wireless network card, see

your printer’s User’s Guide on the CD-ROM.

OTE

: After connecting the printer, you need to configure the

network parameters on the control panel. See your printer’s User’s

Guide. You can use the software supplied with the card. Refer to

the software User’s Guide.

Step 6. Turning the Printer On

Plug the power cord into the power receptacle on the back

of the printer.

Plug the other end into a properly grounded AC outlet and

turn on the power.

AUTIONS

• Some parts inside of the printer may be hot when power is on, or

after printing. Be careful not to burn yourself when working

inside the printer.

• Do not disassemble the printer when it is turned on or plugged

in. Doing so may give you an electric shock.

ETUP

UIDE

Step 7. Printing a Demo Page

Print a demo page to make sure that the printer is operating

correctly.

To print a demo page:

In ready mode, press and hold the

Upper Level

button ( ) on

the control panel for 2 seconds to print a demo page.

A demo page showing the printer’s features and capabilities is

printed.

Step 8. Changing the Display Language

To change the language that is displayed on the control panel,

take the following steps:

In ready mode, press the

button ( ) on the control

panel until you see “Setup” on the bottom line of the

display.

Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “LCD Language” displays

on the bottom line of the display.

Press the scroll button ( or ) until the language you

want to use is displayed.

Press the

Enter

button ( ) to save the selection.

Press the

On Line/Continue

button ( ) to return to

ready mode.

ETUP

UIDE

English

Step 9. Installing the Printer Software

The supplied CD-ROM contains Windows printing software,

Macintosh printing software, Linux printing software, on-line

User’s Guide, and Acrobat Reader to view the User’s Guide.

If you are printing from Windows:

You can install the following printer software using the CD-ROM.

•

Printer driver

for Windows. Use this driver to take full

advantage of your printer’s features. See page 22.

•

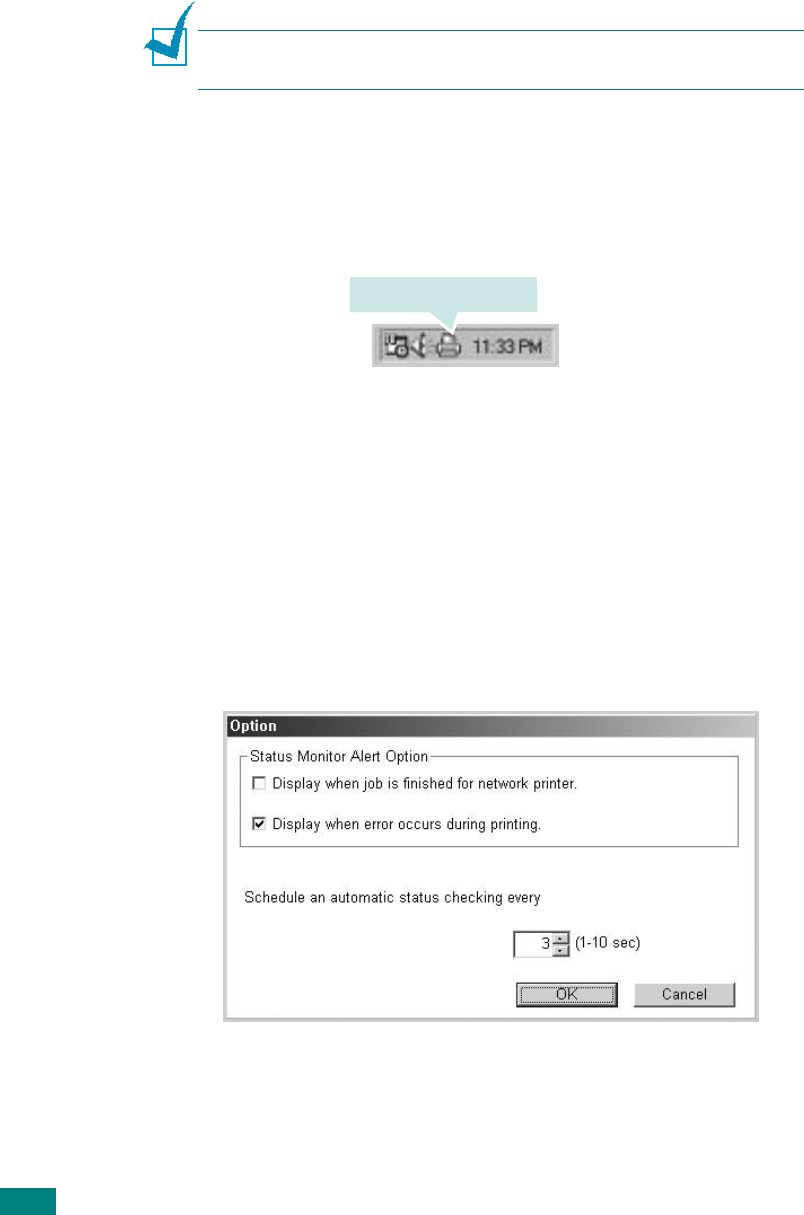

Status Monitor

. Appears when printing errors occur. For

details, refer to chapter 5 in your printer’s User’s Guide on the

CD-ROM. For help in viewing the User’s Guide, see page 30.

If you are printing from Macintosh:

For information about installing the print software and printing

from a Macintosh, refer to Appendix A in your printer’s User’s

Guide. For help in viewing the User’s Guide, see page 29.

If you are printing in Linux:

For information about installing the Linux driver, refer to

Appendix B in your printer’s User’s Guide. For help in viewing the

User’s Guide, see page 30.

ETUP

UIDE

Installing Printer Software in Windows

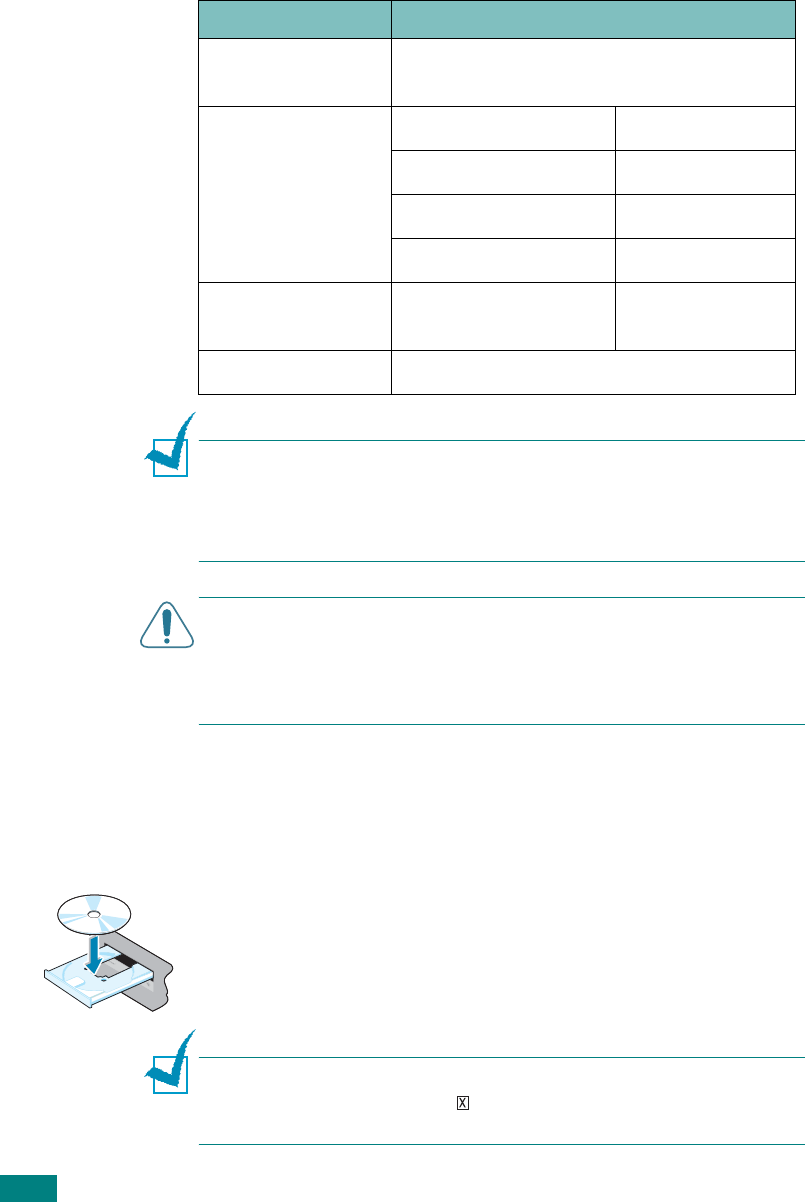

Verify the following before you install the printer software:

OTES

• For Windows NT 4.0/2000/XP/2003, the system administrator

should install the software.

• Windows 95 and Windows NT 4.0 are only supported on the CLP-510N.

AUTION

: For the CLP-510N, to print a document in Windows 95

or Windows NT 4.0, you must install SyncThru and then add a

network printer port. For details about installing SyncThru and

adding a port, please refer to Network Management Software

Quick Guide and SyncThru User’s Guide.

All applications should be closed on your PC before beginning

installation.

Place the CD-ROM in the CD-ROM drive. Installation will

start automatically.

If the CD-ROM drive does not automatically run:

Select

Run

from the

Start

menu, and type

x:\setup.exe

in the Open box (where

is the drive letter for the CD-ROM

drive), then click

OTE

: If the

New Hardware Found

window appears during the

installation procedure, click in the upper right corner of the box

to close the window, or click

Cancel

Item Requirements

Operating system

Windows 95/98/Me/NT 4.0/2000/XP/

2003

RAM

95/98/Me 32 MB

NT 4.0/2000 64 MB

XP 128 MB

2003 256 MB

Free disk space 95/98/Me/NT 4.0/

2000/XP/2003 300 MB

Internet Explorer 5.0 or higher

ETUP

UIDE

English

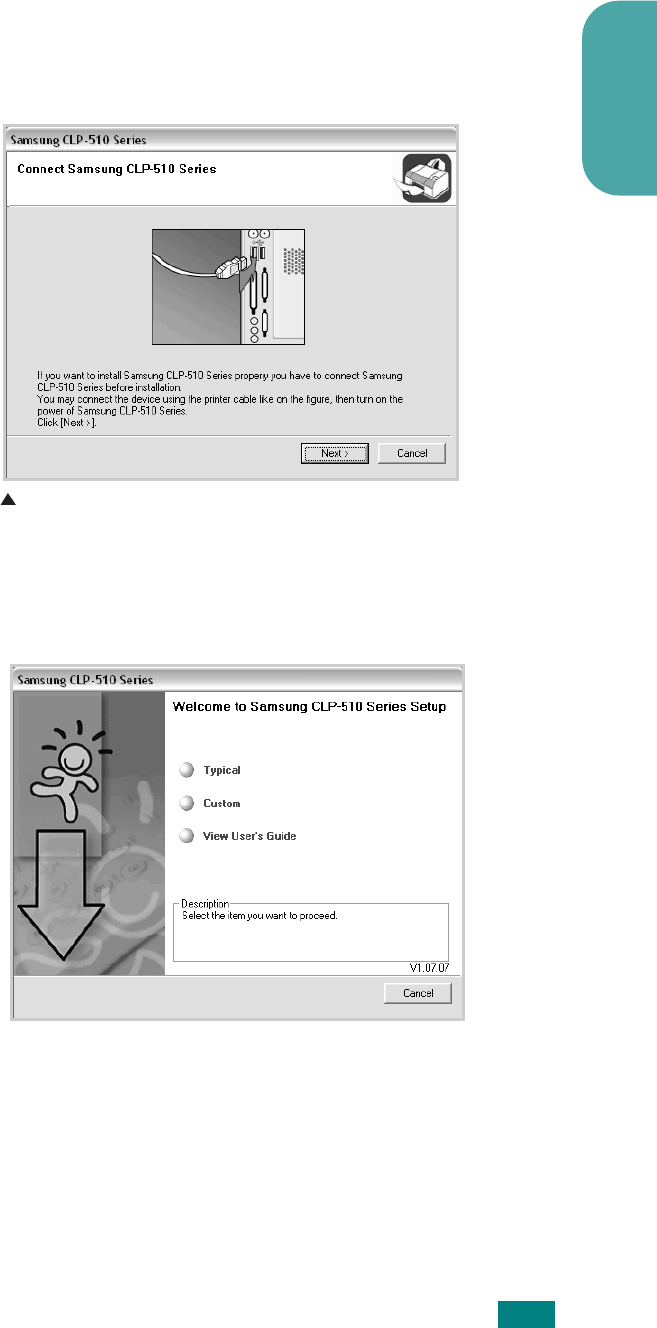

If your printer is not already connected to the computer,

when the following window opens, connect your printer to

the computer and turn the printer on. Then click

If the printer is already connected and turned on, this

screen will not appear. Skip to the next step.

Choose the installation type.

•

Typical

: Installs the common software for your printer

and User’s Guide. This is recommended for most users.

Windows XP

ETUP

UIDE

•

Custom

: Allows you to choose the language of the

software, and the components you want to install. After

selecting the language and the component(s), click

•

View User’s Guide

: Allows you to view the User’s Guide.

If your computer doesn’t have Adobe Acrobat, click on this

option and it will automatically install Adobe Acrobat

Reader for you.

After the installation is finished, a window asking you to

print a test page appears. If you want to print a test page,

select the checkbox and click

Otherwise, just click

and skip to step 6.

When the test page prints out correctly, click

Yes

If not, click

to reprint it.

To register yourself as a user of Samsung Printers in order

to receive information from Samsung, select the checkbox

and click

Finish

. You are now sent to the Samsung web

site.

ETUP

UIDE

English

Otherwise, just click

Finish

OTES

• If your printer doesn’t work properly, reinstall the printer driver.

• You can also print from Macintosh or Linux. For detailed

information, refer to your printer’s User’s Guide on the CD-ROM.

• After installation of the software, you can reinstall or remove the

printer software, if necessary. Also, you can change the display

language. For detailed information, see page 26~28.

ETUP

UIDE

Reinstalling Printer software

You can reinstall the software if your installation fails.

From the

Start

menu, select

Programs

➔

Samsung CLP-

510 Series

Or place the CD-ROM into the CD-ROM drive.

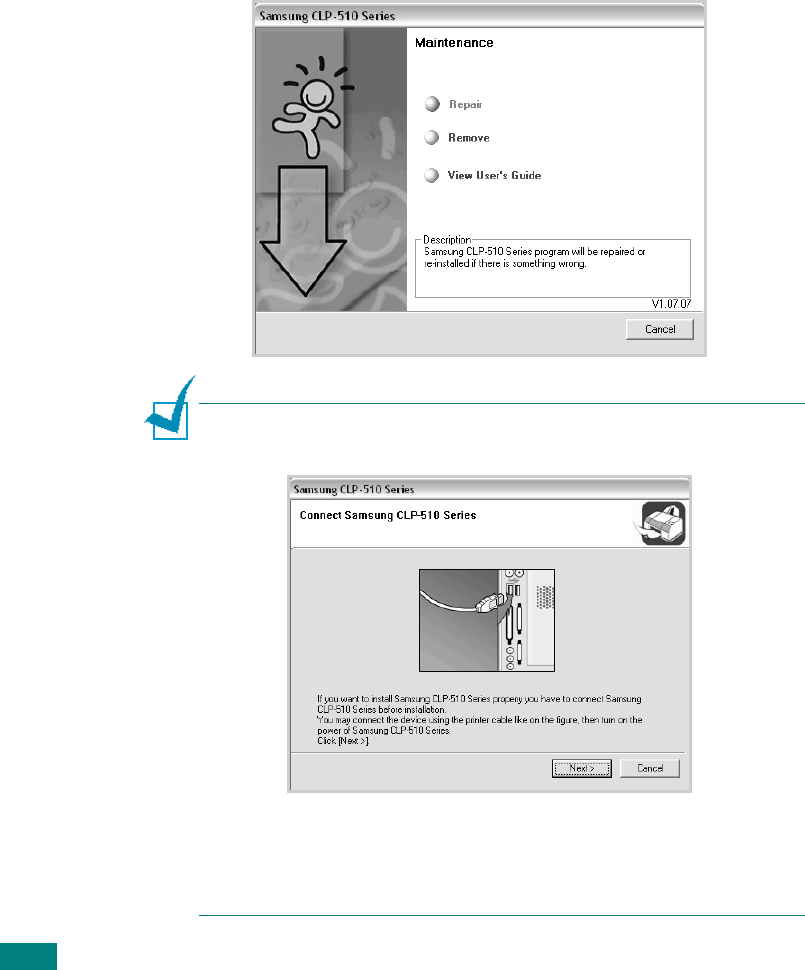

Select

Maintenance

Select

Repair

OTE

: If your machine is not already connected to the computer,

the following window will appear.

• After connecting the machine, click

• If you want to skip the connection status, click

and

go to the following screen. Then the installation will start and a

test page will not be printed at the end of the installation.

ETUP

UIDE

English

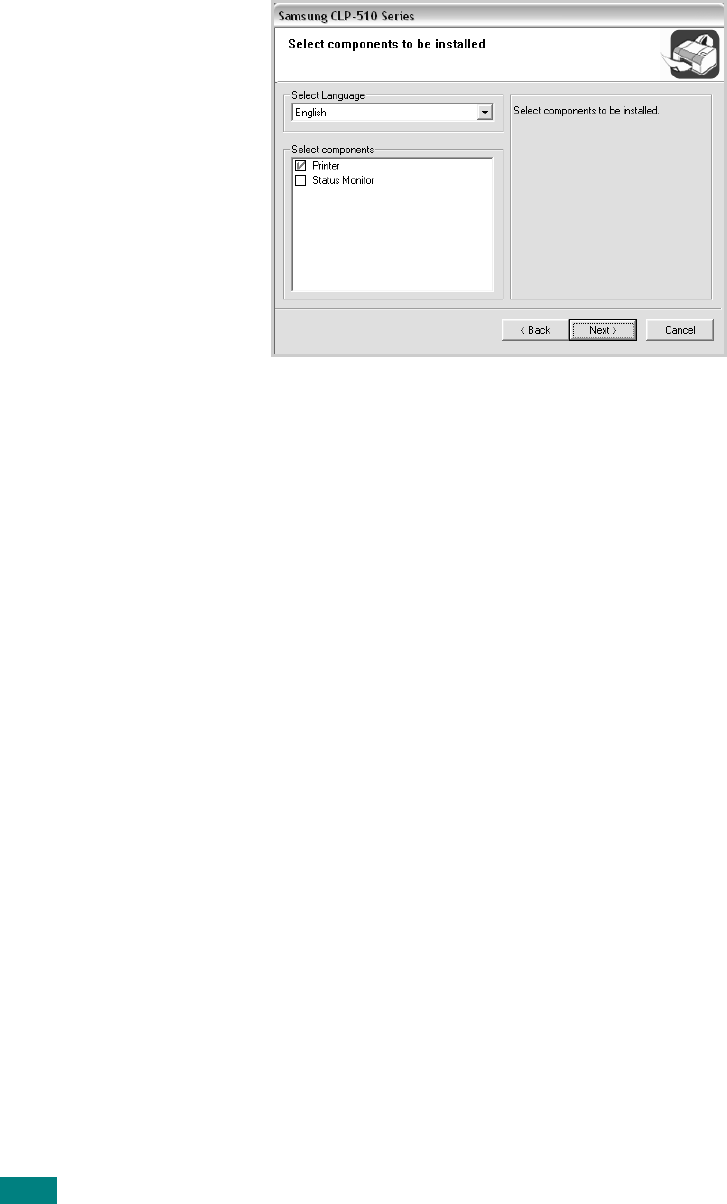

Select the components you want to install and click

If you select

Printer

, the window asking you to print a test

page appears. Do as follows:

a. To print a test page, select the check box and click

b. When the test page prints out correctly, click

Yes

If it doesn’t, click

to reprint it.

When the reinstallation is done, click

Finish

Removing Printer Software

From the

Start

menu, select

Programs

Samsung CLP-

510 Series

Or place the CD-ROM into the CD-ROM drive.

Select

Maintenance

Select

Remove

You will see a component list so that you can remove

components individually.

If you want to uninstall the printer driver, check

Printer

If you want to uninstall the Status Monitor, check

Status

Monitor

ETUP

UIDE

After you have selected the components you want to

remove, click

When your computer asks you to confirm your selection.

click

Yes

The selected driver and all of its components are removed

from your computer.

After the software is removed, click

Finish

Changing the Display Language

After installation of the software, you can change the display

language.

From the

Start

menu, select

Programs

Select

Samsung CLP-510 Series

, and

Language

Selection

Select the desired language from the language selection

window and click

ETUP

UIDE

English

Step 10. Viewing the User’s Guide

The Samsung CLP-510 Series User’s Guide, which is on the

software CD-ROM, is in Adobe Acrobat PDF format. The manual

will provide you flexibility and convenience in accessing

information.

You can view the manual on-screen in different formats (viewing

a single page, continuous single page or continuous facing page,

zooming in up to 1600% or out up to 12.5%, scrolling two-up

page or article flow). You can also print the manual, if necessary.

In Windows

From the

Start

menu, select

Programs

Select

Samsung CLP-510 Series

and

View User’s

Guide

Adobe Acrobat automatically runs and then the User’s Guide

opens.

OTE

: If your computer doesn’t have Adobe Acrobat, selecting

the

View User’s Guide

option automatically installs Adobe

Acrobat for you. After installation is complete, repeat step 1 and 2.

In Macintosh

Place the CD-ROM in the CD-ROM drive.

Double-click

SAMSUNG_CLP

on your Macintosh desktop.

Double-click

Manual

folder.

Double-click the appropriate language folder.

Double-click

Guide.pdf

. The Adobe Acrobat programme

opens and you can view the User’s Guide.

ETUP

UIDE

In Linux

When the Administrator Login window appears, type in

“

root

” in the login field and enter the system password.

Insert the printer software CD-ROM.

Click the icon at the bottom of the screen. When the

terminal screen appears, type in:

[root@local /root]#

cd /mnt/cdrom

(the CD-ROM directory)

[root@local cdrom]#

gv manual/EnGuide.pdf

OTE

: If your ghostscript version is old, you may not be able to

see the pdf file. In that situation, install Acrobat Reader on your

system, or try to read the User’s Guide on a Windows system.

1. Click the icon at the bottom of the screen. When the

terminal screen appears, type in:

[root@local /root]

# cd /mnt/cdrom

(the CD-ROM directory)

[root@local cdrom]

# ./manual/acrobat4/INSTALL

2. After reading the license agreement, type

3. When you are asked for the installation directory, just type the

enter key.

4. You need to make a symbolic link to execute Acrobat Reader

without full path:

[root@local cdrom]

# ln -s /usr/local/acrobat4/bin/

acroread /usr/bin/acroread

5. Now, you can read the pdf files with Acrobat Reader.

[root@local cdrom]#

acroread /mnt/cdrom/manual/

EnGuide.pdf

This manual is provided for information purposes only. All information included herein is

subject to change without notice. Samsung Electronics is not responsible for any changes,

direct or indirect, arising from or related to use of this manual.

• CLP-510, CLP-510N, and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Centronics is a trademark of Centronics Data Computer Corporation.

• Apple, TrueType, Laser Writer, and Macintosh are Trademarks of Apple Computer, Inc.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows 2003,

Windows NT 4.0, and Windows XP are registered trademarks of Microsoft Corporation.

• All other brand or product names are trademarks of their respective companies or

organizations.

Contact SAMSUNG WORLD

WIDE

If you have any comments or questions regarding Samsung products, contact

the SAMSUNG customer care center.

Country Customer Care Center Web Site

CANADA 1-800-SAMSUNG (7267864) www.samsung.com/ca

MEXICO 01-800-SAMSUNG

(7267864) www.samsung.com/mx

U.S.A 1-800-SAMSUNG (7267864) www.samsung.com

ARGENTINE 0800-333-3733 www.samsung.com/ar

BRAZIL 0800-124-421 www.samsung.com/br

CHILE 800-726-7864 (SAMSUNG) www.samsung.com/cl

COSTA RICA 0-800-507-7267 www.samsung.com/latin

ECUADOR 1-800-10-7267 www.samsung.com/latin

EL SALVADOR 800-6225 www.samsung.com/latin

GUATEMALA 1-800-299-0013 www.samsung.com/latin

JAMAICA 1-800-234-7267 www.samsung.com/latin

PANAMA 800-7267 www.samsung.com/latin

PUERTO RICO 1-800-682-3180 www.samsung.com/latin

REP.

DOMINICA 1-800-751-2676 www.samsung.com/latin

TRINIDAD &

TOBAGO 1-800-7267-864 www.samsung.com/latin

VENEZUELA 1-800-100-5303 www.samsung.com/latin

BELGIUM 02 201 2418 www.samsung.com/be

CZECH

REPUBLIC 844 000 844 www.samsung.com/cz

DENMARK 38 322 887 www.samsung.com/dk

FINLAND 09 693 79 554 www.samsung.com/fi

FRANCE 08 25 08 65 65

(€ 0,15/min) www.samsung.com/fr

GERMANY 01805 - 121213

(€ 0,12/min) www.samsung.de

HUNGARY 06 40 985 985 www.samsung.com/hu

ITALIA 199 153 153 www.samsung.com/it

LUXEMBURG 02 261 03 710 www.samsung.lu

NETHERLANDS 0900 20 200 88

(€ 0,10/min) www.samsung.com/nl

NORWAY 231 627 22 www.samsung.com/no

POLAND 0 801 801 881 www.samsung.com/pl

PORTUGAL 80 8 200 128 www.samsung.com/pt

SLOVAKIA 0850 123 989 www.samsung.com/sk

SPAIN 902 10 11 30 www.samsung.com/es

SWEDEN 08 585 367 87 www.samsung.com/se

U.K 0870 242 0303 www.samsung.com/uk

RUSSIA 8-800-200-0400 www.samsung.ru

UKRAINE 8-800-502-0000 www.samsung.com/ur

AUSTRALIA 1300 362 603 www.samsung.com/au

CHINA 800-810-5858

010- 6475 1880 www.samsung.com.cn

HONG KONG 2862 6001 www.samsung.com/hk

INDIA 3030 8282

1600 1100 11 www.samsung.com/in

INDONESIA 0800-112-8888 www.samsung.com/id

JAPAN 0120-327-527 www.samsung.com/jp

MALAYSIA 1800-88-9999 www.samsung.com/my

PHILIPPINES 1800-10-SAMSUNG

(7267864) www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg

THAILAND 1800-29-3232

02-689-3232 www.samsung.com/th

TAIWAN 0800-329-999 www.samsung.com/tw

VIETNAM 1 800 588 889 www.samsung.com/vn

SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za

U.A.E 800SAMSUNG (7267864) www.samsung.com/mea

Country Customer Care Center Web Site

CONTENTS

Chapter 1 :

Introduction

Special Features ........................................................ 1.2

Printer Components .................................................. 1.4

Front View ........................................................... 1.4

Right Side View .................................................... 1.5

Rear View ............................................................ 1.6

Chapter 2 :

Using the Control Panel

Understanding the Control Panel .............................. 2.2

Display ............................................................... 2.2

Buttons ............................................................... 2.3

Using Control Panel Menus ........................................ 2.5

Accessing Control Panel Menus ............................... 2.5

Overview of Control Panel Menus ............................ 2.6

Information

Menu ............................................... 2.6

Layout

Menu ....................................................... 2.7

Printer

Menu ....................................................... 2.8

Color

Menu ......................................................... 2.9

Setup

Menu ......................................................... 2.9

Network

Menu ................................................... 2.12

Chapter 3 :

Using Print Materials

Choosing Paper and Other Materials ......................... 3.2

Sizes and Capacities ............................................. 3.2

Guidelines for Paper and Special Materials ............... 3.3

Loading Paper ........................................................... 3.4

Using Tray 1 ........................................................ 3.4

Changing the Size of the Paper in the Tray ............... 3.7

Using the Optional Tray 2 ...................................... 3.8

Using the Multi-purpose Tray ................................. 3.9

Using the Manual Feed ........................................ 3.12

Printing on Special Print Materials .......................... 3.14

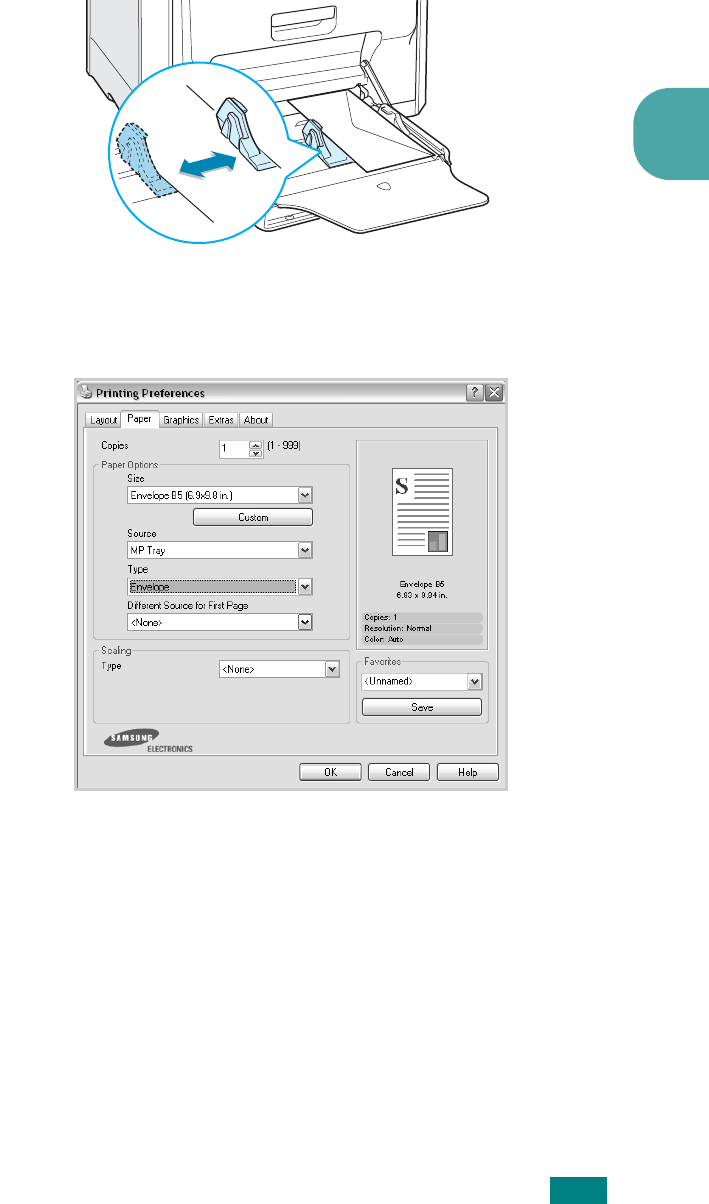

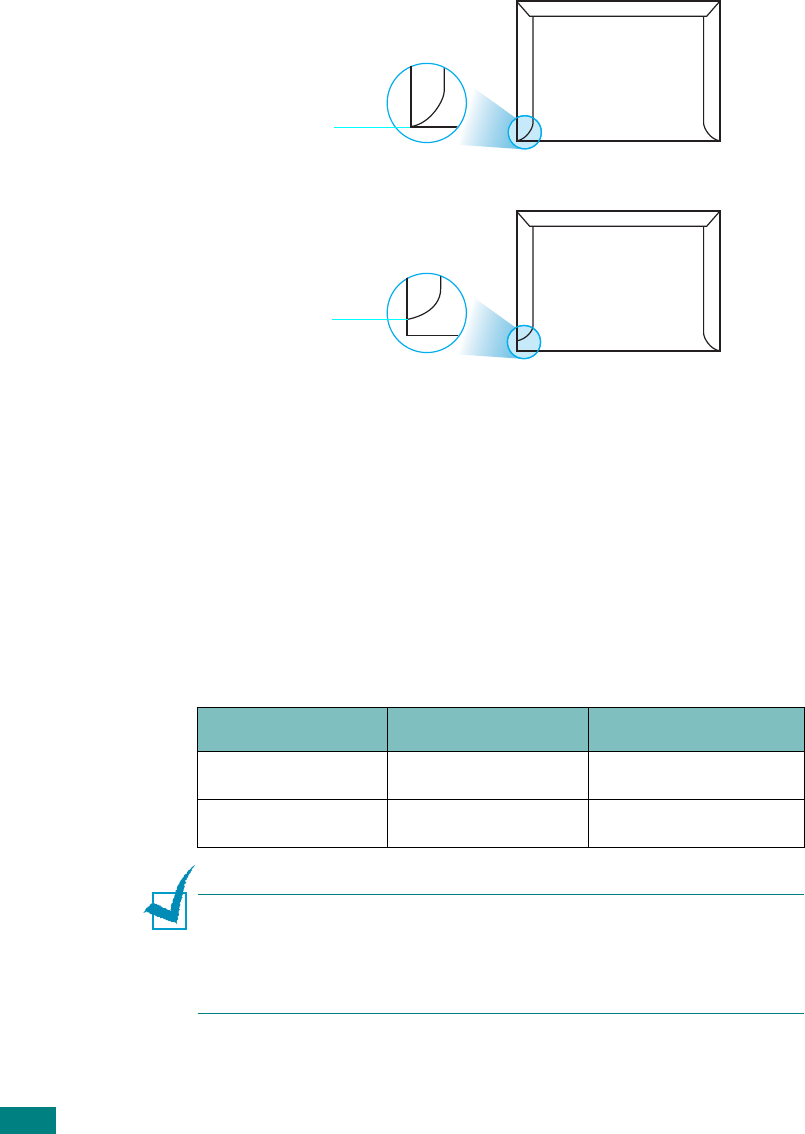

Printing on Envelopes .......................................... 3.14

Printing on Labels ............................................... 3.16

Printing on Transparencies ................................... 3.17

Printing on Preprinted Paper ................................ 3.20

Printing on Card Stock or Custom-sized Materials ... 3.21

Chapter 4 :

Printing Tasks

Printer Driver Features ............................................. 4.2

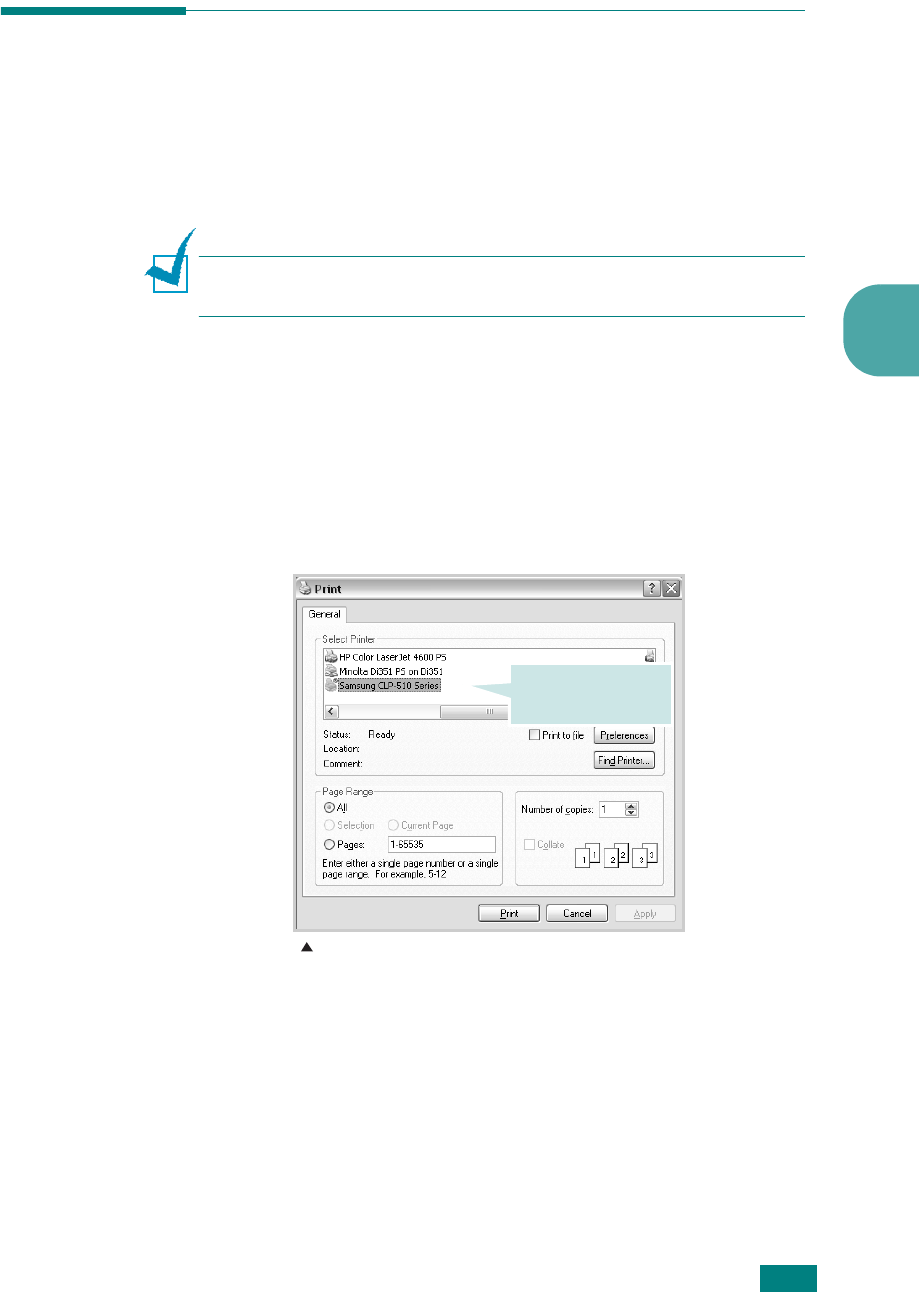

Printing a Document ................................................. 4.3

Canceling a Print Job ............................................. 4.4

Printer Settings ......................................................... 4.5

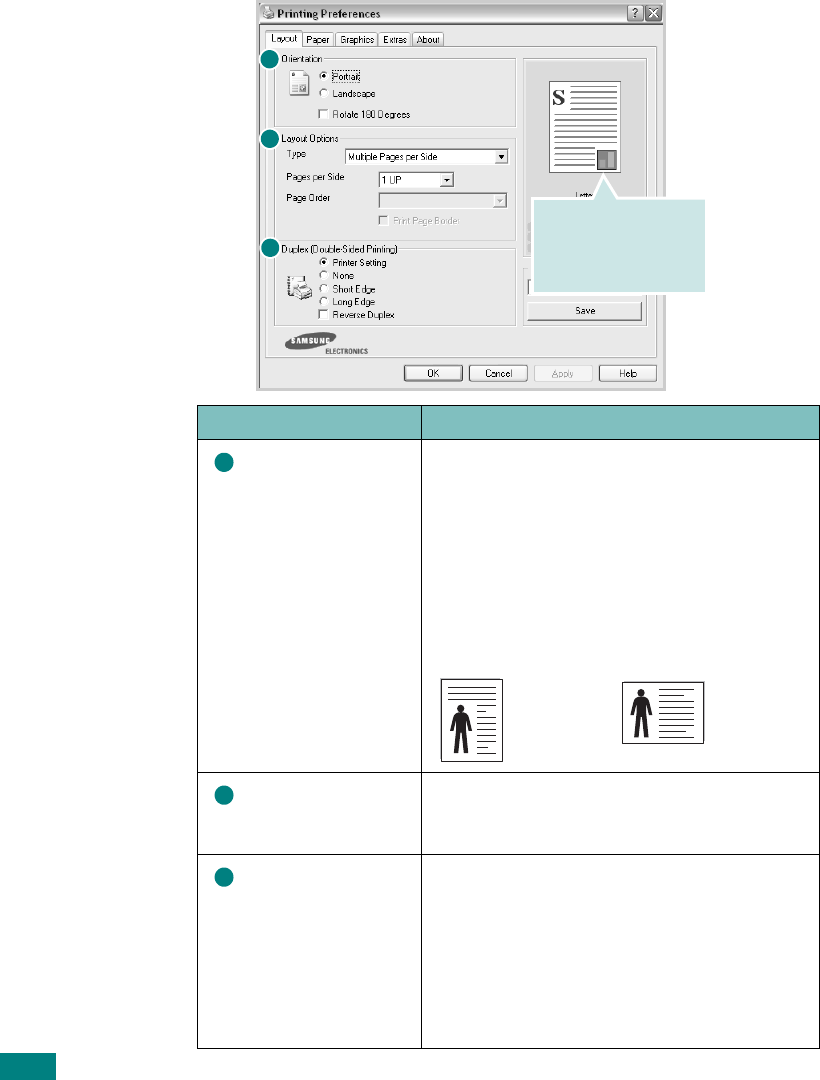

Layout tab ........................................................... 4.6

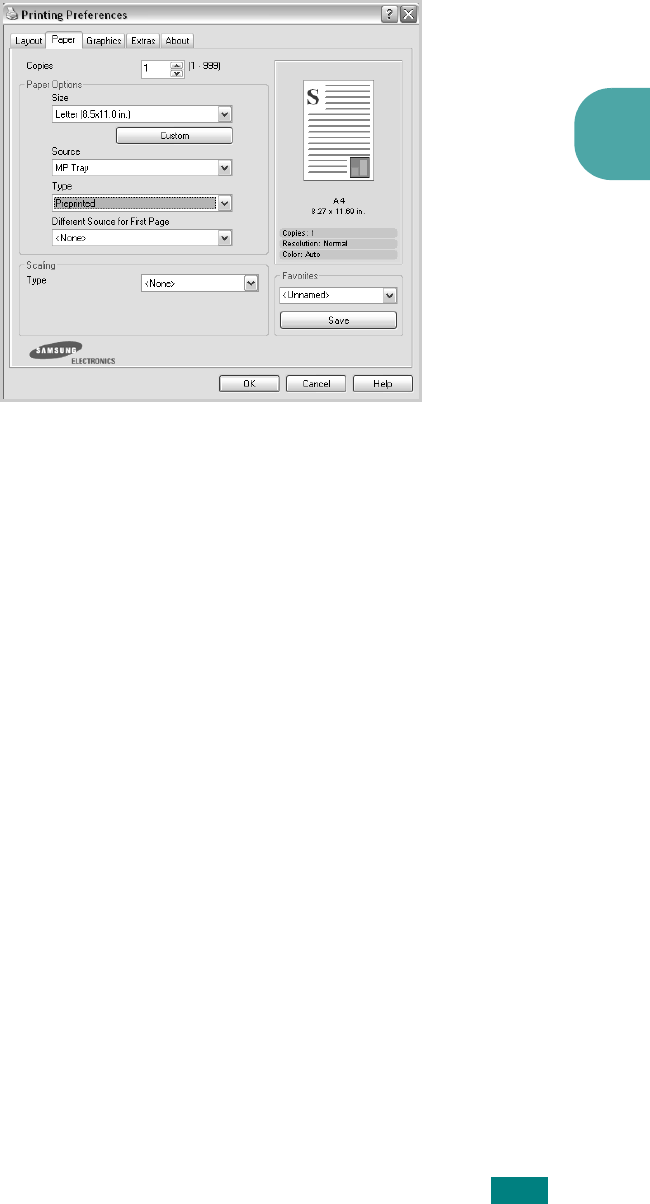

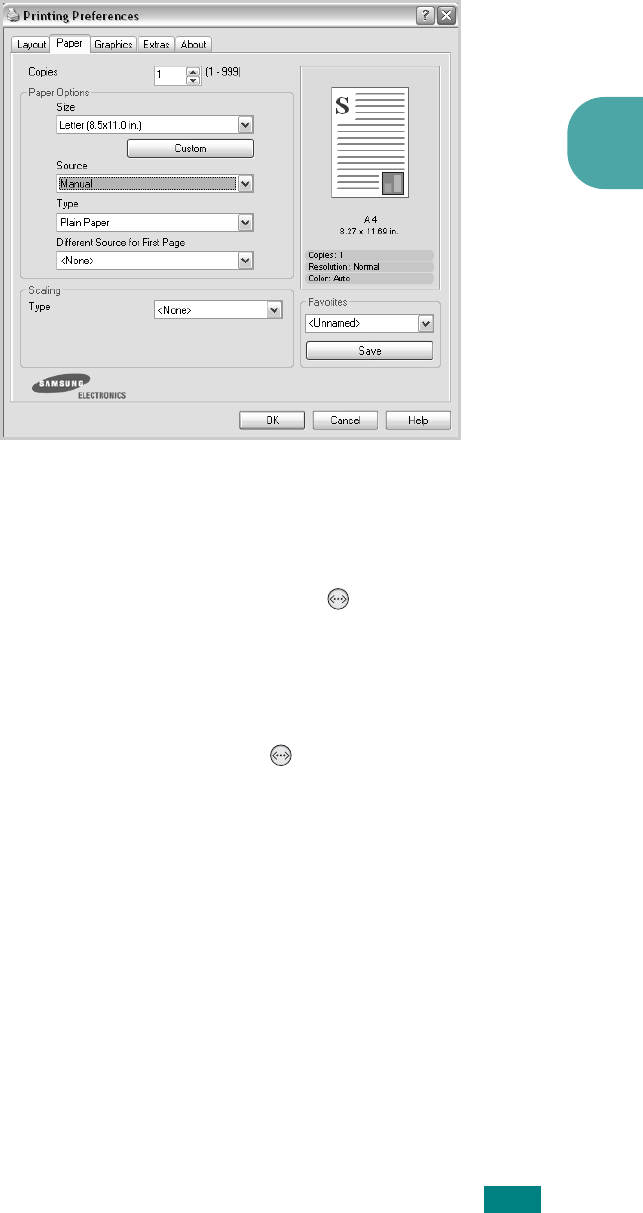

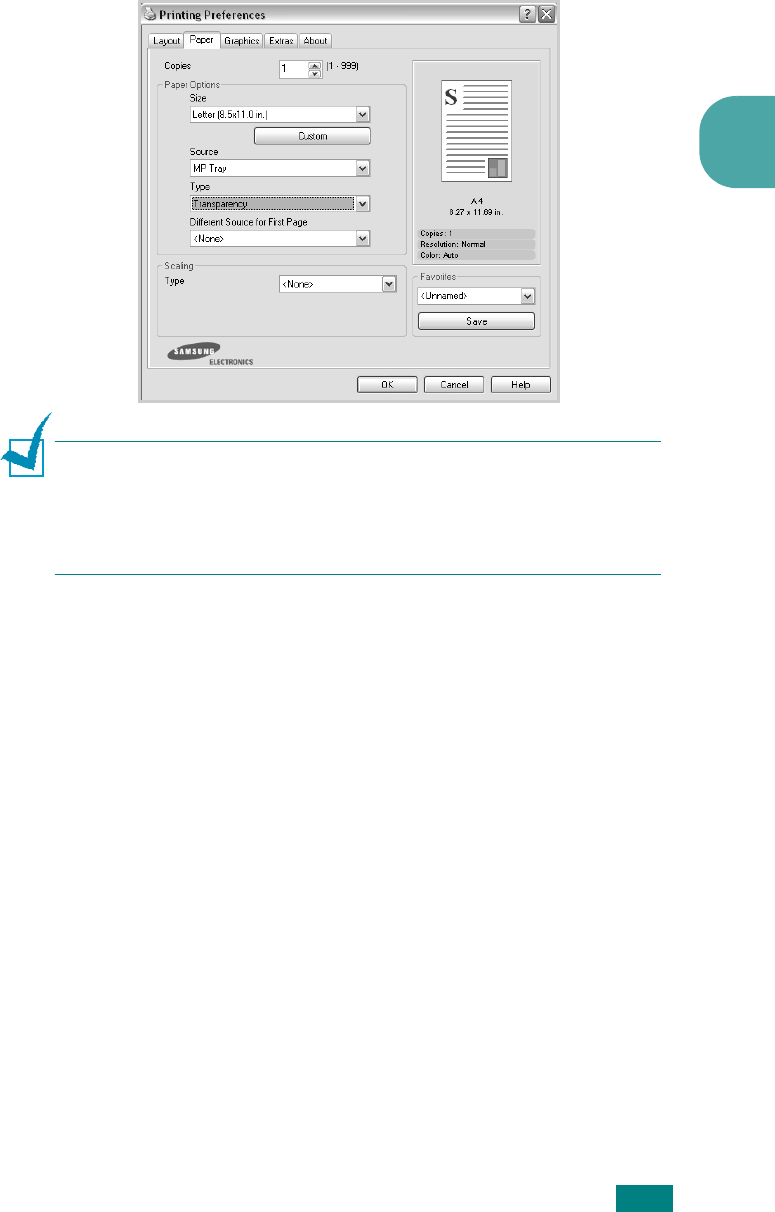

Paper tab ............................................................ 4.7

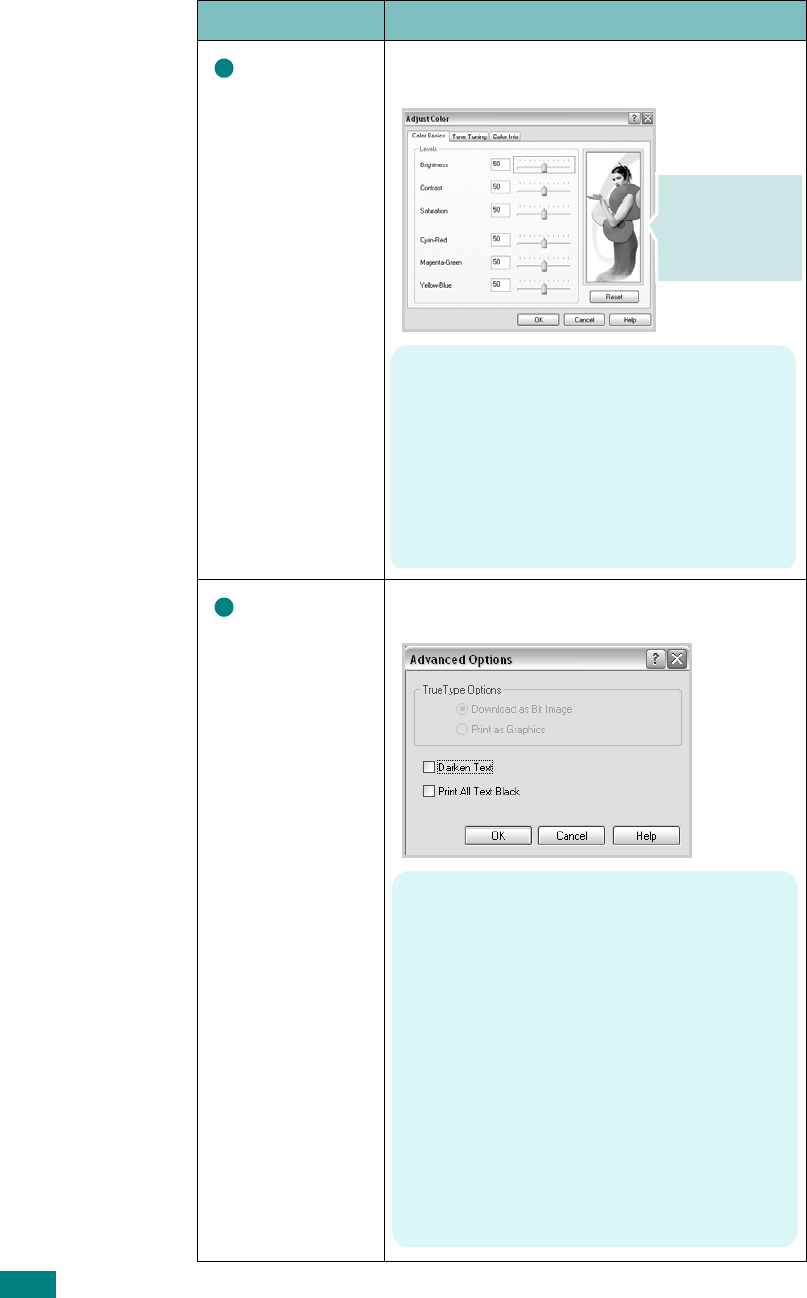

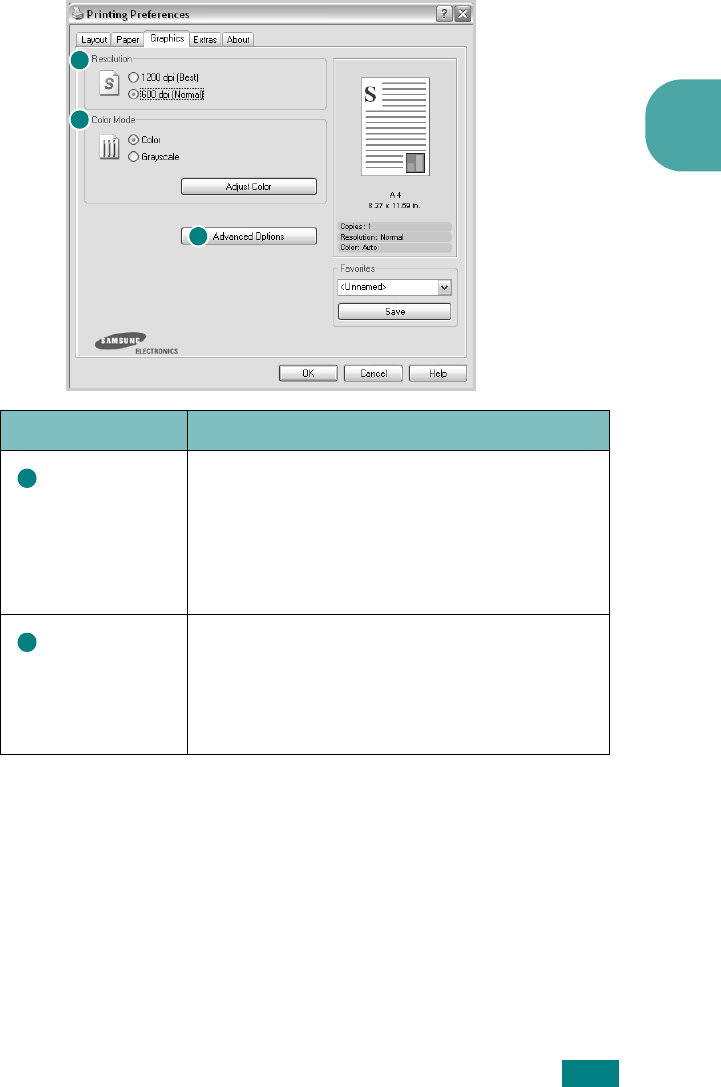

Graphics tab ........................................................ 4.9

Extras tab ......................................................... 4.12

About tab .......................................................... 4.13

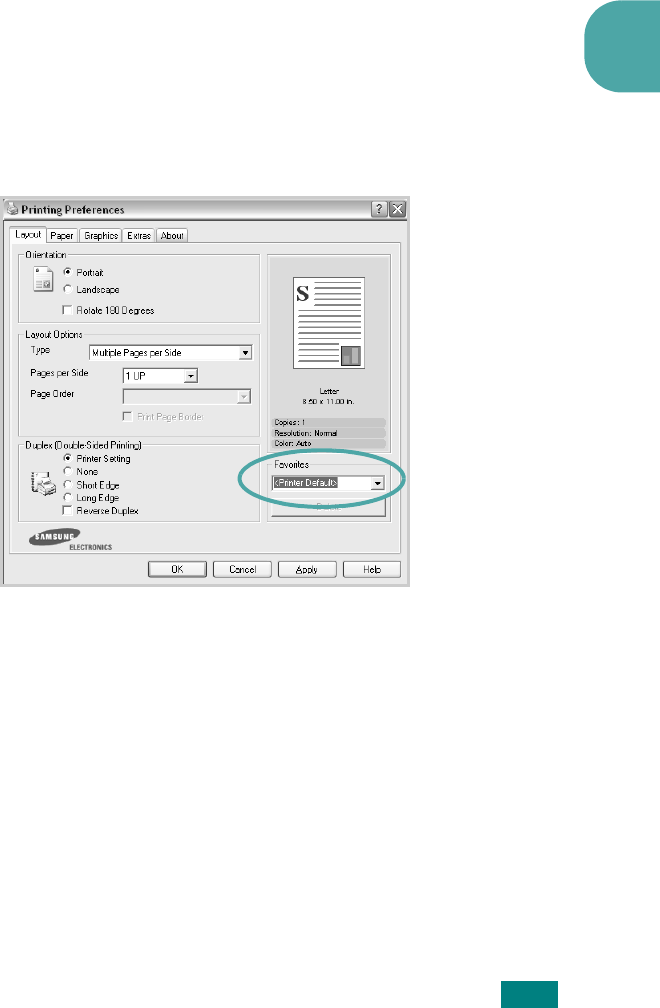

Using a Favorite Setting ...................................... 4.13

Using Help ......................................................... 4.14

Chapter 5 :

Advanced Printing

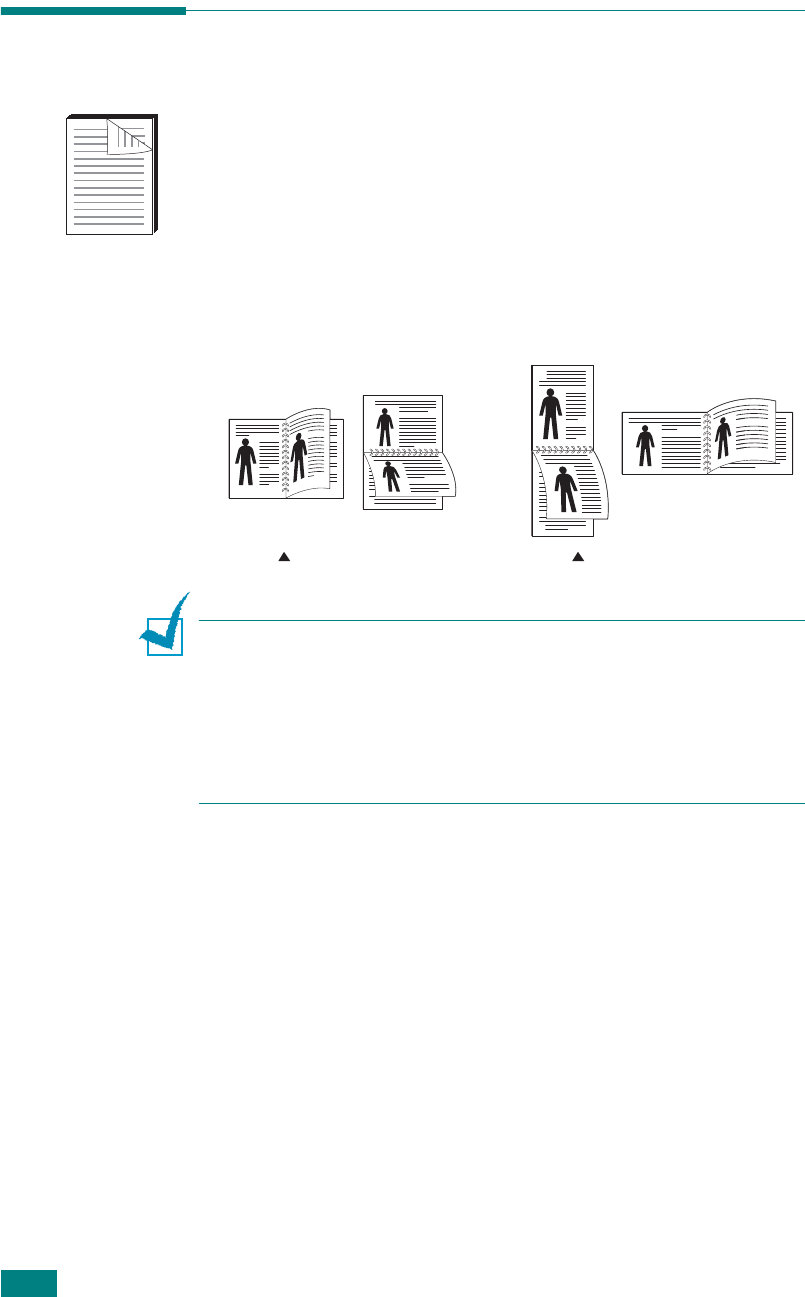

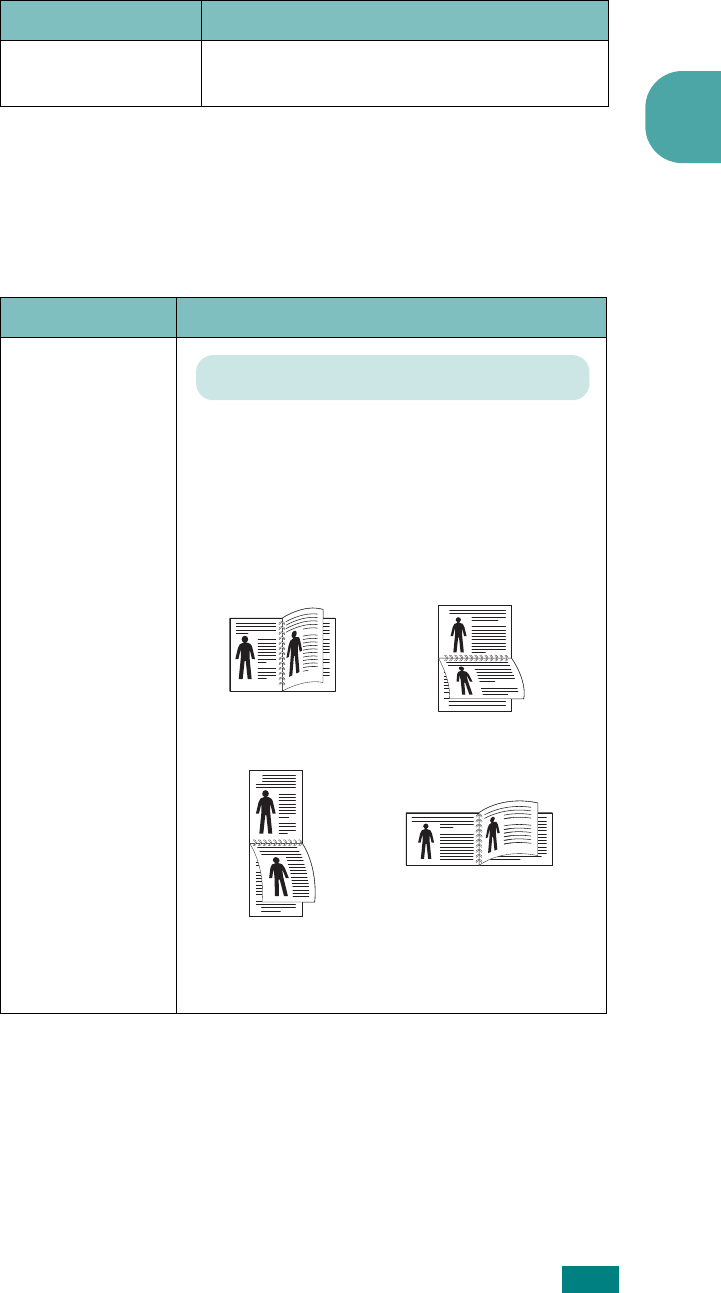

Printing on Both Sides of Paper ................................ 5.2

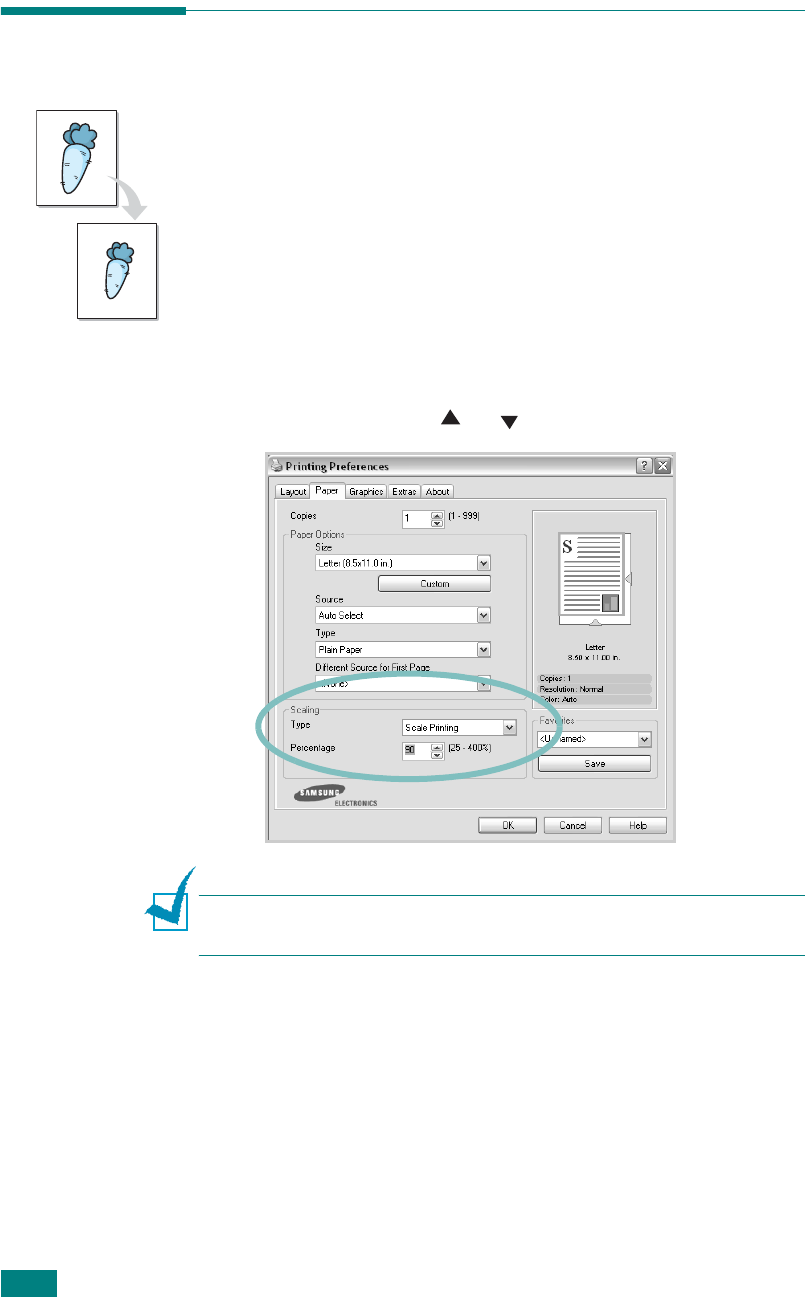

Scaling Your Document ............................................. 5.4

Fitting Your Document to a Selected Paper Size ........ 5.5

Printing Multiple Pages on One Sheet of Paper ......... 5.6

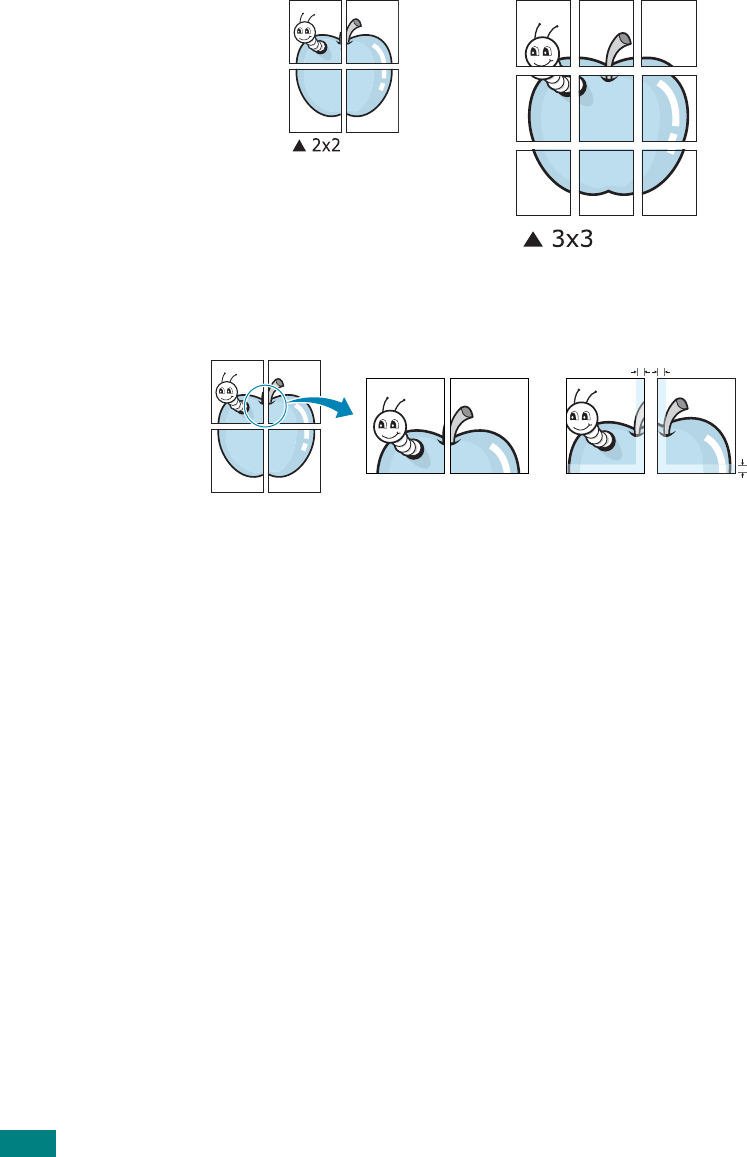

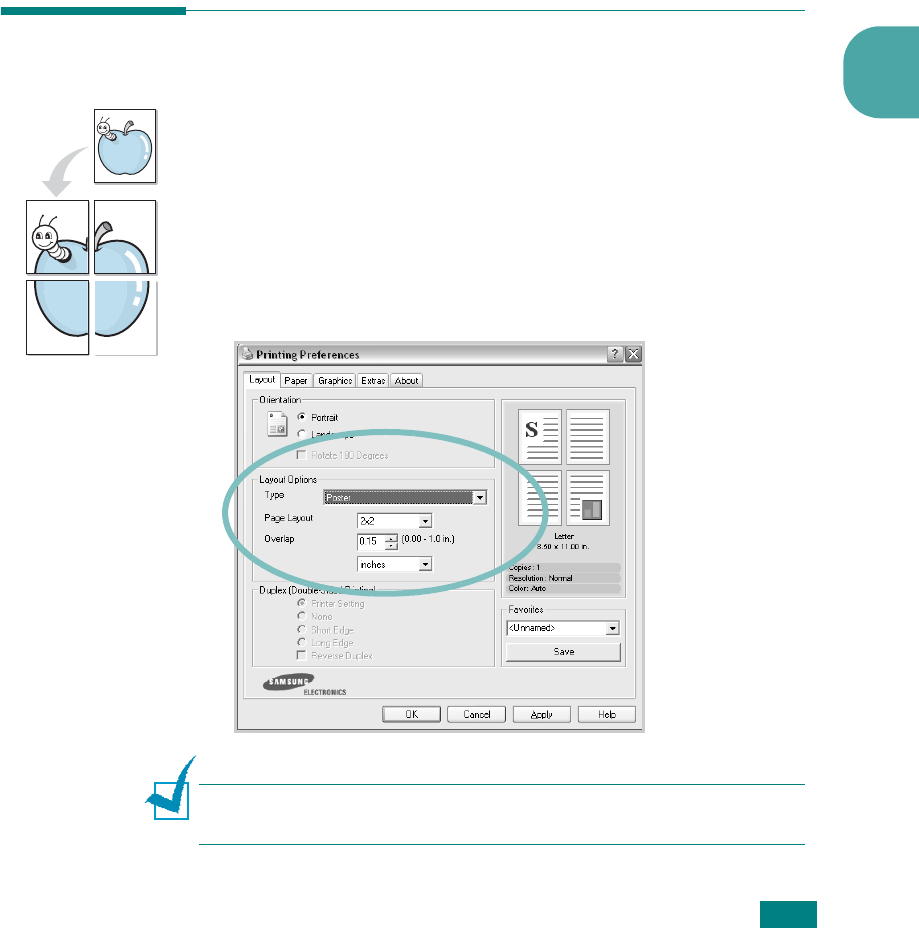

Printing Posters ........................................................ 5.7

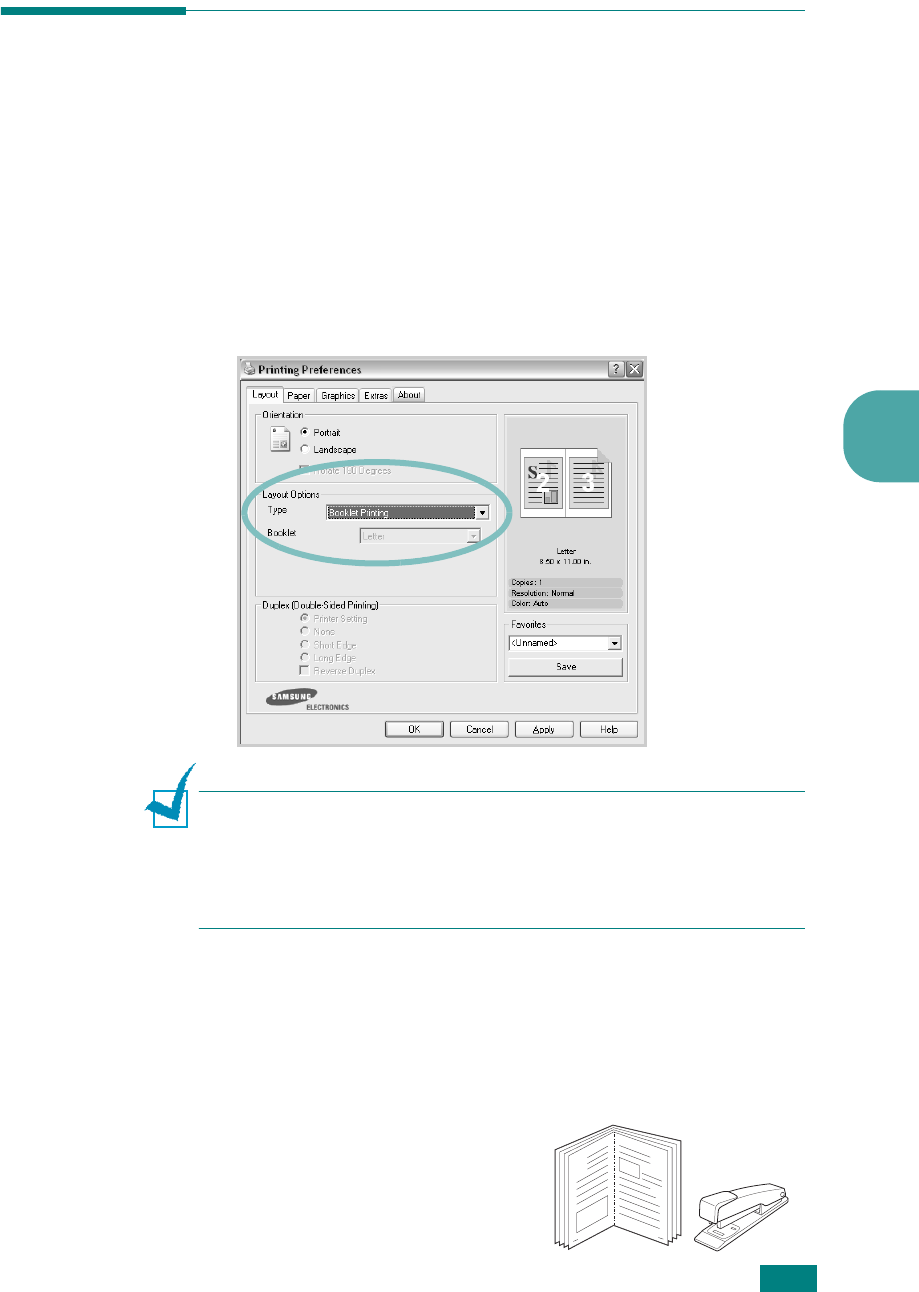

Printing Booklets ...................................................... 5.9

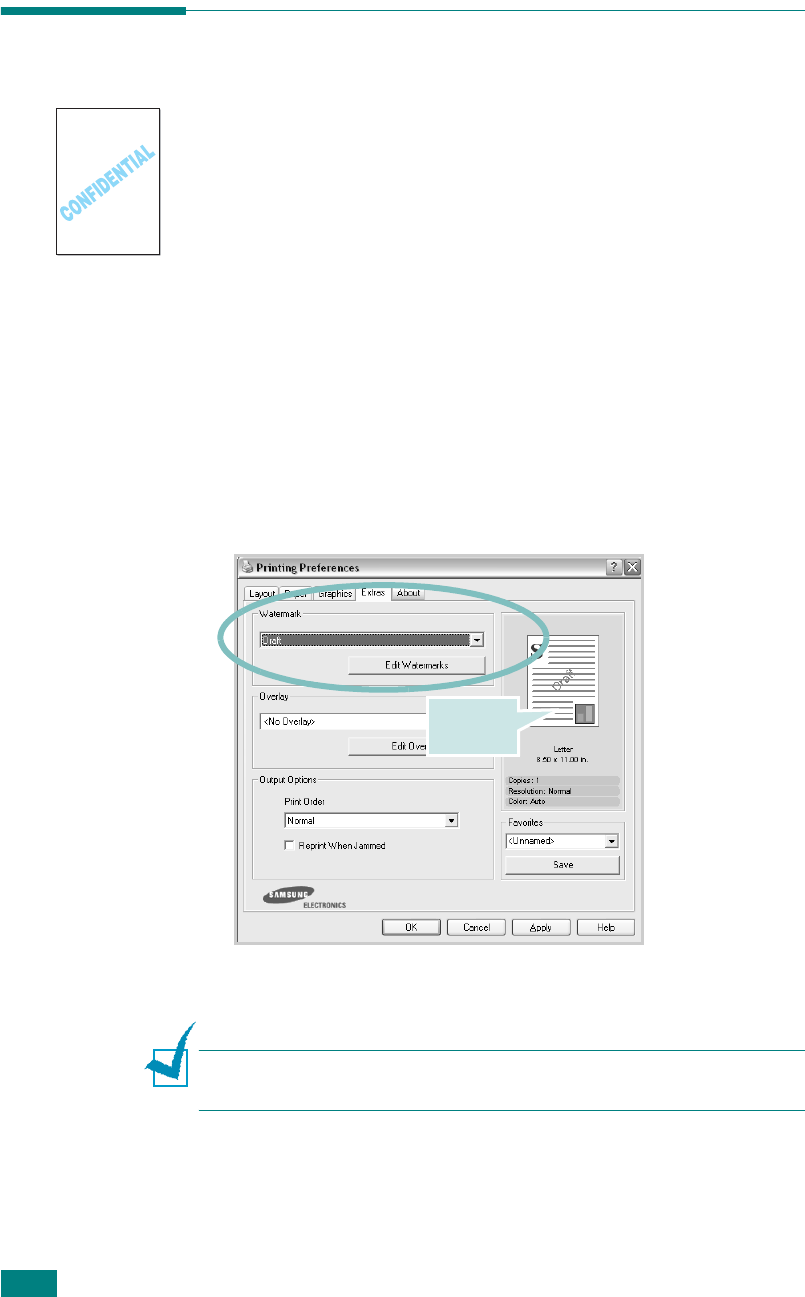

Using Watermarks .................................................. 5.10

Using an Existing Watermark ............................... 5.10

Creating a Watermark ......................................... 5.11

Editing a Watermark ........................................... 5.12

Deleting a Watermark ......................................... 5.12

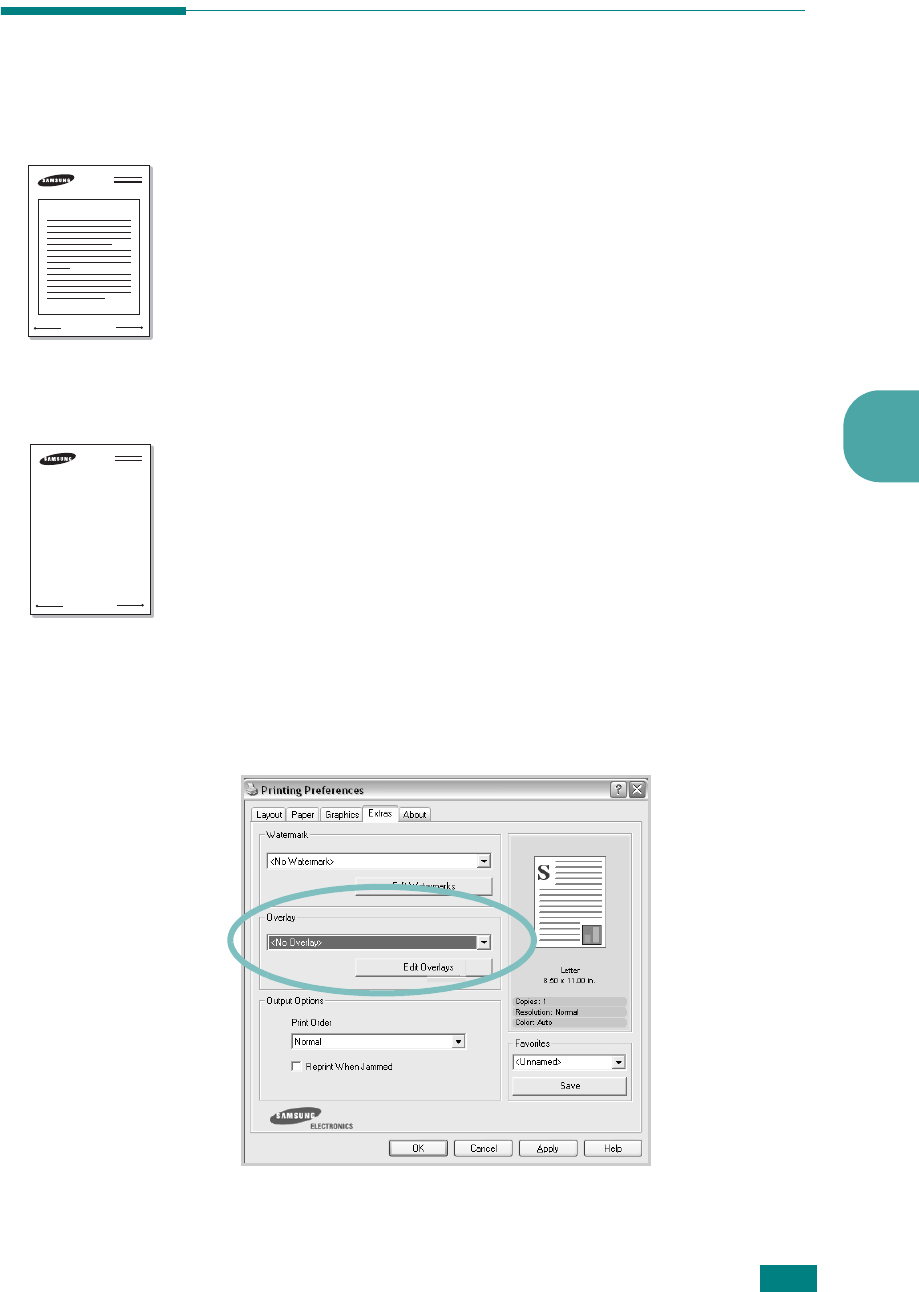

Using Overlays ........................................................ 5.13

What is an Overlay? ............................................ 5.13

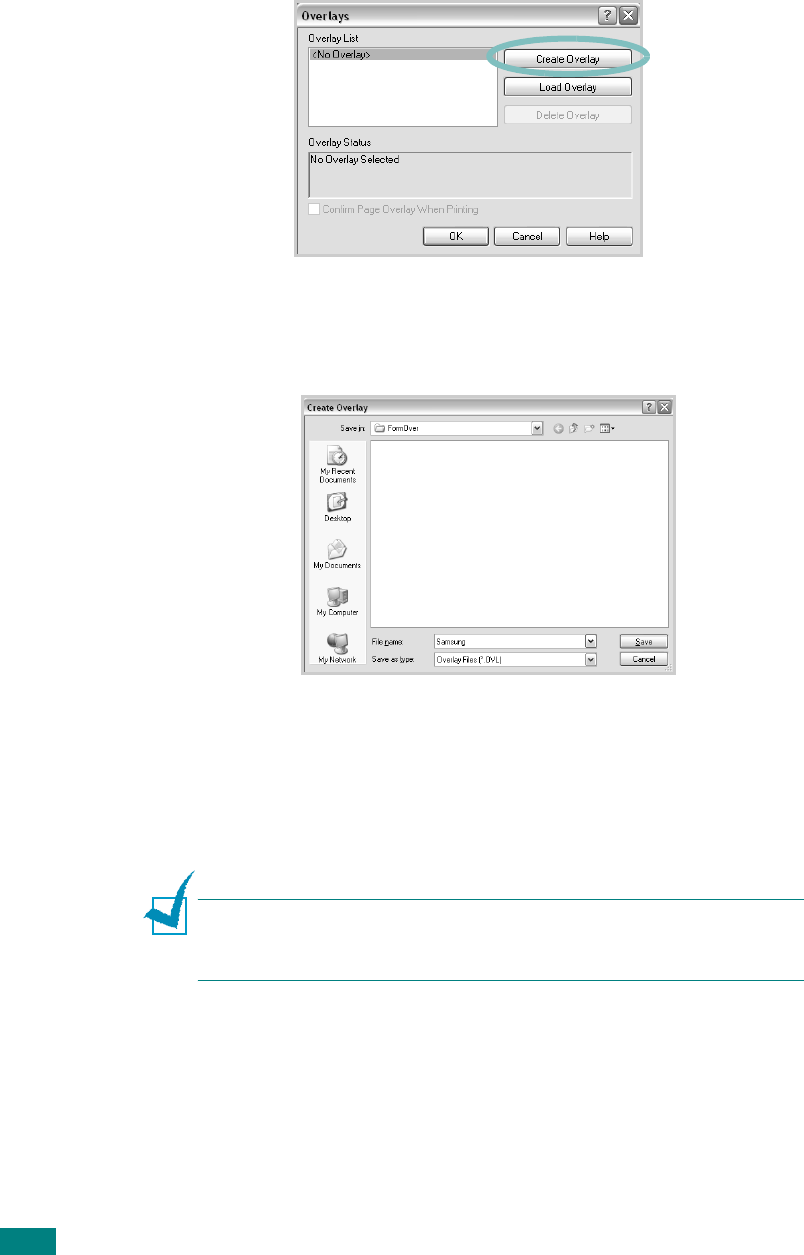

Creating a New Page Overlay ............................... 5.13

Using a Page Overlay .......................................... 5.15

Deleting a Page Overlay ...................................... 5.16

Using Status Monitor ............................................... 5.17

Installing Status Monitor ..................................... 5.17

Opening the Troubleshooting Guide ....................... 5.18

Changing the Status Monitor Program Setting ........ 5.18

Chapter 6 :

Maintaining Your Printer

Printing a Configuration Page ................................... 6.2

Replacing Supplies .................................................... 6.3

Managing Toner Cartridges ....................................... 6.4

Toner Cartridge Storage ........................................ 6.4

Toner Cartridge Life Expectancy ............................. 6.4

Redistributing Toner ............................................. 6.5

Replacing Toner Cartridges ....................................... 6.8

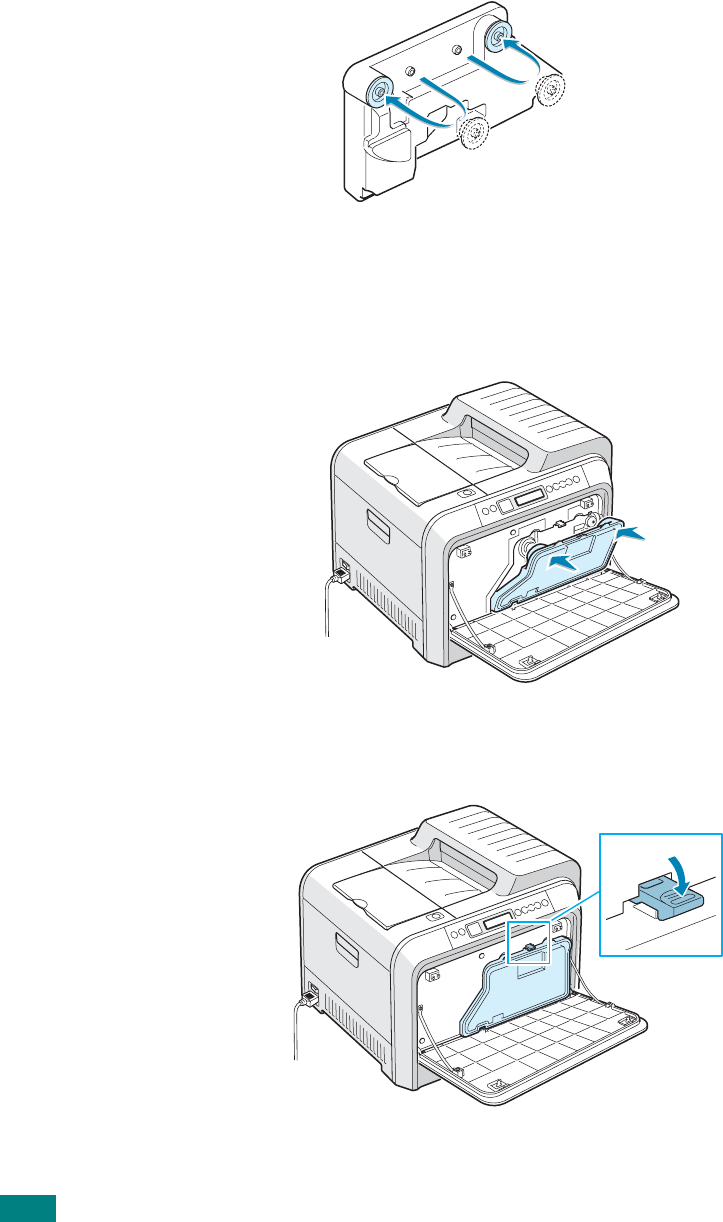

Replacing the Waste Toner Container ..................... 6.11

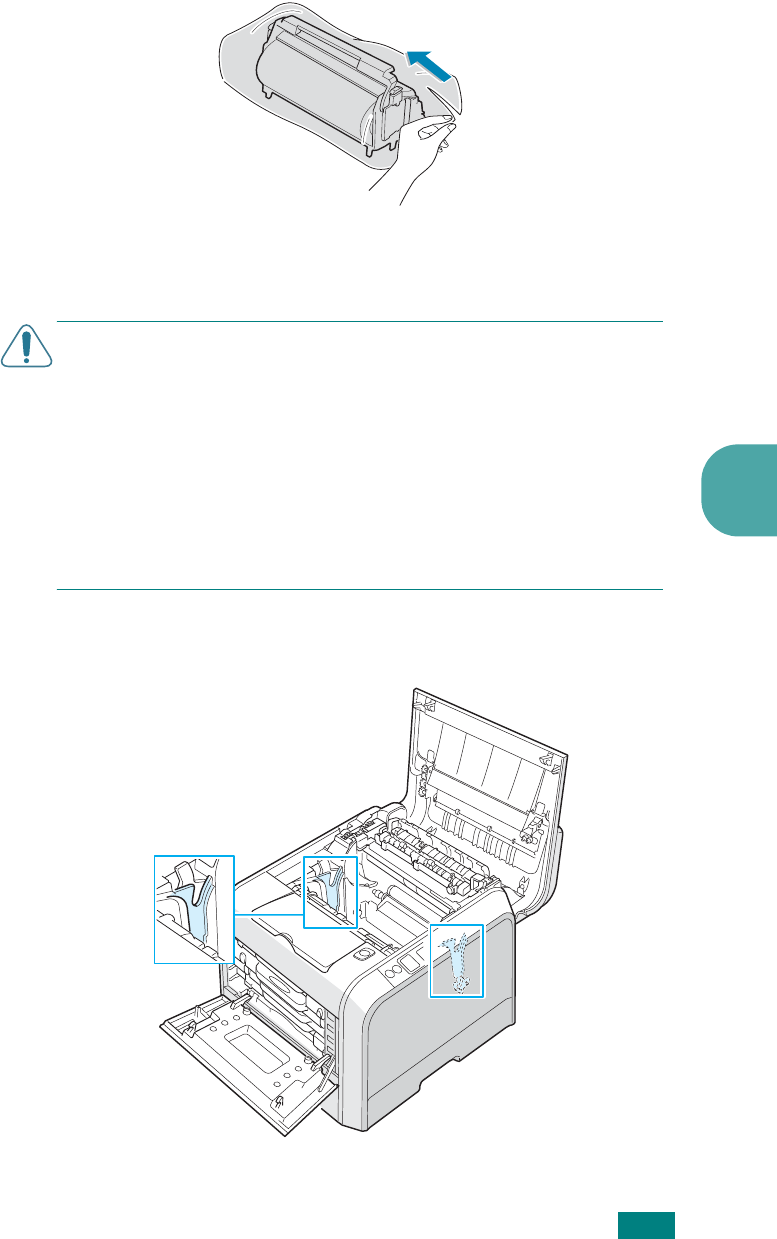

Replacing the Imaging Unit ..................................... 6.14

Replacing the Transfer Belt ..................................... 6.22

Cleaning the Printer ................................................ 6.29

Cleaning the Outside of the Printer ....................... 6.29

Cleaning the LSU Inside the Printer ....................... 6.29

Cleaning the Inside of the Printer .......................... 6.30

Replacement Parts .................................................. 6.38

Managing the Printer from the Website .................. 6.38

Setting Up E-mail Notification ............................... 6.39

Setting the Contact Information tab ...................... 6.41

Chapter 7 :

Solving Problems

Troubleshooting Checklist ......................................... 7.2

Solving General Printing Problems ............................ 7.3

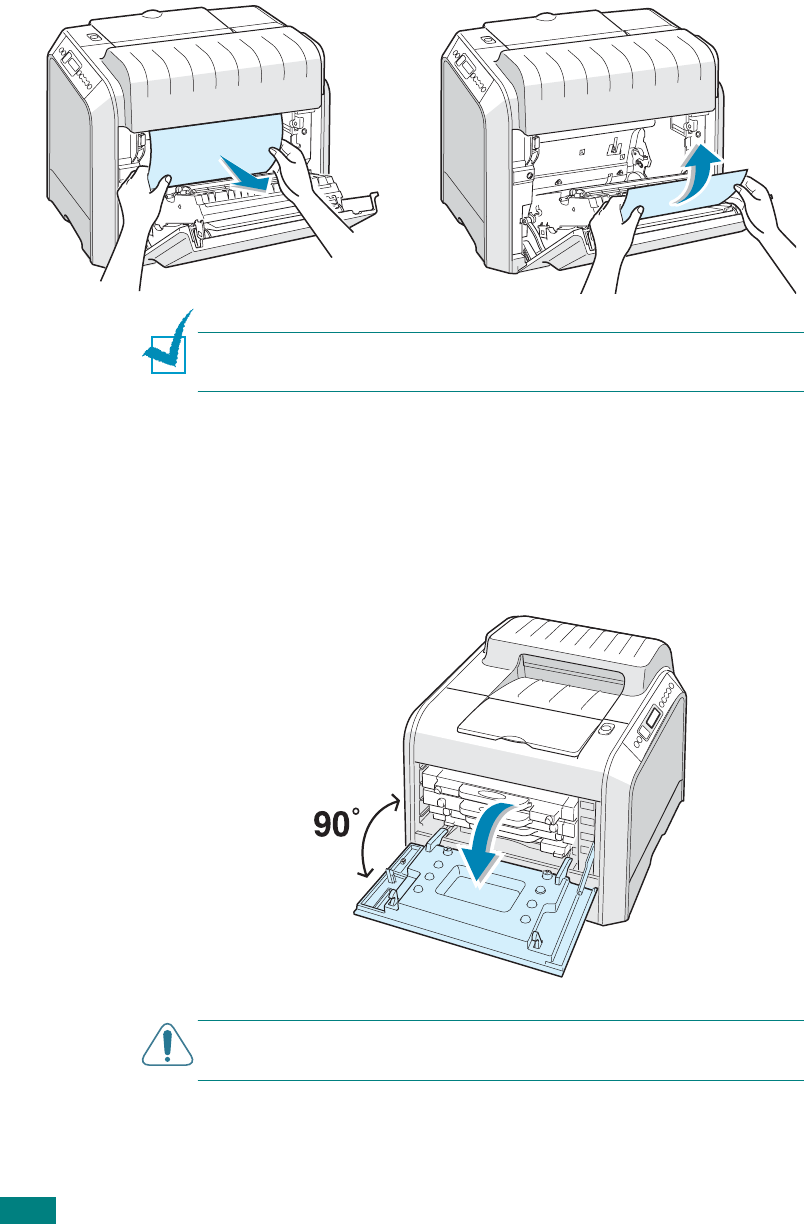

Clearing Paper Jams ................................................. 7.6

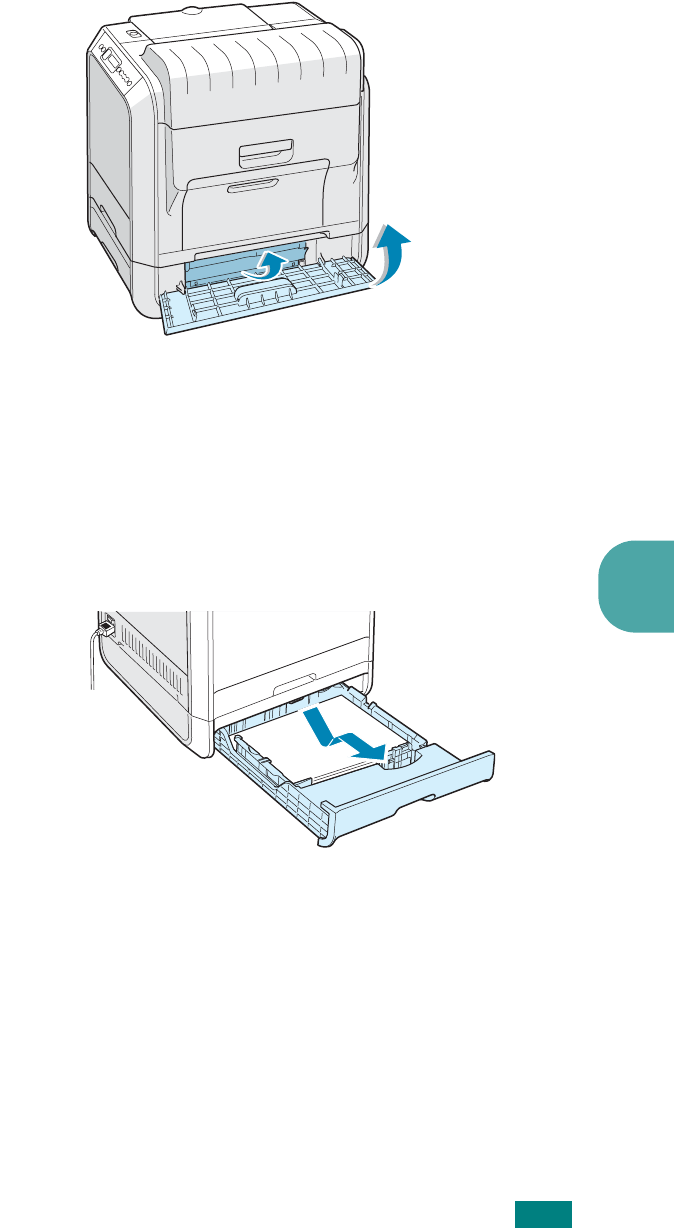

In the Paper Feed Area ......................................... 7.7

In the Multi-purpose Tray ...................................... 7.9

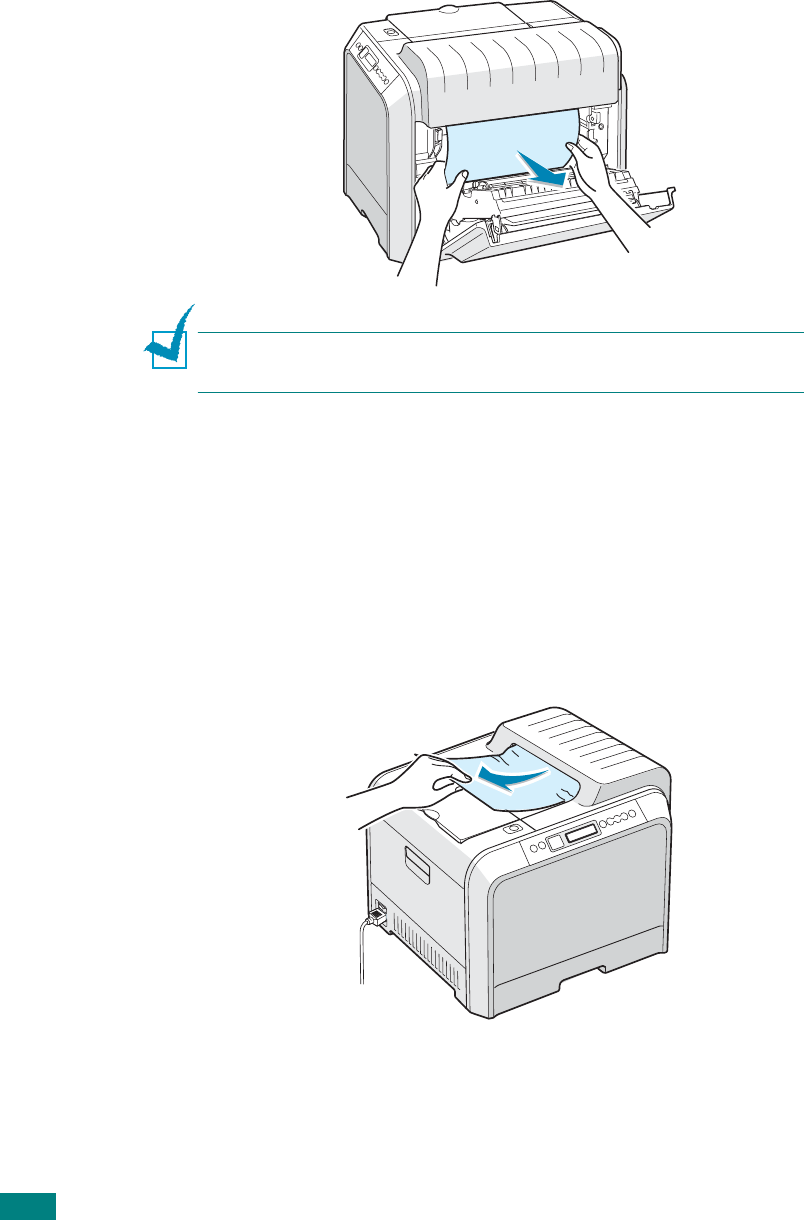

Inside the Printer ................................................. 7.9

In the Paper Exit Area ......................................... 7.10

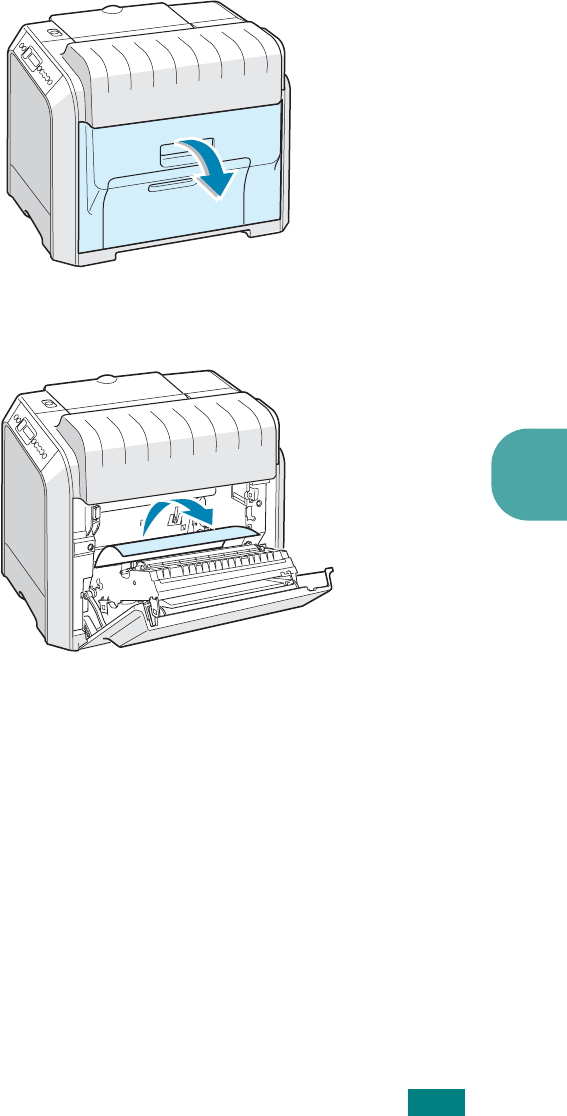

In the Duplex Area ............................................. 7.13

In the Optional Tray2 .......................................... 7.17

Tips for Avoiding Paper Jams ................................ 7.21

Solving Print Quality Problems ................................ 7.22

Understanding Display Messages ............................ 7.26

Common Windows Problems ................................... 7.30

Common Macintosh Problems ................................. 7.31

Common Linux Problems ......................................... 7.31

Appendix A :

Using Your Printer with a Macintosh

Installing Software for Macintosh ............................. A.2

Setting Up the Printer ............................................... A.4

For a Network-connected Macintosh ........................ A.4

For a USB-connected Macintosh .............................. A.5

Printing a Document ................................................. A.6

Canceling a Print Job ............................................. A.6

Using Advanced Printing Features ............................ A.7

Printing Multiple Pages on One Sheet of Paper .......... A.7

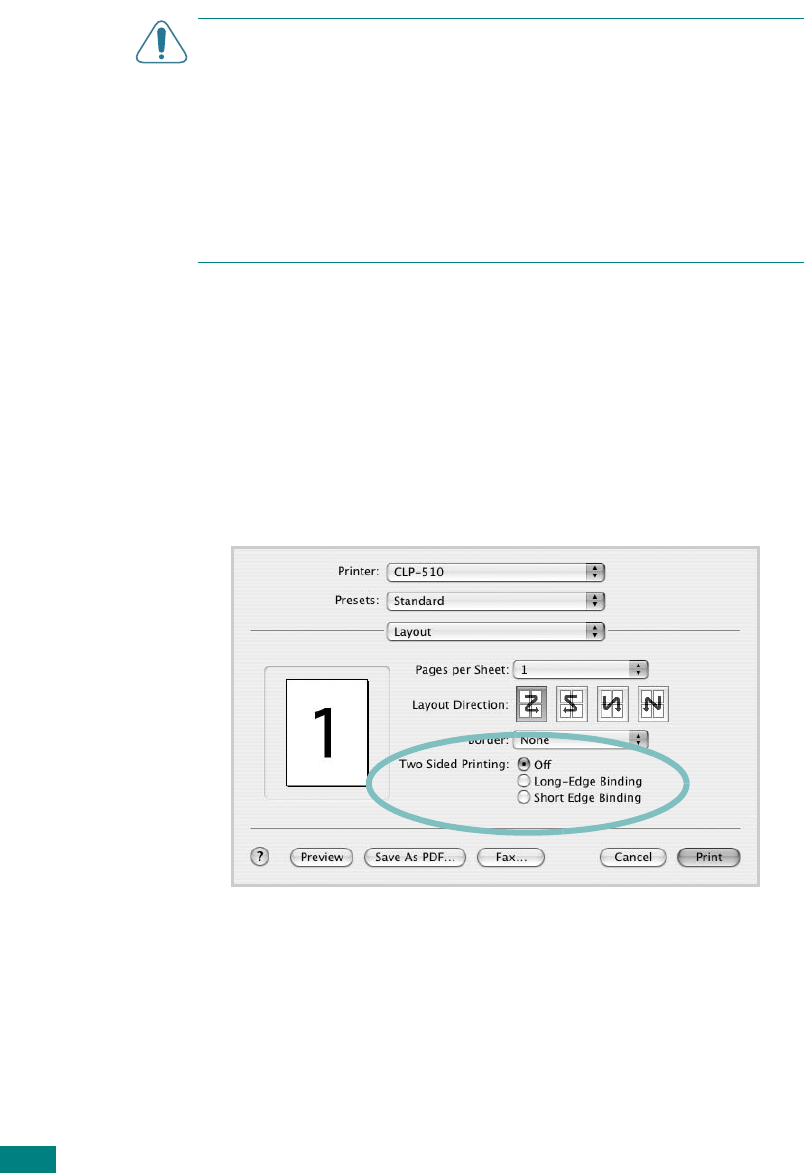

Duplex Printing .................................................... A.8

Scheduling a Print Job ........................................... A.9

Appendix B :

Using Your Printer in Linux

Installing the Printer Driver ...................................... B.2

System Requirements ........................................... B.2

Installing the Printer Driver .................................... B.2

Changing the Printer Connection Method ................. B.6

Uninstalling the Printer Driver ................................ B.7

Using the Configuration Tool ..................................... B.8

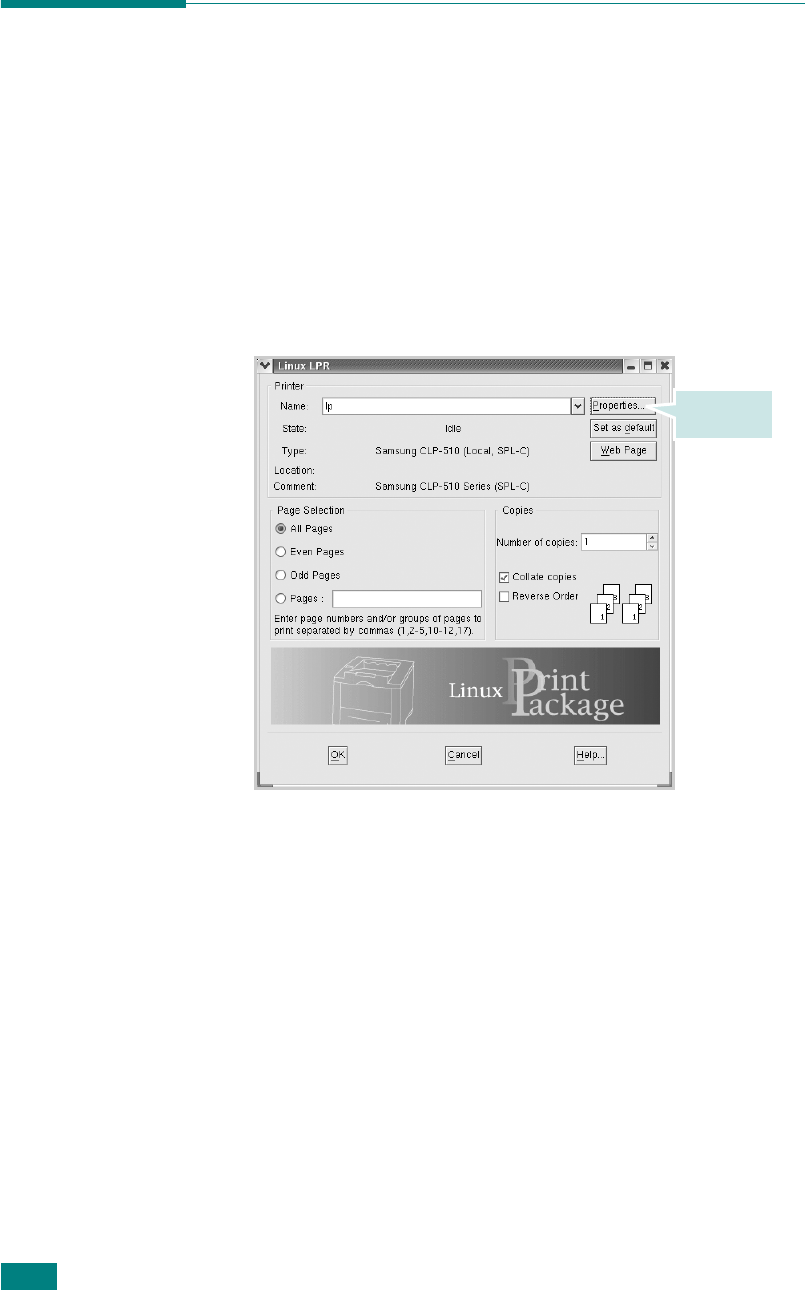

Changing LLPR Properties ....................................... B.10

Appendix C :

Using Your Printer on a Network

About Sharing the Printer on a Network ................... C.2

Setting Up a Locally Shared Printer ........................... C.3

In Windows 95/98/Me ........................................... C.3

In Windows NT 4.0/2000/2003/XP .......................... C.4

Setting Up a Network-Connected Printer .................. C.6

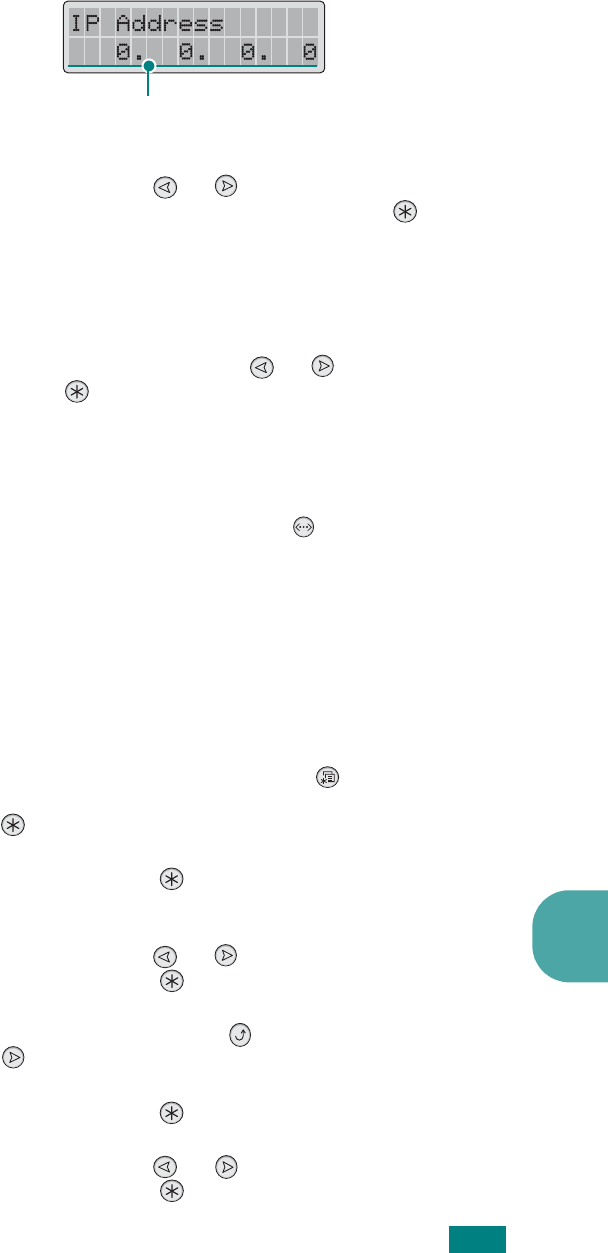

Configuring Network Parameters on the

Control Panel ....................................................... C.6

Appendix D :

Installing Printer Options

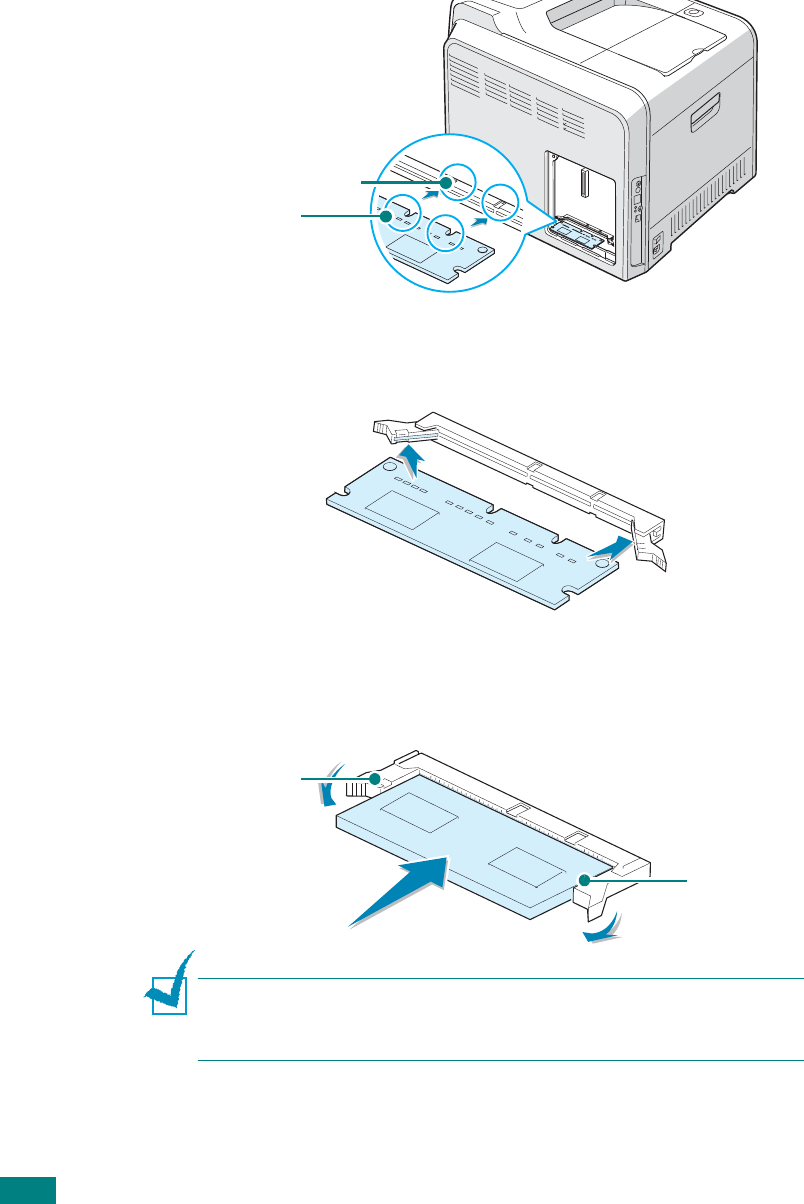

Installing Additional Printer Memory ........................ D.2

Removing a Memory DIMM .................................... D.6

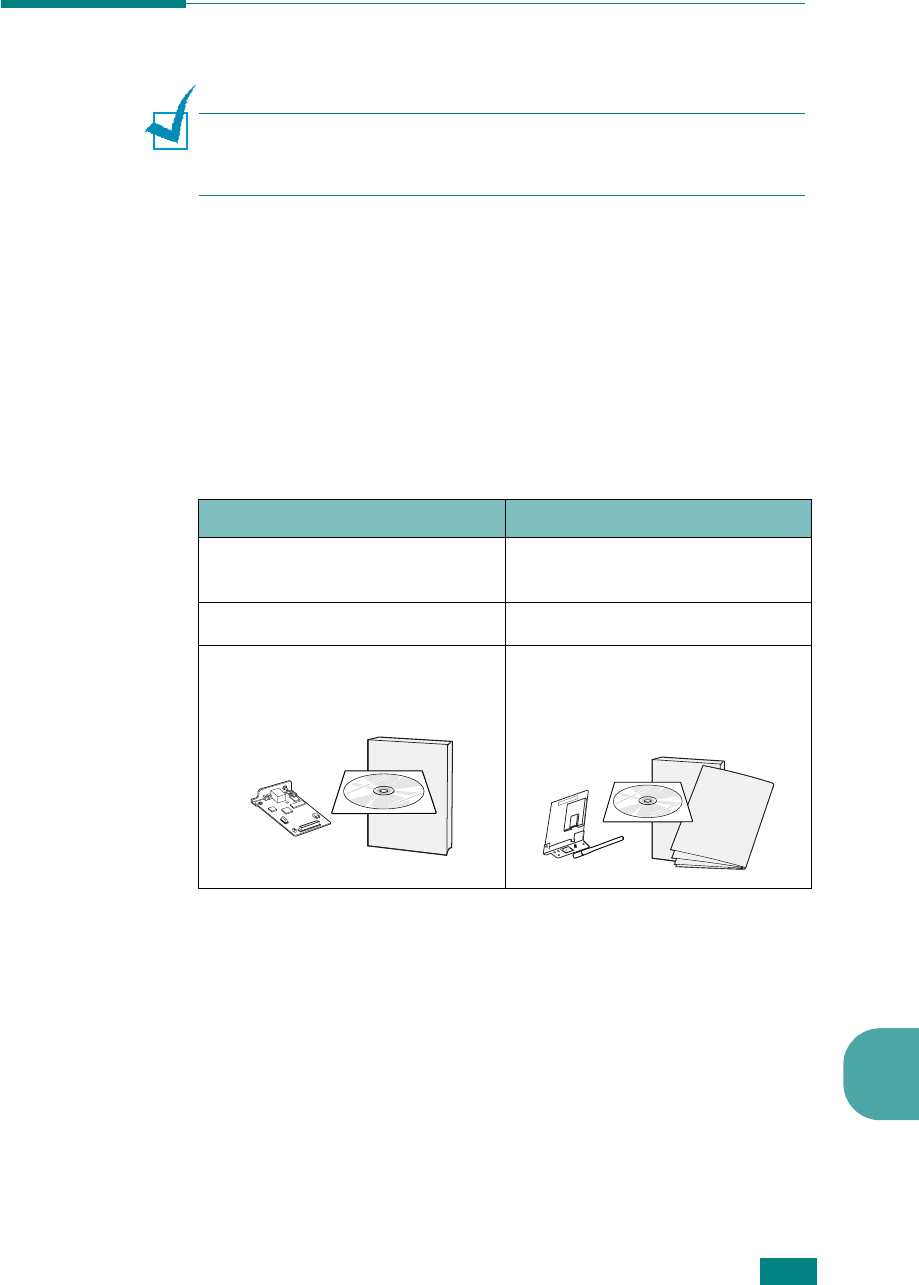

Installing a Network Interface Card .......................... D.7

Installing an Optional Tray ..................................... D.12

Appendix E :

Specifications

Printer Specifications ................................................ E.2

Paper Specifications .................................................. E.4

Overview ............................................................. E.4

Supported Sizes of Paper ....................................... E.5

Guidelines for Using Paper ..................................... E.6

Paper Specifications .............................................. E.7

Paper Output Capacity .......................................... E.7

Paper Input Capacity ............................................ E.7

Printer and Paper Storage Environment ................... E.8

Envelopes ............................................................ E.9

Labels ............................................................... E.11

Transparencies ................................................... E.11

Environmental and Safety Consideration

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR,

chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a

Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system and

printer are designed so there is never any human access to laser radiation above a

Class I level during normal operation, user maintenance, or prescribed service

condition.

ARNING

Never operate or service the printer with the protective cover removed from Laser/

Scanner assembly. The reflected beam, although invisible, can damage your eyes.

When using this product, these basic safety precautions should always be followed to

reduce risk of fire, electric shock, and injury to persons:

Ozone Safety

During normal operation, this machine produces ozone. The

ozone produced does not present a hazard to the operator.

However, it is advisable that the machine be operated in a well

ventilated area.

If you need additional information about ozone, please contact

your nearest Samsung dealer.

Recycling

Please recycle or dispose of packaging materials for this product

in an environmentally responsible manner.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European coun-

tries with separate collection systems)

This marking shown on the product or its literature, indicates

that it should not be disposed with other household wastes at

the end of its working life. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, please sepa-

rate this from other types of wastes and recycle it responsibly to promote the

sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they can

take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product should not be mixed with other commer-

cial wastes for disposal.

Mercury Safety

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE

RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR

FEDERAL LAWS. For details see lamprecycle.org, eiae.org, or call

1-800-Samsung.

Radio Frequency Emissions

FCC regulations

This device has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

AUTION

: Changes or modifications not expressly approved by the manufacturer

responsible for compliance could void the user’s authority to operate the equipment.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus as set out in the interference-causing equipment standard

entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux

appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur:

“Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication

devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer

system. This section is only applicable if these devices are present. Refer to the

system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United

States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the

device and the body, for use of a wireless device near the body (this does not include

extremities). This device should be used more than 20 cm (8 inches) from the body

when wireless devices are on. The power output of the wireless device (or devices),

which may be embedded in your printer, is well below the RF exposure limits as set

by the FCC.

This transmitter must not be collocated or operation in conjunction with any other

antenna or transmitter.

Operation of this device is subject to the following two conditions:(1) This device may

not cause harmful interference, and(2) this device must accept any interference

received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any

way. Modification to a wireless device will void the authorization to use

it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

“While installing and operating this transmitter and antenna combination

the radio frequency exposure limit of 1mW/cm2 may be exceeded at

distances close to the antenna installed. Therefore, the user must

maintain a minimum distance of 20cm from the antenna at all times.

This device can not be colocated with another transmitter and

transmitting antenna.”

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolises Samsung

Electronics Co., Ltd. Declaration of Conformity with the following

applicable 93/68/EEC Directives of the European Union as of the

dates indicated:

January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the

member states related to low voltage equipment.

January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the

laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and

telecommunications terminal equipment and the mutual recognition of their

conformity.

A full declaration, defining the relevant Directives and referenced standards can be

obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications

Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single

terminal connection to the analogue public switched telephone network (PSTN) in

accordance with Directive 1999/5/EC. The product has been designed to work with

the national PSTNs and compatible PBXs of the European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics

Co., Ltd. in the first instance.

The product has been tested against TBR21 and/or TBR 38. To assist in the use and

application of terminal equipment which complies with this standard, the European

Telecommunication Standards Institute (ETSI) has issued an advisory document (EG

201 121) which contains notes and additional requirements to ensure network

compatibility of TBR21 terminals. The product has been designed against, and is fully

compliant with, all of the relevant advisory notes contained in this document.

European Radio Approval Information

(for products fitted with EU-approved radio devices)

This Product is a printer; low power, Radio LAN type devices (radio frequency (RF)

wireless communication devices), operating in the 2.4 GHz band, may be present

(embedded) in your printer system which is intended for home or office use. This

section is only applicable if these devices are present. Refer to the system label to

verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the

European Union or associated areas if a CE mark with a Notified Body

Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you

printer is well below the RF exposure limits as set by the European Commission

through the R&TTE directive.

European States qualified under wireless approvals:

Austria, Belgium, Denmark, Finland, France (with frequency

restrictions), Germany, Greece, Ireland, Italy, Luxembourg,

The Netherlands, Portugal, Spain, Sweden and the United

Accept EU

Iceland, Liechtenstein, Norway and Switzerland

European States with restrictions on use:

In France, the frequency range is restricted to 2446.5-2483.5 MHz

for devices above 10 mW transmitting power such as wireless

Accept EU

No limitations at this time.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication

devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer

system. The following section is a general overview of considerations while operating

a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the

specific country sections (or country group sections). The wireless devices in your

system are only qualified for use in the countries identified by the Radio Approval

Marks on the system rating label. If the country you will be using the wireless device

in, is not listed, please contact your local Radio Approval agency for requirements.

Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your

printer is well below the RF exposure limits as known at this time. Because the

wireless devices (which may be embedded into your printer) emit less energy than is

allowed in radio frequency safety standards and recommendations, manufacturer

believes these devices are safe for use. Regardless of the power levels, care should

be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device

and the body, for use of a wireless device near the body (this does not include

extremities) is typical. This device should be used more than 20 cm (8 inches) from

the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any other

antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common

restrictions are listed below:

Radio frequency wireless communication can interfere with equipment

on commercial aircraft. Current aviation regulations require wireless

devices to be turned off while traveling in an airplane. 802.11B (also

known as wireless Ethernet) and Bluetooth communication devices are

examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or

services is harmful or perceived as harmful, the option to use a wireless

device may be restricted or eliminated. Airports, Hospitals, and Oxygen

or flammable gas laden atmospheres are limited examples where use of

wireless devices may be restricted or eliminated. When in environments

where you are uncertain of the sanction to use wireless devices, ask the

applicable authority for authorization prior to use or turning on the

wireless device.

Every country has different restrictions on the use of wireless devices.

Since your system is equipped with a wireless device, when traveling

between countries with your system, check with the local Radio Approval

authorities prior to any move or trip for any restrictions on the use of a

wireless device in the destination country.

If your system came equipped with an internal embedded wireless

device, do not operate the wireless device unless all covers and shields

are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any

way. Modification to a wireless device will void the authorization to use

it. Please contact manufacturer for service.

Only use drivers approved for the country in which the device will be

used. See the manufacturer System Restoration Kit, or contact

manufacturer Technical Support for additional information.

EU Declaration of Conformity (LVD,EMC)

For the following product :

Manufactured at :

We hereby declare, that all major safety requirements, concerning to CE Marking Directive[93/68/EEC]

and Low Voltage Directive [73/23/EEC], ElectroMagnetic Compatibility [89/336/EEC], amendments

[92/31/EEC] are fulfilled, as laid out in the guideline set down by the member states of the EEC

Commission.

This declaration is valid for all samples that are part of this declaration, which are manufactured

according to the production charts appendix.

The standards relevant for the evaluation of safety & EMC requirements are as follows :

LVD : EN60950:2000, IEC60950:1999,

EN60825-1:1994inc A1:1996/IEC60825-1:1993incA1:1997

EMC : EN55022:1998incA1:2000, EN61000-3-2:2000, EN61000:3-3:1995incA1:2001,

EN55024:1998incA1:2001, AS/NZS3548:1995, EN61000:4-2:1995, EN61000:4-1996,

EN61000:4-4:1995, EN61000:4-5:1995, EN61000:4-6:1996, EN61000:4-11:1994

1. Certificate of conformity / Test report issued by :

LVD : TUV Rheinland

EMC : SAMSUNG Electronics EURO Q.A. Lab. in the U.K.

2. Technical documentation kept as :

Samsung Electronics Co.,Ltd.

#259,Gongdan-Dong,Gumi-City

Gyungbuk, Korea 730-030 Whan-Soon Yim / Senior Manager

(placeanddateofissue) (nameandsignatureofauthorizedperson)

Color Laser Beam Printer

(Product name)

CLP-510, CLP-510N

(Model Number)

1) Samsung Electronics Co.,Ltd. #259, Gongdan-Dong, Gumi-City, Gyungbuk,KOREA. 730-030

2) Shandong Samsung Telecommunications Co., Ltd. Sanxing Road, Weihai Hi-tech, IDZ

Shandong Province, 264 209, China Place: M264

(factory name, address)

Samsung Electronics Co.,Ltd.

(Manufacturer)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony

Way Yateley, Hampshire, GU46 6GG,

UK Yong-Sang Park / Manager

(placeanddateofissue) (nameandsignatureofauthorizedperson)

(Representative in the EU)

1INTRODUCTION

Congratulations on the purchase of your printer!

This chapter includes:

• Special Features

• Printer Components

NTRODUCTION

1.2

Special Features

Your new printer is equipped with several special features that

improve the print quality. You can:

Print in color with excellent quality and speed

• You can print in a full range of colors using cyan, magenta,

yellow, and black.

• You can print up to 1200 x 1200 dpi (effective output).

See page 4.9.

• In black & white mode, your printer prints A4-sized paper

at 24 ppm and letter-sized paper at 25 ppm (pages per

minute). In color mode, A4/ letter-sized paper prints at 6

ppm.

• In duplex printing, your printer prints A4/Letter sized

paper at 11.6 IPM (images per minute) for black & white

and 6 IPM for color.

Flexible paper handling

•

The

Standard 250-sheet input tray

(Tray1) and

optional

500-sheet input tray

(Tray2) supports A4/letter-sized

paper.

•The

Multi-purpose Tray

supports letterhead, envelopes,

labels, transparencies, custom-sized materials, postcards,

and heavy paper. The

Multi-purpose Tray

also supports

up to 100 sheets of plain paper.

Create professional documents

•Print

Watermarks

. You can customize your documents

with a watermark, such as the word “Confidential.” See

page 5.10.

•Print

Booklets

. This feature enables you to easily print a

document to create a book. Once printed, all you have to

do is to fold and staple the pages. See page 5.9.

•Print

Posters

. The text and pictures of each page of your

document can be magnified and printed across several

sheets of paper and taped together to form a poster. See

page 5.7.

NTRODUCTION

1.3

Save time and money

• You can print on both sides of the paper to save paper

(

double-sided printing

). See page 5.2.

• You can print multiple pages on a single sheet of paper to

save paper.

• You can use preprinted forms and letterhead on plain

paper. See “Using Overlays” on page 5.13.

• This printer automatically

conserves electricity

substantially reducing power consumption when not

printing.

Expand the printer’s capacity

• This printer has 64 MB of memory which can be expanded

192 MB

• You can install an optional 500-sheet tray in your printer.

This tray reduces how often you have to add paper to the

printer.

•A

Network interface

enables network printing. You can

add an optional network interface card to the CLP-510.

The CLP-510N comes with a built-in network interface, 10/

100 Base TX.

You can also use an optional wireless network interface in

both the CLP-510 and the CLP-510N.

Print in various environments

You can print in

Windows 95/98/Me/NT 4.0/2000/2003/XP

Windows 95 and NT 4.0 are only supported on the CLP-510N.

• Your printer is compatible with

Macintosh

and

various

Linux OS

• Your printer comes with a

USB

interface.

• You can also use a

Network interface

. The CLP-510N

comes with a built-in network interface, 10/100 Base TX,

but you need to add the optional network interface card to

the CLP-510.

You can also install an optional wireless network interface

in both the CLP-510 and the CLP-510N.

1 2

3 4

NTRODUCTION

1.4

Printer Components

Front View

OTE

The surface of the output tray may become hot if you print

a large number of pages at once. Please make sure that you don’t

touch the surface, and prevent children from approaching it.

Control Panel

(See page 2.2.)

Paper Output Tray

Top Cover

(Open to install the

transfer belt.)

Front Cover

(Open to replace

the waste toner

container.)

Output Support

Tray 1

(250-sheet paper feeder)

Top Cover

Release Button

Optional Tray 2

(500-sheet paper feeder)

Left Cover

(Open fully to install toner

cartridges and to press the top

cover release button.)

Handle

(Use it to lift

the printer.)

NTRODUCTION

1.5

Right Side View

Optional Tray 2 Jam Cover

(Open to remove jams from the optional tray 2.)

Muti-purpose Tray

(Open to load special print materials.)

Right Cover

(Open to remove paper jams.)

Handle

(Use it to lift the printer.)

NTRODUCTION

1.6

Rear View

Control Board

Cover

(Open to install

optional accessories.)

Power Receptacle

Power Switch

Wireless Network

Antenna

Network Port

USB Port

* A wireless network card is not supplied with the printer. It is an option that must be purchased and

installed separately.

** The network port is fitted as standard on the CLP-510N. CLP-510 users can purchase and install an

optional network card separately. For details, see page D.7.

This chapter describes how to use the printer’s control

panel.

This chapter includes:

• Understanding the Control Panel

• Using Control Panel Menus

USING THE CONTROL PANEL

SING

THE

ONTROL

ANEL

2.2

Understanding the Control Panel

The control panel on the top right side of your printer has a

display and seven buttons.

Display

See “Understanding Display Messages” on page 7.26 for a

complete listing of all printer messages.

Buttons

Display: displays the printer

status and job in progress.

Status Map

Message Description

Ready

• The printer is on-line and ready to print.

•If you press

On Line/Continue

, the

printer goes to off-line.

Offline

• The printer is off-line and cannot print.

•If you press

On Line/Continue

, the

printer switches to on-line.

Processing...

• The printer is printing.

• If you want to stop printing, press

Cancel

Sleeping...

• The printer is in Power Save mode,

using less power. When a print job is

received from the computer, or if any

button is pressed, the printer switches

to on-line.

• To deactivate the Power Save mode or

change the power-saving time, see

page 2.9.

SING

THE

ONTROL

ANEL

2.3

Buttons

Button Description

(status

map)

When an error occurs, a lamp turns on at the

corresponding location on the Status map. An error

message appears on the display so that you can

locate the error. For details on the meaning of the

error messages, see page 7.26.

• Press to switch between on-line and off-line.

• In menu mode, press to return to ready mode.

The color of the

On Line/Continue

button

indicates the status of the printer.

Green

On The printer is on-line and can

receive data from the

computer.

Blinking

• When the backlight blinks

slowly, the printer is receiving

data from the computer.

• When the backlight blinks

quickly, the printer is

receiving and printing data.

Orange

Check the display message.

See page 7.26 for details on

the meaning of the error

message.

Blinking

A minor error has occurred and

the printer is waiting for the

error to be cleared. Check the

display message. When the

problem is cleared, the printer

resumes printing. If you want

to ignore this warning, press

this button.

Off

• The printer is off-line and cannot print.

• The printer is in Power Save mode.

When data is received, it switches to

on-line automatically.

• Press to enter menu mode.

• In menu mode, press to scroll through the menus.

SING

THE

ONTROL

ANEL

2.4

In menu mode, press to select the displayed sub

menu item or to confirm the changed setting. The

selected item is marked with an *.

In menu mode, press to scroll through sub menu

items or setting options. Pressing moves you to

the next option and pressing sends you back to

the previous option.

• Press to cancel the current print job.

• In menu mode, press to return to ready mode.

In menu mode, press to go back to the upper menu

level.

Button Description

SING

THE

ONTROL

ANEL

2.5

Using Control Panel Menus

A number of menus are available to make it easy for you to

change printer settings. The diagram on page 2.6 shows the

menus and all of the items available in each menu. The items in

each menu and the options you can select are described in more

detail in the tables beginning on page 2.6.

Accessing Control Panel Menus

You can configure your printer from the printer’s control panel. You

can also use the control panel menus while the printer is in use.

In ready mode, press the

button ( ) until you see

the menu you want on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until the menu item you

want displays on the bottom line.

Press the

Enter

button ( ) to confirm the selected item.

If the menu item has sub menus, repeat steps 3 and 4.

Press the scroll button ( or ) until the setting option

you want displays on the bottom line, or enter the required

value.

Press the

Enter

button ( ) to save your input or selection.

An asterisk (

) appears next to the selection on the display,

indicating that it is now the default.

To exit the menu, press the

Upper Level

button ( )

repeatedly, or the

Cancel

button( ).

After 60 seconds of inactivity (no key being pressed), the

printer automatically returns to ready mode.

OTE

: Print settings made from the printer driver on a connected

computer override the settings on the control panel.

SING

THE

ONTROL

ANEL

2.6

Overview of Control Panel Menus

The control panel menus are used to configure the printer. The

control panel provides access to the following menus:

Information

This menu contains information pages that you can print to give

details about the printer and its configuration.

Layout

(See page 2.7.)

Duplex

Duplex Margin

Printer

(See page 2.8.)

Default Set

Current Job

Information

(See page 2.6.)

Configuration

Menu Map

Demo Page

Color

(See page 2.9.)

Calibration

Custom Color

Network*

(See page 2.12.)

Config Network

Config TCP

IP Get Method

IP Address

Subnet Mask

Gateway

Config 802.11b

Netware

Config Netware

IPX Frame Type

Reset Network

Default Set

Print Net CFG

Setup

(See page 2.9.)

LCD Language

Power Save

Auto Continue

Jam Recovery

Altitude Adj.

Maintenance

* This menu only appears when a network

card is fitted (CLP-510N or CLP-510 with

an optional network card).

Item Explanation

Configuration The configuration page shows the

printer’s current configuration. See

page 6.2.

Menu Map The menu map shows the layout and

current settings of the control panel menu

items.

SING

THE

ONTROL

ANEL

2.7

Layout

Use the

Layout

menu to define all settings relating to output.

(*: the default setting)

Demo Page The demo page allows you to check to see

if your printer is printing properly.

Item Explanation

Duplex

To print on both sides of paper, choose the

edge as follows.

•

Long Edge

: Flips on the long edge. Prints

pages to read like a book.

•

Short Edge

: Flips on the short edge.

Prints pages to read by flipping over like a

note pad.

Select

Off

to print on one side of the paper.

Item Explanation

Options: Off*, Long Edge, Short Edge

Long Edge in the

Portrait orientation Long Edge in the

Landscape orientation

Short Edge in the

Landscape orientation

Short Edge in the

Portrait orientation

SING

THE

ONTROL

ANEL

2.8

Printer

This menu allows you to reset the printer settings or cancel the

current job.

Duplex Margin

In this menu, you can set the margins for

double-sided printing. You can increase or

decrease the value in 0.1mm increments.

•

Top Margin

: Set the top margin, from

0.0mm to 9.9mm.

•

Left Margin

: Set the left margin, from

0.0mm to 9.9mm.

•

Short Binding

: Set the bottom margin of

the back of the page for short binding,

from 0.0mm to 10mm.

Binding position: In portrait orientation,

appears in the upper line of the page. In

landscape orientation, appears on the right

side of the page.

•

Long Binding

: Set the right margin of

the back of the page for long binding, from

0.0mm to 22mm.

Binding position: In portrait orientation,

appears on the left side of the page. In

landscape orientation, appears in the

upper line of the page.

Item Explanation

Default Set This menu item allows you to restore the

printer’s factory default settings.

Current Job You can cancel the current print job and

remove it from the printer buffer.

Item Explanation

SING

THE

ONTROL

ANEL

2.9

Color

This menu allows you to adjust the color setting.

(*: the default setting)

Setup

Use the

Setup

menu to configure a variety of printer features.

(*: the default setting)

Item Explanation

Calibration

This menu item allows you to calibrate the

printer for the best possible color print

quality.

•

Off

: The printer is calibrated by the

default setting.

•

Auto

: Automatically calibrates the printer

to produce the best possible print quality

for color documents.

•

Run Now

: Allows you to manually

calibrate the printer.

Custom Color

This item allows you to adjust contrast, color

by color.

CMYK

: Allows you to adjust the contrast of

the toner in each toner cartridge.

•

Default

: Optimizes colors automatically.

•

Manual Adjust

: Allows you to manually

adjust the color contrast for each

cartridge.

Note

: You should use the

Default

setting

for best color quality.

Item Explanation

LCD Language The LCD Language setting determines the

language of the text that appears on the

control panel display and information

printing.

Options: Off, Auto*, Run Now

Options: English*, German, French, Italian,

Spanish, Russian, Portuguese

SING

THE

ONTROL

ANEL

2.10

Power Save When the printer does not receive data for

an extended period of time, power

consumption is automatically lowered. You

can set how long the printer waits before

going to power save.

Auto Continue

This item determines whether or not the

printer continues printing when it detects

paper notmatched to your paper setting.

•

Off

: If a paper mismatch occurs, the

message remains on the display and the

printer remains off-line until you insert the

correct paper.

•

: If the paper is mismatched, an error

message displays. The printer goes off-line

for 30 seconds then automatically clears

the message and continues printing.

Jam Recovery

This item determines how the printer

behaves when a paper jam occurs.

•

Off

: The printer does not reprint pages.

Printing performance might be increased

with this setting.

•

: The printer automatically reprints

pages after you clear the paper jam.

Altitude Adj. You can optimize the print quality according

to your altitude.

Item Explanation

Options: 5 Minutes, 10 Minutes, 15 Minutes, 30

Minutes, 45 Minutes, 60 Minutes, 120 Minutes

* 30 Minutes for USA, 120 Minutes for Europe

Options: Off, On*

Options: Off*, On

Options: Low*, High

SING

THE

ONTROL

ANEL

2.11

Maintenance

This item allows you to maintain the toner

cartridge and other consumables.

•

Check Others

: This item determines how

the printer behaves when consumables are

low.

Imaging Unit

: allows you to check the

total number of images printed with the

current imaging unit.

Transfer Belt

: allows you to check the

total number of images printed of with the

current transfer belt.

Fuser

Transfer Roll.

MP Pickroll

Tray1 Pickroll

Tray2 Pickroll

These

items are only for service technicians.

•

Alarm Shortage

: This item determines

how the printer behaves when

consumables are low.

Off

: The printer does not display a

warning message.

The printer displays a warning

message.

Item Explanation

SING

THE

ONTROL

ANEL

2.12

Network

This menu lets you configure the network interface card

installed in your printer according to how the network is set up.

You can upgrade the firmware of the network interface card, and

print the configuration.

OTE

: This menu only appears when a network card is fitted

(CLP-510N, or CLP-510 with an optional network card).

(*: the default setting)

Item Explanation

Config Network

Sets whether or not you configure the

network.

If you select

Yes

, you can configure the

TCP/IP and Netware menus.

If you select

Yes

, the following options

are available:

Config TCP

Config

802.11b

and

Netware

Config TCP

Select whether you set the IP address or

not.

If you select

Yes

, you can configure the

IP address.

If you select

Yes

, the

IP Get Method

option appears on the display. You can

select how to get the IP address.

IP Get Method

You can set this item only when you set

the

Config TCP

Yes

•

BOOTP

: The BOOTP server allots the

IP address to you automatically.

•

DHCP

: The DHCP server allots the IP

address to you automatically.

•

Static

You can enter IP address,

subnetmask, and gateway manually.

Options: Yes, No*

Options: Static*, BOOTP, DHCP

SING

THE

ONTROL

ANEL

2.13

IP Address

You can select this item only when you

set

IP Get Method

Static

. This item

lets you enter the IP address manually.

Press the scroll button to set the value of

the 1st byte between 1 and 255, and

then press the

Enter

button.

Set the value for the 2nd, 3rd, and 4th

byte the same way.

Subnet Mask

You can set this item only when you set

IP Get Method

Static

. This item lets

you enter the subnet mask manually.

Press the scroll button to set the value of

the 1st byte between 1 and 255, and

then press the

Enter

button.

Set the value for the 2nd, 3rd, and 4th

byte the same way.

Gateway

You can set this item only when you set

IP Get Method

Static

. This item lets

you enter the gateway manually. Press

the scroll button to set the value of the

1st byte between 1 and 255, and then

press the

Enter

button.

Set the value for the 2nd, 3rd, and 4th

byte the same way.

Config 802.11b

Configure the wireless network

environments.

If you select

Yes

, the following options

are available:

SSID

Operation Mode

Channel

Authentication

Encryption

Using Key

Key Type

and

Key1

Key4

See “Configuring the Wireless Network”

on page C.12

Note

: This menu only appears when an

optional wireless network interface card

has been installed.

Item Explanation

Values: Yes, No*

SING

THE

ONTROL

ANEL

2.14

Netware

You can select whether or not to use the

Netware protocol.

If you select

, you can access the

Config Netware menu item.

In the

Config Netware

menu, you can

specify the frame type parameter used

on your network.

Config Netware

You can set this item only when you set

Netware

. This item lets you

select whether or not you set the frame

type parameter. Select

Yes

to select the

frame type.

If you select

Yes

, the

IPX Frame Type

option appears on the display.

IPX Frame Type

You can select this item only when you

set

Config Netware

Yes

. This item

lets you select the IPX Frame Type.

•

Auto

: You can set the frame type

automatically.

•

EN_8023

: Select this value to use the

IEEE 802.3 frame type.

•

EN_II

: Select this value to use the

ETHERNET II frame type.

•

EN_8022

: Select this value to use the

IEEE 802.2 frame type.

•

EN_SNAP

: Select this value to use the

SNAP frame type.

Reset Network This item reboots the network interface

card.

Default Set This item performs a simple reset and

restores the factory default for the

network configuration.

Print Net CFG This item prints a page showing the

network parameters you set.

Item Explanation

Options: On*, Off

Options: Yes, No*

Values: Auto*, EN_8022, EN_8023, EN_II,

EN_SNAP

This chapter will help you understand the types of paper you

can use with your printer and how to properly load paper in

the different paper trays for the best print quality.

This chapter includes:

• Choosing Paper and Other Materials

• Loading Paper

• Printing on Special Print Materials

USING PRINT MATERIALS

SING

RINT

ATERIALS

3.2

Choosing Paper and Other Materials

You can print on a variety of print materials, such as plain paper,

envelopes, labels, transparencies, and so on. See “Printing on

Special Print Materials” on page 3.14. To get the best possible

print quality, use only high-quality, copier-grade paper.

When you choose print materials, consider the following:

•

Desired outcome

: The paper you choose should be

appropriate for the project.

•

Size

: You can use any size paper that fits easily within the

paper adjusters of the paper tray.

•

Weight

: Your printer supports paper weights as follows:

-16~24lbs (60~90g/m

) bond for Tray 1 or

optional Tray 2

-16~43lbs (60~163g/m

) bond for the

Multi-purpose Tray

-20~24lbs (75~90g/m

) bond for duplex printing

•

Brightness

: Some papers are whiter than others and

produce sharper, more vibrant images.

•

Surface smoothness

: The smoothness of the paper affects

how crisp the printing looks on the paper.

AUTION

: Using a material that does not conform to the

specifications listed on page E.7 can cause problems that may

require service. This service will not be covered by the warranty or

service agreements.

Sizes and Capacities

Size Input Source/Capacity

*Depending on paper thickness, maximum capacity may be reduced.

Tray 1 Tray 2

(option) Multi-

purpose Tray Manual

Feed

Plain Paper

250 500 100 1

Envelopes

—— 10 1

Labels

** If you are experiencing excessive jamming, feed one sheet at a time through the

Multi-purpose Tray.

—— 10 1

Transparencies**

—— 30 1

Card stock**

—— 10 1

SING

RINT

ATERIALS

3.3

Guidelines for Paper and Special Materials

When selecting or loading paper, envelopes, or other special

materials, keep these guidelines in mind:

• Attempting to print on damp, curled, wrinkled, or torn paper

can cause paper jams and poor print quality.

• Use cut-sheet paper only. You cannot use multi-part paper.

• Use only high-quality, copier grade paper for the best print

quality.

• Do not use paper with irregularities, such as tabs or staples.

• Do not attempt to load any tray while printing, and never

overfill the tray. This could cause a paper jam.

• Avoid paper with embossed lettering, perforations, or a

texture that is too smooth or too rough.

• Colored paper should be of the same high quality as white

photocopy paper. The pigments must be able to withstand the

printer’s fusing temperature of 180°C (356°F) for 0.1 seconds

without deteriorating. Do not use paper with a colored coating

that was added after the paper was produced.

• Preprinted forms must be printed with nonflammable, heat-

resistant ink that does not melt, vaporize, or release

hazardous emissions when subjected to the printer’s fusing

temperature.

• Store paper in its ream wrapper until you are ready to use it.

Place cartons on pallets or shelves, not on the floor.

• Do not place heavy objects on top of the paper, whether it is

packaged or unpackaged.

• Keep paper away from moisture, direct sunlight, or other

conditions that can cause it to wrinkle or curl.

OTE

Do not use carbonless paper or tracing paper. They are

unstable at the fusing temperature and can give of fumes, or cause

damage to the printer.

SING

RINT

ATERIALS

3.4

Loading Paper

Proper paper loading helps prevent paper jams and ensures

trouble-free printing. Do not remove the paper tray while a job

is printing. Doing so may cause a paper jam. See “Sizes and

Capacities” on page 3.2 for acceptable paper capacities for each

tray.

Using Tray 1

Tray 1 can hold a maximum of 250 sheets of plain A4 and letter-

sized paper.

You can purchase an optional tray, Tray 2, and attach it below

Tray 1, to load an additional 500 sheets of paper.

Pull the tray out of the printer.

Push down on the metal plate until it locks into position.

SING

RINT

ATERIALS

3.5

Flex the paper sheets back and forth to separate the pages,

and then fan them while holding one edge. Tap the edge of

the stack on a flat surface to even it up.

Load paper

with the print side facing up

Make sure that all four corners are flat in the tray and under

the corner brackets as shown below.

SING

RINT

ATERIALS

3.6

Do not exceed the maximum stack height. Overfilling the

tray may cause a paper jam.

Squeeze the paper guide, as shown and slide it to the stack

of paper until it lightly touches the side of the stack. Do not

press the guide too tightly against the edge of the paper as

it may cause the paper to bend.

OTE

If you want to change the size of the paper in the tray,

refer to page 3.7.

Slide the tray back into the printer.

When you print a document, select the paper type, size,

and source in your software application. For details, see

page 4.7.

SING

RINT

ATERIALS

3.7

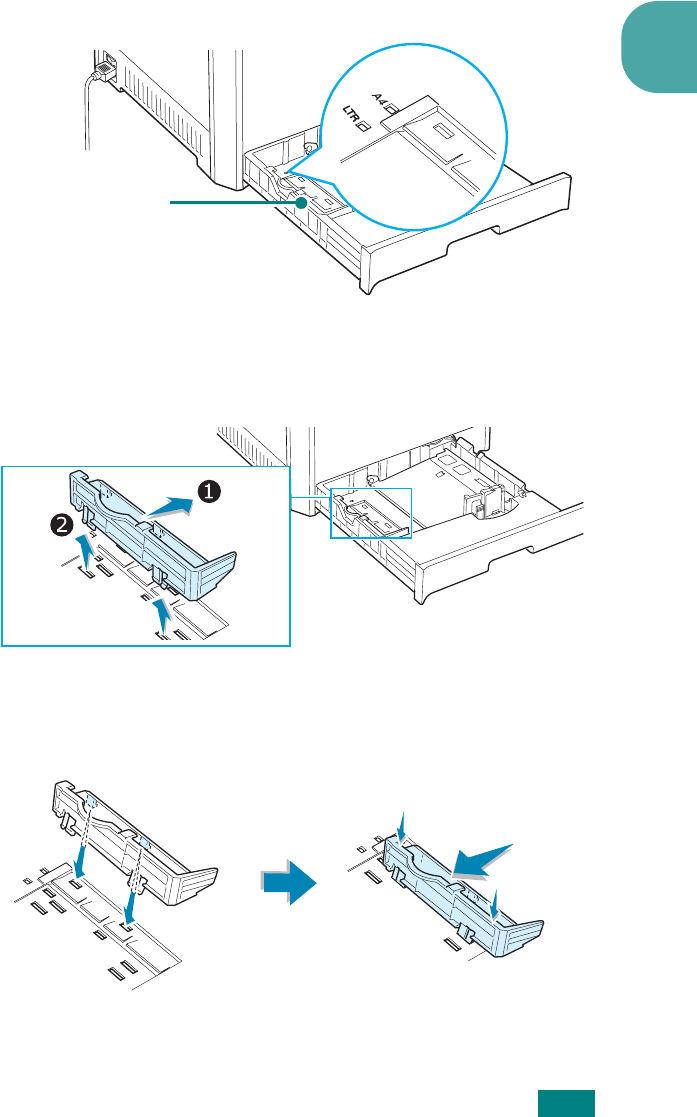

Changing the Size of the Paper in the Tray

The tray is preset to Letter or A4 size, depending on your

country. To change the size to A4 or Letter, you must adjust the

paper length guide properly.

Lift the paper length guide and place it in the correct

position for the paper size you are loading.

To remove the paper length guide, turn it slightly to your

right to release the locks on the bottom of the guide, then

pull it up.

To place the paper length guide in the paper position you

want, insert the locks on the bottom of the guide into the

desired paper slot and push it all the way in.

Paper length guide

SING

RINT

ATERIALS

3.8

Load paper with the

print side facing up

. For more

information see steps 4 and 5 on page 3.5~3.6.

Squeeze the paper guide, as shown and slide it to the stack

of paper until it lightly touches the side of the stack. Do not

push the guide too tightly against the edge of the paper as

it may cause the paper to bend.

Using the Optional Tray 2

The optional tray, Tray 2, can hold a maximum of 500 sheets of

plain paper.

To load paper in Tray 2, follow the instructions for loading paper

on page 3.4.

SING

RINT

ATERIALS

3.9

Using the Multi-purpose Tray

The Multi-purpose Tray is located on the right side of your

printer. It can be closed when you are not using it, making the

printer more compact.

The Multi-purpose Tray can hold several sizes and types of

material, such as transparencies, cards, and envelopes. You

may also want to use the Multi-purpose Tray for single page

print jobs on letterhead, colored paper for use as separator

sheets, or other special materials that you do not normally keep

in the paper tray. You can load approximately 100 sheets of plain

paper, 10 envelopes, 30 transparencies, 10 sheets of card stock,

or 10 labels at a time.

• Load only one size of print material at a time in the

Multi-purpose Tray.

• To prevent paper jams, do not add paper when there is still

paper in the Multi-purpose Tray. This also applies to other

types of print materials.

• Print materials should be loaded face down with the top edge

going into the Multi-purpose Tray first, and be placed in the

center of the tray.

To load print material in the Multi-purpose Tray:

Lower the Multi-purpose Tray and unfold the paper support

extension, as shown.

Multi-purpose Tray

SING

RINT

ATERIALS

3.10

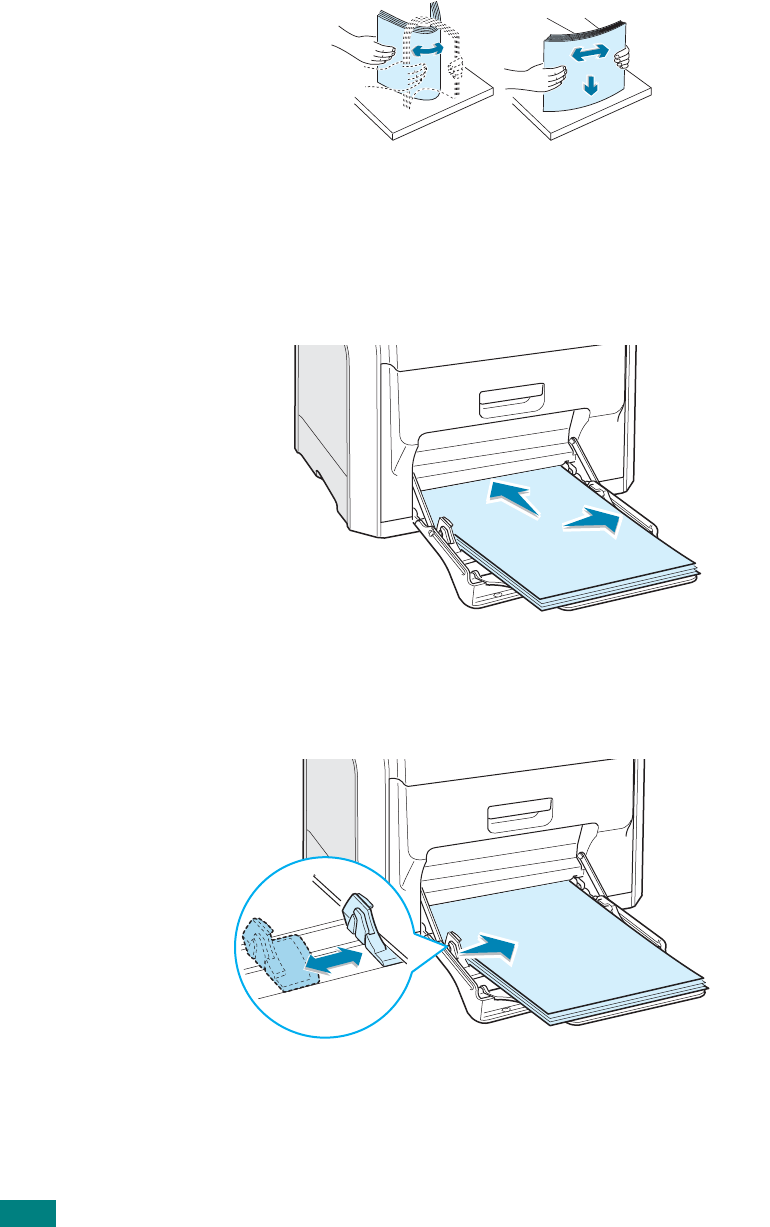

If you are using paper, flex or fan the edge of the paper

stack to separate the pages before loading.

For transparencies, hold them by the edges and avoid

touching the print side. Oils from your fingers can cause

print quality problems.

Load the print material

with the print side facing down

and against the right edge of the tray.

Squeeze the paper width guide and slide it to the right to

touch lightly against the edge of the material without

causing it to bend.

SING

RINT

ATERIALS

3.11

If you want to print on previously printed paper from the

Multi-purpose Tray, the printed side should be facing up

with the uncurled edge toward the printer. If you experience

problems with the paper feeding, turn the paper around.

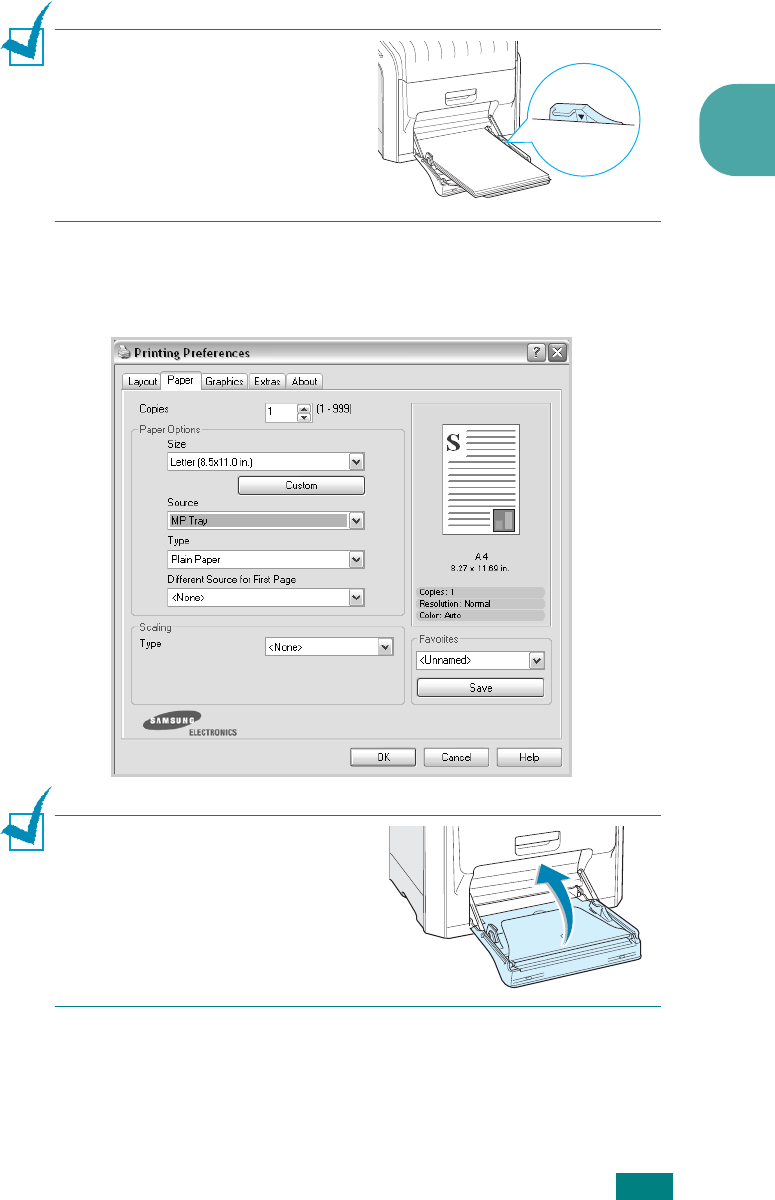

OTE

: Make sure that you have

not loaded too much print

material.

The print material buckles if you

load a stack that is too deep or if

you push it in too far.

When you print a document, set the paper source to

Tray

and select the correct paper size and type in the

software application. For details, see page 4.7.

OTE

: After printing, fold away

the paper support extension and

close the Multi-purpose Tray.

SING

RINT

ATERIALS

3.12

Using the Manual Feed

If you select

Manual

in the

Source

option when changing print

settings, you can manually load a sheet of print material in the

Multi-purpose Tray. Manually loading paper can be helpful when

you want to check the print quality after each page is printed.

This loading procedure is almost the same as the procedure for

loading in the Multi-purpose Tray, except you load paper

sheet-by-sheet in the tray, send print data to print the first page,

and press the

On Line/Continue

button ( ) on the control

panel to print each following page.

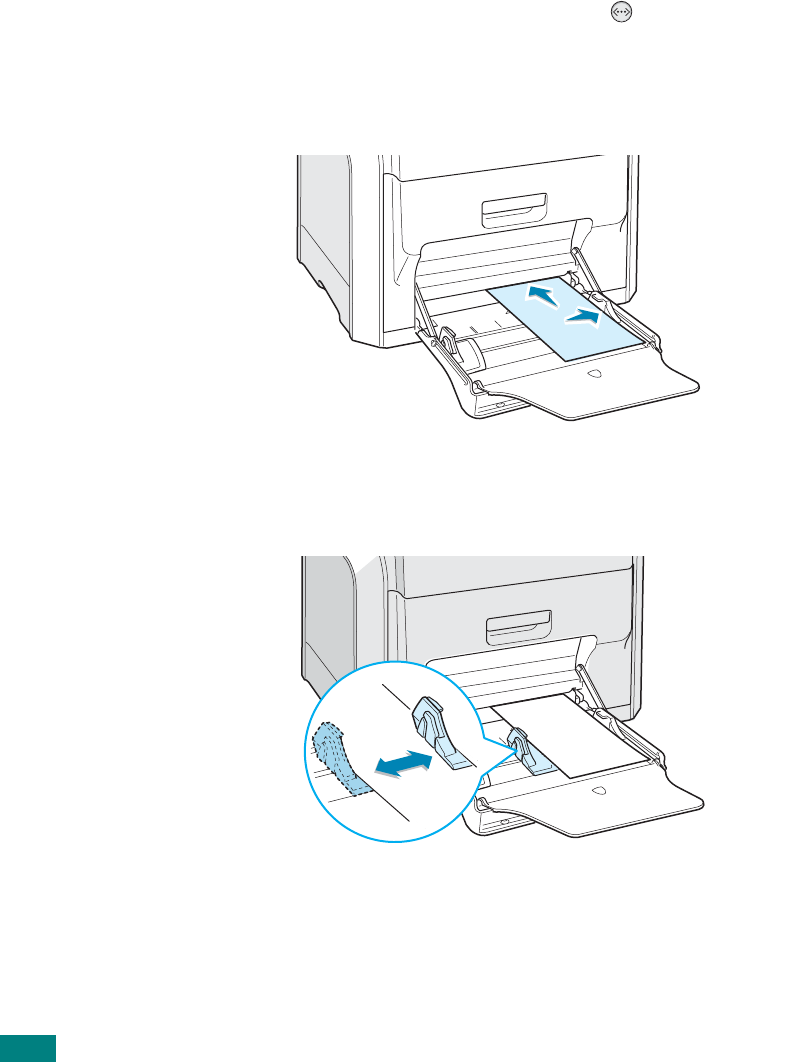

Load a sheet of print material

with the print side down

and against the right edge of the Multi-purpose Tray.

Squeeze the paper width guide and slide it to the right to

touch lightly against the edge of the paper without causing

it to bend.

SING

RINT

ATERIALS

3.13

When you print a document, set the paper source to

Manual

and select the correct paper size and type

in the

software application. For details, see page 4.7.

Print the document.

The display shows a message prompting you to load paper.

Press the

On Line/Continue

button ( ).

The printer picks up the print material and prints. After one

page is printed, the message appears again.

Insert the next sheet into the Multi-purpose Tray and press

the

On Line/Continue

button ( ).

Repeat this step for every page to be printed.

SING

RINT

ATERIALS

3.14

Printing on Special Print Materials

Printing on Envelopes

• Load envelopes into the Multi-purpose Tray only.

• Only use envelopes recommended for laser printers. Before

loading envelopes in the Multi-purpose Tray, make sure that

they are undamaged and are not stuck together.

• Do not feed stamped envelopes.

• Never use envelopes with clasps, snaps, windows, coated

linings, or self-stick adhesives.

To print on envelopes:

Open the Multi-purpose Tray and unfold the paper support.

Flex or fan the edge of the envelope stack to separate them

before loading.

Load the envelopes into the Multi-purpose Tray

with the

flap side up

. The end of the envelope with the stamp area

enters the printer first.

SING

RINT

ATERIALS

3.15

Squeeze the paper width guide and slide it to the right to

touch lightly against the edge of the stack without causing

it to bend.

When you print, set the paper source to

MP Tray

and the

paper type to

Envelope

, and select the correct paper size

in the software application. For details, see page 4.7.

SING

RINT

ATERIALS

3.16

Printing on Labels

• Only use labels recommended for laser printers.

• Verify that the labels’ adhesive material can tolerate a fusing

temperature of 180°C (356°F) for 0.1 seconds.

• Make sure that there is no exposed adhesive material

between the labels. Exposed areas can cause labels to peel

off during printing, which can cause paper jams. Exposed

adhesive can also cause damage to printer components.

• Never print on the same sheet of labels more than once, or

print on a partial sheet of labels.

• Do not use labels that are separating from the backing sheet

or are wrinkled or damaged in any way.

• To prevent labels from sticking together, do not let the printed

label sheets stack up as they are printed out.

To print on labels:

Open the Multi-purpose Tray and unfold the paper support.

Load labels in the Multi-purpose Tray only,

with the print

side down

and the top, short edge in first. Adjust the guide

to fit the width of the labels.

SING

RINT

ATERIALS

3.17

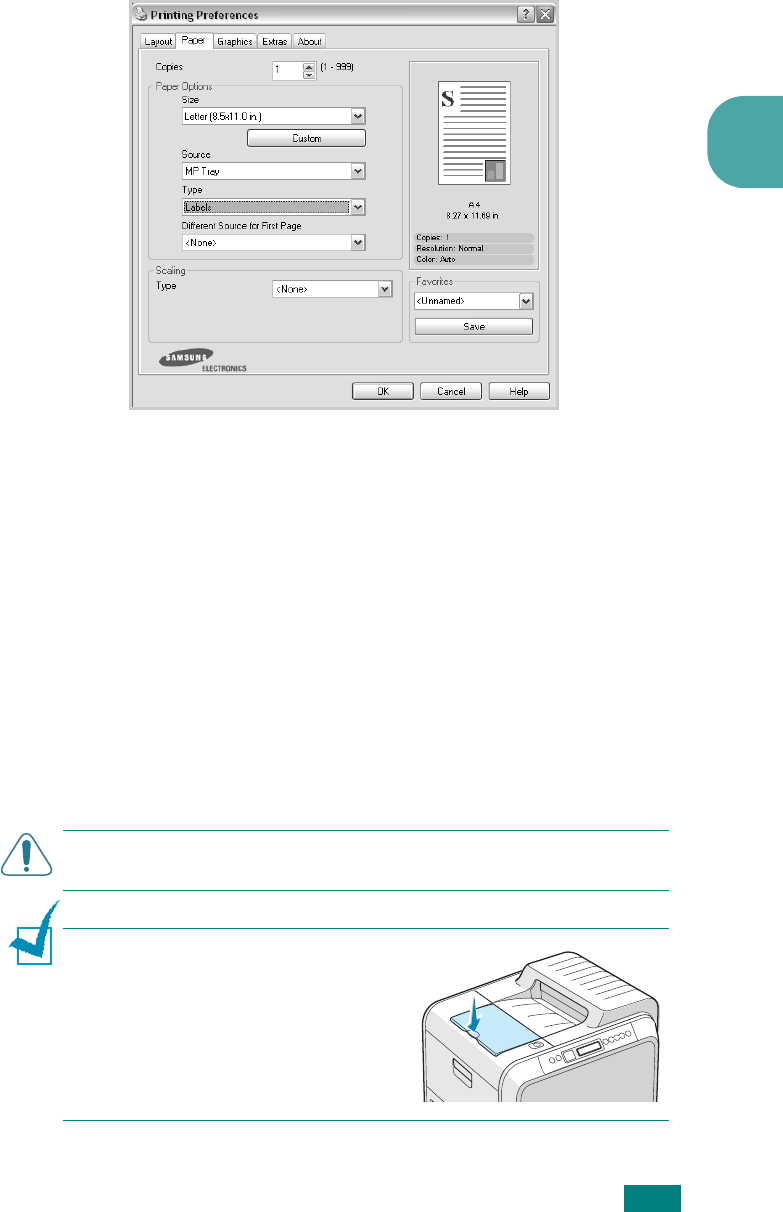

When you print, set the paper source to

MP Tray

and the

paper type to

Labels

, and select the correct size in the

software application. For details, see page 4.7.

Printing on Transparencies

• Only use transparencies recommended for use in laser

printers.

• Ensure that transparencies do not have torn edges and are

not wrinkled or curled.

• Hold the transparencies by the edges and avoid touching the

print side. Oils from your fingers can cause print quality

problems.

• Be careful not to leave fingerprints on or scratch the print

side.

• You should use the following transparency type:

A4: HP 92296U, Letter: Xerox 3R3108

AUTION

: Do not use transparencies when printing color

documents.

OTE

: Before printing on

transparencies, make sure that

the output support is laid down.

SING

RINT

ATERIALS

3.18

To print on transparencies:

Open the Multi-purpose Tray and unfold the paper support.

Load transparencies into the Multi-purpose Tray only. They

must be loaded

with the print side downwards

and

the

top with the white leading edge entering the printer

first

. Adjust the guide to fit the width of the transparencies.

SING

RINT

ATERIALS

3.19

When you print, set the paper source to

MP Tray

and the

paper type to

Transparency

, and select the correct paper

size in the software application. For details, see page 4.7.

OTES

• To prevent transparencies from sticking together, do not let the

printed sheets stack up as they are printed out.

• Place transparencies on a flat surface after removing them from

the printer.

SING

RINT

ATERIALS

3.20

Printing on Preprinted Paper

• Preprinted paper is paper that has some type of printing on it

before it is sent through the printer (paper that has a

preprinted logo at the top of the page, for example).

• Letterhead must be printed with heat-resistant ink that will

not melt, vaporize, or release hazardous emissions when

subjected to the printer’s fusing temperature of 180°C

(356°F) for 0.1 seconds.

• Ink on letterhead must be non-flammable and should not

adversely affect printer rollers.

• Forms and letterhead should be sealed in moisture-proof

wrapping to prevent changes during storage.

• Before you load preprinted paper, such as forms and

letterhead, verify that the ink on the paper is dry. During the

fusing process, wet ink can come off of preprinted paper,

reducing the print quality.

To print on preprinted paper:

Open the Multi-purpose Tray and unfold the paper support.

Load letterhead in the Multi-purpose Tray only,

with the

print side down and the top

and

short edge

first

Adjust the guide to fit the width of the paper stack.

SING

RINT

ATERIALS

3.21

When you print, set the paper source to

MP Tray

and the

paper type to

Preprinted

, and select the correct paper size

in the software application. For details, see page 4.7.

Printing on Card Stock or Custom-sized

Materials

• Postcards, 3.5in. by 5.5in. (index) cards, and other custom-

sized materials can be printed with your printer. The

minimum size is 90mm by 140mm (3.5in. by 5.5in.) and the

maximum size is 216mm by 356mm (8.5in. by 14in.).

• Always insert the short edge into the Multi-purpose Tray first.

If you want to print in landscape mode, make this selection

using your software. Inserting paper long edge first may

cause a paper jam.

• Do not load more than 10 cards into the Multi-purpose Tray at

a time.

• Do not print on material smaller than 90mm (3.5in.) wide or

140mm (5.5in.) long.

• In the software application, set margins at least 4.3mm away

from the edges of the material.

SING

RINT

ATERIALS

3.22

To print on card stock:

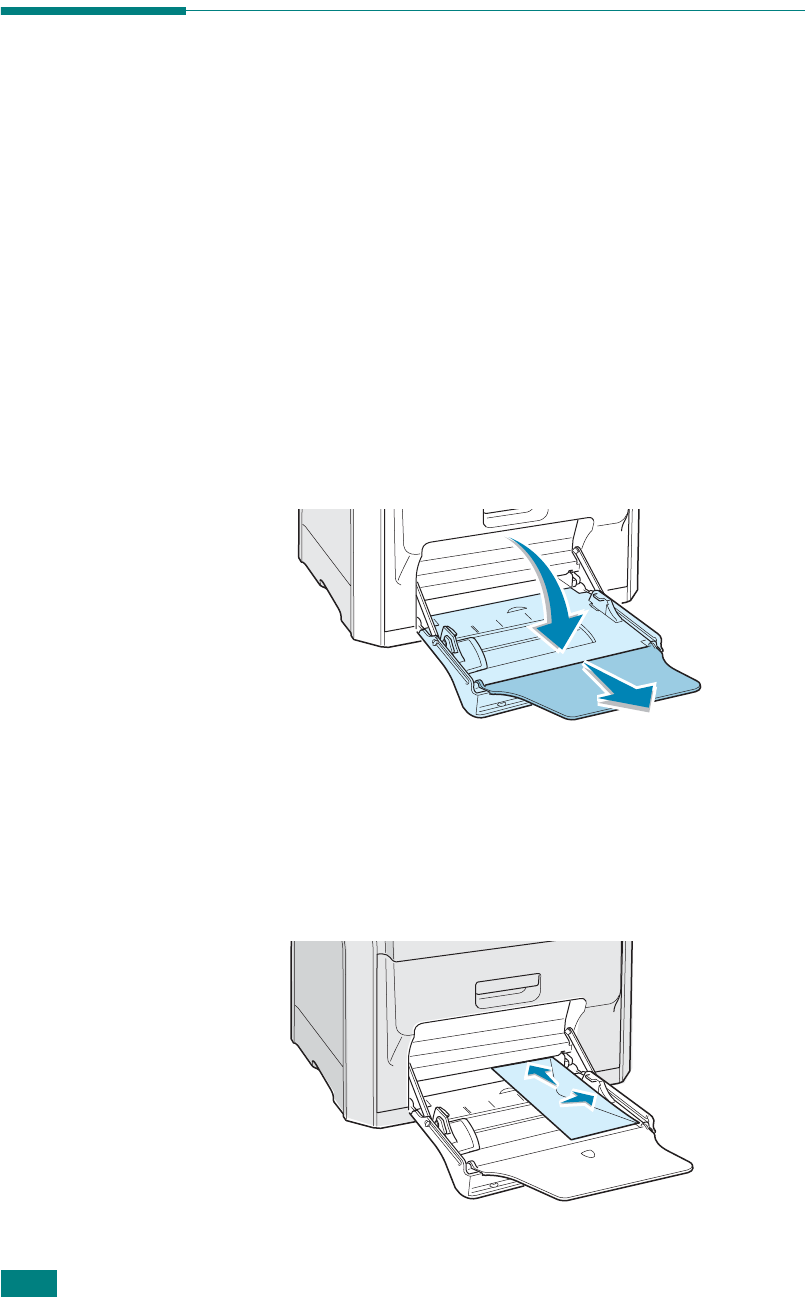

Open the Multi-purpose Tray and unfold the paper support.

Load print material in the Multi-purpose Tray only,

with the

print side down and the short edge first

. Slide the

guide until it lightly touches the stack without causing it to

bend.

SING

RINT

ATERIALS

3.23

When you print, set the paper source to

MP Tray

and select

the correct paper size and type in the software application.

For details, see page 4.7.

If the size of your print material is not listed in the

Size

box

in the

Paper

tab, click the

Custom

button and set the size

manually. See page 4.7.

SING

RINT

ATERIALS

3.24

MEMO

This chapter explains printing options and common printing

tasks.

This chapter includes:

• Printer Driver Features

• Printing a Document

• Printer Settings

PRINTING TASKS

RINTING

ASKS

4.2

Printer Driver Features

Your printer drivers will support the following standard features:

• Paper source selection

• Paper size, orientation, and media type

• number of copies

The table below lists a general overview of features supported by

your printer drivers.

Feature

Printer driver CUPS

Win9x/Me Win2000/

2003/XP NT4.0 Mac

Color mode Y Y Y Y

Print quality option Y Y Y Y

Poster printing Y Y Y N

Double-sided

printing YYYY

Booklet printing Y Y Y N

Multiple pages per

sheet (N-up) YYYY

Fit to page printing Y Y Y N

Scale printing Y Y Y Y

Different source

for first page YYYY

Watermark Y Y Y N

Overlay Y Y Y N

TrueType fonts

option YYYN

RINTING

ASKS

4.3

Printing a Document

The following procedure describes the general steps required for

printing from various Windows applications. The exact steps for

printing a document may vary depending on the application

used. Refer to the User’s Guide of your software application for

the exact printing procedure.

OTE

: For detailed information about printing from a Macintosh

computer or Linux system, see Appendix A and Appendix B.

Open the document you want to print.

Select

from the

File

menu. The Print window opens.

It may look slightly different depending on your application.

You can select the basic print settings within the Print

window. These settings include the number of copies and

the print range.

To take advantage of the printer features provided by your

printer, click

Properties

Peferences

in the application’s

Print window. For details, see “Printer Settings” on page 4.5

If you see a

Setup

Printer

, or

Options

button

in your Print window,

click it instead. Then click

Properties

on the next screen.

Click

to close the printer properties window.

To start the print job, click

in the Print window.

Make sure that your

printer is selected.

Windows XP

RINTING

ASKS

4.4

Canceling a Print Job

A print job can be stopped from a program, from a print queue,

or by pressing the

Cancel

button ( ) on the printer.

To stop a print job from the control panel:

• If the print job is already printing, press the

Cancel

button

( ). The printer finishes printing the pages that are already

moving through the printer and deletes the remainder of the

print job.

•Pressing the

Cancel

button ( ) cancels only the current job

in the printer. If more than one print job is in the printer’s

memory, you must press the

Cancel

button once for each

job, after the job starts printing.

To stop a print job from the Printers folder:

If the print job is waiting in a print queue or print spooler, such

as the Printer group in Windows, delete the job as follows:

Click the Windows

Start

menu.

For Windows 9x/NT4.0/2000/Me, select

Settings

and then

Printers

For Windows XP/2003, select

Printers and Faxes

Double-click the

Samsung CLP-510 Series

icon.

From the

Document

menu, select

Cancel Printing

(Windows

9x/Me) or

Cancel

(Windows NT 4.0/2000/2003/XP).

OTE

: You can access this window simply by double-clicking the

printer icon at the bottom right corner of the Windows desktop.

Windows XP

RINTING

ASKS

4.5

Printer Settings

You can use the Samsung CLP-510 Series printer properties

window, which allows you to access all of the printer options you

need when using your printer. When the printer properties are

displayed, you can review and change whatever settings are

needed for your print job.

The printer’s properties window may differ, depending on your

operating system. This User’s Guide shows the Printing

Preferences window for Windows XP/2003.

Your printer’s Printing Preferences window consists of 5 tabs:

Layout

Paper

Graphics

Extras

, and

About

If you access the printer properties through the

Printers

folder,

you can view more Windows-based tabs; refer to your Windows

User’s Guide.

OTES

• Most Windows applications will override the settings you specify in

the printer driver. Change all of the print settings available in the

software application first, and change any remaining settings using

the printer driver.

• The changes you make in printer settings remain in effect only

while you are using the current program. To make your changes

permanent, make them in the

Printers

folder. Follow this

procedure:

1. Click the Windows

Start

menu.

2. For Windows 95/98/Me/NT 4.0/2000, select

Settings

and then

Printers

For Windows XP/2003, select

Printers and Faxes

3. Select the

Samsung CLP-510 Series

printer.

4. Click the right mouse button on the printer icon and:

• In Windows 95/98/Me, select

Properties

• In Windows 2000/XP/2003, select

Printing Preferences

• In Windows NT 4.0, select

Document Default

5. Change the settings on each tab, and click

RINTING

ASKS

4.6

Layout tab

The

Layout

tab provides options for you to adjust how the

document appears on the printed page. The

Layout Options

includes

Multiple Pages per Side

Booklet Printing

, and

Poster

. You can also use

Duplex[Double-Sided Printing]

this tab. See page 4.3 for more information on accessing printer

properties. Click the

Layout

tab to display the layout properties

shown below.

Property Description

Orientation Orientation

allows you to select the

direction in which information is printed

on a page.

•

Portrait

prints across the width of the

page, letter style.

•

Landscape

prints across the length of

the page, spreadsheet style.

If you want to turn the page upside

down, select

Rotate 180 Degrees

Layout

Options

Layout Options

allows you to select

advanced printing options. For details ,

see Chapter 5, "Advanced Printing."

Duplex

[Double-Sided

Printing]

Duplex[Double-Sided Printing]

allows you to automatically print two-

sided documents. If you want to use the

printer driver’s default setting, select

Printer Setting

. When you select the

Reverse Duplex

option

, your printer

reverses the order of the printed pages.

For details, see page 5.3.

The preview image

shows a sample page

with the settings you

specified.

portrait

Landscape

RINTING

ASKS

4.7

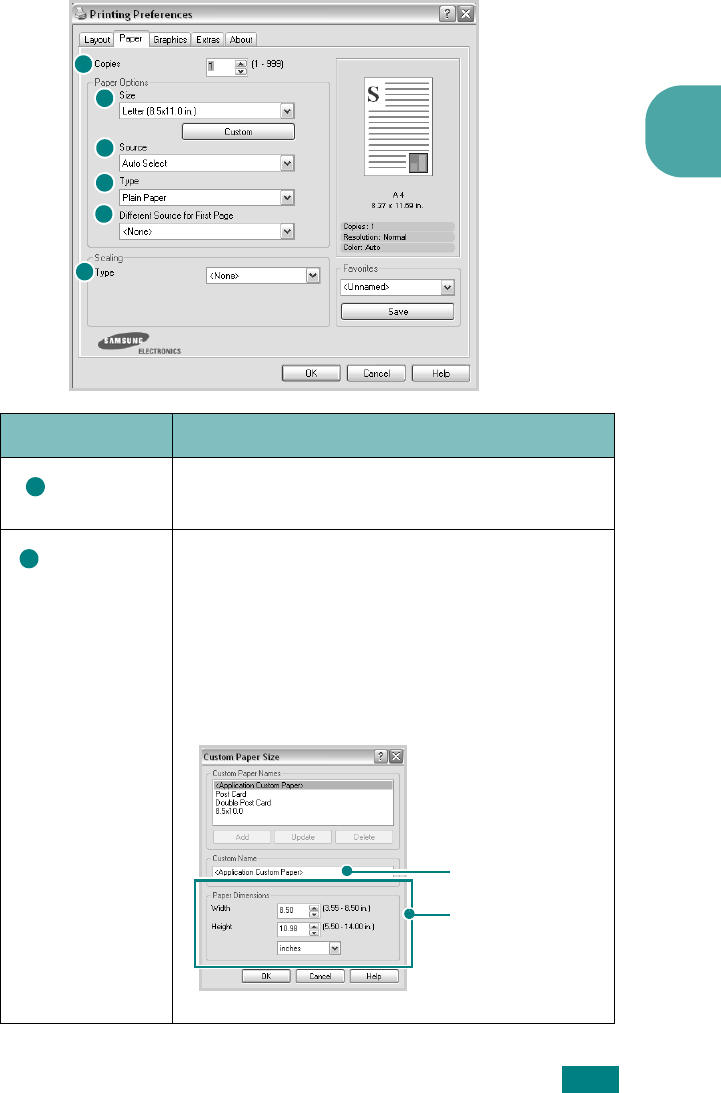

Paper tab

You can use the following options for basic paper handling. See

page 4.3 for more information about accessing printer

properties.

Click the

Paper

tab to display the paper properties shown

below.

Property Description

Copies Copies

allows you to choose the number of

copies to be printed. You can enter up to 999.

Size Size

allows you to choose the size of the

paper loaded in the tray.

If the required size is not listed in the

Size

box, click

Custom

. When the

Custom

Paper Size

window appears, set the paper

size and click

. The setting then appears

on the list so that you can select it.

Enter the custom

name you want to

use.

Enter the paper

size.

RINTING

ASKS

4.8

Source

Make sure that

Source

is set to the

corresponding paper tray.

Use the

Manual

source when printing to

special material. You have to load one sheet

at a time into the Multi-purpose Tray. See

page 3.9.

If the paper source is set to

Auto Select

the printer automatically picks up print

material in the following order: Multi-purpose

Tray, Tray1, Optional Tray2.

Type

Make sure that

Type

is set to

Plain Paper

If you load a different type of print material,

select the corresponding paper type. For

more information on print material, refer to

Chapter 3, "Using Print Materials."

If you use 16lb to 24lb (60~90g/m

) cotton

paper, such as Gilbert 25% and Gilbert 100%,

set the paper type to

Cotton

for best

printing.

To use recycled paper, select

Recycled

Paper

Different

Source for

First Page

This property allows you to print the first

page using a different paper type from the

rest of the document. You can select the

paper source for the first page.

For example, load thick stock for the first

page into the Multi-purpose Tray, and plain

paper into Tray1. Then, select

Tray1

in the

Source

option and

MP Tray

in the

Different Source for

First Page

option.

Scaling Scaling

allows you to automatically or

manually scale your printer job on a page.

You can choose from

None

Scale Printing

and

Fit to Page

. For details, see page 5.4

and page 5.5.

Property Description

RINTING

ASKS

4.9

Graphics tab

Use the following graphic options to adjust the print quality for

your specific printing needs. See page 4.3 for more information

about accessing printer properties.

Click the

Graphics

tab to display the graphics properties shown

below.

Property Description

Resolution

You can select the printing resolution by

choosing from

1200 dpi [Best]

and

600

dpi [Normal]

. The higher the setting, the

sharper the printed characters and

graphics. Higher settings may increase the

time it takes to print a document.

Color Mode

You can

set the color options. Setting to

Color

typically produces the best possible

print quality for color documents. If you

want to print a color document in grayscale,

select

Grayscale

RINTING

ASKS

4.10

Color Mode

(Continued)

If you click

Adjust Color

, you can change

the appearance of the document’s images.

Advanced

Options

You can adjust advanced settings by

clicking the

Advanced Options

button.

Property Description

The preview image

shows a sample

page with the

settings you

specified.

•

Color Basics

: You can adjust the

appearance of the images by changing

the settings in the

Levels

option.

•

Tone Tuning

: You can adjust the

tonal range of images by changing the

Tone Curve

option.

•

Color Info

: This tab contains

information about the driver’s color

conversion system.

TrueType Options

This option is only avaliable when you

use Windows 9x. This option

determines what the driver tells the

printer about how to image the text in

your document. Select the appropriate

setting according to the status of your

document.

•

Download as Bit Image

: When this

option is selected, the driver will

download the font data as bitmap

images. Documents with complicated

fonts, such as Korean or Chinese, or

certain other types of fonts, will print

faster in this setting.

RINTING

ASKS

4.11

Advanced

Options

(Continued)

Property Description

•

Print as Graphics

: When this option

is selected, the driver will download any

fonts as graphics. When printing

documents with high graphic content

and relatively few TrueType fonts,

printing performance (speed) may be

enhanced in this setting.

•

Darken Text

: When this option is

selected, all text in your document

prints darker than normal.

•

Print All Text Black

: When this option

is selected, all text in your document

prints solid in black, regardless of the

color it appears on the screen. When

this option is not selected, colored text

prints in shades of gray.

RINTING

ASKS

4.12

Extras tab

See page 4.3 for more information about accessing printer

properties.

Click the

Extras

tab to access the following features:

Option Description

Watermark

You can create a background image of text

to print on each page of your document. See

“Using Watermarks” on page 5.10.

Overlay

Overlays are often used to take the place of

preprinted forms and letterhead paper. See

“Using Overlays” on page 5.13.

Output

Options

Print Order

: You can set the sequence for

the pages to print. Select the print order

from the drop-down list.

•

Normal

: Your printer prints all pages from

the first page to the last page.

•

Reverse All Pages

: Your printer prints all

pages from the last page to the first page.

•

Print Odd Pages

: Your printer prints only

the odd pages of the document.

•

Print Even Pages

: Your printer prints

only the even pages of the document.

Reprint When Jammed

When this option

is checked, the printer keeps the image for

a printed page until the printer signals that

the page has successfully exited the printer.

When a paper jam occurs, the printer will

reprint the last page sent from the

computer after you clear the jam.

RINTING

ASKS

4.13

About tab

Use the

About

tab to display the copyright notice and the version

number of the driver. If you have an Internet browser, you can

connect to the Internet by clicking the website icon. See page 4.3

for more information about accessing printer properties.

Using a Favorite Setting

The

Favorites

option, which is visible on each tab, allows you

to save the current properties settings for future use.

To save a Favorites item:

Change the settings as needed on each tab.

Enter a name for the item in the

Favorites

input box.

Click

Save

When you save

Favorites

, all current driver settings are

saved.

RINTING

ASKS

4.14

To use a saved setting, select the item from the

Favorites

drop

down list.

The printer is now set to print according to the Favorites setting

you selected.

To delete a Favorites item, select it from the list and click

Delete

You can also restore the printer driver’s default settings by

selecting

<Printer

Default>

from the list.

Using Help

Your printer has a help screen that can be activated using the

Help

button in the printer properties window. The help screen

gives you detailed information about the printer features

provided by the printer driver.

You can also click in the upper right hand corner of the

window, and then click on any setting.

This chapter explains printing options and advanced

printing tasks.

This chapter includes:

• Printing on Both Sides of Paper

• Scaling Your Document

• Fitting Your Document to a Selected Paper Size

• Printing Multiple Pages on One Sheet of Paper

•Printing Posters

• Printing Booklets

•Using Watermarks

• Using Overlays

• Using Status Monitor

ADVANCED PRINTING

DVANCED

RINTING

5.2

Printing on Both Sides of Paper

You can print on both sides of paper automatically. Before

printing, decide how you want your document oriented.

The options are:

•

Long Edge

, which is the conventional layout used in book

binding.

•

Short Edge

, which is the type often used with calendars.

OTES

• Do not print on both sides of labels, transparencies, envelopes,

or thick paper. Paper jamming and damage to the printer may

result.

• To use double-sided printing, you can use only the following

paper sizes: A4, Letter, Legal, and Folio, with a weight of

20~24lbs (75~90g/m

There are two ways to enable or disable double-sided printing:

Using the Control Panel Menu

Select

Duplex

in the

Layout

menu. Set the

Duplex Margin

item in the same menu, if necessary. See page 2.7 for more

details.

For further details about using the control panel menu, see

page 2.5.

Long Edge Short Edge

DVANCED

RINTING

5.3

From the software application

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Layout

tab, select the paper orientation.

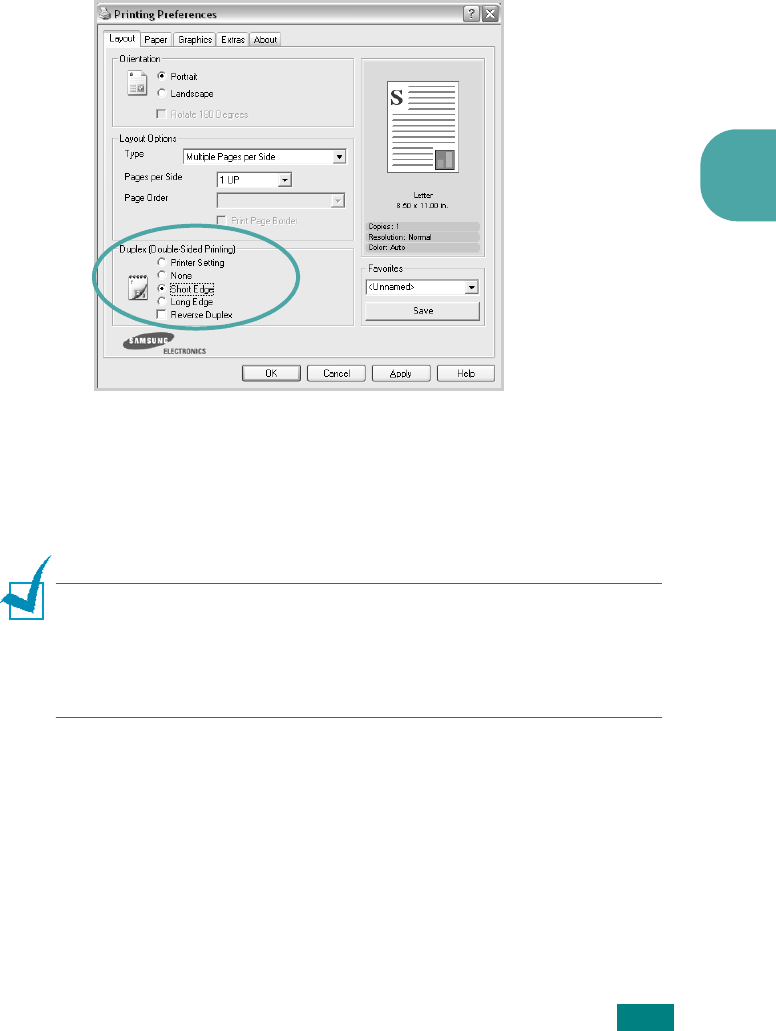

From the

Duplex[Double-Sided Printing]

section, select

either Printer Setting, None, Short Edge, or Long Edge.

Click the

Paper

tab and select the paper source, size, and

type.

Click

and print the document.

OTES

• The settings in the software application override those on the

control panel.

• When you select the

Reverse Duplex

option, your printer

reverses the order of the printed pages.

DVANCED

RINTING

5.4

Scaling Your Document

You can change the size of a page’s content to appear larger or

smaller on the printed page.

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Paper

tab, select

Scale Printing

from the

Type

drop-down list.

Enter the scaling rate in the

Percentage

input box.

You can also click the

or button.

OTE

: This feature is not available when you select

Poster

Booklet

Printing

from the

Layout

tab.

Select the paper source, size, and type in

Paper Options

Click

and print the document.

DVANCED

RINTING

5.5

Fitting Your Document to a Selected

Paper Size

This printer feature allows you to scale your print job to any

paper size regardless of the digital document size. This can be

useful when you want to check the fine details on a small

document.

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Paper

tab, select

Fit to Page

from the

Type

drop-down list.

OTE

: This feature is not available when you select

Poster

Booklet

Printing

from the

Layout

tab.

Select the correct size from the

Target Paper

drop-down

list.

Select the paper source, size, and type in

Paper Options

Click

and print the document.

DVANCED

RINTING

5.6

Printing Multiple Pages on One

Sheet of Paper

You can select the number of pages to be printed on a single

sheet of paper. To print more than one page per sheet, the pages

will be smaller and arranged in the order you specify. You can

print up to 16 pages on one sheet.

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Layout

tab, choose

Multiple Pages per Side

from the

Type

drop-down list.

OTE

: This feature is not available when you select

Scale

Printing

Fit to Page

from the

Paper

tab.

Select the number of pages you want to print per sheet

(1, 2, 4, 9, or 16) from the

Pages per Side

drop-down list.

Select the page order from the

Page Order

drop-down list,

if necessary.

1 2

3 4

Right, Then

Down

Down, Then

Right Left, Then

Down Down, Then

Left

DVANCED

RINTING

5.7

The

Page Order

drop down list is enabled only if the

number of pages per side is 4, 9, or 16.

Check

Print Page Border

to print a border around each

page on the sheet.

Print Page Border

is enabled only if

the number of pages per side is 2, 4, 9, or 16.

Click the

Paper

tab and select the paper source, size, and

type.

Click

and print the document.

Printing Posters

This feature allows you to print a single-page document onto 4,

9, or 16 sheets of paper, for the purpose of pasting the sheets

together to form one poster-sized document.

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Layout

tab, select

Poster

from the

Type

drop-

down list.

OTE

: This feature is not available when you select

Scale

Printing

Fit to Page

from the

Paper

tab.

DVANCED

RINTING

5.8

Configure the poster option:

You can select the page layout from 2x2, 3x3, or 4x4. If you

select 2x2, the image is automatically stretched to cover 4

physical pages.

Specify an overlap in millimeters or inches to make it easier

to pasting the sheets together.

Click the

Paper

tab and select the paper source, size, and

type.

Click

and print the document. You can complete the

poster by pasting the sheets together.

0.1 inches

DVANCED

RINTING

5.9

Printing Booklets

This printer feature allows you to print your document on both

sides of the paper and arranges the pages so that the paper can

be folded in half after printing to produce a booklet.

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Layout

tab, choose

Booklet Printing

from the

Type

drop-down list.

OTES

• The booklet printing option is available when A4, Letter, Legal, or

Folio size is selected in the

Size

option on the

Paper

tab.

• This feature is not available when you select

Scale Printing

Fit to Page

from the

Paper

tab.

Click the

Paper

tab, and select the paper source, size, and

type.

Click

and print the document.

After printing, fold and

staple the pages.

DVANCED

RINTING

5.10

Using Watermarks

The Watermark option allows you to print text over an existing

document. For example, you may want to have large gray letters

reading “DRAFT” or “CONFIDENTIAL” printed diagonally across

the first page or all of the pages of a document.

There are several predefined watermarks that come with your

printer, and they can be modified or you can add new ones to

the list.

Using an Existing Watermark

To change the print settings from your software application,

access the printer properties. See page 4.3.

Click the

Extras

tab, and select a watermark from the

Watermark

drop-down list. You will see the selected

watermark in the preview image.

Click

and start printing.

OTE

: The preview image shows how the page will look when it is

printed.

Preview


DVANCED

RINTING

5.11

Creating a Watermark

To change the print settings from your software application,

access the printer properties. See page 4.3.

Click the

Extras

tab and click the

Edit

Watermarks

button

in the

Watermark

section. The Watermarks window

appears.

Enter a text message in the

Watermark Message

box.

You can enter up to 40 characters and the message displays

in the preview window.

When the

First Page Only

box is checked, the watermark

prints on the

first page

only

Select the watermark options.

You can select the font name, style, color, grayscale level,

and size from the

Font Attributes

section and set the

angle of the watermark from the

Message Angle

section.

Click

Add

to add a new watermark to the list.

When you finish editing, click

and start printing.

To stop printing the watermark, select

from the

Watermark

drop-down list.

DVANCED

RINTING

5.12

Editing a Watermark

To change the print settings from your software application,

access the printer properties. See page 4.3.

Click the

Extras

tab and click the

Edit

Watermarks

button

in the

Watermark

section. The Watermarks window

appears.

Select the watermark you want to edit from the

Current

Watermarks

list to change the watermark message and

the options. Refer to page 5.11.

Click

Update

to save the changes.

Click

until you exit the Print window.

Deleting a Watermark

To change the print settings from your software application,

access the printer properties. See page 4.3.

From the

Extras

tab, click the

Edit Watermarks

button in

the

Watermark

section. The Watermarks window appears.

Select the watermark you want to delete from the

Current

Watermarks

list and click

Delete

When a confirmation message window appears, click

Yes

Click

until you exit the Print window.

DVANCED

RINTING

5.13

Using Overlays

What is an Overlay?

An overlay is text and/or images stored on the computer hard

disk drive (HDD) as a special file format that can be printed on

any document. Overlays are often used to take the place of

preprinted forms and letterhead paper. Rather than using

preprinted letterhead, you can create an overlay containing the

exact same information that is currently on your letterhead. To

print a letter with your company’s letterhead, you need only tell

the printer to print the letterhead overlay on your document.

Creating a New Page Overlay

To use a page overlay, you must create a new page overlay

containing your logo or image.

Create or open a document containing text or an image for

use in a new page overlay. Position the items exactly as you

wish them to appear when printed as an overlay.

To save the document as an overlay, access the printer

properties. See page 4.3.

Click the

Extras

tab and click the

Edit Overlays

button in

the

Overlay

section.

WORLD BEST

Dear ABC

Regards

WORLD BEST

DVANCED

RINTING

5.14

In the Overlays window, click

Create Overlay

In the Create Overlay window, type a name of up to eight

characters in the

File name

box. Select the destination

path, if necessary. (The default is C:\Formover).

Click

Save

. The name appears on the

Overlay List

box.

Click

Yes

to finish creating.

The file is not printed out. Instead it is stored on your

computer hard disk drive.

OTE

: The overlay document size must be the same as the

documents you print with the overlay. Do not create an overlay

with a watermark.

DVANCED

RINTING

5.15

Using a Page Overlay

After an overlay has been created, it is ready to be printed with

your document. To print an overlay with a document:

Create or open the document you want to print.

To change the print settings from your software application,

access the printer properties. See page 4.3.

Click the

Extras

tab.

Select an overlay from the

Overlay

drop-down list box.

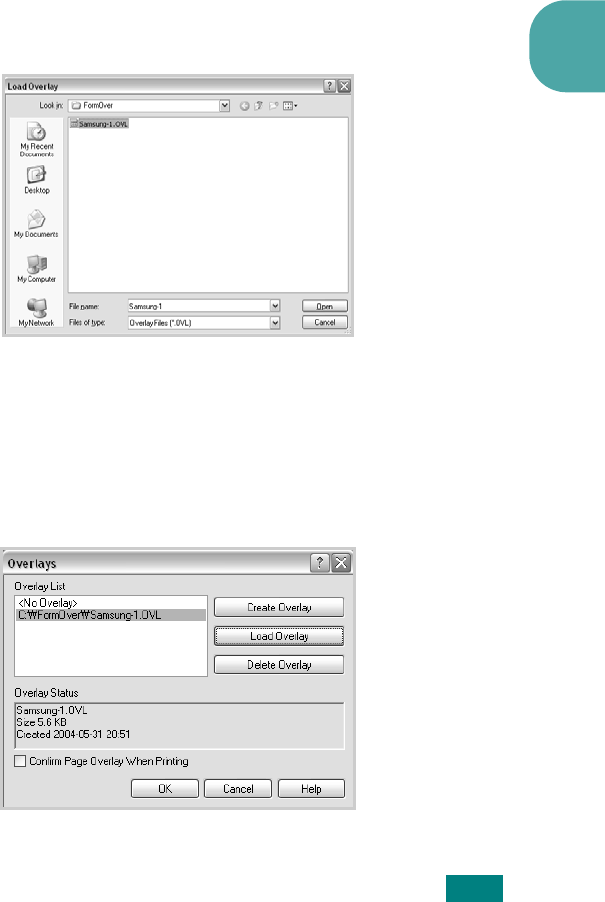

If the overlay file you want does not appear on the

Overlay

list, click the

Edit Overlays

button and

Load Overlay

, and

select the overlay file.

If you have stored the overlay file you want to use in an

external source, you can also load the file when you access

this Load Overlay window.

After you select the file, click

Open

. The file appears in the

Overlay List

box and is available for printing. Select the

overlay from the

Overlay List

box.

DVANCED

RINTING

5.16

If necessary, click

Confirm Page Overlay When Printing

If this box is checked, a message window appears each

time you submit a document for printing, asking you to

confirm your wish to print an overlay on your document.

If this box is empty and an overlay has been selected, the

overlay automatically prints with your document.

Click

Yes

until the printing starts.

The selected overlay downloads with your print job and

prints on your document.

OTE

: The resolution of the overlay document must be the same

as that of the document you are printing with the overlay.

Deleting a Page Overlay

You can delete page overlays that you no longer use.

In the printer properties window, click the

Extras

tab.

Click the

Edit

Overlays

button in the

Overlay

section.

Select the overlay you want to delete from the

Overlay

List

box.

Click

Delete Overlay

When a confirmation message window appears, click

Yes

Click

until you exit the Print window.

DVANCED

RINTING

5.17

Using Status Monitor

If an error occurs while printing, the Status Monitor window

appears, showing the error.

OTES

• The Status Monitor program can only be used if you connect the

printer to your computer with the USB cable, or on a network.

• You can use Status Monitor in Windows 98/Me/NT 4.0/2000/

2003/XP.

Installing Status Monitor

To install Status Monitor, select

Custom

and then

Status

Monitor

while installing the software. For details, refer to the

Setup Guide supplied with your printer.

If you selected

Typical

while installing the software, you can

install Status Monitor as follows:

From the

Start

menu, select

Programs

➔

Samsung CLP-

510 Series

Or place the CD-ROM into the CD-ROM drive.

Select

Maintenance

Select

Repair

OTE

: If your printer is not already connected to the computer,

the following window will appear.

• After connecting the machine, click

• If you want to skip the connection status, click

and

the following screen.

DVANCED

RINTING

5.18

Select

Status Monitor

and then click

When the installation is completed, click

Finish

OTE

If you want to remove the Status Monitor, refer to the

Setup Guide supplied with your printer.

Opening the Troubleshooting Guide

Double click the Status Monitor icon on the Windows task bar.

Or, from the

Start

menu, select

Programs

➔

Samsung CLP-

510 Series

➔

Troubleshooting guide

Changing the Status Monitor Program

Setting

Select the Status Monitor icon on the Windows task bar and

right-click on the Status Monitor icon. Select

Option

The following window opens:

•

Display when job is finished for network printer

shows

the Status Monitor balloon when your job is complete.

Double click this icon.

DVANCED

RINTING

5.19

•

Display when error occurs during printing

shows the

Status Monitor balloon when an error occurs while printing.

•

Schedule an automatic status checking every

allows the

computer to update printer status regularly. Setting the value

close to 1 second causes the computer to check the printer

status more frequently, thereby allowing a faster response to

any printer error.

OTE

When the Status Monitor balloon appears to indicate an

error, you can cancel the current print job or view the

corresponding solution. If you select

Cancel Printing

, turn the

printer off and then click

. It may take several minutes. Note

that this will cause a loss of the data which is being sent to the

printer via the network.

DVANCED

RINTING

5.20

EMO

This chapter provides information for maintaining your

printer and suggestions for high-quality and economical

printing.

This chapter includes:

• Printing a Configuration Page

• Replacing Supplies

• Managing Toner Cartridges

• Replacing Toner Cartridges

• Replacing the Waste Toner Container

• Replacing the Imaging Unit

• Replacing the Transfer Belt

• Cleaning the Printer

• Replacement Parts

• Managing the Printer from the Website

AINTAINING

OUR

RINTER

AINTAINING

OUR

RINTER

6.2

Printing a Configuration Page

You can print a configuration page from the printer’s control

panel. Use the configuration page to view the current settings,

to help troubleshoot problems, or to verify the installation of

optional accessories, such as memory or an optional tray.

To print a configuration page:

In ready mode, press the

button ( ) on the control

panel until you see “Information” on the bottom line of the

display.

Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Configuration” displays

on the bottom line.

A configuration page prints out.

AINTAINING

OUR

RINTER

6.3

Replacing Supplies

From time to time, you need to replace the following items to

maintain top performance and to avoid print quality problems.

Refer to the table below:

Item(s) Printer Message Pages Printed See

Page

Black toner

cartridge Black Toner Empty 7,000 pages,

3,000 pages

*Average A4-/letter-sized page count based on 5% coverage of

individual colors on each page. Usage conditions and print patterns

may cause results to vary.

6.8

Color toner

cartridges [Color] Toner

Empty 5,000 pages,

2,000 pages

6.8

Waste toner

container Replace/Install

Waste Toner Tank

12,000 pages

for black and

3,000 pages for

color

**The number of pages may be affected by operating environment,

media type, media size, and color vs. black printing.

6.11

Imaging Unit Replace

Imaging Unit

50,000 pages

for black and

12,500 pages

for color

6.14

Transfer Belt Replace

Transfer Belt

50,000 pages

for black and

12,500 pages

for color

6.22

AINTAINING

OUR

RINTER

6.4

Managing Toner Cartridges

Toner Cartridge Storage

To get the maximum results from a toner cartridge, keep the

following guidelines in mind:

• Do not remove toner cartridges from their packages until you

are ready to use them.

• Do not refill toner cartridges.

The printer warranty does

not cover damage caused by using a refilled cartridge.

• Store toner cartridges in the same environment as the

printer.

• To prevent damage to toner cartridges, do not expose them

to light for more than a few minutes.

Toner Cartridge Life Expectancy

The life of a toner cartridge depends on the amount of toner that

your print jobs require. When printing text at 5% coverage, a

new toner cartridge lasts an average of 3,000 or 7,000 pages for

black and 2,000 or 5,000 pages for each color. The starter toner

cartridge supplied with the printer lasts an average of 3,000

pages for black and 2,000 pages for each color.

AINTAINING

OUR

RINTER

6.5

Redistributing Toner

When a toner cartridge is low on toner, faded or light areas may

appear. It is also possible that colored images may be printed

with incorrect colors due to flawed mixing of toner colors when

one of the colored toner cartridges is low on toner. “Ready

[Color] Low Toner” appears on the display. The printer is able to

continue to print using the current toner cartridge until the

control panel displays a message telling you to replace the

cartridge.

You may be able to temporarily improve print quality by

redistributing the toner. The control panel display tells you which

color cartridge is low on toner.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AINTAINING

OUR

RINTER

6.6

First, gently pull the cartridge by its handle to erase it out of

its slot, but when you are ready to lift it out of the printer,

transfer your grip to the body of the cartridge, and lift it out

with both hands.

AUTION

: If you leave the left cover open for more than a few

minutes, the imaging unit can be exposed to light. This will cause

damage to the imaging unit. Close the left cover should the

installation needs to be halted for any reason.

Holding both sides of each of the toner cartridge, gently roll

it from side to side to redistribute the toner.

OTE

If toner gets on your clothing, wipe it off with a dry cloth

and wash it in cold water. Hot water sets toner into fabric.

AINTAINING

OUR

RINTER

6.7

Slide the toner cartridge back into the printer.

Close the left cover. Make sure that the cover is securely

latched.

If you have installed the toner cartridges incorrectly, the left

cover will not close properly. Check again to make sure the

cartridge colors correspond to those marked on the right

hand side. Never force the cover closed.

AINTAINING

OUR

RINTER

6.8

Replacing Toner Cartridges

The printer uses four colors and has a different toner cartridge

for each one: cyan (C), magenta (M), yellow (Y), and black (K).

When the display on the control panel shows the error message,

“[Color] Toner Empty,” the printer stops printing. At this stage,

replace a toner cartridge. The control panel display tells you

which color needs to be replaced.

Turn the printer off, then wait a few minutes for the printer

to cool.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

First, gently pull the cartridge by its handle to erase it out of

its slot, but when you are ready to lift it out of the printer,

transfer your grip to the body of the cartridge, and lift it out

with both hands.

AUTION

: If you leave the left cover open for more than a few

minutes, the imaging unit can be exposed to light. This will cause

damage to the imaging unit. Close the left cover should the

installation needs to be halted for any reason.

AINTAINING

OUR

RINTER

6.9

Take a new toner cartridge out of its package.

AUTION

Don’t use sharp objects, such as a knife or scissors, to

open the toner cartridge package. You could damage the surface of

the toner cartridge.

Holding both sides of each of the toner cartridge, gently roll

it from side to side to evenly distribute the toner.

Place the toner cartridge on a flat surface, as shown, and

remove the paper covering the toner cartridge by removing

the tape.

OTE

If toner gets on your clothing, wipe it off with a dry cloth

and wash it in cold water. Hot water sets toner into fabric.

AINTAINING

OUR

RINTER

6.10

Make sure that the color of the toner cartridge matches the

color slot and then slide the new toner cartridge into the

printer. Using both hands, insert the cartridge into the slot.

Then use the handle to slide the cartridge in.

When the toner cartridges are correctly installed, the yellow

and black cartridges will not fully be inserted. These will

automatically move into place when you close the left cover.

Close the left cover. Make sure that the cover is securely

latched, and then turn the printer on.

If you have installed the toner cartridges incorrectly, the left

cover will not close properly. Check again to make sure the

cartridge colors correspond to those marked on the right

hand side. Never force the cover closed.

AINTAINING

OUR

RINTER

6.11

Replacing the Waste Toner Container

The life of the waste toner container is approximately 12,000

pages for black and 3,000 pages for color. Replace the waste

toner container when the control panel displays “Replace/Install

Waste Toner Tank”.

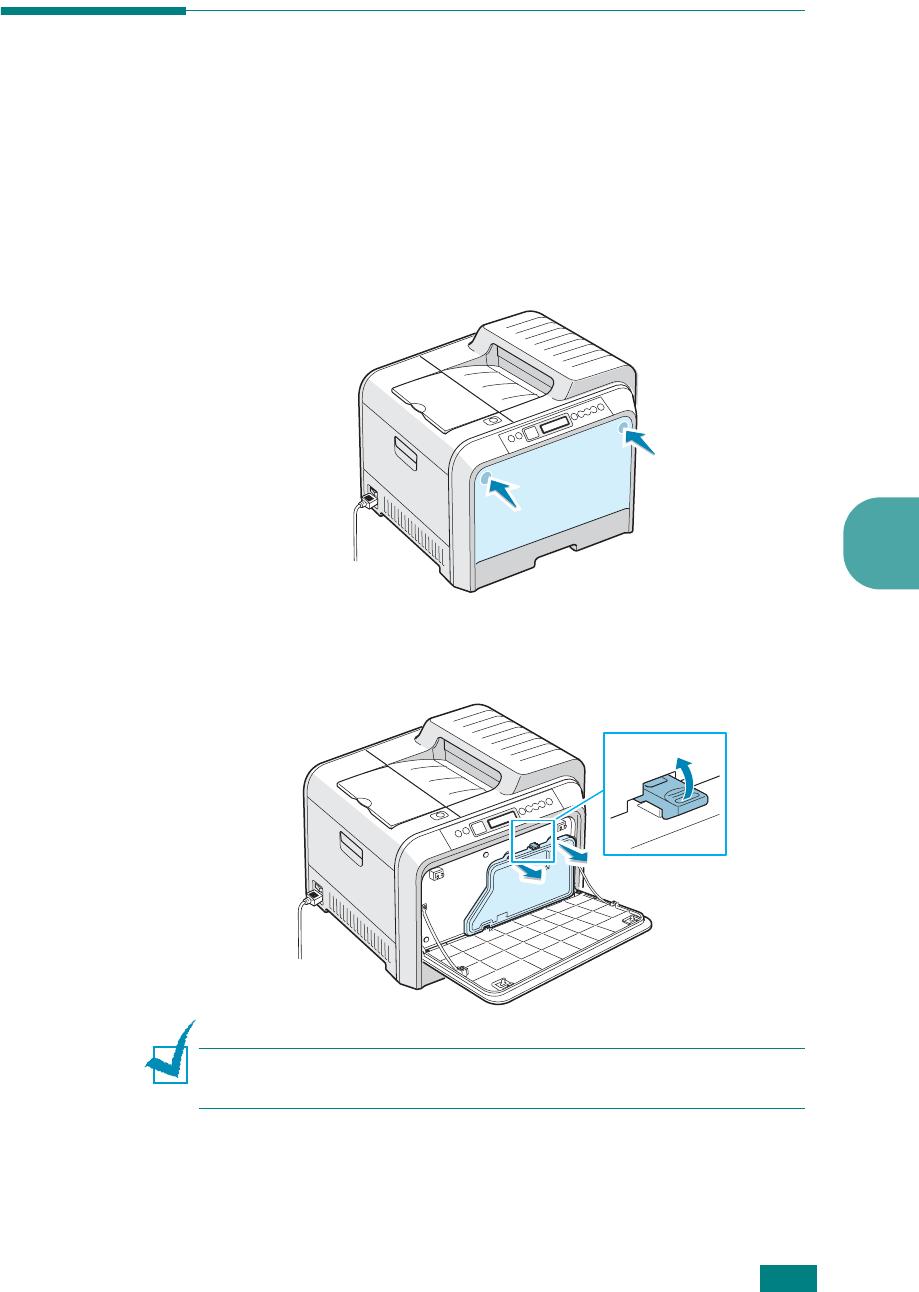

Unlatch the front cover by quickly pressing and releasing it,

using the depressions at the top.

Push the lock lever up and pull the waste toner container

out.

OTE

: Make sure that you lay the waste toner container on a flat

surface so that the toner does not spill.

AINTAINING

OUR

RINTER

6.12

Remove the container’s attached caps, as shown below, and

use them to close the waste toner container.

Take a new waste toner container out of its package.

Insert the lower end of the new container into place and

then push the upper end. Make sure that it is seated in

place.

Make sure that the lock lever is holding the container

securely.

AINTAINING

OUR

RINTER

6.13

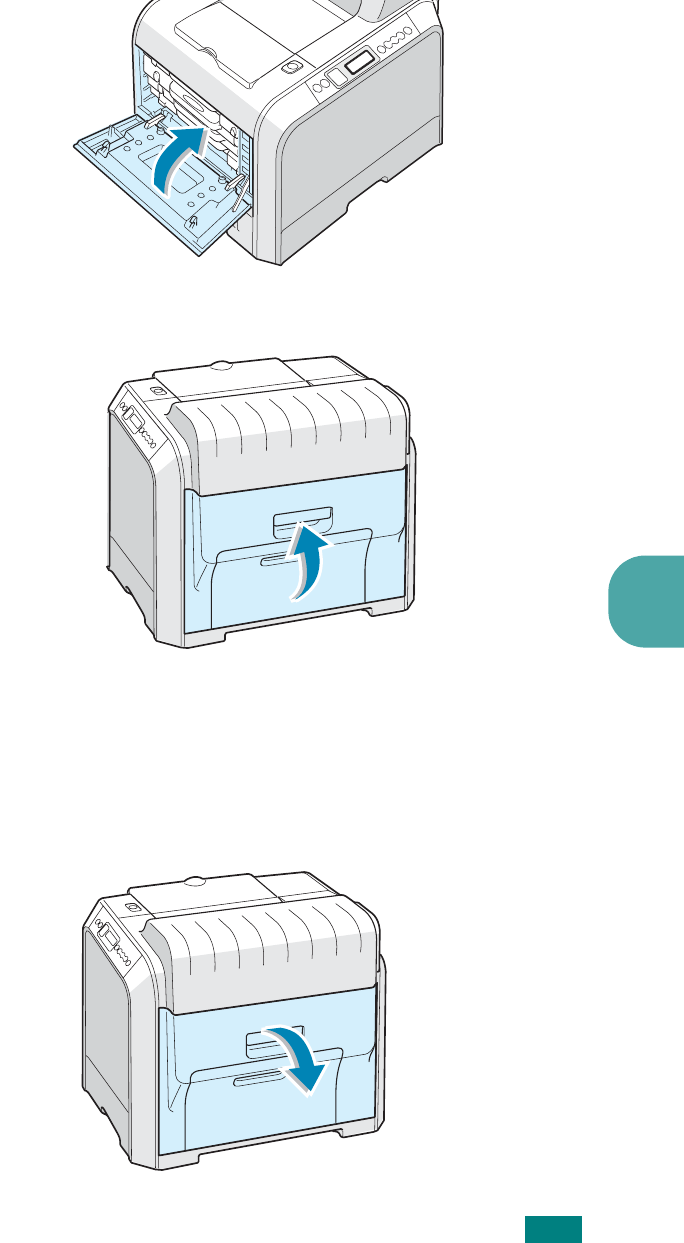

Close the front cover. Make sure that the cover is securely

latched.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

Close the left cover firmly.

AINTAINING

OUR

RINTER

6.14

Replacing the Imaging Unit

The life of the imaging unit is approximately 50,000 pages for

black and 12,500 pages for color. Replace the imaging unit when

the printer control panel displays “Replace Imaging Unit”.

Turn the printer off, then wait a few minutes for the printer

to cool.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AUTION

If the left cover is not completely open, the top cover

release button will remain locked.

AINTAINING

OUR

RINTER

6.15

Press the top cover release button to unlatch the top cover

and open it all the way.

Pull the lock levers on each side toward you, as shown

below, to release the transfer belt.

AINTAINING

OUR

RINTER

6.16

Using the handle, lift the transfer belt out of the printer by

lightly pulling it toward the left of the printer. Set it on a

clean flat surface.

Lift the handle of the used imaging unit and use it to lift the

imaging unit out of the printer.

AINTAINING

OUR

RINTER

6.17

Take a new imaging unit out of its package. Hold it by its

handle.

Remove the paper covering the imaging unit by removing

the tape under the handle of the imaging unit.

AUTIONS

• Don’t use sharp objects, such as a knife or scissors, to open the

imaging unit package and tape on the protective paper liner. You

could damage the surface of the imaging unit.

• To prevent damage, do not expose the imaging unit to light for

more than a few minutes. Cover it with black paper, if necessary.

• Close the top and left covers should the insallation needs to be

halted for any reason.

• Do not touch the surface of the green roller on the imaging unit,

or print quality problems can occur.

Locate the imaging unit slots inside the printer, one on

each side

AINTAINING

OUR

RINTER

6.18

Hold the handle of the new imaging unit with the green

roller facing you. Align the imaging unit with the slots in

your printer so that the colors on both sides of the imaging

unit slide into the corresponding colors of the slots.

AUTION

Insert the imaging unit carefully so as not to scratch or

damage the surface of the green roller.

Slide the imaging unit down into the printer until it cannot

be pushed in any further. Fold the handle down.

AINTAINING

OUR

RINTER

6.19

To reinstall the transfer belt, hold its handle and then align

it with the slots on either side of the inside of your printer.

OTE

Do not turn the transfer belt over, or loose toner may be

spilled.

Slide the transfer belt down into the printer and press it

firmly into place.

AINTAINING

OUR

RINTER

6.20

Firmly push the lock levers on each side toward the top

cover, as shown below, to lock the transfer belt into place.

After making sure that the left cover is open, close the top

cover. Make sure that it is securely latched.

AUTION

Do not try to close the left cover with the top cover

open. This may cause damage to the printer.

AINTAINING

OUR

RINTER

6.21

Close the left cover firmly.

Turn the printer on.

OTE

: After replacing the imaging unit, your printer will

automatically reset the image counter for the imaging unit.

AINTAINING

OUR

RINTER

6.22

Replacing the Transfer Belt

The life of the transfer belt is approximately 50,000 black pages

and 12,500 color pages. Replace the transfer belt when the

control panel displays “Replace Transfer Belt”.

To replace the transfer belt:

Turn the printer off, then wait a few minutes for the printer

to cool.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AUTION

If the left cover is not completely open, the top cover

release button will remain locked.

AINTAINING

OUR

RINTER

6.23

Press the top cover release button to unlatch the top cover

and open it all the way.

Pull the lock levers on each side toward you, as shown

below, to release the transfer belt.

AINTAINING

OUR

RINTER

6.24

Using the handle, lift the used transfer belt out of the

printer by lightly pulling it toward the left of the printer.

OTE

Keep the transfer belt level. Do not turn the transfer belt

over, or loose toner may be spilled.

Take a new transfer belt out of the package.

Remove the paper covering the transfer belt by removing

the tape.

AUTION

Don’t use sharp objects, such as a knife or scissors, to

open the transfer belt package. You could damage the surface of

the transfer belt.

AINTAINING

OUR

RINTER

6.25

Pinch the transfer belt tension levers on both sides of the

transfer belt. Then, pull them out as shown below.

Locate the transfer belt slots inside the printer, one on each

side.

AUTION

To prevent damage, do not expose the imaging unit to

light for more than a few minutes. Close the top and left covers

should the insallation needs to be halted for any reason.

AINTAINING

OUR

RINTER

6.26

Hold the handle on the new transfer belt and then align it

with the slots on either side of the inside of your printer.

OTE

Keep the transfer belt level. Do not turn the transfer belt

over, or loose toner may be spilled.

Slide the new transfer belt down into the printer and press

it firmly into place.

AINTAINING

OUR

RINTER

6.27

Firmly push the lock levers on each side toward the top

cover, as shown below, to lock the transfer belt into place.

After making sure that the left cover is open, close the top

cover. Make sure that it is securely latched.

AUTION

Do not try to close the left cover with the top cover

open. This may cause damage to the printer.

AINTAINING

OUR

RINTER

6.28

Close the left cover firmly.

Turn the printer on.

OTE

: After replacing the transfer belt, your printer will

automatically reset the image counter for the transfer belt.

AINTAINING

OUR

RINTER

6.29

Cleaning the Printer

During the printing process, particles of paper, toner, and dust

can accumulate inside the printer. Over time, this build-up can

cause print quality problems such as toner specks or smearing.

Your printer has a cleaning mode that can correct and prevent

these types of problems.

Cleaning the Outside of the Printer

Clean the cabinet of the printer with a soft and lint-free cloth.

You can dampen the cloth slightly with water, but be careful not

to let any water drip onto the printer or inside of it.

AUTION

: Cleaning the cabinet of the printer with cleaners

containing large amounts of alcohol, solvents, or other strong

substances can discolor or crack the cabinet.

Cleaning the LSU Inside the Printer

OTE

: You should clean the LSU at the same time as you remove

the particles of paper, toner, and dust inside the printer.

Open and close the left cover to clean the LSU inside of the

printer automatically.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AINTAINING

OUR

RINTER

6.30

Close the left cover firmly.

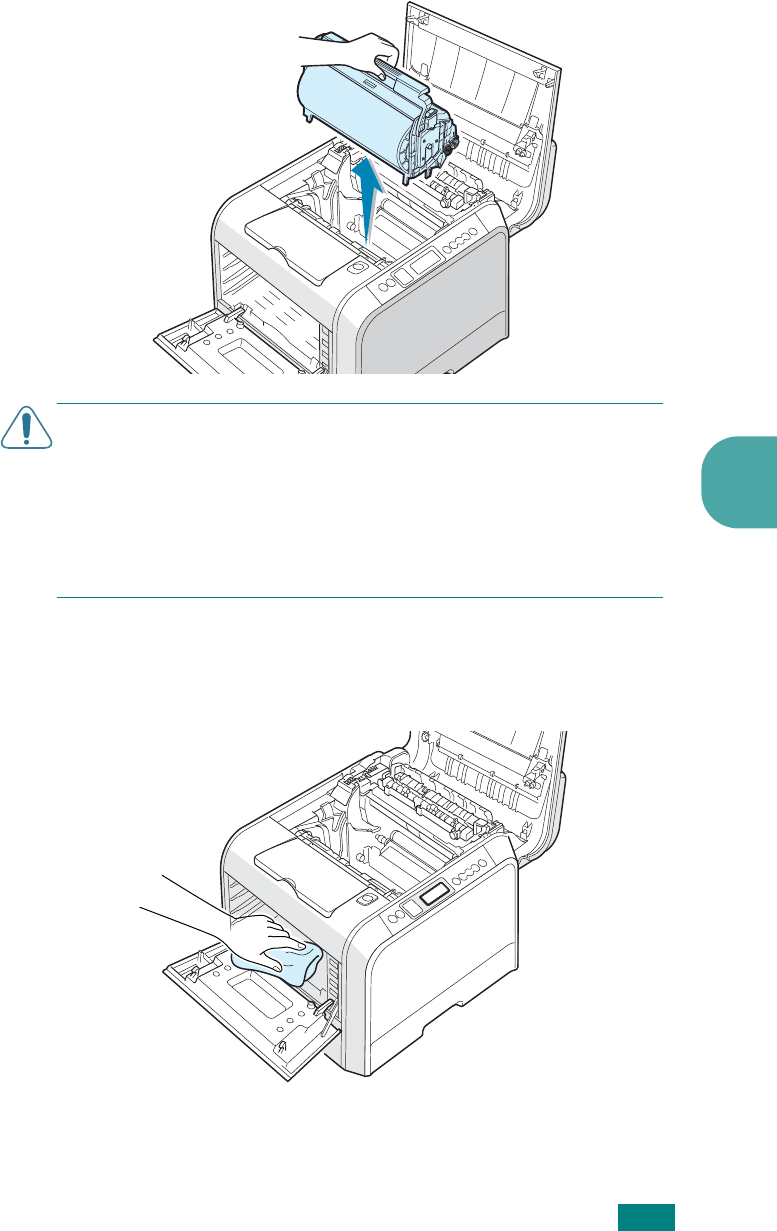

Cleaning the Inside of the Printer

OTE

While cleaning the inside of the printer, be careful not to

touch the transfer roller. Oil from your fingers can cause print

quality problems.

Turn the printer off and unplug the power cord, then wait a

few minutes for the printer to cool.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AUTION

If the left cover is not completely open, the top cover

release button will remain locked.

AINTAINING

OUR

RINTER

6.31

First, gently pull the cartridges by their handle to erase

them out of their slot, but when you are ready to lift them

out of the printer, transfer your grip to the body of the

cartridges, and lift them out with both hands. Set them on a

clean flat surface.

Press the top cover release button to unlatch the top cover

and open it all the way.

AUTION

: If you leave the left cover open for more than a few

minutes, the imaging unit can be exposed to light. This will cause

damage to the imaging unit. Close the top and left covers should

the insallation needs to be halted for any reason.

AINTAINING

OUR

RINTER

6.32

Pull the lock levers on each side toward you, as shown

below, to release the transfer belt.

Using the handle, lift the transfer belt out of the printer by

lightly pulling it toward the left of the printer. Set it on a

clean flat surface.

AINTAINING

OUR

RINTER

6.33

Lift the handle of the imaging unit and use it to lift the

imaging unit out of the printer. Set it on a clean flat surface.

AUTIONS

• To prevent damage, do not expose the imaging unit to light for

more than a few minutes. Cover it with black paper, if necessary.

• Close the top and left covers should the installation needs to be

halted for any reason.

• Do not touch the surface of the green roller on the imaging unit,

or print quality problems can occur.

Look inside the printer. Remove any dust, paper particles,

and spilled toner with a damp, soft lint-free cloth, or small

vacuum cleaner.

AINTAINING

OUR

RINTER

6.34

Insert the imaging unit back into the printer. Make sure you

hear it click, and then fold the handle down. For details, see

steps 9 to 10 on page 6.17~6.18.

AUTION

: Replace the imaging unit carefully so as not to scratch

or damage the surface of the green roller on the imaging unit.

Insert the transfer belt back into the printer. Press it firmly

to make sure it fits into place. For details, see steps 9 and

10 on page 6.25~6.26.

OTE

Keep the transfer belt level. Do not turn the transfer belt

over, or loose toner may be spilled.

AINTAINING

OUR

RINTER

6.35

Firmly push the lock levers on each side toward the top

cover, as shown below, to lock the transfer belt into place.

After making sure that the left cover is open, close the top

cover. Make sure that it is securely latched.

AUTION

Do not try to close the left cover with the top cover

open. This may cause damage to the printer.

AINTAINING

OUR

RINTER

6.36

Look inside the printer on the right and then locate the

colors of the toner cartridges that matches the colors of the

slots.

Holding each toner cartridge with both hands, insert them

into their corresponding positions in the following order:

Cyan, Magenta, Yellow, and then Black. Then use the

handle to fully slide the cartridge in.

When the toner cartridges are correctly installed, the yellow

and black cartridges will not be fully inserted. These will

automatically move into place when you close the left cover.

Black

Yellow

Magenta

Cyan

Grip here.

AINTAINING

OUR

RINTER

6.37

Close the left cover. Make sure that it is securely latched.

If you have installed the toner cartridges incorrectly, the left

cover will not close properly. Check again to make sure the

cartridge colors correspond to those marked on the right

hand side. Never force the cover closed.

Plug the power cord in and turn the printer on.

AINTAINING

OUR

RINTER

6.38

Replacement Parts

From time to time, you will need to replace the roller and fuser

unit to maintain top performance and avoid print quality

problems and paper feed problems resulting from worn parts.

The following items should be replaced after you have printed

the specified number of pages. See the table below.

To purchase replacement parts, contact your Samsung dealer or

the retailer where you bought your printer. We strongly

recommend that items be installed by a trained service

professional.

Managing the Printer from the Website

Via your printer’s website, you can set the printer to send email

notifications to a specified address.

To access the printer’s website:

Start a web browser, such as Internet Explorer from

Windows.

Enter the printer’s IP address (http:// xxx.xxx.xxx) in the

address field and press the

Enter

key or click

Your printer’s embedded web page opens.

Item Yield (Average)

Pick-up roller Approx. 150,000 pages

Transfer roller Approx. 50,000 pages

Fuser unit Approx. 100,000 black pages

(50,000 color pages)

AINTAINING

OUR

RINTER

6.39

Setting Up E-mail Notification

E-Mail notification functionality allows your printer to send warnings

or alerts to a specified address. You can also send an order for toner

to a specified address. An SMTP server should be used to send these

messages.

To set up the E-mail notification feature:

On the printer’s web page, click

Machine Settings

Click

E-mail Notification Setup

Fill in the appropriate boxes.

You can set up server information, recipient list & conditions

information, and the toner ordering system. For further details

about each setting, see the following sections.

Server Information

Configure the settings for your printer to send an e-mail through

the SMTP server.

The following items can be configured:

• IP Address or Host Name: select IP Address or Host Name. If

you select host name, you need to enter your DNS setting in

the TCP/IP of Network Settings tab.

• SMTP Server and Port: Enter the SMTP server name and port

number.

• SMTP Requires Authentication: check if the SMTP server need

to be authenticated.

• SMTP Server Login: enter your login name.

• SMTP Server Password: enter your login password.

• SMTP Server Connection Timeout: Set the time interval (30

to 120 seconds) at which the printer attempts to send email

from the SMTP server to the specified e-mail address.

• Reply Address: When the printer generates email, if

necessary, you can send the reply message somewhere. This

is where you can enter the e-mail address to which you want

replies sent.

AINTAINING

OUR

RINTER

6.40

Recipient List & Conditions

Configure the settings to receive an e-mail from the printer.

The following items can be configured:

• System Admin E-mail Address: Enter the e-mail address of

the system administrator.

• Key User E-mail Address: Enter the user’s e-mail address to

which the printer should send email notifications.

• Service E-mail Address: Enter the e-mail address of a service

center or service representative.

• Consumable Shortage Warning: Select to whom the printer

will send a warning message when approximately 10% of a

consumable item remains.

• Consumable & Printer Setup Review: Select to whom the

printer will send the status message of the printer and

consumables each time the printer prints 1000, 2000, 3000 pages.

• History: Select to whom the printer will send a history of the

replacement time of the consumables and error messages.

• Alert: Select to whom the printer will send recent error

messages.

• Select Notifications: Set whether or not you want to receive

each notification.

Toner Ordering System

The Toner order system allows the printer, when it senses that

the toner cartridge is nearly empty, to send an order for toner

to a specified address.

Configure the settings to enable the toner order system.

The following items can be configured:

• Enable: Select whether or not the printer sends an email

when it is low on toner.

• Phone number: Enter the Samsung dealer’s or the retailer’s

phone number.

• E-mail address: Enter the Samsung dealer’s or the retailer’s e-mail

address.

• URI: Enter the Samsung dealer’s or the retailer’s URI.

AINTAINING

OUR

RINTER

6.41

Setting the Contact Information tab

Select the

Support

tab to know and enter some information in

the

Contact Information

section.

• Name: enter the e-mail sender’s name like your office name.

• Phone Number: enter a phone number recorded in the E-mail

Notification mail.

• Location: enter a position information recorded in the E-mail

Notification mail.

• E-mail Address: enter the sender’s e-mail address.

OTE

: It is possible that Firewall in the network will prevent

e-mail transmission.

AINTAINING

OUR

RINTER

6.42

EMO

This chapter provides helpful information for what to do if

you encounter an error while using your printer.

This chapter includes:

• Troubleshooting Checklist

• Solving General Printing Problems

• Clearing Paper Jams

• Solving Print Quality Problems

• Understanding Display Messages

• Common Windows Problems

• Common Macintosh Problems

• Common Linux Problems

SOLVING PROBLEMS

OLVING

ROBLEMS

7.2

Troubleshooting Checklist

If the printer is not working properly, consult the following

checklist. If the printer does not pass a step, follow the

corresponding troubleshooting suggestions.

Check Solution

Make sure that the

On Line/Continue

button on the control panel

is green and “Ready” is

shown on the display.

• If the button backlight is off, check the power cord

connection. Check the power switch. Check the power

source by plugging the power cord into another outlet.

• If the button backlight is orange, check the display

message and go to “Understanding Display Messages” on

page 7.26.

Print a demo page to verify

that the printer is feeding

paper correctly. See the

Setup Guide supplied with

your printer.

• If a demo page does not print, check the paper supply in

the paper tray.

• If the paper jams in the printer, go to “Clearing Paper

Jams” on page 7.6.

• If an error message appears on the display, go to

“Understanding Display Messages” on page 7.26.

Check the demo page to

see if it is printed correctly. If there is a print quality problem, go to “Solving Print

Quality Problems” on page 7.22.

Print a short document

from a software application

to verify that the computer

and printer are connected

and are communicating

correctly.

• If the page does not print, check the cable connection

between the printer and the computer.

• Check the print queue or print spooler to see if the

printer has been paused.

• Check the software application to ensure that you are

using the proper printer driver and communication port.

If the page is interrupted during printing, go to “Solving

General Printing Problems” on page 7.3.

If completing the checklist

does not resolve the printer

problem, check the

following troubleshooting

sections.

• See “Solving General Printing Problems” on page 7.3.

• See “Understanding Display Messages” on page 7.26.

• See “Common Windows Problems” on page 7.30.

• See “Common Macintosh Problems” on page 7.31.

• See “Common Linux Problems” on page 7.31.

OLVING

ROBLEMS

7.3

Solving General Printing Problems

For problems with the operation of your printer, refer to the table

for suggested solutions.

Problem Possible Cause Solution

The printer

does not print. The printer is not

receiving power. Check the power cord connections. Check

the power switch and the power source.

The printer is not

selected as the default

printer.

Select

Samsung CLP-510 Series

as your

default printer.

Check the printer for

the following:

• The printer cover is

not closed.

• Paper is jammed.

• No paper is loaded.

• The toner cartridge is

not installed.

See to the appropriate issue.

The printer may be in

manual feed mode and

out of paper.

Check the display message, add paper to

the Multi-purpose Tray, and press the

On Line/Continue

button on the printer’s

control panel.

The connection cable

between the computer

and the printer is not

connected properly.

Disconnect the printer cable and reconnect

it.

The connection cable

between the computer

and the printer is

defective.

If possible, attach the cable to another

computer that is working properly and try

to print a document. You can also try using

a different printer cable.

The printer may be

configured incorrectly. Check the printer properties to ensure that

all of the print settings are correct.

The printer driver may

be incorrectly installed. Reinstall the printer driver; refer to the

Setup Guide supplied with your printer. Try

printing a demo page.

The printer is

malfunctioning. Check the display message on the control

panel to determine if the printer is

indicating a system error.

Printer selects

print materials

from the wrong

paper source.

The paper source

selection in the printer

properties may be

incorrect.

For many software applications, the paper

source selection is found under the

Paper

tab within the printer properties. Select the

correct paper source. See page 4.7.

OLVING

ROBLEMS

7.4

Paper does not

feed into the

printer.

Paper has been loaded

incorrectly. Remove paper from the tray and reload it

correctly.

Check that the paper size adjusters are set

correctly.

There is too much

paper in the paper tray. Remove excess paper from the tray.

The paper is too thick. Use only paper that meets the specifications

required by the printer.

Print job is

extremely slow. The job may be very

complex. Reduce the complexity of the page(s) or try

adjusting the print quality settings.

Adjust the print quality settings, such as

reducing the resolution. If you have set the

resolution to

1200 dpi [Best]

, change it

600 dpi [Normal]

Change the port setting to the USB or

network port to improve print speed.

Your printer prints A4-sized paper at 24

ppm and letter-sized paper at 25 ppm in

black & white mode. In color mode, A4/

letter-sized paper prints at 6 ppm.

If using Windows 9x/

Me, the Spooling

Setting may be set

incorrectly.

From the

Start

menu, choose

Settings

and

Printers

. Right-click the

Samsung CLP-

510 Series

printer icon, choose

Properties

, click the

Details

tab, and then

choose the

Spool Settings

button. Select

the desired spool setting.

Half the page is

blank. The page orientation

setting may be

incorrect.

Change the page orientation in your

application. See page 4.6.

The paper size and the

paper size settings do

not match.

Ensure that the paper size in the printer

driver settings matches the paper in the

tray.

Or, ensure that the paper size in the printer

driver settings matches the paper selection

in the software application settings you use.

Problem Possible Cause Solution

OLVING

ROBLEMS

7.5

The paper

keeps jamming. There is too much

paper in the paper tray. Remove excess paper from the tray.

If printing on special materials, use the

Multi-purpose Tray.

Check that the paper size adjusters are set

correctly.

An incorrect type of

paper is being used. Use only paper that meets the specifications

required by the printer.

If printing on special materials, use the

Multi-purpose Tray.

There may be debris

inside the printer. Open the top cover and remove the debris.

The printer

prints, but the

text is wrong,

garbled, or

incomplete.

The printer cable is

loose or defective. Disconnect the printer cable and reconnect.

Try a print job that you have already printed

successfully. If possible, attach the cable

and printer to another computer and try a

print job that you know works. Finally, try a

new printer cable.

The wrong printer

driver was selected. Check the application’s printer selection

menu to ensure that your printer is

selected.

The software

application is

malfunctioning.

Try printing a job from another application.

The operating system is

malfunctioning. Exit Windows and reboot the computer. Turn

the printer off and then back on again.

Pages print, but

are blank. The toner cartridge is

defective or out of

toner.

Redistribute the toner. If necessary, see

page 6.5.

If necessary, replace the toner cartridge.

The file may have blank

pages. Check the file to ensure that it does not

contain blank pages.

Some parts, such as

the controller or the

board, may be

defective.

Contact a service representative.

The illustrations

print incorrectly

in Adobe

Illustrator.

The setting in the

software application is

wrong.

Select

Download as Bit Image

in the

Advanced Options

window of the graphic

properties. Print the document.

Problem Possible Cause Solution

OLVING

ROBLEMS

7.6

Clearing Paper Jams

OTE

: When removing paper that is jammed in the printer, if

possible always pull the paper in the direction that it normally

moves so as not to damage internal components. Always pull

firmly and evenly; do not jerk the paper. If the paper tears, ensure

that all fragments of paper are removed; otherwise a jam will

occur again.

The display on the control panel tells you where a paper jam has

occurred. Refer to the table below to locate the paper jam and

to clear it:

To resume printing after clearing paper jams, you must open

and close the right cover.

The printing

quality of

photos is not

clear.

The resolution is set to

600 dpi [Normal]

.Change the resolution to

1200 dpi [Best]

and then try to print again.

The resolution of the

photo is very low. If you increase the photo size in the

software application, the resolution will be

reduced. Reduce the photo size and then

improve the resolution.

Your printer has

a odd smell

during the

initial use.

The oil used to protect

the fuser is

evaporating.

After printing about 100 color pages, there

will be no more smell. It is a temporary

problem.

Problem Possible Cause Solution

Message Location of Jam GoTo

Jam0 In Tray1

In the paper feed area

page 7.7

Jam0 In MP Tray

In the multi-purpose tray

page 7.9

Jam

Inside Printer

Inside printer

page 7.9

Jam

In Exit Area

In the paper exit area

page 7.10

Jam

In Duplex Path

In the duplex area

page 7.13

Jam0 In Tray2

In the optional tray 2

page 7.17

OLVING

ROBLEMS

7.7

In the Paper Feed Area

If paper is jammed in the paper feed area, “Jam0 In Tray1”

appears on the display.

Using the handle, open the right cover.

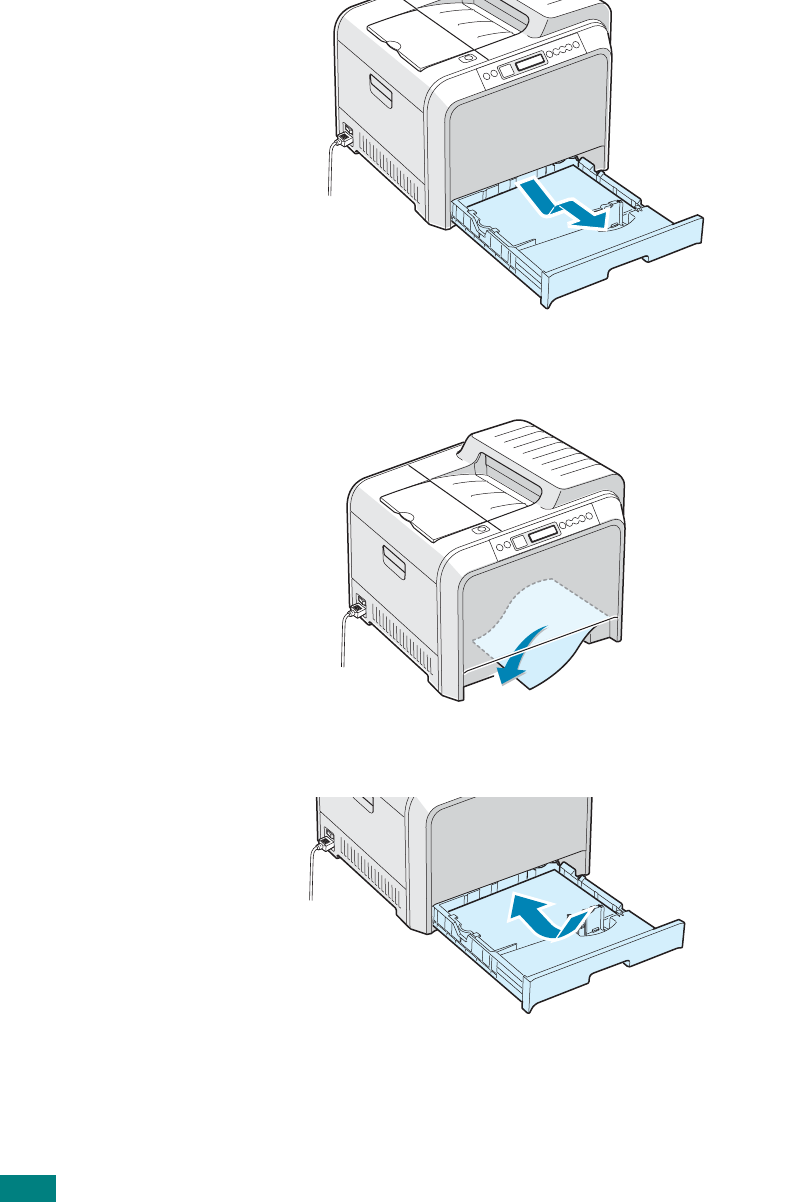

Carefully remove the misfed paper in the direction as shown

below. Go to step 6.

If you cannot find the jammed paper, or if there is any

resistance removing the paper, stop pulling and go to

step 3.

OLVING

ROBLEMS

7.8

Pull the tray open. After you pull it all the way out, lift up

the front part of the tray slightly to release the tray from

the printer.

Remove the jammed paper by gently pulling it straight out

as shown below.

To replace the tray, lower the rear edge, align it with the

slot, and slide it into the printer.

Close the right cover. The printer will resume printing.

OLVING

ROBLEMS

7.9

In the Multi-purpose Tray

“Jam0 In MP Tray”

appears on the display when you print using

the Multi-purpose Tray and the printer detects that there is

either no paper or the paper is improperly loaded.

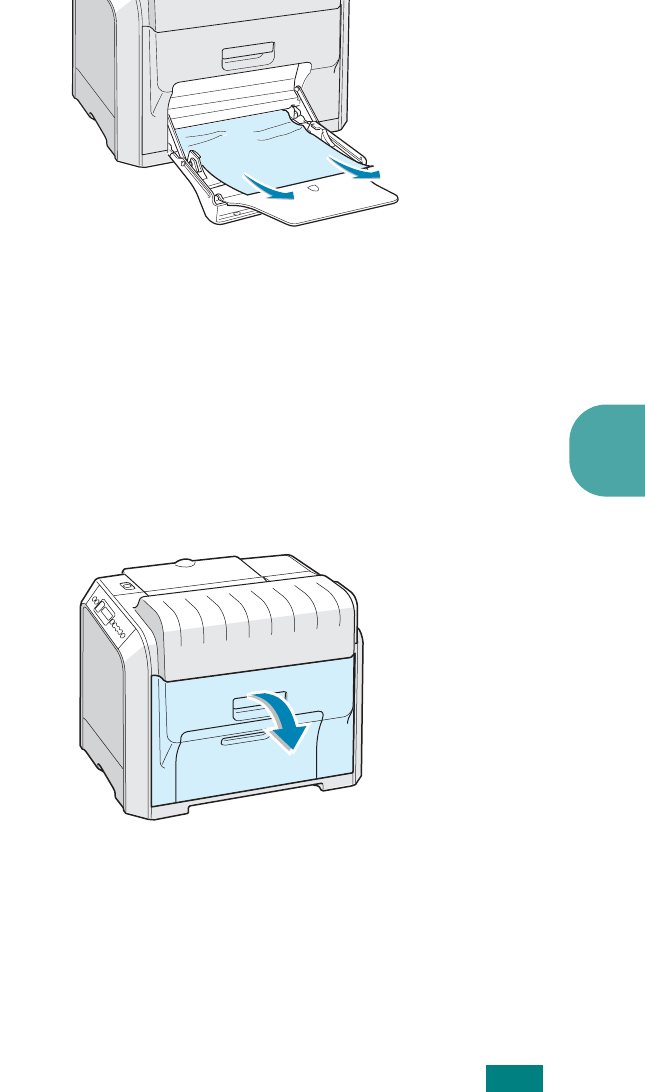

If the paper is not feeding properly, pull the paper out of the

printer.

To resume printing, open and close the right cover.

Inside the Printer

If paper is jammed inside the printer, “Jam Inside Printer”

appears on the display.

Using the handle, open the right cover.

OLVING

ROBLEMS

7.10

Remove the jammed paper in the direction shown. To avoid

the paper tearing, pull it out gently and slowly.

OTE

: If the paper tears, make sure that all of the paper

fragments are removed from the printer.

Close the right cover. The printer will resume printing.

In the Paper Exit Area

If paper is jammed in the paper exit area, “Jam In Exit Area”

appears on the display.

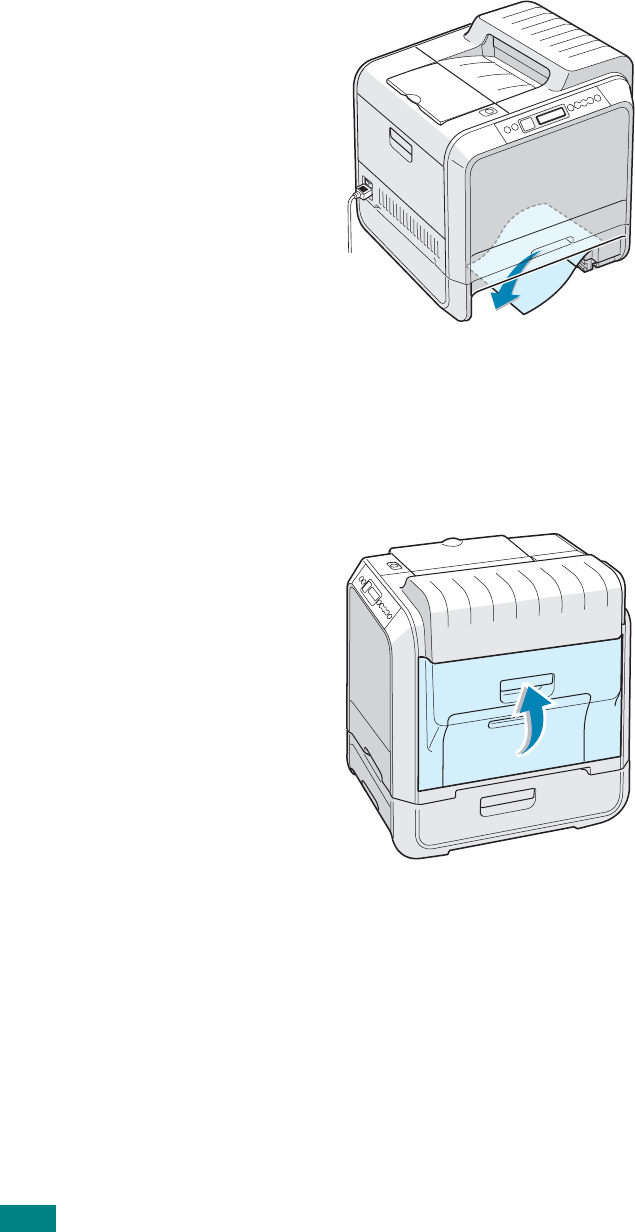

If a long portion of the paper is visible, pull it straight out.

Go to step 7.

If you cannot find the jammed paper, or if there is any

resistance removing the paper, stop pulling and go to

step 2.

OLVING

ROBLEMS

7.11

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AUTION

: If the left cover is not completely open, the top cover

release button will remain locked.

Press the top cover release button to unlatch the top cover

and open it all the way.

OLVING

ROBLEMS

7.12

Carefully take the jammed paper out of the printer.

AUTION

Do not touch the fuser. It is hot and could cause burns!

The fuser’s operating temperature is 180°C (356° F). Take care

when removing paper from the printer.

After making sure that the left cover is open, close the top

cover. Make sure that it is securely latched.

AUTION

Do not try to close the left cover with the top cover

open. This may cause damage to the printer.

The fuser

is hot!

OLVING

ROBLEMS

7.13

Close the left cover firmly.

Open and close the right cover to resume printing.

In the Duplex Area

If paper is jammed in the duplex area, “Jam In Duplex Path”

appears on the display.

Using the handle, open the right cover.

OLVING

ROBLEMS

7.14

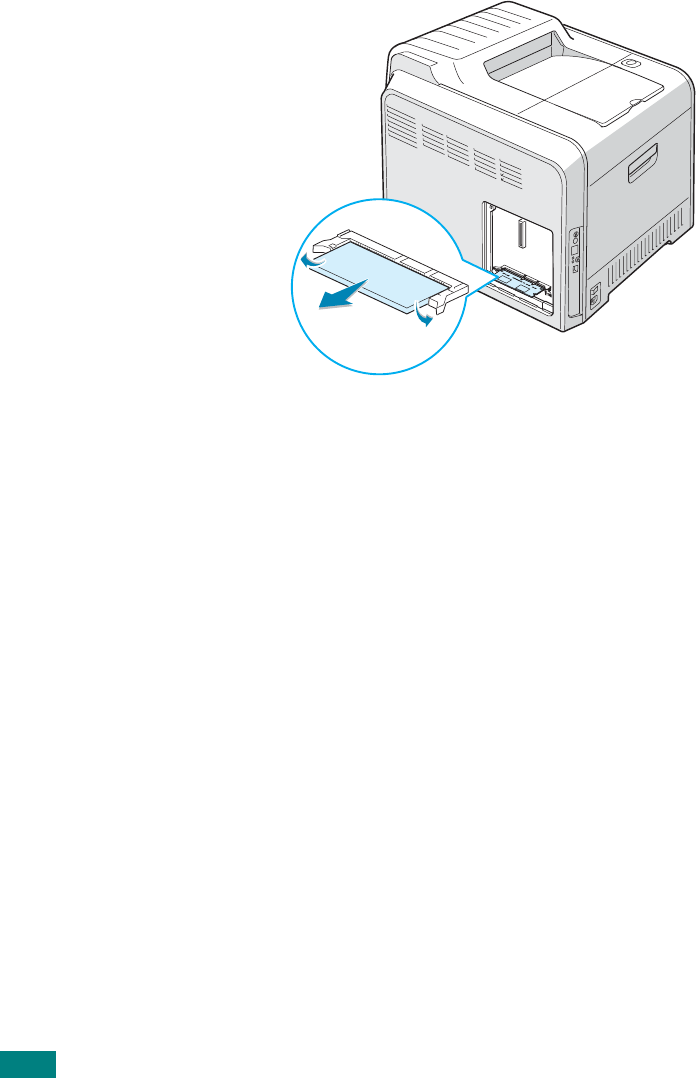

Locate the jammed paper, and then pull it out gently and

slowly to avoid the paper tearing. Go to step 8.

OTE

: If the paper tears, make sure that all of the paper

fragments are removed from the printer.

If you cannot find the jammed paper, or if there is any

resistance removing the paper, stop pulling and go to

step 3.

Using the handle, completely open the left cover until it is at

right angles to the main frame. The toner cartridges will

disengage automatically.

AUTION

: If the left cover is not completely open, the top cover

release button will remain locked.

OLVING

ROBLEMS

7.15

Press the top cover release button to unlatch the top cover

and open it all the way.

Locate the jammed paper, and then carefully take it out of

the printer.

AUTION

Do not touch the fuser. It is hot and could cause burns!

The fuser’s operating temperature is 180°C (356°F). Take care

when removing paper from the printer.

The fuser

is hot!

OLVING

ROBLEMS

7.16

After making sure that the left cover is open, close the top

cover. Make sure that it is securely latched.

AUTION

Do not try to close the left cover with the top cover

open. This may cause damage to the printer.

Close the left cover firmly.

Close the right cover. The printer will resume printing.

OLVING

ROBLEMS

7.17

In the Optional Tray2

If paper is jammed in the optional tray2, “Jam0 In Tray2”

appears on the display.

Using the handle, open the right cover.

Remove the jammed paper in the direction shown below. To

avoid the paper tearing, pull it out gently and slowly. Close

the right cover. The printer will resume printing.

If you cannot find the jammed paper, or if there is any

resistance removing the paper, stop pulling and go to

step 3.

OLVING

ROBLEMS

7.18

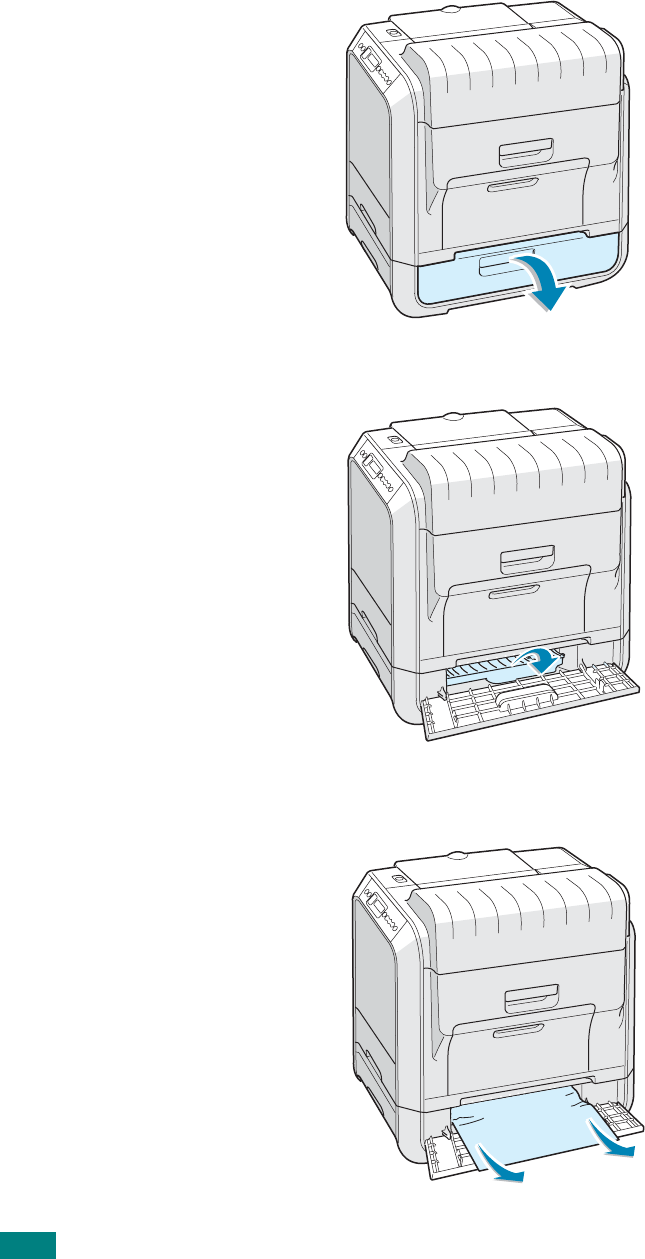

Open the outer jam cover in Tray 2.

Open the inner cover of Tray 2.

Pull the jammed paper out in the direction shown. To avoid

the paper tearing, pull it out gently and slowly.

OLVING

ROBLEMS

7.19

Close the two jam covers and go to step 10.

If you cannot find the jammed paper, or if there is any

resistance removing the paper, stop pulling and continue to

step 7.

Pull the optional tray2 open. After you pull it all the way

out, lift up the front part of the tray slightly to release the

tray from the printer.

OLVING

ROBLEMS

7.20

If you see the jammed paper, remove the paper from the

printer by gently pulling it straight out as shown below.

Slide the tray back into the printer and close the two jam

covers.

Open and close the right cover. The printer will resume

printing.

OLVING

ROBLEMS

7.21

Tips for Avoiding Paper Jams

By selecting the correct paper types, most paper jams can be

avoided. If a paper jam occurs, follow the steps outlined in

“Clearing Paper Jams” on page 7.6.

• Follow the procedures on page 3.4. Ensure that the adjustable

guides are positioned correctly.

• Do not overload the paper tray. Ensure that the paper is below

the paper limit mark on the inside wall of the tray.

• Do not remove the paper from the tray while printing.

• Flex, fan, and straighten the paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in a tray.

• Use only recommended print materials. See “Paper

Specifications” on page E.4.

• Ensure that the print side is facing down when loading paper

in a tray and in the Multi-purpose Tray.

OLVING

ROBLEMS

7.22

Solving Print Quality Problems

Dirt inside of the printer or improper paper loading may reduce

print quality. See the table below to troubleshoot the problem.

Problem Solution

Light or faded

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily

extend the toner cartridge life. See “Redistributing Toner” on

page 6.5. If this does not improve print quality, install a new

toner cartridge.

• The paper may not meet paper specifications (for example,

the paper is too moist or too rough). See “Paper

Specifications” on page E.4.

• A combination of faded or smeared defects may indicate that

the printer needs cleaning. See page 6.30.

• The surface of the LSU may be dirty. Clean the LSU. See

page 6.29.

Toner specs

• The paper may not meet specifications (for example, the

paper is too moist or too rough). See “Paper Specifications” on

page E.4.

• The transfer roller or the paper path may be dirty. See

“Cleaning the Inside of the Printer” on page 6.30.

Dropouts

If generally rounded, faded areas occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the

job.

• The moisture content of the paper is uneven or the paper has

moist spots on its surface. Try a different brand of paper. See

“Paper Specifications” on page E.4.

• The paper lot is bad. The manufacturing process can cause

some areas to reject toner. Try a different kind or brand of

paper.

• The toner cartridge may be defective. See “

Vertical repetitive

defects

” on the next page.

• If these steps do not correct the problems, contact a service

representative.

AaBbCc

OLVING

ROBLEMS

7.23

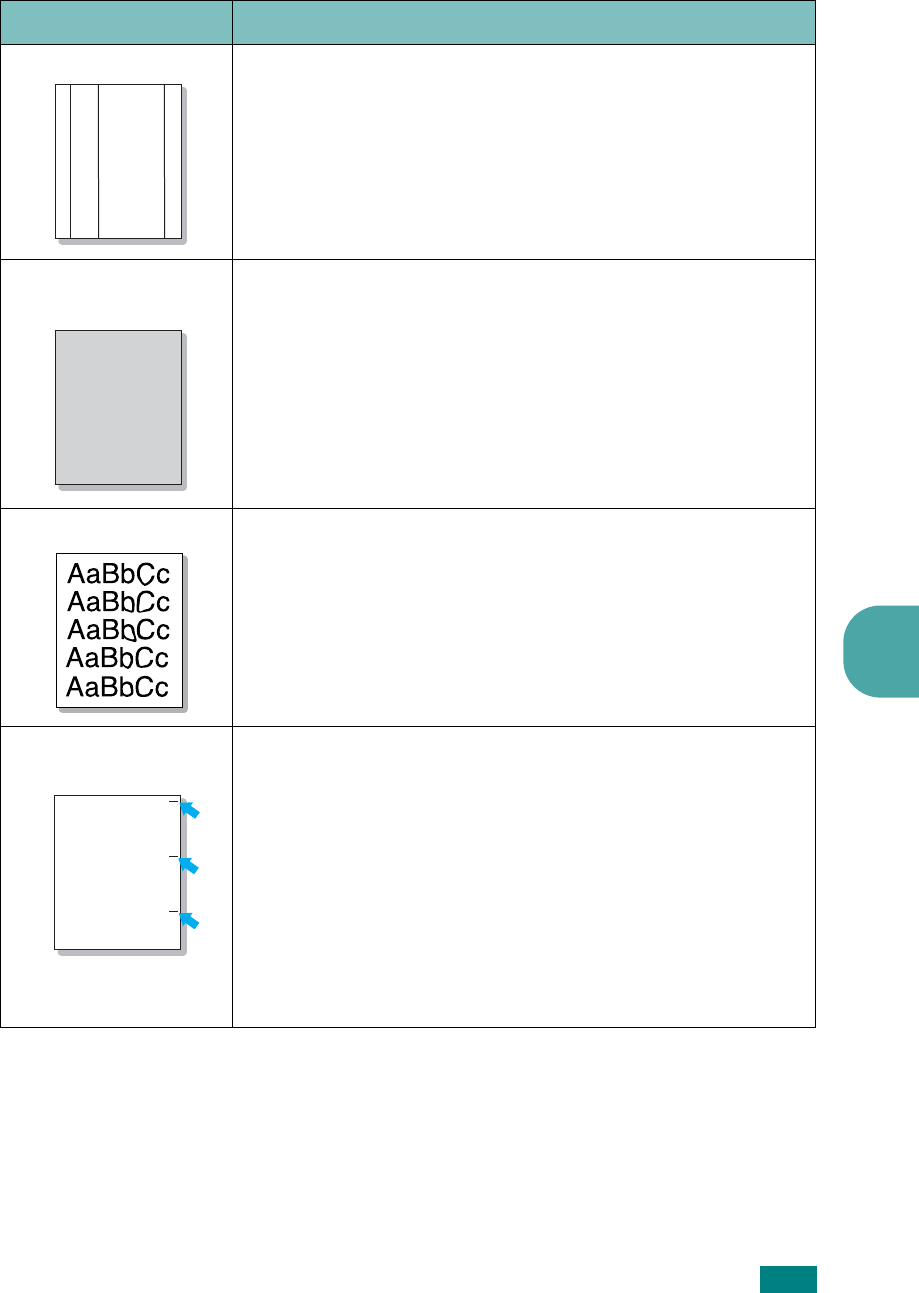

Vertical lines

If black vertical streaks appear on the page:

• The imaging unit inside the printer has probably been

scratched. Install a new imaging unit.

If white vertical lines appear on the page:

• The surface of the LSU may be dirty. Clean the LSU. See

page 6.29.

Color or Black

background

If the amount of background shading becomes unacceptable,

the procedures below may fix the problem.

• Change to lighter weight pages. See “Paper Specifications” on

page E.4.

• Check the printer’s environment; very dry (low humidity) or

high humidity (higher than 80% RH) conditions can increase

the amount of background shading.

• Remove the old imaging unit and install a new one. See

“Replacing the Imaging Unit” on page 6.14.

Toner smear

• Clean the inside of the printer. See “Cleaning the Inside of the

Printer” on page 6.30

• Check the paper type and quality. See “Paper Specifications”

on page E.4.

• Remove the transfer belt and install a new one. See “Replacing

the Transfer Belt” on page 6.22.

Vertical repetitive

defects

If marks repeatedly appear on the printed side of the page at

even intervals:

• Clean the inside of the printer. See “Cleaning the Inside of the

Printer” on page 6.30. After cleaning the inside of the printer,

if you still have the same problems, install a new toner

cartridge of the problem color. See “Replacing Toner

Cartridges” on page 6.8.

• Parts of the printer may have toner on them. If the defects

occur on the back of the page, the problem will likely correct

itself after a few more pages.

• The fusing assembly may be damaged. Contact a service

representative.

Problem Solution

AaBbCc

OLVING

ROBLEMS

7.24

Background scatter

Background scatter results from bits of toner distributed on the

printed page.

• The paper may be too damp. Try printing with a different batch

of paper. Do not open packages of paper until necessary so

that the paper does not absorb too much moisture.

• If background scatter occurs on an envelope, change the

printing layout to avoid printing over areas that have

overlapping seams on the reverse side. Printing on seams can

cause problems.

• If background scatter covers the entire surface area of a

printed page, adjust the print resolution through your software

application or via the printer properties window.

Misformed

characters

• If characters are improperly formed and producing hollowed

images, the paper stock may be too slick. Try a different paper.

See “Paper Specifications” on page E.4.

• If characters are improperly formed and producing a wavy

effect, the scanner unit may need service. Verify that it also

occurs on a demo page. Refer to the Setup Guide. For service,

contact a service representative.

Page skew

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper Specifications”

on page E.4.

• Ensure that the paper or other material is loaded correctly and

the guides are not too tight or too loose against the paper

stack.

Curl or wave

• Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high temperature and

humidity can cause paper curl. See “Paper Specifications” on

page E.4.

• Turn the stack of paper over in the tray. Also try rotating the

paper 180° in the tray.

Wrinkles or

creases

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper Specifications”

on page E.4.

• Turn the stack of paper over in the paper tray. Also try rotating

the paper 180° in the tray.

Problem Solution

aBbC

AaBbC

AaBbCc

aBbCc

OLVING

ROBLEMS

7.25

Back of printouts

are dirty

• The transfer roller may be dirty. See “Cleaning the Inside of

the Printer” on page 6.30.

• Check for leaking toner. Clean the inside of the printer.

Solid Color or

Black pages

• The imaging unit may not be installed properly. Remove the

imaging unit and reinsert.

• The imaging unit may be defective and need replacing. Install

a new imaging unit.

• The printer may require repair. Contact a service

representative.

Loose toner

• Clean the inside of the printer.

• Check the paper type and quality. See “Paper Specifications”

on page E.4.

• Install a new toner cartridge. See “Replacing Toner Cartridges”

on page 6.8.

• If the problem persists, the printer may require repair. Contact

a service representative.

Character Voids

Character voids are white areas within characters that should be

solid black:

• If you are using transparencies, try another type of

transparency. Due to the composition of the transparency,

some character voids may be normal.

• You may be printing on the wrong surface on the paper.

Remove the paper and turn it around.

• The paper may not meet paper specifications. See page E.4.

Horizontal stripes

If horizontally aligned color or black streaks or smears appear:

• The imaging unit may be installed improperly. Remove the

imaging unit and reinsert.

• The imaging unit may be defective. Install a new imaging unit.

See “Replacing the Imaging Unit” on page 6.14.

• If the problem persists, the printer may require repair. Contact

a service representative.

Problem Solution

AaBbCc

OLVING

ROBLEMS

7.26

Understanding Display Messages

Messages appear on the control panel display to indicate the

printer’s status or errors. Refer to the tables below to

understand the messages’ meaning and correct the problem if

necessary. Messages and their meanings are listed in

alphabetical order.

OTE

: When you call for service, it is very helpful to tell the

service

representative

the display message.

Curl

If the printed paper is curled or paper does not feed into the

printer:

• Turn the stack of paper over in the paper tray. Also try rotating

the paper 180° in the tray.

Problem Solution

Message Status Do this...

ADC Not

Confirm Error A problem has occurred in

the ADC in the printer. Contact a service representative.

Cover Open The top cover is open. Close the top cover firmly.

[Color] Toner

Empty The corresponding toner

cartridge in your printer is

empty and the printer

working.

Replace the corresponding toner

cartridge with a new one. See

page 6.8.

Dev. Motor

Error A problem has occurred in

the development motor of

the printer.

Unplug the power cord and plug it in

again. If the problem persists, call for

service.

Engine Fuser

Low Heat Error The temperature in the

fuser is abnormally low. Unplug the power cord and plug it in

again. If the problem persists, call for

service.

Engine Fuser

Over Heat Error The temperature in the

fuser is abnormally high. Unplug the power cord and plug it in

again. If the problem persists, call for

service.

OLVING

ROBLEMS

7.27

Engine LSU

Error A problem has occurred in

the LSU (Laser Scanning

Unit) in the printer.

Unplug the power cord and plug it in

again. If the problem persists, call for

service.

Install

[Color] Toner The indicated color toner

cartridge is not installed in

the printer.

Install the corresponding color toner

cartridge.

Install

Imaging Unit The imaging unit is not

installed in the printer. Install the imaging unit.

Install

Transfer Belt The transfer belt is not

installed in the printer. Install the transfer belt.

Invalid

Imaging Unit An invalid imaging unit is

installed. Only install a Samsung-approved

imaging unit, designed for your

printer. If you have installed an

approved imaging unit and this error

still occurs, contact an authorized

service agent.

Invalid

Transfer Belt An invalid transfer belt is

installed. Only install a Samsung-approved

transfer belt, designed for your

printer. If you have installed an

approved transfer belt and this error

still occurs, contact an authorized

service agent.

Invalid Toner

[Color] An invalid toner cartridge

is installed. Only install a Samsung-approved

toner cartridge, designed for your

printer. If you have installed an

approved toner cartridge and this

error still occurs, contact an

authorized service agent.

Jam0 In Tray1

Jam0 In Tray2

Jam0 In MP Tray

A paper jam has occurred

from the indicated tray. Remove the jammed paper from the

corresponding tray, referring to

page 7.7.

Jam

In Duplex Path A paper jam has occurred

while printing on both

sides of the paper.

Remove the jammed paper from the

printer, referring to page 7.13.

Jam

In Exit Area A paper jam has occurred

in the paper exit area. Remove the jammed paper from the

printer, referring to page 7.10.

Message Status Do this...

OLVING

ROBLEMS

7.28

Jam

Inside Printer A paper jam has occurred

inside the printer. Open the right cover and remove the

jammed paper from the printer,

referring to page 7.9.

Lever Unlocking

Error After installing a transfer

belt, the lock levers has

not been locked.

Push the lock levers on each side

away from you, referring to

page 6.27.

Press

Continue Button The printer is waiting for

the user’s action before

printing from the manual

feeder.

Load a sheet of print material and

press the

On Line/Continue

button. You need to press the button

for each page to be printed.

Load

[Size] In Tray1

Load

[Size] In Tray2

Load

[Size] In MP

The paper size specified in

the printer properties

does not match the paper

you are loading.

Load the correct paper in the tray

Main Motor

Error A problem has occurred in

the main motor of the

printer.

Unplug the power cord and plug it in

again. If the problem persists, call for

service.

Memory Overflow The printer does not have

enough memory to print

the current job.

An error has occurred in

the firmware program of

the printer.

The job automatically clears and the

printer returns to Standby Mode.

• Expand the memory in your printer.

See “Installing Additional Printer

Memory” on page D.2.

Paper Empty

[Size] In Tray1

Paper Empty

[Size] In Tray2

Paper Empty

[Size] In Mp

Paper Empty

[Size] In Manual

The paper tray has run

out of paper. Load paper in the paper tray. See

page 3.4.

Page Too Complex Too much complicated

data was sent to the

printer.

Simplify the page layout and remove

unnecessary graphics from your

document.

To expand the memory in your

printer, see “Installing Additional

Printer Memory” on page D.2.

Ready

[Color]Low Toner The corresponding toner

cartridge in your printer is

low on toner.

Redistribute the toner in the

corresponding toner cartridge,

referring to page 6.5.

Message Status Do this...

OLVING

ROBLEMS

7.29

Ready

IP Conflict An IP address conflicts

with other devices on the

network.

Contact your network administrator

and choose an address within your

subnet which will not conflict with

any other devices.

Replace [Color]

Toner The corresponding toner

cartridge in your printer is

nearly empty. However,

the printer continues

printing, even though

print quality is not

optimal.

If necessary, replace the

corresponding toner cartridge with a

new one. See page 6.8.

Replace Fuser The life span of the fuser

has expired. Contact a service representative.

Replace Fuser Soon The life span of the fuser

will expire soon. When “Replace Fuser” appears on the

display, replace the fuser.

Replace

Imaging Unit The life span of the

imaging unit has expired. Replace the imaging unit with a new

one. See page 6.14.

Replace Imaging

Unit Soon The life span of the

imaging unit will expire

soon.

When “Replace Imaging Unit”

appears on the display, replace the

imaging unit.

Replace MP

Pick-Roller The life span of the MP

pickup roller has expired. Contact a service representative.

Replace

Transfer Belt The life span of the

transfer belt has expired. Replace the transfer belt with a new

one. See page 6.22.

Replace Transfer

Belt Soon The life span of the

transfer belt will expire

soon.

When “Replace Transfer Belt” appears

on the display, replace the transfer

belt.

Replace

Transfer Roller The life span of the

Transfer Roller has

expired.

Contact a service representative.

Replace Transfer

Roller Soon The life span of the

Transfer Roller will expire

soon.

When “Replace Transfer Roller”

appears on the display, contact a

service representative.

Replace Tray1

Pick-Roller The life span of the Tray1

pickup roller has expired. Contact a service representative.

Replace Tray2

Pick-Roller The life span of the Tray2

pickup roller has expired. Contact a service representative.

Message Status Do this...

OLVING

ROBLEMS

7.30

Common Windows Problems

OTE

: Refer to the Microsoft Windows 9x/Me/NT 4.0/2000/2003/

XP User’s Guide that came with your PC for further information on

Windows error messages.

Transfer Belt

Error The transfer belt is either

not working or not

correctly installed in the

printer.

Replace the transfer belt.

Make sure the installed transfer belt

is properly seated.

Tray2 Error Optional Tray2 is not

properly installed or

connected to the printer.

After turn the printer off and then

back on, reinstall the optional tray2.

If the message persists, contact a

service representative.

Tray2 Jam

Cover Open Tray2 jam cover is open. Close Tray2 cover firmly.

Waste Motor

Error A problem has occurred in

the waste toner motor. Contact a service representative.

Replace/Install

Waste Toner Tank The waste toner container

is full. Replace the waste toner container

with a new one. See page 6.11.

Message Status Do this...

Problem Possible Cause and Solution

“File in Use” message

appears during installation. Exit all software applications. Remove all software from the

StartUp Group, then restart Windows. Reinstall the printer

driver.

“Error Writing to LPTx”

message appears. • Ensure that the cables are connected correctly and the

printer is on.

• If bi-directional communication is not turned on in the

driver, it will also cause this message.

“General Protection Fault”,

“Exception OE”, “Spool32”,

or “Illegal Operation”

messages appear.

Close all other applications, reboot Windows and try

printing again.

“Fail To Print”, “A printer

timeout error occurred.”

messages appear.

These messages may appear during printing. Just keep

waiting until the printer finishes printing. If the message

appears in standby mode or after printing is complete,

check the connection and/or whether an error occurred.

OLVING

ROBLEMS

7.31

Common Macintosh Problems

Common Linux Problems

Problem Possible Cause and Solution

The printer does not

print a document from

Acrobat Reader.

You should change the Print Method option to

Print as Image

when you print with Acrobat Reader.

The document is

printed, but the print

job does not disappear

from the spooler in Mac

OS 10.3.2.

Update your Mac OS to OS 10.3.3 or higher.

Problem Possible Cause and Solution

I can’t change settings in

the configuration tool. You need to have administrator privileges to be able to change

global settings.

I am using the KDE

desktop but the

configuration tool and LLPR

won’t start.

You may not have the GTK libraries installed. These usually

come with most Linux distributions, but you may have to

install them manually. Refer to your distribution’s installation

manual for more details about installing additional packages.

I just installed this

package but can’t find

entries in the KDE/Gnome

menus.

Some versions of the KDE or GNOME desktop environments

may require that you restart your session for the changes to

take effect.

I get a “Some options are

not selected” error

message while editing the

printer settings.

Some printers have conflicting settings, meaning that some

settings for two options can’t be selected at the same time.

When you change a setting and the Printer Package detects

such a conflict, the conflicting option is changed to a “No

Choice” value. You have to choose an option that does not

conflict before being able to submit the changes.

OLVING

ROBLEMS

7.32

I can’t make a printer the

system default. In some conditions, it may not be possible to change the

default queue. This happens with some variants of LPRng,

especially on recent RedHat systems that use the “printconf”

database of queues.

When using printconf, the

/etc./printcap

file is

automatically refreshed from the database of printers

managed by the system (usually through the “printtool”

command), and the queues in

/etc./printcap.local

are

appended to the resulting file. The default queue in LPRng is

defined as the first queue in

/etc./printcap

, therefore it is

not possible for the Linux Printer Package to change the

default when some queues have otherwise been defined using

printtool.

LPD systems identify the default queue as the one named “lp”.

Thus, if there is already a queue by this name, and if it

doesn’t have an alias, then you won’t be able to change the

default. To work around this, you can either delete the queue

or rename it by manually editing the

/etc./printcap

file.

The N-up setting does not

work correctly for some of

my documents.

The N-up feature is achieved through post-processing of the

PostScript data that is being sent to the printing system.

However, such post-processing can only be adequately

achieved if the PostScript data conforms to the Adobe

Document Structing Conventions. Problems may arise when

using N-up and other features relying on post-processing if

the document being printed isn’t compliant.

I am using BSD lpr

(Slackware, Debian, older

distributions) and some

options chosen in LLPR

don’t seem to take effect.

Legacy BSD lpr systems have a hard limitation on the length

of the option string that can be passed to the printing system.

As such, if you selected a number of different options, you

may have exceeded the length of the options and some of

your choices won’t be passed to the programs responsible for

implementing them. Try to select fewer options that deviate

from the defaults, to save on memory usage.

I am trying to print a

document in Landscape

mode, but it prints rotated

and cropped.

Most Unix applications that offer a Landscape orientation

option in their printing options will generate correct PostScript

code that should be printed as is. In that case, you need to

make sure that you leave the LLPR option set to its default

Portrait setting, to avoid unwanted rotations of the page that

would result in cropped output.

Some pages come out all

white (nothing is printed),

and I am using CUPS.

If the data being sent is in Encapsulated PostScript (EPS)

format, some earlier versions of CUPS (1.1.10 and before)

have a bug preventing them from being processed correctly.

When going through LLPR to print, the Printer Package will

work around this issue by converting the data to regular

PostScript. However, if your application bypasses LLPR and

feeds EPS data to CUPS, the document may not print

correctly.

Problem Possible Cause and Solution

OLVING

ROBLEMS

7.33

I can’t print to an SMB

(Windows) printer. To be able to configure and use SMB-shared printers (such as

printers shared on a Windows printer), you need to have a

correct installation of the SAMBA package that enables that

feature. The “smbclient” command should be available and

usable on your system.

My application seems to be

frozen while LLPR is

running.

Most Unix applications will expect a command like the regular

“lpr” command to be non-interactive and thus return

immediately. Since LLPR is waiting for user input before

passing the job on to the print spooler, very often the

application will wait for the process to return, and thus will

appear to be frozen (its windows won’t refresh). This is

normal and the application should resume functioning

correctly after the user exits LLPR.

How do I specify the IP

address of my SMB server? It can be specified in the “Add Printer” dialogue of the

configuration tool, if you don’t use the CUPS printing system.

Unfortunately, CUPS currently doesn’t allow you to specify the

IP address of SMB printers, so you will have to be able to

browse the resource with SAMBA in order to be able to print.

Some documents come out

as white pages when

printing.

Some versions of CUPS, especially those shipped with

Mandrake Linux before the 8.1 release, have some known

bugs when processing PostScript output from some

applications. Try upgrading to the latest version of CUPS (at

least 1.1.14). Some RPM packages for the most popular

distributions are provided as a convenience with this Linux

Printing Package.

I have CUPS and some

options (such as N-up)

seem to be always enabled

even though I don’t choose

them in LLPR.

There may be some local options defined in your

.lpoptions

file, which are manipulated by the lpoptions

command. These options are always used if not overridden by

LLPR settings. To get rid of all options for a printer, run the

following command, replacing “printer” with the name of the

queue: lpoptions -x printer

I configured a printer to

print to a file, but I get

“Permission denied” errors.

Most printing systems will not run as the super-user but as a

special user (usually “lp”). Therefore, make sure that the file

you have chosen to print to is accessible to the user owning

the spooler daemon.

On my PCL (or GDI)

printer, I sometimes get

error messages printing

instead of my document.

Unfortunately, some Unix applications may generate non-

compliant PostScript output that may not be supported by

Ghostscript, or even the printer itself in PostScript mode. You

can try to capture the output to a file and view the results

with Ghostscript (gv or ghostview will allow you to do so

interactively) and see if you get error messages. However,

since the application is probably at fault, contact your

software vendor to inform them of the issue.

Problem Possible Cause and Solution

OLVING

ROBLEMS

7.34

Some color images come

out all black. This is a known bug in Ghostscript (until GNU Ghostscript

version 7.05) when the base color space of the document is

indexed color space and it is converted through CIE color

space. Because Postscript uses CIE color space for Color

Matching System, you should upgrade Ghostscript on your

system to at least GNU Ghostscript version 7.06 or later. You

can find recent Ghostscript versions at www.ghostscript.com.

Problem Possible Cause and Solution

Your printer supports Macintosh systems with a built-in USB

interface or 10/100 Base-TX network interface card (option for

CLP-510). When you print a file from a Macintosh computer,

you can use the CUPS driver by installing the PPD file.

This chapter includes:

• Installing Software for Macintosh

• Setting Up the Printer

• Printing a Document

• Using Advanced Printing Features

USING YOUR PRINTER WITH

A MACINTOSH

A.2

Installing Software for Macintosh

The CD-ROM that came with your printer provides you with the

PPD file to use the CUPS driver, Apple LaserWriter driver, for

printing on a Macintosh computer.

Refer to the table below for the driver available for your printer,

and for system requirements.

Verify the following before you install the printer software:

Make sure that you connect the printer to the computer.

Turn on your computer and printer.

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

Double-click the

SAMSUNG_CLP

on your Macintosh

desktop.

Double-click the

Installer

folder.

Double-click the

Samsung SPLC Installer

icon.

Enter the password and click

Click

Continue

and then click

Continue

Your

Printer Available

Driver Connection System

Requirements

CLP-510

CLP-510N CUPS driver USB interface Mac OS 10.3.x

Network

interface

Item Requirements

Operating system Mac OS 10.3.x

RAM 128 MB

Free disk space 200 MB

SING

OUR

RINTER

WITH

ACINTOSH

A.5

A.3

The Samsung SPLC Installer window opens. Select

Easy

Install

Click

Install

After the installation is finished, click

Quit

Uninstalling the Software

Uninstall is required if you are upgrading the software, or if your

installation fails.

Insert the CD-ROM which came with your printer into the

CD-ROM drive.

Double-click

SAMSUNG_CLP

on your Macintosh desktop.

Double-click the

Installer

folder.

Double-click the

Samsung SPLC Installer

icon.

Enter the password and click

The Samsung SPLC Installer window opens. Select

Uninstall

When the uninstallation is done, click

Quit

SING

OUR

RINTER

WITH

ACINTOSH

A.4

Setting Up the Printer

Set up for your printer will be different depending on which cable

you use to connect the printer to your computer—the network

cable or the USB cable.

For a Network-connected Macintosh

Follow the instructions on page A.2 to install the PPD file on

your computer.

For Macintosh OS 10.3.x, open

Print Setup Utility

from

the Utilities folder.

Click

Add

on the Printer List.

Select the

IP Printing

tab.

Enter the printer’s IP address in the

Printer Address

field.

Enter the queue name in the

Queue Name

field. If you

cannot determine the queue name for your printer server,

try using the default queue first.

Select

Samsung

in Printer Model and

CLP-510

in Model Name.

Click

Add

Your printer’s IP address appears on the Printer List, and is

set as the default printer.

SING

OUR

RINTER

WITH

ACINTOSH

A.5

For a USB-connected Macintosh

Follow the instructions on page A.2 to install the PPD file on

your computer.

For Macintosh OS 10.3.x, open

Print Setup Utility

from

the Utilities folder.

Click

Add

on the Printer List.

Select the

USB

tab.

Select

Samsung

in Printer Model and

CLP-510

in Model

Name.

Click

Add

Your printer appears on the Printer List, and is set as the

default printer.

SING

OUR

RINTER

WITH

ACINTOSH

A.6

Printing a Document

When you print with a Macintosh, you need to check the printer

software setting in each application you use. Follow these steps

to print from a Macintosh.

Open a Macintosh application and select the file you want to

print.

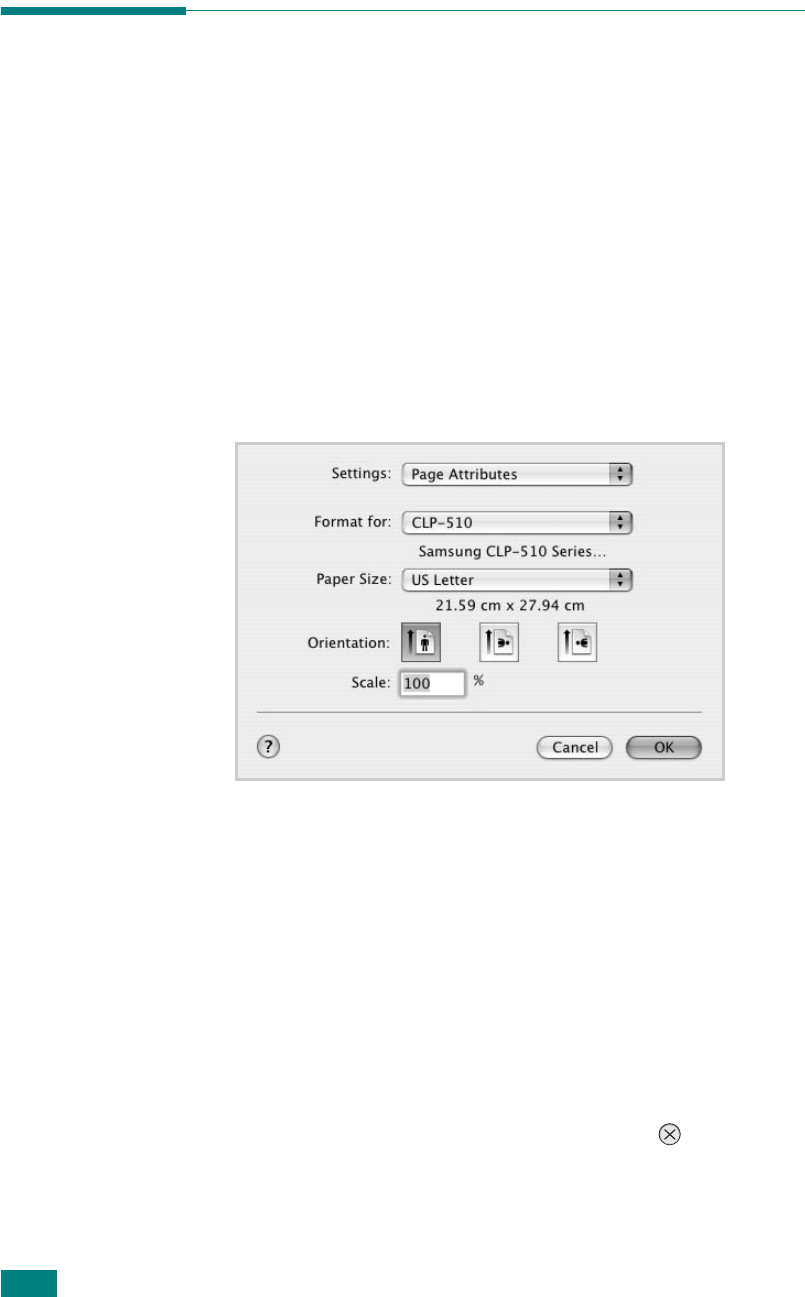

Open the

File

menu and click

Page Setup

(

Document

Setup

in some applications).

Choose your paper size, orientation, scaling, and other

options and click

Open the

File

menu and click

Choose the number of copies you want and indicate which

pages you want to print.

Click

when you finish setting the options.

Canceling a Print Job

To cancel a print job, press the

Cancel

button ( ) on the

control panel. The printer finishes printing the page that is

moving through the printer and deletes the rest of the print job.

▲

Mac OS 10.3

SING

OUR

RINTER

WITH

ACINTOSH

A.7

Using Advanced Printing Features

- Printing Multiple Pages on One Sheet of Paper

- Duplex Printing

- Scheduling a Print Job

Printing Multiple Pages on One Sheet of Paper

You can print more than one page on a single sheet of paper.

This feature provides a cost-effective way to print draft pages.

From your Macintosh application, select

from the

File

menu.

Select the

Layout

Select the number of pages you want to print on one sheet

of paper on the

Pages per Sheet

drop-down list.

Select the page order on the

Layout Direction

option.

To print a border around each page on the sheet, select the

option you want on the

Border

drop-down list.

Click

, and the printer prints the selected number of

pages on one side of each page.

▲

Mac OS 10.3

SING

OUR

RINTER

WITH

ACINTOSH

A.8

Duplex Printing

You can print on both sides of the paper. Before printing in the

duplex mode, decide on which edge you will be binding your

finished document. The binding options are:

AUTION

If you have selected duplex printing and then try to

print multiple copies of a document, the printer may not print

the document in the way you want. In case of "Collated copy" ,

if your document has odd pages, the last page of the first copy

and the first page of the next copy will be printed on the front

and back of one sheet. In case of "Uncollated copy", the same

page will be printed on the front and back of one sheet.

Therefore, if you need multiple copies of a document and you

want those copies on both sides of the paper, you must print

them one at a time, as separate print jobs

Long-Edge Binding

: Which is the conventional layout used in

book binding.

Short-Edge Binding

: Which is the type often used with

calendars.

From your Macintosh application, select

from the

File

menu.

Select the

Layout

Select a binding orientation from

Two Sided Printing

option.

Click

and the printer prints on both sides of the paper.

▲

Mac OS 10.3

SING

OUR

RINTER

WITH

ACINTOSH

A.9

Scheduling a Print Job

You can set your printer to print a job at a future time.

From your Macintosh application, select

from the

File

menu.

Select

Scheduler

Select the time at which you want the print job to be

printed.

•

Now

: The printer prints a job immediately.

•

: The printer prints a job at the time you set in the field.

•

On Hold

: The printer holds a print job in the print queue

until you are ready to release it.

Select a priority for your print job on the

Priority

drop-

down list.

Click

▲

Mac OS 10.3

SING

OUR

RINTER

WITH

ACINTOSH

A.10

EMO

SING

OUR

RINTER

WITH

ACINTOSH

You can use your printer in a Linux environment.

This chapter includes:

• Installing the Printer Driver

• Using the Configuration Tool

• Changing LLPR Properties

SING

OUR

RINTER

INUX

SING

OUR

RINTER

INUX

B.2

Installing the Printer Driver

System Requirements

Supported OS

• Redhat 6.2/7.0/7.1 and above

• Linux Mandrake 7.1/8.0 and above

• SuSE 6.4/7.0/7.1 and above

• Debian 2.2 and above

• Caldera OpenLinux 2.3/2.4 and above

• Turbo Linux 6.0 and above

• Slackware 7.0/7.1 and above

Recommended Capacities

• Pentium IV 1 GHz or higher

• RAM 256 MB or higher

• HDD 1 GB or higher

Software

• Glibc 2.1 or higher

• GTK+ 1.2 or higher

• GhostScript

Installing the Printer Driver

Make sure that you connect the printer to your computer.

Turn both the computer and the printer on.

When the Administrator Login window appears, type in

“

root

” in the Login field and enter the system password.

OTE

: You must log in as a super user (root) to install the printer

software. If you are not the super user, ask your system

administrator.

SING

OUR

RINTER

INUX

B.3

Insert the printer software CD-ROM. The CD-ROM

automatically runs.

OTE

: If the CD-ROM does not automatically run, click the

icon at the bottom of the window. When the Terminal screen

appears, type in:

[root@local /root]#

cd /mnt/cdrom

(the CD-ROM directory)

[root@local cdrom]#

./setup.sh

Select the installation type, either

Recommended

Expert

, and then click

Continue

Recommended

is fully automated and no interaction is

required.

Expert

installation allows you to select the install

path or printing system.

If you selected

Recommended

, go to step 6.

For

Expert

, select an option and then click

Begin Install

SING

OUR

RINTER

INUX

B.4

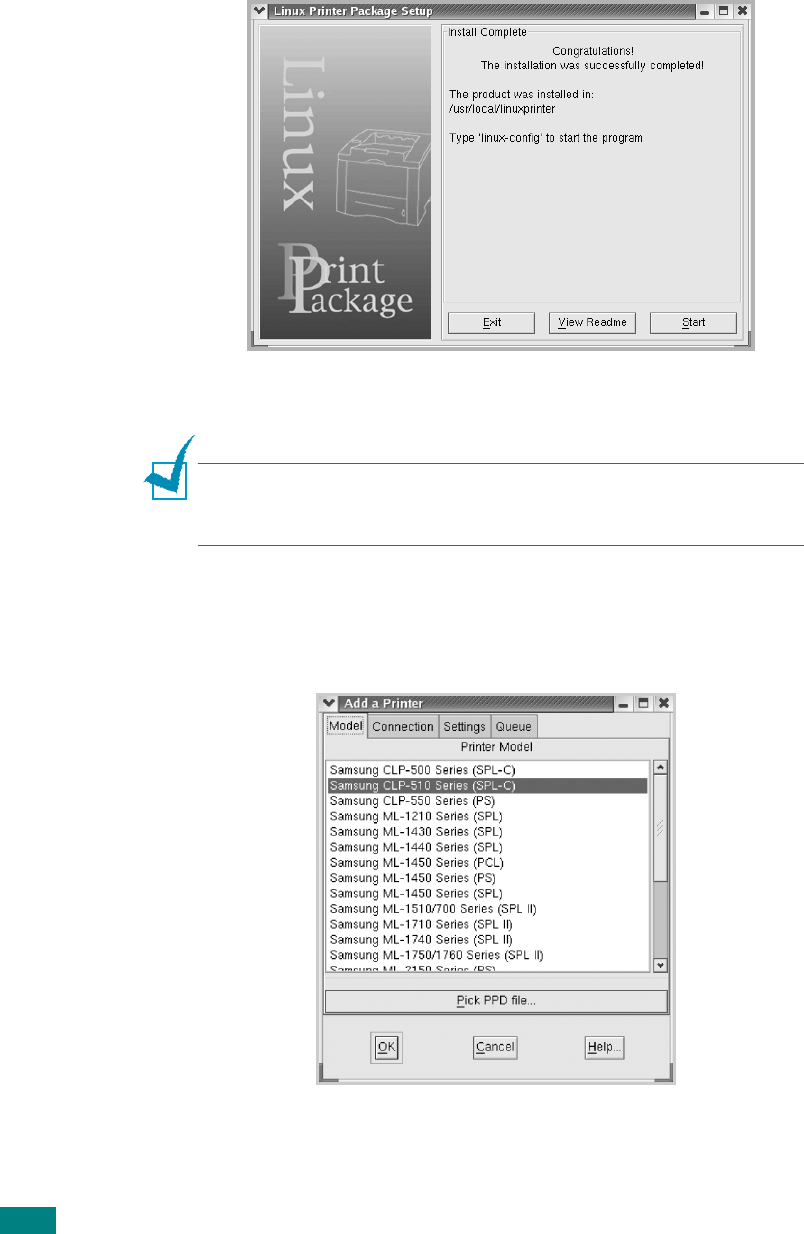

The printer driver installation begins. When the installation

is complete, click

Start

The Linux Printer Configuration window opens. Click the

Add Printer

icon on the tool bar at the top of the window.

OTE

: Depending on the printing system in use, the Administrator

root

” in the Login field and

enter the system password.

You see the printers currently installed on your system.

Select the printer you want to use. The function tabs

available for the selected printer appear at the top of the

Add a Printer window.

SING

OUR

RINTER

INUX

B.5

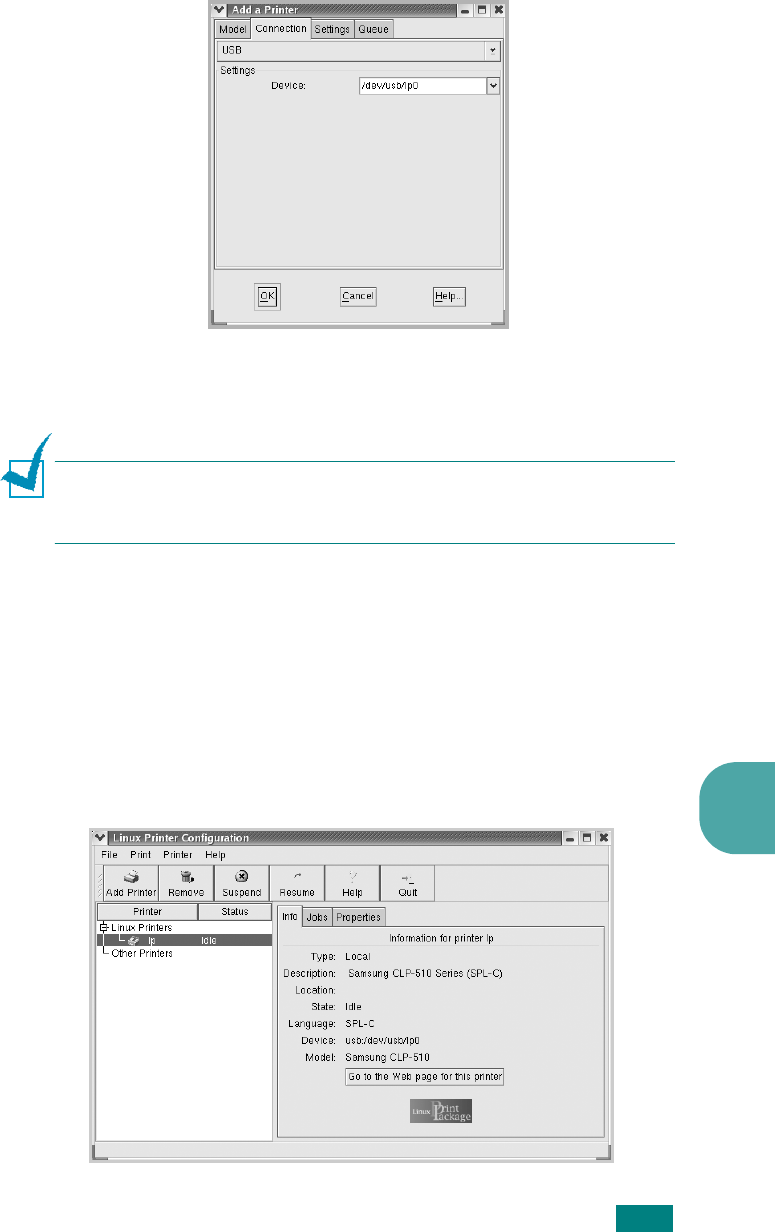

Click the

Connection

tab and ensure that the printer port is

set properly. If not, change the device setting.

You can use the

Settings

tab and the

Queue

tab to view the

printer’s current settings. If necessary, you can change the

settings.

OTE

: The options may differ depending on the printer in use. The

Description and the Location field in the Queue screen may not

appear depending on the printing system in use.

To exit, click

When the window prompts that the new printer is

successfully configured, click

The Linux Printer Configuration window reappears. You can

view the information about your printer from the

Info

tab. If

necessary, you can change the printer’s configuration. For

details about changing the printer’s configuration, see “Using

the Configuration Tool” on page B.8.

SING

OUR

RINTER

INUX

B.6

Changing the Printer Connection Method

If you change the printer connection method from USB to

parallel or vice versa while in use, you must re-configure your

Linux printer by adding the printer to your system. Take the

following steps:

Make sure that you connect the printer to your computer.

Turn both the computer and the printer on.

When the Administrator Login window appears, type in

“

root

” in the Login field and enter the system password.

OTE

: You must log in as a super user (root) to install a new

printer to the printing system. If you are not the super user, ask

your system administrator.

From the Startup Menu icon at the bottom of the desktop,

select

Linux Printer

and then

Configuration Tool

You can also access the Linux Printer Configuration window

by typing “

linux-config

” in the Terminal screen.

When the Linux Printer Configuration window appears, click

the

Add Printer

icon on the tool bar at the top of the

window.

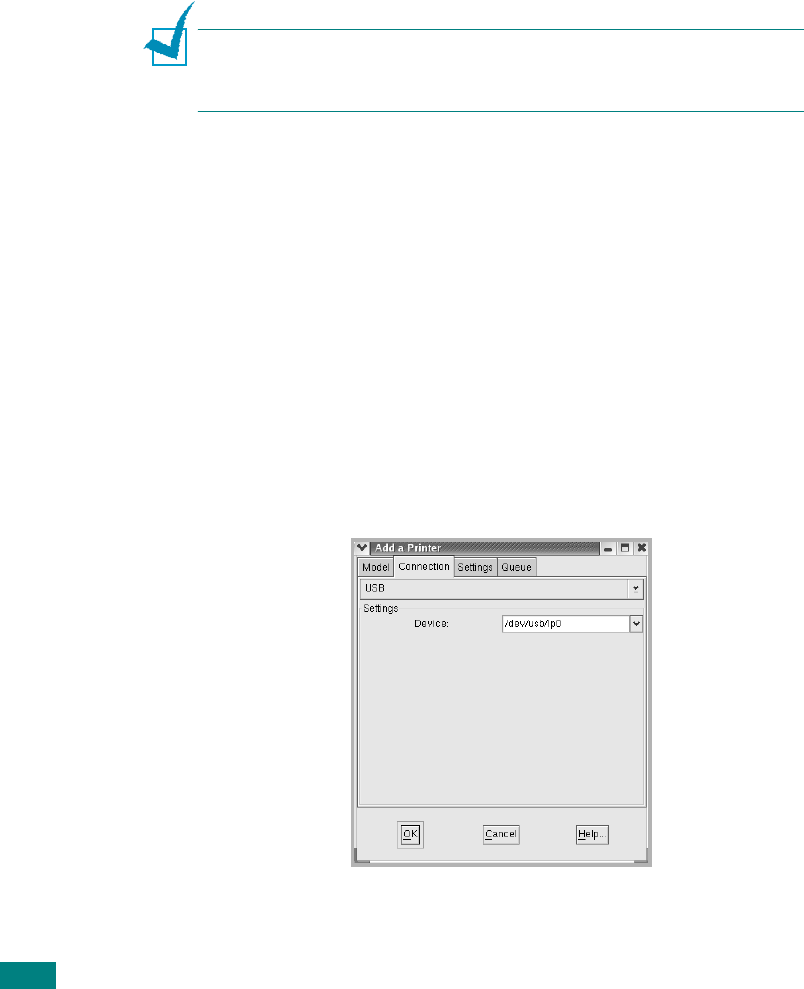

Click the

Connection

tab at the top of the Add a Printer

window.

Ensure that the printer port is set properly. If not, change

the device setting.

Click

SING

OUR

RINTER

INUX

B.7

Uninstalling the Printer Driver

From the Startup Menu icon at the bottom of the desktop,

select

Other

and then

Configuration Tool

You can also access the Linux Printer Configuration window

by typing “

linux-config

” in the Terminal screen.

In the Linux Printer Configuration window, select the

Uninstall

command from the

File

menu.

The Administrator Login window appears. Type in “

root

” in

the Login field and enter the system password. Click

Proceed

OTE

: You must log in as a super user (root) to uninstall the

printer software. If you are not the super user, ask your system

administrator.

A message window appears asking you to confirm the

uninstallation. Click

Yes

Select

Complete uninstall

and then click

Uninstall

SING

OUR

RINTER

INUX

B.8

Click

to begin uninstallation.

When the uninstallation is complete, click

Finished

Using the Configuration Tool

The configuration tool accesses administrative tasks, including

adding and removing a new printer, and changing their global

settings. Regular users can also run it to easily inspect job

queues, examine the printer properties and change their local

preferences.

To access the Configuration Tool:

From the Startup Menu icon at the bottom of the screen,

select

Linux Printer

and then

Configuration Tool

. The

Linux Printer Configuration window appears.

You can also open this window from the Terminal screen by

typing in “

linux-config

.”

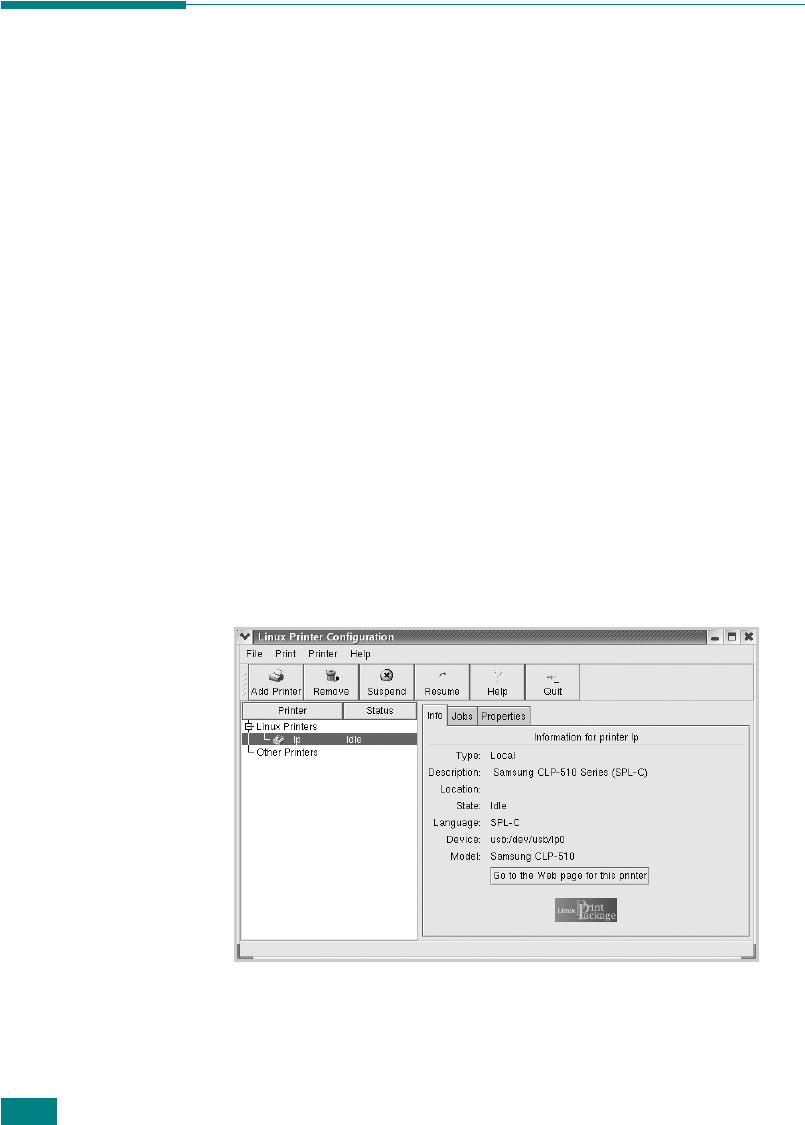

The Linux Printer Configuration window shows a list of

installed printers in the left pane. The right pane shows a

number of tabs that display information regarding the

currently selected printer.

Select your printer, if not currently selected.

SING

OUR

RINTER

INUX

B.9

The

Info

tab shows general information about the printer.

If you are an Internet user, you can click

Go to the Web

page for this printer

to access the printer’s web page.

Click the

Jobs

tab to inspect and manage the job queue for

the selected printer. You can suspend, resume, or delete a

specific job(s) in the queue. If you drag a specific job(s),

you can drop it into the print queue of another printer.

The

Properties

tab allows you to change the default printer

settings.

OTE

: Regular users are able to override the system-wide default

settings defined by the administrator. When a regular user clicks

Apply

, these custom settings are saved in the user’s profile and

may be later used with LLPR. If the administrator is running the

configuration tool, then the settings are saved as the new global

defaults.

SING

OUR

RINTER

INUX

B.10

Changing LLPR Properties

You can fine-tune the printer’s properties by opening the LLPR

Properties window.

To open the LLPR Properties window:

From the application you are using, select the

command.

When the Linux LPR window opens, click

Properties

You can also open the LLPR window:

• Click the Startup Menu icon at the bottom of the screen

and select

Linux Printer

and then

Linux LPR

• If the Linux Printer Configuration window is currently

open, select

Test Print

from the

menu.

Click

Properties.

SING

OUR

RINTER

INUX

B.11

The LLPR Properties window opens.

The following six tabs are at the top of the window:

•

General

- allows you to change the paper size, the paper

type, the paper source, the orientation of documents;

enables the duplex feature, adds start and end banners,

and changes the number of pages per sheet.

AUTION

: When you print color documents on transparencies,

color print quality problems may be occured.

•

Margins

- allows you to specify page margins. The graphic

on the right shows the current settings. These margins do

not apply when printing regular PostScript data.

•


- allows you to set image options that are used when

printing image files, i.e., when a non-PostScript document is

passed to LLPR on the command line. Color settings will also

take effect for postscript documents.

•

Text

- allows you to select the density of the text and turn

the syntax coloring on or off.

•

HP-GL/2

- allows you to set default options to print

documents in the HP-GL/2 format, which is used by some

plotters.

•

Advanced

- allows you to override the default settings for

the printer.

If you click the

Save

button at the bottom of the window, the

options are kept between LLPR sessions.

Use the

Help

button to view details about the options in the

window.

To apply the options, click

in the

LLPR Properties

window.

You are returned to the

Linux LPR

window. To start printing,

click

SING

OUR

RINTER

INUX

B.12

MEMO

If you work in a networked environment, the printer can be

shared by other users on the network.

This chapter includes:

• About Sharing the Printer on a Network

• Setting Up a Locally Shared Printer

• Setting Up a Network-Connected Printer

OTE

: If you are a CLP-510 user, you need to install an

optional network interface card. For more information, see

Appendix D, "Installing Printer Options".

SING

OUR

RINTER

ETWORK

C.2

About Sharing the Printer on a

Network

If you work in a networked environment, you can connect your

printer to the network.

Locally-Shared Printer

You can connect the printer directly to a selected computer, which

is called the “host computer” on the network. The printer can then

be shared by other users on the network through a Windows 9x/Me/

XP/NT 4.0/2000/2003 network printer connection.

Wired Network-connected Printer

A CLP-510N printer has a built-in network interface. For more

information about connecting your printer to the network, see

page D.11.

To use a CLP-510 printer as a network printer, you need to install

an optional network interface card in your printer. See page D.7

for information about installing the card.

Wireless Network-connected Printer

To use your printer in a wireless network environment, you need

to install an optional wired/wireless network interface card in

your printer. See page D.7.

Printing Across a Network

Whether the printer is locally connected or network-connected,

you need to install the CLP-510 series printer software on each

computer that prints documents using the printer.

SING

OUR

RINTER

ETWORK

C.3

Setting Up a Locally Shared Printer

In Windows 95/98/Me

OTE

: Windows 95 is only supported on the CLP-510N.

Setting Up the Host Computer

Start Windows.

From the

Start

menu, select

Control Panel

from

Settings

and double-click on the

Network

icon.

Check the

File and Print Sharing

box, and click

. Close

the window.

From the

Start

menu, select

Printers

from

Settings

and

double-click your printer name.

Select

Properties

in the

Printer

menu.

Click the

Sharing

tab and check the

Shared As

box. Fill in

the

Shared Name

field and click

Setting Up the Client Computer

Right-click the Windows

Start

button and select

Explorer

Open your network folder in the left column.

Right-click the shared name and select

Capture Printer Port

Select the port you want, check the

Reconnect at log on

box

, and click

From the

Start

menu, select

Settings

and then

Printers

Double-click your printer icon.

From the

Printer

menu, select

Properties

From the

Details

tab, select the printer port and click

SING

OUR

RINTER

ETWORK

C.4

In Windows NT 4.0/2000/2003/XP

OTE

: Windows NT 4.0 is only supported on the CLP-510N.

Setting Up the Host Computer

Start Windows.

For Windows NT 4.0/2000, select

Settings

, and

Printers

from the Start menu.

For Windows XP/2003, select

Printers and Faxes

from the

Start menu.

Double-click your printer icon.

From the

Printer

menu, select

Sharing

For Windows NT 4.0, check the

Shared

box.

For Windows 2000, check the

Shared As

box.

For Windows XP/2003, check the

Share this printer

box.

Fill in the

Shared Name

field and click

SING

OUR

RINTER

ETWORK

C.5

Setting Up the Client Computer

Right-click the Windows

Start

button and select

Explorer

Open your network folder in the left column.

Click the shared name.

For Windows NT 4.0/2000, select

Settings

and

Printers

from the

Start

menu.

For Windows XP/2003, select

Printers and Faxes

from the

Start

menu.

Double-click your printer icon.

From the

Printer

menu, select

Properties

From the

Ports

tab, click

Add Port

Select

Local port

and click

New Port

Fill in the

Enter a port name

field with the shared name.

Click

and click

For Windows NT 4.0, click

For Windows 2000/2003/XP, click

Apply

and click

SING

OUR

RINTER

ETWORK

C.6

Setting Up a Network-Connected Printer

You have to set up the network protocols on the printer to use

it as your network printer. Setting protocols can be

accomplished by using the supplied network program. Please

refer to SyncThru User’s Guide.

You can configure the basic network parameters through the printer’s

control panel. Use the printer control panel to do the following:

• Enable or disable network protocols (IPX/SPX)

•Configure TCP/IP

• Configure IPX frame types

Configuring Network Parameters on the

Control Panel

Supported Operating Systems

OTE

: The operating systems supported by the network card may

be different than the operating systems supported by the printer.

The following table shows the network environments supported by

the printer.

• IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange

• TCP/IP: Transmission Control Protocol/Internet Protocol

• DLC/LLC: Data Link Control/Logical Link Control

• DHCP: Dynamic Host Configuration Protocol

• BOOTP: Bootstrap Protocol

Item Requirements

Network Interface 10/100 Base-TX (standard for CLP-510N)

or 802.11b Wireless LAN

Network Operating

System • Novell NetWare 4.x, 5.x, 6.x

• Windows 95/98/Me/NT 4.0/2000/2003/XP

• Various Linux OS

• Macintosh OS 10.3.x

Network Protocols • Netware IPX/SPX

• TCP/IP, DLC/LLC on Windows

Dynamic Addressing

Server DHCP, BOOTP

SING

OUR

RINTER

ETWORK

C.7

Printing a Network Configuration Page

The Network Configuration page shows how the network

interface card on your printer is configured. The default settings

which are suitable for most applications are enabled.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press the scroll button ( or ) until “Print Net CFG”

displays on the bottom line.

Press the

Enter

button ( ).

The Network Configuration page prints out.

Setting Network Protocols

When you first install the printer, all supported network protocols

are enabled. If a network protocol is enabled, the printer may

actively transmit on the network even when the protocol is not in

use. This may increase network traffic slightly. To eliminate

unnecessary traffic, you can disable unused protocols.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays, and

press the

Enter

button ( ). Then press the

Upper Level

button ( ).

Press the scroll button ( or ) until you see the desired

protocol on the bottom line.

You can choose between “Config TCP” and “Netware”.

Press the

Enter

button ( ).

Press the scroll button ( or ) to change the setting.

If you selected “Config TCP”, change the setting to “No”

(disable) or “Yes” (enable).

If you selected ‘Netware’, change the setting to “Off”

(disable) or “On” (enable).

Press the

Enter

button ( ) to save the selection.

Press the

On Line/Continue

button ( ) to return to

ready mode.

SING

OUR

RINTER

ETWORK

C.8

Configuring TCP/IP

Your printer can be set up on a variety of TCP/IP networks. There

are several ways in which your printer can be assigned a TCP/IP

address, depending on your network.

• Static Addressing: TCP/IP address is assigned manually by

the system administrator.

• Dynamic Addressing BOOTP/DHCP (default): TCP/IP address

is assigned automatically by the server.

Static Addressing

To enter the TCP/IP address from your printer’s control panel,

take the following steps:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays, and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “Config TCP” displays.

Press the scroll button ( or ) until “Yes” displays, and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “IP Get Method”

displays.

Press the scroll button ( or ) until “Static” displays,

and press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) to access the IP Address

menu.

SING

OUR

RINTER

ETWORK

C.9

An IP address consists of 4 bytes.

Press the scroll button ( or ) to enter a number

between 0 and 255 and press the

Enter

button ( ).

Repeat step 12 to complete the address from the 1st byte

to the 4th byte.

To select other parameters, such as the Subnet Mask or

Gateway, press the scroll button ( or ). Press the

Enter

button ( ).

Repeat steps 12 through 13 to configure the other TCP/IP

parameters.

Press the

On Line/Continue

button ( ) to return to

ready mode.

Dynamic Addressing (BOOTP/DHCP)

To assign the TCP/IP address automatically by the server, take

the following steps:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays, and

press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “Config TCP” displays.

Press the scroll button ( or ) until “Yes” displays, and

press the

Enter

button ( ).

Enter a number between 0

and 255 for each byte.

SING

OUR

RINTER

ETWORK

C.10

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “IP Get Method”

displays.

Press the scroll button ( or ) until “DHCP” displays,

and press the

Enter

button ( ).

To assign the address from the BOOTP server, press the

Enter

button ( ) when “BOOTP” displays.

Press the

On Line/Continue

button ( ) to return to

ready mode.

Configuring IPX Frame Types

On IPX/SPX protocol networks (for example, Novell NetWare),

the format of the network communication frames must be

specified for the printer. In most cases, you can keep the default

setting “Auto”. However, you can manually set the frame type

format, if required.

•

Auto

(default): Automatically senses and limits the frame

type to the first one detected.

•

EN_8023

: Limits the frame type to IPX over IEEE 802.3

frames. All others will be discarded.

•

EN_II

: Limits the frame type to IPX over Ethernet Frames.

All others will be discarded.

•

EN_8022

: Limits the frame type to IPX over IEEE 802.2 with

IEEE 802.3 frames. All others will be discarded.

•

EN_SNAP

: Limits the frame type to IPX over SNAP with IEEE

802.3 frames. All others will be discarded.

Note that the IPX/SPX protocol must be enabled in the

Netware

menu before you can configure frame types. See “Setting

Network Protocols” on page C.7.

SING

OUR

RINTER

ETWORK

C.11

Take the following steps to change the frame type format:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press the

Enter

button ( ).

Press the

Upper Level

button ( ).

Press the scroll button ( or ) until “Netware” displays

on the bottom line. Press the

Enter

button ( ).

Press the scroll button

( or ) until “On” displays on the

bottom line. Press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “Config Netware”

displays.

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press the

Enter

button ( ).

Press the

Upper Level

button ( ), then use the scroll

button ( ).

Press the

Enter

button ( ) when “IPX Frame Type”

displays.

Press the scroll button ( or ) until you see the desired

frame type and press the

Enter

button ( ).

Press the

On Line/Continue

button ( ) to return to

ready mode.

SING

OUR

RINTER

ETWORK

C.12

Restoring the Network Configuration

You can return the network configuration to its default settings.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press scroll button ( or ) until “Default Set” displays

on the bottom line. Press the

Enter

button ( ).

Press the

Enter

button ( ) to confirm the selection.

Reset the Network Interface Card

You can reset the network interface card when a network

problems occurs.

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display.

Press the

Enter

button ( ) to access the menu.

Press scroll button ( or ) until “Reset Network”

displays on the bottom line. Press the

Enter

button ( ).

Press the

Enter

button ( ).

The printer resets the network interface card.

Configuring the Wireless Network

See the instructions supplied with the wireless network interface

card you purchase.

You can easily configure the wireless network environments

using the SetIP program in Windows. See the Wireless Network

User's Guide.

To configure the wireless settings:

In ready mode, press the

button ( ) until you see

“Network” on the bottom line of the display. Press the

Enter

button ( ) to access the menu.

Press the

Enter

button ( ) when “Config Network”

displays on the bottom line.

SING

OUR

RINTER

ETWORK

C.13

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press the

Enter

button ( ).

Press the

Upper Level

button ( ).

Press the scroll button ( or ) until “Config 802.11b”

displays on the bottom line. Press the

Enter

button ( ).

Press the scroll button ( or ) until “Yes” displays on

the bottom line. Press the

Enter

button ( ).

You can configure the following items:

•

SSID

: When you select “Search List”, the wireless network

card on your printer searches for wireless networks in the

area and shows the results on the list. Select a network from

the list. You cannot change “Operation Mode” and “Channel”.

If you select “Custom”, you can configure the wireless settings

according to your needs and enter a name of up to 32 letters

for your “Custom” setting. “SSID” is case sensitive, so you

need to change it carefully. Using the scroll buttons, find the

alphabet you want and press the

Enter

button ( ). When the

cursor moves to the next input field, enter the following letters

the same way you entered the first letter. After you have

entered the last letter of the name, press the

Enter

button

( ) once again to save the ID. The way to enter the key

number for the encryption key is the same as to enter letters.

•

Operation Mode

: “Ad-hoc” mode allows the wireless devices

to communicate directly with each other. This is the default

operating mode for the print server.

If your network uses an Access Point, you must reconfigure

the operation mode to “InfraStructure”. “InfraStructure” mode

allows both wireless and cabled computers to send files to the

printer through an Access Point.

If you select “Auto”, the print server selects the operation

mode automatically, according to the network cable’s

connection each time it boots up. If the network cable is

detected, the print server enters “Ad-hoc” mode; if not, it

enters “InfraStructure” mode.

•

Channel

: This option is available in the “Ad-hoc” mode only.

In most cases, you will not need to change this setting. The

print server will scan all available channels for the specified

network and will adapt its channel to the one detected. The

default setting is 10.

•

Authentication

: “Open System” or “Shared Key”. The

Samsung print server is not configured for network

authentication (Open System). If required by your network,

the proper authentication method must be configured on the

print server.

SING

OUR

RINTER

ETWORK

C.14

•

Encryption

: “None”, “64-bit WEB”, or “128-bits WEB”.

Default setting is “None”. If your network uses WEP

encryption keys, you must configure the encryption keys. You

can configure up to four keys. The active key must match the

value and active key position (for example, Key 1) configured

on other wireless devices.

•

Using Key

: Select the key to use in your network.

•

Key Type

: Select the key type of your network.

•

Key 1

Key 2

Key 3

Key 4

: Enter the key number for

“Encryption”. The numbers you can enter are as follows:

Hexadecimal Alphanumeric

64-bit WEP 10 digits 5 characters

128-bit WEP 26digits 13 characters

SING

OUR

RINTER

ETWORK

Your printer is a full-featured laser printer that has been

optimized to meet most of your printing needs. Recognizing

that each user may have different requirements, however,

Samsung makes several options available to enhance your

printer’s capabilities.

This chapter includes:

• Installing Additional Printer Memory

• Installing a Network Interface Card

• Installing an Optional Tray

NSTALLING

RINTER

PTIONS

D.2

Installing Additional Printer Memory

Your printer has a dual in-line memory module (DIMM) slot. Use

this DIMM slot to install more memory for the printer.

OTE

: Your printer has 64 MB of memory which can be expanded

to 192 MB. Use only Samsung-approved DIMM, part numbers ML-

00MC (64MB), or ML-00MD (128MB). Contact your Samsung

dealer.

AUTION

: Static electricity can damage DIMMs. When handling a

DIMM, either wear an antistatic wrist strap, or frequently touch the

surface of the DIMM antistatic package and then touch bare metal

on the printer.

Turn the printer off and unplug all cables from the printer.

To remove the control board cover, press down on the tabs

at the top and take it off.

Remove the two screws holding the metal plate in place,

and then remove the metal cover, as shown below.

NSTALLING

RINTER

PTIONS

D.3

Completely open the latches on each side of the DIMM slot.

Remove the memory DIMM from its antistatic package. Locate

the alignment notches on the bottom edge of the DIMM.

OTE

: Avoid touching the connection points along the edge of the

memory DIMM.

Connection

points

Notches

NSTALLING

RINTER

PTIONS

D.4

Holding the memory DIMM by the edges, align the notches

on the memory DIMM with the grooves at the top of the

memory DIMM slot.

Insert the ends of the memory DIMM into the slots on the

latches.

Push the DIMM straight into the DIMM slot until it snaps into

place. Make sure the latches fit over the notches located on

either side of the DIMM.

OTE

: If you have difficulty inserting the memory DIMM or closing

the latches, make sure the notches on the bottom of the DIMM are

aligned with the grooves in the DIMM slot.

Groove

Notch

Latch

Notch

NSTALLING

RINTER

PTIONS

D.5

Replace the metal cover, as shown below, and replace the

two screws you removed in step 3.

Replace the control board cover.

Reconnect the power cord and printer cable and turn the

printer on.

NSTALLING

RINTER

PTIONS

D.6

Removing a Memory DIMM

Follow steps 1 through 3 on page D.2 to access the control

board.

Push the latches at both ends of the DIMM slot away from

the DIMM. Pull out the DIMM.

Place the DIMM in its original packaging or wrap it with a sheet

of thin metal, such as aluminium foil, and store it in a box.

Proceed from step 9 on page D.5.

NSTALLING

RINTER

PTIONS

D.7

Installing a Network Interface Card

OTE

: When you purchase a wired/wireless network interface

card, the antenna connected to the card may not be separated

from the card, depending on your country.

To use your printer on a network, your printer must be equipped

with a network interface card.

The CLP-510N has a built-in network interface card. If you are a

CLP-510 user, you need to install an optional network interface card.

If you want to use the printer in both wired and wireless network

environments, you need to install an optional wired/wireless

network interface card.

Check to see if there are any missing parts in your optional

interface card package.

Turn the printer power off and unplug all cables from the

printer.

CLP-510 only CLP-510, CLP-510N

Ethernet 10/100 Base TX

(Internal) Ethernet 10/100 Base TX +

802.11b Wireless LAN (Internal)

Order number: ML-00NE Order number: ML-00LE

Network interface Card,

SyncThru CD-ROM and SyncThru

Quick Guide

Wireless Network interface Card,

SyncThru CD-ROM, SyncThru

Quick Guide and Wireless Quick

Guide

NSTALLING

RINTER

PTIONS

D.8

To remove the control board cover, press down on the tabs

at the top and take it off.

Remove the two screws holding the metal plate in place,

and then remove the metal cover, as shown below.

NSTALLING

RINTER

PTIONS

D.9

Using a pointed tool, carefully punch out the wireless

network antenna port and the Ethernet network port

covers, and other covers, as shown below.

If you are replacing an existing network interface card with

a new one, remove the two screws and the old card.

Align the connector on the network interface card with the

connector on the control board. Make sure that the jacks on

the card go through the holes. Push the card firmly into the

connector on the control board until it is completely and

securely in place.

NSTALLING

RINTER

PTIONS

D.10

Insert the two screws included with the interface card package

into the appropriate holes above and below the Ethernet

network port, as shown below. Carefully tighten them.

Replace the metal cover, as shown below, and replace the

two screws you removed in step 3.

NSTALLING

RINTER

PTIONS

D.11

Replace the control board cover.

Plug one end of the Ethernet cable into the Ethernet

network port on the printer and

the other end of the cable

into a network LAN connection.

Reconnect the power cord and turn the printer on.

OTE

: For information about configuring and using the printer in a

network environment, refer to the User’s Guide provided with the

network interface card. You can also configure the network

parameters using the control panel; see page C.6.

To the network

LAN connection

NSTALLING

RINTER

PTIONS

D.12

Installing an Optional Tray

You can increase the paper handling capacity of your printer by

installing an optional Tray2. This tray holds 500 sheets of paper.

Turn the printer off and unplug all cables from the printer.

Remove the packing tape and the packing material inside of

the tray.

Find the location of the connector and the optional tray

positioners.

NSTALLING

RINTER

PTIONS

D.13

Place the printer over the tray, aligning the feet on the

printer with the positioners on the optional tray.

AUTION

: This printer weighs 32kg including developer cartridge

and cassette. Use safe lifting and handling techniques. If you need

to move the printer, it should be moved by two people. Use the

lifting handles located as shown in the diagram. Back injury could

be caused if a single person attempts to lift the printer.

Load paper in the optional tray. For information about

loading paper in this tray, see “Using the Optional Tray 2”

on page 3.8.

Reconnect the power cord and cables and then turn the

printer on.

When you print a document on paper loaded in Tray 2, you must

configure the properties of the printer driver.

To access the properties of the printer driver:

Click the Windows

Start

menu.

For Windows 95/98/Me/NT 4.0/2000, select

Settings

and

then

Printers

For Windows XP/2003, select

Printers and Faxes

Select the

Samsung CLP-510 Series

printer.

Lifting handles are

located at the lower

edge of both sides of

the printer.

NSTALLING

RINTER

PTIONS

D.14

Right-click on the printer icon and select

Properties

Click the

Printer

tab, and select

Tray 2

from the

Optional

Tray

drop-down list.

Click

and print the document.

NSTALLING

RINTER

PTIONS

This chapter includes:

• Printer Specifications

• Paper Specifications

SPECIFICATIONS

E.2

Printer Specifications

Item Specifications and Description

Print Speed

Black: Up to 24 PPM in A4 (25 PPM in Letter);

Color: Up to 6 PPM in A4 (6 PPM in Letter)

Duplex: Up to 11.6 IPM in A4/Letter (Black); Up to 6 IPM in

A4/Letter (Color)

Resolution Up to 1200 x 1200 dpi effective output

Warm-up Time Less than 99 seconds( 23°C/55% RH, 110/220Vac)

First Printing on Time 13 seconds (Black); 21 seconds (4-Color)

Power Rating AC 110 ~ 127V (USA, Canada) / 220 ~ 240V (Others),

50 / 60Hz

Power consumption 450 W average during operation /

Less than 30 W in sleep mode

Noise Level

Less than 49 dBA (Color printing)

Less than 49.8 dBA (Black printing)

Less than 40 dBA (Standby printing)

Consumables Life

• Black toner cartridge

- High yield: 7,000 A4/Letter pages at 5% Coverage

- Standard yield: 3,000 A4/Letter pages at 5% Coverage

(Ships with standard yield toner cartridge)

• Color (Yellow/Magenta/Cyan) toner cartridge

- High yield: 5,000 A4/Letter pages at 5% Coverage

- Standard yield: 2,000 A4/Letter pages at 5% Coverage

(Ships with standard yield toner cartridge)

Imaging Unit: Approx. 50,000 black pages

(12,500 color pages)

***

Transfer Belt: Approx. 50,000 black pages

(12,500 color pages)

***

Waste Toner Container: Approx. 12,000 black pages

(3,000 color pages)

***

Duty Cycle Monthly: Up to 35,000 black pages

Weight 32kg (including consumables)(70.5lbs)

Package Weight Paper: 3.44 Kg, Plastic: 0.18Kg

External Dimensions

(W x D x H) 510 (W) x 470 (D) x 405 (H) mm (20.1 x 18.5 x 15.9 in.)

Operating Environment Temperature: 15 ~ 32.5°C / 50 ~ 90°F

Humidity: 20 ~ 80% RH

PECIFICATIONS

E.3

Printer Language SPL-C (Samsung Printer Language Color)

Memory

64 MB (Max. 192 MB)

64, 128 MB optional memory available

Use only the Samsung-approved DIMM.

64 MB: ML-00MC; 128 MB: ML-00MD

Fonts Windows font

Interface CLP-510: USB 2.0

CLP-510N: USB 2.0, Ethernet 10/100 Base TX

OS Compatibility

****

Windows 95/98/Me/NT 4.0/2000/XP/2003, Various Linux OS,

Mac 10.3.x

Windows 95 and Windows NT 4.0 are only supported on the

CLP-510N

Options

CLP-510: Ethernet 10/100 Base TX (Internal), Ethernet 10/

100 Base TX + 802.11b Wireless LAN (Internal)

CLP-510N: Ethernet 10/100 Base TX + 802.11b Wireless

LAN(Internal)

*Print speed will be affected by operating system used, computing performance,

application software, connecting method, media type, media size, and job complexity.

**Sound Pressure Level, ISO7779

***May be affected by operating environment, printing interval, media type, media size,

and color/black.

****Please visit www.samsungprinter.com to download the latest software version.

Item Specifications and Description

PECIFICATIONS

E.4

Paper Specifications

Overview

Your printer accepts a variety of print materials, such as cut-

sheet paper (including up to 100% recycled fiber content

paper), envelopes, labels, transparencies and custom-size

paper. Properties, such as weight, composition, grain and

moisture content, are important factors affecting the printer’s

performance and the output quality. Paper that does not meet

the guidelines outlined in this User’s Guide can cause the

following problems:

• Poor print quality

• Increased paper jams

• Premature wear on the printer.

OTES

• Some paper may meet all of the guidelines in this guide and still

not produce satisfactory results. This may be the result of

improper handling, unacceptable temperature and humidity

levels, or other variables over which Samsung has no control.

• Before purchasing large quantities of paper, ensure that the

paper meets the requirements specified in this User’s Guide.

AUTION

: Using paper that does not meet these specifications

may cause problems, requiring repairs. These repairs are not

covered by the Samsung warranty or service agreements.

PECIFICATIONS

E.5

Supported Sizes of Paper

OTE

: You may experience jams when using print materials with

a length of less than 140mm (5.5in.). For optimum performance,

ensure that you are storing and handling the paper correctly.

Please refer to “Printer and Paper Storage Environment” on

page E.8.

Tray1

Tray2 Dimensions

Weight Capacity

Letter 216 X 279mm

(8.5 X 11in.)

• 60 to 90g/m

bond

(16 to 24lb) for

single-sided

printing

• 75 to

90 g/m

bond

(20 to 24lb) for

duplex printing

• 250 sheets of

75g/m

bond

paper for

Tray 1

• 500 sheets of

75g/m

bond

paper for

Tray 2

A4 210 X 297mm

(8.3 X 11.7in.)

Multi-

Purpose Tray Dimensions

*The printer supports a wide range of media sizes. See “Printing on Card Stock

or Custom-sized Materials” on page 3.21.

Weight Capacity

**Capacity may vary depending on media weight and thickness, and

environmental conditions.

Minimum Size

(custom) 90 X 140mm

(3.5 X 5.5in.) 60 to 163g/m

bond

(16 to 43lb)

100 sheets of

75g/m

bond

paper

Maximum Size

(custom) 216 X 356mm

(8.5 X 14in.)

Transparency

Same minimum

and maximum

paper sizes as

listed above.

Thickness:

0.10 X 0.14

mm (0.0039 X

0.0055in.)

30 typical

Labels

***

***Smoothness: 100 to 250 (Sheffield)

Thickness:

0.10 X 0.14

mm (0.0039 X

0.0055in.)

10 typical

Envelopes up to 90g/m

(16 to 24lb) up to 10

PECIFICATIONS

E.6

Guidelines for Using Paper

For the best result, use conventional 75g/m

(20lb) paper.

Ensure that the paper is of good quality, and free of cuts, nicks,

tears, spots, loose particles, dust, wrinkles, voids, and curled or

bent edges.

If you are unsure of what type of paper you are loading, such as

bond or recycled paper, check the label on the package.

The following problems may cause print quality deviations,

jamming or even damage to the printer.

OTES

• Do not use letterhead paper printed with low-temperature inks,

such as those used in some types of thermography.

• Do not use raised or embossed letterhead.

• The printer uses heat and pressure to fuse toner to the paper.

Ensure that any colored paper or preprinted forms use inks that

are compatible with this fusing temperature (180°C or 356°F for

0.1 second).

Symptom Problem with

Paper Solution

Poor print quality

or toner adhesion,

problems with

feeding

Too moist, too

rough, too smooth

or embossed;

faulty paper lot

Try another kind of

paper, between 100 ~

250 Sheffield, 4 ~ 5%

moisture content.

Dropout,

jamming, curl Stored improperly Store paper flat in its

moisture-proof

wrapping.

Increased gray

background

shading/printer

wear

Too heavy Use lighter paper, open

the rear output tray.

Excessive curl

problems with

feeding

Too moist, wrong

grain direction or

short-grain

construction

Use long-grain paper.

Jamming, damage

to printer Cutouts or

perforations Do not use paper with

cutouts or perforations.

Problems with

feeding Ragged edges Use good quality paper.

PECIFICATIONS

E.7

Paper Specifications

Paper Output Capacity

Paper Input Capacity

Category Specifications

Acid Content 5.5 ~ 8.0pH

Caliper 0.094 ~ 0.18mm (3.0 ~ 7.0mils)

Curl in Ream Flat within 5mm (0.02in.)

Cut Edge Conditions Cut with sharp blades with no visible

fray.

Fusing Compatibility Must not scorch, melt, offset, or release

hazardous emissions when heated to

180°C (356°F) for 0.1 second.

Grain Long Grain

Moisture Content 4% ~ 6% by weight

Smoothness 100 ~ 250 Sheffield

Output Tray Capacity

Face-down 250 sheets of 75g/m

bond paper

Input Tray Capacity

Cassette 250 sheets of 75g/m

bond paper

MP tray 100 sheets of 75g/m

bond paper

Optional tray 500 sheets of 75g/m

bond paper

PECIFICATIONS

E.8

Printer and Paper Storage Environment

Paper storage environmental conditions directly affect the feed

operation.

Ideally, the printer and paper storage environment should be at

or near room temperature, and not too dry or humid. Remember

that paper is hygroscopic; it absorbs and loses moisture rapidly.

Heat works with humidity to damage paper. Heat causes the

moisture in paper to evaporate, while cold causes it to condense

on the sheets. Heating systems and air conditioners remove

most of the humidity from a room. As paper is opened and used,

it loses moisture, causing streaks and smudging. Humid

weather or water coolers can cause the humidity to increase in

a room. As paper is opened and used it absorbs any excess

moisture, causing light print and dropouts. Also, as paper loses

and gains moisture it can become distorted. This can cause

paper jams.

Care should be taken not to purchase more paper than can be

used in a short time (about 3 months). Paper stored for long

periods may experience heat and moisture extremes, which can

cause damage. Planning is important to prevent damage to

large supplies of paper.

Unopened paper in sealed reams can remain stable for several

months before use. Opened packages of paper have more

potential for environment damage, especially if they are not

wrapped with a moisture-proof barrier.

The paper storage environment should be properly maintained

to ensure optimum printer performance. The required condition

is 20° to 24°C (68° to 75°F), with a relative humidity of 45% to

55%. The following guidelines should be considered when

evaluating the paper’s storage environment:

• Paper should be stored at or near room temperature.

• The air should not be too dry or too humid.

• The best way to store an opened ream of paper is to rewrap it

tightly in its moisture-proof wrapping. If the printer

environment is subject to extremes, unwrap only the amount

of paper to be used during the day’s operation to prevent

unwanted moisture changes.

PECIFICATIONS

E.9

Envelopes

Envelope construction is critical. Envelope fold lines can vary

considerably, not only between manufacturers, but also within a

box from the same manufacturer. Successful printing on

envelopes depends upon the quality of the envelopes. When

selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not exceed

90g/m

(24lb) or jamming may occur.

• Construction: Prior to printing, envelopes should lie flat with

less than 6mm (0.25in.) curl, and should not contain air.

• Condition: Envelopes should not be wrinkled, nicked, or

otherwise damaged.

• Temperature: You should use envelopes that are compatible

with the heat and pressure of the printer.

• Size: You should only use envelopes within the following size

ranges.

OTES

• Use only the Multi-purpose Tray to print envelopes.

• You may experience some paper jams when using any media

with a length less than 140mm

(

5.5in.). This may be caused by

paper that has been affected by environmental conditions. For

optimum performance, make sure you are storing and handling

the paper correctly. Please refer to “Printer and Paper Storage

Environment” on page E.8.

Minimum Maximum

Multi-purpose

Tray 90 X 140mm

(3.5 X 5.5in.) 216 X 356mm

(8.5 X 14in.)

PECIFICATIONS

E.10

Envelopes with Double Side Seams

Double side-seams construction has vertical seams at both ends

of the envelope rather than diagonal seams. This style may be

more likely to wrinkle. Be sure the seam extends all the way to

the corner of the envelope as illustrated below.

Envelopes with Adhesive Strips or Flaps

Envelopes with a peel-off adhesive strip or with more than one

flap that folds over to seal must use adhesives compatible with

the heat and pressure in the printer. The extra flaps and strips

might cause wrinkling, creasing, or even jams and may even

damage the fuser.

Envelope Margins

The following gives typical address margins for a commercial

#10 or DL envelope.

OTES

• For best print quality, position margins no closer than 15mm

(0.6in.) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams meet.

Type of Address Minimum Maximum

Return address 15mm (0.6in.) 51mm (2in.)

Delivery address 51mm (2in.) 90mm (3.5in.)

Correct

Incorrect

PECIFICATIONS

E.11

Envelope Storage

Proper storage of envelopes helps contribute to print quality.

Envelopes should be stored flat. If air is trapped in an envelope,

creating an air bubble, then the envelope may wrinkle during

printing. See “Printing on Envelopes” on page 3.14.

Labels

AUTIONS

• To avoid damaging the printer, use only labels recommended for

laser printers.

• To prevent serious jams, always use the Multi-purpose Tray to

print labels and always use the rear output tray.

• Never print on the same sheet of labels more than once and

never print on a partial sheet of labels.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at 180°C

(356°F), the printer’s fusing temperature.

• Arrangement: Only use labels with no exposed backing

between them. Labels can peel off sheets with spaces

between the labels, causing serious jams.

• Curl: Prior to printing, labels must lie flat with no more than

13mm (5in.) of curl in any direction.

• Condition: Do not use labels with wrinkles, bubbles, or other

indications of separation.

See “Printing on Labels” on page 3.16.

Transparencies

Transparencies used in the printer must be able to withstand

180°C (356°F), the printer’s fusing temperature.

AUTION

: To avoid damaging the printer, use only transparencies

recommended for use in laser printers.

See “Printing on Transparencies” on page 3.17.

PECIFICATIONS

booklet printing

5.9

cancel, print jobs

4.4

card stock, print

3.21

clean

inside the printer

6.30

LSU

6.29

outside of the printer

6.29

color mode

4.9, 4.10

components

1.4

configuration page, print

6.2

connect

Ethernet

D.11

control panel

2.2

buttons

2.3

display

2.2

menus

2.5

custom-sized materials, print

3.21

double-sided printing

5.2

envelopes, print

3.14

error messages

7.26

Ethernet cable, print

D.11

Favorite setting, use

4.13

features

printer

1.2

graphic properties, set

4.9

help, use

4.14

imaging unit, replace

6.14

install

Memory

D.2

Network Interface Card

D.7

optional Tray2

D.12

printer driver for Linux

B.2

printer driver for Macintosh

A.2

interface card, install

D.7

labels, print

3.16

Linux

common problems

7.31

configuration tool

B.8

driver, install

B.2

LLPR properties

B.10

load, paper

in the Multi-Purpose Tray

3.9

in the optional Tray2

3.8

in the Tray1

3.4

using the manual feed

3.12

Macintosh

common problems

7.31

document, print

A.6

driver, install

A.2

setting up the printer

A.4

system requirements

A.2

manual feed mode, use

3.12

memory DIMM, install

D.2

memory DIMM, remove

D.6

Multi-Purpose Tray, use

3.9

INDEX

network interface card, install

D.7

network printing

card, install

D.7

locally shared printer, set

C.3

network-connected printer, set

C.6

parameters, configure

C.6

n-up printing

5.6

option, install

memory DIMM

D.2

network interface card

D.7

paper tray 2

D.12

optional tray, install

D.12

orientation, select

4.6

overlay, use

5.13

paper

choose

3.2

guideline

3.3

load

3.4

sizes and capacities

3.2

specifications

E.4

paper jam

in the duplex area

7.13

in the Multi-Purpose Tray

7.9

in the optional Tray 2

7.17

in the paper exit area

7.10

in the paper feed area

7.7

inside the printer

7.9

tips for avoiding

7.21

paper properties, set

4.7

paper size, change in the tray

3.7

paper size, set

4.7

paper size,set

4.7

paper source, set

4.8

paper type, set

4.8

poster printing

5.7

preprinted paper, print

3.20

print order, set

4.12

print quality problems, solve

7.22

print resolution, set

4.9

printer software

install

in Linux

B.2

in Macintosh

A.2

uninstall

in Linux

B.7

printing

booklets

5.9

configuration page

6.2

double-sided

5.2

fitting to a selected paper

5.5

from Macintosh

A.6

from Windows

4.3

multiple pages on one sheet

5.6,

A.7

posters

5.7

reduced/enlarged document

5.4

using overlays

5.13

watermarks

5.10

printing problems

7.3

problem, solving

checklist

7.2

error messages

7.26

general

7.3

Linux

7.31

Macintosh

7.31

paper jams

7.6

print quality

7.22

Windows

7.30

quality problems, solve

7.22

replace

imaging unit

6.14

toner cartridge

6.8

transfer belt

6.22

waste toner container

6.11

specification

paper

E.4

printer

E.2

status monitor, use

5.17

system requirements

for Linux

B.2

for Macintosh

A.2

iii

toner cartridge

maintain

6.4

redistribute

6.5, 6.8

replace

6.8

transfer belt, replace

6.22

transparencies, print

3.17

Tray1, use

3.4

uninstall

Linux

B.7

waste toner container, replace

6.11

watermarks, use

5.10

Home

Visit us at:

www.samsungprinter.com

Rev.3.00

Samsung Clp 510 Series Users Manual EN USER

clp510series 50c71d3c-c825-8244-6dff-2ed944ef5bd0 Samsung Printer CLP-510 Series User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
