Lab Test Report

BLI RECOMMENDATION

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

EUROPEAN EDITION

A Comprehensive BLI Laboratory Evaluation 

JULY 2010

During its lab evaluation at BLI, the Samsung CLP-670ND proved

to be strong in a number of categories. To begin with, the A4 co-

lour laser printer logged 40,000 impressions with no misfeeds or

service of any kind required. The CLP-670ND, which is simple to

set up and use, provided very good overall output in colour and

black modes. While users can beneﬁt from above average feed-

back to workstations, administrators will be able to more easily

manage the unit and a mixed ﬂeet—Samsung and compatible

devices—of hardware via SyncThru Web Service and SyncThru

Web Admin service, respectively. Other highlights include a high

standard memory capacity; standard automatic duplexing, which

contributes to less paper waste; and toner-save mode in the driv-

ers helps extend the life of the print cartridges. BLI highly recom-

mends the CLP-670ND for small to mid-size workgroups with

monthly volumes of up to 1,500 impressions.

Samsung CLP-670ND

24 PPM Colour Laser Printer

Test duration: Two months, including a

40,000-impression durability test.

Maximum monthly duty cycle: 80,000 impressions.

Manufacturer’s recommended monthly volume:

Up to 1,100 impressions.

BLI’s recommended monthly volume for optimum

performance: Up to 1,500 impressions.

More information on the Samsung CLP-670ND is

available through bliQ (www.buyerslab.com/bliQ).

Reliability ................................................................ Excellent

Administrative Utilities .......................................... Very Good

Feedback to Workstations ..................................... Very Good

Ease of Network Setup.......................................... Very Good

Print Drivers .......................................................... Very Good

Applications Compatibility ....................................... Excellent

Colour/Black Print Quality ..................................... Very Good

Colour/Black Print Productivity ......................................Good

Ease of Use ........................................................... Very Good

Feature Set ...................................................................Good

Security Features ...................................................Not Rated

Environmental Features .........................................Not Rated

Toner Yield ....................................................................Good

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Strengths

• Highly reliable—ﬂawless durability performance

• Natural-looking ﬂesh tones in photographic images; most colours in the gamut remained consistent throughout

testing; fully formed and dark characters, consistent production of line art, above average halftones and dark solids

• Above average colour job stream productivity using the PCL driver; faster than average ﬁrst-print times for four of

the ﬁve test ﬁles; among the fastest ﬁrst-print time from overnight sleep

• Above average and slightly above average standard and maximum memory capacities, respectively; standard au-

tomatic duplexing contributes to less paper waste

• Average tested toner yields for all colours exceeded the declared speciﬁcations; toner-save mode in the drivers

helps extend the life of the print cartridges

• Simple processes for adjusting drawers, loading media and removing misfeeds; clean procedure for replacing car-

tridges

• SyncThru Web Service and SyncThru Web Admin service allow administrators to manage the unit and an entire ﬂeet

of Samsung and compatible devices, respectively

• Pop-up messages and icon and e-mail alerts keep users well-informed of device and print job status

• Highly automated driver installation routine has users up and running in minutes

Weaknesses

• Below average productivity when printing multiple sets in both duplex modes

• Below average standard paper capacity; below average paper-handling ability through the drawers

• Low impressions-per-gram yields for all colours

RELIABILITY EXCELLENT

 The CLP-670ND is certiﬁed highly reliable by BLI, completing a 40,000-impression

durability test without a single misfeed and requiring no service of any kind.

PMs/Malfunctions Service Required Meter Count

(Impressions)

Impressions Between

Service

Meter Count (Beginning of Test) 0

End of Test Period 40,000

Total Misfeeds/Misfeed Rate 0/Not applicable

Total Service Calls 0

, — and  represent positive, negative and neutral attributes, respectively.

TEST RESULTS AND OBSERVATIONS



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

ADMINISTRATIVE UTILITIES VERY GOOD

 SyncThru Web Service, the embedded Web page, allows administrators and users to

view conﬁguration, the control panel and any existing errors and warnings. Adminis-

trators have the added abilities to change settings, including duplexing, paper type

and the language on the display, and establish e-mail alerts for designated person-

nel. All users can access SyncThru Web Service to check the approximate percent-

age of remaining toner, as well as the size of paper in the trays.

SyncThru Web Service—Main Screen (U.S. model pictured)

 SyncThru Web Admin Service, which is available as a free download on the com-

pany’s Web site, enables administrators to manage and monitor Samsung and com-

patible devices on the network. Information about non-Samsung devices is almost

as detailed as for the company’s. Otherwise, the utility provides much the same

functionality for administrators and users as the embedded Web page, including the

ability to check toner status.

SyncThru Web Admin Service discovers Samsung and compatible

devices on the network, providing administrators with an interface to

manage a ﬂeet and access each device’s embedded Web page. (U.S.

model pictured)



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

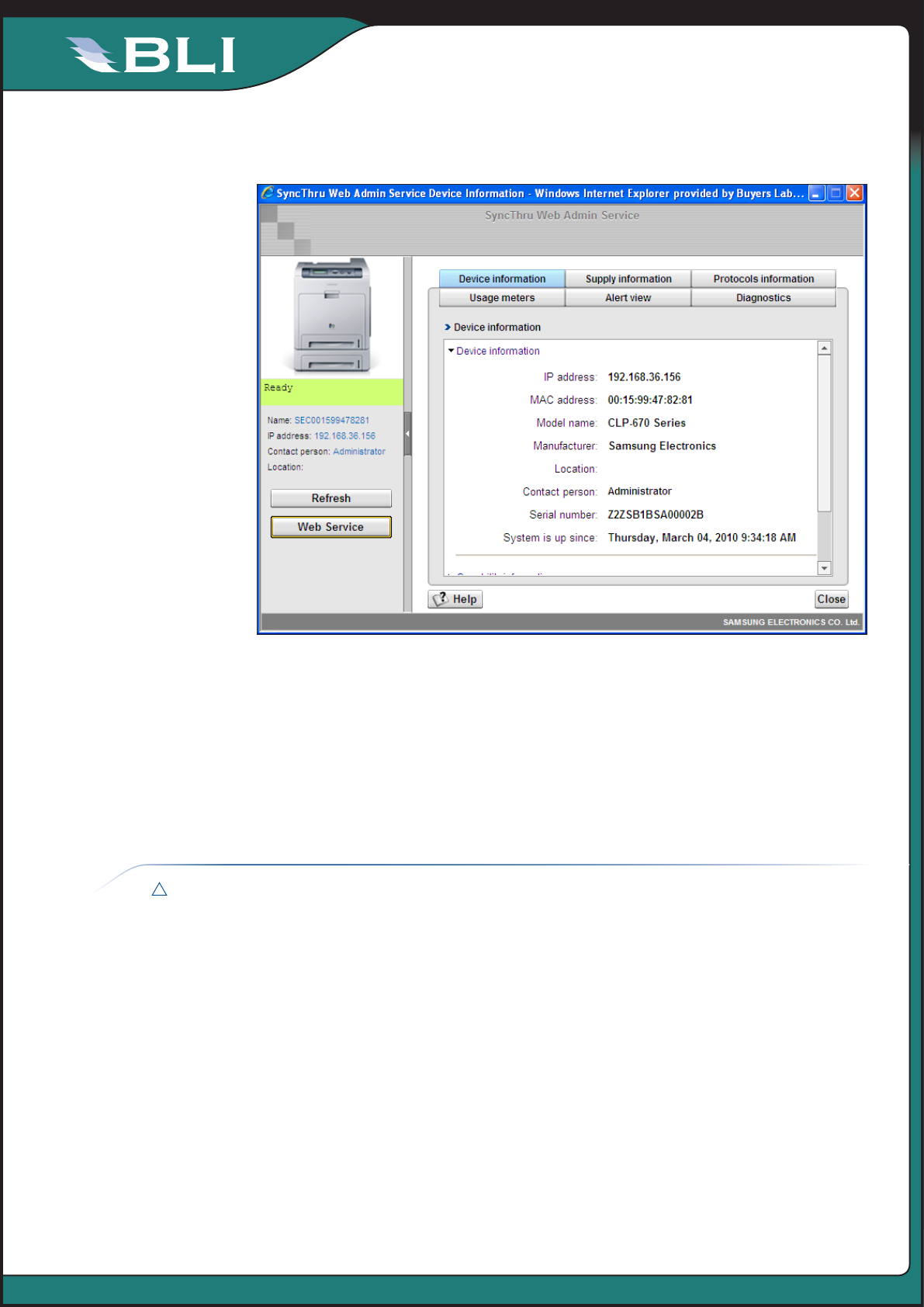

When administrators double-click a device in the list on SyncThru Web Admin

Service, they’re presented with detailed information such as supplies status,

alerts and diagnostics. (U.S. model pictured)

 Additional tools that work independently of or in conjunction with SyncThru Web

Admin Service include Driver Management, Local Device Discovery, Report Genera-

tor, Device Cloning, File Storage and Job Accounting.

FEEDBACK TO WORKSTATIONS VERY GOOD

 The chief provider of feedback is Smart Panel, which is automatically installed with

the drivers. The utility offers pop-up messages for print job completion and when an

error occurs; colour changes to the icon on the taskbar also let users know of other

warning conditions. Administrators can conﬁgure e-mail alerts when consumables

need to be replenished or there’s an error, while all users can proactively access

Smart Panel to check status and toner levels, change settings and view the manual.

When an error message pops up, users can access the troubleshooting guide to

rectify the issue.



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

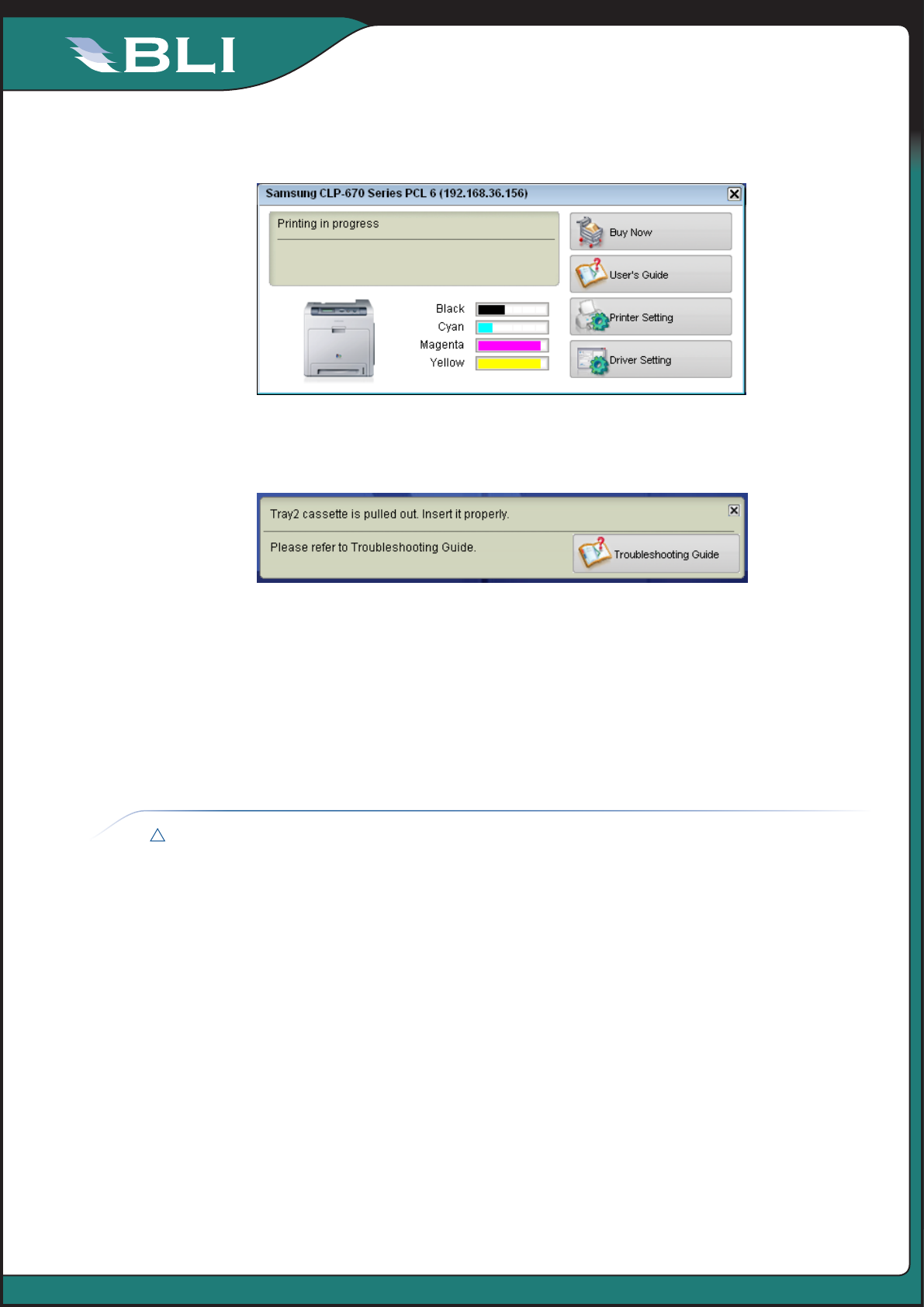

Smart Panel allows users to see device status and toner levels,

and access the manual. (U.S. model pictured)

When an error message pops up, users can access the trouble-

shooting guide to rectify the issue. (U.S. model pictured)

 Via the embedded Web page, administrators can conﬁgure e-mail alerts that can be

sent to three users—SysAdmin, Key User and Service—for consumables shortage

warnings and when the unit is unable to print due to a misfeed, the cover being open

or service being required.

EASE OF NETWORK SETUP VERY GOOD

 Physical setup of the CLP-670ND is straightforward. Samsung recommends two

people lift the main body of the unit, which stacks on top of the optional drawer, out

of the box and bring it to the desired location due to size and weight concerns. Users

remove the packaging material and can then open the bags that contain the print car-

tridges, which have yields of 2,500 and 2,000 impressions for black and each colour,

respectively.

 The CD auto-launches upon insertion in the drive, and the automated installation rou-

tine will have users up and running in a matter of minutes. It takes ﬁve clicks to install

the PCL and PostScript drivers, as well as the user’s guide; by extension, Smart

Panel is loaded with the drivers, which automatically detect conﬁgured accessories.

The port is automatically created.

 Conﬁguration of network settings can be easily performed from the control panel or

remotely via SyncThru Web Service.



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

 Though Samsung doesn’t provide a utility on the CD that enables cloning of settings

or remote installation of drivers onto workstations, administrators can accomplish

these tasks with SyncThru Web Admin Service.

PRINT DRIVERS VERY GOOD

 The unit ships with Microsoft-certiﬁed PCL 6 and PostScript 3 drivers for various

Windows and Mac operating systems, as well as several others such as Linux and

UNIX.

 The graphical drivers have duplex and orientation on the Basic tab, while users must

go to the Paper tab to select quantity and paper size and source.

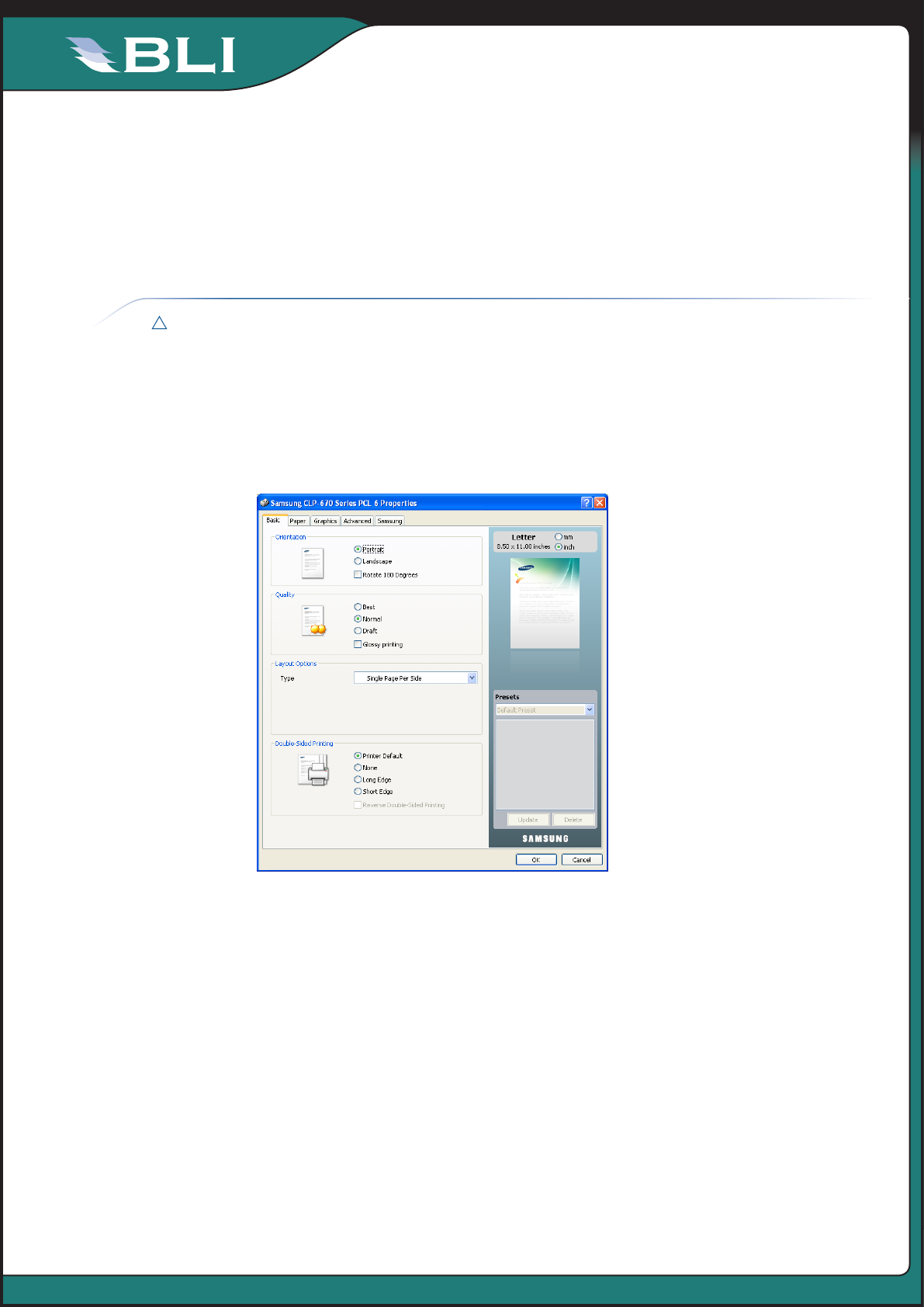

The PostScript 3 driver shares a similar layout

with the PCL 6 driver (pictured above), helping

simplify programming jobs in environments

where users frequently switch between them.

(U.S. model pictured)

 The drivers offer a good overall feature set compared with A4 colour laser/LED print-

ers in this speed range and class, including booklet and N-up—2 to 16—printing;

proof and secure print; poster mode up to 4 x 4; quantity selection up to 999; reduc-

tion/enlargement from 25 to 400 percent; and the abilities to save settings for fre-

quently used jobs and add watermarks. The PCL driver also includes overlay.

 Toner-save mode in the drivers helps extend the life of the cartridges.



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

 File size remains the same when collate is selected from the print screen within the

application.

 The Samsung tab in the drivers allows organizations to visit the company’s Web site

and order supplies.

 Though not tested by BLI, a Universal Print Driver (UPD) is available for download

from Samsung’s Web site. Supporting the company’s devices plus many from other

manufacturers, it allows users to access available network and local devices without

installing additional drivers. The UPD is compatible with network devices that use

PCL 6, PostScript 3 or SPL languages, and provides the current status and proper-

ties of devices when users click the Search Now button. Samsung says the UPD

enables users to create lists of frequently used devices and check their status at a

glance so they know which ones are free before sending a job.

Samsung CLP-670ND Print Driver Features

PCL 6 PostScript 3

Auto Feature/Device Detection Yes Yes

Booklet Printing Yes Yes

Collate No* No*

Max Paper Sources per Job 2 2

Mirror Image No No

Negative Image No No

N-up Printing 2 to 16 2 to 16

Overlay Yes No

Paper Gauge No No

Print and Hold No No

Proof Print Yes Yes

Quantity Selection 999 999

Reduction/Enlargement Auto; 25 to 400% Auto; 25 to 400%

Resolution Modes Best (9600 x 600 dpi);

Normal (600 dpi); Draft

Best (9600 x 600 dpi); Normal

(600 dpi); Draft

Save Settings Yes Yes

Secure Print Yes Yes

Watermarks/Custom Watermarks Yes/Yes Yes/Yes

Cover Mode No No

Poster Mode Yes (up to 4 x 4) Yes (up to 4 x 4)

Blank-Page Removal No No

Toner Gauge No No

Toner Save Yes Yes

Print All Text as Black Yes Yes

Print Blank Pages No No

* Collate must be selected from the Windows print screen within the application.

BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

APPLICATIONS COMPATIBILITY EXCELLENT

 No problems were experienced with any of the test ﬁles used in the applications

compatibility tests. Units are tested for compatibility on Windows 2000 platforms

with Microsoft Word 2000, PowerPoint 2000 and Excel 2000, as well as Adobe Page-

Maker 7.0, Photoshop 6.0 and Acrobat 8.0, using 25 application test ﬁles that contain

text, graphics, halftone images, tables, etc., enabling BLI technicians to evaluate

memory usage, ﬁle processing, font rendering and greyscale capability.

COLOUR/BLACK PRINT QUALITY VERY GOOD

 Business graphics were rated good, as consistency of solids, sharpness of ﬁne

details and production of pastel shades were competitive; while background repro-

duction was above average, saturation wasn’t bright enough. Photographic images

were very good overall, as sharpness of details and halftone range were above aver-

age; though output appeared somewhat grainy, ﬂesh tones were natural-looking.

 The gamut experienced a moderate increase in volume in the green through red

regions at all points after the start of testing. All other colours remained consistent

over the course of the evaluation.

 Easy Colour Manager enables users to enhance image quality via balance, bright-

ness, contrast and saturation controls.

 Text was rated very good, as characters were fully formed and displayed above aver-

age darkness and competitive sharpness, with no toner overspray, while smooth-

ness of curves/serifs was above average. Line art was very good overall, as closely

spaced ﬁne lines remained distinct, consistency of line thickness was above average

and circles were fully formed, while diagonal lines exhibited some evidence of stair-

stepping. Halftone pattern and range were rated excellent and very good, respec-

tively; greyscale was visible from the 1 to 95 percent dot-ﬁll levels with distinct transi-

tions between most levels, while coverage within levels displayed no graininess and

minimal banding. Solids were excellent overall due to above average darkness and

competitive consistency of coverage.

Text Very Good

Line Art Very Good

Halftone Pattern Excellent

Halftone Range Very Good

Solids Excellent

Colour Business Graphics Good

Colour Photographic Images Very Good

Colour Shift Excellent



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Comments:

Colour print quality is tested using a colour test target with print samples taken at ﬁve

evenly spaced intervals throughout the test period. Test targets are read using an X-Rite

Eye-One/iO Colour Spectrophotometer, and samples are analysed using the CIE XY

Chromaticity Diagram. The unit employs an internal automatic calibration process.

Colour Shift

Test Point Delta E BLI Rating

10,667 2.26 Very Good

20,667 3.02 Very Good

30,667 5.74 Good

40,000 5.55 Good

Delta E is a colorimetric measurement assessing the distance between colours. The readings above reﬂect the average

shift of the colour gamut from the previous measured point.

Samsung CLP-670ND Colour Gamut (U.S. model pictured)

Colour Print Density Readings

Cyan 1.12

Magenta 1.07

Yellow 0.81

Density of a printed image with blocks of all solid colours (based on the

average of two readings for each colour).

BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Print Density

Samsung CLP-670ND 1.41 to 1.49

Density for devices in this class tested to date 1.00 to 1.94

Measurements are based on four readings corresponding to four different solid black

locations on the output. The higher the density reading, the darker the image.

Visible Halftone Range

Samsung CLP-670ND 1% to 95%

Typical range for competitive devices 4% to 96%

The halftone test target contains blocks of increasing halftone dot-ﬁll levels (1% to 100%

in 1% increments).

COLOUR/BLACK PRINT PRODUCTIVITY GOOD

 Productivity using the PostScript driver to print BLI’s job stream, which replicates

typical ofﬁce usage in a multi-user environment, in colour and black mode is com-

petitive compared with A4 colour laser/LED printers in this speed range and class

tested to date.

 Productivity using the PCL driver to print the job stream in colour and black mode is

above average for the group.

 Productivity when printing multiple sets in colour and black simplex modes is com-

petitive for the group.

— Productivity when printing multiple sets in both duplex modes is below average for

the group.

 Colour ﬁrst-print times for the Word, PowerPoint, TIFF and JPEG ﬁles are faster than

average for the group, while those for the PDF ﬁle are competitive.

 First-print time from overnight sleep is among the fastest in the group.

First-Print Time from Overnight Sleep Mode in Seconds

Samsung CLP-670ND 19.76

Average for devices in this class tested to date 38.22

Device sits idle overnight; a single-page black Word document is then sent. First-print time indicates the time it

took to RIP, image and deliver the ﬁrst page of the test document to the output tray.

0 1.00.5

CLP-670ND

Print Density

21.5

Range for

tested units



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

First-Print Times in Seconds

Windows XP Word PowerPoint Photoshop Acrobat Photoshop

File Type Black Text Colour Graphic/Text Colour Graphic Black Graphic/Text Colour Graphic

File Extension DOC PPT TIF PDF JPG

Pre-Raster File Size 114 KB 99 KB 20 MB 426 KB 245 KB

Post-Raster File Size 9.74 KB 77.7 KB 15.6 MB 534 KB 851 KB

First-Page Time 11.97 13.44 17.78 16.62 12.06

Tested Competitive Average 14.48 19.67 26.79 18.04 14.52

First-print time indicates the time it took to RIP, image and deliver the ﬁrst page of the test document set to the output tray. Speeds were tested using the PCL driver.

BLI’s Tested Print Speeds

Print speed is tested using BLI’s Monochrome Test Original with 6% page coverage and BLI’s Colour Test Original with 10% coverage for each colour (cyan,

magenta, yellow and black). The test page is printed in a quantity equal to double the vendor’s rated print speed for the device in each mode tested (e.g., if the

vendor’s rated print speed is 20 ppm, 40 pages are printed). The unit’s print speeds were tested using the PCL driver.

Average Print Productivity

SPEED IN PPM PERCENT OF RATED SPEED

Samsung CLP-670ND COMPETITIVE AVERAGE Samsung CLP-670ND COMPETITIVE AVERAGE

FULL COLOUR

1:1 20.1 18.9 83.9 78.2

1:2 9.8 13.2 40.7 55.5

BLACK

1:1 19.9 20.0 83.0 79.0

1:2 9.8 14.6 40.9 57.8

Efﬁciency is tested using a 10-page full-colour document and a 10-page black document. BLI obtains the overall efﬁciency for each mode by averaging the

efﬁciency ratings (derived by dividing the tested speed of the device by the rated speed and then multiplying by 100) for each run length (1, 5 and 10 sets). The

unit’s efﬁciency was tested using the PCL driver.

Average Speed

0 25105

Pages per Minute

20.90

20.87

22.36

22.38

Colour

Monochrome

Including First Page

Excluding First Page

BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Job Stream

POSTSCRIPT Samsung CLP-670ND COMPETITIVE AVERAGE

FULL Colour

PPM 10.3 10.1

Percent of Rated Speed 41.3 42.2

BLACK

PPM 16.8 13.1

Percent of Rated Speed 67.3 50.7

PCL Samsung CLP-670ND COMPETITIVE AVERAGE

FULL COLOUR

PPM 18.8 12.5

Percent of Rated Speed 78.2 48.7

BLACK

PPM 20.2 16.2

Percent of Rated Speed 84.1 60.9

BLI’s job stream includes Word documents, Outlook e-mail messages, Excel spreadsheets, PowerPoint, HTML and Acrobat PDF ﬁles,

totalling 19 pages. This test simulates the type of trafﬁc a typical device might experience in a real-world, multi-user environment. All

of the ﬁles are sent to the device as a group, at which time the stopwatch begins; timing ends when the last page of the last ﬁle exits

the device. Job stream efﬁciency is determined by the percentage of the rated speed at which the device operates when producing

real-world jobs. The closer the rate is to 100%, or if it exceeds 100%, the more efﬁcient the device.

EASE OF USE VERY GOOD

 Samsung’s Blue Compass Navigation control panel consists of a two-line,

32-character LCD, seven hard keys and one colour-changing LED for Status (green

for ready or printing, red for errors or warnings). Functions are simply named, and

the menu system is easy to navigate. Gauges on the LCD provide at-a-glance

toner status.

 Adjusting the drawers is straightforward. Users pull one open and squeeze the blue

tab of the length guide to move it; for A4 paper, users push down the back of the

drawers. The width guides move in sync once users hold down the lever on the right

side. Loading media is equally as easy: Users need only push down the spring-

loaded ramp to lock it into place before adding paper. Paper size must be set via the

control panel, which is common.

 Though no instructions are provided about how to clear misfeeds, BLI technicians

noted that the process is simple. There are ﬁve access points, and consumables

don’t have to be removed, though drums are exposed.

Samsung CLP-670ND Control Panel (U.S. model pictured)



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

 Replacing the print cartridges, which include toner and drums, is a clean procedure.

Users open the front door and pull out a cartridge using two handles. Users can refer

to illustrative instructions on the inside of the door to guide them.

 The unit is also easy to use from the desktop via the well-designed drivers.

FEATURE SET GOOD

 Standard and maximum memory capacities are above average and slightly above

average, respectively, compared with A4 colour laser/LED printers in this speed

range and class.

 The majority of devices in this class don’t offer even an optional hard drive, including

the CLP-670ND.

 While standard paper capacity of 350 sheets is below average for the group, maxi-

mum capacity of 850 sheets is competitive; both ﬁgures include the bypass.

 The unit’s bypass capacity of 100 sheets is competitive for the group.

— The drawers can accommodate up to 105 gsm, which is below average paper-han-

dling ability for the group.

 The bypass can accommodate up to 220 gsm, which is competitive paper-handling

ability for the group.

 Output capacity of 250 sheets is competitive for the group.

 Automatic duplexing is standard.

SECURITY FEATURES NOT RATED

Administrator password length (characters) 18 alphanumeric

Authentication

Network user authentication No

Windows No

Novell NetWare NDPS No

LDAP authentication No

802.1x wireless authentication No

Kerberos protocol support No

Authentication via department or user ID codes that are registered on the machine No

Number of codes NA

Restrict usage of colour No



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Restrict usage of other features No

Authenticated printing No

Common Criteria Certiﬁcation No

Control panel lock/disablement No

Digital user signature No

Encrypted PDF mode/encrypted scanning NA

Encrypted secure print No

Hard drive encryption NA

Hard drive lock NA

Hard drive overwrite NA

Max number of overwrites after every job NA

Overwrite method NA

IP address ﬁltering Yes

IPsec Yes

Job logs (e.g., activity monitoring, compliance auditing) No

MAC address ﬁltering No

Password-protected mailboxes No

Password-protected Web page Yes

Port disablement No

Removable hard drive NA

Secure print No

Secure Sockets Layer (SSL) Yes

SNMPv3 support Yes

Third-party security features None

Transport layer security Yes

Unauthorised copy prevention (secure watermark) No

USB block NA

Additional security features None

NA: Not applicable

ENVIRONMENTAL FEATURES NOT RATED

Speciﬁed capable of running 30% post-consumer recycled paper Yes

Speciﬁed capable of running 50% post-consumer recycled paper Yes

Speciﬁed capable of running 100% post-consumer recycled paper Yes

Instant/Quick Fusing Yes

Duplexing Yes

Toner-save mode Yes

Energy-save mode/modes No

RoHS compliant Yes

In-house environmental policy for this unit? Yes

Percent of product made from previous devices 16.7



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Percent of product made from post-consumer materials 16.7

Percent of product made from pre-consumer materials 16.7

Percent of product made from bio-based materials 16.7

Product designed for recycling (easily disassembled, no binding agents) Yes

Please list types of items that can be recycled Metals, plastics, paper, Styrofoam

Hardware remanufacturing program for this product No

Toner cartridge recycling program for this product Yes (S.T.A.R. Program)

Pre-paid label for return of toner cartridges/bottles for this unit No

Toner recycling system Yes

Ability to program features such as duplexing and auto shut-off over entire

ﬂeet Yes

What tool can be used to do this? Control panel, drivers

Green packaging materials for the product No

Green packaging materials for its consumables No

Packaging materials used EPS, SUK225 (cardboard,

Styrofoam cushion)

Typically, who is responsible for getting rid of packaging materials after

products are shipped to the customer location (e.g., customers, dealers,

shippers)?

Customers

Eco-Label Certiﬁcations

ENERGY STAR Yes

Other The Eco Declaration, Germany

Blue Angel, Korea Eco Label

Tested energy consumption levels of the device (watts):

Ready/Idle 20.5

Energy-save NA

Sleep mode 7.5

During Printing 569

How fast can this product be programmed to go into the following modes (minutes):

Ready/Idle 0

Energy-Save NA

Sleep mode 20

Can the above settings be programmed by a walkup user? Yes (sleep mode only)

First-print time out of sleep mode (seconds) 42

Emissions output from this device for the following substances (mg/h):

Carbon Monoxide NA

Nitrogen Dioxide NA

Ozone 0.42 (colour); 0.36 (black)

Styrene 0.482 (colour); 0.221 (black)

Benzene 0.07 (colour); 0.013 (black)

TVOC 11.36 (colour); 8.15 (black)

Dust 3.1 (colour); 1.9 (black)

Other None

NA: Not applicable

BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

TONER YIELD GOOD

 Based on an average of two cartridges per colour, tested toner yields for all colours

are competitive compared with A4 colour laser/LED printers in this speed range and

class tested to date.

 The average tested toner yields of all colours exceeded the declared speciﬁcations.

— While impressions-per-gram yields for black and cyan are below average for the

group, those for magenta and yellow are well below average.

Tested Toner Yield

Black Cyan Magenta Yellow

Manufacturer’s Rated Toner Yield (Impressions) 5,000 4,000 4,000 4,000

COMPETITIVE AVERAGE 6,429 5,700 5,700 5,700

BLI’s Tested Yield (Impressions)15,959 5,940 5,957 5,957

COMPETITIVE AVERAGE 6,597 5,829 5,703 5,831

Net Weight (Grams) 102.0 88.2 92.1 100.4

Impressions per Gram 58.45 67.35 64.68 59.36

COMPETITIVE AVERAGE 67.64 75.60 81.14 75.05

Manufacturer’s Rated Drum Yield (Impressions)25,000 4,000 4,000 4,000

COMPETITIVE AVERAGE 11,571 11,129 11,129 11,129

1 Based on BLI’s testing of two cartridges per colour using the ISO 24712 toner yield test original.

2 Some devices in the competitive group employ an all-in-one cartridge that includes the toner and drum in a single component. In

those cases, rated toner yield is used as the rated drum yield in calculating the average.

Supplies Cost per Page by Country

Country France Germany Italy UK

Cost per Page 0,0941 € 0,0711 € 0,0800 € 7.263 p

1 Supplies cost per page is based on Manufacturer’s pricing and BLI’s tested toner yields (based on an average of two extra-high-yield print cartridges) using the

ISO 19752 toner yield test original, as well as the manufacturer’s rated yield for the fuser maintenance kit.



BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

Lab Test Report  Samsung CLP-670ND

BUYERS LAB

BuyersLab.com

from Buyers Laboratory. Violators will be prosecuted. To purchase reprints, contact BLI at info@buyerslab.com.

Test Environment

This product was tested in BLI’s 929-square-metre U.S. test lab, in an environment monitored by an Extech RH S20 Digital

RH/Temperature Recorder and Honeywell Model 61 Seven-Day Temperature/Relative Humidity Chart Recorder. All products

lab tested by BLI are powered by dedicated circuits that are protected by ESP (Electronic Systems Protection, Inc.) surge

protectors to prevent transient power and communication disturbances from impacting equipment under test.

Test Equipment

BLI’s dedicated test network, consisting of Windows 2003 servers, Windows XP workstations, 10/100BaseTX network

switches and CAT5 cabling.

Test Duration

Products are tested for two months, a portion of which consists of a durability test during which the product is run at half of

its manufacturer-rated maximum monthly volume, with varying daily test volumes designed to replicate real-world use over

an eight-hour workday. This variable schedule includes a mix of various-size documents, simplex and duplex modes, and a

mix of short, moderate and long run lengths, and on/off cycles, throughout the day.

Tested Conﬁguration

Samsung CLP-670ND base unit, plus optional 512-MB memory upgrade and 500-sheet drawer.

Test Procedures

The test methods and procedures employed by BLI in its lab testing include BLI’s proprietary procedures and industry-

standard test procedures, which include a BLI-developed variation of ASTM’s 1318-90 Test Method for Determination of

Productivity using Electrostatic Copy Machines. In addition to a number of proprietary test documents, BLI uses an industry-

standard KATUN test original for evaluating black image quality and test suites from Quality Logic to evaluate applications

compatibility. In addition to a visual observation under a Graphiclite D5000 Standard Viewer, colour print quality is tested

using a colour test target, which is read using the X-Rite Eye-One/iO Colour Spectrophotometer, and samples are analysed

using the CIE XY Chromaticity Diagram. In addition, density of black and colour output is measured using an X-Rite 500

Series Densitometer. Georgia-Paciﬁc Spectrum Multi-Use Paper is used in the tests, 10 percent of which is recycled paper

containing 30 percent post-consumer content. Image quality is tested using Georgia-Paciﬁc Printing Paper.

SUPPORTING TEST DATA

BUYERS LABORATORY North America • Europe • Asia

Michael Danziger

CEO

Mark Lerch

COO

Anthony F. Polifrone

Managing Director

Daria M. Hoffman

Managing Editor

John Donnelly

Managing Director—International

Pete Emory

Manager of Laboratory Testing

David Sweetnam

European Lab and Research Manager

Jon Bees

Director of Strategic Marketing Products

Buyers Laboratory Inc.

info@buyerslab.com

BLI International (UK) Ltd.

bliEurope@buyerslab.com

BLI International Ltd.

bliAsia@buyerslab.com

BuyersLab.com

permission of Buyers Laboratory, is unlawful and violators will be prosecuted. To purchase reprints, contact BLI at at info@buyerslab.com.

RELIABILITY CERTIFIED

2010

Anthony F. Polifrone

MANAGING DIRECTOR

DATE

CERTIFICATE OF RELIABILITY

THE LEADING INDEPENDENT OFFICE PRODUCTS TEST LAB AND BUSINESS CONSUMER ADVOCATE

NORTH AMERICA  EUROPE  ASIA  WWW.BUYERSLAB.COM

BUYERS LABORATORY INC.

JULY 2010

This is to certify that when subjected to an approximately 40,000-impression Buyers Lab durability test

in a networked environment, the Samsung CLP-670ND proved to be a highly reliable product.

Awarded to

SAMSUNG ELECTRONICS

for the performance of the

Samsung CLP-670ND

in BLI’s in-house durability test.

Samsung Clp 670Nd Users Manual

CLP-670ND to the manual 33908c09-8a7f-438b-8c83-006e87390011

Navigation menu

Versions of this User Manual:

Views

Navigation
