EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-CityKyungbuk,Korea,730-030
(factoryname,address)
declare under our sole responsibility that the product
Digital Keyphone System "DC S-816"
towhichthisdeclarationrelates isinconformitywith
RTTEDirective 1999/5/EC(AnnexII )
Low Voltage Directive 73/23/EEC:93/68/EEC
EMC Directive 89/336/EEC:92/31/EEC
By application of the following standards
EN55022 : 1998 + A1: 2000 + A2:2003, EN55024:1998 + A1:2001 + A2:2003
.........................................................................................
EN61000-3-2: 2000, EN61000-3-3:1995 + A1:2001
.........................................................................................
EN61000-4-2:1995 + A1:1998 + A2:2001, EN61000-4-3:2002
.........................................................................................
EN61000-4-4:1995 + A1:2001 + A2:2001, EN61000-4-5:1995
.........................................................................................
EN61000-4-6:1996 + A1:2001, EN61000-4-11:1994 + A1:2001
.........................................................................................
EN60950 ; 1999 + Corr.Jan.2000
.........................................................................................
.........................................................................................
(Manufacturer)
Samsung Electronics Co., Ltd
259, Gongdan-Dong, Gumi-City
Kyungbuk, Korea, 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date of issue) (name and signature of authorized person)
(Representative intheEU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
In-Seop Lee / Manager
................................................. ...............................................................................
(place and date ofissue) (name andsignature ofauthorized person)
TE Jang
2001-03-31
IS Lee
2001-04-03
EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-CityKyungbuk,Korea,730-030
(factoryname,address)
declare under our sole responsibility that the product
Digital Keyphone System "DCS-408"
towhichthisdeclarationrelates isinconformitywith
RTTEDirective 1999/5/EC(AnnexII )
Low Voltage Directive 73/23/EEC:93/68/EEC
EMC Directive 89/336/EEC:92/31/EEC
By application of the following standards
EN55022 : 1998 Inc. A1: 2000*, EN55024:1998 + A1:2001
.........................................................................................
EN61000-3-2:1995 Inc.A1/A2:1998
.........................................................................................
EN61000-3-3:1995,EN61000-4-2:1995 Inc.A1:1998,EN61000-4-3:1996 Inc.A1:1998
.........................................................................................
EN61000-4-4:1995, EN61000-4-5:1995, EN61000-4-6:1996, EN61000-4-8:1993
.........................................................................................
EN61000-4-11:1994, AS/NZS3548:1995
.........................................................................................
EN60950 ;1992+A1+A2+A3+A4+A11
.........................................................................................
.........................................................................................
(Manufacturer)
Samsung Electronics Co., Ltd
259, Gongdan-Dong, Gumi-City
Kyungbuk, Korea, 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date ofissue) (name andsignature ofauthorized person)
(Representative intheEU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
In-Seop Lee / Manager
................................................. ...............................................................................
(place and date ofissue) (name andsignature ofauthorized person)
2000-12-08
2000-12-08 TE Jang
IS Lee
EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-CityKyungbuk,Korea,730-030
(factoryname,address)
declareunderoursoleresponsibilitythat theproduct
Digital Keyphone System "DCS-408i"
towhichthisdeclarationrelates isinconformitywith
RTTEDirective 1999/5/EC(AnnexII )
Low Voltage Directive 73/23/EEC:93/68/EEC
EMC Directive 89/336/EEC:92/31/EEC
By application of the following standards
EN55022 : 1998 Inc A1: 2000*, EN55024:1998 + A1:2001
.........................................................................................
EN61000-3-2:1995 Inc.A1/A2:1998
.........................................................................................
EN61000-3-3:1995,EN61000-4-2:1995 Inc.A1:1998,EN61000-4-3:1996 Inc.A1:1998
.........................................................................................
EN61000-4-4:1995,EN61000-4-5:1995,EN61000-4-6:1996,EN61000-4-8:1993,
.........................................................................................
EN61000-4-11:1994,AS/NZS3548:1995
.........................................................................................
EN60950 ;1992+A1+A2+A3+A4+A11
.........................................................................................
.........................................................................................
(Manufacturer)
SamsungElectronics co.,ltd
259,Gongdan-Dong,Gumi-City
KyungBuk,Korea 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date ofissue) (name andsignature ofauthorized person)
(Representative intheEU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
In-Seop Lee / Manager
................................................. ...............................................................................
(place and date ofissue) (name andsignature ofauthorized person)
2001-06-11
2001-06-07 TEJang
ISLee
EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-City Kyungbuk, Korea, 730-030
(factoryname,address)
declare under our sole responsibility that the product
Digital Keyphone System "iDCS100"
towhichthisdeclarationrelates isinconformitywith
RTTE Directive 1999/5/EC ( Annex II )
Low Voltage Directive 73/23/EEC:93/68/EEC
EMC Directive 89/336/EEC:92/31/EEC
By application of the following standards
EN55022 : 1998 + A1:2000 + A2:2003, EN55024 : 1998 + A1:2001 + A2:2003
.........................................................................................
EN61000-3-2:2000, EN61000-3-3 : 1995 + A1:2001
.........................................................................................
EN61000-4-2:1995 + A1:1998 + A2:2001, EN61000-4-3:2002
.........................................................................................
EN61000-4-4:1995 + A1:2001 + A2:2001, EN61000-4-5:1995
.........................................................................................
EN61000-4-6:1996 + A1:2001, EN61000-4-11:1994 + A1:2001
.........................................................................................
EN60950-1: 2001(1st Edition) and/or EN60950-1: 2001
.........................................................................................
.........................................................................................
(Manufacturer)
Samsung Electronics Co., Ltd
259, Gongdan-Dong, Gumi-City
Kyungbuk, Korea, 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date ofissue) (name andsignature ofauthorized person)
(Representative intheEU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
Peter Park / Manager
................................................. ...............................................................................
(place and date of issue) (name and signature of authorized person)
2004-12-04
2004-12-04 TE Jang
Peter Park
EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-CityKyungbuk,Korea,730-030
(factoryname,address)
declare under our sole responsibility that the product
Digital Keyphone System " OfficeServ 12"
to which this declaration relates is in conformity with
RTTEDirective 1999/5/EC(AnnexII )
Low Voltage Directive 73/23/EEC:93/68/EEC
EMC Directive 89/336/EEC:92/31/EEC
By application of the following standards
EN55022 : 1998 + A1: 2000 , EN55024 : 1998 +A1:2001
EN61000-3-2:2000, EN61000-3-3:1995 + A1:2001
EN61000-4-2:1995 + A1:1998 + A2:2001 , EN61000-4-3:1996 + A1:1998 + A2:2001
EN61000-4-4:1995 + A1:2001, EN61000-4-5:1995 + A1:2001
EN61000-4-6:1996 + A1:2001, EN61000-4-8:1993 + A1:2001, EN61000-4-11:1994 + A1:2001
EN60950-1: 2001(1st Edition) and/or EN60950-1: 2001
(Manufacturer)
Samsung Electronics Co., Ltd
259, Gongdan-Dong, Gumi-City
Kyungbuk, Korea, 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date ofissue) (name andsignature ofauthorized person)
(Representative intheEU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
In-Seop Lee / Manager
................................................. ...............................................................................
(place and date ofissue) (name andsignature ofauthorized person)
2003-11-25
2003-11-25 TE Jang
IS Lee
....................................................................................................
....................................................................................................
....................................................................................................
....................................................................................................
....................................................................................................
....................................................................................................
EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-CityKyungbuk,Korea,730-030
(factoryname,address)
declare under our sole responsibility that the product
Digital Keyphone System "OfficeServ 100"
towhichthisdeclarationrelates isinconformitywith
RTTE Directive 1999/5/EC ( Annex II )
Low Voltage Directive 73/23/EEC:93/68/EEC
EMC Directive 89/336/EEC:92/31/EEC
By applicationof thefollowingstandards
EN55022 : 1998 + A1:2000 + A2:2003, EN55024 : 1998 + A1:2001 + A2:2003
EN61000-3-2:2000, EN61000-3-3 : 1995 + A1:2001
EN61000-4-2:1995 + A1:1998 + A2:2001, EN61000-4-3:2002
EN61000-4-4:1995 + A1:2001 + A2:2001, EN61000-4-5:1995
EN61000-4-6:1996 + A1:2001, EN61000-4-11:1994 + A1:2001
EN60950-1: 2001(1st Edition) and/or EN60950-1: 2001
(Manufacturer)
Samsung Electronics Co., Ltd
259, Gongdan-Dong, Gumi-City
Kyungbuk, Korea, 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date of issue) (name and signature of authorized person)
(Representative intheEU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
Peter Park / Manager
................................................. ...............................................................................
(place and date ofissue) (name andsignature ofauthorized person)
TE Jang
2004-12-04
Peter Park
2004-12-04
....................................................................................................
....................................................................................................
....................................................................................................
....................................................................................................
....................................................................................................
....................................................................................................
EU Declaration ofConformity(RTTE)
Samsung Electronics Co., Ltd.
259 Gongdan-Dong, Gumi-City Kyungbuk, Korea, 730-030
(factoryname,address)
declare under our sole responsibility that the product
Digital Keyphone System "iDCS500 / OfficeServ500"
towhichthisdeclarationrelates isinconformitywith
RTTEDirective 1999/5/EC(AnnexII )
LowVoltageDirective 73/23/EEC
EMC Directive 89/336/EEC:92/31/EEC
By application of the following standards
EMC: EN55022 : 1998, EN61000-3-2:1995 Inc A1/A2:1998 + A14:2000*,
.........................................................................................
RTTE : TBR4: November 1995 incorporating TBR4/A1: December 1997
.........................................................................................
EN61000-3-3:1995, EN61000-4-2:1995 98, EN61000-4-3:1996,
.........................................................................................
EN61000-4-4:1995, EN61000-4-5:1995, EN61000-4-6:1996,
.........................................................................................
LVD: EN60950: 2000 (IEC 60950, Third Edition, 1999)
.........................................................................................
EN61000-4-11:1994, AS/NZS3548:1995
.........................................................................................
.........................................................................................
(Manufacturer)
Samsung Electronics Co., Ltd
259, Gongdan-Dong, Gumi-City
Kyungbuk, Korea, 730-030
Tae-eok Jang / General Manager
................................................. .................................................................................
(place and date ofissue) (name andsignature ofauthorized person)
(Representative in the EU)
SamsungElectronics EuroQALab.
BlackbusheBusiness Park
SaxonyWay,Yateley,Hampshire
GU46 6GG, UK
In-Seop Lee / Manager
................................................. ...............................................................................
(place and date ofissue) (name andsignature ofauthorized person)
2003-05-18
2003-05-19 TE Jang
IS Lee
© Samsung Business Communications
Digital Keysets
Intended Use
This digital telephone is intended to be connected to a digital extension of a Samsung
DCS-408, DCS-408i, DCS-816, iDCS100 or OfficeServ telephone system. The connection
allows voice communication between the central processor unit and the telephone. It is not
intended to be connected to any other telephone system or the public telephone network.
Please read the provided user instructions carefully.
© Samsung Business Communications 1
ABOUT THIS GUIDE
This User Guide provides instructions for installing and operating Samsung’s latest DS-5038S,
5014S and 5007S 2-line LCD phones with the Samsung DCS-816, DCS-408, DCS-408i,
iDCS100 and Enterprise IP Solutions OfficeServ keyphone systems.
Please take the time to read this guide to familiarise yourself with the features of your phone.
SAFETY PRECAUTIONS
For your safety and to ensure correct operation of your phone, note carefully the following
important precautions.
Avoid placing objects containing water near the phone.
Do not put objects that contain water such as vases, cups, cosmetics, and medicines near the phone.
Moisture in the phone may cause fire and electric shocks.
Do not install the phone in the following locations:
- Direct sunlight or near a heater
- Humid areas or where water flows
- Areas of extreme or volatile changes in temperature.
- Dusty or dirty areas
Use a soft dry cloth to clean the phone.
Do not use chemical solvents such as wax, benzene, alcohol, thinner, aerosol, lubricant, or detergent to
clean your phone.
Do not disassemble or attempt to repair the phone yourself.
If a repair is needed, please contact your authorised Samsung dealer.
2 © Samsung Business Communications
CONTENTS
INTRODUCTION
About this Guide .............................................................................................................................. 1
Safety Precautions .......................................................................................................................... 1
PREPARATION
Main Features.................................................................................................................................. 3
Front View of the Phone .................................................................................................................. 5
Connecting Lines to the Phone........................................................................................................ 7
THINGS YOU SHOULD KNOW
Volume Adjustment.......................................................................................................................... 8
Entering Characters......................................................................................................................... 9
Button LEDs .................................................................................................................................. 12
USING THE FEATURES
Making a Call................................................................................................................................. 13
Answering a Call............................................................................................................................ 17
Features Used During a Call ......................................................................................................... 19
ANNEX
Troubleshooting............................................................................................................................. 23
Product Specifications ................................................................................................................... 25
© Samsung Business Communications 3
PREPARATION

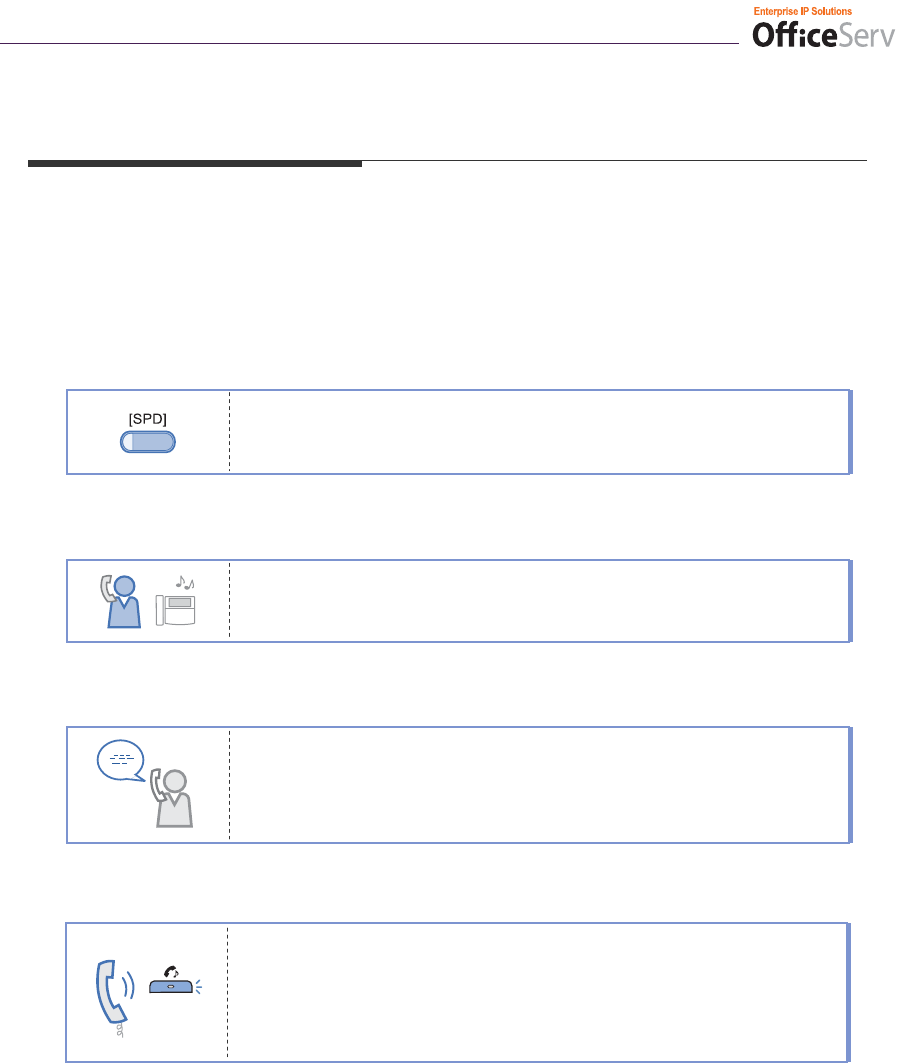

Main Features
Speed Dial
Pickup
Automatic Redial/Retry
Hold
For frequently used phone numbers, you can press a speed dial button
to make a call.
You can answer a call at another extension.
When your call is important but your party is busy on another call, you
can use the automatic redial/retry function. The digital phone redials the
called number automatically until your party is free to take your call.
You can use the Hold feature when you need to interrupt a call; for
example, when another call arrives. Use this button to temporarily hold
the current call until you are ready to resume it. You can even pick up a
held call at another station.
4
© Samsung Business Communications
Conference Calls
Call Forwarding
Do Not Disturb
Paging
Caller ID
If you have any questions or concerns regarding features not covered in this user guide, refer to
the the other documentation supplied with your system or contact your dealer.
If you cannot answer an incoming call, the call can be forwarded to
another extension (unconditionally, while you are busy on a call,
or when you are away from your phone).
When you do not want to be disturbed, the DND feature can be set to
block incoming calls and the phone will not ring. Your calls can be
forwarded to another station when you do not wish to be disturbed.
If you have an urgent announcement to make, or you wish to locate a
colleague, you can page through the speaker of other stations, or
through optional external speakers.
When there is an incoming call, the caller ID or name will be displayed
on the LCD screen. You can see who is calling before answering the
call and respond accordingly.
NOTE
This button is used when multiple parties need to be connected
simultaneously during a phone conversation. Up to five parties, including
you, can be connected in a conference call.
© Samsung Business Communications 5
Front View of the Phone
DS-5038S
Soft Buttons
Transfer Button
LCD screen
Programmable Buttons
Programmable
Buttons
Scroll Button
Status Indicator
Conference Button
Redial Button
Volume Button
Speaker Button
Dial Buttons
Microphone
Speaker
Hold Button
38 Programmable Buttons
6
© Samsung Business Communications

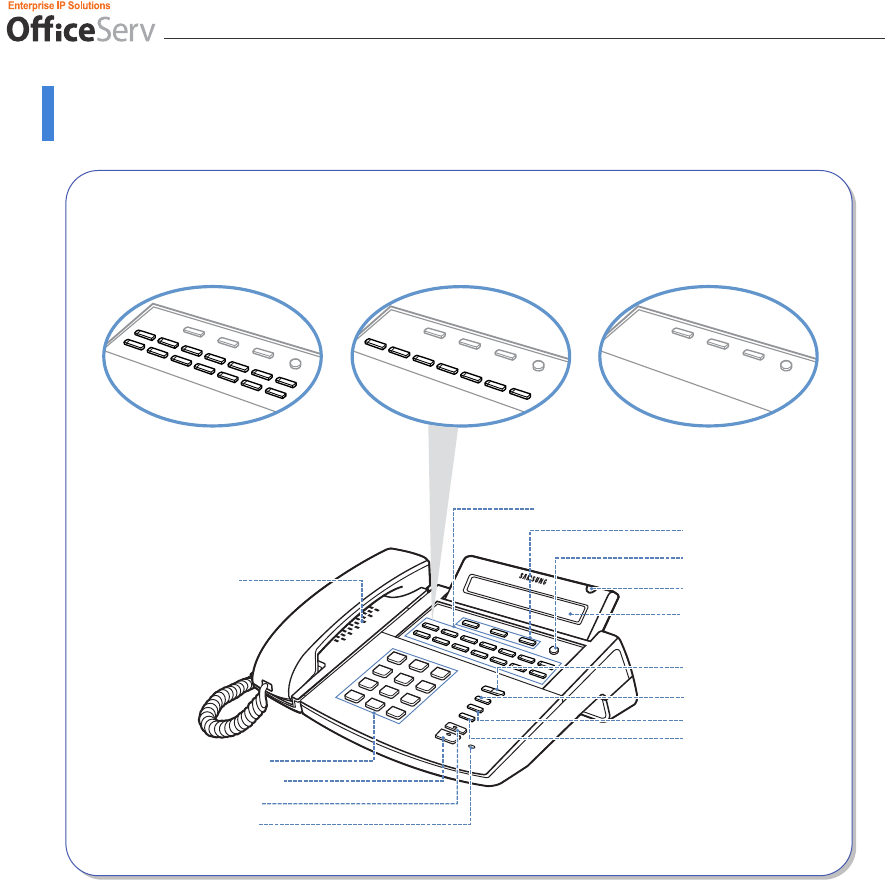

DS-5014S / DS-5007S
DS-5014S
(14 Programmable Buttons)
DS-5007S
(7 Programmable Buttons)
Soft buttons and Scroll button
Soft Buttons
Transfer Button
LCD screen
Programmable Buttons
Scroll Button
Status Indicator
Conference Button
Redial Button
Volume Button
Dial Buttons
Speaker
Speaker Button
Microphone
Hold Button
© Samsung Business Communications 7

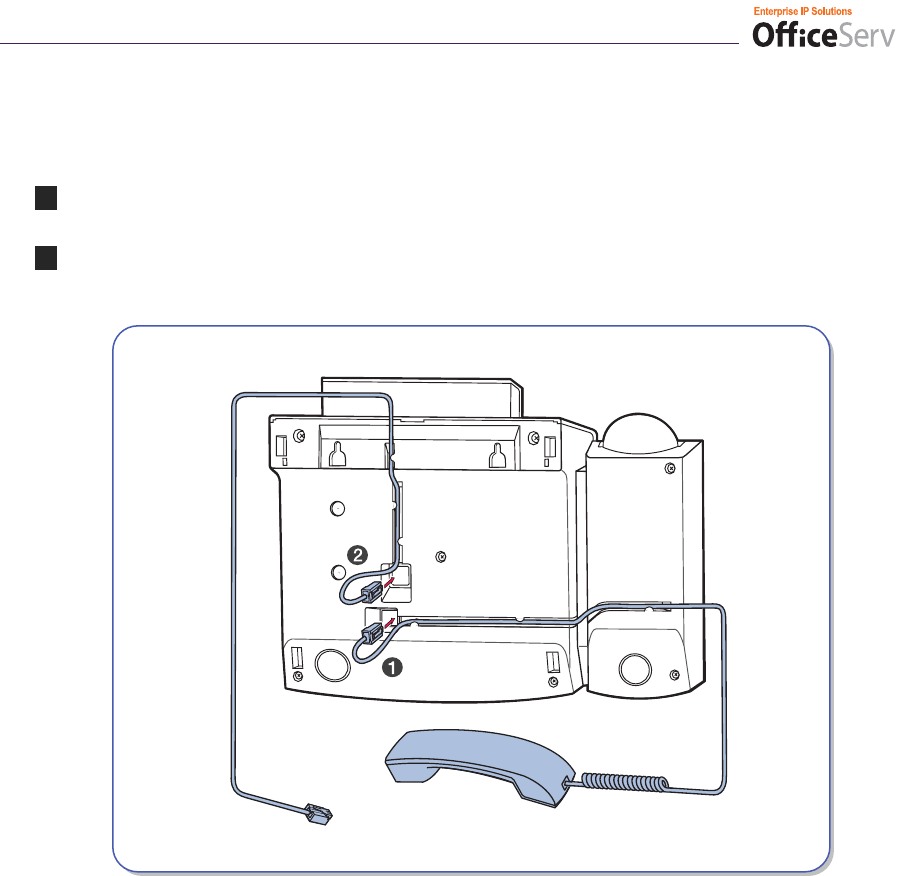

Connecting Lines to the Phone
1 Connect the handset to the handset connection jack.
2 Connect the line cord to the phone line connection jack.
8
© Samsung Business Communications
THINGS YOU SHOULD KNOW

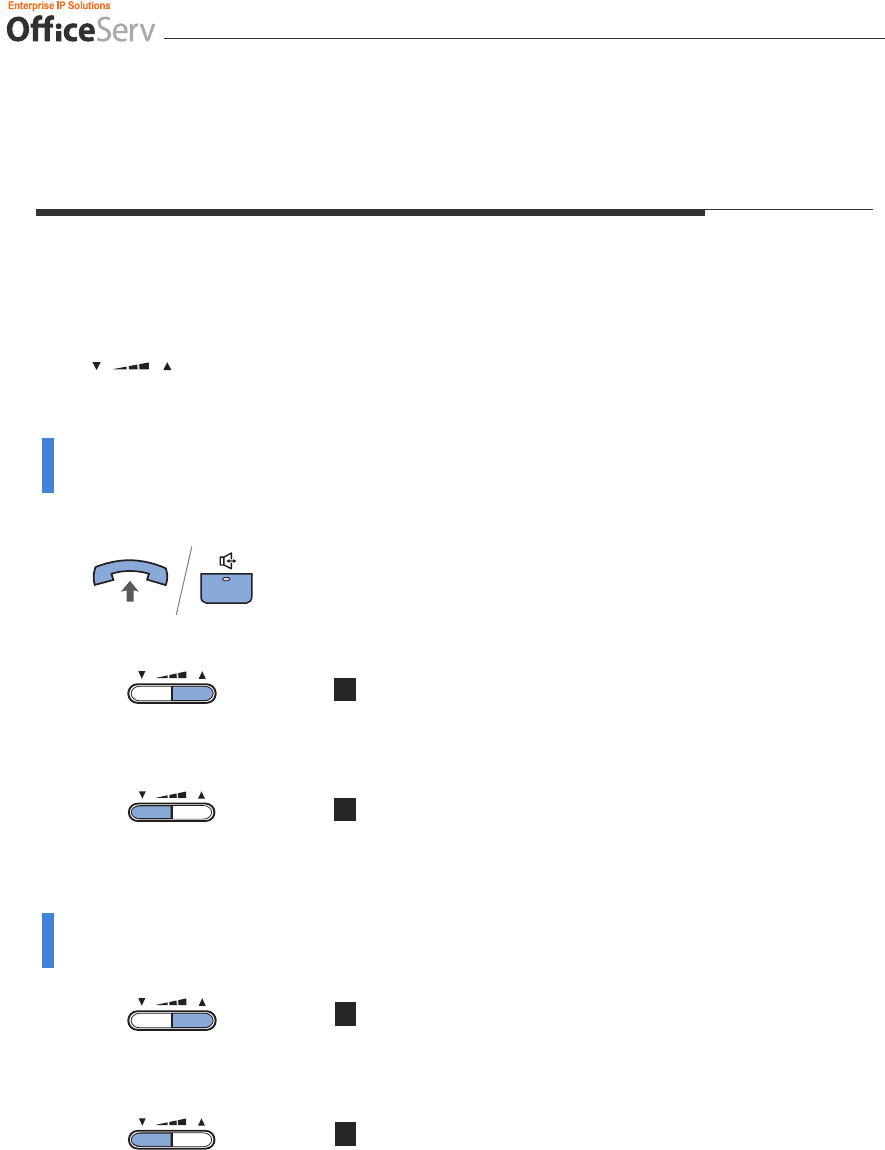

Volume Adjustment
The [ ] button is used for adjusting the volume of the handset, speaker, and ringer.
Adjusting Handset/Speaker Volume
During a call using the handset.
Or, during a call using the [Speaker] button.
1 Press the [VolumeS] button to increase the volume.
2 Press the [TVolume] button to decrease the volume.
Adjusting Ring Volume
1 To increase the ring volume, press the
[VolumeS] button while the phone is ringing.
2 To decrease the ring volume, press the
[TVolume] button while the phone is ringing.
© Samsung Business Communications . 9

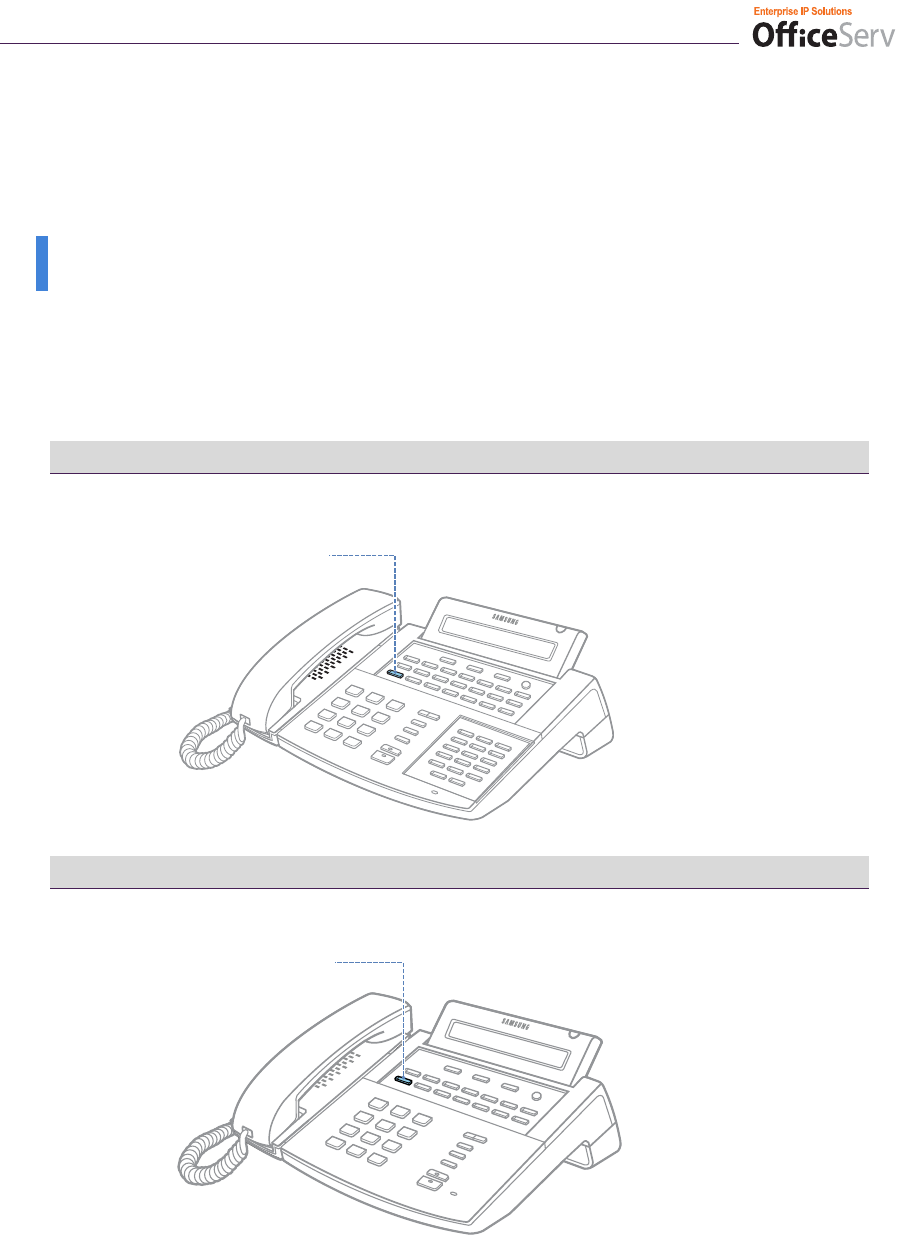

Entering Characters
Using the dial buttons, you can easily enter and edit characters, numbers and special characters.

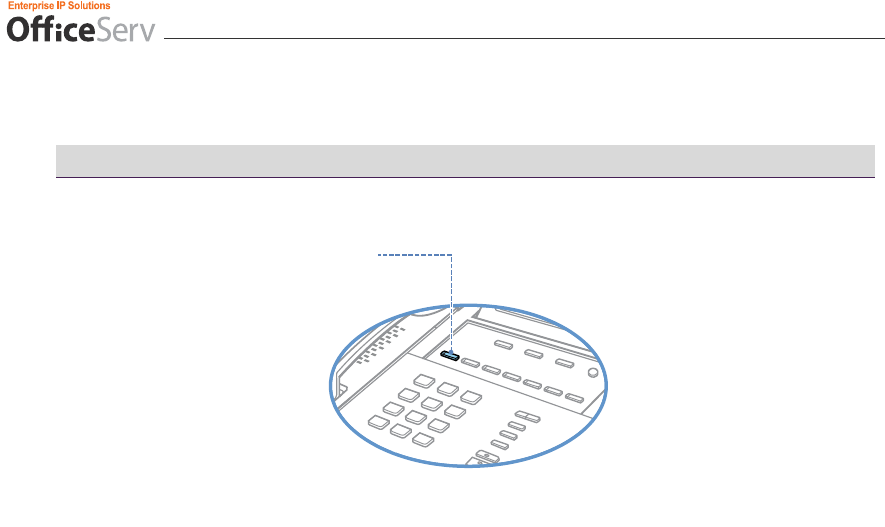

“A” Button
The “A” button is used to toggle between uppercase and lowercase characters.
The “A” button of the DS-5038S, DS-5014S, and DS-5007S digital phone is the first button of
the bottom row of the programmable buttons below the LCD screen.
DS-5038S
DS-5014S
Button A
Button A
10
© Samsung Business Communications
DS-5007S
Button A
© Samsung Business Communications . 11
Procedure
Press the [ ] button to move the cursor and insert or modify the desired character.
Press the [ ] button to move the cursor one space to the right to enter the same
character you previously selected.
Procedures for entering characters are described below.
Enter the characters according to the table below. Press button “A” to switch between
uppercase and lowercase characters.
Dial frequency
Dial button 1 2 3 4 5
0 < > . ) 0
1 Space ? , ! 1
2 A B C @ 2
3 D E F # 3
4 G H I $ 4
5 J K L % 5
6 M N O ^ 6
7 P Q R S 7
8 T U V * 8
9 W X Y Z 9
* : = [ ] *
#
#
?
-
[
)
I
Space
.
<
]
_
;
&
,
>
@
+
!
%
/
^
{
:
$
=
(
}
Press the [#] button to enter special characters. Special characters are displayed in the
following order.
# space & ! : ? . , % $ - < > / =
[ ] @ ^ ( ) _ + { } | ;
12
© Samsung Business Communications

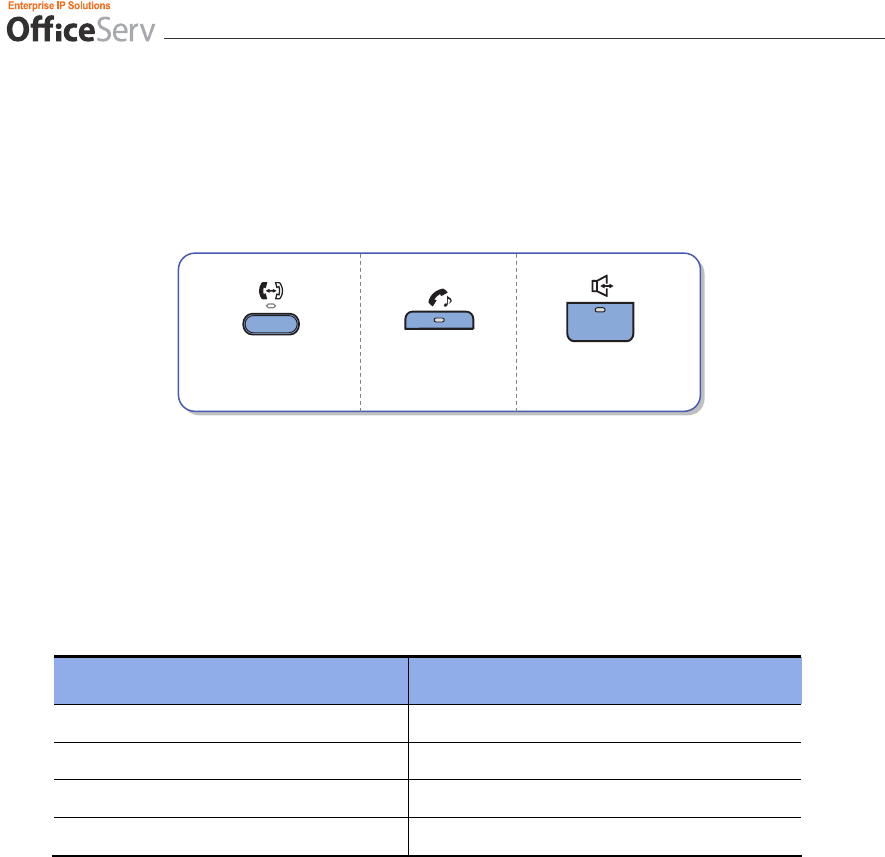

Button LEDs
The [Transfer] button, [Hold] button, and [Speaker] button have LEDs that turn on or
off according to the phone status.
For incoming external calls or intercom calls ringing at your phone the trunk button LED or Call
button LED will flash green. The trunk button LED will flash red on other digital phones with the
same trunk button. While holding a call, the green LED of the trunk line will flash.
The following table summarises the status of LEDs.
Function Button LED Status
Trunk line or functions are in use LED is steady green or red.
New call is ringing LED is a fast flashing green.
A call is on hold LED is a slow flashing green or red.
A call is recalling to the digital phone LED is a slow flashing amber.
[Transfer] button [Hold] button [Speaker] button
© Samsung Business Communications 13
USING THE FEATURES
Making a Call
This function is used when you want to make a call to other stations or to make an external
call.

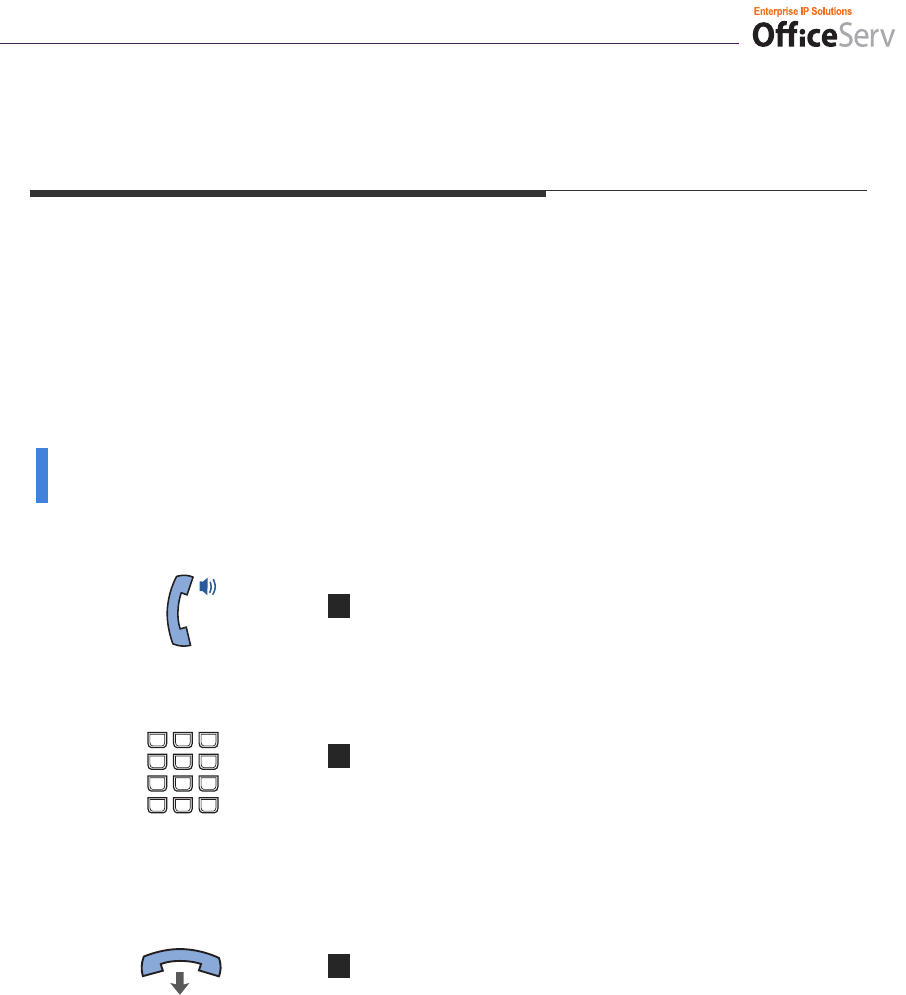

Calling an Extension Number
This function is used when you want to make a call to other stations.
1 Pick up the handset and check for dial tone.
2 Dial the extension number or station group number.
Wait until the other party answers the call.
If a short signal tone (not a ringing tone) is heard,
the receiving extension has set up the Voice
Announce or Automatic Answer function.
3 Replace the handset to finish the call.
14
© Samsung Business Communications

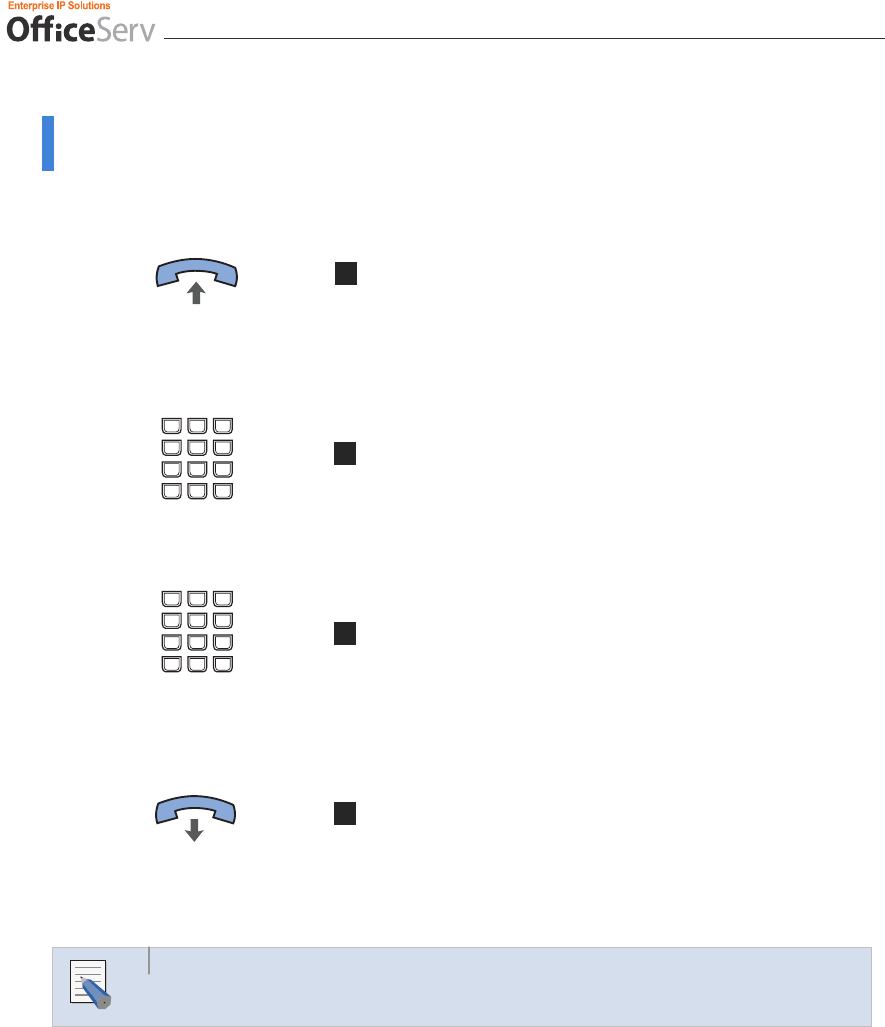

Calling an Outside number
This function is used when you want to make an external call.
1 Pick up the handset.
2 Press the trunk or trunk group button
or dial the trunk group access code (e.g., 9).
3 Dial the telephone number you want to call.
4 Finish your call by replacing the handset.
If the hot keypad feature is used, you can make an external call without picking up the handset
by dialling the trunk access code.
NOTE
© Samsung Business Communications 15

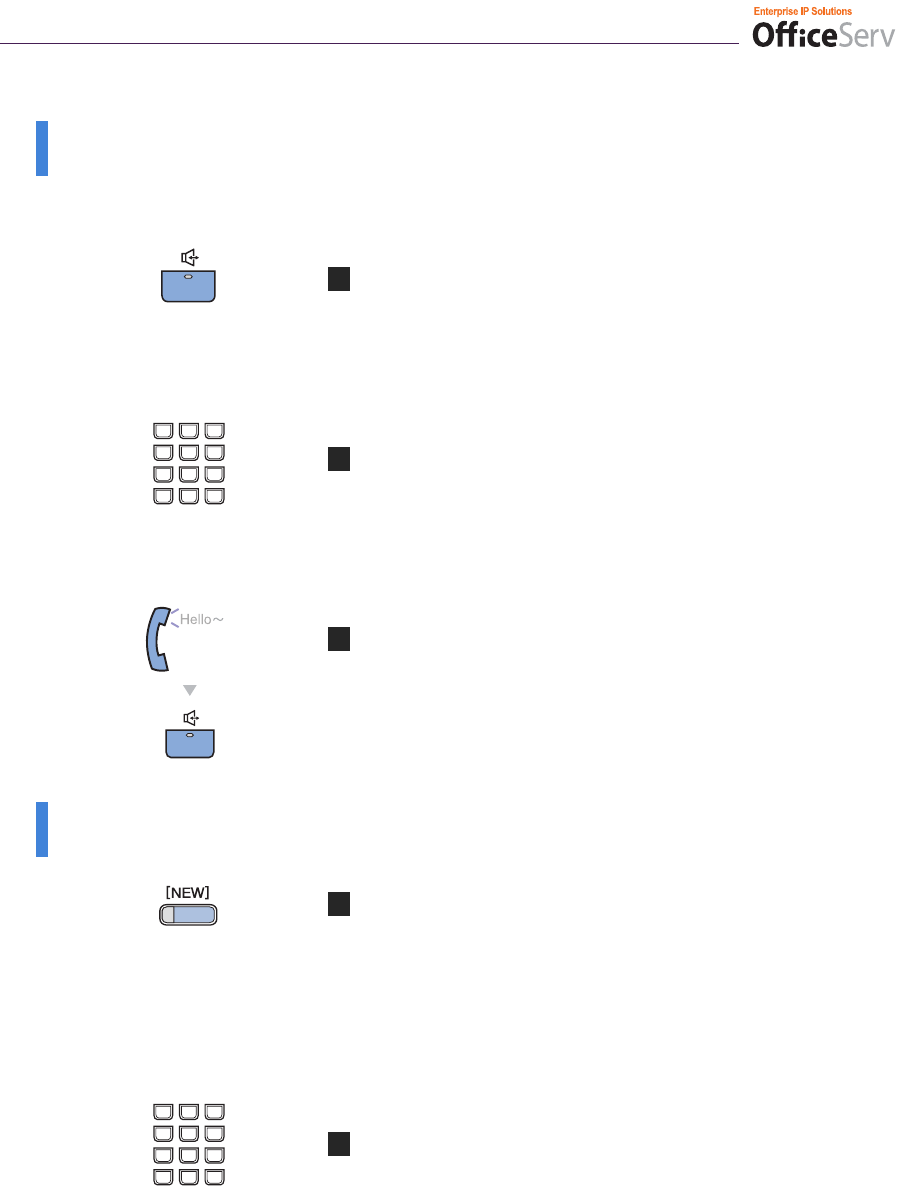

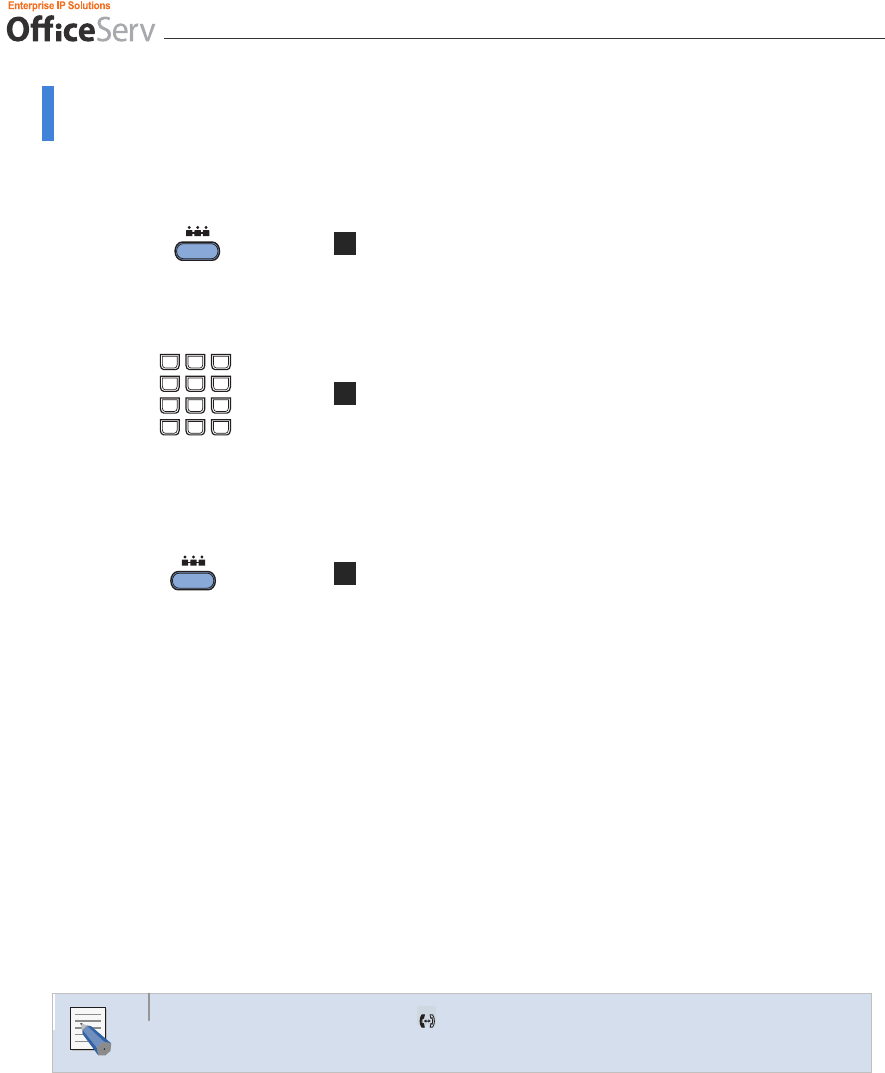

Using a Speakerphone
This function is used when you make a call with the speakerphone.
1 Press the [Speaker] button without lifting the
handset.
2 Dial the telephone number you want to call.
Or, press the trunk line / extension button.
3 Finish the call, by pressing the [Speaker] button.
New Call
1 Press the [NEW] button to disconnect your existing
call, wait for dial tone and then make a new call on
the same line.
If the [NEW] button does not appear on your phone,
press the Soft button corresponding to [NEW]
on the LCD screen.
2 Check for dial tone and then dial the telephone
number.
16
© Samsung Business Communications

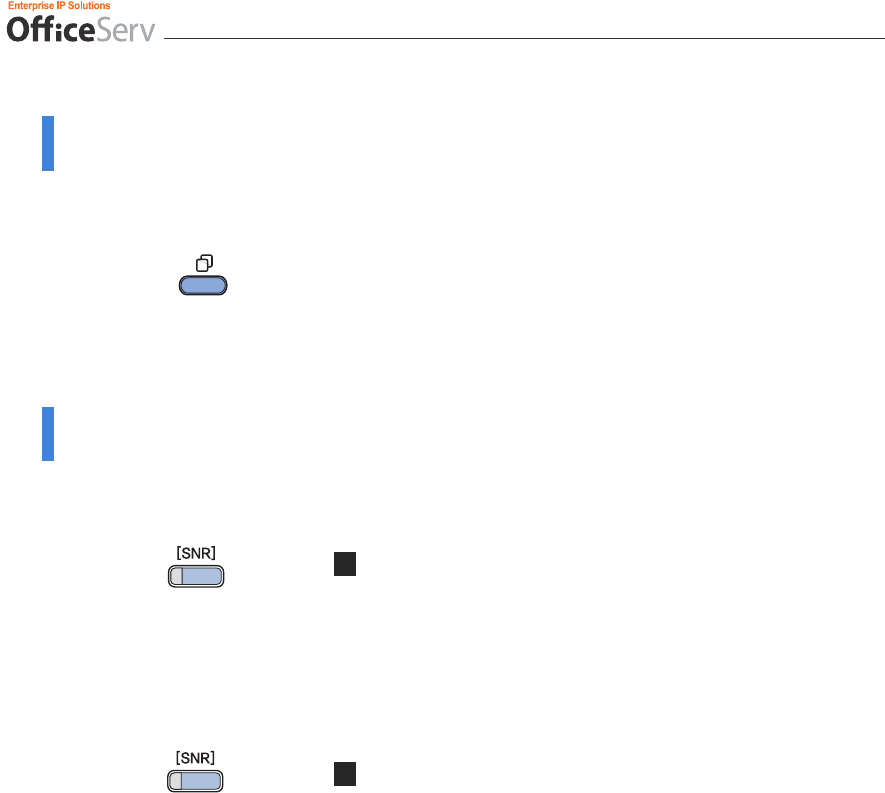

Redial
To redial the last outside telephone number you dialled.
Press the [Redial] button. Or, dial [1][9] .
Save Number with Redial
To save the number you just dialled for later use.
1 Press the [SNR] button before hanging up.
If the [SNR] button does not appear on your
phone, press the Soft button corresponding
to [SAVE] on the LCD screen.
2 The saved number can be redialled at any time
by pressing the [SNR] button or dialling [1][7] .
The same external trunk line will be selected
for you.
© Samsung Business Communications 17
Answering a Call
This function is used when you want to answer an intercom or outside call.

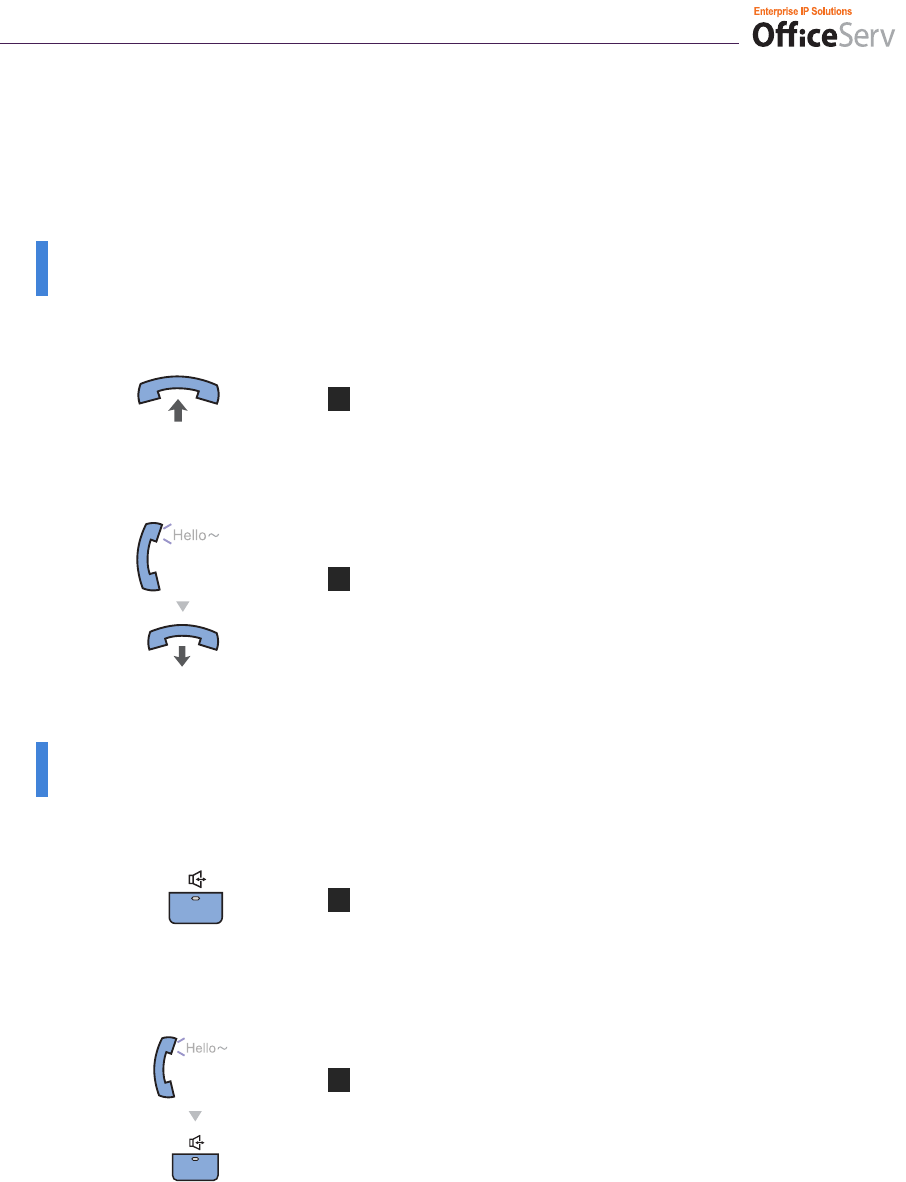

Using a Handset
This function is used when you answer a call with the handset.
1 When the phone rings, pick up the handset.
2 To finish the call replace the handset.
Using the Speakerphone
This function is used when you answer a call with the speakerphone.
1 When the phone rings, press the [Speaker] button
without lifting the handset.
2 To finish the call, press the [Speaker] button.
18
© Samsung Business Communications
If a call is flashing at your phone but not ringing, you must press the flashing button
to answer.

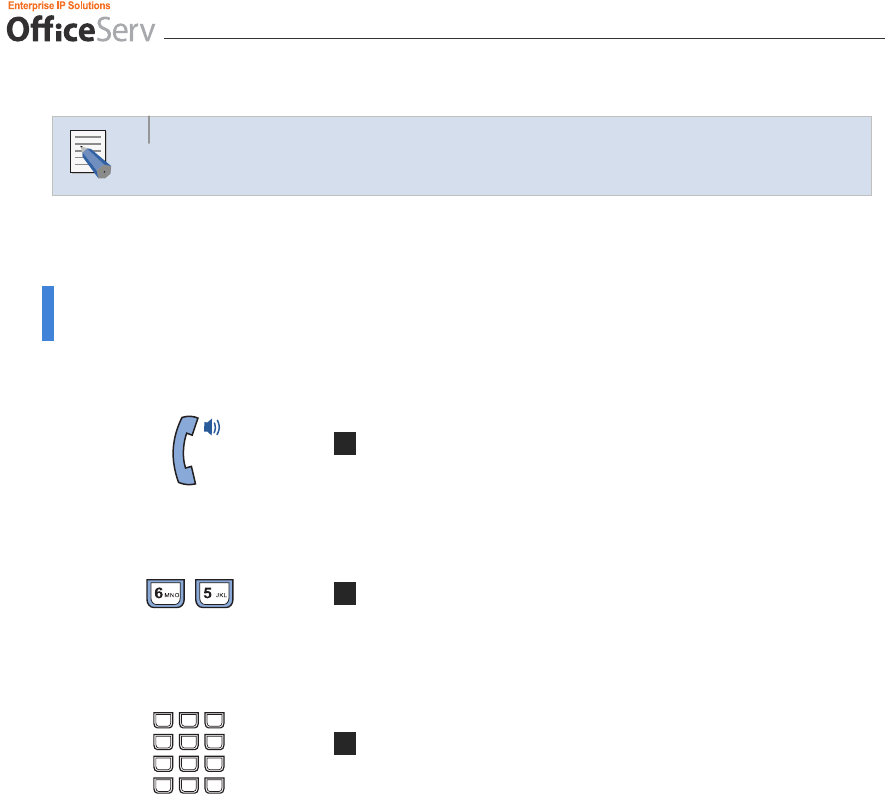

Call Pickup
This function is used when you pick up a call ringing at another station.
1 When, a call is ringing at another station,
pick up the handset and listen for the dial tone.
2 Dial [6][5].
3 Dial the number of the ringing station.
NOTE
© Samsung Business Communications 19
Features Used During a Call
These features are used while you are on a call.

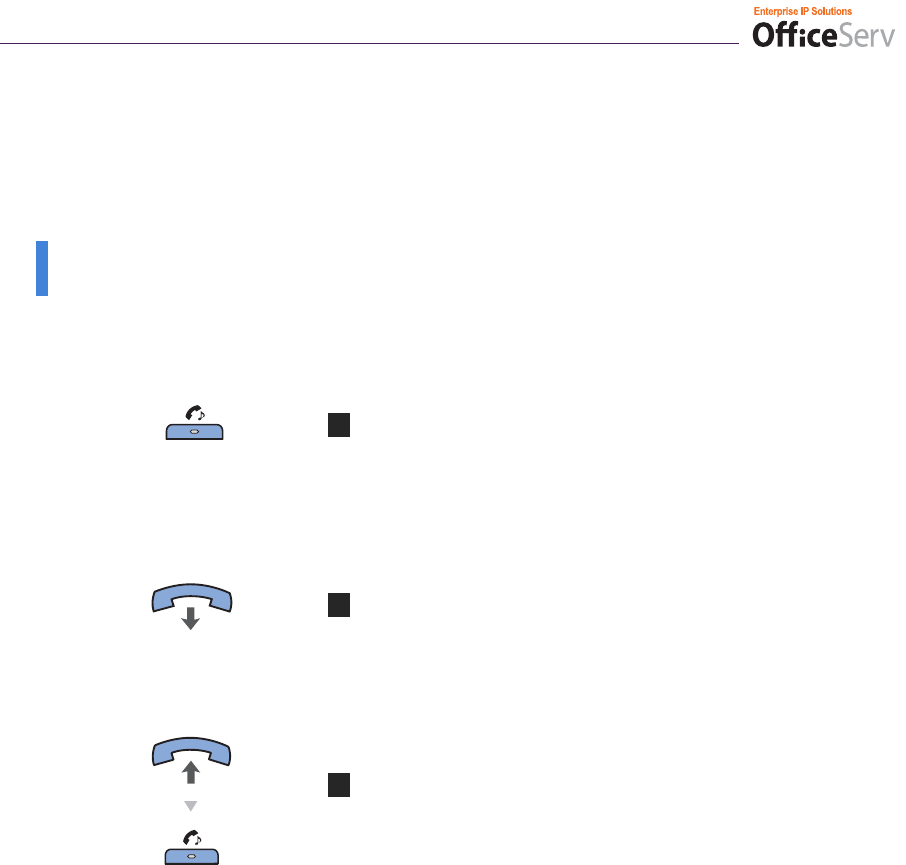

Hold an Intercom Call
You can put the other party on hold if another intercom call arrives or you wish to use both hands
for another task and resume the call later.
1 Press the [Hold] button during a call.
2 Replace the handset to put the current call on hold.
3 To resume the call, lift the handset and then
press the [Hold] button.
20
© Samsung Business Communications

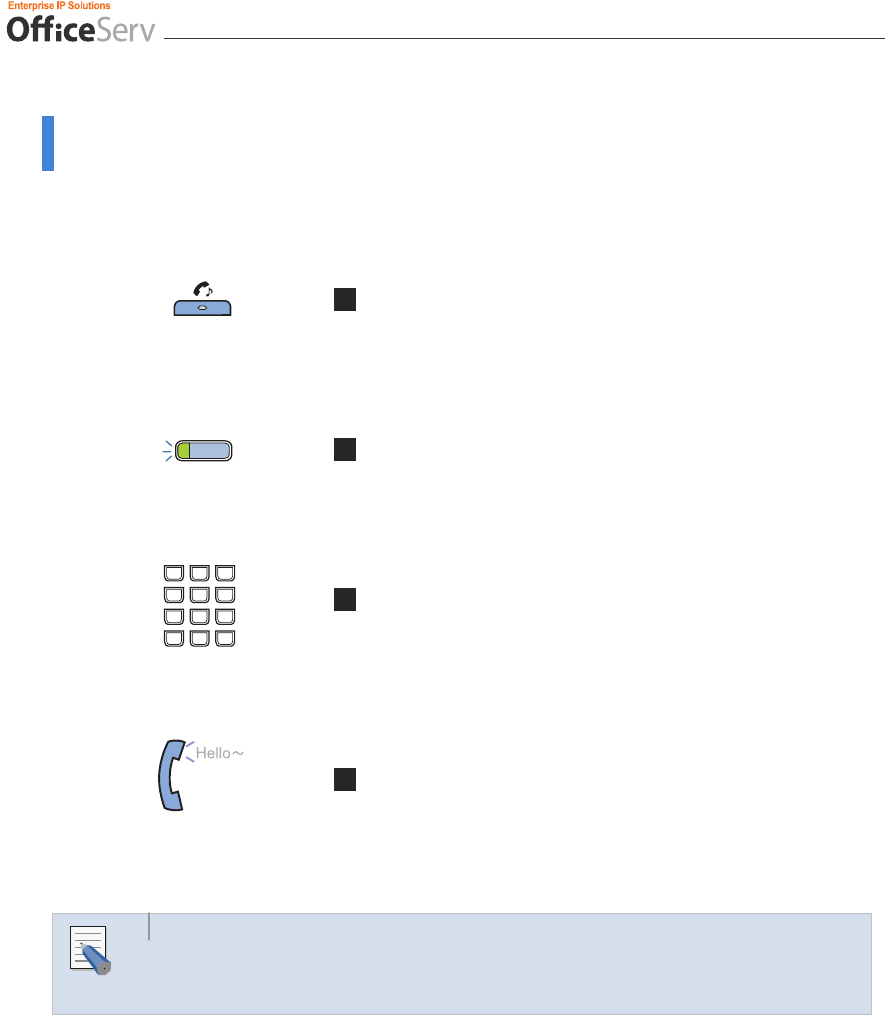

Hold an Outside Call
You can put the other party on hold if another external call arrives or you wish to use both
hands for another task and resume the call later.
1 While you are engaged in a conversation,
press the [Hold] button.
2 The call on hold will flash green on your phone
and this line will flash red on other stations.
3 To return to the held call, press the line button.
The green LED will stop flashing.
4 Resume your conversation with the other party.
While you are on a call, pressing a trunk line button or flashing Call button can automatically
put your first call on hold and connect you to the new call, if the automatic hold feature is set.
See your system administrator for advice.
NOTE
© Samsung Business Communications 21

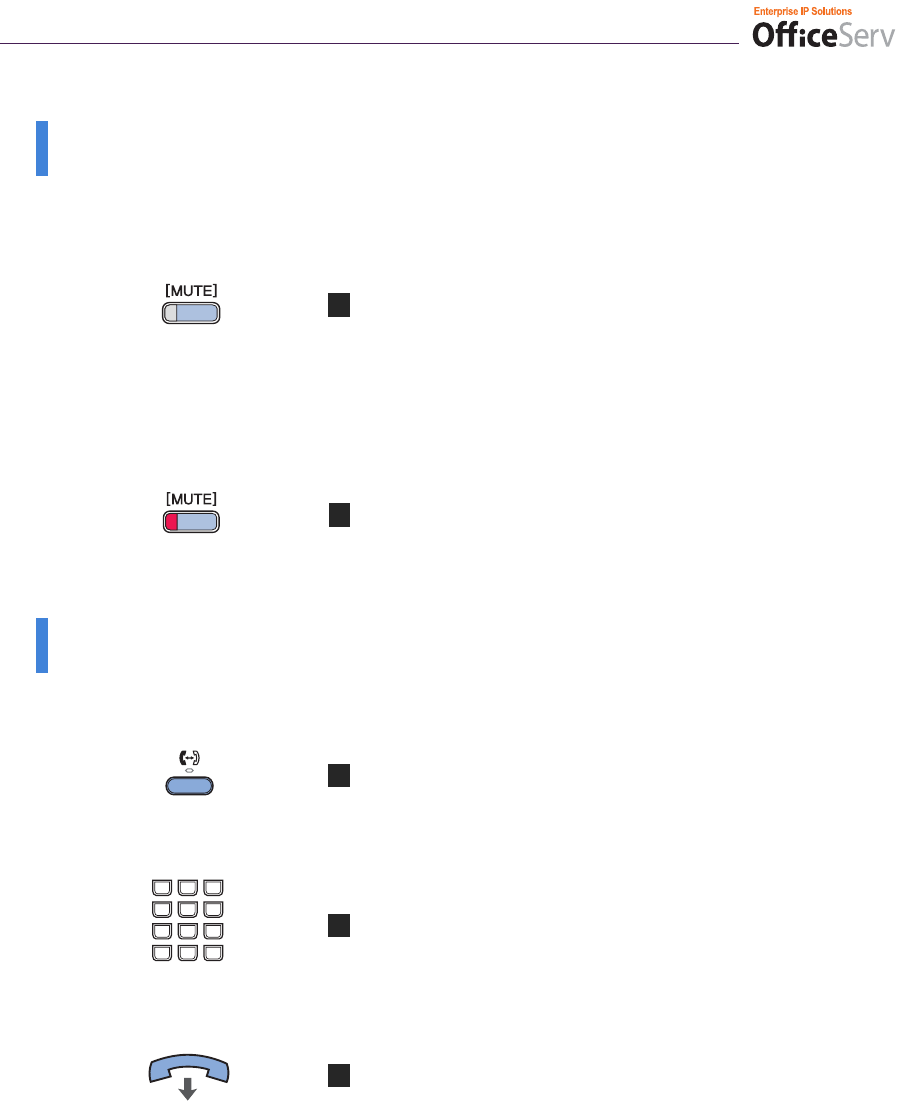

Mute
During a call you can mute the handset transmitter or microphone while still listening to the
other party.
1 Press the [MUTE] button. A red LED lights on the button.
If the [MUTE] button does not appear on your phone,
press the Soft button corresponding to [MUTE]
on the LCD screen.
2 To clear the Mute function, press the [MUTE] button again.
Transferring a Call
You can transfer your call to another extension or return to the outside party.
1 While on a call, press the [Transfer] button.
Your call is automatically put on transfer hold.
2 Dial an extension number or trunk line number.
3 For blind transfer, hang up when you hear ringing. Or, for
screened transfer, wait for the called party to answer and
advise them of the call. Then hang up.
22
© Samsung Business Communications
Conference Calls
Up to 5 members, including you, can participate in a conference simultaneously.
1 Press the [Conference] button while on a call.
You will hear conference tone.
2 Dial the number of the internal or external
party you wish to add to the conference,
wait for them to answer and press the
[Conference] button again.
3 Dial the number of another internal or external
party to be added to the conference,
or press the [Conference] button to begin
the conference.
The conference connection status of all
the numbers is displayed.
When you have added the last party press
the [Conference] button twice.
To disconnect a party from the conference, press the
[Conference] button and dial the station number
or trunk number of the party to be excluded.
Press [Conference] again to resume the conference with
the remaining parties.
Alternatively, you can press the [] button and dial the conference function code [4][6] to use
the conference function to add additional parties.
NOTE
© Samsung Business Communications 23
ANNEX
Troubleshooting
Possible problems and their normal solutions are described below. Check this list before
contacting your Samsung dealer for advice.
Dial tone is not heard when you lift the handset or press the [Speaker] button.
Check that the handset and phone line are connected to the handset connection jack and
phone line connection jack of the phone.
(Refer to 'Connecting Lines to the Phone' in this guide.)
Nothing appears on the LCD screen while the phone is being used.
Check that the phone line is connected to the phone line connection jack of the phone.
(Refer to 'Connecting Lines to the Phone' in this guide.)
The phone does not ring or the volume is too low.
Press the [ ] button to adjust the volume.
(Refer to 'Volume Adjustment' in this guide.)
Conversation quality is reduced due to noise and echo.
If you are using the speakerphone, try using the handset.
24
© Samsung Business Communications
Excessive echo occurs during a page announcement or with Auto Answer set.
If digital phones are too close to each other, sound from one speaker might echo
during a page or on auto answer call. Maintain a reasonable distance between digital
phones.
Caller IDs are not displayed on the LCD screen.
- Confirm with your system administrator that the caller ID service is available from
your Telephone Company.
- The caller may have blocked the sending of their caller ID.
- The caller may be making a call from an area where the caller ID cannot be provided
(e.g., international calls).
- The caller may be using a public phone.
- The caller ID received from the Telephone Company may be corrupt.
- The Telephone Company may not send a caller ID.
An alarm does not ring at the programmed time.
- Check if the current time is set on the phone correctly, and if the alarm is set.
(See your system administrator.)
© Samsung Business Communications 25
Product Specifications
The specifications of the DS-5038S, DS-5014S, and DS-5007S digital phones are as follows.
Item Specification
Model Name DS-5038S DS-5014S DS-5007S
Weight (kg) 0.962 0.830
Size (mm)
(width×length×height) 266×206×119 235×206×100
Operating
Temperature (°C) 0 to 45
Operating Humidity (%) 10 to 90 non-condensing
Number of
[Programmable] buttons 38 14 7
Speakerphone Yes
AOM 64-button AOM can be connected (software connection)
Telephone line thickness 26AWG (or above)
LCD
2-Line LCD
24 characters per line: English
Samsung Business Communications
Brookside Business Park, Greengate, Middleton, Manchester M24 1GS
