Owner’s
Instructions
COLOR TELEVISION
TX-R2764/TX-R3064W
TX-R3264/TX-R2765
TX-R3065W/TX-R3265
TX-R2664W
2
Important Warranty Information
Regarding Television Format
Viewing
Standard screen format televisions (4:3, the aspect ratio of the screen width to height) are pri-
marily designed to view standard format full-motion video. The images displayed on them
should primarily be in the standard 4:3 ratio format and constantly moving. Displaying station-
ary graphics and images on screen, such as the dark top and bottom letterbox bars (wide
screen pictures), should be limited to no more than 15% of the total television viewing per
week.
Wide screen format televisions (16:9, the aspect ratio of the screen width to height) are primar-
ily designed to view wide screen format full-motion video. The images displayed on them
should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your
model offers this feature, and constantly moving. Displaying stationary graphics and images on
screen, such as the dark side-bars on non-expanded standard format television video and pro-
gramming, should be limited to no more than 15% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video
game displays, station logos, web sites or computer graphics and patterns, should be limited as
described above for all televisions. Displaying any stationary images that exceed the above guide-
lines can cause uneven aging of picture tubes (CRTs) that leave subtle, but permanent burned-in ghost
images in the television picture. To avoid this, vary the programming and images, and primarily dis-
play full screen moving images, not stationary patterns or dark bars. On television models that offer
picture sizing features, use these controls to view the different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven CRT
aging as a result of format selection and use, as well as other burned-in images, is not covered
by your Samsung limited warranty.
CONTENTS
3
Chapter 1: Your New TV . . . . . . . . . . . . . . . . 5
List of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Familiarizing Yourself with The TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Side Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 2: Installation. . . . . . . . . . . . . . . . . 11

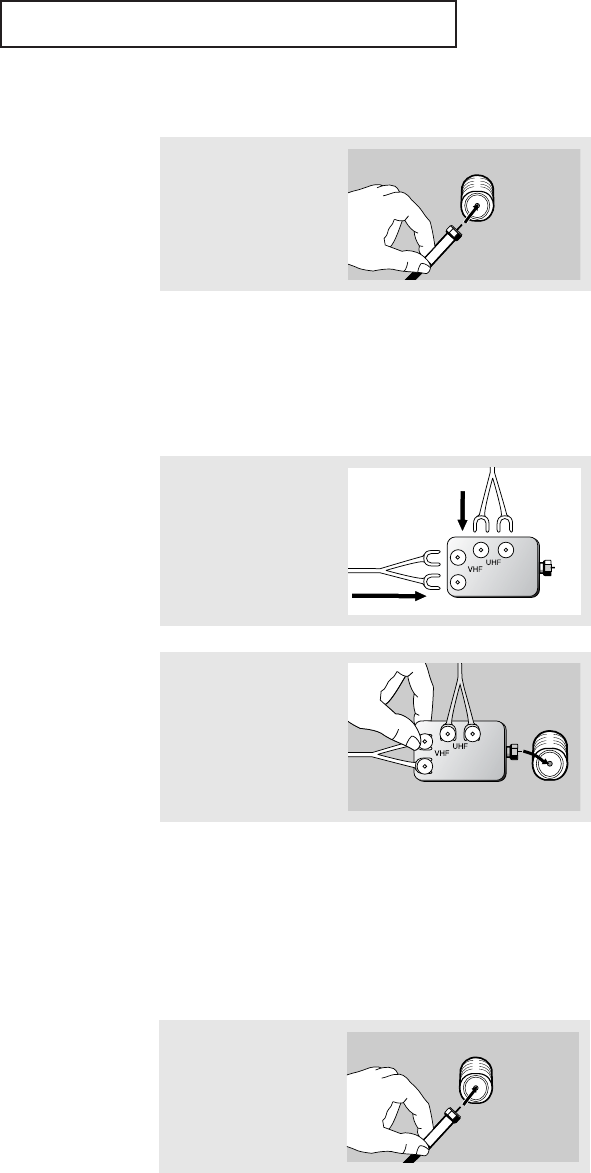

Connecting VHF and UHF Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 11

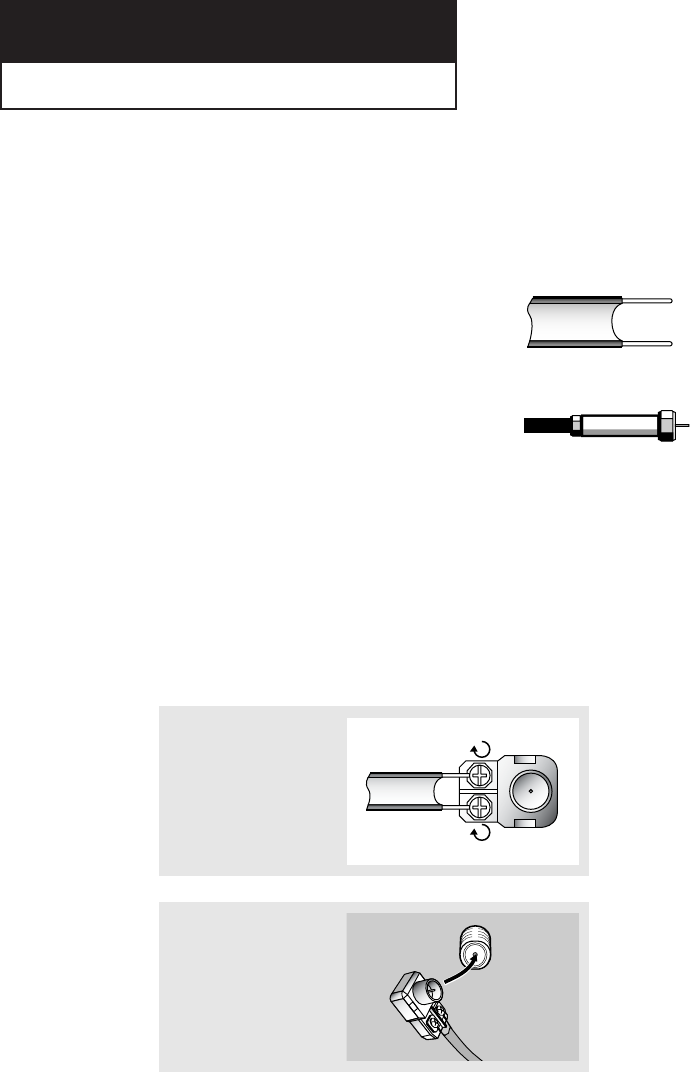

Antennas with 300-ohm Flat Twin Leads . . . . . . . . . . . . . . . 11
Antennas with 75-ohm Round Leads . . . . . . . . . . . . . . . . . . 12
Separate VHF and UHF Antennas. . . . . . . . . . . . . . . . . . . . . 12
Connecting Cable TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cable without a Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting to a Cable Box that Descrambles All Channels . . 13

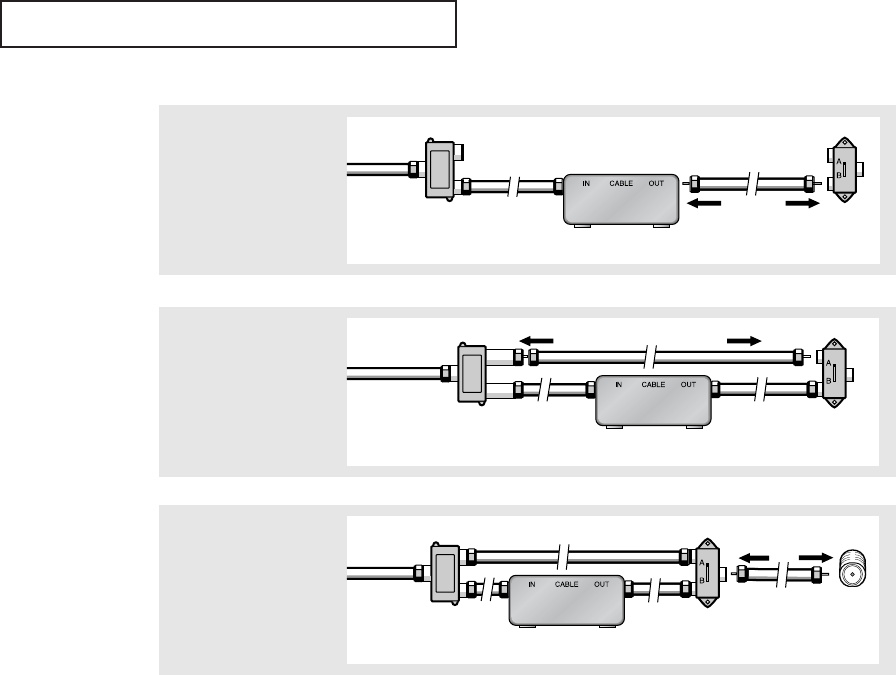

Connecting to a Cable Box that Descrambles Some Channels13

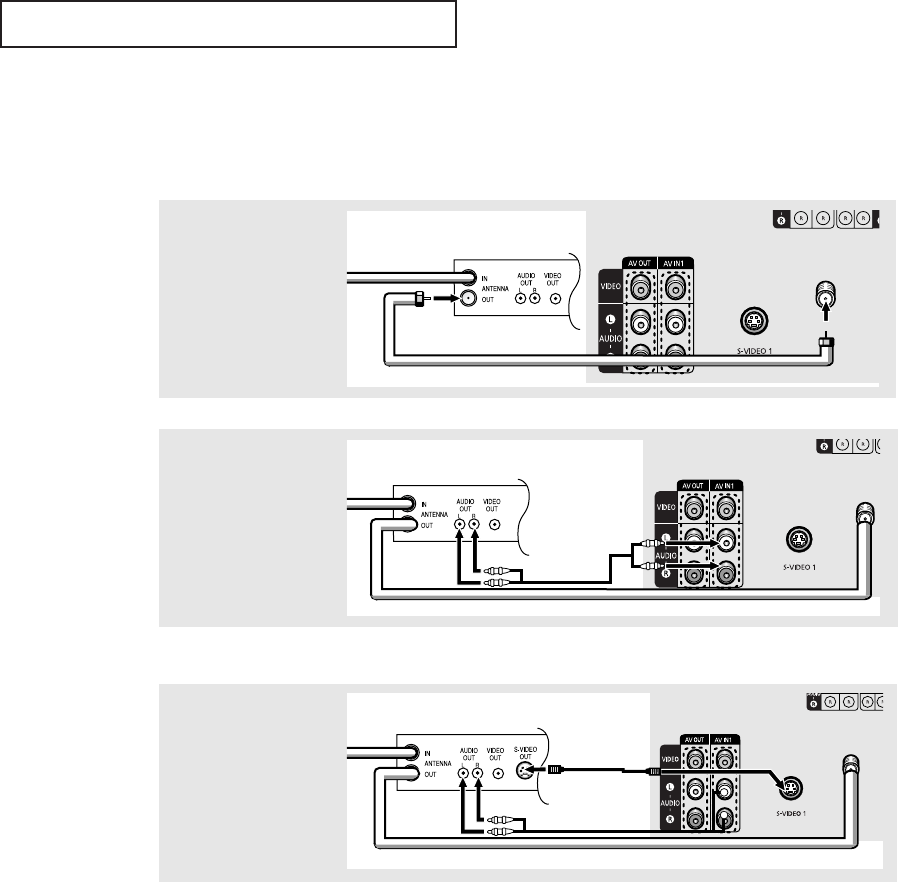

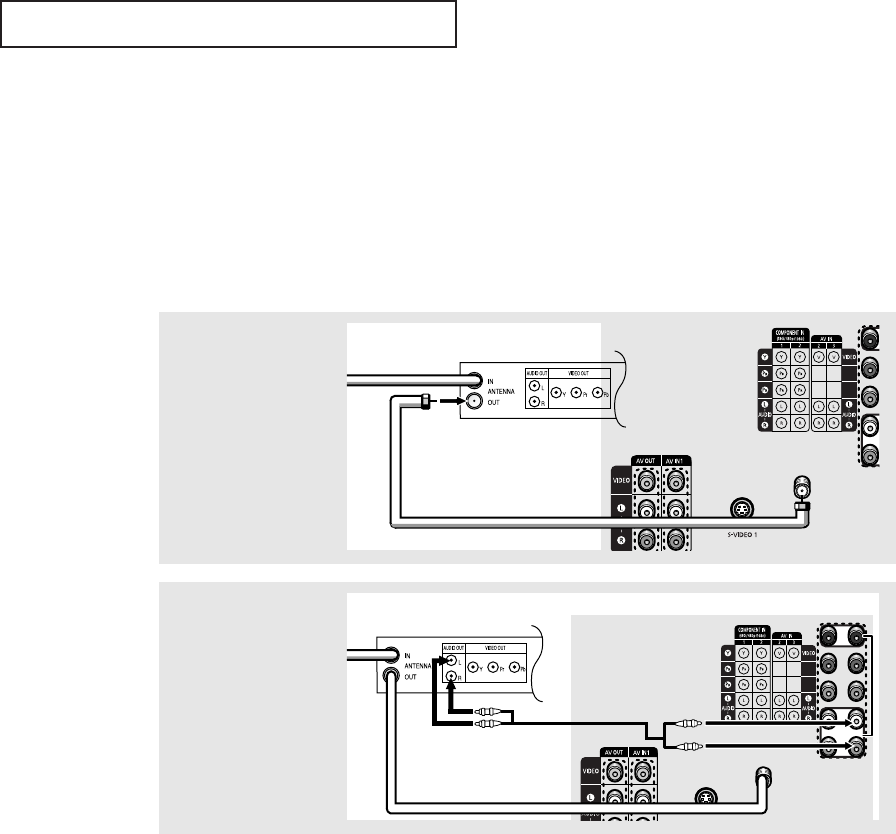

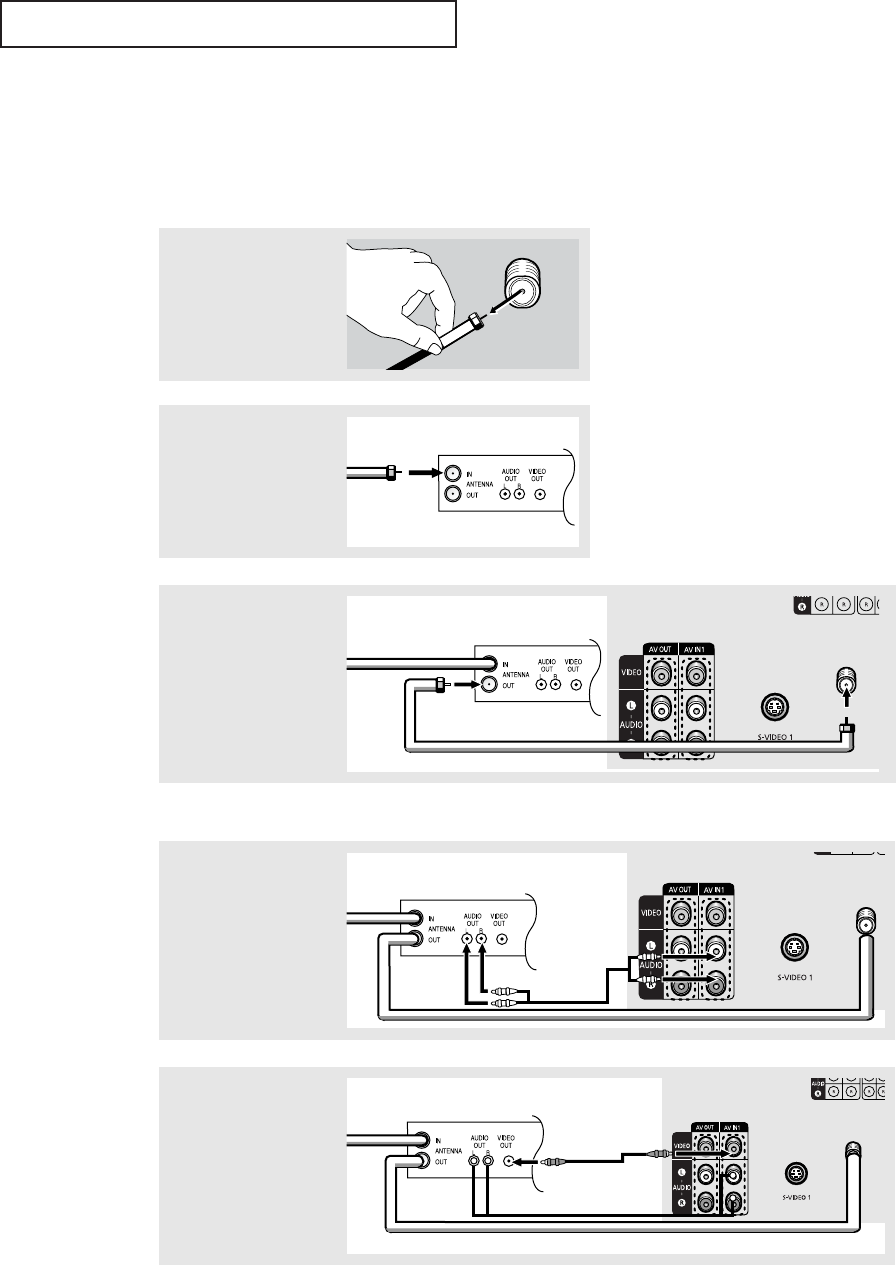

Connecting a VCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting an S-VHS VCR. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting a Second VCR to Record from the TV. . . . . . . . . 17
Connecting a DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting a Digital TV Set-Top Box (480p/1080i). . . . . . . . . . . . . . . 18

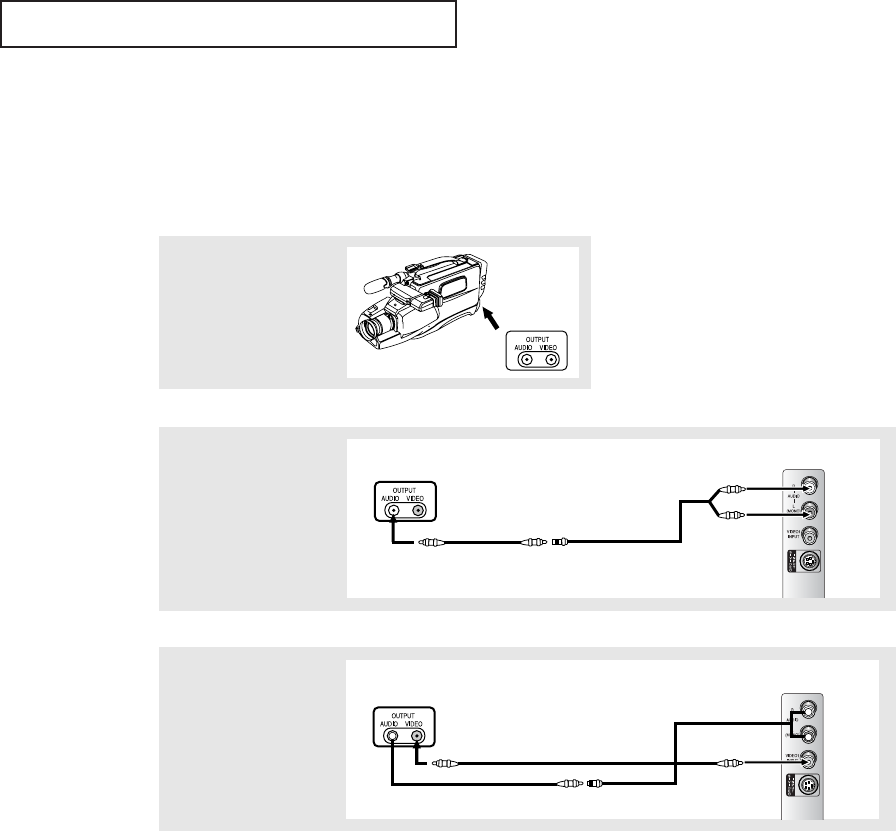

Connecting a Camcorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installing Batteries in the Remote Control. . . . . . . . . . . . . . . . . . . . . . 21
Chapter 3: Operation . . . . . . . . . . . . . . . . . . 22
Turning the TV On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Plug & Play Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

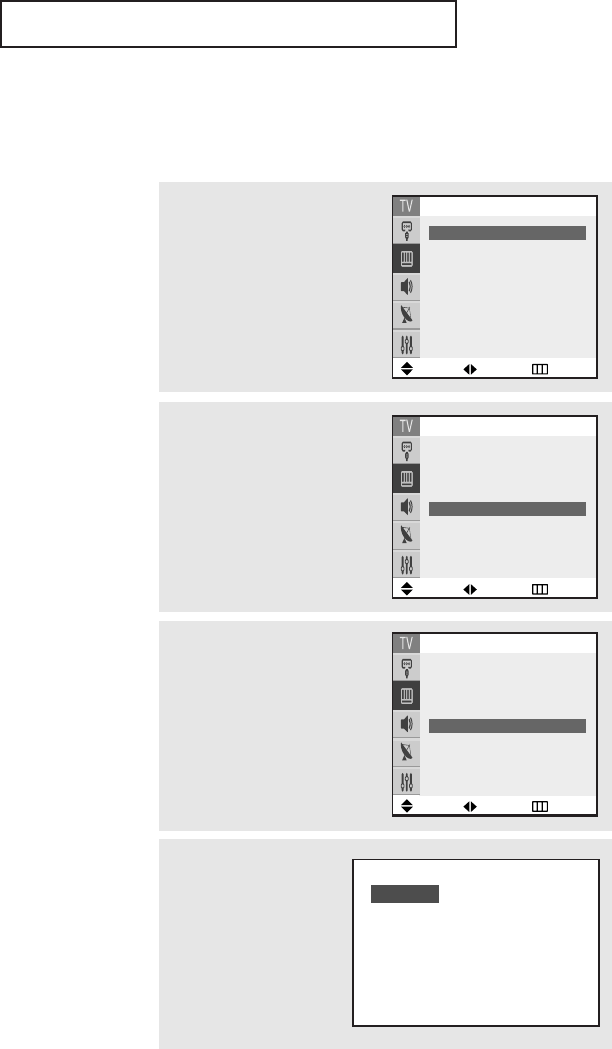

Viewing the Menus and On-Screen Displays . . . . . . . . . . . . . . . . . . . . 24
Viewing the Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Viewing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Selecting a Menu Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Memorizing the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selecting the Video Signal-source . . . . . . . . . . . . . . . . . . . . . 26
Storing Channels in Memory (Automatic Method) . . . . . . . . 27
Adding and Erasing Channels (Manual Method). . . . . . . . . . 28
Changing Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the Channel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Directly Accessing Channels . . . . . . . . . . . . . . . . . . . . . . . . . 29

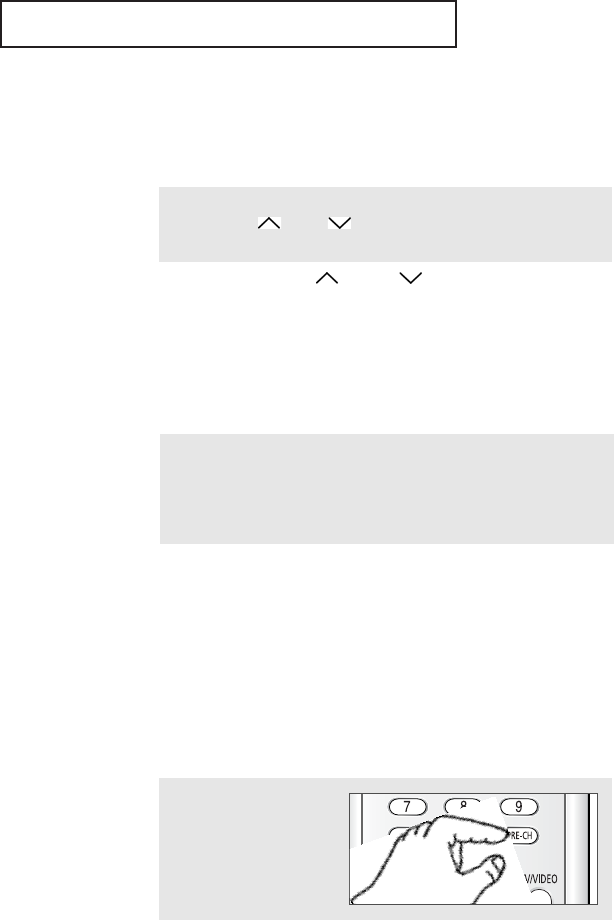

Using the PRE-CH Button to select the Previous Channel. . . 29
Labeling the Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting the Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Customizing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using Automatic Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

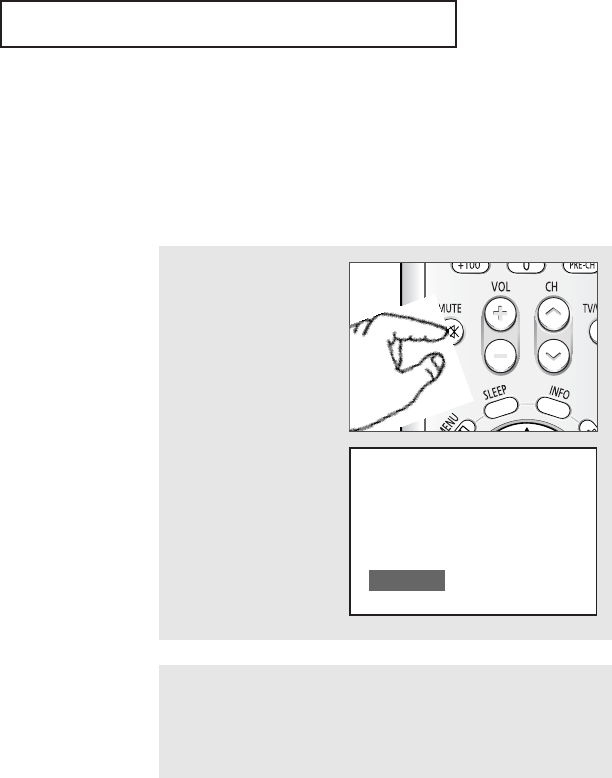

Using the Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
CONTENTS
4
Chapter 3: Operation (Cont.) . . . . . . . . . . . . 37
Customizing the Sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using Automatic Sound Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Viewing an External Signal Source . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting the Signal Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Assigning Names to External input mode . . . . . . . . . . . . . . . 40
Chapter 4: Special Features. . . . . . . . . . . . . 41
Fine Tuning Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Changing the Color Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Changing the Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Digital Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Using the R.Surf Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Freezing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Choosing a Multi-Channel Sound (MTS) Soundtrack . . . . . . . . . . . . . 47
Adjusting the Volume Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting the Surround. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Setting the Turbo Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Setting the On/Off Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Setting the Preferred Volume Level and Channel. . . . . . . . . . . . . . . . . 53
Viewing Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Setting The On/Off Melody. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using the V-Chip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Customizing Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Chapter 5: Troubleshooting. . . . . . . . . . . . . 65
Identifying Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Cleaning and Maintaining Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Using Your TV in Another Country. . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
YOUR NEW TV
5
Chapter One
YOUR NEW TV
List of Features
Your TV was designed with the latest technology. This TV is a high-performance unit that
includes the following special features:
• Full Flat Screen
• Automatic timer to turn the TV on and off
• Adjustable picture and sound settings that can be stored in the TV’s memory
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• V-Chip function
Accessories
Once you have unpacked your TV, check to make sure that you have all the parts shown
here. If any piece is missing or broken, call your dealer.
Remote Control(AA59-00322B)/
AAA Batteries(4301-000121) Owner’s Instructions
/
Safety Guide Manual
Warranty Card; 2EA/
Registration Card
YOUR NEW TV
6
Familiarizing Yourself with The TV

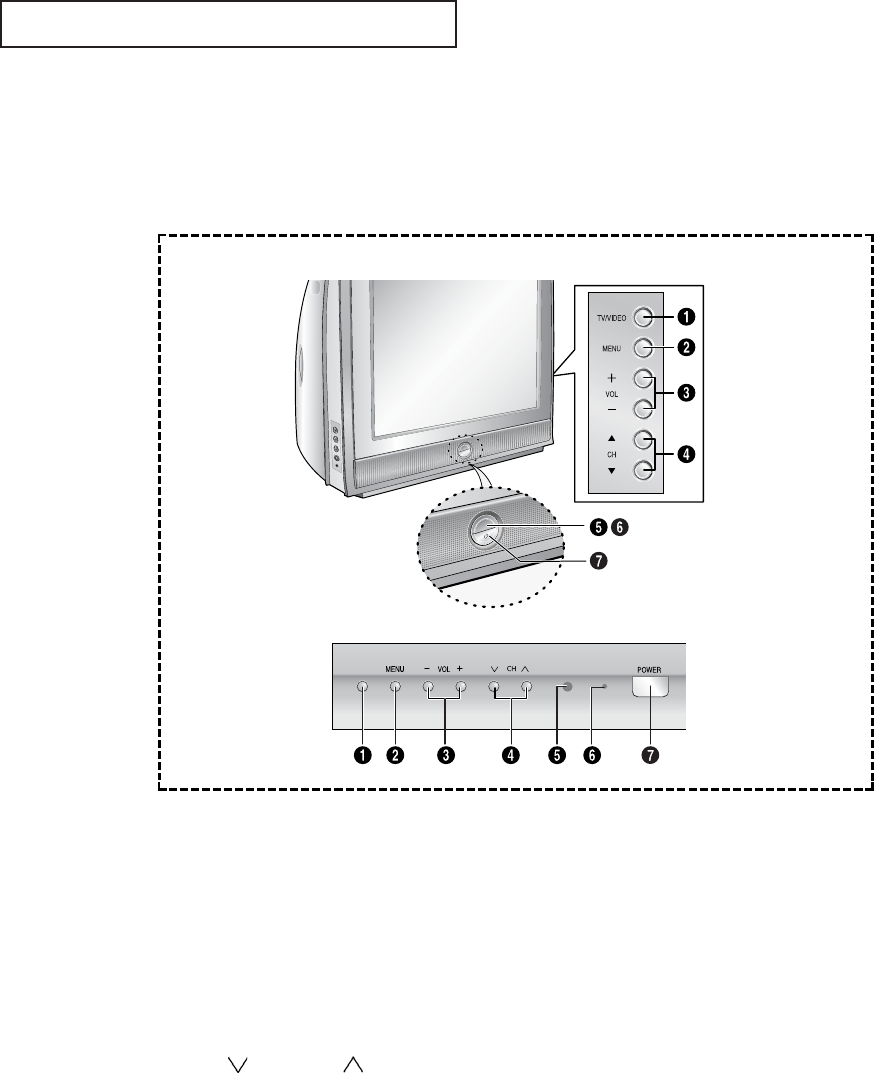

Front Panel Buttons
The buttons on the front panel control your TV’s basic features, including the on-screen
menu. To use the more advanced features, you must use the remote control.
˛
TV/VIDEO, SOURCE
Press to change between viewing TV programs
and signals from other components.
«
MENU
Press to see an on-screen menu of your TV's
features.
VOL – and +
Press to increase or decrease the volume.
Also used to select items on the on-screen
menu.
‹
CH and CH
Press to change channels. Also press to select
various items on the on-screen menu.
Remote Control Sensor
Aim the remote control towards this spot on the
TV.
fl
TIMER indicator
When the TV is turned on, the TIMER indicator
blinks five times. This indicator illuminates when
the TIMER mode is set to the “On” position after
setting the clock and either the On timer or Off
timer, with the remote control. Even if the power
is turned off, this indicator stays lit. (Clock must
be set before using this function.)
‚
POWER
Press to turn the TV on and off.
SOURCE
TX-R2765 / TX-R3065W / TX-R3265
TX-R2764 / TX-R3064W / TX-R3264 / TX-R2664W
YOUR NEW TV
7

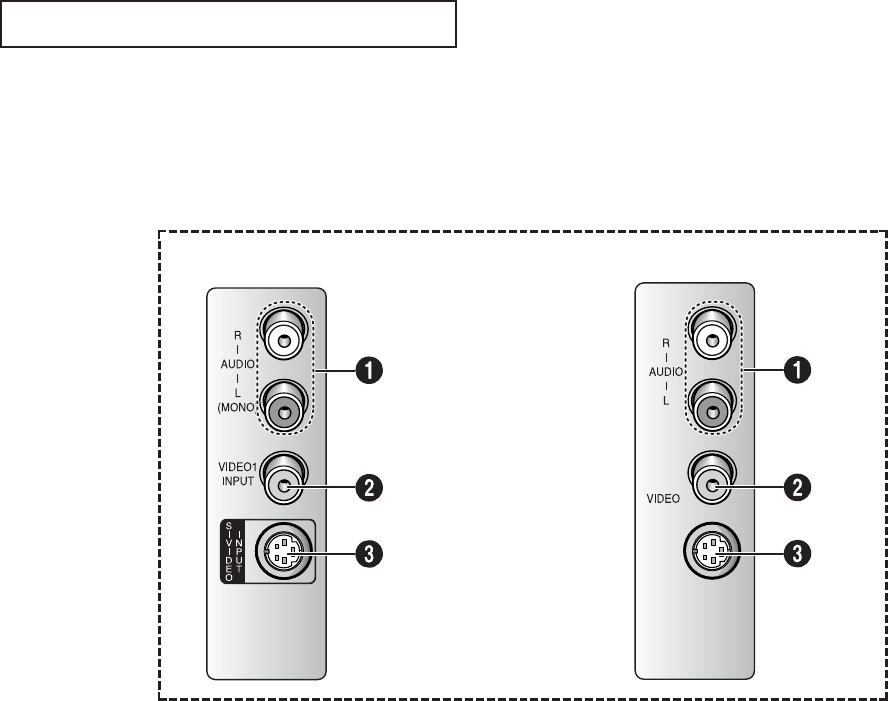

Side Panel Jacks
You can use the side panel jacks to connect an A/V component that is used only occa-
sionally, such as a camcorder or video game. (For information on connecting equipment,
see page 20.)
˛
AUDIO INPUT jacks
Used to connect the audio signals from a cam-
corder or video game.
«
VIDEO INPUT jack
Used to connect a video signal from a camcorder
or video game.
SUPER VIDEO INPUT jack
S-Video signal from an S-VHS VCR or DVD
player.
Note: In S-Video mode, Audio Output depends
what kind of audio input source is connected to
the side audio input jacks (AV1).
TX-R3064W/TX-R3264
TX-R2764/TX-R2664W
S-VIDEO
AV IN1
TX-R2765/TX-R3065W
TX-R3265
YOUR NEW TV
8
ANT IN

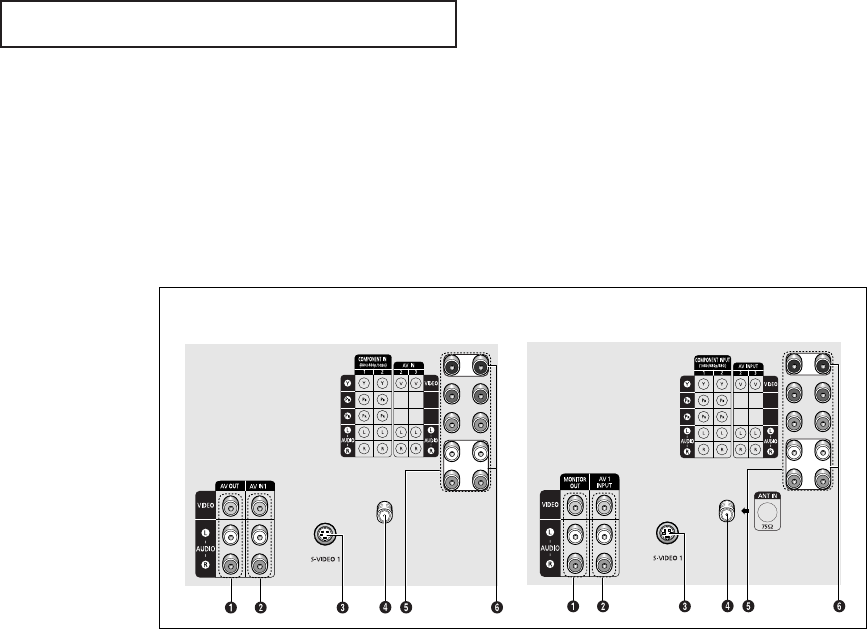

Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
Because there are three sets of input jacks, you can connect three different A/V
components (i.e., a VCR and a DVD, 2 VCRs, etc.)
For more information on connecting equipment, see pages 11 – 19.
˛
AUDIO-VIDEO MONITOR
OUTPUT jacks
These audio-video signals are identical to A/V
signals being displayed on the big screen.
(Typically used as the input signals for a recording
VCR.)
«,fl
VIDEO/AUDIO INPUT jacks
Video and Audio signals from VCRs, DVD players
and similar devices.
Note: The common jack of component 1 and AV2,
component 2 and AV3 input jacks are exclusive
relation with each other.
SUPER VIDEO INPUT jack
S-Video signal from an S-VHS VCR or DVD
player.
Note: In S-Video mode, Audio Output depends
what kind of audio input source is connected to
the side audio input jacks (AV1).
‹
VHF/UHF
Connect to an antenna or to a cable TV system.
COMPONENT 1, 2 INPUT
jacks (480i/480p/1080i)
Connect to the audio and component output jacks
of a DVD player or Set-Top Box.
TX-R3064W/TX-R3264
TX-R2764/TX-R2664W
TX-R2765/TX-R3065W
TX-R3265
YOUR NEW TV
9

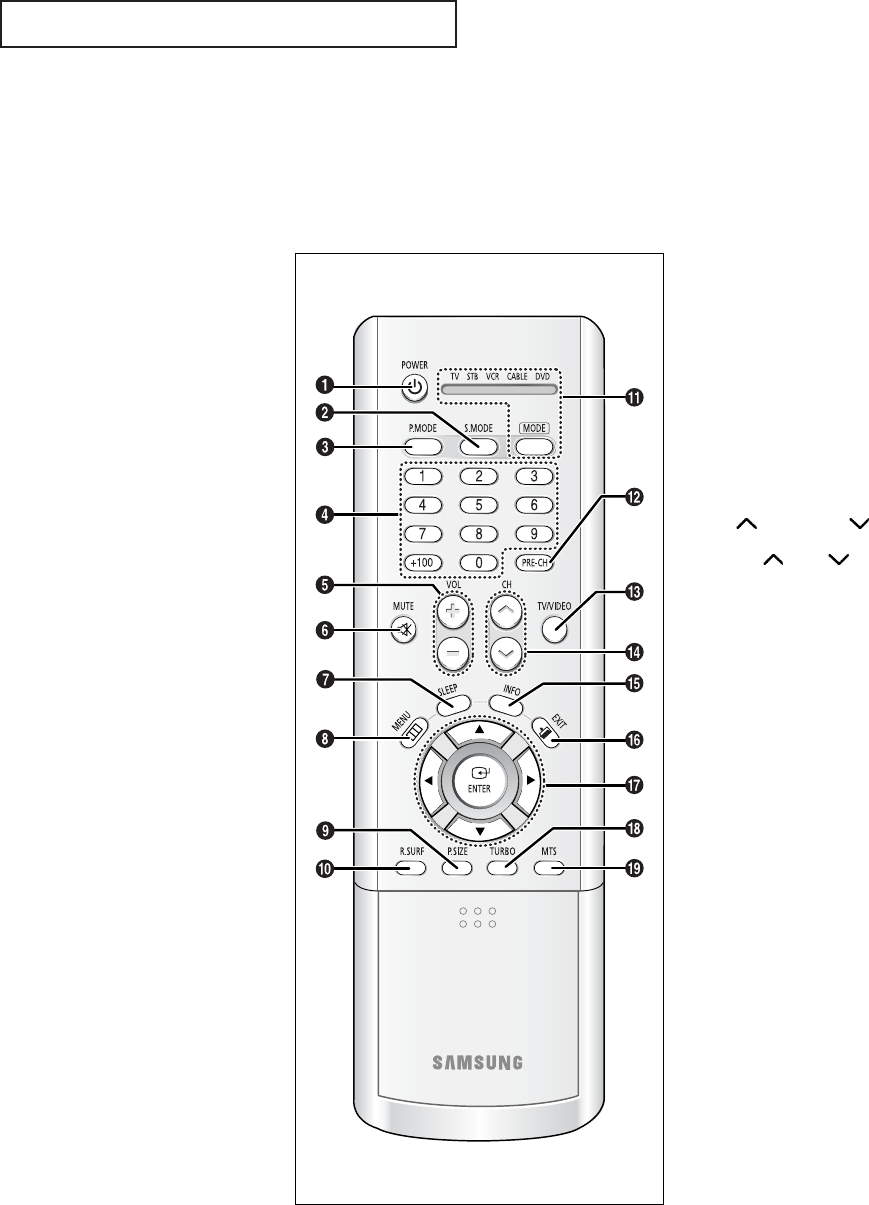

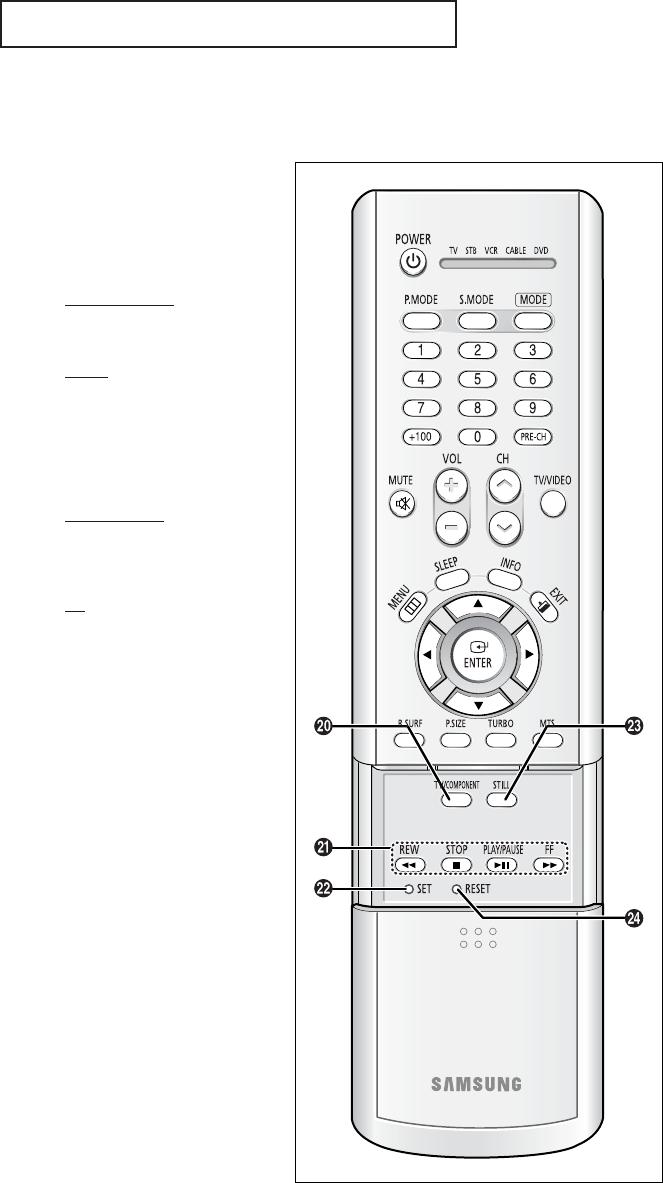

Remote Control
You can use the remote control up to about 23 feet from the TV. When using the remote,
always point it directly at the TV.
You can also use your remote control to operate your Set-Top Box, VCR, DVD and cable
box. See page 63 for details.
˛
POWER
Turns the TV on and off.
«
S.MODE
Adjust the TV sound by selecting
one of the preset factory settings
(or select your personal, cus-
tomized sound settings).
P.MODE
Adjust the TV picture by selecting
one of the preset factory settings
(or select your personal, cus-
tomized picture settings).
‹
Number buttons
Press to select channels directly
on the TV.
+100
Press to select channels over 100.
For example, to select
channel 121, press “+100,” then
press “2” and “1.”
VOL -, VOL +
Press to increase or decrease the
volume.
fl
MUTE
Press to temporarily cut off
the sound.
‚
SLEEP
Press to select a preset time inter-
val for automatic shutoff.
MENU
Displays the main on-screen
menu.
P.SIZE
Press to change the screen size.
R.SURF
Press the R.SURF button to auto-
matically return to a preferred
channel after a user-preset time
delay.
MODE
Selects a target device to be con-
trolled by the Samsung remote
control (i.e., TV, Set Top Box, VCR,
Cable box, or DVD).
PRE-CH
Tunes to the previous channel.
æ
TV/VIDEO
Press to display all of the available
video sources (i.e., Antenna/Cable,
VCR).
CH and CH
(Channel Up/Down)
Press CH or CH to change
channels.
fi
INFO
Press to see the time, channel,
etc., on-screen.
ı
EXIT
Press to exit the menu.
Up,Down,Left,
Right (▲,▼,ˇ,ˆ)/
ENTER
Press to select highlight up, down,
left, or right. While using the on-
screen menus, press ENTER to
activate (or change) a particular
item.
ł
TURBO
Press to turn the TURBO sound On
or Off.
ø
MTS (Multichannel
Television Stereo)
Press to choose stereo, mono or
Separate Audio Program (SAP
broadcast).
YOUR NEW TV
10
Remote Control
TV/COMPONENT
Press to switch the TV, COMPO-
NENT1 or 2 mode.
VCR(DVD, DVR
or STB) Controls
REW (Rewind)
Press to rewind a tape in your
VCR(DVD, DVR or STB).
STOP
Press this button to stop a tape
during play, record, rewind or
fast forward. If the button is
pressed during Full-Automatic
play, the function will be can-
celled.
PLAY/PAUSE
Press the PLAY/PAUSE button to
play back prerecorded tapes or
pause the tape.
FF
Press to fast forward the tape in
your VCR(DVD, DVR or STB).
SET
Use this button when you are
setting up your remote control to
operate your Set Top Box, VCR,
Cable box or DVD.
STILL
Press to stop the action during a
particular scene. Press again to
resume normal video.
Note: The still function doesn’t
operate in Component 1 or 2 mode.
–
RESET
If your remote control is not func-
tioning properly, take out the bat-
teries and press the reset button
for about 2~3 seconds. Re-insert
the batteries and try using the
remote control again.
INSTALLATION
11
Chapter Two
INSTALLATION
Connecting VHF and UHF Antennas
If your antenna has a set of leads that
look like this, see “Antennas with
300-ohm Flat Twin Leads” below.
If your antenna has one lead that looks
like this, see “Antennas with 75-ohm
Round Leads” on next page.
If you have two antennas, see “Separate
VHF and UHF Antennas” on next page.
Antennas with 300-ohm Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has
300-ohm twin flat leads, follow the directions below.
1
Place the wires from the
twin leads under the
screws on the 300-75 ohm
adaptor (not supplied).
Use a screwdriver to
tighten the screws.
2
Plug the adaptor into the
VHF/UHF terminal on the
bottom of the back panel.
INSTALLATION
12
Connecting Cable TV
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
▼
1
Plug the incoming cable
into the VHF/UHF antenna
terminal on back of the TV.
Because this TV is cable-ready,
you do not need a cable box to view
unscrambled cable channels.
2
Plug the combiner into the
VHF/UHF terminal on the
bottom of the rear panel.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must
combine the two antenna signals before connecting the antennas to the TV. This
procedure requires an optional combiner-adaptor (available at most electronics shops).
1
Connect both antenna
leads to the combiner.
Antennas with 75-ohm Round Leads
1
Plug the antenna lead into
the VHF/UHF terminal on
the bottom of the back
panel.
INSTALLATION
13

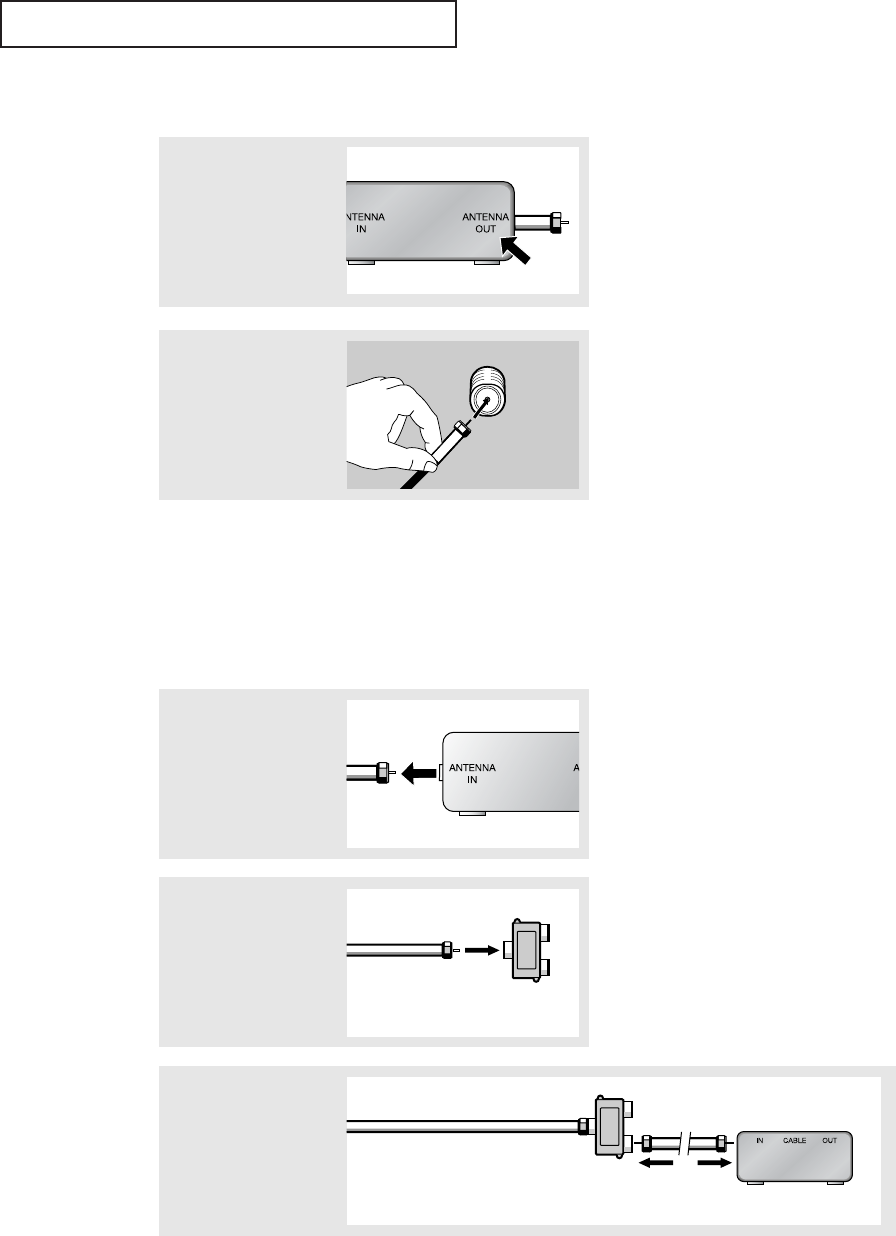

Connecting to a Cable Box that Descrambles All Channels
▼
1
Find the cable that is con-
nected to the ANTENNA
OUT terminal on your
cable box.
This terminal might be labeled
“ANT OUT”, “VHF OUT” or simply,
“OUT”.
2
Connect the other end of
this cable to the VHF/UHF
antenna terminal on the
back of the TV.
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the
instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of
coaxial cable. (These items are available at most electronics stores.)
▼
1
Find and disconnect the
cable that is connected to
the ANTENNA IN
terminal on your cable
box.
This terminal might be labeled
“ANT IN”, “VHF IN” or simply,
“IN”.
2
Connect this cable to a
two-way splitter.
3
Connect a coaxial cable
between an OUTPUT ter-
minal on the splitter and
the IN terminal on the
cable box.
Incoming Cable
Splitter
Incoming Cable
Cable Box
Splitter
INSTALLATION
14
4
Connect a coaxial cable
between the ANTENNA
OUT terminal on the cable
box and the B–IN terminal
on the RF(A/B) switch.
5
Connect another cable
between the other OUT
terminal on the splitter
and the A–IN terminal on
the RF (A/B) switch.
6
Connect the last coaxial
cable between the OUT
terminal on the RF (A/B)
switch and the VHF/UHF
terminal on the rear of the
TV.
After you’ve made this connection, set the A/B switch to the “A” position for normal view-
ing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the
A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is
usually channel 3 or 4.)
Incoming
Cable
Cable Box
RF (A/B)
Switch
Splitter
Incoming
Cable
Cable Box
RF (A/B)
Switch
Splitter
Incoming
Cable
Cable Box
RF (A/B)
Switch
TV Rear
Splitter
INSTALLATION
15
ANT
IN
3
Connect a coaxial cable
between the ANTENNA
OUT terminal on the
VCR and the antenna
terminal on the TV.
AN
4
Connect a set of audio
cables between the
AUDIO OUT jacks on the
VCR and the AUDIO
jacks on the TV.
ANT IN
5
Connect a video cable
between the VIDEO OUT
jack on the VCR and the
VIDEO jack on the TV.
Follow the instructions in “Viewing an External Signal Source” to view your VCR tape.
A coaxial cable is usually included with a VCR. (If not, check your local electronics store).
Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a cable
TV system (according to the instructions on pages 11-14). Skip step 1if you have not yet
connected to an antenna or a cable system.
1
Unplug the cable or
antenna from the back
of the TV.
2
Connect the cable or
antenna to the
ANTENNA IN terminal
on the back of the VCR.
Incoming
Cable or
Antenna
VCR Rear Panel
VCR Rear Panel
Coaxial Cable
TV Rear Panel
VCR Rear Panel
Audio Cable
TV Rear Panel
VCR Rear Panel
Video Cable
TV Rear Panel
INSTALLATION
16
ANT IN
3
Connect an S-video
cable between the
S-VIDEO OUT jack on
the VCR and the
S-VIDEO INPUT
jack on the TV.
An S-video cable is usually included with an S-VHS VCR (If not, check your local
electronics store.)
Make sure the jacks you are using are underneath the number “1.”
A
2
Connect a set of audio
cables between the
AUDIO OUT jacks on the
VCR and the 1 AUDIO
INPUT jacks on the TV.
1
To begin, follow steps
1–3 in the previous
section to connect the
antenna or cable to your
VCR and your TV.
Connecting an S-VHS VCR
Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR. (This
connection delivers a better picture as compared to a standard VHS VCR.)
ANT IN
VCR Rear Panel
Coaxial Cable
TV Rear Panel
VCR Rear Panel
Audio Cable
TV Rear Panel
VCR Rear Panel
Video Cable
TV Rear Panel
INSTALLATION
17

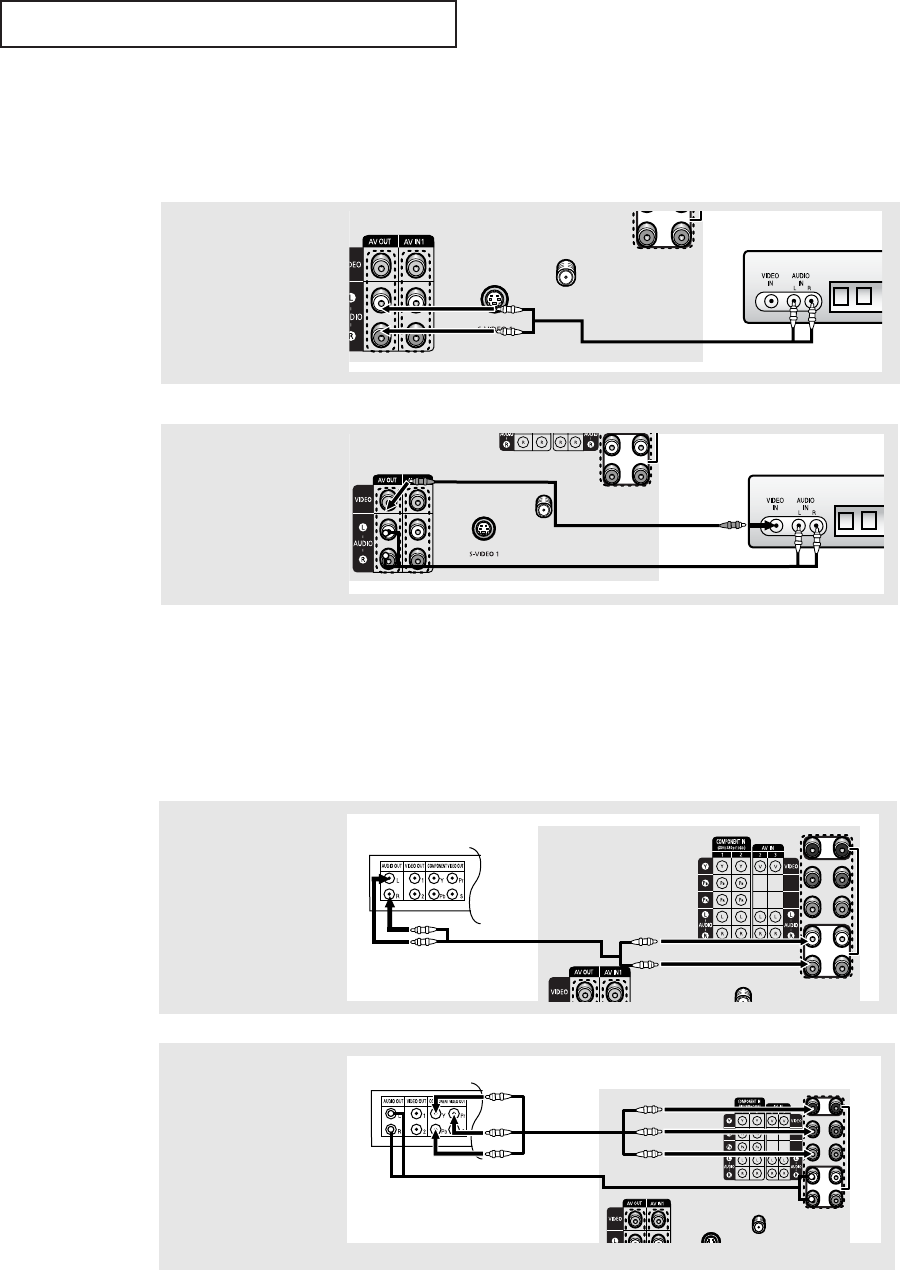

Connecting a Second VCR to Record from the TV
Your TV can send out signals of its picture and sound to be recorded by a second VCR.
To do this, connect your second VCR as follows:
ANT IN
1
Connect a set of audio
cables between the
AUDIO OUT jacks on the
TV and the AUDIO IN
jacks on the VCR.
ANT IN
2
Connect a video cable
between the VIDEO OUT
jack on the TV and the
VIDEO IN jack on the
VCR.
Refer to your VCR’s instructions for more information about how to record using this kind
of connection.
(The VCR input jacks might be either on the front or on back of the VCR.)
Connecting a DVD Player (480i)
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables between the
COMPONENT INPUT 1 (L,
R) or COMPONENT
INPUT 2 (L, R) jacks on
the TV and the AUDIO
OUT jacks on the DVD
player.
ANT IN
2
Connect a video cable
between the COMPO-
NENT INPUT 1 (Y, PB,
PR) or COMPONENT
INPUT 2 (Y, PB, PR) jacks
on the TV and the COM-
PONENT VIDEO OUT (Y,
PB, PR) jacks on the DVD
player.
VCR Input Panel
Audio Cable
TV Rear Panel
VCR Input Panel
Video Cable
TV Rear Panel
DVD Player Rear Panel TV Rear Panel
Audio Cable
DVD Player Rear Panel TV Rear Panel
Video Cable
Note: For an explanation of Component video, see your DVD player's owner's manual.
INSTALLATION
18

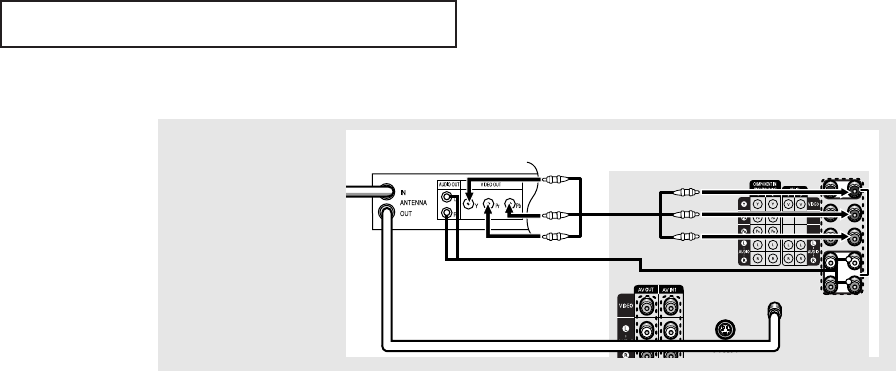

Connecting a Digital TV Set-Top Box
(480p/1080i)
Connecting to Y,PB,PR
Connect the Y, PB, and PRvideo outputs of the set-top box to their corresponding inputs
on the TV. Next, connect the Left and Right audio from the set-top box to the corre-
sponding L and R terminals on the TV. (The connections for a typical set-top box are
shown below.)
ANT IN
1
Connect a coaxial cable
between the ANTENNA
OUT terminal on the Set
Top Box and the antenna
terminal on the TV.
Set Top Box Rear Panel
Coaxial Cable
TV Rear Panel
ANT IN
2
Connect a set of audio
cables between the COM-
PONENT INPUT 2 (L, R) or
COMPONENT INPUT 1 (L,
R) jacks on the TV and the
AUDIO OUT jacks on the
Set Top Box.
Set Top Box Rear Panel
Audio Cable
TV Rear Panel
INSTALLATION
19
Note: For detailed information, refer to the Set Top Box instruction manual.
ANT IN
3
Connect a video cable
between the COMPO-
NENT INPUT 2 (Y, PB, PR)
or COMPONENT INPUT 1
(Y, PB, PR) jacks on the TV
and the VIDEO OUT (Y, PB,
PR) jacks on the Set Top
Box.
Video Cable
Set Top Box Rear Panel TV Rear Panel
INSTALLATION
20
2
Connect an audio cable
between the AUDIO
OUTPUT jack on the
camcorder and the
AUDIO terminals on the
side of the TV.
3
Connect a video cable
between the VIDEO
OUTPUT jack on the
camcorder and the
VIDEO terminal on the
side of the TV.
1
Locate the A/V output
jacks on the camcorder.
They are usually found
on the side or back of
the camcorder.
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow
you to view the camcorder tapes without using a VCR. (Also see “Viewing an External Signal
Source” on page 39).
The audio-video cables shown here are usually included with a Camcorder. (If not, check
your local electronics store.) If your camcorder is stereo, you need to connect a set of two
cables.
Note: This figure shows the Standard connector-jack panel. The actual configuration for
your TV may be different.
Camcorder
Output Jacks
Camcorder
Output Jacks
Audio Cable
Video Cable
Y-Connector
TV Side Panel
Camcorder
Output Jacks
TV Side Panel
INSTALLATION
21
▼
3
Replace the cover.
Remove the batteries and store
them in a cool, dry place if you won’t
be using the remote control for a
long time.
The remote control can be used up
to about 23 feet from the TV.
(Assuming typical TV usage, the
batteries last for about one year.)
▼
2
Install two AAA size
batteries.
Make sure to match the “+” and
“–” ends of the batteries with the
diagram inside the compartment.
Installing Batteries in the Remote Control
1
Slide the cover out com-
pletely.
OPERATION
22
OPERATION
Chapter Three
OPERATION
1
Press the POWER button
on the remote control.
The message “Plug &
Play” is displayed.
It flickers for a little while
and then the “Language”
menu is automatically dis-
played.
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the front panel.

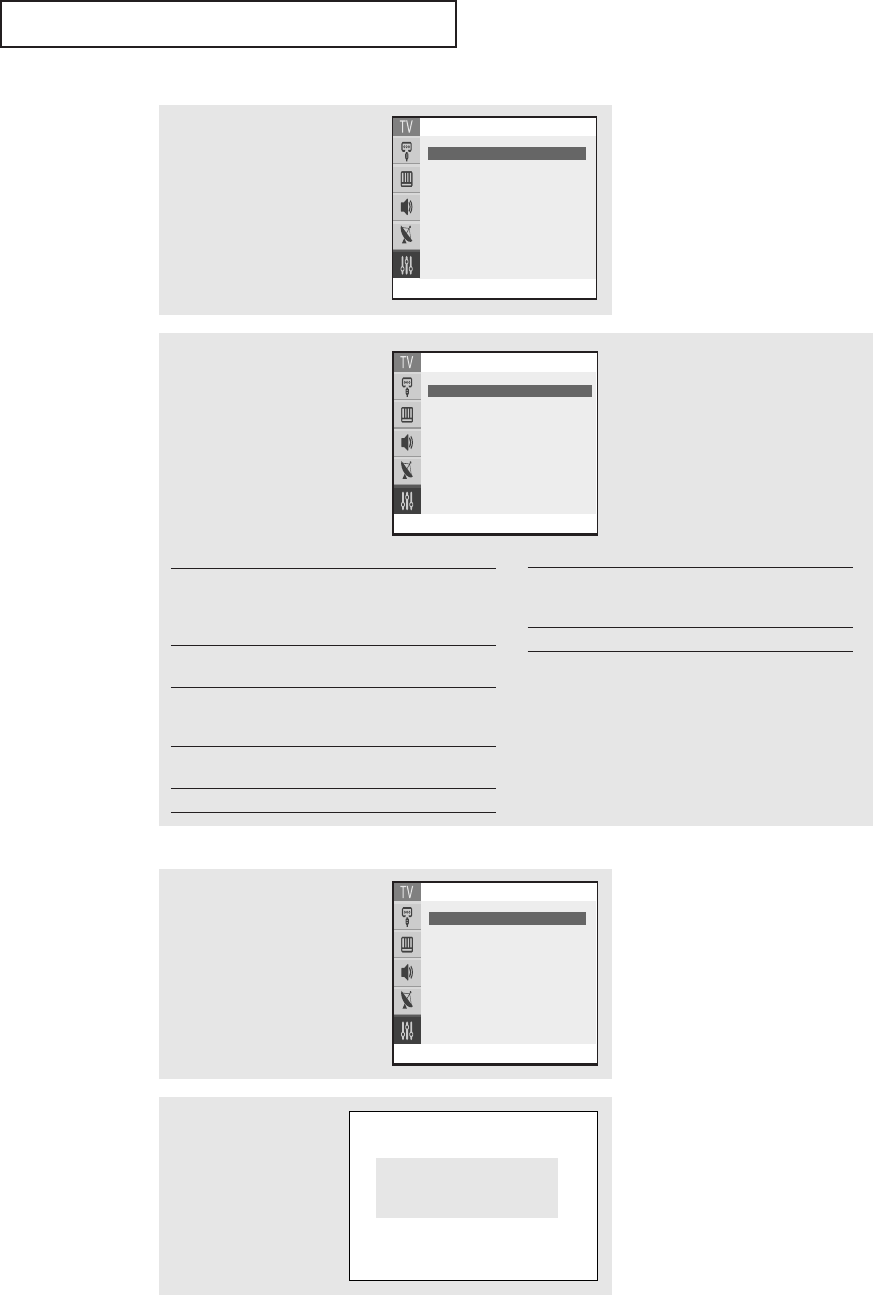

Plug & Play Feature
When the TV is initially powered On, five basic customer settings proceed automatically
and subsequently: Setting the language, Video signal source, Ant. input check, Auto
program and Clock.
Plug & Play
3
Press the ˇor ˆbutton to
select the desired video signal
source.
Press the MENU button to enter
the video signal source, then the
“Check antenna input.” is auto-
matically displayed.
2
Press the ˇor ˆbutton to
select the desired language.
Press the MENU button to enter
the language, then the
“Channel” menu is automatically
displayed.
Adjust Skip
Setup
Plug & Play ˆˆ
Time ˆˆ
Language ˇˇEnglish ˆˆ
Caption ˆˆ
Melody : On
V-chip ˆˆ
Adjust Skip
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV ˇˇAir ˆˆ
Name : - - - -
Check antenna input.
Auto program Skip
OPERATION
23
5
Press the ˆbutton to move to
the hour or minute.
Set the hour or minute by press-
ing the ▲or ▼ button. (refer to
“Setting the Clock” on page 31.)
6
When you have finished,
press the MENU button.
The message “Enjoy your
watching..” is displayed.
7
If you want to reset this feature
(1)Press the MENU button.
(2)Press the ▲or ▼ button to
select the “Setup”, then
press the ENTER button.
(3)Press the ENTER button to
select “Plug & Play”.
The message “Plug & Play” is
displayed.
Note: Plug & Play feature doesn’t work when the V-chip is on or
when in the A/V mode.
Enjoy your watching..
4
Make sure that the antenna
is connected to the TV.
And then press the ˇor ˆ
button to activate "Auto
Program" or press the
MENU button to skip. (refer
to “Auto program” on page
27.)
Auto program
Air 3
Exit
Move Adjust Skip
Time
Clock - - : - - am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
OPERATION
24

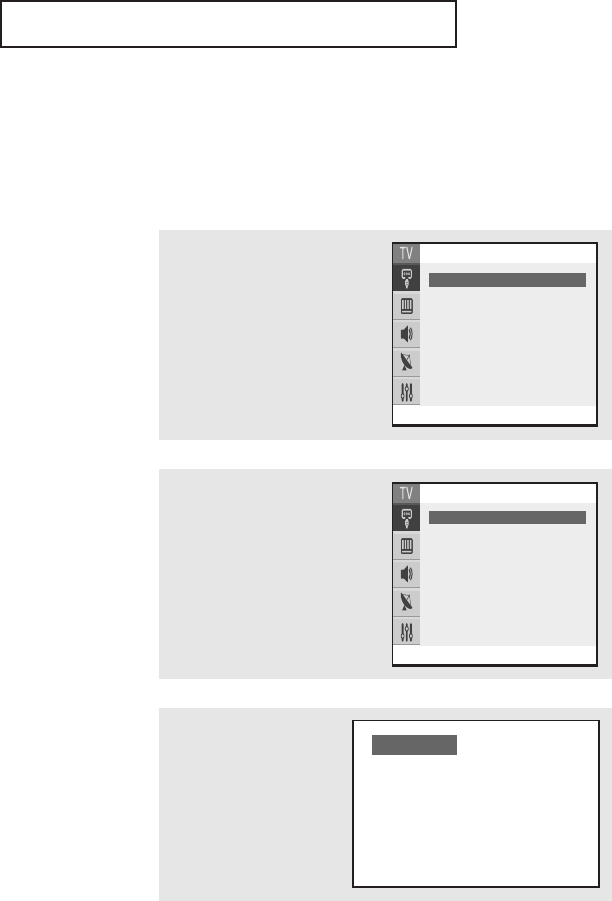

Viewing the Display
▼
The on-screen displays
disappear after ten seconds.
Viewing the Menus and On-Screen Displays
Viewing the Menus
▼
1
With the power on, press the
MENU button.
The main menu appears on the
screen. Its left side has five
icons: Input, Picture, Sound,
Channel and Setup.
The on-screen menus disappear
from the screen after two minutes.
▼
You can also use the MENU, CH
and VOL buttons on the control
panel of the TV to make selections.
1
Press the INFO button.
The on-screen display
shows any or all of the fol-
lowing: Active channel,
the channel label, signal,
MTS and the current time.
2
Use the ▲and ▼buttons to highlight one of the 5 icons.
Then press the ENTER button to access the icon’s sub-menu.
3
Press the EXIT button to exit the menu.
Air 10
12 : 00 am
MTS : Stereo
Signal : Mono
Move Enter Exit
Input
Source List : TV ˆˆ
Edit Name ˆˆ
OPERATION
25
Selecting a Menu Language
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select “Setup”, then press the
ENTER button.
3
Press the ˇ
or ˆ
button to
select the appropriate language:
“English”, “Español” or
“Français”.
Press the EXIT button to exit the
menu.
2
Press the ▲ or ▼button to
select “Language”.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Adjust Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language ˇˇEnglish ˆˆ
Caption ˆˆ
Melody : On
V-chip ˆˆ
Mover Ajustar Regresar
Configuración
Plug & Play ˆˆ
Tiempo ˆˆ
Idioma ˇˇEspañol ˆˆ
Subtítulo ˆˆ
Melodía : Enc.
V-chip ˆˆ
OPERATION
26
Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (antenna)
and cable channels. After the available channels are memorized, use the CH and
CH buttons to scan through the channels. This eliminates the need to change chan-
nels by entering the channel digits. There are three steps for memorizing channels:
selecting a broadcast source, memorizing the channels (automatic) and adding and delet-
ing channels (manual).

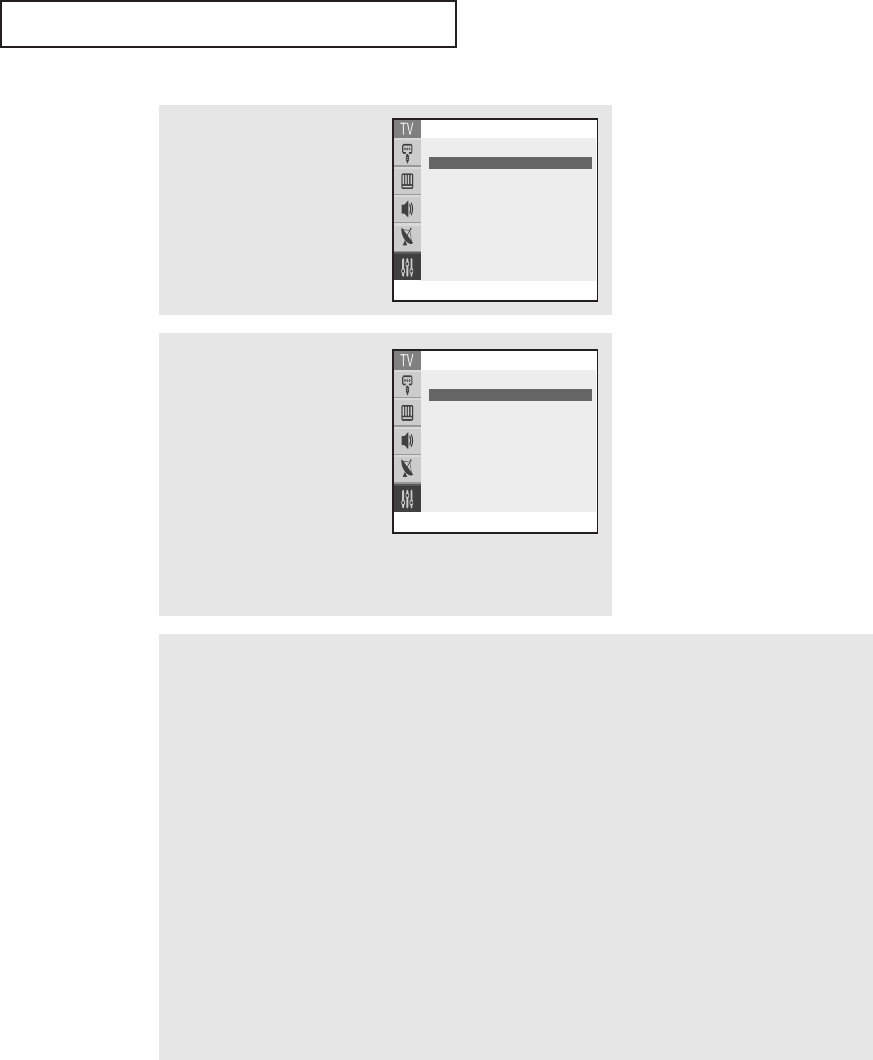

Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the
type of signal source that is connected to the TV (i.e., an antenna or a cable system).
1
Press the MENU button to
display the menu.
Press the ▲ or ▼button to
select “Channel”, then press the
ENTER button
2
Press the ▲ or ▼button to
select “Air/CATV”.
Note: STD, HRC and IRC identify various types of cable
TV systems. Contact your local cable company to identify
the type of cable system that exists in your particular area.
At this point the signal source has been selected. Proceed
to “Storing Channels in Memory” (next page).
3
Repeatedly press the ˇ
or ˆ
button to cycle through these
choices: “Air” (antenna) “STD”,
“HRC” or “IRC” (all cable TV).
Press the EXIT button to exit the
menu.
Move Enter Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name : - - - -
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV ˇˇAir ˆˆ
Name : - - - -
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV ˇˇAir ˆˆ
Name : - - - -
OPERATION
27
3
Press the ENTER button.
The TV will begin
memorizing all of the avail-
able channels.
After all the available
channels are stored, the
channel menu reappears.
Press the EXIT button to
exit the menu.

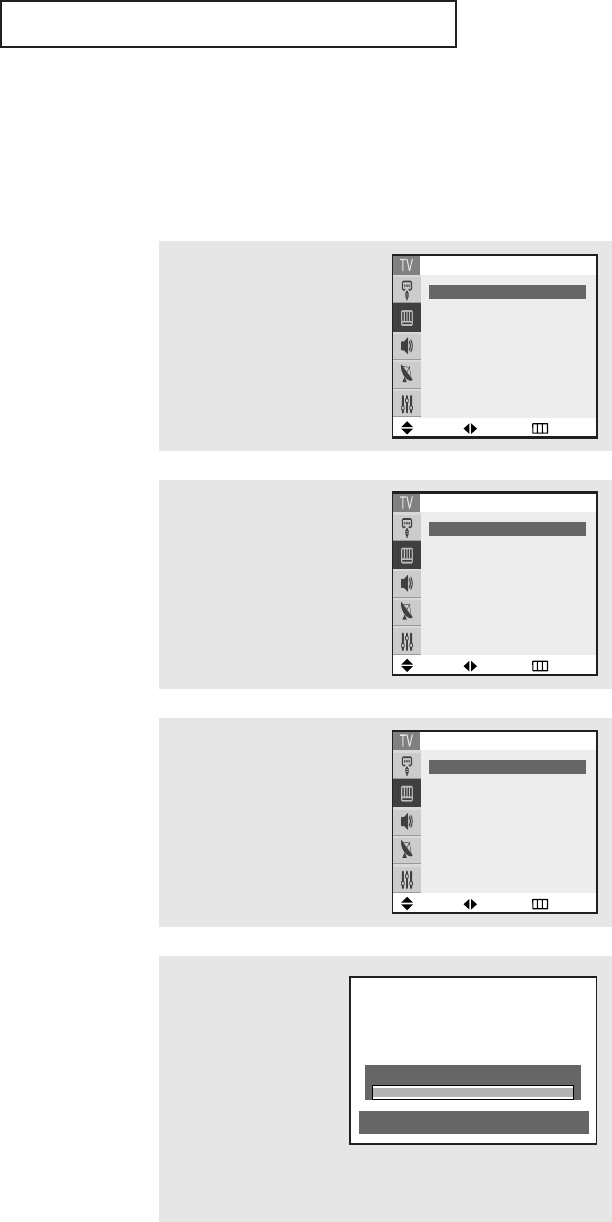

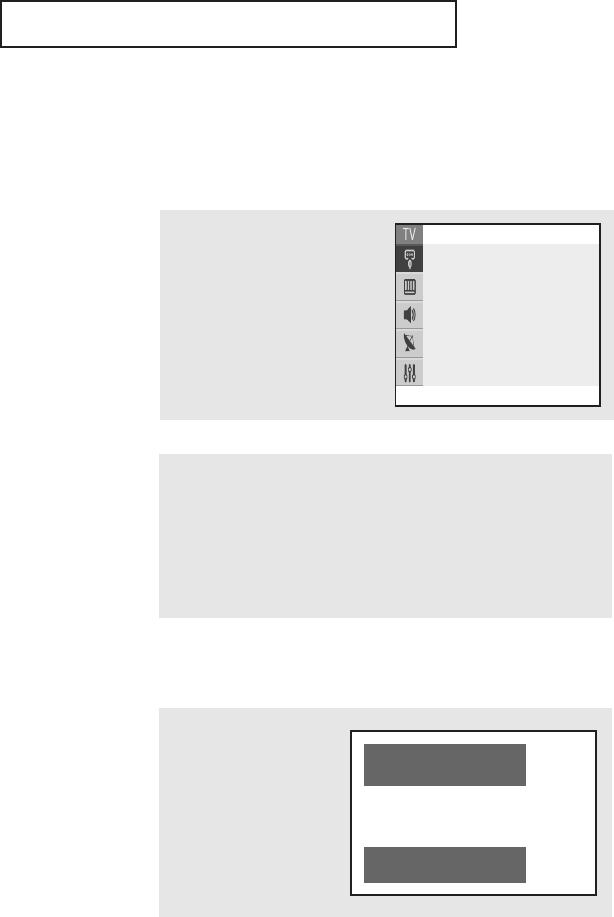

Storing Channels in Memory (Automatic Method)
▼
The TV automatically cycles
through all of the available channels
and stores them in memory.
This takes about one to two minutes.
2
Press the ▲or ▼button
to select “Auto Program”.
1
First, select the correct signal
source (Air, STD, HRC, IRC).
See steps 1~3 on previous page.
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV ˇˇAir ˆˆ
Name : - - - -
Move Enter Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name : - - - -
Auto program
Air 3
Exit
▼
Press the MENU button at any
time to interrupt the memorization
process and return to the channel
menu.
OPERATION
28

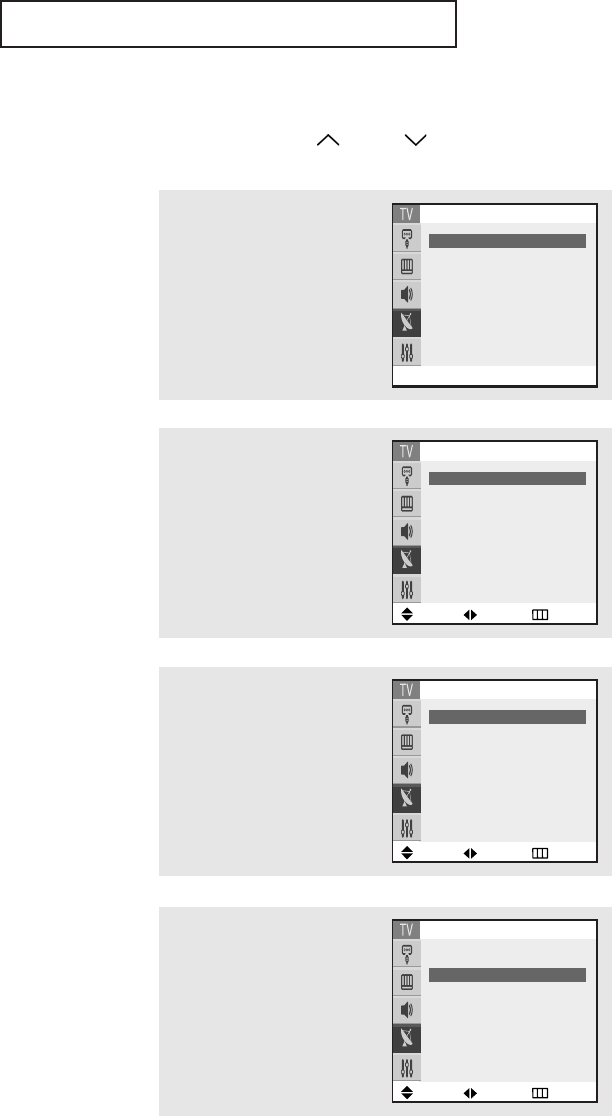

Adding and Erasing Channels (Manual Method)
First, press the CH or CH button or the number buttons
to select the channel you want to add or delete.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼ button to
select “Channel”, then press the
ENTER button.
2
Press the ▲ or ▼ button to
select “Add/Delete”, then press
the ENTER button.
3
Press the ˇ
or ˆbutton or the
number buttons to select the
channel you want to add or
delete.
Move Enter Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name : - - - -
Move Adjust Return
Add/Delete
Channel ˇˇAir 11 ˆˆ
Select : Deleted
Move Adjust Return
Add/Delete
Channel ˇˇAir 11 ˆˆ
Select : Deleted
4
Press the ▲ or ▼ button to
select “Select”, then press the
ˇ
or ˆ
button to select
“Added” or “Deleted”.
Press the EXIT button to exit the
menu.
Move Adjust Return
Add/Delete
Channel : Air 11
Select ˇˇDeleted ˆˆ
OPERATION
29
Changing Channels
Using the Channel Buttons
Press the CH or CH button to change channels.
When you press CH or CH , the TV changes channels in sequence. You will see all the
channels that the TV has memorized. (The TV must have memorized at least three channels.)
You will not see channels that were either erased or not memorized.
Directly Accessing Channels
Use the number buttons to quickly tune to any channel.
Press the number buttons to go directly to a channel. For example,
to select channel 27, press “2” then “7”. The TV will change chan-
nels when you press the second number.
When you use the number buttons, you can directly select channels that were either erased
or not memorized.
To select a channel over 100, press the +100 button. (For channel 122, press “+100” then “2”
then “2”.)
To change to single-digit channels (0–9) faster, press “0” before the single digit.
(For channel “4” press “0” then “4”.)
Using the PRE-CH Button to select the Previous Channel
Press the PRE-CH button.
The TV will switch to the
last channel viewed.
▼
To quickly switch between two
channels that are far apart, tune to
one channel, then use the number
button to select the second channel.
Then, use the PRE-CH button to
quickly alternate between them.
OPERATION
30
Labeling the Channels
Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”,
“ESPN”, “PBS2”, CNN1”, etc.) A label consists of four fields, where each field is a letter,
a number, “*”, or a blank. When the INFO button is pressed, the channel label will
appear next to the channel number.
1
Press the CH or CH
button to tune to the
channel that will be
labeled.
2
Press the MENU button to
display the menu.
Press the ▲or ▼ button
to select “Channel”, then
press the ENTER button.
3
Press the ▲or ▼ button to
select “Name”.
Press the ˆ
button to begin
labeling. The left-most field will
be highlight.
(Each label has four fields.
See top paragraph.)
4
Press the ▲or ▼button to
select a letter, a number, “*” or
a blank. (Pressing ▲or ▼ but-
ton results in this sequence:
A, B,...Z, *, blank, 0, 1, ...9).
▼
Note: You cannot select “Name”
in the AV mode.
5
Press the ˆ
button to switch to
the next field, which will be high-
light.
Select a second letter or digit
using the ▲or ▼button, as
above.
Repeat the process to select the
last two digits.
Press the EXIT button to exit the
menu.
Air 11
Move Enter Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name : - - - -
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name : - - - -
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name ˇˇP - - - ˆˆ
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name ˇˇP B S 1 ˆˆ
OPERATION
31

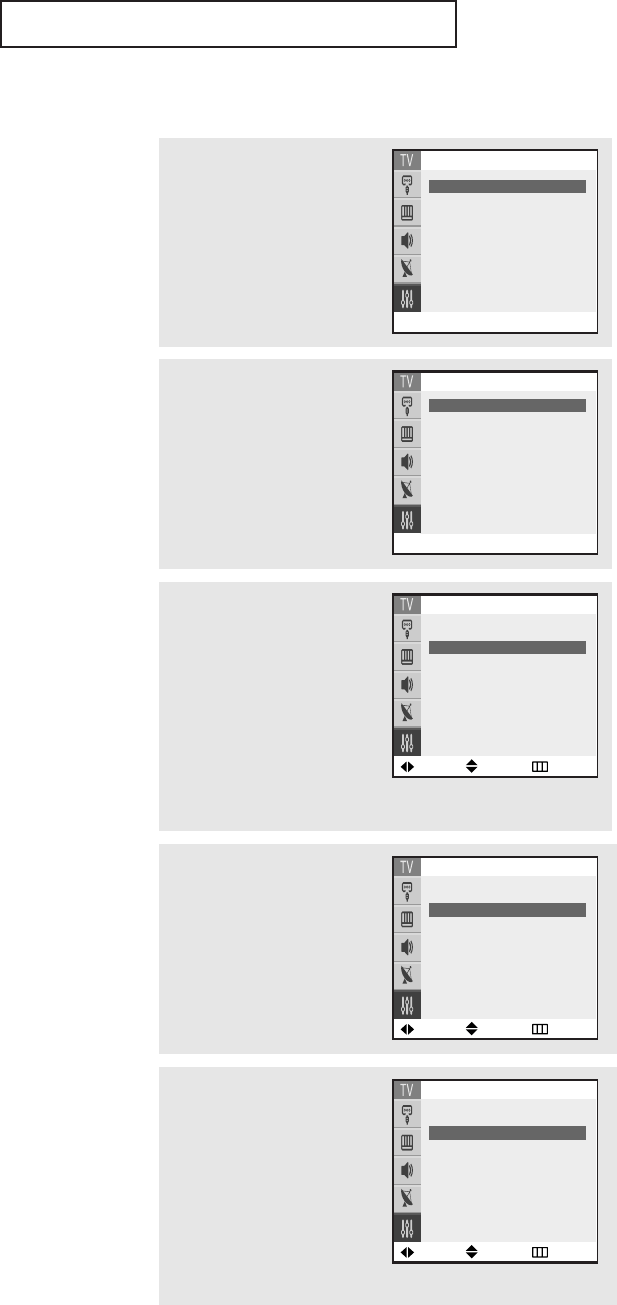

Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV.
Also, you can check the time while watching the TV. (Just press the INFO button.)
Option 1: Setting the Clock Manually
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Setup”, then press the
ENTER button.
▼
When selecting the hours, be
sure to select the proper time of day
(am or pm).
You can change the hours by press-
ing the ▲or ▼button repeatedly (or
by holding down either of these but-
tons).
The current time will appear every
time you press the INFO button.
3
Press the ˇ or ˆbutton to
move to “Hour” or “Minute”.
Set the clock you want by press-
ing the or button, then
press the ˇ or ˆbutton.
Press the EXIT button to exit the
menu.
2
Press the or button to
select “Time”, then press the
ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Enter Return
Time
Clock - - : - - am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
Move Adjust Return
Time
Clock 10 : 30 am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
OPERATION
32

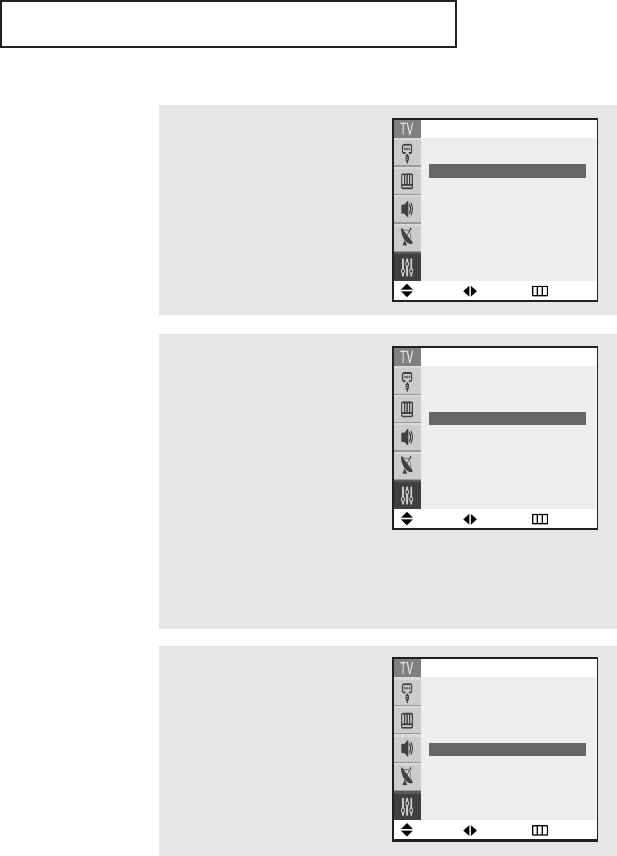

Option 2: Setting the Clock Automatically
The Clock can be set automatically if you are receiving a digital signal.
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Setup”, then press the
ENTER button.
2
Press the or button
to select “Time”, then
press the ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Enter Return
Time
Clock - - : - - am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
3
Press the or button to
select “Auto Clock Set”, then
press the ENTER button.
Move Adjust Return
Auto Clock Set
Auto Clock Set ˇˇOff ˆˆ
PBS Channel : Air - - -
Time Zone : ATL.
DST : No
4
Press the ˇ or ˆbutton to
select “On”.
Move Adjust Return
Auto Clock Set
Auto Clock Set ˇˇOn ˆˆ
PBS Channel : Air - - -
Time Zone : ATL.
DST : No
▼
Certain broadcasts may not
transmit the correct time. In this
case, set the time manually.
OPERATION
33

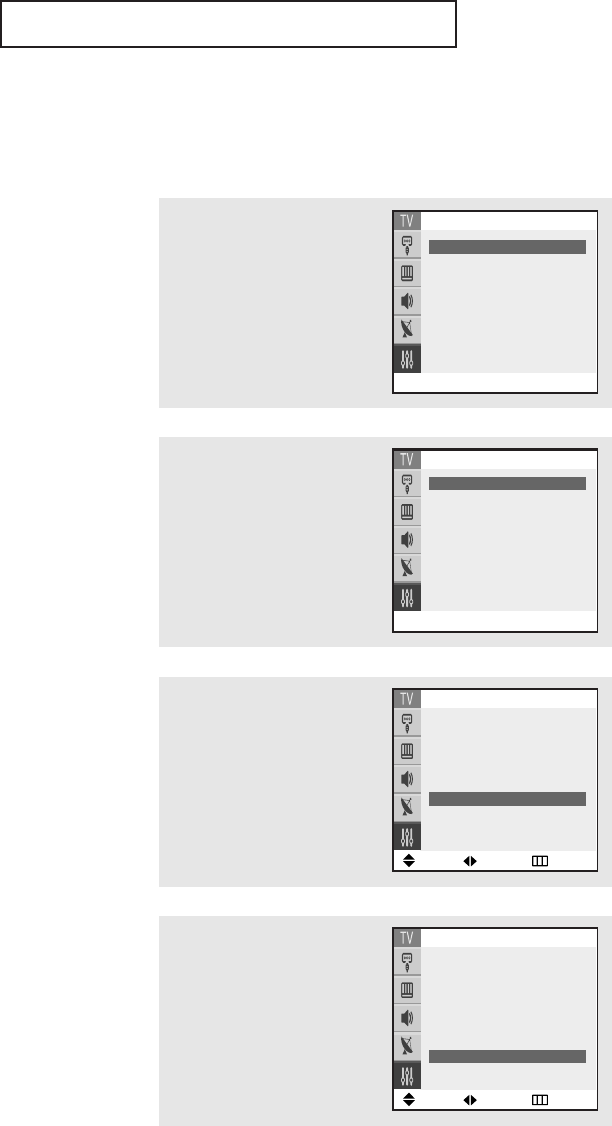

6
Press the or button to
select “Time Zone”, then press
the ˇ or ˆ button to select the
time zone for your local area.
ATL. : Atlantic
EAST : Eastern
CEN. : Central
MTN. : Mountain
PAC. : Pacific
ALAS. : Alaska
HAW. : Hawaii
7
Press the or button to
select “DST” (Daylight
Saving Time), then press
the ˇ or ˆ button to select
“Yes” or “No”.
Press the EXIT button to
exit the menu.
▼
The set time can be changed
according to the broadcasting station
and signal when you set up auto
time.
If there is a difference between the
real time and set time, please set up
manual time.
5
Press the or button to
select “PBS Channel”, then
press the ˇor ˆ button to
select your local PBS channel.
Move Adjust Return
Auto Clock Set
Auto Clock Set : On
PBS Channel ˇˇAir - - - ˆˆ
Time Zone : ATL.
DST : No
Move Adjust Return
Auto Clock Set
Auto Clock Set : On
PBS Channel : Air 3
Time Zone ˇˇATL. ˆˆ
DST : No
Move Adjust Return
Auto Clock Set
Auto Clock Set : On
PBS Channel : Air 3
Time Zone : ATL.
DST ˇˇYes ˆˆ
OPERATION
34
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Picture”, then press the
ENTER button.

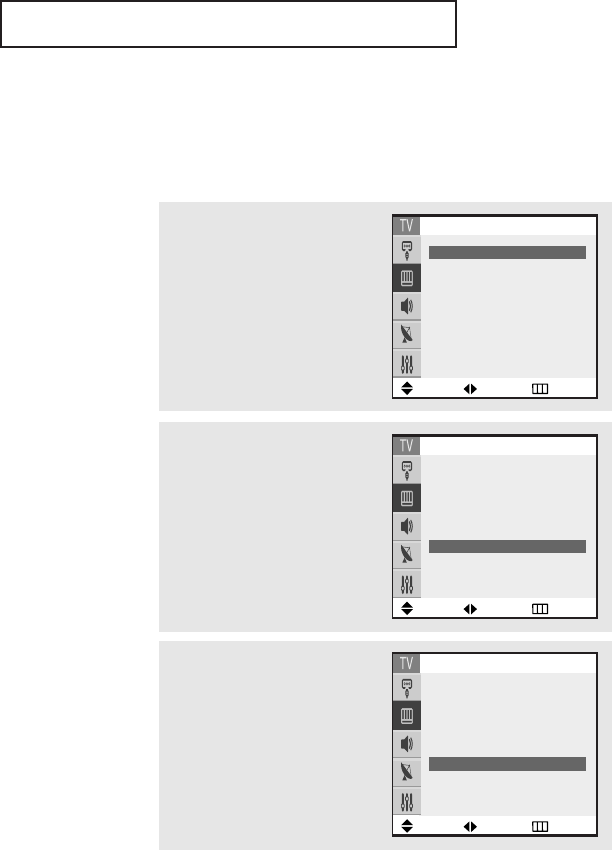

Customizing the Picture
You can use the on-screen menus to change the Contrast, Brightness, Sharpness, Color,
Tint and according to personal preference. (Alternatively, you can use one of the
“Automatic” settings. See next page.)
4
Press the ˇor ˆbutton
to increase or decrease
the value of a particular
item.
For example, if you select
“Contrast”, pressing the
ˆbutton increases it.
Press the EXIT button to
exit the menu.
▼
After adjusting an item, the gauge
will automatically disappear (after
about 10 seconds).
2
Press the or button to
select “Custom”, then press the
ENTER button. (The words
Contrast, Brightness, Sharpness,
Color and Tint will appear on the
screen.)
3
Press the ▲ or ▼ button to
select a particular item.
Contrast 100
Move Adjust Return
Move Adjust Return
Mode ˇˇDynamic ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
Move Adjust Return
Custom
Contrast ˇˇ100 ˆˆ
Brightness : 45
Sharpness : 60
Color : 50
Tint : R 50 G 50
Move Adjust Return
Custom
Contrast ˇˇ100 ˆˆ
Brightness : 45
Sharpness : 60
Color : 50
Tint : R 50 G 50
OPERATION
35

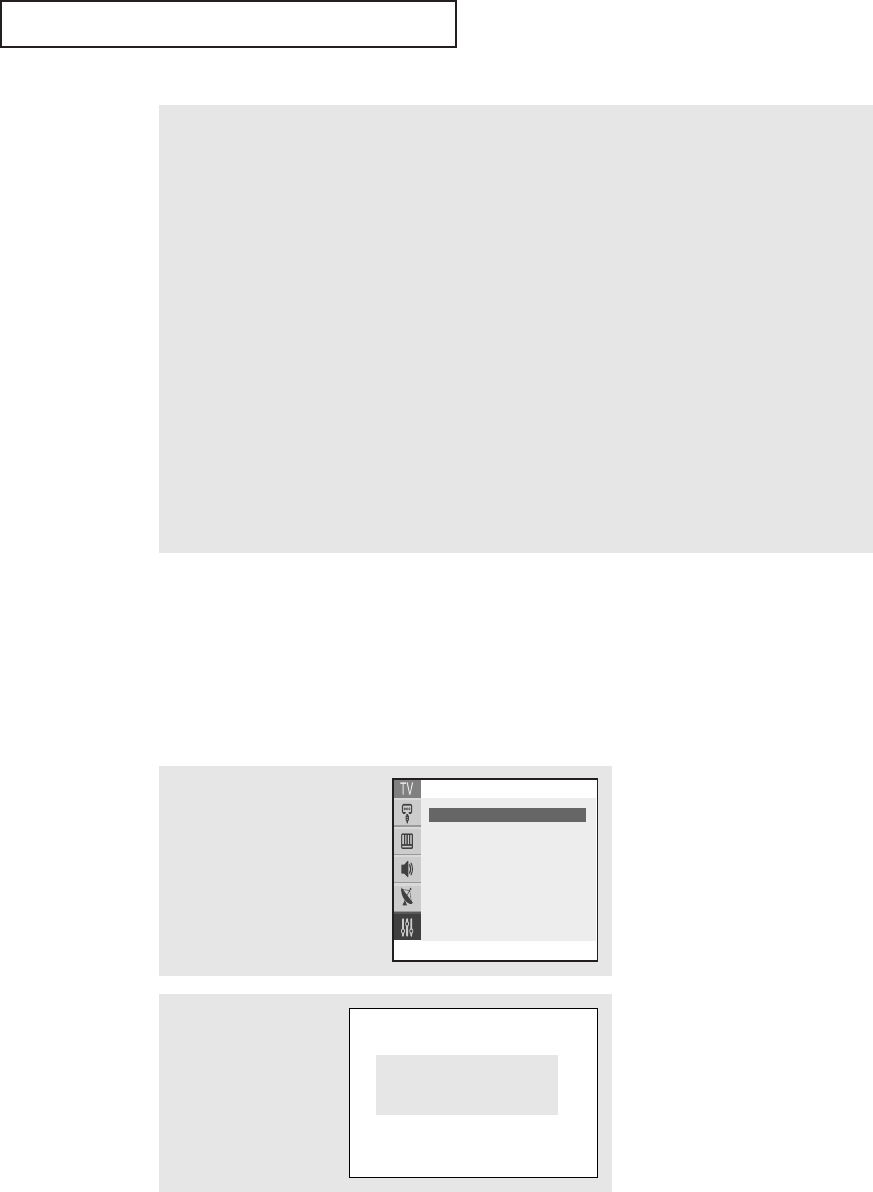

Using Automatic Picture Settings
Your TV has three automatic picture settings (“Dynamic”, “Standard” and “Movie” ) that
are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom
by pressing the P.MODE button (or by making a selection from the menu). Or, you can
select “Custom” which automatically recalls your personalized picture settings.
• Choose Dynamic for viewing the TV during the day or when there is
bright light in the room.
• Choose Standard for the standard factory settings.
• Choose Movie when viewing the movie.
• Choose Custom if you want to adjust the settings according to personal
preference (see “Customizing the Picture”, page 34).
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼ button to
select “Picture”, then press the
ENTER button.
2
Press the ˇor ˆbutton to
select the “Dynamic”
“Standard” “Movie” or
“Custom” picture setting.
Press the EXIT button to exit the
menu.
Move Adjust Return
Mode ˇˇDynamic ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
Move Adjust Return
Mode ˇˇCustom ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
OPERATION
36
Adjusting the Volume
Press the VOL + or VOL – button to increase or decrease the volume.
Using the MUTE Button
At any time, you can temporarily cut off the sound using the MUTE button.
1
Press the MUTE button and
the sound cuts off.
The word “Mute” will
appear in the lower-left
corner of the screen.
2
To turn mute off, press the MUTE button again, or simply press
either the VOL + or VOL – button.
Mute
OPERATION
37
2
Press the ▲ or ▼button to
select “Equalizer”, then press
the ENTER button.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Sound”, then press
the ENTER button.

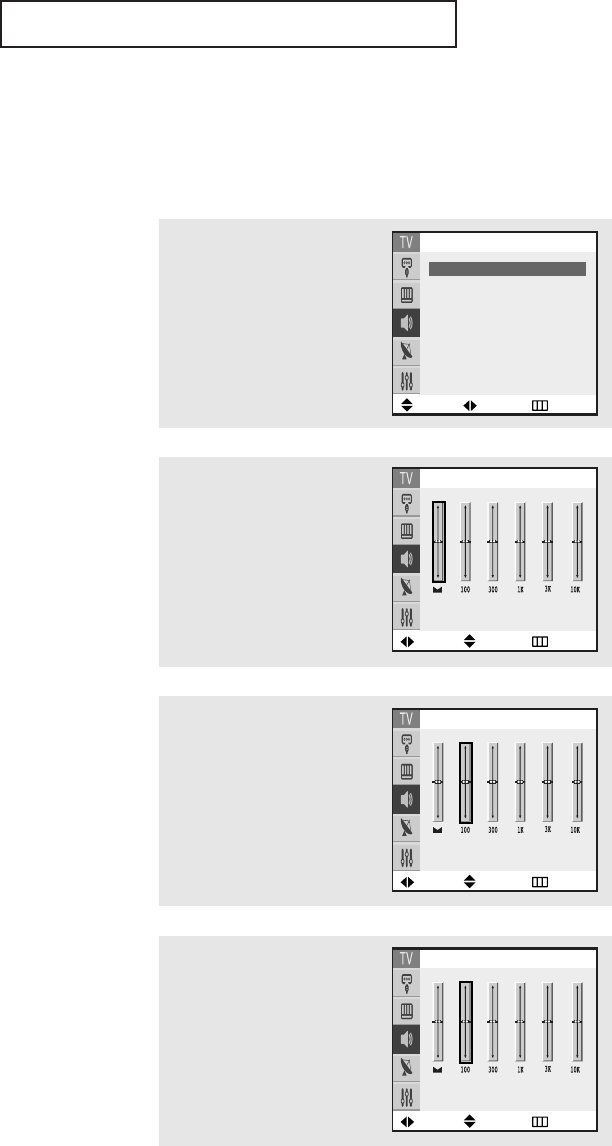

Customizing the Sound
You can use the on-screen menus to adjust the Equalizer setting, according to indi-
vidual preference. (Alternatively, you can use one of the “automatic” settings.
See next page.)
Move Adjust Return
Sound
Mode ˇˇCustom ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
3
Press the ˇor ˆbutton to
select a particular item.
Move Adjust Return
Equalizer
R
L
4
Press the ▲ or ▼button to
increase or decrease the value
of a particular item.
Press the EXIT button to exit the
menu.
Move Adjust Return
Equalizer
R
L
Move Adjust Return
Equalizer
R
L
OPERATION
38

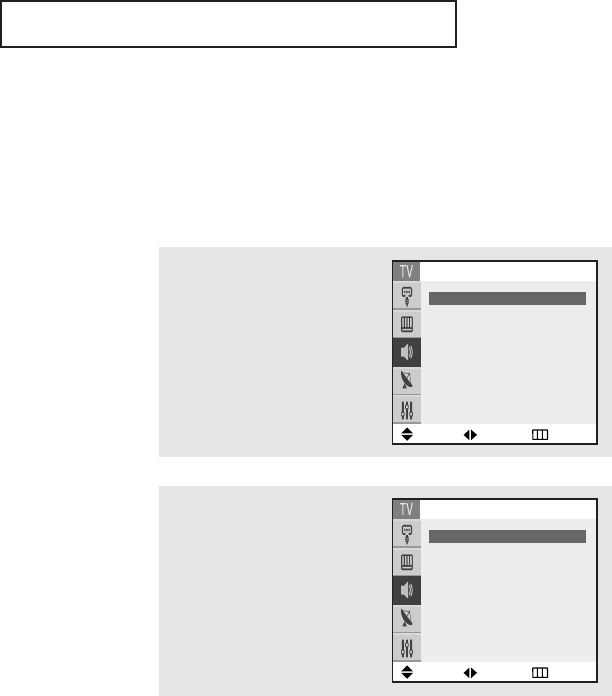

Using Automatic Sound Settings
Your TV has four automatic sound settings (“Standard”, “Music”, “Movie” and “Speech”)
that are preset at the factory. You can activate either Standard, Music, Movie or Speech
by pressing the S.MODE button (or by making a selection from the menu). Or, you can
select “Custom”, which automatically recalls your personalized sound settings.
• Choose Standard for the standard factory settings.
• Choose Music when watching music videos or concerts.
• Choose Movie when watching movie.
• Choose Speech when watching a show that is mostly dialogue (i.e., news).
• Choose Custom to recall your personalized settings.
(see “Customizing the Sound”, page 37).
2
Press the ˇor ˆbutton to
select the “Standard”, “Music”
“Movie”, “Speech” or “Custom”
sound settings.
Press the EXIT button to exit the
menu.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Sound”, then press
the ENTER button.
Move Adjust Return
Sound
Mode ˇˇCustom ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
Move Adjust Return
Sound
Mode ˇˇMusic ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
OPERATION
39
Viewing an External Signal Source
Use the remote control to switch between viewing signals from connected equipment,
such as VCRs, DVD, Set-Top Box and the TV source (broadcast or cable).
Setting the Signal Source
1
Press the MENU button to dis-
play menu, then press the
ENTER button.
2
Press the ENTER button again.
Press the ▲ or ▼button to
select signal source, then press
the ENTER button.
Alternate method:
Simply press the
TV/VIDEO or TV/COMPO-
NENT button on the
remote control to select
an External Signal Source.
Move Enter Return
Input
Source List : TV ˆˆ
Edit Name ˆˆ
Move Enter Return
Source List
TV
AV1 - - - -
AV2 - - - -
AV3 - - - -
S-Video - - - -
COMPONENT1 - - - -
▼ More
AV1
OPERATION
40
Assigning Names to External input mode
1
Press the MENU button to dis-
play menu, then press the
ENTER button.
2
Press the ▲ or ▼button to
select the “Edit Name”, then
press the ENTER button.
3
Press the ▲ or ▼button to
select the source list.
4
Press the ˇor ˆbutton to
select external device (VCR,
DVD, Cable STB, Sat. STB, AV
Recv., DVD Recv., Game,
Camcorder, DVD Combo).
Set other signal sources (AV2,
AV3, S-Video, COMPONENT1,
COMPONENT2) using the same
method as listed above.
Press the EXIT button to exit the
menu.
Move Enter Return
Input
Source List : TV ˆˆ
Edit Name ˆˆ
Move Adjust Return
Edit Name
AV1 ˇˇ- - - - ˆˆ
AV2 : - - - -
AV3 : - - - -
S-Video : - - - -
COMPONENT1 : - - - -
COMPONENT2 : - - - -
Move Adjust Return
Edit Name
AV1 ˇˇ- - - - ˆˆ
AV2 : - - - -
AV3 : - - - -
S-Video : - - - -
COMPONENT1 : - - - -
COMPONENT2 : - - - -
Move Adjust Return
Edit Name
AV1 ˇˇVCR ˆˆ
AV2 : - - - -
AV3 : - - - -
S-Video : - - - -
COMPONENT1 : - - - -
COMPONENT2 : - - - -
41
Fine Tuning Channels
Use fine tuning to manually adjust a particular channel for optional reception.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼ button to
select “Channel”, then press the
ENTER button.
▼
After you adjust the fine tuning,
“*” will appear when you press
INFO while watching this channel.
2
Press the ▲ or ▼ button to
select “Fine tune”.
3
Press the ˇor ˆbutton to
adjust the fine tuning.
4
To store the fine tuning setting in
the TV’s memory, press the ▲
button. (“*” will appear).
To reset the fine tuning to “00”,
press the ▼ button.
Press the EXIT button to exit the
menu.
Chapter Four
SPECIAL FEATURES
Move Enter Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune : 00
Air/CATV : Air
Name : - - - -
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune ˇˇ00 ˆˆ
Air/CATV : Air
Name : - - - -
Move Adjust Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune ˇˇ+ 01 ˆˆ
Air/CATV : Air
Name : - - - -
Add/Delete Return
Channel
Auto program ˆˆ
Add/Delete ˆˆ
Fine tune ˇˇ+ 01*ˆˆ
Air/CATV : Air
Name : - - - -
SPECIAL FEATURES
42
Changing the Color Tone
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Picture”, then press the
ENTER button.
Move Adjust Return
Mode ˇˇDynamic ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
2
Press the or button to
select “Color tone”.
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone ˇˇWarm1 ˆˆ
Size : Wide
Digital NR : On
Tilt : 0
3
Press the ˇor ˆbutton to
select “Cool2”, “Cool1”,
”Normal”, “Warm1” or “Warm2”
according to personal prefer-
ence.
Press the EXIT button to exit the
menu.
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone ˇˇWarm1 ˆˆ
Size : Wide
Digital NR : On
Tilt : 0
SPECIAL FEATURES
43
• Wide: Sets the picture to 16:9 wide mode.
• Panorama: Use this mode for the wide aspect ratio of a panoramic picture.
(Option)
• Zoom1: Magnifies the size of the picture on screen.
You can also move the picture on screen using the ▲or ▼button on the
remote control.
• Zoom2: Magnifies the size of the picture more than Zoom1.
You can also move the picture on screen using the ▲or ▼button on the
remote control.
• 4:3(Normal): Sets the picture to 4:3 normal mode.
Notes: Screen size cannot be changed in the Component (480p, 720p and 1080i) mode.
Changing the Screen Size
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Picture”, then press the
ENTER button.
Move Adjust Return
Mode ˇˇDynamic ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
2
Press the or button to
select “Size”.
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone : Warm1
Size ˇˇWide ˆˆ
Digital NR : On
Tilt : 0
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone : Warm1
Size ˇˇWide ˆˆ
Digital NR : On
Tilt : 0
3
Press the ˇor ˆbutton to
select “Wide”, “Panorama
(Depending on the model)”,
“Zoom1”, “Zoom2”, or “4:3”
(Normal).
Press the EXIT button to exit the
menu.
Alternate method:
Simply press the P.SIZE
button on the remote con-
trol to change a screen
size.
Wide
SPECIAL FEATURES
44
Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise
Reduction feature to help reduce any static and ghosting that may appear on the screen.
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Picture”, then press the
ENTER button.
Move Adjust Return
Mode ˇˇDynamic ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
2
Press the or button to
select “Digital NR”.
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR ˇˇOn ˆˆ
Tilt : 0
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR ˇˇOff ˆˆ
Tilt : 0
3
Press the ˇor ˆbutton to
select “On” or “Off”.
Press the EXIT button to exit the
menu.
SPECIAL FEATURES
45
Tilt
Due to the Earth’s magnetic field there may be same minor image tilt depending
on the TV’s location. When this occurs, follow the steps below.
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Picture”, then press the
ENTER button.
Move Adjust Return
Mode ˇˇDynamic ˆˆ
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : On
Tilt : 0
2
Press the or button to
select “Tilt”.
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : Off
Tilt ˇˇ0ˆˆ
Move Adjust Return
Mode : Dynamic
Custom ˆˆ
Color tone : Warm1
Size : Wide
Digital NR : Off
Tilt ˇˇ2ˆˆ
3
Press the ˇor ˆbutton to
adjust the Tilt.
Press the EXIT button to exit the
menu.
SPECIAL FEATURES
46
Using the R.Surf Feature
This feature allows you to set the TV to return to a particular channel after a certain
amount of time. For example, you may be watching a channel when commercials start.
You can set the R.Surf to “5 minutes”, then switch channels. After minutes, the TV will
return to the original channel. To use the R.Surf feature:
1
While you are watching
the channel to which you
want to return, press the
R.SURF button. The on-
screen display will read
“Surf Off”.
2
Press the R.SURF button
again to set the timer in
thirty second intervals, up
to five minutes.
3
The time you set will begin counting down on the screen.
When the time runs out, the TV will return to the channel
you were watching when you set the timer.
Surf Off
Surf 1: 30
Freezing the Picture
Press the STILL button to freeze a moving picture.
(normal sound will still be heard.)
Press again to cancel.
▼
Note: The still function doesn’t
operate in the COMPONENT mode.
▼
The time will be decreasing while
you are setting up the timer. And you
will reset it when you pass five min-
utes or turn it off.
SPECIAL FEATURES
47
Choosing a Multi-Channel Sound (MTS)
Soundtrack
Depending on the particular program being broadcast, you can listen to Stereo, Mono, or
a Separate Audio Program. (SAP audio is usually a foreign-language translation.
Sometimes SAP has unrelated information like news or weather.)
▼
The text at the bottom of the
menu tells you if the incoming
audio is Mono, Stereo or SAP.
• Choose Mono for channels that are broadcasting in mono, or if you are having dif-
ficulty receiving a stereo signal.
• Choose Stereo for channels that are broadcasting in stereo.
• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-
language translation.
Alternate method:
Simply press the MTS but-
ton on the remote control
to select the MTS setting.
MTS : Stereo
Signal : Stereo
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Sound”, then press
the ENTER button.
Move Adjust Return
Sound
Mode ˇˇStandard ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
Move Adjust Return
Sound
Mode : Standard
Equalizer ˆˆ
MTS ˇˇStereo ˆˆ
Auto volume : Off
Sound effect ˆˆ
2
Press the ▲ or ▼button to
select “MTS”.
Move Adjust Return
Sound
Mode : Standard
Equalizer ˆˆ
MTS ˇˇStereo ˆˆ
Auto volume : Off
Sound effect ˆˆ
3
Press the ˇor ˆbutton
to select “Mono”, “Stereo” or
“SAP”.
Press the EXIT button to exit the
menu.
SPECIAL FEATURES
48
Adjusting the Volume Automatically
Each broadcasting station has its own signal conditions, which can make it necessary to
adjust the volume every time the channel is changed. “Auto volume” lets you automati-
cally adjust the volume of the desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when the modulation signal is
low.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Sound”, then press
the ENTER button.
Move Adjust Return
Sound
Mode ˇˇStandard ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
Move Adjust Return
Sound
Mode : Standard
Equalizer ˆˆ
MTS : Stereo
Auto volume ˇˇOff ˆˆ
Sound effect ˆˆ
2
Press the ▲ or ▼button to
select “Auto volume”.
3
Press the ˇor ˆbutton to
select “On” or “Off”.
Press the EXIT button to exit the
menu.
Move Adjust Return
Sound
Mode : Standard
Equalizer ˆˆ
MTS : Stereo
Auto volume ˇˇOn ˆˆ
Sound effect ˆˆ
SPECIAL FEATURES
49
Setting the Surround
Your Samsung TV can create a "surround" effect such that the sound seems to come from
all directions. Once the “Surround” is set to “On”, the setting applies to sound effects
such as Standard, Music, Movie and Speech.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Sound”, then press
the ENTER button.
Move Adjust Return
Sound
Mode ˇˇStandard ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
Move Adjust Return
Sound effect
Surround ˇˇOff ˆˆ
Turbo sound : Off
Move Adjust Return
Sound effect
Surround ˇˇOn ˆˆ
Turbo sound : Off
2
Press the ▲ or ▼button to
select “Sound effect” then press
the ENTER button.
3
Press the ˇor ˆbutton to
select “On” or “Off”.
Press the EXIT button to exit the
menu.
SPECIAL FEATURES
50
Setting the Turbo Sound
Turbo sound emphasizes the bass and treble frequencies to add fullness to the sound.
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Sound”, then press
the ENTER button.
Move Adjust Return
Sound
Mode ˇˇStandard ˆˆ
Equalizer ˆˆ
MTS : Stereo
Auto volume : Off
Sound effect ˆˆ
Move Adjust Return
Sound effect
Surround ˇˇOff ˆˆ
Turbo sound : Off
Move Adjust Return
Sound effect
Surround : Off
Turbo sound ˇˇOff ˆˆ
Move Adjust Return
Sound effect
Surround : Off
Turbo sound ˇˇOn ˆˆ
2
Press the ▲ or ▼button to
select “Sound effect” then press
the ENTER button.
3
Press the ▲ or ▼button to
select “Turbo sound”.
4
Press the ˇor ˆbutton to
select “On” or “Off”.
Press the EXIT button to exit the
menu.
Alternate method:
Simply press the TURBO
button on the remote con-
trol to select the Turbo
sound setting.
Turbo : On
SPECIAL FEATURES
51
Setting the On/Off Timer
▼
Before using the timer, you must
set the TV’s clock. (See “Setting the
Clock” on page 31).
When any of the timers are set, the
“Timer” LED will illuminate (front
panel of TV.)
▼
To deactivate the “On Timer,”
select “Off” during this step.
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Setup”, then press the
ENTER button.
4
Press the ˆbutton to select the
minutes. (The minutes digits will
be highlighted.)
Press the ▲or ▼ button to
select the appropriate minutes.
2
Press the or button to
select “Time”, then press the
ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Enter Return
Time
Clock 10 : 30 am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
3
Press the or button to
select “On Timer”.
Press the ˆbutton to select the
hours. (The minutes digits will
be highlighted.)
Press the ▲or ▼ button repeat-
edly to select the appropriate
hours (i.e., the hour when the TV
will turn on.)
Move Adjust Return
Time
Clock 10 : 30 am
On Timer 06 : 00 am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
Move Adjust Return
Time
Clock 10 : 30 am
On Timer 06 : 30 am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
5
Press the ˆbutton to select
“On” or “Off”.
Press the ▲or ▼button to turn
the on-timer “On”. (Repeatedly
pressing the ▲or ▼ button will
alternate between “On”
and “Off”.)
When finished, press the ˆbut-
ton.
Move Adjust Return
Time
Clock 10 : 30 am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
SPECIAL FEATURES
52
▼
After about 5 seconds, the sleep
display will disappear from the
screen, and the time interval will be
set.
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time
(from 30 to 180 minutes).
▼
Absent Power Off
When you set the timer “On”, your
television will eventually be turned
off, if you do not operate any
controls during the 3 hours after the
TV is turned on by timer.
This function is available in only the
timer “On” mode and will prevent a
leakage accident or overheating,
caused by your TV left on for a long
time due to the timer “On” (when
you are away on holiday, for
example).
6
To set the Off Timer, press the
▲ or ▼button to select “Off
Timer”.
Press the ˆbutton and set the
hours and minutes. (Follow the
same procedure as in steps 3~5
above.)
When finished setting the timer,
Press the EXIT button to exit the
menu.
Move Adjust Return
Time
Clock 10 : 30 am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Setup”, then press the
ENTER button.
2
Press the or button to
select “Time”, then press the
ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Enter Return
Time
Clock 10 : 30 am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
3
Press the or button to
select “Sleep Timer”.
Press the ˇor ˆ
button repeat-
edly until the appropriate time
interval appears (any of the pre-
set values from “Off” to “180”).
Press the EXIT button to exit the
menu.
Move Adjust Return
Time
Clock 10 : 30 am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer ˇˇ30 ˆˆ
On Timer Volume : 10
On Timer Channel : 3
▼More
Alternate method:
Simply press the SLEEP
button repeatedly until the
appropriate time interval
appears (any of the preset
values from “Off” to “180).
Sleep Timer 30
SPECIAL FEATURES
53
Setting the Preferred Volume Level and Channel
The preferred volume and channel can be set for when the timer automatically turns on
the TV.
1
Press the MENU button to dis-
play the menu.
Press the or button to
select “Setup”, then press the
ENTER button.
2
Press the or button to
select “Time”, then press the
ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Enter Return
Time
Clock 10 : 30 am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel : 3
▼More
Move Adjust Return
Time
Clock 10 : 30 am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume ˇˇ10 ˆˆ
On Timer Channel : 3
▼More
3
Press the or button to
select “On Timer Volume”.
Press the ˇ
or ˆbutton to
adjust volume level.
Move Adjust Return
Time
Clock 10 : 30 am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
On Timer Channel ˇˇ3 ˆˆ
▼More
4
Press the or button to
select “On Timer Channel”.
Press the ˇ
or ˆbutton to
select channel
Press the EXIT button to exit the
menu.
SPECIAL FEATURES
54
▼
5
Depending on the particular broadcast, it might be necessary to
make changes to “Channels” and “Field”:
Use the ▲, ▼,ˇ
and ˆ
buttons to make the changes.
(Follow the same procedure as in steps 3~4 above.)
Press the EXIT button to exit the menu.
Different channels and fields
display different information: Field 2
carries additional information that
supplements the information in Field
1. (For example, Channel 1 may have
subtitles in English, while Channel 2
has subtitles in Spanish.)
▼
Misspellings and unusual
characters sometimes occur during
closed caption transmissions, espe-
cially those of live events. There may
be a small delay before captions
appear when you change channels.
These are not malfunctions of the TV.
3
Press the ˇ
or ˆbutton to turn
closed captioning “On” or “Off”.
▼
In “Caption” mode, captions
appear at the bottom of the screen,
and they usually cover only a small
portion of the picture.
In “Text” mode, information unrelat-
ed to the program, such as news or
weather, is displayed. Text often cov-
ers a large portion of the screen.
4
Press the ▲ or ▼button to
select “Mode”, press the ˇ
or
ˆbutton to select “Caption” or
“Text”.
Viewing Closed Captions
Your TV decodes and displays the closed captions that are broadcast with certain TV shows.
These captions are usually subtitles for the hearing impaired or foreign-language translations.
All VCRs record the closed caption signal from television programs, so home recorded video
tapes also provide closed captions. Most pre recorded commercial video tapes provide closed
captions as well. Check for the closed caption symbol in your television schedule and on the
tape’s packaging: .
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼button to
select the “Setup”, then press
the ENTER button.
2
Press the ▲or ▼button to
select the “Caption”, then press
the ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Adjust Return
Caption
Caption ˇˇOff ˆˆ
Mode : Caption
Channel : 1
Field : 1
Move Adjust Return
Caption
Caption ˇˇOn ˆˆ
Mode : Caption
Channel : 1
Field : 1
Move Adjust Return
Caption
Caption : On
Mode ˇˇCaption ˆˆ
Channel : 1
Field : 1
SPECIAL FEATURES
55
1
Press the MENU button to dis-
play the menu.
Press the ▲ or ▼button to
select the “Setup”, then press
the ENTER button.
2
Press the ▲ or ▼button to
select “Melody”.
Setting The On/Off Melody
You can hear clear a melody sound when the TV is powered On or Off.
3
Press the ˇ
or ˆ
button to
select “On”/ “Off”.
Press the EXIT button to exit the
menu.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Adjust Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody ˇˇOn ˆˆ
V-chip ˆˆ
Move Adjust Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody ˇˇOn ˆˆ
V-chip ˆˆ
SPECIAL FEATURES
56
2
Press the ▲or ▼button
to select the “V-Chip”,
then press the ENTER but-
ton.
The “Enter Pin” screen
will appear. Enter your 4-
digit PIN number,
Enter Pin
Enter Pin : - - - -
Using the V-Chip
The V-Chip feature automatically locks out programming that is deemed inappropriate
for children. The user must first enter a PIN (personal ID number) before any of the
V-Chip restrictions can be set up or changed.
Note : When the V-chip feature is active, channel-auto program features do not function.
Setting Up Your Personal ID Number (PIN)
Note: If you forget the PIN,
press the remote-control keys in the
following sequence, which resets the
pin to 0-0-0-0:
POWER OFF ➜ MUTE ➜ 8 ➜ 2 ➜
4 ➜ POWER ON.
▼
Note: The default PIN number for a new TV set is “0-0-0-0”.
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼button to
select the “Setup”, then press
the ENTER button.
3
After entering a valid PIN num-
ber, the “V-Chip” screen will
appear. Press the
▲or ▼button and select
“Change Pin.”
4
While the “Change Pin”
field is selected, press the
ENTER button.
The Change pin screen
will appear. Choose any 4-
digits for your PIN and
enter them.
As soon as the 4 digits are entered, the “Confirm New Pin”
screen appears. Re-enter the same 4 digits. When the Confirm
screen disappears, your PIN has been memorized.
Press the EXIT button to exit the menu.
Change Pin
Enter New Pin : - - - -
Confirm New Pin
Confirm New Pin : - - - -
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
Move Enter Return
V-chip
V-Chip Lock : No
TV Parental Guidelines ˆˆ
MPAA Rating ˆˆ
Change Pin ˆˆ
Move Enter Return
V-chip
V-Chip Lock : No
TV Parental Guidelines ˆˆ
MPAA Rating ˆˆ
Canadian English ˆˆ
Canadian French ˆˆ
Change Pin ˆˆ
<USA> <Canada>
SPECIAL FEATURES
57
How to Set up Restrictions Using the “TV Parental Guidelines”
First, set up a personal identification number (PIN), and enable the V-Chip.
(See previous section.) Parental restrictions can be set up using either of two methods:
The TV Parental Guidelines or the MPAA rating.
How to Enable/Disable the V-Chip
2
Press the ▲or ▼button
to select the “V-Chip”,
then press the ENTER but-
ton.
The “Enter Pin” screen
will appear. Enter your 4-
digit PIN number.
Enter Pin
Enter Pin : - - - -
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼ button to
select the “Setup”, then press
the ENTER button.
3
To enable the V-Chip
feature, press the ˆbutton so
that the “V-Chip Lock” field is
Yes. (Pressing the ˆbutton will
alternate between Yes and No.)
Press the EXIT button to exit the
menu.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
2
Press the ▲or ▼button
to select the “V-Chip”,
then press the ENTER but-
ton.
The “Enter Pin” screen
will appear. Enter your 4-
digit PIN number.
Enter Pin
Enter Pin : - - - -
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼ button to
select the “Setup”, then press
the ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
continued...
Move Enter Return
V-chip
V-Chip Lock ˇˇYes ˆˆ
TV Parental Guidelines ˆˆ
MPAA Rating ˆˆ
Change Pin ˆˆ
Move Enter Return
V-chip
V-Chip Lock ˇˇYes ˆˆ
TV Parental Guidelines ˆˆ
MPAA Rating ˆˆ
Canadian English ˆˆ
Canadian French ˆˆ
Change Pin ˆˆ
<USA> <Canada>
SPECIAL FEATURES
58
Note: These categories consist of
two separate groups: TV-Y and TV-Y7
(young children through age 7), and
TV-G through TV-MA (everybody
else).
The restrictions for these two groups
work independently: If a household
includes very young children as well
as young adults, the TV Parental
Guidelines must be set up separately
for each age group. (See next step.)
▼
3
Press the ▲or ▼button to
select the “TV Parental
Guidelines”, then press the
ENTER button.
4
The “TV Parental Guidelines”
screen will appear.
Press the ▲,▼ buttons to
select one of the six age-based
categories:
TV-Y Young children
TV-Y7 Children 7 and over
-----------------------------------
TV-G General Audience
TV-PG Parent guidance
TV-14 Viewers 14 and over
TV-MA Mature Audience
5
At this point, one of the TV-Ratings is selected.
Press the ˆbutton: Depending on your existing setup, a letter “U” or “B” will be selected.
(U= Unblocked, B= Blocked)
While the “U” or ”B” is red, press the ▲or ▼button to block or unblock the category.
Press the ˇbutton once to save the TV Parental Guidelines. A TV-Rating will be selected, and no letters
will be selected. To exit this screen, press the MENU button again. To select a different TV-Rating, press the
▲or ▼button and then repeat the process.
Note 1: The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the
following sub-ratings:
FV: Fantasy violence
D: Dialog
L: Adult language
S: Sexual situation
V: Violence
Note 2: The V-Chip will automatically block certain categories that are “more restrictive”. For example, if
you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G catego-
ry, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The
sub-ratings (D, L, S, V) work together similarly. (See next section.)
Move Adjust Return
TV Parental Guidelines
All FV V S L D
TV-Y ˇˇUˆˆ
TV-Y7 : U U
TV-G : U
TV-PG : U U U U U
TV-14 : U U U U U
TV-MA : U U U U
B: Blocked
U: Unblocked
Young Children
Move Adjust Return
TV Parental Guidelines
All FV V S L D
TV-Y ˇˇUˆˆ
TV-Y7 : U U
TV-G : U
TV-PG : U U U U U
TV-14 : U U U U U
TV-MA : U U U U
B: Blocked
U: Unblocked
Young Children
SPECIAL FEATURES
59
6
How to set the FV, D, L, S and V sub-ratings:
First, select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA (See Step 4, on previous page).
Next, while the TV-Rating is selected , repeatedly press the ˆbutton. This will cycle through the available
sub-ratings (FV,L, S, D or V).
A letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is selected, press the ▲or
▼button to change the sub-rating.
Press the ˆbutton to save the TV Parental Guidelines. A TV-Rating will be selected, and no letters will be
selected. To exit this screen, press the MENU button again. To select a different TV-Rating, press the ▲or
▼button and then repeat the process.
Note: The V-chip will automatically block certain categories that are “More restrictive”. For example, if you
block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.
7
Press the EXIT button to clear all the screens. (Or proceed to the next section, and set up additional restric-
tions based on the MPAA codes).
How to Set up Restrictions using the MPAA Ratings: G, PG,
PG-13, R, NC-17, X, NR
The MPAA rating system uses the Motion Picture Association of America (MPAA) system,
and its main application is for movies. (Eventually, movie videocassettes will be encoded
with MPAA ratings.) When the V-Chip lock is on, the TV will automatically block any
programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
2
Press the ▲or ▼button
to select the “V-Chip”,
then press the ENTER but-
ton.
The “Enter Pin” screen
will appear. Enter your 4-
digit PIN number.
Enter Pin
Enter Pin : - - - -
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼ button to
select the “Setup”, then press
the ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
continued...
SPECIAL FEATURES
60
Note: The V-Chip will automati-
cally block any category that is “more
restrictive.” For example, if you block
the “PG-13” category, then “R,” “NC-
17,” and “X” will automatically be
blocked also.
▼
4
The “MPAA Rating”
screen will appear.
Repeatedly press the ▲or
▼ button to select a par-
ticular MPAA category.
Pressing the ▲or ▼but-
ton will cycle through the
MPAA categories:
GGeneral audience.
PG Parental guidance suggested.
PG-13 Parents strongly cautioned.
RRestricted. Children under 17 requires.
to be accompanied by an adult.
NC-17 No children under age 17 admitted.
XAdults only.
NR Not rated.
While a particular category is selected, press ˆto activate it.
A letter (“U” or “B”) will be selected. Press the ▲ or ▼ button to
select “U” or ”B”.
Press the EXIT button to save the settings and to clear all screens.
3
Press the ▲or ▼button to
select the “MPAA Rating”, then
press the ENTER button.
Move Adjust Return
MPAA Rating
B/U
GˇUˆ
PG : U
PG-13 : U
R:U
NC-17 : U
X:U
NR : U
B: Blocked
U: Unblocked
General audience
Move Adjust Return
MPAA Rating
B/U
GˇUˆ
PG : U
PG-13 : U
R:U
NC-17 : U
X:U
NR : U
B: Blocked
U: Unblocked
General audience
How to Set up Restrictions Using the Canadian English
2
Press the ▲or ▼button
to select the “V-Chip”,
then press the ENTER but-
ton.
The “Enter Pin” screen
will appear. Enter your 4-
digit PIN number.
Enter Pin
Enter Pin : - - - -
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼ button to
select the “Setup”, then press
the ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
SPECIAL FEATURES
61
How to Set up Restrictions Using the Canadian French
2
Press the ▲or ▼button
to select the “V-Chip”,
then press the ENTER but-
ton.
The “Enter Pin” screen
will appear. Enter your 4-
digit PIN number.
Enter Pin
Enter Pin : - - - -
1
Press the MENU button to dis-
play the menu.
Press the ▲or ▼ button to
select the “Setup”, then press
the ENTER button.
Move Enter Return
Setup
Plug & Play ˆˆ
Time ˆˆ
Language : English
Caption ˆˆ
Melody : On
V-chip ˆˆ
4
Repeatedly press the ▲or ▼
button to select a particular
Canadian English category.
Pressing the ▲or ▼button will
cycle through the Canadian
English categories:
EExempt programming includes...news, sports,
documentaries and other information
programming, talk shows, music videos, and
variety programming.
CProgramming intended for children under age
8.
C8+ Programming generally considered accept
able for children 8 years and over to watch on
their own.
GGeneral programming, suitable for all audi
ences.
PG Parental Guidance.
14+ Programming contains themes or content
which may not be suitable for viewers under
the age of 14.
18+ Adult programming.
While a particular category is selected, press the
ˆ
button to activate it.
A letter (“U” or “B”) will be selected. Press the ▲
or ▼ button to select “U” or ”B”.
Press the EXIT button to save the settings and to
clear all screens.
3
Press the ▲or ▼button to
select the “Canadian English”,
then press the ENTER button.
The “Canadian English” screen
will appear.
Move Adjust Return
Canadian English
B/U
EˇUˆ
C:U
C8+ : U
G:U
PG : U
14+ : U
18+ : U
B: Blocked
U: Unblocked
continued...
Move Enter Return
V-chip
V-Chip Lock ˇˇYes ˆˆ
TV Parental Guidelines ˆˆ
MPAA Rating ˆˆ
Canadian English ˆˆ
Canadian French ˆˆ
Change Pin ˆˆ
SPECIAL FEATURES
62
4
The “Canadian French” screen
will appear.
Repeatedly press the ▲or ▼
button to select a particular
Canadian French category.
Pressing the ▲or ▼button will
cycle through the Canadian
French categories:
EExempt programming includes...news,
sports, documentaries and other informa
tion programming, talk shows, music
videos, and variety programming.
GGeneral.
8 ans+ 8+ General-Not recommended for young
children.
13 ans+ Programming may not be suitable for
children under the age of 13.
16 ans+ Programming is not suitable for children
under the age of 16.
18 ans+ Programming restricted to adults.
While a particular category is selected, press the
ˆ
button to activate it.
A letter (“U” or “B”) will be selected. Press the ▲
or ▼ button to select “U” or ”B”.
Press the EXIT button to save the settings and to
clear all screens.
3
Press the ▲or ▼button to
select the “Canadian French”,
then press the ENTER button.
How to Reset the TV after the V-Chip Blocks (“Emergency
Escape”)
If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following
message will appear: “Excessive rating.”
To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions
(depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case,
use the V-Chip function for an “emergency escape”:
Press the MENU button to display the menu.Press the ▲ or ▼button to select the “Setup” menu and press
the ENTER button.
Press the ▲ or ▼button to select the “V-Chip” menu and press the ENTER button. Enter your PIN number,
and press the ˆbutton to temporarily disable the V-Chip Lock.
Press the EXIT button to exit the menu.
Move Adjust Return
Canadian French
B/U
EˇUˆ
G:U
8 ans+ : U
13 ans+ : U
16 ans+ : U
18 ans+ : U
B: Blocked
U: Unblocked
Move Enter Return
V-chip
V-Chip Lock ˇˇYes ˆˆ
TV Parental Guidelines ˆˆ
MPAA Rating ˆˆ
Canadian English ˆˆ
Canadian French ˆˆ
Change Pin ˆˆ
SPECIAL FEATURES
63
Customizing Your Remote Control
Your TV comes equipped with a universal remote control. In addition to controlling the TV,
the universal remote control can also operate a Set-Top Box, VCR, Cable box and DVD (even
if your VCR, Cable box and DVD are made by manufacturers other than Samsung).
•The remote control might not be compatible with all VCRs, DVD players and Cable boxes.
1
Turn off your VCR (Cable box or DVD player).
2
Press the MODE button and make sure that the VCR (CABLE or DVD) LED is
illuminated.
ˇThe remote control has five
modes: TV, STB, VCR, CABLE
and DVD.
3
On your Samsung remote control, press the SET button.
4
Enter 3 digits of the VCR (Cable box or DVD player) code listed on next page
for your brand of VCR (Cable box or DVD player).
ˇMake sure you enter 3 digits
of the code, even if the first digit
is a “0”. (If more than one code
listed, try the first one.)
5
Press the POWER button on the remote control. Your VCR (Cable box or
DVD player) should turn on. If your VCR (Cable box or DVD player) turns on,
your remote control is now set correctly.
ˇIf your VCR (Cable box or
DVD player) does not turn on,
repeat steps 2, 3, and 4, but try
one of the other codes listed for
the brand of your particular VCR
(Cable box or DVD player).
6
Once your remote control is set up, press the MODE button any time you
want to use the remote to operate your VCR (Cable box or DVD player).
• When your remote is in the TV mode, the VCR (or DVD player) control buttons (REW, STOP,
PLAY/PAUSE and FF) will still operate your VCR (or DVD player).
• When your remote control is in the VCR (CABLE or DVD) mode, the volume buttons still con-
trol your TV’s volume.
Setting Up Your Remote Control to Operate Your VCR (Cable box
or DVD player)
SPECIAL FEATURES
64
VCR Codes
000
001
002
003
004
005
006
007
008
009
011
014
015
016
017
018
019
021
022
023
024
025
026
027
028
029
030
031
032
035
Samsung
LG(Goldstar)
Daewoo
Daewoo, LG(Goldstar)
Daewoo
Curtis Mathes, Dimensia,
General Electric, PROSCAN,
RCA
Bell & Howell, Fisher, JC Penny,
JCL, Kenwood, Marantz, NEC,
Quartz, Radio Shack, Realistic,
Sanyo, Sears, Tandy
Hitachi, JC Penny, Pentax,
Pioneer, RCA, Sears, Toshiba
Admiral, Optimus, Radio Shack,
Realistic, Sharp
Candle, Citizen, Craig,
Curtis Mathes, General Electric,
Go Video, JC Penny, MTC,
Multitech, RCA, Samsung,
Totevision
Canon, Curtis Mathes,
Emerson, General Electric,
Instant Replay, JC Penny,
JCL, Magnavox, Marantz,
Panasonic, Philco, Philips,
Quasar, Radio Shack, Realistic,
RCA, Sylvania, Technics, Teknika
Candle, Citizen, Emerson,
LG(Goldstar), Radio Shack,
Realistic, Sears, Toshiko, Teknika,
Totevision
Broksonic, Emerson
Craig, Fisher, Radio Shack,
Realistic, Sanyo, Sears
Audio Dynamics, Candle, Citizen,
Daewoo, Emerson, Samsung,
Scott, Toshiba
Colortyme, Curtis Mathes, DB,
LG(Goldstar), Harman Kardon,
JC Penny, JCL, Kenwood,
Marantz, NEC
Aiwa, Curtis Mathes, Dynatech,
Emerson, Funai, Hitachi, Lloyd,
LXI, MTC, Multitech, Radio Shack,
Realistic, Signature, Sylvania,
Symphonic, Tandy, Teac, Teknika
Audio Dynamics, DB, JC Penny,
JCL, Kenwood, Marantz, NEC,
Pioneer, Sansui
Akai, Shintom, Sony
Fisher, Sears
Fisher, Radio Shack, Realistic,
Sears, Toshiba
Emerson
Teknika
Akai, Samsung
Akai, Emerson
Shintom, Sony
059
060
061
062
063
064
065
066
067
069
070
071
073
074
076
077
078
079
082
084
085
086
088
Pioneer
JC Penny
Candle, Citizen, Portland
Canon, Curtis Mathes,
General Electric, JC Penny,
Magnavox, Panasonic, Philco,
Radio Shack, Realistic, Sylvania
RCA
Shintom
Magnavox, Philco, Sylvania
Emerson
Fisher
LG(Goldstar)
Marantz, NEC
Emerson
Curtis Mathes, NEC
Emerson
Curtis Mathes, Emerson, TMK
Emerson, Scott
RCA, Teac
Emerson
KLH
Panasonic
Daewoo
Panasonic
Admiral
036
037
038
039
040
041
042
043
044
045
046
047
048
050
051
052
053
054
055
056
057
058
Electrohome, Emerson,
Radio Shack, Realistic, Sharp
RCA
Magnavox, Marantz, Philco,
Philips, Sylvania
JC Penny, JCL, Kenwood,
Marantz, NEC, Tatung, Teac
Logik, Multitech, Shintom
General Electric, Multitech,
Samsung
Pioneer
Emerson
Hitachi, JC Penny, Pentax, RCA,
Sears
Hitachi
RCA
Sony
Sharp
Emerson, Scott
Emerson, Samsung
Fisher, Radio Shack, Realistic,
Sears
Portland, Quasar
Candle, Citizen, Daewoo,
Portland, Sharp
Candle, Citizen, Curtis Mathes,
LG(Goldstar), JCL, Kenwood,
Marantz, NEC, Pentex Research+
Emerson
Fisher, Sears, Toshiba
Emerson, Scott, Toshiba
Cable Box Codes
000
001
002
003
004
005
006
007
008
010
011
012
013
015
016
017
019
020
021
022
023
024
025
026
027
028
029
030
031
032
033
034
035
036
037
Samsung
Nawoo
TaePyungYang
DeaRyung
DongKuk
DaeHan
LG(Goldstar)
Saewoo
RCA
Regency
Hamlin, Panasonic, Regal,
Samsung
GI, Hamlin, Jerrold
GI, Jerrold
Anvision, Cable Star, Eagle,
Magnavox, Philips, Randtek,
Viewstar
NSC
Sylvania, Texscan
Eastern International, Hamlin,
Regal
Hamlin, Regal
Zenith
GI, Jerrold
Oak, Osk Sigma
Tocom
Pioneer
Magnavox, Philips, Viewstar
Pioneer
Magnavox, Philips, Tocom,
Viewstar
Samsung
GI, Jerrold
Magnavox, Philips, Viewstar
RCA, Panasonic, Sprucer
Magnavox, Philips, Viewstar
057
058
059
060
063
065
066
067
069
070
071
072
073
074
075
076
077
Tocom
Universal
Tocom
Zenith
Stargate 2000
Sylvania, Texscan
Panasonic, Zenith
Jerrold
Samsung
Jerrold
RCA
GI
038
039
040
041
042
044
045
046
047
048
049
050
051
052
054
056
GI, Jerrold
Unika
Magnavox, Philips, Unika,
Viewstar
Magnavox, Philips, Regency,
Viewstar
Hamlin
GI, Jerrold
Hitachi, Macom
Oak
Panasonic
Magnavox, Philips, Viewstar
Magnavox, Philips, Unika,
Viewstar
Zenith
Hitachi, Macom
Pioneer, Samsung, Warner Amex
General Instrument, Hitachi,
Jerrold, Signature, Starcom
Hamlin
DVD Codes
000
001
002
003
004
005
Samsung
LG(Goldstar)
Toshiba
JVC
Sony
Sharp
009
Curtis Mathes
006
007
008
Panasonic
Philips
PROSCAN, RCA
Remote Control Codes
SPECIAL FEATURES
65
SPECIAL FEATURES
Chapter Five
TROUBLESHOOTING
If the TV seems to have a problem, first try this list of possible problems and solutions.
If none of these troubleshooting tips apply, then call your nearest service center.
Identifying Problems
Problem Possible Solution
Poor picture Try another channel.
Adjust the antenna.
Check all wire connections.
Poor sound quality. Try another channel.
Adjust the antenna.
No picture or sound. Try another channel.
Press the TV/VIDEO button.
Make sure the TV is plugged in.
Check the antenna connections.
No color, wrong colors or tints. Make sure the program is broadcast in color.
Adjust the picture settings.
If the set is moved or turned in a different
direction, the power should be OFF for at least
30 minutes.
Picture rolls vertically. Adjust the antenna.
Check all wire connections.
The TV operates erratically Unplug the TV for 30 seconds, then try
operating it again.
Your remote control does not Press the “MODE” button to put your remote
operate your TV. control in the “TV” mode.
The TV won’t turn on. Make sure the wall outlet is working.
SPECIAL FEATURES
66
APPENDIX
MEMOMEMO
APPENDIX
Cleaning and Maintaining Your TV
With proper care, your TV unit will give you many years of service. Please follow these
guidelines to get the maximum performance from your TV.
Placement
• Do not place the TV near extremely hot, cold, humid or dusty places.
• Do not place the TV near appliances with electric motors that create magnetic fields,
such as vacuum cleaners.
• Keep the ventilation openings clear; do not place the TV on a soft surface, such as
cloth or paper.
• Place the TV in a vertical position only.
Liquids
• Do not handle liquids near or on the TV. Liquids that spill into it can cause serious
damage.
Cabinet
• Never open the cabinet or touch the parts inside.
• Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or
chemicals.
• Do not put heavy objects on top of the cabinet.
Temperature
• If your TV is suddenly moved from a cold to a warm place, unplug the power cord,
and allow at least two hours for moisture that may have formed inside the unit to dry
completely.
Using Your TV in Another Country
If you plan to take your TV with you to a foreign country, please be aware of the different
television systems that are in use around the world. A TV designed for one system may
not work properly with another system due to differences in the TV channel frequencies.
Specifications
Model
Voltage
Frequency of Operation
Dimensions
(mm/inches)
Weight (Kg/ lbs)
TX-R2664W
TX-R3065W
TX-R3064W
AC120 V
60 Hz
810 X 515 X 535 / 31.9 X 20.3 X 21.1
880 X 600 X 555 / 34.65 X 23.62 X 21.85
898 X 559 X 587 / 35.35 X 22.01 X 23.11
40.2 / 88.6
56.0 / 123.46
56.0 / 123.46
TX-R2765
TX-R3265
TX-R2764
TX-R3264
AC120 V
60 Hz
742 X 561 X 581 / 29.21 X 22.08 X 22.87
880 X 585 X 690 / 34.65 X 23.03 X 27.17
762 X 519 X 600 / 30.00 X 20.43 X 23.62
911 X 579 X 703 / 35.87 X 22.80 X 27.68
45.5 / 100.31
68.0 / 149.92
47.5 / 104.72
67 / 147.71
MEMO
67
Printed in Mexico
AA68-03704A-01
1-800-SAMSUNG (1-800-726-7864)
U.S.A
Samsung Electronics America
Service Division
400 Valley Road, Suite 201
Mount Arlington, NJ 07856
www.samsung.com
CANADA
Samsung Electronics Canada Inc.
Samsung Customer Care
55 Standish Court
Mississauga, Ontario
L5R 4B2
www.samsung.ca

Navigation menu
