Getting started
Basics
Communication
Web & network
Media
Application & media stores
Utilities
Travel & local
- Maps
Settings
Troubleshooting

www.samsung.com

User Manual

SM-T530

About this manual

This device provides high quality mobile communication and entertainment using Samsung’s

high standards and technological expertise. This user manual is specially designed to detail

the device’s functions and features.

•

Please read this manual before using the device to ensure safe and proper use.

•

Descriptions are based on the device’s default settings.

•

Images and screenshots may differ in appearance from the actual product.

•

Content may differ from the final product, or from software provided by service providers

or carriers, and is subject to change without prior notice. For the latest version of the

manual, refer to the Samsung website,

www.samsung.com

•

Content (high quality content) that requires high CPU and RAM usage will affect the

overall performance of the device. Applications related to the content may not work

properly depending on the device’s specifications and the environment that it is used in.

•

Available features and additional services may vary by device, software, or service

provider.

•

Applications and their functions may vary by country, region, or hardware specifications.

Samsung is not liable for performance issues caused by applications from any provider

other than Samsung.

•

Samsung is not liable for performance issues or incompatibilities caused by edited

registry settings or modified operating system software. Attempting to customise the

operating system may cause the device or applications to work improperly.

•

Software, sound sources, wallpapers, images, and other media provided with this device

are licensed for limited use. Extracting and using these materials for commercial or other

purposes is an infringement of copyright laws. Users are entirely responsible for illegal

use of media.

About this manual

•

Default applications that come with the device are subject to updates and may no longer

be supported without prior notice. If you have questions about an application provided

with the device, contact a Samsung Service Centre. For user-installed applications,

contact service providers.

•

Modifying the device’s operating system or installing softwares from unofficial sources

may result in device malfunctions and data corruption or loss. These actions are violations

of your Samsung licence agreement and will void your warranty.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Note: notes, usage tips, or additional information

This guide is protected under international copyright laws.

No part of this guide may be reproduced, distributed, translated, or transmitted in any form or

by any means, electronic or mechanical, including photocopying, recording, or storing in any

information storage and retrieval system, without the prior written permission of Samsung

Electronics.

About this manual

Trademarks

•

SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.

•

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

•

Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi CERTIFIED™, and the Wi-Fi logo are

registered trademarks of the Wi-Fi Alliance.

•

All other trademarks and copyrights are the property of their respective owners.

Table of Contents

Getting started

7 Device layout

8 Buttons

9 Package contents

10 Charging the battery

12 Inserting a memory card

14 Turning the device on and off

15 Holding the device

15 Locking and unlocking the device

15 Adjusting the volume

15 Switching to silent mode

Basics

16 Indicator icons

17 Using the touch screen

20 Rotating the screen

21 Palm motions

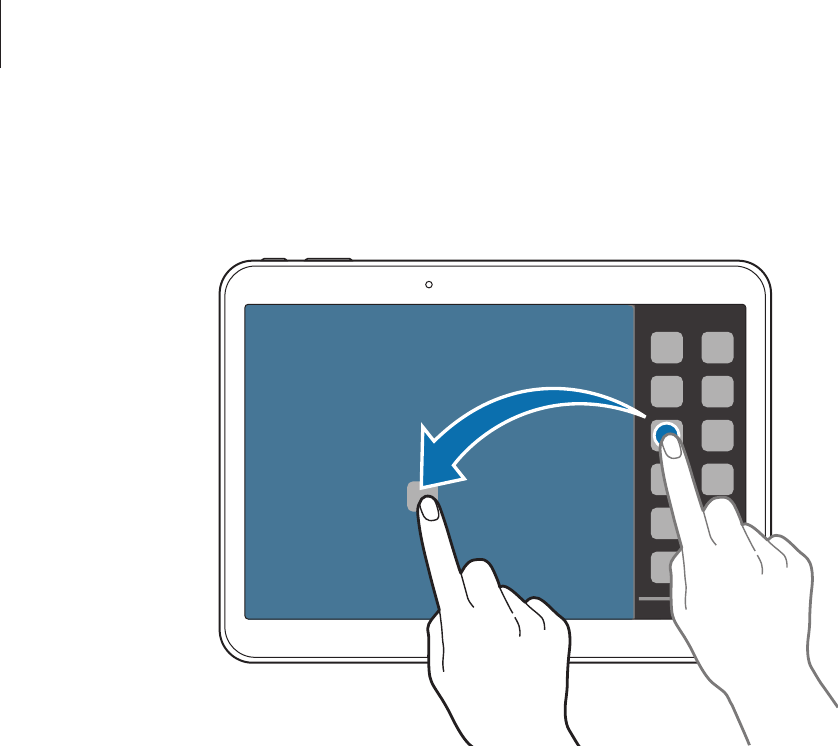

22 Using Multi Window

25 Notifications

26 Home screen

29 Applications screen

30 Using applications

31 Help

31 Entering text

33 Connecting to a Wi-Fi network

34 Setting up accounts

35 Setting up user profiles

35 Transferring files

37 Securing the device

38 Upgrading the device

Communication

39 Contacts

43 Email

45 Google Mail

46 Hangouts

46 Google+

47 Photos

Web & network

48 Internet

50 Chrome

51 Bluetooth

52 Screen Mirroring

Media

53 Music

55 Camera

60 Gallery

63 Video

64 YouTube

Table of Contents

Settings

83 About Settings

83 Connections

86 Device

90 Controls

94 General

97 Google Settings

Troubleshooting

Application & media stores

65 Play Store

66 Samsung Apps

66 Play Books

67 Play Movies & TV

67 Play Music

67 Play Games

67 Play Newsstand

Utilities

68 Memo

69 S Planner

71 Dropbox

71 Cloud

72 Drive

72 Hancom Viewer

75 Alarm

76 World Clock

77 Calculator

77 S Voice

78 Google

79 Voice Search

79 My Files

Travel & local

82 Maps

Getting started

Device layout

Recent apps button

Home button

Touch screen

Volume button

Power button

Back button

Front camera

Speaker

Rear camera

Microphone

Multipurpose jack

Headset jack

GPS antenna

Memory card slot

Speaker

Getting started

•

Do not cover the antenna area with your hands or other objects. This may cause

connectivity problems or drain the battery.

•

Do not use a screen protector. This causes sensor malfunctions.

•

Do not allow water to contact the touch screen. The touch screen may malfunction

in humid conditions or when exposed to water.

Buttons

Button Function

Power

•

Press and hold to turn the device on or off.

•

Press and hold for more than 7 seconds to reset the device if

it has fatal errors or hang-ups, or freezes.

•

Press to lock or unlock the device. The device goes into lock

mode when the touch screen turns off.

Recent apps

•

Tap to open the list of recent applications.

Home

•

Press to return to the Home screen.

•

Press and hold on the Home screen to launch Google search.

Back

•

Tap to return to the previous screen.

Volume

•

Press to adjust the device volume.

Getting started

Package contents

Check the product box for the following items:

•

Device

•

Quick start guide

•

The items supplied with the device and any available accessories may vary

depending on the region or service provider.

•

The supplied items are designed only for this device and may not be compatible

with other devices.

•

Appearances and specifications are subject to change without prior notice.

•

You can purchase additional accessories from your local Samsung retailer. Make

sure they are compatible with the device before purchase.

•

Other accessories may not be compatible with your device.

•

Use only Samsung-approved accessories. Malfunctions caused by using

unapproved accessories are not covered by the warranty service.

•

Availability of all accessories is subject to change depending entirely on

manufacturing companies. For more information about available accessories, refer

to the Samsung website.

Getting started

Charging the battery

Use the charger to charge the battery before using it for the first time.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or

cables can cause the battery to explode or damage the device.

•

When the battery power is low, the battery icon appears empty.

•

If the battery is completely discharged, the device cannot be turned on

immediately when the charger is connected. Allow a depleted battery to charge for

a few minutes before turning on the device.

•

If you use multiple applications at once, network applications, or applications

that need a connection to another device, the battery will drain quickly. To avoid

disconnecting from the network or losing power during a data transfer, always use

these applications after fully charging the battery.

Charging with the charger

Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into

the multipurpose jack.

Getting started

Connecting the charger improperly may cause serious damage to the device. Any

damage caused by misuse is not covered by the warranty.

•

The device can be used while it is charging, but it may take longer to fully charge

the battery.

•

If the device receives an unstable power supply while charging, the touch screen

may not function. If this happens, unplug the charger from the device.

•

While charging, the device may heat up. This is normal and should not affect the

device’s lifespan or performance. If the battery gets hotter than usual, the charger

may stop charging.

•

If the device is not charging properly, take the device and the charger to a

Samsung Service Centre.

After fully charging, disconnect the device from the charger. First unplug the charger from the

device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a

power switch, so you must unplug the charger from the electric socket when not in

use to avoid wasting power. The charger should remain close to the electric socket

and easily accessible while charging.

Checking the battery charge status

When you charge the battery while the device is off, the following icons will show the current

battery charge status:

Charging Fully charged

Getting started

Reducing the battery consumption

Your device provides options that help you save battery power. By customising these options

and deactivating features in the background, you can use the device longer between charges:

•

When you are not using the device, switch to sleep mode by pressing the Power button.

•

Close unnecessary applications with the task manager.

•

Deactivate the Bluetooth feature.

•

Deactivate the Wi-Fi feature.

•

Deactivate auto-syncing of applications.

•

Decrease the backlight time.

•

Decrease the brightness of the display.

Inserting a memory card

Your device accepts memory cards with maximum capacities of 64 GB. Depending on the

memory card manufacturer and type, some memory cards may not be compatible with your

device.

•

Some memory cards may not be fully compatible with the device. Using an

incompatible card may damage the device or the memory card, or corrupt the data

stored in it.

•

Use caution to insert the memory card right-side up.

•

The device supports the FAT and the exFAT file systems for memory cards. When

inserting a card formatted in a different file system, the device asks to reformat the

memory card.

•

Frequent writing and erasing of data shortens the lifespan of memory cards.

•

When inserting a memory card into the device, the memory card’s file directory

appears in the

SD card

folder.

Getting started

1 Open the cover of the memory card slot.

2 Insert a memory card with the gold-coloured contacts facing downwards.

3 Push the memory card into the slot until it locks in place.

4 Close the cover of the memory card slot.

Removing the memory card

Before removing the memory card, first unmount it for safe removal. On the Home screen, tap

→

Settings

→

General

→

Storage

→

Unmount SD card

1 Open the cover of the memory card slot.

2 Push the memory card until it disengages from the device, and then pull it out.

3 Close the cover of the memory card slot.

Do not remove the memory card while the device is transferring or accessing

information. Doing so can cause data to be lost or corrupted or damage to the

memory card or device. Samsung is not responsible for losses that result from the

misuse of damaged memory cards, including the loss of data.

Getting started

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device. Format the

memory card on the device.

On the Home screen, tap

→

Settings

→

General

→

Storage

→

Format SD card

→

Format SD card

→

Erase everything

Before formatting the memory card, remember to make backup copies of all

important data stored on the device. The manufacturer’s warranty does not cover loss

of data resulting from user actions.

Turning the device on and off

When turning on the device for the first time, follow the on-screen instructions to set up your

device.

Press and hold the Power button for a few seconds to turn on the device.

•

Follow all posted warnings and directions from authorised personnel in areas

where the use of wireless devices is restricted, such as aeroplanes and hospitals.

•

Press and hold the Power button and tap

Flight mode

to disable the wireless

features.

To turn off the device, press and hold the Power button, and then tap

Power off

Getting started

Holding the device

Do not cover the antenna area with your hands or other objects. This may cause connectivity

problems or drain the battery.

Locking and unlocking the device

When not in use, lock the device to prevent unwanted operation. Pressing the Power button

turns off the screen and puts the device into lock mode. The device automatically gets locked

if it is not used for a specified period.

To unlock the device, press the Power button or the Home button when the touch screen is

turned off, tap anywhere on the screen, and then flick your finger in any direction.

Adjusting the volume

Press the Volume button left or right to adjust the sound volume when playing music or

video.

Switching to silent mode

Use one of the following methods:

•

Press and hold the Volume button left until it switches to silent mode.

•

Press and hold the Power button, and then tap

Mute

•

Open the notifications panel at the top of the screen, and then tap

Sound

Basics

Indicator icons

The icons displayed at the top of the screen provide information about the status of the

device. The icons listed in the table below are most common.

Icon Meaning

Wi-Fi connected

Bluetooth feature activated

GPS activated

Synced with the web

Connected to computer

Alarm activated

Mute mode activated

Flight mode activated

Error occurred or caution required

Battery power level

Basics

Using the touch screen

Use only fingers to use the touch screen.

•

Do not allow the touch screen to come into contact with other electrical devices.

Electrostatic discharges can cause the touch screen to malfunction.

•

To avoid damaging the touch screen, do not tap it with anything sharp or apply

excessive pressure to it with your fingertips.

•

The device may not recognise touch inputs close to the edges of the screen, which

are outside of the touch input area.

•

Leaving the touch screen idle for extended periods may result in afterimages

(screen burn-in) or ghosting. Turn off the touch screen when you do not use the

device.

Finger gestures

Tapping

To open an application, to select a menu item, to press an on-screen button, or to enter a

character using the on-screen keyboard, tap it with a finger.

Basics

Tapping and holding

Tap and hold an item for more than 2 seconds to access available options.

Dragging

To move an icon, thumbnail, or preview to a new location, tap and hold it and drag it to the

target position.

Basics

Double-tapping

Double-tap on a webpage or image to zoom in a part. Double-tap again to return.

Flicking

Flick left or right on the Home screen or the Applications screen to see another panel. Flick up

or down to scroll through a webpage or a list, such as contacts.

Basics

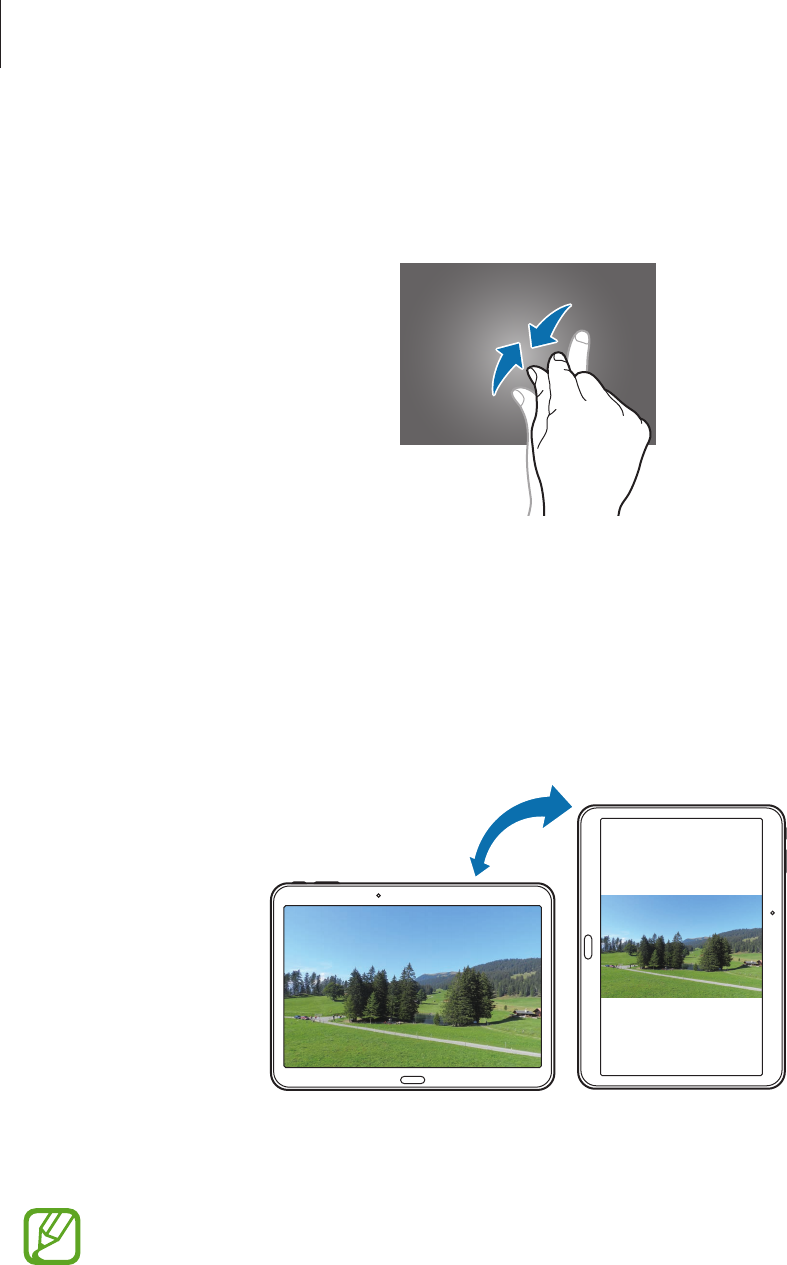

Pinching

Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.

Rotating the screen

Many applications allow display in either portrait or landscape orientation. Rotating the

device causes the display to automatically adjust to fit the new screen orientation.

To prevent the display from rotating automatically, open the notifications panel and deselect

Screen rotation

•

Some applications do not allow screen rotation.

•

Some applications display a different screen depending on the orientation.

Basics

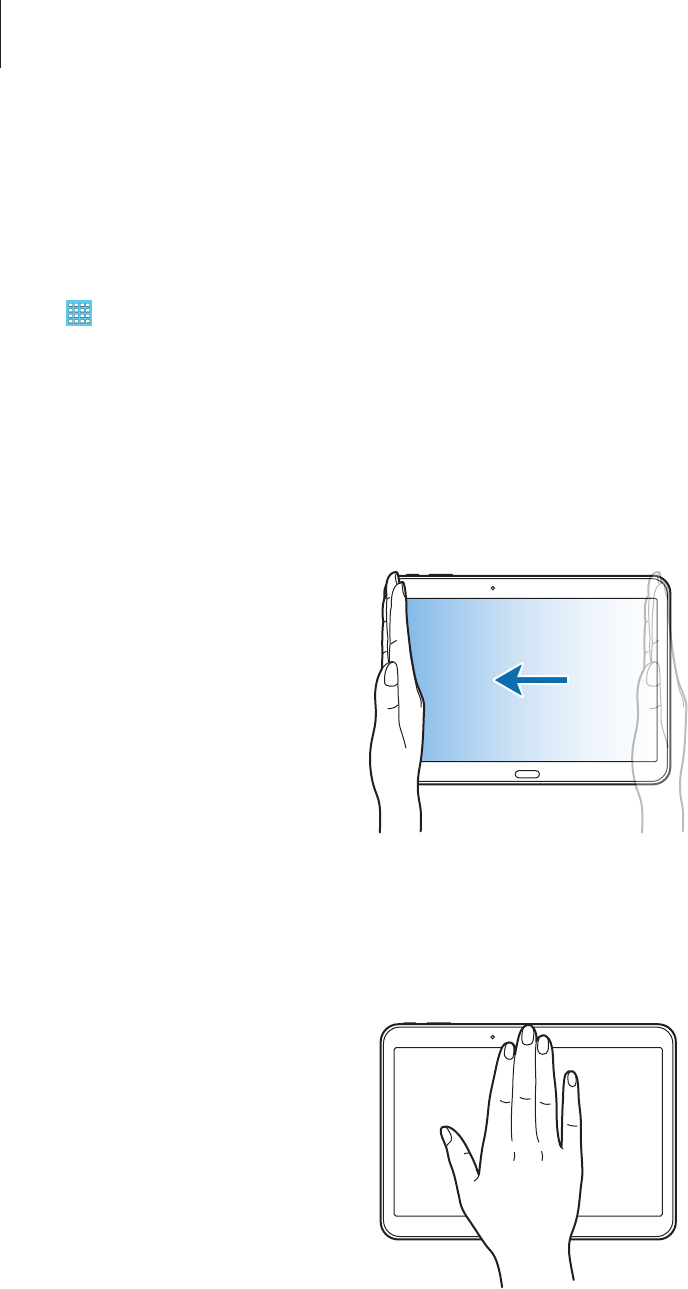

Palm motions

Use palm motions to control the device by touching the screen.

Before using motions, make sure the palm motion feature is activated. On the Home screen,

tap

→

Settings

→

Controls

→

Palm motion

, and then drag the

Palm motion

switch to

the right.

Sweeping

Sweep your hand across the screen to capture a screenshot. The image is saved in

Gallery

→

Screenshots

. It is not possible to capture a screenshot while using some applications.

Covering

Cover the screen with a palm to pause media playback.

Basics

Using Multi Window

Use this feature to run multiple applications on the screen at the same time.

•

Only applications on the Multi Window tray can run.

•

This feature may not be available depending on the region or service provider.

To use Multi Window, on the Home screen, tap

→

Settings

→

Device

→

Multi window

and then drag the

Multi window

switch to the right.

Using a split screen Multi Window

Use this feature to run applications in a split screen.

Launching applications in a split screen Multi Window

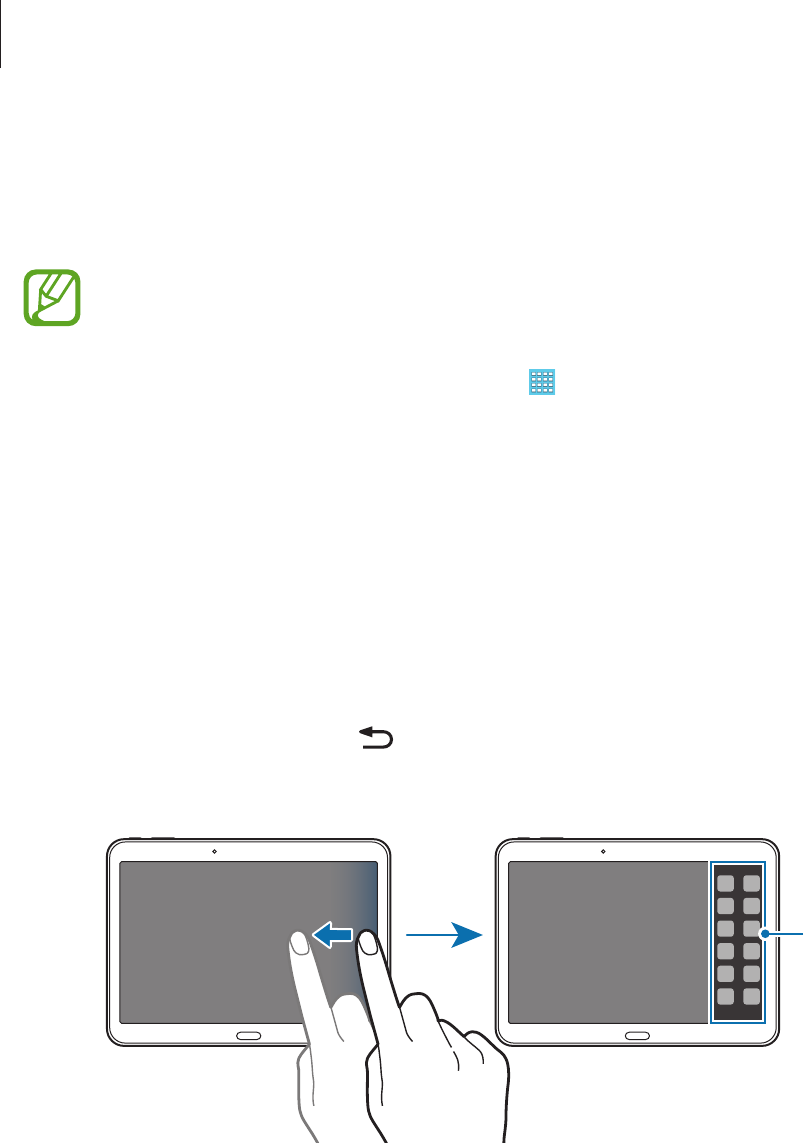

1 Drag your finger from the right edge of the screen towards the middle of the screen.

Alternatively, tap and hold .

The Multi Window tray appears at the right side of the screen.

Multi Window tray

Basics

2 Tap and hold an application icon on the Multi Window tray, and then drag it to the screen.

Release the application icon when the screen turns blue.

3 Tap and hold another application icon on the Multi Window tray, and then drag it to a

new location.

Basics

Sharing content between applications

You can easily share content between applications, such as

and

Internet

, by dragging

and dropping them.

Some applications may not support this feature.

1 Launch

and

Internet

in a split screen Multi Window.

Access the Multi

Window options

2 Tap the circle between the application windows, and then tap .

Tap the circle between application windows to access the following options:

•

: Switch locations between Multi Window applications.

•

: Share items, such as images, text, or links, between application windows by

dragging and dropping them.

•

: Maximise the window.

•

: Close the application.

Basics

3 Tap and hold an item in the Internet window and drag it to a location in the Email

window.

Notifications

Notification icons appear on the status bar at the top of the screen to report new messages,

calendar events, device status, and more. Drag down from the status bar to open the

notifications panel. Scroll the list to see additional alerts. To close the notifications panel, drag

up the bar that is at the bottom of the screen.

From the notifications panel, you can view your device’s current settings. Drag down from the

status bar, and then tap to use the following options:

•

Wi-Fi

: Activate or deactivate the Wi-Fi feature.

•

Location

: Activate or deactivate the GPS feature.

•

Sound

: Activate or deactivate silent mode.

•

Screen rotation

: Allow or prevent the interface from rotating when you rotate the device.

•

Bluetooth

: Activate or deactivate the Bluetooth feature.

Basics

•

Multi window

: Set to use Multi Window.

•

Screen Mirroring

: Activate or deactivate the screen mirroring feature.

•

Sync

: Activate or deactivate auto-syncing of applications.

•

Smart stay

: Activate or deactivate the smart stay feature.

•

Power saving

: Activate or deactivate power-saving mode.

•

Blocking mode

: Activate or deactivate blocking mode. In blocking mode, the device will

block notifications. To select which notifications will be blocked, tap

Settings

→

Device

→

Blocking mode

•

Flight mode

: Activate or deactivate flight mode.

The available options may vary depending on the region or service provider.

To rearrange the options on the notifications panel, open the notifications panel, tap

→

tap and hold an item, and then drag the item to another location.

Home screen

The Home screen is the starting point to access all of the device’s features. It displays indicator

icons, widgets, shortcuts to applications, and others.

The Home screen can have multiple panels. To view other panels, scroll left or right.

Rearranging items

Adding an application icon

On the Home screen, tap , tap and hold an application icon, and then drag it into a panel

preview.

Basics

Adding an item

Customise the Home screen by adding widgets, folders, or panels.

Tap and hold the empty area on the Home screen, and then select one of the following

categories:

•

Apps and widgets

: Add widgets or applications to the Home screen.

•

Folder

: Create a new folder.

•

Page

: Add a new panel to the Home screen.

Moving an item

Tap and hold an item and drag it to a new location. To move it to another panel, drag it to the

side of the screen.

Removing an item

Tap and hold an item, and drag it to the rubbish bin that appears at the top of the Home

screen. When the rubbish bin turns red, release the item.

Rearranging panels

Adding a new panel

Pinch on the screen and tap .

Moving a panel

Pinch on the screen, tap and hold a panel preview, and then drag it to a new location.

Removing a panel

Pinch on the screen, tap and hold a panel preview, and then drag it to the rubbish bin at the

top of the screen.

Basics

Setting wallpaper

Set an image or photo stored in the device as wallpaper for the Home screen.

On the Home screen, tap and hold the empty area, tap

Set wallpaper

→

Home screen

, and

then select one of the following:

•

Gallery

: See photos taken by the device’s camera or images downloaded from the

Internet.

•

Live wallpapers

: See animated images.

•

Photos

: See images in

Photos

•

Wallpapers

: See wallpaper images.

Select an image, resize the frame if necessary, and then set it as wallpaper.

Using widgets

Widgets are small applications that provide convenient functions and information on your

Home screen. To use them, add widgets from the widgets panel to the Home screen.

•

Some widgets connect to web services. Using a web-based widget may result in

additional charges.

•

The widgets available may vary depending on the region or service provider.

On the Home screen, tap

→

Widgets

. Scroll left or right on the widgets panel, and then

tap and hold a widget to add it to the Home screen. Put it on a location you want, resize it by

dragging the frame if necessary, and then tap anywhere on the screen to save the location of

the widget.

Basics

Applications screen

The Applications screen displays icons for all applications, including any new applications

installed.

On the Home screen, tap to open the Applications screen.

To view other panels, scroll left or right.

Rearranging applications

This feature is available only in the customisable grid view.

Tap

→

Edit

, tap and hold an application, and then drag it to a new location. To move it to

another panel, drag it to the side of the screen.

Organising with folders

Put related applications together in a folder for convenience.

Tap

→

Edit

, tap and hold an application, and then drag it to

Create folder

. Enter a folder

name and then tap

. Put applications into the new folder by dragging, and then tap

Save

to save the arrangement.

Rearranging panels

Pinch on the screen, tap and hold a panel preview, and then drag it to a new location.

Installing applications

Use application stores, such as

Samsung Apps

, to download and install applications.

Uninstalling applications

Tap

→

Uninstall/disable apps

, and then select an application to uninstall it.

Default applications that come with the device cannot be uninstalled.

Basics

Disabling applications

Tap

→

Uninstall/disable apps

, and then select an application to disable it.

To enable the application, on the Applications screen, tap

Settings

→

General

→

Application manager

, scroll to

DISABLED

, select the application, and then tap

Enable

•

Downloaded applications and some default applications that come with the

device cannot be disabled.

•

When you use this feature, disabled applications disappear from the Applications

screen but are still stored in the device.

Using applications

This device can run many different types of applications, ranging from media to Internet

applications.

Opening an application

On the Home screen or the Applications screen, select an application icon to open it.

Some applications are grouped into folders. Tap a folder, and then tap an application

to open it.

Opening from recently-used applications

Tap to open the list of recently-used applications.

Select an application icon to open.

Closing an application

Close applications not in use to save battery power and maintain device performance.

Tap

→

Task manager

, and then tap

End

next to an application to close it. To close all

running applications, tap

End all

. Alternatively, tap

→

Close all

Basics

Help

Access help information to learn how to use the device and applications or configure

important settings.

Tap

Help

on the Applications screen. Select a category to view tips.

To sort categories by an alphabetical order, tap .

To search for keywords, tap .

Entering text

Use the Samsung keyboard or the voice input feature to enter text.

Text entry is not supported in some languages. To enter text, you must change the

input language to one of the supported languages.

Changing the keyboard type

Tap any text field, open the notifications panel, tap

Choose input method

, and then select

the type of keyboard to use.

Using the Samsung keyboard

Enter punctuation marks.

Enter uppercase.

Set options for the

Samsung keyboard.

Break to the next line.

Delete a preceding

character.

Enter a space.

Enter uppercase.

Move the cursor.

Entering uppercase

Tap before entering a character. For all caps, tap it twice.

Basics

Changing the keyboard type

Tap and hold , and then tap to change the keyboard type.

On the floating keyboard, tap and hold and move the floating keyboard to another

location.

Changing language keyboards

Add languages to the keyboard, and then slide the space key left or right to change language

keyboards.

Handwriting

Tap and hold , tap , and then write a word with a finger. Suggested words appear as

characters are entered. Select a suggested word.

This feature may not be available depending on the region or service provider.

Entering text by voice

Activate the voice input feature and then speak into the microphone. The device displays

what you speak.

If the device does not recognise your words correctly, tap the underlined text and select an

alternative word or phrase from the dropdown list.

To change the language or add languages for the voice recognition, tap the current language.

Basics

Copying and pasting

Tap and hold over text, drag or to select more or less text, and then tap

Copy

to copy or

Cut

to cut. The selected text is copied to the clipboard.

To paste it into a text entry field, tap and hold at the point where it should be inserted, and

then tap

→

Paste

Connecting to a Wi-Fi network

Connect the device to a Wi-Fi network to use the Internet or share media files with other

devices. (p. 83)

Ensure that the Wi-Fi connection is active before using Internet applications.

Turning Wi-Fi on and off

Open the notifications panel, and then tap

Wi-Fi

to turn it on or off.

•

Your device uses a non-harmonised frequency and is intended for use in all

European countries. The WLAN can be operated in the EU without restriction

indoors, but cannot be operated outdoors.

•

Turn off Wi-Fi to save the battery when not in use.

Joining Wi-Fi networks

On the Applications screen, tap

Settings

→

Connections

→

Wi-Fi

, and then drag the

Wi-Fi

switch to the right.

Select a network from the list of detected Wi-Fi networks, enter a password if necessary, and

then tap

Connect

. Networks that require a password appear with a lock icon. After the device

connects to a Wi-Fi network, the device will automatically connect to it any time it is available.

Basics

Adding Wi-Fi networks

If the desired network does not appear in the networks list, tap

Add Wi-Fi network

at the

bottom of the networks list. Enter the network name in

Network SSID

, select the security

type and enter the password if it is not an open network, and then tap

Connect

Forgetting Wi-Fi networks

Any network that has ever been used, including the current network, can be forgotten so the

device will not automatically connect to it. Select the network in the networks list, and then

tap

Forget

Setting up accounts

Google applications, such as

Play Store

, require a Google account, and

Samsung Apps

requires a Samsung account. Create Google and Samsung accounts to have the best

experience with the device.

Adding accounts

Follow the instructions that appear when opening a Google application without signing in to

set up a Google account.

To sign in with or sign up for a Google account, on the Applications screen, tap

Settings

→

General

→

Accounts

→

Add account

→

Google

. After that, tap

New

to sign up, or tap

Existing

, and then follow the on-screen instructions to complete the account setup. More

than one Google account can be used on the device.

Set up a Samsung account as well.

Removing accounts

On the Applications screen, tap

Settings

→

General

→

Accounts

, select an account name

under

MY ACCOUNTS

, select the account to remove, and then tap

Remove account

Basics

Setting up user profiles

Set up user profiles and then select one when unlocking the device to use personalised

settings. By setting up multiple user profiles, several users can share the device without

affecting others’ personal settings, such as email accounts, wallpaper preferences, and more.

On the Applications screen, tap

Settings

→

General

→

Users

→

User

→

Set

up now

, and then follow the on-screen instructions to set up a new user profile. To access the

device with a user profile, select a profile at the top right of the locked screen.

Transferring files

Move audio, video, image, or other types of files from the device to the computer, or vice

versa.

The following file formats are supported by some applications. Some file formats are

not supported depending on the version of the device’s software or the computer

operating system.

•

Music: mp3, m4a, 3ga, wma, ogg, oga, aac, and flac

•

Image: bmp, gif, jpg, and png

•

Video: avi, wmv, asf, flv, mkv, mp4, 3gp, webm, and m4v

•

Document: txt, rtf, dot, doc, docx, dotx, show, pptx, ppt, thmx, potx, cell, htm, html,

csv, prn, tsv, txt, xls, xlsx, xlt, xlsb, xlsm, xltx, xltm, and pdf

If the applications cannot play files in divx or ac3 format, install applications that

support them.

Basics

Connecting with Samsung Kies

Samsung Kies is a computer application that manages media contents and personal

information with Samsung devices. Download the latest Samsung Kies from the Samsung

website.

1 Connect the device to the computer using the USB cable.

Samsung Kies launches on the computer automatically. If Samsung Kies does not launch,

double-click the Samsung Kies icon on the computer.

2 Transfer files between your device and the computer.

Refer to the Samsung Kies help for more information.

Connecting with Windows Media Player

Ensure that Windows Media Player is installed on the computer.

1 Connect the device to the computer using the USB cable.

2 Open Windows Media Player and sync music files.

Connecting as a media device

1 Connect the device to the computer using the USB cable.

2 Open the notifications panel, and then tap

Connected as a media device

→

Media

device (MTP)

Tap

Camera (PTP)

if your computer does not support Media Transfer Protocol (MTP) or

not have any appropriate driver installed.

3 Transfer files between your device and the computer.

Basics

Securing the device

Prevent others from using or accessing personal data and information stored in the device by

using the security features. The device requires an unlock code whenever unlocking it.

Setting a pattern

On the Applications screen, tap

Settings

→

Device

→

Lock screen

→

Screen lock

→

Pattern

Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it.

Set a backup unlock PIN to unlock the screen when you forget the pattern.

Setting a PIN

On the Applications screen, tap

Settings

→

Device

→

Lock screen

→

Screen lock

→

Enter at least four numbers, and then enter the password again to verify it.

Setting a password

On the Applications screen, tap

Settings

→

Device

→

Lock screen

→

Screen lock

→

Password

Enter at least four characters including numbers and symbols, and then enter the password

again to verify it.

Basics

Unlocking the device

Turn on the screen by pressing the Power button or the Home button, and enter the unlock

code.

If the unlock code is forgotten, take the device to a Samsung Service Centre to reset it.

Upgrading the device

The device can be upgraded to the latest software.

This feature may not be available depending on the region or service provider.

Upgrading with Samsung Kies

Launch Samsung Kies and connect the device to the computer. Samsung Kies automatically

recognises the device and shows available updates in a dialogue box, if any. Click the Update

button in the dialogue box to start upgrading. Refer to the Samsung Kies help for details on

how to upgrade.

•

Do not turn off the computer or disconnect the USB cable while the device is

upgrading.

•

While upgrading the device, do not connect other media devices to the computer.

Doing so may interfere with the update process.

Upgrading over the air

The device can be directly upgraded to the latest software by the firmware over-the-air

(FOTA) service.

On the Applications screen, tap

Settings

→

General

→

About device

→

Software update

→

Update now

Communication

Contacts

Use this application to manage contacts, including phone numbers, email addresses, and

others.

Tap

Contacts

on the Applications screen.

Managing contacts

Tap

Contacts

Creating a contact

Tap and enter contact information.

•

: Add an image.

•

/ : Add or delete a contact field.

Editing a contact

Select a contact to edit, and then tap .

Deleting a contact

Tap .

Searching for contacts

Tap

Contacts

Use one of the following search methods:

•

Scroll up or down the contacts list.

•

Use the index at the left side of the contacts list for quick scrolling, by dragging a finger

along it.

•

Tap the search field at the top of the contacts list and enter search criteria.

Communication

Once a contact is selected, take one of the following actions:

•

: Add to favourite contacts.

•

: Compose an email.

Displaying contacts

Tap

Contacts

By default, the device shows all saved contacts.

Tap

→

Settings

→

Contacts to display

, and then select a location where contacts are

saved.

Moving contacts

Tap

Contacts

Moving contacts to Google

Tap

→

Merge accounts

→

Merge with Google

Contacts moved to Google Contacts appear with in the contacts list.

Moving contacts to Samsung

Tap

→

Merge accounts

→

Merge with Samsung

Contacts moved to Samsung Contacts appear with in the contacts list.

Importing and exporting contacts

Tap

Contacts

Importing contacts

Tap

→

Settings

→

Import/Export

, and then select an import option.

Communication

Exporting contacts

Tap

→

Settings

→

Import/Export

, and then select an export option.

Sharing contacts

Tap

→

Share namecard via

→

Multiple contacts

, select contacts, tap

Done

, and then

select a sharing method.

Favourite contacts

Tap

Favourites

Tap to add contacts to favourites.

Tap , and then take one of the following actions:

•

: Search for contacts.

•

Remove from favourites

: Remove contacts from favourites.

•

List view

Grid view

: View contacts in grid or list form.

•

Help

: Access help information about using contacts.

Contact groups

Tap

Groups

Creating a group

Tap , set details for the group, add contacts, and then tap

Save

Adding contacts to a group

Select a group, and then tap

→

Add member

. Select contacts to add, and then tap

Done

Communication

Managing groups

Tap , and then take one of the following actions:

•

: Search for contacts.

•

Delete groups

: Select user-added groups, and then tap

Done

. Default groups cannot be

deleted.

•

Edit

: Change the group settings.

•

Add member

: Add members to the group.

•

Remove member

: Remove members from the group.

•

Send email

: Send an email to a group’s members.

•

Change order

: Tap and hold next to the group name, drag it up or down to another

position, and then tap

Done

•

Help

: Access help information about using contacts.

Sending an email to a group’s members

Select a group, tap

→

Send email

, select members, and then tap

Done

Business card

Tap

Contacts

Create a business card and send it to others.

Tap

Set up my profile

, enter details, such as phone number, email address, and postal

address, and then tap

Save

. If user information has been saved when you set up the device,

select the business card, and then tap to edit.

Tap

→

Share namecard via

→

Selected contact

, and then select a sharing method.

Communication

Use this application to send or view email messages.

Tap

on the Applications screen.

Setting up email accounts

Set up an email account when opening

for the first time.

Enter the email address and password. Tap for a private email account, such as Google

Mail, or tap

Manual setup

for a company email account. After that, follow the on-screen

instructions to complete the setup.

To set up another email account, tap

→

Settings

→

Add account

Sending messages

Tap the email account to use, and then tap at the top of the screen. Enter recipients,

subject, and message, and then tap .

Tap to add a recipient from the contacts list.

Tap

+Me

to add yourself as a recipient.

Tap to attach images, videos, contacts, events, and others.

Tap

→

to insert images, events, contacts, location information, and others into the

message.

Communication

Sending scheduled messages

While composing a message, tap

→

Schedule sending

. Tick

Schedule sending

, set a time

and date, and then tap

Done

. The device will send the message at the specified time and

date.

•

If the device is turned off at the scheduled time, is not connected to the network,

or the network is unstable, the message will not be sent.

•

This feature is based on the time and date set on the device. The time and date

may be incorrect if you move across time zones and the network does not update

the information.

Reading messages

Select an email account to use, and new messages are retrieved. To manually retrieve new

messages, tap .

Tap a message to read.

Open attachments.

Change the screen layout.

Add this email address to

the contacts list.

Reply to the message.

Forward the message.

Delete the message.

Access additional options.

Compose a message.

Mark the message as a

reminder.

Retrieve new messages. Search for a message.

Tap the attachment tab to open attachments, and then tap

Save

to save it.

Communication

Google Mail

Use this application to quickly and directly access the Google Mail service.

Tap

Google Mail

on the Applications screen.

•

This application may not be available depending on the region or service provider.

•

This application may be labelled differently depending on the region or service

provider.

Sending messages

In any mailbox, tap , enter recipients, a subject, and a message, and then tap

SEND

Tap

→

Save draft

to save the message for later delivery.

Tap

→

Attach file

to attach files.

Tap

→

Discard

to start over.

Tap

→

Settings

to change the Google Mail settings.

Tap

→

Send feedback

to report your opinions for application development.

Tap

→

Help

to access help information for the Google Mail.

Reading messages

Preview attachment.

Search for a message.

Compose a message.

Add this email address to

the contacts list.

Reply to the message.

Keep the message for

long-term storage.

Delete the message.

Reply to all recipients or

print the message.

Forward the message to

others.

Mark the message as a

reminder.

Access additional options.

Communication

Labels

Google Mail does not use actual folders, but uses labels instead. When Google Mail is

launched, it displays messages labelled Inbox.

Select a label in

ALL LABELS

to view messages in other labels.

To add a label to a message, select the message, tap

→

Change labels

, and then select the

label to assign.

Hangouts

Use this application to chat with others.

Tap

Hangouts

on the Applications screen.

This application may not be available depending on the region or service provider.

Select a friend from the friends list or enter data to search and select a friend from the results

to start chatting.

Google+

Use this application to stay connected with people via Google’s social network service.

Tap

Google+

on the Applications screen.

This application may not be available depending on the region or service provider.

Tap

All

to change the category, and then scroll up or down to view posts from your circles.

Tap to use other social network features.

Communication

Photos

Use this application to view and share images or videos via Google’s social network services.

Tap

Photos

on the Applications screen.

This application may not be available depending on the region or service provider.

Select one of the following categories:

•

CAMERA

: View all the images or videos that are taken or downloaded to the device.

•

HIGHLIGHTS

: View images or videos grouped by date or album. Tap to view all of the

images or videos in the group.

Then, select an image or video.

While viewing it, use one of the following icons:

•

: Modify the image.

•

: Share the image or video with others.

•

: Delete the image or video.

Web & network

Internet

Use this application to browse the Internet.

Tap

Internet

on the Applications screen.

Viewing webpages

Tap the address field, enter the web address, and then tap

Tap to access additional options while viewing a webpage.

To change the search engine, tap the address field, and then tap the search engine icon next

to the web address.

Opening a new page

Tap

→

New tab

To go to another webpage, scroll left or right on the title field, and then tap the title to select

it.

Searching the web by voice

Tap the address field, tap

→

, speak a keyword, and then select one of the suggested

keywords that appear.

This feature may not be available depending on the region or service provider.

Web & network

Bookmarks

To bookmark the current webpage, tap

→

To open a bookmarked webpage, tap , and then select one.

History

Tap

→

History

to open a webpage from the list of recently-visited webpages. To clear the

history, tap .

Saved pages

To view saved webpages, tap

→

Saved pages

Links

Tap and hold a link on the webpage to open it in a new page, save, or copy.

To view saved links, on the Applications screen, tap

My Files

→

Device storage

→

Download

Sharing webpages

To share a webpage address with others, tap

→

Share via

To share a part of a webpage, tap and hold the desired text, and then tap

Share via

Web & network

Chrome

Use this application to search for information and browse webpages.

Tap

Chrome

on the Applications screen.

This application may not be available depending on the region or service provider.

Viewing webpages

Tap the address field, and then enter a web address or search criteria.

Opening a new page

Tap

→

New tab

To go to another webpage, scroll left or right on the title field, and tap the title to select it.

Bookmarks

To bookmark the current webpage, tap

→

Save

To open a bookmarked webpage, tap

→

Bookmarks

, and then select one.

Searching the web by voice

Tap , speak a keyword, and then select one of the suggested keywords that appear.

Syncing with other devices

Sync open tabs and bookmarks to use with Chrome on another device, when you are logged

in with the same Google account.

To view open tabs on other devices, tap

→

Other devices

. Select a webpage to open.

To view bookmarks, tap

BOOKMARKS

Web & network

Bluetooth

Bluetooth creates a direct wireless connection between two devices over short distances. Use

Bluetooth to exchange data or media files with other devices.

•

Samsung is not responsible for the loss, interception, or misuse of data sent or

received via the Bluetooth feature.

•

Always ensure that you share and receive data with devices that are trusted

and properly secured. If there are obstacles between the devices, the operating

distance may be reduced.

•

Some devices, especially those that are not tested or approved by the Bluetooth

SIG, may be incompatible with your device.

•

Do not use the Bluetooth feature for illegal purposes (for example, pirating copies

of files or illegally tapping communications for commercial purposes).

Samsung is not responsible for the repercussion of illegal use of the Bluetooth

feature.

To activate Bluetooth, on the Applications screen, tap

Settings

→

Connections

→

Bluetooth

, and then drag the

Bluetooth

switch to the right.

Pairing with other Bluetooth devices

On the Applications screen, tap

Settings

→

Connections

→

Bluetooth

→

Scan

, and

detected devices are listed. Select the device you want to pair with, and then accept the auto-

generated passkey on both devices to confirm.

Sending and receiving data

Many applications support data transfer via Bluetooth. An example is

Gallery

. Open

Gallery

select an image, tap

→

Bluetooth

, and then select one of the Bluetooth devices. After that,

accept the Bluetooth authorisation request on the other device to receive the image.

When another device sends you data, accept the Bluetooth authorisation request made by

another device. Received files are saved in the

Download

folder. If a contact is received, it is

added to the contacts list automatically.

Web & network

Screen Mirroring

Use this feature to connect your device to a large screen with an AllShare Cast dongle or

HomeSync and then share your contents. You can also use this feature with other devices that

support the Wi-Fi Miracast feature.

•

This feature may not be available depending on the region or service provider.

•

Miracast-enabled devices that do not support High-bandwidth Digital Content

Protection (HDCP 2.X) may not be compatible with this feature.

•

Some files may be buffered during playback, depending on the network

connection.

•

To save energy, deactivate this feature when not in use.

•

If you specify a Wi-Fi frequency, AllShare Cast dongles or HomeSync may not be

discovered or connected.

•

If you play videos or games on a TV, select an appropriate TV mode to get the best

experience.

On the Applications screen, tap

Settings

→

Connections

→

Screen Mirroring

, and then

drag the

Screen Mirroring

switch to the right. Select a device, open or play a file, and then

control the display with the keys on your device. To connect to a device using a PIN, tap and

hold the device name to enter the PIN.

Media

Music

Use this application to listen to music.

Tap

Music

on the Applications screen.

•

Some file formats are not supported depending on the software installed on the

device.

•

Some files may not play properly depending on the encoding method used.

Playing music

Select a music category, and then select a song to play.

Tap the album image at the bottom of the screen to open the music player screen.

Skip to the next song. Tap

and hold to move

forwards quickly.

Pause and resume

playback.

Adjust the volume.

Access additional options.

Change the repeat mode.

Restart the

currently-playing song or

skip to the previous song.

Tap and hold to move

backwards quickly.

Turn on shuffle.

Open the playlist.

Search for other devices to

play the file.

Set the file as your

favourite song.

Media

To listen to songs at equal volume levels, tap

→

Settings

→

Player

→

Smart Volume

When

Smart Volume

is activated, the volume may end up louder than the device

volume level. Use caution to avoid long-term exposure to loud sounds to prevent

damage to your hearing.

Smart Volume

may not be activated for some files.

To set a personalised sound while listening to songs with a headset, tap

→

Settings

→

Player

→

Adapt Sound

→

. When you turn the volume up to level 13 or higher, the adapt

sound option is not applied to music playback. If you turn the volume down to level 12 or

lower, the option is reapplied.

Setting a song as alarm ringtone

To use the currently-playing song as alarm ringtone, tap

→

Set as alarm tone

→

From the

beginning

Auto recommendation

→

Done

Creating playlists

Make an own selection of songs.

Tap

Playlists

, and then tap

→

Create playlist

. Enter a title and tap

. Tap

Add tracks

select songs to include, and then tap

Done

To add the currently-playing song to a playlist, tap

→

Add to playlist

Playing music by mood

Play music grouped by mood. The playlist is automatically created by the device.

Tap

→

Music square

, and select a cell of mood. Or select multiple cells by dragging your

finger.

Media

Camera

Use this application to take photos or videos.

Use

Gallery

to view photos and videos taken with the device’s camera. (p. 60)

Tap

Camera

on the Applications screen.

•

The camera automatically shuts off when unused.

•

Make sure that the lens is clean. Otherwise, the device may not work properly in

some modes that require high resolutions.

Camera etiquette

•

Do not take photos or videos of other people without their permission.

•

Do not take photos or videos where legally prohibited.

•

Do not take photos or videos in places where you may violate other people’s privacy.

Taking photos

Taking a photo

Tap to take a photo.

Display current mode.

Change the shooting

mode.

Change the camera

settings.

Switch between the front

and rear camera.

Select among various

effects that are available.

View more options.

Switch between still and

video mode.

View photos and videos

you have taken.

Media

Shooting mode

Several photo effects are available.

Tap

MODE

, and then scroll up or down the screen at the right side of the screen.

•

Auto

: Use this to allow the camera to evaluate the surroundings and determine the ideal

mode for the photo.

•

Beauty face

: Take a photo with lightened faces for gentler images.

•

Sound & shot

: Use this to take a photo with sound.

Tap to take a photo. The device records a few seconds of audio after taking a photo.

While taking photos in this mode, sound is recorded by the internal microphone.

•

Panorama

: Take a photo composed of many photos strung together.

To get the best shot, follow these tips.

–

Move the camera slowly in one direction.

–

Keep the camera’s viewfinder within the guide frame.

–

Avoid taking photos of a subject in front of unrecognisable backgrounds, such as

empty skies or plain walls.

•

Sports

: Use this setting for fast-moving subjects.

•

Night

: Use this setting for images taken in darker conditions.

Panoramic photos

A panoramic photo is a wide landscape image consisting of multiple shots.

Tap

MODE

→

Panorama

Tap and move the camera in one direction. When two panorama guide frames are aligned,

the camera automatically takes another shot in a panoramic sequence. To stop shooting, tap

If the viewfinder is out of the direction, the device stops shooting.

Applying filter effects

Use the filter effects to take unique photos or videos.

Tap and select a filter effect. The available options vary by mode.

Media

Taking videos

Taking a video

Slide the still-video switch to the video icon, and then tap to take a video. To pause

recording, tap . To stop recording, tap .

Manual focus is not available in video mode.

Recording mode

Select among various

effects that are available.

Display current mode.

Switch between still and

video mode.

Switch between the front

and rear camera.

View photos and videos

you have taken.

Change the camera

settings.

View more options.

Tap

→

to change the recording mode.

•

Normal

: Use this mode for normal quality.

•

Limit for email

: Use this mode to lower the recording quality for sending via email.

Media

Zooming in and out

Use one of the following methods:

•

Use the Volume button to zoom in or out.

•

Spread two fingers apart on the screen to zoom in, and pinch to zoom out.

The zoom in/out effect is available when using the zoom feature while shooting

video.

Share shot

Tap

→

, and then select one of the following:

•

Share shot

: Send a photo directly to another device via Wi-Fi Direct.

•

Buddy photo share

: Set the device to recognise a person’s face that you have tagged in a

photo and send it to that person.

•

Remote viewfinder

: Set a device to control the camera remotely.

Controlling the camera remotely

Set a device as a viewfinder to control the camera remotely.

Tap

→

Remote viewfinder

, and then connect the device and the camera using Wi-Fi

Direct. Tap to take a photo remotely using the device as a viewfinder.

Media

Configuring settings for Camera

Tap to configure settings for Camera. Not all of the following options are available in both

still camera and video camera modes. The available options vary depending on the mode

used.

•

Photo size

Video size

: Select a resolution. Use higher resolution for higher quality. But it

takes up more memory.

•

Metering modes

: Select a metering method. This determines how light values are

calculated.

Centre-weighted

measures background light in the centre of the scene.

Spot

measures the light value at a specific location.

Matrix

averages the entire scene.

•

Location tag

: Attach a GPS location tag to the photo.

•

To improve GPS signals, avoid shooting in locations where the signal may be

obstructed, such as between buildings or in low-lying areas, or in poor weather

conditions.

•

Your location may appear on your photos when you upload them to the Internet.

To avoid this, deactivate the GPS tag setting.

•

Review pics/videos

: Set to show photos or videos after taking them.

•

Volume key

: Set the device to use the Volume button to control the shutter or zoom

function.

•

Timer

: Use this for delayed-time shots.

•

White balance

: Select an appropriate white balance, so images have a true-to-life colour

range. The settings are designed for specific lighting situations. These settings are similar

to the heat range for white-balance exposure in professional cameras.

•

Brightness

: Change the brightness.

•

Guidelines

: Display viewfinder guides to help composition when selecting subjects.

•

Contextual filename

: Set the camera to display contextual tags. Activate this to use Tag

Buddy in

Gallery

•

Save as flipped

: Invert the image to create a mirror-image of the original scene.

•

Storage

: Select the memory location for storage.

•

Reset

: Reset the camera settings.

•

Help

: Access help information for using the camera.

Media

Shortcuts

Reorganise shortcuts for easy access to the camera’s various options.

Tap and tap and hold a shortcut icon.

Tap and hold an option and drag it to a slot at the top of the screen.

Gallery

Use this application to view images and videos.

Tap

Gallery

on the Applications screen.

•

Some file formats are not supported depending on the software installed on the

device.

•

Some files may not play properly depending on the encoding method used.

Viewing images

Launching

Gallery

displays available folders. When another application, such as

, saves

an image, the

Download

folder is automatically created to contain the image. Likewise,

capturing a screenshot automatically creates the

Screenshots

folder. Select a folder to open

it.

In a folder, images are displayed by creation date. Select an image to view it in full screen.

Scroll left or right to view the next or previous image.

Zooming in and out

Use one of the following methods to zoom in an image:

•

Double-tap anywhere to zoom in.

•

Spread two fingers apart on any place to zoom in. Pinch to zoom out, or double-tap to

return.

Media

Playing videos

Video files show the icon on the preview. Select a video to watch it and tap .

Trimming segments of a video

Select a video and tap . Move the start bracket to the desired starting point, move the end

bracket to the desired ending point, and then save the video.

Editing images

When viewing an image, tap and use the following functions:

•

Favourite

: Add to the favourites list.

•

Slideshow

: Start a slideshow with the images in the current folder.

•

Photo frame

: Use this to add a frame and a note to an image. The edited image is saved

in the

Photo frame

folder.

•

Photo note

: Use this to write a note on the back of the image. Tap to edit the note.

•

Copy to clipboard

: Copy to clipboard.

•

: Print the image by connecting the device to a printer. Some printers may not be

compatible with the device.

•

Rename

: Rename the file.

•

Buddy photo share

: Send the image to a person whose face is tagged in the image.

•

Rotate left

: Rotate anticlockwise.

•

Rotate right

: Rotate clockwise.

•

Crop

: Resize the blue frame to crop and save the image in it.

•

Set as

: Set the image as wallpaper or a contact image.

•

Details

: View image details.

•

Settings

: Change the Gallery settings.

Favourite images

When viewing an image, tap

→

Favourite

to add the image to the favourites list.

Media

Deleting images

Use one of the following methods:

•

In a folder, tap

→

Select item

, select images, and then tap .

•

When viewing an image, tap .

Sharing images

Use one of the following methods:

•

In a folder, tap

→

Select item

, select images, and then tap to send them to others or

share them via social network services.

•

When viewing an image, tap to send it to others or share it via social network services.

Setting as wallpaper

When viewing an image, tap

→

Set as

to set the image as wallpaper or to assign it to a

contact.

Tagging faces

When viewing an image, tap

→

Settings

→

Categories

: View files sorted by their types.

•

Apps

: View files stored or created in specific applications.

Select a category, and then select a file or folder to open it.

Utilities

After selecting a category, tap , and then use one of the following options:

•

Select

: Select files or folders.

•

Sort by

: Sort files or folders.

•

Add to favourite folders

: Add a shortcut to the folder in

Favourite folders

•

Add shortcut to home

: Add a shortcut to a file or folder to the Home screen.

•

Add FTP

: Add an FTP server shortcut in

Folders

•

Scan for Nearby Devices

: Search for devices that have media sharing activated.

•

Display options

: Change the file display options.

Tap

→

Select

, select a file or folder, and then use one of the following functions:

•

: Send files to others or share them.

•

: Delete files or folders.

•

: Move files or folders to another folder.

•

: Copy files or folders to another folder.

•

→

Rename

: Rename a file or folder.

•

→

Add to favourite folders

: Add a shortcut to the folder in Favourite folders.

•

→

Add shortcut to home

: Add a shortcut to a file or folder to the Home screen.

•

→

Zip

: Compress files or folders to create a zip file.

•

→

Details

: View file or folder details.

Searching for a file

Tap , and then enter search criteria.

Viewing storage information

Tap to view memory information for your device and memory card.

Changing the view mode

Tap to change the view mode.

Utilities

Creating folders

Tap , enter a name for the folder, and then tap

Adding shortcuts to folders

Add a shortcut to frequently-used folders in

Favourite folders

. Select a folder and tap

→

Add to favourite folders

Adding FTP server shortcuts to the device

Add an FTP server shortcut in

Folders

. Tap

→

Add FTP

, enter details for the FTP server, and

then tap

Done

Travel & local

Maps

Use this application to pinpoint the location of the device, search for places, or get directions.

Tap

Maps

on the Applications screen.

This application may not be available depending on the region or service provider.

Searching for locations

Search for locations by entering an address or a keyword. Once the location is found, select a

location to view the detailed information. Refer to the help for more information.

Getting directions for a destination

Tap to set starting and ending locations, and then select a travel method. The device

shows the routes to get to the destination.

Settings

About Settings

Use this application to configure the device, set application options, and add accounts.

Tap

Settings

on the Applications screen.

Connections

Wi-Fi

Activate the Wi-Fi feature to connect to a Wi-Fi network and access the Internet or other

network devices.

To use options, tap .

•

Advanced

: Customise Wi-Fi settings.

•

WPS push button

: Connect to a secured Wi-Fi network with a WPS button.

•

WPS PIN entry

: Connect to a secured Wi-Fi network with a WPS PIN.

•

Help

: Access help information for Wi-Fi.

Setting Wi-Fi sleep policy

On the Settings screen, tap

Connections

→

Wi-Fi

→

Advanced

→

Keep Wi-Fi on

during sleep

Settings

Setting Network notification

The device can detect open Wi-Fi networks and display an icon on the status bar to notify

when available.

On the Settings screen, tap

Connections

→

Wi-Fi

→

Advanced

and tick

Network

notification

to activate this feature.

Wi-Fi Direct

Wi-Fi Direct connects two devices directly via a Wi-Fi network without requiring an access

point.

On the Settings screen, tap

Connections

→

Wi-Fi

→

Wi-Fi Direct

Bluetooth

Activate the Bluetooth feature to exchange information over short distances.

To use more options, tap .

•

Visibility timeout

: Set duration that the device is visible.

•

Received files

: View received files via the Bluetooth feature.

•

Rename device

: Change the device name.

•

Help

: Access help information for Bluetooth.

Flight mode

This disables all wireless functions on your device. You can use only non-network services.

Data usage

Keep track of your data usage amount.

•

Data usage cycle

: Enter monthly reset date to monitor your data usage.

To use more options, tap .

•

Auto sync data

: Activate or deactivate auto-syncing of applications. You can select what

information to sync for each account in

Settings

→

General

→

Accounts

•

Mobile hotspots

: Select Wi-Fi hotspots to prevent applications that are running in the

background from using them.

Settings

Location

Change settings for location information permissions.

•

Mode

: Select a method to collect your location data.

•

RECENT LOCATION REQUESTS

: View which applications request your current location

information and their battery usage.

•

LOCATION SERVICES

: View the location services your device is using.

•

My places

: Set up profiles that will be used for specific locations when you use GPS, Wi-Fi,

or Bluetooth features to find your current location.

More networks

Customise settings to control connections with other devices or networks.

Printing

Configure settings for printer plug-ins installed on the device. You can search for available

printers or add one manually to print files via Wi-Fi or cloud services.

VPN

Set up and connect to virtual private networks (VPNs).

Ethernet

The Ethernet option is available when an Ethernet adaptor is connected to the device. Use

this option to activate the Ethernet feature and configure network settings.

Nearby devices

•

DEVICE NAME

: View the device name.

•

Shared contents

: Set the device to share your content with other devices.

•

Allowed devices

: View the list of devices that can access your device.

•

Denied devices

: View the list of devices that are blocked from accessing your device.

•

Download to

: Select a memory location for saving media files.

•

Download from other devices

: Set the device to accept uploads from other devices.

Settings

Screen Mirroring

Activate the screen mirroring feature and share your display with others.

Device

Sound

Change settings for various sounds on the device.

•

Volume

: Adjust the volume level for music and videos, system sounds, and notifications.

•

Notifications

: Select a ringtone for events, such as incoming messages.

•

Touch sounds

: Set the device to sound when selecting an application or option on the

touch screen.

•

Screen lock sound

: Set the device to sound when locking or unlocking the touch screen.

•

SAMSUNG APPLICATIONS

: Change the notification settings for each application.

•

Sound when tapped

: Set the device to sound when a key is touched.

•

Adapt Sound

: Personalise the sound for the ear you use most while listening to music.

Display

Change the settings for the display.

•

Brightness

: Set the brightness of the display.

•

Screen timeout

: Set the length of time the device waits before turning off the display’s

backlight.

•

Daydream

: Set the device to launch a screensaver when your device is connected to a

desktop dock or charging.

•

Display battery percentage

: Set the device to display the remaining battery life.

Settings

Multi window

Activate the Multi Window feature to run multiple applications on the screen at the same

time.

•

Open in multi window view

: Set the device to activate the Multi Window feature when

you open files from

My Files

Video

Lock screen

Change settings for the locked screen.

•

Screen lock

: Activate the screen lock feature. The following options may vary depending

on the screen lock feature selected.

•

Clock widget options

: Configure settings for the clock widget.

–

Clock size

: Change the size of the clock.

–

Show date

: Set the device to show the date with the clock.

•

Shortcuts

: Set the device to show and edit application shortcuts on the locked screen.

This feature may not be available depending on the region or service provider.

•

Personal message

: Set the device to show a personal message on the locked screen.

–

Edit personal information

: Edit the personal message.

•

Owner information

: Enter your information that is shown with the clock.

•

Unlock effect

: Select an effect when you unlock the screen.

•

Help text

: Set the device to show the help text on the locked screen.

Wallpaper

Change the wallpaper settings.

•

Home screen

: Select a background image for the Home screen.

•

Lock screen

: Select a background image for the locked screen.

•

Home and lock screens

: Select a background image for the Home screen and the locked

screen.

Settings

Font

Change the settings for the font.

•

Font style

: Change the font type for display text.

•

Font size

: Change the font size.

Notification panel

Customise the items that appear on the notifications panel.

•

Brightness and volume

: Set the device to display the brightness and volume adjustment

bars on the notifications panel.

•

Recommended apps

: Set the device to display a list of recommended applications on

the notifications panel based on your actions, such as connecting a headset to the device.

•

Set quick setting buttons

: Rearrange the quick setting buttons displayed on the

notifications panel.

Accessibility

Accessibility services are special features for those with certain physical disabilities. Access

and alert the following settings to improve accessibility to the device.

•

Auto rotate screen

: Set the interface to rotate automatically when you rotate the device.

•

Screen timeout

: Set the length of time the device waits before turning off the display’s

backlight.

•

Speak passwords

: Set the device to read aloud passwords you enter with TalkBack.

•

Single tap mode

: Set this to control notifications by tapping the button instead of

dragging it.

•

Show shortcut

: Add a shortcut to

Accessibility

TalkBack

on the quick menu that

appears when you press and hold the Power button.

•

Manage accessibility

: Export or import the accessibility settings to share them with

other devices.

–

Import/Export

: Import or export the current accessibility settings as a file.

–

Share via

: Send the accessibility settings file to others.

Settings

•

TalkBack

: Activate TalkBack, which provides voice feedback.

•

Font size

: Change the font size.

•

Magnification gestures

: Set the device to zoom in and out with finger gestures.

•

Negative colours

: Reverse the display colours to improve visibility.

•

Notification reminder

: Set the device to alert you when you have missed notifications

and set an interval for repeating the alert.

•

Accessibility shortcut

: Set the device to activate TalkBack when you press and hold the

Power button, and then tap and hold the screen with two fingers.

•

Text-to-speech options

–

PREFERRED TTS ENGINE

: Select a speech synthesis engine. To change the settings for

speech synthesis engines, tap .

–

Speech rate

: Select a speed for the text-to-speech feature.

–

Listen to an example

: Listen to the spoken text for an example.

–

Default language status

: View the status of the default language for the text-to-

speech feature.

•

Sound balance

: Adjust the sound balance when using a dual headset.

•

Mono audio

: Enable mono sound when listening to audio with one earbud.

•

Turn off all sounds

: Mute all device sounds.

•

Google subtitles (CC)

: Set the device to display closed captions on content supported by

Google and to change the closed caption settings.

•

Samsung subtitles (CC)

: Set the device to display closed captions on content supported

by Samsung and to change the closed caption settings.

•

Assistant menu

: Set the device to show the assistive shortcut icon that helps you access

functions supported by external buttons or features on the notifications panel. You can

also edit the menu on the shortcut icon.

–

Dominant hand

: Select the left or right hand for easy assistant menu use.

–

Edit

: Customise the items that appear on the assistant menu.

Settings

•

Tap and hold delay

: Set the recognition time for tapping and holding the screen.

•

Interaction control

: Activate interaction control mode to restrict the reaction of the

device for inputs in an application.

Blocking mode

Select which notifications will be blocked and how long to block them.

Controls

Language and input

Change the settings for text input. Some options may not be available depending on the

selected language.

Language

Select a display language for all menus and applications.

Default

Select a default keyboard type for text input.

Samsung keyboard

To change the Samsung keyboard settings, tap .

The available options may vary depending on the region or service provider.

•

Select input languages

: Select languages for text input.

•

Predictive text

: Activate predictive text mode to predict words based on your input and

show word suggestions. You can also customise the word prediction settings.

Settings

•

Auto replacement

: Set the device to correct misspelled and incomplete words by

tapping the space bar or punctuation mark.

•

Auto capitalisation

: Set the device to automatically capitalise the first character after a

final punctuation mark, such as a full stop, question mark, or exclamation mark.

•

Auto spacing

: Set the device to automatically insert a space between words.

•

Auto-punctuate

: Set the device to insert a full stop when you double-tap the space bar.

•

None

: Set the device to deactivate the keyboard swipe feature.

•

Continuous input

: Set the device to enter text by sweeping on the keyboard.

•

Cursor control

: Enable the smart keyboard navigation feature to move the cursor by

scrolling the keyboard.

•

Sound

: Set the device to sound when a key is touched.

•

Character preview

: Set the device to display a large image of each character tapped.

•

Help

: Access help information for using the Samsung keyboard.

•

Reset settings

: Reset Samsung keyboard settings.

Google voice typing

To change the voice input settings, tap .

•

Choose input languages

: Select input languages for text input.

•

Block offensive words

: Set the device to prevent the device from recognising offensive

words in voice inputs.

•

Offline speech recognition

: Download and install language data for offline voice input.

Voice recogniser

Select a voice recognition engine.

This feature appears once you use a voice recognition application.

Settings

Voice search

For Samsung voice recognition, use the following options:

•

Language

: Select a language for the voice recognition.

•

Hide offensive words

: Hide offensive words from voice search results.

•

About

: View version information.

•

Open via the home key

: Set the device to launch

S Voice

when you press the Home

button twice.

•

Voice wake-up

: Set the device to start voice recognition by saying a wake up command

while using

S Voice

•

Check missed events

: Set the device to check missed messages or events when

S Voice

is launched by pressing the headset button.

•

Home address

: Enter your home address to use location information with the voice

command feature.

•

: Enter your Facebook account information to use Facebook with

Voice

•

: Enter your Twitter account information to use Twitter with

S Voice

For Google voice recognition, use the following options:

•

Language

: Select a language for the voice recognition.

•

Speech output

: Set the device to provide voice feedback to alert you to the current

action.

•

Block offensive words

: Hide offensive words from voice search results.

•

Hotword detection

: Set the device to begin voice recognition when you say the wake up

command while using the search application.

•

Offline speech recognition

: Download and install language data for offline voice input.

•

Bluetooth headset

: Set the device to allow a voice search with a Bluetooth headset,

when one is connected to the device.

Settings

Text-to-speech options

•

PREFERRED TTS ENGINE

: Select a speech synthesis engine. To change the settings for

speech synthesis engines, tap .

•

Speech rate

: Select a speed for the text-to-speech feature.

•

Listen to an example

: Listen to the spoken text for an example.

•

Default language status

: View the status of the default language for the text-to-speech

feature.

Pointer speed

Adjust the pointer speed for the mouse or trackpad connected to your device.

Palm motion

Activate the palm motion feature to control the device by touching the screen.

•

Capture screen

: Set the device to capture an image of the screen when you sweep your

hand to the left or right across the screen.

•

Mute/Pause

: Set the device to pause media playback when you touch the screen with

your palm.

Smart screen

•

Smart stay

: Set the device to prevent the display backlight from turning off while you are

looking at the display.

Settings

General

Accounts

Add email or SNS accounts.

Cloud

Change settings for syncing data or files with your Samsung account or Dropbox cloud

storage.

Backup and reset

Change the settings for managing settings and data.

•

Back up my data

: Set the device to back up settings and application data to the Google

server.

•

Backup account

: Set up or edit your Google backup account.

•

Automatic restore

: Set the device to restore settings and application data when the

applications are reinstalled on the device.

•

Factory data reset

: Reset settings to the factory default values and delete all data.

Date and time

Access and alter the following settings to control how the device displays the time and date.

If the battery remains fully discharged or removed from the device, the time and date

is reset.

•

Set date

: Set the current date manually.

•

Set time

: Set the current time manually.

•

Select time zone

: Set the home time zone.

•

Use 24-hour format

: Display time in 24-hour format.

•

Select date format

: Select a date format.

Settings

Accessories

Change the accessory settings.

•

Dock sound

: Set the device to play a sound when your device is connected to or

removed from a desktop dock.

•

Audio output mode

: Set the device to use the dock speaker when your device is

connected to a desktop dock.

•

Automatic unlock

: Set the device to unlock automatically when the cover is flipped

open.

Application manager

View and manage the applications on your device.

Default applications

Select a default setting for using applications.

•

Home

: Select a default Home screen mode.

Users

Set up and manage user profiles for personalised settings.

Battery

View the amount of battery power consumed by your device.

•

Display battery percentage

: Set the device to display the remaining battery life.

Power saving mode

Activate power-saving mode and change the settings for power-saving mode.

•

CPU performance

: Set the device to limit some system resource usage.

•

Screen output

: Set the device to decrease the brightness of the display.

•

Learn about Power saving

: Discover how to reduce battery consumption.

Settings

Storage

View memory information for your device and memory card, or format a memory card.

Formatting a memory card permanently deletes all data from it.

The actual available capacity of the internal memory is less than the specified

capacity because the operating system and default applications occupy part of the

memory. The available capacity may change when you upgrade the device.

Security

Change settings for securing the device.

•

Encrypt device

: Set a password to encrypt data saved on the device. You must enter the

password each time you turn on the device.

Charge the battery before enabling this setting because it may take more than an

hour to encrypt your data.

•

Encrypt external SD card

: Set the device to encrypt files on a memory card.

If you reset your device to the factory defaults with this setting enabled, the device

will not be able to read your encrypted files. Disable this setting before resetting the

device.

•

Remote controls

: Set the device to allow control of your lost or stolen device remotely

via the Internet. To use this feature, you must sign in to your Samsung account.

–

ACCOUNT REGISTRATION

: Add or view your Samsung account.

–

Use wireless networks

: Set the device to allow location data collection or to

determine the location of your lost or stolen device via Wi-Fi.

•

Go to website

: Access the Find my mobile website (

findmymobile.samsung.com

). You

can track and control your lost or stolen device on the Find my mobile website.

•

Make passwords visible

: Set the device to display passwords as they are entered.

•

Device administrators

: View device administrators installed on the device. You can allow

device administrators to apply new policies to the device.

Settings

•

Unknown sources

: Choose to install applications from any source. If not chosen,

download applications only from

Play Store

•

Verify apps

: Set the device to allow Google to check applications for harmful behaviour

before installing them.

•

Security policy updates

–

Automatic updates

: Set the device to check and download security updates

automatically.

–

Check for updates

: Check for security updates.

•

Send security reports

: Set the device to send security reports automatically when the

device is connected to a Wi-Fi network.

•

Storage type

: Set a storage type for credential files.

•

Trusted credentials

: Use certificates and credentials to ensure secure use of various

applications.

•

Install from device storage

: Install encrypted certificates stored on the USB storage.

•

Clear credentials

: Erase the credential contents from the device and reset the password.

About device

Access device information, edit the device name, or update device software.

Google Settings

Use this application to configure settings for some features provided by Google.

Tap

Google Settings

on the Applications screen.

Troubleshooting

Before contacting a Samsung Service Centre, please attempt the following solutions. Some

situations may not apply to your device.

When you turn on your device or while you are using the device, it

prompts you to enter one of the following codes:

•

Password: When the device lock feature is enabled, you must enter the password you set

for the device.

•

PIN: When using the device for the first time or when the PIN requirement is enabled, you

must enter the PIN supplied with the SIM or USIM card. You can disable this feature by

using the Lock SIM card menu.

•

PUK: Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly

several times. You must enter the PUK supplied by your service provider.

•

PIN2: When you access a menu requiring the PIN2, you must enter the PIN2 supplied with

the SIM or USIM card. For details, contact your service provider.

Your device displays network or service error messages

•

When you are in areas with weak signals or poor reception, you may lose reception. Move

to another area and try again. While moving, error messages may appear repeatedly.

•

You cannot access some options without a subscription. Contact your service provider for

more details.

Your device does not turn on

•

When the battery is completely discharged, your device will not turn on. Charge the

battery completely before turning on the device.

•

The battery may not be inserted properly. Insert the battery again.

•

Wipe both gold-coloured contacts and insert the battery again.

Troubleshooting

The touch screen responds slowly or improperly

•

If you attach a protective cover or optional accessories to the touch screen, the touch

screen may not function properly.

•

If you are wearing gloves, if your hands are not clean while touching the touch screen,

or if you tap the screen with sharp objects or your fingertips, the touch screen may

malfunction.

•

The touch screen may malfunction in humid conditions or when exposed to water.

•

Restart your device to clear any temporary software bugs.

•

Ensure that your device software is upgraded to the latest version.

•

If the touch screen is scratched or damaged, visit a Samsung Service Centre.

Your device freezes or has fatal errors

If your device freezes or hangs, you may need to close applications or reinsert the battery and

turn on the device to regain functionality. If your device is frozen and unresponsive, press and

hold the Power button for more than 7 seconds to reboot.

If this does not solve the problem, perform a factory data reset. On the Applications screen,

tap

Settings

→

General

→

Backup and reset

→

Factory data reset

→

Reset device

→

Erase everything

. Before performing the factory data reset, remember to make backup

copies of all important data stored on the device.

If the problem is still not resolved, contact a Samsung Service Centre.

Calls are not connected

•

Ensure that you have accessed the right cellular network.

•

Ensure that you have not set call barring for the phone number you are dialling.

•

Ensure that you have not set call barring for the incoming phone number.

Others cannot hear you speaking on a call

•

Ensure that you are not covering the built-in microphone.

•

Ensure that the microphone is close to your mouth.

•

If using a headset, ensure that it is properly connected.

Troubleshooting

100

Sound echoes during a call

Adjust the volume by pressing the Volume button or move to another area.

A cellular network or the Internet is often disconnected or audio

quality is poor

•

Ensure that you are not blocking the device’s internal antenna.

•

When you are in areas with weak signals or poor reception, you may lose reception. You

may have connectivity problems due to issues with the service provider’s base station.

Move to another area and try again.

•

When using the device while moving, wireless network services may be disabled due to

issues with the service provider’s network.

The battery icon is empty

Your battery is low. Recharge or replace the battery.

The battery does not charge properly (For Samsung-approved

chargers)

•

Ensure that the charger is connected properly.

•

If the battery terminals are dirty, the battery may not charge properly or the device may

turn off. Wipe both gold-coloured contacts and try charging the battery again.

•

The batteries in some devices are not user-replaceable. To have the battery replaced, visit

a Samsung Service Centre.

The battery depletes faster than when first purchased

•

When you expose the battery to very cold or very hot temperatures, the useful charge

may be reduced.

•

Battery consumption increases when you use messaging features or some applications,

such as games or the Internet.

•

The battery is consumable and the useful charge will get shorter over time.

Troubleshooting

101

Your device is hot to the touch

When you use applications that require more power or use applications on your device for an

extended period of time, your device may feel hot to the touch. This is normal and should not

affect your device’s lifespan or performance.

Error messages appear when launching the camera

Your device must have sufficient available memory and battery power to operate the camera

application. If you receive error messages when launching the camera, try the following:

•

Charge the battery or replace it with a battery that is fully charged.

•

Free some memory by transferring files to a computer or deleting files from your device.

•

Restart the device. If you are still having trouble with the camera application after trying

these tips, contact a Samsung Service Centre.

Photo quality is poorer than the preview

•

The quality of your photos may vary, depending on the surroundings and the

photography techniques you use.

•

If you take photos in dark areas, at night, or indoors, image noise may occur or images

may be out of focus.

Error messages appear when opening multimedia files

If you receive error messages or files do not play, when opening multimedia files on your

device, try the following:

•

Free some memory by transferring files to a computer or deleting files from your device.

•

Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is

DRM-protected, ensure that you have the appropriate licence or key to play the file.

•

Ensure that your device supports the file type.

Troubleshooting

102

•

Your device supports photos and videos captured with the device. Photos and videos

captured by other devices may not work properly.

•

Your device supports multimedia files that are authorised by your network service

provider or providers of additional services. Some content circulated on the Internet,

such as ringtones, videos, or wallpapers, may not work properly.

Another Bluetooth device is not located

•

Ensure that the Bluetooth wireless feature is activated on your device.

•

Ensure that the Bluetooth wireless feature is activated on the device you wish to connect

to.

•

Ensure that your device and the other Bluetooth device are within the maximum

Bluetooth range (10 m).

If the tips above do not solve the problem, contact a Samsung Service Centre.

A connection is not established when you connect the device to a

computer

•

Ensure that the USB cable you are using is compatible with your device.

•

Ensure that you have the proper driver installed and updated on your computer.

•

If you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher

installed on your computer.

•

Ensure that you have Samsung Kies or Windows Media Player 10 or higher installed on

your computer.

Your device cannot find your current location

GPS signals may be obstructed in some locations, such as indoors. Set the device to use Wi-Fi

or a mobile network to find your current location in these situations.

Troubleshooting

103

Data stored on the device has been lost

Always make backup copies of all important data stored on the device. Otherwise, you

cannot restore data if it is corrupted or lost. Samsung is not responsible for the loss of data

stored on the device.

A small gap appears around the outside of the device case

•

This gap is a necessary manufacturing feature and some minor rocking or vibration of

parts may occur.

•

Over time, friction between parts may cause this gap to expand slightly.

Some content may differ from your device depending on the region, service provider, or

software version, and is subject to change without prior notice.

www.samsung.com English (EU). 03/2014. Rev.1.0

Samsung Galaxy Tab 4 10 1 Wi Fi Sm T530 Users Manual

Galaxy Tab 4 10.1 Wi-Fi (SM-T530) - User Manual Galaxy_Tab_4_10.1_Wi-Fi_T530_Kk_Eng Free User Guide for Samsung Tablet and eReader, Manual - page1

Navigation menu

Versions of this User Manual:

Views

Navigation
