Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

5.1CH Blu-ray™

Home Entertainment System

user manual

HT-H5500

HT-H5500W

HT-H5530

HT-H5550

HT-H5550W

HT-H5500_00W_30_50_50W-ENG_0402.indd 1HT-H5500_00W_30_50_50W-ENG_0402.indd 1 2014-04-02  1:07:152014-04-02  1:07:15

2 - English

Safety Information

• The slots and openings in the cabinet and in the back

or bottom are provided for necessary ventilation. To

ensure reliable operation of this apparatus, and to

protect it from overheating, these slots and openings

must never be blocked or covered.

- Do not place this apparatus in a confined space,

such as a bookcase, or built-in cabinet, unless

proper ventilation is provided.

- Do not place this apparatus near or over a radiator

or heat register, or where it is exposed to direct

sunlight.

- Do not place vessels (vases etc.) containing water

on this apparatus. A water spill can cause a fire or

electric shock.

• Do not expose this apparatus to rain or place it near

water (near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming

pool, etc.). If this apparatus accidentally gets wet,

unplug it and contact an authorized dealer immediately.

• This apparatus uses batteries. In your community,

there might be environmental regulations that require

you to dispose of these batteries properly. Please

contact your local authorities for disposal or recycling

information.

• Do not overload wall outlets, extension cords or

adaptors beyond their capacity, since this can result in

fire or electric shock.

• Route power-supply cords so that they are not likely to

be walked on or pinched by items placed on or against

them. Pay particular attention to cords at the plug end,

at wall outlets, and the point where they exit from the

apparatus.

• To protect this apparatus from a lightning storm, or

when it is left unattended and unused for long periods

of time, unplug it from the wall outlet and disconnect

the antenna or cable system. This will prevent damage

to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC

adaptor outlet, make sure the voltage designation of

the DC adaptor corresponds to the local electrical

supply.

• Never insert anything metallic into the open parts

of this apparatus. Doing so may create a danger of

electric shock.

• To avoid electric shock, never touch the inside of this

apparatus. Only a qualified technician should open this

apparatus.

• Make sure to plug the power cord in until it is firmly

seated. When unplugging the power cord from a wall

outlet, always pull on the power cord's plug. Never

unplug by pulling on the power cord. Do not touch the

power cord with wet hands.

• If this apparatus does not operate normally - in

particular, if there are any unusual sounds or smells

coming from it - unplug it immediately and contact an

authorized dealer or service centre.

• Maintenance of Cabinet.

- Before connecting other components to this

product, be sure to turn them off.

- If you move your product suddenly from a cold place

to a warm place, condensation may occur on the

operating parts and lens and cause abnormal disc

playback. If this occurs, unplug the product, wait for

two hours, and then connect the plug to the power

outlet. Then, insert the disc, and try to play back

again.

• Be sure to pull the power plug out of the outlet if the

product is to remain unused or if you are leaving the

house for an extended period of time (especially when

children, elderly, or disabled people will be left alone in

the house).

- Accumulated dust can cause an electric shock, an

electric leakage, or a fire by causing the power cord

to generate sparks and heat or the insulation to

deteriorate.

• Contact an authorized service centre for information

if you intend to install your product in a location with

heavy dust, high or low temperatures, high humidity,

chemical substances, or where it will operate 24 hours

a day such as in an airport, a train station, etc. Failing

to do so may lead to serious damage of your product.

• Use only a properly grounded plug and wall outlet.

- An improper ground may cause electric shock or

equipment damage. (Class l Equipment only.)

• To turn this apparatus off completely, you must

disconnect it from the wall outlet. Consequently, the

wall outlet and power plug must be readily accessible

at all times.

• Do not allow children to hang on the product.

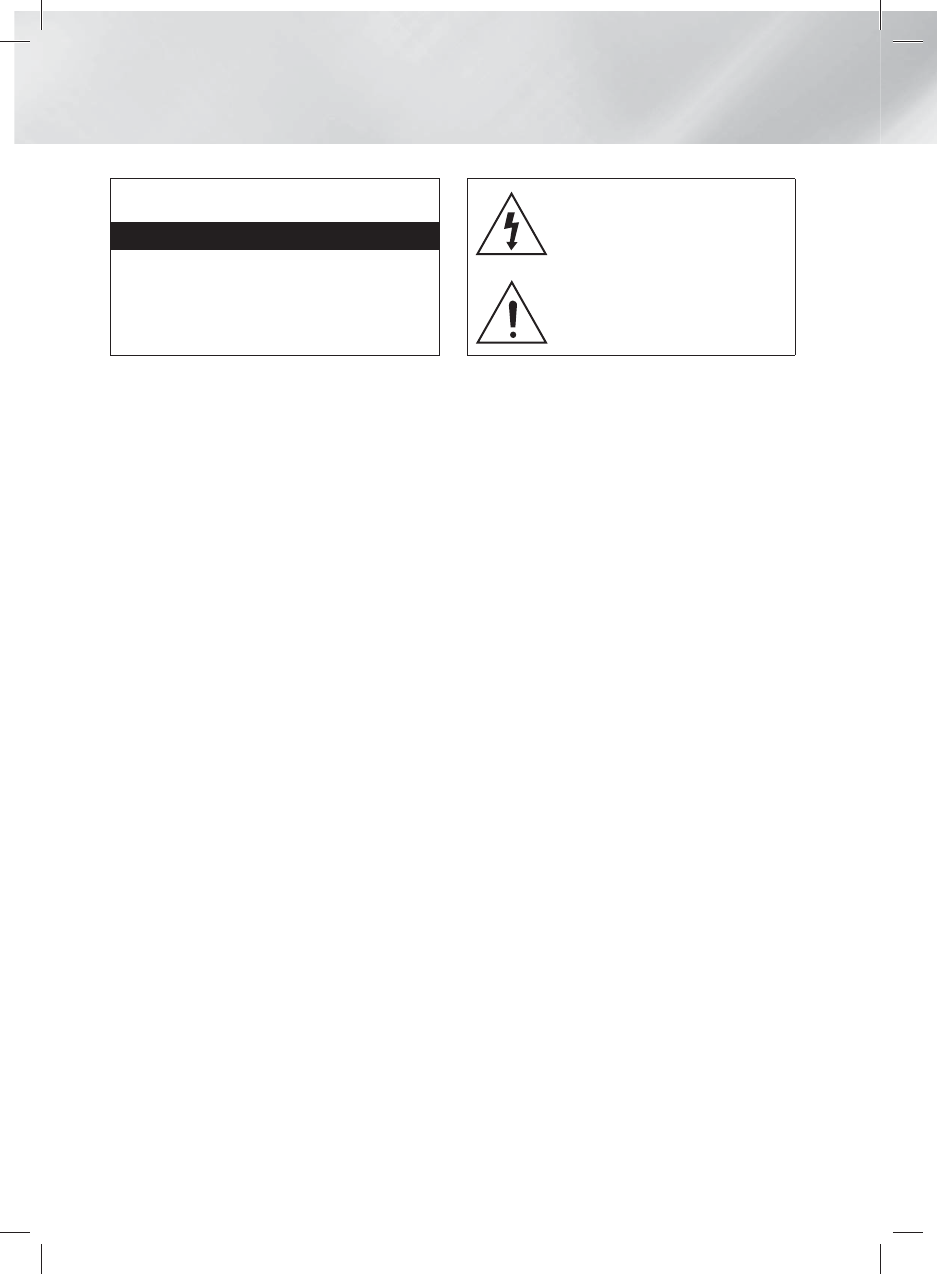

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO

QUALIFIED PERSONNEL.

This symbol indicates that high voltage is

present inside. It is dangerous to make

any kind of contact with any internal part

of this product.

This symbol indicates that important

literature concerning operation and

maintenance has been included with this

product.

HT-H5500_00W_30_50_50W-ENG_0402.indd 2HT-H5500_00W_30_50_50W-ENG_0402.indd 2 2014-04-02  1:07:292014-04-02  1:07:29

3 - English

Safety Information

• Store the accessories (battery, etc.) in a location safely

out of the reach of children.

• Do not install the product in an unstable location such

as a shaky self, a slanted floor, or a location exposed

to vibration.

• Do not drop or strike the product. If the product is

damaged, disconnect the power cord and contact a

service centre.

• To clean this apparatus, unplug the power cord from

the wall outlet and wipe the product using a soft,

dry cloth. Do not use any chemicals such as wax,

benzene, alcohol, thinners, insecticide, air fresheners,

lubricants, or detergent. These chemicals can damage

the appearance of the product or erase the printing on

the product.

• Do not expose this apparatus to dripping or splashing.

Do not put objects filled with liquids, such as vases on

the apparatus.

• Do not dispose of batteries in a fire.

• Do not plug multiple electric devices into the same wall

socket. Overloading a socket can cause it to overheat,

resulting in a fire.

• There is danger of an explosion if you replace the

batteries used in the remote with the wrong type of

battery. Replace only with the same or equivalent type.

WARNING :

• TO PREVENT THE SPREAD OF FIRE,

KEEP CANDLES AND OTHER ITEMS

WITH OPEN FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES.

CLASS 1 LASER PRODUCT

This product is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of

procedures other than those specified herein may result

in hazardous radiation exposure.

CAUTION :

• INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED, AVOID EXPOSURE TO

BEAM.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

3D Precautions

IMPORTANT HEALTH AND SAFETY INFORMATION FOR

3D PICTURES.

Read and understand the following safety information

before using the 3D function.

• Some viewers may experience discomfort while viewing

3D TV such as dizziness, nausea, and headaches.

If you experience any such symptom, stop viewing 3D

TV, remove the 3D Active Glasses, and rest.

• Watching 3D images for an extended period of time

may cause eye strain. If you feel eye strain, stop

viewing 3D TV, remove your 3D Active Glasses, and

rest.

• A responsible adult should frequently check on children

who are using the 3D function.

If there are any reports of tired eyes, headaches,

dizziness, or nausea, have the child stop viewing 3D

TV and rest.

• Do not use the 3D Active Glasses for other purposes

(such as general eyeglasses, sunglasses, protective

goggles, etc.)

• Do not use the 3D function or 3D Active Glasses while

walking or moving around. Using the 3D function or 3D

Active Glasses while moving around may cause you to

bump into objects, trip, and/or fall, and cause serious

injury.

• If you want to enjoy 3D content, connect a 3D device

(3D compliant AV receiver or TV) to the product’s HDMI

OUT port using a high-speed HDMI cable. Put on 3D

glasses before playing the 3D content.

• The product outputs 3D signals only through an HDMI

cable connected to the HDMI OUT port.

• The video resolution in 3D play mode is fixed to the

resolution of the original 3D video. You can not change

the resolution.

• Some functions such as BD Wise, screen size

adjustment, and resolution adjustment may not operate

properly in 3D play mode.

• You must use a high-speed HDMI cable for proper

output of the 3D signal.

• Stay at least three times the width of the screen from

the TV when watching 3D images. For example, if

you have a 46 inch screen, stay 3.5 meters from the

screen.

• Place the 3D video screen at eye level for the best 3D

picture.

• When the product is connected to some 3D devices,

the 3D effect may not function properly.

• This product does not convert 2D content into 3D.

• "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of

the Blu-ray Disc Association.

HT-H5500_00W_30_50_50W-ENG_0402.indd 3HT-H5500_00W_30_50_50W-ENG_0402.indd 3 2014-04-02  1:07:292014-04-02  1:07:29

4 - English

Contents

GETTING STARTED

5 Accessories

5 Speaker Components

7 Front Panel

7 Rear Panel

8 Remote Control

CONNECTIONS

9 Connecting the Speakers

12 Attaching the Toroidal Ferrite Core to the Power

Cord of the Wireless Receiver Module (SWA-

6000)

13 Connecting to a TV and External Devices

14 Connecting to a Network Router

SETTINGS

15 The Initial Settings Procedure

16 The Home Screen at a Glance

16 Accessing the Settings Screen

17 Settings Menu Functions

20 Network Setup

22 Wi-Fi Direct

23 Upgrading Software

25 Setting Up DLNA

PLAYING CONTENT

26 Switching the Source Device

26 Playing Commercial Discs

26 Playing a Disc with User Recorded Content

27 Playing Files on a USB Device

28 Controlling Video Playback

29 Playing a Pre-Recorded Commercial Audio Disc

30 Controlling Music Playback

31 Playing Photo Contents

32 Listening to the Radio

33 Using Bluetooth

36 Using the Special Effects Remote Control

Buttons

NETWORK SERVICES

37 Using BD-LIVE™

37 Using DLNA

37 Apps

38 Using Opera TV Store

39 Screen Mirroring

APPENDIX

40 Additional Information

41 Disk and Format Compatibility

46 Troubleshooting

49 Specifications

51 Licences

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE : The mains lead on this equipment is supplied with a moulded plug incorporating a fuse.

The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362

of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and

a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are

available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long

enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer

for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of

the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT : The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL

BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your

plug, proceed as follows:–The wire coloured BLUE must be connected to the terminal marked with the letter N or

coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L

or coloured BROWN or RED.

IMPORTANT : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH

LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

HT-H5500_00W_30_50_50W-ENG_0402.indd 4HT-H5500_00W_30_50_50W-ENG_0402.indd 4 2014-04-02  1:07:302014-04-02  1:07:30

5 - English

Getting Started

Figures and illustrations in this User Manual are provided for reference only and may differ from actual

product appearance.

An administration fee may be charged if either

a. an engineer is called out at your request and there is no defect in the product (i.e. where you have

failed to read this user manual)

b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed

to read this user manual).

 The amount of such administration charge will be advised to you before any work or home visit is

carried out.

Check the box for the accessories and speaker components listed or shown below.

Accessories

• Remote Control • User Manual • Batteries

HT-H5500W/HT-H5550W only

(For Power cord)

Power Cable FM Antenna Toroidal Ferrite Core

Speaker Components

HT-H5500/HT-H5500W

HT-H5500W only

Centre

Front x 2 Surround x 2 Speaker Cable x 6 Subwoofer Wireless Receiver

Module (SWA-6000)

Getting Started

HT-H5500_00W_30_50_50W-ENG_0402.indd 5HT-H5500_00W_30_50_50W-ENG_0402.indd 5 2014-04-02  1:07:302014-04-02  1:07:30

6 - English

Getting Started

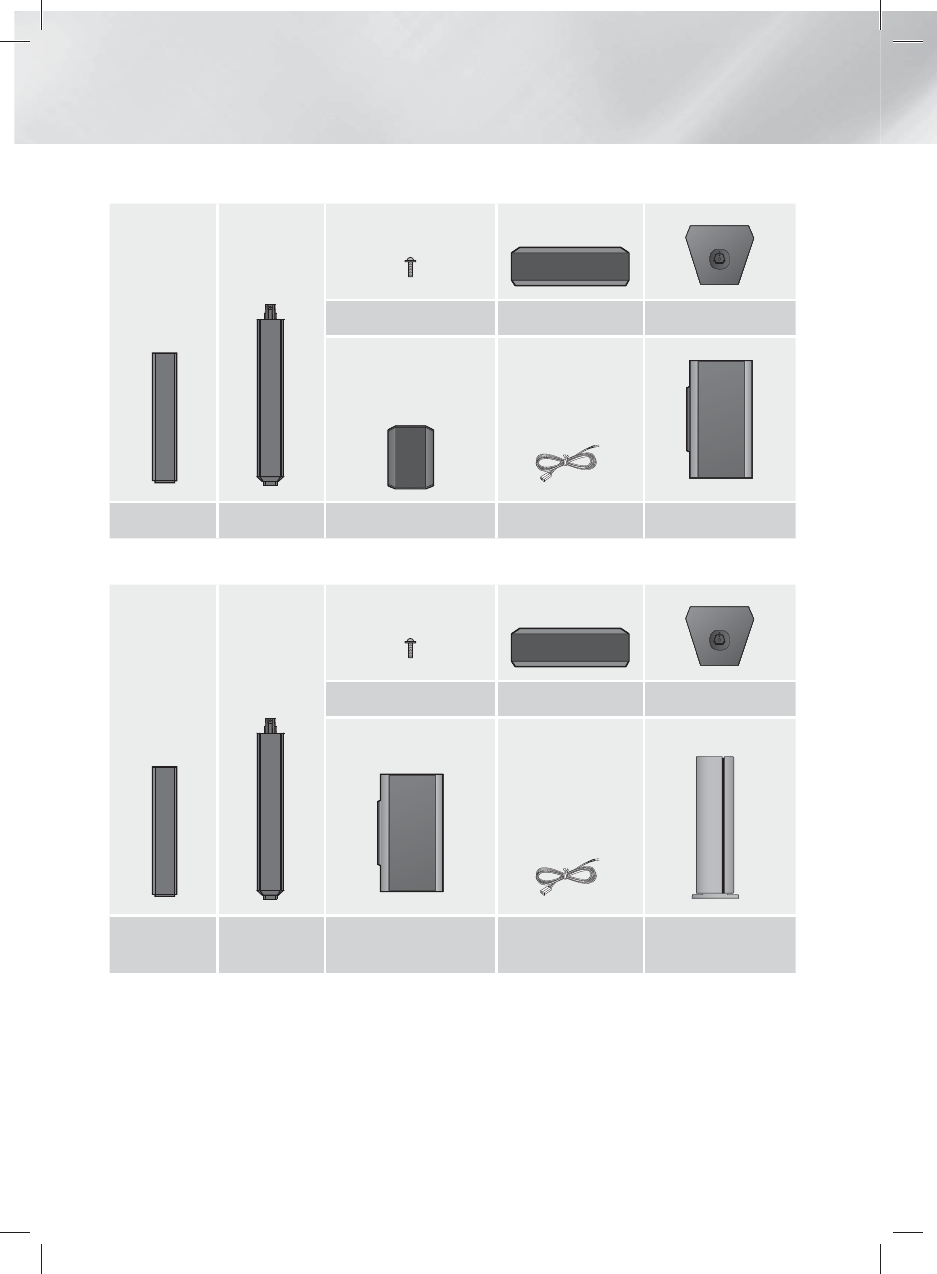

HT-H5530

Screw (5x20) x 8 Centre Stand Base x 2

Front x 2 Stand x 2 Surround x 2 Speaker Cable x 6 Subwoofer

HT-H5550/HT-H5550W

Screw (5x20) x 16 Centre Stand Base x 4

HT-H5550W only

Front x 2

Surround x 2 Stand x 4 Subwoofer Speaker Cable x 6 Wireless Receiver

Module (SWA-6000)

HT-H5500_00W_30_50_50W-ENG_0402.indd 6HT-H5500_00W_30_50_50W-ENG_0402.indd 6 2014-04-02  1:07:322014-04-02  1:07:32

7 - English

Getting Started

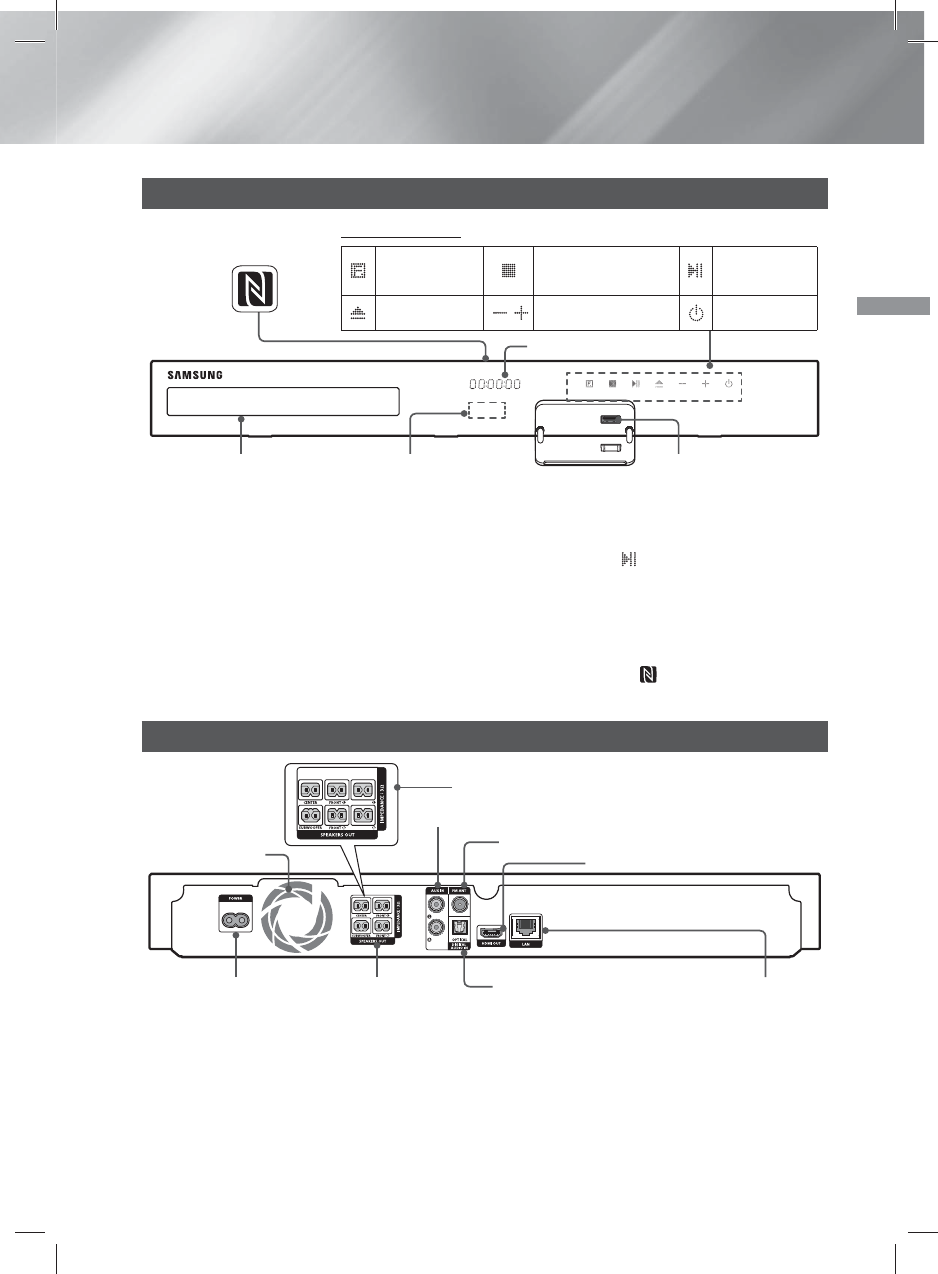

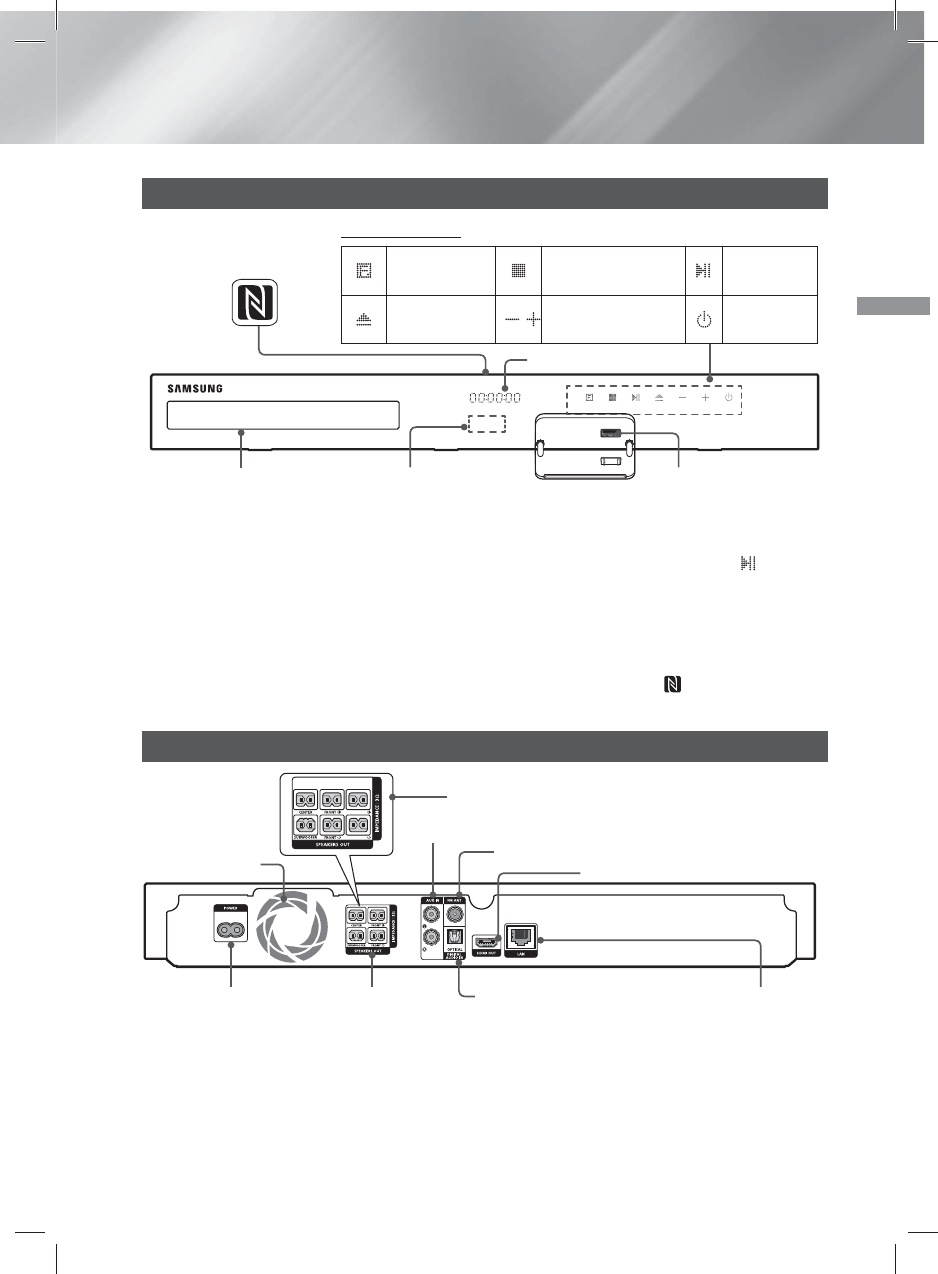

Front Panel

DISPLAY ICONS

FUNCTION STOP PLAY/PAUSE

OPEN/

VOLUME

CONTROL POWER

5V 0.5A

USBREMOTE CONTROL SENSOR

DISPLAY

DISC TRAY

NFC

✎When the product is on, do not let children touch the product's surface. It will be hot.

✎To upgrade the product's software through the USB jack, you must use a USB flash drive.

✎When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the /6 button

on the product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and

then press the E button.

✎If you are using the Internet or are playing content from a USB device on your TV through the home cinema,

you cannot select the BD/DVD mode with the FUNCTION button. To select the BD/DVD mode, exit the

Internet or stop the content you are playing on the TV, and then select the BD/DVD mode.

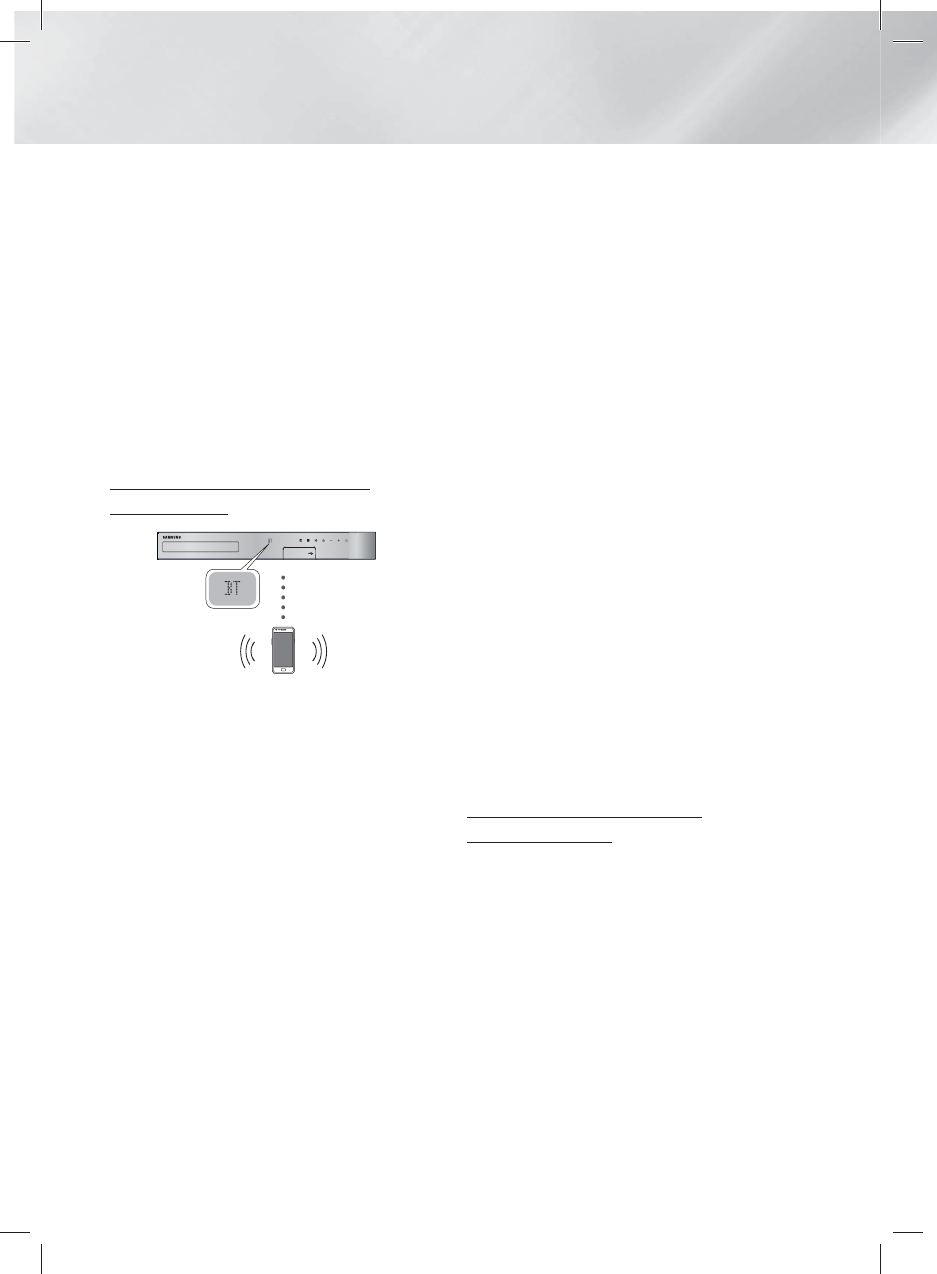

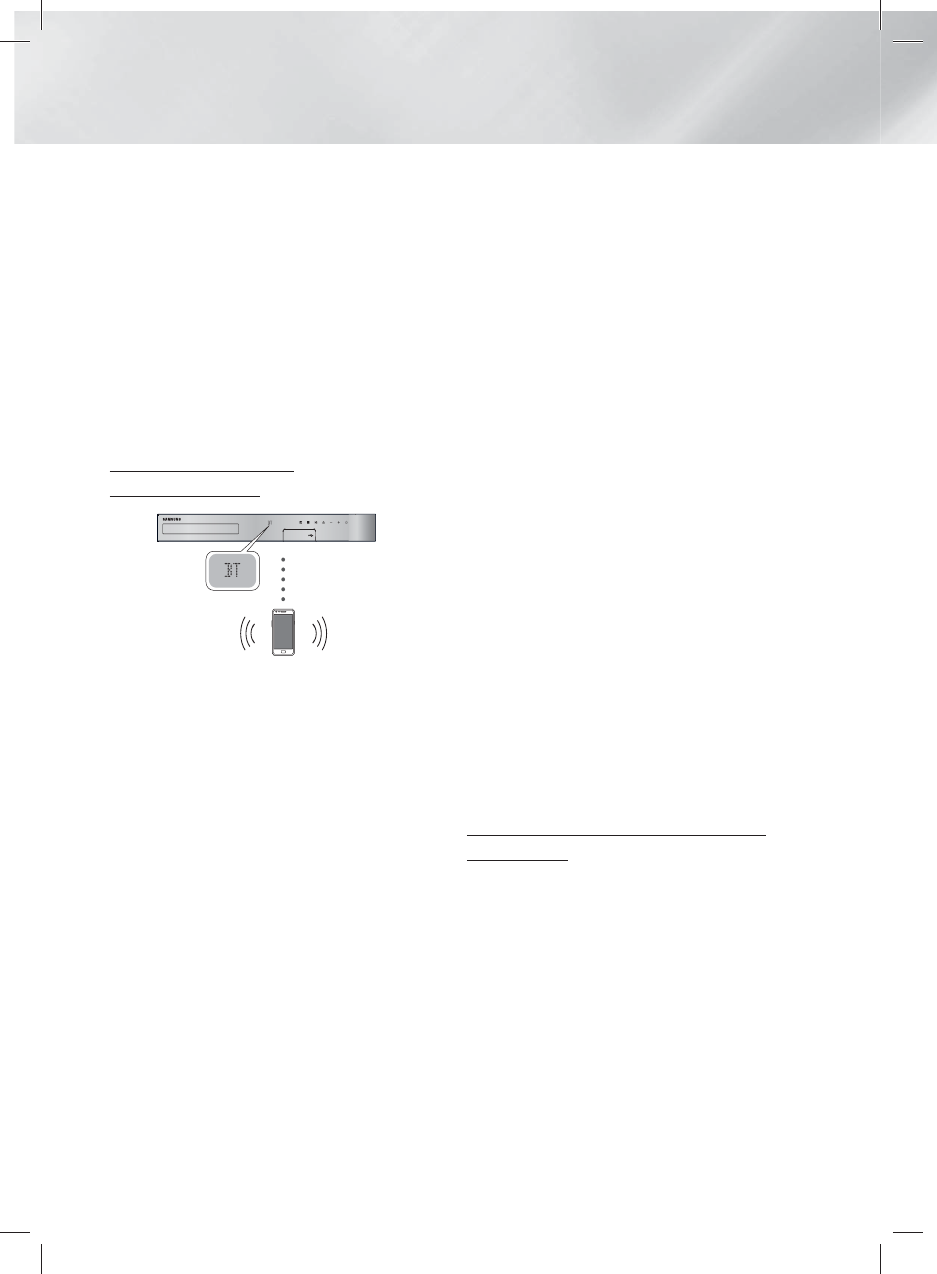

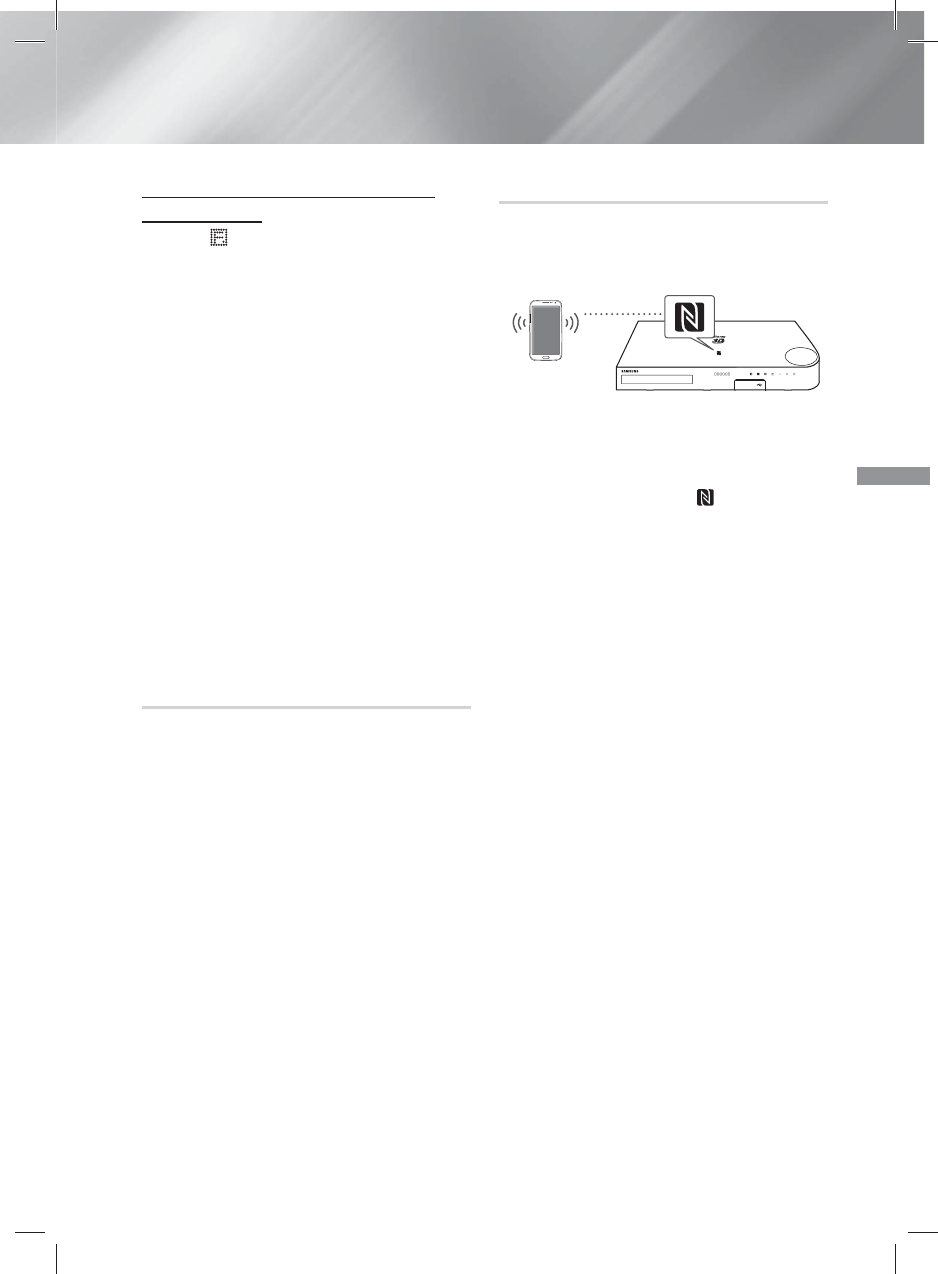

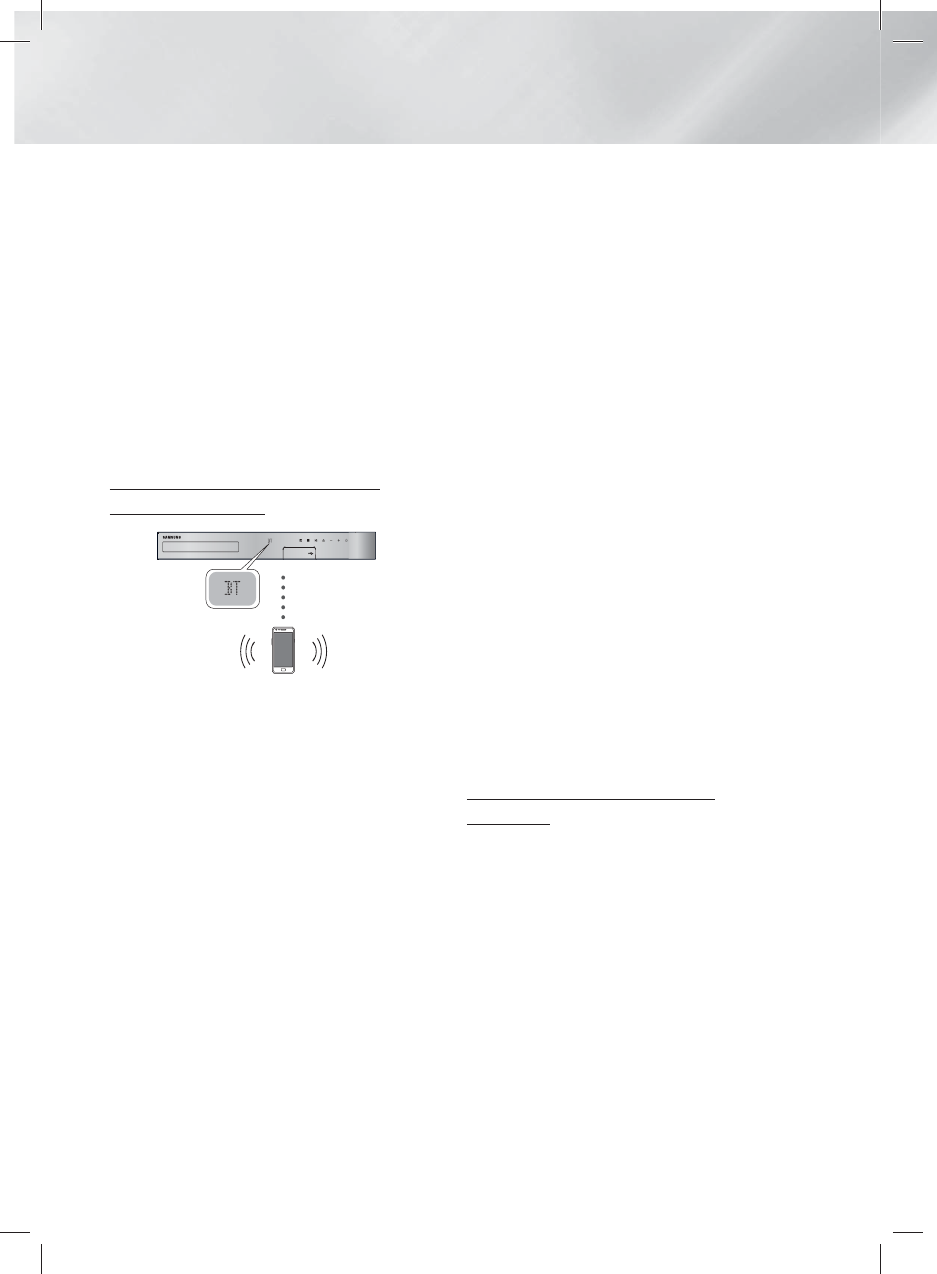

✎To use the NFC function, tag the compatible Bluetooth source device to the on the top of the product

(See page 35).

Rear Panel

SURROUND

COOLING FAN * FM ANTENNA

AUX IN

HDMI OUT

SPEAKER OUTPUT

CONNECTORS

POWER CORD LAN TERMINALEXTERNAL DIGITAL

AUDIO IN (OPTICAL)

* In case of HT-H5500/HT-H5530/HT-H5550

* Connecting the FM Antenna

1. Connect the supplied FM antenna to the FM ANT Jack.

2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a

wall or other rigid surface.

✎Maintain a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation.

Do not obstruct the cooling fan or ventilation holes.

✎This product does not receive AM broadcasts.

HT-H5500_00W_30_50_50W-ENG_0402.indd 7HT-H5500_00W_30_50_50W-ENG_0402.indd 7 2014-04-02  1:07:332014-04-02  1:07:33

8 - English

Getting Started

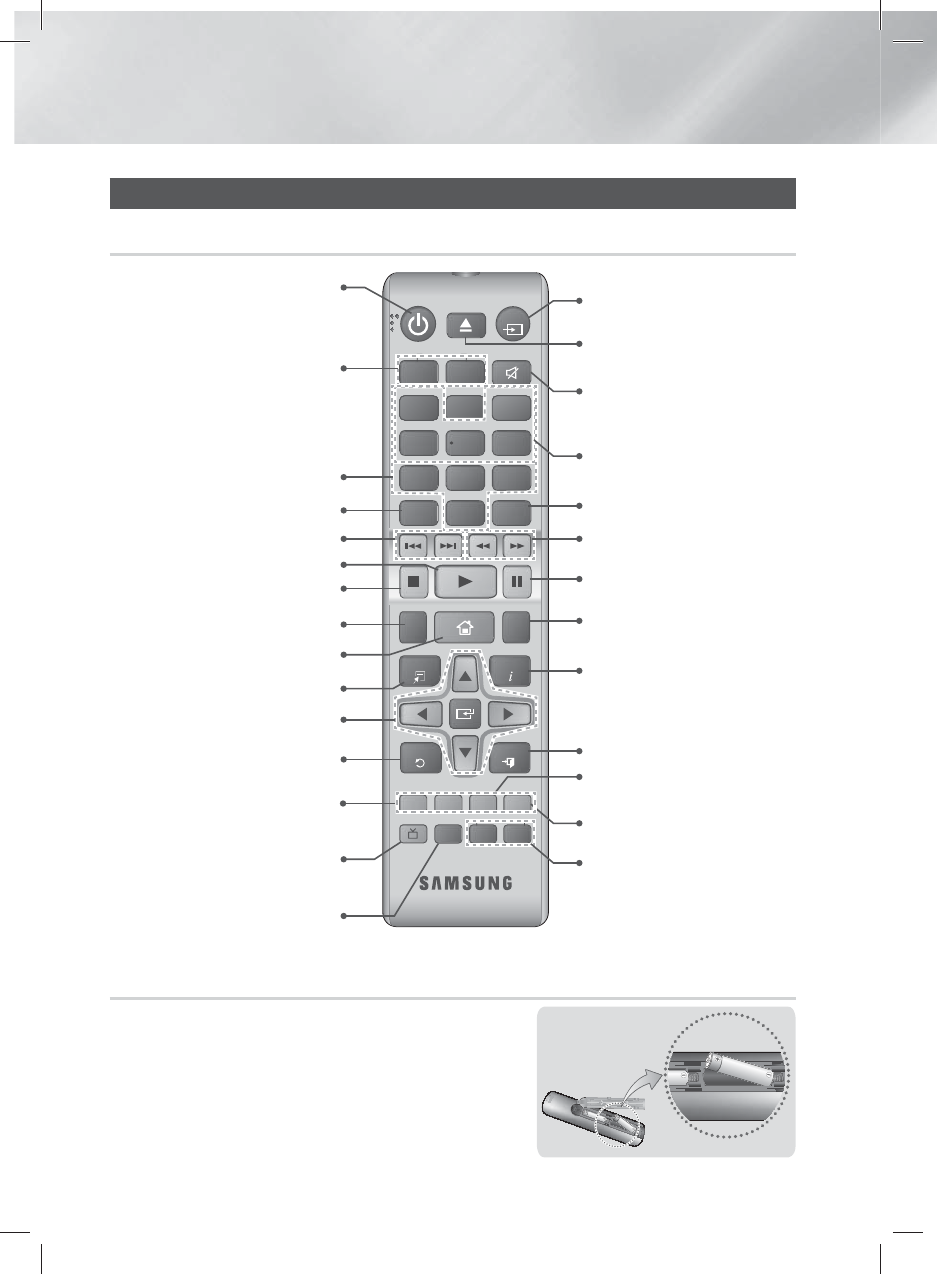

Remote Control

Tour of the Remote Control

Turn the product on and off.

Adjust the volume.

Press numeric buttons to operate

options.

Press to skip backwards or forwards.

Selects the disc subtitle language.

Press to move to the Home screen.

Select on-screen menu items

and change menu values.

Return to the previous menu.

These buttons are used both for

menus on the product and also

several Blu-ray Disc functions.

Press to view the disc menu.

Press to use the Tools menu.

Press to play a disc or files.

Press to direct audio signal to home

cinema speaker or TV speaker.

(See page 36)

Select the desired DSP/EQ audio

mode.

Press to stop a disc or files.

Cut off the sound temporarily.

Press to search backwards or

forwards.

Press to pause playing.

Allows you to repeat a title,

chapter, track or disc.

Use to enter the Popup menu/

Title menu.

Use the RDS function to

receive FM stations.

Select MONO or STEREO for radio

broadcasts.

Search for active FM stations and

to change channels.

Use to display the playback

information when playing

a Blu-ray/DVD disc or files.

To open and close the disc tray.

Press to exit the menu.

Press to select Home Cinema's

mode. (BD/DVD, D. IN, AUX,

etc.).

Use to set a preset radio frequency.

Installing batteries in the Remote Control

✎Make sure to match the "+" and "–" ends of the batteries with

the diagram inside the compartment.

✎

Assuming typical usage, the batteries last for about one year.

✎The remote control can be used up to approximately 7 meters

from the product in a straight line.

Battery size: AAA

TOOLS

RETURN

EXIT

INFO

SUBTITLE HOME

REPEAT

123

789

DISC MENU

PTY - PTY SEARCH PTY +

RDS DISPLAY TA

TITLE MENU

POPUP

456

MUTE

MO/ST

TUNER

MEMORY

DPS/EQTV SOUND

ABCD

TUNING

DOWN UP

VOLUME

FUNCTION

HT-H5500_00W_30_50_50W-ENG_0402.indd 8HT-H5500_00W_30_50_50W-ENG_0402.indd 8 2014-04-02  1:07:352014-04-02  1:07:35

9 - English

Connections

This section describes various methods of connecting the product to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

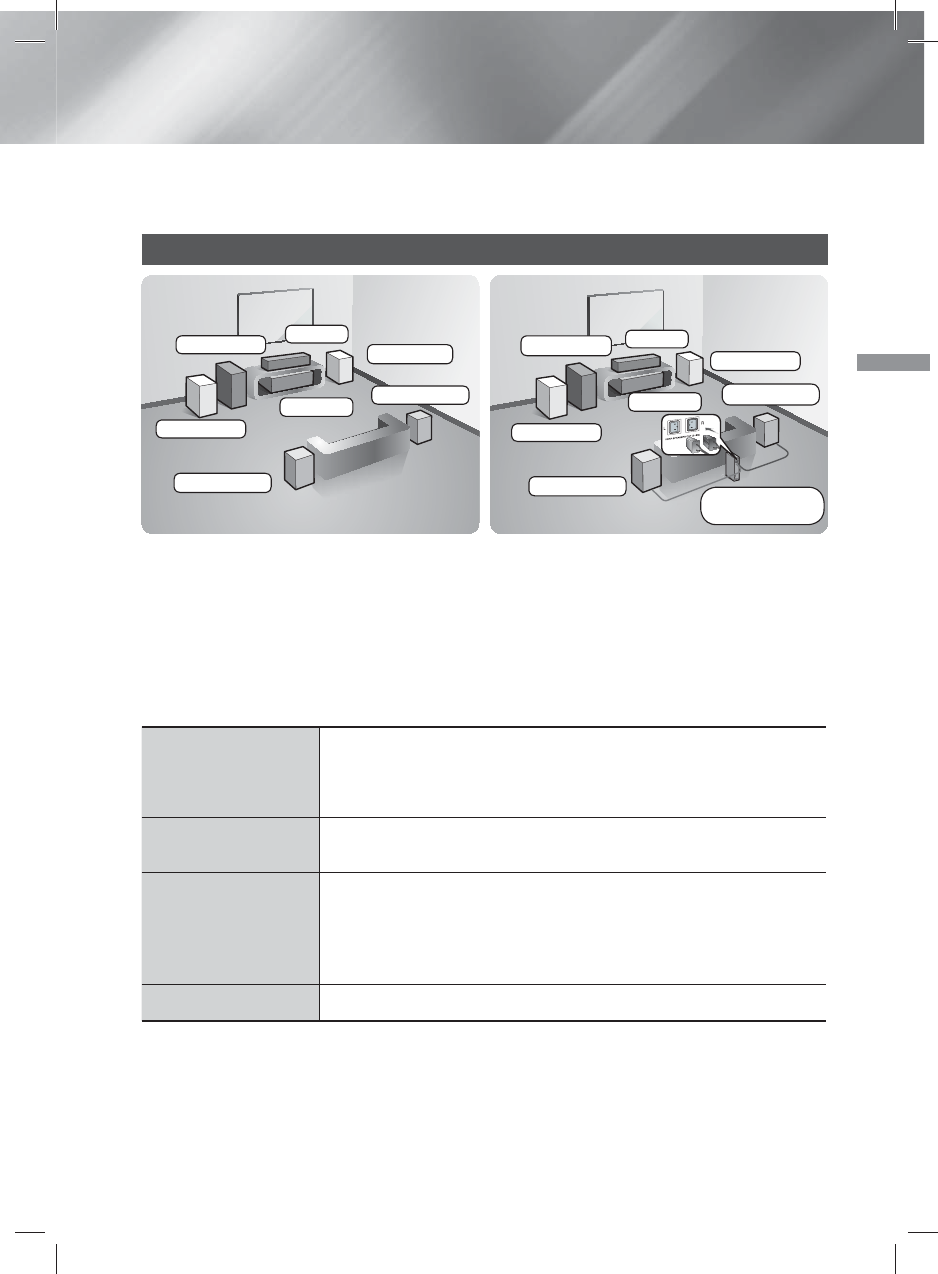

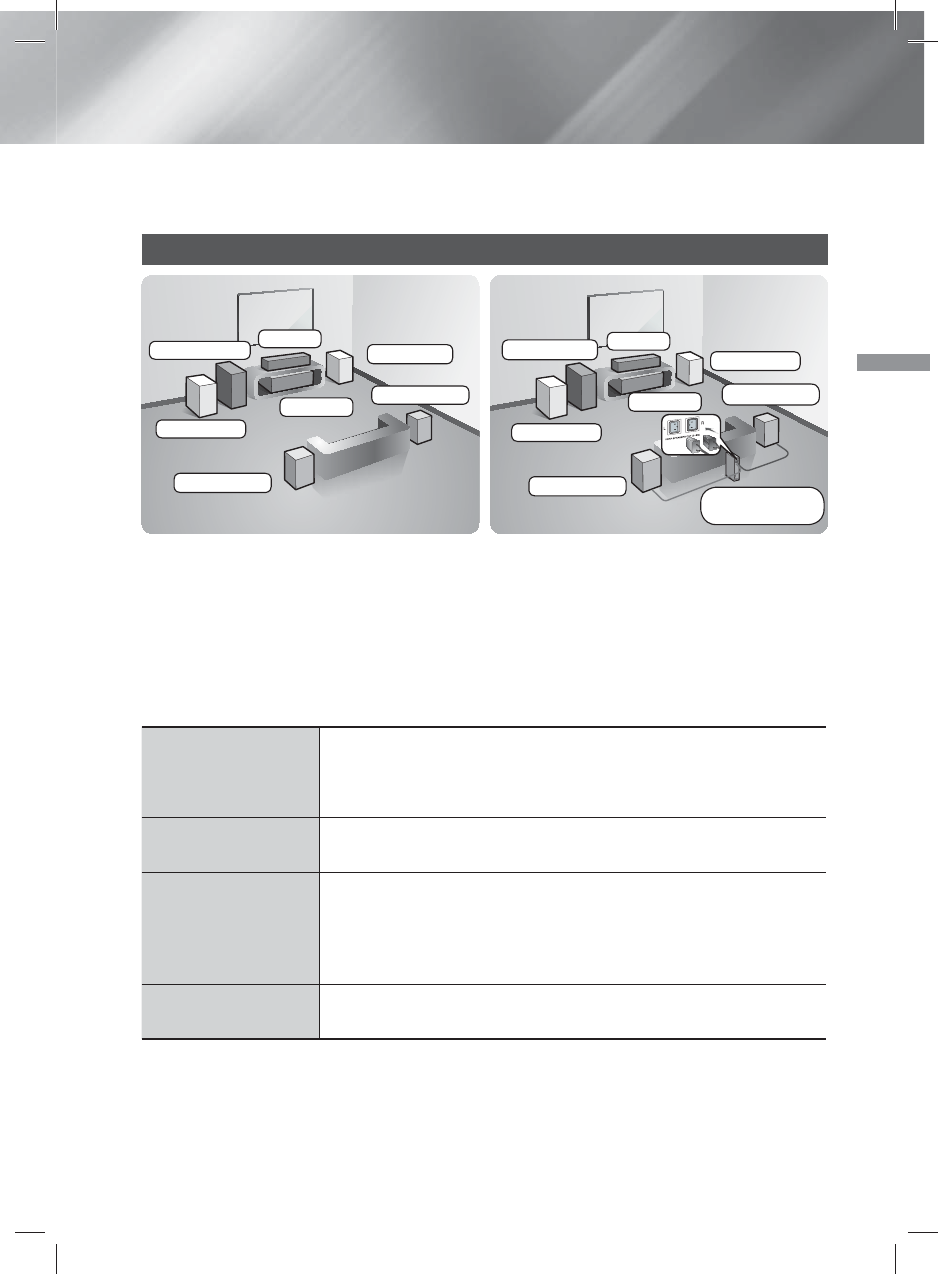

Connecting the Speakers

Front (L)

Surround (L)

Surround (R)

Front (R)

Product

Centre

Subwoofer

* HT-H5500/HT-H5530/HT-H5550

Surround (L)

Surround (R)

Product

Centre

Subwoofer

Wireless

Receiver Module

Front (L)

Front (R)

* HT-H5500W/HT-H5550W

Surround speakers must be connected to the

wireless receiver module.

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the TV's screen size away from the TV. For

example, if you have a 46 inch screen, locate the listening position 2.92 to 3.50 meters from the screen.

Front Speakers

Place these speakers in front of your listening position, facing inwards (about

45°) toward you. Place the front speakers so that their tweeters will be at the

same height as your ear. Align the front face of the front speakers with the front

face of the centre speaker or place them slightly in front of the centre speakers.

Centre Speaker It is best to install the Centre Speaker at the same height as the front speakers.

You can also install it directly over or under the TV.

Surround Speakers

Place these speakers to the side of your listening position. If there isn't enough

room, place these speakers so they face each other. Position them about 60 to

90cm above your ear, facing slightly downward.

* Unlike the front and centre speakers, the surround speakers are used mainly

for sound effects. Sound will not come from them all the time.

Subwoofer The position of the subwoofer is not so critical. Place it anywhere you like.

* The appearance of your speakers may differ from the illustrations in this manual.

* Match the speaker cables to the coloured label on the back of the speaker, and then plug them into

the jack of the same colour. See page 10 for exact instructions.

Connections

HT-H5500_00W_30_50_50W-ENG_0402.indd 9HT-H5500_00W_30_50_50W-ENG_0402.indd 9 2014-04-02  1:07:362014-04-02  1:07:36

10 - English

Connections

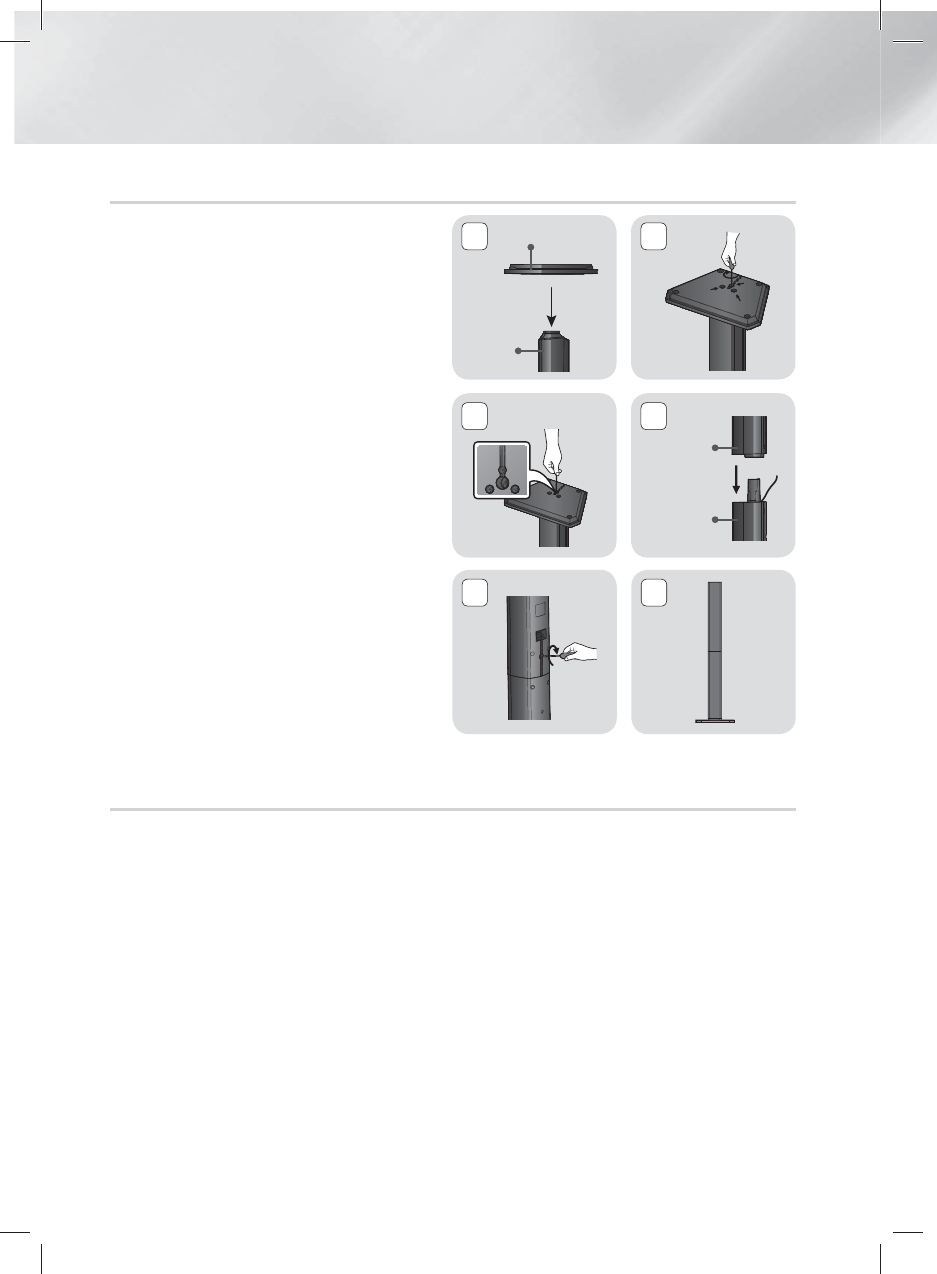

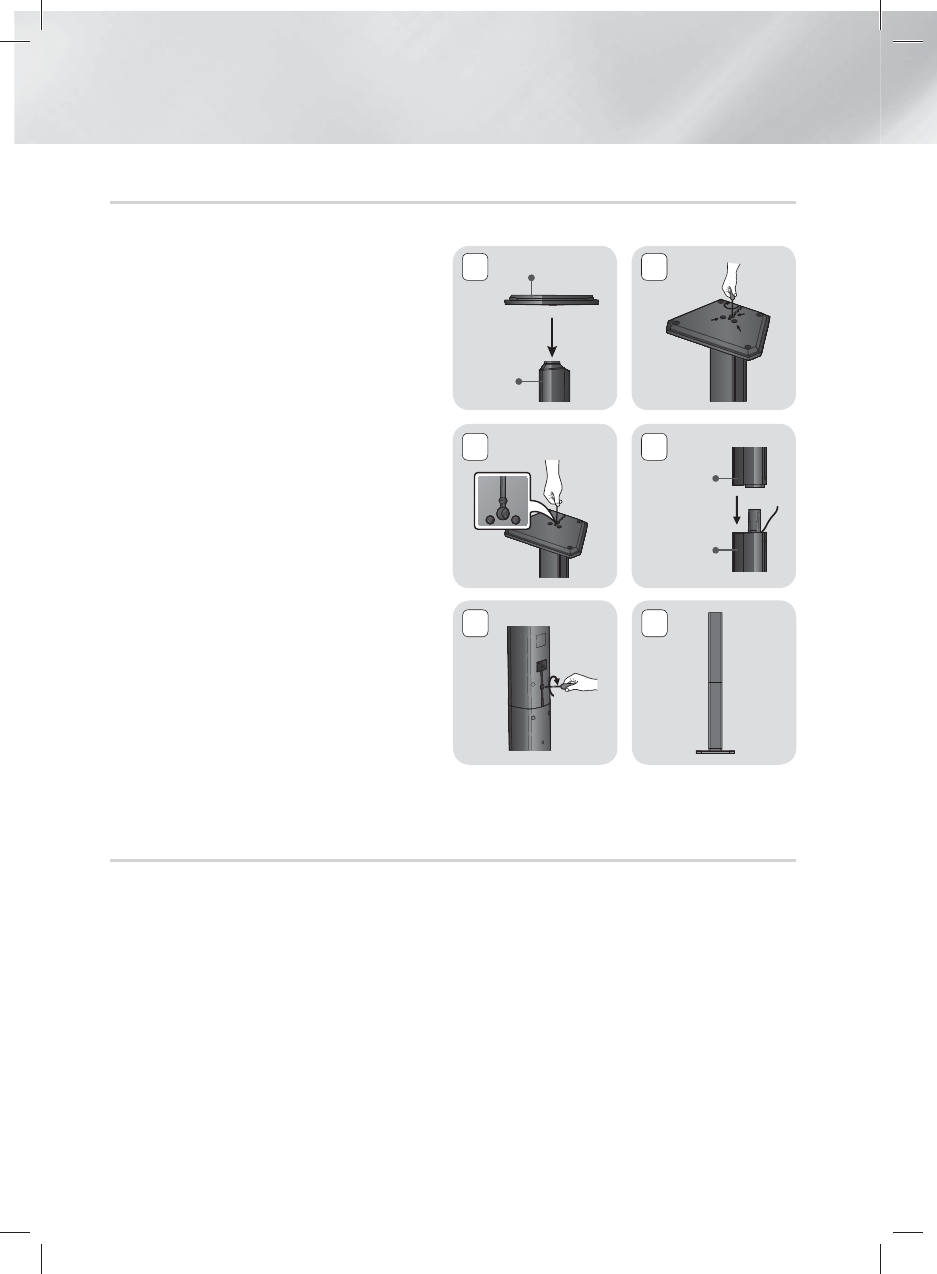

Installing the Speakers on the Tallboy Stand

* HT-H5530/HT-H5550/HT-H5550W only

1. Turn the Stand Base upside-down and

connect it to the Stand.

2. Use the driver to combine the screws on the

3 marked holes.

3. Straighten a supplied speaker wire to the

gravity direction and put in the hole on the

centre of Stand Base.

4. Connect the upper Speaker to the assembled

Stand.

5. Insert a screw clockwise into the hole on the

rear of the speaker using a screwdriver.

And then connect a speaker cable.

6. This is the appearance after the speaker is

installed.

Follow this steps to install other speaker.

Stand Base

Stand

Speaker

Stand

5 6

Speaker Cable Connections

1. Match each speaker cable bundle to the correct speaker by matching the colour coded plug on each

bundle to the coloured sticker on the bottom of each speaker.

2. Connect the speaker wire plugs from each speaker to the back of the product by matching the colours of

the speaker plugs to the colours of the speaker jacks.

HT-H5500_00W_30_50_50W-ENG_0402.indd 10HT-H5500_00W_30_50_50W-ENG_0402.indd 10 2014-04-02  1:07:372014-04-02  1:07:37

11 - English

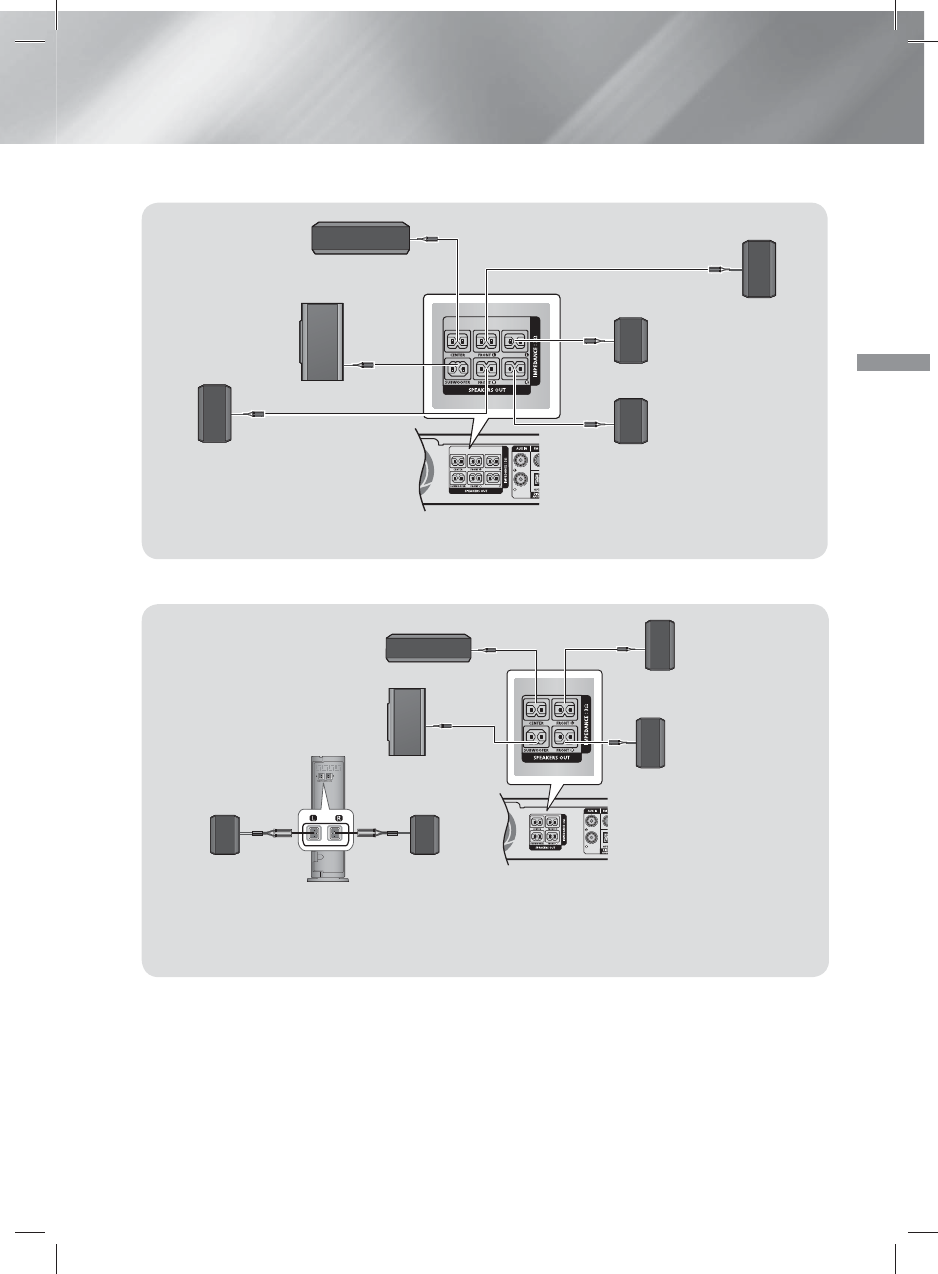

Connections

In case of HT-H5500

SURROUND

Front Speaker (R)

Subwoofer

Centre Speaker

Front Speaker (L)

Surround Speaker (L)

Surround Speaker (R)

* Refer to page 6 for the speakers of HT-H5530/HT-H5550.

In case of HT-H5500W

Front Speaker (R)

Wireless Receiver Module

Surround

Speaker (L)

Surround

Speaker (R)

* HT-H5500W/HT-H5550W should be connected with the SWA-6000 only.

* Refer to page 6 for the speakers of HT-H5550W.

Subwoofer

Centre Speaker Front Speaker (L)

✎ If you place a speaker near your TV set, the screen colour may be distorted because of the magnetic field.

✎Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too

close to the product, sound from the speakers may be disrupted because of interference.

✎If you use a device such as a microwave oven, wireless LAN Card, Bluetooth device, or any other device

that uses the 2.4/5.8GHz frequencies near the product, sound from the speakers may be disrupted because

of interference.

HT-H5500_00W_30_50_50W-ENG_0402.indd 11HT-H5500_00W_30_50_50W-ENG_0402.indd 11 2014-04-02  1:07:382014-04-02  1:07:38

12 - English

Connections

✎The maximum transmission distance from the product to the wireless receiver module is about 10m, but

may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the

product and the wireless receiver module, the system may not operate at all, because the radio waves

cannot penetrate metal.

✎If the product doesn't make a wireless connection, you need to run an ID Set between the product and

wireless receiver module. With the product turned off, press "0""1""3""5" on the remote control. Turn

on the wireless receiver module. Then, press and hold the "ID SET" button on the back of the wireless

receiver module for 5 seconds, and then turn the product on.

| CAUTION |

If you want to install the speakers on the wall, fasten screws or nails (not provided) firmly to the wall wherever

you want to hang a speaker, and then, using the hole in the rear of each speaker, carefully hang each

speaker on a screw or nail.

Do not let children play with or near the speakers. They could get hurt if a speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

 Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien

substances into the duct (hole) of the subwoofer speaker.

 Do not hang the subwoofer on the wall using the duct (hole).

 The wireless receiving antenna is built into the wireless receiver module. Keep it away from water and

moisture.

For optimal listening performance, make sure that the area around the wireless receiver module location is

clear of any obstructions.

In 2-CH mode, you will hear no sound from the wireless surround speakers.

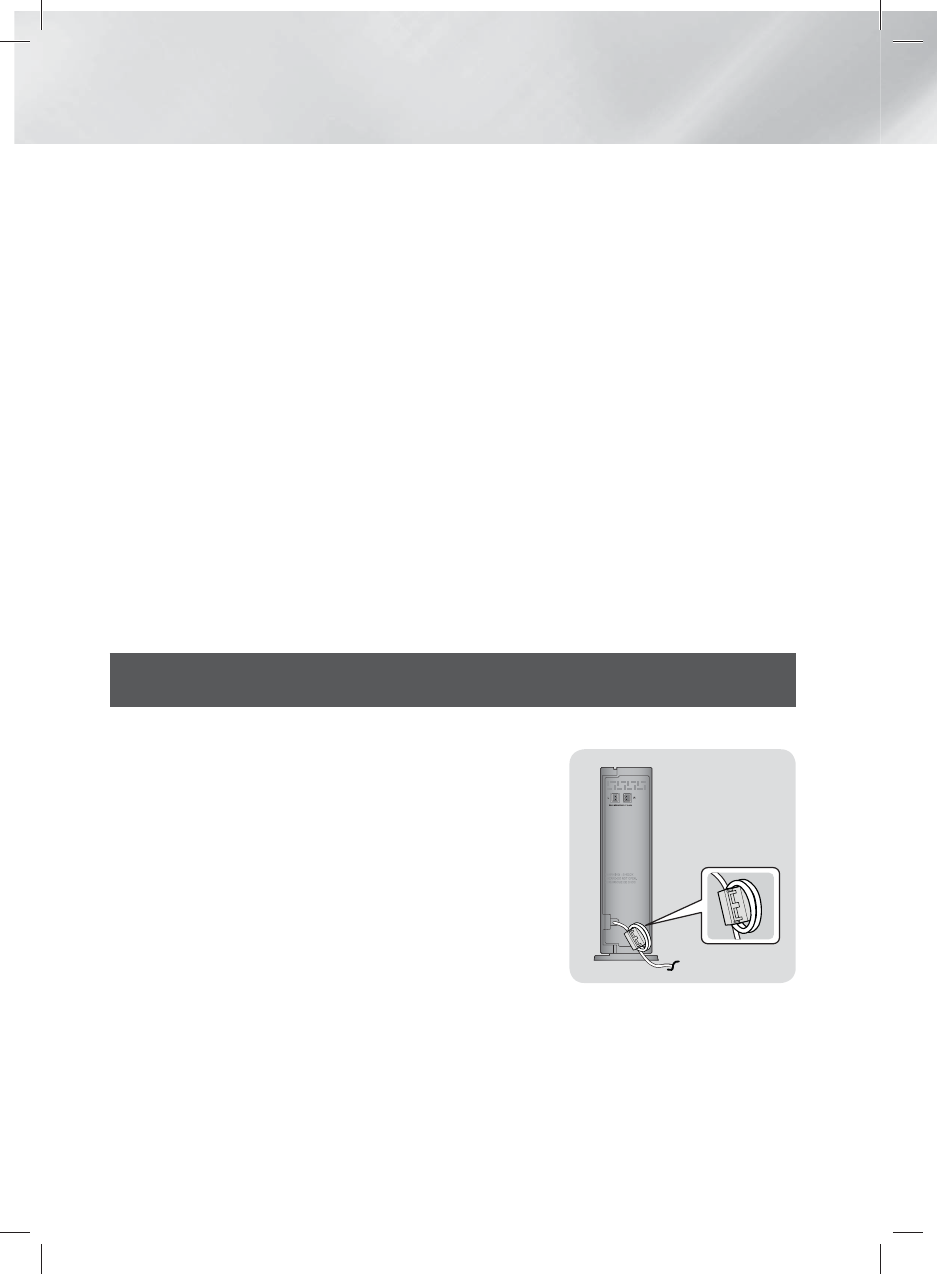

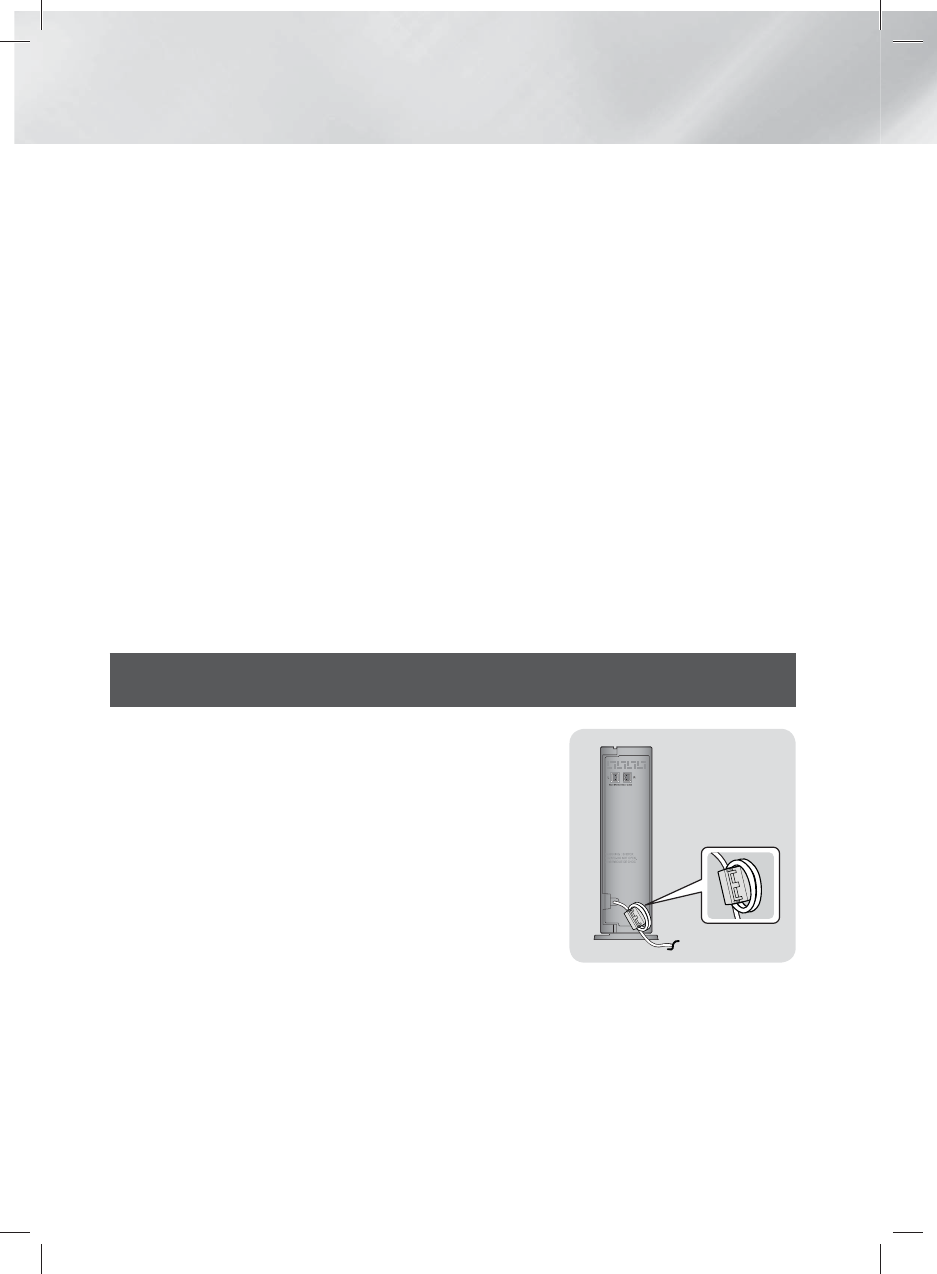

Attaching the Toroidal Ferrite Core to the Power Cord of the Wireless

Receiver Module (SWA-6000)

* HT-H5500W/HT-H5550W only

If you attach a Toroidal ferrite core to the power cord of the wireless

receiver module, it will help prevent RF interference from radio signals.

1. Pull the fixing tab of the Toroidal ferrite core to open it.

2. Make two loops in the wireless receiver module power cord.

3. Attach the Toroidal ferrite core to the wireless receiver module

power cord as shown in the figure on the right, and then close it by

pressiing it until it clicks.

• Attach the ferrite core as close to the Wireless Receiver Module

as possible.

HT-H5500_00W_30_50_50W-ENG_0402.indd 12HT-H5500_00W_30_50_50W-ENG_0402.indd 12 2014-04-02  1:07:392014-04-02  1:07:39

13 - English

Connections

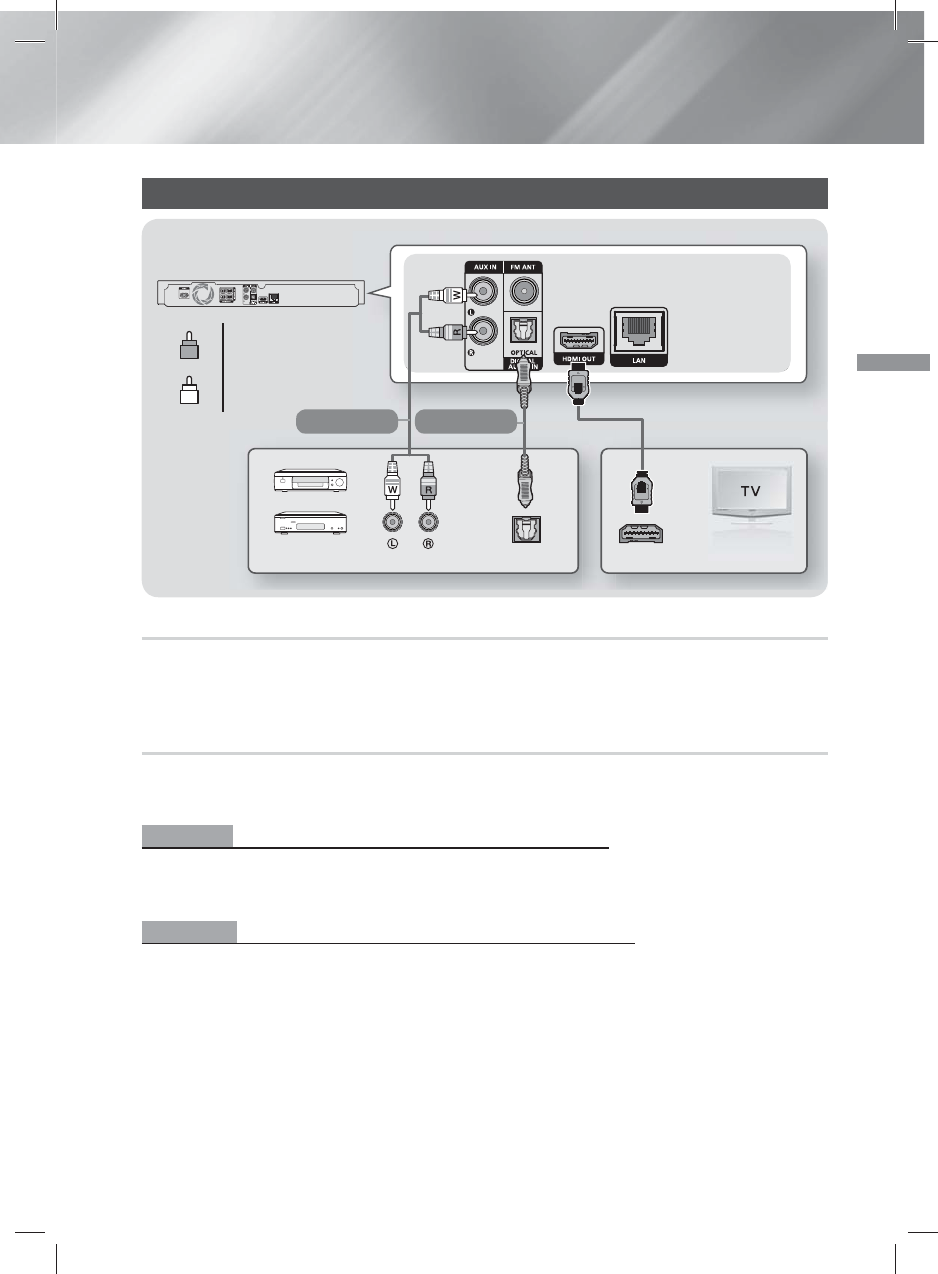

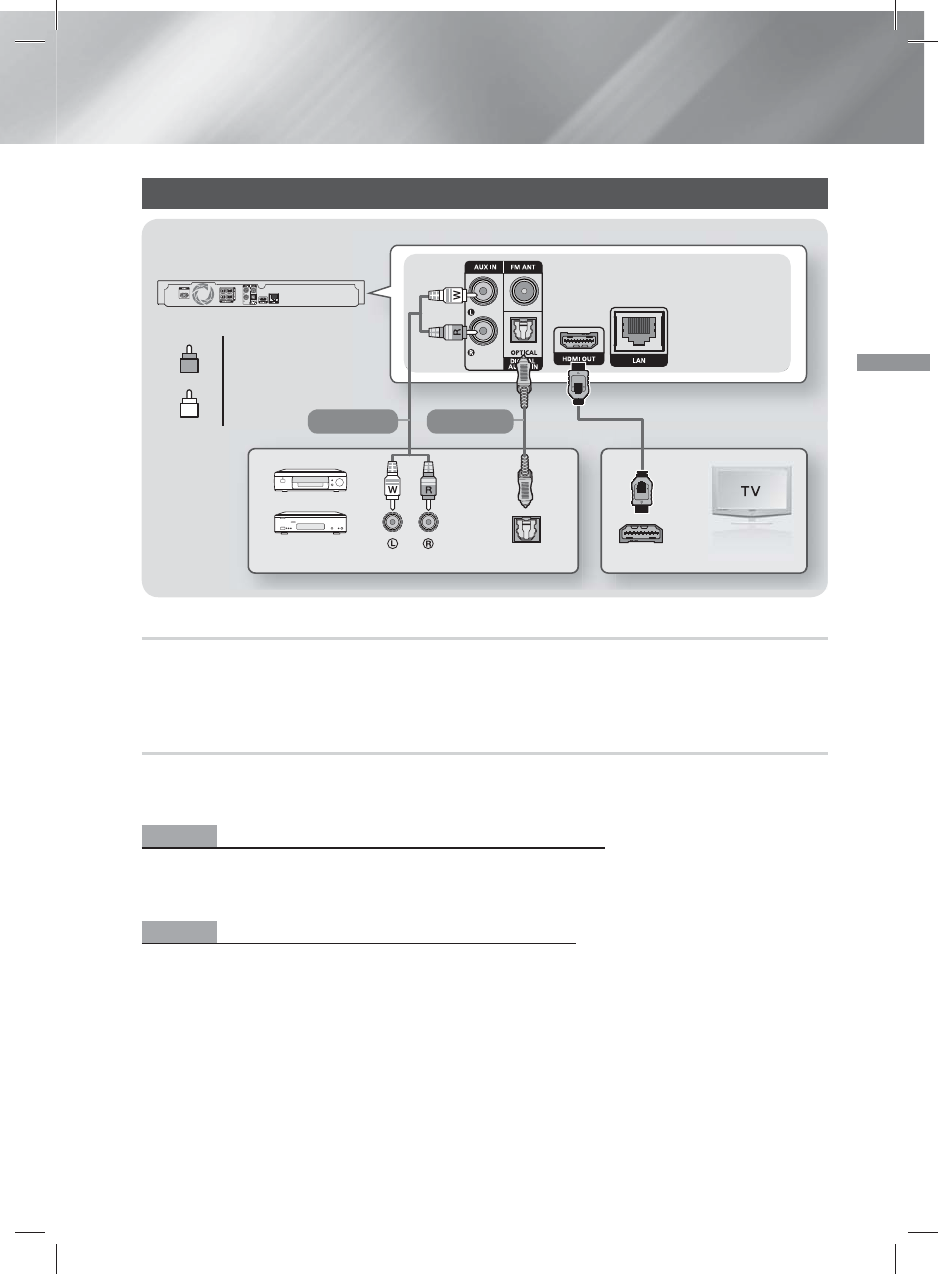

Connecting to a TV and External Devices

OPTICAL OUT

AUDIO OUT HDMI IN

Method 1 Method 2

RRed

WWhite

External Devices

Connecting to a TV

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack

on your TV. If the TV supports ARC, you can hear the audio from your TV through the home cinema with only

this cable connected. See page 18 in this manual and the section on ARC in your TV's user's manual for details.

Connecting to External Devices

To select the correct mode for an external device after you have connected the device, press the FUNCTION

button. Each time you press the button, the mode changes in this order :

BD/DVD  D. IN  AUX  FM  BT

Two methods of connecting external devices to your home cinema are explained below.

Method 1 AUX IN : Connecting an External Analogue Component

Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on

the external analogue component.  Select the AUX mode.

• Be sure to match the colours on the cable plugs to the colours on the input and output jacks.

Method 2 OPTICAL : Connecting an External Digital Audio Component

Use to connect the digital audio output of digital signal components such as Cable Boxes and Satellite

Receivers (Set-Top-Boxes): Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack

on the product to the Digital Optical Out jack of the external digital device using a digital optical cable.

 Select the D. IN mode.

✎To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.

✎This system supports Digital sampling frequencies of 32 kHz or higher from external digital components.

✎This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported.

HT-H5500_00W_30_50_50W-ENG_0402.indd 13HT-H5500_00W_30_50_50W-ENG_0402.indd 13 2014-04-02  1:07:402014-04-02  1:07:40

14 - English

Connections

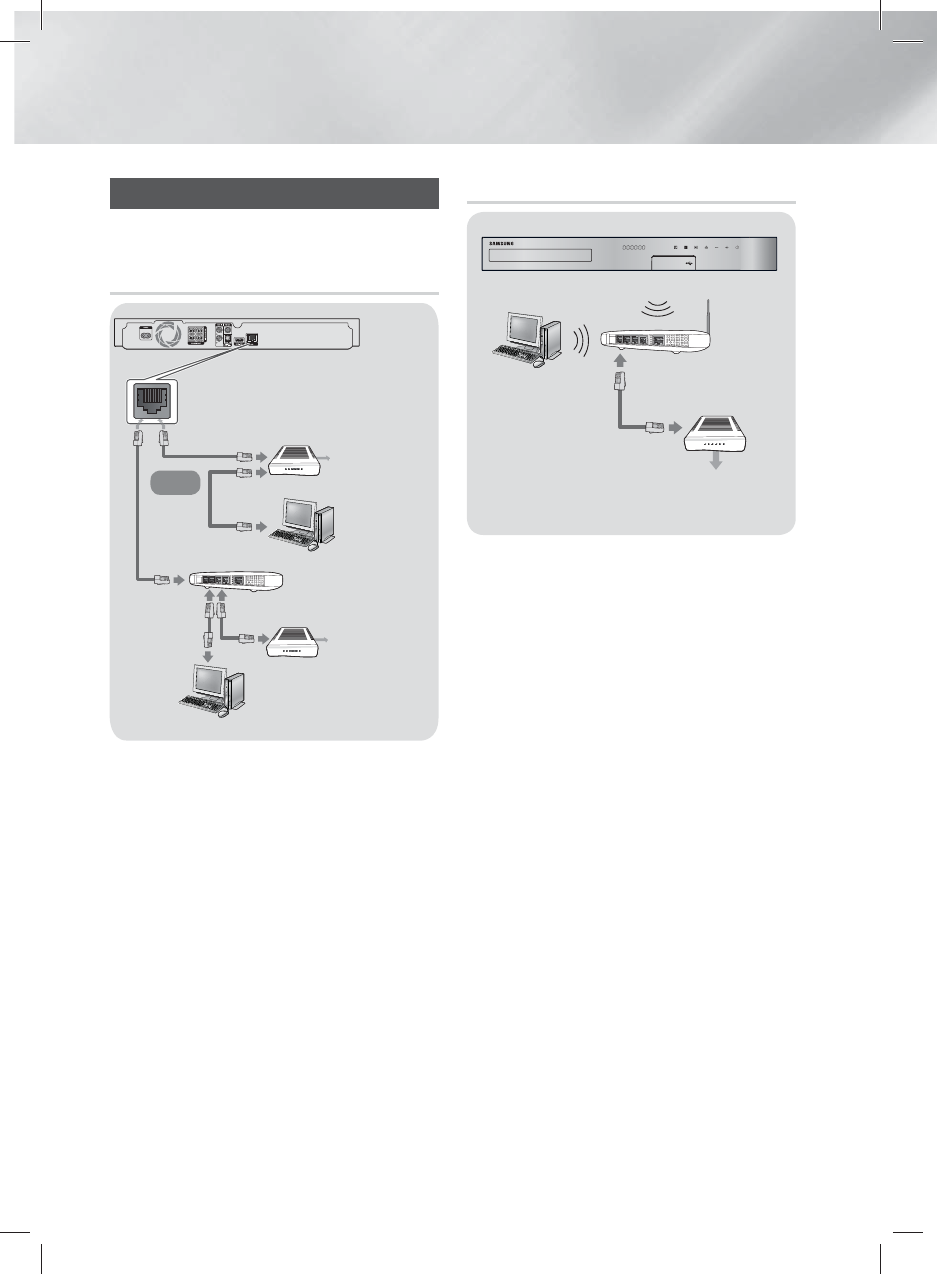

Connecting to a Network Router

You can connect your product to your network router

using one of the methods illustrated below.

Wired Network

Broadband

service

Broadband

service

Broadband modem

(with integrated router)

Broadband

modem

Router

✎Your router or your Internet Service Provider's

policies may prevent the product from accessing

Samsung's software update server. If this occurs,

contact your Internet Service Provider (ISP) for

more information.

✎ DSL users, please use a router to make a network

connection.

✎ To use the DLNA function, you must connect your

PC to your network as shown in the illustrations

above.

The connection can be wired or wireless.

Wireless Network

Broadband

service

Wireless IP sharer

✎ If your wireless IP router supports DHCP, this

product can use a DHCP or static IP address to

connect to the wireless network.

✎ Set your wireless IP router to Infrastructure mode.

Ad-hoc mode is not supported.

✎ The product supports only the following wireless

security key protocols:

- WEP (OPEN/SHARED), WPA-PSK (TKIP/AES),

WPA2-PSK (TKIP/AES)

✎ Select a channel on the wireless IP router that is

not currently being used. If the channel set for

the wireless IP router is currently being used by

another device nearby, it will result in interference

and communication failure.

✎In compliance with the newest Wi-Fi certification

specifications, Samsung home cinemas do not

support WEP, TKIP, or TKIP-AES (WPS2 Mixed)

security encryption in networks running in the

802.11n mode.

✎ Wireless LAN, by its nature, may cause

interference, depending on the operating

conditions (AP performance, distance, obstacles,

interference by other radio devices, etc).

HT-H5500_00W_30_50_50W-ENG_0402.indd 14HT-H5500_00W_30_50_50W-ENG_0402.indd 14 2014-04-02  1:07:402014-04-02  1:07:40

15 - English

Settings

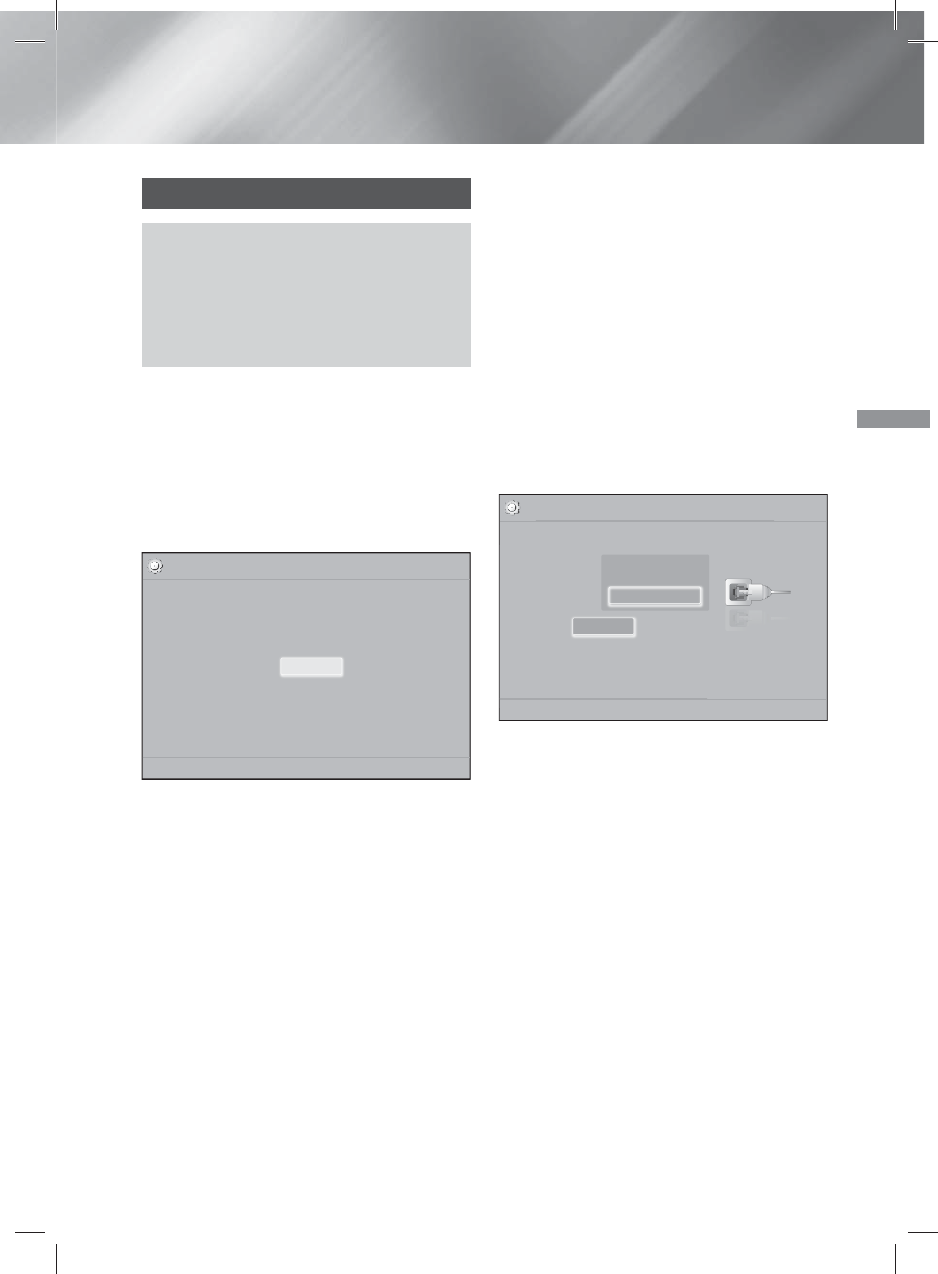

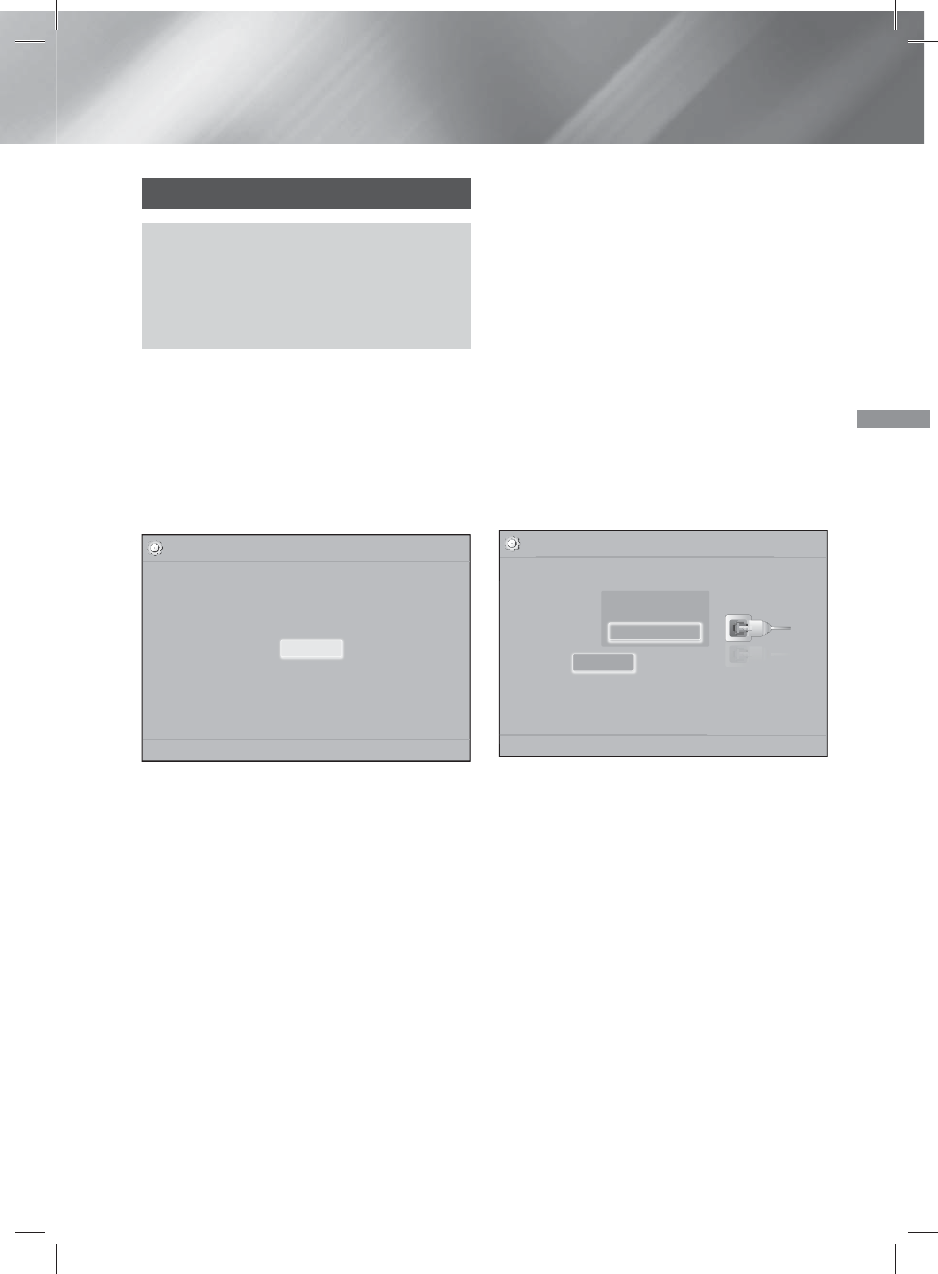

The Initial Settings Procedure

• The Home menu will not appear if you do not

configure the initial settings.

• The OSD (On Screen Display) may change in

this product after you upgrade the software

version.

• The access steps may differ depending on the

menu you selected.

1. Turn on your TV after connecting the product,

and then turn on the product. When you turn

on the product for the first time, the product

automatically displays the Initial Settings

Language screen.

2. Press the ▲▼ buttons to select the desired

language, and then press the E button.

3. Press the E button to start function setup.

Initial Settings

TV Aspect and Network will be set.

Each setting may be changed later under "Settings"

a Previous " Select

Start

4. The TV Aspect screen appears. Press the ▲▼

buttons to select a TV aspect ratio, and then

press the E button.

You have four choices:

16:9 Original - For widescreen TVs. Displays

widescreen pictures in their original 16:9 format

and 4:3 pictures (the old, standard format) in 4:3

pillar box format with black bars on the left and

right.

16:9 Full - For widescreen TVs. Displays

widescreen pictures in their original 16:9 format

and expands 4:3 pictures to fill the 16:9 screen.

4:3 Letter Box - For older, standard screen,

analogue TVs. Displays 4:3 pictures in full screen

and 16:9 pictures in letter box format that retains

the 16:9 aspect ratio but puts black bars above

and below the picture.

4:3 Pan-Scan - For older, standard screen,

analogue TVs. Displays 4:3 pictures in full screen

and 16:9 pictures in Pan-Scan format that fills

the screen, but cuts off the left and right sides of

the picture and enlarges the middle vertically.

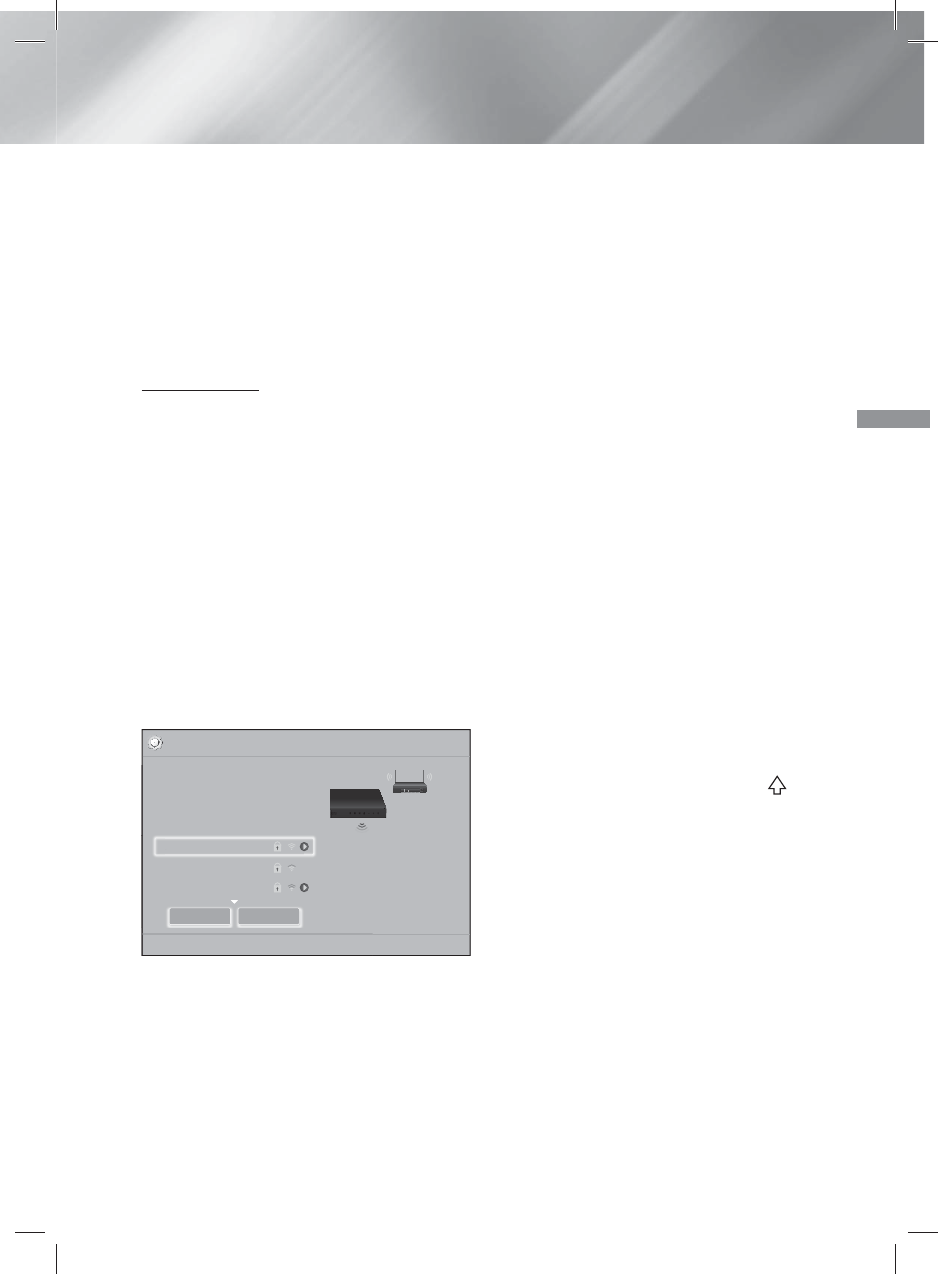

5. The Network screen appears.

- Before you begin, confirm that the product is

connected to your router.

- Set to wired or wireless depending on your

network environment.

- If you have a network with static IP addresses,

we suggest you select Skip by pressing the

BLUE (D) button.

✎If you skip network setup here or the setup does

not work correctly, you can set up the product's

network connection later. (See page 20)

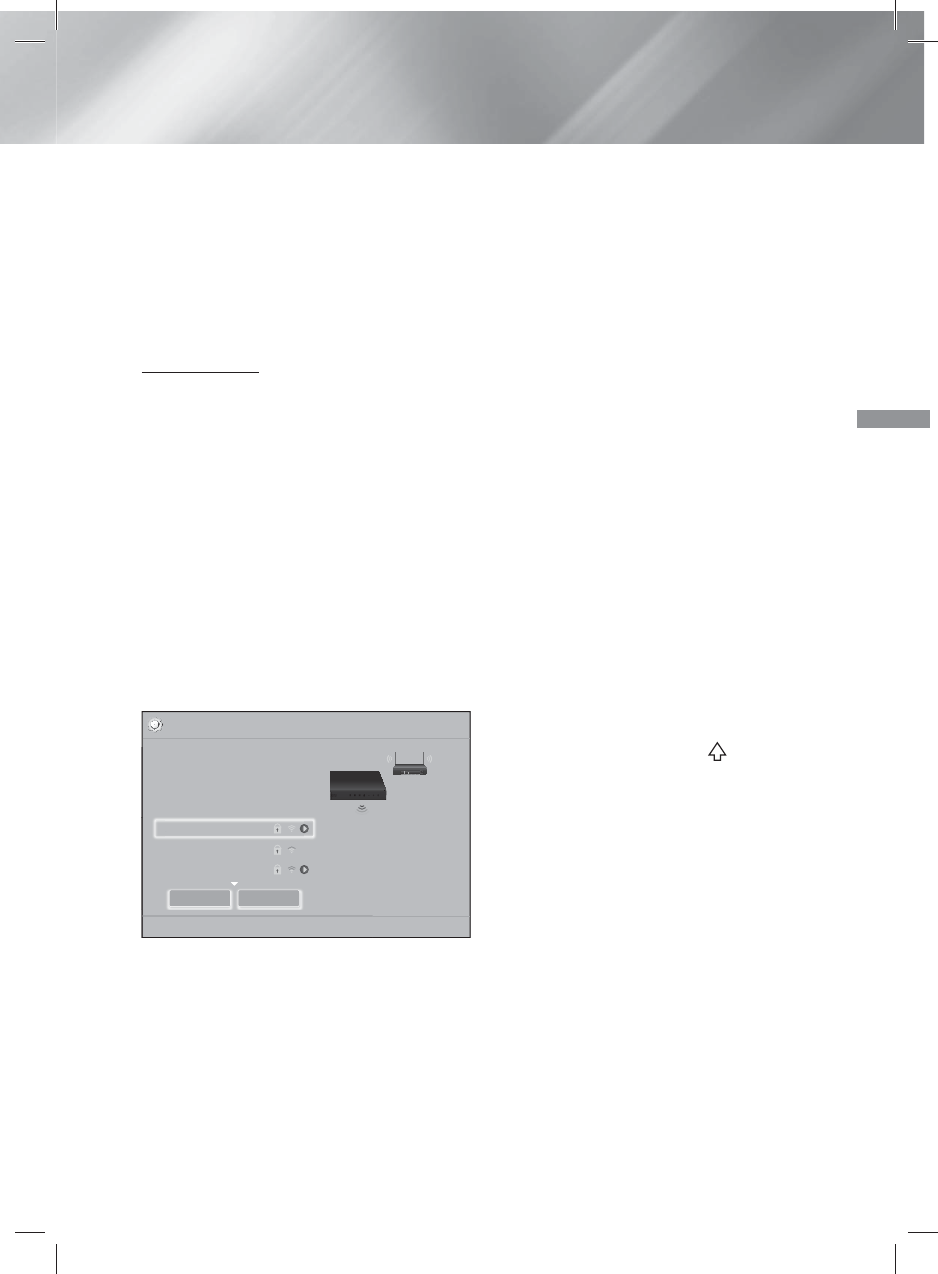

㾎

Initial Settings | Network

Select your network type.

Network Type

Network cable connected.

Wireless

Wired

Connect

6. The product verifies the network connection

and then connects to the network. When it is

done, press the E button. The "Initial settings

completed." screen appears, and then the

Home screen appears.

✎If you want to display the Initial Settings screen

again and make changes, select the Reset

option. (See page 20)

✎If you use an HDMI cable to connect the product

to an Anynet+ (HDMI-CEC)-compliant Samsung

TV and 1.) You have set the Anynet+ (HDMI-CEC)

feature to On in both the TV and the product and

2.) You have set the TV to a language supported

by the product, the product will select that

language as the preferred language automatically.

Settings

HT-H5500_00W_30_50_50W-ENG_0402.indd 15HT-H5500_00W_30_50_50W-ENG_0402.indd 15 2014-04-02  1:07:422014-04-02  1:07:42

16 - English

Settings

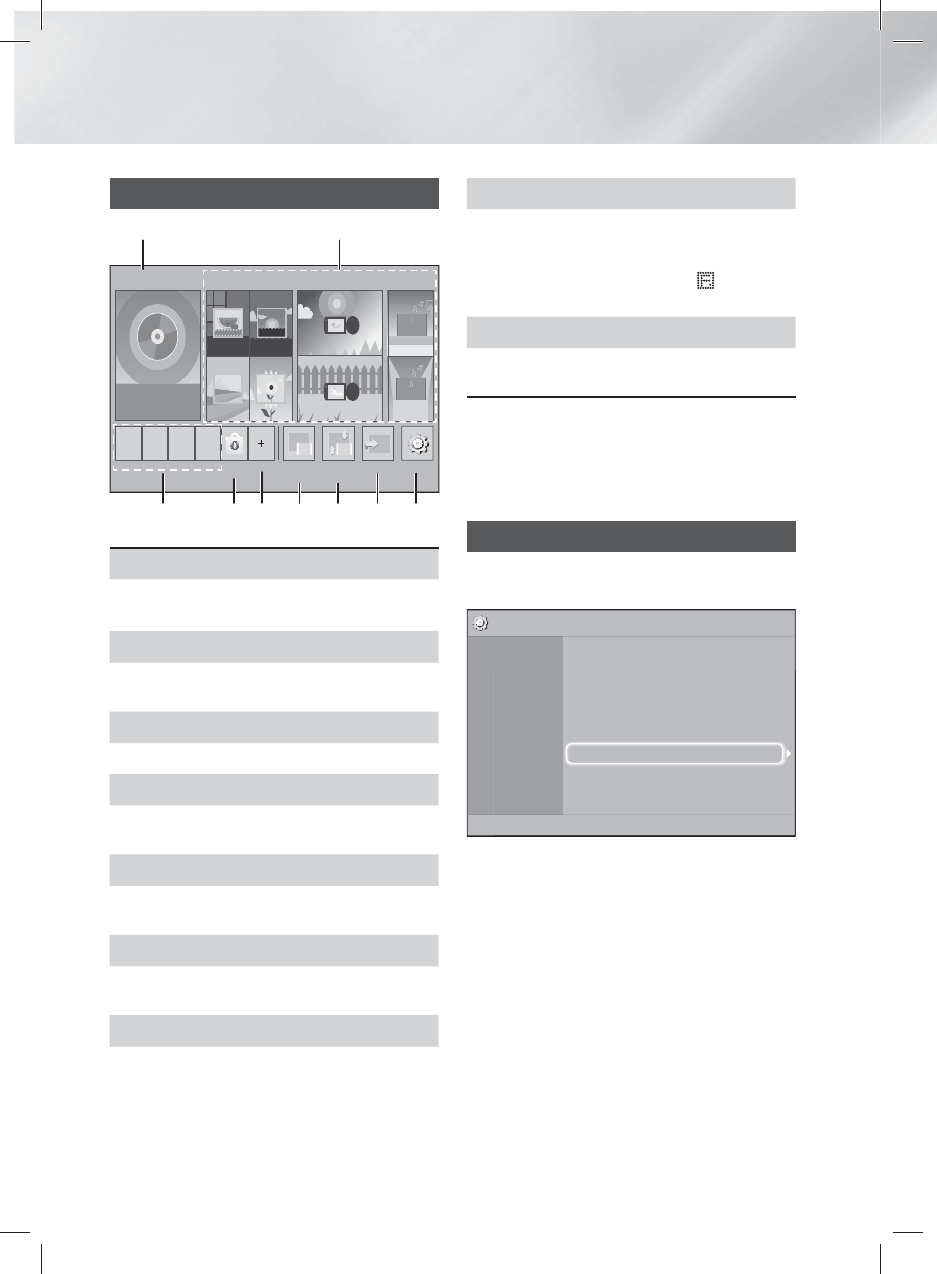

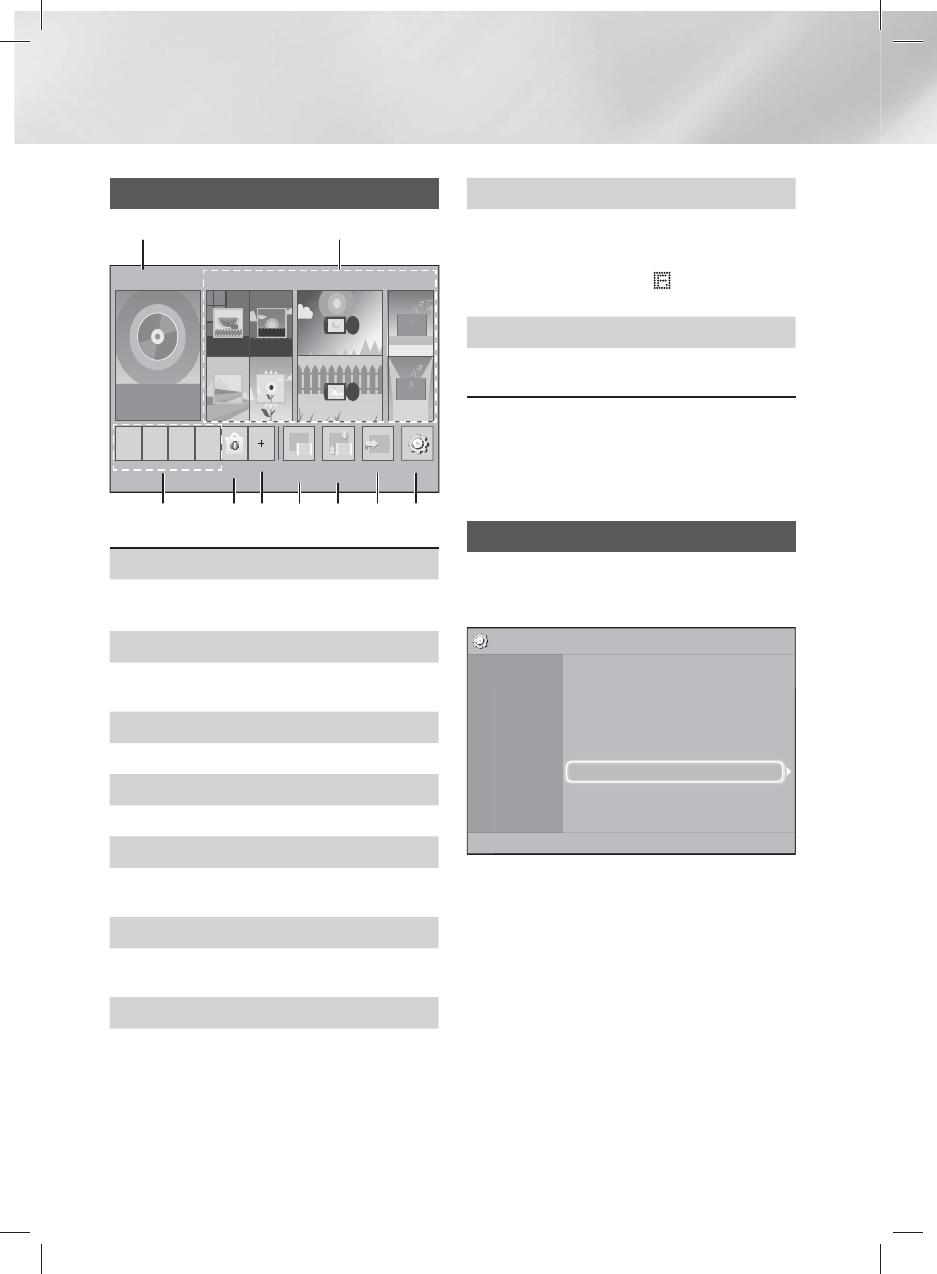

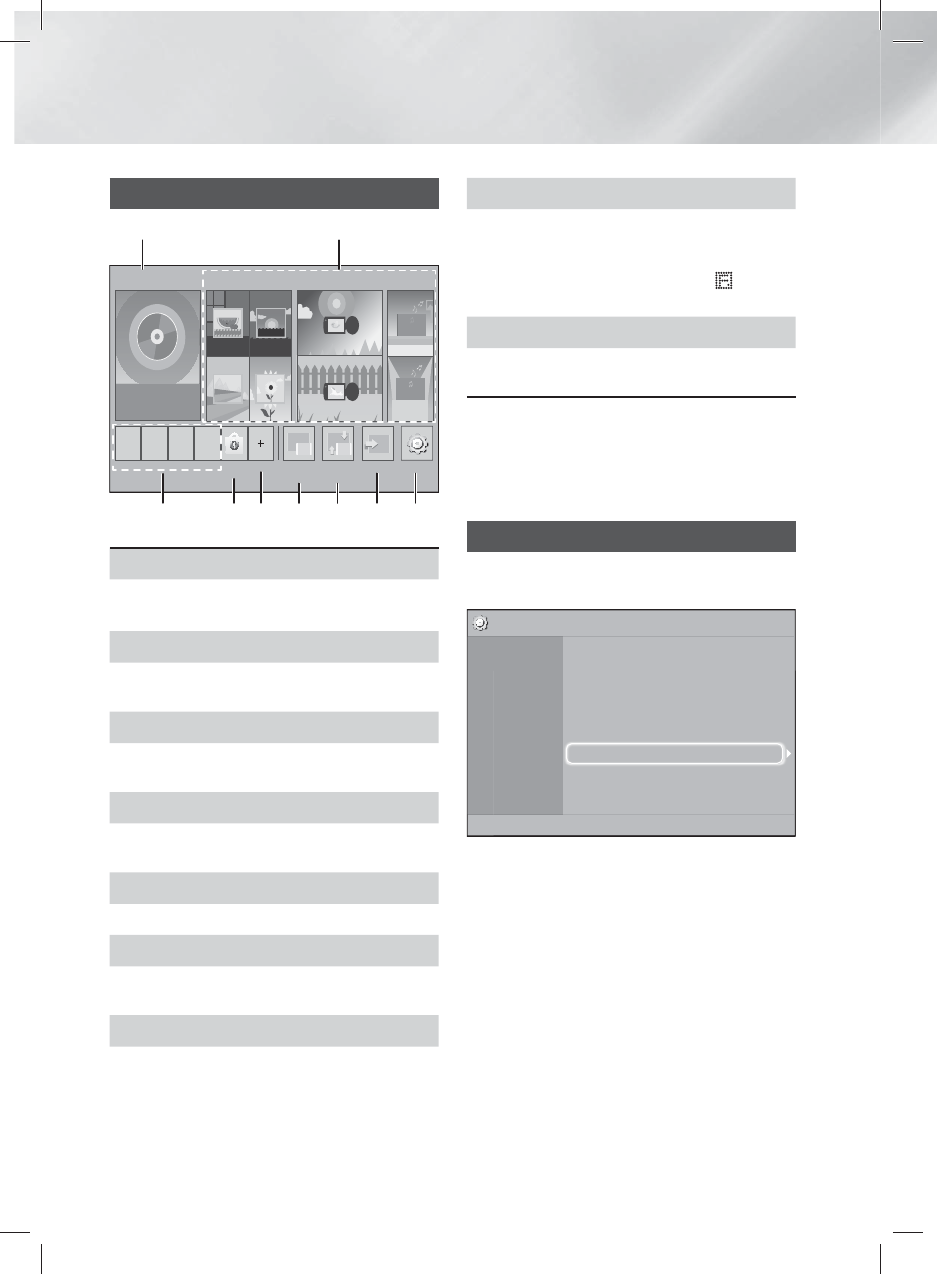

The Home Screen at a Glance

Play disc

App 1 App 2 App 3 App 4

Screen

Mirroring

Change

Device

Function

Blu-ray

Settings

Photos Videos Music

3456789

Opera TV

Store

Play disc

The disc currently in the tray is displayed.

Press E to start playing the disc.

2 Photos/Videos/Music

Play photos, videos, or music content from Disc,

USB, PC, or mobile devices.

Apps

Access various for pay or free-of-charge

applications.

Opera TV Store

Makes the Web-based App for TV available for

use.

A list of useful and popular apps we recommend.

Screen Mirroring

Set up the wireless mirroring function between

the home cinema and a smart phone or tablet.

Change Device

Displays a list of external devices connected to the

main unit. Switch to the desired device.

Function

Use for switching to an external device, and

for radio and mode switching for a Bluetooth

connection. You can use the remote control’s

FUNCTION button and the main unit’s button

for mode switching.

Settings

Set various functions to suit your personal

preferences.

✎To play or view video, photo, music files located

on your PC, you must connect your home

cinema and PC to a home network and you

must download, install, and configure the DLNA

software on your PC. (See page 25)

Accessing the Settings Screen

1. Select Settings on the Home screen, and then

press E. The Settings screen appears.

Settings

Display

Audio

Network

System

Language

Security

General

Support

3D Settings

TV Aspect Ratio : 16:9 Original

BD Wise : Off

Resolution : Auto

Movie Frame (24 fps) : Off

HDMI Colour Format : Auto

HDMI Deep Colour : Off

Progressive Mode : Auto

2. To access the menus, sub-menus, and options

on the Settings screen, please refer to the

remote control illustration. (See page 17)

✎If you leave the product in the stop mode for more

than 5 minutes without using it, a screen saver

will appears on your TV. If the product is left in the

screen saver mode for more than 20 minutes, the

power automatically turns off.

HT-H5500_00W_30_50_50W-ENG_0402.indd 16HT-H5500_00W_30_50_50W-ENG_0402.indd 16 2014-04-02  1:07:432014-04-02  1:07:43

17 - English

Settings

Buttons on the Remote Control Used

for the Settings Menu

TOOLS

RETURN

EXIT

INFO

SUBTITLE HOME

REPEAT

TUNER

HOME Button : Press to move to the Home

screen.

RETURN Button : Press to return to the

previous menu.

E (ENTER) / DIRECTION Button :

• Press ▲▼◄► to move the cursor or

select an item.

• Press the E button to activate the

currently selected item or confirm a

setting.

EXIT Button : Press to exit the current

menu.

Detailed Function Information

Each Settings function, menu item, and individual

option is explained in detail on-screen. To view an

explanation, use the ▲▼◄► buttons to select the

function, menu item, or option. The explanation will

usually appear on the bottom of the screen.

A short description of each Settings function starts

on this page. Additional information on some of the

functions is also in the Appendix of this manual.

Settings Menu Functions

Display

3D Settings

Set up the 3D related functions.



3D Blu-ray Playback Mode: Select whether to

play a Blu-ray Disc with 3D contents in 3D Mode.

If you move to the Home menu while in 3D mode,

the product will switch to 2D automatically.



Screen Size: Enter the size of the TV attached to

the product. The product will automatically adjust

the 3D output to the screen size of the TV.

✎

Carefully read the health and safety information

before viewing 3D content. (See page 3)

TV Aspect Ratio

Lets you adjust the output of the product to the

screen size of your TV. (See page 40)

BD Wise

BD Wise is Samsung’s latest inter-connectivity

feature. When you connect a Samsung product

and a Samsung TV with BD Wise to each other

via HDMI, and BD Wise is on in both the product

and TV, the product outputs video at the video

resolution and frame rate of the Blu-ray/DVD Disc.

Resolution

Lets you set the output resolution of the HDMI

video signal to BD Wise, Auto, 1080p, 1080i,

720p, 576p/480p. The number indicates the

number of lines of video per frame. The i and

p indicate interlaced and progressive scan,

respectively. The more lines, the higher quality.

Movie Frame (24 fps)

Setting the Movie Frame (24 fps) feature to

Auto lets the product adjust its HDMI output to

24 frames per second automatically for improved

picture quality if attached to a 24Fs compatible TV.

• You can enjoy the Movie Frame (24 fps) feature

only on a TV supporting this frame rate.

• Movie Frame is only available when the product

is in the HDMI 1080p output resolution modes.

HT-H5500_00W_30_50_50W-ENG_0402.indd 17HT-H5500_00W_30_50_50W-ENG_0402.indd 17 2014-04-02  1:07:442014-04-02  1:07:44

18 - English

Settings

HDMI Colour Format

Lets you set the colour space format for the HDMI

output to match the capabilities of the connected

device (TV, monitor, etc).

HDMI Deep Colour

Lets you set the product to output video from the

HDMI OUT jack with Deep Colour. Deep Colour

provides more accurate colour reproduction with

greater colour depth.

Progressive Mode

Lets you improve picture quality when viewing

DVDs.

Audio

Speaker Settings

Lets you adjust the following speaker settings and

turn the test tone on and off so you can test the

speakers.

Level

: Lets you adjust the relative loudness of

each speaker from 6dB to -6dB. For example, if

you like deep bass, you can increase the loudness

of the subwoofer by 6dB.

Distance

: Lets you adjust the relative distance

of each speaker from the listening position up to

9 meters. The farther the distance, the louder the

speaker will be.

Test Tone

: Lets you run the Test Tone function so

you can test your adjustments. Setting Test Tone

to On turns the Test Tone on. Setting it to Off turns

it off.

Speaker Selection

Lets you select which speakers you want active,

either the TV's speakers or the home cinema's

speakers.

Audio Return Channel

Lets you direct the sound from the TV to the Home

Cinema speakers. Requires an HDMI connection and

an Audio Return Channel (ARC) compatible TV.

• If Audio Return Channel is set to on and you

are using an HDMI cable to connect the product

to the TV, digital optical input will not work.

• If Audio Return Channel is set to Auto and you

are using an HDMI cable to connect the product

to the TV, ARC or digital optical input is selected

automatically.

Digital Output

Lets you set the Digital Output to match the

capabilities of the AV receiver you’ve connected to

the product. For more details, please refer to the

digital output selection table. (See page 45)

Dynamic Range Control

Lets you apply dynamic range control to Dolby

Digital, Dolby Digital Plus, and Dolby TrueHD audio.



Auto: Automatically controls the dynamic range

of Dolby TrueHD audio, based on information in

the Dolby TrueHD soundtrack. Also turns dynamic

range control off for Dolby Digital and Dolby Digital

Plus.



Off: Leaves the dynamic range uncompressed,

letting you hear the original sound.



On: Turns dynamic range control on for all three

Dolby formats. Quieter sounds are made louder

and the volume of loud sounds is reduced.

Downmixing Mode

Lets you select the multi-channel downmix method

that is compatible with your stereo system. You

can choose to have the product downmix to

Normal Stereo or to Surround Compatible.

Audio Sync

When the product is attached to a digital TV, lets

you adjust the audio delay so that the audio syncs

with the video. You can set the delay between 0

and 300 milliseconds.

Network

Network Settings

Lets you configure the network connection so

you can enjoy various features such as Internet

services or DLNA Wi-Fi functionality, and perform

software upgrades.

Network Test

Lets you test the Internet Protocol setup to see if it

is working correctly.

Network Status

Lets you check the current network and Internet

status.

HT-H5500_00W_30_50_50W-ENG_0402.indd 18HT-H5500_00W_30_50_50W-ENG_0402.indd 18 2014-04-02  1:07:452014-04-02  1:07:45

19 - English

Settings

Wi-Fi Direct

Lets you connect a Wi-Fi Direct device to the

product using a peer-to-peer network, without the

need for a wireless router.

Note that if the product is connected to a wireless

network, it may be disconnected when you use

Wi-Fi Direct. (

See page 22)

✎

Text files, such as files with a .TXT or .DOC

extension, will not display when you are using the

Wi-Fi Direct function.

Screen Mirroring

The Screen Mirroring function lets you view the

screen of your smart phone or smart device on

the TV you have connected to the home cinema

system. (

See page 39)

Device Name

Lets you assign an identifying name to the product.

You use this name to identify the product when you

are connecting external Wi-Fi devices (smart phones,

tablets, etc.) to it.

BD-Live Internet Connection

Lets you allow or prohibit an Internet connection

for the BD-Live service.

System

Initial Settings

Lets you re-run the Initial Settings procedure. (See

page 15)

Quick start

You can turn on the power quickly by decreasing

the boot time.

✎

If this function is set to On, Standby power

consumption will be increased. (About 12W ~

20W)

Anynet+ (HDMI-CEC)

Anynet+ is a convenient function that offers linked

operations with other Samsung products that have

the Anynet+ feature and lets you control those

products with one Samsung TV remote. To operate

this function, you must connect this product to an

Anynet+ Samsung TV using a HDMI cable.

BD Data Management

Lets you manage the contents you downloaded

through a Blu-ray disc that supports the BD-Live

service. You can view the information about the

USB device you are using for BD Live data storage

including the storage space. You can also delete

BD Live data and change the device.

DivX® Video On Demand

View DivX® VOD Registration Codes to purchase

and play DivX® VOD contents.

Language

Lets you select the language you prefer for the On-

Screen Menu, disc menu, etc.

• The selected language will only appear if it is

supported on the disc.

Security

The default PIN is 0000. Enter the default PIN to

access the security function if you haven't created

your own PIN.

BD Parental Rating

Prevents playback of Blu-ray Discs with a rating

equal to or above a specific age rating unless you

enter the PIN.

DVD Parental Rating

Prevents playback of DVDs with a rating above a

specific numerical rating unless you enter the PIN.

Change PIN

Changes the 4-digit PIN used to access security

functions.

General

Time Zone

Lets you specify the time zone that is applicable to

your area.

HT-H5500_00W_30_50_50W-ENG_0402.indd 19HT-H5500_00W_30_50_50W-ENG_0402.indd 19 2014-04-02  1:07:452014-04-02  1:07:45

20 - English

Settings

Support

Software Upgrade

For more information about this function see page

23.

Contact Samsung

Provides contact information for assistance with

your product.

View the general disclaimer regarding third party

contents and services.

Reset

Reverts all settings to their defaults except for the

network. Requires that you enter your security PIN.

The default security PIN is 0000.

Network Setup

When you connect this product to a network, you

can use network based applications and functions

such as BD-LIVE and upgrade the product's software

through the network connection.

Configuring Your Network Connection

To begin configuring your network connection, follow

these steps:

1. In the Home screen, select Settings, and then

press the E button.

2. Select Network, and then press the E button.

3. Select Network Settings, and then press the

E button.

4. Go to the instructions for Wired networks

starting below or the instructions for Wireless

networks. (See page 21)

Wired Network

 Wired – Automatic

After following Steps 1 to 3 above:

1. In the Network Settings screen, change

Network Type to Wired. Then, select Connect

and press the E button. The product detects

the wired connection, verifies the network

connection, and then connects to the network.

2. When it is done, highlight OK, and then press

E button.

 Wired - Manual

If you have a static IP address or the automatic

procedure does not work, you'll need to set the

Network Settings values manually.

After following Steps 1 to 3 above:

1. In the Network Settings screen, change

Network Type to Wired. Then, select Connect

and press the E button.

The product searches for a network, and then

displays the connection failed message.

✎If it is possible to connect the home cinema to

your network wirelessly, select Change Network

at this point, change the Network Type to

Wireless, and then go to the instructions for

wireless networks. (See page 21)

Network Settings

MAC Address XX:XX:XX:XX:XX:XX

IP Address 0. 0. 0. 0

Subnet Mask 0. 0. 0. 0

Gateway 0. 0. 0. 0

DNS Server 0. 0. 0. 0

a Previous d Skip < Move " Select

IP auto setting failed. Try the following to set up the IP automatically, or set up the IP manually

by selecting IP Settings.

Ensure that the DHCP server is enabled on the wireless network, then unplug and plug the wireless

network in again.

- Contact your internet service provider for more info.

Wired network connection failed.

Change Network IP Settings Retry Close

2. Use the ◄► buttons to select IP Settings,

and then press the E button. The IP Settings

screen appears.

3. Select the IP setting field, and then set it to

Enter manually.

4. Select a parameter to enter (IP Address, for

example), and then press E. Use the number

keypad on your remote control to enter the

numbers for the parameter. You can also enter

numbers using the ▲▼ buttons. Use the ◄►

buttons on the remote control to move from

entry field to entry field within a parameter. When

done with one parameter, press the E button.

5. Press the ▲ or ▼ button to move to another

parameter, and then enter the numbers for that

parameter following the instructions in Step 4.

HT-H5500_00W_30_50_50W-ENG_0402.indd 20HT-H5500_00W_30_50_50W-ENG_0402.indd 20 2014-04-02  1:07:452014-04-02  1:07:45

21 - English

Settings

6. Repeat Steps 4 and 5 until you have filled in all

parameters.

✎You can get the network parameter values from

your Internet provider.

7. When finished entering all the parameter values,

select Return ('), and then press the E

button. The home cinema verifies the network

connection and then connects to the network.

Wireless Network

You can set up a wireless network connection in three

ways:

- Wireless Automatic

- Wireless Manual

- WPS(PBC)

Before you configure the wireless network

connection, disconnect any wireless network devices

currently connected to the product or, if applicable,

the product's current wired connection.

 Wireless - Automatic

Follow the Steps 1 to 3 in "Configuring Your Network

Connection". (See page 20)

1. In the Network Settings screen, change

Network Type to Wireless. The product

searches for and then displays a list of the

available networks.

㾎

Network Settings

Select your network type.

Network Type Wireless

Wireless network

m Move " Select ' Return

You can connect your BD

Home Theater to the

internet. Please select which

wireless network to use.

WPS(PBC) Search

si-ap

MIC

KIMING_VTOWER

2. Select the desired network, and then press the

E button.

3. On the Security screen, enter your network's

security code or pass phrase.

Enter numbers directly using the number buttons

on your remote control. Enter letters by selecting

a letter with ▲▼◄► buttons, and then pressing

E button.

4. When finished, select Done, and then press the

E button. The product verifies the network

connection and then connects to the network.

✎You should be able to find the security code or

pass phrase on one of the set up screens you

used to set up your router or modem.

 Wireless - Manual

If you have a static IP address or the Automatic

procedure does not work, you'll need to set the

Network Settings values manually.

Follow the Steps 1 to 3 in "Configuring Your Network

Connection". (See page 20)

1. In the Network Settings screen, change

Network Type to Wireless. The product

searches for and then displays a list of the

available networks.

2. Scroll through the list, select the desired network

or Add Network, and then press the E button.

3. If you selected a network in Step 2, go to Step 6.

If you selected Add Network, go to Step 4.

4. Enter your wireless network or wireless router's

name.

• Enter numbers directly using the number

buttons on your remote control.

• Enter letters by selecting a letter with the

▲▼◄► buttons, and then pressing the E

button.

• To display capital letters (or redisplay lower

case letters if capital letters are displayed),

select , and then press the E button.

• To display symbols and punctuation, select

123#&, and then press the E button. To

redisplay letters, select 123#&, and then press

the E button.

When finished, select Done, and then press the

E button.

5. On the Security method screen that appears,

use the ▲▼ buttons to select the network's

Security method, and then press the E button.

On the next screen, enter your network's

security code or pass phrase.

• Enter numbers directly using the number

buttons on your remote control.

• Enter letters by selecting a letter with the

▲▼◄► buttons, and then pressing the E

button.

HT-H5500_00W_30_50_50W-ENG_0402.indd 21HT-H5500_00W_30_50_50W-ENG_0402.indd 21 2014-04-02  1:07:462014-04-02  1:07:46

22 - English

Settings

When finished, select Done, and then press

the E button. The product searches for the

network.

6. The Network connection fail screen appears.

Use ◄► buttons to select IP Settings, and

then press the E button.

7. Select the IP setting field, and then set it to

Enter manually.

8. Select a network parameter to enter (IP

Address, for example), and then press E

button. Use the number keypad on your remote

control to enter the numbers for the parameter.

You can also enter numbers using the ▲▼

buttons. Use the ◄► buttons on the remote

control to move from entry field to entry field

within a parameter. When done with one value,

press the E button.

9. Press the ▲ or ▼ button to move to another

parameter, and then enter the numbers for that

parameter following the instructions in Step 8.

10. Repeat Steps 8 and 9 until you have filled in all

parameters.

✎You can get the Network parameter values from

your Internet provider.

11. When finished, select Return ('), and then

press the E button. The Security Key screen

appears.

12. On the Security Key screen, enter your

network's Security Code or Pass Phrase. Enter

numbers directly using the number buttons on

your remote control. Enter letters by selecting

a letter with the ▲▼◄► buttons, and then

pressing the E button.

13. When finished, select Done at the right of the

screen, and then press the E button. The

product verifies the network connection and

then connects to the network.

14. After the home cinema verifies the network,

select OK, and then press the E button.

✎You can also begin the Manual Network setup by

going to Settings > Network > Network Status.

 WPS(PBC)

One of the easiest ways to set up the wireless

network connection is using the WPS(PBC) function.

If your wireless router has a WPS(PBC) button, follow

these steps:

Follow the Steps 1 to 3 in "Configuring Your Network

Connection". (See page 20)

1. In the Network Settings screen, change

Network Type to Wireless. The product

searches for and then displays a list of the

available networks.

2. Scroll the list down, select WPS(PBC), and then

press the E button.

3. Press the WPS(PBC) button on your router

within two minutes. Your product automatically

acquires all the network settings values it needs

and connects to your network after the network

connection is verified.

4. When it is done, highlight OK, and then press

the E button.

✎ For a WPS connection, set your wireless router’s

security encryption to AES. WEP security

encryption does not support a WPS connection.

Wi-Fi Direct

The Wi-Fi Direct function allows you to connect Wi-

Fi Direct devices to the product and each other using

a peer-to-peer network, without a wireless router.

✎Some Wi-Fi Direct devices may not support the

DLNA function if connected via Wi-Fi Direct. If

this is the case, change the network connection

method you used to connect the device to the

home cinema.

✎Wi-Fi Direct transmissions can interfere with

Bluetooth signals. Before you use the Bluetooth

function, we strongly recommend that you turn off

the Wi-Fi Direct function on any device in which

it is currently on.

1. Turn on the Wi-Fi Direct device and activate its

Wi-Fi Direct function.

2. In the Home screen, select Settings, and then

press the E button.

3. Select Network, and then press the E button.

HT-H5500_00W_30_50_50W-ENG_0402.indd 22HT-H5500_00W_30_50_50W-ENG_0402.indd 22 2014-04-02  1:07:462014-04-02  1:07:46

23 - English

Settings

4. Select Wi-Fi Direct, and then press the E

button.

The Wi-Fi Direct devices that you can connect

to appear.

Settings

Display

Audio

Network

System

Language

Security

General

Support

Wi-Fi Direct

Device Name : HT-H5500

Select your Wi-Fi Direct device to connect to.

AndroidXXXXXXX Not Connected

Refresh

5. You have three ways to complete the Wi-Fi

connection:

• Through the Wi-Fi device.

• Through the product using PBC.

• Through the product using a PIN.

Each is covered below.

Through the Wi-Fi Device

1. On the Wi-Fi device, follow the device's

procedure for connecting to another Wi-Fi

Direct device. See the device's user manual for

instructions.

2. When you have completed the procedure, you

should see a pop-up on your TV screen saying

that a device that supports Wi-Fi Direct has

requested to connect. Select OK, and then

press the E button to accept.

3. The Connecting pop-up appears, followed by

the Connected pop-up. When it closes, you

should see the device listed on the Wi-Fi Direct

screen as connected.

• The PBC and PIN procedures connect devices

automatically.

Through the Product Using PBC

1. Select the Wi-Fi Direct device you want to

connect to this product, and then press the E

button.

2. The Connecting pop-up appears, followed by

the Connected pop-up. When it closes, you

should see the device listed on the Wi-Fi Direct

screen as connected.

Through the Product Using a PIN

1. Select the Wi-Fi Direct device you want to

connect to this product, and then press the E

button.

2. The PIN pop-up appears.

3. Note the PIN code in the pop-up, and then enter

it into the appropriate field in the Wi-Fi Direct

device you want to connect.

4. The Connecting pop-up appears, followed by

the Connected pop-up. When it closes, you

should see the device listed on the Wi-Fi Direct

screen as connected.

✎The current wired or wireless network connection

will be disconnected when you use the Wi-Fi

Direct function.

✎

Text files, such as files with a .TXT or .DOC

extension, will not display when you are using the

Wi-Fi Direct

function.

Upgrading Software

The Software Upgrade menu allows you to upgrade

the product’s software for performance improvements

or additional services.

• Never turn the product off or back on manually

during the update process.

• The update is complete when the product turns

off after restarting. Press the POWER button to

turn on the updated product for your use.

• Samsung Electronics takes no legal

responsibility for product malfunction caused by

an unstable Internet connection or consumer

negligence during a software upgrade.

1. In the Home menu, select Settings, and then

press the E button.

2. Select Support, and then press the E button.

3. Select Software Upgrade, and then press the

E button.

HT-H5500_00W_30_50_50W-ENG_0402.indd 23HT-H5500_00W_30_50_50W-ENG_0402.indd 23 2014-04-02  1:07:472014-04-02  1:07:47

24 - English

Settings

4. Select one of the following methods:

• By Online

• By USB

• Auto Upgrade Notification

5. Press the E button.

Directions for each method begin below.

✎If you want to cancel the upgrade while the

upgrade software is downloading, press the E

button.

By Online

Your product must be connected to the Internet to

use the By Online function. Remove all discs before

you begin.

1. Select By Online, and then press the E

button. The Connecting to Server message

appears.

2. If an update is available, a popup message

appears asking if you want to upgrade. If you

select Yes, the product turns off automatically,

turns on, and then begins the upgrade.

3. The update progress popup appears. When

the update is completed, the product turns off

automatically again.

4. Press the POWER button to turn on the

product.

By USB

1. Visit www.samsung.com.

2. Click SUPPORT on the top right of the page.

3. Enter the product's model number into the

search field. As you enter the model number, a

drop down will display products that match the

model number.

4. Left click your product's model number in the

drop down list.

5. On the page that appears, scroll down to and

then click Firmware Manuals & Downloads.

6. Click Firmware in the centre of the page.

7. Click the ZIP icon in the File column on the right

side of the page.

8. Click Send in the first pop-up that appears.

Click OK in the second pop-up to download and

save the firmware file to your PC.

9. Unzip the zip archive to your computer. You

should have a single folder with the same name

as the zip file.

10. Copy the folder to a USB flash drive.

11. Make sure no disc is inserted in the product,

and then insert the USB flash drive into the USB

port of the product.

12. In the product’s menu, go to Settings >

Support > Software Upgrade.

13. Select By USB.

14. The home cinema searches for the software on

the USB drive. When it finds the software, the

Update Request pop-up appears.

15. Select OK. The home cinema turns off, turns on,

and then begins the upgrade. When the upgrade

is done, the home cinema turns off.

16. Press the POWER button to turn on the home

cinema.

✎There should be no disc in the product when you

upgrade the software using the USB Host jack.

✎When the software upgrade is done, check the

software details in the Software Upgrade menu.

Auto Upgrade Notification

If your product is connected to the network and you

set Auto Upgrade Notification on, the product will

notify you if a new software version is available with a

pop-up message.

1. Turn on the product.

2. In the Software Upgrade menu, set Auto

Upgrade Notification to On.

If there is a new software version available, the

product will notify you with a pop-up message.

3. To upgrade the firmware, select Yes. The

product turns off automatically, turns on, and

then begins the upgrade.

4. The update progress popup will appear. When

the update is complete, the product will turn off

automatically again.

5. Press the POWER button to turn on the

product.

HT-H5500_00W_30_50_50W-ENG_0402.indd 24HT-H5500_00W_30_50_50W-ENG_0402.indd 24 2014-04-02  1:07:472014-04-02  1:07:47

25 - English

Settings

Setting Up DLNA

DLNA enables you to play music, video, and photo

files located in your PC using this product. To use

DLNA, you must connect the product to your PC via

the network (See page 14) and install the SAMSUNG

PC Share Manager on the PC.

To Download the DLNA Software

To use DLNA with your PC, you must install DLNA

software on your PC. You can download the PC

software and get detailed instructions for using DLNA

from the Samsung.com website.

1. Go to www.samsung.com.

2. Click SUPPORT at the top of the page.

3. Enter the product's model number into the

search field. As you enter the model number, a

drop down will display products that match the

model number.

4. Left click your product's model number in the

drop down list.

5. On the page that appears, scroll down to and

then click Firmware Manuals & Downloads.

6. Click the Software tab.

7. On the software tab, click the EXE icon on the

right side of the DLNA line.

8. In the first pop-up that appears, click Send. In

the second pop-up, click Save File.

9. Find the DLNA install file on your disk, and then

double click the file.

10. In the pop-up that appears, click Run, and then

follow the directions that appear on your screen.

Download the DLNA Installation/Instruction manual

from the same Software Tab by clicking the

corresponding PDF file symbol in the File column on

the right. The file, in PDF format, will download and

open. Follow the directions to install and setup DLNA.

You can view and/or save the file.

✎To use DLNA with your smart phone, you need to

connect your home cinema and smart phone to

the same network.

HT-H5500_00W_30_50_50W-ENG_0402.indd 25HT-H5500_00W_30_50_50W-ENG_0402.indd 25 2014-04-02  1:07:472014-04-02  1:07:47

26 - English

Playing Content

Your home cinema can play content located on

Blu-ray/DVD/CD discs, USB devices, PCs, smart

phones, tablets, and in Apps.

To play content located on your PC or a mobile

device, you must connect the PC or mobile device

and the product to your network. To play content on

your PC, you must also download and install DLNA

network software or already have DLNA network

software on your PC.

✎PCs running Windows 7 and Windows 8 have

DLNA software (Play To) built in.

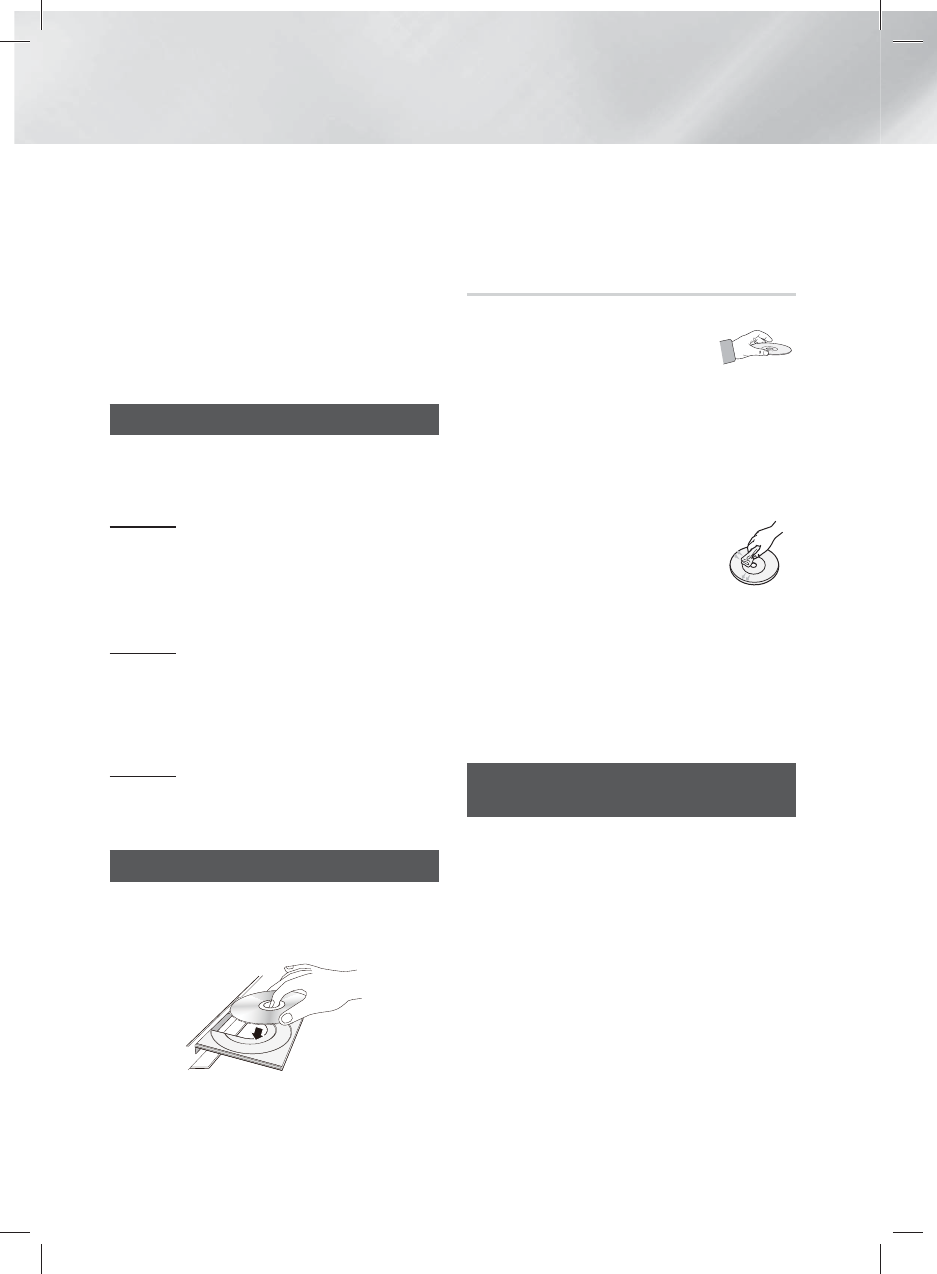

Switching the Source Device

If two or more external devices are connected to

the main unit, you can use any of the three methods

described below to change the source device.

Method 1

From the Home screen, use the ▲▼◄► buttons to

move to Change Device, and then press E.

The Change Device popup window will appear. Use

the ▲▼ buttons to move to the desired device, and

then press E.

Method 2

If you move to Photos, Videos, Music or other file-

based contents, a list of folders and files will appear.

Press the RED (A) button to display the Change

Device popup window, use the ▲▼ buttons to move

to the desired device, and then press E.

Method 3

When a device is connected for the first time, a

popup window appears on which you can change

the source device by using the ◄► buttons.

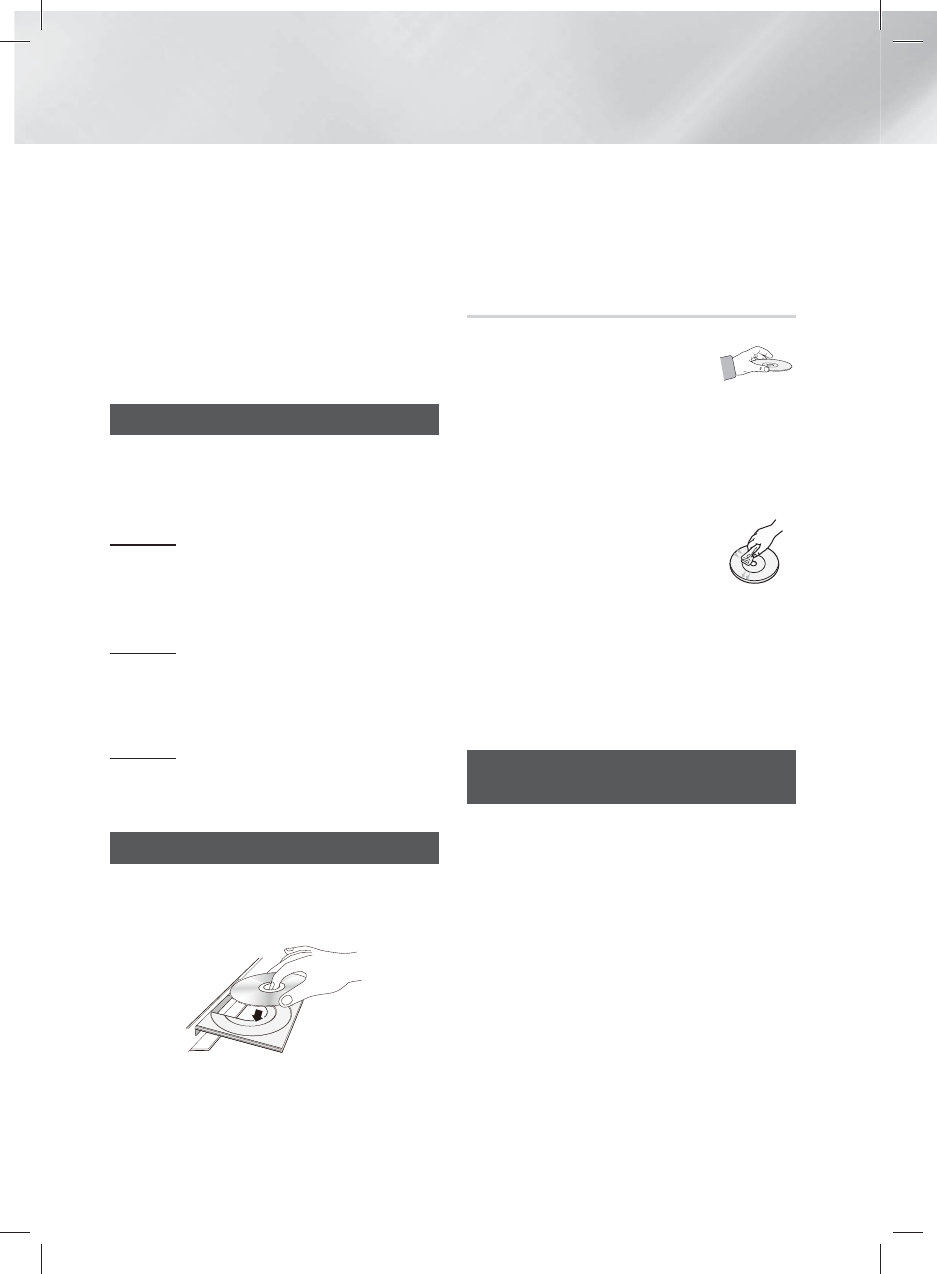

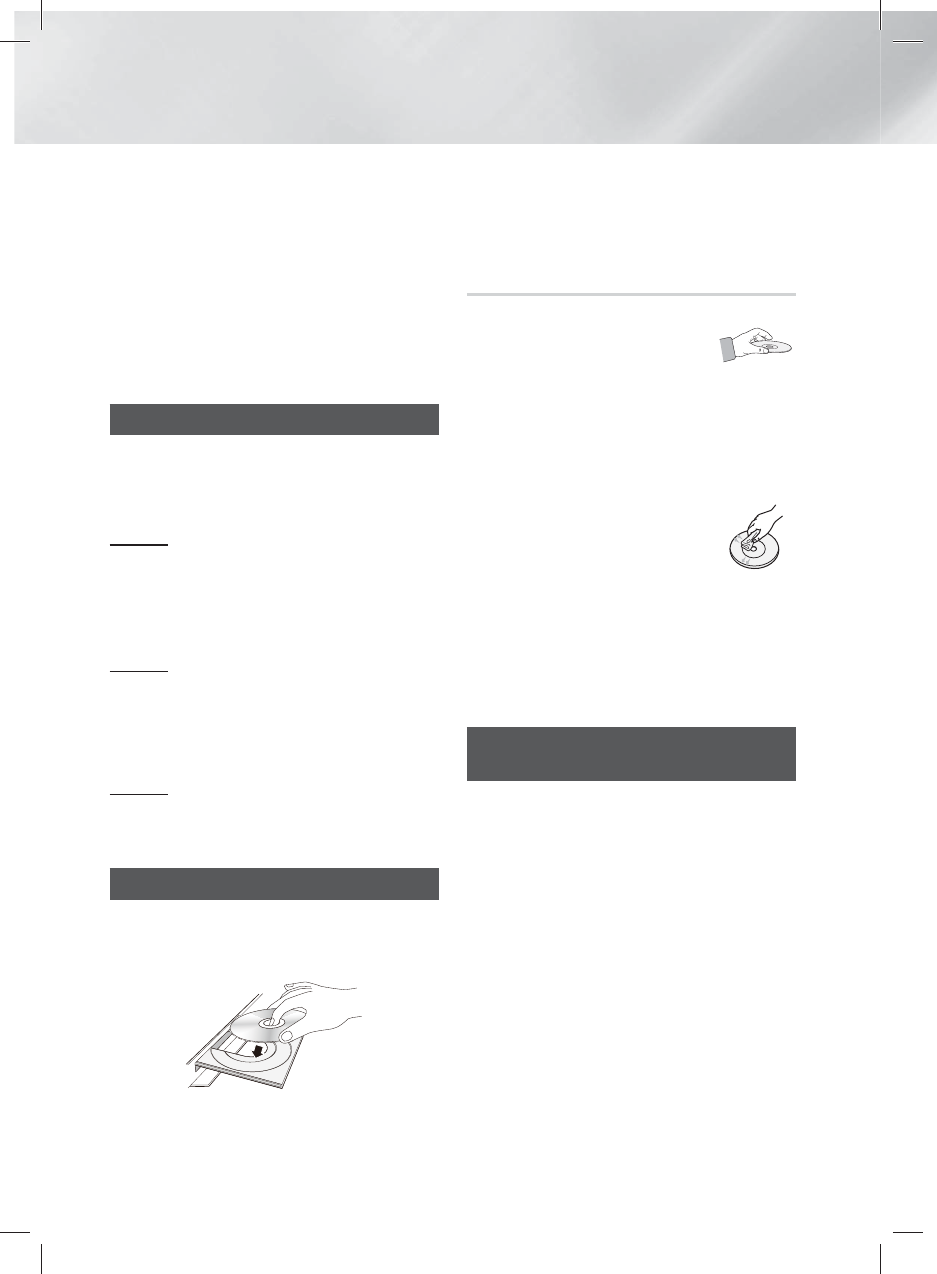

Playing Commercial Discs

1. Press the  button to open the disc tray.

2. Place a disc gently into the disc tray with the

disc’s label facing up.

3. Press the  button to close the disc tray.

Playback starts automatically.

4. If playback does not start automatically, press

the 6 button on the remote.

Disc Storage & Management

• Holding Discs

- Fingerprints or scratches on

a disc may reduce sound and

picture quality or cause skipping.

- Avoid touching the surface of a

disc where data has been recorded.

- Hold the disc by the edges so that fingerprints

will not get on the surface.

- Do not stick paper or tape on the disc.

• Cleaning Discs

- If you get fingerprints or dirt on a

disc, clean it with a mild detergent

diluted in water and wipe with a soft

cloth.

- When cleaning, wipe gently from the

inside to the outside of the disc.

- Disc Storage

Do not keep in direct sunlight.

Keep in a cool ventilated area.

Keep in a clean protective jacket and store

vertically.

Playing a Disc with User Recorded

Content

You can play multimedia files you have recorded on

Blu-ray, DVD, or CD discs.

1. Place a user recorded disc into the disc tray with

the disc’s label facing up, and then close the

tray.

2. Use the ▲▼◄► buttons to select the type

of content you want to view or play - Photos,

Videos, or Music - and then press the E

button.

-1

. Select Play disc from the Home screen. The

Play disc screen appears. Use the ▲▼ buttons

to select the desired content type, Photos,

Videos, or Music.

HT-H5500_00W_30_50_50W-ENG_0402.indd 26HT-H5500_00W_30_50_50W-ENG_0402.indd 26 2014-04-02  1:07:482014-04-02  1:07:48

27 - English

Playing Content

3. A screen appears listing the contents of the disc.

Depending on how the contents are arranged,

you will see either folders, individual files, or

both.

4. If necessary, use the ▲▼◄► buttons to select

a folder, and then press the E button.

5. Use the ▲▼◄► buttons to select a file to view

or play, and then press the E button.

6. Press the RETURN button one or more times to

exit a current screen, exit a folder, or to return to

the Home screen.

Press the EXIT button to return directly to the

Home Screen.

7. Go to pages 28~32 for instructions that explain

how to control playback of videos, music, and

pictures on a disc.

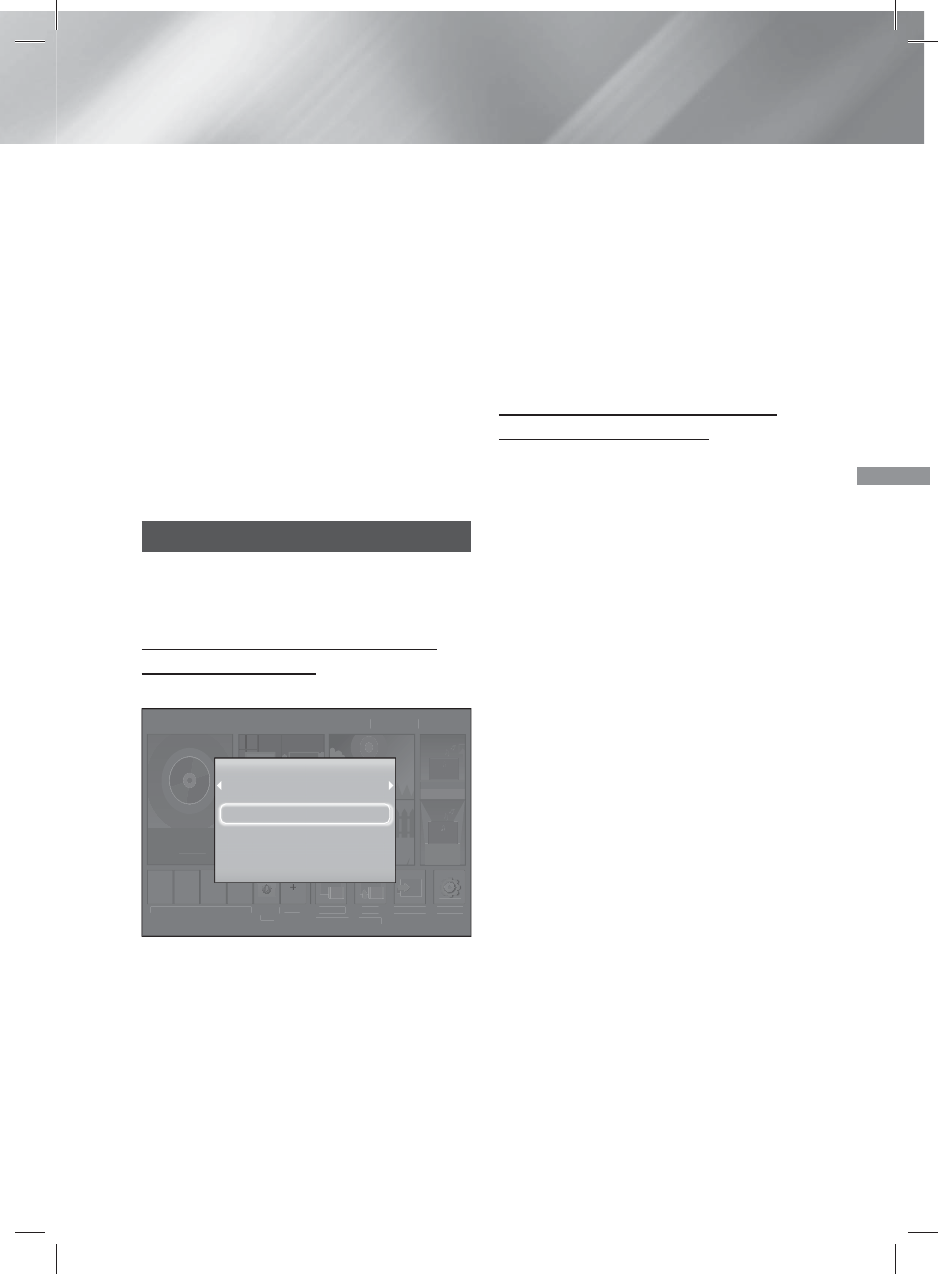

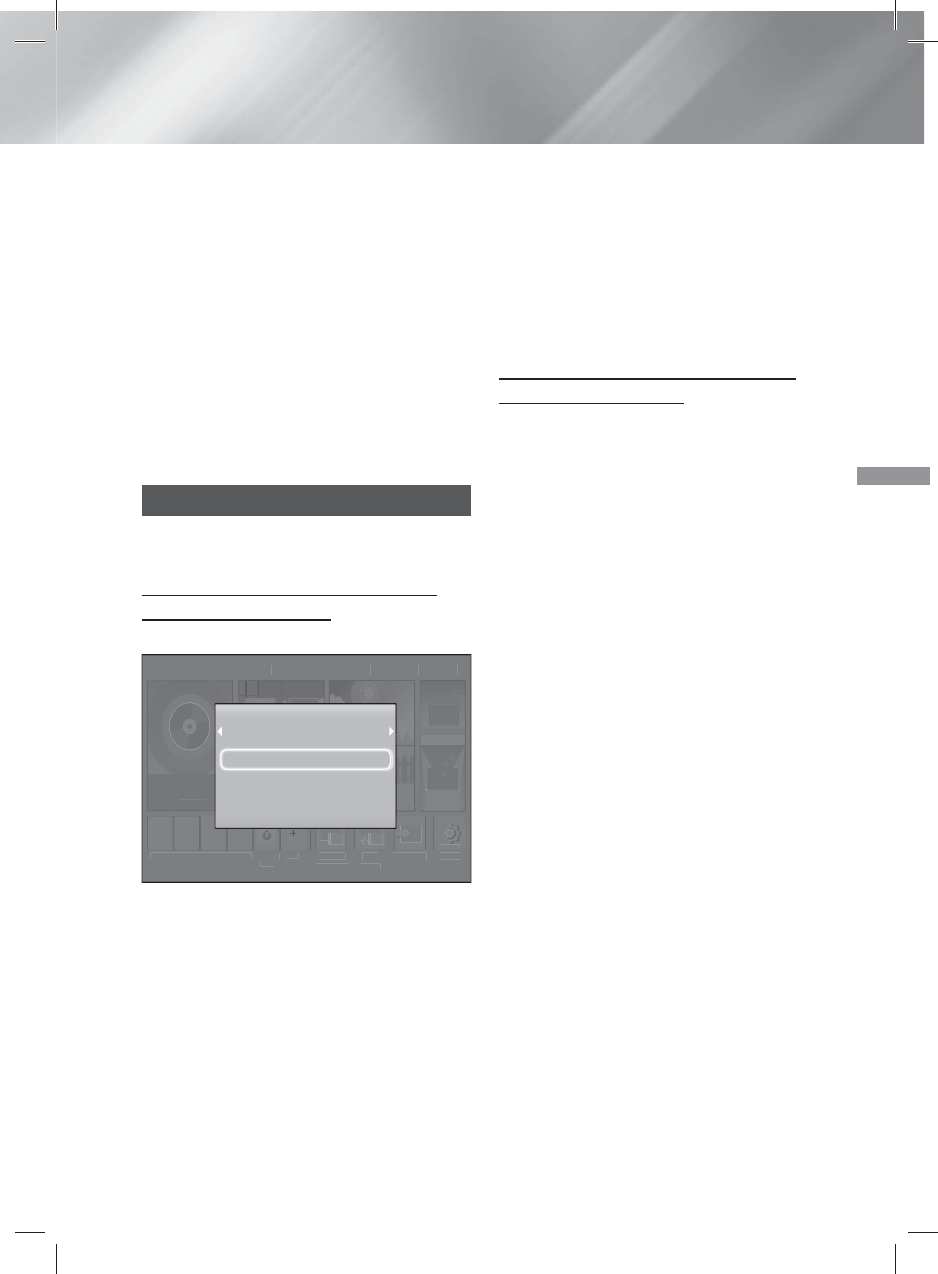

Playing Files on a USB Device

There are two methods you can use to play or view

multimedia files located on a USB device through

your product.

Method 1 : If you connect a USB device while

the product is turned on

1. The "New device connected." pop-up appears.

Play disc

App 1 App 2 App 3 App 4

Screen

Mirroring

Change

Device

Function

Blu-ray

Settings

Photos Videos Music

Opera TV

Store

App

1 A

2 A

3 A

Screen

irrorin

han

u-ra

ettin

oto

Vid

pera TV

tore

New device connected.

USB DISK

Photos

Videos

Music

✎If the pop-up does not appear, go to Method 2.

2. Use the ▲▼ buttons to select Photos, Videos,

or Music and then press the E button.

Depending on how the contents are arranged,

you will see either folders, individual files, or

both.

3. If necessary, use the ▲▼◄► buttons to select

a folder, and then press the E button.

4. Select a file to view or play, and then press the

E button.

5. Press the RETURN button to exit a folder or the

EXIT button to return to the Home screen.

6. Go to pages 28~32 for instructions that explain

how to control playback of videos, music, and

pictures on a USB device.

Method 2 : If the product is turned on after

you connect a USB device

1. Turn the product on.

2. Press Change Device and select a USB device.

3. Use the ◄► buttons to select Photos, Videos,

or Music on the Home screen, and then press

the E button.

4. If necessary, use the ▲▼◄► buttons to select

a folder, and then press the E button.

5. Select a file to view or play, and then press the

E button.

6. Press the RETURN button to exit a folder or the

EXIT button to return to the Home screen.

7. Go to pages 28~32 for instructions that explain

how to control playback of videos, music, and

pictures on a USB device.

✎If you insert a disc when playing a USB device

or phone, the device mode changes to "Disc"

automatically.

✎If your cellular phone is DLNA compatible, you

can play contents without connecting a USB

cable. (See page 37)

HT-H5500_00W_30_50_50W-ENG_0402.indd 27HT-H5500_00W_30_50_50W-ENG_0402.indd 27 2014-04-02  1:07:482014-04-02  1:07:48

28 - English

Playing Content

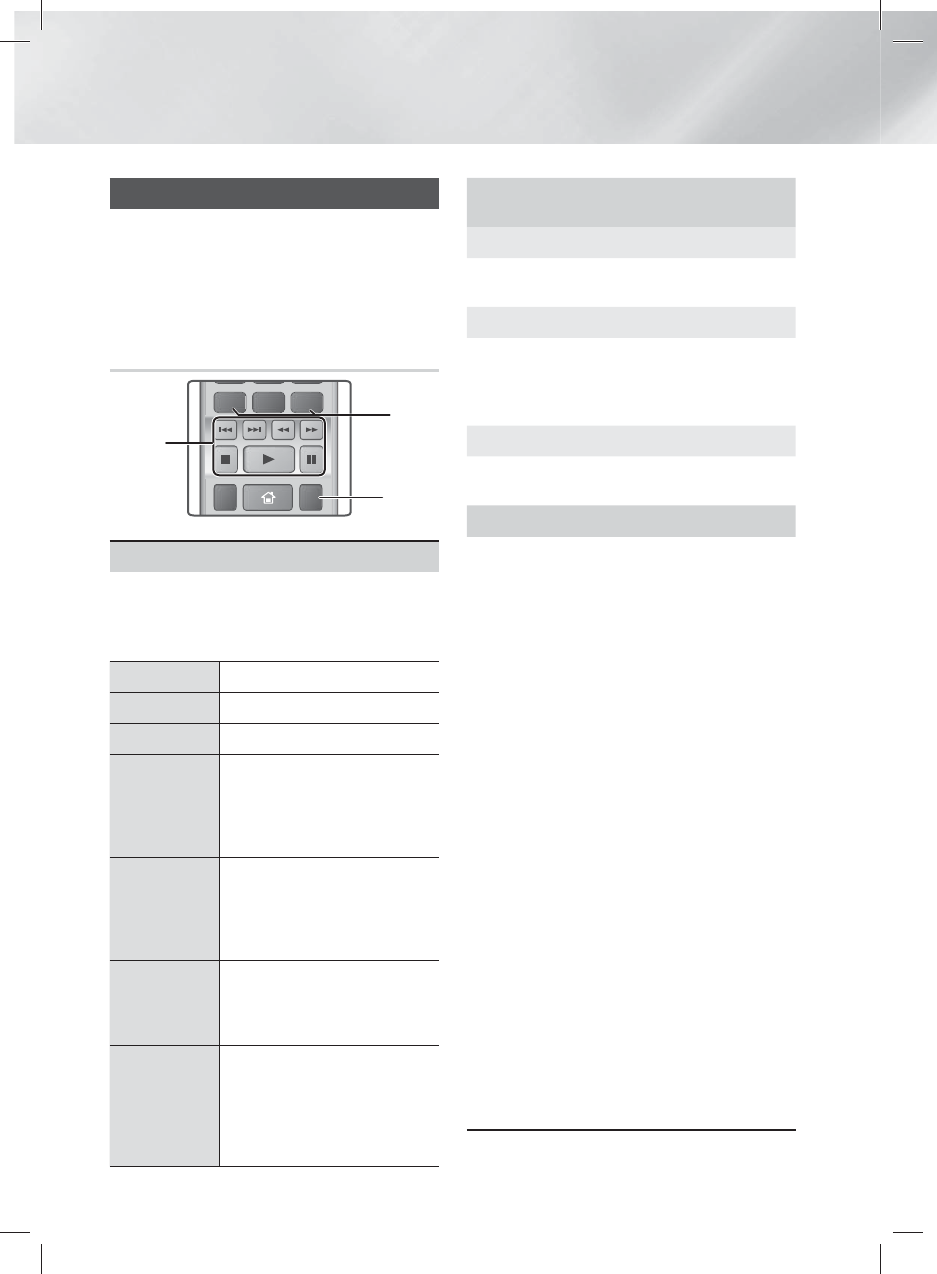

Controlling Video Playback

You can control the playback of video content located

on a Blu-ray/DVD disc, USB device, mobile device,

or PC. Depending on the disc or contents, some of

the functions described in this manual may not be

available.

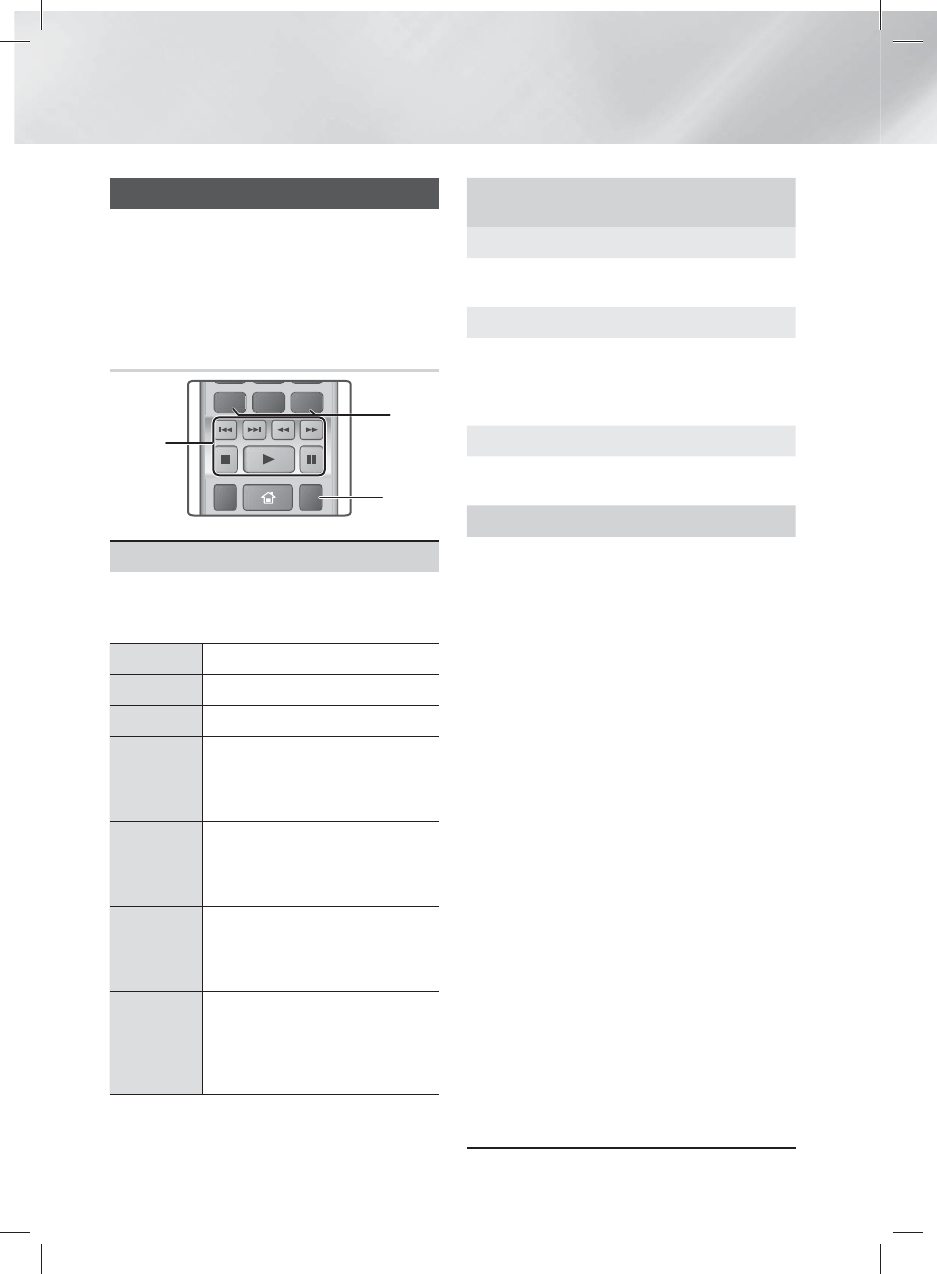

Buttons on the Remote Control used

for Video Playback

SUBTITLE HOME

REPEAT

DISC MENU TITLE MENU

POPUP

1 Playback related buttons

The product does not play sound in Search, Slow,

or Step mode.

• To return to normal speed playback, press the

6 button.

6Starts playback.

5Stops playback.

7Pauses playback.

Fast

Motion

Play

During playback, press the 3 or

 button.

Each time you press the 3 or 

button, the playback speed will

change.

Slow

Motion

Play

In pause mode, press the 

button.

Each time you press the  button,

the playback speed will change.

Step

Motion

Play

In pause mode, press the 7

button.

Each time you press the 7 button,

a new frame appears.

Skip

Motion

Play

During playback, press the 1 or

2 button.

Each time you press the 1 or

2 button, the disc moves to the

previous or next chapter or file.

2 Using the disc menu, title menu, popup

menu, and title list

DISC MENU

During playback, press this button to display the

Disc menu.

TITLE MENU

During playback, press this button to display the

Title menu.

• If your disc has a playlist, press the GREEN (B)

button to go to the playlist.

POPUP MENU

During playback, press this button to display the

Popup menu.

3 Repeat Playback

1. During playback, press the REPEAT button

on the remote control.

2. Press the ▲▼ buttons to select Off, Title,

Chapter, All or Repeat A-B, and then press

the E button.

 Repeat A-B

1. Press the E button at the point where you

want repeat play to start (A).

2. Press the E button at the point where you

want repeat play to stop (B).

3. To return to normal play, press the REPEAT

button again.

4. Press the E button.

✎Depending on the disc, the screen may not

display all repeat options.

✎The screen may not display Chapter or Title

immediately. Continue to press the ▲▼ buttons

until your choice is inside the applicable field.

✎To return to normal play, press the REPEAT

button again, press the ▲▼ buttons to select

Off, and then press the E button.

✎The screen may not display Repeat A-B

immediately. Continue to press the ▲▼ buttons

until Repeat A-B is inside the applicable field.

✎You must set point (B) at least 5 seconds of

playing time after point (A).

HT-H5500_00W_30_50_50W-ENG_0402.indd 28HT-H5500_00W_30_50_50W-ENG_0402.indd 28 2014-04-02  1:07:492014-04-02  1:07:49

29 - English

Playing Content

Using the TOOLS Menu

During playback, press the TOOLS button.

Title

If there is more than one title on a disk or device,

lets you move to or select a desired title.

Playing Time

Lets you go to a specific playback point. Use the

numeric buttons to input the playback point.

Repeat Mode

Lets you repeat a specific title, chapter, or marked

section.

Audio Sync

Lets you adjust the audio delay so that the audio

syncs with the video. You can set the delay from

0 to 300 milliseconds.

Picture Settings

Lets you set the picture mode.

Mode

- User : Lets you adjust the Brightness,

Contrast, Colour, and Sharpness functions

manually.

- Dynamic : Choose this setting to increase

sharpness.

- Normal : Choose this setting for most viewing

applications.

- Movie : This is the best setting for watching

movies.

Menu selections that appear only when a

BD/DVD disc plays

Chapter

Lets you move to a chapter that you want to

watch.

Audio

Lets you set the desired audio language.

Subtitle

Lets you set the desired subtitle language.

Angle

To view a scene from another angle. The Angle

option displays the number of angles available to

view (1/1, 1/2, 1/3, etc.).

BONUSVIEW Video BONUSVIEW Audio

Lets you set the desired Bonusview option.

Menu selections that appear only while a file

plays

Full Screen

Lets you set the desired full screen size. You

can select Original, Mode1 (larger), and Mode2

(largest).

Information

Select to view video file information.

✎Depending on the disc or storage device, the

Tools menu may differ. All options may not be

displayed.

Creating a Video Playlist

You can create a playlist of video files in a way that

is nearly identical to the way you create a playlist of

music files. See page 30 for instructions.

Playing a Pre-Recorded

Commercial Audio Disc

1. Insert an Audio CD (CD-DA) or an MP3 Disc into

the disc tray.

• For an Audio CD (CD-DA), the first track will

be played automatically. Tracks on a disc

are played in the order in which they were

recorded on the disc.

•

For an MP3 disc, press the

◄►

buttons to

select Music, then press the

button.

HT-H5500_00W_30_50_50W-ENG_0402.indd 29HT-H5500_00W_30_50_50W-ENG_0402.indd 29 2014-04-02  1:07:502014-04-02  1:07:50

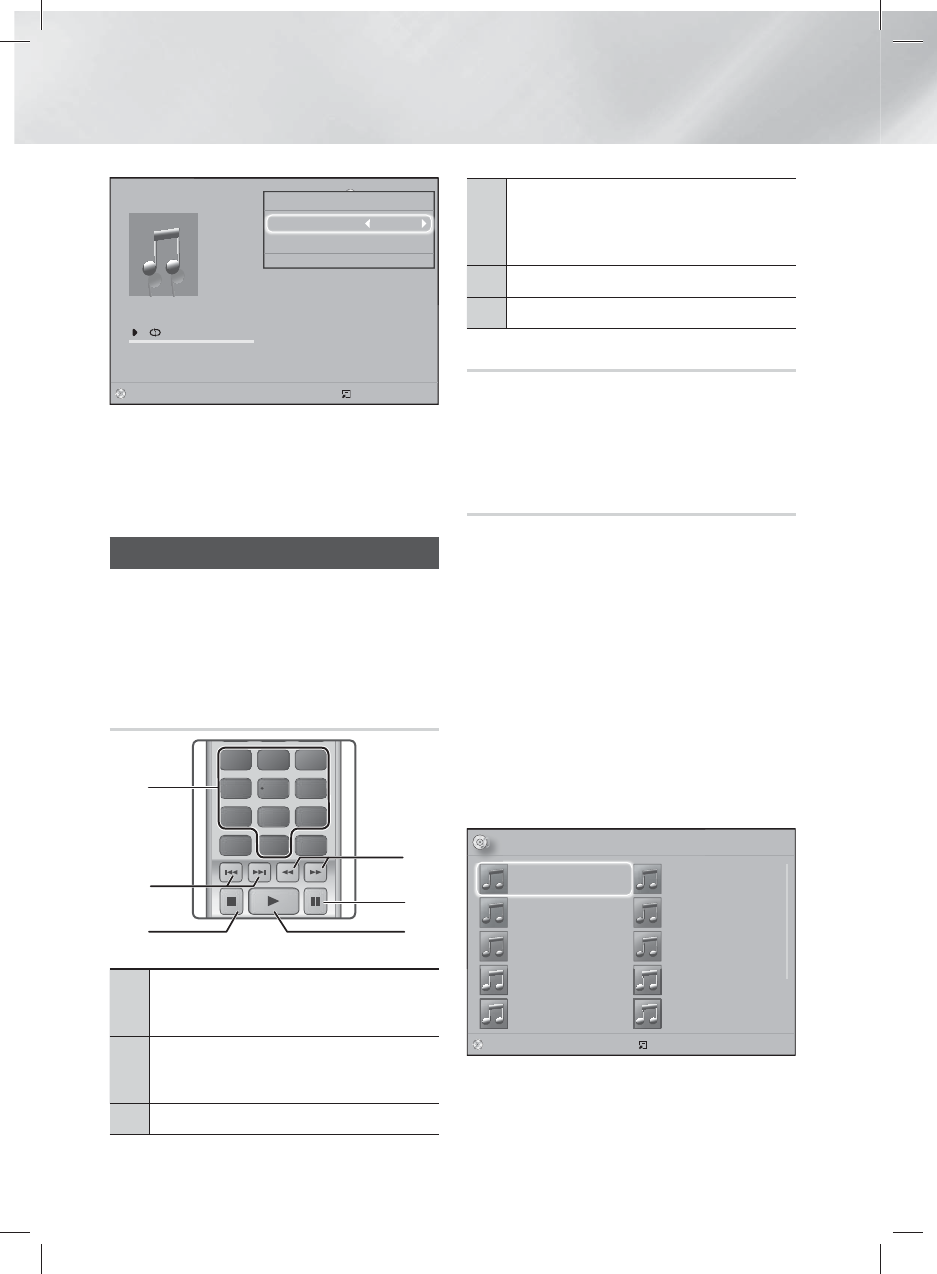

30 - English

Playing Content

0/16

00:00/00:00

Playlist

Pl li

TRACK 003 04:41

TRACK 004 04:02

TRACK 005 03:43

TRACK 006 03:40

TRACK 001

Tools

Repeat Mode Track

Rip

> Move < Adjust ' Return

" Pause  Select Tools ' Return

To play a particular track, use the ▲▼ buttons on

the remote to select the track, and then press the

button.

✎For more information about playing music, see

Controlling Music Playback below.

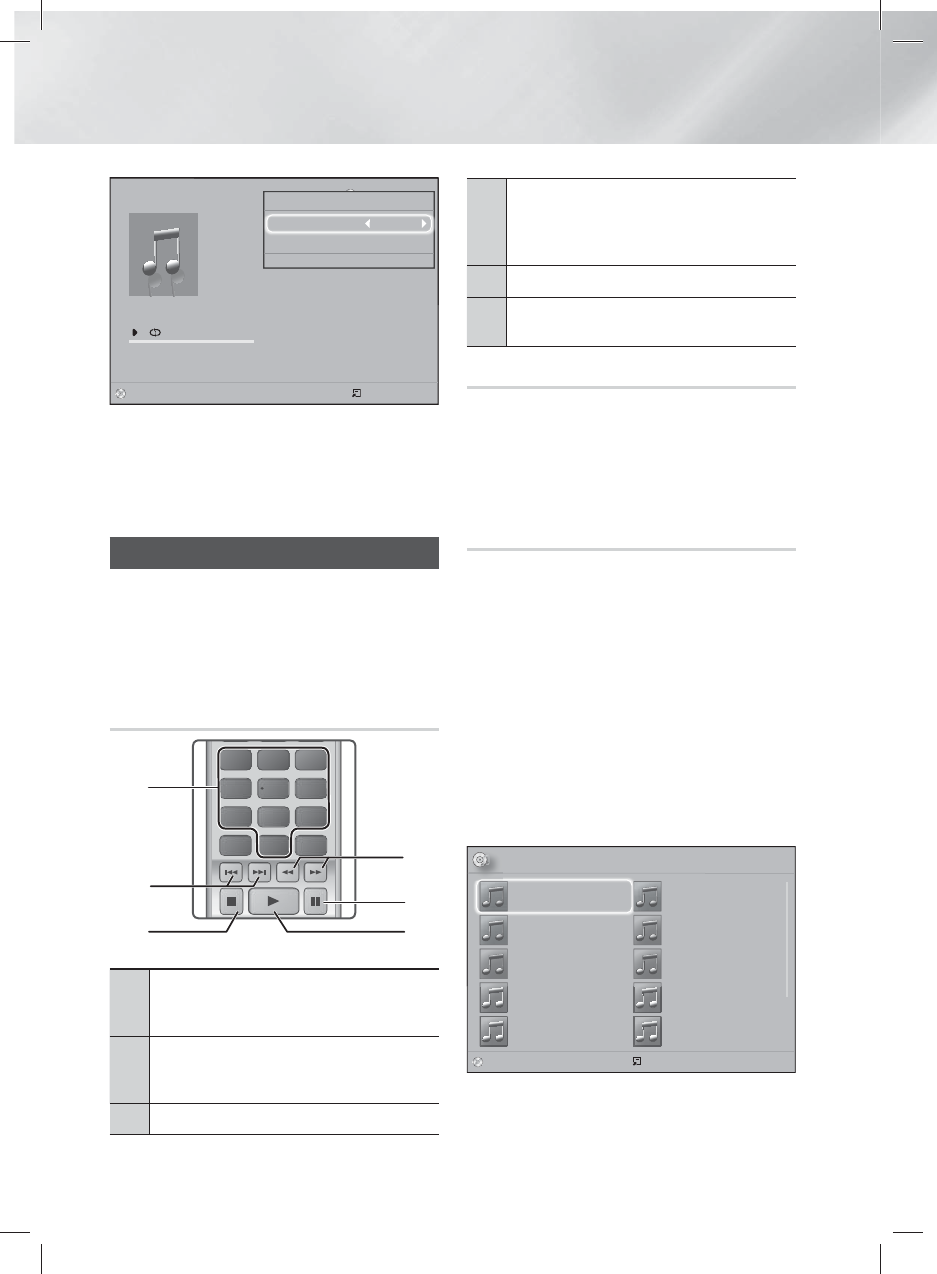

Controlling Music Playback

You can control the playback of music content

located on a DVD, CD, USB, mobile device, or

PC. Depending on the disc or contents, some of

the functions described in this manual may not be

available.

Buttons on the Remote Control used

for Music Playback

123

789

DISC MENU

PTY - PTY SEARCH PTY +

RDS DISPLAY TA

TITLE MENU

POPUP

456

Number buttons : During Playlist playback,

press the desired track number. The

selected track is played.

Skip : During playback, press the 1 or

2 button to move to the previous or next

music track.

35 button : Stops a track.

Fast Play (Audio CD [CD-DA] only) :

During playback, press the 3 or  button.

Each time you press the 3 or  button,

the playback speed will change.

57 button : Pauses a track.

66 button : Plays the currently selected

track.

Repeating Tracks

You can set the product to repeat tracks.

1. During music playback, press the TOOLS

button.

2. Use ◄► button to select Off, Track or One, All

or Shuffle in Repeat Mode, and then press the

E button.

Creating a Music Playlist

1. If playing music from a commercial CD or DVD,

press the

or RETURN button. The Music

List Screen appears. If you are creating a playlist

from music on a user created disk or USB

device, access the Music list as described on

page 26 or 27.

2. Press the ▲▼◄► buttons to move to a desired

file, and then press the YELLOW (C) button

to select it. Repeat this procedure to select

additional files.

3. If you want to select all files, press the TOOLS

button, use the ▲▼ buttons to select Select All,

and then press E. If you want to deselect all

files, press the TOOLS button, select Deselect

All, and then press E.

㾎

CD a Change Device

 Select Tools () Jump to Page ' Return

Music TRACK 001 1 files selected 1/2 Page

TRACK 001
