HT-TWZ312(315)_XAC(ENG)_0220.ind2 2 2008-02-20 �� 3:53:57

AH68-02054S

Digital Home

Theater System

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/global/register

HT-TWZ312

HT-TWZ315

HT-TWZ312(315)_XAC(ENG)_0220.ind3 3 2008-02-20 �� 3:53:58

2

features

Playback of many disc types

The HT-TWZ312/HT-TWZ315 allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD,

WMA-CD, DivX, CD-R/RW, and DVD±R/RW.

DVD-Audio compatible

Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to

deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.

USB Host support

You can enjoy media fi les such as pictures, movies and music saved on an MP3 player, digital camera or USB

memory stick by connecting the storage device to the USB port of the Home Theater.

Dolby Pro Logic II

Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro

Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel

sound.

TV Screen Saver Function

If the main unit remains in Stop mode for 3 minutes, the Samsung logo appears on the TV screen.

The HT-TWZ312/HT-TWZ315 will automatically switch to the Power Saving mode after 20 minutes in the Screen Saver

mode.

Power Saving Function

The HT-TWZ312/HT-TWZ315 will automatically shut off after 20 minutes in Stop mode.

Customized TV Screen Display

The HT-TWZ312/HT-TWZ315 allows you to select your favorite image during JPEG or DVD playback and set it as

your background wallpaper.

Anynet+ (HDMI-CEC) Function

Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the

Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support

Anynet+.)

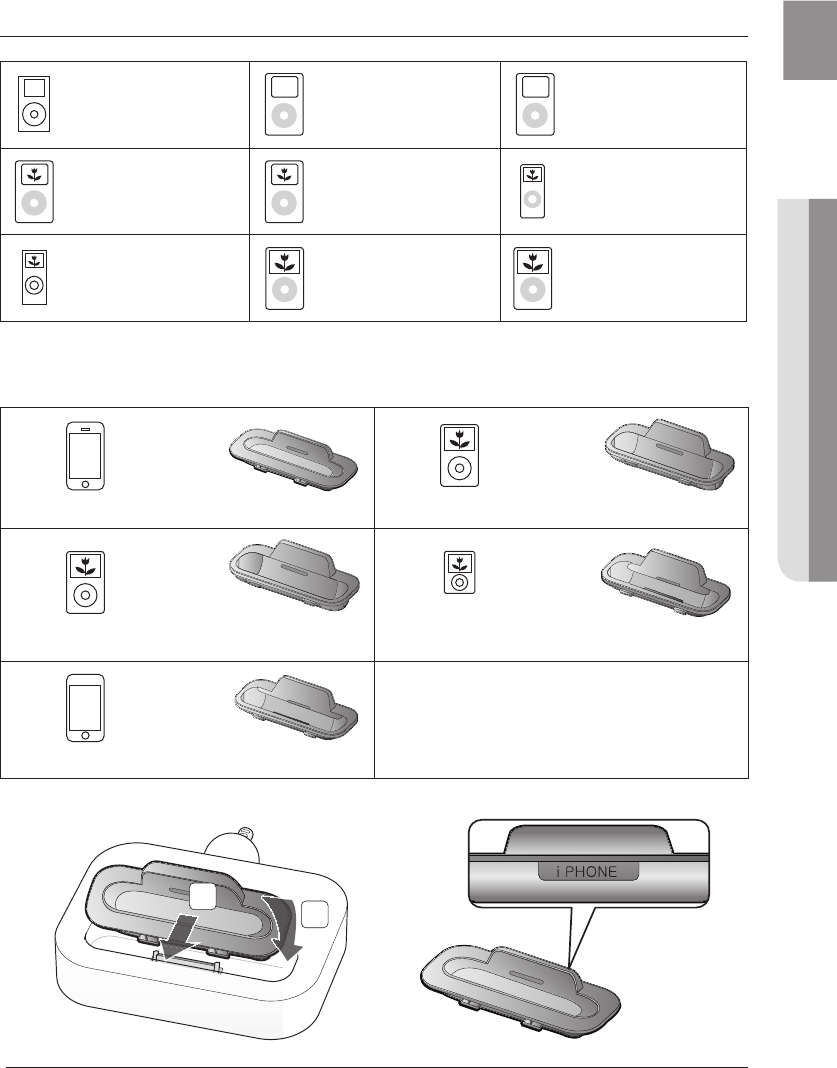

iPod support

You can enjoy music fi les by connecting your iPod to the home theater with the supplied iPod dock.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV.

To compensate for this, you can adjust the audio delay time to sync up with the video.

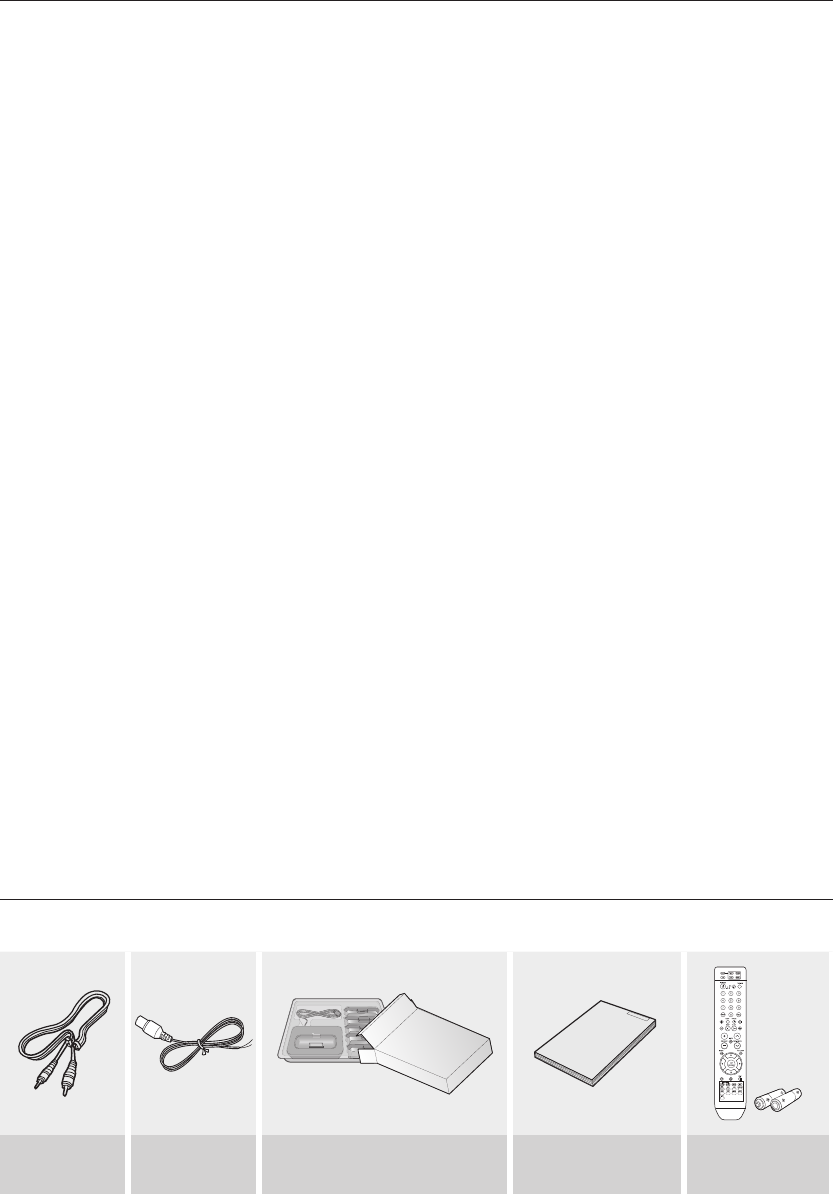

WHAT’S INCLUDED

Check for the supplied accessories below.

Video Cable FM Antenna iPod Dock Package

User's Manual

Remote Control

/ Batteries (AAA size)

HT-TWZ312(315)_XAC(ENG)_0220.ind2 2 2008-02-20 �� 3:53:59

3

ENG

SWA-4000

Wireless Receiver Module TX Card Speaker Cable (2EA)

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER (or BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage”

inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instructions

accompanying the product.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Section 820~40 of the NEC which

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to

the grounding system of the building, as close to the point of cable entry as practical.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be

placed on the apparatus.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS

1LASER product.

Use of controls, adjustments or performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION : INVISIBLE LASER RADIATION WHEN

OPEN AND INTERLOCKS DEFEATED,

AVOID EXPOSURE TO BEAM.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

HT-TWZ312(315)_XAC(ENG)_0220.ind3 3 2008-02-20 �� 3:53:59

4

safety information

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep

these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these Instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8)

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10)

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11) Only use attachment/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

HT-TWZ312(315)_XAC(ENG)_0220.ind4 4 2008-02-20 �� 3:54:00

5

ENG

PRECAUTIONS

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your

player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation

slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which

may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off

the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the

power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC main plug from the

wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the player from moisture (i.e. vases) , and excess heat

(e.g.fireplace) or equipment creating strong magnetic or electric fields

(i.e.speakers...). Disconnect the power cable from the AC supply if the

player malfunctions. Your player is not intended for industrial use. Use of

this product is for personal use only.

Condensation may occur if your player or disc has been stored in

cold temperatures. If transporting the player during the winter,

wait approxi

mately 2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful

to the environment.

Do not dispose of batteries in the general household trash.

This product is covered by one or more of the following U.S. patents:

5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587

6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208

6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535

6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6,775,465 6,778,755 6,788,629 6,788,630 6,795,637

6,810,201 6,862,256 6,868,054 6,894,963 6,937,552

This product is covered by the following U.S. patents:

US4,930,158 US4,930,160

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your

Do not expose the

unit to direct sunlight or other heat sources.

During thunderstorms, disconnect th

e AC main plug from the

Phones

HT-TWZ312(315)_XAC(ENG)_0220.ind5 5 2008-02-20 �� 3:54:02

6

contents

FEATURES

2

2 What’s included

SAFETY INFORMATION

3

3 Safety Warnings

4 Important Safety Instructions

5 Precautions

GETTING STARTED

8

8 Before Reading the User’s Manual

9 Playable Discs

9 Do not use the following types of disc!

9 Copy Protection

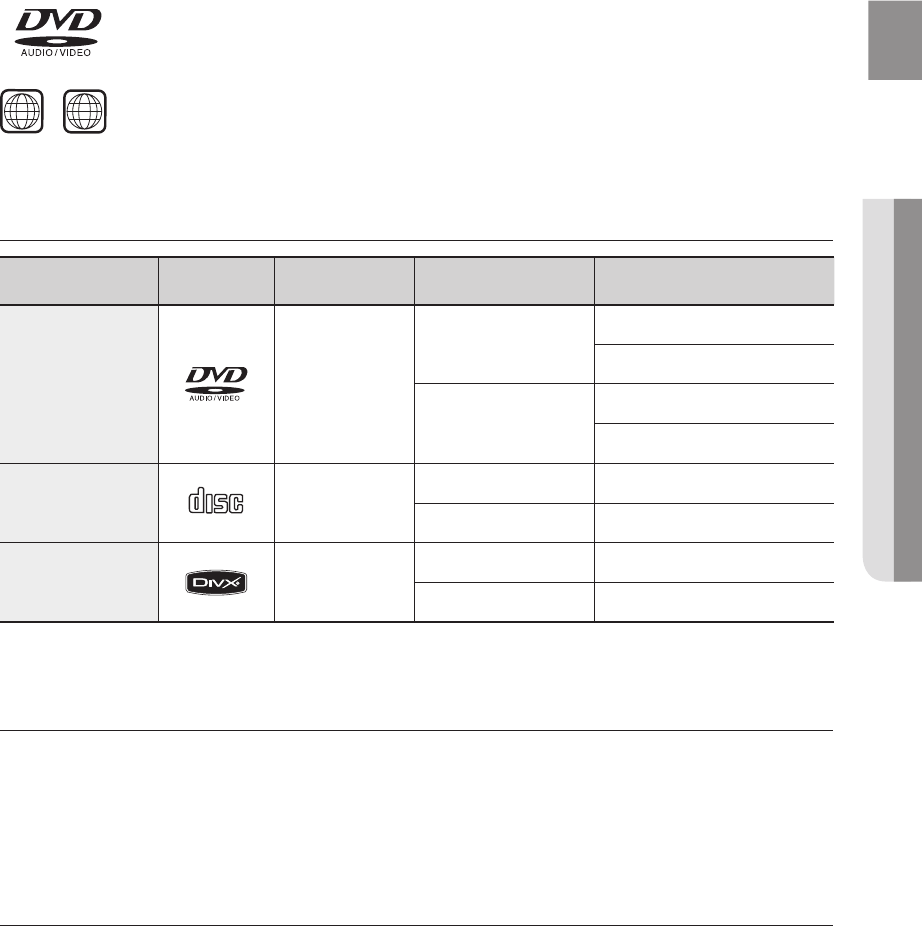

10 Disc Type and Characteristics

DESCRIPTION

11

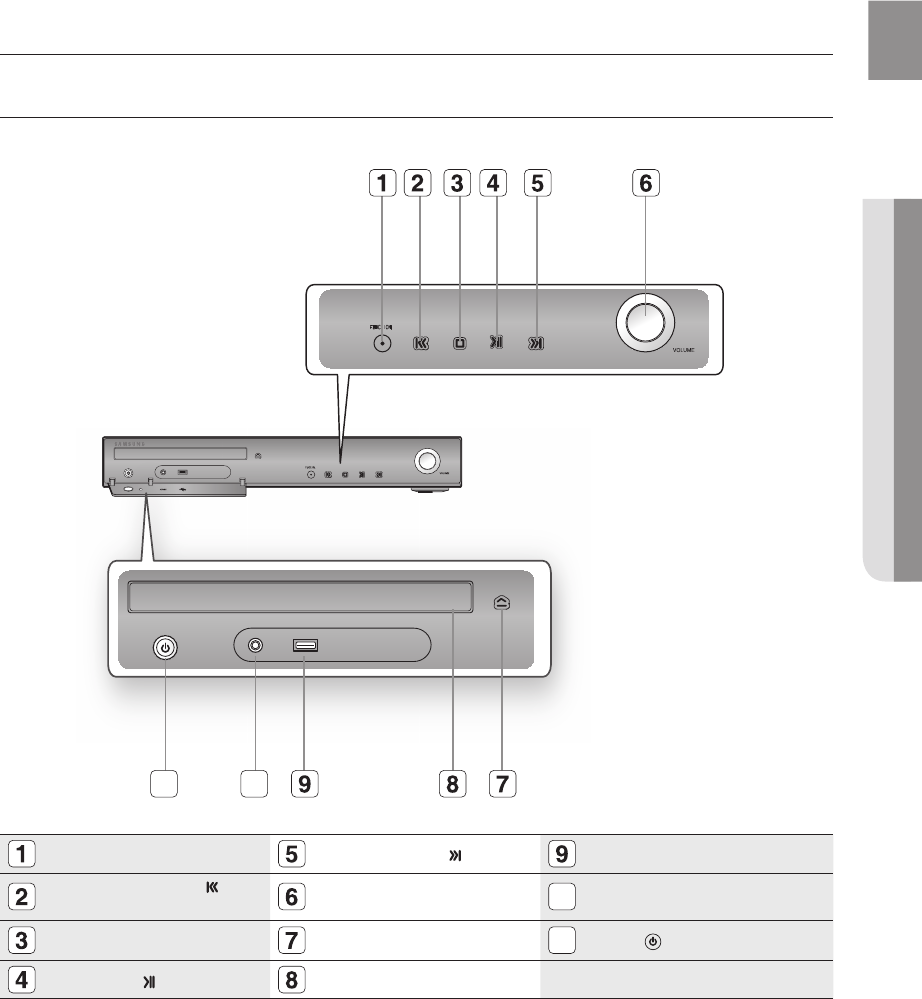

11 Front Panel

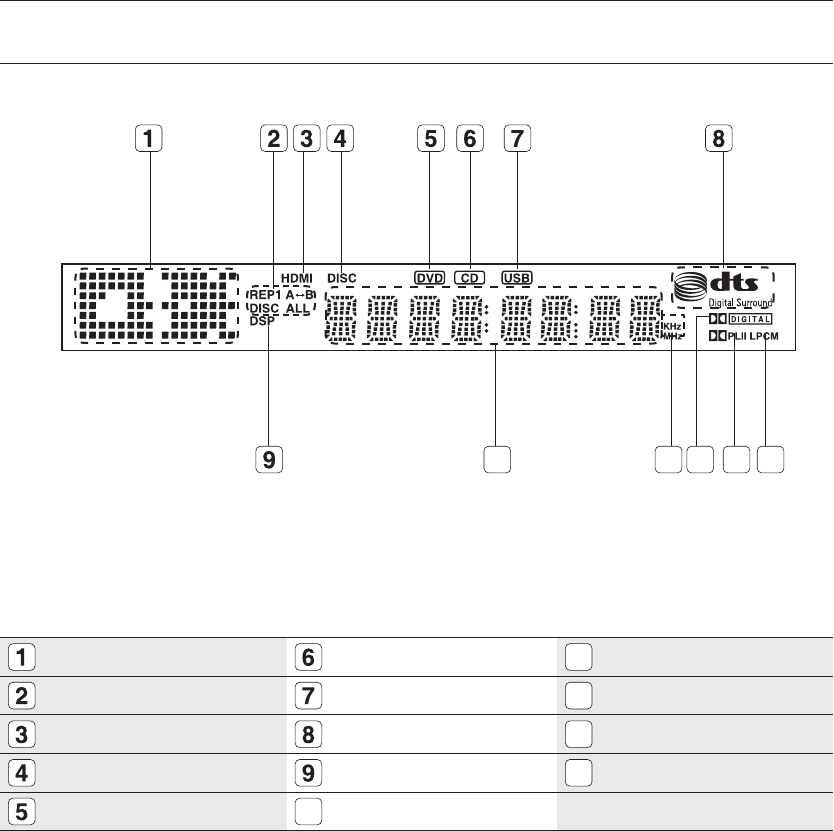

12 Display

13 Rear Panel

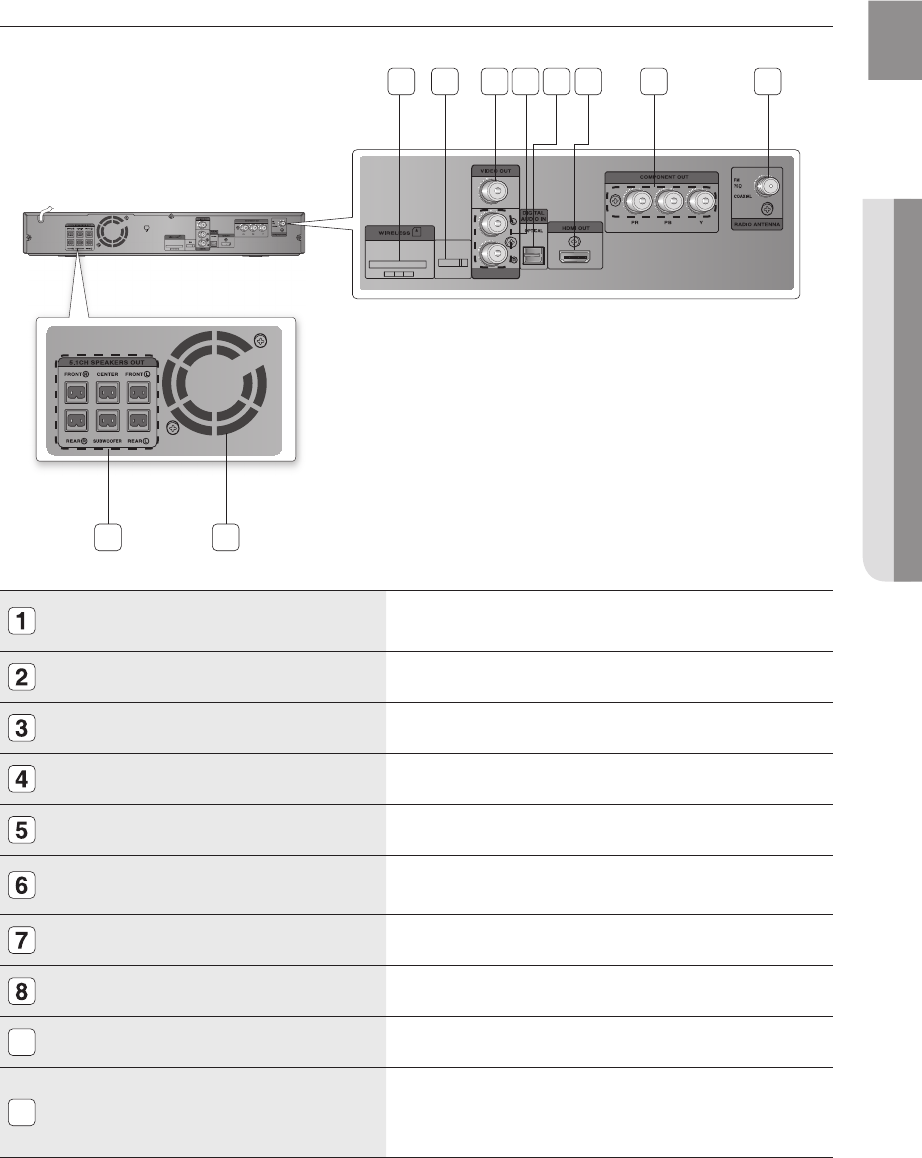

REMOTE CONTROL

14

14 Tour of the Remote Control

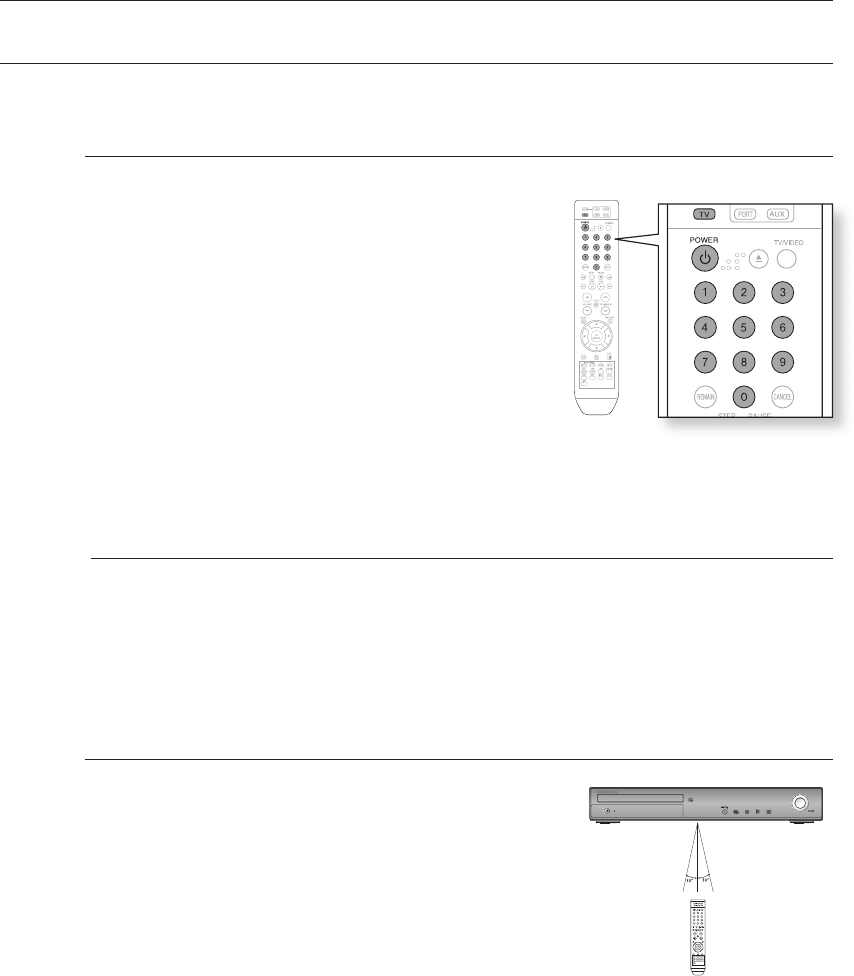

16 Setting the Remote Control

CONNECTIONS

18

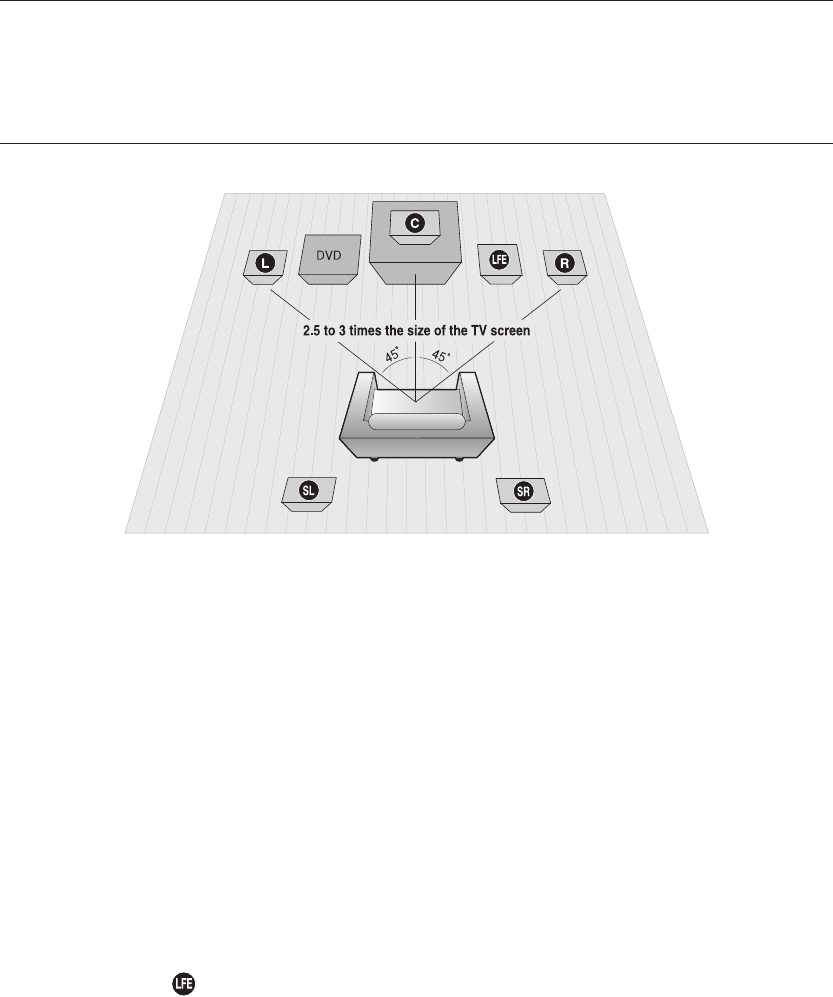

18 Connecting the Speakers

23 Connecting the Wireless Receiving Amplifier

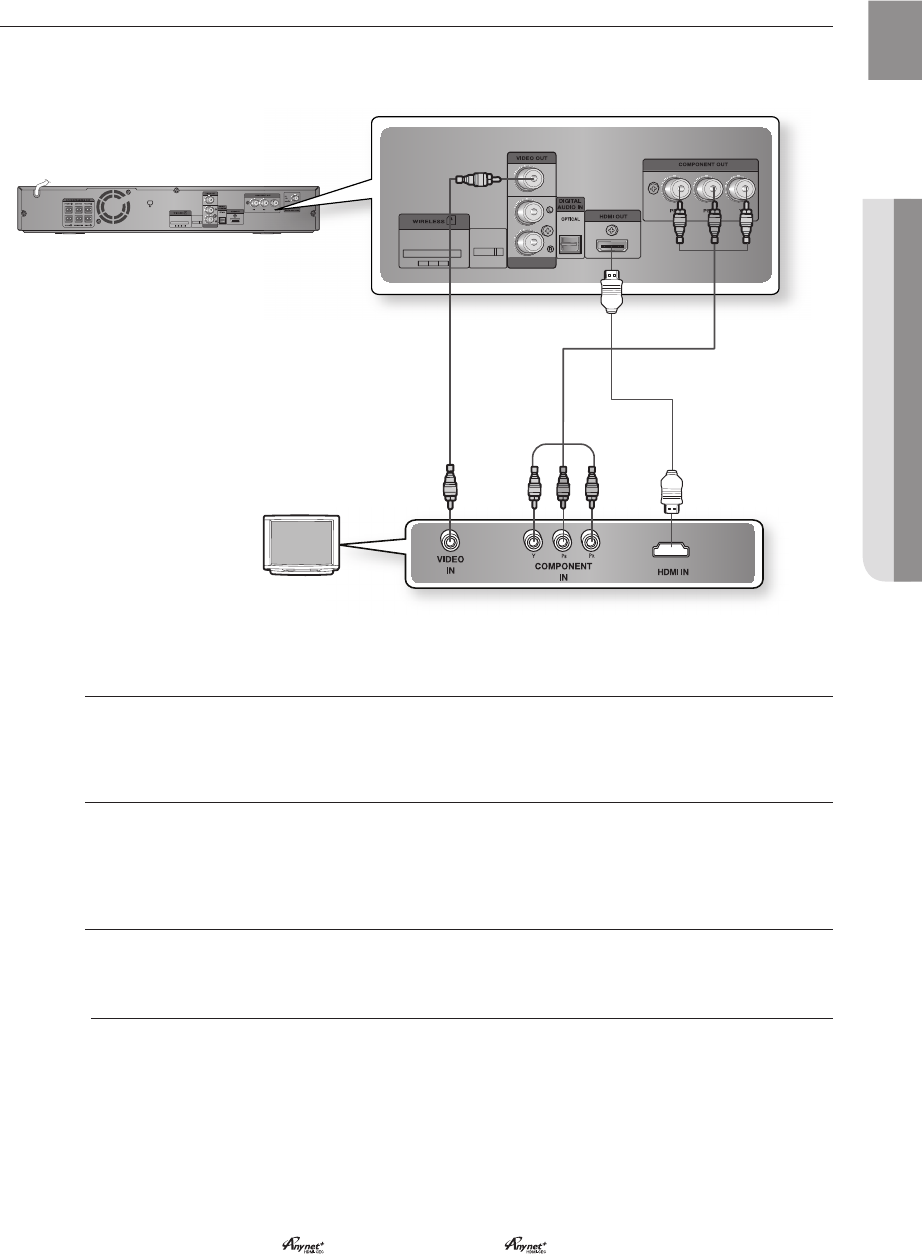

25 Connecting the Video Out to your TV

27 HDMI Function

28 Connecting an iPod

30 Connecting Audio from External

Components

32 Connecting the FM Antenna

PLAYBACK

34

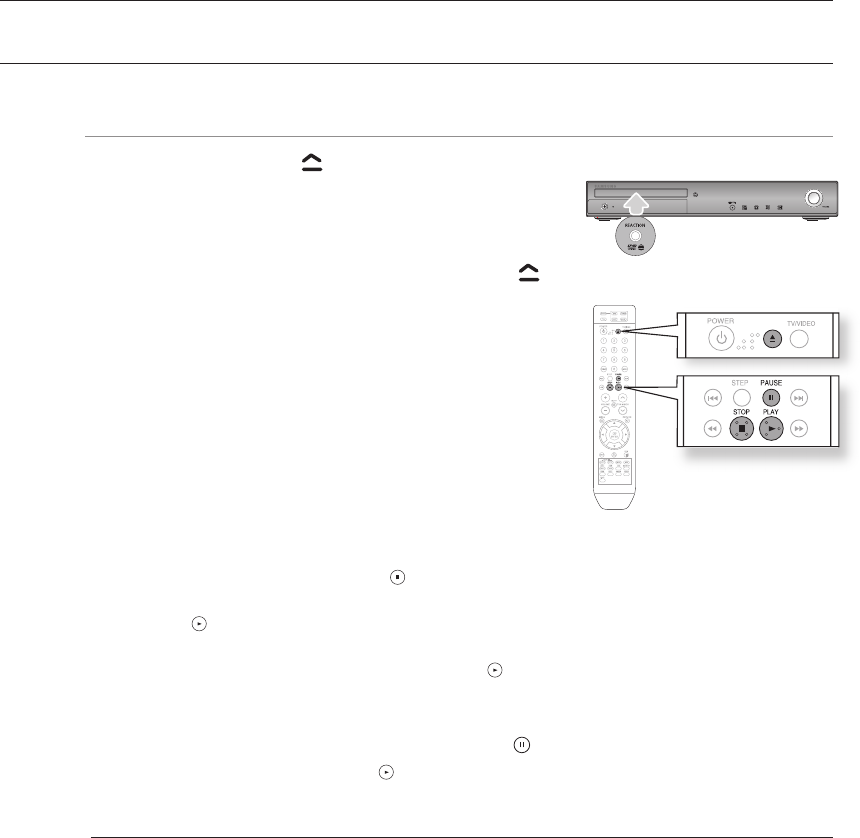

34 Disc Playback

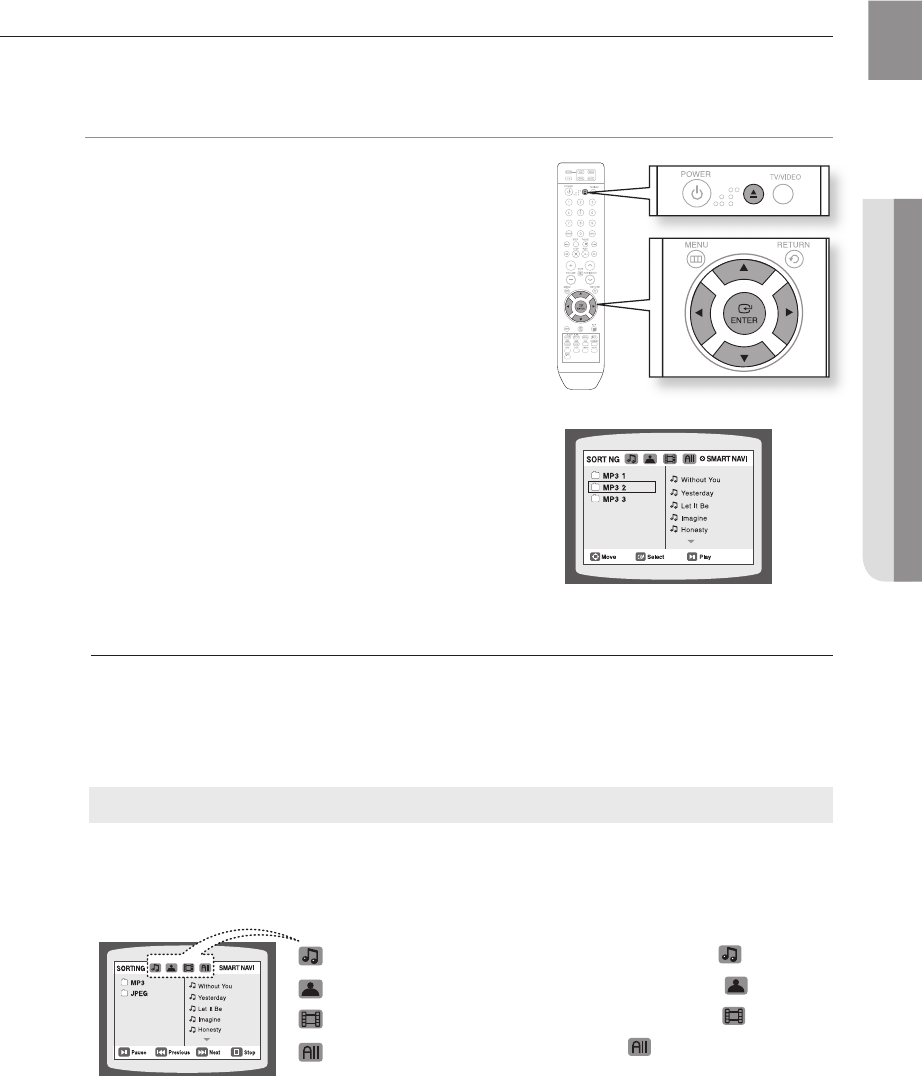

35 MP3/WMA-CD playback

36 Jpeg File Playback

37 Divx Playback

39 Using The Playback Function

48 Using the iPod

49 Playing Media Files Using The USB Host

Feature

BEFORE USING YOUR HOME

THEATER

33

33 Before using your home theater

HT-TWZ312(315)_XAC(ENG)_0220.ind6 6 2008-02-20 �� 3:54:02

7

ENG

SYSTEM SETUP

51

51 Setting the Language

52 Setting TV Screen Type

53 Setting Parental Controls (Rating Level)

53 Setting the Password

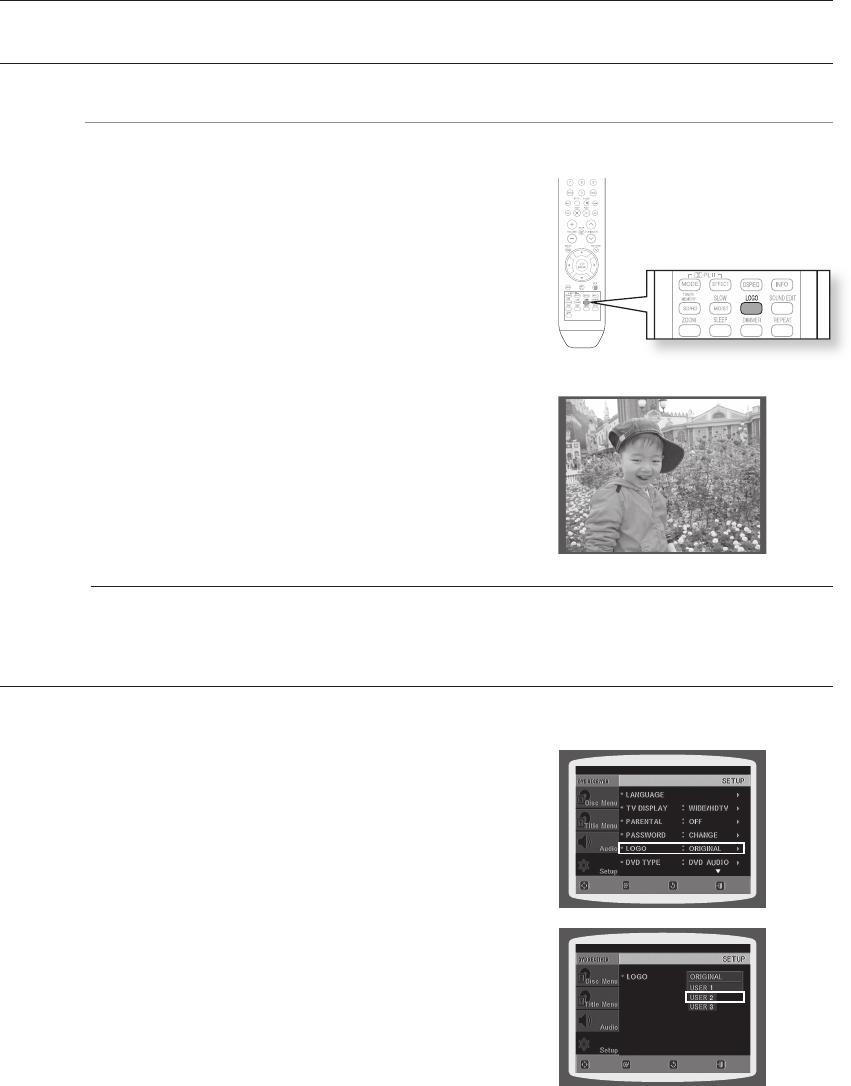

54 Setting The Wallpaper

54 To Select one of the 3 Wallpaper Settings

you've made

55 DVD Playback Mode

55 Setting the Speaker Mode

56 Setting the Delay Time

57 Setting the Test Tone

57 Setting the Audio

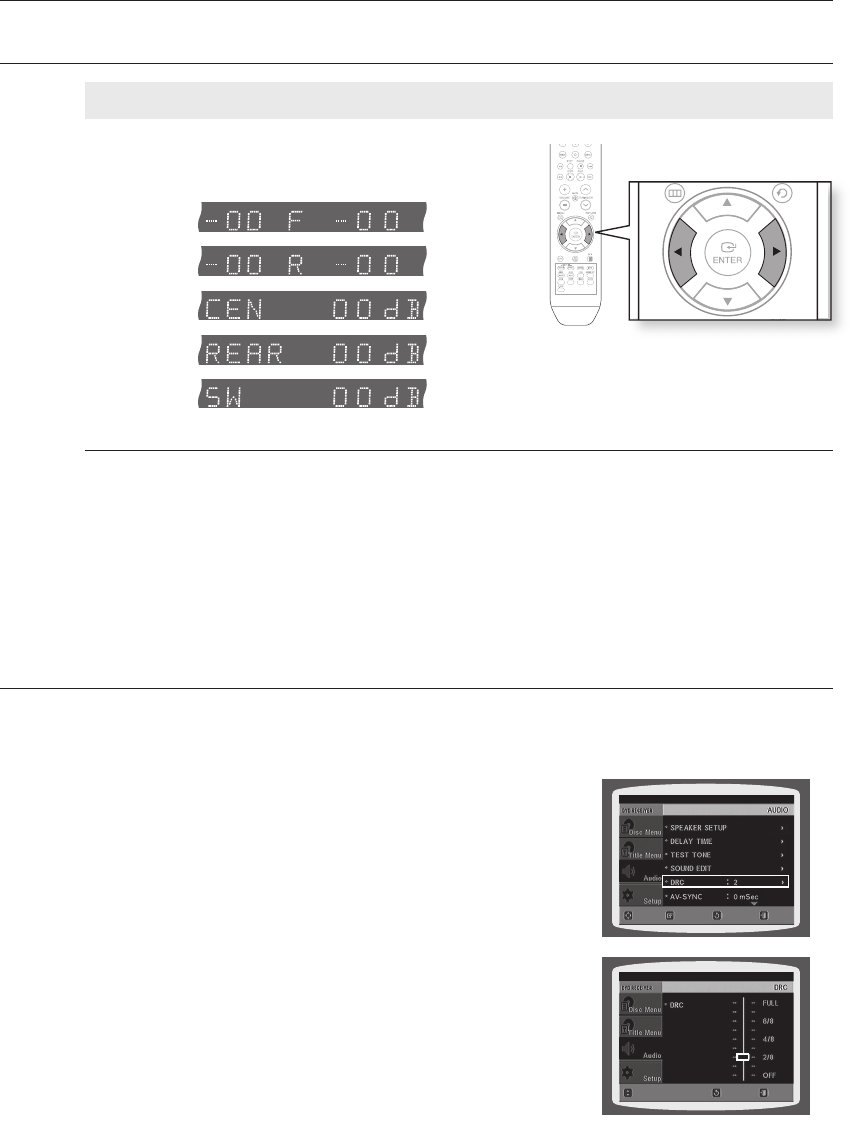

58 Setting the DRC (Dynamic Range

Compression)

59 Setting the AV SYNC

59 Setting the HDMI Audio

60 Sound field (DSP)/EQ Function

60 Dolby Pro Logic II Mode

61 Dolby Pro Logic II Effect

61 P.BASS

RADIO

62

62 Listening To Radio

62 Presetting Stations

CONVENIENT FUNCTION

63

63 Sleep Timer Function

63 Adjusting Display Brightness

63 Mute Function

TROUBLESHOOTING

64

64 Troubleshooting

USB HOST FEATURE SUPPORTED

PRODUCTS

66

66 Digital Camera

66 USB Flash Disc

66 MP3 Player

APPENDIX

67

67 Cautions on Handling and Storing Discs

68 Specifications

69 Warranty

HT-TWZ312(315)_XAC(ENG)_0220.ind7 7 2008-02-20 �� 3:54:02

getting started

8

BEFORE READING THE USER’S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Definition

d

DVD This involves a function available with DVD or DVD-R/DVD-RW discs that

have been recorded and finalized in Video Mode.

B

CD This involves a function available with a data CD (CD-R or CD-RW).

A

MP3 This involves a function available with CD-R/-RW discs.

G

JPEG This involves a function available with CD-R/-RW discs.

D

DivX This involves a function available with MPEG4 discs.

(DVD±R/RW, CD-R or CD-RW)

Caution This involves a case where a function does not operate or settings may be

cancelled.

M

Note This involves tips or instructions on the page that help each function

operate.

In this manual, the instructions marked with "DVD (

DVD

)" are applicable to DVD-

VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode

and then finalized. Where a particular DVD type is mentioned, it is indicated

separately.

If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be

playable.

About the use of this user’s manual

Be sure to be familiar with Safety Instructions before using this product. (See pages 3~5)

If a problem occurs, check the Troubleshooting. (See pages 64~65)

Copyright

©2008 Samsung Electronics Co.,Ltd.

All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the

prior written permission of Samsung Electronics Co.,Ltd.

M`

`

1)

2)

HT-TWZ312(315)_XAC(ENG)_0220.ind8 8 2008-02-20 �� 3:54:03

9

ENG ● GETTING STARTED

PLAYABLE DISCS

Disc Type Mark (Logo) Recorded Signals Disc Size Max. Playing Time

DVD-AUDIO

DVD-VIDEO AUDIO + VIDEO

5 inches

Approx. 240 min. (single-sided)

Approx. 480 min. (double-sided)

3 1/2 inches

Approx. 80 min. (single-sided)

Approx. 160 min. (double-sided)

AUDIO-CD

COMPACT

DIGITAL AUDIO

AUDIO

5 inches 74 min.

3 1/2 inches 20 min.

DivX AUDIO + VIDEO

5 inches

—

3 1/2 inches

—

DO NOT USE THE FOLLOWING TYPES OF DISC!

LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this player.

If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.

DVD discs purchased abroad may not play on this player.

If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the

TV screen.

COPY PROTECTION

Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player

directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD

discs.

This product incorporates copyright protection technology that is protected by methods claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended

for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

~

~

~

~

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these

realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the

disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is given on the rear panel of the player.

(Your DVD player will only play DVDs that are labeled with identical region codes.)

1 6

~

HT-TWZ312(315)_XAC(ENG)_0220.ind9 9 2008-02-20 �� 3:54:03

getting started

10

DISC TYPE AND CHARACTERISTICS

This product does not support Secure (DRM) Media files.

CD-R Discs

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the

condition of the disc.

Use a 650MB/74 minute CD-R disc.

Do not use CD-R discs over 700MB/80 minutes as they may not be played back.

Some CD-RW (Rewritable) media, may not be playable.

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you

may not be able to fully play the disc.

CD-R MP3 Discs

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters

(. / = +).

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

Only files with the "mp3" and extensions can be played.

Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession

disc, the disc can be played only up to the blank segment.

If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate

(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

A maximum of 500 tracks can be played per CD.

A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

Only files with the "jpg" extensions can be played.

If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters

(. / = +).

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession

disc, the disc can be played only up to the blank segment.

A maximum of 9,999 images can be stored on a single CD.

When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD±R/RW, CD-R/RW DivX Discs

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the

user might not play.

Software updates for incompatible formats are not supported.

(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)

Sections with a high frame rate might not be played while playing a DivX file.

For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.

net".

❖

~

~

~

~

❖

~

~

~

~

~

~

~

~

~

❖

~

~

~

~

~

~

~

~

❖

~

~

~

~

HT-TWZ312(315)_XAC(ENG)_0220.ind10 10 2008-02-20 �� 3:54:03

11

ENG ● DESCRIPTION

FRONT PANEL

FUNCTION BUTTON TUNING UP & SKIP ( ) BUTTON USB CONNECTOR

TUNING DOWN & SKIP ( )

BUTTON

VOLUME CONTROL

10

AUX IN 1 CONNECTOR

STOP (T) BUTTON

OPEN/CLOSE BUTTON

11

POWER( ) BUTTON

PLAY/PAUSE ( ) BUTTON

DISC TRAY

AUX IN 1

AUX IN 1

1011

description

HT-TWZ312(315)_XAC(ENG)_0220.ind11 11 2008-02-20 �� 3:54:05

12

description

DISPLAY

FUNCTION DISPLAY CD INDICATOR

11

RADIO FREQUENCY INDICATOR

REPEAT INDICATOR USB INDICATOR

12

DOLBY DIGITAL INDICATOR

HDMI INDICATOR

DTS DISC INDICATOR

13

PRO LOGIC INDICATOR

DISC INDICATOR DSP INDICATOR

14

LPCM INDICATOR

DVD INDICATOR

10

SYSTEM STATUS DISPLAY

10 11 12 13 14

HT-TWZ312(315)_XAC(ENG)_0220.ind12 12 2008-02-20 �� 3:54:06

13

ENG ● DESCRIPTION

REAR PANEL

TX CARD CONNECTION (WIRELESS) The TX card enables communication between the main unit and the

wireless receiver amplifi er.

iPod JACK Connect the iPod dock connector here.

VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.

AUX IN 2 JACKS Connect to the 2CH analog output of an external device (such as a VCR)

External Digital Optical Input Jack Use this to connect external equipment capable of digital output.

HDMI OUT JACK Use the HDMI cable, connect this HDMI output terminal to the HDMI input

terminal on your TV for the best quality picture.

COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.

FM 75

Ω

COAXIAL JACK Connect the FM antenna.

9

SPEAKER OUTPUT CONNECTORS Connect the front, center, rear speakers and subwoofer.

10

COOLING FAN

The fan always revolves when the power is on. Ensure a minimum of

4 inches of clear space on all sides of the fan when installing the

product.

ipod

AUX IN 2

ipod

AUX IN 2

ipod

AUX IN 2

2 31 6 7

109

4 85

HT-TWZ312(315)_XAC(ENG)_0220.ind13 13 2008-02-20 �� 3:54:10

14

remote control

TOUR OF THE REMOTE CONTROL

DVD RECEIVER

DVD

REMAIN

STEP PAUSE

PORT

AUDIO

P.BASS

SUB

TITLE

2

1

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

36

HT-TWZ312(315)_XAC(ENG)_0220.ind14 14 2008-02-20 �� 3:54:11

15

ENG ● REMOTE CONTROL

PORT button

OPEN/CLOSE button

TV/VIDEO button

CANCEL button

23

PAUSE button

PLAY button

STOP button

SEARCH buttons

TUNING/CH button

MUTE button

RETURN button

Cursor/ENTER button

SUBTITLE button

EXIT button

INFO button

SOUND EDIT button

REPEAT button

DSP/EQ button

LOGO button

DIMMER button

DVD RECEIVER button

TV button

POWER button

Number (0~9) buttons

REMAIN button

STEP button

Tuning Preset/CD Skip buttons

VOLUME button

MENU button

AUDIO button

PL II MODE button

TUNER MEMORY, SD(Standard

Definition)/HD(High Definition) button

ZOOM button

P.BASS button

SLEEP button

SLOW, MO/ST button

PL II EFFECT button

DVD

DVD button

DVD

TUNER button

DVD

AUX button

35

34

33

32

31

30

29

28

27

26

25

24

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

Insert Remote Batteries

1. Remove the battery

cover in the direction

of the arrow.

2. Insert two 1.5V AAA batteries, paying

attention to the correct polarities

(+ and –).

3. Replace the battery

cover.

Follow these precautions to avoid leaking or cracking cells:

Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).

Use the correct type of batteries. Batteries that look similar may differ in voltage.

Always replace both batteries at the same time.

Do not expose the batteries to heat or a flame.

M

`

`

`

`

36

HT-TWZ312(315)_XAC(ENG)_0220.ind15 15 2008-02-20 �� 3:54:12

16

Operation Range of the Remote Control

The remote control can be used up to approximately

23 feet (7 meters) in a straight line.

It can also be operated at a horizontal angle of up to 30° from the

remote control sensor.

When operating a TV with the remote control

1. Press the TV button to set the remote to TV mode.

2. Press the POWER button to turn on the TV.

3. While holding down the POWER button, enter the code

corresponding to your brand of TV.

If there is more than one code listed for your TV in the

table, enter one at a time to determine which code works.

Example : For a Samsung TV

While holding down the POWER button, use the number

buttons to enter 00, 15, 16, 17 or 40.

4. If the TV turns off, the setting is complete.

You can use the TV POWER, VOLUME, CHANNEL, and

Numeric buttons (0~9).

The remote control may not work on some brands of TVs. Also, some operations may not

be possible depending on your brand of TV.

If you do not set the remote control with the code for your brand of TV, the remote control

will work on a Samsung TV by default.

~

~

M`

`

SETTING THE REMOTE CONTROL

You can control certain functions of your TV with this remote control.

remote control

HT-TWZ312(315)_XAC(ENG)_0220.ind16 16 2008-02-20 �� 3:54:13

17

ENG ● REMOTE CONTROL

TV Brand Code List

Admiral (M.Wards)

A Mark

Anam

AOC

Bell & Howell (M.Wards)

Brocsonic

Candle

Cetronic

Citizen

Cinema

Classic

Concerto

Contec

Coronado

Craig

Croslex

Crown

Curtis Mates

CXC

Daewoo

Daytron

Dynasty

Emerson

Fisher

Funai

Futuretech

General Electric (GE)

Hall Mark

Hitachi

Inkel

JC Penny

JVC

KTV

KEC

KMC

LG (Goldstar)

Luxman

LXI (Sears)

Magnavox

Marantz

Matsui

MGA

Mitsubishi/MGA

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

56, 57, 58

01, 15

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,

12, 13, 14

01, 18, 40, 48

57, 58, 81

59, 60

18

03

03, 18, 25

97

03

18

46

15

03, 05, 61, 82, 83, 84

62

03

59, 61, 63

03

02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,

25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90

40

03

03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85

19, 65

03

03

06, 40, 56, 59, 66, 67, 68

40

15, 18, 50, 59, 69

45

56, 59, 67, 86

70

59, 61, 87, 88

03, 15, 40

15

01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44

18

19, 54, 56, 59, 60, 62, 63, 65, 71

15, 17, 18, 48, 54, 59, 60, 62, 72, 89

40, 54

54

18, 40

18, 40, 59, 60, 75

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

MTC

NEC

Nikei

Onking

Onwa

Panasonic

Penney

Philco

Philips

Pioneer

Portland

Proton

Quasar

Radio Shack

RCA/Proscan

Realistic

Sampo

Samsung

Sanyo

Scott

Sears

Sharp

Signature 2000 (M.Wards)

Sony

Soundesign

Spectricon

SSS

Sylvania

Symphonic

Tatung

Techwood

Teknika

TMK

Toshiba

Vidtech

Videch

Wards

Yamaha

York

Yupiteru

Zenith

Zonda

Dongyang

18

18, 19, 20, 40, 59, 60

03

03

03

06, 07, 08, 09, 54, 66, 67, 73, 74

18

03, 15, 17, 18, 48, 54, 59, 62, 69, 90

15, 17, 18, 40, 48, 54, 62, 72

63, 66, 80, 91

15, 18, 59

40

06, 66, 67

17, 48, 56, 60, 61, 75

18, 59, 67, 76, 77, 78, 92, 93, 94

03, 19

40

00, 15, 16, 17, 40, 43, 46, 47, 48, 49,

59, 60, 98

19, 61, 65

03, 40, 60, 61

15, 18, 19

15, 57, 64

57, 58

50, 51, 52, 53, 55

03, 40

01

18

18, 40, 48, 54, 59, 60, 62

61, 95, 96

06

18

03, 15, 18, 25

18, 40

19, 57, 63, 71

18

59, 60, 69

15, 17, 18, 40, 48, 54, 60, 64

18

40

03

58, 79

01

03, 54

No.

Brand

Code No.

Brand

Code

HT-TWZ312(315)_XAC(ENG)_0220.ind17 17 2008-02-20 �� 3:54:13

18

connections

CONNECTING THE SPEAKERS

Position of the DVD Player

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.

Example : For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

Front Speakers

ei

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.

Place the speakers so that their tweeters will be at the same height as your ear.

Align the front face of the front speakers with the front face of the center speaker or place them slightly in front

of the center speakers.

Center Speaker

f

It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.

Rear Speakers

hj

Place these speakers behind your listening position. If there isn't enough room, place these speakers so they face each

other. Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

*

Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not

come from them all the time.

Subwoofer

The position of the subwoofer is not so critical. Place it anywhere you like.

This section involves various methods of connecting the Digital Home Theater to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

HT-TWZ312(315)_XAC(ENG)_0220.ind18 18 2008-02-20 �� 3:54:13

19

ENG ● CONNECTIONS

Installing the Cradle Stand

1. Insert the stand so that it fi ts into the hole

as described in the fi gure.

2. Turn the stand clockwise to lock it.

(Turning it counter-clockwise will loosen

from the hole.)

3. This is the completion of the stand

installation.

<Front/Rear> <Center>

1 1

2 2

3 3

Speaker Components

SUBWOOFER STAND BASE

FRONT

SCREW (Large): 4EA

SCREW (Small): 6EA

CRADLE STAND/

WALL MOUNT

REAR

CENTER

REAR

CENTER

HOLE COVER

REAR

CENTER

(L) (R)

STAND

(L) (R)

HT-TWZ312

SUBWOOFER STAND BASE

FRONT

SCREW (Large): 8EA

SCREW (Small): 12EA

CRADLE STAND/

WALL MOUNT

CENTER

HOLE COVER

CENTER

(L) (R)

STAND

HT-TWZ315

REAR

(L) (R)

CENTER

HT-TWZ312(315)_XAC(ENG)_0220.ind19 19 2008-02-20 �� 3:54:19

20

connections

CONNECTING THE SPEAKERS (CON'T)

44

5 5

4. Use a coin turn the hole cover clock wise

to fi x it. (Turning it count-clock wise will

loosen from the hole.)

5. Use the wall mount hole (bracket) to install

the speaker on the wall.

To avoid accident fall and consequent damage to the customer and speaker, make sure

the speaker is hung safely.

M`

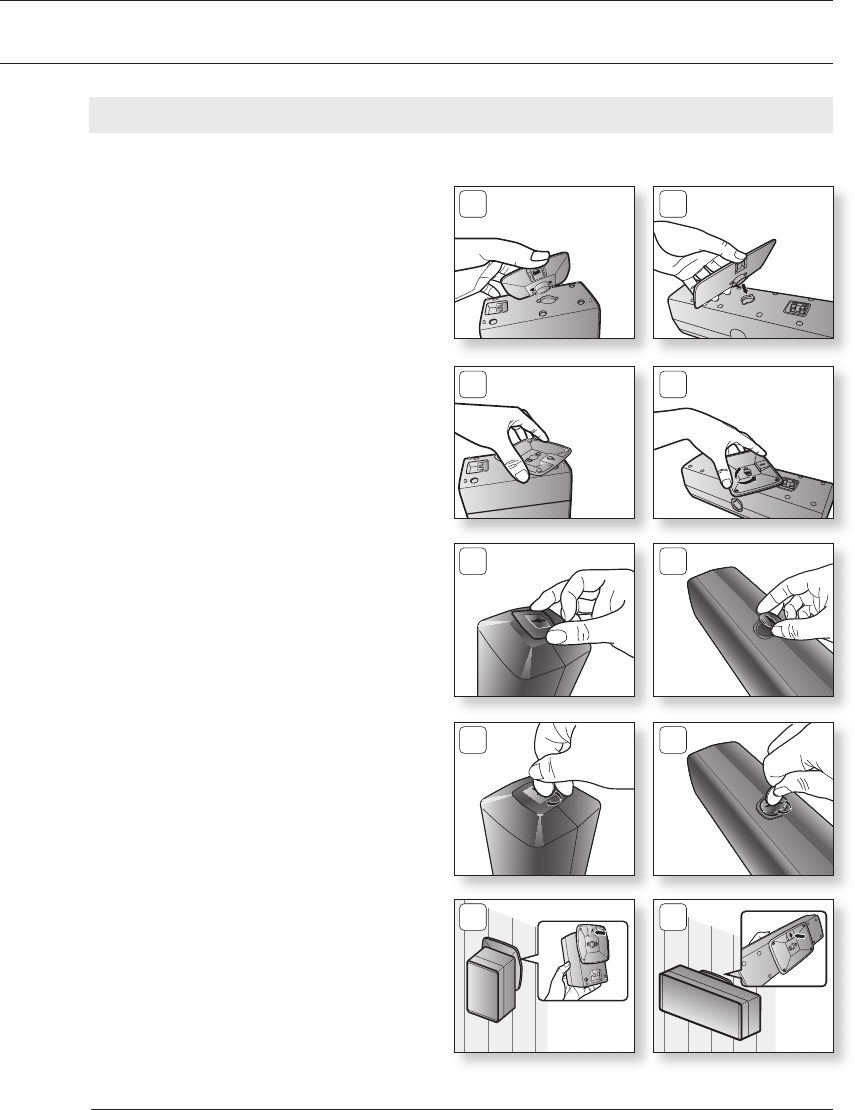

Installing the Wall Mount

<Front/Rear> <Center>

1. Insert the wall mount so that it fi ts into the

rear hole of the speaker as in the fi gure.

2. Turn the wall mount counter clockwise to

fi x it. (This is the reverse direction to the

cradle stand.)

3. Put the hole cover on the hole of the

speaker.

1 1

2 2

33

HT-TWZ312(315)_XAC(ENG)_0220.ind20 20 2008-02-20 �� 3:54:22

21

ENG ● CONNECTIONS

How to Install the Speaker on the Stand Base

Connect the SPEAKER with the

STAND BASE.

Insert the SCREW into the hole on the rear

of the speaker using a screwdriver as shown

in the illustration.

This is the SPEAKER successfully

assembled with the Stand Base.

1.

2.

3.

1 2

3

SPEAKER

STAND

BASE

Turn the STAND upside-down and connect

it to the STAND BASE.

Insert three small SCREWS into three holes

marked with arrows using a screwdriver as

shown in the illustration.

Insert a large SCREW into the hole on the

rear of the Speaker STAND.

Connect the assembled stand to the

SPEAKER.

Insert another large SCREW into the hole

on the rear of the speaker using a

screwdriver as shown in the illustration.

This is the successfully assembled speaker.

Make sure that the speaker is installed on a

fl at and stable area. Otherwise it may be

easily knocked over.

1.

2.

3.

4.

5.

6.

1 2

5 6

How to Install the Speaker on the Stand

STAND

BASE

3 4

STAND

SPEAKER

STAND

HT-TWZ312(315)_XAC(ENG)_0220.ind21 21 2008-02-20 �� 3:54:24

22

connections

Connecting the Front, Rear, Center and Subwoofer Speakers

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into

the red (+) terminal, and then release the tab.

Connect the connecting plugs to the back of the Home Theater.

Make sure the colors of the speaker terminals match the colors of

the connecting plugs.

1.

2.

3.

~

If you place a speaker near your TV set, screen color may be distorted because of the magnetic

fi eld generated by the speaker. If this occurs, place the speaker away from your TV set.

M`

Do not let children play with or near the speakers. They could get hurt if a speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

Keep the subwoofer speaker out of reach of children so as to prevent children from

inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.

Do not hang the subwoofer on a wall through the duct (hole).

`

`

`

`

CONNECTING THE SPEAKERS (CON'T)

Black Red

ipod

AUX IN 2

HT-TWZ315

Front Speaker (R)

Center Speaker

Front Speaker (L)

Subwoofer

ipod

AUX IN 2

HT-TWZ312

Front Speaker (R)

Center Speaker

Rear Speaker (R)

Front Speaker (L)

Rear Speaker (L)

Subwoofer Rear Speaker (R) Rear Speaker (L)

HT-TWZ312(315)_XAC(ENG)_0220.ind22 22 2008-02-20 �� 3:54:25

23

ENG ● CONNECTIONS

CONNECTING THE WIRELESS RECEIVING AMPLIFIER

Wireless Receiving Module (SWA-4000)

Connect the front, center and Subwoofer speakers to the

DVD Player, referring to pages 22.

With the DVD Player turned off, insert the TX card into the

TX Card Connection(WIRELESS) on the back of the main unit.

Hold the TX card so that the slanted side faces to the left

and insert the card into the port.

The TX card enables communication between the main

unit and the wireless receiver.

Connect the left and right rear speakers to the wireless

receiving module.

1.

2.

~

~

3.

ipod

AUX IN 2

Slanted side face left

TX card

ipod

AUX IN 2

RESET

WIRELESS RECEIVER MODULE

Rear Speaker (L) Rear Speaker (R)

Subwoofer

Front

Speaker (R)

Front

Speaker (L)

Center Speaker

In case of HT-TWZ312

Plug the power cord of the wireless receiving module

in the wall outlet and switch the power switch ON.

4.

RESET

HT-TWZ312(315)_XAC(ENG)_0220.ind23 23 2008-02-20 �� 3:54:27

24

connections

When you have Purchased the Wireless Receiving Module (SWA-4000)

Do not insert any other card except the TX card dedicated to the product.

If a different TX card is used, the product may be damaged or the card may not be removed

easily.

Do not insert the TX card upside down or in the reverse direction.

Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned

on may cause a problem.

If the TX Card is inserted and wireless receiving module setting is complete, sound is not output

from the Rear Speaker connectors on the main unit.

The wireless receiving antenna is built into the wireless receiver module. Keep the unit away

from water and moisture.

For optimal listening performance, make sure that the area around the wireless receiver module

location is clear of any obstructions.

If no sound is heard from the wireless rear speakers, switch the mode to

DVD 5.1 channel or Dolby ProLogic II .

In 2-CH mode, no sound will be heard from the wireless rear speakers.

`

`

`

`

`

`

`

`

Place the wireless receiver module at the rear of the listening position. If the wireless receiver module

is too close to the main unit, some sound interruption may be heard due to interference.

If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment,

or any other device that uses the same frequency (5.8GHz) near the system, some sound

interruption may be heard due to interference.

The transmission distance from the main unit to the wireless receiving module is about 33

feet (10m), but may vary depending on your operating environment. If a steel-concrete wall

or metallic wall is between the main unit and the wireless receiver module, the system may

not operate at all, because the radio wave cannot penetrate metal.

This product(HT-TWZ312/HT-TWZ-315) is also compatible with the wireless receiver

module SWA-3000.

If the main unit doesn't make wireless connection, the system needs ID Setting between

main unit and wireless receiver module. With the main unit turned off, press remote

control's number button "0""1""3""5" and unit turned on. With the wireless receiver

module turned on, press "ID SET" button on the back of the wireless receiver for 5 seconds.

M`

`

`

`

`

CONNECTING THE WIRELESS RECEIVING AMPLIFIER (CON'T)

HT-TWZ312(315)_XAC(ENG)_0220.ind24 24 2008-02-20 �� 3:54:27

25

ENG ● CONNECTIONS

CONNECTING THE VIDEO OUT TO YOUR TV

Choose one of the three methods for connecting to a TV.

ipod

AUX IN 2

ipod

AUX IN 2

METHOD3

(supplied)

METHOD2

METHOD1

METHOD 1 : HDMI

Connect the HDMI cable from the HDMI OUT jack on the back of the DVD Home Theater to the HDMI

IN jack on your TV.

METHOD 2 : Component Video

If your television is equipped with Component Video inputs, connect a component video cable(not

supplied) from the Component Video Output (Pr, Pb and Y) Connectors on the back of the main unit to

the Component Video Input Connectors on your TV.

METHOD 3 : Composite Video

Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO

IN jack on your TV.

Resolutions available for the HDMI output are 480p, 720p,1080i/1080p.

This product operates in Interlace scan mode (480i) for Component Output.

After making the video connection, set the Video input source on your TV to match the

corresponding Video output (HDMI, Component or Composite) on your Home theater.

See your TV owner's manual for more information on how to select the TV's Video Input source.

If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home

Theater using the TV's remote control. (This is only available with SAMSUNG TVs that support

Anynet+(HDMI-CEC).)

Please check the

logo (If your TV has an

logo, then it supports Anynet+

function.)

M`

`

`

`

`

HT-TWZ312(315)_XAC(ENG)_0220.ind25 25 2008-02-20 �� 3:54:29

26

connections

HDMI Auto Detection Function

The player's video output will automatically change to HDMI mode when connecting an HDMI cable

while power is on. For possible HDMI resolutions, see page 27.

HDMI (High Definition Multimedia Interface)

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

Using HDMI, the DVD Home Theater transmits a digital video and audio signal and displays a vivid picture on a TV

having an HDMI input jack.

HDMI connection description

HDMI connector - Supports video and digital audio data.

- HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the

screen.

Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is

digital. Therefore either a digital-to-analog converter (in the DVD Home Theater) or an analog-to-digital converter (in

the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI

technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

What is the HDCP?

HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI

from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device

(TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

What is Anynet+?

Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+

feature.

- If your Samsung TV has an logo, then it supports the Anynet+ function.

- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on

automatically and switch to HDMI mode.

- If you turn on the player and press the Play button with a disc already inserted, the TV will immediately turn on

and switch to HDMI mode.

~

~

~

~

~

CONNECTING THE VIDEO OUT TO YOUR TV (CON'T)

HT-TWZ312(315)_XAC(ENG)_0220.ind26 26 2008-02-20 �� 3:54:30

27

ENG ● CONNECTIONS

HDMI FUNCTION

Resolution Selection

This function allows the user to select the screen resolution for

HDMI output.

In Stop mode, press and hold the SD/HD (Standard Defi nition/

High Defi nition) button on the remote control.

Resolutions available for the HDMI output are 480p, 720p,

1080i/1080p.

SD(Standard Defi nition) resolution is 480p and HD

(High Defi nition) resolution is 720p, 1080i/1080p.

If the TV does not support the confi gured

resolution, you will not be able to see the picture

properly.

When an HDMI cable is connected, composite and

component video signals are not output.

See your TV owner's manual for more information on

how to select the TV's Video Input source.

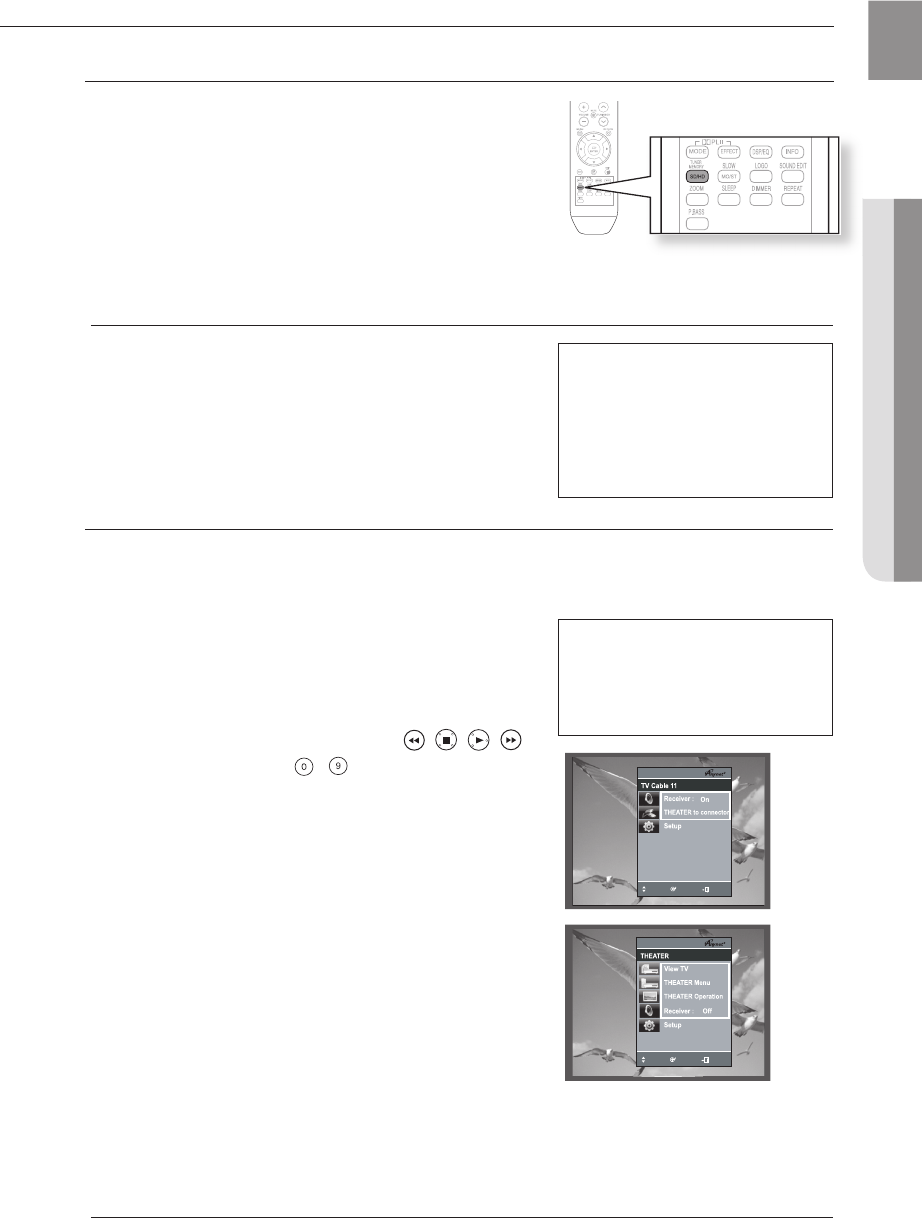

Using Anynet+(HDMI-CEC)

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote

control, Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable.

This is only available with SAMSUNG TVs that support Anynet+.

Connect the main unit of the Home Theater to a Samsung

TV with an HDMI cable. (See page 25)

Set the Anynet+ function on your TV.

(See the TV instruction manual for more information.)

You can operate the Home Theater by using the TV

remote control. (Available TV buttons : , , , ,

,

and

,

buttons, ~ button)

If you select the TV

Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+

button on your TV remote control.

•

Receiver : On :

You can listen to audio through the Home Theater.

•

Receiver : Off : You can listen to audio through the TV.

If you select the THEATER

Select THEATER to

connect

and set the option of each item

below.

•

View TV :

If anynet+(HDMI CEC) is set to on and you select View TV, the

home theater will automatically switch to digital in mode.

• Theater

Menu :

you can access and control the Home theater menu.

• Theater Operation : The Home Theater disc playback

information will be displayed.

You can

control the Disc operation of the Home Theater

such as title,chapter and subtitle change.

•

Receiver : On :

You can listen to audio through the Home Theater.

•

Receiver : Off : You can listen to audio through the TV.

In case that you chose 'View TV', if you want to listen to TV sound through Digital In, you

have to connect the optical cable between the TV and the Home Theater.

~

~

M`

`

`

1.

2.

~

M`

Why use HDMI (High Defi nition

Multimedia Interface)?

This device transmits a DVD video

signal digitally without the process

of converting to analog. You will get

sharper digital pictures when using

an HDMI connection.

Move Enter Exit

Setup

Connected to Player

Off

On

View TV

THEATER

THEATER Menu

MOVE

ENTER

EXIT

MOVE

ENTER

EXIT

Move Enter Exit

Setup

Connected to Player

Off

On

View TV

THEATER

THEATER Menu

MOVE

ENTER

EXIT

With Anynet+

You can operate this unit, power

on your TV, or watch a movie by

pressing the Play button on your

Samsung TV's remote control.

HT-TWZ312(315)_XAC(ENG)_0220.ind27 27 2008-02-20 �� 3:54:32

28

connections

CONNECTING AN

iPod

You can listen to the audio from an iPod through the main unit. For iPod operation with this Home Theater, see

pages 29 and 48.

ipod

AUX IN 2

ipod

Connect the iPod dock connector to the iPod jack on the DVD home theater.

Press the PORT button on the remote control to select iPod input.

You can also use the FUNCTION button on the main unit.

The mode switches as follows :

DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ OSD iPOD ➞ FM.

As the cable ports are close together, be sure to remove the wireless adaptor before

disconnecting the ipod docking cable.

Depending on the type of iPod. You may need to insert one of the dock slots into the dock

before you station your iPod (see next page).

Adjust the volume to a moderate level before you connect your iPod and DVD home

theater.

When the unit is powered on and you connect an iPod, the unit will charge your iPod's

battery.

Make sure to connect the dock connector so that the

label “SAMSUNG” faces upward.

1.

2.

~

M`

`

`

`

`

ipod

AUX IN 2

HT-TWZ312(315)_XAC(ENG)_0220.ind28 28 2008-02-20 �� 3:54:33

29

ENG ● CONNECTIONS

iPod models compatible with the dock

mini (4GB, 6GB) 20GB 40GB

20GB, 30GB

(color display)

40GB, 60GB

(color display)

nano

(1GB, 2GB, 4GB)

nano (aluminum)

(2GB, 4GB, 8GB) 30GB (video) 60GB, 80GB (video)

The following 5 models must be used with the applicable dock insert as well as the dock before

they can be connected to the system.

iPhone (4GB, 8GB)



AH81-04244A classic (80GB)



AH81-04241A

classic (160GB)



AH81-04242A nano (video)

(4GB, 8GB)



AH81-04243A

touch (8GB, 16GB)



AH81-04245A

The provided dock insert includes 5 different types. Check the dock insert for the iPod model

name on its rear side before use. (The dock insert for Classic 160 GB has the model name on

the bottom.)

M`

2

1

HT-TWZ312(315)_XAC(ENG)_0220.ind29 29 2008-02-20 �� 3:54:36

30

connections

CONNECTING AUDIO FROM EXTERNAL COMPONENTS

AUX1 : Connecting an External Component/MP3 player

Components such as an MP3 Player.

AUX IN 1

Audio Cable

(not supplied)

Audio OUT

Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3

player.

Press the AUX button on the remote control to select AUX1 input.

You can also use the FUNCTION button on the main unit.

The mode switches as follows :

DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ OSD iPOD ➞ FM.

1.

2.

~

HT-TWZ312(315)_XAC(ENG)_0220.ind30 30 2008-02-20 �� 3:54:37

31

ENG ● CONNECTIONS

ipod

AUX IN 2

ipod

AUX IN 2

AUX2 : Connecting an External Analog Component

Analog signal components such as a VCR.

Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.

Be sure to match connector colors.

Press the AUX button on the remote control to select AUX 2 input.

You can also use the FUNCTION button on the main unit.

The mode switches as follows :

DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ OSD iPOD ➞ FM.

You can connect the Video Output jack of your VCR to the TV, and connect the Audio

Output jacks of the VCR to this product.

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital

component.

Press the AUX button on the remote control to select DIGITAL IN.

You can also use the FUNCTION button on the main unit.

The mode switches as follows :

DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ OSD iPOD ➞ FM.

1.

~

2.

~

M`

1.

2.

~

Audio Cable (not supplied)

If the external analog component

has only one Audio Out, connect

either left or right.

Optical Cable

(not supplied)

AUX2 : Rear Panel OPTICAL : Rear Panel

External Analog Component External Digital Component

HT-TWZ312(315)_XAC(ENG)_0220.ind31 31 2008-02-20 �� 3:54:38

32

connections

CONNECTING THE FM ANTENNA

Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.

Slowly move the antenna wire around until you fi nd a location where reception is good, then fasten it

to a wall or other rigid surface.

This unit does not receive AM broadcasts.

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise

and may damage it.

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a

newspaper or cloth, heat may build up inside the unit and fi re may result.)

1.

2.

M`

~

~

ipod

AUX IN 2

ipod

AUX IN 2

FM Antenna

(supplied)

HT-TWZ312(315)_XAC(ENG)_0220.ind32 32 2008-02-20 �� 3:54:40

33

ENG

The DVD Home Theater's remote can be used to control Samsung TVs.

Plug the main unit's power cord into the AC power supply.

Press the DVD RECEIVER button to operate the DVD Home

Theater.

Press the FUNCTION button on the main unit or DVD button

on the remote to enable DVD/CD playback.

Press the TV button to set the remote to TV mode.

Press the POWER button to turn on your Samsung TV

with this remote.

Press the TV/VIDEO button to select VIDEO mode

on your TV.

1.

2.

3.

4.

5.

6.

before using your home theater

VIDEO

●

BEFORE USING YOUR HOME THEATER

HT-TWZ312(315)_XAC(ENG)_0220.ind33 33 2008-02-20 �� 3:54:41

playback

34

DISC PLAYBACK

dB

Press the OPEN/CLOSE ( ) button to open the disc tray.

Load a disc.

Place a disc gently into the tray with the disc’s label

facing up.

Close the compartment by pressing the OPEN/CLOSE ( )

button again.

Playback starts automatically.

To stop playback, press the STOP ( ) button during playback.

If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory.

If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position.

(This function works only with DVDs.)

If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the

beginning.

To temporarily pause playback, press the PAUSE ( ) button during playback.

To resume playback, press the PLAY ( ) button.

Depending on the content of the disc, the initial screen may appear different.

Pirated discs will not run in this player because it violates the CSS (Content Scrambling System :

a copy protection system) recommendations.

1.

2.

~

3.

~

~

~

~

M`

`

HT-TWZ312(315)_XAC(ENG)_0220.ind34 34 2008-02-20 �� 3:54:43

35

ENG ● PLAYBACK

MP3/WMA-CD PLAYBACK

Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.

A

Place the MP3/WMA disc on the disc tray.

The MP3/WMA menu screen will appear and

playback will start.

The appearance of the menu depends on the

MP3/WMA disc.

WMA-DRM fi les cannot be played.

In Stop mode, use the Cursor ,,, button

to select the album, and then press the ENTER button.

Use the Cursor

,

button to select the track.

To change the album, use the Cursor ,,,

button to select another album in Stop mode, and then

press the ENTER button.

Press the STOP (T) button to stop playback.

Depending on the recording mode, some MP3/WMA-CDs may not play.

Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded

on the disc.

Press the Cursor ,,, button when it is in Stop mode and select a desired icon from the

top part of the menu.

Music File Icon : To play music fi les only, select the Icon.

Image File Icon : To view image fi les only, select the Icon.

Movie File Icon : To view movie fi les only, select the Icon.

All File Icon : To view all fi les select the Icon.

1.

~

~

~

2.

~

3.

4.

M`

`

~

To play a fi le icon in the screen,

HT-TWZ312(315)_XAC(ENG)_0220.ind35 35 2008-02-20 �� 3:54:43

playback

36

JPEG FILE PLAYBACK

Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played back

with this Home Theater.

Slide Mode G

Place the JPEG disc on the disc tray.

Playback starts automatically. Each image is displayed

for 5 seconds and then the next image is displayed.

Press the [,] button to skip to the next slide.

Each time the button is pressed, the slide moves backward or forward.

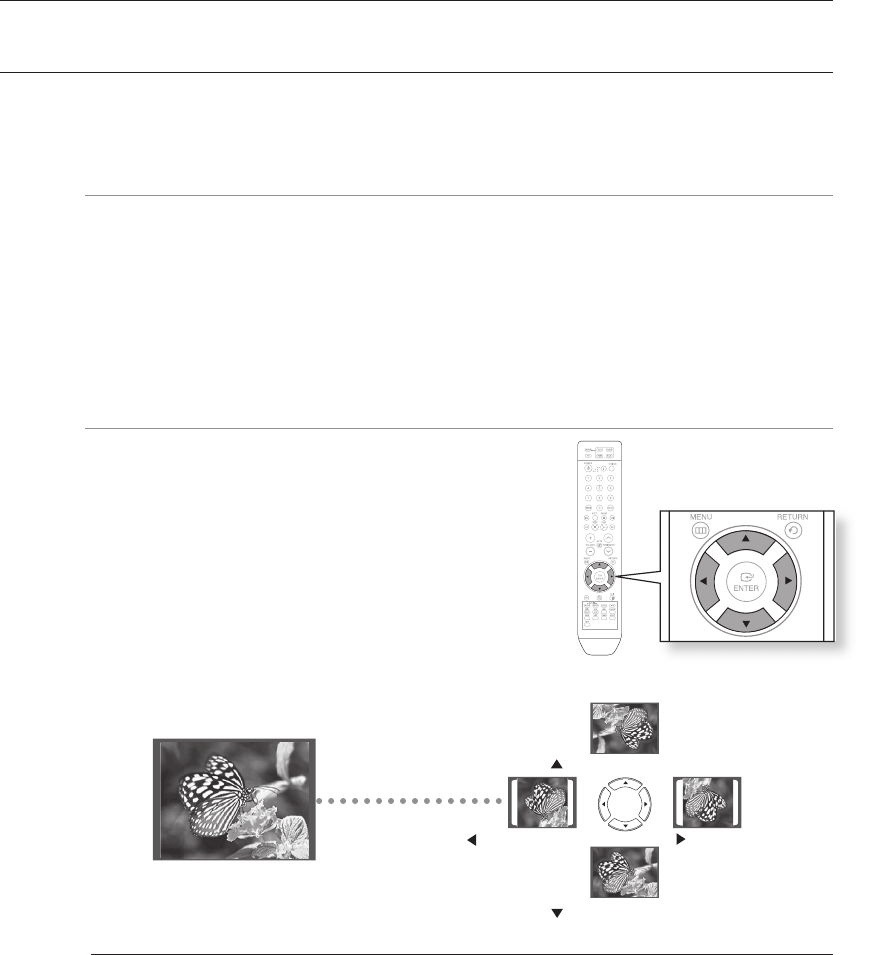

Rotate/Flip Function G

Press the Cursor ,,, button during playback.

The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for

standard JPEG fi les and 2048 x 1536 (or 3.0 MPixel) for progressive image fi les.

If a JPEG fi le is played when the HDMI output

resolution is 720p/1080i/1080p, the mode is automatically converted to 480p mode.

~

~

M`

`

button: Rotate 90°

Clockwise

button: Rotate 90°

Counterclockwise

button: Flip Vertically

button: Flip Horizontally

Original Image

ENTER SELECT

HT-TWZ312(315)_XAC(ENG)_0220.ind36 36 2008-02-20 �� 3:54:45

37

ENG ● PLAYBACK

DIVX PLAYBACK

The functions on this page apply to DivX disc playback.

Skip Forward/Back D

During playback, press the [,] button.

Goes to the next fi le whenever you press the ] button,

if there are over 2 fi les in the disc.

Goes to the previous fi le whenever you press the

[ button, if there are over 2 fi les in the disc.

Fast Playback D

During playback, press the (,) button.

To play back the disc at a faster speed, press the ( or )

button during playback.

Each time you press either button, the playback speed will

change as follows:

2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

5 Minute Skip function D

During playback, press the Cursor , button.

Playback skips 5 minutes forward whenever you press the

Cursor  button.

Playback skips 5 minutes back whenever you press the

Cursor  button.

Audio Display D

Press the AUDIO button.

If there are multiple audio languages on a disc, you can

toggle between them.

Each time you press the button, your selection will toggle

between AUDIO (1/N, 2/N ...) and .

is displayed when there is one supported language in the disc.

Subtitle Display D

Press the SUBTITLE button.

Each time you press the button, your selection will toggle

between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.

If the disc has only one subtitle fi le, it will be played

automatically.

See number 2 (Caption Function) on the next page for

more details concerning Subtitle usage with DivX discs.

~

~

~

~

~

~

~

M`

~

~

~

HT-TWZ312(315)_XAC(ENG)_0220.ind37 37 2008-02-20 �� 3:54:47

playback

38

DIVX PLAYBACK

If the Disc has more than One Subtitle File D

If the disc has more than one subtitle fi le, the default

subtitle may not match the movie and you will have

to select your subtitle language as follows:

In Stop mode, press the Cursor , button, select the

desired subtitle ( ) from the TV screen, and then

press the ENTER button.

When you select the desired DivX fi le from the TV

screen, the movie will be played normally.

DivX(Digital internet video eXpress)

DivX is a video fi le format developed by Microsoft and is based on MPEG4 compression technology to

provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at

near DVD-quality video and audio.

Supported Formats

This product only supports the following media formats.If both video and audio formats are not

supported, you may experience problems such as broken images or no sound.

Supported Video Formats

Format AVI WMV

Supported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7

Supported Audio Formats

Format MP3 WMA AC3 DTS

Bit Rate 80~384kbps 56~128kbps 128~384kbps 1.5Mbps

Sampling Frequency 44.1khz 44.1/48khz 44.1khz

DivX fi les, including audio and video fi les, created in the DTS format can only support up to 6Mbps.

Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports

up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.

When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may

experience shaking on the screen during playback.

Caption Function

You must have some experience with video extraction and editing in order to use this feature

properly.

To use the caption function, save the caption fi le (*.smi) in the same fi le name as that of the DivX

media fi le (*.avi) within the same folder.

Example. Root Samsung_007CD1.avi

Samsung_007CD1.smi

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean

and Chinese) for the fi le name.

1.

2.

1.

~

~

~

2.

~

~

~

HT-TWZ312(315)_XAC(ENG)_0220.ind38 38 2008-02-20 �� 3:54:48

39

ENG ● PLAYBACK

USING THE PLAYBACK FUNCTION

Displaying Disc Information dBAGD

You can view disc playback information on the TV screen.

Press the INFO button.

Depending on the disc, the disc information

display may appear different.

Depending on the disc, you can also select

DTS, DOLBY DIGITAL, or PRO LOGIC.

appears on the TV screen!

If this symbol appears on the TV screen when pressing

a button, that operation is not possible with the disc

currently being played.

Checking the Remaining Time dBA

Press the REMAIN button.

For checking the total and remaining time of a title or

chapter being played.

Each time the Remain button is pressed

DVD-VIDEO

TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN

DVD-AUDIO

GROUP ELAPSED ➞ GROUP REMAIN ➞ TRACK ELAPSED ➞ TRACK REMAIN

B

TRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN

A

TRACK REMAIN ➞ TRACK ELAPSED

M`

`

~

HT-TWZ312(315)_XAC(ENG)_0220.ind39 39 2008-02-20 �� 3:54:49

playback

40

USING THE PLAYBACK FUNCTION

Fast Playback dBAD

Press the (,) button.

Each time the button is pressed during playback, the

playback speed changes as follows:

( 2X ➞ ( 4X ➞ ( 8X ➞ ( 32X ➞  PLAY

) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞  PLAY

During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x,

8x, and 32x speeds.

Slow Playback dD

Press the SLOW button.

Each time the button is pressed during playback, the

playback speed changes as follows:

d

*1/2 ➞*1/4 ➞*1/8 ➞&1/2 ➞&1/4 ➞&1/8 ➞

 PLAY

D

*1/2 ➞*1/4 ➞*1/8 ➞  PLAY

No sound is heard during slow playback.

Reverse slow playback does not work with CD.

Skipping Scenes/Songs dA

Press the [,] button.

Each time the button is pressed during playback, the previous

or next chapter, track or directory (fi le) will be played.

You cannot skip chapters consecutively.

~

M`

~

M`

`

~

~

HT-TWZ312(315)_XAC(ENG)_0220.ind40 40 2008-02-20 �� 3:54:50

41

ENG ● PLAYBACK

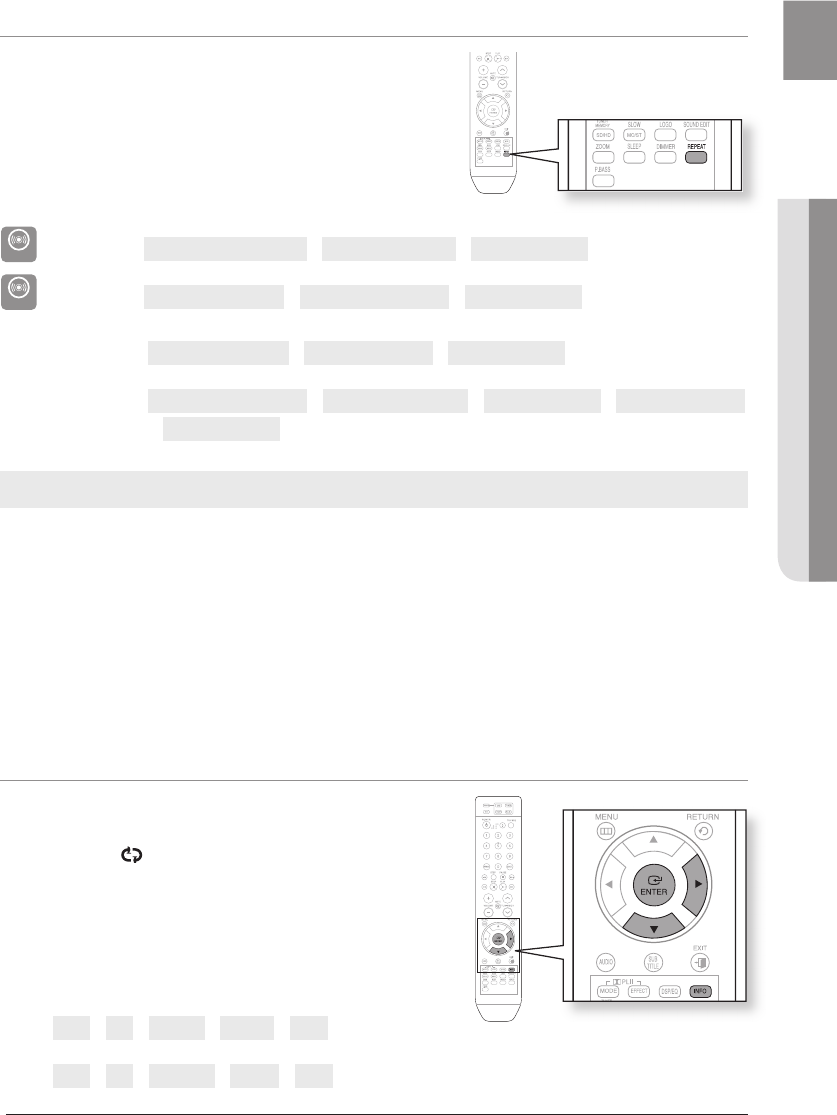

Repeat Playback dBAGD

Repeat playback allows you to repeatedly play a chapter, title,

track (song), or directory (MP3 fi le).

Press the REPEAT button.

Each time the button is pressed during playback, the repeat

playback mode changes as follows:

DVD-VIDEO

REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF

DVD-AUDIO

REPEAT : TRACK ➞ REPEAT : GROUP ➞ REPEAT : OFF

B

REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF

AGD

REPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR ➞ REPEAT : DISC

➞ REPEAT : OFF

CHAPTER : Repeatedly plays the selected chapter.

TITLE : Repeatedly plays the selected title.

GROUP : Repeatedly plays the selected group.

RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)

TRACK : Repeatedly plays the selected track.

DIR : Repeatedly plays all tracks in the selected folder.

DISC : Repeatedly plays the entire disc.

OFF : Cancels Repeat Playback.

To Select a Repeat Playback Mode in the Disc Information Screen

dB

Press the INFO button twice.

Press the Cursor  button to move to REPEAT

PLAYBACK ( ) display.

Press the Cursor  button to select the desired Repeat

Playback mode.

To select another album and track, repeat Steps 2 and

3 above.

Press the ENTER button.

d

OFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFF

B

OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF

For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information

display screen.

~

1.

2.

3.

~

4.

M`

Repeat Playback Options

HT-TWZ312(315)_XAC(ENG)_0220.ind41 41 2008-02-20 �� 3:54:51

playback

42

USING THE PLAYBACK FUNCTION

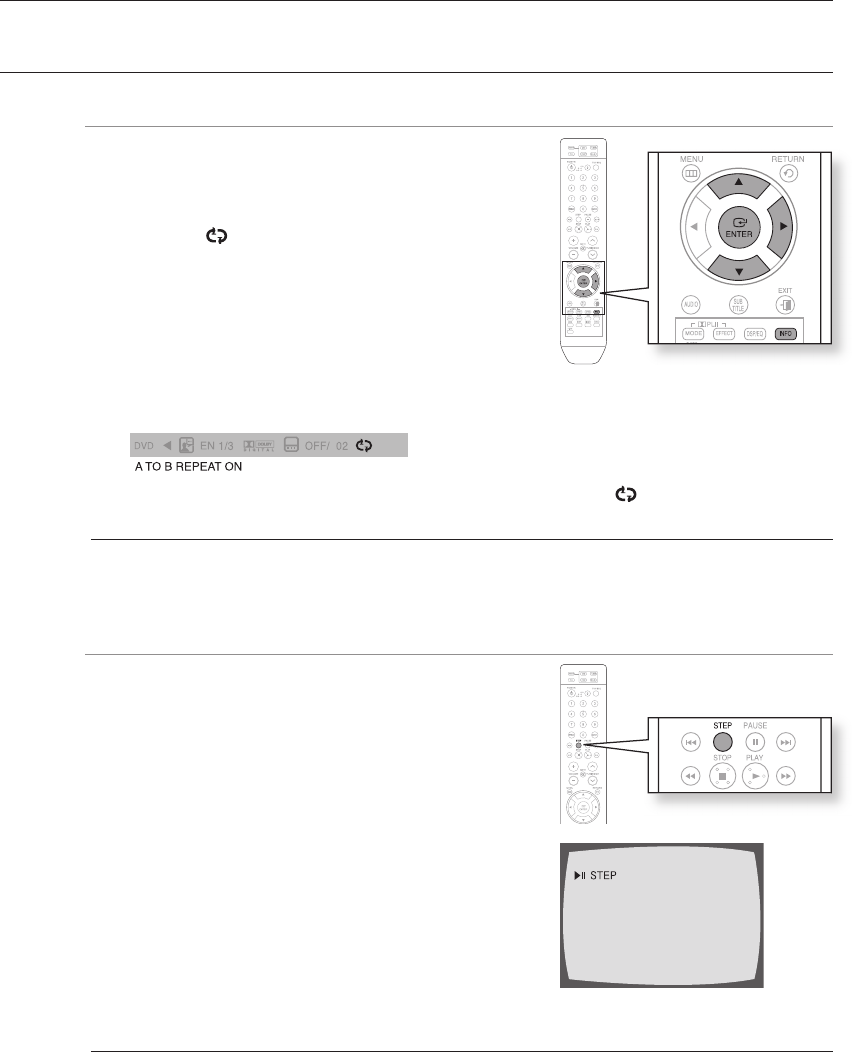

A-B Repeat Playback d

You can repeatedly play back a designated section of a DVD.

Press the INFO button twice.

Press the Cursor  button to move to REPEAT

PLAYBACK ( ) display.

Press the Cursor , button to select A- and then press

the ENTER button.

When the ENTER button is pressed, the selected

position will be stored in memory.

Press the ENTER button at the end of the desired

segment.

The specifi ed segment will be played repeatedly.

A -

A -?

A - B

REPEAT : AÐ

A TO B REPEAT ON

d To return to normal playback, press the Cursor , button to select OFF.

The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.

Step Function dD

Press the STEP button.

The picture moves forward one frame each time the button is

pressed during playback.

No sound is heard during step motion playback.

1.

2.

3.

~

4.

~

M`

~

M`

HT-TWZ312(315)_XAC(ENG)_0220.ind42 42 2008-02-20 �� 3:54:53

43

ENG ● PLAYBACK

Angle Function d

This function allows you to view the same scene in different

angles.

Press the INFO button.

Press the Cursor  button to move to ANGLE ( )

display.

Press the Cursor , button or numeric buttons to

select the desired angle.

Each time the button is pressed, the angle changes as

follows:

1/3 ➞ 2/3 ➞ 3/3 ➞ 1/3

The Angle function works only with discs on which multiple angles have been recorded.

Zoom (Screen Enlarge) Function d

This function allows you to enlarge a particular area of the

displayed image.

Press the ZOOM button.

Press the Cursor ,,, button to move to the area

you want to enlarge.

Press the ENTER button.

Each time the button is pressed, the zoom level changes

as follows:

ZOOM X 1.5 ➞ZOOM X 2 ➞ZOOM X 3

➞ZOOM OFF

1.

2.

3.

~

M`

1.

2.

3.

~

ENTER SELECT

SELECT ZOOM POSITION

HT-TWZ312(315)_XAC(ENG)_0220.ind43 43 2008-02-20 �� 3:54:54

playback

44

USING THE PLAYBACK FUNCTION

Bonus Group

DVD-AUDIO

Some DVD-Audio discs have an extra ‘bonus’ group that

requires a 4-digit key number to access. See the disc

packaging for details and the key number.

When you play a DVD-Audio disc that has a bonus group, the

key number input screen appears automatically.

If you eject the disc, switch the power off, or unplug the player, you will need to re-enter

the key number.

Navigating Pages

DVD-AUDIO

During playback, press the .,, button on the remote control.

You can select the desired image from a DVD-Audio disc

containing still images.

With some discs, you may not be able to select images.

M`

~

~

BONUS GROUP�

KEY NUMBER :

HT-TWZ312(315)_XAC(ENG)_0220.ind44 44 2008-02-20 �� 3:54:55

45

ENG ● PLAYBACK

Audio Language Selection Function d

Press the INFO button twice.

Press the Cursor , button or numeric buttons to

select the desired audio language.

Depending on the number of languages on a DVD disc,

a different audio language (ENGLISH, SPANISH,

FRENCH, etc.) is selected each time the button is

pressed.

EN 1/3 ➞ SP 2/3 ➞ FR 3/3 ➞ EN 1/3

Subtitle Language Selection Function d

Press the INFO button twice.

Press the Cursor  button to move to SUBTITLE ( )

display.

Press the Cursor  button or numeric buttons to select

the desired subtitle.

EN 01/03 ➞ SP 02/03 ➞ FR 03/03 ➞ OFF/03 ➞

EN 01/03

To operate this function, you can also press the AUDIO or SUBTITLE buttons on the

remote control.

Depending on the disc, the Subtitle and Audio Language functions may not be available.

Moving Directly to a Scene/Song dBAG

dB

Press the INFO button.

Press the Cursor , button or numeric buttons to

select the desired title/track ( ) and then press the

ENTER button.

Press the Cursor , button to move to the Chapter

( ) display.

Press the Cursor , button or numeric buttons to

select the desired chapter and then press the ENTER

button.

Press the Cursor , button to move to time ( )

display.

Press the numeric buttons to select the desired time

and then press the ENTER button.

1.

2.

~

1.

2.

3.

M`

`

1.

2.

3.

4.

5.

6.

HT-TWZ312(315)_XAC(ENG)_0220.ind45 45 2008-02-20 �� 3:54:56

playback

46

USING THE PLAYBACK FUNCTION

Moving Directly to a Scene/Song dBAG

AG

Press the numeric buttons.

The selected fi le will be played.

When playing an MP3 or JPEG disc, you cannot use the

Cursor , button to move to a folder.

To move a folder, press the STOP (T) and then press the

Cursor , button.

You can press the

[,]

button on the remote control to move directly to the desired title,

chapter, or track.

Depending on the disc, you may not be able to move to the selected title or time.

Using the Disc Menu d

You can use the menus for the audio language, subtitle language, profi le, etc.

DVD menu contents differ from disc to disc.

In Stop mode, press the MENU button.

Press the Cursor , button or numeric buttons

to move to Disc Menu and then press the

ENTER button.

When you select Disc Menu and it is not supported by

the disc, the "This menu is not

supported" message appears on the screen.

Press the Cursor ,,, button to select the desired

item.

Press the ENTER button.

d Press the EXIT button to exit the setup screen.

The disc menu display may be different depending on the disc.

~

~

M`

`

1.

2.

~

3.

4.

M`

ENTERMOVE EXIT

HT-TWZ312(315)_XAC(ENG)_0220.ind46 46 2008-02-20 �� 3:54:57

47

ENG ● PLAYBACK

Using the Title Menu d

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the

availability of this feature may vary.

In Stop mode, press the MENU button.

Press the Cursor , button to move to Title Menu.

Press the ENTER button.

The title menu appears.

d Press the EXIT button to exit the setup screen.

The Title menu display may be different depending on the disc.

1.

2.

3.

~

M`

ENTERMOVE EXIT

HT-TWZ312(315)_XAC(ENG)_0220.ind47 47 2008-02-20 �� 3:54:58

playback

48

USING THE

iPod

You can enjoy playback of your iPod using the supplied remote control.

Place the iPod in the Dock.

Your iPod is automatically turned on.

Connect the dock connector for iPod to the iPod jack on the DVD

home theater.

Press the PORT button on the remote control to select iPod mode.

Each time the button is pressed, your selection will toggle between

iPod mode and USB mode.

Use ,, and ENTER button on the remote control to display

the list of menu.

You can use the remote control or main unit to control simple

playback functions such as PLAY, PAUSE, STOP, NEXT/PREV,

and FF/REW, and REPEAT.

d Press the RETURN button to return to the previous menu.

Listening by Category

Press the , buttons on the remote control to select music and

press the ENTER button.

The Music categories appear.

Press the , buttons desired category and press the ENTER button.

The music fi les appear.

Press the , buttons to select the fi le to play and press the ENTER

button

The music will start with a new screen which shows the song title,

time, artist, and progress bar.

Not all iPods are compatible with this unit.

This product may not work properly, depending on the software

version of iPod. Please download and install the latest software

version.

This product does not support playing photos and movies from

your iPod.

Music categories

File information including the artist name, album name, music title and genre will be displayed according

to the ID3 Tag information on the appropriate music fi le.

Now Playing : Plays a recently played fi le or moves to the playback screen of the current fi le.

Artists : To play by artist.

Songs : To play in numeric or alphabetical order

Playlists : To play by Playlist.

Albums : To play by album.

Genres : To play by genre.

Composer : To play by composer.

What is an ID3 Tag?

This is what is attached to an MP3 to carry information relevant to the fi le such as

the title, artist, album, year, genre and a comment fi eld.

1.

~

2.

3.

~

4.

5.

1.

~

2.

~

3.

~

M`

`

`

M`

HT-TWZ312(315)_XAC(ENG)_0220.ind48 48 2008-02-20 �� 3:54:59

49

ENG ● PLAYBACK

PLAYING MEDIA FILES USING THE USB HOST FEATURE

You can enjoy media fi les such as pictures, movies and music saved on an MP3 player (except iPod), USB memory stick

or digital camera in high quality video with 5.1 channel Home Theater sound by connecting the storage device to the

USB port of the Home Theater.

Connect the USB device to the USB port on the front

of the unit.

Press the FUNCTION button on the DVD Player or the

PORT button on the remote control to select the USB

mode.

USB appears on the display screen and then

disappears.

The USB MENU screen appears on the TV screen

and the saved fi le is played.

To stop playback, press the STOP (T) button.

To prevent damage to the memory stored in the USB device,

perform safe removal before disconnecting the USB cable.

Press the STOP (T) button twice in a row.

The display will show REMOVE USB.

Remove the USB cable.

To listen to your music fi les with 5.1 channel home theater sound, you must set the Dolby

Pro Logic II mode to Matrix. (See page 60)

In USB mode, you are not enabled to change the resolution or use the SETUP menu if there is

no USB device connected to the USB port.

Skip Forward/Back

During playback, press the [,] button.

When there is more than one fi le and you press the ]

button, the next fi le is selected.

When there is more than one fi le and you press the [

button, the previous fi le is selected.

1.

2.

~

~

3.

~

~

M`

`

~

~

AUX IN 1

Safe PORT Removal

HT-TWZ312(315)_XAC(ENG)_0220.ind49 49 2008-02-20 �� 3:55:00

playback

50

Fast playback

During playback, press the (,) button.

Each time you press either button, the playback speed

will change as follows:

2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.

Compatible Devices

USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc

in Windows (2000 or later) without additional driver installation.)

MP3 Player: HDD and fl ash type MP3 players.

Digital camera: Cameras that support USB Mass Storage v1.0.

Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.

USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

You may experience a difference in playback quality when you connect a USB1.1 device.

For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

5. USB card Reader: One slot USB card reader and Multi slot USB card reader.

Depending on the manufacturer. the USB card reader may not be supported.

If you install multiple memory devices into a multi card reader, you may experience problems.

6. If you use a USB extension cable, the USB device might not be recognized.

Supported Formats

Format File name File

extension Bit rate Version Pixel

Sampling

Frequency

Still Picture JPG JPG .JPEG – – 640x480 –

Music

MP3 .MP3 80~384kbps – – 44.1kHz

WMA .WMA 56~128kbps V8 – 44.1kHz

Movie

WMV .WMV 4Mbps V1,V2,V3,V7 720x480

44.1KHz~48KHz

DivX

.AVI,.ASF 4Mbps DivX3.11~

DivX5.1, XviD 720x480

44.1KHz~48KHz

CBI (Control/Bulk/Interrupt) is not supported.

Digital Cameras that use PTP protocol or require additional program installation when connected to a

PC are not supported.

A device using NTFS fi le system is not supported. (The system supports only the FAT fi le system and

will not play a movie in larger than 1 GB in USB mode.)

Some MP3 players, when connected to this product, may not operate depending on the sector size

of their fi le system.

The USB host function is not supported if a product that transfers media fi les by its manufacturer-

specifi c program is connected.

Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.

The USB host function of this product does not support all USB devices. For information on

supported devices, see page 66.

~

1.

2.

3.

~

4.

~

~

~

~

~

~

~

~

~

~

~

HT-TWZ312(315)_XAC(ENG)_0220.ind50 50 2008-02-20 �� 3:55:01

51

ENG

● SYSTEM SETUP

MOVE ENTER

EXITRETURN

MOVE ENTER EXITRETURN

system setup

For your convenience, you can set this DVD Home Theater's features for the best use in your home

environment.

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

SETTING THE LANGUAGE

OSD(On-Screen Display) language is set to English by default.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Setup and then press the

ENTER button.

Select Language and then press the ENTER button.

Press the Cursor

$

,

%

button to select OSD Language and then

press the ENTER button.

Press the Cursor

$

,

%

button to select the desired language

and then press the ENTER button.

Once the setup is complete, the OSD will be English if

English has been selected as language.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

OSD LANGUAGE : Selecting the OSD Language

AUDIO : Selecting the Audio Language (recorded on the disc)

SUBTITLE : Selecting the Subtitle Language (recorded on the disc)

DISC MENU : Selecting the Disc Menu Language (recorded on the disc)

a

If the language you selected is not recorded on the disc, menu

language will not change even if you set it to your desired language.

OTHERS : To select another language, select OTHERS and

enter the language code of your country.

AUDIO, SUBTITLE and DISC MENU languages can be

selected.

1.

2.

3.

4.

5.

~

~

~

~

~

~

HT-TWZ312(315)_XAC(ENG)_0220.ind51 51 2008-02-20 �� 3:55:01

52

system setup

SETTING TV SCREEN TYPE

Depending on your TV type (Widescreen or conventional 4:3), you can select the TV's aspect ratio.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Setup and then press the

ENTER button.

Press the Cursor

%

button to move to TV DISPLAY and then

press the ENTER button.

Press the Cursor

$

,

%

button to select the desired item

and then press the ENTER button.

Once the setup is complete, you will be taken to the

previous screen.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high

definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different

screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

For a standard TV, select either 4:3PS or 4:3LB option according to personal preference.

Select WIDE/HDTV if you have a widescreen TV.

4:3PS (4:3 Pan&Scan)

Select this to play a 16:9 picture in the pan & scan mode on a

conventional TV.

You can see the central portion of the screen only (with the sides of the

16:9 picture cut off).

4:3LB (4:3 Letterbox)

Select this to play a 16:9 picture in the letter box mode on a conventional

TV.

Black bars will appear at the top and bottom of the screen.

WIDE/HDTV

Select this to view a 16:9 picture in the full-screen mode on your

widescreen TV.

You can enjoy the widescreen aspect.

If a DVD is in the 4:3 ratio, you cannot view it in widescreen.

Since DVD discs are recorded in various image formats, they will look different depending

on the software, the type of TV, and the TV aspect ratio setting.

When using HDMI, the screen is automatically converted to Wide mode.

1.

2.

3.

4.

~

~

~

~

M`

`

`

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

HT-TWZ312(315)_XAC(ENG)_0220.ind52 52 2008-02-20 �� 3:55:02

53

ENG ● SYSTEM SETUP

SETTING PARENTAL CONTROLS (RATING LEVEL)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Setup and then press the

ENTER button.

Press the Cursor

%

button to move to PARENTAL and then press

the ENTER button.

Press the Cursor

$

,

%

button to select the desired rating level and

then press the ENTER button.

If you have selected Level 6, you cannot view DVDs with Level 7

or higher.

The higher the level, the closer the content is to violent or adult

material.

5. Enter the password and then press the ENTER button.

The password is set to "7890" by default.

Once the setup is complete, you will be taken to the previous screen.

d Press the RETURN button to return to the previous level.

d

Press the EXIT button to exit the setup screen.

This function works only if a DVD disc contains the rating level information.

SETTING THE PASSWORD

You can set the password for the Parental (rating level) setting.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Setup and then press the

ENTER button.

Press the Cursor

%

button to move to PASSWORD and then

press the ENTER button.

Press the ENTER button.

Enter the password and then press the ENTER button.

Enter the old password, a new password, and confirm new

password.

The setting is complete.

The password is set to "7890" by default.

If you have forgotten the rating level password, do the following

While the player is in No DIsc mode, hold the DVD Players STOP (T) button for longer than

5 seconds. INITIAL appears on the display and all settings will return to the default values.

Press the POWER button.

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

1.

2.

3.

4.

~

~

~

~

M`

1.

2.

3.

4.

5.

~

~

M`

~

~

MOVE ENTER EXITRETURN

MOVE SELECT EXITRETURN

MOVE SELECT EXITRETURN

MOVE ENTER EXIT

RETURN

HT-TWZ312(315)_XAC(ENG)_0220.ind53 53 2008-02-20 �� 3:55:02

54

system setup

SETTING THE WALLPAPER

dG

While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.

During playback, press the PAUSE button when

an image you like appears.

Press the LOGO button.

COPY LOGO DATA will be displayed on the TV screen.

The power will turn off and then back on.

The selected wallpaper will be displayed.

You can select up to 3 wallpaper settings.

This function will not work when the HDMI output is 720p, 1080i or 1080p.

TO SELECT ONE OF THE 3 WALLPAPER SETTINGS YOU'VE MADE

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Setup and then

press the ENTER button.

Press the Cursor

%

button to move to LOGO and then

press the ENTER button.

Press the Cursor

$

,

%

button to select the desired USER,

and then press the ENTER button.

This selects one of the 3 wallpaper screens.

5. Press the EXIT button to exit the setup screen.

ORIGINAL : Select this to set the Samsung Logo image as

your wallpaper.

USER : Select this to set the desired image as your

wallpaper.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

1.

2.

~

3.

~

~

M`

1.

2.

3.

4.

~

~

~

COPY LOGO DATA

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

HT-TWZ312(315)_XAC(ENG)_0220.ind54 54 2008-02-20 �� 3:55:03

55

ENG ● SYSTEM SETUP

DVD PLAYBACK MODE

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.

To play back the DVD-Video portion of the DVD-Audio disc, set the unit

to DVD-Video mode.

Press the MENU button while the disc tray is open.

Press the Cursor

%

button to move to Setup and then press the

ENTER button.

Press the Cursor

%

button to move to DVD TYPE and then press

the ENTER button.

Press the Cursor

$

,

%

button to move to DVD VIDEO and then

press the ENTER button.

Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.

DVD VIDEO : Set to play the DVD video contents contained on

a DVD audio disc.

DVD AUDIO : Set to play the default DVD audio.

DVD Play mode is set to DVD Audio as factory default setting.

Powering off the main unit will automatically switch to the DVD Audio mode.

DviX (R) Registration

Please use the Registration code to register this player with the DivX (R) video on demand format.

To learn more, go to www.divx.com/vod.

SETTING THE SPEAKER MODE

Signal outputs and frequency responses from the speakers will automatically be adjusted according to

your speaker configuration and whether certain speakers are used or not.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Audio and then press the

ENTER button.

In the SPEAKER SETUP, press the ENTER button again.

Press the Cursor ,,, button to move to the desired speaker

and then press the ENTER button.

For C,

SL

, and SR, each time the button is pressed, the mode switches

alternately as follows : SMALL

➞

NONE.

For L and R, the mode is set to SMALL.

SMALL : Select this when using the speakers.

NONE : Select this when no speaker is connected.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 60).

1.

2.

3.

4.

~

~

~

M`

`

1.

2.

3.

4.

~

~

~

~

M`

MOVE ENTER EXITRETURN

MOVE ENTER EXIT

RETURN

MOVE ENTER EXITRETURN

MOVE CHANGE EXIT

RETURN

HT-TWZ312(315)_XAC(ENG)_0220.ind55 55 2008-02-20 �� 3:55:03

56

system setup

SETTING THE DELAY TIME

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay

time of the audio signals from the center and rear speakers.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Audio and then press the ENTER button.

Press the Cursor

%

button to move to DELAY TIME and then press the ENTER button.

Press the Cursor ,,, button to move to the desired speaker and then press the ENTER button.

5. Press the Cursor , to set the Delay time.

You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each

speaker is the same.

Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can

adjust this difference by adding a delay effect to the sound of the Center and Rear Speakers.

Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the

distance of Df in the figure, set the mode as 0ms.

Otherwise, change the setting according to the table.

Distance

between

Df and Dc

0.00 inch 1 feet,

1.39 inches

2 feet,

2.77 inches

3 feet,

5.73 inches

4 feet,

7.12 inches

5 feet,

9.29 inches

Delay Time

0 ms 1 ms 2 ms 3 ms 4 ms 5 ms

Setting REAR SPEAKER

If the distance of Dc is equal to or longer than the distance of Df

in the figure, set the mode as 0ms.

Otherwise, change the setting according to the table.

Distance

between

Df and Dc

0.00 inch 3 feet,

5.73 inches

6 feet,

11.7 inches

10 feet,

4.80 inches

13 feet,

10.54 inches

17 feet,

4.27 inches

Delay Time

0 ms 3 ms 6 ms 9 ms 12 ms 15 ms

With PL II (Dolby Pro Logic II), the delay time may be different for each mode.

With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.

The Center channel is only adjustable on 5.1 channel discs.

1.

2.

3.

4.

~

M`

`

`

Ideal CENTER SPEAKER

placement

Df: The distance from FRONT SPEAKER

Dc: The distance from CENTER SPEAKER

Dr: The distance from REAR SPEAKER

It is desirable to place all speakers within this circle.

Ideal

REAR

SPEAKER

placement

Setting up the Speaker Delay Time

HT-TWZ312(315)_XAC(ENG)_0220.ind56 56 2008-02-20 �� 3:55:04

57

ENG ● SYSTEM SETUP

SETTING THE TEST TONE

Use the Test Tone feature to check the speaker connections.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Audio and then press the

ENTER button.

Press the Cursor

%

button to move to TEST TONE and then press

the ENTER button.

The test tone will be sent to L ➞ C ➞ R ➞ SR ➞ SL ➞ SW in

order.

If the ENTER button is pressed again at this time, the test tone

will stop.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

SETTING THE AUDIO

You can adjust the balance and level for each speaker.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Audio and then press the

ENTER button.

Press the Cursor

%

button to move to SOUND EDIT and then press

the ENTER button.

Press the Cursor

,

button to select and adjust the desired item.

Press the Cursor

,

button to adjust the settings.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

1.

2.

3.

~

1.

2.

3.

4.

MOVE ENTER EXITRETURN

MOVE CHANGE EXIT

RETURN

MOVE ENTER EXITRETURN

STOP EXIT

HT-TWZ312(315)_XAC(ENG)_0220.ind57 57 2008-02-20 �� 3:55:04

58

system setup

SETTING THE AUDIO

Press the SOUND EDIT button and then press the Cursor

,

button.

Adjusting Front/Rear Speaker Balance

You can select between 00, -06, and OFF.

The volume decreases as you move closer to –6.

Adjusting Center/Rear/Subwoofer Speaker Level

The volume level can be adjusted in steps from +6dB to –6dB.

The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

SETTING THE DRC (DYNAMIC RANGE COMPRESSION)

This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby

Digital sound when watching movies at low volume at night.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Audio and then press

the ENTER button.

Press the Cursor

%

button to move to DRC and then press the

ENTER button.

Press the Cursor

,

to adjust the DRC.

When the Cursor



button is pressed, the effect is greater,

and when the Cursor



button is pressed, the effect is

smaller.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

`

`

`

`

1.

2.

3.

4.

~

Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.

RETURNMOVE ENTER EXIT

CHANGE EXIT

RETURN

HT-TWZ312(315)_XAC(ENG)_0220.ind58 58 2008-02-20 �� 3:55:05

59

ENG ● SYSTEM SETUP

SETTING THE AV SYNC

Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to

match the video.

In Stop mode, press the MENU button.

Press the Cursor

%

button to move to Audio and then press the

ENTER button.

Press the Cursor

%

button to move to AV-SYNC and then press

the ENTER button.

Press the Cursor

,

button to select the AV-SYNC Delay Time

and then press the ENTER button.

You can set the audio delay time between 0 ms and 300 ms. Set

it to the optimal status.

d Press the RETURN button to return to the previous level.

d Press the EXIT button to exit the setup screen.

SETTING THE HDMI AUDIO

The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.

In Stop mode, press the MENU button.

Press the Cursor



button to move to Audio and then press the

ENTER button.

Press the Cursor



button to move to HDMI AUDIO and then

press the ENTER button.

Press the Cursor

,

button to select ON or OFF and then press

the ENTER button.

• ON : Both video and audio signals are transmitted over the HDMI

connection cable, and audio is output through your

TV speakers only.

• OFF : Video is transmitted over the HDMI connection cable only,

and audio is output through the home theater speakers only.

d

Press the RETURN button to return to the previous level.

d

Press the EXIT button to exit the setup screen.

The default setting of this function is HDMI AUDIO OFF.

HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.

1.

2.

3.

4.

~

1.

2.

3.

4.

M`

`

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

MOVE ENTER EXITRETURN

MOVE SELECT EXIT

RETURN

HT-TWZ312(315)_XAC(ENG)_0220.ind59 59 2008-02-20 �� 3:55:06

60

system setup

SOUND FIELD (DSP)/EQ FUNCTION

DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.

EQ :

You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Press the DSP/EQ button.

DSP appears on the display panel.

Each time the button is pressed, the selection changes as follows:

POPS ➞ JAZZ ➞ ROCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHURCH ➞ PASS

POPS, JAZZ, ROCK : Depending on the genre of music, you

can select POP, JAZZ, and ROCK.

STUDIO : Provides a sense of presence as if in a studio.

CLUB : Simulates the sound of a dance club with a throbbing

bass beat.

HALL : Provides a clear vocal as if listening in a concert hall.

MOVIE : Provides the feeling of a movie theater.

CHURCH : Gives the feel of being in a grand church.

PASS : Select this for normal listening.

The DSP/EQ function is only available in STEREO mode.

Press the PL II mode button to show STEREO on the display.

This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs.

When playing a DVD disc encoded with two or more channels, multi-channel mode will be

selected automatically and DSP/EQ function does not work.

DOLBY PRO LOGIC II MODE

You can select the desired Dolby Pro Logic II audio mode.

Press the PL II MODE button.

Each time the button is pressed, the mode changes as follows.

MUSIC ➞ CINEMA ➞ PRO LOGIC ➞ MATRIX ➞

STEREO ➞ MUSIC

PRO LOGIC II

MUSIC : When listening to music, you can experience

sound effects as if you are listening to the actual performance.

CINEMA : Adds realism to the movie soundtrack.

PRO LOGIC : You will experience a realistic multi-channel effect, as if using fi ve speakers, while using

just the front left and right speakers.

MATRIX : You will hear 5.1 channel surround sound.

STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.

When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks

(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen

to surround sound.

~

~

~

~

~

~

~

~

M`

`

`

~

~

~

~

~

~

M`

HT-TWZ312(315)_XAC(ENG)_0220.ind60 60 2008-02-20 �� 3:55:07

61

ENG ● SYSTEM SETUP

DOLBY PRO LOGIC II EFFECT

This function works only in Dolby Pro Logic MUSIC mode.

Press the PL II MODE button to select MUSIC mode.

Press the PL II EFFECT button.

Each time the button is pressed, the mode changes as

follows.

Press the

,

buttons to select the desired effect setting.

PANORAMA : You can select either 0 or 1.

C- WIDTH : You can select between 0 and 7.

DIMENS : You can select between 0 and 6.

P.BASS

P.BASS function boosts the bass for a more powerful

sound.

Press the P.BASS button to select P.BASS mode.

Press the P.Bass button again to turn off the P.Bass mode.

The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd

and wma. Press P.BASS button and "POWER BASS ON" will be displayed on the screen.

The P.bass does not work with DSP/EQ or DOLBY PRO LOGIC ll modes.

If you press P.BASS in the DSP/EQ mode, the DSP/EQ mode is automatically shut off and

the P. BASS function comes on.

1.

2.

~

3.

~

~

~

1.

2.

M`

`

HT-TWZ312(315)_XAC(ENG)_0220.ind61 61 2008-02-20 �� 3:55:08

62

LISTENING TO RADIO

Remote Control

Press the TUNER button to select the FM band.

Tune in to the desired station.

Automatic Tuning 1 : When the [,] button is

pressed, a preset broadcast station is selected.

Automatic Tuning 2 : Press and hold the ,,. button

to automatically search for active broadcasting

stations.

Manual Tuning : Briefl y press the ,,. button to

increase or decrease the frequency incrementally.

Main Unit

Press the FUNCTION button to select the FM band.

Select a broadcast station

.

Automatic Tuning 1 : Press the STOP (T) button to select PRESET and then press the [,]

button to select the preset station.

Automatic Tuning 2 : Press the STOP (T) button to select MANUAL and then press and hold

the [,] button to automatically search the band.

Manual Tuning : Press the STOP (T) button to select MANUAL and then briefl y press

the button to tune in to a lower or higher frequency.

Press the MO/ST button to listen in Mono/Stereo.

•

Each time the button is pressed, the sound switches between STEREO and MONO.

•

In a poor reception area, select MONO for a clear, interference-free broadcast.

PRESETTING STATIONS

Example : Presetting FM 89.10 in the memory

Press the TUNER button to select the FM band.

Press the

,,.

button to select 89.10.

Press the TUNER MEMORY button.

Press the

[,]

button to select preset number.

You can select between 1 and 15 presets.

5. Press the TUNER MEMORY button again.

6. To preset another station, repeat steps 2 to 5.

To tune in to a preset station, press the

[,]

button

on the remote control to select a channel.

1.

2.

~

~

~

1.

2.

~

~

~

1.

2.

3.

4.

~

~

radio

HT-TWZ312(315)_XAC(ENG)_0220.ind62 62 2008-02-20 �� 3:55:10

63

ENG

SLEEP TIMER FUNCTION

You can set the time that the Home Theater will shut itself off.

Press the SLEEP button.

SLEEP will be displayed. Each time the button is pressed, the preset

time changes as follows :

10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF.

To confi rm the sleep timer setting, press the SLEEP button.

The remaining time before the Home Theater will shut itself off is

displayed.

Pressing the button again changes the sleep time from what you have

set earlier.

To cancel the sleep timer, press the SLEEP button until OFF appears on the display.

ADJUSTING DISPLAY BRIGHTNESS

You can adjust the brightness of the display on the main unit so it won't

interfere with your movie viewing.

Press the DIMMER button.

Each time the button is pressed, the brightness of front display will be

adjusted.

MUTE FUNCTION

This is useful when answering a doorbell or telephone call.

Press the MUTE button.

MUTE appears in the display.

To restore the sound, press the MUTE button again.

~

~

~

~

~

~

convenient function

● CONVENIENT FUNCTION

HT-TWZ312(315)_XAC(ENG)_0220.ind63 63 2008-02-20 �� 3:55:11

64

troubleshooting

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed

below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest

authorized dealer or Samsung Electronics Service Center.

SYMPTOM Check/Remedy

Disc tray does not open. • Is the power cord plugged securely into the outlet?

• Turn off the power and then turn it back on.

‘Please connect your ipod’

appears on the screen.

• Remove the iPod from the docking cradle and reinsert again.

• If the battery level of your iPod is totally drained, you have to

charge it again before use.

Playback does not start

immediately when the

Play/Pause button is pressed.

• Are you using a deformed disc or a disc with scratches on

the surface?

• Wipe the disc clean.

Sound is not produced. • No sound is heard during fast playback, slow playback, and

step motion playback.

• Are the speakers connected properly? Is the speaker setup

correctly customized?

• Is the disc severely damaged?

Sound can be heard only from a

few speakers and not all six.

• When listening to a CD or radio, sound is output to the front

speakers (L/R) only. Select "PRO LOGIC II" by pressing

PL II (Dolby Pro Logic II) on the remote control to use all

six speakers.

• Make sure that the DVD disc is 5.1-CH compatible.

• If you set C, SL, and SR to NONE in the speaker mode in the

audio setup of the setup screen, no sound is heard from the

center speaker and the front left and right speakers. Set C,

SL, and SR to SMALL.

Dolby Digital 5.1 CH Surround

Sound is not produced.

• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby

Digital 5.1 CH Surround Sound is produced only if the disc is

recorded with 5.1 channel sound.

• Is the audio language correctly set to DOLBY DIGITAL 5.1-

CH in the information display?

The remote control does not

work.

• Is the remote control being operated within its operation

range of angle and distance?

• Are the batteries exhausted?

• Have you selected the mode(TV/DVD) functions of the

remote control (TV or DVD) correctly?

HT-TWZ312(315)_XAC(ENG)_0220.ind64 64 2008-02-20 �� 3:55:11

65

ENG ● TROUBLESHOOTING

SYMPTOM Check/Remedy

• Disc is rotating but no

picture is produced.

• Picture quality is poor and

picture is shaking.

• Is the TV power on?

• Are the video cables connected properly?

• Is the disc dirty or damaged?

• A poorly manufactured disc may not be playable.

Audio language and subtitles do

not work.

• Audio language and subtitles will not work if the disc does

not contain them.

Menu screen does not appear

even when the menu function is

selected.

• Are you using a disc that does not contain menus?

Aspect ratio cannot be changed. • You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER

BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be

seen in 4:3 ratio only. Refer to the DVD disc jacket and then

select the appropriate function.

• The main unit is not working.

(Example: The power goes out

or strange noise is heard.)

• The DVD player is not working

normally.

• Turn off the power and hold the STOP (T) button on the

main unit for longer than 5 seconds (reset function).

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

The password for rating level has

been forgotten.

• While “NO DISC” message appears on the display of main

unit, hold the main unit's STOP (T) button for longer than 5

seconds. “INITIAL” appears on the display and all settings will

return to the default values.

• Press the POWER button.

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

Can't receive radio broadcast. • Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM

antenna in an area with good reception.

HT-TWZ312(315)_XAC(ENG)_0220.ind65 65 2008-02-20 �� 3:55:11

66

DIGITAL CAMERA

Product

Company

Type

Finepix-A340 Fuji Digital Camera

Finepix-F810 Fuji Digital Camera

Finepix-F610 Fuji Digital Camera

Finepix-f450 Fuji Digital Camera

Finepix S7000 Fuji Digital Camera

Finepix A310 Fuji Digital Camera

KD-310Z Konica Digital Camera

Finecam SL300R Kyocera Digital Camera

Finecam SL400R Kyocera Digital Camera

Finecam S5R Kyocera Digital Camera

Finecam Xt Kyocera Digital Camera

Dimage-Z1 Minolta Digital Camera

Dimage Z1 Minolta Digital Camera

Dimage X21 Minolta Digital Camera

Coolpix4200 Nikon Digital Camera

Coolpix4300 Nikon Digital Camera

Coolpix 2200 Nikon Digital Camera

Coolpix 3500 Nikon Digital Camera

Coolpix 3700 Nikon Digital Camera

Coolpix 4100 Nikon Digital Camera

Coolpix 5200 Nikon Digital Camera

Stylus 410 digital Olympus Digital Camera

300-digital Olympus Digital Camera

300-digital Olympus Digital Camera

U300 Olympus Digital Camera

X-350 Olympus Digital Camera

C-760 Olympus Digital Camera

C-5060 Olympus Digital Camera

X1 Olympus Digital Camera

U-mini Olympus Digital Camera

Lumix-FZ20 Panasonic Digital Camera

DMC-FX7GD Panasonic Digital Camera

Lumix LC33 Panasonic Digital Camera

LUMIX DMC-F1 Panasonic Digital Camera

Optio-S40 Pentax Digital Camera

Optio-S50 Pentax Digital Camera

Optio 33LF Pentax Digital Camera

Optio MX Pentax Digital Camera

Digimax-420 Samsung Digital Camera

Digimax-400 Samsung Digital Camera

Sora PDR-T30 Toshiba Digital Camera

Coolpix 5900 Nikon Digital Camera

Coolpix S1 Nikon Digital Camera

Coolpix 7600 Nikon Digital Camera

DMC-FX7 Panasonic Digital Camera

Dimage Xt Minolta Digital Camera

AZ-1 Olympus Digital Camera

Product

Company

Type

Product

Company

Type

Cruzer Micro Sandisk

USB 2.0 USB Flash Drive 128M

Cruzer Mini Sandisk USB 2.0 128M

Cruzer Mini Sandisk USB 2.0 256M

SONY Micro Vault Sony USB 2.0 64MB

FLEX DRIVE Serotech USB 2.0 32MB

AnyDrive A.L tech USB 2.0 128MB

XTICK LG USB 2.0 128M

Micro Mini Iomega USB 2.0 128M

iFlash Imation USB 2.0 64M

LG XTICK(M) USB 2.0 64M

RiDATA EZDrive USB 2.0 64M

Product

Company

Type

USB host feature supported products

USB FLASH DISC

MP3 PLAYER

Product

Company

Type

Creative MuVo NX128M

Creative 128 MB MP3 Player

Iriver H320 Iriver 20G HDD MP3 Player

YH-920 Samsung 20G HDD MP3 Player

YP-T7 Samsung MP3 Player

YP-MT6 Samsung MP3 Player

YP-T6 Samsung MP3 Player

YP-T9 Samsung MP3 Player

YP-ST5 Samsung MP3 Player

YP-T5 Samsung MP3 Player

YP-K5 Samsung MP3 Player

YP-K3 Samsung MP3 Player

YP-U3 Samsung MP3 Player

YP-Z5F Samsung MP3 Player

iAUDIO U2 Cowon MP3 Player

iAUDIO G3 Cowon MP3 Player

iAudio M3 Cowon HDD MP3 Player

SI-M500L Sharp 256MB MP3 Player

H10 Iriver MP3 Player

YP-T10 Samsung MP3 Player

YP-P2 Samsung MP3 Player

Product

Company

Type

HT-TWZ312(315)_XAC(ENG)_0220.ind66 66 2008-02-20 �� 3:55:11

67

ENG

● APPENDIX

appendix

CAUTIONS ON HANDLING AND STORING DISCS

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight Keep in a cool

ventilated area

Keep in a clean Protection jacket.

Store vertically.

Do not allow the discs to become contaminated with dirt.

Do not load cracked or scratched discs.

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with

a soft cloth.

When cleaning, wipe gently from the inside to the outside of the disc

Condensation may form if warm air comes into contact with cold parts inside the player.

When condensation forms inside the player, the player may not operate correctly. If this

occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

M`

`

~

M`

HT-TWZ312(315)_XAC(ENG)_0220.ind67 67 2008-02-20 �� 3:55:12

68

SPECIFICATIONS

General

Power Requirements AC 120V, 60Hz

Power Consumption 80 W

Weight 7.9 Ibs

Dimensions 16.9 (W) x 2.6 (H) x 13.6 (D) inches

Operating Temperature Range +41°F to +95°F

Operating Humidity Range 10 % to 75 %

Disc

DVD (Digital Versatile Disc) Reading Speed : 3.49 ~ 4.06 m/sec.

Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.

CD : 5 inches (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

CD : 3 1/2 inches (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 20 min.

Video Output

Composite Video 480i

1 channel : 1.0 Vp-p (75 Ω load)

Component Video

480i

Y : 1.0 Vp-p (75 load)

Pr : 0.70 Vp-p (75 Ω load)

Pb : 0.70 Vp-p (75 Ω load)

Video/Audio HDMI 1080p, 1080i, 720p, 480p

Amplifier

Front speaker output 166W x 2(3

Ω

)

Center speaker output 166W (3

Ω

)

Rear speaker output 166W x 2(3

Ω

)

Subwoofer speaker output 170W(3

Ω

)

Frequency range 20Hz~20KHz

S/N Ratio 70dB

Channel separation 60dB

Input sensitivity (AUX)400mV

appendix

Power Requirements AC120V~ 60Hz

Power Consumption 40 W

Weight 2.9 lbs

Dimensions (W x H x D) 3.0 x 10.1 x 6.9 inches

Operating Temperature Range +5°C ~ +35°C

Operating Humidity Range 10% ~ 75%

Output 170W x 2

Frequency range 20Hz~20KHz

S/N Ratio 75dB

SWA-4000

HT-TWZ312(315)_XAC(ENG)_0220.ind68 68 2008-02-20 �� 3:55:12

69

ENG ● APPENDIX

HT-TWZ312

HT-TWZ315

Speaker

Speaker system 5.1ch speaker system

Impedance

Frequency range

Output sound pressure level

Rated input

Maximum input

Dimensions (W x H x D)

Weights

Front/Rear

3 Ω

160Hz~20KHz

86dB/W/M

166W

332W

Center

3 Ω

160Hz~20KHz

86dB/W/M

166W

332W

Subwoofer

3 Ω

45Hz~170Hz

88dB/W/M

170W

340W

Front

: 3.5 x 40.1 x 3.6 inches (Stand : 11.0 x 11.0)

Rear

: 3.5 x 5.4 x 3.6 inches

Center : 11.8 x 4.0 x 3.6 inches

Subwoofer : 7.1 x 12.6 x 15.0 inches

Front

: 6.6 Ibs, Center : 1.9 Ibs

Rear : 1.0 Ibs, Subwoofer : 10.0 Ibs

Speaker

Speaker system 5.1ch speaker system

Impedance

Frequency range

Output sound pressure level

Rated input

Maximum input

Dimensions (W x H x D)

Weights

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

Front/Rear

3 Ω

140Hz~20KHz

86dB/W/M

166W

332W

Center

3 Ω

140Hz~20KHz

86dB/W/M

166W

332W

Subwoofer

3 Ω

45Hz~160Hz

86dB/W/M

170W

340W

Front

/

Rear

: 3.5 x 40.1 x 3.6 inches (stand base : 11.0 x 11.0)

Center : 11.8 x 101 x 91.5 inches

Subwoofer : 7.1 x 12.6 x 15.0 inches

Front

: 6.6 lbs, Center : 1.9 lbs

Rear : 3.0 lbs, Subwoofer : 10.0 lbs

HT-TWZ312(315)_XAC(ENG)_0220.ind69 69 2008-02-20 �� 3:55:12

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective

material and workmanship.

SECA further warrants that if this product falls to operate properly within the specified warranty

period and the failure is due to improper workmanship or defective materials, SECA will repair

or replace the product at its option.

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and

address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG)

On carry-in models, transportation to and from the service center is the customer’s responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable

proof of purchase. It must be presented to the authorized service center at the time service is

requested.

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse,

incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or

damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this

warranty. Customer adjustments which are explained in the instruction manual are not covered

under the terms of this warranty. This warranty will automatically be voided for any unit found with a

missing or altered serial number. This warranty is valid only on products purchased and used in

Canada.

HEADQUARTERS

SAMSUNG ELECTRONICS CANADA INC.,

CUSTOMER SERVICE

55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA

FABRIQUE EN CORÉE

1-800-SAMSUNG (1-800-7267864)

WWW.SAMSUNG.COM/CA

LABOR

One year (Carry- in)

PARTS

One year

EXCLUSIONS (WHAT IS NOT COVERED)

HT-TWZ312(315)_XAC(ENG)_0220.ind70 70 2008-02-20 �� 3:55:13

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer

care center.

Region Country Customer Care Center Web Site

North America

CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com

U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com

Latin America

ARGENTINE 0800-333-3733 www.samsung.com/ar

BRAZIL 0800-124-421 , 4004-0000 www.samsung.com

CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl

NICARAGUA 00-1800-5077267

HONDURAS 800-7919267

COSTA RICA 0-800-507-7267 www.samsung.com/latin

ECUADOR 1-800-10-7267 www.samsung.com/latin

EL SALVADOR 800-6225 www.samsung.com/latin

GUATEMALA 1-800-299-0013 www.samsung.com/latin

JAMAICA 1-800-234-7267 www.samsung.com/latin

PANAMA 800-7267 www.samsung.com/latin

PUERTO RICO 1-800-682-3180 www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 www.samsung.com/latin

TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin

VENEZUELA 0-800-100-5303 www.samsung.com/latin
