imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
RF268**
English
Refrigerator
user manual
DA68-01861A.indb 1 2010.10.14 3:37:11 PM
2_ features
For easy future reference, write the model
and serial number down. You will find
your model number and serial number on
the left side of the refrigerator.
Model #
Serial #
Features of your new Refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient
features.
 Twin Cooling System
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
 Bigger & Wider Space
The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.
The wide freezer drawer also provides enough space for 2~3 turkeys.
 Cool Select PantryPlus
The Cool Select pantryPlus is a full-width drawer with adjustable temperature control.
 Compact Ice Maker
The Ice maker can dispense cubed or crushed ice.
 Secure Auto Close
The Secure Auto Close feature will automatically close a door that is slightly open.
 Digital Display and Temperature Control
 Water Filtration System
 Door Alarm
A helpful beeper alerts you if door is ajar.
 Tilting Pocket
The Tilting pocket can be used to store up to a 16” pizza.
 Auto Pull Out Drawer
The upper drawer in the freezer comes out automatically when you open the freezer door.
 Easy Handle
Freezer door can be opened with less effort.
 Energy Star
This Energy star labeled product may save you money on your energy costs.
 Dual Ice Maker
The Refrigerator and freezer each have an ice maker; providing even more cubed and crushed ice.
DA68-01861A.indb 2 2010.10.14 3:37:11 PM
safety information _3
SAFETY INFORMATION
Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to ensure that
you know how to safely and efficiently operate the features and functions that your new appliance offers.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Because the following instruction covers various models, the characteristics of your Refrigerator may differ
slightly from the Refrigerator described in this manual. If you have any question, contact us at 1-800-SAMSUNG
or find help and information online at www.samsung.com.
Important safety symbols and precautions:
WARNING Hazards or unsafe practices that may result in .
CAUTION
Hazards or unsafe practices that may result in 
.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall socket.
Make sure the refrigerator is grounded to prevent electric shock.
Call the contact center for help.
Note.



WARNING
SEVERE WARNING SIGNS FOR INSTALLATION
Safety Information
• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters or
other appliance.
• Do not install the refrigerator in a damp place or place where it may come in contact with water.
- Deteriorated insulation of electrical parts may cause an electric shock or fire.
• Do not plug several appliances into the same multiple power board. The refrigerator should always be
plugged into its own individual electrical which has a voltage rating that matched the rating plate.
- This provides the best performance and also prevents overloading house wiring circuits, which could cause
a fire hazard from overheated wires.
DA68-01861A.indb 3 2010.10.14 3:37:11 PM
4_ safety information
Safety Information
• The Refrigerator must be safely grounded
- Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines or other potential lightning attractors as an electrical ground.
- Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the appliance. The marked rating of the extension cord should
be AC115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully
grounded.
• If the power cord is damaged, have it replaced immediately by the manufacturer or its service
agent.
• This refrigerator must be properly installed and located in accordance with the manual before it is
used.
• Connect the power plug in proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This constitutes a fire hazard.
• Make sure that the power plug is not squashed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if children put them on their head.
• The appliance must be positioned so that the plug is accessible after installation.
• Do not insert the power plug with wet hands.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of fire or electric shock.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not let children hang on the door. A serious injury may occur.
• Do not let children enter inside of the refrigerator. There is a risk of child entrapment.
CAUTION
CAUTION SIGNS FOR INSTALLATION
• Allow sufcient space to install the refrigerator on a at surface.
- If your refrigerator is not level, the internal cooling system may not work correctly.
• Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.
• Allow the appliance to stand for 2 hours after installation.
WARNING
SEVERE WARNING SIGNS FOR USING
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of fire.
• Do not use a cord that shows cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy articles on it.
• Never unplug your refrigerator by pulling on the power cord. Always grip plug rmly and pull straight
out from the outlet.
- Damage to the cord may cause a short-circuit, fire and/or electric shock.
• Do not use aerosols near the Refrigerator.
- Aerosols used near the Refrigerator may cause an explosion or fire.
DA68-01861A.indb 4 2010.10.14 3:37:12 PM
safety information _5
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
• Do not let children step on drawer’s cover.
- The drawer may break and cause them to slip.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material damage.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
- This may cause frostbite.
• Do not spray inammable gas near the refrigerator.
- There is a risk of explosion or fire.
• Do not store volatile or ammable substances in the refrigerator.
- The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
• Do not store pharmaceuticals products, scientic materials or temperature sensitive products in the
refrigerator.
- Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type
recommended by the manufacturer.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not disassemble or repair the refrigerator by yourself.
- You run risk of causing a fire, malfunction and/or personal injury.
- When the interior or exterior LED lamp has gone out, please contact your service agents.
WARNING
SEVERE WARNING SIGNS FOR USING
• If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug
immediately and contact your nearest service center.
• If you experience difculty when changing the light, contact service agents.
• If the products equipped with LED Lamp, do not disassemble Lamp Cover and LED Lamp by
yourself.
- Please contact your service agents.
• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics
service center.
- Otherwise there is a risk of fire
• Children should be supervised to ensure that they do not play with the appliance.
• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.
• If a gas leak is detected, avoid any naked ames or potential sources of ignition and air the room in
which the appliance is standing for several minutes.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
- Otherwise, there is a risk of electric shock.
• Do not re-freeze frozen foods that have thawed completely.
• Do not place carbonated or zzy drinks in the freezer compartment. Do not put bottles or glass
containers in the freezer.
- When the contents freeze, the glass may break and cause personal injury.
CAUTION
CAUTION SIGNS FOR USING
DA68-01861A.indb 5 2010.10.14 3:37:12 PM
6_ safety information
Safety Information
• Remove any foreign matter or dust from the power plug pins. Do not use a wet or damp cloth when
cleaning the plug, remove any foreign material or dust from the power plug pins.
- Otherwise there is a risk of fire or electric shock.
• Do not directly spray water inside or outside the refrigerator.
- There is a risk of fire or electric shock.
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
• Please dispose of the packaging material for this product in an environmentally friendly manner.
• Leave the shelves in place so that children may not easily climb inside. Ensure that none of the
pipes on the back of the appliance are damaged prior to disposal.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small
children or animals cannot become trapped inside.
Children should be supervised to ensure that they do not play with the appliance.
• Cyclopentane is used as in the insulation. The gases in the insulation material require a special
disposal procedure. Please contact your local authorities in regard to the environmentally safe
disposal of this product. Ensure that none of the pipes on the back of the refrigerator are damaged
prior to disposal.
• Service warranty and Modication.
- Any changes or modifications performed by a 3rd party on this finished appliance is not covered under
Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party
modifications.
• Do not block air holes.
- If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled. If this cooling
period lasts too long, the water filter may break and cause water leakage.
• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes
before plugging it back.
• If you have a long vacation planned or the refrigerator is not to be used for a long period of time,
you must empty the refrigerator and pull out the power plug.
- Deterioration in the insulation may cause fire.
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, door and mold may develop.
• To get the best performance from the product,
- Do not place foods too closely in front of the vents at the rear of the appliance as it can obstruct free air
circulation in the refrigerator compartment.
- Wrap the food up properly or place it in airtight containers before putting it into the refrigerator.
• Fill water tank, ice tray, water cubes only with potable water.
WARNING
SEVERE WARNING SIGNS FOR DISPOSAL
• When the product is ooded, make sure to contact your nearest service center.
- There is a risk of electric shock or fire.
• Unplug the refrigerator before cleaning and making repairs.
CAUTION
CAUTION SIGNS FOR CLEANING
DA68-01861A.indb 6 2010.10.14 3:37:12 PM
Contents _7
Contents


08
08 Getting ready to install the refrigerator
09 Setting up the refrigerator
09 Removing the refrigerator doors
11 Disassemble the Freezer Drawer
12 Reattaching the refrigerator doors
14 Assemble the Freezer Drawer
15 Adjusting the doors
16 Making minor adjustments between doors
17 Adjusting the freezer drawer level
18 Checking the water dispenser line
19 Installing the water line


21
21 Using the control panel
22 Using the digital display
23 Controlling the temperature
24 Using the cold water dispenser
26 Parts and Features
27 Storing food in the refrigerator
27 Storing food in the freezer drawer
28 Using the Cool Select Pantry
Plus
29 Removing the refrigerator accessories
30 Using the doors
30 Using the tilting pocket
31 Removing the freezer accessories
32 Food Storage Tips
34 Cleaning the refrigerator
35 Changing the interior lights
36 Changing the water filter
TROUBLESHOOTING
37
37 Troubleshooting

38
38 Water filter chart
39 Water filter certification
40 Warranty on SAMSUNG refrigerator
DA68-01861A.indb 7 2010.10.14 3:37:12 PM
8_ Setting up
Setting up your French Door Refrigerator

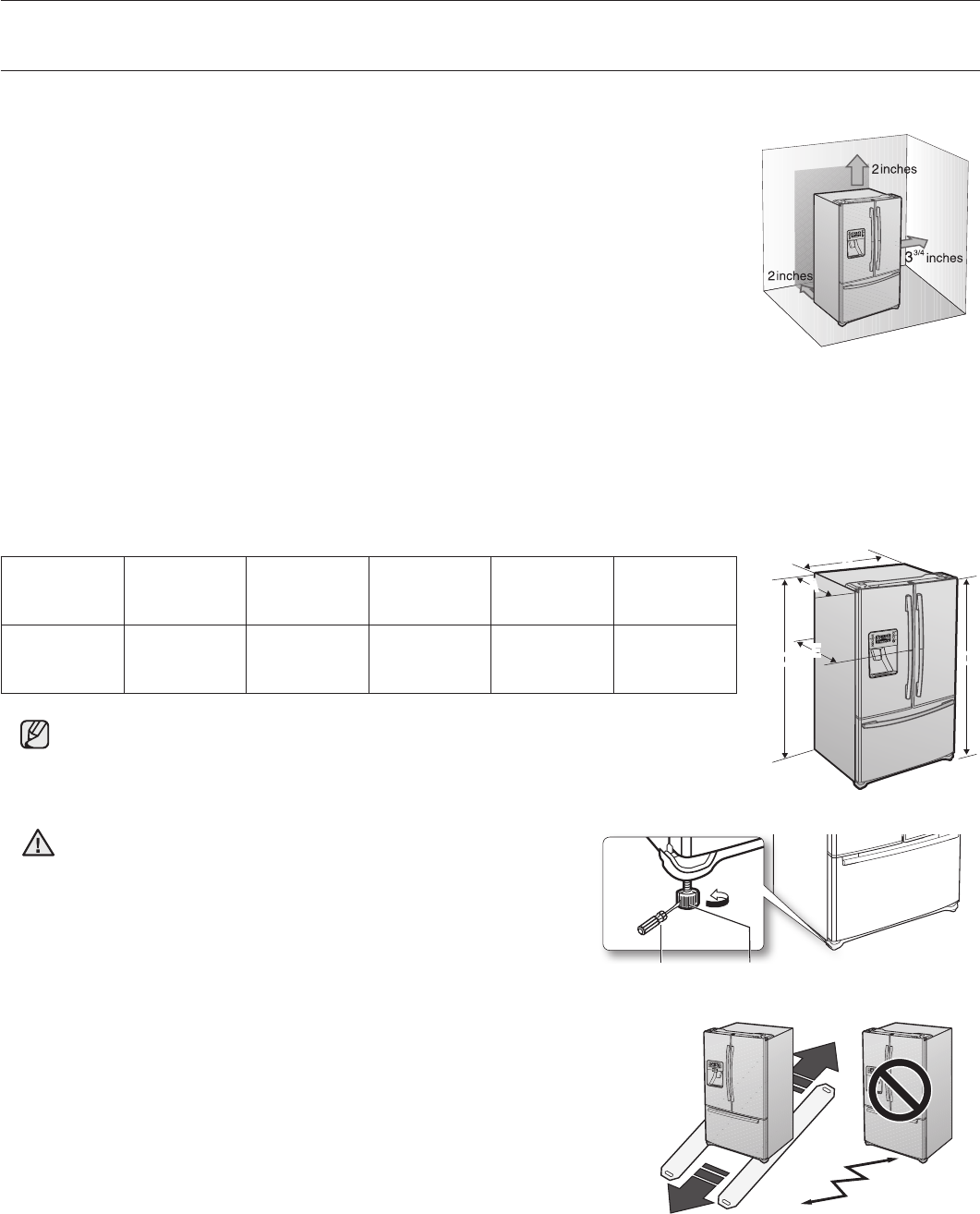

If your refrigerator has an ice maker, allow extra space at the back for the water line connections.
When you install the refrigerator next to a fixed wall, minimum clearance is 3 ¾” (95mm) between the refrigerator
and wall to allow the door to swing open.
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
FLOORING
For proper installation, this refrigerator must be placed on a level
surface of hard material that is the same height as the rest of the
flooring. This surface should be strong enough to support a fully
loaded refrigerator, or approximately 328lbs (150kg). To protect
the finish of the flooring, cut a large section of the cardboard
carton and place under the refrigerator where you are working.
When moving the refrigerator, be sure to pull it straight out and
push it back straight in.
• Allow clearance to the right, left, back and top when installing. This will help
reduce power consumption and keep your energy bills lower.
• Do not install the Refrigerator where the temperature will go below 50ºF (10ºC).
• Do not locate the refrigerator where it may become wet.
When moving your refrigerator
To prevent floor damage, be sure the front adjusting legs
are in the up position(above the floor).
Refer to ‘Adjusting the doors’ in the manual (on page 15).
CAUTION
Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance offers.

• A location with easy access to the water supply.
• A location without direct exposure to sunlight.
• A location with level (or nearly level) ooring.
• A location with enough space for the Refrigerator doors to open easily.
• Allow sufcient space to the right, left, back and top for air circulation.
If the Refrigerator does not have enough space, the internal cooling system may
not work properly.
• Please ensure that appliance can be moved freely in the event of maintenance &
service.
GETTING READY TO INSTALL THE REFRIGERATOR
Model Depth
“A”
Width
“B”
Height
“C”
Overall
Height “D”
Depth
“E”
RF268**
28 ⅞”
(734mm)
35 ⅞”
(912mm)
68 ⅞”
(1750mm)
70 ⅛”
(1780mm)
35 ⅞”
(912mm)
Control LeverFlat-blade
screw driver(-)
B
A
CED
B
A
CED
DA68-01861A.indb 8 2010.10.14 3:37:21 PM
Setting up _9
01 SETTING UP
REMOVING THE REFRIGERATOR DOORS
SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and
functions of the appliance. By completing the following steps, your Refrigerator should be fully operational.
1. Place the Refrigerator in an appropriate location with reasonable clearance between it and the wall.
Refer to installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly
chilled and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can
store food and drinks in the Refrigerator after the temperature is sufficiently cool.

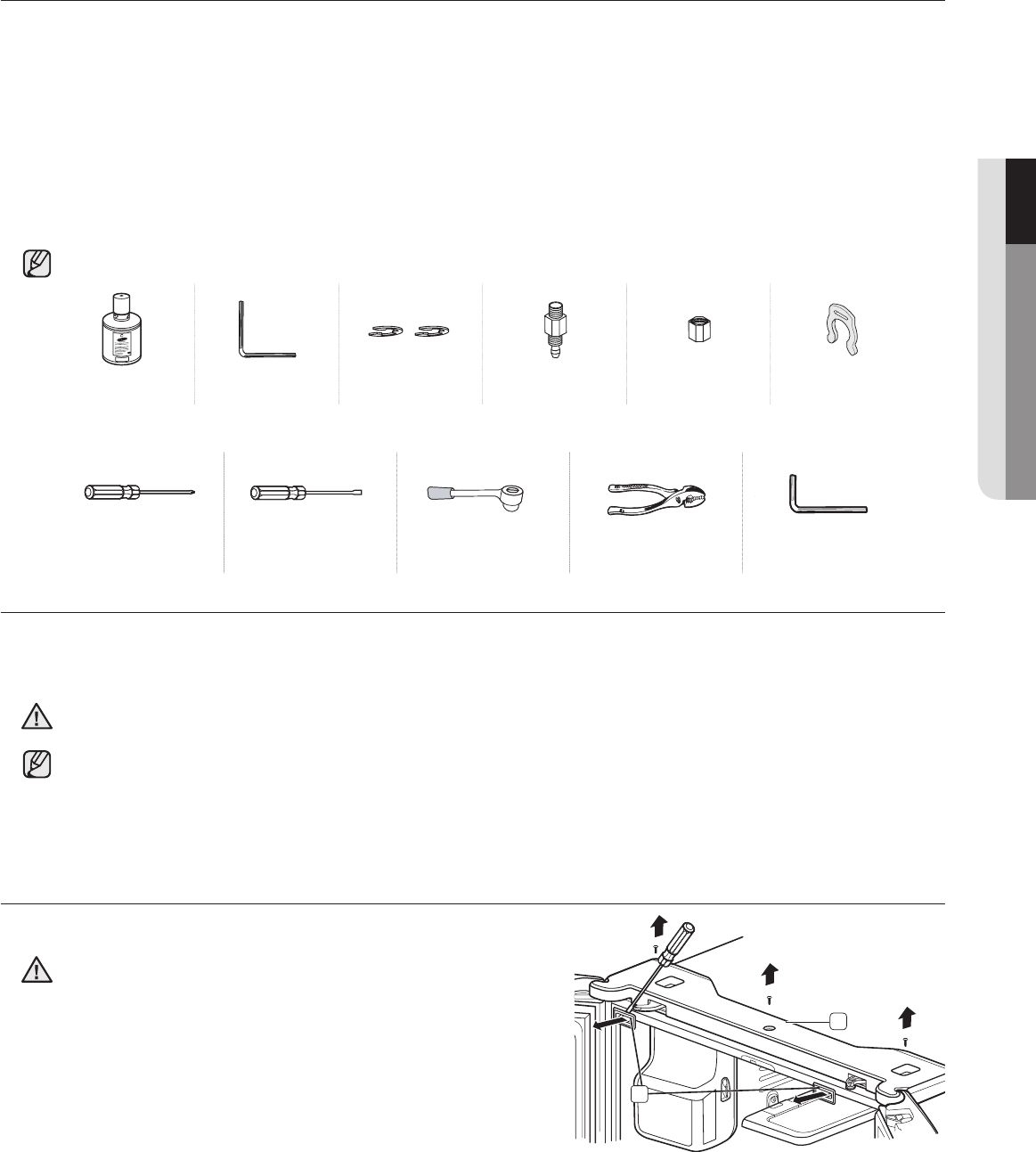

Philips screwdriver(+) Flat-blade screwdriver(-) Socket wrench (10mm) Pliers Allen wrench(3/16”)
Water filter Hex wrench Fastener Compression fitting Compression nut Clip fitting lock(red)

Some installations require door removal to transport the Refrigerator to its final location.
Do not remove the door/drawer if it is not needed. Before removing the door/drawer, make sure you read
following items.
Disconnect power to the Refrigerator before removing the door or drawer.
WARNING
Be careful not to drop and scratch the doors while removing the
doors.
WARNING
• Be careful not to drop, damage or scratch the door/drawer while removing them.
• Be careful not to get injured while removing the door/drawer.
• Reattach the door/drawer properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
Check the accessories listed below.
2
1
Disassemble the Refrigerator doors
Disassemble the Refrigerator doors
1. With the door opened, remove the cap top table ( 1 ) with
a flat-blade screwdriver(-), and close the door.
Remove the 3 screws holding down the top table ( 2 ) and
remove it.
DA68-01861A.indb 9 2010.10.14 3:37:23 PM
10_ Setting up
Setting up your French Door Refrigerator

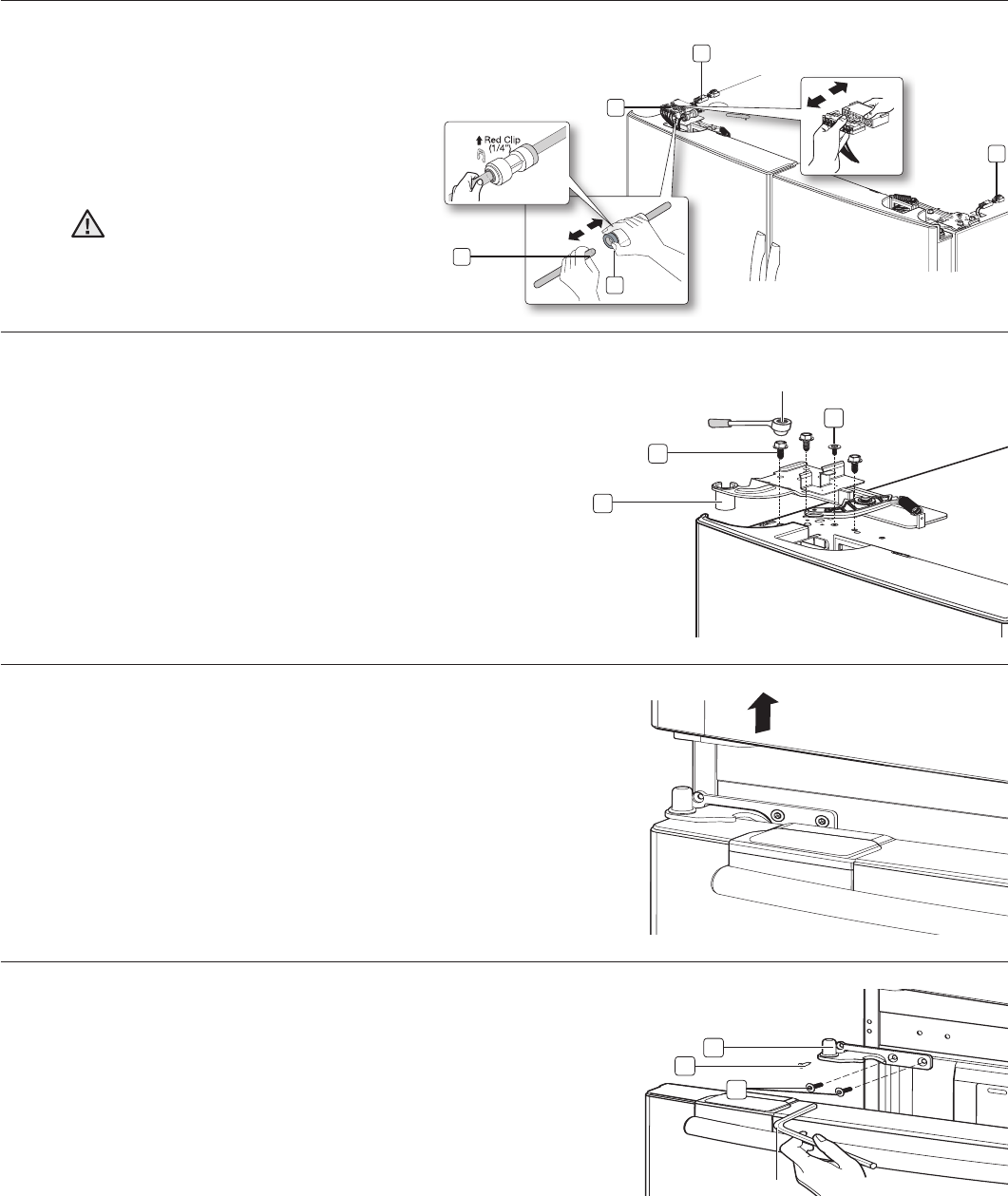

2. Disconnect 2 connectors ( 3 ) at each
side of the top cap and one connector
( 4 ) on the left side door. Remove the
water line ( 5 ) while pressing the dark
gray color part ( 6 ) of the water line
coupler.
3. Remove the 3 hex head bolts ( 7 ) attached to the
upper left and right door hinges with a socket wrench
(10mm). Remove the ground screw ( 8 ) attached to
the upper left and right door hinges with a philips
screwdriver(+).
Remove the upper left and right door hinges ( 9 ).
4. Lift the door straight up to remove.
5. Remove the screw ( 10 ) attached to the lower left
and right door hinges with a philips screwdriver(+).
Remove the 2 hex head bolts ( 11 ) attached to the
lower left and right door hinges with an allen wrench
(3/16”).
Remove the lower left and right door hinges ( 12 ).
Socket wrench
9
7
8
5
6
4
3
3
12
10
11
Allen wrench
If a red clip is on the coupler, it must
be removed before removing the
tube.
CAUTION
DA68-01861A.indb 10 2010.10.14 3:37:26 PM
Setting up _11
01 SETTING UP

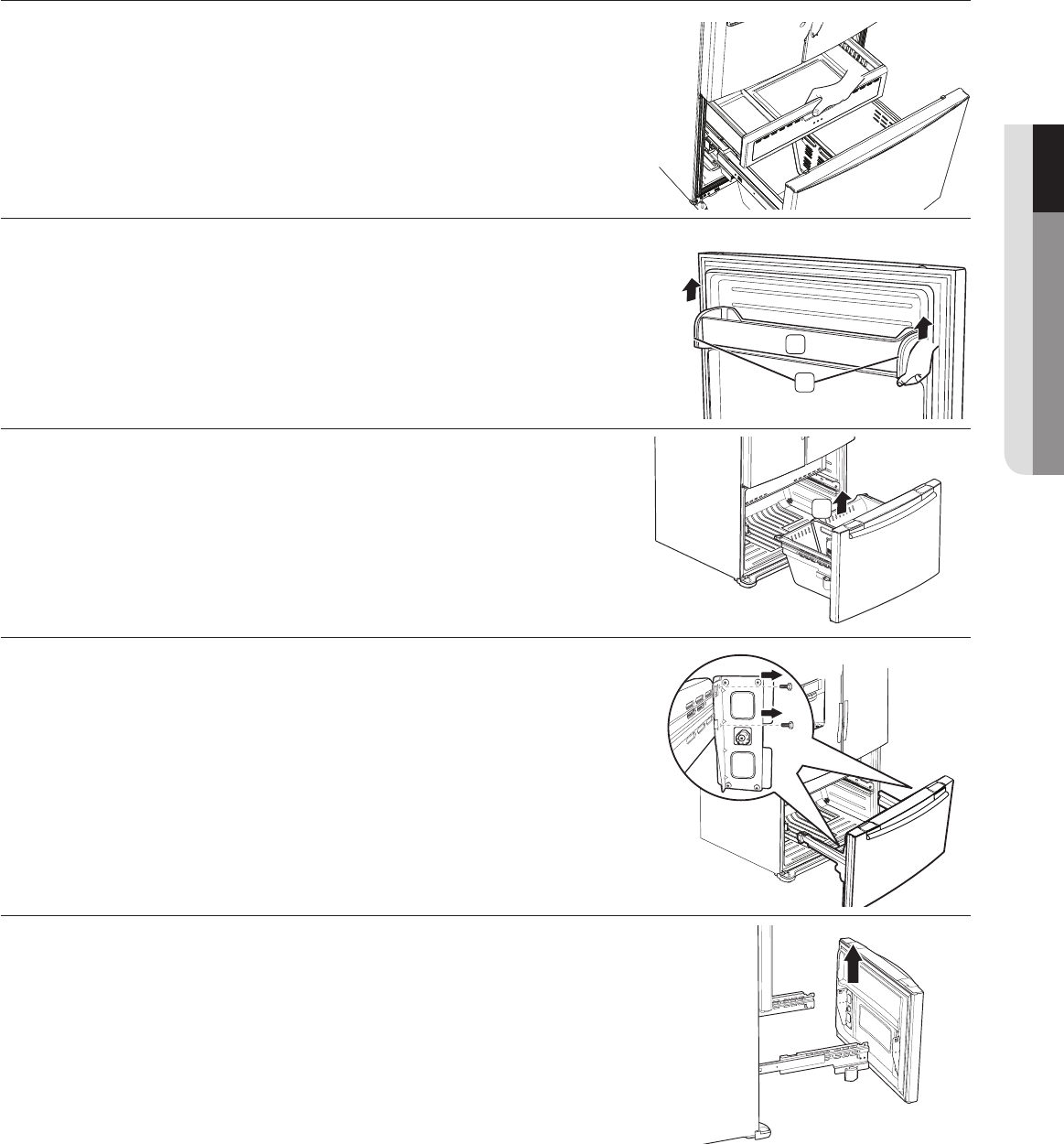

1. Take out the upper drawer by lifting it up.
2. Remove the tilting pocket ( 1 ) by pulling both support
guards ( 2 ) upward at the same time.
3. Take out the lower basket( 3 ) by lifting the basket up
from the rail system.
4. Remove 4 hex head bolts from both sides with a
socket wrench(10mm).
5. Lift up the freezer door from the rails.
1
2
3
Slot
Slot
DISASSEMBLE THE FREEZER DRAWER
DA68-01861A.indb 11 2010.10.14 3:37:31 PM
12_ Setting up
Setting up your French Door Refrigerator
12

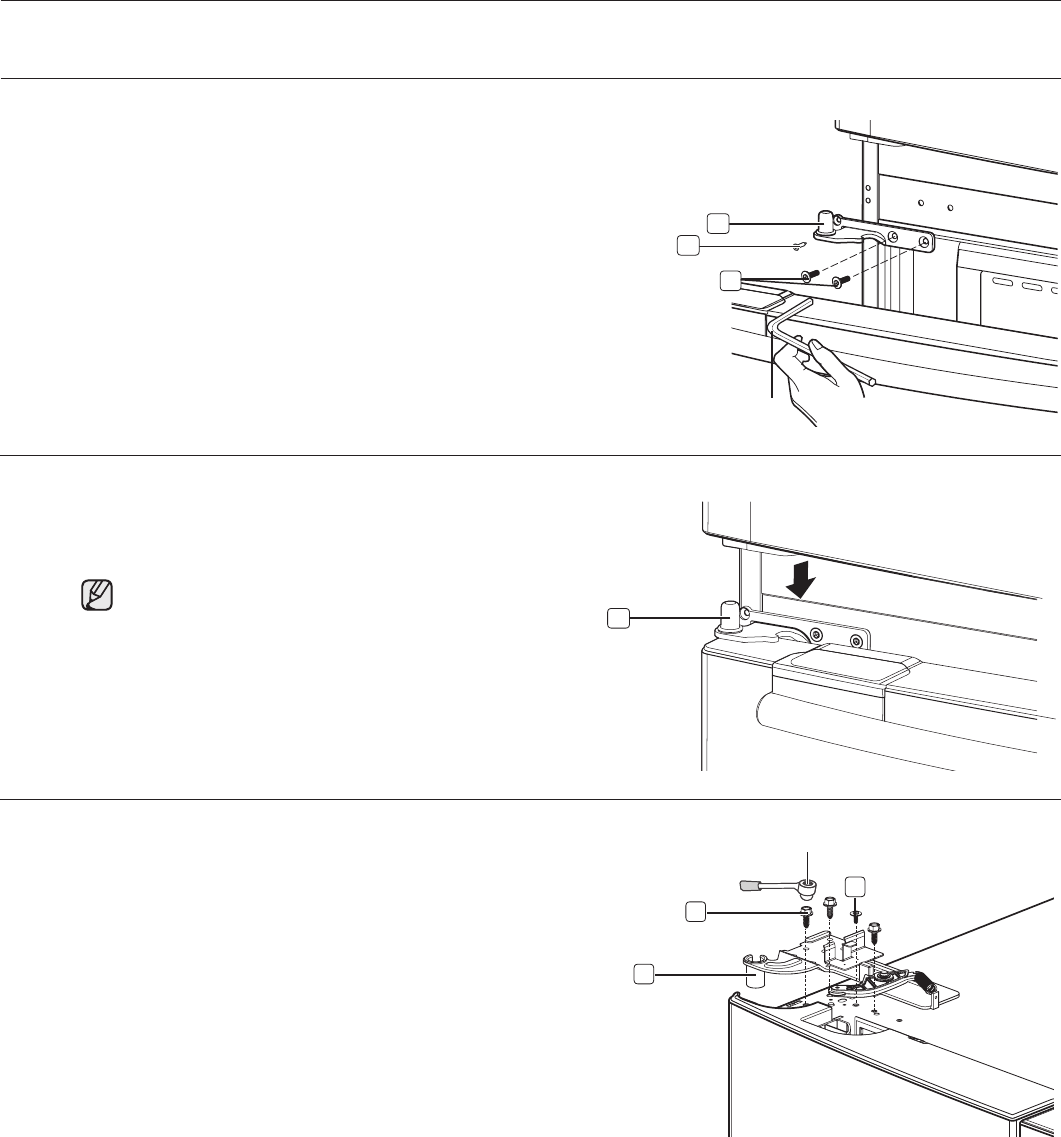

Assemble the Refrigerator doors
1. Reattach the lower left and right door hinges ( 12 ).
With a Philips head screwdriver, insert and tighten the
screw ( 10 ) into the lower left and right door hinges.
With a allen wrench(3/16”), insert and tighten the 2
hex head bolts ( 11 ) into the lower left and right door
hinges.
2. Place the hole in the bottom of the door over the door
hinge ( 12 ).
3. Insert the upper hinges ( 9 ) into the holes at the top
of the doors.
Insert and tighten the 3 hex head bolts ( 7 ) into
the upper left and right door hinges with a socket
wrench(10mm).
Insert and tighten the ground screw ( 8 ) into the
upper left and right door hinges with a philips
screwdriver(+).
REATTACHING THE REFRIGERATOR DOORS
12
10
11
Allen wrench
7
8
9
Socket wrench
Be careful not to miss the hinge cap because it
can be easily taken off.
DA68-01861A.indb 12 2010.10.14 3:37:33 PM
Setting up _13
01 SETTING UP
5. Position the top table ( 2 ) in place. Insert and tighten
the 3 screws into the top table with a philips screw
driver(+). With the doors open, reinsert the cap top
table ( 1 ) and close the doors.
REATTACHING THE REFRIGERATOR DOORS
1
2
3
3
4
5


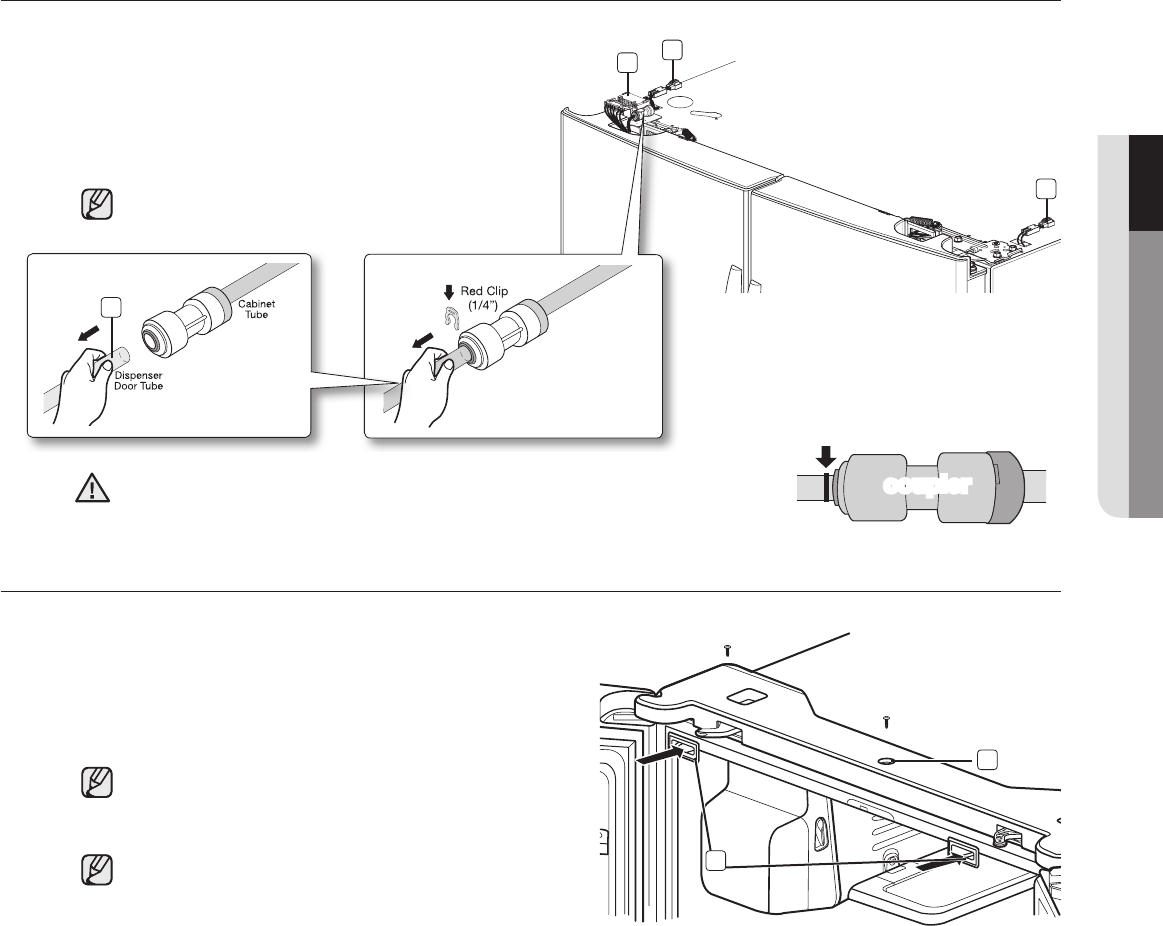

dispenser door tube
The dispenser door tube ( 5 ) must be fully inserted to the marked
line to prevent water leakage from the dispenser.
CAUTION
4. Connect the dispenser door tube ( 5 ) and then
insert a clip on the coupler with pulling tube.
Connect the connector ( 4 ) on the left side door
and two connectors ( 3 ) at each side of the top
cap.
The clip is enveloped inside of the top cap.
When reattaching the top table, make sure that
the wires are not pressed or damaged by the
hinge cover.
After assembling, close the doors and check
to see whether the doors have gaps between
gaskets or are tilted. If you see a gap or tilt
please refer to “Adjusting the doors” on page 15.
DA68-01861A.indb 13 2010.10.14 3:37:34 PM
14_ Setting up
Setting up your French Door Refrigerator
7
8
9

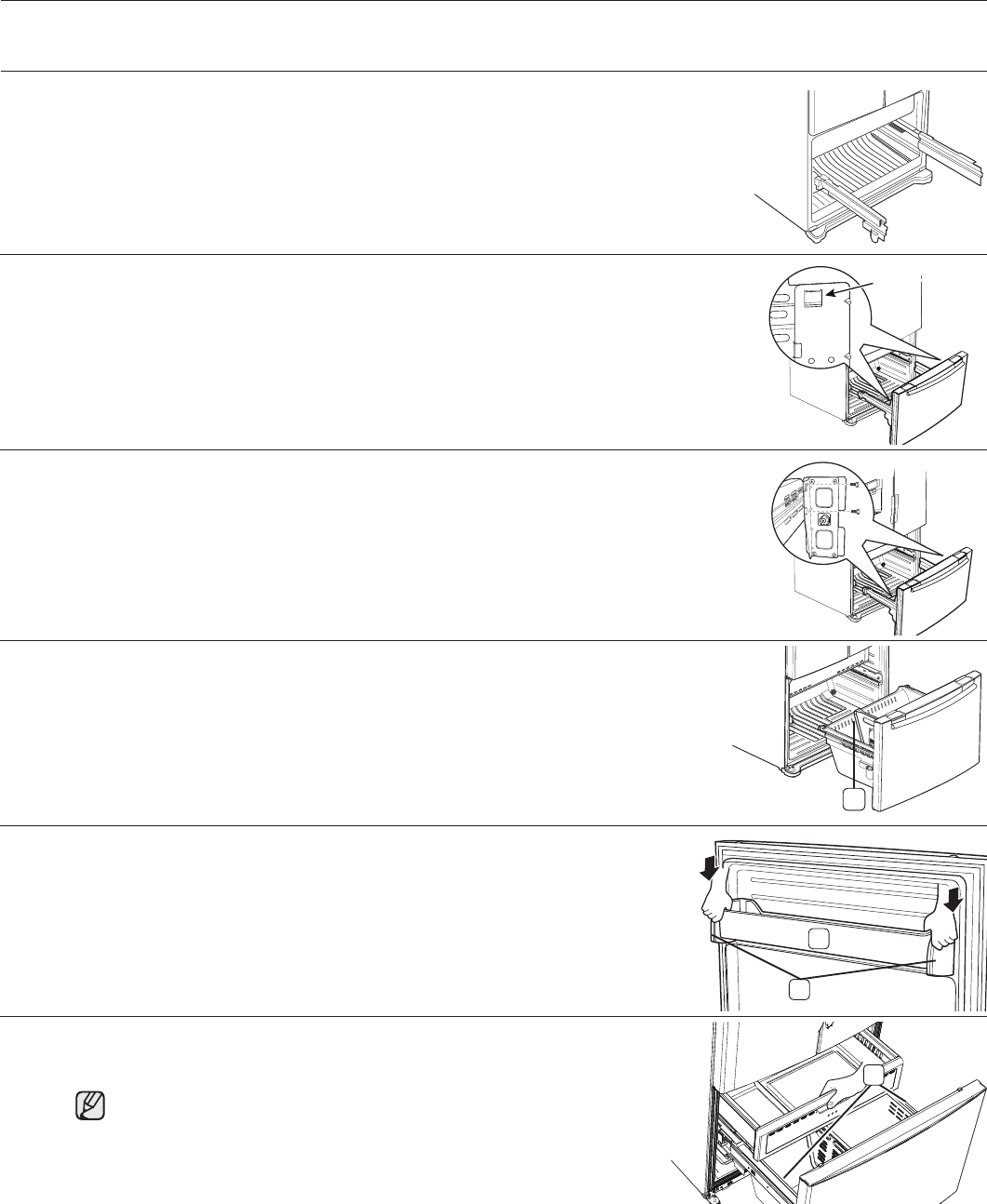

ASSEMBLE THE FREEZER DRAWER
1. Pull out the rails fully on each side of the cabinet.
2. Attach the freezer door front onto the open slots on the sides.
3. Tighten 4 hex head bolts completely with a socket
wrench(10mm).
4. Insert the lower basket ( 6 ) into the rail system.
5. Hook the ends of the tilting pocket ( 7 ) onto the support
guards ( 8 ) and push down until they lock into place.
6. Insert the upper drawer.
6
Remove 2 pieces of tape ( 9 ) attached to the side of the
drawer bin.
Reattach the tape in the same position when moving the
refrigerator to prevent scratching the drawer bin.
DA68-01861A.indb 14 2010.10.14 3:37:37 PM
Setting up _15
01 SETTING UP
ADJUSTING THE DOORS
After putting the doors back on the refrigerator, make sure the refrigerator is level so that you can make final
adjustments.
If the Refrigerator is not level, it will not be possible to get the doors perfectly even, which may cause moisture
condensation and increased energy bills.

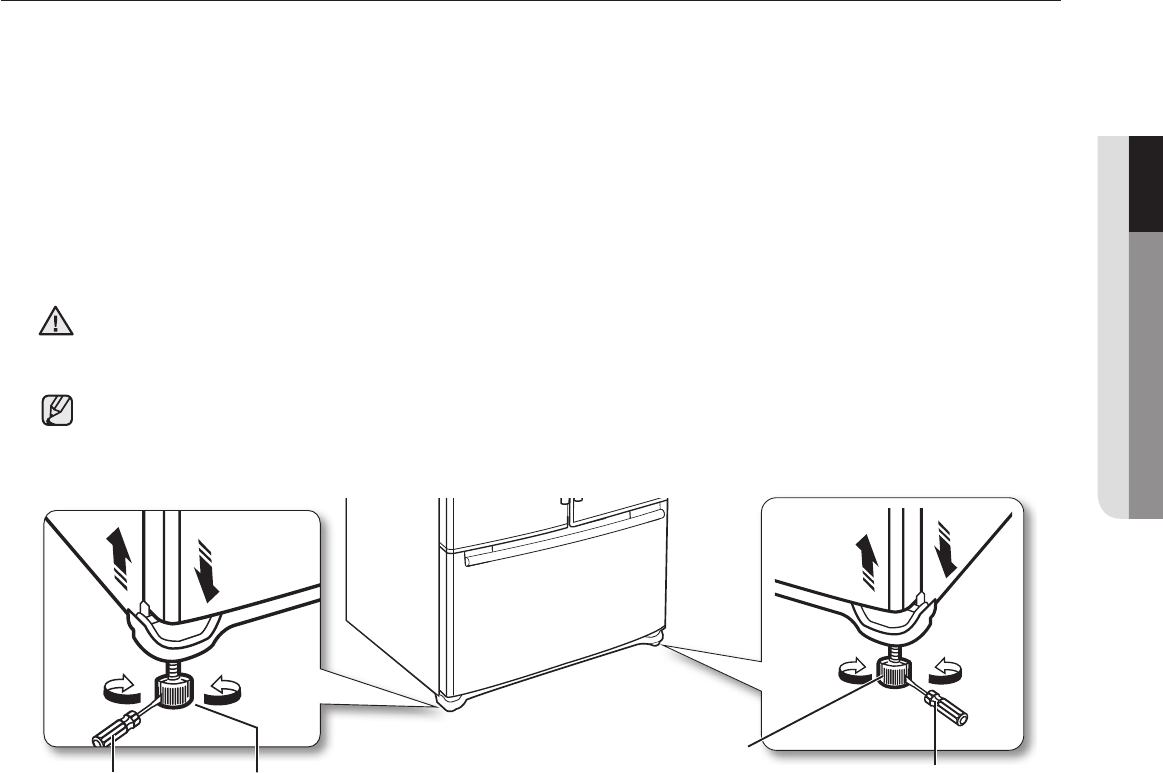

For example, when the left side is lower than the right side, insert a flat-blade screwdriver(-) into a notch on the
left control lever, and turn it counterclockwise to level the door.
Turn it clockwise to lower the refrigerator and counterclockwise to raise it.
Both control levers must be touching the floor to avoid possible personal injury or property damage
because of tipping.
CAUTION






We do not recommend making small adjustments with the control lever. Instead, refer to the next
page for the best way to make minor adjustments to the doors.
DA68-01861A.indb 15 2010.10.14 3:37:39 PM
16_ Setting up

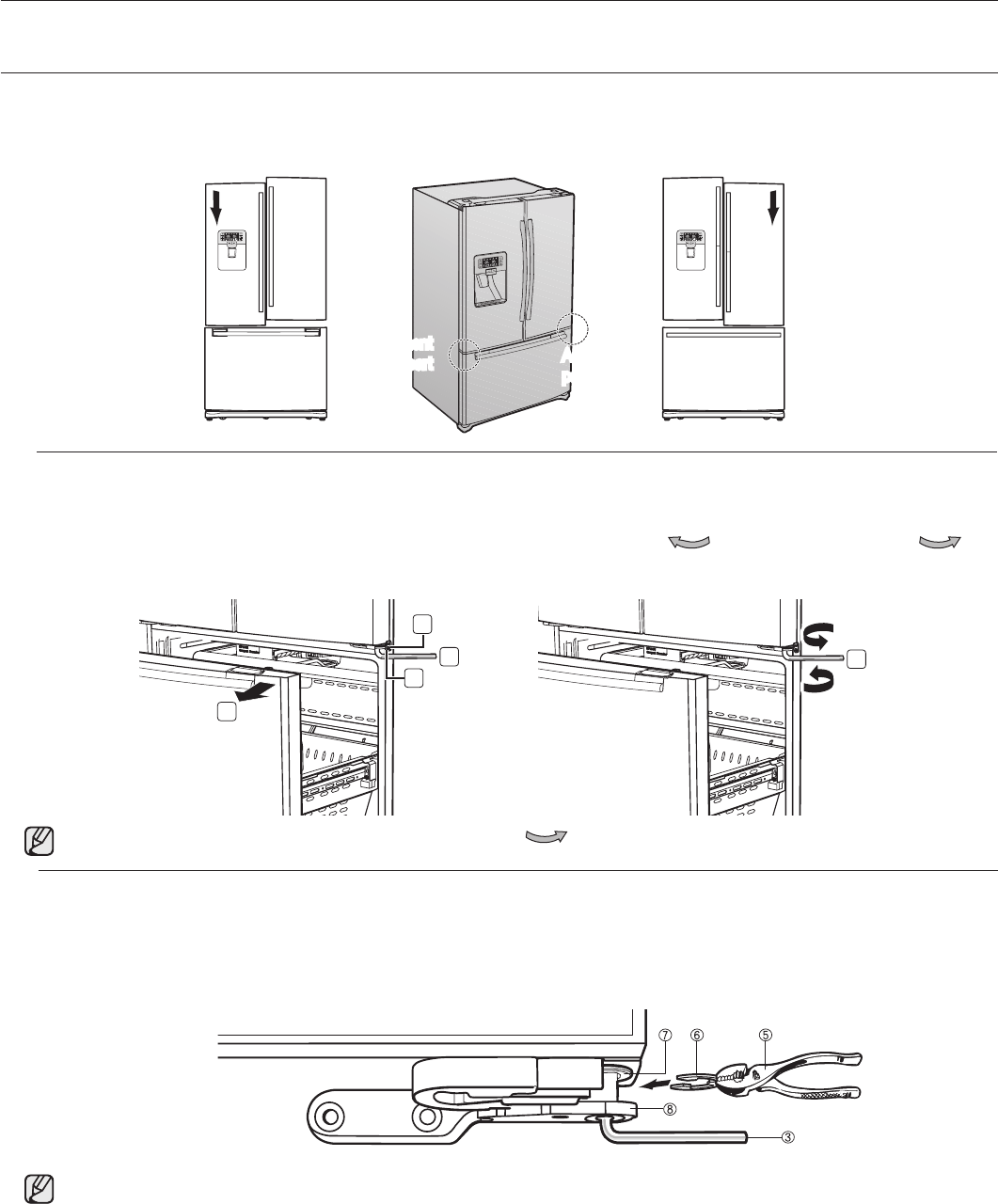

1. Pull out the freezer drawer ( 1 ), then you can see the middle hinge ( 2 ) .
2. Insert the supplied hex wrench ( 3 ) into the shaft ( 4 ) of the middle hinge.
3. Please adjust the height by turning the hex wrench ( 3 ) clockwise ( ) or counter-clockwise ( ).
1. After adjusting the doors, please insert the supplied fastener ( 6 ) using pliers ( 5 ) in the gap between
the hinge-grommet ( 7 ) and the lower hinge ( ). The number of fasteners you’ll need to insert
depends on the gap.
MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember, a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
Setting up your French Door Refrigerator
When you turn the hex wrench counter-clockwise( ), the door will move up.
2 fasteners are enclosed with the refrigerator.
The thickness of each fastener is 0.04”.
When the left
door is lower
than the right
door.
When the left
door is higher
than the right
door.
Adjustment
part Adjustment
part
3
2
3
4
1
DA68-01861A.indb 16 2010.10.14 3:37:41 PM
Setting up _17
01 SETTING UP

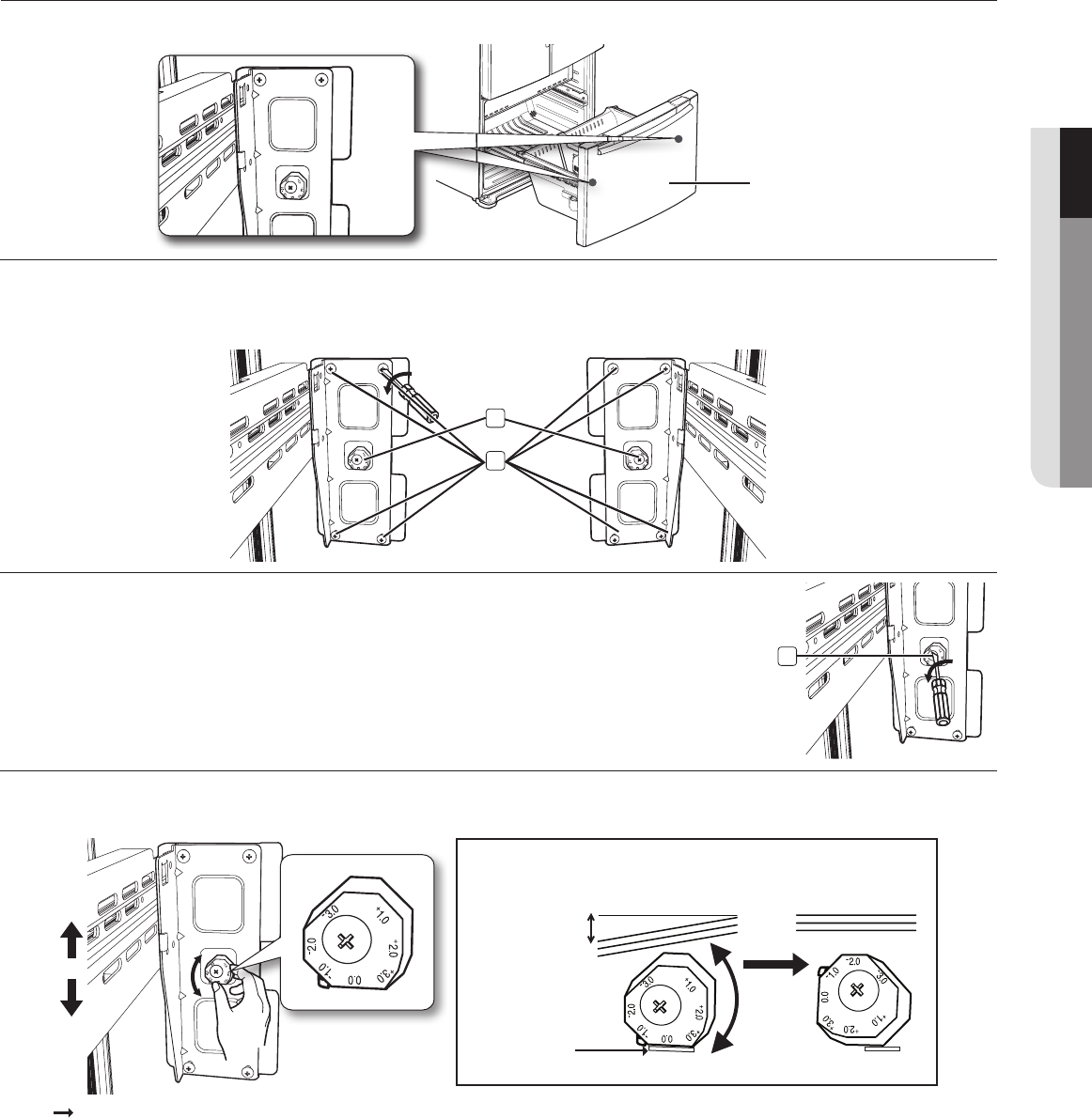

ADJUSTING THE FREEZER DRAWER LEVEL
1. Locate the height-adjuster ( 1 ) in the freezer drawer.
Unscrew the 8 Phillips screws ( 2 ) slightly to loosen the door.
3. Find the best level to align the door slope.
After adjustment, tighten the controller screw ( 3 ) and then philips screws.
Freezer Drawer
Adjustment part
2. Loosen the controller screw( 3 ) with a Phillips screwdriver(+).
3
2
1
Example) The slope is about 0.08inch(2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Reference
plane
DA68-01861A.indb 17 2010.10.14 3:37:43 PM
18_ Setting up
CHECKING THE WATER DISPENSER LINE
A water dispenser is one of the helpful features on your new Refrigerator. To help promote better health,
the water filter removes unwanted particles from your water. However, it does not sterilize or destroy
microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20~125 psi is required.
Under normal conditions, a 170 cc (5.75 oz.) cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
Setting up your French Door Refrigerator
Water line installation kits are available at extra cost from your dealer. We recommend using a water line
installation kit that contains copper tubing and ¼” compression nut.
After connecting the water supply with water filter, turn on water supply and Flush 3 gallons through
filter before use (flush approximately 6 minutes)
If water drop or leakage is found on the connection area, turn off the main water supply. Check it and,
if necessary, tighten it more.
Pipe clamp
Cold water line
Shut off valve
Shut off valve
Pipe clamp
Cold water line
Water line installation kit

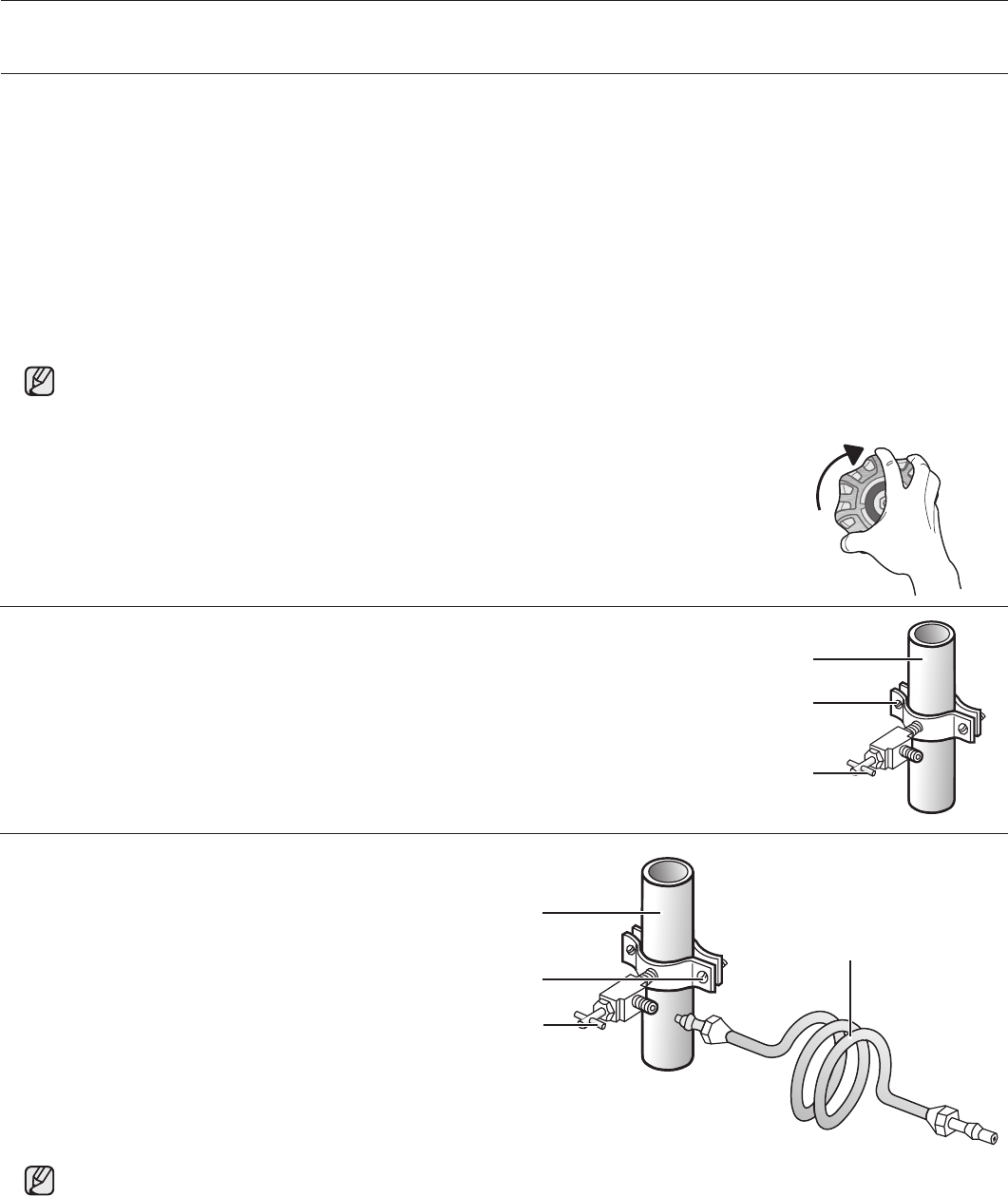

Connecting to the water supply line
1. First, shut off the main water supply.
2. Locate the nearest cold water drinking line and install
the pipe clamp and shut off valve.
3. Connect the water line installation kit to shut off valve.
DA68-01861A.indb 18 2010.10.14 3:37:46 PM
Setting up _19
01 SETTING UP

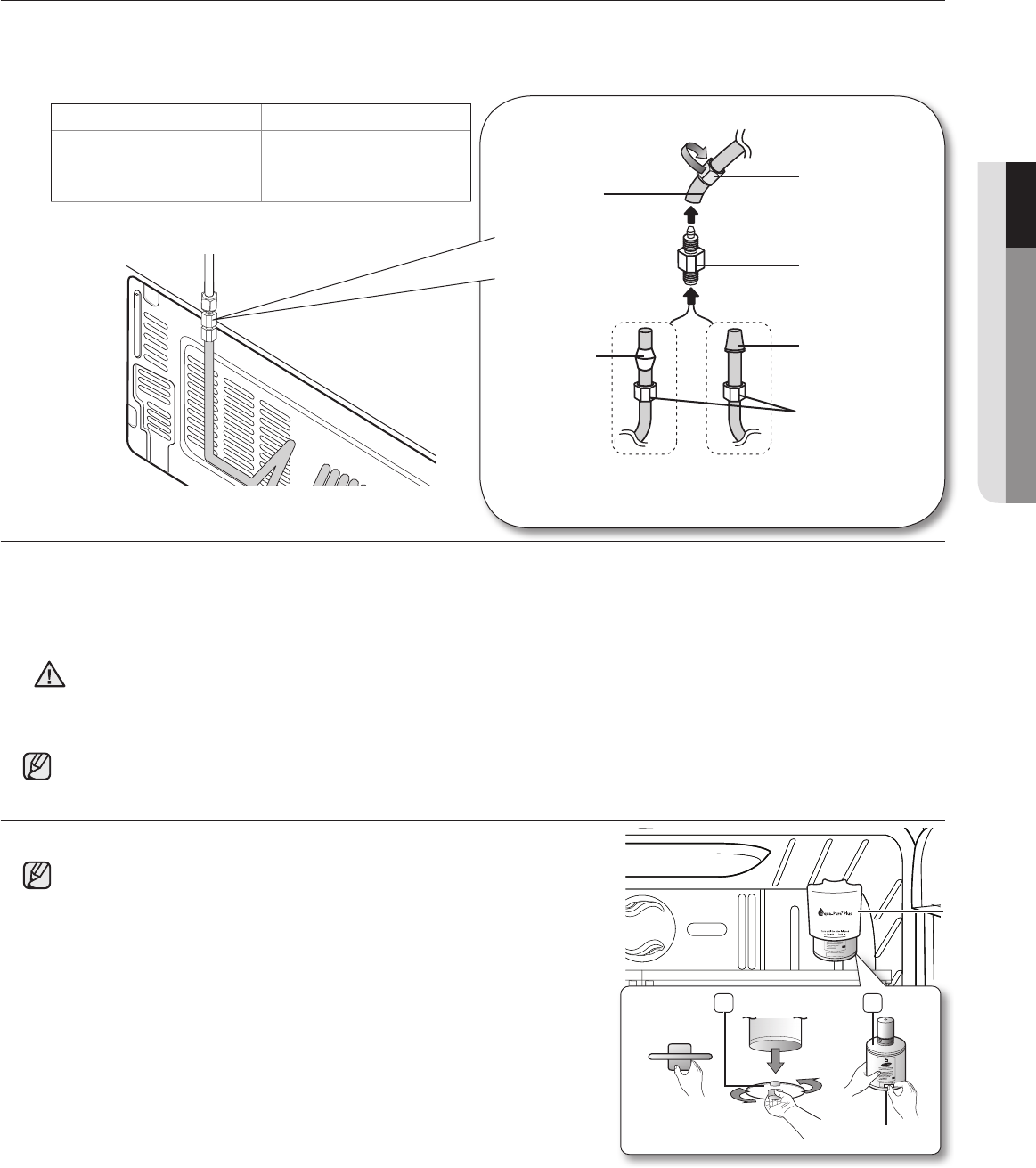

INSTALLING THE WATER LINE
Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you
get a snug, leak-free connection.
After removing the right side upper shelf, you can
install the water filter more easily.
Installing the water lter.
Connecting the water supply line to the refrigerator.
There are several items that you need to purchase to complete this connection.
You may find these items sold as a kit at your local hardware store.
1. Slip the compression nut (A) through the supplied plastic tubing (A) .
2. Tighten the compression nut (A) onto the 1/4” compression fitting.
- If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on
copper tubing (not supplied) as shown.
-
If you are using plastic tubing (B), insert the molded end(Bulb) of the plastic tubing (B) into the compression fitting.
3. Tighten the compression nut (B) onto the compression fitting. Do not over-tighten the compression nut (B).
4. Turn water on and check for any leakage.

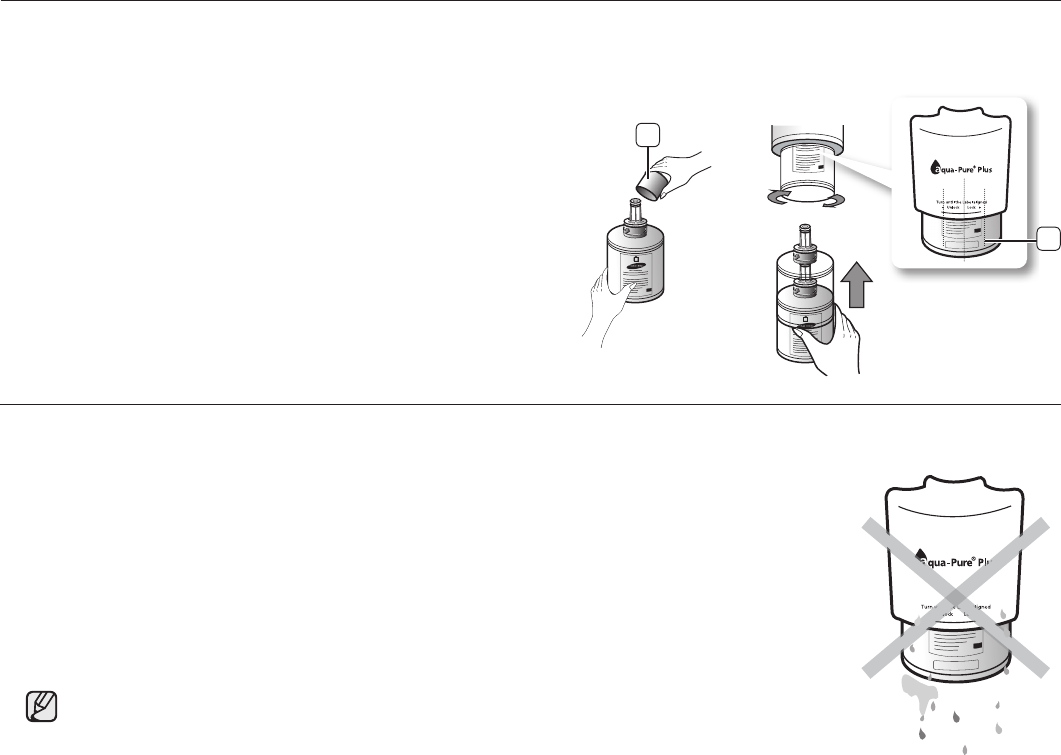

1. Remove the water filter cover ( 1 )
2. Remove the fixed cap ( 2 ) by turning it counter-clockwise. Keep
the cap in a safe place for later use if you don’t use the filter.
3. Remove the water filter ( 3 ) from the box and put a replacement
indicator sticker (Indicator sticker is included in the box) on
the filter as shown. Place the sticker on the filter that dates
six months in the future. For example, if you install the water
filter in March, put the “SEP” sticker on the filter to remind you
to replace it in September. This way, you can remember the
time to replace the water filter. Normally, a filter life is about 6
months.
2 3
Indicator sticker
(month indicator)
Plastic tubing (A)
(Supplied)
Ferrule
(Not supplied)
Compression nut (A)
(1/4”) (Supplied)
Compression fitting
(Supplied)
Molded end(Bulb)
Compression nut (B)
(1/4”) (Not supplied)
or
Copper tubing
(Not supplied)
Plastic tubing (B)
(Not supplied)
Household water supply line
Refrigerator
Use Copper Tubing Use Plastic Tubing
• ¼” copper tubing
• ¼” compression nut (2pc)
• Ferrule (2pc)
• ¼” plastic tubing
→ Molded end(Bulb)
• ¼” compression nut (2pc)
Do not use without the molded end(Bulb) of the plastic tubing (B) .
CAUTION
DA68-01861A.indb 19 2010.10.14 3:37:53 PM
20_ Setting up
Setting up your French Door Refrigerator
4. Remove the filter cap ( 4 ) and insert the filter
into the filter housing.
5. Slowly turn the water lter 90º clockwise to align
with the printing mark on the cover, locking the
filter in position. Make sure to align the water
filter label mark ( 5 ) with center of cover filter
printing as illustrated.
Remember, do not over-tighten. Turn until the label
is aligned.
Separation
of filter cap(red)
Cover filter.
4
5
Removing any residual matter inside the water supply line after
installing the water lter.
1. Turn on the main water supply & turn on the valve to the water supply line.
2. Run water through the dispenser until the water runs clear (approx. 6-7minutes).
This will clean the water supply system and remove air from the lines.
3. Additional clearing time may be required in some households.
4. Open the Refrigerator door and make sure there are no water leaks coming
from the water filter.
Reverse Osmosis Water Supply
 The pressure of the water supply coming out of a reverse osmosis system going to the
water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to
the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment lter in the reverse osmosis system is blocked. Replace the lter if
necessary.
• Allow the storage tank on the reverse osmosis system to rell after heavy usage.
• If your refrigerator has a water lter, it may further reduce the water pressure when used in conjunction
with a reverse osmosis system. Remove the water filter.
If you have questions about your water pressure, call a licensed, qualified plumber.
Be sure to flush the dispenser thoroughly or water may leak from it.
This is due to the fact that there is still air in the line.
DA68-01861A.indb 20 2010.10.14 3:37:58 PM
Operating _21
02 OPERATING
Some functions are activated after a few-second delay when the buttons are pressed, while others
operate immediately. This is normal operation.
Operating your French Door Refrigerator
1
2
3
4
5
6
1
 Press the  button for better energy efficiency. If water drops appear on the doors, turn
the  function off.
2


Press the  button to set the Freezer to your desired temperature.
You can set the temperature between -8°F and 8°F
Press and hold the  Button for 3 seconds, to speed up the time needed to
freeze products in the Freezer. It can be helpful if you need to quickly freeze easily spoiled items or if
the temperature in the Freezer has warmed dramatically (For example, if the door was left open).
3

Press the  button to select the ice or water function. You can select water or the types of
ice(cube/crushed ice).
After making a selection, press the dispenser lever.
4

Press the  button to turn off the door open alarm. The default alarm mode is On.
If you press and hold the  button for 3 seconds, the Dispenser LED Lamp will stay
on.
5

Press the  button to set the fridge to your desired temperature.
You can set the temperature between 34°F and 46°F.
Press and hold the  button for 3 seconds to speed up the time needed to cool
products in the Refrigerator. It can be helpful if you need to quickly cool easily spoiled items or if the
temperature in the fridge has warmed dramatically (For example, if the door was left open).
6

Press the  button to turn the ice making function off.
If you press and hold the  button for 3 seconds, the Display and Dispenser will be
locked.

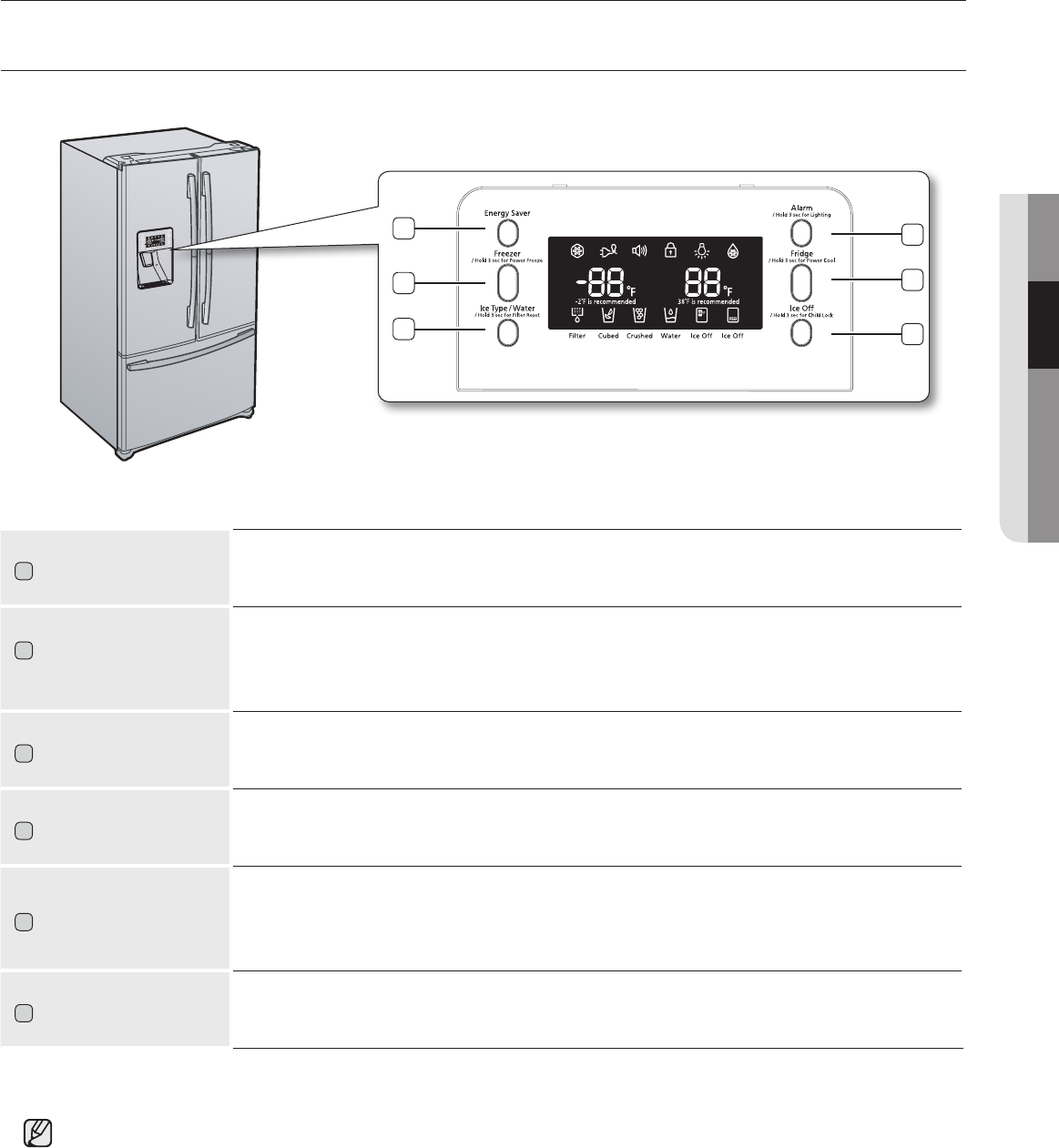

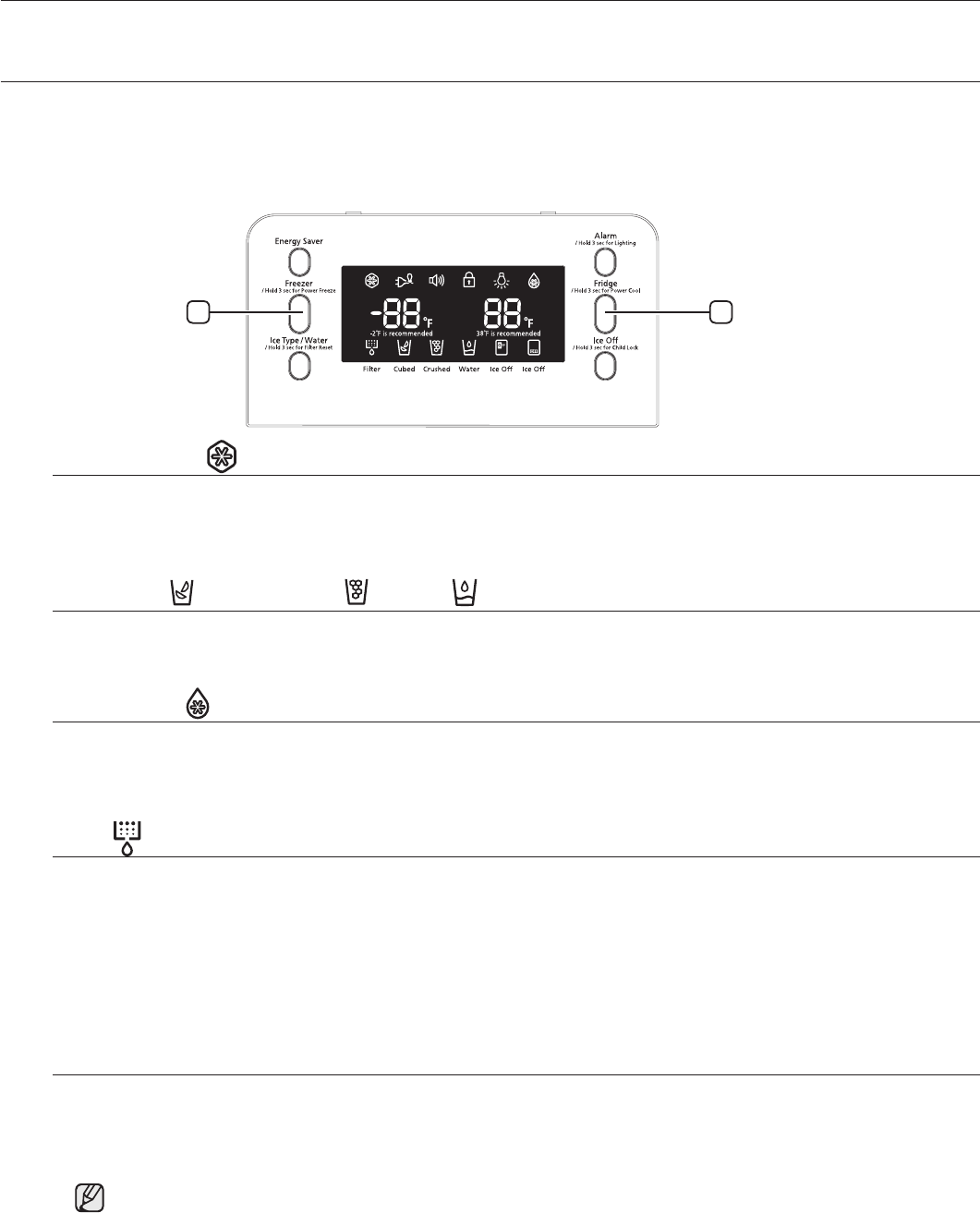

USING THE CONTROL PANEL
DA68-01861A.indb 21 2010.10.14 3:38:0 PM
22_ Operating
Operating your French Door Refrigerator
USING THE CONTROL PANEL
1 2
 indicates the current Freezer temperature.
 indicates the current Refrigerator temperature.
If you do not press any button, the freezer & fridge temperature indicator will turn off in a few seconds.
If any button is pressed, the display will light up again.
Power Freeze
This icon will light up when you press the  button for 3 seconds. Power Freeze
is great when you need a lot of ice. When you have enough ice, just press the same button again for 3
seconds to cancel the Power Freeze mode. After 2 and a half hours, Power Freeze mode will turn off
automatically to decrease energy consumption.

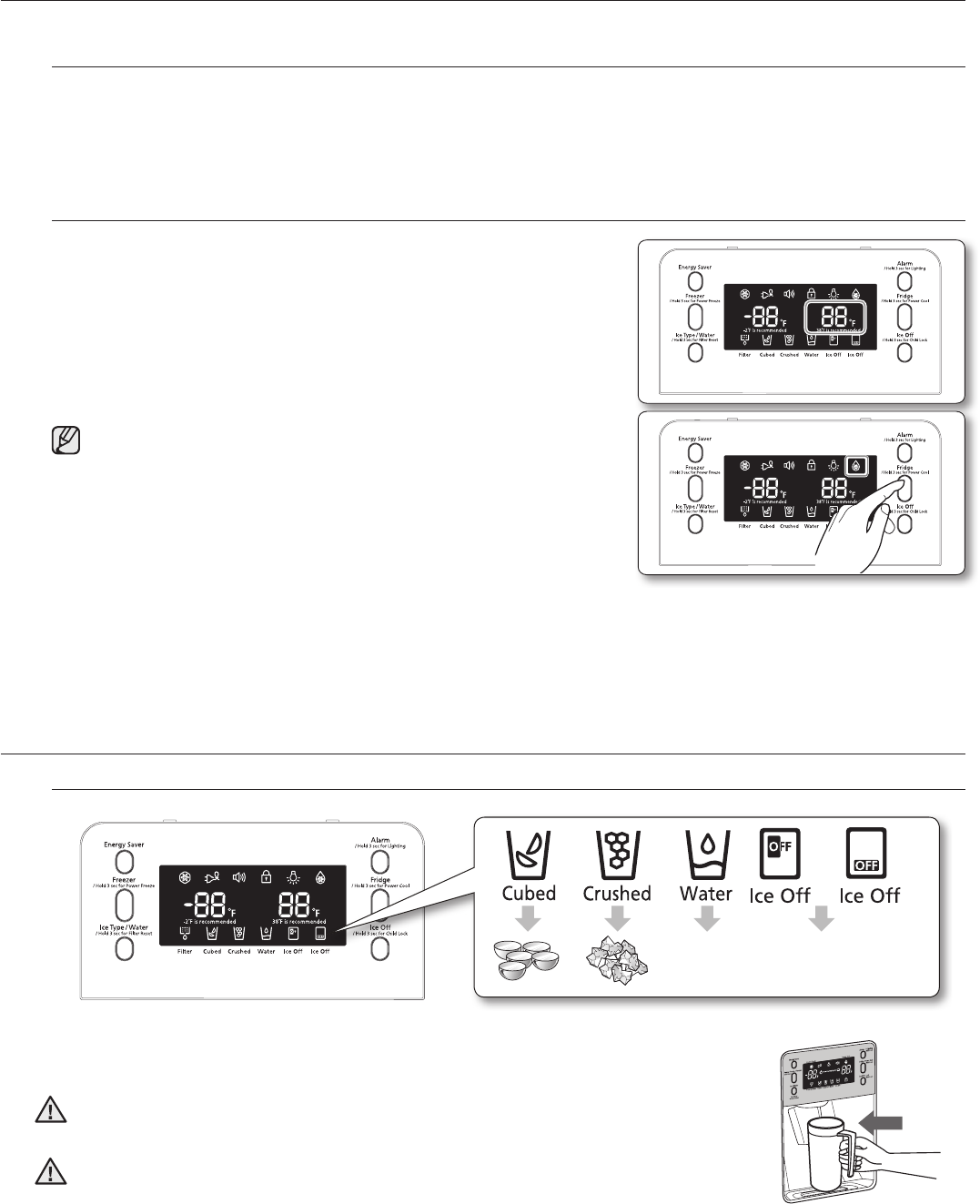

Cubed Ice , Crushed Ice , Water
Enjoy cubed or crushed ice by selecting your preference from the digital control panel. If you don’t need
ice, turn the function off to save on water and energy consumption. Each Ice type icon will light up
depending on what is currently chosen.
Power Cool
This icon will light up when you press the  button for 3 seconds. For a quick fridge
cool down, use Power Cool mode. If you want to cancel the Power Cool mode, just press the same
button again for 3 seconds. After 2 and a half hours, Power cool mode will turn off automatically to
decrease energy consumption.
Cooling off Mode (“OF & OF” code on the display)
Cooling Off stops cooling in the freezer and refrigerator compartments, but does not shut off electrical
power to the refrigerator. To use this feature, press  Button and 
Button simultaneously for 3 seconds until an alarm sound is heard. To cancel this mode, press the same
buttons again for 3 seconds.
Filter
When the filter indicator light is on, it is time to change the filter. Typically this happens about every 6 months.
The filter indicator will be Blue when you initially insert the water filter.
The filter indicator will be Light Pink when you have used your water filter for 270 gallons.
The filter indicator will be Red when you have used your water filter for 300 gallons.
After removing the old water filter and installing a new one(see page 36 for instructions on how to do this)
when the filter indicator is red, reset the indicator by pressing and holding the “Alarm/Hold 3 sec for Filter
Reset” button for 3 seconds.(The filter indicator will be blue or yellow green when the indicator is reset.)
This function is for store display refrigerators. It is not for customer use.
DA68-01861A.indb 22 2010.10.14 3:38:2 PM
Operating _23
02 OPERATING
CONTROLLING THE TEMPERATURE
Energy saver

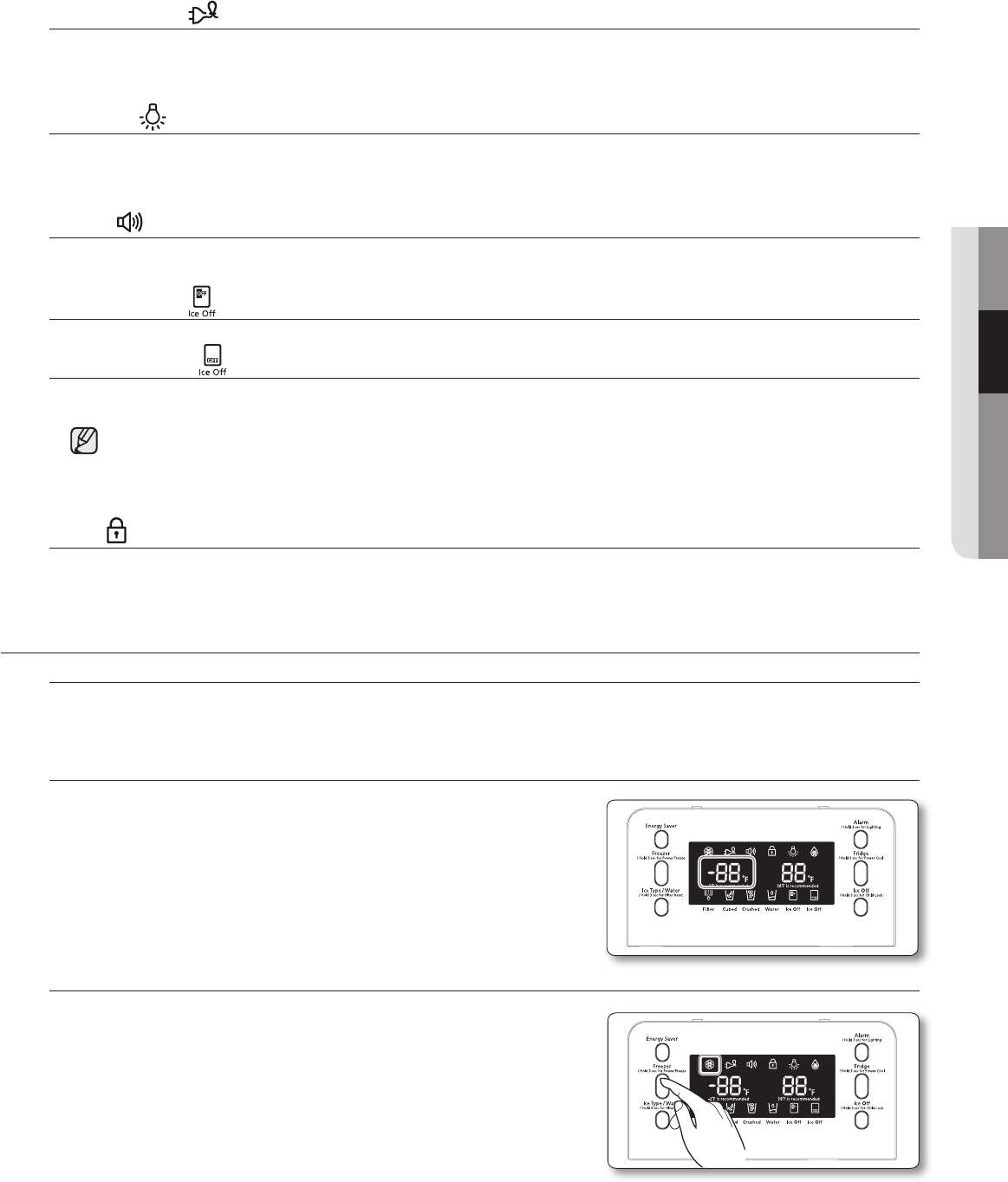

This icon will light up when you press the  button. The Energy Saver function is
automatically set to “ON” when power is supplied to the Refrigerator. If condensation occurs on the doors,
turn the Energy Saver mode off.
Lighting
This icon will light up when you press the  button. In this case, the dispenser light(under the
display) will be on constantly. If you would like the dispenser light to come on only when using the
dispenser, turn the Lighting mode off.
Alarm
This icon will light up when you press the  button. The door alarm will sound if any door is open for
more than 3 minutes. The beeping stops when you close the door. Initially the Alarm is set to on.
Fridge ice off
This icon will light up when you press the  button. In this case, the fridge ice will not be produced.
Freezer Ice off
This icon will light up when you press the  button. In this case, the freezer ice will not be
produced.
Lock
This icon will light up when you press the  button. In this case, you won’t be able to use the control
panel. If you press and hold the Ice Off/Hold button for 3 sec to unlock Child Lock, you will be able to use
the control panel again.
• As this refrigerator has a dual Ice Maker, there is a possibility of using more energy. We
recommend if you have enough ice, set ice off to save energy.
• You may occasionally hear noises from Ice dropping or water owing to the icemaker. These
noises are part of normal operation.
Basic temperature of Freezer and Refrigerator Compartments
The basic temperature and/or recommended temperatures of the Freezer and Refrigerator Compartments are -2°F
and 38°F respectively.
If the temperature of Freezer and Refrigerator Compartments are too high or low, adjust the temperature manually.
Controlling the Freezer temperature
The Freezer temperature can be set between -8°F and 8°F to suit your
particular needs. Press the Freezer button repeatedly until the desired
temperature is shown in the temperature display. The temperature will
move 2°F degrees with each press (-2°F ➝ -4°F ➝ -6°F ➝ -8°F ➝ 8°F ➝
6°F ➝ 4°F ➝ 2°F ➝ 0°F ➝ -2°F). Keep in mind that foods like ice cream
may melt at 4°F. The temperature display will move sequentially from -8°F
to 8°F. Five seconds after the new temperature is set, the display will show
the actual current freezer temperature until the new temperature is reached.
Using the Power Freeze
If you need a lot of ice or if you want to cool down the freezer faster, you
can use the Power Freezer function. Press and hold the Freezer/Power
Cool button for 3 seconds. Then, the power freeze indicator will light and
activate the power freeze mode independent of the freezer set temperature.
If you select Power freeze, the inside temperature of the freezer will
decrease for about two and a half hours. When you have enough ice, just
press and hold the button for 3 seconds again to cancel the Power Freeze
mode. Then, the indicator will go out and the freezer will return to the set
temperature again.
DA68-01861A.indb 23 2010.10.14 3:38:4 PM
24_ Operating
Operating your French Door Refrigerator
Controlling the fridge temperature
The fridge temperature can be set between 46°F and 34°F to suit your particular needs. Press the Fridge button
repeatedly until the desired temperature is shown in the temperature display. The temperature will move 2°F degrees
with each press(38°F ➝ 36°F ➝ 34°F ➝ 46°F ➝ 44°F ➝ 42°F ➝ 40°F ➝ 38°F). The temperature control process for
the Fridge works just like the Freezer process. Press the Fridge button to set your desired temperature. After a few
seconds, the Fridge will begin adjusting towards the newly set temperature. This will be reflected in the digital display.
Press the Ice type or water button to select the type of you want
Using the Power Cool
For a quick Fridge cool down, use the Power Cool function. Press and
hold the Fridge/Hold 3 sec for Power Cool button for 3 seconds. Then,
the power cool indicator will light and activate the power cool mode
independent of fridge set temperature. If you select Power Cool, the inside
temperature of the fridge will decrease for about two and a half hours
or until 25°F is reached. Press and hold the button for 3 seconds again
to cancel the Power Cool mode. Then, the indicator will go out and the
Refrigerator will return to the set temperature again.

Select this if you want
to turn ice maker off.
- The temperature of the Freezer, fridge or Pantry Room may
rise when you open the doors too frequently, or if a large
amount of warm or hot food is placed inside.
- This may cause the digital display to blink. Once the
Freezer and fridge temperature return to their normal set
temperatures, the blinking will stop.
- If the blinking continues, you may need to “reset” the
Refrigerator. Try unplugging the appliance, wait for around 10 minutes and then plug the power cord
back in.
- If there is an communication error between the Display and Main Controller, the Pantry Display
light may blink. Once the normal set temperatures are reached, the blinking will stop. If the blinking
continues for a long period of time, please contact a Samsung Electronics Service Center.
USING THE COLD WATER DISPENSER
Using the ice Dispenser

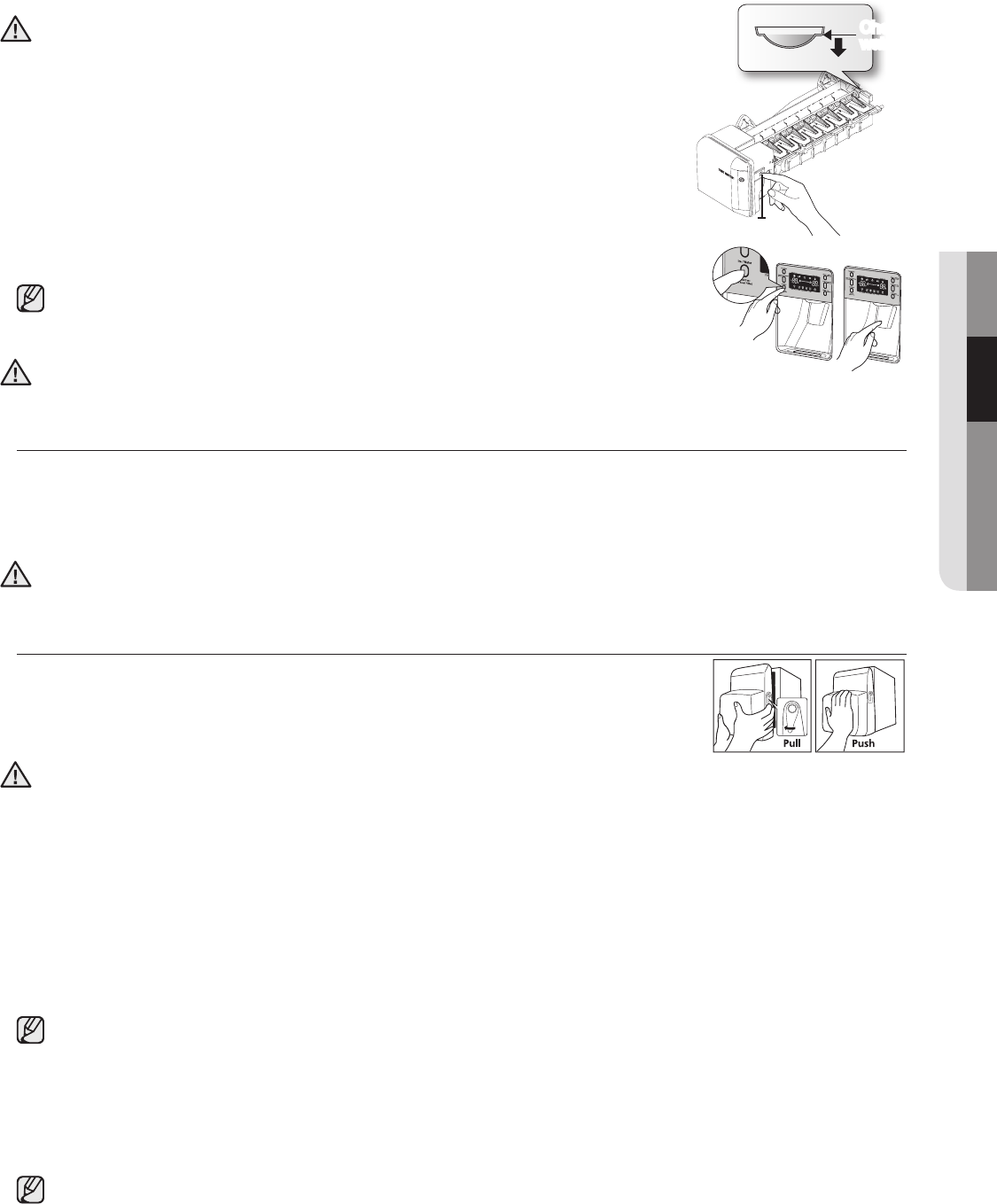

Place a glass underneath the ice dispenser and push gently against the dispenser lever with your glass.
Make sure the glass is in line with the dispenser to prevent the ice from bouncing out.
PUSH
• When Cubed Ice is selected after using the Crushed Ice mode, a small
amount of residual crushed ice might be produced.
CAUTION
• Before or during using, wash ice bin/bucket with a mild detergent, rinse well,
and dry thoroughly it. Do not use harsh or abrasive cleaners or solvents.
CAUTION
DA68-01861A.indb 24 2010.10.14 3:38:19 PM
Operating _25
02 OPERATING
Using the water dispenser
Place a glass underneath the water outlet and push gently against the water dispenser lever with your glass.
Make sure the glass is in line with the dispenser to prevent the water from splashing out.
If you have just installed the refrigerator or installed a new water filter,Flush 3 gallons through filter before use (flush
approximately 6 minutes). Make sure that water flows clearly again before drinking.
Using the ice off Function
When selecting the Ice Off mode, remove all ice cubes from the bucket. If you are not using
the ice dispenser, the ice cubes may clump together. Pull the lock lever forward to throw
away ice cubes or remove clumped ice from the bucket. Push the bucket back until you
hear a click.
If you use all the ice at once, steps 3 and above 4 must be repeated (before dispensing
the first 4 to 6 ice cubes, you need to wait 8 hours). This will replenish the ice cubes
and ensure maximum ice production.

All water provided to refrigerators flows through the core filter which is an alkaline water filter. In this process, the
pressure in the water that has flowed out of the filter gets increased, and oxygen and nitrogen become saturated.
When this water flows out in the air, the pressure plummets and the oxygen and nitrogen get supersaturated,
which results in gas bubbles. The water may temporarily look misty or cloudy due to these oxygen bubbles. After
a few seconds, the water will look clear.
Please wait 2 second before removing the cup after dispensing water to prevent spills. Do not pull out the lever
dispenser after taking out ice or water. It comes back automatically. Ice is made in cubes. When you select
“Crushed”, the ice maker grinds the ice cubes into crushed ice.
• In case ice doesn’t come out, pull out the ice bucket and press the test button
located on the right side of ice maker.
• Do not press the test button continuously when the tray is lled with ice or water.
Water may overflow or ice jamming may occur.
• Normal Use
To fill the ice bucket to maximum capacity after installation, make sure to do the
following steps.
1. Allow your refrigerator to operate and cool down for 24 hours (or 1 full day).
2. Waiting 24 hours will allow your ice maker to cool properly.
3. Dispense 4 to 6 ice cubes into the glass.
4. After 8 and 16 hours, dispense a full glass of ice.
When you dump the ice from the ice bucket, you should press the dispenser lever
once with ‘ICE CUBED’ or ‘CRUSHED’ function ON to get new ice faster after
replacing the ice bucket in the refrigerator.
When you do not use the water dispenser for 2~3 days (especially during the summer), the dispensed water
may have a funny smell or taste.
If this occurs, we recommend that you discard the first 1~2 glasses for better tasting water.
Use only the ice maker provided with the refrigerator. The water supply to this refrigerator must only be
installed/connected by a suitably qualified person and connect to a potable water supply only. In order to
operate the ice maker properly, water pressure of 138 ~ 862Kpa is required. If you have a long vacation or
business trip and won’t use water or ice dispensers, close the water valve.
- Otherwise, water leakage may occur.
Wipe excess moisture from inside and leave the doors open.
- Otherwise, odor and mold may develop.
Use running water to clean the ice tray bucket, do not use detergent or your hands. Do not put your fingers or
any other object in the chutes or blades, as it may result in injury or damage to the refrigerator.
Never put your finger or any other objects in the dispenser opening.
- It may cause injury.
Do not try to disassemble the ice maker. Do not wash or spray the ice bucket with water.
CAUTION
CAUTION
CAUTION
CAUTION
Test button
Check the
water level
DA68-01861A.indb 25 2010.10.14 3:38:23 PM
26_ Operating
Use this page to become more familiar with the parts and features of the Refrigerator.
PARTS AND FEATURES
Operating your French Door Refrigerator
Auto Door Closer
Water Filter
Dairy
Compartment
1
Door Bins
2
Cool Select
PantryPlus
5
Light
Vertical Hinged
Section
4
Vegetable & Fruit
Drawers
7
Tilting Pocket
Light
Freezer Drawer Bin
8
Auto Pull Out Drawer
6
Slide-Shelf
FF Ice-Maker
Foldable-Shelf
Tempered Glass
Shelves
3
Quick-Space
Glass Shelf
FZ Ice-Maker
Ice Bucket
When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid
scratching the other door.
If the Vertical Hinged Section is reversed, put it back to the right position and close the door.
Moisture may occur at times on the Vertical Hinged Section.
The door handle may become loose over time.
If this happens, tighten the bolts found on the inside of the door.
If you close one door with a lot of force, the other door may open.
DA68-01861A.indb 26 2010.10.14 3:38:29 PM
Operating _27
02 OPERATING
Do not place any large articles of food under the lamp in the Refrigerator. An air sensor is located near the lamp and if
the sensor is blocked, your Refrigerator may become too cold. Please place vegetable and fruits in the vegetable and
fruit drawers to avoid freezing them. If the food in your Refrigerator becomes frozen, please set the temperature higher.
If you plan to go away for a long time, empty the Refrigerator and turn it off. Wipe the excess moisture from
the inside of the appliance and leave the doors open.
( 1
) DAIRY
COMPARTMENT
Can be used to store small dairy items like butter or margarine,
yogurt or cream cheese bricks
( 2
) DOOR BINS
Designed to handle large, bulky items such as gallons of milk or
other large bottles and containers.
( 3
) TEMPERED GLASS
SHELVES
Designed to be crack-resistant, the shelves can be used to store all
types of food and drinks. Circular marks on the glass surface are a
normal phenomenon and can usually be wiped clean with a damp
cloth.
( 4
) VEGETABLE & FRUIT
DRAWERS
Used to preserve the freshness of your stored vegetables and fruits.
This drawer could control the level of humidity for items that must
keep the enough moisture. Keep vegetables and fruits separate
when possible.
( 5
) COOL SELECT
PANTRYPLUS
Can be used for large party trays, deli items, pizza, beverages or
miscellaneous items.
( 6
) AUTO PULL OUT
DRAWER
Best use to store meats or dry foods. Stored food should be
placed in a container or wrapped securely using foil or other
suitable wrapping materials.
( 7
) TILTING POCKET Can be used for small packages of frozen food.
You can also store a 16” pizza.
( 8
) FREEZER DRAWER
BIN
Can be used to store meat and dry foods.
Stored food should be placed in a container or wrapped securely
using foil or other suitable wrapping materials.
Bottles should be stored tightly together so that they do not tip and fall out when the Refrigerator door is
opened.

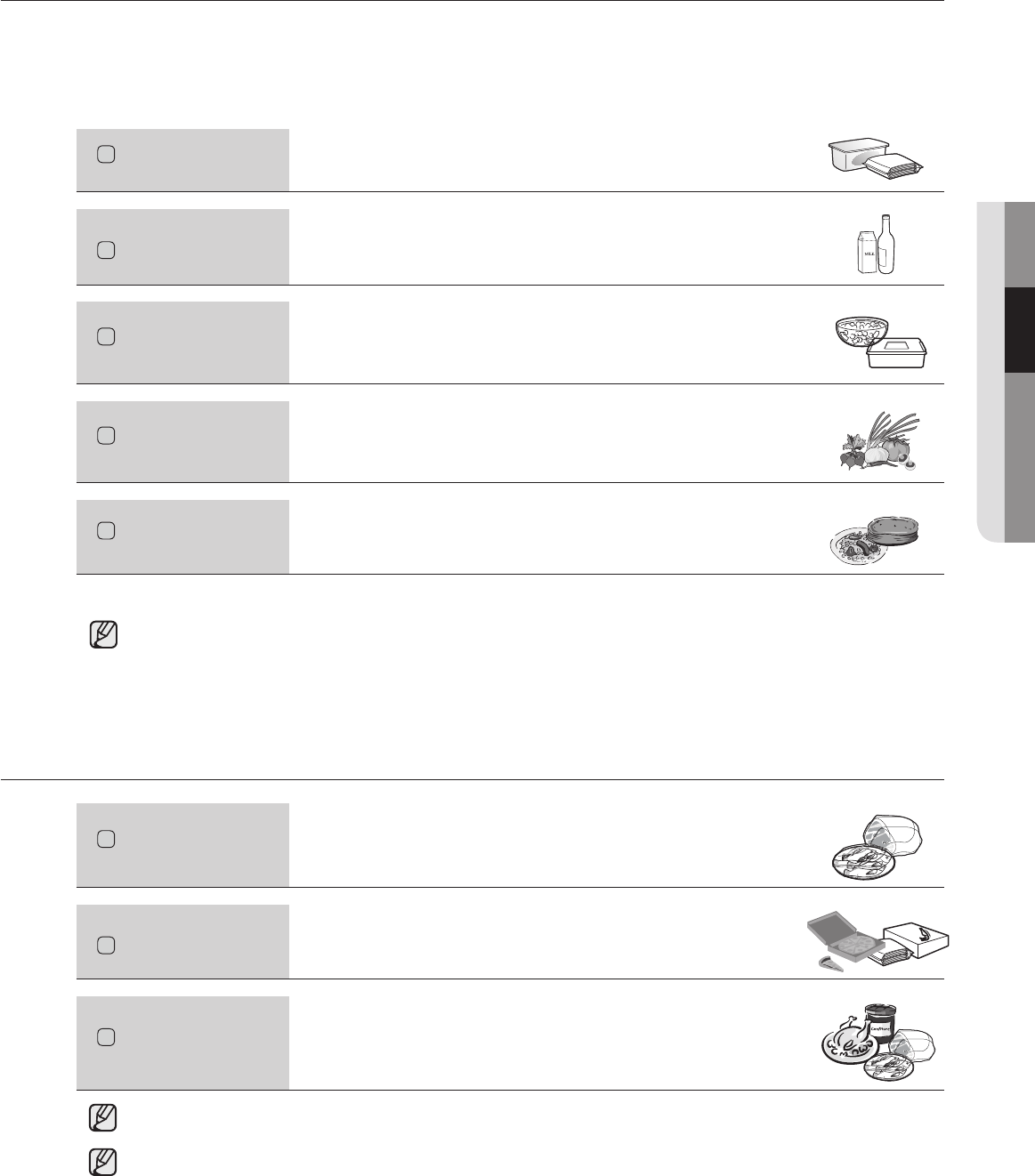

STORING FOOD IN THE REFRIGERATOR
STORING FOOD IN THE FREEZER DRAWER
The Samsung French Door Refrigerator has been designed to provide you with maximum space saving features
and functions. Here are some of the customized compartments we have created to keep your food fresher longer. In
order to further prevent odor from seeping into the ice compartment, stored food should be wrapped securely and as
airtight as possible.
DA68-01861A.indb 27 2010.10.14 3:38:34 PM
28_ Operating
Operating your SAMSUNG Refrigerator
USING THE COOL SELECT PANTRYPLUS
Deli Fresh Chilled
• pineapples • cucumbers • steaks
• lemons • apples • hard cheeses
• avocados • oranges • cold cuts
• potatoes • grapes • bacon
• zucchinis • hot dogs
• corn
The Cool Select PantryPLUS is a full-width drawer with an adjustable
temperature control. This pantry can be used for large party trays, deli
items, pizzas, beverages or miscellaneous items. There is a temperature
sensor which can adjust the amount of cold air allowed into the pantry. The
control buttons are located on the right side of the pantry.
• Press the Temp button repeatedly until your desired mode is lit.
The Fresh mode(38°F), Chilled mode(34°F) and Deli mode(41°F) will be selected whenever you press the
Temp button.
Initially, the Fresh mode is set. Though the set temperature is different from the current temperature, the
temperature will be changed to the set temperature automatically.
• The Pantry temperature may change depending on the amount of items inside and where they are located, the
ambient temperature, and how often the door is opened.
Temperature
You can select your pantry temperature from among Fresh(38°F), Chilled mode(34°F), and Deli mode(41°F)
modes.
Selection Button
1. When “Deli” is selected, the temperature of the pantry will be kept
around 41°F(5°C). This feature helps keep food fresh for a long time.
2. When “Fresh” is selected, the temperature of the pantry will be kept
around 38°F(3°C). This feature helps keep food fresh for a longer time.
3. When “Chilled” is selected, the temperature of the pantry will be kept
around 34°F(1°C). This feature also helps keep meat or fish fresh for a
longer time.
Fruits and vegetables may be damaged under the “Chilled” setting.
Do not store lettuce or other leafy produce in this pantry.
Do not store glass bottles in this pantry.
If they are frozen, they can break and cause personal injury.
CAUTION
DA68-01861A.indb 28 2010.10.14 3:38:35 PM
Operating _29
02 OPERATING
2
1

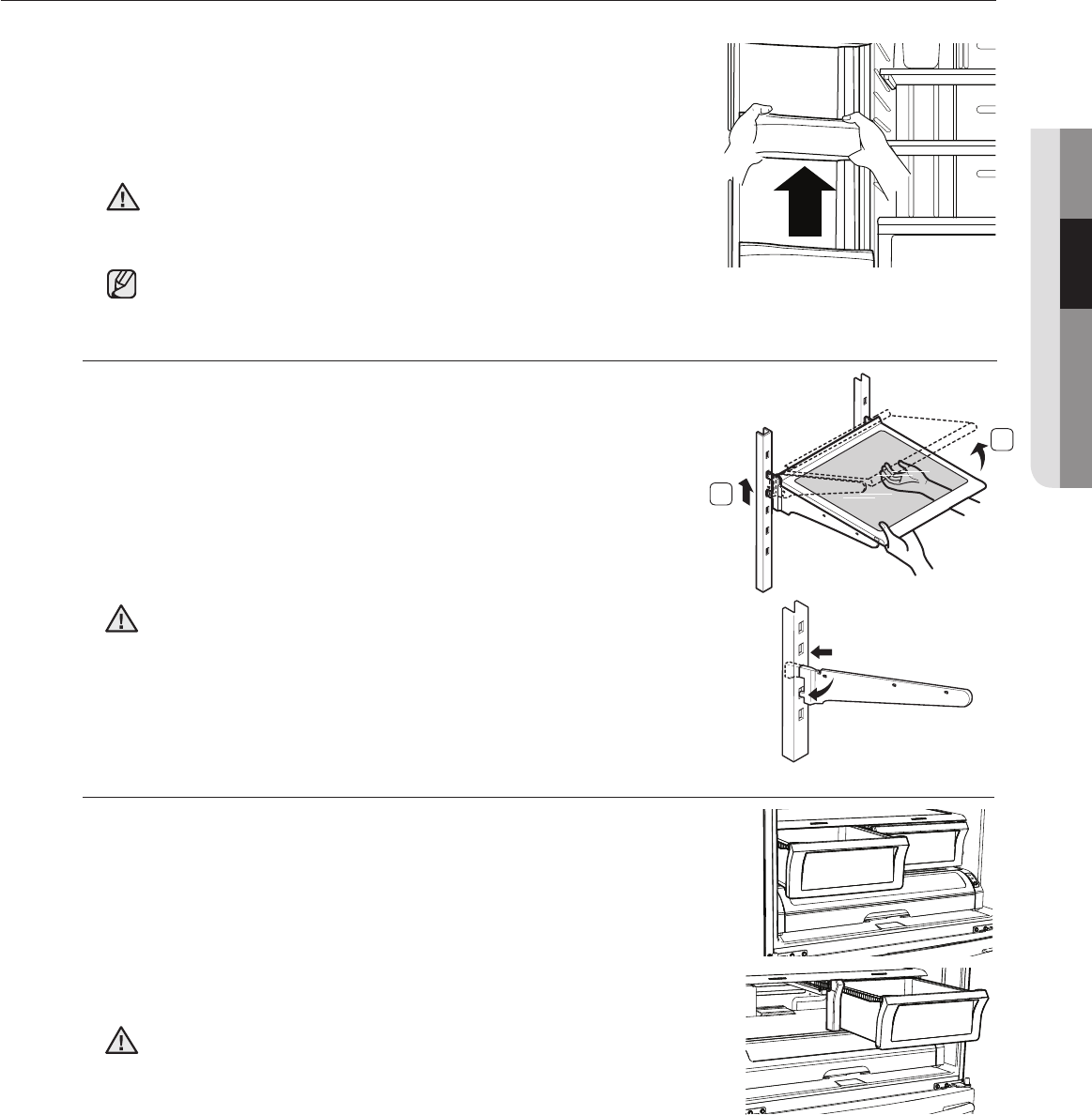

REMOVING THE REFRIGERATOR ACCESSORIES
2. Tempered Glass shelves
To remove - Tilt up the front of the shelf in the direction shown ( 1 )
and lift it up vertically ( 2 ) .
Pull the shelf out.
To relocate - Tilt the front of the shelf up and guide the shelf hooks
into the slots at a desired height. Then lower the front
of the shelf so that the hooks can drop into the slots.
1. Door Bins & Dairy Compartment
To remove - Simply lift the bin up and pull straight out.
To relocate - Slide it in above the desired location and push down
until it stops.
Dust removal method -Remove the guard and wash in water.
3. Vegetable & Fruit Drawers
To remove - Pull the drawer out to full extension. Tilt up the front of
the drawer and pull straight out.
To relocate - Insert the drawer into the frame rails and push back
into place.
Injury may occur if the door bins are not firmly assembled.
Do not allow children to play with bins. Sharp corners of the bins
may cause injury.
CAUTION
The Tempered Glass shelves are heavy.
Use special care when removing them.
CAUTION
The drawers need to be removed before the glass shelf above
them can be lifted out.
Do not open the drawers while the pantry is open.
It may cause a scratch or breakage to the drawer covers.
CAUTION
Do not adjust a bin full of foods.
DA68-01861A.indb 29 2010.10.14 3:38:44 PM
30_ Operating
Operating your SAMSUNG Refrigerator

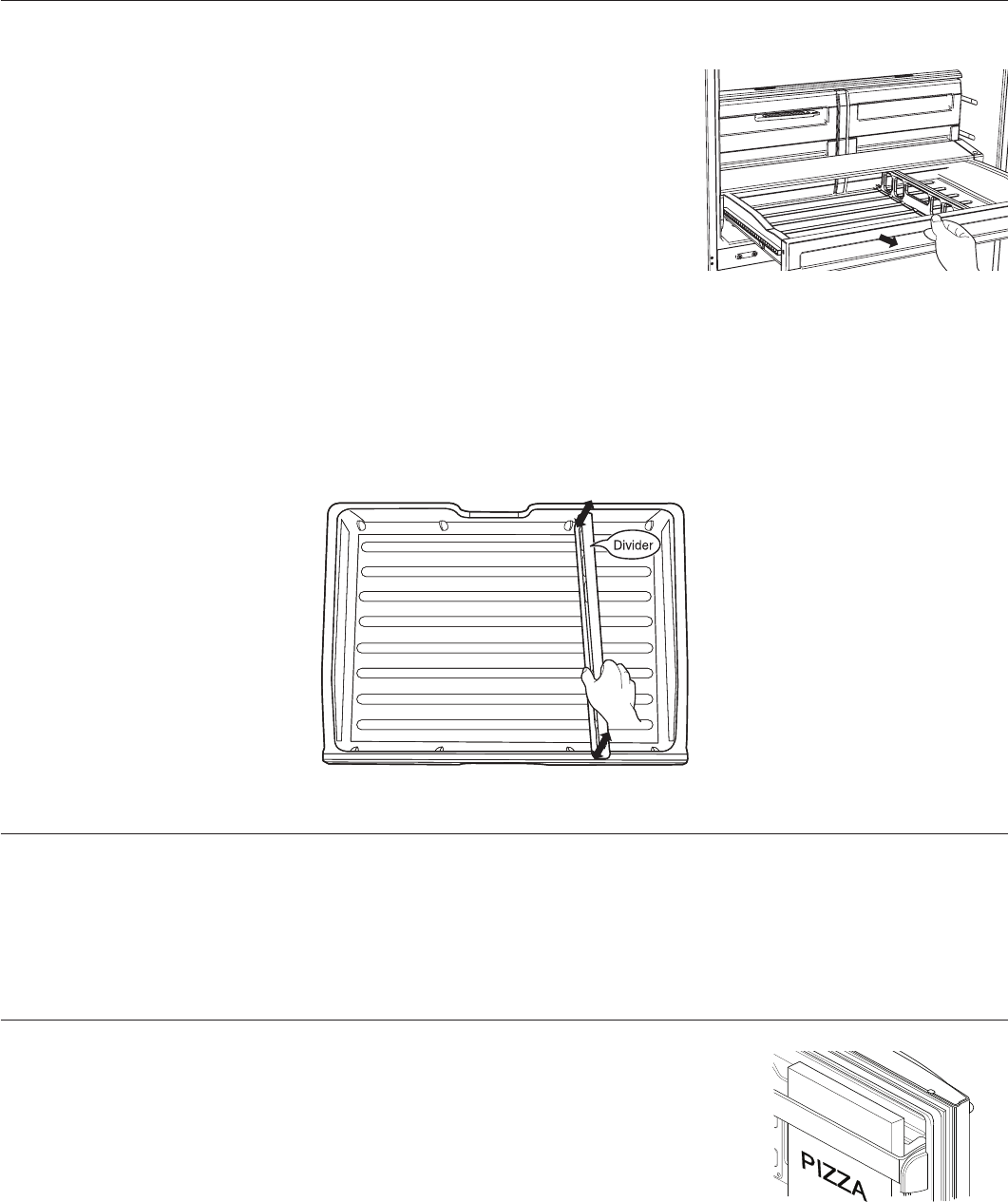

4. Cool Select PantryPLUS
To remove the pantry - Pull the pantry out to full extension.
Tilt up the front side of pantry and pull
straight out.
To relocate the pantry - Push the rails to the back of the
Refrigerator. Place the drawer onto the
rails and slide the pantry back until it is in
place.
To remove the divider - Pull the pantry completely out to full extension and raise the front side of
the divider to unhook it from the rear wall of the pantry, then lift the divider
out.
To relocate the divider - Hook the back of the divider over the rear wall of the pantry and push the
divider down.
USING THE DOORS
USING THE TILTING POCKET
The Refrigerator doors ensure that the doors close all the way and are securely sealed.
When the Refrigerator door is only partially open, it will automatically close. But, the door will stay open when opened
more than the auto close range.
The Tilting Pocket can be used to store up to a 16” pizza if you place it as shown in
the illustration.
DA68-01861A.indb 30 2010.10.14 3:38:45 PM
Operating _31
02 OPERATING
1
3
4
12
REMOVING THE FREEZER ACCESSORIES
1. Tilting Pocket
To remove - Pull both brackets( 1 ) upward until you hear a clicking
sound and remove the pocket
To replace - Hook the ends of the pocket into both brackets ( 1 )
and push down until it locks into place.
2. ICE BUCKET
To remove - Lift the ice bucket( 1 ).
To relocate - Place the ice bucket into the Super extended drawer(
2 ).
3. Auto Pull Out Drawer
To remove - Pull the drawer out to full extension.
Tilt up the rear of the drawer and lift straight out.
To relocate - Place the drawer onto the rails( 4 ) by tilting it up.
Lower the drawer into place until it is horizontal and
slide the Drawer( 3 ) in.
4. Freezer Drawer
To remove the freezer drawer - Pull the freezer drawer out
fully. Tilt up the rear of the
bin and lift it out to remove.
To relocate the freezer drawer - Place the bin into the rail
assembly.
To remove the divider - Pull the divider straight up.
To relocate the divider - Hook the top corners of divider ( 1 )
over a hole in the bin ( 2 ).
Do not allow babies or children go inside the freezer drawer.
They could damage the refrigerator and seriously injure
themselves. Do not sit on the freezer door. The door may
break. Do not allow children to climb into the freezer drawer.
If you remove the divider to clean the freezer drawer, be sure
to replace the divider. It is for the safety of babes or children.
 Children can become trapped inside and suffocate.
1
2Divider
CAUTION
CAUTION
WARNING
DA68-01861A.indb 31 2010.10.14 3:39:3 PM
32_ Operating
Operating your SAMSUNG Refrigerator
FOOD STORAGE TIPS
   
DAIRY PRODUCTS
Butter 2-3 Weeks 6-9 Months Wrap or cover tightly.
Milk 1-2 Weeks Not recommended
Check date code. Most milk and similar products are sold in date-coded
cartons that indicate a products’s peak freshness. Re-seal with cap or
wrap tightly. Do not return unused portions to original container.
Cream Cheese, cheese
food, and cheese
spread
2-4 Weeks Not recommended
Check date code. Keep all cheese tightly packed in moisture proof wrap
Hard Cheese (un-
opened) 3-4 Months 6 Months
Hard Cheese (opened) 2 Months Not recommended
Cottage Cheese 10-15 Days Not recommended
Cream 7-10 Days 2 Months Check date code. Most yogurt, creams, and similar products are sold in
date-coded cartons that indicate a product’s peak freshness. Re-seal or
cover tightly. Do not return unused portions to original container.
Sour Cream 2 Weeks Not recommended
Cream Dips (opened) 1 Week Not recommended
Yogurt 10-14 Days Not recommended Check date code. Keep covered.
Frozen Yogurt n/a 2 Months
EGGS
Eggs (uncooked) 3-4 Weeks Not recommended Check date code. Store eggs in coldest part of refrigerator and in their
original container.
Eggs (cooked) 1 weeks Not recommended Store in covered container
Leftover egg dishes 3-4 Days Not recommended Store in covered container
FRESH FRUITS
Apples 1 Month Not recommended
If storing in refrigerator, do not wash fruit before storing. Store in mois-
ture resistant bags or containers. Wrap cut fruits. Some fruits darken
when refrigerated.
Bananas 2-4 Days Not recommended
Peaches, Melons,
Pears, Avocados 3-5 Days Not recommended
Berries and Cherries 2-3 Days 12 Months
Apricots 3-5 Days Not recommended
Grapes 2-5 Days n/a
Pineapple (un-cut) 2-3 Days Not recommended
Pineapple (cut) 5-7 Days 6-12 Months
Citrus 1-2 Weeks Not recommended Store uncovered.
Juice 6 Days Not recommended Check date code and re-seal in original container. Do not return unused
portions to original container.
Frozen Juice Thawing only 12 Months Check date code. Do not re-freeze.
FISH AND SHELLFISH
DA68-01861A.indb 32 2010.10.14 3:39:4 PM
Operating _33
02 OPERATING
   
Fish
Fatty Fish (mackerel,
trout, salmon) 1-2 Days 2-3 Months Keep in original wrapper and store in coldest part of refrigerator. Pack-
age in vapor-proof and moisture proof wrap for freezer. Freeze at 0ºF.
Thaw in refrigerator or Check date code. Freeze in original packaging.
Lean Fish (cod, flounder,
etc) 1-2 Days 6 Months
Frozen or Breaded n/a 3 Months
Shellfish
Shrimp (uncooked) 1-2 Days 12 Months
Freeze package in vapor and moisture-proof container.Crab 3-5 Days 10 Months
Cooked Fish or Shellfish 2-3 Days 3 Months
MEAT
Fresh, Uncooked
Chops 2-4 Days 6-12 Months
Check date code for use. Store in coldest part of refrigerator in original
packaging. Use additional moisture and vapor-proof container for freez-
ing. Recommended refrigerator temperature 33ºF to 36ºF and freezer
temperature 0ºF to 2ºF
Ground 1 Day 3-4 Months
Roast 2-4 Days 6-12 Months
Bacon 1-2 Weeks 1-2 Months
Sausage 1-2 Days 1-2 Months
Steak 2-4 Days 6-9 Months
Poultry 1 Day 12 Months
Lunch meat 3-5 Days 1 Month
Cooked
Meat 2-3 Days 2-3 Months Check date code for use. Store in coldest part of refrigerator in original
packaging. Place package in moisture and vapor-proof container for
freezing.
Poultry 2-3 Days 4-5 Months
Ham 1-2 weeks 1-2 Months
Sources:
American Meat Institute Foundation. 1994. Yellow pages: answers to predictable questions consumers ask about meat and poultry.
American Meat Institute Food Marketing Institute. 1999. The food keeper. Food Marketing Institute, Washington, D.C. Freeland-Graves,
J.H. and G.C. Peckham. 1996. Foundations of food preparation, 6th ed. Prentice-Hall, Inc. Englewood Cliffs, NJ. Hillers, V.N. 1993. Stor-
ing foods at home. Washington State University Cooperative Extension, Pullman, WA. Publ. EB 1205.
National Restaurant Association. 2001. Be cool-chill out! Refrigerate promptly. National Restaurant Association Education Foundation¼s
International Food Safety Council, Washington, D.C. USDA. 1997. Basics for handling food safely. U.S. Department of Agriculture, Food
Safety and Inspection Service, Washington, D.C.
DA68-01861A.indb 33 2010.10.14 3:39:4 PM
34_ Operating
Operating your SAMSUNG Refrigerator

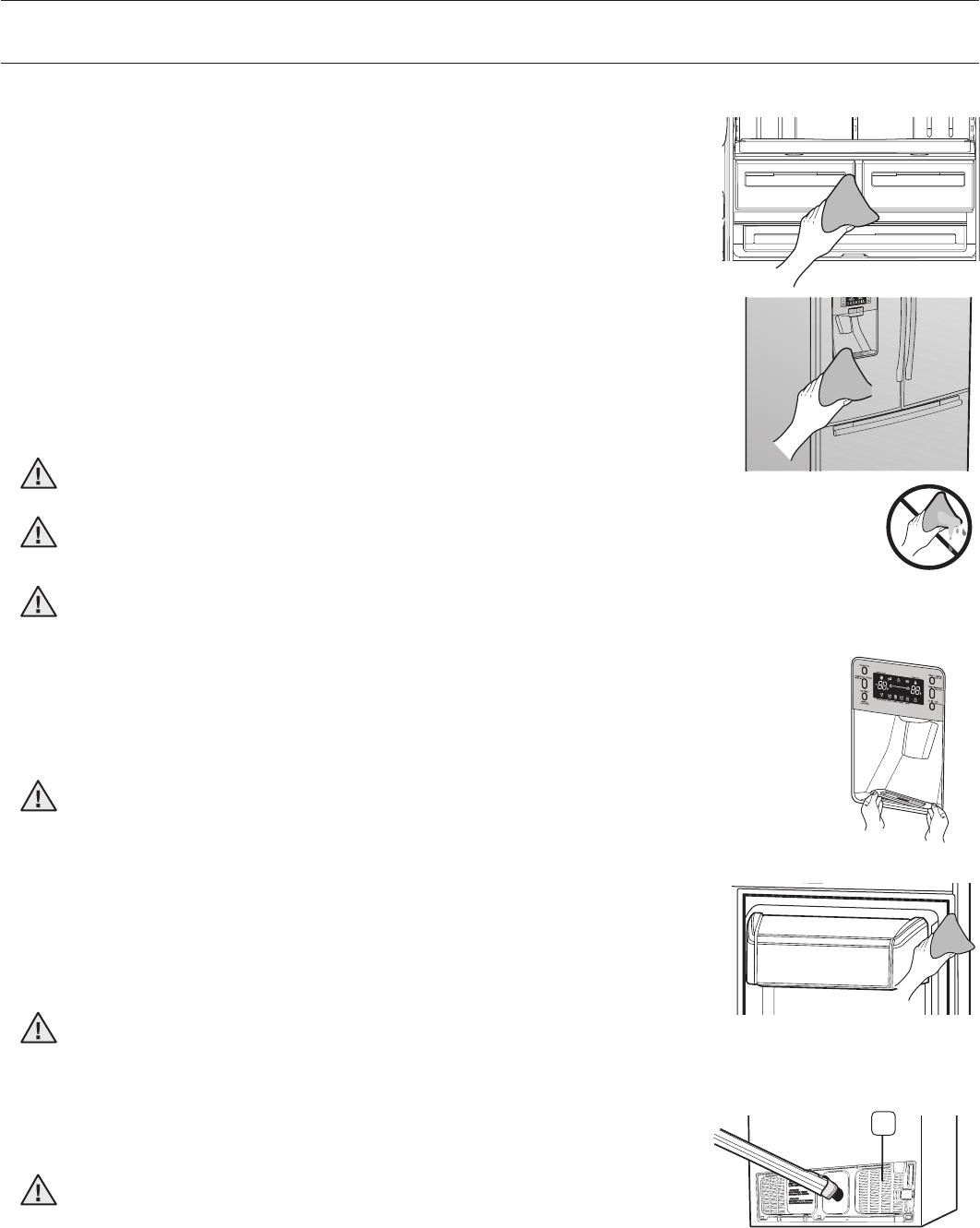

CLEANING THE REFRIGERATOR
Caring for your Samsung French Door Refrigerator prolongs the life of your appliance and helps keep the
refrigerator free of odor and germs.

Clean the inside walls and accessories with a mild detergent and then
wipe dry with a soft cloth. You can remove the drawers and shelves for
a more thorough cleaning. Just make sure to dry drawers and shelves
before putting them back into place.

Wipe the control panel and digital display with a damp, clean, soft cloth.
Do not spray water directly on the surface of the refrigerator.
The doors, handles and cabinet surfaces should be cleaned with a mild
detergent and then wiped dry with a soft cloth. To keep your appliance
looking its best, polish the exterior once or twice a year.
Do not spray water directly or not use a wet or damp cloth.
Do not use benzene, thinner, or Clorox for cleaning. They may damage the surface of the
appliance and may cause a fire.
Printed letters on the display may be erased if the stainless cleaner is applied directly to the area
where the letters are printed.

Push down one end of the tray dispenser and remove it. Wipe the Ice / Water
Dispenser with a clean and soft cloth.
When using the crushed ice selection from the dispenser some residual ice chips
may start to collect in the ice chute. In order to prevent that residual ice from
melting and running out of the chute you should clean out the residual ice when
you see it start to collect in the ice chute.

If the rubber door seals are dirty, the doors may not close properly, and
the refrigerator will not operate efficiently. Keep the door seals free of dust
or stain by cleaning the doors with a mild detergent and damp cloth. Wipe
dry with a clean, soft cloth.
Do not clean the refrigerator with benzene, thinner, or car detergent due to risk of fire.

To keep cords and exposed parts free of dust and dirt accumulation.
Vacuum the rear side of the appliance once or twice a year.
Do not remove the back cover ( 1 ). You could suffer an electric shock.
1
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
DA68-01861A.indb 34 2010.10.14 3:39:19 PM
Operating _35
02 OPERATING
CHANGING THE INTERIOR LIGHTS
Do not disassemble or replace the LED type Lighting.
To change the LED Type Lighting contact Samsung service center or your authorised Samsung dealer.
When the interior or exterior LED lamp has gone out, please contact your service agents.

Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660
1-800-SAMSUNG (1-800-726-7864) and www.samsung.com
If Users randomly exchange the LED lamp by yourself, this may result in electric shock or personal injury.
CAUTION
CAUTION
DA68-01861A.indb 35 2010.10.14 3:39:20 PM
36_ Operating
Turn until the
label aligned.
Cover filter
Indicator sticker
(month indicator)
12
3
Operating your SAMSUNG Refrigerator
CHANGING THE WATER FILTER
To reduce risk of water damage to your property DO NOT use generic brands of water filters in your SAMSUNG
Refrigerator. USE ONLY SAMSUNG BRAND WATER FILTERS.
SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused
by water leakage from use of a generic water filter. SAMSUNG Refrigerators are designed to work ONLY WITH
SAMSUNG WATER Filter.
The “Filter” light lets you know when it is time to change your water filter cartridge. To give you
preparation time to get a new filter, the red light will come on just before the capacity of the current
filter runs out. Changing the filter on time provides you with the freshest, cleanest water from your
fridge.
1. Take a new water filter and put a month indicator sticker(
1
) on the filter as shown. The date on the sticker
must be six months from the current date. For example, if you are replacing the water filter in March, put the
“SEP” (September) sticker on the filter to remind you to replace in September. Normal filter life is about 6
months.
2. Remove the new filter’s protective cap(
2
) and remove the old filter.
3. Position and insert the new filter into the cover filter. Slowly turn the water filter clockwise to align with the
printing mark on the cover, locking the filter in position. Make sure to align the water filter label(
3
) mark with
the center of cover filter printing as illustrated. Remember, do not over-tighten.
4. After above steps, press and hold the Alarm / Hold 3 sec for Filter Reset button for 3 seconds to reset the filter.
5. Lastly,Flush 3 gallons through filter before use (flush approximately 6 minutes)
Make sure that water flows clearly again before drinking.
Be sure to flush the dispenser thoroughly otherwise water may drip from the dispenser.
This means that there is still air in the line.
Do NOT use the water or ice dispenser without a water filter cartridge because the water line may become blocked.
Ordering a Replacement Water Filter
For a replacement water filter, you can visit your local home improvement center or contact the Samsung Parts
distributor. Be sure the replacement water filter has the SAMSUNG logo on the box and on the water filter.
Link: http://www.samsungparts.com
WARNING
DA68-01861A.indb 36 2010.10.14 3:39:27 PM
troubleshooting _37
03 TROUBLESHOOTING
Troubleshooting
PROBLEM SOLUTION
The Refrigerator does not
work at all or it does not chill
sufciently.
• Check that the power plug is properly connected.
• Check the set temperature on the digital display is warmer than the freezer or fridge
inner temperature.
• Try setting it to a lower temperature.
• Is the Refrigerator in direct sunlight or located near a heat source?
• Is the back of the Refrigerator too close to the wall and therefore keeping air from
circulating?
The food in the
Refrigerator is frozen.
• Check to see if the set temperature on the digital display is too low.
• Try setting it to a warmer temperature.
• Is the temperature in the room too low?
Try setting it to a warmer temperature.
• Did you store the food which is soft in the coldest part of the Refrigerator?
Try moving those items on the other shelves in fridge instead of keeping them in the
Cool Select PantryPlus.
You hear unusual noise or
sounds.
• Check that the Refrigerator is level and stable.
• Is the back of the Refrigerator too close to the wall and therefore keeping air from
circulating?
• Try locating the refrigerator at least 2 inches from the wall.
• Was anything dropped behind or under the Refrigerator?
• A “ticking” sound is heard from inside the Refrigerator. It is normal and occurs
because various accessories are contracting or expanding according to the
temperature of the Refrigerator interior.
The front corners and
vertical hinged section of
the appliance are hot and
condensation is occurring.
• Some heat is normal as anti-condensation devices are installed in the vertical hinged
section of the Refrigerator to prevent condensation.
• Is the Refrigerator door ajar? Condensation can occur when you leave the door
open for a long time.
Ice Maker is not producing ice.
•
Did you wait for 12 hours after installation of the water supply line before making ice?
• Is the water line connected and the shut-off valve opened?
• Did you manually stop the ice making function?
• Is the Freezer temperature too warm? Try setting the Freezer temperature lower.
You can hear water bubbling in
the Refrigerator.
• This is normal. The bubbling comes from the Refrigerator coolant liquid circulating
through the Refrigerator.
There is a bad smell in the
Refrigerator.
• Check for spoiled food.
• Foods with strong odors(for example, sh) should be tightly covered.
• Clean out your Freezer periodically and throw away any spoiled food.
Frost forms on the walls of the
Freezer.
• Is the air vent blocked? Remove any obstructions so air can circulate freely.
• Allow sufcient space between the foods stored for efcient air circulation.
• Is the Freezer drawer closed properly?
Water dispenser is not
functioning.
• Is the water line connected and the shut-off valve opened?
• Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
• Is the water tank frozen because the Refrigerator temperature is too low?
Try selecting a warmer setting on the Digital display.
DA68-01861A.indb 37 2010.10.14 3:39:28 PM
38_ warranty
Warranty
WATER FILTER CHART


This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or
equal to the permissible limit for water leaving the system, as specifi ed in NSF/ANSI 42 and 53.
To a capacity of 300 gallons (1,136 liters).
Note that while the testing was performed under standard laboratory conditions, actual performance may vary.
System tested and certified by NSF International against NSF/ANSI Standard 42 for
the reduction of Chlorine Taste and Odor, Particulate Class I, and against NSF/ANSI
Standard 53 for the reduction of Cysts, Turbidity, Lead, Asbestos, Benzene, Carbofuran,
p-Dichlorobenzene and Mercury.

Contaminant
Reduction
Average Inuent
Concentration
NSF Specied
Inuent Challenge
Concentration Units
apply to each row
Average %
Reduction
Average
Product Water
Concentration
Max.
Permissible
Product Water
Concentration
NSF Reduction
Requirements NSF Test
Chlorine taste
and odor 2.1 mg/L 2.0 mg/L ± 10% 97.6 0.05 mg/L NA > 50% J-00029741
Particulate Class I
Particle size :
< 0.5 to < 1 um
10,566,666
pt/mL
At least 10,000
particles/mL 98.4 171,833 pts/mL NA > 85% J-00029739
Cysts* 127,500 cysts/L Minimum 50,000
cysts/L 99.99 <1 cyst/L NA > 99.95% J-00031000
Turbidity 10.5 11±1 NTU 98.6 0.15 NTU 0.5 NTU > 0.5 NTU J-00033223
Lead @ pH 6.5 153 ug/L 0.15±10% 99.3 <1ug/L 0.010 mg/L 10 ug/L J-00039590
Lead @ pH 8.5 155 ug/L 0.15±10% >99.4 <1ug/L 0.010 mg/L 10 ug/L J-00039591
Mercury @ pH
6.5 5.97 ug/L 0.006±10% 96.6 <0.2 ug/L 0.002 mg/L 2 ug/L J-00039589
Mercury @ pH
8.5 6.29 ug/L 0.006±10% 88.9 0.7 ug/L 0.002 mg/L 2 ug/L J-00039586
Asbestos 140 MFL 107 to 108 fibers
> um in length > 99 <0.17 MFL NA 99% J-00029743
Benzene 13.88 ug/L 0.015±10% 96.4 <0.5 ug/L 0.005 mg/L < 5 ug/L J-0029751
Carbofuran 79.6 ug/L 0.190 mg/L 98.7 1 ug/L 0.001 mg/L < 40 ug/L J-00029750
p-Dichloroben-
zene 237.5 ug/L 0.225±10% 99.8 0.525 ug/L 0.075 mg/L < 75 ug/L J-00029749
DA68-01861A.indb 38 2010.10.14 3:39:28 PM
warranty _39
04 WARRANTY

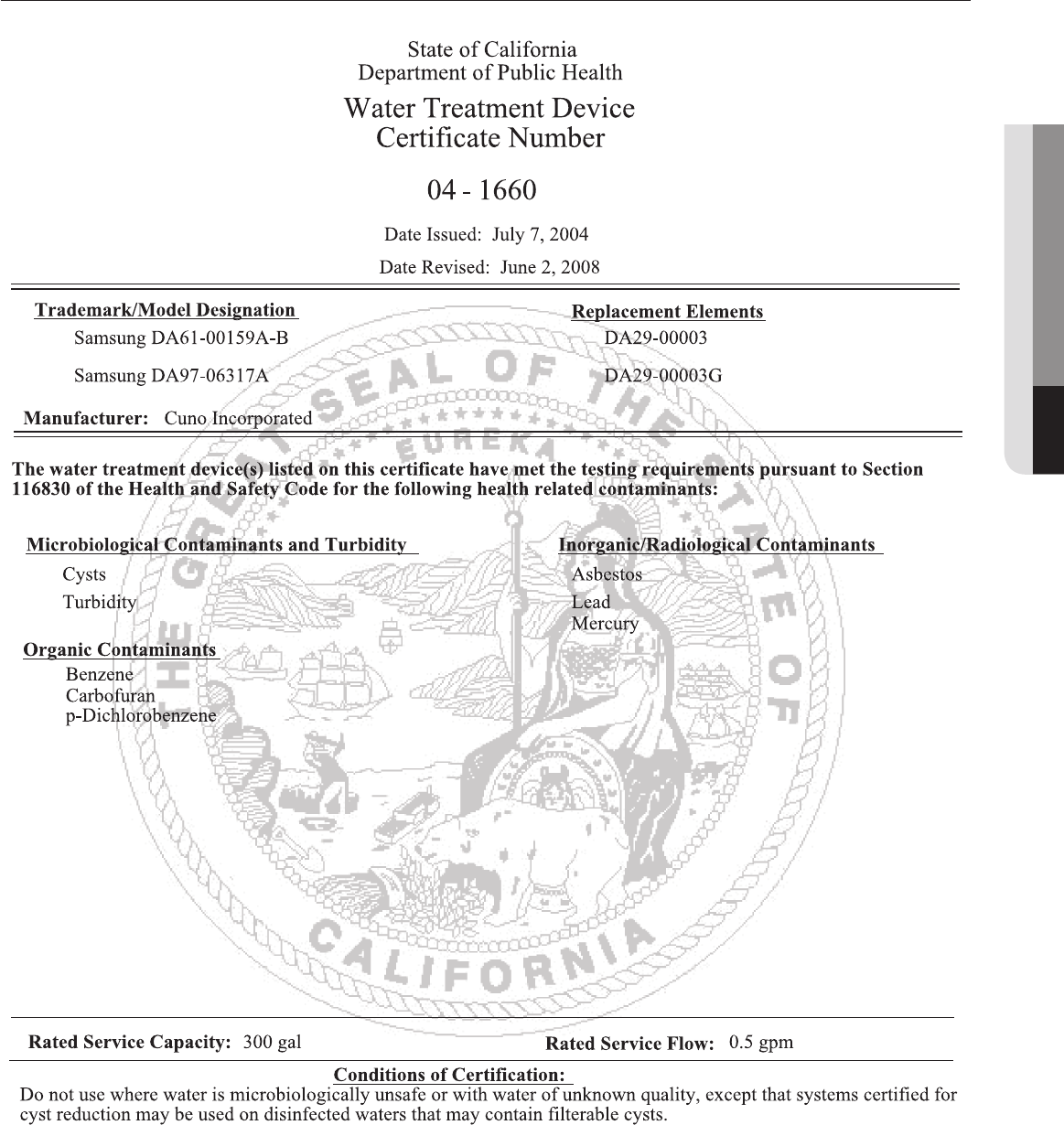

WATER FILTER CERTIFICATION
DA68-01861A.indb 39 2010.10.14 3:39:30 PM
40_ warranty
Warranty
WARRANTY ON SAMSUNG REFRIGERATOR
LIMITED WARRANTY TO ORIGINAL PURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung)
and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against
manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration system only*
(*Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in
the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and
service procedures. Warranty service can only be performed by a Samsung authorized service center. The original
dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service
center.
Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulatedX herein,
with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products
become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the
remaining original warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to availability within the contiguous United
States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed
and accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may
be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at
our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise,
transportation to and from the Samsung authorized service center is the responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal,
noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which
occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered
product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other
acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications,
installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied
and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line
voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning,
maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due
to spoilage; consumable items including filters and light.
DA68-01861A.indb 40 2010.10.14 3:39:30 PM
warranty _41
04 WARRANTY
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND
NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY
AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY
OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT
SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND
AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY
SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER
ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S
PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO
USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact Samsung at:
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660
1-800-SAMSUNG (1-800-726-7864) and www.samsung.com
DA68-01861A.indb 41 2010.10.14 3:39:30 PM
In an effort to promote recycling this user manual is printed on recycled paper.
DA68-01861A.indb 42 2010.10.14 3:39:31 PM

Navigation menu
