BN46-00311C-00
User manual
S27C390H
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
Table Of Contents 2
Table Of Contents
BEFORE USING THE
PRODUCT
7 Copyright
7 Icons used in this manual
8 Cleaning
9 Securing the Installation Space
9 Precautions for storage
10 Safety Precautions
10 Symbols for safety precautions
11 Electricity and Safety
12 Installation and Safety
14 Operation
18 Correct posture to use the product
PREPARATIONS 19 Checking the Contents

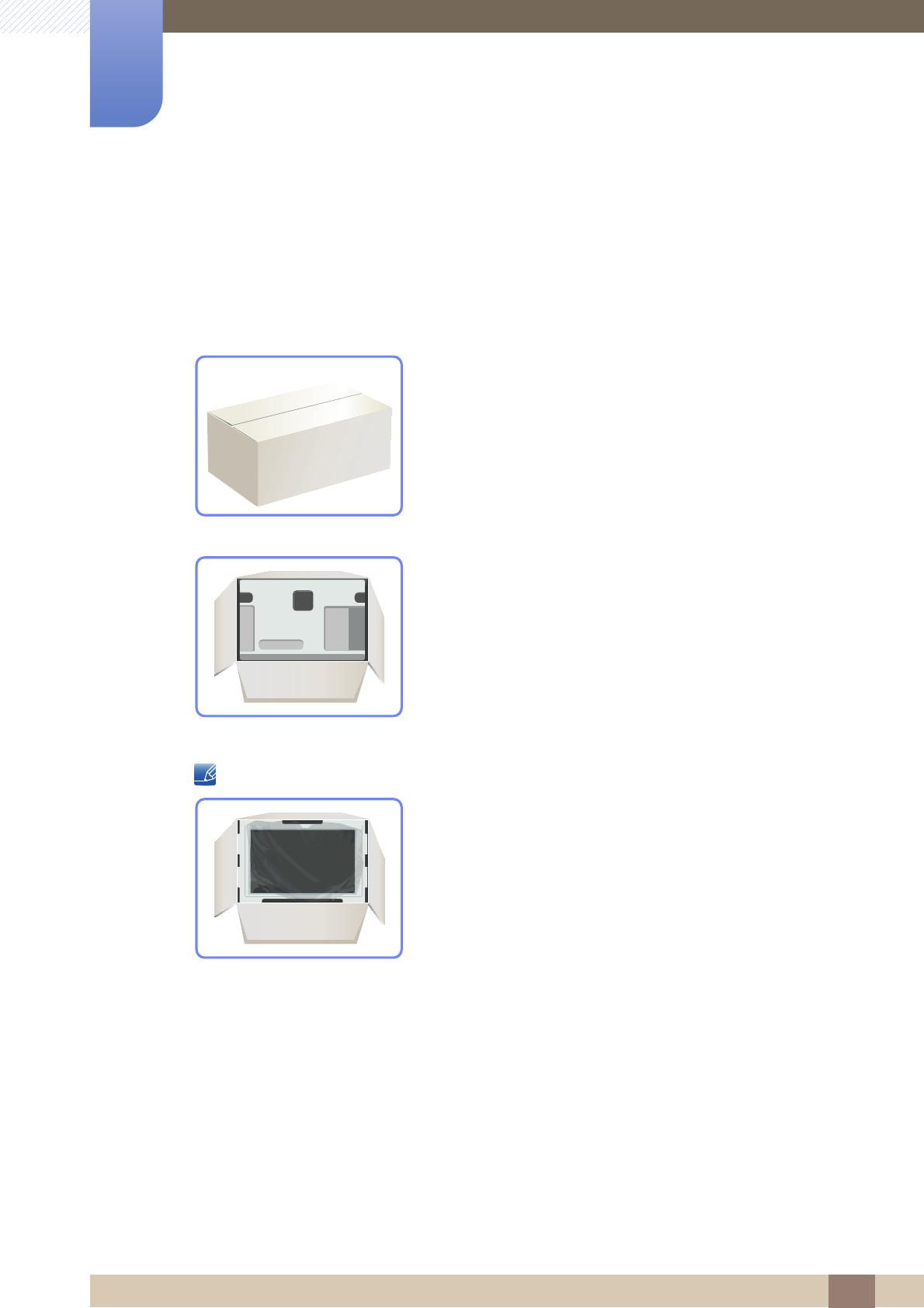

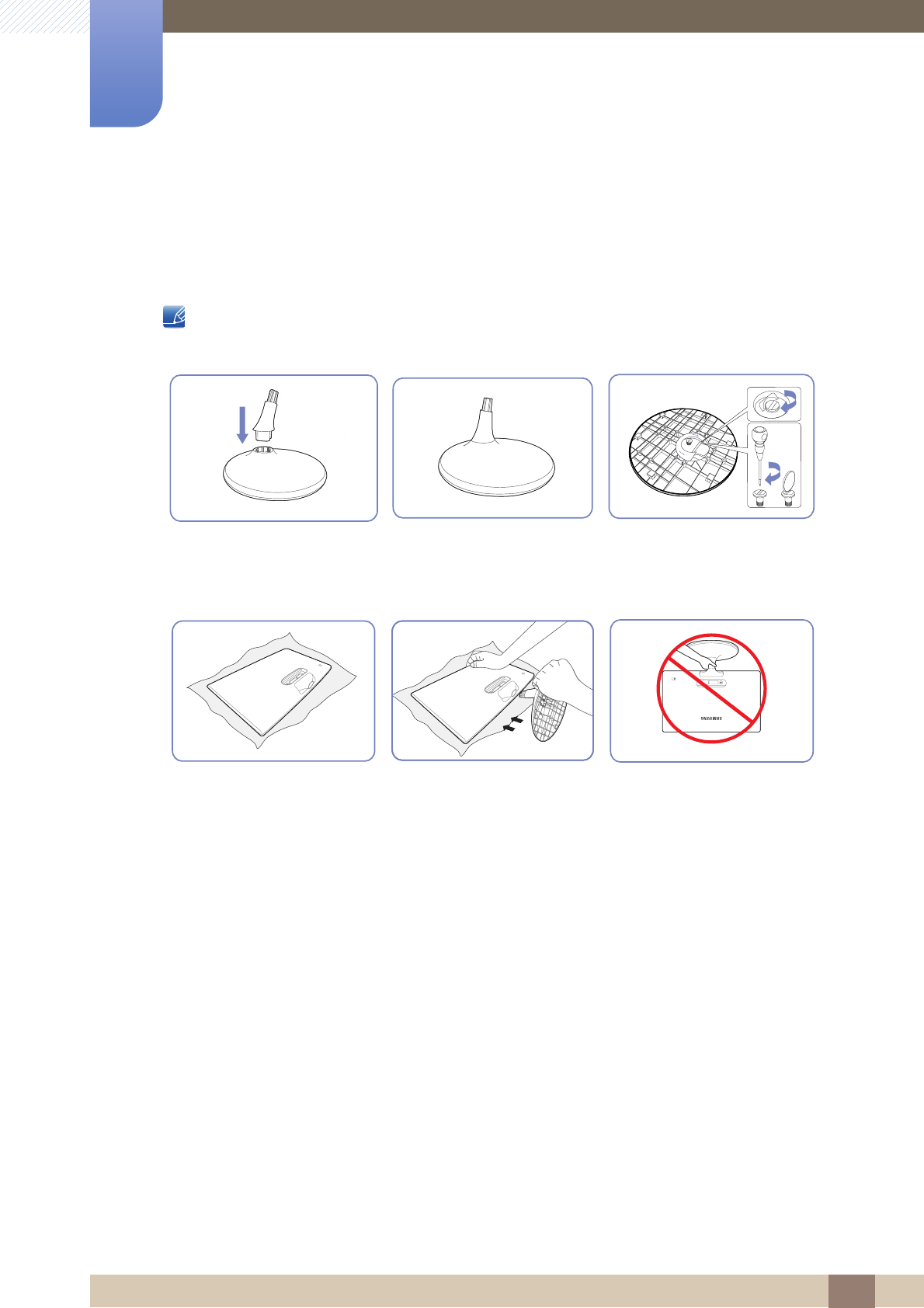

19 Removing the Packaging

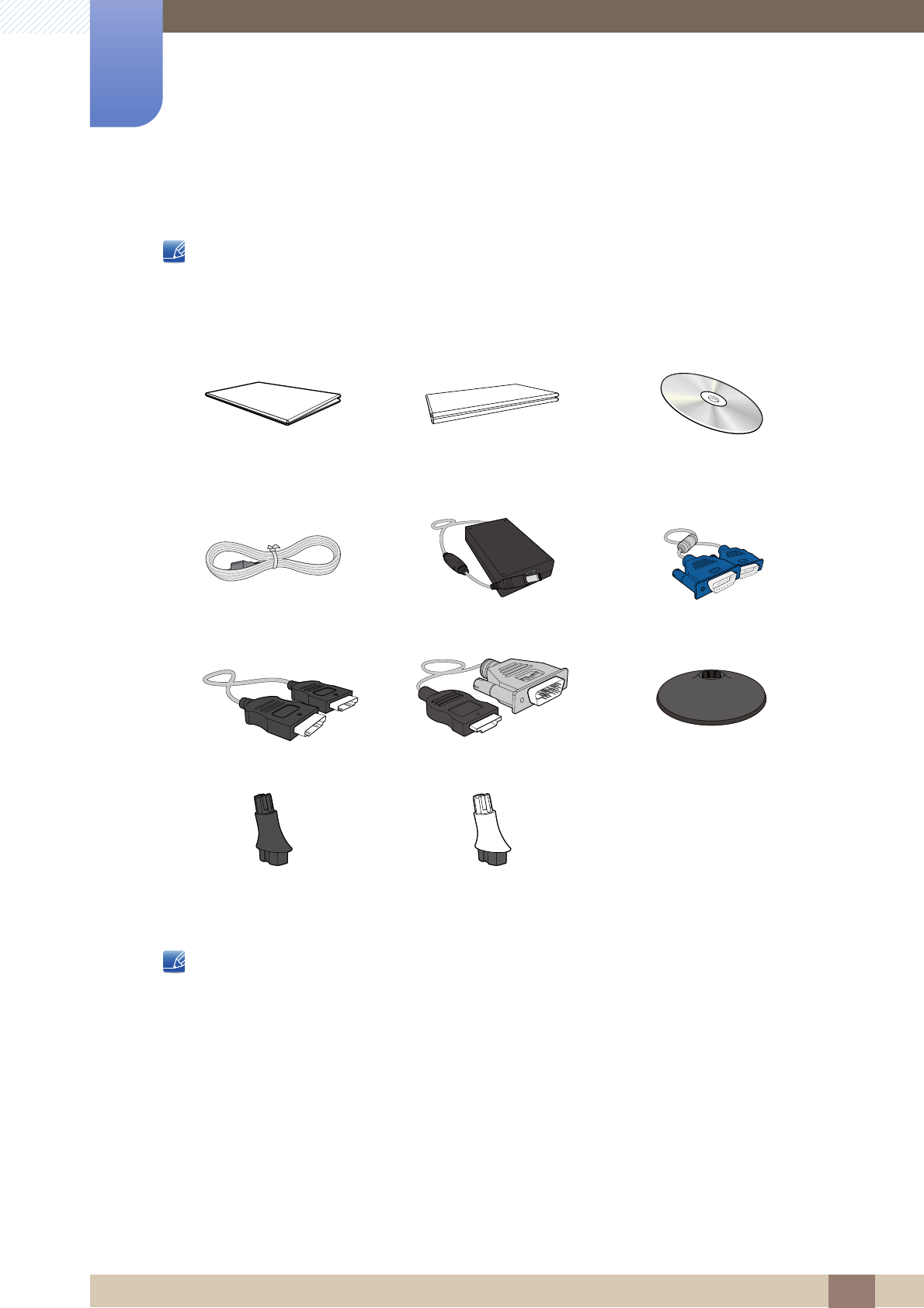

20 Checking the Components
21 Parts

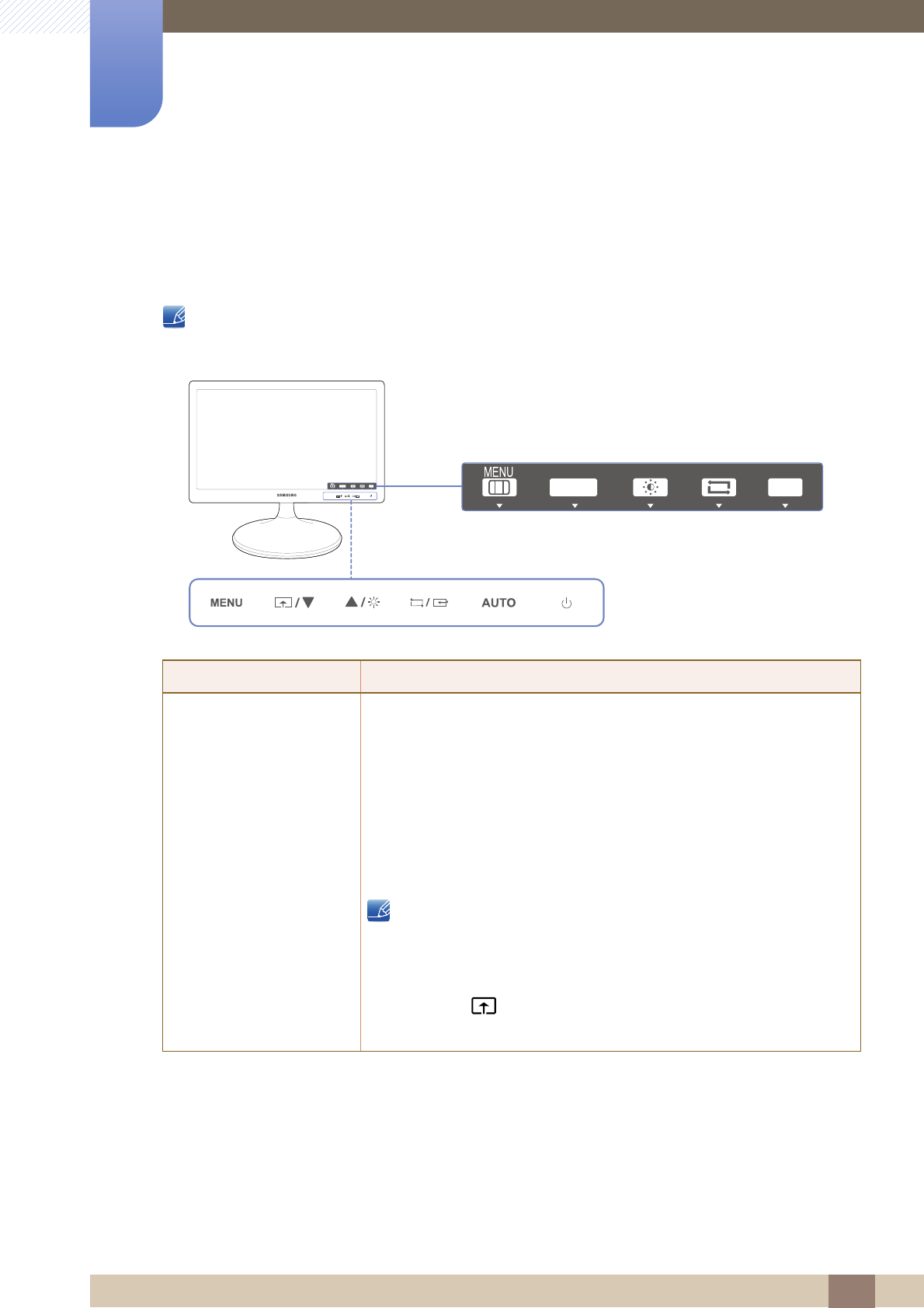

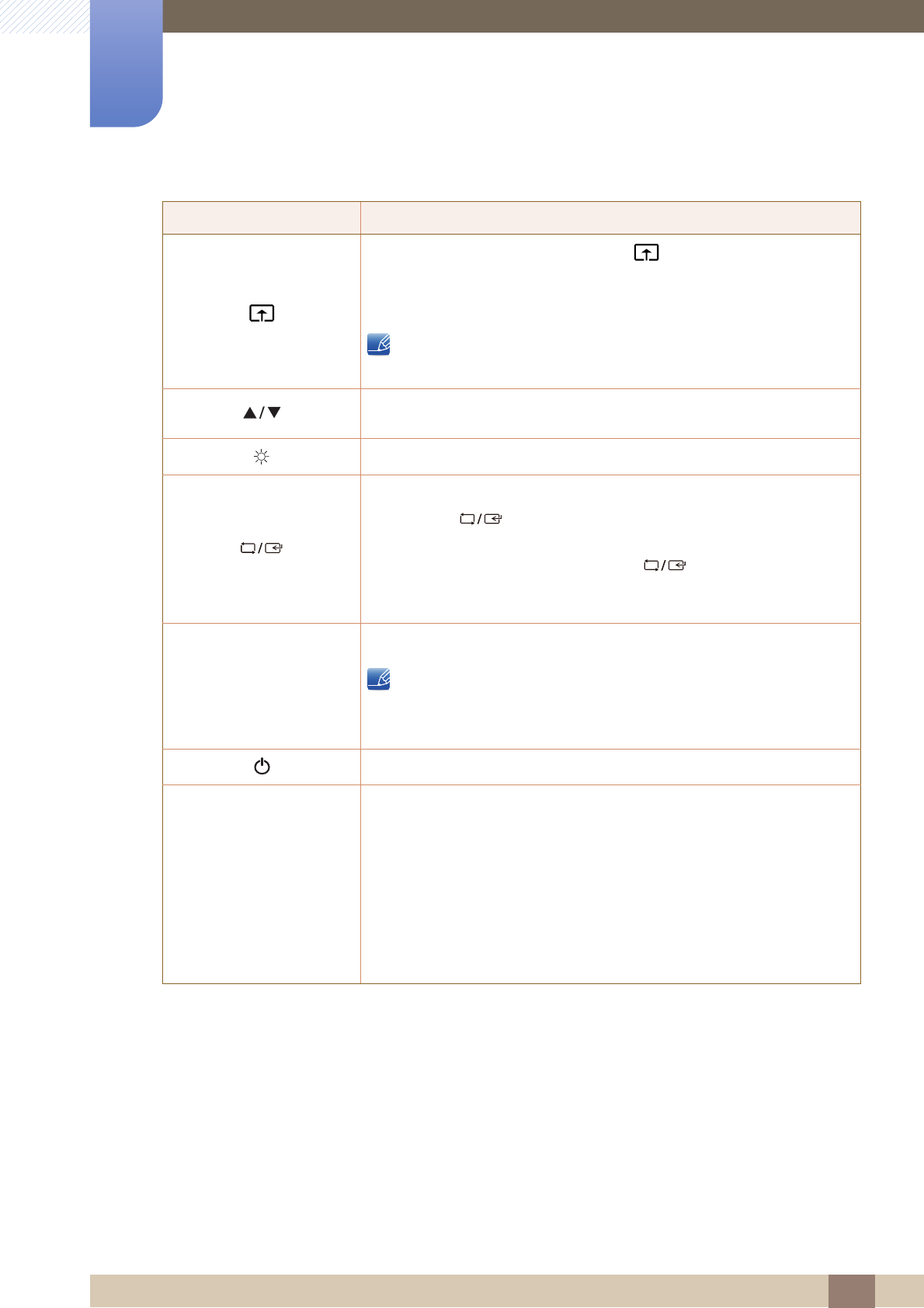

21 Frontal Button

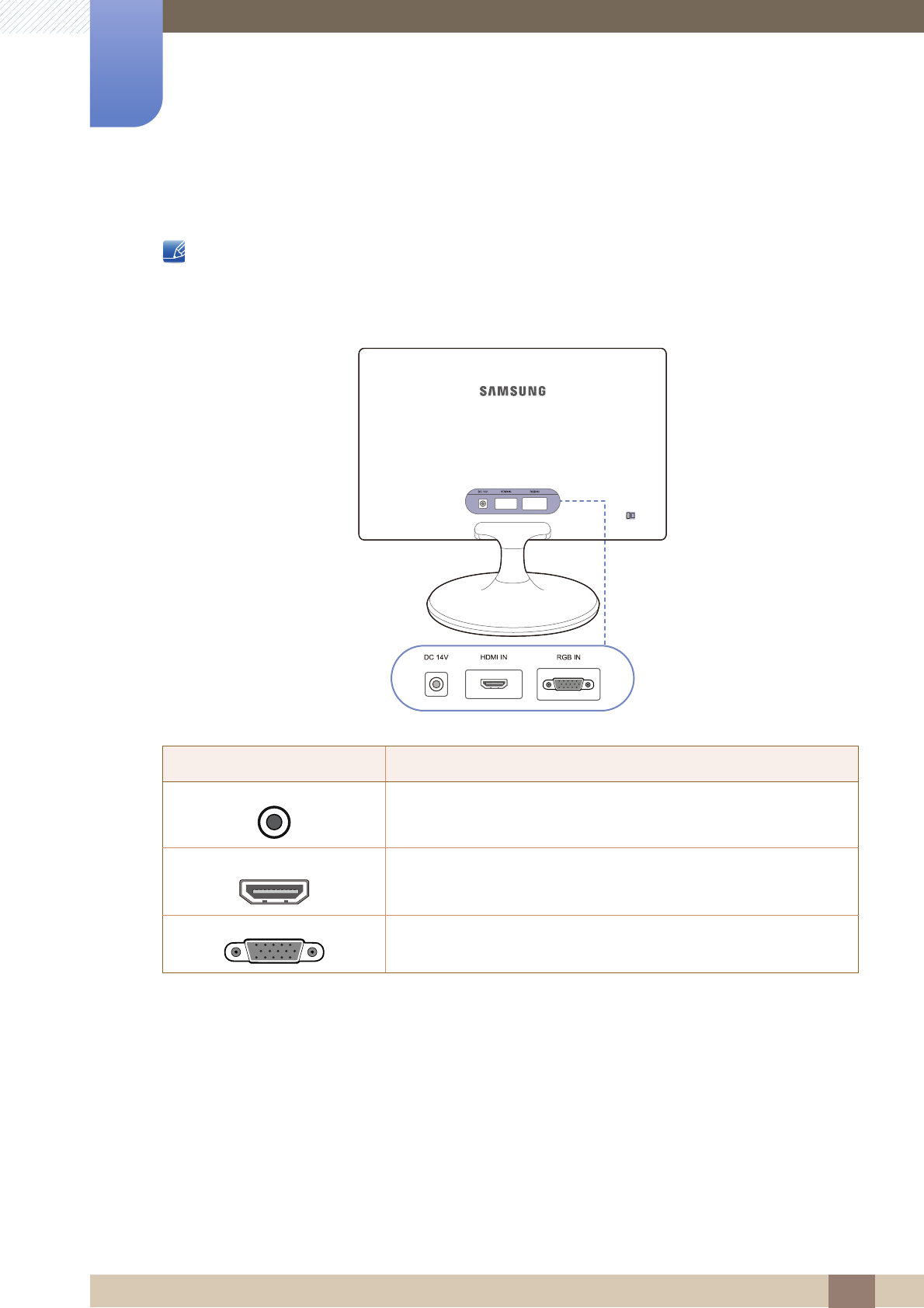

23 Reverse Side
24 Installation
24 Attaching the Stand
25 Removing the Stand
26 Adjusting the Product Tilt
27 Anti-theft Lock
CONNECTING AND USING
A SOURCE DEVICE
28 Before Connecting
28 Pre-connection Checkpoints
Table Of Contents
Table Of Contents 3
29 Connecting and Using a PC
29 Connection Using the D-SUB Cable (Analog
Type)

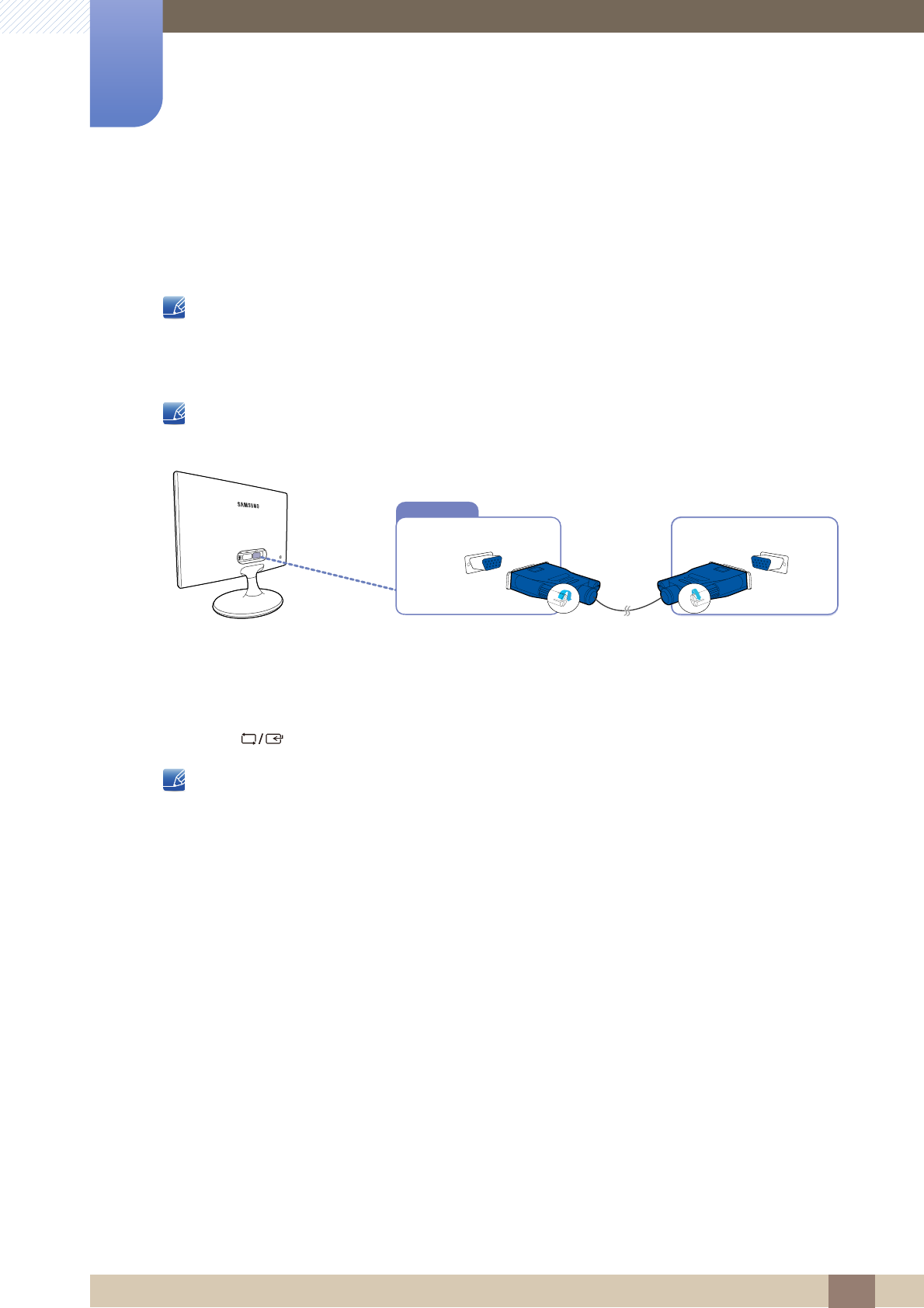

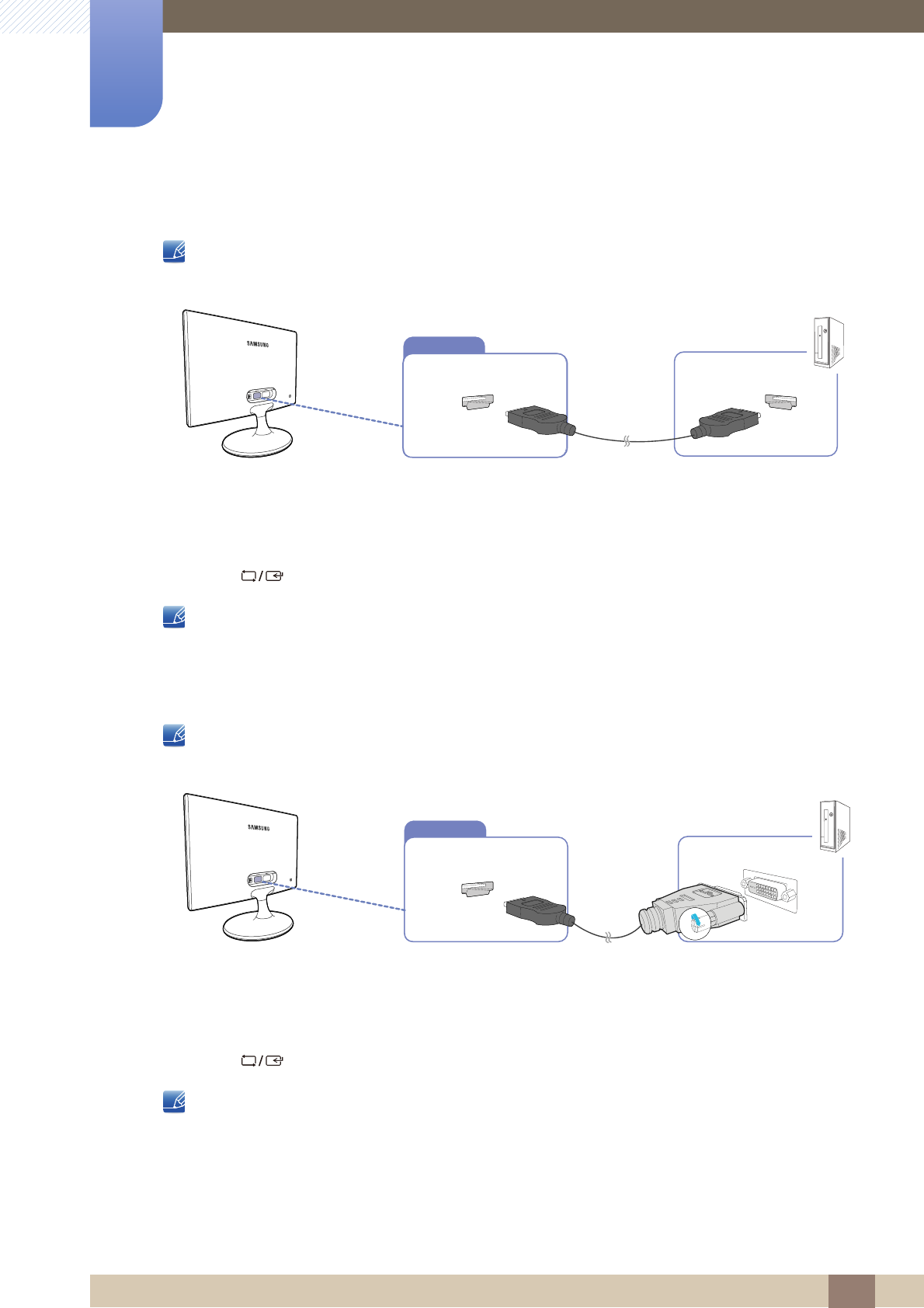

30 Connection Using the HDMI Cable
30 Connection Using an HDMI-DVI Cable

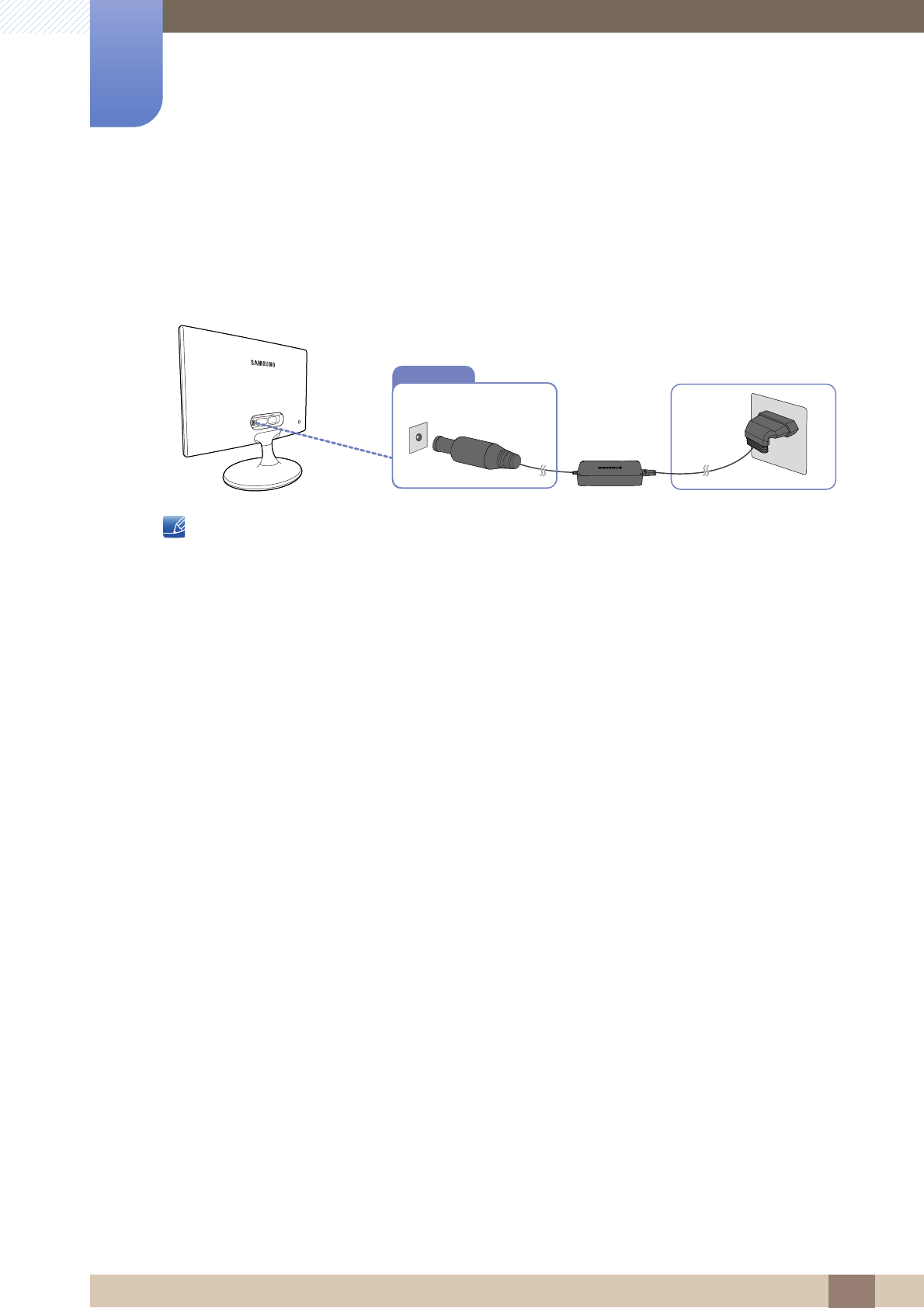

31 Connecting the Power

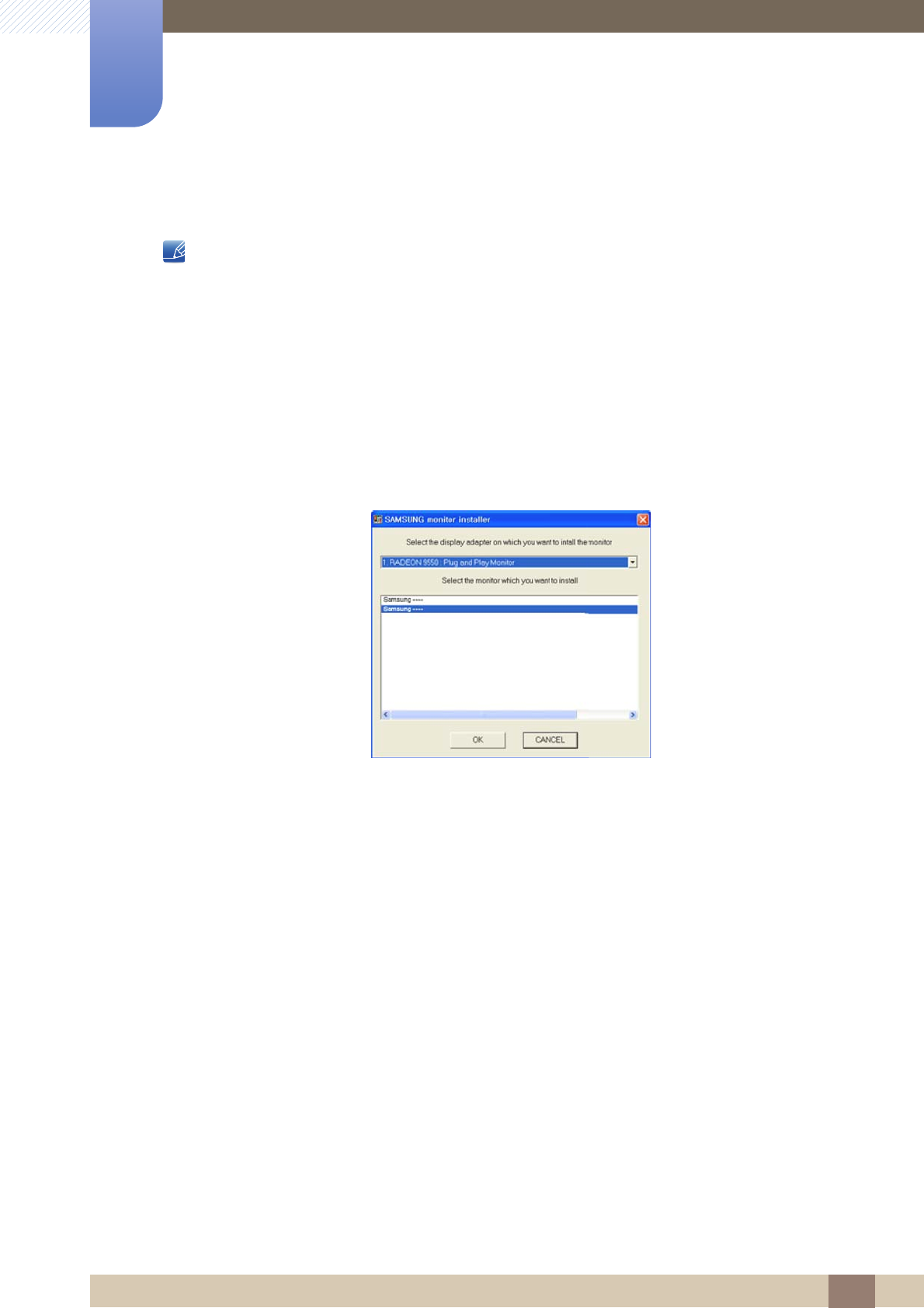

32 Driver Installation
33 Setting Optimum Resolution

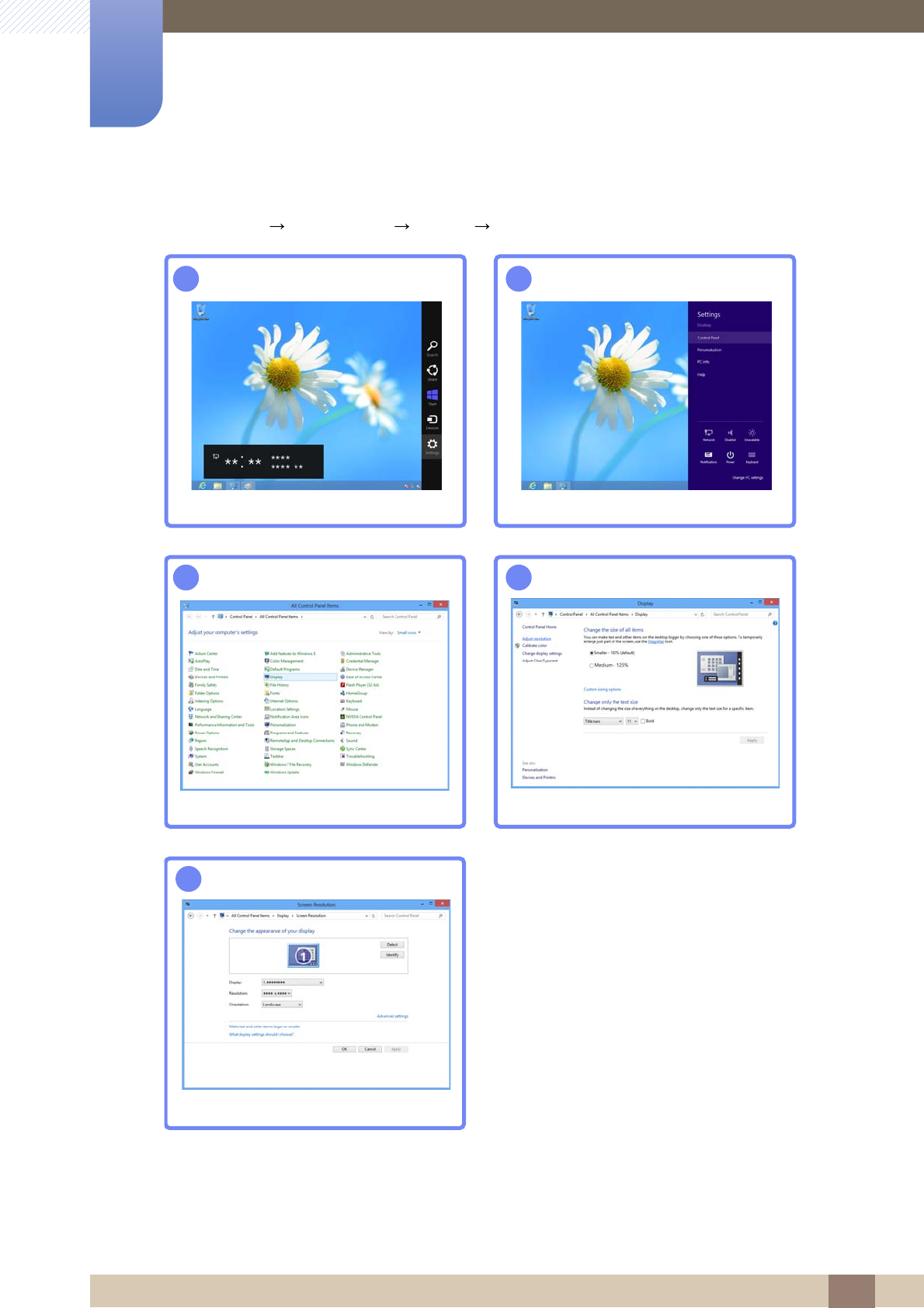

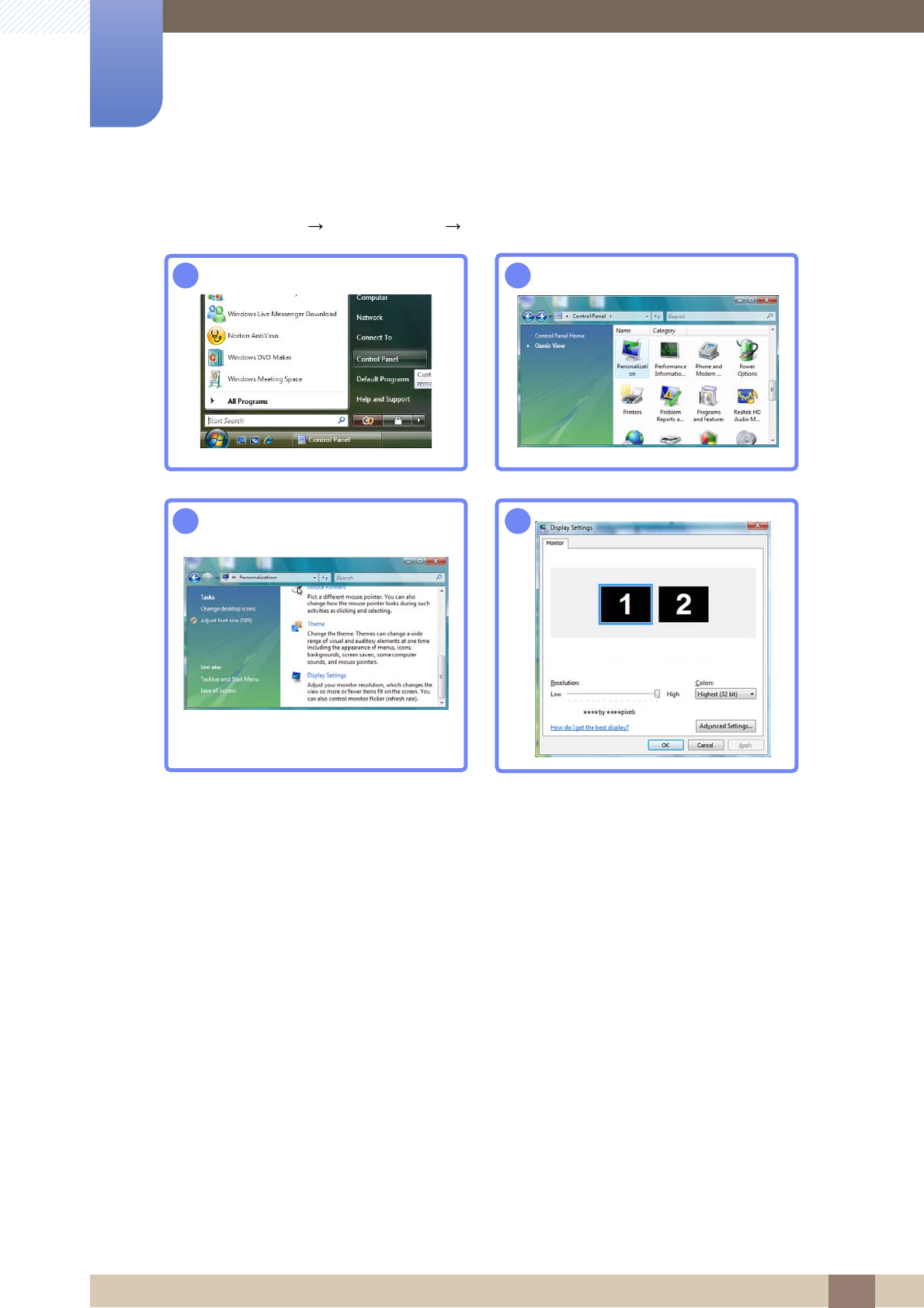

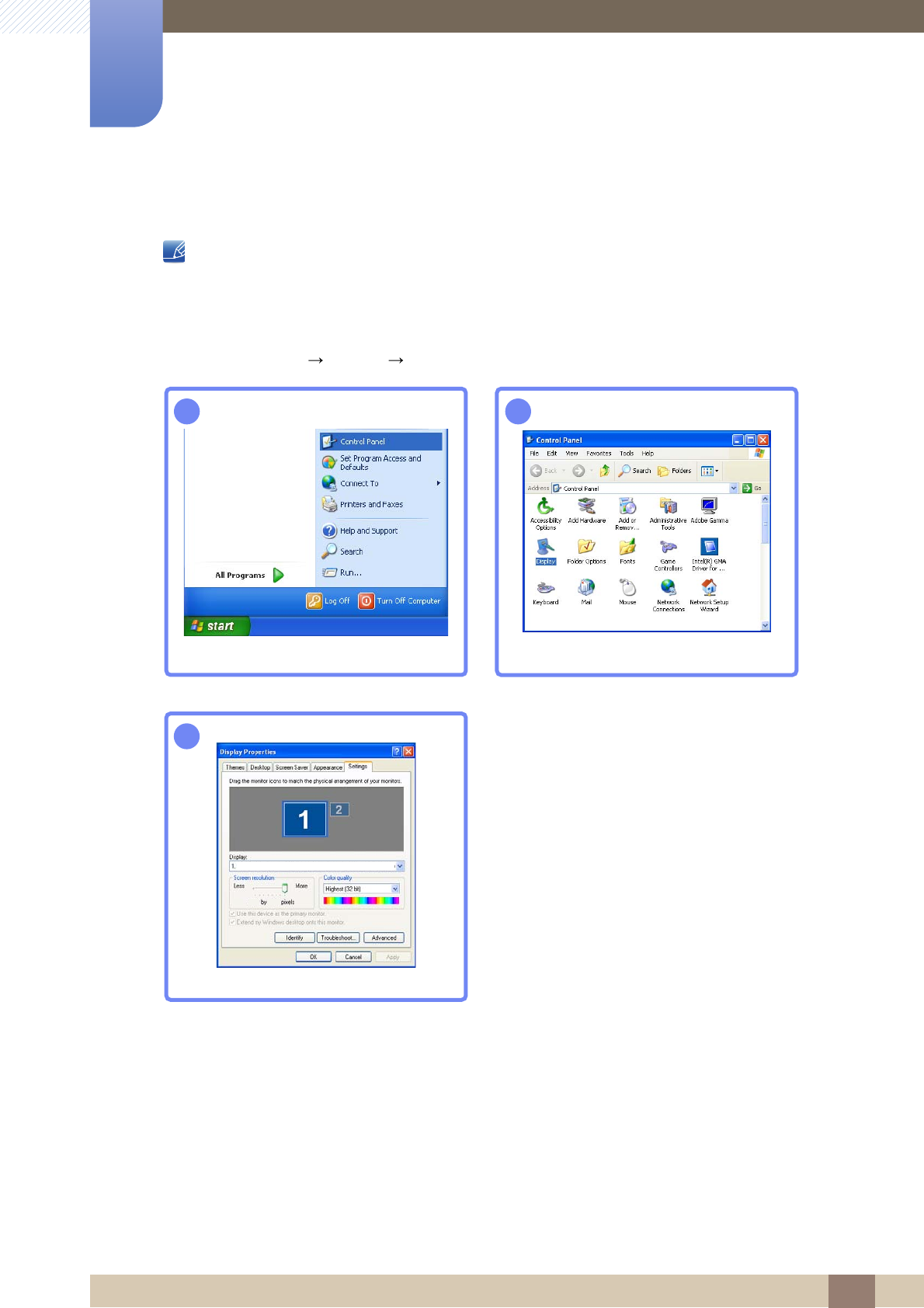

34 Changing the Resolution Using a PC
SCREEN SETUP 38 Brightness
38 Configuring Brightness
39 Contrast
39 Configuring Contrast
40 Sharpness
40 Configuring Sharpness
41 SAMSUNG MAGIC Bright
41 Configuring SAMSUNG MAGIC Bright

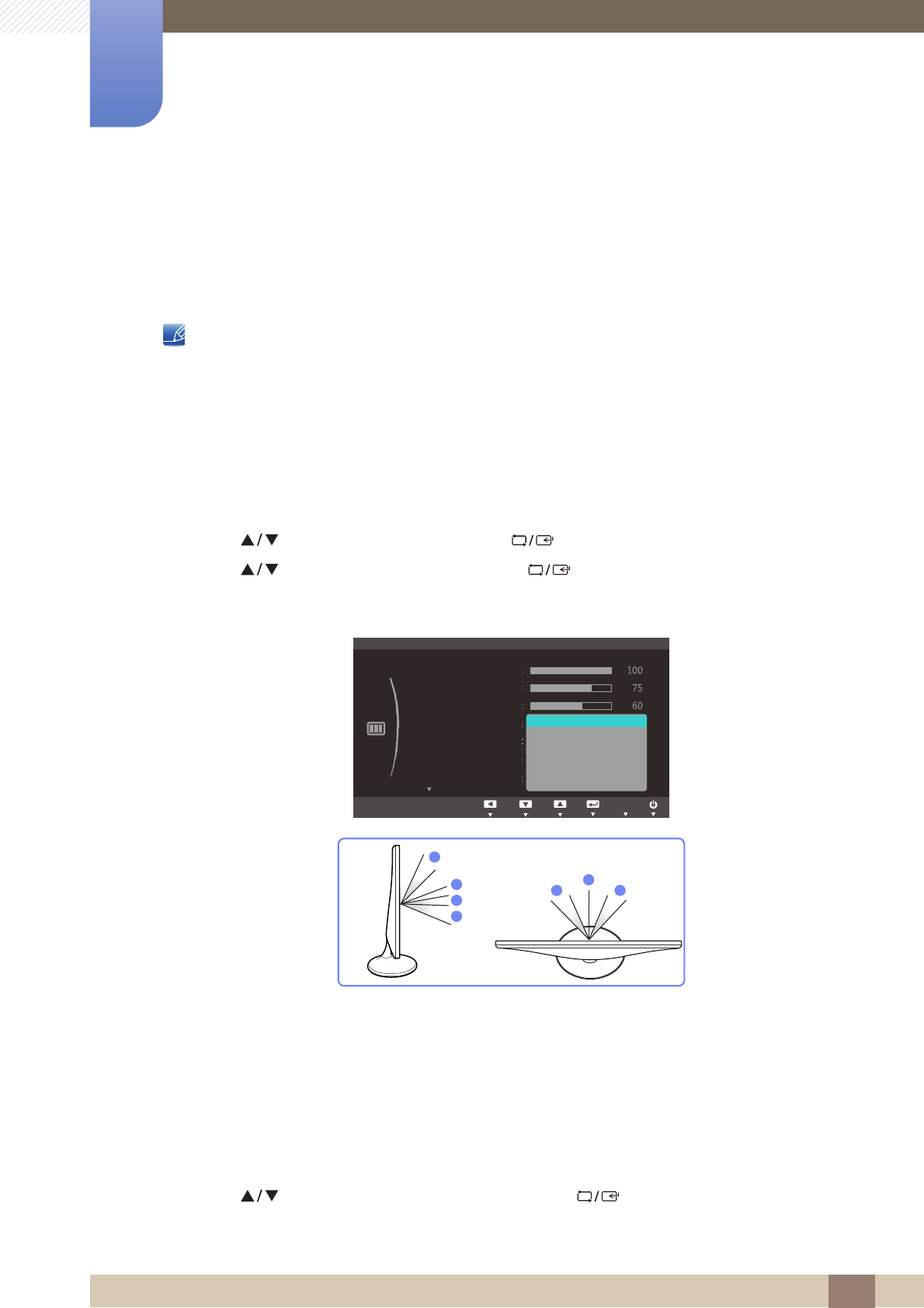

43 SAMSUNG MAGIC Angle
43 Configuring SAMSUNG MAGIC Angle
44 SAMSUNG MAGIC Upscale
44 Configuring SAMSUNG MAGIC Upscale
45 Image Size
45 Changing the Image Size
46 HDMI Black Level
46 Configuring the HDMI Black Level Settings
47 H-Position & V-Position
47 Configuring H-Position & V-Position
48 Coarse
48 Adjusting Coarse
49 Fine
49 Adjusting Fine
Table Of Contents
Table Of Contents 4
CONFIGURING TINT 50 Red
50 Configuring Red
51 Green
51 Configuring Green
52 Blue
52 Configuring Blue
53 Color Tone
53 Configuring the Color Tone Settings
54 Gamma
54 Configuring Gamma
COORDINATING OSD 55 Language
55 Configuring Language
56 Menu H-Position & Menu V-Position
56 Configuring Menu H-Position & Menu V-
Position
57 Display Time
57 Configuring Display Time
58 Transparency
58 Changing Transparency
SETUP AND RESET 59 Reset
59 Initializing Settings (Reset)
60 Eco Saving
60 Configuring Eco Saving
61 Off Timer
61 Configuring Off Timer
62 Turn Off After
62 Configuring Turn Off After
63 PC/AV Mode
63 Configuring PC/AV Mode
Table Of Contents
Table Of Contents 5
64 Key Repeat Time
64 Configuring Key Repeat Time
65 Source Detection
65 Configuring Source Detection
66 Customized Key
66 Configuring Customized Key
INFORMATION MENU AND
OTHERS
67 INFORMATION
67 Displaying INFORMATION
68 Configuring Brightness and Contrast in
the Initial Screen
INSTALLING THE
SOFTWARE
69 MagicTune
69 What is "MagicTune"?
69 Installing the Software
70 Removing the Software
71 MultiScreen
71 Installing the Software
72 Removing the Software
TROUBLESHOOTING
GUIDE
73 Requirements Before Contacting
Samsung Customer Service Center
73 Testing the Product
73 Checking the Resolution and Frequency
73 Check the following.
76 Q & A
SPECIFICATIONS 78 General
80 PowerSaver
80 Standard Signal Mode Table
APPENDIX 82 Contact SAMSUNG WORLD WIDE
Table Of Contents
Table Of Contents 6
88 Responsibility for the Pay Service (Cost
to Customers)
88 Not a product defect
88 A Product damage caused by customer's fault
89 Others
90 Correct Disposal
90 Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
91 Terminology
INDEX
7
Before Using the Product
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
2013 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Icons used in this manual
-An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product.
(i.e. where you have failed to read this user manual)
(b) you bring the unit to a repair center and there is no defect in the product.
(i.e. where you have failed to read this user manual)
-The amount of such administration charge will be advised to you before any work or home visit
is carried out.
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
8
Before Using the Product
Before Using the Product

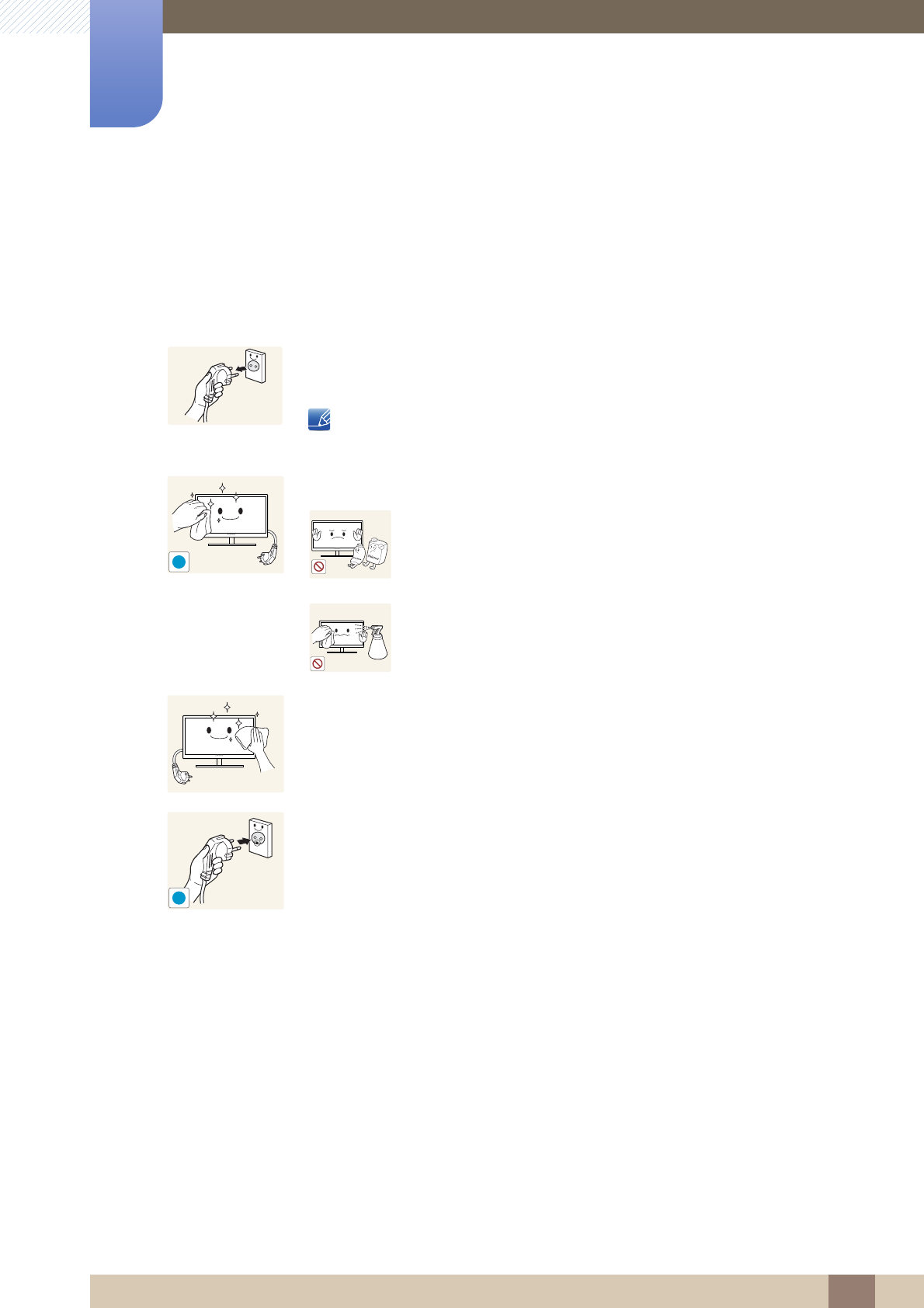

Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cord from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor with a clean, soft and dry cloth.
-Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
-Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cord to the product after cleaning the product.
6. Power on the monitor and computer.
!
!
9
Before Using the Product
Before Using the Product

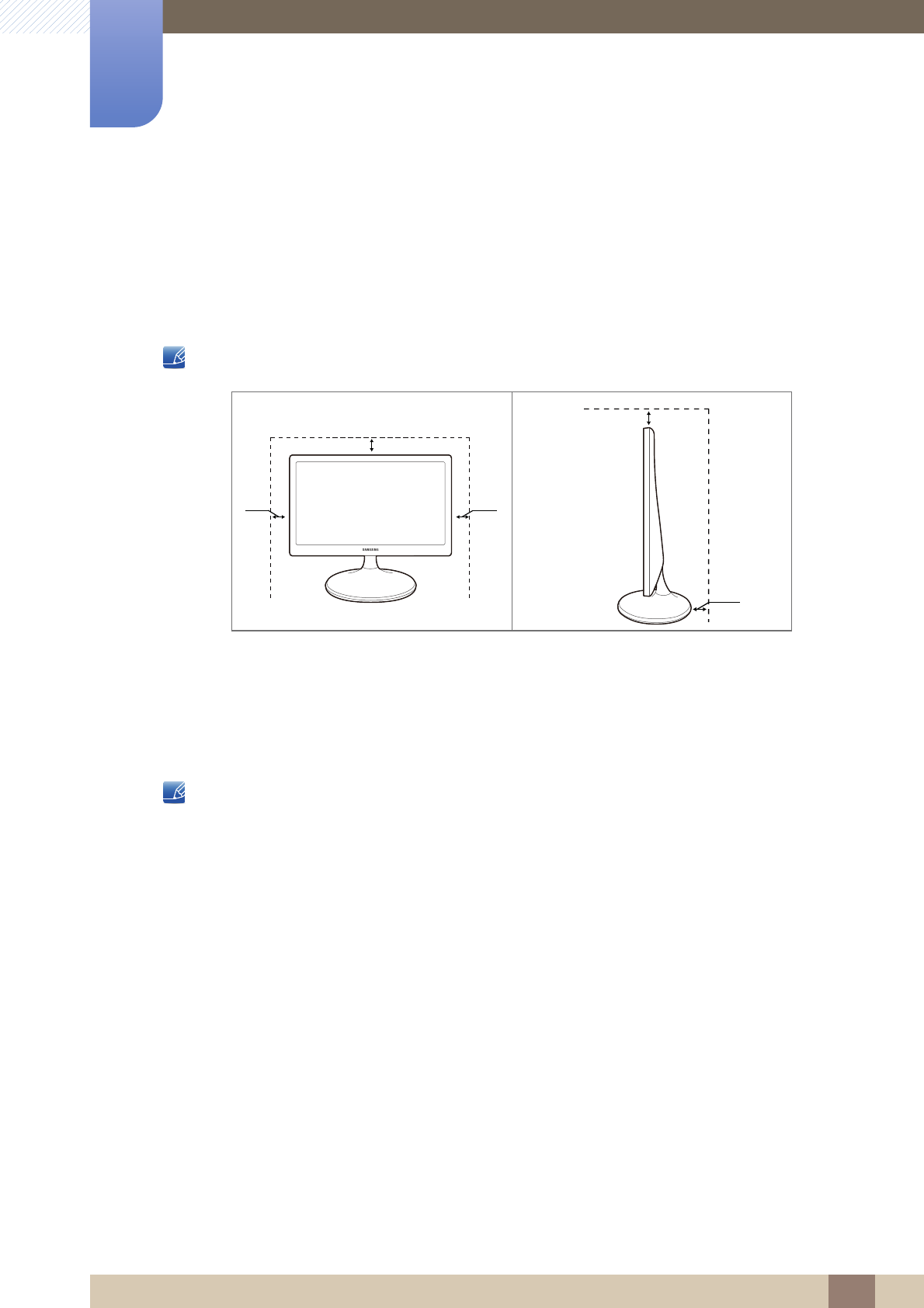

Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire and
damage the product. Be sure to allow the amount of space as shown below or greater when installing
the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center (page 82) if the inside of the monitor needs
cleaning. (Service fee will be charged.)
3.93
inches
(10 cm)
3.93
inches
(10 cm)
3.93 inches(10 cm)
3.93 inches(10 cm)
3.93 inches
(10 cm)
10
Before Using the Product
Before Using the Product

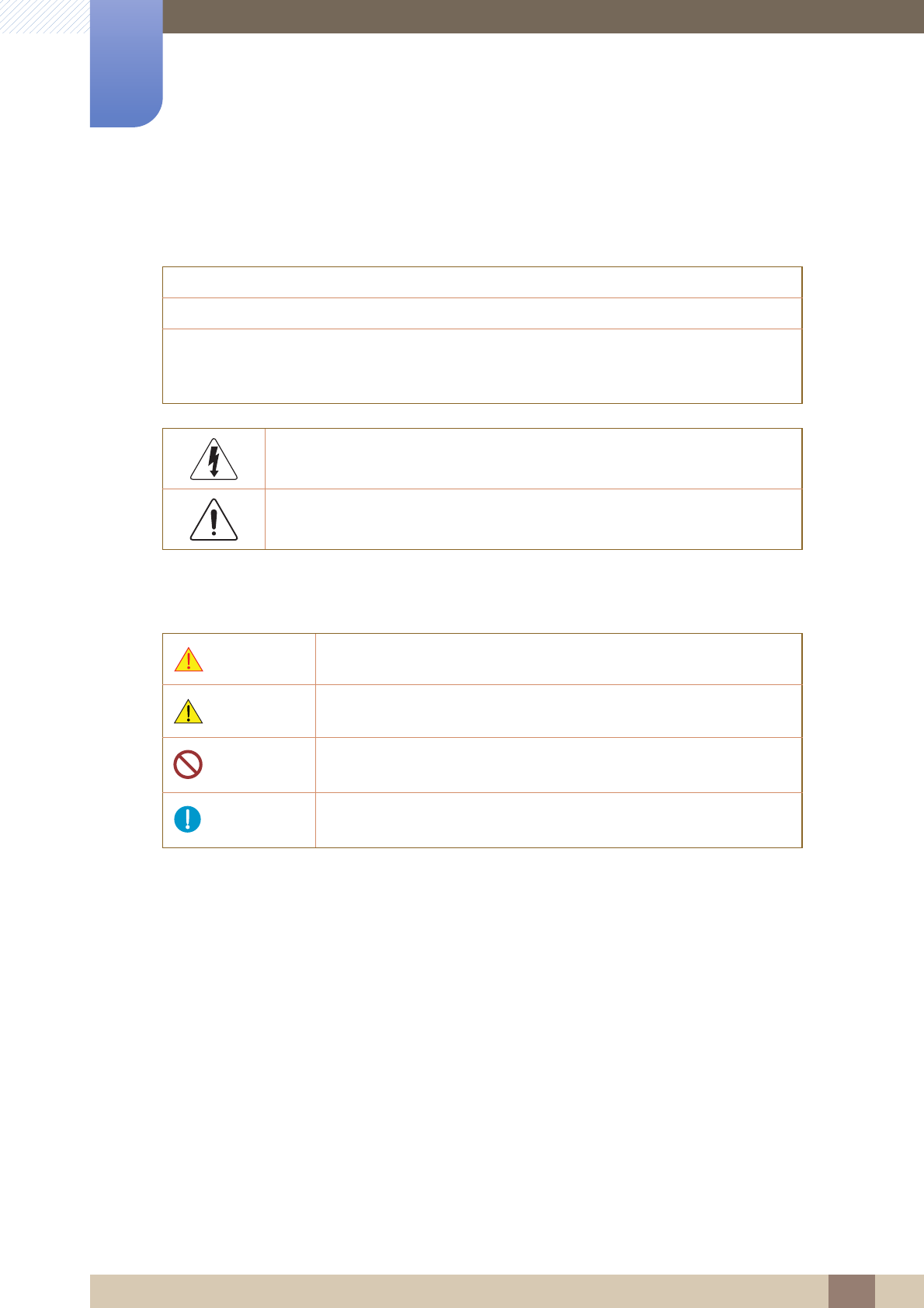

Safety Precautions
Symbols for safety precautions
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
Warning A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
11
Before Using the Product
Before Using the Product

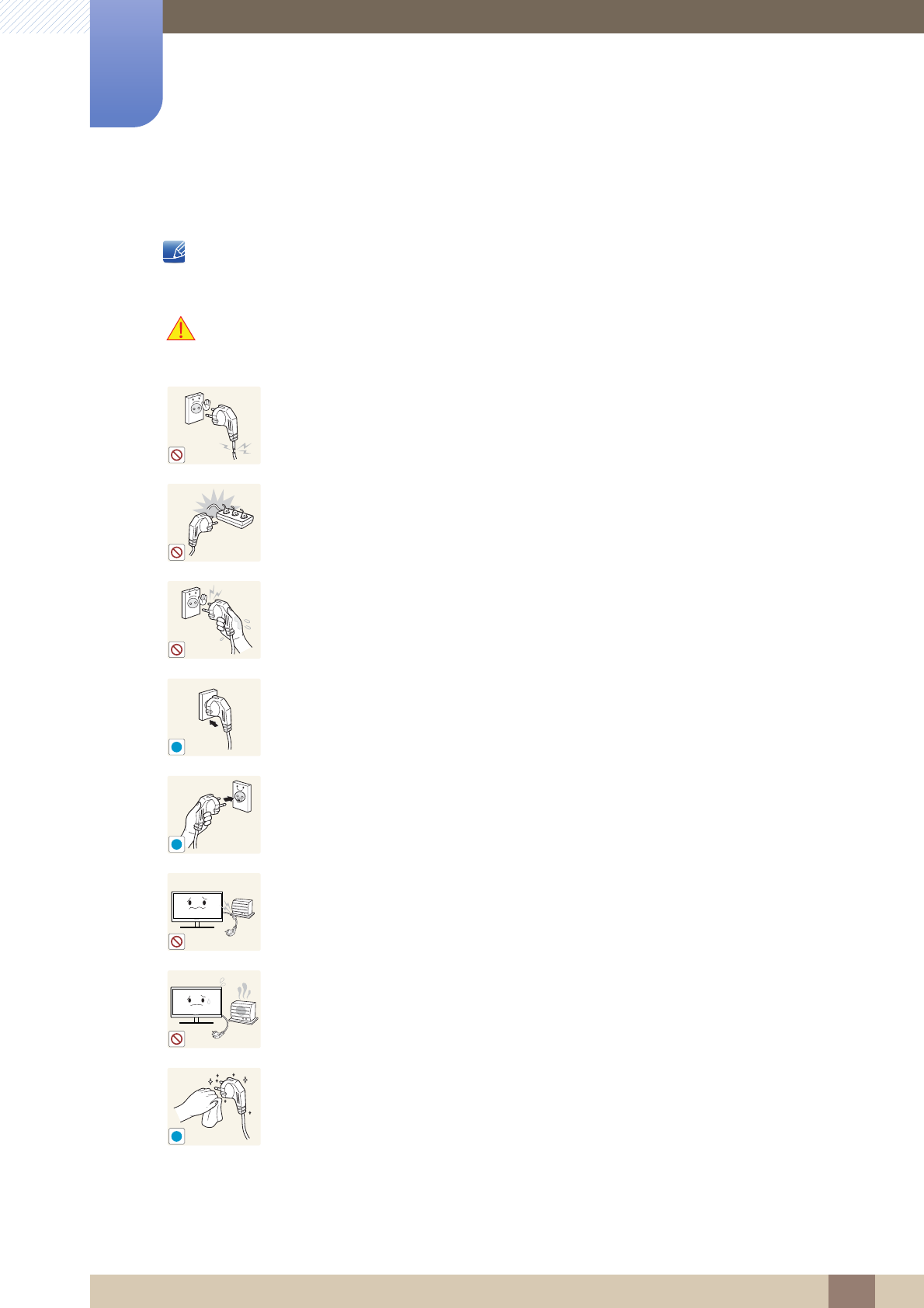

Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
-An electric shock or fire may result.
Do not plug many products into the same power socket.
-Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
-Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
-An unstable connection may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated devices
only).
-An electric shock or injury may result.
Do not bend or pull the power cord with force. Do not weigh the power cord
down with a heavy object.
-A damaged power cord may cause an electric shock or fire.
Do not place the power cord or product near heat sources.
-An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
-Otherwise, a fire may result.
!
!
!
12
Before Using the Product
Before Using the Product

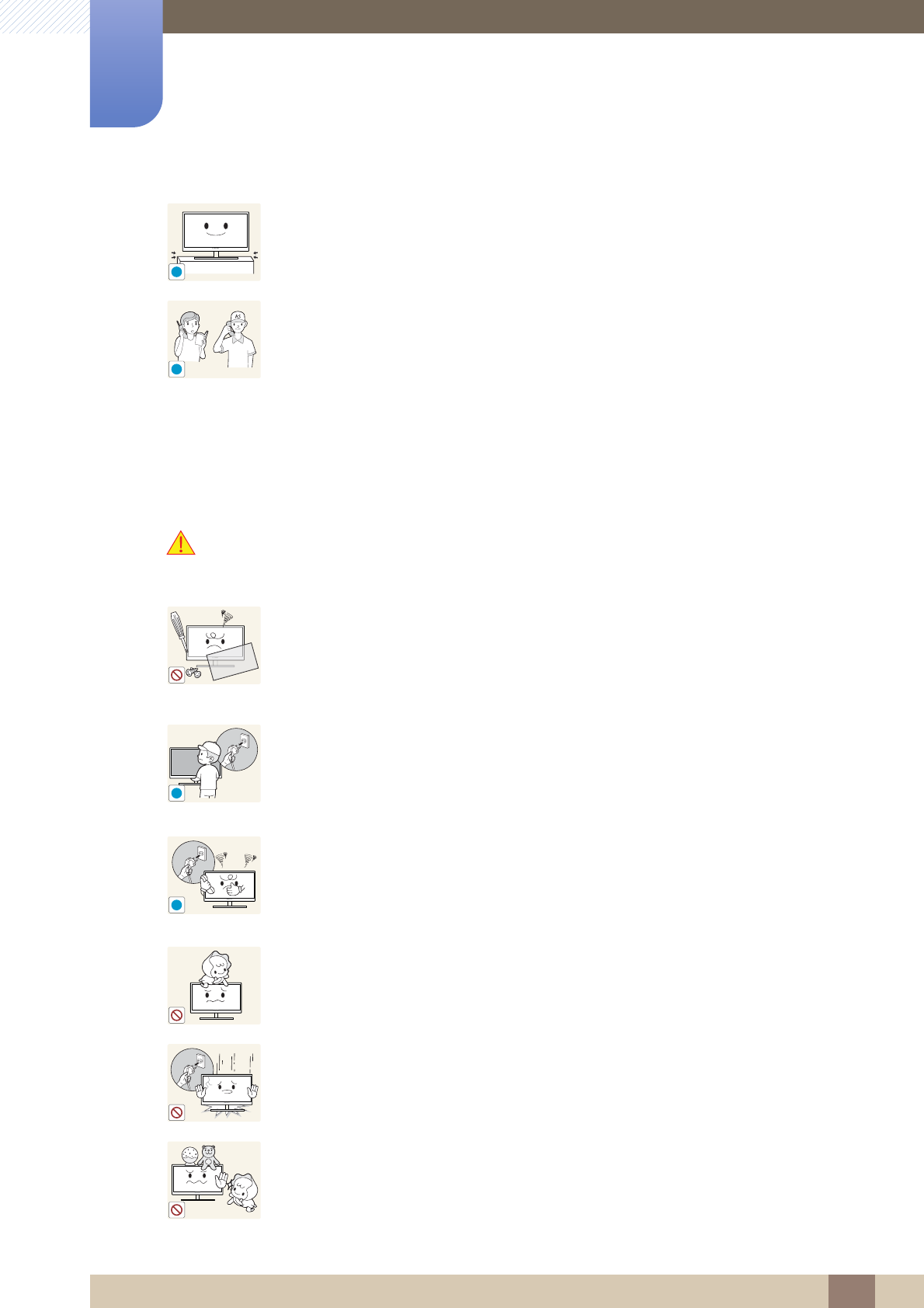

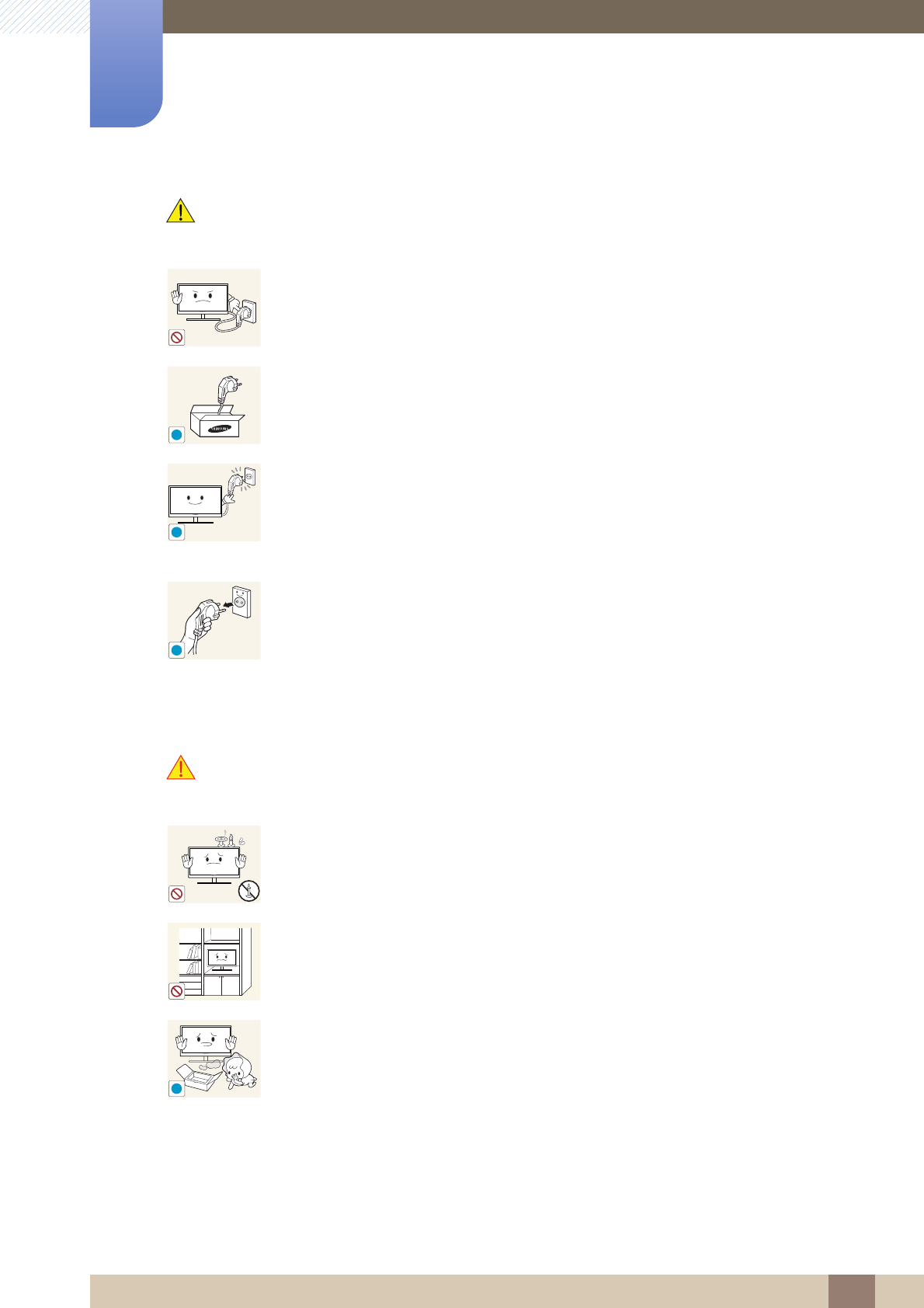

Caution
Installation and Safety
Warning
Do not unplug the power cord when the product is in use.
-The product may become damaged by an electric shock.
Do not use the power cord for products other than authorized products supplied
by Samsung.
-An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
-If any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cord from the power socket.
-An electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
-Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
-Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
-Children may suffocate.
!
!
!
!
13
Before Using the Product
Before Using the Product

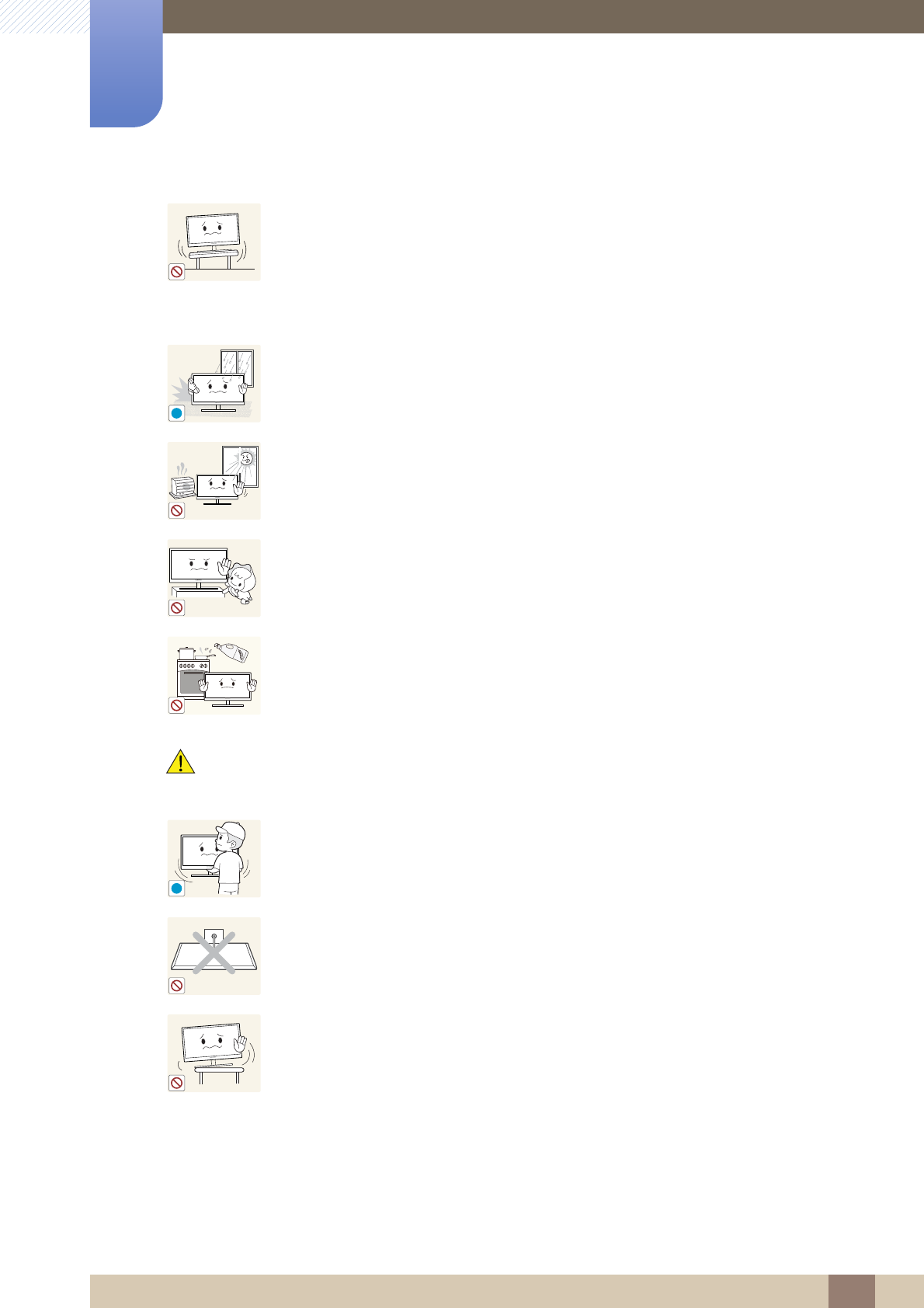

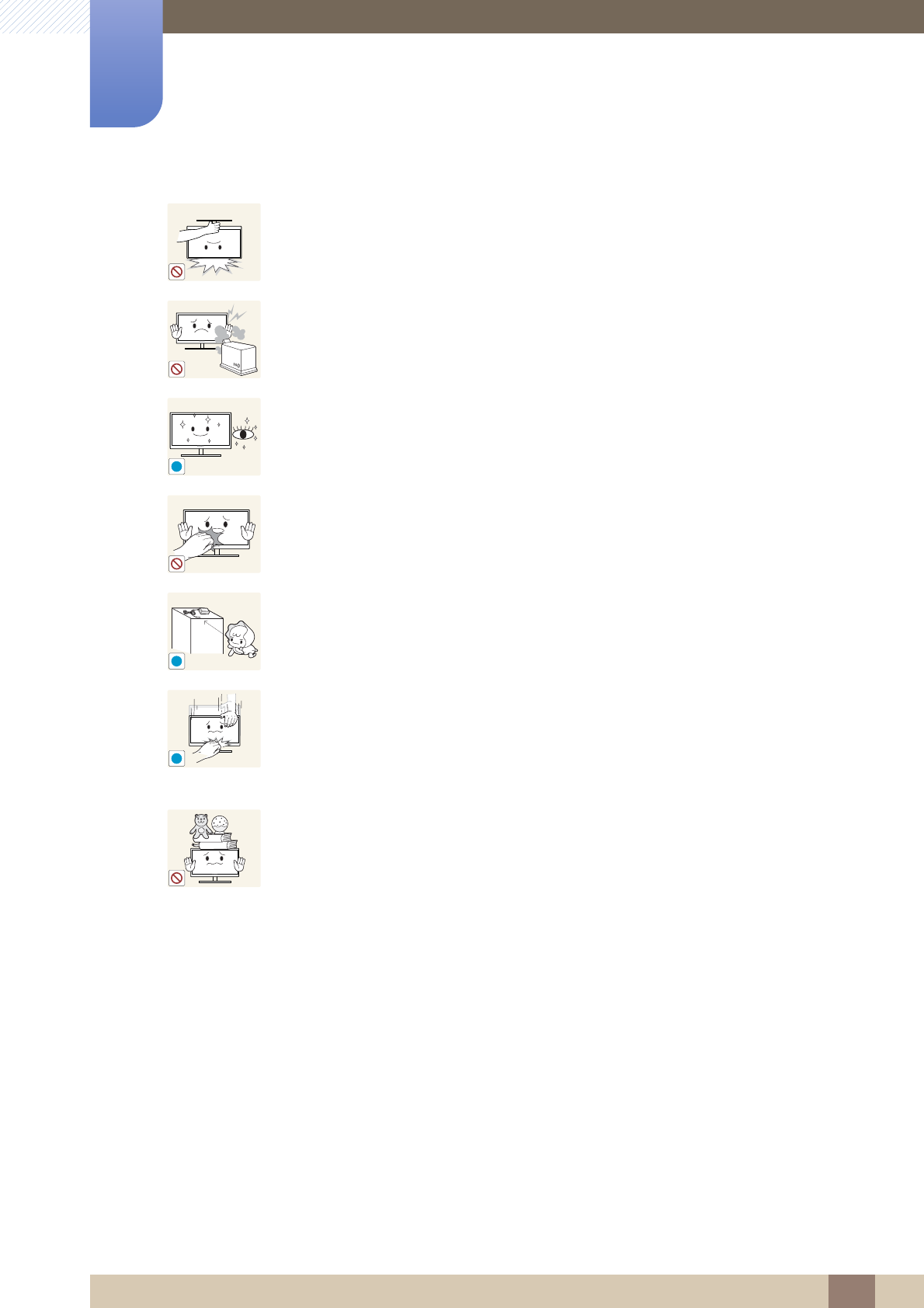

Caution
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
-The product may fall and break or cause a personal injury.
-Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
-An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
-Otherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
-The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
-Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
-The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
-The product may fall and break or cause a personal injury.
-Install the product only on cabinets or shelves of the right size.
!
!
14
Before Using the Product
Before Using the Product
Operation
Warning
Put down the product carefully.
-The product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine
particles, chemical substances or extreme temperatures, or an airport or train
station where the product should operate continuously for an extended period of
time) may seriously affect its performance.
-Be sure to consult Samsung Customer Service Center (page 82) before
installation if you want to install the product at such a place.

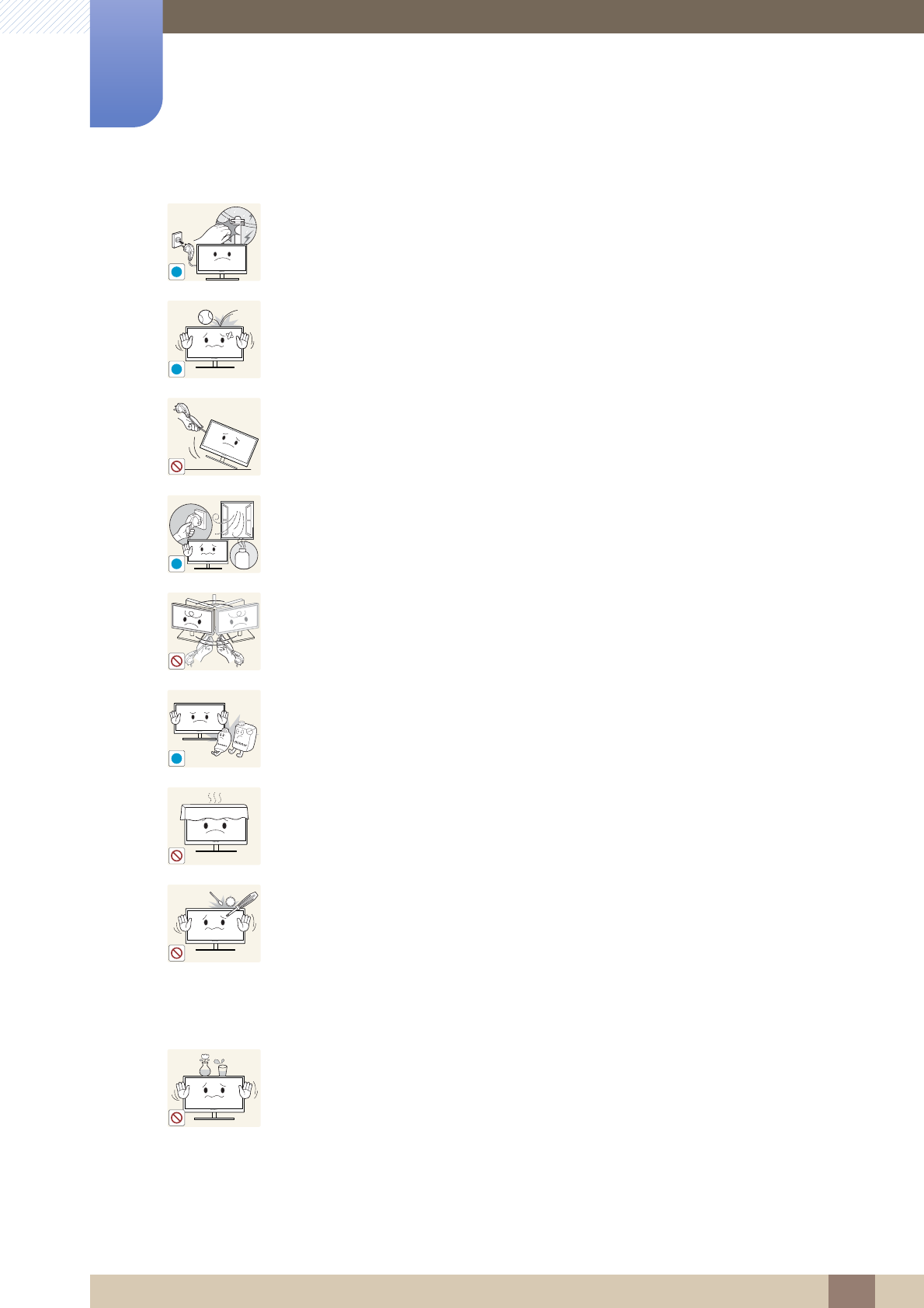

High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
-An electric shock or fire may result.
-Contact Samsung Customer Service Center (page 82) for repair.
Before moving the product, turn off the power switch and disconnect the power
cable and all other connected cables.
-Otherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cord immediately and contact Samsung Customer Service Center (page
82).
-An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
-The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cord, and contact Samsung Customer Service Center (page 82).
-Otherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
-The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
!
SAMSUNG
!
!
!
15
Before Using the Product
Before Using the Product
During a lightning or thunderstorm, power off the product and remove the power
cable.
-An electric shock or fire may result.
Do not drop objects on the product or apply impact.
-An electric shock or fire may result.
Do not move the product by pulling the power cord or any cable.
-Otherwise, the power cable may be damaged and product failure, an electric
shock or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
-Sparks can cause an explosion or fire.
Do not lift or move the product by the power cord or any cable.
-Otherwise, the power cable may be damaged and product failure, an electric
shock or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
-An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
-Otherwise, a fire may result from an increased internal temperature.
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
-If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 82).
-Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
-If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 82).
-Product failure, an electric shock or fire may result.
!
!
!
GAS
!
10 0
16
Before Using the Product
Before Using the Product

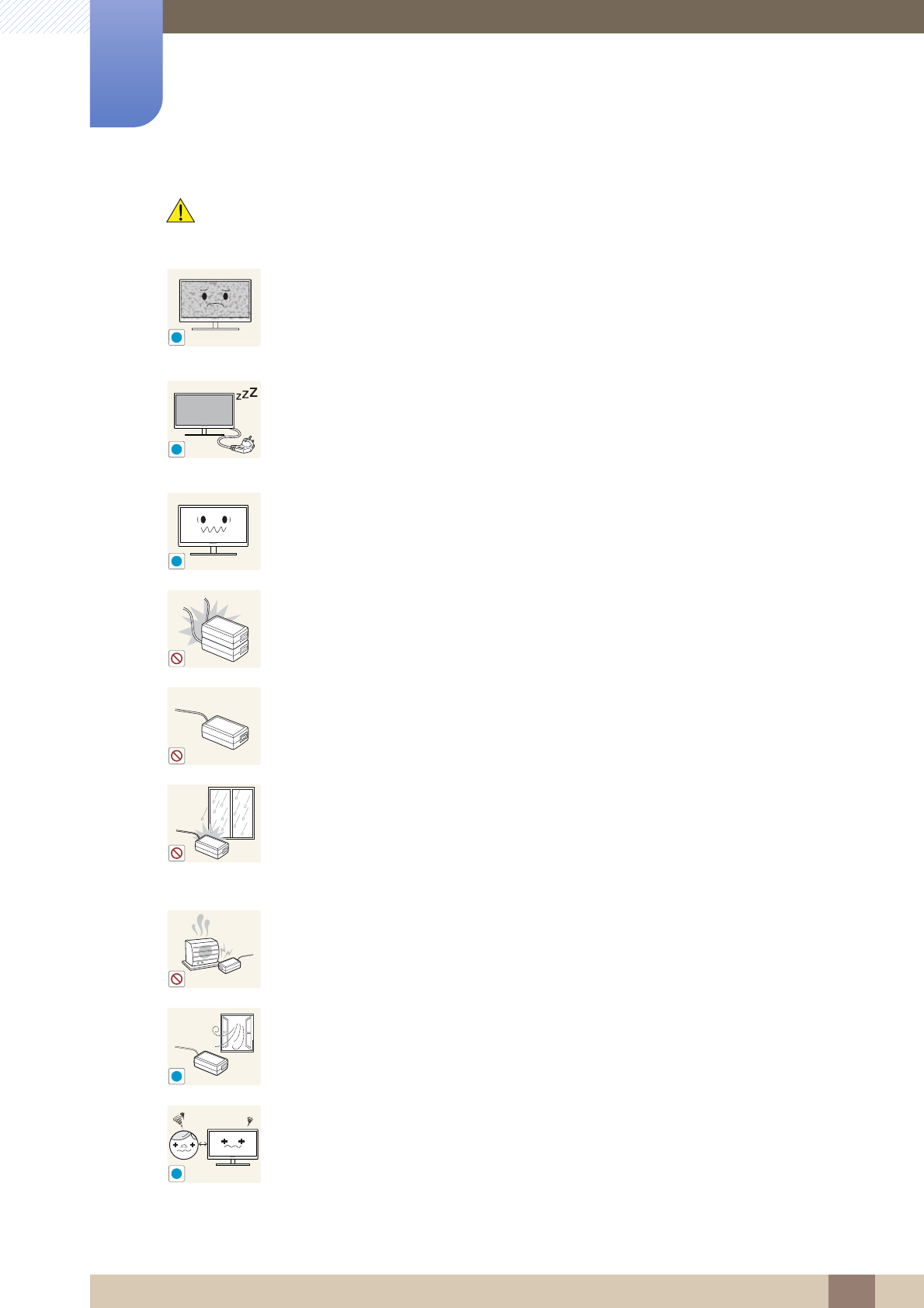

Caution
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
-If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc).
-Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
-Your eyesight may deteriorate.
Do not put DC power adapters together.
-Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
-Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
-An electric shock or fire may result.
-Avoid using the product outdoors where it can be exposed to rain or snow.
-Be careful not to get the DC power adapter wet when you wash the floor.
Do not put the DC power adapter near to any heating apparatus.
-Otherwise, a fire may result.
Keep the DC power adapter in a well-ventilated area.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
!
!
-_-
!
!
!
!
17
Before Using the Product
Before Using the Product
Do not hold the monitor upside-down or move it by holding the stand.
-The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
-An electric shock or fire may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
-Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
-Otherwise, children's fingers or hands may become stuck and injured.
-Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
-Product failure or personal injure may result.
!
!
!
18
Before Using the Product
Before Using the Product
Correct posture to use the product
Use the product in the correct posture as follows:
-Straighten your back.
-Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
-Adjust the angle so light does not reflect on the screen.
-Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
-Keep your elbows at about a right angle.
-Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
50 cm
19
1 Preparations
1 Preparations
1.1 Checking the Contents
1.1.1 Removing the Packaging
1Open the packaging box. Be careful not to damage the product when you open the packaging with
a sharp instrument.
2Remove the styrofoam from the product.
3Check the components and remove the styrofoam and plastic bag.
This image is for reference only.
4Store the box in a dry area so that it can be used when moving the product in the future.
20
Preparations
1
1 Preparations
1.1.2 Checking the Components
-Contact the dealer from whom you purchased the product if any item is missing.
-The appearance of the components and items sold separately may differ from the image shown.
Components
Components may vary depending on the country.
Quick setup guide Warranty card
(Not available in some locations)
User manual
Power cable DC power adapter D-SUB cable (optional)
HDMI cable (optional) HDMI-DVI cable (optional) Stand base
Stand neck
(Other areas)
Stand neck
(North America only)
21
Preparations
1
1 Preparations
1.2 Parts
1.2.1 Frontal Button
The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent menu.
-OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings.
-Enable: To lock the OSD control, press and hold the [ ] button
for 10 seconds.
-Disable: To unlock the OSD control, press and hold the [ ]
button for more than 10 seconds.
If the OSD control is locked,
-Brightness, Contrast and Angle can be adjusted, and
INFORMATION can be viewed.
-The Customized Key function can be used by pressing
the [ ] button. (The Customized Key is available even when
the OSD control is locked.)
MENU
MENU
MENU
SAMSUNG
MAGIC
22
Preparations
1
1 Preparations
Icons Description
Configure Customized Key and press [ ]. The following options will
be enabled.
Angle - Bright - Eco Saving - Image Size
To configure Customized Key, go to SETUP & RESET
Customized Key and select the mode you want.
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the brightness and contrast of the screen.
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/HDMI). If you power on the product or
change the input source by pressing the [ ] button, a message that
shows the changed input source will appear at the top left corner of the
screen.
Press the [ ] button to automatically adjust the screen settings.
-Changing the resolution in Display Properties will activate the
Auto Adjustment function.
-Available only in Analog mode.
Turn the screen on or off.
Function Key Guide
When a control button on the product is pressed, the Function Key Guide
will be displayed before the onscreen menu opens.
(The guide shows the function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Function Key Guide may vary depending on the function or product
model.
Refer to the actual product.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
→
AUTO
AUTO
23
Preparations
1
1 Preparations

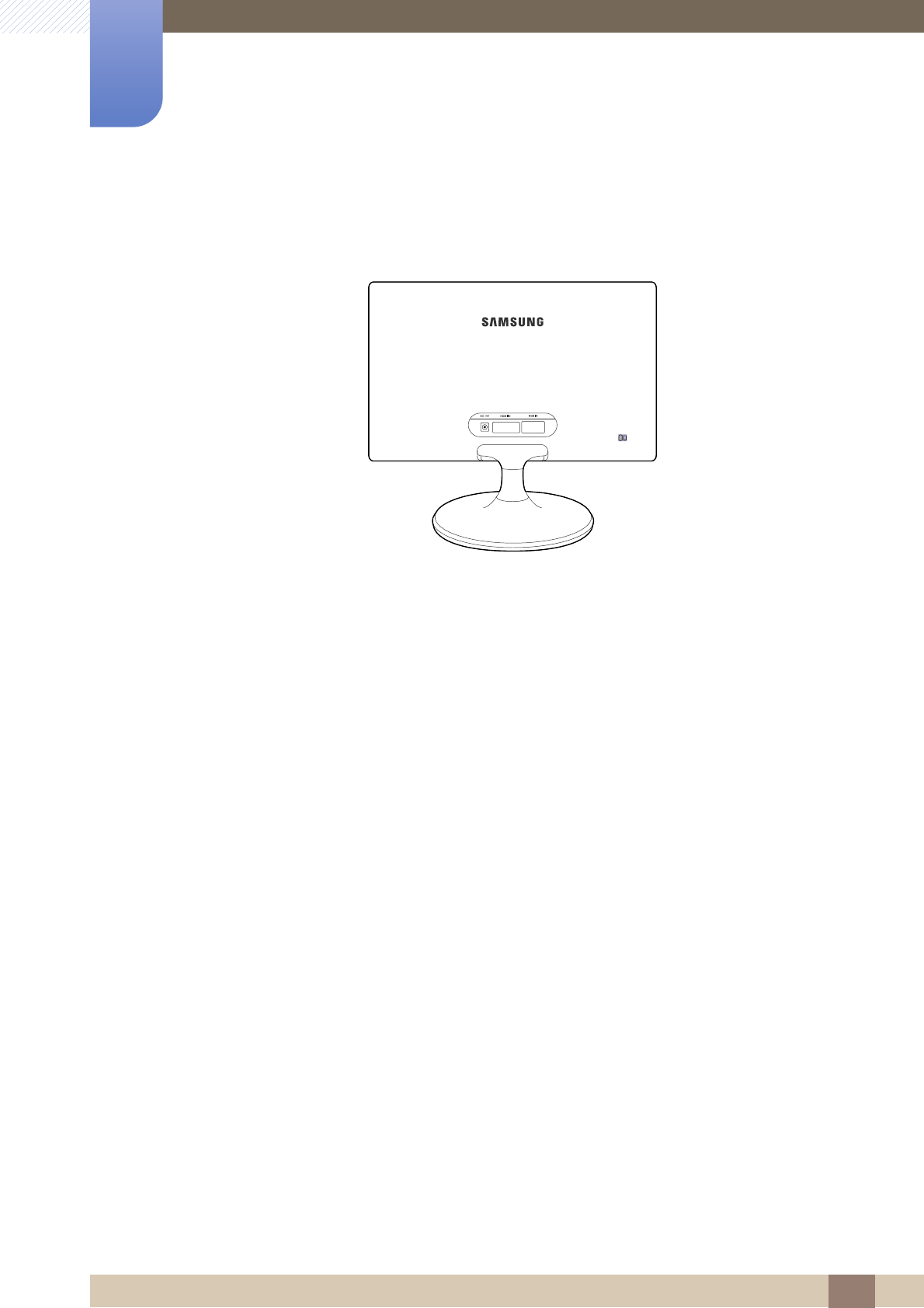

1.2.2 Reverse Side
-The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
-Provided ports may vary depending on the product.
Port Description
Connects to the DC power adapter.
Connects to a source device via a HDMI cable.
Connect to a PC using the D-SUB cable.
DC 14V
HDMI IN
RGB
IN
24
Preparations
1
1 Preparations
1.3 Installation
1.3.1 Attaching the Stand
Before assembling the product, place the product down on a flat and stable surface so that the screen
is facing downwards.
Insert the stand neck into the
stand base in the direction
shown in the figure.
Check that the stand neck is
firmly connected.
Tightly fasten the connecting
screw at the bottom of the
stand base.
Place a soft cloth over the table
to protect the product and
place the product onto the
cloth so that the front of the
product is facing downwards.
Hold the main body of the
product with your hand as
shown by the figure.
Push the assembled stand into
the main body in the direction
of the arrow as shown in the
figure.
- Caution
Do not hold the product upside
down only by the stand.
25
Preparations
1
1 Preparations

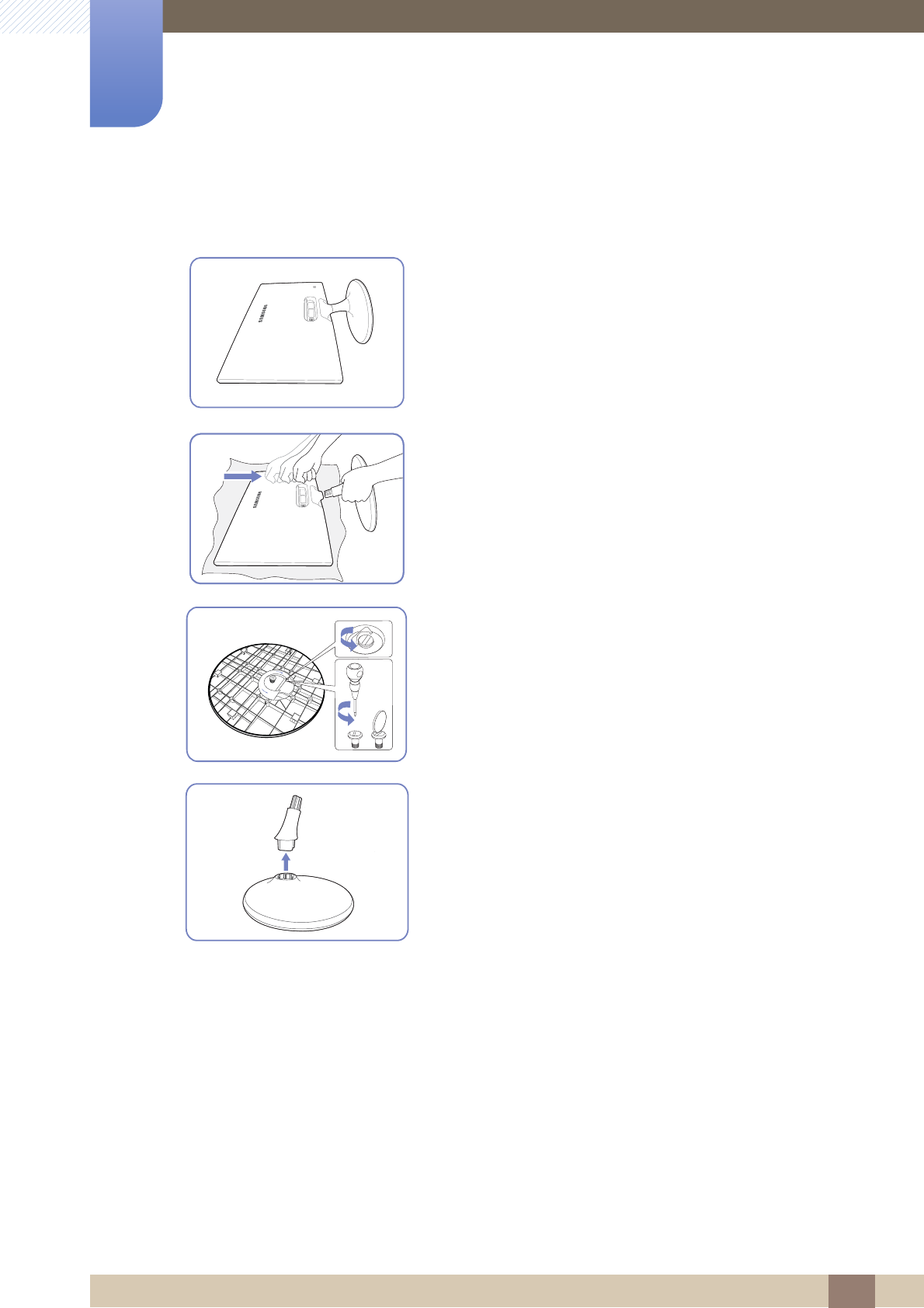

1.3.2 Removing the Stand
Place a soft cloth over the table to protect the product and
place the product onto the cloth so that the front of the product
faces downwards.
While holding the stand neck with one hand, pound the other
fisted hand down onto the top of the stand base in the direction
of the arrow to detach the stand base.
Turn the connecting screw at the bottom of the stand base to
separate it.
Remove the stand neck from the stand base by pulling it in the
direction of the arrow as shown in the figure.
26
Preparations
1
1 Preparations
1.3.3 Adjusting the Product Tilt
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
-You can adjust the tilt of your monitor.
-Hold the lower part of the product and adjust the tilt carefully.
-1° (±2°) ~ 20° (±2°)
27
Preparations
1
1 Preparations

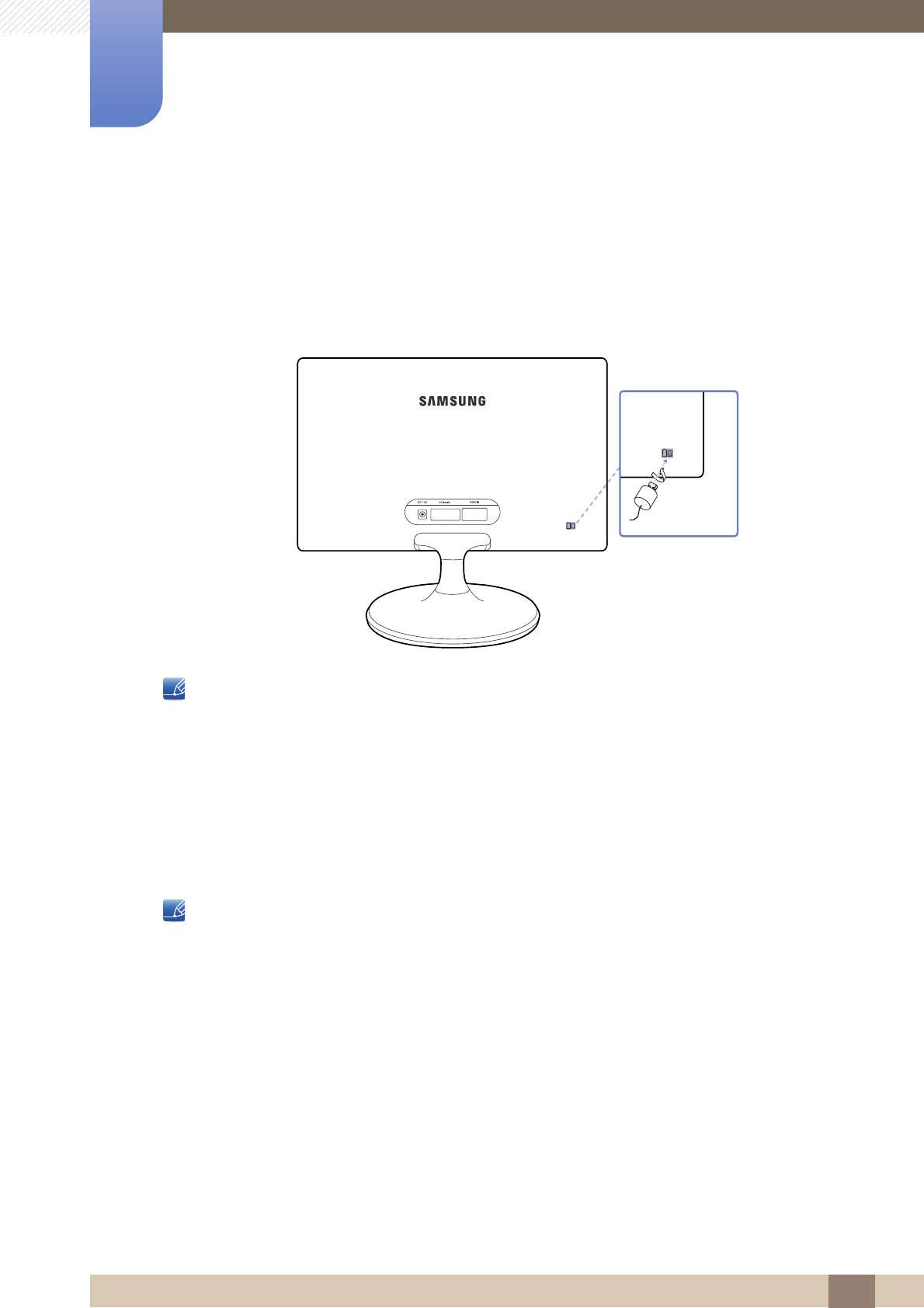

1.3.4 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places. The locking device shape
and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft
locking device for details. The lock device is sold separately.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To lock an anti-theft locking device:
1Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2Put one end of the cable through the loop on the other end.
3Insert the Kensington Lock into the security slot on the back of the display.
4Lock the locking device.
-An anti-theft locking device can be purchased separately.
-Refer to the user guide provided with your anti-theft locking device for details.
-Anti-theft locking devices can be purchased at electronics retailers or online.
28
2 Connecting and Using a Source Device
2 Connecting and Using a Source Device
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
-Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
-Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
-Check the types of ports at the back of the product you want to connect.
29
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2 Connecting and Using a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.
2.2.1 Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1
Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.
2Connect the DC power adapter to the product and a power socket.
Next, turn on the power switch on the PC. (For details, refer to"2.2.4 Connecting the Power".)
3Press [ ] to change the input source to Analog.
Provided ports may vary depending on the product.
RGB IN
30
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.2 Connection Using the HDMI Cable
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1
Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the PC.
2Connect the DC power adapter to the product and a power socket.
Next, turn on the power switch on the PC. (For details, refer to "2.2.4 Connecting the Power".)
3Press [ ] to change the input source to HDMI.
Provided ports may vary depending on the product.
2.2.3 Connection Using an HDMI-DVI Cable
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1
Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on the PC.
2Connect the DC power adapter to the product and a power socket.
Next, turn on the power switch on the PC. (For details, refer to "2.2.4 Connecting the Power".)
3Press [ ] to change the input source to HDMI.
Provided ports may vary depending on the product.
HDMI IN
HDMI IN
31
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.4 Connecting the Power
Connect the power adapter to [DC 14V] jack on the rear of the product.
Connect the power cable to the DC power adapter. Next, connect the DC power adapter to the product.
Plug in the power cable to the power socket.
The input voltage is switched automatically.
DC 14V
32
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.5 Driver Installation
-You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
-An installation driver is contained on the CD supplied with the product.
-If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and
download the file.
1Insert the user manual CD provided with the product into the CD-ROM drive.
2Click "Windows Driver".
3Follow the instructions given on the screen to proceed with installation.
4Select your product model from the list of models.
5Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
33
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

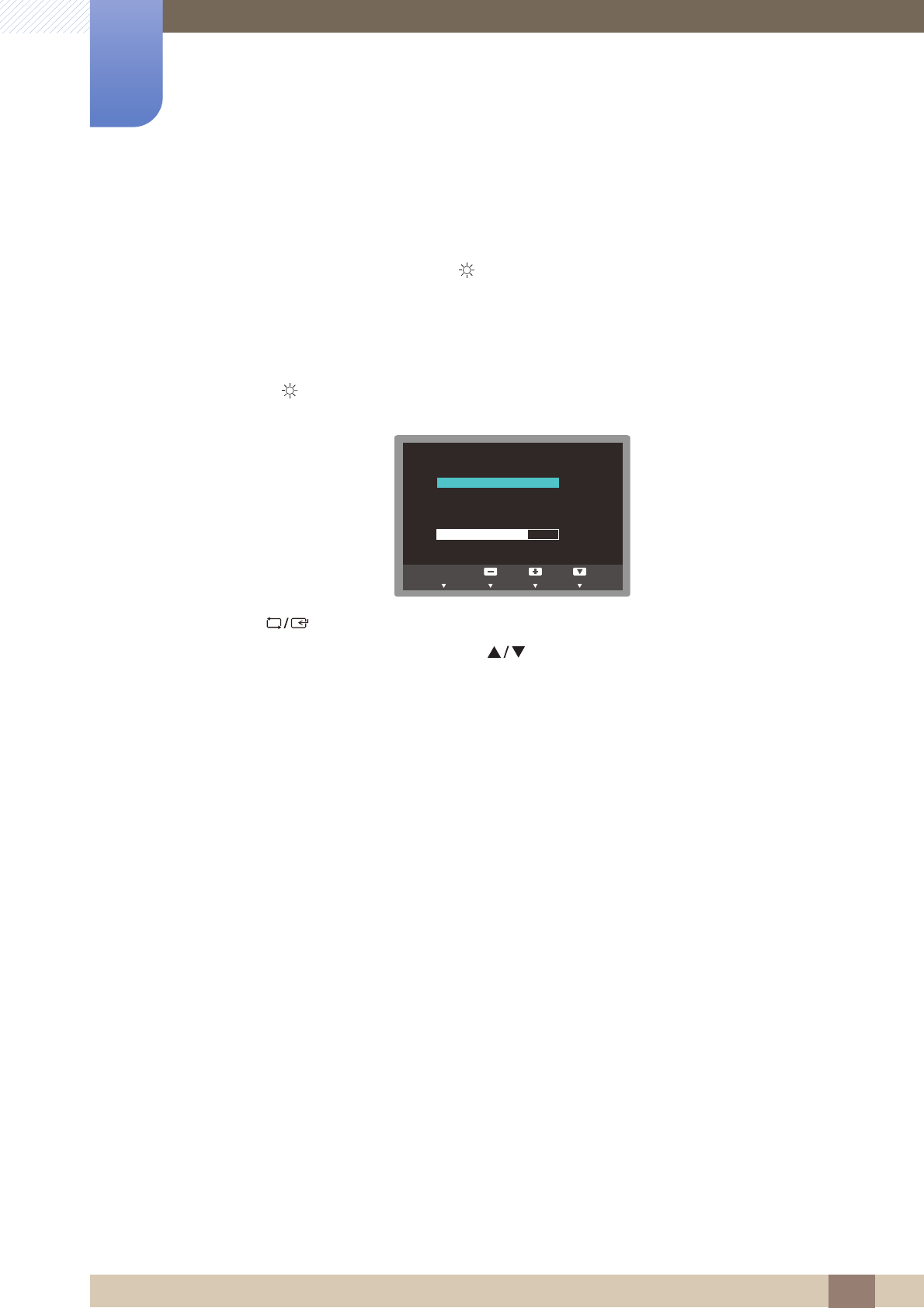

2.2.6 Setting Optimum Resolution

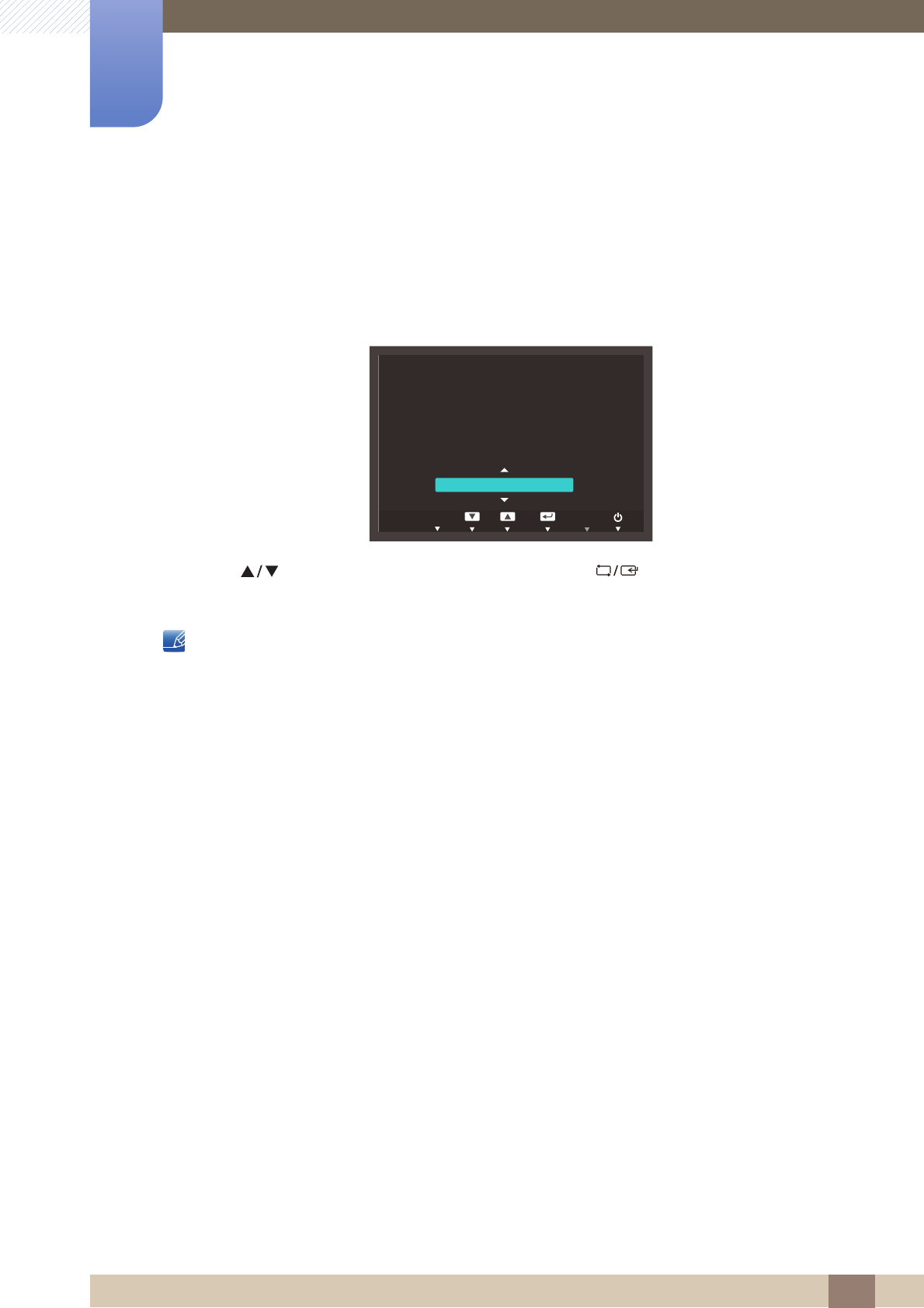

An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
1Press [ ] to move to the language you want and press [ ].
2To hide the information message, press [ ].
-If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
-The optimum resolution can also be selected in Control Panel on your PC.
EXIT AUTO
The optimal resolution for this
monitor is as follows:
**** x **** **Hz
Use the above settings to set
the resolution on your PC.
English
M
ENU
34
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.7 Changing the Resolution Using a PC
-Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture
quality.
-The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected.
Changing the Resolution on Windows XP
Go to Control Panel Display Settings and change the resolution.
12
3
**** ****
**********
35
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
Changing the Resolution on Windows Vista
Go to Control Panel Personalization Display Settings and change the resolution.
12
34
***********
***********
36
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

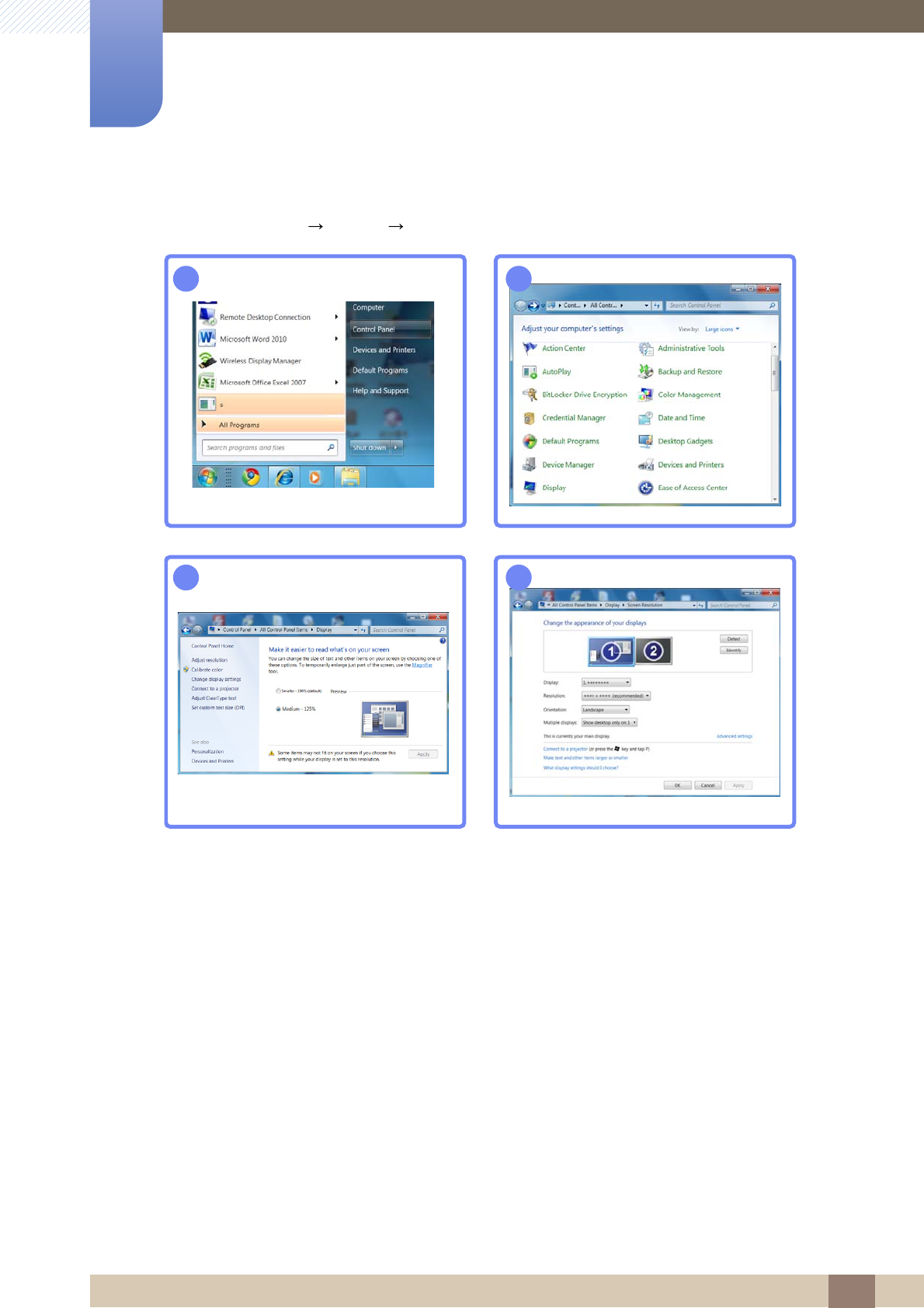

Changing the Resolution on Windows 7
Go to Control Panel Display Screen Resolution and change the resolution.
12
34
37
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
Changing the Resolution on Windows 8
Go to Settings Control Panel Display Screen Resolution and change the resolution.
12
34
5
38
3 Screen Setup
3 Screen Setup
Configure the screen settings such as brightness.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
-This menu is not available when Bright is set to Dynamic Contrast mode.
-This menu is not available when Eco Saving is enabled.

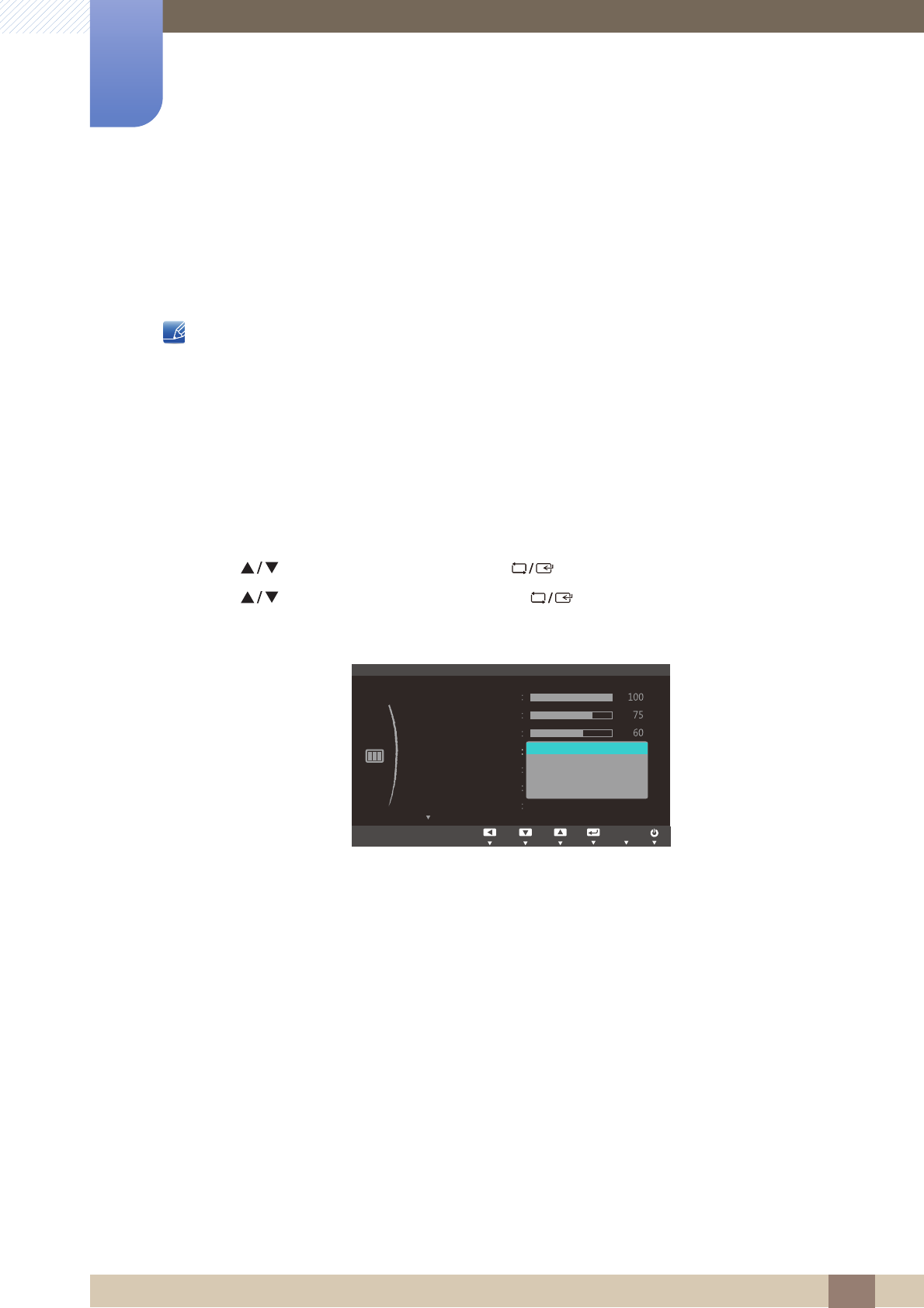

3.1.1 Configuring Brightness
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Brightness and press [ ] on the product.
The following screen will appear.
4Adjust the Brightness using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
Off
Off
Wide
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC
Angle
Custom
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Upscale
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
39
Screen Setup
3
3 Screen Setup

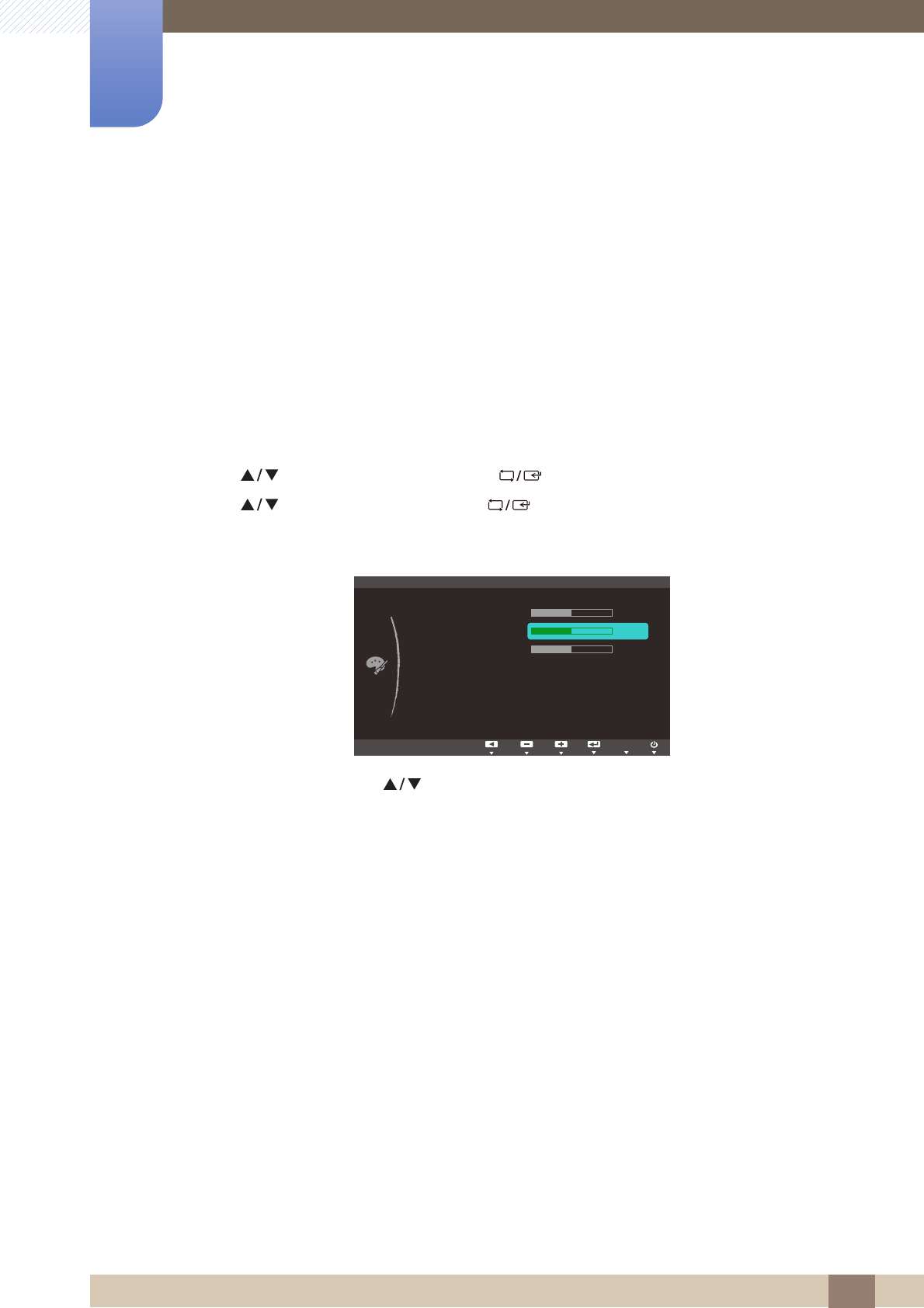

3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.

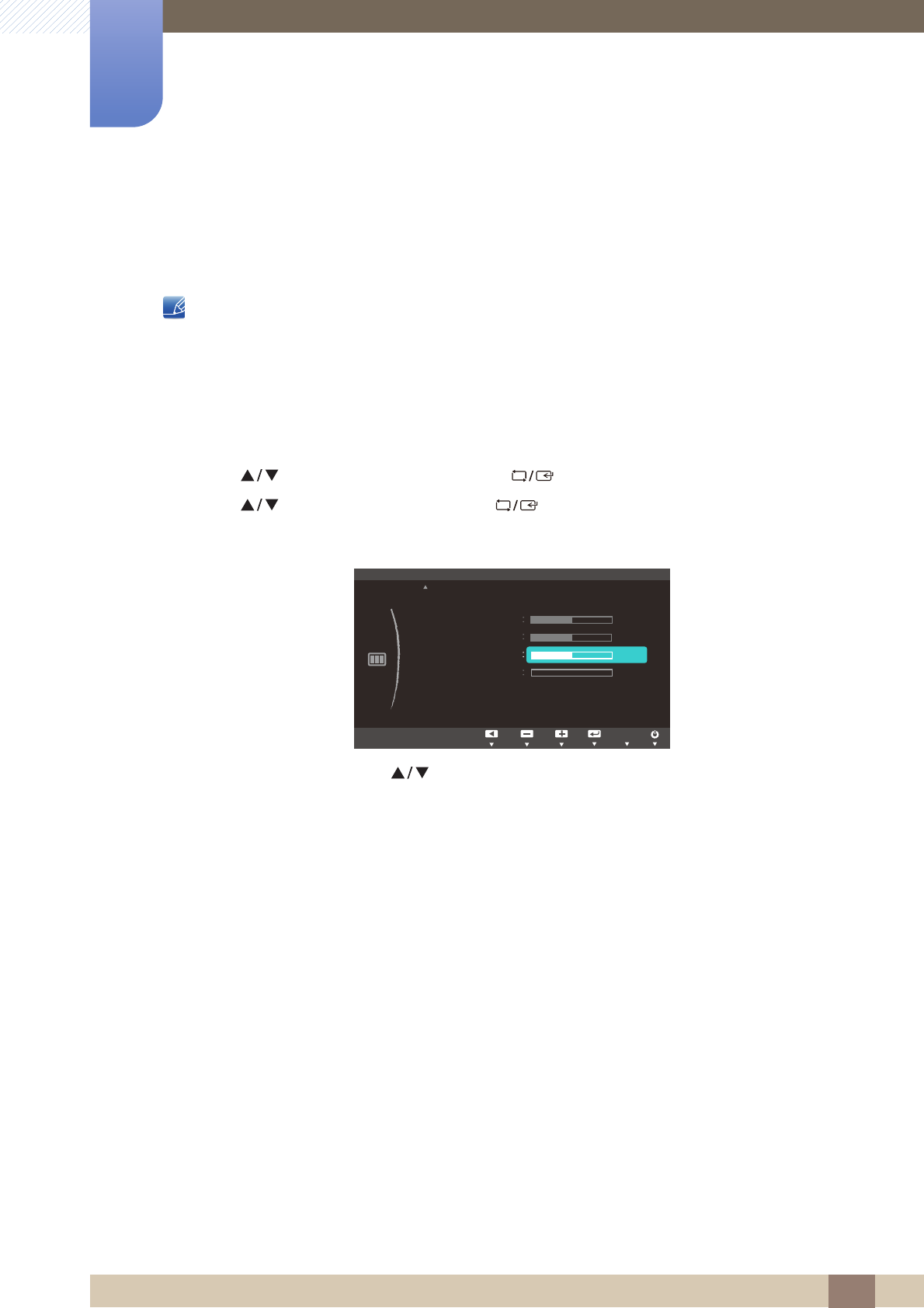

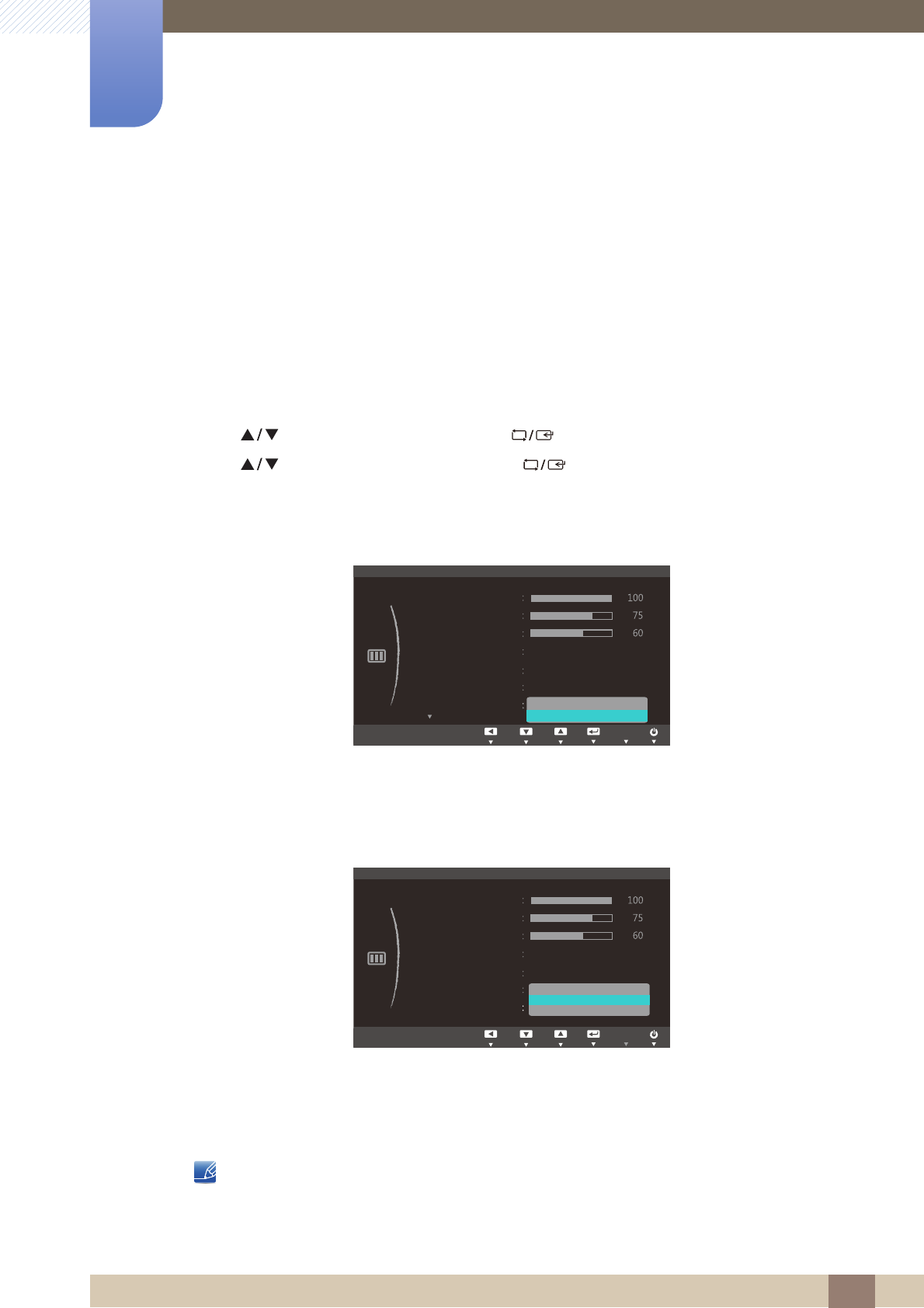

3.2.1 Configuring Contrast
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Contrast and press [ ] on the product.
The following screen will appear.
4Adjust the Contrast using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
Custom
Off
Wide
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Upscale
Adjust EnterReturn
Off
SAMSUNG
MAGIC
Angle
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
40
Screen Setup
3
3 Screen Setup
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
-This option is not available when Bright is in Cinema or Dynamic Contrast mode.
-This menu is not available when Upscale is in Mode1 or Mode2.

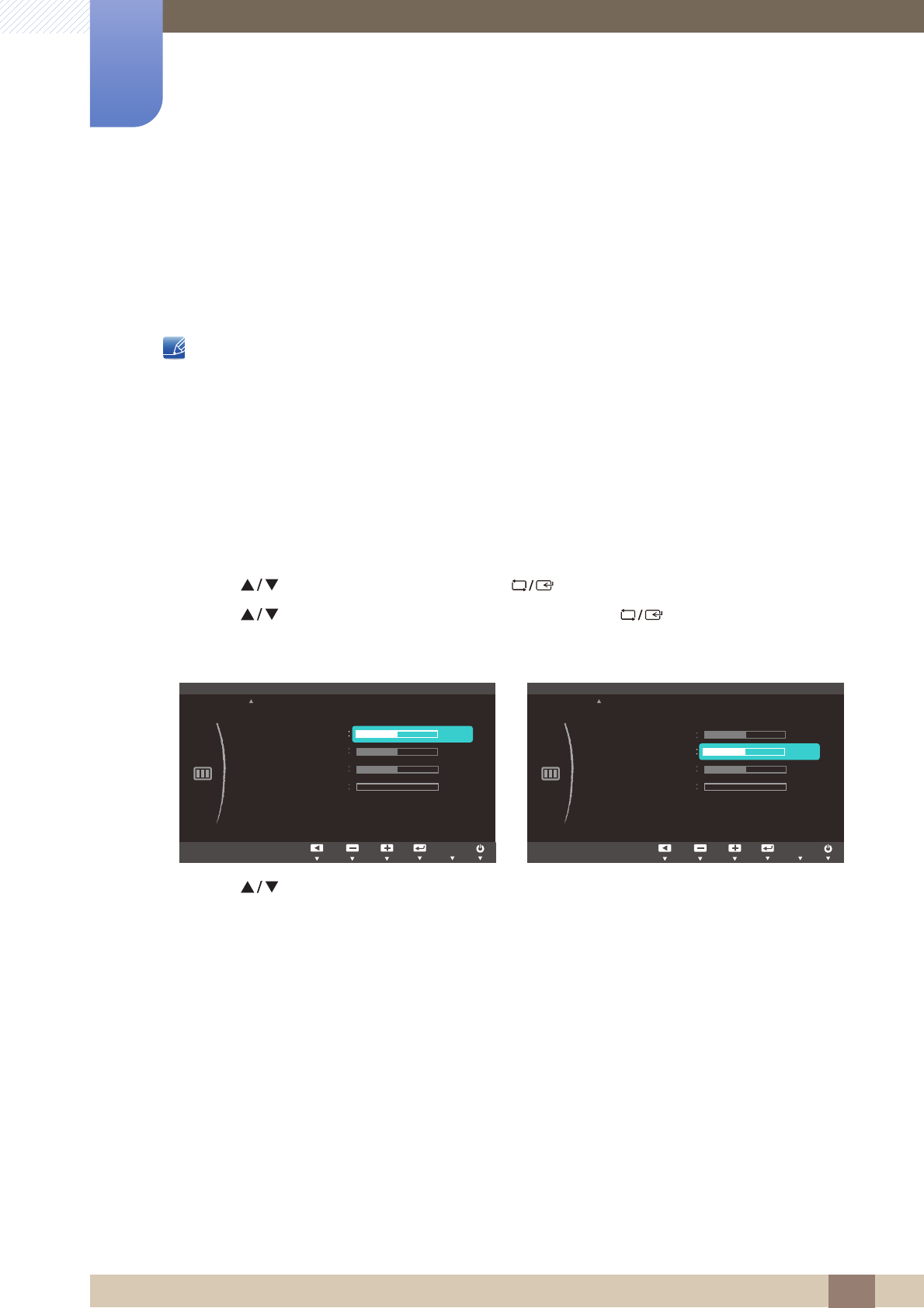

3.3.1 Configuring Sharpness
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Sharpness and press [ ] on the product.
The following screen will appear.
4Adjust the Sharpness using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
Custom
Off
Wide
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC Bright
SAMSUNG
MAGIC Upscale
Adjust EnterReturn
Off
SAMSUNG
MAGIC Angle
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
41
Screen Setup
3
3 Screen Setup

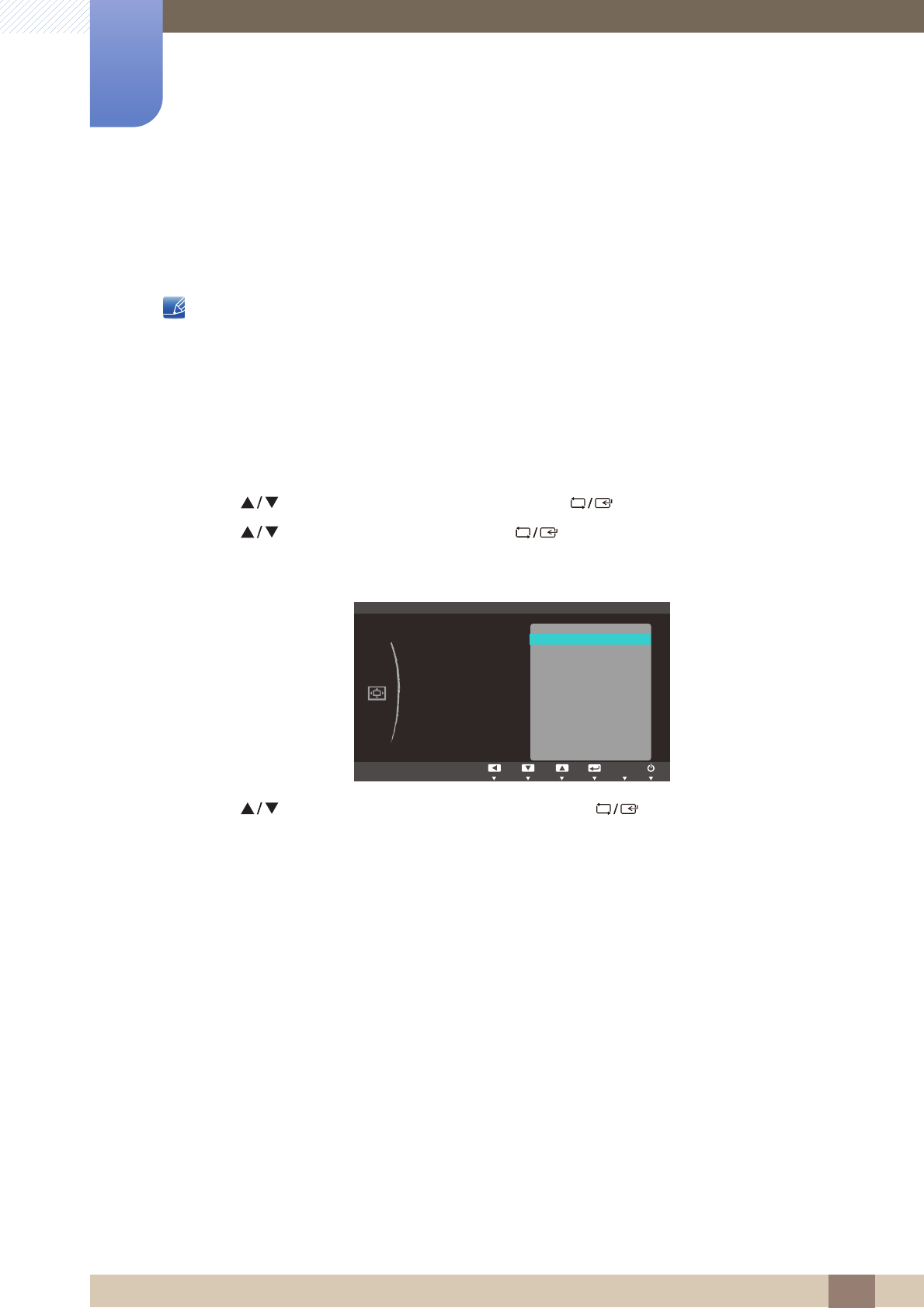

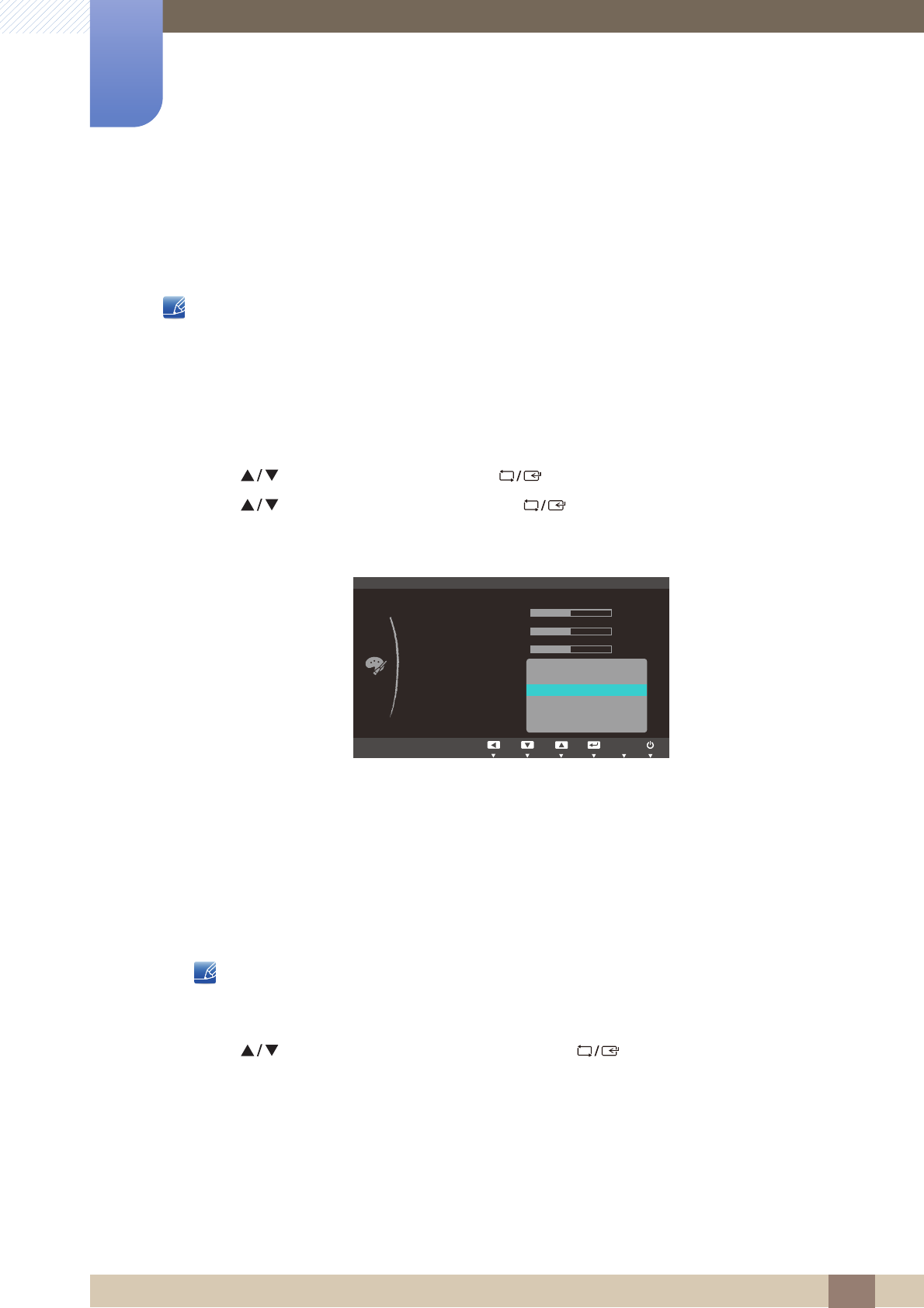

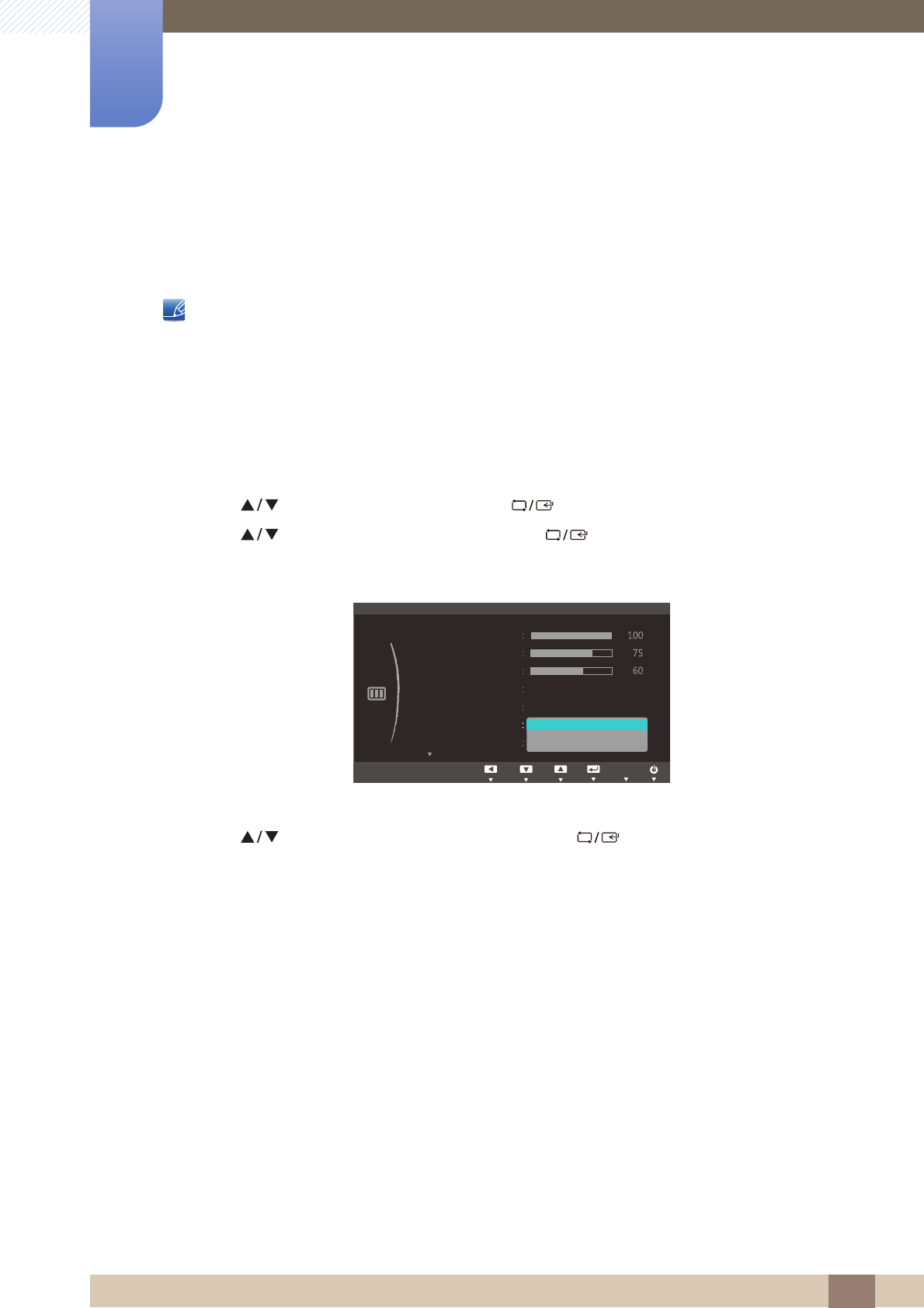

3.4 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
-This menu is not available when Eco Saving is enabled.
-This menu is not available when Angle is enabled.
You can customize the brightness to suit your preferences.

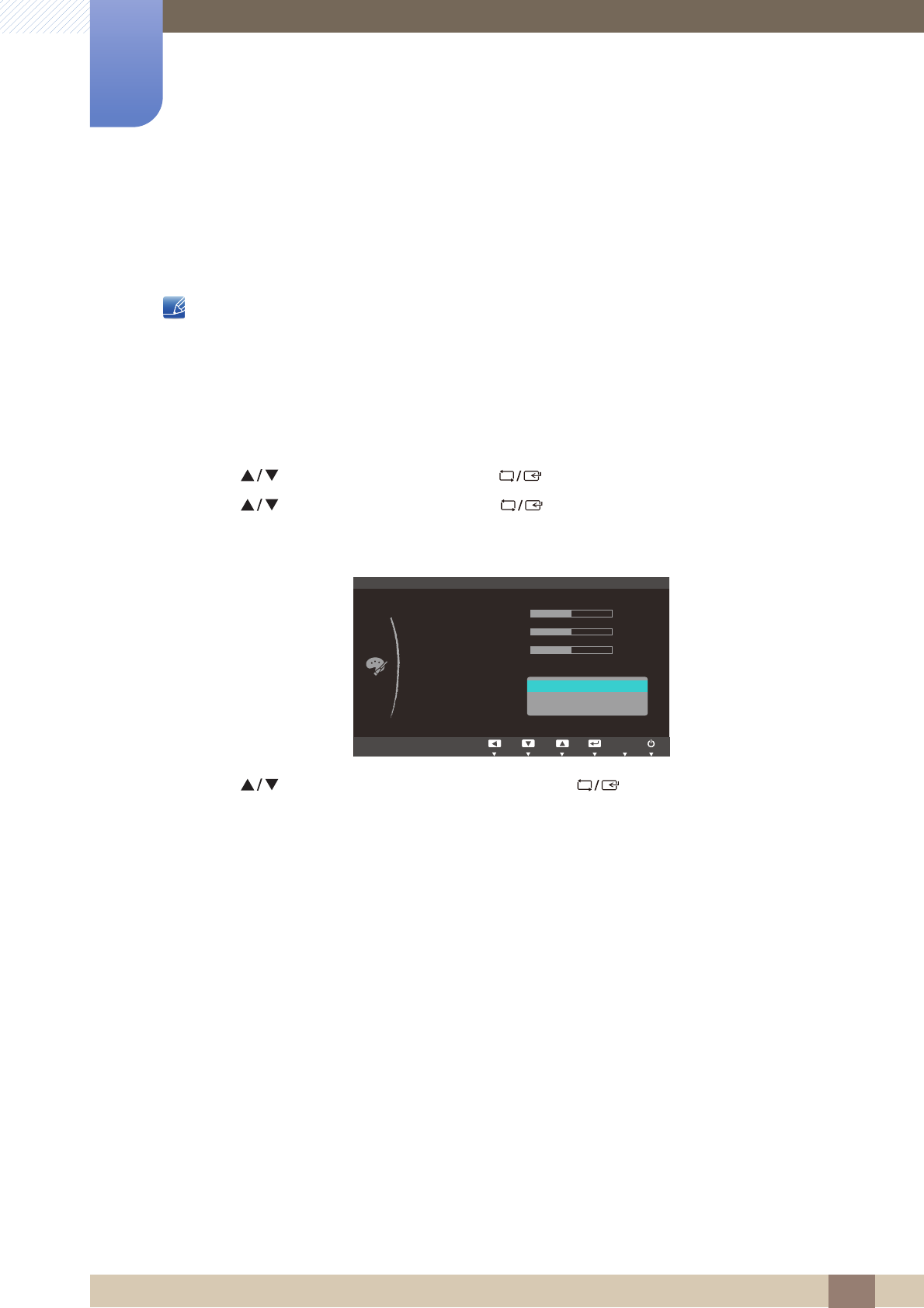

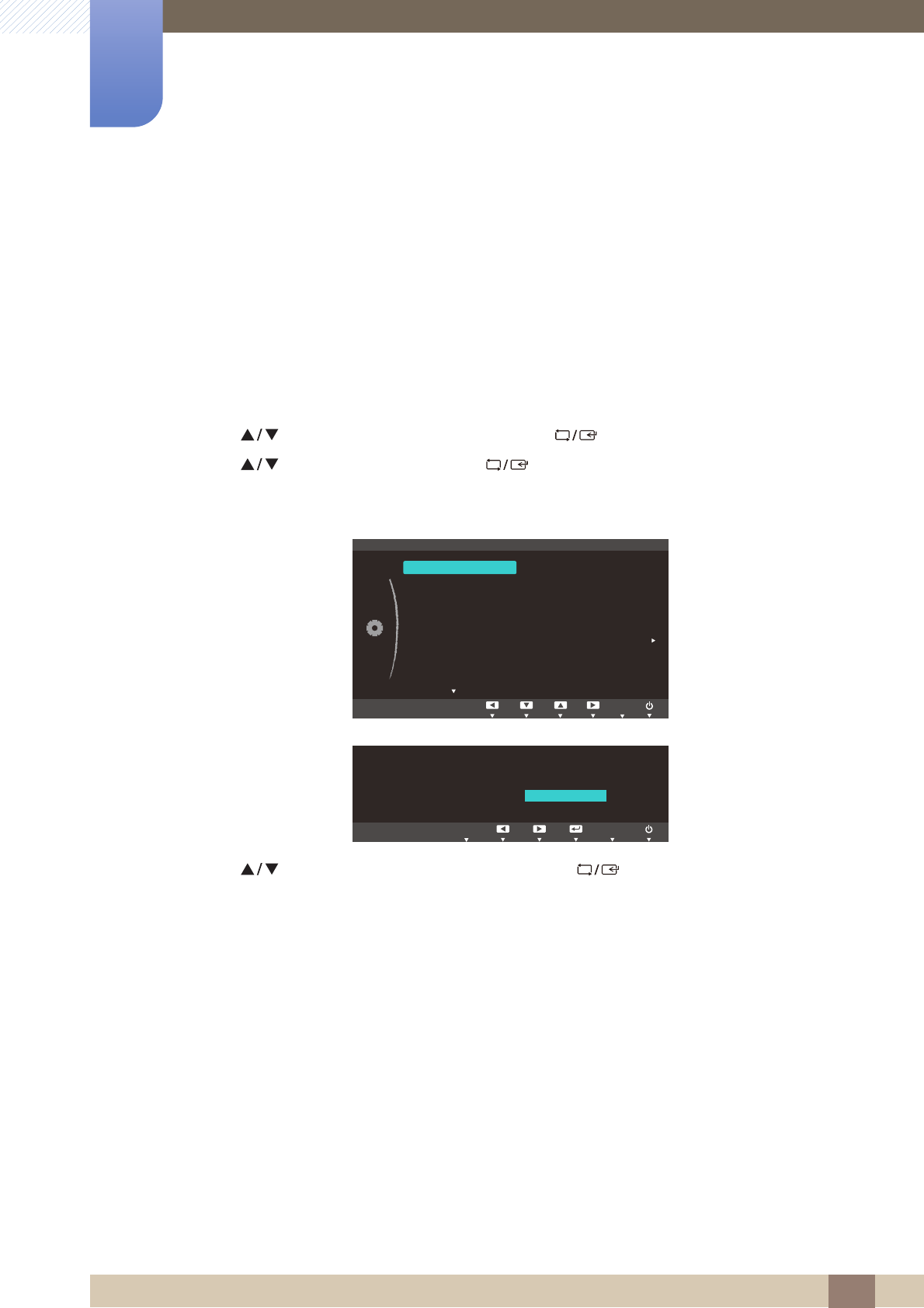

3.4.1 Configuring SAMSUNG MAGIC Bright
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Bright and press [ ] on the product.
The following screen will appear.
-Custom: Customize the contrast and brightness as required.
-Standard: Obtain a picture quality suitable for editing documents or using Internet.
-Game: Obtain a picture quality suitable for playing games that involve many graphic effects and
dynamic movements.
-Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD
content.
-Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
Custom
Off
Auto
Brightness
Contrast
Sharpness
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Custom
Standard
Game
Wide
Image Size
SAMSUNG
MAGIC
Upscale
Cinema
Dynamic Contrast
Move EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
42
Screen Setup
3
3 Screen Setup

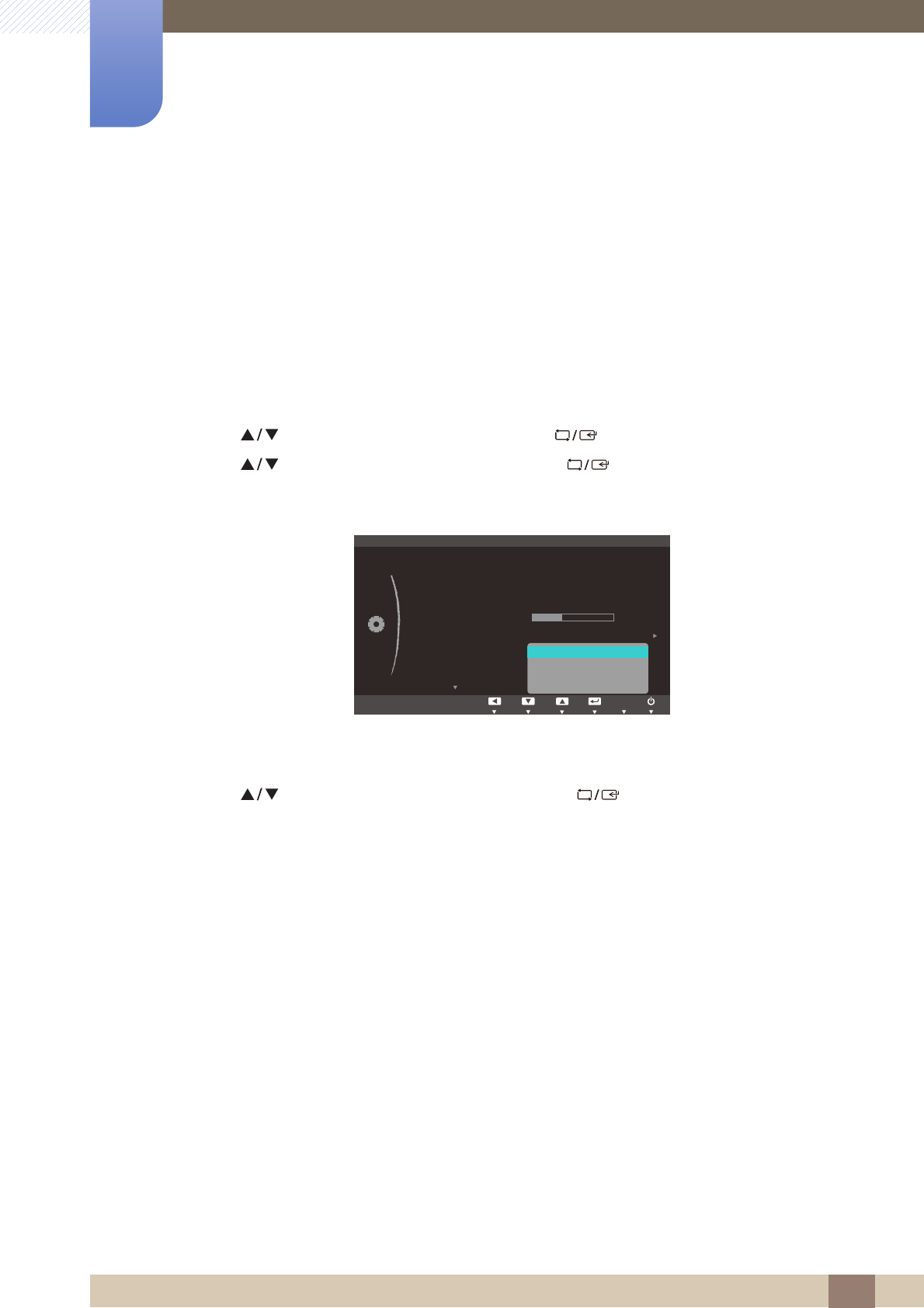

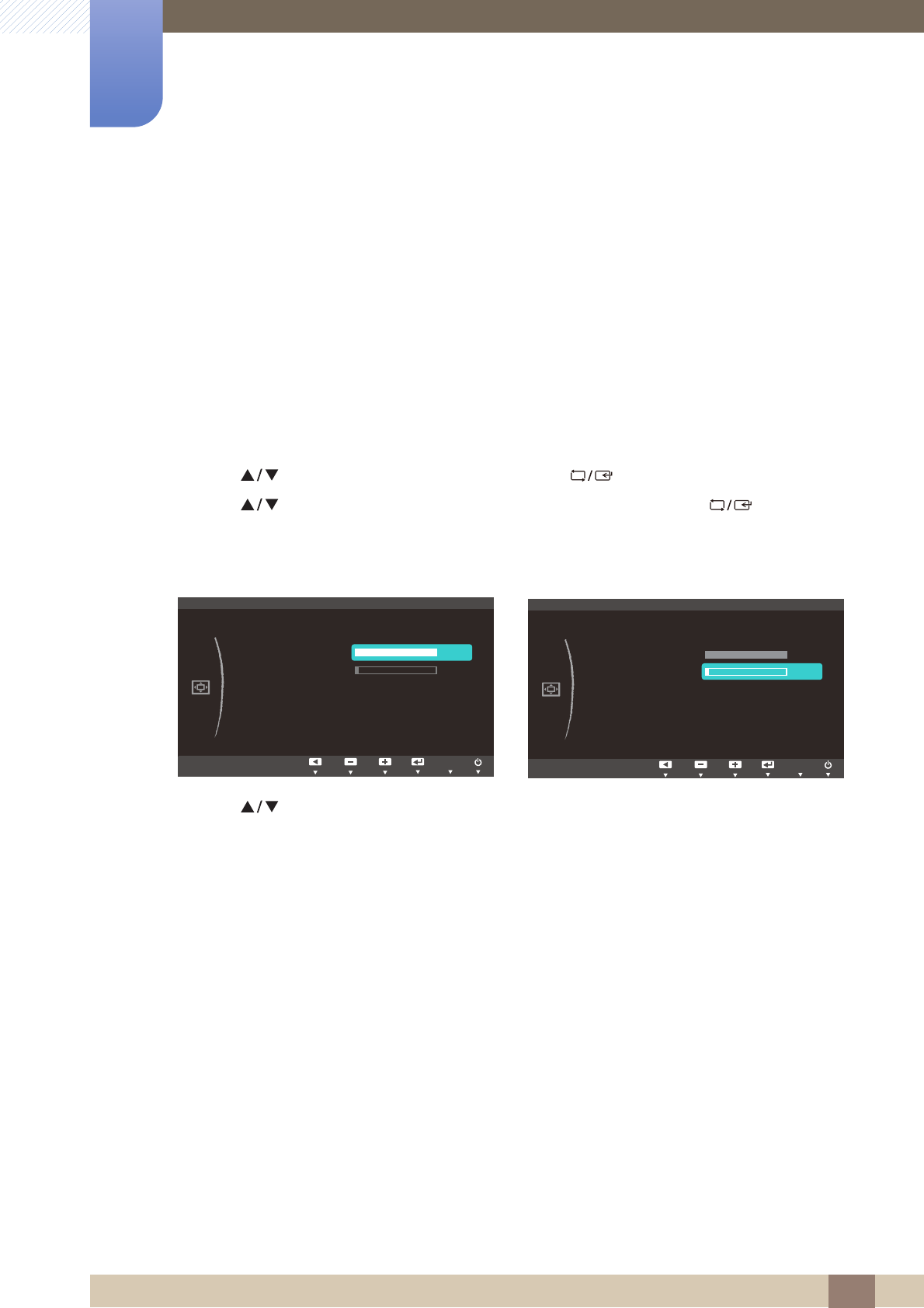

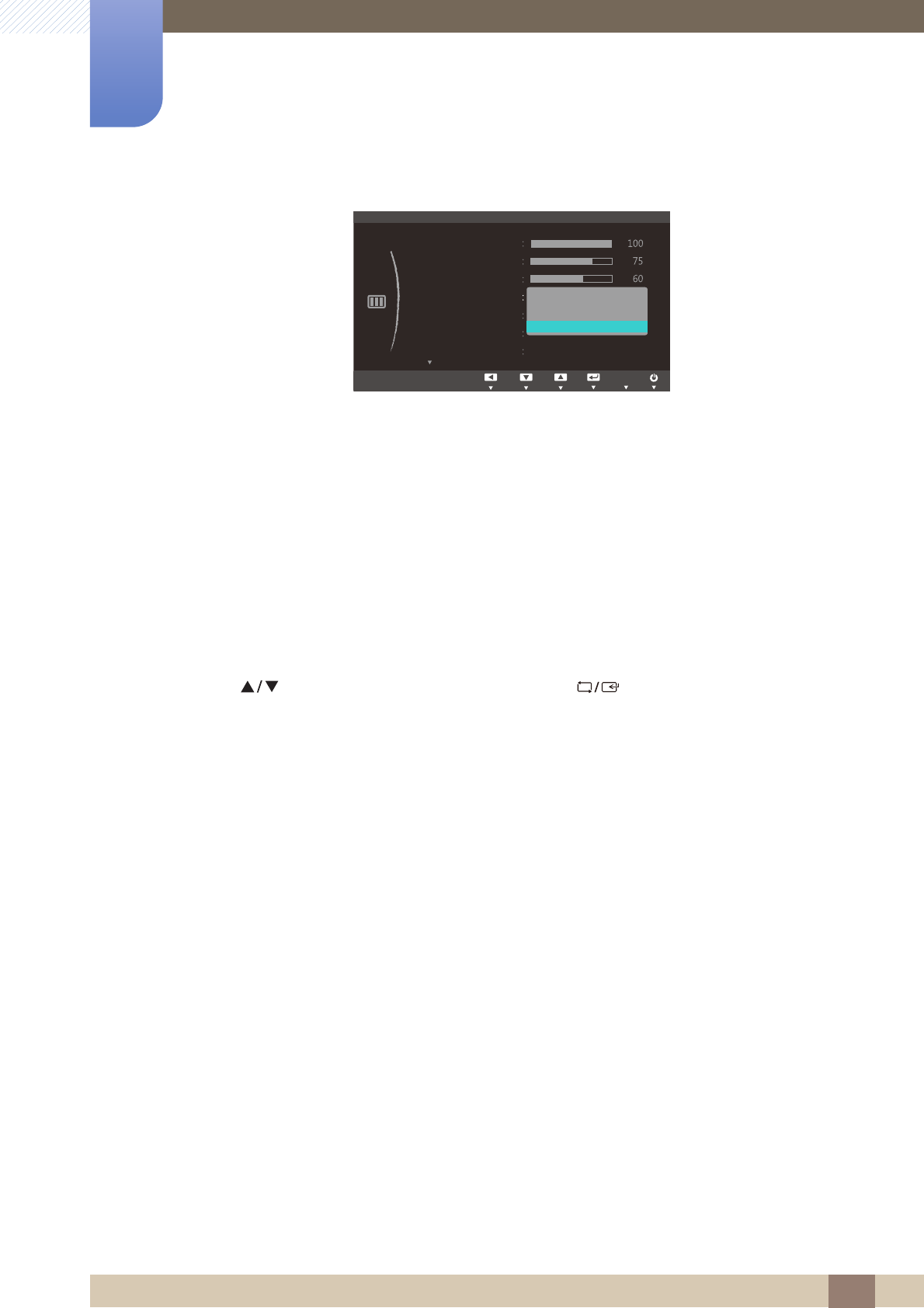

When the external input is connected through HDMI and PC/AV Mode is set to AV, Bright
has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the
factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom
which automatically recalls your personalized picture settings.
-Dynamic: Select this mode to view a sharper image than in Standard mode.
-Standard: Select this mode when the surroundings are bright. This also provides a sharp
image.
-Movie: Select this mode when the surroundings are dark. This will save power and reduce eye
fatigue.
-Custom: Select this mode when you want to adjust the image according to your preferences.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
Custom
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC Bright
MAGIC
Dynamic
Standard
Movie
Custom
Move EnterReturn
SAMSUNG
MAGIC Angle
Wide
SAMSUNG
MAGIC Upscale
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
SAMSUNG
MAGIC
43
Screen Setup
3
3 Screen Setup
3.5 SAMSUNG MAGIC Angle
Angle allows you to configure the settings to obtain the optimum picture quality according to your
viewing angle.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This feature provides the viewing angle, brightness, and tint to suit your preferences.
3.5.1 Configuring SAMSUNG MAGIC Angle
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Angle and press [ ] on the product.
The following screen will appear.
-Off : Select this option to view directly in front of the product.
-Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.
-Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.
-Standing Mode : Select this option to view from a place higher than the product.
-Side Mode : Select this option to view from either side of the product.
-Group View: Select this option for more than one viewer to view from places , and .
-Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
Custom
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC Bright
MAGIC
Off
Lean Back Mode 1
Lean Back Mode 2
Standing Mode
Side Mode
Group View
Custom
Move EnterReturn
SAMSUNG
MAGIC Angle
SAMSUNG
MAGIC Upscale
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
4
2
3
11
5 5
①
②
③
④
⑤
①
④⑤
44
Screen Setup
3
3 Screen Setup

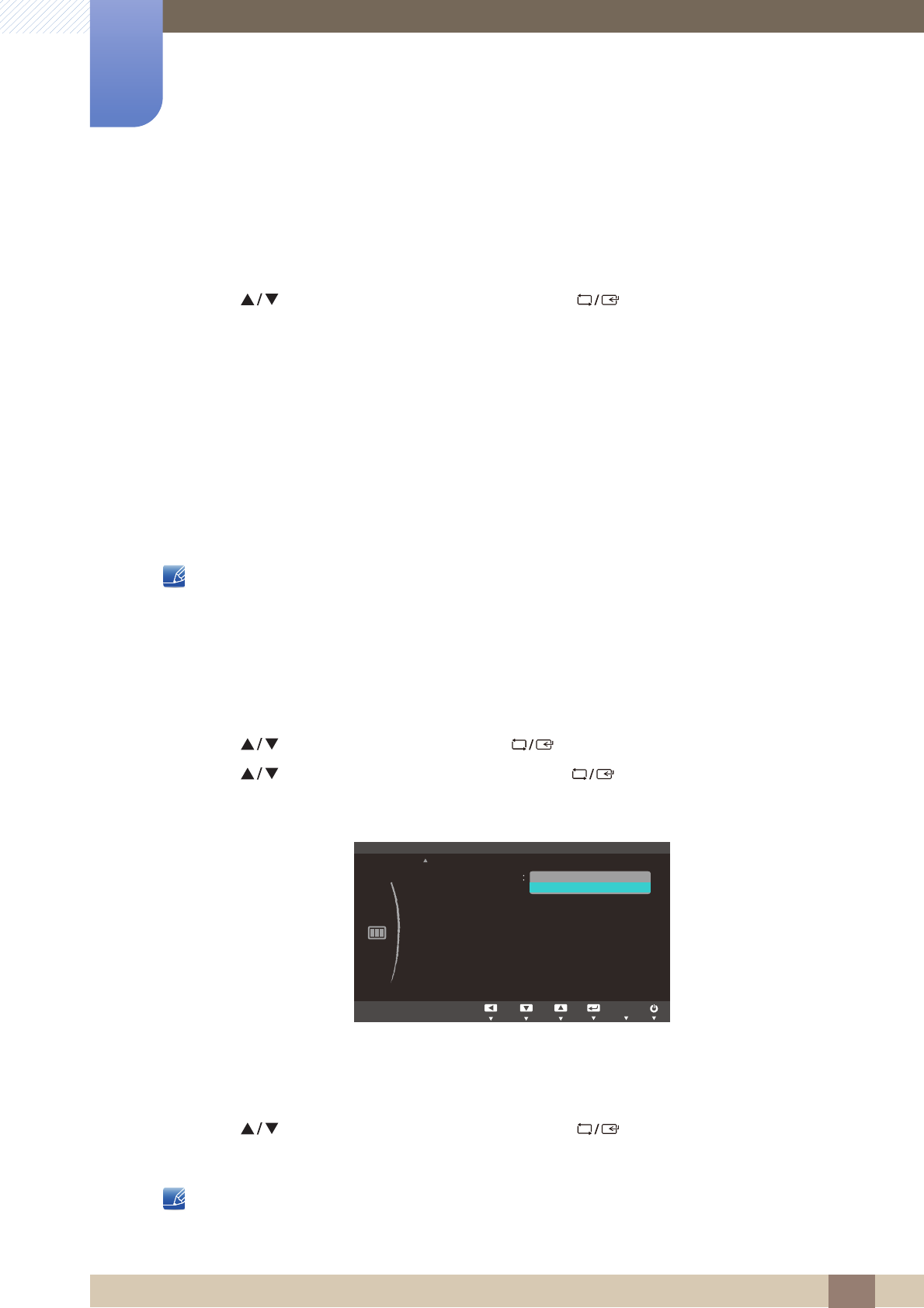

3.6 SAMSUNG MAGIC Upscale
Upscale function can enhance the layers of the picture details and the vividness of the picture.
-The function has more obvious effects on low-resolution pictures.
-This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
3.6.1 Configuring SAMSUNG MAGIC Upscale
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Upscale and press [ ] on the product.
The following screen will appear.
Comparing with Mode1, Mode2 has a stronger effect.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
Custom
Off
Auto
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC Bright
SAMSUNG
MAGIC Upscale
Off
Mode1
Mode2
Move EnterReturn
Off
SAMSUNG
MAGIC Angle
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
45
Screen Setup
3
3 Screen Setup
3.7 Image Size
Change the picture size.
3.7.1 Changing the Image Size
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Image Size and press [ ] on the product.
The following screen will appear.
-Auto: Display the picture according to the aspect ratio of the input source.
-Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
-4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
-16:9: Display the picture with an aspect ratio of 16:9.
-Screen Fit: Display the picture with the original aspect ratio without cutting off.
-Changing the screen size is available when the following conditions are satisfied.
-The function may not be supported depending on the ports provided with the product.
A digital output device is connected using the HDMI cable.
In PC mode
In AV mode
MENU
Custom
Off
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC Bright
SAMSUNG
MAGIC Upscale
Auto
Wide
Move EnterReturn
Off
SAMSUNG
MAGIC Angle
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
Custom
Off
Brightness
Contrast
Sharpness
Image Size
SAMSUNG
MAGIC Bright
SAMSUNG
MAGIC Upscale
Auto
Move EnterReturn
Off
SAMSUNG
MAGIC Angle
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
4:3
16:9
Screen Fit
46
Screen Setup
3
3 Screen Setup
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally
(Not every model can support all of these signals.).
This can only be set when the external input is connected through HDMI and
PC/AV Mode is set to AV.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
3.8 HDMI Black Level
If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/
color degradation, black level, etc.) may occur, depending on the connected source device. If this is the
case, correct the degraded picture quality using HDMI Black Level.
This function is only available in HDMI mode.
3.8.1 Configuring the HDMI Black Level Settings
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to HDMI Black Level and press [ ] on the product.
The following screen will appear.
-Normal: Select this mode when there is no contrast ratio degradation.
-Low: Select this mode to reduce the black level and increase the white level when there is a
contrast ratio degradation.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
HDMI Black Level may not be compatible with some source devices.
MENU
H-Position
V-Position
Coarse
Fine
Move EnterReturn
HDMI Black Level
Normal
Low
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
47
Screen Setup
3
3 Screen Setup
3.9 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
-This menu is available in Analog mode only.
-This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select
Screen Fit to adjust horizontal position in 0-6 levels.
3.9.1 Configuring H-Position & V-Position
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to H-Position or V-Position, and press [ ].
The following screen will appear.
4Press [ ] to configure H-Position or V-Position.
5The selected option will be applied.
MENU
0
HDMI Black Level
H-Position
V-Position
Coarse
Fine
2200
50
50
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
0
HDMI Black Level
H-Position
V-Position
Coarse
Fine
2200
50
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
50
48
Screen Setup
3
3 Screen Setup
3.10 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
3.10.1 Adjusting Coarse
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Coarse and press [ ] on the product.
The following screen will appear.
4Adjust the Coarse using the [ ] buttons.
5The selected option will be applied.
MENU
0
HDMI Black Level
H-Position
V-Position
Coarse
Fine
2200
50
50
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
49
Screen Setup
3
3 Screen Setup
3.11 Fine
Fine-adjust the screen to obtain a vivid picture.
This menu is available in Analog mode only.
3.11.1 Adjusting Fine
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Fine and press [ ] on the product.
The following screen will appear.
4Adjust the Fine using the [ ] buttons.
5The selected option will be applied.
MENU
0
HDMI Black Level
H-Position
V-Position
Coarse
Fine
2200
50
50
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
50
4 Configuring Tint
4 Configuring Tint
Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or
Dynamic Contrast mode.
SAMSUNG
MAGIC
4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.1.1 Configuring Red
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Red and press [ ] on the product.
The following screen will appear.
4Adjust the Red using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma Mode1
50
50
Normal
50
AUTO
AUTO
51
Configuring Tint
4
4 Configuring Tint
4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.2.1 Configuring Green
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Green and press [ ] on the product.
The following screen will appear.
4Adjust the Green using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma Mode1
50
50
Normal
50
Adjust EnterReturn
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
52
Configuring Tint
4
4 Configuring Tint
4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.3.1 Configuring Blue
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Blue and press [ ] on the product.
The following screen will appear.
4Adjust the Blue using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma 0RGH
50
50
Normal
50
Adjust EnterReturn
Adjust EnterReturn
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
AUTO
53
Configuring Tint
4
4 Configuring Tint
4.4 Color Tone
Adjust the general color tone of the picture.
This menu is not available when Angle is enabled.
4.4.1 Configuring the Color Tone Settings
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Color Tone and press [ ] on the product.
The following screen will appear.
-Cool 2: Set the color temperature to be cooler than Cool 1.
-Cool 1: Set the color temperature to be cooler than Normal mode.
-Normal: Display the standard color tone.
-Warm 1: Set the color temperature to be warmer than Normal mode.
-Warm 2: Set the color temperature to be warmer than Warm 1.
-Custom: Customize the color tone.
-When the external input is connected through HDMI and PC/AV Mode is set to AV,
Color Tone has four color temperature settings (Cool, Normal, Warm and Custom).
-The function may not be supported depending on the ports provided with the product.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
Cool 2
Cool 1
Normal
Warm 1
Warm 2
Custom
50
50
50
AUTO
54
Configuring Tint
4
4 Configuring Tint
4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This menu is not available when Angle is enabled.
4.5.1 Configuring Gamma
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Gamma and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma Mode1
Mode2
Mode3
50
50
50
Normal
AUTO
55
5 Coordinating OSD
5 Coordinating OSD
5.1 Language
Set the menu language.
-A change to the language setting will only be applied to the onscreen menu display.
-It will not be applied to other functions on your PC.
5.1.1 Configuring Language
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Language and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the language you want and press [ ].
5The selected option will be applied.
MENU

20 sec
On
0(186(77,1*6
/DQJXDJH
0HQX+3RVLWLRQ
0HQX93RVLWLRQ
'LVSOD\7LPH
7UDQVSDUHQF\



'HXWVFK
(QJOLVK
(VSDxRO
)UDQoDLV
,WDOLDQR
0DJ\DU
3ROVNL
3RUWXJXrV
ƧNJLjLjǁƿǀ
6YHQVND
7UNoH
ଞ˲߭
∝䇁
AUTO
᪥ᮏㄒ
56
Coordinating OSD
5
5 Coordinating OSD
5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ] on the
product.
The following screen will appear.
4Press [ ] to configure Menu H-Position or Menu V-Position.
5The selected option will be applied.
MENU
(QJOLVK
VHF
2Q
0(186(77,1*6

AUTO
/DQJXDJH
0HQX+3RVLWLRQ
0HQX93RVLWLRQ
'LVSOD\7LPH
7UDQVSDUHQF\

AUTO
AUTO
AUTO
(QJOLVK
20 VHF
2Q
0(186(77,1*6
/DQJXDJH
0HQX+3RVLWLRQ
0HQX93RVLWLRQ
'LVSOD\7LPH
7UDQVSDUHQF\


AUTO
AUTO
AUTO
AUTO
57
Coordinating OSD
5
5 Coordinating OSD
5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Display Time and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
(QJOLVK
20 sec
On
0(186(77,1*6
/DQJXDJH
0HQX+3RVLWLRQ
0HQX93RVLWLRQ
'LVSOD\7LPH
7UDQVSDUHQF\

AUTO

VHF
VHF
VHF
VHF
AUTO
58
Coordinating OSD
5
5 Coordinating OSD
5.4 Transparency
Set the transparency for the menu windows:
5.4.1 Changing Transparency
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Transparency and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
(QJOLVK
VHF
On
0(186(77,1*6
/DQJXDJH
0HQX+3RVLWLRQ
0HQX93RVLWLRQ
'LVSOD\7LPH
7UDQVSDUHQF\

AUTO

2II
2Q
AUTO
59
6 Setup and Reset
6 Setup and Reset
6.1 Reset
Return all the settings for the product to the default factory settings.
6.1.1 Initializing Settings (Reset)
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Reset and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
6(7835(6(7
2II
2II
$FFHOHUDWLRQ
0DQXDO
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
AUTO
5HVHWDOOVHWWLQJV"
<HV 1R
EXIT AUTO
60
Setup and Reset
6
6 Setup and Reset
6.2 Eco Saving
The Eco Saving function reduces power consumption by controlling the electric current used by the
monitor panel.
This menu is not available when Bright is in Dynamic Contrast mode.
6.2.1 Configuring Eco Saving
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Eco Saving and press [ ] on the product.
The following screen will appear.
-75%: Change the monitor power consumption to 75% of the default level.
-50%: Change the monitor power consumption to 50% of the default level.
-Off: Deactivate the Eco Saving function.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
6(7835(6(7
Off
Off
$FFHOHUDWLRQ
0DQXDO
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
ଥࢿ
ଥࢿ
2II


AUTO
6(7835(6(7
AUTO
61
Setup and Reset
6
6 Setup and Reset
6.3 Off Timer
You can set the product to automatically turn off.
6.3.1 Configuring Off Timer
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer and press [ ] on the product.
The following screen will appear.
-Off: Deactivate the off timer so that the product does not power off automatically.
-On: Activate the off timer so that the product powers off automatically.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
6(7835(6(7
2II
$FFHOHUDWLRQ
0DQXDO
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
AUTO
2II
2Q
AUTO
62
Setup and Reset
6
6 Setup and Reset
6.4 Turn Off After
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the
specified number of hours.
This option is only available when Off Timer is set to On.
6.4.1 Configuring Turn Off After
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Turn Off After and press [ ] on the product.
The following screen will appear.
4Press [ ] to configure Turn Off After.
5The selected option will be applied.
For products for the market in Europe, the Off Timer is set to automatically activate 4 hours after the
product powers on. This is done in accordance with power supply regulations. If you do not want the
timer to activate, go to MENU SETUP&RESET and set Off Timer to Off.
MENU
6(7835(6(7
2II
$FFHOHUDWLRQ
0DQXDO
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
2Q
K
AUTO
AUTO
AUTO
→
63
Setup and Reset
6
6 Setup and Reset
6.5 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
-This function does not support Analog mode.
-Supplied for the wide models only such as 16:9 or 16:10.
6.5.1 Configuring PC/AV Mode
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to PC/AV Mode and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
6(7835(6(7
2II
$FFHOHUDWLRQ
0DQXDO
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
2Q
K
AUTO
3&$90RGH
HDMI
AUTO
PC
AV
64
Setup and Reset
6
6 Setup and Reset
6.6 Key Repeat Time
Control the response rate of a button when the button is pressed.
6.6.1 Configuring Key Repeat Time
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Key Repeat Time and press [ ] on the product.
The following screen will appear.
-Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
6(7835(6(7
2II
Acceleration
Manual
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
2Q
4K
$FFHOHUDWLRQ
VHF
VHF
1R5HSHDW
AUTO
65
Setup and Reset
6
6 Setup and Reset
6.7 Source Detection
You can activate Source Detection.
6.7.1 Configuring Source Detection
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Source Detection and press [ ] on the product.
The following screen will appear.
-Auto: The input source is automatically recognized.
-Manual: Manually select an input source.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
6(7835(6(7
2II
$FFHOHUDWLRQ
5HVHW
(FR6DYLQJ
2II7LPHU
7XUQ2II$IWHU
3&$90RGH
.H\5HSHDW7LPH
6RXUFH'HWHFWLRQ
2Q
K
AUTO
$XWR
0DQXDO
66
Setup and Reset
6
6 Setup and Reset
6.8 Customized Key
You can customize Customized Key as follows.
6.8.1 Configuring Customized Key
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Customized Key and press [ ] on the product.
The following screen will appear.
-Angle - Bright - Eco Saving - Image Size
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
6(7835(6(7
&XVWRPL]HG.H\ $FFHOHUDWLRQ
2Q
(FR6DYLQJ
,PDJH6L]H
SAMSUNG
MAGIC
Angle
AUTO
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
SAMSUNG
MAGIC
67
7 INFORMATION Menu and Others
7 INFORMATION Menu and Others
7.1 INFORMATION
View the current input source, frequency and resolution.
7.1.1 Displaying INFORMATION
1Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2Press [ ] to move to INFORMATION.
The current input source, frequency and resolution will appear.
The displayed menu items may vary depending on the model.
MENU
SETUP&RESET
Analog
**kHz **Hz NP
**** x ****
Optimal Mode
**** x **** **Hz
֩ЍیԂक ۴੔࣏ࢽ
COLOR
MENU SETTINGS
INFORMATION
AUTOEXIT AUTO
EXIT
68
INFORMATION Menu and Others
7
7 INFORMATION Menu and Others
7.2 Configuring Brightness and Contrast in the Initial Screen
Adjust the Brightness, Contrast using the [ ] buttons when the initial screen (that displays no menu
screen) is displayed.
1Press any button on the front of the product (when no menu screen is displayed) to display the
Function Key Guide.
Next, press [ ]. The following screen will appear.
2Press the [ ] button to alternate between the Brightness and Contrast settings.
3Adjust the Brightness, Contrast using the [ ] buttons.
%ULJKWQHVV
100
&RQWUDVW
75
EXIT
69
8 Installing the Software
8 Installing the Software
8.1 MagicTune
8.1.1 What is "MagicTune"?
"MagicTune" is a software program that helps with monitor adjustments by providing comprehensive
descriptions of monitor functions and easy-to-understand guidelines.
You can adjust the product with the mouse and the keyboard without using the operating buttons of the
product.
8.1.2 Installing the Software
1Insert the installation CD into the CD-ROM drive.
2Select the "MagicTune" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "MagicTune" setup file on the CD-ROM.
3Select the installation language and click Next.
4Complete the remaining software installation steps according to the instructions displayed on the
screen.
-The software may not work properly if you do not restart the computer after the installation.
-The "MagicTune" icon may not appear depending on the computer system and the product
specifications.
-If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation ("MagicTune™")
The installation of "MagicTune™" may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS
-Windows XP, Windows Vista, Windows 7, Windows 8
70
Installing the Software
8
8 Installing the Software
8.1.3 Removing the Software
You can only remove "MagicTune™" through Add or Remove Programs in Windows.
To remove "MagicTune™", complete the following steps.
1Click Start select Settings, and select Control Panel from the menu.
For Windows XP, click Start, and select Control Panel from the menu.
2Double-click the Add or Remove Programs icon in the Control Panel.
3In the Add/Remove window, find and select "MagicTune™" so that it is highlighted.
4Click Change or Remove Programs to remove the software.
5Select Yes to start removing "MagicTune™".
6Wait until a message box appears informing you that the software has been removed completely.
For technical support, the FAQ (frequently asked questions) or information about the software
upgrade for "MagicTune™", please visit our website (http://www.samsung.com/us/consumer/
learningresources/monitor/magetune/pop_intro.html).
71
Installing the Software
8
8 Installing the Software
8.2 MultiScreen
"MultiScreen" enables users to use the monitor by partitioning multiple sections.
8.2.1 Installing the Software
1Insert the installation CD into the CD-ROM drive.
2Select the "MultiScreen" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "MultiScreen" setup file on the CD-ROM.
3When the Installation Wizard appears, click Next.
4Complete the remaining software installation steps according to the instructions displayed on the
screen.
-The software may not work properly if you do not restart the computer after the installation.
-The "MultiScreen" icon may not appear depending on the computer system and the product
specifications.
-If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation ("MultiScreen")
The "MultiScreen" installation may be affected by the Graphics Card, Motherboard and the Networking
Environment.
System Requirements
OS
-Windows™ 2000
-Windows XP Home Edition
-Windows XP Professional
-Windows Vista 32Bit
-Windows 7 32Bit
-Windows 8 32Bit
For "MultiScreen", the operating systems Windows 2000 or later is recommended.
MultiScreen
72
Installing the Software
8
8 Installing the Software
Hardware
-At least 32MB of memory
-At least 60MB of free space on the hard disk drive
8.2.2 Removing the Software
Click Start, select Settings/Control Panel, and then double-click Add or Remove Programs.
Select "MultiScreen" from the program list and click the Add/Delete button.
73
9 Troubleshooting Guide
9 Troubleshooting Guide
9.1 Requirements Before Contacting Samsung Customer
Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1Power off both the PC and product.
2Disconnect the cables from the product.
3Power on the product.
4If the message Check Signal Cable appears, the product is working normally.
If the screen remains blank, check the PC system, video controller and cable.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.3 Standard Signal Mode Table"),
the message Not Optimum Mode will appear for a short time.
9.1.3 Check the following.
Installation issue (PC mode)
Issues Solutions
The screen keeps switching on and off. Check the cable connection between the product
and PC, and ensure the connectors are locked.
(Refer to "2.2 Connecting and Using a PC")
74
Troubleshooting Guide
9
9 Troubleshooting Guide
Screen issue
Issues Solutions
The power LED is off. The screen will not switch
on.
Check that the power cable is connected
properly.
(Refer to "2.2 Connecting and Using a PC")
The message Check Signal Cable appears. Check that the cable is properly connected to the
product.
(Refer to "2.2 Connecting and Using a PC")
Check that the device connected to the product is
powered on.
Not Optimum Mode is displayed. This message appears when the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 80).
The images on the screen look distorted. Check the cable connection to the product.
(Refer to "2.2 Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse and Fine.
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears unstable and shaky. Check that the resolution and frequency for the
PC are within the range of resolution and
frequency compatible with the product.
Next, if required, change the settings, referring to
Standard Signal Mode Table (page 80) in this
manual and the INFORMATION menu on the
product.
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness and Contrast.
Screen color is inconsistent. Change the COLOR settings.
(Refer to " Configuring Tint")
The colors on the screen have a shadow and are
distorted.
Change the COLOR settings.
(Refer to " Configuring Tint")
White does not really look white. Change the COLOR settings.
(Refer to " Configuring Tint")
75
Troubleshooting Guide
9
9 Troubleshooting Guide
Source device issue
There is no image on the screen and the power
LED blinks every 0.5 to 1 second.
The product is operating in power-saving mode.
Press any key on the keyboard or move the
mouse to return to normal operating mode.
Issues Solutions
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
booting, have your PC serviced.
Issues Solutions
76
Troubleshooting Guide
9
9 Troubleshooting Guide
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
-
Windows XP: Go to
Control Panel
Appearance and Themes
Display
Settings
Advanced
Monitor
, and adjust
Refresh rate
under
Monitor settings
.
-
Windows ME/2000: Go to
Control Panel
Display
Settings
Advanced
Monitor
, and adjust
Refresh rate
under
Monitor settings
.
-
Windows Vista: Go to
Control Panel
Appearance and Personalization
Personalization
Display Settings
Advanced Settings
Monitor
, and adjust
Refresh rate
under
Monitor settings
.
-
Windows 7: Go to
Control Panel
Appearance and Personalization
Display
Screen Resolution
Advanced settings
Monitor
, and
adjust
Refresh rate
under
Monitor settings
.
-
Windows 8: Go to
Settings
Control Panel
Appearance and Personalization
Display
Screen Resolution
Advanced settings
Monitor
, and
adjust
Refresh rate
under
Monitor settings
.
77
Troubleshooting Guide
9
9 Troubleshooting Guide
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the
resolution?
-
Windows XP: Go to
Control Panel
Appearance and Themes
Display
Settings
, and adjust the resolution.
-
Windows ME/2000: Go to
Control Panel
Display
Settings
,
and adjust the resolution.
-
Windows Vista: Go to
Control Panel
Appearance and Personalization
Personalize
Display Settings
, and adjust the resolution.
-
Windows 7: Go to
Control Panel
Appearance and Personalization
Display
Adjust Resolution
, and adjust the resolution.
-
Windows 8: Go to
Settings
Control Panel
Appearance and Personalization
Display
Adjust Resolution
, and adjust the resolution.
How do I set power-saving
mode?
-
Windows XP: Set power-saving mode in
Control Panel
Appearance and Themes
Display
Screen Saver Settings
or BIOS SETUP on the PC.
-
Windows ME/2000: Set power-saving mode in
Control Panel
Display
Screen Saver Settings
or BIOS SETUP on the PC.
-
Windows Vista: Set power-saving mode in
Control Panel
Appearance and Personalization
Personalize
Screen Saver Settings
or BIOS SETUP on the PC.
-
Windows 7: Set power-saving mode in
Control Panel
Appearance and Personalization
Personalize
Screen Saver Settings
or BIOS SETUP on the PC.
-
Windows 8: Set power-saving mode in
Settings
Control Panel
Appearance and Personalization
Personalize
Screen Saver Settings
or BIOS SETUP on the PC.
Question Answer
78
10 Specifications
10 Specifications
10.1 General
Model Name S27C390H
Panel
Size 27 Inches (68 cm)
Display area 597.60 mm (H) x 336.15 mm (V)
23.53 Inches (H) x 13.23 Inches (V)
Pixel Pitch 0.31125 mm (H) x 0.31125 mm (V)
0.0123 Inches (H) x 0.0123 Inches (V)
Synchronization Horizontal
Frequency
30 ~ 81 kHz
Vertical
Frequency
56 ~ 75 Hz
Display Color
16.7 M
Resolution Optimum
Resolution
1920 x 1080 @ 60 Hz
Maximum
Resolution
1920 x 1080 @ 60 Hz
Input Signal, Terminated RGB Analog, HDMI (High Definition Multimedia Interface)
0.7 Vp-p ± 5%
separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
Maximum Pixel Clock 148 MHz (Analog, HDMI)
Power Supply
This product supports 100-240 V. Since the standard voltage may
differ from country to country, please check the label on the back of the
product.
Signal connectors 15pin-to-15pin D-sub cable, Detachable
HDMI to DVI Cable, Detachable
HDMI Cable, Detachable
Dimensions
(W x H x D) /
Weight
Without Stand 643 x 398 x 55 mm
25.3 x 15.7 x 2.2 inches
With Stand 643 x 470 x 252 mm / 4.2 kg
25.3 x 18.5 x 9.9 inches / 9.3 lbs
79
Specifications
10
10 Specifications
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Environmental
considerations
Operating Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % – 80 %, non-condensing
Storage Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % – 95 %, non-condensing
Plug-and-Play This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Panel Dots (Pixels) Due to the nature of the manufacturing of this product,
approximately 1 pixel per million (1ppm) may be brighter or darker
on the LCD panel.
This does not affect product performance.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
Model Name S27C390H
80
Specifications
10
10 Specifications
10.2 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
controlling the power LED status if the product is not used for a specified period of time.
The power is not turned off in power-saving mode. To switch the screen back on, press any key on the
keyboard or move the mouse. Power-saving mode functions only when the product is connected to a
PC that has a power-saving function.
-The power consumption level can vary in different operating conditions or when settings are
changed.
(S*C390 Model Power saving mode / Power off (Power button) : Max 0.45 watts.)
-ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Energy Star power is measured with the test method in the current Energy Star® Standard.
-To reduce the power consumption to 0 watts, turn off the power switch on the back of the product
or disconnect the power cable. Be sure to disconnect the power cable when you will not be using
the product for an extended period of time. To reduce the power consumption to 0 watts when the
power switch is not available, disconnect the power cable.
10.3 Standard Signal Mode Table
-This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
-Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
PowerSaver Energy Star
Power Consumption Power saving mode Power off
(Power button)
Power Indicator On Blinking Off
Power Consumption 25 W Typical 0.3 W Typical 0.3 W
81
Specifications
10
10 Specifications
-Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
-Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures.
The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480
35.000
66.667 30.240 -/-
MAC, 832 x 624
49.726 74.551
57.284 -/-
MAC, 1152 x 870
68.681
75.062 100.000 -/-
VESA, 640 x 480
31.469
59.940
25.175
-/-
VESA, 640 x 480
37.861
72.809 31.500 -/-
VESA, 640 x 480 37.500 75.
000
31.500 -/-
VESA, 800 x 600
35.156
56.250 36.000 +/+
VESA, 800 x 600
37.879
60.317 40.000 +/+
VESA, 800 x 600 48.077
72.188 50.000
+/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768
48.363
60.004 65.000 -/-
VESA, 1024 x 768
56.476
70.069 75.000 -/-
VESA, 1024 x 768
60.023
75.029 78.750 +/+
VESA, 1152 x 864
67.500 75.000 108.000 +/+
VESA, 1280 x 720
45.000 60.000 74.250 +/+
VESA, 1280 x 800
49.702 59.810 83.500 -/+
VESA, 1280 x 1024
63.981 60.020 108.000 +/+
VESA, 1280 x 1024
79.976 75.025 135.000 +/+
VESA, 1440 x 900
55.935 59.887 106.500 -/+
VESA, 1600 x 900 (RB)
60.000 60.000 108.000 +/+
VESA, 1680 x 1050
65.290 59.954 146.250 -/+
VESA, 1920 x 1080p
67.500 60.000 148.500 +/+
82
Appendix
Appendix
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
NORTH AMERICA
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca
(English)
http://www.samsung.com/ca_fr
(French)
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com
LATIN AMERICA
ARGENTINE 0800-333-3733 http://www.samsung.com
BOLIVIA 800-10-7260 http://www.samsung.com
BRAZIL 0800-124-421
4004-0000
http://www.samsung.com
CHILE 800-SAMSUNG (726-7864)
From mobile 02-24 82 82 00
http://www.samsung.com/cl
COLOMBIA http://www.samsung.com/co
COSTA RICA 0-800-507-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
DOMINICA 1-800-751-2676 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
ECUADOR 1-800-10-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
EL SALVADOR 800-6225 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
01-8000 112 112
Bogotá: 6001272
83
Appendix
Appendix
GUATEMALA 1-800-299-0013 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
HONDURAS 800-27919267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
JAMAICA 1-800-234-7267 http://www.samsung.com
NICARAGUA 00-1800-5077267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
PANAMA 800-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
PARAGUAY 009-800-542-0001 http://www.samsung.com
PERU 0-800-777-08 (Only from landline)
336-8686 (From HHP & landline)
http://www.samsung.com
PUERTO RICO 1-800-682-3180 http://www.samsung.com
TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com
URUGUAY 000-405-437-33 http://www.samsung.com
VENEZUELA 0-800-100-5303 http://www.samsung.com
EUROPE
AUSTRIA 0810 - SAMSUNG
(7267864, € 0.07/min)
http://www.samsung.com
BELGIUM 02-201-24-18 http://www.samsung.com/be
(Dutch)
http://www.samsung.com/be_fr
(French)
BOSNIA 051 133 1999 http://www.samsung.com
BULGARIA 07001 33 11 , normal tariff http://www.samsung.com
CROATIA 062 SAMSUNG (062 726 786) http://www.samsung.com
LATIN AMERICA
84
Appendix
Appendix
CYPRUS 8009 4000 only from landline
(+30) 210 6897691 from mobile
and land line
http://www.samsung.com
CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com
DENMARK 70 70 19 70 http://www.samsung.com
EIRE 0818 717100 http://www.samsung.com
ESTONIA 800-7267 http://www.samsung.com/ee
FINLAND 030-6227 515 http://www.samsung.com
FRANCE 01 48 63 00 00 http://www.samsung.com/fr
GERMANY 0180 5 SAMSUNG bzw.
0180 5 7267864* (*0,14 €/Min. aus
dem dt. Festnetz, aus dem
Mobilfunk max. 0,42 €/Min.)
http://www.samsung.com
GREECE 80111-SAMSUNG (80111 726
7864) only from land line
(+30) 210 6897691 from mobile
and land line
http://www.samsung.com
HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com
ITALIA 800-SAMSUNG (726-7864) http://www.samsung.com
LATVIA 8000-7267 http://www.samsung.com/lv
LITHUANIA 8-800-77777 http://www.samsung.com/lt
LUXEMBURG 261 03 710 http://www.samsung.com
MONTENEGRO 020 405 888 http://www.samsung.com
NETHERLANDS 0900 - SAMSUNG
(0900-7267864) (€ 0,10/Min)
http://www.samsung.com
NORWAY 815 56480 http://www.samsung.com
POLAND http://www.samsung.com/pl
EUROPE
Samsung Electronics Czech and Slovak, s.r.o.,
Oasis Florenc, Sokolovská 394/17, 180 00, Praha 8
till 8.2.2013 . From 8.2.2013: Samsung Electronics Czech and
Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4
0 801-1SAMSUNG(172-678) *
lub +48 22 607-93-33 **





85
Appendix
Appendix
PORTUGAL 808 20 - SAMSUNG (808 20 7267) http://www.samsung.com
ROMANIA 08008 SAMSUNG (08008 726
7864)
TOLL FREE No.
http://www.samsung.com
SERBIA +381 11 321 6899
(old number still active 0700
7267864)
http://www.samsung.com
SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com
SPAIN 902 - 1 - SAMSUNG (902 172 678) http://www.samsung.com
SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com
SWITZERLAND 0848-SAMSUNG
(7267864, CHF 0.08/min)
http://www.samsung.com/ch
(German)
http://www.samsung.com/ch_fr
(French)
U.K 0330 SAMSUNG (7267864) http://www.samsung.com
CIS
ARMENIA 0-800-05-555 http://www.samsung.com
AZERBAIJAN 088-55-55-555 http://www.samsung.com
BELARUS 810-800-500-55-500 http://www.samsung.com
GEORGIA 0-800-555-555 http://www.samsung.com
KAZAKHSTAN 8-10-800-500-55-500
(GSM: 7799)
http://www.samsung.com
KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com
MOLDOVA 0-800-614-40 http://www.samsung.com
MONGOLIA +7-800-555-55-55 http://www.samsung.com
RUSSIA 8-800-555-55-55 http://www.samsung.com
TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com
UKRAINE 0-800-502-000 http://www.samsung.com/ua
(Ukrainian)
http://www.samsung.com/ua_ru
(Russian)
UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com
EUROPE
86
Appendix
Appendix
ASIA PACIFIC
AUSTRALIA 1300 362 603 http://www.samsung.com
CHINA 400-810-5858 http://www.samsung.com
HONG KONG (852) 3698 - 4698 http://www.samsung.com/hk
(Chinese)
http://www.samsung.com/hk_en
(English)
INDIA 1800 3000 8282
1800 266 8282
http://www.samsung.com/in
INDONESIA 0800-112-8888
021-5699-7777
http://www.samsung.com/id
JAPAN 0120-327-527 http://www.samsung.com
MALAYSIA 1800-88-9999 http://www.samsung.com/my
NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com
PHILIPPINES 1-800-10-SAMSUNG (726-7864)
for PLDT
1-800-3-SAMSUNG (726-7864)
for Digitel
1-800-8-SAMSUNG (726-7864)
for Globe
02-5805777
http://www.samsung.com/ph
SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com
TAIWAN 0800-329-999
0266-026-066
http://www.samsung.com
THAILAND 1800-29-3232
02-689-3232
http://www.samsung.com/th
VIETNAM 1 800 588 889 http://www.samsung.com
MENA
BAHRAIN 8000-4726 http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
EGYPT 08000-726786 http://www.samsung.com
IRAN 021-8255 http://www.samsung.com
JORDAN 800-22273
065777444
http://www.samsung.com/Levant
(English)
87
Appendix
Appendix
KUWAIT 183-2255 (183-CALL) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
MOROCCO 080 100 2255 http://www.samsung.com
OMAN 800-SAMSUNG (726-7864) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
QATAR 800-2255 (800-CALL) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
SAUDI ARABIA 9200-21230 http://www.samsung.com/sa
(Arabic)
SYRIA 18252273 http://www.samsung.com/Levant
(English)
TURKEY 444 77 11 http://www.samsung.com
U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com
AFRICA
ANGOLA 91-726-7864 http://www.samsung.com
BOTSWANA 0800-726-000 http://www.samsung.com
CAMEROON 7095- 0077 http://www.samsung.com
COTE D’ IVOIRE 8000 0077 http://www.samsung.com
GHANA 0800-10077
0302-200077
http://www.samsung.com
KENYA 0800 545 545 http://www.samsung.com
NAMIBIA 8197267864 http://www.samsung.com
NIGERIA 0800-726-7864 http://www.samsung.com
SENEGAL 800-00-0077 http://www.samsung.com
SOUTH AFRICA 0860-SAMSUNG (726-7864) http://www.samsung.com
TANZANIA 0685 88 99 00 http://www.samsung.com
UGANDA 0800 300 300 http://www.samsung.com
ZAMBIA 211350370 http://www.samsung.com
MENA
88
Appendix
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
-If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
-If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)
-If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
-If a product is reinstalled to move to a different spot or to move to a different house.
-If customer requests instructions on how to use because of another company's product.
-If customer requests instructions on how to use the network or another company's program.
-If customer requests software installation and setup for the product.
-If a service technician removes/cleans dusts or foreign materials inside of the product.
-If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
-external impact or drop.
-use of supplies or separately sold product unspecified by Samsung.
-repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
-remodeling or repairing the product by customer.
-using it with incorrect voltage or non-authorised electrical connections.
-not following the "cautions" in User Manual.
89
Appendix
Appendix
Others
-If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
-If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
90
Appendix
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
91
Appendix
Appendix
Terminology
OSD (On Screen Display)
On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as
required. You can change the screen brightness, tint, size and many other settings using menus
displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal
frequency is measured in kHz and represents how many times horizontal lines per second are
transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the
horizontal lines that make up an image are transmitted 85000 times per second. The horizontal
frequency is indicated in 85kHz.
Vertical Frequency
One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and
represents how many images can be created per second by those horizontal lines. A vertical
frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is
also called "refresh rate" and affects screen flicker.
92
Appendix
Appendix
Resolution
Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the
level of display detail.
A higher resolution displays a greater amount of information on the screen and is suitable for
performing multiple tasks at the same time.
E.g. A resolution of 1366 x 768 consists of 1366 horizontal pixels (horizontal resolution) and 768
vertical lines (vertical resolution).
E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080
vertical lines (vertical resolution).
Plug & Play
The Plug & Play feature allows the automatic exchange of information between a monitor and PC to
produce an optimum display environment.
The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 93
Index
B
Before Connecting 28
Blue 52
Brightness 38
C
Checking the Contents 19
Coarse 48
Color Tone 53
Connecting and Using a PC 29
Contact SAMSUNG WORLD WIDE 82
Contrast 39
Copyright 7
Correct Disposal 90
Correct posture to use the product 18
Customized Key 66
D
Display Time 57
E
Eco Saving 60
F
Fine 49
G
Gamma 54
General 78
Green 51
H
HDMI Black Level 46
I
Image Size 45
INFORMATION 67
Installation 24
K
Key Repeat Time 64
L
Language 55
M
MagicTune 69
MultiScreen 71
O
Off Timer 61
P
Parts 21
PC/AV Mode 63
Q
Q & A 76
R
Red 50
Requirements Before Contacting Samsung
Customer Service Center 73
Reset 59
Responsibility for the Pay Service (Cost to
Customers) 88
Index
Index 94
S
Safety Precautions 10
SAMSUNG MAGIC Angle 43
SAMSUNG MAGIC Bright 41
SAMSUNG MAGIC Upscale 44
Sharpness 40
Source Detection 65
Standard Signal Mode Table 80
T
Terminology 91
Transparency 58
Turn Off After 62

Navigation menu
