1. Print / Copy Speed
• 22 ppm in letter
2. Processor
• Jupiter5 375 Mhz
3. Printer Language Emulations
• SPL, PCL-5 (4623FW)
4. Memory
• 64 MB (4600/4623F)
• 128 MB (4623FN)
• 256MB (4623FW)
5. Interfaces
• One USB port
• One 10/100 Base TX network connector (4623FN)
• One 802.11b/g/n wireless module (4623FW)
6. Toner cartridge
• Initial : 0.7K / 1K
• Sales : 1.5K / 2.5K two types
7. ADF (4623 series)
- SCX-4600/4623 series
3
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
This Parts Catalog is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of this manual can be punished under
applicable International and/or domestic law.
3
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
ExplodedView and Parts List
Power Cord ……………………………………………………………… 4
Thumbnail ………………………………………………………………… 5
1. MAIN …………………………………………………………………… 7
2. COVER ………………………………………………………………… 9
3. COVER-MIDDLE ASSY ……………………………………………… 11
4. COVER FRONT ……………………………………………………… 13
5. COVER REAR ………………………………………………………… 15
6. FRAME BASE-LOWER ……………………………………………… 17
7. DRIVE MAIN-BRACKET ……………………………………………… 21
8. FRAME BASE-PICK UP ……………………………………………… 23
9. FUSER ………………………………………………………………… 25
10. CASSETTE …………………………………………………………… 27
11. SCANNER_4 in 1 …………………………………………………… 29
12. SCANNER_3 in 1 …………………………………………………… 31
13. COVER-PLATEN …………………………………………………… 33
14. OPE_4 in 1 …………………………………………………………… 35
15. OPE_3 in 1 …………………………………………………………… 37
16. PLATEN-LOW END ………………………………………………… 39
17. PLATEN-LOWER_4 in 1 …………………………………………… 41
18. PLATEN-LOWER_3 in 1 …………………………………………… 43
19. PLATEN-UPPER_4 in 1 …………………………………………… 45
20. PLATEN-UPPER_3 in 1 …………………………………………… 47
21. PLATEN-SHEET …………………………………………………… 49
22. ASSY_ADF_BASE ………………………………………………… 51
23. ASSY-INPUT-TRAY ………………………………………………… 53
24. ASSY_ADF_COVER ………………………………………………… 55
25. ASSY_PAPER-PATH………………………………………………… 57
26. ASSY_DRIVING_MODULE ………………………………………… 59
Contents
4
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
5
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Power Cord
Power Cord differs by countries. Please check your country code.
3903-000042
3903-000085
3903-000067
3903-000050
3903-000133
3903-000082 3903-000227
3903-000146
3903-000020
3903-000182
XAZ
SEE / STS / XSA / XSG
XSS / XEV / XEG
XFA / XIP
XEU / XSS
XIL
XAA / XAX
KOR
XBH
ETS
TED
To p View Side View
Part Code
Usable Country Code
To p View Side View
Part Code
Usable Country Code
4
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
5
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

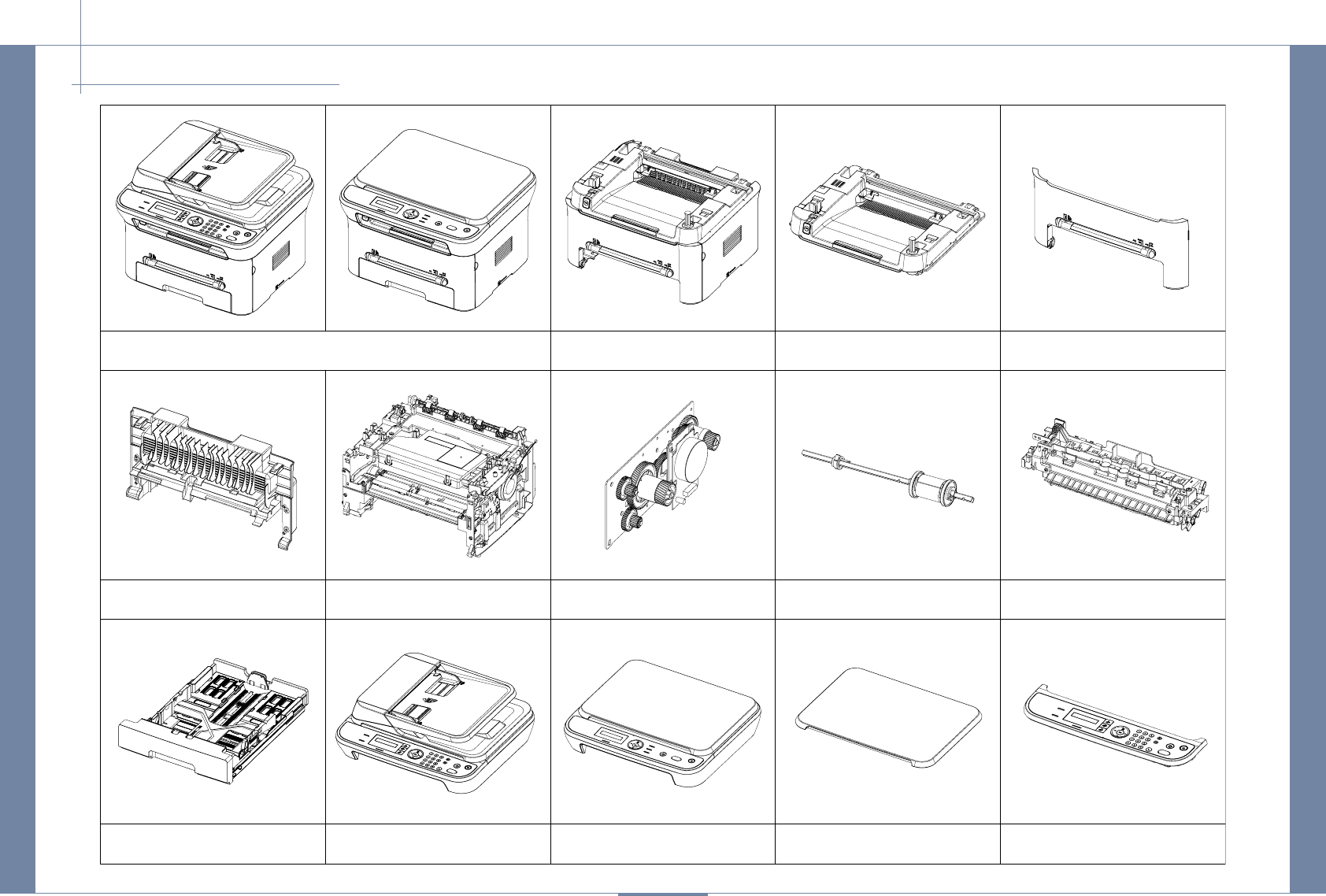

Thumbnail 1
1. MAIN 2. COVER 3. COVER-MIDDLE ASSY 4. COVER FRONT
5. COVER REAR 8. FRAME BASE-PICK UP 9. FUSER
7. DRIVE MAIN-BRACKET
(4 in 1) (3 in 1)
6. FRAME BASE-LOWER
10. CASSETTE 11. SCANNER_4 in 1 12. SCANNER_3 in 1 13. COVER-PLATEN 14. OPE_4 in 1
6
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
7
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

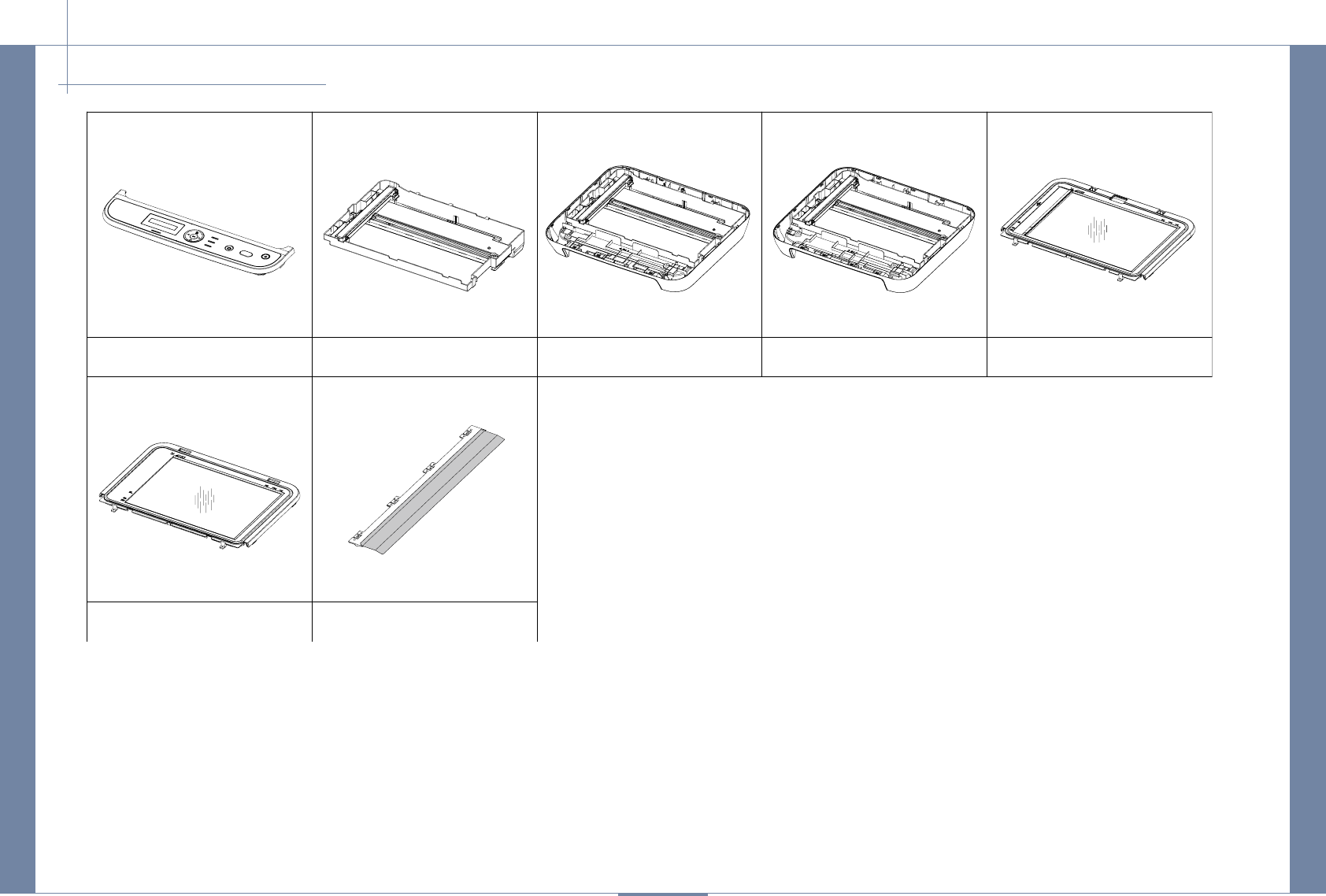

Thumbnail 2
16. PLATEN-LOW END 17. PLATEN-LOWER_4 in 1 18. PLATEN-LOWER_3 in 1 19. PLATEN-UPPER_4 in 1
21. PLATEN-SHEET
20. PLATEN-UPPER_3 in 1
15. OPE_3 in 1
6
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
7
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

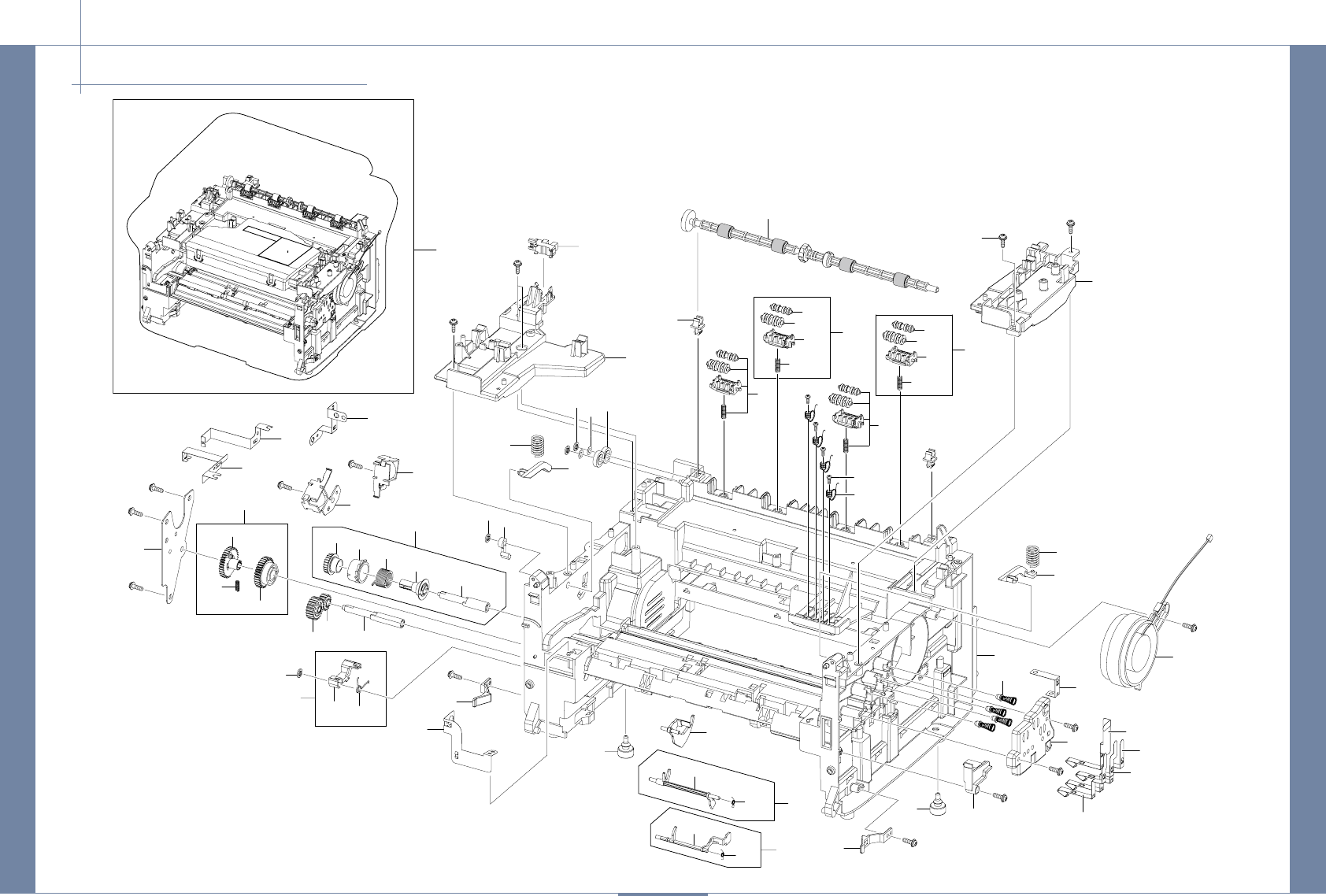

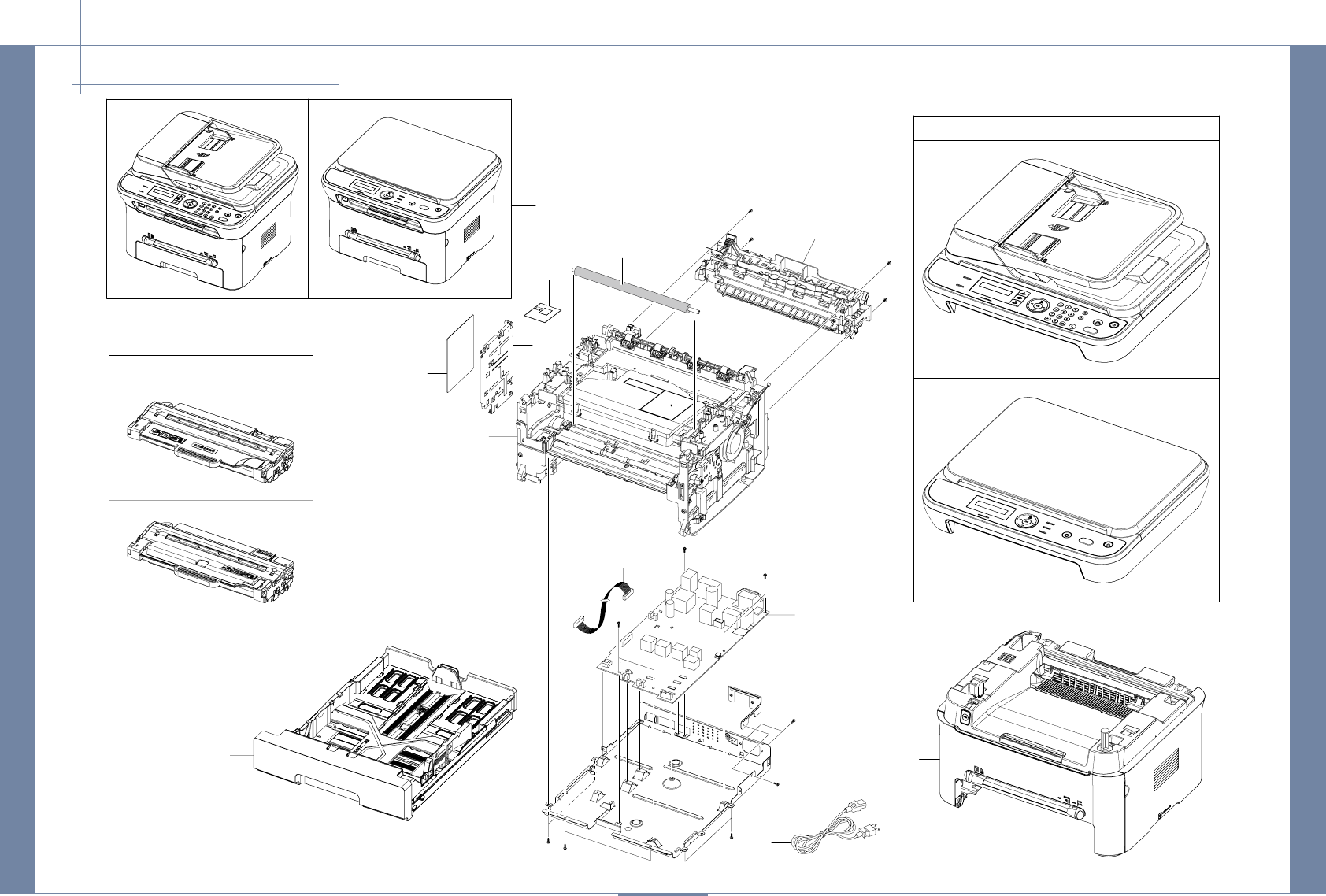

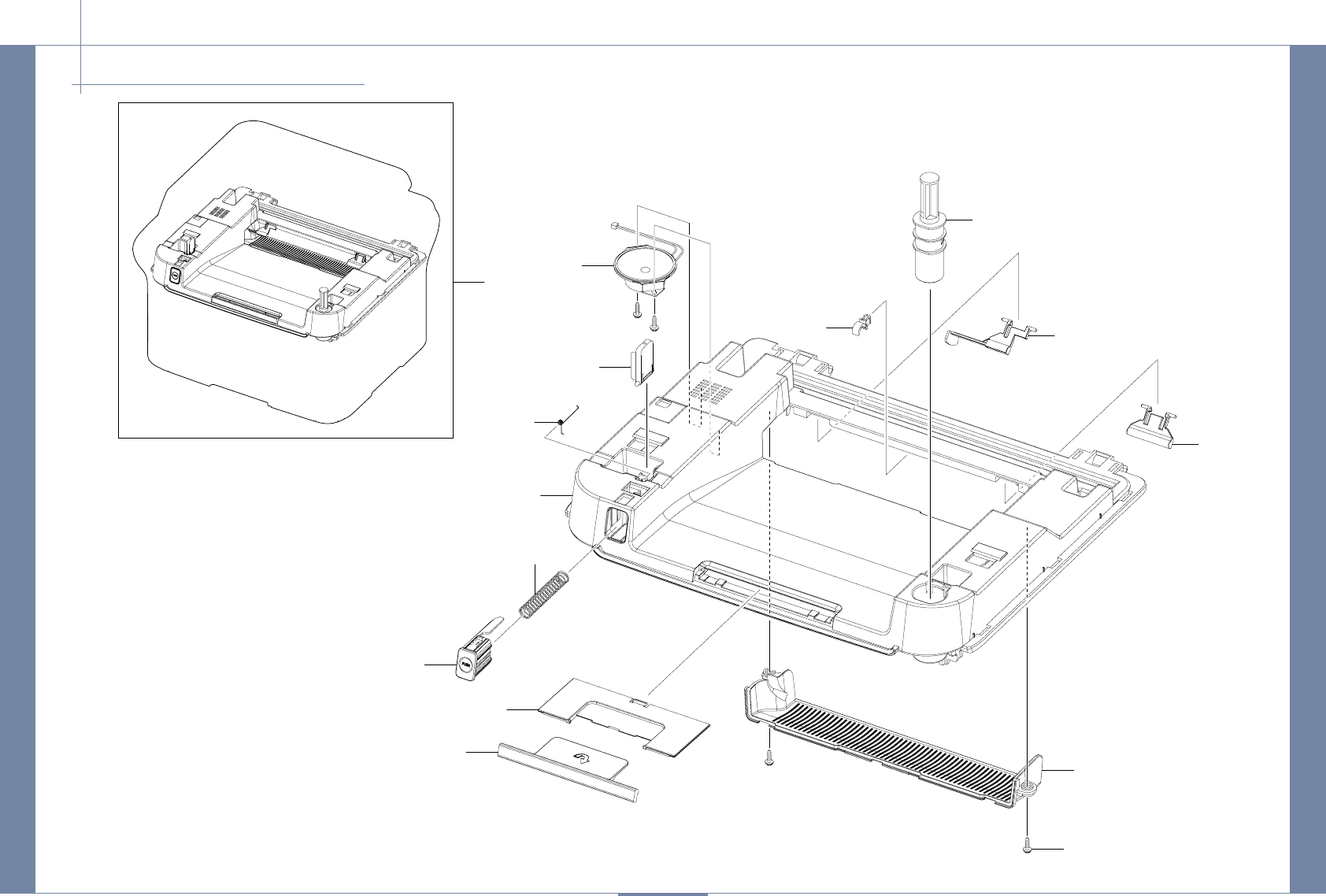

1. MAIN
0
(4 in 1) (3 in 1)
12
8 7
9
1
4
5
6
3
13
(4 in 1)
(3 in 1)
10
11
14
2
15
8
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
9
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 SCX-4623FN SET 14 in 1
0 SCX-4623FW SET 14 in 1
0 SCX-4623F SET 14 in 1
0 SCX-4600 SET 13 in 1
1JC44-00178A SMPS/HVPS-V1 1SA 110V
1JC44-00179A SMPS/HVPS-V2 1SA 220V
2 JC92-02179A PBA-MAIN 1SA 4623FN/Others
2 JC92-02179B PBA-MAIN 1SA
4623FN/SEE/XEC
2 JC92-02179D PBA-MAIN 1SA 4623FW/Others
2 JC92-02179E PBA-MAIN 1SA
4623FW/SEE/XEC
2 JC92-02188A PBA-MAIN 1SA 4623F/Others
2 JC92-02188B PBA-MAIN 1SA
4623F/SEE/XEC
2 JC92-02189A PBA-MAIN 1SA 4600
3 JC90-00943A CASSETTE 1SA
4 JC61-00601A BRACKET-P-INLET 1SA
5 JC63-02410A SHIELD-ENGINE 1SNA
Drawer# SEC_Code Description QT’y Service Remark
6 JC39-01237A HARNESS-ENGINE 1SNA
7 JC91-00945A FUSER 1SA 220V
7 JC91-00945B FUSER 1SA 220V/XIP
7 JC91-00946A FUSER 1SA 110V
8 JC66-01218A ROLLER-TRANSFER 1SA
9JC93-00088A FRAME BASE-LOWER 1SA
10 JC97-03685A SCANNER 1SNA 4623F/FN
10 JC97-03684A SCANNER 1SNA 4600
11 JC95-01080A COVER 1SNA 4623FN
11 JC95-01080B COVER 1SNA 4623F
11 JC95-01080C COVER 1SNA 4600
12 - CARTRIDGE-TONER 1SNA
13 - CBF-POWER CORD 1SA
Refer to power cord
14 JC63-02451A SHIELD-CONTROLLER 1SNA
15 JC92-02308A PBA-WNPC 1SA 4623FW
16 JC39-01344A HARNESS-WLAN 1SA 4623FW
MAIN Parts List
8
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
9
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
0
1
2
3
4
5

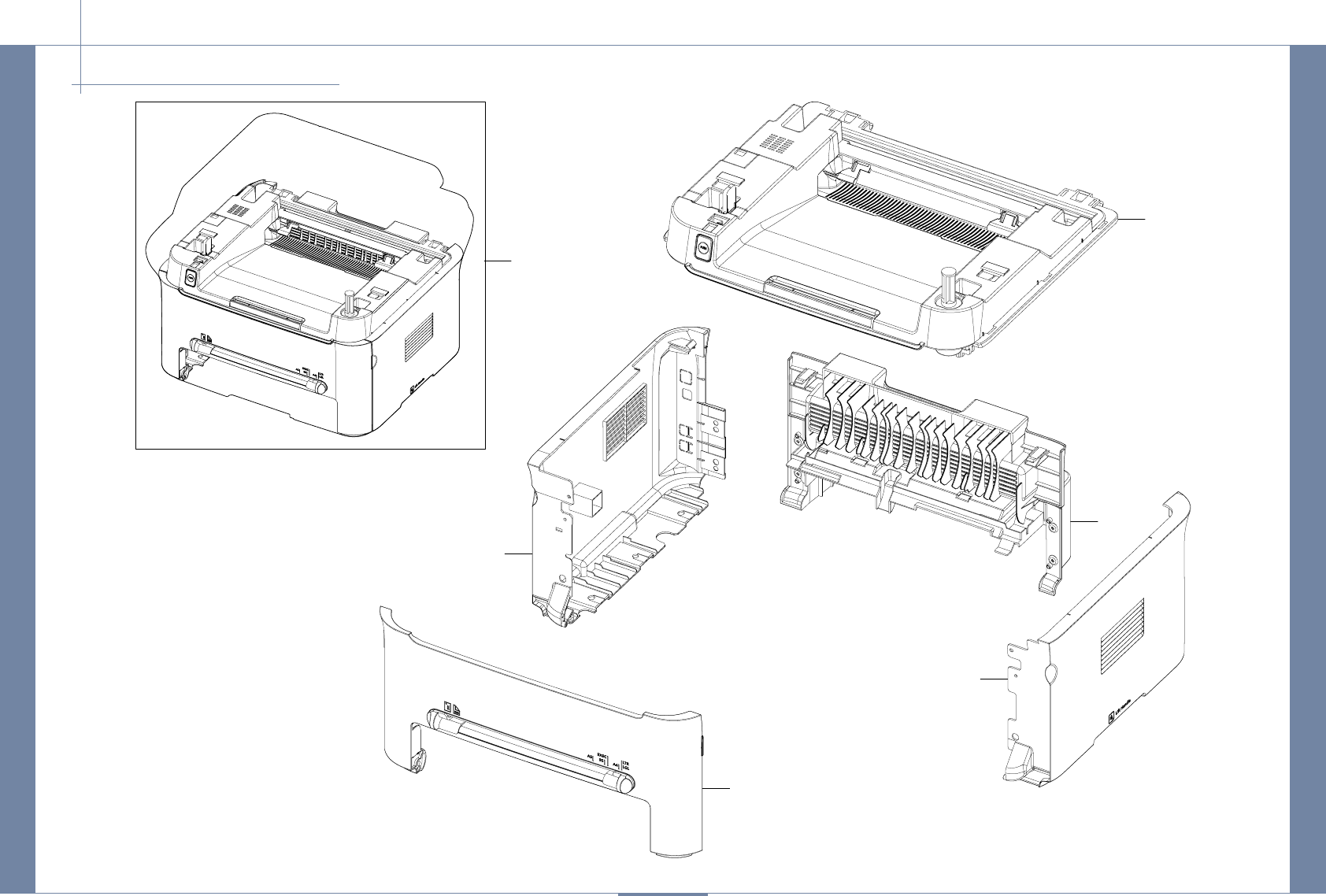

2. COVER
10
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
11
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
COVER Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC95-01080A COVER 1SNA 4623FN
0 JC95-01080B COVER 1SNA 4623F
0 JC95-01080C COVER 1SNA 4600
1JC95-01075A COVER-MIDDLE ASSY 1SA 4623F/FN
1JC95-01075B COVER-MIDDLE ASSY 1SA 4600
2 JC95-01078A COVER-REAR ASSY 1SA
Drawer# SEC_Code Description QT’y Service Remark
3 JC63-02461A COVER-LEFT 1SNA 4623FN
3 JC63-02461B COVER-LEFT 1SNA 4623F
3 JC63-02461C COVER-LEFT 1SNA 4600
4 JC63-02460A COVER-RIGHT 1SNA
5 JC95-01079A COVER-FRONT ASSY 1SA
10
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
11
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
0
14
10
11
5
4
12
8
9
6
13
1
7
3
2

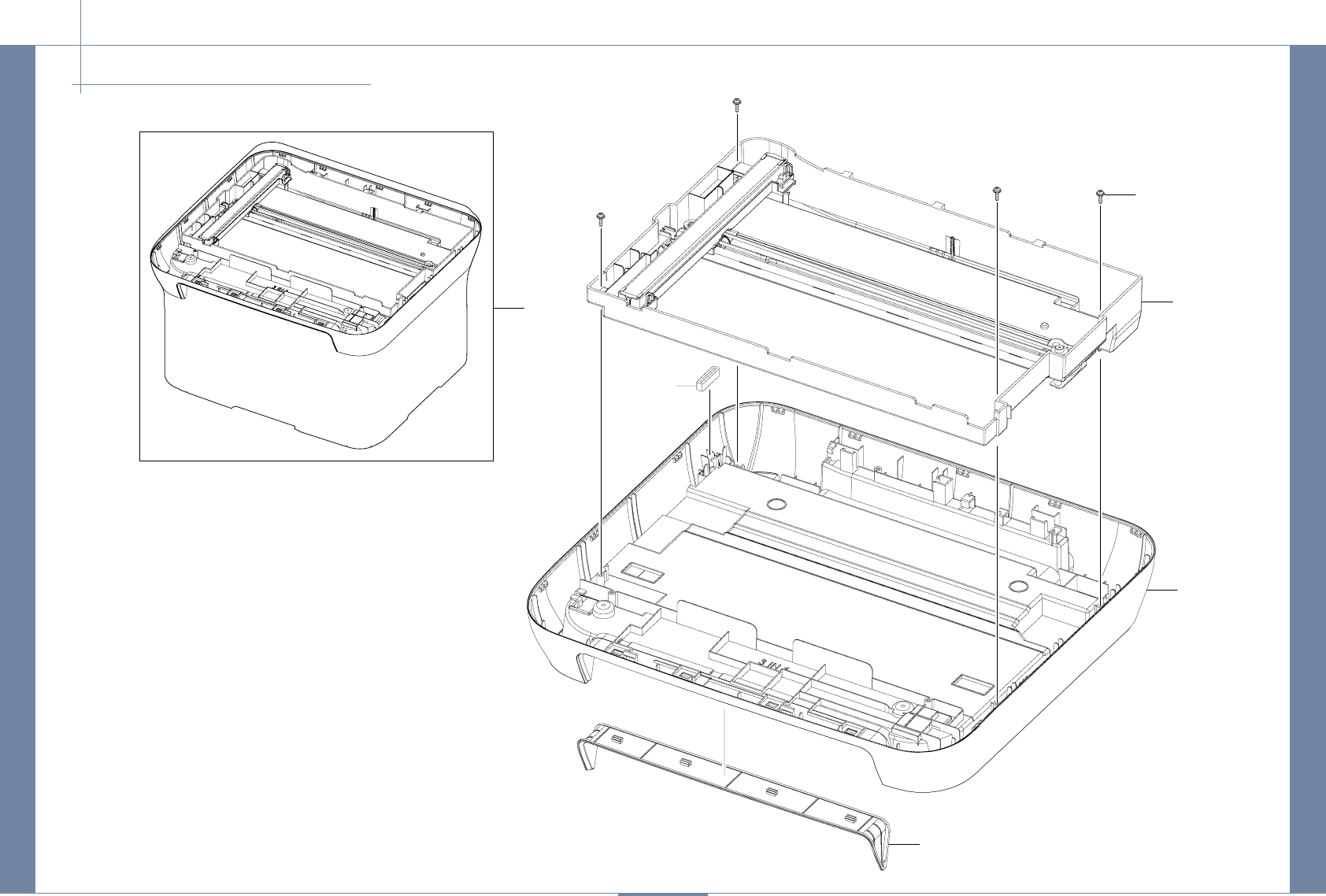

3. COVER-MIDDLE ASSY
12
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
13
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
COVER-MIDDLE ASSY Parts List
Drawer# SEC_Code Description QT’y Service Remark
0 JC95-01075A COVER-MIDDLE ASSY 1SA 4623F/FN
0 JC95-01075B COVER-MIDDLE ASSY 1SA 4600
1JC72-01343A PMO-SUB_M_STACKER 1 SC
2 JC72-00387A PMO-BUSHING_F/DOWN 1SA
3 JC66-01932A DAMPER-OPEN 1SNA
4 JC64-00523A BUTTON-SCAN DOWN 1SNA
5 JC63-02458A COVER-MIDDLE 1SNA
6 JC63-02390B COVER-EXIT 1SNA
7 JC61-03446A STACKER-BIN_FULL 1SNA
Drawer# SEC_Code Description QT’y Service Remark
8 JC61-02583B STACKER-RX LARGE 1SA
9JC61-02582A STACKER-SMALL 1SA
10 JC61-00949A STOPPER-M-LEVER 1SA
11 JC61-00026A SPRING ETC-TS-CHARGE APOLLO 1SNA
12 6107-001345 SPRING-CS 1SA
13 6003-000196 SCREW-TAPTYPE 4 SA 4623F/FN
13 6003-000196 SCREW-TAPTYPE 2 SA 4600
14 3001-002262 SPEAKER 1SA 4623F/FN
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
12
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
13
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
5
0
3
4
6
2
1
4. COVER FRONT
14
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
15
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
COVER FRONT Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC95-01079A COVER-FRONT ASSY 1SA
1JC70-00477F ADJUST-MANUAL R 1SA
2 JC70-00476F ADJUST-MANUAL L 1SA
3 JC70-00304A ADJUST RACK-M-MANUAL 2 SA
Drawer# SEC_Code Description QT’y Service Remark
4 JC66-00387A GEAR-RACK_PINION 1SA
5 JC63-02464A COVER-FRONT 1SNA
6 6003-000264 SCREW-TAPTYPE 3 SNA
14
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
15
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

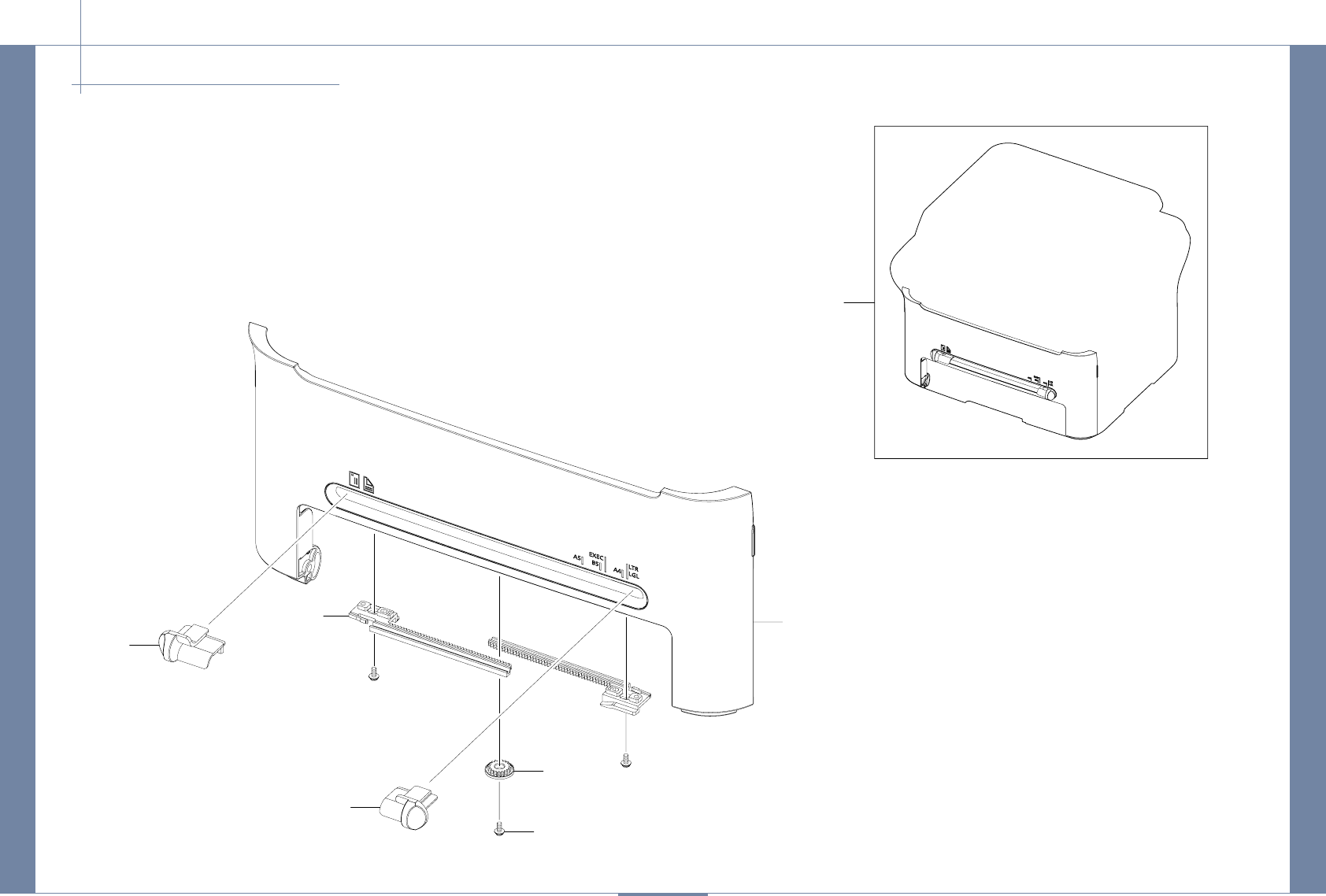

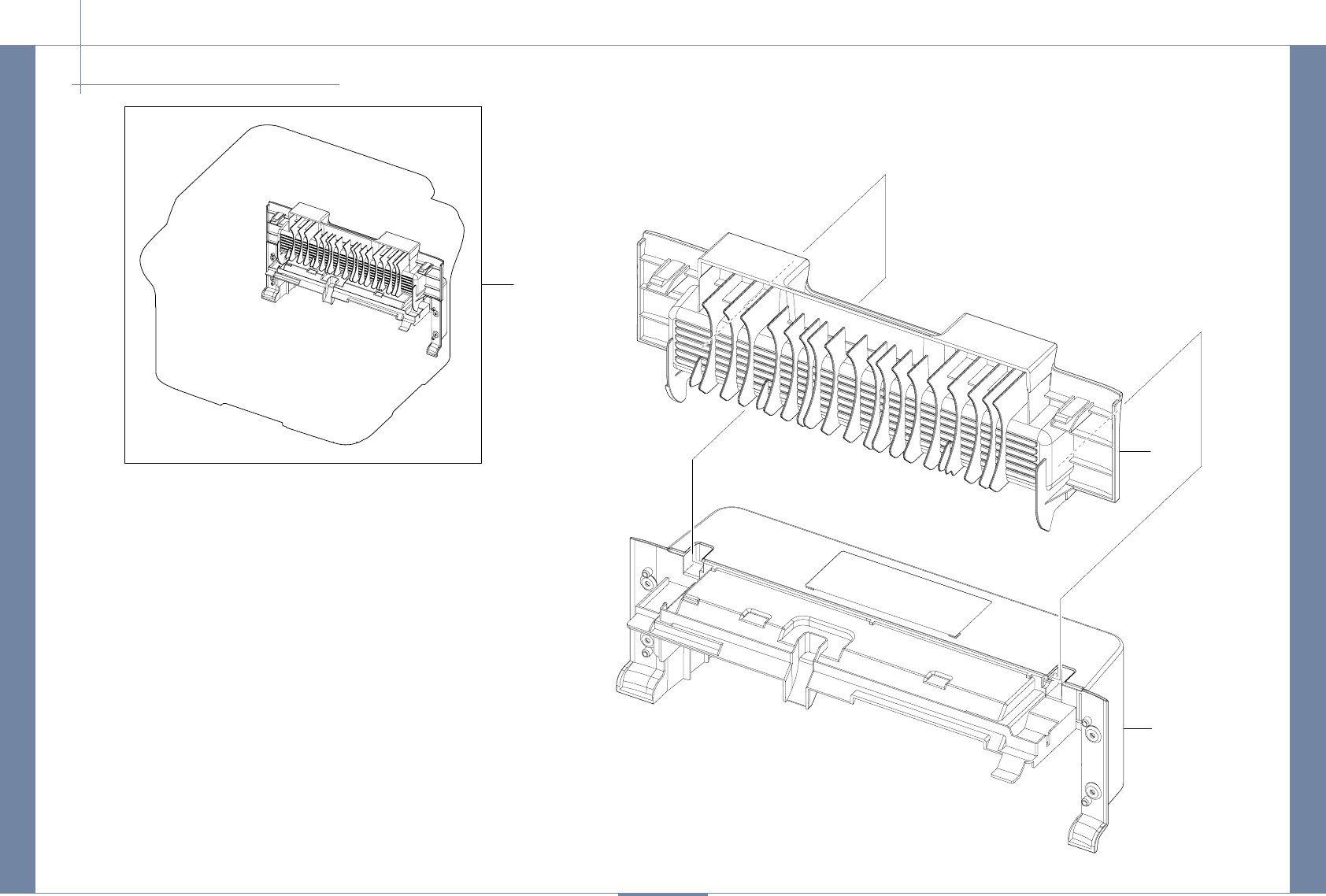

5. COVER REAR
0
2
1
16
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
17
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
COVER REAR Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC95-01078A COVER-REAR ASSY 1SA
1JC63-02462A COVER-REAR 1SNA
Drawer# SEC_Code Description QT’y Service Remark
2 JC63-02463A COVER-REAR DOWN 1SNA
16
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
17
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

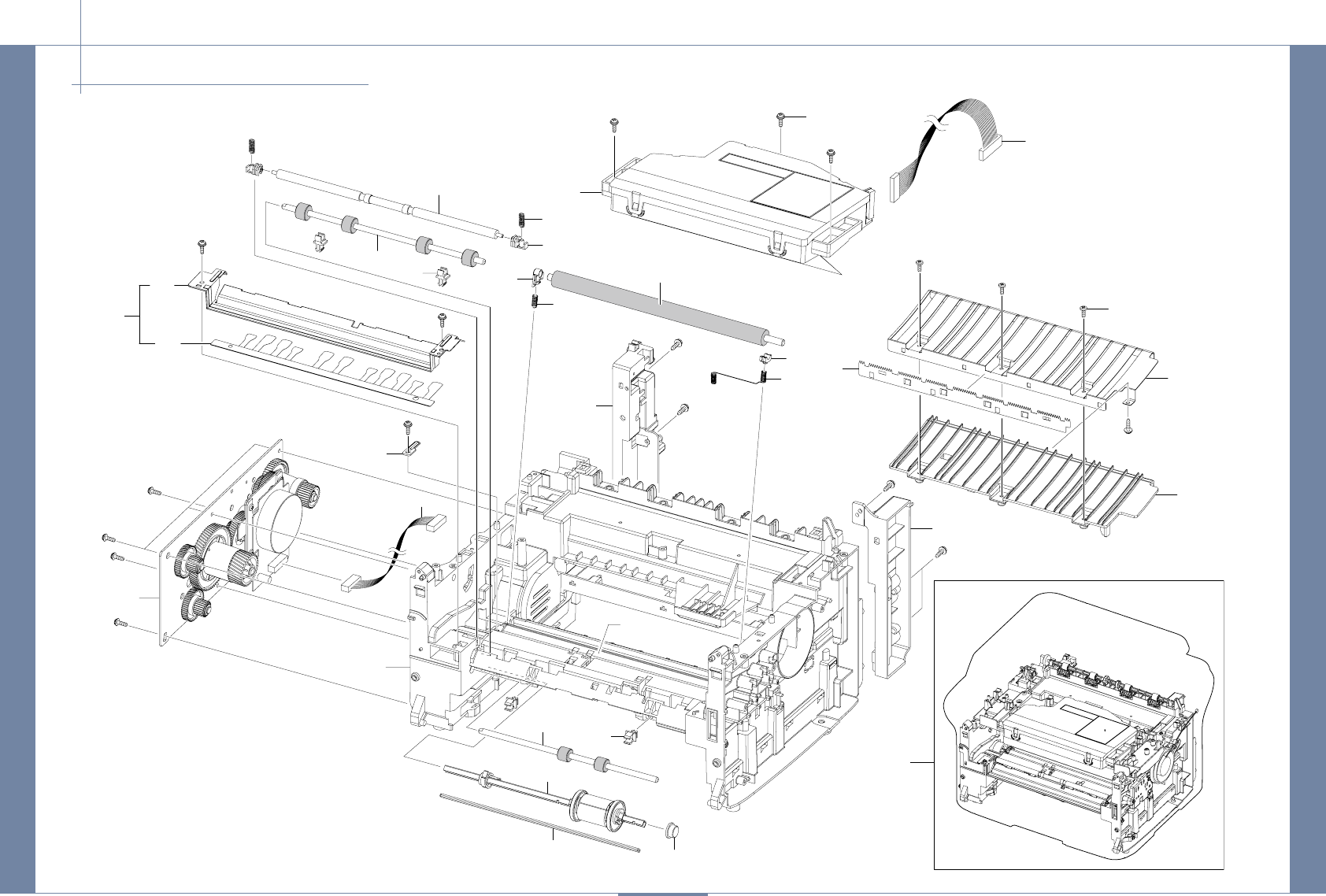

6. FRAME BASE-LOWER1
01
26
33
60
53
5
6
35
51
48
20
11
10
42
41 43
71
6
65 59
52
24
33
61
9
62
49
40
50
39
38
28
55
32
59
56
14
12
54
68-1
68-2
68-3
68-4
68
72
27
2
37
631
32
71-2 71-4 71-1
71-5
71-3
57-1
57-2
57-3
57
65-1
65-2
14-2
14-1
12-2
12-1
67-1
67-2
67-3
67-4
67
68
67
3
18
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
19
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

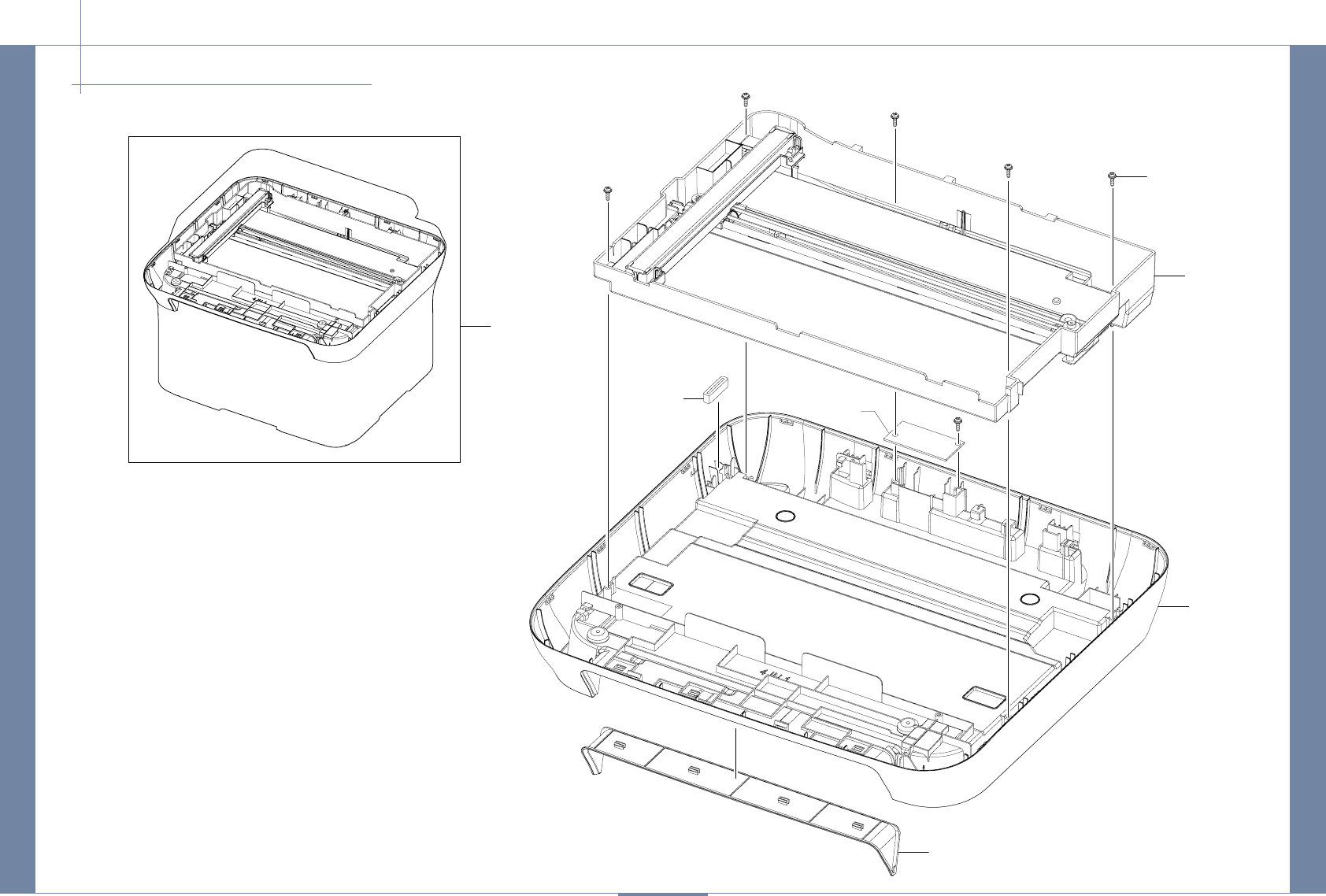

FRAME BASE-LOWER2
69-1
69-2
0
24
22
19
4
3
75
73
16
34
45
54
44
69
21
25
74
47
64
17
46
54
23
7
8
18
63
29
30
36
76
18
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
19
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
FRAME BASE-LOWER Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC93-00088A FRAME BASE-LOWER 1SA
10604-001393 PHOTO-INTERRUPTER 1SA
2 6002-000308 SCREW-TAPTYPE 4 SNA
3 6003-000196 SCREW-TAPTYPE 35 SA
4 6003-000282 SCREW-TAPTYPE 2 SNA
5 6031-001051 WASHER-PLAIN 2 SNA
6 6044-000001 RING-CS 4 SA
7 6107-001162 SPRING-ETC 1SA
8 6107-001370 SPRING-CS 1SA
9JC31-00087A FAN-DC 1SA
10 JC33-00025B SOLENOID-MANUAL 1SA
11 JC33-00026A SOLENOID-PICK UP 1SA
12 JC93-00109A FRAME-LOWER ACTUATOR MANUAL 1SA
12-1 6107-001165 SPRING-TS 1SA
12-2 JC72-00977A PMO-ACTUATOR MANUAL 1SA
14 JC93-00110A FRAME-LOWER ACTUATOR FEED 1SA
14-1 6107-001164 SPRING-TS 1SA
14-2 JC72-00976A PMO-ACTUATOR FEED 1SA
16 JC61-00585A BUSH-M-FEED IDLE 2 SA
17 JC61-00587A BUSH-M-PICK_UP R 1SA
18 JC61-00588A BUSH-M-TR L 1SA
19 JC61-00594A GUIDE-M-TR RIB 1SA
20 JC61-00602A BRACKET-P-FEED 1SA
21 JC61-00604A PLATE-P-SAW 1SA
22 JC61-00607A GUIDE-P-TR 1SA
23 JC61-02468A BUSH-TR_L 1SA
24 JC61-03322A FRAME-BASE 1SNA
25 JC61-03440A BRACKET-BUSH_TR L 1SA
26 JC61-03447A FRAME-HOLDER_LSU_L 1SNA
27 JC61-03448A FRAME-HOLDER_LSU_R 1SNA
28 JC61-03467A HOUSING-TERMINAL 1SNA
Drawer# SEC_Code Description QT’y Service Remark
29 JC61-03498A FRAME-COVER HOLDER L 1SA
30 JC61-03499A FRAME-COVER HOLDER R 1SA
31 JC61-03524A STOPPER-LEVER_DR 1SA
32 JC61-40001A FOOT-ML80 2 SA
33 JC61-70932A SPRING ETC-GUIDE DEVE 2 SA
34 JC61-70958A SPRING ETC-TR 2 SA
35 JC63-02411A GROUND-FUSER 1SNA
36 JC63-02450A GROUND-SHIELD 1SNA
37 JC65-00019A TERMINAL-CRUM 4 SA
38 JC65-00041A TERMINAL-SUPPLY 1SA
39 JC65-00042A TERMINAL-CON 1SA
40 JC65-00043A TERMINAL-CR 1SA
41 JC66-00394A GEAR-FEED 2 1SA
42 JC66-00396A GEAR-IDLE 23 1SA
43 JC66-00398A SHAFT-FEED 1SA
44 JC66-00526B ROLLER-REGI 1SA
45 JC66-00527A SHAFT-FEED IDLE 1SA
46 JC66-00598A ROLLER-FEED 1SA
47 JC66-00720A SHAFT-P-CORE 2 SA
48 JC70-00308A IPR-P-GROUND_DRIVE 1SNA
49 JC70-00311A IPR-P-GROUND_TR 1SNA
50 JC70-00312A IPR-P-TERMINAL CON 1SA
51 JC70-00335A IPR-P_GROUND_DRIVE2 1SNA
52 JC70-00458A IPR-P-GROUND_GUIDE PAPER 1SNA
53 JC72-00143A PMO-GEAR_EXIT_DRV16 2 SNA
54 JC72-00382B PMO-BUSHING FEED 7 SA
55 JC72-00974A PMO-ACTUATOR CVR OPEN 1SA
56 JC72-00975A PMO-ACTUATOR EMPTY 1SA
57 JC97-03141A MEA UNIT-GEAR_PICKUP 1SA
57-1 6107-001167 SPRING-CS 1SA
57-2 JC72-00979A PMO-GEAR PICK_UP A 1 SC
20
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
21
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
FRAME BASE-LOWER Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
57-3 JC72-00980A PMO-GEAR PICK_UP B 1 SC
59 JC72-00983A PMO-LOCKER CST 2 SA
60 JC72-00984A PMO-PLATE GUIDE DEVE_L 1SA
61 JC72-00985A PMO-PLATE GUIDE DEVE_R 1SA
62 JC75-00049A MEC-TERMINAL 4 SA
63 JC93-00003A DRIVE MAIN-BRACKET 1SA
64 JC93-00085A FRAME BASE-PICK UP 1SA
65 JC93-00106A FRAME-LEFT STOPPER PICK UP 1SA
65-1 6107-001170 SPRING-TS 1SA
65-2 JC66-00377A CAM-M-PICK_UP 1SA
67 JC93-00107A FRAME-ROLLER DECURL 2 SA
67-1 JC61-01172A HOLDER-M-EXIT F/DOWN 1SNA
67-2 JC66-00830A ROLLER-M-EXIT FR 1SA
67-3 JC66-00824A ROLLER-M-EXIT MAIN 1SA
67-4 6107-001163 SPRING-CS 1SA
68 JC93-00107B FRAME-ROLLER DECURL 2 SA
68-1 JC61-02702B HOLDER-EXIT ROLLER 1SA
Drawer# SEC_Code Description QT’y Service Remark
68-2 JC66-00830A ROLLER-M-EXIT FR 1SA
68-3 JC66-00824A ROLLER-M-EXIT MAIN 1SA
68-4 6107-001163 SPRING-CS 1SA
69 JC93-00108A FRAME-FRONT GUIDE PAPER 1SA
69-1 JC61-00718A GUIDE-P-PAPER 1SA
69-2 JC63-02483A SHEET-GUIDE_PAPER 1SA
71 JC97-01788A MEA UNIT-CLUTCH 1SA
71-1 6107-001171 SPRING-TS 1SA
71-2 JC66-00393A GEAR-FEED 1 1SA
71-3 JC66-00398A SHAFT-FEED 1SA
71-4 JC72-00978A PMO-COLLAR_SPRING 1SA
71-5 JC72-00981A PMO-HUB CLUTCH 1SNA
72 JC93-00097A FRAME-ROLLER EXIT FACE DOWN 1SA
73 JC97-03585A LSU 1SNA
74 JC39-01080A HARNESS-BLDC_MOTOR_CLUTCH 1SA
75 JC39-01217A HARNESS-LSU 1SNA
20
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
21
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

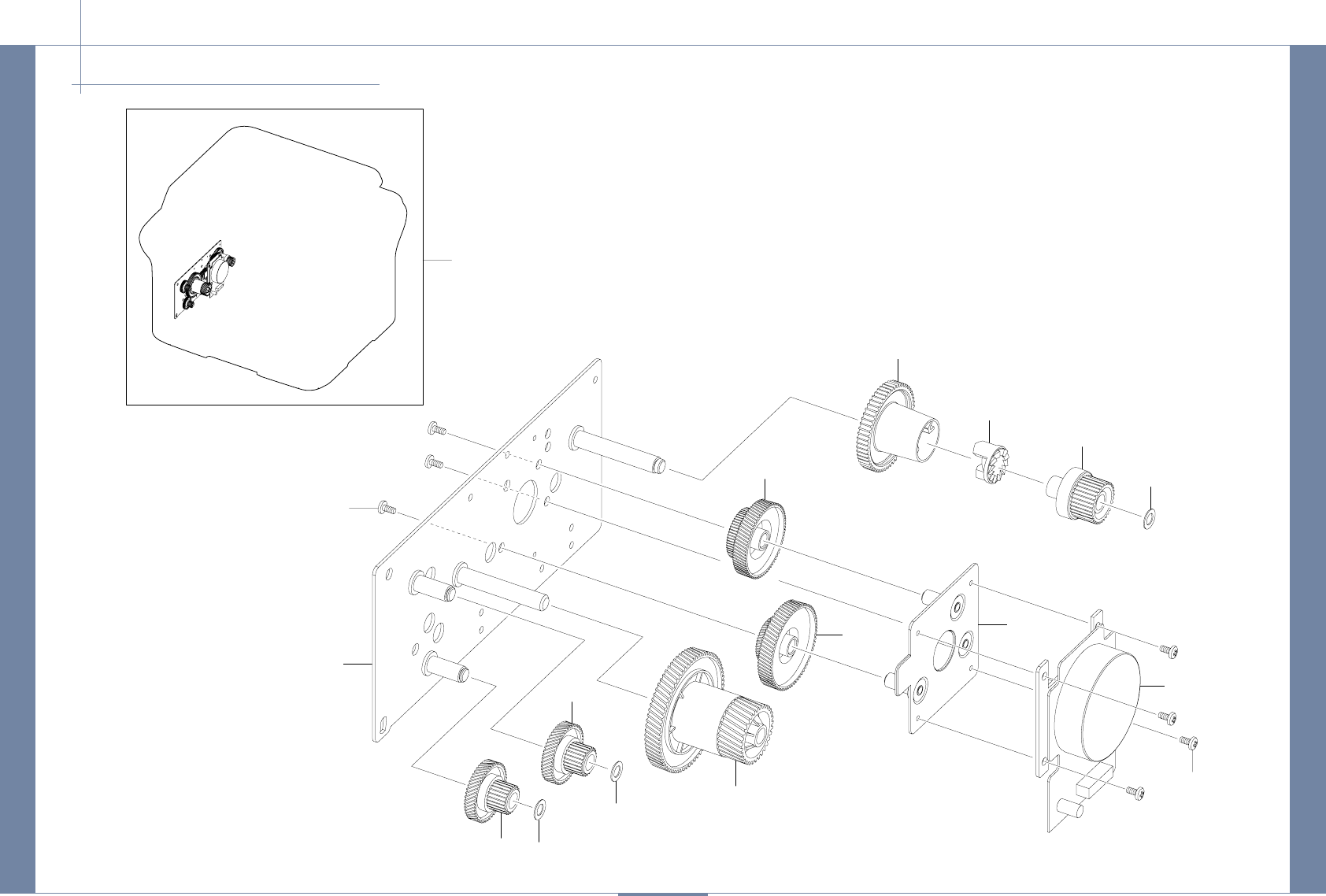

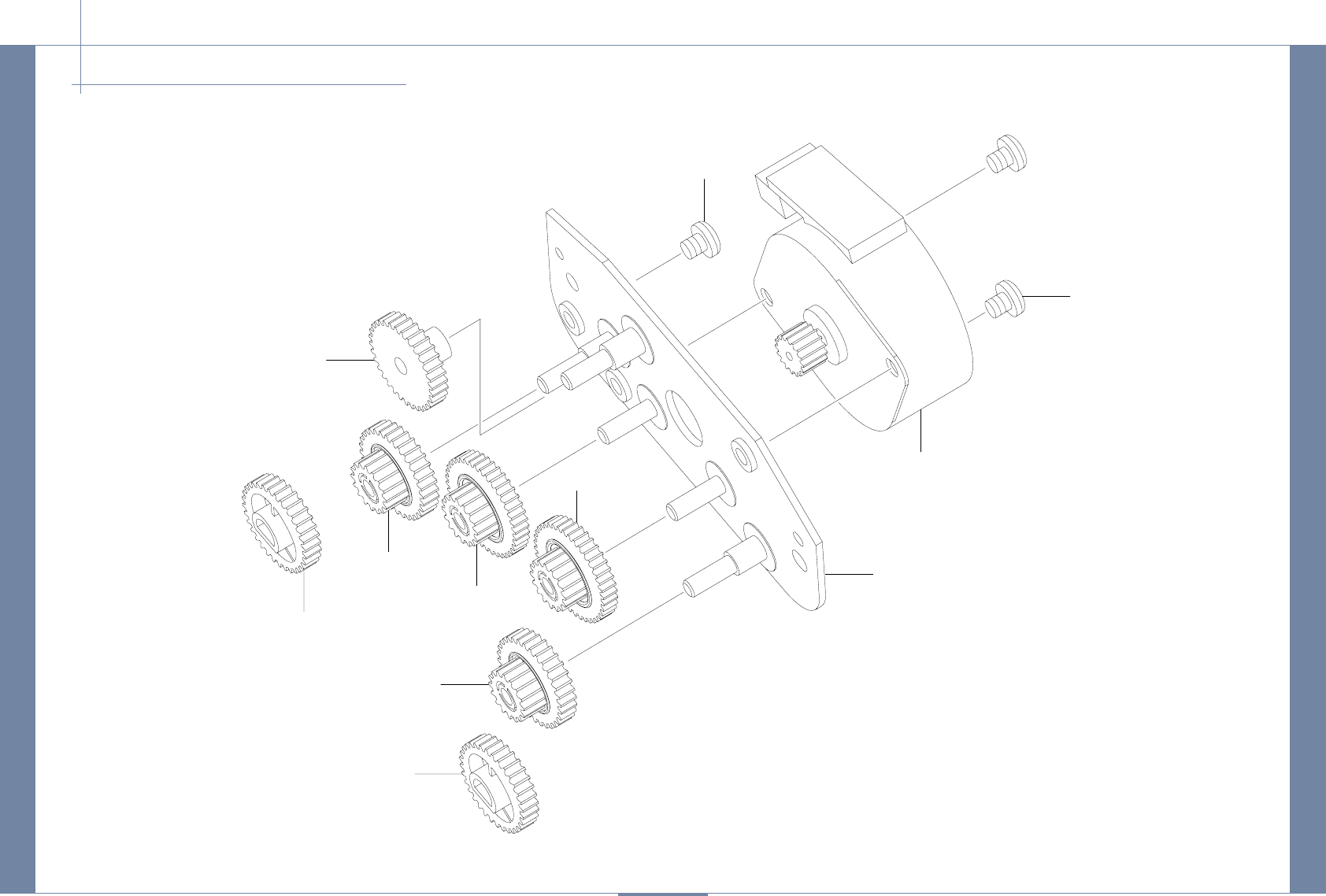

7. DRIVE MAIN-BRACKET
0
11
1
512
5
12
4
7
6
8
9
10
12
11
3
2
22
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
23
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
DRIVE MAIN-BRACKET Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC93-00003A DRIVE MAIN-BRACKET 1SA
1JC61-00598B BRACKET-P-GEAR 1400 1 SC
2 JC31-00122A MOTOR BLDC 1SNA
3 JC61-03395A BRACKET-MOTOR_STEP 1SA
4 JC66-02316A GEAR-RDCN_OPC 1SA
5 JC66-00389A GEAR-RDCN 57/18 2 SA
6 JC66-00392A GEAR-RDCN 90/31 1SA
Drawer# SEC_Code Description QT’y Service Remark
7 JC66-00390A GEAR-RDCN 103/41 1SA
8 JC66-01203A GEAR-DRV FUSER OUT 1SA
9JC66-00340A GEAR-HUB CLUTCH 1SA
10 JC66-01202A GEAR-DRV FUSER IN 1SA
11 6003-000269 SCREW-TAPTYPE 5 SA
12 6031-000023 WASHER-PLAIN 3 SA
22
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
23
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

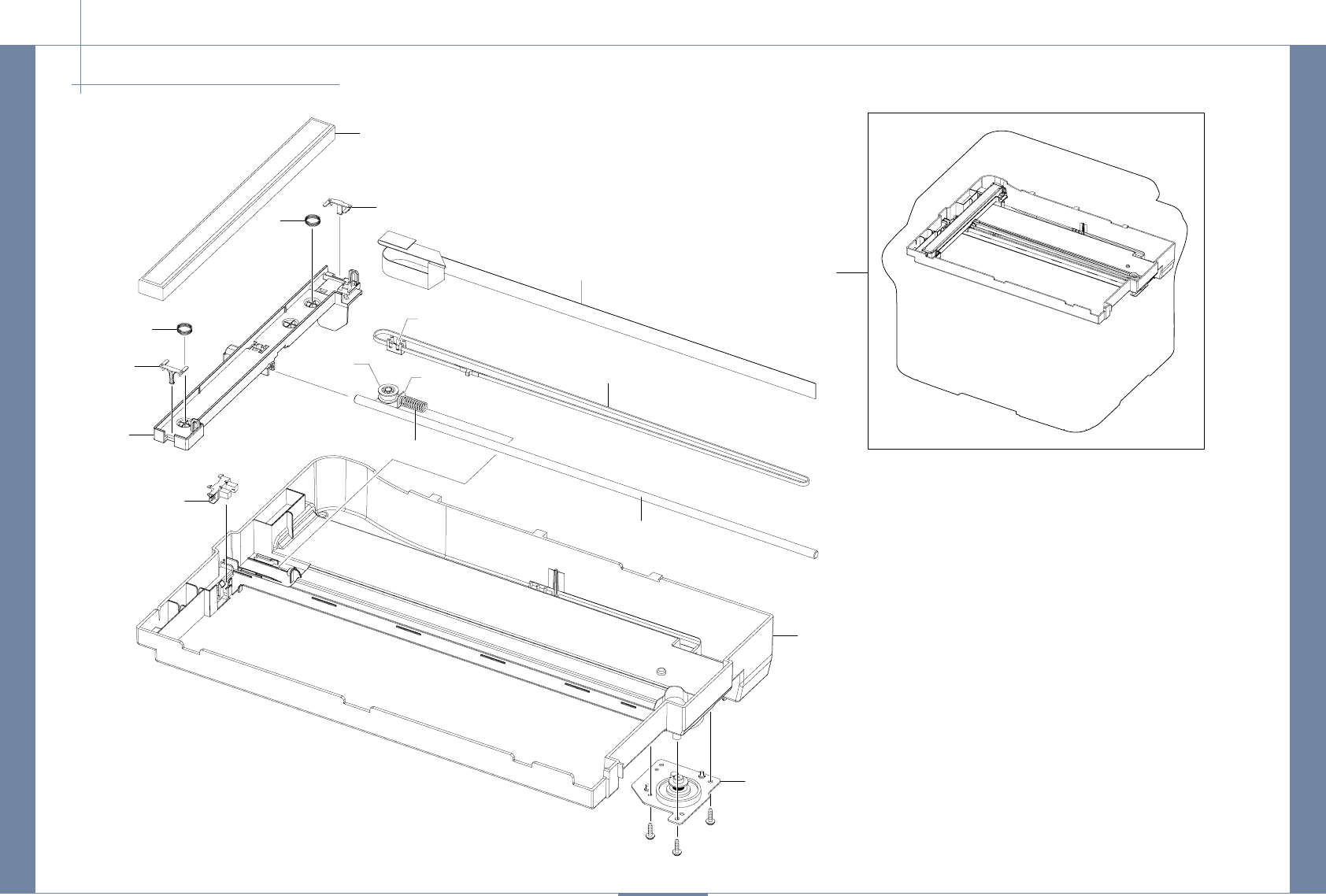

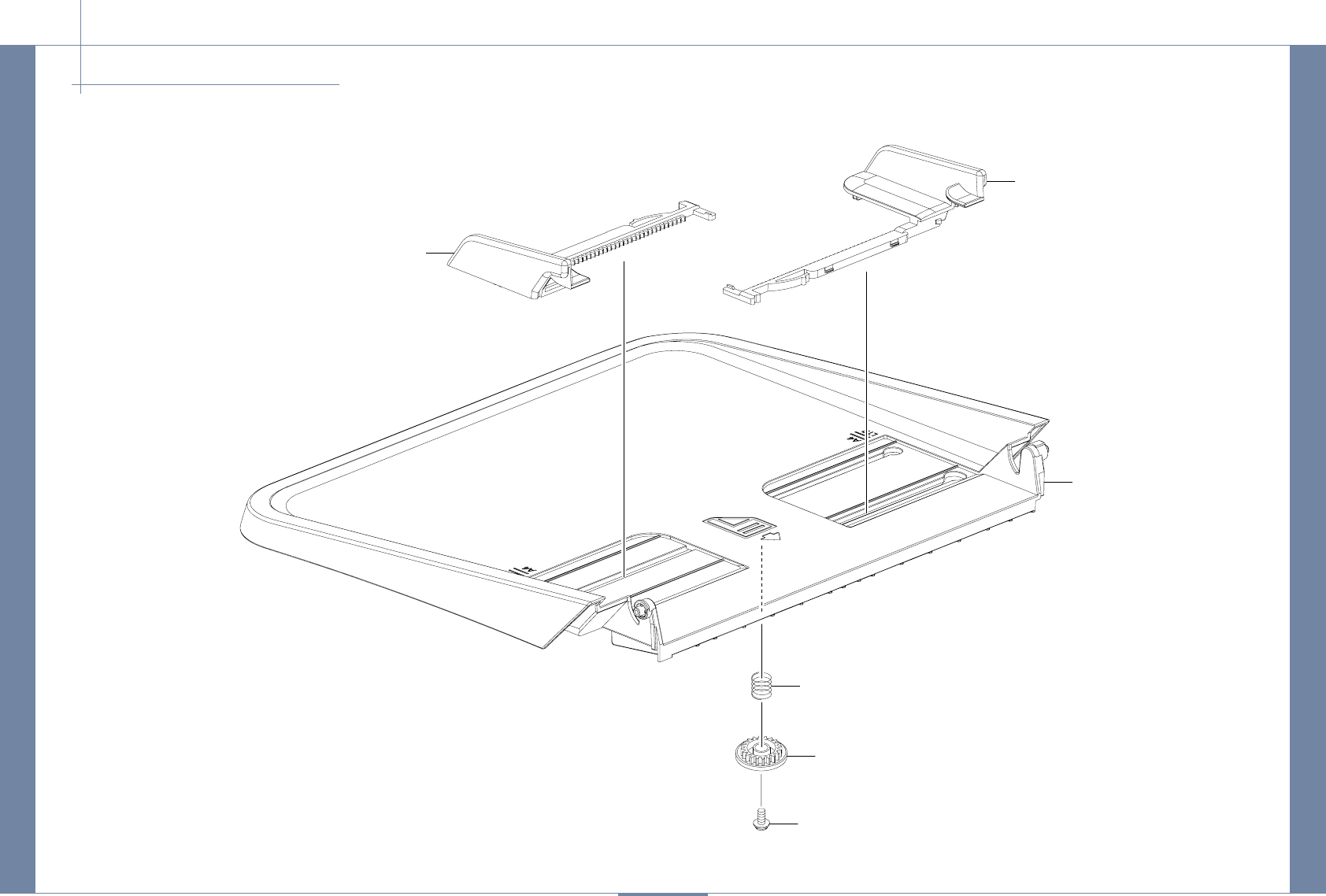

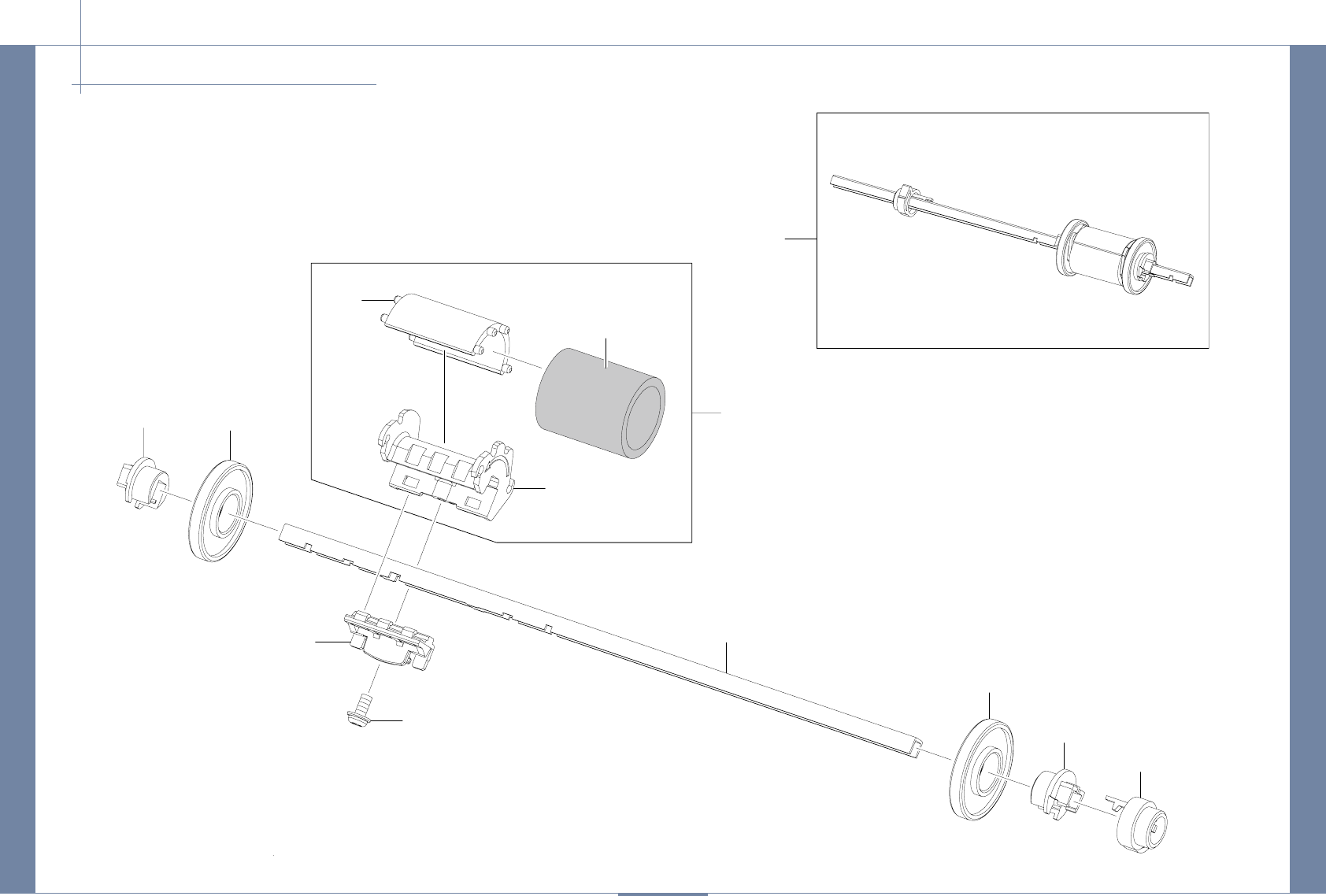

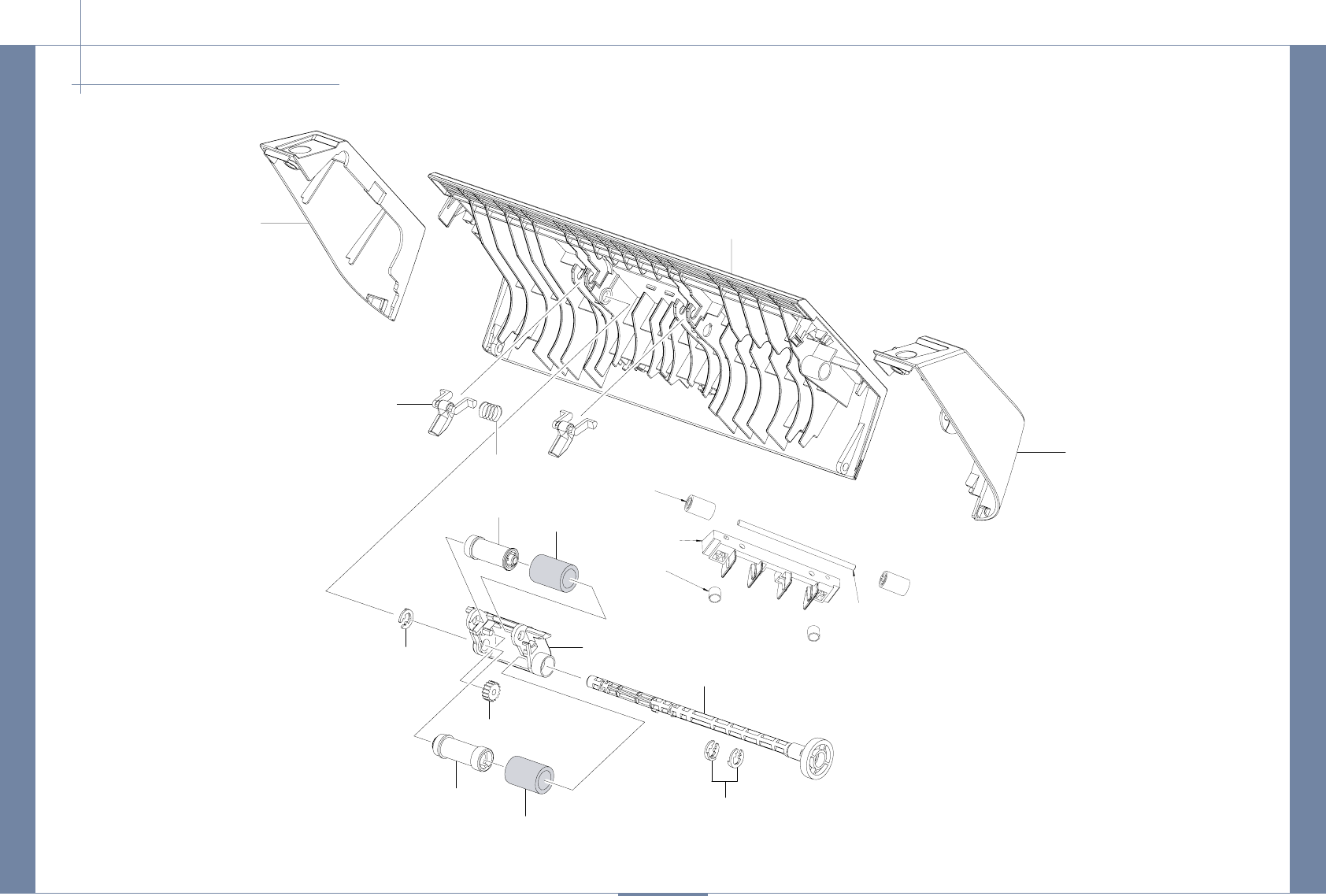

8. FRAME BASE-PICK UP
3-3
3-2
3-1
3
12
6
4
5
2
1
7
0
24
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
25
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
FRAME BASE-PICK UP Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC93-00085A FRAME BASE-PICK UP 1SA
1JC61-03477A STOPPER-PICK_UP 2 SA
2 JC72-00982A PMO-IDLE PICK_UP 2 SA
3 JC93-00087A FRAME BASE-PICK UP RUBBER 1SA
3-1 JC73-00315A RUBBER-PICK_UP 1SA
3-2 JC61-03514A HOUSING-PICKUP_RUB 1SA
Drawer# SEC_Code Description QT’y Service Remark
3-3 JC61-03435A HOUSING-PICKUP 1SA
4 JC61-03485A HOLDER-PICKUP 1SA
5 6003-000264 SCREW-TAPTYPE 1SNA
6 JC66-00399A SHAFT-P-PICK_UP 1SA
7 JC61-00586A BUSH-M-PICK_UP L 1SA
24
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
25
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

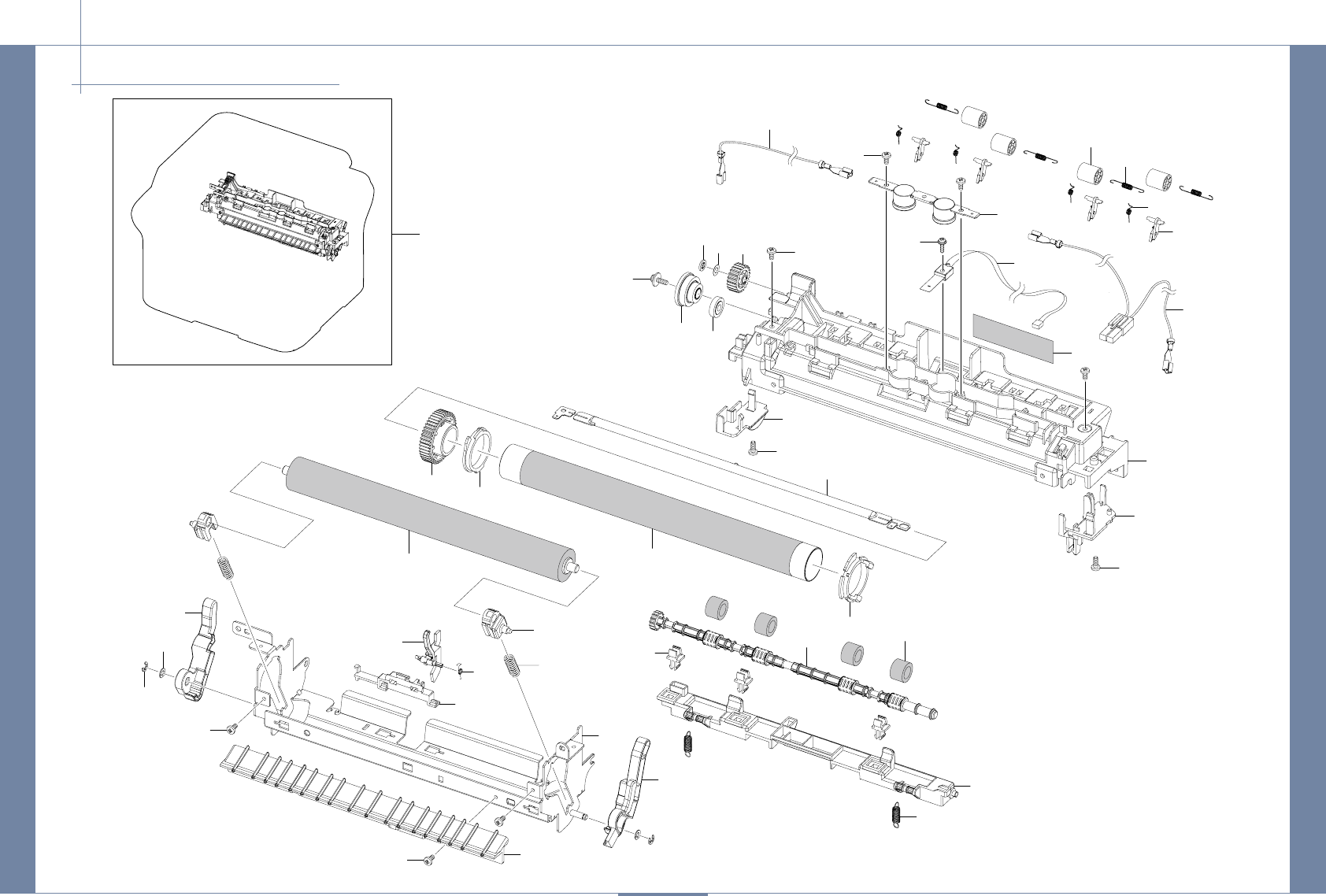

9. FUSER
0
23
20
14
19
24
25
12
4
11
6
31
40
3
10 745
5
44 43
4
41
4
13
35
28
36
27 17
33
18
32
15
34
22
21
16
37
26
29
39
30
3
3
38
8
9
42
26
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
27
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
FUSER Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC91-00946A FUSER 1SA 110V
0 JC91-00945A FUSER 1SA 220V
0 JC91-00945B FUSER 1SA 220V/XIP
3 6003-000269 SCREW-TAPTYPE 5 SA
4 6003-000282 SCREW-TAPTYPE 2 SNA
5 6006-001078 SCREW-TAPTYPE 1SNA
6 6003-000196 SCREW-TAPTYPE 1SA
7 6031-001051 WASHER-PLAIN 1SNA
8 6031-001584 WASHER-PLAIN 2 SA
96044-000159 RING-C 2 SA
10 6044-000001 RING-CS 1SA
11 1404-001447 THERMISTOR-NTC ASSY 1SA
12 4712-001031 THERMOSTAT 1SA
13 4713-001211 LAMP-HALOGEN 1SA 110V
13 4713-001212 LAMP-HALOGEN 1SA 220V
14 6107-001800 SPRING-TS 4 SA
15 6107-001802 SPRING-ES 2 SA
16 6107-001165 SPRING-TS 1SA
17 JC73-00017A RMO-RUBBER_EXIT 4 SA
18 JC72-00382A PMO-BUSHING TX 3 SNA
19 JC61-02154A GUIDE-CLAW 4 SNA
20 JC61-70976A SPRING ETC-FUSER EXIT 4 SNA
21 JC61-00056A SPRING ETC-PR(7300) 2 SA
22 JC61-03473A BUSH-PR HIGH 2 SNA
23 JC72-40361A PMO-ROLLER_EXIT 4 SNA
Drawer# SEC_Code Description QT’y Service Remark
24 JC39-00819A HARNESS-FUSER JOINT 1SA
25 JC39-01082A HARNESS-FUSER AC 1SA
26 JC61-00581A HOLDER-ACTUATOR 1SA
27 JC61-00887A BUSH-M-HR R_R2 1SA
28 JC61-00888A BUSH-M-HR L_R2 1SA
29 JC61-03449A FRAME-FUSER 1SNA
30 JC61-03450A GUIDE-INPUT 1SNA
31 JC63-02412A COVER-FUSER 1SNA
32 JC63-02413A COVER-FUSER DUMMY 1SNA
33 JC66-00380A ROLLER-M-EXIT F/UP 1SA
34 JC66-00600A ROLLER-PRESSURE 1SA
34 JC66-00600B ROLLER-PRESSURE 1SA XIP
35 JC66-01254A GEAR-FUSER 1SA
36 JC66-01256A ROLLER-HEAT 1SA
36 JC66-01256B ROLLER-HEAT 1SA XIP
37 JC66-02364A ACTUATOR-EXIT 1SNA
38 JC66-02365A LEVER-LINK JAM L 1SNA
39 JC66-02366A LEVER-LINK JAM R 1SNA
40 JC67-00414A CAP-FUSER LAMP R 1SNA
41 JC67-00415A CAP-FUSER LAMP L 1SNA
42 JC68-01581B LABEL-CAUTION 1SNA
43 JC72-00143A PMO-GEAR_EXIT_DRV16 1SNA
44 JC66-02317A GEAR-RDCN_EXIT 1SA
45 JC66-00396A GEAR-IDLE 23 1SA
26
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
27
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
10. CASSETTE
0
5
46
7
8
9
10
10
11
11-1
11-2
11-3
12
13
14
15
2
3
1
16
17
18
19
20
21
22
28
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
29
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
CASSETTE Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC90-00943A CASSETTE 1SA
1JC61-03343A FRAME-CASSETTE 1SNA
2 JC61-03341A GUIDE-EXTENSION CST 1SNA
3 JC72-00971A PMO-EXTENSION SMALL 1SA
4 JC70-00300A ADJUST-M-CASSETTE_L 1SA
5 JC70-00301A ADJUST-M-CASSETTE_R 1 SC
6 JC73-00141A RPR-PAD CASSETTE 1SA
7 JC61-00603A PLATE-P-KNOCK_UP 1SNA
8 JC66-00719A CAM-M-KNOCK UP 1SA
96003-000261 SCREW-TAPTYPE 1SNA
10 6107-001166 SPRING-CS 2 SA
11 JC90-00941A CASSETTE-HOLDER PAD 1SA
11-1 JC63-00290A SHEET-HOLDER PAD 1SA
Drawer# SEC_Code Description QT’y Service Remark
11-2 JC73-00140A RPR-FRICTION PAD 1SA
11-3 JC61-03344A HOLDER-PAD 1SA
12 JC61-01978A HOUSING-HOLDER PAD 1SA
13 JC61-70911A SPRING ETC-EXIT ROLL FD 1SA
14 JC66-00529C ROLLER-IDLE FEED 2 SA
15 6107-001047 SPRING-ES 2 SA
16 JC63-02452A COVER-CASSETTE 1SA
17 6003-000196 SCREW-TAPTYPE 2 SA
18 JG66-40003A GEAR-PINION 1SA
19 6003-000264 SCREW-TAPTYPE 1SNA
20 JC72-00972A PMO-PLATE_LOCKER 1SA
21 JG61-70531A SPRING ETC-LOCKER,PLATE 1SA
22 JC72-40981A PMO-ROLLER UPPER DP 2 SA
28
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
29
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

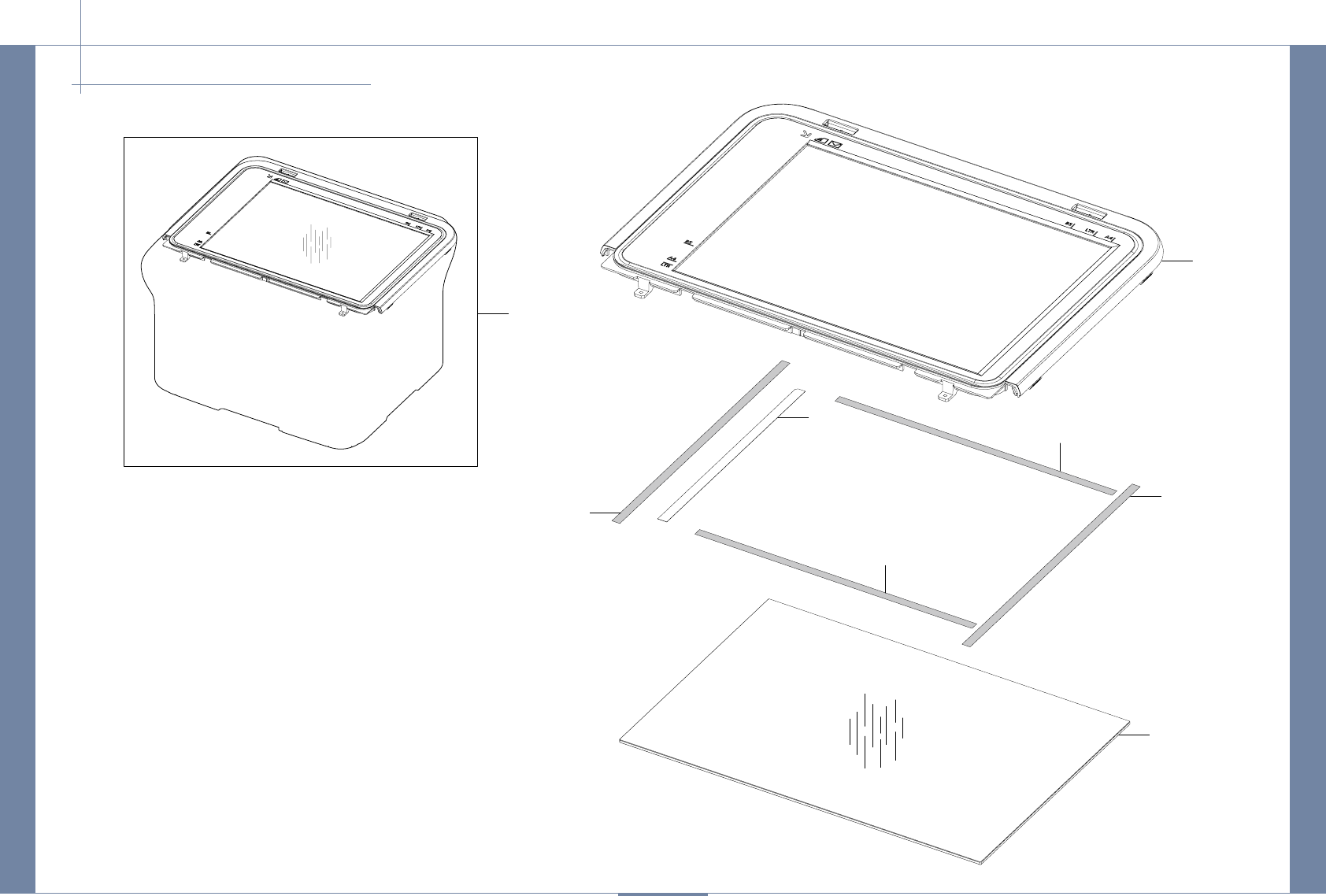

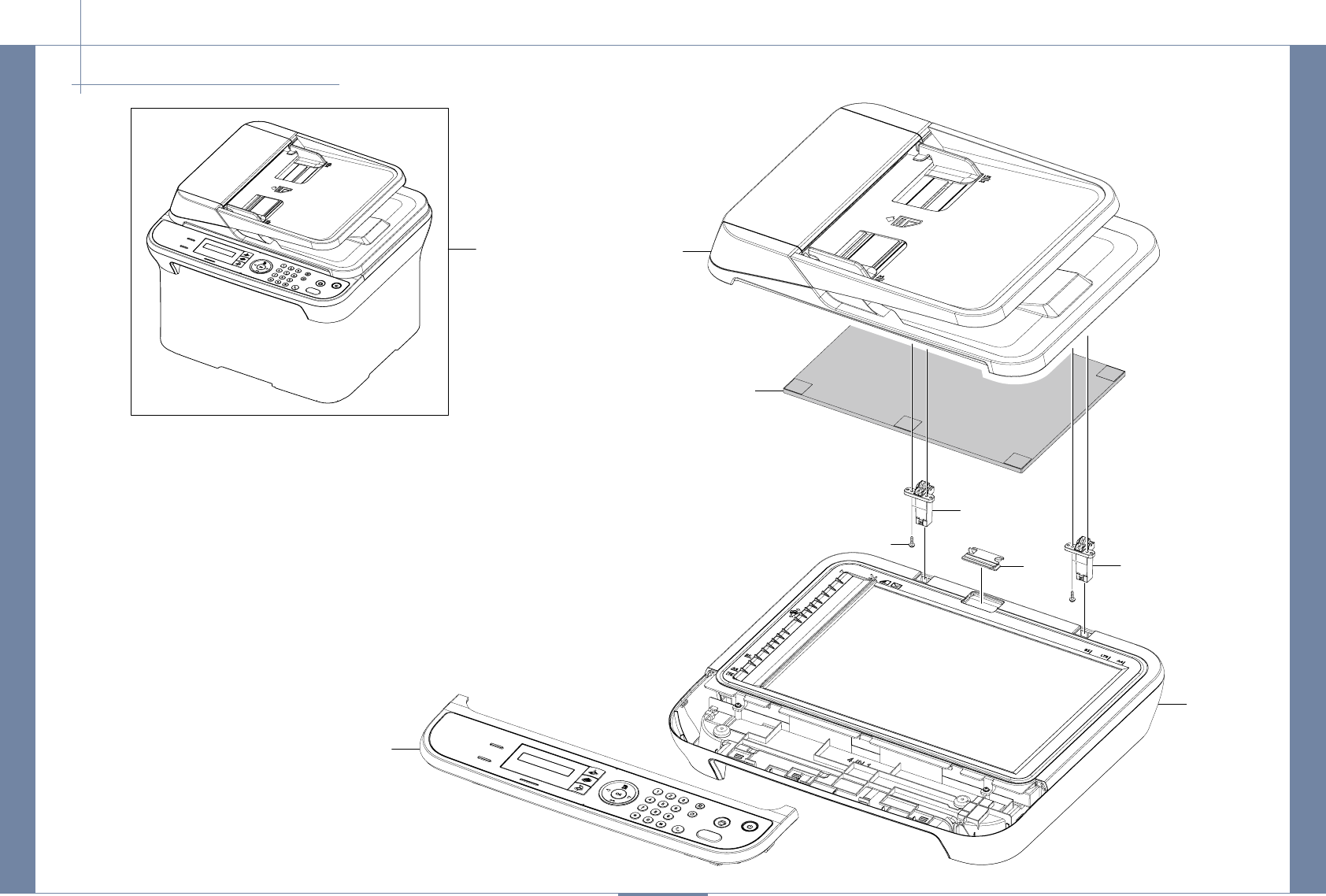

11. SCANNER_4 in 1
07
4
3
65
1
2
(4 in 1) 8
30
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
31
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
SCANNER_4 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03685A SCANNER 1SNA
4623FN/Others
0 JC97-03685B SCANNER 1SNA
4623FN/SEE/XEC
0 JC97-03685C SCANNER 1SNA
4623F/Others
0 JC97-03685D SCANNER 1SNA
4623F/SEE/XEC
0 JC97-03685F SCANNER 1SNA
4623FN/XAX/XBH
0 JC97-03685G SCANNER 1SNA
4623FN/XEV
0 JC97-03685H SCANNER 1SNA
4623FN/STS
0 JC97-03685J SCANNER 1SNA
4623FN/ETS
0 JC97-03685M SCANNER 1SNA
4623F/XAX/XBH
0 JC97-03685N SCANNER 1SNA 4623F/XEV
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03685P SCANNER 1SNA 4623F/STS
0 JC97-03685R SCANNER 1SNA 4623F/ETS
1JC97-03677A PLATEN 1SNA
2 - OPE 1SA
Refer to 14.OPE
3 6003-000196 SCREW-TAPTYPE 4 SA
4 JC97-03191A MEA UNIT-HINGE L 1SA
5 JC97-03190A MEA UNIT-HINGE R 1SA
6 JC63-02454A COVER-CONNECTOR 1SNA
7 JC97-03694A ADF 1SA
8 JC63-02569A SHEET-WHITE 1SA
30
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
31
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

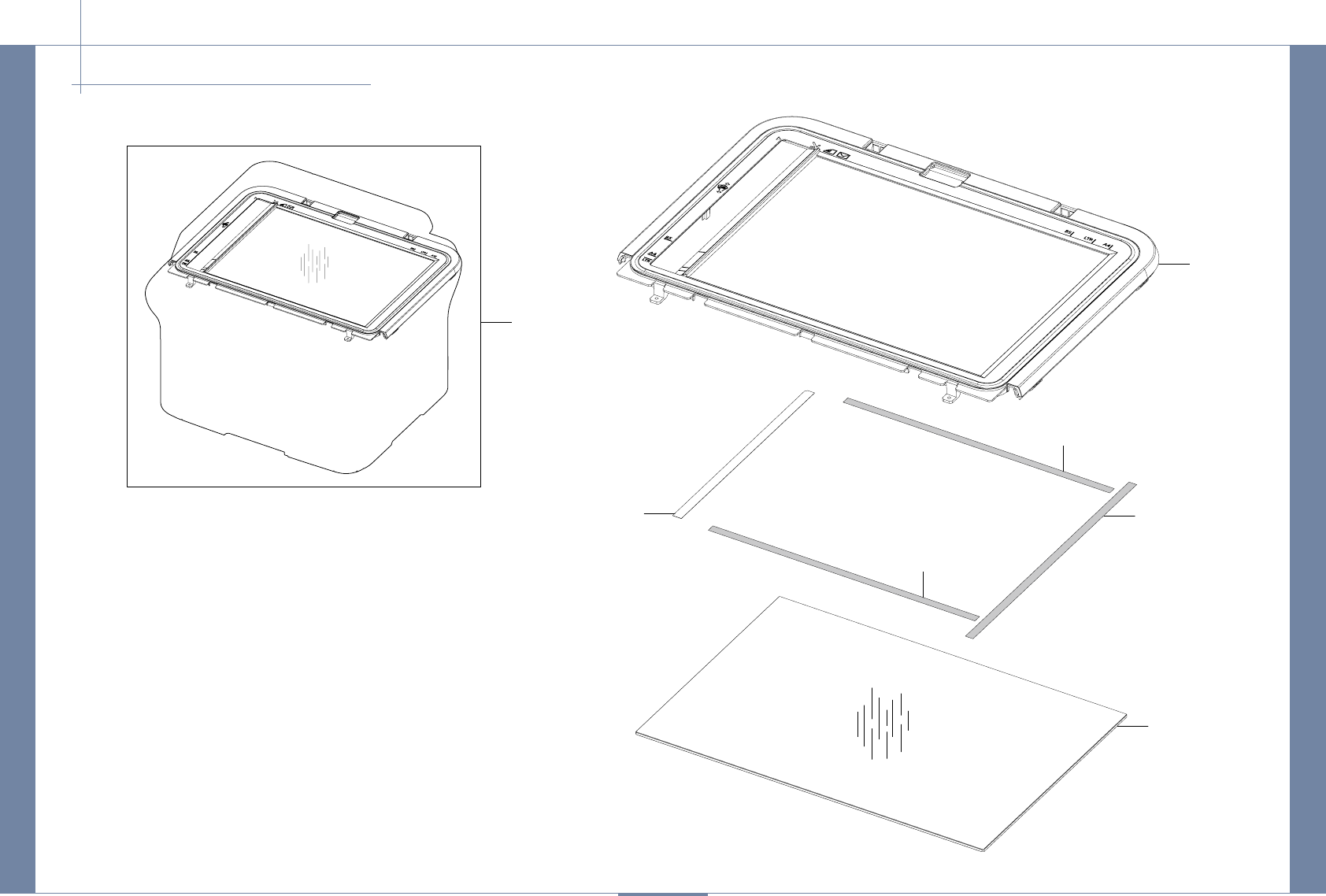

12. SCANNER_3 in 1
02
3
1
(3 in 1)
32
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
33
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
SCANNER_3 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03684A SCANNER 1SNA
4600/Others
0 JC97-03684D SCANNER 1SNA
4600/XAX/XBH
0 JC97-03684E SCANNER 1SNA 4600/XEV
0 JC97-03684F SCANNER 1SNA 4600/STS
Drawer# SEC_Code Description QT’y Service Remark
1- OPE 1SA
Refer to 15.OPE
2 JC97-03438A MEA UNIT-COVER PLATEN 1SA
3 JC97-03680A PLATEN 1SA
32
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
33
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

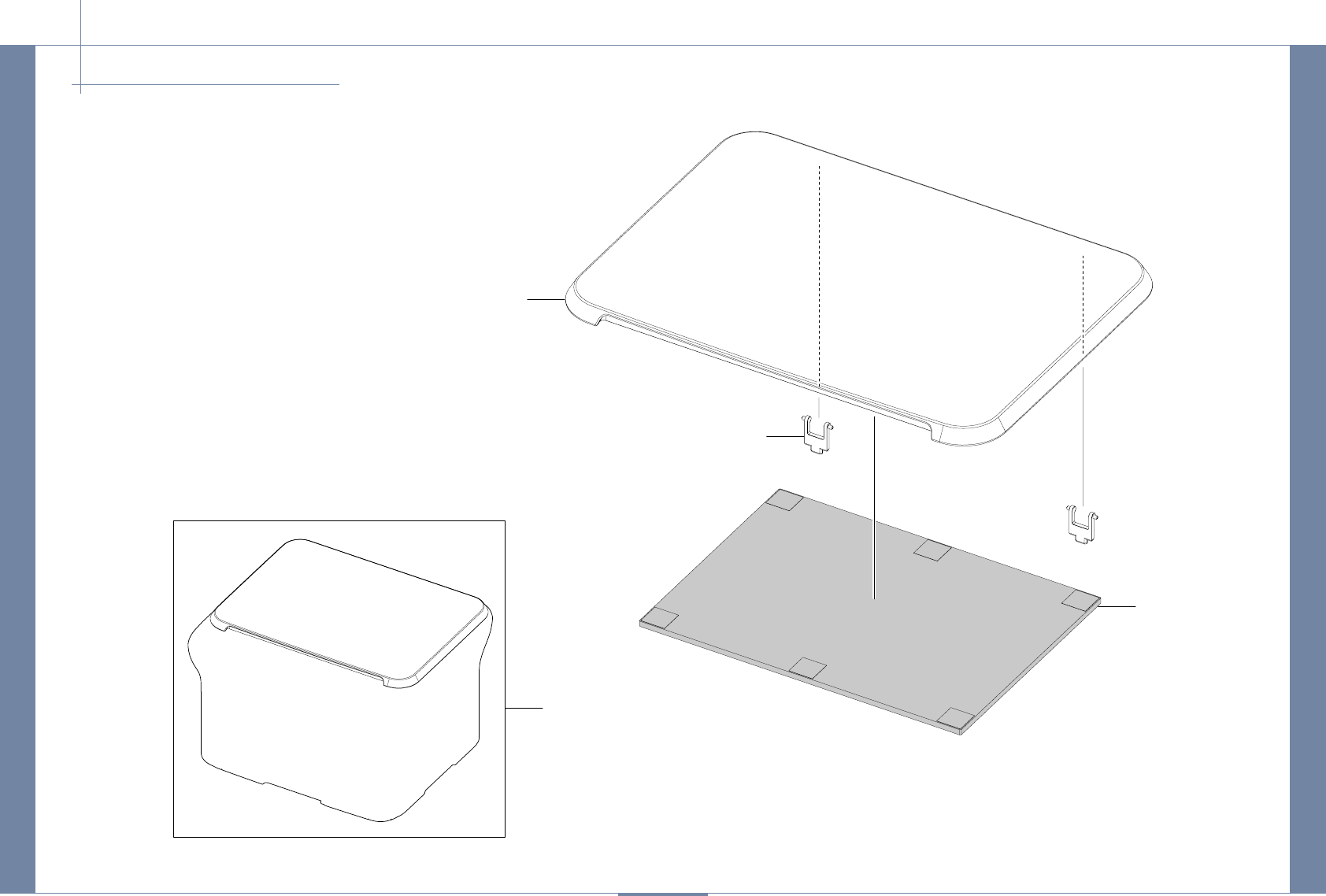

13. COVER-PLATEN
0
3
1
2
(3 in 1)
34
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
35
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
COVER-PLATEN Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03438A MEA UNIT-COVER PLATEN 1SA 4600
1JC61-00929B HINGE-PIVOT 2 SA
Drawer# SEC_Code Description QT’y Service Remark
2 JC63-00209A SHEET-WHITE SPONGE 1SNA
3 JC63-01977A COVER-PLATEN 1SA
34
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
35
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
14. OPE_4 in 1
0
1
10
11
8
9
13
14
7
6
5
12
34
2
(4 in 1)
36
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
37
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
OPE_4 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03675A OPE 1 SA
4623FN/Others
0 JC97-03675B OPE 1 SA
4623FN/SEE/XEC
0 JC97-03675C OPE 1 SA 4623F/Others
0 JC97-03675D OPE 1 SA
4623F/SEE/XEC
0 JC97-03675F OPE 1 SA
4623FN/XAX/XBH
0 JC97-03675G OPE 1 SA 4623FN/XEV
0 JC97-03675H OPE 1 SA 4623FN/STS
0 JC97-03675J OPE 1 SA 4623FN/ETS
0 JC97-03675M OPE 1 SA
4623F/XAX/XBH
0 JC97-03675N OPE 1 SA 4623F/XEV
0 JC97-03675P OPE 1 SA 4623F/STS
0 JC97-03675R OPE 1 SA 4623F/ETS
0 JC97-03675W OPE 1 SA
4623FW/Others
0 JC97-03675X OPE 1 SA
4623FW/SEE/XEC
1 JC63-02453A COVER-OPE 1 SNA
4623FN/Others
1 JC63-02453B COVER-OPE 1 SNA
4623FN/SEE/XEC
1 JC63-02453C COVER-OPE 1 SNA 4623F/Others
1 JC63-02453D COVER-OPE 1 SNA
4623F/SEE/XEC
1 JC63-02453F COVER-OPE 1 SNA
4623FN/XAX/XBH
1 JC63-02453G COVER-OPE 1 SNA 4623FN/XEV
1 JC63-02453H COVER-OPE 1 SNA 4623FN/STS
1 JC63-02453J COVER-OPE 1 SNA 4623FN/ETS
Drawer# SEC_Code Description QT’y Service Remark
1 JC63-02453M COVER-OPE 1 SNA
4623F/XAX/XBH
1 JC63-02453P COVER-OPE 1 SNA 4623F/STS
1 JC63-02453R COVER-OPE 1 SNA 4623F/ETS
1 JC63-02453W COVER-OPE 1 SNA
4623FW/Others
1 JC63-02453X COVER-OPE 1 SNA
4623FW/SEE/XEC
2 JC64-00386B KEY-EXTRA 1 SA
3 JC64-00392A KEY-STATUS 1 SNA
3 JC64-00431A KEY-STATUS 1 SNA 4623FW
4 JC64-00387B KEY-FAX 1 SA
5 JC64-00394B KEY-TEL 1 SA
6 JC64-00388B KEY-MENU 1 SA
7 JC64-00389B KEY-OK 1 SA
8 JC64-00393B KEY-STOP 1 SA
9 JC64-00410C KEY-START 1 SNA
10 JB64-00114D KEY-POWER 1 SA
11 JC64-00443A KEY-POWER_B 1 SNA
12 JC63-01802A COVER-LCD 1 SNA
13 JC92-02134A PBA-OPE 1 SA
13 JC92-02134B PBA-OPE 1 SA
14 6003-000196 SCREW-TAPTYPE 5 SA
15 - SHEET-OPE 1 SNA
36
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
37
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
15. OPE_3 in 1
0
1
8
9
6
7
5
3
11
12
4
2
10
(3 in 1)
38
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
39
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
OPE_3 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03676A OPE 1SA 4600/Others
0 JC97-03676D OPE 1SA
4600/XAX/XBH
0 JC97-03676E OPE 1SA 4600/XEV
0 JC97-03676F OPE 1SA 4600/STS
1JC63-02468A COVER-OPE 1SA
2 JC64-00392A KEY-STATUS 1SNA
3 JC64-00388B KEY-MENU 1SNA
4 JC64-00389B KEY-OK 1SNA
5 JC64-00430A KEY-EXTRA 1SNA
Drawer# SEC_Code Description QT’y Service Remark
6 JC64-00393B KEY-STOP 1SNA
7 JC64-00410C KEY-START 1SNA
8 JB64-00114D KEY-POWER 1SNA
9JC64-00443A KEY-POWER_B 1SNA
10 JC63-01802A COVER-LCD 1SNA
11 JC92-02175A PBA-OPE 1SA
12 6003-000196 SCREW-TAPTYPE 4 SNA
13 - SHEET-OPE 1SNA
38
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
39
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual

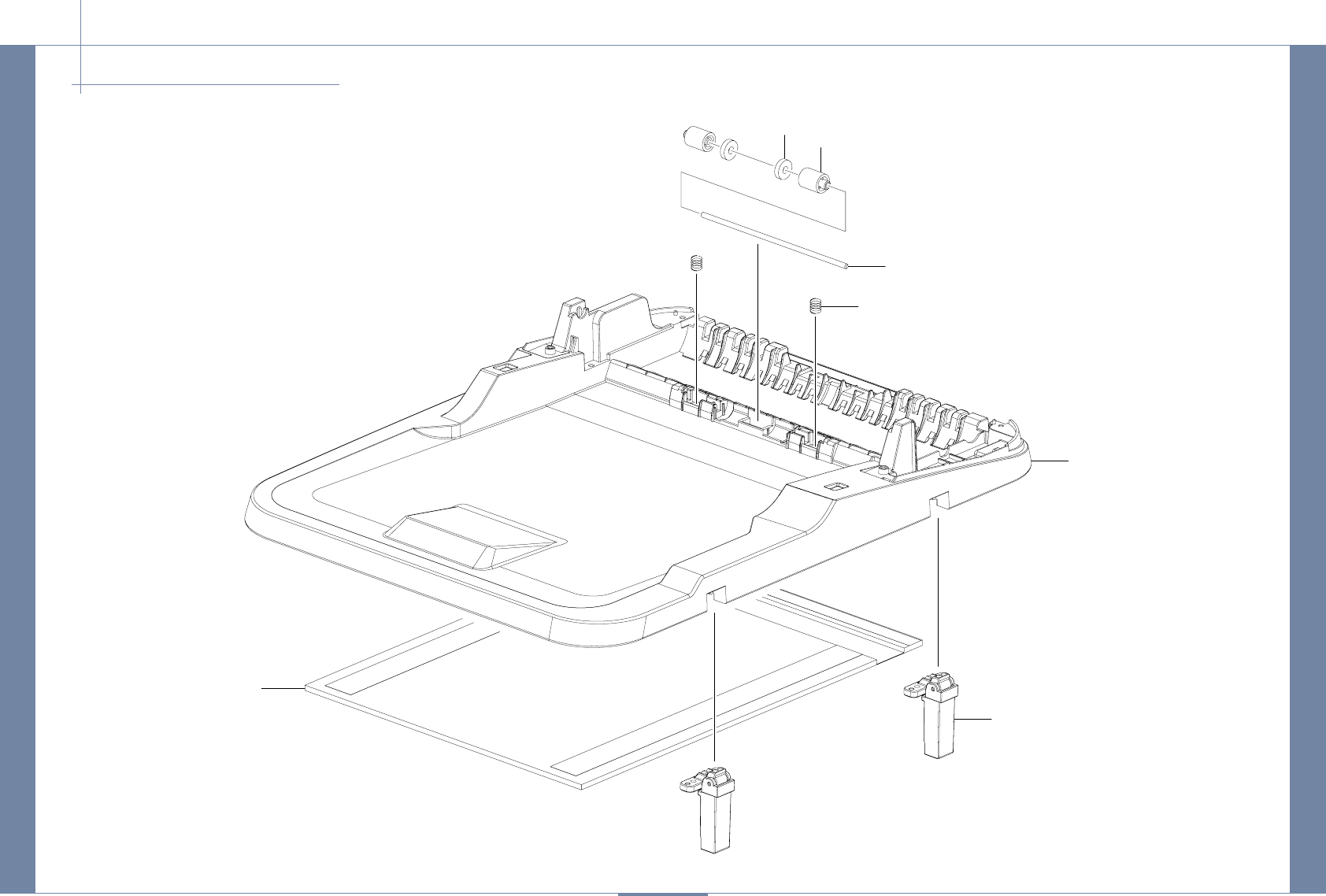

16. PLATEN-LOW END
0
1
4
6
6
4
10
5
11
7
2
14
8
3
9
12
15
40
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
41
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
PLATEN-LOW END Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03686A PLATEN-LOW END 1SNA
1JC61-02506A BRACKET-CIS 1SNA
2 JC93-00111A DRIVE PLATEN 1SA
3 6107-001194 SPRING-CS 1SA
4 JC66-01580A SLIDER-CIS 2 SA
5 6602-001637 BELT-TIMING GEAR 1SA
6 6107-001137 SPRING-CS 2 SA
7 JC61-02517A FRAME-SCAN LOWER 1SNA
Drawer# SEC_Code Description QT’y Service Remark
8 JC66-00713A PULLEY-M_IDLE 1SNA
9JC61-00931A BRACKET-P-PULLEY 1SNA
10 CIS_FPC_TULIP 1
11 JC66-01448A SHAFT-CIS 1SA
12 JB61-00232A CLIP-P-BELT 1SA
13 6003-000196 SCREW-TAPTYPE 3 SA
14 0604-001095 PHOTO-INTERRUPTER 1SA
40
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
41
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
17. PLATEN-LOWER_4 in 1
0
(4 in 1)
4
3
1
2
6
5
42
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
43
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
PLATEN-LOWER_4 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03679A PLATEN-LOWER 1SNA 4 in 1
1JC63-02455A COVER-SCAN LOWER 1SNA
2 JC63-02457A COVER-OPE DECO 1SNA
Drawer# SEC_Code Description QT’y Service Remark
3 JC97-03686A PLATEN-LOW END 1SNA
4 6003-000196 SCREW-TAPTYPE 6 SA
42
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
43
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
18. PLATEN-LOWER_3 in 1
0
(3 in 1)
4
3
1
2
5
44
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
45
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
PLATEN-LOWER_3 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03682A PLATEN-LOWER 13 in 1
1JC63-02465A COVER-SCAN LOWER 1
2 JC63-02466A COVER-OPE DECO 1
Drawer# SEC_Code Description QT’y Service Remark
3 JC97-03686A PLATEN-LOW END 1
4 6003-000196 SCREW-TAPTYPE 4
44
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
45
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
19. PLATEN-UPPER_4 in 1
0
(4 in 1)
1
2
2
2
4
3
46
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
47
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
PLATEN-UPPER_4 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03678A PLATEN-UPPER 1SNA 4 in 1
1JC63-02456A COVER-SCAN UPPER 1SNA
2 0203-001267 TAPE-DOUBLE FACE 3 SNA
Drawer# SEC_Code Description QT’y Service Remark
3 JC63-01906A SHEET-SHADING 1SNA
4 JC01-00002A GLASS-SCAN MONTBLANC 1 SC
46
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
47
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
20. PLATEN-UPPER_3 in 1
0
(3 in 1)
1
3
3
3
3
2
4
48
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
49
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
PLATEN-UPPER_3 in 1 Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03681A PLATEN-UPPER 1SNA 3 in 1
1JC63-02467A COVER-SCAN UPPER 1SNA
2 JC63-01906A SHEET-SHADING 1SNA
Drawer# SEC_Code Description QT’y Service Remark
3 0203-001267 TAPE-DOUBLE FACE 4 SNA
4 JC01-00002A GLASS-SCAN MONTBLANC 1 SC
48
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
49
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
21. PLATEN-SHEET
0
1
2
(4 in 1)
50
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
51
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
PLATEN-SHEET Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
0 JC97-03693A PLATEN-SHEET 1SA
1JC61-03513A HOLDER-ADF SHEET 1SNA
Drawer# SEC_Code Description QT’y Service Remark
2 JC63-01794A SHEET-ADF 1SNA
50
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
51
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
22. ASSY_ADF_BASE
7
6
5
2
4
1
3
52
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
53
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
ASSY_ADF_BASE Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
1- WHEEL,EJECT 2 SNA
2 - SPRING,EJECT, IDLE 2 SNA
3 JC81-07319A CSP-ROLLER_EJECT_IDLE 2 SA
4 - SHAFT 1SNA
Drawer# SEC_Code Description QT’y Service Remark
5 JC81-07311A CSP-FRAME_ADF_BASE 1SA
6 - MEA UNIT HINGE 2 SNA
7 - 1SNA
52
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
53
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
23. ASSY-INPUT-TRAY
1
6
2
5
3
4
54
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
55
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
ASSY-INPUT-TRAY Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
1JC81-07328A CSP-EDGE_GUIDE_FRONT 1SA
2 JC81-07329A CSP_EDGE_GUIDE_REAR 1SA
3 JC81-07339A CSP-GEAR_PINION 1SA
Drawer# SEC_Code Description QT’y Service Remark
4 - SCREW-TAPTYPE 1SNA
5 - SPRING 1SNA
6 JC81-07327A CSP-TRAY_INPUT 1SA
54
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
55
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
24. ASSY_ADF_COVER
12
3
6
5
910
4
13
12
11
8
7
7
14
15
16
17
56
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
57
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
ASSY_ADF_COVER Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
1JC81-07313A CSP-COVER_ADF_FRONT 1SA
2 JC81-07312A CSP-COVER_ADF_TOP 1SA
3 JC81-07314A CSP-COVER_ADF_REAR 1SA
4 JC81-07317A CSP-HOUSING_PICK_UP 1SA
5 - SPRING 1SNA
6 JC81-07316A CSP-STOPPER_PAPER 2 SA
7 JC81-07318A CSP-RING_CHESS 3 SA
8 JC81-07332A CSP-GEAR_PICK_IDLE 1SA
9- GEAR,PCIK FEEDING ROLLER 1SNA
Drawer# SEC_Code Description QT’y Service Remark
10 - RUBBER 1SNA
11 - RUBBER 1SNA
12 JC81-07334A CSP-GEAR_SEPARATE_ROLLER 1SA
13 JC81-07331A CSP-GEAR_DRIVE_PICK 1SA
14 JC81-07315A CSP-ROLLER_IDLE 2 SA
15 JC81-07330A CSP-FRAME_IDLE_UNIT 1SA
16 - SPRING 2 SNA
17 - SHAFT IDLE ROLLER 1SNA
56
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
57
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
25. ASSY_PAPER-PATH
6
4
5
3
1
2
7
18
8
18 18
10
10 9
11
12
19
14
13
17
16
15
58
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
59
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
ASSY_PAPER-PATH Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
1-1SNA
2 - SPRING 1SNA
3 JC81-07326A CSP-HOLDER_SEPERATION 1SA
4 - E-PAPER SENSOR 1SNA
5 - RUBBER SEPARATION 1SNA
6 - E-PAPER SENSOR 1SNA
7 - COVER SENSOR 1SNA
8 - BRUSH 1SNA
9JC81-07320A CSP-FRAME_DOCUMENT 1SA
10 JC81-07322A CSP-BEARING 4 SA
Drawer# SEC_Code Description QT’y Service Remark
11 - SPRING 2 SNA
12 JC81-07325A CSP_ARM-PAPER_POSITION 1SA
13 JC81-07324A CSP-ARM_PAPER_DETECT 1SA
14 - SPRING 1SNA
15 JC81-07323A CSP-WHITE_BAR 1SA
16 JC81-07321A CSP-FRAME_DOCUMENT_DOWN 1SA
17 - ROLLER FEEDING 2 SNA
18 - SCREW-TAPTYPE 10 SNA
19 - SPRING 1SNA
58
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
59
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
26. ASSY_DRIVING_MODULE
1
1
3
3
4
4
2
5
6
7
7
60
Parts Catalog - SCX-4600/4623 series
Samsung Electronics Service Manual
Parts Catalog -SCX-4600/4623 series
Samsung Electronics Service Manual
ASSY_DRIVING_MODULE Parts List
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
Drawer# SEC_Code Description QT’y Service Remark
1JC81-07336A CSP-GEAR_FEEDING 2 SA
2 JC81-07338A CSP-GEAR_IDLE 1SA
3 JC81-07337A CSP-GEAR_30T 2 SA
4 JC81-07335A CSP-GEAR_42T 2 SA
Drawer# SEC_Code Description QT’y Service Remark
5 JC81-07340A CSP-PLATE-READING_MOTOR 1SA
6 - STEP MOTOR 1SNA
7 - SCREW-TAPTYPE 3 SNA

Navigation menu
