COLOR TELEVISION RECEIVER

Chassis : KS7A(P) REV.1

Model : CW25M064NRXXEC

COLOR TELEVISION RECEIVER CONTENTS

Specifications

Alignment and Adjustments

Exploded Views and Parts List

Electrical Parts List

PCB Diagram

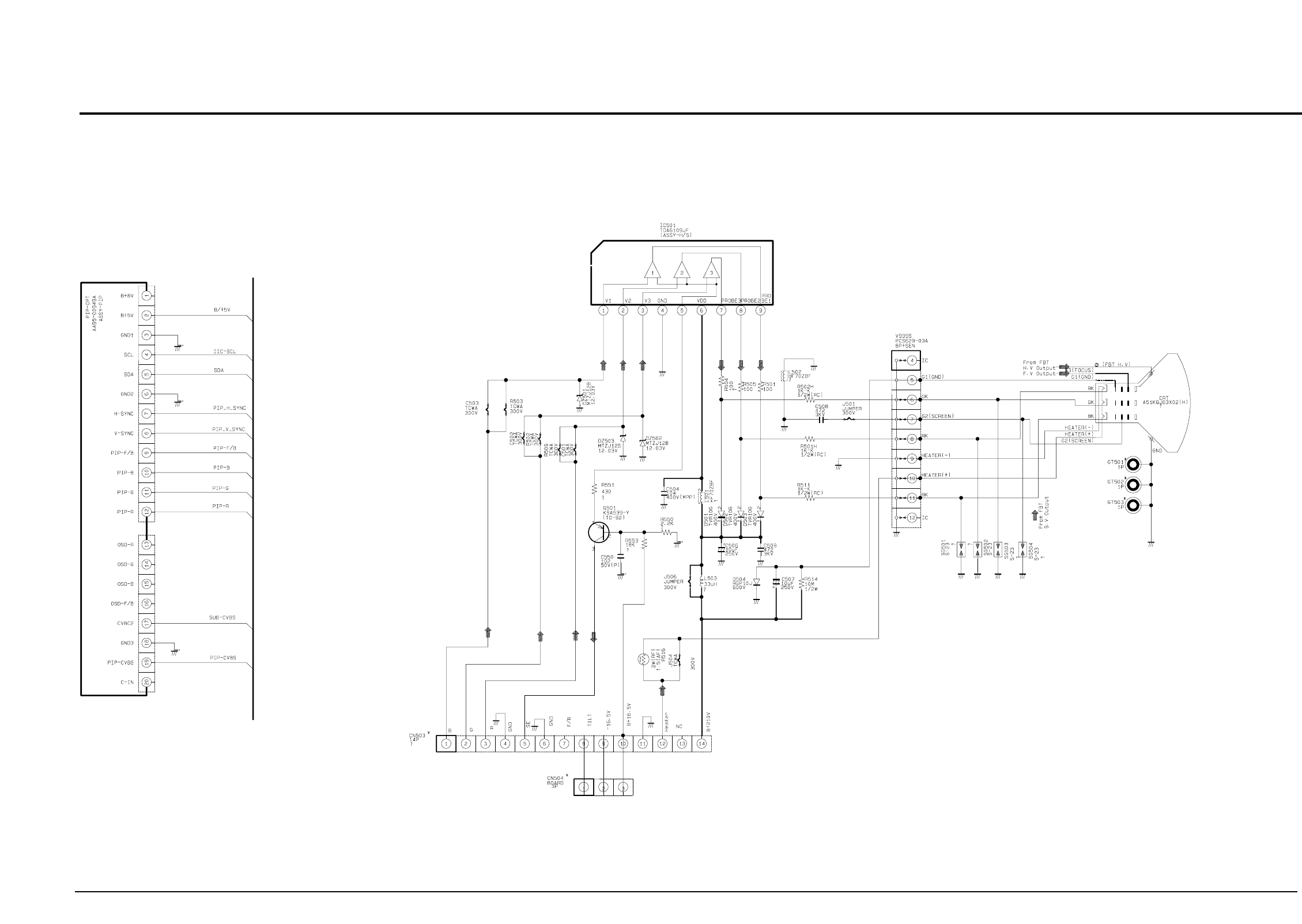

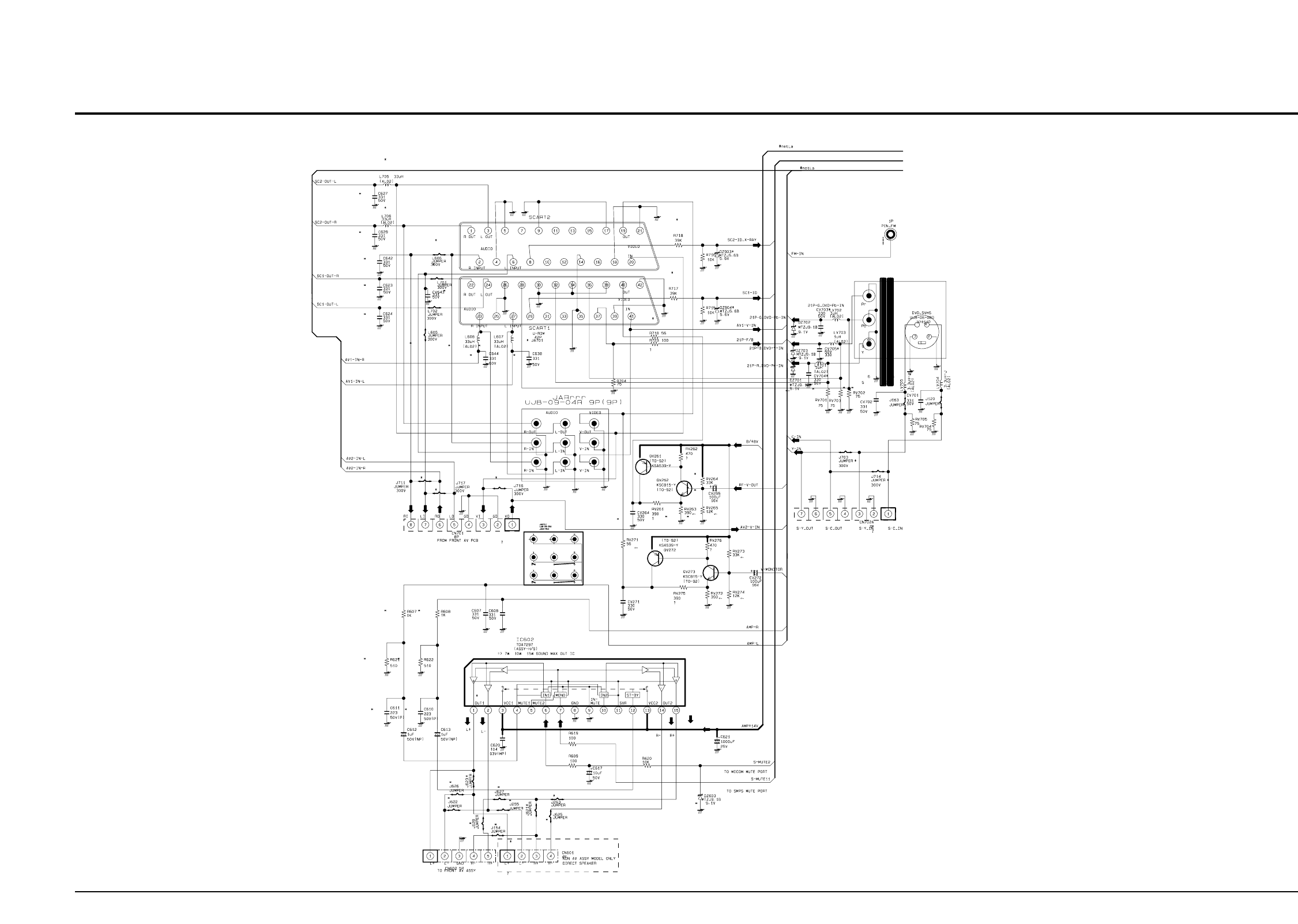

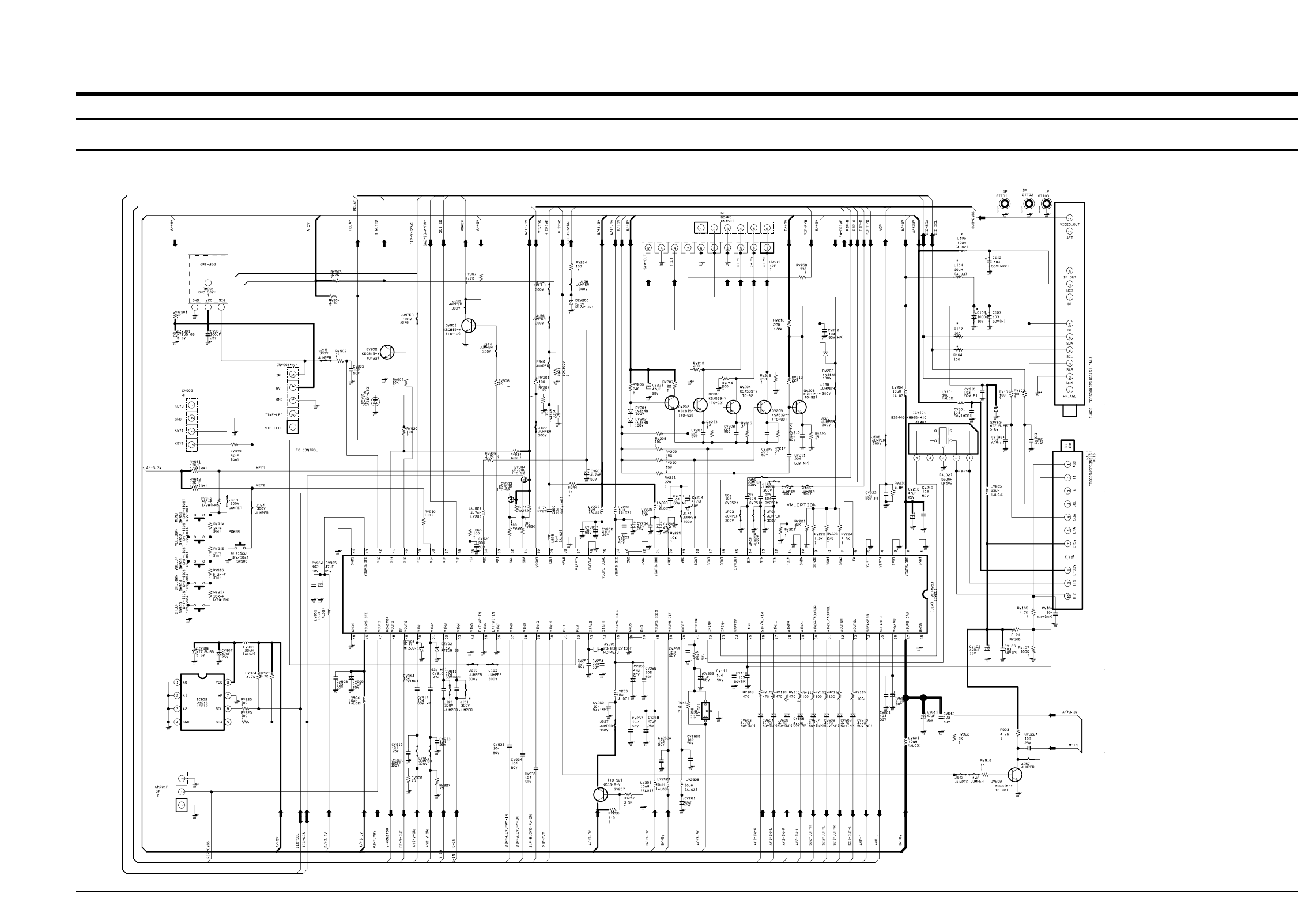

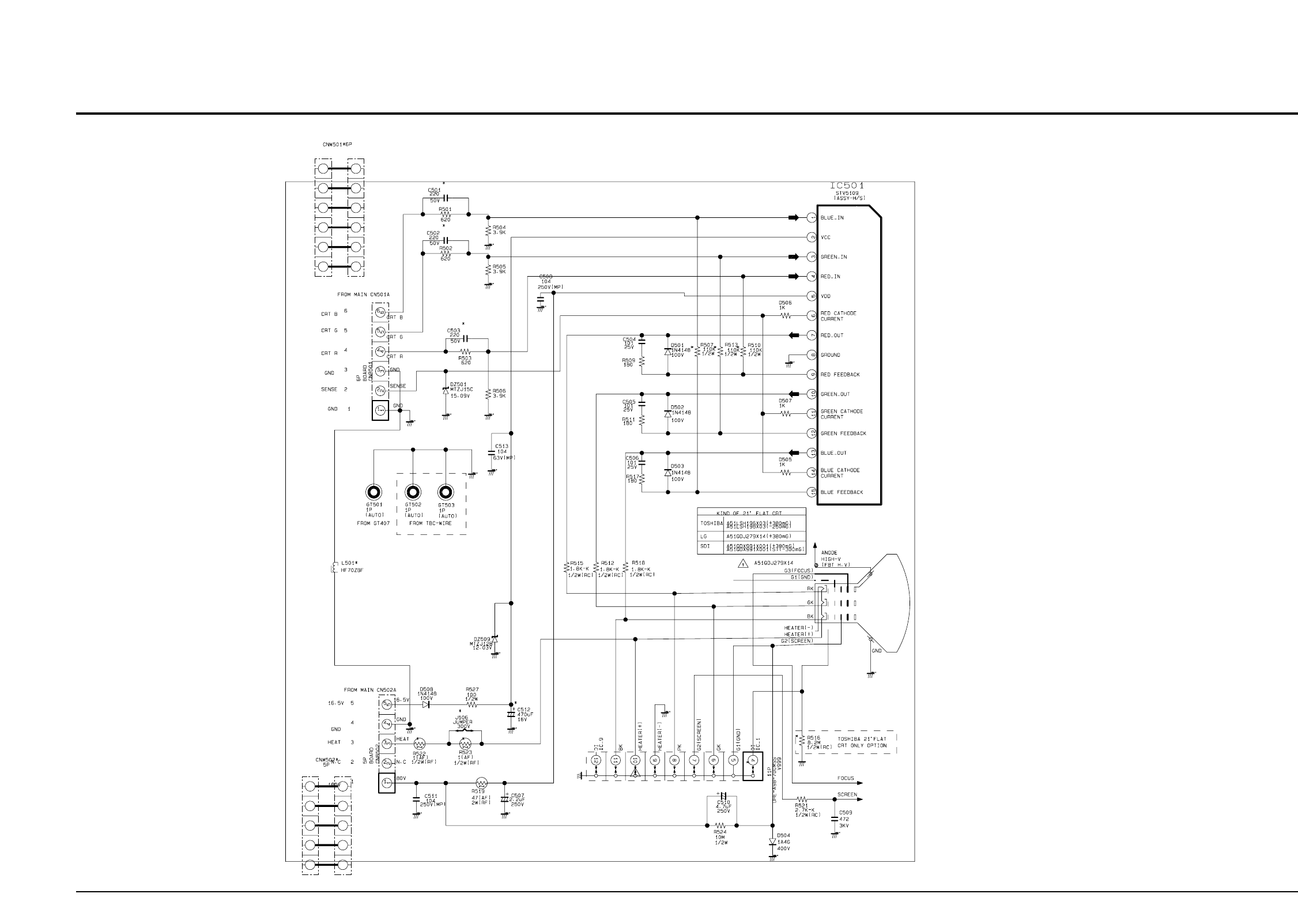

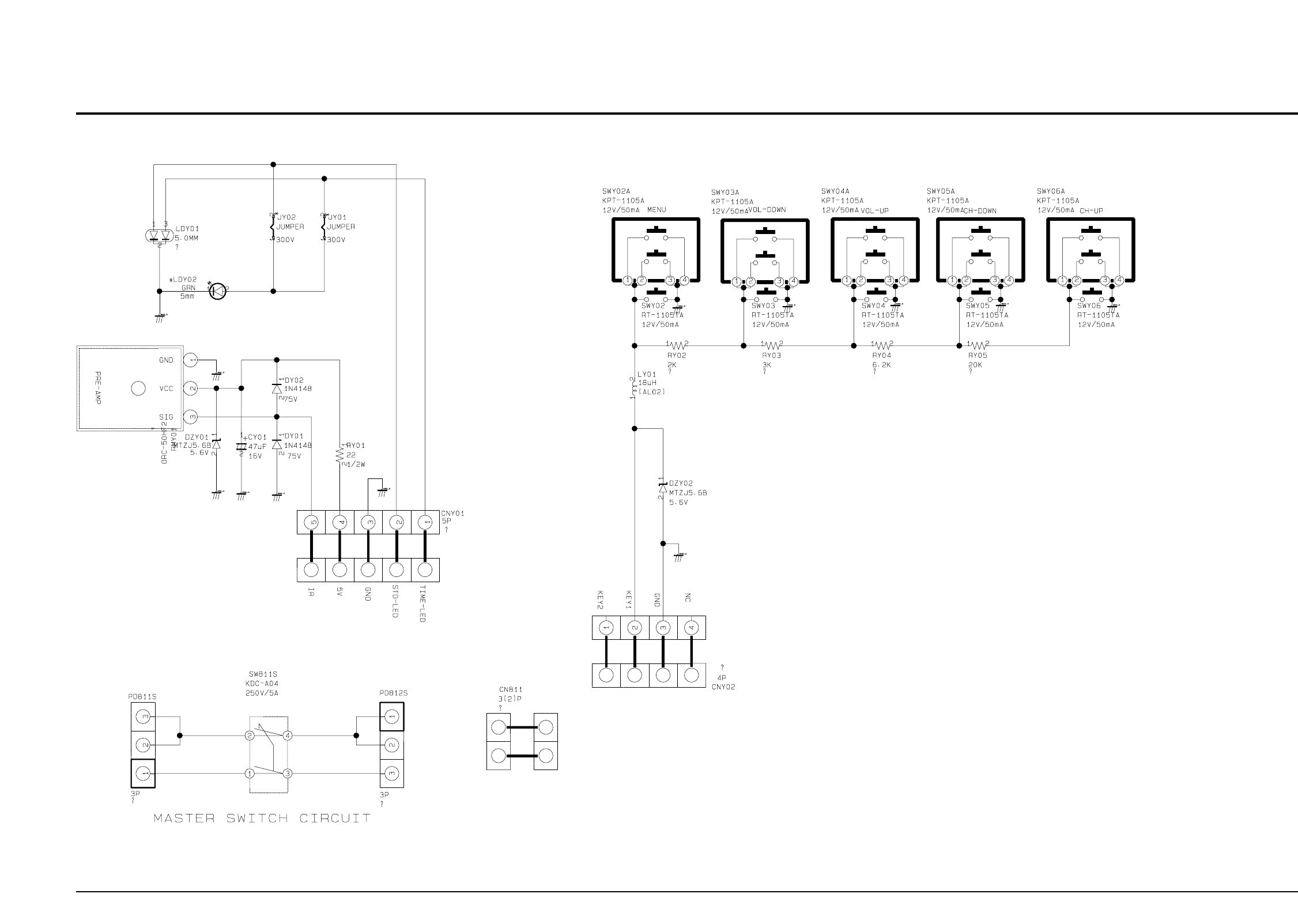

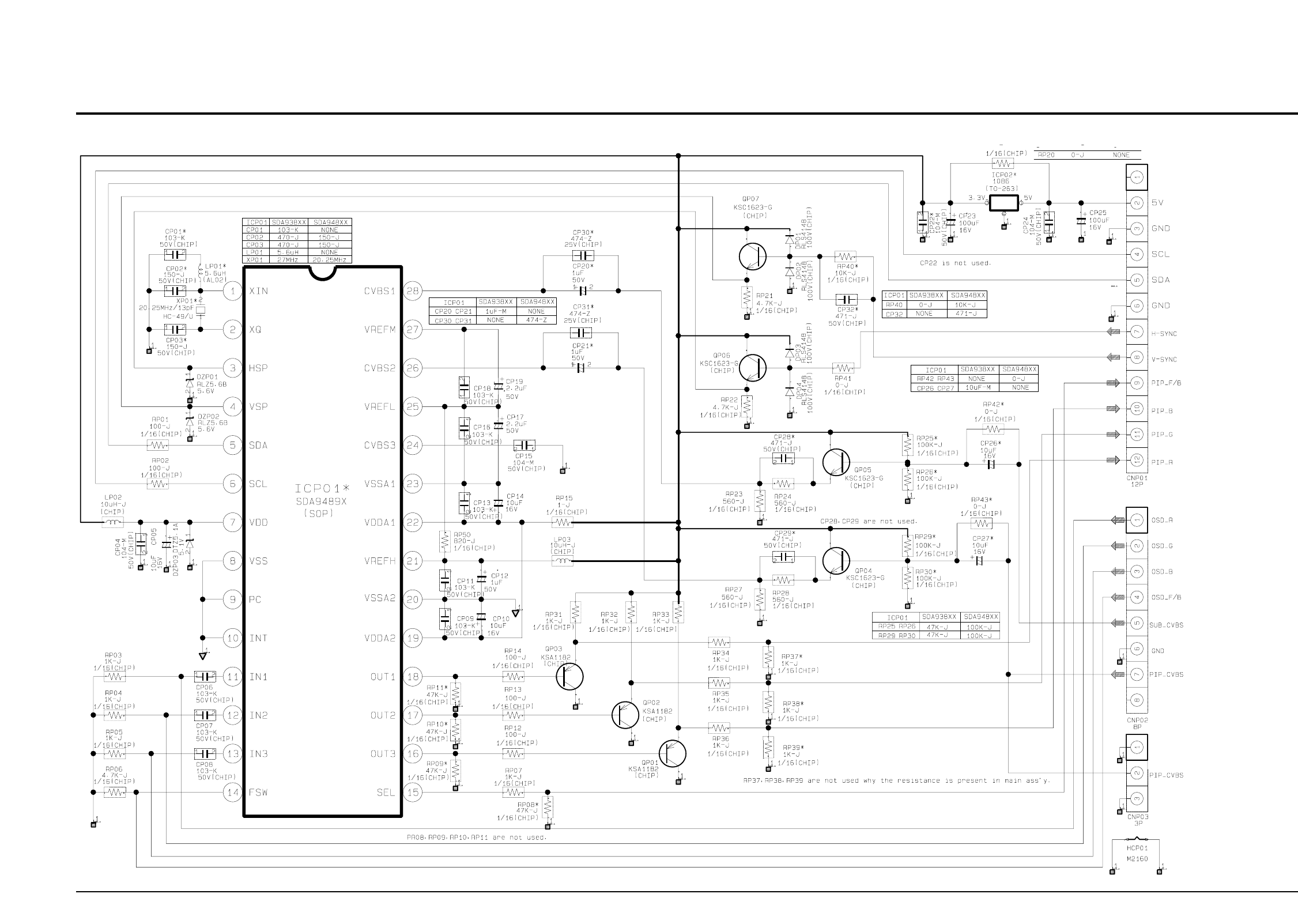

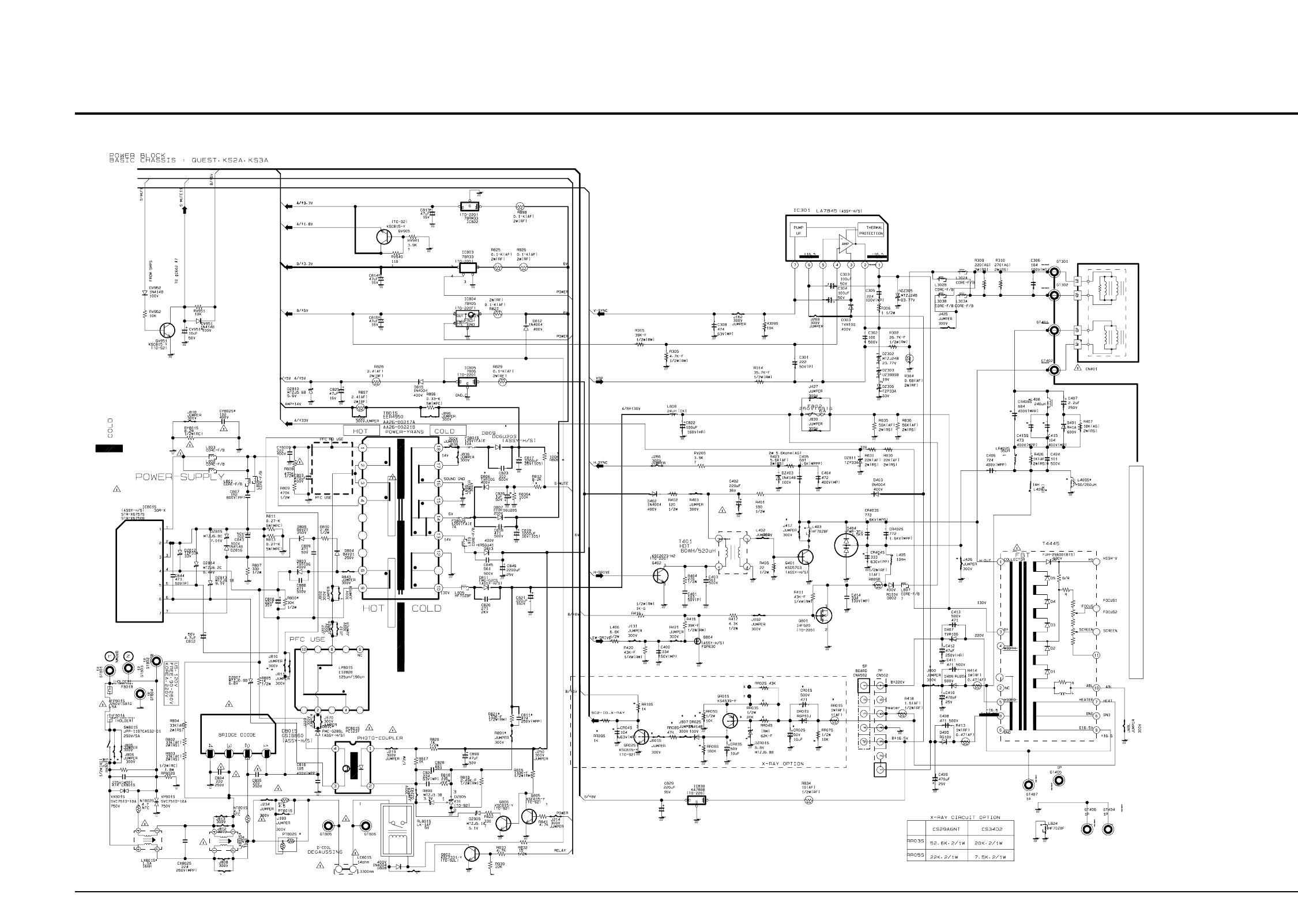

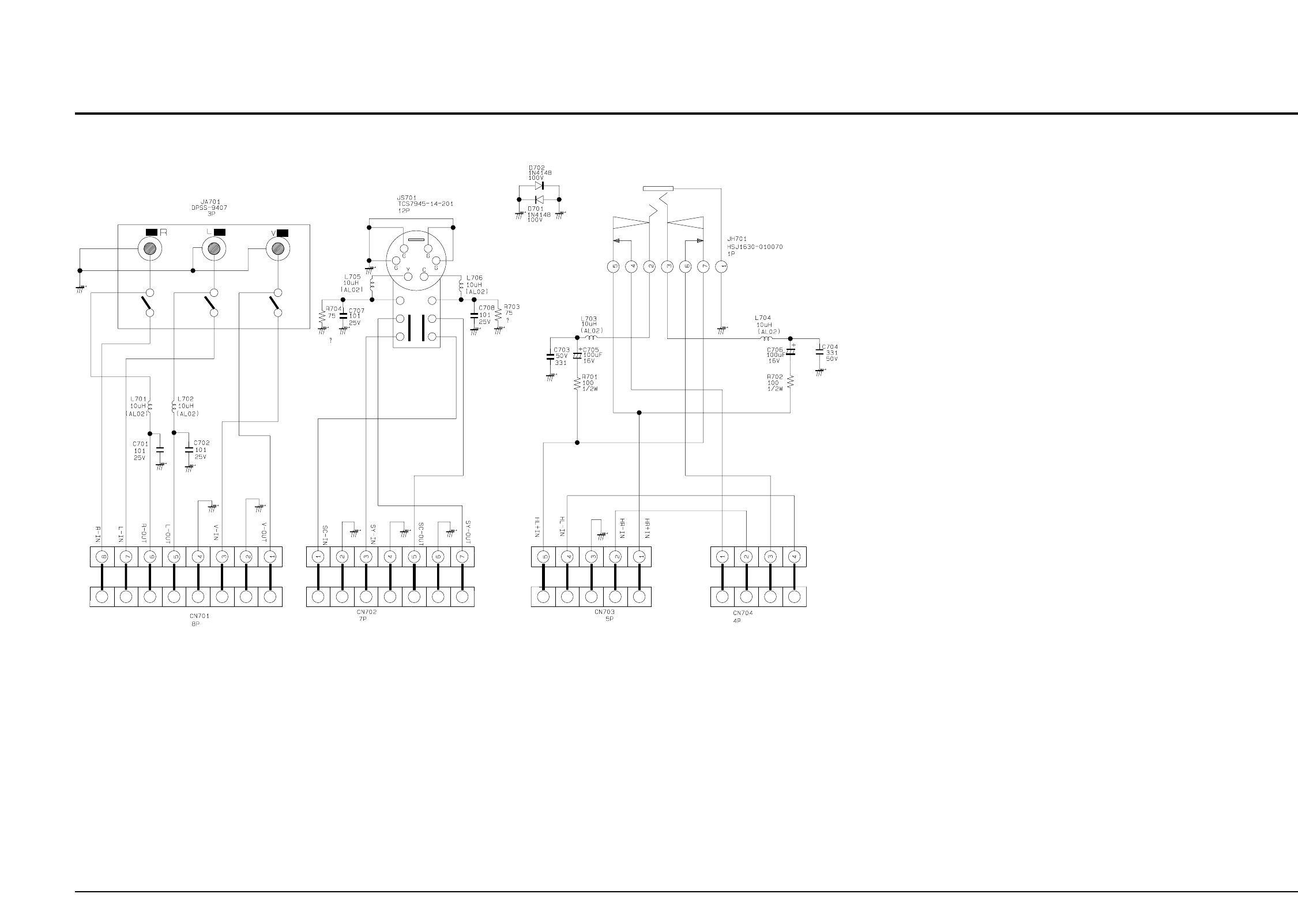

Schematic Diagrams

1.

2.

3.

4.

5.

6.

SERVICE Manual

Specifications

Samsung Electronics 1-1

1. Specifications

Country INDEX

F

I

X

E

D

Origin Mark MadeinLocal Country(Factory) or Made By Samsung

Color

demodulation

PAL/SECAM/NTSC4.43/NTSC3.58(NTSC3.58isoption),(SECAM-L’,L isoption)

Sound

receving way Quasi -split(Related toVCTI)

Sound Virtual Dolby/Nicam/St e reo/L i ne St er eo

Antenna 75ohmDin-Jack(V/U)

Channel search Programmable F/S

Chnnel numbers 100 CH PROGRAM MEMORY

Input voltage East - Asia, Middle-East Asia, Africa(100V ~ 260V) ,

Cis(160V ~ 300V), Europe( 230V), 240V

Po wer Input

frequency 50/60Hz

Power STR Free Volt(X6757), Single Volt(X6750)

Power insulation SMPS/COLD

U

n

f

i

x

e

d

Receiving(P/G)CHVHF: 2 ~ 13, UHF:14 ~ 69, CATV:S1~S41

BRAND / BUYER SAMSUNG/Depend on the Buyer

SafetyDepend on t he count ry

Power cord/

Polarity CP2/No(4. 0), AP2/Yes, EP2/No

Character

*2T-PIP/1T- PIP/ NoPIP

*ANT display( Option)

*DNIe Jr(Option)

*FMRadio(Option)

Alignment and Adjustments

Samsung Electronics 2-1

2. Alignment and Adjustments

2-1 General Alignment Instructions

1. Usually, a color TV-VCR needs only slight

touch-up adjustment upon installation. Check

the basic characteristics such as height,

horizontal and vertical sync and focus.

2. Observe the picture for good black and white

details. There should be objectionable color

shading; if color shading is present,

demagnetize, perform purity and convergence

adjustments described below.

3. Use the specified test equipment or its

equivalent.

4. Correct impedance matching is essential.

5. Avoid overload. Excessive signal from a

sweep generator might overload the front-end

of the TV. When inserting signal markers, do

not allow the marker generator to distort test

results.

6. Connect the TV only to an AC power source

with voltage and frequency as specified on the

backcover nameplate.

7. Do not attempt to connect or disconnect any

wires while the TV is turned on. Make sure

that the power cord is disconnected before

replacing any parts.

8. To protect against shock hazard, use an

isolation transformer.

2-2 Automatic Degaussing

A degaussing coil is mounted around the

picture tube, so that external degaussing after

moving the TV should be unnecessary. But

the receiver must be properly degaussed upon

installation.

The degaussing coil operates for about 1

second after the power is switched ON. If the

set is moved or turned in a different direction,

the power should be OFF for at least 10

minutes.

If the chassis or parts of the cabinet become

magnetized, poor color purity will result. If

this happens, use an external degaussing coil.

Slowly move the degaussing coil around the

faceplate of the picture tube and the sides and

front of the receiver. Slowly withdraw the coil

to a distance of about 6 feet before turning

power OFF.

If color shading persists, perform the

following Color purity and Convergence

adjustments.

2-3 High Voltage Check

CAUTION : There is no high voltage adjustment

on this chassis. The B+ power supply should be

+135 volts (with full color- bar input and normal

picture level).

1. Connect a digital voltmeter to the second

anode of the picture tube.

2. Turn on the TV. Set the Brightness and

Contrast controls to minimum (zero beam

current).

3. Adjust the Brightness and contrast controls to

both extremes. Ensure that the high voltage

does not exceed 30 KV under any conditions.

Alignment and Adjustments

2-2 Samsung Electronics

2-4 FOCUS Adjustment

1. Iput a crosshatch pattern.

2. Adjust the tuning control for the clearest picture.

3. Adjust the FOCUS control for well defined scanning lines in the center area of the screen.

2-5 SCREEN Adjustment

1. Input Toshiba Pattern

If a Toshiba pattern is not available,

Enter “Service Mode” and

select “Test pattern 2”(Toshiba pattern)

2. Enter “Service Mode”.

3. Select “G2-Adjust”.

4. Set the values as example

5. Turn the SCREEN VR until “Read Cutoff” and “Read Drive” are green.

(The incorrect SCREEN Voltage may result that “Read Cutoff” and “Read Drive” should be red)

ex) IBRM = 175

WDRV = 110

CDL = 250

COLR G B = 110 110 110

2-6 White Balance Adjustment

1. Warm up the TV set for at least 30 minutes.

2. Enter the Service Mode by pressing the remote control keys in the following sequence:

Power Off ➞Info ➞ Menu ➞Mute ➞Power On

3. Initialize all set data.

4. Input a Toshiba pattern.

5. Using a probe(CA100), do the White Balance adjustments.

(1) Adjust Low-Light.

- Adjust Sub Brightness to set Y.

- Adjust B Cutoff to set y.

- Adjust R Cutoff to set x.

(2) Adjust High-Light.

- Adjust Sub Contrast to set Y.

- Adjust B Drive to set y.

- Adjust R Drive to set x.

(3) Check the value of Low-Light. If necessary, readjust Low-Light.

(4) Check the value of High-Light. If necessary, readjust High-Light.

2-8 Factory Adjustment

1. To enter the “Service Mode”, Press the remote-control keys in this sequence :

- If you do not have Factory remote-control

- If you have Factory remote-control

PICTURE OFF PICTURE ON

() MENU MUTE

INFO

PICTURE ON () FACTORY

INFO

2-8-1 Service Mode

Alignment and Adjustments

Samsung Electronics 2-3

2-7 When adjusting Screen Voltage and White Balance

1. Screen Voltage and White Balance are related each other. Make sure both adjustments are correct.

2. Adjust Screen Voltage before White Balance Adjustments. Make sure Screen Voltage is correct.

3. If White Balance has been readjusted, re-check Screen Voltage.

4. After adjustments are complete, check the following.

- If spots appear on the screen after pressing the Power On/Off key, readjust Screen Voltage.

- If flyback lines appear on the screen, readjust Screen Voltage.

Alignment and Adjustments

2-4 Samsung Electronics

2-8-2 Factoy Mode OSD

SERVICE / T - ETPAS0 - 10XX

Deflection

Video Adjust1

Video Adjust2

Video Adjust3

Option : D2 16 04 02

YC Delay

Test Pattern : 0

EEPROM

Bus Stop

Check Sum : 0000

Reset / 2004-03-08

G2 Adujust

2-8-2(A) ADJUST

127

180

127

255

127

Item Min Max

-128

32

-128

0

-128

Remark

Adjust

FIX(Depend on the inch)

Adjust

FIX(Depend on the inch)

Adjust

FIX(Depend on the inch&CRT Drive)

V Amp

V Shift

H EW

H Shift

V Linearity

V SC

H Parabolra

Upper Corner

Lower Corner

Upper Corner 6

Lower Corner 6

H Trapezium

Bow

Angle

EHT Time

EHT Threshold

EHT Vertical

EHT Horizontal

EHT Vertical2

EHT Horizontal2

DEFLECTION : PAL

ET

24

-35

25

124

0

43

62

-5

-4

-3

3

1

20

1

-12

5

-19

10

Alignment and Adjustments

Samsung Electronics 2-5

G/R

12

-59

5

105

0

43

80

-19

-39

0

1

3

-2

20

1

-12

5

-19

10

Alignment and Adjustments

2-6 Samsung Electronics

127

180

127

Item Min Max

-128

32

-128

Remark

FIX

V Amp

V Shift

H EW

H Shift

V Linearity

V SC

H Parabolra

Upper Corner

Lower Corner

Upper Corner 6

Lower Corner 6

H Trapezium

Bow

Angle

DEFLECTION : NTSC OFFSET

ET

-2

6

0

14

-3

0

G/R

-2

6

0

14

-3

0

Alignment and Adjustments

Samsung Electronics 2-7

Video Adjust 1

255

100

63

23

63

1

127

255

15

10

255

127

15

Item Min Max

0

-128

0

-10

0

10

0

Remark

Adjust

FIX

Adjust

FIX

Adjust

FIX(Depend on the country&CRT Drive)

FIX

FIX(Depend on the inch)

FIX

FIX(Depend on the inch&CRT Drive)

Inch(Depend on the CRT)

FIX

ET

127

50

55

10

42

1

16

240

255

8

-5

-4

65

-

R Cutoff

G Cutoff

B Cutoff

R Drive

G Drive

B Drive

Sub Bright

Sub Contrast

Sub Color

Sub Tint

AKB Option

BCL Threshold

BCL Gain

BCL Time

Sub Sharpness

DVD R Cutoff

DVD B Cutoff

BCL BCUT

Pilot Low(NTSC ONLY)

Pilot High(NTSC ONLY)

V-Mute(X100ms,NTSC ONLY

G/R

127

50

55

2

52

1

22

240

255

13

-5

-4

55

-

Alignment and Adjustments

2-8 Samsung Electronics

Video Adjust 2

115

20

255

15

63

15

3

7

15

255

1

3

Item Min Max

0

Remark

FIX

FIX(Depend the Tuner)

FIX(Depend on the CRT Drive AMP)

FIX

FIX(Depend on the mode)

FIX

2

10

159

1

6

4

6

7

3

7

15

255

1

3

VSU

Melody Volume

HB Start

HB Stop

RF AGC

VM Gain

VM Delay

V_Peaking

BLE Tilt

BLE Gain

BLE Mode

BLE Break

CTI Gain

CTI Coring

LTI Gain

D-EHT Time

DCT Ratio

LTI Enable

VSP Comb

ET G/R

2

10

159

4

0

6

1

2

1

0

5

50

0

Alignment and Adjustments

Samsung Electronics 2-9

Video Adjust 3

31

1

127

255

127

255

15

63

15

255

15

255

Item Min Max

0

-128

0

-128

0

Remark

FIX

FIX(Depend on the CRT)

ET

0

1

30

140

50

30

145

10

63

10

24

23

39

5

4

125

122

NR Off Value

Gamma Mode

Gamma Correction

BST StartPoint

BST GAIN(B)

DPWL Gain

DPWL Start

PIP Contrast

PIP Tint

PIP Color

PIP PAL V.Pos

PIP NTSC V.Pos

PIP H.Pos

PIP R Cutoff

PIP B Cutoff

PIP R Drive

PIP B Drive

G/R

3

1

75

140

50

30

145

10

63

10

24

23

39

5

4

125

122

Alignment and Adjustments

2-10 Samsung Electronics

YC DELAY

7

Item Min Max

-8

Remark

FIX

ET

-3

-1

-3

PAL DELAY

SECAM DELAY

NTSC DELAY

PAL AV DELAY

SECAM AV DELAY

NTSC AV DELAY

YC DELAY

Option

Initial CS29M6PQ CS25M20EQ CS29M20EQ

Asia Version Singapore Cis TSE

1 System CS CS CS CS CS / CZ / CW

2 Sound NICAM NICAM NICAM NICAM Line Stereo / A2 / NICAM / V-Dolby

3 CRT 4:3 4:3 4:3 4:3 4:3 / Wide

4 AV Jack 2RCA+S+DV

D

2RCA+S+DV

D

SCART+S 2RCA+S+DV

D

2RCA / 2RCA+S / 2RCA+DVD / 2RCA+S+DVD /

2Scart / 2Scart+S

5 Auto FM On On On On On / Off

6 PIP Off 2-Tuner 1-Tuner 1-Tuner Off / 1-Tuner / 2-Tuner

7 Txt Language West Europe West Europe Russian West Europe West Europe / East Europe / Russian / Greek-Turkey

Arabic / Farsi / Arab-Hebrew

8 LNA Off On On Off On / Off

9 High Deviate Off Off Off Off On / Off

10 TTX On/Off On On On On On / Off

11 Double TTX Off Off Off Off On / Off

12 Tilt Off On Off On On / Off

13 Hotel Mode Off Off Off Off On / Off

14 Volume Curve Large Curve Large Curve Large Curve Large Curve Large Curve / Small Curve

15 FM Radio Off Off Off Off On / Off

16 Antenna Disp On On On On On / Off

17 Osd Language East-Asia East-Asia Russian East-Asia East-Asia / Middle-Asia / CIS

18 TTX List Pri Off Off Off Off On / Off

19 DNIe Jr On On On On On / Off

REMARK

ITEM

NO.

Test pattern

0 : Current RF Signal

1 : White + Crosshatch

2 : ABL pattern

3 : Black to White (4 pattern)

4 : Black to White

5 : Green + Magenta

6 : Color bar

7 : Crosshatch

G/R

-3

-1

-3

Alignment and Adjustments

Samsung Electronics 2-11

EEPROM

SubAddress Factory Control

ｸ

Remark MIN MAX INITIAL

0 Dynamic Contrast 0 255 100 100

1 Dynamic Brightness FIX

FIX 0 255 45 45

2 Dynamic Sharpness FIX 0 255 75 75

3 Dynamic Color FIX 0 255 55 55

4 Dynamic Tint FIX 0 255 50 50

5 Standard Contrast FIX 0 255 80 80

6 Standard Brightness FIX 0 255 50 50

7 Standard Sharpness FIX 0 255 50 50

8 Standard Color FIX 0 255 50 50

9 Standard Tint FIX 0 255 50 50

10 Movie Contrast FIX 0 255 50 50

11 Movie Brightness FIX 0 255 55 55

12 Movie Sharpness FIX 0 255 25 25

13 Movie Color FIX 0 255 40 40

14 Movie Tint FIX 0 255 50 50

15 255 255

16 255 255

17 255 255

18 255 255

19 DVD SUB TINT FIX 0 255 17 17

20 16:9 V-SHIFT FIX 0 255 15 15

21 16:9 PARAVOLA FIX 0 255 5 5

22 PIP BRIGHTNESS FIX 0 255 0 0

23 Double TTX Contrast FIX 255 60 60

24 TTX V Position FIX 0 255 35 35

25 TTX H Position FIX 0 255 125 125

26 TTX Contrast FIX 0 255 100

100

115

27 TTX Brightness FIX 0 255 20

20

28 OSD/PIP CONTRAST FIX 0 255 120

120

29 OSD/PIP BRIGHT FIX 0 255 15

15

30 Double TTX H Position FIX 0 255 225 225

31 Standard Equ100 (Std BASS) FIX 0 255

32 Standard Equ300 (Std TREBLE) FIX 0 255 13 13

33 Standard Equ1K (Music BASS) FIX 0 255 14 14

34 Standard Equ3K (Music TREBLE) FIX 0 255 13 13

35 Standard 10K (Movie BASS) FIX 0 255 12 12

36 Music Equ100 (Movie TREBLE) FIX 0 255 18 18

37 Music Equ300 (Speech BASS) FIX 0 255 14 14

38 Music Equ1K (Speech TREBLE) FIX 0 255 11 11

39 Music Equ3K FIX 0 255 14 14

40 Music 10K FIX 0 255 18 18

41 Movie Equ100 FIX 0 255 22 22

42 Movie Equ300 FIX 0 255 15 15

43 Movie Equ1K FIX 0 255 11 11

44 Movie Equ3K FIX 0 255 12 12

45 Movie 10K FIX 0 255 13 13

46 Speech Equ100 FIX 0 255

47 Speech Equ300 FIX 0 255 11 11

48 Speech Equ1K FIX 0 255 14 14

49 Speech Equ3K FIX 0 255 13 13

50 Speech 10K FIX 0 255 11 11

51 Brightness(RGB/DVD) FIX 0 255 13 13

52 Contrast(RGB/DVD) FIX 0 255 38 38

53 U Saturation(RGB/DVD) FIX 0 255 44 44

54 V saturation(RGB/DVD) FIX 0 255 43 43

55 V/FBL Delay FIX 0 255 85 85

56 CrCb Delay FIX 0 255 84 84

57 d/w h-position FIX 0 255 58 58

58 d/w -blanking 1 FIX 0 255 129 129

110

631

70 70

64 64

100 100

15 15

50

85

70

95

50

40

88

66

2-12 Samsung Electronics

G2-Adjust IBRM FIX 0 255 175

FIX 0 255 110

CDL FIX 0 255 250

COLR G B FIX 0 , 0 , 0 255,255,255 110,110,110

175

110

250

150,150,150

WDRM

G2 Adjust

EEPROM

SubAddress Factory Control

ｸ

MIN MAX

100 115

20 20

120 120

15 15

59 d/w -blanking 2 FIX 0 255 150 150

60 PIP G CUTOFF FIX 0 255

61 PIP G DRIVE FIX 0 255 125 125

62 OSD BRIGHT OFFSET FIX 0 255 31 31

63 OSD/PIP BRIGHT OFFSET FIX 0 255 85 85

64 MDB_STRENGTH FIX 0 255 68 68

65 MDB_HARMONIC FIX

FIX 0 255 37 37

MDB_HP 0 255

67 MDB_LP FIX 0 255 11 11

68 MDB_LIM FIX 0 255 252 252

69 MDB_CUTOFF FIX 0 255 12 12

70 EHT POSITION 1 FIX 0255

71 EHT POSITION 2 FIX 0255 249 249

72 3.4CH SLLTHD (TV-NO NOISE) FIX 0255

73

ｱ

簀

ｸ

CH SLLTHD (TV-NO NOISE) FIX 0255

74 LNA FIX 0255 110 110

110

75 SLLTHDV(TV NO NOISE) FIX 0255

76 VCR/TV Noise Level Offset FIX 0255

77 LNA SW FIX 0255

78 LMIXOFS FIX 0255 6

6

31

79 HOUTDEL FIX 0255 70

70

80 Over Modulation Detect FIX 0255 64 64

81 Over Mod.<-> Normal return FIX 0255 100 100

82 VCR mode detect counter FIX 0255

83 SUB MATRIX Tint FIX 015

84 VIDEO SUB SHARPNESS FIX 015 15

15

85 S VIDEO SUB SHARPNESS FIX 0

015

15

86 DVD SUB SHARPNESS FIX

87 Standard Bass 50

88 Standrad Treble 50

89 Music Bass 85

90 Music Treble 70

91 Movie Bass 95

92 Movie Treble 50

93 Speech Bass 40

94 Speech Terble

66

22

99

55

00

11

66

055

11

55

44

813

3. Exploded View & Parts List

3-1 CW25M064NRXXEC

Exploded View & Parts List

Samsung Electronics 3-1

No. Code No Description;Specification Q’ty S.N.A

CCM1 AA60-10050Q SCREW-MACHINE;-,SWRCH18A,M5,L26.5,HH,+,W 4 S.N.A

CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A

M0014 AA94-14728A ASSY PCB MAIN;CW25M064VRXXEC,SDIG,ELDOR, 1

T0003 AA63-00824A COVER-FRONT;25M06,HIPS,HB,SV012P,KS7A,SE 1 S.N.A

T0015 AA63-00825A COVER-REAR;25M06,HIPS,HB,SV012P,KS7A,SEH 1 S.N.A

T0022 AA64-04011A KNOB CONTROL;M06,HIPS,HB,SV012P,ALL,SEH 1 S.N.A

T0023 AA64-04012A KNOB POWER;M06,HIPS,HB,SV012P,ALL,SEH 1 S.N.A

T0057 AA64-70117B BADGE-BRAND;,AL,T1.5,10.6,L65,BLK,SILVER 1 S.N.A

T0063 AA03-00322A CRT COLOR;A59QDF891X999,380MG,1.05MH,14. 1

T0074 AA59-00312A REMOCON;DEEP IMPACT,TM75,36,TTX,EX,PAL 1

T0082 3001-001092 SPEAKER;10W,8OHM,87DB,150HZ 2

T0091 AA94-14310A ASSY PCB MISC-A/V;WS32M164VWXXEC,KS7A 1

T0245 HA61-00711C HOLDER-PCB;29K8,HIPS,HB,GRY 1 S.N.A

T0268 AA39-10001M CBF-POWER CORD;-,KJP-140,KLCE-2F,2.4m,HO 1

T0299 AA64-04013A WINDOW-RMC,LED;M06,ACRYL,HB,CLEAR,SEH 1 S.N.A

T0527 AA65-30113A CLAMPER CORE-D,COIL;-,NYLON 66,V2,-,BLK, 4 S.N.A

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

Electric Parts List

Samsung Electronics 4-1

4-1 CW25M064NRXXEC

4. Electrical Parts List

Level Loc. No. Code No. Description ; Specification Remark

You can search for the updated part code through ITSELF web site.

URL : http://itself.sec.samsung.co.kr

ASSY CPT

1 T0521 AA91-08227A ASSY CPT;CW25M064VPXXEC,25,A59QDF891X99S.N.A

..2 T0063 AA03-00322A CRT COLOR;A59QDF891X999,380MG,1.05MH,14.

..2 T0089 AA27-00261A COILDEGAUSSING;,25INCH F,10%,25TS,4.5OH

..2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

..2 T0527 AA65-30113A CLAMPER CORE-D,COIL;-,NYLON 66,V2,-,BLK, S.N.A

..2 AA96-01643A ASSYTBC WIRE P;,25INCH,PAL,2P+1P S.N.A

ASSY COVER FRONT

1 M0001 AA90-05239A ASSY COVER FRONT;25M06,HIPS,HB,SV012P,KS S.N.A

..2 T0081 6002-000515 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR

..2 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A

..2 T0081 6003-001268 SCREW-TAPTITE;TH,+,B,M4,L12,ZPC(YEL),SWR S.N.A

..2 CCM1 AA60-10050QSCREW-MACHINE;-,SWRCH18A,M5,L26.5,HH,+,W S.N.A

..2 AA65-30110A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,S.N.A

..2 M0003 AA96-02465A ASSY COVER P-FRONT;25M06,HIPS,HB,SV012P,

...3 T0082 3001-001092 SPEAKER;10W,8OHM,87DB,150HZ

...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR S.N.A

...3 T0245 AA39-00102A LEAD CONNECTOR-ASSY;,4P,900,700MM,35155-

...3 CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A

...3 M0112 AA63-00824A COVER-FRONT;25M06,HIPS,HB,SV012P,KS7A,SE S.N.A

....4 HA83-00006ALP-RESIN HIPS;,BASF495F,NTR,HB S.N.A

....4 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY S.N.A

....4 HA83-00040BLP-MARKING PAINT;,METALLIC SILVER,SV-012 S.N.A

....4 AA81-00106A A/S-MARKING PAINT;,P432U,DARK GREY,TPC S.N.A

...3 T0022 AA64-04011A KNOB CONTROL;M06,HIPS,HB,SV012P,ALL,SEH S.N.A

....4 HA83-00006ALP-RESIN HIPS;,BASF495F,NTR,HB S.N.A

....4 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY S.N.A

....4 HA83-00040BLP-MARKING PAINT;,METALLIC SILVER,SV-012 S.N.A

...3 T0023 AA64-04012A KNOB POWER;M06,HIPS,HB,SV012P,ALL,SEH S.N.A

....4 HA83-00006ALP-RESIN HIPS;,BASF495F,NTR,HB S.N.A

....4 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY S.N.A

....4 HA83-00040BLP-MARKING PAINT;,METALLIC SILVER,SV-012 S.N.A

...3 T0299 AA64-04013A WINDOW-RMC,LED;M06,ACRYL,HB,CLEAR,SEH S.N.A

....4 HA83-00010ALP-RESIN;,OROGLAS,VM-100 ZHN 2 S.N.A

...3 T0057 AA64-70117B BADGE-BRAND;,AL,T1.5,10.6,L65,BLK,SILVER S.N.A

...3 AA65-30105A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,S.N.A

...3 T0245 HA61-00711C HOLDER-PCB;29K8,HIPS,HB,GRY S.N.A

....4 HA83-00006ALP-RESIN HIPS;,BASF495F,NTR,HB S.N.A

....4 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY S.N.A

...3 HA83-00049ALP-ADHESIVE-HM;12MM,NTR S.N.A

ASSY COVER REAR

1 M0002 AA90-05240A ASSY COVER REAR;25M06,KS7A,SEH S.N.A

..2 M0006 AA63-00825A COVER-REAR;25M06,HIPS,HB,SV012P,KS7A,SEH S.N.A

...3 AA81-00096A RESIN-A;VL-1823,G5433,A S.N.A

..2 T0214 AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,- S.N.A

..2 AA65-30009A CLAMPER CORE-FBT;-,ABS,V0,-,BLK,- S.N.A

ASSY ACCESSORY

1 M0045 AA92-08984A ASSY ACCESSORY;WS32A114VWXXEC,KS7A,ET S.N.A

..2 T0074 AA59-00312A REMOCON;DEEP IMPACT,TM75,36,TTX,EX,PAL

..2 BN68-00514BMANUAL-01,WARRANTY;PDP/LCD TV,SAMSUNG,/ S.N.A

ASSY LABEL

1 AA92-09214A ASSY LABEL;ALL,SEH S.N.A

..2 AA81-00129A A/S-TAPE-INK;ALL,BLK,W100MM S.N.A

..2 HA83-00052ALP-TAPE-INK;,WIDTH 55 MM S.N.A

ASSY P/MATERIAL

1 AA92-10263A ASSY P/MATERIAL;25M06,KS7A,SEH S.N.A

..2 6902-000006 BAG PE;HDPE/NITRON/HDPE,T0.02/T0.5/T0 S.N.A

..2 T0214 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X S.N.A

...3 HA83-00058A LP-RESIN-EPS;,CHEIL SF-301V,WHT S.N.A

..2 HA83-00047ALP-TAPEACETATE;T0.1MM,W20MM,L200MM S.N.A

ASSY BOX

1 AA92-10264A ASSY BOX;25M06,KS7A,SEH S.N.A

..2 HA83-00046ALP-TAPE INK;,WIDTH 105 MM S.N.A

ASSY CHASSIS

1 M0017 AA91-08408A ASSY CHASSIS;CW25M064VRXXEC,SDIG,ELDOR,S.N.A

..2 T0268 AA39-10001MCBF-POWER CORD;-,KJP-140,KLCE-2F,2.4m,HO

..2 T0091 AA94-14310A ASSY PCB MISC-A/V;WS32M164VWXXEC,KS7A

...3 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A

...3 T0121 3301-001201 CORE-FERRITE;AE,21x11x32mm,1500,280G

...3 T0121 3301-001305 CORE-FERRITE;AE,30X15X34(39)MM,1500,2800

...3 JA701 3722-001031 JACK-PIN;3P,3.6mm,#18,AU

...3 JS701 3722-001163 JACK-VHS;4P,12mm,AU,BLK,N

...3 T0245 AA39-20009E LEAD CONNECTOR-ASSY;,1P,600,YFH800-01,16

...3 T0245 AA39-20068GLEAD CONNECTOR-ASSY;,8P,700MM,YBNH025-08

...3 T0245 AA39-20070J LEAD CONNECTOR-ASSY;,7P,700MM,YBNH250-07

...3 FIX1 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 FIX2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 FIX3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 AA97-15150A ASSYAUTO-A/V;WS32M164VWXXEC,KS7A S.N.A

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.

....4 L701 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 L702 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 L705 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 L706 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 L709 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50

....4 PCB AA41-00590A PCB-SIDE A/V;CS29K1,FR-1,1L,A,1.6T,245X2 S.N.A

..2 M0014 AA94-14728A ASSY PCB MAIN;CW25M064VRXXEC,SDIG,ELDOR,

...3 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A

...3 T0083 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,DO-201A

...3 T0090 0502-001007 TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6

...3 PC801S0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST

...3 IC112 1103-001171 IC-EEPROM;24C161,2Kx8,DIP,8P,9.2x6.4mm,2

...3 T0087 1203-000284 IC-POSI.FIXED REG.;7806,TO-220,3P,-,PLAS

...3 T0087 1203-000293 IC-POSI.FIXED REG.;7808,TO-220,3P,-,PLAS

...3 T0087 1203-001006 IC-POSI.FIXED REG.;78R05,TO-220F,4P,-,PL

...3 T0087 1203-001543 IC-POSI.FIXED REG.;78R33,TO-220,4P,400MI

...3 T0900 1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T

...3 P803T 1404-001264 THERMISTOR-PTC;4.5OHM,+30/-20%,220V,290V

...3 C598 2201-000963 C-CERAMIC,DISC;1NF,20%,400V,Y5U,TP,9.5X6

...3 C598 2201-000987 C-CERAMIC,DISC;2.2NF,20%,400V,Y5U,BK,12.

...3 C406 2301-001296 C-FILM,LEAD-PPF;720NF,5%,400V,BK,26X15.5

...3 C405 2301-001338 C-FILM,LEAD-OTHER;0.68NF,5%,1.6KV,BK,28X

...3 CR404S2301-001385 C-FILM,LEAD-PPF;30nF,5%,630V,TP,20x15.5x

...3 C816 2301-001703 C-FILM,LEAD;1000nF,5%,630V,BK,30X23X15,-

...3 CR406S2306-000235 C-FILM,LEAD-PPF;560NF,5%,400V,BK,26X22.5

...3 CX802S2306-000318 C-FILM,LEAD-PPF;220NF,20%,250V,BK,-,22.5

...3 CX801S2306-000321 C-FILM,LEAD-PPF;470NF,20%,275V,BK,31X11X

...3 CR402S2306-000357 C-FILM,LEAD-PPF;8.2nF,5%,1.6KV,BK,20x9.5

...3 CR403S2306-000357 C-FILM,LEAD-PPF;8.2nF,5%,1.6KV,BK,20x9.5

...3 C701 2401-001426 C-AL;470uF,20%,400V,GP,-,35x45mm,10

...3 C701 2401-003026 C-AL;330uF,20%,200V,GP,ST,22x35,10

...3 C701 2401-003058 C-AL;100uF,20%,200V,WT,TP,16x25,7.5

...3 XV201 2801-004019 CRYSTAL-UNIT;20.25MHz,30ppm,28-AAM,13pF,

...3 ICV101 2904-001179 FILTER-SAW;36.125MHz,-,32.65-39.6MHz/0.5

...3 SW801S3403-001134 SWITCH-PUSH;250V,5A,DPST,ON-OFF,-

...3 RL801S 3501-001053 RELAY-POWER;5VDC,530MW,10000MA,1FORMA,15

...3 FP801S 3601-000414 FUSE-CARTRIDGE;250V,5A,SLOW-BLOW,GLASS,5

...3 CN906 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,STRAIGH

...3 JAR701 3722-000195 JACK-SCART;42P,-,SN,BLK,NO

...3 T0616 AA26-00145A TRANS FBT;1372.0076B,CT29A5P,3.5MH,135V

...3 T801S AA26-00221B TRANS SWITCHING;EER5345,CS29M6/KS7A,AC22

...3 T401 AA26-50001RTRANS-HORIZ.DRIVE;-,-,-,80MH,-,-,520UH,-

...3 L405 AA27-00057A COIL CHOKE;-,10mH,YL-9N 15x27.5 C:9.5,0.

...3 L408 AA27-00067A COIL CHOKE;-,240uH,YL9N 12x20 C:6.0,0.12

...3 LP801S AA27-00218A COIL-PFC;EI2820,125UH,190UH,7%,EI2820 P

...3 L409 AA27-00286A COIL CHOKE;1MH,CPTTV,1MH,10%,0.5OHM,1A,D

...3 L808 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m

...3 T0296 AA27-30003S COIL LINEARITY;-,54uH,YL81DR14x15,0.12mm

...3 LX802S AA29-00011A FILTER LINE NOISE;CZ32W8,-,0.20MAX,1.5KV

...3 LX801S AA29-30002NFILTER LINE NOISE;-,16MH,1.5A,AC100~260V

...3 D0254 AA32-00015A MODULE REMOCON;FRP-3521H31,38KHZ,940MM,M

...3 T0245 AA39-20010B LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,

...3 TU01S AA40-00114A TUNER;TECC0949FG40B(S),PAL(CCIR),181

...3 GT301 AA60-40012D PIN-GT,ASSY;T1.6,6-12.5-,NYLON66 S.N.A

...3 D801S AA96-00276CASSY H/S;-,BRIDGE ,AA62-00052A,GSIB660,K S.N.A

....4 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0083 0402-001399 DIODE-BRIDGE;GSIB660,600V,6A,SIP-4,BK

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA60-30003A WASHER;T1.5,SBHG-1 S.N.A

....4 AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2 S.N.A

...3 LDV901 AA96-00461A ASSY LED GUIDE;-,-,SL-255D,RED/GRN S.N.A

...3 HC801 AA96-00475HASSY H/S;SCREW,AA62-00066B,FMG-G2CS,FFP S.N.A

....4 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0083 0402-001230 DIODE-RECTIFIER;FMG-G2CS,1000V,3A,DO-41,

....4 T0083 0402-001374 DIODE-RECTIFIER;FFPF06U20S,200V,6A,TO-22

....4 T0087 1203-001944 IC-POSI.FIXED REG.;78RM33,TO-220,3P,-,PL

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A

....4 HS AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00 S.N.A

...3 Q801 AA96-00624GASSY H/S;SCREW,AA62-00057B,FQP630TSTU,OI S.N.A

....4 H/S 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 Q409 0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM,

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 H/S AA62-00057B HEAT SINK-PS;CT-29K12P,A1050S,1.0,41,60 S.N.A

...3 Q401 AA96-00624J ASSY H/S;SCREW,AA62-00057A,C5936,OIL SIL S.N.A

....4 H/S 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0090 0502-001264 TR-POWER;2SC5936,NPN,40000mW,TOP-3E,ST,

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 H/S AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG S.N.A

....4 H/S AA62-00057A HEAT SINK-PS;-,-,T1.0,-,41*20*60,D2,-,-, S.N.A

...3 D810 AA96-50132GASSY HEAT SINK P;AA62-30062A,SCREW,FMC-G S.N.A

....4 T0083 0402-001593 DIODE-RECTIFIER;FMC-G28SL,800V,5A,TO-220

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR S.N.A

....4 AA62-30062A HEAT SINK-PS;-,SPC-1,-,T1.0,-,FE SN2,-,- S.N.A

...3 IC801S AA96-50371K ASSY HEAT SINK P;AA62-30181H,SCREW,STR-X S.N.A

....4 CIS 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 IC063 AA13-00112A IC HYBRID;STR-X6750B,CS29M6PF,7,-20 to +

....4 CIS AA62-30197DHEAT SINK-ES;DP,-,-,-,AA62-30181H,-,-,- S.N.A

...3 IC301 AA96-50381A ASSY H/S;-,-,AA62-30180B,LA7845,- S.N.A

....4 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0088 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30180B HEAT SINK-ES;-,A6063 EXTR.,2,WHT,70MM,-, S.N.A

...3 M0018 AA97-15178A ASSY MICOM;K55A,VCTi 49XYF PY,T_ETPEU_10

...3 AA97-15324A ASSYAUTO-MAIN;CW29M164VRXXEC,KS7A,SDI S.N.A

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 CISS 0401-000006 DIODE-SWITCHING;BAV21,250V,200MA,DO-35,T

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

....4 T0083 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC

....4 T0083 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.0A,DO-41,T

....4 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO

....4 DZ016 0403-000700 DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP

....4 DZ016 0403-000714 DIODE-ZENER;MTZJ3.3B,3.32-3.53V,500MW,DO

....4 DZ016 0403-000718 DIODE-ZENER;MTZJ6.8B,6.52-6.79V,500MW,DO

....4 DZ016 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO

....4 DZ016 0403-001221 DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D

....4 DZ016 0403-001320 DIODE-ZENER;MTZJ6.2C,6.16-6.4V,500MW,DO-

....4 DZ016 0403-001321 DIODE-ZENER;MTZJ6.8C,6.7-6.97V,500MW,DO-

....4 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.75-23.73V,500MW,D

....4 T0156 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO-

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

Electric Parts List

4-2 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

....4 IC012 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL

....4 IC202 1203-001943 IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC

....4 VP801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

....4 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

....4 R125 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000006 R-CARBON;2.4KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM

....4 R075 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000252 R-CARBON;1.6KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000376 R-CARBON;15OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000534 R-CARBON;240OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000666 R-CARBON;33OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001070 R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001079 R-CARBON(S);15OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4

....4 R075 2001-001114 R-CARBON(S);270OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001128 R-CARBON(S);30KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001131 R-CARBON(S);33KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001143 R-CARBON(S);4.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001168 R-CARBON(S);6.8KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001195 R-CARBON(S);82OHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R0521 2002-001011 R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x

....4 R0521 2002-001012 R-COMPOSITION;8.2Mohm,5%,1/2W,AA,TP,3.7x

....4 R426 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m

....4 R830 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R831 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

....4 R802 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x

....4 R803 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x

....4 R804 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x

....4 R423 2003-001042 R-METAL OXIDE(S);5.6Kohm,5%,2W,AF,TP,3.9

....4 R835 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x

....4 R836 2003-002020 R-METAL OXIDE(S);56Kohm,5%,2W,AF,TP,3.9x

....4 R310 2003-002150 R-METAL OXIDE;270OHM,5%,2W,AG,TP,6X16MM

....4 R407 2003-002151 R-METAL OXIDE;18KOHM,5%,2W,AG,TP,6X16MM

....4 R309 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 R350 2003-002238 R-METAL OXIDE(S);1.3OHM,5%,2W,AF,TP,3.9X

....4 R420 2004-000412 R-METAL;18Kohm,1%,1/4W,AA,TP,2.4x6.4mm

....4 RV225 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 RV917 2004-000531 R-METAL;20Kohm,1%,1/2W,AA,TP,2.3x6.5mm

Electric Parts List

Samsung Electronics 4-3

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 RV914 2004-000680 R-METAL;2Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 RV909 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 RV915 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 R411 2004-000947 R-METAL;43Kohm,1%,1/4W,AA,TP,2.4x6.4mm

....4 RV916 2004-001126 R-METAL;6.2Kohm,1%,1/8W,AA,TP,1.8x3.2m

....4 RV230 2004-001137 R-METAL;6.8Kohm,1%,1/8W,AA,TP,1.8x3.2m

....4 R024 2004-001382 R-METAL(S);13Kohm,1%,1/2W,AA,TP,2.4x6.4m

....4 R024 2004-001390 R-METAL(S);1Kohm,2%,1/2W,AA,TP,2.4x6.4mm

....4 R024 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001891 R-METAL(S);133Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-001983 R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-001986 R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6.

....4 R024 2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R024 2004-004045 R-METAL(S);390ohm,1%,1/2W,AA,TP,2.5x6.5m

....4 R024 2004-004089 R-METAL(S);123Kohm,1%,1/2W,AA,TP,2.5x6.5

....4 R024 2004-005054 R-METAL(S);39KOHM,1%,1/2W,AA,TP,2.4X6.4M

....4 R834 2008-000205 R-FUSIBLE(S);10ohm,5%,1/2W,AF,TP,2.5x6.5

....4 R809B 2008-000206 R-FUSIBLE(S);1ohm,5%,1/2W,AF,TP,2.5x6.5m

....4 R829 2008-000252 R-FUSIBLE(S);0.47ohm,10%,1/2W,AF,TP,2.5x

....4 R413 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

....4 R827 2008-000254 R-FUSIBLE(S);0.68ohm,5%,2W,AF,TP,3.9x10m

....4 R414 2008-000264 R-FUSIBLE(S);1ohm,5%,1W,AF,TP,3.9x10mm

....4 R825 2008-000284 R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M

....4 R828 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm

....4 R898 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm

....4 R899 2008-000290 R-FUSIBLE(S);2.4ohm,5%,2W,AF,TP,3.9x10mm

....4 R304 2008-001015 R-FUSIBLE(S);1.5ohm,5%,2W,AF,TP,3.9x10mm

....4 R418 2008-001154 R-FUSIBLE(S);1.8OHM,5%,1/2W,AF,TP,6.5X2.

....4 R0251 2009-000021 R-METAL PLATE;0.33ohm,10%,5W,CL,TP,5x14x

....4 R0251 2009-001012 R-METAL PLATE;0.27OHM,10%,5W,CL,TP,5X14X

....4 C598 2201-000132 C-CERAMIC,DISC;0.1NF,10%,500V,Y5P,TP,6.5

....4 C598 2201-000192 C-CERAMIC,DISC;0.01NF,0.25PF,500V,C0G,TP

....4 C598 2201-000291 C-CERAMIC,DISC;1NF,10%,500V,Y5P,TP,7.5X3

....4 C598 2201-000332 C-CERAMIC,DISC;2.2NF,20%,250V,Y5U,TP,9X4

....4 C598 2201-000374 C-CERAMIC,DISC;0.22NF,5%,50V,C0G,TP,10.5

....4 C598 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3

....4 C598 2201-000406 C-CERAMIC,DISC;0.27NF,10%,2KV,Y5P,TP,6.3

....4 C598 2201-000556 C-CERAMIC,DISC;0.47NF,10%,500V,Y5P,TP,5.

....4 C598 2201-000558 C-CERAMIC,DISC;0.47NF,10%,50V,Y5P,TP,5X3

....4 C598 2201-000599 C-CERAMIC,DISC;0.56NF,10%,500V,Y5P,TP,5.

....4 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

....4 C689 2202-000231 C-CERAMIC,MLC-AXIAL;0.33NF,10%,50V,Y5P,T

....4 C689 2202-000243 C-CERAMIC,MLC-AXIAL;33pF,5%,50V,SL,TP,3.

....4 C689 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

....4 C689 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

....4 C689 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP

....4 C689 2202-000849 C-CERAMIC,MLC-AXIAL;0.018NF,5%,50V,C0G,T

....4 C689 2202-000863 C-CERAMIC,MLC-AXIAL;560pF,10%,50V,Y5P,TP

....4 C689 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V

....4 C2560 2301-000192 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5.3x10mm,5

....4 C2560 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1

....4 C2560 2301-000342 C-FILM,LEAD-PEF;2.2nF,5%,50V,TP,7.4x3.9x

....4 C2560 2301-000356 C-FILM,LEAD-PEF;47nF,5%,50V,TP,7.5x4.0x6

....4 C2560 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x7x3.2mm

....4 C811 2301-001194 C-FILM,LEAD-PPF;470nF,5%,250V,TP,18x16x8

....4 CV223B2301-001211 C-FILM,LEAD-PPF;22nF,5%,400V,TP,20x7x14,

....4 C415 2301-001259 C-FILM,LEAD-PPF;100nF,5%,400V,TP,19x8x16

....4 C807 2301-001342 C-FILM,LEAD-PPF;1.5nF,5%,800V,TP,15x6.5x

....4 C2560 2305-000285 C-FILM,LEAD-PEF;220NF,5%,100V,TP,10.5X5.

....4 C2560 2305-000289 C-FILM,LEAD-PEF;220nF,5%,63V,TP,-,5mm

....4 C2560 2305-000354 C-FILM,LEAD-PEF;330nF,5%,50V,TP,7.3x4.8x

....4 C2560 2305-000382 C-FILM,LEAD-PEF;4.7nF,5%,400V,TP,-,5mm

....4 C2560 2305-000412 C-FILM,LEAD-PEF;470nF,5%,63V,TP,-,5mm

....4 C2560 2305-000624 C-FILM,LEAD-PEF;330nF,10%,100V,TP,-,5mm

....4 C2560 2305-000665 C-FILM,LEAD-PEF;100nF,5%,63V,TP,7.5x4.0x

....4 C2560 2305-001037 C-FILM,LEAD-PEF;330nF,5%,63V,TP,7.5x5.5x

....4 CV933 2306-000122 C-FILM,LEAD-PPF;100nF,5%,50V,TP,7.3x4.0x

....4 C414 2306-000131 C-FILM,LEAD-PPF;150nF,5%,250V,TP,19x16x7

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

....4 C701 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,

....4 C701 2401-000455 C-AL;10uF,20%,35V,GP,TP,4x7mm,5mm

....4 C701 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,TP,5X11,2

....4 C701 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

....4 C701 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

....4 C701 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

....4 C701 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m

....4 C701 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

....4 C701 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

....4 C701 2401-001998 C-AL;1000uF,20%,25V,GP,TP,10x20,5mm

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

Electric Parts List

4-4 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 C701 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-002215 C-AL;2200uF,20%,25V,WT,TP,13x25,5

....4 C701 2401-002268 C-AL;2.2uF,20%,250V,LZ,TP,8X11,5

....4 C701 2401-002288 C-AL;470uF,20%,25V,WT,TP,10x20,5

....4 C701 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-002594 C-AL;220uF,20%,16V,GP,TP,8x11.5,5

....4 C701 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5

....4 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

....4 C701 2401-003555 C-AL;3300uF,20%,25V,WT,TP,16x25,7.5

....4 C701 2401-003578 C-AL;1000uF,20%,10V,GP,TP,8x20mm,5

....4 J113 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 J243 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 LV101 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 LV110 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 LV199 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 LV252A 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 LV252B 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534

....4 J105 2701-000115 INDUCTOR-AXIAL;10UH,10%,3070

....4 LV204 2701-000115 INDUCTOR-AXIAL;10UH,10%,3070

....4 LV904 2701-000116 INDUCTOR-AXIAL;10UH,10%,4298

....4 L424 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 L825 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LV701 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LV702 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LV703 2701-000142 INDUCTOR-AXIAL;1UH,10%,2534

....4 LV201 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070

....4 LV202 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070

....4 LV203 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070

....4 LV901 2701-000143 INDUCTOR-AXIAL;1UH,10%,3070

....4 LV905 2701-000158 INDUCTOR-AXIAL;22UH,10%,2534

....4 LV205 2701-000159 INDUCTOR-AXIAL;22UH,10%,4298

....4 LV704 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 LV705 2701-000168 INDUCTOR-AXIAL;3.3UH,5%,2534

....4 L607 2701-000180 INDUCTOR-AXIAL;33UH,5%,2534

....4 L608 2701-000180 INDUCTOR-AXIAL;33UH,5%,2534

....4 L701 2701-000180 INDUCTOR-AXIAL;33UH,5%,2534

....4 L702 2701-000180 INDUCTOR-AXIAL;33UH,5%,2534

....4 L705 2701-000180 INDUCTOR-AXIAL;33UH,5%,2534

....4 L706 2701-000180 INDUCTOR-AXIAL;33UH,5%,2534

....4 LV206 2701-000184 INDUCTOR-AXIAL;4.7UH,10%,2534

....4 LV102 2701-000202 INDUCTOR-AXIAL;0.56UH,10%,2534

....4 L303B 2701-001040 INDUCTOR-AXIAL;10UH,10%,4514

....4 LV252 2702-001094 INDUCTOR-RADIAL;10uH,10%,4x6mm

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50

....4 FD802S 3601-001163 FUSE-AXIAL LEAD;125V,7A,-,EPOXY,2.4X7.1M

....4 FD801S 3601-001228 FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO

....4 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm

....4 CN906 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH

....4 CN906 3711-002647 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH

....4 EL800 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL801 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL803 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL804 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL805 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL806 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL807 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL808 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL809 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL810 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL857 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL868 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EY981 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EY986 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 ET984 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY400 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY401 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY600 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY601 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY602 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY603 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY800 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY801 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY8010 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY8011 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY802 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY803 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY804 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY805 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY806 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY807 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY808 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY809 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY810 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY811 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY812 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY813 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY814 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY815 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY816 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY817 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY818 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY819 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY820 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY821 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY822 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY823 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY824 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY825 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY826 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY827 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY828 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY829 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY832 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY833 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY834 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY835 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY836 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY837 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY838 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY839 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY840 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY841 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY842 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY843 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY844 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY845 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY846 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY847 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

Electric Parts List

Samsung Electronics 4-5

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 EY848 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY849 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY850 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY851 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY852 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY853 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY854 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY855 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY856 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY858 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY859 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY860 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY861 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY863 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY864 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY865 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY866 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY867 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY869 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY870 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY871 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY872 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY873 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY874 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY875 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY876 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY878 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY879 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY898 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY899 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY982 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY983 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 EY985 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 FT401 AA37-00001A CONNECTOR-FBTFIX PIN;JM-3500,CPTTV,0.36

....4 FT402 AA37-00001A CONNECTOR-FBTFIX PIN;JM-3500,CPTTV,0.36

....4 0 AA41-00826E PCB MAIN;CS29M6,FR-1,1L,00,1.6T,245*330 S.N.A

....4 GT404 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT406 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT801 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT802 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT803 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT804 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT805 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT806 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT01 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT02 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT03 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT04 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT06 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT07 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GTT08 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 SW901 3404-001252 SWITCH-TACT;12VDC,50MA,130GF,7.5X7.1,1

....4 SW902 3404-001252 SWITCH-TACT;12VDC,50MA,130GF,7.5X7.1,1

....4 SW903 3404-001252 SWITCH-TACT;12VDC,50MA,130GF,7.5X7.1,1

....4 SW904 3404-001252 SWITCH-TACT;12VDC,50MA,130GF,7.5X7.1,1

....4 SW905 3404-001252 SWITCH-TACT;12VDC,50MA,130GF,7.5X7.1,1

....4 R075 2001-001187 R-CARBON(S);75OHM,5%,1/2W,AA,TP,2.4X6.4M

...3 IC602 BP96-00418A ASSY HEAT SINK P;AA62-30182F,SCREW,TDA72 S.N.A

....4 CIS 0205-001153 GREASE-SILICON;SC102,JAPAN,- S.N.A

....4 T0124 1201-001064 IC-POWER AMP;7297,ZIP,15P,-,DUAL,32dB,PL

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 CIS AA62-30182F HEAT SINK-ES;CS29M6,A6063S,T2.0,26.2,52. S.N.A

..2 T0065 AA94-14729A ASSY PCB CRT;CW25M064VRXXEC,SDIG,ELDOR,B

...3 0202-001366 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb, S.N.A

...3 T0090 0502-000244 TR-POWER;KSA940,PNP,1.5W,TO-220,-,40-14

...3 T0090 0502-001007 TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6

...3 DU410 1201-000191 IC-OPAMP;4558,DIP,8P,300MIL,DUAL,20V/mV

...3 R523 2008-001013 R-FUSIBLE(S);1.2ohm,5%,2W,AF,TP,3.9x10mm

...3 L507 2701-000197 INDUCTOR-AXIAL;5.6UH,10%,2534

...3 VA999 3704-000114 SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK

...3 CN906 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.5MM,STRAIG

...3 CN906 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

...3 CN906 3711-002643 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH

...3 CN906 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH

...3 JA501 3722-001503 JACK-PIN;1P,1PI,NI,RED,SCR-JACK

...3 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,

...3 T0245 AA39-00225A LEAD CONNECTOR-ASSY;,10P,600MM,67096-010

...3 T0245 AA39-20010B LEAD CONNECTOR-ASSY;,1P,500,YFH800-01,S,

...3 T0245 AA39-20029K LEAD CONNECTOR-ASSY;,7P,400,67096-007,S,

...3 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR S.N.A

...3 QF04 AA96-00111A ASSY H/S;-,-,AA62-30013L,2SC2344,- S.N.A

....4 T0090 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30013L HEAT SINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A

...3 QF05 AA96-00111B ASSY H/S;-,-,AA62-30013L,2SA1011,- S.N.A

....4 T0090 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30013L HEAT SINK-ES;-,-,-,-,44/22,-,WHT,-,-,-,- S.N.A

...3 IC501 AA96-50151A ASSY H/S;-,TR,AA61-10060A,TDA6101Q,- S.N.A

...3 IC502 AA96-50151A ASSY H/S;-,TR,AA61-10060A,TDA6101Q,- S.N.A

...3 IC503 AA96-50151A ASSY H/S;-,TR,AA61-10060A,TDA6101Q,- S.N.A

....4 T0074 1201-000539 IC-VIDEO AMP;6101,ZIP,9P,-,SINGLE,-,PLAS

....4 CCM1 6001-000057 SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1S.N.A

....4 NT 6021-000118 NUT-HEXAGON;1C,M3,ZPC(YEL),SM20C S.N.A

....4 BRC501AA61-10060A BRACKET-TR;W3220,CUS-1 1/2H,T0.5,-,-,-,- S.N.A

...3 AUTO AA97-14952A ASSY AUTO-CRT;32,KS7A S.N.A

....4 CISS 0401-000005 DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1A,TS-1

....4 DZ016 0403-001039 DIODE-ZENER;MA2560,52-60V,1000MW,DO-41,T

....4 DZ016 0403-001211 DIODE-ZENER;MTZJ12B,11.8-12.3V,500MW,DO-

....4 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.42-15.02V,500MW,D

....4 DZ016 0403-001328 DIODE-ZENER;MTZJ22A,20.15-21.2V,500MW,DO

....4 T0156 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

....4 T0156 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO-

....4 T0156 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

....4 R075 2001-000085 R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000313 R-CARBON;11KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000904 R-CARBON;620OHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R125 2001-000989 R-CARBON;820KOHM,5%,1/8W,AA,TP,1.8X3.2MM

....4 R075 2001-001062 R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

....4 R075 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001143 R-CARBON(S);4.3KOHM,5%,1/2W,AA,TP,2.4X6.

Electric Parts List

4-6 Samsung Electronics

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

....4 R075 2001-001143 R-CARBON(S);4.3KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001163 R-CARBON(S);560OHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R0521 2002-001009 R-COMPOSITION;2.7Kohm,10%,1/2W,AA,TP,3.7

....4 R0521 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

....4 RF23 2003-000746 R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m

....4 RF24 2003-000746 R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m

....4 RF19 2003-001023 R-METAL OXIDE(S);120ohm,5%,2W,AF,TP,3.9x

....4 RF25 2003-002009 R-METAL OXIDE(S);390ohm,5%,2W,AF,TP,3.9x

....4 R518 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

....4 RF20 2003-002214 R-METAL OXIDE(S);680ohm,5%,2W,AG,TP,3.9x

....4 RF21 2003-002214 R-METAL OXIDE(S);680ohm,5%,2W,AG,TP,3.9x

....4 RF22 2003-002214 R-METAL OXIDE(S);680ohm,5%,2W,AG,TP,3.9x

....4 R527 2004-000433 R-METAL;1Kohm,1%,1/8W,AA,TP,1.8x3.2mm

....4 R526 2004-000500 R-METAL;2.7Kohm,1%,1/8W,AA,TP,1.8x3.2m

....4 R024 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001987 R-METAL(S);4.3Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-002022 R-METAL(S);51Kohm,1%,1/2W,AA,TP,2.4x6.4m

....4 RF18 2008-000261 R-FUSIBLE(S);150ohm,5%,1W,AF,TP,3.9x10mm

....4 LF02 2008-001078 R-FUSIBLE;47OHM,5%,1/2W,AA,TP,4.7X11MM

....4 RG06 2008-001139 R-FUSIBLE;3.3OHM,5%,1/2W,AA,TP,2.5X6.5MM

....4 C598 2201-000180 C-CERAMIC,DISC;10NF,10%,50V,Y5V,TP,7X3MM

....4 C598 2201-000247 C-CERAMIC,DISC;0.015NF,5%,50V,C0G,TP,5X3

....4 C598 2201-000376 C-CERAMIC,DISC;0.22NF,5%,50V,SL,TP,6.3X3

....4 C598 2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,500V,Y5U,TP

....4 C598 2201-000604 C-CERAMIC,DISC;0.056NF,+100-0%,500V,SL,T

....4 C598 2201-000653 C-CERAMIC,DISC;0.068NF,5%,50V,SL,TP,5X3M

....4 C598 2201-000723 C-CERAMIC,DISC;4.7NF,20%,3KV,Y5U,TP,16X5

....4 C598 2201-002108 C-CERAMIC,DISC;1.5NF,10%,500V,Y5P,TP,8.5

....4 C2560 2301-000192 C-FILM,LEAD-PEF;1nF,5%,50V,TP,5.3x10mm,5

....4 C2560 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7.4x3.9x1

....4 C2560 2301-000261 C-FILM,LEAD-PEF;4.7nF,5%,100V,TP,10.5x12

....4 C2560 2305-000149 C-FILM,LEAD-PEF;100nF,5%,100V,TP,12x12.5

....4 C2560 2305-000704 C-FILM,LEAD-PEF;100nF,5%,250V,TP,16.5x10

....4 C701 2401-000025 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

....4 C701 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

....4 C701 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

....4 C701 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

....4 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5

....4 C701 2401-000927 C-AL;22uF,20%,250V,GP,TP,13x20,5

....4 C701 2401-001232 C-AL;4.7uF,20%,250V,GP,TP,10x12.5,5

....4 C701 2401-001563 C-AL;47uF,20%,400V,GP,TP,16x25,7.5

....4 L501 2701-000178 INDUCTOR-AXIAL;33UH,10%,3070

....4 J110 2701-000215 INDUCTOR-AXIAL;8.2UH,10%,2534

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L2514 3301-000287 BEAD-AXIAL;,3.5x1.0x6.0mm,3000mA,TP,,,50

....4 EL81 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL82 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL83 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL84 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL85 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL86 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL87 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL88 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL89 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL90 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL91 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL92 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL93 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EL94 6042-000001 EYELET;ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/ S.N.A

....4 EY501 6042-000002 EYELET;ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H S.N.A

....4 LX085 AA27-90001B COIL-SPARK,GAP;S-23,1.5KV,-,-,-,-,-,-,-,

....4 CRT PCBAA41-00983A PCB ;CT-29K12P,FR-1,1L,330*245,1.6T S.N.A

....4 GT504 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT505 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT506 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

....4 GT507 AA60-40014A PIN-GT,ASSY;AUTO S.N.A

Electric Parts List

Samsung Electronics 4-7

Loc. No. Code No. Description ; Specification Remark Loc. No. Code No. Description ; Specification Remark

5. PCB Diagrams

5-1 MAIN (TOP)

PCB Diagram

Samsung Electronics 5-1

6. Schematic Diagrams

Samsung Electronics

Schematic Diagrams

6-1

6-1 MAIN
