![](asset-1.png)
8 CHANNEL/
16 CHANNEL DVR
User Manual SDE-400x/SDE-500x
![](asset-2.png)
Copyright
©2012 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or
changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided.
Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the
contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
8 Channel/
16 Channel DVR
User Manual
![](asset-3.png)
English _3
- OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods
of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
overview
![](asset-4.png)
4_ overview
overview
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within
this unit.
This exclamation point symbol is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or
damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat
generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on
top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately
disconnect the power source and contact the service center. Continued use in such a condition may cause fire
or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this
product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted
repair.)
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
11. Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside the Clear Dome due to temperature difference between
internal and external of the dome camera.
12. If you install this product in a low-temp area such as inside a cold store, you must seal up the wiring pipe with
silicon, so that the external air can not flow inside the housing.
Otherwise, external high, humid air may flow inside the housing, pooling moisture or vapor inside the product
due to a difference between internal and external temperature.
![](asset-5.png)
English _5
- OVERVIEW
BEFORE START
This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection
to other equipment, menu setup, etc.
You have to keep in mind the following notices :
• SAMSUNG retains the copyright on this manual.
• This manual cannot be copied without SAMSUNG’s prior written approval.
• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation
of instructions mentioned in this manual.
• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be
removed from the unit.
• Before installing an additional HDD or connecting an external storage device (USB HDD) to this DVR, check the
compatibility. Consult your provider for the compatibility list.
Warning
❖Battery
It is essential that when changing the battery in the unit, the replacement battery must be of the same type
otherwise there may be a possibility of an explosion.
The following are the specifications of the battery you are using now.
• Normal voltage : 3V
• Normal capacity : 170mAh
• Continuous standard load : 0.2mA
• Operating temperature : -20°C ~ +85°C
(-4°F ~ +185°F)
Caution
• Connect the power cord into a grounded outlet.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like
• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the
Instructions.
❖System Shutdown
Turning off the power while the product is in operation, or undertaking improper actions may cause damage
or malfunction to the hard drive or the product.
Please turn off the power using the Power button on the front of your DVR.
For SDE-4003/5003, please right-click to display the context sensitive menu and select <Shutdown>.
After selecting <OK> in the pop-up menu, you can pull off the power cord.
You may want to install a UPS system for safe operation in order to prevent damage caused by an
unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)
❖Operating Temperature
The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).
This product may not work properly if you run right after a long period of storage at a temperature below the
guaranteed one.
Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand
at room temperature for a period.
Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).
Likewise, the hard drive may not work at a temperature below the guaranteed one.
❖Ethernet Port
DVR is designed for indoor use only and all the communication wirings are limited to inside of the building.
M Do not connect UTP camera and BNC camera simultaneously. (CH1, CH2)
(SDE-4001/4002/4004/4005/5001/5002)
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California USA.
“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
![](asset-6.png)
6_ overview
overview
CONTENTS
OVERVIEW
3
3 Important Safety Instructions
5 Before Start
6 Contents
8 Features
17 Part Names and Functions (Front)
19 Part Names and Functions (Rear)
21 Remote Control
CONNECTING WITH OTHER DEVICE
23
23 installation
23 Checking the Installation Environment
24 Connecting the Video, Audio and Monitor
25 Connecting the USB
25 Connecting the Camera (SED-1001R, SEB-
1005R, SEB-1007R)
26 Connecting the Camera (SEB-1020R)
32 Connecting the Alarm Input/Output
32 Connecting the Network
LIVE
34
34 Getting Started
36 Live Screen Configuration
41 Live Mode
44 Spot Out
44 Zoom
45 Audio On/Off
45 Freeze
46 Event Monitoring
MAIN MENU
47
47 System Setup
59 Setting the Device
66 Setting the Recording
70 Setting the Event
74 Backup
75 Network Configuration
![](asset-7.png)
English _7
- OVERVIEW
SEARCH & PLAY
89
89 Search
92 Playback
WEB VIEWER
94
94 Introducing Web Viewer
95 Connecting Web Viewer (Mac)
96 Using Live Viewer (Mac)
97 Connecting Web Viewer (Windows)
98 Using Live Viewer (Windows)
103 Using Search Viewer
107 Viewer Setup
118 About
119 Mobile Viewer
BACKUP VIEWER
120
120 SEC Backup Viewer
APPENDIX
123
123 Product Specification (Camera)
126 Product Specification
135 Default Setting
138 Troubleshooting
141 Open Source License Report on the Product
![](asset-8.png)
8_ overview
overview
FEATURES
The DVR employs H.264 video encoding for 8 or 16 channel inputs and G.711 audio encoding for 8 or 16 channels
while simultaneously supports hard disc recording and playback.
These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video
and audio data.
• Provides a convenient User Interface
• 8/16 CH Composite/UTP Input Connectors
• Supports CIF(S)/2CIF(M)/4CIF(L) recording formats
• With the network specific codec, network transfer enabled regardless of the recording conditions
• De-interlacing processor for better picture quality
• Display of HDD information and status by using HDD SMART
• Hard Disk overwrite function
• Mass storage hard disk backup through high-speed USB 2.0
• Simultaneous Record and Playback of 8/16-channel video data
• Various Search Modes (Search by Time, Event, Backup and Motion Detection)
• Various Recording Modes (Manual, Event, Scheduled Recording)
• Alarm Interface
• Remote Monitoring function by Network Viewer, Smart Viewer and Mobile Viewer
Standards Approvals
M This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
![](asset-9.png)
English _9
- OVERVIEW

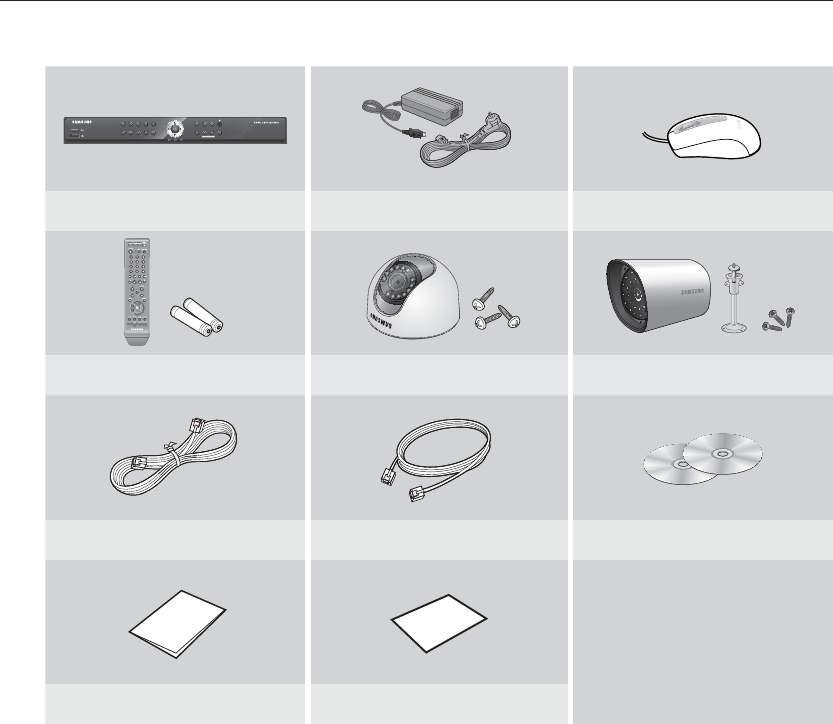

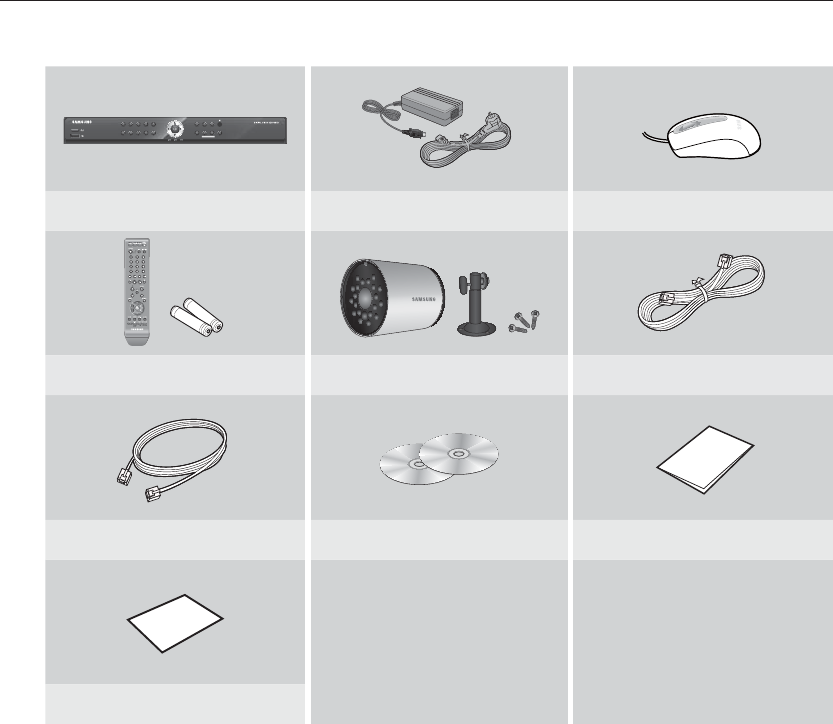

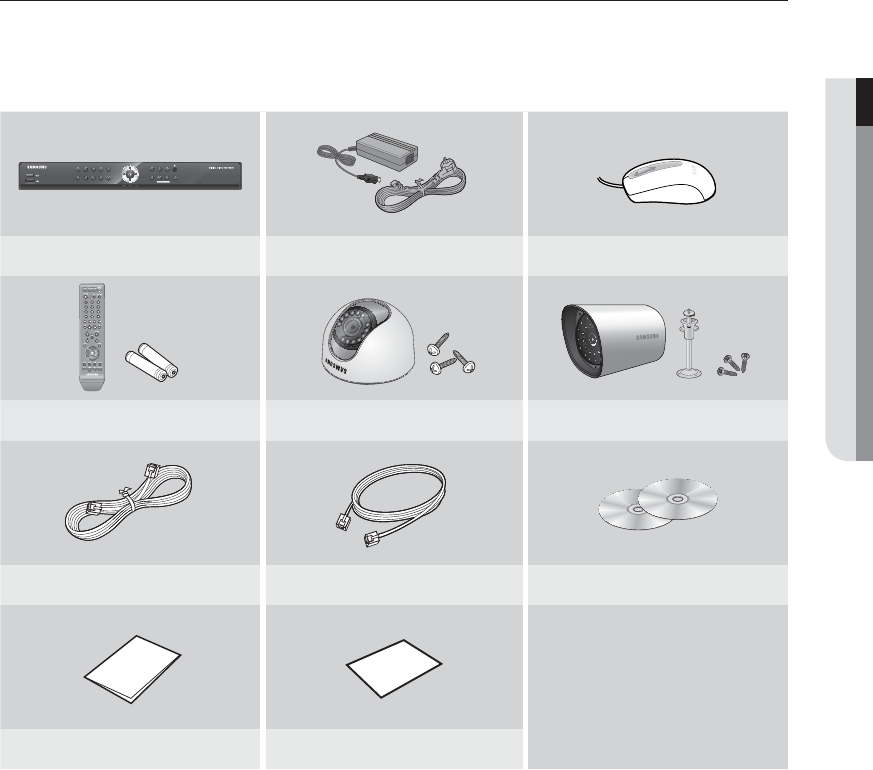

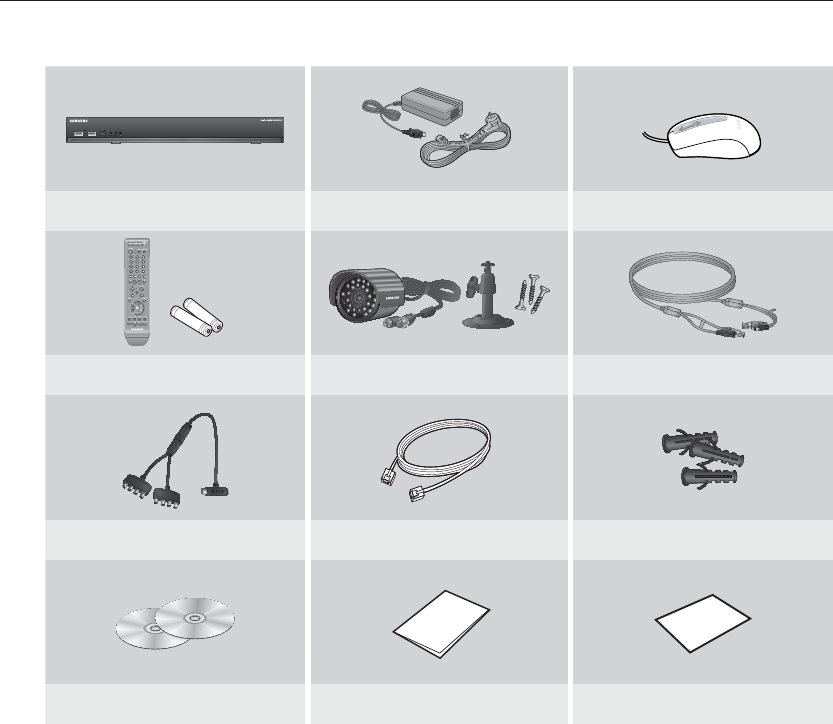

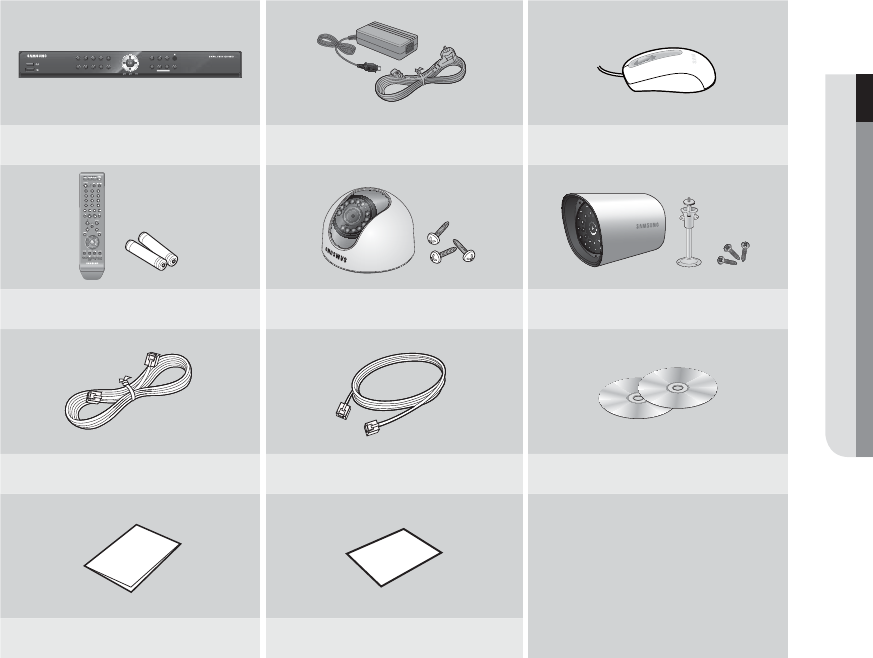

Package Contents
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.

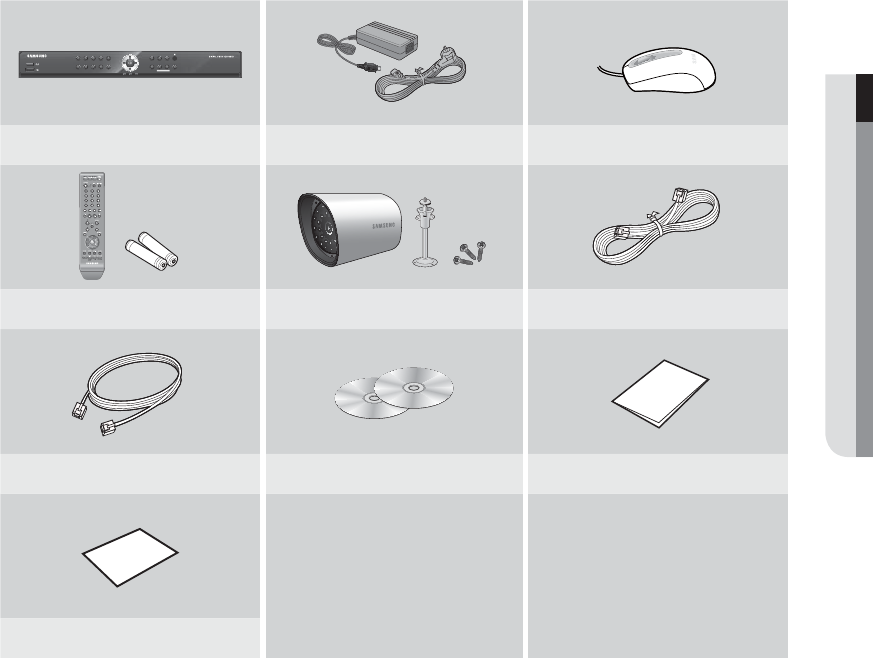

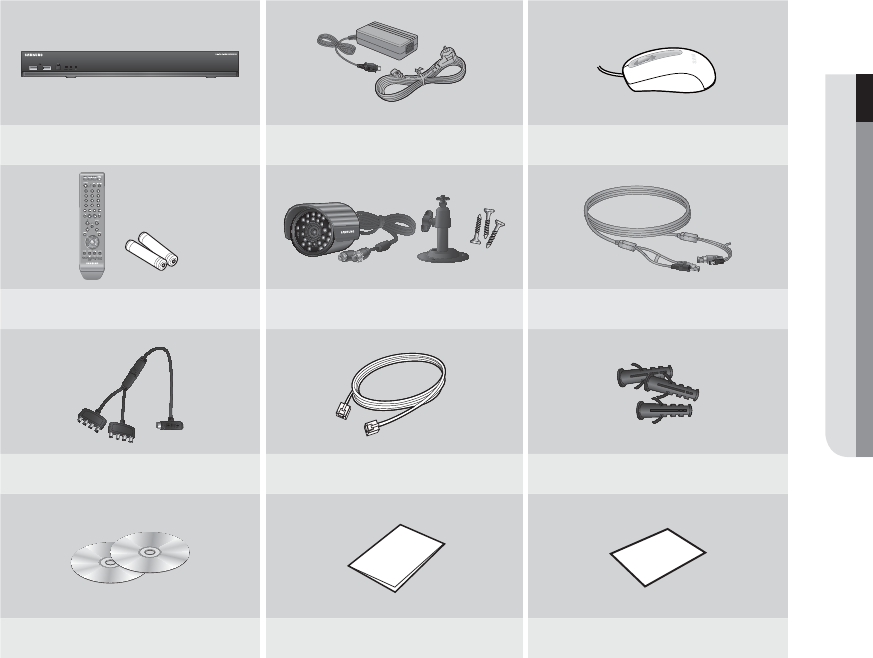

❖SDE-4001N Package
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
DVR (1SET) Adapter (2EA) / Power Cable (2EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SED-1001R (2SET) SEB-1005R (4SET)
Camera Cable (6EA) Network Cable (1EA) SmartViewer (1EA) / Manual CD (1EA)
Quick Start Guide (1EA) Warranty Card (1EA)
![](asset-a.png)
10_ overview
overview
❖SDE-4001P Package
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
DVR (1SET) Adapter (2EA) / Power Cable (2EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SED-1001R (2SET) SEB-1005R (2SET)
Camera Cable (4EA) Network Cable (1EA) SmartViewer (1EA) / Manual CD (1EA)
Quick Start GuideWarranty Card (1EA)
J Depending on sales territory, quantity of Quick Start Guide differs.
SDE-4001P/AJ Model doesn’t include “Warranty Card”.
![](asset-b.png)
English _11
- OVERVIEW
❖SDE-4003N Package
DVR (1SET) Adapter (1EA) / Power Cable (1EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SEB-1020R (4SET) Camera Cable (4EA)
Camera Power Cable (1EA) Network Cable (1EA) Expansion pipe (12EA)
SmartViewer (1EA) / Manual CD (1EA) Quick Start Guide (1EA) Warranty Card (1EA)
![](asset-c.png)
12_ overview
overview
❖SDE-4004N Package
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
DVR (1SET) Adapter (2EA) / Power Cable (2EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SEB-1007R (4SET) Camera Cable (4EA)
Network Cable (1EA) SmartViewer (1EA) / Manual CD (1EA) Quick Start Guide (1EA)
Warranty Card (1EA)
![](asset-d.png)
English _13
- OVERVIEW
❖SDE-4005N Package
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
DVR (1SET) Adapter (2EA) / Power Cable (2EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SEB-1005R (4SET) Camera Cable (4EA)
Network Cable (1EA) SmartViewer (1EA) / Manual CD (1EA) Quick Start Guide (1EA)
Warranty Card (1EA)
![](asset-e.png)
14_ overview
overview
❖SDE-5001N Package
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
DVR (1SET) Adapter (2EA) / Power Cable (2EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SED-1001R (4SET) SEB-1005R (4SET)
Camera Cable (8EA) Network Cable (1EA) SmartViewer (1EA) / Manual CD (1EA)
Quick Start Guide (1EA) Warranty Card (1EA)
J SDE-5001P/AJ Model doesn’t include “Warranty Card”.
![](asset-f.png)
English _15
- OVERVIEW
❖SDE-5002N Package
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
DVR (1SET) Adapter (2EA) / Power Cable (2EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SED-1001R (4SET) SEB-1007R (4SET)
Camera Cable (8EA) Network Cable (1EA) SmartViewer (1EA) / Manual CD (1EA)
Quick Start Guide (1EA) Warranty Card (1EA)
J SDE-5002P/AJ Model doesn’t include “Warranty Card”.
![](asset-10.png)
16_ overview
overview
❖SDE-5003N Package
DVR (1SET) Adapter (1EA) / Power Cable (1EA) Mouse (1EA)
Remote Control (1EA) / Battery (2EA) SEB-1020R (8SET) Camera Cable (8EA)
Camera Power Cable (1EA) Network Cable (1EA) Expansion pipe (24EA)
SmartViewer (1EA) / Manual CD (1EA) Quick Start Guide (1EA) Warranty Card (1EA)
![](asset-11.png)
English _17
- OVERVIEW

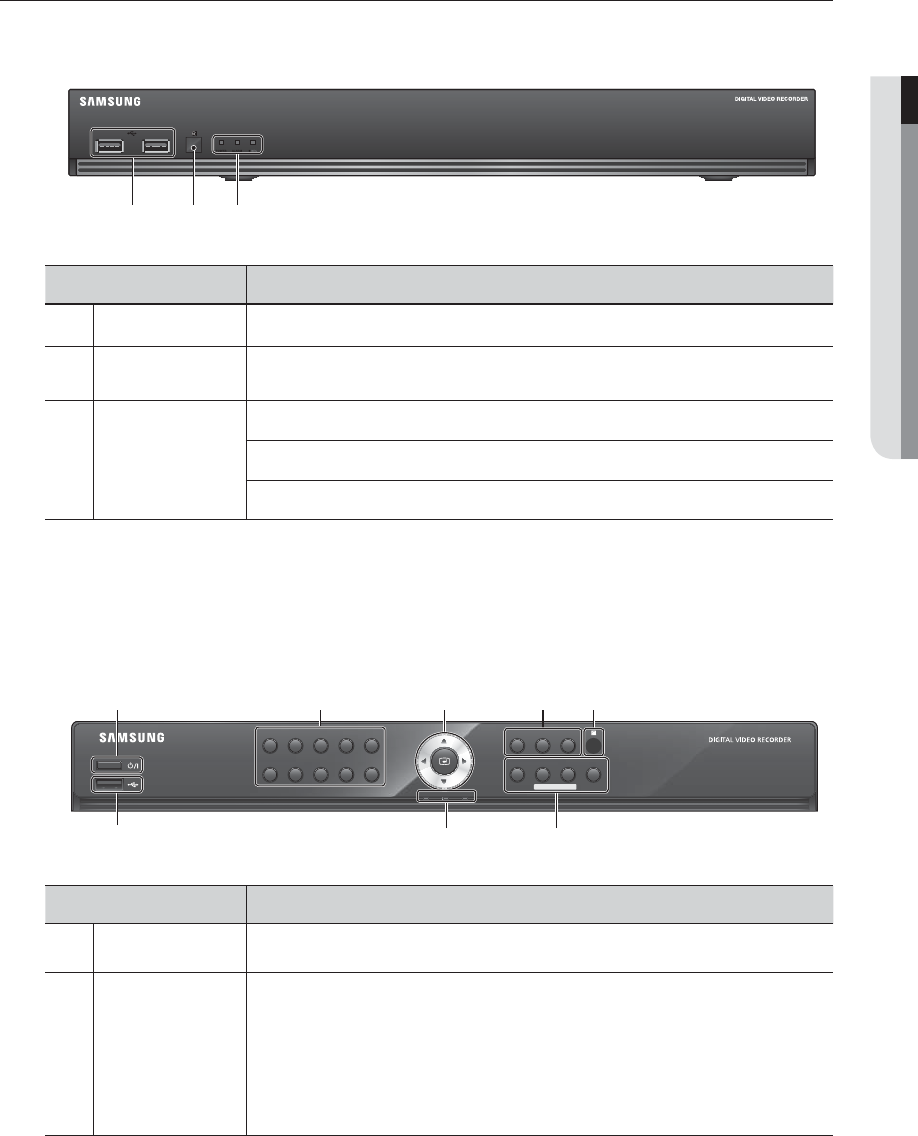

PART NAMES AND FUNCTIONS (FRONT)
SDE-4003/5003
Part Names Functions
USB Port Connects the USB devices.
bRemote Control
Receiver Input the remote control signal.
cLED Indicator
POWER : Displays the power ON/OFF status.
ALARM : Lights on when an event occurs.
REC : Lights on when recording is in progress.
M All functions of SDE-4003/5003 are operable with mouse control, since there are no front buttons.
SDE-4001/4002/4004/4005/5001/5002
Part Names Functions
Power Used to turn the DVR ON/OFF.
bChannel
Used to select channel numbers directly in the Live Mode, or numbers in the numeric input
mode.
CHANNEL 1–9 : Press each button between 1 to 9. (8CH : 8)
CHANNEL 10 : Press the [0/10+] button fi rst, then press the [0/10+] within 1 second.
CHANNEL 11–16 : Press the [0/10+] button first, then press any number between 1 to 6
within 1 second.
cb
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
b c
![](asset-12.png)
18_ overview
overview
Part Names Functions
c
Direction (
◄►
) /
Select Button
Used to change a value or move the cursor up/down/left/right.
Selects a menu item or executes the selected menu.
REC Starts or ends the recording.
►
/
Play/Pause : Used to pause or resume the screen.
Stop : Used to stop the playback.
Remote Control
Receiver Input the remote control signal.
MENU Either goes to the system menu screen or moves to the upper menu from the lower menu.
SEARCH / PREV Starts search menu.
PREV : Used to move to the previous page in setup or search page.
MODE / NEXT
Each time you press the button in Live mode, the screen mode will be switched in sequence.
Each time you press the button in play mode, the screen mode will be switched in sequence.
(1 live channel + (N-1) live channel)
NEXT : Used to move to the next page in setup or search page.
ALARM Cancels the ALARM LED and the audible alarm when the alarm is going off, and to remove the
icon.
LED Indicator
HDD : Displays the normal access to HDD.
Upon access to HDD, LED is on.
POWER : Displays the power ON/OFF status.
ALARM : Lights on when an event occurs.
USB Port Connects the USB devices.
![](asset-13.png)
English _19
- OVERVIEW

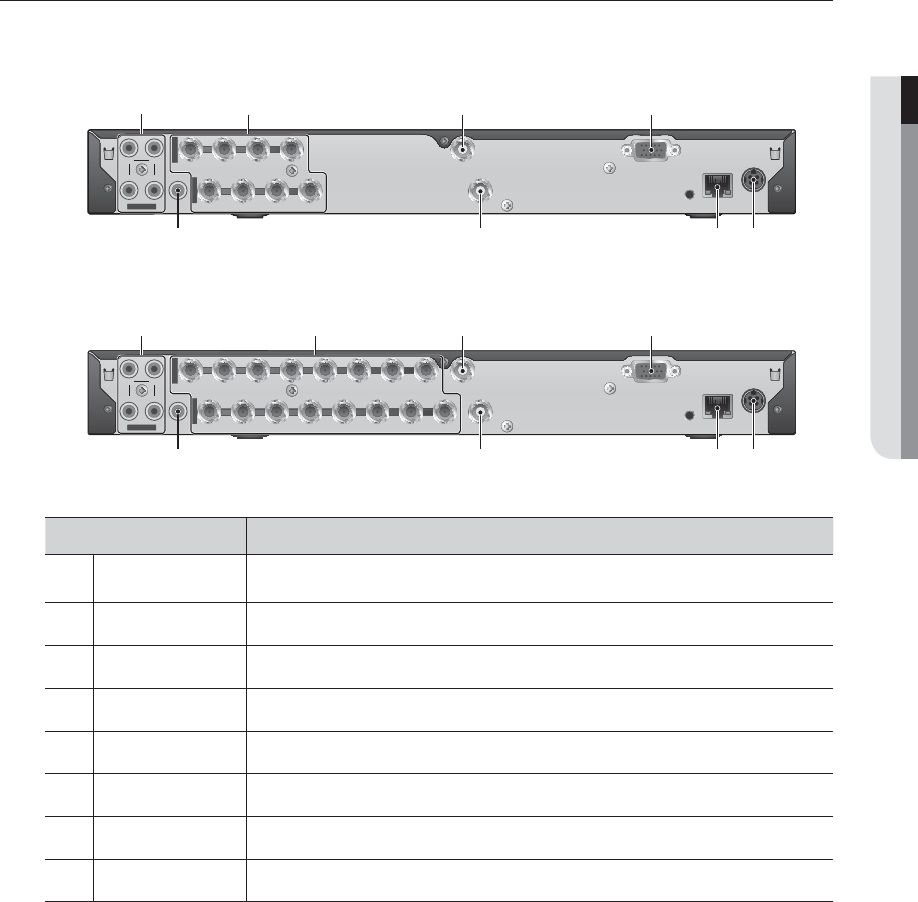

PART NAMES AND FUNCTIONS (REAR)
SDE-4003
SDE-5003
Part Names Functions
AUDIO IN Input ports (RCA jack) for the audio signal.
bVIDEO IN Input port for the composite video signal.
cSPOT BNC type of output port for the Spot signal.
VGA OUT Output port for VGA video signal.
DC 12V DVR power input port.
NETWORK NETWORK connector port.
VIDEO OUT BNC type of output port for the composite video signal.
AUDIO OUT Output port (RCA jack) for the audio signal.
M [CONSOLE] is designed for the service repair purpose only.
SDE-4003 and SDE-5003 Model don’t support the function of “ALARM IN” and “ALARM OUT”.
SERIAL
1
ALARM
OUT
RS-
485
COM COM
21234 5 6 7 8 G1 2 3456 7 8 G
ALARM IN
NETWORK
CONSOLE
VGA OUT
SERIAL
VIDEO OUT
87654321
CH1 CH2
CH3 CH4
9 10111213141516
SPOT
AUDIO OUT
DC 12 V
AUDIO IN
VIDEO IN
VIDEO IN
NETWORK
CONSOLE
VGA OUT
VIDEO OUT
4321
CH1 CH2
CH3 CH4
5678
SPOT
AUDIO OUT
DC 12 V
AUDIO IN
VIDEO IN
VIDEO IN
b c
SERIAL
1
ALARM
OUT
RS-
485
COM COM
212 3 4 5 6 7 8 910 11 12 13 14
15 16
G
G
ALARM IN
NETWORK
CONSOLE
VGA OUT
VIDEO OUT
8764321
CH1 CH2
CH3 CH4
9 10111213141516
SPOT
AUDIO OUT
DC 12 V
AUDIO IN
VIDEO IN
VIDEO IN
5
b c
![](asset-14.png)
20_ overview
overview

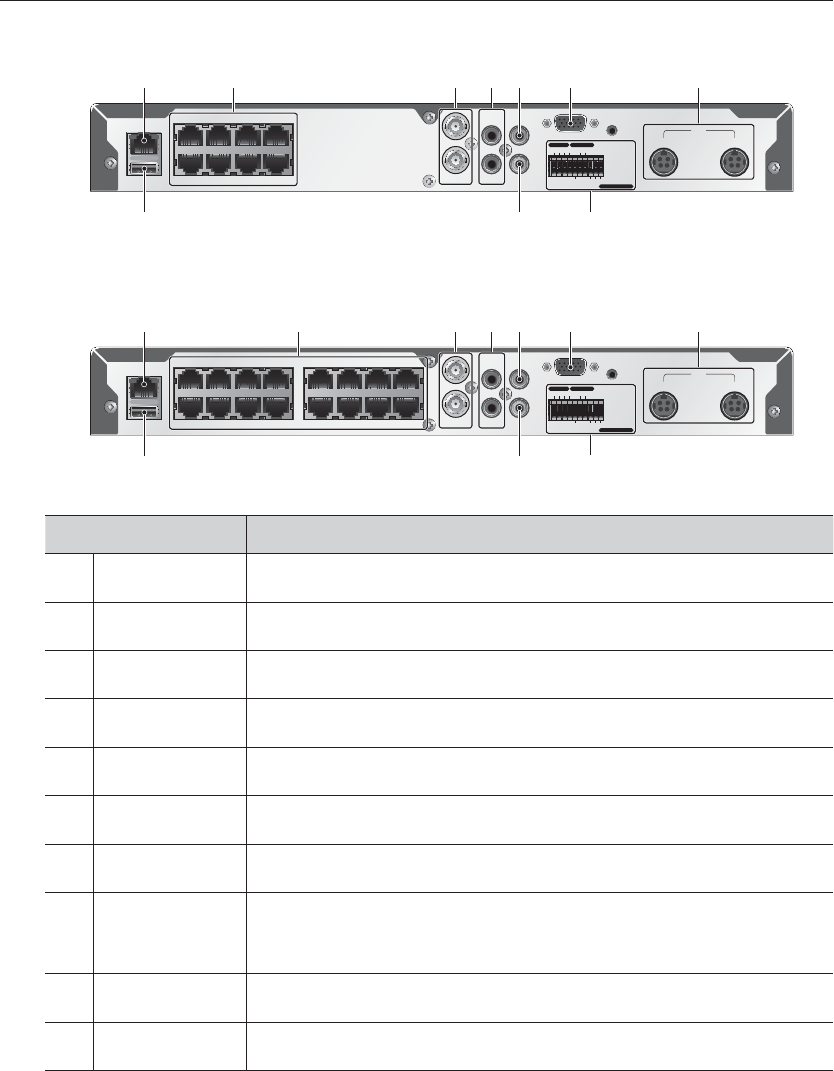

SDE-4001/4002/4004/4005
SDE-5001/5002
Part Names Functions
NETWORK NETWORK connector port.
bCAMERA IN Video Signal input ports (UTP type connector).
cVIDEO IN Composite Video Signal Input Port (BNC type connector).
AUDIO IN Audio input signal port (RCA jack).
VIDEO OUT Video Signal Output Port (RCA jack).
VGA VGA Video Signal Output Port.
POWER Camera and DVR power input port.
ALARM
- ALARM IN 1~4 : Alarm Input port.
- ALARM OUT : Alarm Output port.
- SENSOR POWER : Sensor Power Output port.
AUDIO OUT Audio Signal Output Port (RCA jack).
USB USB connector port.
1 - 12 CH 13 - 16 CH
NETWORK
USB
AUDIO IN 1
AUDIO IN 2
VIDEO IN 2
VIDEO IN 1
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
G G G
COM
14321
DVR POWER
VGA
AUDIO OUT
5
1
6
2
7
3
8
4
ALARM IN ALARM OUT
b c
NETWORK
USB
AUDIO IN 1
AUDIO IN 2
VIDEO IN 2
VIDEO IN 1
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
G G G
COM
14321
DVR & CAMERA POWER
VGA
AUDIO OUT 1 - 12 CH 13 - 16 CH
5
1
6
2
7
3
8
4
13
9
14
10
15
11
16
12
ALARM IN ALARM OUT
b c
![](asset-15.png)
English _21
- OVERVIEW
M If you connect UTP camera(SEB-1006R) that support Audio to CH1~CH16, Audio output for CH1~CH16 will be available.
Do not connect UTP camera and BNC camera simultaneously. (CH1, CH2)
Use only provided UTP camera.
If using the VGA cable, the source from VGA will be displayed as main image on the screen along with the OSD menus.
Then, the BNC port will output the video signal alone.
If not using the VGA cable, the source from BNC will be displayed as main image on the screen along with the OSD menus.
If you connect the VGA cable after the system boot, only the video signal from VGA will be displayed.
[CONSOLE] is designed for the service repair purpose only.

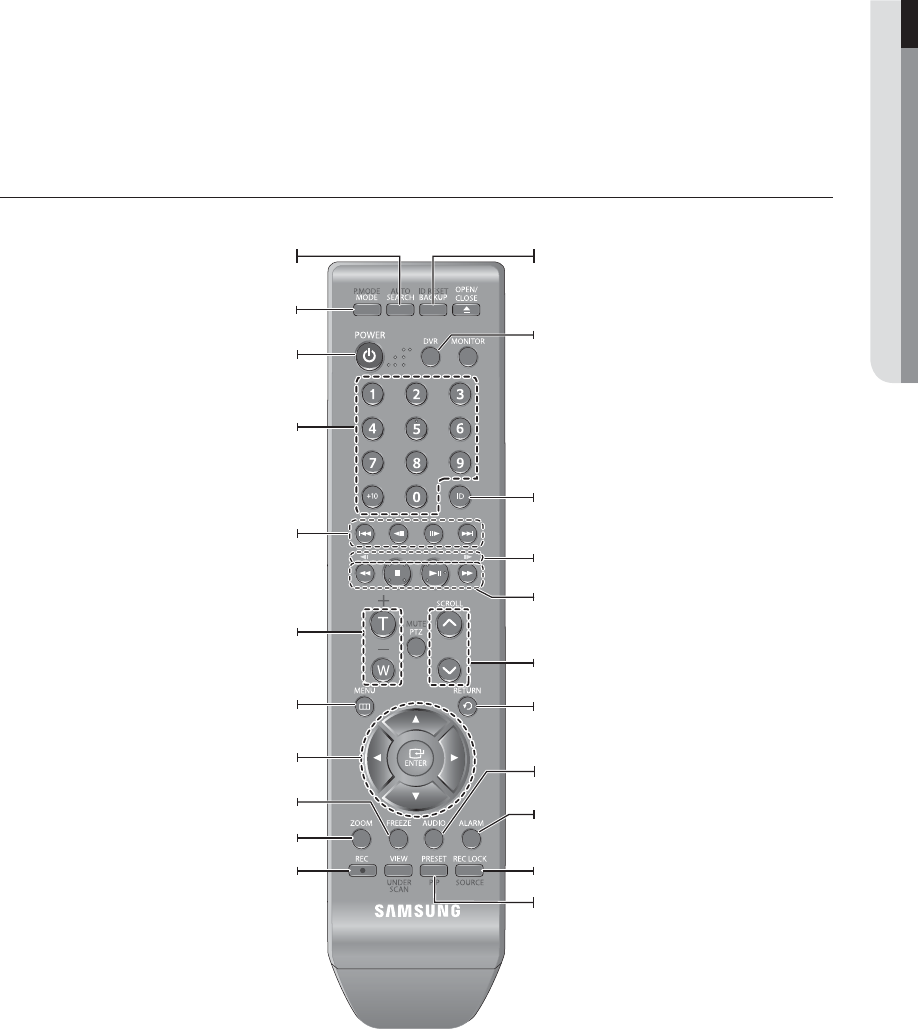

REMOTE CONTROL
SEARCH
Displays the search menu.
POWER
Displays the Exit pop up screen.
NUMBER [0~+10]
Used as the numeric input keys, or displays a single
channel.
T/W
Zooms in or out.
BACKUP
Displays the Backup Menu.
MODE
Changes the screen mode.
MENU
Goes to the system menu screen.
Up/Down/Left/Right(▲▼◄ ►)/ENTER
Moves the cursor up/down/left/right, and runs the
Select Menu.
FREEZE
Freezes the screen temporarily.
ZOOM
Runs the digital zoom (x2) function.
DVR
Activates the DVR function.
ID
Sets the ID of the system.
Select 2 digits from 0 ~ 9 while pressing the ID Key.
SCROLL ,.
Moves the menu scroll.
RETURN
Returns to the previous screen.
AUDIO
Turns Audio on/off.
ALARM
Cancels the Alarm.
REC LOCK
Selects the recording lock function.
REC
Starts or ends the live recording.
Skip Backward (by unit time),
Slow Rewind, Slow Forward,
Skip Forward (by unit time) Move Frame
While paused, moves to the previous/next frame.
FR, STOP, PLAY/PAUSE, FF
PIP
Selects or deselects the PIP function.
![](asset-16.png)
22_ overview
overview
Using the numeric buttons
CHANNEL 1–9 Press each button between 1 to 9. (8CH : 8)
CHANNEL 10 Press the [0/+10] button first, then press the [0/+10] within 1 second.
CHANNEL 11–16 Press the [0/+10] button first, then press any number between 1 to 6.
Changing the Remote Control ID
1. Press the ID button of the remote control and check the ID displayed on the DVR screen.
The factory default ID of the remote control is 00.
2. Enter 2 digits of your selection in order, while pressing the system [ID] button.
3. When ID input is done, press the system [ID] button again to check the setting.
M If you want to change the remote control ID to 08: Press 0 and 8 in order while the system [ID] button is pressed.
Remote control's ID and DVR’s ID should be matched for proper operation. Refer to “Remote Devices”. (Page 63)
![](asset-17.png)
English _23

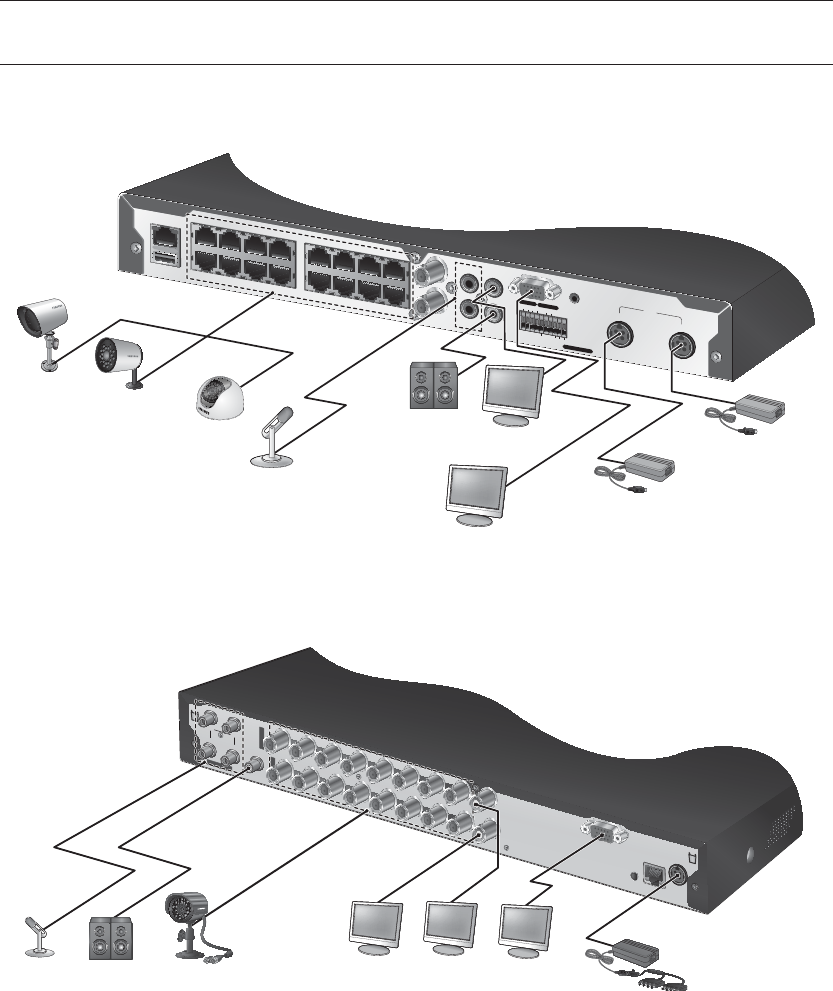

- CONNECTING WITH OTHER DEVICE
connecting with other device
INSTALLATION
Please take note of the followings before using this product.
• Do not use the product outdoor.
• Do not spill water or liquid in the connection part of the product.
• Do not impose the system to excessive shock or force.
• Do not pull out the power plug forcefully.
• Do not disassemble the product on your own.
• Do not exceed the rated input/output range.
• Use a certified power cord only.
• For the product with an input ground, use a grounded power plug.
CHECKING THE INSTALLATION ENVIRONMENT
Samsung Digital Video Recorder (“DVR” hereinafter) is a state-
of-art security device, and contains mass storage hard disk(s)
and critical circuits inside.
When the temperature rises inside the product, the product may
breakdown and the product life be shortened. Please pay
attention to the following recommendations before installation.
The followings are the recommendations when Samsung DVR is installed on a rack.
1. Please ensure that the rack inside is not sealed.

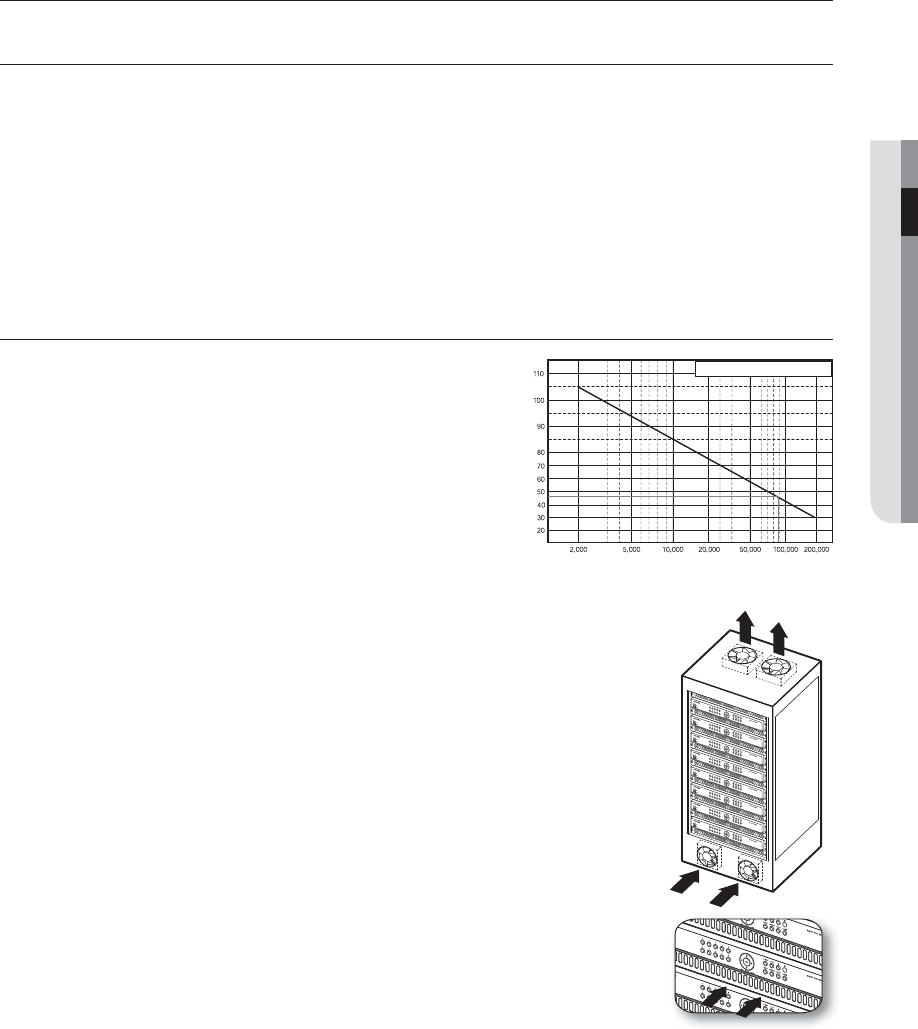

2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.
3. If the DVR or other devices on a rack is to be stacked as in the picture, provide a
suitable space or install a ventilating opening for air circulation.
4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.
5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air
circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
6. Please maintain the temperature inside the rack or surrounding areas between
0°C ~ 40°C (32°F ~ 104°F) as shown in the figure 1.
Rack Mount Instructions - The following or similar rack-mount instructions are
included with the installation instructions :
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature specified by the
manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not
compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should
be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
One Year: 24HR X 365 DAY =8,760 HR
Temperature
Unit: ºC
Life (Unit: HOURS)
[Figure 1]
[Figure 2]
![](asset-18.png)
24_ connecting with other device
connecting with other device
CONNECTING THE VIDEO, AUDIO AND MONITOR
SDE-4001/4002/4004/4005/5001/5002
M Do not connect UTP camera and BNC camera simultaneously. (CH1, CH2)
SDE-4003/5003
CONSOLE
AUDIO IN
CH1 CH2 VGA OUT
DC 12V
NETWORK
AUDIO IN
VIDEO IN
VIDEO IN
12345678SPOT
910 11 12 13 14 15 16 VIDEO OUT
CH3 CH4
AUDIO OUT
NETWORK
USB
AUDIO IN 1
AUDIO IN 2
VIDEO IN 2
VIDEO IN 1
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
GGG
COM
14
321
DVR & CAMERA POWER
AUDIO OUT 1 - 12 CH 13 - 16 CH
5
1
6
2
7
3
8
4
13
9
14
10
15
11
16
12
ALARM IN ALARM OUT
S
E
B
-
1
0
0
7
R
W
E
A
T
H
E
R
P
R
O
O
F
I
P
6
6
![](asset-19.png)
English _25
- CONNECTING WITH OTHER DEVICE
CONNECTING THE USB
1. By factory default, a USB port is provided for external connection.
2. You can connect a USB HDD, USB memory or mouse to the USB port.
3. If a USB HDD is connected to the system, recognition and settings are available in “Main Menu > Setting the
Device > Storage Device”. (Page 61)
4. This product supports hot-plugging, which connects/removes the USB device during the system operation.
J If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.
CONNECTING THE CAMERA (SED-1001R, SEB-1005R, SEB-1007R)
Equipped with the IR LED and the illumination sensor, enables you to monitor at night as well as in daytime.
The camera is suitable for both internal and external use.

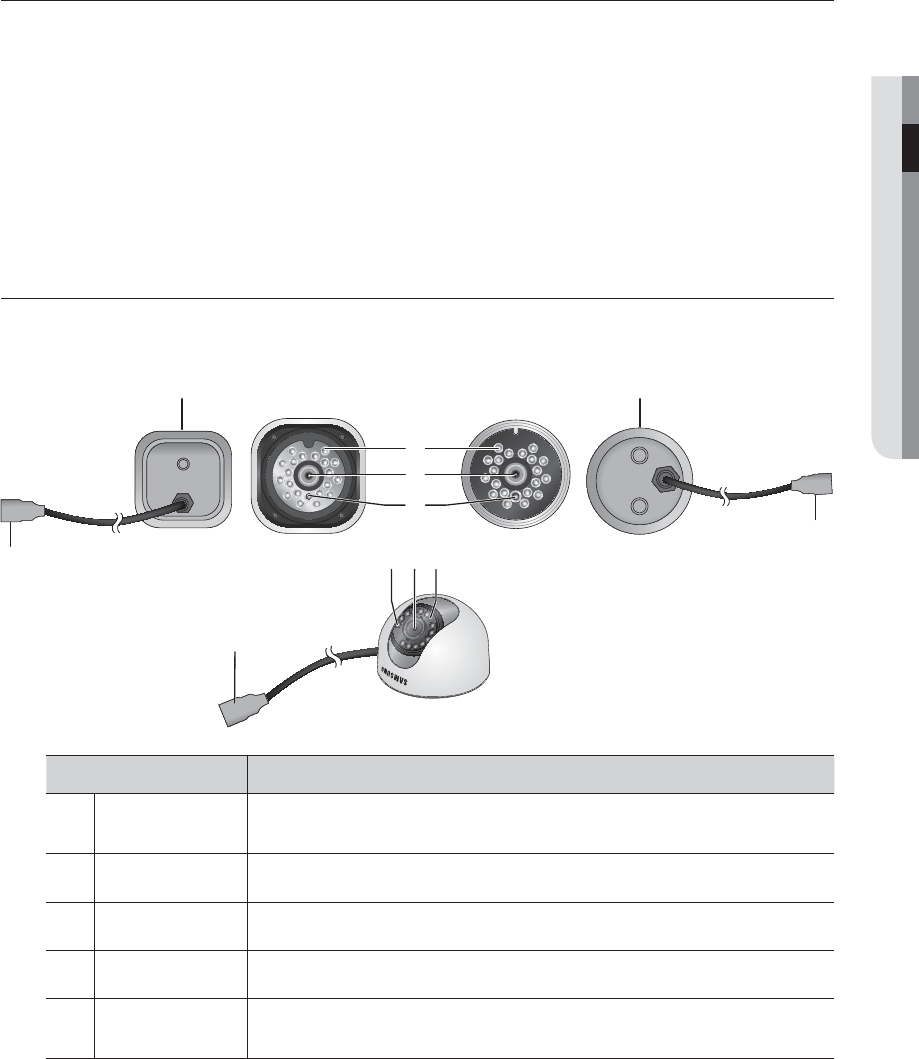

Name Description
Camera Fitting
Groove
Groove that is used to fit the camera bracket.
There are two grooves; one on the top and one on the bottom.
bIR LED These infrared LED's are controlled by the illumination sensor.
cLens
Focal length of 3.6mm enables you to cover relatively longer range of monitoring.
Illumination Sensor Detects incoming light to control the IR LED.
DVR Connection
Cable
Connect the cable directly to the DVR without using a particular power cable.
You can use the RJ-45 cable to connect to a remote camera.
SEB-1007RSEB-1005R
cb
SED-1001R
b
c
![](asset-1a.png)
26_ connecting with other device
connecting with other device
RJ-45 Cable (Length: 18.3m, 60ft)
This cable is specific to UTP connection, which is not compliant with the LAN cable. You can use the UTP
direct cable (all of 8 pins are used) to extend the length to a max of 200m. (based on UTP CAT 5e)
CVBS+ N.C
CVBS-
N.C
GND 12V
N.C
N.C

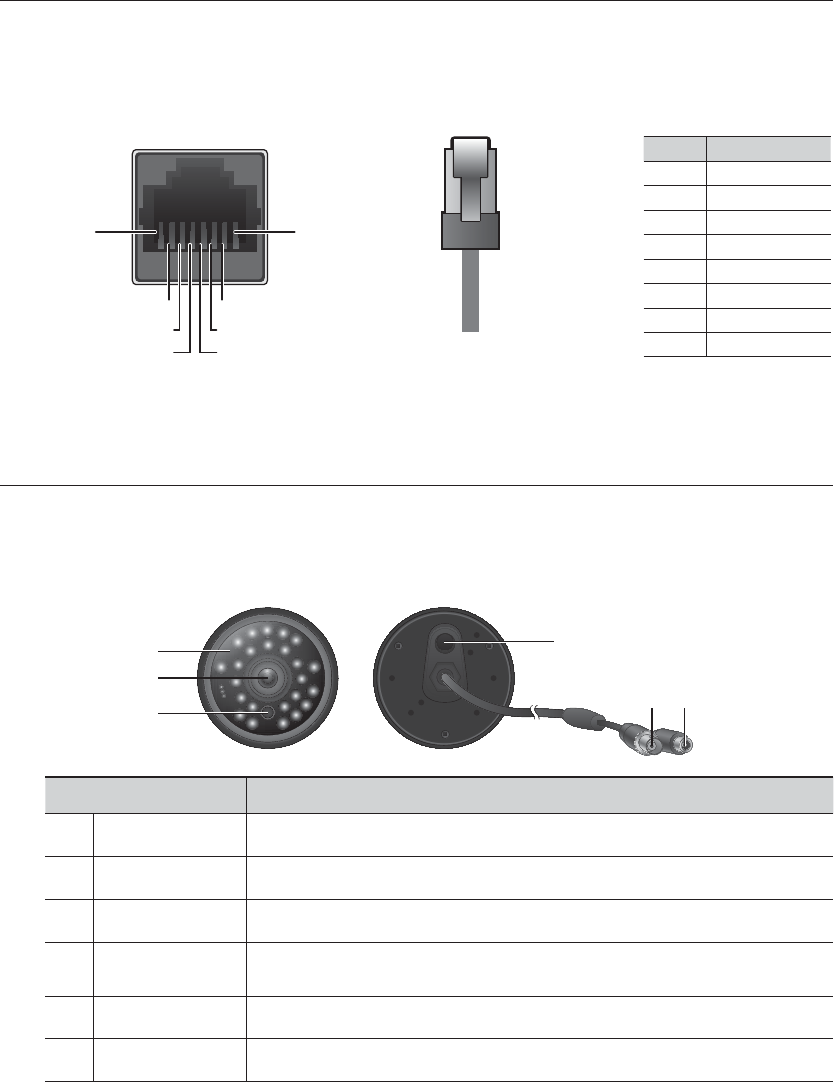

<Cable pin information provided>
Name
1 CVBS+
2 CVBS-
3 AUDIO
4 GND
5 12V
6 N.C
7 N.C
8 N.C
Camera Cable

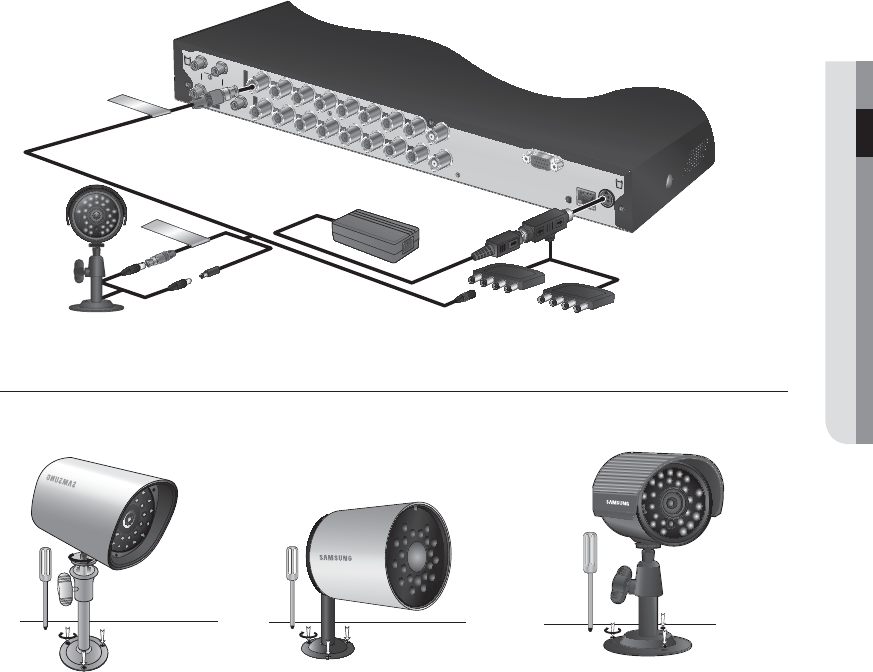

CONNECTING THE CAMERA (SEB-1020R)
Equipped with the IR LED and the illumination sensor, enables you to monitor at night as well as in daytime.
The camera is suitable for both internal and external use.
Please make sure not to fully expose the camera to rain. The camera must be installed under a shelter to avoid exposure to excessive rain
or moisture.
Name Description
IR LED These infrared LED’s are controlled by the illumination sensor.
bLens Focal length of 3.6mm enables you to cover relatively longer range of monitoring.
cIllumination Sensor Detects incoming light to control the IR LED.
Camera Fitting
Groove
Groove that is used to fit the camera bracket.
There are two grooves; one on the top and one on the bottom.
BNC Cable BNC terminal for video signal output.
Power Cable Used to plug the power cable.
b
c
![](asset-1b.png)
English _27
- CONNECTING WITH OTHER DEVICE
Connecting with DVR
Installing the camera
The camera can be installed on the wall, ceiling, shelf or a desired position using the provided bracket.
1. Select a position where you want to install the camera.
Make sure the selected position can sustain the weight of the camera.
2. Use the screw bolts to mount the camera bracket onto the wall or ceiling.
3. Place the camera on the selected position and fit the hole either on the top or the bottom of the camera
into the fixing bolt of the bracket, and turn the camera clockwise.
J You should be careful when installing the BOX camera outdoors because the cable connectors may be wet with moisture
or pile up with impurities.
The camera satisfies the IP66 standard, and direct exposure to water or moisture may cause problem such as
condensation.
M4 X L15
sized screws
wall or ceiling
SEB-1005R
M4 X L15
sized screws
wall or ceiling
SEB-1007R SEB-1020R
M3.5 X L25
sized screws wall or ceiling
CONSOLE
AUDIO IN
CH1 CH2 VGA OUT
DC 12V
NETWORK
AUDIO IN
VIDEO IN
VIDEO IN
12345678SPOT
910 11 12 13 14 15 16 VIDEO OUT
CH3 CH4
AUDIO OUT
TO CAMERA SIDE ONLY
TO DVR SIDE ONLY
![](asset-1c.png)
28_ connecting with other device
connecting with other device

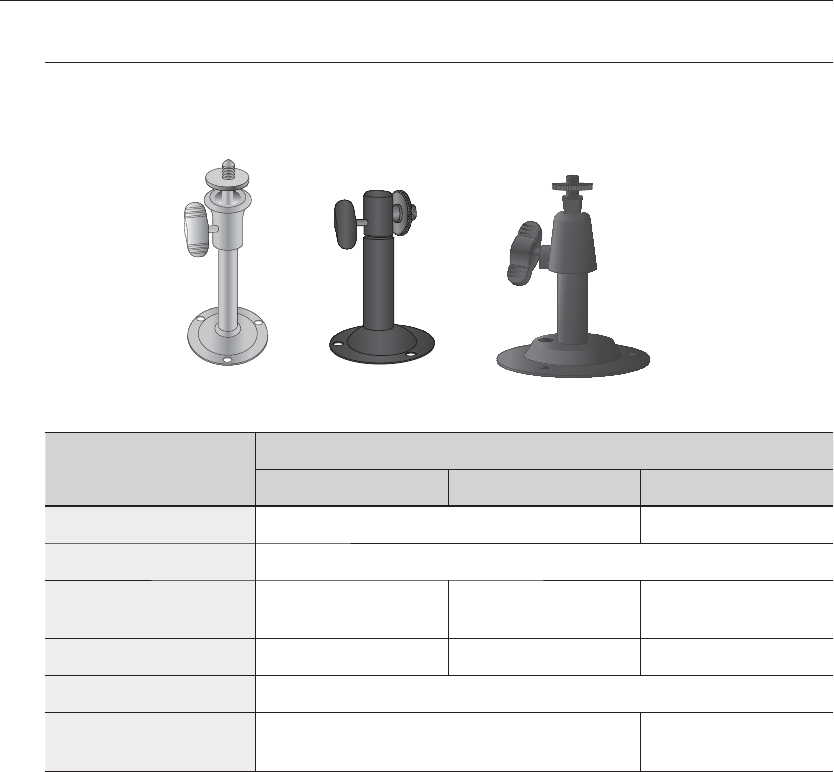

Camera Bracket
The camera bracket can be used to install the camera on the wall, ceiling or shelf.
Camera Bracket Specification
Name
Description
SEB-1005R SEB-1007R SEB-1020R
Use Indoor Indoor/Outdoor
Installation Wall or Ceiling
Dimensions
W57 X H47.2 X L100.5 mm
(W2.25 X H1.86 X L3.95 inch)
W40 X H58 X D40 mm
(W1.57 X H2.28 X D1.57 inch)
Ø60 X H72 mm
(Ø2.36 X H2.83 inch)
Weight 130g(0.29 lbs) 55g (0.12 lbs) 85g (0.19 lbs)
Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F)
Accessories SCREW (M4 X L15) : 3 pcs SCREW (M3.5 X L25): 3 pcs
for each bracket
SEB-1005R SEB-1007R SEB-1020R
![](asset-1d.png)
English _29
- CONNECTING WITH OTHER DEVICE
Adjusting the Camera Bracket
1. Choose an installation site that can sufficiently support the weight of the equipments to be installed.
2. Attach the camera bracket to the wall using the supplied screws.
• SEB-1020R : (M3.5 X L25). 3.5 X 25
• SEB-1005R/1007R : (M4 x L15). 4x15
3. Adjust the camera to target the video location and tighten the camera bracket handle on the camera
bracket. Install the camera on to the male screw of the camera bracket by rotating the camera clockwise.
4. Loosen the handle by turning it counter clockwise and then adjust the camera position. Tighten the
handle, turning it clockwise to lock the camera in position.
5. Connect the camera cable to the camera.
Handle
Handle
Handle
![](asset-1e.png)
30_ connecting with other device
connecting with other device
Installing the camera (SED-1001R)
Precautions before installation
Ensure you read the following instructions before installing the camera:
Select an installation site (ceiling or wall) that can endure at least 5 times of the camera weight.
Stuck-in or peeled-off cables can cause damage to the product or a fire.

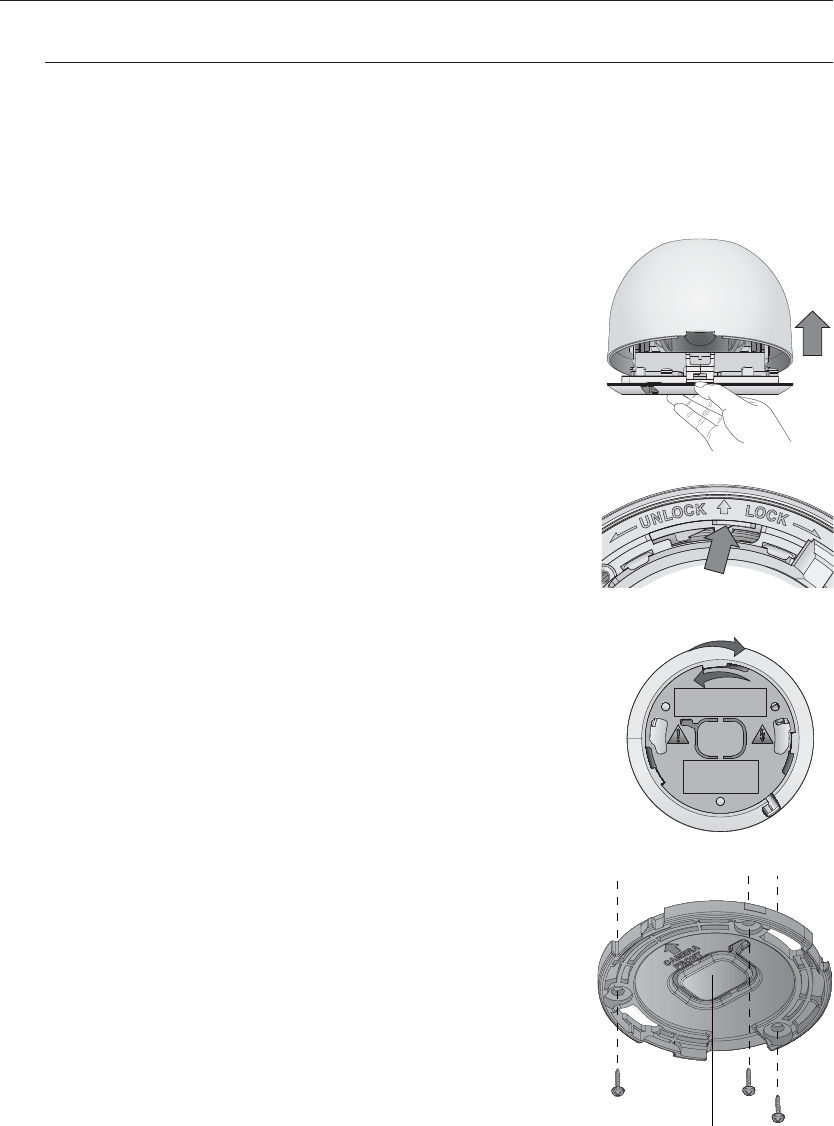

1. Hold down the bottom lock lever while removing the cover with the
other hand.
2. Press and hold the lock key outward (in the arrow direction) and turn
the bracket counter clockwise to remove it.
3. Use the provided screws (x3) to fix the bracket to a desired
position (ceiling or wall).
Ensure that the <CAMERA FRONT> label on the bracket faces the
direction for camera monitoring.
4. Arrange the cables through the bracket to the ceiling or wall.
If you intend to drill a hole in the installation site for the wiring
purpose, remove the wiring cover to reveal a hole. Arrange the
cables through the hole.
If you intend to arrange the cables without drilling a hole, use the
empty area opposite to the <CAMERA FRONT> label side for the
wiring purpose.
Wiring Cover
![](asset-1f.png)
English _31
- CONNECTING WITH OTHER DEVICE

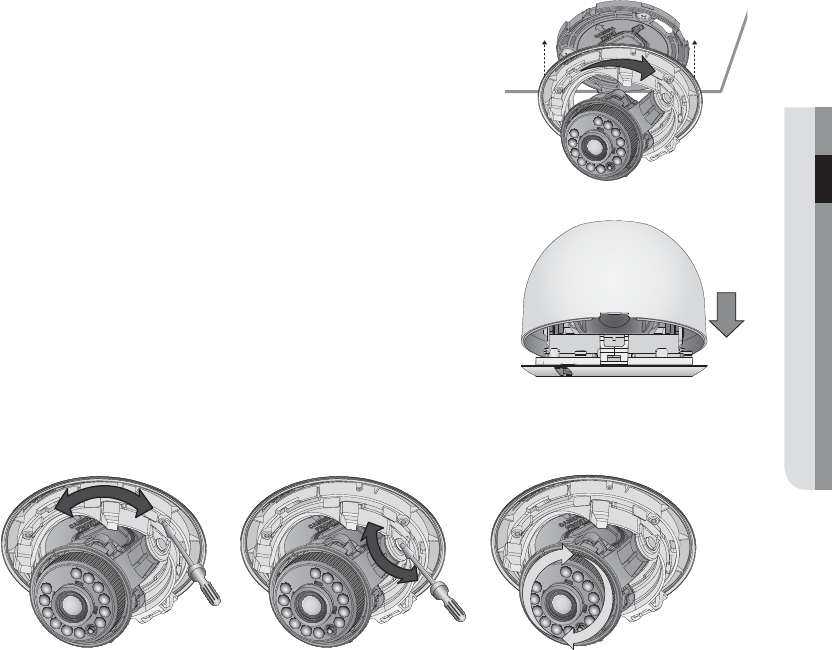

5. Mount the main unit onto the bracket.
Align the marking hole of the main unit with the <CAMERA FRONT>
label of the bracket, and turn the unit in the <LOCK> direction.
6. Adjust the lens in a desired direction.
For adjusting the lens direction, refer to “Adjusting the monitoring
direction for the camera”.
7. Fix the cover to the main unit.
Align the lock key of the main unit with the latch of the cover.
Press down the cover until you hear a click.
Adjusting the monitoring direction for the camera
You can adjust the camera direction only when the camera is fixed on the ceiling.
Then, turning the camera to the left or right is referred to as “Panning”, while tilting the angle is “Tilting”.
- If you want to adjust the panning direction, loosen the bottom screw and turn the camera to a desired
direction. Then, tighten the screw back.
If you couldn’t tighten the screw for positioning reasons, select a different screw hole and try again.
- The tilting is available between 0˚ and 60˚. When you finish adjusting the tilt, tighten the tilt adjustable screw
if you want to fix the angle.
- If you install the camera vertically on a slanting ceiling or wall, the video from the camera may not be
displayed properly. If this is the case, adjust the lens direction to correct the display of the video.
Panning Lens rotationTilting
![](asset-20.png)
32_ connecting with other device
connecting with other device

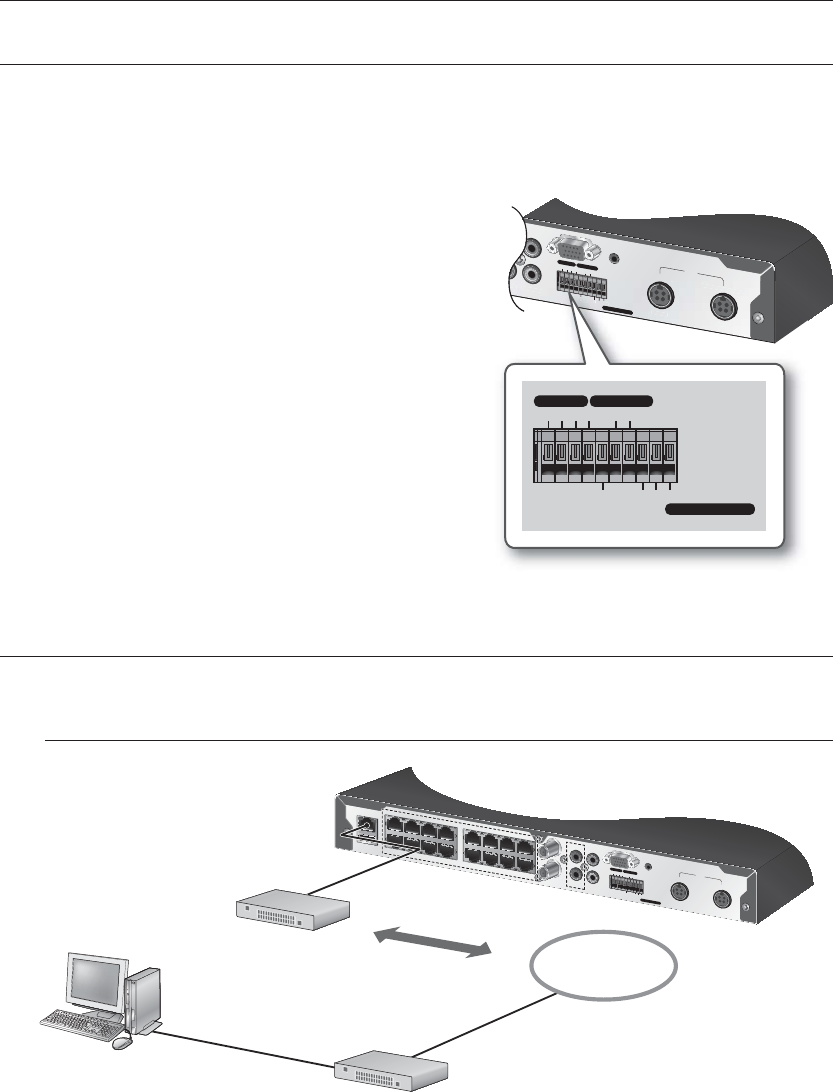

CONNECTING THE ALARM INPUT/OUTPUT
M SDE-4003 and SDE-5003 Model don’t support the function of “ALARM IN” and “ALARM OUT”.
Connecting the alarm Input signal
Connection port for the alarm input signal.
Connect one strand of the sensor signal line (two strands) to
the alarm input port and connect the other to the [G] port.
Connecting the alarm output signal
Connection port for the alarm output signal.
Connect one strand of the sensor signal line (two strands) to
the alarm output port and connect the other to the [COM]
port.
• ALARM IN : 5mA sink
• ALARM OUT : 30VDC 2A, 125VAC 0.5A MAX

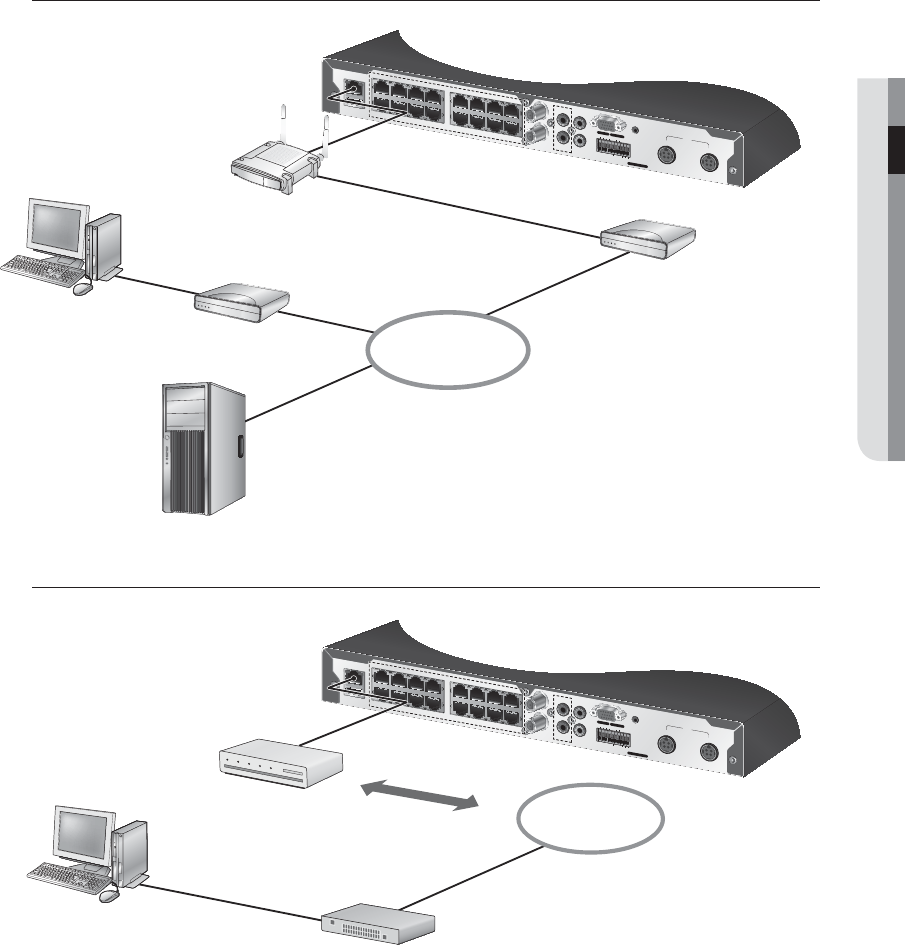

CONNECTING THE NETWORK
The following figures are based on Model SDE-5001.
Connecting to network through Ethernet (10/100BaseT)
O IN 1
O IN 2
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
GGG
COM
1
432
1
DVR & CAMERA POWER
AUDIO OUT 1 - 12 CH 13 - 16 CH
ALARM IN ALARM OUT
IN 2
WER
12V
SENSOR POWER
G
G
G
DVR & CAME
RA POWER
AUDIO OUT
1 - 12 CH
13 - 16 CH
12V
SENSOR POWER
G G G
COM
14321
ALARM IN ALARM OUT
RJ-45 Ethernet Cable
(Direct Cable)
Back Bone
Hub/Switcher
Hub/Switcher
Windows
Network Viewer
NETWORK
USB
AUDIO IN 1
AUDIO IN 2
VIDEO IN 2
VIDEO IN 1
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
GGG
COM
1
4
321
DVR & CAMERA POWER
AUDIO OUT 1 - 12 CH 13 - 16 CH
5
1
6
2
7
3
8
4
13
9
14
10
15
11
16
12
ALARM INALARM OUT
NETWORK
![](asset-21.png)
English _33
- CONNECTING WITH OTHER DEVICE
Connecting to the Network using the router
Connecting to Network through ADSL
NETWORK
USB
AUDIO IN 1
AUDIO IN 2
VIDEO IN 2
VIDEO IN 1
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
GGG
COM
1
4
32
1
DVR & CAMERA POWER
AUDIO OUT 1 - 12 CH 13 - 16 CH
5
1
6
2
7
3
8
4
13
9
14
10
15
11
16
12
ALARM IN ALARM OUT
NETWORK
RJ-45 Ethernet Cable
(Direct Cable)
Phone(ADSL) Line
ADSL MODEM
Hub/Switcher
Windows
Network Viewer
NETWORK
USB
AUDIO IN 1
AUDIO IN 2
VIDEO IN 2
VIDEO IN 1
VIDEO OUT
CONSOLE
CAMERA POWER
12V
12V
SENSOR POWER
GGG
COM
1
4
3
2
1
DVR & CAMERA POWER
AUDIO OUT 1 - 12 CH 13 - 16 CH
5
1
6
2
7
3
8
4
13
9
14
10
15
11
16
12
ALARM IN ALARM OUT
Broadband Router
xDSL or Cable Modem
External
Remote PC
DDNS Server
(Data Center)
NETWORK
xDSL or Cable Modem
![](asset-22.png)
34_ live
live
GETTING STARTED

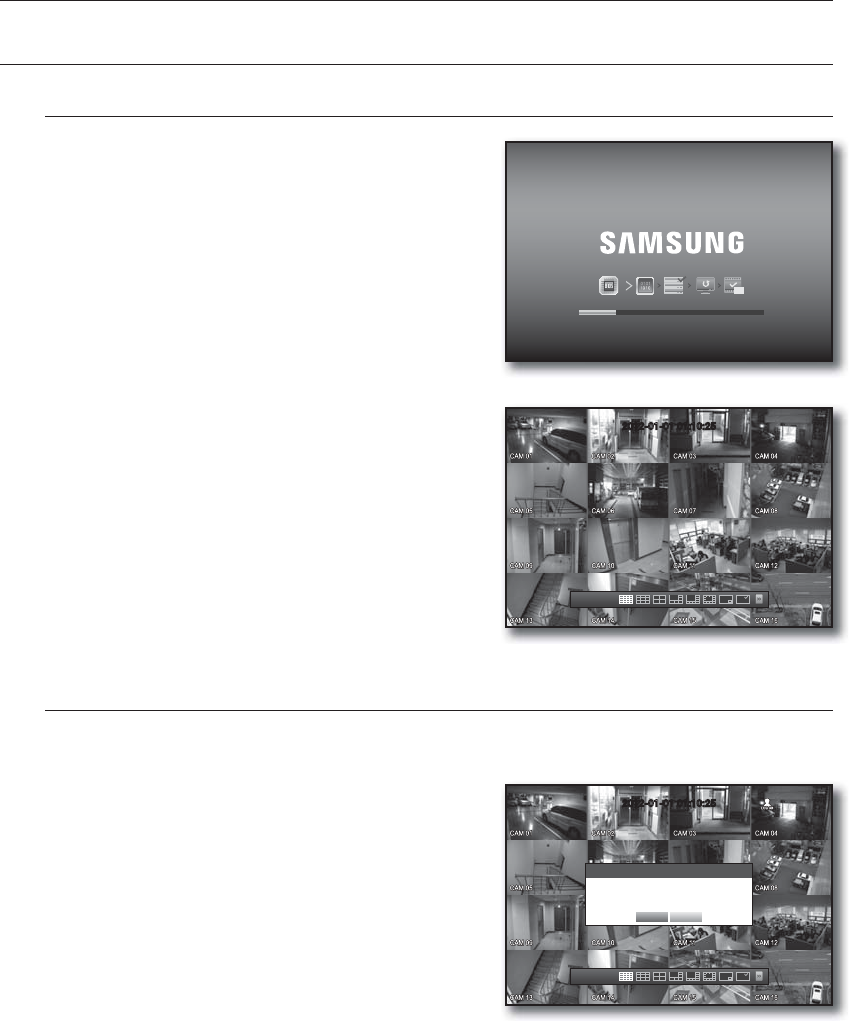

Starting the system
1. Connect the power cable of the DVR to the wall outlet.
M It takes about 10 seconds to display the start screen after
booting.
2. You will see the initialization screen.
The initialization process will last about 1 minute.
If a new HDD is installed, the initialization process may
take longer.
3. The live screen appears with a beep.
Shutting Down the System
You can shut down the system only if you have logged in to the DVR.
You require permission to shut down the system if you are not logged in as admin.
1. Press the [POWER] button on the remote control or the
front panel, or right-click to display the context sensitive
menu and select <Shutdown>.
2. The “Shutdown” confirmation window appears.
3. Use the arrow keys on the remote control or the front
panel to move to <OK> and press the [ENTER] button or
click <OK>. The system will shut down.
4. Press the [POWER] button again to restart.
M For the permission management, refer to “Permission
Management > Setting Permissions”. (Page 54)
REC
2012-01-01 01:10:25
2012-01-01
01:10:25
2012-01-01 01:10:25
2012-01-01
01:10:25
Shutdown
Are you sure to shutdown?
OK Cancel
![](asset-23.png)
English _35
- LIVE

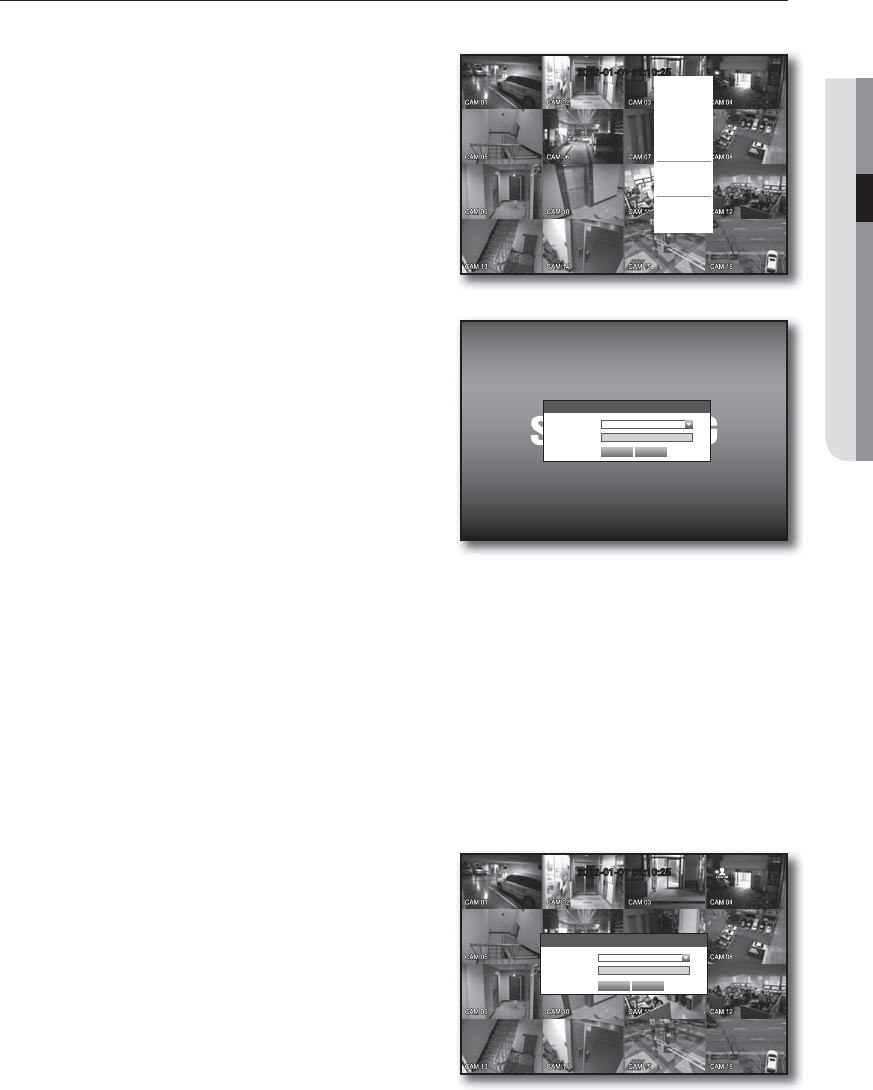

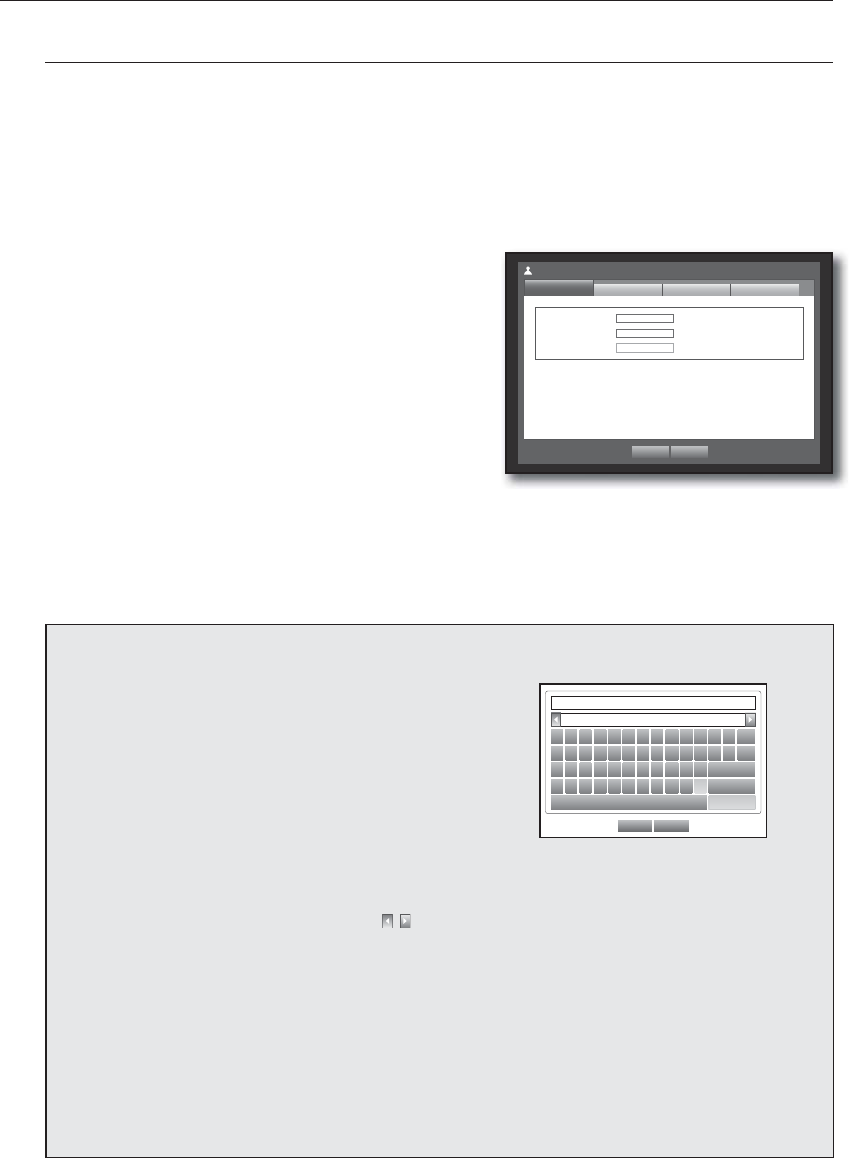

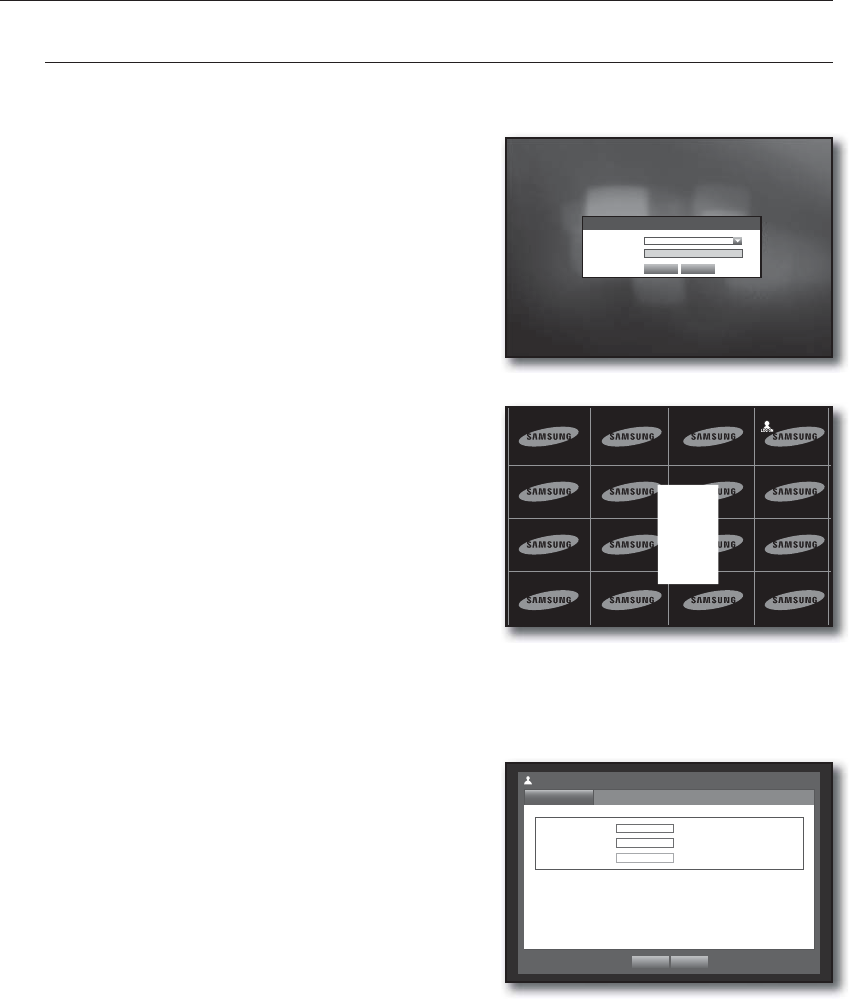

Login
To access a DVR or restricted menu, you should have logged in to the DVR.
1. In live mode, right-click any area of the screen.
You will see the context sensitive menu as in the right
figure.
2. Click <Login>.
The login dialog appears.
You can also see the login dialog to access a desired
menu by pressing the [MENU] button on the remote
control or the front panel.
The login dialog will also appear if you press a menu button on
the remote control or the front panel of the DVR when the
corresponding menu requires logging in.
After logged in, press [RETURN] on the remote control to display
the logout dialog.
By default, initial ID and password are set to “admin”, and “4321”.
J The default password can be exposed to a hacking thread so it is recommended to change the password after installing
the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
M For the restricted permission, refer to “Permission Management > Setting Permissions”. (Page 54)
Locking All Buttons
This will restrict access to all buttons available in the DVR.
1. In Live mode, press buttons on the remote control in the
order of [STOP (@)]
[FREEZE]
[STOP (@)]
[FREEZE]
[MENU].
All buttons will be locked.
2. In the lock condition, press any button to display a dialog
where you are prompted to enter the password for
unlocking the buttons.
The button lock will be released if you enter the admin
password.
”
Login
ID admin
Password
OK Cancel
2012-01-01 01:10:25
Key Lock Password
ID admin
Password
OK Cancel
2012-01-01 01:10:25
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Login
![](asset-24.png)
36_ live
live
LIVE SCREEN CONFIGURATION

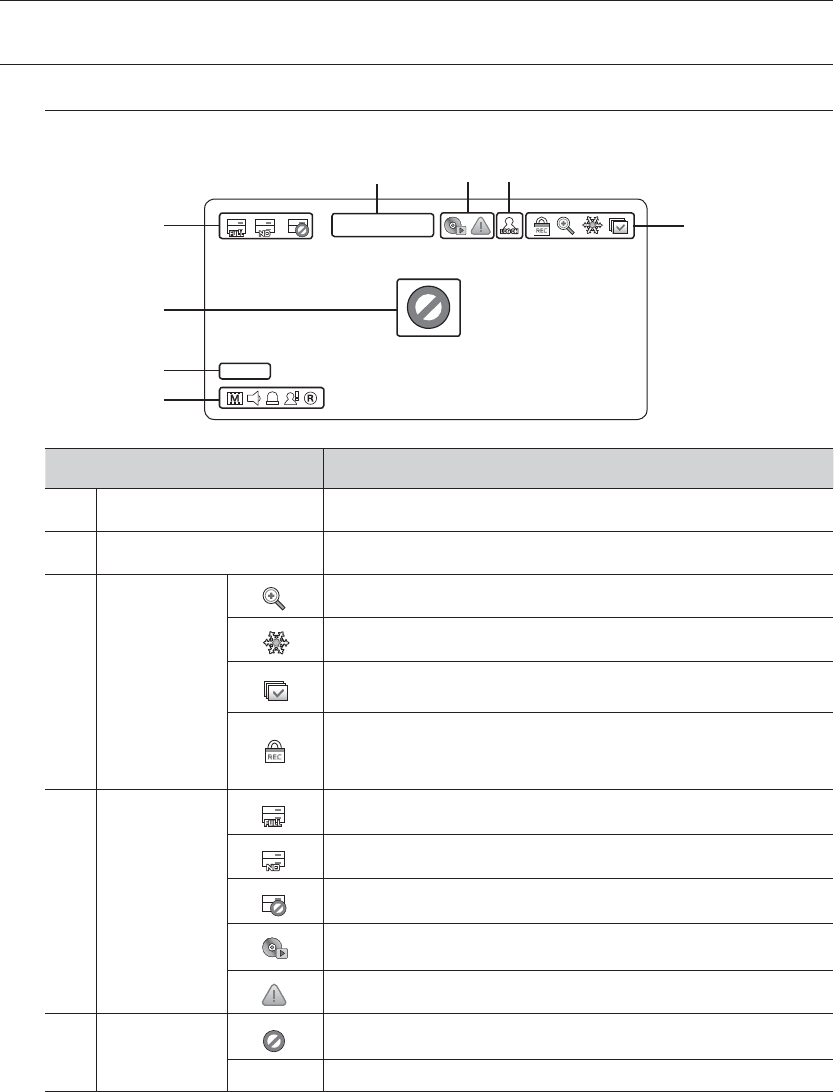

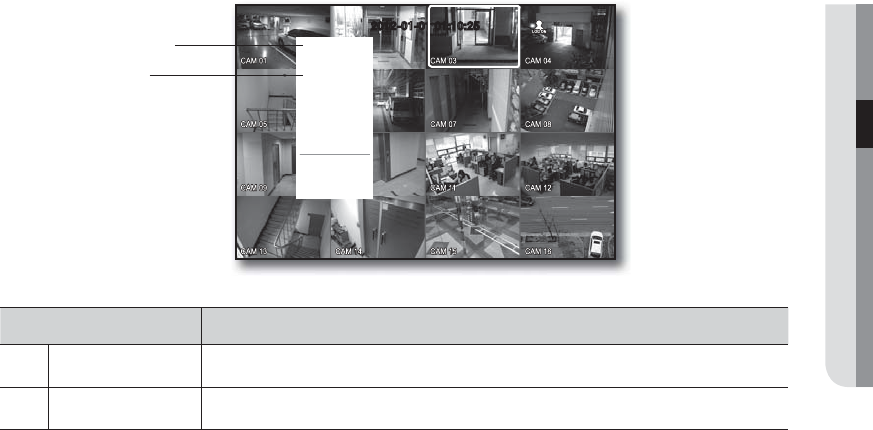

Icons on the Live Screen

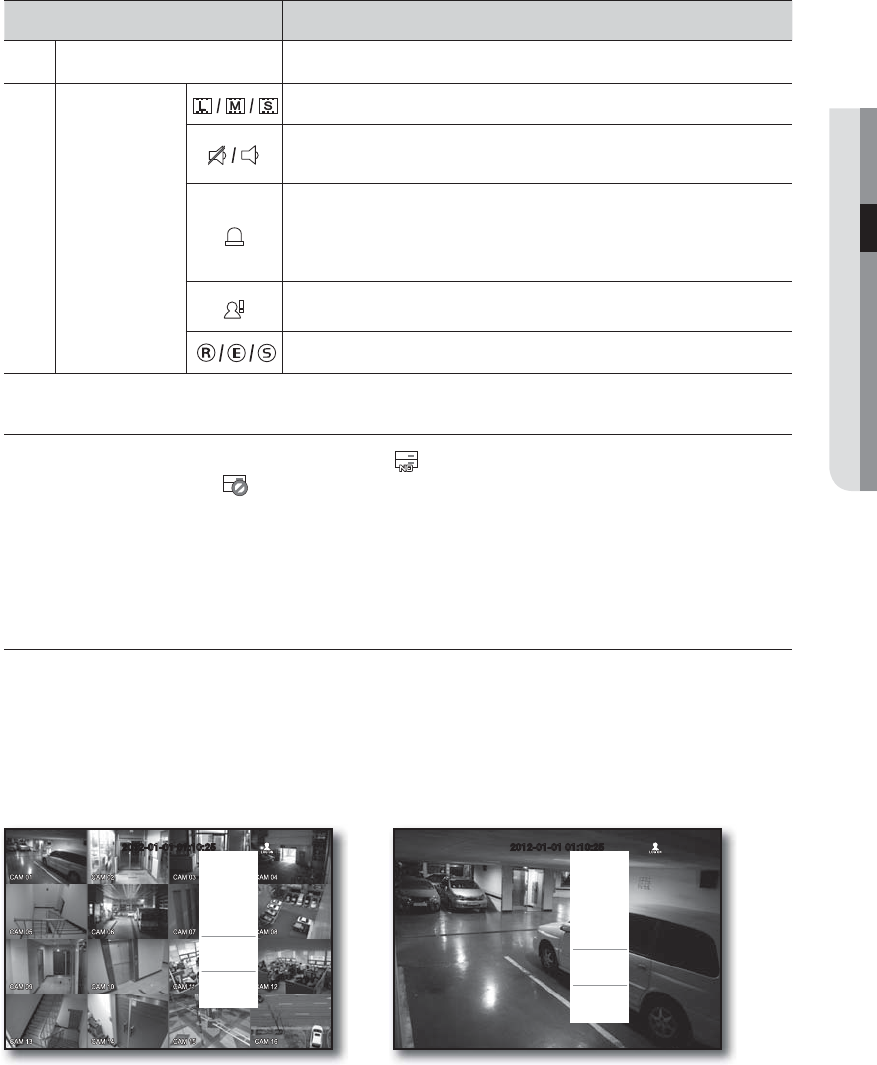

You can check the status or operation of the DVR with the icons on the live screen.
Name Description
Current Date, Time Displays the current time and date.
bLogin Information When you are logged in, the “LOG ON” icon will be displayed.
cScreen Mode
Displayed if the zoom function is activated.
Freezes the screen temporarily.
Displayed in Auto Sequence mode where all channels are switched at the specific
time interval.
This icon is displayed if a user with restricted access to the Record button tries to
make manual recording.
Only the user with the applicable permission can release (stop) the recording.
System Operation
Displayed if the HDD is full and the DVR has an insufficient space to record.
Displayed if no HDD is installed or the existing HDD should be replaced.
Displayed if the HDD needs a technical examination.
This will be displayed if the backup operation is in process.
Displayed if a new firmware is found from the network.
Video Input Status Displayed if no input is entered in the condition that the camera is set to <ON>.
Nothing will be displayed on the screen if the camera is set to <OFF>.
CAM 01
CAM 01
2012-01-01 00:00:01
b
c
![](asset-25.png)
English _37
- LIVE
Name Description
Camera Name/ Channel Displays the camera name and the changed channel, if any.
Camera Operation
Displays the resolution of the recording screen. (Page 68)
Displays AUDIO ON/MUTE.
Not displayed in video mode if deactivated.
If the sensor is set to <ON>, the input signal will be displayed on the screen of the
connected channel.
SDE-4003 and SDE-5003 Model don’t support the function of “ALARM IN” and
“ALARM OUT”.
Displayed if a motion detected in the condition that the motion detection is set to
<ON>.
Displays the current record mode from Record/Event/Schedule.
Error Information
• If the internal HDD is not connected, the “NO HDD”( ) message will appear; if there occurs a problem,
you will see the “HDD FAIL”( ) message in the top left corner. In this case, make sure you contact the
service center for assistance as this may cause a failure of recording, playback or backup.
M If you see NO HDD, HDD FAIL icons on the screen, contact the service center for more details.
Live Screen Menu

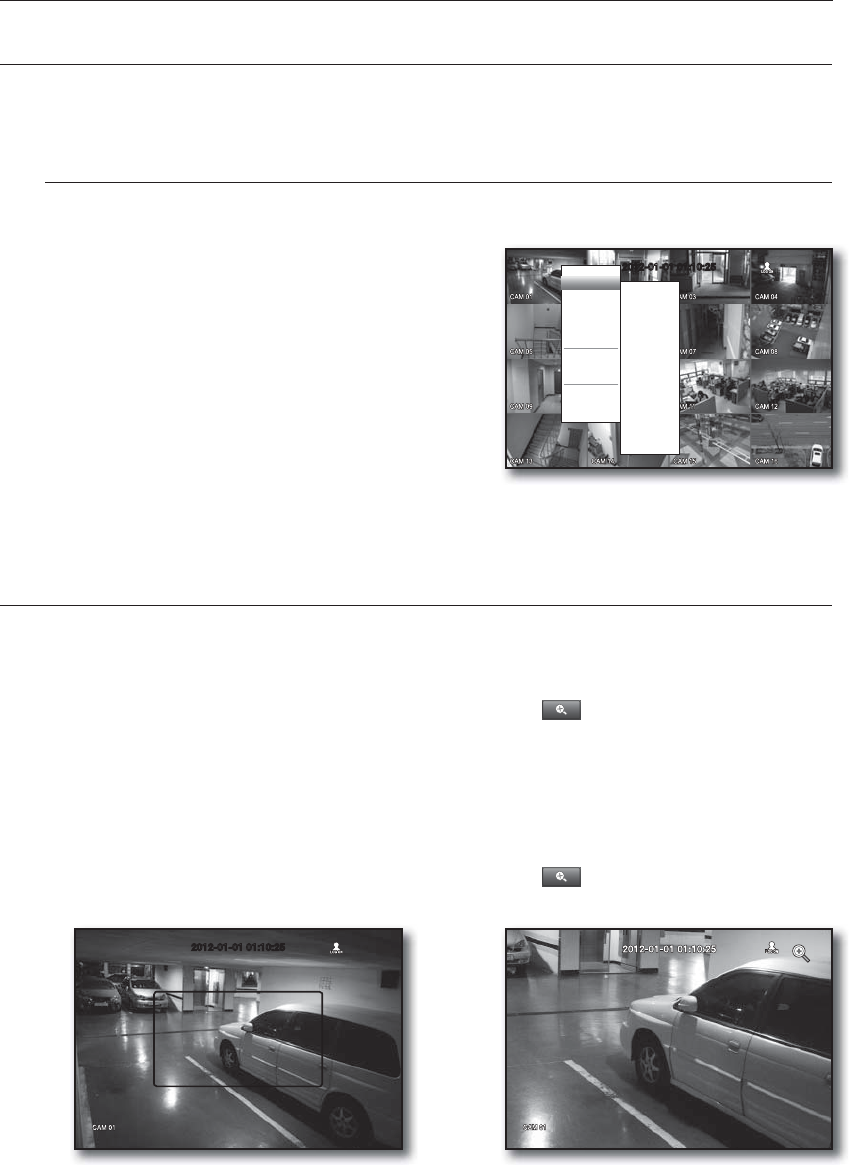

In addition to the buttons on the front panel or the remote control, you can access a desired menu by right-
clicking the mouse any area in live mode.
The context sensitive menu that appears by right-clicking the screen may differ, depending on the login/
logout, screen split mode and DVR operation mode.
M Menu items of Search, Record, Backup and Shutdown can be deactivated, depending on the user permission.
< Single Mode Menu >
2012-01-01 01:10:25
Scene Mode
Spot Out
Zoom In
Audio off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
< Split Mode Menu >
2012-01-01 01:10:25
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
![](asset-26.png)
38_ live
live
Split Mode Menu
The context sensitive menu in split mode differs, depending on the login/logout status.
Menu Description
Scene Mode Refer to “Live Mode”. (Page 41)
bSpot Out Refer to “Spot Out”. (Page 44)
cAudio On/Off Refer to “Audio On/Off”. (Page 45)
Freeze Refer to “Freeze”. (Page 45)
Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”.(Page 46)
Record/Stop Starts/stops the standard recording.
Play Plays the search result (data). Refer to “Search & Play > Play”. (Page 92)
Search Refer to “Search & Play > Search”. (Page 89)
Backup Refer to “Main Menu > Setting the Backup”. (Page 74)
Main Menu Accesses the main menu. Refer to the Using the DVR section. (Page 47)
Shutdown
Turns down the DVR.
Show/Hide Launcher
Shows or hides the launcher. Refer to “View the Launcher Menu”. (Page 40)
mLogin/Logout You can log in or out.
2012-01-01 01:10:25
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
c
b
m
![](asset-27.png)
English _39
- LIVE
Single Mode Menu
The single mode menu is available only in Single Mode.
The context sensitive menu for the One Channel mode, in Split mode is different from that of the Single mode.
Menu Description
Full Screen
Select and click a desired channel in Split mode to switch to the full screen of the selected channel.
bZoom In Enlarges the selected image. (Page 44)
2012-01-01 01:10:25
Alarm Freeze
Full Screen
Spot Out
Zoom In
Audio On
Freeze
Stop Alarm
Record
Play
Shutdown
Hide Launcher
Logout
b
![](asset-28.png)
40_ live
live
View the Launcher Menu
The Launcher menu appears on the bottom of the live screen.
1. In Live mode, right-click to display the context menu and
select <Show Launcher>.
2. Move the cursor to the bottom and click a desired item in
the Launcher menu.
M If no input is entered for 10 seconds, the menu will disappear.
The Launcher menu can be accessed only by using the mouse.
SDE-400X do not support the 16-split screen mode.
Menu Description
Date/Time
Displays the current time and date.
The indication of AM/PM is displayed if you set 12 hours for the time format in “System >
Date/Time/Language > Time”. (Page 47)
bScreen Mode Press this button to switch the screen mode in sequence.
The current mode is highlighted in white.
cMenu Expansion Button Click to display the hidden menu to the right.
Audio Turns ON/OFF the sound of the selected channel.
Zoom Enlarges the selected area. This is available only in Single Live mode.
Alarm Stops the alarm if it's activated.
Freeze Freezes the Live screen temporarily.
Play Enters Play mode if a file to play exist, and if not, enters Search mode.
Record Start/End recording the Live screen.
2012-01-01 01:10:25
2012-01-01
01:10:25
2012-01-01
01:10:25
2012-01-01
01:10:25
b c
Alarm
Freeze
![](asset-29.png)
English _41
- LIVE
LIVE MODE
SDE-500X display Live images from 16 channels in a total of 8 layout of split screens.

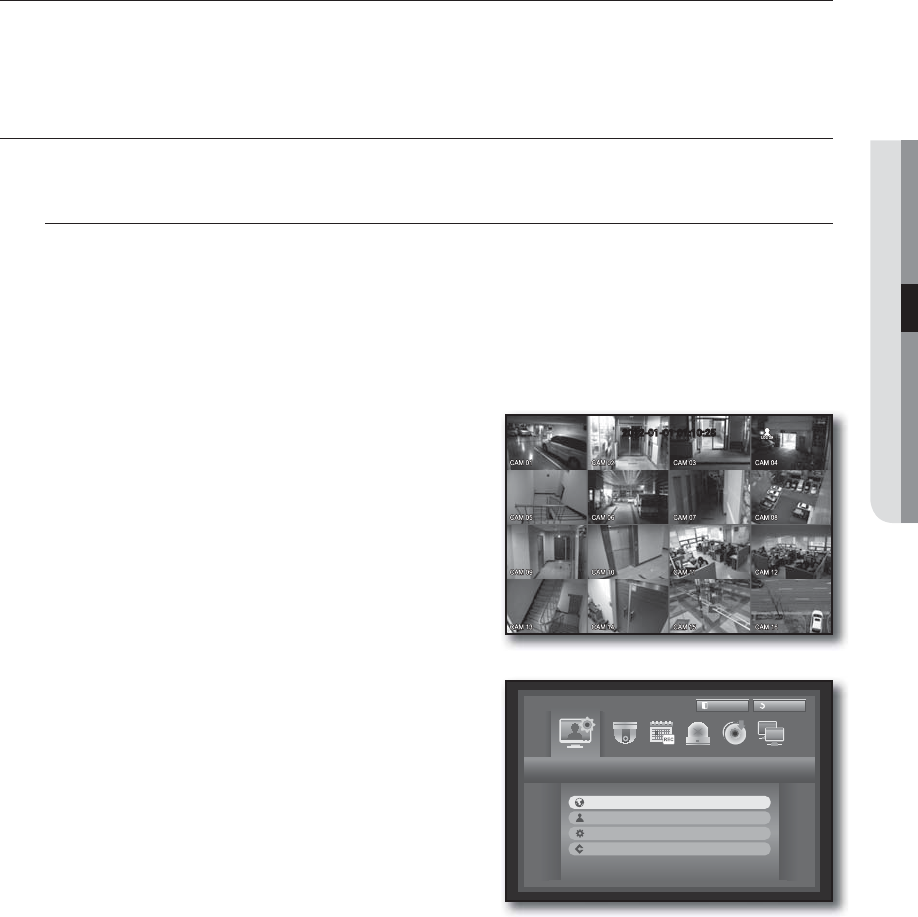

Switching the screen mode
To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in
the context menu.
Press the [MODE] button on the front panel or the remote control to switch the mode in the sequence of the
launcher menu items.
M SDE-400X do not support the 16-split screen mode.
Switching the split mode
SDE-500X display 16 Live images in the sequence of Single, 4-split and 9-split modes.
Auto Sequence
CH1 CH2
CH3 CH4
CH4 CH5
CH2
CH6
CH1 CH3
CH7 CH8 CH9
CH1 CH3
CH2
CH4 CH5 CH6
CH15
CH11
CH16
CH12
CH7
CH3
CH8
CH4
CH13
CH9
CH14
CH10
CH5
CH1
CH6
CH2
16-split mode 9-split mode 4-split mode 6-split mode
CH1CH7 CH8
CH4
CH3
CH2
CH5
CH1
CH6 CH12
CH1
CH13
CH19
CH4
CH7
CH5
CH10
CH8
CH11
CH6
CH2 CH3
CH1
CH2
8-split mode 13-split mode PIP
Auto Sequence
16
CH1
1
Single mode
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1
CH1 CH2
CH3 CH4
13-16
9-12
5-8
1-4
4-split mode
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
CH4 CH5
CH2
CH6
CH1 CH3
CH7 CH8 CH9
10-16
1-9
9-split mode
CH4 CH5
CH2
CH6
CH1 CH3
CH7 CH8 CH9
![](asset-2a.png)
42_ live
live
M In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be conducted
at the set interval. (Page 59)
In a split mode, If you have set <Multi CH SEQ Time> in “Setting the Device > Monitor”, Auto Sequence will be
conducted at the set interval. (Page 64)

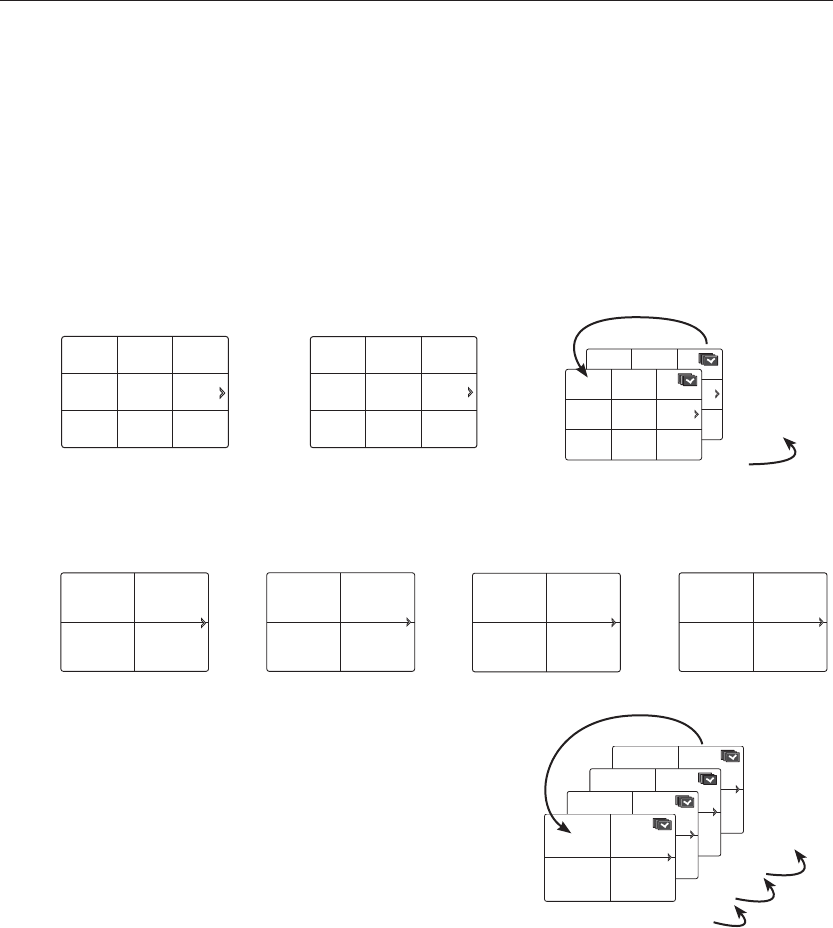

Manual Switching
Press the left/right button on the front panel or the remote control, or click the arrow <
◄
/
►
> key to move to
the next split mode.
• If pressing the right [
►
] button in 9-split mode :
9-split (CH 1~9) mode 9-split (CH 10~16) mode Auto Sequence
• If pressing the right [
►
] button in 4-split mode :
Channel (CH 1~4) Channel (CH 5~8) Channel (CH 9~12) Channel (CH 13~16) Auto Sequence
CH4 CH5
CH2
CH6
CH1 CH3
CH7 CH8 CH9
CH13 CH14
CH11
CH15
CH10 CH12
CH16
CH4 CH5
CH2
CH6
CH1 CH3
CH7 CH8 CH9
CH4 CH5
CH2
CH6
CH1 CH3
CH7 CH8 CH9
10-16
1-9
CH1 CH2
CH3 CH4
CH5 CH6
CH7 CH8
CH9 CH10
CH11 CH12
CH13 CH14
CH15 CH16
CH1 CH2
CH3 CH4
13-16
9-12
5-8
1-4
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
CH1 CH2
CH3 CH4
![](asset-2b.png)
English _43
- LIVE
Channel Setting
You can display the channel in a desired area of a split screen.
1. Place the cursor over the camera name of each channel to display the <
▼
> key to the right on the screen.
2. Click a camera name to display a channel list where you can select a different channel.
3. Select a desired channel and click it.
The current channel will be switched to the selected one.
Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also
change the channel position.
Ex : if switching CH 1 to CH 7
Switching to Single Mode
When in split mode, select and double-click a desired channel to switch to its Single mode.
Press the number corresponding to a desired channel on the front panel or the remote control to switch to its
Single mode.
• CHANNEL 1–9 : Press each button between 1 to 9. (8CH : 8)
• CHANNEL 10 : Press the [0/+10] button.
• CHANNEL 11–16 : Press the [0/+10] button first, then press any number between 1 to 6 within 1 second.
Refer to “Remote Control > Using the numeric buttons”. (Page 22)
Ex : If double-clicking CH 3 or pressing the number “3” on the remote control or the front panel.
CH15
CH11
CH16
CH12
CH7
CH3
CH8
CH4
CH13
CH9
CH14
CH10
CH5
CH1
CH6
CH2
CH15
CH11
CH16
CH12
CH1
CH3
CH8
CH4
CH13
CH9
CH14
CH10
CH5
CH7
CH6
CH2
CH15
CH11
CH16
CH12
CH7
CH3
CH8
CH4
CH13
CH9
CH14
CH10
CH5
CH1
CH6
CH2
CH3
![](asset-2c.png)
44_ live
live
SPOT OUT
The Spot Out monitoring is independent of the Live mode, which monitors a specific channel through the Spot Out
port.
Selecting a Spot Out mode
If an event occurs such as sensor, motion or alarm from the Spot Out port in connection with a monitor, you
can select a output screen mode.
1. In Live mode, right-click any area on the screen.
The Live menu appears.
2. Click Spot Out.
Supports the Spot output in Single screen with Auto
Sequence mode.
The Spot output is supported only for a designated channel.
For the Spot Out port of a model, refer to “Part Names and
Functions (Rear)”. (Page 19)
ZOOM
This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to
enlarge it twice.
1. Select <Zoom In> in the right-click menu.
Press the [ZOOM] button on the remote control, or simply click < > in the launcher menu. The zoom
box appears.
2. Use the direction keys, or drag and drop to specify an area to enlarge.
3. Press the [ENTER] button, or double-click the selected area to enlarge it twice.
In the enlarged image, use the direction buttons (◄ ►) on the remote control or the front panel to move the
enlarged area.
4. Press the [ZOOM] button on the remote control, or simply click < > in the launcher menu to release
the zoom.
2012-01-01 01:10:25
< Multichannel Live Menu >
2012-01-01 01:10:25
Auto Sequence
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
![](asset-2d.png)
English _45
- LIVE
AUDIO ON/OFF
You can turn the sound on/off corresponding to the channel in Live mode.
AUDIO On/Off in Single mode
Click the audio icon (
) on the screen, or press the [AUDIO] button on the remote control to turn it on/off.
M Only the channel where <Audio> is set to <ON> in “Device > Camera” displays the audio icon ( ) in Live mode that
you can use to turn the sound on/off.
FREEZE
This is available only in Live mode, this pauses playing the Live image temporarily.
1. Press the [FREEZE] button on the remote control, or click <
Freeze
> in the launcher menu.
The playback of the image is stopped temporarily.
2. Press the [FREEZE] button again, or click <
Freeze
>.
This will release the freeze.
![](asset-2e.png)
46_ live
live
EVENT MONITORING
This will display the channel in sync with a specific event (Sensor/Motion/Video Loss) if it occurs.
In “Monitor > Event Display”, set the event monitoring to ON/OFF and specify the event display time. (Page 64)
SDE-4003 and SDE-5003 Model don’t support the function of Sensor detection.
• If multiple events occur simultaneously, the screen will switch to a split mode.
- 2~4 events : 4-split mode
- 5~9 events : 9-split mode
- 10~16 events : 16-split mode
• If the second event occurs within the set time of <Event Display>, the first event will last until the second
one is terminated. (Page 64)

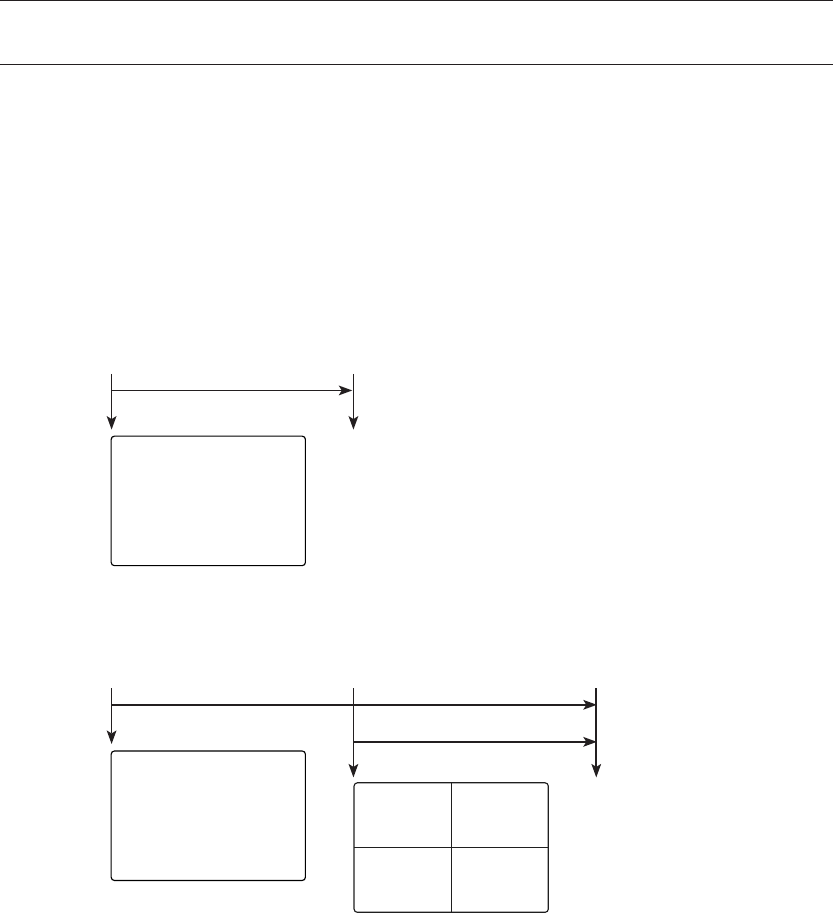

Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.
Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the first
event occurred in CH 1.
M Press the [ALARM] button to reset the alarm settings and to release the event mode.
If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will be
performed.
Event occurrence 4 seconds 9 seconds
Stop alarm
CH1
CH1 CH2
Event occurrence 5 seconds
Stop alarm
CH1
![](asset-2f.png)
English _47
- MAIN MENU
You can setup the system properties, devices, and options for recording, event,
backup and network.
SYSTEM SETUP
You can setup Date/Time/Language, Permission, System Properties and Log.
Date/Time/Language
You can check and setup the current Date/Time and time related properties, as well as the language used for
the interface on the screen.
Setting the Date/Time/Language
Set the Date/Time/Language
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or on the
front panel.
If not logged in, it prompts with login window.
Refer to “Login”. (Page 35)
2. Use the left/right buttons (
◄ ►
) to select the <System>.
System property setup menu is selected.
3. Use the up/down buttons (
) to select <Date/Time/
Language> and press the [ENTER] button.
4. Select <Date/Time/Language>.
A dialog to setup Date, Time and Language.
5. Use direction buttons (
◄ ►
) to select an item to set
and make your changes.
main menu
2012-01-01 01:10:25
System
Logout Return
Date/Time/Language
Permission Management
System Management
Log Information
![](asset-30.png)
48_ main menu
main menu
• Date : Sets the date that will appear on the screen.
You can select the date format.
• Time : Sets the time and its format that will appear on the
screen.
Select either one from <24 Hours, 12 Hours (AM/PM)>.
• Time Zone : Sets the time zone of your area based on the
Greenwich Mean Time (GMT).
GMT (Greenwich Mean Time) is standard World Time and the basis
of world time zone.
•
Time Sync. : You can set the DVR’s current time synchronized
to a selected <Time Server> regularly if you select to use <Time Server>.
In this case, <Date/Time/Language> setup does not allow time adjustment.
- Time Server : Enter an IP or URL address of the time
server.
- Last Sync Time : Displays the most recent synchronization
time from the selected time server.
- Activate as Server : Set to <Use> to allow the DVR to act
as a Time Server for other DVRs.
• DST : Set up Daylight Saving Time with its period to make
the time earlier than the GMT of its time zone by 1 hour
during the set period.
• Language : Select your language. Sets the language for the
interface.
English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese,
Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian and Greek are available.
6. When the Date/Time/Language setup is done, press <OK>.
M
You can also use numeric buttons on the remote control or front panel to enter values for Date, Time and other
numeric fields.
Date/Time/Language
Date/Time/Language
Holiday
Date 2012 -01-01 YYYY-MM-DD
Time 08:14:24 24 Hours
Time Zone GMT+08:00
Time Sync. Setup Not Used
DST Dec First (Sun) 0H Dec First (Sun) 0H
Language English
OK Cancel
Time Synchronization Setup
OK Cancel
Synchronization Use
Time Server 203.248.240.103
Last Sync Time Fail
Activate as Server Use
S
Date/Time/Language
Date/Time/Language
Holiday
Date 2012-01-01 YYYY-MM-DD
Time 08:14:24 24 Hours
Time Zone GMT
Time Sync. Setup
DST Dec First (Sun) 0 Dec First (Sun) 0
Language English
OK Cancel
![](asset-31.png)
English _49
- MAIN MENU

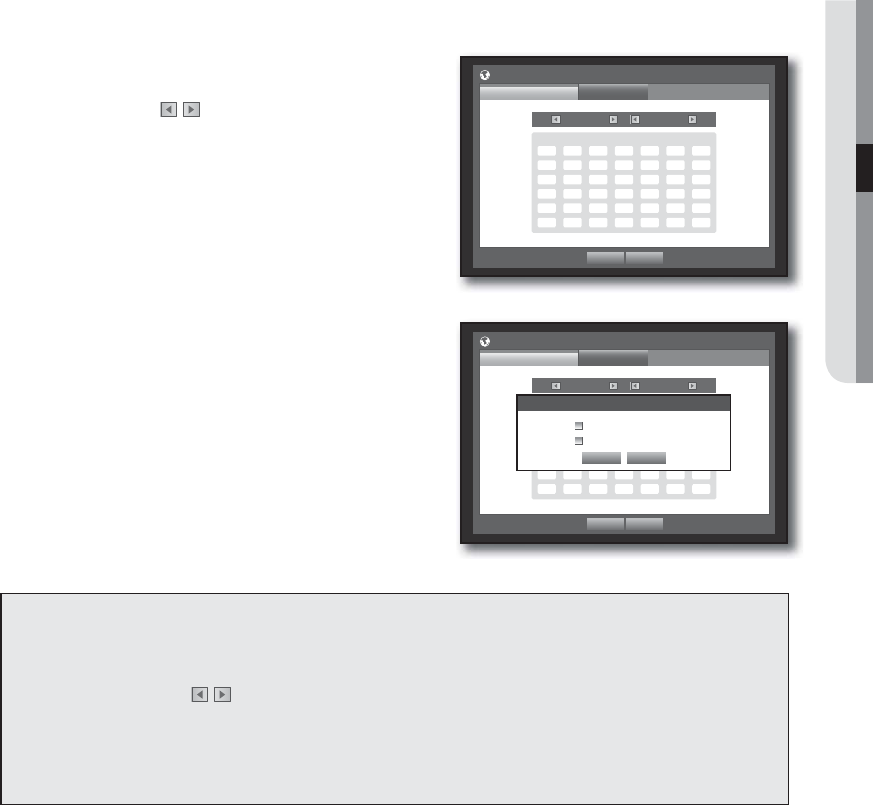

Setting Holiday
You can set specific dates to Holidays according to your preferences.
Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Date/Time/Language> window to select <Date/Time/Language>, and
press the [ENTER] button.
2. Select <Holiday>.
A calendar for Holiday setup appears.
3. Use the left/right < > buttons to select year or month,
and press the [ENTER] button.
4. Use direction buttons (
◄ ►
) to select a desired date,
and press the [ENTER] button.
You will see the “Setting Holiday” screen.
Ex : Select January 9th and check on <1/9> only to make every
January 9th a holiday. Check both on <1/9> and
<Jan 2nd Mon> to make every January 9th and 2nd Monday
of January holidays.
5. When the Holiday setup is done, press <OK>.
Using the Calendar
Using the mouse may help make setup easier.
Select year and month.
Select the left/right < > key on the left/right side of year/month and press [ENTER] button to
adjust by 1 year/month.
Use direction buttons to select a date and press [ENTER] button.
A date with recorded data to be searched will appear in yellow in the System Log, Event Log, Time Search and
Event Search.
OK Cancel
Date/Time/Language
Date/Time/Language Holiday
2012 Jan
Sun Mon Tue Wed Thu Fri Sat
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31
OK Cancel
Date/Time/Language
Date/Time/Language Holiday
2012 Jan
Sun Mon Tue Wed Thu Fri Sat
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31
Setting Holiday
OK Cancel
1 / 9
Jan 2nd Mon
![](asset-32.png)
50_ main menu
main menu
Permission Management
You can set permissions of each user over the DVR's specific function and settings.
Setting the Administrator
You can set and change Administrator’s ID and password.
The administrator can use and set all menu items and functions.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
2. Select <Admin>.
A dialog for Admin ID and Password input appears.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the ID and password.
M
By default, initial ID and password are set to “admin”, and
“4321”.
The default password can be exposed to a hacking thread so it is recommended to change the password after
installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
4. When the administrator setup is done, press <OK>.
Using Virtual Keyboard
For alphanumeric inputs, the virtual keyboard window
appears.
Use direction buttons (
◄ ►
) to move to a desired
character, and press the [ENTER] button.
In the upper text input box of the virtual keyboard, there
displays a list of candidate words containing the selected
character.
Select a word from the list, or use the keyboard to enter the
whole word.
OK Cancel
` 1 2 3 4 5 6 7 8 9 0 - =
q w e r t y u i o p [ ] \
Del
a s d f g h j k l ; ‘
Caps Lock
z x c v b n m , . /
Shift
Space Ctrl
If there are many of candidate words, use < , > buttons to move between them forward and backward.
Select <OK>.
Entered word is applied.
For upper case letters, use <Caps Lock> button.
For special characters, use <Shift> button.
Using the virtual keyboard is the same to a normal keyboard use in your region.
You can enter only lower-case alphabets and numeric values for the user ID.
For the password, use alphabets and special characters excluding < \ > and <“>.
You can use number buttons on the remote control or front panel.
ID admin
New Password ************
Confi rm P/W ************
Permission Management
Admin Group
OK Cancel
User Setup
![](asset-33.png)
English _51
- MAIN MENU

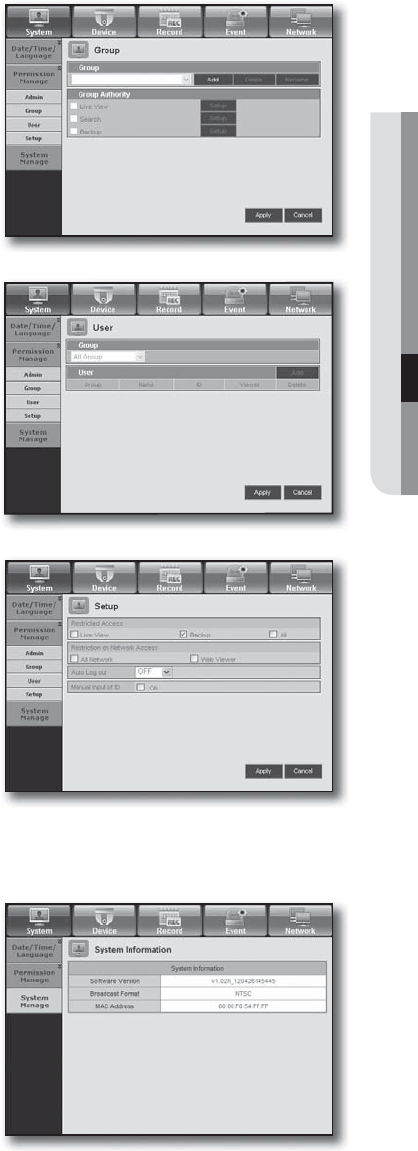

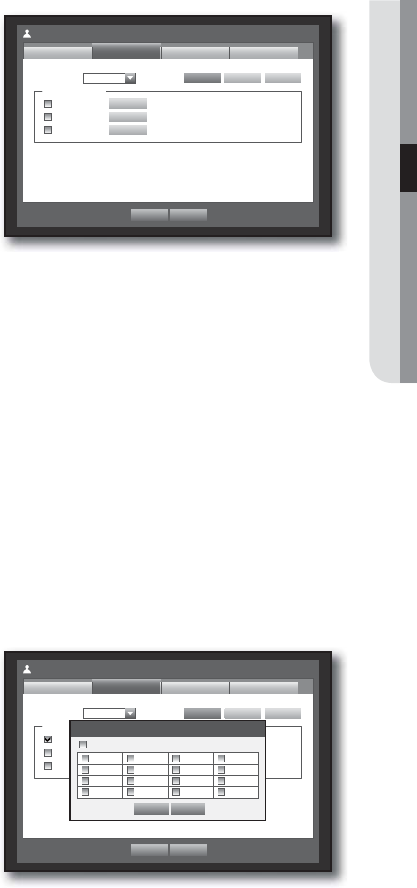

Setting the Group
You can create user groups and setup permissions for those user groups.
You can register a user for each group in <User>.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
2. Select <Group>.
A window for <Add>, <Delete>, <Rename>, and
<Group Authority> setup appears.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Add, Delete, Rename : You can add, delete, rename a
group or modify the permissions given to the group.
The virtual keyboard appears when <Add> or <Rename> was selected.
You can add up to 10 groups.
- Add : When you first run the DVR with the admin account, only the admin account exists. Add has already
been deactivated. Select <Add> to display the virtual keyboard. Enter a group name. You can add up to
10 groups.
- Delete : Deletes a user group that is already registered. Selecting Delete will delete all user accounts
belonging to that group.
- Rename : Renames a group that is already registered. Select <Rename> to display the virtual keyboard.
For entering a group name, refer to “Using Virtual Keyboard”. (Page 50)
• Group Authority : Sets permissions to access menu items of each group.
Users of a group can access checked functions.
4. When the group setup is done, press <OK>.
To set the group authority
You can set the permissions of the group users to access the menu according to the channel.
1. Select a menu to which the group permission is assigned.
The menu where the group permission is assigned will be
displayed in the Live menu when a group user logs in.
• Live View : You can set the permission to access the Live
screen according to the channel.
SDE-400X shows a list of 8 channels in Channel Setup window.
• Search : You can set the permission to access the Search
menu according to the channel.
• Backup : You can set the permission to access the Backup
menu according to the channel.
2. Select <OK>.
Select and assign a group user so that the user can access the specified menu.
Permission Management
Group
Admin
OK Cancel
User
Add Delete Rename
Group
Group Authority
Live View
Search
Backup
Setup
Setup
Setup
Setup
Permission Management
Group
Admin
OK Cancel
User
Add Delete Rename
Group ABC
Group Authority
Live View
Search
Backup
Setup
Setup
Setup
Setup
Channel Setup
OK Cancel
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
All
![](asset-34.png)
52_ main menu
main menu
To restrict the user permissions
If the admin restricts all permissions of an added group, the users belonging to that group can access only
the default minimum menus and can change the user’s own password only.
1. Start the DVR.
If all permissions are restricted, only the Login dialog
should appear.
2. Log in with a registered user ID.
3. Right-click any area on the screen.
If all permissions are restricted, only the accessible context
menus should appear.
To change the user password
If you log in with a user account that is restricted to access the menu, you can change your own password
only.
1. Log in with your account.
2. Select <User Menu>.
The Permission Management setup screen appears.
3. Select <Permission Management>.
The Password setup dialog appears.
4. Enter a new password.
5. Select <OK>.
You change to the password will be applied.
ID abc
New Password ************
Confi rm P/W ************
Permission Management
User
OK Cancel
Login
ID abc
Password
OK Cancel
2012-01-01 01:10:25
Scene Mode
Audio Off
Freeze
Stop Alarm
Record
User Menu
Hide Launcher
Logout
![](asset-35.png)
English _53
- MAIN MENU
Setting the User
Users can be added only if a group was created in <Group> menu.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
2. Select <User>.
A window for Add User appears.
3. Use direction buttons (
◄ ►
) to select <Add> from the
window.
A window for “Add User” appears.
You can configure the Network Viewer settings including
name, ID, viewer, Select Group and password.
Result of the user setup appears in the <User> window.
To change the user property, use “Edit User”.
The “Edit User” window appears when you select a
desired item to be changed in the <User> window.
• Viewer : If you select <Use>, you will be given access to the
Web Viewer and Network Viewer.
Refer to “Connecting Web Viewer”. (Page 95)
For more information about use of SmartViewer, refer to the
SmartViewer's user guide.
4. When the user setup is done, press <OK>.
Group Name ID Viewer Del
Permission Management
User
Admin
OK Cancel
Setup
Add
Group
Group All Group
Previous/Next Page
Group Name ID Viewer Del
Permission Management
User
Admin
OK Cancel
Setup
Add
Group
Group All Group
Previous/Next Page
Add User
OK Cancel
Name
ID
Viewer Not Used
Select Group ABC
Password
Confi rm P/W
![](asset-36.png)
54_ main menu
main menu
Setting Permissions
You can set restricted access for all general users.
Items with restrictions will require logging in for use.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
2. Select <Setup>.
The Restricted Access, Restriction on Network Access,
Auto Log out, Manual Input of ID setup screen appear.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Restricted Access : All menu items allowed for a user can
be set with restricted access.
- Checked ( ) : Restricted
- Not checked ( ) : Accessible
If it is not checked ( ) in <Restricted Access>, any user can access the item no matter what the <Group Authority>
setting.
If it is checked ( ) in <Restricted Access>, a user can access the item only if the user has permission in <Group
Authority> setting.
• Restriction on Network Access : Restricts remote access from a <Restricted Access> network.
- All Network : Restricts all access instances via Network Viewer and Web Viewer.
- Web Viewer : Restricts access via the Web Viewer.
• Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of
time.
• Manual Input of ID : Prompts you to enter the user ID
manually for the login process.
- Checked ( ) : Encloses the registered user IDs with the
[] symbols.
Use the virtual keyboard to enter the user ID.
4. When the permission setup is done, press <OK>.
Login
ID *****
Password
OK Cancel
Permission Management
Setup
Admin
OK Cancel
Group
Restricted Access
Live View Backup All
Auto Log out OFF
Manual Input of ID ON
User
Restriction on Network Access
All Network Web Viewer
![](asset-37.png)
English _55
- MAIN MENU

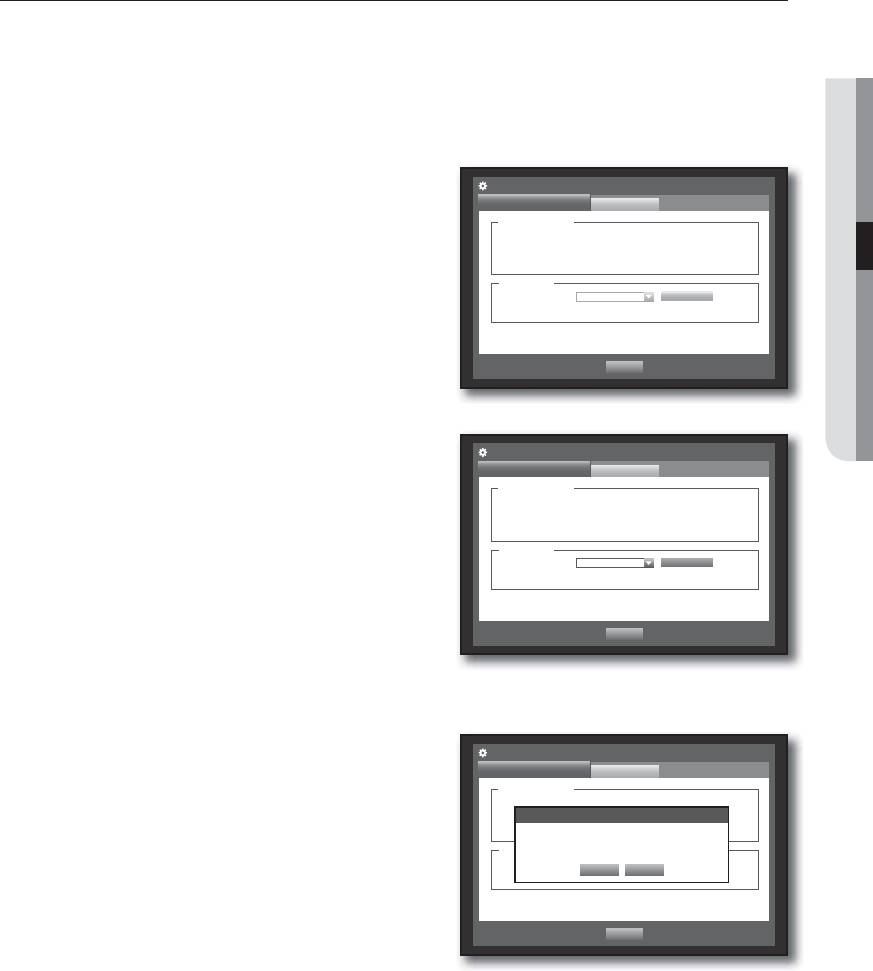

System Management
You can check the system version, update to a newer version, as well as data backup and initialization.
Checking the System Information
You can check the current system version, broadcasting system, MAC address. You can update the system.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <System Management>, and press [ENTER]
button.
2. Check the Software Version, Broadcast Format, and MAC
Address.
• System Information : Shows the current system’s
information.
The values can not be changed by a user.
• S/W Upgrade : Updates the DVR’s software up to date.
Ex : If you connect to a storage device that has upgradable software
installed, and return to the <System Management> menu, the
current software version will be displayed.
• Updating the Software
1. Connect a device storing the software to be updated.
(It may take about 10 seconds to recognize the device.)
Upgradeable devices include USB memory and network device.
To update the network, the current DVR should have been
connected to the network.
Upgrade via the proxy server may not be enabled due to the
restricted access.
2. Select <System Management> from <System> window.
3. Select <System Information>.
4. When the recognized device appears, select <Upgrade>.
The <Upgrade> button will be activated only if the current <Software Version> of the <System Information> is
same to or older than that of <S/W Upgrade>.
Software Version v1.0xh_yymmddhhmmss
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version v1.0xh_yymmddhhmmss
S/W Upgrade
Software Version v1.0xh_yymmddhhmmss
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device Network
Version No S/W Data
S/W Upgrade
Software Version V1.0xh_yymmddhhmmss
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version V1.0xh_yymmddhhmmss
S/W Upgrade
System Upgrade
OK Cancel
Current Version V1.0xh_yymmddhhmmss
New Version V1.0xh_yymmddhhmmss
Do you want to upgrade?
![](asset-38.png)
56_ main menu
main menu

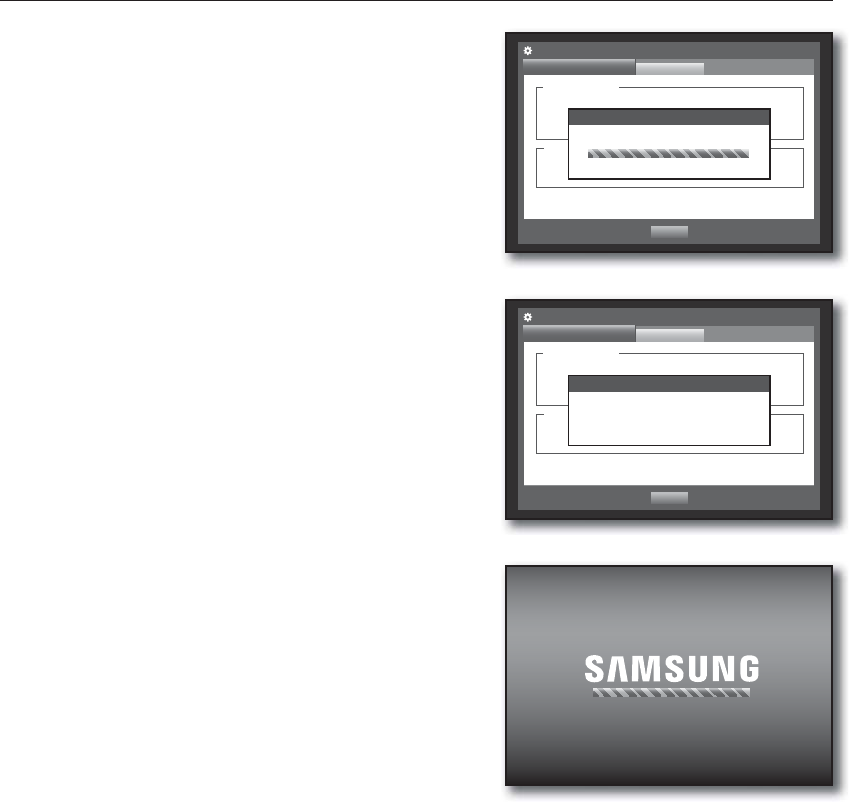

5. Press <OK> in the “System Upgrade” window.
While updating, it shows the progress.
• Updating progresses with 3 steps as shown in the figure.
6. When the updating is done, it automatically restarts.
Do not turn the power off until it finishes restarting.
M
If “Upgrade Failed” appears, retry from the step 4.
When you experience continued failure, consult the service
center for assistance.
When you perform S/W update remotely using Smart Viewer,
it may take a max of 3 minutes to complete the update since
Smart Viewer popped up a confirmation message. This is to
guarantee that the DVR set operates stably. For a faster
update, use the USB cable to connect to the DVR set.
Software Version V1.0xh_yymmddhhmmss
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version V1.0xh_yymmddhhmmss
S/W Upgrade
S/W Upgrade
Software upgrading...
Software Version V1.0xh_yymmddhhmmss
Broadcast Format NTSC
MAC Address 00:00:F0:54:FF:FF
System Management
System Information Settings
Previous
System Information
Upgrade
Device USB2FlashStorage
Version V1.0xh_yymmddhhmmss
S/W Upgrade
S/W Upgrade
Software upgrading...
S/W Upgrade
Software upgrading...
Do not turn off during the upgrade.
![](asset-39.png)
English _57
- MAIN MENU

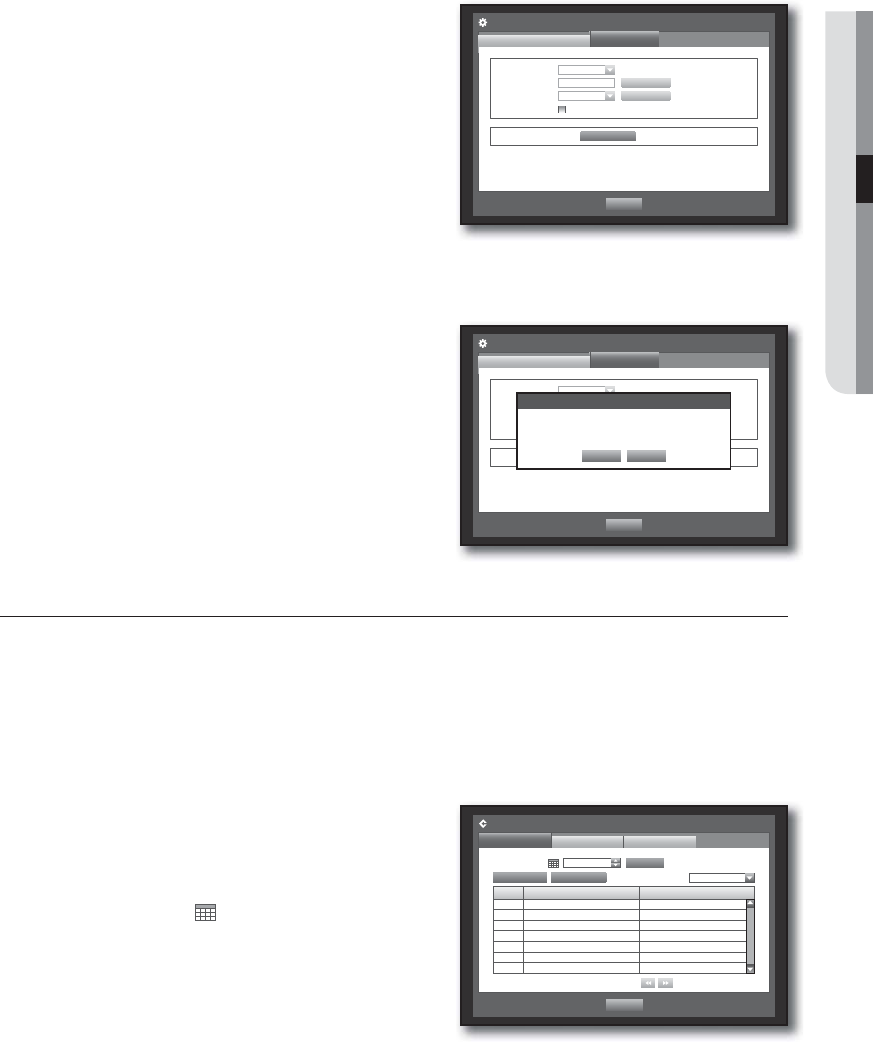

Settings
You can copy and import the DVR settings by using a storage media.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <System Management>, and press [ENTER]
button.
2. Select <Settings>.
A window of storage device and load factory default
appears.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and export or import settings data to a storage
device.
• Storage Device : Shows the connected storage device.
• DVRUSB : Exports DVR settings to the connected storage device.
• USBDVR : Imports DVR settings from the storage device and applies to the DVR.
If <Include Network Settings> is checked, the network settings will be imported too.
• Load Factory Default : If <Default> is selected, a
confirmation dialog for “Load Factory Default” prompts.
Press <OK> to initialize the system to the factory default.
4. To move to the previous menu, press <Previous>.

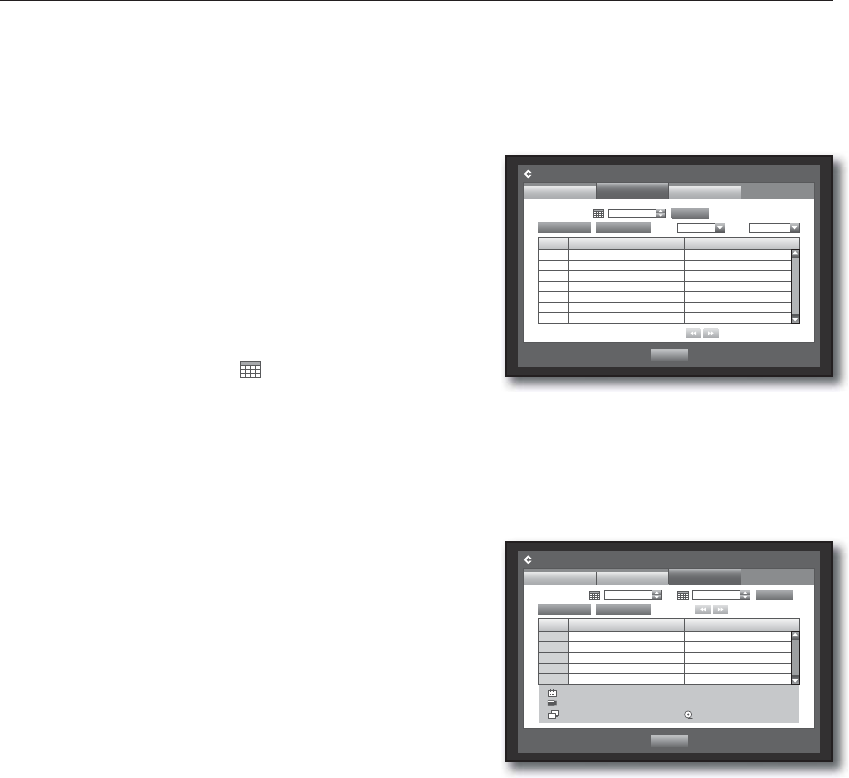

Log Information
You can browse logs on the system and events.
System Log
System Log shows log and timestamp on every system start up, system shutdown, and changes on system
settings.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <Log Information>, and press [ENTER] button.
2. Select <System Log>.
Refer to “Using the Calendar”. (Page 49)
Click on the calendar < > to display the calendar window.
• Type : When there are too many logs, you can display logs
of the desired format by selecting the type.
3. Use direction buttons
(
◄ ►
)
to move to a desired item,
and press <Search>.
Storage Device 0 MB (Remained Capacity)
DVRUSB 38010100
USBDVR No date
Include Network Settings
Settings
System Information
Previous
Load Factory Default Default
Export
Import
System Management
Load Factory Default
OK Cancel
Sure to Default Setting?
Storage Device 0 MB (Remained Capacity)
DVRUSB 38010100
USBDVR No data
Include Network Settings
Settings
System Information
Previous
Load Factory Default Default
Export
Import
System Management
No. Log List Date/Time
Log Information
System Log Event Log
First Page
Search Day 2012-01-01
Previous
Previous/Next Page
Type View all
Search
Last Page
Backup Log
![](asset-3a.png)
58_ main menu
main menu
Event Log
Event log shows recorded events on alarms, motion detections and video loss.
It also shows the log and its timestamp.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <System> window to
move to <Log Information>, and press [ENTER] button.
2. Select <Event Log>.
3. Use direction buttons (
◄ ►
) to move to the desired
item.
4. Set Search Day, Channel and Type and the press
<Search>.
Refer to “Using the Calendar”. (Page 49)
Click on the calendar < > to display the calendar window.
Backup Log
You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).
Using the mouse may help make setup easier.
1. In the <System> window, press the up/down (
) button
to move to <Log Information> and press the [ENTER]
button.
2. Select <Backup Log>.
3. Use the four direction buttons (
◄ ►
) to move to a
desired item.
4. Specify a search term and select <Search> in the right
corner.
Backup details for the search term will be listed.
No. Log List Date/Time
7 Motion Detection [CH 7] 2012-01-01 00:02:18
6 Motion Detection [CH 6] 2012-01-01 00:02:18
5 Motion Detection [CH 5] 2012-01-01 00:02:18
4 Motion Detection [CH 4] 2012-01-01 00:02:18
3 Motion Detection [CH 3] 2012-01-01 00:02:18
2 Motion Detection [CH 2] 2012-01-01 00:02:18
1 Motion Detection [CH 1] 2012-01-01 00:02:18
Log Information
Event Log
System Log
First Page
Search Day 2012-01-01
Previous
Previous/Next Page
CH All CHs Type View all
Search
Last Page
Backup Log
No. User Date/Time
Log Information
Backup Log
System Log
First Page
Search Day 2012-01-01 ~ 2012-01-02
Previous
Previous/Next Page
Search
Last Page
Event Log
![](asset-3b.png)
English _59
- MAIN MENU

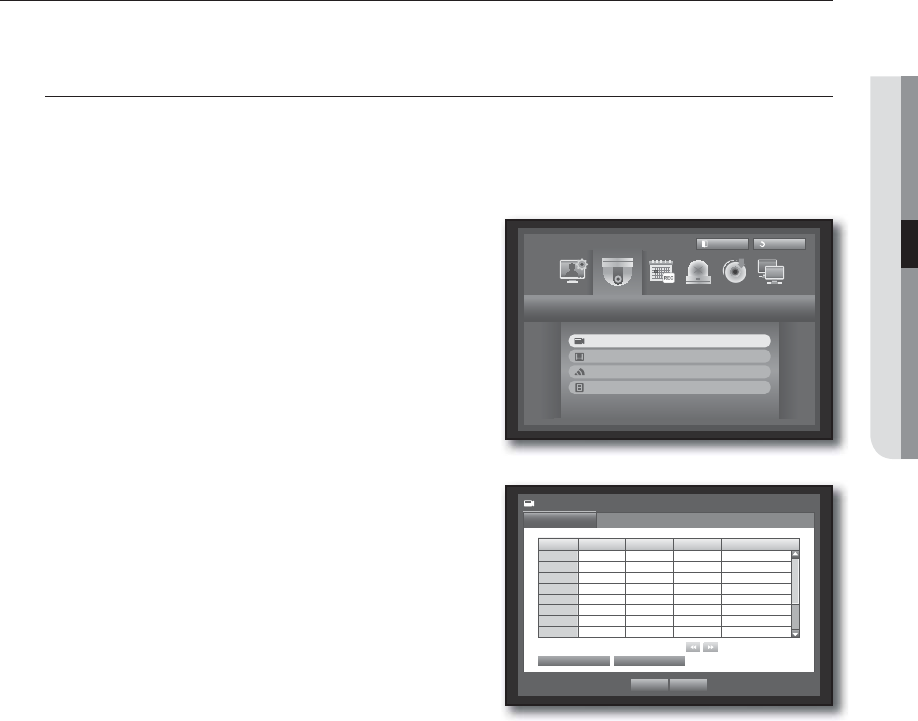

SETTING THE DEVICE
You can configure the settings of: Camera, Storage Device, Remote Device and Monitor.
Camera
Setting the Camera
You can set Video, Audio, Channel Name and Dwell Time of a Camera.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
2. Use the left/right button (
◄ ►
) to select <Device>.
Device setting menu is selected.
3. Use the up/down buttons (
) to move to <Camera>,
and press [ENTER] button.
4. Select <Camera>.
You will see a window where you can configure the
camera settings including Video, Audio, Channel Name,
SEQ-Dwell Time and Privacy Region.
5. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Video
-<ON/OFF> : You can turn ON/OFF the selected channel’s
camera.
-<Covert1> : Shows information other than the video of
the selected channel.
For privacy protection, it does not display the video while the recording continues.
-<Covert2> : Shows nothing but an empty screen while the recording continues.
• Audio
- If set to <ON>, you can turn the audio of the channel ON on the Live screen.
- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.
• CH Name : Up to 15 characters including blanks are allowed.
Refer to “Using Virtual Keyboard”. (Page 50)
• SEQ-Dwell Time : You can set the dwell time between channels for the Live screen.
If set to <OFF>, the channel is not listed in the Auto Sequence mode.
Device
Logout Return
Camera
Storage Device
Remote Device
Monitor
CH Video
Audio
CH Name SEQ-Dwell Time
1 ON
OFF
CAM 01 5 sec
2 ON
OFF
CAM 02 5 sec
3 ON
OFF
CAM 03 5 sec
4 ON
OFF
CAM 04 5 sec
5 ON
OFF
CAM 05 5 sec
6 ON
OFF
CAM 06 5 sec
7 ON
OFF
CAM 07 5 sec
8 ON
OFF
CAM 08 5 sec
Camera
Previous/Next Page
Screen Setup
OK Cancel
Camera
Privacy Region
![](asset-3c.png)
60_ main menu
main menu
• Screen Setup : The video appeared on the screen may vary
depending on the channel’s camera, configure the DVR
display to your preferences.
Select a channel and adjust the
<
(Brightness)>,
<
(Contrast)>, and
<
(Color)> of the selected channel.
Press the <Init> to initialize settings back to the default 50.
• Privacy Region : You can specify a certain area of the
camera video to be protected for your privacy.
The <Privacy Region> is supported by SDE-4003/5003 only.
6. When the camera setup is done, press <OK>.
To set the privacy region
Select <Privacy Region>.
When “Privacy Region” window appears, select a
channel for detection and set the area of motion
detection.
• To set the area in “Privacy Region” window
In the “Privacy Region” window, select desired region
from < >.
• Privacy Region
You can specify up to 4 privacy zones for each channel,
which can be identified by the color.
1 Purple 2 Green 3 Blue 4 Yellow
• To set the area using <Individual> selection
Privacy Region
OK Cancel
Apply to All CH
CH1
Privacy Region1
Individual
When selected <Individual>, “Privacy Region” window disappears and you can select cells one by one.
When the motion area setup is done, Right-click to select <Menu> in the context menu or the [MENU]
button on the remote control to display the “Privacy Region” window again.
- Clear All : Selected cell is removed from the Privacy Region.
- Menu : After selecting individual motion areas, move to the “Privacy Region”
window.
If selected <Apply to All CH>, selected motion area is applied to all channels.
When completing the privacy zone settings, click <OK>.
Clear All
Menu
Screen Setup
Init Apply to All CH
CH1 50 50 50
OK Cancel
![](asset-3d.png)
English _61
- MAIN MENU
Storage Device
You can check information on storage devices.
Confirming Devices
You can check storage devices and their free space, usage as well as status.
Devices available are HDD, and USB devices (Memory, HDD).
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
2. Select <Device>.
• No. : Shows the assigned number of the internal HDD.
• Used/Total : Shows the used/total capacity of the storage
device.
• Usage : Sets the storage device’s usage.
- USB memory is used only for backups.
• Status/Management : Shows the current status of the HDD,
as in Normal/Check/Replace.
- Normal : Available to use
- Check : Available to use but recommended to replace
- Replace : Requires immediate replacement.
3. To move to the previous menu, press <OK>.
Storage Device
Device Format
OK Cancel
HDD Alarm
Device No. Used/Total Usage Status/Management
HDD 1 3.95G/0.98T Internal Normal
![](asset-3e.png)
62_ main menu
main menu

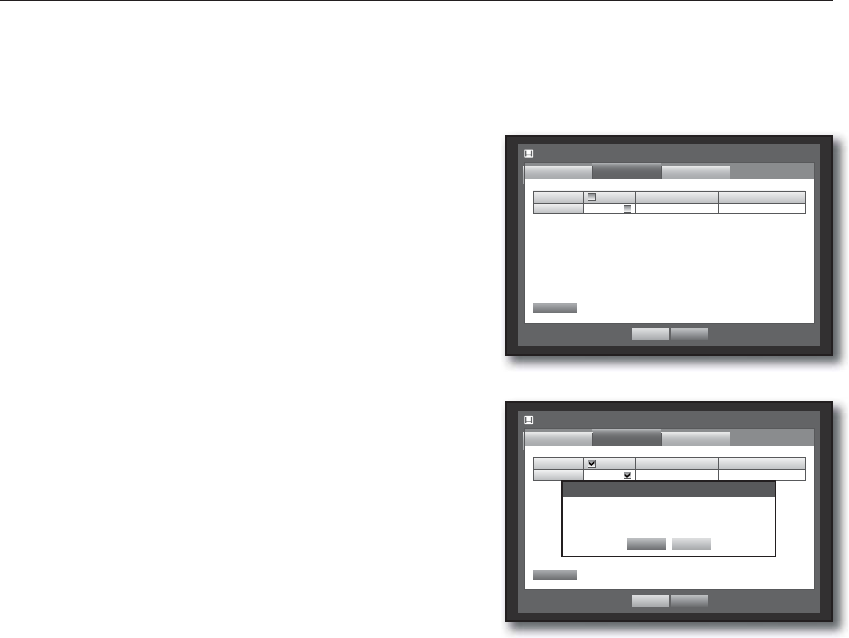

Formatting
You can format a storage device.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
2. Select <Format>.
A window for selection of device for formatting appears.
3. Use direction buttons (
◄ ►
) to select a device to be
formatted.
4. Select <Format> on the bottom of the screen.
Press <OK> on the “Manage” confirmation window will
start formatting the selected device.
5. When the formatting is done, press <OK>.
M
Even when formatted, used HDD space will not be 0 GB due
to the space reserved by the system required for operating.
Storage Device
Device
OK Cancel
HDD Alarm
Format
Device Select Used/Total Usage
HDD 1 3.95G/0.98T Internal
Format
Storage Device
Device
OK Cancel
HDD Alarm
Format
Device Select Used/Total Usage
HDD 1 3.95G/0.98T Internal
Format
Manage
Formatting deletes all recordings.
Proceed formatting?
OK Cancel
![](asset-3f.png)
English _63
- MAIN MENU

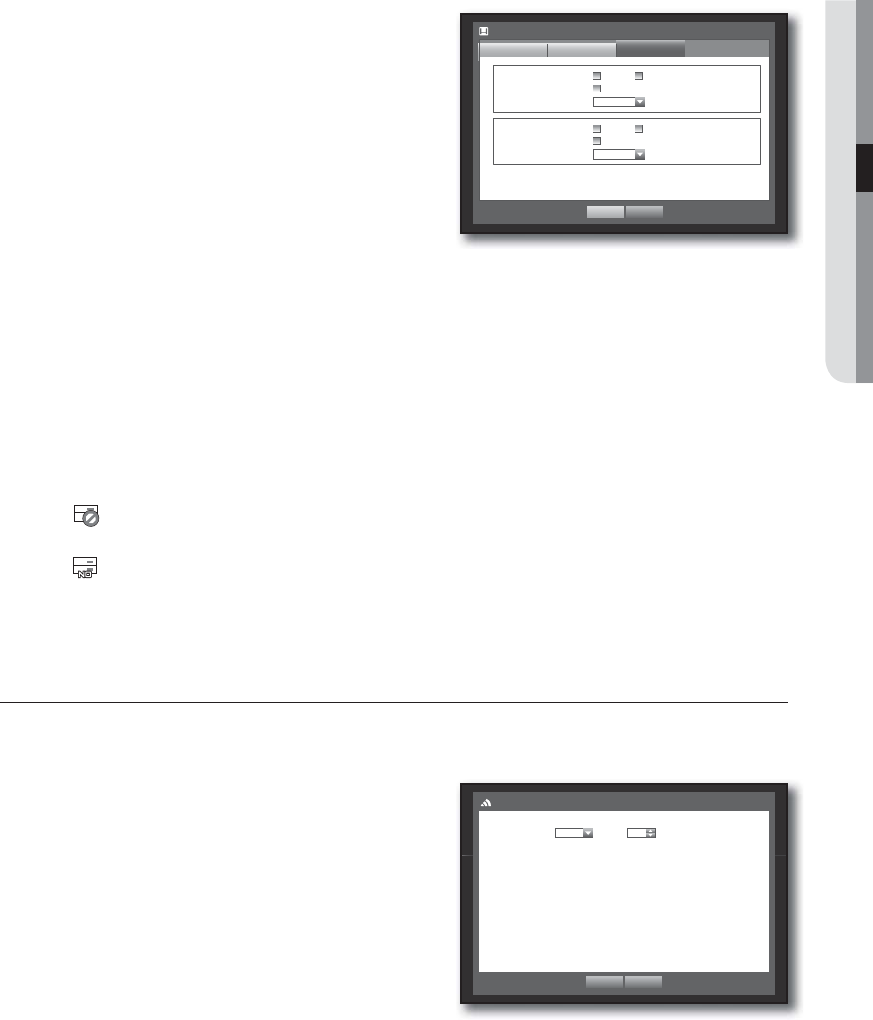

HDD Alarm
You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port,
and its duration.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
2. Select <HDD Alarm>.
A window for setting HDD check and replace output ports
and their durations appears.
3. Use direction buttons (
◄ ►
) to move to the desired
item.
• Alarm
- Alarm signal will output through the alarm out port on the
rear side when selected <1>.
- If <BEEP> was selected, a beep will sound.
- If <All> was selected, both beep sound and alarm signal through rear side ports will output.
Alarm function is not supported by SDE-4003/5003.
• Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the specified alarm
output port.
• Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specified
alarm output port.
• Duration : Sets the alarm duration for the alarm signal and beep sound.
M
<Check> status means that the HDD is operating but it has problems that require technical examination.
() appears on the Live screen.
<Replace> status means that the HDD has defect and requires immediate replacement.
() appears on the Live screen.
4. When the HDD Alarm setup is done, press <OK>.
Remote Devices
You can set the Remote Control ID with the DVR.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Remote Device>, and press [ENTER] button.
2. Use direction buttons (
◄ ►
) to move to the desired
item, and press [ENTER] button.
3. Make sure to match IDs of the DVR and Remote Control,
and press <OK>.
M
For changing the remote control’s ID, refer to “Changing the
Remote Control ID”. (Page 22)
Remote Control ON ID 0
Remote Device
OK Cancel
Storage Device
Format
OK Cancel
Device HDD Alarm
Check Alarm Output Port
Duration OFF
1 BEEP
All
Replace Alarm Output Port
Duration OFF
1 BEEP
All
![](asset-40.png)
64_ main menu
main menu

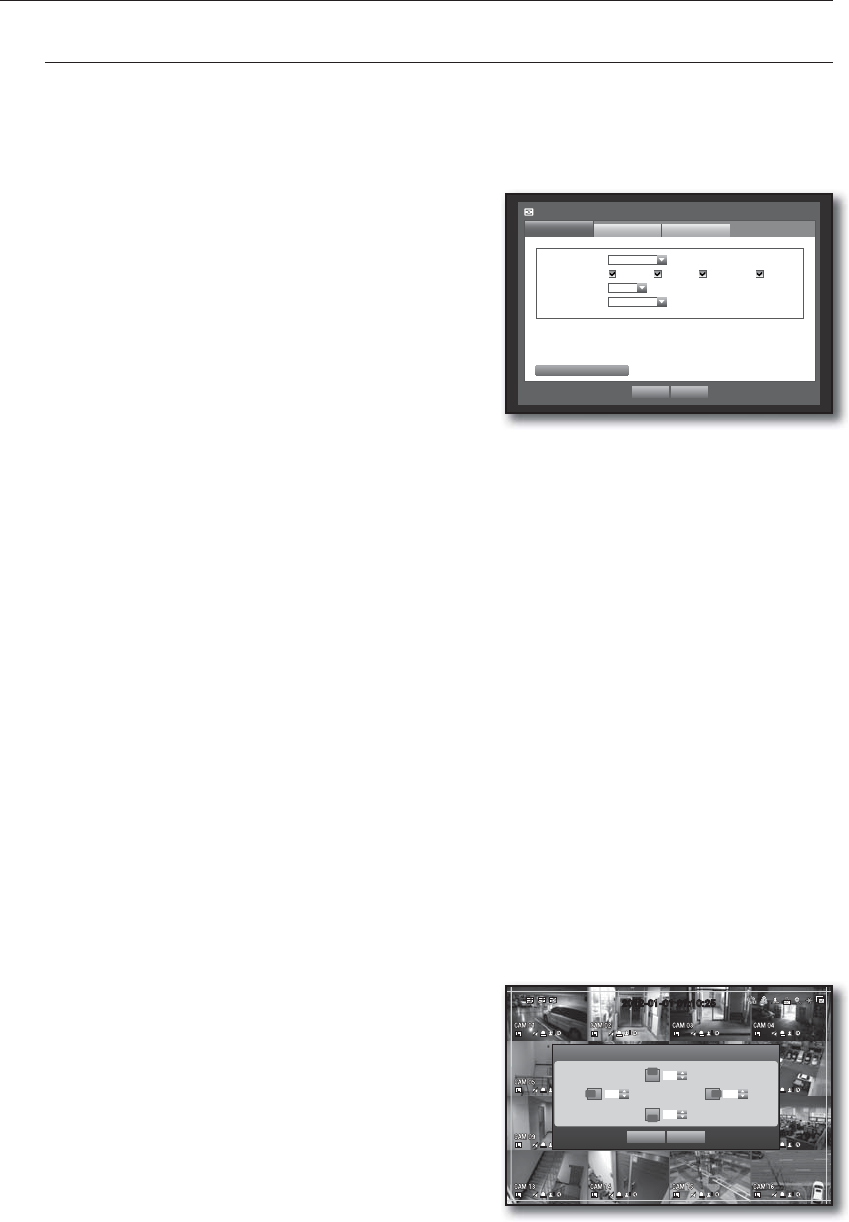

Monitor
You can configure information to be displayed.
Setting the Monitor
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
2. Select <Monitor>.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Event Display : Sets the dwell time of the event channel
display on the monitor when an event occurs.
If selected <Continuous>, it displays the channel until you
press [ALARM] button to release it.
• Display : Displays only checked items on the monitor
screen.
• Multi CH SEQ Time : Sets the interval between automatic display switching in 4-split and 9-split mode of
the Live screen.
• Video Out: You can set the video output mode.
- Auto : The default is set to Composite. (In VGA mode, the “SAMSUNG” logo will be displayed)
If a VGA source is connected, the source from the VGA will be displayed as main. (In Composite mode,
the spot screen will be displayed)
The monitor distributor is not supported.
To switch to VGA mode, turn off the DVR set and connect the VGA jack. (The VGA monitor will turn on)
- VGA : The main video mode will switch to VGA after the DVR set reboots; the composite source will be
displayed on the spot screen.
- Composite : The main video mode will switch to Composite after the DVR set reboots.
(SDE-4003/5003 : In VGA mode, the “SAMSUNG” logo will be displayed.)
4. When the monitor setup is done, press <OK>.
Setting Display position
Some monitors many not display information (camera name, icon, time information, etc.) about the DVR,
depending on the condition. Then, you can change the display position of the data.
1. In the <Device> window, press the up/down (
) button to move to <Monitor> and press the [ENTER]
button.
2. Select the <Monitor> item.
3. Select <Display Position Setup> in the bottom.
You will move to the <Display Position Setup> window.
4. Use the four direction buttons or the number buttons on
the front panel or the remote control to adjust the data
position.
Monitor
Monitor Spot Out
Event Display OFF
Display Date Time CH Name Icon
Multi CH SEQ Time
5sec
Video Output
VGA
OK Cancel
Display Position Setup
Mode
2012-01-01 01:10:25
Display Position Setup
OK Cancel
30 30
30
30
![](asset-41.png)
English _65
- MAIN MENU

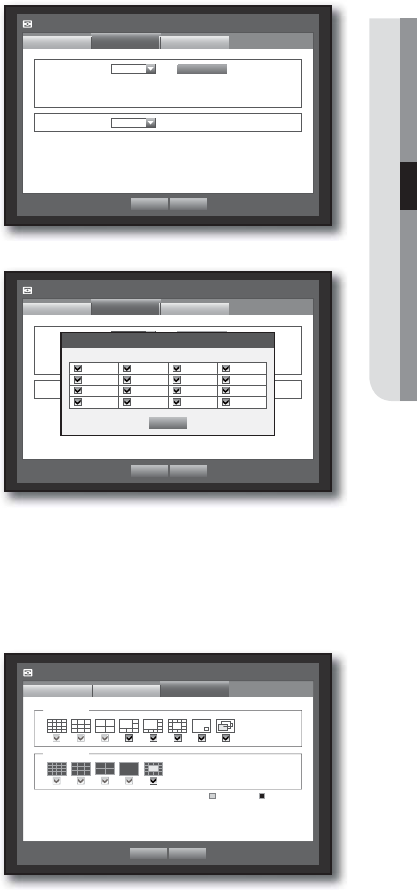

Setting the Spot Out
You can set the DVR to output information / video apart from the monitor out.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
2. Select <Spot Out>.
The number of Spot Out terminals differs according to the
model.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Spot Out 1 : You can select between SEQ, and Single.
• Set Mode : A window for “Set Spot Out” appears and you
can set the channel for it.
You can set the dwell time between the screen switching in
“Setting the Device > Camera > SEQ-Dwell Time”.
(Page 59)
M
You can setup using the mouse right button in Live screen.
Refer to “Spot Out”. (Page 44)
4. When the Spot Out is done, press <OK>.
Setting the Screen Mode
You can configure the Live screen and Split Screens.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
2. Select <Mode>.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Live Screen : Select split modes for the Live screen.
16-, 9-, and 4-split screens are included by default.
SDE-400X doesn't support 16-split screen mode.
• Play Screen : Select split modes for the playback screen.
Only the 13-split screen is optional.
Black shows the playback while white shows the Live screen.
4. When the screen mode setup is done, press <OK>.
Monitor
Mode
Monitor
OK Cancel
Live Play
Live Screen
Play Screen
Spot Out
Monitor
Spot Out
Monitor
Spot Out 1 SEQ
Event Display OFF
Mode
OK Cancel
Set Mode All
Monitor
Spot Out
Monitor
Spot Out 1 SEQ
Event Display OFF
Mode
OK Cancel
Set Mode All
Set Spot Out
OK
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
![](asset-42.png)
66_ main menu
main menu

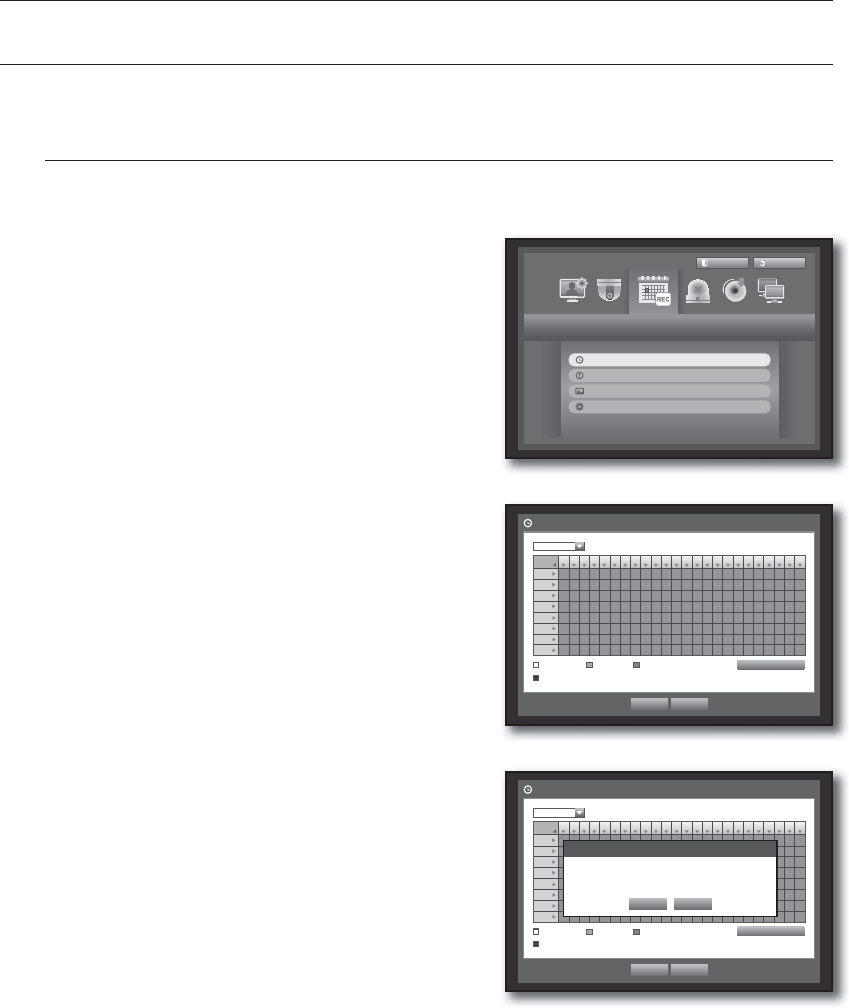

SETTING THE RECORDING
You can setup scheduled recording, event recording and other recording related settings.
Recording Schedule
Make your reservation on a date and time to schedule the recording on specified time.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
2. Use the left/right button (
◄ ►
) to select <Record>.
Record menu is selected.
3. Use the up/down buttons (
) to move to <Recording
Schedule>, and press [ENTER] button.
4. Select <Recording Schedule>.
A window of scheduled recording setup appears.
5. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Apply to All CH : If selected <Apply to All CH>, “Apply to
All CH” window appears.
Press <OK> to apply the setup to all channels.
6. When the recording schedule setup is done, press <OK>.
M
Event recording and scheduled recording starts about 3
seconds prior to the event/schedule for guaranteed recording.
Record
Logout Return
Recording Schedule
Event Record Duration
REC Quality & Resolution
Record Option
All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
No Recording Continuous Event
Both(Cont&Evnt)
Apply to All CH
OK Cancel
Recording Schedule
CH1
All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
No Recording Continuous Event
Both(Cont&Evnt)
Apply to All CH
OK Cancel
Recording Schedule
CH1
Apply to All CH
OK Cancel
Apply recording schedule to all channels?
![](asset-43.png)
English _67
- MAIN MENU
Recording Color Tags
Color Function Description
White No Recording No schedule / event recording
Orange Continuous Scheduled recording only
Blue Event Event recording only
Green Both(Cont&Evnt) Both scheduled / event recordings
Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event>-
<Both(Cont&Evnt)>.
Event Record Duration
You can set the beginning and ending point of a recording on an event.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Record> window to
move to <Event Record Duration>, and press [ENTER]
button.
2. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Pre Event :
The recording of an event will start at a
pre-determined time prior to the actual occurrence of the event.
If it is set to 5 seconds, the recording begins from 5
seconds before the event.
• POST Event : The recording will continue for a
pre-determined time after the actual end of an event.
If it is set to 5 seconds, the recording ends in 5 seconds after an event.
3. When the event recording duration setup is done, press <OK>.
Event Record Duration
OK Cancel
Previous/Next Page
CH Pre Event
POST Event
1 OFF 1 min
2 OFF 1 min
3 OFF 1 min
4 OFF 1 min
5 OFF 1 min
6 OFF 1 min
7 OFF 1 min
8 OFF 1 min
![](asset-44.png)
68_ main menu
main menu
REC Quality & Resolution
You can set resolution, FPS and quality of recordings by channel, and by recording type of standard / event.
Setting Standard Recording Properties
You can set each channel’s resolution, quality and fps for normal recordings.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Record> window to
move to <REC Quality & Resolution>, and press
[ENTER] button.
2. Select <Standard>.
3. When the recording setup is done, press <OK>.
Setting Event Recording Properties
You can set each channel’s resolution, quality and fps for event recordings.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Record> window to
move to <REC Quality & Resolution>, and press
[ENTER] button.
2. Select <Event>.
Event recording setup window appears.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and select it.
• Resolution : Sets the resolution of the recorded screen.
• Record Rate : Frames recorded per second.
• Record Quality : Sets the recording quality.
M
The estimated total remaining count means the total number of remaining recordings for both standard and event
recordings.
You cannot increase the remaining count if the current remaining count has reached zero or there is no available
remaining count from any other page. If this is the case, reduce the remaining count for the current page, or do so
for the same channel on any other page.
4. When the Event recording setup is done, press <OK>.
CH Resolution
Record Rate
Record Quality
1 CIF(S) 7fps
Level4
2 CIF(S) 7fps
Level4
3 CIF(S) 7fps
Level4
4 CIF(S) 7fps
Level4
5 CIF(S) 7fps
Level4
6 CIF(S) 7fps
Level4
7 CIF(S) 7fps
Level4
8 CIF(S) 7fps
Level4
REC Quality & Resolution
Standard Event
Previous/Next Page
OK Cancel
Remaining count : 4CIF(L) : 8 2CIF(M) : 16 CIF(S) : 32
CH Resolution
Record Rate
Record Quality
1 4CIF(L) 7fps
Level4
2 4CIF(L) 7fps
Level4
3 4CIF(L) 7fps
Level4
4 4CIF(L) 7fps
Level4
5 4CIF(L) 7fps
Level4
6 4CIF(L) 7fps
Level4
7 4CIF(L) 7fps
Level4
8 4CIF(L) 7fps
Level4
REC Quality & Resolution
Standard Event
Previous/Next Page
OK Cancel
Remaining count : 4CIF(L) : 8 2CIF(M) : 16 CIF(S) : 32
![](asset-45.png)
English _69
- MAIN MENU

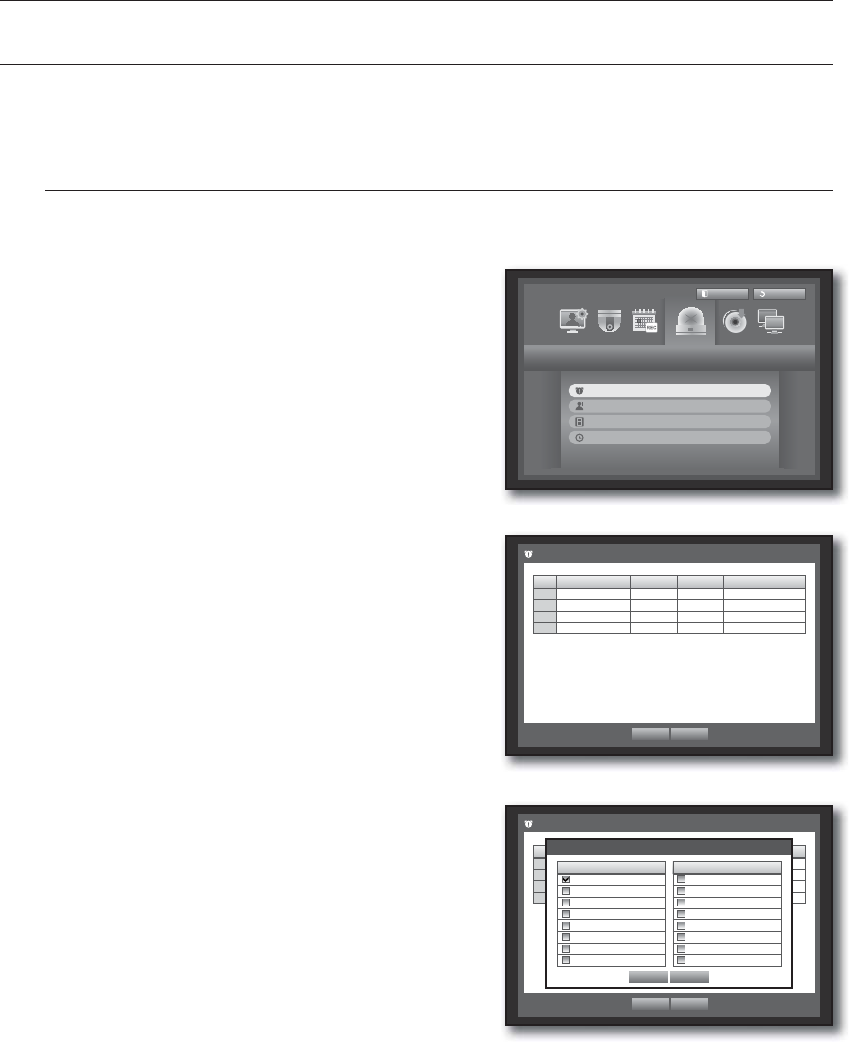

Record Option
You can set the recording to stop or overwrite when the HDD is full.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Record> window to
move to <Record Option>, and press [ENTER] button.
2. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Disk End Mode : If selected <Overwrite>, recording will
continue despite the HDD full while overwriting the oldest.
If selected <Stop>, the recording will stop when the HDD is
full.
• Disk End Beep : If selected <Stop>, the button is activated.
If you check it, the beep will sound on the disk full and the
recording stops.
• Auto Delete : If you check it, Record Period setup is activated.
If you specify the auto deletion period, the recording data before the period will be deleted automatically.
This option will be enabled only if Disk End Mode is set to <Overwrite>.
3. When the recording option setup is done, press <OK>.
Record Option
OK Cancel
Disk End Mode Overwrite
Disk End Beep
Auto Delete 180 day
Auto Delete
OK Cancel
The recording information will be deleted.
Do you want to proceed?
![](asset-46.png)
70_ main menu
main menu
SETTING THE EVENT
You can set recording options for sensor, motion, and video loss event.
Setting the <Sensor Detection> is not supported by SDE-4003/5003.
Sensor Detection
You can set the sensor’s operating condition and connected camera, as well as alarm output and its duration.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
2. Use the left/right button (
◄ ►
) to select <Event>.
Event setting menu is selected.
3. Use the up/down buttons (
) to move to <Sensor
Detection>, and press [ENTER] button.
A window of sensor detection setup appears.
4. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Sensor Operation : Sets the operation mode of sensors.
-<OFF> : Sensor does not operate.
-<N.O (Normal Open)> : Sensor is opened.
If the sensor is closed, it generates alarm.
-<N.C (Normal Close)> : Sensor is closed.
If the sensor is open by interruption, it generates alarm.
• Cam : Select a channel to be connected to the sensor.
If selected camera, “Camera Setup” window appears.
Select a channel and setup the preset.
SDE-400X could only preset 8 channels.
Event
Logout Return
Sensor Detection
Motion Detection
Video Loss Detection
Alarm Schedule
Sensor Detection
OK Cancel
Sensor
Sensor Operation
Cam
Alarm
Duration
1 OFF 1 None 10 sec
2 OFF 2 None 10 sec
3 OFF 3 None 10 sec
4 OFF 4 None 10 sec
Sensor Detection
OK Cancel
Sensor
Sensor Operation
Cam
Alarm
Duration
1 OFF 1 None 10 sec
2 OFF 2 None 10 sec
3 OFF 3 None 10 sec
4 OFF 4 None 10 sec
Camera Setup
OK Cancel
CH
1
2
3
4
5
6
7
8
CH
9
10
11
12
13
14
15
16
![](asset-47.png)
English _71
- MAIN MENU

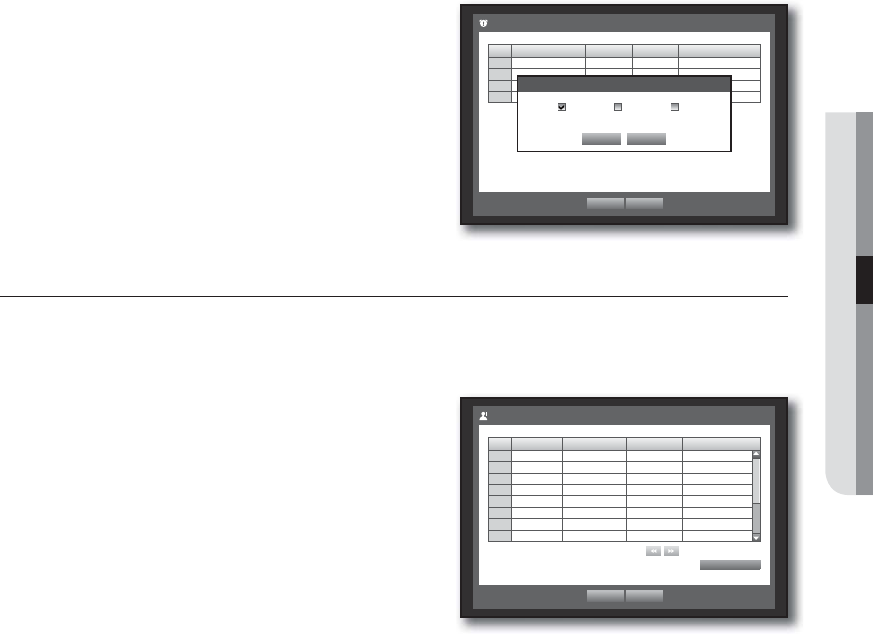

• Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 63)
• Duration : Sets the duration of alarm signal and alarm
sound.
5. When the sensor detection setup is done, press <OK>.
Motion Detection
You can set target detection region and motion, as well as the alarm signal output.
When the motion detection region is set, it detects motion within the area.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Event> window to
move to <Motion Detection>, and press [ENTER] button.
A window of motion detection area setup appears.
2. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Mode : Sets whether to activate motion detection.
• Sensitivity : Sets the sensitivity level of the motion detection.
• Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 63)
• Alarm Duration : Sets the duration of alarm signal and alarm sound.
3. When the motion detection setup is done, press <OK>.
Motion Detection
OK Cancel
Previous/Next Page
CH Mode
Sensitivity
Alarm
Alarm Duration
1 OFF Level10[High]
None 10 sec
2 OFF Level10[High]
None 10 sec
3 OFF Level10[High]
None 10 sec
4 OFF Level10[High]
None 10 sec
5 OFF Level10[High]
None 10 sec
6 OFF Level10[High]
None 10 sec
7 OFF Level10[High]
None 10 sec
8 OFF Level10[High]
None 10 sec
Motion Region
Sensor Detection
OK Cancel
Sensor
Sensor Operation
Cam
Alarm
Duration
1 OFF 1 None 10 sec
2 OFF 2 None 10 sec
3 OFF 3 None 10 sec
4 OFF 4 None 10 sec
Alarm Setup
OK Cancel
1 BEEP All
![](asset-48.png)
72_ main menu
main menu

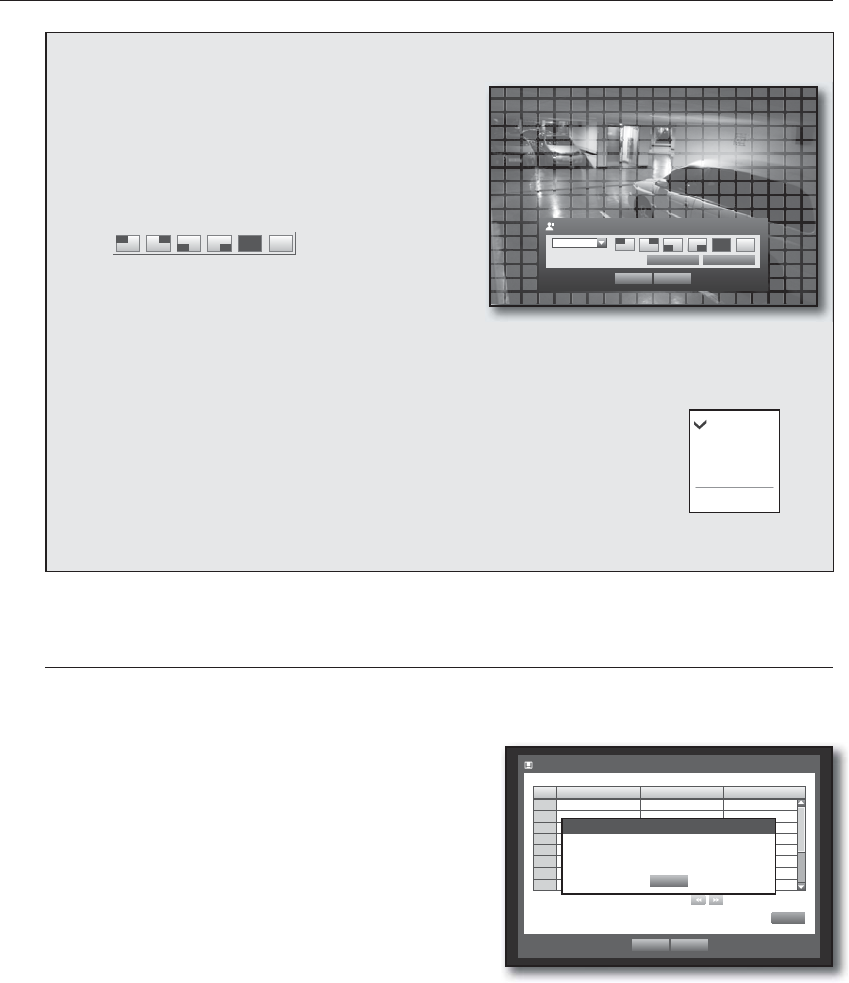

Setting the Motion Detection Area
Select <Motion Region>.
When “Motion Region” window appears, select a
channel for detection and set the area of motion
detection.
• To set the area in “Motion Region” window
In the “Motion Region” window, select desired region
from < >.
• To set the area using <Individual> selection
In the “Motion Region” window, you can select cells
individually by using <Individual>.
Motion Region
OK Cancel
Apply to All CH
CH1
Individual
When selected <Individual>, “Motion Region” window disappears and you can select cells one by one.
When the motion area setup is done, press the <Menu> on the screen or the [MENU] button on the
remote control or front panel to display the “Motion Region” window again.
- Select : Selected cell is set to be a part of motion detection area.
- Unselect : Selected cell is removed from the motion detection area.
- Inverse : Unselected cells are set to be the motion detection area.
- Menu : After selecting individual motion areas, move to the “Motion Region” window.
If selected <Apply to All CH>, selected motion area is applied to all channels.
When the motion detection setup is done, press <OK>.
Select
Unselect
Inverse
Menu
Video Loss Detection
You can set the alarm to be generated on a camera disconnection, which causes a video loss.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Event> window to
move to <Video Loss Detection>, and press [ENTER]
button.
A window of video loss detection area setup appears.
2. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Video Loss State : Sets whether to activate video loss
detection.
• Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 63)
• Alarm Duration : Sets the duration of alarm signal and alarm sound.
• Help : Displays a help message that will appear if a video loss event occurs.
3. When the video loss detection setup is done, press <OK>.
Video Loss Detection
OK Cancel
Previous/Next Page
CH Video Loss State Alarm
Alarm Duration
1 OFF None 10 sec
2 OFF None 10 sec
3 OFF None 10 sec
4 OFF None 10 sec
5 OFF None 10 sec
6 OFF None 10 sec
7 OFF None 10 sec
8 OFF None 10 sec
Help
Help
OK
If a video loss event occurs during the event
recording, the POST recording settings of the
applicable channel will be reset.
![](asset-49.png)
English _73
- MAIN MENU

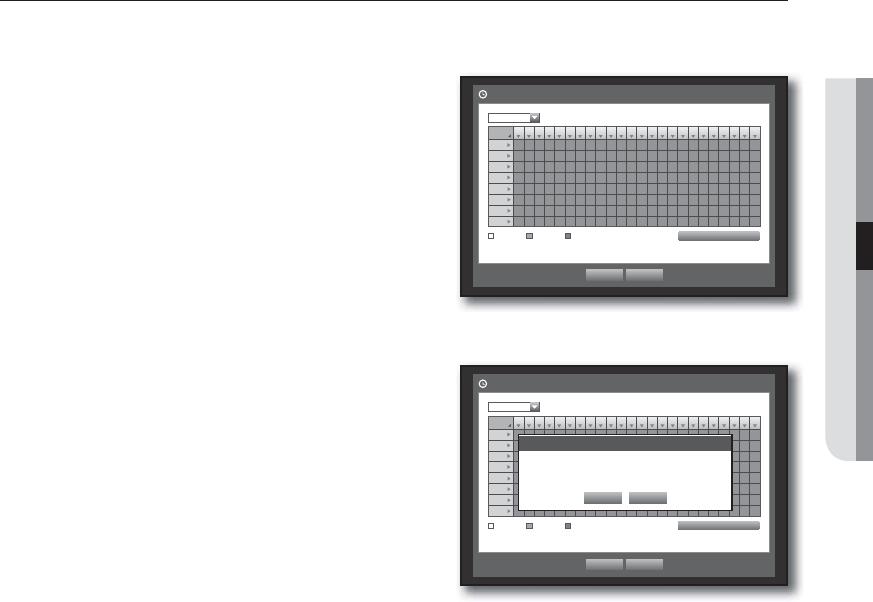

Alarm Schedule
You can set the conditions and operating hours for scheduled alarms.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Event> window to
move to <Alarm Schedule>, and press [ENTER] button.
2. A window of <Alarm Schedule> settings appears.
• Alarm : Sets the alarm output method.
For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 63)
• <ON> : Marked in orange, and always generates alarm on
scheduled time.
• <OFF> : Marked in white, no alarm is generated even if an
event occurs.
• Event Sync : Marked in Blue, generates alarm only when an
event occurs.
• Apply to All Alarm : Applies the configured schedule to all
alarms.
It is not supported by SDE-4003/5003.
M
When the alarm is generated on the scheduled time, you can
stop the alarm by canceling the schedule.
3. When the Alarm Schedule setup is done, press <OK>.
All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
OFF ON Event Sync Apply to All Alarm
OK Cancel
Alarm Schedule
Alarm1
All 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
OFF ON Event Sync Apply to All Alarm
OK Cancel
Alarm Schedule
Alarm1
Apply to All Alarm
OK Cancel
Apply the alarm scheduling to all?
![](asset-4a.png)
74_ main menu
main menu
BACKUP
You can check the backup device and set the backup schedule by channel or by time.
The product only supports external HDD of USB memory and USB type. (Page 126)

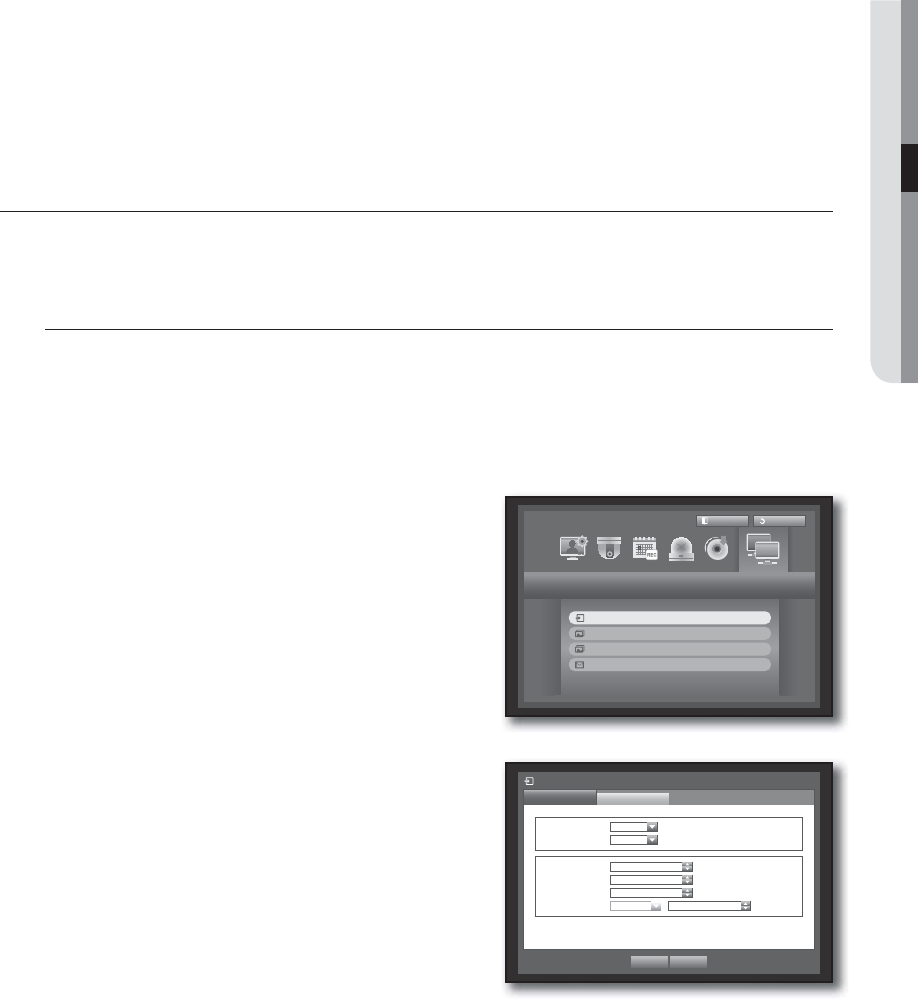

Setting the Backup
You can backup the desired data to a connected device.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
2. Use the left/right button (
◄ ►
) to select <Backup>.
Backup menu is selected.
3. Press the [ENTER] button.
A backup window appears.
You can directly access it from the “Live screen menu”.
(Page 37)
4. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Backup Range : Sets the <Start> and <End> time for the
backup.
• Channel : Sets the channel to backup.
You can select multiple channels.
• Device : Select a backup device from the recognized devices.
• Type : Sets the backup data format.
- DVR : Saved data can be played back only by the DVR.
- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate
playback on a PC.
• Filename : You can set the back file name.
Refer to “Using Virtual Keyboard”. (Page 50)
• Check capacity : Shows the size of the selected backup data, used and available capacity of the selected
backup device.
• Overlap : Shows a list of overlapping data on a same time according to the number of data.
It appears when one channel has multiple data on a certain time point due to changing of time or time zone
settings, etc.
Refer to time and time zone of “Setting the Date/Time/Language”. (Page 47)
Backup
Logout Return
Backup
Backup
Used
Free
Check capacity
OK Cancel
Backup
Start End
2012-01-01 00:01:06 ~ 2012-01-01 08:25:45
Overlap List0
Device USB-Storage Type DVR
Folder \20120101\ Filename 0001
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
All
Change
![](asset-4b.png)
English _75
- MAIN MENU
5. When the backup setup is done, press <OK>.
If no available device is recognized for backup, <OK> button is not activated.
J
The application may slow down during the backup.
You can switch to the menu screen during the backup in operation, but playback of data is not available.
When a memory device is used for backup, it is not available to use the full capacity of the media because the
system consumes a portion of its capacity.
M
Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.
NETWORK CONFIGURATION
It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with
events. You can configure the network environment which enables such functions.
Connection Mode
You can set the network connection route and protocol.
Setting the Connection
Sets the protocol and environment of the network.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
2. Use the left/right button (
◄ ►
) to select <Network>.
Network menu is selected.
3. Use the up/down buttons (
) to move to <Connection
Mode>, and press [ENTER] button.
4. Select <Connection>.
A window of connection mode setup appears.
5. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Connection Mode : Sets the network connection mode.
• Bandwidth : Sets the maximum data flow to be transferred.
(Upload speed)
Options will vary depending on the selected connection
mode.
- For <Static IP>, <Dynamic IP> : Select one from
50 kbps ~ 2Mbps, and Unlimited.
- For <ADSL>, select one from 50 kbps ~ 600 kbps.
Network
Logout Return
Connection Mode
DDNS
Live Transfer
Mailing Service
Connection Mode
Connection Protocol
Connection Mode Static IP
Bandwidth 2Mbps
OK Cancel
IP 192.168.1.200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS Manual 168.126.63.1
![](asset-4c.png)
76_ main menu
main menu
• IP, Gateway, Subnet Mask, and DNS
- For <Static IP> : You can directly input IP address,
Gateway, Subnet Mask and DNS.
- For <Dynamic IP> : IP address, Gateway, and Subnet
Mask are set automatically.
- For <ADSL> : IP address, Gateway, and Subnet Mask are
set automatically.
• User ID, Password : In case you selected ADSL, provide the
“User ID” and its “Password”.
M
DNS server for <Dynamic IP> and <ADSL> can be set by user only if you selected <Manual>.
6. When the connection setup is done, press <OK>.
Setting the Protocol
1. Use the up/down buttons (
) in <Network> window to
move to <Connection Mode>, and press [ENTER]
button.
2. Select <Protocol>.
3. Use direction buttons (
◄ ►
) to move to a desired
item, and set the value.
• Protocol Type : Select the protocol type between TCP and
UDP.
If selected UDP, selections of Port (TCP), Port (UDP), and Unicast/
Multicast are activated.
• Port (TCP) : Initially, <4520~4524> is set. It increases / decreases by 5.
- TCP : It has better stability and lower speed when compared to UDP, and recommended for internet
environments.
• Port (UDP) : Initially, <8000~8160> is set. It increases / decreases by 160.
- UDP : It has less stability and faster speed when compared to TCP, and recommended for local area
network (LAN) environments.
• Unicast/Multicast : Select one between Unicast and Multicast.
If selected Multicast, Multicast IP and TTL are activated.
- Unicast : Transfers data (UDP, TCP) individually to each connecting client.
- Multicast : Multiple client can receive the data (only in UDP) without putting additional traffic load to the
network.
• Multicast IP : User can directly input.
• TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.
• Webviewer Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.
• Multi Browser Support : You can use a Silverlight-compliant web browser to connect to the Web Viewer.
Multi browsers are enabled only if the TCP port is set to between 4505 and 4530 with the Web Viewer port
of 80. This is a security measure in order to enable Silverlight.
M
As UDP protocol may cause a packet loss on the network, it is recommended to use TCP protocols.
If you select UDP protocols and set port forwarding in the IP router, ending up with an unstable network connection,
configure the DMZ settings in the IP router as necessary.
4. When the protocol setup is done, press <OK>.
Connection Mode
Connection Protocol
Connection Mode ADSL
Bandwidth 600kbps
OK Cancel
IP 192.168. 1. 200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS Manual 168.126.63.1
User ID ID
Password ************
Connection Mode
Protocol
Connection
Protocol Type TCP
Port(TCP) 4520 ~ 4524
Port(UDP) 8000 ~ 8160
Unicast/Multicast Unicast
Multicast IP 224.126.63.1
TTL 5
Webviewer Port 80
* Multi Browser Support :
TCP Port 4505~4530, Webviewer Port 80
OK Cancel
![](asset-4d.png)
English _77
- MAIN MENU
Notification
J
In a multi-browser environment, the web port should be set to 80 (private port).
Select one between 4505 and 4530 for RTSP

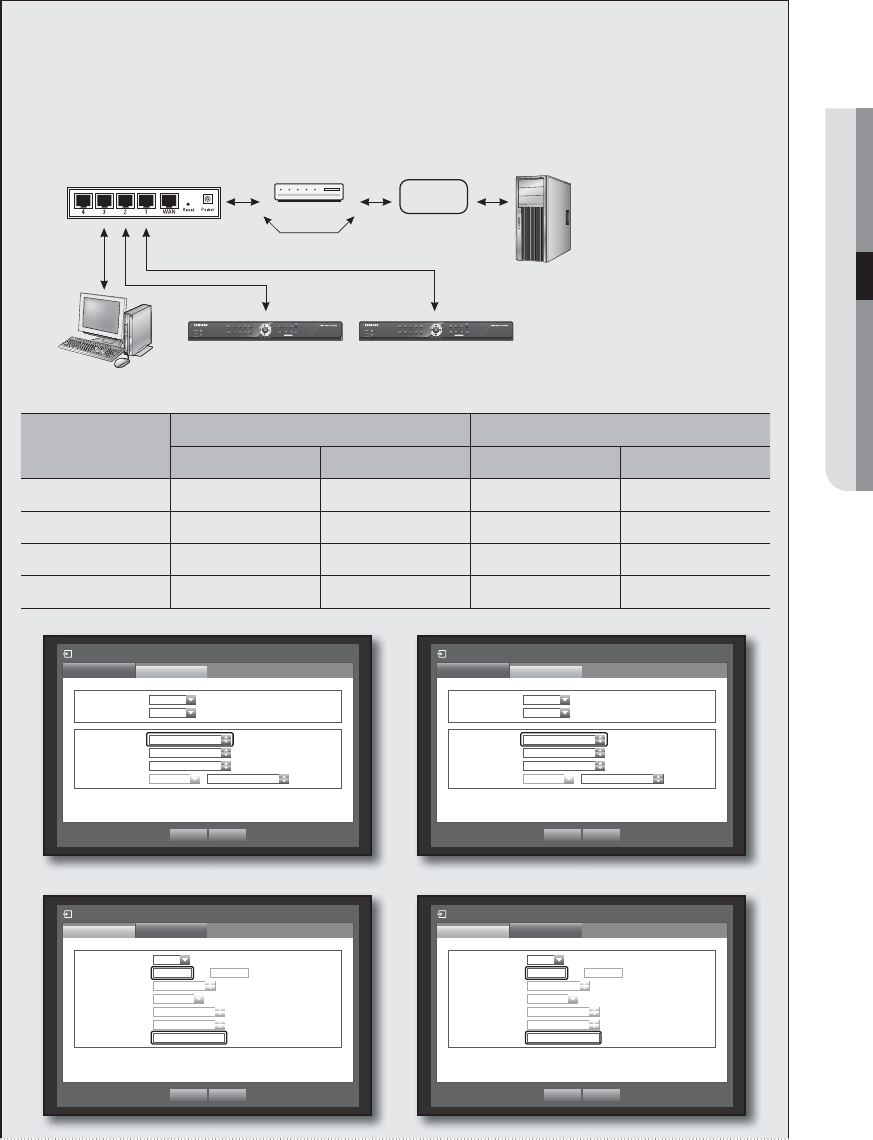

• Network Overview
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
1
6
2
7
3
8
4
9
!
REC
MENU
POWER
HDD ALARM
+/
SEARCH
@
MODE
PREV NEXT
ALARM
5
0/10+
Internet
Local PC
DVR 1
Router (External IP: 109.112.92.133,
Local IP: 192.168.1.1
Cable/ADSL
Modem
DVR 2
DDNS Server
(www.samsungipolis.com)
System DVR 1 DVR 2
WEB RTSP WEB RTSP
IP 192.168.1.200 192.168.1.200 192.168.1.202 192.168.1.202
Protocol TCP TCP TCP TCP
Private Port 80 4520~4524 81 4525~4529
Public Port 80 4520~4524 81 4525~4529
Connection Mode
Protocol
Connection
Protocol Type TCP
Port(TCP) 4520 ~ 4524
Port(UDP) 8000 ~ 8160
Unicast/Multicast Unicast
Multicast IP 224.126.63.1
TTL 5
Webviewer Port 80
* Multi Browser Support :
TCP Port 4505~4530, Webviewer Port 80
OK Cancel
Connection Mode
Protocol
Connection
Protocol Type TCP
Port(TCP) 4525 ~ 4529
Port(UDP) 8000 ~ 8160
Unicast/Multicast Unicast
Multicast IP 224.126.63.1
TTL 5
Webviewer Port 81
* Multi Browser Support :
TCP Port 4505~4530, Webviewer Port 80
OK Cancel
Connection Mode
Connection Protocol
Connection Mode Static IP
Bandwidth 2Mbps
OK Cancel
IP 192.168.1.200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS Manual 168.126.63.1
Connection Mode
Connection Protocol
Connection Mode Static IP
Bandwidth 2Mbps
OK Cancel
IP 192.168.1.202
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS Manual 168.126.63.1
![](asset-4e.png)
78_ main menu
main menu

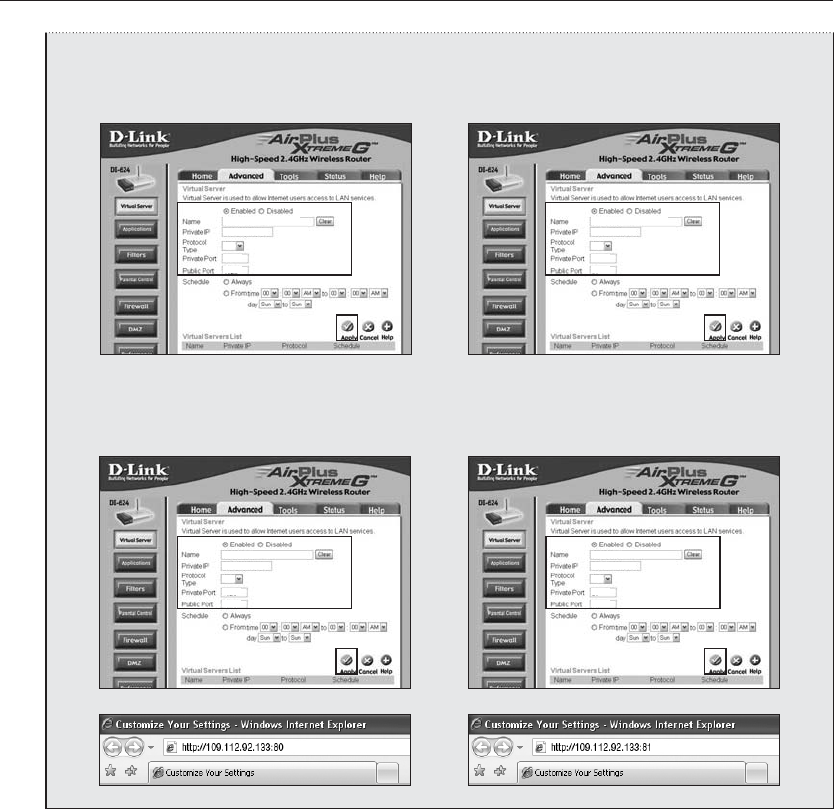

• 1st Set Port Forwarding Setting
Port Forwarding is 4520~4524
(4520, 4521, 4522, 4523, 4524)
SDE-500X
192. 168. 1. 200
TCP
4520
4520
Port Forwarding is 80
SDE-500X
192. 168. 1. 200
TCP
80
80
• 2nd Set Port Forwarding Setting
Port Forwarding is 4525~4529
(4525, 4526, 4527, 4528, 4529)
SDE-500X
192. 168. 1. 202
TCP
4525
4525
Port Forwarding is 81
SDE-500X
192. 168. 1. 202
TCP
81
81
![](asset-4f.png)
English _79
- MAIN MENU
Connecting and Setting the Network
Networking may differ from the connection method, check your environment before setting the connection mode.
When no router is used
• Static IP mode
- Internet connection : Static IP ADSL, leased line, and LAN environments allows connection between the
DVR and remote user.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <Static IP>.
Consult your network manager for IP, Gateway and Subnet Mask.
• Dynamic IP (DHCP) mode
- Internet connection : Connect the DVR directly to a cable
modem, DHCP ADSL modem or FTTH network.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <Dynamic IP>.
• ADSL (PPPoE: ID and password certification)
- Internet connection : An ADSL modem is directly connected to the DVR, where the ADSL connection
requires user ID and password.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <ADSL>.
<User ID> and <Password> should be the same to the ADSL
user information.
If you don’t know the ID and password, consult your ADSL service
provider.
Connection Mode
Connection Protocol
Connection Mode Static IP
Bandwidth 2Mbps
OK Cancel
IP 192.168.1.200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS Manual 168.126.63.1
Connection Mode
Connection Protocol
Connection Mode ADSL
Bandwidth 600kbps
OK Cancel
IP 192.168.1.200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS Manual 168.126.63.1
User ID ID
Password ************
![](asset-50.png)
80_ main menu
main menu
When a router is used
J
To avoid IP address conflict with the DVR's static IP, check followings :
• Setting the DVR with a static IP
- Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem
or a router in a Local Area Network (LAN) environment.
• Setting the DVR Network
1. Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.
2. Check whether the set IP address is in the static IP range provided by the IP router.
IP, Gateway, and Subnet Mask : Consult your network manager.
Check whether the set IP address is in the static IP range provided by the IP router.
J
If a DHCP server is configured with starting address (192.168.0.100) and end address (192.168.0.200), you should
set the IP address out of the configured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~
192.168.0.254).
3. Check the Gateway address and subnet mask are equal to those set in the IP router.
• Setting the DHCP IP Address of the IP router
1. To access the IP router’s configurations, open a web browser on the local PC that is connected to the IP
router and enter the router’s address (ex : http://192.168.1.1).
2. At this stage, make the local PC's windows network configurations to the below example :
Ex) IP : 192.168.1.2
Subnet Mask : 255.255.255.0
Gateway : 192.168.1.1
- Once connected to the IP router, it prompts with password. While entering nothing to the User Name field,
enter “admin” into the password field and press <OK> to access the router configurations.
- Access the router’s DHCP configuration menu and set its DHCP server activation, and provide the start and
end address.
Set the start address (192.168.0.100) and end address (192.168.0.200).
M
Above steps may differ from the router devices depending on the manufacturer.
![](asset-51.png)
English _81
- MAIN MENU

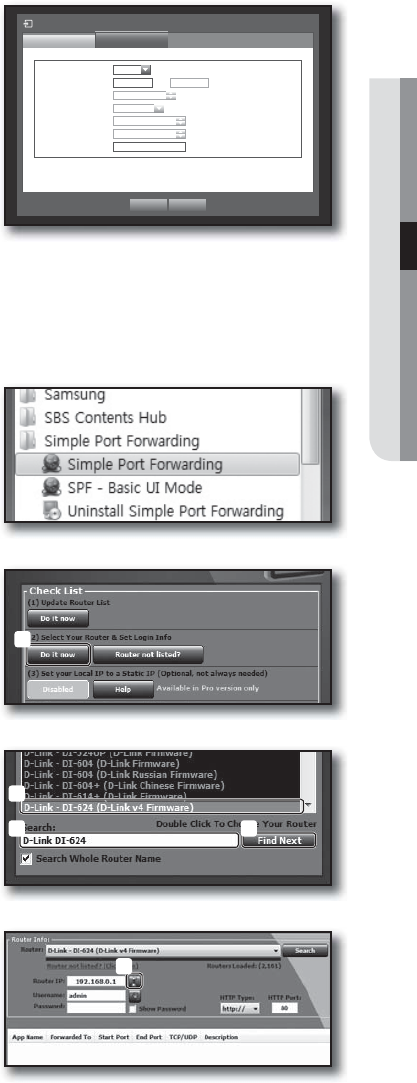

• Setting Router’s Port Forwarding
1. Set the protocol to <TCP>.
2. External Port Range : Enter the TCP Port set in the
<Port(TCP)> in <Protocol> menu of the connected DVR.
If more than one DVRs are connected to the router, the
TCP port can be different.
3. Internal PC IP Address : Enter the IP address set to the
<IP> in <Connection> menu of the connected DVR.
4. Internal Port Range : Set the same to the “External Port
Range”.
M
Above steps may differ from the router devices depending on the manufacturer.
Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s
network.

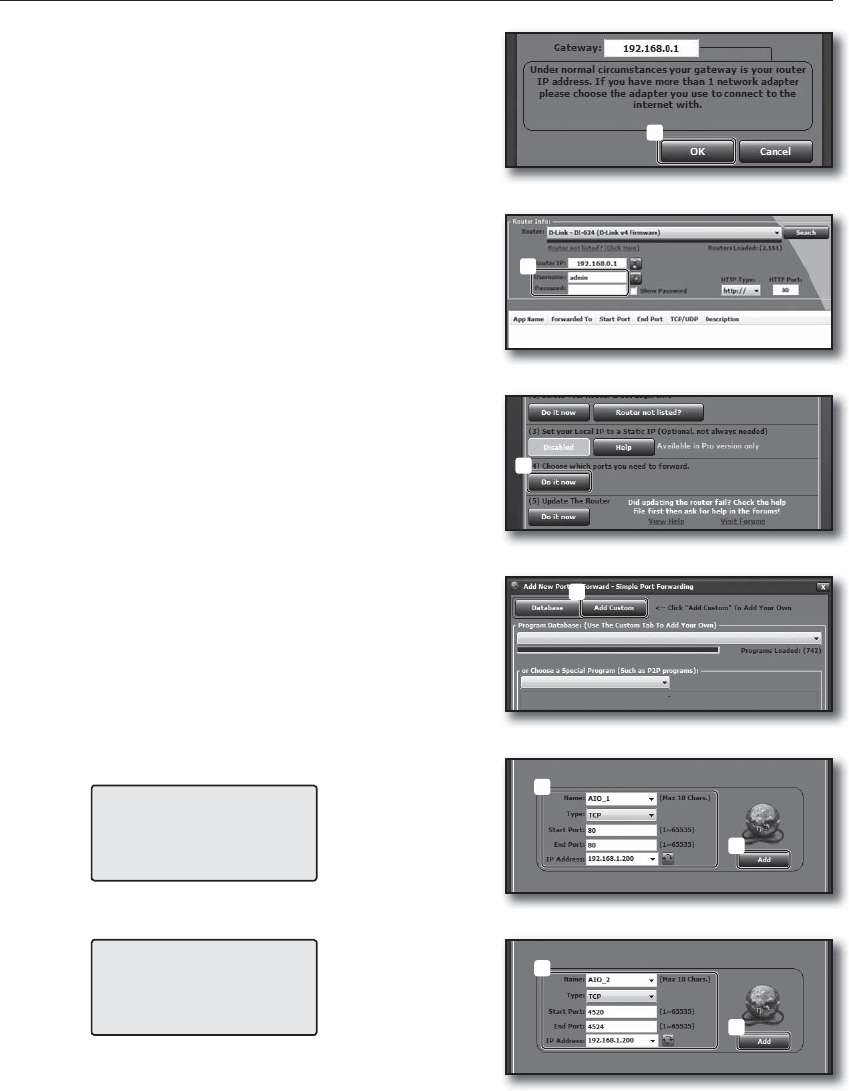

❖In case of Port Forwarding Setting
1. Download the program.
Install it in your PC. Run <Simple Port Forwarding>.
To download visit http://www.simpleportforwarding.com/
download
2.
Click <(2)Do it now> in Check List.
Type your router information.
If you can’t find the exact router in the list, update the
router list or choose a similar router in the same
manufacturer.
3.
Click the icon for checking your router IP address.
Connection Mode
Protocol
Connection
Protocol Type TCP
Port(TCP) 4520 ~ 4524
Port(UDP) 8000 ~ 8160
Unicast/Multicast Unicast
Multicast IP 224.126.63.1
TTL 5
Webviewer Port 80
* Multi Browser Support :
TCP Port 4505~4530, Webviewer Port 80
OK Cancel
b c
![](asset-52.png)
82_ main menu
main menu
Click <OK> for updating your router IP address.
Type your router Username & Password.
If you haven’t changed them, skip this procedure, for it
provides default value.
4.
Click <(4)Do it now> in Check List for choosing the
ports.
Click <OK> for updating your router IP address.
IP Address : 192.168.1.200
Type : TCP
Start Port : 80
End Port : 80
IP Address : 192.168.1.200
Type : TCP
Start Port : 4520~4524
End Port : 4520~4524
b
c
b
c
![](asset-53.png)
English _83
- MAIN MENU
5. After checking if the list is right, click <(5)Do it now> for
updating your router.
DDNS
You can set the DDNS site for a remote user’s network connection.
Using the mouse may help make setup easier.
1. Use the up/down buttons (
) in <Network> window to
move to <DDNS>, and press [ENTER] button.
2. Use virtual keyboard to enter user inputs.
Refer to “Using Virtual Keyboard”. (Page 50)
• If selected <OFF> or <iPOLiS>, input fields are deactivated.
• If you select <iPOLiS>, the “DDNS Host Address” item will
be displayed.
- Type your set ID in <Product ID> field.
More specific information is in “iPOLiS DDNS Setting”.
- Select <Use> in <Quick Connect> menu. After finishing
“iPOLiS DDNS Setting”, you can connect your DVR set with the address <http://www.samsungipolis.com/
HOMEDVR>.
The router used should support uPNP Port Forwarding function.
Note that uPNP Port Forwarding does not support UDP protocol.
If the program fails to read uPNP Port Forwarding List, try again after restarting the computer and router.
3. When the DDNS setup is done, press <OK>.
OK Cancel
DDNS
DDNS Site iPOLiS
Server Name www.samsungip...
Product ID HOMEDVR
Quick Connect Not Use Use
DDNS Host Address http://www.samsungipolis.com/HOMEDVR
![](asset-54.png)
84_ main menu
main menu
DDNS Setting
DDNS is a short form of Dynamic Domain Naming System.
DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters
(ex : www.google.com) to an IP address consisting of numbers (64.233.189.104).
DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS
server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP
system.
• Setting DDNS in the DVR
Set <Protocol Type> in the <Protocol> menu of the connected DVR to the following :
Ex) Protocol Type : TCP
Port (TCP) : 4520~4524
DDNS Site : iPOLiS

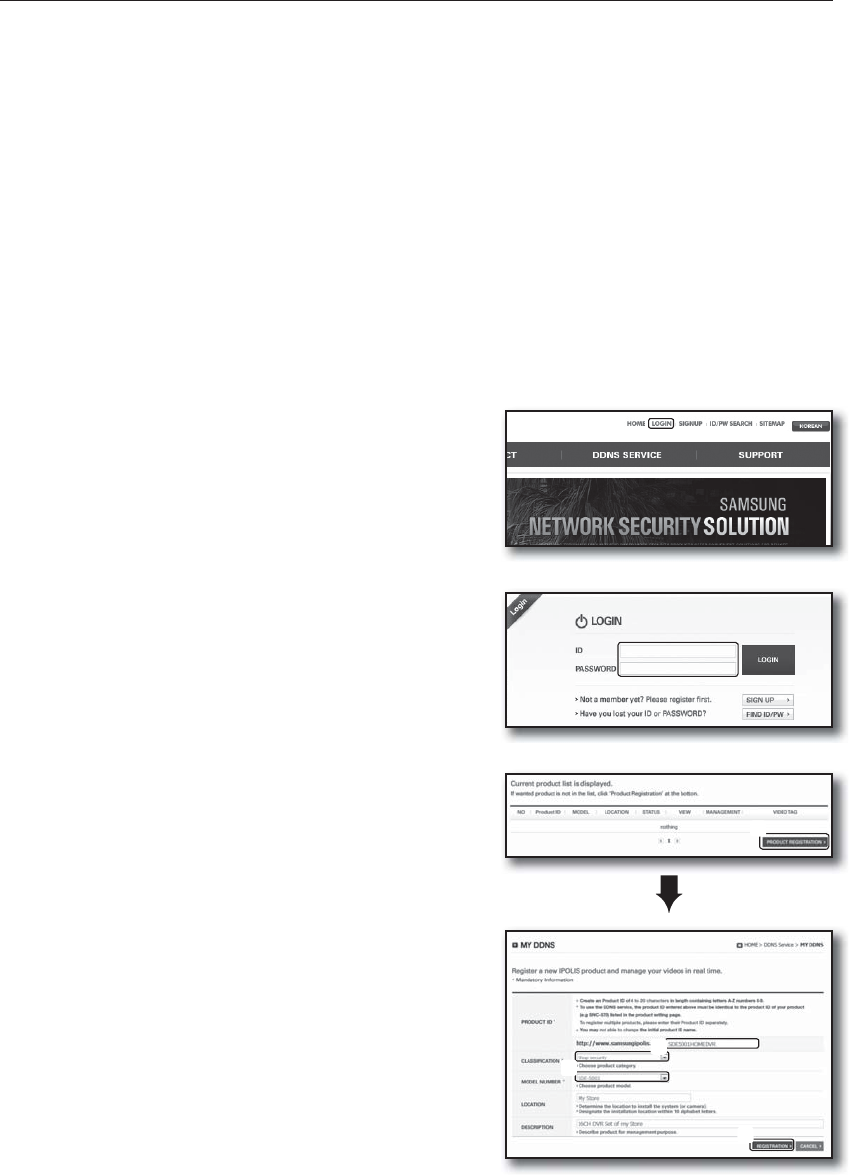

❖iPOLiS DDNS Setting
1. Visit http://www.samsungipolis.com or
http://www.samsungipolis.co.kr and click <LOGIN>.
2. If you have ID & PASSWORD, insert them.
Otherwise, click <SIGN UP> for a new account.
3. After log in, register your set with your information.
b
b
c
![](asset-55.png)
English _85
- MAIN MENU

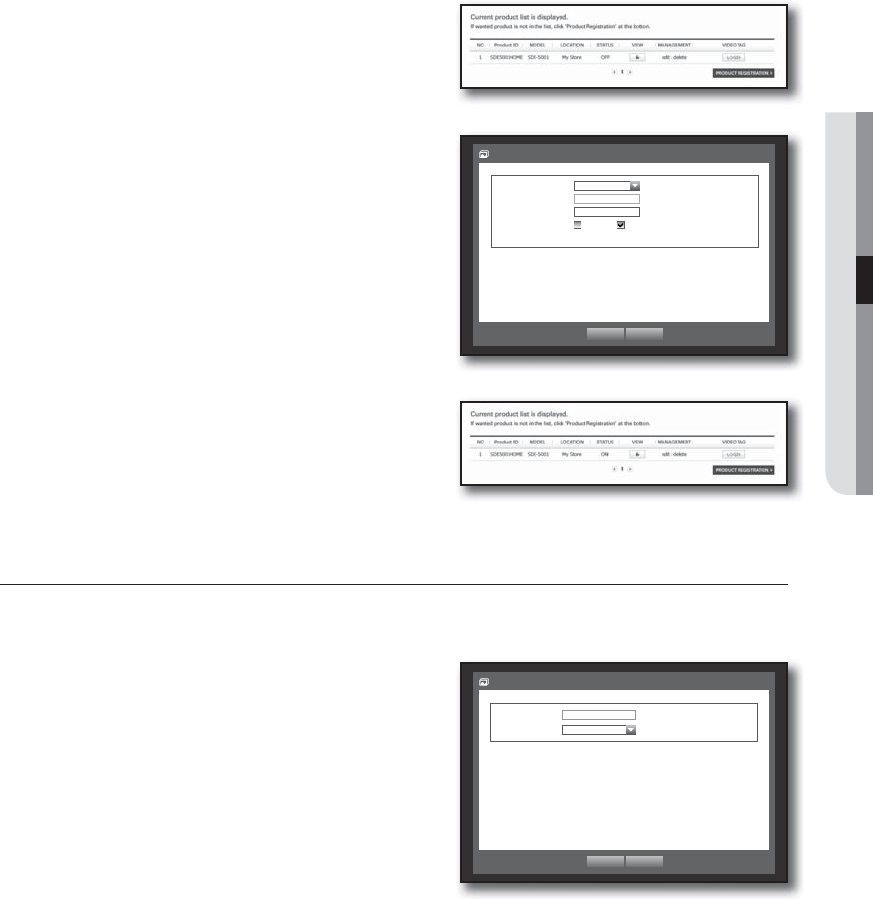

4. After registration, you can see the list as below.
5. Select <iPOLiS> and fill Server Name out with your
registration information.
6. You can see <STATUS> changed to <ON> in 10 minutes,
if all the network settings are right.
Live Transfer
Sets the quality of the image that is transferred from the DVR to the network.
Using the mouse may help make setup easier.
1. In the <Network> setting window, press the up/down
(
) button to move to <Live Transfer> and press the
[ENTER] button.
The Live Transfer window appears.
2. Use the direction buttons (
◄ ►
) to move to a desired
item and set the value.
3. When the live transfer is done, press <OK>.
The resolution for real-time (live) transfer will be set to CIF(S).
(Page 68)
OK Cancel
DDNS
DDNS Site iPOLiS
Server Name www.samsungip...
Product ID SDE5001HOME
Quick Connect Not Use Use
DDNS Host Address http://www.samsungipolis.com/SDE5001HOME
Live Transfer
Resolution CIF(S)
Quality Low
OK Cancel
![](asset-56.png)
86_ main menu
main menu
Mailing Service
You can send an e-mail to a DVR-registered user at a specific time interval, or if an event occurs.
M
If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set
to <OFF>, only the text notification will be sent to the applicable email address.
The e-mail receivers are not able to adjust the attached image quality.

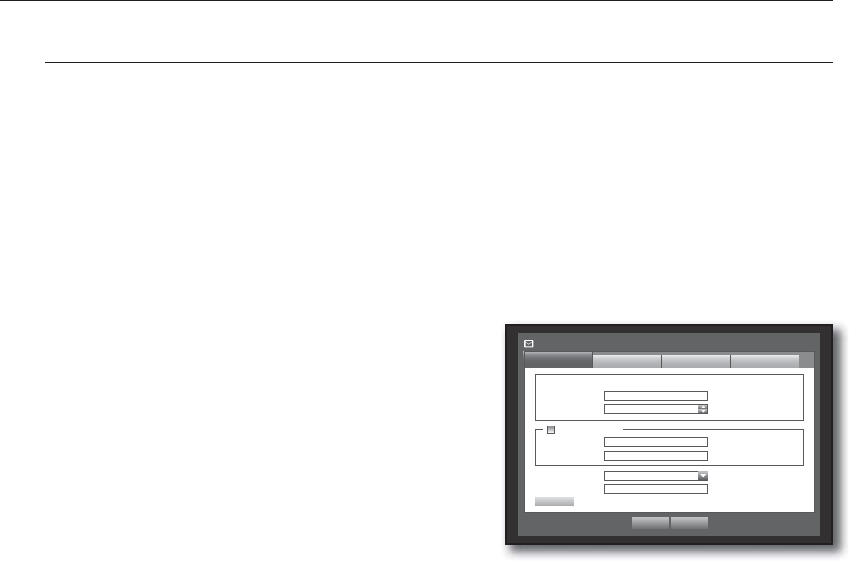

SMTP Setting
Sets the SMTP mail server.
Using the mouse may help make setup easier.
1. In the <Network> setting window, press the up/down
(
) button to move to <Mailing Service> and press the
[ENTER] button.
2. Select <SMTP>.
You will see the SMTP setting window.
3. Use direction buttons (
◄ ►
) to move to a desired item
and set the value.
• ServerType : Displays the connected server type.
• Server : Enter a server to connect to.
• Port : Sets the communication port.
• Use Authentication : Check this if the SMTP server uses user authentication.
The account input box will be activated.
• User : Enter a user to use authentication when connecting to the SMTP server.
• Password : Enter the password of the SMTP server user.
• Secure Transfer : Select one from <Never> and <TLS (if available)>.
• Sender : Use the virtual keyboard to enter the sender’s e-mail address.
Refer to “Using Virtual Keyboard”. (Page 50)
• TEST : Conducts the test on the server settings.
4. When the SMTP setting is done, press <OK>.
Mailing Service
SMTP Event
OK Cancel
Use Authentication
Group Recipient
ServerType SMTP mail Server
Server
Port 25
User
Password
Secure Transfer Never
Sender ex. user@example.net
TEST
![](asset-57.png)
English _87
- MAIN MENU

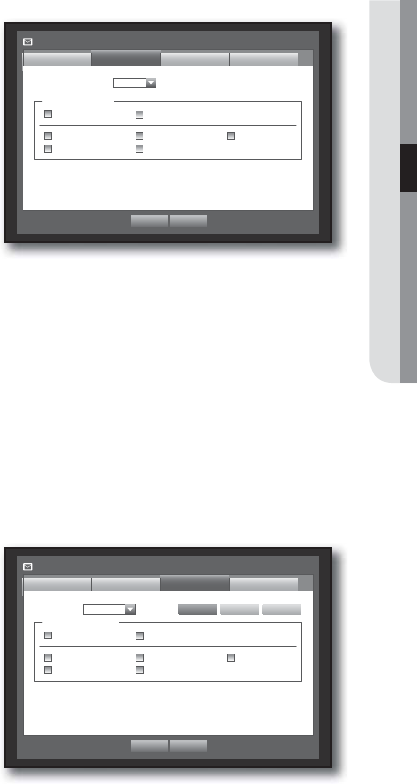

Event Setting
You can set the interval and type of the event that will be sent to the user.
Using the mouse may help make setup easier.
SDE-4003 and SDE-5003 Model don’t support the function of Sensor detection.
1. In the <Network> setting window, press the up/down
(
) button to move to <Mailing Service> and press the
[ENTER] button.
2. Select <Event>.
3. Use direction buttons (
◄ ►
) to move to a desired item
and set the value.
• Event Interval : Set the event interval.
If a series of events occurs, the e-mail will be sent at the specified
interval, not on each event.
• Use Event Transfer : Select an event type to send if an event
occurs.
If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.
4. When the event setting is done, press <OK>.
Group Setting
You can set the group to whom the e-mail is sent, and specify the permission for each group.
You can add recipients for each group in the <Recipient> menu item.
The recipient is set separately from the DVR user group.
Using the mouse may help make setup easier.
SDE-4003 and SDE-5003 Model don’t support the function of Sensor detection.
1. In the <Network> setting window, press the up/down
(
) button to move to <Mailing Service> and press the
[ENTER] button.
2. Select <Group>.
3. Use direction buttons (
◄ ►
) to move to a desired item
and set the value.
• Add : Select <Add> and use the virtual keyboard to add a
group.
Refer to “Using Virtual Keyboard”. (Page 50)
• Delete : Deletes the selected group.
• Rename : You can reset the recipient permission of an existing group.
• Recipient Permission : Set the permission of the recipient group.
4. When the group setting is done, press <OK>.
Mailing Service
Group
SMTP
OK Cancel
Recipient
Group
Recipient Permission
Sensor Motion
Change P/W HDD Info Video Loss
Power On/Off Manual Record
Event
Add Delete Rename
Mailing Service
SMTP
OK Cancel
Recipient
Event Interval 10 min
Use Event Transfer
Sensor Motion
Change P/W HDD Info Video Loss
Power On/Off Manual Record
Event Group
![](asset-58.png)
88_ main menu
main menu

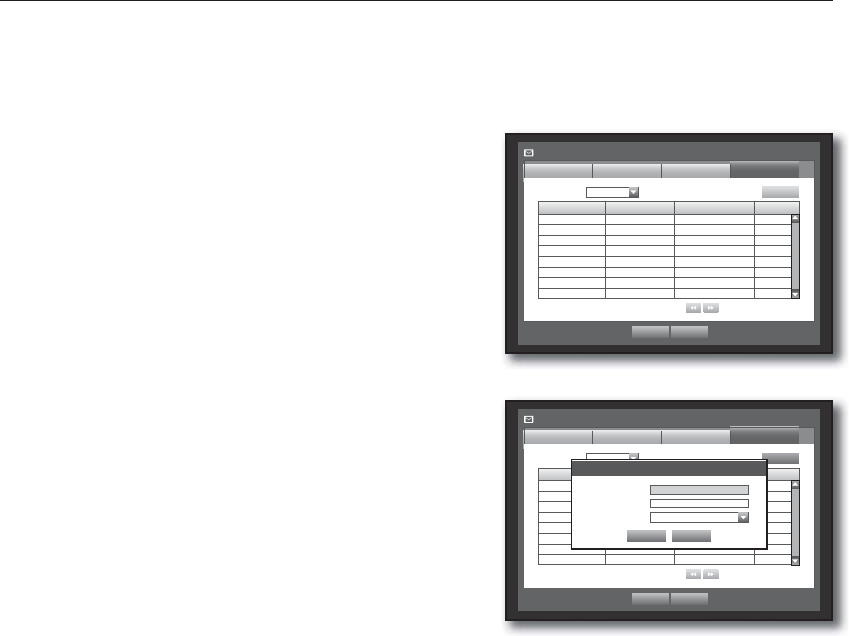

Recipient Setting
You can add/remove a recipient(s) to/from the specified group and edit the group if necessary.
Using the mouse may help make setup easier.
1. In the <Network> setting window, press the up/down
(
) button to move to <Mailing Service> and press the
[ENTER] button.
2. Select <Recipient>.
3. Use direction buttons (
◄ ►
) to move to a desired item
and set the value.
• Add : You can select a recipient name, e-mail address or
group.
You should have created a group in the <Group> menu
item before you can add a user to the group.
For inputting the recipient name and email address, refer to
“Using Virtual Keyboard”. (Page 50)
4. When the recipient setting is done, press <OK>.
Mailing Service
SMTP
OK Cancel
Event Group Recipient
Group Name e-Mail Address Del
Add
Group All Group
Previous/Next Page
Mailing Service
SMTP
OK Cancel
Event Group Recipient
Group Name e-Mail Address Del
Add
Group ABC
Previous/Next Page
Add recipient
OK Cancel
Name
Email
Select Group ABC
![](asset-59.png)
English _89
- SEARCH & PLAY
SEARCH
You can perform the search for recorded data by the time or by the search criteria such as an event.
You can access the <Search> menu directly in Live mode.
1. In Live mode, right-click any area of the screen.
The Live menu appears.
2. Select <Search>.
Or, press the [SEARCH] button on the remote control or
the front panel.
3. The Search menu appears.
4. The search can be restricted by the Auto Delete function.
Refer to “Setting the Recording > Record Option”.
(Page 69)
M
Overlapped data : It only appears if there exists overlapped
data on a certain time, produced due to the change of DVR’s
time setup. The latest data comes first, from <List0>.
It does not appear in <Backup Search>.
Time Search
You can search for recorded data of a desired time.
As the time to display may be different depending on the time zone and the DST standard time, the time of
data recorded in the same time can be displayed differently depending on time zone and DST settings.
Using the mouse may help make setup easier.
SDE-4003 and SDE-5003 Model don’t support the function of Sensor detection.
1. Select <Time Search> in the <Search> menu.
2. Select a date to search.
Refer to “Using the Calendar”. (Page 49)
3. The record data on the specific date will be listed.
The display bar is different according to the data type.
So check the data type for the color in the left pane.
4. Use direction buttons (
◄ ►
) to set the search criteria
and press the [ENTER] button.
• Go to First : Moves to the earliest date.
• Go to Last : Moves to the most recent date.
• Time : Enter a time to perform the search or use the up/down button <
>
> to select one.
search & play
2012-01-01 01:10:25
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
Time Search
2012-01-01
Play Return
2012/01/01 00:01:17
Standard Schedule
Motion Sensor
V.Loss Etc
Go to First Go to Last
Zoom In Zoom Out
All Data
CAM 01
CAM 02
CAM 03
CAM 04
CAM 05
CAM 06
CAM 07
Previous/Next Page
00:01
Overlapped Data List1
2012-01-01 01:10:25
Time Search
Event Search
Backup Search
Motion Search
Return
![](asset-5a.png)
90_ search & play
search & play

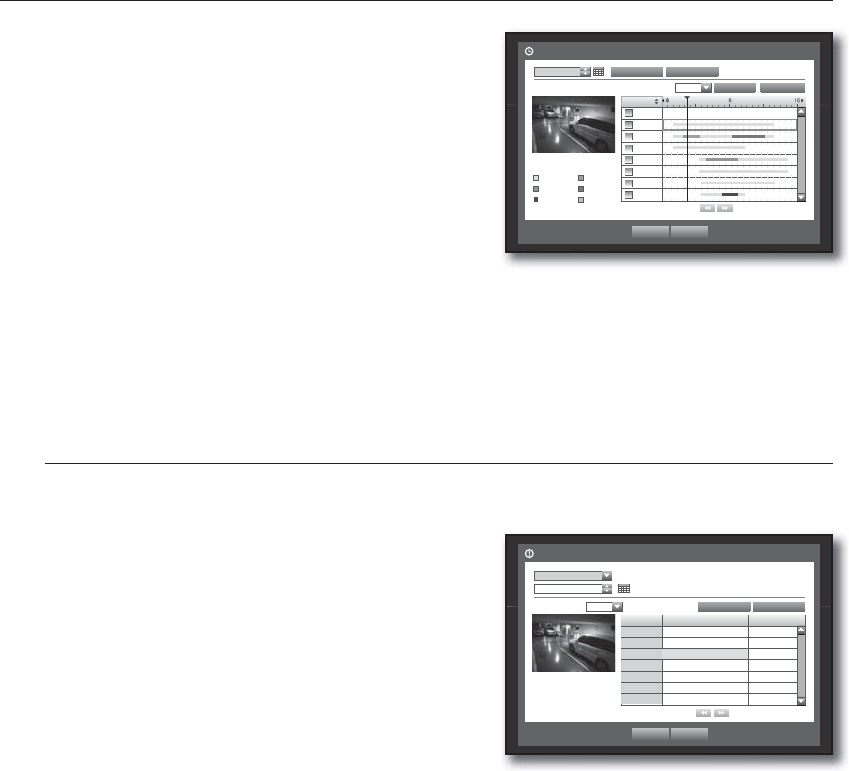

• Zoom In : The map enlarges in detail.
It will switch in the sequence of 24 hours - 16 hours - 8 hours
- 4 hours.
• Zoom Out : The map will switch in the reverse order of the
detailed mode above.
It will switch in the sequence of 4 hours - 8 hours - 16 hours
- 24 hours.
M
Double-click a desired time to zoom it in/out.
• Preview : Click <Channel> and select (click, drag) a time in
<Duration> to display a still image for the portion.
- If the selected channel does not contain any recorded data, it will be marked black.
5. Select a data item and click <Play>.
The screen switches to the data playback mode.
Event Search
You can search for events by the channel and play them.
Using the mouse may help make setup easier.
1. Select <Event Search> in the <Search> menu.
2. Use direction buttons (
◄ ►
) to set the search criteria
and press the [ENTER] button.
All record events on a specific date will be found. (Normal/
Schedule recording included)
• Date/Time Preview : If you select a data item in the list, the
still image of the selected data will be displayed in the left
preview pane.
• Event : Displays the type of the event that occurred.
3. Select a data item and click <Play>.
The screen switches to the event data playback mode.
Time Search
2012-01-01
Play Return
2012/01/01 00:01:17
Standard Schedule
Motion Sensor
V.Loss Etc
Go to First Go to Last
Zoom In Zoom Out
All Data
CAM 01
CAM 02
CAM 03
CAM 04
CAM 05
CAM 06
CAM 07
Previous/Next Page
00:01
Overlapped Data List1
Event Search
CAM 01
2012-01-01
Play Return
Previous/Next Page
2012/01/01 00:01:22
No. Date/Time Preview Event
3 02:47:54 ~ 02:48:59 Motion
2 00:39:06 ~ 00:40:30 Motion
1 00:01:22 ~ 00:02:28 Motion
Go to First Go to Last
Overlapped Data List1
![](asset-5b.png)
English _91
- SEARCH & PLAY
Backup Search
Searches for backup data in the connected backup device.
Only data in the format of DVR is included in the search.
Refer to <Type> in “Backup > Setting the Backup”. (Page 74)
Using the mouse may help make setup easier.
1. Select <Backup Search> in the <Search> menu.
2. Use direction buttons (
◄ ►
) to set the search criteria
and press the [ENTER] button.
• Record Period : Displays the record period.
• Channel info : Displays the recorded channel.
• Play Start Time : Select a time that you start playing.
3. Select a data item and click <Play>.
The screen switches to the backup data playback mode.
Motion Search
If a motion is detected in each channel, you can set a desired area to perform the search.
You can use the mouse to select the related items.
1. Select <Motion Search> in the <Search> menu.
2. Use direction buttons (
◄ ►
) to set the search criteria
and press the [ENTER] button.
If you set the motion area to <Manual Area>, the <Setup>
button will be activated.
• Motion Region : Select an area to perform the search.
- All Area : Searches for all areas of the selected channel.
- Current Area : Searches for the motion area for each
channel specified in “Motion Detection >
Setting the Motion Detection Area”. (Page 72)
- Manual Area : You can set the motion area manually.
• Setup : The Setup button will be activated only if you have
set the motion area to Manual. Press this button to display
the area setting window.
• Date/Time : The Date/Time will be automatically set by the
hour, and the end time will be automatically set to one hour
later than the start time if it is set.
• Preview : Select a data item in the list to display the still
image of the item.
3. Select a data item and click <Play>.
The screen switches to the motion data playback mode.
Backup Search
Play Return
No. Folder File Name
1 20120101 16190000
Previous/Next Page
File Name 16190000 Channel info 1
Record Period 2012-01-01 01:01:01 - 2012-01-01 01:01:10
Play Start Time 2012-01-01 01:01:01
USB:USB2FlashStorage
Motion Search
Date/Time 2012-01-01 03:41:18 2012-01-01 05:11:44
Play Return
No. Start Time
7 01:01:30
6 01:01:25
5 01:01:20
4 01:01:15
3 01:01:10
2 01:01:05
1 01:01:01
Previous/Next Page
Search
Channel CAM 01 Motion Region All Area Setup
2012/01/01 01:01:30
Go to First Go to LastOverlapped Data List1
Motion Region
OK Cancel
Apply to All CH
CH1
Individual
![](asset-5c.png)
92_ search & play
search & play

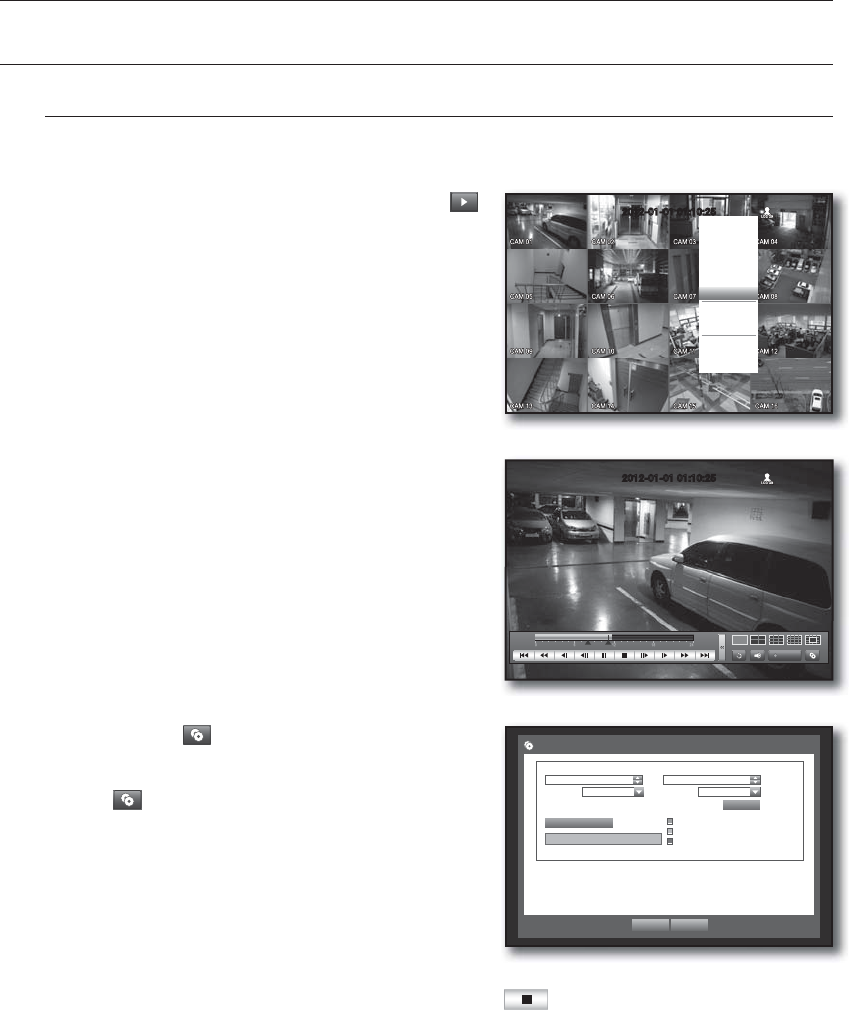

PLAYBACK
Play
You can play data stored in the HDD and backup a desired portion of the data.
Using the mouse may help make setup easier.
1. In Live mode, click <Play> in the right-click menu or < >
in the launcher menu, or press the Play button on the
remote control or the front panel.
2. Use the up/down button (
) to select a menu.
For data search, refer to <Search>. (Page 89)
3. Select a data item and click <Play> in the Search menu.
The selected data is played and the play launcher appears
on the screen.
If there is an existing data, <Play> will start immediately without
performing the search.
• Playback Information : Displays the date and time of the
current data in the top corner.
• Backup : Click < > to set the current time to the start
time of backup; you can specify a backup area using the
mouse (yellow triangle).
Click < > again to set the current time to the end time of
the backup and the “Backup Range” window appears.
- Type : Supports formats of DVR and SEC.
Refer to a list of formats in “Setting the Backup”.
(Page 74)
- Device : Select a backup device.
- Check Capacity : Enables you to check the capacity of
the selected storage device.
4. If you want to return to the Live screen in Play mode, click <
> in the launcher menu or press the
[
] button on the remote control or the front panel.
Backup
Used
Fre
Check capacity
OK Cancel
Backup Range
Start End
2012-01-01 00:01:06 2012-01-01 01:10:25
Device USB Storage Type DVR
Folder \20120101\
Filename 0001 Change
2012-01-01 01:10:25
REC
2012-01-01 01:10:25
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
![](asset-5d.png)
English _93
- SEARCH & PLAY

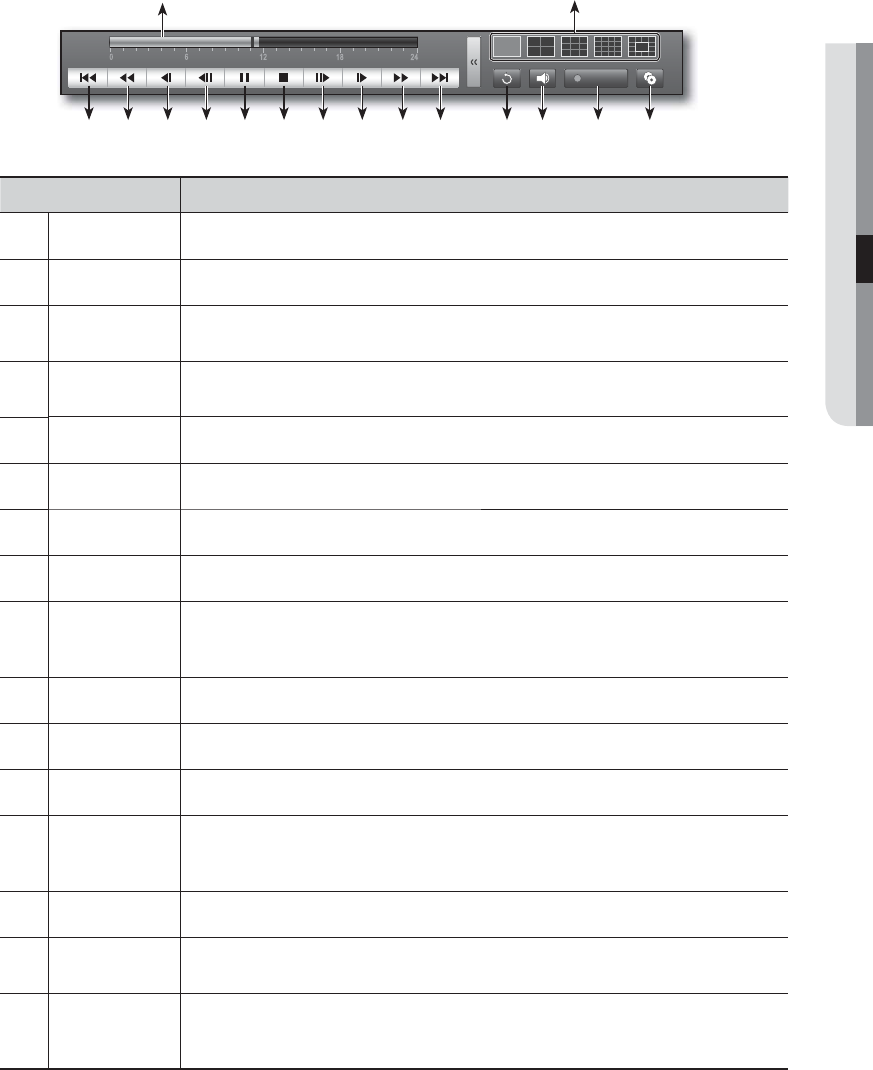

Using the Playback Button
Part Names Functions
Play Timeline Indicates the current playback point, and can be used to move.
bSkip Backward Moves backward by unit time.
cBackward Fast
Play Used for quick backward playback.
Backward Slow
Play Used for backward frame-by-frame search while in PAUSE.
Step Backward Moves backward by one frame at a time.
Pause Stops playing the current video temporarily.
Stop Stops playback and moves to the live screen.
Step Forward Moves forward by one frame at a time.
Forward Slow
Play
Play forward up to 4 channels simultaneously at a low speed.
In a split mode, the real time playback may not be supported, depending on the record quality,
resolution and number of channels. And some frame rates may be supported.
Forward Fast Play Used for quick forward playback.
Skip Forward Moves forward by unit time.
Return Return to the search setup screen.
mAudio
Sets Audio ON/OFF.
If using both web view and DVR set simultaneously, the audio signal will be output from the DVR
set.
nREC Records all channels in Live mode.
Partial Backup Begins backup of the selected section of the video being played, with the specified starting/ending
point.
Mode Switch
Click a desired playback mode or press [MODE] to switch the screen mode in sequence.
The gray area in the center of the 13-split mode plays the Live channel.
The default channel of the Live mode is CH1, which can be changed later.
REC
b c m n
![](asset-5e.png)
94_ Web Viewer
Web Viewer
INTRODUCING WEB VIEWER
What is Web Viewer?
Web Viewer allows remote access to your DVRs. You have
access to live video, archived video etc.
Product Features
• Remote access from a standard browser
• Supports 1, 4, 9, 16 camera viewing formats (maximum of
16 cameras in the list).
• Gets JPEG, BMP format images to print and save to “Print
or Save JPEG, BMP format images”.
• Record video in AVI format-compatible with popular media
players. (needed the H.264 codec)
System Requirements
The following lists the minimum suggested hardware and operating system requirements needed to run the
Web Viewer.
OS
Windows XP Professional
Windows 2000
Windows Vista Home Basic /Premium
Windows 7
Safari 5.1.1 or later version
Web Browser Internet Explorer 6.0.2900.2180 or later
CPU Intel Pentium 4, 2GHz
Memory 512 MB
Monitor High Color 16-bit 1024 x 768
HDD
50 MB(Installation space required)
* Additional HDD space required for recording.
Recorded file size will vary depending on recording quality settings.
J
Even for computers of higher performance than recommended, you may experience frame skipping with the Web
Viewer if the computer is overloaded showing more than 80% of CPU usage.
![](asset-5f.png)
- WEB VIEWER

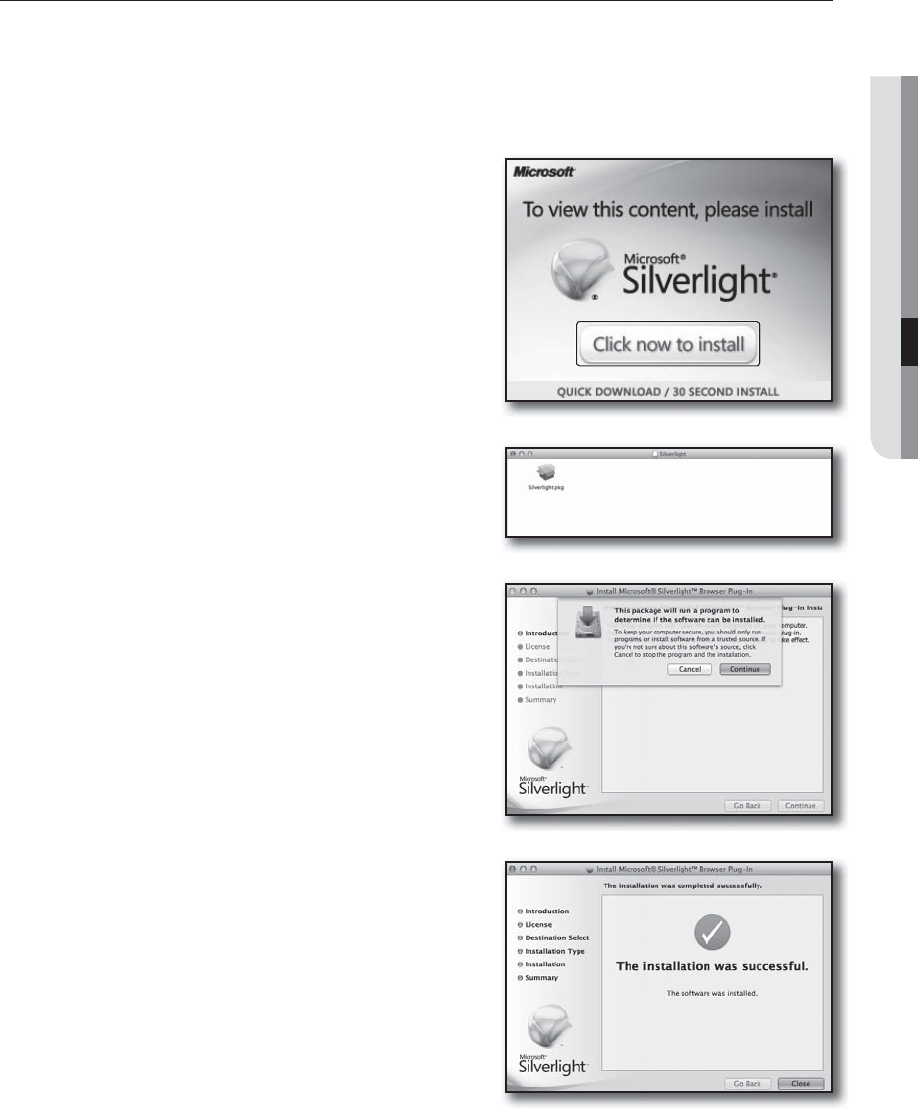

CONNECTING WEB VIEWER (MAC)
❖Safari on MAC.
If you want to use SDE-Series DVR Web Viewer with Safari Browser on a Mac, please refer to this user guide
and install Multi Viewer with firmware upgrade if necessary.
• Brower versions available: Safari 5.1.1 or later version
• Silverlight: 4.0.60831.0 or later
1. Click [Click now to Install] to display the installation
screen as shown.
2. Double-click the [Silverlight.pkg] icon to display the
Silverlight plug-in installation screen as shown.
3. Click [Continue] to start installing Silverlight plug-in.
When done, you will see the screen as below.
4. Click [Close] to exit from the Silverlight plug-in installation
screen.
English _95
![](asset-60.png)
96_ Web Viewer
Web Viewer
• If Microsoft Silverlight plug-in is already installed
1. Use a web browser to connect to the DVR.
2. If Silverlight plug-in is already installed, you will see the
screen as shown.
3. If this is the case, perform Step 3 [TCP port & Web
Viewer port settings] below.
4. If the screen above does not appear, check if the DVR set is connected properly with a valid IP address.

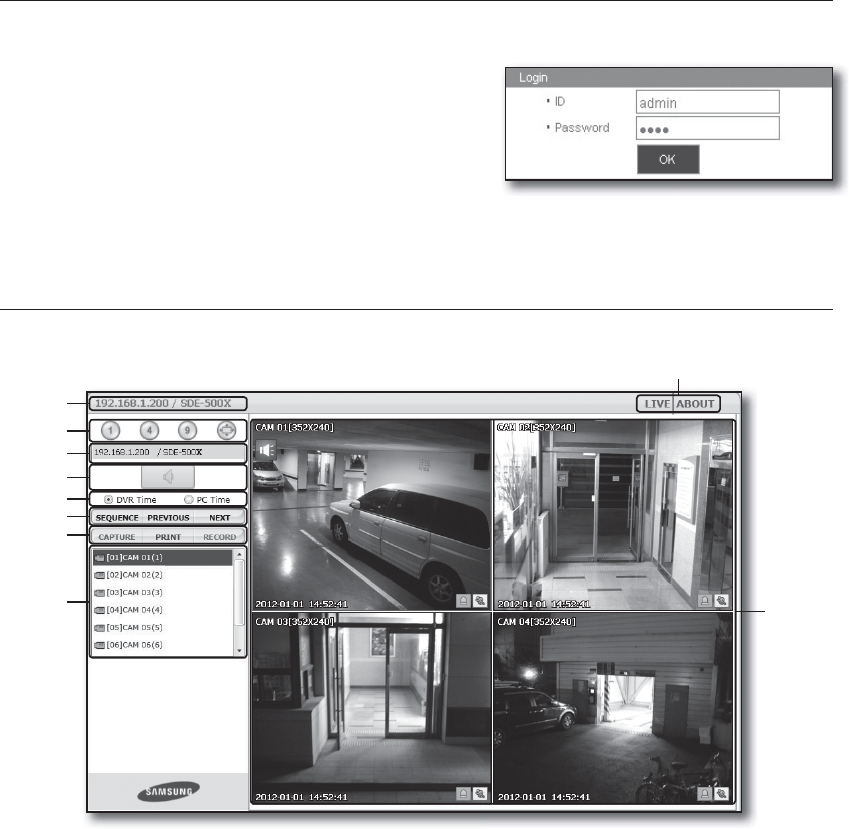

USING LIVE VIEWER (MAC)
The Live Viewer screen consists of following :
This displays the IP address and the model name of the connected DVR.
b These menus consist of <LIVE>, <ABOUT>.
c These buttons are used for the screen split and full screen mode. (Max. : 9CH)
Shows the IP address and model name of the connected DVR.
Select to turn the sound on/off.
Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.
These buttons are used for sequence and changing the screen channel.
These buttons are used for capture, print, and save the image.
When you can’t play the file recorded in web, install the H.264 CODEC
ex) MAC: perian_1.2.3.dmg (http://perian.org)
Shows the channel of the connected DVR.
This displays the screen for connected camera with DVR.
c
b
![](asset-61.png)
- WEB VIEWER

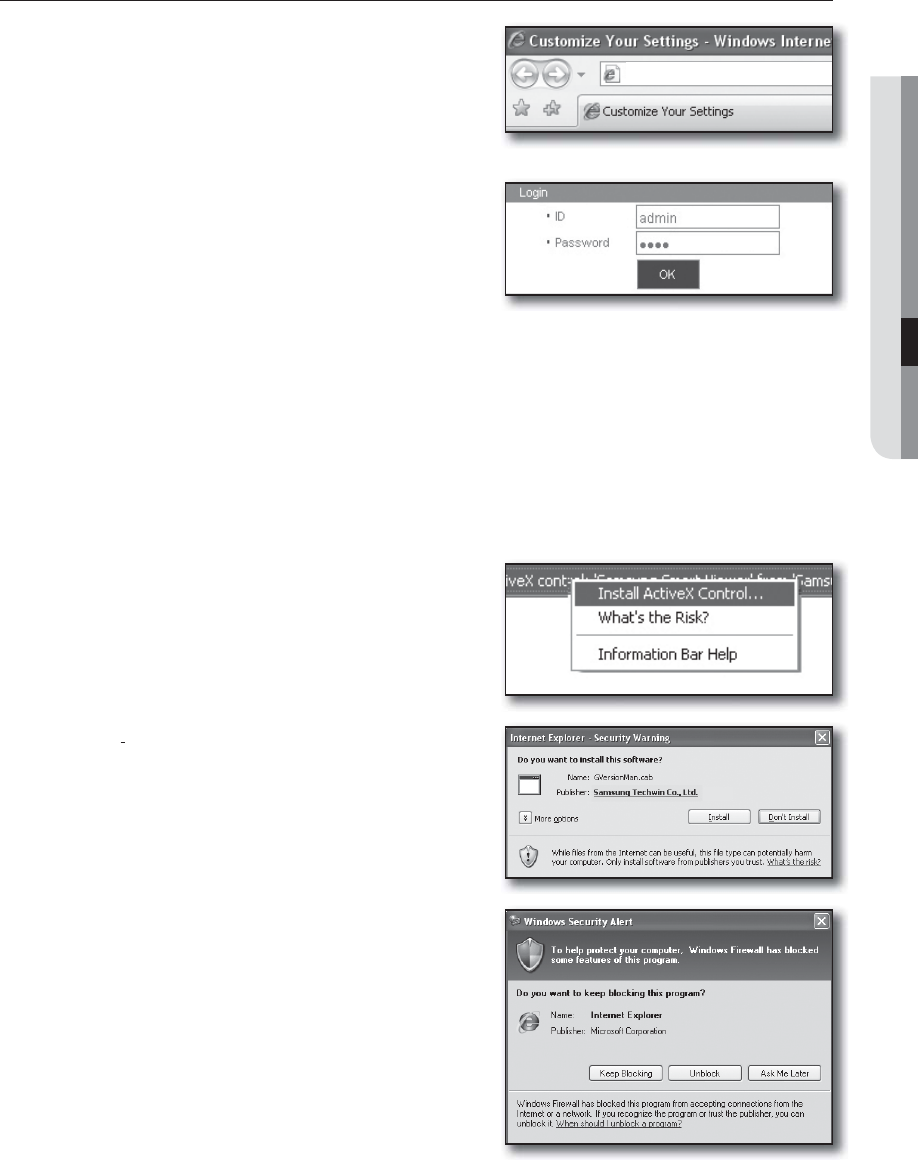

CONNECTING WEB VIEWER (WINDOWS)
1. Open your web browser and type the IP address or URL
of DVR into the URL address box.
M
The basic URL of the DVR is as following in case of MAC address :
http://www.samsungipolis.com/User ID
You can also use registered URL which setups up in the Setup
menu of your DVR.
2. Set the Admin ID and password same to those of the DVR
Admin.
For general users, enter the DVR user ID and password.
J
The default password can be exposed to a hacking thread so
it is recommended to change the password after installing the
product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
M
It allows up to 10 simultaneous access including the Admin and general users.
It does not allow multiple login of the Admin user.
Initial password of the Admin user is set to “4321”.
Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.
Normal users should have set <Viewer> under <Permission Management> to “Use” before connecting to the
Web Viewer. (Page 53)
All settings are applied by the DVR’s settings.
3. Click <Install ActiveX Control…>.
Downloading Active-X control may take several minutes
according to the security settings on your PC.
4. Click <Install>.
5. You may have “Windows Security Alert” that attempts to
block this with the Windows Firewall. In that case, click
<Unblock> to start Web Viewer.
6. Installation is complete.
Now you can see the main screen of Live Viewer.
English _97
http://www.samsungipolis.com/HOMEDVR
![](asset-62.png)
98_ Web Viewer
Web Viewer
USING LIVE VIEWER (WINDOWS)
The Live Viewer screen consists of following :
This displays the IP address and the model name of the connected DVR.
b These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.
c These buttons are used for the screen split and full screen mode.
Shows the IP address and model name of the connected DVR.
Select to turn the sound on/off.
Select the format of OSD information that will be displayed on Live Viewer.
Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.
These buttons are used for sequence and changing the screen channel.
These buttons are used for capture, print, and save the image.
Shows the channel of the connected DVR.
This displays the screen for connected camera with DVR.
M
The initial split-screen mode is set according to the number of channels connected to DVR.
You can change the split-screen mode by clicking buttons for split-screen modes.
c
b
![](asset-63.png)
- WEB VIEWER

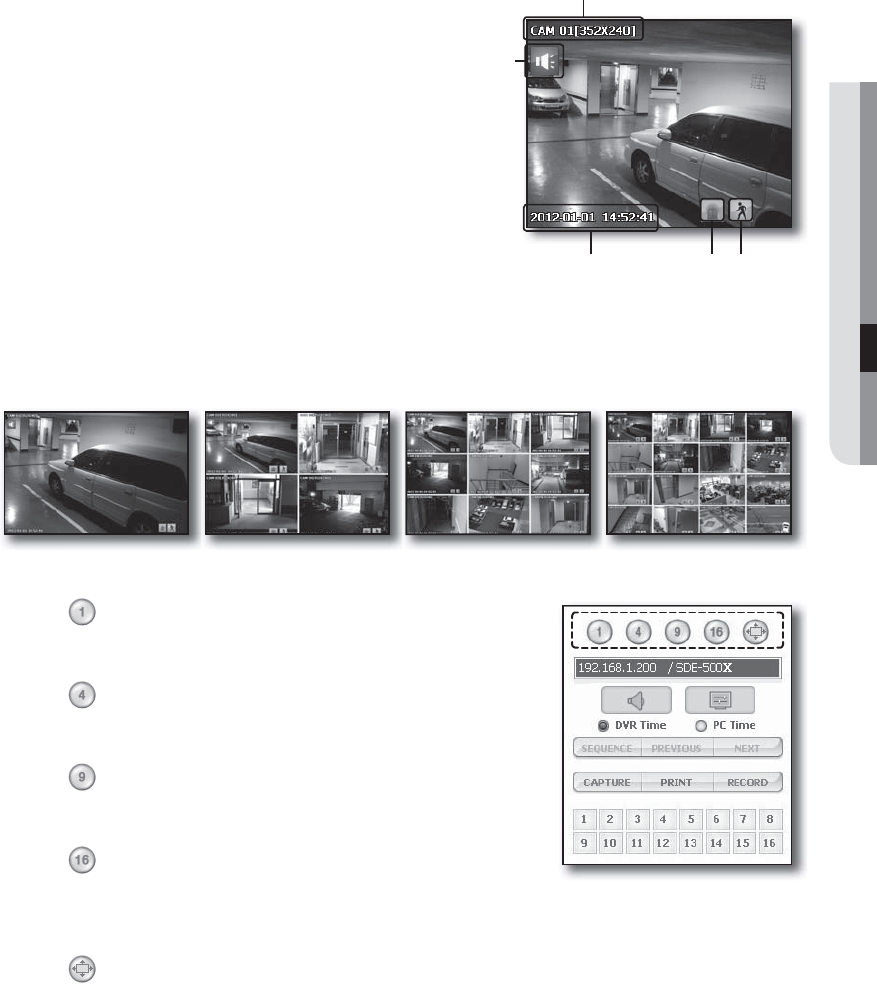

OSD Information Display
The channel number, video size, and IP address of the
connected DVR are displayed.
b This icon will appear if the audio signal is currently being
output.
c The current date and time will be displayed according to the
selected time information display setting <DVR Time> or
<PC Time>.
Alarm icon appears when alarm is issued.
It disappears when pressed the [ALARM] button of the DVR.
Motion icon appears when motion is detected.
It disappears when pressed the [ALARM] button of the DVR.
Split-Screen
You can change the split mode by clicking each number icon.
• Click < > button.
The screen displays the selected camera connected to the DVR in
“SINGLE MODE”.
• Click < > button.
The screen displays the selected camera connected to the DVR in
“QUAD MODE”.
• Click < > button.
The screen displays the selected camera connected to the DVR in
“NINE MODE”.
• Click < > button.
The screen displays the selected camera connected to the DVR in
“SIXTEEN MODE”.
SDE-400X doesn't support 16-split screen mode.
• Click < > button.
The screen displays the selected camera connected to the DVR in “FULL SCREEN MODE”.
Double clicking on the screen or pressing any button of the keyboard returns to the previous mode.
English _99
b
c
NINE MODE SIXTEEN MODE
SINGLE MODE QUAD MODE
![](asset-64.png)
100_ Web Viewer
Web Viewer

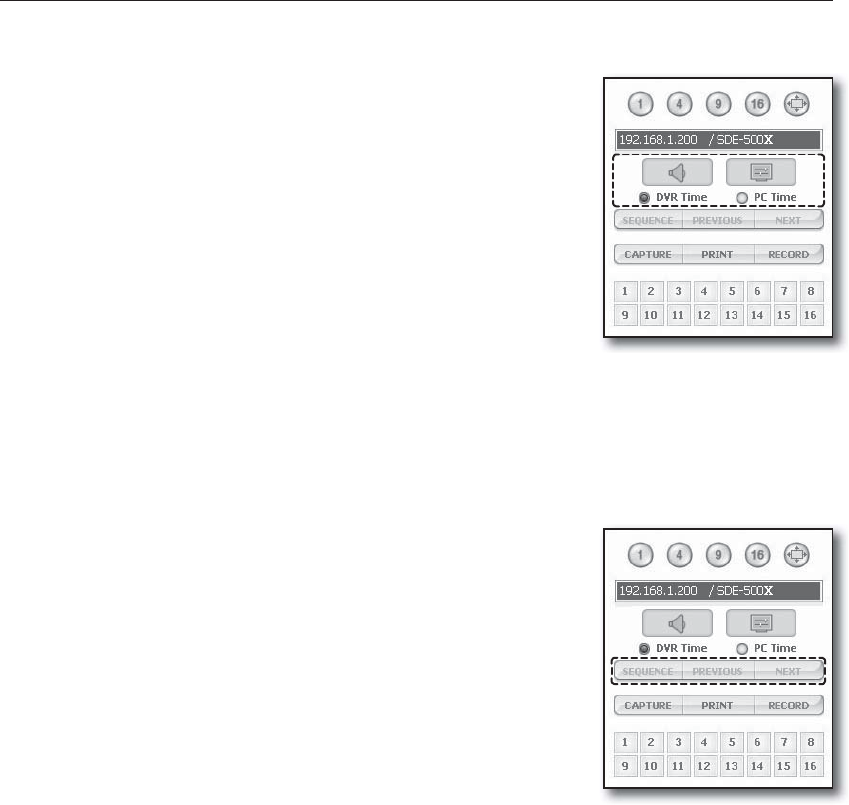

Connected DVR
This displays the IP address and the status of the connecting DVR.
M
Connection failure message
No Response : Appears when the DVR does not respond.
Access Denied : Appears when the maximum number of users is exceeded.
The number of simultaneous connections are limited to 10.
Setting the display of the OSD time information
Select <DVR Time> or <PC Time> for the OSD time information display
setting.
• DVR Time : Based on the time of the connected DVR
• PC Time : Based on the time of the PC currently running the Web Viewer.
• Audio : Sound On/Off
Changing The Live Screen Mode
16-split mode does not support “SEQUENCE”, “PREVIOUS” and “NEXT”.
• SEQUENCE : When this button is clicked, screens are switched at a
preset interval.
In SINGLE MODE, the channel numbers are sequentially switched from
1 to 16.
In QUAD MODE, the screens are changed like 1st 4 channels (1~4)
2nd 4 channels (5~8) 3rd 4 channels (9~12) 4th 4 channels
(13~16).
In NINE MODE, the screens are changed from 9 channels (1~9) to 7
channels (10~16).
Preset interval (10 seconds)
• PREVIOUS : When this button is clicked, the previous screen appears.
In SINGLE MODE, the channel numbers are switched in reverse order.
In QUAD MODE, the screens are changed like 1st 4 channels (1~4) 2nd 4 channels (13~16) 3rd 4
channels (9~12) 4th 4 channels (5~8). In NINE MODE, the screens are changed from 9 channels (1~9) to
7 channels (10~16).
![](asset-65.png)
- WEB VIEWER

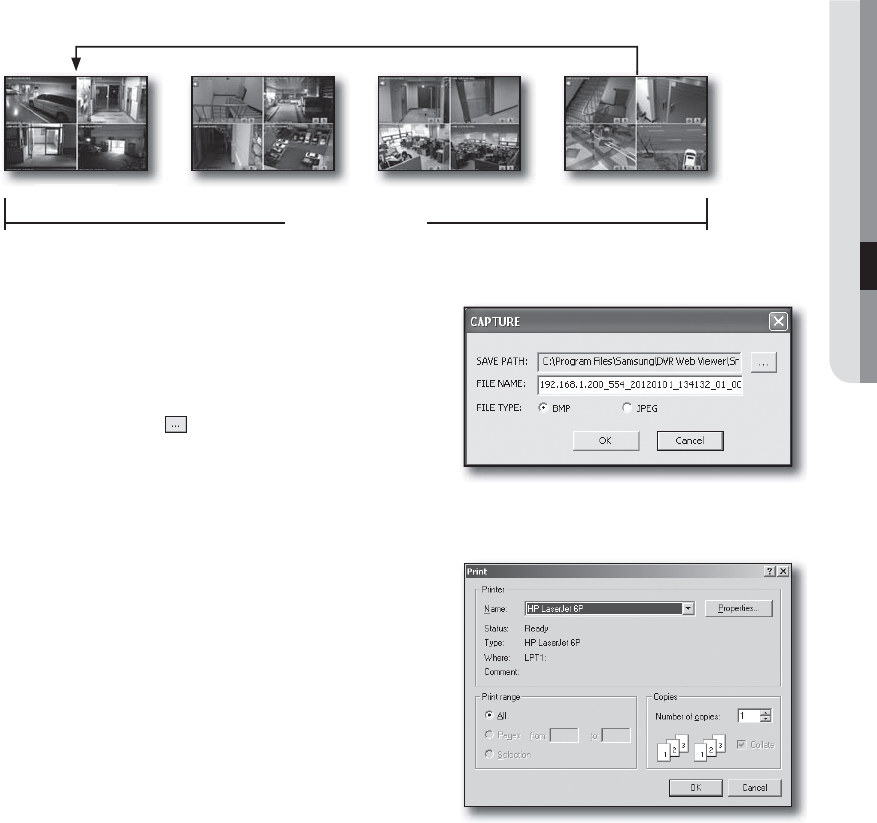

• NEXT : When this button is clicked, the next screen appears.
In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16.
In QUAD MODE, the screens are changed like 1st 4 channels (1~4) 2nd 4 channels (5~8)
3rd 4 channels (9~12) 4th 4 channels (13~16).
In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).
If 16-channel DVR is connected, clicking “NEXT” in QUAD MODE is to change the screen as shown in the picture.
Saving The Live Screen On The PC
• CAPTURE : Saves the current screen into a BMP or JPEG
file.
M
The default saving path is “C:\Program Files\Samsung\DVR
Web Viewer\SnapShot\Live”. To change the saving path, click
<SAVE PATH ( )> button and then select the path you
want. For Windows Vista, the saving path is “C:\users\(user
ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Snapshot\”
by default.
The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”
Ex) 192.168.1.200_554_20120101_134132_01_00
• PRINT : Prints out the selected screen out of the currently
displayed live screens. It also prints the IP address, time,
camera number and the current event status together.
English _101
(CH1 to CH4)
16-channel DVR
(C
H1
t
CH
4)
(CH5 to CH8) (CH9 to CH12) (CH13 to CH16)
![](asset-66.png)
102_ Web Viewer
Web Viewer

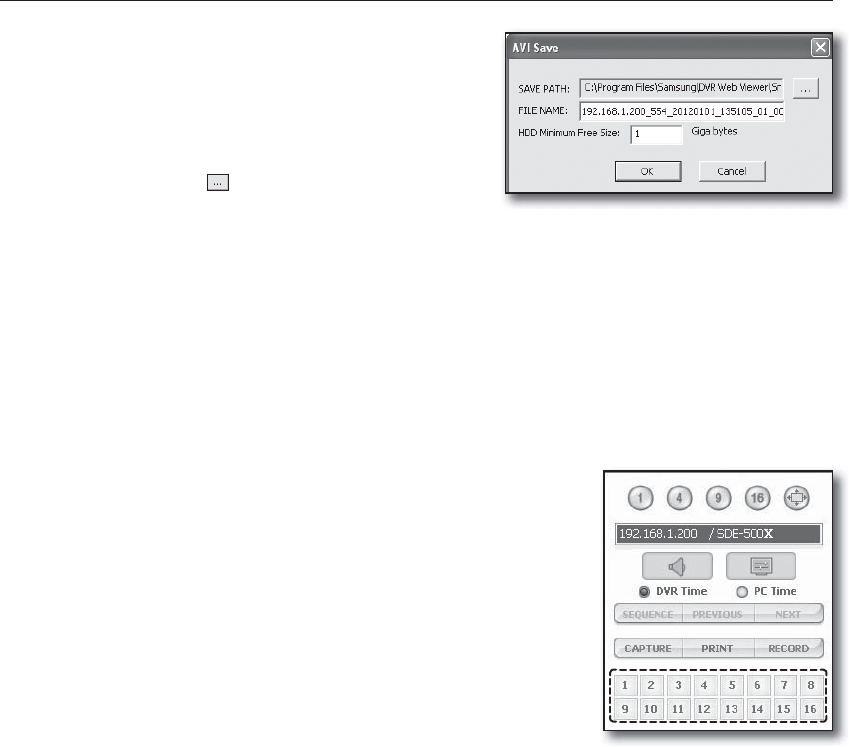

• RECORD : Saves the current image on the screen and
saves it as a avi video file.
M
To record it, it is required at least 1GB of available space.
The default saving path is “C:\Program Files\Samsung\DVR
Web Viewer\VideoClip\Live”. To change the saving path, click
<SAVE PATH ( )> button and then select the path you
want. For Windows Vista, the saving path is “C:\users\(user
ID)\AppData\Local-Low\Samsung\DVR Web Viewer\VideoClip\”.
The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”
Ex) 192.168.1.200_554_20120101_135105_01_00
For AVI Save, you need the Xvid codec for playing saved files.
HDD Minimum Free Size : During the recording, if there is no more capacity available in the HDD than set free space
will prompt with a popup message : “Cannot record due to insufficient disc space in the HDD”.
Changing The Live Screen Channel
• Blue numbers : The channel connected to the current live screen
• Gray numbers : The channel not connected to the current live screen
![](asset-67.png)
- WEB VIEWER

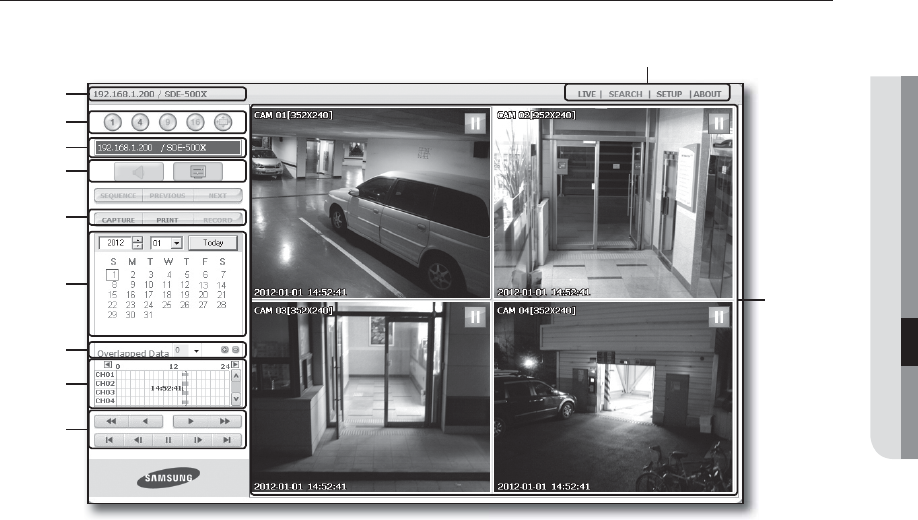

USING SEARCH VIEWER
The Search Viewer screen consists of following :
This displays the IP address and the model name of the connected DVR.
b These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.
c These buttons are used for the screen split and full screen mode.
Shows the IP address and model name of the connected DVR.
Select the format of OSD information that will be displayed on Live Viewer.
These buttons are used for capture, print, and save the image.
This displays a calendar at which you can search the recorded video.
The duplicate check list will appear If there are found duplicates in the same timeline.
The duplicated items will be listed in latest-first order.
This displays a timeline at which you can search the recorded video by the time.
These buttons are used for controlling playback.
This displays the screen for playback of recorded video.
M
<SEQUENCE>, <PREVIOUS>, <NEXT> buttons are not available in SEARCH menu.
During the DVR backup, you may have a trouble accessing CMS & Web Search.
Web Viewer on only Internet Explorer can support “Search” function.
English _103
c
b
![](asset-68.png)
104_ Web Viewer
Web Viewer

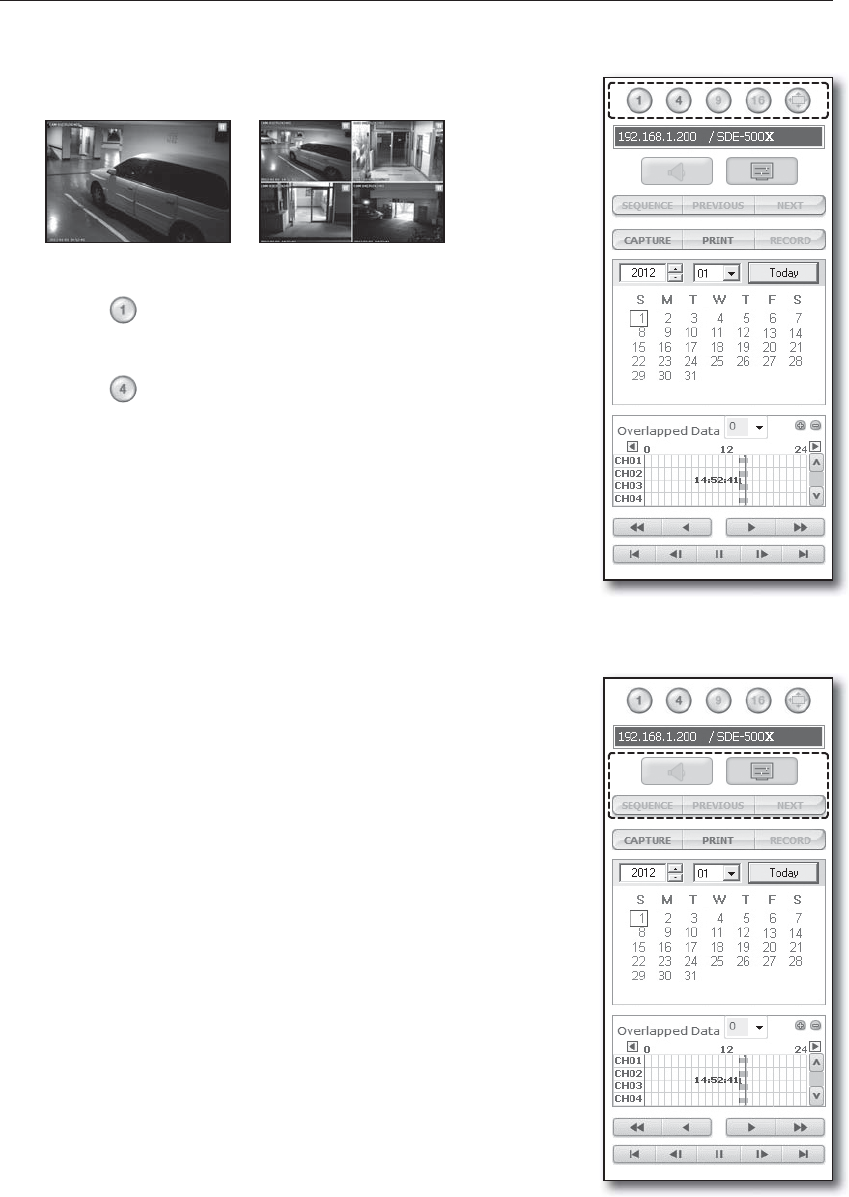

Split-Screen
You can change the split mode by clicking each number icon.
• Click < > button.
The screen displays the selected camera connected to the DVR in
“SINGLE MODE”.
• Click < > button.
The screen displays the selected camera connected to the DVR in
“QUAD MODE”.
M
Only SINGLE and QUAD MODE are available in SEARCH menu.
Connected DVR
This displays the IP address and the status of the connecting DVR.
M
Connection failure message
No Response : Appears when the DVR does not respond.
Access Denied : Appears when the maximum number of users is exceeded.
The number of simultaneous connection is limited to 3.
SINGLE MODE QUAD MODE
![](asset-69.png)
- WEB VIEWER

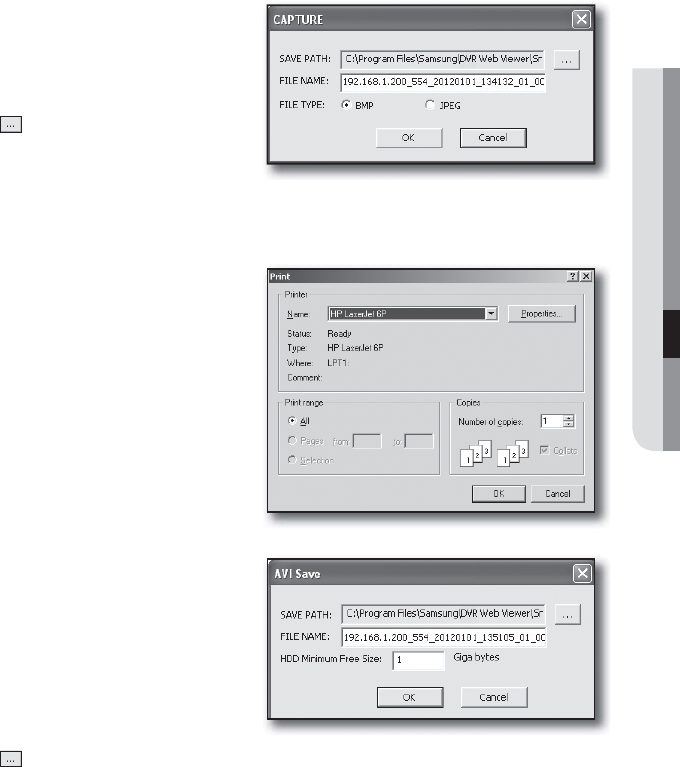

Saving The Live Screen On The PC
• CAPTURE : Saves the current screen into a BMP or JPEG
file.
M
The default saving path is “C:\Program Files\Samsung\DVR
Web Viewer\SnapShot\Search”. To change the saving path,
click <SAVE PATH ( )> button and then select the path
you want. For Windows Vista, the saving path is “C:\users\
(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\
Snapshot\”.
The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”
Ex) 192.168.1.200_554_20120101_134132_01_00
• PRINT : Print out the current screen. It also prints IP
address, time, camera number and current event state.
• RECORD : While in playback, press this button saves the
video data of the selected channel as an AVI file. (It is saved
in the designated folder on your PC.)
To stop recording, click this button again.
M
To record it, it is required at least 1GB of available space.
The default saving path is “C:\Program Files\Samsung\DVR
Web Viewer\VideoClip\Search”. To change the saving path,
click <SAVE PATH ( )> button and then select the path you want. For Windows Vista, the saving path is
“C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\VideoClip\”.
The file is automatically named as following : “IP address_Port number_YYYYMMDD_camera number_index”
Ex) 192.168.1.200_554_20120101_135105_01_00
For AVI save, you need the Xvid codec for playing saved files.
English _105
![](asset-6a.png)
106_ Web Viewer
Web Viewer

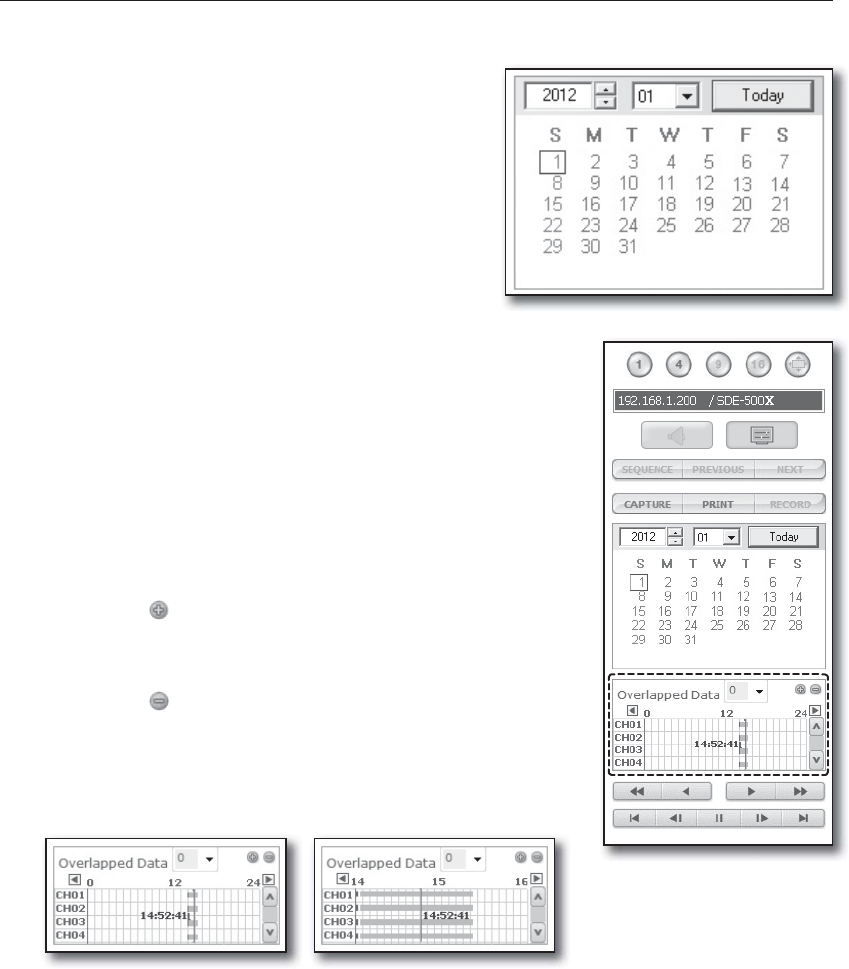

Searching The Recorded Video In The Calendar
If the video data has been recorded on a date, the date is
distinguished in green. If you click the date, the recorded video
information is displayed in the time line. When you click
<Today>, it will be synchronized with the system time (date) of
the current PC.
Check duplicates
If there are found duplicates in the same timeline after you changed the DVR
time, those duplicates will be listed in the <0> order with the latest one on top.
Searching The Recorded Video In The Timeline
It displays the recorded video data status on the DVR after a date is
selected. The normal mode displays the time ranging from 0 to 24 Hours
while the extension mode displays the time every 2 hours.
[Normal Mode]
• If you click < > button, it changes to the extension mode.
• Each time line represents 1 hour.
[Extension Mode]
• If you click < > button, it changes to the normal mode.
• Each time line represents 5 minutes.
M
For SDE-500X, channels are ranging from CH01 to CH16.
For SDE-400X, channels are ranging from CH01 to CH08.
![](asset-6b.png)
- WEB VIEWER

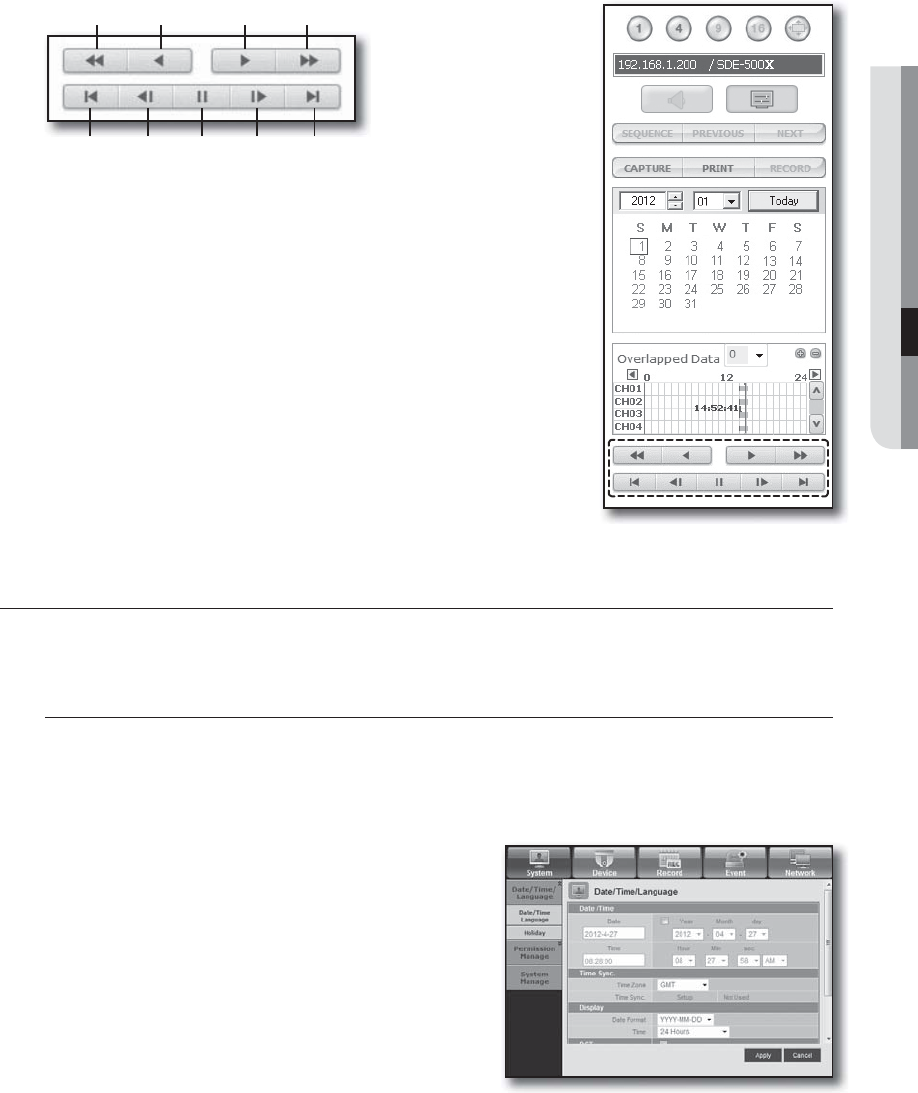

Controlling Playback
Fast Backward : Reverse-plays faster(2x~64x).
b Reverse Play : Performs Reverse Play.
c Play : Performs playback.
Fast Forward : Plays faster(2x~64x).
Go to First :
Moves the beginning time of recorded video in the time line.
Step Backward : Performs one step reverseplay by one frame.
Pause : Stops the playback temporarily.
Step Forward : Performs one step forward by one frame.
Go to Last : Moves the last time of recorded video in the time line.
M
Only the admin account can play the audio signal during the playback.
If using both web view and DVR set simultaneously, the audio signal will be
output from the DVR set.
VIEWER SETUP
You can configure the DVR settings remotely on the network.
To configure the DVR settings, click <Setup>.
System
You can configure the various settings of the DVR system.
Date/Time/Language
For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 47)
1. Select <Date/Time/Language> in the System menu.
2. Configure the DVR settings according to your system
environment.
• Date/Time
Set the date and time.
English _107
b c
![](asset-6c.png)
108_ Web Viewer
Web Viewer
• Time Synchronization Setup
Set the time synchronization.
• Display
Date Format : Set the date type.
Time : Select a time format to display on the screen.
• DST (Daylight Saving Time)
DST is displayed an hour ahead of the standard time of the
time zone.
• Language
Select a preferred language for the DVR.
Holiday
You can set specific dates to Holidays according to your
preferences.
For more information, refer to <Setting Holiday> in the
<System Setup> menu. (Page 49)
Permission Management
For more information, refer to <Permission Management> in the <System Setup> menu. (Page 50)
• Admin
You can change the admin ID or the password.
![](asset-6d.png)
- WEB VIEWER
• Group
Users are classified into groups and the permission can be
set according to the group.
First of all, add a group.
• User
You can add, change or remove a user or users.
• Setup
You can set the user permission.
System Management
For more information, refer to <System Management> in the <System Setup> menu. (Page 55)
• System Information
You can see information of the current system.
Check the Software Version, Broadcast Format and
MAC Address.
English _109
![](asset-6e.png)
110_ Web Viewer
Web Viewer
Device
You can check a list of devices that are connected to the DVR and configure the necessary settings.
Click <Device> in the menu screen.
For more information, refer to “Setting the Device”. (Page 59)
Camera
• Camera
You can configure the settings of the camera that is
connected to the DVR.
• Privacy Region
You can specify a certain area of the camera video to be
protected for your privacy.
The <Privacy Region> is supported by SDE-4003/5003 only.
![](asset-6f.png)
- WEB VIEWER

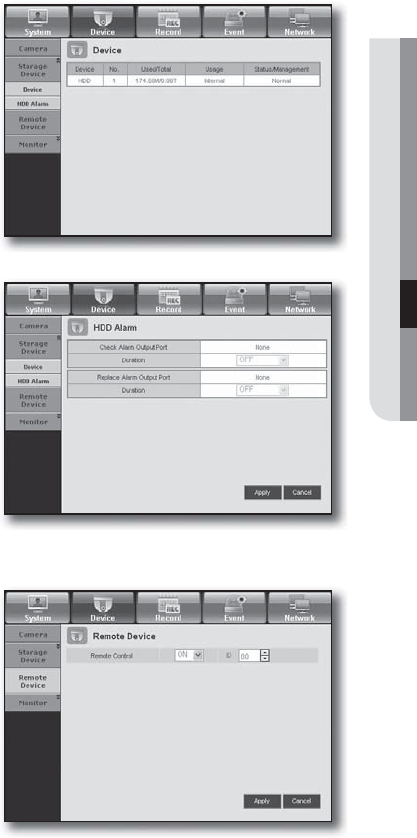

Storage Device
You can check and change the settings of the storage device.
• Device
You will see a list of storage devices that are connected to the
DVR.
You can check the type, used/total, usage and status of the
device.
• HDD Alarm
You can set the alarm output channel and the alarm duration
for an error.
Remote Device
Specify the use of remote control and the remote control ID so
that you can synchronize with the DVR.
English _111
![](asset-70.png)
112_ Web Viewer
Web Viewer
Monitor
• Monitor
You can configure the monitoring screen settings and set the
output system.
• Spot Out
With the monitor connected via the SPOT port, if there occurs
an event such as Sensor, Motion, or Alarm, you can select a
video output mode for external monitoring.
• Mode
You can switch between live mode and play mode.
![](asset-71.png)
- WEB VIEWER
Record
For more information, refer to “Setting the Recording”. (Page 66)
Recording Schedule
If you set a recording schedule for a specific date and time,
the recording will start at that specific time.
- Apply to All CH : Click <Apply to All CH> to display the
confirmation window.
Event Record Duration
You can set the start and end times of recording that will be
activated if an event occurs.
English _113
![](asset-72.png)
114_ Web Viewer
Web Viewer

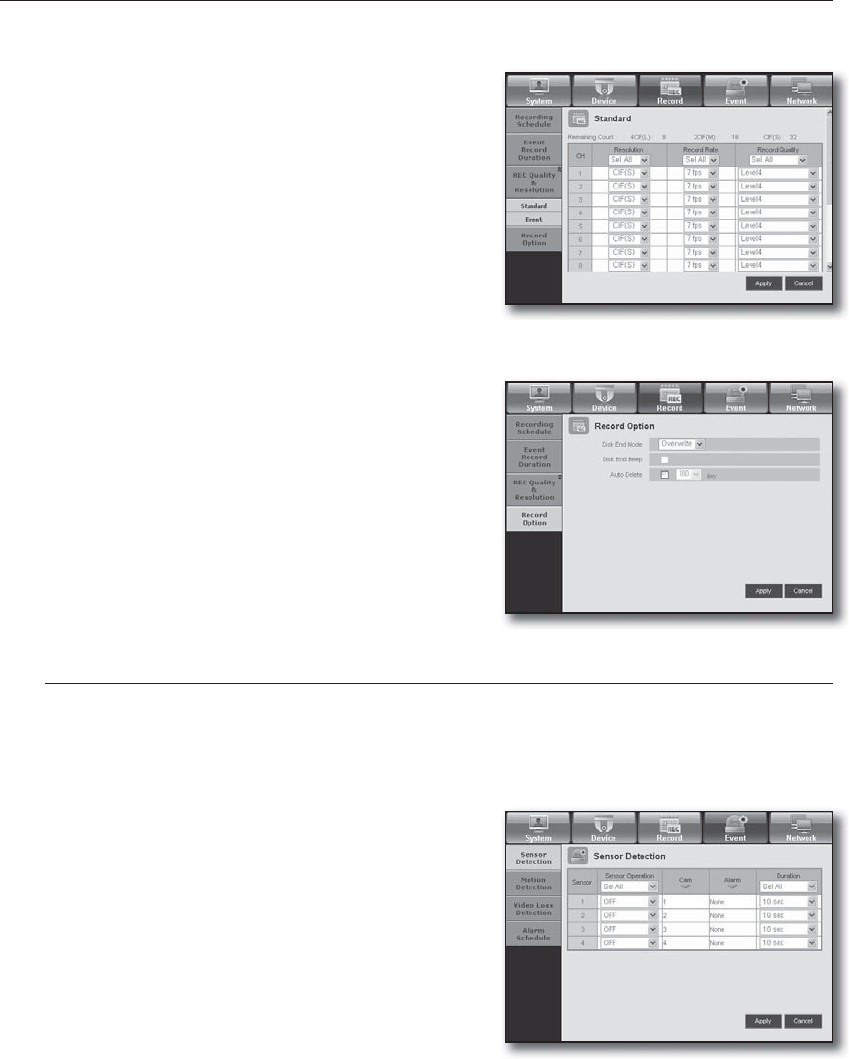

REC Quality & Resolution
• Standard/Event
You can set the resolution, frame rate and recording quality for
each channel.
Record Option
You can set the Disk End Mode.
Event
For more information, refer to “Setting the Event”. (Page 70)
Setting the <Sensor Detection> is not supported by SDE-4003/5003.
Sensor Detection
You can set the sensor operation mode and the synchronized
camera as well as the alarm output type and the duration.
![](asset-73.png)
- WEB VIEWER

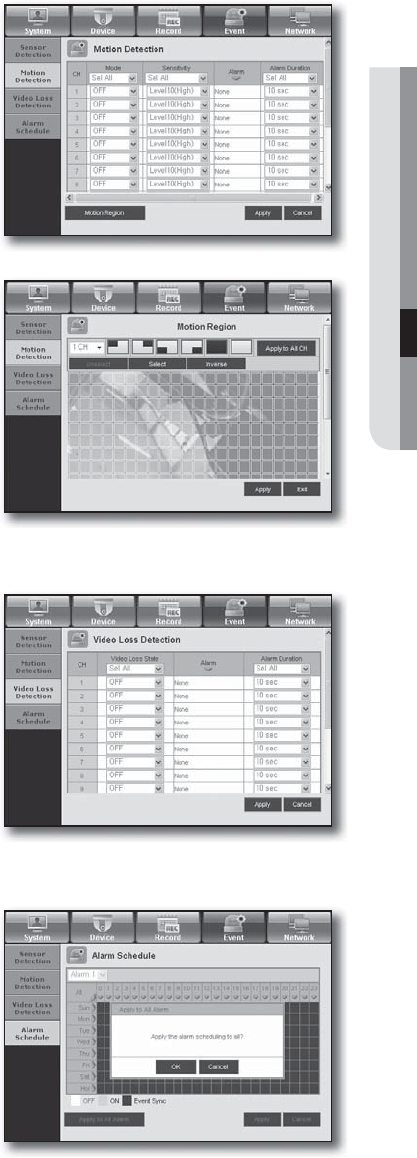

Motion Detection
You can set the motion detection mode and the sensitivity as
well as the alarm output type and the duration.
• Motion Region
Set the target motion detection area
Video Loss Detection
You can set the alarm output time if a video loss occurs.
Alarm Schedule
You can schedule the alarm output according to the day of
the week and the time.
The default setting is Event Sync, which activates the alarm
only if an event occurs.
It is not supported by SDE-4003/5003.
English _115
![](asset-74.png)
116_ Web Viewer
Web Viewer
Network
For more information, refer to “Network Configuration”. (Page 75)

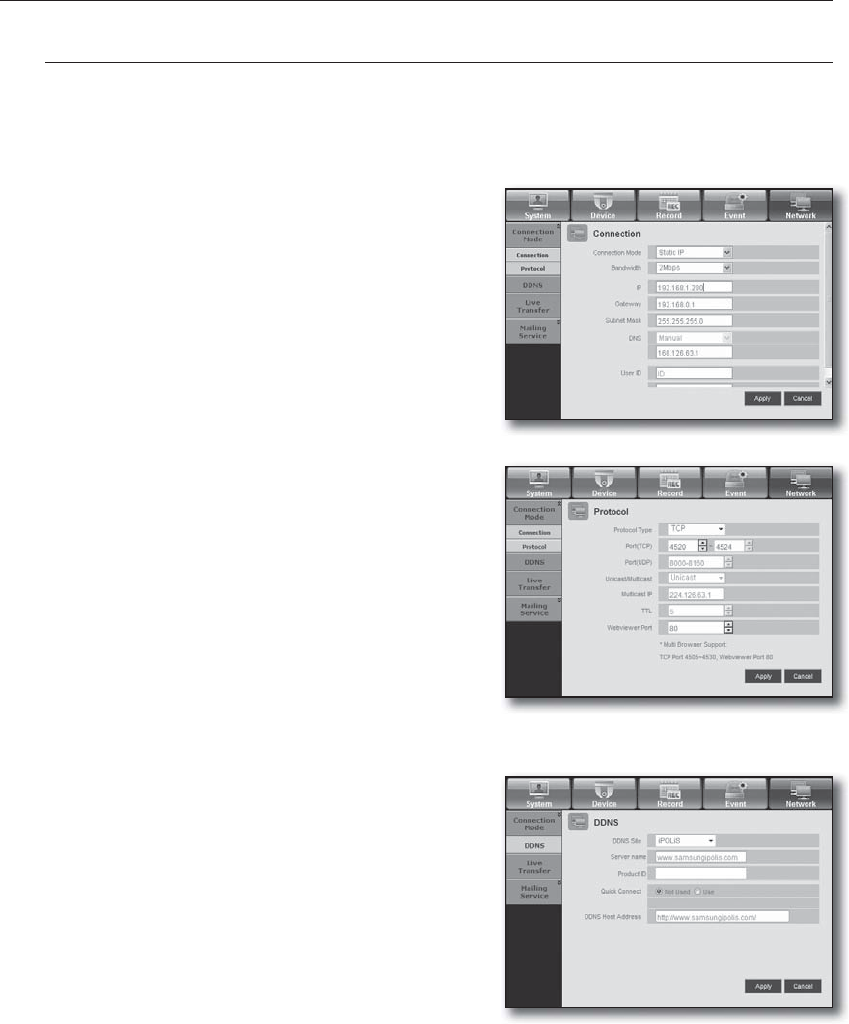

Connection
A remote user can access the DVR via the network to check the current mode and the IP address.
• Connection
You can set the network connection route.
• Protocol
You can configure the protocol related settings.
DDNS
You can check the DDNS settings.
If you select <iPOLiS>, the “DDNS Host Address” item will be
displayed.
![](asset-75.png)
- WEB VIEWER

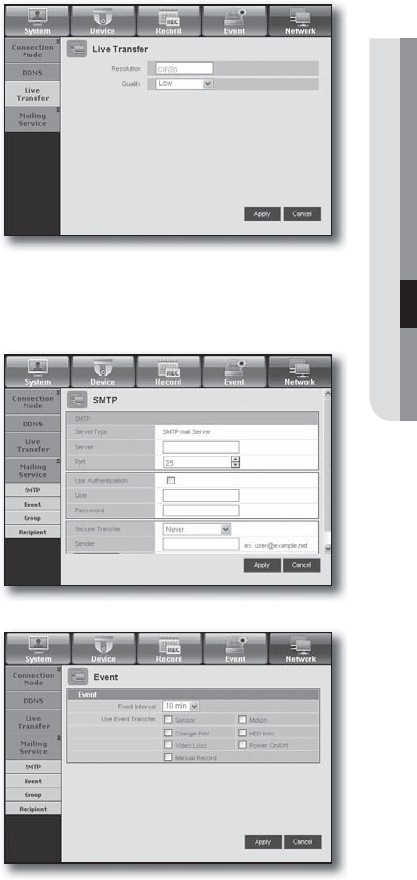

Live Transfer
A remote user can set the images of the DVR.
• Live Transfer
A remote user can set the image resolution of the transferred
data.
Mailing Service
You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users.
• SMTP
You can set the server that sends mails and specify if you use
the authentication process.
• Event
You can set the event interval and specify which events the
server sends mails for.
SDE-4003 and SDE-5003 Model don’t support the function of
Sensor detection.
English _117
![](asset-76.png)
118_ Web Viewer
Web Viewer

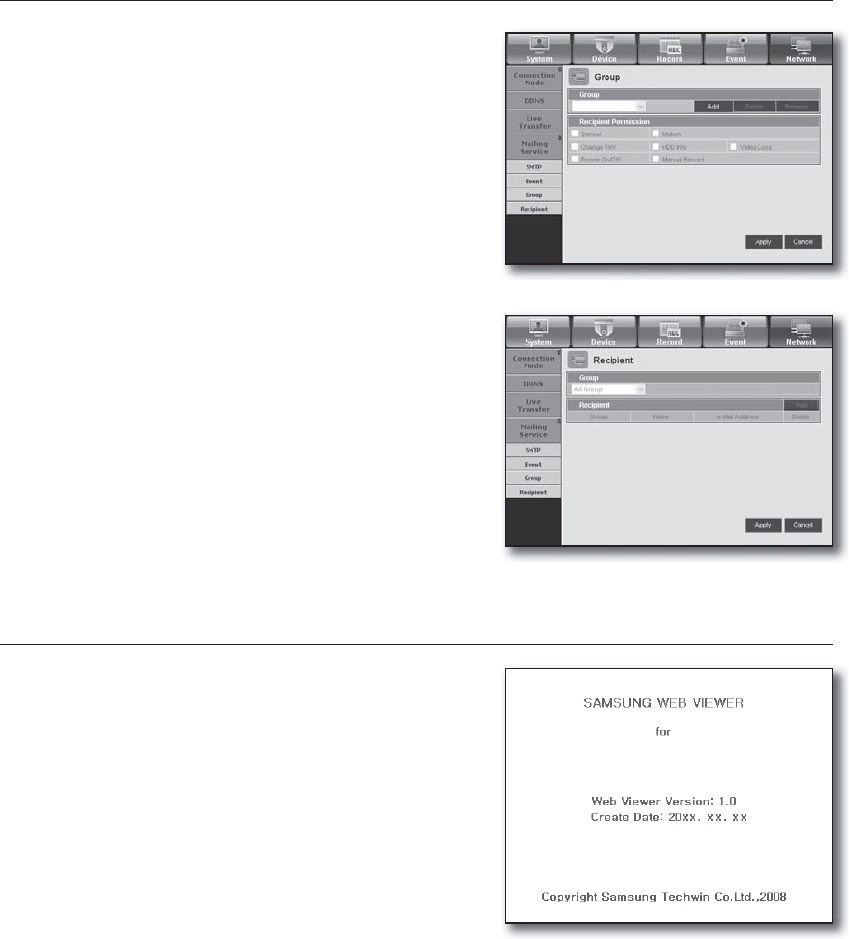

• Group
You can add a group to receive the mail if an event occurs
and set the permission to receive the event mail for each
group.
SDE-4003 and SDE-5003 Model don’t support the function of
Sensor detection.
• Recipient
You can add a user or users who will receive the mail.
ABOUT
Click <ABOUT>.
Displays the model name of connected DVR and the version
of Web Viewer.
SDE-500X
![](asset-77.png)
- WEB VIEWER

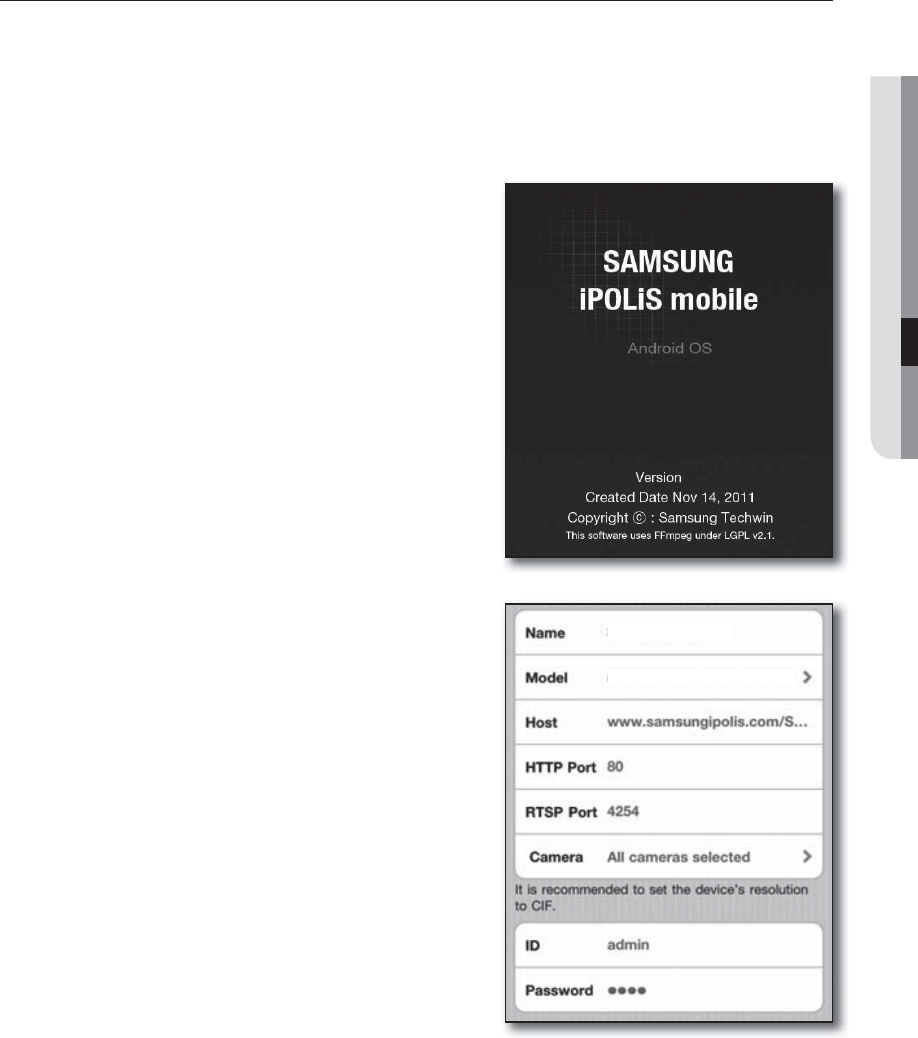

MOBILE VIEWER
What is Mobile Viewer?
iPOLIS mobile is smartphone application that enables you to connect to DVR (Digital Video Recorder)
remotely and control the video playback and PTZ operations (if configured) in real time.
Using a Smartphone
1. Download iPOLiS mobile to your Smartphone.
iPhone : App Store, Android: Android Market
2. From the start screen of iPOLiS mobile, tap <Device List>.
The Add Device screen appears.
3. Register the DVR to the iPOLiS mobile.
Key Features
• Remote access via Smartphone
• 1-split and 4-split modes supported in Live Viewer
(However, search is not available).
• Switch channels using the touch-sensitive LCD panel
• Up to 4 channels supported
• Audio (wifi : O, 3G : X)
Compatible Smartphone
This application is optimized for
• iPhone OS v4.3.5
• Android v2.2/2.3 (Galaxy S/S2 recommended)
M
Refer to your DVR Setting for HTTP and RTSP Port Setting.
Mobile Viewer uses the last value of the RTSP port numbers
you registered in your DVR.
Ex) HTTP: 80, RTSP 4250-4254
For more information refer to “Setting the Protocol”. (Page 76)
English _119
1.X
SDE-5001 DVR
(DVR) SDE 5 scries (16CH)
<The picture is taken from iPhone>
![](asset-78.png)
120_ backup viewer
backup viewer

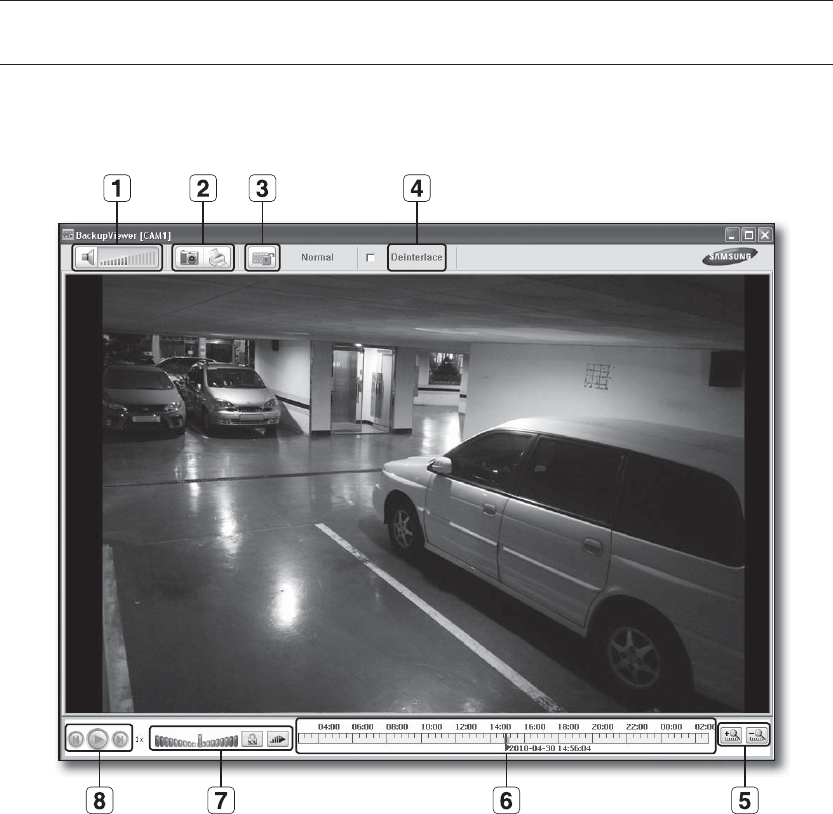

SEC BACKUP VIEWER
You can play a file that is backed up in the format of SEC.
Backup in the format of SEC will involve in generating two files: one for the backup data and one for the viewer.
If you run the backup file viewer, the backup data file will be automatically played.
Recommended System Requirements
PCs with a lower specification than the recommended below may not fully support forward/backward and
high-speed playback.
• OS : Windows XP professional, Windows Vista, Windows 7 (It is not supported by MAC OS.)
• CPU : Intel Core2-Duo 2.4GHz or higher
• RAM : DDR PC-3200 1G or more
• VGA : Geforce 6200 or higher
backup viewer
![](asset-79.png)
- BACKUP VIEWER

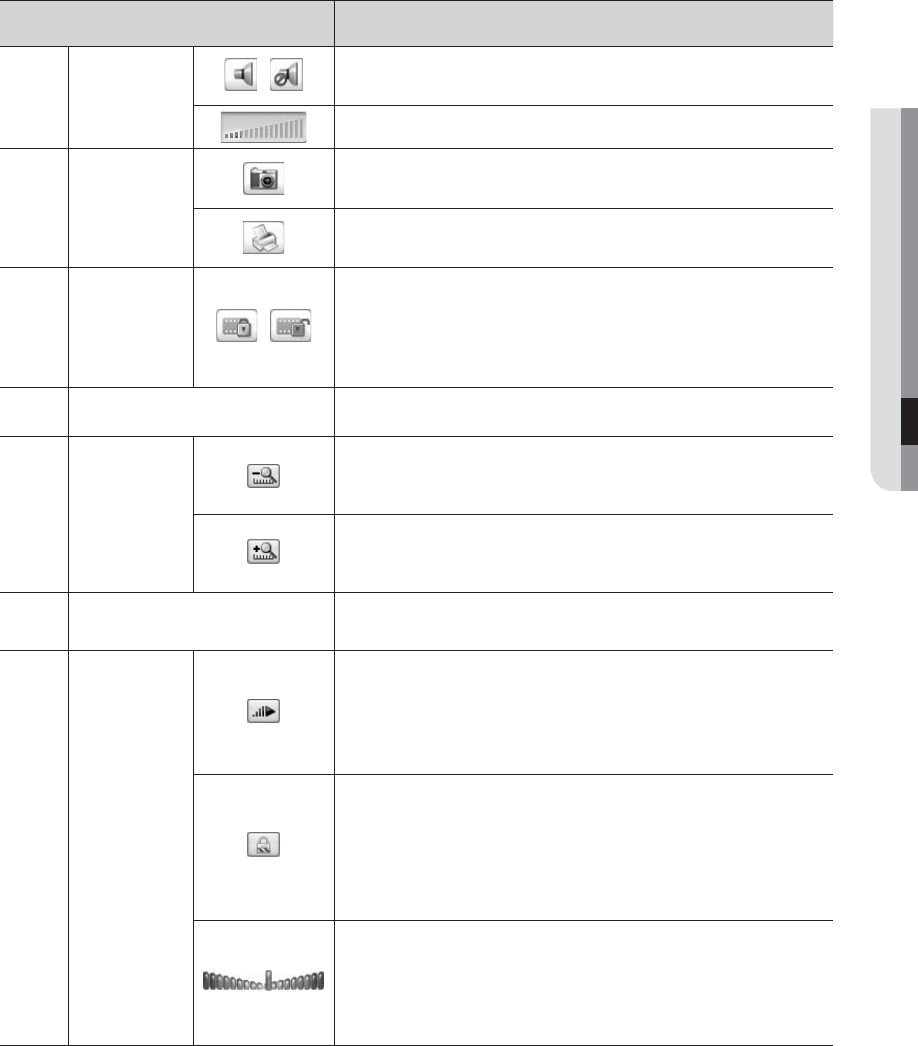

Name Description
Audio
/ A toggle button. Each time you press this button, the audio output will toggle
between activated and deactivated.
You can adjust the volume level from 0 to 100.
b
Screen Printout
Saves the current screen as an image file. Supported file formats include
BMP and JPEG.
Prints out the current screen. You should have installed the appropriate printer
driver before you can print out the screen.
c
File Tamper
Detection /
A toggle button. Each time you press this button, it will toggle between
activated and deactivated. The closed lock icon indicates activation of the file
tamper detection, which will blink the screen three times and stop playing if
an unauthorized manipulation of a data file is detected.
A message of "The file is forged” will display in the menu bar.
Deinterlace You can enable the De-interlace function.
Zoom In/Out
Collapses the time range that is displayed on the range bar of the storage
time. You can collapse the range bar until the overall range is shortened to 24
hours.
Enlarges the time range that is displayed on the range bar of the storage
time. You can enlarge the range bar until the overall range is extended to 1
minute.
Display of storage time range Displays the time range of a stored video file.
You can move the gridline of the range bar to select a time point to play.
Speed
A toggle button; each time you press this button, the "Slow Playback " icon
changes its color to display it’s activated/deactivated. If it is activated, you can
use the play speed control to adjust the play speed up to x1/16 forward and
backward respectively, whereas if deactivated, you can adjust up to x16
forward and backward.
A toggle button; each time you press this button, the "Lock Speed" icon
changes its color to display it’s activated/deactivated.
If activated, the adjusted speed will be kept even if you release the mouse on
the speed bar. If deactivated, the adjusted speed will be applied only while
you use the mouse to hold the adjusted speed, and if you release the mouse,
the speed will restore to x1.
You can adjust the play speed up to x16 forward and backward respectively,
which varies according to the frame rate per second of the source.
Fast playback maximum is limited to x2 for footages recorded at 20 ~ 30 fps
(frames per second), x4 for 11 ~ 19 fps, x8 for 6 ~ 10 fps, and x16 for footages
recorded at slower than 6 fps.
English _121
![](asset-7a.png)
122_ backup viewer
backup viewer
Name Description
Play
Displays the next frame. This is available only if the playback is stopped.
A toggle button. Press it once to start playing the video and switch the button
mode to 'Pause', and press it again to switch the button mode to Play and
stop playing temporarily.
Displays the previous frame. This is available only if the playback is stopped.
![](asset-7b.png)
- APPENDIX
appendix
PRODUCT SPECIFICATION (CAMERA)
❖SED-1001R / SED-1005 / SED-1007R
Item Details
SED-1001R N SED-1001R P SEB-1005R N SEB-1005R P SEB-1007R N SEB-1007R P
Electrical
Input Voltage DC 12V(by UTP)
Power Consumption 2.2W 2.6W 2.6W
Video
Imaging Device MT9V138
Total Pixels 680 x 512
Scanning System Interlace
Synchronization Internal
Frequency H: 15,734 Hz H: 15,625 Hz H: 15,734 Hz H : 15,625 Hz H: 15,734 Hz H : 15,625 Hz
V: 59.94 Hz V: 50 Hz V: 59.94 Hz V : 50 Hz V: 59.94 Hz V : 50 Hz
Horizontal Resolution 520TVL
Min. Illumination
OLux (IR-LED)
S/N Ratio (Y Signal) 46dB
UTP
Built-in UTP TX
Maximum Transmission Length: 200m (UTP CAT 5e, all of 8 pins are used)
Balanced Differential Impedance: 100 ohm
Lens
Focus Length 3.6mm
Max.Aperture Ratio 2
Angular Field of View H: 56˚
V: 42˚
Operational
Shutter Mode Auto (Rolling Shutter)
Gain Control Auto
White Balance Auto (3200°K~6500°K)
Digital Noise Reduction Auto
Day & Night Auto
Night-Visibility 10m(12EA) 15m (20EA) 15m (20EA)
English _123
![](asset-7c.png)
124_ appendix
appendix
Item Details
SED-1001R N SED-1001R P SEB-1005R N SEB-1005R P SEB-1007R N SEB-1007R P
Environmental
Operating Temperature/
Humidity
0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
Mechanical
Dimension (W X H X D) W102 X H71.7 mm
W65.5 X H65.5 X D94.6
mm
(2.58 X 2.58 X 3.72 inch)
W59.1 X H59.1 X D72 mm
(2.33 X 2.33 X 2.83 inch)
Weight 170g 315g 115g
![](asset-7d.png)
- APPENDIX
❖SEB-1020R
Item Details
SEB-1020R N SEB-1020R P
Electrical
Input Voltage DC 12V
Power Consumption 3W
Video
Imaging Device 1/3.6’’ OV7959 Color CMOS
Active Pixels NTSC: 648(H) x 488(V), PAL: 668(H) x 528(V)
Scanning System Interlace
Synchronization Internal
Frequency H : 15,734 Hz H : 15,625 Hz
V : 59.94 Hz V : 50 Hz
Horizontal Resolution 480TVL
Min. Illumination
OLux (IR-LED)
S/N Ratio (Y Signal) 46dB
Lens
Focus Length 3.6mm
Max.Aperture Ratio 2
Angular Field of View H: 67˚
V: 53˚
Operational
Shutter Mode Auto (Rolling Shutter)
Gain Control Auto
White Balance Auto (3200°K~6500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance 15m
Environmental
Operating Temperature/
Humidity
0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
Mechanical
Dimension (W X H X L)
W64 X H63 X L86 mm (2.52 X 2.48 X 3.39 inch)
Weight 0.30Kg
English _125
![](asset-7e.png)
126_ appendix
appendix
PRODUCT SPECIFICATION
❖SDE-4001/4004/4005
Item
Details
SDE-4001 SDE-4004 SDE-4005
Video Inputs 8 UTP Line(CH1~CH8), BNC 2 ports(CH1, CH2)
Resolution 704x480 NTSC, 704x576 PAL
Live
Frame rate 30fps NTSC, 25fps PAL
Resolution 704x480 NTSC, 704x576 PAL
Multi Screen display 1, 4, 6, 8, 9, 13, PIP, Sequence
Performance
Operating System Embedded Linux
Recording
Compression H.264
Record Rate
NTSC: Up to 60fps @ 704x480 / PAL: Up to 50fps @ 704x576
NTSC: Up to 120fps @ 704x240 / PAL: Up to 100fps @ 704x288
NTSC: Up to 240fps @ 352x240 / PAL: Up to 200fps @ 352x288
Mode Manual, Schedule, Event
Overwrite modes Continuous
Pre-event Off/5sec
Post-event - Off/5/10/20/30sec
- 1/3/5/10/20min, 1/2/3/4/5/6 hour
Search & Playback Search mode
Date/time, Event, Backup, Motion ( All Search contains the Preview function)
Playback function Fast Forward/Backward, Slow Forward/Backward, Step Forward/Backward
Network
Transmission speed
NTSC:120fps, PAL:100fps
Stream H.264(CIF)
Maximum No. of remote
users Search(2) / Live Unicast(10) / Live Multicast(10)
Protocol support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring Smart viewer, Webviewer, Mobile Viewer
![](asset-7f.png)
- APPENDIX
Item
Details
SDE-4001 SDE-4004 SDE-4005
Storage
Internal HDD NTSC : 1TB SATA HDD
PAL : 500GB SATA HDD
NTSC : 500GB SATA
HDD
External HDD –
DVD Writer (Back-up) –
USB (Back-up) 2 USB Ports
File Format (Back-up) BU(DVR Player), SEC(Include Player)
Security Password Protection 1Admin, 10 Group, 10 User per 1 Group, User can be assigned authority for
function
Data Authentication Watermark (Only supports in SEC backup viewer)
Interface
Monitors
VGA Analog RGB 1024x768 resolution(BNC or VGA selected in booting.)
HDMI –
Main Composite BNC, 1 Vp-p, 75 ohm
Spot Composite –
Loop Outputs –
Audio
Inputs/Output 8 UTP Line(CH1~CH8), 2 Port RCA(CH1, CH2) / 1 line out
Compression G.711
Sampling rate 8KHz
Alarm Inputs/Outputs Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs,
Rating: 30V DC/2A, 125V AC/0.5A
Remote notification Notification via e-mail
Connections
Ethernet 1 RJ-45 10/100 Base-T
Serial interface –
USB USB 2.0, 2 ports
e-SATA –
Application Supoort Mouse, Remote Controller
Protocol support –
PTZ –
English _127
![](asset-80.png)
128_ appendix
appendix
Item
Details
SDE-4001 SDE-4004 SDE-4005
General
Electrical Input Voltage/Current 100 ~ 240 VAC ±10%; 50/60 Hz, Autoranging
Power consumption ADP-4812 Adaptor (2EA), 12V, 48W+48W
Environmental Operating Temperature/
Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical
Dimension (W X H X D) W350 X H44 X D300mm (13.98 X 1.73 X 11.81 inch)
Weight (With hard disks) NTSC: 2.75Kg /
PAL: 2.56Kg NTSC: 2.75Kg NTSC: 2.56Kg
Gross weight NTSC: 11.6Kg /
PAL: 9.2Kg NTSC: 8.8Kg NTSC: 9.7Kg
Box Size (Outer)
❖SDE-4001/4005
NTSC: W497 X H402 X D288mm / PAL: W497 X H402 X D213mm
(NTSC: 19.57x15.83x11.34 inch / PAL: 19.57x15.83x8.39 inch)
❖SDE-4004
NTSC: W497 X H402 X D213mm (19.57x15.83x8.39 inch)
Box Size (Inner)
❖SDE-4001/4005
NTSC: W487 X H392 X D270mm / PAL: 487 X H392 X D198mm
(NTSC: 19.17x15.43x10.63 inch / PAL: 19.17x15.43x7.80 inch)
❖SDE-4004
NTSC: W487 X H392 X D195mm (19.17x15.43x7.68 inch)
Lauguage
English, Spanish, French, German, Italian, Polish, Portuguese, Russian,
Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland,
Thai, Romanian, Serbian, Croatian, Hungarian, Greek
![](asset-81.png)
- APPENDIX
❖SDE-5001/5002
Item
Details
SDE-5001 SDE-5002
Video Inputs 16 UTP Line(CH1~CH16), BNC 2 ports(CH1, CH2)
Resolution 704x480
Live
Frame rate 30fps
Resolution 704x480
Multi Screen display 1, 4, 6, 8, 9, 13, 16, PIP, Sequence
Performance
Operating System Embedded Linux
Recording
Compression H.264
Record Rate
Up to 120fps@ 704x480
Up to 240fps @ 704x240
Up to 480fps @ 352x240
Mode Manual, Schedule, Event
Overwrite modes Continuous
Pre-event Off/5sec
Post-event - Off/5/10/20/30sec
- 1/3/5/10/20min, 1/2/3/4/5/6 hour
Search & Playback Search mode Date/time, Event, Backup, Motion ( All Search Included Prview Function)
Playback function Fast Forward/Backward, Slow Forward/Backward, Step Forward/Backward
Network
Transmission speed
120fps
Stream H.264(CIF)
Maximum No. of remote
users Search(2) / Live Unicast(10) / Live Multicast(10)
Protocol support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring Smart viewer, Webviewer, Mobile Viewer
English _129
![](asset-82.png)
130_ appendix
appendix
Item
Details
SDE-5001 SDE-5002
Storage
Internal HDD 1TB SATA HDD
External HDD –
DVD Writer (Back-up) –
USB (Back-up) 2 USB Ports
File Format (Back-up) BU(DVR Player), SEC(Include Player)
Security Password Protection 1Admin, 10 Group, 10 User per 1 Group, User can be assigned authority for
function
Data Authentication Watermark (Only supports in SEC backup viewer)
Interface
Monitors
VGA Analog RGB 1024x768 resolution(BNC or VGA selected in booting.)
HDMI –
Main Composite BNC, 1 Vp-p, 75 ohm
Spot Composite –
Loop Outputs –
Audio
Inputs/Output 16 UTP Line(CH1~CH16), 2 Port RCA(CH1, CH2) / 1 line out
Compression G.711
Sampling rate 8KHz
Alarm Inputs/Outputs Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs,
Rating: 30V DC/2A, 125V AC/0.5A
Remote notification Notification via e-mail
Connections
Ethernet 1 RJ-45 10/100 Base-T
Serial interface –
USB USB 2.0, 2 ports
e-SATA –
Application Supoort Mouse, Remote Controller
Protocol support –
![](asset-83.png)
- APPENDIX
Item
Details
SDE-5001 SDE-5002
General
Electrical Input Voltage/Current 100 ~ 240 VAC ±10%; 50/60 Hz, Autoranging
Power consumption ADP-4812 Adaptor (2EA), 12V, 48W+48W
Environmental Operating Temperature/
Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical
Dimension (W X H X D) W350 X H44 X D300 mm (13.98 X 1.73 X 11.81 inch)
Weight (With hard disks) 2.8Kg
Gross weight 12.8Kg
Box Size (Outer) W497 X H402 X D288mm (NTSC: 19.57 X 15.83 X 11.34 inch)
Box Size (Inner) W487 X H392 X D270mm (NTSC: 19.17 X 15.43 X 10.63 inch)
Lauguage
English, Spanish, French, German, Italian, Polish, Portuguese, Russian,
Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherlands,
Thai, Romanian, Serbian, Croatian, Hungarian, Greek
English _131
![](asset-84.png)
132_ appendix
appendix
❖SDE-4003/5003
Item
Details
SDE-5003 SDE-4003
Video
Inputs 16 composite video 0.5-1 Vpp,
75 ohm 8 composite video 0.5-1 Vpp, 75 ohm
Resolution 704x480 NTSC, 704x576 PAL
Live
Frame rate 480fps NTSC, 400fps PAL 240fps NTSC, 200fps PAL
Resolution 704x480 NTSC, 704x576 PAL
Multi Screen display 1, 4, 6, 8, 9, 13, 16, PIP, Sequence 1, 4, 6, 8, 9, 13, PIP, Sequence
Performance
OS Embedded Linux
Recording
Compression H.264
Record Rate
NTSC: Up to 120fps @ 704x240
PAL: Up to 100ips @ 704x288
NTSC: Up to 60fps @ 704x480
PAL: Up to 50ips @ 704x576
NTSC: Up to 240fps @ 352x240
PAL: Up to 200ips @ 352x288
NTSC: Up to 120fps @ 704x240
PAL: Up to 100ips @ 704x288
NTSC: Up to 480fps @ 352x240
PAL: Up to 400ips @ 352x288
NTSC: Up to 240fps @ 352x240
PAL: Up to 200ips @ 352x288
Mode Manual, Schedule, Event
Overwrite modes Continuous
Pre-alarm Off/5sec
Post-Alarm Up to 6 hour. (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 min,1, 2, 3, 4, 5, 6 hour)
Search mode
Search mode Date/time, Event, Back up, Motion
Playback function Fast Forward / Backward, Slow Forward / Backward, Step Forward / Backward
Network
Transmission speed NTSC:120fps, PAL:100fps
Bandwidth
Up to (4)Mbps, Unlimited(4M)/2/1.5/1 Mbps/800/600/500/400/300/200/100/50 kbps
Bandwidth control Automatic
Stream H.264(CIF)
Maximum No. of
remote users Search(2) / Live Unicast(10) / Live Multicast(10)
Protocol support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring Smart Viewer, WebViewer, Mobile Viewer
![](asset-85.png)
- APPENDIX
Item
Details
SDE-5003 SDE-4003
Smart phone
Smart phone Android, i-phone (iPad included)
Protocol support RTP, RTSP, HTTP, CGI
Transmission speed CIF Max 15fps(Single Channel)/ CIF Max 2fps(Quad Channel)
Remote users
Maximum Live(1)
Storage
Internal HDD 1TB SATA HDD
External HDD –
DVD Writer (Back-up) –
USB (Back-up) 2 USB Ports
File Format (Back-up) BU (DVR Player), SEC (Include Player)
Security
Password Protection 1 Admin, 10 Group , 10 User per 1 Group
Data Authentication Watermark
Interface
Monitors
VGA Analog RGB 1024x768 resolution (BNC or VGA selected in booting.)
HDMI –
Main/Spot Composite BNC, 1 Vp-p, 75 ohm
Spot Composite Analgo Spot (1 BNC, 1 Vp-p, 75 ohm)
Loop Outputs –
Audio
Inputs / Output 4 line in / 1 line out
Compression G.711
Sampling rate 8KHz
Alarm
Inputs / Outputs –
Remote notification Notification via e-mail
English _133
![](asset-86.png)
134_ appendix
appendix
Item
Details
SDE-5003 SDE-4003
Connections
Ethernet 1 RJ45 10/100 Base-T
Serial interface –
USB USB 2.0, 2 ports (Front)
e-SATA –
Application Supoort Mouse, Remote Controller
PTZ Protocol support –
General
Electrical
Input Voltage /Current DC12V Adaptor,4A,100~250VAC, 50~60Hz, 48watt
Power consumption Max.36 W (with 1x HDD)
Environmental Operating
Temperature /Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical
Dimension (W X H X D)
W360 X H44 X D160 mm (14.17 X 1.73 X 6.30 inches)
Weight (With hard
disks) 1.86kg 1.84kg
Gross weight 10.11kg 6.8kg
Box Size (Outer) W445 X H299 X D303 mm
(17.52 X 11.77 X 11.93 inches)
W445 X H299 X D221 mm
(17.52 X 11.77 X 8.70 inches)
Box Size (Inner) W435 X H289 X D285 mm
(17.13 X 11.38 X 11.22 inches)
W435 X H289 X D203 mm
(17.13 X 11.38 X 7.99 inches)
Lauguage
Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian,
Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai, Rumania,
Serbia, Croatia, Hungary, Greek
![](asset-87.png)
- APPENDIX
DEFAULT SETTING
This returns the factory default settings.
The settings are made as follows;
• Use System/Load Factory Default in MENU
The default settings are based on SDE-5001.
The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
Category Details Factory Default
System Settings
Date/Time/Language Date/Time/Language
Date YYYY-MM-DD
Time Format 24 hours
Time Zone GMT
Time Synchronize OFF
DST OFF
Language English
Permission
Management
Admin ID admin
New Password 4321
Setting Restricted Access Backup
Auto Logout OFF
System Management System Information Broadcast Format NTSC/PAL
Device
Camera
Camera
Video ON
Audio OFF
CH Name CAM 01 ~ CAM 16
SEQ-Dwell Time 5sec
Screen Setup
Brightness 50
Contrast 50
Color 50
Storage Device HDD Alarm
Check Alarm Output Port OFF
Duration OFF
Replace Alarm Output Port OFF
Duration OFF
Remote Device Remote Control ON(00)
English _135
![](asset-88.png)
136_ appendix
appendix
Category Details Factory Default
Device Monitor
Monitor
Event Display OFF
Display All
Multi CH SEQ Time 5sec
Video Output VGA
Display Position Setup 30
Mode Live Mode ALL
Play Mode ALL
Recording
Recording Schedule CH1 Both(Cont&Evnt)
Event Record
Duration
PRE Event OFF
POST Event 1 min
REC Quality/
Resolution
Standard
Resolution CIF(S)
Frame Rate NTSC: 7 fps
PAL: 5 fps
Record Quality Level 4
Event
Resolution 4CIF(L)
Frame Rate NTSC: 7 fps
PAL: 5 fps
Record Quality Level 4
Record Option Disk End Mode Setup Overwrite
Disk End Beep OFF
Auto Delete OFF
Event
Sensor Detection
Sensor Operation OFF
Camera Camera No.
Alarm None
Alarm Duration 10 sec
Motion Detection
Mode OFF
Sensitivity Level 10 High
Alarm None
Alarm Duration 10 sec
Motion Region All Area
![](asset-89.png)
- APPENDIX
Category Details Factory Default
Event Video Loss Detection
Video Loss State OFF
Alarm None
Alarm Duration 10 sec
Alarm Schedule Alarm1 Event Sync
Network
Connection Mode
Connection
Connection Mode Static IP
Bandwidth 2Mbps
IP 192.168.1.200
Gateway 192.168.1.1
Subnet Mask 255.255.255.0
DNS 168.126.63.1
Protocol
Protocol Type TCP
Port (TCP) 4520~4524
Webviewer Port 80
DDNS DDNS Site OFF
Live Transfer Resolution CIF(S)
Quality Low
Mailing Service
SMTP
Server OFF
Port 25
Use Authentication OFF
Secure Transfer Never
Event Event Interval 10 min
Use Event Transfer OFF
Group Group OFF
Recipient Permission OFF
Recipient Group All Group
English _137
![](asset-8a.png)
138_ appendix
appendix
TROUBLESHOOTING
Symptom Countermeasures
The system does not turn on and the indicator on the
front panel does not work at all.
Check if the power supply system is properly connected.
Check the system for the input voltage from the power source.
If the problem persists even after you have taken the above actions,
check the power supplier and replace it with a new one if neccessary.
Some channels display just a black screen even if
they receive video sources.
Check if the camera connected to the system properly displays the
image. Sometimes, this problem may occur on a camera that is not
properly connected to the video source.
Check if the camera is properly supplied with power.
Sometimes, this problem may occur on a channel with weak video signal
from a video distributor that is connected to multiple systems. In this
case, input the video source of the camera directly into the DVR. This
may find the cause and solve the problem.
If I press the [REC] button on the front panel, nor the
player start recording.
Check if there is a free space on the HDD for the recording.
Check if the record mode is set to ON in the record mode setting.
The screen displays the logo image repeatedly.
This may occur from a problem with the main board, or the related
software is corrupt.
Contact the nearest service center for more information.
The Channel button does not work on the Live screen.
The Channel button does not work if the current screen is in the event
monitoring mode.
In the event monitoring screen, press the [ALARM] button to exit the
screen and select a channel.
The cursor will not move to the Start button when I
start the calendar search.
Check if the channel and the date that you want to play are marked with
the V symbol.
Both channel and date should be checked before you can start playing
with the Start button.
When the alarm sounds, I press the [ALARM] button
on the front panel to release the alarm but it does not
work. The alarm persists and I could not set it off in
any way.
Press the [MENU] button on the front panel to release the alarm in the
following way:
1) To release the event monitoring mode : Monitoring Mode – set the
duration of the event monitoring to Off.
2) To release the alarm sound : Event Record Mode - Alarm (Motion
Detection/Video Loss) – deactivate the alarm sound.
3) To release the event : Event Record Mode - Alarm (Motion Detection/
Video Loss) – set the mode to Off.
![](asset-8b.png)
- APPENDIX
Symptom Countermeasures
A message of “Need to reset date/time.” Is displayed
on the screen.
This message is displayed if there occurs a problem with the time
setting of the internal clock or an error in the clock itself.
Contact the retailer or the service center for more information.
The time bar is not displayed in Search mode.
The timeline can switch between normal and extension mode.
In extension mode, the time bar may not be displayed in the current
timeline. Switch to normal mode or use the left or right button to
navigate through the time bar.
The “NO HDD” icon and an error message are
displayed.
Check the HDD for connection. If the problem persists in a normal
condition, contact the nearest service center to have the HDD checked
by the service personnel.
I have installed an additional HDD on the DVR but it
does not recognize the HDD.
See the compatibilty list to check if the additional HDD is supported by
the DVR. For the compatibility list, contact the retailer where you
purchased the DVR.
I have connected an external storage device to the
DVR but the DVR seems not to recognize it.
See the compatibility list of external storage devices to check if the
connected device is supported by the DVR.
For the compatibility list, contact the retailer where you purchased the
DVR.
If I press the ESC key in full screen mode of the
WebViewer, the system does not switch to a normal
split mode.
Press the ALT+TAB keys to select ‘ACTIVE MOVIE’ and press the ESC
key again. The system will switch to a normal split mode.
I found it difficult to configure the network settings if
using the default search, backup and router settings.
For more information, refer to the user manual.
If you want to check the basics of the product for a quick start, refer to
the quick start guide (backup, search).
If you use the router for network connection, refer to the “Connecting to
the Internet using the router” section in this manual.
I forgot the password.
Contact the DVR administrator for help.
Backup data is just not played by the PC or DVR.
When you are backing up data, you have choices about the player either:
PC or DVR. Make your selection before proceeding.
If you are using the PC to play the data, the format of the backup file
should be SEC.
If you are using the DVR for this purpose, formatting backup files should
be done by the DVR.
My player does not switch to Live mode while in
playback.
Press the Stop [@] button on the DVR or the remote control, or click the
[ ] icon on the launcher to switch to Live mode.
English _139
![](asset-8c.png)
140_ appendix
appendix
Symptom Countermeasures
Recording does not work.
If your player does not display a Live image at all, that indicates
recording does not work so first check if you see an image on the
screen.
Recording does not work if the recording settings are not properly
configured.
1) Manual Record: Press the [REC] button on the front panel of the DVR
or on the remote control to start recording.
2) Scheduled Record: Specify a desired time in Menu – Record -
Recording Schedule. Recording will start at the specified time.
-<Continuous> Record: Recording will proceed in any conditions at
the specified time.
-<Event> Record: When an event occurs, recording will perform
only if the event is of alarm, motion detection and video loss.
If there is no event found, recording will not perform.
-<Continuous / Event> Record: If there is no event found,
Continuous recording will perform. Whereas, if an event occurs,
Event recording will perform.
The image quality of the recording data is not good.
Increase the resolution and quality level in Menu – Record – Quality /
Resolution.
1) Resolution: Select a bigger size when specifying the recording size.
(4CIF>2CIF>CIF)
The recording image in the CIF format shows a deteriorated quality as
it is enlarged from a small-sized image.
2) Record Quality: Specify a bigger level for the recording quality.
If you increase the resolution and the recording quality, the data size
increases accordingly. So the HDD will be filled faster. Overwriting will
overwrite the existing data so recording will proceed at a shorter interval.
![](asset-8d.png)
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this
license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom
to share and change it. By contrast, the GNU General Public License is
intended to guarantee your freedom to share and change free software
to make sure the software is free for all its users. This General Public
License applies to most of the Free Software Foundation’s software and
to any other program whose authors commit to using it. (Some other
Free Software Foundation software is covered by the GNU Lesser
General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price.
Our General Public Licenses are designed to make sure that you have
the freedom to distribute copies of free software (and charge for this
service if you wish), that you receive source code or can get it if you
want it, that you can change the software or use pieces of it in new free
programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone
to deny you these rights or to ask you to surrender the rights. These
restrictions translate to certain responsibilities for you if you distribute
copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis
or for a fee, you must give the recipients all the rights that you have. You
must make sure that they, too, receive or can get the source code. And
you must show them these terms so they know their rights.
We protect your rights with two steps:
(1) copyright the software, and (2) offer you this license which gives you
legal permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain
that everyone understands that there is no warranty for this free
software. If the software is modified by someone else and passed on,
we want its recipients to know that what they have is not the original, so
that any problems introduced by others will not reflect on the original
authors’ reputations.
Finally, any free program is threatened constantly by software patents.
We wish to avoid the danger that redistributors of a free program will
individually obtain patent licenses, in effect making the program
proprietary. To prevent this, we have made it clear that any patent must
be licensed for everyone’s free use or not licensed at all. The precise
terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin S
0. This License applies to any program or other work which contains a
notice placed by the copyright holder saying it may be distributed under
the terms of this General Public License. The “Program”, below, refers
to any such program or work, and a “work based on the Program”
means either the Program or any derivative work under copyright law:
that is to say, a work containing the Program or a portion of it, either
verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term
“modification”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of running
the Program is not restricted, and the output from the Program is
covered only if its contents constitute a work based on the Program
(independent of having been made by running the Program). Whether
that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s
source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the notices
that refer to this License and to the absence of any warranty; and give
any other recipients of the Program a copy of this License along with
the Program.
You may charge a fee for the physical act of transferring a copy, and
you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of
it, thus forming a work based on the Program, and copy and distribute
such modifications or work under the terms of Section 1 above,
provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices
stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in
whole or in part contains or is derived from the Program or any
part thereof, to be licensed as a whole at no charge to all third
parties under the terms of this License.
c) If the modified program normally reads commands interactively
when run, you must cause it, when started running for such
interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a
notice that there is no warranty (or else, saying that you provide a
warranty) and that users may redistribute the program under these
conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally
print such an announcement, your work based on the Program is
not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable
sections of that work are not derived from the Program, and can be
reasonably considered independent and separate works in themselves,
then this License, and its terms, do not apply to those sections when
you distribute them as separate works. But when you distribute the
same sections as part of a whole which is a work based on the
Program, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire
whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your
rights to work written entirely by you; rather, the intent is to exercise the
right to control the distribution of derivative or collective works based on
the Program.
In addition, mere aggregation of another work not based on the
Program with the Program (or with a work based on the Program) on a
volume of a storage or distribution medium does not bring the other
work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it,
under Section 2) in object code or executable form under the terms of
Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for
software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to
give any third party, for a charge no more than your cost of
physically performing source distribution, a complete machine-
readable copy of the corresponding source code, to be distributed
under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to
distribute corresponding source code. (This alternative is allowed
only for noncommercial distribution and only if you received the
program in object code or executable form with such an offer, in
accord with Subsection b above.)
The source code for a work means the preferred form of the work for
making modifications to it. For an executable work, complete source
code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to control
compilation and installation of the executable. However, as a special
exception, the source code distributed need not include anything that is
OPEN SOURCE LICENSE REPORT ON THE PRODUCT
The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete
Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to help.cctv@samsung.com
If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source
distribution might be charged.
• GPL Software : linux kernel, Sysvinit, dosfstools, wget, msmtp, busybox, cdrtools, dvd+rw-tools, iconv, smartctl, uboot, minicom, openssl, bash,
lm_sensors
• LGPL Software : glibc, vmstat, inetutils
• OpenSSL License : OpenSSL
normally distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating system on
which the executable runs, unless that component itself accompanies
the executable.
If distribution of executable or object code is made by offering access to
copy from a designated place, then offering equivalent access to copy
the source code from the same place counts as distribution of the
source code, even though third parties are not compelled to copy the
source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program
except as expressly provided under this License. Any attempt otherwise
to copy, modify, sublicense or distribute the Program is void, and will
automatically terminate your rights under this License. However, parties
who have received copies, or rights, from you under this License will not
have their licenses terminated so long as such parties remain in full
compliance.
5. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify or
distribute the Program or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and all
its terms and conditions for copying, distributing or modifying the
Program or works based on it.
6. Each time you redistribute the Program (or any work based on the
Program), the recipient automatically receives a license from the original
licensor to copy, distribute or modify the Program subject to these
terms and conditions. You may not impose any further restrictions on
the recipients’ exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot distribute
so as to satisfy simultaneously your obligations under this License and
any other pertinent obligations, then as a consequence you may not
distribute the Program at all. For example, if a patent license would not
permit royalty-free redistribution of the Program by all those who receive
copies directly or indirectly through you, then the only way you could
satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply
and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents
or other property right claims or to contest validity of any such claims;
this section has the sole purpose of protecting the integrity of the free
software distribution system, which is implemented by public license
practices. Many people have made generous contributions to the wide
range of software distributed through that system in reliance on
consistent application of that system; it is up to the author/donor to
decide if he or she is willing to distribute software through any other
system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be
a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain
countries either by patents or by copyrighted interfaces, the original
copyright holder who places the Program under this License may add
an explicit geographical distribution limitation excluding those countries,
so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
9. The Free Software Foundation may publish revised and/or new
versions of the General Public License from time to time. Such new
versions will be similar in spirit to the present version, but may differ in
detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program
specifies a version number of this License which applies to it and “any
later version”, you have the option of following the terms and conditions
either of that version or of any later version published by the Free
Software Foundation. If the Program does not specify a version number
of this License, you may choose any version ever published by the Free
Software Foundation.
10. If you wish to incorporate parts of the Program into other free
programs whose distribution conditions are different, write to the author
to ask for permission. For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the
two goals of preserving the free status of all derivatives of our free
software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF
THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE
PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN
IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest
possible use to the public, the best way to achieve this is to make it free
software which everyone can redistribute and change under these
terms.
To do so, attach the following notices to the program. It is safest to
attach them to the start of each source file to most effectively convey
the exclusion of warranty; and each file should have at least the
“copyright” line and a pointer to where the full notice is found.
one line to give the program’s name and an idea of what it does.
Copyright (C) yyyy name of author
This program is free software; you can redistribute it and/or modify it
under the terms of the GNU General Public License as published by the
Free Software Foundation; either version 2 of the License, or (at your
option) any later version.
This program is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See
the GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program; if not, write to the Free Software Foundation,
Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.
Also add information on how to contact you by electronic and paper
mail. If the program is interactive, make it output a short notice like this
when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for details
type ‘show w’. This is free software, and you are welcome to
redistribute it under certain conditions; type ‘show c’ for details.
The hypothetical commands ‘show w’ and ‘show c’ should show the
appropriate parts of the General Public License. Of course, the
commands you use may be called something other than ‘show w’ and
‘show c’; they could even be mouse-clicks or menu items--whatever
suits your program.
You should also get your employer (if you work as a programmer) or
your school, if any, to sign a “copyright disclaimer” for the program, if
necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program
‘Gnomovision’ (which makes passes at compilers) written by James
Hacker.
signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This
General Public License does not permit incorporating your program into
proprietary programs. If your program is a subroutine library, you may
consider it more useful to permit linking proprietary applications with the
library. If this is what you want to do, use the GNU Lesser General
Public License instead of this License.
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright © 2007 Free Software Foundation, Inc. <http://fsf.org/>
Everyone is permitted to copy and distribute verbatim copies of this license
document, but changing it is not allowed.
Preamble
The GNU General Public License is a free, copyleft license for software
and other kinds of works.
The licenses for most software and other practical works are designed
to take away your freedom to share and change the works. By contrast,
the GNU General Public License is intended to guarantee your freedom
to share and change all versions of a program--to make sure it remains
free software for all its users. We, the Free Software Foundation, use the
GNU General Public License for most of our software; it applies also to
any other work released this way by its authors. You can apply it to your
programs, too.
When we speak of free software, we are referring to freedom, not price.
Our General Public Licenses are designed to make sure that you have
the freedom to distribute copies of free software (and charge for them if
you wish), that you receive source code or can get it if you want it, that
you can change the software or use pieces of it in new free programs,
and that you know you can do these things.
To protect your rights, we need to prevent others from denying you
these rights or asking you to surrender the rights. Therefore, you have
certain responsibilities if you distribute copies of the software, or if you
modify it: responsibilities to respect the freedom of others.
For example, if you distribute copies of such a program, whether gratis
or for a fee, you must pass on to the recipients the same freedoms that
you received. You must make sure that they, too, receive or can get the
source code. And you must show them these terms so they know their
rights.
Developers that use the GNU GPL protect your rights with two steps:
(1) assert copyright on the software, and (2) offer you this License giving
you legal permission to copy, distribute and/or modify it.
For the developers’ and authors’ protection, the GPL clearly explains
that there is no warranty for this free software. For both users’ and
authors’ sake, the GPL requires that modified versions be marked as
changed, so that their problems will not be attributed erroneously to
authors of previous versions.
Some devices are designed to deny users access to install or run
modified versions of the software inside them, although the
manufacturer can do so. This is fundamentally incompatible with the
aim of protecting users’ freedom to change the software. The
systematic pattern of such abuse occurs in the area of products for
individuals to use, which is precisely where it is most unacceptable.
Therefore, we have designed this version of the GPL to prohibit the
practice for those products. If such problems arise substantially in other
domains, we stand ready to extend this provision to those domains in
future versions of the GPL, as needed to protect the freedom of users.
Finally, every program is threatened constantly by software patents.
States should not allow patents to restrict development and use of
software on general-purpose computers, but in those that do, we wish
to avoid the special danger that patents applied to a free program could
make it effectively proprietary. To prevent this, the GPL assures that
patents cannot be used to render the program non-free.
The precise terms and conditions for copying, distribution and
modification follow.
TERMS AND CONDITIONS
0. Definitions.
“This License” refers to version 3 of the GNU General Public License.
“Copyright” also means copyright-like laws that apply to other kinds of
works, such as semiconductor masks.
“The Program” refers to any copyrightable work licensed under this
License. Each licensee is addressed as “you”. “Licensees” and
“recipients” may be individuals or organizations.
To “modify” a work means to copy from or adapt all or part of the work
in a fashion requiring copyright permission, other than the making of an
exact copy. The resulting work is called a “modified version” of the
earlier work or a work “based on” the earlier work.
A “covered work” means either the unmodified Program or a work
based on the Program.
To “propagate” a work means to do anything with it that, without
permission, would make you directly or secondarily liable for
infringement under applicable copyright law, except executing it on a
computer or modifying a private copy. Propagation includes copying,
distribution (with or without modification), making available to the public,
and in some countries other activities as well.
To “convey” a work means any kind of propagation that enables other
parties to make or receive copies. Mere interaction with a user through
a computer network, with no transfer of a copy, is not conveying.
An interactive user interface displays “Appropriate Legal Notices” to the
extent that it includes a convenient and prominently visible feature that
(1) displays an appropriate copyright notice, and (2) tells the user that
there is no warranty for the work (except to the extent that warranties
are provided), that licensees may convey the work under this License,
and how to view a copy of this License. If the interface presents a list of
user commands or options, such as a menu, a prominent item in the list
meets this criterion.
1. Source Code.
The “source code” for a work means the preferred form of the work for
making modifications to it. “Object code” means any non-source form
of a work.
A “Standard Interface” means an interface that either is an official
standard defined by a recognized standards body, or, in the case of
interfaces specified for a particular programming language, one that is
widely used among developers working in that language.
The “System Libraries” of an executable work include anything, other
than the work as a whole, that (a) is included in the normal form of
packaging a Major Component, but which is not part of that Major
Component, and (b) serves only to enable use of the work with that
Major Component, or to implement a Standard Interface for which an
implementation is available to the public in source code form. A “Major
Component”, in this context, means a major essential component
(kernel, window system, and so on) of the specific operating system (if
any) on which the executable work runs, or a compiler used to produce
the work, or an object code interpreter used to run it.
The “Corresponding Source” for a work in object code form means all
the source code needed to generate, install, and (for an executable
work) run the object code and to modify the work, including scripts to
control those activities. However, it does not include the work’s System
Libraries, or general-purpose tools or generally available free programs
which are used unmodified in performing those activities but which are
not part of the work. For example, Corresponding Source includes
interface definition files associated with source files for the work, and the
source code for shared libraries and dynamically linked subprograms
that the work is specifically designed to require, such as by intimate
data communication or control flow between those subprograms and
other parts of the work.
The Corresponding Source need not include anything that users can
regenerate automatically from other parts of the Corresponding Source.
The Corresponding Source for a work in source code form is that same
work.
2. Basic Permissions.
All rights granted under this License are granted for the term of
copyright on the Program, and are irrevocable provided the stated
conditions are met. This License explicitly affirms your unlimited
permission to run the unmodified Program. The output from running a
covered work is covered by this License only if the output, given its
content, constitutes a covered work. This License acknowledges your
rights of fair use or other equivalent, as provided by copyright law.
You may make, run and propagate covered works that you do not
convey, without conditions so long as your license otherwise remains in
force. You may convey covered works to others for the sole purpose of
having them make modifications exclusively for you, or provide you with
facilities for running those works, provided that you comply with the
terms of this License in conveying all material for which you do not
control copyright. Those thus making or running the covered works for
you must do so exclusively on your behalf, under your direction and
control, on terms that prohibit them from making any copies of your
copyrighted material outside their relationship with you.
Conveying under any other circumstances is permitted solely under the
conditions stated below. Sublicensing is not allowed; section 10 makes
it unnecessary.
3. Protecting Users’ Legal Rights From Anti-Circumvention Law.
No covered work shall be deemed part of an effective technological
measure under any applicable law fulfilling obligations under article 11 of
the WIPO copyright treaty adopted on 20 December 1996, or similar
laws prohibiting or restricting circumvention of such measures.
When you convey a covered work, you waive any legal power to forbid
circumvention of technological measures to the extent such
circumvention is effected by exercising rights under this License with
respect to the covered work, and you disclaim any intention to limit
operation or modification of the work as a means of enforcing, against
the work’s users, your or third parties’ legal rights to forbid
circumvention of technological measures.
4. Conveying Verbatim Copies.
You may convey verbatim copies of the Program’s source code as you
receive it, in any medium, provided that you conspicuously and
appropriately publish on each copy an appropriate copyright notice;
keep intact all notices stating that this License and any non-permissive
terms added in accord with section 7 apply to the code; keep intact all
notices of the absence of any warranty; and give all recipients a copy of
this License along with the Program.
You may charge any price or no price for each copy that you convey,
and you may offer support or warranty protection for a fee.
5. Conveying Modified Source Versions.
You may convey a work based on the Program, or the modifications to
produce it from the Program, in the form of source code under the
terms of section 4, provided that you also meet all of these conditions:
a) The work must carry prominent notices stating that you modified
it, and giving a relevant date.
b)
The work must carry prominent notices stating that it is released
under this License and any conditions added under section 7. This
requirement modifies the requirement in section 4 to “keep intact all
notices”.
c) You must license the entire work, as a whole, under this License
to anyone who comes into possession of a copy. This License will
therefore apply, along with any applicable section 7 additional
terms, to the whole of the work, and all its parts, regardless of
how they are packaged. This License gives no permission to
license the work in any other way, but it does not invalidate such
permission if you have separately received it.
d) If the work has interactive user interfaces, each must display
Appropriate Legal Notices; however, if the Program has interactive
interfaces that do not display Appropriate Legal Notices, your
work need not make them do so.
A compilation of a covered work with other separate and independent
works, which are not by their nature extensions of the covered work,
and which are not combined with it such as to form a larger program, in
or on a volume of a storage or distribution medium, is called an
“aggregate” if the compilation and its resulting copyright are not used to
limit the access or legal rights of the compilation’s users beyond what
the individual works permit. Inclusion of a covered work in an aggregate
does not cause this License to apply to the other parts of the
aggregate.
6. Conveying Non-Source Forms.
You may convey a covered work in object code form under the terms of
sections 4 and 5, provided that you also convey the machine-readable
Corresponding Source under the terms of this License, in one of these
ways:
a) Convey the object code in, or embodied in, a physical product
(including a physical distribution medium), accompanied by the
Corresponding Source fixed on a durable physical medium
customarily used for software interchange.
b) Convey the object code in, or embodied in, a physical product
(including a physical distribution medium), accompanied by a
written offer, valid for at least three years and valid for as long as
you offer spare parts or customer support for that product model,
to give anyone who possesses the object code either (1) a copy of
the Corresponding Source for all the software in the product that
is covered by this License, on a durable physical medium
customarily used for software interchange, for a price no more
than your reasonable cost of physically performing this conveying
of source, or (2) access to copy the Corresponding Source from a
network server at no charge.
c) Convey individual copies of the object code with a copy of the
written offer to provide the Corresponding Source. This alternative
is allowed only occasionally and noncommercially, and only if you
received the object code with such an offer, in accord with
subsection 6b.
d) Convey the object code by offering access from a designated
place (gratis or for a charge), and offer equivalent access to the
Corresponding Source in the same way through the same place at
no further charge. You need not require recipients to copy the
Corresponding Source along with the object code. If the place to
copy the object code is a network server, the Corresponding
Source may be on a different server (operated by you or a third
party) that supports equivalent copying facilities, provided you
maintain clear directions next to the object code saying where to
find the Corresponding Source. Regardless of what server hosts
the Corresponding Source, you remain obligated to ensure that it
is available for as long as needed to satisfy these requirements.
e) Convey the object code using peer-to-peer transmission, provided
you inform other peers where the object code and Corresponding
Source of the work are being offered to the general public at no
charge under subsection 6d.
A separable portion of the object code, whose source code is excluded
from the Corresponding Source as a System Library, need not be
included in conveying the object code work.
A “User Product” is either (1) a “consumer product”, which means any
tangible personal property which is normally used for personal, family, or
household purposes, or (2) anything designed or sold for incorporation
into a dwelling. In determining whether a product is a consumer
product, doubtful cases shall be resolved in favor of coverage. For a
particular product received by a particular user, “normally used” refers to
a typical or common use of that class of product, regardless of the
status of the particular user or of the way in which the particular user
actually uses, or expects or is expected to use, the product. A product
is a consumer product regardless of whether the product has
substantial commercial, industrial or non-consumer uses, unless such
uses represent the only significant mode of use of the product.
“Installation Information” for a User Product means any methods,
procedures, authorization keys, or other information required to install
and execute modified versions of a covered work in that User Product
from a modified version of its Corresponding Source. The information
must suffice to ensure that the continued functioning of the modified
object code is in no case prevented or interfered with solely because
modification has been made.
If you convey an object code work under this section in, or with, or
specifically for use in, a User Product, and the conveying occurs as part
of a transaction in which the right of possession and use of the User
Product is transferred to the recipient in perpetuity or for a fixed term
(regardless of how the transaction is characterized), the Corresponding
Source conveyed under this section must be accompanied by the
Installation Information. But this requirement does not apply if neither
you nor any third party retains the ability to install modified object code
on the User Product (for example, the work has been installed in ROM).
The requirement to provide Installation Information does not include a
requirement to continue to provide support service, warranty, or
updates for a work that has been modified or installed by the recipient,
or for the User Product in which it has been modified or installed.
Access to a network may be denied when the modification itself
materially and adversely affects the operation of the network or violates
the rules and protocols for communication across the network.
Corresponding Source conveyed, and Installation Information provided,
in accord with this section must be in a format that is publicly
documented (and with an implementation available to the public in
source code form), and must require no special password or key for
unpacking, reading or copying.
7. Additional Terms.
“Additional permissions” are terms that supplement the terms of this
License by making exceptions from one or more of its conditions.
Additional permissions that are applicable to the entire Program shall be
treated as though they were included in this License, to the extent that
they are valid under applicable law. If additional permissions apply only
to part of the Program, that part may be used separately under those
permissions, but the entire Program remains governed by this License
without regard to the additional permissions.
When you convey a copy of a covered work, you may at your option
remove any additional permissions from that copy, or from any part of it.
(Additional permissions may be written to require their own removal in
certain cases when you modify the work.) You may place additional
permissions on material, added by you to a covered work, for which
you have or can give appropriate copyright permission.
Notwithstanding any other provision of this License, for material you add
to a covered work, you may (if authorized by the copyright holders of
that material) supplement the terms of this License with terms:
a) Disclaiming warranty or limiting liability differently from the terms of
sections 15 and 16 of this License; or
b) Requiring preservation of specified reasonable legal notices or
author attributions in that material or in the Appropriate Legal
Notices displayed by works containing it; or
c) Prohibiting misrepresentation of the origin of that material, or
requiring that modified versions of such material be marked in
reasonable ways as different from the original version; or
d) Limiting the use for publicity purposes of names of licensors or
authors of the material; or
e) Declining to grant rights under trademark law for use of some
trade names, trademarks, or service marks; or
f) Requiring indemnification of licensors and authors of that material
by anyone who conveys the material (or modified versions of it)
with contractual assumptions of liability to the recipient, for any
liability that these contractual assumptions directly impose on
those licensors and authors.
All other non-permissive additional terms are considered “further
restrictions” within the meaning of section 10. If the Program as you
received it, or any part of it, contains a notice stating that it is governed
by this License along with a term that is a further restriction, you may
remove that term. If a license document contains a further restriction but
permits relicensing or conveying under this License, you may add to a
covered work material governed by the terms of that license document,
provided that the further restriction does not survive such relicensing or
conveying.
If you add terms to a covered work in accord with this section, you
must place, in the relevant source files, a statement of the additional
terms that apply to those files, or a notice indicating where to find the
applicable terms.
Additional terms, permissive or non-permissive, may be stated in the
form of a separately written license, or stated as exceptions; the above
requirements apply either way.
8. Termination.
You may not propagate or modify a covered work except as expressly
provided under this License. Any attempt otherwise to propagate or
modify it is void, and will automatically terminate your rights under this
License (including any patent licenses granted under the third paragraph
of section 11).
However, if you cease all violation of this License, then your license from
a particular copyright holder is reinstated (a) provisionally, unless and
until the copyright holder explicitly and finally terminates your license,
and (b) permanently, if the copyright holder fails to notify you of the
violation by some reasonable means prior to 60 days after the
cessation.
Moreover, your license from a particular copyright holder is reinstated
permanently if the copyright holder notifies you of the violation by some
reasonable means, this is the first time you have received notice of
violation of this License (for any work) from that copyright holder, and
you cure the violation prior to 30 days after your receipt of the notice.
Termination of your rights under this section does not terminate the
licenses of parties who have received copies or rights from you under
this License. If your rights have been terminated and not permanently
reinstated, you do not qualify to receive new licenses for the same
material under section 10.
9. Acceptance Not Required for Having Copies.
You are not required to accept this License in order to receive or run a
copy of the Program. Ancillary propagation of a covered work occurring
solely as a consequence of using peer-to-peer transmission to receive a
copy likewise does not require acceptance. However, nothing other
than this License grants you permission to propagate or modify any
covered work. These actions infringe copyright if you do not accept this
License. Therefore, by modifying or propagating a covered work, you
indicate your acceptance of this License to do so.
10. Automatic Licensing of Downstream Recipients.
Each time you convey a covered work, the recipient automatically
receives a license from the original licensors, to run, modify and
propagate that work, subject to this License. You are not responsible for
enforcing compliance by third parties with this License.
An “entity transaction” is a transaction transferring control of an
organization, or substantially all assets of one, or subdividing an
organization, or merging organizations. If propagation of a covered work
results from an entity transaction, each party to that transaction who
receives a copy of the work also receives whatever licenses to the work
the party’s predecessor in interest had or could give under the previous
paragraph, plus a right to possession of the Corresponding Source of
the work from the predecessor in interest, if the predecessor has it or
can get it with reasonable efforts.
You may not impose any further restrictions on the exercise of the rights
granted or affirmed under this License. For example, you may not
impose a license fee, royalty, or other charge for exercise of rights
granted under this License, and you may not initiate litigation (including
a cross-claim or counterclaim in a lawsuit) alleging that any patent claim
is infringed by making, using, selling, offering for sale, or importing the
Program or any portion of it.
11. Patents.
A “contributor” is a copyright holder who authorizes use under this
License of the Program or a work on which the Program is based. The
work thus licensed is called the contributor’s “contributor version”.
A contributor’s “essential patent claims” are all patent claims owned or
controlled by the contributor, whether already acquired or hereafter
acquired, that would be
infringed by some manner, permitted by this
License, of making, using, or selling its contributor version, but do not
include claims that would be infringed only as a consequence of further
modification of the contributor version. For purposes of this definition,
“control” includes the right to grant patent sublicenses in a manner
consistent with the requirements of this License.
Each contributor grants you a non-exclusive, worldwide, royalty-free
patent license under the contributor’s essential patent claims, to make,
use, sell, offer for sale, import and otherwise run, modify and propagate
the contents of its contributor version.
In the following three paragraphs, a “patent license” is any express
agreement or commitment, however denominated, not to enforce a
patent (such as an express permission to practice a patent or covenant
not to sue for patent infringement). To “grant” such a patent license to a
party means to make such an agreement or commitment not to enforce
a patent against the party.
If you convey a covered work, knowin
gly relying on a patent license, and
the Corresponding Source of the work is not available for anyone to copy,
free of charge and under the terms of this License, through a publicly
available network server or other readily accessible means, then you must
either (1) cause the Corresponding Source to be so available, or (2)
arrange to deprive yourself of the benefit of the patent license for this
particular work, or (3) arrange, in a manner consistent with the
requirements of this License, to extend the patent license to downstream
recipients. “Knowingly relying” means you have actual knowledge that, but
for the patent license, your conveying the covered work in a country, or
your recipient’s use of the covered work in a country, would infringe one or
more identifiable patents in that country that you have reason to believe
are valid.
If, pursuant to or in connection with a single transaction or arrangement,
you convey, or propagate by procuring conveyance of, a covered work,
and grant a patent license to some of the parties receiving the covered
work authorizing them to use, propagate, modify or convey a specific
copy of the covered work, then the patent license you grant is
automatically extended to all recipients of the covered work and works
based on it.
A patent license is “discriminatory” if it does not include within the scope
of its coverage, prohibits the exercise of, or is conditioned on the
non-exercise of one or more of the rights that are specifically granted
under this License. You may not convey a covered work if you are a
party to an arrangement with a third party that is in the business of
distributing software, under which you make payment to the third party
based on the extent of yo
ur activity of conveying the work, and under
which the third party grants, to any of the parties who would receive the
covered work from you, a discriminatory patent license (a) in connection
with copies of the covered work conveyed by you (or copies made from
those copies), or (b) primarily for and in connection with specific
products or c
ompilations that contain the covered work, unless you
entered into that arrangement, or that patent license was granted, prior
to 28 March 2007.
Nothing in this License shall be construed as excluding or limiting any
implied license or other defenses to infringement that may otherwise be
available to you under applicable patent law.
12. No Surrender of Others’ Freedom.
If conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot convey a
covered work so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not convey it at all. For example, if you agree to terms that obligate
you to collect a royalty for further conveying from those to whom you
convey the Program, the only way you could satisfy both those terms
and this License would be to refrain entirely from conveying the
Program.
13. Use with the GNU Affero General Public License.
Notwithstanding any other provision of this License, you have
permission to link or combine any covered work with a work licensed
under version 3 of the GNU Affero General Public License into a single
combined work, and to convey the resulting work. The terms of this
License will continue to apply to the part which is the covered work, but
the special requirements of the GNU Affero General Public License,
section 13, concerning interaction through a network will apply to the
combination as such.
14. Revised Versions of this License.
The Free Software Foundation may publish revised and/or new versions
of the GNU General Public License from time to time. Such new
versions will be similar in spirit to the present version, but may differ in
detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program
specifies that a certain numbered version of the GNU General Public
License “or any later version” applies to it, you have the option of
following the terms and conditions either of that numbered version or of
any later version published by the Free Software Foundation. If the
Program does not specify a version number of the GNU General Public
License, you may choose any version ever published by the Free
Software Foundation.
If the Program specifies that a proxy can decide which future versions of
the GNU General Public License can be used, that proxy’s public
statement of acceptance of a version permanently authorizes you to
choose that version for the Program.
Later license versions may give you additional or different permissions.
However, no additional obligations are imposed on any author or
copyright holder as a result of your choosing to follow a later version.
15. Disclaimer of Warranty.
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF
THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
16. Limitation of Liability.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN
IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
17. Interpretation of Sections 15 and 16.
If the disclaimer of warranty and limitation of liability provided above
cannot be given local legal effect according to their terms, reviewing
courts shall apply local law that most closely approximates an absolute
waiver of all civil liability in connection with the Program, unless a
warranty or assumption of liability accompanies a copy of the Program
in return for a fee.
END OF TERMS AND CONDITIONS
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this
license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL.
It also counts as the successor of the GNU Library Public License,
version 2, hence the version number 2.1.]
Preamble
The licenses for most software are designed to take away your freedom
to share and change it. By contrast, the GNU General Public Licenses
are intended to guarantee your freedom to share and change free
software to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some
specially designated software packages--typically libraries--of the Free
Software Foundation and other authors who decide to use it. You can
use it too, but we suggest you first think carefully about whether this
license or the ordinary General Public License is the better strategy to
use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not
price. Our General Public Licenses are designed to make sure that you
have the freedom to distribute copies of free software (and charge for
this service if you wish); that you receive source code or can get it if you
want it; that you can change the software and use pieces of it in new
free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid
distributors to deny you these rights or to ask you to surrender these
rights. These restrictions translate to certain responsibilities for you if you
distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a
fee, you must give the recipients all the rights that we gave you. You
must make sure that they, too, receive or can get the source code. If
you link other code with the library, you must provide complete object
files to the recipients, so that they can relink them with the library after
making changes to the library and recompiling it. And you must show
them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the
library, and (2) we offer you this license, which gives you legal
permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no
warranty for the free library. Also, if the library is modified by someone
else and passed on, the recipients should know that what they have is
not the original version, so that the original author’s reputation will not be
affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any
free program. We wish to make sure that a company cannot effectively
restrict the users of a free program by obtaining a restrictive license from
a patent holder. Therefore, we insist that any patent license obtained for
a version of the library must be consistent with the full freedom of use
specified in this license.
Most GNU software, including some libraries, is covered by the ordinary
GNU General Public License. This license, the GNU Lesser General
Public License, applies to certain designated libraries, and is quite
different from the ordinary General Public License. We use this license
for certain libraries in order to permit linking those libraries into non-free
programs.
When a program is linked with a library, whether statically or using a
shared library, the combination of the two is legally speaking a
combined work, a derivative of the original library. The ordinary General
Public License therefore permits such linking only if the entire
combination fits its criteria of freedom. The Lesser General Public
License permits more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does
Less to protect the user’s freedom than the ordinary General Public
License. It also provides other free software developers Less of an
advantage over competing non-free programs. These disadvantages
are the reason we use the ordinary General Public License for many
libraries. However, the Lesser license provides advantages in certain
special circumstances.
For example, on rare occasions, there may be a special need to
encourage the widest possible use of a certain library, so that it
becomes a de-facto standard. To achieve this, non-free programs must
be allowed to use the library. A more frequent case is that a free library
does the same job as widely used non-free libraries. In this case, there
is little to gain by limiting the free library to free software only, so we use
the Lesser General Public License.
In other cases, permission to use a particular library in non-free
programs enables a greater number of people to use a large body of
free software. For example, permission to use the GNU C Library in
non-free programs enables many more people to use the whole GNU
operating system, as well as its variant, the GNU/Linux operating
system.
Although the Lesser General Public License is Less protective of the
users’ freedom, it does ensure that the user of a program that is linked
with the Library has the freedom and the wherewithal to run that
program using a modified version of the Library.
The precise terms and conditions for copying, distribution and
modification follow. Pay close attention to the difference between a
“work based on the library” and a “work that uses the library”. The
former contains code derived from the library, whereas the latter must
be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other
program which contains a notice placed by the copyright holder or
other authorized party saying it may be distributed under the terms of
this Lesser General Public License (also called “this License”). Each
licensee is addressed as “you”.
A “library” means a collection of software functions and/or data
prepared so as to be conveniently linked with application programs
(which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which
has been distributed under these terms. A “work based on the Library”
means either the Library or any derivative work under copyright law: that
is to say, a work containing the Library or a portion of it, either verbatim
or with modifications and/or translated straightforwardly into another
language. (Hereinafter, translation is included without limitation in the
term “modification”.)
“Source code” for a work means the preferred form of the work for
making modifications to it. For a library, complete source code means
all the source code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control compilation and
installation of the library.
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of running a
program using the Library is not restricted, and output from such a
program is covered only if its contents constitute a work based on the
Library (independent of the use of the Library in a tool for writing it).
Whether that is true depends on what the Library does and what the
program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s
complete source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all
the notices that refer to this License and to the absence of any
warranty; and distribute a copy of this License along with the Library.
You may charge a fee for the physical act of transferring a copy, and
you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of
it, thus forming a work based on the Library, and copy and distribute
such modifications or work under the terms of Section 1 above,
provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices
stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge
to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of
data to be supplied by an application program that uses the
facility, other than as an argument passed when the facility is
invoked, then you must make a good faith effort to ensure that, in
the event an application does not supply such function or table,
the facility still operates, and performs whatever part of its purpose
remains meaningful.
(For example, a function in a library to compute square roots has a
purpose that is entirely well-defined independent of the application.
Therefore, Subsection 2d requires that any application-supplied function
or table used by this function must be optional: if the application does
not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable
sections of that work are not derived from the Library, and can be
reasonably considered independent and separate works in themselves,
then this License, and its terms, do not apply to those sections when
you distribute them as separate works. But when you distribute the
same sections as part of a whole which is a work based on the Library,
the distribution of the whole must be on the terms of this License,
whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your
rights to work written entirely by you; rather, the intent is to exercise the
right to control the distribution of derivative or collective works based on
the Library.
In addition, mere aggregation of another work not based on the Library
with the Library (or with a work based on the Library) on a volume of a
storage or distribution medium does not bring the other work under the
scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public
License instead of this License to a given copy of the Library. To do this,
you must alter all the notices that refer to this License, so that they refer
to the ordinary GNU General Public License, version 2, instead of to this
License. (If a newer version than version 2 of the ordinary GNU General
Public License has appeared, then you can specify that version instead
if you wish.) Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy,
so the ordinary GNU General Public License applies to all subsequent
copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the
Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of
it, under Section 2) in object code or executable form under the terms
of Sections 1 and 2 above provided that you accompany it with the
complete corresponding machine-readable source code, which must
be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange.
If distribution of object code is made by offering access to copy from a
designated place, then offering equivalent access to copy the source
code from the same place satisfies the requirement to distribute the
source code, even though third parties are not compelled to copy the
source along with the object code.
5. A program that contains no derivative of any portion of the Library,
but is designed to work with the Library by being compiled or linked
with it, is called a “work that uses the Library”. Such a work, in isolation,
is not a derivative work of the Library, and therefore falls outside the
scope of this License.
However, linking a “work that uses the Library” with the Library creates
an executable that is a derivative of the Library (because it contains
portions of the Library), rather than a “work that uses the library”. The
executable is therefore covered by this License. Section 6 states terms
for distribution of such executables.
When a “work that uses the Library” uses material from a header file
that is part of the Library, the object code for the work may be a
derivative work of the Library even though the source code is not.
Whether this is true is especially significant if the work can be linked
without the Library, or if the work is itself a library. The threshold for this
to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure
layouts and accessors, and small macros and small inline functions (ten
lines or less in length), then the use of the object file is unrestricted,
regardless of whether it is legally a derivative work. (Executables
containing this object code plus portions of the Library will still fall under
Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute
the object code for the work under the terms of Section 6. Any
executables containing that work also fall under Section 6, whether or
not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or link
a “work that uses the Library” with the Library to produce a work
containing portions of the Library, and distribute that work under terms
of your choice, provided that the terms permit modification of the work
for the customer’s own use and reverse engineering for debugging such
modifications.
You must give prominent notice with each copy of the work that the
Library is used in it and that the Library and its use are covered by this
License. You must supply a copy of this License. If the work during
execution displays copyright notices, you must include the copyright
notice for the Library among them, as well as a reference directing the
user to the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-
readable source code for the Library including whatever changes
were used in the work (which must be distributed under Sections
1 and 2 above); and, if the work is an executable linked with the
Library, with the complete machine readable “work that uses the
Library”, as object code and/or source code, so that the user can
modify the Library and then relink to produce a modified
executable containing the modified Library. (It is understood that
the user who changes the contents of definitions files in the Library
will not necessarily be able to recompile the application to use the
modified definitions.)
b)
Use a suitable shared library mechanism for linking with the Library.
A suitable mechanism is one that (1) uses at run time a copy of the
library already present on the user’s computer system, rather than
copying library functions into the executable, and (2) will operate
properly with a modified version of the library, if the user installs
one, as long as the modified version is interface-compatible with
the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three
years, to give the same user the materials specified in Subsection
6a, above, for a charge no more than the cost of performing this
distribution.
d) If distribution of the work is made by offering access to copy from
a designated place, offer equivalent access to copy the above
specified materials from the same place.
e) Verify that the user has already received a copy of these materials
or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library”
must include any data and utility programs needed for reproducing the
executable from it. However, as a special exception, the materials to be
distributed need not include anything that is normally distributed (in
either source or binary form) with the major components (compiler,
kernel, and so on) of the operating system on which the executable
runs, unless that component itself accompanies the executable.
It may happen that this requirement contradicts the license restrictions
of other proprietary libraries that do not normally accompany the
operating system. Such a contradiction means you cannot use both
them and the Library together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library
side-by-side in a single library together with other library facilities not
covered by this License, and distribute such a combined library,
provided that the separate distribution of the work based on the Library
and of the other library facilities is otherwise permitted, and provided
that you do these two things:
a) Accompany the combined library with a copy of the same work
based on the Library, uncombined with any other library facilities.
This must be distributed under the terms of the Sections above.
b)
Give prominent notice with the combined library of the fact that part
of it is a work based on the Library, and explaining where to find the
accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the
Library except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense, link with, or distribute the Library
is void, and will automatically terminate your rights under this License.
However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such
parties remain in full compliance.
9.
You are not required to accept this License, since you have not signed
it. However, nothing else gr
ants you permission to modify or distribute
the Library or its derivative works. These actions are prohibited by law if
you do not accept this License. Therefore, by modifying or distributing
the Library (or any work based on the Library), you indicate your
acceptance of this License to do so, and all its terms and conditions for
copying, distributing or modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the
Library), the recipient automatically receives a license from the original
licensor to copy, distribute, link with or modify the Library subject to
these terms and conditions. You may not impose any further restrictions
on the recipients’ exercise of the rights granted herein. You are not
responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot distribute
so as to satisfy simultaneously your obligations under this License and
any other pertinent obligations, then as a consequence you may not
distribute the Library at all. For example, if a patent license would not
permit royalty free redistribution of the Library by all those who receive
copies directly or indirectly through you, then the only way you could
satisfy both it and this License would be to refrain entirely from
distribution of the Library.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply, and
the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or
other property right claims or to contest validity of any such claims; this
section has the sole purpose of protecting the integrity of the free software
distribution system which is implemented by public license practices. Many
people have made generous contributions to the wide range of software
distributed through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing to
distribute software through any other system and a licensee cannot impose
that choice.
This section is intended to make thoroughly clear what is believed to be
a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain
countries either by patents or by copyrighted interfaces, the original
copyright holder who places the Library under this License may add an
explicit geographical distribution limitation excluding those countries, so
that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
13. The Free Software Foundation may publish revised and/or new
versions of the Lesser General Public License from time to time. Such
new versions will be similar in spirit to the present version, but may differ
in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library
specifies a version number of this License which applies to it and “any
later version”, you have the option of following the terms and conditions
either of that version or of any later version published by the Free
Software Foundation. If the Library does not specify a license version
number, you may choose any version ever published by the Free
Software Foundation.
14. If you wish to incorporate parts of the Library into other free
programs whose distribution conditions are incompatible with these,
write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status of
all derivatives of our free software and of promoting the sharing and
reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE
IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED
BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO
THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU.
SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE
COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE
LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO
LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF
THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest
possible use to the public, we recommend making it free software that
everyone can redistribute and change. You can do so by permitting
redistribution under these terms (or, alternatively, under the terms of the
ordinary General Public License).
To apply these terms, attach the following notices to the library. It is
safest to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least the
“copyright” line and a pointer to where the full notice is found. one line
to give the library’s name and an idea of what it does.
Copyright (C) year name of author
This library is free software; you can redistribute it and/or modify it under
the terms of the GNU Lesser General Public License as published by
the Free Software Foundation; either version 2.1 of the License, or (at
your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT
ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See
the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public
License along with this library; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-
1301 USA Also add information on how to contact you by electronic
and paper mail.
You should also get your employer (if you work as a programmer) or
your school, if any, to sign a “copyright disclaimer” for the library, if
necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the library
‘Frob’ (a library for tweaking knobs) written by James Random Hacker.
signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice.
OpenSSL LICENSE
Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software
must display the following acknowledgment: “This product includes
software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)”
4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be
used to endorse or promote products derived from this software
without prior written permission. For written permission, please contact
openssl-core@openssl.org.
5. Products derived from this software may not be called “OpenSSL”
nor may “OpenSSL” appear in their names without prior written
permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following
acknowledgment: “This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.
org/)”
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ‘‘AS IS’’
AND ANY EXPRESSED OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.This product includes cryptographic software written by Eric
Young (eay@cryptsoft.com). This product includes software written by
Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights
reserved. This package is an SSL implementation written by Eric Young
(eay@cryptsoft.com). The implementation was written so as to conform
with Netscapes SSL. This library is free for commercial and non-
commercial use as long as the following conditions are aheared to. The
following conditions apply to all code found in this distribution, be it the
RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL
documentation included with this distribution is covered by the same
copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.
com).
Copyright remains Eric Young’s, and as such any Copyright notices in
the code are not to be removed.
If this package is used in a product, Eric Young should be given
attribution as the author of the parts of the library used. This can be in
the form of a textual message at program startup or in documentation
(online or textual) provided with the package.Redistribution and use in
source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this
list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software
must display the following acknowledgement: “This product includes
cryptographic software written by Eric Young (eay@cryptsoft.com)” The
word ‘cryptographic’ can be left out if the rouines from the library being
used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from
the apps directory (application code) you must include an
acknowledgement: “This product includes software written by Tim
Hudson (tjh@cryptsoft.com)”
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ‘‘AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.The licence and distribution terms for any publically
available version or derivative of this code cannot be changed. i.e. this
code cannot simply be copied and put under another distribution
licence [including the GNU Public Licence.
![](asset-96.png)
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly
to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of
where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their
working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery
return system.
![](asset-98.png)
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
www.samsungsv.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
www.samsungtechwin.com
www.samsungsecurity.com
www.samsungipolis.com
