GH68_3XXXXA Printed in KoreaXX
ANDROID SMARTPHONE
User Manual
Please read this manual before operating your
phone and keep it for future reference.
GEN_SCH-R530X_UM_ENG_MK4_CB_010714_4.3_MR_F1
Warning!
This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone
System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the
rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain
with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser
General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered
under the open source licenses, please visit:
http://opensource.samsung.com
.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR
ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR
COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING
THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR
ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS
OR BENEFITS.
Modification of Software
SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS,
OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE.
USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR
CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.
SAFE™ (Samsung Approved For Enterprise)
SAFE™: "SAFE™" (Samsung for Enterprise) is a mark for a Samsung device which has been tested against Samsung's own
internal criteria for interoperability with certain third party security-related solutions for MDM and VPN. The testing includes field
testing with local network connection and menu tree testing which tests functionality of the solutions in conjunction with the
Samsung device. During the testing, the device is tested with the security solutions to see if the solutions work with the device as
described by the third party security solution providers. The testing, for example, includes field testing with local network
connection and menu tree testing which tests functionality of the solutions in conjunction with the Samsung device. For more
information about Samsung's SAFE™ program, please refer to
www.samsung.com/us/safe
.
Disclaimer of Warranties: EXCEPT AS OTHERWISE PROVIDED IN THEIR STANDARD END USER LICENSE AND WARRANTY, TO THE
FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND
THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™
DEVICES AND APPLICATIONS TESTED WITH SAFE™ DEVICES. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO
INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ DEVICES OR APPLICATIONS TESTED WITH SAFE™ DEVICES. In
addition, information technology security protection will be affected by features or functionality associated with, among other
things the e-mail platform, master data management, and virtual private network solutions selected by the software provider,
solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole
discretion of the software provider, solution provider or user and any associated effect on information technology security
protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited
warranty, please refer to
www.samsung.com/us/safe
, available on the web and where Samsung smartphone and Galaxy Tab™
devices are sold. [101212]
Samsung Telecommunications America (STA), LLC
Headquarters:
1301 E. Lookout Drive
Richardson, TX 75082
©2013 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
Do you have questions about your Samsung Mobile Phone?
For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:
www.samsung.com/us/support
The actual available capacity of the internal memory is less than the specified capacity because the operating system and default
applications occupy part of the memory. The available capacity may change when you upgrade the device.
Nuance®, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications,
Inc., or its affiliates in the United States and/or other countries.
The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are
registered trademarks and are wholly owned by the Bluetooth SIG.
microSD™ and the microSD logo are Trademarks of the SD Card Association.
Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Mail, Google Maps, Google Music, Google Talk,
Hangouts, Picasa, YouTube and other marks are trademarks of Google Inc.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
Toll Free Tel: 1.888.987.HELP (4357)
Internet Address:
http://www.samsung.com
Swype and the Swype logos are trademarks of Swype, Inc. © 2010 Swype, Inc. All rights reserved.
, DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under
license.
DivX Certified® to play DivX® video up to HD 720p, including premium content.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX
Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit
www.divx.com
for more information and
software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu (tap
Applications > Settings > About phone > Legal information > License settings > DivX® VOD > Register
). Go to
vod.divx.com
for more
information on how to complete your registration.
1
Table of Contents
Section 1: Getting Started .......................... 4
Understanding This User Manual . . . . . . . . . . . . . . . . 4
Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . 6
Turning the Phone On . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning the Phone Off . . . . . . . . . . . . . . . . . . . . . . . 13
Restarting the Phone . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . 13
Displaying Your Phone Number . . . . . . . . . . . . . . . . 17
Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Securing Your Phone . . . . . . . . . . . . . . . . . . . . . . . . 18
TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Section 2: Understanding Your Phone ..... 20
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Motions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using Multi Window . . . . . . . . . . . . . . . . . . . . . . . . . 26

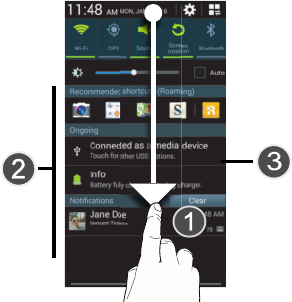

Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Customizing the Home Screen . . . . . . . . . . . . . . . . .37
Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Section 3: Memory Card ............................42
Mounting the SD Card . . . . . . . . . . . . . . . . . . . . . . . . 42
Unmounting the Memory Card . . . . . . . . . . . . . . . . .42
SD Card Available Memory Status . . . . . . . . . . . . . . . 43
Formatting a Memory Card . . . . . . . . . . . . . . . . . . . .43
Section 4: Accounts and Contacts ...........44
Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Section 5: Calling ......................................57
Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Multi-Party Calling . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
2
Section 6: Entering Text ............................69
Text Input Methods . . . . . . . . . . . . . . . . . . . . . . . . . .69
Entering Text Using the Samsung Keyboard . . . . . . .69
Using the Google Voice Typing Feature . . . . . . . . . . .73
Samsung Keyboard Settings . . . . . . . . . . . . . . . . . . .73
Entering Text Using Swype . . . . . . . . . . . . . . . . . . . .74
Section 7: Messaging ................................75
Types of Messages . . . . . . . . . . . . . . . . . . . . . . . . . .75
Text and Multimedia Messaging . . . . . . . . . . . . . . . .75
Emergency Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Hangouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Google+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Voice Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Section 8: Multimedia ...............................87
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Gallery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Google Play Books . . . . . . . . . . . . . . . . . . . . . . . . . .102
Google Play Magazines . . . . . . . . . . . . . . . . . . . . . .103
Google Play Movies & TV . . . . . . . . . . . . . . . . . . . . 103
Google Play Music . . . . . . . . . . . . . . . . . . . . . . . . . 104
YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Section 9: Applications and Widgets .....105
Accessing Applications . . . . . . . . . . . . . . . . . . . . . 105
Applications List . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Accessing Widgets . . . . . . . . . . . . . . . . . . . . . . . . . 126
Section 10: Connections .........................127
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Mobile Hotspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Beaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
PC Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Screen Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Nearby Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Section 11: Settings ................................140
Accessing Settings . . . . . . . . . . . . . . . . . . . . . . . . . 140
Settings Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
My device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
3
Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Section 12: Health and Safety
Information ........................................ 187
Exposure to Radio Frequency (RF) Signals . . . . . . . 187
Specific Absorption Rate (SAR) Certification
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
FCC Part 15 Information to User . . . . . . . . . . . . . . . 194
Commercial Mobile Alerting System (CMAS) . . . . . . 194
Smart Practices While Driving . . . . . . . . . . . . . . . . 195
Battery Use and Safety . . . . . . . . . . . . . . . . . . . . . . 196
Samsung Mobile Products and Recycling . . . . . . . . 198
UL Certified Travel Charger . . . . . . . . . . . . . . . . . . . 199
Display / Touch-Screen . . . . . . . . . . . . . . . . . . . . . 199
GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . 201
Responsible Listening . . . . . . . . . . . . . . . . . . . . . . 202
Operating Environment . . . . . . . . . . . . . . . . . . . . . . 204
FCC Hearing Aid Compatibility (HAC) Regulations
for Wireless Devices . . . . . . . . . . . . . . . . . . . . . . 206
Restricting Children's Access
to Your Mobile Device . . . . . . . . . . . . . . . . . . . . . 208
FCC Notice and Cautions . . . . . . . . . . . . . . . . . . . . 208
Other Important Safety Information . . . . . . . . . . . . .209
Section 13: Warranty Information ..........211
Standard Limited Warranty . . . . . . . . . . . . . . . . . . .211
End User License Agreement for Software . . . . . . . 216
Index .........................................................224
4
Section 1: Getting Started
This section allows you to quickly start using the Samsung
GALAXY S III phone by installing an optional microSD card,
installing and charging the battery, activating your service,
and setting up your voicemail account.
Understanding This User Manual
The sections of this manual generally follow the features of
your phone. A robust index for features begins on page 224.
Also included is important safety information that you should
know before using this phone. Most of this information is
near the back of the guide, beginning on page 187.
This manual gives navigation instructions according to the
default display settings. If you select other settings,
navigation steps may be different.
Note:
Instructions in this manual are based on default settings,
and may vary from your phone, depending on the
software version on your phone, and any changes to the
phone’s Settings.
Unless otherwise specified, all instructions in this
manual assume that you are starting from the Home
screen. To get to the Home screen, you may need to
unlock the phone or keypad. (For more information,
refer to “Securing Your Phone” on page 18.)
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your phone and any changes to the phone’s Settings.
Getting Started 5
Special Text
In this manual, you’ll find text that is set apart from the rest.
This special text is intended to point out important
information, to share quick methods for activating features,
to define terms, and more. The definitions for these methods
are as follows:
•
Notes
: Presents alternative options for the current feature, menu,
or sub-menu.
•
Tips
: Provides quick or innovative methods or useful shortcuts.
•
Example
: Provides an example of the feature or procedure.
•
Important
: Provides important information about the current
feature that could affect performance.
•
Caution
: Provides information to avoid possible damage.
•
Warning
: Brings to your attention important information to
prevent loss of data or functionality or even to prevent damage to
your phone.
Text Conventions
This manual provides condensed information about how to
use your phone. To make this possible, the following text
conventions are used to represent often-used steps:
Example:
“Press
Home
, then touch
Menu
➔
Settings
➔
Connections
➔
Wi-Fi
.”
➔
Arrows are used to represent the sequence of
selecting successive options in longer, or
repetitive, procedures.
6
Setting Up Your Phone
Before using your phone, install the SIM card, the microSD™
card, and the battery into their respective internal slots and
compartments.
Important!
Before removing or replacing the battery cover,
make sure the phone is switched off.
To turn the phone off, press and hold down the
Power key until the
Device options
pop-up displays,
and then touch
Power off
.
Removing the Battery Cover
1. Locate the cover removal opening (1).
2. Place your fingernail in the opening and pry the cover
away from the device (2).
Caution!
Do not bend or twist the back cover excessively.
Doing so may damage the cover.
Getting Started 7
Installing a Memory Card
This phone lets you install an optional microSD (SD) or
microSDHC memory card to expand available memory to
store images, videos, music, applications, and data.
1. Remove the battery cover. (See “Removing the Battery
Cover” on page 6.)
2. Locate the microSD card slot on the bottom inside of
the phone.
3. With the gold contacts facing down, carefully slide the
memory card into the slot (as shown), pushing gently
until the memory card clicks into place.
Important!
Be sure to align the gold contact pins on the
memory card with the phone’s contacts.
Caution!
Applications, personal settings, and other stored
data may be lost or may not function properly if the
memory card is removed without first unmounting it.
For more information about mounting/unmounting,
formatting, or uninstalling a memory card, see “Mounting the
SD Card” on page 42, “Unmounting the Memory Card” on
page 42, or “Formatting a Memory Card” on page 43.
8
Replacing the Battery Cover
Align the cover (1) and press it firmly into place (2),
ensuring that the cover snaps into place at the corners.
Removing a Memory Card
Important!
Unmount the memory card before removing it from
the phone to prevent damage to information stored
on the memory card.
1. Press Home, then touch
Menu
➔
Settings
➔
More
➔
Storage
➔
Unmount SD card
.
2. Remove the battery cover. (See “Removing the Battery
Cover” on page 6.)
3. Firmly press the Memory card into the slot and
carefully release it. The card should pop partially out of
the slot.
4. Remove the card from the slot.
5. Replace the battery cover. (For more information, refer
to “Replacing the Battery Cover” on page 8.)
Getting Started 9
Battery
This phone is powered by a rechargeable, standard Li-Ion
battery. A Wall/USB Charger (Charging Head and USB cable)
is included with the phone for charging the battery.
Note:
This phone is shipped with the battery partially charged.
Please charge the battery fully before using the phone
for the first time.
After the first charge, you can use the phone while
charging.
Warning!
Use only Samsung-approved charging devices and
batteries. Samsung accessories are designed to
maximize battery life. Using other accessories may
invalidate your warranty and may cause damage.
Failure to unplug the wall charger before you remove
the battery can cause damage to the phone.
Battery Indicator
The battery icon in the Status bar shows the battery
power level. Two to three minutes before the battery
becomes too low to operate the phone, the empty battery
icon flashes and a tone sounds. If you continue to operate the
phone without charging the battery, the phone powers off.
Installing the Battery
1. Remove the battery cover (see “Removing the Battery
Cover” on page 6).
2. Slide the battery into the compartment (1) so that the
tabs on the end align with the slots at the bottom of the
phone. Ensure that the connectors align.
3. Gently press down to secure the battery (2).
10
Removing the Battery
1. Remove the battery cover (see “Removing the Battery
Cover” on page 6).
2. Lift the battery up using the slot provided (1).
3. Lift the battery up and out of the phone (2).
Charging the Battery
This phone is powered by a rechargeable Li-ion battery. A
wall charger, which is used for charging the battery, is
included with this phone. Use only approved batteries and
chargers. Ask your local Samsung dealer for further details.
Before using the phone for the first time, you must fully
charge the battery. A discharged battery recharges fully in
approximately 4 hours.
Important!
It is recommended that you fully charge the battery
before using the device for the first time.
Getting Started 11
1. Insert the USB cable into the phone’s Charger/
Accessory jack.
2. Connect the USB cable to the charging head.
3. Plug the charging head into a standard AC power
outlet. The device turns on with the screen locked and
indicates both its charge state and percent of charge.
4. When charging is finished, first unplug the charger’s
power plug from the AC wall outlet, and then
disconnect the USB cable connector from the device.
Turning the Phone On
Press and hold the
Power/Lock
key (on the
upper right side of the phone) for three seconds. While
powering on, the phone connects with the network,
then displays the Locked screen and any active
Notification alerts.
Note:
This illustration displays both the correct and
incorrect orientation for connecting the USB
cable. Failure to connect the USB cable correctly
may damage the accessory port and void the
phone’s warranty.
Incorrect
Warning!
While the device is charging, if the touch
screen does not function due to an unstable
power supply, unplug the USB power
adapter from the power outlet or unplug the
USB cable from the device.
12
Note:
The phone’s internal antenna is located along the
bottom back of the phone. Do not block the antenna;
doing so may affect call quality or cause the phone to
operate at a higher power level than necessary.
Unlocking the Phone
1. If needed, press
Home
to wake
the screen.
2. If there are no Notification
alerts on the phone, swipe
the screen to unlock it.
The Home screen
displays.
Note:
If you purchased your phone online, the first time you
power your phone on and unlock the screen, the
Activation Wizard
Welcome
screen displays.
Follow the prompts to activate and set up your phone.
Getting Started 13
Turning the Phone Off
1. Press and hold the
Power/Lock
for two
seconds until the Device options screen displays.
2. At the prompt, touch
Power off
.
3. Touch
OK
at the prompt.
Restarting the Phone
1. Press and hold the
Power/Lock
until the Device
options screen displays.
2. Touch
Restart
➔
OK
.
Important!
Please note that a touch screen responds best to a
light touch from the pad of your finger or a non-
metallic stylus. Using excessive force or a metallic
object when pressing on the touch screen may
damage the tempered glass surface and void the
warranty. (For more information, refer to “Standard
Limited Warranty” on page 211.)
Setting Up Your Phone
When you first turn on the phone, you are asked to set up a
few things. To do that, the following screens display. Touch
Skip >
to skip some screens, or touch
Back
to redisplay
them. (Some screens may or may not display depending on
the options you choose.)
Note:
If your screen dims or turns off, momentarily press the
Power/Lock key to continue.
Welcome
1. Under
Select language
, touch the language you want
this phone to use, such as
English
.
2. If you want to use some or all of the enhanced
accessibility features of your phone, touch
Accessibility
.
3. Touch
Next >
. The
Activate device
screen appears.
Your phone will automatically activate itself.
14
Wi-Fi
Make sure the Wi-Fi
OFF / ON
icon is set to ON, and choose
one of the following options:
Touch
Add Wi-Fi network
to enter a Network SSID that is
not listed.
Touch
Scan
to make sure you have an accurate list of
Wi-Fi networks.
Touch one of the Wi-Fi networks in the list, enter the
password, and touch
Connect
. Touch and connect to
another Wi-Fi network or touch
Next >
to continue.
Touch
Skip >
to perform this task later. (For more information,
refer to “Wi-Fi” on page 127.)
Samsung Account
An active Samsung account is required to use applications
such as AllShare Play and Media Hub.
1. If you already have a Samsung account, on the
Samsung Account
screen, touch
Sign in
and follow the
prompts to connect your phone to your existing
Samsung account.
2. If you do not have a Samsung account, touch
Create
new account
and follow the on-screen instructions to
create a Samsung account.
3. Read the Terms and conditions, and then touch the
I
accept all the terms
above
check box.
4. Touch
Agree
.
5. Enter the required information and touch
Sign up
.
6. At the Welcome screen, touch
Next
.
7. Follow the on-screen instructions to verify your email
address and activate your account.
Getting Started 15
Got Google?
To use all of the Android features of your phone, you need to
create a Google™ Account the first time you use your phone.
With a Google Account, Google applications, including Gmail,
Maps, Navigation, Google Talk, and Google Play, are always
in sync between your phone and computer.
The
Got Google?
screen lets you create and sign in to a new
Google Account or simply sign in to an existing Google
Account.
Note:
If you skipped Wi-Fi setup, the Wi-Fi setup screen
displays and you must connect through a Wi-Fi network.
Respond to the “
Do you have a Google Account?
” as follows:
1. Touch
Yes
if you already have a Google Account. The
Sign in
screen displays.
•
Touch the
Email
field and enter your Google Account Email ID
and touch
Next
on the keyboard.
•
Enter your Google Account password and touch
Done
on the
keyboard.
– or –
Touch
No
if you do not have a Google Account.
•
The
Make it Google
screen displays. Touch
Get an account
to
create and sign in to a new Google Account. (Or touch
Not now
to bypass this step and proceed.)
•
Touch
OK
.
2. Once you enter your Google Account information, you
are prompted to agree to the Google Terms of Service
and Privacy Policy.
3. The
Signing in
screen displays until the phone links to
your Google Account. (For more information, refer to
“Setting Up Your Gmail Account” on page 83
.)
16
Resetting Your Google Account Password
A Google Account password is required for Google
applications. If you misplace or forget your Google Account
password, follow these instructions to reset it:
1. From your computer, use an Internet browser to
navigate to
google.com/accounts
.
2. When the web page loads, click the
Can’t access your
account?
link.
3. Under the title
Having trouble signing in?
, follow the
password reset prompts.
Entertainment
Sign up for Google Wallet—a fast, easy, and safe way to pay
for purchases in the Google Play Store and other sites.
(This screen displays only when you are signed in to your
Google Account.)
Touch
Set up credit card
and enter purchase
information for your Google Account.
– or –
Touch
Not now
.
Backup and Restore
You can use your Google Account to back up your apps,
settings, and other data.
(This screen displays only when you are signed in to your
Google Account.)
1. Read the backup and restore information.
2. Enable either or both options.
3. Touch to continue .
If you selected
Restoring from my Google Account to this
phone
, the Restoring screen displays while your
information is restored.
Google and Location
Enable the desired settings related to location
information, then touch to continue.
This Phone Belongs To...
To personalize the phone with your name:
1. Touch the First and Last fields and use the on-screen
keyboard to enter you first and last name.
2. Touch to continue.
Getting Started 17
Setup Complete
Congratulations! Your phone is set up and ready to use.
Touch
Finish
.
Displaying Your Phone Number
Press
Home
, then touch
Menu
➔
Settings
➔
More
➔
About device
➔
Status
.
Your phone number displays in the
My phone number
field.
Voicemail
All unanswered calls to the phone are sent to voicemail, even
if the phone is turned off. Set up your voicemail and personal
greeting as soon as you activate the phone.
Setting Up Voicemail
1. Press
Home
, touch
Phone
, and then touch
and hold .
2. Follow the automated instructions to set up your new
password and record a greeting.
Checking Voicemail
1. Press
Home
, touch
Phone
, and then touch
and hold .
2. Follow the automated instructions to manage
voicemail.
Tip:
You can also access
Voicemail
by dialing your phone
number from any touch-tone phone.
18
Roaming
When you travel outside your home network’s coverage area,
your phone can roam to acquire service on other compatible
digital networks. When Roaming is active, the Roaming icon
( ) displays in the Annunciator Line (Notification Bar) of
the display.
Tip:
You can set your phone’s roaming behavior. For more
information, refer to “Mobile Networks” on page 147
During roaming, some services may not be available.
Depending on your coverage area and service plan, extra
charges may apply when you make or receive calls.
Note:
Contact your wireless provider for more information
about your coverage area and service plan.
Securing Your Phone
By default, the phone locks automatically when the screen
times out, or you can lock the phone manually. You can
unlock the phone using one of the default Unlock screens.
For increased security, use a personal screen unlock pattern,
a personal identification number (PIN), or a password.
For more information about creating and enabling a Screen
unlock pattern, see “Lock Screen” on page 153.
Note:
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
Locking the Phone Manually
Press the
Power/Lock
key on the top right
side of the phone.
Getting Started 19
Unlocking the Phone
For information on unlocking your phone, see “Unlocking the
Phone” on page 12.
Unlocking with a Personal Screen Unlock Pattern
1. Press
Home
to wake the screen.
2. Draw a personal unlock pattern on the screen.
For more information, refer to “Lock Screen” on page 153
Unlocking with a Password
1. Press
Home
to wake the screen.
2. Enter your Password.
3. Touch
OK
.
TTY Mode
This phone is fully TTY-compatible, allowing you to connect a
TTY device to the phone’s headset jack. Before you can use
this phone with a TTY device, enable TTY Mode.
For more information, refer to “Other call settings” on page
68.
20
Section 2: Understanding Your Phone
Features
•
4.8-inch 1280x720 Super AMOLED HD touch screen
•
CDMA 1X/EV-DO Rev-A /LTE Wireless Technology
•
1.5 gigahertz dual-core processor
•
Android
®
4.3 platform
•
Google Play
™
Store, plus pre-loaded applications
•
SAFE
™
Certified
•
Connections
–
Wi-Fi 802.11 a/b/g/n
–
Mobile Hotspot
–
Bluetooth 4.0
–
Tethering
–
VPN
–
NFC
–
Android Beam
–
S Beam
–
Wi-Fi Direct
–
AllShare Cast
–
DLNA
–
USB 3.0
•
Galaxy Gear™ compliant. For more information, please visit:
www.samsung.com/us/galaxygearsupport
•
Messaging Services
–
Text Messaging
–
Picture Messaging
–
Video Messaging
–
Voice Messaging
–
Email
–
Mobile Instant Messenger (IM)
–
Chat
•
8 Megapixel Camera/Camcorder with LED flash + 1.9 Megapixel
Front camera
•
Picture Gallery
•
Video Player (720p — MP4 and 3GP)
•
DivX Certified
®
to play DivX
®
video up to HD 720p, including
premium content
•
Music Player (AAC, AAC+, eAAC+, MP3, and WMA)
•
Speakerphone
•
Support for microSD
™
and microSDHC
™
Memory Cards up to
64GB capacity
Understanding Your Phone 21
Front View
1.
Earpiece
:
Use during calls to listen to callers.
2.
LED Indicator
: Flashes or glows to alert you to alert
notifications or phone status.
3.
Menu Key
: Touch to display options for the current
screen.
4.
Home Key
: Press to display the Home screen or, if the
phone is locked, the Lock screen. Press and hold to
display recent applications or to launch Task Manager.
5.
Microphone
: Use when recording and during calls, to
allow callers to hear your voice.
6.
Back Key
: Touch to return to the previous screen or
option.
7.
1.9 Megapixel Front Camera
: Use for taking pictures and
recording video.
8.
Proximity and Light Sensors
: Detects the presence of
nearby objects to control phone functions or blank the
screen display, such as when you hold the phone to
your ear during a phone call. Detects ambient light to
determine screen brightness when
Brightness
is set to
Automatic brightness
(see “Brightness” on page 155),
and when you take pictures with the Front camera.
1
2
3
4
6
5
7
8
22
Side Views
1.
Volume Key
: From the Home screen, press to adjust
Master Volume. During calls or music playback, press
to adjust volume. Press to mute the ringtone of an
incoming call.
2.
USB
Power/Accessory Port
: Connect a USB cable for
charging or to sync music and files.
3.
Power/Lock Key
: Press and hold to turn the phone on or
off. Press to lock the phone or to wake the screen for
unlocking.
1
3
2
Understanding Your Phone 23
Back View
1.
Noise Cancelation Microphone
: Captures background
noise that the phone uses to produce a quiet
background during calls and video chats.
2.
Camera Flash
: Use when taking photos.
3.
8 Megapixel Camera Lens
: Use when taking photos or
recording videos.
4.
External Speaker
: Play ringtones, call audio when in
Speakerphone mode, media sounds (music and video),
and other sounds.
5.
3.5mm Headset Jack
: Plug in an optional headset or
TTY equipment.
1
2
3
4
5
24
Navigation
Navigate your phone’s features using the command keys and
the touch screen.
Warning!
A touch screen responds best to a light touch from
the pad of your finger or a non-metallic stylus. Using
excessive force or a metallic object when pressing
on the touch screen may damage the tempered
glass surface and void the warranty. For more
information, see “Warranty Information” on
page 211.
Context-Sensitive Menus
While you use your phone, context-sensitive menus offer
options for the feature or screen currently in use.
To access context-sensitive menus:
1. Touch
Menu
.
2. Touch and hold on an item.
Command Keys
Menu Key
Touch
Menu
to display a context-sensitive menu of
options for the current screen or feature.
Home Key
Press
Home
to display the Home screen.
Press and hold
Home
to launch Task Manager or to
launch a menu of recent applications.
Back Key
Touch
Back
to return to the previous screen, option,
or step.
Understanding Your Phone 25
Motions
Finger Motions
Touch
Touch items to select or launch them. For example:
•
Touch the on-screen keyboard to enter characters or text.
•
Touch an item to select it.
•
Touch an application icon to launch the application.
Touch and Hold
Activate on-screen items by a touch and hold gesture. For
example:
•
Touch and hold a widget or icon on the Home screen to move it.
•
Touch and hold on a field to display a pop-up menu of options.
Swipe
Swipe your finger vertically or horizontally across the screen.
For example:
•
Unlock the screen.
•
Scroll the Home screen or a menu.
•
Combine touch and hold with swipe to drag an item to a
new location.
Pinch
Using two fingers, make a pinch motion on the screen.
For example:
•
Pinch outward to zoom in on pictures or screens.
•
Pinch inward to zoom out on pictures or screens.
Motions
Your phone recognizes motion to allow you to navigate and
access features by moving the phone in specific patterns.
To use motions to control your phone, enable the
Motion
settings. (For more information, see “Motion” on page 168.)
•
Direct call
: When this option is set to On, you can lift the phone to
your ear to call a contact displayed in a Messaging, Contacts, or
Call Log screen.
•
Smart alert
: When this option is set to On, you can lift the phone
to automatically receive notification of missed calls, messages,
and alerts that occurred while the phone was stationary.
26
•
Double tap to top
: When this option is set to On, a double tap on
the top of the phone takes you to the top of the list.
•
Tilt to zoom
: When this option is set to On, touching and holding
with your thumbs on the screen while in Gallery or Internet, then
tilting the phone forward and back, causes the screen to zoom in
or out.
•
Pan to move icon
: When this option is set to On, touching and
holding on the screen, then moving the phone in a side-to-side
motion, moves a highlighted icon to a new location on the Home
screen.
•
Pan to browse images
: When this option is set to On, moving the
phone in a panning motion while viewing an image moves focus
around in the image.
•
Shake to update
: When this option is set to On, shaking the
phone causes Bluetooth or Wi-Fi screens to scan for devices.
•
Turn over to mute/pause
: When this option is set to On, turning
the phone screen-down automatically mutes incoming call
ringtones and alerts sounds.
Hand Motions
Use your hand to swipe across the screen, or cover the
screen.
•
Palm swipe to capture
: When this option is set to On, swiping
the screen with the side of your hand (left to right, or right to left)
captures a screen shot.
•
Palm touch to mute/pause
: When this option is set to On, covering
the screen with your hand mutes or pauses media playback.
Using Multi Window
This feature allows you to run multiple applications on the
current screen at the same time.
Note:
Only applications found within the Multi window panel
can be active atop another current application on the
screen.
When launching applications that contain multimedia
files (music/video), audio from both files will be played
simultaneously.
Understanding Your Phone 27
Tip:
You can use Multi window with your phone either upright
or rotated onto its side. You can also rotate your phone
with Multi window already running two applications.
Enabling Multi Window
Enabling Multi window on the Notification screen:
1. In a single motion, touch the Status bar to reveal the
Notifications tab, and then drag it to the bottom of the
screen to open the Notifications screen (1).
2. Swipe the row of Quick Settings buttons to the left until
the
Multi window
icon appears.
3. Touch
Multi window
to enable the feature. The
icon turns green when active.
Showing the Multi window tab:
1. If the Multi window tab is not showing on
the current screen, touch and hold
Back
. The Multi window tray appears briefly
(by default) on the left side of the screen,
then closes, leaving only the Multi window
tab showing.
2. Touch the Multi window tab to open the
Multi window tray, showing some of the
available Multi window apps.
3. Swipe the tray upwards to show more Multi
window apps.
Hiding Multi window tab:
With the Multi window tab showing, touch
and hold
Back
. This action hides the
Multi window tab from view.
28
Using Multi window to run multiple apps on the same
screen
Any of the apps found within the Multi window panel can be
run at the same time as a current on-screen app.
Once multiple apps are running on the same screen, you can
then choose to either swap their positions or maximize a
desired app.
1. Launch an application, such as Internet.
•
From the Home screen, touch
Internet
.
2. Enable the Multi window feature. (See “Enabling Multi
Window” on page 27.)
3. Touch the Multi window tab to display the apps tray.
4. Touch and hold the desired app, such as
Maps
,
until it detaches from the tray.
5. In a single motion, drag the app over the current app
and drop the new Multi window app over either the top
or bottom half of the current on-screen app.
The device displays a split screen view containing both
the initial app and the new Multi window app. Each
application is still independent of the other.
To swap the locations of the
applications:
1. With the two
applications shown in a
split screen, touch the
Border bar to show the
on-screen icons.
2. Touch the desired
application area (top or
bottom).
3. Touch
Swap apps
.
The current apps swap
places.
To increase the size of a
desired application window:
With the two
applications running in
the Multi window
screen, touch and hold the Border bar, then drag it to
resize the desired window.
App #1 Max
App #2 Border Swap
apps
bar Close
Understanding Your Phone 29
To seperate the current applications:
1. With the two applications running in the Multi window
screen, touch the Border bar to show the on-screen
icons.
2. Touch the desired application area (top or bottom).
3. Touch
Maximize apps
. The current apps are the
both maximized.
To close an application:
1. With the two applications running in the Multi window
screen, touch the Border bar to show the on-screen
icons.
2. Touch the desired application area (top or bottom).
3. Touch
Close app
. The current apps swap places.
Moving the Multi Window Tab and Tray
You can move the Multi window tab along any edge of the
screen (top, bottom, left, or right). This is a quick way to get
the tab out of the way if you can’t get to a button or option
behind it.
To move the tab:
1. Enable the Multi window
feature. (See “Enabling
Multi Window” on page
27.)
2. In a single motion, touch
and hold the tab for a
second, then slowly
drag it to its new
location
along the
current
screen edge.
30
To relocate the Multi window tray:
1. Enable the Multi window feature. (See “Enabling Multi
Window” on page 27.)
2. Touch the tab to display the apps tray (containing the
scrollable apps).
Note:
Notice that when the apps are visible, the tab turns a
dark grey. Its only in this state that the apps tray can be
relocated.
3. In a single motion, touch and hold the Multi window
tab for approximately one-second to detach it from
the screen (1), then slowly drag it to its new location
on
any other
available screen edge (2). You can move it to
the top or bottom of the screen, or to either side.
Understanding Your Phone 31
Customizing the Multi Window tray
You can customize the contents of the Multi window tray by
rearranging, removing, or adding apps.
To rearrange the Multi window apps:
1. Enable the Multi window feature. (See “Enabling Multi
Window” on page 27.)
2. Touch the Multi window tab to open the apps tray.
3. In a single motion, touch and hold a desired app until it
detaches from the tray, then carefully drag it to a new
location in the list of apps. Lift your finger or stylus off
the screen to let go of the app and drop it into its new
location.
To remove a Multi window app:
1. Enable the Multi window feature. (See “Enabling Multi
Window” on page 27.)
2. Touch the Multi window tab to open the apps tray.
3. Touch
Edit
(located at the bottom of the list) to reveal
the staging area containing any previously removed
apps.
4. Follow the prompt to remove apps from the Multi
window tray to the staging area.
5. When you are finished, touch
Done
.
To add a Multi window app:
1. Enable the Multi window feature. (See “Enabling Multi
Window” on page 27.)
2. Touch the Multi window tab to open the apps tray.
3. Touch
Edit
(located at the bottom of the list) to reveal
the staging area containing any previously removed
apps.
4. In a single motion, touch and hold a desired app until it
detaches from the staging area, then carefully drag it
to a new location in the current list of apps.
5. When you are finished, touch
Done
.
32
Notifications
The Notification area indicates new message events (data
sync status, new messages, calendar events, call status,
etc). You can expand this area to reveal the Notifications
screen that provides more detailed information about the
current on-screen notification icons.
Opening the Notifications Screen
1. In a single motion, touch and drag the Status bar down
to the bottom of the screen to display notifications.
2. Touch a notification entry to open the associated
application.
3. Touch
Clear
to clear all Notifications.
Understanding Your Phone 33
Quick Settings Menu
Use the Quick Settings buttons at the top of Notifications to
control popular settings. Slide your finger left to view icons
hidden on the right.
•
Wi-Fi
: Turn Wi-Fi On or Off. (For more information about using
Wi-Fi, see
“Wi-Fi”
on page 127.)
•
GPS
: Turn Standalone GPS services on or off. (For more
information, see
“Location Services”
on page 178.)
•
Sound
: Touch to switch between your sound settings and the two
Silent modes, Mute and Vibrate.
•
Screen Rotation
: Enable or disable the Auto rotation setting to
control whether the screen automatically updates when you
rotate the phone. (For more information, see “
Auto-Rotate
Screen
” on page 156.)
•
Bluetooth
: Turn Bluetooth On or Off. (For more information about
using Bluetooth, see
“Bluetooth”
on page 128.)
•
Mobile data
: Activate or deactivate your phone’s access to
mobile data. (For more information, see
“Turning Mobile Data
On or Off”
on page 145.)
•
Blocking mode
: Enable or disable blocking of select notifications
you receive. (For more information, refer to
“Blocking mode”
on
page 159).
•
Power saving
: Enable or disable Power saving mode. (For more
information, refer to
“Power saving mode”
on page 160.)
•
Multi window
: Enable or disable the Multi Window feature that
lets you run two applications on the same screen at the same
time. (For more information, refer to
“Using Multi Window”
on
page 26.)
•
Screen Mirroring
: Enable or disable sharing of screens on your
device with other devices. (For more information, refer to
“Screen Mirroring”
on page 139.)
•
Brightness
: Set to Auto. Deselect and drag the slider left to
decrease or right to increase screen brightness levels.
Clearing Notifications
1. Sweep your finger downward from the top of the
screen to display Notifications.
2. Touch a notification to clear it or to launch an
application.
– or –
Touch
Clear
to clear all notifications.
34
Home Screen
The Home screen is the starting point for using your phone.
Note:
Unless stated otherwise, instructions in this User Manual
start with the phone unlocked, at the Home screen.
All screen images in this manual are simulated. Actual
displays may vary, depending on the software version of
your phone and any changes to the phone’s Settings.
1.
Status Bar
: Presents icons to show network status,
battery power, and connection details. (For a list of
icons, see “Status Bar Icons” on page 35.)
2.
Home Screen
: The starting point for using your phone.
Place shortcut icons, widgets, and other items to
customize your phone to your needs.
3.
Primary Shortcuts
: Shortcuts to your phone’s common
apps. (For more information, see “Primary Shortcuts”
on page 38.)
4.
Panel Indicator
: Indicates which of 7 available Home
screen panels display on the screen.
5.
Shortcuts
: Shortcuts to common apps.These shortcuts
are found on the Home screen by default, and you can
add more shortcuts to your favorite applications. (For
more information, see “Adding an Application Shortcut
to the Home Screen” on page 39.)
6.
Widgets
: Apps that run on the Home screen. These
widgets are found on the Home screen by default, and
you can add your favorites. (For more information, see
“Widgets” on page 38.)
1
2
3
4
5
6
Understanding Your Phone 35
Status Bar Icons
The Status bar shows network and battery status and other
details.
Airplane Mode Active
: All wireless communications
are disabled. (See “Airplane Mode” on page 146.)
USB Connected
: The phone is connected to a
computer using a USB cable.
Voice Call
: A voice call is in progress.
Speakerphone
: Speakerphone is enabled.
Missed Call
: There is a missed call.
Battery Level
: Battery is fully charged.
Battery Charging
: Battery is charging.
Device Power Critical
: Battery has very little power
remaining. Charge immediately.
GPS Location Active
: One or more GPS location
services are currently active. (See “Location
Services” on page 178.)
Missing SIM
: No LTE SIM is installed.
No Network
: No wireless network is available.
3G connection
: Phone is active on a 3G system.
Signal Strength
: Current signal strength. The
greater the number of bars, the stronger the signal.
New Message
: You have new message(s).
New Voicemail
: You have new voicemail. A number
indicates the number of new messages.
New Email Message
: You have new email.
Silent Mode
: All sounds except media and alarms
are silenced, and Vibrate is not active.
36
You can customize display settings to your preferences. (For
more information, refer to “Display” on page 155.)
Extended Home Screen
The Home screen consists of the Home panel, plus panels
that extend beyond the display width to provide more space
for adding shortcuts, widgets, and folders.
Slide your finger horizontally across the screen to scroll to
the left or right side panels. As you scroll, the indicator at the
bottom of the display shows your current position.
Mute
: Voice or playback volume is muted.
Vibrate
: All sounds are silenced, and Vibrate is
active. (See “
Vibrations
: Choose or create a vibration
pattern to use when vibration is enabled.” on page
157.)
SD Card Ready
: A memory card scan is underway to
prepare the card for use.
SD Card Removed
: A memory card was uninstalled.
SD Card Unexpectedly Removed
. The memory card
was removed improperly.
Bluetooth Active
: Bluetooth is turned on.
Bluetooth Connected
: Your phone is connected with
another Bluetooth device.
Wi-Fi Active
: Wi-Fi is active, and connected to a Wi-
Fi network.
Wi-Fi Action Needed
: Action is needed to connect to
Wi-Fi network. (For more information about
configuring Wi-Fi, see “Wi-Fi Settings” on
page 142.)
TTY
: TTY Mode is active.
Understanding Your Phone 37
Customizing the Home Screen
Customize the Home screen to suit your preferences.
•
Add Apps and Widgets
: For more information, see
“Adding an
Application Shortcut to the Home Screen”
on page 39.
•
Add Folders
: For more information, see
“Place folders on the
Home screen to organize items.”
on page 39.
•
Change the Wallpaper
: For more information, see
“Wallpaper”
on page 40.
Adding and Removing Home Screen Panels
Your phone comes with 7 Home screen panels. You can
customize the Home screen to include up to the seven
default panels and set one panel as Home.
1. From the Home screen, touch
Menu
➔
Edit page
.
2. Slide your finger across the screen to scroll the panels.
Use these controls to configure panels:
Tip:
You can also “pinch” the Home screen to display Edit
options.
Remove
: Touch and hold on a panel and drag it
to
Remove
.
Add
: Touch a previously-removed panel to add
it, up to the default total of seven.
Set as Home
: Touch to assign a panel as the
Home screen. The panel set as Home displays
when you press the
Home
key.
38
Primary Shortcuts
Primary shortcuts display at the bottom of the display. You
can edit the Primary shortcuts, except for
Apps
.
Editing the Primary Shortcuts
To add or remove shortcuts:
Touch and hold a shortcut and drag it from the Primary
shortcuts to the Home screen or from the Home screen
to the Primary shortcuts.
To remove shortcuts:
Touch and hold the shortcut until
Remove
displays,
and then drag the shortcut to the
Remove
icon.
Widgets
Widgets are self-contained applications that you can place
on the Home screen for quick, direct access.
Adding Widgets to the Home Screen
1. From the Home screen, swipe to a Home screen panel.
Touch and hold on the screen to display the
Home screen
menu.
2. Touch
Apps and widgets
.
3. Touch the
Widgets
tab; then touch and hold a widget to
add it to the Home screen.
Adding Widgets from the Widgets Tab
1. From the Home screen, swipe to a Home screen panel.
2. Touch
Apps
, and then touch the
Widgets
tab.
3. Touch and hold a widget to add it to the Home screen.
Removing Widgets
Touch and hold the widget until
Remove
displays.
Drag the widget to the
Remove
icon.
Understanding Your Phone 39
Shortcuts
Use Application shortcuts to launch applications from the
Home screen. Your phone comes with application shortcuts
already placed on the Home screen, and you can add your
favorites.
Adding an Application Shortcut to the
Home Screen
1. Swipe left or right to select a screen location for your
new shortcut.
2. Touch
Apps
to displays all the currently available
applications. By default, applications display in grid
mode.
3. Scroll across the screens and locate your desired
application.
4. Touch and hold the on-screen icon. The new shortcut
then hovers over the current screen.
5. While still holding the on-screen icon, position it on the
current screen. Release the screen to lock the shortcut
into its new position.
Move and Delete Items
Touch and hold the item you want to move or delete
and drag it to another location or to the Trash Can icon
at the bottom of the screen.
Folders
Place folders on the Home screen to organize items.
Adding Folders
1. From the Home screen, touch and hold on the screen
to display the
Home
screen
menu. Touch
Folder
then
enter a folder name in the field and touch
OK
.
– or –
Touch
Menu
➔
Create folder
.
The folder displays on the Home screen.
2. Enter a folder name in the field and touch
OK
.
Removing Folders
Touch and hold the folder until
Remove
displays,
and drag the folder to the
Remove
icon.
40
Wallpaper
Choose a picture to display in the background of the Home
screen. You can choose from pre-loaded wallpaper images or
select a picture that you have taken with the Camera or
downloaded.
1. From the Home screen, touch and hold on the screen
to display the
Home
screen
menu.
2. Touch
Set wallpaper
➔
Home screen
,
Lock screen
, or
Home and lock screens
.
3. Choose a wallpaper image source:
• Gallery
: Choose a picture stored on your phone or on an
optional installed memory card. Touch a picture to select it, and
use the crop tool to resize the picture, if desired. Touch
Done
to
save the picture as wallpaper.
• Live wallpapers
: Choose from pre-loaded animated wallpaper
images. Touch a wallpaper; then touch
Set wallpaper
.
• Wallpapers
: Choose from pre-loaded wallpaper images. Touch
a wallpaper; then touch
Set wallpaper
.
Note:
You can also set Wallpaper in Settings. (For more
information, see “Wallpaper” on page 155.)
Apps
Apps holds all applications installed on your phone.
Applications that you download and install from the
Google Play Store or from the web are also added to Apps.
The Apps screen is like the Home screen—it consists of
panels that extend beyond the display width to provide more
space. Slide your finger horizontally across the screen to
scroll to the left or right side panels. As you scroll, the
indicator at the bottom of the display shows your current
position.
For more information about applications, see “Applications
and Widgets” on page 105.
You can place shortcuts to applications on the Home screen
for quick access to the application.
1. From the Home screen, touch
Apps
.
2. Slide your finger left or right to scroll the Applications
screens.
3. Touch an icon to launch the application.
Understanding Your Phone 41
Customizing the Apps Screens
Choosing a View
By default, application icons display in Grid view. You can
change the view to list view.
1. From the Home screen, touch
Apps.
2. Touch
Menu
➔
View type
.
3. Choose an option:
• Customizable Grid
: The default view allows you to touch and
hold on applications to move them from screen to screen.
• Alphabetical grid
: Icons are arranged in a grid, in A-Z order.
• Alphabetical list
: Icons are arranged in a list, sorted from A-Z.
Apps Screen Options
1. From the Home screen, touch
Apps.
2. Touch
Menu
for options:
•Play Store
: Launch Google Play Store to browse for new
applications to download.
•Edit
: Touch and hold an application icon for these options:
–
Drag it to a new location.
–
Drag it to to create a new folder to contain the icon.
–
Drag it to to create a new application screen and place the
icon on it.
–
Drag it to to launch Application manager to view information
about the application. (For more information, refer to
“Application Manager”
on page 181.)
–
Drag to
Uninstall
(if available) to remove the icon. The
trash can is available only for applications you’ve installed.
Pre-loaded applications cannot be removed.
• Create folder
: Create a folder for organizing shortcuts.
• Uninstall
: Remove an application that you downloaded from
your phone. Preloaded applications cannot be uninstalled.
•View type
: Configure the
application
screen.
•Share apps
: Select
applications
that you have downloaded (not
available for pre-loaded
applications
) to share using Bluetooth,
Dropbox, Email, Flipboard, Gmail, Google+, Messaging,
S Memo, or Wi-Fi Direct.
• Hide applications
/
Show hidden applications
: Control
whether application icons are visible in Apps. Hiding an icon
does not remove the application from your phone.
42
Section 3: Memory Card
Your phone lets you use a microSD
™
(SD) or microSDHC
™
card to expand available memory space. This secure digital
card enables you to exchange images, music, and data
between SD-compatible devices. This section addresses the
features and options of your phone’s SD functionality. The
phone has a USB SD card mode.
Mounting the SD Card
To store additional photos, music, videos, and other
applications, you must mount (install) the SD card before
use. Mounting the SD card establishes a USB connection
with your computer.
1. Insert the microSD card into the internal, microSD card
slot. (For more information, see “Installing a Memory
Card” on page 7.)
2. The phone scans the SD card and views the available
information stored on it.
Unmounting the Memory Card
Important!
To prevent damage to information stored on the
memory card, unmount the card before removing it
from the phone.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Storage
➔
Unmount SD card
.
2. Remove the battery cover. (For more information, refer
to “Removing the Battery Cover” on page 6.)
3. Firmly press the Memory card into the
microSD
slot and
carefully release the card. The card pops partially out
of the slot.
4. Remove the card from the
microSD
slot.
5. Replace the battery cover. (For more information, refer
to “Replacing the Battery Cover” on page 8.)
Memory Card 43
SD Card Available Memory Status
To view the memory allocation for the external SD card:
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Storage
. The
Storage
screen displays.
2. View the available memory for the device and SD card
under the
Total space
or
Available space
heading.
Formatting a Memory Card
Use the Erase SD card setting to remove all content from an
installed memory card.
1. From the Home screen, touch
Menu
➔
Settings
➔
More
➔
Storage
. The
Storage
screen displays.
2. Under
SD card
, touch
Mount SD card
. (SD card must be
mounted in order to format it.)
3. After mounting the SD card, touch
Format SD card
, and
follow the prompts to confirm the deletion of all
information from the card.
4. Touch
Delete all
to format the SD card.
Caution!
Performing the next step erases all data
stored on the SD card.
44
Section 4: Accounts and Contacts
Accounts
Your phone provides the ability to synchronize information,
from a variety of accounts, including Email, Facebook,
Google, and your Samsung account. Depending on the
account, you can choose to synchronize your calendar,
contacts, and other types of content.
Contacts from your accounts appear in your phone’s
Contacts.
With synchronization, you can ensure that information on
your phone is updated with any information that changes in
your accounts.
Setting Up Your Accounts
Set up and manage your accounts with the
Accounts
settings.
For information about setting up other, email accounts, see
“Creating Additional Email Accounts” on page 82.
Tip:
For more information on setting up your email, contact
your Wireless Provider.
Adding an Account
1. From the Home screen, touch
Menu
➔
Settings
➔
Accounts
.
2. Under
My accounts
, touch
Add account
.
3. Select an account type, then follow the prompts to
enter your credentials and sign in.
4. If needed, the phone communicates with the provider’s
server to set up your new account on the phone.
Accounts and Contacts 45
Controlling Synchronization
You can choose to have your phone automatically
synchronize with your accounts, or manually synchronize
each account when you want to check messages.
You may also choose to limit automatic or background
synchronization to extend battery life.
1. From the Home screen, touch
Menu
, then touch
Settings
➔
Accounts
.
2. Under
My accounts
, touch the account type that
contains data to synchronize. The account type screen
displays.
3. Under
Accounts
, touch the account that contains data
to synchronize. The
Sync settings
screen for the
selected account displays and lists some or all of the
following synchronization settings:
•
Sync App Data
•
Sync Calendar
•
Sync Chrome
•
Sync Contacts
•
Sync Email
•
Sync Gmail
•
Sync Google Photos
•
Sync Google Play Books
•
Sync Google Play Magazines
•
Sync Google Play Movies & TV
•
Sync Google Play Music
•
Sync Google+
•
Sync Google+ Auto Backup
•
Sync Internet
•
Sync People details
•
Sync Picasa Web Albums
•
Sync S Memo
•
Sync Tasks
4. Touch these settings to enable/disable synchronization
of the associated file types. When enabled, a check
mark displays in each setting check box.
•
With automatic synchronization enabled, your phone
automatically synchronizes its related files with similar files on
on-line file servers.
•
With automatic synchronization disabled, you can manually
sync accounts by touching
Sync all
in the account type screen
for each accoun type.
46
Tip:
You can also control automatic synchronization using the
Sync
toggle in the Quick Settings menu on the
Notifications screen. (For more information, refer to
“Quick Settings Menu” on page 33.)
Managing Accounts
For more information, refer to “Accounts” on page 170.
1. From the Home screen, touch
Menu
, then touch
Settings
➔
Accounts
.
2. Under
My accounts
, touch an account type to manage.
The account type screen displays.
3. Under
Common settings
/
General settings
, touch
Settings
/
Account settings
. The related
Settings
screen
displays.
Google Account Privacy Settings
Personalize the Privacy settings for Google Accounts:
1. From the Home screen, touch
Menu
, then touch
Settings
➔
Accounts
.
2. Under
My accounts
, touch
Google
. The Google account
type screen displays.
3. Under
Privacy
, the following options are available:
•Search
: Manage Google Accounts location histories and
search histories.
• Location settings
: Choose whether Google apps can access
location information for Google Accounts.
•Google+
: Manage Google+ information for Google Accounts.
•Ads
: Choose whether to personalize Google and AdMob
advertisements for Google Accounts.
Accounts and Contacts 47
Contacts
The Contacts application lets you store and manage contacts
from a variety of sources, including contacts you enter and
save directly on your phone as well as contacts synchronized
with your Google account, your Samsung account, your PC,
email accounts (including Exchange Server accounts), and
your Facebook friends.
To access Contacts:
From the Home screen, touch
Contacts
.
Contact tips:
•
To make a call to a contact, swipe your finger left-to-right across
the contact.
•
To create a message addressed to a contact, swipe right-to-left
across the contact.
Adding Contacts
1. From the Home screen, touch
Contacts
➔
Add contact
.
2. Touch the Storage location button to select a location
where to save this contact (available options depend
on the accounts you define to your device):
–
Device
: Save to “my device contacts”.
–
Google
: Save to your Google Account.
–
Samsung account
: Save to your Samsung account.
–
Microsoft Exchange ActiveSync account
: Save to your
Microsoft Exchange ActiveSync account.
Note:
The first time you add a contact to your Contacts
list, a pop-up displays:
•
If you have defined one or more accounts (Google,
Samsung, and so on), the
Save contact to
pop-up
displays, select
Device
or the account to receive
the new Contact entry.
•
If no accounts are defined, the
Save contact
pop-
up displays, select
OK
to save your contacts in “
my
device contacts
” or select
Add new account
.
+
48
–
Add new account
:
Allows you to define an account in which
to save your contacts. The
Add new account
screen
displays. (
For more information, refer to
“Setting Up Your
Accounts”
on page 44
.)
3. Touch
Photo ID
to choose a picture to identify the
contact.
4. Touch
Name
to enter a name for the contact. Touch
to enter a
Name prefix
,
First name
,
Middle name
,
Last
name
, or
Name suffix
.
5. Under
Phone
, the following options are available:
• Mobile
button: Touch to choose a phone number label
[
Mobile
,
Home
,
Work
,
Main
,
Work Fax
,
Home Fax
,
Pager
,
Car
,
Company Main
,
MMS
,
Radio
,
Assistant
,
Other
,
Callback
, or
Custom
(create a new label)]. The labels
displayed depend upon the Storage location for this contact.
• Phone number
: Enter a phone number.
•
To add another number, touch .
6. Under
Email
, the following options are available:
•Home
button: Touch to choose a label [
Home
,
Work
,
Other
, or
Custom
(create a new label)].
• Email address
: Enter an email address.
•
To add an address, touch .
7. Touch
Groups
to assign the contact to a group. For more
information about Groups, see “Groups” on page 54.
8. Touch
Ringtone
to choose a ringtone for the contact.
9. Touch
Message alert
to select the alert tone to play
when you receive a message from this contact.
10. Touch
Vibration pattern
to choose a vibration pattern to
play when you receive a call or message from this
contact.
11. Touch
Add another field
to add more fields, including
Phonetic Name
,
Organization
,
IM
,
Address
,
Notes
,
Nickname
,
Website
,
Internet call
,
Events
, or
Relationship
.
12. Touch
Save
when you finish selecting and entering
information.
Accounts and Contacts 49
Creating Contacts from Recent Calls
Save a phone number from a recent call to create a new
contact, or update an existing contact.
For more information, refer to “Creating or Updating Contacts
Using Recent Calls” on page 63.
Creating Contacts using the Phone Keypad
Enter a phone number with the Phone Keypad, then save it.
1. From the Home screen, touch
Phone
.
2. On the
Keypad
, touch the digits of the phone number.
3. Touch
Add to Contacts
, then select
Create contact
from
the pop-up menu.
4. Continue entering contact information. (For more
information, refer to “Adding Contacts” on page 47.)
Tip:
While entering a phone number, you can add waits or
pauses. Enter the number up to the pause or wait, then
touch
Menu
to select
Add 2 sec pause
or
Add wait
.
Updating Contacts
Make changes to update an existing contact.
1. From the Home screen, touch
Contacts
.
2. Touch a contact to view its information, then touch
Edit
.
– or –
Touch and hold a contact, then select
Edit
from the
menu.
3. Continue entering contact information. (For more
information, refer to “Adding Contacts” on page 47.)
Updating Contacts using the Phone Keypad
Enter a phone number with the Phone Keypad, then save it.
1. From the Home screen, touch
Phone
.
2. On the
Keypad
, touch the digits of the phone number.
3. Touch
Add to Contacts
, then select
Update existing
from
the pop-up menu.
4. Select a contact to update, then continue entering
contact information. (For more information, refer to
“Adding Contacts” on page 47.)
50
Updating Contacts from Recent Calls
Save a phone number from a recent call to create a new
contact, or update an existing contact.
For more information, refer to “Creating or Updating Contacts
Using Recent Calls” on page 63.
Choosing Contacts to Display
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
➔
Contacts to display
:
•All contacts
: to show all contacts.
• Phone
: to show only show contacts saved to the phone.
• <Account>
: to only display contacts from the selected
account.
• Customized list
:
to select contact types for each account, or
the phone.
Contacts Settings
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
➔
Settings
.
3. Select one of the following settings options:
• Only contacts with phones
: to show contacts with at least one
stored phone number.
•List by
: to sort contacts by first or last name.
• Display contacts by
: to list contacts by first or last name.
• Contact sharing settings
: to set your preference for sending
contacts namecards to other accounts or devices. (For more
information about sending contacts, see
“Sending
Namecards”
on page 53.)
• Online search
: When enabled,
Accounts and Contacts 51
Other Contacts Options
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display it, then touch
Menu
to
select from these options:
•History
: View calls and messages to and from this contact.
•Edit
: Modify contact information. (For more information, refer to
“Updating Contacts”
on page 49.)
•Delete
: Erase the contact record.
• Link contact
/
Separate contact
: Manage multiple contacts
as one. (For more information, refer to
“Linking Contacts”
on page 52.)
• Mark as default
: Set a default phone number or other field
(such as IM or email address). Defaults are the contact method
used when creating a message or calling a contact. You can
also set a default by touching and holding on a contact field.
• Share namecard via
: Send the namecard. (For more
information, refer to
“Sending Namecards”
on page 53.)
• Add to reject list
: Mark the contact so that calls or messages
from the contact are rejected automatically. To remove a
contact from the reject list, touch and hold on the contact in the
main contacts screen, then choose
Delete from reject list
.
• Add shortcut to Home
: Add shortcut to this contact to
Home screen.
My Local Profile
My local profile is your own contact record, listed under
ME
in Contacts. You can send My local profile as a vCard using
Bluetooth or as an attachment.
Creating My Local Profile
1. From the Home screen, touch
Contacts
.
2. Under
ME
touch
Set up profile
.
3. Enter your information in the contact fields.
(
For more
information, refer to “Adding Contacts” on page 47.)
Sending My Local Profile
You can send your profile as a vCard using Bluetooth to other
Bluetooth devices, or as an attachment.
1. From the Home screen, touch
Contacts
.
2. Touch your profile to display your contact information.
3. Touch
Menu
, then touch
Share namecard via
.
4. Choose a sending method from the
Share namecard via
screen, then follow the prompts to send the profile.
52
Linking Contacts
Your phone can synchronize with multiple accounts,
including Google, Corporate, and other providers, plus social
networking sites like Facebook. When you synchronize
contacts from these accounts with your phone, you may have
multiple contacts representing one person.
Linking contact records allows you to see all the contact’s
numbers and addresses together. Linking also helps you
keep your contacts updated, because any changes to
information in the respective accounts is automatically
updated the next time you synchronize with the account.
Linking Contacts
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display its information.
3. Touch
Menu
, then touch
Link contact
. A list of
available contacts displays.
4. Select a contact to join to the displayed contact. The
linked contact displays.
5. To link another contact, touch the
Connection
field. The
Linked contact screen displays.
Touch
Link another contact
. A list of available contacts
displays.
Select a contact to link to the displayed contact. The
linked contact displays.
Separating Contacts
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display its information.
3. Touch the
Connection
field to display linked contacts.
4. Touch to the right of a contact to remove it from the
selected linked contact.
Accounts and Contacts 53
Exporting and Importing Contacts
You can export your contact list to an installed memory card,
or import a list of contacts (previously exported) from a
memory card.
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Import/Export
. The
Import/Export contacts
pop-up displays.
3. Select an option, then follow the prompts to complete
the operation:
• Import from USB storage
: Copy contacts that are saved in
installed mass storage.
• Export to USB storage
: Copy contacts to installed mass
storage.
• Import from SD card
: Copy contacts that are saved on an
installed memory card.
• Export to SD card
: Copy contacts to an installed memory card.
Sending Namecards
You can send a contact entry as a namecard using a
Bluetooth connection to another device, or as an attachment
to a Gmail or Email message.
Important!
Not all Bluetooth devices will accept contacts, and
not all devices support transfers of multiple
contacts. Check the target device’s documentation.
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Share namecard via
.
3. Touch contacts to mark them for sending, or touch
Select all
to mark all contacts. A check mark displays in
the check box for marked contacts.
4. Touch
Done
.
5. Select
Bluetooth
,
Drive
,
Email
,
Gmail
,
Messaging
, or
Wi-Fi
Direct
, then follow the prompts to send the
namecard(s).
54
Favorites
Mark contacts with a
star to identify them as Favorites.
Favorites display on the
Favorites
tab in the
Phone
and
Contacts
screens for fast dialing or messaging, and are
indicated by the .
Creating Favorites
1. From the Home screen, touch
Contacts
.
2. Touch a contact to display it, then touch at the top
right of the screen, it changes color to .
Groups
Assign contacts to Groups to make searching for contacts
faster, or to quickly call or send messages to group
members. Your phone comes with pre-loaded groups you
can use to add your contacts.
Adding a New Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch
Menu
➔
Create
, then enter information:
•Group name
:
Enter a Group Name.
• Group ringtone
:
Choose a ringtone for calls from members of
this group.
• Message alert
: Choose an alert tone for messages from
members of this group.
• Vibration pattern
:
Choose a vibration to play for calls from
members of this group.
•Add member
: Select members from Contacts.
3. Touch
Save
to save the new group.
Accounts and Contacts 55
Editing a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it.
3. Touch
Menu
➔
Edit group
, then update
information for the group. For more information, see
“Adding a New Group” on page 54.
Deleting a Group
Tip:
You can only delete groups that you have created.
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch
Menu
➔
Delete groups
.
3. Touch a Group to mark it for deletion, or touch
Select all
to mark all groups. When selected, a check mark
displays in the check box.
Note:
You cannot delete pre-loaded groups.
4. Touch
Delete
, then choose
Group only
or
Group
and
group members
.
Adding Contacts to a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it, then touch .
3. Touch contact(s) to mark them for addition, or touch
Select all
to mark all contacts. When selected, a check
mark displays in the check box.
4. Touch
Done
to add the selected contact(s).
Removing Contacts from a Group
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch a Group to display it.
3. Touch
Menu
➔
Remove member
.
4. Touch contact(s) to mark them for removal, or touch
Select all
to mark all contacts. When selected, a check
mark displays in the check box.
5. Touch
Done
to remove the selected contact(s).
+
56
Sending a Message to Group Members
Create a new text or email message, addressed to the
group’s members.
1. From the Home screen, touch
Contacts
➔
Groups
.
2. Touch and hold a Group, then touch
Send message
or
Send email
.
3. Touch contacts to mark them as recipients for the new
message, then touch
Done
.
The new message opens, with the marked contacts as
recipients.
4. Continue creating the message, as desired. For more
information, refer to “Creating and Sending Messages”
on page 75 or see “Composing and Sending Email” on
page 82.
Speed Dials
Speed dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you
assign to contacts, to allow you to quickly call the contact.
For more information about calling using speed dials, see
“Making Calls Using Speed Dials” on page 57.
Note:
Speed dial 1 is reserved for Voicemail, and cannot be
assigned.
Assigning Speed Dials
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Speed dial setting
. A list
of speed dials displays.
3. Touch a speed dial, then touch a contact to assign the
speed dial to the contact.
Removing or Reassigning a Speed Dial
1. From the Home screen, touch
Contacts
.
2. Touch
Menu
, then touch
Speed dial setting
.
3. Touch and hold an assigned Speed dial setting, the
following options pop-up:
• Replace
: Touch a new speed dial location to assign to the
contact.
•Delete
: Un-assign the speed dial from the contact.
Calling 57
Section 5: Calling
Making Calls
There are multiple ways to make calls:
•
Use the touch screen
Phone Keypad
to enter the phone number
or speed dial.
•
Call a contact from
Contacts
.
•
Call a contact from
Favorites
.
•
Return a call, or call a recent caller, from
Recent
.
•
Voice dial using
Voice Dialer
.
Making Calls Using the Phone Keypad
1. From the Home screen, touch
Phone
then touch
the
Keypad
tab.
2. Enter the digits of the of the telephone number using
the
Keypad
.
3. Touch to place the call.
Making Calls Using Speed Dials
Speed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you
assign to contacts, to allow you to quickly call the contact.
For more information about setting speed dials, see “Speed
Dials” on page 56.
1. From the Home screen, touch
Phone
.
2. Touch the digits of the speed dial number on the
Keypad
, holding the last digit until the number dials.
58
More Dialing Options
After entering a number, you can access additional calling
options.
From the
Keypad
screen, touch
Menu
for
additional options:
•Send message
to send the current caller a text message while
still maintaining the current call active.
• Add to Contacts
to add the current number to either a new or
existing Contacts entry.
• Speed dial setting
to access the Speed dialing setting menu
where you can assign a speed dial location to a current
Contacts entry.
• Add 2-sec pause
to insert a two-second pause within a
number string (the phone continues dialing after 2 seconds
without any additional keys being pressed).
•Add wait
to insert a hard pause within the number string (the
phone waits for your input). A wait requires that any
consecutive numbers be manually sent by touching
Yes
.
• Call settings
: See
“Call Settings”
on page 64.
Making Calls from Contacts
A contact is an entry that you have created to store the
name, numbers, and other information for people or groups
of interest.
For more information, refer to “Contacts” on page 47.
1. From the Home screen, touch
Contacts
.
– or –
From the Phone
Keypad
screen, touch
Contacts
.
2. Swipe your finger from left to right across the contact
to dial their default number.
– or –
Touch a contact, then touch to dial the number.
Tip:
You can create pauses longer than two seconds
by entering multiple 2 second pauses.
Contacts
Contacts
Calling 59
Making Calls Using S Voice
Place a call by speaking the name or number.
1. Press
Home
, then touch
Apps
, then touch
the
Apps
tab. The
Apps
screen displays.
2. Touch
S Voice
.
3. The first time you access S Voice, follow the prompts to
confirm the Samsung Disclaimer and Terms of service.
4. Read the About S Voice screen and follow the prompts.
5. At the
What would you like to do?
screen, say “Hi
Galaxy” to wake up S voice.
6. Say, “Call” followed by the name of a contact.
Making Calls Using Favorites
Favorites are contacts that you designate as favorites by
starring them. (For more information about creating favorites,
see “Favorites” on page 54.)
1. From the Home screen, touch
Phone
.
2. Touch
Favorites
to display your favorite contacts.
3. Find the contact and touch it to open the Contact entry.
4. Swipe your finger from left to right across the contact
to dial their default number.
– or –
Touch a contact, then touch to dial the number.
Making Calls from Recent Calls
Return a call, or call a number from a recent call stored in
Recent calls.
For more information, refer to “Recent Calls” on page 62.
60
Multi-Party Calling
Use multi-party call features to set up a call between multiple
callers, such as for a conference call.
1. Establish the first call, by answering an incoming call
or making a call.
2. Touch
Add call
. The first call is placed on hold.
3. Make the second call by touching the phone number
digits, then touch .
4. Touch
Merge
to merge the calls into one conference
call.
5. To end the call touch
.
Answering Calls
You can answer incoming calls when the phone is locked or
unlocked.
Touch and drag the
Answer
icon to the right.
Tip:
Press the
Volume
key Up or Down to silence the ringtone
for an incoming call.
Sending Calls to Voicemail
When the phone alerts you to an incoming call, you can
reject the call to send the caller to voice mail, or reject the
call and send a message to the caller.
Rejecting a Call
Touch and drag the
Reject
icon to the left.
Rejecting a Call with a Message
Touch and drag
Reject call with message
toward the
middle of the screen, then select an existing message,
or
Create new message
. For more information about
creating reject messages, see “Set up call rejection
messages” on page 65.
Calling 61
Answering Call-Waiting Calls
When you receive a call during another call:
Touch and drag the
Answer
icon to the right to
answer the incoming call. The original call is placed on
hold, and remains on hold until you end the second
call, or swap calls back to the original call.
– or –
Touch
Swap
to place a call on hold and return to the
original call.
Options During a Call
While in a call, you can use these features:
•
Personalize call sound
: Apply a sound equalizer to the call
audio, in cases where you might need the sound softer, clearer, or
optimized for your right or left ear.
Personalize
call sound
Noise
reduction
Extra
Volume
62
•
Noise reduction on
/
Noise reduction off
: Enable or disable
noise reduction to improve call audio quality in noisy
environments.
•
Extra volume turned on
/
Extra volume turned off
: Increase/
decrease volume for received voices.
•
Add call
: Display the Dialer to set up a multi-party call.
•
Keypad
: Display a keypad to enter numbers.
•
End call
: End the phone call.
•
Speaker
: Enable or disable speakerphone.
•
Mute
: Mute or unmute your voice on the call.
•
Headset
: Switch the call’s audio to a Bluetooth headset.
Touch
Menu
for options:
•Contacts
: Launch Contacts.
•Memo
: Launch S Memo to take notes or to create a drawing.
• Message
: Launches Messaging to compose a message.
Ending a Call
Touch .
Recent Calls
When you place, answer, or miss a call, a record of the call is
saved in Recent calls.
Accessing Recent Calls
From the Home screen, touch
Phone
➔
Recent
to display recent calls.
Making Calls Using Recent Calls
1. From the Home screen, touch
Phone
➔
Recent
to display recent calls.
2. Swipe your finger from left to right across the call to
redial.
– or –
Touch a call, then touch to dial the number.
Calling 63
Sending Messages Using Recent Calls
1. From the Home screen, touch
Phone
➔
Recent
to display recent calls.
2. Swipe your finger from right to left across any call to
send a message.
– or –
For Contacts, touch the number, then touch to send
a message.
Creating or Updating Contacts Using
Recent Calls
1. From the Home screen, touch
Phone
➔
Recent
to display recent calls.
2. Touch and hold on a call, then select
Add to Contacts
from the pop-up menu.
3. Choose
Create contact
or
Update existing
.
4. Continue entering contact information. For more
information, see “Contacts” on page 47.
Managing Recent Calls
Deleting Records
1. From the Home screen, touch
Phone
➔
Recent
to display recent calls.
2. While viewing the calls, touch
Menu
, then touch
Delete
.
3. Touch call records to mark them for deletion, or touch
Select all
. A check indicates marked records.
4. Touch
Delete
to delete marked records.
Filtering Records
1. From the Home screen, touch
Phone
➔
Recent
to display recent calls.
2. While viewing the calls, touch
Menu
, then touch
View
.
3. Select a filter type, from
All logs
,
All calls
,
Missed calls
,
Dialed calls
,
Received calls
,
Rejected calls
,
All messages
,
Sent messages
, or
Received messages
.
64
Viewing Call Durations
View the length of the Last call, all Dialed calls, all Received
calls, or All calls.
1. From the Home screen, touch
Phone
➔
Recent
to display recent calls.
2. While viewing calls, touch
Menu
, then touch
Call
duration
.
Call Settings
Configure settings for calling with the phone.
To access Call settings, from the Home screen, touch
Phone
➔
Menu
➔
Call settings
.
– or –
Touch
Menu
➔
Settings
➔
My device
➔
Call
.
Call block
Create and manage a list of phone numbers, to have the
phone automatically reject calls you receive from those
numbers.
From the
Call settings
screen, touch
Call block
for these
options:
• Block calls
: Touch
Off
to accept all calls, or you can reject calls
from
All numbers
or reject calls from numbers on the
Call
block list only
.
• Call block list
: Enter telephone numbers to reject when
Block
calls
is set to ON. Turn on
Unavailable
to reject calls with no
caller ID. Touch
Create
, then follow the prompts to enter
numbers to reject, or select them from Contacts. Touch
Match
criteria
to set options for using the reject number list.
My device
My device
Calling 65
Set up call rejection messages
Create and manage text messages to send to callers when
you select
Reject call with message
in the
Incoming call
screen.
1. From the
Call settings
screen, touch
Set up call
rejection messages
. The
Reject messages
screen
displays.
2. Touch
Create
, then follow the prompts to create a new
message.
– or –
Touch a message, then edit the text to modify an
existing message.
Answering/ending calls
Manage settings for answering and ending calls.
From the
Call settings
screen, touch
Answering/ending
calls
. Configure the following options:
• The home key answers calls
: When enabled, press
Home
to answer an incoming.
• Voice control
: When enabled, you can answer an incoming
call using voice commands. (For more information, refer to
“S
Voice”
on page 121.)
• The power key ends calls
: When enabled, press
Power/Lock
to end a call.
Turn off screen during calls
When enabled, the screen automatically turns off during
phone calls, and the proximity sensor on the front of the
device is used to turn the screen back on when the device is
moved or brought close to another surface, such as when
you move the device to your ear.
From the
Call settings
screen, touch
Turn off screen
during calls
to enable or disable the option.
66
Call alerts
Set options for sounds and vibrations to occur during calls.
From the
Call settings
screen, touch
Call alerts
. The
following options are available:
• Call vibrations
: Configure the conditions in which the phone
vibrates for different call alerts.
–
Vibrate on connection to network
:
The phone vibrates when
it connects to the network.
–
Call-end vibration
:
The phone vibrate when the other caller
ends the call.
• Call status tones
: Touch this options to enable/disable sounds
to play during calls.
–
Call connect tone
: The phone plays a tone when the other
caller answers a call.
–
Minute minder
: A tone plays once per minute during a call.
–
Call end tone
: The phone plays a tone when the other caller
ends the call.
• Alerts on call
: When enabled, alarms and new messages play
during phone calls. When disabled, these alerts are muted
during a call.
Call accessories
Configure headset options for calls.
From the
Call settings
screen, touch
Call accessories
.
The following options are available:
• Headset settings for incoming calls
:
–
Automatic answering
: When enabled, and a headset is
connected to the Headset Jack, incoming calls are automatically
answered after a delay, set at Automatic answering timer.
–
Automatic answering timer
: Choose a time period to delay
before automatically answering an incoming call when
Automatic answering is enabled and a headset is connected to
the phone.
• Bluetooth headset settings
:
–
Outgoing call conditions
: When the phone is paired with a
Bluetooth headset, you can choose to make calls Even when the
phone is locked or Only when the device is unlocked.
Calling 67
Ringtone and sound settings
Ringtones and keypad tones
Select incoming call ringtone and vibration, and enable or
disable call vibration and keypad tones.
From the
Call settings
screen, touch
Ringtones and
keypad tones
. The following options are available:
•Ringtones
: Select the ringtone the phone plays to alert you of
incoming calls.
•Vibrations
: Select the vibration pattern the phone uses to alert
you of incoming calls.
• Vibrate when ringing
: Touch to enable/disable use of the
selected
Device vibration
. When enabled, a check mark
displays.
• Dial keypad tone
: Touch to enable/disable playing of a tone
when you enter numbers with the Phone keypad. When
enabled, a check mark displays.
Personalize call sound
This option personalizes the sounds you hear during a call
whether or not you are using a headset.
From the
Call settings
screen, touch
Personalize call
sound
. Configure the following options:
• In-call sound EQ
: Select the sound quality:
Off
,
Soft sound
,
Clear sound
,
Adapt sound left
, or
Adapt sound right
.
• Adapt sound
: Touch this option, then follow the instructions
and prompts to set the phone to deliver optimum sound for the
left and right headset earphone.
Noise Reduction
Noise reduction suppresses background noise on your side of
the conversation during an active call.
From the
Call settings
screen, touch
Additional Settings
➔
Noise reduction
to enable or disable the option.
68
Increase volume in pocket
When enabled, the phone uses the proximity sensor to detect
when the phone is in a pocket or other close-fitting location
such as a purse or bag, and increases the volume for
incoming call ringtones.
From the
Call settings
screen, touch
Increase volume in
pocket
to enable or disable the option.
Voicemail
Configure options for voicemail.
From the
Call settings
screen, under
Voicemail
, the
following options are available:
• Voicemail service
: By default, the phone uses your wireless
service provider’s voicemail service. If you have another option
for voicemail installed, select it.
• Voicemail settings
: By default, the speed dial for calling
voicemail (speed dial 1) is set to your phone number. Touch
Voicemail number
if you want to set up another voicemail
service.
•Sound
: Choose sound to play for a voicemail notification.
•Vibrate
: Choose an option for vibration to play for a
voicemail notification.
Other call settings
From the
Call settings
screen, under
Other call settings
,
and configure the following options:
•Auto retry
: When enabled, your phone will automatically re-
attempt a call when it encounters a network busy signal.
• TTY mode
: Choose a TTY mode to enable TTY mode, for use
with optional TTY equipment.
•DTMF tones
: Set the length of Dual-tone Multi-frequency
tones, that play when you use the keypad during a call, such as
when navigating phone menus.
• Voice privacy
: When enabled, encrypts your voice calls for
enhanced privacy.
Entering Text 69
Section 6: Entering Text
This section explains how to select the desired text input
method when entering characters into the phone. This
section also describes the predictive text entry system that
reduces the amount of key strokes associated with
entering text.
The phone comes equipped with an orientation detector that
can tell if the phone is in an upright (Portrait) or sideways
(Landscape) orientation. This feature is useful when
entering text.
Text Input Methods
There are three text input methods available:
•
Samsung keyboard (default)
: Samsung’s on-screen
QWERTY keyboard is used in both portrait and landscape
orientation.
•
Google voice typing
: Enter text by speaking.
•
Swype
™
keyboard
: The Swype on-screen keyboard allows you
to slide your fingers from letter to letter in order to form words
without lifting them as you would when typing text.
To change the input method, see “Keyboards and Input
Methods” on page 163.
Entering Text Using the
Samsung Keyboard
From a screen where you can enter text, rotate the phone
counterclockwise to a Landscape orientation. The on-screen
QWERTY keyboard displays.
New
Paragraph
Text Input Mode
Shift
Key Delete
Key
Space Bar
Voice Input
70
Changing the Text Input Mode Keyboard
There are two main keyboard layout keys that will change
the on-screen keys in the QWERTY keyboard.
The available Text Input modes are:
Sym
and
Abc
.
Note:
When in
Abc
mode, the
Sym
button displays. When in
Sym
mode, the
Abc
/
ABC
/
abc
button displays.
Using ABC Mode
1. If desired, rotate the phone counterclockwise to a
Landscape orientation.
2. When you touch the
Enter message
field, the following
screen displays:
3. Touch the desired alphabetic characters.
4. The screen initially opens in ABC mode. After you type
the first letter, the shift key ( ) changes to
and following letters are lowercase.
5. Touch to input another uppercase letter or touch
twice to switch to ABC mode. The shift key
changes to in ABC mode. All following letters are
uppercase until you touch the shift key again.
Symbol/Numeric Mode
: Activate the number,
symbol, and emoticon keys.
ABC Mode
: Activate the default alphabet keys.
Can also be set to Abc or abc by using the shift
( ) key.
Sym
123
ABC
Entering Text 71
Using Symbol/Numeric Mode
Use Symbol/Numeric Mode to add numbers, symbols, or
emoticons.
1. Rotate the phone counterclockwise to a Landscape
orientation.
2. Touch at the bottom of the screen. The following
screen displays:
3. Touch the desired number, symbol, or emoticon
characters.
4. Touch the button to access additional symbols.
5. Touch to return to Abc mode.
Predictive Text
By using the Predictive Text option, you can have next-letter
prediction and regional error correction, which compensates
for touching the wrong keys on the QWERTY keyboard.
Predictive text is turned on by default.
1. To turn Predictive Text on or off, touch
Apps
➔
Settings
➔
Language and input
.
2. Touch the icon next to
Samsung keyboard
.
3. Touch the ON/OFF slider, located to the right of the
Predictive text
field, to .
4. In the text portion of the message screen, begin typing
a word. A list of word options display. Touch one of the
words to replace the word that was already typed or
scroll the line of words to the left for more word
choices.
5. Continue typing your message. Touch to send the
message or touch for more options. (For more
information, refer to “Text and Multimedia Messaging”
on page 75.)
Sym
123
1/3
ABC
ON
ON
72
Note:
You can also use Predictive Text mode in the portrait
orientation.
Entering Text Using Handwriting
You can enter text simply by using your finger to draw letters
on your screen.
1. From the keyboard, touch and hold , then touch
Handwriting
.
2. Use your finger tip to write out each character. You can
print or use cursive.
3. You can write out the entire message using the
Handwriting feature or touch to switch back to
Samsung keyboard mode.
Entering Text 73
Using the Google Voice Typing Feature
You can use your voice to enter text using the Google voice
typing feature.
1. From the keyboard, touch the top of the screen and
drag it down to display your notification panel.
2. Touch
Choose input method
.
3. Touch
Google voice typing
.
4. At the
Speak now
prompt, speak clearly and distinctly
into the microphone.
5. If the red microphone turns gray, then the feature has
timed out. Touch the microphone icon to start again.
The text displays in the message as you speak.
Note:
The feature works best when you break the message
down into smaller segments.
Samsung Keyboard Settings
For information on how you can configure the Samsung
keyboard settings, see “Keyboards and Input Methods” on
page 163.
74
Entering Text Using Swype
Swype is a text input method that allows you to enter a word
by sliding your finger or stylus from letter to letter, lifting your
finger between words.
Swype provides next-letter prediction and regional error
correction, which compensates for users touching the wrong
keys on QWERTY keyboards.
Enabling and Configuring Swype
The Samsung keyboard is the default text input method, so
you must changed the text input method to use Swype.
1. From the keyboard, touch the top of the screen and
drag it down to display your notification panel.
2. Touch
Choose input method
.
3. Touch
Swype
. The Swype keyboard displays.
Swype Keyboard Settings
For information on how you can configure the Swype
keyboard settings, see “Keyboards and Input Methods” on
page 163.
Messaging 75
Section 7: Messaging
This section explains how to send and receive messages,
and other features associated with messaging.
Types of Messages
This phone supports these types of messages:
•
Text messages
: Send and receive simple messages containing
text to other mobile phones or email addresses (also known
as SMS).
•
Multimedia messages
: Exchange text messages with pictures,
video, and/or sound to other mobile phones or email addresses
(also known as MMS).
•
Mobile IMs
: Exchange Instant Messages to other users of popular
messaging sites.
•
Email
: Send and receive email using your email accounts,
including Corporate mail.
•
Gmail
: Send and receive Gmail using your Google Account.
•
Voicemail
: Retrieve voice messages from callers.
•
Hangouts
: Chat with other Google Hangouts users.
Text and Multimedia Messaging
This phone can send and receive text and multimedia
messages.
Creating and Sending Messages
1. From the Home screen, touch
Messaging
➔
Compose
.
2. Touch
Enter recipient
and enter a name, phone number
or email address.
– or –
Touch
➔
Contacts
to select from one of the
following:
•Contacts
: Select a recipient from your Contacts list (valid
entries must have a wireless phone number or email address).
•Groups
: Select a recipient from the Group list.
•Favorites
: Select a recipient from the Favorites list.
• Recent
: Select a recipient from a list of recently sent
messages.
76
3. If adding a recipient from either Contacts, Groups,
Favorites, or Recent, touch the contact(s) (a check
mark indicates selection), and touch
Done
. The
contact(s) appear in the recipient field.
Note:
Delete any unnecessary recipients by touching their
name/number in the recipient area and selecting
Delete
.
4. Touch
Enter message
, and use the on-screen keypad to
enter a message.
5. While entering the message, use these options
(available options depend on attachment):
•
Attach
to add media or content to the message (converts
the message to MMS).
•
Menu
for options:
–
Insert smiley
: Add a text emoticon to the message.
–
Add text
: Select text from S Memo, Calendar, Location,
Contacts, or Text templates to add.
–
View contact
: View the contact record.
–
Add slide
/
Remove slide
: Add or remove a slide. Slides hold
pictures or other media (adding a slide converts the message
to MMS).
–
Add subject
: Add a subject field (converts the message to
MMS.)
–
Scheduling
: Select a date and time for the message to be
delivered.
–
Discard
: To close and delete this message.
6. Touch to send the message.
Note:
If you exit a message before it sends, the message is
automatically saved as a draft.
Messaging 77
Managing Messages
Messages that you send and receive to the same contact,
number, or address are grouped together as a
“conversation.” Threads allow you to see all the messages
you exchanged with a recipient in one place.
1. From the Home screen, touch
Messaging
.
2. Message threads display by contact, number, or
address. While viewing message threads, you have
these options:
3. Touch and hold a thread to choose options, including:
•Delete
: Erase the entire message thread.
•View Contact
/
Add to Contacts
: View the contact record, or
save the sender/recipient’s information.
• Add to spam numbers
: Lists this phone number as a spam
number and sends future messages from this number to the
Spam mesasges folder.
4. Touch
Menu
for options, including:
•Search
: Enter characters to search messages and recipients.
• Delete threads
: Touch message threads to mark them for
erasure, or touch
Select all
to mark all message threads.
• Draft messages
: Displays a list of drafted messages.
• Locked messages
: Displays list of messages that are locked
to prevent deletion.
• Scheduled messages
: Displays list of messages scheduled for
later delivery.
• Spam messages
: Displays a list of spam messages.
•Settings
: Configure Messaging settings.
Message Settings
Configure settings for message storage, delivery, or alerts.
1. From the Home screen, touch
Messaging
.
2. Touch
Menu
, and touch
Settings
for options:
General settings
:
• Delete old messages
: When enabled, messages are
automatically erased when storage reaches default limits.
When disabled, the phone prompts you to delete old messages
to make room.
• Text message limit
: Set the number of SMS messages per
conversation.
• Multimedia message limit
: Set the number of MMS
messages per thread.
78
• Text templates
: Text templates are phrases that you can add
to your messages. Use a pre-loaded text template, or create
your own.
Text message (SMS) settings
:
• Delivery reports
: When enabled, you receive a delivery report
for text messages that you send.
•Auto combination
: When enabled, displays multiple-segment
messages as a single message.
Multimedia message (MMS) settings
:
• Group messaging
: When enabled, lets you send the same
message to multiple recipients.
• Delivery reports
: When enabled, you receive a delivery report
for multimedia messages that you send.
•Auto retrieve
: When enabled, MMS messages download
automatically. When disabled, the phone prompts for
download.
• Roaming auto retrieve
: When enabled, MMS messages
download and display automatically when roaming. When
disabled, the phone prompts you to download new MMS
messages.
•MMS alert
: When enabled, plays an alert tone when message
mode changes from text (SMS) to multimedia (MMS).
Display
:
• Bubble style
: Choose the appearance of messages in a
message thread. Touch a bubble style for each side of the
conversation, then touch
Save
.
• Background style
: Choose the appearance of the screen
behind message threads. Touch a style, then touch
Save
.
• Use the volume key
: When enabled, you can change the size
of message text while viewing by pressing the Volume Key.
Notification settings
:
• Notifications
: When enabled, message alerts display in the
Status bar.
• Select ringtone
: Choose a sound for message alerts.
•Vibrate
: Configure vibration for message alerts.
• Message alert repitition
: Sets the number of times to alert you
when a new MMS message is received.
• Preview message
: When enabled, displays a preview of
received messages.
Messaging 79
Emergency message settings
:
•Emergency Alerts
: This device is designed to receive Wireless
Emergency Alerts from the Commercial Mobile Alert Service
(CMAS), including Presidential Alerts, Imminent Alerts (Severe
or Extreme), and AMBER Alerts (missing persons). You may
choose not to receive Imminent and AMBER alerts, but
Presidential Alerts cannot be disabled. All alerts are enabled by
default (a check mark displays). (For more information, refer to
“Emergency Alerts”
on page 80.)
• Emergency notification preview
: Listen to an example of a
Emergency Alert tone (and vibration, if enabled). The
Emergency Alert tone plays at the same volume as your call
ringtone.
•Vibrate
: When enabled, vibrates your phone for Emergency
Alerts.
• Alert sound
: When enabled, plays the Emergency notification
tone for Emergency Alerts.
• Alert reminder
: Choose whether, and at what interval, the
phone plays a sound to notify you of a Emergency Alert after
the Emergency Alert tone has stopped.
Signature settings
:
• Add signature
: When enabled, adds a signature to outgoing
messages.
• Signature text
: Enter the text for your message signature.
Spam message settings
:
• Spam settings
: When enabled, activates the following Spam
message settings.
• Add to spam numbers
: Registers numbers that were blocked
when they send you a message.
• Add to spam phrases
: Register phrases typically used in spam
messages.
• Block unknown senders
: When enabled, blocks messages
from senders with “Unknown” numbers.
80
Emergency Alerts
This device is designed to receive Wireless Emergency Alerts
from the Commercial Mobile Alert Service (CMAS).
Emergency Alerts are geographically-targeted and alert
customers of imminent threats to their safety within their
area. There is no charge for receiving an Emergency Alert.
There are three types of Emergency Alerts:
•
Presidential
•
Imminent (Severe or Extreme)
•
AMBER Alerts (missing person alert)
You may choose not to receive Imminent Alerts and AMBER
Alerts. Presidential Alerts, however, cannot be disabled. To
disable Imminent Threat Alerts (Extreme and Severe) and
AMBER Alerts, do the following:
1. From the Home screen, touch
Messaging
.
2. Touch
Menu
➔
Settings
➔
Emergency Alerts
.
3. All alerts are enabled by default (a check mark
displays). Touch an alert to disable it.
Email
Send and receive email using popular email services.
Creating an Email Account
1. From the Home screen, touch
Email
.
Your accounts screen displays with an Email setup
screen displayed.
2. Enter your email address in the
account@example.com
field.
3. Enter your password in the
Password
field.
4. Touch
Next
.
5. At the
Account options
screen, select any of the options
you want to change or enable/disable.
6. Touch
Next
.
7. At the
Set up email
screen, enter a name for this email
account (optional) and/or enter your name as you want
it to appear in your outgoing messages.
8. Touch
Done
.
Tip:
If you want to see your password as you type it,
touch
Show password
to enable it.
Messaging 81
Creating a Microsoft Exchange Email Account
Use the following procedure to configure your phone to
synchronize with a Microsoft Exchange email account.
1. From the Home screen, touch
Menu
➔
Settings
➔
Accounts
➔
Add account
➔
Microsoft Exchange ActiveSync
.
The
Add an Exchange ActiveSync account
screen
appears.
2. Enter your email address in the
account@example.com
field.
3. Enter your password in the
Password
field.
4. Touch
Manual setup
or
Next
(for automatic setup).
5. The
Exchange server settings
screen displays.
6. As needed, change or enter the Exchange server
information for your account, then touch
Next
.
7. Follow the prompts to activate server communication
functions, such as security, as required.
8. At the
Account options
screen, select any of the options
you want to change or enable/disable.
9. Touch
Next
.
10. At the
Set up email
screen, enter a name for this email
account (optional).
11. Touch
Done
.
12. Press
Home
to return to the Home screen, then
touch
Email
.
Tip:
If you want to see your password as you type it,
touch
Show password
to enable it.
Tip:
If your Exchange ActiveSync account inbox does
not appear, see “Switching Between Email
Accounts” on page 82.
82
Creating Additional Email Accounts
To create additional email accounts after setting up your first
account, follow these steps:
1. From the Home screen, touch
Email
.
Your Email screen displays showing your emails from
the active account.
2. Touch
Menu
➔
Settings
➔
Add account
.
3. Enter the information required to set up another
account. (For more information, refer to “Creating an
Email Account” on page 80.)
Switching Between Email Accounts
1. From the Home screen, touch
Email
.
Your Email screen displays showing your emails from
the active account.
2. Touch the Inbox button at the top of your
screen that displays the optional name (such as Work,
Personal and so on) you assigned to your email
account. Your Email accounts screen displays.
3. Touch the Email account Inbox you want to access.
4. The new Email account displays.
Composing and Sending Email
1. From the Home screen, touch
Email
➔
Compose
.
2. Touch fields to enter recipients and the email text.
3. While composing a message, touch
Attach
to add
a file attachment to the message.
4. Touch
Menu
for email options.
5. Touch
Send
to send the message.
Tip:
You can also select
Combined inbox
to list email
messages from all of your accounts.
Messaging 83
Managing Emails
Refreshing Your Email Account
Refresh your account to update the phone from the servers.
1. From the Home screen, touch
Email
.
2. Touch
Refresh
.
Email Account Settings
Use Account settings to configure handling of your email.
Note:
Available settings depend on the email provider.
1. From the Home screen, touch
Email
.
2. Touch
Menu
, then touch
Settings
.
3. Touch an account name to set options.
Gmail
Send and receive emails using Gmail, Google’s web-based
email.
From the Home screen, touch
Apps
➔
Gmail
.
Setting Up Your Gmail Account
The first time you launch Gmail, the phone prompts you to
set up your Google Account, unless you have already set up a
Google Account during set up of your phone (see “Got
Google?” on page 15).
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
New
to create a new account, or
Existing
to sign
in to a created account.
3. The phone communicates with the Google server to set
up your account and synchronize your email.
Note:
You can use more than one Google Account on the
phone. To add another account, from within Gmail, touch
Menu
➔
Settings
➔
ADD ACCOUNT
option.
84
Refreshing Your Gmail Account
Refresh your account to update messages on the phone.
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
Refresh
.
Managing Your Gmail Account
Use menu options to manage your Gmail.
1. From the Home screen, touch
Apps
➔
Gmail
.
2. Touch
Menu
for options.
Composing and Sending Gmail
1. From the Home screen, touch
Apps
➔
Gmail
➔
New message
.
2. Touch fields to compose the message. While
composing, touch
Menu
for options.
3. When your message is complete, touch
Send
.
Hangouts
Hangouts is a free Windows- and web-based application for
instant messaging offered by Google. Conversation logs are
automatically saved to a Chats area in your Gmail account.
This feature allows you to search a chat log and store them
in your Gmail accounts.
1. Log on to your Google Account if you have not already
done so. (For more information, refer to “Got Google?”
on page 15 and “Adding an Account” on page 44.)
2. From the Home screen, touch
Apps
➔
Hangouts
.
3. Begin using Hangouts.
4. Touch
Menu
➔
Help
for more information on using
Hangouts.
Note:
The Network confirms your log-in. This process could
take up to 5 minutes to complete.
Messaging 85
Google+
Google+ makes messaging and sharing with your friends a
lot easier. Set up Circles of friends, visit the Stream to get
updates from your Circles, use Messenger for fast messaging
with everyone in your Circles, or use Instant Upload to
automatically upload videos and photos to your own private
album on Google+.
1. Sign on to your Google Account. (For more information,
refer to “Got Google?” on page 15 and “Adding an
Account” on page 44.)
2. From the Home screen, touch
Apps
➔
Google+
.
3. Select the account you want to use to sign in to
Google+.
– or –
Touch
Existing
and sign in, or touch
New
and create a
new account.
4. Follow the on-screen instructions to use Google+.
5. Visit
google.com/mobile/+/
for more information.
Voice Recorder
The Voice Recorder allows you to record an audio file up to
one minute long and then immediately share it using
AllShare Play, Messaging, Gmail, or Bluetooth. Recording
time varies based on the available memory within the phone.
1. From the Home screen, touch
Apps
➔
Voice Recorder
.
2. To start recording, touch
Record
and speak into the
microphone.
3. During the recording process you can either touch
Stop
to stop and save the recording or
Pause
to
temporarily halt the recording. After pausing, touch
Record
to resume recording.
4. Once the audio recording has stopped, the message is
automatically saved. Touch
Cancel
to cancel the
recording without saving.
5. Touch
List
to display a list of all your voice
recordings.
6. Touch a voice recording to play it.
86
7. Touch and hold a voice recording for these options:
•Share via
: Share your recording using Bluetooth, Drive, Email,
Gmail, Messaging, or Wi-Fi Direct.
•Delete
: Delete the voice recording.
•Rename
: Rename your voice recording.
•Set as
: Set the voice recording as a Phone ringtone, Caller
ringtone, or Alarm tone.
•Details
: View details of the voice recording, such as Name,
Last modified time, Location, Duration, and Size.
8. While viewing the list of voice recordings, touch
Menu
and select from the following options:
•Share via
: Select and share your recording(s) using Bluetooth,
Dropbox, Email, Gmail, Group Play, Messaging, or Wi-Fi Direct.
•Delete
: Delete 1 or more voice recordings. Select the
recordings to delete and touch
Delete
.
• Settings
: The following settings are available:
–
Storage
: Select where your recordings are saved. Selections
are
Phone
or
Memory card
.
–
Recording quality
: Set the recording quality to
High
or
Normal
.
–
LImit for mutimedia messages
: Select On or Off. Selecting
On limits the message size so the recording size attaches to an
MMS message.
–
Contextual filename
: Creates filenames based on your
location using a GPS tag when connected to a network.
–
Default name
: Select the name prefix for recordings. For
example, if your Default name is Voice, your recordings would
be named Voice 001, Voice 002, and Voice 003.
–
Noise reduction
: When set to On, reduces background noise
being recorded.
–
Recording volume
: Select High or Low.
–
Skip interval
: Select 10 sec., 30 sec., or 60 sec.
•End
: Exit the Voice Recorder app.
9. While viewing the main Voice Recorder screen, touch
Menu
and select from the following options:
• Settings
: Configure Voice Recorder options.
•End
: Exit the Voice Recorder app.
Multimedia 87
Section 8: Multimedia
Music
The Music application can play music files. The Music app
supports files with extensions AAC, AAC+, eAAC+, MP3, and
WMA. Launch Music to navigate through your music library,
play songs, and create playlists (music files bigger than 300
KB display).
Playing Music
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch a library category tab at the top of the screen
(All, Playlists, Albums, Artists, Music square, or
Folders) to view the available music files.
3. Scroll through the list of songs and touch an entry to
begin playback.
Tip:
To play music in background, press
Home
. The
Music app screen closes and playback controls display on
Notifications (see “Notifications” on page 32).
Music controls
The following Music controls are available:
Pause
the song.
Start
the song after pausing.
Touch and hold to
rewind
the song. Touch to go to
previous song.
Volume
Shuffle
Favorite
Playback
Controls
Repeat
Group Play
88
Music options and settings
To access additional options, follow these steps:
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch
Menu
and select from the following
options (options vary depending on activity):
• Via Bluetooth
: Scan for devices and pair with a Bluetooth
headset.
• Play via Group Play
: Share playback of this music file with
other Group Play devices. (See
“Group Play”
on page 113.)
• Add to playlist
: Add the current music file to a playlist.
•Set as
: Assign this music file as the Phone ringtone, a Caller
(Contact) ringtone, or an Alarm tone.
• Settings
: Change the following Music settings:
–
Music menu
: Select which categories you want to display in
the Music menu. Choices are: Albums, Artists, Genres, Music
square, Folders, Composers, Years, Most played, Recently
played, or Recently added.
–
SoundAlive
: Select music equalization such as Normal, Pop,
Rock, Jazz, Dance, Classic, and more.
Touch and hold to
fast-forward
the song. Touch to
go to next song.
Group Play
: Share playback of a song with other,
available Digital Living Network Alliance (DLNA)
certified devices. (See “Group Play” on page 113.)
Control the
volume
.
Shuffle On
: Randomly shuffle the current list of
songs for playback.
Shuffle Off
: Play songs in the listed order.
Favorite
: Touch to add this song to the Favorites
playlist. (Star changes color to .)
Repeat one
: Repeat the song currently playing.
Repeat all
: Replay the current list when the list ends.
Play All
: Play the current song list once.
Reduced display
: Reduces playback display to
include the current song list.
Music List
: Return to the current playlist.
Multimedia 89
–
Play speed
: Set the play speed anywhere between 0.5X and
2.0X using the slider.
–
Music auto off
: Activate to turn off music automatically after a
set interval.
–
Lyrics
: Activate to display the song’s lyrics, if available.
–
Smart volume
: When enabled, automatically adjust each
track’s playback volume to an equal level.
–
Voice control
: When enabled, use S Voice commands to
control the Music app.
•Details
: View file information list (Artist, Title, Album, Track
length, Genre, Track number, Format, Bit depth, Sampling rate,
Size, and Location).
•End
: Close the Music application.
Music file options
1. From the Home screen, touch
Apps
➔
Music
.
2. If needed, touch
Music list
.
3. Scroll through the list of songs and touch and hold on
an entry to access the following options:
• Delete:
Delete this music file from your phone.
•Add to playlist
: Add this music file to a playlist.
•Set as
: Assign this music file as the Phone ringtone, a Caller
(Contact) ringtone, or as an Alarm tone.
•Details
: View file information list (Artist, Title, Album, Track
length, Genre, Track number, Format, Bit depth, Sampling rate,
Size, and Location).
90
Using Playlists
Playlists are used to assign songs to a list of preferred media
that can then be grouped into a list for later playback. These
Playlists are created using either the handset’s Music Player
options menu or from within a 3rd party music application
(such as Windows Media Player) and then downloaded to the
handset.
Creating a Playlist
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch
Playlists
.
3. Touch
Menu
➔
Create playlist
.
4. Enter a name for this playlist in the field and touch
OK
.
Adding Music to a Playlist
To add files to the playlist:
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch
Playlists
.
3. Touch the playlist name in which to add music.
4. Touch
Menu
➔
Add
.
5. Touch a music file, or touch
Select all
to add all the
music tracks to this playlist then touch
Done
.
Removing Music from a Playlist
To remove music files from a playlist:
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch
Playlists
.
3. Touch the playlist name in which to delete music.
4. Touch ➔
Remove
.
5. Touch the checkbox to the left of each track that you
want to remove from this playlist, or touch
Select all
to
remove all the music tracks from this playlist.
6. Touch
Remove
.
Playlists
Playlists
Playlists
Playlists
Playlists
Playlists
Multimedia 91
Editing a Playlist Name
Besides adding and removing music files in a playlist, you
can also rename the playlist.
To edit a playlist:
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch
Playlists
.
3. Touch
Menu
➔
Edit title
, and touch the playlist
you want to rename.
4. In the
Edit title
pop-up, enter a new name for the
playlist, and then touch
OK
.
Note:
For information on downloading music for the phone,
see “Connecting as a Storage Device” on page 138.
Setting a Song as a Ringtone
You can set a song as a ringtone for all voice calls, for calls
from an individual contact, or as an alarm tone.
1. From the Home screen, touch
Apps
➔
Music
.
2. Touch and hold on a song; then touch
Set as
and
choose from these options:
• Phone ringtone
: Set the song as the default ringtone for all
incoming voice calls.
• Caller ringtone
: Choose a contact to set the song as the
ringtone for calls from the contact.
• Alarm tone
: Set the song as the alarm ringtone for a new
alarm, or for an existing alarm.
Playlists
Playlists
92
Video
The Video application identifies and plays video files (3GP or
MP4) stored on the phone or on an optional microSD Memory
card.
1. From the Home screen, touch
Apps
➔
Video
.
2. Video Player scans for videos stored in phone memory,
or on an installed memory card, and displays your
videos on the
Thumbnails
,
List
, and
Folders
tabs.
3. Touch a video to play. While playing, touch the screen
to display or hide on-screen playback controls:
Group Play
: Share playback of a song with
other, available Digital Living Network Alliance
(DLNA) certified devices. (See “Group Play” on
page 113.)
Volume
: Activates an on-screen volume
control. Touch and drag the scale to set
volume, or press the Volume key on the side
of the phone.
Full-screen in ratio view
: The video is enlarged
as much as possible without becoming
distorted.
Full-screen view
. Displays the video on the
entire screen. This view may cause image
distortion.
Original size view
: The video plays in its
original size.
Maximu diagonal view
: The video plays in its
original size.
Back
: Moves backward to the previous video.
Touch and hold to scan backward through the
current video.
Pause
: Pauses playback.
Play
: Plays the video.
Forward
: Advances to the next video. Touch
and hold to scan forward through the current
video
Pop-up Player
: The video plays in a small
window so you can use the phone for other
purposes while watching the video from the
front screen instead of in the player.
Double-tap the smal window to return to the
player and normal size.
Multimedia 93
Note:
The screen view icons ( , , , and ) are
a four-way toggle. The displayed icon indicates the
mode used after you touch the icon.
4. While playing a video, touch
Menu
for more
video options.
Camera
Use the phone’s built-in Camera to take pictures and
record video.
From the Home screen, touch
Apps
➔
Camera
.
Important!
Do not take photos of people without their
permission.
Do not take photos in places where cameras are
not allowed.
Do not take photos in places where you may
interfere with another person’s privacy.
Taking Pictures
1. From the Home screen, touch
Apps
➔
Camera
.
2. Using the display as a viewfinder, compose your
picture by aiming the lens at the subject.
•
Touch the screen to focus on the area you touched.
•
“Pinch” the screen, or press the
Volume
key, to zoom in or out.
•
Configure settings, see
“Camera Options”
on page 94.
3. Touch the
Camera
button ( ) to take the picture.
Options menu
Image Viewer
Mode Button
Camera
Button
94
4. After taking a picture, touch
Image Viewer
to view the
picture. While viewing the picture, use these options:
You can also “Pinch” the screen, or touch the zoom
icons, to zoom in or out, or double-touch to zoom all
the way in or out.
5. Touch
Menu
to access added options:
Favorite
,
Slideshow
,
Photo frame
,
Photo note
,
Copy to clipboard
,
Print
,
Rename
,
Buddy photo share
,
Rotate left
,
Rotate
right
,
Crop
,
Get directions
,
Set as
(Contact photo, Home
and/or Lock screen wallpaper),
Details
, or
Settings
(Accounts, SNS data management, Tags, and/or Sound
& shot).
Camera Options
Touch these
Options
to configure the camera:
Change player
: displays this picture on other,
available Digital Living Network Alliance
(DLNA) certified devices. (See “Group Play” on
page 113.)
Share via
: send the picture using Group Play,
Dropbox, Flipboard, Picasa, or See all (for
more options).
Edit
: launches Photo Editor application. The
first time you touch
Edit
, you are prompted to
download Photo Editor onto your device.
Delete
to erase the picture (only visible with
the screen in landscape mode).
Self-portrait
: Switch to the front camera lens,
for self-portraits.
Flash
: Choose Off, On, or Auto flash.
Shooting mode
: Choose an automatic shooting
mode, from:
•
Single shot
: Take a single photo.
•
Best shot
: The camera automatically selects
the best of 5 photos to save.
•
Best face
: The camera automatically selects
the best facial shot out of 5 shots to save.
•
Sound & shot
: Record sound to play when
viewing a picture.
Multimedia 95
•
Face detection
: Touch the Camera button to
focus on and take a picture of the subject’s
face.
•
Panorama
: Take a landscape photo by
taking an initial photo and then adding
additional images to the initial photo. The
guide box lets you view the area in which
the second part of the panoramic picture
should fall.
•
Share shot
: Use Wi-Fi Direct to share your
pictures quickly with your friends.
•
HDR
: Take pictures in HDR (High Dynamic
Range) mode to increase image detail.
•
Buddy photo share
: Use face recognition
from pictures in your contacts to send your
friends or family pictures of themselves.
•
Beauty
: Adjust the contrast to create a
smooth facial feature effect.
•
Smile shot
: Touch the Camera button to
focus on the subject’s face. If a smile is
detected, the picture is taken automatically.
•
Low light
: Adjust the exposure to take better
photos in low light conditions.
Color effects
: Choose color theme for the
photo: No effect, Cold vintage, Warm vintage,
Posterize, Solarize, Green point, Blue point,
Red-yellow point, Washed out, Cartoonify,
Black and white, Sepia, or Negative.
Settings
•
Edit shortcuts
: Select which function
shortcuts display in the function menu.
•
Burst shot
: Automatically take multiple
pictures in a row instead of a single picture.
•
GPS Tag
: Add GPS location information to
photo details.
•
Self-portrait
: Set the front camera so you
can take pictures of yourself.
•
Flash
: Choose Off, On, or Auto flash.
•
Shooting mode
: Choose Single shot, Best
photo, Best face, Face detection, Panorama,
Share shot, HDR, Buddy photo share,
Beauty, Smile shot, or Low light.
•
Effects
: Apply a color effect to pictures.
96
•
Scene mode
: Choose a mode to match
conditions.
•
Exposure value
: Adjust the picture
brightness level by moving the slider.
•
Focus mode
: Choose a type of automatic
focus.
•
Timer
: Set a delay before taking a picture.
•
Resolution
: Choose a size (in pixels) for the
image.
•
White balance
: Choose a setting for the light
source.
•
ISO
: Choose a setting for imaging sensitivity.
•
Metering
: Select a method for measuring
light.
•
Auto contrast
: Allow automatic light/dark
adjustment.
•
Guidelines
: Enable or disable an on-screen
grid to aid in photo composition.
•
Auto share shot
: Allows you to share photos
quickly with other enabled devices by
simply bringing them together (typically
back to back).
•
Anti-Shake
: Minimize the effect of camera
movement.
•
Contextual filename
: Set the video file name
to a name describing the video content or
location (e.g., South Padre Beach).
•
Voice control
: Lets you take photos by
saying “Capture”, “Shoot”, “Smile”, or
“Cheese”.
•
Image quality
: Choose a quality setting for
photos.
•
Storage
: Choose to store your pictures in
Phone memory or on an optional Memory
card.
•
Reset
: Set all Camera settings to the
defaults.
Multimedia 97
Camcorder
Use the phone’s built-in Camcorder to record video.
From the Home screen, touch
Apps
➔
Camera
➔
Mode
.
Important!
Do not take videos of people without their
permission.
Do not take videos in places where cameras are
not allowed.
Do not take videos in places where you may
interfere with another person’s privacy.
Capturing Video
1. From the Home screen, touch
Apps
➔
Camera
➔
Mode
.
2. Using the display as a viewfinder, compose your shot
by aiming the lens at the subject.
•
Touch the screen to focus on the area you touched.
•
“Pinch” the screen, or press the
Volume
key, to zoom in or out.
•
To configure settings, see
“Camcorder Options”
on page 98.
3. Touch the
Record
button to start recording.
4. Touch
Pause
to Pause the camcorder.
5. Touch
Stop
to stop recording.
6. Touch
Image Viewer
to view the video after recording.
Mode
Record
Options menu
Viewer
button
button
98
7. While viewing the video, use these options:
8. Touch
Menu
to mark the video as a Favorite, to
play the video as part of a Slideshow, to rename the
video, to view details about the video, or to access
Image Viewer settings (see “Taking Pictures” on
page 93).
9. Touch
Back
to return to the Camcorder to record
more videos.
Camcorder Options
Configure the camcorder.
1. From the Home screen, touch
Apps
➔
Camera
➔
Mode
.
2. Use these options to configure the camcorder:
Pinch the screen to zoom in or out.
Play
to review the video.
Favorite
to mark this video as a Favorite.
Share via
to send the video.
Delete
to erase the video.
Self recording
: Record video with the front
camera.
Flash
: Choose Off, or On.
Recording mode
: Choose a recording mode,
from:
•
Normal
: Record a video of any length.
•
Limit for MMS
: Record a video of a size
suitable for sending in a Video message.
Color effects
: Choose color theme for the
video: Negative, Sepia, Black and white,
Cartoonify, Washed out, Red-yellow point,
Blue point, Green point, Solarize, Posterize,
Warm vintage, Cold vintage, or No effect.
Multimedia 99
Settings
•
Edit shortcuts
: Select which function
shortcuts display in the function menu.
•
GPS tag
: Add GPS location information to
video details.
•
Self-recording
: Set the front camera so you
can take videos of yourself or video chat.
•
Flash
: Choose Off or On.
•
Recording mode
: Choose Normal or Limit
for MMS recording mode.
•
Effects
: Apply an effect to videos.
•
Exposure value
: Adjust the picture
brightness level by moving the slider.
•
Timer
: Set a delay before starting
recording.
•
Resolution
: Choose a size (in pixels) for the
recording.
•
White balance
: Choose a setting for the
light source.
•
Guidelines
: Display a grid to aid in video
composition.
•
Anti-Shake
: Minimize the effect of
camcorder movement.
•
Contextual filename
: Allows you to set the
video file name to a name describing the
video content or location (i.e., South Padre
Beach).
•
Video quality
: Choose a quality setting for
videos.
•
Storage
: Choose to store your videos in
Phone memory or on an optional Memory
card.
•
Reset
: Set all Camcorder settings to the
defaults.
100
Gallery
The Gallery is where you view photos and videos. For photos,
you can also perform basic editing tasks, view a slideshow,
set photos as wallpaper or contact image, and share as a
picture message.
Note:
You can increase Gallery photo and video storage by
installing a memory card. For more information, see
“Installing a Memory Card” on page 7.
1. From the Home screen, touch
Apps
➔
Gallery
.
All of the Albums that hold your pictures and videos
display with folder name(s) and number of files.
2. Touch an Album and thumbnails of the contents
display.
Viewing Pictures
1. From the Home screen, touch
Apps
➔
Gallery
.
2. Select an album, then touch a picture to view it.
3. While viewing a picture, touch on the screen or touch
Menu
for options.
4. Touch
Menu
for the following additional options:
•Edit:
Edit the picture using the downloadable Photo Editor app.
•Favorite
: Mark the picture as a Favorite.
•Slideshow
: View a slideshow of your photos and videos.
Note:
If your device indicates that memory is full when
you access Gallery, delete some of the files by
using
My files
or another file management
application and try again. For more information,
refer to “My Files” on page 116.
Change player
: displays this picture on other,
available Digital Living Network Alliance
(DLNA) certified devices. (See “Group Play” on
page 113.)
Share via
: send the picture using Group Play,
Dropbox, Flipboard, Picasa, or See all (for
more options).
Delete
to erase the picture (only visible with
the screen in landscape mode).
Camera
: launches the Camera. (See “Camera”
on page 93.)
Multimedia 101
• Photo frame
: Apply a selected frame to this picture.
•Photo note
: Add a note to the back of this picture.
•Copy to clipboard
: Create a copy, to paste into other apps.
•Print
: Print the picture using Wi-Fi to a compatible Samsung
printer.
•Rename
: Change the picture’s filename.
• Buddy photo share
: Send the picture to the Contacts whose
Contact photos match faces in the picture.
•Rotate left
: Rotate the image 90 degrees counter-clockwise.
•Rotate right
: Rotate
the image 90 degrees counter-clockwise.
•Crop
: Select a portion of the picture to retain and discard the
rest.
• Get directions
: When enabled, adds Weather, Location,
Person, and Date information to the photo.
•Set as
: Assign the picture as a Contact photo, or as wallpaper.
•Details
: View information about the picture.
•Settings
: Select values for Accounts, SNS data management,
Tags, and/or Sound & shot.
Viewing Videos
1. From the Home screen, touch
Apps
➔
Gallery
,
and select an album. A matrix or list of available videos
displays.
2. To play a video, touch its thumbnail or list entry.
3. After touching a video thumbnail, touch on the screen
or touch
Menu
for options.
4. Why playing a video, touch
Menu
for the following
additional options:
•Share via
: Send the video using Bluetooth, Email, Gmail,
Google+, Picasa, Wi-Fi Direct, or YouTube.
• Chapter preview
: Displays matrix of video frames.
•Trim
: Remove unwanted frames from this video.
Share
: Send the video using Bluetooth, Email,
Gmail, Google+, Picasa, Wi-Fi Direct, or
YouTube.
Trim
: Remove unwanted frames from this
video.
Delete
: Erase this video.
102
• Via Bluetooth
: Send a copy of this video to another Bluetooth-
capable device.
• Video auto off
: When enabled, ends the Video app when
playback of this video ends.
• Settings
: Select values Mini controller, Brightness, Capture,
Play speed, SoundAlive, Subtitles (CC), and/or Tag buddy.
•Details
: View details about the video.
Sharing Using S Beam
You can also share Gallery photos and videos with
compatible devices using S Beam. (For more information,
refer to “S Beam” on page 136.)
Google Play Books
Google Books is now Google Play Books. With Google Play
Books, you can shop the world's largest selection of ebooks
and read them anywhere you like
—
on a phone, phone,
e-reader, or the Web.
1. From the Home screen, touch
Apps
➔
Play Books
.
2. Sign on to your Google Account. (For more information,
refer to “Got Google?” on page 15 and “Adding an
Account” on page 44.)
3. Follow the on-screen instructions for using the Play
Books application.
Multimedia 103
Google Play Magazines
Google Play Magazines is a subscription service where you
can shop a wide selection of titles, from cooking to
technology, travel, fashion, sports, photography, and more.
1. From the Home screen, touch
Apps
➔
Play Magazines
.
2. Sign on to your Google Account. (For more information,
refer to “Got Google?” on page 15 and “Adding an
Account” on page 44.)
3. Follow the on-screen instructions for using the Play
Magazines application.
Google Play Movies & TV
With Google Play Movies & TV, you can rent or purchase
thousands of movies and TV shows. You can watch instantly
or download your movie or TV show for offline viewing at a
later time.
1. From the Home screen, touch
Apps
➔
Play Movies & TV
.
2. Sign on to your Google Account. (For more information,
refer to “Got Google?” on page 15 and “Adding an
Account” on page 44.)
3. Following the on-screen instructions for renting and
viewing movies.
4. Touch the
My Movies
tab to view movies that you have
purchased or rented.
5. Touch the
My TV Shows
tab to view tv shows that you
have purchased.
6. Touch the
Shop
tab to lauch Play Store and browse for
desired
MOVIES
and
TV
.
7. Touch
Menu
for additional options.
104
Google Play Music
With Google Play Music, you can play music that you have
added to your music file. While offline, you can listen to your
music.
1. From the Home screen, touch
Apps
➔
Play Music
.
2. Music Player scans for songs stored in phone memory,
or on an installed memory card, and displays your
songs on the
My Library
,
Playlists
, or
Instant Mixes
tabs.
3. Touch a music file to begin playback.
4. Touch
Menu
for the following options:
•Refresh
: Synchronize your music folders with the Google Play
Music server.
• Settings
: View Open source licenses and the music version for
the Play Music application.
•Help
: View a help file on the Google Support website.
YouTube
Access your YouTube
™
account, and view and upload
YouTube videos from the phone.
1. From the Home screen, touch
Apps
➔
YouTube
.
2. Follow the on-screen instructions for using the YouTube
application.
Applications and Widgets 105
Section 9: Applications and Widgets
This section contains a description of each application and
widget that is available in the Apps and Widget menus, the
function, and how to navigate through that particular
application or widget. If the application or widget is already
described in another section of this user manual, then a
cross reference to that particular section is provided.
Tip:
To open applications quickly, add the icons of frequently-
used applications to one of the Home screens. (For
details, see “Customizing the Home Screen” on page 37.)
You can also add an application icon as a Primary
Shortcut that displays on all Home screens. If you add an
application as a primary shortcut, the application icon
does not display in the Apps menu. (For more information,
refer to “Editing the Primary Shortcuts” on page 38.)
Accessing Applications
1. Press
Home
, touch
Apps
, then touch the
Apps
tab. The
Apps
screen displays on the screen.
2. Sweep your finger right or left to scroll the Apps
screens.
3. To launch an application, touch the application’s icon.
Customizing the Applications Screens
Choosing a view
By default, application icons appear in Customizable grid
view. You can change the view to Alphabetical grid view or
Alphabetical list view.
1. From the
Apps
screen, touch
Menu
➔
View type
.
The available options are:
• Customizable grid
: Arrange application icons in the order
you prefer, including organizing them into folders.
• Alphabetical grid
: Application icons automatically arranged in
alphabetical order.
• Alphabetical list
: Application icons automatically listed in
alphabetical order.
106
Moving Application icons
With the
Apps
screen in Customizable grid view, you can
arrange the application icons to suit yourself.
1. From the Home screen, touch
Menu
➔
Edit
.
Note:
The
Edit
option is not available with the
Apps
screen
View type
set to
Alphabetical list
.
2. Touch and hold an application icon, then drag it to a
new location.
3. Touch
Save
when you are finished.
Filtering Application icons
You can select which icons appear in the
Apps
screen.
1. From the Home screen, touch
Menu
, then touch
Hide applications
.
2. Mark those applications you do not want to appear on
the
Apps
screen by touching their icons (check marks
appear in their check boxes).
3. Touch
Done
. The
Apps
screen displays without the
hidden applications.
Creating Application Folders
You can create application folders to hold similar applications
if you wish.
To create a folder follow these steps:
1. From the
Apps
menu, touch
Menu
➔
Create
folder
.
2. Enter a folder name and touch
OK
.The new folder
displays on the
Apps
menu.
3. Touch
Menu
➔
Edit
.
4. Touch and hold an application that you would like to
move to a folder.
The folder icon displays with the application icon
displayed on top of it.
5. Repeat step 4 to add additional apps to the folder.
6. To view information on an application, touch and drag
the application shortcut up to the
Info
icon.
7. Touch
Save
.
Applications and Widgets 107
Applications List
Calculator
Use the phone’s Calculator to perform arithmetical
calculations (addition, subtraction, multiplication, and
division).
From the
Apps
screen, touch
Calculator
.
Calendar
Record events and appointments to manage your schedule.
Tip:
A Calendar widget is available in Widgets. For more
information about placing widgets on the Home screen,
see “Widgets” on page 38.
1. From the Home screen, touch
Calendar
.
– or –
From the
Apps
screen, touch
Calendar
.
2. Touch one of the following tabs to choose a calendar
view:
•Year
: Display all twelve months of this year. Sweep across the
years at the bottom of the screen to display another year.
•Month
: Display the current month. Touch a month and year at
the bottom of the screen to display another month.
• Week
: Display the current week. Touch a week at the bottom of
the screen to display another week.
•Day
: Display today’s schedule by hour. Touch day at the bottom
of the screen to display another day.
•List
: Display only event and task names and dates for a
selected year. Touch a year at the bottom of the screen to
display another year. Touch a date to hide or show the
event or task name.
•Task
: Display your list of tasks. Touch the sort field to change
how your tasks are sorted. Tasks can be sorted by due date,
priority, date, week, month, or group.
3. Swipe left or right across the screen to view other
days, or weeks.
4. Swipe up or down the screen to view other events.
5. Use the on-screen keyboard to enter a search term.
Possible events display as you type.
108
6. Touch
Menu
for these options:
•Go to
: Display a specific date.
•Delete
: Delete an event.
•Search
: Search for calendar events.
•Sync
: Synchronize the phones calendar with your account
calendars. (For more information, refer to
“Setting Up Your
Accounts”
on page 44.)
• Settings
: Customize the calendar.
Customizing the Calendar
1. From the
Apps
screen, touch
Calendar
.
2. Touch
Menu
, then touch
Settings
to configure
these settings:
•View settings
:
–
View styles
:
Month view styles
: Choose month view style (Calendar view
+ list, Calendar view +pop-up).
Week view
: Choose Timeline or Analog view for a week’s
events.
–
First day of week
: Choose a day to begin each week.
–
Hide declined events
: Enable or disable display of events.
–
Lock time zone
: When enabled, sets event times and dates to
a specified time zone, so that times and dates do not change if
you move to another time zone.
–
Select time zone
: When Lock time zone is enabled, specify the
time zone for all events.
–
Show week number
: Display the number of the week (1–52)
in a
W
column to the left of
Sun
.
–
Calendars
: Select calendars to display.
Applications and Widgets 109
• Event notification
:
–
Set alerts & notifications
: Choose Alert to receive alerts,
Status bar notification to display notifications in the Status bar, or
Off for no notifications or alerts.
–
Select Ringtone
: Choose a ringtone for event notifications,
then touch
OK
.
–
Vibration
: Enable/disable vibration for event notifications.
–
Default reminder time
: Choose a default reminder time for
Calendar events (default time is 15 minutes).
–
Notifications while screen is off
: Enable/disable display of
notifications on the full screen while the screen is blanked.
–
Quick responses
: Pre-composed text to include with email
notifications to meeting attendees, guests, and so on.
•Gesture
:
–
Swipe with two fingers
: Show animation demonstrating how
to change the Calendar view with a simple swipe with two
fingers.
Creating an Event or Task
1. From the
Apps
screen, touch
Calendar
.
2. Touch
Add event
/
Add Task
, fill in and select the
information for this event or task, and then touch
Save
.
Sending Events
Send events as vCalendar files to other compatible devices.
1. From the
Apps
screen, touch
Calendar
.
2. Touch an event to display its details.
3. Touch
Menu
➔
Share via
.
4. Select the desired Sharing method from the
Share via
pop-up.
5. Follow the prompts to send a copy of a Calendar event
to another device. For more information, refer to
“Connections” on page 127.
110
Camera
Use the phone’s built-in Camera to take pictures and record
video.
From the Home screen, touch
Camera
.
– or –
From the
Apps
screen, touch
Camera
.
For more information, refer to “Camera” on page 93 and
“Camcorder” on page 97.
Chrome
The Google Chrome app allows you to use the Google
Chrome web browser on the phone.
1. From the
Apps
screen, touch
Chrome
.
2. Read the
Google Chrome Terms of Service
and touch
Accept and Continue
.
3. If you have an existing Chrome account, touch
Sign in
to bring your open tabs, bookmarks, and omnibox data
from your computer to the phone, otherwise touch
No
thanks
.
4. Follow the on-screen instructions to use
Google Chrome.
Clock
From the
Apps
screen, touch
Clock
.
The Clock application includes these features:
•Alarm clock
: Create alarms to go off once, or to repeat.
• World clock
: Display the time and date in any time zone.
•Stopwatch
: Record lap times.
•Timer
: Measure elapsed time.
•Desk clock
: Choose whether the clock calendar and weather
displays on the screen, and what outputs are active, when you
connect the phone to an optional dock.
Contacts
Contacts lets you access and manage your Contacts list,
Contacts Groups, Favorites list, and Speed dial settings.
For more information, refer to “Contacts” on page 47.
From the Home screen, touch
Contacts
.
– or –
From the
Apps
screen, touch
Contacts
.
Applications and Widgets 111
Downloads
View and manage files and other items you download to the
phone.
1. From the
Apps
screen, touch
Downloads
.
2. Touch an item to open it (if an appropriate application
is installed.)
Note:
Applications you download using
Play Store
are
also managed with that app, and do not appear in the
Downloads
list.
Drive
Drive is a “cloud” file storage service. The Drive app lets you
save files to your drive account and access them from
multiple devices. You can also copy your files to a device for
off-line access.
From the
Apps
screen, touch
Drive
.
Email
Send and receive email using popular email services. (For
more information, see “Email” on page 80.)
From the Home screen, touch
Email
.
– or –
From the
Apps
screen, touch
Email
.
G+ Photos
G+ Photos allows you to share you photos more easily using
the Google+ application.
1. Sign on to your Google account. (For more information,
refer to “Got Google?” on page 15 and “Adding an
Account” on page 44.)
2. From the
Apps
menu, touch
G+ Photos
.
3. Follow the on-screen instructions to use G+ Photos.
112
Gallery
The Gallery is where you view photos and videos. For photos,
you can also perform basic editing tasks, view a slideshow,
set photos as wallpaper or contact image, and share as a
picture message.
For more information, refer to “Gallery” on page 100.
Note:
You can increase Gallery photo and video storage by
installing a memory card. For more information, see
“Installing a Memory Card” on page 7.
From the
Apps
screen, touch
Flipboard
.
Game Hub
Provides a premium one-stop service center that let’s you
play, connect, and share games on compatible Samsung
Android devices.
1. From the
Apps
screen, touch
Game Hub
.
2. Read the on-screen disclaimer and tap
Confirm
.
3. Follow the on-screen instructions and navigate to your
favorite games and services.
Gmail
Send and receive emails using Gmail, Google’s web-based
email.
For more information, see “Gmail” on page 83.
From the
Apps
screen, touch
Gmail
.
Google
Use Google to search the Web.
Tip:
The Google Search Widget is available by default on the
Home screen. For more information Widgets, see
“Widgets” on page 38.
1. From the Home screen, touch the
Google
Widget.
– or –
From the
Apps
screen, touch
Google
.
2. Enter search criteria. Search results display
automatically. Touch a search result to display it in a
browser window.
Applications and Widgets 113
Google Settings
As Google has become more intertwined with other
applications, this menu provides a quick and ready access
point to configure preferences for Google+, Maps & Latitude,
Locations, and so on. You can also use the Search function to
initiate a Google Search from this menu.
1. From the
Apps
menu, touch
Google Settings
and
select an on-screen option.
2. Touch one of the Google Settings options.
3. Follow the on-screen prompts to modify your Google
Settings.
Google+
Google+ makes messaging and sharing with your friends a
lot easier. You can set up Circles of friends, visit the Stream
to get updates from your Circles, use Messenger for fast
messaging with everyone in your Circles, or use Instant
Upload to automatically upload videos and photos to your
own private album on Google+.
For more information, refer to “Google+” on page 85.
From the
Apps
menu, touch
Google+
.
Group Play
Using Group Play, you can share documents or photos you
are viewing, or music you are listening to, with other Digital
Living Network Alliance (DLNA) certified devices connected
to the same Wi-Fi network with your device.
1. From the
Apps
menu, touch
Group Play
.
The
Welcome to Group Play!
screen displays.
2. For instructions on using Group Play, touch
Next
.
Hangouts
Hangouts is a free Windows and web-based application for
instant messaging offered by Google. You can connect with
your friends across computers and various Android devices.
You can have conversations or video calls with up to 10
friends.
For more information, refer to “Hangouts” on page 84.
1. From the
Apps
menu, touch
Hangouts
.
114
Help
Use Help to read or view brief instructions or videos on how
to use the features and settings available with the phone.
1. From the
Apps
menu, touch
Help
.
The
Help
screen displays.
2. Select a topic from the menu on the left side of the
screen.
3. Read or view the selected topic information in the right
side of the screen.
Internet
This phone is equipped with a full HTML Browser, which
allows you to access the internet.
(For Internet browser usage information, see “Internet” on
page 130.)
Internet browser options and settings
1. From the Home screen, touch
Internet
.
– or –
From the
Apps
menu, touch
Internet
.
2. Touch
Menu
and select from these options:
• New window
: Displays a new window so you can browse
multiple URLs. (For more information, refer to
“Using
Browser Windows”
on page 131.)
•Add bookmark
: Lets you add a URL to your bookmark list
• Add shortcut to home screen
: Lets you add a shortcut to your
Home screen.
• Share page
: Lets you share the page using Gmail or as a
message.
• Find on page
: Allows you to search in the current page.
Applications and Widgets 115
• Desktop view
: Allows you to assign the browser to display the
current page in the desktop view (to closely mimic the display
as it would display on a desktop computer).
• Save for offline reading
: Allows you to store the current page
in memory to read later even if you lose your Internet
connection.
•Brightness
: Allows you to adjust the brightness of the display.
• Downloads
: Displays the download history.
•Print
: Lets you print the screen or web page on a Samsung
printer using Wi-Fi Direct.
•Settings
: Lets you tailor the Internet browser to suit yourself.
KNOX
Samsung KNOX is a comprehensive enterprise mobile
solution for use with both work and play. This application
must be downloaded to the device before use.
1. From the
Apps
menu, touch
KNOX
.
2. Touch
OK
and follow the on-screen instructions.
Maps
Use Google Maps to find your current location, get directions,
and other location-based information. The Google Maps
shortcut displays by default on the Home screen.
Note:
You must enable location services to use Maps, and
some features require Standalone or Google location
services. (For more information, see “Location Services”
on page 178.)
From the
Apps
menu, touch
Maps
.
Navigating the Map
Zooming
•
Double-tap on the screen to zoom in.
•
Touch Zoom in or Zoom out.
Scrolling
•
Touch and drag on the screen to reposition the map in the display.
Touch
•
Touch an icon on the map to display information about the
location.
116
Messaging
Messaging lets you exchange text and multimedia messages
with compatible device users.
(For more information, refer to “Messaging” on page 75.)
From the Home screen, touch
Messaging
.
– or –
From the
Apps
menu, touch
Messaging
.
Music
Music is an application that can play music files. Music
supports files with extensions AAC, AAC+, eAAC+, MP3, and
WMA. Launching Music lets you navigate through your music
library, play songs, and create playlists (music files bigger
than 300 KB display).
(For more information, refer to “Music” on page 87.)
From the
Apps
menu, touch
Music
.
My Files
Find, view and manage files stored on an installed memory
card. If the file is associated with an application on the
phone, you can launch the file in the application.
1. From the
Apps
menu, touch
My Files
.
2. Touch a folder and scroll down or up until you locate a
file.
3. Touch a file to launch it in the associated application (if
the file is associated with an application).
4. While browsing files, use these controls:
Home
to go back to the root directory.
Up
to go back up to a higher directory.
Menu
for options.
Applications and Widgets 117
Phone
The Phone application allows you to access the dialer
keypad, call logs, and favorites.
For more information, refer to “Calling” on page 57.
From the Home screen, touch
Phone
.
– or –
From the
Apps
menu, touch
Phone
.
Play Books
Google Books is now Google Play Books. With Google Play
Books, you can shop the world's largest selection of ebooks
and read them anywhere you like
—
on a phone, phone,
e-reader, or the Web.
For more information, refer to “Google Play Books” on page
102.
From the
Apps
menu, touch
Play Books
.
Play Games
Play Games allows you to discover new games and to unify
your gaming activities.
Note:
Play Games requires that you have or create a Google+
profile.
From the
Apps
menu, touch
Play Games
.
Play Magazines
Google Play Magazines is a subscription service where you
can shop a wide selection of titles, from cooking to
technology, travel, fashion, sports, photography, and more.
Buy new issues or back issues, subscribe and get free 14 or
30-day trials, and customize your reading experience for
the phone.
For more information, refer to “Google Play Magazines” on
page 103.
From the
Apps
menu, touch
Play Magazines
.
118
Play Movies & TV
With Google Play Movies & TV, you can rent or purchase
thousands of movies and TV shows. You can watch instantly
or download your movie or TV show for offline viewing at a
later time.
For more information, refer to “Google Play Movies & TV” on
page 103.
From the
Apps
menu, touch
Play Movies & TV
.
Play Music
With Google Play Music, you can play music that you have
added to your music file and any music you copied from your
PC. While offline, you can listen to music that you have
copied from your PC.
For more information, refer to
“Google Play Music”
on page
104.
From the
Apps
menu, touch
Play Music
.
Play Store
Discover the Google Play Store, where all your favorite
books, movies, apps, and games are all in one place that’s
accessible from the Web and your Android device. You’ll need
to have a Google Account set up on the phone to download a
new application.
1. From the Home screen, touch
Play Store
.
– or –
From the
Apps
menu, touch
Play Store
.
2. The first time you open Google Play Store, read the
Terms of Service, then touch
Accept
to continue.
3. Browse for applications to download, then follow the
prompts.
Applications and Widgets 119
S Memo
The S Memo application allows you to create memos using
the keypad, your finger, or both. You can add images,
handwriting, voice recordings, and typewritten text all in one
place.
1. From the
Apps
menu, touch
SMemo
.
2. Review the
Learn about actions
information pop-up to
learn more about S Memo.
Creating a New Memo
1. From the
Apps
menu, touch
SMemo
. The S Memo
screen displays.
2. Touch an existing Memo to open it, then touch the
screen to enter edit mode.
– or –
Touch to start a new memo in text mode with
the keypad displayed or touch to start a new
memo in drawing mode using your finger or an optional
compatible stylus, such as the
Samsung Galaxy S III
CPen
. You can change back and forth in a memo to add
text with the keypad and the stylus.
The icons that you see displayed on the screen are described
in the following table:
Add a new memo.
Change the view mode.
Add free-format drawing.
Toolbar
Secondary
Show/Hide
Add Page
Writing area
Secondary
Add Title
Writing
Modes
Keyboard
Toolbar
Toolbar
120
3. Touch to access the following options:
•Rename
: Change the current memo title.
•Share via
: Share your memo using Group Play, Dropbox,
Flipboard, Picasa, Paper Artist, Google+, Bluetooth,
Wi-Fi Direct, Messaging, Gmail, or Email.
• Handwriting-to-text
: Transcribe handwriting into text.
•Export
: Save the memo to your Gallery or as a PDF.
•Save as
: Save the memo with a different name.
• Add picture
: Add an image to the current memo. Choose
from: Picture, Take picture, Clip Art, Clipboard, or Map.
•Add tag
: Set tags to add in searches.
•Add as favorite
: Tag the current memo as a favorite.
• Change background
: Set the background for your memo.
Swipe the screen to the left or right to select a background and
then touch
Done
.
• Link to Calendar
: Link the memo to your Calendar.
•Lock
: Lock an email by using a PIN number.
•Set as
: Set a memo as a contact icon, Home screen wallpaper,
Lock screen wallpaper, or Home and lock screens.
•Print
: Print the screen or web page on a Samsung printer
using Wi-Fi.
4. When you have finished creating your memo, touch
Save
on the top menu bar.
Note:
Which options appear depends upon whether you have
saved the memo, are in keypad mode, or in handwriting
mode.
Display the keypad to add text.
Erase marks and drawings.
Undo the last action.
Redo the last action that was undone.
Make a voice recording to add to the memo.
Hide the secondary toolbar.
Show the secondary toolbar.
Add an additional page to the memo.
Applications and Widgets 121
S Voice
S Voice provides plain language voice recognition control of
various features and applications on the phone.
1. From the
Apps
menu, touch
S Voice
.
– or –
From the Home screen, press
Home
twice in
quick succession.
2. Read the Samsung Disclaimer then touch
Confirm
to
continue.
3. Read the Vlingo Terms of Service then touch
Agree
to
continue.
4. Read the information on the
About S Voice
screen, then
touch
Next
.
5. Read the information on the
Say what you want
screen,
then touch
Next
.
6. Read the information on the
Wake up S Voice
screen,
then touch
Next
.
7. Read the information on the
Edit what you said
screen,
then touch
Next
.
8. Read the information on the
Help
screen, then
touch
Finish
.
9. At the S Voice screen, say “Hi Galaxy” to wake up
S voice.
10. Speak into the phone and follow the on-screen
instructions.
Samsung Apps
With Samsung Apps, you can easily download an abundance
of applications to your device. These include games, news,
reference, social networking, navigation, and more.
Samsung Apps makes your Smartphone smarter.
Note:
Access to this feature requires that you already be
logged in to your Samsung account. (For more
information, refer to “Samsung Account” on page 14.)
1. From the
Apps
menu, touch
Samsung Apps
.
2. If prompted, read the on-screen disclaimer and agree
to the information.
3. Follow the on-screen instructions.
122
Samsung Link
This application wirelessly synchronizes your device with
your TV, streams content and even keeps tabs on who calls
or sends text messages with real-time, on-screen
monitoring. Samsung Link makes staying connected easy.
Allows users to share their in-device media content with
other external devices using DLNA certified™ (Digital Living
Network Alliance) Devices. These external devices must also
be DLNA-compliant. Wi-Fi capability can be provided to TVs
using a digital multimedia streamer.
Important!
Your Samsung account manages the access
information (username/password) to several
applications, such as Samsung Link.
AllShare/Samsung Link Definitions:
Important!
You must connect both of your communicating
devices to the same Wi-Fi and use an active/
registered Samsung account prior to using this
application.
For more information, refer to “Wi-Fi Settings” on
page 142.
For more information, refer to “Add account” on
page 170.
Samsung Link/
AllShare Play
This new feature builds on the
previous AllShare Play functionality. It
includes features such as Web storage
integration and social networking
integration. This is a Web service
that requires using a Samsung
account.
Group Play
A subset feature of Samsung Link, this
allows you to mirror photos and
multimedia presentations with other
members of your current Wi-Fi
group. Users must be on the same
Wi-Fi and provide an access code to
join the group.
AllShare Cast
(with Hub
accessory)
This feature functions with an
external AllShare Cast Hub to fully
mirror what is currently displayed on
your device to the external TV.
Applications and Widgets 123
1. Confirm you have already logged in to your Samsung
account.
2. From the
Apps
menu, touch
Samsung Link
.
3. If prompted with an on-screen notification about no
Wi-Fi detected, touch
Cancel
(to continue by using your
network connection) or
Connect
to continue.
4. Touch
Sign in
.
5. If prompted to log into your Samsung account, touch
Sign in
and follow the on-screen instructions.
6. Follow the on-screen prompts.
7. Touch to reveal the DEVICES & STORAGE list,
scroll down the screen. The DEVICES & STORAGE list
contains two separate streaming media options:
• Registered devices
allows you to stream/share selected
multimedia content from your device to DLNA compliant device
connected to the same Wireless Access Point.
•Registered storage
: allows you to receive and playback media
stored externally (server, laptop, and so on) directly on your
device by allowing you to add a Web storage service for
streaming content.
Configuring Samsung Link Settings
The Samsung Link application must first be configured prior
to its initial use. You must setup parameters such as
connected Wi-Fi, Items to share, source server address, and
external device acceptance rights.
1. From the
Apps
menu, touch
Samsung Link
.
2. Touch and then touch
Settings
and configure the
following settings as desired:
•Registered storage
: allows you to add a Web storage location.
Without a storage service/location added, you cannot use
Samsung Link.
•Save to
: allows you to save your media to your internal phone
memory or to an SD card.
• Auto upload
: allows you to enable automatic upload of images
from your device to those storage locations specified within the
Web storage list. Move the slider to the on position to activate
the feature.
Note:
If the main screen still shows a
Sign in
box,
close the application and restart it.
124
• Video optimization
: allows you to setup the video quality for
streamed video content. Move the slider to the on position to
activate the feature.
• Password lock
: allows you to restrict access to Samsung Link
by requiring a user enter the currently active and associated
Samsung account password. Move the slider to the on position
to activate the feature.
• My account
: displays Samsung account information.
•Customer support
: allows you to contact the Samsung Link
team using a new email from an available email account.
• About this service
: displays application information.
Setting Up Web Storage
Web storage services allow you to use storage space to store
your files and share them on the “Cloud”.
Note:
If you are using another Web storage service, log into
that service first before using Samsung Link.
1. From the
Apps
menu, touch
Samsung Link
.
2. Touch ➔
Add storage
.
Note:
When adding storage, an N Drive is added.
3. Choose from: SugarSync, Dropbox, or SkyDrive.
– or –
Touch
➔
Settings
➔
Registered storage
➔
Add storage
.
4. Follow the on-screen instructions to register or log into
your cloud service.
5. Once the process is successfully completed, the Web
storage icon or name appears in the Web storage area
of the main screen.
6. From the main screen, select a connected device and
then touch on the media that you would like to share.
•
A file with in the upper-left indicates it is stored remotely
on a Web storage location. Selecting this media causes your
device to access the file currently stored on your services’
servers.
To de-register Web storage service:
1. From the Samsung Link application, touch and
then touch
Settings
➔
Registered storage
.
2. Select
Delete
➔
Delete
.
3. Select a current storage service and touch
OK
.
Applications and Widgets 125
Sharing Media over Samsung Link to a Target Device
Important!
Make sure all communicating devices are
connected to the same Wi-Fi.
1. Launch AllShare Play/Samsung Link on the target
device (such as an Internet TV, Samsung tablet, and so
on).
2. From the
Apps
menu, touch
Samsung Link
.
Note:
You must be signed in to your Samsung Account before
you can use this feature.
3. Touch and select your device name from the
Registered devices
area.
4. Touch an available category tab (Pictures, Music,
Movies, Files, or Info) and select a file.
•
A file with in the upper-left indicates it is stored remotely
on a Web storage location. Selecting this media causes your
device to access the file currently stored on your services’
servers.
5. Touch an available on-screen file, image, or video to
place a green check mark alongside it.
6. Touch
Stream to connected devices
and select an
available target device to begin streaming.
7. On a target device (ex: Internet TV) select the on-
screen
Allow
button to continue.
Note:
At this stage your device is requesting access to share
media with the external source.
8. Confirm
Samsung Link Controller enabled
appears
in the Notification area at the top of the device to
indicate you are using your device as the media
source.
Settings
Tailor your phone to your preferences.
For more information, see “Settings” on page 140.
From the
Apps
menu, touch
Settings
.
Video
The Video app identifies and plays video files (3GP or MP4)
stored on the phone or on an optional microSD Memory card.
For more information, refer to “Video” on page 92.
From the
Apps
menu, touch
Video
.
126
Voice Recorder
Record your voice or other sounds, and share recordings
using Bluetooth, Messaging, or Gmail.
For more information, refer to “Voice Recorder” on page 85.
From the
Apps
menu, touch
Voice Recorder
.
Voice Search
Voice Search offers voice-activated Google searches. If you
agree, Voice Search uses your location to improve search
results and offer other services.
From the
Apps
menu, touch
Voice Search
.
VPN Client
VPN Client lets you define multiple Virtual Private Networks
(VPNs) to your device and connect to them as needed by
simply selecting a connection from the VPN Client list.
From the
Apps
screen, touch
VPN Client
.
YouTube
Access your YouTube
™
account, and view and upload
YouTube videos from the phone.
1. From the
Apps
menu, touch
YouTube
.
2. Follow the on-screen instructions for using the YouTube
application.
Accessing Widgets
1. Press
Home
, then sweep your finger right or
left to scroll to a particular Home screen panel.
2. Touch
Apps
➔
Widgets
tab. The
Widgets
screen
appears.
– or –
Touch and hold on the displayed Home screen panel
until the
Home screen
menu pops-up, then touch
Apps
and widgets
➔
Widgets
tab. The
Widgets
screen
appears.
3. Sweep your finger right or left to scroll through the
Widgets screens and find the desired widget.
4. To place a widget on the selected Home screen panel,
touch and hold the widget’s image or icon, then
position the widget on the Home screen panel.
5. If needed, follow any prompts to configure the widget.
Connections 127
Section 10: Connections
This section describes the various connections the phone
can make, including Wi-Fi, Bluetooth, accessing the Internet
with your Browser, and Connecting your PC.
Wi-Fi
Wi-Fi is a wireless networking technology that provides
access to local area networks.
Wi-Fi communication requires access to an existing Wi-Fi
network. Wi-Fi networks can be Open (unsecured), or
Secured (requiring you to provide login credentials).
This phone supports the 802.11 a/b/g/n Wi-Fi protocols.
Configuring Wi-Fi Settings
Configure the phone’s Wi-Fi settings. (For more information,
see “Wi-Fi Settings” on page 142.)
Turning Wi-Fi On or Off
When you turn Wi-Fi service on, the phone automatically
searches for available, in-range “hotspots” [also termed
WAPs (Wireless Access Points)].
Turning Wi-Fi On
1. From the top of the Home screen, swipe your finger
downward to display the Notifications screen.
2. At the top of the Notifications screen, touch
Wi-Fi
to
turn Wi-Fi On.
Turning Wi-Fi Off
1. From the top of the Home screen, sweep your finger
downward to display Notifications.
2. At the top of the Notifications screen, touch
Wi-Fi
to
turn Wi-Fi Off.
Scanning and Connecting to a Wi-Fi Network
1. Turn Wi-Fi on (See “Turning Wi-Fi On” ). The phone
scans for available hotspots and displays a list of any it
finds.
2. To connect to a hotspot, touch it on the pop-up list.
•
If the Wi-Fi network is open, you are automatically connected.
•
If the Wi-Fi network is secured, enter the password at the
prompt to connect.
128
Adding a Wi-Fi Network Manually
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
Wi-Fi
. The
Wi-Fi
options screen
displays. (For more information, refer to “Accessing
Settings” on page 140.)
2. Touch the
Wi-Fi
slider to turn Wi-Fi ON.
3. Touch
Add Wi-Fi network
, then enter the following
values:
• Network SSID
: Enter the name of the WAP (Wireless Access
Point).
• Security
: Select the type of security used by the WAP.
• Password
: If the WAP is secured, enter the password or key.
Bluetooth
Note:
For Hearing Aid Compatibility Information, see page 206.
Bluetooth is a short-range wireless communications
technology for exchanging information over a distance of
about 30 feet.
You don’t need to line up the devices to send information
with Bluetooth. If the devices are in range, you can exchange
information between them, even if they are in different
rooms.
Configuring Bluetooth Settings
Configure the phone’s Bluetooth settings. (For more
information, see “Bluetooth Settings” on page 145.)
Note:
Bluetooth profiles are specifications for services
supported by individual devices. (For a list of profiles the
phone supports, see “Bluetooth Profiles” on page 144.)
OFF
OFF
Connections 129
Turning Bluetooth On or Off
1. From the Home screen, sweep your finger from the top
of the screen downward to display Notifications.
2. Touch
Bluetooth
to turn Bluetooth On.
Touch
Bluetooth
to turn Bluetooth Off.
Pairing with a Bluetooth Device
Search for a Bluetooth device and pair with it, to exchange
information between the phone and the device.
After pairing, the phone and the target device connect with
each other and exchange information without a passcode
or PIN.
Note:
When connected, the
Bluetooth connected
icon
displays in the Status Bar. If you receive a new request
for connection while connected with a Bluetooth
headset, a new Bluetooth icon displays at the left of the
Status bar and Notifications displays the connection
request.
1. Activate the target device’s discoverable mode.
2. Turn on Bluetooth from the phone (see “Turning
Bluetooth On or Off” on page 129). A list of detected
devices displays.
3. From the list of detected devices, touch the target
device the phone attempts to automatically pair with
the target device.
If automatic pairing fails, then follow the prompts to
complete manual pairing:
•
Enter a PIN for the target device and touch
OK
.
Tip:
Some devices use a default passcode of 0000. Refer to
the target device’s user manual for more information.
•
When prompted to connect with the target device, touch
OK
to
complete the connection or touch
Cancel
to retain the
pairing only.
130
Connecting with a Bluetooth Device
1. Turn Bluetooth ON. (See “Turning Bluetooth On or Off”
on page 129.)
2. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
Bluetooth
. The
Bluetooth
screen displays.
3. Under
Available devices
, touch a previously paired
device. The device connects with the phone.
Internet
This phone is equipped with a full HTML Browser, which
allows you to access the internet.
From the Home screen, select
Internet
. Your
Wireless Provider’s mobile home page displays in the
Internet screen.
Note:
This phone also comes with the Google Chrome mobile
browser. (For more information, refer to “Chrome” on
page 110.)
Navigating the Web
Selecting Items on a Page
While browsing web pages, use gestures and menus to
navigate:
•
Touch an item to select it.
•
Touch a hyperlink to follow the link.
•
Touch and hold on a hyperlink for options.
Command Keys
•
Touch
Back
or touch
Back
to return to the previous
page.
•
Touch
Forward
to go to the next page.
Connections 131
Touching and Dragging
•
Touch and drag your finger on the screen to navigate pages and
to reposition pages within the screen.
Entering Text in a Field
•
While browsing, touch a text field to display the virtual QWERTY
keyboard to enter text.
Zoom
Note:
Some web pages do not support the Zoom function.
•
Using two fingers, make a pinch motion on the screen.
–
Pinch in to zoom in on a web page.
–
Pinch out to zoom out on a web page.
•
To return a web page to original size, double tap on it.
Entering a URL
Access a website quickly by entering the URL.
1. Touch the
URL
field at the top of the Internet screen,
then enter the URL using the virtual QWERTY keyboard.
If the
URL
field is not visible, touch and swipe
downward until the
URL
field displays.
2. As you enter characters, potential matches display.
Continue entering characters, or touch a match to
complete the URL, then touch
Go
to load the page.
Copying Text
Copy information from a web page.
1. From the Internet screen, browse to the desired
website.
2. Touch and hold on the text to enable the text selector,
then use the on-screen tools.
Using Browser Windows
You can have multiple windows open at one time, and you
can switch between windows.
•
To open a new window, on the Internet screen,
touch
Windows
➔
New window
.
•
To switch to another open window, touch
Windows
. Touch
and swipe to the desired window thumbnail, then touch it to
display the window.
•
To close a window, touch
Windows
. Touch
Close
beside
a window to close it.
1
2
2
132
Going Incognito
The Incognito feature lets you view Internet sites without
leaving records in your browser history or search history, and
without traces (such as cookies) stored on your device.
Note:
Any downloaded files are preserved and stay on your
device after you exit the incognito mode.
To add an Incognito window:
1. From the Home screen, touch
Internet
, then touch
Windows
➔
Incognito
.
2. A new Incognito window displays.
Note:
The incognito icon displays in the upper-left of the new
browser window while you are in this mode.
3. Browse to the desired web site(s).
To exit from the incognito window:
1. From your browser window, touch
Windows
.
2. Scroll across the available windows and locate the
Incognito window.
3. Touch next to the Incognito window to delete it.
Using Bookmarks
While browsing, bookmark a site to quickly access it later.
Creating a bookmark
1. From the Home screen, touch
Internet
, then
browse to the desired website,
then touch
Bookmarks
➔
Add bookmark
. The
Add bookmark
screen displays.
2. Edit the
Name
and
Address
of the new bookmark as
needed, then select the
Folder
where you want it
added.
3. Touch
Save
to save the new bookmark.
Accessing Bookmarks and History
Launch a bookmarked page, or reload recent pages.
1. From the Internet screen, touch
Bookmarks
.
2. On the tabs, use these options:
•
Touch an item to load the page.
•
Touch and hold on an item for options.
•
Touch
Menu
for more options.
2
2
Connections 133
Deleting Bookmarks
1. From the Bookmarks page, touch and hold the
bookmark you want to delete.
2. Touch
Delete bookmark
.
3. In the
Delete
confirmation pop-up, touch
OK
.
Mobile Hotspot
Use Mobile Hotspot to share your phone’s internet connection
with up to 10 other devices through Wi-Fi.
Note:
Mobile Hotspot requires a subscription to the applicable
service to use the application.
Mobile Hotspot consumes battery power and uses data
service. While Mobile Hotspot is active, the phone’s
applications use the Mobile Hotspot data feature
allowance.
Configuring Mobile Hotspot Settings
Configure the phone’s Mobile Hotspot settings, including the
phone’s name and password, and set the visibility of the
phone’s Wi-Fi hotspot.
Tip:
By default, your device’s mobile hotspot has no security
applied, and any device can connect. (For more
information about configuring your mobile hotspot, see
“Configuring Mobile Hotspot” on page 148.)
Turning Mobile Hotspot ON
Turn Mobile Hotspot ON to allow other devices to use your
phone’s internet connection.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
More networks
➔
Tethering and
portable hotspot
.
2. Slide
Mobile Hotspot
to the right and follow the
prompts to turn Mobile Hotspot ON.
ON
ON
134
Connecting a Device Using Mobile Hotspot
Use the other device’s Wi-Fi control to connect to the phone’s
Mobile Hotspot.
On your phone:
1. Turn Mobile Hotspot ON. (For more information, refer to
“Turning Mobile Hotspot ON” on page 133.)
On the other devices:
2. Activate Wi-Fi.
3. Scan for Wi-Fi hotspots, and select your phone from
the list. (To find your phone’s name, see “Configuring
Mobile Hotspot” on page 148.)
4. At the prompt, enter your phone’s Mobile Hotspot
password.
Wi-Fi Direct
Wi-Fi Direct allows devices to connect to each other directly
through Wi-Fi, without a Wi-Fi network or hotspot, and
without having to set up the connection. For example, some
printers support Wi-Fi Direct, and you can print from the
phone using Wi-Fi Direct.
Turning Wi-Fi Direct On or Off
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
Wi-Fi
.
2. Slide
Wi-Fi
to the right to turn Wi-Fi ON.
Wi-Fi must be on to use Wi-Fi Direct.
3. Touch
Wi-Fi Direct
. The
Wi-Fi Direct
screen displays,
and the phone scans for available Wi-Fi Direct devices
and lists them under
Available devices
.
Connecting to Wi-Fi Direct Devices
1. First, enable Wi-Fi on your device. From the Home
screen, touch
Menu
➔
Settings
.
2. Slide
Wi-Fi
to the right to turn Wi-Fi ON.
Wi-Fi must be on to use Wi-Fi Direct.
3. Enable Wi-Fi Direct on the other device(s). Consult the
other device¡¯s documentation for more information.
Tip:
By default, the Mobile Hotspot password is your
phone number. (For information on changing your
phone’s Mobile Hotspot password, see
“Configuring Mobile Hotspot” on page 148.)
ON
ON
ON
ON
Connections 135
4. On your phone, touch
Wi-Fi Direct
(below the list of
networks) to scan for the other device(s).
5. In the
Available devices
list, touch a device to connect
with it, or touch
Multi-connect
to connect to multiple
devices (not all devices support multi-connect).
6. Follow the prompts on both devices to complete the
connection.
Wi-Fi Direct Settings
1. First, enable Wi-Fi on your device. From the Home
screen, touch
Menu
➔
Settings
.
2. Slide
Wi-Fi
to the right to turn Wi-Fi ON.
Wi-Fi must be on to configure Wi-Fi Direct settings.
3. Touch
Wi-Fi Direct
.
4. Touch
Menu
to configure:
• Rename device
: Change the name of your phone.
•Help
: Read additional information about Wi-Fi Direct.
Beaming
NFC
NFC (Near Field Communication) allows data exchange when
you touch your device with another compatible device. This
is used for applications such as Android Beam and S Beam.
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
NFC
2. Slide
NFC
to turn NFC ON.
Note: NFC
must be turned ON to use
Android Beam
or
S Beam
.
Android Beam
When Android Beam is activated, you can beam application
content to another NFC-capable device by holding the
devices close together. You can beam browser pages,
YouTube videos, contacts, and more.
Turning Android Beam On or Off
1. Turn
NFC
ON. (See “NFC” .) NFC must be ON to use
Android Beam.
2. Slide
Android Beam
to the right to turn
Android Beam On.
ON
ON
ON
ON
ON
136
Using Android Beam
1. Turn
Android Beam
On. (See “Turning Android Beam On
or Off” .)
2. Launch the desired feature or application or browse to
the desired web page (See “Applications and Widgets”
on page 105.)
3. Place the phone back-to-back with the device to
receive your “beamed” content, then touch the screen
on the phone. The receiving device prompts the user to
accept your “beamed” content.
4. Once the user of the receiving device accepts your
“beamed” content, it displays on the screen of that
device.
S Beam
When S Beam is turned ON, you can beam files to another
NFC-capable device by holding the devices close together.
You can beam images and videos from your gallery, music
files from your music player, and more.
Turning S Beam On or Off
1. Turn
NFC
ON (see “NFC” on page 135). NFC must be
ON to use S Beam.
2. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
S Beam
3. Slide
S Beam
to the right to turn S Beam ON.
ON
ON
Connections 137
Using S Beam
1. Turn
S Beam
ON. (See “Turning S Beam On or Off” .)
2. Launch
Camera
,
Music Player
, or
Gallery
(See “Applications and Widgets” on page 105). When
using Gallery, you can select multiple files to S Beam.
3. Place the phone back-to-back with the device to
receive your “beamed” content, then touch the screen
on the phone. The receiving device prompts the user to
accept your “beamed” content.
4. Once the user of the receiving device accepts your
“beamed” content, it displays on the screen of
that device.
Tethering
Use Tethering to share the phone’s internet connection with a
computer connected to your device using the USB data/
charging cable, or using Bluetooth.
For more information, refer to “Tethering” on page 149
1. From the Home screen, touch
Menu
➔
Settings
➔
Connections
➔
More networks
➔
Tethering and
portable hotspot
. The
Tethering and portable hotspot
screen displays.
2. Choose a tethering method:
• USB tethering
: Connect the computer to the phone using a
USB cable, then touch
USB tethering
to turn tethering On or
Off. A check mark displays to indicate activation.
• Bluetooth tethering
: Connect the phone with the computer
using Bluetooth. Consult the computer’s documentation for
more information about using your computer to make a
Bluetooth connection. Touch
Bluetooth Tethering
to turn
tethering On or Off. A check mark displays when activated.
•Help
: Provides assistance with tethering.
Note:
Using Tethering requires a subscription to your Wireless
Provider’s mobile data service.
138
PC Connections
You can connect your device to a PC using an optional PC
data cable using various USB connection modes.
Storage
: Lets you use the built-in mass storage and memory
card capacity of the phone to store and upload files. This
option lets your computer treat the phone’s installed and card
memory as removable storage drives.
Kies air
: Lets you wirelessly synchronize files on the phone (in
mass storage and on a memory card) with files on your
Windows PC, provided they are both on the same Wi-Fi
network.
Note:
To sync your device to your PC, it is highly
recommended that you install Samsung Kies which is
available at
samsung.com/kies
(for Windows/Mac).
Note:
If you are a Windows XP user, ensure that you have
Windows XP Service Pack 3 or higher installed on your
computer. Also, ensure that you have Samsung Kies air
2.0 or Windows Media Player 10 or higher installed on
your computer.
Connecting as a Storage Device
You can connect your device to a personal computer, have
your device display as a removable disk, and access your
device’s file directory. If you insert a memory card in the
device, you can also access the files directory on the
memory card by using the device as a memory card reader.
Note:
The file directory of the memory card displays as a
removable disk, separate from the internal memory.
1. Connect the USB cable to the device and connect the
cable to the computer. After a few seconds, a pop-up
window displays on the PC, prompting you to choose
how to access the new device.
2. On the PC pop-up, click
Open device to view files
.
You can now transfer files between the PC and the
phone’s memory and memory card (if installed).
Connections 139
Screen Mirroring
Screen Mirroring lets the phone share the contents of its
display with other Digital Living Network Alliance (DLNA)
certified devices, such as Smart televisions.
Note:
To view more information about DLNA certified products
visit
dlna.org
.
1. Connect the phone and another DLNA certified device
to the same Wi-Fi network. (For more information, refer
to “Wi-Fi” on page 127.)
2. On the phone press
Home
, then touch
Menu
➔
Settings
➔
Connections
➔
Screen Mirroring
. The
Screen Mirroring
screen displays
with
Screen Mirroring
already active and begins
scanning for available devices. All detected DLNA
certified devices are listed under
Available devices
.
3. Touch the desired device to establish a connection. You
can now view the contents of the phone’s display on
the connected device.
Nearby Devices
Share files with nearby Digital Living Network Alliance
(DLNA) certified devices over Wi-Fi. For more information,
refer to “Nearby Devices” on page 152.
Note:
To use Nearby devices for sharing, you must have set up
a connection with another Wi-Fi device that supports
DLNA.
1. Connect the phone and another DLNA certified device
to the same Wi-Fi network. (For more information, refer
to “Wi-Fi” on page 127)
2. On the phone press
Home
, then touch
Menu
➔
Settings
➔
Connections
➔
Nearby devices
. The
Nearby devices
screen displays.
3. Slide
Nearby devices
to the right to turn Nearby
devices ON.
4. Touch
Allowed devices list
to select a device to share
contents with.
ON
ON
140
Section 11: Settings
Accessing Settings
From the Home screen, touch
Menu
➔
Settings
.
– or –
From the Home screen, touch
Apps
➔
Settings
.
The
Settings
menu displays.
Settings Tabs
The Settings are divided into 4 main groups. When the
Settings screen displays, the following 4 tabs are located at
the top of the screen:
Connections
:
This tab provides access to the settings related to
the connection of your device to external sources.
Features include: Wi-Fi, Bluetooth, Data usage,
More networks (Airplane mode, Mobile networks,
Tethering, and VPN), NFC, S Beam, Nearby
devices, and Screen Mirroring.
My device
:
This tab provides access to device configuration
and customization features. Features include:
Lock screen, Display, LED indicator, Sound, Home
screen mode, Call, Blocking mode, Hands-free
mode, Power saving mode, Accessory,
Accessibility, Language and input, Motion, Smart
screen, and Voice control.
Accounts
:
This tab provides both the ability to create and
modify your accounts (such as: Samsung account,
Email, Google account, and so on) and access
Backup and reset features.
More
:
This tab provides access to the remaining set of
device settings not listed under the other three
tabs. These include: Location services, Security,
Application manager, Battery, Storage, Date and
time, and About device.
My device
My device
Settings 141
Note:
The settings for your device are described below in the
order that they appear within the Settings menu. Options
under the
Connections
tab are listed first, followed by
My device
,
Accounts
, and
More
.
Connections
To access the Connections settings:
From the Settings screen, touch the
Connections
tab.
The
Connections
menu displays.
Wi-Fi
Set up and manage the phone’s connections to Wi-Fi
networks. This phone supports Wi-Fi a/b/g/n.
For more information about using Wi-Fi, see “Wi-Fi” on
page 127.
Turning Wi-Fi On or Off
Turn the phone’s Wi-Fi service on or off. When you turn Wi-Fi
service ON, the phone automatically searches for nearby
available Wi-Fi networks.
Tip:
When you turn Wi-Fi service ON, the phone automatically
searches for available networks and displays them.
You can also turn Wi-Fi ON or OFF from the Notifications
panel, Quick Settings menu. (For more information, refer
to “Quick Settings Menu” on page 33.)
Turn Wi-Fi ON:
From the
Connections
menu, touch
Wi-Fi
.
– or –
From the Home screen and others, touch and swipe the
Status Bar downward, then touch
Wi-Fi
in the
Quick Settings menu.
Turn Wi-Fi OFF:
From the
Connections
menu, touch
Wi-Fi
.
– or –
From the Home screen and others, touch and swipe the
Status Bar downward, then touch
Wi-Fi
.
OFF
OFF
ON
ON
142
Wi-Fi Settings
Configure and manage connections to Wi-Fi access points.
1. From the
Connections
menu, touch
Wi-Fi
. The
Wi-Fi
screen appears.
2. Touch options to configure:
•Add Wi-Fi network
: Connect to a new Wi-Fi network
(see
“Adding a Wi-Fi Network Manually”
on page 128).
•Scan
: Search for available Wi-Fi networks.
• Wi-Fi Direct
: Access Wi-Fi Direct settings
(see
“Wi-Fi Direct”
on page 143.)
3. Touch
Menu
to access the following additional
options:
• Advanced
: View and configure the phone’s Advanced Wi-Fi
settings.
• WPS push button
: Record/send the signal from the Wi-Fi
Protected Setup push button on your Wi-Fi router.
• WPS PIN entry
: Record/send the Wi-Fi Protected Setup
Personal Identification Number for your Wi-Fi router.
Advanced Wi-Fi Settings
1. From the
Connections
menu, touch
Wi-Fi
➔
Menu
➔
Advanced
.
2. Configure settings:
• Wi-Fi notifications
: When enabled, the phone notifies you of
nearby Wi-Fi networks when you launch a high data-usage
application.
•Sort by
: Select whether WAPs are listed in Alphabet order or
Signal Strength order.
• Keep Wi-Fi on during sleep
: Specify when to switch from
W-Fi to mobile data for data communications, when the phone
goes to sleep (when the backlight goes out). This setting can
affect your data usage, and the behavior of devices you
connect to the phone, such as when tethering or using
Mobile Hotspot.
• Always allow scanning
: When enabled, Google location
service and other apps scan for Wi-Fi networks, even when
Wi-Fi is set to OFF.
• Auto network switch
: When enabled, your device
automatically switches between the carrier network and a Wi-Fi
network (only active when SIM card is installed).
Settings 143
• Install certificates
: Installs optional security certificates from
an installed microSD card. (For more information, refer to
“Installing a Memory Card”
on page 7.)
•MAC address
: (Not configurable) View the phone’s MAC
address, needed for connecting to some secured networks
(only shows when Wi-Fi is active).
•IP address
:
(Not configurable) View the phone’s IP address
(only shows when connected to a Wi-Fi network).
Wi-Fi Direct
Wi-Fi Direct allows devices to connect to each other directly
through Wi-Fi, without a Wi-Fi network or hotspot, and
without having to set up the connection.
Example:
Some printers support Wi-Fi Direct, allowing you to
print from your phone using Wi-Fi Direct.
Turning Wi-Fi Direct On or Off
1. From the
Connections
menu, touch the
Wi-Fi
slider to turn Wi-Fi ON.
2. Touch
Wi-Fi Direct
. The
Wi-Fi Direct
screen appears,
and the phone scans for available Wi-Fi Direct devices
and lists them under
Available devices
.
(For information on connecting the phone to other
Wi-Fi Direct devices, see “Connecting to Wi-Fi Direct
Devices” on page 134.)
Note:
Wi-Fi must be ON to use Wi-Fi Direct.
OFF
OFF
144
Bluetooth
This phone supports Bluetooth 4.0.
Bluetooth Profiles
Bluetooth profiles are specifications for services supported
by individual devices. Profiles improve the ability of different
devices to work together. This phone supports these
Bluetooth profiles:
•
Headset
: HSP v1.2 profile supports use of compatible Bluetooth
headsets for mono voice.
•
Handsfree
: HFP v1.5 profile supports Bluetooth headsets, and
may also support other compatible Bluetooth devices with
speakerphone capabilities.
•
Stereo
: A2DP v1.2, AVRCP v1.0, GAVDP 1.2, AVCTP 1.3 and
AVDTP 1.2 profiles support delivery of stereo audio to compatible
Bluetooth devices.
•
Object Exchange
: OPP v1.0 profile allows sending and receiving
of contact name cards (vCard 2.1) and calendar events
(vCalendar) between devices. PBAP v1.2 supports exchange of
Phone Book Objects.
•
Human Interface Devices
: HID v1.0 profile supports certain
interface devices.
•
Personal Area Networking
: PAN 1.0 supports exchange of data
with other devices.
•
Message Access Profile
: MAP 1.0 allows exchange of messages
between devices, such as with an automotive hands-free device.
Turning Bluetooth ON or OFF
Turn Bluetooth ON:
From the
Connections
menu, touch
Bluetooth
.
Turn Bluetooth OFF:
From the
Settings
screen, touch
Bluetooth
.
Tip:
You can also turn Bluetooth ON or OFF at the Notifications
Panel.
OFF
OFF
ON
ON
Settings 145
Bluetooth Settings
Pair and connect with other Bluetooth devices, manage your
Bluetooth connections, and control your device’s visibility to
other devices.
Note:
Bluetooth must be turned ON to access Bluetooth
settings.
1. From the
Connections
menu, touch
Bluetooth
.
2. Touch a setting to configure Bluetooth:
•
Touch
Bluetooth
to turn Bluetooth ON.
•
Under
My device
, touch the phone’s name to enable/disable
its visibility to other devices’ Bluetooth searches. Available
when Bluetooth is ON.
•
Touch
Scan
to search for visible Bluetooth devices. Touch a
detected device to pair with it (see
“Pairing with a Bluetooth
Device”
on page 129).
•
Touch
Menu
to access the following options:
–
Visiblity timeout
: Select how long the phone remains visible to
other devices.
–
Received files
: Lists files received from other devices over
Bluetooth connections.
Data Usage
Control your device’s connection to your Wireless Provider’s
data service, and monitor your data usage.
Turning Mobile Data On or Off
1. From the
Connections
menu, touch
Data usage
. The
Data usage
screen displays.
2. Touch the
Data usage cycle
drop-down menu and
select a date.
The data usage displays as a visual (chart) and also
displays a list of each application with a breakdown of
how much data was used per application.
3. Touch
Menu
to display additional options. Touch
each check box to enable the feature or option.
• Data roaming
: When enabled, includes data roaming usage in
the graph. (For more information about roaming, see
“Roaming”
on page 18.)
• Restrict background
: When enabled, stops some apps and
services unless your device is connected to a Wi-Fi network.
OFF
OFF
Note:
Data is measured by your device. Your service
provider may account for data usage differently.
146
• Auto sync data
: When enabled, lets your accounts
synchronize automatically. (When disabled, reduces mobile
data usage and conserves battery power, but you must
manually sync your accounts.)
•Show Wi-Fi usage
: When enabled, two buttons appear at the
top of the Data usage screen:
–
Mobile
: Shows Mobile data usage.
–
Wi-Fi
: Shows Wi-Fi data usage.
• Mobile hotspots
: Lets you block background apps from using
selected, expensive mobile hotspots for large downloads.
More networks
From the
Connections
menu, touch
More networks
. The
More networks
menu displays.
Airplane Mode
When airplane mode is enabled, all the phone’s wireless
connections are disabled, and you cannot make or receive
calls [except for Emergency (E911) calls] or messages. You
can, however, make Wi-Fi and Bluetooth connections.
While in airplane mode, you can use other features of the
phone, such as playing music, watching videos, or using
other applications.
1. From the
More networks
menu, touch
Airplane mode
to
enable or disable airplane mode. When enabled, a
check mark displays in the check box.
2. At the
Turn on Airplane mode
prompt, touch
OK
.
The Airplane mode icon displays at the top of the
screen.
Settings 147
Mobile Networks
Set options for network selection, data service, and roaming
behavior.
1. From the
More networks
menu, touch
Mobile networks
.
The
Mobile networks
menu displays.
2. Set these options:
• Mobile data
: Enable or disable the phone’s connection to the
mobile data network. You can also control this setting at
Notifications with the Mobile data toggle.
• Data roaming
: Enable or disable connection to data services
when your device is roaming on another network. (For more
information about roaming, see
“Roaming”
on page 18.)
• System select
:
–
Home only
: Restricts the phone to using your Wireless
Provider’s mobile network.
–
Automatic
: Permits the phone to automatically roam to
networks other than that provided by your Wireless Provider.
Tethering and portable hotspot
Mobile Hotspot
Turning ON Mobile Hotspot turns your phone into an Wi-Fi
Internet access point (hotspot) and allows up to 10 other
devices to connect to it using a Wi-Fi connection. These
devices have Internet access through your Wireless
Provider’s data network.
To enhance security, you can create an allowed device list
and set the connection mode for Allowed devices only.
This feature enables mobile data and consumes more battery
power.
Note:
Using this device as a Wi-Fi hotspot requires a
subscription to data service. For more information,
contact your Wireless Provider.
148
Turning Mobile Hotspot On or Off
1. From the
More networks
menu, touch
Tethering
. The
Tethering
menu displays.
2. Touch the
Mobile Hotspot
slider to turn
Mobile
Hotspot
ON.
Configuring Mobile Hotspot
1. From the
More networks
menu, touch
Tethering
➔
Mobile Hotspot
. The
Mobile Hotspot
screen displays.
2. Touch the Mobile Hotspot name to select whether
All
devices
or
Allowed devices only
can access your Mobile
Hotspot. (For more information, refer to “Allowed
Devices” on page 149.)
3. Touch
Configure
to access the following options:
• Network SSID
: View and change the name of your Mobile
Hotspot.
• Hide my device
: When enabled, your Mobile Hotspot is not
visible to other Wi-Fi devices during a scan. Other devices can
still connect to your Mobile Hotspot, but a manual connection is
required that uses your Network SSID and Password.
• Security
: Choose the security level for your Mobile Hotspot.
• Password
: If you choose a security level that uses a password,
enter the password. By default, the password is your mobile
telephone number.
• Show password
: Enable to make the Password field visible.
• Show advanced options
: Enable to access advanced options,
including Broadcast channel, to specify the channel your device
uses for Mobile Hotspot.
Note:
Using the phone as a mobile hotspot consumes
uses data service and battery power:
While Mobile Hotspot is active, the phone’s
applications will use your Wireless Provider’s
data service.
Roaming while using the phone as a mobile
hotspot will incur extra data charges.
OFF
OFF
Settings 149
Allowed Devices
Restrict what devices can connect to your Mobile Wi-Fi
Hotspot with the Allowed devices list. After you add devices
to the list, they can connect to your device using your
device’s Wi-Fi hotspot name (SSID) and password.
Note:
Using the phone as a mobile hotspot consumes battery
power and uses data service. While Mobile Wi-Fi
Hotspot is active, the phone’s applications will use your
Wireless Provider’s data service. Roaming while using
the phone as a mobile hotspot will incur extra data
charges.
1. From the
More networks
menu, touch
Tethering and
portable hotspot
➔
Mobile Hotspot
. The
Mobile Hotspot
screen displays.
2. Touch
Allowed devices
➔
, then enter the other
device’s Device name and MAC address.
3. Touch
OK
to add the device to the
Allowed devices
list.
Tip:
For information about connecting to your Mobile Hotspot,
see “Mobile Hotspot” on page 133.
Tethering
Use Tethering to share the phone’s internet connection with a
computer that connects to your device using a USB cable, or
by Bluetooth.
For more information about connecting computers to the
phone using Tethering, see “Tethering” on page 137.
1. From the
More networks
menu, touch
Tethering
. The
Tethering
screen displays.
2. Choose a tethering method:
• USB tethering
: Connect the computer to the phone using a
USB cable, then touch
USB Tethering
to enable or disable
tethering. When enabled, a check displays in the check box.
• Bluetooth tethering
: Pair the phone with the computer using a
Bluetooth connection. Consult the computer’s documentation
for more information about configuring your computer to pair
using Bluetooth. Touch
Bluetooth Tethering
to enable or
disable tethering. When enabled, a check displays in the check
box.
Note:
Using Tethering requires a subscription to your Wireless
Provider’s mobile data service.
150
VPN
Set up and manage Virtual Private Networks (VPNs).
1. From the
More networks
menu, touch
VPN
.
Depending on your device’s Lock screen setting, the
VPN
screen appears.
2. Touch
Tap to add VPNs
. The
Add VPN
pop-up
appears. The following options are available:
•Name
: Enter a name for the VPN connection.
•Type
: Choose the type of VPN.
• Server address
: Enter the IP address of the VPN server.
• PPP encryption (MPPE)
: Touch to enable or disable
encryption.
• Show advanced options
: Touch to show more options.
Available options depend on the type of VPN you are adding.
NFC
NFC (Near Field Communication) allows data exchange when
you touch your device with another compatible device. This
is used for applications such as Android Beam and S Beam.
From the
Connections
menu, touch the
NFC
slider
to turn NFC ON.
– or –
Touch the
NFC
slider to turn NFC OFF.
Note:
NFC must be turned on to use Android Beam and/or S
Beam.
Note:
If
Lock screen
is not set to
Pattern
,
PIN
, or
Password
, you are prompted to change your
Lock screen setting to one of these options.
OFF
OFF
ON
ON
Settings 151
Android Beam
When Android Beam is ON, you can beam application content
to another NFC-capable device by holding the devices close
together. You can beam browser pages, YouTube videos,
contacts, and more.
1. From the
Connections
menu, touch
NFC
.
2. Turn
NFC
ON (see “NFC” on page 150).
3. Touch the
Android Beam
slider to turn Android
Beam ON.
– or –
Touch the Android Beam slider to turn Android
Beam OFF.
S Beam
S Beam uses the phone’s NFC (Near Field Communication) to
send, or “beam”, content to other NFC and Wi-Fi Direct
devices, by holding the devices close together.
S Beam works in the background. To share pictures or videos
from Gallery, videos from Video player, or songs from Music
player. Just bring the devices together (typically back-to-
back), then touch the screen.
1. Turn
NFC
ON (see “NFC” on page 150).
2. From the
Connections
menu, touch the
S Beam
slider
to turn S Beam ON.
– or –
Touch the
SBeam
slider to turn S Beam OFF.
OFF
OFF
ON
ON
OFF
OFF
ON
ON
152
Nearby Devices
Share files with nearby devices using DLNA (Digital Living
Network Alliance) over Wi-Fi.
Note:
To use Nearby devices for sharing, you must have set up
a connection with another Wi-Fi device that supports
DLNA.
1. From the
Connections
menu, touch
Nearby devices
. The
Nearby devices
screen displays.
2. Touch the
Nearby devices
slider to turn Nearby
devices ON.
– or –
Touch the
Nearby devices
slider to turn Nearby
devices OFF.
• Device name
: View your device’s name. (To change the Device
name, see
“About Device”
on page 184.)
3. Under
Advanced
, touch options to control how content
is shared from your device:
• Shared contents
: Choose the type of content to share, from
Videos
,
Photos
, or
Music
.
• Allowed devices list
: Lists Wi-Fi devices allowed to access
your device.
• Not-allowed devices list
: Lists Wi-Fi devices blocked from
accessing your device.
•Download to
: Choose a location to save downloaded content,
Device
(USB storage) or
SD card
.
• Upload from other devices
: Choose how to handle incoming
files from other devices, from
Always accept
,
Always ask
, or
Always reject
.
OFF
OFF
ON
ON
Settings 153
Screen Mirroring
Screen Mirroring lets the phone share the contents of its
display with other Digital Living Network Alliance (DLNA)
certified devices, such as Smart televisions or HDTVs
connected to an optional AllShare Cast dongle.
Note:
To view more information about DLNA certified products
visit
dlna.org
.
1. From the
Connections
menu, touch
Screen Mirroring
.
The
Screen Mirroring
screen displays.
2. Touch the
Screen Mirroring
slider to turn
Screen Mirroring ON. Screen Mirroring begins scanning
for Available devices.
– or –
Touch the
Screen Mirroring
slider to turn
Screen Mirroring OFF.
3. To scan for Available devices, touch
Scan
.
4. Touch
Menu
➔
Help
for information on using
Screen Mirroring.
My device
From the
Settings
screen, touch
My device
.
The
My device
menu displays.
Lock Screen
Choose settings for locking and unlocking the phone.
For more information about using the lock and unlock
features, see “Securing Your Phone” on page 18.
From the
My device
menu, touch
Lock screen
. The
following options are available:
• Screen lock
: Touch one of the following options to select it as
your custom screen lock/unlock method:
–
Swipe
: When enabled, you unlock the phone by swiping your
finger across the screen. This is the default screen lock, and
offers no security.
–
Face unlock
: When enabled, you unlock the phone by looking
at the screen. This option offers low security, because someone
who looks similar to you could unlock the phone. Touch the
option for more information, and to set up Face unlock.
OFF
OFF
ON
ON
My device
My device
154
–
Face and voice
: When enabled, you unlock the phone by
looking at the screen and speaking. This option offers low
security, because someone who looks and/or sounds similar to
you could unlock the phone. Touch the option for more
information, and to set up Face unlock.
–
Pattern
: When enabled, you draw a pattern, which you create,
on the screen to unlock the phone. Touch the option, then follow
the prompts to create or change your screen unlock pattern.
–
PIN
: When enabled, you enter a numeric PIN (Personal
Identification Number), which you create, to unlock the phone.
–
Password
: When enabled, you enter an alphanumeric
password, which you create, to unlock the phone.
–
None
: Disable all custom screen lock settings, to use the default
swipe unlock screen.
• Lock screen options
: Touch this option and the
Lock screen
options
screen displays with the following additional options
available depending on the Screen Lock type that you have
selected:
–
Swipe options
:
Multiple widgets
When enabled, displays multiple widgets on
your lock screen. Appears as an option after you set
Screen
lock
to an option other than
None
.
Lock screen widgets
allows you to lock the widgets that are
displayed on your home screens.
Shortcuts
: When enabled, application shortcuts appear on the
lock screen. Swipe an icon to launch the associated application.
Touch
Shortcuts
to enable lock screen shortcuts.
Touch
Shortcuts
to disable lock screen shortcuts.
Touch
Shortcuts
to add/remove lock screen shortcuts.
Unlock effect
sets the effect you receive when unlocking the
phone. You can select None, Ripple effect, or Light effect.
Help text
: Touch this option to enable/disable showing text
explanations of lock screen features. When enabled, a check
mark displays in the check box.
Wake up in lock screen
: Touch this option to enable/disable
unlocking the phone by saying the S Voice wake-up command.
When enabled, a check mark displays in the check box. (For
more information about S Voice, see
“S Voice”
on page 121.)
Set wake-up command
: Touch this option and to change the
S Voice wake-up command. (For more information about S
Voice, see
“S Voice”
on page 121.)
–
Face unlock options
:
Lock screen widgets
allows you to lock the widgets that are
displayed on your home screens.
Improve facial recognition
allows you to improve your
device’s face matching capability by capturing your face in
different lighting, with or without glasses, and bearded or clean-
shaven. Follow the on-screen instructions.
OFF
OFF
ON
ON
Settings 155
Presence check
When enabled, requires that you blink when
using the Face unlock feature. This will increase the security of
the feature.
Lock automatically
lets you set a time-out for the screen to
lock automatically.
Lock instantly with power key
When enabled, you can
instantly lock the screen by pressing the Power-Lock key.
–
Pattern options
:
Lock screen widgets
allows you to lock the widgets that are
displayed on your home screens.
Make pattern visible
allows you to see the pattern as you
draw it.
Lock automatically
lets you set a time-out for the screen to
lock automatically.
Lock instantly with power key
When enabled, you can
instantly lock the screen by pressing the Power-Lock key.
–
PIN and Password options
:
Lock screen widgets
allows you to lock the widgets that are
displayed on your home screens.
Lock automatically
lets you set a time-out for the screen to
lock automatically.
Lock instantly with power key
When enabled, you can
instantly lock the screen by pressing the Power-Lock key.
Display
From the
My device
menu, touch
Display
.
The following options display:
•General
:
–
Wallpaper
: Assigns a wallpaper for the Home screen, Lock
screen, or both.
–
Notification panel
: Touch this option to enable/disable
Brightness adjustment from the Notification panel, and to set
which quick setting buttons display on the Notification panel.
–
Multi window
: When enabled, Multi window lets you run two
apps at the same time. (For more information, refer to
“Using
Multi Window”
on page 26.)
–
Page buddy
: Allows context related pages to be created on the
Home screen. You can select Earphones page, Docking page,
and Roaming page. Touch Page buddy help for more
information. Touch and slide the Page buddy slider to the right to
turn it on .
• Screen
:
–
Brightness
: Configures the LCD Brightness levels. Touch
Automatic brightness to allow the phone to self-adjust or drag
the slider and touch OK.
ON
ON
156
–
Auto rotate screen
: When enabled, automatically switches
the display orientation when you rotate the phone.
–
Screen timeout
: Adjust the delay time before the screen
automatically turns off. Selections are: 15 seconds, 30 seconds,
1 minute, 3 minutes, 5 minutes, and 10 minutes.
–
Daydream
: When set to ON, lets you configure the screen that
appears when your phone is docked or sleeping. Touch the
Daydream
slider to turn it ON.
•Font
:
–
Font style
: Select the text font style that appears in screens.
You can also touch
Get fonts online
to choose from a wider
selection.
–
Font size
: Select the size of the text that appears in screens.
• More settings
:
–
Touch key light duration
: Select the inactive time the Menu
and Back keys remain lit.
–
Show battery percentage
: When enabled, the battery charge
percentage appears next to the battery charge icon at the top of
the display.
–
Auto adjust screen tone
: When enabled, saves power by
having the phone analyze the displayed screen images and
adjust the display brightness.
LED indicator
Select which alerts cause the LED indicator (upper left corner
of the phone) to come on while the phone’s screen is off.
From the
My device
menu, touch
LED indicator
.
The following options display:
•Charging
: When enabled, LED indicator lights red while the
phone’s battery is charging.
•Low battery
: When enabled, LED indicator flashes red when
the phone’s battery charge level becomes low.
• Notifications
: When enabled, LED indicator flashes blue when
you have missed calls, new messages, or application events.
• Voice recording
: When enabled, LED indicator flashes blue
when you are recording a voice note.
Tip:
When turned ON, your Daydream settings
take the place of the Desk home screen
display setting. (For more information, refer
to “Accessory” on page 161.)
ON
ON
Settings 157
Sound
From the
My device
menu, touch
Sound
.
The following options display:
•Volume
: Set the system volume level, and set default volume
for media playback, call ringtones, notifications, and system.
• Vibration Intensity
: Set the level for vibration to accompany
ringtones, notifications, and Haptic feedback.
• Ringtones and notifications
:
–
Ringtones
: Choose a ringtone for incoming calls. You can Add
music files to the list for use as a ringtone.
–
Vibrations
: Choose or create a vibration pattern to use when
vibration is enabled.
–
Default notification sound
: Choose a default sound to play
for notifications, such as for new messages and event
reminders.
–
Vibrate when ringing
: When enabled, vibration is played at
the same time as sounds for calls and alerts.
• System
:
–
Dialing keypad tone
: When enabled, a tone sounds when you
touch keys on the Phone keypad.
–
Touch sounds
: When enabled, a tone sounds when you touch
keys on the Phone keypad.
–
Screen lock sound
: When enabled, the screen lock sound
plays when you lock or unlock the screen.
–
Haptic feedback
: When enabled, the phone vibrates to
indicate screen touches and other interactions.
Tip:
You can also set System volume from the Home
screen by pressing the
Volume
key Up or Down.
Tip:
You can set songs as ringtones for all calls, or
for a selected contact. For more information,
refer to “Music” on page 116.
Tip:
You can set songs as notification ringtones.
(For more information, refer to “Music” on
page 116.)
158
–
Auto haptic
: When turned ON, haptic vibrations occur in
response to sounds from downloaded apps, such as games.
Touch the Auto haptic slider to turn the feature ON.
–
Emergency Tone
: You can set the phone Emergency tone to
Off, or to play an Alert tone, or to Vibrate during an emergency
call (for example, calls to 911).
• Samsung keyboard
:
–
Key-tap sound
: When enabled, a tone sounds when you touch
keys on the Samsung keypad.
–
Key-tap vibration
: When enabled, your device vibrates when
you touch keys on the Phone keypad.
•HDMI
:
–
Audio output
: Choose to have your phone play Stereo or
Surround sounds over the HDMI output.
Home screen mode
Select the Home screen layout that best suits your needs.
1. From the
My device
menu, touch
Home screen mode
.
The
Home screen mode
screen displays.
2. Select the desired Home screen mode:
• Standard mode
: A conventional layout for apps and widgets
on the Home screen panels.
•Starter mode
: A simplified apps and widgets layout for first
time smartphone users.
3. Touch
Apply
to confirm.
Call
For information about Call settings, see “Call Settings” on
page 64.
Note:
Some downloaded apps do not support this
feature.
ON
ON
Settings 159
Blocking mode
When enabled, Blocking mode lets you select which
notifications you receive.
1. From the
My device
menu, touch the
Blocking mode
slide to turn this feature ON.
2. Touch
Blocking mode
to access the following options:
•Features
:
–
Block incoming calls
: Blocks incoming calls from everyone
except
Allowed contacts
.
–
Turn off notifications
: Blocks notifications from playing an
alert tone.
–
Turn off alarm and timer
: Blocks notifications from Clock and
Calendar alarms, and from timers.
–
Turn off LED indicator
: Stops LED indicator from lighting.
•Set time
:
–
Always
: When enabled, Blocking mode stays active until you
turn it off.
–
From
: With
Always
disabled, select the time when Blocking
mode turns on.
–
To
: With
Always
disabled, select the time when Blocking mode
turns off.
• Allowed contacts
:
–
Allowed contacts
: Select contacts from whom the phone is to
accept incoming calls. [Options are: None, All contacts,
Favorites, Custom (selecting this option enables
Allowed
contact list
).]
–
Allowed contact list
: Add and remove contacts from whom
the phone accepts calls when Blocking mode is on.
3. Select the desired option to enable/disable it.
OFF
OFF
160
Hands-free mode
Hands-free mode allows you to select whether your phone
announces in plain language incoming calls and messages,
alarm information, and/or schedule alarm information from
your Calendar.
1. From the
My device
menu, touch
Hands-free mode
.
2. Touch the ON/OFF slider, located to the right of
Hands-
free mode
, to turn it ON .
3. Touch the following options to create a check mark and
enable them:
• Incoming call
: When enabled, your phone reads out caller
information for incoming calls.
• Message
: When enabled, your phone reads out sender
information for incoming messages.
•Alarm
: When enabled, your phone reads out alarm
information.
• Schedule
: When enabled, your phone reads out Calendar
event alarm information.
Power saving mode
Configure Power saving settings to conserve battery power.
1. From the
Settings
screen, under
Device
, touch
Power
saving mode
. The
Power saving mode
screen displays.
2. Touch the
Power saving mode
slide to turn
Power saving ON.
3. Touch the following
Power saving mode settings
to
enable or disable them. (When an option is enabled, a
check mark displays in its check box.):
• CPU power saving
: When enabled, the phone’s maximum
performance is limited. This does not affect normal usage,
such as browsing and video playback.
• Screen power saving
: When enabled, the screen uses
reduced frame refresh rate and lower brightness.
• Turn off haptic feedback
: When enabled, no vibration plays
when you touch the screen.
4. Under
Power saving tips
, touch
Learn about power saving
to read information about Power saving options.
ON
ON
Tip: Power saving
must be set to ON ( ) to
configure the
Power saving mode settings
.
OFF
OFF
ON
ON
Settings 161
Accessory
This menu allows you to select the Audio output mode when
using a car or desk dock.
1. From the
My device
menu, touch
Accessory
.
2. Touch the following
Dock
settings to enable or disable
them. (When an option is enabled, a check mark
displays in its check box.):
• Dock sound
: When enabled, sounds play when inserting or
removing the phone from the optional dock.
• Audio output mode
: When enabled, you can use optional
external dock speakers when the phone is docked.
• Desk home screen display
: When enabled, the desk home
screen displays when the phone is docked.
3. Touch
Audio output
to set your HDMI Audio output to
Stereo or Surround.
Accessibility
Accessibility services are special features to make using the
device easier for those with certain physical disabilities. Use
the Accessibility settings to activate these services.
Note:
You can download accessibility applications from Play
Store and manage their use here.
1. From the
My device
menu, touch
Accessibility
.
2. The following options are available:
• Auto rotate screen
: When enabled, automatically rotates the
screen from landscape to portrait when you rotate your phone.
•Screen timeout
: Set the length of inactive time after which
the display turns off.
• Speak passwords
: When enabled, reads out password
information.
• Answering/ending calls
: accept incoming calls by pressing
the Home key, by touching the accept call button, or by using
Voice control. End calls by pressing the Power-Lock key.
•Show shortcut
: Adds an Accessibility settings option or a
TalkBack settings option to the
Device options
menu that
appears when you press and hold the Power-Lock key.
162
• Services
:
–
TalkBack
: When set to ON, the TalkBack feature speaks
feedback to help blind and low-vision users.
•Vision
:
–
Font size
: Change the size of the fonts used on the device
within menus, options, and so on. Choose from: Tiny, Small,
Normal, Large, or Huge.
–
Magnification gestures
: When set to ON, you can use
exaggerated gestures such as triple-tapping, double pinching,
and dragging two fingers across the screen.
–
Negative colors
: When enabled, reverses the display of on-
screen colors from White text on a Black background to Black
text on a White background.
–
Accessibility shortcut
: When set to ON, allows you to
quickly enable accessibility features in 2 quick steps. Follow the
on-screen instructions.
–
Text-to-speech options
: Set the your text-to-speech
options. (For more information, refer to
“Speech”
on page
166.)
•Hearing
:
–
Sound balance
: Use the slider to set the Left and Right
balance when using a stereo device.
–
Mono audio
: When enabled, combines stereo audio to into a
mono audio stream for use with a single earphone headsets
(wired or Bluetooth).
–
Turn off all sounds
: When enabled, mutes every sound
made by your device during touches, selections, notifications,
and so on.
–
Flash notification
: When enabled, the camera flash blinks
whenever you receive a notification.
• Mobility
:
–
Touch and hold delay
: Select a time interval for this action.
Choose from: Short, Medium, Long, or Custom.
Important!
TalkBack can collect all of the text you
enter, except passwords, including
personal data and credit card
numbers. It may also log your user
interface interactions with the device.
Settings 163
Language and Input
From the
My device
menu, touch
Language and input
.
The
Language and input
screen displays.
Language
Select the language used in the phone’s screens.
From the
Language and input
screen, touch
Language
to select the language used in the phone’s screens.
Keyboards and Input Methods
Configure text entry options to your preferences.
From the
Language and input
screen, under
Keyboards
and input methods
, the following options are available:
•Default
: Select the default method for manually entering text.
• Samsung keyboard
: Touch beside Samsung keypad to
configure the following options.
–
Input languages
: Select languages for the Samsung
keyboard.
–
Select input languages
: Choose which languages are loaded
onto your phone.
–
Predictive text
: When set to ON, suggests words matching
your text entries and optionally, complete common words
automatically. Touch
Predictive text
to set Predictive
textON. Touch
Predictive text
to configure the following
options:
Personalized data
: When enabled, Predictive text uses
personal language data you have entered.
Learn from Gmail
: Log in to let your device learn from your
Gmail messages.
Learn from Facebook
: Log in to let your device learn from
your Facebook entries.
Learn from Twitter
: Log in to let your device learn from your
“tweets”.
Note:
This option cannot be disabled.
Tip:
When you have more than one language
selected, you can slide your finger on the
space bar while entering text to switch
languages.
OFF
OFF
164
Learn from Messages
: Update to let your device learn from
your message text entries.
Learn from Contacts
: Update to let your device learn from
your Contacts style.
Clear personalized data
: Remove all the personal language
data you have entered.
–
Auto replacement
: When set to ON, lets you complete or
replace the word you are typing with the most probable word by
touching the space bar or a punctuation mark.
–
Auto capitalization
: When enabled, T9 automatically
capitalizes words in your text based on common usage, such as
at the beginning of sentences.
–
Auto spacing
: When enabled, spaces are automatically
inserted between words.
–
Auto punctuate
: a period and space are automatically entered
to end a sentence, when you touch the space bar twice.
–
Keyboard swipe
: Choose None (disables Keyboard swipe), T9
Trace (lets you type words by swiping between letters), or Cursor
control (lets you move the cursor by sliding your finger across
the keyboard).
–
Key-tap feedback
:
Sound
: When enabled, a sound plays for your key touches.
Vibration
: When enabled, a vibration plays for your key
touches.
Character preview
: When enabled, characters available on
the key you touch display briefly as you enter text.
–
Tutorial
: View help for using T9 predictive text.
–
Reset settings
: Touch to reset Samsung keyboard settings
to the defaults, except for My word list and the Auto
substitution list.
•Swype
: Touch beside Swype to configure the following
options.
–
Basic settings
:
Vibrate on keypress
: When enabled, your phone vibrates
when you enter text using the on-screen keyboard.
Sound on keypress
: When enabled, a sound plays when you
touch a keyboard key.
Pop-up on keypress
: When enabled, displays a character
above an on-screen key while typing.
Show complete trace
: When enabled, displays the complete
Swype path for a word.
Note:
This option cannot be disabled.
Settings 165
–
Prediction
:
Auto-capitalization
: When enabled, automatically capitalizes
the first letter of a sentence.
Auto-spacing
: When enabled, automatically inserts a space
between words. When you finish a word, just lift your finger or
stylus and start the next word.
Next word prediction
: When enabled, predicts the next word
in your text string based on your current text entries.
–
Voice and Handwriting
:
Show Voice key
: When enabled, displays the Voice
recognition key on the Swype keyboard.
–
My Words
:
Backup & Sync
: allows you to backup your Swype dictionary
and sync your Swype dictionary across multiple devices.
Living Language
: When enabled, this feature automatically
updates your Swype dictionary with popular new words.
Social integration
: When you sign in, Swype learns
information from your Facebook, Twitter, and Gmail accounts to
help you use Swype.
Edit my dictionary
: Edit your personal Swype dictionary.
Clear language data
: Deletes all of your personal language
data, including your words.
Contribute usage data
: When enabled, allows the Nuance
®
application to collect usage data for better word predictions.
Cellular data
: When enabled, activates cellular data usage by
the Swype application so it can receive program updates,
language downloads, and other related features via your existing
data connection.
–
Languages
: Activate and select the current text input
language. Default language is US English.
Touch
English
to change the current language. After you
change the language, it will be displayed instead of English. You
must first select the Download languages option and download
another language before it will appear here.
Touch
Download languages
to download more languages.
Touch a language under the
Active
heading to make it current.
–
Gestures
: View helpful information on using gestures while
using Swype.
–
Help
: View an on-screen manual for Swype.
–
Updates
: Update Swype if new software is available.
Note:
If incorrect words are being entered as you
type, disabled this feature.
166
• Google voice typing
: When enabled, lets you vocally dictate
the text entered into a field. Touch beside Google voice
typing to configure the following options:
–
Choose input languages
: Select languages for Google voice
typing. Select
Automatic
to use the Default language
exclusively, or choose other language(s).
–
Block offensive words
: When enabled, words many people
find offensive are not shown in results of Google voice searches.
Offensive words are replaced in results with a placeholder
(####).
–
Offline speech recognition
: Enables voice input using Google
voice typing while the phone is offline.
Speech
This menu allows you to set the speech settings for Voice
input.
1. From the
Language and input
menu, touch
Voice
recognizer
to select a speech recognition engine.
Options are:
Samsung powered by Vlingo
and
Google
.
2. Touch
Voice search
to configure the following:
• Language
: Choose a language for your voice input.
• Speech output
: Sets whether you will use speech output
always or only when using hands-free.
• Block offensive words
: When enabled, blocks recognized
offensive words from the results of your voice-input Google
searches.
• Hotword detection
: When enabled, you can launch voice
search by saying the word “Google”.
• Offline speech recognition
:
Lets you download speech
recognition software for different languages. Touch the ALL tab
to display all available languages, then touch the language that
you want.
• Personalized recognition
: Improve voice recognition based on
your speech. (This option is only available when you are signed
in to a Google Account.)
• Google Account dashboard
: View and manage your collected
data. (This option is only available when you are signed in to a
Google Account.)
• Bluetooth headset
: When enabled, records audio through a
Bluetooth headset, if connected.
Settings 167
3. Touch
Text-to-speech options
. The following options are
available:
• Prefered TTS engine
: Select
Samsung text-to-speech
engine
or
Google Text-to-speech Engine
.
• Speech rate
: Set the speed at which the text is spoken.
• Listen to an example
: Play a sample of speech synthesis
(available if voice data is installed).
4. Touch next to the Preferred TTS engine to
configure the following settings:
• Language
: allows you to set the language for spoken text.
• Settings for Samsung text-to-speech engine
: Allows you to
select the language-specific voice for spoken text.
• Settings for Google Text-to-speech Engine
: Allows you to
select the language-specific voice for spoken text. The
following options are also available:
–
Auto-update voices
: Touch to enable/disable.
–
Update voices over Wi-Fi only
: When enabled, saves on data
usage charges.
–
View Open Source Licenses
: Display information about the
Open Source Licenses involved in Google Text-to-speech
Engine.
• Install voice data
: Download and install language-specific
voice data for speech synthesis.
5. Under
General
, the following options are available:
• Speech rate
: Select the speed at which text is spoken.
• Listen to an example
: Plays a short sample of speech
synthesis.
Mouse/Trackpad
Customize the response of your screen swipes.
From the
Language and input
screen, under
Mouse/
trackpad
, touch
Pointer speed
, then touch and drag
along the scale to set the pointer speed.
Note:
Options may be different depending on the TTS
engine you select.
168
Motion
Motion lets you control a number of the phone’s functions by
moving your hand or finger across the screen in a particular
pattern or by moving the phone itself in a particular way.
Note:
For more information about using Motion, see “Motions”
on page 25.
1. From the
My device
menu, touch the
Motion
slider, to
turn Motion features ON .
2. From the
My device
menu, touch
Motion
.
3. Touch the following options to create a check mark and
enable them:
•Direct call
: Once enabled, the device will dial the currently
displayed on-screen Contact entry as soon as you place the
device to your ear.
•Smart alert
: Once enabled, pickup the device to be alerted and
notified of you have missed any calls or messages.
• Double tap to top
: Once enabled, double tap the top of the
device to be taken to the top of the current on-screen list.
• Tilt to zoom
: Once enabled, you must be on a screen where
content can be zoomed. In a single motion, touch and hold two
points on the display then tilt the tilt the device back and forth to
zoom in or out.
• Pan to move icon
: Once enabled, touch and hold a desired
application shortcut icon or widget on the screen. Once it
detaches, move the device left or right to migrate it to a new
location.
• Pan to browse images
:
Once enabled, touch and hold a
desired on-screen image to pan around it. Move the device left
or right to pan vertically or up and down to pan horizontally
around the large on-screen image.
• Shake to update
: Once enabled, shake your device to re-scan
for Bluetooth devices, re-scan for Wi-Fi devices, Refresh a Web
page, etc.
• Turn over to mute/pause
: Once enabled, mute incoming calls
and any playing sounds by turning the device display down on
a surface. This is the opposite of the Pickup to be Notified
Gesture.
ON
ON
Settings 169
Sensitivity settings and tutorial:
4. Touch
Sensitivity settings
, then select Tilt to zoom, Pan
to move icon, or Pan to browse images.
5. Adjust the selected
Sensitivity
setting by touching and
dragging the slider to the left or right, then touch
OK
.
– or –
Touch
Test
and try out a new setting, then touch
Back
➔
OK
.
6. Touch
Learn about motions
to read tutorial type
information about motion settings.
Hand motions:
7. Touch these Hand motions to create a check mark and
enable them:
• Palm swipe to capture
: When enabled, you can capture any
on-screen information swiping across the screen. In a single
motion, press the side of your hand on the screen and swipe
form left to right. The image is then copied to the clipboard.
• Palm touch to mute/pause
: Once enabled, you can pause any
on-screen video or mute any current sound by simply covering
the screen with your hand. Once you remove your hand from
the screen, the device goes back to normal by either continuing
to play the current video or un-muting the current sound.
8. Touch
Learn about hand motions
to read tutorial type
information about hand motions.
Smart screen
The Smart screen options allow you to customize your
screen settings to make the screen more responsive and
easier to use.
1. From the
My device
menu, touch
Smart screen
.
2. Touch any of the following options to create a
checkmark and activate the features:
•Smart stay
: When enabled, disables the screen timeout if your
phone detects that your face is watching the screen.
• Smart rotation
: When enabled, disables the auto screen
rotation by checking the orientation of your face and the device.
170
Voice control
The Voice control settings allow you to set up voice
commands to control your device.
Note:
If you set the Alert type for calls or alarms to vibration,
Voice control will not be available.
1. From the
My device
menu, touch
Voice control
.
2. Touch the
Voice control
slider to turn Voice
control ON.
3. Touch the following options to create a checkmark and
activate the feature:
• Incoming calls
: When enabled, lets you answer or reject calls
using the commands
Answer
and
Reject
.
•Alarm
: When enabled, lets you stop or snooze an alarm by
using the commands
Stop
and
Snooze
.
•Camera
: When enabled, lets you take pictures using the voice
commands
Smile
,
Cheese
,
Capture
, or
Shoot
.
•Music
: When enabled, lets you control the Music app using the
voice commands
Next
,
Previous
,
Pause
,
Play
,
Volume Up
,
and
Volume Down
.
Accounts
Your phone provides the ability to synchronize information,
from a variety of accounts, including Email, Facebook,
Google, and your Samsung account. Depending on the
account, you can choose to synchronize your calendar,
contacts, and other types of content.
With synchronization, you can ensure that information on
your phone is updated with any information that changes in
your accounts.
From the Settings screen, touch the
Accounts
tab.
The
Accounts
menu displays.
Add account
1. From the
Accounts
menu, touch
Add account
.
2. Touch one of the account types.
3. Use the keyboard and follow the prompts to enter your
credentials and set up the account.
A green circle will appear next to the account type once
you have created an account. Your email account will
also be displayed in the
Accounts
menu under
My
Accounts
.
ON
ON
Settings 171
For more information on creating accounts:
•
See
“Samsung Account”
on page 14.
•
See
“Got Google?”
on page 15 and
“Adding an Account”
on page 44.
•
See
“Creating an Email Account”
on page 80.
•
See
“Creating a Microsoft Exchange Email Account”
on
page 81.
Synchronizing Accounts
Select the items you want to synchronize on your account
such as Books, Calendar, Contacts, and more.
1. From the
Accounts
menu, under
My accounts
, touch
the account to be synchronized. The account type
screen displays.
2. Touch the account name. The
Sync settings
screen
displays.
3. Touch
Sync now
to synchronize your account or touch
Sync all
to synchronize all your accounts. Touch
Cancel
sync
to stop the synchronization.
Samsung Account
1. From the
Accounts
menu, under
My accounts
, touch
Samsung account
. The
Samsung account
screen
displays.
2. Under
General settings
, the following options are
available:
• Account settings
:
–
Profile
(password protected): Change password and view Email
address, Date of birth, Title, First name, Last name, Zip code,
and Receive notices status for your account.
–
Terms and conditions
: Review Terms and conditions, Special
terms, and Privacy policy information.
–
Help
: Find your email address or password, Contact us with a
text message, review Customer support information [My
questions, FAQ (Frequently Asked Questions), or Contact us],
About (Samsung account Version and date Last updated), About
Samsung services (apps), and Terms and conditons.
• Storage usage
: View Total used and access Personal data
management.
• Backup
:
172
–
Auto backup
: When set to On for at least an hour and
connected to a Wi-Fi network and with the screen off and the
device charging, your data is backed up automatically.
–
Backup options
: Select the data to back up [Logs, Messages
(SMS), Messages (MMS), and/or Wallpaper].
–
Back up now
: Immediately backup your data. Also shows
when your data was Last backed up.
•Restore
: Immediately restore your backed up data to your
device.
Dropbox
1. From the
Accounts
menu, under
My accounts
, touch
Add account
➔
Dropbox
. The
Welcome to Dropbox!
screen displays.
2. Follow the prompts to set up a Dropbox account or a
link to an existing account.
Email
1. From the
Accounts
menu, under
My accounts
, touch
Email
. The
Email
screen displays.
2. Under
Accounts
, touch an account to synchronize the
account. (For more information, refer to “Synchronizing
Accounts” on page 171.)
3. Under
Common settings
, touch
Settings
. The
Account
settings
screen displays.
4. Select an Email account to configure. The following
options are available:
• Sync settings
:
–
Sync Email
: When enabled, synchronizes message folders on
your phone with matching folders on the Email server.
–
Sync schedule
: Peak/Off-peak schedule control.
–
Size to retrieve emails
: Select the amount of new incoming
message contents to include in your message list while in local
area (Size to retrieve emails) or when roaming (While roaming).
•Signature
: When ON, adds pre-composed signature text to
send messages. Touch to edit the signature text that displays at
the end of email messages you send.
•Default account
: When enabled, sends email from this
account by default.
• Password
: Change your Email account password to match
that on the Email server.
• Notification settings
–
Email notifications
: Enable or disable display of a new email
icon in the Annunciator line when new mail arrives.
Settings 173
–
Select ringtone
: Assign a ringtone for new email notifications.
–
Vibrate
:
When enabled,
your phone vibrates with new email
notifications.
5. Touch
More settings
. The following options are
available:
• Common settings
:
–
Account name
: Enter a name to identify the account.
–
Your name
: Enter your name to be used in emails.
–
Always Cc/Bcc myself
: Adds your email address to None of
send email messages or to Cc or Bcc field of send email
messages.
–
Show images
: When enabled, images included in incoming
messages are automatically downloaded and displayed.
–
Security options
: Set advanced Email security options (Encrypt
all, Sign all, Key management).
• Data usage
:
–
Number of emails to load
: Select the number of messages
(25, 50, 75, 100, 200, Total) that appear in your message list.
–
Auto download attachments
: When enabled, items attached
to incoming messages are automatically downloaded with the
messages.
–
Auto resend times
: Select the number of times to attempt to
send an outgoing message before marking it as un-sent.
• Server settings
:
–
Incoming settings
: Modify settings for accessing the email
server to view incoming email messages.
–
Outgoing settings
: Modify settings for accessing the email
server to send email messages.
Facebook
1. From the
Settings
screen, under
Accounts
, touch
Add account
➔
Facebook
. The
Play store - Facebook
Install
screen displays.
2. Follow the prompts to install and launch the Facebook
app and to set up a Facebook account or a link to an
existing account.
174
Google
1. From the
Accounts
menu, under
My accounts
, touch
Google
. The
Google
screen displays.
2. Under
Accounts
, touch the desired Google Account.
The
Sync settings
screen displays listing the following
options:
•Sync App Data
: Synchronize the phone’s application data with
the Google server.
•Sync Calendar
: Synchronize the phone’s calendar with your
on-line calendar.
•Sync Contacts
: Synchronize the phone’s contacts list with your
on-line contacts list.
•Sync Drive
: Synchronize the phone’s Drive contents with the
Google server.
•Sync Gmail
: Synchronize the phone’s Gmail inbox with your
on-line Gmail inbox.
• Sync Google Photos
: Synchronize the phone’s gallery photos
with your on-line Google Photos.
• Sync Google Play Books
: Synchronize the phone’s ebooks
library with your on-line ebooks library.
• Sync Google Play Magazines
: Synchronize the phone’s
emagazines library with your on-line emagazines library.
• Sync Google Play Movies & TV
: Synchronize the phone’s
movies library with your on-line movies library.
• Sync Google+
: Synchronize the phone’s Google+ inbox with
the linked messaging servers.
• Sync Google+ Auto Backup
: Synchronize the phone’s
Google+ inbox contents with the Google server automatic
backup storage.
• Sync Internet
: Synchronize the phone’s Internet browser
bookmarks with your on-line bookmarks list.
• Sync People details
: Synchronize Contacts information with
contacts on the Google server.
• Sync Picasa Web albums
: Synchronize changes from Picasa
to your web albums.
•Sync now
: Synchronize all enabled options immediately.
• Remove account
: Delete this account from the phone.
You can also access some Google application settings
(Search, Location settings, Google+, and Ads).
Settings 175
LDAP
1. From the
Accounts
menu, under
My accounts
, touch
Add account
➔
LDAP
. The
Set up an LDAP account
screen displays.
2. Follow the prompts to set up an LDAP account link.
Microsoft Exchange ActiveSync
1. From the
Accounts
menu, under
My accounts
, touch
Microsoft Exchange ActiveSync
. The
Microsoft Exchange
ActiveSync
screen displays.
2. Under
Accounts
, touch the desired account. The
following options are available:
•Sync Calendar
: Synchronize the phone’s calendar with the
Exchange server’s calendar.
•Sync Contacts
: Synchronize the phone’s contacts list with the
Exchange server’s contacts list.
•Sync Email
: Synchronize the phone’s Exchange ActiveSync
Email folders with the Exchange server’s Email folders.
• Sync Task
: Synchronize the phone’s Task list with the
Exchange server’s Task list.
•Sync now
: Synchronize all enabled options immediately.
• Remove account
: Delete this account from the phone.
3. Under
Common settings
, touch
Settings
. The
Account
settings
screen displays.
4. Touch the desired account. The following options are
available:
• Sync settings
:
–
Sync Email
: When enabled,
synchronizes the phone’s
Exchange ActiveSync Email folders with the Exchange
server’s Email folders.
–
Sync schedule
Choose your email automatic synchronization
schedule.
–
Size to retrieve emails
: Choose how much of each message
the phone retrieves and displays in the message list.
•Signature
: Touch to enter or change signature text.
When set to ON, signature text is included in outgoing message
text.
• Out of office settings
: Enable/disable and enter/change out of
office auto-reply messages (internal and external). Optionally,
set a period of time (by date and time) to send out of office
auto-reply messages.
• Default account
: When enabled, this account is the default
account for sending email from the phone.
176
• Password
: Change your Email account password to match
that on the Exchange server.
• Notification settings
:
–
Email notifications
:
When enabled,
displays a new email
icon in the Annunciator line when new mail arrives.
–
Select ringtone
: Assign a ringtone for new email notifications.
–
Vibrate
:
When enabled, your phone
vibrates with new email
notifications.
5. Touch
More settings
. The
More settings
menu displays
with the following options available:
• Common settings
:
–
Account name
: Enter a name to identify the account.
–
Your name
: Enter the name you want to appear on your
outgoing messages.
–
Always Cc/Bcc myself
: Adds your email address to None of
send email messages or to Cc or Bcc field of send email
messages.
–
Show images
: When enabled, images included in messages
automatically display, without a confirmation pop-up.
• Data usage
:
–
Auto download attachments
: When enabled, automatically
downloads attachments to recent messages, but only when
your device is connected to a Wi-Fi network.
–
Auto resend times
: Choose the number of times to
automatically resend a message before marking it un-sent.
• Exchange ActiveSync settings
:
–
Folder sync settings
: Choose email automatic synchronization
schedules for individual folders.
–
Period to sync Calendar:
Choose the period of time for the
phone to synchronize calendar events (
2 weeks, 1 month
,
3months
,
6 months
, or
All calendar
).
–
Empty server trash
: Delete your email account’s trash bin
remotely.
–
In case of sync conflict
: Choose whether your Device has
priority or the Server has priority during automatic
synchronization.
–
Security options
: Set advanced Email security options (Encrypt
all, Sign all, Key management).
–
Sync Contacts
: Synchronize the phone’s contacts list with the
Exchange server’s contacts list.
Settings 177
–
Sync Calendar
: Synchronize the phone’s calendar with the
Exchange server’s calendar.
–
Sync Task
: Synchronize the phone’s Task list with the
Exchange server’s Task list.
–
Exchange server settings
: Change the server link settings on
your device.
Back Up and Reset
Set options for backing up your information and resetting
your device.
From the
Settings
screen, under
Personal
, touch
Backup and reset
. The
Backup and reset
screen
displays.
Backup and Restore
From the
Backup and reset
screen, under
Backup and
restore
, touch the check box next to each of the
following options to enable it. (When enabled, a check
mark displays in the check box.)
• Back up my data
: When enabled, backs up app data, Wi-Fi
passwords, and other phone settings to Google servers.
• Backup account
: Select or set-up a Google Account the
phone uses to backup your app data, Wi-Fi passwords, and
other phone settings.
•Automatic restore
: When enabled, automatically restores app
data, Wi-Fi passwords, and other phone settings from your
automatic backup.
Personal Data
Factory data reset
Use Factory data reset to return all settings to the defaults,
and remove all data from the phone.
From the
Backup and reset
screen, under
Personal data
,
touch
Factory data reset
to return all settings to the
defaults, and remove all data from the phone.
Important!
Settings and data erased in a Factory data reset
cannot be recovered. To save your settings, you
can use Back up my data settings before a reset.
178
More
From the
Settings
screen, touch
More
. The
More
menu displays.
Location Services
Location services control your device's use of GPS signals.
Some apps may require one or more location services be
turned On for full app functionality.
GPS signals may be affected by your surroundings, including:
•
Buildings
•
Tunnels or underground structures
•
Weather conditions
•
High-voltage or electromagnetic fields
•
Tinted windows
1. From the
More
menu, touch
Locations services
. The
Location services
screen displays.
2. Touch the following options to enable/disable them.
(When an option is enabled, a check mark displays in
its check box.):
• Access to my location
: When enabled, lets applications that
ask permission use your location information.
• Use GPS satellites
: When enabled, applications can use GPS
to pinpoint your location.
• Use wireless networks
: When enabled, applications can use
data from mobile networks and Wi-Fi to help determine your
location.
Note: Use GPS satellites
must be enabled to use
some applications. You can also enable or
disable
GPS
from the Notifications panel. For
more information, refer to “Notifications” on
page 32.
Important!
By selecting
Use GPS satellites
, you are
allowing access to all location
information by any third party through
web access or any software or
peripheral components you choose to
install, download, add, or attach to the
device or any other means.
Settings 179
Security
From the
More
menu, touch
Security
. The
Security
menu displays. The following options are available:
•Encryption
:
As a security measure, you can encrypt the contents of the phone
or an installed memory card, and require a password each time
you turn on the phone or access the memory card.
Encryption may take an hour or more to complete. Start with a
charged battery, and attach the charger until encryption is
complete. Loss of power or other interruption may cause the loss of
some or all data.
Once your information is encrypted you are prompted to enter your
decryption password each time you turn the phone on.
–
Encrypt device
: Touch this option to encrypt accounts,
settings, downloaded applications and data, media files, and
more under a password you specify.
–
Encrypt external SD card
: Touch this option to encrypt All
information stored on a microSD memory card, or only files
created by your phone, under a password you specify.
•Passwords
:
–
Make passwords visible
: When enabled, briefly displays
password characters as you enter them.
•Device Administration
:
View or disable device administrators. Some applications, such as
corporate Email, may require you allow access to your device by
device administrators in certain circumstances, such as if the
phone is lost or stolen.
Some features a device administrator might control include:
Setting the number of failed password attempts before the
phone is restored to factory settings.
Automatically locking the phone.
Restoring factory settings on the phone.
–
Device administrators
: View, add, or remove device
administrators.
–
Unknown sources
: When enabled, you can install applications
from sources other than Google Play Store.
–
Verify apps
: When enabled, a warning displays when your
device determines an application may harm it.
Warning!
Because this device can be configured
with system software not provided by or
supported by Google or any other
company, end-users operate these
devices at their own risk.
180
–
Change security level
: Set your device’s security level to
Normal (blocks explicit threats) or High (blocks all
unauthenticated actions).
• Security update service
:
–
Security policy updates
: When enabled, changes to security
policy automatically download and update.
–
Send security reports
: When enabled, changes to security
policy automatically download only when your device is
connected to a Wi-Fi network.
• Credential Storage
:
You can install credentials with an application, from device storage,
or from an installed memory card, and use the
Credential
storage
settings to allow applications to access the secure
certificates and other credentials.
–
Storage type
: Software only (this option cannot be changed).
–
Trusted credentials
: View, enable, or disable trusted CA
certificates.
–
Install from device storage
: Install encrypted certificates
from an installed memory card.
–
Clear credentials
: Clear stored credentials and reset the
password.
Note:
To use this feature, you must first install a
memory card containing encrypted
certificates. (For more information, refer to
“Installing a Memory Card” on page 7.)
Note:
This setting is only available if you have
installed certificates.
Settings 181
Application Manager
You can download and install applications from the
Google Play Store, the Samsung Apps, or create applications
using the Android SDK and install them on the phone. Use
Application manager to manage applications on the phone.
Warning!
Because this device can be configured with system
software not provided by or supported by Google or
any other company, end-users operate these devices
at their own risk.
1. From the
More
menu, touch
Applications manager
. The
Applications manager
screen displays.
2. Touch
DOWNLOADED
,
SD CARD
,
RUNNING
, or
ALL
to list
the statuses of applications and services. The graph at
the bottom of the
DOWNLOADED
tab shows used and
free Device memory. The graph at the bottom of the
SD
CARD
tab shows used and free USB storage. The graph
at the bottom of the
RUNNING
tab shows used and free
RAM.
3. Touch an app or service to display the
App info
or
Active
app
screen which provides more detailed storage
usage information, and lets you Stop/Force stop or
Uninstall/Report and app or service. For Downloaded
apps, you can also Clear data, Clear cache, and/or
Clear defaults.
182
Battery
See how much battery power is used by device activities.
1. From the
More
menu, touch
Battery
. The
Battery
screen
displays.
2. View battery usage for applications and services
currently running.
The battery level displays in percentage. The amount
of time the battery was used also displays. Battery
usage displays in percentages per application.
3. Touch
Screen
,
Cell standby
,
Android System
,
Android
OS
, or any other listed feature or application to view
how it is affecting battery use.
4. At the bottom of the
Battery
screen, touch
Show battery
percentage
to enable/disable the display of battery
charge percentage beside the battery status icon.
(When an option is enabled, a check mark displays in
its check box.)
Storage
Manage the use of memory resources in the phone’s Device
memory, and on an installed memory card.
From the
Settings
screen, under
Device
, touch
Storage
.
The
Storage
screen displays. The following options are
available:
• Device memory
: View usage for, and manage, the phone’s
internal memory (For detailed information and to manage
storage in use, touch any item except
Total space
or
Available
space
.):
–
Total space
: Shows the total installed device memory.
–
System memory
: Shows the minimum amount of device
storage required to run the system.
–
Used space
: Shows the total amoung of storage space being
used.
–
Cached data
: Shows the total storage space being used to
store app data for immediate reuse.
–
Miscellaneous files
: Shows the total device memory currently
used to store various application data and system data files.
–
Available space
: Shows the total device memory available for
use.
Note:
Other applications may be running that affect
battery use.
Settings 183
•SD card
: View usage for, and manage, storage space on an
optional memory card.
–
Total space
: Shows the total card memory.
–
Available space
: Shows the total card memory available for
use.
–
Unmount SD card
: Deactivates the memory card so that you
can safely remove it or format it. (For more information, see
“Installing a Memory Card”
on page 7 or
see
“Removing a Memory Card”
on page 8
.)
–
Format SD card
: Deletes all data from the memory card,
including music, videos, and photos. (For more information, see
“Formatting a Memory Card”
on page 43.)
Date and Time
By default, the phone receives date and time information
from the wireless network. When you are outside network
coverage, you may want to set date and time information
manually using the Date & time settings.
1. From the Home screen, touch
Menu
, then select
Settings
➔
Date and time
.
2. Touch a setting to configure:
• Automatic date and time
: When enabled, the phone takes
date and time updates from the wireless network (disables Set
date, Set time, and Select time zone).
•Set date
: Enter the current date (only available when Automatic
date and time is disabled).
•Set time
: Enter the current time (only available when Automatic
date and time is disabled).
• Automatic time zone
: When enabled, the phone uses the
network-provided time zone.
• Select time zone
: Choose your local time zone (only available
when Automatic date and time is disabled).
• Use 24-hour format
: When enabled, uses 24-hour time
display.
184
• Select date format
: Set the format for date displays.
About Device
This menu contains legal information, system tutorial
information, and other phone information such as the model
number, firmware version, baseband version, kernal version,
and software build number.
To access phone information:
1. From the
More
menu, touch
About device
.
2. The following information displays:
• System updates
: Lets you download and install updates to
your phone’s software, if available. (For more information, refer
to
“Software update”
on page 185.)
• Status
: Displays the Battery status, Battery level (percentage),
Network, Signal strength, Mobile network type, Service state,
Roaming, Mobile network state, My phone number, MIN
number, PRL version, MEID number, IP address, Wi-Fi MAC
address (if Wi-Fi is set to ON), Bluetooth address (if Bluetooth is
set to ON), Up time, and Device status.
• Legal information
: This option displays information about
Open source licenses, Google legal information, Privacy Alert
(downloadable application), and License settings. This
information clearly provides copyright and distribution legal
information and facts as well as Google Terms of Service,
Terms of Service for Android-powered Phones, and much more
pertinent information as a reference. Read the information and
terms, then touch
to return to the
About device
screen.
• Device name
: Shows the default Device name used with your
device’s communications features. To change the Device
name, touch this option, enter your desired changes, and touch
OK.
• Model number
: Shows the phone’s model number.
• Android version
: Shows the android version loaded on this
handset.
Settings 185
• Baseband version
: Shows the baseband version loaded on
this handset.
• Kernel version
: Shows the kernel version loaded on this
handset.
• Build number
: Shows the software, build number.
• SE for Android status
: Shows the status of SE for Android. SE
for Android is a set of security policies/modules which is
applied to the device to improve the overall security.
• Hardware version
: Shows the hardware version composing
this handset.
Software update
The AT&T Software Update feature enables you to use your
phone to connect to the network and upload any new phone
software directly to your phone. The phone automatically
updates with the latest available software when you access
this option.
Tip:
For best results, before launching Software update,
connect your device to a Wi-Fi Access Point. For more
information, refer to “Scanning and Connecting to a Wi-Fi
Network” on page 127.
1. From the
More
menu, touch
About device
➔
System
updates
.
2. Touch
Check now
to check for updates.
3. At the
Software update
prompt, touch
OK
to continue.
4. The phone automatically updates the software (if
available), otherwise, when the
Your system is up to
date
prompt displays, touch
Back
.
Note:
Baseband, kernel, and build numbers are
usually used for updates to the handset or for
support. For additional information please
contact your Customer Care representative.
186
5. When updating software, once the update file is
downloaded, you can delay the update on the start
screen by postponing it for a certain period of time. If
you want to resume the update before the selected
time, touch
Continue update
.
6. Set the following options as needed:
• Auto update
: When enabled, Software update periodically
checks for updates automatically.
• Wi-Fi only
: When enabled, software updates download only
over a Wi-Fi connection.
Health and Safety Information 187
Section 12: Health and Safety Information
This device is capable of operating in Wi-Fi
™
mode in the
2.4 and 5 GHz bands. The FCC requires that devices
operating within 5.15-5.25 GHz may only be used indoors,
not outside, in order to avoid interference with Mobile
Satellite Services (MSS). Therefore, this device is restricted
from being used outdoors when operating in frequencies
between 5.15-5.25 GHz.
This section outlines the safety precautions associated with
using your phone. The terms “mobile device” or “cell phone”
are used in this section to refer to your phone.
Read this
information before using your mobile device
.
Exposure to Radio Frequency (RF)
Signals
The U.S. Food and Drug Administration (FDA) has published
information for consumers relating to Radio Frequency (RF)
exposure from wireless phones. The FDA publication
includes the following information:
Do cell phones pose a health hazard?
Many people are concerned that cell phone radiation will
cause cancer or other serious health hazards. The weight of
scientific evidence has not linked cell phones with any health
problems.
Cell phones emit low levels of Radio Frequency (RF) energy.
Over the past 15 years, scientists have conducted hundreds
of studies looking at the biological effects of the radio
frequency energy emitted by cell phones. While some
researchers have reported biological changes associated
with RF energy, these studies have failed to be replicated.
The majority of studies published have failed to show an
association between exposure to radio frequency from a cell
phone and health problems.
The low levels of RF cell phones emit while in use are in the
microwave frequency range. They also emit RF at
substantially reduced time intervals when in the stand-by
mode. Whereas high levels of RF can produce health effects
(by heating tissue), exposure to low level RF that does not
produce heating effects causes no known adverse health
effects.
188
The biological effects of radio frequency energy should not
be confused with the effects from other types of
electromagnetic energy.
Very high levels of electromagnetic energy, such as is found
in X-rays and gamma rays, can ionize biological tissues.
Ionization is a process where electrons are stripped away
from their normal locations in atoms and molecules. It can
permanently damage biological tissues including DNA, the
genetic material.
The energy levels associated with radio frequency energy,
including both radio waves and microwaves, are not great
enough to cause ionization of atoms and molecules.
Therefore, RF energy is a type of non-ionizing radiation.
Other types of non-ionizing radiation include visible light,
infrared radiation (heat), and other forms of electromagnetic
radiation with relatively low frequencies.
While RF energy does not ionize particles, large amounts can
increase body temperatures and cause tissue damage. Two
areas of the body, the eyes and the testes, are particularly
vulnerable to RF heating because there is relatively little
blood flow in them to carry away excess heat.
Research Results to Date: Is there a connection
between RF and certain health problems?
The results of most studies conducted to date say no. In
addition, attempts to replicate and confirm the few studies
that have shown a connection have failed.
The scientific community at large therefore believes that the
weight of scientific evidence does not show an association
between exposure to Radio Frequency (RF) from cell phones
and adverse health outcomes. Still the scientific community
has supported additional research to address gaps in
knowledge. Some of these studies are described below.
Interphone Study
Interphone is a large international study designed to
determine whether cell phones increase the risk of head and
neck cancer. A report published in the International Journal
of Epidemiology (June, 2010) compared cell phone usage for
more than 5,000 people with brain tumors (glioma and
meningioma) and a similar number of healthy controls.
Results of this study did NOT show that cell phones caused
brain cancer. In this study, most people had no increased risk
of brain cancer from using cell phones. For people with the
heaviest use of cell phones (an average of more than ½ hour
per day, every day, for over 10 years) the study suggested a
Health and Safety Information 189
slight increase in brain cancer. However, the authors
determined that biases and errors prevented any conclusions
being drawn from this data. Additional information about
Interphone can be found at
http://www.iarc.fr/en/media-centre/pr/2010/pdfs/pr200_E.pdf.
Interphone is the largest cell phone study to date, but it did
not answer all questions about cell phone safety. Additional
research is being conducted around the world, and the FDA
continues to monitor developments in this field.
International Cohort Study on Mobile Phone Users
(COSMOS)
The COSMOS study aims to conduct long-term health
monitoring of a large group of people to determine if there
are any health issues linked to long-term exposure to radio
frequency energy from cell phone use. The COSMOS study
will follow approximately 300,000 adult cell phone users in
Europe for 20 to 30 years. Additional information about the
COSMOS study can be found at
http://www.ukcosmos.org/index.html
.
Risk of Brain Cancer from Exposure to Radio
Frequency Fields in Childhood and Adolescence
(MOBI-KIDS)
MOBI-KIDS is an international study investigating the
relationship between exposure to radio frequency energy
from communication technologies including cell phones and
brain cancer in young people. This is an international
multi-center study involving 14 European and non-European
countries. Additional information about MOBI-KIDS can be
found at
http://www.creal.cat/programes-recerca/en_projectes-creal/
view.php?ID=39.
Surveillance, Epidemiology, and End Results (SEER)
Program of the National Cancer Institute
The National Cancer Institute (NCI) actively follows cancer
statistics in the United States to detect any change in rates of
new cases for brain cancer. If cell phones play a role in risk
for brain cancer, rates should go up, because heavy cell
phone use has been common for quite some time in the U.S.
Between 1987 and 2005, the overall age-adjusted incidence
of brain cancer did not increase. Additional information about
SEER can be found at
http://seer.cancer.gov/
.
190
Cell Phone Industry Actions
Although the existing scientific data do not justify FDA
regulatory actions, the FDA has urged the cell phone industry
to take a number of steps, including the following:
•
Support-needed research on possible biological effects of RF
for the type of signal emitted by cell phones;
•
Design cell phones in a way that minimizes any RF exposure to
the user; and
•
Cooperate in providing users of cell phones with the current
information on cell phone use and human health concerns.
The FDA also is working with voluntary standard-setting
bodies such as the Institute of Electrical and Electronics
Engineers (IEEE), the International Commission on
Non-Ionizing Radiation Protection (ICNIRP), and others to
assure that safety standards continue to adequately protect
the public.
Reducing Exposure: Hands-Free Kits and Other
Accessories
Steps to Reduce Exposure to Radio Frequency Energy
If there is a risk from being exposed to radio frequency
energy (RF) from cell phones - and at this point we do not
know that there is - it is probably very small. But, if you are
concerned about avoiding even potential risks, you can take
a few simple steps to minimize your RF exposure.
•
Reduce the amount of time spent using your cell phone;
•
Use speaker mode or a headset to place more distance between
your head and the cell phone.
Hands-Free Kits
Hands-free kits may include audio or Bluetooth® headsets
and various types of body-worn accessories such as
belt-clips and holsters. Combinations of these can be used to
reduce RF energy absorption from cell phones.
Headsets can substantially reduce exposure because the
phone is held away from the head in the user's hand or in
approved body-worn accessories. Cell phones marketed in
the U.S. are required to meet RF exposure compliance
requirements when used against the head and against the
body.
Health and Safety Information 191
Because there are no known risks from exposure to RF
emissions from cell phones, there is no reason to believe that
hands-free kits reduce risks. Hands-free kits can be used for
convenience and comfort. They are also required by law in
many states if you want to use your phone while driving.
Cell Phone Accessories that Claim to Shield the Head
from RF Radiation
Because there are no known risks from exposure to RF
emissions from cell phones, there is no reason to believe that
accessories which claim to shield the head from those
emissions reduce risks. Some products that claim to shield
the user from RF absorption use special phone cases, while
others involve nothing more than a metallic accessory
attached to the phone.
Studies have shown that these products generally do not
work as advertised. Unlike “hands-free” kits, these so-called
“shields” may interfere with proper operation of the phone.
The phone may be forced to boost its power to compensate,
leading to an increase in RF absorption.
Children and Cell Phones
The scientific evidence does not show a danger to any users
of cell phones from RF exposure, including children and
teenagers. The steps adults can take to reduce RF exposure
apply to children and teenagers as well.
•
Reduce the amount of time spent on the cell phone;
•
Use speaker mode or a headset to place more distance between
the head and the cell phone.
Some groups sponsored by other national governments have
advised that children be discouraged from using cell phones
at all. For example, The Stewart Report from the United
Kingdom made such a recommendation in December 2000.
In this report, a group of independent experts noted that no
evidence exists that using a cell phone causes brain tumors
or other ill effects. Their recommendation to limit cell phone
use by children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
Additional information on the safety of RF exposures from
various sources can be obtained from the following
organizations (updated 10/1/2010):
•
FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/.
192
•
Environmental Protection Agency (EPA):
http://www.epa.gov/radtown/wireless-tech.html.
•
Occupational Safety and Health Administration (OSHA):
http://www.osha.gov/SLTC/radiofrequencyradiation/
.
(Note: This web address is case sensitive.)
•
National Institute for Occupational Safety and Health (NIOSH):
http://www.cdc.gov/niosh/.
•
World Health Organization (WHO):
http://www.who.int/peh-emf/en/.
•
International Commission on Non-Ionizing Radiation Protection:
http://www.icnirp.de.
•
Health Protection Agency:
http://www.hpa.org.uk/Topics/Radiation/.
•
US Food and Drug Administration:
http://www.fda.gov/Radiation-EmittingProducts/
RadiationEmittingProductsandProcedures/
HomeBusinessandEntertainment/CellPhones/default.htm.
Specific Absorption Rate (SAR)
Certification Information
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the exposure
limits for Radio Frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. Government.
These FCC RF exposure limits are derived from the
recommendations of two expert organizations: the National
Council on Radiation Protection and Measurement (NCRP)
and the Institute of Electrical and Electronics Engineers
(IEEE). In both cases, the recommendations were developed
by scientific and engineering experts drawn from industry,
government, and academia after extensive reviews of the
scientific literature related to the biological effects of RF
energy.
The RF exposure limit set by the FCC for wireless mobile
phones employs a unit of measurement known as the
Specific Absorption Rate (SAR). The SAR is a measure of the
rate of absorption of RF energy by the human body
expressed in units of watts per kilogram (W/kg). The FCC
requires wireless phones to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg).
Health and Safety Information 193
The FCC SAR limit incorporates a substantial margin of safety
to give additional protection to the public and to account for
any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its
highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum reported value.
This is because the phone is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless base
station antenna, the lower the power output of the phone.
Before a new model phone is available for sale to the public,
it must be tested and certified to the FCC that it does not
exceed the SAR limit established by the FCC. Tests for each
model phone are performed in positions and locations (e.g. at
the ear and worn on the body) as required by the FCC. For
body-worn operation, this phone has been tested and meets
FCC RF exposure guidelines when used with an accessory
that contains no metal and that positions the mobile device a
minimum of 1.0 cm from the body.
Use of other accessories may not ensure compliance with
FCC RF exposure guidelines. The FCC has granted an
Equipment Authorization for this mobile device with all
reported SAR levels evaluated as in compliance with the FCC
RF exposure guidelines. This mobile phone has a FCC ID
number: A3LSCHI535 [Model Number: SCH-R530X] and the
specific SAR levels for this mobile phone can be found at the
following FCC website:
http://www.fcc.gov/oet/ea/
.
The SAR information for this device can also be found on
Samsung’s website:
http://www.samsung.com/sar
.
SAR information on this and other model phones can be
accessed online on the FCC's website through
http://
transition.fcc.gov/oet/rfsafety/sar.html
. To find information that
pertains to a particular model phone, this site uses the phone
FCC ID number which is usually printed somewhere on the
case of the phone. Sometimes it may be necessary to
remove the battery pack to find the number. Once you have
the FCC ID number for a particular phone, follow the
instructions on the website and it should provide values for
typical or maximum SAR for a particular phone. Additional
194
SAR information can also be obtained at
http://www.fcc.gov/encyclopedia/specific-absorption-rate-sar-
cellular-telephones
.
FCC Part 15 Information to User
Pursuant to part 15.21 of the FCC Rules, you are cautioned
that changes or modifications not expressly approved by
Samsung could void your authority to operate the device.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Commercial Mobile Alerting System
(CMAS)
This device is designed to receive wireless emergency alerts
from the Commercial Mobile Alerting System ("CMAS";
which may also be known as the Personal Localized Alerting
Network ("PLAN")). If your wireless provider has chosen to
participate in CMAS/PLAN, alerts are available while in the
provider's coverage area. If you travel outside your provider's
coverage area, wireless emergency alerts may not be
available. For more information, please contact your wireless
provider.
Health and Safety Information 195
Smart Practices While Driving
On the Road - Off the Phone
The primary responsibility of every driver is the safe
operation of his or her vehicle.
Responsible drivers understand that no secondary task
should be performed while driving whether it be eating,
drinking, talking to passengers, or talking on a mobile phone
- unless the driver has assessed the driving conditions and is
confident that the secondary task will not interfere with their
primary responsibility.
Do not engage in any activity while
driving a moving vehicle which may cause you to take your
eyes off the road or become so absorbed in the activity that
your ability to concentrate on the act of driving becomes
impaired
. Samsung is committed to promoting responsible
driving and giving drivers the tools they need to understand
and address distractions.
Check the laws and regulations on the use of mobile devices
and their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas. For example, only hands-free use
may be permitted in certain areas.
Before answering calls, consider your circumstances. Let the
call go to voicemail when driving conditions require.
Remember, driving comes first, not the call!
If you consider a call necessary and appropriate, follow these
tips:
•
Use a hands-free device;
•
Secure your phone within easy reach;
•
Place calls when you are not moving;
•
Plan calls when your car will be stationary;
•
Do not engage in stressful or emotional conversations;
•
Let the person with whom you are speaking know that you are
driving and will suspend the call if necessary;
•
Do not take notes or look up phone numbers while driving;
Notice regarding legal restrictions on mounting this device in
an automobile:
Laws in some states may prohibit mounting this device on or
near the windshield of an automobile. In other states, the law
may permit mounting this device only in specific locations in
the automobile. Be sure to consult the state and local laws or
ordinances where you drive before mounting this device in
an automobile. Failure to comply with these restrictions could
result in fines, penalties, or other damages.
196
Never mount this device in a manner that will obstruct the
driver's clear view of the street and traffic.
Never use wireless data services such as text messaging, Web
browsing, or e-mail while operating a vehicle.
Never watch videos, such as a movie or clip, or play video
games while operating a vehicle.
For more information, go to
http://www.ctia.org
.
Battery Use and Safety
Important! Handle and store batteries properly to avoid injury or
damage
. Most battery issues arise from improper
handling of batteries and, particularly, from the
continued use of damaged batteries.
•
Do not disassemble, crush, puncture, shred, or otherwise
attempt to change the form of your battery
. Do not put a high
degree of pressure on the battery. This can cause leakage or an
internal short-circuit, resulting in overheating.
•
Do not let the phone or battery come in contact with liquids.
Liquids can get into the phone's circuits, leading to corrosion.
Even when the phone appears to be dry and appears to operate
normally, the circuitry could slowly corrode and pose a safety
hazard. If the phone and/or battery get wet, have them checked
by your service provider or contact Samsung, even if they appear
to be working properly.
•
Do not place your battery in or near a heat source
. Excessive
heating can damage the phone or the battery and could cause the
phone or the battery to explode. Do not dry a wet or damp battery
with an appliance or heat source such as a microwave oven, hair
dryer, iron, or radiator. Avoid leaving your phone in your car in
high temperatures.
•
Do not dispose of the phone or the battery in a fire
. The phone
or the battery may explode when overheated.
•
Do not handle a damaged or leaking battery
. Do not let leaking
battery fluid come in contact with your eyes, skin or clothing. For
safe disposal options, contact your nearest Samsung-authorized
service center.
Health and Safety Information 197
•
Avoid dropping the cell phone
. Dropping the phone or the
battery, especially on a hard surface, can potentially cause
damage to the phone and battery. If you suspect damage to the
phone or battery, take it to a service center for inspection.
•
Never use any charger or battery that is damaged in any way
.
•
Do not allow the battery to touch metal objects
. Accidental
short-circuiting can occur when a metallic object (coin, key,
jewelry, clip, or pen) causes a direct connection between the +
and - terminals of the battery (metal strips on the battery), for
example when you carry a spare battery in a pocket or bag.
Short-circuiting the terminals may damage the battery or the
object causing the short-circuiting.
Important!
Use only Samsung-approved batteries, and
recharge your battery only with
Samsung-approved chargers which are
specifically designed for your phone.
WARNING!
Use of a non-Samsung-approved battery or charger may
present a risk of fire, explosion, leakage, or other hazard
.
Samsung's warranty does not cover damage to the phone
caused by non-Samsung-approved batteries and/or
chargers.
•
Do not use incompatible cell phone batteries and chargers
.
Some websites and second-hand dealers not associated with
reputable manufacturers and carriers, might be selling
incompatible or even counterfeit batteries and chargers.
Consumers should purchase manufacturer or
carrier-recommended products and accessories. If unsure about
whether a replacement battery or charger is compatible, contact
the manufacturer of the battery or charger.
•
Misuse or use of incompatible phones, batteries, and
charging devices could result in damage to the equipment
and a possible risk of fire, explosion, or leakage, leading to
serious injuries, damages to your phone, or other serious
hazard
.
198
Samsung Mobile Products and
Recycling
Samsung cares for the environment and encourages its
customers to recycle Samsung mobile devices and genuine
Samsung accessories.
Proper disposal of your mobile device and its battery is not
only important for safety, it benefits the environment.
Batteries must be recycled or disposed of properly.
Recycling programs for your mobile device, batteries, and
accessories may not be available in your area.
We've made it easy for you to recycle your old Samsung
mobile device by working with respected take-back
companies in every state in the country.
Drop It Off
You can drop off your Samsung-branded mobile device
and batteries for recycling at one of our numerous
Samsung Recycling Direct (SM) locations. A list of these
locations may be found at:
http://pages.samsung.com/us/recyclingdirect/
usactivities_environment_samsungrecyclingdirect_locations.jsp
.
Samsung-branded devices and batteries will be accepted
at these locations for no fee.
Consumers may also recycle their used mobile device or
batteries at many retail or carrier-provided locations
where mobile devices and batteries are sold. Additional
information regarding specific locations may be found at:
http://www.epa.gov/epawaste/partnerships/plugin/cellphone/
index.htm
or at
http://www.call2recycle.org/
.
Mail It In
The Samsung Mobile Take-Back Program will provide
Samsung customers with a free recycling mailing label.
Just go to
http://fun.samsungmobileusa.com/recycling/index.jsp
.
Dispose of unwanted electronics through an approved
recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect
Or call, (877) 278-0799.
Health and Safety Information 199
Follow local regulations regarding disposal of mobile
devices and batteries
Dispose of your mobile device and batteries in accordance
with local regulations. In some areas, the disposal of these
items in household or business trash may be prohibited. Help
us protect the environment - recycle!
Warning!
Never dispose of batteries in a fire because they may
explode.
UL Certified Travel Charger
The Travel Charger for this phone has met applicable UL
safety requirements. Please adhere to the following safety
instructions per UL guidelines:
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY
LEAD TO SERIOUS PERSONAL INJURY AND POSSIBLE
PROPERTY DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN NORTH
AMERICA, USE AN ATTACHMENT PLUG ADAPTOR
OF THE PROPER CONFIGURATION FOR THE
POWER OUTLET.
THIS POWER UNIT IS INTENDED TO BE
CORRECTLY ORIENTED IN A VERTICAL OR
HORIZONTAL OR FLOOR MOUNT POSITION.
Display / Touch-Screen
Please note the following information when using your
mobile device:
WARNING REGARDING DISPLAY
The display on your mobile device is made of glass or
acrylic and could break if your mobile device is
dropped or if it receives significant impact. Do not use
if screen is broken or cracked as this could cause
injury to you.
200
WARRANTY DISCLAIMER: PROPER USE OF A
TOUCH-SCREEN MOBILE DEVICE
If your mobile device has a touch-screen display,
please note that a touch-screen responds best to a
light touch from the pad of your finger or a non-metallic
stylus. Using excessive force or a metallic object when
pressing on the touch-screen may damage the
tempered glass surface and void the warranty. For
more information, please refer to the “Standard
Limited Warranty”.
GPS
Certain Samsung mobile devices can use a Global Positioning
System (GPS) signal for location-based applications. A GPS
uses satellites controlled by the U.S. Government that are
subject to changes implemented in accordance with the
Department of Defense policy and the 2008 Federal Radio
navigation Plan (FRP). Changes may affect the performance
of location-based technology on your mobile device.
Even with GPS, when you make an emergency call:
•
Always tell the emergency responder your location to the best of
your ability; and
•
Remain on the mobile device for as long as the emergency
responder instructs you.
Navigation
Maps, directions, and other navigation-data, including data
relating to your current location, may contain inaccurate or
incomplete data, and circumstances can and do change over
time. In some areas, complete information may not be
available.
Therefore, you should always visually confirm that
the navigational instructions are consistent with what you see
before following them. All users should pay attention to road
conditions, closures, traffic, and all other factors that may
impact safe driving or walking. Always obey posted road signs.
Emergency Calls
This mobile device, like any wireless mobile device, operates
using radio signals, wireless and landline networks, as well
as user-programmed functions, which cannot guarantee
connection in all conditions, areas, or circumstances.
Therefore, you should never rely solely on any wireless
mobile device for essential communications (medical
emergencies, for example). Before traveling in remote or
underdeveloped areas, plan an alternate method of
contacting emergency services personnel. Remember, to
Health and Safety Information 201
make or receive any calls, the mobile device must be
switched on and in a service area with adequate signal
strength.
Emergency calls may not be possible on all wireless mobile
device networks or when certain network services and/or
mobile device features are in use. Check with local service
providers.
To make an emergency call:
1. If the mobile device is not on, switch it on.
1. From the Home screen, touch
Phone
then touch
the
Keypad
tab.
2. Enter the digits of the emergency number for your
present location on the
Keypad
(for example, 911 or
other official emergency number). Emergency numbers
vary by location.
3. Touch to place the call.
If certain features are in use (call blocking, for example), you
may first need to deactivate those features before you can
make an emergency call. Consult your User Manual and your
local cellular service provider. When making an emergency
call, remember to give all the necessary information as
accurately as possible. Remember that your mobile device
may be the only means of communication at the scene of an
accident; do not cut off the call until given permission to do
so.
Care and Maintenance
Your mobile device is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for many
years:
Keep your Samsung Mobile Device away from:
Liquids of any kind
Keep the mobile device dry. Precipitation, humidity, and
liquids contain minerals that will corrode electronic
circuits. If the mobile device does get wet, do not
accelerate drying with the use of an oven, microwave, or
dryer, because this may damage the mobile device and
could cause a fire or explosion.
Do not use the mobile device with a wet hand. Doing so
may cause an electric shock to you or damage to the
mobile device.
202
Extreme heat or cold
Avoid temperatures below 0°C / 32°F or above 45°C /
113°F.
Microwaves
Do not try to dry your mobile device in a microwave oven.
Doing so may cause a fire or explosion.
Dust and dirt
Do not expose your mobile device to dust, dirt, or sand.
Cleaning solutions
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the mobile device. Wipe it with a soft
cloth slightly dampened in a mild soap-and-water
solution. If the mobile device has a retractable camera
lens, do not use soap and water to clean the lens. Use a
blower or brush or lens cleaning paper dampened in a
lens cleaning solution.
Shock or vibration
Do not drop, knock, or shake the mobile device. Rough
handling can break internal circuit boards.
Paint
Do not paint the mobile device. Paint can clog the
device’s moving parts or ventilation openings and prevent
proper operation.
Responsible Listening
Caution! Avoid potential hearing loss
.
Damage to hearing occurs when a person is exposed to loud
sounds over time. The risk of hearing loss increases as
sound is played louder and for longer durations. Prolonged
exposure to loud sounds (including music) is the most
common cause of preventable hearing loss. Some scientific
research suggests that using portable audio devices, such as
portable music players and cell phones, at high volume
settings for long durations may lead to permanent
noise-induced hearing loss.
This includes the use of headphones (including headsets,
earbuds, and Bluetooth® or other wireless devices).
Exposure to very loud sound has also been associated in
some studies with tinnitus (a ringing in the ear),
hypersensitivity to sound, and distorted hearing. Individual
susceptibility to noise-induced hearing loss and potential
Health and Safety Information 203
hearing problem varies. Additionally, the amount of sound
produced by a portable audio device varies depending on the
nature of the sound, the device settings, and the headphones
that are used. As a result, there is no single volume setting
that is appropriate for everyone or for every combination of
sound, settings, and equipment.
You should follow some common sense recommendations
when using any portable audio device:
•
Always turn the volume down before plugging the earphones into
an audio source.
•
Set the volume in a quiet environment and select the lowest
volume at which you can hear adequately.
•
Be aware that you can adapt to higher volume settings over time,
not realizing that the higher volume may be harmful to your
hearing.
•
When using headphones, turn the volume down if you cannot
hear the people speaking near you or if the person sitting next to
you can hear what you are listening to.
•
Do not turn the volume up to block out noisy surroundings. If you
choose to listen to your portable device in a noisy environment,
use noise-cancelling headphones to block out background
environmental noise. By blocking background environment noise,
noise cancelling headphones should allow you to hear the music
at lower volumes than when using earbuds.
•
Limit the amount of time you listen. As the volume increases, less
time is required before you hearing could be affected.
•
Avoid using headphones after exposure to extremely loud noises,
such as rock concerts, that might cause temporary hearing loss.
Temporary hearing loss might cause unsafe volumes to sound
normal.
•
Do not listen at any volume that causes you discomfort. If you
experience ringing in your ears, hear muffled speech, or
experience any temporary hearing difficulty after listening to your
portable audio device, discontinue use and consult your doctor.
You can obtain additional information on this subject from the
following sources:
204
Operating Environment
Remember to follow any special regulations in force in any
area, and always switch your mobile device off whenever it is
forbidden to use it, or when it may cause interference or
danger. When connecting the mobile device or any accessory
to another device, read its user's guide for detailed safety
instructions. Do not connect incompatible products.
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: (800) 222-2336
Email: info@audiology.org
Internet:
http://www.audiology.org/Pages/
default.aspx
National Institute on Deafness and Other
Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD 20892-2320
Email: nidcdinfo@nih.gov
Internet:
http://www.nidcd.nih.gov/
National Institute for Occupational Safety
and Health (NIOSH)
395 E Street, S.W., Suite 9200
Patriots Plaza Building
Washington, DC 20201
Voice: 1-800-35-NIOSH
(1-800-356-4674)
1-800-CDC-INFO (1-800-232-4636)
Outside the U.S. 513-533-8328
Email: cdcinfo@cdc.gov
Internet:
http://www.cdc.gov/niosh/topics/noise/
default.html
1-888-232-6348 TTY
Health and Safety Information 205
Using Your Mobile Device Near Other Electronic
Devices
Most modern electronic equipment is shielded from Radio
Frequency (RF) signals. However, certain electronic
equipment may not be shielded against the RF signals from
your wireless mobile device. Consult the manufacturer to
discuss alternatives.
Implantable Medical Devices
A minimum separation of six (6) inches should be maintained
between a handheld wireless mobile device and an
implantable medical device, such as a pacemaker or
implantable cardioverter defibrillator, to avoid potential
interference with the device.
Persons who have such devices:
•
Should ALWAYS keep the mobile device more than six (6) inches
from their implantable medical device when the mobile device is
turned ON;
•
Should not carry the mobile device in a breast pocket;
•
Should use the ear opposite the implantable medical device to
minimize the potential for interference;
•
Should turn the mobile device OFF immediately if there is any
reason to suspect that interference is taking place;
•
Should read and follow the directions from the manufacturer of
your implantable medical device. If you have any questions about
using your wireless mobile device with an implantable medical
device, consult your health care provider.
For more information see:
http://www.fcc.gov/oet/rfsafety/rf-
faqs.html#
.
Other Medical Devices
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able
to assist you in obtaining this information. Switch your
mobile device off in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your vehicle
before using your mobile device in a motor vehicle. You
should also consult the manufacturer of any equipment that
has been added to your vehicle.
206
Posted Facilities
Switch your mobile device off in any facility where posted
notices require you to do so.
Potentially Explosive Environments
Switch your mobile device off when in any area with a
potentially explosive atmosphere and obey all signs and
instructions. Sparks in such areas could cause an explosion
or fire resulting in bodily injury or even death. Users are
advised to switch the mobile device off while at a refueling
point (service station).
Users are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage and
distribution areas), chemical plants, or where blasting
operations are in progress. Areas with a potentially explosive
atmosphere are often, but not always, clearly marked. They
include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as
propane or butane), areas where the air contains chemicals
or particles, such as grain, dust, or metal powders, and any
other area where you would normally be advised to turn off
your vehicle engine. Vehicles using liquefied petroleum gas
(such as propane or butane) must comply with the National
Fire Protection Standard (NFPA-58). For a copy of this
standard, contact the National Fire Protection Association.
When your Device is Wet
Do not turn on your device if it is wet. If your device is
already on, turn it off and remove the battery immediately (if
the device will not turn off or you cannot remove the battery,
leave it as-is). Then, dry the device with a towel and take it
to a service center.
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices
The U.S. Federal Communications Commission (FCC) has
established requirements for digital wireless mobile devices
to be compatible with hearing aids and other assistive
hearing devices.
When individuals employing some assistive hearing devices
(hearing aids and cochlear implants) use wireless mobile
devices, they may detect a buzzing, humming, or whining
noise. Some hearing devices are more immune than others
to this interference noise, and mobile devices also vary in the
amount of interference they generate.
Health and Safety Information 207
The wireless telephone industry has developed a rating
system for wireless mobile devices to assist hearing device
users find mobile devices that may be compatible with their
hearing devices. Not all mobile devices have been rated.
Mobile devices that are rated have the rating on their box or
a label located on the box.
The ratings are not guarantees. Results will vary depending
on the user's hearing device and hearing loss. If your hearing
device happens to be vulnerable to interference, you may not
be able to use a rated mobile device successfully. Trying out
the mobile device with your hearing device is the best way to
evaluate it for your personal needs.
M-Ratings
: Wireless mobile devices rated M3 or M4 meet
FCC requirements and are likely to generate less interference
to hearing devices than mobile devices that are not labeled.
M4 is the better/higher of the two ratings. M-ratings refer to
enabling acoustic coupling with hearing aids that do not
operate in telecoil mode.
T-Ratings
: Mobile devices rated T3 or T4 meet FCC
requirements and are likely to generate less interference to
hearing devices than mobile devices that are not labeled. T4
is the better/higher of the two ratings. T-ratings refer to
enabling inductive coupling with hearing aids operating in
telecoil mode.
Hearing devices may also be rated. Your hearing aid
manufacturer or hearing health professional may help you
find this rating. Higher ratings mean that the hearing device
is relatively immune to interference noise.
Under the current industry standard, American National
Standards Institute (ANSI) C63.19, the hearing aid and
wireless mobile device rating values are added together to
indicate how usable they are together. For example, if a
hearing aid meets the M2 level rating and the wireless
mobile device meets the M3 level rating, the sum of the two
values equals M5.
Under the standard, this should provide the hearing aid user
with normal use while using the hearing aid with the
particular wireless mobile device. A sum of 6 or more would
indicate excellent performance.
However, these are not guarantees that all users will be
satisfied. T ratings work similarly.
208
The HAC rating and measurement procedure are described in
the American National Standards Institute (ANSI) C63.19
standard.
HAC for Newer Technologies
This phone has been tested and rated for use with hearing
aids for some of the wireless technologies that it uses.
However, there may be some newer wireless technologies
used in this phone that have not been tested yet for use with
hearing aids.
It is important to try the different features of this phone
thoroughly and in different locations, using your hearing aid
or cochlear implant, to determine if you hear any interfering
noise. Consult your service provider or the manufacturer of
this phone for information on hearing aid compatibility. If you
have questions about return or exchange policies, consult
your service provider or phone retailer.
Restricting Children's Access to Your
Mobile Device
Your mobile device is not a toy. Do not allow children to play
with it because they could hurt themselves and others,
damage the mobile device, or make calls that increase your
mobile device bill.
Keep the mobile device and all its parts and accessories out
of the reach of small children.
FCC Notice and Cautions
FCC Notice
The mobile device may cause TV or radio interference if used
in close proximity to receiving equipment. The FCC can
require you to stop using the mobile device if such
interference cannot be eliminated.
Cautions
Any changes or modifications to your mobile device not
expressly approved by Samsung could void your warranty for
this equipment and void your authority to operate this
M3 + M2 = 5
T3 + T2 = 5
Health and Safety Information 209
equipment. Only use approved batteries, antennas, and
chargers. The use of any unauthorized accessories may be
dangerous and void the mobile device warranty if said
accessories cause damage or a defect to the mobile device.
Although your mobile device is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid dropping,
hitting, bending, or sitting on it.
Other Important Safety Information
•
Only qualified personnel should service the mobile device or
install the mobile device in a vehicle. Faulty installation or service
may be dangerous and may invalidate any warranty applicable to
the device.
•
Ensure that any mobile devices or related equipment installed in
your vehicle are securely mounted.
•
Check regularly that all wireless mobile device equipment in your
vehicle is mounted and operating properly.
•
When using a headset in dry environments, static electricity can
build up in the headset and cause a small quick static electrical
shock. To minimize the risk of electrostatic discharge from the
headset avoid using the headset in extremely dry environments or
touch a grounded unpainted metal object to discharge static
electricity before inserting the headset.
•
Do not store or carry flammable liquids, gases, or explosive
materials in the same compartment as the mobile device, its
parts, or accessories.
•
For vehicles equipped with an air bag, remember that an air bag
inflates with great force. Do not place objects, including installed
or portable wireless equipment near or in the area over the air
bag or in the air bag deployment area. If wireless equipment is
improperly installed and the air bag inflates, serious injury could
result.
•
Switch your mobile device off before boarding an aircraft. The use
of wireless mobile devices in aircraft is illegal and may be
dangerous to the aircraft's operation. Check with appropriate
authorities before using any function of a mobile device while on
an aircraft.
•
Failure to observe these instructions may lead to the suspension
or denial of cell phone services to the offender, or legal action, or
both.
•
While using your device, leave some lights on in the room and do
not hold the screen too close to your eyes.
210
•
Seizures or blackouts can occur when you are exposed to flashing
lights while watching videos or playing games for extended
periods. If you feel any discomfort, stop using the device
immediately.
•
Reduce risk of repetitive motion injuries. When you repetitively
perform actions, such as pressing keys, drawing characters on a
touch screen with your fingers, or playing games, you may
experience occasional discomfort in your hands, neck, shoulders,
or other parts of your body. When using your device for extended
periods, hold the device with a relaxed grip, press the keys lightly,
and take frequent breaks. If you continue to have discomfort
during or after such use, stop use and see a physician.
•
If your device has a camera flash or light, do not use the flash or
light close to the eyes of people or pets. [122011]
Warranty Information 211
Section 13: Warranty Information
Standard Limited Warranty
What is covered and for how long?
SAMSUNG TELECOMMUNICATIONS AMERICA, LLC
(“SAMSUNG”) warrants that SAMSUNG’s handsets and
accessories (“Products”) are free from defects in material
and workmanship under normal use and service for the
period commencing upon the date of purchase by the first
consumer purchaser and continuing for the following
specified period of time after that date:
*If applicable.
What is not covered?
This Limited Warranty is conditioned upon proper use of the
Product.
This Limited Warranty does not cover: (a) defects or damage
resulting from accident, misuse, abnormal use, abnormal
conditions, improper storage, exposure to liquid, moisture,
dampness, sand or dirt, neglect, or unusual physical,
electrical or electromechanical stress; (b) scratches, dents
and cosmetic damage, unless caused by SAMSUNG;
(c) defects or damage resulting from excessive force or use
of a metallic object when pressing on a touch screen;
(d) equipment that has the serial number or the
enhancement data code removed, defaced, damaged,
altered or made illegible; (e) ordinary wear and tear;
(f) defects or damage resulting from the use of Product in
conjunction or connection with accessories, products, or
ancillary/peripheral equipment not furnished or approved by
SAMSUNG; (g) defects or damage resulting from improper
testing, operation, maintenance, installation, service, or
adjustment not furnished or approved by SAMSUNG;
(h) defects or damage resulting from external causes such as
collision with an object, fire, flooding, dirt, windstorm,
lightning, earthquake, exposure to weather conditions, theft,
blown fuse, or improper use of any electrical source;
(i) defects or damage resulting from cellular signal reception
Device 1 Year
Battery(ies)* 1 Year
Case/Pouch/Holster* 90 Days
Other Device
Accessories*
1 Year
212
or transmission, or viruses or other software problems
introduced into the Product; or (j) Product used or purchased
outside the United States. This Limited Warranty covers
batteries only if battery capacity falls below 80% of rated
capacity or the battery leaks, and this Limited Warranty does
not cover any battery if (i) the battery has been charged by a
battery charger not specified or approved by SAMSUNG for
charging the battery; (ii) any of the seals on the battery are
broken or show evidence of tampering; or (iii) the battery has
been used in equipment other than the SAMSUNG phone for
which it is specified.
What are SAMSUNG’s obligations?
During the applicable warranty period, provided the Product
is returned in accordance with the terms of this Limited
Warranty, SAMSUNG will repair or replace the Product, at
SAMSUNG’s sole option, without charge. SAMSUNG may, at
SAMSUNG’s sole option, use rebuilt, reconditioned, or new
parts or components when repairing any Product, or may
replace the Product with a rebuilt, reconditioned or new
Product.
Repaired/replaced cases, pouches and holsters will be
warranted for a period of ninety (90) days. All other repaired/
replaced Products will be warranted for a period equal to the
remainder of the original Limited Warranty on the original
Product or for ninety (90) days, whichever is longer. All
replaced Products, parts, components, boards and
equipment shall become the property of SAMSUNG. Except to
any extent expressly allowed by applicable law, transfer or
assignment of this Limited Warranty is prohibited.
What must you do to obtain warranty service?
To obtain service under this Limited Warranty, you must
return the Product to an authorized phone service facility in
an adequate container for shipping, accompanied by the
sales receipt or comparable proof of sale showing the
original date of purchase, the serial number of the Product
and the seller’s name and address.
To obtain assistance on where to deliver the Product, please
call SAMSUNG Customer Care at 1-888-987-4357. If
SAMSUNG determines that any Product is not covered by this
Limited Warranty, you must pay all parts, shipping, and labor
charges for the repair or return of such Product.
You should keep a separate backup copy of any contents of
the Product before delivering the Product to SAMSUNG for
warranty service, as some or all of the contents may be
deleted or reformatted during the course of warranty service.
Warranty Information 213
What are the limits on SAMSUNG’s liability?
THIS LIMITED WARRANTY SETS OUT THE FULL EXTENT OF
SAMSUNG’S RESPONSIBILITIES, AND THE EXCLUSIVE
REMEDY REGARDING THE PRODUCTS.
ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT
SHALL SAMSUNG BE LIABLE FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT OR FOR, WITHOUT
LIMITATION, COMMERCIAL LOSS OF ANY SORT; LOSS OF
USE, TIME, DATA, REPUTATION, OPPORTUNITY, GOODWILL,
PROFITS OR SAVINGS; INCONVENIENCE; INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES; OR
DAMAGES ARISING FROM THE USE OR INABILITY TO USE THE
PRODUCT. SOME STATES AND JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
AND DISCLAIMERS MAY NOT APPLY TO YOU.
SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS,
EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO
THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE
OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OR
EQUIPMENT USED IN CONJUNCTION WITH THE PRODUCT, OR
THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR
EQUIPMENT WITH THE PRODUCT, WHETHER SUCH
THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH
THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE.
RESPONSIBILITY FOR THE QUALITY, CAPABILITIES,
OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY
SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT RESTS
SOLELY WITH THE USER AND THE DIRECT VENDOR, OWNER
OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT.
Nothing in the Product instructions or information shall be
construed to create an express warranty of any kind with
respect to the Products. No agent, employee, dealer,
representative or reseller is authorized to modify or extend
this Limited Warranty or to make binding representations or
claims, whether in advertising, presentations or otherwise,
on behalf of SAMSUNG regarding the Products or this Limited
Warranty.
This Limited Warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
214
What is the procedure for resolving disputes?
ALL DISPUTES WITH SAMSUNG ARISING IN ANY WAY FROM
THIS LIMITED WARRANTY OR THE SALE, CONDITION OR
PERFORMANCE OF THE PRODUCTS SHALL BE RESOLVED
EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION,
AND NOT BY A COURT OR JURY.
Any such dispute shall not be combined or consolidated with
a dispute involving any other person’s or entity’s Product or
claim, and specifically, without limitation of the foregoing,
shall not under any circumstances proceed as part of a class
action. The arbitration shall be conducted before a single
arbitrator, whose award may not exceed, in form or amount,
the relief allowed by the applicable law. The arbitration shall
be conducted according to the American Arbitration
Association (AAA) Commercial Arbitration Rules applicable to
consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State
of Texas, without reference to its choice of laws principles,
shall govern the interpretation of the Limited Warranty and all
disputes that are subject to this arbitration provision. The
arbitrator shall decide all issues of interpretation and
application of this arbitration provision and the Limited
Warranty.
For any arbitration in which your total damage claims,
exclusive of attorney fees and expert witness fees, are
$5,000.00 or less (“Small Claim”), the arbitrator may, if you
prevail, award your reasonable attorney fees, expert witness
fees and costs as part of any award, but may not grant
SAMSUNG its attorney fees, expert witness fees or costs
unless it is determined that the claim was brought in bad
faith. In a Small Claim case, you shall be required to pay no
more than half of the total administrative, facility and
arbitrator fees, or $50.00 of such fees, whichever is less, and
SAMSUNG shall pay the remainder of such fees.
Administrative, facility and arbitrator fees for arbitrations in
which your total damage claims, exclusive of attorney fees
and expert witness fees, exceed $5,000.00 (“Large Claim”)
shall be determined according to AAA rules. In a Large Claim
case, the arbitrator may grant to the prevailing party, or
apportion among the parties, reasonable attorney fees,
expert witness fees and costs. Judgment may be entered on
the arbitrator’s award in any court of competent jurisdiction.
This arbitration provision also applies to claims against
SAMSUNG’s employees, representatives and affiliates if any
such claim arises from the Product’s sale, condition or
performance.
Warranty Information 215
You may opt out of this dispute resolution procedure by
providing notice to SAMSUNG no later than 30 calendar days
from the date of the first consumer purchaser’s purchase of the
Product. To opt out, you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: “Arbitration
Opt Out.” You must include in the opt out e-mail (a) your name
and address; (b) the date on which the Product was purchased;
(c) the Product model name or model number; and (d) the IMEI
or MEID or Serial Number, as applicable, if you have it (the IMEI
or MEID or Serial Number can be found (i) on the Product box;
(ii) on the Product information screen, which can be found
under “Settings;” (iii) on a label on the back of the Product
beneath the battery, if the battery is removable; and (iv) on the
outside of the Product if the battery is not removable).
Alternatively, you may opt out by calling 1-888-987-4357 no
later than 30 calendar days from the date of the first consumer
purchaser’s purchase of the Product and providing the same
information. These are the only two forms of notice that will be
effective to opt out of this dispute resolution procedure. Opting
out of this dispute resolution procedure will not affect the
coverage of the Limited Warranty in any way, and you will
continue to enjoy the benefits of the Limited Warranty.
Severability
If any portion of this Limited Warranty is held to be illegal or
unenforceable, such partial illegality or unenforceability shall
not affect the enforceability of the remainder of the Limited
Warranty.
Precautions for Transfer and Disposal
If data stored on this device is deleted or reformatted using
the standard methods, the data only appears to be removed
on a superficial level, and it may be possible for someone to
retrieve and reuse the data by means of special software.
To avoid unintended information leaks and other problems of
this sort, it is recommended that the device be returned to
Samsung’s Customer Care Center for an Extended File
System (EFS) Clear which will eliminate all user memory and
return all settings to default settings. Please contact the
Samsung Customer Care Center
for details.
Important!
Please provide warranty information (proof of
purchase) to Samsung’s Customer Care Center in
order to provide this service at no charge. If the
warranty has expired on the device, charges may
apply.
216
Samsung Telecommunications America, LLC
1301 E. Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
No reproduction in whole or in part allowed without prior
written approval. Specifications and availability subject to
change without notice. [111611]
End User License Agreement for
Software
IMPORTANT. READ CAREFULLY: This End User License
Agreement ("EULA") is a legal agreement between you
(either an individual or a single entity) and Samsung
Electronics Co., Ltd. ("Samsung") for software, owned by
Samsung and its affiliated companies and its third party
suppliers and licensors, that accompanies this EULA, which
includes computer software and may include associated
media, printed materials, "online" or electronic
documentation in connection with your use of this device
("Software").
This device requires the use of preloaded software in its
normal operation. BY USING THE DEVICE OR ITS PRELOADED
SOFTWARE, YOU ACCEPT THE TERMS OF THIS EULA. IF YOU
DO NOT ACCEPT THESE TERMS, DO NOT USE THE DEVICE OR
THE SOFTWARE.
1.
GRANT OF LICENSE
. Samsung grants you the following
rights provided that you comply with all terms and conditions
of this EULA: You may install, use, access, display and run
one copy of the Software on the local hard disk(s) or other
permanent storage media of one computer and use the
Software on a single computer or a mobile device at a time,
and you may not make the Software available over a network
where it could be used by multiple computers at the same
time. You may make one copy of the Software in machine
readable form for backup purposes only; provided that the
backup copy must include all copyright or other proprietary
notices contained on the original.
Certain items of the Software may be subject to open source
licenses. The open source license provisions may override
some of the terms of this EULA. We make the applicable
open source licenses available to you on the Legal Notices
section of the Settings menu of your device.
Warranty Information 217
2.
RESERVATION OF RIGHTS AND OWNERSHIP
. Samsung
reserves all rights not expressly granted to you in this EULA.
The Software is protected by copyright and other intellectual
property laws and treaties. Samsung or its suppliers own the
title, copyright and other intellectual property rights in the
Software. The Software is licensed, not sold.
3.
LIMITATIONS ON END USER RIGHTS
. You may not reverse
engineer, decompile, disassemble, or otherwise attempt to
discover the source code or algorithms of, the Software
(except and only to the extent that such activity is expressly
permitted by applicable law not withstanding this limitation),
or modify, or disable any features of, the Software, or create
derivative works based on the Software. You may not rent,
lease, lend, sublicense or provide commercial hosting
services with the Software.
4.
CONSENT TO USE OF DATA
. You agree that Samsung and its
affiliates may collect and use technical information gathered
as part of the product support services related to the
Software provided to you, if any, such as IMEI (your device’s
unique identification number), device number, model name,
customer code, access recording, your device’s current SW
version, MCC (Mobile Country Code), MNC (Mobile Network
Code). Samsung and its affiliates may use this information
solely to improve their products or to provide customized
services or technologies to you and will not disclose this
information in a form that personally identifies you. At all
times your information will be treated in accordance with
Samsung’s Privacy Policy, which can be viewed at:
http://account.samsung.com/membership/pp
.
5.
SOFTWARE UPDATES
. Samsung may provide to you or
make available to you updates, upgrades, supplements and
add-on components (if any) of the Software, including bug
fixes, service upgrades (parts or whole), products or devices,
and updates and enhancements to any software previously
installed (including entirely new versions), (collectively
“Update”) after the date you obtain your initial copy of the
Software to improve the Software and ultimately enhance
your user experience with your device. This EULA applies to
all and any component of the Update that Samsung may
provide to you or make available to you after the date you
obtain your initial copy of the Software, unless we provide
other terms along with such Update. To use Software
provided through Update, you must first be licensed for the
Software identified by Samsung as eligible for the Update.
After the Update, you may no longer use the Software that
formed the basis for your Update eligibility. The updated
Software version may add new functions and, in some
limited cases, may delete existing functions.
218
While the Update will be generally available, in some limited
circumstances, the Software updates will only be offered by
your network carrier, and such Software updates will be
governed by your contractual relationship with your network
carrier.
With the “Automatic Update” function enabled (as in the
default setting in the System Update menu in the Setting),
your device downloads some Updates automatically from
time to time. Your device will, however, ask for your consent
before installing any Update If you choose to disable the
“Automatic Update” function, then you can check the
availability of new Updates by clicking on the “Check
Update” menu in the Setting. We recommend that you check
availability of any new Updates periodically for optimal use of
your device. If you want to avoid any use of network data for
the Update downloads, then you should choose the “Wi-Fi
Only” option in the Setting. (Regardless of the option you
choose, the “Automatic Update” function downloads Updates
only through Wi-Fi connection.)
6. Some features of the Software may require your device to
have access to the internet and may be subject to
restrictions imposed by your network or internet provider.
Unless your device is connected to the internet through Wi-Fi
connection, the Software will access through your mobile
network, which may result in additional charges depending
on your payment plan. In addition, your enjoyment of some
features of the Software may be affected by the suitability
and performance of your device hardware or data access.
7.
SOFTWARE TRANSFER
. You may not transfer this EULA or
the rights to the Software granted herein to any third party
unless it is in connection with the sale of the mobile device
which the Software accompanied. In such event, the transfer
must include all of the Software (including all component
parts, the media and printed materials, any upgrades, this
EULA) and you may not retain any copies of the Software.
The transfer may not be an indirect transfer, such as a
consignment. Prior to the transfer, the end user receiving the
Software must agree to all the EULA terms.
8.
EXPORT RESTRICTIONS
. You acknowledge that the
Software is subject to export restrictions of various countries.
You agree to comply with all applicable international and
national laws that apply to the Software, including all the
applicable export restriction laws and regulations.
9.
TERMINATION
. This EULA is effective until terminated. Your
rights under this License will terminate automatically without
notice from Samsung if you fail to comply with any of the
Warranty Information 219
terms and conditions of this EULA. Upon termination of this
EULA, you must cease all use of the Software and destroy all
copies, full or partial, of the Software.
10.
DISCLAIMER OF WARRANTY
. UNLESS SEPARATELY STATED
IN A WRITTEN EXPRESS LIMITED WARRANTY
ACCOMPANYING YOUR DEVICE, ALL SOFTWARE PROVIDED
BY SAMSUNG WITH THIS MOBILE DEVICE (WHETHER
INCLUDED WITH THE DEVICE, DOWNLOADED, OR
OTHERWISE OBTAINED) IS PROVIDED "AS IS" AND ON AN
"AS AVAILABLE" BASIS, WITHOUT WARRANTIES OF ANY KIND
FROM SAMSUNG, EITHER EXPRESS OR IMPLIED. TO THE
FULLEST EXTENT POSSIBLE PURSUANT TO APPLICABLE
LAW, SAMSUNG DISCLAIMS ALL WARRANTIES EXPRESS,
IMPLIED, OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTORY
QUALITY OR WORKMANLIKE EFFORT, FITNESS FOR A
PARTICULAR PURPOSE, RELIABILITY OR AVAILABILITY,
ACCURACY, LACK OF VIRUSES, QUIET ENJOYMENT, NON
INFRINGEMENT OF THIRD PARTY RIGHTS OR OTHER
VIOLATION OF RIGHTS. SOME JURISDICTIONS DO NOT
ALLOW EXCLUSIONS OR LIMITATIONS OF IMPLIED
WARRANTIES, SO THE ABOVE EXCLUSIONS OR LIMITATIONS
MAY NOT APPLY TO YOU. NO ADVICE OR INFORMATION,
WHETHER ORAL OR WRITTEN, OBTAINED BY YOU FROM
SAMSUNG OR ITS AFFILIATES SHALL BE DEEMED TO ALTER
THIS DISCLAIMER BY SAMSUNG OF WARRANTY REGARDING
THE SOFTWARE, OR TO CREATE ANY WARRANTY OF ANY
SORT FROM SAMSUNG.
11.
THIRD-PARTY APPLICATIONS
. Certain third party
applications may be included with, or downloaded to this
mobile device. Samsung makes no representations
whatsoever about any of these applications. Since Samsung
has no control over such applications, you acknowledge and
agree that Samsung is not responsible for the availability of
such applications and is not responsible or liable for any
content, advertising, products, services, or other materials
on or available from such applications. You expressly
acknowledge and agree that use of third party applications is
at your sole risk and that the entire risk of unsatisfactory
quality, performance, accuracy and effort is with you. It is up
to you to take precautions to ensure that whatever you select
to use is free of such items as viruses, worms, Trojan horses,
and other items of a destructive nature. References on this
mobile device to any names, marks, products, or services of
any third-parties are provided solely as a convenience to you,
and do not constitute or imply an endorsement, sponsorship,
or recommendation of, or affiliation with the third party or its
products and services. You agree that Samsung shall not be
220
responsible or liable, directly or indirectly, for any damage or
loss, including but not limited to any damage to the mobile
device or loss of data, caused or alleged to be caused by, or
in connection with, use of or reliance on any such third party
content, products, or services available on or through any
such application. You acknowledge and agree that the use of
any third-party application is governed by such third party
application provider's Terms of Use, License Agreement,
Privacy Policy, or other such agreement and that any
information or personal data you provide, whether knowingly
or unknowingly, to such third-party application provider, will
be subject to such third party application provider's privacy
policy, if such a policy exists. SAMSUNG DISCLAIMS ANY
RESPONSIBILITY FOR ANY DISCLOSURE OF INFORMATION OR
ANY OTHER PRACTICES OF ANY THIRD PARTY APPLICATION
PROVIDER. SAMSUNG EXPRESSLY DISCLAIMS ANY
WARRANTY REGARDING WHETHER YOUR PERSONAL
INFORMATION IS CAPTURED BY ANY THIRD PARTY
APPLICATION PROVIDER OR THE USE TO WHICH SUCH
PERSONAL INFORMATION MAY BE PUT BY SUCH THIRD
PARTY APPLICATION PROVIDER.
12.
SAMSUNG APPLICATIONS
. Certain Samsung applications
and services may be included with, or downloaded to, this
mobile device. Many of them require Samsung Services
membership registration (“Samsung Account”), and your
rights and obligations will be set forth in separate Samsung
Account terms and conditions and privacy policies. There are
non-Samsung Account applications and services that require
your consent to their separate terms and conditions and
privacy policies. You expressly acknowledge and agree that
your use of such applications and services will be subject to
the applicable terms and conditions and privacy policies.
13.
LIMITATION OF LIABILITY
. SAMSUNG WILL NOT BE LIABLE
FOR ANY DAMAGES OF ANY KIND ARISING OUT OF OR
RELATING TO THE USE OR THE INABILITY TO USE THE
SOFTWARE OR ANY THIRD PARTY APPLICATION, ITS
CONTENT OR FUNCTIONALITY, INCLUDING BUT NOT LIMITED
TO DAMAGES CAUSED BY OR RELATED TO ERRORS,
OMISSIONS, INTERRUPTIONS, DEFECTS, DELAY IN
OPERATION OR TRANSMISSION, COMPUTER VIRUS, FAILURE
TO CONNECT, NETWORK CHARGES, IN-APP PURCHASES,
AND ALL OTHER DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES EVEN IF
SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. NOTWITHSTANDING
Warranty Information 221
THE FOREGOING, SAMSUNG ELECTRONIC CO.'S TOTAL
LIABILITY TO YOU FOR ALL LOSSES, DAMAGES, CAUSES OF
ACTION, INCLUDING BUT NOT LIMITED TO THOSE BASED ON
CONTRACT, TORT, OR OTHERWISE, ARISING OUT OF YOUR
USE OF THE SOFTWARE OR THIRD PARTY APPLICATIONS ON
THIS MOBILE DEVICE, OR ANY OTHER PROVISION OF THIS
EULA, SHALL NOT EXCEED THE AMOUNT PURCHASER PAID
SPECIFICALLY FOR THIS MOBILE DEVICE OR ANY SUCH
THIRD PARTY APPLICATION THAT WAS INCLUDED WITH THIS
MOBILE DEVICE. THE FOREGOING LIMITATIONS,
EXCLUSIONS, AND DISCLAIMERS (INCLUDING SECTIONS 10,
11, 12 AND 13) SHALL APPLY TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, EVEN IF ANY REMEDY
FAILS ITS ESSENTIAL PURPOSE.
14.
U.S. GOVERNMENT END USERS RESTRICTED RIGHTS
. The
Software is licensed only with "restricted rights" and as
"commercial items" consisting of "commercial software"
and "commercial software documentation" with only those
rights as are granted to all other end users pursuant to the
terms and conditions herein. All Products are provided only
with "restricted rights" with only those rights as are granted
to all other end users pursuant to the terms and conditions
herein. All Software and Products are provided subject to
Federal Acquisition Regulation (FAR) 52.227.19.
15.
APPLICABLE LAW
. This EULA is governed by the laws of
the jurisdiction where you are a resident or, if a resident of
the United States, by the laws of the state of Texas, without
regard to its conflict of law provisions. This EULA shall not be
governed by the UN Convention on Contracts for the
International Sale of Goods, the application of which is
expressly excluded.
16.
DISPUTE RESOLUTION
.
(a) Non-United States residents. If a dispute, controversy or
difference arising in any way from this EULA or your use of
the Software is not amicably settled, it shall be subject to the
non-exclusive jurisdiction of the courts of the jurisdiction
where you are a resident. Notwithstanding the foregoing,
Samsung may apply for injunctive remedies (or an equivalent
type of urgent legal relief) in any jurisdiction.
(b) United States residents. ALL DISPUTES WITH SAMSUNG
ARISING IN ANY WAY FROM THIS EULA OR YOUR USE OF THE
SOFTWARE SHALL BE RESOLVED EXCLUSIVELY THROUGH
FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR
JURY. Any such dispute shall not be combined or
consolidated with any other person’s or entity’s claim or
dispute, and specifically, without limitation of the foregoing,
shall not under any circumstances proceed as part of a class
222
action. The arbitration shall be conducted before a single
arbitrator, whose award may not exceed, in form or amount,
the relief allowed by the applicable law. The arbitration shall
be conducted according to the American Arbitration
Association (AAA) Commercial Arbitration Rules applicable to
consumer disputes. This arbitration provision is entered
pursuant to the Federal Arbitration Act. The laws of the State
of Texas, without reference to its choice of laws principles,
shall govern the interpretation of the EULA and all disputes
that are subject to this arbitration provision. The arbitrator
shall decide all issues of interpretation and application of this
arbitration provision and the EULA. For any arbitration in
which your total damage claims, exclusive of attorney fees
and expert witness fees, are $5,000.00 or less ("Small
Claim"), the arbitrator may, if you prevail, award your
reasonable attorney fees, expert witness fees and costs as
part of any award, but may not grant Samsung its attorney
fees, expert witness fees or costs unless it is determined that
the claim was brought in bad faith. In a Small Claim case,
you shall be required to pay no more than half of the total
administrative, facility and arbitrator fees, or $50.00 of such
fees, whichever is less, and Samsung shall pay the
remainder of such fees. Administrative, facility and arbitrator
fees for arbitrations in which your total damage claims,
exclusive of attorney fees and expert witness fees, exceed
$5,000.00 ("Large Claim") shall be determined according to
AAA rules. In a Large Claim case, the arbitrator may grant to
the prevailing party, or apportion among the parties,
reasonable attorney fees, expert witness fees and costs.
Judgment may be entered on the arbitrator's award in any
court of competent jurisdiction. This arbitration provision also
applies to claims against Samsung’s employees,
representatives and affiliates if any such claim arises from
the licensing or use of the Software. You may opt out of this
dispute resolution procedure by providing notice to Samsung
no later than 30 calendar days from the date of the first
consumer purchaser’s purchase of this device. To opt out,
you must send notice by e-mail to
optout@sta.samsung.com, with the subject line: "Arbitration
Opt Out." You must include in the opt out e-mail (a) your
name and address; (b) the date on which the device was
purchased; (c) the device model name or model number; and
(d) the IMEI or MEID or Serial Number, as applicable, if you
have it (the IMEI or MEID or Serial Number can be found (i) on
the device box; (ii) on the device information screen, which
can be found under "Settings;" (iii) on a label on the back of
the device beneath the battery, if the battery is removable;
and (iv) on the outside of the device if the battery is not
Warranty Information 223
removable). Alternatively, you may opt out by calling
1-888-987-4357 no later than 30 calendar days from the
date of the first consumer purchaser's purchase of the
device and providing the same information. These are the
only two forms of notice that will be effective to opt out of
this dispute resolution procedure. Opting out of this dispute
resolution procedure will not affect your use of the device or
its preloaded Software, and you will continue to enjoy the
benefits of this license.
17.
ENTIRE AGREEMENT; SEVERABILITY
. This EULA is the
entire agreement between you and Samsung relating to the
Software and supersedes all prior or contemporaneous oral
or written communications, proposals and representations
with respect to the Software or any other subject matter
covered by this EULA. If any provision of this EULA is held to
be void, invalid, unenforceable or illegal, the other provisions
shall continue in full force and effect. [050113]
224
Index
Numerics
2-Sec Pause
Adding 58
A
Abc mode 70
Accessory Settings 161
Accounts
adding a Google account 44
setting up 44
Airplane mode 146
AllShare Play
see Samsung Link 122, 123
AllShareCast Hub 122
Applications
downloading new 118
AT&T Music
Playlists 90
B
Back key 24
Battery
cover, removing 6
Wall Charger 10
Battery Use & Safety 196
Bigger Font
Setting 162
Bluetooth
pairing with a device 129
profiles 144
settings 145
turning on or off 129
C
Calculator 107
Calendar 107
Call
Settings 58
Call log
creating/updating contacts 63
managing 63
sending messages 63
Calls
answering 60
call-waiting 61
ending 62
from Call log 59
from Contacts 58
from Favorites 59
in-call options 61
rejecting 60
sending to voicemail 60
settings 64
silencing a ringer 60
three-way 60
using the Keypad 57
Camcorder
recording video 97
settings 98
Camera
settings 94
taking pictures 93
Care and Maintenance 201
Children and Cell Phones 191
Clock 110
Commercial Mobile Alerting System
(CMAS) 194
225
Contacts
creating 47
creating from Call log 49
creating from the Keypad 49
exporting and importing 53
groups 54
joining 52
My Profile 51
namecards 53
speed dials 56
starred contacts 54
updating 49
updating from Call log 50, 63
updating from Keypad 49
Creating a Playlist 90
D
Deregister
Web Storage Service 124
Display
Using Negative Colors 162
Display / Touch-Screen 199
Do cell phones pose a health
hazard? 187
Dropbox 124
E
Email
account settings 83
combined Inbox 83
composing and sending 82
Creating a Microsoft Exchange
Email Account 81
Creating Additional Email
Accounts 82
refreshing your accounts 83
Switching Between Email
Accounts 82
Emergency Calls 200
Entering Text
Changing the Text Entry Mode 70
Using 123Sym Mode 71
Using Abc Mode 70
Using Swype 73
Using Symbol/Numeric Mode 71
Exposure to Radio Frequency (RF)
Signals 187
F
FCC Hearing Aid Compatibility (HAC)
Regulations for Wireless Devices
206
FCC Notice and Cautions 208
Font Size
Changing 162
G
Gallery
viewing pictures and video 100
viewing videos 101
Gestures
Browse Image 168
Screen Capture 169
Shake to Update 168
Tilt to Zoom 168
Gmail
composing and sending 84
configuring your account 83
managing your account 84
refreshing your account 84
226
Google
Gmail 83
managing an account 46
Maps 115
Play Store 118
setting up an account 44
your account 15
YouTube 104, 126
Google Voice Typing 73
GPS 200
Groups
adding contacts 55
creating 54
sending a message 56
H
Hand motions 26
Handwriting feature 72
HDMI Port 23
Health and Safety Information 187
Home key 24
Home screen 34
adding shortcuts 39
adding widgets 38
customizing 37
folders 39
primary shortcuts 38
wallpaper 40
I
Incognito 132
Create Window 132
Exit Window 132
Internet 114, 130
L
Landscape 69
Locking and Unlocking
unlocking the keypad 12, 19
M
Maps 115
Memory Card
erasing 43
removing 42
Memory settings
internal phone storage 182
Menu
key 24
Messages
creating and sending 75
email 80
Gmail 83
managing 77
settings 77
types 75
Messaging
Handwriting 72
Signing into Email 80
microSDHC card 7
Mobile Hotspot
using the phone as a hotspot 133
Mobile networks
settings 147
Mono
Audio Setup 162
Motions 25
227
Multi Window 26
Customizing 31
Increase App Window Size 28
Maximize App 29
Moving the Tab and Tray 29
Panel Relocation 30
Rearrange Apps 31
Removing Apps 31
Restoring Apps 31
Running Multiple Apps 28
Switch Arrangement 28
Music
Music Player 87, 116
setting a song as a ringtone 91
Music File Extensions
AAC 87, 116
AAC+ 87, 116
eAAC+ 87, 116
MP3 87, 116
WMA 87, 116
Music Player
adding music 90
creating a playlist 90
removing music 90
My Files 116
My Profile 51
sending 51
N
Namecards
sending 53
Navigation
command keys 38
touch gestures 25
Negative Colors 162
Notification Panel 32
O
Operating Environment 204
Other Important Safety
Information 209
P
Pairing with Bluetooth 129
PC Connections 138
Personal Localized Alerting Network
(PLAN) 194
Phone settings
Date & time 183
language 163
Pictures
taking 93
Play Store 118
Powering On and Off 11
Q
QWERTY keypad 69
R
Reducing Exposure
Hands-Free Kits and Other
Accessories 190
Responsible Listening 202
Restricting Children's Access to Your
Mobile Device 208
Ringtones
setting a song as a ringtone 91
S
S Memo
Creating a New Memo 119
228
Samsung Link
Configuring Settings 123
Definitions 122
Deregister Storage 124
Sharing Media 125
Web Storage Setup 124
Samsung Mobile Products and
Recycling 198
Screen Capture 169
Security
locking the phone 18
Security settings
credential storage 180
Settings 140
Call 58
SkyDrive 124
Smart Practices While Driving 195
Smart screen 169
Software Update 185
Specific Absorption Rate (SAR)
Certification Information 192
Speed Dials
assigning 56
removing or reassigning 56
Standard Limited Warranty 211
SugarSync 124
SWYPE
entering text using 73
Swype
Cellular Data 165
Gestures 165
Updates 165
Symbol/Numeric mode 71
T
Text Input
Abc mode 70
Methods 69
numeric mode 71
symbol mode 71
Text settings
default 163
Google voice typing 166
Samsung keyboard 163
TTY Mode 19
Turning the Phone On and Off 11
U
UL Certified Travel Charger 199
Unlocking
using an unlock pattern 19
USB Power/Accessory Port 22
USB settings
mass storage device 138
Using Favorites
Deleting a Favorite 133
V
Videos
recording 97
Voice control 170
Voicemail
checking 17
setting up 17
Volume
key 22
229
W
Warranty Information 211
Widgets 38
Wi-Fi
adding a connection
manually 128
scanning and connecting 127
settings 141
turning on or off 127
using the phone as a hotspot 133
Wi-Fi Direct 134
connecting to other devices 134
settings 135
turning on and off 134
Wireless Networking
Bluetooth 128
Wi-Fi 127
Y
YouTube 104, 126

Navigation menu
