About the User’s Guide
This
User’s Guide
provides information you need for setting up your machine.
It also provides all of the detailed instructions for using your machine as a printer, a scanner, a copier, and a facsimile,
and information for maintaining and troubleshooting the machine.
The
Software User’s Guide
which is the second section of this guide provides information you need for installing the supplied software and using its
features.
This manual is provided for information purposes only. All information included herein is subject to change without notice.
Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to use of this manual.
© 2008 Samsung Electronics
Co., Ltd
. All rights reserved.
• SCX-4321, SCX-4521F and SCX-4521FR are model names of Samsung Electronics Co., Ltd.
• SAMSUNG and Samsung logo are trademarks of Samsung Electronics Co., Ltd.
• Apple, AppleTalk, TrueType, Laser Writer, and Macintosh are trademarks of Apple Computer, Inc.
• Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows NT 4.0, and Windows XP are registered trademarks of Microsoft
Corporation.
• All other brand or product names are trademarks of their respective companies or organization.
contact SAMSUNG worldwide
If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.
COUNTRY CUSTOMER CARE CENTER WEB SITE
ARGENTINE 0800-333-3733 www.samsung.com/ar
AUSTRALIA 1300 362 603 www.samsung.com/au
AUSTRIA 0800-SAMSUNG (726-
7864) www.samsung.com/at
BELGIUM 02 201 2418 www.samsung.com/be
BRAZIL 0800-124-421
4004-0000 www.samsung.com/br
CANADA 1-800-SAMSUNG (726-
7864) www.samsung.com/ca
CHILE 800-SAMSUNG (726-7864) www.samsung.com/cl
CHINA 800-810-5858
400-810-5858
010-6475 1880
www.samsung.com/cn
COLOMBIA 01-8000112112 www.samsung.com.co
COSTA RICA 0-800-507-7267 www.samsung.com/
latin
CZECH
REPUBLIC 800-726-786 (800 -
SAMSUNG) www.samsung.com/cz
Samsung Zrt.,
č
eská organiza
č
ní složka, Oasis
Florenc, Sokolovská394/17, 180 00, Praha 8
DENMARK 70 70 19 70 www.samsung.com/dk
ECUADOR 1-800-10-7267 www.samsung.com/
latin
EL
SALVADOR 800-6225 www.samsung.com/
latin
ESTONIA 800-7267 www.samsung.ee
KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/
kz_ru
KYRGYZSTAN 00-800-500-55-500
FINLAND 030-6227 515 www.samsung.com/fi
FRANCE 3260 SAMSUNG
08 25 08 65 65 (€ 0,15/min) www.samsung.com/fr
GERMANY 01805 - SAMSUNG (726-
7864 € 0,14/min) www.samsung.de
GUATEMALA 1-800-299-0013 www.samsung.com/
latin
HONDURAS 800-7919267 www.samsung.com/
latin
HONG KONG 3698 4698 www.samsung.com/hk
HUNGARY 06-80-SAMSUNG (726-
7864) www.samsung.com/hu
INDIA 3030 8282
1800 110011
1-800-3000-8282
www.samsung.com/in
INDONESIA 0800-112-8888 www.samsung.com/id
ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it
JAMAICA 1-800-234-7267 www.samsung.com/
latin
JAPAN 0120-327-527 www.samsung.com/jp
LATVIA 8000-7267 www.samsung.com/lv
LITHUANIA 8-800-77777 www.samsung.com/lt
LUXEMBURG 02 261 03 710 www.samsung.com/lu
MALAYSIA 1800-88-9999 www.samsung.com/my
MEXICO 01-800-SAMSUNG (726-
7864) www.samsung.com/mx
NETHERLAND
S0900 SAMSUNG(726-7864
€ 0,10/min) www.samsung.com/nl
NEW
ZEALAND 0800 SAMSUNG (0800 726
786) www.samsung.com/nz
NICARAGUA 00-1800-5077267 www.samsung.com/
latin
NORWAY 815-56 480 www.samsung.com/no
PANAMA 800-7267 www.samsung.com/
latin
PHILIPPINES 1800-10-SAMSUNG (726-
7864) www.samsung.com/ph
POLAND 0 801 801 881
022-607-93-33 www.samsung.com/pl
PORTUGAL 80820-SAMSUNG (726-
7864) www.samsung.com/pt
PUERTO RICO 1-800-682-3180 www.samsung.com/
latin
REP.
DOMINICA 1-800-751-2676 www.samsung.com/
latin
EIRE 0818 717 100 www.samsung.com/ie
RUSSIA 8-800-555-55-55 www.samsung.ru
SINGAPORE 1800-SAMSUNG (726-
7864) www.samsung.com/sg
SLOVAKIA 0800-SAMSUNG (726-
7864) www.samsung.com/sk
SOUTH
AFRICA 0860 SAMSUNG (724-
7864) www.samsung.com/za
COUNTRY CUSTOMER CARE CENTER WEB SITE
SPAIN 902-1-SAMSU(72678) www.samsung.com/es
SWEDEN 0771-400 200 www.samsung.com/se
SWITZERLAN
D0800-SAMSUNG (726-
7864) www.samsung.com/ch
TADJIKISTAN 8-10-800-500-55-500
TAIWAN 0800-329-999 www.samsung.com/tw
THAILAND 1800-29-3232
02-689-3232 www.samsung.com/th
TRINIDAD &
TOBAGO 1-800-SAMSUNG (726-
7864) www.samsung.com/
latin
TURKEY 444 77 11 www.samsung.com/tr
U.A.E 800-SAMSUNG (726-7864)
8000-4726 www.samsung.com/ae
U.K 0845 SAMSUNG (726-
7864) www.samsung.com/uk
U.S.A 1-800-SAMSUNG (726-
7864) www.samsung.com/us
UKRAINE 8-800-502-0000 www.samsung.ua
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/
kz_ru
VENEZUELA 0-800-100-5303 www.samsung.com/
latin
VIETNAM 1 800 588 889 www.samsung.com/vn
COUNTRY CUSTOMER CARE CENTER WEB SITE
CONTENTS
1. Introduction
Special Features .................................................................................................................... 1.1
Understanding Component Locations ........................................................................................ 1.2
Front View ....................................................................................................................... 1.2
Rear View ........................................................................................................................ 1.2
Control Panel Functions ..................................................................................................... 1.3
2. Getting Started
Unpacking ............................................................................................................................. 2.1
Selecting a Location .......................................................................................................... 2.2
Installing the Toner Cartridge .................................................................................................. 2.2
Loading Paper ....................................................................................................................... 2.3
Making Connections ............................................................................................................... 2.4
Turning the Machine On .......................................................................................................... 2.6
Installing Printer Software ....................................................................................................... 2.7
System Requirements ....................................................................................................... 2.7
Printer Driver Features ...................................................................................................... 2.8
Changing the Display Language and Country ............................................................................. 2.8
Setting Language ............................................................................................................. 2.8
Setting Country ................................................................................................................ 2.8
Setting the Machine ID
(Only for
SCX-4521F/ SCX-4521FR
) ......................................................................... 2.9
Entering Characters Using the
Number Keypad ............................................................................................................... 2.9
Setting the Date and Time
(Only for
SCX-4521F/ SCX-4521FR
) ....................................................................... 2.10
Changing the Clock Mode ................................................................................................. 2.10
Setting the Paper Size and Type ............................................................................................. 2.10
Setting Sounds
(Only for
SCX-4521F/ SCX-4521FR
) .................................................... 2.11
Speaker, Ringer, Key Sound, and Alarm Sound ................................................................... 2.11
Speaker Volume ............................................................................................................. 2.11
Using the Save Modes .......................................................................................................... 2.11
Toner Save Mode ............................................................................................................ 2.11
Power Save Mode ........................................................................................................... 2.11
Setting the Dial Mode
(Only for
SCX-4521F/ SCX-4521FR
) ....................................................................... 2.12
3. Paper Handling
Selecting Print Materials .......................................................................................................... 3.1
Paper Type, Input Sources, and Capacities ........................................................................... 3.1
Guidelines for Paper and Special Materials ........................................................................... 3.2
Loading Paper ....................................................................................................................... 3.3
Using the Tray ................................................................................................................. 3.3
Using the Manual Tray ....................................................................................................... 3.3
Verifying an Output Location ................................................................................................... 3.3
4. Copying
Loading Paper for Copying ....................................................................................................... 4.1
Preparing a Document ............................................................................................................ 4.1
Making Copies on the Document Glass ...................................................................................... 4.2
Making Copies from the Automatic Document Feeder .................................................................. 4.2
Setting Copy Options .............................................................................................................. 4.3
Darkness ......................................................................................................................... 4.3
Original Type ................................................................................................................... 4.3
Reduced/Enlarged Copy ..................................................................................................... 4.3
Number of Copies ............................................................................................................. 4.3
Using Special Copy Features .................................................................................................... 4.4
Clone Copying .................................................................................................................. 4.4
Collation Copying .............................................................................................................. 4.4
Auto Fit Copying ............................................................................................................... 4.4
ID Card Copying ............................................................................................................... 4.5
2 Up or 4 Up Copying ........................................................................................................ 4.5
Poster Copying ................................................................................................................. 4.5
Changing the Default Settings ................................................................................................. 4.6
Setting the Time Out Option .................................................................................................... 4.6
Setting the Favorite Copy Option .............................................................................................. 4.6
5. Basic Printing
Printing a Document ............................................................................................................... 5.1
Canceling a Print Job .............................................................................................................. 5.1
6. Scanning
Scanning Basics ..................................................................................................................... 6.1
Scanning From the Control Panel to an Application ..................................................................... 6.1
7. Faxing (Only for SCX-4521F/ SCX-4521FR)
Changing the Fax Setup options ............................................................................................... 7.1
Available Fax Setup Options .................................................................................................... 7.1
Loading a Document ............................................................................................................... 7.3
Adjusting the Document Resolution .......................................................................................... 7.4
Sending a Fax Automatically .................................................................................................... 7.4
Sending a Fax Manually .......................................................................................................... 7.5
Redialing the Last Number ...................................................................................................... 7.5
Confirming Transmission ......................................................................................................... 7.5
Automatic Redialing ................................................................................................................ 7.5
About Receiving Modes ........................................................................................................... 7.6
Loading Paper for Receiving Faxes ............................................................................................ 7.6
Receiving Automatically in Fax Mode ......................................................................................... 7.6
Receiving Manually in Tel Mode ................................................................................................ 7.6
Receiving Automatically in Ans/
Fax Mode .............................................................................................................................. 7.6
Receiving Manually Using an Extension Telephone ...................................................................... 7.7
Receiving Faxes Using the DRPD Mode ...................................................................................... 7.7
Receiving Faxes in the Memory ................................................................................................ 7.7
Speed Dialing ........................................................................................................................ 7.8
Storing a Number for Speed Dialing .................................................................................... 7.8
Sending a Fax using a Speed Dial Number ........................................................................... 7.8
Group Dialing ........................................................................................................................ 7.8
Setting a Group Dial Number ............................................................................................. 7.8
Editing Group Dial Numbers ............................................................................................... 7.9
Sending a Fax Using Group Dialing
(Multi-address Transmission) ............................................................................................. 7.9
Searching for a Number in Memory .......................................................................................... 7.9
Searching Sequentially through the Memory ......................................................................... 7.9
Searching with a Particular First Letter .............................................................................. 7.10
Printing a Phonebook List ...................................................................................................... 7.10
Sending Broadcast Faxes ...................................................................................................... 7.10
Sending a Delayed Fax ......................................................................................................... 7.11
Sending a Priority Fax ........................................................................................................... 7.11
Adding Documents To a Scheduled Fax ................................................................................... 7.12
Canceling a Scheduled Fax .................................................................................................... 7.12
Using Secure Receiving Mode ................................................................................................ 7.13
Printing Reports ................................................................................................................... 7.13
Using Advanced Fax Settings ................................................................................................. 7.14
Changing Setting Options ................................................................................................ 7.14
Advanced Fax Setting Options .......................................................................................... 7.14
8. Maintenance
Clearing the Memory .............................................................................................................. 8.1
Setting the Machine to be Checked by Phone
(Only for
SCX-4521F/ SCX-4521FR
) ......................................................................... 8.2
Cleaning Your Machine ............................................................................................................ 8.2
Cleaning the Outside ......................................................................................................... 8.2
Cleaning the Inside ........................................................................................................... 8.2
Cleaning the Scan Unit ...................................................................................................... 8.3
Maintaining the Toner Cartridge ............................................................................................... 8.3
Redistributing Toner .......................................................................................................... 8.4

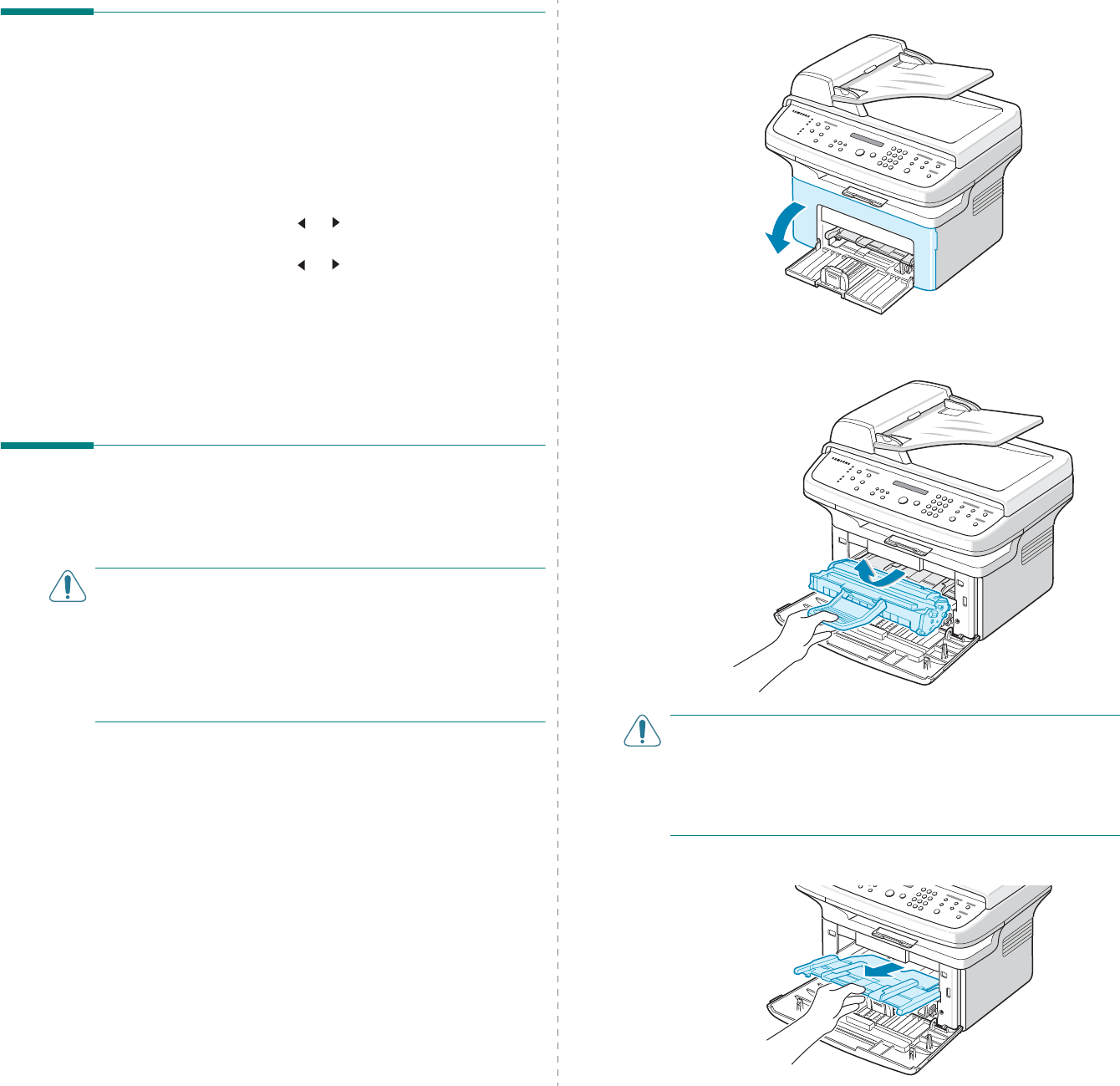

Replacing the Toner Cartridge ............................................................................................ 8.4
Setting the Notify Toner Option
(Only for
SCX-4521F/ SCX-4521FR
) .................................................................... 8.4
Cleaning the Drum ............................................................................................................ 8.5
Ignoring the Toner Empty Message
(Only for
SCX-4521F/ SCX-4521FR
) .......................... 8.5
Consumables and Replacement Parts ........................................................................................ 8.5
Replacing the ADF Rubber Pad ................................................................................................. 8.6
9. Troubleshooting
Clearing Document Jams ......................................................................................................... 9.1
Input Misfeed ................................................................................................................... 9.1
Exit Misfeed ..................................................................................................................... 9.2
Clearing Paper Jams ............................................................................................................... 9.2
In the Tray ...................................................................................................................... 9.2
In the Manual Tray ........................................................................................................... 9.2
In the Fuser Area or Around the Toner Cartridge ................................................................... 9.3
In the Paper Exit Area ....................................................................................................... 9.3
Tips for Avoiding Paper Jams .............................................................................................. 9.4
Clearing LCD Error Messages ................................................................................................... 9.4
Solving Other Problems .......................................................................................................... 9.6
Paper Feeding Problems .................................................................................................... 9.6
Printing Problems ............................................................................................................. 9.7
Printing Quality Problems ................................................................................................... 9.8
Copying Problems ........................................................................................................... 9.10
Scanning Problems ......................................................................................................... 9.11
Fax Problems (Only for SCX-4521F/ SCX-4521FR)
.................................................................... 9.11
Common Linux Problems ....................................................................................................... 9.12
Common Macintosh Problems ................................................................................................ 9.13
Problems in Printer Setup Utility ....................................................................................... 9.13
10. Specifications
General Specifications .......................................................................................................... 10.1
Scanner and Copier Specifications .......................................................................................... 10.2
Printer Specifications ............................................................................................................ 10.2
Facsimile Specifications
(Only for
SCX-4521F/ SCX-4521FR
)
............................................................................................. 10.3
Paper Specifications ............................................................................................................. 10.3
Overview ....................................................................................................................... 10.3
Supported Sizes of Paper ................................................................................................. 10.4
Guidelines for Using Paper ............................................................................................... 10.4
Paper Specifications ........................................................................................................ 10.5
Paper Output Capacity .................................................................................................... 10.5
Paper Storage Environment ............................................................................................. 10.5
Important Precautions and Safety Information
When using this machine, these basic safety precautions should always be
followed to reduce risk of fire, electric shock and injury to people:
1. Read and understand all instructions.
2. Use common sense whenever operating electrical appliances.
3. Follow all warnings and instructions marked on the machine and in the
literature accompanying the machine.
4. If an operating instruction appears to conflict with safety information,
heed the safety information. You may have misunderstood the operating
instruction. If you cannot resolve the conflict, contact your sales or
service representative for assistance.
5. Unplug the machine from the AC wall socket and/or telephone jack
before cleaning. Do not use liquid or aerosol cleaners. Use only a damp
cloth for cleaning.
6. Do not place the machine on an unstable cart, stand or table. It may fall,
causing serious damage.
7. Your machine should never be placed on, near or over a radiator, heater,
air conditioner or ventilation duct.
8. Do not allow anything to rest on the power. Do not locate your machine
where the cords will be abused by persons walking on them.
9. Do not overload wall outlets and extension cords. This can diminish
performance, and may result in the risk of fire or electric shock.
10. Do not allow pets to chew on the AC power, telephone or PC interface
cords.
11. Never push objects of any kind into the machine through case or cabinet
openings. They may touch dangerous voltage points, creating a risk of
fire or shock. Never spill liquid of any kind onto or into the machine.
12. Your machine may have a heavy cover for optimal pressure on the
document for the best scanning and/or faxing (usually the flatbed-type
machine). In this case, replace the cover after placing document on the
scan glass, by holding and moving it down slowly until it seats on its
location.
13. To reduce the risk of electric shock, do not disassemble the machine.
Take it to a qualified service technician when repair work is required.
Opening or removing covers may expose you to dangerous voltages or
other risks. Incorrect reassembly could cause electric shock when the
unit is subsequently used.
14. Unplug the machine from the telephone jack, PC and AC wall outlet and
refer servicing to qualified service personnel under the following
conditions:
•When any part of the power cord, plug or connecting cable is damaged
or frayed.
•If liquid has been spilled into the machine.
•If the machine has been exposed to rain or water.
•If the machine does not operate properly after instructions have been
followed.
•If the machine has been dropped, or the cabinet appears damaged.
•If the machine exhibits a sudden and distinct change in performance.
15. Adjust only those controls covered by the operating instructions.
Improper adjustment of other controls may result in damage, and may
require extensive work by a qualified service technician to restore the
machine to normal operation.
16. Avoid using this machine during a lightning storm. There may be a
remote risk of electric shock from lightning. If possible, unplug the AC
power and telephone cord for the duration of the lightning storm.
17. SAVE THESE INSTRUCTIONS.
18. Use only No.26 AWG or larger telephone line cord.
Laser Safety Statement
The printer is certified in the U.S. to conform to the requirements of DHHS
21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere
is certified as a Class I laser product conforming to the requirements of IEC
825.
Class I laser products are not considered to be hazardous. The laser system
and printer are designed so there is never any human access to laser
radiation above a Class I level during normal operation, user maintenance or
prescribed service condition.
WARNING
Never operate or service the printer with the protective cover removed from
Laser/Scanner assembly. The reflected beam, although invisible, can
damage your eyes.
Ozone Safety
During normal operation, this machine produces ozone.
The ozone produced does not present a hazard to the
operator. However, it is advisable that the machine be
operated in a well ventilated area.
If you need additional information about ozone, please
request your nearest Samsung dealer.
Mercury Safety
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST
BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE
OR FEDERAL LAWS. For details see lamprecycle.org, eiae.org, or
call 1-800-Samsung
Power Saver
This machine contains advanced energy conservation technology that
reduces power consumption when it is not in active use.
When the machine does not receive data for an extended period of time,
power consumption is automatically lowered.
The energy star emblem does not represent EPA endorsement of any
machine or service.
Recycling
Please recycle or dispose of the packaging material for this
product in an environmentally responsible manner.
Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems)
This marking shown on the product or its literature, indicates
that it should not be disposed with other household wastes
at the end of its working life. To prevent possible harm to
the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and
recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Radio Frequency Emissions
FCC Information to the User
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or experienced radio TV technician for help.
C
AUTION
:
Change or modifications not expressly approved by the
manufacturer responsible for compliance could void the user's authority to
operate the equipment.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry
and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques
applicables aux appareils numériques de Classe B prescrites dans la norme
sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par
l’Industrie et Sciences Canada.
Fax Branding
The Telephone Consumer Protection Act of 1991 makes it unlawful for any
person to use a computer or other electronic device to send any message via
a telephone facsimile machine unless such message clearly contains in a
margin at the top or bottom of each transmitted page or on the first page of
the transmission the following information:
(1) the date and time of transmission
(2) identification of either business, business entity or individual sending the
message; and
(3) telephone number of either the sending machine, business, business
entity or individual.
The Telephone Company may make changes in its communications facilities,
equipment operations or procedures where such action is reasonably
required in the operation of its business and is not inconsistent with the rules
and regulations in FCC Part 68. If such changes can be reasonably expected
to render any customer terminal equipment incompatible with telephone
company communications facilities, or require modification or alteration of
such terminal equipment, or otherwise materially affect its use or
performance, the customer shall be given adequate notice in writing, to allow
the customer an opportunity to maintain uninterrupted service.
Ringer Equivalence Number
The Ringer Equivalence Number and FCC Registration Number for this
machine may be found on the label located on the bottom or rear of the
machine. In some instances you may need to provide these numbers to the
telephone company.
The Ringer Equivalence Number (REN) is a measure of the electrical load
placed on the telephone line, and is useful for determining whether you have
“overloaded” the line. Installing several types of equipment on the same
telephone line may result in problems making and receiving telephone calls,
especially ringing when your line is called. The sum of all Ringer Equivalence
Numbers of the equipment on your telephone line should be less than five in
order to assure proper service from the telephone company. In some cases,
a sum of five may not be usable on your line. If any of your telephone
equipment is not operating properly, you should immediately remove it from
your telephone line, as it may cause harm to the telephone network.
WARNING:
FCC Regulations state that changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to
operate this equipment. In the event that terminal equipment causes harm
to the telephone network, the telephone company should notify the customer
that service may be stopped. However, where prior notice is impractical, the
company may temporarily cease service, providing that they:
a) promptly notify the customer.
b) give the customer an opportunity to correct the equipment problem.
c) inform the customer of the right to bring a complaint to the Federal
Communication Commission pursuant to procedures set out in FCC Rules and
Regulations Subpart E of Part 68.
You should also know that:
• Your machine is not designed to be connected to a digital PBX system.
• If you intend to use a computer modem or fax modem on the same phone
line as your machine, you may experience transmission and reception
problems with all the equipment. It is recommended that no other
equipment, except for a regular telephone, share the line with your
machine.
• If your area experiences a high incidence of lightning or power surges, we
recommend that you install surge protectors for both the power and the
telephone lines. Surge protectors can be purchased from your dealer or
telephone and electronic specialty stores.
• When programming emergency numbers and/or making test calls to
emergency numbers, use a non-emergency number to advise the
emergency service dispatcher of your intentions. The dispatcher will give
you further instructions on how to actually test the emergency number.
• This machine may not be used on coin service or party lines.
• This machine provides magnetic coupling to hearing aids.
• You may safely connect this equipment to the telephone network by
means of a standard modular jack, USOC RJ-11C.
Declaration of Conformity (European
Countries)
Approvals and Certifications
The CE marking applied to this product symbolizes Samsung
Electronics Co., Ltd. Declaration of Conformity with the
following applicable 93/68/EEC Directives of the European
Union as of the dates indicated:
January 1, 1995
: Council Directive 73/23/EEC Approximation of the laws
of the member states related to low voltage equipment.
January 1, 1996
: Council Directive 89/336/EEC (92/31/EEC),
approximation of the laws of the Member States related to electromagnetic
compatibility.
March 9, 1999
: Council Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment and the mutual recognition of their
conformity.
A full declaration, defining the relevant Directives and referenced standards
can be obtained from your Samsung Electronics Co., Ltd. representative.
EC Certification
Certification to 1999/5/EC Radio Equipment &
Telecommunications Terminal Equipment Directive (FAX)
This Samsung product has been self-certified by Samsung for pan-European
single terminal connection to the analogue public switched telephone
network (PSTN) in accordance with Directive 1999/5/EC. The product has
been designed to work with the national PSTNs and compatible PBXs of the
European countries:
In the event of problems, you should contact the Euro QA Lab of Samsung
Electronics Co., Ltd. in the first instance.
The product has been tested against TBR21. To assist in the use and
application of terminal equipment which complies with this standard, the
European Telecommunication Standards Institute (ETSI) has issued an
advisory document (EG 201 121) which contains notes and additional
requirements to ensure network compatibility of TBR21 terminals. The
product has been designed against, and is fully compliant with, all of the
relevant advisory notes contained in this document.
Replacing the Fitted Plug (for UK Only)
I
MPORTANT
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp
plug and has a 13 amp fuse. When you change or examine the fuse, you
must re-fit the correct 13 amp fuse. You then need to replace the fuse cover.
If you have lost the fuse cover, do not use the plug until you have another
fuse cover.
Please contact the people from you purchased the machine.
The 13 amp plug is the most widely used type in the UK and should be
suitable. However, some buildings (mainly old ones) do not have normal 13
amp plug sockets. You need to buy a suitable plug adaptor. Do not remove
the moulded plug.
W
ARNING
If you cut off the moulded plug, get rid of it straight away.
You cannot rewire the plug and you may receive an electric
shock if you plug it into a socket.
I
MPORTANT
WARNING
: You must earth this machine.
The wires in the mains lead have the following color code:
• Green and Yellow: Earth
•Blue: Neutral
•Brown: Live
If the wires in the mains lead do not match the colors marked in your plug,
do the following:
You must connect the green and yellow wire to the pin marked by the letter
“E” or by the safety ‘Earth symbol’ or colored green and yellow or green.
You must connect the blue wire to the pin which is marked with the letter “N”
or colored black.
You must connect the brown wire to the pin which is marked with the letter
“L” or colored red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution
board.
Differences Between British and American
English
British English American English
(Re)dialling (Re)dialing
Colour Color
Emphasise Emphasize
Recognise Recognize
Organise Organize
Authorise Authorize
Cancelling Canceling
Customise Customize
Socket Jack
Labelling Labeling
Grey Gray
Introduction
1.1
1Introduction
Thank you for purchasing this Samsung multifunctional
product. Your machine provides printing, copying, scanning,
and faxing (only for SCX-4521F/ SCX-4521FR) functions!
This chapter includes:
• Special Features
• Understanding Component Locations
Special Features
Your new machine is equipped with special features that
improve the print quality. You can:
Print with excellent quality and high speed
• You can print up to
600 dots per inch
(dpi).
•Up to
20 ppm in A4
(
20 ppm in Letter
).
Handle paper flexibly
•
Manual tray
supports one sheet of envelopes, labels,
transparencies, custom-sized materials, postcards and
heavy paper.
•
Standard 150-sheet tray
supports standard type and
size of paper. Also, standard tray supports one sheet of
special materials.
• 50-sheet output tray supports convenient access.
Create professional documents
•Print
Watermarks
. You can customize your documents
with words, such as “Confidential”. For details, see
Software User’s Guide
.
•Print
Posters
. The text and pictures of each page of your
document are magnified and printed across the sheet of
paper and taped together to form a poster. For details,
see
Software User’s Guide
.
Save time and money
• Allows you to use the
Toner Save
mode to save the
toner. For details, see
Software User’s Guide
and “Toner
Save Mode” on page 2.11.
• You can print multiple pages on one single sheet of paper
to save paper.
• You can use preprinted forms and letterhead on plain
paper.
• This machine automatically
conserves electricity
by
substantially reducing power consumption when not
printing.
• This machine meets
Energy Star
guidelines for energy
efficiency.
Print in various environments
• You can print in
Windows 98/Me/NT 4.0/2000/XP
.
• Your machine is compatible with various
Linux
and
Macintosh
.
• Your machine comes with both the
USB
and
Parallel
interface.
Introduction
1.2
Understanding Component
Locations
These are the main components of your machine:
Front View
Document
Guides
Document
Input Tray Document
Cover
Document Glass
Automatic
Document Feeder
Control Panel
(SCX-4521F/
SCX-4521FR:
see page 1.3.
SCX-4321: see
page 1.3.)
Front Door
Output Tray
(Face Down)
Paper Input
Tray
Paper
Output
Extension
Document
Output Tray
Toner
Cartridge
Manual Tray
The figure above shows an SCX-4521F.
Rear View
Line Jack
(Only for SCX-4521F/ SCX-
4521FR)
The figure above shows an SCX-4521F.
Rear Cover
Power
Switch
AC Power Cord
Connector
EXT. Jack*
(Only for SCX-4521F/
SCX-4521FR) USB
Connector
Parallel
Connector
*
If your country has a different telephone connection system,
this socket may be blocked.
Introduction
1.3
Control Panel Functions
SCX-4521F/ SCX-4521FR
Darkness
Adjusts the brightness of the documents for the
current copy job.
Original Type
Selects the document type for the current copy job.
No. of Copies
Selects the number of copies.
Reduce/Enlarge
Makes a copy smaller or larger than the original.
Favorite Copy
Allows you to use one of the special copy features,
such as Clone, Collation, Auto Fit, ID Card Copy, 2/4
Up (multiple pages on a sheet), and Poster copying
after assigning it.
Displays the current status and prompts during an
operation.
Uses to scroll through the available options for the
selected menu item.
Enter
Confirms the selection on the display.
Menu
Enters Menu mode and scrolls through the menus
available.
Upper Level
Sends you back to the upper menu level.
Start
Starts a job.
Stop/Clear
Stops an operation at any time.
In Standby mode, clears/cancels the copy options,
such as the darkness, the document type setting,
the copy size, and the number of copies.
Number Keypad
Dials a number or enters alphanumeric characters.
Resolution
Adjusts the resolution of the documents for the
current fax job.
Broadcasting
Allows you to send a fax to multiple destinations.
Phone Book
Allows you to store frequently-dialed fax numbers as
one or two-digit speed dial or group dial numbers for
automatic dialing and edit the stored numbers. Also
allows you to print a Phonebook list.
Redial/Pause
In Standby mode, redials the last number or in Edit
mode, inserts a pause into a fax number.
On Hook Dial
Engages the telephone line.
1
2
3
4
5
SCX-4321
Scan-to
Allows you to access a list of your PC software
programs that an image can be scanned to. You
must create the scan list using the Samsung
software (Printer Settings Utility) provided with this
machine. For details, see
Software User’s Guide
.
Toner Save
Allows you to save on toner by using less toner to
print a document.
6
7
Darkness
Adjusts the brightness of the documents for the
current copy job.
Original Type
Selects the document type for the current copy job.
No. of Copies
Selects the number of copies.
Reduce/Enlarge
Makes a copy smaller or larger than the original.
Favorite Copy
Allows you to use one of the special copy features,
such as Clone, Collation, Auto Fit, ID Card Copy, 2/4
Up (multiple pages on a sheet), and Poster copying
after assigning it.
Displays the current status and prompts during an
operation.
Uses to scroll through the available options for the
selected menu item.
Enter
Confirms the selection on the display.
Menu
Enters Menu mode and scrolls through the menus
available.
Upper Level
Sends you back to the upper menu level.
Start
Starts a job.
Stop/Clear
Stops an operation at any time.
In Standby mode, clears/cancels the copy options,
such as the darkness, the document type setting, the
copy size, and the number of copies.
Scan-to
Allows you to access a list of your PC software
programs that an image can be scanned to. You must
create the scan list using the Samsung software
(Printer Settings Utility) provided with this machine.
For details, see
Software User’s Guide
.
Toner Save
Allows you to save on toner by using less toner to
print a document.
1
2
3
4
5
Getting Started
2.1
2Getting Started
This chapter gives you step-by-step instructions for setting up
your machine.
This chapter includes:
•Unpacking
• Installing the Toner Cartridge
•Loading Paper
• Making Connections
• Turning the Machine On
• Installing Printer Software
• Changing the Display Language and Country
• Setting the Machine ID (Only for SCX-4521F/ SCX-
4521FR)
• Setting the Date and Time (Only for SCX-4521F/ SCX-
4521FR)
• Setting the Paper Size and Type
• Setting Sounds (Only for SCX-4521F/ SCX-4521FR)
• Using the Save Modes
• Setting the Dial Mode (Only for SCX-4521F/ SCX-
4521FR)
Unpacking
1
Remove the machine and all accessories from the packing
carton. Make sure that the machine has been packed with
the following items:
Starter Toner Cartridge AC Power Cord
*
*.The appearance of the power cord and the telephone line cord
may differ depending on your country’s specifications.
CD-ROM
**
**.The CD-ROM contains the Samsung printer drivers, Scan
drivers, Printer Settings Utility, SmarThru software, the
User’s Guide, and the Adobe Acrobat Reader program.
Quick Install Guide
Telephone Line Cord*
(only for SCX-4521F/ SCX-
4521FR)
TAM Lead
(only for SCX-4521F/ SCX-
4521FR and UK)
Paper Cover
***
Getting Started
2.2
2
Remove the packing tape from the front, back, and sides
of the machine.
Selecting a Location
Select a level, stable place with adequate space for air
circulation. Allow extra space for opening doors and trays.
The area should be well-ventilated and away from direct
sunlight or sources of heat, cold, and humidity. Do not set the
machine close to the edge of your desk or table.
***.The paper cover is to prevent dust and moisture from
contaminating your paper loaded in the tray. When you need
to open the machine (for example, cleaning inside of the
machine, removing the jammed paper or installing the toner
cartridge), remove the paper cover from your machine.
N
OTES
:
• Components may differ from country to country.
• You should use the telephone line cord which is supplied
with your machine. If you are replacing it with another
vendor’s, it should be AWG #26 or larger telephone line
cord.
• Power cord must be plugged into a grounded power
socket.
Tape
Clearance Space
•Front: 19 in./482.6 mm (enough space so that the tray
and door can be opened)
•Back: 3.9 in./100 mm (enough space for ventilation)
•Right: 3.9 in./100 mm (enough space for ventilation)
•Left: 3.9 in./100 mm (enough space for ventilation)
Installing the Toner Cartridge
1
Open the front door.
Getting Started
2.3
2
Remove the toner cartridge from its bag and remove the
paper protecting the cartridge by pulling the packing tape.
3
Gently roll the cartridge 5 or 6 times to distribute the
toner.
Thoroughly rolling the cartridge will assure maximum
copies per cartridge.
N
OTE
: If toner gets on your clothing, wipe it off with a dry cloth
and wash clothing in cold water. Hot water sets toner into fabric.
C
AUTIONS
:
• To prevent damage, do not expose the toner cartridge to
light for more than a few minutes. Cover it with a piece of
paper, if left exposed for more than a few minutes.
• Do not touch the green underside of the toner cartridge. Use
the handle on the cartridge to avoid touching this area.
4
Unfold the toner cartridge handle and grasp it. Insert the
cartridge in the machine until it snaps into place.
N
OTE
: Carefully insert or pull out the toner cartridge not to
scratch against the printer.
5
Close the front door. Make sure that the door is securely
closed. If the cover is not firmly closed, printing errors
may occur when you print.
N
OTE
: When printing text at 5% coverage, you can expect a toner
cartridge life of approximately 3,000 pages. (1,000 pages for the
toner cartridge that is shipped with the machine.)
Loading Paper
The tray can hold a maximum of 150 sheets of 20 lb (
75 g/m2
bond) plain paper.
1
Grasp the tray and pull it toward you to open. Pinch the
rear guide and pull it out to extend the tray.
Getting Started
2.4
2
Fan the edges of the paper stack to separate the pages.
Then tap the stack on a flat surface to even it up.
3
Load paper
with the print side facing up
.
Make sure that all four corners are flat in the tray.
Pay attention not to overload paper. Paper overloading
may cause paper jams.
4
Pinch the rear guide to adjust for the paper length and
pinch the side guide to slide it to the edge of the paper.
N
OTES
:
• Do not push the paper side guide far enough to cause the
materials to warp.
• If you do not adjust the paper side guide, it may cause paper
jams.
5
If necessary, close the paper cover to keep the paper
loaded in the tray from dust.
Making Connections
1
If you have SCX-4321:
Skip this step and proceed to step 2.
If you have SCX-4521F/ SCX-4521FR:
Plug one end of the supplied telephone line cord into the
LINE
jack on the machine and the other end into the wall
jack.
If you want to use your machine to receive both faxes and
voice calls, you will need to connect a telephone and/or
answering machine to your machine.
To the wall jack
Getting Started
2.5
Plug the cord of your extension phone or answering
machine into the
EXT.
jack.
UK users should plug the cord of the extension phone into
the supplied TAM lead and plug the cord of the TAM lead
into the
EXT.
jack on the back of your machine.
N
OTES
:
• Use the TAM lead and the telephone line cord supplied with
your machine.
• In the United Kingdom, if a three-wire type (SHUNT-wire,
older equipment) telephone or answering machine is
connected to the EXT. jack on the machine, the external
equipment will fail to ring when receiving an incoming call as
the machine is designed to operate with the latest
technology. To prevent this incompatibility, use two-wire
(newer equipment) telephones or answering machines.
To an extension phone or
answering machine
TAM lead
(For UK users only)
For German users only
For France users only
Getting Started
2.6
2
Connect a USB cable to the USB connector on your
machine. You need to buy a USB 1.1 compliant cable that
is within 3 m in length.
If you want to use a parallel printer cable, purchase only
an IEEE-1284 compliant parallel cable and connect it to
the parallel connector on your machine.
Push the metal clips down to fit inside the notches on the
cable plug.
N
OTES
:
• You only need to connect one of the cables mentioned
above. Do not use the parallel and the USB cables at the
same time.
• If you are using a USB cable, you must be running Windows
98/Me/2000/XP, Macintosh 10.3, or Linux.
To the USB port on your computer
To the parallel port on your computer
Turning the Machine On
1
Plug one end of the supplied three-pronged electrical cord
into the AC socket on the machine and the other end into a
properly grounded AC outlet.
2
Press the power switch to turn the machine on. “Warming
Up Please Wait” appears on the display indicating that the
machine is now on.
To view your display text in another language, see
“Changing the Display Language and Country” on
page 2.8.
C
AUTIONS
:
• The fusing area at the rear portion of the inside of your
printer is hot when powered. Be careful not to be burned
when accessing this area.
• Do not disassemble the machine with power on. If you do,
you may receive an electric shock.
To the AC outlet
Getting Started
2.7
Installing Printer Software
You must install software using the supplied CD-
ROM after you have set up your machine and
connected it to your computer. For details, see
Software User’s Guide
.
The CD-ROM provides you with the following software:
Programs for Windows
To use your machine as a printer and scanner in Windows, you
must install the MFP driver. You can install selectively or all the
following components:
•
Printer driver
- Use this driver to take full advantage of
your printer’s features.
•
Scan driver
- TWAIN and Windows Image Acquisition
(WIA) driver are available for scanning documents on
your machine.
•
Printer Settings Utility
-
Use this program to create
phonebook entries and configure the destination of the scan
button. You can also update the firmware of the machine.
•
SmarThru
- It is the accompanying Windows-based
software for your multifunctional machine. Allows you to
edit a scanned image in many ways using a powerful
image editor and to send the image by e-mail. You can
also open another image editor program installed in your
Windows, like Adobe PhotoShop, from SmarThru.
For details, please refer to the onscreen help supplied on
the SmarThru program.
Macintosh Driver
You can print and scan in Macintosh using your machine.
Linux Driver
You can print and scan in Linux using your machine.
System Requirements
Your machine supports following operating system.
•Windows
98/Me/NT 4.0/2000/XP
- The following table
shows Windows requirements.
N
OTE
:
For Windows NT 4.0/2000/XP, the system
administrator should install the software.
• Macintosh 10.3 - See Software User’s Guide.
• Various Linux - See Software User’s Guide.
Item Requirements Recommended
CPU
Windows 98/Me/
NT 4.0/2000 Pentium II 400
MHz or higher Pentium III 933
MHz
Windows XP Pentium III 933
MHz or higher Pentium IV 1 GHz
RAM Windows 98/Me/
NT 4.0/2000 64 MB or higher 128 MB
Windows XP 128 MB or higher 256 MB
Free disk
space
Windows 98/Me/
NT 4.0/2000 300 MB or higher 1 GB
Windows XP 1 GB or higher 5 GB
Internet
Explorer 5.0 or higher 5.5
Getting Started
2.8
Printer Driver Features
Your printer drivers support the following standard features:
• Paper source selection
• Paper size, orientation and media type
• number of copies
The following table lists a general overview of features
supported by your printer drivers.
N
OTE
:
For details about installing software and using its
features, see
Software User’s Guide
.
Feature Printer Driver
Win 98/Me/
NT4.0/2000/XP Linux Macintosh
Toner Save Y Y N
Print quality option Y Y Y
Poster printing Y N N
Multiple pages per sheet
(N-up) YY(2,4)Y
Fit to page printing Y Y N
Scale printing Y Y Y
Watermark Y N N
Overlay Y N N
Print order Y N N
Changing the Display Language
and Country
Setting Language
To change the language that displays on the control panel,
follow these steps:
1
Press
Menu
until “Machine Setup” appears on the top line
of the display.
2
Press
the scroll button ( or ) until “Language” appears
on the bottom line of the display.
3
Press
Enter
. The current setting appears on the bottom
line of the display.
4
Press
the scroll button ( or )
until the language you
want appears on the display.
5
Press
Enter
to save the selection.
6
To return to Standby mode, press
Stop/Clear
.
Setting Country
1
Press
Menu
until “Machine Setup” appears on the top line
of the display.
2
Press
the scroll button ( or ) until “Select Country”
appears on the bottom line of the display.
3
Press
Enter
. The current setting appears on the bottom
line of the display.
4
Press
the scroll button ( or )
until your country appears
on the display.
5
Press
Enter
to save the selection.
6
To return to Standby mode, press
Stop/Clear
.
N
OTE
:
Changing the country clears the memory.
Getting Started
2.9
Setting the Machine ID
(Only for SCX-4521F/ SCX-4521FR)
In some countries, you are required by law to indicate your fax
number on any fax you send. The Machine ID, containing your
telephone number and name (or company name), will be
printed at the top of each page sent from your machine.
1
Press
Menu
until “Machine Setup” appears on the top line
of the display. The first available menu item, “Machine ID”,
displays on the bottom line.
2
Press
Enter
. The display asks you to enter the fax number.
If there is a number already set, the number appears.
3
Enter your fax number using the number keypad.
N
OTE
:
If you make a mistake while entering numbers, press
the button to delete the last digit.
4
Press
Enter
when the number on the display is correct.
The display asks you to enter an ID.
5
Enter your name or the company name using the number
keypad.
You can enter alphanumeric characters using the number
keypad, and include special symbols by pressing the
0
button.
For details on how to use the number keypad to enter
alphanumeric characters, see “Entering Characters Using
the Number Keypad” on page 2.9.
If you want to enter the same letter or number in
succession (e.g. SS, AA, 777), enter one digit, move the
cursor by pressing the
button and enter the next digit.
If you want to insert a space in the name, you can also
use the
button to move the cursor to skip the position.
6
Press
Enter
when the name on the display is correct.
7
To return to Standby mode, press
Stop/Clear
.
Entering Characters Using the
Number Keypad
As you perform various tasks, you need to enter names and
numbers. For example, when you set up your machine, you
enter your name (or your company’s name) and telephone
number. When you store one- or two-digit speed dial or group
dial numbers, you may also enter the corresponding names.
To enter alphanumeric characters:
1
When you are prompted to enter a letter,
locate the button labeled with the
character you want. Press the button until
the correct letter appears on the display.
For example, to enter the letter
O
,
press
6
, labeled with “MNO”.
Each time you press
6
, the display shows
a different letter,
M
,
N
,
O
, and finally
6
.
You can enter special characters, such as space, plus sign,
and etc.. For details, see “Keypad Letters and Numbers”
on page 2.9.
2
To enter additional letters, repeat step 1.
If the next letter is printed on the same button, move the
cursor by pressing the
button and then press the button
labeled with the letter you want. The cursor will move to
the right and the next letter will appear on the display.
You can enter a space by pressing
1
twice.
3
When you finish entering letters, press
Enter
.
Keypad Letters and Numbers
Changing Numbers or Names
If you make a mistake while entering a number or name, press
the button to delete the last digit or character. Then enter the
correct number or character.
Inserting a Pause
With some telephone systems, you must dial an access code (9,
for example) and listen for a second dial tone. In such cases,
you must insert a pause in the telephone number. You can
insert a pause while you are setting up speed dial numbers.
To insert a pause, press
Redial/Pause
at the appropriate place
while entering the telephone number. A “
−
” appears on the
display at the corresponding location.
Key Assigned numbers, letters, or characters
1 1 Space
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 + - , . ‘ / * # & 0
Getting Started
2.10
Setting the Date and Time
(Only for SCX-4521F/ SCX-4521FR)
When you turn your machine on for the first time, the display
prompts you to enter the current date and time. After entering,
it will not appear anymore.
N
OTE
: When turning on the machine after turning it off for a
long time, you need to reset date and time.
1
Press
Menu
until “Machine Setup” appears on the top line
of the display.
2
Press the scroll button ( or ) to display “Date & Time”
on the bottom line and press
Enter
.
3
Enter the correct time and date using the number keypad.
Month = 01 ~ 12
Day = 01 ~ 31
Year = requires four digits
Hour = 01 ~ 12 (12-hour mode)
00 ~ 23 (24-hour mode)
Minute = 00 ~ 59
N
OTE
: The date format may differ from country to country.
You can also use the scroll button ( or ) to move the
cursor under the digit you want to correct and enter a new
number.
4
To select “AM
”
or “PM
”
for 12-hour format, press the or
button or any number button.
When the cursor is not under the AM or PM indicator,
pressing the or button immediately moves the
cursor to the indicator.
You can change the clock mode to 24-hour format (e.g.
01:00 PM as 13:00). For details, see “Changing the Clock
Mode” on page 2.10.
5
Press
Enter
when the time and date on the display is
correct.
6
To return to Standby mode, press
Stop/Clear
.
Changing the Clock Mode
You can set your machine to display the current time using
either a 12-hour or 24-hour format.
1
Press
Menu
until “Machine Setup” appears on the top line
of the display.
2
Press the scroll button ( or ) until you see “Clock Mode”
on the bottom line and press
Enter
.
The clock mode currently set for the machine displays.
3
Press the scroll button ( or ) to select the other mode
and then press
Enter
to save the selection.
4
To return to Standby mode, press
Stop/Clear
.
Setting the Paper Size and Type
After loading paper in the tray, you need to set the paper size
and type using the control panel buttons. These settings will
apply to copy and fax modes. For PC-printing, you need to
select the paper size and type in the application program you
use on your PC.
1
Press
Menu
.
The display shows “Paper Setting” on the top line of the
display.
2
Press the scroll button ( or )
to display “Paper Size” on
the bottom line and press
Enter
to access the menu item.
3
Use
the scroll button ( or )
to find the paper size you
are using and press
Enter
to save it.
4
Press the button to scroll to “Paper Type” and press
Enter
to access the menu item.
5
Use
the scroll button ( or )
to find the paper type you
are using and press
Enter
to save it.
6
To return to Standby mode, press
Stop/Clear
.
Getting Started
2.11
Setting Sounds
(Only for SCX-4521F/ SCX-
4521FR)
You can control the following sounds:
• Speaker: You can turn on or off the
sounds from the
telephone line through the speaker, such as the dial tone or
a fax tone
. With this option set to “Comm.” the speaker is
on until the remote machine answers.
• Ringer: You can adjust the ringer volume.
• Key Sound: With this option set to “On” a key tone
sounds each time a key is pressed.
• Alarm Sound: You can turn the alarm sound on or off.
With this option set to “On” an alarm tone sounds when
an error occurs or fax communication ends.
• You can adjust the volume level using the On Hook Dial
button.
Speaker, Ringer, Key Sound, and Alarm Sound
1
Press
Menu
until “Sound/Volume” appears on the top line
of the display.
2
Press the scroll button ( or ) to scroll through the
options. Press
Enter
when you see the desired sound
option.
3
Press the scroll button ( or ) to display the desired
status or volume for the option you have selected.
You will see the selection on the bottom line of the display.
For the ringer volume, you can select “Off”, “Low”, “Med”,
and “High”. Setting “Off” means that the ringer does not
sound. The machine works normally even if the ringer is
turned off.
4
Press
Enter
to save the selection. The next sound option
appears.
5
If necessary, repeat steps 2 through 4.
6
To return to Standby mode, press
Stop/Clear
.
Speaker Volume
1
Press
On Hook Dial
. A dial tone sounds from the speaker.
2
Press the scroll button ( or ) until you hear the volume
you want. The display shows the current volume level.
3
Press
On Hook Dial
to save the change and return to
Standby mode.
N
OTE
: You can adjust the speaker volume only when the
telephone line is connected.
Using the Save Modes
Toner Save Mode
Toner Save mode allows your machine to use less toner on each
page. Activating this mode extends the life of the toner
cartridge beyond what one would experience in the normal
mode, but it reduces print quality.
To turn the toner save mode on or off, press
Toner Save
.
• If the button backlight is on, the mode is active and the
machine uses less toner when printing a document.
• If the button backlight is off, the mode is deactivated and
the machine prints with the normal quantity of toner.
N
OTE
: When PC-printing, you can also turn on or off the toner
save mode in the printer properties. For details, see
Software
User’s Guide
.
Power Save Mode
Power Save mode allows your machine to reduce power
consumption when it is not in actual use. You can turn this
mode on and select a length of time for which the machine
waits after a job is printed before it switches to a reduced power
state.
1
Press
Menu
until “Machine Setup” appears on top line of
the display.
2
Press the scroll button ( or )
until “Power Save” appears
on the bottom line. Press
Enter
.
3
Press the scroll button ( or ) to display “On” on the
bottom line and press
Enter
.
Selecting “Off” means that the power save mode is
deactivated.
4
Press the scroll button ( or ) until the time setting you
want appears.
The available options are 5, 10, 15, 30, and 45 (minutes).
5
Press
Enter
to save the selection.
6
To return to Standby mode, press
Stop/Clear
.
Getting Started
2.12
Setting the Dial Mode
(Only for SCX-4521F/ SCX-4521FR)
You can select the type of the telephone dial system where your
machine is connected.
N
OTE
: The Dial Mode setting may be unavailable depending
on your country.
1
Press
Menu
until “Machine Setup” appears on the top line
of the display.
2
Press the scroll button ( or ) until you see “Dial Mode”
on the bottom line and press
Enter
.
3
Press the scroll button ( or ) to select the desired dial
mode.
Select “Tone” if your machine is connected to a tone dial
line.
Select “Pulse” if the machine is connected to a pulse dial
line.
4
Press
Enter
to save the selection.
5
To return to Standby Mode, press
Stop/Clear
.
Paper Handling
3.1
3Paper Handling
This chapter introduces you to the basics of selecting print
materials and loading them into your machine.
This chapter includes:
• Selecting Print Materials
•Loading Paper
• Verifying an Output Location
Selecting Print Materials
You can print on a variety of print materials, such as plain
paper, envelopes, labels, and transparencies. Always use print
materials that meet the guidelines for use with this machine.
See “Paper Specifications” on page 10.3. To get the best
possible print quality, use only high-quality copier-grade paper.
When you choose print materials, consider the following:
• Size: You can use any size paper that fits easily within the
paper adjusters of the tray.
• Weight: 16 ~ 24 lb (60 to 90 g/m2 bond) for the tray with
multi-pages feeding, and 16 ~ 43 lb (60 to 165 g/m2
bond) for the manual tray and tray with single page
feeding.
• Brightness: Some papers are whiter than others and
produce sharper, more vibrant images.
• Surface smoothness: The smoothness of the paper
affects how crisp the printing looks on the paper.
C
AUTION
: Using print materials that dose not conform to the
specifications listed on page 10.2 may cause problems that
may require service. This service is not covered by the
warranty or service agreements.
Paper Type, Input Sources, and
Capacities
Paper Type
*
*. If you experience excessive jamming, load one sheet at a time
through the tray or manual tray.
Input Tray/Capacity
**
**.Maximum capacity may differ depending on media weight,
thickness, and environmental conditions.
Tray Manual tray
Plain paper
150 1
Envelopes
11
Labels
11
Transparencies
11
Card stock
11
Paper Handling
3.2
Guidelines for Paper and Special
Materials
When selecting or loading paper, envelopes, or other special
material, keep these guidelines in mind:
• Always use paper and other materials that conform with
the specifications listed under “Paper Specifications” on
page 10.3.
• Attempting to print on damp, curled, wrinkled, or torn
paper can cause paper jams and poor print quality.
• Use only high quality copier grade paper for the best print
quality.
• Avoid paper with embossed lettering, perforations, or a
texture that is too smooth or too rough. Paper jams may
occur.
• Store paper in its ream wrapper until you are ready to
use. Place cartons on pallets or shelves, not on the floor.
Do not place heavy objects on top of the paper, whether
it is packaged or unpackaged. Keep it away from
moisture, or other conditions that can cause it to wrinkle
or curl.
• Store unused materials at temperatures between 15 oC
and 30 oC (59 oF to 86 oF). The relative humidity should
be between 10 % and 70 %.
• During storage, you should use a moisture-proof wrap,
such as a plastic container or bag, to prevent dust and
moisture from contaminating your paper.
• Load special paper types one sheet at a time through the
manual tray or the tray to avoid paper jams.
• Only use materials specifically recommended for use in
laser printers.
• To prevent special materials, such as transparencies and
label sheets from sticking together, remove them as they
print out.
•For envelopes:
Use only well-constructed envelopes with sharp and well
creased folds.
Do not use envelopes with clasps and snaps.
Do not use envelopes with windows, coated lining, self-
adhesive seals, or other synthetic materials.
Do not use damaged or poorly made envelopes.
Only use envelopes recommended for laser printers.
Before loading envelopes in the tray, make sure that they
are undamaged and are not stuck together.
Do not feed stamped envelopes.
• For transparencies:
Place them on a flat surface after removing them from the
machine.
Do not leave them in the tray for long periods of time.
Dust and dirt may accumulate on them, resulting in spotty
printing.
To avoid smudging caused by fingerprints, handle them
carefully.
To avoid fading, do not expose printed transparencies to
prolonged sunlight.
Only use transparencies recommended for use in laser
printers.
Ensure that transparencies are not wrinkled, curled, or
have any torn edges.
• For labels:
Verify that their adhesive material can tolerate a fusing
temperature of 200
o
C (392
o
F) for 0.1 second.
Make sure that there is no exposed adhesive material
between them. Exposed areas can cause labels to peel off
during printing, which can cause paper jams. Exposed
adhesive can also cause damage to machine components.
Do not load a sheet of them through the machine more
than once. The adhesive backing is designed for one pass
through the machine.
Do not use labels that are separating from the backing
sheet or are wrinkled, bubbled or otherwise damaged.
Only use labels recommended for laser printers.
• For Card Stock or Custom-sized materials:
Postcards, 3.5 x 5.8 in. (89 x 148 mm) cards and other
custom-sized materials can be printed with this printer.
The minimum size is 3 x 5 in. (76 x 127 mm) and the
maximum size is 8.5 x 14 in. (216 x 356 mm)
Always insert the short-edge into the tray first. If you
want to print in landscape mode, make this selection
through your software. Inserting paper long-edge first
may cause a paper jam.
Do not print on media smaller than 3 in. (76 mm) wide or
5 in. (127 mm) long.
• For preprinted paper:
Letterheads must be printed with heat-resistant ink that
will not melt, vaporize, or release hazardous emissions
when subjected to the printer’s fusing temperature of
200 °C (392 °F) for 0.1 second.
Ink on letterheads must be non-flammable and should not
adversely affect any printer rollers.
Forms and letterheads should be sealed in a moisture-
proof wrapping to prevent changes during storage.
Before you load preprinted paper as forms and
letterheads, verify that the ink on the paper is dry. During
the fusing process, wet ink can come off preprinted paper.
•Do not use
Carbonless
paper and
Tracing
paper. Use of
these types of paper could result in chemical smells and
could damage your machine.
Paper Handling
3.3
Loading Paper
Proper paper loading helps prevent paper jams and ensure
trouble-free printing. Do not remove the paper in the tray while
a job is printing. Doing so may cause a paper jam. See “Paper
Type, Input Sources, and Capacities” on page 3.1 for
acceptable paper size and capacity for the tray.
Using the Tray
The tray holds 150 sheets of paper.
Load a stack of paper into the tray and print. For details about
loading paper in the tray, see “Loading Paper” on page 2.3.
To use the special material like envelope, label and card,
remove the stack of plain paper and load one sheet of special
material into the tray.
Using the Manual Tray
When you print a document using your PC and want to check
the print quality after each page is printed, load the paper in
the manual tray and select
Manual Feed
for
Source
from the
software application.
1
Load the print material in the tray
with the print side up
.
Push the print material firmly into the manual tray.
2
Adjust the paper guide against the print material without
bending the material.
3
Select
Manual Feed
for
Source
from the software
application, and then select the correct paper size and
type. For details, see
Software User’s Guide
.
4
Operate printing.
5
The display shows “Add Paper & Press Start” then press
Start
on the machine to start feeding.
Printing is started.
6
If you have multiple pages to be printed, the display shows
“Add Paper & Press Start” again. Load the next sheet and
press
Start
.
Repeat this step for every page to be printed.
N
OTES
:
• When you print more than 20 envelopes in succession, print
speed may be reduced.
• If you experience jams with card stock feeding, turn the
paper around and try again.
• Manually loading paper and pressing
Start
to start feeding is
only available with PC printing.
• Because the Manual Feed mode does not print jobs
automatically and continuously, incoming faxes are stored in
memory instead of printing immediately. (Only for SCX-
4521F/ SCX-4521FR)
• When you press
Stop/Clear
in the Manual Feed mode, the
print job in progress is canceled.
Verifying an Output Location
The machine has a paper output location which holds 50 sheets
of paper. The output tray collects printed paper face down, in
the order in which the sheets were printed.
N
OTE
: Pull the paper output extension not to drop the printed
paper.
Copying
4.1
4Copying
This chapter gives you step-by-step instructions for copying
documents.
This chapter includes:
• Loading Paper for Copying
• Preparing a Document
• Making Copies on the Document Glass
• Making Copies from the Automatic Document Feeder
• Setting Copy Options
• Using Special Copy Features
• Changing the Default Settings
• Setting the Time Out Option
• Setting the Favorite Copy Option
Loading Paper for Copying
The instructions for loading print materials are the same
whether you are printing, faxing, or copying. For further details,
see “Loading Paper” on page 2.3 for loading paper in the tray.
N
OTE
: For copying, you can only use Letter-, A4-, Legal-,
Folio-, Executive-, B5-, A5-, or A6-sized print materials.
Preparing a Document
You can use the document glass or the Automatic Document
Feeder (ADF) to load an original document for copying,
scanning, and sending a fax. Using the ADF, you can load up to
30 documents (20 lb, 75 g/m
2
bond) for one job. You can, of
course, place only one sheet at a time on the document glass.
When you use the ADF:
• Do not load documents smaller than 5.6 x 5.8 in. (142 x
148 mm) or larger than 8.5 x 14 in. (216 x 356 mm).
• Do not attempt to feed the following types of documents:
- carbon-paper or carbon-backed paper
- coated paper
- onion skin or thin paper
- wrinkled or creased paper
- curled or rolled paper
- torn paper
• Remove all staples and paper clips before loading
documents.
• Make sure any glue, ink, or correction fluid on the paper
is completely dry before loading documents.
• Do not load documents that include different sizes or
weights of paper.
• Do not load booklet, pamphlet, transparencies, or
documents having other unusual characteristics.
Copying
4.2
Making Copies on the Document Glass
1
Lift and open the document cover.
2
Place the document
face down
on the document glass
and align it at the top left corner of the glass.
N
OTE
: Make sure that no documents are in the ADF
(Automatic Document Feeder). If a document is detected in
the ADF, the machine gives it priority over the document on
the document glass.
3
Close the document cover.
N
OTES
:
• When you close the document cover, please be careful of any
injuries.
• Leaving the cover open while copying may affect copy
quality and toner consumption.
• If you are copying a page from a book or magazine, start
copying with the cover open.
4
Customize the copy settings including number of copies,
copy size, darkness, and original type, by using the control
panel buttons. See “Setting Copy Options” on page 4.3.
To clear the settings, use the
Stop/Clear
button.
5
If necessary, you can use special copy features, such as
Poster, Auto Fit, Clone, and ID Card copying.
6
Press
Start
to begin copying.
The display shows the copy processing.
N
OTES
:
• You can cancel the copy job during an operation. Press
Stop/Clear
, and the copying will stop.
• Dust on the document glass may cause black spots on the
printout. Always keep it clean.
• To get the best scan quality, especially for colored or gray-
scaled images, use the document glass.
Making Copies from the
Automatic Document Feeder
1
Load the document
face up
into the ADF (Automatic
Document Feeder). You can insert up to 30 sheets at a
time. Make sure that the bottom of the document stack
matches the paper size marked on the document tray.
2
Adjust the document guides to the document size.
Copying
4.3
3
Customize the copy settings including number of copies,
copy size, darkness, and original type, by using the control
panel buttons. See “Setting Copy Options” on page 4.3.
To clear the settings, use the
Stop/Clear
button.
4
If necessary, you can use special copy features, such as
Collate and 2 or 4 Up copying.
5
Press
Start
to begin copying.
The display shows the copy processing.
N
OTE
: Dust on the ADF glass may cause black lines on the
printout. Always keep it clean.
Setting Copy Options
The buttons on the control panel let you select all basic copy
options: darkness, document type, copy size, and number of
copies. Set the following options for the current copy job before
pressing
Start
to make copies.
N
OTE
: If you press
Stop/Clear
while setting the copy
options, all of the options you have set for the current copy job
will be canceled and returned to their default status. Or, they
will automatically return to their default status after the
machine completes the copy in progress.
Darkness
If you have an original document containing faint markings and
dark images, you can adjust the brightness to make a copy that
is easier to read.
To adjust the contrast, press
Darkness
.
Each time you press the button, the LED labeled with the
selected mode lights.
You can choose from the following contrast modes:
•
Light
: works well with dark print.
•
Normal
: works well with standard typed or printed
documents.
•
Dark
: works well with light print or faint pencil markings.
Original Type
The Original Type setting is used to improve the copy quality by
selecting the document type for the current copy job.
To select the document type, press
Original Type
.
Each time you press the button, the LED labeled with the
selected mode lights.
You can choose from the following image modes:
•
Text
: Use for documents containing mostly text.
•
Text/Photo
: Use for documents with mixed text and
photographs.
•
: Use when the originals are photographs.
N
OTE
: When you copy a document containing color on the
background, such as a newspaper or a catalog, the
background will appear on your copy. If you want to reduce
the background, change the
Darkness
setting to
Light
and/or
the
Original Type
setting to
Text
.
Reduced/Enlarged Copy
Using the
Reduce/Enlarge
button, you can reduce or enlarge
the size of a copied image from 25% to 400% when you copy
original documents from the document glass or from 25% to
100% from the ADF. Note that the zoom rate available is
different depending on the document loading method.
To select from the predefined copy sizes:
1
Press
Reduce/Enlarge
.
The default setting appears on the bottom line of the
display.
2
Press
Reduce/Enlarge
or the scroll button ( or ) to
find the size setting you want.
3
Press
Enter
to save the selection.
To fine-tune the size of copies:
1
Press
Reduce/Enlarge
.
2
Press
Reduce/Enlarge
or the scroll button ( or )
until “Custom:25-100%” or “Custom:25-400%” displays
on the bottom line. Press
Enter
.
3
Press the scroll button ( or ) until the copy size you
want appears on the display.
Pressing and holding the button allows you to quickly
scroll to the number you want.
For the SCX-4521F/ SCX-4521FR, you can enter the value
using the number keypad.
4
Press
Enter
to save the selection.
N
OTE
: When you make a reduced copy, black lines may
appear at the bottom of your copy.
Number of Copies
Using the
No. of Copies
button, you can select the number of
copies from 1 to 99.
1
Press
No. of Copies
.
2
Press the scroll button ( or ) until the number you want
appears on the display.
Pressing and holding the button allows you to quickly
scroll to the number you want.
For the SCX-4521F/ SCX-4521FR, you can enter the value
using the number keypad.
3
Press
Enter
to save the selection.
Copying
4.4
Using Special Copy Features
You can use the following copy features:
•
Off
: Prints in normal mode.
•
Clone
:
Prints multiple image copies from the original
document on a single page. The number of images is
automatically determined by the original image and paper
size. See “Clone Copying” on page 4.4.
•
Copy Collate
:
Sorts the copy job. For example, if you make
2 copies of a 3 page document, one complete 3 page
document will print followed by the second complete
document. See “Collation Copying” on page 4.4.
•
Auto Fit
: A
utomatically reduces or enlarges the original
image to fit on the paper currently loaded in the machine.
See “Auto Fit Copying” on page 4.4.
•
ID Card Copy
:
Prints 2-sided ID card like a drivers licence
on one sheet of paper. See “ID Card Copying” on page 4.5.
•
2
/
4 Up
: Prints 2/4 original images reduced to fit onto one
sheet of paper. See “2 Up or 4 Up Copying” on page 4.5.
•
Poster
: Prints an image onto 9 sheets of paper (3x3).
You can paste the printed pages together to make one
poster-sized document. See “Poster Copying” on
page 4.5.
N
OTE
: Some features may not be available depending on
where you loaded the document, on the document glass or in
the Automatic Document Feeder.
Clone Copying
This special copy feature can be applied only when you place a
document on the document glass. If a document is detected in
the ADF, Clone copying feature does not work.
1
Place the document to be copied on the document glass,
and close the cover.
2
Press
Menu
until “Copy Feature” appears on the top line of
the display.
3
Press the scroll button ( or ) until “Clone” displays on
the bottom line.
4
Press
Enter
to make your selection.
5
If necessary, customize the copy settings, including
number of copies, darkness, and original type, by using
the control panel buttons. See “Setting Copy Options” on
page 4.3.
N
OTE
: You cannot adjust the copy size using the
Reduce/
Enlarge
button while making a clone copy.
6
Press
Start
begin copying.
Collation Copying
This special copy feature is available only when you load
documents in the ADF.
1
Load the documents to be copied in the ADF.
2
Press
Menu
until “Copy Feature” appears on the top line of
the display.
3
Press the scroll button ( or ) until “Copy Collate”
displays on the bottom line.
4
Press
Enter
to make your selection.
5
If necessary, customize the copy settings, including
number of copies, darkness, and original type, by using
the control panel buttons. See “Setting Copy Options” on
page 4.3.
6
Press
Start
to begin copying.
Auto Fit Copying
This special copy feature can be applied only when you place a
document on the document glass. If a document is detected in
the ADF, Auto Fit copying does not work.
1
Place the document to be copied on the document glass,
and close the cover.
2
Press
Menu
until “Copy Feature” appears on the top line of
the display.
3
Press the scroll button ( or ) until “Auto Fit” appears on
the bottom line.
4
Press
Enter
to make your selection.
123
123
A
Copying
4.5
5
If necessary, customize the copy settings, including
number of copies, darkness, and original type, by using
the control panel buttons. See “Setting Copy Options” on
page 4.3.
N
OTE
: You cannot adjust the copy size using the
Reduce/
Enlarge
button while Auto Fit copying is enabled.
6
Press
Start
to begin copying.
ID Card Copying
You can copy both sides of the ID Card like a drivers licence to
a single side of paper.
When you copy using this feature, the machine prints one side
of the card on the upper half of the paper and the other side on
the lower half without reducing the size of the original.
If the loaded card is larger than the printable area, some
portions may not be printed.
This special copy feature can be applied only when you place a
document on the document glass. If a document is detected in
the ADF, ID Card copying feature does not work.
1
Place the ID Card to be copied on the document glass and
close the cover.
2
Press
Menu
until “Copy Feature” appears on the top line of
the display.
3
Press the scroll button ( or ) until “ID Card Copy”
displays on the bottom line.
4
Press
Enter
to make your selection.
5
If necessary, customize the copy settings, including
number of copies, darkness, and original type, by using
the control panel buttons. See “Setting Copy Options” on
page 4.3.
6
Press
Start
to begin copying.
Your machine begins scanning the front side.
7
When “Set Backside” displays on the bottom line, open the
document cover and turn the card over. Close the cover.
N
OTE
: If you press the
Stop/Clear
button or if no buttons
are pressed for approximately 30 seconds, the machine
cancels the copy job and returns to Standby mode.
8
Press
Start
again.
2 Up or 4 Up Copying
This copy feature is available only when you load documents in
the ADF.
1
Load the documents to be copied in the ADF.
2
Press
Menu
until “Copy Feature” appears on the top line of
the display.
3
Press the scroll button ( or ) until “2 UP” or “4 UP”
displays on the bottom line.
4
Press
Enter
to make your selection.
5
If necessary, customize the copy settings, including
number of copies, darkness, and original type, by using
the control panel buttons. See “Setting Copy Options” on
page 4.3.
N
OTE
: You cannot adjust the copy size using the
Reduce/
Enlarge
button for making a 2 or 4 Up copy.
6
Press
Start
to begin copying.
Poster Copying
This special copy feature can be applied only when you place a
document on the document glass. If a document is detected in
the ADF, the Poster copying feature does not work.
1
Place the document to be copied on the document glass
and close the cover.
2
Press
Menu
until “Copy Feature” appears on the top line of
the display.
3
Press the scroll button ( or ) until “Poster” displays on
the bottom line.
4
Press
Enter
to make your selection.
5
If necessary, customize the copy settings, including
number of copies, darkness, and original type, by using
the control panel buttons. See “Setting Copy Options” on
page 4.3.
N
OTE
: You cannot adjust the copy size using the
Reduce/
Enlarge
button when making a poster.
6
Press
Start
to begin copying.
Your original document is divided into 9
portions. Each portion is scanned and
printed one by one in the following
order:
1 2
3 4
1 2
2-up copying
4-up copying
Copying
4.6
Changing the Default Settings
The copy options, including darkness, original type, copy size
and number of copies, can be set to the most frequently used
modes. When you copy a document, the default settings are
used unless they are changed by using the corresponding
buttons on the control panel.
To create your own default settings:
1
Press
Menu
on the control panel until “Copy Setup”
appears on the top line of the display.
The first menu item, “Default-Change”, appears on the
bottom line.
2
Press
Enter
to access the menu item. The first setup
option, “Darkness”, appears on the bottom line.
3
Press the scroll button ( or ) to scroll through the setup
options.
4
When the option you want to set appears, press
Enter
to
access the option.
5
Change the setting using the scroll button ( or ).
For the SCX-4521F/ SCX-4521FR, you can enter the value
using the number keypad.
6
Press
Enter
to save the selection.
7
Repeat steps 3 through 6, as needed.
8
To return to Standby mode, press
Stop/Clear
.
N
OTE
: While you are setting copy options, pressing
Stop/Clear
cancels the changed settings and restores their default status.
Setting the Time Out Option
You can set the time the machine waits before it restores the
default copy settings, if you do not start copying after changing
them on the control panel.
1
Press
Menu
on the control panel until “Copy Setup”
appears on the top line of the display.
2
Press the scroll button ( or ) to display “Timeout” on the
bottom line.
3
Press
Enter
to access the menu item.
4
Press the scroll button ( or ) until the status you want
appears on the display.
You can select from 15, 30, 60, and 180 (seconds).
Selecting “Off” means that the machine does not restore
the default settings until you press
Start
to begin copying,
or
Stop/Clear
to cancel.
5
Press
Enter
to make your selection.
6
To return to Standby mode, press
Stop/Clear
.
Setting the Favorite Copy Option
You can set
Favorite Copy
on the control panel works as a
special copy button. Assign one of the copy feature to
Favorite
Copy
for quick accessing.
1
Press
Menu
on the control panel until “Copy Setup”
appears on the top line of the display.
2
Press the scroll button ( or ) to display “Favorite Copy”
on the bottom line.
3
Press
Enter
to access the menu item.
4
Press the scroll button ( or ) until the feature you want
appears on the display.
You can select from Clone, Copy Collate, Auto fit, ID Card
Copy, 2 Up, 4 Up, and Poster. See “Using Special Copy
Features” on page 4.4 for details about each feature.
5
Press
Enter
to make your selection.
To use the special copy feature quickly, press
Favorite Copy
then you will see the assigned special copy feature on the
display. Press
Enter
to start copy job.
Basic Printing
5.1
5Basic Printing
This chapter includes:
• Printing a Document
• Canceling a Print Job
Printing a Document
This machine allows you to print in various Windows
applications, a Macintosh computer, or a Linux system. The
exact steps for printing a document may vary depending on the
application you use.
For details about printing, see
Software User’s Guide
.
Canceling a Print Job
If the print job is waiting in a print queue or print spooler, such
as the Printer group in Windows, delete the job as follows:
1
Click the Windows
Start
button.
2
For Windows 98/NT4.0/2000/Me, select
Settings
and
then
Printers
.
For Windows XP, select
Printers and Faxes
.
3
Double-click the
your printer driver
icon.
4
From the
Document
menu, select
Cancel Printing
(Windows 98/Me) or
Cancel
(Windows NT 4.0/2000/XP).
N
OTE
: You can also access this window by simply double-
clicking the printer icon at the bottom right corner of the
Windows desktop.
You can also cancel the current job by pressing the
Stop/Clear
button on the control panel of your printer.
Scanning
6.1
6 Scanning
This chapter includes:
• Scanning Basics
• Scanning From the Control Panel to an Application
Scanning Basics
Your SCX-4x21 Series offers four ways to scan. These are:
• From the control panel on your machine to an
application: Use the
Scan-to
button on the control panel
to initiate scanning. Assign the TWAIN-compliant
software, such as Adobe Photo Deluxe or Adobe
Photoshop, to the machine by selecting it from a list of
available applications via the
Scan-to
button. To compose
the list of available applications, you must configure it in
the scan settings tab of the Printer Settings Utility
program. For details, see
Software User’s Guide
.
• From TWAIN-compliant software: You can use other
software including Adobe PhotoDeluxe and Adobe
Photoshop. For details, see
Software User’s Guide
.
• From the Windows Images Acquisition (WIA) driver: Your
machine also supports the WIA driver for scanning
images. For details, see
Software User’s Guide
.
• From the Samsung SmarThru software: Launch Samsung
SmarThru and open Scan To to begin scanning. For
details, see
Software User’s Guide
.
N
OTES
:
•
To scan with your machine, you must install the software.
For details,
s
ee the installing printer software in windows
section of
Software User’s Guide
to install the scan
software.
• Scanning is done through the same LPT or USB port
currently assigned for your printer port.
Scanning From the Control
Panel to an Application
1
Make sure that your machine and computer are turned on
and properly connected to each other.
2
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
3
Press
Scan-to
. The first available menu item, for example
“Microsoft Paint”, appears on the display.
4
Press the scroll button ( or ) to select an application to
which you want to send the scanned image.
5
Press
Start
to start scanning. The selected application
window opens with the scanned image.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.1
7Faxing (Only for SCX-4521F/ SCX-4521FR)
The fax feature is only available on the SCX-4521F/ SCX-
4521FR. This chapter gives you information about using your
machine as a fax machine.
This chapter includes:
Setting Up the Fax System
• Changing the Fax Setup options
• Available Fax Setup Options
Sending a Fax
• Loading a Document
• Adjusting the Document Resolution
• Sending a Fax Automatically
• Sending a Fax Manually
• Redialing the Last Number
• Confirming Transmission
• Automatic Redialing
Receiving a Fax
• About Receiving Modes
• Loading Paper for Receiving Faxes
• Receiving Automatically in Fax Mode
• Receiving Manually in Tel Mode
• Receiving Automatically in Ans/ Fax Mode
• Receiving Manually Using an Extension Telephone
• Receiving Faxes Using the DRPD Mode
• Receiving Faxes in the Memory
Automatic Dialing
•Speed Dialing
• Group Dialing
• Searching for a Number in Memory
• Printing a Phonebook List
Other Ways to Fax
•Sending Broadcast Faxes
•Sending a Delayed Fax
• Sending a Priority Fax
• Adding Documents To a Scheduled Fax
• Canceling a Scheduled Fax
Additional Features
• Using Secure Receiving Mode
• Printing Reports
• Using Advanced Fax Settings
Setting Up the Fax System
Changing the Fax Setup options
1
Press
Menu
until “Fax Setup” appears on the top line of
the display.
The first available menu item, “Default-Change”, displays
on the bottom line.
2
Press the scroll button ( or ) until you see the desired
menu item on the bottom line and press
Enter
.
If you select “Default-Change”, you will see “Resolution”.
Press
Enter
again.
3
Use the scroll button ( or ) to find the desired status or
use the number keypad to enter the value for the option
you have selected.
4
Press
Enter
to make your selection. The next Fax Setup
option appears.
5
If necessary, repeat steps 2 through 4.
6
To return to Standby mode, press
Stop/Clear
.
Available Fax Setup Options
Option Description
Default-Change
You can change the default value of resolution.
• Standard for documents with normal sized
characters.
• Fine for documents containing small characters or
thin lines, or for sending documents printed using a
dot-matrix printer.
• Super Fine for documents containing extremely fine
detail. Super Fine mode is enabled only if the remote
machine also supports Super Fine resolution.
• Photo for documents containing shades of gray or
photographs.
• Color for documents with colors. Sending a color fax
is enabled only if the machine with which you are
communicating supports color fax reception and you
send the fax manually. In this mode, memory
transmission is not available.
Ring To Answer You can specify the number of times the machine rings,
from 1 to 7, before answering an incoming call.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.2
Darkness
You can select the default contrast mode to fax your
documents lighter or darker.
•
Light
works well with dark print.
•
Normal
works well with standard typed or printed
documents.
•
Dark
works well with light print or faint pencil
markings.
Redial Term Your machine can automatically redial a remote fax
machine if it was busy. Intervals from 1 to 15 minutes
can be entered.
Redials You can specify the number of redial attempts, from 1
to 13.
MSG Confirm
You can set your machine to print a report showing
whether a transmission was successful, how many
pages were sent, and more. The available options are
On
,
Off
, and
On-Err
, which prints only when a
transmission is not successful.
Image TCR You can prevent the Image TCR from being included in
the confirmation report for privacy or security
protection. The available options are
On
or
Off
.
Auto Report This produces a report with detailed information about
the previous 50 communications operations, including
time and dates. The available options are
On
or
Off
.
Auto Reduction
When receiving a document containing pages as long
as or longer than the paper loaded in the tray, the
machine can reduce the size of the document to fit the
size of the paper loaded in the machine. Select
On
if
you want to automatically reduce an incoming page.
With this feature set to
Off
, the machine cannot reduce
the document to fit onto one page. The document will
be divided and printed in actual size on two or more
pages.
Discard Size
When receiving a document containing pages as long
as or longer than the paper installed in your machine,
you can set the machine to discard any excess at the
bottom of the page. If the received page is outside the
margin you set, it will print in actual size on two or
more sheets of paper.
When the document is outside the margin and the Auto
Reduction feature is turned on, the machine reduces
the document to fit it onto the appropriately-sized
paper and discard does not occur. If the Auto Reduction
feature is turned off or fails, data outside the margin
will be discarded. Settings range from 0 to 30 mm.
Option Description
Receive Code
The Receive Start Code allows you to initiate fax
reception from an extension phone plugged into the
EXT. jack on the back of the machine. If you pick up the
extension phone and hear fax tones, enter the Receive
Start Code. The Receive Start Code is preset to *9* at
the factory. Settings range from 0 to 9. See “Receiving
Manually Using an Extension Telephone” on page 7.7
for more information about using the code.
DRPD Mode
You can receive a call using the Distinctive Ring Pattern
Detection (DRPD) feature, which enables a user to use
a single telephone line to answer several different
telephone numbers. In this menu, you can set the
machine to recognize which ring patterns to answer. For
details about this feature,
see
“Receiving Faxes Using
the DRPD Mode” on page 7.7.
Receive Mode
You can select the default fax receiving mode.
•In
Tel
mode, you can receive a fax by picking up the
handset of the extension phone and then pressing
the remote receive code (see “Receive Code” on
page 7.2). Alternatively, you can press
On Hook
Dial
(you can hear a fax tone from the remote
machine) and then press
Start
on the control panel
of your machine.
•In the
Fax
mode,
the machine answers an
incoming call and immediately goes into fax
reception mode.
•In
Ans/Fax
mode, the answering machine answers
an incoming call, and the caller can leave a message
on the answering machine. If the fax machine
senses a fax tone on the line, the call automatically
switches to Fax mode.
•In
DRPD
mode, you can receive a call using the
Distinctive Ring Pattern Detection (DRPD) feature.
This option is available only when you set up the
DRPD Mode. For further details, see “Receiving Faxes
Using the DRPD Mode” on page 7.7.
Option Description
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.3
Sending a Fax
Loading a Document
You can use the Automatic Document Feeder (ADF) or the
document glass to load an original document for faxing. Using
the ADF, you can load up to 30 sheets of 20 lb (75 g/m
2
bond)
paper at a time. You can, of course, place only one sheet at a
time on the document glass. For details about preparing a
document, see “Preparing a Document” on page 4.1.
To fax a document using the Automatic
Document Feeder (ADF):
1
Load the document
face up
into the ADF. You can insert
up to 30 sheets at a time.
Make sure that the bottom of the document stack matches
the paper size marked on the document tray.
2
Adjust the document guide on the ADF to match the width
of the document.
N
OTE
: Dust on the ADF glass may cause black lines on the
printout. Keep it always clean.
To fax a document from the document glass:
1
Lift and open the document cover.
2
Place the document
face down
on the document glass
and align it at the top left corner of the glass.
N
OTE
: Make sure that no other documents are in the ADF
(Automatic Document Feeder). If a document is detected in
the ADF, the machine gives it priority over the document on
the document glass.
3
Close the document cover.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.4
Adjusting the Document
Resolution
The default document settings produce good results when
using typical text-based documents.
However, if you send documents that are of a poor quality, or
contain photographs, you can adjust the resolution to produce
a higher quality fax.
1
Press
Resolution
on the control panel.
2
By pressing
Resolution
or the scroll button ( or ), you
can choose from Standard, Fine, Super Fine, Photo, and
Color.
3
When the mode you want to use displays, press
Enter
to
make your selection.
The document types recommended for the resolution settings
are described in the table below:
N
OTES
:
• For memory transmission, Super Fine mode is not available.
The resolution setting is automatically changed to Fine.
• When your machine is set to Super Fine resolution and the fax
machine with which you are communicating does not support
Super Fine resolution, the machine transmits using the highest
resolution mode supported by the other fax machine.
Mode Recommended for:
Standard Documents with normal sized characters.
Fine Documents containing small characters or thin
lines or documents printed using a dot-matrix
printer.
Super Fine
Documents containing extremely fine detail.
Super Fine mode is enabled only if the machine
with which you are communicating also
supports the Super Fine resolution. See the
notes below.
Photo Documents containing shades of gray or
photographs.
Color
Documents with colors. Sending a color fax is
enabled only if the machine with which you are
communicating supports color fax reception
and you send the fax manually. In this mode,
memory transmission is not available.
Sending a Fax Automatically
1
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Enter the remote fax phone number using the number
keypad.
You can also press and hold the digit button of the speed
dial number if you have assigned one. To store the speed
dial number, see “Storing a Number for Speed Dialing” on
page 7.8.
4
Press
Start
.
5
When a document is placed on the document glass, the
display shows “Another Page?” on the top line after the
document is scanned into the memory. If you have the
next page, remove the scanned page and place the next
page on the glass and select “1:Yes”. Repeat as necessary.
After all of the pages are scanned, select “2:No” when the
display shows “Another Page?”.
6
The number is dialed and then the machine begins sending
the fax when the receiving fax machine is ready.
N
OTE
: When you want to cancel a fax job, press
Stop/Clear
at any time while sending.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.5
Sending a Fax Manually
1
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Press
On Hook Dial
. You hear a dial tone.
4
Enter the receiving fax machine’s number using the
number keypad.
You can also press and hold the digit button of the speed
dial number if you have assigned one. To store the speed
dial number, see “Storing a Number for Speed Dialing” on
page 7.8.
5
Press
Start
when you hear a high-pitched fax signal from the
remote fax machine.
N
OTE
:
When you want to cancel a fax job, press
Stop/Clear
at any time while sending.
Redialing the Last Number
To redial the number you last called:
Press
Redial/Pause
.
When a document is loaded in the ADF (Automatic Document
Feeder; see “To fax a document using the Automatic Document
Feeder (ADF):” on page 7.3), the machine automatically begins
to send.
For a document placed on the document glass, the display asks
if you want to load another page. Select “1:Yes” to add.
Otherwise, select “2:No”.
Confirming Transmission
When the last page of your document has been sent
successfully, the machine beeps and returns to Standby mode.
When something goes wrong while sending your fax, an error
message appears on the display. For a list of error messages
and their meanings, see “Clearing LCD Error Messages” on
page 9.4.
If you receive an error message, press
Stop/Clear
to clear the
message and try to send the document again.
You can set your machine to print a confirmation report
automatically each time sending a fax is completed. For further
details, see the MSG Confirm item on “MSG Confirm” on
page 7.2.
Automatic Redialing
When the number you have dialed is busy or there is no answer
when you send a fax, the machine automatically redials the
number every three minutes, up to seven times according to
the factory default settings.
When the display shows “Retry Redial ?”, press
Enter
to redial
the number without waiting. To cancel the automatic redialing,
press
Stop/Clear
.
To change the time interval between redials and the number of
redial attempts. See “Redial Term” on page 7.2.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.6
Receiving a Fax
About Receiving Modes
•In
Fax
mode, the machine answers an incoming fax call
and immediately goes into the fax reception mode.
•In
Tel
mode, you can receive a fax by pressing
On Hook
Dial
(you can hear a fax tone from the sending machine)
and then pressing
Start
on the control panel of your
machine. You can also pick up the handset of the
extension phone and then press the remote receive code
(see “Receive Code” on page 7.2).
•In
Ans/Fax
mode, the answering machine answers an
incoming call, and the caller can leave a message on the
answering machine. If the fax machine senses a fax tone
on the line, the call automatically switches to Fax mode.
•In
DRPD
mode, you can receive a call using the
Distinctive Ring Pattern Detection (DRPD) feature.
“Distinctive Ring” is a telephone company service which
enables a user to use a single telephone line to answer
several different telephone numbers. For further details,
see “Receiving Faxes Using the DRPD Mode” on page 7.7.
When your machine’s memory is full, the receiving mode
automatically switches to Tel.
For details about changing the receiving mode, see “Receive
Mode” on page 7.2.
N
OTES
:
• To use the Ans/Fax mode, attach an answering machine to
the EXT. jack on the back of your machine.
• If you do not want other people to view your received
documents, you can use Secure Receiving mode. In this
mode, all of the received faxes are stored in memory. For
further details, see “Using Secure Receiving Mode” on
page 7.13.
Loading Paper for Receiving
Faxes
The instructions for loading paper in the tray are the same
whether you are printing, faxing, or copying, except that faxes
can only be printed on Letter-, A4-, Legal-, Folio-, Executive-,
or B5-sized paper. For details about loading paper and setting
the paper size in the tray, see “Loading Paper” on page 2.3 and
“Setting the Paper Size and Type” on page 2.10.
Receiving Automatically in Fax
Mode
Your machine is preset to Fax mode at the factory.
When you receive a fax, the machine answers the call on a
specified number of rings and automatically receives the fax.
To change the number of rings,
see “Ring To Answer” on
page 7.1.
If you want to adjust the ringer volume, see “Setting Sounds
(Only for SCX-4521F/ SCX-4521FR)” on page 2.11.
Receiving Manually in Tel Mode
You can receive a fax call by Start key pressure like below,
1
Press the On Hook Dial key or lift the external handset.
2
Press Start, then the “1.Sending 2.Receiving” message
appears on the display.
3
Press 2 by using the numer keypad for receiving.
4
Press Enter to start fax receiving.
Receiving Automatically in Ans/
Fax Mode
To use this mode, you must attach an answering machine to the
EXT. jack on the back of your machine. See “Making
Connections” on page 2.4.
If the caller leaves a message, the answering machine stores
the message as it would normally. If your machine detects a fax
tone on the line, it automatically starts to receive the fax.
N
OTES
:
• If you have set your machine to Ans/Fax mode and your
answering machine is switched off, or no answering machine
is connected to EXT. jack, your machine automatically goes
into Fax mode after a predefined number of rings.
• If your answering machine has a ‘user-selectable ring
counter’, set the machine to answer incoming calls within 1
ring.
• If you are in Tel mode (manual reception) when the
answering machine is connected to your machine, you must
switch off the answering machine, or the outgoing message
from the answering machine will interrupt your phone
conversation.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.7
Receiving Manually Using an
Extension Telephone
This features works best when you are using an extension
telephone connected to the EXT. jack on the back of your
machine. You can receive a fax from someone you are talking
to on the extension telephone without going to the fax
machine.
When you receive a call on the extension phone and hear fax
tones, press the keys
9
on the extension telephone. The
machine receives the document.
Press the buttons slowly in sequence. If you still hear the fax
tone from the remote machine, try pressing
9
once again.
9
is the remote receive code preset at the factory. The first
and the last asterisks are fixed, but you can change the middle
number to whatever you wish. For details about changing the
code, see “Receive Code” on page 7.2
Receiving Faxes Using the
DRPD Mode
“Distinctive Ring” is a telephone company service which
enables a user to use a single telephone line to answer several
different telephone numbers. The particular number someone
uses to call you is identified by different ringing patterns, which
consist of various combinations of long and short ringing
sounds. This feature is often used by answering services who
answer telephones for many different clients and need to know
which number someone is calling in on to properly answer the
phone.
Using the Distinctive Ring Pattern Detection feature, your fax
machine can “learn” the ring pattern you designate to be
answered by the fax machine. Unless you change it, this ringing
pattern will continue to be recognized and answered as a fax
call, and all other ringing patterns will be forwarded to the
extension telephone or answering machine plugged into the
EXT. jack. You can easily suspend or change Distinctive Ring
Pattern Detection at any time.
Before using the Distinctive Ring Pattern Detection option,
Distinctive Ring service must be installed on your telephone line
by the telephone company. To set up Distinctive Ring Pattern
Detection, you will need another telephone line at your
location, or someone available to dial your fax number from
outside.
To set up the DRPD mode:
1
Press
Menu
until “Fax Setup” appears on the top line of
the display.
2
Press the scroll button ( or ) until you see “Receive
Mode” on the bottom line and press
Enter
.
3
Press the scroll button ( or ) until you see “DRPD Mode”
on the bottom line and press
Enter
.
4
When “Set” displays on the bottom line, press
Enter
.
“Waiting Ring” appears on the display.
5
Call your fax number from another telephone. It is not
necessary to place the call from a fax machine.
6
When your machine begins to ring, do not answer the call.
The machine requires several rings to learn the pattern.
When the machine completes learning, the LCD displays
“End DRPD Setup”.
If the DRPD setup fails, “DRPD Ring Error” appears. Press
Enter
when “DRPD Mode” displays and retry from step 3.
7
To return to Standby mode, press
Stop/Clear
.
When the DRPD feature is set up, the DRPD option is available
in the Receive Mode menu. To receive faxes in the DRPD mode,
you need to set the menu to
DRPD
; see “DRPD Mode” on
page 7.2.
N
OTES
:
• DRPD must be set up again if you re-assign your fax number,
or connect the machine to another telephone line.
• After DRPD has been set up, call your fax number again to
verify that the machine answers with a fax tone. Then have
a call placed to a different number assigned to that same
line to be sure the call is forwarded to the extension
telephone or answering machine plugged into the EXT. jack.
Receiving Faxes in the Memory
Since your machine is a multi-tasking device, it can receive
faxes while you are making copies or printing. If you receive a
fax while you are copying or printing, your machine stores
incoming faxes in memory. Then, as soon as you finish copying
or printing, the machine automatically prints the fax.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.8
Automatic Dialing
Speed Dialing
You can store up to 100 frequently dialed numbers in one or
two-digit speed dial locations (0-99).
Storing a Number for Speed Dialing
1
Press
Phone Book
on the control panel.
2
Press
Phone Book
or the scroll button ( or ) to display
“Store&Edit” on the bottom line of the display. Press
Enter
.
3
Press
Enter
when “Speed Dials” appears on the display.
The display prompts you to enter a location number,
showing the first available number.
4
Enter a speed dial number between 0 and 99, using the
number keypad or the scroll button ( or ) and press
Enter
.
If a number is already stored in the location you chose,
the display shows the number to allow you to change it. To
start over with another speed-dial number, press
Upper
Level
.
5
Enter the number you want to store using the number
keypad and press
Enter
.
To insert a pause between numbers, press
Redial/Pause
.
The symbol “
−
” appears on the display.
6
To assign a name to the number, enter the name you
want. For details about entering characters, see “Entering
Characters Using the Number Keypad” on page 2.9.
OR
If you do not want to assign a name, skip this step.
7
Press
Enter
when the name appears correctly or without
entering a name.
8
To store more fax numbers, repeat steps 4 through 7.
OR
To return to Standby mode, press
Stop/Clear
.
Sending a Fax using a Speed Dial
Number
1
Feed the document(s) face up into the ADF.
Or
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Enter the speed dial number.
•For a one-digit speed dial number, press and hold the
appropriate digit button.
•For a two-digit speed dial number, press the first digit
button and press and hold the last digit button.
4
The corresponding entry’s name briefly displays.
5
The document scans into memory.
When a document is placed on the document glass, the
LCD display asks if you want to send another page. Select
“1:Yes” to add more documents or “2:No” to begin
sending the fax immediately.
6
The fax number stored in the speed dial location is
automatically dialed. The document is sent when the
receiving fax machine answers.
Group Dialing
If you frequently send the same document to several
destinations, you can create a group of these destinations and
set them under a group dial location. This enables you to use a
group dial number setting to send the same document to all the
destinations in the group.
Setting a Group Dial Number
1
Press
Phone Book
on the control panel.
2
Press
Phone Book
or the scroll button ( or ) to display
“Store&Edit” on the bottom line of the display. Press
Enter
.
3
Press the scroll button ( or ) to display “Group Dials” on
the bottom line and press
Enter
.
4
Press
Enter
when “New” displays on the bottom line.
The display prompts you to enter a location number,
showing the first available number.
5
Enter a group number between 0 and 99 using the number
keypad or the scroll button ( or ) and press
Enter
.
6
Enter a speed dial number you want to include in the
group and press
Enter
.
You can also select the speed dial number stored in the
machine by pressing the scroll button ( or ) and then
press
Enter
.
7
When the display confirms the number to be added to the
group, press
Enter
.
8
Repeat steps 6 and 7 to enter other speed dial numbers
into the group.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.9
9
Press the
Upper Level
button when you have entered all
of the desired numbers. The display prompts you to enter
a group ID.
10
To assign a name to the group, enter the name you want.
For details about entering characters, see “Entering
Characters Using the Number Keypad” on page 2.9.
OR
If you do not want to assign a name, skip this step.
11
Press
Enter
when the name appears correctly or without
entering a name.
12
If you want to assign another group, press
Enter
and
repeat from step 5.
OR
To return to Standby mode, press
Stop/Clear
.
N
OTE
: You cannot include one group dial number in another
group dial number.
Editing Group Dial Numbers
You can delete a specific speed dial number from a selected
group or add a new number to the selected group.
1
Press
Phone Book
on the control panel.
2
Press
Phone Book
or the scroll button ( or ) to display
“Store&Edit” on the bottom line of the display. Press
Enter
.
3
Press the scroll button ( or ) to display “Group Dials” on
the bottom line and press
Enter
.
4
Press the scroll button ( or ) to display “Edit” on the
bottom line and press
Enter
.
5
Enter the group number you want to edit or select the
group number by pressing the scroll button ( or ) and
press
Enter
.
6
Enter the speed dial number you want to add or delete.
You can also select the speed dial number you want to
delete by pressing the scroll button ( or ).
7
Press
Enter
.
8
When you enter the specific number in the group, the
display shows “Delete?”.
When you enter a new number, the display shows “Add?”.
9
Press
Enter
to add or delete the number.
10
To change the group name, press
Upper Level
.
11
Enter a new group name and press
Enter
.
12
If you want to edit another group, press
Enter
and repeat
from step 5.
Or
To return to Standby mode, press
Stop/Clear
.
Sending a Fax Using Group Dialing
(Multi-address Transmission)
You can use group dialing for Broadcast or Delayed
transmissions.
Follow the procedure of the operation (Broadcast fax: see
“Sending Broadcast Faxes” on page 7.10, Delayed fax: see
“Sending a Delayed Fax” on page 7.11, Priority fax: see
“Sending a Priority Fax” on page 7.11). When you come to a
step in which the display asks you to enter the receiving fax
number:
• For a one-digit group number, press and hold the
appropriate digit button.
• For a two-digit group number, press the first digit button
and press and hold the last digit button.
You can use only one group number for one operation. Then
continue the procedure to complete the desired operation.
Your machine automatically scans a document loaded in the
Automatic Document Feeder or on the document glass into
memory. The machine dials each of the numbers included in the
group.
Searching for a Number in
Memory
There are two ways to search for a number in the machine’s
memory. You can either scan from A to Z sequentially, or you
can search using the first letter of the name associated with the
number.
Searching Sequentially through the
Memory
1
Press
Phone Book
.
2
Press
Enter
when “Search&Dial” appears on the display.
3
Press the scroll button ( or )
to scroll through the
machine’s memory until the name and number you want
to dial display. You can search upwards or downwards
through the entire memory in alphabetical order, from A to
Z.
While searching through the machine’s memory, you can
see that each entry is preceded by one of three letters;
“S” for speed dial or “G” for group dial numbers. These
letters tell you how the number is stored.
4
When the name and/or the number you want displays,
press
Start
or
Enter
to dial.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.10
Searching with a Particular First Letter
1
Press
Phone Book
.
2
Press
Enter
when “Search&Dial” appears on the display.
3
Press the button labeled with the letter you want to search
for. A name beginning with the letter displays.
For example, if you want to find the name “MOBILE” press
the
6
button, which is labeled with “MNO”.
4
Press the scroll button ( or )
to display the next name.
5
When the name and/or the number you want displays,
press
Start
or
Enter
to dial.
Printing a Phonebook List
You can check your automatic dial setting by printing a
Phonebook list.
1
Press
Phone Book
.
2
Press
Phone Book
or the scroll button ( or ) until
“Print” appears on the bottom line and press
Enter
.
A list showing your speed dial, and group dial entries
prints out.
Other Ways to Fax
Sending Broadcast Faxes
Using the
Broadcasting
button on the control panel, you can
use the broadcast fax feature, which allows you to send a
document to multiple locations. Documents are automatically
stored in memory and sent to a remote station. After
transmission, the documents are automatically erased from
memory.
1
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Press
Broadcasting
on the control panel.
4
Enter the number of the first receiving machine using the
number keypad.
You can also press and hold the digit button of the speed
dial number if you have assigned one. To store the speed
dial number, see “Storing a Number for Speed Dialing” on
page 7.8.
5
Press
Enter
to confirm the number. The display asks you
to enter another fax number to send the document.
N
OTE
: The Another No. prompt does not appear if you have
added numbers for another broadcast or delay fax job. You
must wait until the job is completed.
6
To enter more fax numbers, press
1
to select “Yes” and
repeat steps 4 and 5. You can add up to 10 destinations.
Note that you can input group dial numbers only once at
first.
7
When you finish entering fax numbers, press
2
to select
“No” at the Another No. prompt.
The document is scanned into memory before
transmission. The display shows memory capacity and the
number of pages being stored in memory.
For a document placed on the document glass, the display
asks if you want to load another page. Select “1:Yes” to
add. Otherwise, select “2:No”.
8
The machine begins sending the document to the numbers
you entered in the order in which you entered them.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.11
Sending a Delayed Fax
You can set your machine to send a fax at a later time when you
will not be present.
1
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Press
Menu
until “Fax Feature” appears on the top line of
the display. The first available menu item, “DelayFax”
displays on the bottom line.
4
Press
Enter
.
5
Enter the number of the receiving machine using the
number keypad.
You can also press and hold the digit button of the speed
dial number if you have assigned one. To store the speed
dial number, see “Storing a Number for Speed Dialing” on
page 7.8.
6
Press
Enter
to confirm the number on the display. The
display asks you to enter another fax number to which to
send the document.
N
OTE
: The Another No. prompt does not appear if you have
added numbers for another broadcast or delay fax job. You
must wait until the job is completed.
7
To enter more fax numbers, press
1
to select “Yes” and
repeat steps 5 and 6. You can add up to 10 destinations.
Note that you can input group dial numbers only once at
first.
8
When you finish entering fax numbers, press
2
to select
“No
”
at the Another No. prompt.
The display asks you to enter a name.
9
To assign a name to the transmission, enter the name you
want. For details about entering characters, see “Entering
Characters Using the Number Keypad” on page 2.9.
If you do not want to assign a name, skip this step.
10
Press
Enter
. The display shows the current time and asks
you to enter the starting time when the fax is to be sent.
11
Enter the time using the number keypad.
To select “AM” or “PM” for 12-hour format, press the or
button or any number button.
If you set a time earlier than the current time, the
document will be sent at that time on the following day.
12
Press
Enter
when the starting time displays correctly.
13
The document is scanned into memory before
transmission. The display shows memory capacity and the
number of pages being stored in memory.
For a document placed on the document glass, the display
asks if you want to load another page. Select “1:Yes” to
add. Otherwise, select “2:No”.
14
The machine returns to Standby mode. The display
reminds you that you are in Standby mode and that a
delayed fax is set.
N
OTE
: If you want to cancel the delayed transmission, see
“Canceling a Scheduled Fax” on page 7.12.
Sending a Priority Fax
Using the Priority Fax feature, a high priority document can be
sent ahead of reserved operations. The document is scanned
into memory and transmitted when the current operation is
finished. In addition, priority transmission will interrupt a
broadcast operation between stations (i.e., when the
transmission to station A ends, before transmission to station B
begins) or between redial attempts.
1
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Press
Menu
until “Fax Feature” appears on the top line of
the display.
4
Press the scroll button ( or ) to display “Priority Fax” on
the bottom line and press
Enter
.
5
Enter the number of the receiving machine using the
number keypad.
You can also press and hold the digit button of the speed
dial number if you have assigned one. To store the speed
dial number, see “Storing a Number for Speed Dialing” on
page 7.8.
6
Press
Enter
to confirm the number. The display asks you
to enter a name.
7
To assign a name to the transmission, enter the name you
want. For details about entering characters, see “Entering
Characters Using the Number Keypad” on page 2.9.
If you do not want to assign a name, skip this step.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.12
8
Press
Enter
.
The document is scanned into memory before
transmission. The display shows memory capacity and the
number of pages being stored in memory.
For a document placed on the document glass, the display
asks if you want to load another page. Select “1:Yes” to
add. Otherwise, select “2:No”.
9
The machine shows the number being dialed and begins
sending the document.
Adding Documents To a
Scheduled Fax
You can add documents to a delayed transmission previously
reserved in your machine’s memory.
1
Load the document(s) face up into the ADF.
OR
Place a single document face down on the document
glass.
For details about loading a document, see “Loading a
Document” on page 7.3.
2
Adjust the document resolution to suit your fax needs (see
“Adjusting the Document Resolution” on page 7.4).
If you need to change the darkness, see “Darkness” on
page 7.2.
3
Press
Menu
until “Fax Feature” appears on the top line of
the display.
4
Press the scroll button ( or ) to display “Add Page” on
the bottom line and press
Enter
.
The display shows the last job reserved in memory.
5
Press the scroll button ( or ) until you see the fax job to
which you want to add documents and press
Enter
.
The machine automatically stores the documents in
memory, and the display shows memory capacity and the
number of pages.
For a document placed on the document glass, the display
asks if you want to load another page. Select “1:Yes” to
add. Otherwise, select “2:No”.
6
After storing, the machine displays the numbers of total
pages and added pages and then returns to Standby
mode.
Canceling a Scheduled Fax
1
Press
Menu
until “Fax Feature” appears on the top line of
the display.
2
Press the scroll button ( or ) to display “Cancel Job” on
the bottom line and press
Enter
.
The display shows the last job reserved in memory.
3
Press the scroll button ( or ) until you see the fax job
you want to cancel, and press
Enter
.
4
When the display confirms your selection, press
1
to select
“Yes”. The selected job is canceled and the machine
returns to Standby mode.
To cancel your selection, press
2
to select “No”.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.13
Additional Features
Using Secure Receiving Mode
You may need to prevent your received faxes from being
accessed by unauthorized people. You can turn on Secure
Receiving mode to restrict printing of received faxes when the
machine is unattended. In Secure Receiving mode, all incoming
faxes go into memory. When the mode is deactivated, any
stored faxes are printed.
To turn Secure Receiving mode on:
1
Press
Menu
until “Advanced Fax” appears on the top line
of the display.
2
Press the scroll button ( or ) until “Secure Receive”
appears on the bottom line and press
Enter
.
3
Press the scroll button ( or ) to display “On” on the
bottom line and press
Enter
.
4
Enter a four-digit password you want to use, using the
number keypad and press
Enter
.
5
Re-enter the password to confirm it and press
Enter
.
6
To return to Standby mode, press
Stop/Clear
.
When a fax is received in Secure Receiving mode, your machine
stores it in memory and displays “Secure Receive” to let you
know that there is a fax stored.
To print received documents:
1
Press
Menu
until “Advanced Fax” appears on the top line
of the display.
2
Press the scroll button ( or ) until “Secure Receive”
appears on the bottom line and press
Enter
.
3
Press the scroll button ( or ) to display “Print” on the
bottom line and press
Enter
.
4
Enter the four-digit password and press
Enter
.
The machine prints all of the faxes stored in memory.
To turn Secure Receiving mode off:
1
Press
Menu
until “Advanced Fax” appears on the top line
of the display.
2
Press the scroll button ( or ) until “Secure Receive”
appears on the bottom line and press
Enter
.
3
Press the scroll button ( or ) to display “Off” on the
bottom line and press
Enter
.
4
Enter the four-digit password and press
Enter
.
The mode is deactivated and the machine prints all faxes
stored in memory.
5
To return to Standby mode, press
Stop/Clear
.
Printing Reports
Your machine can print reports containing useful information.
The following reports are available:
Phonebook List
This list shows all of the numbers currently stored in the
machine’s memory as speed dial and group dial numbers.
You can print this Phonebook list using the
Phone Book
button: see “Printing a Phonebook List” on page 7.10.
Sent Fax Report
This report shows information on the faxes you have recently
sent.
Received Fax Report
This report shows information on the faxes you have recently
received.
System Data List
This list shows the status of the user-selectable options. You
may print this list to confirm your changes after changing any
settings.
Scheduled Job Information
This list shows the document(s) currently stored for Delayed
faxes. You may print this list to check the delayed faxes and the
starting times.
Message Confirmation
This report shows the fax number, the number of pages, the
elapsed time of the job, the communication mode, and the
communication results for a particular fax job.
You can set up your machine to automatically print a message
confirmation report after each fax job. See “MSG Confirm” on
page 7.2.
Junk Fax Number List
This list shows up to 10 fax numbers specified as junk fax
numbers. To add or delete numbers to or from this list, access
the Junk Fax Setup menu: see “Junk Fax Setup” on page 7.14.
When the Junk Fax Barrier feature is turned on, incoming faxes
from those numbers are blocked.
This feature recognize the last 6 digits of the fax number set as
a remote fax machine’s ID.
Multi-communication Report
This report is printed automatically after sending documents
from more than one location.
Faxing
(Only for SCX-4521F/ SCX-4521FR)
7.14
Power Failure Report
This report is printed out automatically when power is restored
after a power failure, if any data loss occurs due to the power
failure.
N
OTE
: The lists you have set to print out automatically don’t
print out when there is no paper loaded or a paper jam has
occurred.
Printing a Report
1
Press
Menu
until “Reports” appears on the top line of the
display.
2
Press the scroll button ( or ) to display the report or list
you want to print on the bottom line.
•Phone Book: Phonebook list
•Sent Report: Sent fax report
•RCV Report: Received fax report
•System Data: System data list
•Scheduled Jobs: Scheduled job information
•MSG Confirm: Message confirmation
•Junk Fax List: Junk fax number list
3
Press
Enter
.
The selected information prints out.
Using Advanced Fax Settings
Your machine has various user-selectable setting options for
sending or receiving faxes. These options are preset at the
factory, but you may need to change them. To find out how the
options are currently set, print the System Data list. For details
about printing the list, see above.
Changing Setting Options
1
Press
Menu
until “Advanced Fax” appears on the top line
of the display.
2
Press the scroll button ( or ) until you see the menu
item you want on the bottom line and press
Enter
.
3
When the option you want appears on the display, choose
a status by pressing the scroll button ( or ) or enter a
value using the number keypad.
4
Press
Enter
to save the selection.
5
You can exit from Setup mode at any time by pressing
Stop/Clear
.
Advanced Fax Setting Options
Option Description
Send Forward
You can set the machine to send a copy of all outgoing
faxes to a specified destination, in addition to the fax
numbers you entered.
Select
Off
to turn this feature off.
Select
On
to turn this feature on. You can set the
number of the fax machine to which faxes are to be sent.
RCV Forward
You can set your machine to forward incoming faxes to
another fax number during a specified time period. When
a fax arrives at your machine, it is stored in memory.
Then, the machine dials the fax number that you have
specified and sends the fax.
Select
Off
to turn this feature off.
Select
On
to turn this feature on. You can set the fax
number to which faxes are forwarded. Then, you can
enter the starting time and date, and/or the ending time
and date. The
Print Local Copy
option allows you to
set the machine to print the fax on your machine, if fax
forwarding is completed without any error.
Junk Fax Setup
Using the Junk Fax Barrier feature, the system will not
accept faxes sent from remote stations whose numbers
are stored in the memory as junk fax numbers. This
feature is useful for blocking any unwanted faxes.
Select
Off
to turn the feature off. Your machine accepts
all faxes.
Select
On
to turn the feature on. You can set up to 10
fax numbers as junk fax numbers using the
Set
option.
After storing numbers, your machine will not accept
faxes from the registered stations. To delete all junk fax
numbers, use the
All Delete
option.
Secure Receive
You can keep your received faxes from being accessed by
unauthorized people.
For further details about setting this mode, see “Using
Secure Receiving Mode” on page 7.13.
Prefix Dial You can set a prefix dial number of up to five digits. This
number dials before any automatic dial number is
started. It is useful for accessing a PABX exchange.
Stamp RCV
Name
This option allows the machine to automatically print the
page number, and the date and time of reception at the
bottom of each page of a received document.
Select
Off
to turn this feature off.
Select
On
to turn this feature on.
ECM Mode (Error
Correction
Mode)
Error Correction Mode helps with poor line quality and
makes sure any faxes you send are sent smoothly to any
other ECM-equipped fax machine. If the line quality is
poor, it takes more time to send a fax when you are
using ECM.
Select
Off
to turn this feature off.
Select
On
to turn this feature on.
Maintenance
8.1
8Maintenance
This chapter provides information for maintaining your machine
and the toner cartridge.
This chapter includes:
•Clearing the Memory
• Setting the Machine to be Checked by Phone (Only for
SCX-4521F/ SCX-4521FR)
• Cleaning Your Machine
• Maintaining the Toner Cartridge
• Consumables and Replacement Parts
• Replacing the ADF Rubber Pad
Clearing the Memory
You can selectively clear information stored in your machine’s
memory.
C
AUTION
: For SCX-4521F/ SCX-4521FR users, before
clearing the memory, make sure that all fax jobs have been
completed.
1
Press
Menu
on the control panel until “Maintenance”
appears on the top line of the display.
2
Press the scroll button ( or ) until you see “Clear
Memory” on the bottom line and press
Enter
.
The first available menu item, “Clear All Mem.”, displays
on the bottom line.
3
Press the scroll button ( or ) until you see the item you
want to clear.
•Clear All Mem.: Clears all of the data stored in the
memory.
•Paper Setting: Restores all of the Paper Setting options to
the factory default.
•Machine Setup: Resets all of your settings to the factory
default.
•Copy Setup: Restores all of the Copy Setup options to the
factory default.
•Fax Setup: (Only for SCX-4521F/ SCX-4521FR) Restores
all of the Fax Setup options to the factory default.
•Fax Feature: (Only for SCX-4521F/ SCX-4521FR) Cancels
all of the scheduled fax jobs in the machine’s memory.
•Advanced Fax: (Only for SCX-4521F/ SCX-4521FR)
Restores all of the Advanced Fax setting options to the
factory default.
•Sound/Volume: (Only for SCX-4521F/ SCX-4521FR)
Restores all of the Sound/Volume settings to the factory
default.
•Sent Report: (Only for SCX-4521F/ SCX-4521FR) Clears
all records of sent faxes.
•RCV Report: (Only for SCX-4521F/ SCX-4521FR) Clears
all records of received faxes.
•Phone Book: (Only for SCX-4521F/ SCX-4521FR) Clears
the speed dial and group dial numbers stored in the
memory.
4
Press
Enter
. The selected memory is cleared and the
display asks you to continue clearing the next item.
5
To clear another item, repeat steps 3 and 4.
OR
To return to Standby mode, press
Stop/Clear
.
Maintenance
8.2
Setting the Machine to be
Checked by Phone
(Only for SCX-4521F/ SCX-4521FR)
The Remote Test feature allows your machine to be checked out
by a service company at a remote place by phone.
1
Press
Menu
on the control panel until “Maintenance”
appears on the top line of the display.
2
Press the scroll button ( or ) until you see “Remote
Test” on the bottom line and press
Enter
.
3
Press
the scroll button ( or )
to change the setting.
Select “On” to enable this feature. Selecting “Off” protects
your machine from being accessed by unauthorized
people.
4
Press
Enter
to save the selection.
5
To return to Standby mode, press
Stop/Clear
.
Cleaning Your Machine
To maintain print quality, follow the cleaning procedures below
each time the toner cartridge is replaced or if print quality
problems occur.
C
AUTIONS
:
• Cleaning the cabinet of the machine with cleaning materials
containing large amounts of alcohol, solvent, or other strong
substances can discolor or crack the cabinet.
• While cleaning the inside of the machine, be careful not to
touch the transfer roller, located underneath the toner
cartridge. Oil from your fingers can cause print quality
problems.
Cleaning the Outside
Clean the cabinet of the machine with a soft lint-free cloth. You
can dampen the cloth slightly with water, but be careful not to
let any water drip onto or into the machine.
Cleaning the Inside
During the printing process, paper, toner, and dust particles can
accumulate inside the machine. This buildup can cause print
quality problems, such as toner specks or smearing. Cleaning
the inside of the machine clears or reduces these problems.
1
Turn the machine off and unplug the power cord. Wait for
the machine to cool down.
2
Open the front door.
3
Pull the toner cartridge out, lightly pushing it down. Set it
on a clean flat surface.
C
AUTIONS
:
• To prevent damage to the toner cartridge, do not expose it
to light for more than a few minutes. Cover it with a piece of
paper, if necessary.
• Do not touch the green underside of the toner cartridge. Use
the handle on the cartridge to avoid touching this area.
4
Remove the manual tray by pulling it out.
Maintenance
8.3
5
With a dry lint-free cloth, wipe away any dust and spilled
toner from the toner cartridge area and the toner cartridge
cavity.
C
AUTION
: Do not touch the black transfer roller inside the
machine.
6
Locate the long strip of glass (LSU) inside the top of the
cartridge compartment, and gently swab the glass to see if
dirt turns the white cotton black.
7
Reinsert the manual tray, toner cartridge and close the
door.
8
Plug in the power cord and turn the machine on.
Cleaning the Scan Unit
Keeping the scan unit clean helps ensure the best possible
copies. We suggest that you clean the scan unit at the start of
each day and during the day, as needed.
1
Slightly dampen a soft lint-free cloth or paper towel with
water.
2
Open the document cover.
3
Wipe the surface of the document glass and ADF glass
until it is clean and dry.
4
Wipe the underside of the white document cover and white
bar until it is clean and dry.
5
Close the document cover.
Maintaining the Toner Cartridge
Toner cartridge storage
To get the most from the toner cartridge, keep the following
guidelines in mind:
• Do not remove the toner cartridge from its package until
ready for use.
• Do not refill the toner cartridge.
The machine warranty
does not cover damage caused by using a refilled
cartridge.
• Store toner cartridges in the same environment as your
machine.
• To prevent damage to the toner cartridge, do not expose
it to light for more than a few minutes.
Saving toner
To save toner, press the
Toner Save
button on the control
panel; see “Toner Save Mode” on page 2.11. The button
backlight turns on. Using this feature extends the life of the
toner cartridge and reduces your cost per page, but it also
reduces print quality.
Expected Cartridge Life
The life of the toner cartridge depends on the amount of toner
that print jobs require. When printing text at ISO 19752 5%
coverage, a new toner cartridge lasts an average of 3,000
pages. (The original toner cartridge supplied with the machine
lasts an average of 1,000 pages.) The actual number may be
different depending on the print density of the page you print.
If you print a lot of graphics, you may need to change the
cartridge more often.
Document
cover
Document
glass
White bar
ADF glass
Maintenance
8.4
Redistributing Toner
When the toner cartridge is near the end of its life, white
streaks or light printing occurs. The LCD displays the warning
message, “[Toner Low]”. You can temporarily reestablish print
quality by redistributing the remaining toner in the cartridge. In
some case, white streaks or light printing still occurs even after
you have redistributed the toner.
1
Open the front door.
2
Pull the toner cartridge out and remove it from the printer.
3
Gently shake the toner cartridge from side to side five or
six times to redistribute the toner.
N
OTE
: If toner gets on your clothing, wipe it off with a dry
cloth and wash clothing in cold water. Hot water sets toner into
fabric.
C
AUTION
: Do not touch the green underside of the toner
cartridge. Use the handle on the cartridge to avoid touching
this area.
4
Reinstall the cartridge and close the front door. Make sure
that the cover is securely closed. If it is not firmly closed,
printing error may occur when you print.
Replacing the Toner Cartridge
When the display on the control panel shows the warning
message, “[Toner Empty]” the toner cartridge has run out but
continues printing. For the SCX-4521F/ SCX-4521FR, incoming
faxes are saved in memory. At this stage, the toner cartridges
needs to be replaced.
N
OTE
: You can set the machine to ignore the “[Toner Empty]”
message and to continue printing incoming faxes. See
“Ignoring the Toner Empty Message (Only for SCX-4521F/
SCX-4521FR)” on page 8.5.
Remove the old toner cartridge and install a new toner
cartridge. See “Installing the Toner Cartridge” on page 2.2.
Setting the Notify Toner Option
(Only for
SCX-4521F/ SCX-4521FR
)
If you set the Notify Toner menu option to “On”, your machine
automatically sends a fax to your service company or the dealer
to notify them. The fax number is preset by your dealer when
you bought your machine.
Notification cases are like this:
• When the toner cartridges is low.
• When critical error occured at your machine.
(Error cases: CRU Fuse Error, Low Heat Error, LSU Error.)
• When notification day and notification pages that are
preset by your dealer have passed.
1
Press
Menu
on the control panel until “Maintenance”
appears on the top line of the display.
2
Press the scroll button ( or ) to display “Notify Toner ”
on the bottom line and press
Enter
.
3
Enter
a four-digit password you want to use, using the
number keypad and press
Enter
.
(If you select this menu, for the first time after purchasing
or after clearing all memory, Re-enter the password to
confirm it and press
Enter
.)
4
Press
the scroll button ( or )
to change the setting.
Select “On” to enable this feature. Selecting “Off” disables
this feature.
5
Press
Enter
to save the selection.
6
To return to Standby mode, press
Stop/Clear
.
Maintenance
8.5
Cleaning the Drum
You can clean the OPC drum of the toner cartridge manually or
automatically.
If there are streaks or spots on documents you print, the OPC
drum of the toner cartridge may require manual cleaning.
1
Before starting the cleaning procedure, make sure that
paper is loaded in the machine.
2
Press
Menu
on the control panel until “Maintenance”
appears on the top line of the display.
The first available menu item, “Clean Drum”, displays on
the bottom line.
3
Press
Enter
.
The first available menu item, “Yes” displays on the
bottom line.
4
Press
Enter
.
The machine prints out a cleaning page. Toner particles on
the drum surface are affixed to the paper.
5
If the problem remains, repeat steps 1 through 4.
6
To return to Standby mode, press
Stop/Clear
.
Ignoring the Toner Empty Message
(Only for
SCX-4521F/ SCX-4521FR
)
When the toner cartridge is nearly empty, the machine shows
the “[Toner Empty]” message and continues printing except
incoming faxes. In this case, incoming faxes are saved in
memory.
However, you can set the machine to print incoming faxes, even
though print quality is not optimal.
1
Press
Menu
until “Machine Setup” appears on the display.
2
Press the scroll button ( or ) until “Ignore Toner”
appears on the bottom line and press
Enter
.
3
Press the Scroll button ( or ) to select “On” or “Off”.
Select “On” to ignore the [Toner Empty] message.
Select “Off” to stop printing incoming faxes when the
message appears. This is the default setting.
4
Press
Enter
to save the selection.
5
To return to Standby mode, press
Stop/Clear
.
Consumables and Replacement Parts
From time to time, you needs to replace the toner cartridge,
roller, and fuser unit to maintain top performance and to avoid
print quality problems and paper feed problems resulting from
worn parts.
The following items should be replaced after you have printed
the specified number of pages:
To purchase consumables and replacement parts, contact your
Samsung dealer or the retailer where you bought your
machine. We strongly recommend that these items be installed
by a trained service professional, except for the toner cartridge
(see “Replacing the Toner Cartridge” on page 8.4) and the ADF
rubber pad (see “Replacing the ADF Rubber Pad” on page 8.6).
Items Yield (Average)
ADF rubber pad Approx. 20,000 pages
ADF roller Approx. 50,000 pages
Paper feeding roller Approx. 50,000 pages
Transfer roller Approx. 50,000 pages
Fuser unit Approx. 50,000 pages
Maintenance
8.6
Replacing the ADF Rubber Pad
You can purchase an ADF rubber pad from your Samsung
dealer or the retailer where you bought your machine.
1
Open the ADF cover.
2
Remove the ADF rubber pad from the ADF, as shown.
3
Insert a new ADF rubber pad into place.
4
Close the ADF cover.
Troubleshooting
9.1
9Troubleshooting
This chapter gives helpful information for what to do if you
encounter an error.
This chapter includes:
• Clearing Document Jams
•Clearing Paper Jams
• Clearing LCD Error Messages
• Solving Other Problems
• Common Linux Problems
• Common Macintosh Problems
Clearing Document Jams
When a document jams while passing through the ADF
(Automatic Document Feeder), “[Document Jam]” appears on
the display.
Input Misfeed
1
Remove any remaining page(s) from the ADF.
2
Open the ADF cover.
3
Pull the document gently out of the ADF.
4
Close the ADF cover. Then load the removed page(s), if
any, back into the ADF.
N
OTE
: To prevent document jams, use the document glass for
thick, thin, or mixed paper-type documents.
Troubleshooting
9.2
Exit Misfeed
1
Remove any remaining page(s) from the ADF.
2
Open the ADF cover.
3
Remove the misfed documents from the document output
tray.
4
Close the ADF cover. Then load the removed page(s), if
any, back into the ADF.
Clearing Paper Jams
When a paper jam occurs, “Paper Jam” appears on the display.
Refer to the table below to locate and clear the paper jam.
To avoid tearing the paper, pull out the jammed paper gently
and slowly. Follow the instructions in the following sections to
clear the jam.
Message Location of Jam Go to
[Paper Jam 0]
Open/Close Door In the tray or manual
tray page 9.2
[Paper Jam 1]
Open/Close Door In the fuser area or
around the toner
cartridge.
page 9.3
[Paper Jam 2]
Check Inside In the paper exit area page 9.3
In the Tray
1
Remove the jammed paper in the tray by gently pulling it
straight out.
If there is any resistance and the paper does not move
when you pull, or if you cannot see the paper in this area,
check the fuser area around the toner cartridge. See
page 9.3.
2
Open and close the front door to resume printing.
In the Manual Tray
1
Remove the jammed paper in the tray by gently pulling it
straight out.
If there is any resistance and the paper does not move
when you pull, or if you cannot see the paper in this area,
check the fuser area around the toner cartridge. See
page 9.3.
2
Open and close the front door to resume printing.
Troubleshooting
9.3
In the Fuser Area or Around the Toner
Cartridge
N
OTE
: The fuser area is hot. Take care when removing paper
from the machine.
1
Open the front door.
2
Pull the toner cartridge out, lightly pushing it down.
3
If necessary, pull the manual tray out.
4
Remove the jammed paper by gently pulling it straight
out.
5
If necessary, push the manual tray back into the machine.
6
Reinstall the toner cartridge and close the front door.
Printing automatically resumes.
In the Paper Exit Area
1
Open and close the front door. The jammed paper
automatically exits the machine.
If the paper does not exit, continue to step 2.
2
Gently pull the paper out of the output tray.
Troubleshooting
9.4
3
If there is any resistance and the paper does not move
when you pull, or if you cannot see the paper in the output
tray, open the rear cover by pulling the tab on it.
4
Remove the jammed paper by gently pulling it straight
out.
C
AUTION
: Inside of the machine is hot. Take care when
removing paper from the machine.
5
Close the rear cover.
6
Open and close the front door to resume printing.
Tips for Avoiding Paper Jams
By selecting the correct paper types, most paper jams can be
avoided. When a paper jam occurs, follow the steps outlined in
“Clearing Paper Jams” on page 9.2.
• Follow the procedures in “Loading Paper” on page 2.3.
Ensure that the adjustable guides are positioned
correctly.
• Do not overload the tray.
• Do not remove paper from the tray while your machine is
printing.
• Flex, fan, and straighten the paper before loading.
• Do not use creased, damp, or highly curled paper.
• Do not mix paper types in the tray.
• Use only recommended print materials. See “Paper
Specifications” on page 10.3.
• Ensure that the recommended print side of print
materials is facing up in the tray.
Clearing LCD Error Messages
Display Meaning Suggested solutions
Cancel ?
1:Yes 2:No
(only for SCX-
4521F/ SCX-
4521FR)
Your machine’s
memory has become
full while trying to
store a document into
memory.
To cancel the fax job, press
the
1
button to accept “Yes”.
If you want to send the pages
that have been successfully
stored, press the
2
button to
accept “No”. You should send
the remaining pages later,
when memory is available.
[Comm. Error]
(only for SCX-
4521F/ SCX-
4521FR)
The machine has a
communication
problem.
Ask the sender to try again.
CRU Fuse Error The toner cartridge is
not installed correctly. Install the toner cartridge
correctly. See “Replacing the
Toner Cartridge” on page 8.4.
[Document Jam] The loaded document
has jammed in the
ADF (Automatic
Document Feeder).
Clear the document jam. See
“Clearing Document Jams” on
page 9.1.
[Front or Rear]
[Cover Open] The front door or rear
cover is not securely
latched.
Close the door until it locks
into place.
Enter Again You entered an
unavailable item. Enter the correct item again.
Troubleshooting
9.5
Low Heat Error There is a problem in
the fuser unit. Unplug the power cord and
plug it back in. If the problem
persists, please call for
service.
Open Heat Error
[Over Heat]
Group Not
Available
(only for SCX-
4521F/ SCX-
4521FR)
You have tried to
select a group location
number where only a
single location
number can be used,
such as when adding
locations for a
broadcast operation.
Use a speed dial number or
dial a number manually using
the number keypad.
[Incompatible]
(only for SCX-
4521F/ SCX-
4521FR)
The remote machine
did not have the
requested feature,
such as a delayed
transmission.
This message also
occurs if the remote
machine does not
have enough memory
space to complete the
operation you are
attempting.
Reconfirm the remote
machine’s features.
[Line Busy]
(only for SCX-
4521F/ SCX-
4521FR)
The receiving party
did not answer or the
line is already
engaged.
Try again after a few minutes.
[Line Error]
(only for SCX-
4521F/ SCX-
4521FR)
Your machine cannot
connect with the
remote machine or
has lost contact
because of a problem
with the phone line.
Try again. If the problem
persists, wait an hour or so
for the line to clear and try
again.
Or, turn the ECM mode on.
See “ECM Mode (Error
Correction Mode)” on
page 7.14.
Load Document You have attempted
to set up a copy or fax
operation with no
document loaded into
the ADF.
Load a document into the ADF
and try again.
[LSU Error] A problem has
occurred in the LSU
(Laser Scanning Unit).
Unplug the power cord and
plug it back in. If the problem
persists, please call for
service.
Memory Dial Full
(only for SCX-
4521F/ SCX-
4521FR)
The fax jobs queue in
the memory is full. Cancel unnecessary fax jobs
in the memory.
Display Meaning Suggested solutions
Memory Full
(only for SCX-
4521F/ SCX-
4521FR)
The memory is full. Delete unnecessary
documents and retransmit
after more memory becomes
available. Alternatively, split
the transmission into more
than one operation.
[No Answer]
(only for SCX-
4521F/ SCX-
4521FR)
The receiving fax
machine has not
answered after
several redial
attempts.
Try again. Make sure that the
receiving machine is
operational.
[No Cartridge] The toner cartridge is
not installed. Install the toner cartridge.
See “Installing the Toner
Cartridge” on page 2.2.
Not
Assigned
(only for SCX-
4521F/ SCX-
4521FR)
• The speed dial
location you tried to
use has no number
assigned to it.
• The ID you entered
is not assigned
.
• Dial the number manually
using the number keypad or
assign the number. For
storing a number, see
“Automatic Dialing” on
page 7.8.
• Enter the correct ID.
.
[No Paper]
Add Paper The paper in the tray
has run out. Load paper in the tray. See
“Loading Paper” on page 2.3.
Operation
Not Assigned
(only for SCX-
4521F/ SCX-
4521FR)
You are doing the
Add/Cancel operation,
but there are no jobs
waiting.
Check the display to see if
there are any scheduled jobs.
The display should indicate
them in Standby mode; for
example, Delay Fax.
Out of Range The current date and
time you entered is
not correct
.
Enter the correct date and
time
.
[Paper Jam 0]
Open/Close Door Paper has jammed in
the feeding area of
the tray.
Clear the jam. See “In the
Tray” on page 9.2.
[Paper Jam 1]
Open/Close Door Paper has jammed in
the fuser area or
around the toner
cartridge.
Clear the jam. See “In the
Fuser Area or Around the
Toner Cartridge” on page 9.3.
[Paper Jam 2]
Check Inside Paper has jammed in
the paper exit area. Clear the jam. See “In the
Paper Exit Area” on page 9.3.
[Power Failure] Power has turned off
then on and the
machine’s memory
has not been saved.
The job which you were trying
to do before the power failure
must be completely re-done.
Display Meaning Suggested solutions
Troubleshooting
9.6
Remove Documents
from ADF The Favorite Copy
button is set to Clone,
Autofit, ID Card Copy
or Poster and you
press the button.
The Clone, Autofit, ID Card
Copy or Poster feature does
not work with ADF. Remove
the documents in the ADF.
[Retry Redial?]
(only for SCX-
4521F/ SCX-
4521FR)
The machine is
waiting for a specified
time interval to redial
a previously busy
station.
You can press
Enter
to
immediately redial, or
Stop/
Clear
to cancel the redial
operation.
Scanner Locked The scanner module is
locked. Upload the power cord and
plug it back in.
[Stop Pressed] The
Stop/Clear
button has been
pressed during a copy
or fax operation.
Try again.
[Toner Empty] The toner cartridge
has run out. Replace the toner cartridge
with a new one. See
“Replacing the Toner
Cartridge” on page 8.4.
[Toner Low] The toner is almost
empty. Take out the toner cartridge
and gently shake it. By doing
this, you can temporarily
reestablish printing
operations. See
“Redistributing Toner” on
page 8.4.
Display Meaning Suggested solutions
Solving Other Problems
The following chart lists some conditions that may occur and
the recommended solutions. Follow the suggested solutions
until the problem is corrected. If the problem persists, please
call for service.
Paper Feeding Problems
Condition Suggested solutions
Paper is jammed
during printing. Clear the paper jam. See “Clearing Paper Jams” on
page 9.2.
Paper sticks
together. • Ensure that there is not too much paper in the tray.
The tray can hold up to 150 sheets of paper,
depending on the thickness of your paper.
• Make sure that you are using the correct type of
paper. See “Paper Specifications” on page 10.3
.
• Remove paper from the tray and flex or fan the
paper.
• Humid conditions may cause some paper to stick
together.
Multiple sheets of
paper do not feed. • Different types of paper may be stacked in the tray.
Load paper of only one type, size, and weight.
• If multiple sheets have caused a paper jam, clear
the paper jam. See “Clearing Paper Jams” on
page 9.2.
Paper does not feed
into the machine. • Remove any obstructions inside the machine.
• Paper has not been loaded correctly. Remove paper
from the tray and reload it correctly.
• There is too much paper in the tray. Remove excess
paper from the tray.
• The paper is too thick. Use only paper that meets
the specifications required by the machine. See
“Paper Specifications” on page 10.3.
The paper keeps
jamming. • There is too much paper in the tray. Remove excess
paper from the tray. If you are printing on special
materials, use one sheet of paper at a time.
• An incorrect type of paper is being used. Use only
paper that meets the specifications required by the
machine. See “Paper Specifications” on page 10.3.
• There may be debris inside the machine. Open the
front door and remove the debris.
Transparencies stick
together in the
paper exit.
Use only transparencies specifically designed for laser
printers. Remove each transparency as it exits from
the machine.
Envelopes skew or
fail to feed
correctly.
Ensure that the paper guides are against both sides of
the envelopes.
Troubleshooting
9.7
Printing Problems
Condition Possible cause Suggested solutions
The machine
does not
print.
The machine is not
receiving power. Check the power cord
connections. Check the power
switch and the power source.
The machine is not
selected as the default
printer.
Select
your printer
as your
default printer in your Windows.
Check the machine for
the following:
• The front door is not
closed.
• Paper is jammed.
• No paper is loaded.
• The toner cartridge
is not installed.
After locating the problem, clear
it.
• Close the door.
• Clear the paper jam. See
“Clearing Paper Jams” on
page 9.2.
• Load paper. See “Loading
Paper” on page 2.3.
• Install the toner cartridge. See
“Installing the Toner Cartridge”
on page 2.2.
If a printer system error occurs,
contact your service
representative.
The connection cable
between the computer
and the machine is not
connected properly.
Disconnect the printer cable and
reconnect it.
The connection cable
between the computer
and the machine is
defective.
If possible, attach the cable to
another computer that is working
properly and print a job. You can
also try using a different printer
cable.
The port setting is
incorrect. Check the Windows printer setting
to make sure that the print job is
sent to the correct port, for
example, LPT1. If the computer
has more than one port, make
sure that the machine is attached
to the correct one.
The machine may be
configured incorrectly. Check the printer properties to
ensure that all of the print
settings are correct.
The printer driver may
be incorrectly
installed.
Repair the printer software. For
details, see
Software User’s
Guide
.
The machine is
malfunctioning. Check the display message on the
control panel to see if the
machine is indicating a system
error.
The machine
selects print
materials
from the
wrong paper
source.
The paper source
selection in the printer
properties may be
incorrect.
For many software applications,
the paper source selection is
found under the
Paper
tab within
the printer properties. Select the
correct paper source. For details,
see
Software User’s Guide
.
A print job is
extremely
slow.
The job may be very
complex. Reduce the complexity of the
page or try adjusting the print
quality settings.
The maximum print speed of your
machine is 20 PPM for Letter-sized
paper and 20 PPM for A4-sized
paper.
If you are using
Windows 98/Me, the
Spooling Setting may
be set incorrectly.
From the
Start
menu, choose
Settings
and
Printers
. Right-
click the
your printer
icon,
choose
Properties
, click the
Details
tab, and then choose the
Spool Settings
button. Select
the desired spool setting.
Half the page
is blank. The page orientation
setting may be
incorrect.
Change the page orientation in
your application. For details, see
Software User’s Guide
.
The paper size and the
paper size settings do
not match.
Ensure that the paper size in the
printer driver settings matches
the paper in the tray.
Or, ensure that the paper size in
the printer driver settings
matches the paper selection in the
software application settings you
use.
The machine
prints, but the
text is wrong,
garbled, or
incomplete.
The printer cable is
loose or defective. Disconnect the printer cable and
reconnect. Try a print job that you
have already printed successfully.
If possible, attach the cable and
the machine to another computer
and try a print job that you know
works. Finally, try a new printer
cable.
The wrong printer
driver was selected. Check the application’s printer
selection menu to ensure that
your machine is selected.
The software
application is
malfunctioning.
Try printing a job from another
application.
The operating system
is malfunctioning. Exit Windows and reboot the
computer. Turn the machine off
and then back on again.
Condition Possible cause Suggested solutions
Troubleshooting
9.8
Pages print,
but are blank. The toner cartridge is
defective or out of
toner.
Redistribute the toner, if
necessary. See “Redistributing
Toner” on page 8.4.
If necessary, replace the toner
cartridge.
The file may have
blank pages. Check the file to ensure that it
does not contain blank pages.
Some parts, such as
the controller or the
board, may be
defective.
Contact a service representative.
An error
occurs
repeatedly
when you are
printing with
the USB
connection.
When the USB mode is
set to “Fast”, some PC
user may experience
poor USB
communication.
Change the USB mode to “Slow”.
To do so, follow these steps:
1. Press
Menu
until “Machine
Setup” appears on the display.
2. Press the scroll
button ( or )
until “USB Mode” appears on
the bottom line and press
Enter
.
3. Press the scroll
button ( or )
to select “Slow”.
4. Press
Enter
to save the
selection.
5. Press
Stop/Clear
to return to
Standby Mode.
Condition Possible cause Suggested solutions
Printing Quality Problems
If the inside of the machine is dirty or paper has been loaded
improperly, you may notice a reduction in print quality. See the
table below to clear the problem.
Condition Suggested solutions
Light or faded
print
If a vertical white streak or faded area appears on the
page:
• The toner supply is low. You may be able to temporarily
• extend the toner cartridge life. See “Redistributing
Toner” on page 8.4. If this does not improve the print
quality, install a new toner cartridge.
• The paper may not meet paper specifications; for
example, the paper is too moist or too rough. See
“Paper Specifications” on page 10.3.
• If the entire page is light, the print resolution setting is
too low or the toner save mode is on. Adjust the print
resolution and turn the toner save mode off. For
details, see
Software User’s Guide
and “Toner Save
Mode” on page 2.11, respectively.
• A combination of faded or smeared defects may
indicate that the toner cartridge needs cleaning. See
“Cleaning the Drum” on page 8.5.
• The surface of the LSU part inside the machine may be
dirty. Clean the LSU (“Cleaning the Inside” on
page 8.2). Contact a service representative.
Toner specs
• The paper may not meet specifications; for example,
the paper is too moist or too rough. See “Paper
Specifications” on page 10.3.
• The transfer roller may be dirty. Clean the inside of
your machine. See “Cleaning the Inside” on page 8.2.
• The paper path may need cleaning. See “Cleaning the
Drum” on page 8.5.
Dropouts
If faded areas, generally rounded, occur randomly on the
page:
• A single sheet of paper may be defective. Try reprinting
the job.
• The moisture content of the paper is uneven or the
paper has moist spots on its surface. Try a different
brand of paper. See “Paper Specifications” on
page 10.3.
• The paper lot is bad. The manufacturing processes can
cause some areas to reject toner. Try a different kind or
brand of paper.
• The toner cartridge may be defective. See “Vertical
repetitive defects” on page 9.9.
• If these steps do not correct the problem, contact a
service representative.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Troubleshooting
9.9
Vertical lines
If black vertical streaks appear on the page:
• The drum inside the toner cartridge has probably been
scratched. Remove the toner cartridge and install a
new one. See “Replacing the Toner Cartridge” on
page 8.4.
If white vertical streaks appear on the page:
• The surface of the LSU part inside the machine may be
dirty. Clean the LSU (“Cleaning the Inside” on
page 8.2). Contact a service representative.
Gray
background
If the amount of background shading becomes
unacceptable:
• Change to a lighter weight paper. See “Paper
Specifications” on page 10.3.
• Check the machine’s environment: very dry (low
humidity) or high humidity (higher than 80% RH)
conditions can increase the amount of background
shading.
• Remove the old toner cartridge and install a new one.
See “Replacing the Toner Cartridge” on page 8.4.
Toner smear
• Clean the inside of the machine. See “Cleaning the
Inside” on page 8.2.
• Check the paper type and quality. See “Paper
Specifications” on page 10.3.
• Remove the toner cartridge and install a new one. See
“Replacing the Toner Cartridge” on page 8.4.
Vertical
repetitive
defects
If marks repeatedly appear on the printed side of the
page at even intervals:
• The toner cartridge may be damaged. If a repetitive
mark occurs on the page, print a cleaning sheet several
times to clean the cartridge; see “Cleaning the Drum”
on page 8.5. After the printout, if you still have the
same problems, remove the toner cartridge and install
a new one. See “Replacing the Toner Cartridge” on
page 8.4.
• Parts of the machine may have toner on them. If the
defects occur on the back of the page, the problem will
likely correct itself after a few more pages.
• The fusing assembly may be damaged. Contact a
service representative.
• If you use inferior quality paper; see “Cleaning the
Drum” on page 8.5.
Condition Suggested solutions
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Background
scatter
Background scatter results from bits of toner randomly
distributed on the printed page.
• The paper may be too damp. Try printing with a
different batch of paper. Do not open packages of
paper until necessary so that the paper does not
absorb too much moisture.
• If background scatter occurs on an envelope, change
the printing layout to avoid printing over areas that
have overlapping seams on the reverse side. Printing
on seams can cause problems.
• If background scatter covers the entire surface area of
a printed page, adjust the print resolution through your
software application or the printer properties.
Misformed
characters
• If characters are improperly formed and producing
hollow images, the paper stock may be too slick. Try a
different paper. See “Paper Specifications” on
page 10.3.
• If characters are improperly formed and producing a
wavy effect, the scanner unit may need service. For
service, contact a service representative.
Page skew
• Ensure that the paper is loaded properly.
• Check the paper type and quality. See “Paper
Specifications” on page 10.3.
• Ensure that the paper or other material is loaded
correctly and the guides are not too tight or too loose
against the paper stack.
Curl or wave
• Ensure that the paper is loaded properly.
• Check the paper type and quality. Both high
temperature and humidity can cause paper curl. See
“Paper Specifications” on page 10.3.
• Turn over the stack of paper in the tray. Also try
rotating the paper 180° in the tray.
Wrinkles or
creases
• Ensure that the paper is loaded properly.
• Check the paper type and quality. See “Paper
Specifications” on page 10.3.
• Turn over the stack of paper in the tray. Also try
rotating the paper 180° in the tray.
Condition Suggested solutions
A
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Troubleshooting
9.10
Back of
printouts are
dirty
Check for leaking toner. Clean the inside of the machine.
See “Cleaning the Inside” on page 8.2.
Black pages
• The toner cartridge may not be installed properly.
Remove the cartridge and reinsert it.
• The toner cartridge may be defective and need
replacing. Remove the toner cartridge and install a new
one. See “Replacing the Toner Cartridge” on page 8.4.
• The machine may require repair. Contact a service
representative.
Loose toner
• Clean the inside of the machine. See “Cleaning the
Inside” on page 8.2.
• Check the paper type and quality. See “Paper
Specifications” on page 10.3.
• Remove the toner cartridge and install a new one. See
“Replacing the Toner Cartridge” on page 8.4.
• If the problem persists, the machine may require
repair. Contact a service representative.
Character
Voids
Character voids are white areas within parts of characters
that should be solid black:
• If you are using transparencies, try another type of
transparency. Because of the composition of
transparencies, some character voids are normal.
• You may be printing on the wrong surface of the paper.
Remove the paper and turn it around.
• The paper may not meet paper specifications. See
“Paper Specifications” on page 10.3.
Horizontal
stripes
If horizontally aligned black streaks or smears appear:
• The toner cartridge may be installed improperly.
Remove the cartridge and reinsert it.
• The toner cartridge may be defective. Remove the
toner cartridge and install a new one. See “Replacing
the Toner Cartridge” on page 8.4.
• If the problem persists, the machine may require
repair. Contact a service representative.
Curl
If the printed paper is curled or paper does not feed into
the machine:
• Turn over the stack of paper in the tray. Also try
rotating the paper 180° in the tray.
Condition Suggested solutions
A
A
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Copying Problems
Condition Suggested solutions
Copies are too light or
too dark. Use the
Darkness
button to darken or lighten the
background of the copies.
Smears, lines, marks,
or spots appears on
copies.
• If defects are on the original, press the
Darkness
button to lighten the background of
your copies.
• If no defects are on the original, clean the scan
unit. See “Cleaning the Scan Unit” on page 8.3.
Copy image is skewed. • Ensure that the original is face down on the
document glass or face up in the ADF (Automatic
Document Feeder).
• Check that the copy paper is loaded correctly.
Blank copies print out. Ensure that the original is face down on the
document glass or face up in the ADF.
Image rubs off the
copy easily. • Replace the paper in the tray with paper from a
new package.
• In high humidity areas, do not leave paper in the
machine for extended periods of time.
Frequent copy paper
jams occur. • Fan the stack of paper, then turn it over in the
tray. Replace the paper in the tray with a fresh
supply. Check/adjust the paper guides, if
necessary.
• Ensure that the paper is the proper paper
weight. 20 lb (75 g/m
2
bond) paper is
recommended.
• Check for copy paper or pieces of copy paper
remaining in the machine after a paper jam has
been cleared.
Toner cartridge
produces fewer copies
than expected before
running out of toner.
• Your originals may contain pictures, solids, or
heavy lines. For example, your originals may be
forms, newsletters, books, or other documents
that use more toner.
• The machine may be turned on and off
frequently.
• The document cover may be left open while
copies are being made.
Troubleshooting
9.11
Scanning Problems
Fax Problems
(Only for SCX-4521F/ SCX-4521FR)
Condition Suggested solutions
The scanner does
not work. • Make sure that you place the document to be
scanned face down on the document glass, or face
up in the Automatic Document Feeder.
• There may not be enough available memory to hold
the document you want to scan. Try the Prescan
function to see if that works. Try lowering the scan
resolution rate.
• Check that the USB or parallel cable is connected
properly.
• Make sure that the USB or parallel cable is not
defective. Switch the cable with a known good
cable. If necessary, replace the cable.
• If you are using a parallel cable, ensure that it is
compliant with IEEE 1284 standards.
• Check that the scanner is configured correctly.
Check scan setting in the SmarThru Configuration
or the application you want to use to make certain
that the scanner job is being sent to the correct
port, for example, LPT1.
The unit scans very
slowly. • Check if the machine is printing received data. If so,
scan the document after the received data has been
printed.
• Graphics are scanned more slowly than text.
• Communication speed slows in scan mode because
of the large amount of memory required to analyze
and reproduce the scanned image. Set your
computer to the ECP printer mode through BIOS
setting. It will help to increase the speed. For
details about how to set BIOS, refer to your
computer User’s Guide.
Condition Suggested solutions
The machine is not
working, there is no
display and the
buttons are not
working.
• Unplug the power cord and plug it in again.
• Ensure that there is power to the electrical outlet.
No dial tone sounds. • Check that the phone line is connected properly.
• Check that the phone socket in the wall is working
by plugging in another phone.
The numbers stored
in memory do not
dial correctly.
Make sure that the numbers are stored in memory
correctly. Print a Phonebook list, referring to
“Phonebook List” on page 7.13.
The document does
not feed into the
machine.
• Make sure that the document is not wrinkled and
you are putting it in correctly. Check that the
document is the right size, not too thick or thin.
• Make sure that the ADF (Automatic Document
Feeder) cover is firmly closed.
Faxes are not
received
automatically.
• Fax mode should be selected.
• Make sure that there is paper in the tray.
• Check to see if the display shows “Memory Full”.
The machine does
not send. • Make sure that the document is loaded in the ADF
or on the document glass.
• “TX” should show up on the display.
• Check the fax machine you are sending to, to see
if it can receive your fax.
The incoming fax has
blank spaces or is of
poor-quality.
• The fax machine sending you the fax may be
faulty.
• A noisy phone line can cause line errors.
• Check your machine by making a copy.
• The toner cartridge may be empty. Replace the
toner cartridge, referring to “Replacing the Toner
Cartridge” on page 8.4.
Some of the words
on an incoming fax
are stretched.
The fax machine sending you the fax had a
temporary document jam.
There are lines on
the documents you
send.
Check your scanning glass for marks and clean it.
See “Cleaning the Scan Unit” on page 8.3.
The machine dials a
number, but a
connection with the
other fax machine
fails.
The other fax machine may be turned off, out of
paper, or cannot answer incoming calls. Speak with
the other machine operator and ask her/him to sort
out the problem.
Documents are not
stored in memory. There may not be enough memory to store the
document. If the display shows a “Memory Full”
message, delete from memory any documents you
no longer need and then try again to store the
document.
Blank areas appear
at the bottom of each
page or on other
pages, with a small
strip of text at the
top.
You may have chosen the wrong paper settings in
the user option setting. For details about paper
settings, see “Setting the Paper Size and Type” on
page 2.10.
Condition Suggested solutions
Troubleshooting
9.12
Common Linux Problems
Problem Possible Cause and Solution
The machine
doesn’t print. • Check if the printer driver is installed in your system.
Open MFP configurator and switch to the Printers tab in
Printers configuration window to look at the list of
available printers. Make sure that your machine is
displayed on the list. If not, please, invoke Add new
printer wizard to set up your device.
• Check if the printer is started. Open Printers
configuration and select your machine on the printers list.
Look at the description in the Selected printer pane. If its
status contains “(stopped)” string, please, press the
Start
button. After that normal operation of the printer
should be restored. The "stopped" status might be
activated when some problems in printing occurred. For
instance, this could be an attempt to print document
when MFP port is claimed by a scanning application.
• Check if the MFP port is not busy. Since functional
components of MFP (printer and scanner) share the same
I/O interface (MFP port), the situation of simultaneous
access of different “consumer” application to the same
MFP port is possible. To avoid possible conflicts, only one
of them at a time is allowed to gain control over the
device. The other “consumer” will encounter “device
busy” response. You should open MFP ports configuration
and select the port assigned to your printer. In the
Selected port pane you can see if the port is occupied by
some other application. If this is the case, you should
wait for completion of the current job or should press
Release port button, if you are sure that the present
owner is not functioning properly.
Check if your application has special print option such
as “-oraw”. If “-oraw” is specified in the command
line parameter then remove it to print properly. For
Gimp front-end, select “print” -> “Setup printer” and
edit command line parameter in the command item.
The machine
doesn’t appear
on the
scanners list.
• Check if your machine is attached to your computer.
Make sure that it is connected properly via the USB port
and is turned on.
• Check if the scanner driver for you machine is installed in
your system. Open MFP Configurator, switch to Scanners
configuration, then press
Drivers
. Make sure that driver
with a name corresponding to your machine's name is
listed in the window.
• Check if the MFP port is not busy. Since functional
components of MFP (printer and scanner) share the same
I/O interface (MFP port), the situation of simultaneous
access of different “consumer” application to the same
MFP port is possible. To avoid possible conflicts, only one
of them at a time is allowed to gain control over the
device. The other “consumer” will encounter “device
busy” response. This can usually happen while starting
scan procedure, and appropriate message box displays.
To identify the source of the problem, you should open
MFP ports configuration and select the port assigned to
your scanner. MFP port's symbol /dev/mfp0 corresponds
to LP:0 designation displayed in the scanners’ options, /
dev/mfp1 relates to LP:1 and so on. USB ports start at /
dev/mfp4, so scanner on USB:0 relates to /dev/mfp4
respectively and so forth sequentially. In the Selected
port pane you can see if the port is occupied by some
other application. If this is the case, you should wait for
completion of the current job or should press Release
port button, if you are sure that the present port's owner
is not functioning properly.
The machine
doesn’t scan. • Check if a document is loaded into the machine.
• Check if your machine is connected to the computer.
Make sure if it is connected properly if I/O error is
reported while scanning.
• Check if MFP port is not busy. Since functional
components of MFP (printer and scanner) share the same
I/O interface (MFP port), the situation of simultaneous
access of different “consumer” application to the same
MFP port is possible. To avoid possible conflicts, only one
of them at a time is allowed to gain control over the
device. The other “consumer” will encounter “device
busy” response. This can usually happen while starting
scan procedure, and appropriate message box will be
displayed.
The machine
doesn’t scan.
(continued)
• To identify the source of the problem, you should open
MFP ports configuration and select the port assigned to
your scanner. MFP port’s symbol /dev/mfp0 corresponds
to LP:0 designation displayed in the scanners’ options, /
dev/mfp1 relates to LP:1 and so on. USB ports start at /
dev/mfp4, so scanner on USB:0 relates to /dev/mfp4
respectively and so forth sequentially. In the Selected
port pane you can see if the port is occupied by some
other application. If this is the case, you should wait for
completion of the current job or should press Release
port button, if you are sure that the present port’s owner
is not functioning properly.
Problem Possible Cause and Solution
Troubleshooting
9.13
I can’t print
when I
installed both
Linux Print
Package (LPP)
and MFP driver
on the same
machine
simultaneously.
• Since both Linux Printer Package and MFP driver make a
symbolic link to “lpr” printing command, which is
commonly used on Unix clones, it is not recommended to
use both package on the same machine.
• If you still want to use both packages simultaneously,
please install the LPP first.
• If you want to uninstall only one of them, please uninstall
both packages and install that one you want to use again.
• If you don’t want to uninstall MFP driver and install it
again, you may make the necessary symbolic link
yourself. Please, log in as root user and invoke the
following command:
ln -sf /usr/local/bin/samsung/slpr /usr/bin/lpr
Can’t scan via
Gimp Front-
end.
• Check if Gimp Front-end has “Xsane:Device dialog..” on
the “Acquire” menu. If not, you should install Xsane plug-
in for Gimp on the your computer. You can find Xsane
plug-in package for Gimp on Linux distribution CD or
Gimp home page. For the detail information, refer to the
Help for Linux distribution CD or Gimp Front-end
application.
If you wish to use other kind of scan application, refer to
the Help for application.
I encounter
error “Cannot
open MFP port
device file”
when printing
a document.
Please avoid changing print job parameters (via SLPR
utility, for example) while a print job is in progress. Known
versions of CUPS server break the print job whenever print
options are changed and then try to restart the job from
the beginning. Since Linux MFP driver locks MFP port while
printing, the abrupt termination of the driver keeps the port
locked and therefore unavailable for subsequent print jobs.
If this situation occurred, please, try to release the MFP
port.
Problem Possible Cause and Solution
Common Macintosh Problems
Problems in Printer Setup Utility
Problem Possible Cause and Solution
There is described
"driver not
installed" at Product
List Window after
you click Add and
Select USB.
• Software is not installed correctly. Reinstall the
software. See
Software User’s Guide
.
• Make sure that you are using a high-quality cable.
Your product not
listed at Product
List Window after
you click Add and
Select USB.
• Make sure that the cables are connected correctly
and the printer is turned on.
• Check if “Ready” appears on the display of the
control panel. If not, clear the problem depending
on the error message; see “Clearing LCD Error
Messages” on page 9.4.
• Make sure that the correct printer driver has been
selected at Product List Window after you click Add
and Select USB.
Specifications
10.1
10
Specifications
This chapter includes:
• General Specifications
• Scanner and Copier Specifications
• Printer Specifications
• Facsimile Specifications (Only for SCX-4521F/ SCX-
4521FR)
• Paper Specifications
General Specifications
Item Description
Automatic document
feeder Up to 30 sheets (20 lb, 75 g/m
2
bond)
ADF document size Width: 5.6 to 8.5 inches (142 to 216 mm)
Length: 5.8 to 14 inches (148 to 356 mm)
Paper input capacity
Tray with multi-pages: 150 multi-pages for plain
paper (20 lb, 75 g/m
2
bond)
Tray with single page and manual tray: 1 single page
for plain paper, card stock, labels, transparencies,
and envelopes
Paper output capacity 50 sheets
Paper type Plain paper, Transparencies, Labels, Card stock,
Envelopes
Consumables 1-piece toner cartridge system
Power requirements 110 - 127 VAC, 50/60 Hz, 4.5 A
220 - 240 VAC, 50/60 Hz, 2.5 A
Power consumption Sleep mode: Under 10 W
Average: 350 W
Noise
*
*.Sound Pressure Level, ISO7779
Standby mode: Less than 35 dBA
Warm up: Less than 49 dBA
Copying: Less than 55 dBA
Printing: Less than 53 dBA
Warm-up time Less than 35 seconds
Operating conditions Temperature: 50
o
F to 89
o
F (10
o
C to 32
o
C)
Humidity: 20 % to 80 % RH
LCD 16 characters x 2 lines
Toner cartridge life
**
**.The number of pages may be affected by operating environment, printing
interval, media type, and media size.
3,000 pages (for starter, 1,000 pages) @ ISO 19752
5 % coverage
SET dimension
(W x D x H) 17.2 x 14.7x 14.5 in. (438 x 374 x 368 mm)
Weight 10.4 Kg (including consumables)
Package weight Paper: 1.2 Kg
Plastic: 0.5 Kg
Duty cycle (Monthly) Print: Up to 4,200 pages
Specifications
10.2
Scanner and Copier
Specifications
Item Description
Compatibility TWAIN standard / WIA standard
Scanning method ADF and Flat-bed CIS (Contact Image Sensor)
module
Resolution Optical: 600 x 600 dpi (Mono and color)
Enhanced: 4,800 x 4,800 dpi
Effective scanning
length Platen: 11.7 in. (297 mm)
ADF: 14 in. (356 mm)
Effective scanning
width Max. 8.2 in. (208 mm)
Color bit depth 24 bit
Mono bit depth 1 bit for Black & White mode
8 bit for Gray mode
Copy speed
*
*. Copy Speed is based on Single Document Multiple Copy.
• SCX-4521F: Up to 20 cpm in A4 (20 cpm in Letter)
• SCX-4521FR: Up to 9 cpm in A4 (9 cpm in Letter)
First copy out time Standby mode: 11 seconds
Power save mode: 41 seconds
Copy resolution
Scan: 600 x 300 (Text, Text/Photo)
600 x 600 (Photo using Platen)
600 x 300 (Photo using ADF)
Print: 600 x 600 (Text, Text/Photo, Photo)
Zoom rate Platen: 25 ~ 400 %
ADF: 25 ~ 100 %
Multiple copies 1-99 pages
Gray scale 256 levels
Printer Specifications
Item Description
Printing method Laser Beam Printing
Printing speed
*
*. Print speed will be affected by operating system used, computing
performance, application software, connecting method, media type,
media size, and job complexity.
Up to 20 ppm in A4 (20 ppm in Letter)
First print out time Standby mode: 11 seconds
Power save mode: 41 seconds
Paper size
Letter, Legal, A4, Folio, Executive, A5, A6 card,
Envelope 10, Envelope DL, Envelope C5, Envelope
C6, Envelope 7-3/4 (Monarch), JIS B5, ISO B5
* Min.: 3 x 5 in. (76 x 127 mm)
Max.: 8.5 x 14 in. (216 x 356 mm)
Printer resolution 600 x 600 dpi
Emulation SPL (Samsung Printer Language)
OS Compatibility
**
**.Please visit www.samsungprinter.com to download the latest soft-
ware version.
Windows 98/2000/NT 4.0/Me/XP, Various Linux OS
(USB only), Macintosh 10.3
Memory 10 MB (Non-expendable)
Inteface IEEE 1284 Parallel,
USB 1.1 (Compatible with USB 2.0)
Specifications
10.3
Facsimile Specifications
(Only for SCX-4521F/ SCX-4521FR)
Item Description
Compatibility ITU-T Group 3
Applicable line Public Switched Telephone Network (PSTN) or
behind PABX
Data coding MH/MR/MMR (ECM Mode)/JPEG
Modem speed 33.6 Kbps
Transmission speed
Approx. 3 seconds/page
* Transmission time applies to memory
transmission of text data with ECM compression
using only ITU-T No.1 Chart.
Maximum document
length Platen: 11.7 in. (297 mm)
ADF: 14 in. (356 mm)
Paper size Letter, A4, Legal, Folio, Executive, B5
Resolution
Standard: 203 x 98 dpi
Fine: 203 x 196 dpi
Super Fine: 300 x 300 dpi
Photo: 203 x 196 dpi
Color: 200 x 200 dpi
Memory 2 MB
Halftone 256 levels
Auto dialer Speed dialing (up to 100 numbers)
Paper Specifications
Overview
Your machine accepts a variety of print materials, such as cut-
sheet paper (including up to 100% recycled fiber content
paper), envelopes, labels, transparencies and custom-size
paper. Properties, such as weight, composition, grain and
moisture content, are important factors affecting the machine’s
performance and the output quality. Paper that does not meet
the guidelines outlined in this user’s guide can cause the
following problems:
• Poor print quality
• Increased paper jams
• Premature wear on the machine.
N
OTES
:
• Some paper may meet all of the guidelines in this guide and
still not produce satisfactory results. This may be the result
of improper handling, unacceptable temperature and
humidity levels, or other variables over which Samsung has
no control.
• Before purchasing large quantities of paper, insure the paper
meets the requirements specified in this user’s guide.
C
AUTION
: Using paper that does not meet these
specifications may cause problems, requiring repairs. These
repairs are not covered by the Samsung warranty or service
agreements.
Specifications
10.4
Supported Sizes of Paper
N
OTE
: You may experience jams when using print materials
with a length of less than 5 in. (127 mm). For optimum
performance, ensure that you are storing and handling the
paper correctly. Please refer to “Paper Storage Environment”
on page 10.5.
Paper Dimensions
*
Weight Capacity
**
Letter 8.5 x 11 in.
(216 x 279 mm)
• 16 to 24 lb
(60 to 90 g/m
2
bond) for the tray
with multi-pages
feeding
• 16 to 43 lb
(60 to 165 g/m
2
bond) for the tray
with single page
feeding and the
manual tray
• 150
sheets of
20 lb
(75 g/m
2
bond)
paper for
the tray
•1 sheet of
paper for
the tray or
manual
tray
A4 8.3 x 11.7 in.
(210 x 297 mm)
Executive 7.3 x 10.5 in.
(184 x 267 mm)
Legal 8.5 x 14 in.
(216 x 356 mm)
A5 5.8 x 8.2 in.
(148 x 210 mm)
A6 4.1 x 5.8 in.
(105 x 148 mm)
ISO B5 6.9 x 9.8 in.
(176 x 250 mm)
JIS B5 7.2 x 10.1 in.
(182 x 257 mm)
Folio 8.5 x 13 in.
(216 x 330 mm)
Minimum size
(custom) 3 x 5 in
(76 x 127 mm) 16 to 43 lb (60 to 165
g/m
2
bond) for the
tray with single page
feeding and the
manual tray 1 sheet of
paper for
the tray or
manual tray
Maximum size
(custom) 8.5 x 14 in
(216 x 356 mm)
Transparency
Same minimum
and maximum
paper sizes as
listed above.
138 to 146 g/m
2
Labels 120 to 150 g/m
2
Cards 90 to 163 g/m
2
Envelopes 75 to 90 g/m
2
(20 to 24 lb)
*. The machine supports a wide range of media sizes. See “Paper
Type, Input Sources, and Capacities” on page 3.1
**.Capacity may differ depending on media weight, thickness, and
environmental conditions.
Guidelines for Using Paper
For the best result, use conventional 20 lb (75 g/m
2
bond)
paper. Ensure that the paper is of good quality, and free of cuts,
nicks, tears, spots, loose particles, dust, wrinkles, voids, and
curled or bent edges.
If you are unsure of what type of paper you are loading, such
as bond or recycled paper, check the label on the package.
The following problems may cause print quality deviations,
jamming or even damage to the machine:
N
OTES
:
• Do not use letterhead paper printed with low-temperature
inks, such as those used in some types of thermography.
• Do not use raised or embossed letterhead.
• The machine uses heat and pressure to fuse toner to the
paper. Insure that any colored paper or preprinted forms use
inks that are compatible with this fusing temperature (200
°C or 392 °F for 0.1 second).
Symptom Problem with Paper Solution
Poor print quality or
toner adhesion,
problems with feeding
Too moist, too rough,
too smooth or
embossed; faulty paper
lot
Try another kind of
paper, between 100 ~
400 Sheffield, 4 ~ 5 %
moisture content.
Dropout, jamming,
curl Stored improperly Store paper flat in its
moisture-proof
wrapping.
Increased gray
background shading/
printer wear Too heavy Use lighter paper.
Excessive curl
problems with feeding
Too moist, wrong grain
direction or short-grain
construction Use long-grain paper.
Jamming, damage to
machine Cutouts or perforations Do not use paper with
cutouts or perforations.
Problems with feeding Ragged edges Use good quality paper.
Specifications
10.5
Paper Specifications
Paper Output Capacity
Paper Storage Environment
Paper storage environmental conditions directly affect the feed
operation.
Ideally, the machine and paper storage environment should be
at or near room temperature, and not too dry or humid.
Remember that paper is hygroscopic; it absorbs and loses
moisture rapidly.
Heat works with humidity to damage paper. Heat causes the
moisture in paper to evaporate, while cold causes it to
condense on the sheets. Heating systems and air conditioners
remove most of the humidity from a room. As paper is opened
and used, it loses moisture, causing streaks and smudging.
Humid weather or water coolers can cause the humidity to
increase in a room. As paper is opened and used it absorbs any
excess moisture, causing light print and dropouts. Also, as
paper loses and gains moisture it can become distorted. This
can cause paper jams.
Care should be taken not to purchase more paper than can be
used in a short time (about 3 months). Paper stored for long
periods may experience heat and moisture extremes, which
can cause damage. Planning is important to prevent damage to
large supplies of paper.
Unopened paper in sealed reams can remain stable for several
months before use. Opened packages of paper have more
potential for environment damage, especially if they are not
wrapped with a moisture-proof barrier.
Category Specifications
Acid content 5.5 pH or lower
Caliper 3.0 ~ 7.0 mils (0.094 ~ 0.18 mm)
Curl in ream Flat within 0.02 in. (5 mm)
Cut edge conditions Cut with sharp blades with no visible fray.
Fusing compatibility Must not scorch, melt, offset or release hazardous
emissions when heated to 200 °C (392 °F) for 0.1
second.
Grain Long grain
Moisture content 4 % ~ 6 % by weight
Smoothness 100 ~ 400 Sheffield
Output Location Capacity
Face-down output tray 50 sheets of 20 lb (75 g/m
2
bond) paper
The paper storage environment should be properly maintained
to ensure optimum performance. The required condition is 20
to 24 °C (68 to 75 °F), with a relative humidity of 45 % to 55
%. The following guidelines should be considered when
evaluating the paper’s storage environment:
• Paper should be stored at or near room temperature.
• The air should not be too dry or too humid.
• The best way to store an opened ream of paper is to
rewrap it tightly in its moisture-proof wrapping. If the
machine environment is subject to extremes, unwrap
only the amount of paper to be used during the day’s
operation to prevent unwanted moisture changes.
Envelopes
Envelope construction is critical. Envelope fold lines can vary
considerably, not only between manufacturers, but also within
a box from the same manufacturer. Successful printing on
envelopes depends upon the quality of the envelopes. When
selecting envelopes, consider the following components:
• Weight: The weight of the envelope paper should not
exceed 24 lb (90 g/m
2
bond
) or jamming may occur.
• Construction: Prior to printing, envelopes should lie flat
with less than 0.25 in. (6 mm) curl, and should not
contain air.
• Condition: Envelopes should not be wrinkled, nicked or
otherwise damaged.
• Temperature: You should use envelopes that are
compatible with the heat and pressure of the machine.
• Size: You should only use envelopes within the following
size ranges.
N
OTES
:
• Load only one sheet of paper at a time to print envelopes.
• You may experience some paper jams when using any media
with a length less than 5.5 in. (140 mm). This may be
caused by paper that has been affected by environmental
conditions. For optimum performance, make sure you are
storing and handling the paper correctly. Please refer to
“Paper Storage Environment” on page 10.5.
Minimum Maximum
3 x 5 in.
(76 x 127 mm) 8.5 x 14 in.
(216 x 356 mm)
Specifications
10.6
Envelopes with Double Side Seams
Double side-seams construction has vertical seams at both
ends of the envelope rather than diagonal seams. This style
may be more likely to wrinkle. Be sure the seam extends all the
way to the corner of the envelope as illustrated below.
Envelopes with Adhesive Strips or Flaps
Envelopes with a peel-off adhesive strip or with more than one
flap that folds over to seal must use adhesives compatible with
the heat and pressure in the machine. The extra flaps and strips
might cause wrinkling, creasing or even jams and may even
damage the fuser.
Envelope Margins
The following gives typical address margins for a commercial
#10 or DL envelope.
N
OTES
:
• For the best print quality, position margins no closer than
0.6 in. (15 mm) from the edges of the envelope.
• Avoid printing over the area where the envelope’s seams
meet.
Envelope Storage
Proper storage of envelopes helps contribute to print quality.
Envelopes should be stored flat. If air is trapped in an envelope,
creating an air bubble, then the envelope may wrinkle during
printing.
Correct
Incorrect
Type of Address Minimum Maximum
Return address 0.6 in. (15 mm) 2 in. (51 mm)
Delivery address 2 in. (51 mm) 3.5 in. (90 mm)
Labels
C
AUTIONS
:
• To avoid damaging the machine, use only labels
recommended for laser printers.
• To prevent serious jams, always load one sheet of paper at a
time to print labels.
• Never print on the same sheet of labels more than once and
never print on a partial sheet of labels.
When selecting labels, consider the quality of each component:
• Adhesives: The adhesive material should be stable at
180°C (356°F), the machine’s fusing temperature.
• Arrangement: Only use labels with no exposed backing
between them. Labels can peel off sheets with spaces
between the labels, causing serious jams.
• Curl: Prior to printing, labels must lie flat with no more
than 5 in. (13 mm) of curl in any direction.
• Condition: Do not use labels with wrinkles, bubbles or
other indications of separation.
Transparencies
Transparencies used in the machine must be able to withstand
180°C (356°F), the machine’s fusing temperature.
C
AUTION
: To avoid damaging the machine, use only
transparencies recommended for use in laser printers.
INDEX
Numerics
2/4-up, special copy
4.5
A
adding documents
7.12
ADF (Automatic Document Feeder),
load
4.2, 7.3
ADF rubber pad, replace
8.6
auto fit, special copy
4.4
automatic dialing
group
7.8
speed
7.8
automatic redialing
7.5
B
broadcasting faxes
7.10
C
canceling
copy
4.2
fax
7.5
print
5.1
scheduled faxes
7.12
characters, enter
2.9
cleaning
drum
8.5
inside
8.2
LSU
8.3
outside
8.2
scan unit
8.3
clone, special copy
4.4
collation, special copy
4.4
components
1.2
connection
AC power
2.6
extension phone
2.5
parallel
2.6
telephone line cord
2.4
USB
2.6
consumables
8.5
contrast, copy
4.3
control panel
1.3
copying
collation
4.4
contrast
4.3
default setting, change
4.6
from ADF
4.2
from document glass
4.2
number of pages
4.3
original type
4.3
special features
4.4
time out, set
4.6
D
date and time, set
2.10
delayed fax
7.11
display language, change
2.8
document
jam, clear
9.1
loading
ADF
4.2, 7.3
document glass
4.2, 7.3
preparing
4.1
document glass
cleaning
8.3
loading
7.3
DRPD (Distinctive Ring Pattern
Detection)
7.7
drum, clean
8.5
E
error messages
9.4
extension phone, connect
2.5
F
fax system, set
advanced settings
7.14
basic settings
7.1
fit to page
copying
4.4
G
group dial
dialing
7.9
editing
7.9
setting
7.8
I
installing
toner cartridge
2.2
J
jam, clear
document
9.1
paper
9.2
L
Linux
common problems
9.12
load paper
manual tray
3.3
tray
2.3
M
machine ID, set
2.9
Macintosh
common problems
9.13
memory, clear
8.1
N
notifying toner
8.4
n-up (multiple pages per sheet)
copying
4.5
P
paper guidelines
3.2
paper jam, clear
9.2
paper load
manual tray
3.3
tray
2.3
paper load capacity
3.1
paper size, set
paper tray
2.10
paper type, set
paper tray
2.10
parallel,connect
2.6
poster
copying
4.5
power save mode, use
2.11
print quality problems, solve
9.8
printing
document
5.1
Phonebook list
7.10
reports
7.13
priority fax
7.11
problem, solve
copying
9.10
error messages
9.4
faxing
9.11
Linux
9.12
Macintosh
9.13
paper feeding
9.6
printing
9.7
printing quality
9.8
scanning
9.11
R
receive mode, set
7.2
receiving a fax
in Ans/Fax mode
7.6
in DRPD mode
7.7
in Fax mode
7.6
in Secure Receiving mode
7.13
in Tel mode
7.6
in the memory
7.7
redialing
automatically
7.5
manually
7.5
reduced/enlarged
copying
4.3
replacing
ADF rubber pad
8.6
toner cartridge
8.4
reports, print
7.13
resolution
faxing
7.4
S
scanning
contol panel
6.1
searching Phonebook
7.9
Secure Receiving mode
7.13
sending a fax
automatically
7.4
manually
7.5
sounds, set
2.11
specifications
facsimile
10.3
general
10.1
paper
10.3
printer
10.2
scanner and copier
10.2
speed dial
dialing
7.8
storing
7.8
system requirements
Windows
2.7
T
tel line, connect
2.4
toner cartridge
installing
2.2
maintaining
8.3
redistributing
8.4
replacing
8.4
toner save mode, use
2.11
U
USB
connect
2.6
mode, change
9.8
V
volume, adjust
alarm
2.11
key
2.11
ringer
2.11
speaker
2.11
Z
zoom rate, copy
4.3
Samsung Printer
Software section
1
SOFTWARE SECTION
CONTENTS
Chapter 1:
INSTALLING PRINTER SOFTWARE IN WINDOWS
Installing Printer Software ........................................................................................................ 4
Reinstalling Printer Software ..................................................................................................... 6
Removing Printer Software ....................................................................................................... 6
Chapter 2:
BASIC PRINTING
Printing a Document ................................................................................................................ 7
Printing to a file (PRN) ............................................................................................................ 8
Printer Settings ....................................................................................................................... 8
Layout Tab .................................................................................................................... 9
Paper Tab ...................................................................................................................... 9
Graphics Tab ............................................................................................................... 10
Extras Tab ................................................................................................................... 11
About Tab ................................................................................................................... 11
Printer Tab .................................................................................................................. 11
Using a Favorite Setting ................................................................................................ 12
Using Help ................................................................................................................... 12
Chapter 3:
ADVANCED PRINTING
Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ..................................................... 13
Printing Posters ..................................................................................................................... 14
Printing a Reduced or Enlarged Document ................................................................................ 14
Fitting Your Document to a Selected Paper Size ......................................................................... 14
Using Watermarks ................................................................................................................. 15
Using an Existing Watermark ......................................................................................... 15
Creating a Watermark ................................................................................................... 15
Editing a Watermark ..................................................................................................... 15
Deleting a Watermark ................................................................................................... 15
2
Using Overlays ...................................................................................................................... 16
What is an Overlay? ...................................................................................................... 16
Creating a New Page Overlay ......................................................................................... 16
Using a Page Overlay .................................................................................................... 16
Deleting a Page Overlay ................................................................................................ 16
Chapter 4:
SHARING THE PRINTER LOCALLY
Setting Up a Host Computer ................................................................................................... 17
Setting Up a Client Computer .................................................................................................. 17
Chapter 5:
USING SMART PANEL
Understanding Smart Panel .................................................................................................... 18
Opening the Troubleshooting Guide ......................................................................................... 18
Changing the Smart Panel Program Settings ............................................................................. 19
Chapter 6:
SCANNING
Scanning Using Samsung SmarThru ......................................................................................... 20
Uninstalling Samsung SmarThru ..................................................................................... 20
Using Samsung SmarThru ............................................................................................. 21
Using Onscreen Help File ............................................................................................... 22
Scanning Process with TWAIN-enabled Software ........................................................................ 22
Scanning Using the WIA Driver ................................................................................................ 22
Windows XP ................................................................................................................. 22
Windows Vista ............................................................................................................. 22
Chapter 7:
USING YOUR PRINTER IN LINUX
Getting Started ..................................................................................................................... 23
Installing the Unified Linux Driver ............................................................................................ 23
Installing the Unified Linux Driver ................................................................................... 23
Uninstalling the Unified Linux Driver ............................................................................... 24
Using the Unified Driver Configurator ....................................................................................... 25
Opening the Unified Driver Configurator .......................................................................... 25
Printers Configuration ................................................................................................... 25
Scanners Configuration ................................................................................................. 26
3
Ports Configuration ....................................................................................................... 26
Configuring Printer Properties ................................................................................................. 27
Printing a Document .............................................................................................................. 27
Printing from Applications .............................................................................................. 27
Printing Files ................................................................................................................ 28
Scanning a Document ............................................................................................................ 28
Using the Image Manager .............................................................................................. 29
Chapter 8:
USING YOUR PRINTER WITH A MACINTOSH
Installing Software ................................................................................................................ 31
Setting Up the Printer ............................................................................................................ 32
For a Network-connected ............................................................................................... 32
For a USB-connected .................................................................................................... 32
Printing ................................................................................................................................ 33
Printing a Document ..................................................................................................... 33
Changing Printer Settings .............................................................................................. 33
Printing Multiple Pages on One Sheet of Paper .................................................................. 35
Scanning .............................................................................................................................. 35
Installing Printer Software in Windows
4
1Installing Printer
Software in Windows
This chapter includes:
• Installing Printer Software
• Reinstalling Printer Software
•Removing Printer Software
Installing Printer Software
You can install the printer software for local printing. To install
the printer software on the computer, perform the appropriate
installation procedure depending on the printer in use.
A printer driver is software that lets your computer
communicate with your printer. The procedure to install drivers
may differ depending on the operating system you are using.
All applications should be closed on your PC before beginning
installation.
A local printer is a printer directly attached to your computer
using the printer cable supplied with your printer, such as a USB
or parallel cable.
You can install the printer software using the typical or custom
method.
NOTE
: If the “New Hardware Wizard” window appears during
the installation procedure, click in the upper right corner of
the box to close the window, or click
Cancel
.
This is recommended for most users. All components necessary
for printer operations will be installed.
1
Make sure that the printer is connected to your computer
and powered on.
2
Insert the supplied CD-ROM into your CD-ROM drive.
The CD-ROM should automatically run, and an installation
window appears.
If the installation window does not appear, click
Start
and
then
Run
. Type
X:\Setup.exe
, replacing “
X
” with the
letter which represents your drive and click
OK
.
If you use Windows Vista, click
Start
→
All programs
→
Accessories
→
Run
, and type
X:\Setup.exe
.
If the
AutoPlay
window appears in Windows Vista, click
Run
Setup.exe
in
Install or run program
field, and
click
Continue
in the
User Account Control
window.
3
Click
Next
.
• If necessary, select a language from the drop-down list.
•
View User’s Guide
: Allows you to view the User’s
Guide. If your computer doesn’t have Adobe Acrobat,
click on this option and it will automatically install Adobe
Acrobat Reader for you.
4
Choose the type of installation. Click
Next
.
Installing Printer Software in Windows
5
•
Typical
: Installs the most common software for your
printer. This is recommended for most users.
•
Custom
: Allows you to choose the individual
components you want to install.
NOTE
: If your printer is not already connected to the
computer, the following window will appear.
• After connecting the printer, click
Next
.
• If you don’t want to connect the printer at this time, click
Next
, and
No
on the following screen. Then the installation
will start and a test page will not be printed at the end of the
installation.
• The installation window that appears in this User’s
Guide may differ depending on the printer and
interface in use.
5
After the installation is finished, a window asking you to
print a test page appears. If you choose to print a test
page, select the checkbox and click
Next
.
Otherwise, just click
Next
and skip to step 7.
6
If the test page prints out correctly, click
Yes
.
If not, click
No
to reprint it.
7
To register yourself as a user of Samsung Printers in order
to receive information from Samsung, select the checkbox
and click
Finish
. You are now sent to the Samsung web
site.
Otherwise, just click
Finish
.
NOTE
: After setup is complete, if your printer driver doesn’t
work properly, reinstall the printer driver. See “Reinstalling
Printer Software” on page 6.
Installing Printer Software in Windows
6
Reinstalling Printer Software
You can reinstall the software if installation fails.
1
Start Windows.
2
From the
Start
menu select
Programs
or
All Programs
→
your printer driver name
→
Maintenance
.
3
Select
Repair
and click
Next
.
You will see a component list so that you can reinstall any
item individually.
NOTE
: If your printer is not already connected to the
computer, the following window will appear.
• After connecting the printer, click
Next
.
• If you don’t want to connect the printer at this time, click
Next
, and
No
on the following screen. Then the installation
will start and a test page will not be printed at the end of the
installation.
• The reinstallation window that appears in this User’s
Guide may differ depending on the printer and
interface in use.
4
Select the components you want to reinstall and click
Next
.
If you
you select
your printer driver name
and reinstall
the printer software for local printing
, the window asking
you to print a test page appears. Do as follows:
a. To print a test page, select the check box and click
Next
.
b. If the test page prints out correctly, click
Yes
.
If it doesn’t, click
No
to reprint it.
5
When the reinstallation is done, click
Finish
.
Removing Printer Software
1
Start Windows.
2
From the
Start
menu select
Programs
or
All Programs
→
your printer driver name
→
Maintenance
.
3
Select
Remove
and click
Next
.
You will see a component list so that you can remove any
item individually.
4
Select the components you want to remove and then click
Next
.
5
When your computer asks you to confirm your selection,
click
Yes
.
The selected driver and all of its components are removed
from your computer.
6
After the software is removed, click
Finish
.
Basic Printing
7
2Basic Printing
This chapter explains the printing options and common printing
tasks in Windows.
This chapter includes:
• Printing a Document
• Printing to a file (PRN)
•Printer Settings
- Layout Tab
- Paper Tab
- Graphics Tab
- Extras Tab
- About Tab
- Printer Tab
- Using a Favorite Setting
- Using Help
Printing a Document
N
OTES
:
• Your printer driver
Properties
window that appears in this
User’s Guide may differ depending on the printer in use.
However the composition of the printer properties window is
similar.
• Check the Operating System(s) that are compatible
with your printer. Please refer to the OS Compatibility
section of Printer Specifications in your Printer User’s
Guide.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
• When you select an option in printer properties, you may see
an exclamationmark or mark. An exclamation mark
means you can select that certain option but it is not
recommended, and mark means you cannot select that
option due to the machineís setting or environment.
The following procedure describes the general steps required
for printing from various Windows applications. The exact steps
for printing a document may vary depending on the application
program you are using. Refer to the User’s Guide of your
software application for the exact printing procedure.
1
Open the document you want to print.
2
Select
Print
from the
File
menu. The Print window is
displayed. It may look slightly different depending on your
application.
The basic print settings are selected within the Print
window. These settings include the number of copies and
print range.
3
Select
your printer driver
from the
Name
drop-down
list.
To take advantage of the printer features provided by your
printer driver, click
Properties
or
Preferences
in the
application’s Print window. For details, see “Printer
Settings” on page 8.
If you see
Setup
,
Printer
, or
Options
in your Print
window, click it instead. Then click
Properties
on the next
screen.
Click
OK
to close the printer properties window.
4
To start the print job, click
OK
or
Print
in the Print
window.
Make sure that your
printer is selected.
Basic Printing
8
Printing to a file (PRN)
You will sometimes need to save the print data as a file for your
purpose.
To create a file:
1
Check the
Print to file
box at the
Print
window.
2
Select the folder and assign a name of the file and then
click OK.
Printer Settings
You can use the printer properties window, which allows you to
access all of the printer options you need when using your
printer. When the printer properties are displayed, you can
review and change the settings needed for your print job.
Your printer properties window may differ, depending on your
operating system. This Software User’s Guide shows the
Properties window for Windows XP.
Your printer driver
Properties
window that appears in this
User’s Guide may differ depending on the printer in use.
If you access printer properties through the Printers folder, you
can view additional Windows-based tabs (refer to your
Windows User’s Guide) and the Printer tab (see “Printer Tab” on
page 11).
N
OTES
:
• Most Windows applications will override settings you specify
in the printer driver. Change all print settings available in the
software application first, and change any remaining settings
using the printer driver.
• The settings you change remain in effect only while you are
using the current program.
To make your changes
permanent
, make them in the Printers folder.
• The following procedure is for Windows XP. For other
Windows OS, refer to the corresponding Windows User's
Guide or online help.
1. Click the Windows
Start
button.
2. Select
Printers and Faxes
.
3. Select your printer driver icon.
4. Right-click on the printer driver icon and select
Printing Preferences
.
5. Change the settings on each tab, click OK.
Basic Printing
9
Layout Tab
The
Layout
tab provides options to adjust how the document
appears on the printed page. The
Layout Options
includes
Multiple Pages per Side
,
Poster Printing
and
Booklet
Printing
. See “Printing a Document” on page 7 for more
information on accessing printer properties.
Paper Orientation
Paper Orientation
allows you to select the direction in which
information is printed on a page.
•
Portrait
prints across the width of the page, letter style.
•
Landscape
prints across the length of the page, spreadsheet
style.
•
Rotate
allows you to rotate the page the selected degrees
Layout Options
Layout Options
allows you to select advanced printing options.
You can choose
Multiple Pages per Side
and
Poster Printing
.
•
For details, see
“Printing Multiple Pages on One Sheet of Paper
(N-Up Printing)” on page 13.
•
For details, see
“Printing Posters” on page 14
Landscape
Portrait
Paper Tab
Use the following options to set the basic paper handling
specifications when you access the printer properties. See
“Printing a Document” on page 7 for more information on
accessing printer properties.
Click the
Paper
tab to access various paper properties.
Copies
Copies
allows you to choose the number of copies to be printed.
You can select 1 to 999 copies.
Paper Options
Size
Size
allows you to set the size of paper you loaded in the tray.
If the required size is not listed in the
Size
box, click
Custom
.
When the
Custom Paper Setting
window appears, set the paper
size and click
OK
. The setting appears in the list so that you can
select it.
Source
Make sure that
Source
is set to the corresponding paper tray.
Use
Manual Feeder
when printing on special materials like
envelopes and transparencies. You have to load one sheet at a
time into the Manual Tray or Multi-Purpose Tray.
If the paper source is set to
Auto Selection
, the printer
automatically picks up print material in the following tray order:
Manual Tray or Multi-Purpose Tray, Tray n.
Basic Printing
10
Type
Set
Type
to correspond to the paper loaded in the tray from
which you want to print. This will let you get the best quality
printout. If not, print quality may not be acheived as you want.
Thick Paper
: 24 lb to 28 lb (90~105 g/m
2
) thick paper.
Thin Paper
: 16 lb to 19 lb (60~70 g/m
2
) thin paper.
Cotton
: 20 lb to 24 lb (75~90 g/m
2
) cotton paper such as Gilbert
25 % and Gilbert 100 %.
Plain Paper
: Normal plain paper. Select this type if your printer is
monochrome and printing on the 16 lb (60 g/m
2
) cotton paper.
Recycled Paper
: 20 lb to 24 lb (75~90 g/m
2
) recycled paper.
Color Paper
: 20 lb to 24 lb (75~90 g/m
2
) color-backgrounded
paper.
Archive Paper
: If you need to keep print-out for a long period
time such as archives, select this option.
Scaling Printing
Scaling Printing
allows you to automatically or manually scale
your print job on a page. You can choose from
None
,
Reduce/
Enlarge
, and
Fit to Page
.
•
For details, see
“Printing a Reduced or Enlarged Document” on
page 14.
•
For details, see
“Fitting Your Document to a Selected Paper
Size” on page 14.
Graphics Tab
Use the following Graphic options to adjust the print quality for
your specific printing needs. See “Printing a Document” on
page 7 for more information on accessing printer properties.
Click the
Graphic
tab to display the properties shown below.
Resolution
The Resolution options you can select may vary
depending on your printer model.
The higher the setting,
the sharper the clarity of printed characters and graphics. The
higher setting also may increase the time it takes to print a
document.
Toner Save Mode
Selecting this option extends the life of your toner cartridge and
reduces your cost per page without a significant reduction in print
quality.
Some printers do not support this feature.
•
Printer Setting
: If you select this option, this feature is
determined by the setting you’ve made on the control panel of
the printer.
•
On
: Select this option to allow the printer to use less toner on
each page.
•
Off
: If you don’t need to save toner when printing a document,
select this option.
Darkness
Use this option to lighten or darken your print job.
•
Normal
: This setting is for normal documents.
•
Light
: This setting is for bolder line widths or darker gray-scale
images.
•
Dark
: This setting is for finer line width, higher definition in
graphics, and lighter gray-scale images.
Basic Printing
11
Advanced Options
You can set advanced settings by clicking the
Advanced
Options
button.
•
Print All Text To Black
:
When the
Print All Text To
Black
option
is checked, all text in your document prints solid
black, regardless of the color it appears on the screen.
•
Print All Text To Darken
:
When the
Print All Text To
Darken
option is checked, all text in your document is allowed
to print darker than on a normal document.
Some printers do
not support this feature.
Extras Tab
You can select output options for your document. See “Printing
a Document” on page 7 for more information about accessing
the printer properties.
Click the
Extras
tab to access the following feature:
Watermark
You can create a background text image to be printed on each
page of your document.
For details, see
“Using Watermarks” on
page 15.
Overlay
Overlays are often used to take the place of preprinted forms and
letterhead paper.
For details, see
“Using Overlays” on page 16.
Output Options
•
Print Subset
: You can set the sequence in which the pages
print. Select the print order from the drop-down list.
-
Normal (1,2,3)
: Your printer prints all pages from the first
page to the last page.
-
Reverse All Pages (3,2,1)
: Your printer prints all pages
from the last page to the first page.
-
Print Odd Pages
: Your printer prints only the odd numbered
pages of the document.
-
Print Even Pages
: Your printer prints only the even
numbered pages of the document.
About Tab
Use the
About
tab to display the copyright notice and the
version number of the driver. If you have an Internet browser,
you can connect to the Internet by clicking on the web site icon.
See “Printing a Document” on page 7 for more information
about accessing printer properties.
Printer Tab
If you access printer properties through the
Printers
folder,
you can view the
Printer
tab. You can set the printer
configuration.
The following procedure is for Windows XP. For other Windows
OS, refer to the corresponding Windows User's Guide or online
help.
1
Click the Windows
Start
menu.
2
Select
Printers and Faxes
.
3
Select
your printer driver
icon.
4
Right-click on the printer driver icon and select
Properties
.
5
Click the
Printer
tab and set the options.
High Altitude Correction
If your printer is going to be used at a high altitude, checking this
option will optimize the print quality for those circumstances.
Basic Printing
12
Using a Favorite Setting
The
Favorites
option, which is visible on each properties tab,
allows you to save the current properties settings for future
use.
To save a
Favorites
item:
1
Change the settings as needed on each tab.
2
Enter a name for the item in the
Favorites
input box.
3
Click
Save
.
When you save
Favorites
, all current driver settings are
saved.
To use a saved setting, select the item from the
Favorites
drop
down list. The printer is now set to print according to the
Favorites setting you selected.
To delete a Favorites item, select it from the list and click
Delete
.
You can also restore the printer driver’s default settings by
selecting
Printer Default
from the list.
Using Help
Your printer has a help screen that can be activated by clicking
the
Help
button in the printer properties window. These help
screens give detailed information about the printer features
provided by the printer driver.
You can also click from the upper right corner of the window,
and then click on any setting.
Advanced Printing
13
3Advanced Printing
This chapter explains printing options and advanced printing
tasks.
N
OTE
:
• Your printer driver
Properties
window that appears in this
User’s Guide may differ depending on the printer in use.
However the composition of the printer properties window is
similar.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
This chapter includes:
• Printing Multiple Pages on One Sheet of Paper (N-Up
Printing)
•Printing Posters
• Printing a Reduced or Enlarged Document
• Fitting Your Document to a Selected Paper Size
• Using Watermarks
• Using Overlays
Printing Multiple Pages on One
Sheet of Paper (N-Up Printing)
You can select the number of pages to print on a single sheet
of paper. To print more than one page per sheet, the pages will
be reduced in size and arranged in the order you specify. You
can print up to 16 pages on one sheet.
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
From the
Layout
tab, choose
Multiple Pages per Side
in
the
Layout Type
drop-down list.
3
Select the number of pages you want to print per sheet
(1, 2, 4, 6, 9, or 16) in the
Pages per Side
drop-down
list.
4
Select the page order from the
Page Order
drop-down
list, if necessary.
Check
Print Page Border
to print a border around each
page on the sheet.
5
Click the
Paper
tab, select the paper source, size, and
type.
6
Click
OK
and print the document.
1 2
3 4
Advanced Printing
14
Printing Posters
This feature allows you to print a single-page document onto 4,
9, or 16 sheets of paper, for the purpose of pasting the sheets
together to form one poster-size document.
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
Click the
Layout
tab, select
Poster Printing
in the
Layout Type
drop-down list.
3
Configure the poster option:
You can select the page layout from
Poster<2x2>
,
Poster<3x3>
or
Poster<4x4>
. If you select
Poster<2x2>
, the output will be automatically stretched
to cover 4 physical pages.
Specify an overlap in millimeters or inches to make it
easier to pasting the sheets together.
4
Click the
Paper
tab, select the paper source, size, and
type.
5
Click
OK
and print the document. You can complete the
poster by pasting the sheets together.
0.15 inches
0.15 inches
Printing a Reduced or Enlarged
Document
You can change the size of a page’s content to appear larger or
smaller on the printed page.
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
From the
Paper
tab, select
Reduce/Enlarge
in the
Printing Type
drop-down list.
3
Enter the scaling rate in the
Percentage
input box.
You can also click the or button.
4
Select the paper source, size, and type in
Paper Options
.
5
Click
OK
and print the document.
Fitting Your Document to a
Selected Paper Size
This printer feature allows you to scale your print job to any
selected paper size regardless of the digital document size. This
can be useful when you want to check fine details on a small
document.
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
From the
Paper
tab, select
Fit to Page
in the
Printing
Type
drop-down list.
3
Select the correct size from the
Output size
drop-down
list.
4
Select the paper source, size, and type in
Paper Options
.
5
Click
OK
and print the document.
A
Advanced Printing
15
Using Watermarks
The Watermark option allows you to print text over an existing
document. For example, you may want to have large gray
letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally
across the first page or all pages of a document.
There are several predefined watermarks that come with the
printer, and they can be modified, or you can add new ones to
the list.
Using an Existing Watermark
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
Click the
Extras
tab, and select the desired watermark
from the
Watermark
drop-down list. You will see the
selected watermark in the preview image.
3
Click
OK
and start printing.
N
OTE
: The preview image shows how the page will look when
it is printed.
Creating a Watermark
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
Click the
Extras
tab, and click the
Edit
button in the
Watermark
section. The
Edit Watermark
window
appears.
3
Enter a text message in the
Watermark Message
box.
You can enter up to 40 characters. The message displays
in the preview window.
When the
First Page Only
box is checked, the watermark
prints on the first page only.
4
Select watermark options.
You can select the font name, style, size, or grayscale level
from the
Font Attributes
section and set the angle of the
watermark from the
Message Angle
section.
5
Click
Add
to add a new watermark to the list.
6
When you have finished editing, click
OK
and start
printing.
To stop printing the watermark, select
(No Watermark)
from
the
Watermark
drop-down list.
Editing a Watermark
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
Click the
Extras
tab and click the
Edit
button in the
Watermark
section. The
Edit Watermark
window
appears.
3
Select the watermark you want to edit from the
Current
Watermarks
list and change the watermark message and
options.
4
Click
Update
to save the changes.
5
Click
OK
until you exit the Print window.
Deleting a Watermark
1
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
2
From the
Extras
tab, click the
Edit
button in the
Watermark section. The
Edit Watermark
window
appears.
3
Select the watermark you want to delete from the
Current
Watermarks
list and click
Delete
.
4
Click
OK
until you exit the Print window.
Advanced Printing
16
Using Overlays
What is an Overlay?
An overlay is text and/or images stored in the computer hard
disk drive (HDD) as a special file format that can be printed on
any document. Overlays are often used to take the place of
preprinted forms and letterhead paper. Rather than using
preprinted letterhead, you can create an overlay containing the
exact same information that is currently on your letterhead. To
print a letter with your company’s letterhead, you do not need
to load preprinted letterhead paper in the printer. You need only
tell the printer to print the letterhead overlay on your
document.
Creating a New Page Overlay
To use a page overlay, you must create a new page overlay
containing your logo or image.
1
Create or open a document containing text or an image for
use in a new page overlay. Position the items exactly as
you wish them to appear when printed as an overlay.
2
To save the document as an overlay, access printer
properties. See “Printing a Document” on page 7.
3
Click the
Extras
tab, and click
Edit
button in the
Overlay
section.
4
In the Edit Overlay window, click
Create Overlay
.
5
In the Create Overlay window, type a name of up to eight
characters in the
File name
box. Select the destination
path, if necessary. (The default is C:\Formover).
6
Click
Save
. The name appears on the
Overlay List
box.
7
Click
OK
or
Yes
to finish creating.
The file is not printed. Instead it is stored on your
computer hard disk drive.
N
OTE
: The overlay document size must be the same as the
documents you print with the overlay. Do not create an overlay
with a watermark.
WORLD BEST
Dear ABC
Regards
WORLD BEST
Using a Page Overlay
After an overlay has been created, it is ready to be printed with
your document. To print an overlay with a document:
1
Create or open the document you want to print.
2
To change the print settings from your software
application, access printer properties. See “Printing a
Document” on page 7.
3
Click the
Extras
tab.
4
Select the desired overlay from the
Overlay
drop-down
list box.
5
If the overlay file you want does not appear in the
Overlay
list, click
Edit
button and
Load Overlay
, and
select the overlay file.
If you have stored the overlay file you want to use in an
external source, you can also load the file when you access
the
Load Overlay
window.
After you select the file, click
Open
. The file appears in the
Overlay List
box and is available for printing. Select the
overlay from the
Overlay List
box.
6
If necessary, click
Confirm Page Overlay When
Printing
. If this box is checked, a message window
appears each time you submit a document for printing,
asking you to confirm your wish to print an overlay on your
document.
If this box is not checked and an overlay has been
selected, the overlay automatically prints with your
document.
7
Click
OK
or
Yes
until printing begins.
The selected overlay downloads with your print job and
prints on your document.
N
OTE
: The resolution of the overlay document must be the
same as that of the document you will print with the overlay.
Deleting a Page Overlay
You can delete page overlays that you no longer use.
1
In the printer properties window, click the
Extras
tab.
2
Click the
Edit
button in the
Overlay
section.
3
Select the overlay you want to delete from the
Overlay
List
box.
4
Click
Delete Overlay
.
5
When a confirming message window appears, click
Yes
.
6
Click
OK
until you exit the Print window.
Sharing the Printer Locally
17
4Sharing the Printer
Locally
You can connect the printer directly to a selected computer,
which is called “host computer,” on the network.
The following procedure is for Windows XP. For other Windows
OS, refer to the corresponding Windows User's Guide or online
help.
N
OTES
:
• Check the Operating System(s) that are compatible with
your printer. Please refer to the OS Compatibility section of
Printer Specifications in your Printer User’s Guide.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
Setting Up a Host Computer
1
Start Windows.
2
From the
Start
menu select
Printers and Faxes
.
3
Double-click
your printer driver icon
.
4
From the
Printer
menu, select
Sharing
.
5
Check the
Share this printer
box.
6
Fill in the
Shared Name
field, and then click
OK
.
Setting Up a Client Computer
1
Right-click the Windows
Start
button and select
Explore
.
2
Select
My Network Places
and then right-click
Search
for Computers
.
3
Fill in the IP address of host computer in
Computer name
field, and click
Search
. (In case host computer requires
User name
and
Password
, fill in User ID and password
of host computer account.)
4
Double-click
Printers and Faxes
.
5
Right-click printer driver icon, select
Connect
.
6
Click
Yes
, if the installation confirm message appears.
Using Smart Panel
18
5Using Smart Panel
Smart Panel is a program that monitors and informs you of the
status of the printer, and allows you to customize the printer’s
settings.
Smart Panel
is installed automatically when you
install the printer software.
N
OTES
:
• To use the this program, you need:
- To check for Operating System(s) that are compatible with
your printer, refer to Printer Specifications in your Printer
User’s Guide.
- Internet Explorer version 5.0 or higher for flash animation
in HTML Help.
• If you need to know the exact name of your printer, you can
check the supplied CD-ROM.
Understanding Smart Panel
If an error occurs while printing, Smart Panel appears
automatically, showing the error. You can also launch Smart
Panel manually from the Windows task bar. Double-click the
Smart Panel icon on the Windows task bar.
Or, from the
Start
menu, select
Programs
or
All Programs
→
your printer driver name
→
Smart Panel
.
N
OTES
:
• If you have already installed more than one Samsung
printer, first select the printer model you want in order to
use the corresponding Smart Panel. Right-click the Smart
Panel icon on the Windows task bar and select
your printer
name
.
• The Smart Panel window and its contents shown in this
Software User’s Guide may differ depending on the printer in
use.
Double click this icon.
The Smart Panel program displays the current status of the
printer, various information, lets you change settings and the
level of toner remaining in the toner cartridge(s).
Toner Level
You can view the level of toner remaining in the toner
cartridge(s). The printer and the number of the toner cartridge(s)
shown above window may differ depending on the printer in use.
Buy Now
You can order replacement toner cartridge online.
Troubleshooting Guide
You can view Help to solve problems.
Driver Setting
You can use the printer properties window, which allows you to
access all of the printer options you need for using your
printer.
For details,
See “Printer Settings” on page 8.
Opening the Troubleshooting
Guide
Using the troubleshooting guide, you can view solutions for
error status problems.
Right-click the Smart Panel icon on the Windows task bar and
select
Troubleshooting Guide
.
1
1
Using Smart Panel
19
Changing the Smart Panel
Program Settings
Right-click the Smart Panel icon on the Windows task bar and
select
Options
.
Select the settings you want from the
Options
window.
Scanning
20
6Scanning
Scanning with your machine lets you turn pictures and text into
digital files on your computer. Then you can fax or e-mail the
files, display them on your web site or use them to create
projects that you can print using Samsung SmarThru software
or the WIA driver.
This chapter includes:
• Scanning Using Samsung SmarThru
• Scanning Process with TWAIN-enabled Software
• Scanning Using the WIA Driver
N
OTES
:
• Check the Operating System(s) that are compatible
with your printer. Please refer to the OS Compatibility
section of Printer Specifications in your Printer User’s
Guide.
• You can check your printer name in the supplied CD-
ROM.
• The maximum resolution that can be achieved
depends upon various factors, including computer
speed, available disk space, memory, the size of the
image being scanned, and bit depth settings. Thus,
depending on your system and what you are scanning,
you may not be able to scan at certain resolutions,
especially using enhanced dpi.
Scanning Using Samsung
SmarThru
Samsung SmarThru is the accompanying software for your
machine. With SmarThru, scanning is the proverbial piece of
cake.
Uninstalling Samsung SmarThru
N
OTE
: Before beginning uninstallation, ensure that all
applications are closed on your computer.
1
From the
Start
menu, select
Programs
.
2
Select
SmarThru 4
, and then select
Uninstall SmarThru
4
.
3
When your computer asks you to confirm, click
OK
.
4
Click
Finish
.
You may be prompted to restart your computer. In this
case you must shut the computer down and then restart it
before the changes will be saved.
Scanning
21
Using Samsung SmarThru
Follow these steps to start scanning using the SmarThru:
1
Make sure that your machine and computer are turned on
and properly connected to each other.
2
Place your photograph or page on the document glass
or ADF.
3
Once you have installed Samsung SmarThru, you will see
the
SmarThru 4
icon on your desktop. Double-click the
SmarThru 4
icon.
The SmarThru 4 window opens.
•Scan To
Allows you to scan an image and save it to an application
or folder, email it, or publish it on a web site.
•Image
Allows you to edit an image you have saved as a graphic
file and send it to a selected application or folder, email it,
or publish it on a web site.
•Copy
Allows you to produce professional quality copies. You can
make black and white or color copies of an image if your
machine supports it, and customize the copy settings.
•Print
Allows you to print images you have saved. You can print
images in black and white or color mode if your machine
supports it.
•Fax
Allows you to fax images or files you have saved on your
computer. This is available when your machine supports
the fax feature.
Double-click this icon.
Make sure that your
printer is selected.
4
Click
Scan To
. The
Scan To
menu bar appears on the
SmarThru 4 window.
Scan To
lets you use the following services:
•Application
Scanning an image and placing it in an image editor
application, such as Paint or Adobe Photoshop.
•E-mail
Scanning an image and emailing it. Allows you to scan an
image, preview it, and email it.
N
OTE
: To send an image by e-mail, you must have a mail
client program, like Outlook Express, which has been set up
with your e-mail account.
•Folder
Scanning an image and saving it to a folder. Allows you to
scan an image, preview it, and save it to the folder of your
choice.
•OCR
Scanning an image and performing text recognition.
Allows you to scan an image, preview it, and send it to the
OCR program for text recognition.
- Recommended Scan Option for OCR
- Resolution: 200 or 300 dpi
- Image Type: Grayscale or Black & White
•Web
Scanning an image, previewing it, and publishing it on a
web site, using the specified file format for the image you
want to publish.
•Settings
Customizing settings of
Scan To
basic functions. Allows
you to customize settings for
Application
,
E-mail
,
OCR
,
and
Web
functions.
Adjust the
scan settings.
Scan To
menu bar
Click to start
scanning.
Scanning
22
5
Click the service icon according to your job.
6
SmarThru 4
opens for the selected service. Adjust the
scan settings.
7
To start scanning, click
Scan
.
N
OTE
: If you want to cancel the scan job, click
Cancel
.
Using Onscreen Help File
For more information about SmarThru, click at the top right
corner of the window. The SmarThru Help window opens and
allows you to view onscreen help supplied on the SmarThru
program.
Scanning Process with TWAIN-
enabled Software
If you want to scan documents using other software, you will
need to use TWAIN-compliant software, such as Adobe
Photoshop. The first time you scan with your machine, select
it as your TWAIN source in the application you use.
The basic scanning process involves a number of steps:
1
Make sure that your machine and computer are turned on
and properly connected to each other.
2
Load the document(s) face up into the DADF (or ADF).
OR
Place a single document face down on the document
glass.
3
Open an application, such as PhotoDeluxe or Photoshop.
4
Open the TWAIN window and set the scan options.
5
Scan and save your scanned image.
N
OTE
: You need to follow the program’s instructions for
acquiring an image. Please refer to the user’s guide of the
application.
Scanning Using the WIA Driver
Your machine also supports the Windows Image Acquisition
(WIA) driver for scanning images. WIA is one of the standard
components provided by Microsoft
®
Windows
®
XP and works
with digital cameras and scanners. Unlike the TWAIN driver, the
WIA driver allows you to scan and easily manipulate images
without using additional software.
N
OTE
: The WIA driver works only on Windows XP/Vista with
USB port.
Windows XP
1
Load the document(s) face up into the DADF (or ADF).
OR
Place a single document face down on the document
glass.
2
From the
Start
menu on your desktop window, select
Settings
,
Control Panel
, and then
Scanners and
Cameras
.
3
Double click
your scanner driver
icon. The Scanner and
Camera Wizard launches.
4
Choose your scanning preferences and click
Preview
to
see how your preferences affect the picture.
5
Click
Next
.
6
Enter a picture name, and select a file format and
destination to save the picture.
7
Follow the on-screen instructions to edit the picture after it
is copied to your computer.
Windows Vista
1
Load the document(s) face up into the DADF (or ADF).
OR
Place a single document face down on the document glass.
2
Click
Start
→
Control Panel
→
Hardware and Sound
→
Scanners and Cameras
.
3
Click on
Scan a document or picture
. Then
Windows
Fax and Scan
application is opened automatically.
N
OTE
:
• To view scanners, user can click on
View scanners and
cameras
.
•
If there is not
Scan a document or picture
, open the MS paint
program and click
From Scanner or Camera...
on
File
menu.
4
Click
New Scan
and then scan driver is opened.
5
Choose your scanning preferences and click
Preview
to
see your preferences affect the picture.
6
Click
Scan
.
N
OTE
: If you want to cancel the scan job, press the Cancel
button on the Scanner and Camera Wizard.
Using Your Printer in Linux
23
7Using Your Printer in
Linux
You can use your machine in a Linux environment.
This chapter includes:
• Getting Started
• Installing the Unified Linux Driver
• Using the Unified Driver Configurator
• Configuring Printer Properties
• Printing a Document
• Scanning a Document
Getting Started
The supplied CD-ROM provides you with Samsung’s Unified
Linux Driver package for using your machine with a Linux
computer.
Samsung’s Unified Linux Driver package contains printer and
scanner drivers, providing the ability to print documents and
scan images. The package also delivers powerful applications
for configuring your machine and further processing of the
scanned documents.
After the driver is installed on your Linux system, the driver
package allows you to monitor a number of machine devices via
fast ECP parallel ports and USB simultaneously. The acquired
documents can then be edited, printed on the same local or
network machine devices, sent by e-mail, uploaded to an FTP
site, or transferred to an external OCR system.
The Unified Linux Driver package is supplied with a smart and
flexible installation program. You don't need to search for
additional components that might be necessary for the Unified
Linux Driver software: all required packages will be carried onto
your system and installed automatically; this is possible on a
wide set of the most popular Linux clones.
Installing the Unified Linux
Driver
Installing the Unified Linux Driver
1
Make sure that you connect your machine to your
computer. Turn both the computer and the machine on.
2
When the Administrator Login window appears, type in
root
in the Login field and enter the system password.
N
OTE
: You must log in as a super user (root) to install the
printer software. If you are not a super user, ask your system
administrator.
3
Insert the printer software CD-ROM. The CD-ROM will
automatically run.
If the CD-ROM does not automatically run, click the
icon at the bottom of the desktop. When the Terminal
screen appears, type in:
If the CD-ROM is secondary master and the location to
mount is /mnt/cdrom,
[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/
cdrom
[root@localhost root]#cd /mnt/cdrom/Linux
[root@localhost root]#./install.sh
If you still failed to run the CD-ROM, type the followings
in sequence:
[root@localhost root]#umount/dev/hdc
[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/
cdrom
N
OTE
: The installation program runs automatically if you
have an autorun software package installed and configured.
Using Your Printer in Linux
24
4
When the welcome screen appears, click
Next
.
5
When the installation is complete, click
Finish
.
The installation program has added the Unified Driver
Configurator desktop icon and Samsung Unified Driver
group to the system menu for your convenience. If you
have any difficulties, consult the onscreen help that is
available through your system menu or can otherwise be
called from the driver package windows applications,
such as
Unified Driver Configurator
or
Manager
.
N
OTE
: Installing the driver in the text mode:
• If you do not use the graphical interface or have failed the
driver installation, you have to use the driver in the text
mode.
• Follow the step 1 to 3, then type [root@localhost Linux]# ./
install.sh, than follow the instruction on the terminal screen.
Then the installation completes.
• When you wan to uninstall the driver, follow the installation
instruction above, but type [root@localhost Linux]# ./
uninstall.sh on the terminal screen.
Uninstalling the Unified Linux Driver
1
When the Administrator Login window appears, type in
root
in the Login field and enter the system password.
N
OTE
: You must log in as a super user (root) to install the
printer software. If you are not a super user, ask your system
administrator.
2
Insert the printer software CD-ROM. The CD-ROM will
automatically run.
If the CD-ROM does not automatically run, click the
icon at the bottom of the desktop. When the Terminal
screen appears, type in:
If the CD-ROM is secondary master and the location to
mount is /mnt/cdrom,
[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/
cdrom
[root@localhost root]#cd /mnt/cdrom/Linux
[root@localhost root]#./uninstall.sh
N
OTE
: The installation program runs automatically if you
have an autorun software package installed and configured.
3
Click
Uninstall
.
4
Click
Next
.
5
Click
Finish
.
Using Your Printer in Linux
25
Using the Unified Driver
Configurator
Unified Linux Driver Configurator is a tool primarily intended for
configuring Printer or MFP devices. Since an MFP device
combines the printer and scanner, the Unified Linux Driver
Configurator provides options logically grouped for printer and
scanner functions. There is also a special MFP port option
responsible for the regulation of access to an MFP printer and
scanner via a single I/O channel.
After installing the Unified Linux driver, the Unified Linux Driver
Configurator icon will automatically be created on your desktop.
Opening the Unified Driver
Configurator
1
Double-click
Unified Driver Configurator
on the
desktop.
You can also click the Startup Menu icon and select
Samsung Unified Driver
and then
Unified Driver
Configurator
.
2
Press each button on the Modules pane to switch to the
corresponding configuration window.
You can use the onscreen help by clicking
Help
.
3
After changing the configurations, click
Exit
to close the
Unified Driver Configurator.
Printers Configuration button
Scanners Configuration button
Ports Configuration button
Printers Configuration
Printers configuration has the two tabs:
Printers
and
Classes
.
Printers Tab
You can see the current system’s printer configuration by
clicking on the printer icon button on the left side of the Unified
Driver Configurator window.
You can use the following printer control buttons:
•
Refresh
: renews the available printers list.
•
Add Printer
: allows you to add a new printer.
•
Remove Printer
: removes the selected printer.
•
Set as Default
: sets the current printer as a default
printer.
•
Stop
/
Start
: stops/starts the printer.
•
Test
: allows you to print a test page to check if the
machine is working properly.
•
Properties
: allows you to view and change the printer
properties. For details, see page 27.
Shows all of the
installed printer.
Switches to Printer
configuration.
Shows the status,
model name and
URI of your printer.
Using Your Printer in Linux
26
Classes Tab
The Classes tab shows a list of available printer classes.
•
Refresh
: Renews the classes list.
•
Add Class... :
Allows you to add a new printer class.
•
Remove Class :
Removes the selected printer class.
Scanners Configuration
In this window, you can monitor the activity of scanner devices,
view a list of installed Samsung MFP devices, change device
properties, and scan images.
•
Properties...
: Allows you to change the scan properties
and scan a document. See page 28.
•
Drivers... :
Allows you to monitor the activity of the scan drivers.
Shows the status of the
class and the number of
printers in the class.
Shows all of the
printer classes.
Switches to
Scanners
configuration. Shows all of the
installed scanners.
Shows the vendor,
model name and type
of your scanner.
Ports Configuration
In this window, you can view the list of available ports, check
the status of each port and release a port that is stalled in busy
state when its owner is terminated for any reason.
•
Refresh
: Renews the available ports list.
•
Release port :
Releases the selected port.
Sharing Ports Between Printers and Scanners
Your machine may be connected to a host computer via the
parallel port or USB port. Since the MFP device contains more
than one device (printer and scanner), it is necessary to
organize proper access of “consumer” applications to these
devices via the single I/O port.
The Samsung Unified Linux Driver package provides an
appropriate port sharing mechanism that is used by Samsung
printer and scanner drivers. The drivers address their devices
via so-called MFP ports. The current status of any MFP port can
be viewed via the Ports Configuration. The port sharing
prevents you from accessing one functional block of the MFP
device, while another block is in use.
When you install a new MFP device onto your system, it is
strongly recommended you do this with the assistance of an
Unified Driver Configurator. In this case you will be asked to
choose I/O port for the new device. This choice will provide the
most suitable configuration for MFP’s functionality. For MFP
scanners I/O ports are being chosen by scanner drivers
automatically, so proper settings are applied by default.
Switches to
ports
configuration.
Shows the port type,
device connected to
the port and status
Shows all of the
available ports.
Using Your Printer in Linux
27
Configuring Printer Properties
Using the properties window provided by the Printers
configuration, you can change the various properties for your
machine as a printer.
1
Open the Unified Driver Configurator.
If necessary, switch to Printers configuration.
2
Select your machine on the available printers list and click
Properties
.
3
The Printer Properties window opens.
The following five tabs display at the top of the window:
•
General
: allows you to change the printer location and
name. The name entered in this tab displays on the
printer list in Printers configuration.
•
Connection
: allows you to view or select another port. If
you change the printer port from USB to parallel or vice
versa while in use, you must re-configure the printer port
in this tab.
•
Driver
: allows you to view or select another printer
driver. By clicking
Options
, you can set the default
device options.
•
Jobs
: shows the list of print jobs. Click
Cancel job
to
cancel the selected job and select the
Show completed
jobs
check box to see previous jobs on the job list.
•
Classes
: shows the class that your printer is in. Click
Add to Class
to add your printer to a specific class or
click
Remove from Class
to remove the printer from the
selected class.
4
Click
OK
to apply the changes and close the Printer
Properties Window.
Printing a Document
Printing from Applications
There are a lot of Linux applications that you are allowed to
print from using Common UNIX Printing System (CUPS). You
can print on your machine from any such application.
1
From the application you are using, select
Print
from the
File
menu.
2
Select
Print
directly using
lpr
.
3
In the LPR GUI window, select the model name of your
machine from the Printer list and click
Properties
.
4
Change the printer and print job properties.
Click.
Using Your Printer in Linux
28
The following four tabs display at the top of the window.
•
General
- allows you to change the paper size, the paper
type, and the orientation of the documents, enables the
duplex feature, adds start and end banners, and changes
the number of pages per sheet.
•
Text
- allows you to specify the page margins and set the
text options, such as spacing or columns.
•
Graphics
- allows you to set image options that are used
when printing images/files, such as color options, image
size, or image position.
•
Device
: allows you to set the print resolution, paper
source, and destination.
5
Click
Apply
to apply the changes and close the Properties
window.
6
Click
OK
in the LPR GUI window to start printing.
7
The Printing window appears, allowing you to monitor the
status of your print job.
To abort the current job, click
Cancel
.
Printing Files
You can print many different types of files on the Samsung
machine device using the standard CUPS way - directly from
the command line interface. The CUPS lpr utility allows you do
that. But the drivers package replaces the standard lpr tool by
a much more user-friendly LPR GUI program.
To print any document file:
1
Type
lpr <file_name>
from the Linux shell command
line and press
Enter
. The LPR GUI window appears.
When you type only
lpr
and press
Enter
, the Select
file(s) to print window appears first. Just select any files
you want to print and click
Open
.
2
In the LPR GUI window, select your printer from the list,
and change the printer and print job properties.
For details about the properties window, see page 27.
3
Click
OK
to start printing.
Scanning a Document
You can scan a document using the Unified Driver Configurator
window.
1
Double-click the Unified Driver Configurator on your
desktop.
2
Click the button to switch to Scanners Configuration.
3
Select the scanner on the list.
When you have only one MFP device and it is connected
to the computer and turned on, your scanner appears on
the list and is automatically selected.
If you have two or more scanners attached to your
computer, you can select any scanner to work at any
time. For example, while acquisition is in progress on the
first scanner, you may select the second scanner, set the
device options and start the image acquisition
simultaneously.
4
Click
Properties
.
5
Load the document to be scanned
face up into the ADF
(Automatic Document Feeder) or face down on the
document glass.
6
Click
Preview
in the Scanner Properties window.
Click your
scanner.
Using Your Printer in Linux
29
The document is scanned and the image preview appears
in the Preview Pane.
7
Change the scan options in the Image Quality and Scan
Area sections.
•
Image Quality
: allows you to select the color
composition and the scan resolution for the image.
•
Scan Area
: allows you to select the page size. The
Advanced
button enables you to set the page size
manually.
If you want to use one of the preset scan option settings,
select from the Job Type drop-down list. For details about
the preset Job Type settings, see page 29.
You can restore the default setting for the scan options
by clicking
Default
.
8
When you have finished, click
Scan
to start scanning.
The status bar appears on the bottom left of the window
to show you the progress of the scan. To cancel scanning,
click
Cancel
.
9
The scanned image appears in the new Image Manager
tab.
If you want to edit the scanned image, use the toolbar.
For further details about editing an image, see page 29.
Drag the pointer to
set the image area
to be scanned.
10
When you are finished, click
Save
on the toolbar.
11
Select the file directory where you want to save the image
and enter the file name.
12
Click
Save
.
Adding Job Type Settings
You can save your scan option settings to retrieve for a later
scanning.
To save a new Job Type setting:
1
Change the options from the Scanner Properties window.
2
Click
Save As
.
3
Enter the name for your setting.
4
Click
OK
.
Your setting is added to the Saved Settings drop-down
list.
To save a Job Type setting for the next scan job:
1
Select the setting you want to use from the Job Type drop-
down list.
2
The next time you open the Scanner Properties window,
the saved setting is automatically selected for the scan
job.
To delete a Job Type setting:
1
Select the setting you want to delete from the Job Type
drop-down list.
2
Click
Delete
.
The setting is deleted from the list
Using the Image Manager
The Image Manager application provides you with menu
commands and tools to edit your scanned image.
Use these tools to
edit the image.
Using Your Printer in Linux
30
You can use the following tools to edit the image:
For further details about the Image Manager application, refer
to the onscreen help.
Tools Function
Saves the image.
Cancels your last action.
Restores the action you canceled.
Allows you to scroll through the image.
Crops the selected image area.
Zooms the image out.
Zooms the image in.
Allows you to scale the image size; you can
enter the size manually, or set the rate to
scale proportionally, vertically, or
horizontally.
Allows you to rotate the image; you can
select the number of degrees from the drop-
down list.
Allows you to flip the image vertically or
horizontally.
Allows you to adjust the brightness or
contrast of the image, or to invert the
image.
Shows the properties of the image.
Using Your Printer with a Macintosh
31
8Using Your Printer with
a Macintosh
Your printer supports Macintosh systems with a built-in USB
interface or 10/100 Base-TX network interface card. When you
print a file from a Macintosh computer, you can use the CUPS driver
by installing the PPD file.
N
OTE
:
Some printers do not support a network
interface. Make sure that your printer supports a
network interface by referring to Printer Specifications
in your Printer User’s Guide.
This chapter includes:
• Installing Software
• Setting Up the Printer
•Printing
• Scanning
Installing Software
The CD-ROM that came with your printer provides you with the
PPD file that allows you to use the CUPS driver or Apple
LaserWriter driver
(only available when you use a printer
which supports the PostScript driver)
, for printing on a
Macintosh computer.
Also, it provides you with the Twain driver for scanning on a
Macintosh computer.
Printer driver
Installing the Printer driver
1
Make sure that you connect your printer to the computer.
Turn on your computer and printer.
2
Insert the CD-ROM which came with your printer into the
CD-ROM drive.
3
Double-click
CD-ROM icon
that appears on your
Macintosh desktop.
4
Double-click the
MAC_Installer
folder.
5
Double-click the
Installer
icon.
6
Enter the password and click
OK
.
7
The Samsung Installer window opens. Click
Continue.
8
Select
Easy Install
and click
Install
.
Easy Install
is
recommended for most users. All components necessary
for printer operations will be installed.
If you select
Custom Install
, you can choose individual
components to install.
9
The message which warns all application will close on your
computer appears, Click
Continue
.
10
After the installation is finished, click
Quit
.
N
OTE
:
• If you have installed scan driver, click
Restart
.
• After installation, you need to set up the connection between
the printer and your computer. See “Setting Up the Printer”
on page 32.
Uninstalling the Printer driver
Uninstall is required if you are upgrading the software, or if
installation fails.
1
Make sure that you connect your printer to the computer.
Turn on your computer and printer.
2
Insert the CD-ROM which came with your printer into the
CD-ROM drive.
3
Double-click
CD-ROM icon
that appears on your
Macintosh desktop.
4
Double-click the
MAC_Installer
folder.
5
Double-click the
Installer
icon.
6
Enter the password and click
OK
.
7
The Samsung Installer window opens. Click
Continue
8
Select
Uninstall
and then click
Uninstall
.
9
The message which warns all application will close on your
computer appears, Click
Continue
.
10
When the uninstallation is done, click
Quit
.
Using Your Printer with a Macintosh
32
Setting Up the Printer
Set up for your printer will be different depending on which
cable you use to connect the printer to your computer—the
network cable or the USB cable.
For a Network-connected
N
OTE
:
Some printers do not support a network
interface. Before connecting your printer, make sure
that your printer supports a network interface by
referring to Printer Specifications in your Printer User’s
Guide.
1
Follow the instructions on “Installing Software” on page 31
to install the PPD and Filter files on your computer.
2
Open the
Applications
folder
→
Utilities
, and
Print
Setup Utility
.
•For MAC OS 10.5, open
System Preferences
from the
Applications
folder, and click
Print & Fax
.
3
Click
Add
on the
Printer List
.
•For MAC OS 10.5, press the “
+
” icon then a display
window will pop up.
4
For MAC OS 10.3, select the
IP Printing
tab.
•For MAC OS 10.4, click
IP Printer
.
•For MAC OS 10.5, click
IP
.
5
Select
Socket/HP Jet Direct
in
Printer Type
.
WHEN PRINTING A DOCUMENT CONTAINING MANY
PAGES, PRINTING PERFORMANCE MAY BE
ENHANCED BY CHOOSING SOCKET FOR PRINTER
TYPE OPTION.
6
Enter the printer’s IP address in the
Printer Address
field.
7
Enter the queue name in the
Queue Name
field. If you
cannot determine the queue name for your printer server,
try using the default queue first.
8
For MAC OS 10.3, if Auto Select does not work properly,
select
Samsung
in
Printer Model
and
your printer
name
in
Model Name
.
•For MAC OS 10.4, if Auto Select does not work properly,
select
Samsung
in
Print Using
and
your printer name
in
Model
.
•For MAC OS 10.5, if Auto Select does not work properly,
select
Select a driver to use...
and
your printer name
in
Print Using
.
Your printer’s IP address appears on the
Printer List
, and
is set as the default printer.
9
Click
Add
.
For a USB-connected
1
Follow the instructions on “Installing Software” on page 31
to install the PPD and Filter files on your computer.
2
Open the
Applications
folder
→
Utilities
, and
Print
Setup Utility
.
•For MAC OS 10.5, open
System Preferences
from the
Applications
folder, and click
Print & Fax
.
3
Click
Add
on the
Printer List
.
•For MAC OS 10.5, press the “
+
” icon then a display
window will pop up.
4
For MAC OS 10.3, select the
USB
tab.
•For MAC OS 10.4, click
Default Browser
and find the
USB connection.
•For MAC OS 10.5, click
Default
and find the USB
connection.
5
For MAC OS 10.3, if Auto Select does not work properly,
select
Samsung
in
Printer Model
and
your printer
name
in
Model Name
.
•For MAC OS 10.4, if Auto Select does not work properly,
select
Samsung
in
Print Using
and
your printer name
in
Model
.
•For MAC OS 10.5, if Auto Select does not work properly,
select
Select a driver to use...
and
your printer name
in
Print Using
.
Your machine appears on the Printer List and is set as the
default printer.
6
Click
Add
.
Using Your Printer with a Macintosh
33
Printing
N
OTES
:
• The Macintosh printer’s properties window that appears in
this User’s Guide may differ depending on the printer in use.
However the composition of the printer properties window is
similar.
• You can check your printer name in the supplied CD-
ROM.
Printing a Document
When you print with a Macintosh, you need to check the printer
software setting in each application you use. Follow these steps
to print from a Macintosh.
1
Open a Macintosh application and select the file you want
to print.
2
Open the
File
menu and click
Page Setup
(
Document
Setup
in some applications).
3
Choose your paper size, orientation, scaling, and other
options and click
OK
.
4
Open the
File
menu and click
Print
.
5
Choose the number of copies you want and indicate which
pages you want to print.
6
Click
Print
when you finish setting the options.
s
Mac OS 10.4
Make sure that your
printer is selected.
Changing Printer Settings
You can use advanced printing features when using your
printer.
From your Macintosh application, select
Print
from the
File
menu. The printer name which appears in the printer properties
window may differ depending on the printer in use. Except for
the name, the composition of the printer properties window is
similar.
N
OTES
: The setting options may differ depending on printers
and Macintosh OS version.
Layout
The
Layout
tab provides options to adjust how the document
appears on the printed page. You can print multiple pages on
one sheet of paper. Select
Layout
from the
Presets
drop-down
list to access the following features.
•
Pages per Sheet
: This feature determines how many pages
printed on one page. For details, see "Printing Multiple Pages
on One Sheet of Paper" on the next column.
•
Layout Direction
: You can select the printing direction on a
page as like the examples on UI.
s
Mac OS 10.4
Using Your Printer with a Macintosh
34
Graphics
The
Graphics
tab provides options for selecting
Resolution(Quality)
and
Darkness
. Select
Graphics
form
the
Presets
' drop-down list to access the graphic features.
•
Resolution(Quality)
: You can select the printing
resolution. The higher the setting, the sharper the clarity of
printed characters and graphics. The higher setting also may
increase the time it takes to print a document.
•
Darkness
: Use this option to lighten or darken your print job.
-
Normal
: This setting is for normal documents.
-
Light
: This setting is for bolder line widths or darker gray-
scale images.
-
Dark
: This setting is for finer line width, higher definition in
graphics, and lighter gray-scale images.
Paper
Set
Paper Type
to correspond to the paper loaded in the tray
from which you want to print. This will let you get the best
quality printout. If you load a different type of print material,
select the corresponding paper type.
s
Mac OS 10.4
s
Mac OS 10.4
Printer Settings
Select
Printer Settings
from the list to access the following
features:
•
Toner Save Mode
Selecting this option extends the life of your toner cartridge and
reduces your cost per page without a significant reduction in print
quality.
Some printers do not support this feature.
-
Printer Setting
: If you select this option, this feature is
determined by the setting you’ve made on the control panel of
the printer.
-
On
: Select this option to allow the printer to use less toner on
each page.
-
Off
: If you don’t need to save toner when printing a
document, select this option.
s
Mac OS 10.4
Using Your Printer with a Macintosh
35
Printing Multiple Pages on One Sheet
of Paper
You can print more than one page on a single sheet of paper.
This feature provides a cost-effective way to print draft pages.
1
From your Macintosh application, select
Print
from the
File
menu.
2
Select
Layout
.
3
Select the number of pages you want to print on one sheet
of paper on the
Pages per Sheet
drop-down list.
4
Select the page order from the
Layout Direction
option.
To print a border around each page on the sheet, select
the option you want from the
Border
drop-down list.
5
Click
Print
, and the printer prints the selected number of
pages on one side of each page.
s
Mac OS 10.4
Scanning
You can scan docoments using
Image Capture
. Macintosh OS
offers
Image Capture
.
1
Make sure that your machine and computer are turned on
and properly connected to each other.
2
Place a single document face down on the document glass.
OR load the document(s) face up into the ADF (or DADF).
3
Start
Applications
and click
Image Capture
.
N
OTE
: If
No Image Capture device connected
message
appears, disconnect the USB cable and reconnect it. If the
problem persists, please refer to the
Image Capture
's help.
4
Set the scan options on this program.
5
Scan and save your scanned image.
N
OTE
:
• For more information about using
Image Capture
, please
refer to the
Image Capture
's help.
• If you want to scan via the DADF, use TWAIN-comliant
softwares.
• You can also scan using TWAIN-compliant softwares, such as
Adobe Photoshop.
• Scan process differ according to TWAIN-compliant
softwares. Please refer to the user's guide of the software.
• When scanning does not operate in Image Capture, update
Mac OS to the latest version. Image Capture operates
properly in Mac OS 10.4.7 or higher.
36
SOFTWARE SECTION
INDEX
A
advanced printing, use
13
C
canceling
scan
22
D
document, print
Macintosh
33
Windows
7
E
Extras properties, set
11
F
favorites settings, use
12
G
Graphics properties, set
10
H
help, use
12
I
install
printer driver
Macintosh
31
Windows
4
installing
Linux software
23
L
Layout properties, set
Windows
9
Linux
driver, install
23
printer properties
27
printing
27
scanning
28
M
Macintosh
driver
install
31
uninstall
31
printing
33
scanning
35
setting up the printer
32
MFP driver, install
Linux
23
N
n-up printing
Macintosh
35
Windows
13
O
orientation, print
28
Windows
9
overlay
create
16
delete
16
print
16
P
Paper properties, set
9
paper size, set
9
print
28
paper source, set
28
Windows
9
paper type, set
print
28
poster, print
14
print
document
7
fit to page
14
from Macintosh
33
from Windows
7
N-up
Macintosh
35
Windows
13
overlay
16
poster
15
PRN
8
scaling
14
watermark
15
print resolution
28
printer driver, install
Linux
23
printer properties
Linux
27
printer properties, set
Macintosh
33
Windows
8
printer resolution, set
Windows
10
printer software
install
Macintosh
31
Windows
4
uninstall
Macintosh
31
Windows
6
printing
from Linux
27
R
resolution
printing
28
S
scanning
Linux
28
SmarThru
20
TWAIN
22
WIA driver
22
scanning from Macintosh
35
37
setting
darkness
10
favorites
12
image mode
10
resolution
Windows
10
toner save
10
true-type option
10
software
install
Macintosh
31
Windows
4
reinstall
Windows
6
system requirements
Macintosh
31
uninstall
Macintosh
31
Windows
6
status monitor, use
18
T
toner save, set
10, 34
TWAIN, scan
22
U
uninstall, software
Macintosh
31
Windows
6
uninstalling
MFP driver
Linux
24
W
watermark
create
15
delete
15
edit
15
print
15
WIA, scan
22
www.samsungprinter.com Rev.6.00
