DLP TV
SP50L6HD
SP56K3HD
SP67L6HD
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
Picture In Picture (PIP)
My Colour Control
TELETEXT
(Option)
SRS TruSurroundXT
Digital Natural Image engine
Digital Terrestrial Receiver
This device is a Class B digital apparatus.
Register your product at www.samsung.com/global/register
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 1
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 2
English - 3
continued...
Contents
◆CONNECTING AND PREPARING YOUR TELEVISION
■Checking Parts .............................................................................................. 5
■Control Panel................................................................................................. 6
■Connection Panel .......................................................................................... 7
■Infrared Remote Control ................................................................................ 9

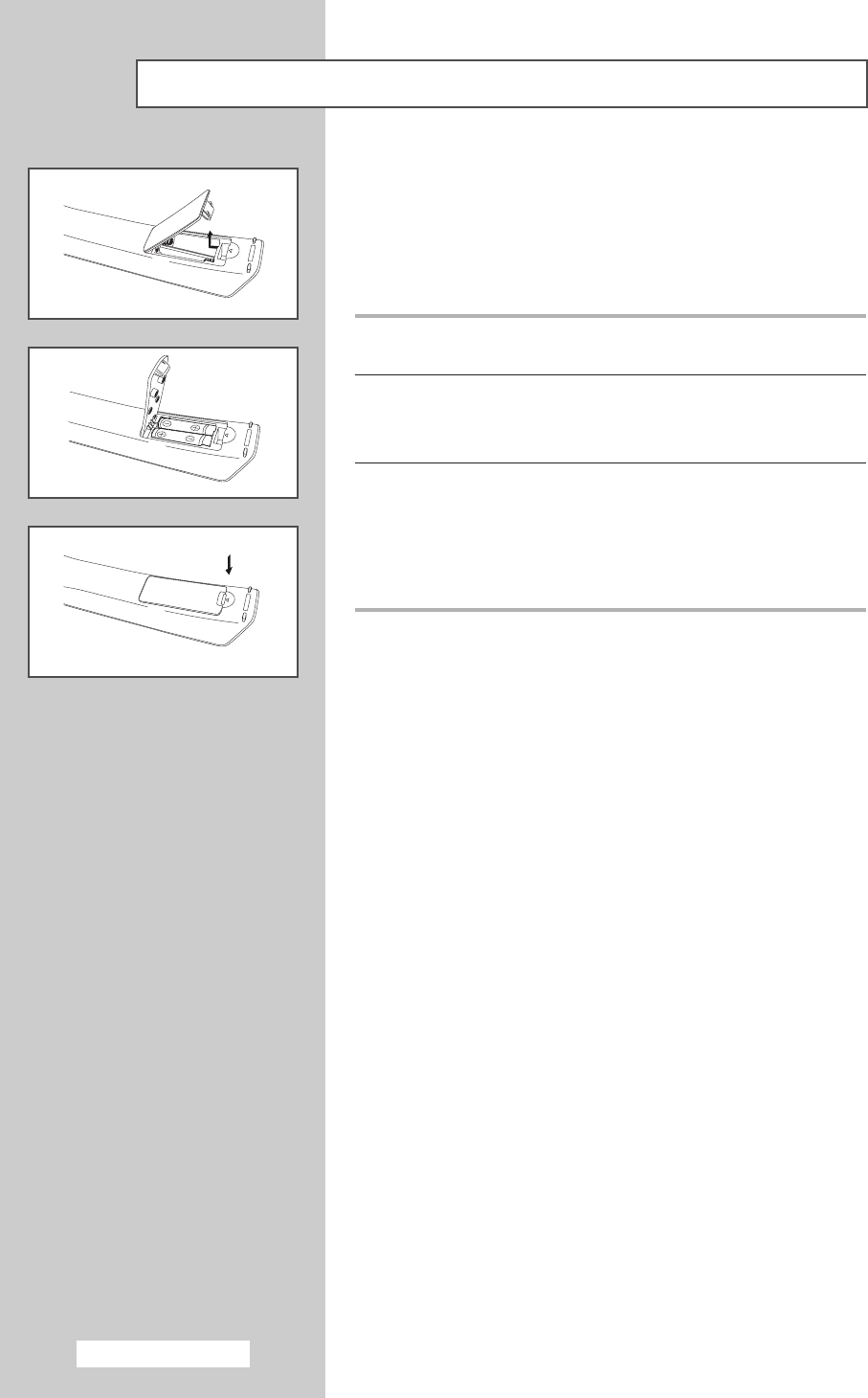

■Inserting the Batteries in the Remote Control................................................ 10
■Connecting to an Aerial or Cable Television Network ................................... 11
■Connecting a Satellite Receiver or Decoder.................................................. 11
■Switching Your Television On and Off........................................................... 12
■Placing Your Television in Standby Mode..................................................... 12
■Becoming Familiar with the Remote Control ................................................. 13
■Plug & Play Feature....................................................................................... 14
■Choosing Your Language.............................................................................. 16
◆SETTING THE CHANNELS (ANALOG TV)
■Storing Channels Automatically..................................................................... 17
■Storing Channels Manually............................................................................ 18
■Adding / Locking Channels............................................................................ 20
■Sorting the Stored Channels ......................................................................... 21
■Assigning Names to Channels ...................................................................... 22
■Using the LNA (Low Noise Amplifier) Feature............................................... 23
■Fine Tuning Channel Reception.................................................................... 24
◆USING YOUR DISPLAY
■Displaying Information ................................................................................... 24
■Changing the Picture Standard ..................................................................... 25
■Customizing the Picture Settings................................................................... 26
■Setting the Picture (PC Mode)....................................................................... 27
■Selecting the Picture Size.............................................................................. 29
■Viewing the DNIe Demonstration .................................................................. 30
■Freezing the Current Picture ......................................................................... 30
■Setting the My Colour Control (Easy Control) ............................................... 31
■Setting the My Colour Control (Detail Control) .............................................. 32
■Setting the Blue Screen................................................................................. 33
■Activating Panel Button Lock......................................................................... 33
■Setting the Film Mode.................................................................................... 34
■Using Game Mode......................................................................................... 34
■Viewing the Picture in Picture (PIP)............................................................... 35
■Using the Digital NR (Noise Reduction) Feature ........................................... 37
■Changing the Sound Standard ...................................................................... 38
■Customizing the Sound Settings ................................................................... 39
■Setting the TruSurround XT........................................................................... 40
■Adjusting the Volume Automatically .............................................................. 40
■Selecting the Internal Mute............................................................................ 41
■Setting the Melody Sound ............................................................................. 41
■Selecting the Sound Mode (depending on the model) .................................. 42
■Setting and Displaying the Current Time....................................................... 43
■Setting the Sleep Timer ................................................................................. 44
■Switching the Television On and Off Automatically ....................................... 45
■Viewing an External Signal Source ............................................................... 47
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 3
English - 4
➢
◆USING THE DTV FEATURE
■Previewing the DTV Menu System .......................................................................... 48
■Updating the Channel List Automatically ................................................................. 49
■Updating the Channel List Manually ........................................................................ 50
■Editing Your Favourite Channels.............................................................................. 51
■Viewing Channel Managers...................................................................................... 54
■Displaying Programme Information.......................................................................... 54
■Viewing the EPG (Electronic Programme Guide) Information................................ 55
■Using the Scheduled List .......................................................................................... 56
■Setting the Default Guide.......................................................................................... 57
■Viewing All Channels and Favourite Channels ....................................................... 58
■Setting the Preferred Languages ............................................................................. 59
■Choosing Your Language......................................................................................... 60
■Adjusting the Translucency Level............................................................................. 60
■Setting up the Parental Lock..................................................................................... 61
■Using the Preferred Features ................................................................................... 62
■Checking the Product Information ............................................................................ 63
■Checking the Signal Information............................................................................... 63
■Upgrading the Software (Option).............................................................................. 64
■Viewing Common Interface ...................................................................................... 65
■Selecting the CI (Common Interface) Menu ............................................................ 66
■Resetting.................................................................................................................... 67
■Freezing the Current Picture..................................................................................... 67
◆USING THE TELETEXT FEATURE
■Teletext Feature ............................................................................................ 68
■Displaying the Teletext Information ............................................................... 69
■Selecting Display Options.............................................................................. 70
■Selecting a Teletext Page.............................................................................. 71
◆ADDITIONAL INFORMATION AND CONNECTIONS
■Connecting to the External Input/Output ....................................................... 72
■Connecting to the RCA Input......................................................................... 73
■Connecting to the S-Video Input.................................................................... 73
■Connecting to the Component Input.............................................................. 74
■Connecting to the PC Input ........................................................................... 74
■Connecting to the HDMI (High Definition Multimedia Interface) Input ........... 75
■Connecting to the HDMI/DVI Compatible ...................................................... 75
■Connecting a Digital Audio System ............................................................... 75
■Connecting Home Theater System ............................................................... 76
■Setting up Your PC Software (Windows only) .............................................. 77
■PC Input Mode............................................................................................... 78
◆RECOMMENDATIONS FOR USE
■Replacing the Lamp....................................................................................... 79
■Troubleshooting: Before Contacting Service Personnel................................ 80
■Technical Specifications ................................................................................ 81
☛➢
Press Important Note
Symbols
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 4
English - 5
Owner’s Instructions
Remote Control/
AAA Batteries
Replacement Lamp
For purchasing a replacement lamp,
ask at a nearby service center.
•
Use authorized lamps only. The
company cannot guarantee the
quality of the product if an
unauthorized lamp is used.
Sold Separately
➢When installing the product, make sure to keep
it away from the wall (more than 10cm) for
ventilation purposes.
• Poor ventilation may cause an increase
in the internal temperature of the product,
resulting in a shortened component life
and degraded performance.
Checking Parts
Power Cord
Warranty Card/
Safety Guide Manual
(Not available in
all locations)
S-VIDEO Cable
PC Cable
HDMI Cable
HDMI/DVI Cable
PC Audio Cable
Component Cables
(RCA)
Antenna Cable
Scart Cable Optical Cable
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 5
English - 6
➢
Control Panel
➢
The actual configuration on your TV may be different, depending on
your model.
LED Indicators
LED Indicators
Switch the
TV On and Off
Picture On/Off
Picture On/Off
Remote Control Sensor
Remote Control Sensor
Switch among video input modes
Switch among video input modes
Display the on-screen menu
Adjust the volume
Select the channels
Access to the selected option
on the menu system
Display the on-screen menu
Adjust the volume
Select the channels
Access to the selected option on
the menu system
(:On, :Blinking, :Off)
TIMER LAMP STAND BY/TEMP Indication
Standby mode.
A timer pilot lights when Timer Auto On or Off is selected.
Normal operation.
Normal operation (when Timer Auto On or Off is selected).
Lamp is warming up. The normal picture comes on after 25 seconds.
The normal picture comes on after 25 seconds. (when Timer Auto On or
Off is selected)
Air vent cover in the rear of the TV is not properly installed.
Inside temperature of the TV is over normal. Clean the air vent cover in the
rear of the TV. Turn the TV back on after 1 hour.
The lamp does not work, please contact an authorized Service Center for
assistance.
Front of the TV
continued...
SP50L6HD/SP67L6HD
SP56K3HD
BP68-00583A-00Eng_01-47 4/4/06 1:58 PM Page 6
English - 7
Video Input
Video Input
Audio Input
S-Video Input
Audio Input S-Video Input
continued...
Connection Panel
➢
The actual configuration on your TV may be different, depending on
your model.
Side of the TV
n
SP50L6HD/SP67L6HD
SP56K3HD
➢
◆
You can use the channel selection buttons to switch on the TV when it is in standby mode
depending on the model.
◆
When using the on-screen menu the volume adjustment and channel selection buttons
have the same function as the …/†/œ/√buttons on the remote control.
◆
If the remote control no longer works or your have lost it, you can use controls on the
panel of the TV.
◆
Press the "
I
" side of the POWER switch to supply power to the TV. If the "
I
" side of the
POWER switch is not pressed, the POWER button on the remote control and the Picture
On/Off switch on the front panel of the TV will not work.
◆
Press the MENU button once in DTV mode, then the DTV menu is displayed.
BP68-00583A-00Eng_01-47 4/4/06 1:58 PM Page 7
English - 8
Rear of the TV
a) EXT 1(RGB), 2(Y/C)
Inputs or outputs for external devices, such as VCR, DVD,
video game device or video disc players.
b) COMPONENT IN
Video (Y/PB/PR) and audio (AUDIO L/R) inputs for Component.
c) PC IN (PC / AUDIO)
Connect to the video and audio output jack on your PC.
d) HDMI/DVI IN
- Connect to the HDMI jack of a device with HDMI output.
These inputs can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI cable
will be necessary to make this connection.
When using the optional HDMI/DVI adapter, the DVI analog
audio inputs on your TV allow you to receive left and right
audio from your DVI device. (Not compatible with PC)
- When connecting this product via HDMI or DVI to a
Set Top Box, DVD Player or Games Console etc, make sure
that it has been set to a compatible video output mode as
shown in the table below. Failure to observe this may result
in picture distortion, image breakup or no picture.
➢Supported modes for DVI or HDMI
- Do not attempt to connect the HDMI/DVI connector to a
PC or Laptop Graphics Card.
(This will result in a blank screen being displayed)
e) DVI IN (AUDIO L/R)
DVI audio inputs for external devices.
f) AUDIO OUT
Connect to the external audio amplifier.
g) DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio Component.
h) SERVICE PORT
Connector for service only.
i) ANT IN
Coaxial connector for Aerial/Cable Network.
j) DTV SERVICE
Connector for service only.
k) Common Interface Slot
Insert CI (Common Interface) card into the slot. (refer to page 66)
- When not inserting "CI CARD" in some channels, "Scramble
Signal" is displayed on the screen.
- The pairing information containing a telephone number, CI
CARD ID, Host ID, and other information will be displayed
in about 2~3 minutes.
If an error message is displayed, please contact your service
provider.
- When the channel information configuration has finished,
the message "Updating Completed" is displayed, indicating
that the channel list is now updated.
➢You must obtain a CI CARD from a local cable service provider.
Remove the CI CARD by carefully pulling it out with your hands
since dropping the CI CARD may cause damage to it.
➢For further details about connection, refer to pages 73~76.
➢Whenever you connect an audio or video system to your
television, ensure that all elements are switched off. Refer to
the documentation supplied with your equipment for detailed
connection instructions and associated safety precautions.
c
(
50Hz
60Hz
Component
480i
X
X
O
480p
O
O
O
576i
X
X
O
576p
O
X
O
720p
O
O
O
1080i
O
O
O
Please insert
the card as
shown.
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 8
English - 9
Infrared Remote Control
66)
ble
CI
ed
ce
g
der.
ds
to
ed
Selects a target device to be
controlled by the Samsung remote
control (TV, DVD, STB, CABLE, VCR)
Turns the TV on and off
Direct channel selection
One or two-digit channel selection
TV and DTV mode Selection
DTV Channel list display
VCR/DVD Function
(Rewind, Stop, Play/Pause, Fast/Forward)
Volume increase
Volume decrease
Temporary sound switch-off
Menu display/
Teletext index
Move to the required menu option/
Adjust an option value
respectively
Electronic Program Guide (EPG)
display
Information display/Teletext reveal
(Refer to page 24)
Picture-In-Picture On/Off/
Teletext page hold
Picture effect selection /
Teletext size selection
Picture still (Refer to page 30, 67)
Sound mode selection
Used during set up of this Samsung
remote control, so that it will work
compatibly with other devices (VCR,
Cable Box and DVD).
External input selection/
Teletext mode selection (LIST/FLOF)
Switch repeatedly between the last two
channels displayed/
Teletext Sub-page
Automatic switch-off
(Refer to page 44)
DTV menu display
Next channel/
Teletext next page
Previous channel/
Teletext previous page
Exit menu/
Teletext cancel
Teletext display/
Mix both teletext information and
the normal broadcast
Fastext topic selection
Picture size (Refer to page 29)
Sound effect selection/Teletext store
(Refer to page 38)
Digital subtitle display
TruSurround XT mode selection
(Refer to page 40)
If your remote control is not functioning
properly, take out the batteries and
press the reset button for about 2~3
seconds.
Re-insert the batteries and try using the
remote control again.
➢The performance of the remote control may be affected by bright light.
➢This is a special remote control for the visually impaired, and has Braille points.
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 9
English - 10
T
th
In
yo
de
re
◆
◆
➢
Inserting the Batteries in the Remote Control
You must insert or replace the batteries in the remote control when
you:
◆Purchase the television
◆Find that the remote control is no longer operating
correctly
1Lift the cover at the back of the remote control upward as shown in
the figure.
2Install two AAA size batteries.
➢ Make sure to match the “+” and “–” ends of the batteries with
the diagram inside the compartment.
3Close the cover as shown in the figure.
➢ Remove the batteries and store them in a cool, dry place if
you won’t be using the remote control for a long time.
The remote control can be used up to about 23 feet from the
TV. (Assuming typical TV usage, the batteries last for about
one year.)
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 10
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆An outdoor aerial
◆A cable television network
◆A satellite network
1In the first three cases, connect the aerial or network input cable to
the ANT IN jack on the rear of the television.
2If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to:
◆“Storing Channels Automatically” on page 17.
◆“Storing Channels Manually” on page 18.
➢When installing or re-installing your TV, be sure to use the
supplied coaxial antenna cable. If you connect using a different
coaxial cable, there is risk of noise or interference to the screen
image. (You must not use another general purpose cable.
Use the 3M/5M/7M cable supplied by Samsung.)
In order to watch television programmes broadcast via a satellite network,
you must connect a satellite receiver to the rear of TV. Also, in order to
descramble a coded transmission signal, you must connect a decoder to the
rear of TV.
◆Using a SCART cable
Connect the receiver (or decoder) SCART cable to one of the
SCART connectors on the rear of the television.
◆Using a coaxial cable
Connect a coaxial cable to the:
-
Receiver (or Decoder) output socket.
-
Television aerial input socket.
➢If you wish to connect both a satellite receiver (or decoder) and
a VCR, you should connect the:
◆Receiver (or Decoder) to the VCR
◆VCR to the television
Otherwise, connect the receiver (or decoder) directly to the
television.
English - 11
Connecting to an Aerial or Cable Television Network
Connecting a Satellite Receiver or Decoder
Rear of the TV
Cable Television
Network
or
Rear of the TV
Satellite Receiver/Decoder
SCART
cable
Coaxial
cable
n
n
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 11
English - 12
T
T
th
Placing Your Television in Standby Mode
Switching Your Television On and Off
Your television can be placed in Standby mode, in order to reduce
the power consumption.
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
1Press the POWER () button on the remote control to turn the
screen off.
Result:The STAND BY/TEMP indicator on the front of the
television lights.
2To turn the screen back on, simply press the POWER () button
again.
➢You can also switch on by pressing the P/, TV/DTV or
numeric button.
☛Do not leave your television in Standby mode for long
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the power
switch on the back of the set. It is best to unplug the set
from the mains and aerial.
The mains lead is attached to the rear of your television.
1Plug the mains lead into an appropriate socket.
➢The main voltage is indicated on the rear of the television
and the frequency is 50 or 60Hz.
2Press the power switch on the side of the television toward
“ON” (I).
3Press the POWER () button on the remote control (or the
button on the front of the television).
Result:The programme that you were watching last is re-
selected automatically.
➢If you have not yet stored any channels, No clear picture
appears. Refer to “Storing Channels Automatically” on
page 16 or “Storing Channels Manually” on page 18.
4To switch your television off, press the power switch toward
“OFF” (O).
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 12
English - 13
Becoming Familiar with the Remote Control
Button Viewing Function Menu Function
Used to display the next
stored channel.
Used to display the
previous stored channel.
Used to display the
on-screen menu system.
Used to return to the previous
menu or normal viewing.
-
-
-
-
Used to:
◆Display a sub-menu
containing selections for
the current menu option.
◆Increase/decrease a
menu option value.
Used to confirm your choice.
Used to display the corresponding channels.
Used to increase the volume.
Used to decrease the volume.
Used to switch the sound off temporarily.
➢
To turn the sound back on, press this button
again, or press the or button.
Press the PRE-CH button. The TV will switch to the last
channel viewed. To quickly switch between two channels
that are far apart, select the first channel, then use the
numeric buttons to select the second channel. Then, use the
PRE-CH button to quickly alternate between them.
to
Used to exit from the menu
system and return to normal
viewing directly.
Used to select a channel numbered ten or over.
Press this button, and the “
--
” symbol is displayed.
Enter the two-digit channel number.
-
/
--
The remote control is used mainly to:
◆Change channels and adjust the volume.
◆Set up the television using the on-screen menu system.
The following table presents the most frequently used buttons and
their functions.
MUTE
()
P
MENU
()
EXIT
()
PRE-CH
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 13
If
English - 14
Plug & Play Feature
Plug & Play
Start Plug & Play
OK
Check antenna input.
OK
Plug & Play
Plug & Play
Enter Exit
Enter Skip
Auto Store
P 1 C
--
40 MHz
0 %
Start
Enter Skip
Plug & Play
Language
Move Enter Skip
Plug & Play
Country
Belgium
France
Germany
Italy
Move Enter Skip
Plug & Play
Clock Set
--
:
--
Enter Skip
Plug & Play
Clock Set 00 : 00
Move Adjust Enter Skip
When the television is initially powered on, several basic customer
settings proceed automatically and subsequently.
The following settings are available.
1If the television is in standby mode, press the POWER ()button
on the remote control.
Result:The message to start Plug & Play is displayed.
2To start Plug & Play, press the ENTER/OK () button.
Result:The Language menu is displayed.
➢The Language menu will automatically appear after several
seconds, even if the ENTER/OK () button is not pressed.
3Select the appropriate language by pressing the …or †button.
Press the ENTER/OK () button.
Result:The message to check the connected status of the
antenna is displayed.
4Make sure that the antenna is connected to the TV.
Press the ENTER/OK () button.
Result:The Country menu is displayed.
➢If you do not press the ENTER/OK () button, the clock
setting menu appears after several seconds.
5Select your country or area by pressing the …or †button.
Press the ENTER/OK () button.
Result:The menu to select channels is displayed.
6To start channel store, press the ENTER/OK () button.
Result:The search will end automatically. Channels are sorted
and stored in the order which reflects their position in
the frequency range (with lowest first and highest last).
When this has finished, the menu to set the time will be
displayed.
➢To stop the search before it has finished or return to normal
viewing, press the MENU () or the ENTER/OK ()
button.
➢Press the ENTER/OK () button to set the clock.
7Press the œor √button to select the hour or minute.
Set these by pressing the …or †button.
➢You can enter the hours or minutes by using the numeric
buttons on the remote control.
8Press the ENTER/OK () button to confirm your setting.
The DTV channel scan menu appears and the DTV channel is
automatically updated.
➢If the DTV channel is updated, the Source in the source list
of the Input menu is automatically changed to DTV.
➢For detailed descriptions about DTV channel update, refer
to page 49 of this manual.
continued...
English
Deutsch
Français
Italiano
Svenska
Plug & Play
Skip
Scanning for digital services...
Services found : 24 Channel : 38
35%
Stop
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 14
If you want to reset this feature...
1Press the MENU ()button.
Result:The main menu is displayed.
➢This function is not available in DTV and other source
modes.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the ENTER/OK () button again to select Plug & Play.
Result:The message to start Plug & Play is displayed.
5For further details on settings, refer to the previous page.
English - 15
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Start Plug & Play
OK
Plug & Play
Enter Return
r
.
d
.
e
l
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 15
English - 16
Y
d
m
y
to
➢
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Language.
Press the ENTER/OK () button.
Result:The available languages are listed.
5Select the appropriate language by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
Choosing Your Language
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Setup
TV
Move Enter Return
Plug & Play
Language :English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
English
Deutsch
Français
Italiano
Svenska
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 16
English - 17
Storing Channels Automatically
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Move Enter Return
Auto Store
P 1 C
--
40 MHz
0 %
Start
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Enter Return
You can scan for the frequency ranges available to you (availability
depends on your country). Automatically allocated programme numbers
may not correspond to actual or desired programme numbers. However
you can sort numbers manually and clear any channels you do not wish
to watch.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
Result:The Country is selected.
4Press the ENTER/OK () button again.
Result:The available countrys are listed.
5Select your Country by pressing the …or †button.
➢If you have selected the Others option but do not wish to
scan the PAL frequency range, store the channels manually
(“Storing Channels Manually” on page 19).
6Press the ENTER/OK () button.
7Press the …or †button to select Auto Store.
Press the ENTER/OK () button.
Result:The Auto Store menu is displayed.
8Press the ENTER/OK () button again to start the search.
Result:The search will end automatically. Channels are sorted
and stored in the order which reflects their position in
the frequency range (with lowest first and highest last).
The programme originally selected is then displayed.
➢To stop the search before it has finished, press the MENU
() or the ENTER/OK () button.
9When the channels have been stored, you can:
◆Sort them in the order required (“Sorting the Stored
Channels” on page 21).
◆Fine-tune channel reception if necessary (“Fine Tuning
Channel Reception” on page 24).
◆Assign a name to the stored channels (“Assigning Names to
Channels” on page 22).
◆Activate/deactivate the Digital NR (Noise Reduction) feature
(“Using the Digital NR (Noise Reduction) Feature” on page 37).
◆Activate/deactivate the LNA (Low Noise Amplifier) feature
(“Using the LNA (Low Noise Amplifier) Feature” on page 23).
Belgium
France
Germany
Italy
Netherlands
Spain
➢
Not available in DTV or external input mode.
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 17
English - 18
☛
You can store television channels, including those received via cable
networks.
When storing channels manually, you can choose:
◆Whether or not to store each of the channels found.
◆The programme number of each stored channel which you
wish to identify.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Manual Store.
Press the ENTER/OK () button.
Result:The Manual Store menu is displayed.
5If necessary, select the broadcasting standard required.
Press the …or †button to select Colour System.
Press the ENTER/OK () button.
6Select the required colour standard by pressing the …or †
button. Press the ENTER/OK () button.
Result:The following options are available.
(depending on the model)
AUTO - PAL - SECAM - NTSC 4.43
7Press the …or †button to select Sound System.
Press the ENTER/OK () button.
8Select the required sound standard by pressing the …or †
button. Press the ENTER/OK () button.
Result:The following options are available.
BG - DK - I- L
Storing Channels Manually
➢
Not available in DTV or external input mode.
continued...
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 5
Search : 175 MHz
Store : ?
Manual Store
TV
Move Enter Return
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 2
Search : 48 MHz
Store : ?
Manual Store
TV
Move Enter Return
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 2
Search : 48 MHz
Store : ?
Manual Store
TV
Move Enter Return
BG
DK
I
L
AUTO
PAL
SECAM
NTSC 4.43
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 18
English - 19
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel :C05
Search : 175 MHz
Store : ?
Manual Store
TV
Adjust Enter Return
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 5
Search : 175 MHz
Store : ?
Manual Store
TV
Adjust Enter Return
Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 5
Search : 175 MHz
Store : OK
Manual Store
TV
Move Enter Return
9If you know the number of the channel to be stored, see the
following steps.
◆
Press the …or †button to select Channel.
Press the ENTER/OK () button.
◆
Press the …or †button to select C(Air channel) or
S(Cable channel).
◆
Press the √button.
◆
Press the …or †button to select the required number.
Press the ENTER/OK () button.
➢You can select the channel directly by pressing
the numeric buttons on the remote control.
➢If there is abnormal sound or no sound, re-select the
sound standard required.
10 If you do not know the channel numbers, select Search by
pressing the …or †button. Press the ENTER/OK () button.
Press the …or †button to start the search.
Press the ENTER/OK () button.
Result:The tuner scans the frequency range until the first
channel or the channel that you selected is received on
your screen.
11 To assign a programme number to a channel, select Programme
by pressing the …or †button. Press the ENTER/OK ()
button.
12 Press the …or †button until you find the correct number.
Press the ENTER/OK () button.
➢You can select the programme directly by pressing
the numeric buttons on the remote control.
13 To store the channel and associated programme number, select
Store by pressing the …or †button. Set to OK by pressing the
ENTER/OK () button.
14 Repeat steps 9to 13 for each channel to be stored.
15 Press the EXIT button to exit.
☛Channel mode
◆P (Programme mode): When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to P99. You can select a
channel by entering the position number in this mode.
◆C(Air channel mode): You can select a channel by entering
the assigned number to each air broadcasting station in this
mode.
◆S(Cable channel mode): You can select a channel by entering
the assigned number for each cable channel in this mode.
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 19
English - 20
T
st
➢
Adding / Locking Channels
Using the Channel Manager, you can conveniently lock or add channels.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Channel Manager.
Press the ENTER/OK () button.
◆
Adding channel
Using the Channel Manager, you can add channels.
5Move to the ( ) field by pressing the …/†/œ/√buttons, select a
channel to be added, and press the ENTER/OK () button to
add the channel.
➢If you press the ENTER/OK () button again, the ( )
symbol next to the channel disappears and the channel is not
added.
◆
Locking channels
This feature allows you to prevent unauthorized users, such as
children, from watching unsuitable programmes by muting out
video and audio.
6Press the …or †button to select Child Lock, then press the
ENTER/OK () button.
7Select On by pressing the …or †buttons, then press the
ENTER/OK () button.
8Press the …or †buttons to select the Channel Manager, then
press the ENTER/OK () button.
9Move to the ( ) field by pressing the …/†/œ/√buttons, select a
channel to be locked, and press the ENTER/OK () button.
➢If you press the ENTER/OK () button again, the ( )
symbol next to the channel disappears and the channel lock
is canceled.
➢A blue screen is displayed when Child Lock is activated.
10 Press the EXIT button to exit.
\
☛You can select these options simply by pressing the
CH MGR button on the remote control.
➢
Not available in DTV or external input mode.
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Channel Manager
Chile Lock : Off
Channel Manager
TV
Move Enter Return
Move Enter
Page Exit
Add Lock
Channel Manager
P 1 C 1 1 / 10
Prog.
0C
--
1C 1
2C 3
3C 5
4C 8
5C 9
6C 10
7C 11
8C 12
9S 12
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 20
English - 21
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Prog. Channel Name
0C
--
1C 7
2C 19
3C 25
4C 26
Sort
TV
Move Enter Return
Prog. Channel Name
0C
--
C 7
2C 19
3C 25
4C 26
Sort
TV
Move Enter Return
Sorting the Stored Channels
This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using auto store.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Sort.
Press the ENTER/OK () button.
5Select the channel that you wish to move by pressing the …or †
button. Press the ENTER/OK () button.
6Select the number of the programme to which the channel is to
be moved by pressing the …or †button.
Press the ENTER/OK () button.
Result:The channel is moved to its new position and all other
channels are shifted accordingly.
7Repeat steps 5to 6until you have moved all the channels to the
required programme numbers.
8Press the EXIT button to exit.
➢
Not available in DTV or external input mode.
t
as
t
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 21
T
si
p
Channel names will be assigned automatically when channel information is
broadcast. These names can be changed, allowing you to assign new
names.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Name.
Press the ENTER/OK () button.
Result:The Name menu is displayed with the current channel
selected.
5Press the …or †button to select the channel to be assigned to a
new name. Press the ENTER/OK () button.
Result:Arrow indications are displayed around the name box.
6Press the …or †button to select a letter (A~Z), a number (0~9),
or a symbol. Move on to the previous or next letter by pressing the
œor √button.
7Press the ENTER/OK () button.
8Repeat steps 5to 7for each channel to be assigned to a new
name.
9Press the EXIT button to exit.
Assigning Names to Channels
➢
Not available in DTV or external input mode.
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Prog. Channel Name
0C
-- -----
1C 7
-----
2C 19
-----
3C 25
-----
4C 26
-----
Name
TV
Move Enter Return
Name
TV
Move Adjust Return
Prog. Channel Name
0C
-- -----
1C 7
A
2C 19
-----
3C 25
-----
4C 26
-----
English - 22
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 22
This function is very useful in the situation that the TV is used in weak
signal. LNA amplifies the TV signal in the weak signal area, a low-noise
preamplifier boosts the incoming signal.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select LNA.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
➢◆ If the picture is noisy with the LNA set to On, select Off.
◆ LNA setting is to be made for each channel.
◆ Depending on areas, factory mode of LNA will be set up
as On or Off.
Using the LNA (Low Noise Amplifier) Feature
English - 23
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Off
On
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
is
a
e
BP68-00583A-00Eng_01-47 2/9/06 7:09 PM Page 23
Y
v
English - 24
Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off
Channel
TV
Move Enter Return
Fine Tune
Adjust Save
Return
P 1
0
Reset
Fine Tune
P 1
+3
Reset
P 1 *
Mono
Fine Tune
Reset
P 1 *
+3
P 1
Mono
Picture : Standard
Sound : Custom
SRS TSXT : Off
00 : 00
Adjust Save
Return
Adjust Save
Return
If the reception is clear, you do not have to fine tune the channel,
as this is done automatically during the search and store operation.
If the signal is weak or distorted, you may have to fine tune the
channel manually.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Fine Tune.
Press the ENTER/OK () button.
Result:The horizontal bar is displayed.
5To obtain a sharp and clear picture and good sound quality,
press the œor √button until you reach the optimal setting.
6To store the fine tuning setting in the TV’s memory, press the
ENTER/OK () button.
Result:The programme number changes to red and is
marked with a “*”.
7To reset the fine tuning to 0, select Reset by pressing the …or †
button then press the ENTER/OK () button.
8Press the EXIT button to exit.
➢If you are unable to fine tune a channel, check that the
Colour System and Sound System settings are correct.
➢Fine Tune Store will change the colour of the Channel OSD
(On Screen Display) from White to Red and add the “*” mark.
You can view the channel information and setting status you have
selected by pressing the INFO
()
button on the remote control.
The information displayed varies according to the selected source.
Fine Tuning Channel Reception
Displaying Information
➢
Not available in DTV or external input mode.
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 24
You can select the type of picture which best corresponds to your
viewing requirements.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:
The
Picture menu is displayed.
3Press the ENTER/OK () button.
Result:
The
Mode is selected.
4Press the ENTER/OK () button again.
Result:
The
Mode menu is displayed.
5Press the ENTER/OK () button.
Result:The following
options
are available.
Dynamic - Standard - Movie - Custom
➢◆Choose Dynamic for viewing the TV during the day or
when there is bright light in the room.
◆Choose Standard for the standard factory settings.
◆Choose Movie when viewing the movie.
◆Choose Custom if you want to adjust the settings
according to personal preference (see “Customizing the
Picture Settings”, page 26).
6Select the required option by pressing the …or †button.
Press the ENTER/OK () button.
7Press the EXIT button to exit.
➢
You can also set these options simply by pressing the
P.MODE (: Picture Mode) button on the remote control.
Changing the Picture Standard
English - 25
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Mode : Standard
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Mode
TV
Move Enter Return
Mode : Dynamic
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Mode
TV
Move Enter Return
Dynamic
Standard
Movie
Custom
†
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 25
➢
English - 26
Customizing the Picture Settings
Contrast 80
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Mode : Custom
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Mode
TV
Move Enter Return
Mode : Custom
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Mode
TV
Move Enter Return
Cool 2
Cool 1
Normal
Warm 1
Warm 2
Mode : Custom
Contrast 80
Brightness 50
Sharpness 50
Colour 50
Tint G 50 R 50
Colour Tone : Cool 1
Reset
Mode
TV
Move Enter Return
Your television has several setting options that allow you to control
the picture quality.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:
The
Picture menu is displayed.
3Press the ENTER/OK () button.
Result:
The
Mode is selected.
4Press the ENTER/OK () button again.
Result:
The
Mode menu is displayed.
5Press the ENTER/OK () button.
Result:The following
options
are available.
Dynamic - Standard - Movie - Custom
6Select the required option by pressing the …or †button.
7Press the ENTER/OK () button.
8Select the required option by pressing the …or †button.
Result:The following
options
are available.
◆Contrast - Brightness - Sharpness - Colour -
Tint (NTSC only)
◆Contrast - Brightness : PC mode.
9Press the ENTER/OK () button.
Result:The horizontal bar is displayed.
Press the œor √button until you reach the optimal
setting.
➢◆Press the …or †button to select other option(s).
◆The settings values may vary depending on the input
source. (ex. RF, Video, Component, PC, or HDMI.)
10 Press the MENU () button to return to Mode menu.
Press the …or †button to select Colour Tone.
Press the ENTER/OK () button.
11 Select the required option by pressing the …or †button.
Result:The following
options
are available.
Cool 2 - Cool 1 - Normal - Warm 1 - Warm 2
12 Press the ENTER/OK () button.
13 To return the factory defaults, select Reset by pressing the
…or † button. Press the ENTER/OK () button.
Result:The previously adjusted settings will be reset to the
factory defaults.
➢The reset function is set for each mode (Dynamic,
Standard, Movie, or Custom).
➢The reset function is also set for each Colour Tone (Cool 2,
Cool 1, Normal, Warm 1, or Warm 2).
14 Press the EXIT button to exit.
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 26
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select PC.
Press the ENTER/OK () button.
Result:The PC menu is displayed.
5Press the ENTER/OK () button to select Image Lock.
Press the ENTER/OK () button.
6Press the …or †button to select the option (Coarse or Fine) to
be adjusted. Press the ENTER/OK () button.
Result:The horizontal bar is displayed.
Press the œor √button until you reach the optimal
setting.
➢The purpose of picture quality adjustment is to remove or
reduce picture noise.
If the noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (coarse) and Fine-tune
again. After the noise has been reduced, re-adjust the
picture so that it is aligned on the center of screen.
➢Press the …or †button to select other option(s).
7Press the ENTER/OK () button.
8Press the MENU ()button.
Result:The PC menu is displayed again.
9Press the …or †button to select Position.
Press the ENTER/OK () button.
➢Adjust the PC’s screen positioning if it does not fit the TV
screen.
10 Adjust the position by pressing the …/†/œ/√button.
11 Press the ENTER/OK () button.
Setting the Picture (PC Mode)
➢Preset to the PC mode by pressing the SOURCE () button.
continued...
50
Coarse
English - 27
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Image Lock
Position
Auto adjustment
Image Reset
PC
TV
Image Lock
Position
Auto adjustment
Image Reset
PC
TV
Position
TV
Move Enter Return
Coarse 50
Fine 50
Image Lock
TV
Move Enter Return
Move Enter Return
Move Enter Return
Move Enter Return
ol
2,
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 27
English - 28
Y
re
Po
Image Lock
Position
Auto adjustment
Image Reset
PC
TV
Image Lock
Position
Auto adjustment
Image Reset
PC
TV
Image Reset is completed.
Return
Move Enter Return
Move Enter Return
Auto Adjustment in progress
Please wait
12 Press the …or †button to select Auto adjustment.
Press the ENTER/OK () button.
Result:The screen quality and position are automatically reset.
The settings are all finished, and the TV will
automatically return to the previous picture.
13 To return the factory defaults, select Image Reset by pressing
the …or † button. Press the ENTER/OK () button.
Result:The previously adjusted settings will be reset to the
factory defaults.
14 Press the EXIT button to exit.
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 28
English - 29
Selecting the Picture Size
You can select the picture size which best corresponds to your viewing
requirements.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Size.
Press the ENTER/OK () button.
5Select the required option by pressing the …or †button.
Result:The following modes are available depending on the
mode.
◆Auto Wide :Expanding and pulling up the picture from 4:3
to 16:9 ratio.
◆16:9 :Sets the picture to 16:9 wide mode. Press the
√button. The picture position ( , ) and
size ( ) adjustment are able in these mode by
pressing the ▲or ▼button.
◆Zoom :Magnify the size of the picture vertically on
screen. Press the √button. The picture position
() and size ( ) adjustment are able in
these mode by pressing the ▲ or ▼button.
◆4:3 :Sets the picture to 4:3 wide mode. Press the
√button. The picture position ( , ) and
size ( ) adjustment are able in these mode by
pressing the ▲or ▼button.
➢You can select only the 14:9 screen size in the DTV mode.
6When you are satisfied with your setting, press the ENTER/OK
()button.
7Press the EXIT button to exit.
➢◆You can select these options simply by pressing the P.SIZE
button on the remote control.
◆If you change the picture size when PIP is On, PIP will
automatically be turned Off.
◆Depending on the input source, the P.SIZE options may vary.
Positioning and Sizing the screen using Zoom
➢◆Resizing the screen using the Zoom enables the positioning
and sizing of the screen to up/down direction using the …or
†button as well as the screen size.
◆Move the screen up/down using the …or †button after
selecting the by pressing the œor √button.
◆Resize the screen vertically using the …or †button after
selecting the by pressing the œor √button.
(Pressing the …button extends it upward and pressing the
†button extends it downward.)
◆Screen enlargement operates only in RF/AV/S-video/SD level
Component(480i,576i,480p,576p) input modes.
PC Mode
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Auto Wide
16:9
14:9
Zoom
4:3
Size
TV
Move Enter Return
Auto Wide
16:9
Zoom
4:3
Size
TV
Move Enter Return
Auto Wide
16:9
Zoom
4:3
Size
TV
Move Enter Return
HDMI Mode
Auto Wide
16:9
Zoom
4:3
Size
TV
Move Enter Return
RF/AV/S-Video SD-level-Component Mode
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 29
English - 30
T
ad
G
th
Viewing the DNIe Demonstration
Freezing the Current Picture
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Off
On
DNIe Demo
DNIe Off DNIe On
This TV includes the DNIe function so as to provide a high visual
quality.
If you set DNIe Demo to On, you can view an applied DNIe and a
normal picture on the screen, for demonstration purposes. Using
this function, you can view the difference in the visual quality.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select DNIe Demo.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Result:The following options are available.
◆On :Switches on the DNIe Demo mode.
◆Off :Switches off the DNIe Demo mode.
6When you are satisfied with your setting, press the ENTER/OK
()button.
7Press the EXIT button to exit.
➢DNIeTM (Digital Natural Image engine)
This feature brings you more detailed image with 3D noise
reduction, detail enhancement, contrast enhancement and
white enhancement. New image compensation Algorithm
gives brighter, clearer, more detailed image to you.
DNIeTM technology will fit every signal into your eyes.
You can freeze the picture when watching a television programme
simply by pressing the STILL button. To return to normal
viewing, press it again.
➢In the PIP mode, the main and sub pictures are stilled at
the same time.
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 30
English - 31
Setting the My Colour Control (Easy Control)
This feature allows you to adjust colours according to your preferences, by
adjusting skin, sky, and grass tones using the predefined settings (Blue,
Green, Pink, Standard, and Custom) without affecting other colours on
the screen.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select My Colour Control.
Press the ENTER/OK () button.
Result:The Easy Control is selected.
5Press the ENTER/OK () button again.
➢The current image will be displayed on the screen.
Result:The following options are available.
◆Blue
Emphasizing clear blues.
◆Green
Emphasizing mild greens.
◆Pink
Emphasizing warm skin colours.
◆Standard
Standard picture.
◆Custom
Changing the settings in the Detail Control
menu will automatically set to Custom
(see next page).
6Select the required option by pressing the œor √button.
Result:The original picture (before adjustment) is shown on
the left side, while the selected mode is shown on the
right side.
7When you are satisfied with your setting, press the ENTER/OK
()button.
8Press the EXIT button to exit.
➢◆The My Colour Control is not available in PC mode.
◆When running the My Colour Control feature, the current
picture is captured as a still image before being displayed on
the screen.
◆You cannot use this function, when PIP is On.
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Easy Control : Custom
Detail Control
My Colour Control
TV
Move Enter Return
e
Move Enter Return
Easy Control
Standard Custom
œ
Original Custom
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 31
If
au
co
O
T
op
co
th
English - 32
Setting the My Colour Control (Detail Control)
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Easy Control : Custom
Detail Control
My Colour Control
TV
Move Enter Return
Pink 50
Green 50
Blue 50
Reset
Detail Control
TV
Move Enter Return
Pink 50
Green 50
Blue 50
Reset
Detail Control
TV
Move Enter Return
Move
Adjust
Return
Detail Control
Pink 50
Original Adjusted
This setting can be adjusted to suit your personal preferences.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select My Colour Control.
Press the ENTER/OK () button.
5Press the …or †button to select Detail Control.
Press the ENTER/OK () button.
6Select the required option (Pink, Green, or Blue) by pressing the
▲or ▼ button. Press the ENTER/OK () button.
7Press the œor √button until you reach the optimal setting.
Result:Changing the adjustment value will refresh the
adjusted screen.
➢Press the ▲or ▼ button to select other option(s).
8Press the MENU ()button.
Result:The Detail Control menu is displayed again.
9To return the factory defaults, select Reset by pressing the
▲or ▼button. Press the ENTER/OK () button.
Result:The previously adjusted colours will be reset to the
factory defaults.
10 Press the EXIT button to exit.
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 32
If no signal is being received or the signal is very weak, a blue screen
automatically replaces the noisy picture background. If you wish to
continue viewing the poor picture, you must set the Blue Screen mode to
Off.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Blue Screen.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
➢Blue Screen is displayed while there is no signal from the
external device in the external mode, regardless of the Blue
Screen Setting.
This feature allows you to lock the TV panel buttons so that it cannot be
operated via the TV panel. It can, however, till be operated via the remote
control. Only remote control can release the panel lock setting, so keep
the remote control away from unauthorized users.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Panel Lock.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
English - 33
Setting the Blue Screen
Activating Panel Button Lock
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen :Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Off
On
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock :Off
PC
Setup
TV
Move Enter Return
Off
On
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 33
Y
e
c
English - 34
Setting the Film Mode
Using Game Mode
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Off
On
You can automatically sense and process film signals from all sources
and adjust the picture for optimum quality.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Film Mode.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
◆Off Switches off the film mode.
◆On Automatically senses and processes film signals from
all sources and adjusts the picture for optimum quality.
6When you are satisfied with your setting, press the ENTER/OK
()button.
7Press the EXIT button to exit.
➢◆The Film Mode is not available in PC, Component (except 480i,
576i, 480p, 576p), or HDMI mode.
When connecting to a game console such as PlayStationTM or XboxTM, you
can enjoy a more realistic gaming experience by selecting game menu.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Game Mode.
Press the ENTER/OK () button.
5Select Off or On by pressing the ▲or ▼button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
➢To disconnect the game console and connect another external device,
cancel game mode in the picture menu.
➢If you display the TV menu in Game mode, the screen shakes slightly.
➢Game Mode is not available in TV mode.
➢If Game Mode is On :
◆Picture Mode is automatically changed to Custom and users cannot
change the mode.
◆Sound Mode in the Sound menu is deactivated. Adjust the sound
using the equalizer.
◆The Reset Sound function is activated. Selecting the Reset function after
setting the equalizer resets the equalizer setting to the factory defaults.
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Off
On
➢
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 34
English - 35
You can display a sub picture within the main picture of a TV program or
external A/V devices. In this way you can monitor the video input from any
connected devices while watching TV or other video input.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the … or †button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the … or †button to select PIP.
Press the ENTER/OK () button.
Result:The PIP is selected.
5Press the ENTER/OK () button again.
To activate, set PIP to on by pressing the … or †button.
Press the ENTER/OK () button.
➢You can select these options by simply pressing the
PIP () button on the remote control.
6Press the … or †button to select Source.
Press the ENTER/OK () button.
Result:The following options are available.
TV - Ext.1 - Ext.2 - AV - S-Video
➢The same source cannot be selected on both the main and
sub screens. However, the same source can be selected on
both the main and sub screens for TV.
7Select a source of the sub picture by pressing the … or †button.
Press the ENTER/OK () button.
8Press the … or †button to select Swap.
Press the ENTER/OK () button.
Result:The main picture and sub picture are interchanged.
➢You cannot use the Swap function for PC, HDMI or
Component.
9Press the … or †button to select Size.
Press the ENTER/OK () button.
Result:The following options are available.
- - -
➢You cannot use the Double size ( , ) function for
PC or HDMI mode.
10 Select a size of the sub picture by pressing the … or †button.
Press the ENTER/OK () button.
continued...
Viewing the Picture in Picture (PIP)
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
PIP : On
Source : TV
Swap
Size
:
Position
:
Programme : P 1
PIP
TV
Move Enter Return
Off
On
PIP : On
Source : TV
Swap
Size
:
Position
:
Programme : P 1
PIP
TV
Move Enter Return
PIP : On
Source : Ext1.
Swap
Size
:
Position
:
Programme : P 1
PIP
TV
Move Enter Return
PIP : On
Source : Ext1.
Swap
Size
:
Position
:
Programme : P 1
PIP
TV
Move Enter Return
TV
Ext.1
Ext.2
AV
S-Video
s
y.
➢Not available in DTV mode.
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 35
If
fe
sc
English - 36
11 Press the …or †button to select Position.
Press the ENTER/OK () button.
Result:The following options are available.
---
➢The Position menu is available when the Size is
or mode.
12 Select a position of the sub picture by pressing the …or †
button. Press the ENTER/OK () button.
13 Press the …or †button to select Programme.
Press the ENTER/OK () button.
14 Select the channel that you want to view through sub picture by
pressing the …or †button.
➢If the sub picture receives no signal and the main picture is
output from a Component, PC or HDMI signal, the sub
picture will be blue. If the main picture is output from a Video
signal, the sub picture will be black.
15 When you are satisfied with your setting, press the ENTER/OK
()button.
16 Press the EXIT button to exit.
➢
Table of PIP Settings
X - This PIP combination is not available.
O - This PIP combination is available.
PIP : On
Source : Ext1.
Swap
Size
:
Position
:
Programme : P 1
PIP
TV
Move Enter Return
PIP : On
Source : Ext1.
Swap
Size
:
Position
:
Programme : 01
PIP
TV
Adjust Enter Return
Sub Main
DTV
TV
AV
Ext.1
Ext.2
S-Video
HDMI
X
O
O
O
O
O
PC
X
O
O
O
O
O
Component
X
O
O
O
O
O
S-Video
X
O
O
O
O
X
AV
X
O
X
O
O
O
Ext.2
X
O
O
O
X
O
Ext.1
X
O
O
X
O
O
TV
X
X
O
O
O
O
DTV
X
X
X
X
X
X
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 36
English - 37
Using the Digital NR (Noise Reduction) Feature
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Mode : Standard
Size : Auto Wide
Digital NR : On
DNIe Demo : Off
My Colour Control
Film Mode : Off
PIP
TV
Move Enter Return
Off
On
If the signal received by your television is weak, you can activate this
feature to help reduce any static and ghosting that may appear on the
screen.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Picture.
Result:The Picture menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Digital NR.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
I
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 37
English - 38
Y
so
You can select the type of special sound effect to be used when
watching a given broadcast.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the ▲or ▼button to select Sound.
Result:The Sound menu is displayed.
3Press the ENTER/OK () button.
Result:The Mode is selected.
4Press the ENTER/OK () button again.
5Select the required option by pressing the ▲or ▼button.
Result:The following options are available.
Standard - Music - Movie - Speech - Custom
➢◆Choose Standard for the standard factory settings.
◆Choose Music when watching music videos or concerts.
◆Choose Movie when watching movies.
◆Choose Speech when watching a show that is mostly
dialog (i.e., news).
◆Choose Custom to recall your personalized settings
(see “Customizing the Sound Settings”, page 39).
6When you are satisfied with your setting, press the ENTER/OK
()button.
7Press the EXIT button to exit.
➢You can select these options by simply pressing the
S.MODE (Sound Mode) button on the remote control.
Changing the Sound Standard
Custom
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Mode : Standard
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Standard
Music
Movie
Speech
Custom
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 38
English - 39
Equalizer
TV
100Hz300Hz1KHz3KHz10KHz
R
L
+
0
-
+
0
-
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Move Adjust Return
Customizing the Sound Settings
Your television has several settings which allow you to control the
sound quality.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Sound.
Result:
The
Sound menu is
displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Equalizer.
Press the ENTER/OK () button.
Result:
The
Equalizer menu is
displayed.
5Select the required option (balance or equalizer) by pressing the
œor √button.
6Press the …or †button until you reach the
optimal
setting.
Press the ENTER/OK () button.
7Press the EXIT button to exit.
➢
If you make any changes to the sound settings, the sound
standard is automatically switched to Custom.
➢◆L/R Sound Balance Adjustment
To adjust the sound balance of the L/R speakers.
◆Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz)
To adjust the level of different bandwidth frequencies.
➢If Game Mode is On, the Reset Sound function is activated.
Selecting the Reset function after setting the equalizer
resets the equalizer setting to the factory defaults.
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 39
English - 40
If
c
Y
o
Setting the TruSurround XT
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1
multichannel content over two speakers. TruSurround delivers a compelling, virtual
surround sound experience through any two-speaker playback system, including
internal television speakers. It is fully compatible with all multichannel formats.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Sound.
Result:
The
Sound menu is
displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select SRS TSXT.
Press the ENTER/OK () button.
5Select the required option by pressing the …or †button.
Result:The following options are available.
Off - 3D Mono - Stereo
6When you are satisfied with your setting, press the ENTER/OK
()button.
7Press the EXIT button to exit.
➢
You can select these options simply by pressing the
SRS () button on the remote control.
➢
TruSurround XT, SRS and Symbol are
trademarks of SRS Labs, Inc. TruSurround XT
technology is incorporated under license from
SRS Labs, Inc.
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Off
3D Mono
Stereo
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Each broadcasting station has its own signal conditions, and so it is not
easy for you to adjust the volume every time the channel is changed.
This feature lets you automatically adjust the volume of the desired
channel by lowering the sound output when the modulation signal is high
or by raising the sound output when the modulation signal is low.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Sound.
Result:The Sound menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Auto Volume.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
Sound
TV
Move Enter Return
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Off
On
Adjusting the Volume Automatically
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 40
English - 41
Selecting the Internal Mute
Setting the Melody Sound
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset
Sound
TV
Move Enter Return
Off
On
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody :On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Off
On
If you want to hear the sound through separate speakers,
cancel the internal amplifier.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Sound.
Result:
The
Sound menu is
displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Internal Mute.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
➢
The VOL +, VOL - and Mute buttons do not operate when the
Internal Mute is set to On.
You can hear melody sound when the television is powered on or
off.
1Press the MENU ()button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Melody.
Press the ENTER/OK () button.
5Select Off or On by pressing the …or †button.
Press the ENTER/OK () button.
6Press the EXIT button to exit.
1
l
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 41
English - 42
Y
by
w
Selecting the Sound Mode (depending on the model)
The DUAL I-II button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “DUAL-I” or “Stereo”, depending on
the current transmission.
➢◆If the receiving conditions deteriorate, listening will be
easier if the mode is set to Mono.
◆If the stereo signal is weak and automatic switching
occurs, switch to Mono.
◆When receiving mono sound in AV mode, connect to the
AUDIO-L input connector on the panel (front or side,
depending on the model). If mono sound only comes out
of the left speaker, press the DUAL I-II button.
Type of broadcast
Regular broadcast
(Standard audio)
Regular +
NICAM Mono
NICAM stereo
NICAM DUAL-I/II
Regular broadcast
(Standard audio)
Bilingual or DUAL-I/II
Stereo
On-screen indication
Mono (Normal use)
NICAM Mono
↔
Mono
NICAM stereo
↔
Mono
(Forced mono)
Mono
DUAL-I
↔
DUAL-II
Stereo
↔
Mono
(Forced mono)
NICAM DUAL-I
→
NICAM DUAL-II
→
Mono
NICAM
Stereo
A2
Stereo
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 42
English - 43
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Clock Set 00 : 00
Sleep Timer : Off
On Timer 00 : 00 Off
Off Timer 00 : 00 Off
Time
TV
Move Enter Return
Clock Set
TV
Move Adjust Return
Hour
00 00
Minute
Setting and Displaying the Current Time
You can set the television’s clock so that the current time is displayed
by pressing the INFO
()
button. You must also set the time if you
wish to use the automatic on or off timers.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Time.
Press the ENTER/OK () button.
Result:The Clock Set is selected.
5Press the ENTER/OK () button again.
6Press the œor √button to select Hour or Minute.
Set these by pressing the …or †button.
➢You can set the hour and minute directly by pressing
the numeric buttons on the remote control.
7When you are satisfied with your setting, press the ENTER/OK
()button.
8Press the EXIT button to exit.
➢
In the event of a power interruption or the set being turned off at
the supply, the settings for the Clock will be lost.
e
t
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 43
English - 44
Y
Setting the Sleep Timer
You can select a time period of between 30 and 180 minutes after
which the television automatically switches to Standby mode.
1Press the MENU () button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Time.
Press the ENTER/OK () button.
Result:The Time menu is displayed.
5Press the …or †button to select Sleep Timer.
Press the ENTER/OK () button.
6Select the preset time interval (Off, 30, 60 , 90 , 120, 150, or 180)
for staying on by pressing the ▲or ▼button.
Press the ENTER/OK () button.
7Press the EXIT button to exit.
➢
◆You can select these options simply by pressing the
SLEEP button on the remote control.
◆If the sleep timer is not yet set, Off is displayed.
If the sleep timer is already set, the remaining time before
which the television switches to standby mode is displayed.
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Clock Set 00 : 00
Sleep Timer : Off
On Timer
--
:
--
Off
Off Timer
--
:
--
Off
Time
TV
Move Enter Return
Clock Set : 00 : 00
Sleep Timer : Off
On Timer : 00 : 00 Off
Off Timer : 00 : 00 Off
Time
TV
Move Enter Return
Off
30
60
90
120
150
180
Sleep Timer : Off
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 44
English - 45
Switching the Television On and Off Automatically
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : On
Panel Lock : Off
PC
Setup
TV
Move Enter Return
Clock Set 00 : 00
Sleep Timer : Off
On Timer
--
:
--
Off
Off Timer
--
:
--
Off
Time
TV
Move Enter Return
On Timer
TV
Move Adjust Return
Hour
00 00
Minute
Programme
01
10
Volume
No
Activation
TV
Move Adjust Return
On Timer
00
Hour
Programme
01
10
Volume
Yes
Activation
You can set the on or off timers so that the television will:
◆Switch on automatically and tune to the channel of your
choice at the time you select.
◆Switch off automatically at the time you select.
➢The first step is to set the television’s clock (refer to
“Setting and Displaying the Current Time” on page 43).
1Press the MENU () button.
Result:The main menu is displayed.
2Press the …or †button to select Setup.
Result:The
Setup menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Time.
Press the ENTER/OK () button.
Result:The Time menu is displayed.
5Press the …or †button to select On Timer.
Press the ENTER/OK () button.
Result:The On Timer menu is displayed.
6Select Hour, Minute, Programme, or Volume by pressing the œor √
button.
Set these by pressing the …or †button.
➢You can set the hour and minute directly by pressing
the numeric buttons on the remote control.
7Press the œor √button to select Activation.
8To activate On Timer with the setting entered, select Yes by
pressing the …or †button.
9Press the ENTER/OK () button.
Result:The Time menu is displayed again.
continued...
00
Minute
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 45
English - 46
U
c
so
10 Press the … or †button to select Off Timer.
Press the ENTER/OK () button.
Result:The Off Timer menu is displayed.
11 Select Hour or Minute by pressing the œor √button.
Set these by pressing the …or †button.
➢You can set the hour and minute directly by pressing
the numeric buttons on the remote control.
12 Press the œor √button to select Activation.
13 To activate Off Timer with the setting entered, select Yes by
pressing the …or †button.
14 When you are satisfied with your setting, press the ENTER/OK
()button.
15 Press the EXIT button to exit.
➢Auto Power Off
When you set the timer “On”, the television will eventually turn
off, if no controls are operated for 3 hours after the TV was turned
on by timer. This function is only available in timer “On” mode
and prevents overheating or leakages, which may occur if a TV is
on for too long (when you are on vacation, for example).
➢If no signal is received for 15 minutes, the TV will be
automatically turned off.
Clock Set 00 : 00
Sleep Timer : Off
On Timer 00 : 00 On
Off Timer
--
:
--
Off
Time
TV
Move Enter Return
Off Timer
TV
Move Adjust Return
Hour Activation
00 No
00
Minute
Off Timer
TV
Move Adjust Return
Hour
00 00
Minute Activation
Yes
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 46
English - 47
Source List : TV
Edit Name
Input
TV
Move Enter Return
Source List : TV
Edit Name
Input
TV
Move Enter Return
TV
DTV
Ext.1 :
----
Ext.2 :
----
AV :
----
S-Video :
----
Component :
----
More
Source List
TV
Move Enter Return
Ext.1 :
----
Ext.2 :
----
AV :
----
S-Video :
----
Component :
----
PC :
----
HDMI :
----
Edit Name
TV
Move Enter Return
----
VCR
DVD
D-VHS
Cable STB
Use the remote control to switch between viewing signal from
connected equipment, such as VCR, DVD, Set-Top box, and the TV
source (broadcast or cable).
1Press the MENU () button.
Result:The main menu is displayed.
2Press the ENTER/OK () button to select Input.
Result:The Input menu is displayed.
3Press the ENTER/OK () button.
Result:The Source List is selected.
4Press the …or †button to select the signal source, press the
ENTER/OK () button.
Result:The available signal sources are listed.
➢
◆
TV, DTV, Ext.1, Ext.2, Component, PC , or HDMI :
on the TV’s rear panel.
◆
AV, S-Video : on the TV’s side panel.
◆
You can also set these options simply by pressing the
SOURCE ()button on the remote control.
◆
Only connected devices can be selected
5Press the MENU () button.
Result:The main menu is displayed.
6Press the ENTER/OK () button to select Input.
Result:The Input menu is displayed agian.
7Press the …or †button to select Edit Name.
Press the ENTER/OK () button.
8Press the …or †button to select external source to be edited.
Press the ENTER/OK () button.
Result:The available device names are listed.
VCR, DVD, D-VHS, Cable STB, HD STB, Satellite
STB, AV Receiver, DVD Receiver, Game, Camcorder,
DVD Combo, DHR (DVD HDD Recorder), or PC
9Select the required device by pressing the …or † button.
Press the ENTER/OK () button.
10 Press the EXIT button to exit.
➢If you change the external source while viewing, pictures
might take a short period of time to switch.
➢To watch television programme again, press the
TV/DTV
button and select the channel number required.
Viewing an External Signal Source
d
s
BP68-00583A-00Eng_01-47 2/9/06 7:10 PM Page 47
English - 48
Previewing the DTV Menu System
Yo
Se
➢ The sub-items of the CI Menu may vary depending on the CAM model.
(refer to page 66)
Now & Next Guide
Full Guide
Scheduled List
√
Default Guide : Full Guide
√
Preferred Subtitle Language : English
√
Preferred Audio Language : English
√
OSD Language : English
√
Translucency Level : Medium
√
Parental Lock
√
Guide
Preference
Move Enter Exit
Move Enter Exit
Subtitle : Off
√
Subtitle Language
Audio Language
Digital Text : Enable
√
Move Enter Exit
Feature
Auto Store
√
Manual Store
√
Edit Favourite Channels
√
Channel Manager
√
Move Enter Exit
Channel
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
Reset
√
Move Enter Exit
System
To help you navigate around the on-screen menu system and adjust
the various settings available, refer to the following illustration.
Press the D.MENU button on your remote control.
➞
Guide
➞
Now & Next Guide
➞
Full Guide
➞
Scheduled List
➞
Default Guide
➞
Preference
➞
Preferred Subtitle Language
➞
Preferred Audio Language
➞
OSD Language
➞
Translucency Level
➞
Parental Lock
➞
Feature
➞
Subtitle
➞
Subtitle Language
➞
Audio Language
➞
Digital Text
➞
Channel
➞
Auto Store
➞
Manual Store
➞
Edit Favourite Channels
➞
Channel Manager
➞
System
➞
Product Information
➞
Signal Information
➞
Software Upgrade
➞
Common Interface
➞
Reset
➞
Now/Next
➞
Full Guide
➞
High
➞
Medium
➞
Low
➞
Opaque
➞
English
➞
Welsh
➞
Gaelic
➞
Irish
➞
Parental Rating
➞
Change PIN
➞
Off
➞
On
➞
Disable
➞
Enable
➞
Channel
➞
Frequency
➞
Bandwidth
➞
Application Info.
➞
CI Menu
➞
English
➞
Welsh
➞
Gaelic
➞
Irish
➞
English
➞
Deutsch
➞
Italiano
➞
Français
➞
Svenska
➢Available in DTV mode.
Preset to the DTV mode by using the TV/DTV button on your remote control.
BP68-00583A-00Eng_48-67 2/9/06 7:22 PM Page 48
English - 49
Updating the Channel List Automatically
You can update the channel list when the broadcaster adds new
Services or if you move the TV to a new location.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
Result:The Auto Store is displayed.
4Press the ENTER/OK () button again to start the search.
Result:When it has finished, the number of scanned services
will be displayed.
◆The existing favourite channel list will not be
deleted when the channel list is updated.
◆To stop the scan before it has finished, press the
ENTER/OK () button with Stop selected.
5Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
➢If the signal status is poor, “No service found! Check the
aerial connection.” message is displayed.
odel.
st
.
Auto Store
√
Manual Store
√
Edit Favourite Channels
√
Channel Manager
√
Move Enter Return
Channel
Scanning for digital services...
Services found : 24 Channel : 38
35%
Return
Auto Store
Stop
Scanning for digital services...
Services found : 30 Channel : 68
100%
Return
Auto Store
Update Channel List...
BP68-00583A-00Eng_48-67 2/9/06 7:22 PM Page 49
Yo
English - 50
Updating the Channel List Manually
You can specify the channel or frequency for a fast channel search.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the …or †button to select Manual Store.
Press the ENTER/OK () button.
Result:The Manual Store is displayed.
5Press the œor √button to select Channel, Frequency, or
Bandwidth.
◆
Channel
Press the ▲, ▼ or numeric buttons (0~9) to select a
channel. The available channels are 21~68.
Result:The corresponding frequency for the selected
channel is automatically set.
◆
Frequency
You can specify the frequency (KHz) using the numeric
buttons (0~9). If you do not know the exact frequency,
follow the above step to select the frequency automatically
using channel.
◆
Bandwidth
Press the ▲ or ▼ button to select a bandwidth.
The available bandwidths are 7 and 8 MHz.
6Press the red button to start the scan for digital services.
Result:When it has finished,channels are updated in the
channel list.
7Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
➢You can input by pressing the button on the remote control.
➢You can not change only frequency and when changing a
channel the Frequency will be automatically changed.
Auto Store
√
Manual Store
√
Edit Favourite Channels
√
Channel Manager
√
Move Enter Return
Channel
Channel Frequency Bandwidth
Search
KHz
Manual Store
21 474000 MHz
8
Adjust Move Return
Channel Frequency Bandwidth
Search
KHz
Manual Store
21 474000 MHz
8
Adjust Move Return
Channel Frequency Bandwidth
Search
KHz
Manual Store
21 474000 MHz
8
Enter freq. Move Return
➢
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 50
English - 51
Editing Your Favourite Channels
You can edit your favourite channels using the colour buttons.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Edit Favourite Channels.
5Press the ENTER/OK () button.
Result:The Edit Favourite Channels menu is displayed.
6Press the red button to display all currently stored channels.
7Press the ▲or ▼button to select a channel you want.
Press the ENTER/OK () button.
Result:A★icon is shown next to the selected channel and
the channel will be added to the favourites list.
➢◆To undo, press the ENTER/OK () button again.
◆Select All : Select all channels currently displayed.
◆Select None : Deselect all selected channels.
◆Preview : Displays (a) currently selected channel(s).
➢The Favourite Channels settings have been completed.
8Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
continued....
s
Auto Store
√
Manual Store
√
Edit Favourite Channels
√
Channel Manager
√
Move Enter Return
Channel
800 RaiDue
801 RaiTre
802 RaiUno
Move Select Return
Edit Favourite Channels
Edit Favourite Channels
Return
(no channels)
Select All
Select None Preview
Add Channels
➢In the case of DTV mode, OK or Select can be used as the
ENTER/OK () button.
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 51
English - 52
◆Add
You can use this function when one or more favourite channels
have been selected.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Edit Favourite Channels.
5Press the ENTER/OK () button.
6Press the red button in the Edit Favourite Channels menu.
To add more channels, refer to the step 7on the previous page.
➢◆ To add all channels to the favourites channel list, press
the red button.
◆ To remove all channels, press the green button.
◆ Preview : Displays (a) currently selected channel(s).
◆ Press the CH MGR button to display the favourite
channel list.
7Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
continued....
Auto Store
√
Manual Store
√
Edit Favourite Channels
√
Channel Manager
√
Move Enter Return
Channel
800 RaiDue ★
801 RaiTre ★
802 RaiUno ★
Move Select Return
Edit Favourite Channels
Select All
Select None Preview
800 RaiDue ★
801 RaiTre ★
802 RaiUno ★
Move Select Return
Edit Favourite Channels
Add
Move Preview Delete
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 52
English - 53
◆Move
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Edit Favourite Channels.
5Press the ENTER/OK () button.
6Press the ▲or ▼button to select the required channel.
7Press the green button.
Result:Aicon is displayed on the left side of the
channel name.
8Press the ▲or ▼button to select the channel that you want to
move, then press the green or ENTER/OK () button.
Result:The channel is moved to its new position.
9Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
◆Preview
1In the Edit Favourite Channels menu, select the channel to
be previewed by pressing the …or † button.
2Press the yellow button.
Result:Displays currently selected channel.
3Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
◆Delete
1In the Edit Favourite Channels menu, select the channel to
be deleted from the favourite channels list by pressing the …or
† button.
2Press the blue button.
Result:The selected channel and number will be deleted.
➢To add a deleted channel back in to the favourite channel list,
see Add on page 52.
3Press the D.MENU button to return to the previous menu or press
the EXIT button to return to normal viewing.
s
..
800 RaiDue ★
801 RaiTre ★
802 RaiUno ★
Move Return
Edit Favourite Channels
800 RaiDue ★
801 RaiTre ★
802 RaiUno ★
Move Return
Edit Favourite Channels
801 RaiTre ★
802 RaiUno ★
Move Return
Edit Favourite Channels
Add
Move Preview Delete
Add
Drop Preview Delete
Add
Move Preview Delete
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 53
Th
br
th
up
➢
English - 54
Viewing Channel Managers
Displaying Programme Information
You can display a list of all channels or your favourite channels.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or †button to select Channel.
Result:The Channel menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Channel Manager.
Press the ENTER/OK () button.
Result:The channel list is displayed.
➢It can be displayed simply by pressing the CH MGR button.
5Press the yellow button to toggle between your favourite channels
and all channels.
Result:Your favourite channels are only displayed if they
were previously set in the Edit Favourite
Channels menu (refer to page 52~53).
6Press the red or green button to display the previous or next
channel list page.
7Press the ▲or ▼button to select a channel to be tuned.
Press the ENTER/OK () button.
Result:The channel number, name and an icon are displayed
in the top left corner while changing the channel.
The channel number and name are displayed if the
channel is one of the all channels, and a icon if the
channel is one of the favourite channels.
8Press the blue or CH MGR button to exit from the channel list.
While viewing a channel, additional information about the current
programme may be displayed.
1While viewing a programme, press the INFO () button.
Result:The programme information is displayed.
➢The information is displayed:
- Parental Rating
- Video Type: SD, HD, Radio
- Audio Type: MPEG, Dolby-AC3
- Existence of Teletext or DVB Subtitle
- Audio Language
2To exit from banner information, press the INFO () button.
Auto Store
√
Manual Store
√
Edit Favourite Channels
√
Channel Manager
√
Move Enter Return
Move Watch Exit
Channel
Channel Manager
BBC TWO All Channels
1. Test Card ‘M’...
3. Vida003b
4. Vida004b
5. Vida005b
6. Vida006b
7. BBC THREE
30. CBBC Channel
40. BBC NEWS24
51. BBCi
800 ARD-MHP-DATA
801 ARD-OnLine-K..
802 BBC ONE
803 MDR FERNSE..
804 NDR FERNSEH..
805 Vida002b
806 arte
Previous Page Next Page Favourites Exit
All Channels
14:20 - 14:33
Contains video with AFD O; coded frame
is 16:9
1 AFDO, 16:9
AFDO, 16:9
No Block
SD
Stereo
Subtitle
English
Exit
21:49 Sat 1 May
2. BBC TWO
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 54
English - 55
Viewing the EPG (Electronic Programme Guide) Information
The EPG (Electronic Programme Guide) information is provided by the
broadcasters. Programme entries may appear blank or out of date as a result of
the information broadcast on a given channel. The display will dynamically
update as soon as new information becomes available.
◆Now & Next Guide
For the six channels indicated in the left-hand column, displays
the Current programme and the Next programme information.
◆Full Guide
Displays the programme information as time ordered 30 minute
segments. One and half hours of programme information is
displayed which may be scrolled forwards or backwards in time.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the ENTER/OK () button to select Guide.
3Press the ▲or ▼button to select Now & Next Guide or Full
Guide. Press the ENTER/OK () button.
Result:The selected guide menu is displayed.
➢
You can also display the guide menu simply by pressing
the GUIDE button.
4To Then
Watch a programme ◆Select a programme by
in the EPG list pressing the ▲/▼/œ/√button.
◆Press the ENTER/OK () button.
➢If the next program is selected, it is scheduled with the clock
icon displayed. If the ENTER/OK () button is pressed
again, the scheduling is canceled with the clock icon gone.
For details about scheduling programmes, refer to the next
page.
View programme ◆Select a programme of your choice
information by pressing the ▲/▼/œ/√ button.
◆Press the INFO
()
button when
the programme of your choice is
highlighted.
Toggle between the Now & ◆Press the red button repeatedly.
Next Guide or Full Guide
Display the Favourites ◆Press the green button repeatedly.
and the All Channels list
Scrolls backwards quickly ◆Press the yellow button repeatedly.
(2 hours).
Scrolls forward quickly ◆Press the blue button repeatedly.
(2 hours).
Exit the guide ◆Press the Exit button.
➢◆Information such as the channel number, programme
title and running time, status bar, and brief summary
of the highlighted programme will be displayed in the
top right corner of the screen. If there is a lengthy
summary, “…” will be displayed. Press the INFO
()
button for the full summary text.
◆Six channels are displayed. To scroll between channels,
move to a channel using the ▲or ▼button. To display
page by page, use the
P
or button.
.
s
d
e
t
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 55
Yo
English - 56
Using the Scheduled List
If you make a scheduled viewing list of programs you may like to see, the
channel will be automatically switched to the scheduled program at the
scheduled time even if you are watching another program.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the ENTER/OK () button to select Guide.
3Select the Scheduled List by pressing the …or † button.
Press the ENTER/OK () button.
Result:The selected guide menu is displayed.
4Press the red button to add a new programme.
Result:The menu for adding a programme is displayed with
Channel selected.
5Press the ▲or ▼button to select the required channel.
Press the ENTER/OK () button.
Result:The Time is selected.
6Enter the start and stop time of the programme by pressing the
numeric button.
You also can use ▲or ▼button to select time.
Result:The Date is selected automatically, even if any button
is not pressed.
7Press the ▲or ▼button to select the required date.
Press the ENTER/OK () button.
Result:The Frequency is selected.
continued....
Now & Next Guide
Full Guide
Scheduled List
√
Default Guide : Full Guide
√
Move Enter Return
Guide
Scheduled List
Channel
Time
Date
Frequency
Save Cancel
Adjust Move Return
810 Super RTL
10 : 15 to --:--
Thu 03 Mar 2005
Scheduled List
Channel
Time
Date
Frequency
Save Cancel
810 Super RTL
10 : 15 to --:--
Thu 03 Mar 2005
Once
Scheduled List
Channel
Time
Date
Frequency
Save Cancel
810 Super RTL
10 : 15 to --:--
Thu 03 Mar 2005
Edit
Move
Return
Adjust Move Return
Return
Scheduled List
Add Programme Edit Delete
Thursday 22 Apr 15:30 ~ 18:00 Once
2 BBC TWO Animal Park
Thursday 22 Apr 20:00 ~ 21:00 Once
2 BBC TWO The Hairy Biker’s
Move
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 56
English - 57
8Press the ▲or ▼button to select the required frequency (Once,
Daily, or Weekly).
9When you are satisfied with your settings, save the adjusted
schedule by pressing the red button.
Result:The scheduled list is displayed again.
10 If you want to edit the scheduled programme, select a programme
by pressing the ▲or ▼button. Press the green button.
If necessary, select the programme to be deleted by pressing the
▲or ▼button. Press the blue button.
11 Repeat step 4to 9for other programme to be added to the
scheduled list.
➢When watching analog TV, the reserved DTV channel
cannot be changed. The channel is only changed
automatically to the reserved channel when you are
watching DTV.
➢Scheduling programme only functions with the television
already turned on, and not from standby mode.
For details about switching the television on and off
automatically, refer to page 12.
Setting the Default Guide
You can preset the default guide style.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the ENTER/OK () button to select Guide.
3Press the ▲or ▼button to select Default Guide.
Press the ENTER/OK () button.
4Select the required option (Now & Next Guide or Full Guide)
by pressing the …or † button. Press the ENTER/OK ()
button.
Result:The selected option is stored and the preset/default
channel list in the EPG menu and channel list will be
displayed.
5Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
n
..
Scheduled List
Channel
Time
Date
Frequency
Save Cancel
QVC
15 : 20 to --:--
Thu 03 Mar 2005
Once
Adjust Move Return
Return
Scheduled List
Add Programme Edit Delete
Thursday 22 Apr 15:30 ~ 18:00 Once
2 BBC TWO Animal Park
Thursday 22 Apr 20:00 ~ 21:00 Once
2 BBC TWO The Hairy Biker’s
Move
Now & Next Guide
Full Guide
Scheduled List
√
Default Guide : Full Guide
√
Move Enter Return
Guide
Now & Next Guide
Full Guide
Scheduled List
Default Guide :
Move Enter Return
Guide
Now/Next
Full Guide
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 57
U
(E
d
English - 58
Viewing All Channels and Favourite Channels
In the EPG menu, you can display all channels or favourite channels.
1Press the D.MENU button.
Result:The Guide menu is displayed.
2Press the ENTER/OK () button to select Guide.
3Press the ▲or ▼button to select Now & Next Guide or Full
Guide. Press the ENTER/OK () button.
Result:The selected guide menu is displayed.
4Press the green button repeatedly to toggle between the all and
favourite channels list.
5Select a programme of your choice by pressing the ▲/▼/œ/√
button.
6Press the INFO () button to display information about the
highlighted programme.
Result:The available programme information is displayed.
7When the favourite channel list has not been set up:
◆The favourites list is empty. Would you like to
choose your favourites now? message is displayed.
◆Select Yes.
Result:The Edit Favourite Channels menu is
displayed. If you select No, all channels will
remain unchanged.
◆To edit the favourite channels, refer to page 51~53 for more
details.
8Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
➢◆All Channels is the list of channels that have been
scanned by the channel list update. All channels are
displayed in the all channel mode.
◆Favourites (favourite channels) is the list of
channels that has been set in the Edit Favourite
Channels menu (refer to page 51~53).
◆When there is no channel information, the No Data
message will be displayed and you will not be able to
change the channel even if you press the
ENTER/OK
()
button.
When the No Data message appears and you
cannot change the channel, press the channel
number directly using the numeric buttons.
Now & Next Guide
Full Guide
Scheduled List
√
Default Guide : Full Guide
√
Move Enter Return
Guide
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 58
English - 59
Setting the Preferred Languages
Using this feature, users can select one of the four languages
(English, Welsh, Gaelic, Irish). The language selected here is the
default when the user selects a channel.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select Preference.
Result:The Preference menu is displayed.
3Press the ENTER/OK () button.
4Select your required menu by pressing the ▲or ▼button.
◆
Preferred Subtitle Language
◆
Preferred Audio Language
5Press the ENTER/OK () button.
Result:The options of the selected menu are displayed.
6Select the required option by pressing the …or † button, and
press the ENTER/OK () button to change the setting.
◆
Preferred Subtitle Language : English, Welsh,
Gaelic, Irish
◆
Preferred Audio Language : English, Welsh,
Gaelic, Irish
➢◆
If you change the language setting, the Subtitle
Language and the Audio Language of the features menu
(refer to page 62) are automatically changed to the
selected language.
◆
The Subtitle Language and the Audio Language of
the features menu show a list of languages supported by
the current channel and the selection is highlighted. If you
change this language setting, the new selection is only
valid for the current channel. The changed setting does
not change the setting of the Preferred Subtitle
Language or the Preferred Audio Language of the
preference menu.
7Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
o
Preferred Subtitle Language : English
√
Preferred Audio Language : English
√
OSD Language : English
√
Translucency Level : Medium
√
Parental Lock
√
Preference
Move Enter Return
Preferred Subtitle Language :English
Preferred Audio Language : English
OSD Language : English
Translucency Level :
Parental Lock
Preference
Move Enter Return
English
Welsh
Gaelic
Irish
Preferred Subtitle Language : English
Preferred Audio Language :English
OSD Language : English
Translucency Level :
Parental Lock
Preference
Move Enter Return
English
Welsh
Gaelic
Irish
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 59
T
ch
(P
T
ch
English - 60
Adjusting the Translucency Level
Choosing Your Language
You can set the translucency of the on-screen menu.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select Preference.
Result:The Preference menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Translucency Level.
Press the ENTER/OK () button.
5Select the required option(High, Medium, Low, or Opaque) by
pressing the …or † button. Press the ENTER/OK () button
to change the setting.
6Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
When you start using your DTV for the first time, you must select
the language which will be used for displaying menus and
indications.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select Preference.
Result:The Preference menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select OSD Language.
Press the ENTER/OK () button.
5Select a particular language by pressing the …or † button
repeatedly. Press the ENTER/OK () button to change the
setting.
➢You can choose one of 5 languages.
6Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
Preferred Subtitle Language : English
√
Preferred Audio Language : English
√
OSD Language : English
√
Translucency Level : Medium
√
Parental Lock
√
Preference
Move Enter Return
Preferred Subtitle Language : English
Preferred Audio Language : English
OSD Language : English
Translucency Level :
Parental Lock
Preference
Move Enter Return
High
Medium
Low
Opaque
Preferred Subtitle Language : English
Preferred Audio Language : English
OSD Language : English
Translucency Level :
Parental Lock
Preference
Move Enter Return
English
Deutsch
Français
Italiano
Svenska
Preferred Subtitle Language : English
√
Preferred Audio Language : English
√
OSD Language : English
√
Translucency Level : Medium
√
Parental Lock
√
Preference
Move Enter Return
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 60
English - 61
Setting up the Parental Lock
This feature allows you to prevent unauthorized users, such as
children, from watching unsuitable programmes by a 4-digit PIN
(Personal Identification Number) code that is defined by the user.
The on-screen menu will instruct you to assign a PIN code (you can
change it later, if necessary).
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select Preference.
Result:The Preference menu is displayed.
3Press the ENTER/OK () button.
4Press the …or † button to select Parental Lock.
Press the ENTER/OK () button.
Result:The Enter PIN is displayed.
5Enter your current 4-digit PIN code by using the numeric buttons
(0~9).
Result:The Parental Lock menu are displayed with the
Parental Rating selected.
➢◆The default PIN code for a new TV set is 0000.
◆If you enter an invalid PIN code,the Invalid PIN code.
Please try again.message is displayed.
6Press the ENTER/OK button.
7Press the …or † button to select the age rating you want to lock
out.
Press the ENTER/OK () button.
8If you want to change the PIN code,select Change PIN by
pressing the …or † button. Press the ENTER/OK () button.
Result:The Enter New PIN is displayed.
9Enter your new PIN code by using the numeric buttons (0~9).
Result:The Confirm New PIN is displayed.
10 Re-enter your new PIN code to confirm by using the numeric
buttons (0~9).
Result:The Your PIN code has been changed
successfully message is displayed.
11 Press the ENTER/OK () button.
12 Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
➢If you forget the PIN code, press the remote control
buttons in the following sequence, which resets the PIN
to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On)
Preferred Subtitle Language : English
√
Preferred Audio Language : English
√
OSD Language : English
√
Translucency Level : Medium
√
Parental Lock
√
Preference
Move Enter Return
Enter PIN
Parental Lock
Return
Parental Rating :
Change PIN
Parental Lock
Move Enter Return
No Block
3
4
5
6
7
Enter PIN
Enter New PIN
Change PIN
Return
Enter PIN
Confirm New PIN
Change PIN
Return
Enter PIN
Parental Rating :
No Block
Change PIN
Parental Lock
Move Enter Return
Your PIN code has been changed
successfully.
OK
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 61
Yo
p
Yo
English - 62
Using the Preferred Features
You can use various settings to suit your personal preferences.
◆Activating/deactivating the subtitle
◆Changing the default value for subtitle and audio
languages
◆Activating/deactivating the digital text
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the ▲or ▼button to select Feature.
Result:The Feature menu is displayed.
3Press the ENTER/OK () button.
4Select your required menu by pressing the ▲or ▼button.
◆
Subtitle
◆
Subtitle Language
◆
Audio Language
◆
Digital Text
5Press the ENTER/OK () button.
Result:The options of the selected menu are displayed.
6Select the required option by pressing the ▲or ▼button, and
press the ENTER/OK () button to change the setting.
◆
Subtitle : On or Off
◆
Subtitle Language
◆
Audio Language
◆
Digital Text : Disable or Enable
➢If the programme is broadcast with digital text, this feature
is enabled.
7Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
➢◆MHEG(Multimedia and Hypermedia Information
Coding Experts Group)?
An International standard for data encoding systems
used in multimedia and hypermedia. This is at a
higher level than the MPEG system which includes
data-linking hypermedia such as still images,
character service, animation, graphic and video files
as well as multimedia data. MHEG is user runtime
interaction technology and is being applied to various
fields including VOD (Video-On-Demand), ITV
(Interactive TV), EC (Electronic Commerce),
tele-education, tele-conferencing, digital libraries
and network games.
Subtitle : Off
√
Subtitle Language
Audio Language
Digital Text : Enable
√
Move Enter Return
Feature
Subtitle : On
√
Subtitle Language
Audio Language
Digital Text : Enable
√
Move Enter Return
Feature
Subtitle : On
√
Subtitle Language
Audio Language
Digital Text : Enable
√
Move Enter Return
Feature
Subtitle : On
√
Subtitle Language
Audio Language
Digital Text : Enable
√
Move Enter Return
Feature
Subtitle : On
Subtitle Language English
Audio Language
Digital Text : Enable
Move Enter Return
Feature
Off
On
Subtitle : On
Subtitle Language
Audio Language
Digital Text : Enable
Move Enter Return
Feature
Disable
Enable
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 62
English - 63
Checking the Product Information
You can view your product information. For service or repair,
please contact a Samsung approved dealer.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select System.
Result:The System menu is displayed.
3Press the ENTER/OK () button.
Result:The Product Information is selected.
4Press the ENTER/OK () button again.
Result:The product information menu is displayed.
- Software Version
- Firmware Version
- Hardware Version
5Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
Checking the Signal Information
You can get information about the signal status.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select System.
Result:The System menu is displayed.
3Press the ENTER/OK () button.
4Press the …or † button to select Signal Information.
Press the ENTER/OK () button.
Result:The technical information for signal status is
displayed.
-
Service
-
Service ID
-
Multiplex
-
Network
-
Bit Error Level
-
Signal Strength
5Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
e
us
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
Reset
√
Move Enter Return
System
Software Version : T_BORDDUKO_0003
Firmware Version : T_BORDDUK7_1000
Hardware Version : v0.90a
Return
Product Information
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
Reset
√
Move Enter Return
System
Service : Test Card ‘M’ v2.0
Service ID : 1014, running
Multiplex : 65C (TSID 1001,ONID 233a)
Network : Test Card ‘M’.. (ID 3Off)
Bit error Level : 0
Signal Strength : 97
Return
Signal Information
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 63
T
English - 64
Upgrading the Software (Option)
To keep your product up-to-date with new Digital Television
features then software upgrades are periodically broadcast as part
of the normal Television signal. It will automatically detect these
signals and display the software upgrade banner. You are given the
option to install the upgrade.
◆Upgrade Now
If you select Upgrade Now, the iDTV immediately installs
the new upgrade and then restarts.
◆Upgrade Later
If you select Upgrade Later, the upgrade is postponed
until the next restart or channel change some 90 minutes
later, when the upgrade dialog appears again.
◆Don’t Upgrade
If you select Don’t Upgrade, the iDTV does not perform
the upgrade and the software upgrade banner is not
displayed again. The upgrade is still stored internally, to
subsequently upgrade to the new version then the following
sequence of steps are performed.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select System.
Result:The System menu is displayed.
3Press the ENTER/OK () button.
4Press the ▲or ▼button to select Software Upgrade.
Press the ENTER/OK () button.
Result:The information for Software Upgrade is displayed.
5If necessary, press the ENTER/OK () button again to display
the software version information.
6Press the D.MENU button to return to the Software Upgrade
menu.
7To switch to an alternative version, press the red button.
Press the blue button to reset, activate the upgrade and restart.
8Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
√
Reset
√
Move Enter Return
System
Move Return Info
Software Upgrade
Current Software: T_BORDDUKO_0003
Default
Alternative Software: T_BORDDUKO_0002
(New version)
Switch Default Software
Move Return Info
Software Upgrade
Current Software: T_BORDDUKO_0003
Default
Alternative Software: T_BORDDUKO_0002
(New version) New Default
Confirm
Return
Software Upgrade
Software Verdion: : T_BORDDUKO_0003
Date: 09 Dec 2005
Manifacturing release.
Technical Help Desk: 0870 242 0303
On-line : www.samsung.co.uk, FAQ’s and
support
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 64
English - 65
Viewing Common Interface
This contains information on CAM inserted in the CI slot and displays it.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select System.
Result:The System menu is displayed.
3Press the ENTER/OK () button.
4Press the …or † button to select Common Interface.
Press the ENTER/OK () button.
Result:The Application Info. is selected.
5Press the ENTER/OK () button to display the information for
your application.
6Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
➢The Application Info inserting is about the CI CARD.
➢You can install the CAM anytime whether the TV is ON
or OFF.
1. Purchase the CI CAM module by visiting your nearest
dealer or by phone.
2. Insert the CI CARD into the CAM in the direction of
the arrow until it fits.
3. Insert the CAM with the CI CARD installed into the
common interface slot. (Insert the CAM in the
direction of the arrow, right up to the end so that it is
parallel with the slot.)
4. Check if you can see a picture on a scrambled signal
channel.
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
√
Reset
√
Move Enter Return
System
Application Info.
√
CI Menu
Move Enter Return
Common Interface
Type : CA
Monufacturer : Canal Plus
Info : Top Up TV
Return
Application Info.
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 65
Yo
Y
si
v
English - 66
Selecting the CI (Common Interface) Menu
This helps the user select an item from the CAM-supported menu.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select System.
Result:The System menu is displayed.
3Press the ENTER/OK () button.
4Press the …or † button to select Common Interface.
Press the ENTER/OK () button.
Result:The technical information for signal status is
displayed.
5Press the …or † button to select CI Menu.
Press the ENTER/OK () button.
Result:The options of the selected menu are displayed.
6Select the required option by pressing the …or † button.
Press the ENTER/OK () button.
7Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
➢Select the CI Menu based on the menu PC Card.
➢In the case of DTV mode,
OK
or
Select
can be used as
the ENTER/OK () button.
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
√
Reset
√
Move Enter Return
System
Application Info.
√
CI Menu
Move Enter Return
Common Interface
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 66
English - 67
Resetting
You can reset the values stored to the factory default values.
➢
The Reset operation deletes all channel information and
user preferences returning all values to their default factory
state.
1Press the D.MENU button.
Result:The DTV menu is displayed.
2Press the …or † button to select System.
Result:The System menu is displayed.
3Press the ENTER/OK () button.
4Press the …or † button to select Reset.
Press the ENTER/OK () button.
Result:The Enter PIN is displayed.
5Enter your current 4-digit PIN code by using the numeric buttons
(0~9).
Result:The warning message is displayed. All values will be
reset by pressing the coloured buttons (red,green,
yellow,and blue) in turn.
6Press the D.MENU button to return to the previous menu or
press the EXIT button to return to normal viewing.
➢
The default PIN of a new TV set is “0-0-0-0”.
➢
When PIN is changed in Child Lock, the PIN for resetting
automatically changes.
Freezing the Current Picture
You can freeze the picture when watching a television programme
simply by pressing the “STILL” button. To return to normal
viewing, press it again.
➢To prevent screen burn-in, this function will automatically
cancel after 5 minutes.
Product Information
√
Signal Information
√
Software Upgrade
√
Common Interface
√
Reset
√
Move Enter Return
System
Enter New PIN
Reset
Return
Enter PIN
Return
Reset
WARNING: All channel settings and user
perferences will be lost and returned to the
factory defaults. It is recommended that a
reset is performed only when serious
problems are experienced.
BP68-00583A-00Eng_48-67 2/9/06 7:23 PM Page 67
English - 68
YMost television channels provide written information services via
teletext. Information provided includes:
◆
Television programme times
◆
News bulletins and weather forecasts
◆
Sports results
◆
Travel information
The teletext pages are organized according to six categories:
Part Contents
ASelected page number.
BBroadcasting channel identity.
CCurrent page number or search indications.
DDate and time.
EText.
FStatus information.
FASTEXT information.
➢Teletext information is often divided between several pages
displayed in sequence, which can be accessed by:
◆Entering the page number
◆Selecting a title in a list
◆Selecting a coloured heading (FASTEXT system)
Teletext Feature
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 68
English - 69
You can display Teletext information at any time on your television.
☛For Teletext information to be displayed correctly,
channel reception must be stable; otherwise:
◆Information may be missing
◆Some pages may not be displayed
1Select the channel providing the Teletext service by pressing the
Por button.
2Press the TTX/MIX () button to activate the teletext mode.
Result:
The contents page is displayed. It can be redisplayed at
any time by pressing the MENU button.
3Press the TTX/MIX () button again.
Result:
The screen will be split into two. This Double Teletext
feature lets you view the
actual broadcast
and teletext
information separately on the screen.
4If you wish to display the actual broadcast and teletext information
on a single screen, press the TTX/MIX ()button again.
5To exit from the teletext display, press the TV/DTV button.
Displaying the Teletext Information
s
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 69
English - 70
Y
b
Selecting Display Options
When you have displayed a Teletext page, you can select various
options to suit your requirements.
To display... Press the...
◆Hidden text (reveal)
(answers to quiz games, for example)
◆The normal screen (reveal) again
◆A secondary page (sub-page)
◆The broadcast when searching for a page (cancel)
◆The next page (page up)
◆The previous page (page down)
◆Double-size letters in the: (size)
•Upper half of the screen • Once
•Lower half of the screen • Twice
◆Normal screen • Three times
➢
To return to the normal display after using the reveal or
size feature, press the
TV/DTV
button.
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 70
English - 71
Selecting a Teletext Page
You can enter the page number directly by pressing the numeric
buttons on the remote control.
1Enter the three-digit page number given in the content by
pressing the corresponding numeric buttons.
Result:The current page counter is incremented and the page
is then displayed. If the selected page is linked with
several secondary pages, the secondary pages are
displayed in sequence. To freeze the display on a
given page, press the (hold). Press it again to
resume.
2If the FASTEXT system is used by a broadcasting company, the
different topics covered on a Teletext page are colour-coded and
can be selected by pressing the coloured buttons on the remote
control.
Press the coloured button corresponding to the topic that you wish
to select; the available topics are given in the status line.
Result:The page is displayed with other coloured information
that can be selected in the same way.
3To display the previous or next page, press the corresponding
coloured button.
4To display the sub-page, see the following steps.
◆
Press the (sub-page) button.
Result:The available sub-pages appear.
◆
Select the required sub-page. Sub-pages can be scrolled by
pressing the or button.
5When you have finished, press the TV/DTV button to return to
your normal broadcast.
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 71
English - 72
☛
Connecting to the External Input/Output
Rear of the TV
①
This end can be fitted with:
◆A SCART connector
◆An S-Video connector and two audio RCA connectors (L+R); EXT 2
◆Three RCA connectors (VIDEO + AUDIO-L and R)
②
If you have a second VCR and wish to copy cassette tapes, connect the source VCR to EXT 1 and the
target VCR to EXT 2 so that you can redirect the signal from EXT 1 to EXT 2.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
When you wish to record a programme, connect the receiver to EXT 1 and the VCR to EXT 2 so that
you can redirect the signal from EXT 1 to EXT 2.
➢Please be sure to match the colour coded input terminals and cable jacks.
Input/Output Specification
Connector Input Output
Video Audio (L/R) S-Video RGB Video + Audio (L/R)
EXT 1 ✔✔ ✔✔ Only TV output is available.
EXT 2 ✔✔ ✔ Monitor output
“EXT 1” is used for the equipment with an RGB output, such as video game devices or video disc players.
☛Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
VCR
Decoder /
Video Game Device
Video Disc Player
Satellite Receiver
DVD
②
③
④
or
①
or
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 72
English - 73
Connecting to the RCA Input
➢The RCA (VIDEO + AUDIO L /R) connectors are used for equipment, such as camcorders, video disc
players, and some video game devices.
Camcorder
Video game device
Video disc player
➢The S-VIDEO and AUDIO L /R connectors are used for equipment with an S-Video output, such as a
camcorder or VCR.
Camcorder
VCR
①
To play pictures and sound, both the S-VIDEO and AUDIO L /R
connectors must be used.
and
①
☛Whenever you connect an audio or video system to your television,
ensure that all elements are switched off. Refer to the documentation
supplied with your equipment for detailed connection instructions
and associated safety precautions.
➢Please be sure to match the colour coded input terminals and cable jacks.
➢Please be sure to match the colour coded input terminals and cable jacks.
Side of the TV
Side of the TV
Connecting to the S-Video Input
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 73
English - 74
Connecting to the Component Input
Connecting to the PC Input
➢The PC IN (video) and AUDIO connectors are used for interfacing with your PC.
Personal Computer
and
Rear of the TV
①
The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.
(480i, 480p, 576i, 576p, 720p, 1080i)
DVD
Rear of the TV
DTV receiver
①
②
➢Please be sure to match the colour coded input terminals and cable jacks.
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 74
English - 75
Connecting to the HDMI (High Definition Multimedia Interface) Input
Connecting to the HDMI/DVI Compatible
➢The HDMI/DVI IN connector is used for equipment with a DVI out.
DTV Set-Top Box
Rear of the TV
➢The HDMI/DVI IN connector is used for equipment with an HDMI out.
DTV Set-Top Box
Rear of the TV
(HDMI/DVI cable)
and
Connecting a Digital Audio System
➢If your audio system has an optical digital audio input, connect to the OPTICAL jack on the TV.
(Only DTV output is available.)
➢OPTICAL: converts the electric signal into an optical light signal, and transmits it through glass fibers.
A transmission system of digital audio in the form of a light wave, S/PDIF format using a glass
conductor.
Digital Audio System
Rear of the TV
(Optical cable)
BP68-00583A-00Eng_68-84 3/10/06 12:58 PM Page 75
English - 76
1
2
3
4
5
6
➢
Connecting Home Theater System
Connecting the Home Theater System
①
Connect the monitoring audio out L and R jacks of the AUDIO
OUT on the rear-side connection panel of the TV to the AUDIO
IN jacks of the DVD Home Theater System (or AV Receiver)
using the audio cable.
②
Press the SOURCE ()button to select the desired external
device connected to the TV.
③
If you want to hear the sound through separate speakers,
cancel the internal amplifier.
To Display the DVD Home Theater
!
Turn the TV on and press the SOURCE ()button to select the Ext.1, Ext.2 or Component IN.
@
Be sure to connect the video cable properly if desired external input (Ext.1, Ext.2 or Component IN)
cannot be selected.
#
Play the DVD after activating the DVD Home Theater System.
$
Use the volume control of the Home Theater System while watching the TV using the DVD Home
Theater, where the TV does not produce the audio.
DVD Home Theater
Rear of the TV
AV Receiver Amplifier
①
②
Use the AV OUT ports of the TV for Home Theater System Connections.
☛◆Refer to corresponding user’s manual from the manufacturer for wiring the
speakers to the DVD Home Theater System (or AV Receiver).
◆Disable the TV internal speaker to enjoy the rich sound through the
speakers of your Home Theater System.
➢Please be sure to match the colour coded input terminals and cable jacks.
T
P
v
in
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 76
English - 77
1Right click the mouse on the Windows Desktop,
then click on Properties.
The Display Properties will be displayed.
2Click on Settings tab, then set the Display Mode
with reference to the Display Modes Table.
You do not need to change the Colours settings.
3Click on Advanced. A new settings dialog box
will be displayed.
4Click on the Monitor tab, then set the Screen
refresh rate with reference to the Display Modes
Table. Set the Vertical Frequency and Horizontal
Frequency individually if you can do so instead of
setting the Screen refresh rate.
5Click on OK to close the window, then Click on
OK button to the Display Properties window.
Automatic re-booting may commence at this
moment.
6Shutdown the PC, and connect it to your TV.
(“Connecting to the PC Input” on page 74)
➢
◆
The actual screens on your PC may look
different, depending on your particular
version of Windows and the type of your
PC.
◆
When you use your TV as a PC monitor, it
supports Colours up to 32 bits.
◆
In this case, the display on the TV may look
different depending on your particular
version of Windows or the PC
manufacturer.
◆
When connecting a PC you must set it to
the display settings that are supported by
the TV. Otherwise, the message Out of
input range will be displayed.
Setting up Your PC Software (Windows only)
2
3
4
5
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 77
English - 78
PC Input Mode
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
◆The interlace mode is not supported.
Notes
◆When this television is used as a PC display, 24-bit colour is supported (over 16 million colours).
◆Your PC display screen might appear different depending on the manufacturer (and your particular version of
Windows). Check your PC instruction book for information about connecting your PC to a television.
◆If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned
off (or if the PC is disconnected). If so, press the SOURCE ()button to enter the Video mode. Also, make
sure that the PC is connected.
◆When connecting a notebook PC to the television, make sure that the PC screen is displayed through only the
television (Otherwise, random signals might appear). It depends on the note PC model.
◆When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable
connections.
Standard
VGA
SVGA
XGA
Resolution
720 x 400
640 x 480
800 x 600
832 x 624
1024 x 768
Horizontal
frequency (kHz)
31.47
31.47
35.00
37.86
37.50
43.27
35.16
37.88
48.08
46.87
53.67
49.73
48.36
56.40
57.80
60.02
Vertical
frequency (kHz)
70.00
60.00
66.70
72.80
75.00
85.00
56.30
60.30
72.20
75.00
85.10
74.60
60.00
70.10
72.00
75.00
Pixel Clock
(MHz)
28.322
25.175
30.24
31.50
31.50
36.00
36.00
40.00
50.00
49.50
56.25
57.284
65.00
75.00
74.99
78.75
Sync Polarity
(H/V)
-
/
-
-
/+
-
/
-
-
/
-
-
/
-
-
/
-
-
+/
-
+/+
-
+/+
+/+
+/+
-
/+
-
/
-
-
/
-
-
/
-
+/
-
BP68-00583A-00Eng_68-84 2/15/06 1:11 PM Page 78
English - 79
Replacing the Lamp
1Unplug TV, then use a screwdriver to remove the screw.
2Remove the Lamp cover.
3Remove the screws securing the Lamp by using a screwdriver.
4Separate the Lamp from the engine by holding the handle and
pulling it out
5To reinstall the Lamp, follow these steps in reverse order.
◆Why do I need to replace the lamp?
The lamp used in a projection TV has a limited lifespan. For
the best screen quality it needs to be replaced
periodically. After replacing the lamp, the screen quality will
be bright and clear as new.
◆When do I need to replace it?
It should be replaced when the screen becomes darker, less
clear or when all three LEDs on the front (TIMER, LAMP and
STAND BY/TEMP) are flashing.
◆Check before lamp replacement
-Turn the power off and wait for 30 minutes before
replacing the lamp as it will be hot.
-The lamp must be the same code to avoid damage to the
TV. The lamp code is indicated on the lamp case or the
side of TV.
-After checking the lamp code, give to the store where you
purchased the TV or to a Samsung Service Center.
◆Caution
-Do not touch the glass part of the lamp with your bare
hands nor insert any foreign object inside the cover as it
may cause poor screen quality, electric shock or fire.
-Do not place the old lamp near flammable objects or
within the reach of children.
-Don't allow dirt or dust to accumulate inside the lamp
cover or on the lamp. A dirty cover or lamp can catch fire,
explode and cause electric shock.
-If a new lamp is improperly handled, the screen quality
can be affected and the expected lifespan of the lamp can
be reduced.
-Be sure to tighten the lamp cover on the TV after changing
the lamp. Note that the TV will not function if the lamp
cover is not securely attached. Please tighten the holding
screw on the lamp cover after it has been attached to the
TV.
e
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 79
English - 80
T
s
Troubleshooting: Before Contacting Service Personnel
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
Screen is black and power indicator
light blinks steadily
◆Check that the mains lead has been connected to a wall socket.
◆Check that you have pressed the power button (On/Off) and the
POWER () button.
◆Check the picture contrast and brightness settings.
◆Check the volume.
◆Check if Internal Mute is set to ON.
◆Check the volume.
◆Check whether the volume MUTE () button on the remote control
has been pressed.
◆Adjust the colour settings.
◆Check that the broadcast system selected is correct.
◆Try to identify the electrical appliance that is affecting the television,
then move it further away.
◆Plug your television into a different mains socket.
◆Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
◆Replace the remote control batteries.
◆Clean the upper edge of the remote control (transmission window).
◆Check the battery terminals.
◆On your computer check; Power, Signal Cable.
◆The TV is using its power management system.
◆Move the computer’s mouse or press any key on the keyboard.
◆On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
◆The TV is using its power management system.
◆Press the SOURCE () button on the panel or remote control.
◆Turn the TV off and on.
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 80
English - 81
Technical Specifications
The descriptions and characteristics in this booklet are given for information purposes only and are
subject to modification without notice.
Model name
Colour systems
TV standards
Audio output power
Dimensions
(W x D x H)
Weights
SP50L6HD
1182 x 354 x 869.7 mm
33 kg
SP67L6HD
1584 x 502.5 x 1144.5 mm
47.5 kg
SP56K3HD
1330 x 388.5 x 961.7 mm
35 kg
PAL, SECAM, NTSC4.43
BG, DK, I, L
l
,
15 W + 15 W 10 W + 10 W
BP68-00583A-00Eng_68-84 4/6/06 9:21 AM Page 81
This page is intentionally
left blank.
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 82
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Samsung Eco-mark
The Samsung’s own Eco mark helps consumers to easily understand that
Samsung develops eco-friendly products. This mark represents Samsung’s
continuous effort to develop eco-friendly products.
BP68-00583A-00Eng_68-84 4/4/06 1:56 PM Page 83
BP68-00583A-00
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.
Country
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
RUSSIA
SLOVAKIA
SPAIN
SWEDEN
U.K
UKRAINE
Customer Care Centre
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (€0,15/Min)
01805 - 121213 (€0,12/Min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 (€0,10/Min)
231 627 22
0 801 801 881
80 8 200 128
8-800-200-0400
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-502-0000
Web Site
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.ru
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ur
BP68-00583A-00Eng_68-84 2/9/06 7:03 PM Page 84

Navigation menu
