LCD TV MONITOR

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please

register your product at

Model Serial No.

SyncMaster 933HD Plus

www.samsung.com/register

Important Warranty Information Regarding Television Format Viewing ❑

See the warranty card for more information on warranty terms. N

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily

designed to view wide screen format full-motion video. The images displayed on them should

primarily be in the wide screen 16:9 ratio format, or expanded to ll the screen if your model offers

this feature and the images are constantly moving. Displaying stationary graphics and images

on screen, such as the dark sidebars on nonexpanded standard format television video and

programming, should be limited to no more than 5% of the total television viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game

displays, station logos, web sites or computer graphics and patterns, should be limited as described

above for all televisions. Displaying stationary images that exceed the above guidelines can cause

uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD

picture. To avoid this, vary the programming and images, and primarily display full screen moving

images, not stationary patterns or dark bars.

On LCD models that offer picture sizing features, use these controls to view different formats as a

full screen picture.

Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging

as a result of format selection and use, as well as burned-in images, are not covered by your

Samsung limited warranty.

Precautions When Displaying a Still Image ❑

A still image may cause permanent damage to the TV screen

Do not display a still image on the LCD panel for more than 2 hours as it can cause screen ●

image retention. This image retention is also known as “screen burn”. To avoid such image

retention, reduce the degree of brightness and contrast of the screen when displaying a still

image.

● Watching the LCD TV in 4:3 format for a long period of time may leave traces

of borders displayed on the left, right and center of the screen caused by the

difference of light emission on the screen.

Playing a DVD or a game console may cause a similar effect to the screen.

Damages caused by the above effect are not covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may ●

produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

© 2009 Samsung Electronics Co., Ltd. All rights reserved.

English - 1

License ❑

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks

of Dolby Laboratories.

Symbol ❑

N O T

Note One-Touch Button TOOLS Button

General Information

Accessories ■ ................................................. 2

Viewing the Control Panel ■ ........................... 2

Viewing the Connection Panel ■ ..................... 3

Remote Control ■ ........................................... 4

Installing Batteries in the Remote Control ■ ... 4

Connections

Connecting VHF and UHF Antennas ■ ........... 5

Connecting Cable TV ■ .................................. 6

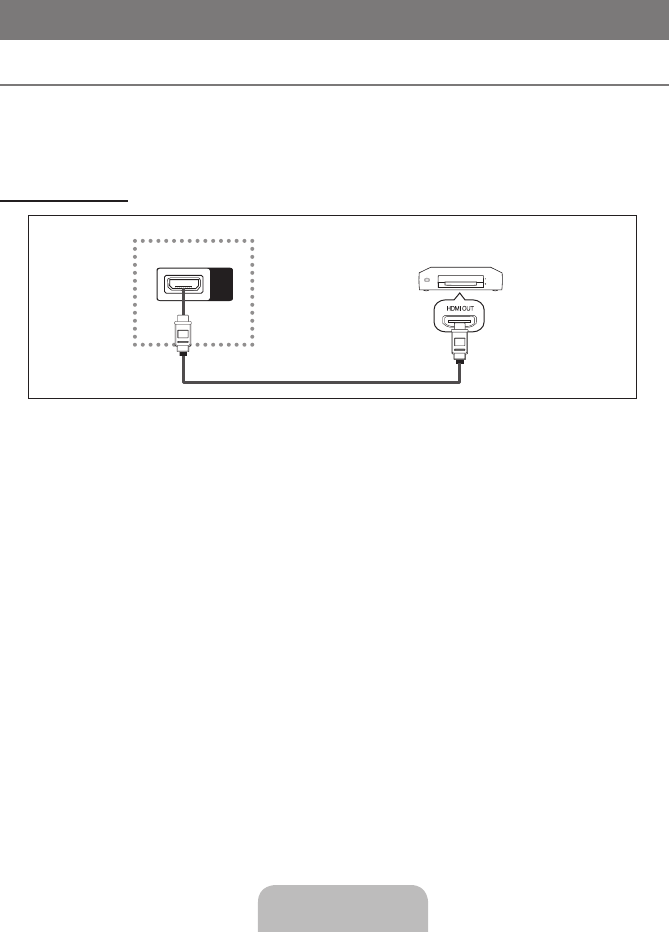

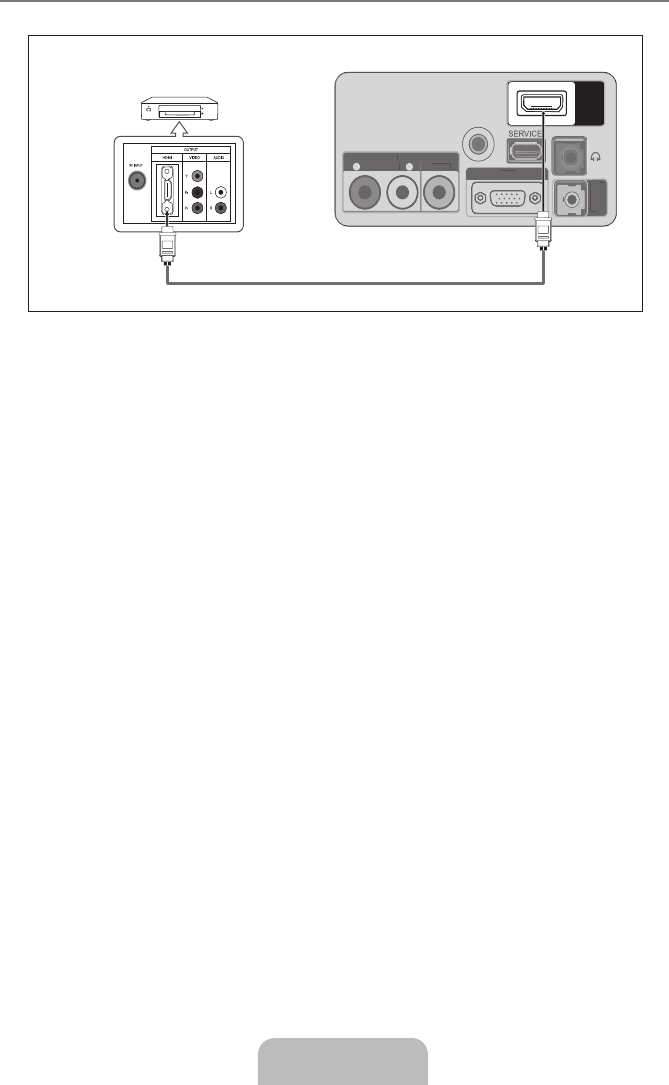

Connecting a DVD / Blu-Ray player / ■

Satellite receiver (Set-Top Box) via HDMI ... 7

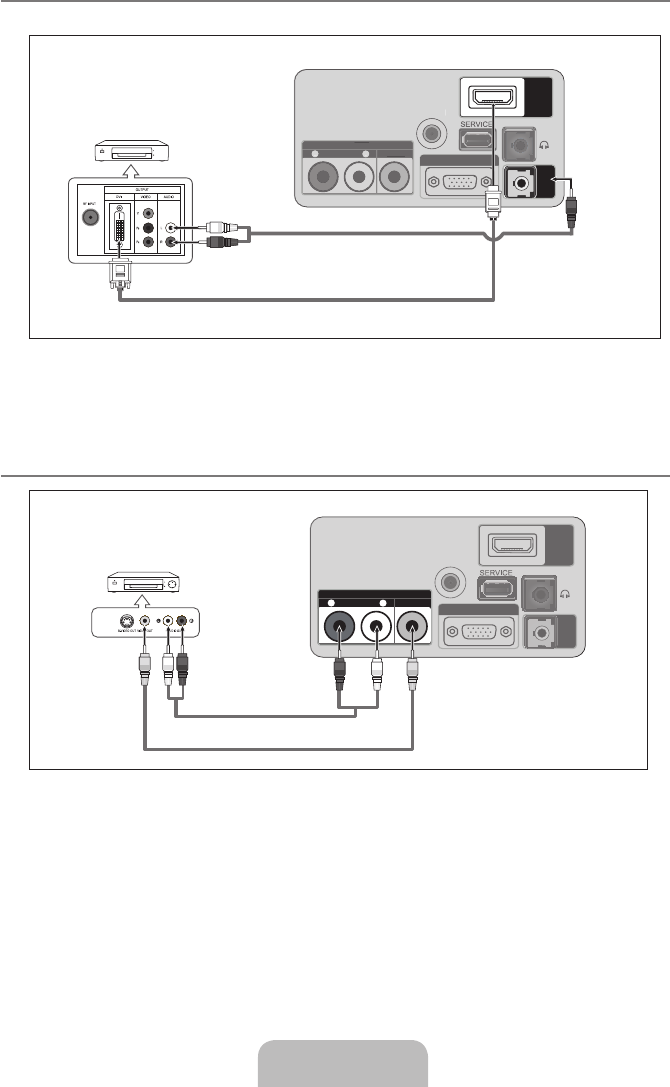

Connecting a DVD / Blu-Ray player / ■

Satellite receiver (Set-Top Box) via DVI ...... 8

Connecting a VCR ■ ....................................... 8

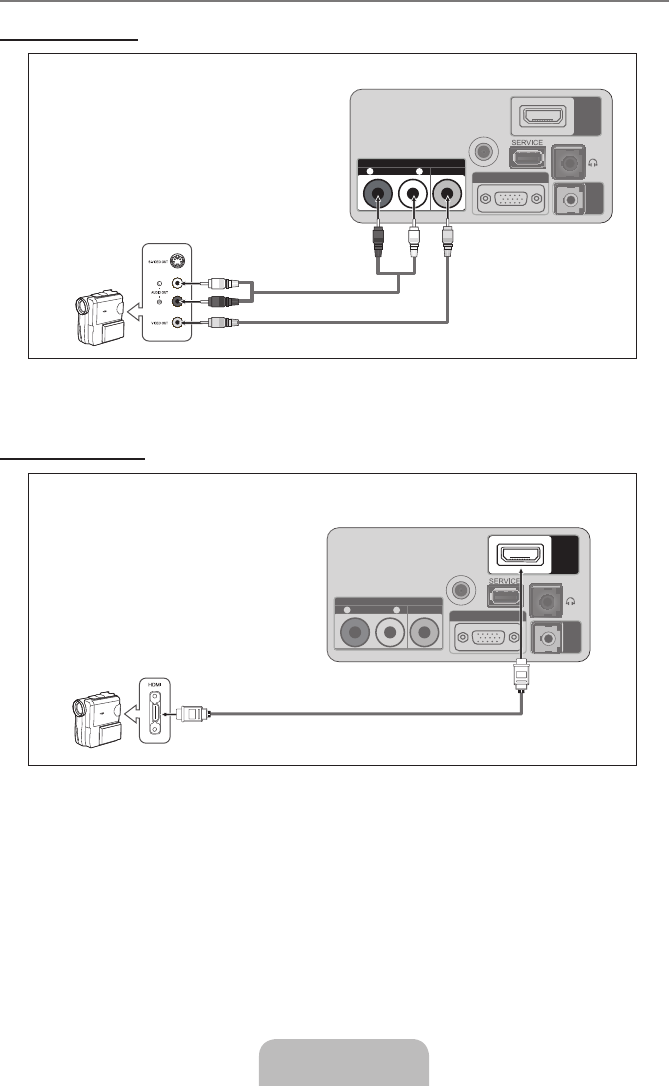

Connecting a Camcorder ■............................. 9

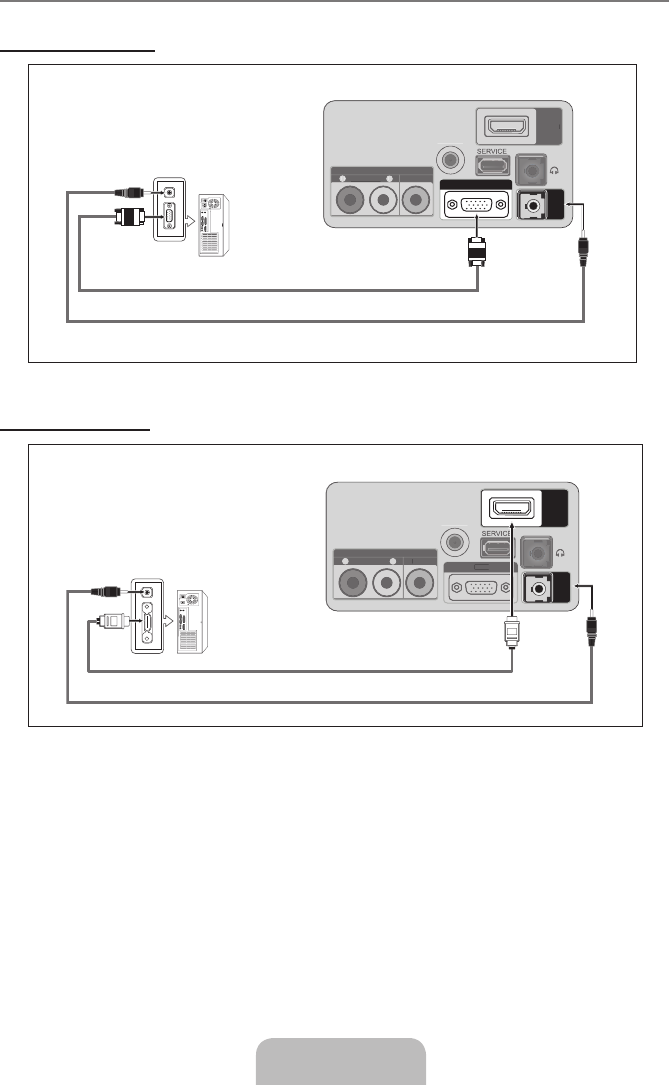

Connecting a PC ■ ....................................... 10

Operation

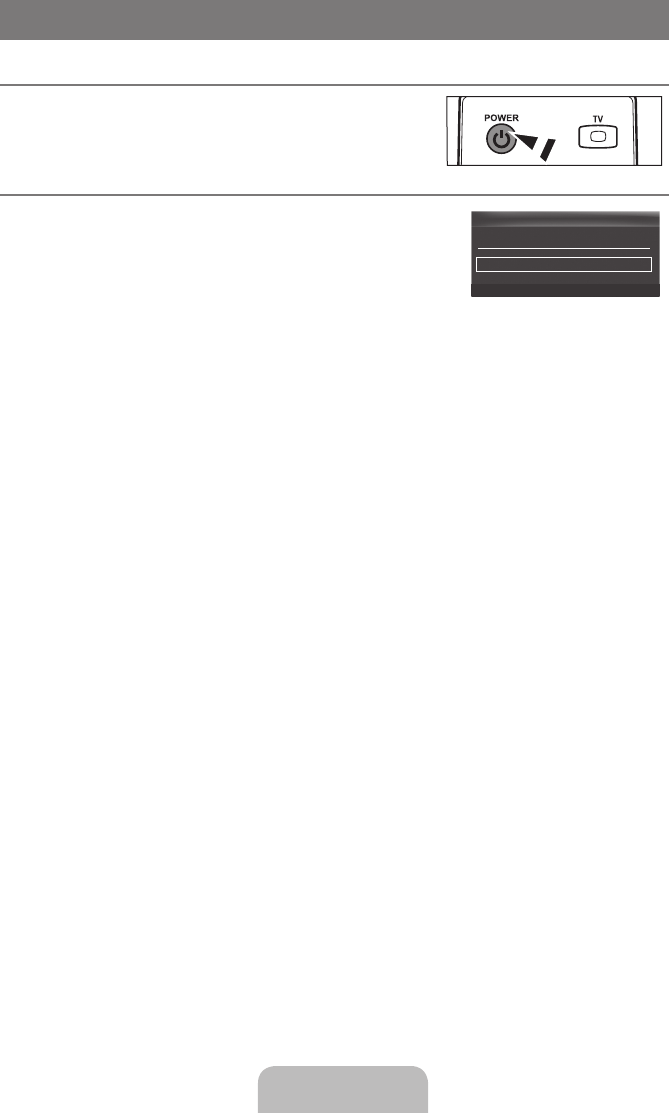

Turning the TV On and Off ■ .........................11

Plug & Play Feature ■....................................11

CHANNEL CONTROL

Conguring the Channel Menu ■ .................. 12

Managing Channels ■.................................. 13

Picture Control

Conguring the Picture Menu ■

(TV / AV / HDMI ) ....................................... 15

Using Your TV as a Computer (PC) ■

Display ....................................................... 18

Setting up the TV with your PC ■ ................. 19

Sound Control

Conguring the Sound Menu ■ ..................... 20

Setup

Conguring the Setup Menu ■ ...................... 21

Input / Support

Conguring the Input Menu ■ ....................... 26

Conguring the Support Menu ■................... 27

Anynet

+

Connecting Anynet ■+ Devices .................... 28

Setting Up Anynet+ ■ .................................... 29

Switching between Anynet ■+ Devices ......... 30

Troubleshooting for Anynet ■+ ...................... 31

Installing the Software

Installing the Device Driver ■ ........................ 32

Natural Color ■ ............................................. 32

MultiScreen ■................................................ 33

Appendix

TV Monitor Self-Diagnosis ■ ......................... 34

Troubleshooting ■ ......................................... 34

FAQ ■ ........................................................... 36

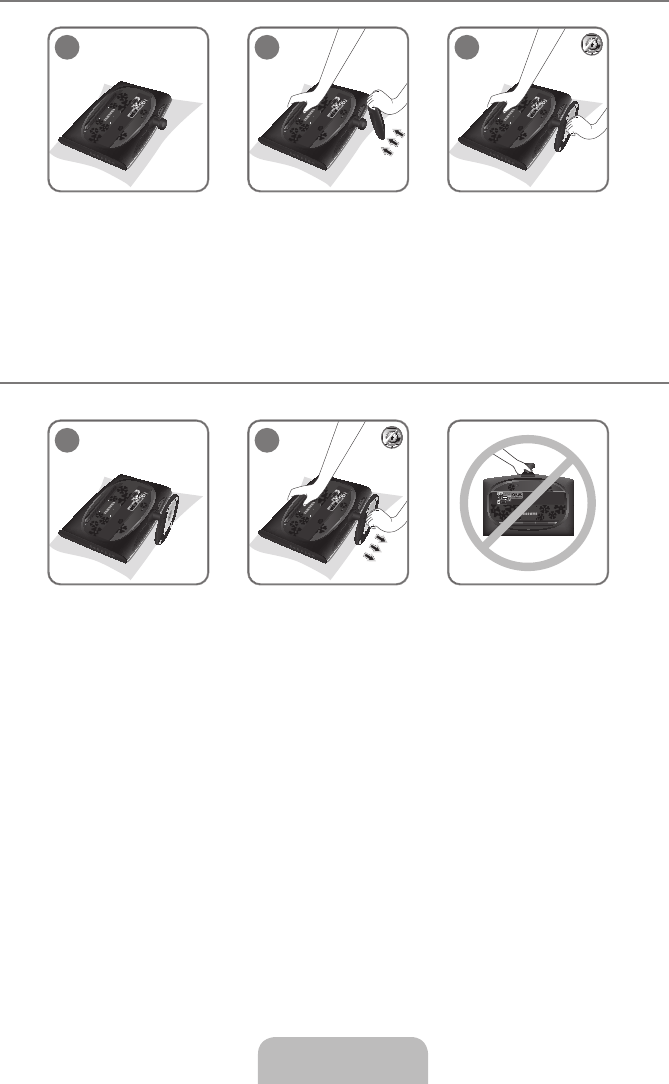

Installing the Stand ■ .................................... 37

Disconnecting the Stand ■............................ 37

Wall Mount Kit Specications (VESA) ■ ....... 37

Using the Anti-Theft Kensington Lock ■ ....... 38

Securing the Installation Space ■ ................. 39

Specications ■ ............................................ 40

Power Saving Function ■.............................. 40

CONTENTS

English - 2

GENERAL INFORMATION

Accessories ¦

Please make sure the following items are included with your LCD TV. If any items are missing,

contact your dealer.

Remote Control / Batteries (AAA x 2) (Not available in all locations) / Power Cord / Cleaning Cloth

/ User Manual (CD, Book) / Quick Setup Guide / Warranty Card (Not available in all locations) /

Cable holder / Stand Base

The items color and shape may vary depending on the model. N

Cleaning Cloth is only provided for highly polished black products as a product feature. N

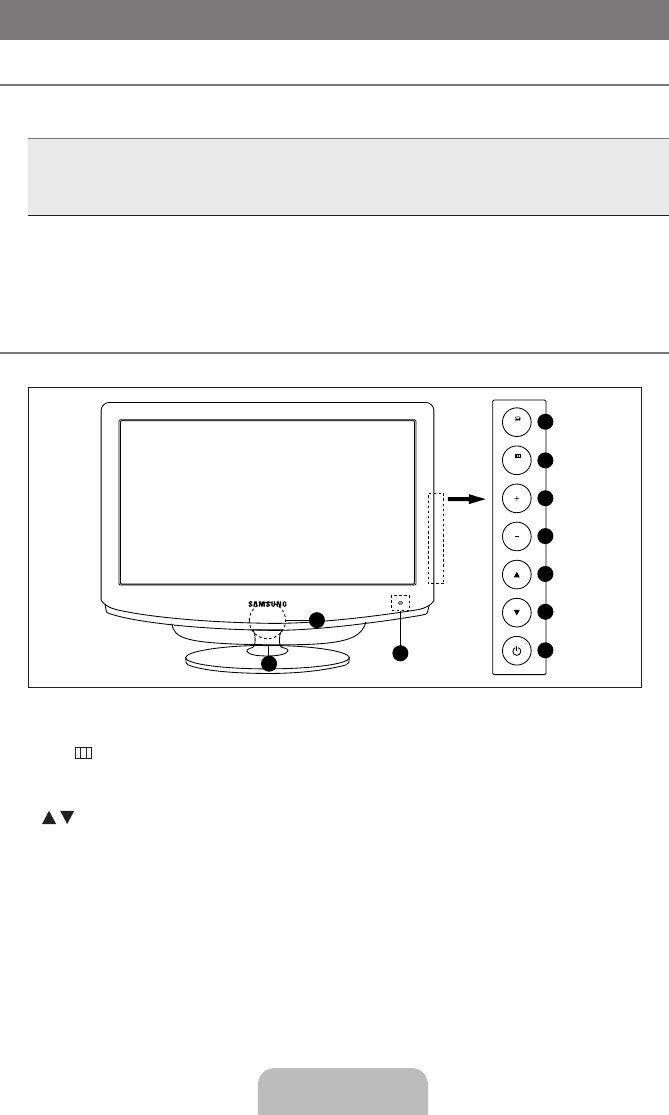

Viewing the Control Panel ¦

The product color an shape may vary depending on the model. N

1

SOURCE

2

3

5

6

4

7

8

9

10

MENU

1

SOURCE

E

: Toggles between all the available input sources. In the on-screen menu, use this

E

button as you use the button on the remote control.

2

MENU : Press to see an on-screen menu of your TV’s features.

3

,

4

+ / - : Moves from one menu item to another horizontally or adjusts selected menu values

Adjusts the audio volume.

5

,

6

, : Moves from one menu item to another vertically or adjusts selected menu values. In TV

mode, selects TV channels.

7

P

(POWER): Press to turn the TV on and off.

8

REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.

9

POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.

0

SPEAKERS

English - 3

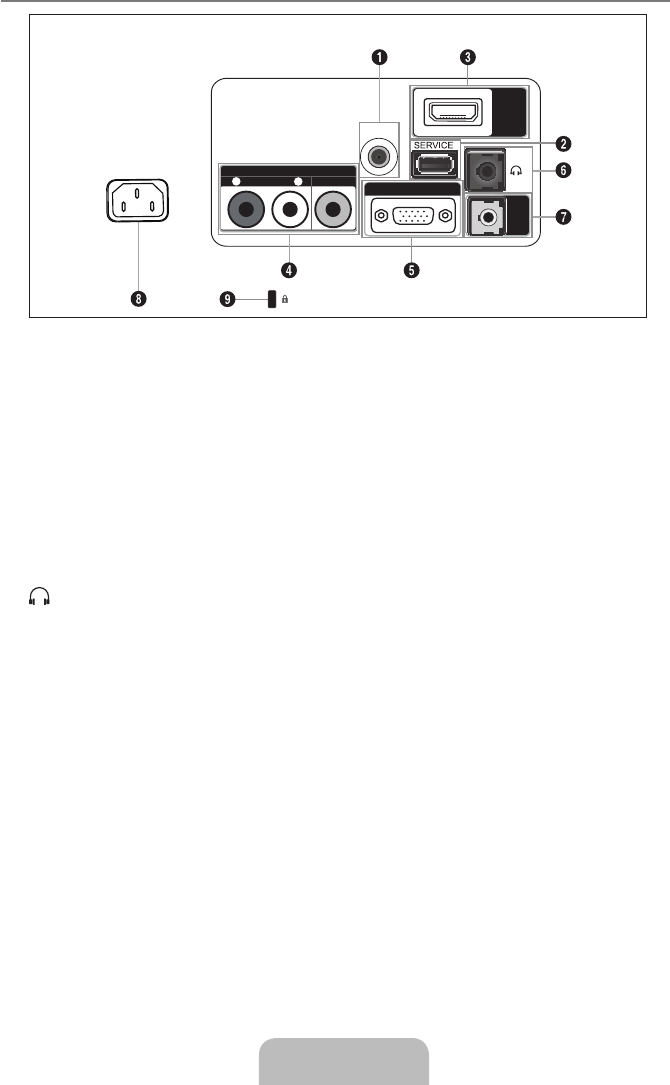

Viewing the Connection Panel ¦

The product color and shape may vary depending on the model. N

1

ANT IN

Connects to an antenna or cable TV system. –

2

SERVICE

Connector for service only. –

3

HDMI IN

Connects to the HDMI jack of a device with an HDMI output. –

No sound connection is needed for an HDMI to HDMI connection. N

4

AV IN

Video and audio inputs for external devices, such as a camcorder or VCR. –

5

PC IN

Connects to the video jacks on your PC. –

6

Connect your headphones to the Headphone connection terminal. –

7

HDMI / PC AUDIO IN

Connect the HDMI / PC AUDIO IN terminal at the back of your product to your –

computer’s sound card.

8

POWER INPUT

Connects the supplied power cord. –

9

KENSINGTON LOCK

The Kensington Lock (optional) is a device used to physically x the system when used in –

a public place. If you want to use a locking device, contact the dealer where you purchased

the TV.

The location of the Kensington Lock may be different depending on its model. N

[TV Rear Panel]

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

English - 4

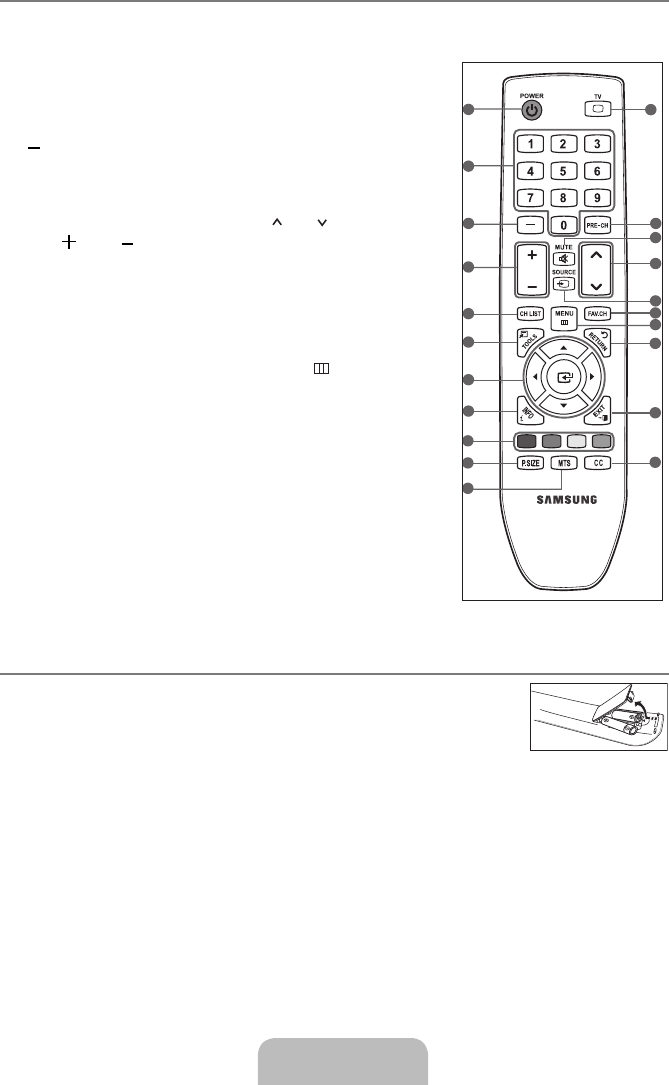

Remote Control ¦

You can use the remote control up to a distance of about 23 feet from the TV. N

The performance of the remote control may be affected by bright light. N

1

POWER:Turns the TV on and

off.

2

NUMERIC BUTTONS: Press to

change the channel.

3

:

Press to select additional

channels (digital) being broadcast

by the same station. For example,

to select channel ‘54-3’, press

‘54’, then press ‘-’ and ‘3’.

4

VOL / VOL : Press to

increase or decrease the

volume.

5

CH LIST: Used to display

Channel Lists on the screen.

6

TOOLS: Use to quickly select

frequently used functions.

7

 UP▲/DOWN▼/LEFT◄/

RIGHT►/

E

: Use to select on-

screen menu items and change

menu values.

8

INFO: Press to display

information on the TV screen.

9

COLOR BUTTONS: Use these

buttons in the Channel list, etc.

0

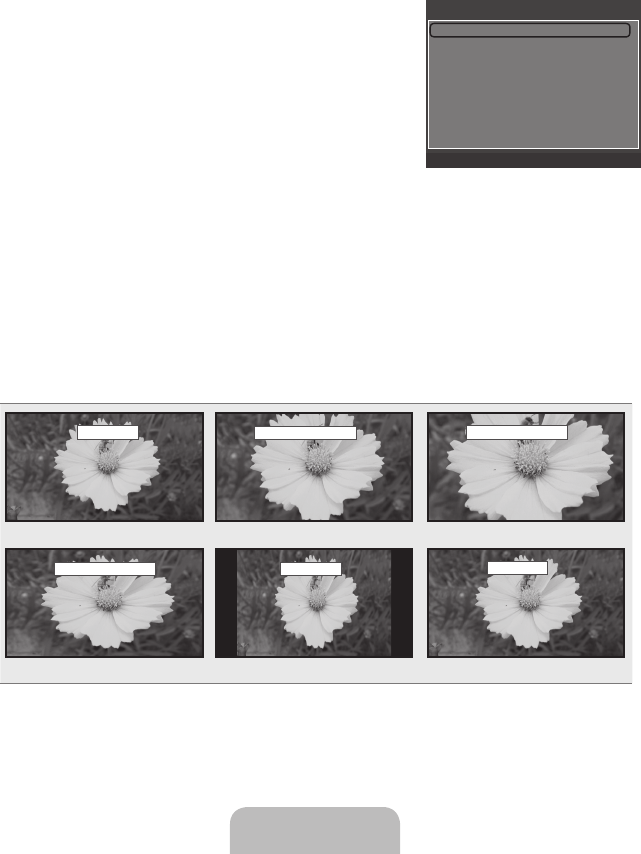

P.SIZE:Picture size selection.

!

MTS:Press to choose stereo,

mono or Separate Audio

Program (SAP broadcast).

@

TV: Selects the TV mode

directly.

#

PRE-CH: This button

is used to return to the

previous channel viewed.

$

MUTE

M

: Press to

temporarily cut off the

sound.

%

CH : Press to change

channels.

^

SOURCE: Press to display

and select the available

video sources.

&

FAV.CH: Press to switch to

your favorite channels.

*

MENU : Displays the

main on-screen menu.

(

RETURN: Returns to the

previous menu.

)

EXIT:Press to exit the

menu.

a

CC:Controls the caption

decoder.

Installing Batteries in the Remote Control ¦

1. Lift the cover at the back of the remote control upward as shown in the gure.

2. Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the diagram Ninside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control Nfor a long time. (Assuming typical TV usage, the batteries should last for about one year.)

If the remote control doesn’t work, check the following: N

Is the TV power on? ●

Are the plus and minus ends of the batteries reversed? ●

Are the batteries drained? ●

Is there a power outage or is the power cord unplugged? ●

Is there a special uorescent light or neon sign nearby? ●

CHVOL

17

18

19

20

21

15

14

13

1

2

3

4

6

5

7

8

9

10

1 1

12

16

English - 5

CONNECTIONS

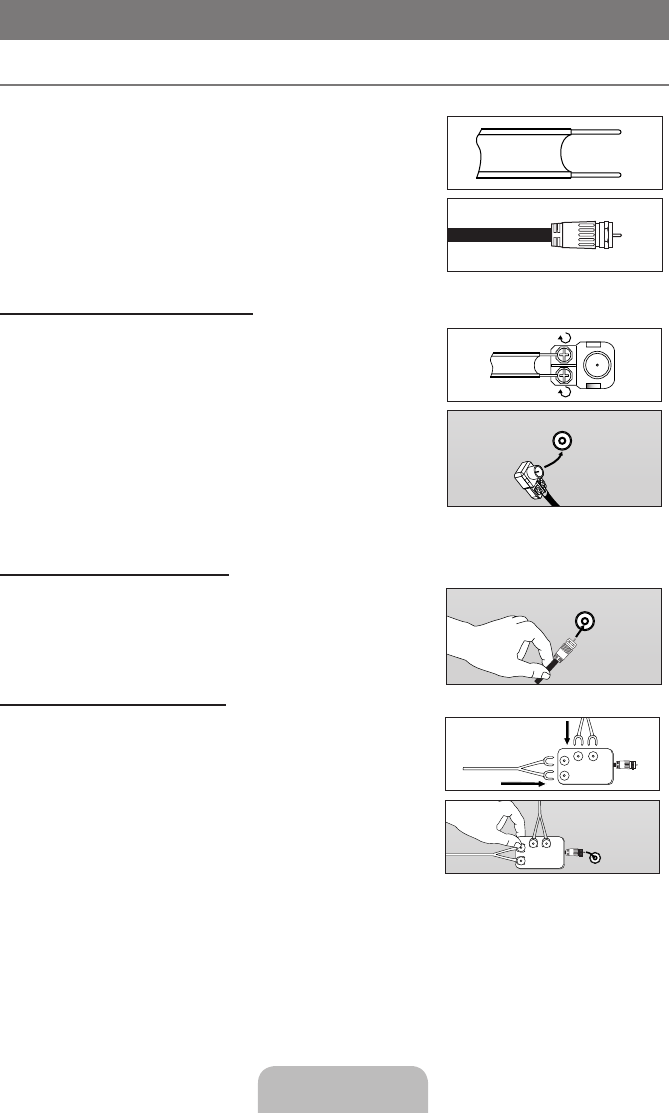

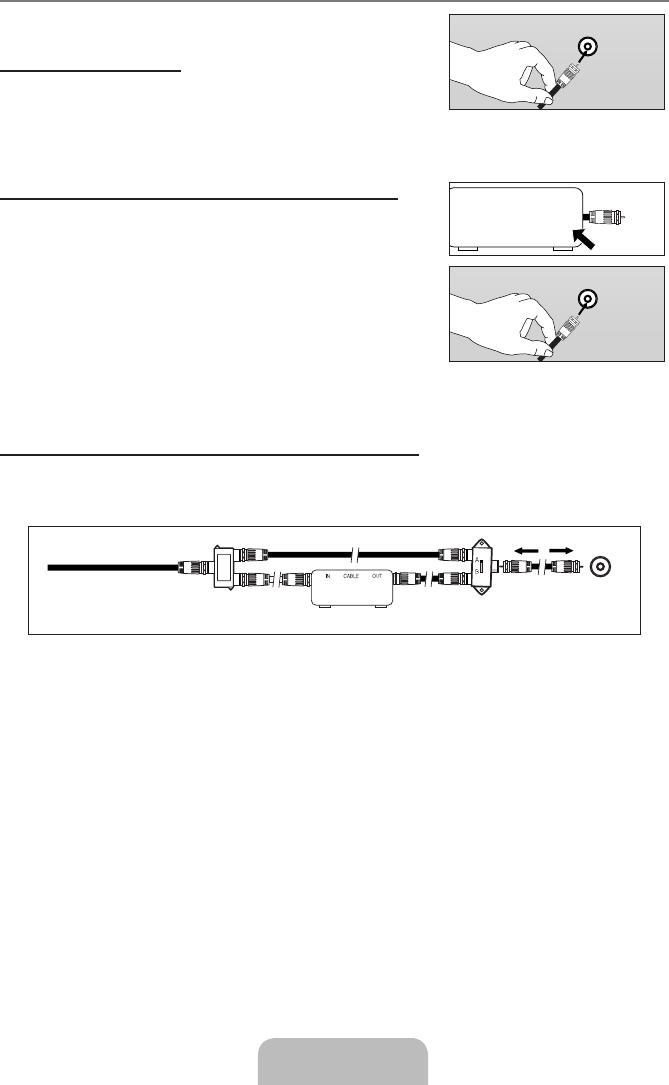

Connecting VHF and UHF Antennas ¦

If your antenna has a set of leads that look like the diagram to the right, see ‘Antennas with 300 Ω

Flat Twin Leads’ below.

If your antenna has one lead that looks like the diagram to the

right, see ‘Antennas with 75 Ω Round Leads’.

If you have two antennas, see ‘Separate VHF and UHF

Antennas’.

Antennaswith300ΩFlatTwinLeads

If you are using an off-air antenna (such as a roof antenna or

‘rabbit ears’) that has 300Ω twin at leads, follow the directions

below.

1. Place the wires from the twin leads under the screws on a 300-

75 Ω adapter (not supplied). Use a screwdriver to tighten the

screws.

2. Plug the adaptor into the ANT IN terminal on the back of the TV.

Antennaswith75ΩRoundLeads

Plug the antenna lead into the ANT IN terminal on the back of

the TV.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and

one UHF), you must combine the two antenna signals before

connecting the antennas to the TV. This procedure requires

an optional combiner-adaptor (available at most electronics

shops).

1. Connect both antenna leads to the combiner.

2. Plug the combiner into the ANT IN terminal on the bottom of

the rear panel.

ANT IN

ANT IN

UHF

VHF

ANT IN

UHF

VHF

English - 6

Connecting Cable TV ¦

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

Plug the incoming cable into the ANT IN terminal on the back of

the TV.

Because this TV is cable-ready, you do not need a cable box Nto view unscrambled cable channels.

Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on

your cable box.

This terminal might be labeled ‘ANT OUT’, ‘VHF OUT’ or Nsimply, ‘OUT’.

2. Connect the other end of this cable to the ANT IN terminal on

the back of the TV.

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the

instructions below. You will need a two-way splitter, an RF (A/B) switch and four lengths of RF cable.

(These items are available at most electronics stores.)

Splitter

Cable Box

Incoming cable TV Rear

ANT IN

RF (A/B) Switch

1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.

This terminal might be labeled ‘ANT IN’, ‘VHF IN’ or simply, ‘IN’. N

2. Connect this cable to a two-way splitter.

3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on

the cable box.

4. Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal

on the RF(A/B) switch.

5. Connect another cable between the other OUT terminal on the splitter and the A–IN terminal

on the RF (A/B) switch.

6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and the ANT IN

terminal on the rear of the TV.

After you have made this connection, set the A/B switch to the ‘A’ position for normal viewing. Set

the A/B switch to the ‘B’ position to view scrambled channels. (When you set the A/B switch to ‘B’,

you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)

ANT IN

ANT IN ANT OUT

ANT IN

English - 7

Connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box) via HDMI ¦

This connection can only be made if there is an HDMI Output connector on the external device.

TV Rear Panel

DVD / Blu-Ray player / Satellite receiver

(Set-Top Box) Rear Panel

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

ANTIN

AV IN

-

A

U

DI

O

-

V

IDE

O

R

L

P

C

I

N

HDMI

/

P

C

A

UDI

O

I

N

1

HDMI Cable (Not supplied)

What is HDMI? N

HDMI(High-Denition Multimedia Interface), is an interface that enables the transmission of ●

digital audio and video signals using a single cable.

The difference between HDMI and DVI is that the HDMI device is smaller in size and has the ●

HDCP (High Bandwidth Digital Copy Protection) coding feature installed.

Each DVD / Blu-Ray player / Satellite receiver (Set-Top Box) has a different back panel Nconguration.

The TV may not output sound and pictures may be displayed with abnormal color when DVD / NBlu-Ray player / Satellite receiver (Set-Top Box) supporting HDMI versions older than 1.3 are

connected. When connecting an older HDMI cable and there is no sound, connect the HDMI

cable to the HDMI IN jack and the audio cables to the HDMI / PC AUDIO IN jacks on the back of

the TV. If this happens, contact the company that provided the DVD / Blu-Ray player / Satellite

receiver (Set-Top Box) to conrm the HDMI version, then request an upgrade.

HDMI cables that are not 1.3 may cause annoying icker or no screen display. N

English - 8

Connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box) via DVI ¦

This connection can only be made if there is a DVI Output connector on the external device.

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

ANTIN

AV IN

- A

U

DI

O

-

V

IDE

O

R

L

P

C

I

N

1

DVI to HDMI Cable (Not supplied)

2

RCA to stereo Cable (Not supplied)

DVD / Blu-Ray player /

Satellite receiver

(Set-Top Box)

TV Rear Panel

Each DVD / Blu-Ray player / Satellite receiver (Set-Top Box) has a different back panel Nconguration.

When connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box), match the N color of the connection terminal to the cable.

Connecting a VCR ¦

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

If you have a ‘mono’ (non-stereo) VCR, use a Y-connector (not supplied) to connect to the right Nand left audio input jacks of the TV. Alternatively, connect the cable to the ‘R’ jack. If your VCR is

stereo, you must connect two cables.

Each VCR has a different back panel conguration. N

When connecting a VCR, match the color of the connection terminal to the cable. N

1

Video Cable (Not supplied)

2

Audio Cable (Not

supplied)

VCR Rear Panel

TV Rear Panel

English - 9

Connecting a Camcorder ¦

Using a Video Cable

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

Camcorder

TV Rear Panel

1

Video Cable (Not supplied)

2

Audio Cable

(Not supplied)

Each Camcorder has a different back panel conguration. N

When connecting a Camcorder, match the color of the connection terminal to the cable. N

Using an HDMI Cable

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

TV Rear Panel

HD Camcorder

1

HDMI Cable (Not supplied)

1. Connect an HDMI Cable between the HDMI IN jack on the TV and the HDMI OUT jack on the

camcorder.

English - 10

Connecting a PC ¦

Using the D-Sub Cable

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

A

NT I

N

HDMIIN

AV IN

- AUDI

O

-

V

IDE

O

R

L

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

ANTIN

AV IN

- A

U

DI

O

-

V

IDE

O

R

L

PC I

N

TV Rear Panel

PC

1

D-Sub Cable

When connecting a PC, match the color of the connection terminal to the cable N.

Using the HDMI Cable

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

A

NT I

N

AV IN

- AUDI

O

-

V

IDE

O

R

L

P

C

I

N

PC

TV Rear Panel

1

HDMI Cable (Not supplied)

2

Stereo Cable (Not supplied)

Each PC has a different back panel conguration N.

2

Stereo Cable (Not supplied)

English - 11

OPERATION

Turning the TV On and Off ¦

Press the POWER

P

button on the remote control. You can also

use the

P

button on the TV.

Plug & Play Feature ¦

When the TV is initially powered on, basic settings proceed automatically

and subsequently.

1. Press the POWER

P

button on the remote control.

You can also use the N

P

button on the TV.

2. Press the E button, then “Select Language of the OSD.” menu is

automatically displayed.

3. Press the ▲ or ▼ button to select language, then press the E button. The message “Select

‘Home Use’ when installing this TV in your home.” is displayed.

4. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then press the E button. The

message “Select the Antenna source to memorize.” is displayed.

We recommend setting the TV to “ NHome Use” mode for the best picture in your home

environment.

“ NStore Demo” mode is only intended for use in retail environments. If the unit is accidentally set

to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the volume

button on the TV. When the volume OSD is displayed, press and hold the MENU button on the

TV for 5 seconds.

5. Press the ▲ or ▼ button to memorize the channels of the selected connection. Press the E button

to select “Start”.

Air N: “Air” antenna signal. / Cable: “Cable” antenna signal. / Auto: “Air” and “Cable” antenna

signals.

In Cable mode, you can select the correct signal source among NSTD, HRC, and IRC by pressing

the ▲, ▼, ◄ or ► button, then press the E button. If you have Digital cable, select the cable

system signal source for both Analog and Digital. Contact your local cable company to identify

the type of cable system that exists in your particular area.

6. Press the E button to select “Start”. The TV will begin memorizing all of the available channels.

To stop the search before it has nished, press the N E button with “Stop” selected.

After all the available channels are stored, it starts to remove scrambled channels. The NAuto program menu then reappears. Press the E button when channel memorization is

complete. The message “Set the Clock Mode.” is displayed.

7. Press the E button.

Press the ▲ or ▼ button to select “Auto”, then Press the E button. The message “Set to daylight

saving time.” is displayed. If you select “Manual”, “Set current date and time” is displayed.

8. Press the ▲ or ▼ button to select “Off”, “On” or “Auto”, then press the button.

9. Press the ▲ or ▼ button to highlight the time zone for your local area. Press the E button. If you

have received a digital signal, the time will be set automatically.

10. The connection method to provide the best quality HD is offered. After conrming the method, press

the E button.

11. The message “Enjoy your TV.” is displayed. When you have nished, press the E button.

Plug & Play

Select Language of the OSD.

Language : English r

E

Enter

CHVOL

English - 12

If you want to reset this feature...

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select “Setup”, then press the

E

button.

2. Press the

E

button again to select “Plug & Play”. For further details on setting up options.

The “ NPlug & Play” feature is only available in the TV mode.

CHANNEL CONTROL

CHANNEL CONTROL

ConguringtheChannelMenu ¦

Antenna→Air ❑ / Cable

Before your television can begin memorizing the available

channels, you must specify the type of signal source that is

connected to the TV (i.e. an Air or a Cable system).

Press the TTOOLS button to display “Tools” menu. You can

also set the Antenna by selecting “Tools → Switch to Cable

(or Switch to Air)”.

Auto Program ❑

Air : Air antenna signal. / Cable: Cable antenna signal. /

Auto: Air and Cable antenna signals

When selecting the Cable TV system: Selects the cable system. STD, HRC and IRC identify Nvarious types of cable TV systems. Contact your local cable company to identify the type of cable

system that exists in your particular area. At this point the signal source has been selected.

After all the available channels are stored, it starts to remove scrambled channels (Clearing NScrambled Channels). The Auto program menu then reappears.

If you want to stop Auto Programming, press the N E button. The “Stop Auto Program?”

message will be displayed. Select “Yes” by pressing the ◄ or ► button, then press the E

button.

Clearing Scrambled Channels ❑ (digital channels only)

This function is used to lter out scrambled channels after “Auto Program” is completed. This

process may take up to 20~30 minutes.

To stop searching scrambled channels: Press the N E button to select “Stop”. Press the ◄ button

to select “Yes”, then press the button.

This function is only available in “ NCable” mode.

Channel List ❑

For the detailed procedures on using the “Channel List”, refer to the ‘Managing Channels’

instructions.

You can select these options by simply pressing the NCH LIST button on the remote control.

Fine Tune ❑ (analog channels only)

Use ne tuning to manually adjust a particular channel for optimal reception.

If you do not store the ne-tuned channel in memory, adjustments are not saved. N

“*” will appear next to the name of ne-tuned channels. N

To reset the ne tuning setting, press the ▼ button to select “ NReset”, then press the E button.

Antenna  :Air  ►

Auto Program

Clear Scrambled Channel

Channel List

Fine Tune

Channel

English - 13

Managing Channels ¦

Channel List ❑

Using this menu, you can add / delete or set favorite channels

and use the program guide for digital broadcasts.

All Channels 

Shows all currently available channels.

Added Channels 

Shows all added channels.

Favorite 

Shows all favorite channels.

To select the favorite channels you have set up, press the OFAV.CH button on the remote control.

Programmed 

Shows all current reserved Programs.

Select a channel in the NAll Channels, Added Channels or Favorite screen by pressing the ▲ /

▼ buttons, and pressing the E. Then you can watch the selected channel.

Using the Color buttons with the Channel List N

Green (Zoom): – Enlarges or shrinks a channel number.

Yellow (Select): – Selects multiple channel lists. You can perform the add / delete or add to

Favorite / delete from Favorite function for multiple channels at the same time. Select the

required channels and press the yellow button to set all the selected channels at the same

time. The c mark appears to the left of the selected channels.

TOOLS (Tools): – Displays the Add (or Delete), Add to Favorite (or Delete from Favorite),

Timer Viewing, Channel Name Edit, Select All (or Deselect All) and Auto Program

menus (The Options menus may differ depending on the situation.)

Channel Status Display Icons N

♥ : – A channel set as a Favorite.

c –: A channel selected by pressing the yellow button.

( –: A Program currently being broadcast.

) –: A reserved program

Channel List Option Menu (in All Channels / Added Channels / Favorite)

Press the

TOOLS

button to use the option menu.

Option menu items may differ depending on the channel status. N

Add / Delete 

You can delete or add a channel to display the channels you want.

All deleted channels will be shown on N All Channels menu.

A gray-colored channel indicates the channel has been deleted. N

The NAdd menu only appears for deleted channels.

You can also delete a channel from the NAdded Channels or Favorite menu in the same manner.

2 Air

4 Air

4-2 ♥ TV #8

8 Air

13 Air

13-1 ♥ TV #3

Alice’s Adventures in Wonderland

Added Channels

Air Zoom Select

T

Tools

English - 14

Add to Favorite / Delete from Favorite 

You can set channels you watch frequently as Favorite.

Press the TTOOLS button to display the Tools menu. You can

also set the add to (or delete from) Favorites by selecting

Tools → Add to Favorite (or Delete from Favorite).

The ♥ symbol will be displayed and the channel will be set as Na favorite.

All favorite channels will be shown in the NFavorite menu.

Timer Viewing 

If you reserve a program you want to watch, the channel is automatically switched to the reserved

channel in the Channel List; even when you are watching another channel. To reserve a program,

set the current time rst.

Only memorized channels can be reserved. N

You can set the channel, month, day, year, hour and minute directly by pressing the number Nbuttons on the remote control.

Reserving a program will be shown in the NProgrammed menu.

Digital Program Guide and Viewing Reservation N

When a digital channel is selected, and you press the ► button, the Program Guide for the Nchannel appears. You can reserve a program according to the procedures described above.

Channel Name Edit (analog channels only) 

Channels can labeled so that their call letters appear whenever the channel is selected.

The names of digital broadcasting channels are automatically assigned and cannot be labeled. N

Select All / Deselect All 

Select All ●: You can select all the channels in the channel list.

Deselect All ●: You can deselect all the selected channels.

You can only select NDeselect All when there is a selected channel.

Auto Program 

For further details on setting up options, refer to page 12. N

Channel List Option Menu (in Programmed)

You can view, modify or delete a reservation.

Press the TOOLS button to use the option menu. N

Change Info 

Select to change a viewing reservation.

Cancel Schedules 

Select to cancel a viewing reservation.

Information 

Select to view a viewing reservation. (You can also change the

reservation information.)

Select All 

Select all reserved Programs.

1 / 1 / 2009

9:08 am 5 TV3 The

3:15 pm 2 TV3 The Equalizer

5:50 pm 2 TV3 McMillan & Wife

Programmed

Change Info

Cancel Schedules

Information

Select All

Air Zoom Select

T

Tools

E

Information

2 Air

4 Air

4-2 ♥ TV #8

8 Air

13 Air

13-1 ♥ TV #3

Alice’s Adventures in Wonderland

All Channels

Delete

Add to Favorite

Timer Viewing

Channel Name Edit

Select All

Auto Program

Air Zoom Select

T

Tools

English - 15

PICTURE CONTROL

ConguringthePictureMenu(TV/AV/HDMI) ¦

Mode ❑

You can select the type of picture which best corresponds to

your viewing requirements.

Dynamic 

Selects the picture for increased denition in a bright room.

Standard 

Selects the picture for the optimum display in a normal

environment.

Movie 

Selects the picture for viewing movies in a dark room.

Backlight ❑/ Contrast / Brightness / Sharpness / Color / Tint (G/R)

Your television has several setting options that allow you to control the picture quality.

Backlight ●: Adjusts the brightness of LCD back light.

Contrast ●: Adjusts the contrast level of the picture.

Brightness ●: Adjusts the brightness level of the picture

Sharpness ● : Adjusts the edge denition of the picture.

Color ●: Adjusts color saturation of the picture.

Tint (G/R) ●: Adjusts the color tint of the picture.

When you make changes to “ NBacklight”, “Contrast”, “Brightness”, “Sharpness” “Color”or “Tint

(G/R)” the OSD will be adjusted accordingly.

Settings can be adjusted and stored for each external device you have connected to an input of Nthe TV.

The energy consumed during use can be signicantly reduced if the level of Backlight is reduced, Nand that this will reduce the overall running cost.

Advanced Settings ❑

Samsung’s new TVs allow you to make even more precise

picture settings than previous models.

Advanced Settings N is available in Standard or Movie mode

.

In PC mode, you can only make changes to NGamma and

White Balance from among the Advanced Settings items.

BlackTone→Off/Dark/Darker/Darkest 

You can select the black level on the screen to adjust the screen

depth.

DynamicContrast→Off/Low/Medium/High 

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma 

You can adjust the primary color (red, green, blue) Intensity. (-3 ~ +3)

Color Space 

Color space is a color matrix composed of red, green and blue colors. Select your favorite color

space to experience the most natural color.

Native ●: Native Color Space offers deep and rich color tone.

Auto ●:

Auto Color Space automatically adjusts to the most natural color tone based on program sources.

Mode  :Standard  ►

Backlight : 8

Contrast : 95

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50


Advanced Settings

Black Tone : Off ►

Dynamic Contrast : Medium

Gamma : 0

Color Space : Native

White Balance

Flesh Tone : 0

Edge Enhancement : On

U

Move

E

Enter

R

Return

English - 16

White Balance 

You can adjust the color temperature for more natural picture colors.

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain ●:

You can adjust the Color ‘temperature’

in the light areas by changing the values of R, G, B. Recommended for advanced users only.

Reset ●: The previously adjusted white balance will be reset to the factory defaults.

Changing the adjustment value will refresh the adjusted screen. N

Flesh Tone 

You can emphasize the pink ‘esh tone’ in the picture.

Changing the adjustment value will refresh the adjusted screen. N

EdgeEnhancement→Off/On 

You can emphasize object boundaries in the picture.

Picture Options ❑

In PC mode, you can only make changes to the “ NColor Tone”

and “Size” from among the items in “Picture Options”.

Color Tone →Cool / Normal / Warm1 / Warm2

Warm1 N or Warm2 is only activated when the picture mode is Movie.

Settings can be adjusted and stored for each external Ndevice you have connected to an input of the TV.

Size 

Occasionally, you may want to change the size of the image on your screen. Your TV comes with

six screen size options, each designed to work best with specic types of video input. Your satellite

receiver may have its own set of screen sizes as well. In general, though, you should view the TV in

16:9 mode as much as possible.

Alternately, you can press the OP.SIZE button on the remote control repeatedly to change the picture size.

16:9 ● : Sets the picture to 16:9 wide mode.

Zoom1 ● : Magnies the size of the picture on the screen.

Zoom2 ● : Magnies the size of the picture more than “Zoom1”.

Wide Fit ● : Enlarges the aspect ratio of the picture to t the entire screen.

4:3 ● : Sets the picture to 4:3 normal mode.

Screen Fit: ●Use the function to see the full image without any cutoff when HDMI

(720p/1080i/1080p) or DTV (1080i) signals are input.

16:9 Zoom1

U

Move Zoom2

U

Move

16:9 Zoom1 Zoom2

Wide Fit

U

Move 4:3 Screen Fit

Wide Fit 4:3 Screen Fit

Picture Options

Color Tone : Normal ►

Size : 16:9

Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

U

Move

E

Enter

R

Return

English - 17

Temporary image retention may occur when viewing a static image on the set for more than two hours. N

After selecting “ NZoom1”, “Zoom2” or “Wide Fit”: Press the ◄ or ► button to select “Position”, then

press the E button. Press the ▲ or ▼ button to move the picture up and down.

Reset: Press the ◄ or ►button to select “Reset”, then press the E button. You can initialize the setting.

HD (High Denition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) N

Settings can be adjusted and stored for each external device you have connected to an input of the TV N

.

Input Source Picture Size

TV, AV 16:9, Zoom1, Zoom2, 4:3

DTV(1080i), HDMI (720p, 1080i, 1080P) 16:9, 4:3, Wide Fit, Screen Fit

Digital NR →Off / Low / Medium / High / Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction

feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed. N

HDMI Black Level →Normal / Low

You can select the black level on the screen to adjust the screen depth.

This function is active only when an external device is connected to the TV via HDMI. The “ NHDMI

Black Level” function may not be compatible with all external devices.

Film Mode →Off / Auto

The TV can be set to automatically sense and process lm signals from all sources and adjust the

picture for optimum quality.

“ NFilm Mode” is supported in TV and HDMI (480i / 1080i).

Reset ❑→ResetPictureMode/Cancel

Resets all picture settings to the default values.

Reset Picture Mode N: Current picture values return to default settings.

English - 18

Using Your TV as a Computer (PC) Display ¦

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your

PC will probably be different, depending upon your particular version of Windows and your particular

video card. However, even if your actual screens look different, the same basic set-up information

will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on ‘Control Panel’ on the Windows start menu.

2. When the control panel window appears, click on ‘Appearance and Themes’ and a display dialog-

box will appear.

3. When the control panel window appears, click on ‘Display’ and a display dialog-box will appear.

4. Navigate to the ‘Settings’ tab on the display dialog-box.

The correct size setting (resolution): Optimum: 1360 X 768 pixels

If a vertical frequency option exists on your display settings dialog box, the correct value is “60” or

“60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Display Modes

If the signal from the system equals the standard signal mode, the screen is adjusted automatically.

If the signal from the system doesn’t equal the standard signal mode, adjust the mode by referring to

your videocard user guide; otherwise there may be no video. For the display modes listed below, the

screen image has been optimized during manufacturing.

Timing modes(PC, DVI-D and HDMI input) 

Mode Resolution Horizontal Frequency

(kHz)

Vertical Frequency

(Hz)

Pixel Clock

Frequency (MHz)

Sync Polarity

(H / V)

IBM 640 x 350 31.469 70.086 25.175 + / -

640 x 480 31.469 59.940 25.175 - / -

720 x 400 31.469 70.087 28.322 - / +

MAC 640 x 480 35.000 66.667 30.240 - / -

832 x 624 49.726 74.551 57.284 - / -

VESA 640 x 480 37.861 72.809 31.500 - / -

640 x 480 37.500 75.000 31.500 - / -

800 x 600 35.156 56.250 36.000 + / +

800 x 600 37.879 60.317 40.000 + / +

800 x 600 48.077 72.188 50.000 + / +

800 x 600 46.875 75.000 49.500 + / +

1024 x 768 48.363 60.004 65.000 - / -

1024 x 768 56.476 70.069 75.000 - / -

1024 x 768 60.023 75.029 78.750 + / +

1360 x 768 47.712 60.015 85.500 + / +

English - 19

Setting up the TV with your PC ¦

Preset: Press the NSOURCE button to select PC mode.

MagicBright : ❑ Entertain / Internet / Text / Dynamic Contrast / Custom

MagicBright is a feature providing optimum viewing environment depending on the contents of

the image you are watching. Currently ve different modes are available: Entertain, Internet, Text,

Dynamic Contrast and Custom. Each mode has its own pre-congured brightness value.

Contrast / Brightness / Sharpness ❑

Contrast: Adjusts the contrast level of the picture. •

Brightness: Adjusts the brightness level of the picture. •

Sharpness: Adjusts the edge denition of the picture. •

Auto Adjustment ❑

Use the Auto Adjust function to have the TV set automatically

adjust the video signals it receives. The function also

automatically ne-tunes the settings and adjusts the frequency

values and positions.

Press the TTOOLS button to display “Tools” menu. You can

also set the Auto Adjustment by selecting “Tools → Auto

Adjustment”.

This function do work in PC mode only N

Screen ❑

The purpose of the picture quality adjustment is to remove or reduce picture noise. If the noise is not

removed by ne tuning alone, then make the vertical frequency adjustments on your PC and ne tune

again. After the noise has been reduced, re-adjust the picture so that it is aligned on the center of the

screen.

Coarse / Fine 

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed

by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the

noise has been reduced, readjust the picture so that it is aligned on the center of screen.

PC Position 

Adjust the PC’s screen positioning if it does not t the TV screen. Press the ▲ or ▼ button to

adjusting the Vertical-Position. Press the ◄ or ►button to adjust the Horizontal-Position.

Image Reset 

You can replace all image settings with the factory default values.

Picture Options ❑

Color Tone : Cool / Normal / Warm / Custom 

R-Gain / G-Gain / B-Gain 

R-Gain: Adjusts the red color brightness. N

G-Gain: Adjusts the green color brightness. N

B-Gain: Adjusts the blue color brightness. N

Size: 16:9 / 4:3 

Alternately, you can press the OP.SIZE button on the remote control repeatedly to change the

picture size.

16:9 : Sets the picture to 16:9 wide mode. N

4:3 : Sets the picture to 4:3 normal mode. N

Reset : Reset Picture Mode / Cancel ❑

Resets all picture settings to the default values.

Reset Picture Mode: Current picture values return to default settings. N

Brightness : 45

Sharpness : 50

AutoAdjustment   ►

Screen

Advanced Settings

Picture Options

Picture Reset


English - 20

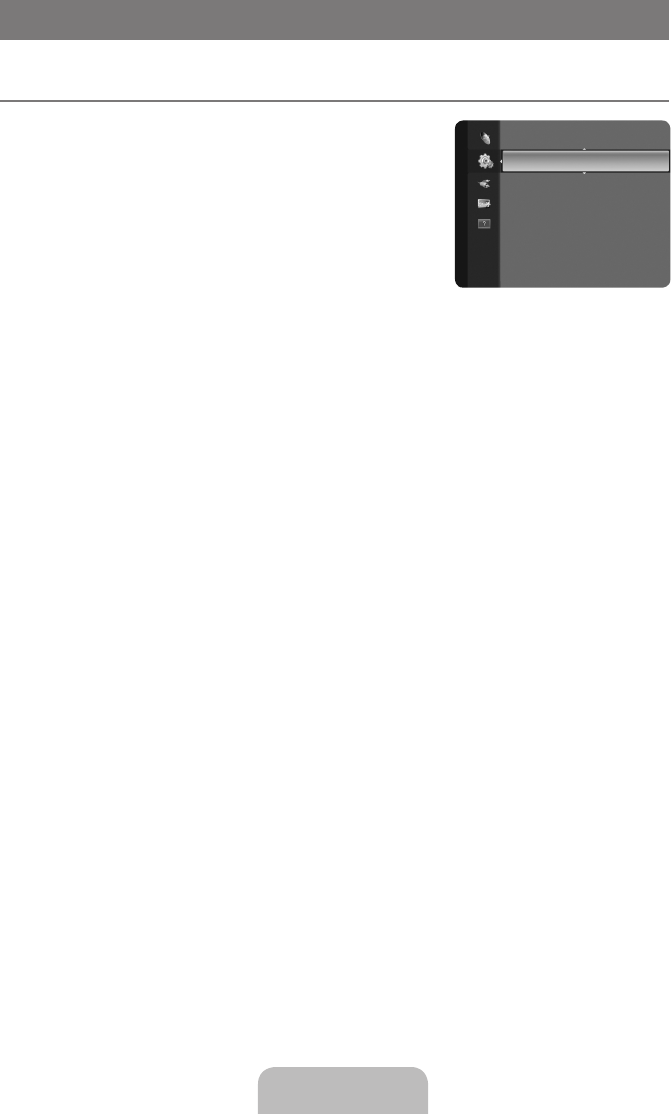

SOUND CONTROL

ConguringtheSoundMenu ¦

Mode ❑→Standard / Music / Movie / Clear Voice /

Custom

You can select a sound mode to suit your personal preferences.

Equalizer ❑

The sound settings can be adjusted to suit your personal

preference.

Mode 

Selects the sound mode among the predened settings.

Balance L/R 

Adjusts the balance between the right and left speaker.

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment)

To adjust the level of different bandwidth frequencies.

Reset 

Resets the equalizer settings to the default values.

Preferred Language ❑ (only digital channel)

Digital-TV broadcasts are capable of simultaneous transmission of many audio tracks (for example,

simultaneous translations of the program into foreign languages).

You can listen in a language other than the “ OPreferred Language” by pressing the MTS button

on the remote control.

“ NPreferred Language” is available only in Digital TV mode.

You can only select the language from among the actual languages being broadcast. N

Multi-Track Sound (MTS) ❑ (only analog channel)

Press the OMTS button on the remote control repeatedly to select “Mono”, “Stereo” or “SAP”.

Mono ● : Choose for channels that are broadcasting in mono or if you are having difculty

receiving a stereo signal.

Stereo ●: Choose for channels that are broadcasting in stereo.

SAP ●: Choose to listen to the Separate Audio Program, which is usually a foreign-language

translation.

“ NMulti-Track Sound” is available only in Analog TV mode.

Depending on the particular program being broadcast, you can listen to “ NMono”, “Stereo” or

“SAP”.

Auto Volume ❑→Off / On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume

every time the channel is changed. This feature lets you automatically adjust the volume of the

desired channel by lowering the sound output when the modulation signal is high.

SoundReset→ResetAll/ResetSoundMode/Cancel ❑

You can restore the Sound settings to the factory defaults.

Reset Sound Mode O: Current sound values return to default settings.

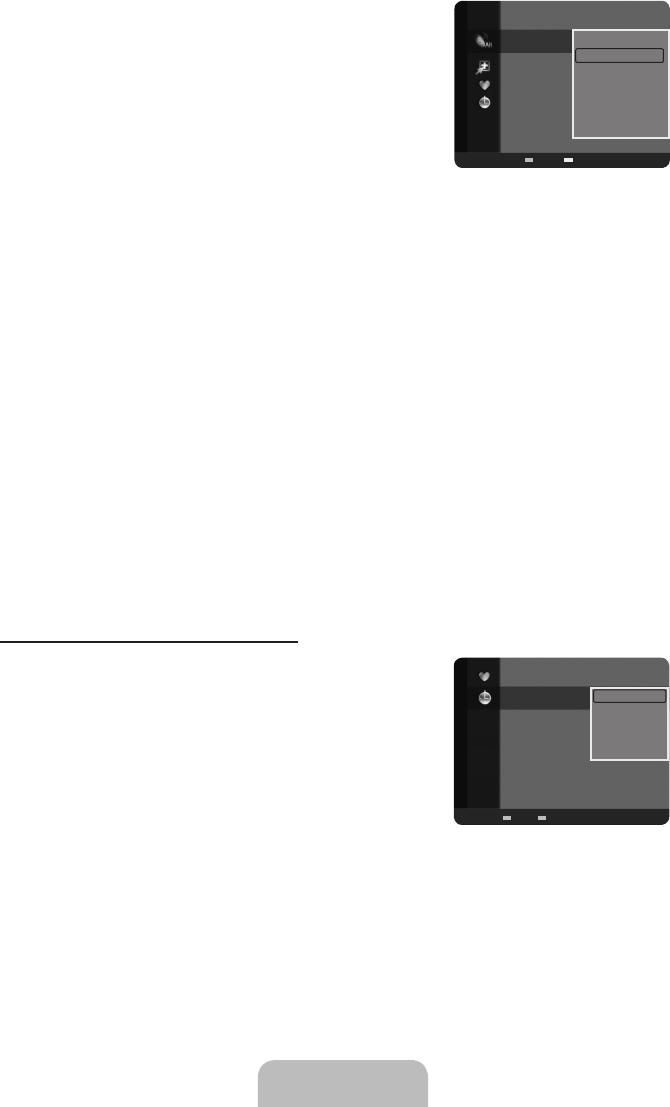

Mode   :Custom ►

Equalizer

Preferred Language : English

Multi-Track Sound : Mono

Auto Volume : Off

Sound Reset

Sound

English - 21

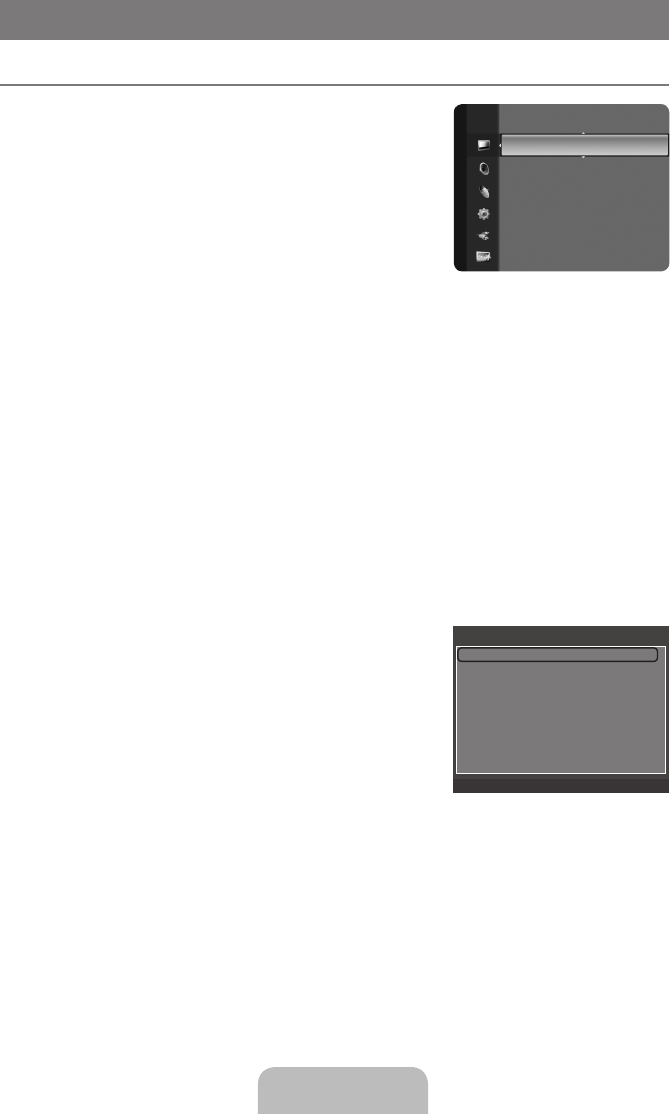

SETUP

ConguringtheSetupMenu ¦

Language ❑

You can set the menu language.

Time ❑

Clock 

Setting the clock is necessary in order to use the various timer

features of the TV.

The current time will appear every time you press the OINFO

button.

If you disconnect the power cord, you have to set the clock again. N

Clock Mode ●

You can set up the current time manually or automatically.

Auto – : Set the current time automatically using the time from the digital broadcast.

Manual – : Set the current time to a manually specied time.

Depending on the broadcast station and signal, the auto time may not be set correctly. If this Noccurs, set the time manually.

The Antenna or cable must be connected in order to set the time automatically. N

Clock Set ●

You can set the current time manually.

This function is only available when “ NClock Mode” is set to “Manual”.

You can set the month, day, year, hour and minute directly by pressing the number buttons on Nthe remote control.

Time Zone ●

Select your time zone.

This function is only available when “ NClock Mode” is set to “Auto”.

DST ● (Daylight Saving Time) → Off / On / Auto

Switches the Daylight Saving Time function on or off.

This function is only available when “ NClock Mode” is set to “Auto”.

Sleep Timer 

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180

minutes).

Press the TTOOLS button to display “Tools” menu. You can also set the sleep timer by selecting

“Tools → Sleep Timer”.

To cancel the “ NSleep Timer” function, select “Off”.

Plug & Play

Language  :English ►

Time

Game Mode : Off

V-Chip

Caption

Light Level : Off

Melody : Medium

Setup

English - 22

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the clock rst.

On Time ●: Set the Hour, Minute, am/pm, and Activate/Inactivate. (To activate timer with the

setting you’ve chosen, set to “Activate”.)

Off Time ●: Set the Hour, Minute, am/pm, and Activate/Inactivate. (To activate timer with the

setting you’ve chosen, set to “Activate”.)

Volume ●: Set the required volume level.

Antenna ●: View antenna type. (Air or Cable)

You can set the Antenna by selecting Channel → Antenna. N

Channel ●: Select the desired channel.

Repeat ●: Select “Once”, “Everyday”, “Mon~Fri”, “Mon~Sat”, “Sat~Sun” or “Manual”.

When “ NManual” is selected, press the ►button to select the desired day of the week. Press the

E

button over the desired day and the

c

mark will appear.

You can set the hour, minute and channel by pressing the number buttons on the remote control. N

Auto Power Off N

When you set the timer On, the television will eventually turn off, if no controls are operated for

3 hours after the TV was turned on by the timer. This function is only available in timer On mode

and prevents overheating, which may occur if a TV is on for too long time.

GameMode→Off/On ❑

When connecting to a game console such as PlayStationTM or XboxTM, you can enjoy a more realistic

gaming experience by selecting the game menu.

Restrictions on game mode (Caution) N

To disconnect the game console and connect another external device, set – Game Mode

to Off in the setup menu. If you display the TV menu in Game mode, the screen shakes

slightly.

If NGame Mode is On :

Picture mode is automatically changed to – Standard and cannot be changed.

Sound mode is automatically changed to – Custom and cannot be changed. Adjust the

sound using the equalizer.

Game Mode N is not available in regular TV and PC mode.

If the picture is poor when external device is connected to TV, check if NGame Mode is On. Set

Game Mode to Off and connect external devices.

V-Chip ❑

U.S.A and Canada Only N

The V-Chip feature automatically locks out programs that are deemed inappropriate for children.

The user must enter a PIN (personal ID number) before any of the V-Chip restrictions are set up or

changed.

“ NV-Chip” function is not available in HDMI or PC mode.

The default PIN number of a new TV set is ‘0-0-0-0’ N

If you forget the PIN, press the remote-control buttons in the following sequence, which resets Nthe pin to 0-0-0-0 : POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Allow all N: Press to unlock all TV ratings. / Block all: Press to lock all TV ratings.

English - 23

V-Chip Lock →Off / On

You can block rated TV Programs.

TV Parental Guidelines 

You can block TV programs depending on their rating. This

function allows you to control what your children are watching.

TV-Y ●: Young children / TV-Y7: Children 7 and over / TV-G:

General audience /

TV-PG: Parental guidance / TV-14: Viewers 14 and over /

TV-MA: Mature audience

ALL ●: Lock all TV ratings. / FV: Fantasy violence / V:

Violence / S: Sexual situation /

L: Adult Language / D: Sexually Suggestive Dialog

The V-Chip will automatically block certain categories that are more restrictive. For example, if Nyou block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the

TV-G category, then all the categories in the young adult group will be blocked (TV-G, TV-PG,

TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together similarly.

The V-chip will automatically block certain categories that are ‘More restrictive’. For example, if you block N“L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.

MPAA Rating 

You can block movies depending on their MPAA rating.The

Motion Picture Association of America(MPAA) has implemented

a rating system that provides parents or guardians with advance

information on which lms are appropriate for children.

G ●: General audience (no restrictions).

PG ●: Parental guidance suggested.

PG-13 ●: Parents strongly cautioned.

R ●: Restricted. Children under 17 should be accompanied by

an adult.

NC-17 ●: No children under age 17.

X ●: Adults only.

NR ●: Not rated.

The V-Chip will automatically block any category that is ‘More restrictive’. For example, if you Nblock the “PG-13” category, then “R”, “NC-17” and “X” will automatically be blocked also.

Canadian English 

C ●: Programming intended for children under age 8.

C8+ ●: Programming generally considered acceptable for children 8 years and over to watch on

their own.

G ●: General programming, suitable for all audiences.

PG ●: Parental Guidance.

14+ ●: Programming contains themes or content which may not be suitable for viewers under the

age of 14.

18+ ●: Adult programming.

The V-Chip will automatically block any category that is ‘More restrictive’. For example, if you Nblock G category, then PG, 14+ and 18+ will automatically be blocked also.

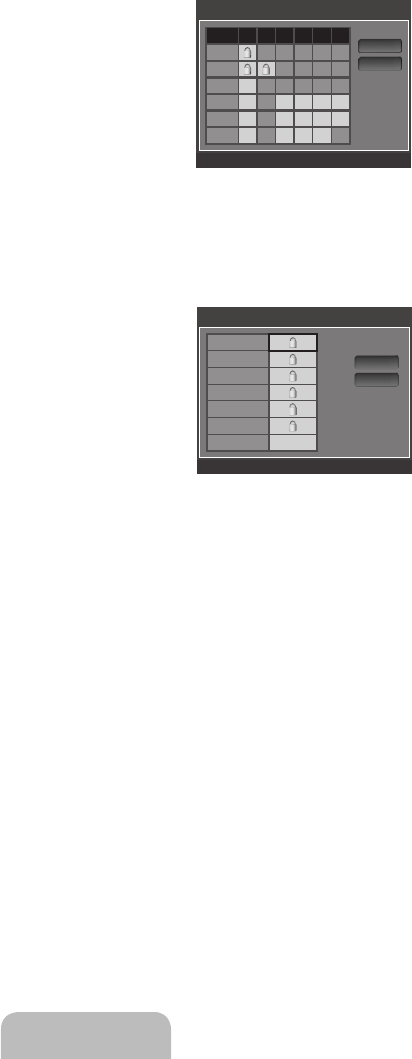

MPAA Rating

G

PG

PG-13

R

NC-17

X

NR

n

Move

E

Enter

R

Return

Allow All

Block All

TV Parental Guidelines

ALL FV V S L D

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

n

Move

E

Enter

R

Return

Allow All

Block All

English - 24

Canadian French 

G ●: General

8 ans+ ●: Programming generally considered acceptable for children 8 years and over to watch

on their own.

13 ans+ ●: Programming may not be suitable for children under the age of 13.

16 ans+ ●: Programming is not suitable for children under the age of 16.

18 ans+ ●: Programming restricted to adults.

The V-Chip will automatically block any category that is ‘More restrictive’. For example, if you Nblock 8 ans+ category, then 13 ans+, 16 ans+ and 18 ans+ will automatically be blocked also.

Downloadable U.S. Rating 

Parental restriction information can be used while

watching DTV channels

If information is not downloaded from the Nbroadcasting station, the “Downloadable U.S.

rating” menu is deactivated.

Parental restriction information is automatically Ndownloaded while watching DTV channels. It may

take several seconds.

The “ NDownloadable U.S. rating” menu is available

for use after information is downloaded from the

broadcasting station. However, depending on the

information from the broadcasting station, it may not be available for use.

Parental restriction levels differ depending on the broadcasting station. The default menu name Nand Downloadable US rating changes depending on the downloaded information.

Even if you set the On-screen display to your desired language, the “ NDownloadable U.S.

Rating” menu will appear in English only.

The rating will automatically block certain categories that are more restrictive. N

The rating titles (For example: Humor Level..etc) and TV ratings (For example: NDH, MH, H..etc)

may differ depending on the broadcasting station.

Change PIN 

The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them.

As soon as the 4 digits are entered, the ConrmNewPIN screen appears. Re enter the same 4

digits. When the Conrm screen disappears, your PIN has been memorized.

If you forget the PIN, press the remote-control buttons in the following sequence, which resets Nthe pin to 0-0-0-0 : POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Downloadable U.S. Rating

Humor Level ►1/2

DH

MH

H

VH

EH

n

Move

E

Enter

R

Return

Allow All

Block All

Rating title

The number of all

rating information

The number of current

rating information

English - 25

How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)

If the TV is tuned to a restricted channel, the V-Chip will block it.

The screen will go blank and the following message will appear:

1. Enter your PIN, then press the E button and press the ▲ or ▼

button to temporarily disable the V-Chip Lock.

If you forget the PIN, press the remote-control buttons in the Nfollowing sequence, which resets the pin to 0-0-0-0 : POWER

(off) → MUTE → 8 → 2 → 4

→ POWER (on)

Caption ❑ (On-Screen Text Messages)

Caption→Off/On 

You can switch the caption function on or off. If captions are not available, they will not be displayed

on the screen.

Press the OCC button on the remote control to turn the Caption on or off.

The Caption feature doesn’t work in HDMI , PC or DVI modes. N

Caption Mode 

You can select the desired caption mode.

The availability of captions depends on the program being broadcast. N

Default / CC1~CC4 / Text1~Text4 ● (analog channels only)

The Analog Caption function operates in either analog TV channel mode or when a signal is

supplied from an external device to TV. (Depending on the broadcasting signal, the Analog

Caption function may operate on digital channels.)

Default / CC1~CC4 / Text1~Text4 / Service1~Service6 ●(digital channels only)

The Digital Captions function operates on digital channels.

Service1~6 in digital caption mode may not be available depending on the broadcast. N

Digital Caption Options (digital channels only) 

Size ●: This option consists of “Default”, “Small”, “Standard” and “Large”. The default is

“Standard”.

Font Style ●: This option consists of “Default”, “Style0 ~ Style 7”. You can change the font you

want. The default is “Style 0”.

Foreground Color ●: This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”,

“Yellow”, “Magenta” and “Cyan”. You can change the color of the letter. The default is “White”.

Background Color ●: This option consists of “Default”, “White”, “Black”, “Red”, “Green”, “Blue”,

“Yellow”, “Magenta” and “Cyan”. You can change the background color of the caption. The

default is “Black”.

Foreground Opacity ●: This option consists of “Default”, “Transparent”, “Translucent”, “Solid”

and “Flashing”. You can change the opacity of the letter.

Background Opacity ●: This option consists of “Default”, “Transparent”, “Translucent”, “Solid”

and “Flashing”. You can change the background opacity of the caption.

Return to Default ●: This option sets each of “Size”, “Font Style”, “Foreground Color”,

“Background color”, “Foreground Opacity” and “Background Opacity” to its default.

“ NDigital Caption Options” are available only when “Default” and “Service1~Service6” can be

selected in “Caption Mode”.

The availability of captions depends on the program being broadcast. N

“ NDefault” means to follow the standard set by the broadcaster.

Foreground and Background cannot be set to have the same color. N

“ NForeground Opacity” and “Background Opacity” cannot be both set to Transparent.

Received Rating: TV-14/NL

This channel is blocked by a Parental Lock. Prees enter the PIN

to unblock.

CH

Change 0~9 Enter PIN

English - 26

Light Level ❑

Use to adjust the light level i.e., the brightness of the light.

Melody→Off/Low/Medium/High ❑

A melody sound can be set to come on when the TV is powered On or Off.

The Melody does not play. N

When no sound is output from the TV because the – MUTE button has been pressed.

When no sound is output from the TV because the volume has been reduced to minimum –

with the VOL – button.

When the TV is turned off by Sleep Timer function. –

Energy Saving ❑→Off / Low / Medium / High / Auto

This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at

night, set the “Energy Saving” mode option to “High” to reduce eye fatigue as well as power consumption.

INPUT / SUPPORT

ConguringtheInputMenu ¦

Source List ❑

Use to select TV or other external input sources such as DVD /

Blu-Ray players / Satellite receivers (Set-Top Box) connected to

the TV. Use to select the input source of your choice.

Press the OSOURCE button on the remote control to view an

external signal source.

PC / TV / AV / HDMI 

You can choose only those external devices that are connected Nto the TV. In the “Source List”, connected inputs will be

highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom.

Edit Name ❑

Name the device connected to the input jacks to make your input source selection easier.

VCR  / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder /PC / DVI

PC / DVI / TV / IPTV / Blu-Ray / HD DVD / DMA

When a PC with a resolution of 1920X1080@60Hz and 640x480@60Hz is connected to the NHDMI IN port, you should set the “HDMI1/DVI” mode to “PC” in the “Edit Name” of the “Input”

mode. Conguring the Support Menu.Conguring the Support Menu

Source List

Edit Name

Input

English - 27

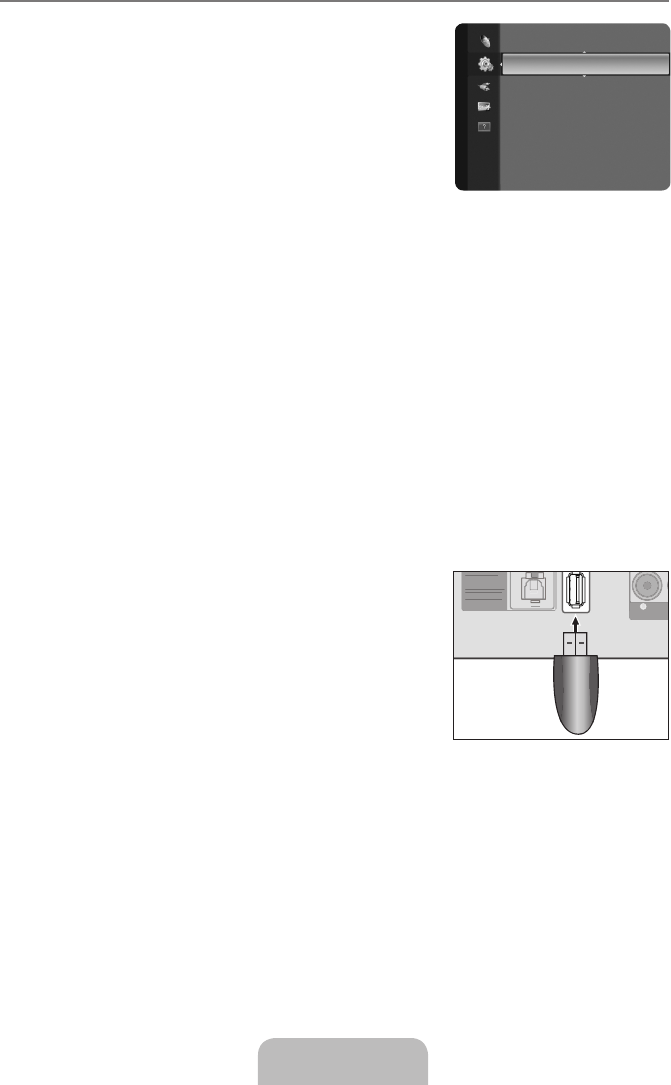

ConguringtheSupportMenu ¦

Self Diagnosis ❑

Picture Test 

If you think you have a picture problem, perform the picture test. Check

the color pattern on the screen to see if the problem still exists.

Yes ●:

If the test pattern does not appear or there is noise in the

test pattern, select Yes. There may be a problem with the

TV. Contact Samsung’s call center for assistance.

No ●:

If the test pattern is properly displayed, select No. There

may be a problem with your external equipment. Please

check your connections. If the problem still persists, refer to the external device’s user manual.

Sound Test 

If you think you have a sound problem, please perform the sound test. You can check the sound by

playing a built-in melody sound through the TV. ‘Does the problem still exist with this sound test?’

appears on the screen.

Yes ●: If during the sound test you can hear sound only from one speaker or not at all, select Yes.

There may be a problem with the TV. Contact Samsung’s call center for assistance.

No ●: If you can hear sound from the speakers, select No. There may be a problem with your

external equipment. Please check your connections. If the problem still persists, refer to the

external device’s user manual.

Signal Strength  (digital channels only)

Unlike analog channels, which can vary in reception quality from ‘snowy’ to clear, digital (HDTV)

channels have either perfect reception quality or you will not receive them at all. So, unlike analog

channels, you cannot ne tune a digital channel. You can, however, adjust your antenna to improve

the reception of available digital channels.

If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the Nsignal strength. Continue to adjust the antenna until you nd the best position with the strongest signal.

Software Upgrade ❑

Samsung may offer upgrades for TV’s rmware in the future.

Please visit Samsung.com or contact the Samsung call center

at 1-800-SAMSUNG (726-7864) to receive information about

downloading upgrades and using a USB drive. Upgrades will

be possible by connecting a USB drive to the SERVICE port

located on your TV.

Insert a USB drive containing the rmware upgrade into the NSERVICE port on the side of the TV.

Please be careful to not disconnect the power or remove the NUSB drive while upgrades are being applied. The TV will turn

off and turn on automatically after completing the rmware

upgrade. Please check the rmware version after the upgrades are complete. When software is

upgraded, video and audio settings you have made will return to their default (factory) settings. We

recommend you write down your settings so that you can easily reset them after the upgrade.

SelfDiagnosis   ►

Software Upgrade

HD Connection Guide

Contact Samsung

Support

AV IN

- AUDIO -

RLVIDEO

HDMI IN

DIGITA L

AUDIO OUT

(OPTICAL)

DVI-D IN PC IN

ANT INANT IN

COMPONENT IN

- AUDIO -

R

L

PRPB

Y

SERVICE

HDMI/PC

/DVI-D

AUDIO IN

AV IN

- AUDIO -

RLVIDEO

HDMI IN

DVI-D IN PC IN

ANT INANT IN

COMPONENT IN

- AUDIO -

R

L

PRPB

Y

HDMI/PC

/DVI-D

AU DIO IN

DIGITA L

AUDIO OUT

(OPTICAL)

A

V I

N

- A

U

DI

O

-

R

L

V

IDE

O

H

DMI IN

DVI

-

DIN

P

C

IN

ANTIN

ANTIN

ANTIN

ANT IN

CO

MP

O

NENT IN

-

A UDI

O

-

R

L

P

P

R

R

P

P

B

Y

H

DMI

/

P

C

/

DVI-D

A

UDIO I

N

DI

G

ITA

L

AU

DI

O

OU

T

(O

PTI

C

AL

)

USB drive

English - 28

HD Connection Guide ❑

This menu presents the connection method that provides the optimal quality for the HD TV.

Refer to this information when connecting external devices to the TV.

Contact Samsung ❑

View this information when your TV does not work properly or when you want to upgrade the software.

You can view the information regarding the call center, product and software le download method.

ANYNET

+

Connecting Anynet ¦+ Devices

Anynet+ is a function that enables you to control all connected Samsung devices that support

Anynet+ with your Samsung TV’s remote.

The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be

sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to a TV

TV

HDMI IN

AV IN

- AUDIO -

RLVIDEO

HDMI IN

DVI-D IN PC IN

ANT INANT IN

COMPONENT IN

- AUDIO -

R

L

PRPB

Y

HDMI/PC

/DVI-D

AUDIO IN

DIGITAL

AUDIO OUT

(OPTICAL)

DIGITAL

AUDIO OUT

(OPTICAL)

HDMI IN

Anynet+ Device

HDMI 1.3 Cable

1.

Connect the HDMI IN jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

Conn Nect only one Home Theater.

You can connect an Anynet N+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.

Anynet N+ works when the AV device supporting Anynet+ is in the Standby or On status.

Anynet N+ supports up to 10 AV devices in total. Note that you can connect up to 4 devices of the same type.

English - 29

Setting Up Anynet+ ¦

Press the TTOOLS button to display the Tools menu. You can

also display Anynet+ menu by selecting Tools→Anynet+

(HDMI-CEC).

Setup ❑

Anynet + (HDMI-CEC)→Off/On

To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

When the NAnynet+ (HDMI-CEC) function is disabled, all the

Anynet+ related operations are deactivated.

AutoTurnOff→No/Yes 

Setting an Anynet+ Device to turn Off Automatically when the TV

is Turned Off

The active source on the TV remote must be set to TV to use Nthe Anynet+ function.

If you set NAuto Turn Off to Yes, connected external devices

are also turned off when the TV is turned off. If an external

device is still recording, it may or may not turn off.

Anynet

+

(HDMI-CEC)  ►

Application

Device List

Setup

U

Move

E

Enter

R

Return

Anynet+(HDMI-CEC) : On

Auto Turn Off : Yes

U

Move

E

Enter

R

Return

Setup

English - 30

Switching between Anynet ¦+ Devices

1. Press the TOOLS button. Press the

E

button to select Anynet+

(HDMI-CEC).

2. Press the ▲ or ▼ button to select Device List, then press the

E

button.

Anynet N+ devices connected to the TV are listed.

If you cannot nd a device you want, press the red button to Nscan for devices.

3. Press the ▲ or ▼ button to select a particular device and press

the

E

button. It is switched to the selected device.

Only when you set NAnynet+ (HDMI-CEC) to On in the

Application menu, the Device List menu appears.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation Nduring the switching operation.

The time required to scan for devices is determined by the number of connected devices. N

When the device scan is complete, the number of devices found are not displayed. N

Although the TV automatically searches the device list when the TV is turned on via the power Nbutton, devices connected to the TV when the TV is on or under some conditions are not

automatically displayed in the device list. Press the red button to search for the connected

device.

If you have selected external input mode by pressing the NSOURCE button, you cannot use the

Anynet+ function. Make sure to switch to an Anynet+ device by using the Device List.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to

the TV.

Anynet+ Menu Description

View TV Anynet+ mode changes to TV broadcast mode.

Device List Shows the Anynet+ device list.

(device_name) Menu Shows the connected device menus. E.g. If a DVD recorder is

connected, the disc menu of the DVD recorder will appear.

(device_name)

Operation

Shows the play menu of the connected device. E.g. If a DVD recorder

is connected, the play menu of the DVD recorder will appear.

Record: (*recorder) Starts recording immediately using the recorder. (This is only available

for devices that support the recording function.)

Stop Recording:

(*recorder) Stops recording.

Receiver Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one Nrecording device is connected, it will be represented as (*device_name).

View TV

Device List

Record : DVDR

DVDR Menu

DVDR Operation

Setup

U

Move

E

Enter

R

Return

Device List

English - 31

Troubleshooting for Anynet ¦+

Problem Possible Solution

Anynet+ does not work. Check if the device is an Anynet ●+ device. The Anynet+ system

supports Anynet+ devices only.

Connect only one receiver (home theater). ●

Check if the Anynet ●+ device power cord is properly connected.

Check the Anynet ●+ device’s Video/Audio/HDMI 1.3 cable

connections.

Check whether Anynet ●+ (HDMI-CEC) is set to On in the Anynet+

setup menu.

Check whether the TV remote control is in TV mode. ●

Check whether it is Anynet ●+ exclusive remote control.

Anynet ●+ doesn’t work in certain situations. (Searching channels,

Operating, Plug & Play, etc.)

When connecting or removing the HDMI 1.3 cable, please make ●

sure to search devices again or turn your TV off and on again.

Check if the Anynet ●+ Function of Anynet+ device is set on.

I want to start Anynet+.Check if the Anynet ●+ device is properly connected to the TV and

check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+

Setup menu.

Press the TV button on the TV remote control to switch to TV. ●

Then press the TOOLS button to show the Anynet+ menu and

select a menu you want.

I want to exit Anynet+.Select View TV in the Anynet ●+ menu.

Press the SOURCE button on the TV remote control and select ●

a device other than Anynet+ devices.

Press ●

z

, CH LIST, PRE-CH, and FAV.CH to change

the TV mode. (Note that the channel button operates only when

a tuner-embedded Anynet+ device is not connected.)

The message Connecting

to Anynet+ device...

appears on the screen.

You cannot use the remote control when you are conguring ●

Anynet+ or switching to a view mode.

Use the remote control when the Anynet ●+ setting or switching to

view mode is complete.

The Anynet+ device does

not play.

You cannot use the play function when Plug & Play is in ●

progress.

The connected device is

not displayed.

Check whether or not the device supports Anynet ●+ functions.

Check whether or not the HDMI 1.3 cable is properly connected. ●

Check whether Anynet ●+ (HDMI-CEC) is set to On in the Anynet+

setup menu.

Search Anynet ●+ devices again.

You can connect an Anynet ●+ device using the HDMI 1.3 cable

only. Some Some HDMI cables may not support Anynet+

functions.

If it is terminated by an abnormal situation such as disconnecting ●

the HDMI cable or power cord or a power failure, please repeat

the device scan.

The TV program cannot

be recorded.

Check whether the antenna jack on the recording device is ●

properly connected.

The TV sound is not

output through the

receiver.

Connect the optical cable between TV and the receiver. ●

English - 32

INSTALLING THE SOFTWARE

Installing the Device Driver ¦

If you install the device driver, you can set up the appropriate resolution and frequency for Nthe product. The device driver isincluded on the CD supplied with the product. If the supplied

drive le is corrupted, please visit the Samsung Electronicswebsite (www.samsung.com), and

download the driver.

1. Insert the driver installation CD into the CD-ROM drive.

2. Click on Windows Driver.

3. Select the model of your product from the model list.

SAMSUNG monitor installer

Select the display adapter on which you want to intall the monitor

1.RADEON 9550 : Plug and Play Monitor

Select the monitor which you want to install

Samsung

....

Samsung

....

OK

CANCEL

4. Complete the remaining installation steps according to the instructions displayed on the screen.

5. Check if the appropriate resolution and screen refresh rate are displayed in the Control Panel

settings. For more information,refer to the document about the Windows operating system.

Natural Color ¦

This software is for Samsung products only and enables you to adjust the displayed colors on the

product so they more closely match the colors of printed pictures. For more information, refer to the

online help of the software (F1).

Natural Color is provided online. You can download it from the website below and install; Nhttp://www.samsung.com/us/consumer/learningresources/monitor/naturalcolorexpert/pop_

download.html

English - 33

MultiScreen ¦

MultiScreen enables you to partition multiple sections on the Monitor.

Installing the Software ●

1. Insert the installation CD into the CD-ROM drive.

2. Select the MultiScreen setup program.

If the pop-up screen for the software installation does not appear on the main screen, nd Nand double-click the MultiScreen setup le on the CD-ROM.

3. When the Installation Wizard appears, click [Next].

4. Complete the remaining software installation steps according to the instructions displayed on

the screen.

The software may not work properly if you do not restart the computer after the installation. N

The MultiScreen icon may not appear depending on the computer system and the product Nspecications.

If the shortcut icon does not appear, press the F5 key. N

MultiScreen Installation Requirements ●

The MultiScreen installation may be affected by the graphics card, motherboard and the

networking environment.

Operating System ●

OS

• Windows 2000

• Windows XP Home Edition

• Windows XP Professional

• Windows Vista

For MultiScreen, Windows 2000 or later operating systems are recommended. N

Hardware • At least 32MB of memory

• At least 60MB of free space on the hard disk drive

Removing the Software ❑

Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs].

Select MultiScreen from the program list and click the [Add/Delete] button.

English - 34

APPENDIX

TV Monitor Self-Diagnosis ¦

You can check if the product is working properly using the Self-Diagnosis function. N

If a blank screen is displayed and the Power LED blinks even if the product and the PC are Nproperly connected, perform the selfdiagnosis function according to the procedures below.

1. Turn the product and the PC off.

2. Remove the D-Sub cable from the product.

3. Turn the product on.

4. If the product is working properly, the <Check Signal Cable> message appears.

In this case, if a blank screen is displayed again, make sure that there is no problem with the PC

and the connection.

Troubleshooting ¦

If the TV seems to have a problem, rst try this list of possible problems and solutions. If none of

these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG.

Problem Possible Solution

Poor picture. Try another channel. / Adjust the antenna. / Check all wire

connections.

Poor sound quality. Try another channel. / Adjust the antenna.

No picture or sound. Try another channel. / Press the SOURCE button.

Make sure the TV is plugged in. / Check the antenna

connections.

No sound or sound is too low at

maximum volume.

First, check the volume of units connected to your TV

(digital broadcasting receiver, DVD, cable broadcasting

receiver, VCR, etc.). Then, adjust the TV volume

accordingly.

The TV operates erratically. Unplug the TV for 30 seconds, then try operating it again.

The TV won’t turn on. Make sure the wall outlet is working.

Remote control malfunctions. Replace the remote control batteries.

Clean the upper edge of the remote control (transmission

window).

Check the battery terminals.

‘Check signal cable’ message. Ensure that the signal cable is rmly connected to the PC

and DVI source.

‘Not Supported Mode’ message. Check the maximum resolution and connected device’s

Video frequency.

Compare these values with the data in the Display Modes.

Digital broadcasting screen

problem.

Please check the digital signal strength and input antenna.

The image is too light or too dark. Adjust the Brightness and Contrast. / Adjust the Fine

tuning.

English - 35

Problem Possible Solution

Black bars on the screen.

Make sure the broadcast you’re receiving is High Denition (HD).

HD channels sometimes broadcast Standard Denition

(SD) programming, which can cause black bars.

Set your cable/satellite box to stretch or widescreen mode

to eliminate the bars.

Picture has a Red/Green or Pink tint.

Make sure the Component cables are connected to the correct jacks.

Closed Captioning not working. If you are using a Cable/Satellite box, you must set Closed

Captioning on the box, not your TV.

Snowy picture. Your cable box may need a rmware upgrade. Please

contact your Cable company.

Ghosting on picture.

This is sometimes caused by compatibility issues with your cable box.

Try connecting Component cables instead.

Screen is black and power indicator

light blinks steadily.

On your computer check: Power, Signal Cable.

The TV is using its power management system.

Move the computer's mouse or press any key on the keyboard.

Image is not stable and may

appear to vibrate when you have

a computer connected to the PC

input.

If the setting is not correct, use your computer utility

program to change the display settings.

Your TV supports multiscan display functions within the

following frequency domain:

- Horizontal frequency (kHz): 30 ~ 81 kHz

- Vertical frequency (Hz): 56 ~ 75 Hz

- PC Maximum refresh rate (at 60 Hz): 1360 X 768

Image is not centered on the

screen.

Adjust the horizontal and vertical position.

The screen position must be adjusted on the output source

(i.e. STB) with a digital signal.

The picture appears distorted in the

corner of the screen.

If “Screen Fit” is selected with some external devices, the

picture may appear distorted in the corner of the screen.

This symptom is caused by the external devices, not TV.

The ‘Resets all settings to the

default values.’ message appears.

This appears when you press and hold the EXIT button for a

while. The product settings are reset to the factory defaults.

This TFT LCD panel uses a panel consisting of sub pixels (3,133,440) which require Nsophisticated technology to produce. However, there may be few bright or dark pixels on the

screen. These pixels will have no impact on the performance of the product.

English - 36

FAQ ¦

FAQ PLEASE TRY THE FOLLOWING!

How can I change the frequency of

the video signal?

You have to change the frequency of the graphics card.

(For more information, refer to the User Manual of the

computer or thegraphics card.)

How can I change the resolution? Windows XP: Change the resolution by selecting Control

Panel→Appearance and Themes→Display→Settings.

Windows ME/2000 : Change the resolution by selecting Control

Panel→Appearance and Themes→Display→Settings.

(For more information, refer to the User Manual of the

computer or thegraphics card.)

How can I use the power saving

function?

Windows XP: Congure it by selecting Control

Panel→Appearance and Themes→Display→Screen Saver

Setting or congure it in the BIOS SETUP of the computer.

Windows ME/2000 : Congure it by selecting Control

Panel→Appearance and Themes→Display→Screen Saver

Setting or congure it in the BIOS SETUP of the computer.

For more information, refer to the Windows user manual for

the computer.

How can I clean the outer case/

LCD Panel?

Disconnect the power cord and then clean the monitor with

a soft, dry or slightly damp cloth.

Do not leave any detergent or scratches on the case.

Do not let any water enter the monitor.

Can I watch digital TV broadcasting

with an analog TV?

No.

The analog TV cannot interpret digital signals. Therefore, a

digital TV is required to watch digital TV broadcasting.

Can I use my present antenna to

receive digital broadcasting?

As for existing analog TV, digital TV is designed so that

digital broadcasting signals are received via both indoor

and outdoor antennas.

If signal reception is very good in your environment, you

can watch digital broadcasts with your existing indoor

antenna. If not, it is better to install an outdoor antenna.

English - 37

Installing the Stand ¦

1

2

3

1. Place the front of the TV onto a soft cloth or cushion on a table.

Align the TV bottom along the table edge. N

2. Insert the Stand Connector into the Stand in the direction shown by the gure.

3. Turn the connecting screw at the bottom of the stand fully so that it is completely xed.

Disconnecting the Stand ¦

1

2

1. Place the front of the TV onto a soft cloth or cushion on a table.

Align the TV bottom along the table edge. N

2. Turn the connecting screw at the bottom of the stand to separate it.

Do not lift the product holding only the stand. N

English - 38

WallMountKitSpecications(VESA) ¦

Install your wall mount on a solid wall perpendicular to the

oor. When attaching to other building materials, please

contact your nearest dealer. If installed on a ceiling or slanted

wall, it may fall and result in severe personal injury.

When purchasing our wall mount kit, a detailed installation Nmanual and all parts necessary for assembly are

provided.

Do not use screws longer than the standard dimension, Nas they may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA Nstandard screw specications, the length of the screws

may differ depending on their specications.

Do not use screws that do not comply with the VESA standard screw specications. N

Do not fasten the screws too strongly, this may damage the product or cause the product to fall, Nleading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specied Nwall mount is used or the consumer fails to follow the product installation instructions.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal

injury due to electric shock.

Using the Anti-Theft Kensington Lock ¦

The Kensington Lock is a device used to physically x the

system when using it in a public place. The appearance and

locking method may differ from the illustration depending on the

manufacturer.

Refer to the manual provided with the Kensington Lock for

proper use. The locking device has to be purchased separately.

The location of the Kensington Lock may be different Ndepending on its model.

1. Insert the locking device into the Kensington slot on the LCD TV (

1

) and turn it in the locking

direction (

2

).

2. Connect the Kensington Lock cable (

3

).

3. Fix the Kensington Lock to a desk or a heavy stationary object.

ANT IN

HDMI IN

AV IN

- AUDIO -VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

3

1

2

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

ANT IN

HDMI IN

AV IN

- AUDIO -VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

ANT IN

HDMI IN

AV IN

- AUDIO - VIDEO

RL

PC IN

HDMI / PC

AUDIO IN

POWER

75 mm (2.95 inches)

75 mm (2.95 inches)

English - 39

Securing the Installation Space ¦

Keep the required distances between the product and other objects (e.g. walls) to ensure proper

ventilation.

Failing to do so may result in re or a problem with the product due to an increase in the internal

temperature of the product.

Install the product so the required distances shown in the gure are kept.

When using a stand or wall-mount, use parts provided by Samsung Electronics only. N

If you use parts provided by another manufacturer, it may result in a problem with the –

product or an injury due to the product falling.

If you use parts provided by another manufacturer, it may result in a problem with the –

product or re due to an increase in the internal temperature of the product due to poor

ventilation.

The appearance may differ depending on the product. N

When installing the product with a stand

When installing the product with a wall-mount

10 cm (3.9 inches) 10 cm (3.9 inches)

10 cm (3.9 inches)

10 cm

(3.9 inches) 10 cm

(3.9 inches)

10 cm

(3.9 inches

)

10 cm

(3.9 inches

)

English - 40

Specications ¦

Model Name 933HD Plus

Screen Size

Diagonal 18.5 inches (47 cm)

Display area 409.8 mm (H) x 230.4 mm(V) (16.13 inches X 9.07 inches)

Pixel Pitch 0.3 mm (H) x 0.3 mm (V) (0.01 inches X 0.01 inches)

Display Color 16.7M

Maximum Pixel Clock 85.000 MHz (Analog, Digital)

Power Supply

This product supports 100 – 240 V. Since the standard voltage

may differ from country to country, please check the label on the

back of the product.

PC Resolution 1360 X 768 @ 60 Hz

Sound

Output 3W x 2

Dimensions (WxDxH)

Body

With stand

454.5 x 307 x 67.5 mm ( 17.9 x 12.1 x 2.7 inches)

454.5 x 353.5 x 177 mm ( 17.9 x 14.0 x 7.0 inches)

Weight

With Stand 4.0 kg ( 8.8 lbs)

Environmental Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

50°F to 104°F (10°C to 40°C)

10% to 80%, non-condensing

-4°F to 113°F (-20°C to 45°C)

5% to 95%, non-condensing

VESA Mounting Interface 75 mm x 75 mm (2.95 x 2.95 inches)

Design and specications are subject to change without prior notice. N

This device is a Class B digital apparatus. N

For the power supply and Power Consumption, refer to the label attached to the product. N

Power Saving Function ¦

This product provides a power saving function that automatically turns the screen off when the product

is not used for a predetermined period of time to reduce power consumption. If the product enters

power saving mode, the power LED turns to a different color to indicate that the product is in power

saving mode.When the product is in power saving mode, the power is not turned off and you can turn

the screen on again by pressing any key or clicking the mouse. However, the power saving function

only works when the product is connected to a computer that provides the power saving function.

POWER SAVING

FUNCTION NORMAL OPERATION POWER SAVING

MODE

POWER OFF

(POWER BUTTON)

Power LED On Blinks Off

Power Consumption 34 watts less than 2 watts less than 1 watts

If there is no power cut-off switch, the power consumption is “0” only when the power cord is disconnected. N

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer

care center.

Country Customer Care Center Web Site

ARGENTINA 0800-333-3733 www.samsung.com/ar

BRAZIL 0800-124-421

4004-0000 www.samsung.com/br

CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl

COLOMBIA 01-8000112112 www.samsung.com.co

COSTA RICA 0-800-507-7267 www.samsung.com/latin

ECUADOR 1-800-10-7267 www.samsung.com/latin

EL SALVADOR 800-6225 www.samsung.com/latin

GUATEMALA 1-800-299-0013 www.samsung.com/latin

HONDURAS 800-7919267 www.samsung.com/latin

JAMAICA 1-800-234-7267 www.samsung.com/latin

PANAMA 800-7267 www.samsung.com/latin

PUERTO RICO 1-800-682-3180 www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 www.samsung.com/latin

NICARAGUA 00-1800-5077267 www.samsung.com/latin

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx

TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin

VENEZUELA 0-800-100-5303 www.samsung.com/latin

IMPORTADO POR:

AV. PRESIDENTE MASARIK #111 INT701

COL. CHAPULTEPEC MORALES C.P.11570

DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL

Tel: 01-55-5747-5100 / 01-800-726-7864
