COLOR TELEVISION RECEIVER

Chassis : KS3A(P)_50Hz(REV. 4)

Model : WS28V53NS8XXEC

WS28V55VS8XXEC

WS32V56VS8XXEC

COLOR TELEVISION RECEIVER CONTENTS

Precautions

Reference Information

Specifications

Alignment and Adjustments

Troubleshooting

Exploded Views and Parts List

Electrical Parts List

Block Diagrams

Wiring Diagram

Schematic Diagrams

10.

1. Precautions

1-1 Safety Precautions

1. Be sure that all of the built-in protective

devices are replaced. Restore any missing

protective shields.

2. When reinstalling the chassis and its

assemblies, be sure to restore all protective

devices, including: nonmetallic control knobs

and compartment covers.

3. Make sure that there are no cabinet openings

through which people—particularly

children—might insert fingers and contact

dangerous voltages. Such openings include

the spacing between the picture tube and the

cabinet mask, excessively wide cabinet

ventilation slots, and improperly fitted back

covers.

If the measured resistance is less than 1.0

megohm or greater than 5.2 megohms, an

abnormality exists that must be corrected

before the unit is returned to the customer.

4. Leakage Current Hot Check (Figure 1-1):

Warning: Do not use an isolation

transformer during this test. Use a leakage-

current tester or a metering system that

complies with American National Standards

Institute (ANIS C101.1, Leakage Current for

Appliances), and Underwriters Laboratories

(UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug

the AC line cord directly into the power

outlet. With the unit’s AC switch first in the

ON position and then OFF, measure the

current between a known earth ground (metal

water pipe, conduit, etc.) and all exposed

metal parts, including: antennas, handle

brackets, metal cabinets, screwheads and

control shafts. The current measured should

not exceed 0.5 milliamp. Reverse the power-

plug prongs in the AC outlet and repeat the

test.

Fig. 1-1 AC Leakage Test

6. Antenna Cold Check:

With the unit’s AC plug disconnected from the

AC source, connect an electrical jumper across

the two AC prongs. Connect one lead of the

ohmmeter to an AC prong. Connect the other

lead to the coaxial connector.

7. X-ray Limits:

The picture tube is especially designed to

prohibit X-ray emissions. To ensure continued

X-ray protection, replace the picture tube only

with one that is the same type as the original.

Carefully reinstall the picture tube shields and

mounting hardware; these also provide X-ray

protection.

8. High Voltage Limits:

High voltage must be measured each time

servicing is done on the B+, horizontal

deflection or high voltage circuits.

Correct operation of the X-ray protection

circuits must be reconfirmed whenever they

are serviced.

(X-ray protection circuits also may be called

“horizontal disable” or “hold-down”.)

Heed the high voltage limits. These include

the X–ray Protection Specifications Label, and

the Product Safety and X-ray Warning Note on

the service data schematic.

Precautions

Samsung Electronics 1-1

LEAKAGE

CURRENT

TESTER

DEVICE

UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED) EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0.5mA)

Follow these safety, servicing and ESD precautions to prevent damage and protect against potential

hazards such as electrical shock and X-rays.

1-1 Safety Precautions (Continued)

9. High voltage is maintained within specified

limits by close-tolerance, safety-related

components and adjustments. If the high

voltage exceeds the specified limits, check

each of the special components.

10. Design Alteration Warning:

Never alter or add to the mechanical or

electrical design of this unit. Example: Do not

add auxiliary audio or video connectors. Such

alterations might create a safety hazard. Also,

any design changes or additions will void the

manufacturer’s warranty.

11. Hot Chassis Warning:

Some TV receiver chassis are electrically

connected directly to one conductor of the AC

power cord. If an isolation transformer is not

used, these units may be safely serviced only

if the AC power plug is inserted so that the

chassis is connected to the ground side of the

AC source.

To confirm that the AC power plug is inserted

correctly, do the following: Using an AC

voltmeter, measure the voltage between the

chassis and a known earth ground. If the

reading is greater than 1.0V, remove the AC

power plug, reverse its polarity and reinsert.

Re-measure the voltage between the chassis

and ground.

12. Some TV chassis are designed to operate with

85 volts AC between chassis and ground,

regardless of the AC plug polarity. These units

can be safely serviced only if an isolation

transformer inserted between the receiver and

the power source.

13. Some TV chassis have a secondary ground

system in addition to the main chassis ground.

This secondary ground system is not

isolated from the AC power line. The two

ground systems are electrically separated by

insulating material that must not be defeated

or altered.

14. Components, parts and wiring that appear to

have overheated or that are otherwise

damaged should be replaced with parts that

meet the original specifications. Always

determine the cause of damage or

overheating, and correct any potential

hazards.

15. Observe the original lead dress, especially

near the following areas: Antenna wiring,

sharp edges, and especially the AC and high

voltage power supplies. Always inspect for

pinched, out-of-place, or frayed wiring. Do

not change the spacing between components

and the printed circuit board. Check the AC

power cord for damage. Make sure that leads

and components do not touch thermally hot

parts.

16. Picture Tube Implosion Warning:

The picture tube in this receiver employs

“integral implosion” protection. To ensure

continued implosion protection, make sure

that the replacement picture tube is the same

as the original.

17. Do not remove, install or handle the picture

tube without first putting on shatterproof

goggles equipped with side shields. Never

handle the picture tube by its neck. Some

“in-line” picture tubes are equipped with a

permanently attached deflection yoke; do not

try to remove such “permanently attached”

yokes from the picture tube.

18. Product Safety Notice:

Some electrical and mechanical parts have

special safety-related characteristics which

might not be obvious from visual inspection.

These safety features and the protection they

give might be lost if the replacement

component differs from the original—even if

the replacement is rated for higher voltage,

wattage, etc.

Components that are critical for safety are

indicated in the circuit diagram by shading,

( ) or ( ).

Use replacement components that have the

same ratings, especially for flame resistance

and dielectric strength specifications.

A replacement part that does not have the

same safety characteristics as the original

might create shock, fire or other hazards.

Precautions

1-2 Samsung Electronics

1-2 Servicing Precautions

1. Servicing precautions are printed on the

cabinet. Follow them.

2. Always unplug the unit’s AC power cord from

the AC power source before attempting to:

(a) Remove or reinstall any component or

assembly, (b) Disconnect an electrical plug or

connector, (c) Connect a test component in

parallel with an electrolytic capacitor.

3. Some components are raised above the printed

circuit board for safety. An insulation tube or

tape is sometimes used. The internal wiring is

sometimes clamped to prevent contact with

thermally hot components. Reinstall all such

elements to their original position.

4. After servicing, always check that the screws,

components and wiring have been correctly

reinstalled. Make sure that the portion around

the serviced part has not been damaged.

5. Check the insulation between the blades of the

AC plug and accessible conductive parts

(examples: metal panels, input terminals and

earphone jacks).

6. Insulation Checking Procedure: Disconnect the

power cord from the AC source and turn the

power switch ON. Connect an insulation

resistance meter (500V) to the blades of the AC

plug.

The insulation resistance between each blade

of the AC plug and accessible conductive parts

(see above) should be greater than 1 megohm.

7. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of

its assemblies) unless all solid-state heat sinks

are correctly installed.

8. Always connect a test instrument’s ground

lead to the instrument chassis ground before

connecting the positive lead; always remove

the instrument’s ground lead last.

Precautions

Samsung Electronics 1-3

Warning1: First read the “Safety Precautions” section of this manual. If some unforeseen circumstance creates a conflict between

the servicing and safety precautions, always follow the safety precautions.

Warning2: An electrolytic capacitor installed with the wrong polarity might explode.

1. Some semiconductor (“solid state”) devices

are easily damaged by static electricity. Such

components are called Electrostatically

Sensitive Devices (ESDs); examples include

integrated circuits and some field-effect

transistors. The following techniques will

reduce the occurrence of component damage

caused by static electricity.

2. Immediately before handling any semicon

ductor components or assemblies, drain the

electrostatic charge from your body by

touching a known earth ground. Alternatively,

wear a discharging wrist-strap device. (Be

sure to remove it prior to applying power—

this is an electric shock precaution.)

3. After removing an ESD-equipped assembly,

place it on a conductive surface such as

aluminum foil to prevent accumulation of

electrostatic charge.

4. Do not use freon-propelled chemicals. These

can generate electrical charges that damage

ESDs.

5. Use only a grounded-tip soldering iron when

soldering or unsoldering ESDs.

6. Use only an anti-static solder removal device.

Many solder removal devices are not rated as

“anti-static”; these can accumulate sufficient

electrical charge to damage ESDs.

7. Do not remove a replacement ESD from its

protective package until you are ready to

install it. Most replacement ESDs are

packaged with leads that are electrically

shorted together by conductive foam,

aluminum foil or other conductive materials.

8. Immediately before removing the protective

material from the leads of a replacement ESD,

touch the protective material to the chassis or

circuit assembly into which the device will be

installed.

9. Minimize body motions when handling

unpackaged replacement ESDs. Motions such

as brushing clothes together, or lifting a foot

from a carpeted floor can generate enough

static electricity to damage an ESD.

Precautions

1-4 Samsung Electronics

1-3 Precautions for Electrostatically Sensitive Devices (ESDs)

Reference Information

Samsung Electronics 2-1

2. Reference Information

2-1 Tables of Abbreviations and Acronyms

dBm

°C

°F

°K

GHz

ips

kWh

kHz

kΩ

km/h

kVA

MHz

Ampere

Ampere-hour

Angstrom

Decibel

Decibel Referenced to One

Milliwatt

Degree Celsius

Degree Fahrenheit

degree Kelvin

Farad

Gauss

Gigahertz

Gram

Henry

Hertz

Hour

Inches Per Second

Kilowatt-hour

Kilogram

Kilohertz

Kilohm

Kilometer

Kilometer Per Hour

Kilovolt

Kilovolt-ampere

Kilowatt

Liter

Megahertz

MΩ

µA

µF

µH

µm

µs

µW

Ω

rpm

rps

Megavolt

Megawatt

Megohm

Meter

Microampere

Microfarad

Microhenry

Micrometer

Microsecond

Microwatt

Milliampere

Milligram

Millihenry

Milliliter

Millimeter

Millisecond

Millivolt

Nanofarad

Ohm

Picofarad

Pound

Revolutions Per Minute

Revolutions Per Second

Second (Time)

Volt

Volt-ampere

Watt

Watt-hour

Table 2-1 Abbreviations

Reference Information

2-2 Samsung Electronics

Table 2-2 Table of Acronyms

ABL

ACC

AFC

AFT

AGC

ANSI

APC

A/V

AVC

BAL

BPF

B-Y

CATV

CCD

CCTV

CRT

DVM

EIA

ESD

FBP

FBT

GND

G-Y

HI-FI

Automatic Brightness Limiter

Alternating Current

Automatic Chroma Control

Audio Frequency

Automatic Frequency Control

Automatic Fine Tuning

Automatic Gain Control

Amplitude Modulation

American National Standards Institute

Automatic Phase Control

Automatic Picture Control

Audio-Video

Automatic Volume Control

Balance

Bandpass Filter

Blue-Y

Community Antenna Television (Cable TV)

Citizens Band

Charge Coupled Device

Closed Circuit Television

Channel

Cathode Ray Tube

Continuous Wave

Direct Current

Digital Volt Meter

Electronics Industries Association

Electrostatic Discharge

Electrostatically Sensitive Device

Feedback Pulse

Flyback Transformer

Flip-Flop

Frequency Modulation

Fail Safe

Ground

Green-Y

High

High-Frequency

High Fidelity

Inductance-Capacitance

Integrated Circuit

Intermediate Frequency

I/O

LED

MOSFET

MTS

NAB

NEC

NTSC

OSD

PCB

PLL

PWM

QIF

R-Y

SAP

SAW

SIF

SMPS

S/N

TTL

UHF

VCD

VCO

VCXO

VHF

VIF

VTR

VTVM

Input/output

Left

Low

Light Emitting Diode

Low Frequency

Metal-Oxide-Semiconductor-Field-Effect-Tr

Multi-channel Television Sound

National Association of Broadcasters

National Electric Code

National Television Systems Committee

On Screen Display

Printed Circuit Board

Phase-Locked Loop

Pulse Width Modulation

Quadrature Intermediate Frequency

Right

Resistor & Capacitor

Radio Frequency

Red-Y

Second Audio Program

Surface Acoustic Wave(Filter)

Sound Intermediate Frequency

Switching Mode Power Supply

Signal/Noise

Switch

Test Point

Transistor Transistor Logic

Television

Ultra High Frequency

Underwriters Laboratories

Ultraviolet

Variable-Capacitance Diode

Voltage Controlled Oscillator

Voltage Controlled Crystal Oscillator

Very High Frequency

Video Intermediate Frequency

Variable Resistor

Video Tape Recorder

Vacuum Tube Voltmeter

Transistor

Table 2 - 3 IC Line - Up

DESCRIPTION

Video Processor

Multistandard Sound Processor

MICOM, TTX(MTP)

EEPROM

Audio AMP

RGB Drive AMP Hybrid IC

Vertical IC

Horizontal Drive IC

E/W Drive IC

SPS Controllor

Bridge Diode

Photo Coupler

5V Controlled Regulator

Rectifier Diode

3.3V Regulator

6V Regulator

8V Controlled Regulator

3.3V Regulator

MICOM Reset IC

IIC Level Shifter

Reference Information

Samsung Electronics 2-3

2-2 IC Line Up

LOC. NO

IC201S

IC601

IC901

IC902

IC602

HIC201

HIC202

HIC203

HIC204

IC301

Q402

Q401

D414

IC401

Q404

IC801S

D801S

PC801S

IC802

D805

D806

D807

D802

IC201

IC804

IC803

IC903

IC904

Q909

Q910

BOARD

MAIN

SPEC

VDP3130Y

MSP3411G

SDA555X

KS24L161

TDA7297

DRGB001

LA7845

KSC2073-H2

KSD5703

FMP-3FU

KA393

IRF620

3S1265RB

3S1265RD

RBV606

PC123Y

KA78R05

FML-G12S

FMG-G2CS

KA78RM33

KA7806

KA78R08

KA78RM33

KIA7025AP

2N700

REMARK

Refer to Table 2-3-1

Refer to Table 2-3-2

Refer to Table 2-3-3

VM Option

HC401

HC801

2-4 Samsung Electronics

Table 2 - 3 IC Line - Up

DESCRIPTION

Video Output AMP R.G.B Drive

Push-Pull (VM)

TR-Power (TILT)

OP-AMP (TILT)

OP-AMP

TR-Power

Video Switching IC with Adder Output

High-end Picture-In Picture IC

1-TUNER PIP

3.3V Regulator

LOC. NO

TU01S

TU02S

IC501

IC502

IC503

QF04

QF05

QG02

QG03

ICG01

ICH01

QH01

ICS01

ICP01

ICP02

SPEC

TCL3101PD09A9(S)

TDA5109

TDA6101Q

2SC2344

2SA1011

KSA940

KSD2073-H2

KA4558

2SC4636RB

TEA6425

SDA9489X

SDA9489

EZ1086CM

REMARK

Refer to Table 2-3-4

Refer to Table 2-3-5

FLAT

Option

BOARD

CRT

DOUBLE

FOCUS

V-S/W

PIP

Reference Information

SPEC

VDP3108B

VDP3112B

VDP3120B

VDP3130Y

FUNCTION

50Hz Basic

50Hz, 2H Comb Filter

50Hz, 2H Comb Filter, Horizontal Scaler

50Hz, 2H Comb Filter, DVD Input

REMARK

Table 2-3-1 VIDEO IC (IC201S)

SPEC

MSP3400D

MSP3410D

MSP3411G

FUNCTION

Multistandard, A2 Stereo

Multistandard, A2 Stereo, Nicam

Multistandard, A2 Stereo, Nicam, Vitual Dolby

REMARK

Table 2-3-2 SOUND IC (IC601)

Reference Information

Samsung Electronics 2-5

SPEC

TDA7297

FUNCTION

15W x 2CH, 10W x 2CH

REMARK

SPEC

TCLS3101PD09A(S)

TCPS3000P

TCPS3001PD09E(S)

TCPW3001PD09A(S)

TCL3101PD16A

FUNCTION

CS with LNA Function

CZ, CW

REMARK

Main(Old)

India

Main(New)

SPEC

TCPS3000PC09B(S)

TCPS3000PC16B

FUNCTION

REMARK

Sub(Old()

Sub(New)

TCPS3001PD09A(S) is out-of-date, TCPS3001PD09D(S) which is up-to-date has the same function.

Table 2-3-3 SOUND AMP (IC602)

Table 2-3-4 1’st TUNER (TU01S)

Table 2-3-5 2’nd TUNER (TU02S)

Note

2-6 Samsung Electronics

MEMO

Specifications

Samsung Electronics 3-1

3. Specifications

Specifications are subject to change.

Television

System

Antena Input

Power

Consumption

Requirements

Frequency

Sound

Output

Effect

Jacks

Front

(AV2)

Back

PAL/SECAM-B/G,D/K,L,I, NTSC-M

130W (Applied When 29” Flat)

220V Only

Free Voltage

50/60Hz

15W x 2CH

10W x 2CH

5W x 2CH

Virtual Dolby

Turbo Sound

Pseudo Stereo

RCA Input

S-VHS

Head-Phone

RCA99(AV2 Input/Out)

2Scart Input/Output

DVD Input(YPbPr)

AV2 Monitor Audio Output

S-VHS

75ohms, Coaxial Cable

Not Present R815

Option

AV1 : Scart I/O, RGB Input,

RF Out

AV2 : Scart I/O, Monitor Out

Option

Function

NICAM

2 TUNER PIP

2 TUNER PIP, NICAM, TTX

2 TUNER PIP, A2 STEREO, TTX

2 TUNER PIP, A2 STEREO

2 TUNER MULTI PIP, A2 STEREO,

NICAM, TTX

A2 STEREO, TTX

1 TUNER PIP, A2 STEREO, TTX

NOTE

“NICAM” means that

A2 STEREO + NICAM

Specifications for Model Name (Ex. CS29A6??8X/HAC)

29 Inch

21 Inch

3-2 Samsung Electronics

MEMO

Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

4-1 General Alignment Instructions

1. Usually, a color TV-VCR needs only slight

touch-up adjustment upon installation. Check

the basic characteristics such as height,

horizontal and vertical sync and focus.

2. Observe the picture for good black and white

details. There should be objectionable color

shading; if color shading is present,

demagnetize, perform purity and convergence

adjustments described below.

3. Use the specified test equipment or its

equivalent.

4. Correct impedance matching is essential.

5. Avoid overload. Excessive signal from a

sweep generator might overload the front-end

of the TV. When inserting signal markers, do

not allow the marker generator to distort test

results.

6. Connect the TV only to an AC power source

with voltage and frequency as specified on the

backcover nameplate.

7. Do not attempt to connect or disconnect any

wires while the TV is turned on. Make sure

that the power cord is disconnected before

replacing any parts.

8. To protect against shock hazard, use an

isolation transformer.

4-2 Automatic Degaussing

A degaussing coil is mounted around the

picture tube, so that external degaussing after

moving the TV should be unnecessary. But

the receiver must be properly degaussed upon

installation.

The degaussing coil operates for about 1

second after the power is switched ON. If the

set is moved or turned in a different direction,

the power should be OFF for at least 10

minutes.

If the chassis or parts of the cabinet become

magnetized, poor color purity will result. If

this happens, use an external degaussing coil.

Slowly move the degaussing coil around the

faceplate of the picture tube and the sides and

front of the receiver. Slowly withdraw the coil

to a distance of about 6 feet before turning

power OFF.

If color shading persists, perform the

following Color purity and Convergence

adjustments.

4-3 High voltage Check

CAUTION : There is no high voltage adjustment

on this chassis. The B+ power supply should be

+135 volts (with full color- bar input and normal

picture level).

1. Connect a digital voltmeter to the second

anode of the picture tube.

2. Turn on the TV. Set the Brightness and

Contrast controls to minimum (zero beam

current).

3. Adjust the Brightness and contrast controls to

both extremes. Ensure that the high voltage

does not exceed 32 KV under any conditions.

Alignment and Adjustments

4-2 Samsung Electronics

4-5 SCREEN Adjustment

1. Input Toshiba Pattern

2. Enter “Service Mode”.(Refer to “Service Mode”)

3. Select “G2-Adjust”.

4. Set the values as example(Refer to page4-24).

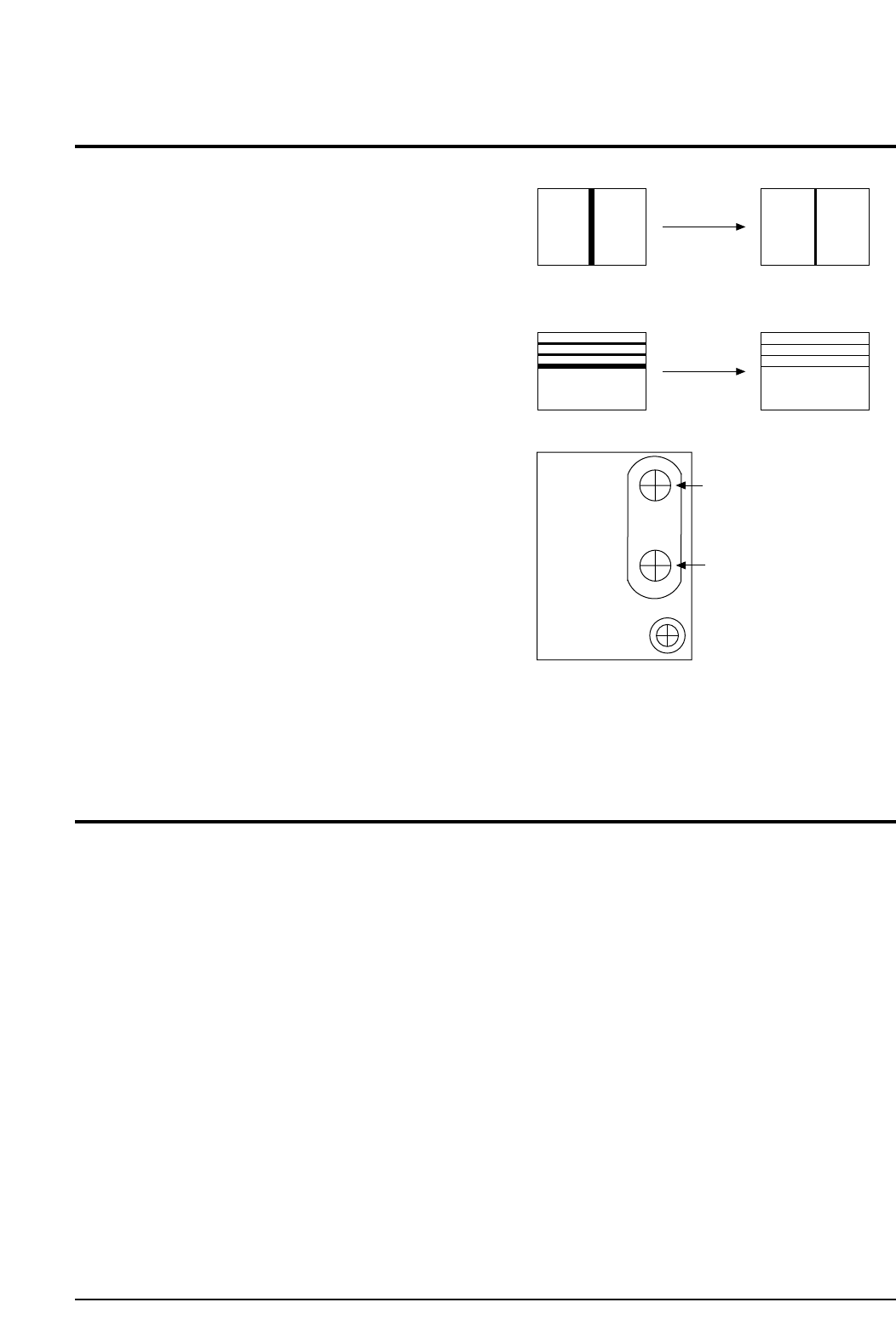

4-4 Dynamic Focus Adjustment

1. A dynamic focus adjustment should be done

after replacing the CRT PCB, FBT or CRT.

2. Input a crosshatch pattern.

3. Enter “ STANDARD “ in video mode.

4. Turn the Dynamic focus VR fully clockwise

(maximum).( )

5. Turn the Static focus VR fully

counterclockwise (maximum).( )

6. Slowly turn the static focus VR

counterclockwise. Adjust until the

vertical line in the middle of the screen

has maximum clarity.( )

7. Slowly turn the dynamic focus VR (clockwise)

and adjust the 3rd horizontal line for

maximum clarity.( )

8. Repeat 4-7, if necessary.

STATIC FOCUS VR

DYNAMIC FOCUS VR

SCREEN

❷

❶

❷

❶

❷

❶

❷

❶

ex) IBRM = 220

WDRV = 35

CDL = 220

COLR G B = 150 150 150

Alignment and Adjustments

Samsung Electronics 4-3

When you do not have Toshiba Pattern, follow this method.

1. Set the TV on the condition that AV mode no signal(black)

2. Enter the “Menu” and set the mode to blue screen off.

3. Enter the “Service Mode”.

4. Select “ G2-Adjust”.

5. Set the values as example(Refer to page4-24).

ex) IBRM = 220

WDRV = 35

CDL = 220

COLR G B = 150 150 150

6. Turn the SCREEN VR until the value of “ MRCR G B” is about 120. Do not mind that

the “OSD” Color is red.

■ After completing G2-Adjust, follow this procedure.

① Enter the “Video Adjust 1”.

➁ Choose any item in menu. (ex. Select “Red Cutoff”)

➂ Change the value of item you select, and recover the value.

For example, when the value of “Red Cutoff” is 127, change the value to 128 and restore

the value to 127.

If you do not follow this procedure, the picture may be abnormal.

For example, when the TV set is on, the picture becames brighter gradually.

Note 1.

5. Turn the SCREEN VR until “MRCR G B” and “MRWDG” are green and those value are about 100.

(The incorrect SCREEN Voltage may result that “MRCR G B” and “MRWDG” should be red)

Alignment and Adjustments

4-4 Samsung Electronics

4-6 E2PROM (IC902) Replacement

1. When IC902 is replaced, all adjustment data revert to the initial values.

So, all adjustment values when servicing should be readjusted.

2. After IC902 is replaced, connect the AC power supply cord.

3. Turn the power switch ON.

4. In stand-by, warm up the TV for at least 10 seconds.

5. Power on the TV.

4-7 White Balance Adjustment

■ Equipment : Color-Analyzer (CA-100)

■ Input Signal : Pattern signal (Toshiba pattern)

1. Select STANDARD from the menu.

2. Input an 100% White pattern.

3. Enter the “Service Mode”. (Refer to “4-8 Service Mode”)

4. Warm up the TV set at least for 30 minutes.

5. Input a Toshiba pattern signal.

6. Enter the “Video Adjust1”.

- Adjust “Sub Contrast” so that Y (luminance) becomes 40 ft ± 3.

- Use “Red Drive” and “ Blue Drive” to adjust High-Light (x : 290, y : 300)

- Adjust “Sub Bright” so that Y (luminance) becomes 1.3ft ± 0.3.

- Use “Red Cutoff” and “Blue Cutoff” to adjust Low-Light (x : 290, y : 300).

7. Adjust CA-100 so that the final adjustment value can be fixed.

8. Use the Channel Up/Down (▲/▼) buttons to move the cursor on the adjustment modes.

9. Use the Volume +/- buttons to change the adjustment value.

■SMPS Controller differentiol List

LOC.

DZ808

C811

C828

1265RD

1265RB

SPEC

MTZ8.28

47NF

221.50V

SPEC

MTZ8.28

47NF

221.50V

LOC.

DZ808

C811

C828

■ Background : It is occurred to service confusion

■ Cause : CRT Socket PCB change as CRT changing from Double Focus to Single Focus

■ How to service

Code : It is different to CRT Socket Code per focus type

Case :

1. Using CRT Socket PCB for Single Focus at CRT for Double Focus

(1) Change the CRT Socket in PCB(Single →Double).

(2) Cut the red-colored focus wire of FBT in set.

(3) Connect the wires at Focus terminal like picture #1 for short circuit using red-colored focos

wire of FTB.

2. Using CRT Socket PCB for Double Focus at CRT for Single Focus

(1) Change the CRT Socket in PCB(Double →Single).

(2) Cut the red-colored focus wire of FBT in set like picture #2.

❈ You mus tape the isolation parts for safety.

Alignment and Adjustments

Samsung Electronics 4-5

KS3A 29” Flat 50Hz, CRT Change(Double Focus →→Single Focu)

Note 2.

CRT Socket

For Double Focus

For Single Focus

Code No

3704-001032

3704-000114

Alignment and Adjustments

4-6 Samsung Electronics

4-8 Factory Adjustment

1. To enter the “Service Mode”, Press the remote-control keys in this sequence :

- If you do not have Factory remote-control

- If you have Factory remote-control

2. After the Service Mode is entered, the initial screen is as shown in the figure below.

Service

Deflection

Video Adjust 1

Video Adjust 2

Video Adjust 3

Option(81h 0Ch)

Reset

G2-Adjust

Others

3. Use the Channel Up/Down buttons to move the cursor in the adjustment parameters.

- When CRT, CRT PCB, FBT, E2PROM (sometimes MICOM) is replaced, the adjustment values

should be controlled.

- After the Service adjustment is completed, Do not select “Reset” in the service mode menu.

(After above procedure is done, power is on initially and the “Plug and Play” will be operated.)

PICTURE OFF PICTURE ON

DISPLAY() MENU MUTE

PICTURE ON DISPLAY() FACTORY

4-8-1 Service Mode

*These hexa digits are check sum value which

depends on the MICOM.

If check sum value is changed, the value of

E2PROM Data newly initialed.

Note 3.

Alignment and Adjustments

Samsung Electronics 4-7

4-8-2 Memory Data

4-8-2(A) DEFLECTION (GEOMETRIC ADJUSTMENT VALUE)

No.

OSD

V Amp

V Shift

V Slope

V SC

H EW

H Trapizium

H Parabola

H Symmetry

H Corner

H Shift

Zoom 4:3 Para

4:3~16:9 Para

Wide-4:3 Para

Wide-Zoom Para

Wide-Zoom2 Para

Zoom1 Amp

Zoom2 Amp

TTX Position

D-TTX Posi

RGB Shift

PIP Contrast

PIP Tint

PIP V.Move(VSPDEL)

PIP PAL V.Pos

PIP NTSC V.Pos

PIP H.Pos

PIP BLKLG

Function

Adjusts Vertical picture size. Adjust 4:4 upper and below picture size in

lion head pattern at factory.

Adjusts Vertical picture position

Adjusts Vertical Slope Correction

Adjusts Vertical s-correction

Horizontal east west width. Adjust 5:5 left and right picture size in lion

head pattern at factory.

Adjusts horizontal Trapezium.

Adjusts Horizontal Parabola.

Adjusts Picture upper and below horizontal Symmetry.

Adjusts Picture upper and below Horizontal Corner.After adjust the

Parabola, adjust H corner vertical Line upper and below has nonlinear.

Adjusts Horizontal Position.

Corrects the vertical linearity in Zoom mode of P-SIZE.

The data depends on CRT (see data above)

Corrects the vertical linearity in 16:9 mode of P-SIZE.

The data differs according to CRT (see data above).

Corrects the vertical linearity in wide mode of P-SIZE.

The data differs according to CRT (see data above).

Corrects the vertical linearity in wide mode of P-SIZE.

The data differs according to CRT (see data above).

Corrects the vertical linearity in wide mode of P-SIZE.

The data differs according to CRT (see data above).

Adjusts vertical amplitude in zoom1

Adjusts vertical amplitude in zoom2. Zoom2 mode is a manual zoom

mode

Sets TTX Position.

Double -TTX position.

Adjusts RGB input signal Horizontal position

Adjusts PIP contrast.

Adjusts PIP Tint. It is a function to control color phase of NTSC signal in

PIP

PIP vertical sync pulse delay. When changing data, PIP jitters at two

points.

In this case, the PIP VSPDEL is set to the center between two points.

Adjusts Vertical position of PIP in PAL system.

Adjusts Vertical position of PIP in NTSC system.

Adjusts Horizontal Position of the PIP.

PIP blanking level green(PIP low light white balance).

It is used to control low light white balance in PIP

Remark

Adjust

Fix

Adjust

Fix

Adjust

Fix

Adjust

Fix

Alignment and Adjustments

4-8 Samsung Electronics

21" 4:3

SED

RANGEOSD

INITIAL DATA

SIM-806EW1(SEH)

V Amp

V Shift

V Slope

V SC

H EW

H Trapizium

H Parabola

H Symmetry

H Corner

H Shift

Zoom 4:3 Para

4:3~16:9 Para

Wide-4:3 Para

Wide-Zoom Para

Wide-Zoom2 Para

Zoom1 Amp

Zoom2 Amp

TTX Position

D-TTX Posi

RGB Shift

0 ~ 255

107

126

127

166

161

142

162

29" 4:3

SED

Flat

125

126

113

225

118

209

139

134

-8

-20

24"

WIDE

Phi AK

103

125

133

123

137

103

136

-7

-25

24"

WIDE

Phi Invar

126

140

127

124

136

158

-7

-4

24"

WIDE

Tho Invar

124

133

134

138

139

146

-7

-5

28" 4:3

Tho

110

124

120

164

112

136

128

150

-1

28" 4:3

Phi

Invar

101

125

124

120

164

118

136

101

156

-11

28" 4:3

Tho

Invar

119

110

123

120

163

123

136

122

150

-11

21" 4:3

Tho

107

126

127

166

161

142

162

25" 4:3

SED/Tho

115

123

120

160

101

143

136

145

-20

Remarks

GEOM

FIX

GEOM

FIX

GEOM

FIX

28"

WIDE

Tho AK

RANGEOSD

SIM-806EW1(SEH) SIM-806EW1(HQ)

V Amp

V Shift

V Slope

V SC

H EW

H Trapizium

H Parabola

H Symmetry

H Corner

H Shift

Zoom 4:3 Para

4:3~16:9 Para

Wide-4:3 Para

Wide-Zoom Para

Wide-Zoom2 Para

Zoom1 Amp

Zoom2 Amp

TTX Position

D-TTX Posi

RGB Shift

0 ~ 255

121

133

123

113

139

109

146

-4

-5

-24

29"

Flat

100

120

124

110

200

120

140

150

140

-7

-3

21"

Flat

130

124

110

170

160

140

100

150

-7

25"

Flat

100

120

124

110

200

120

140

150

140

-7

-3

21"

Pin Free

118

127

110

194

177

134

160

-10

28"

WIDE

SED Flat

170

109

124

121

148

134

142

139

126

139

-10

-25

32"

WIDE

Pin Flat

126

170

128

140

147

32"

WIDE

Tho Flat

126

133

149

135

136

-7

-3

-5

-10

-5

-15

28"

WIDE

Tho Invar

100

126

133

190

113

136

113

149

-5

32"

WIDE

Tho Invar

100

126

133

190

110

139

114

140

-6

-3

-17

-10

-5

-15

Remarks

GEOM

FIX

GEOM

FIX

GEOM

FIX

Alignment and Adjustments

Samsung Electronics 4-9

29"

Flat/

DVD

RANGEOSD

INITIAL DATA

SIM-812MA3 SIM-

812MAD SIM-806MA3 SIM-

812EA1

SIM-

806EI1

V Amp

V Shift

V Slope

V SC

H EW

H Trapizium

H Parabola

H Symmetry

H Corner

H Shift

PIP Contrast

PIP Tint

PIP V.Move(VSPDEL)

PIP PAL V.Pos

PIP NTSC V.Pos

PIP H.Pos

PIP BLKLG

-30/55

-7

-3

-17

-47

-7

10/13

29"

Flat

-55

-7

-3

-17

-47

-7

29"

Flat

-65

-7

-3

-15

-47

-7

29"

Flat

-45

-2

-3

-17

-34

-10

29"

Flat

-55

-7

-3

-17

-47

-7

34"

Flat

-22

-7

-15

-8

-22

-6

-8

-13

CIS

29"

Flat

-30

-7

-3

-17

-47

-7

CIS 29"

Flat SKD

CKD

-30

-7

-3

-17

-47

-7

Remarks

GEOM

FIX

GEOM

FIX

GEOM

FIX

Alignment and Adjustments

4-10 Samsung Electronics

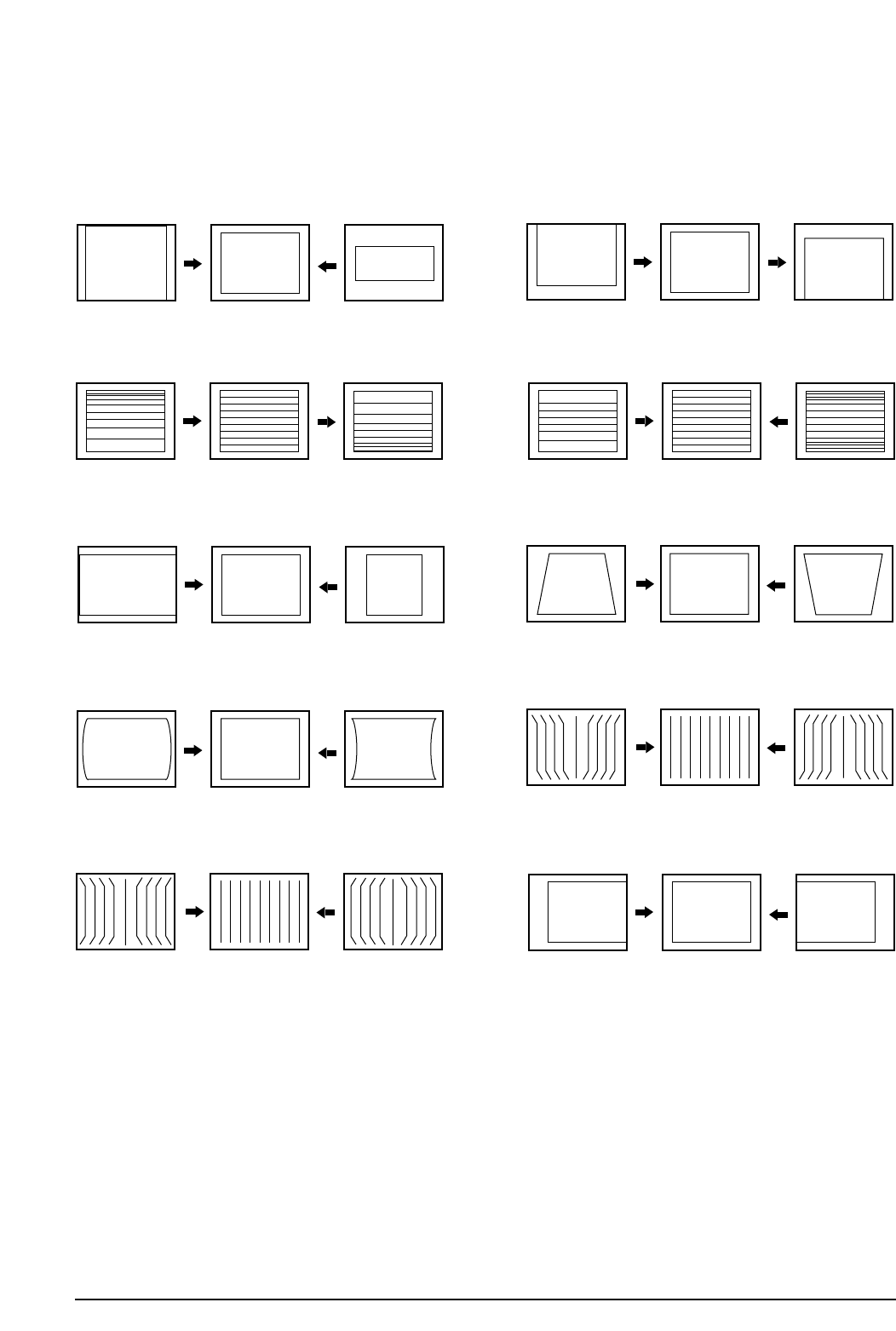

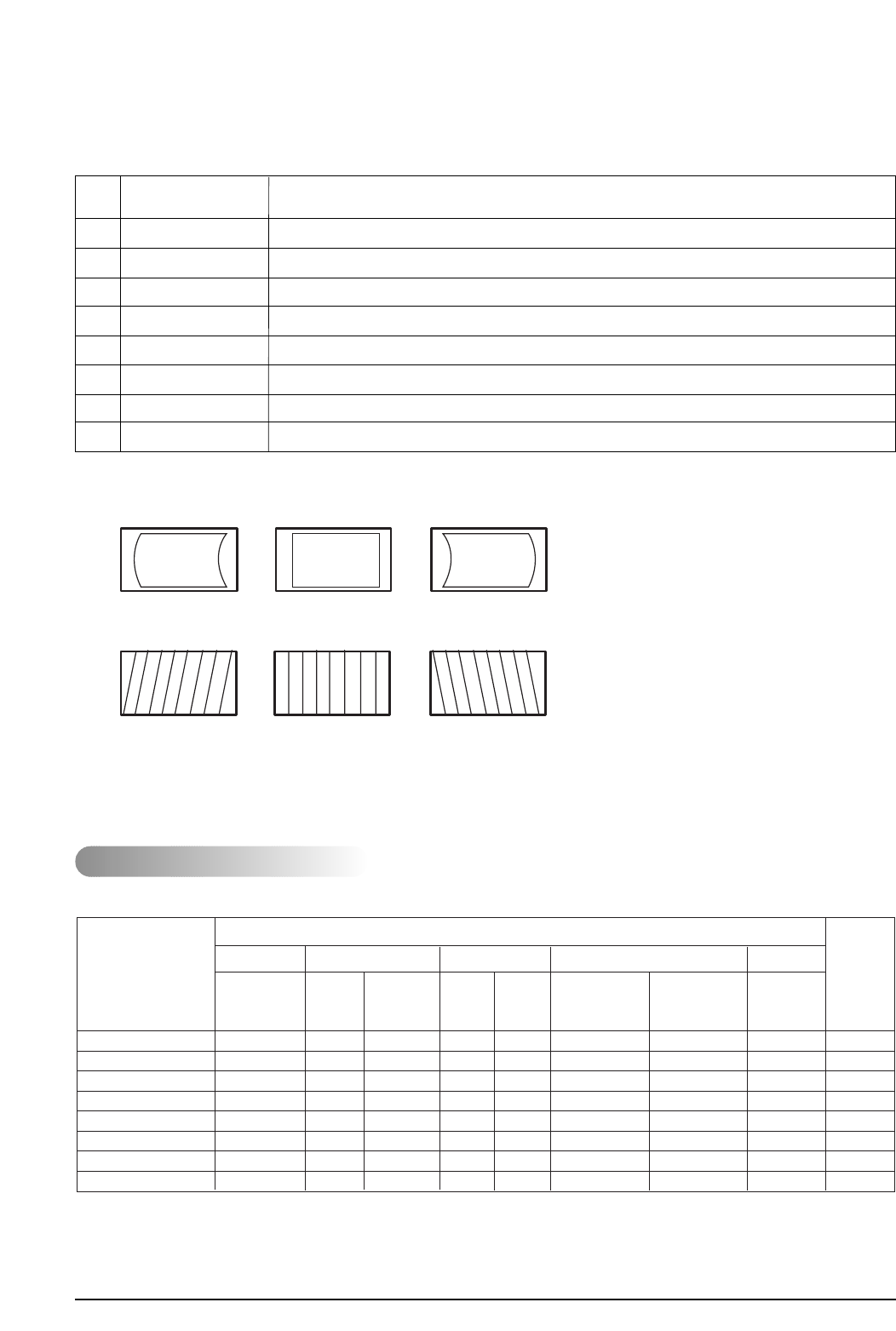

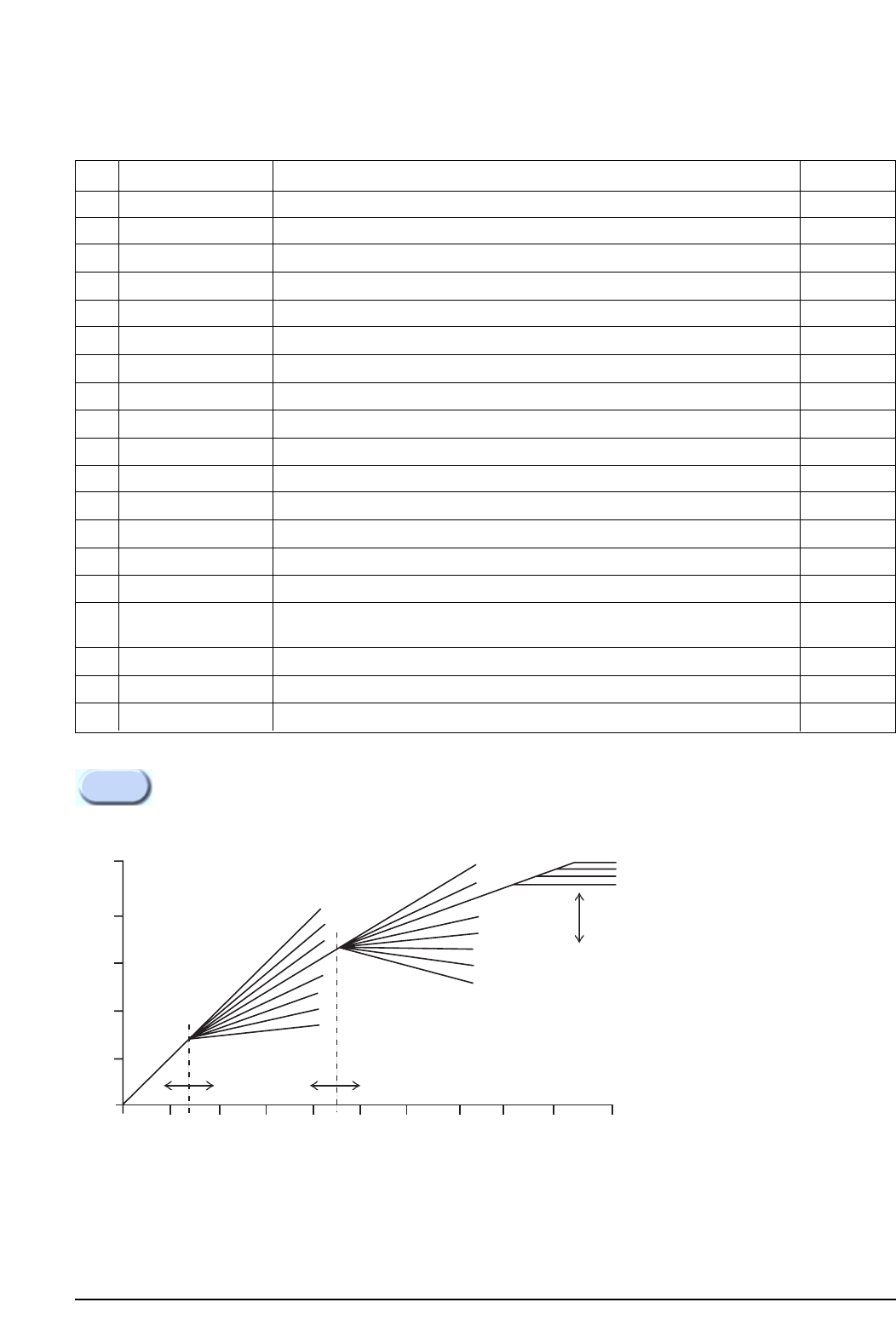

4-8-2(B) SCREEN CHANGE (I2C BUS GEOMETRIC ADJUSTMENT)

H Symmetry

9 H Corner

6H Trapizium

7 H Parabola

10 H Shift

5 H EW

3V Slope 4V SC

1 V Amp 2 V Shift

Alignment and Adjustments

Samsung Electronics 4-11

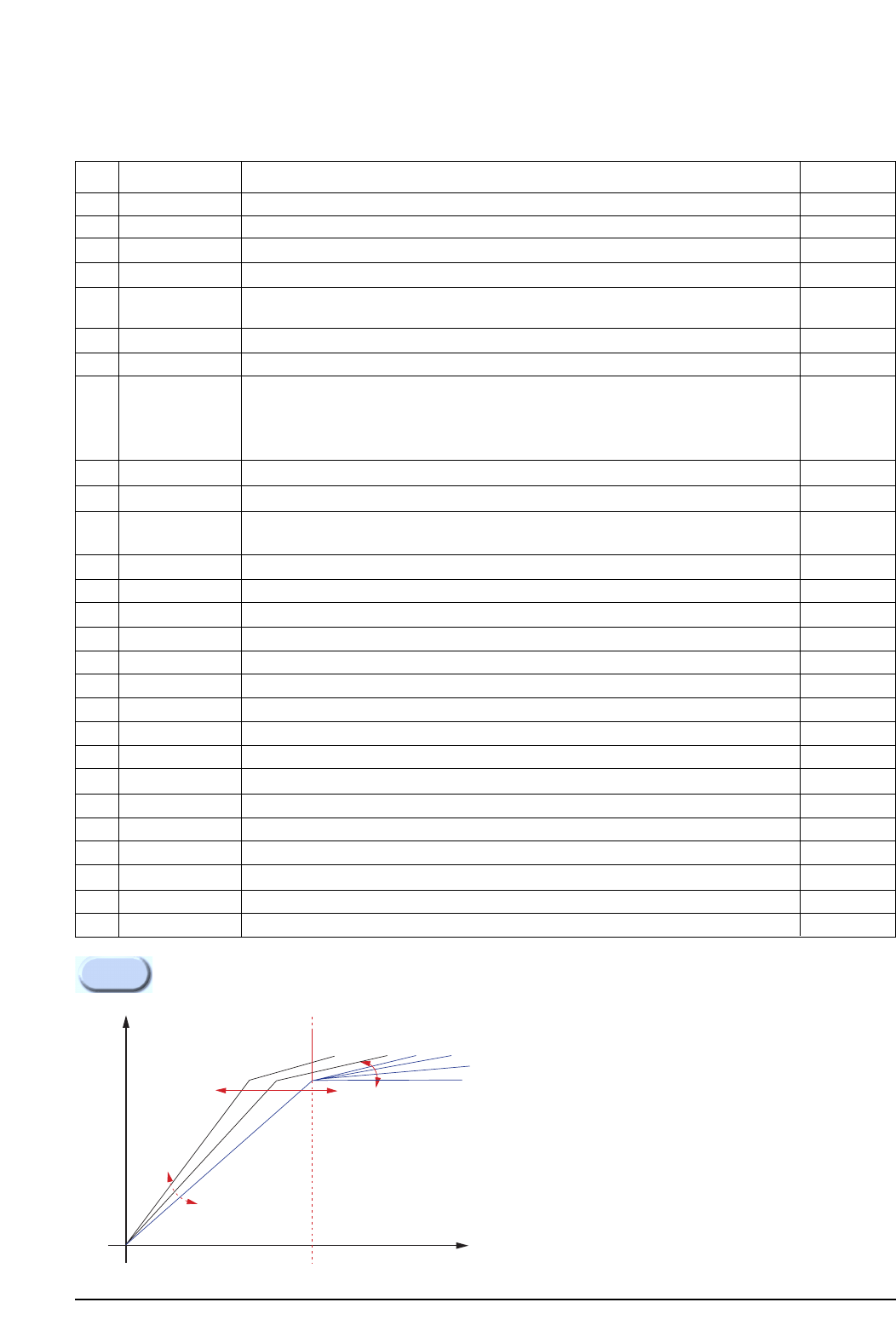

4-8-2(C) VIDEO ADJUST 1

No.

OSD

Red Cufoff

Green Cutoff

Blue Cutoff

Red Drive

Green Drive

Blue Drive

Sub Bright

Sub Contrast

Sub Color

Sub Tint

BCL Threshold

BCL Gain

BCL Time

BCL Time2

BCL Bri Reduction

P.DK.YC Delay

P.I.YC Delay

P.L.YC Delay

S.BG.YC Delay

S.DK.YC Delay

S.L.YC Delay

P.BG.YC Delay

P.YC Delay

S.YC Delay

N.YC Delay

P.M.YC Delay

N.MYC Delay

Function

Adjusts the gain of red output of low light

Adjusts the gain of green output of low light.Fix this gain to 127.

Adjusts the gain of blue output of low light.

Adjusts the gain of red output of high light.

Adjusts the gain of green output of high light. After “G2-Adjustment” and White

Balance adjustments are complete,this data is fixed to 127..

Adjusts the gain for blue output of high light.

Adjust sub brightness level to set the low light luminance in Picture Standard mode.

Adjusts sub contrast level to set the high light luminance in Pictue Standard mode.

Set the value of sub contrast to near 50. The user control “contrast” depends on this

value.User contrast=[sub cont*2/100]If sub contrast data is 10, user contrast changes

into 1/5step

Adjusts sub color level to set the gain for color in Picture Standard mode.

Adjusts the sub tint level of NTSC color system.

Beam Current Limit threshold current if SENSE input used 0...-2048 BCL threshold

current if RSW1 input used(max. ADC output ~2047))

Beam Current Limit loop Gain

BCL time constant; 0 = off

Teletext Contrast Level

BCL Brighness Reduction

PAL-D/K Y/C Delay

PAL-I Y/C Delay

PAL-L Y/C Delay

SECAM-B/G Y/C Delay

SECAM-D/K Y/C Delay

SECAM-L Y/C Delay

PAL-B/G Y/C Delay

External PAL Y/C Delay

External SECAM Y/C Delay

External NTSC Y/C Delay

PAL-M Y/C DELAY

NTSC-M YC DELAY

Remark

WDRGB

BCL THESHOLD

beam

1.8mA

1.6mA

MIN

IRE

BCL GAIN MAX

Beam Control Limit Characteristic

Note 4.

Adjusts

Fix

Adjusts

Fix

Adjusts

Fix

Alignment and Adjustments

4-12 Samsung Electronics

21" 4:3

SED AK

RANGEOSD

INITIAL DATA

SIM-806EW1(SEH)

Red Cufoff

Green Cutoff

Blue Cutoff

Red Drive

Green Drive

Blue Drive

Sub Bright

Sub Contrast

Sub Color

Sub Tint

BCL Threshold

BCL Gain

BCL Time

BCL Time2

BCL Bri Reduction

P.DK.YC Delay

P.I.YC Delay

P.L.YC Delay

S.BG.YC Delay

S.DK.YC Delay

S.L.YC Delay

P.BG.YC Delay

P.YC Delay

S.YC Delay

N.YC Delay

116

127

158

139

127

1.2 ftl

100

28 ftl

127

1.2 ftl

100

28 ftl

117

127

134

161

127

1.2 ftl

111

28 ftl

117

133

134

161

127

1.2 ftl

100

28 ftl

118

127

162

127

110

1.2 ftl

107

28 ftl

128

127

135

147

127

105

1.2 ftl

118

32 ftl

127

1.2 ftl

100

32 ftl

21" 4:3

Tho AK

25" 4:3

SED AK

25" 4:3

SED AK

28" 4:3

Tho AK

28" 4:3

Phi/Tho

Invar

29" 4:3

SED

Flat

119

127

130

145

127

131

1.2 ftl

100

28 ftl

24"

WIDE

Phi AK

127

128

150

127

1.2 ftl

112

32 ftl

24"

WIDE

Phi Invar

127

1.2 ftl

100

32 ftl

24"

WIDE

Tho Invar

Remarks

W/B

Fix

W/B

Fix

W/B

Fix

28"

WIDE

Tho AK

RANGEOSD

SIM-806EW1(SEH) SIM-806EW1(HQ)

Red Cufoff

Green Cutoff

Blue Cutoff

Red Drive

Green Drive

Blue Drive

Sub Bright

Sub Contrast

Sub Color

Sub Tint

BCL Threshold

BCL Gain

BCL Time

BCL Time2

BCL Bri Reduction

P.DK.YC Delay

P.I.YC Delay

P.L.YC Delay

S.BG.YC Delay

S.DK.YC Delay

S.L.YC Delay

P.BG.YC Delay

P.YC Delay

S.YC Delay

N.YC Delay

S.I YC Delay

TTX Contrast

0 ~ 255

0 ~ 200

0 ~ 63

0 ~ 27

0 ~ 127

0 ~ 255

0 ~ 15

0 ~ 255

0 ~ 8

0 ~ 255

131

127

133

147

127

121

1.2 ftl

28 ftl

130

127

131

164

127

106

1.2 ftl

105

32 ftl

132

127

128

157

127

1.2 ftl

100

32 ftl

117

133

134

161

127

1.2 ftl

100

32 ftl

129

127

168

127

110

1.2 ftl

109

32 ftl

145

127

107

146

127

116

1.2 ftl

117

32 ftl

127

100

28"

WIDE

Tho Invar

32"

WIDE

Tho Invar

28"

WIDE

SED Flat

32"

WIDE

Phi Flat

32"

WIDE

Tho Flat

29"

Flat

127

100

120

21"

Flat

127

100

25"

Flat

127

122

149

127

124

149

120

21' LG

Pin Free Remarks

W/B

Fix

W/B

Fix

W/B

Fix

Alignment and Adjustments

Samsung Electronics 4-13

29"

Flat/

DVD

RANGEOSD

INITIAL DATA

SIM-

812MA3

SIM-

812MAD

SIM-

806MA3

SIM-

812EA1

SIM-

806EI1

Red Cufoff

Green Cutoff

Blue Cutoff

Red Drive

Green Drive

Blue Drive

Sub Bright

Sub Contrast

Sub Color

Sub Tint

BCL Threshold

BCL Gain

BCL Time

TTX Contrast

P.YC Delay

S.YC Delay

N.YC Delay

P.BG YC Delay

P.DK YC Delay

P.I YC Delay

S.BG YC Delay

S.DK YC Delay

S.I YC Delay

P.M.YC Delay

N.MYC Delay

0 ~ 255

0 ~ 200

0 ~ 63

0 ~ 27

0 ~ 127

0 ~ 255

0 ~ 15

0 ~ 255

0 ~ 8

127

100

127

100

127

100

127

100

127

100

127

100

127

100

CIS

29"

Flat

CIS 29"

Flat SKD

CKD

29"

Flat

34"

Flat

29"

Flat

29"

Flat

127

100

29"

Flat

Remarks

W/B

Fix

W/B

Fix

W/B

Fix

Alignment and Adjustments

4-14 Samsung Electronics

4-8-2(D) VIDEO 2 ADJUST

No.

OSD

B stretch-BTHR

B stretch-BTLT

B stretch-BAM

Coring

NR Off Value

Melody Volume

RGB Bright

RGB Contrast

EHT Time

EHT Vertical

Range

0 ~255

0 ~10

0 ~20

0 ~127

0 ~63

0 ~255

Function

Black stretch thresholdLuminance peaking filter coring.

BLACK stretch tilt position

BLACK stretch amountAdjusts RGB input signal contrast

Luminance peaking filter, coring level

Luminance peaking filter coring.

Sets the level of melody volume in Picture ON. Differently controlled

according to buyer and area.

Adjust RGB input signal brightness

Adjust RGB input signal contrast

Electronics high tension time. According to change of Beam, EHT vertical

correction time.

EHT compensation coefficent vertical.

Remark

Fix

FiX

Fix

[kv]

electric high tension

average beam current

100

200 400 600 800 1000

EHT_THRES

EHT compensation

EHT

Lout

BTLT

BAM

Ltr

Lmax

Lmin

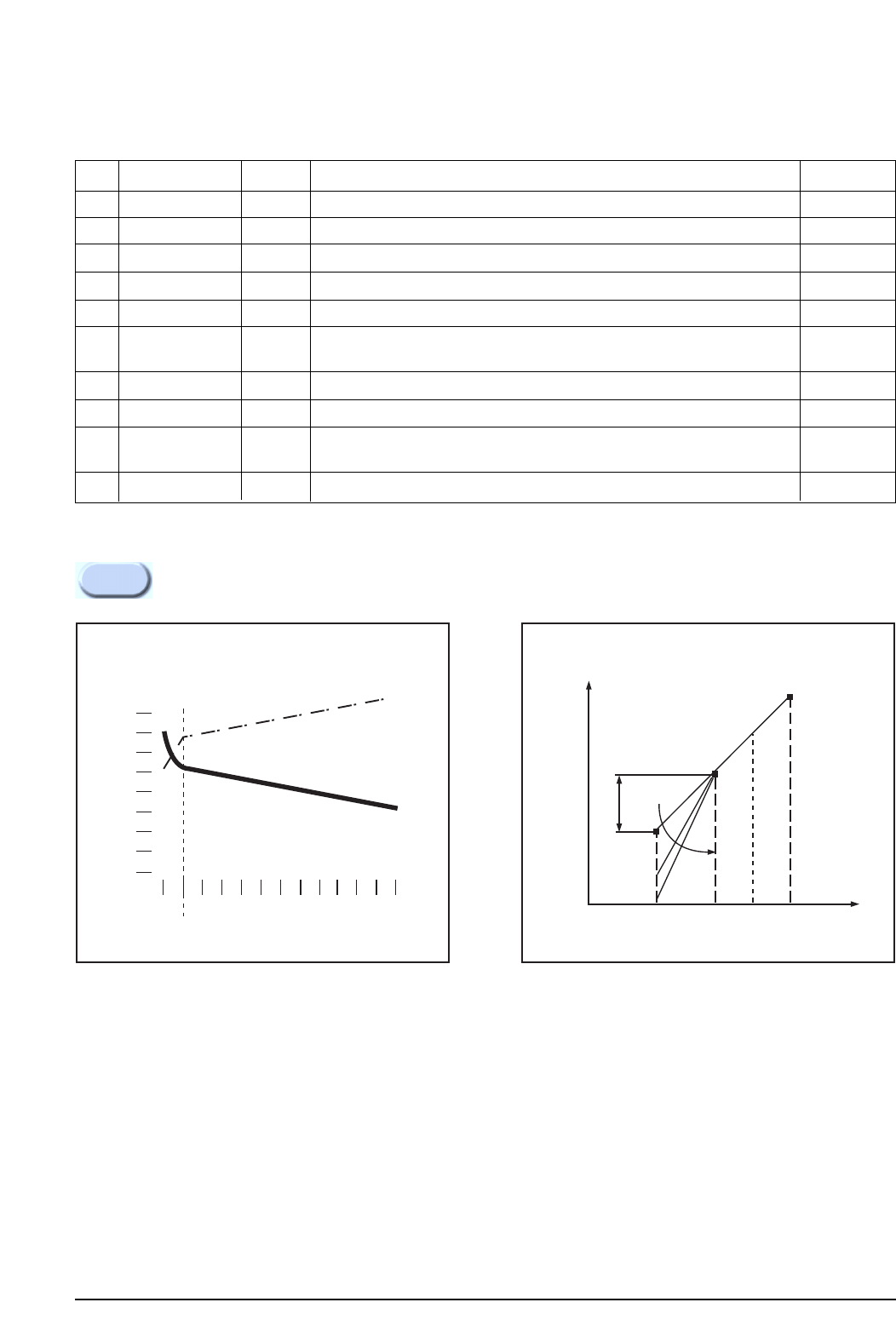

EHT compensation Characteristic

Note 5.

Alignment and Adjustments

Samsung Electronics 4-15

21" 4:3

SED/Tho

RANGEOSD

INITIAL DATA

SIM-806EW1(SEH)

B stretch-BTHR

B stretch-BTLT

B stretch-BAM

Coring

NR Off Value

Melody Volume

RGB Bright

RGB Contrast

EHT Time

EHT Compesation

VSU

0 ~ 55

0 ~ 15

0 ~ 31

0 ~ 10

0 ~ 20

0 ~ 255

0 ~ 80

0 ~ 255

96 ~ 111

110

140

110

25" 4:3

SED/Tho

28" 4:3

Tho

28" 4:3

Phi/Tho

Invar

29" 4:3

SED

Flat

24"

WIDE

Phi AK

110

24" WIDE

Phi/Tho

110

28" WIDE

Phi/Tho

110

28" WIDE

Phi/Tho

Invar

Remarks

Fix

RANGEOSD

SIM-806EW1(SEH)

B stretch-BTHR

B stretch-BTLT

B stretch-BAM

Coring

NR Off Value

Melody Volume

RGB Bright

RGB Contrast

EHT Time

EHT Compesation

VSU

0 ~ 55

0 ~ 15

0 ~ 31

0 ~ 10

0 ~ 20

0 ~ 255

0 ~ 80

0 ~ 255

96 ~ 111

Remarks

Fix

32" WIDE

Phi/Tho

Invar

110

28" WIDE

Phi/SED

Flat

110

32" WIDE

Phi/Tho

Flat

110

Alignment and Adjustments

4-16 Samsung Electronics

29" Flat

RANGEOSD

INITIAL DATA

SIM-806EW1(HQ) SIM-812MA3

B stretch-BTHR

B stretch-BTLT

B stretch-BAM

Coring

NR Off Value

Melody Volume

RGB Bright

RGB Contrast

EHT Time

EHT Compesation

VSU

EHT Vertical

0 ~ 55

0 ~ 15

0 ~ 31

0 ~ 10

0 ~ 20

0 ~ 255

0 ~ 80

0 ~ 255

96 ~ 111

0 ~ 255

110

100

0/3

21" Flat 25" Flat 21" LG

Pin Free

29"

Flat/DVD

CIS 29"

Flat

Remarks

Fix

CIS 29"

Flat SKD

CKD

RANGE

OSD

812MAD SIM-806MA3 SIM-812EA1 SIM-806EI1SIM-812MA3

B stretch-BTHR

B stretch-BTLT

B stretch-BAM

Coring

NR Off Value

Melody Volume

RGB Bright

RGB Contrast

EHT Time

EHT Compesation

VSU

EHT Vertical

0 ~ 55

0 ~ 15

0 ~ 31

0 ~ 10

0 ~ 20

0 ~ 255

0 ~ 80

0 ~ 255

96 ~ 111

0 ~ 255

29" Flat 34" Flat 29" Flat 29" Flat 29" Flat Remarks

Fix

Alignment and Adjustments

Samsung Electronics 4-17

Output

511

400

300

200

100

0100 200 300 400 500 600 700 800 900 1023

tilt 1 [0...511] tilt 2 [0...511]

Part 1 Part 2

Slope 1 [0...15]

Slope 2 [0...15]

range=256...511

Hard limiter

Calcuation Example for the

Softlimiter Input Amplitude.

(The real signal procesing in

the limiter is 2 bit more than

descrbed here)

Y Input 16...235(ITUR)

Black Level 16(constant)

Contrast 63

Dig. Brightness 20

BLE Off

Peaking Off

Limiter input signal.

(Yin-Black Level).Contr/32+Brightn.

(235-16).63/32+20=451

Soft Limit & Hard Limit

Note 6.

4-8-2(E) VIDEO 3 ADJUST

No.

OSD

Peak Threshold

Soft Limit Slope B

Hard Limit

Peak Video Ref

Peak Video Gain

ACC Ref=(PAL/NTSC)

ACCR(SECAM)

Gain1(Video)

Delay1(Video)

Velocity Limit

Velocity Delay

Velocity Coring

RGB Shift

HB START

HB STOP

2H CombFilter

NR Off Value

Color hys(SECAM)

Color hys(PAL)

Function

White peak level threshold

Refer to picture below

White peak level threhold reference

White peak level threshild gain

Auto color control gain(PAL/NTSC)

Auto color control gain(SECAM)

Velocity video gain

Velocity video delay

Velocity limit

Velocity delay

Velocity frequency coring

Adjust RGB input signal Horizontal position

Horizontal blainking start

Horizontal blainking stop

Comb filter on/off (0:Comb filter off 1:Comb filter on) VDP3108 has no function

of Comb filter. In VDP3112B/VDP3130Y/VDP3120B, Set 'on'.

Adjusts Digital NR off value

Color killing hysteresys(SECAM)

Color killing hysteresys(PAL)

Remark

Fix

FiX

Fix

FiX

Fix

Alignment and Adjustments

4-18 Samsung Electronics

21" 4:3

SED/Tho

RANGEOSD

INITIAL DATA

SIM-806EW1(SEH)

Peak Threshold

Soft Limit Slope B

Hard Limit

Peak Video Ref

Peak Video Gain

ACC Ref=(PAL/NTSC)

ACCR(SECAM)

Gain1(Video)

Delay1(Video)

Velocity Limit

Velocity Delay

Velocity Coring

0 ~ 255

0 ~ 15

0 ~ 4

0 ~ 255

0 ~ 5

0 ~ 40

0 ~ 39

0 ~ 31

0 ~ 15

0 ~ 127

0 ~ 15

100

255

100

255

100

255

100

255

100

255

100

255

25" 4:3

SED/Tho

28" 4:3

Tho

28" 4:3

Phi/Tho

Invar

29" 4:3

SED

Flat

24"

WIDE

Phi AK

100

255

24" WIDE

Phi/Tho

100

255

28" WIDE

Phi/Tho

100

255

28" WIDE

Phi/Tho

Invar

Remarks

Fix

RANGEOSD

SIM-806EW1(SEH)

Peak Threshold

Soft Limit Slope B

Hard Limit

Peak Video Ref

Peak Video Gain

ACC Ref=(PAL/NTSC)

ACCR(SECAM)

Gain1(Video)

Delay1(Video)

Velocity Limit

Velocity Delay

Velocity Coring

0 ~ 255

0 ~ 15

0 ~ 4

0 ~ 255

0 ~ 5

0 ~ 40

0 ~ 39

0 ~ 31

0 ~ 15

0 ~ 127

0 ~ 15

Remarks

Fix

32" WIDE

Phi/Tho

Invar

100

255

28" WIDE

Phi/SED

Flat

100

255

32" WIDE

Phi/Tho

Flat

100

255

Alignment and Adjustments

Samsung Electronics 4-19

29" Flat

RANGEOSD

INITIAL DATA

SIM-806EW1(HQ) SIM-812MA3

Peak Threshold

Soft Limit Slope B

Hard Limit

Peak Video Ref

Peak Video Gain

ACC Ref=(PAL/NTSC)

ACCR(SECAM)

Gain1(Video)

Delay1(Video)

Velocity Limit

Velocity Delay

Velocity Coring

RGB Shift

HB START

HB STOP

2H CombFilter

NR Off Value

Color hys(SECAM)

Color hys(PAL)

0 ~ 255

0 ~ 15

0 ~ 4

0 ~ 255

0 ~ 5

0 ~ 40

0 ~ 39

0 ~ 31

0 ~ 15

0 ~ 127

0 ~ 15

0 ~ 255

0 ~ 3

0 ~ 255

0 ~ 1

0 ~ 10

0 ~ 255

185

160

121

173

255

121

173

185

160

121

173

255

121

173

185

180

127

121/117

173/168

166

200

185

180

127

109

121

173

166

200

21" Flat 25" Flat 21" LG

Pin Free

29"

Flat/DVD

CIS 29"

Flat

Remarks

Fix

RANGEOSD

Peak Threshold

Soft Limit Slope B

Hard Limit

Peak Video Ref

Peak Video Gain

ACC Ref=(PAL/NTSC)

ACCR(SECAM)

Gain1(Video)

Delay1(Video)

Velocity Limit

Velocity Delay

Velocity Coring

RGB Shift

HB START

HB STOP

2H CombFilter

NR Off Value

Color hys(SECAM)

Color hys(PAL)

0 ~ 255

0 ~ 15

0 ~ 4

0 ~ 255

0 ~ 5

0 ~ 40

0 ~ 39

0 ~ 31

0 ~ 15

0 ~ 127

0 ~ 15

0 ~ 255

0 ~ 3

0 ~ 255

0 ~ 1

0 ~ 10

0 ~ 255

Remarks

Fix

CIS 29"

Flat SKD

CKD

812MAD SIM-806MA3 SIM-812EA1 SIM-806EI1SIM-812MA3

185

180

127

121

173

166

200

185

180

127

117

168

166

185

180

127

115

169

166

200

185

180

127

117

168

166

200

185

180

127

117

168

185

180

127

117

168

29" Flat 34" Flat 29" Flat 29" Flat 29" Flat

Alignment and Adjustments

4-20 Samsung Electronics

Sound

A2/NICAM

V-DOLBY

Mono

L-Stereo

IC601

MSP3400D, MSP3410D

MSP3411G

Not used this mode for KS3A Chassis

4-8-2(F) OPTION

No.

OSD

System

AV by CH Key

Sound

CRT

AV Mode

Speaker

TTX TOP

X-Ray

Tilt Control

Auto FM

Text Language

AKB

Language

PIP

LNA

Equalizer

High Deviate

TTX On/OFF

Function

Select the Broadcasting System - CZ : PAL/SECAM-B/G,D/K,I,L

CW : It is added SECAM-L function in CZ

On : It can select AV Mode for CH key in case that the number of Pannel key is 5.

Off : In case that it is AV key in pannel

Select the sound system, for example A2-Stereo/Nicam,V-dolby,Mono, L-StereoIn case of using

MSP3411G and V-Dolby MSP3400D/MSP3410, select A2-Stereo/Nicam

Select P-Size Mode

Select EXT Jack (RCA/SCARTS-1,2,S-VIDEO,DVD)

Select the Speaker .

If Dome speaker, Select 'Dome Spk'. If Non Dome speaker, select 'Non Dome Spk

Select TOP TTX On/Off

Select X-Ray On/Off (On : USA, Of f: Other )

Select Tilt On/Off

On : In Nicam Broadcasting Channel, If it happened 'Nicam Ident check bits error'or 'Sound Noise', Set

Auto FM Mode.

Of f :In Nicam Broadcasting Channel, Keep Nicam Mode till Nicam Ident Check bits are perfectly Off .

West Europe : English/German/Skandinavian/Italian/French/Spainsh/Czech

East Europe : Polish/Czech/Rumanian/Slovenian/Croatian//French/Skandinavian/German/Italian

Russian : Russian/Ukranian/Estonian/Czech/German/Lettish/English

Greek-Turkey : English/Turkey/Greek/French/Skandinavian/German/Spainsh/Italian/

Arabic : English/Arabic/French Farsi : English/Farsi/French Arab-Hebrew : Arabic/Hebrew

AKB(Auto kined bias) On/Off

Select OSD Language

Arab : English/Arabic/French/Pakistan≤î Libya : English/French/Libya≤îIran :

English/French/Persia≤î/Turkey CIS : English/Russian

Select 1T-PiP, 2T-PIP or PIP Off

If LNA(Low Noise Amplitude) Tuner, Set 'On'. : TCLS

Equalizer ON/OFF.

On :If it happened 'Sound click' Noise cause that the input signal from TV Station has been over

modulated,Set 'ON'. Off : Normal input Signal

Select TTX On/Off

Sound IC & System

Note 6.

Alignment and Adjustments

Samsung Electronics 4-21

4:3 WIDE

MODEL

OSD

INITIAL DATA

SIM-806EW1(SEH) SIM-806EW1(HQ)

System

AV by CH Key

Sound

CRT

AV Mode

Speaker

TTX TOP

X-Ray

Tilt Control

Auto FM

AKB

Text Language

Option

4:3

2Scart

Non

Off

West

V.Dolby

Wide

2Scart

Non

Off

West

V.Dolby

Wide

2Scart

Non

Off

West

Off

A2/NICAM

4:3

2Scart

Dome spk

Off

A2/NICAM

4:3

2Scart

Dome spk

Off

A2/NICAM

4:3

2Scart+S

Dome spk

Off

28" WIDE

Flat

32" WIDE

Flat CW29A7 CZ29A6 CZ29A7

Off

V.Dolby

4:3

2Scart

Dome spk

Off

A2/NICAM

4:3

2Scart

Non

Off

A2/NICAM

4:3

2Scart

Non

Off

CZ29A6 CZ21A8 CW21A8

OSD

Language

Sound

CRT

AV Mode

X-Ray

Tilt Control

Auto FM

PIP

Txt Language

LNA

Equalizer

High Deviate

TTX On/Off

AV by CH Key

SIM-812MA3

Arab

V.Dolby

4:3

2RCA+S

Off

Arabic

Off

29A5WT8X

Iran

V.Dolby

4:3

2RCA+S

Off

2-Tuner

Farsi

Off

29A6PF8X

CIS

A2/Nicam

4:3

2Scart+S

Off

Russian

Off

29K3WT8X

CIS

A2/Nicam

4:3

2Scart+S

Off

Russian

Off

29A6WT8X

Arab

V.Dolby

4:3

2RCA+S

Off

2-Tuner

Arabic

Off

29A6PF8X

Arab

V.Dolby

4:3

2RCA+S+D

Off

2-Tuner

Arabic

Off

29A6PFBX

Iran

V.Dolby

4:3

2Scart+S

Off

Reek-Turkey

Off

29A6WT8X

OSD

Language

Sound

CRT

AV Mode

X-Ray

Tilt Control

Auto FM

PIP

Txt Language

LNA

Equalizer

High Deviate

TTX On/Off

AV by CH Key

SIM-812MA3 SIM-806MA3

Arab

V.Dolby

4:3

2RCA+S+D

Off

Arabic

Off

29A5WTBX

Iran

V.Dolby

4:3

2RCA+S+D

Off

2-Tuner

Farsi

Off

29A6PFBX

Arab

V.Dolby

4:3

2Scart+S

Off

2-Tuner

Arabic

29A5PF8C

Iran

V.Dolby

4:3

2RCA+S+D

Off

East Euripe

Off

29A6NTBX

Iran

A2/Nicam

4:3

2RCA+D

Off

1-Tuner

West Europe

Off

34D2GNBX

Arab

Virtual Dolby

4:3

2RCA+S+D

Off

1-Tuner

Arabic

Off

29A6GWBX

Alignment and Adjustments

4-22 Samsung Electronics

INITIAL DATA

OSD

Language

Sound

CRT

AV Mode

X-Ray

Tilt Control

Auto FM

PIP

Txt Language

LNA

Equalizer

High Deviate

TTX On/Off

AV by CH Key

AKB

SIM-812EA1

OSD

Language

Sound

CRT

AV Mode

X-Ray

Tilt Control

Auto FM

PIP

Txt Language

LNA

Equalizer

High Deviate

TTX On/Off

AV by CH Key

AKB

SIM-812MAD SIM-806E1

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

2-Tuner

West

Off

29A5PFBX

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

West

Off

29A6NTBX

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

2-Tuner

West

Off

29A7PNBX

CIS

A2/Nicam

4:3

2Scart+S

Off

2T-D/W

Russian

Off

29A6MT8X

CIS

A2/Nicam

4:3

2Scart+S

Off

2T-D/W

Russian

Off

29A5MT8X

V.Dolby

4:3

2RCA+S+D

Off

2-Tuner

Off

29A7PFBX

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

West

Off

29A7NTBX

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

West

Off

29A5WBX

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

West

Off

29A5NTBX

ESASIA

A2/Nicam

4:3

2RCA+S+D

Off

West

Off

29K3WTBX

ESASIA

A2/Nicam

4:3

2RCA+S+D

Off

West

Off

29K3WBX

ESASIA

V.Dolby

4:3

2RCA+S+D

Off

2-Tuner

West

Off

29A7PFBX

Alignment and Adjustments

Samsung Electronics 4-23

4-8-2(G) G2-ADJUST

After setting COL/CDL/WDRV/IBRM to each spec of models, adjust the screen VR till the color of MRCR/MRCG/MRCB/MRWDG

becomes green

OSD

MRCR

MRCG

MRCB

MRWDG

IBRM

WDRV

CDL

COL(G)

COL(B)

No.

Function

Measurement Result Resisters; Cutoff/Leakage Red

Measurement Result Resisters; Cutoff/Leakage Green

Measurement Result Resisters; Cutoff/Leakage Blue

Measurement Result Resisters; White Drive

Internal Brightness, Measurement (0 .. 511), the center value is 256, the brightness for

measurement can be set to measure at higher cutoff current.

The measurement brightness is independent of the drive values."

White Drive Measurement Control; RGB Values for White Drive Beam Current Measurement

Cathode Drive Level

Uses the same register as the RGB drive in Video adjust-1.

Cutoff Level

Red Uses the same register as the RED cutoff in Video adjust-1.

Cutoff Level

GreenUses the same register as the GREEN cutoff in Video adjust-1.

Cutoff Level

BlueUses the same register as the BLUE cutoff in Video adjust-1.

Remark

Measure data

G2 Voltage

of CRT

Fix

Alignment and Adjustments

4-24 Samsung Electronics

21" 4:3

SED

RANGEOSD

INITIAL DATA

SIM-806EW1(SEH)

MRCR

MRCG

MRCB

MRWDG

IBRM

WDRV

CDL

COL(R)

COL(G)

COL(B)

0 ~ 255

208

117

166

198

120

140

125

207

108

188

115

208

114

160

152

197

105

149

100

208

230

160

Measure data

G2 Vlotage of CRT

Fix

21" 4:3

Tho

25" 4:3

SED

25" 4:3

Tho

28" 4:3

Tho

204

118

150

176

24"

WIDE

Tho Invar

214

148

215

28"

WIDE

Tho Ak

197

124

140

24"

WIDE

Phi Ak

29" 4:3

SED

Flat

Remarks

28"

WIDE

Tho Invar

RANGEOSD

SIM-806EW1(SEH) SIM-806EW1(HQ)

MRCR

MRCG

MRCB

MRWDG

IBRM

WDRV

CDL

COL(R)

COL(G)

COL(B)

0 ~ 255

211

105

200

180

211

250

180

205

197

142

152

197

200

210

125

230

233

198

220

210

150

Measure data

G2 Vlotage of CRT

Fix

32"

WIDE

Tho Invar

28"

WIDE

SED Flat

32"

WIDE

Pin Flat

32"

WIDE

Tho Flat

220

200

150

25"

Flat

240

255

160

LG Pin

Free

Set

220

165

21"

Flat

29"

Flat Remarks

29"

Flat

RANGEOSD

SIM-812MA3 SIM-

812MAD

SIM-

812EA1

SIM-

812EI1

SIM-806MA3

MRCR

MRCG

MRCB

MRWDG

IBRM

WDRV

CDL

COL(R)

COL(G)

COL(B)

0 ~ 255

220

150

220

150

220

150

220

150

220

150

Measure data

G2 Vlotage of CRT

Fix

CIS 29"

Flat

CIS 29"

Flat SKD

CKD

29"

Flat

220

150

29"

Flat

220

150

29"

Flat

34"

Flat

200

160

200

29"

Flat

Remarks

After setting COL/CDL/WDRV/IBRM to each spec of models, adjust the screen VR till the color of MRCR/MRCG/MRCB/MRWDG

becomes green

Alignment and Adjustments

Samsung Electronics 4-25

4-8-2(H) OTHERS

OSD

VSU

H QEW

H ZOOM PARABOLA

H 16:9 PARABOLA

TTX H SHIFT

MONO SOUND SYSTEM

V SLICE LEVEL

MELODY VOLUME

AKB

TTX LIST PRIOR

MAIN NEWLIN

Main PFGHB

PIP BLKLR

PIP BLKLB

PIP PKLR

PIP PKLG

PIP PKLB

No.

Function

Vertical Setup Time. Delays the vertical sync to solve the jitter of OSD and TTX .

Check OSD while varying 96 ~ 111 step by step and an 1H line moves at two points.

If the value is set at the first point or second point, an OSD jitter may happen. Also, if the

value is set between the first andsecond points, a TTX jitter may happen. So, the value of

VSU should be set after giving some magines (three steps).

Short for Q-CRT HORIZNOTAL EAST WEST,data used only for Q-CRT MODEL. In NORMAL

mode, the horizontal picture size is within 5 ~ 5.5.

In Q mode, the horizontal picture size is within 6.5 ~ 7.

This H QEW function sets the gap between horizontal picture size in NORMAL mode and

horizontal picture size in Q mode.

In ZOOM mode of P-SIZE, Adjusts vertical linearity. Each CRT has a different data.

(Refer 'other' data)

In 16:9 mode of P-SIZE, Adjusts vertical linearity. Each CRT has a different data.

(Refer 'other' data)

Adjusts TTX horizontal position

NOT USED, KS3A chassis has no function of Mono sound system.

Allows the sync slice level of sync separate block to be changed. This item corresponds the

case where a vertical bouncing happens according to signal conditions by area.

(overmodulation, especially).

0: 100% 1: 90% 2: 75% 3: 60%

Sets the level of melody volume in Picture ON. It is managed differently according to buyer or

area.

Short for Auto Kined Bias, a function that maintains uniformity inbrightness and white balance

by automatically correction the variance of brightness and white balance according to

temperature and characteristics of AMP in the CRT drive

TTX mode has two different types; List and FLOF. When swtiching into the TTX mode, this

function determines which type has priorty.

On : Australia Off : others country

Controls the picture compressing rate.

Controls the horizontal blanking when the picture size compressed.

PIP blanking level red(PIP low light white balance). Adjust low light white balance of PIP.

PIP blanking level blue(PIP low light white balance). Adjust low light white balance of PIP.

PIP peak white level Red. Adjusts high lignt white balance of PIP.

PIP peak white level Green. Adjusts high lignt white balance of PIP.

PIP peak white level Blue. Adjusts high lignt white balance of PIP.

Alignment and Adjustments

4-26 Samsung Electronics

29" Flat

RANGEOSD

INITIAL DATA

SIM-812MA3 SIM-812MAD SIM-806MA3

H QEW

H ZOOM Parabola

H 16:9 Parabola

TTX H Shift

Mono sounD system

V Slice Level

Melody Volume

AKB

TTX List Prior

Main Newlin

Main PFGHB

PIP BLKLR

PIP BLKLB

PIP PKLR

PIP PKLG

PIP PKLB

96 ~111

-30 ~ 30

0 ~ 3

0 ~ 20

On/Off

40 ~ 100

146 ~ 206

0 ~ 15

155 ~ 255

100

-15

100

-17

100

-20

190

255

102

-17

Off

100

-17

29" Flat

DVD CS29A6MT 34" Flat 29" Flat

Remarks

Fix

Southeast Asia

29" Flat DVD

RANGEOSD

SIM-812EA1 SIM-806E11

H QEW

H ZOOM Parabola

H 16:9 Parabola

TTX H Shift

Mono sounD system

V Slice Level

Melody Volume

AKB

TTX List Prior

Main Newlin

Main PFGHB

PIP BLKLR

PIP BLKLB

PIP PKLR

PIP PKLG

PIP PKLB

96 ~111

-30 ~ 30

0 ~ 3

0 ~ 20

On/Off

40 ~ 100

146 ~ 206

0 ~ 15

155 ~ 255

100

-17

100

-17

Off

100

-17

100

-20

Australia, Newzealand

29" Flat dvd Thailand

29" Flat DVD

India

29" Flat DVD

Remarks

Fix

SIM-806EW doesn’t have this function

Alignment and Adjustments

Samsung Electronics 4-27

4-8-2(I) Y-ADD

OSD

H-BOW

H-ANGLE

H-DSCC

DVD TINT CONTROL

DVD SUB TINT

EHT OFFSET

EHT HORIZONTAL

VDPY B2 Version

No.

Function

Horizontal bow control (Refer to bottom picture) actually no active function.

Horizontal angle control (Refer to bottom picture) actually no active function.

Discharge sample counter for deflection retrace.

Determines whether DVD SUB TINT control is used. VDP3130Y B1 is set to '1' and B2 is set to '0'.

Adjusts the color phase in the Picture standard mode and receives a NTSC DVD signal.

EHT Compensation east/west offset coefficent (Not used)

EHT Compensation east/west gain coefficent (Not used)

Selects the VDP3130Y IC version. B2 version is set 'ON,' but B1 version is set 'OFF.

29" Flat

OSD

INITIAL DATA

SIM-812MA3 SIM-812MAD SIM-806MA3

H-BOW

H-ANGLE

H-DSCC

DVD TINT CONTROL

DVD SUB TINT

EHT OFFSET

EHT HORIZONTAL

VDPY 32 Version

Off

29" Flat

DVD CS29A6MT 34" Flat 29" Flat

SIM-812EA1

Off

29" Flat DVD

(VDP3130Y B2)

29" Flat DVD

(VDP3130Y B1)

SIM-806EI1

India 29"

Flat DVD

Remarks

Fix

SIM-806EW doesn’t have this function

H- BOW

H- ANGLE

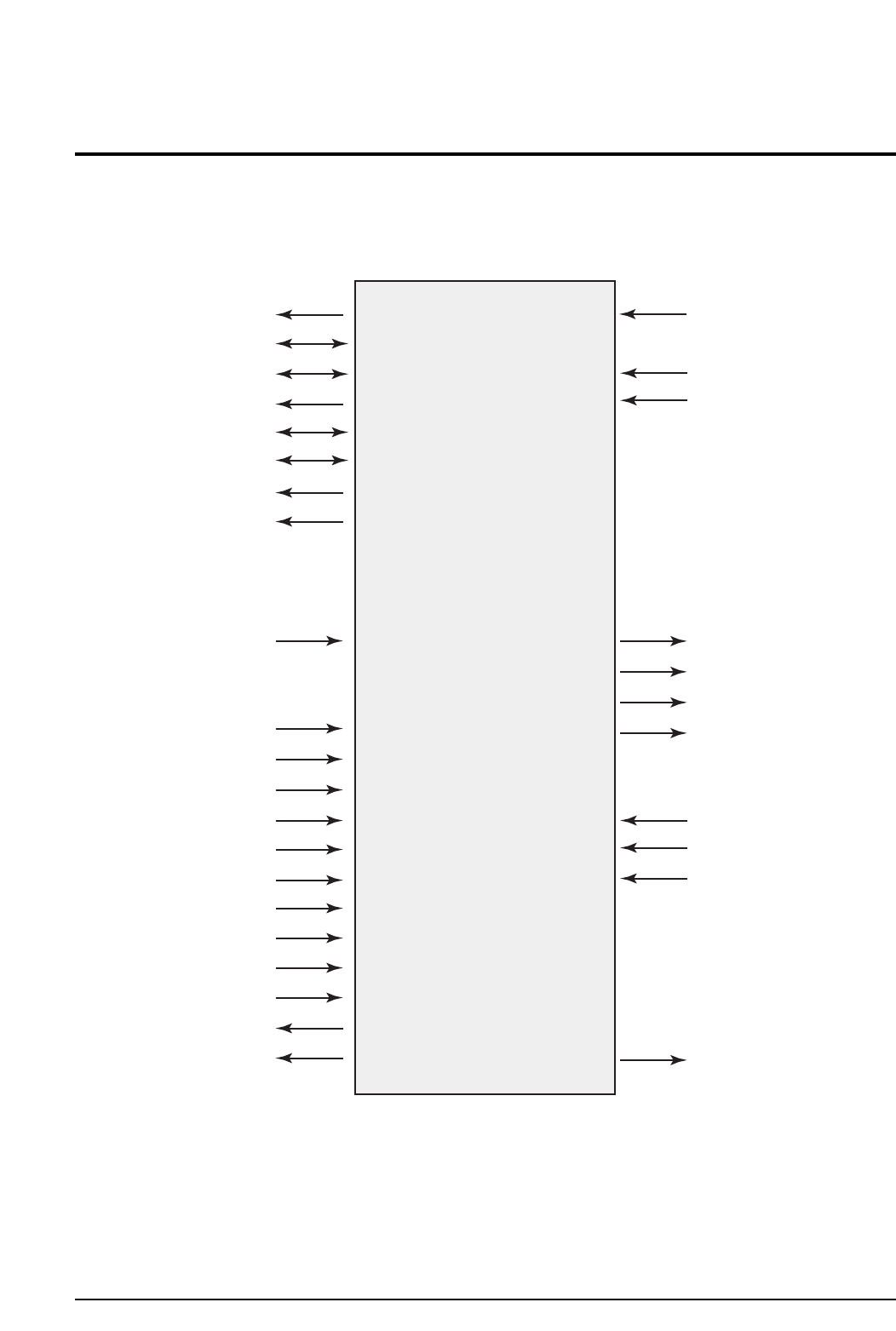

4-9-1 Pin Layout

Alignment and Adjustments

4-28 Samsung Electronics

4-9 MICOM

I/O

ADC

I/O

PWM

I/O

Write Protect

EEPROM SDA

EEPROM SCL

Bus-Stop

Main SDA

Main SCL

Sound Reset

Video Reset

VDD 2.5V

GND

VDD 3.3V

CVBS Input

VDD 2.5V

GND

AFT

Scart1 Ident

Scart2 Ident

Key 1

H-Sync

V-Sync

Key 3

Key 2

X-Ray Protect

IR Input

Stand-By LED

Time LED

Tilt

N.C.

Power

Sound Mute

N.C.

PX. Y

VDD 3.3V

GND

VDD 2.5V

CORE

OSD-B

OSD-G

OSD-R

VDD 2.5V

GND

X-TAL Out

X-TAL In

MICOM Reset

N.C.

VDD 3.3V

GND

N.C.

Relay

Alignment and Adjustments

Samsung Electronics 4-29

4-9-2 Pin Assignment Specification

DESCRIPTION

EEPROM Write Protection

EEPROM Serial Data Line

EEPROM Serial Clock Line

Disable Micom IIC

Peripheral IC Serial Data Line

Peripheral IC Serial Clock Line

MSP IC Initial Control

VDP IC Initial Control

TTX CVBS Input

Analog B+

Analog Ground

Auto Fine Tuning Control

Scart1 Ident

Scart2 Ident

Key1 Input

Horizontal Sync Input

Vertical Sync Input

Key3 Input

Key2 Input

X-Ray Protection

Remocon Signal Input

LED Drive Output(Red)

LED Drive Output(Green)

PIN NO

FUNCTION

I/O

Vdd

GND

Vdd

CVBS

Vdd

GND

ADC

I/O

ASSIGN

Write Protect

ROM SDA

ROM SCL

Bus Stop

Main SDA

Main SCL

Sound Reset

Video Reset

VDD 2.5V

VDD 3.3V

CVBS Input

VDD 2.5V

AFT

SC1-ID

SC2-ID

Key1

H-Sync

V-Sync

Key3

Key2

X-Ray

IR-In

STD-LED

TIM-LED

IN/OUT

Out

I/O

Out

ACTIVE H/L

Low

Alignment and Adjustments

4-30 Samsung Electronics

4-9-2 Pin Assignment Specification (Continued)

PIN NO

FUNCTION

I/O

N.C.

GND

Vdd

N.C.

Reset

X-In

X-Out

GND

Vdd

COR

Vdd

GND

Vdd

I/O

N.C.

I/O

N.C.

I/O

ASSIGN

Relay

VDD 3.3V

Reset

X-TAL In

X-TAL Out

VDD 2.5V

OSD-R

OSD-G

OSD-B

CORE

VDD 2.5V

VDD 3.3V

PX.Y

S-Mute

Power

Tilt

IN/OUT

Out

ACTIVE H/L

Low

6MHz

High

Low

PWM

DESCRIPTION

Activate Degausssing Coil

Not Used (Programmed Gound Level)

Analog Ground

Not Used (Programmed Gound Level)

Micom Hardware Reset

Crystal Oscillation Input

Crystal Oscillation Output

Analog Ground

Analog B+

OSD/TTX Output (Red)

OSD/TTX Output (Green)

OSD/TTX Output (Blue)

Fast Blank/Half Contrast Output

When The Caption Function Adopted, Used.

Not Used (Programmed Gound Level)

Sound Amp Mute

Picture On/Off Control

Not Used (Programmed Gound Level)

Tilt Control Output

Troubleshooting

Samsung Electronics 5-1

5. Troubleshooting

5-1 No Power

Check

LED lamp

Abnormal

Plug in Power Cord

Check

MICOM IIC #5, #6

Check

IC901 MICOM

Input Voltage

Check

the MICOM Power #59

With Remote Controller

Check

Level Shifter Q909, Q910

Output(If 2N7000 Output has the DC

Component over 0.7V, it is broken)

Check

MICOM

IIC #2, #3

Check

IC902 EEPROM

Replace

Q909, Q910

Check

Q908

Replace

the MICOM

Check IC201S

Replace

EEPROM(IC902)

Replace Q908

Abnormal

Normal

Abnormal

Check and Replace

IC903

Replace

D801 or D811

Check and Replace

IC804

Check and Replace

R828 or D805

Check

IC201S VDP

H-OUT #50

Check

Q401 H-TR

Check

135V Line

Check

IC802, IC803 Replace

IC802, IC803

Replace

IC201S

Replace

Q401

Abnormal Check

PC801S, IC801S

Replace

FBT

Normal

Check and Replace

the MICOM

Check

IC903 3.3V Regulator

Input Voltage

Check

D801 and D811

Check

IC804 Input Voltage

Check

R828 and D805

Check

IC801S and FP801S

OFF

Normal

Note : When you check whether any component is normal, you must let the output pin be open in order not to be affected by the side of output.

5-2 No Picture

Troubleshooting

5-2 Samsung Electronics

No Picture, but sound is

in normal operation

Turn the VR of FBT, higher screen

voltage and Check the Deflection

is in Normal Operation

(If the deflection is in operation,

flyback signal is appeared)

Check

CRT PCB RK, BK, GK Check

IC201S #31

Check

Heater Voltage

Check

HIC202, HIC203,

HIC204 Output

Check CRT and FBT

Check

200V, 16.5V Line

Check

IC201S #63

or #59

Replace IC201S

Check

Tuner CVBS Output

Check

IC301

Check

IC803

Normal

Normal Normal

Normal

Replace

IC201S

Replace

DZ202

Normal

Abnormal

Abnormal Abnormal

Abnormal

Normal

Check 8V Check DZ202

Troubleshooting

Samsung Electronics 5-3

5-3 No Sound

No Sound, but Picture is

in normal operation

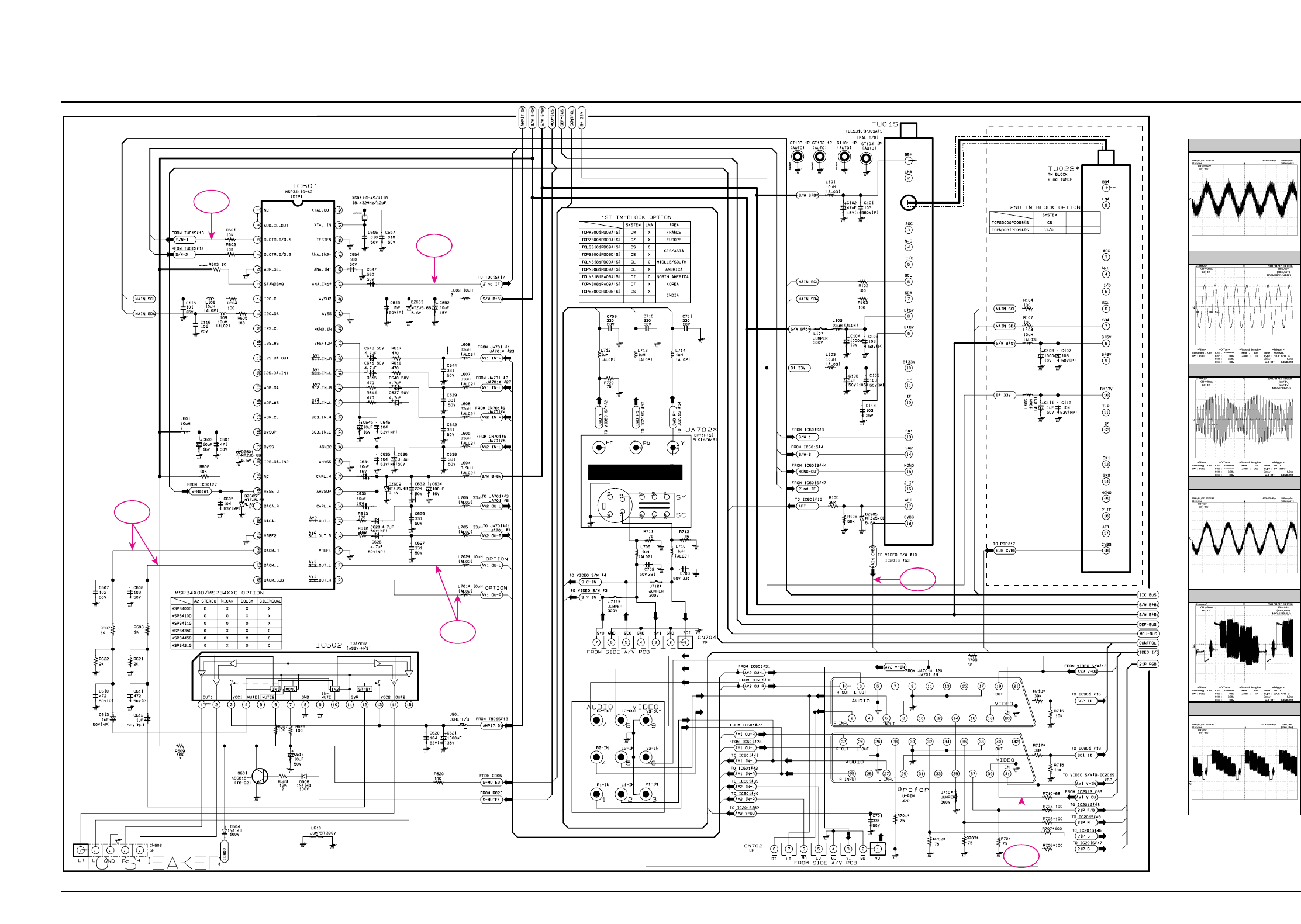

Check the CN602

Connection and Signal

Check

14V Line

Check

IC601 Input

Voltages (5V,8V)

Check

IC601 #24, #25

Check

D816, Q906

Normal

Replace

IC602

Check

IC601 Input Signal

Replace

IC601

Normal

Check

FA803S

Abnormal

Normal

Check

IC602 #7

(If the pin is in low state,

Sound is mute)

Check the Speaker

Wire Connection

Check

the coils around IC601

Abnormal

Check

the Tuner

MEMO

5-4 Samsung Electronics

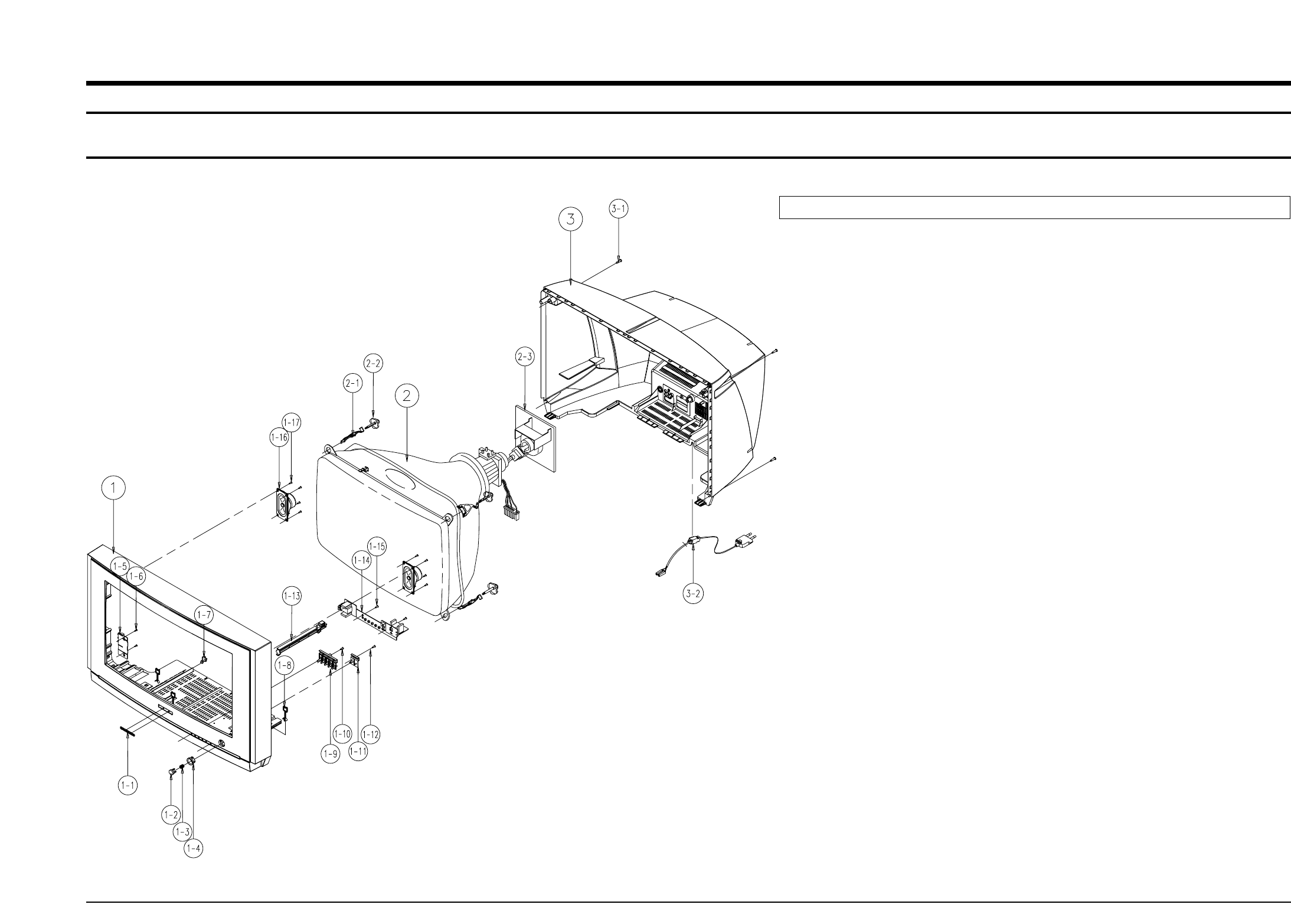

6. Exploded View & Parts List

6-1 WS28V53NS8XXEC(32V5)

Exploded View & Parts List

Samsung Electronics 6-1

No Code No Description;Specification Q’ty Remark S.N.A

1 HA91-05147D ASSY CABINET FRONT;,28V5,KS3A,COR-PROT,H 1

1* AA64-02996D CABINET-FRONT;28V5,HIPS,HB,SV012P-II,COR 1

1-1 AA64-70117B BADGE-BRAND;-,AL,-,-,L65,R2000,SILVER,SS 1

1-2 AA64-02999A KNOB POWER;28/32V5,HIPS,HB,GRY 1

1-3 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, 1

1-4 AA64-03001A DECORATION-POWER;28/32V5,HIPS,HB 1

1-5 AA95-01518A ASSY ETC-PCB A/V BOARD;,29K8,KS3A,50HZ 1

1-6 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 2 CF+PCB

1-7 STOPPER-PCB

1-8 AA65-30105A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2, 2

1-9 AA64-02998A KNOB CONTROL;28/32V5,HIPS,HB,GRY 1

1-10 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 KC+CF

1-11 AA64-03002A WINDOW-RMC,LED;28/32V5,PC,CLR 1

1-12 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 WR+CF

1-13 HA61-00711C HOLDER-PCB;29K8,HIPS,HB,GRY 1

1-14 AA95-01752B ASSY SUB-PCB CONTROL;29M6,KS3A,AA95-0140 1

1-15 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 3 CF+PCB

1-16 3001-001005 SPEAKER;10W,8OHM,91DB,140HZ 2

1-17 6002-000515 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR 8 CF+SPK

2 HA94-01652A ASSY CRT;-,-,28,ITC,W66EJU023X215,NON- 1

2-1 AA65-00009B CLAMPER CORE-D,COIL;21A8,NYLON 66,V0,-,- 4 CRT

2-2 AA60-10050V SCREW-ASSY;-,SWRCH18A,M6,L30,HH,+,WC,-,Z 4 CRT+CF

2-3 3704-000114 SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK 1 VA999

3 HA64-02530C CABINET-BACK;28M6,VL-1823,GRY 1

3-1 6002-000515 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR 6 CB+CF

3-2 AA96-01126B ASSY POWER CORD;DP,AA39-10001G,CP2,H/C40 1

Electrical Parts List

Samsung Electronics 7-1

7-1 WS28V53NS8XXEC

Level Loc. No. Code No. Description ; Specification Remark

7. Electrical Parts List

Level Loc. No. Code No. Description ; Specification Remark

ASSY PCB MAIN(OPT)

1 AA94-05586B ASSY PCB MAIN(OPT);WS28W7N,KS3A/H,TH,AK

2 T801S AA26-00046A TRANS SWITCHING;-,-,-,AC90~260V,DC135/16

2 IC201S 1204-001634 IC-VIDEO PROCESS;VDP3120B-C3,DIP,64P,-,P

2 HC401 HA96-00275A ASSY-H/S;-,COMPLEX,AA62-00051A,KSD5703,

3 AA62-00051A HEAT SINK-PS;-,-,-,SILVER,HOLE 31mm,ALL,

3 D414 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,

3 Q401 0502-001136 TR-POWER;KSD5703,NPN,70W,TO-3PF,ST,8-

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 T401 AA26-50001L TRANS-HORIZ.DRIVE;-,-,-,29mH,-,-,133uH,-

2 TU01S AA40-00079A TUNER;TCPW3001PD16A(S),PAL,181CH,38.

2 IC602 HA96-50369B ASSY-H/S;-,-,AA62-30181F,TDA7297,-

3 1201-001064 IC-POWER AMP;7297,ZIP,15P,-,DUAL,32dB,PL

3 AA62-30181F HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,50MM,-

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 IC601 1204-001775 IC-SOUND PROCESSOR;MSP3410D-C5 9458 ,SDI

2 T444S AA26-00008A TRANS FBT;-,FUH-34A001(S),34INCH,135V

2 PT801S 1404-001156 THERMISTOR-PTC;9OHM,+30%/-20%,220VRMS,27

2 C806 2401-001137 C-AL;330uF,20%,400V,GP,BK,30x45mm,1

2 L402 AA27-00067A COIL HORIZ. WIDTH;-,240uH,YL9N 12x20 C:6

2 C405 2306-000357 C-FILM,MPPF;8.2nF,5%,1.6KV,BK,20x9.5x17.

2 C406 2306-000330 C-FILM,MPPF;7.7nF,3%,1.6KV,TP,28.5x18.5x

2 C426 2306-000235 C-FILM,MPPF;560nF,5%,400V,TP,26*22.5*14,

2 L411 AA27-30001F COIL LINEARITY;-,22uH,DR1011,PI0.45,25.5

2 L408 AA27-40003L COIL HORIZ. WIDTH;-,1.0mH,DR14x20,2UEW0.

2 L405 AA27-00057A COIL HORIZ. WIDTH;-,10mH,YL-9N 15x27.5 C

2 C423 2301-001192 C-FILM,MPPF;820nF,5%,400V,TP,29x18.5x25.

2 CX801S 2306-000318 C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm

2 LX801S AA29-00015A FILTER LINE NOISE;WS32W8,28-20MH 1.5A,+-

2 IC301 HA96-50406B ASSY-H/S;ASSY-H/S;-,AA62-30180B,LA7845

3 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC

3 AA62-30180B HEAT SINK-ES;-,A6063 EXTR.,2,WHT,70MM,-,

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 HC801 HA96-00274A ASSY-H/S;-,COMPLEX,AA62-00053A,FMLG12S

3 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

3 AA62-00053A HEAT SINK-PS;-,-,-,SILVER,HOLE 22mm,ALL,

3 D802 0402-001230 DIODE-RECTIFIER;FMG-G2CS,1000V,3A,TO-220

3 D805 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

3 D806 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

3 D807 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

3 IC802 1203-001006 IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 IC803 1203-001697 IC-VOLTAGE REGULATOR;78R08,TO-220,4P,-,P

2 IC804 HA96-00243C ASSY-H/S;-,REGULATOR,AA62-00045A,KA7806

3 1203-000284 IC-POSI.FIXED REG.;7806,TO-220,3P,-,PLAS

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 AA62-00065A HEAT SINK-PS;DP,-,-,-,AA62-00045A,-,-,-,

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 IC902 1103-001171 IC-EEPROM;L51DC,16KBit,DIP,8P,300MIL,10m

2 IC901 AA09-00181A IC MICOM;SIM806EW3-A035,SIM806EW3-A035,5

2 IC801S HA96-50371C ASSY H/S;-,-,AA62-30181H,KA3A1265R,-

3 AA13-00101A IC HYBRID;KA3S1265RD,CN5039,5PIN,-50TO12

3 AA61-10386A BRACKET-IC;-,SECC 100,T1.0,-,-,-,KA2S068

3 AA62-30197D HEAT SINK-ES;DP,-,-,-,AA62-30181H,-,-,-

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 HA68-02189A LABEL-WARNING;,33MM,18MM,WHITE

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 IC903 1203-001944 IC-POSI.FIXED REG.;78RM33,TO-220,3P,-,PL

2 C407 2301-001338 C-FILM,MPE-PPF;0.68nF,5%,1.6kV,TP,28x7x1

2 D801S 0402-001399 DIODE-BRIDGE;GSIB660,600V,6A,SIP-4,BK

2 Q402 0502-001007 TR-POWER;KSC2073-H2,NPN,25W,TO-220,ST,6

2 PC801S 0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST

2 NT802S 1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T

2 C815 2401-003602 C-AL;220uF,20%,160V,GP,BK,22x25mm,1

2 CY802S 2201-002002 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,TP,16x

2 JA701 3722-000195 JACK-SCART;42P,-,SN,BLK,NO

2 C820 2401-003076 C-AL;3300uF,20%,50V,WP,BK,18x35.5mm

2 R807 2006-001083 R-CEMENT;120ohm,5%,5W,CJ,TP,14x10x27mm

2 L808 AA27-10002L COIL CHOKE;-,24uH,K,-,2A,-,24UH-K,10x10m

2 IC401 1202-000103 IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL,

2 Q404 HA96-00437A ASSY-H/S;ASSY-H/S;AA62-00076A,IRF620

3 0505-000156 FET-SILICON;IRF620,N,200V,5A,0.8ohm,50W,

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 HA62-00076A HEAT SINK;AL,100Hz,T1.0,10,40

2 AA98-00245A ASSY SUB PART;S51A,PCB MAIN(OPT)

3 0202-001222 SOLDER-WIRE FLUX;RS-107,RS60-1.2AA,D1.2,

3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

3 0202-001046 SOLDER-WIRE FLUX;CF-110VH-2A,-,-,-,-

3 0204-000442 SOLVENT;1M-1000,C3H70H,96,-

2 C105 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C101 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C103 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C228 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C230 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C809 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C810 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C811 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C202 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C205 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C920 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C231 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C215 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C630 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C631 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C645 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C652 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C603 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C708 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C214 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C216 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C605 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C620 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C635 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C646 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C829 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C837 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C839 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C916 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C308 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C914 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C831 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C825 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C208 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

2 C217 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

2 C636 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

2 C905 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C607 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C608 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C903 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C211 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C212 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C416 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C213 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5

2 C218 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C219 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C220 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C221 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C222 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C223 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C901 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C921 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C922 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C919 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C924 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C233 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C234 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C235 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C907 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C909 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C237 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5

2 C841 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

2 C604 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

2 C201 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

2 C303 2201-002031 C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,

2 C224 2201-002031 C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,

2 C225 2201-002031 C-CERAMIC,DISC;0.005nF,0.5pF,50V,NP0,TP,

2 C304 2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15

2 C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

2 C821 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

2 C902 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

2 C307 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

2 C302 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

2 C401 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

2 C403 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

2 C421 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

2 C402 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

2 C404 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

2 C408 2305-000382 C-FILM,MPEF;4.7nF,5%,400V,TP,-,5mm

2 C414 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5

2 C418 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5

2 C422 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m

2 C424 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

2 C601 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3

2 C610 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

2 C611 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

2 C415 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

2 C612 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2 C613 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2 C617 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

2 C917 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

2 C413 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

2 C622 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

2 C625 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

2 C626 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

2 C628 2401-001989 C-AL;4.7uF,20%,50V,BP,TP,5x11,5

2 C623 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C624 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C627 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C629 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C642 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C644 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C701 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C638 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C639 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C249 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C632 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP

2 C634 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C826 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C832 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C838 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C637 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C640 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C641 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C643 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C647 2202-000286 C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.

2 C649 2301-000108 C-FILM,PEF;1.5nF,5%,50V,TP,6.5x3.0x5.5mm

2 C804 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

2 C805 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

2 C807 2301-001397 C-FILM,PPF;2.2nF,5%,1.2kV,TP,15x8.5x13.5

2 C814 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3

2 C816 2401-000262 C-AL;100uF,20%,160V,HR,TP,16x25,7.5

2 C817 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C819 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C822 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C818 2401-000722 C-AL;2200uF,20%,25V,WT,TP,16x25,7.5

2 C910 2201-000980 C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,

2 C911 2201-000980 C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,

2 C913 2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5

2 C915 2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5

2 C918 2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5

2 C210 2401-000287 C-AL;100uF,20%,16V,WT,TP,6.3x11,5

2 D201 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D202 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D207 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D208 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D209 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D210 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D211 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D602 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D804 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 DZ402 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D906 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D405 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D301 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D411 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D803 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D816 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D401 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP

2 D404 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP

2 D402 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

2 D403 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D406 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D810 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D811 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D907 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D413 0402-000537 DIODE-RECTIFIER;RH1A,600V,0.6A,DO-204AC

2 D801 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20

2 DZ201 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ202 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ802 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ902 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ601 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ603 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ903 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ904 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ905 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ906 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ907 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ909 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ910 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ604 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ605 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ908 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ203 0403-001321 DIODE-ZENER;MTZJ6.8C,6.66-7.01V,500mW,DO

2 DZ302 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D

2 DZ303 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D

2 DZ304 0403-001329 DIODE-ZENER;MTZJ24B,22.61-23.77V,500mW,D

2 DZ305 0403-001221 DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D

2 DZ306 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T

2 DZ804 0403-000700 DIODE-ZENER;TZP33A,33V,31-35V,1W,DO-41,T

2 DZ401 0403-001325 DIODE-ZENER;MTZJ15C,14.35-15.09V,500mW,D

2 DZ801 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

2 DZ808 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

2 DZ204 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

2 DZ205 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500mW,DO

2 DZ805 1203-001217 IC-POSI.ADJUST REG.;431,TO-92,3P,4.58MIL

2 GT101 AA60-40014A PIN-GT,ASSY;AUTO

2 GT102 AA60-40014A PIN-GT,ASSY;AUTO

2 GT301 AA60-40014A PIN-GT,ASSY;AUTO

2 GT302 AA60-40014A PIN-GT,ASSY;AUTO

2 GT401 AA60-40014A PIN-GT,ASSY;AUTO

2 GT402 AA60-40014A PIN-GT,ASSY;AUTO

2 GT801 AA60-40014A PIN-GT,ASSY;AUTO

2 GT802 AA60-40014A PIN-GT,ASSY;AUTO

2 GT803 AA60-40014A PIN-GT,ASSY;AUTO

2 GT804 AA60-40014A PIN-GT,ASSY;AUTO

2 GT805 AA60-40014A PIN-GT,ASSY;AUTO

2 GT806 AA60-40014A PIN-GT,ASSY;AUTO

Electrical Parts List

7-2 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 7-3

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

2 GT103 AA60-40014A PIN-GT,ASSY;AUTO

2 GT409 AA60-40014A PIN-GT,ASSY;AUTO

2 J102 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J103 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J105 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J108 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J110 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J111 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J112 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J113 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J114 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J115 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J116 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J117 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J119 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J122 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J123 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J124 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J203 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J205 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J206 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J207 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J208 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J209 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J210 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J212 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J213 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J214 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J216 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J217 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J218 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J219 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J222 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J223 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J224 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J225 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J226 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J227 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J228 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J229 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J230 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J232 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J234 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J236 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J237 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J238 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J239 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J242 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J244 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J246 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J247 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J248 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J401 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J402 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J404 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J409 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J412 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J414 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J416 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J421 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J422 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J424 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J428 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J601 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J602 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J603 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J604 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J606 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J607 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J611 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J614 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J615 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J616 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J617 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J618 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J619 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J620 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J621 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J622 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J624 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J627 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J629 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J631 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J632 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J703 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J704 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J708 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J715 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J716 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J717 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J805 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J806 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J807 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J810 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J811 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J816 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J819 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J820 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J821 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J824 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J826 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J829 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J830 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J831 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J832 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J833 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J909 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J911 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J912 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J913 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J915 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J916 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J917 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J924 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J925 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J926 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J927 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J928 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J932 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J933 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J934 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J936 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J939 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J941 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J942 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 R939 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J714 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J249 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 D908 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J835 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J425 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J633 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J818 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J612 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 L610 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J937 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J918 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J626 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J126 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J118 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J101 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J253 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J943 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J944 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J705 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J707 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J127 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J605 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J608 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J609 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 L107 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J902 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 D407 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J407 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J419 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J801 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J802 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J803 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J804 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J211 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J241 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J630 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 L410 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J834 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J204 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J701 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J817 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 L413 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 R926 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J940 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 EY301 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY302 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY303 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY304 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY401 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY402 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY403 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY404 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY405 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY406 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY407 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY408 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY409 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY410 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY411 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY412 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY413 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY414 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY415 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY416 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY417 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY418 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY419 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY420 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY421 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY422 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY423 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY424 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY425 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY426 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY427 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY428 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY429 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY430 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY431 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY432 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY433 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY434 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY435 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY436 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY437 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY438 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY439 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY440 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY441 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY442 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY443 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY444 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY445 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY446 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY447 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY448 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY449 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY450 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY451 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY452 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY453 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY454 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY455 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY456 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY457 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY458 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY601 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY602 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY603 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY604 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY701 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY702 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY703 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY704 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY801 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY802 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY803 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY804 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY805 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY806 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY807 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY808 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY809 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY810 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY811 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY812 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY813 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY814 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY815 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY816 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY817 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY818 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY819 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY820 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY822 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY823 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY824 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY825 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY826 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY827 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY828 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY829 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY830 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY831 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY832 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY833 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY834 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY835 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY836 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY837 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY838 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY839 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY840 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY841 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY842 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY844 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY845 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY846 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY847 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY848 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY849 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY850 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY851 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY852 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY853 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY854 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY855 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY856 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY857 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY858 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY859 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY860 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EY861 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 TOP1 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 TOP2 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EL401 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL402 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL403 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL404 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL405 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

Electrical Parts List

7-4 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 7-5

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

2 EL406 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL407 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL408 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL802 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL803 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL805 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL806 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL807 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL808 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL809 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL810 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL811 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 R236 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R237 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R238 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R247 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R622 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R621 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R935 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R202 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R205 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R243 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R245 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R246 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R310 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R716 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R715 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R606 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R602 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R601 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R620 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R629 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R309 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R206 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R609 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R912 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R952 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R940 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R941 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R942 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R947 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R948 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R102 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R103 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R203 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R204 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R604 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R605 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R610 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R611 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R612 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R613 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R628 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R627 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R706 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R707 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R708 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R723 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R909 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R907 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 J920 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 J904 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R925 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R955 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RR430S 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

2 R418 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4M

2 RY801S 2002-001011 R-COMPOSITION;3.3Mohm,5%,1/2W,AA,TP,3.7x

2 RY802S 2002-001013 R-COMPOSITION;4.7Mohm,5%,1/2W,AA,TP,3.7x

2 VP801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

2 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

2 X901 2801-003728 CRYSTAL-UNIT;6MHz,30ppm,28-AAM,20pF,40oh

2 L103 2701-000115 INDUCTOR-AXIAL;10uH,10%,3x7mm

2 0203-001123 TAPE-PAPER;#53131,T0.15,W6.0,L200000,YEL

2 C707 2401-000939 C-AL;22uF,20%,25V,GP,TP,5x11,5

2 L202 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L301 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L406 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L907 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L711 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L108 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L109 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L204 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm

2 L222 2701-000184 INDUCTOR-AXIAL;4.7uH,10%,2.5x3.4mm

2 L302 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L802 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L803 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L804 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L809 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 J901 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L303 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L207 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L412 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 J406 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L407 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 L807 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 L601 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 L609 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 L201 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 L604 2701-000169 INDUCTOR-AXIAL;3.9uH,10%,2.5x3.4mm

2 L905 2701-000211 INDUCTOR-AXIAL;68uH,10%,2.5x3.4mm

2 Q201 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q202 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q203 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q901 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q906 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q908 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q701 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q204 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q601 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 Q907 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 R244 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R954 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R208 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R209 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R215 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R823 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R910 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R216 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R234 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R235 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R603 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R817 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R924 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R914 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R252 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R726 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R902 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R816 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R228 2001-000117 R-CARBON(S);68OHM,5%,1/2W,AA,TP,2.4X6.4M

2 R301 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

2 R423 2004-001397 R-METAL(S);4.7Kohm,1%,1/2W,AA,TP,2.4x6.4

2 R303 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP,2.4X6.4MM

2 R828 2008-000266 R-FUSIBLE(S);1ohm,5%,2W,AF,TP,3.9x10mm

2 R314 2004-001986 R-METAL(S);35.7Kohm,1%,1/2W,AA,TP,2.4x6.

2 R411 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

2 R412 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M

2 R421 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.

2 R913 2001-000947 R-CARBON;7.5KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R426 2003-000540 R-METAL OXIDE(S);1Kohm,5%,2W,AF,TP,4x12m

2 R434 2003-000664 R-METAL OXIDE(S);33ohm,5%,2W,AF,TP,4x12m

2 R614 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R615 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R616 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R617 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R920 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R226 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R224 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R225 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R931 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R812 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R831 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R956 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R919 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R214 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R701 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R702 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R703 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R704 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R719 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R705 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R242 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R802 2003-001025 R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x

2 R803 2003-001025 R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x

2 R804 2003-001025 R-METAL OXIDE(S);15Kohm,5%,2W,AF,TP,3.9x

2 R805 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.

2 R806 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA,TP,2.4X6.

2 R813 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M

2 R832 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M

2 R810 2001-001178 R-CARBON(S);680OHM,5%,1/2W,AA,TP,2.4X6.4

2 R819 2004-001983 R-METAL(S);2.49Kohm,1%,1/2W,AA,TP,2.4x6.

2 R820 2001-001096 R-CARBON(S);2.2OHM,5%,1/2W,AA,TP,2.4X6.4

2 R822 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R824 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R825 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R901 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R903 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R904 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R905 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R906 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R908 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R921 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R927 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R928 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R937 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R724 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R725 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R251 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R223 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 R248 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 R249 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 R250 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 R207 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 R911 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 R922 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R923 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 C411 2301-000104 C-FILM,PEF;1.2NF,5%,50V,TP,6.5X3.0X5.5MM

2 C412 2301-000313 C-FILM,PEF;8.2nF,5%,100V,TP,7x3.2x7mm,5m

2 C427 2401-002267 C-AL;2.2uF,20%,250V,GP,TP,8x11.5,5

2 C833 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2 C229 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

2 CN602 3711-002644 CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH

2 CN901 3711-002644 CONNECTOR-HEADER;BOX,5P,1R,2.5mm,STRAIGH

2 CW901 2503-000156 C-NETWORK;100pFx4,20%,50V

2 D203 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D204 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D205 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D206 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D901 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D902 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D903 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 D904 0404-000156 DIODE-SCHOTTKY;RB441Q,10V,100mA,DO-34,TP

2 DZ803 0403-001167 DIODE-ZENER;MTZJ30D,30V,29.02-30.51V,500

2 FA802S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

2 HIC202 AA13-00093A IC HYBRID;-,DRGB001A,SIP,5P,-,TP

2 HIC203 AA13-00093A IC HYBRID;-,DRGB001A,SIP,5P,-,TP

2 HIC204 AA13-00093A IC HYBRID;-,DRGB001A,SIP,5P,-,TP

2 HIC201 AA13-00093A IC HYBRID;-,DRGB001A,SIP,5P,-,TP

2 R302 2004-001984 R-METAL(S);26.7Kohm,1%,1/2W,AA,TP,2.4x6.

2 R409 2003-002009 R-METAL OXIDE(S);390ohm,5%,2W,AF,TP,3.9x

2 R410 2003-002009 R-METAL OXIDE(S);390ohm,5%,2W,AF,TP,3.9x

2 R413 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10

2 R424 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10

2 R425 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10

2 R405 2008-001018 R-FUSIBLE(S);0.47ohm,10%,2W,AF,TP,3.9x10

2 R827 2008-000284 R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M

2 R829 2008-001029 R-FUSIBLE(S);5.6ohm,5%,2W,AF,TP,3.9x10mm

2 R835 2003-002181 R-METAL OXIDE(S);68Kohm,5%,2W,AG,TP,3.9x

2 R836 2003-002181 R-METAL OXIDE(S);68Kohm,5%,2W,AG,TP,3.9x

2 R433 2003-001042 R-METAL OXIDE(S);5.6Kohm,5%,2W,AF,TP,3.9

2 R717 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R718 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R105 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 X201 2801-003432 CRYSTAL-UNIT;20.25MHZ,30PPM,28-AAM,13PF,

2 X601 2801-003903 CRYSTAL-UNIT;18.432MHz,25ppm,28-AAM,12pF

2 IC904 1203-001943 IC-VOL. DETECTOR;7025,TO-92,3P,-,PLASTIC

2 PCB AA41-00168H PCB-MAIN;CS29A6,FR-1,1L,H,1.6T,330X245,K

2 Q909 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

2 Q910 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400m

2 R403 2003-001091 R-METAL OXIDE(S);10ohm,5%,2W,AF,TP,4x12m

2 L705 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L706 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L605 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L606 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L607 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L608 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L701 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 L702 2701-000180 INDUCTOR-AXIAL;33uH,5%,2.5x3.4mm

2 R106 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R313 2004-001137 R-METAL;6.8Kohm,1%,1/8W,AA,TP,1.8x3.2m

2 R710 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R709 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R241 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R315 2004-004970 R-METAL(S);62Kohm,1%,1/8W,AA,TP,1.8x3.2m

2 R811 2004-001408 R-METAL(S);91Kohm,1%,1/2W,AA,TP,2.4x6.4m

2 R809 2001-000022 R-CARBON(S);33OHM,5%,1/2W,AA,TP,2.4X6.4M

2 R432 2004-001402 R-METAL(S);6.8Kohm,1%,1/2W,AA,TP,2.4x6.4

2 L901 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

2 L903 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

2 L904 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

2 L909 2701-000191 INDUCTOR-AXIAL;47uH,10%,2.5x3.4mm

2 L908 2701-000191 INDUCTOR-AXIAL;47uH,10%,2.5x3.4mm

2 R818 2001-001113 R-CARBON(S);270KOHM,5%,1/2W,AA,TP,2.4X6.

2 CN702 3711-002647 CONNECTOR-HEADER;BOX,8P,1R,2.5mm,STRAIGH

2 C656 2201-000304 C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP

2 C657 2201-000304 C-CERAMIC,DISC;0.001nF,0.25pF,50V,NP0,TP

2 C306 2301-000342 C-FILM,PEF;2.2nF,5%,50V,TP,7.4x3.9x13mm,

2 R422 2001-000037 R-CARBON(S);330OHM,5%,1/2W,AA,TP,2.4X6.4

2 C621 2401-002458 C-AL;1000uF,20%,35V,GP,TP,16x25,7.5

2 C824 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5

2 C823 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5

2 C808 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5

2 C115 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2 C116 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2 C244 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2 C245 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2 L209 2701-000168 INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm

2 L210 2701-000168 INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm

2 L801 3301-001223 CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,-

2 L806 3301-001223 CORE-FERRITE BEAD;AA,62ohm,3.5x0.8x5mm,-

2 R945 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R946 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 C104 2401-002463 C-AL;470uF,20%,16V,GP,TP,8x11.5,5

2 R210 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 C835 2401-002289 C-AL;470uF,20%,35V,WT,TP,10x20,5

2 C840 2401-002212 C-AL;10uF,20%,25V,WT,TP,5x11,5

2 C827 2401-002212 C-AL;10uF,20%,25V,WT,TP,5x11,5

2 C301 2401-000611 C-AL;1uF,20%,50V,WT,TP,5x11,5

2 C106 2401-000611 C-AL;1uF,20%,50V,WT,TP,5x11,5

2 DZ602 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500

2 R808 2001-001079 R-CARBON(S);15OHM,5%,1/2W,AA,TP,2.4X6.4M

2 C248 2202-000210 C-CERAMIC,MLC-AXIAL;270pF,10%,50V,Y5P,TP

2 C246 2202-000210 C-CERAMIC,MLC-AXIAL;270pF,10%,50V,Y5P,TP

2 R304 2008-000254 R-FUSIBLE(S);0.68ohm,5%,2W,AF,TP,3.9x10m

2 C102 2401-001513 C-AL;47uF,20%,16V,WT,TP,5x11,5

2 L208 2701-000147 INDUCTOR-AXIAL;2.2uH,5%,2.4x3.4mm

2 C247 2202-000849 C-CERAMIC,MLC-AXIAL;18pF,5%,50V,CH,TP,3.

2 HA68-02176A LABEL;LABEL

2 L102 2701-000159 INDUCTOR-AXIAL;22uH,10%,4.2x9.8mm

2 C654 2201-000611 C-CERAMIC,DISC;0.056nF,5%,50V,NP0,TP,7x3

2 R305 2003-002205 R-METAL OXIDE(S);330ohm,5%,2W,AG,TP,3.9X

2 R306 2003-002205 R-METAL OXIDE(S);330ohm,5%,2W,AG,TP,3.9X

2 R401 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

2 R402 2003-000586 R-METAL OXIDE(S);22Kohm,5%,2W,AF,TP,4x12

2 R414 2008-000253 R-FUSIBLE(S);0.47ohm,5%,1W,AF,TP,3.9x10m

2 R420 2004-001406 R-METAL(S);8.2Kohm,1%,1/2W,AA,TP,2.4x6.4

2 R428 2001-001191 R-CARBON(S);820KOHM,5%,1/2W,AA,TP,2.4X6.

Electrical Parts List

7-6 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 7-7

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

2 R429 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R436 2003-002008 R-METAL OXIDE(S);18Kohm,5%,2W,AF,TP,3.9x

2 R607 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R608 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 CN903 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

2 C409 2301-001268 C-FILM,PPF;33nF,5%,630V,TP,20x11x17,7.5

2 CN502 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH

2 R821 2004-001891 R-METAL(S);133Kohm,1%,1/2W,AA,TP,2.5x6.5

2 C410 2301-000213 C-FILM,PEF;220nF,5%,250V,TP,21.5x11,7.5

2 R213 2001-000232 R-CARBON;1.3KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R404 2008-000282 R-FUSIBLE;0.47ohm,5%,1W,AA,TP,3.9x12mm

2 C425 2303-001026 C-FILM,PPF;33nF,10%,400V,TP,20x15x8,7.5

2 DZ806 0403-001316 DIODE-ZENER;MTZJ3.0A,2.85-3.07V,500mW,DO

2 R417 2004-001382 R-METAL(S);13Kohm,1%,1/2W,AA,TP,2.4x6.4m

2 FA803S 3601-001228 FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO

2 J914 2001-000674 R-CARBON;360OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R212 2004-000218 R-METAL;10Kohm,1%,1/8W,AA,TP,1.8x3.2mm

2 C925 2202-000127 C-CERAMIC,MLC-AXIAL;10nF,+80-20%,25V,Y5V

2 C420 2305-001003 C-FILM,MPEF;10nF,5%,250V,TP,13x4.5x9mm,7

2 C828 2201-000376 C-CERAMIC,DISC;0.22nF,5%,50V,SL,TP,6.3x3

2 J919 2701-000183 INDUCTOR-AXIAL;39uH,5%,2.5x3.4mm

2 C203 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5

2 R944 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 L910 2701-000215 INDUCTOR-AXIAL;8.2uH,10%,2.5x3.4mm

2 C926 2202-000154 C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP

2 F801A 3602-000114 FUSE-HOLDER;-,-,30mohm

2 F801B 3602-000114 FUSE-HOLDER;-,-,30mohm

2 FP801S 3601-000297 FUSE-CARTRIDGE;250V,5A,TIME-LAG,GLASS,5.

2 RX801S 2002-001010 R-COMPOSITION;1.8Mohm,5%,1/2W,AA,TP,3.7x

2 R415 2004-004083 R-METAL(S);3.6Kohm,2%,1/2W,AA,TP,2.5x6.5

2 D408 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

2 CN501 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.54mm,STRAI

2 CN801 3711-004721 CONNECTOR-HEADER;3WALL,2P,1R,12.5mm,STRA

2 CN802 3711-004720 CONNECTOR-HEADER;3WALL,2P,1R,12.5mm,STRA

2 TOP AA39-20010B LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,500,

ASSY CRT

1 HA94-01652A ASSY CRT;-,-,28,ITC,W66EJU023X215,NON-

2 AA03-00106A CRT COLOR;W66EJU023X215,+380mG,1.15mH,12

2 AA39-20518A LEAD CONNECTOR-ASSY;,6(4)P,YFH806-06,350

2 AA27-00020A COIL-DEGAUSSING;-,28,12OHM,55T,L3000,E

2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR

2 AA98-70008D ASSY TBC WIRE(P);-,28WIDE,PAL,2P,-

ASSY SUB-PCB CONTROL

1 AA95-01752B ASSY SUB-PCB CONTROL;29M6,KS3A,AA95-0140

2 0202-001222 SOLDER-WIRE FLUX;RS-107,RS60-1.2AA,D1.2,

2 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

2 0204-000442 SOLVENT;1M-1000,C3H70H,96,-

2 0202-001046 SOLDER-WIRE FLUX;CF-110VH-2A,-,-,-,-

2 LDY01 0601-000198 LED;ROUND,RED/GRN,5.0mm,630/565nm

2 SW811S 3403-001107 SWITCH-PUSH;250V,5A,DPST,-,KDC-A04

2 PD811S 3711-004696 CONNECTOR-HEADER;NOWALL,3P,1R,10/5mm,ANG

2 PD812S 3711-004697 CONNECTOR-HEADER;NOWALL,3P,1R,5/10mm,ANG

2 6001-000057 SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1

2 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

2 CNY02 AA39-20005B LEAD CONNECTOR-ASSY;,3P,YBNH025-03,67096

2 CNY01 AA39-20069D LEAD CONNECTOR-ASSY;,5P,YBNH025-05,67096

2 CN811 AA39-20179A LEAD CONNECTOR-ASSY;,3(2)P,YFH800-150,S,

2 RMY01 AA32-00012A MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES

2 AA61-00530B BRACKET-MASTER;25M6,29M6,SECC

2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR

2 DY01 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 DY02 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 DZY01 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZY02 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 RY03 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RY05 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RY01 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,TP,2.4X6.4M

2 RY02 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RY04 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 CY01 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5

2 LY01 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 SWY02 3404-000282 SWITCH-TACT;12Vdc,50mA,120gf,6x6x5mm,SPS

2 SWY03 3404-000282 SWITCH-TACT;12Vdc,50mA,120gf,6x6x5mm,SPS

2 SWY04 3404-000282 SWITCH-TACT;12Vdc,50mA,120gf,6x6x5mm,SPS

2 SWY05 3404-000282 SWITCH-TACT;12Vdc,50mA,120gf,6x6x5mm,SPS

2 SWY06 3404-000282 SWITCH-TACT;12Vdc,50mA,120gf,6x6x5mm,SPS

2 PCB AA41-00552A PCB-CONTROL;29M6/25M6,CEM-1,1L,A,1.6T,24

2 EL01 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EL02 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EL03 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EL04 AA60-40011A K EYELET;ID2.0,OD2.8,BST

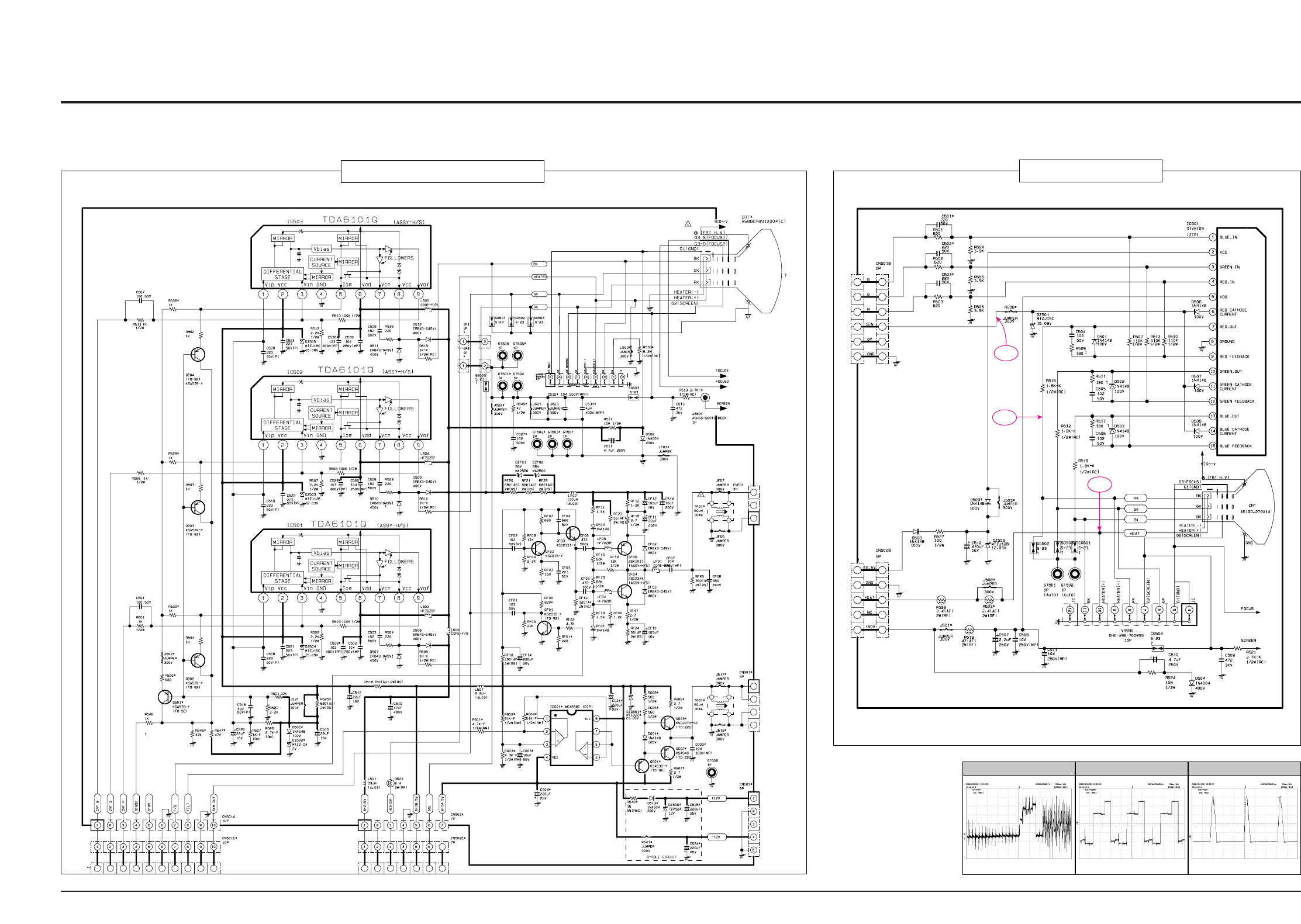

ASSY PCB CRT

1 AA95-01532A ASSY PCB CRT;,KS3A,28,32,W5-W6-W7,50HZ

2 VA999 3704-000114 SOCKET-CRT;14P,29.1,35.5,SN,ISH09S/BK

2 QF04 HA96-50149A ASSY-H/S;-,AA62-30013A,2SC2344,-

3 0502-000153 TR-POWER;2SC2344-D,NPN,1.2W,TO-220,-,60

3 SCR09 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 H/S09 AA62-30013A HEAT SINK-ES;-,A6063 EXTR,-,-,45(21) T02

2 QF05 HA96-50149B ASSY-H/S;-,TR,AA62-30013A,2SA1011,-

3 QV10 0502-000131 TR-POWER;2SA1011-D,PNP,1.2W,TO-220,-,60

3 SCR10 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 H/S10 AA62-30013A HEAT SINK-ES;-,A6063 EXTR,-,-,45(21) T02

2 IC501 HA96-50151A ASSY-H/S;-,TR,AA61-10060A,TDA6101Q,-

2 IC502 HA96-50151A ASSY-H/S;-,TR,AA61-10060A,TDA6101Q,-

2 IC503 HA96-50151A ASSY-H/S;-,TR,AA61-10060A,TDA6101Q,-

3 1201-000539 IC-VIDEO AMP;6101,ZIP,9P,-,SINGLE,-,PLAS

3 6001-000057 SCREW-MACHINE;RH,+,M3,L6,ZPC(BLK),SWRCH1

3 6021-000154 NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C

3 BRC501 AA61-10060A BRACKET-TR;W3220,CUS-1 1/2H,T0.5,-,-,-,-

2 HA68-02176A LABEL;LABEL

2 GT501 AA60-40014A PIN-GT,ASSY;AUTO

2 GT502 AA60-40014A PIN-GT,ASSY;AUTO

2 GT507 AA60-40014A PIN-GT,ASSY;AUTO

2 GT503 AA60-40014A PIN-GT,ASSY;AUTO

2 GT504 AA60-40014A PIN-GT,ASSY;AUTO

2 GT505 AA60-40014A PIN-GT,ASSY;AUTO

2 EL81 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL82 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL83 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL84 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL85 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL86 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL87 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL88 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL89 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL90 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL91 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL92 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 EL93 AA60-40011B K EYELET;ID2.2,OD3.2,BSP

2 J501 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J502 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J503 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J506 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J507 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J508 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J509 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J510 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF02 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF03 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF04 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J511 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF05 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 L502 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF01 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J512 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J513 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J514 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J516 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J520 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J521 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J523 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J524 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J526 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J527 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J528 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J529 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J530 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 R546 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF06 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JF07 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 R504 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 R509 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 J515 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 R539 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 DF01 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 DF04 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D502 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D507 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D508 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D509 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D510 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D511 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 D512 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 DF02 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 DF03 0402-001105 DIODE-RECTIFIER;ERB43-04SV1,400V,1.0A,-,

2 DZ503 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D

2 Q501 0501-000283 TR-SMALL SIGNAL;KSA539,PNP,400mW,TO-92,T

2 QF03 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1000mW,TO-

2 QF01 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 QF02 0501-000389 TR-SMALL SIGNAL;KSC815,NPN,400mW,TO-92,T

2 RF09 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 RF12 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 RF10 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 RF11 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R521 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R526 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RF08 2001-000313 R-CARBON;11KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RF03 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R529 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R530 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R536 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RF04 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 RF05 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RF02 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R520 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 RF06 2001-000989 R-CARBON;820KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R517 2001-001062 R-CARBON(S);10MOHM,5%,1/2W,AA,TP,2.4X6.4

2 RF14 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R502 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

2 R507 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

2 R512 2001-001049 R-CARBON(S);1.3KOHM,5%,1/2W,AA,TP,2.4X6.

2 RF15 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

2 RF17 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA,TP,2.4X6.4

2 RF13 2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4

2 RF16 2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R503 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R508 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R513 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA,TP,2.4X6.4

2 R505 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

2 R510 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

2 R515 2002-001017 R-COMPOSITION;1Kohm,10%,1/2W,AA,TP,3.7x9

2 RF18 2003-000458 R-METAL OXIDE(S);100ohm,5%,2W,AF,TP,4x12

2 RF23 2003-000746 R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m

2 RF24 2003-000746 R-METAL OXIDE(S);56ohm,5%,2W,AF,TP,4x12m

2 RF19 2003-001023 R-METAL OXIDE(S);120ohm,5%,2W,AF,TP,3.9x

2 RF20 2003-001045 R-METAL OXIDE(S);680ohm,5%,2W,AF,TP,3.9x

2 RF21 2003-001045 R-METAL OXIDE(S);680ohm,5%,2W,AF,TP,3.9x

2 RF22 2003-001045 R-METAL OXIDE(S);680ohm,5%,2W,AF,TP,3.9x

2 RF25 2003-002009 R-METAL OXIDE(S);390ohm,5%,2W,AF,TP,3.9x

2 RF07 2004-001989 R-METAL;620ohm,5%,1/8W,AA,TP,1.8x3.2mm

2 CF01 2201-000180 C-CERAMIC,DISC;10nF,10%,50V,Y5V,TP,7x3,5

2 CF03 2201-000376 C-CERAMIC,DISC;0.22nF,5%,50V,SL,TP,6.3x3

2 CF06 2201-000516 C-CERAMIC,DISC;4.7nF,+100-0%,500V,Y5U,TP

2 C503 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C506 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C509 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 CF04 2201-000653 C-CERAMIC,DISC;0.068nF,5%,50V,SL,TP,5x3,

2 CF08 2201-000653 C-CERAMIC,DISC;0.068nF,5%,50V,SL,TP,5x3,

2 CF14 2401-000832 C-AL;220uF,20%,25V,GP,TP,8x11.5,5

2 CF02 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

2 C516 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

2 C518 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C519 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C520 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C521 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C522 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C523 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 CF05 2301-000261 C-FILM,PEF;4.7nF,5%,100V,TP,10.5x12.5x6.

2 C502 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5

2 C505 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5

2 C508 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5

2 CF07 2305-000704 C-FILM,MPEF;100nF,5%,250V,TP,16.5x10.3x5

2 C514 2401-000430 C-AL;10uF,20%,250V,GP,TP,10x16mm,5m

2 C512 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5

2 C515 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5

2 C526 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5

2 C511 2401-001232 C-AL;4.7uF,20%,250V,GP,TP,10x12.5,5

2 CF10 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 CF12 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 L501 2701-000112 INDUCTOR-AXIAL;100uH,10%,3x7mm

2 LF02 2701-000112 INDUCTOR-AXIAL;100uH,10%,3x7mm

2 LF01 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L505 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L506 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 PCB AA41-00210D PCB-CRT;CS29A6,FR-1,1L,D,1.6T,330x245,KS

2 DZF01 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T

2 DZF02 0403-001039 DIODE-ZENER;MA2560,56V,52-60V,1W,DO-41,T

2 R522 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R527 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M

2 R525 2003-001043 R-METAL OXIDE(S);510ohm,5%,1W,AF,TP,2.5x

2 R518 2003-002171 R-METAL OXIDE(S);150ohm,5%,2W,AG,TP,3.9x

2 L503 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 L504 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 LF04 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 LF05 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

2 R519 2002-001009 R-COMPOSITION;2.7Kohm,10%,1/2W,AA,TP,3.7

2 L507 2701-000215 INDUCTOR-AXIAL;8.2uH,10%,2.5x3.4mm

2 SG501 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm

2 SG502 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm

2 SG503 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm

2 SG504 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm

2 SG505 AA27-00084A COIL;S-23,-,-,-,-,-,-,S-23,5000Mohm

2 R501 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R506 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 R511 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,1.8X3.2MM

2 HA98-00003A ASSY SUB PART;ASSY-SUB,PART;S53A,PCB,CRT

3 0202-001222 SOLDER-WIRE FLUX;RS-107,RS60-1.2AA,D1.2,

3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

3 0204-000442 SOLVENT;1M-1000,C3H70H,96,-

3 0202-001046 SOLDER-WIRE FLUX;CF-110VH-2A,-,-,-,-

2 GT507 AA39-20010D LEAD CONNECTOR-ASSY;,1P,YFH800-01,S,400,

2 CN501A AA39-00225A LEAD CONNECTOR-ASSY;,10P,67096-010,S,600

2 CN501A 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.54mm,STRAI

2 CN502A AA39-20029K LEAD CONNECTOR-ASSY;,7P,67096-007,S,400,

2 CNF01 AA39-20033C LEAD CONNECTOR-ASSY;,3(2)P,67096-003,S,2

2 CF11 2401-000927 C-AL;22uF,20%,250V,GP,TP,13x20,5

2 C513 2201-000723 C-CERAMIC,DISC;4.7nF,20%,3KV,Y5U,TP,16x5

2 R523 2008-000265 R-FUSIBLE(S);1ohm,5%,2W,AA,TP,3.9x10mm

2 C510 2401-001525 C-AL;47uF,20%,250V,GP,BK,16x25mm,7.

2 JA501 3722-001503 JACK-PIN;1P,1PI,NI,RED,SCR-JACK

2 CNF01 3711-002642 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGH

2 CN502A 3711-002646 CONNECTOR-HEADER;BOX,7P,1R,2.5mm,STRAIGH

ASSY ETC-PCB A/V BOARD

1 AA95-01518A ASSY ETC-PCB A/V BOARD;,29K8,KS3A,50HZ

2 JH701 3722-000143 JACK-PHONE;1P(VER),3.4PI,AG,BLK,NO

2 JA701 3722-001031 JACK-PIN;3P,3.6mm,#18,AU

2 CN704 AA39-00070A LEAD CONNECTOR-ASSY;,4P,YBNH250-04,35184

Electrical Parts List

7-8 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 7-9

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

2 CN705 AA39-20009E LEAD CONNECTOR-ASSY;,1P,YFH800-01,600,16

2 CN701 AA39-20068G LEAD CONNECTOR-ASSY;,8P,YBNH025-08,67096

2 CN703 AA39-20069A LEAD CONNECTOR-ASSY;,5P,YBNH025-05,67096

2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR

2 AA98-00246A ASSY SUB PART;S51A,CONTROL WIDE

3 0202-001222 SOLDER-WIRE FLUX;RS-107,RS60-1.2AA,D1.2,

3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

3 0202-001046 SOLDER-WIRE FLUX;CF-110VH-2A,-,-,-,-

3 0204-000442 SOLVENT;1M-1000,C3H70H,96,-

2 R701 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

2 R702 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AA,TP,2.4X6.4

2 C701 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2 C702 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP

2 C703 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C704 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C705 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

2 C706 2401-002009 C-AL;100uF,20%,16V,GP,TP,6.3x7,5

2 L701 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L702 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L703 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L704 2701-000114 INDUCTOR-AXIAL;10uH,10%,2.5x3.4mm

2 L707 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 L708 3301-000287 CORE-FERRITE BEAD;AA,3.5x1.0x6.0mm,1500,

2 PCB AA41-00345A PCB-SIDE A/V;CS29K1,FR-1,1L,A,1.6T,245x2

2 AA65-30018A CLAMPER CORE-WIRE;DONG-A,NYLON-66,-,-,-,

ASSYPCB-PFC

1 HA94-05786B ASSYPCB-PFC;28W8/Z4-29A8/K8,50HZ,5786A

2 EYP07 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP08 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP09 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP10 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP11 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP12 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP13 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP14 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP15 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP16 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP17 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP18 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP01 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP02 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP03 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP04 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP05 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 EYP06 AA60-40011A K EYELET;ID2.0,OD2.8,BST

2 PCB AA41-00404A PCB-PFC;CS2539,FR-1,1L,A,1.6T,330x245,KS

2 JP801 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 JP802 3812-000219 WIRE-NO SHEATH CU;TCWA,300V,52mm(TAPING)

2 CNP02 AA39-00236A LEAD CONNECTOR-ASSY;,3(2)P,YHL500-03A BL

2 PFT01 AA27-00116A COIL CHOKE;CODE_NO,-,35mH,-0, +5%,-,2.8O

2 HA98-600020 ASSY-SUB,PART;KS4A,PFC PCB

3 0202-001222 SOLDER-WIRE FLUX;RS-107,RS60-1.2AA,D1.2,

3 0202-000187 SOLDER-WIRE FLUX;-,RS60S,D1.2,63Sn/37Pb

3 0202-001046 SOLDER-WIRE FLUX;CF-110VH-2A,-,-,-,-

3 0204-000442 SOLVENT;1M-1000,C3H70H,96,-

2 HA61-00987A HOLDER-PFC;32W8,29A8,28W8,HIPS,ALLFLAT

3 HA83-00006A LP-RESIN HIPS;,BASF495F,NTR,HB

3 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY

2 CNP02 3711-004721 CONNECTOR-HEADER;3WALL,2P,1R,12.5mm,STRA

2 6003-001023 SCREW-TAPTITE;RWH,+,B,M3,L10,ZPC(YEL),SW

2 CNP01 AA39-00235A LEAD CONNECTOR-ASSY;,3(2)P,YHL500-03A BL

2 CNP01 3711-004720 CONNECTOR-HEADER;3WALL,2P,1R,12.5mm,STRA

2 LX803S AA29-00015A FILTER LINE NOISE;WS32W8,28-20MH 1.5A,+-

2 CX803S 2306-000318 C-FILM,MPPF;220nF,20%,250V,TP,-,22.5mm

ASSY CABINET FRONT

1 HA91-05147D ASSY CABINET FRONT;,28V5,KS3A,COR-PROT,H

2 WR+CF 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

2 KC+CF 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

2 AA64-03002A WINDOW-RMC,LED;28/32V5,PC,CLR

3 HA83-00009A LP-RESIN PC;,LEXAN 121R,VIOLET

2 AA64-02999A KNOB POWER;28/32V5,HIPS,HB,GRY

3 HA83-00040A LP-MARKING PAINT;,METALLIC SILVER,SV-012

3 HA83-00006A LP-RESIN HIPS;,BASF495F,NTR,HB

3 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY

2 AA64-70117B BADGE-BRAND;-,AL,-,-,L65,R2000,SILVER,SS

2 HA83-00049A LP-ADHESIVE-HM;12MM,NTR

2 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-,

2 AA65-30105A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,

2 AA64-01506C INLAY-AV;29K3,PVC-SHEET,T0.3,-,-,P/GRAY

2 AA64-02996D CABINET-FRONT;28V5,HIPS,HB,SV012P-II,COR

3 HA83-00040A LP-MARKING PAINT;,METALLIC SILVER,SV-012

3 HA83-00021A LP-MARKING PAINT;,WHITE,TPC180

3 HA83-00006A LP-RESIN HIPS;,BASF495F,NTR,HB

3 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY

2 AA64-02998A KNOB CONTROL;28/32V5,HIPS,HB,GRY

3 HA83-00040A LP-MARKING PAINT;,METALLIC SILVER,SV-012

3 HA83-00006A LP-RESIN HIPS;,BASF495F,NTR,HB

3 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY

2 AA64-03001A DECORATION-POWER;28/32V5,HIPS,HB

3 HA83-00040A LP-MARKING PAINT;,METALLIC SILVER,SV-012

3 HA83-00006A LP-RESIN HIPS;,BASF495F,NTR,HB

3 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY

2 CF+SPK 6002-000515 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR

2 3001-001005 SPEAKER;10W,8OHM,91DB,140HZ

2 AA39-00102A LEAD CONNECTOR-ASSY;,4P,35155-0400,REC,9

2 0203-001290 TAPE-OPP MASKING;ANT 100C,T0.073,W30,L50

ASSY-CABINET(COM)

1 AA90-03552B ASSY-CABINET(COM);KS3A,VL-1823,28V5

2 CRT AA65-00009B CLAMPER CORE-D,COIL;21A8,NYLON 66,V0,-,-

2 AA65-30008A CLAMPER CORE-CORD;-,PE,HB,-,BLK,-

2 CRT+CF AA60-10050V SCREW-ASSY;-,SWRCH18A,M6,L30,HH,+,WC,-,Z

2 AA65-30009A CLAMPER CORE-FBT;-,ABS,V0,-,BLK,-

2 AA65-30110A CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,

2 HA83-00046A LP-TAPE INK;,WIDTH 105 MM

2 HA68-02179A LABEL-RATING;58MM,53MM,WHITE

2 HA83-00052A LP-TAPE-INK;,WIDTH 55 MM

2 CB+RCA 6002-000515 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR

2 CB+CF 6002-000515 SCREW-TAPPING;RH,+,2,M4,L15,ZPC(WHT),SWR

2 CF+PCB 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR

2 AA63-10002A BAND-TIE;NYLON66 V2,L100,NTR

2 AA65-30104B CLAMPER CORE-WIRE;ALL MODEL,NYLON 66,V2,

2 AA64-00894L INLAY-BACK;21K2,PS SHEET,T0.3,BLK,KS1B 2

2 HA64-02530C CABINET-BACK;28M6,VL-1823,GRY

3 AA81-00096A RESIN-A;VL-1823,G5433,A

3 HA83-00012A LP-RESIN;,M BATCH,WILSON 6053-GY-60,GRY

2 HA61-00711C HOLDER-PCB;29K8,HIPS,HB,GRY

3 HA83-00006A LP-RESIN HIPS;,BASF495F,NTR,HB

3 HA83-00011A LP-RESIN;,M BATCH,WILSON 6007-GY-60,GRY

2 HA83-00049A LP-ADHESIVE-HM;12MM,NTR

2 HA68-02177B LABEL-PQS;ALL,30MM,65MM,WHITE,AA68-02177

ASSY PACKING

1 AA90-03550A ASSY PACKING;28V5

2 HA69-01701A PACKING CASE;28V5(SEH),D-3 AB,A1,865,605

2 HA69-01647A CUSHION-SET;28V5,PS FOAMED,C=0.02

3 HA83-00058A LP-RESIN-EPS;,CHEIL SF-301V,WHT

2 AA69-00744E BAG-SHEET;-,HDPE PE FOAM,T0.015,W1300,H1

2 AA60-40006A PIN-STAPLE;AUTO,33X17.8X2.4,H18,33X17.8X

2 HA68-02178A LABEL-BOX;250MM,89MM,WHITE

2 HA83-00046A LP-TAPE INK;,WIDTH 105 MM

2 HA83-00057B LP-TAPE-CELLULOSE;,HA02-030010,T0,046,W7

ASSY PCB MAIN(OPT)

1 AA94-11586A ASSY PCB MAIN(OPT);WS28V5DH,KS3A/H,TH,IN

2 C815 2401-003602 C-AL;220uF,20%,160V,GP,BK,22x25mm,1

2 CN501 3711-002641 CONNECTOR-HEADER;BOX,10P,1R,2.54mm,STRAI

2 CX801S 2306-000321 C-FILM,MPPF;470NF,5%,275V,TP,-,22.5

2 IC301 HA96-50406B ASSY-H/S;ASSY-H/S;-,AA62-30180B,LA7845

3 1204-000517 IC-VERTICAL DEF.;LA7845,SIP,7P,-,PLASTIC

3 AA62-30180B HEAT SINK-ES;-,A6063 EXTR.,2,WHT,70MM,-,

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 IC401 1202-000103 IC-VOLTAGE COMP.;393,DIP,8P,300MIL,DUAL,

2 IC801S HA96-50371C ASSY H/S;-,-,AA62-30181H,KA3A1265R,-

3 AA13-00101A IC HYBRID;KA3S1265RD,CN5039,5PIN,-50TO12

3 AA61-10386A BRACKET-IC;-,SECC 100,T1.0,-,-,-,KA2S068

3 AA62-30197D HEAT SINK-ES;DP,-,-,-,AA62-30181H,-,-,-

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 HA68-02189A LABEL-WARNING;,33MM,18MM,WHITE

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 JA701 3722-000195 JACK-SCART;42P,-,SN,BLK,NO

2 NT802S 1404-001045 THERMISTOR-NTC;4.7ohm,15%,2900K,35.0mW,T

2 PC801S 0604-001038 PHOTO-COUPLER;TR,130-260%,200mW,DIP-4,ST

2 PT801S 1404-000002 THERMISTOR-PTC;9ohm,20%,-,-,TR,RECT,-

2 RL801S 3501-001040 RELAY-POWER;12VDC,500mW,10A,1FormA,15mS,

2 HC801 HA96-00274B ASSY-H/S;-,COMPLEX,AA62-00066B,FMLG12S

3 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

3 AA62-00066B HEAT SINK;D2,D3,AL ,T1.0,89,70,-,AA62-00

3 D802 0402-001230 DIODE-RECTIFIER;FMG-G2CS,1000V,3A,TO-220

3 D805 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

3 D806 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

3 D807 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

3 IC805 1203-001006 IC-VOLTAGE REGULATOR;78R05,TO-220F,4P,-,

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 HC401 HA96-00275D ASSY-H/S;-,COMPLEX,AA62-00051B,2SC5446

3 AA62-00067B HEAT SINK-PS;-,DP,-,-,-,-,AA62-00051B,-

3 D414 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,TO-3PF,

3 Q401 0502-001175 TR-POWER;2SC5446,NPN,200000mW,TO-3PL,BK

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 AA60-30001A WASHER-PLATE;M3,ID3.5,15X8.5,T1.0,SBHG

3 AA62-00092A HEAT SINK;STB,A6063 EXTR.,T1.3,28*28,H12

3 Q401 AA02-00007A SUB ETC-MICA;,MICA,22X30X0.1MM

3 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZPC(YEL),SWR

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 D801S 0402-001399 DIODE-BRIDGE;GSIB660,600V,6A,SIP-4,BK

2 IC602 HA96-50369B ASSY-H/S;-,-,AA62-30181F,TDA7297,-

3 1201-001064 IC-POWER AMP;7297,ZIP,15P,-,DUAL,32dB,PL

3 AA62-30181F HEAT SINK-ES;-,AL6063 EXTR.,2,WHT,50MM,-

3 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW

3 0205-000129 GREASE-SILICON;SC102,JAPAN

2 IC902 1103-001171 IC-EEPROM;L51DC,16KBit,DIP,8P,300MIL,10m

2 C105 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C103 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C101 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C416 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C909 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

2 C228 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C230 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C809 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C810 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C811 2301-000356 C-FILM,PEF;47nF,5%,50V,TP,7.5x4.0x6.5,5m

2 C202 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C205 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C920 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C231 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C215 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C630 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C631 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C645 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C652 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C603 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C207 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C708 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C239 2401-002235 C-AL;10uF,20%,16V,GP,TP,5x11mm,5mm

2 C214 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C605 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C620 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C635 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C646 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C829 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C837 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C839 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C916 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C914 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C831 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C825 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C240 2305-000665 C-FILM,MPEF;100nF,5%,63V,TP,7.5x4.0x5.0m

2 C208 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

2 C636 2401-001026 C-AL;3.3UF,20%,50V,GP,TP,5X11,5

2 C905 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C607 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C608 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C211 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50V,Y5P,TP,3

2 C212 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5

2 C213 2301-000247 C-FILM,PEF;33nF,5%,50V,TP,8.1x4.5x13mm,5

Electrical Parts List

7-10 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

ASSY ACCESSORY

1 AA94-05820A ASSY ACCESSORY;50HZ,KS3A,XEC

2 4301-000120 BATTERY-MN;1.5V,-,AA,14.5x50mm,-

2 HA83-00047A LP-TAPEACETATE;T0.1MM,W20MM,L200MM

2 HA69-00276A BAG VINYL;HDPE,T0.025,L400,W240,-,W/O LO

2 HA68-00335A LABEL CAUTION;A/P100(G),S51A,HUN,POL,-,-

REMOCON

1 AA59-00104K REMOCON;-,TM59,DREAM,29,L/GRAY,PAL-TTX

ASSY POWER CORD

1 AA96-01126B ASSY POWER CORD;DP,AA39-10001G,CP2,H/C40

2 AA39-10001G CBF POWER CORD;-,KKP-419C,KLCE-2F,2.286m

2 AA61-20284A HOLDER;P-CORD,PP,-,-,-,BLK,VO,KE-002

7-2 WS28V55VS8XXEC

Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 7-11

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

2 C218 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C219 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C220 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C901 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C921 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C922 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C919 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C924 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

2 C907 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C308 2305-000412 C-FILM,MPEF;470nF,5%,63V,TP,-,5mm

2 C237 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5

2 C604 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

2 C201 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

2 C841 2401-000603 C-AL;1uF,20%,50V,GP,TP,5x11,5

2 C304 2305-000285 C-FILM,MPEF;220NF,5%,100V,TP,10.5X5.5X15

2 C305 2305-000149 C-FILM,MPEF;100nF,5%,100V,TP,12x12.5x6.5

2 C821 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

2 C902 2301-000192 C-FILM,PEF;1nF,5%,50V,TP,5.3x10mm,5mm

2 C307 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

2 C302 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5

2 C401 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

2 C403 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

2 C421 2201-000556 C-CERAMIC,DISC;0.47nF,10%,500V,Y5P,TP,5.

2 C402 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

2 C404 2401-001397 C-AL;470uF,20%,25V,GP,TP,10x16,5

2 C408 2305-000382 C-FILM,MPEF;4.7nF,5%,400V,TP,-,5mm

2 C414 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5

2 C418 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5

2 C422 2401-001527 C-AL;47uF,20%,250V,HR,TP,13x25mm,5m

2 C424 2201-000132 C-CERAMIC,DISC;0.1nF,10%,500V,Y5P,TP,6.5

2 C601 2201-000558 C-CERAMIC,DISC;0.47nF,10%,50V,Y5P,TP,5x3

2 C610 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

2 C611 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm

2 C612 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2 C613 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2 C209 2401-001914 C-AL;1uF,20%,50V,BP,TP,5x11,5

2 C617 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

2 C917 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

2 C413 2401-000493 C-AL;10uF,20%,50V,LZ,TP,5x11mm,5mm

2 C623 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C624 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C627 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C629 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C642 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C644 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C638 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C639 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C249 2202-000231 C-CERAMIC,MLC-AXIAL;330pF,10%,50V,Y5P,TP

2 C632 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP

2 C634 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C832 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C838 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C826 2401-001840 C-AL;100uF,20%,16V,GP,TP,6.3x11,5

2 C637 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C640 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C641 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C643 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5

2 C647 2202-000286 C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.

2 C649 2301-000108 C-FILM,PEF;1.5nF,5%,50V,TP,6.5x3.0x5.5mm

2 C804 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

2 C805 2201-000332 C-CERAMIC,DISC;2.2nF,20%,250V,Y5U,TP,9x4

2 C807 2301-001397 C-FILM,PPF;2.2nF,5%,1.2kV,TP,15x8.5x13.5

2 C814 2201-000406 C-CERAMIC,DISC;0.27nF,10%,2kV,Y5P,TP,6.3

2 C817 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C819 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C822 2201-000599 C-CERAMIC,DISC;0.56nF,10%,500V,Y5P,TP,5.

2 C818 2401-000722 C-AL;2200uF,20%,25V,WT,TP,16x25,7.5

2 C910 2201-000980 C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,

2 C911 2201-000980 C-CERAMIC,DISC;0.03nF,5%,50V,NP0,TP,5x3,

2 D201 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D202 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D207 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D208 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D209 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D210 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D211 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D602 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D804 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 DZ402 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D906 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D604 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D405 0401-000005 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,

2 D401 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5A,-,TP

2 D402 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

2 D404 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

2 D411 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.2A,DO-201,T

2 D406 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D808 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D810 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D811 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D907 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D403 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

2 D801 0402-001111 DIODE-RECTIFIER;1N5397GP,600V,1.5A,DO-20

2 DZ201 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ202 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ802 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ902 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ601 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ603 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500

2 DZ806 0403-000508 DIODE-ZENER;MTZJ5.6B,5.6V,5.45-5.73V,500
