Sang Fei Consumer Communications CT9A9K GSM/GPRS Mobile Phone with Bluetooth User Manual Xenium9 9k Master EN

Shenzhen Sang Fei Consumer Communications Co., Ltd. GSM/GPRS Mobile Phone with Bluetooth Xenium9 9k Master EN

User manual

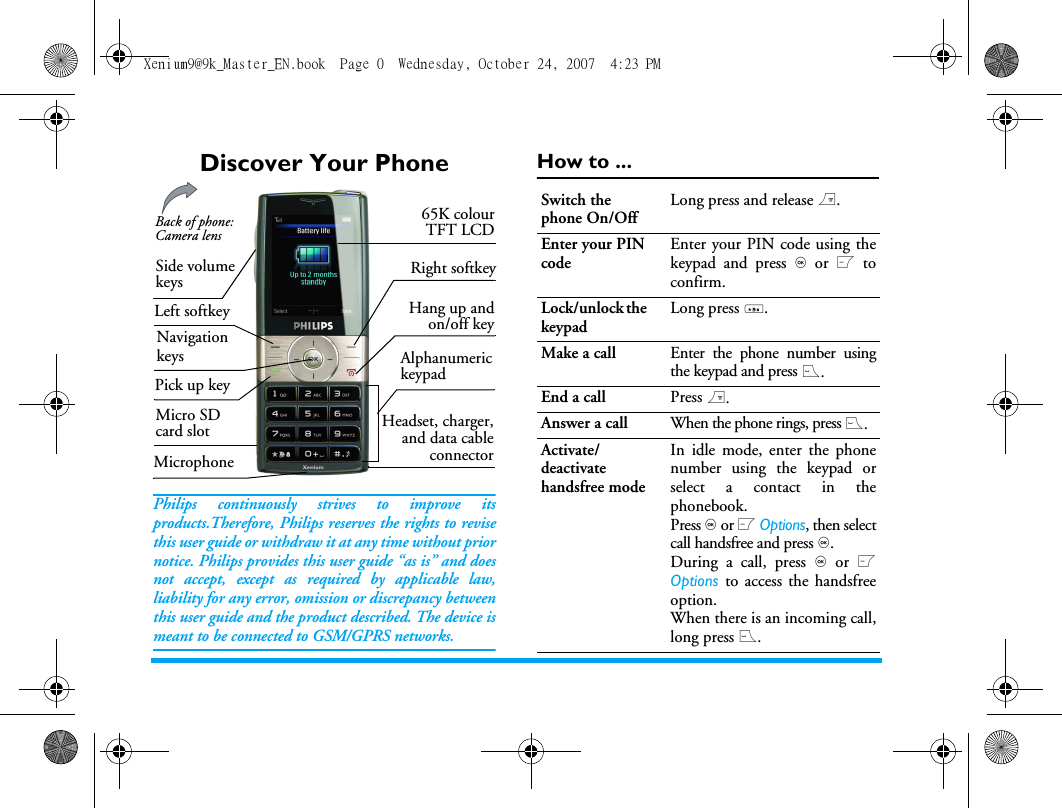

Discover Your PhonePhilips continuously strives to improve itsproducts.Therefore, Philips reserves the rights to revisethis user guide or withdraw it at any time without priornotice. Philips provides this user guide “as is” and doesnot accept, except as required by applicable law,liability for any error, omission or discrepancy betweenthis user guide and the product described. The device ismeant to be connected to GSM/GPRS networks.How to ...Alphanumeric keypadMicrophone 65K colourTFT LCDHang up andon/off keyLeft softkeyRight softkeyPick up keyBack of phone: Camera lensHeadset, charger,and data cableconnectorMicro SD card slotSide volume keysNavigationkeysSwitch the phone On/OffLong press and release ).Enter your PIN codeEnter your PIN code using thekeypad and press , or L toconfirm.Lock/unlock the keypadLong press *.Make a call Enter the phone number usingthe keypad and press (.End a call Press ).Answer a call When the phone rings, press (.Activate/deactivate handsfree modeIn idle mode, enter the phonenumber using the keypad orselect a contact in thephonebook.Press , or L Options, then selectcall handsfree and press ,.During a call, press , or LOptions to access the handsfreeoption.When there is an incoming call,long press (.Xenium9@9k_Master_EN.book  Page 0  Wednesday, October 24, 2007  4:23 PM

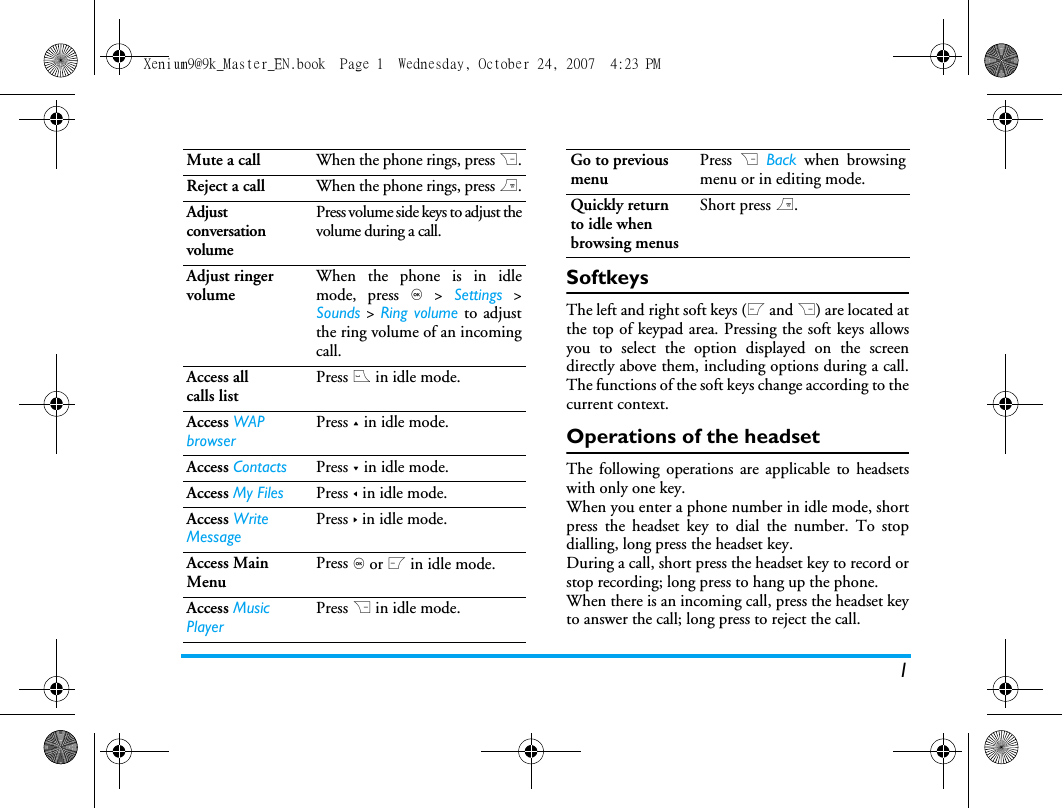

1SoftkeysThe left and right soft keys (L and R) are located atthe top of keypad area. Pressing the soft keys allowsyou to select the option displayed on the screendirectly above them, including options during a call.The functions of the soft keys change according to thecurrent context. Operations of the headsetThe following operations are applicable to headsetswith only one key. When you enter a phone number in idle mode, shortpress the headset key to dial the number. To stopdialling, long press the headset key. During a call, short press the headset key to record orstop recording; long press to hang up the phone. When there is an incoming call, press the headset keyto answer the call; long press to reject the call. Mute a call When the phone rings, press R.Reject a call When the phone rings, press ).Adjust conversation volumePress volume side keys to adjust thevolume during a call.Adjust ringer volumeWhen the phone is in idlemode, press , > Settings >Sounds > Ring volume to adjustthe ring volume of an incomingcall.Access all calls listPress ( in idle mode.Access WAP browserPress + in idle mode.Access Contacts Press - in idle mode.Access My Files Press < in idle mode.Access Write MessagePress > in idle mode.Access Main MenuPress , or L in idle mode.Access Music PlayerPress R in idle mode.Go to previous menuPress R Back when browsingmenu or in editing mode.Quickly return to idle when browsing menusShort press ).Xenium9@9k_Master_EN.book  Page 1  Wednesday, October 24, 2007  4:23 PM

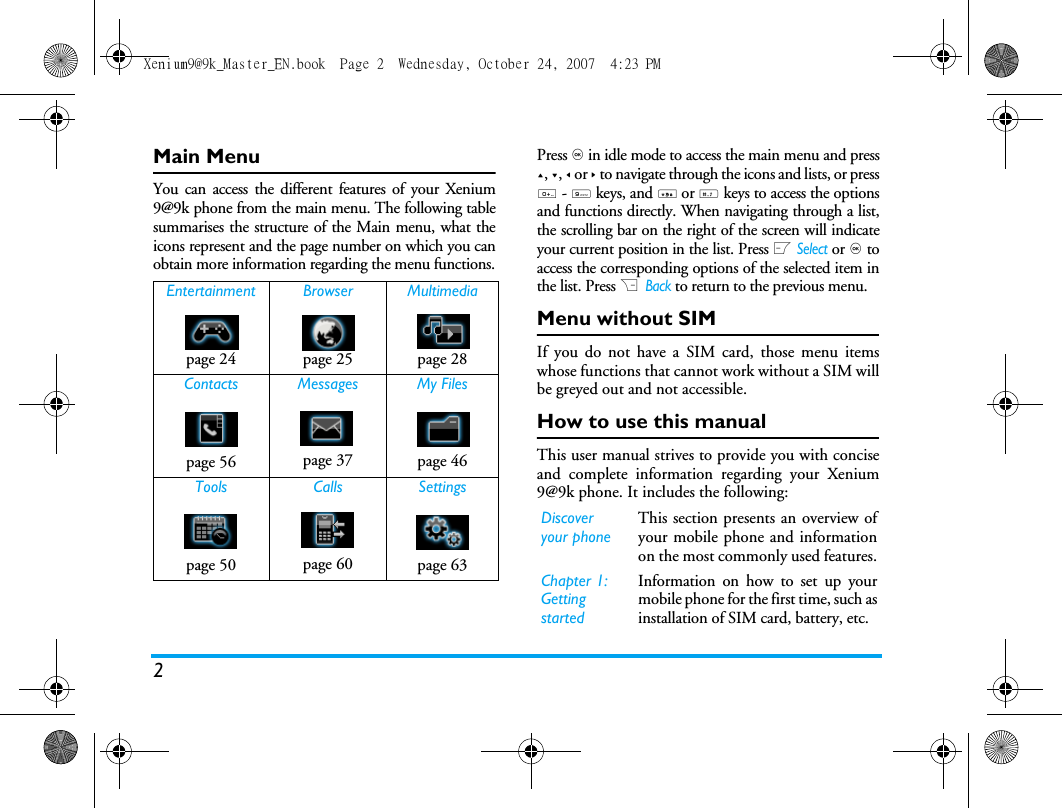

2Main MenuYou can access the different features of your Xenium9@9k phone from the main menu. The following tablesummarises the structure of the Main menu, what theicons represent and the page number on which you canobtain more information regarding the menu functions.Press , in idle mode to access the main menu and press+, -, < or > to navigate through the icons and lists, or press0 - 9 keys, and * or # keys to access the optionsand functions directly. When navigating through a list,the scrolling bar on the right of the screen will indicateyour current position in the list. Press L Select or , toaccess the corresponding options of the selected item inthe list. Press R  Back to return to the previous menu. Menu without SIMIf you do not have a SIM card, those menu itemswhose functions that cannot work without a SIM willbe greyed out and not accessible.  How to use this manualThis user manual strives to provide you with conciseand complete information regarding your Xenium9@9k phone. It includes the following:Entertainment Browser Multimediapage 24 page 25 page 28Contacts Messages My Filespage 56 page 37 page 46Tools Calls Settingspage 50 page 60 page 63Discover your phoneThis section presents an overview ofyour mobile phone and informationon the most commonly used features.Chapter 1: Getting startedInformation on how to set up yourmobile phone for the first time, such asinstallation of SIM card, battery, etc.Xenium9@9k_Master_EN.book  Page 2  Wednesday, October 24, 2007  4:23 PM

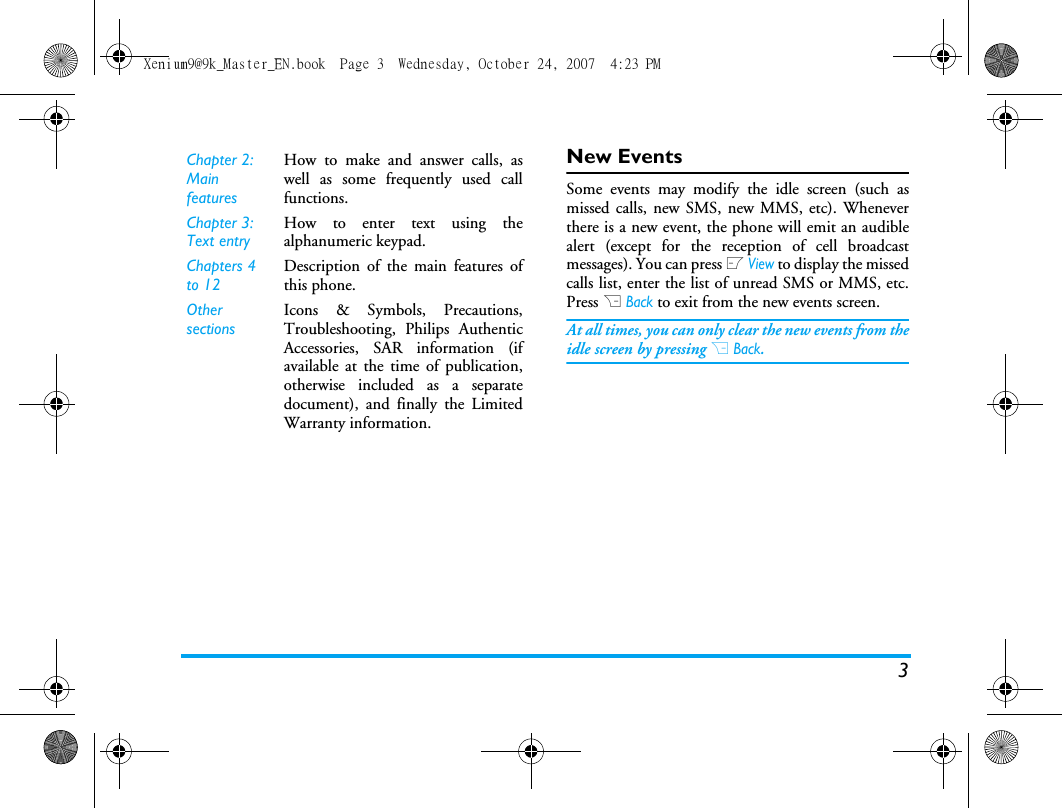

3New EventsSome events may modify the idle screen (such asmissed calls, new SMS, new MMS, etc). Wheneverthere is a new event, the phone will emit an audiblealert (except for the reception of cell broadcastmessages). You can press L View to display the missedcalls list, enter the list of unread SMS or MMS, etc.Press R Back to exit from the new events screen. At all times, you can only clear the new events from theidle screen by pressing R Back.Chapter 2: Main featuresHow to make and answer calls, aswell as some frequently used callfunctions. Chapter 3: Text entryHow to enter text using thealphanumeric keypad.Chapters 4 to 12Description of the main features ofthis phone.Other sectionsIcons & Symbols, Precautions,Troubleshooting, Philips AuthenticAccessories, SAR information (ifavailable at the time of publication,otherwise included as a separatedocument), and finally the LimitedWarranty information.Xenium9@9k_Master_EN.book  Page 3  Wednesday, October 24, 2007  4:23 PM

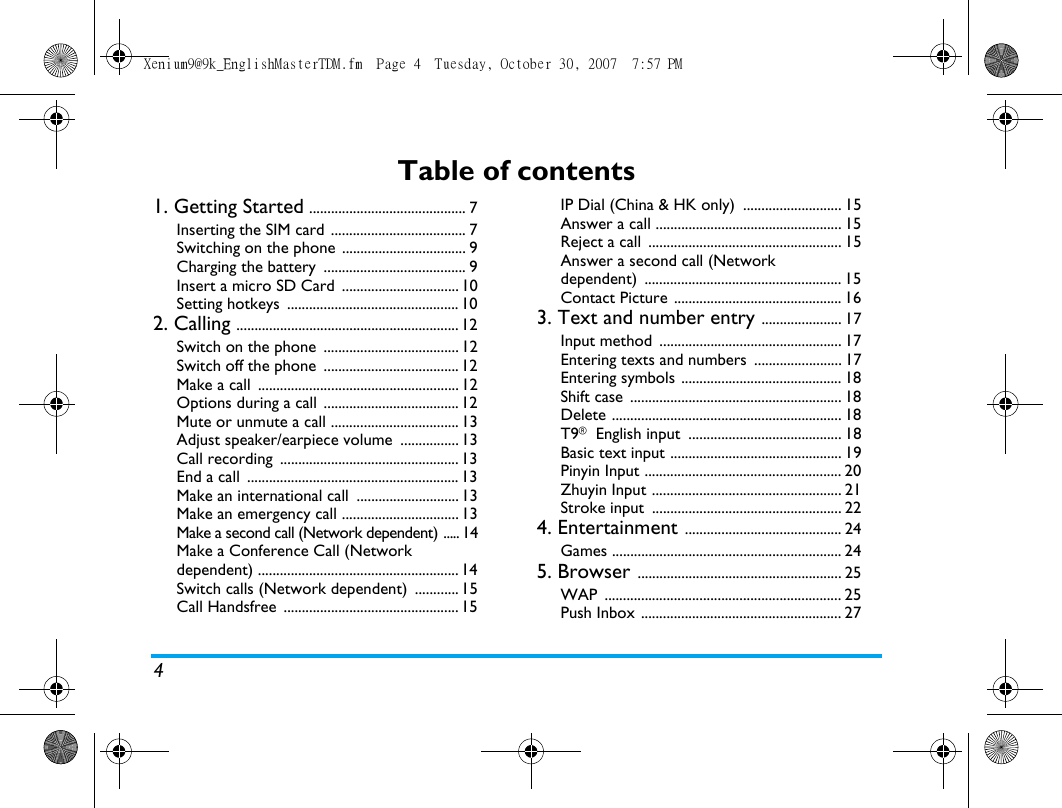

4Table of contents1. Getting Started ........................................... 7Inserting the SIM card ..................................... 7Switching on the phone .................................. 9Charging the battery  ....................................... 9Insert a micro SD Card  ................................ 10Setting hotkeys  ............................................... 102. Calling ............................................................. 12Switch on the phone  ..................................... 12Switch off the phone  ..................................... 12Make a call  ....................................................... 12Options during a call  ..................................... 12Mute or unmute a call ................................... 13Adjust speaker/earpiece volume  ................ 13Call recording  ................................................. 13End a call  .......................................................... 13Make an international call  ............................ 13Make an emergency call ................................ 13Make a second call (Network dependent) ..... 14Make a Conference Call (Network dependent) ....................................................... 14Switch calls (Network dependent)  ............ 15Call Handsfree  ................................................ 15IP Dial (China & HK only)  ........................... 15Answer a call ................................................... 15Reject a call  ..................................................... 15Answer a second call (Network dependent) ...................................................... 15Contact Picture .............................................. 163. Text and number entry ...................... 17Input method  .................................................. 17Entering texts and numbers  ........................ 17Entering symbols ............................................ 18Shift case  .......................................................... 18Delete ............................................................... 18T9® English input  .......................................... 18Basic text input ............................................... 19Pinyin Input ...................................................... 20Zhuyin Input .................................................... 21Stroke input  .................................................... 224. Entertainment ........................................... 24Games ............................................................... 245. Browser ........................................................ 25WAP ................................................................. 25Push Inbox ....................................................... 27Xenium9@9k_EnglishMasterTDM.fm  Page 4  Tuesday, October 30, 2007  7:57 PM

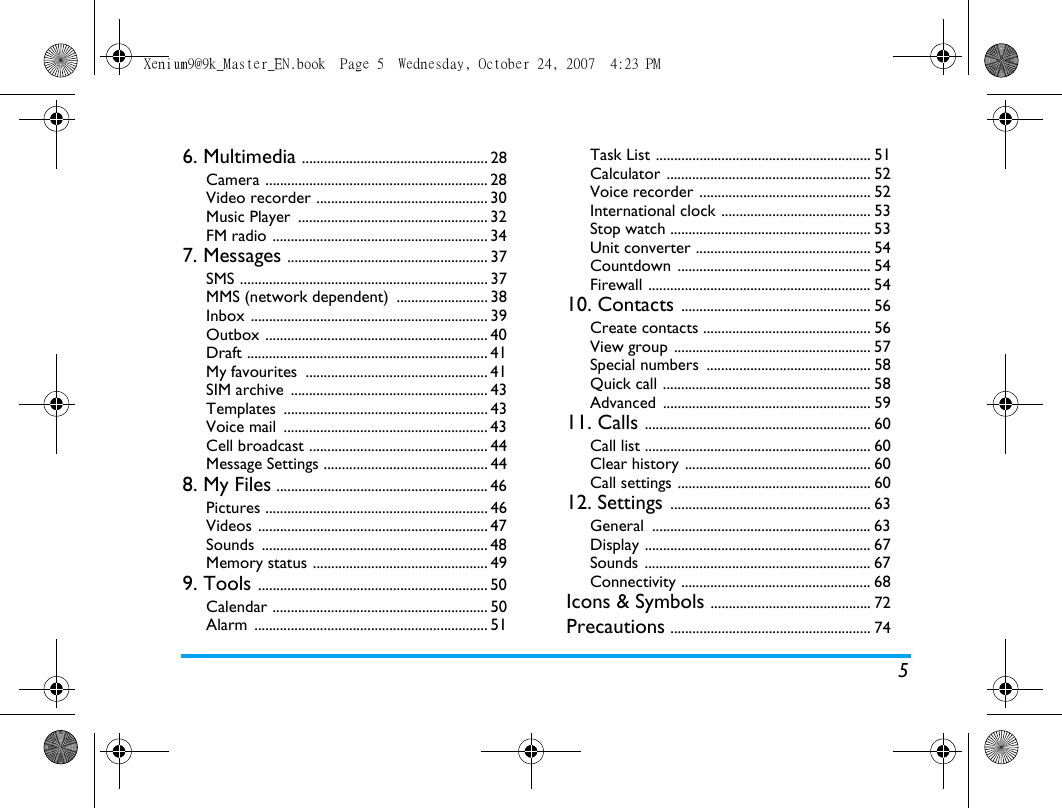

56. Multimedia ................................................... 28Camera ............................................................. 28Video recorder ............................................... 30Music Player  .................................................... 32FM radio ........................................................... 347. Messages ....................................................... 37SMS .................................................................... 37MMS (network dependent)  ......................... 38Inbox ................................................................. 39Outbox ............................................................. 40Draft .................................................................. 41My favourites  .................................................. 41SIM archive  ...................................................... 43Templates ........................................................ 43Voice mail  ........................................................ 43Cell broadcast ................................................. 44Message Settings ............................................. 448. My Files .......................................................... 46Pictures ............................................................. 46Videos ............................................................... 47Sounds .............................................................. 48Memory status ................................................ 499. Tools ............................................................... 50Calendar ........................................................... 50Alarm ................................................................ 51Task List ........................................................... 51Calculator ........................................................ 52Voice recorder ............................................... 52International clock ......................................... 53Stop watch ....................................................... 53Unit converter ................................................ 54Countdown ..................................................... 54Firewall ............................................................. 5410. Contacts .................................................... 56Create contacts .............................................. 56View group ...................................................... 57Special numbers  ............................................. 58Quick call ......................................................... 58Advanced ......................................................... 5911. Calls .............................................................. 60Call list .............................................................. 60Clear history ................................................... 60Call settings ..................................................... 6012. Settings ....................................................... 63General ............................................................ 63Display .............................................................. 67Sounds .............................................................. 67Connectivity .................................................... 68Icons & Symbols ............................................ 72Precautions ....................................................... 74Xenium9@9k_Master_EN.book  Page 5  Wednesday, October 24, 2007  4:23 PM

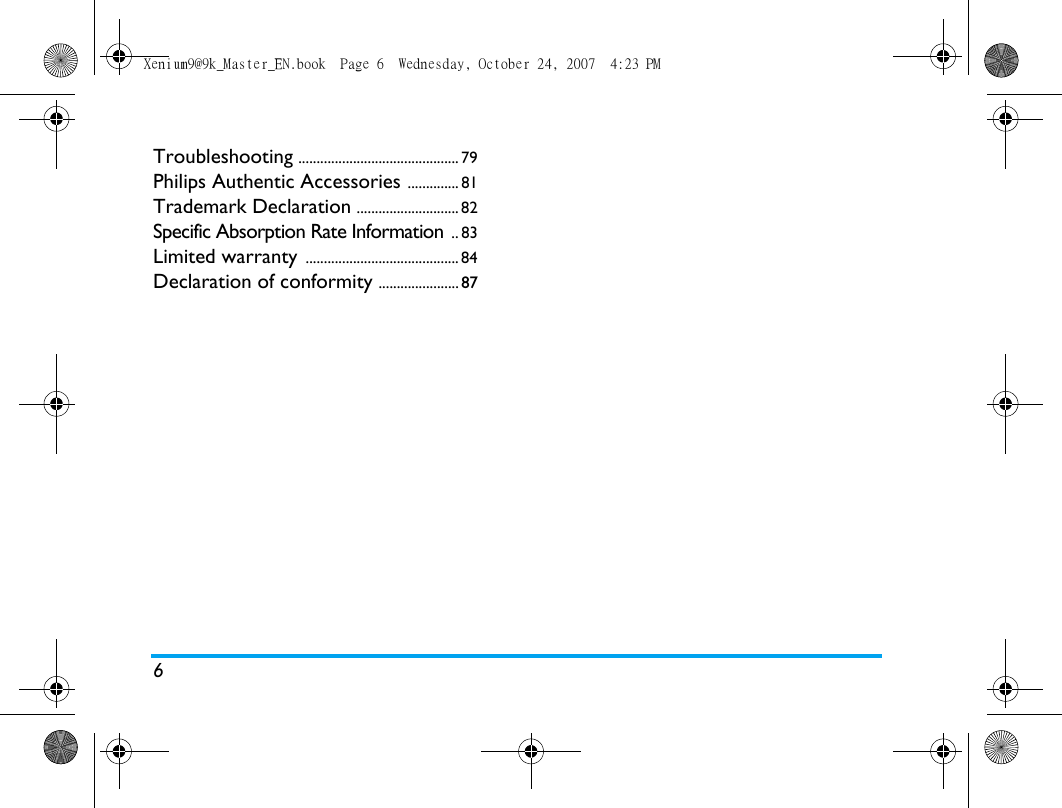

6Troubleshooting ............................................ 79Philips Authentic Accessories .............. 81Trademark Declaration ............................ 82Specific Absorption Rate Information .. 83Limited warranty .......................................... 84Declaration of conformity ......................87Xenium9@9k_Master_EN.book  Page 6  Wednesday, October 24, 2007  4:23 PM

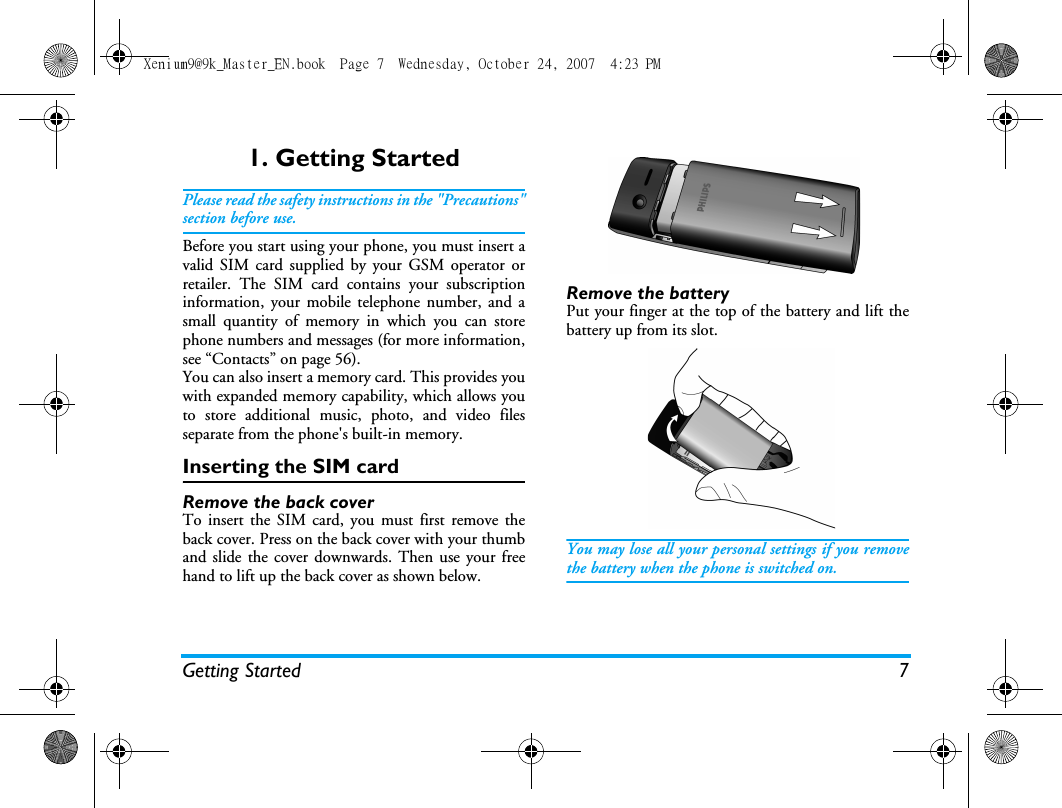

Getting Started 71. Getting StartedPlease read the safety instructions in the "Precautions"section before use.Before you start using your phone, you must insert avalid SIM card supplied by your GSM operator orretailer. The SIM card contains your subscriptioninformation, your mobile telephone number, and asmall quantity of memory in which you can storephone numbers and messages (for more information,see “Contacts” on page 56). You can also insert a memory card. This provides youwith expanded memory capability, which allows youto store additional music, photo, and video filesseparate from the phone's built-in memory.Inserting the SIM cardRemove the back coverTo insert the SIM card, you must first remove theback cover. Press on the back cover with your thumband slide the cover downwards. Then use your freehand to lift up the back cover as shown below.Remove the batteryPut your finger at the top of the battery and lift thebattery up from its slot.You may lose all your personal settings if you removethe battery when the phone is switched on.Xenium9@9k_Master_EN.book  Page 7  Wednesday, October 24, 2007  4:23 PM

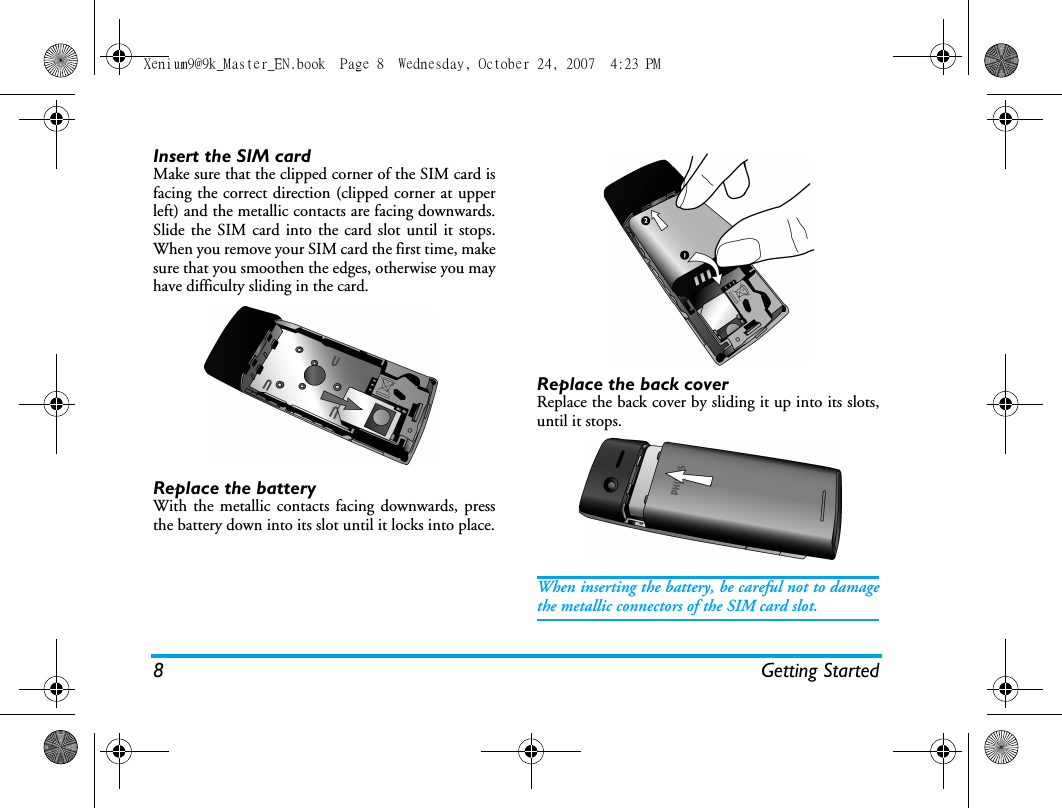

8 Getting StartedInsert the SIM cardMake sure that the clipped corner of the SIM card isfacing the correct direction (clipped corner at upperleft) and the metallic contacts are facing downwards.Slide the SIM card into the card slot until it stops.When you remove your SIM card the first time, makesure that you smoothen the edges, otherwise you mayhave difficulty sliding in the card.Replace the batteryWith the metallic contacts facing downwards, pressthe battery down into its slot until it locks into place.Replace the back coverReplace the back cover by sliding it up into its slots,until it stops.When inserting the battery, be careful not to damagethe metallic connectors of the SIM card slot.Xenium9@9k_Master_EN.book  Page 8  Wednesday, October 24, 2007  4:23 PM

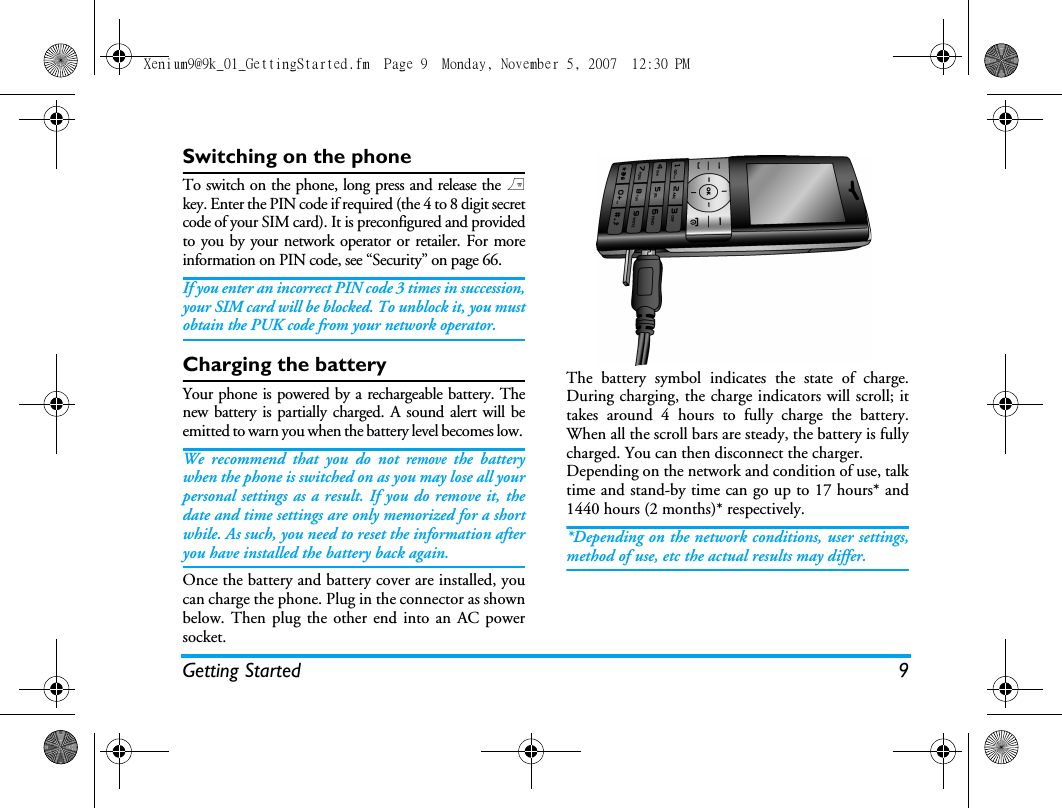

Getting Started 9Switching on the phoneTo switch on the phone, long press and release the )key. Enter the PIN code if required (the 4 to 8 digit secretcode of your SIM card). It is preconfigured and providedto you by your network operator or retailer. For moreinformation on PIN code, see “Security” on page 66.If you enter an incorrect PIN code 3 times in succession,your SIM card will be blocked. To unblock it, you mustobtain the PUK code from your network operator.Charging the batteryYour phone is powered by a rechargeable battery. Thenew battery is partially charged. A sound alert will beemitted to warn you when the battery level becomes low. We recommend that you do not remove the batterywhen the phone is switched on as you may lose all yourpersonal settings as a result. If you do remove it, thedate and time settings are only memorized for a shortwhile. As such, you need to reset the information afteryou have installed the battery back again.Once the battery and battery cover are installed, youcan charge the phone. Plug in the connector as shownbelow. Then plug the other end into an AC powersocket.The battery symbol indicates the state of charge.During charging, the charge indicators will scroll; ittakes around 4 hours to fully charge the battery.When all the scroll bars are steady, the battery is fullycharged. You can then disconnect the charger.Depending on the network and condition of use, talktime and stand-by time can go up to 17 hours* and1440 hours (2 months)* respectively.*Depending on the network conditions, user settings,method of use, etc the actual results may differ. Xenium9@9k_01_GettingStarted.fm  Page 9  Monday, November 5, 2007  12:30 PM

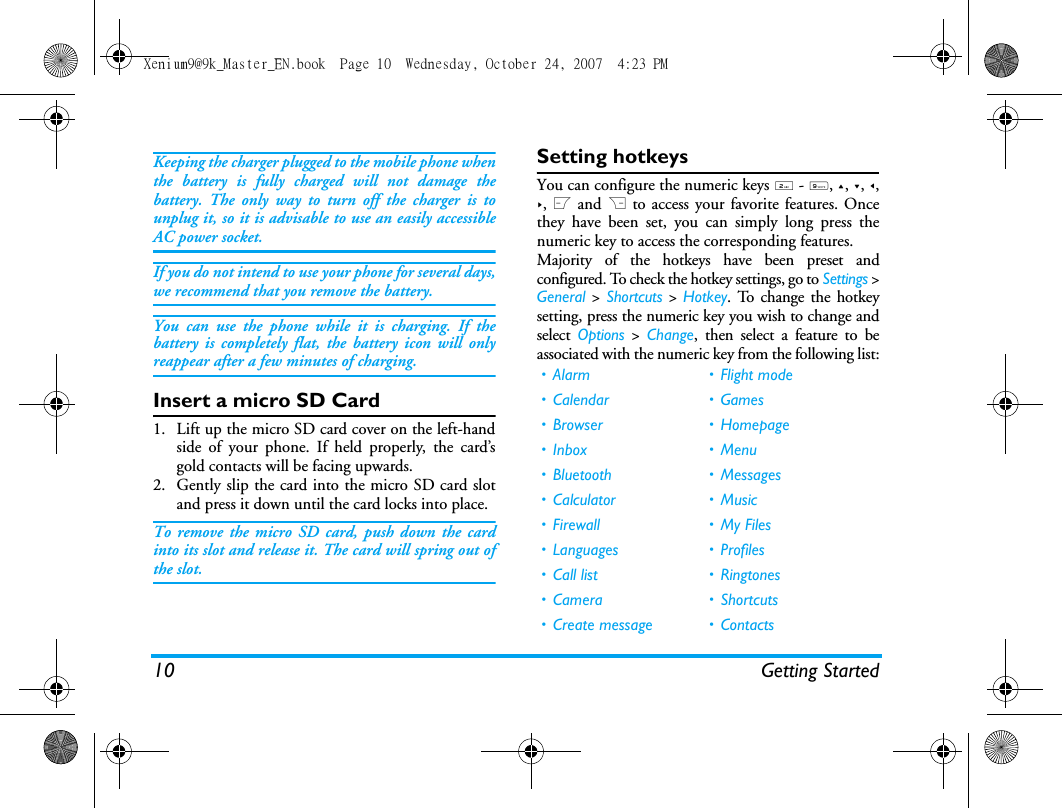

10 Getting StartedKeeping the charger plugged to the mobile phone whenthe battery is fully charged will not damage thebattery. The only way to turn off the charger is tounplug it, so it is advisable to use an easily accessibleAC power socket. If you do not intend to use your phone for several days,we recommend that you remove the battery.You can use the phone while it is charging. If thebattery is completely flat, the battery icon will onlyreappear after a few minutes of charging.Insert a micro SD Card1. Lift up the micro SD card cover on the left-handside of your phone. If held properly, the card’sgold contacts will be facing upwards.2. Gently slip the card into the micro SD card slotand press it down until the card locks into place.To remove the micro SD card, push down the cardinto its slot and release it. The card will spring out ofthe slot.Setting hotkeysYou can configure the numeric keys 2 - 9, +, -, <,>, L and R to access your favorite features. Oncethey have been set, you can simply long press thenumeric key to access the corresponding features.Majority of the hotkeys have been preset andconfigured. To check the hotkey settings, go to Settings >General > Shortcuts > Hotkey. To change the hotkeysetting, press the numeric key you wish to change andselect  Options > Change, then select a feature to beassociated with the numeric key from the following list:•Alarm •Flight mode•Calendar •Games•Browser •Homepage•Inbox •Menu• Bluetooth • Messages• Calculator • Music• Firewall • My Files• Languages • Profiles• Call list • Ringtones• Camera • Shortcuts• Create message • ContactsXenium9@9k_Master_EN.book  Page 10  Wednesday, October 24, 2007  4:23 PM

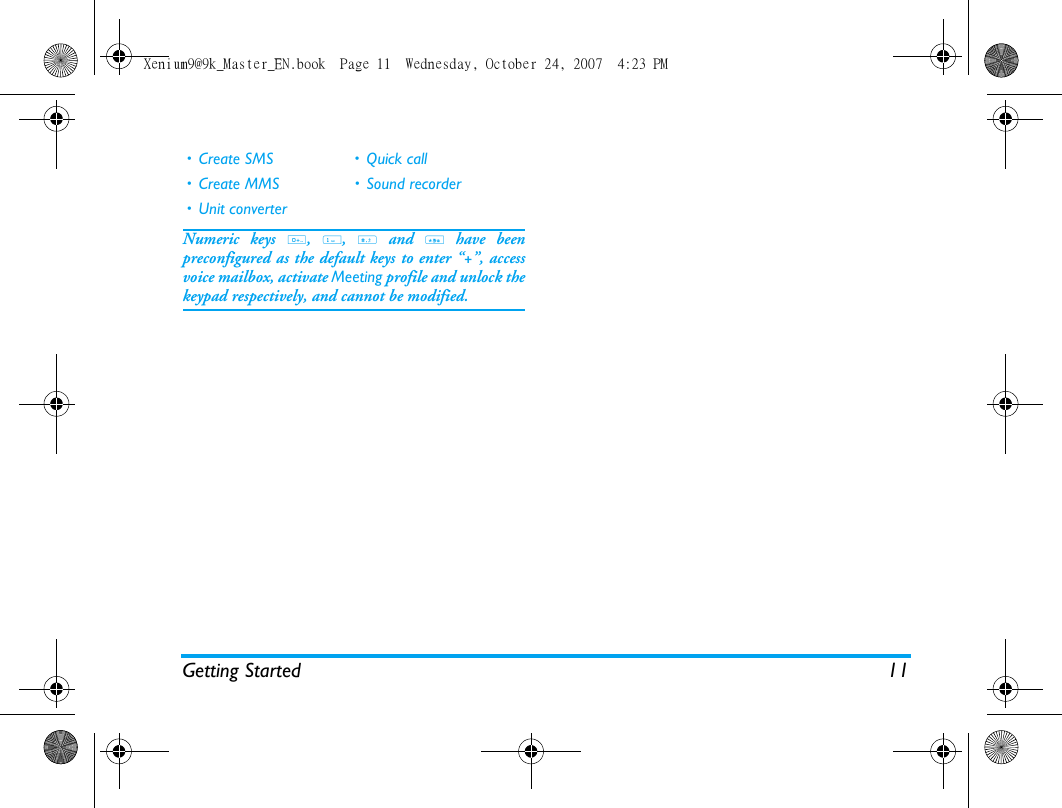

Getting Started 11Numeric keys 0, 1, # and * have beenpreconfigured as the default keys to enter “+”, accessvoice mailbox, activate Meeting profile and unlock thekeypad respectively, and cannot be modified.• Create SMS • Quick call• Create MMS • Sound recorder• Unit converterXenium9@9k_Master_EN.book  Page 11  Wednesday, October 24, 2007  4:23 PM

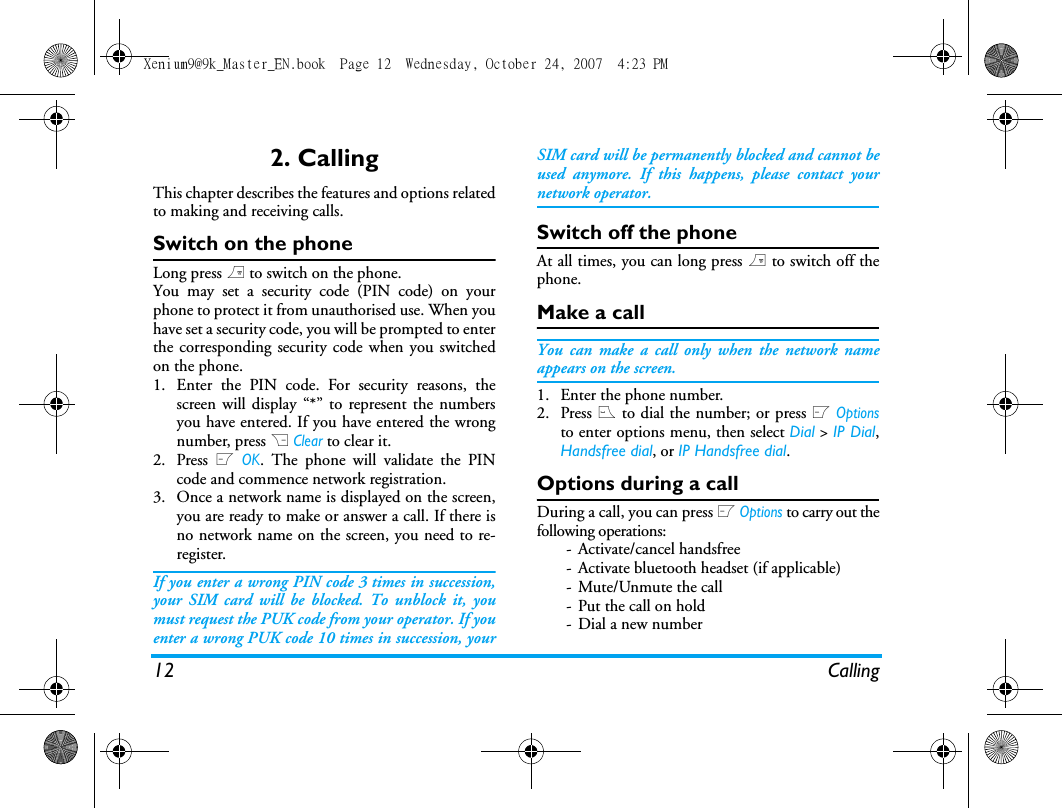

12 Calling2. CallingThis chapter describes the features and options relatedto making and receiving calls.Switch on the phoneLong press ) to switch on the phone.You may set a security code (PIN code) on yourphone to protect it from unauthorised use. When youhave set a security code, you will be prompted to enterthe corresponding security code when you switchedon the phone. 1. Enter the PIN code. For security reasons, thescreen will display “*” to represent the numbersyou have entered. If you have entered the wrongnumber, press R Clear to clear it.2. Press L OK. The phone will validate the PINcode and commence network registration. 3. Once a network name is displayed on the screen,you are ready to make or answer a call. If there isno network name on the screen, you need to re-register. If you enter a wrong PIN code 3 times in succession,your SIM card will be blocked. To unblock it, youmust request the PUK code from your operator. If youenter a wrong PUK code 10 times in succession, yourSIM card will be permanently blocked and cannot beused anymore. If this happens, please contact yournetwork operator.Switch off the phoneAt all times, you can long press ) to switch off thephone.Make a callYou can make a call only when the network nameappears on the screen. 1. Enter the phone number.2. Press ( to dial the number; or press L Optionsto enter options menu, then select Dial > IP Dial,Handsfree dial, or IP Handsfree dial.Options during a callDuring a call, you can press L Options to carry out thefollowing operations:- Activate/cancel handsfree- Activate bluetooth headset (if applicable)- Mute/Unmute the call- Put the call on hold- Dial a new numberXenium9@9k_Master_EN.book  Page 12  Wednesday, October 24, 2007  4:23 PM

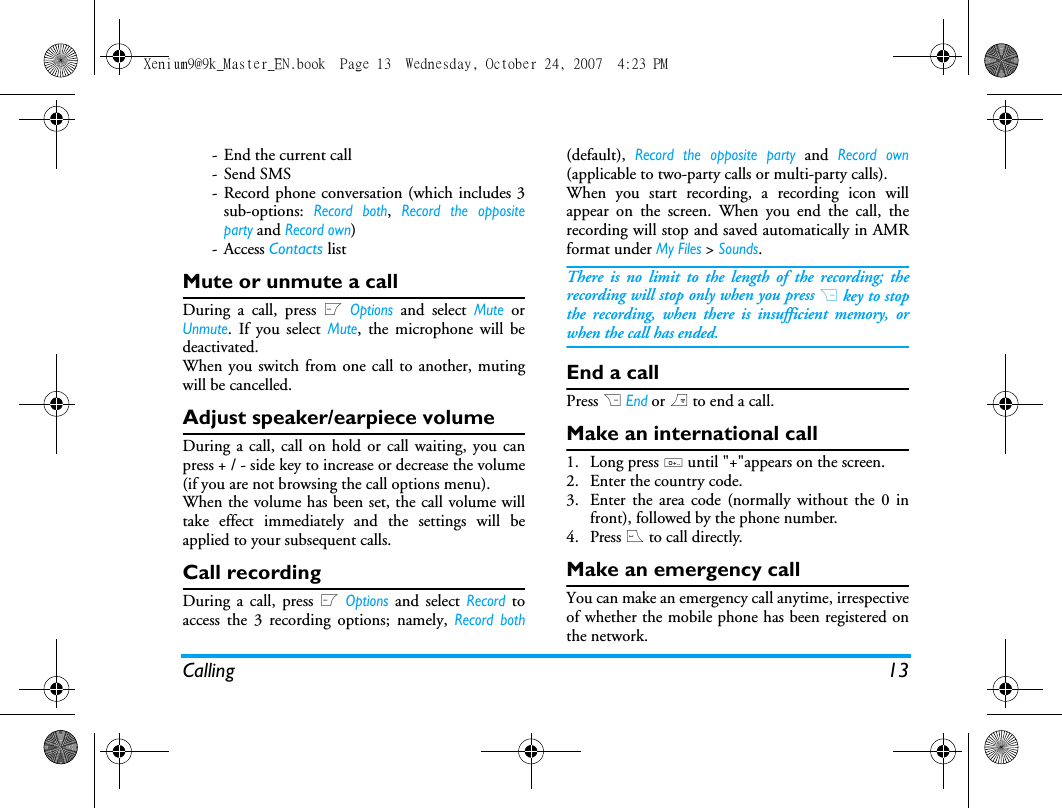

Calling 13- End the current call-Send SMS- Record phone conversation (which includes 3sub-options: Record both, Record the oppositeparty and Record own)- Access Contacts listMute or unmute a callDuring a call, press L Options and select Mute orUnmute. If you select Mute, the microphone will bedeactivated.When you switch from one call to another, mutingwill be cancelled. Adjust speaker/earpiece volumeDuring a call, call on hold or call waiting, you canpress + / - side key to increase or decrease the volume(if you are not browsing the call options menu).When the volume has been set, the call volume willtake effect immediately and the settings will beapplied to your subsequent calls. Call recordingDuring a call, press L Options and select Record toaccess the 3 recording options; namely, Record both(default), Record the opposite party and Record own(applicable to two-party calls or multi-party calls).When you start recording, a recording icon willappear on the screen. When you end the call, therecording will stop and saved automatically in AMRformat under My Files > Sounds.There is no limit to the length of the recording; therecording will stop only when you press R key to stopthe recording, when there is insufficient memory, orwhen the call has ended. End a callPress R End or ) to end a call.Make an international call1. Long press 0 until "+"appears on the screen.2. Enter the country code.3. Enter the area code (normally without the 0 infront), followed by the phone number. 4. Press ( to call directly.Make an emergency callYou can make an emergency call anytime, irrespectiveof whether the mobile phone has been registered onthe network. Xenium9@9k_Master_EN.book  Page 13  Wednesday, October 24, 2007  4:23 PM

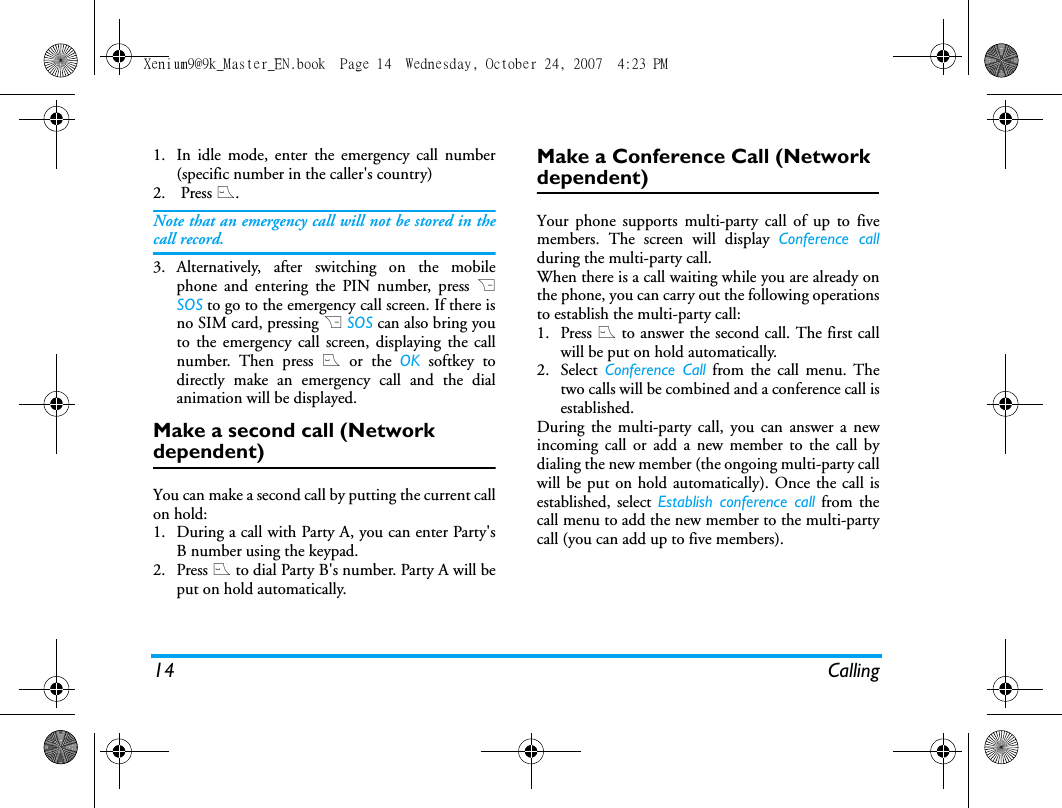

14 Calling1. In idle mode, enter the emergency call number(specific number in the caller's country)2.  Press (.Note that an emergency call will not be stored in thecall record. 3. Alternatively, after switching on the mobilephone and entering the PIN number, press RSOS to go to the emergency call screen. If there isno SIM card, pressing R SOS can also bring youto the emergency call screen, displaying the callnumber. Then press ( or the OK softkey todirectly make an emergency call and the dialanimation will be displayed.Make a second call (Network dependent)You can make a second call by putting the current callon hold: 1. During a call with Party A, you can enter Party'sB number using the keypad. 2. Press ( to dial Party B's number. Party A will beput on hold automatically. Make a Conference Call (Network dependent)Your phone supports multi-party call of up to fivemembers. The screen will display Conference callduring the multi-party call.When there is a call waiting while you are already onthe phone, you can carry out the following operationsto establish the multi-party call:1. Press ( to answer the second call. The first callwill be put on hold automatically. 2. Select Conference Call from the call menu. Thetwo calls will be combined and a conference call isestablished. During the multi-party call, you can answer a newincoming call or add a new member to the call bydialing the new member (the ongoing multi-party callwill be put on hold automatically). Once the call isestablished, select Establish conference call from thecall menu to add the new member to the multi-partycall (you can add up to five members).Xenium9@9k_Master_EN.book  Page 14  Wednesday, October 24, 2007  4:23 PM

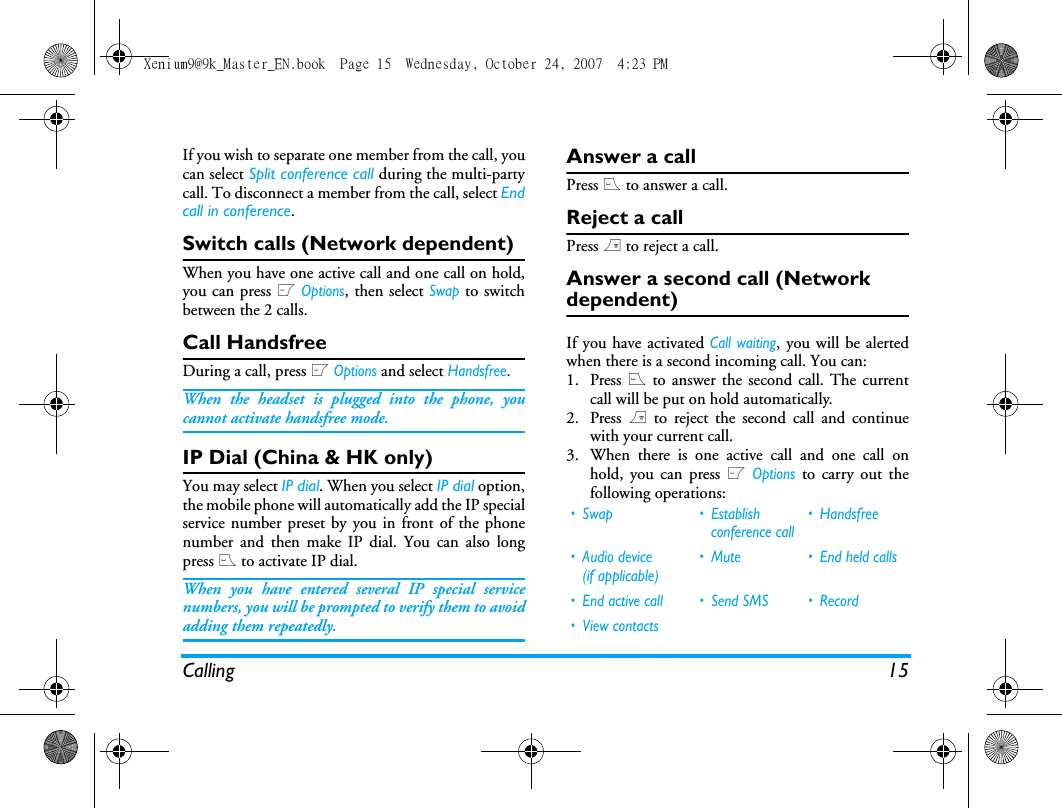

Calling 15If you wish to separate one member from the call, youcan select Split conference call during the multi-partycall. To disconnect a member from the call, select Endcall in conference.Switch calls (Network dependent)When you have one active call and one call on hold,you can press L Options, then select Swap to switchbetween the 2 calls. Call HandsfreeDuring a call, press L Options and select Handsfree.When the headset is plugged into the phone, youcannot activate handsfree mode.IP Dial (China & HK only)You may select IP dial. When you select IP dial option,the mobile phone will automatically add the IP specialservice number preset by you in front of the phonenumber and then make IP dial. You can also longpress ( to activate IP dial.When you have entered several IP special servicenumbers, you will be prompted to verify them to avoidadding them repeatedly.Answer a callPress ( to answer a call.Reject a callPress ) to reject a call.Answer a second call (Network dependent) If you have activated Call waiting, you will be alertedwhen there is a second incoming call. You can: 1. Press ( to answer the second call. The currentcall will be put on hold automatically.2. Press ) to reject the second call and continuewith your current call.3. When there is one active call and one call onhold, you can press L Options to carry out thefollowing operations:• Swap • Establish conference call• Handsfree• Audio device (if applicable)• Mute • End held calls• End active call • Send SMS • Record• View contactsXenium9@9k_Master_EN.book  Page 15  Wednesday, October 24, 2007  4:23 PM

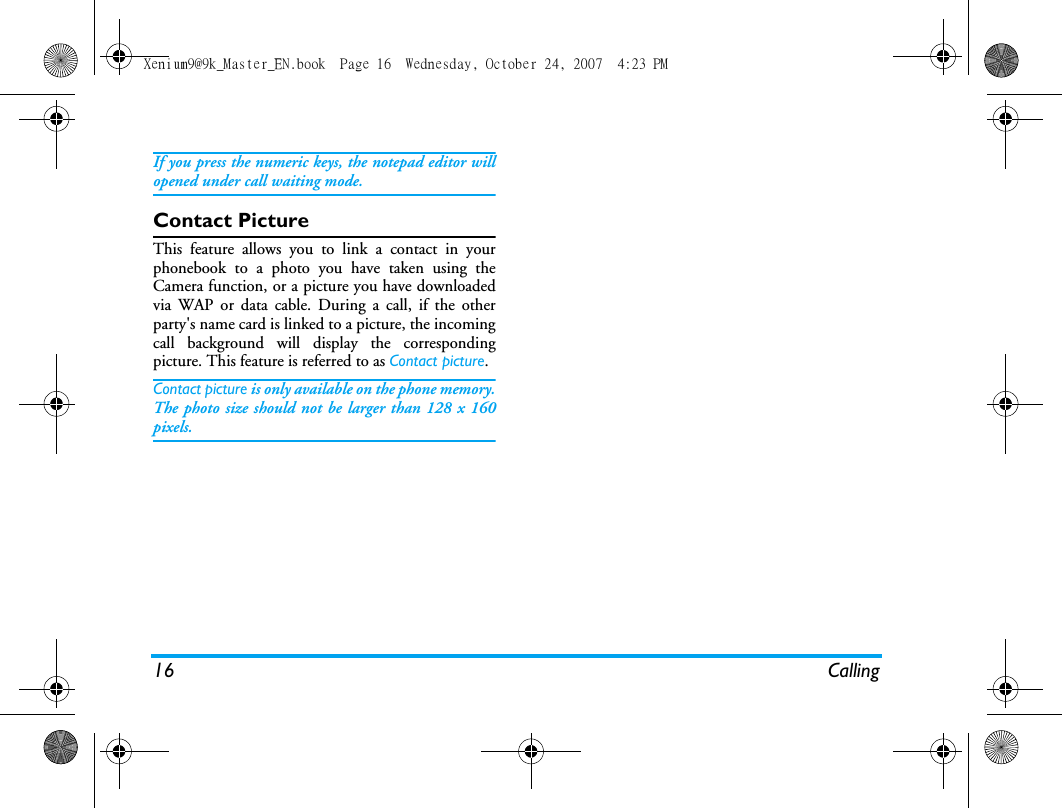

16 CallingIf you press the numeric keys, the notepad editor willopened under call waiting mode. Contact PictureThis feature allows you to link a contact in yourphonebook to a photo you have taken using theCamera function, or a picture you have downloadedvia WAP or data cable. During a call, if the otherparty's name card is linked to a picture, the incomingcall background will display the correspondingpicture. This feature is referred to as Contact picture.Contact picture is only available on the phone memory.The photo size should not be larger than 128 x 160pixels.Xenium9@9k_Master_EN.book  Page 16  Wednesday, October 24, 2007  4:23 PM

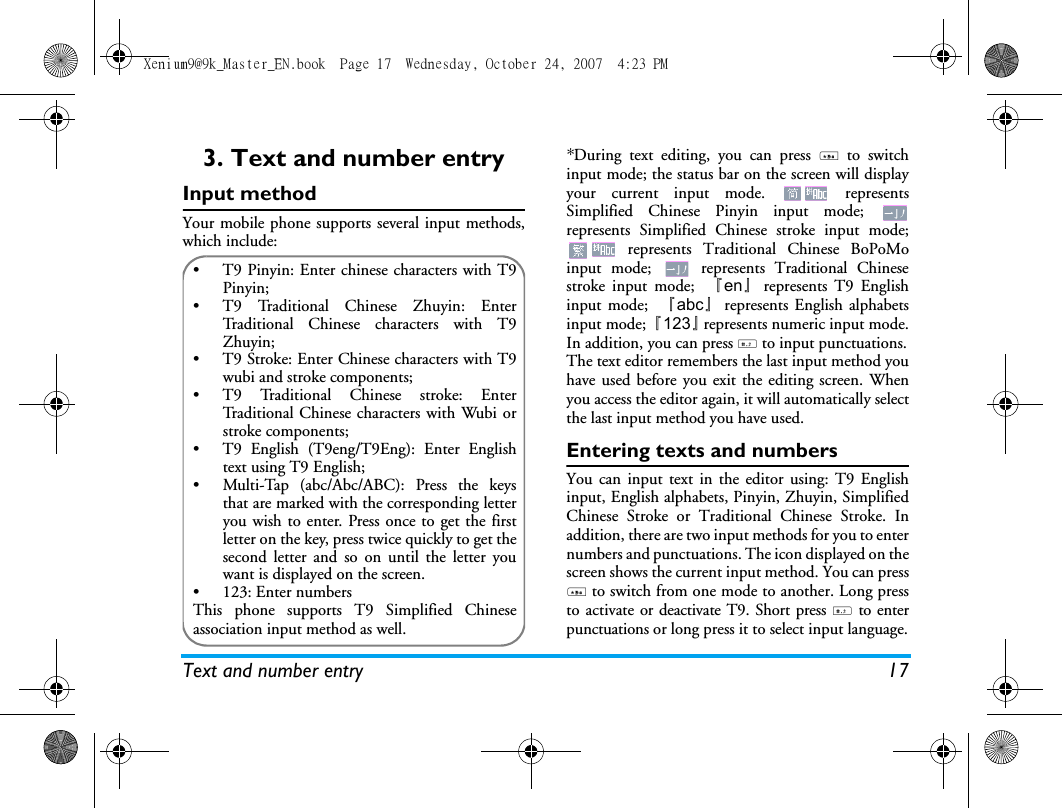

Text and number entry 173. Text and number entryInput methodYour mobile phone supports several input methods,which include:*During text editing, you can press * to switchinput mode; the status bar on the screen will displayyour current input mode.   representsSimplified Chinese Pinyin input mode; represents Simplified Chinese stroke input mode; represents Traditional Chinese BoPoMoinput mode;   represents Traditional Chinesestroke input mode;  『en』represents T9 Englishinput mode;  『abc』represents English alphabetsinput mode; 『123』represents numeric input mode.In addition, you can press # to input punctuations.The text editor remembers the last input method youhave used before you exit the editing screen. Whenyou access the editor again, it will automatically selectthe last input method you have used. Entering texts and numbersYou can input text in the editor using: T9 Englishinput, English alphabets, Pinyin, Zhuyin, SimplifiedChinese Stroke or Traditional Chinese Stroke. Inaddition, there are two input methods for you to enternumbers and punctuations. The icon displayed on thescreen shows the current input method. You can press* to switch from one mode to another. Long pressto activate or deactivate T9. Short press # to enterpunctuations or long press it to select input language.•  T9 Pinyin: Enter chinese characters with T9Pinyin;•  T9 Traditional Chinese Zhuyin: EnterTraditional Chinese characters with T9Zhuyin; •  T9 Stroke: Enter Chinese characters with T9wubi and stroke components; •  T9 Traditional Chinese stroke: EnterTraditional Chinese characters with Wubi orstroke components;•  T9 English (T9eng/T9Eng): Enter Englishtext using T9 English;•  Multi-Tap (abc/Abc/ABC): Press the keysthat are marked with the corresponding letteryou wish to enter. Press once to get the firstletter on the key, press twice quickly to get thesecond letter and so on until the letter youwant is displayed on the screen.• 123: Enter numbersThis phone supports T9 Simplified Chineseassociation input method as well.Xenium9@9k_Master_EN.book  Page 17  Wednesday, October 24, 2007  4:23 PM

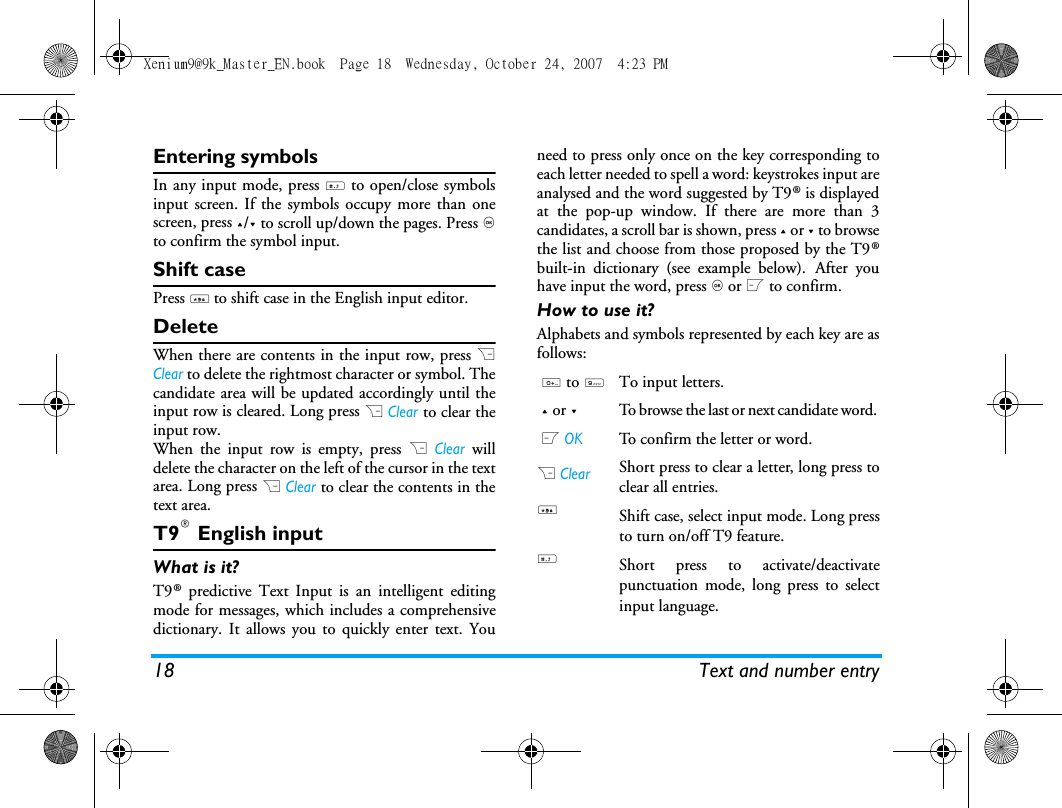

18 Text and number entryEntering symbolsIn any input mode, press # to open/close symbolsinput screen. If the symbols occupy more than onescreen, press +/- to scroll up/down the pages. Press ,to confirm the symbol input.Shift casePress * to shift case in the English input editor. DeleteWhen there are contents in the input row, press RClear to delete the rightmost character or symbol. Thecandidate area will be updated accordingly until theinput row is cleared. Long press R Clear to clear theinput row.When the input row is empty, press R Clear willdelete the character on the left of the cursor in the textarea. Long press R Clear to clear the contents in thetext area. T9® English inputWhat is it?T9® predictive Text Input is an intelligent editingmode for messages, which includes a comprehensivedictionary. It allows you to quickly enter text. Youneed to press only once on the key corresponding toeach letter needed to spell a word: keystrokes input areanalysed and the word suggested by T9® is displayedat the pop-up window. If there are more than 3candidates, a scroll bar is shown, press + or - to browsethe list and choose from those proposed by the T9®built-in dictionary (see example below). After youhave input the word, press , or L to confirm.How to use it?Alphabets and symbols represented by each key are asfollows:0 to 9To input letters.+ or -To browse the last or next candidate word. L OKTo confirm the letter or word.R ClearShort press to clear a letter, long press toclear all entries.*Shift case, select input mode. Long pressto turn on/off T9 feature.#Short press to activate/deactivatepunctuation mode, long press to selectinput language.Xenium9@9k_Master_EN.book  Page 18  Wednesday, October 24, 2007  4:23 PM

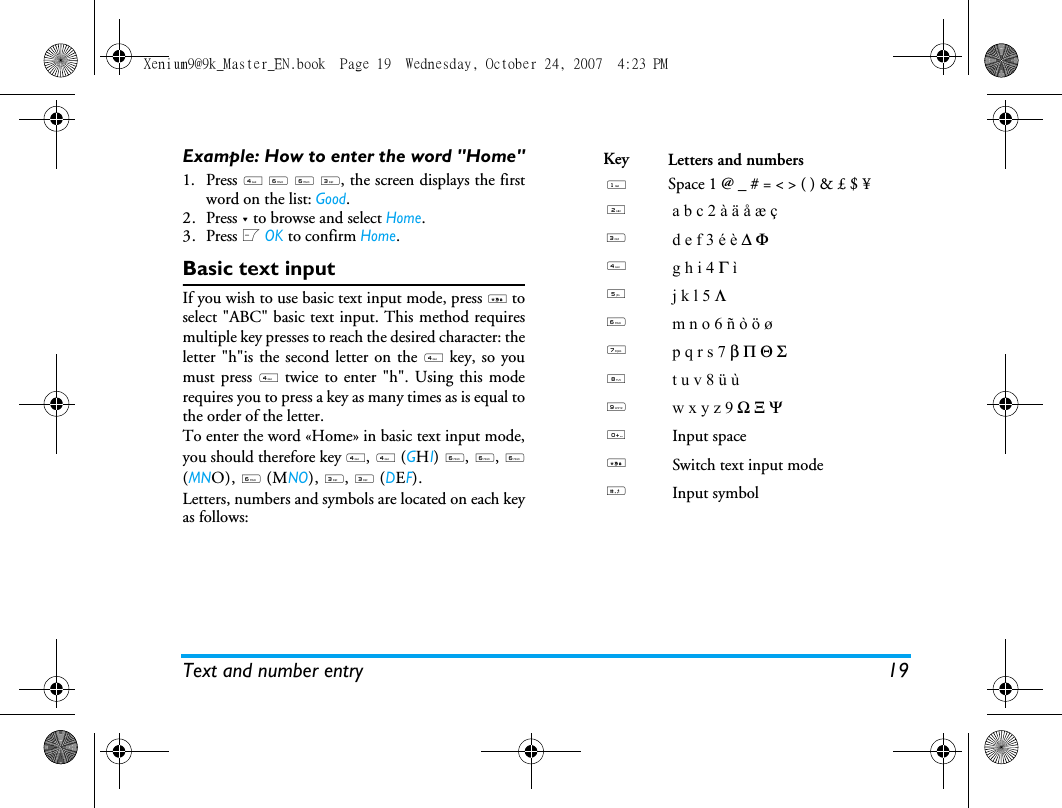

Text and number entry 19Example: How to enter the word "Home"1. Press 4 6°6 3, the screen displays the firstword on the list: Good.2. Press - to browse and select Home.3. Press L OK to confirm Home.Basic text inputIf you wish to use basic text input mode, press * toselect "ABC" basic text input. This method requiresmultiple key presses to reach the desired character: theletter "h"is the second letter on the 4 key, so youmust press 4 twice to enter "h". Using this moderequires you to press a key as many times as is equal tothe order of the letter.To enter the word «Home» in basic text input mode,you should therefore key 4, 4 (GHI) 6, 6, 6(MNO), 6 (MNO), 3, 3 (DEF).Letters, numbers and symbols are located on each keyas follows:Key Letters and numbers1Space 1 @ _ # = < > ( ) & £ $ ¥ 2a b c 2 à ä å æ ç3d e f 3 é è ∆ Φ4g h i 4 Γ ì5j k l 5 Λ6m n o 6 ñ ò ö ø7p q r s 7 β Π Θ Σ8t u v 8 ü ù9w x y z 9 Ω Ξ Ψ0Input space*Switch text input mode#Input symbolXenium9@9k_Master_EN.book  Page 19  Wednesday, October 24, 2007  4:23 PM

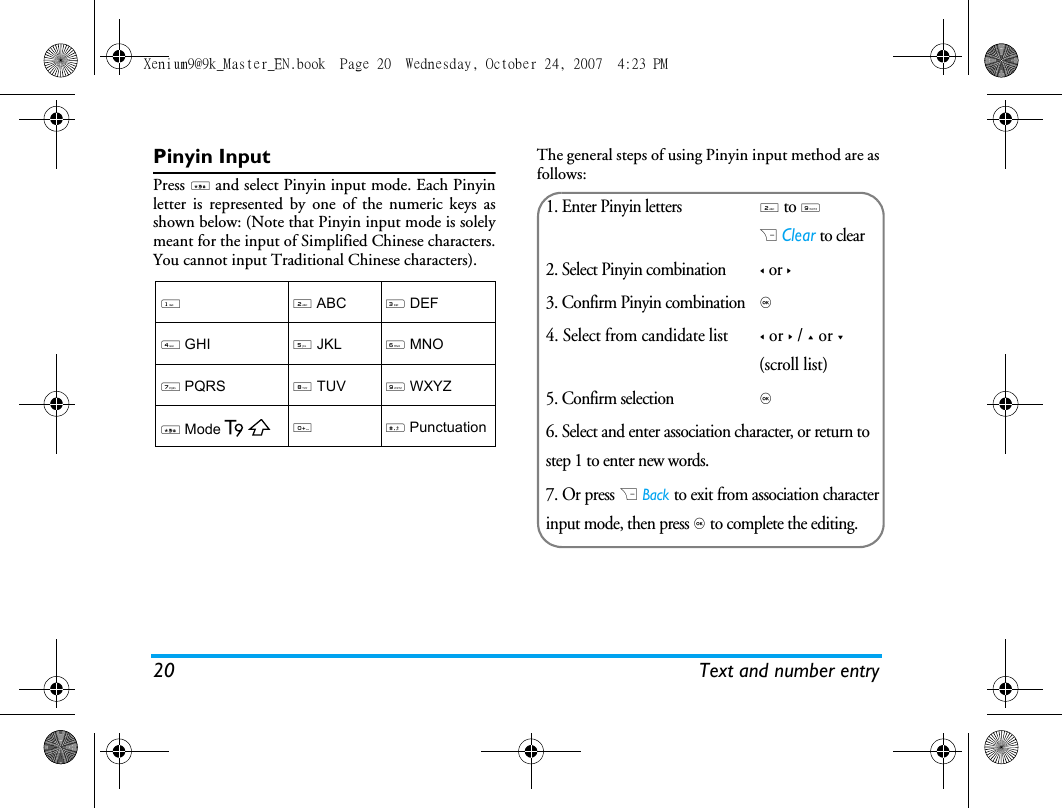

20 Text and number entryPinyin InputPress * and select Pinyin input mode. Each Pinyinletter is represented by one of the numeric keys asshown below: (Note that Pinyin input mode is solelymeant for the input of Simplified Chinese characters.You cannot input Traditional Chinese characters).The general steps of using Pinyin input method are asfollows:12 ABC3 DEF4 GHI5 JKL6 MNO7 PQRS8 TUV9 WXYZ * Mode0# Punctuation1. Enter Pinyin letters2 to 9R Clear to clear2. Select Pinyin combination< or >3. Confirm Pinyin combination, 4. Select from candidate list< or > / + or - (scroll list)5. Confirm selection, 6. Select and enter association character, or return to step 1 to enter new words.7. Or press R Back to exit from association characterinput mode, then press , to complete the editing.Xenium9@9k_Master_EN.book  Page 20  Wednesday, October 24, 2007  4:23 PM

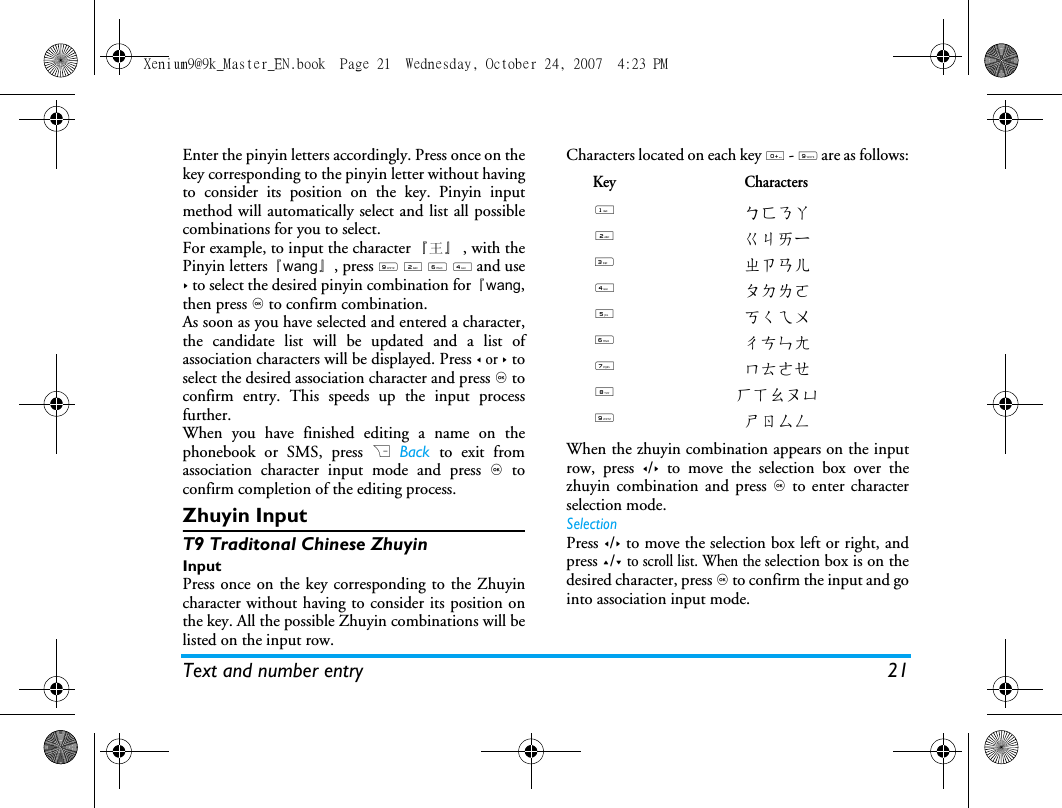

Text and number entry 21Enter the pinyin letters accordingly. Press once on thekey corresponding to the pinyin letter without havingto consider its position on the key. Pinyin inputmethod will automatically select and list all possiblecombinations for you to select. For example, to input the character 『王』 , with thePinyin letters『wang』, press 9 2 6 4 and use> to select the desired pinyin combination for 『wang,then press , to confirm combination. As soon as you have selected and entered a character,the candidate list will be updated and a list ofassociation characters will be displayed. Press < or > toselect the desired association character and press , toconfirm entry. This speeds up the input processfurther.When you have finished editing a name on thephonebook or SMS, press R Back to exit fromassociation character input mode and press , toconfirm completion of the editing process. Zhuyin Input T9 Traditonal Chinese ZhuyinInputPress once on the key corresponding to the Zhuyincharacter without having to consider its position onthe key. All the possible Zhuyin combinations will belisted on the input row. Characters located on each key 0 - 9 are as follows:When the zhuyin combination appears on the inputrow, press </> to move the selection box over thezhuyin combination and press , to enter characterselection mode. SelectionPress </> to move the selection box left or right, andpress +/- to scroll list. When the selection box is on thedesired character, press , to confirm the input and gointo association input mode. Key Characters1ㄅㄈㄋㄚ2ㄍㄐㄞー3ㄓㄗㄢㄦ4ㄆㄉㄌㄛ5ㄎㄑㄟㄨ6ㄔㄘㄣㄤ7ㄇㄊㄜㄝ8ㄏㄒㄠㄡㄩ9ㄕㄖㄙㄥXenium9@9k_Master_EN.book  Page 21  Wednesday, October 24, 2007  4:23 PM

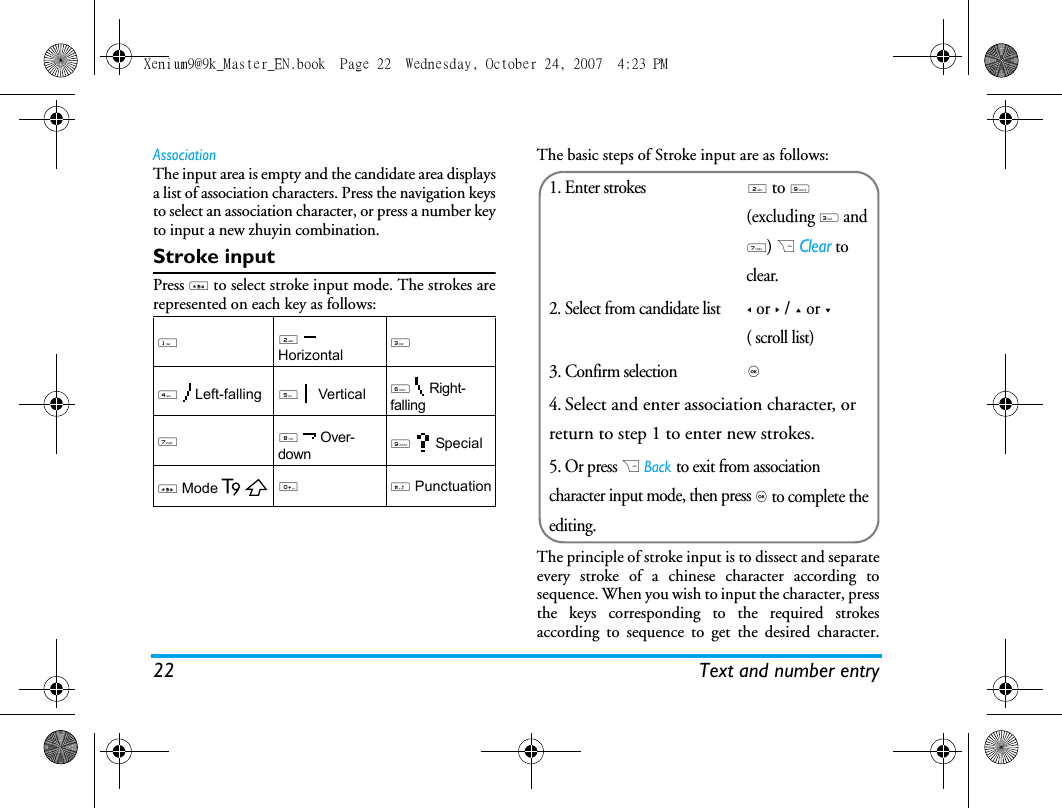

22 Text and number entryAssociationThe input area is empty and the candidate area displaysa list of association characters. Press the navigation keysto select an association character, or press a number keyto input a new zhuyin combination. Stroke inputPress * to select stroke input mode. The strokes arerepresented on each key as follows: The basic steps of Stroke input are as follows:The principle of stroke input is to dissect and separateevery stroke of a chinese character according tosequence. When you wish to input the character, pressthe keys corresponding to the required strokesaccording to sequence to get the desired character.12  Horizontal34  Left-falling5  Vertical6  Right-falling7 8  Over-down9  Special* Mode0 # Punctuation1. Enter strokes2 to 9 (excluding 3 and 7) R Clear to clear.2. Select from candidate list< or > / + or -( scroll list)3. Confirm selection,4. Select and enter association character, or return to step 1 to enter new strokes.5. Or press R Back to exit from association character input mode, then press , to complete the editing.Xenium9@9k_Master_EN.book  Page 22  Wednesday, October 24, 2007  4:23 PM

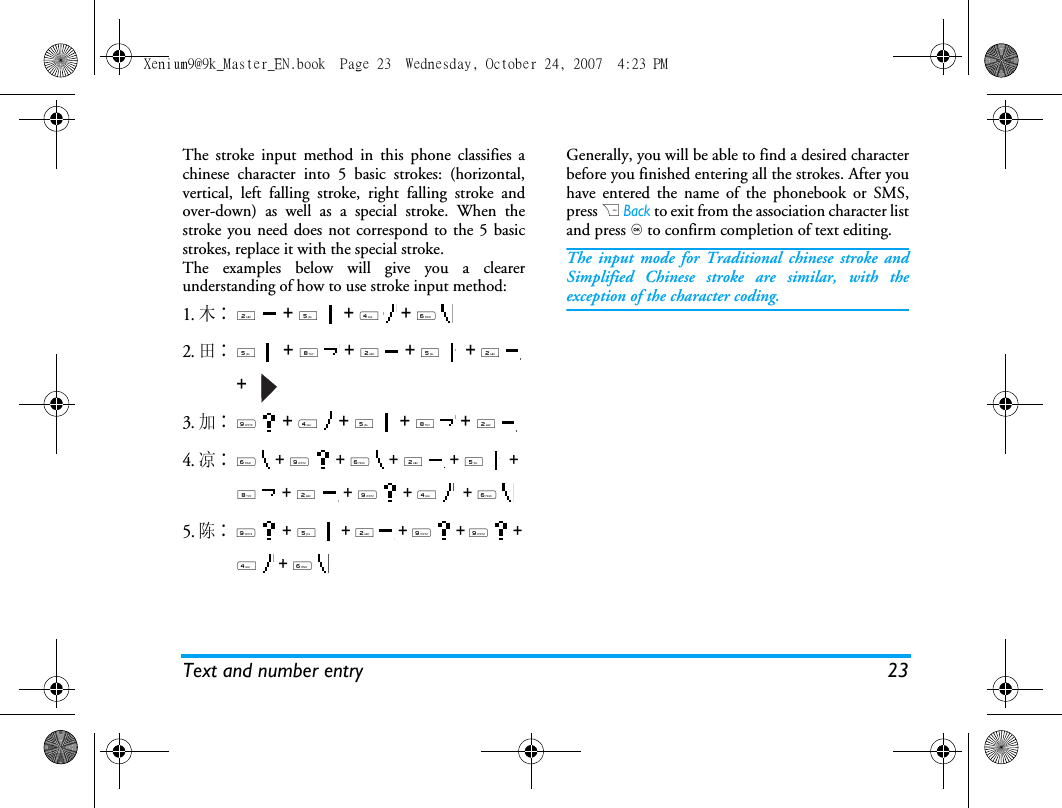

Text and number entry 23The stroke input method in this phone classifies achinese character into 5 basic strokes: (horizontal,vertical, left falling stroke, right falling stroke andover-down) as well as a special stroke. When thestroke you need does not correspond to the 5 basicstrokes, replace it with the special stroke. The examples below will give you a clearerunderstanding of how to use stroke input method:1.木∶2  + 5  + 4  + 6  2.田∶5  + 8  + 2  + 5  + 2  +   3.加∶9  + 4  + 5  + 8  + 2 4.凉∶6  + 9  + 6  + 2  + 5  + 8  + 2  + 9  + 4   + 6 5. 陈∶9  + 5  + 2  + 9  + 9  + 4  + 6  Generally, you will be able to find a desired characterbefore you finished entering all the strokes. After youhave entered the name of the phonebook or SMS,press R Back to exit from the association character listand press , to confirm completion of text editing. The input mode for Traditional chinese stroke andSimplified Chinese stroke are similar, with theexception of the character coding. Xenium9@9k_Master_EN.book  Page 23  Wednesday, October 24, 2007  4:23 PM

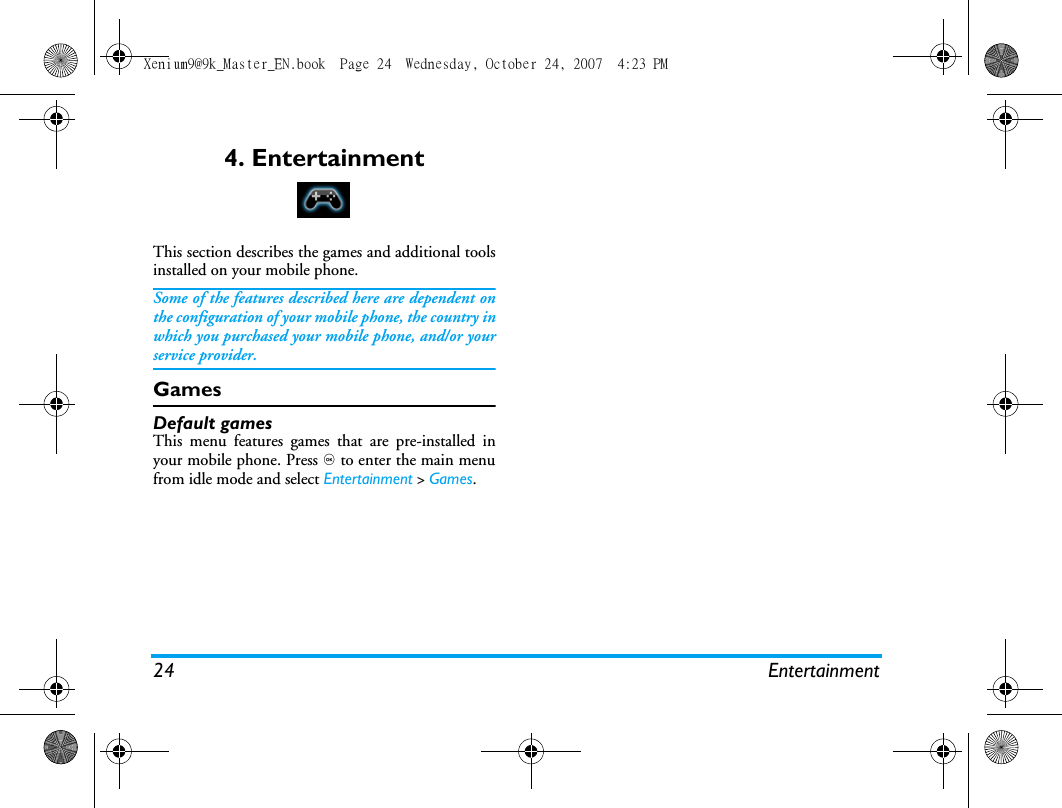

24 Entertainment4. EntertainmentThis section describes the games and additional toolsinstalled on your mobile phone.Some of the features described here are dependent onthe configuration of your mobile phone, the country inwhich you purchased your mobile phone, and/or yourservice provider.GamesDefault gamesThis menu features games that are pre-installed inyour mobile phone. Press , to enter the main menufrom idle mode and select Entertainment > Games.Xenium9@9k_Master_EN.book  Page 24  Wednesday, October 24, 2007  4:23 PM

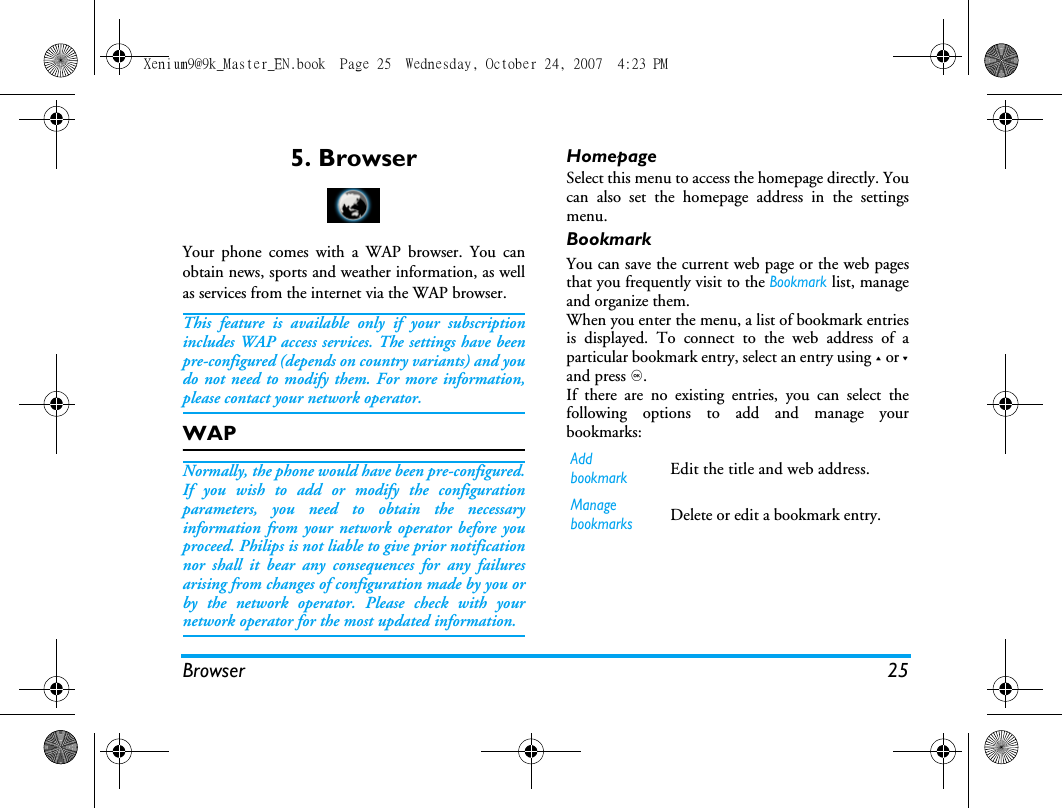

Browser 255. BrowserYour phone comes with a WAP browser. You canobtain news, sports and weather information, as wellas services from the internet via the WAP browser. This feature is available only if your subscriptionincludes WAP access services. The settings have beenpre-configured (depends on country variants) and youdo not need to modify them. For more information,please contact your network operator. WAP Normally, the phone would have been pre-configured.If you wish to add or modify the configurationparameters, you need to obtain the necessaryinformation from your network operator before youproceed. Philips is not liable to give prior notificationnor shall it bear any consequences for any failuresarising from changes of configuration made by you orby the network operator. Please check with yournetwork operator for the most updated information.HomepageSelect this menu to access the homepage directly. Youcan also set the homepage address in the settingsmenu. BookmarkYou can save the current web page or the web pagesthat you frequently visit to the Bookmark list, manageand organize them. When you enter the menu, a list of bookmark entriesis displayed. To connect to the web address of aparticular bookmark entry, select an entry using + or -and press ,.If there are no existing entries, you can select thefollowing options to add and manage yourbookmarks:Add bookmarkEdit the title and web address. Manage bookmarksDelete or edit a bookmark entry. Xenium9@9k_Master_EN.book  Page 25  Wednesday, October 24, 2007  4:23 PM

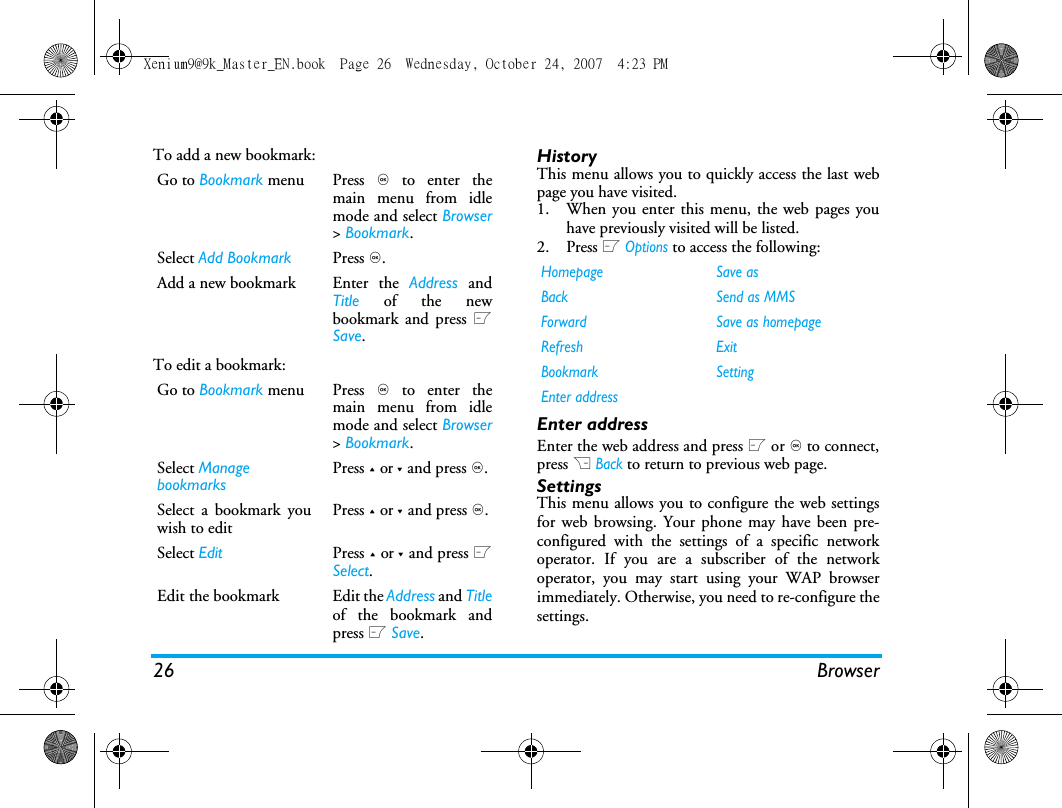

26 BrowserTo add a new bookmark:To edit a bookmark:HistoryThis menu allows you to quickly access the last webpage you have visited. 1. When you enter this menu, the web pages youhave previously visited will be listed.2. Press L Options to access the following:Enter addressEnter the web address and press L or , to connect,press R Back to return to previous web page.SettingsThis menu allows you to configure the web settingsfor web browsing. Your phone may have been pre-configured with the settings of a specific networkoperator. If you are a subscriber of the networkoperator, you may start using your WAP browserimmediately. Otherwise, you need to re-configure thesettings. Go to Bookmark menu Press , to enter themain menu from idlemode and select Browser> Bookmark.Select Add Bookmark Press ,.Add a new bookmark  Enter  the  Address andTitle of the newbookmark and press LSave.Go to Bookmark menu Press , to enter themain menu from idlemode and select Browser> Bookmark.Select Manage bookmarksPress + or - and press ,. Select a bookmark youwish to editPress + or - and press ,.Select Edit Press + or - and press LSelect.Edit the bookmark  Edit the Address and Titleof the bookmark andpress L Save.Homepage Save asBack Send as MMSForward Save as homepageRefresh ExitBookmark SettingEnter addressXenium9@9k_Master_EN.book  Page 26  Wednesday, October 24, 2007  4:23 PM

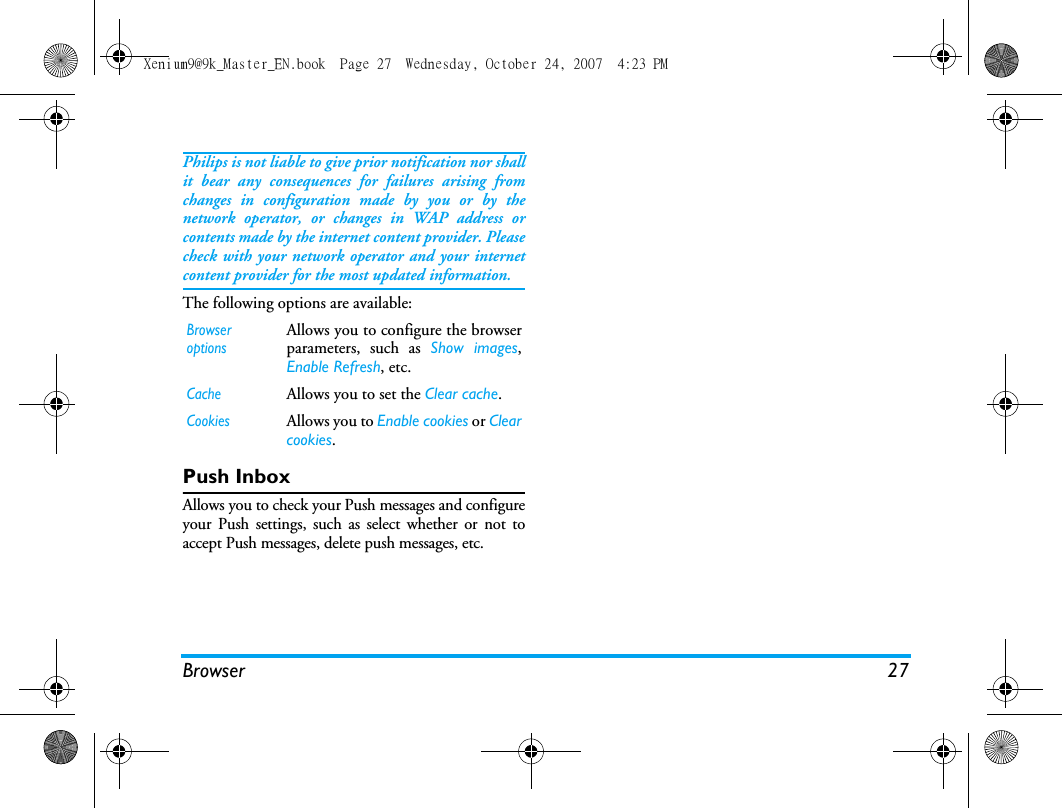

Browser 27Philips is not liable to give prior notification nor shallit bear any consequences for failures arising fromchanges in configuration made by you or by thenetwork operator, or changes in WAP address orcontents made by the internet content provider. Pleasecheck with your network operator and your internetcontent provider for the most updated information.The following options are available:Push InboxAllows you to check your Push messages and configureyour Push settings, such as select whether or not toaccept Push messages, delete push messages, etc. Browser optionsAllows you to configure the browserparameters, such as Show images,Enable Refresh, etc.CacheAllows you to set the Clear cache. CookiesAllows you to Enable cookies or Clearcookies. Xenium9@9k_Master_EN.book  Page 27  Wednesday, October 24, 2007  4:23 PM

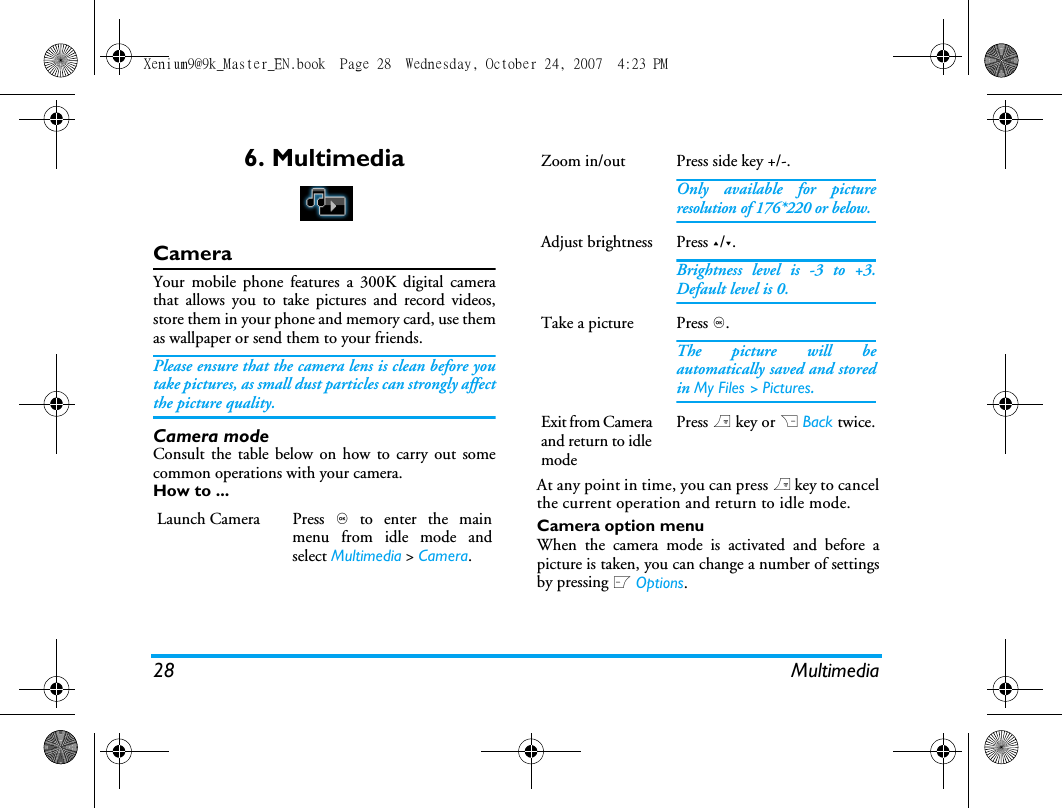

28 Multimedia6. MultimediaCameraYour mobile phone features a 300K digital camerathat allows you to take pictures and record videos,store them in your phone and memory card, use themas wallpaper or send them to your friends.Please ensure that the camera lens is clean before youtake pictures, as small dust particles can strongly affectthe picture quality.Camera modeConsult the table below on how to carry out somecommon operations with your camera.How to ... At any point in time, you can press ) key to cancelthe current operation and return to idle mode.Camera option menuWhen the camera mode is activated and before apicture is taken, you can change a number of settingsby pressing L Options.Launch Camera Press , to enter the mainmenu from idle mode andselect Multimedia > Camera.Zoom in/out  Press side key +/-.Only available for pictureresolution of 176*220 or below.Adjust brightness Press +/-.Brightness level is -3 to +3.Default level is 0. Take a picture Press ,.The picture will beautomatically saved and storedin My Files > Pictures. Exit from Camera and return to idle modePress ) key or R Back twice.Xenium9@9k_Master_EN.book  Page 28  Wednesday, October 24, 2007  4:23 PM

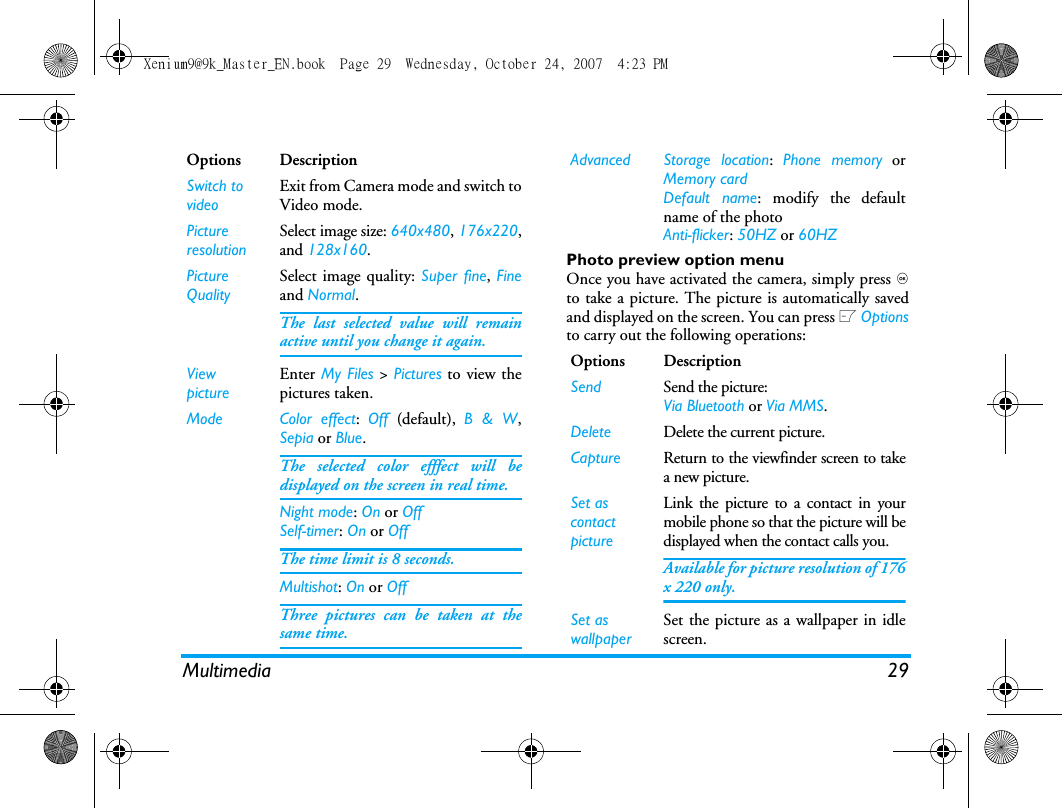

Multimedia 29Photo preview option menuOnce you have activated the camera, simply press ,to take a picture. The picture is automatically savedand displayed on the screen. You can press L Optionsto carry out the following operations: Options DescriptionSwitch to videoExit from Camera mode and switch toVideo mode.PictureresolutionSelect image size: 640x480, 176x220,and 128x160.Picture QualitySelect image quality: Super fine, Fineand Normal.The last selected value will remainactive until you change it again.ViewpictureEnter My Files > Pictures to view thepictures taken.Mode Color effect:  Off  (default),  B & W,Sepia or Blue. The selected color efffect will bedisplayed on the screen in real time. Night mode: On or OffSelf-timer: On or OffThe time limit is 8 seconds. Multishot: On or OffThree pictures can be taken at thesame time.Advanced Storage location:  Phone memory orMemory cardDefault name: modify the defaultname of the photo Anti-flicker: 50HZ or 60HZOptions DescriptionSend Send the picture:Via Bluetooth or Via MMS.Delete Delete the current picture.Capture Return to the viewfinder screen to takea new picture.Set as contact pictureLink the picture to a contact in yourmobile phone so that the picture will bedisplayed when the contact calls you.Available for picture resolution of 176x 220 only.Set as wallpaperSet the picture as a wallpaper in idlescreen.Xenium9@9k_Master_EN.book  Page 29  Wednesday, October 24, 2007  4:23 PM

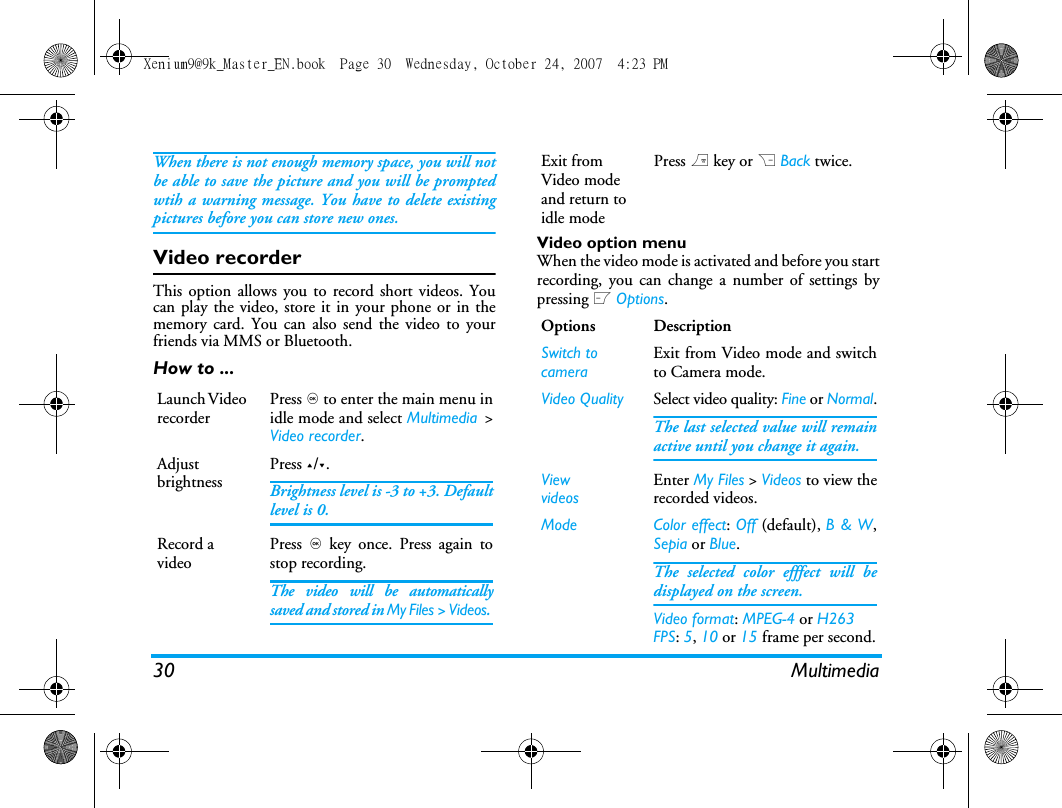

30 MultimediaWhen there is not enough memory space, you will notbe able to save the picture and you will be promptedwtih a warning message. You have to delete existingpictures before you can store new ones. Video recorderThis option allows you to record short videos. Youcan play the video, store it in your phone or in thememory card. You can also send the video to yourfriends via MMS or Bluetooth. How to ...Video option menuWhen the video mode is activated and before you startrecording, you can change a number of settings bypressing L Options.Launch Video recorderPress , to enter the main menu inidle mode and select Multimedia >Video recorder.Adjust brightnessPress +/-.Brightness level is -3 to +3. Defaultlevel is 0. Record a videoPress , key once. Press again tostop recording.The video will be automaticallysaved and stored in My Files > Videos. Exit from Video mode and return to idle modePress ) key or R Back twice.Options DescriptionSwitch to cameraExit from Video mode and switchto Camera mode.Video Quality Select video quality: Fine or Normal.The last selected value will remainactive until you change it again.ViewvideosEnter My Files > Videos to view therecorded videos.Mode Color effect: Off (default), B & W,Sepia or Blue.The selected color efffect will bedisplayed on the screen. Video format: MPEG-4 or H263FPS: 5, 10 or 15 frame per second.Xenium9@9k_Master_EN.book  Page 30  Wednesday, October 24, 2007  4:23 PM

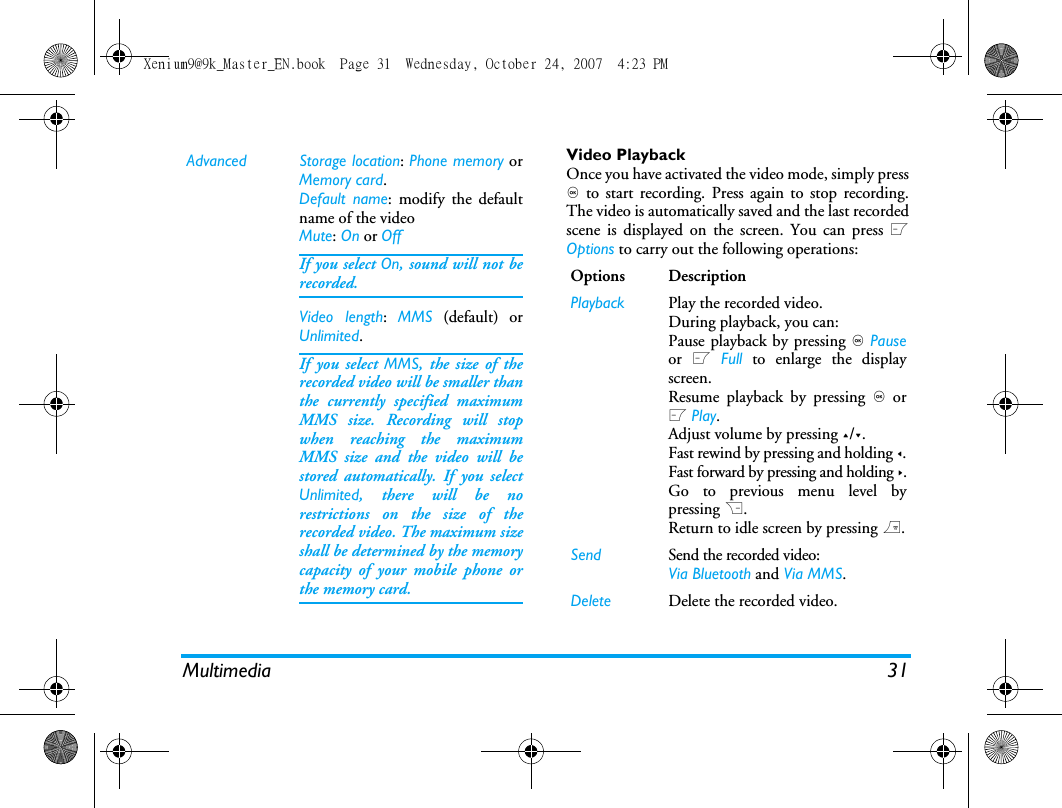

Multimedia 31Video PlaybackOnce you have activated the video mode, simply press, to start recording. Press again to stop recording.The video is automatically saved and the last recordedscene is displayed on the screen. You can press LOptions to carry out the following operations:Advanced Storage location: Phone memory orMemory card.Default name: modify the defaultname of the videoMute: On or OffIf you select On, sound will not berecorded.Video length:  MMS (default) orUnlimited.If you select MMS, the size of therecorded video will be smaller thanthe currently specified maximumMMS size. Recording will stopwhen reaching the maximumMMS size and the video will bestored automatically. If you selectUnlimited, there will be norestrictions on the size of therecorded video. The maximum sizeshall be determined by the memorycapacity of your mobile phone orthe memory card.Options DescriptionPlayback Play the recorded video.During playback, you can:Pause playback by pressing , Pauseor L Full to enlarge the displayscreen. Resume playback by pressing , orL Play. Adjust volume by pressing +/-.Fast rewind by pressing and holding <.Fast forward by pressing and holding >.Go to previous menu level bypressing R.Return to idle screen by pressing ).Send Send the recorded video: Via Bluetooth and Via MMS.Delete Delete the recorded video.Xenium9@9k_Master_EN.book  Page 31  Wednesday, October 24, 2007  4:23 PM

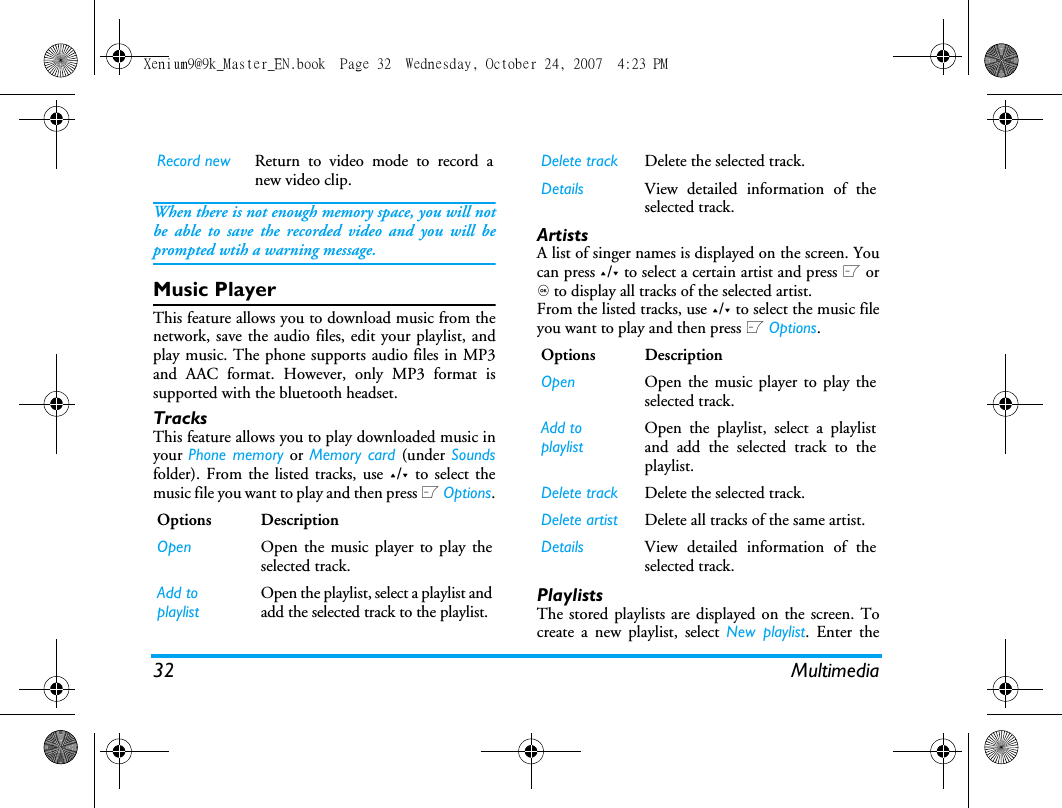

32 MultimediaWhen there is not enough memory space, you will notbe able to save the recorded video and you will beprompted wtih a warning message. Music PlayerThis feature allows you to download music from thenetwork, save the audio files, edit your playlist, andplay music. The phone supports audio files in MP3and AAC format. However, only MP3 format issupported with the bluetooth headset.TracksThis feature allows you to play downloaded music inyour Phone memory or Memory card (under  Soundsfolder). From the listed tracks, use +/- to select themusic file you want to play and then press L Options.ArtistsA list of singer names is displayed on the screen. Youcan press +/- to select a certain artist and press L or, to display all tracks of the selected artist.From the listed tracks, use +/- to select the music fileyou want to play and then press L Options. PlaylistsThe stored playlists are displayed on the screen. Tocreate a new playlist, select New playlist. Enter theRecord new Return to video mode to record anew video clip.Options DescriptionOpen Open the music player to play theselected track.Add to playlistOpen the playlist, select a playlist andadd the selected track to the playlist.Delete track Delete the selected track.Details View detailed information of theselected track.Options DescriptionOpen Open the music player to play theselected track.Add to playlistOpen the playlist, select a playlistand add the selected track to theplaylist.Delete track Delete the selected track.Delete artist Delete all tracks of the same artist.Details View detailed information of theselected track.Xenium9@9k_Master_EN.book  Page 32  Wednesday, October 24, 2007  4:23 PM

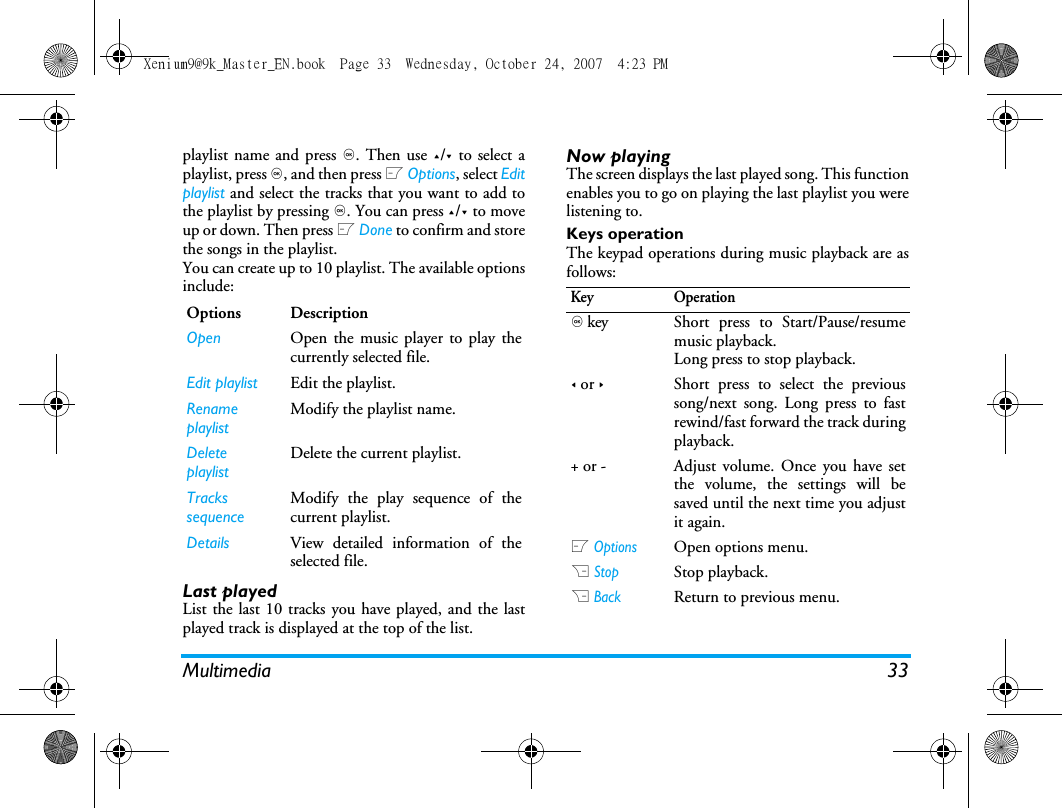

Multimedia 33playlist name and press ,. Then use +/- to select aplaylist, press ,, and then press L Options, select Editplaylist and select the tracks that you want to add tothe playlist by pressing ,. You can press +/- to moveup or down. Then press L Done to confirm and storethe songs in the playlist.You can create up to 10 playlist. The available optionsinclude: Last playedList the last 10 tracks you have played, and the lastplayed track is displayed at the top of the list. Now playingThe screen displays the last played song. This functionenables you to go on playing the last playlist you werelistening to.Keys operationThe keypad operations during music playback are asfollows: Options DescriptionOpen Open the music player to play thecurrently selected file.Edit playlist Edit the playlist.Rename playlistModify the playlist name.Delete playlistDelete the current playlist.Tracks sequenceModify the play sequence of thecurrent playlist.Details View detailed information of theselected file.Key Operation, key Short press to Start/Pause/resumemusic playback.Long press to stop playback. < or >Short press to select the previoussong/next song. Long press to fastrewind/fast forward the track duringplayback. + or - Adjust volume. Once you have setthe volume, the settings will besaved until the next time you adjustit again. L OptionsOpen options menu.R StopStop playback.R BackReturn to previous menu. Xenium9@9k_Master_EN.book  Page 33  Wednesday, October 24, 2007  4:23 PM

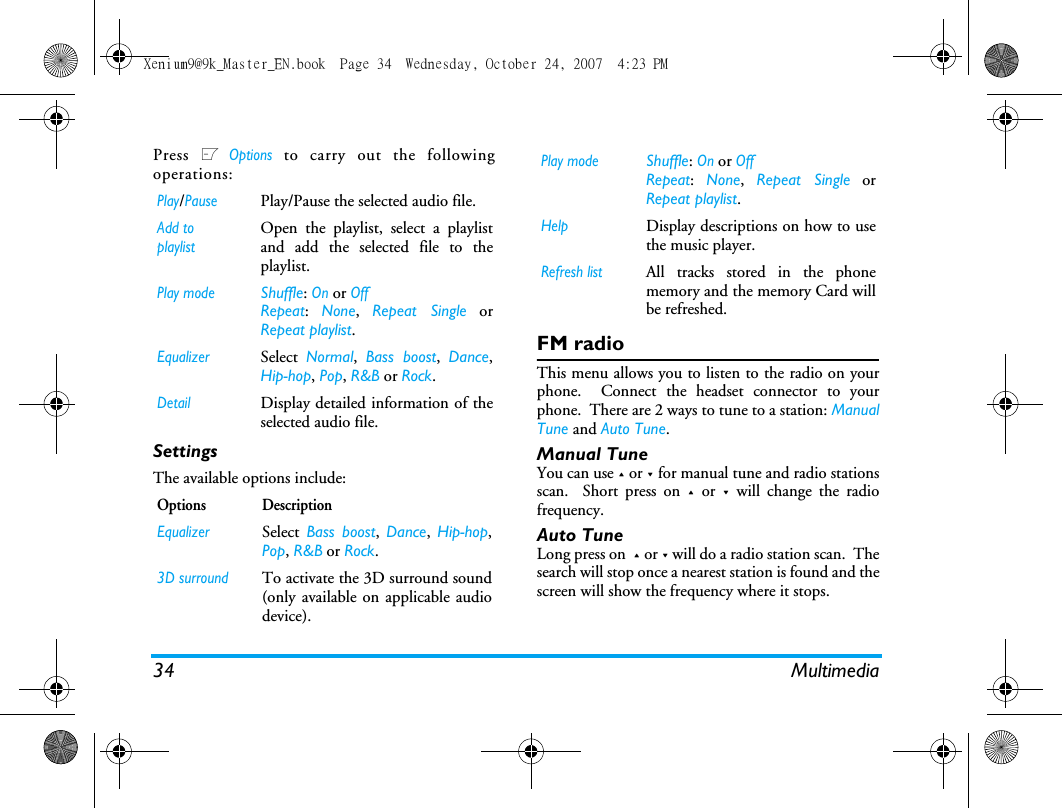

34 MultimediaPress L Options to carry out the followingoperations:SettingsThe available options include: FM radioThis menu allows you to listen to the radio on yourphone.  Connect the headset connector to yourphone.  There are 2 ways to tune to a station: ManualTune and Auto Tune.  Manual TuneYou can use + or - for manual tune and radio stationsscan.  Short press on + or - will change the radiofrequency. Auto TuneLong press on  + or - will do a radio station scan.  Thesearch will stop once a nearest station is found and thescreen will show the frequency where it stops. Play/PausePlay/Pause the selected audio file.Add to playlistOpen the playlist, select a playlistand add the selected file to theplaylist.Play modeShuffle: On or OffRepeat:  None,  Repeat Single orRepeat playlist.EqualizerSelect  Normal,  Bass boost,  Dance,Hip-hop, Pop, R&B or Rock.DetailDisplay detailed information of theselected audio file.Options DescriptionEqualizerSelect Bass boost,  Dance,  Hip-hop,Pop, R&B or Rock.3D surroundTo activate the 3D surround sound(only available on applicable audiodevice).Play modeShuffle: On or OffRepeat:  None,  Repeat Single orRepeat playlist.HelpDisplay descriptions on how to usethe music player.Refresh listAll tracks stored in the phonememory and the memory Card willbe refreshed.Xenium9@9k_Master_EN.book  Page 34  Wednesday, October 24, 2007  4:23 PM

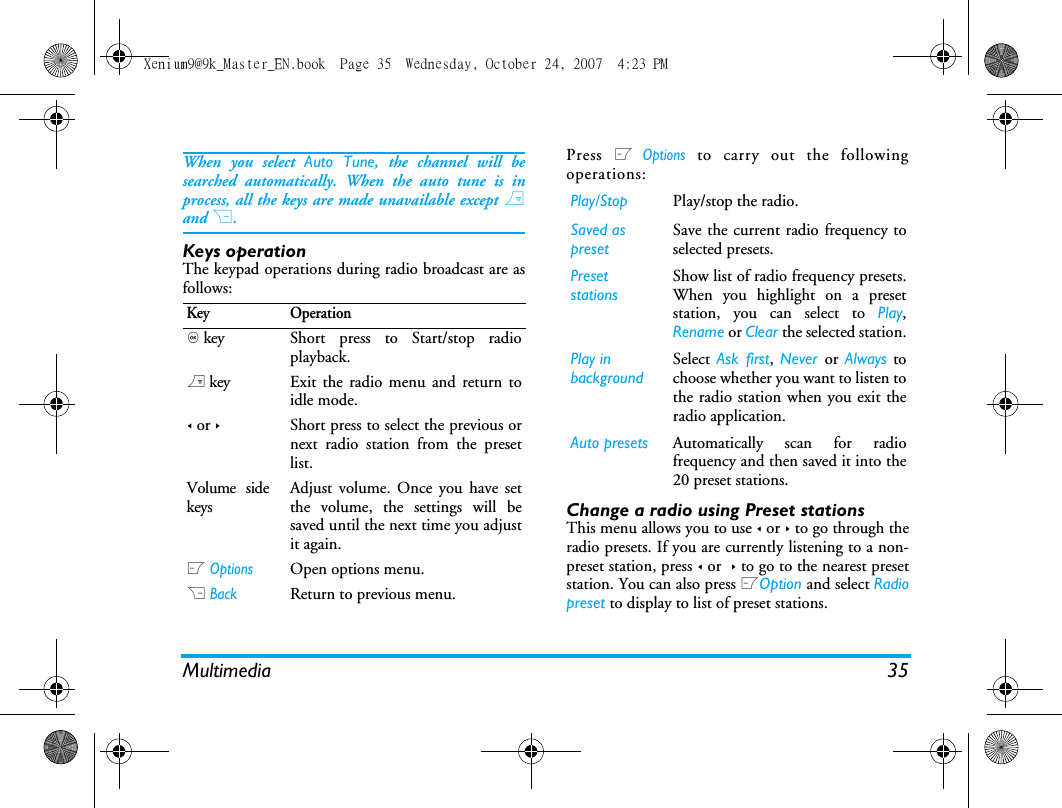

Multimedia 35When you select Auto Tune, the channel will besearched automatically. When the auto tune is inprocess, all the keys are made unavailable except )and R. Keys operationThe keypad operations during radio broadcast are asfollows: Press L Options to carry out the followingoperations:Change a radio using Preset stationsThis menu allows you to use < or > to go through theradio presets. If you are currently listening to a non-preset station, press < or  > to go to the nearest presetstation. You can also press LOption and select Radiopreset to display to list of preset stations. Key Operation, key Short press to Start/stop radioplayback.) key Exit the radio menu and return toidle mode.< or >Short press to select the previous ornext radio station from the presetlist. Volume sidekeysAdjust volume. Once you have setthe volume, the settings will besaved until the next time you adjustit again. L OptionsOpen options menu.R BackReturn to previous menu. Play/Stop Play/stop the radio.Saved as presetSave the current radio frequency toselected presets.Preset stationsShow list of radio frequency presets.When you highlight on a presetstation, you can select to Play,Rename or Clear the selected station.Play in backgroundSelect  Ask first,  Never  or  Always tochoose whether you want to listen tothe radio station when you exit theradio application.  Auto presets Automatically scan for radiofrequency and then saved it into the20 preset stations.Xenium9@9k_Master_EN.book  Page 35  Wednesday, October 24, 2007  4:23 PM

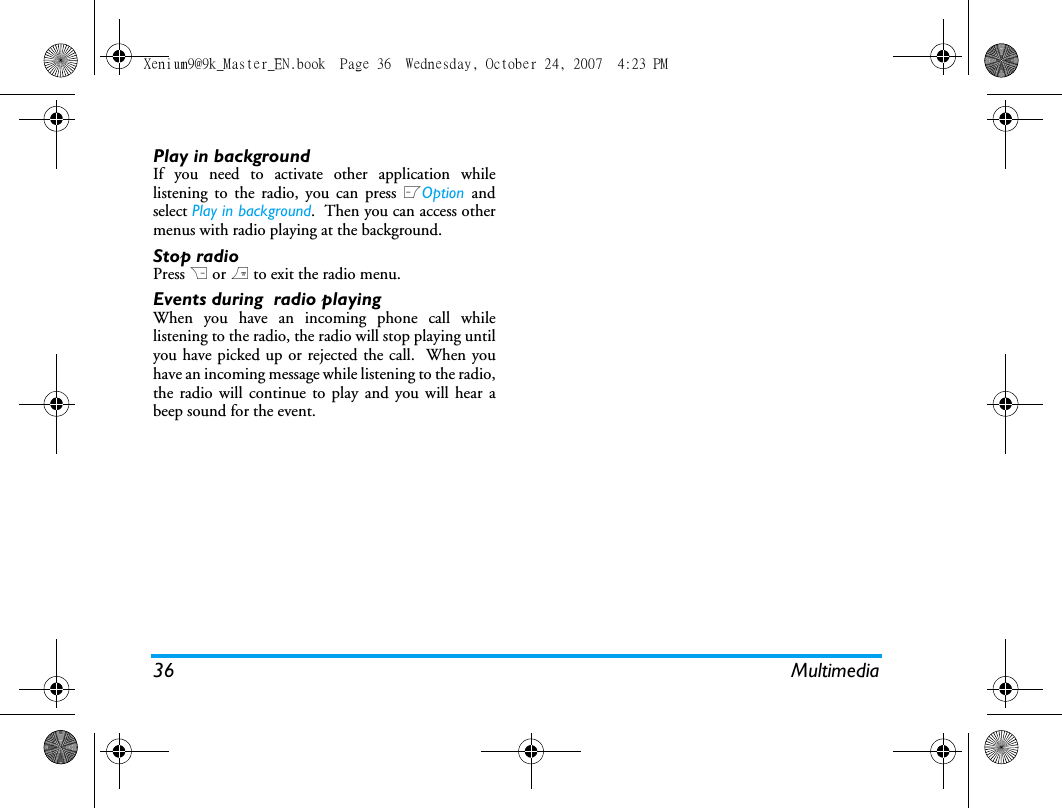

36 MultimediaPlay in backgroundIf you need to activate other application whilelistening to the radio, you can press LOption  andselect Play in background.  Then you can access othermenus with radio playing at the background.Stop radioPress R or ) to exit the radio menu.Events during  radio playingWhen you have an incoming phone call whilelistening to the radio, the radio will stop playing untilyou have picked up or rejected the call.  When youhave an incoming message while listening to the radio,the radio will continue to play and you will hear abeep sound for the event.Xenium9@9k_Master_EN.book  Page 36  Wednesday, October 24, 2007  4:23 PM

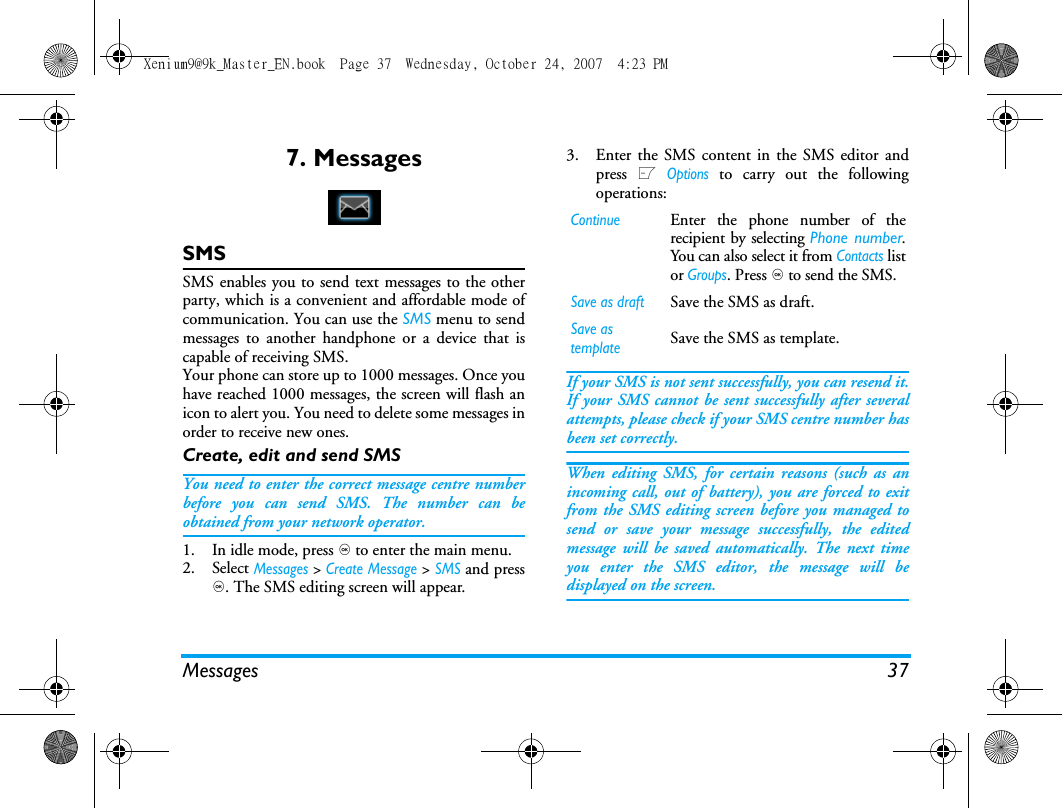

Messages 377. MessagesSMSSMS enables you to send text messages to the otherparty, which is a convenient and affordable mode ofcommunication. You can use the SMS menu to sendmessages to another handphone or a device that iscapable of receiving SMS. Your phone can store up to 1000 messages. Once youhave reached 1000 messages, the screen will flash anicon to alert you. You need to delete some messages inorder to receive new ones. Create, edit and send SMSYou need to enter the correct message centre numberbefore you can send SMS. The number can beobtained from your network operator. 1. In idle mode, press , to enter the main menu. 2. Select Messages > Create Message > SMS and press,. The SMS editing screen will appear. 3. Enter the SMS content in the SMS editor andpress L Options to carry out the followingoperations: If your SMS is not sent successfully, you can resend it.If your SMS cannot be sent successfully after severalattempts, please check if your SMS centre number hasbeen set correctly. When editing SMS, for certain reasons (such as anincoming call, out of battery), you are forced to exitfrom the SMS editing screen before you managed tosend or save your message successfully, the editedmessage will be saved automatically. The next timeyou enter the SMS editor, the message will bedisplayed on the screen. ContinueEnter the phone number of therecipient by selecting Phone number.You can also select it from Contacts listor Groups. Press , to send the SMS.Save as draftSave the SMS as draft.Save as templateSave the SMS as template.Xenium9@9k_Master_EN.book  Page 37  Wednesday, October 24, 2007  4:23 PM

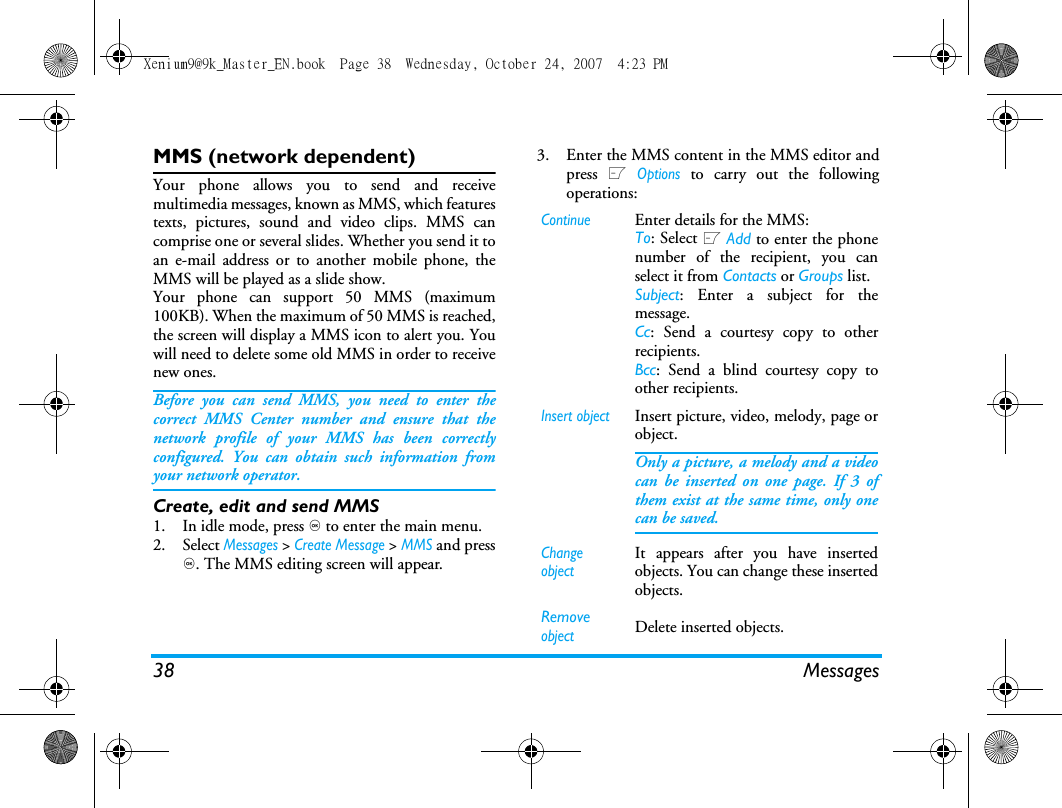

38 MessagesMMS (network dependent)Your phone allows you to send and receivemultimedia messages, known as MMS, which featurestexts, pictures, sound and video clips. MMS cancomprise one or several slides. Whether you send it toan e-mail address or to another mobile phone, theMMS will be played as a slide show. Your phone can support 50 MMS (maximum100KB). When the maximum of 50 MMS is reached,the screen will display a MMS icon to alert you. Youwill need to delete some old MMS in order to receivenew ones.Before you can send MMS, you need to enter thecorrect MMS Center number and ensure that thenetwork profile of your MMS has been correctlyconfigured. You can obtain such information fromyour network operator. Create, edit and send MMS1. In idle mode, press , to enter the main menu.2. Select Messages > Create Message > MMS and press,. The MMS editing screen will appear. 3. Enter the MMS content in the MMS editor andpress L Options to carry out the followingoperations: ContinueEnter details for the MMS:To: Select L Add to enter the phonenumber of the recipient, you canselect it from Contacts or Groups list.Subject: Enter a subject for themessage.Cc: Send a courtesy copy to otherrecipients.Bcc: Send a blind courtesy copy toother recipients.Insert objectInsert picture, video, melody, page orobject. Only a picture, a melody and a videocan be inserted on one page. If 3 ofthem exist at the same time, only onecan be saved.Change objectIt appears after you have insertedobjects. You can change these insertedobjects. Remove objectDelete inserted objects.Xenium9@9k_Master_EN.book  Page 38  Wednesday, October 24, 2007  4:23 PM

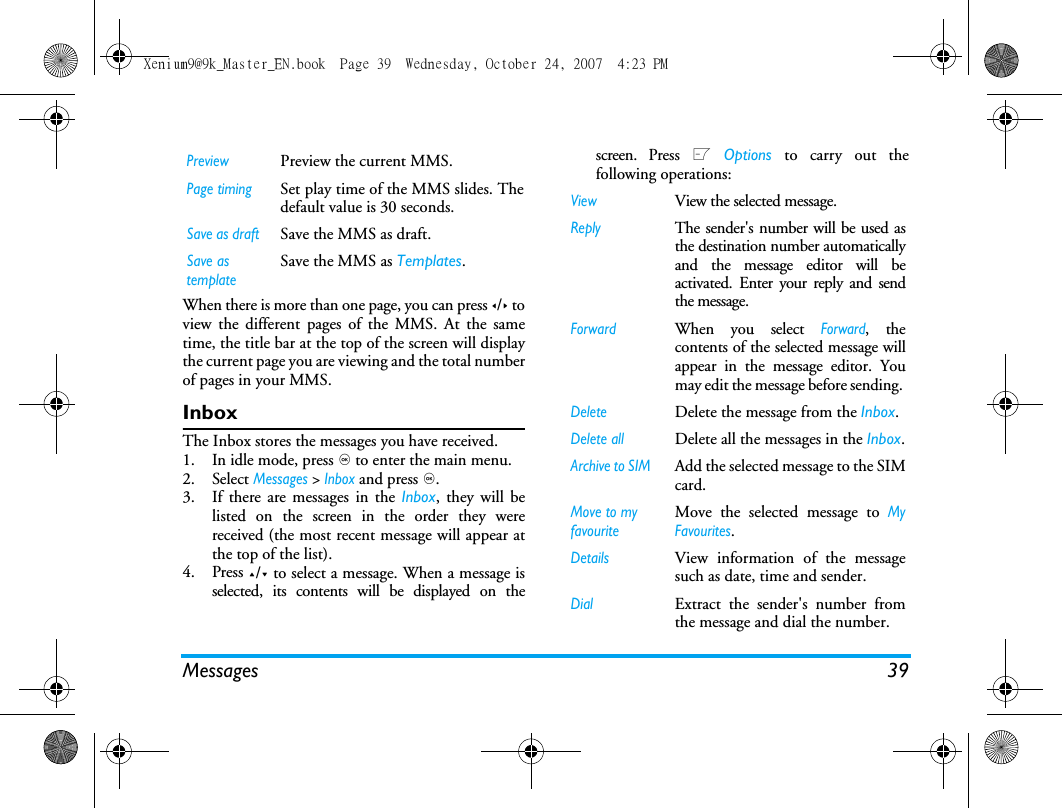

Messages 39When there is more than one page, you can press </> toview the different pages of the MMS. At the sametime, the title bar at the top of the screen will displaythe current page you are viewing and the total numberof pages in your MMS. InboxThe Inbox stores the messages you have received. 1. In idle mode, press , to enter the main menu.2. Select Messages > Inbox and press ,.3. If there are messages in the Inbox, they will belisted on the screen in the order they werereceived (the most recent message will appear atthe top of the list).4. Press +/- to select a message. When a message isselected, its contents will be displayed on thescreen. Press L Options to carry out thefollowing operations:PreviewPreview the current MMS.Page timingSet play time of the MMS slides. Thedefault value is 30 seconds.Save as draftSave the MMS as draft.Save as templateSave the MMS as Templates.ViewView the selected message.ReplyThe sender's number will be used asthe destination number automaticallyand the message editor will beactivated. Enter your reply and sendthe message.ForwardWhen you select Forward, thecontents of the selected message willappear in the message editor. Youmay edit the message before sending. DeleteDelete the message from the Inbox.Delete allDelete all the messages in the Inbox.Archive to SIM Add the selected message to the SIMcard.Move to my favouriteMove the selected message to MyFavourites.DetailsView information of the messagesuch as date, time and sender.DialExtract the sender's number fromthe message and dial the number.Xenium9@9k_Master_EN.book  Page 39  Wednesday, October 24, 2007  4:23 PM

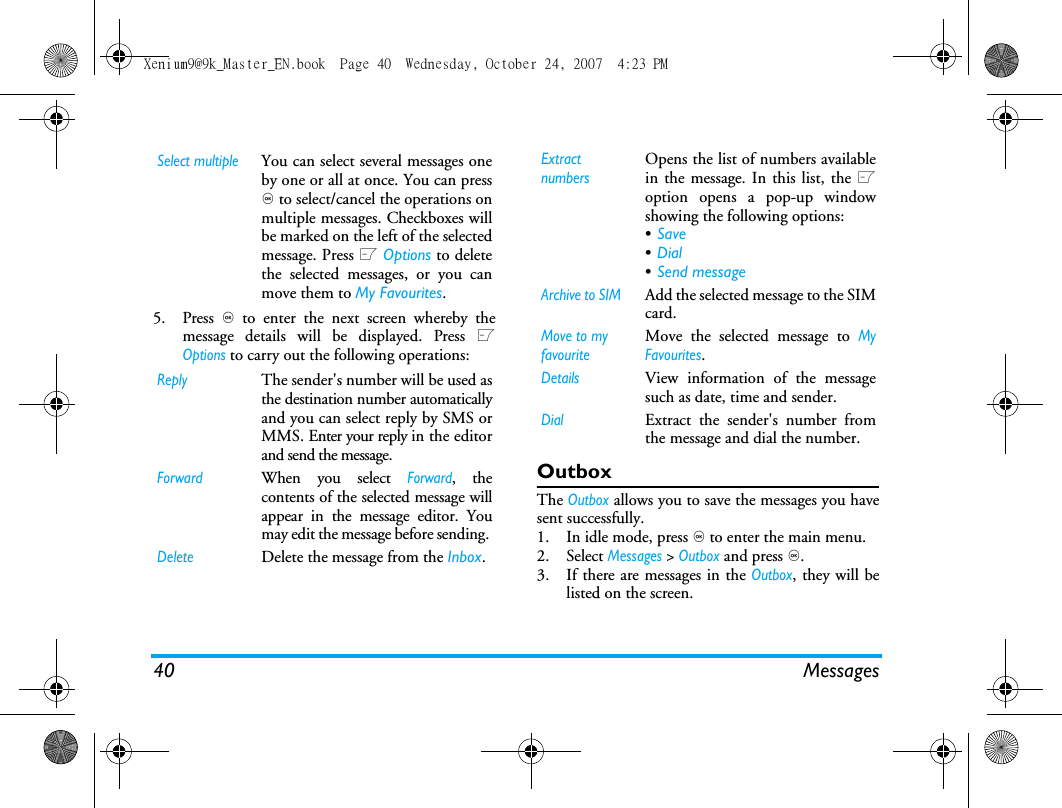

40 Messages5. Press , to enter the next screen whereby themessage details will be displayed. Press LOptions to carry out the following operations:OutboxThe Outbox allows you to save the messages you havesent successfully. 1. In idle mode, press , to enter the main menu.2. Select Messages > Outbox and press ,.3. If there are messages in the Outbox, they will belisted on the screen. Select multipleYou can select several messages oneby one or all at once. You can press, to select/cancel the operations onmultiple messages. Checkboxes willbe marked on the left of the selectedmessage. Press L Options to deletethe selected messages, or you canmove them to My Favourites.ReplyThe sender's number will be used asthe destination number automaticallyand you can select reply by SMS orMMS. Enter your reply in the editorand send the message.ForwardWhen you select Forward, thecontents of the selected message willappear in the message editor. Youmay edit the message before sending. DeleteDelete the message from the Inbox.Extract numbersOpens the list of numbers availablein the message. In this list, the Loption opens a pop-up windowshowing the following options:•Save •Dial •Send message Archive to SIM Add the selected message to the SIMcard.Move to my favouriteMove the selected message to MyFavourites.DetailsView information of the messagesuch as date, time and sender.DialExtract the sender's number fromthe message and dial the number.Xenium9@9k_Master_EN.book  Page 40  Wednesday, October 24, 2007  4:23 PM

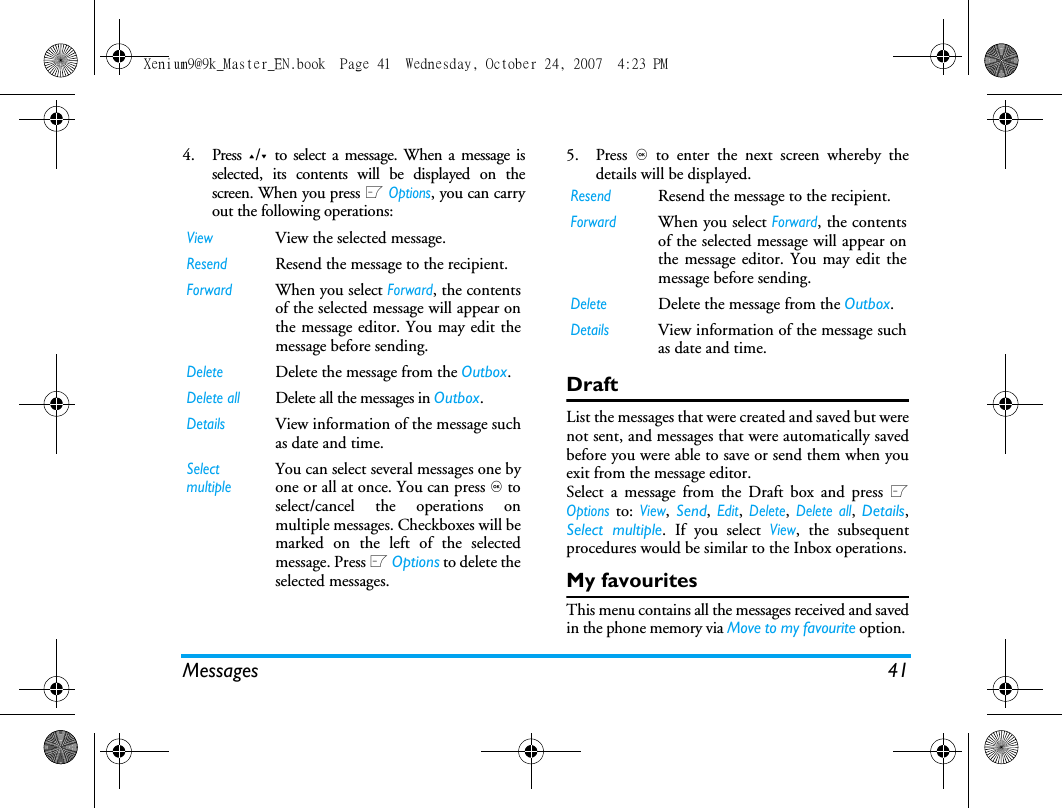

Messages 414. Press +/- to select a message. When a message isselected, its contents will be displayed on thescreen. When you press L Options, you can carryout the following operations:5. Press , to enter the next screen whereby thedetails will be displayed. DraftList the messages that were created and saved but werenot sent, and messages that were automatically savedbefore you were able to save or send them when youexit from the message editor. Select a message from the Draft box and press LOptions to: View,  Send, Edit, Delete, Delete all,  Details,Select multiple. If you select View, the subsequentprocedures would be similar to the Inbox operations.My favouritesThis menu contains all the messages received and savedin the phone memory via Move to my favourite option. ViewView the selected message.Resend Resend the message to the recipient. ForwardWhen you select Forward, the contentsof the selected message will appear onthe message editor. You may edit themessage before sending. DeleteDelete the message from the Outbox.Delete allDelete all the messages in Outbox.DetailsView information of the message suchas date and time.Select multipleYou can select several messages one byone or all at once. You can press , toselect/cancel the operations onmultiple messages. Checkboxes will bemarked on the left of the selectedmessage. Press L Options to delete theselected messages.Resend Resend the message to the recipient. ForwardWhen you select Forward, the contentsof the selected message will appear onthe message editor. You may edit themessage before sending. DeleteDelete the message from the Outbox.DetailsView information of the message suchas date and time.Xenium9@9k_Master_EN.book  Page 41  Wednesday, October 24, 2007  4:23 PM

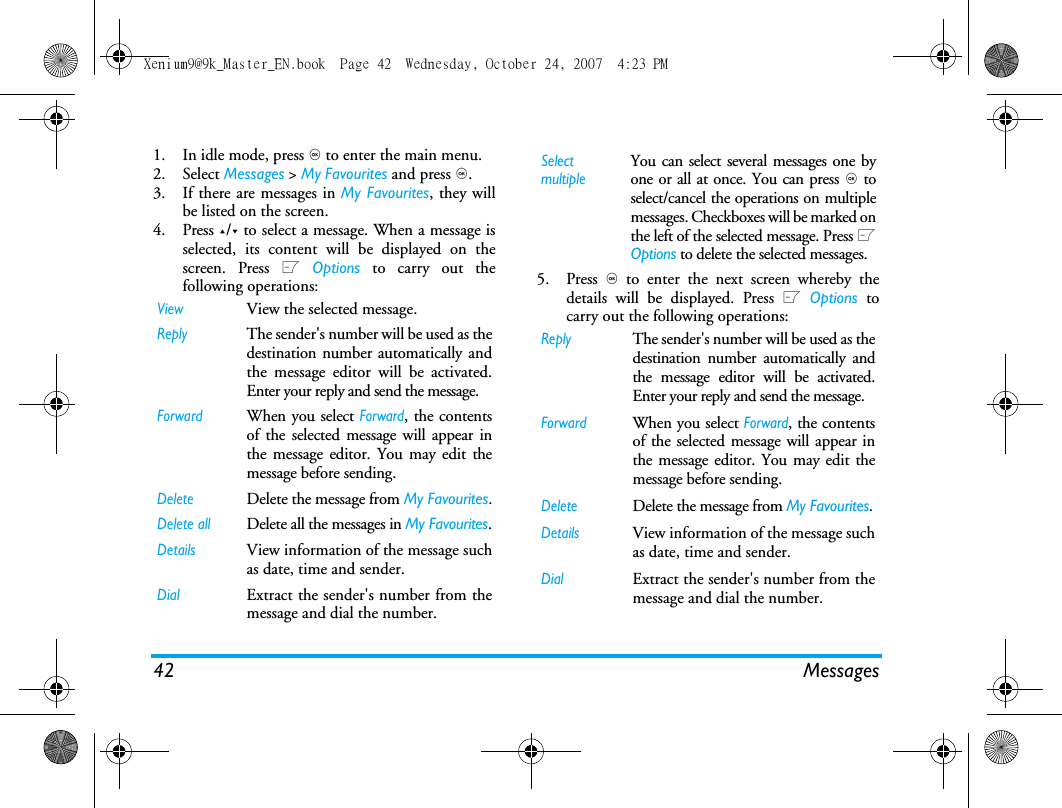

42 Messages1. In idle mode, press , to enter the main menu. 2. Select Messages > My Favourites and press ,.3. If there are messages in My Favourites, they willbe listed on the screen. 4. Press +/- to select a message. When a message isselected, its content will be displayed on thescreen. Press L Options to carry out thefollowing operations: 5. Press , to enter the next screen whereby thedetails will be displayed. Press L Options tocarry out the following operations:ViewView the selected message.ReplyThe sender's number will be used as thedestination number automatically andthe message editor will be activated.Enter your reply and send the message.ForwardWhen you select Forward, the contentsof the selected message will appear inthe message editor. You may edit themessage before sending. DeleteDelete the message from My Favourites.Delete allDelete all the messages in My Favourites.DetailsView information of the message suchas date, time and sender.DialExtract the sender's number from themessage and dial the number.Select multipleYou can select several messages one byone or all at once. You can press , toselect/cancel the operations on multiplemessages. Checkboxes will be marked onthe left of the selected message. Press LOptions to delete the selected messages.ReplyThe sender's number will be used as thedestination number automatically andthe message editor will be activated.Enter your reply and send the message.ForwardWhen you select Forward, the contentsof the selected message will appear inthe message editor. You may edit themessage before sending. DeleteDelete the message from My Favourites.DetailsView information of the message suchas date, time and sender.DialExtract the sender's number from themessage and dial the number.Xenium9@9k_Master_EN.book  Page 42  Wednesday, October 24, 2007  4:23 PM

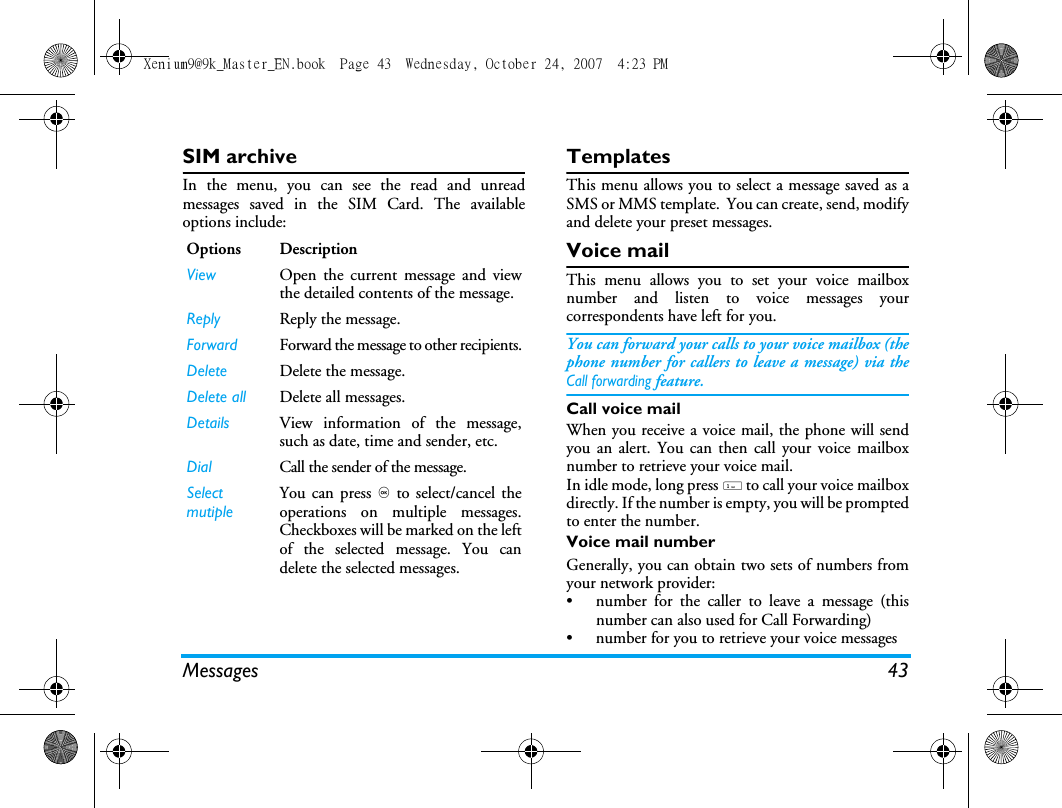

Messages 43SIM archiveIn the menu, you can see the read and unreadmessages saved in the SIM Card. The availableoptions include:TemplatesThis menu allows you to select a message saved as aSMS or MMS template.  You can create, send, modifyand delete your preset messages.Voice mailThis menu allows you to set your voice mailboxnumber and listen to voice messages yourcorrespondents have left for you.You can forward your calls to your voice mailbox (thephone number for callers to leave a message) via theCall forwarding feature. Call voice mailWhen you receive a voice mail, the phone will sendyou an alert. You can then call your voice mailboxnumber to retrieve your voice mail. In idle mode, long press 1 to call your voice mailboxdirectly. If the number is empty, you will be promptedto enter the number. Voice mail numberGenerally, you can obtain two sets of numbers fromyour network provider: •  number for the caller to leave a message (thisnumber can also used for Call Forwarding)•  number for you to retrieve your voice messagesOptions DescriptionView Open the current message and viewthe detailed contents of the message.Reply Reply the message.Forward Forward the message to other recipients.Delete Delete the message.Delete all Delete all messages.Details View information of the message,such as date, time and sender, etc.Dial Call the sender of the message.Select mutipleYou can press , to select/cancel theoperations on multiple messages.Checkboxes will be marked on the leftof the selected message. You candelete the selected messages.Xenium9@9k_Master_EN.book  Page 43  Wednesday, October 24, 2007  4:23 PM

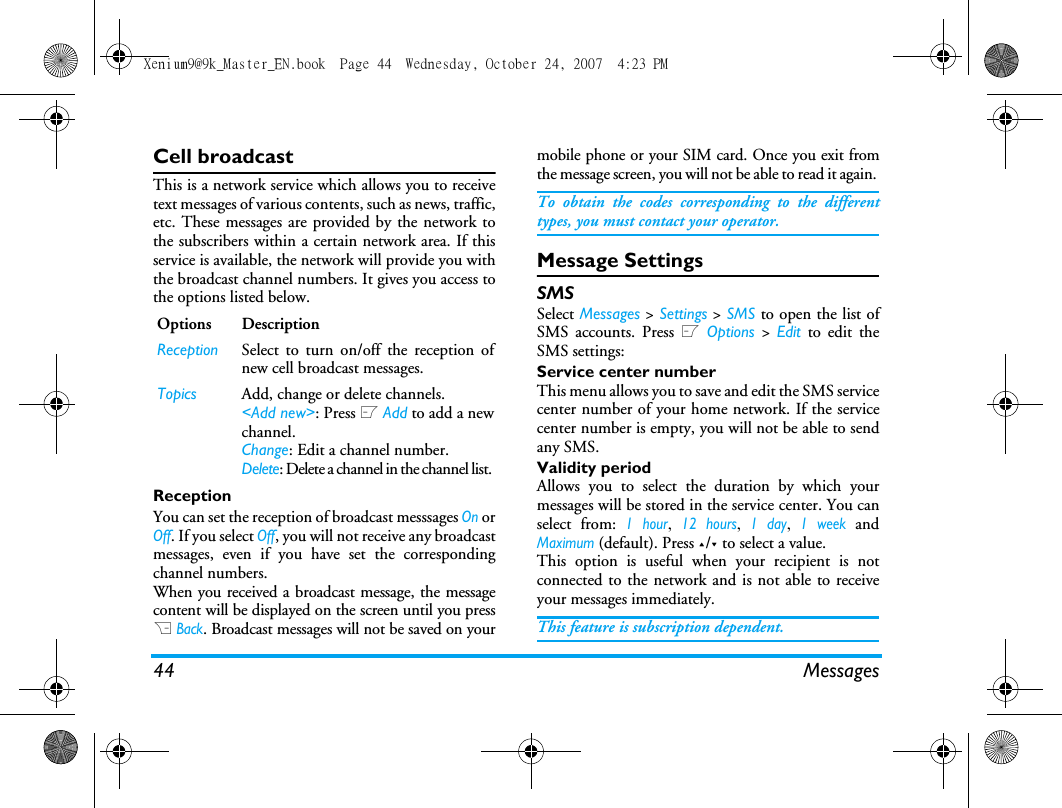

44 MessagesCell broadcastThis is a network service which allows you to receivetext messages of various contents, such as news, traffic,etc. These messages are provided by the network tothe subscribers within a certain network area. If thisservice is available, the network will provide you withthe broadcast channel numbers. It gives you access tothe options listed below.ReceptionYou can set the reception of broadcast messsages On orOff. If you select Off, you will not receive any broadcastmessages, even if you have set the correspondingchannel numbers. When you received a broadcast message, the messagecontent will be displayed on the screen until you pressR Back. Broadcast messages will not be saved on yourmobile phone or your SIM card. Once you exit fromthe message screen, you will not be able to read it again. To obtain the codes corresponding to the differenttypes, you must contact your operator.Message SettingsSMSSelect Messages > Settings > SMS to open the list ofSMS accounts. Press L Options > Edit to edit theSMS settings:Service center numberThis menu allows you to save and edit the SMS servicecenter number of your home network. If the servicecenter number is empty, you will not be able to sendany SMS.Validity periodAllows you to select the duration by which yourmessages will be stored in the service center. You canselect from: 1 hour, 12 hours, 1 day, 1 week andMaximum (default). Press +/- to select a value. This option is useful when your recipient is notconnected to the network and is not able to receiveyour messages immediately. This feature is subscription dependent. Options DescriptionReception Select to turn on/off the reception ofnew cell broadcast messages.Topics Add, change or delete channels.<Add new>: Press L Add to add a newchannel.Change: Edit a channel number.Delete: Delete a channel in the channel list. Xenium9@9k_Master_EN.book  Page 44  Wednesday, October 24, 2007  4:23 PM

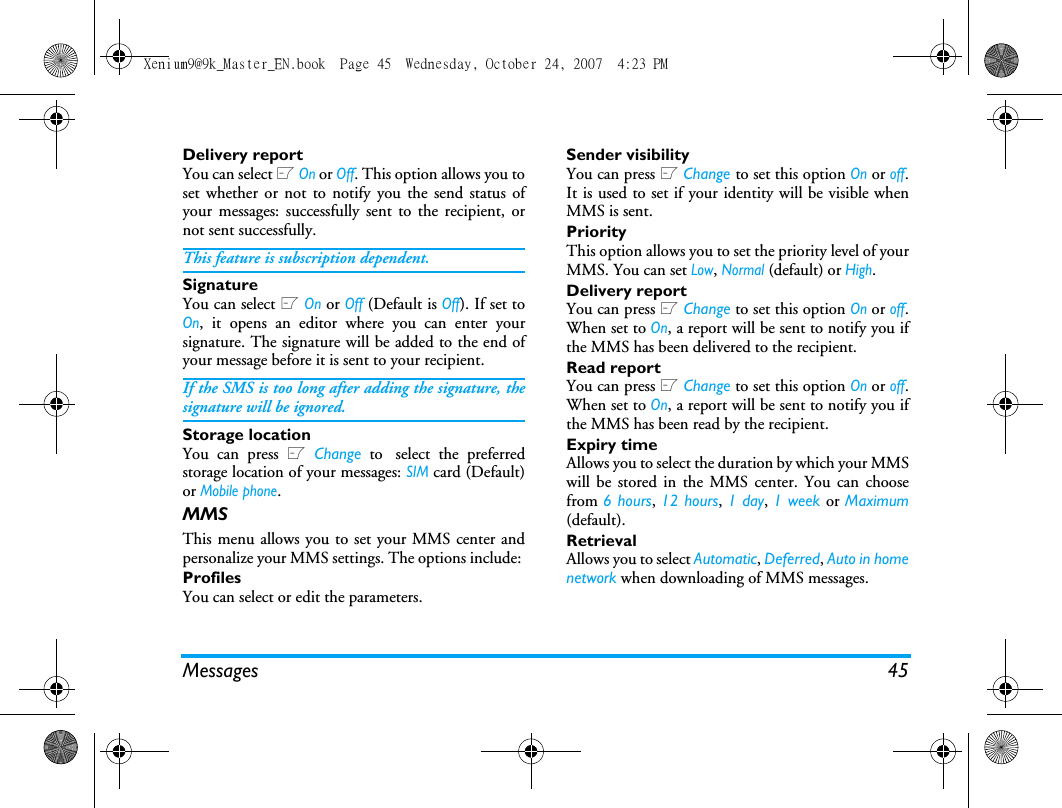

Messages 45Delivery reportYou can select L On or Off. This option allows you toset whether or not to notify you the send status ofyour messages: successfully sent to the recipient, ornot sent successfully. This feature is subscription dependent. SignatureYou can select L On or Off (Default is Off). If set toOn, it opens an editor where you can enter yoursignature. The signature will be added to the end ofyour message before it is sent to your recipient. If the SMS is too long after adding the signature, thesignature will be ignored. Storage locationYou can press L Change to select the preferredstorage location of your messages: SIM card (Default)or Mobile phone.MMSThis menu allows you to set your MMS center andpersonalize your MMS settings. The options include: ProfilesYou can select or edit the parameters.Sender visibilityYou can press L Change to set this option On or off.It is used to set if your identity will be visible whenMMS is sent.PriorityThis option allows you to set the priority level of yourMMS. You can set Low, Normal (default) or High.Delivery reportYou can press L Change to set this option On or off.When set to On, a report will be sent to notify you ifthe MMS has been delivered to the recipient. Read reportYou can press L Change to set this option On or off.When set to On, a report will be sent to notify you ifthe MMS has been read by the recipient. Expiry timeAllows you to select the duration by which your MMSwill be stored in the MMS center. You can choosefrom 6 hours, 12 hours, 1 day, 1 week or Maximum(default). RetrievalAllows you to select Automatic, Deferred, Auto in homenetwork when downloading of MMS messages.Xenium9@9k_Master_EN.book  Page 45  Wednesday, October 24, 2007  4:23 PM

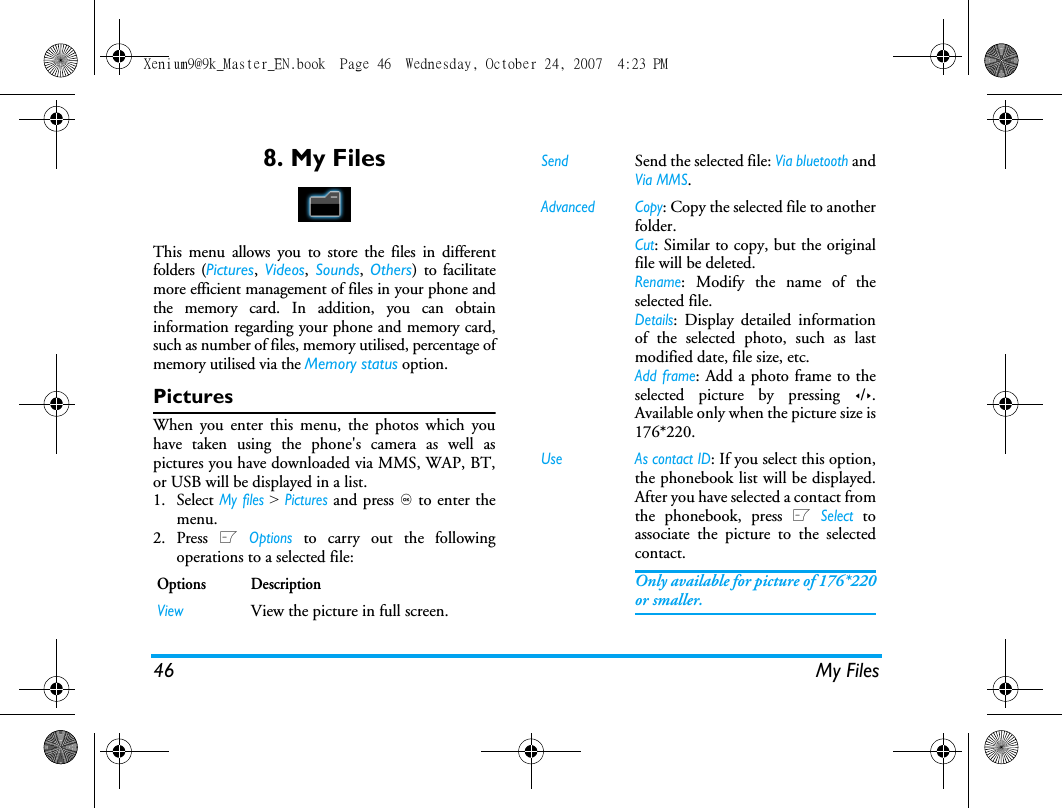

46 My Files8. My FilesThis menu allows you to store the files in differentfolders (Pictures,  Videos,  Sounds,  Others) to facilitatemore efficient management of files in your phone andthe memory card. In addition, you can obtaininformation regarding your phone and memory card,such as number of files, memory utilised, percentage ofmemory utilised via the Memory status option. PicturesWhen you enter this menu, the photos which youhave taken using the phone's camera as well aspictures you have downloaded via MMS, WAP, BT,or USB will be displayed in a list. 1. Select My files > Pictures and press , to enter themenu.2. Press L Options to carry out the followingoperations to a selected file:Options DescriptionViewView the picture in full screen.Send Send the selected file: Via bluetooth andVia MMS.Advanced Copy: Copy the selected file to anotherfolder.Cut: Similar to copy, but the originalfile will be deleted.Rename: Modify the name of theselected file.Details: Display detailed informationof the selected photo, such as lastmodified date, file size, etc. Add frame: Add a photo frame to theselected picture by pressing </>.Available only when the picture size is176*220.Use As contact ID: If you select this option,the phonebook list will be displayed.After you have selected a contact fromthe phonebook, press L Select toassociate the picture to the selectedcontact. Only available for picture of 176*220or smaller.Xenium9@9k_Master_EN.book  Page 46  Wednesday, October 24, 2007  4:23 PM

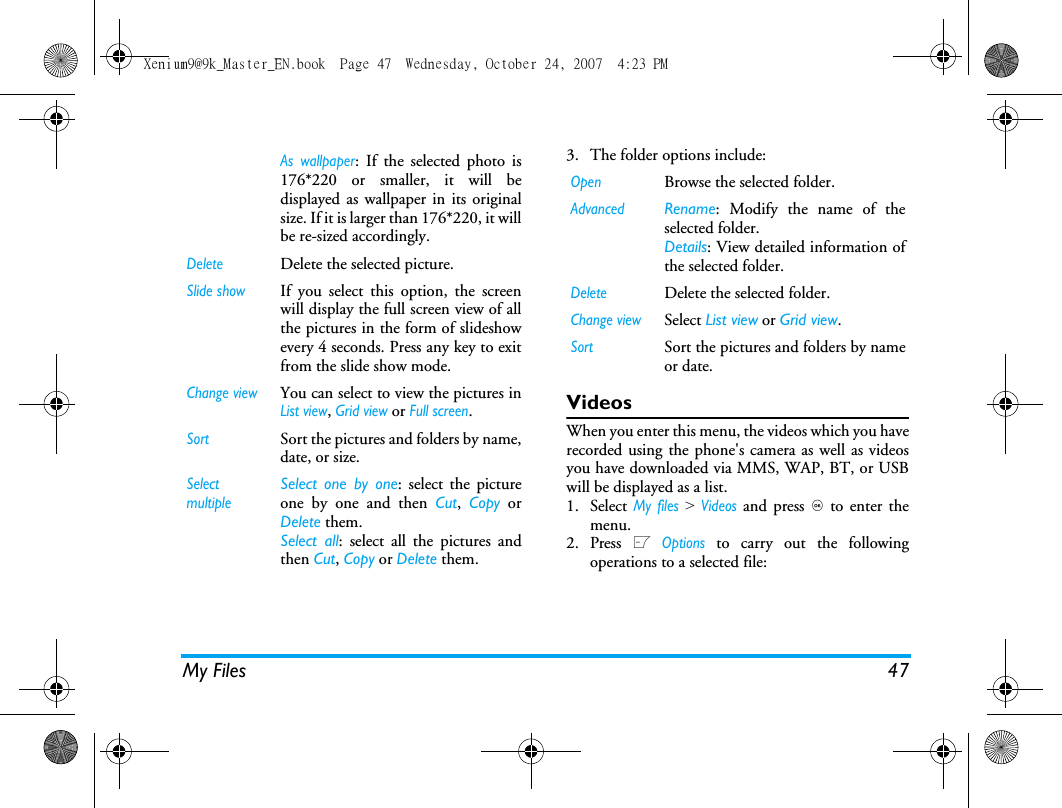

My Files 473. The folder options include: VideosWhen you enter this menu, the videos which you haverecorded using the phone's camera as well as videosyou have downloaded via MMS, WAP, BT, or USBwill be displayed as a list.1. Select My files > Videos and press , to enter themenu.2. Press L Options to carry out the followingoperations to a selected file:As wallpaper: If the selected photo is176*220 or smaller, it will bedisplayed as wallpaper in its originalsize. If it is larger than 176*220, it willbe re-sized accordingly. DeleteDelete the selected picture.Slide showIf you select this option, the screenwill display the full screen view of allthe pictures in the form of slideshowevery 4 seconds. Press any key to exitfrom the slide show mode. Change viewYou can select to view the pictures inList view, Grid view or Full screen.SortSort the pictures and folders by name,date, or size.SelectmultipleSelect one by one: select the pictureone by one and then Cut,  Copy orDelete them.Select all: select all the pictures andthen Cut, Copy or Delete them.OpenBrowse the selected folder.AdvancedRename: Modify the name of theselected folder.Details: View detailed information ofthe selected folder.DeleteDelete the selected folder.Change viewSelect List view or Grid view.SortSort the pictures and folders by nameor date.Xenium9@9k_Master_EN.book  Page 47  Wednesday, October 24, 2007  4:23 PM

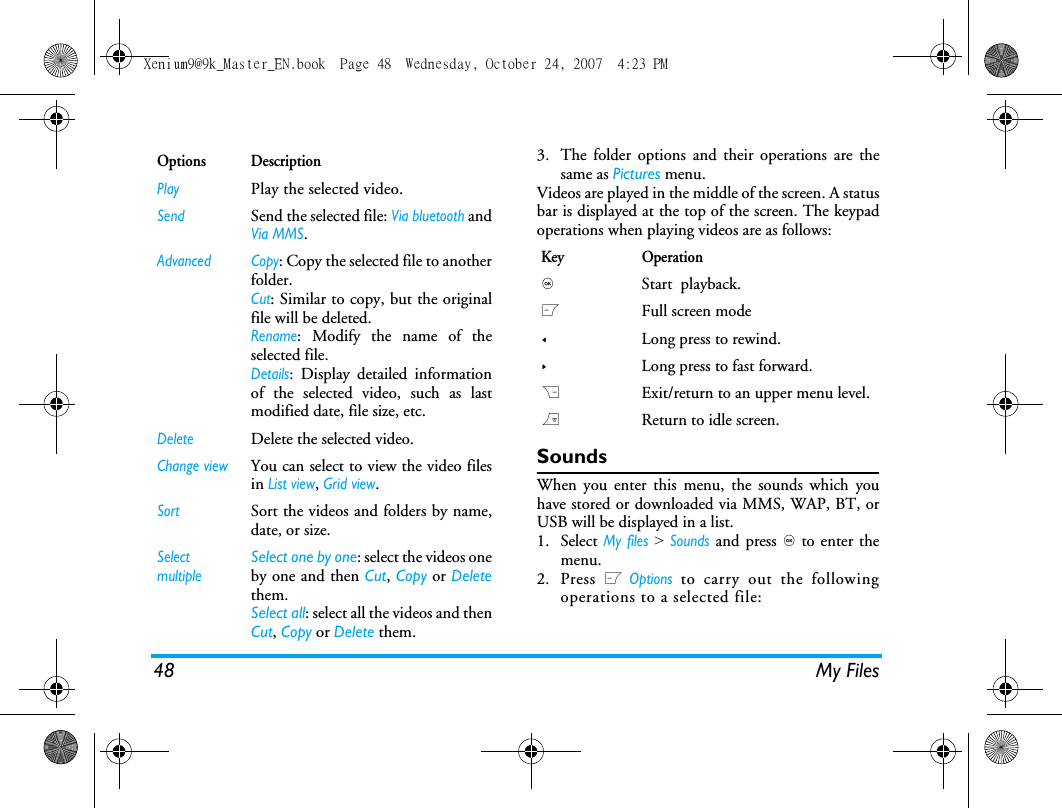

48 My Files3. The folder options and their operations are thesame as Pictures menu.Videos are played in the middle of the screen. A statusbar is displayed at the top of the screen. The keypadoperations when playing videos are as follows: SoundsWhen you enter this menu, the sounds which youhave stored or downloaded via MMS, WAP, BT, orUSB will be displayed in a list. 1. Select My files > Sounds and press , to enter themenu.2. Press L Options to carry out the followingoperations to a selected file:Options DescriptionPlayPlay the selected video.SendSend the selected file: Via bluetooth andVia MMS.Advanced Copy: Copy the selected file to anotherfolder.Cut: Similar to copy, but the originalfile will be deleted.Rename: Modify the name of theselected file.Details: Display detailed informationof the selected video, such as lastmodified date, file size, etc. DeleteDelete the selected video.Change viewYou can select to view the video filesin List view, Grid view.SortSort the videos and folders by name,date, or size.SelectmultipleSelect one by one: select the videos oneby one and then Cut, Copy or Deletethem.Select all: select all the videos and thenCut, Copy or Delete them.Key Operation, Start  playback.LFull screen mode<Long press to rewind.>Long press to fast forward.RExit/return to an upper menu level.)Return to idle screen.Xenium9@9k_Master_EN.book  Page 48  Wednesday, October 24, 2007  4:23 PM

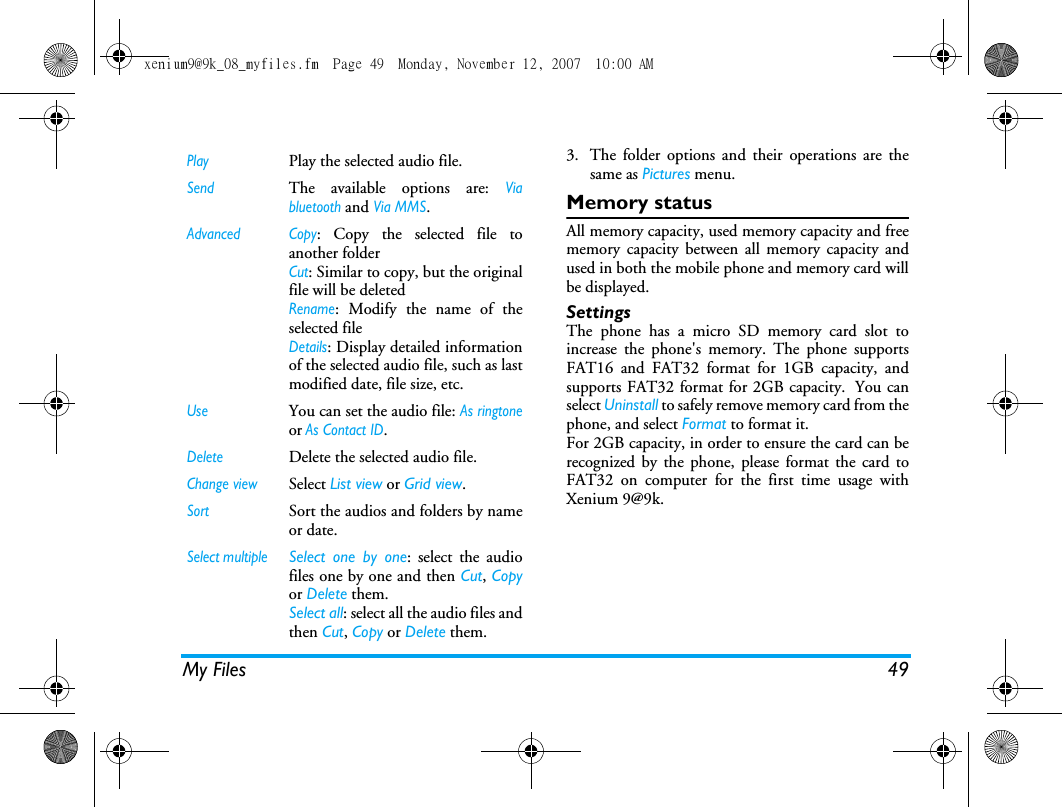

My Files 493. The folder options and their operations are thesame as Pictures menu.Memory statusAll memory capacity, used memory capacity and freememory capacity between all memory capacity andused in both the mobile phone and memory card willbe displayed.SettingsThe phone has a micro SD memory card slot toincrease the phone's memory. The phone supportsFAT16 and FAT32 format for 1GB capacity, andsupports FAT32 format for 2GB capacity.  You canselect Uninstall to safely remove memory card from thephone, and select Format to format it.For 2GB capacity, in order to ensure the card can berecognized by the phone, please format the card toFAT32 on computer for the first time usage withXenium 9@9k.PlayPlay the selected audio file.SendThe available options are: Viabluetooth and Via MMS.Advanced Copy: Copy the selected file toanother folderCut: Similar to copy, but the originalfile will be deletedRename: Modify the name of theselected fileDetails: Display detailed informationof the selected audio file, such as lastmodified date, file size, etc. UseYou can set the audio file: As ringtoneor As Contact ID. DeleteDelete the selected audio file.Change viewSelect List view or Grid view.SortSort the audios and folders by nameor date.Select multipleSelect one by one: select the audiofiles one by one and then Cut, Copyor Delete them.Select all: select all the audio files andthen Cut, Copy or Delete them.xenium9@9k_08_myfiles.fm  Page 49  Monday, November 12, 2007  10:00 AM

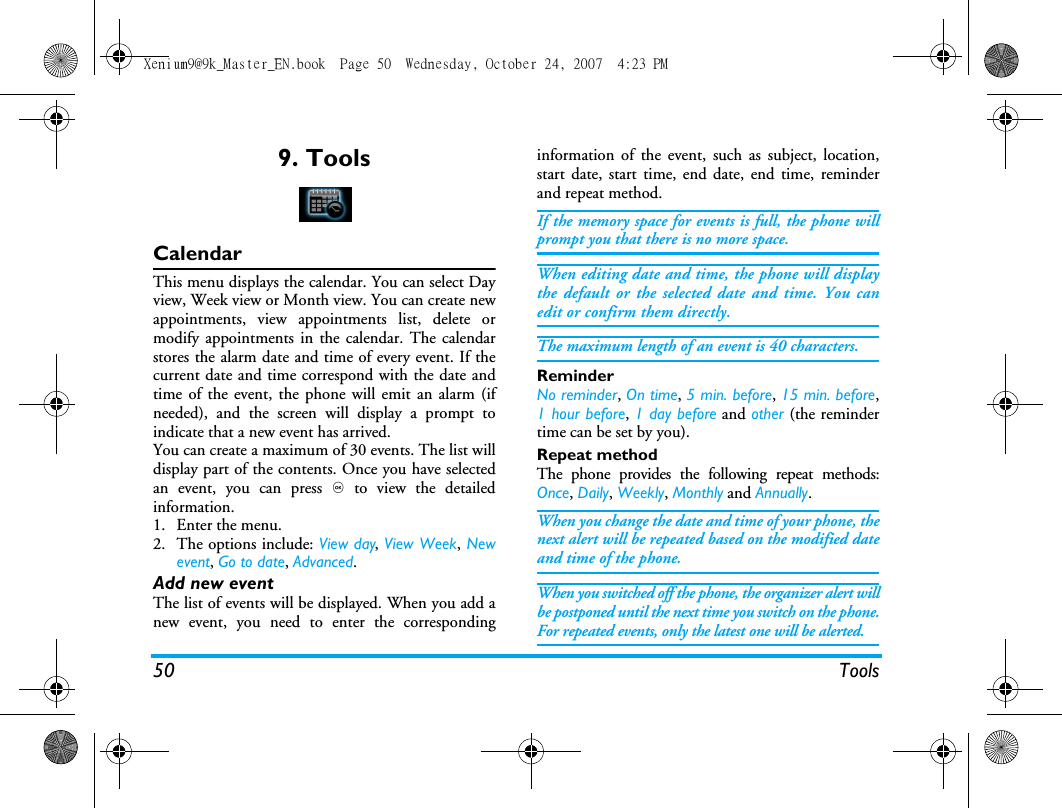

50 Tools9. ToolsCalendarThis menu displays the calendar. You can select Dayview, Week view or Month view. You can create newappointments, view appointments list, delete ormodify appointments in the calendar. The calendarstores the alarm date and time of every event. If thecurrent date and time correspond with the date andtime of the event, the phone will emit an alarm (ifneeded), and the screen will display a prompt toindicate that a new event has arrived. You can create a maximum of 30 events. The list willdisplay part of the contents. Once you have selectedan event, you can press , to view the detailedinformation.1. Enter the menu.2. The options include: View day, View Week, Newevent, Go to date, Advanced.Add new eventThe list of events will be displayed. When you add anew event, you need to enter the correspondinginformation of the event, such as subject, location,start date, start time, end date, end time, reminderand repeat method.If the memory space for events is full, the phone willprompt you that there is no more space. When editing date and time, the phone will displaythe default or the selected date and time. You canedit or confirm them directly. The maximum length of an event is 40 characters. ReminderNo reminder, On time, 5 min. before, 15 min. before,1 hour before, 1 day before and other (the remindertime can be set by you).Repeat methodThe phone provides the following repeat methods:Once, Daily, Weekly, Monthly and Annually.When you change the date and time of your phone, thenext alert will be repeated based on the modified dateand time of the phone. When you switched off the phone, the organizer alert willbe postponed until the next time you switch on the phone.For repeated events, only the latest one will be alerted. Xenium9@9k_Master_EN.book  Page 50  Wednesday, October 24, 2007  4:23 PM

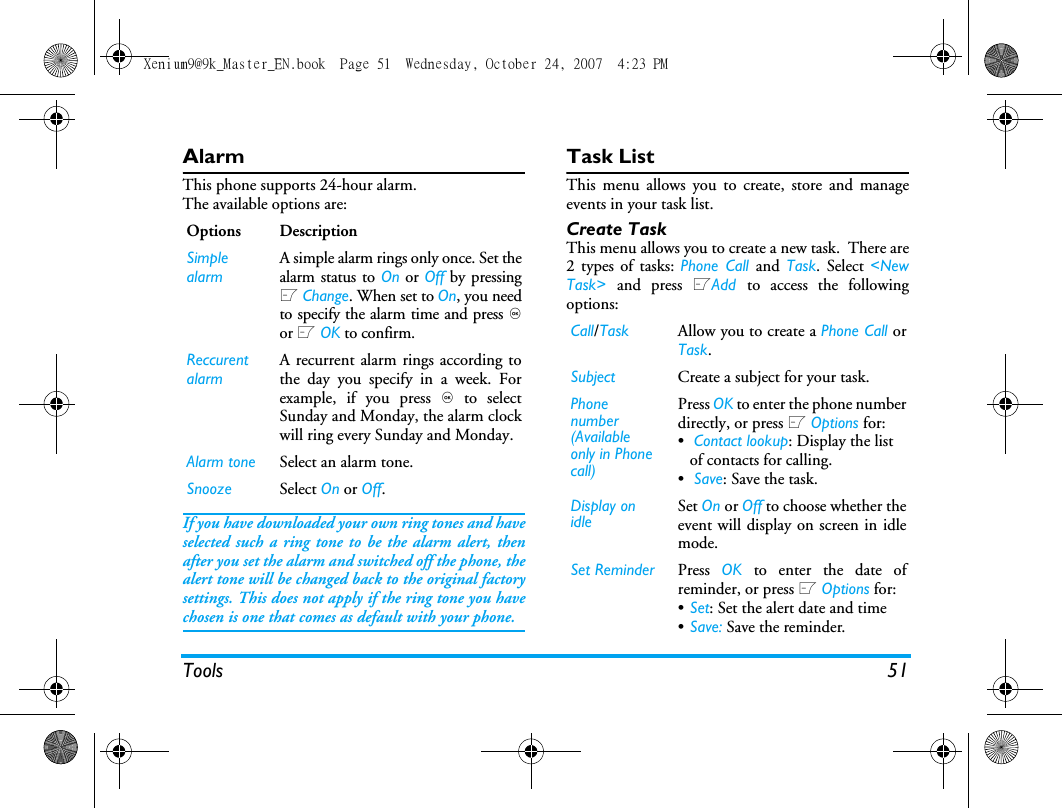

Tools 51AlarmThis phone supports 24-hour alarm.The available options are:If you have downloaded your own ring tones and haveselected such a ring tone to be the alarm alert, thenafter you set the alarm and switched off the phone, thealert tone will be changed back to the original factorysettings. This does not apply if the ring tone you havechosen is one that comes as default with your phone.Task ListThis menu allows you to create, store and manageevents in your task list.    Create TaskThis menu allows you to create a new task.  There are2 types of tasks: Phone Call and  Task. Select <NewTask>  and press LAdd  to access the followingoptions:Options DescriptionSimple alarmA simple alarm rings only once. Set thealarm status to On or Off by pressingL Change. When set to On, you needto specify the alarm time and press ,or L OK to confirm.Reccurent alarmA recurrent alarm rings according tothe day you specify in a week. Forexample, if you press , to selectSunday and Monday, the alarm clockwill ring every Sunday and Monday. Alarm tone Select an alarm tone.Snooze Select On or Off.Call/Task Allow you to create a Phone Call orTask. Subject Create a subject for your task.Phone number (Available only in Phone call)Press OK to enter the phone numberdirectly, or press L Options for:• Contact lookup: Display the list of contacts for calling.• Save: Save the task. Display on idleSet On or Off to choose whether theevent will display on screen in idlemode.Set Reminder Press  OK to enter the date ofreminder, or press L Options for: •Set: Set the alert date and time•Save: Save the reminder.Xenium9@9k_Master_EN.book  Page 51  Wednesday, October 24, 2007  4:23 PM

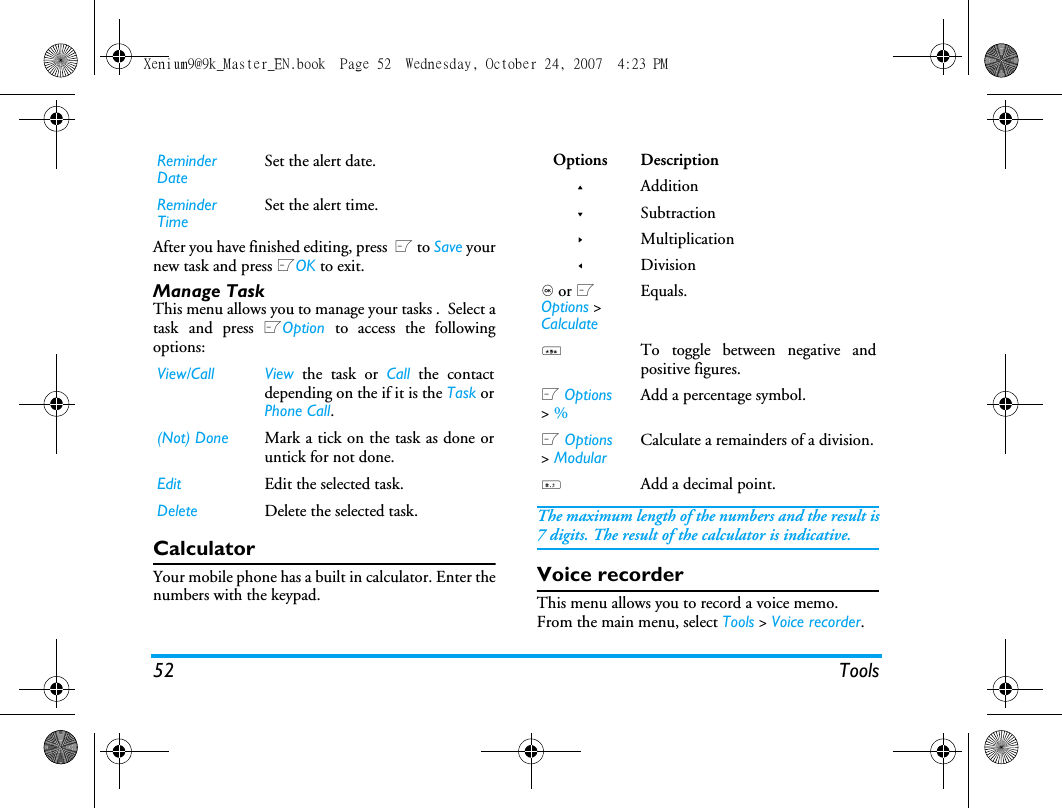

52 ToolsAfter you have finished editing, press  L to Save yournew task and press LOK to exit. Manage TaskThis menu allows you to manage your tasks .  Select atask and press LOption  to access the followingoptions: CalculatorYour mobile phone has a built in calculator. Enter thenumbers with the keypad.The maximum length of the numbers and the result is7 digits. The result of the calculator is indicative.Voice recorderThis menu allows you to record a voice memo.From the main menu, select Tools > Voice recorder.Reminder DateSet the alert date.Reminder TimeSet the alert time.View/Call View the task or Call the contactdepending on the if it is the Task orPhone Call. (Not) Done Mark a tick on the task as done oruntick for not done.Edit Edit the selected task.Delete Delete the selected task.Options Description+Addition-Subtraction>Multiplication<Division, or L Options > CalculateEquals.*To toggle between negative andpositive figures.L Options > % Add a percentage symbol.L Options > ModularCalculate a remainders of a division.#Add a decimal point.Xenium9@9k_Master_EN.book  Page 52  Wednesday, October 24, 2007  4:23 PM

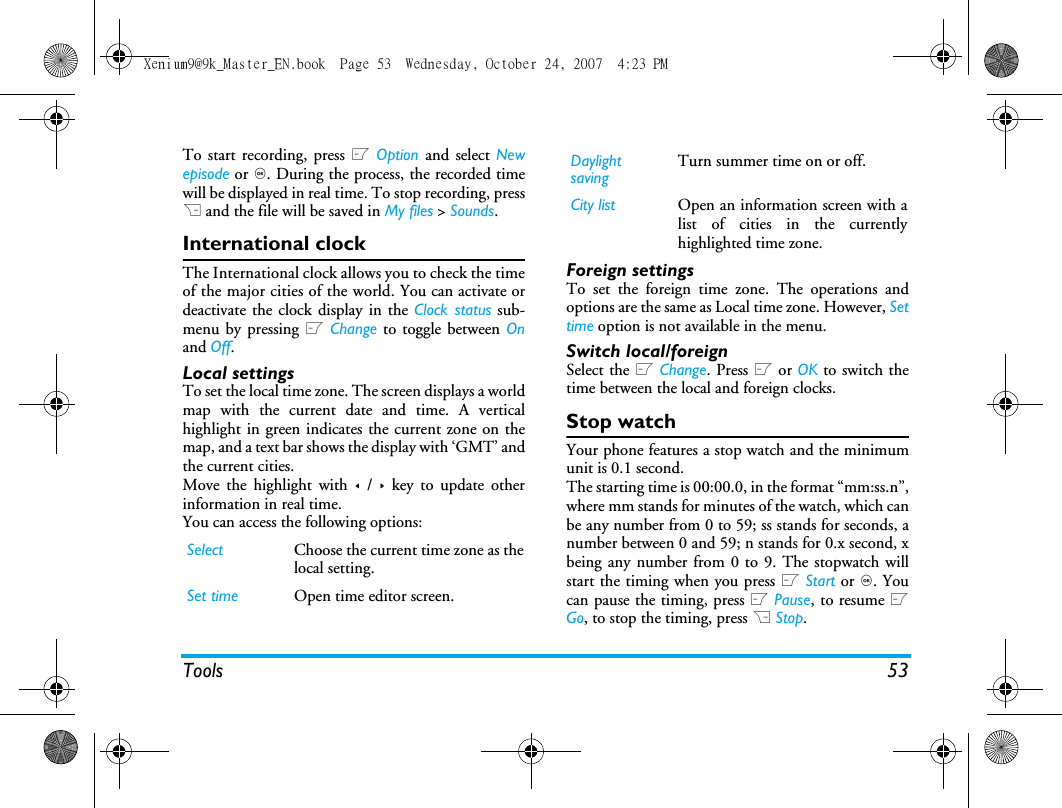

Tools 53To start recording, press L Option and select Newepisode or ,. During the process, the recorded timewill be displayed in real time. To stop recording, pressR and the file will be saved in My files > Sounds. International clockThe International clock allows you to check the timeof the major cities of the world. You can activate ordeactivate the clock display in the Clock status sub-menu by pressing L Change to toggle between Onand Off.Local settingsTo set the local time zone. The screen displays a worldmap with the current date and time. A verticalhighlight in green indicates the current zone on themap, and a text bar shows the display with ‘GMT’ andthe current cities.Move the highlight with < / > key to update otherinformation in real time.You can access the following options:Foreign settingsTo set the foreign time zone. The operations andoptions are the same as Local time zone. However, Settime option is not available in the menu. Switch local/foreignSelect the L Change. Press L or OK to switch thetime between the local and foreign clocks.Stop watchYour phone features a stop watch and the minimumunit is 0.1 second.The starting time is 00:00.0, in the format “mm:ss.n”,where mm stands for minutes of the watch, which canbe any number from 0 to 59; ss stands for seconds, anumber between 0 and 59; n stands for 0.x second, xbeing any number from 0 to 9. The stopwatch willstart the timing when you press L Start or ,. Youcan pause the timing, press L Pause, to resume LGo, to stop the timing, press R Stop.Select Choose the current time zone as thelocal setting.Set time Open time editor screen.Daylight savingTurn summer time on or off. City list Open an information screen with alist of cities in the currentlyhighlighted time zone.Xenium9@9k_Master_EN.book  Page 53  Wednesday, October 24, 2007  4:23 PM

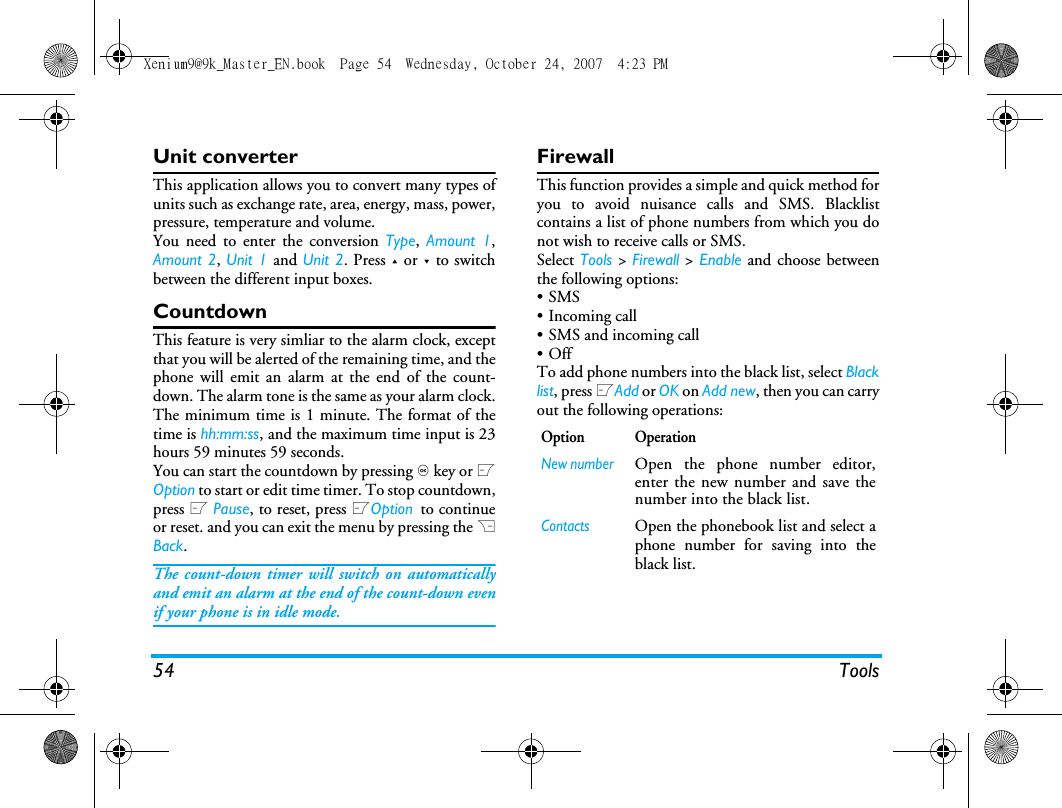

54 ToolsUnit converterThis application allows you to convert many types ofunits such as exchange rate, area, energy, mass, power,pressure, temperature and volume.You need to enter the conversion Type,  Amount 1,Amount 2, Unit 1 and Unit 2. Press + or - to switchbetween the different input boxes.CountdownThis feature is very simliar to the alarm clock, exceptthat you will be alerted of the remaining time, and thephone will emit an alarm at the end of the count-down. The alarm tone is the same as your alarm clock.The minimum time is 1 minute. The format of thetime is hh:mm:ss, and the maximum time input is 23hours 59 minutes 59 seconds. You can start the countdown by pressing , key or LOption to start or edit time timer. To stop countdown,press L Pause, to reset, press LOption to continueor reset. and you can exit the menu by pressing the RBack.The count-down timer will switch on automaticallyand emit an alarm at the end of the count-down evenif your phone is in idle mode.FirewallThis function provides a simple and quick method foryou to avoid nuisance calls and SMS. Blacklistcontains a list of phone numbers from which you donot wish to receive calls or SMS.Select Tools > Firewall > Enable and choose betweenthe following options:•SMS • Incoming call • SMS and incoming call•OffTo add phone numbers into the black list, select Blacklist, press LAdd or OK on Add new, then you can carryout the following operations:Option OperationNew numberOpen the phone number editor,enter the new number and save thenumber into the black list.ContactsOpen the phonebook list and select aphone number for saving into theblack list.Xenium9@9k_Master_EN.book  Page 54  Wednesday, October 24, 2007  4:23 PM

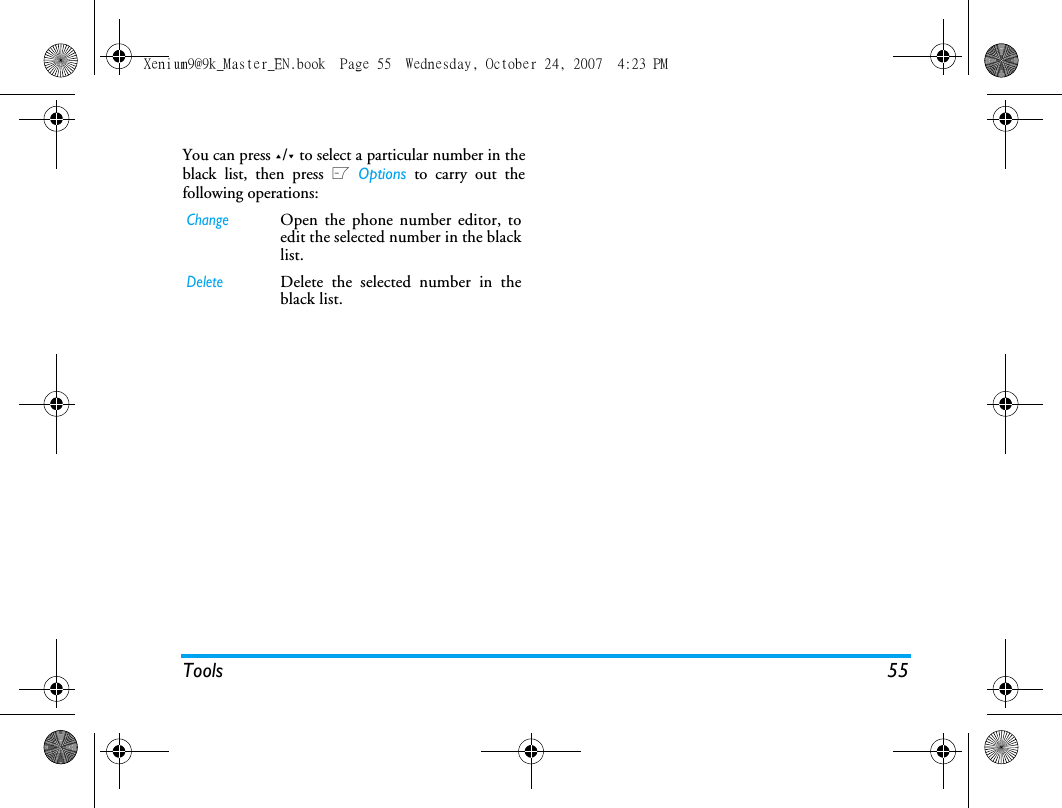

Tools 55You can press +/- to select a particular number in theblack list, then press L Options to carry out thefollowing operations:ChangeOpen the phone number editor, toedit the selected number in the blacklist.DeleteDelete the selected number in theblack list.Xenium9@9k_Master_EN.book  Page 55  Wednesday, October 24, 2007  4:23 PM

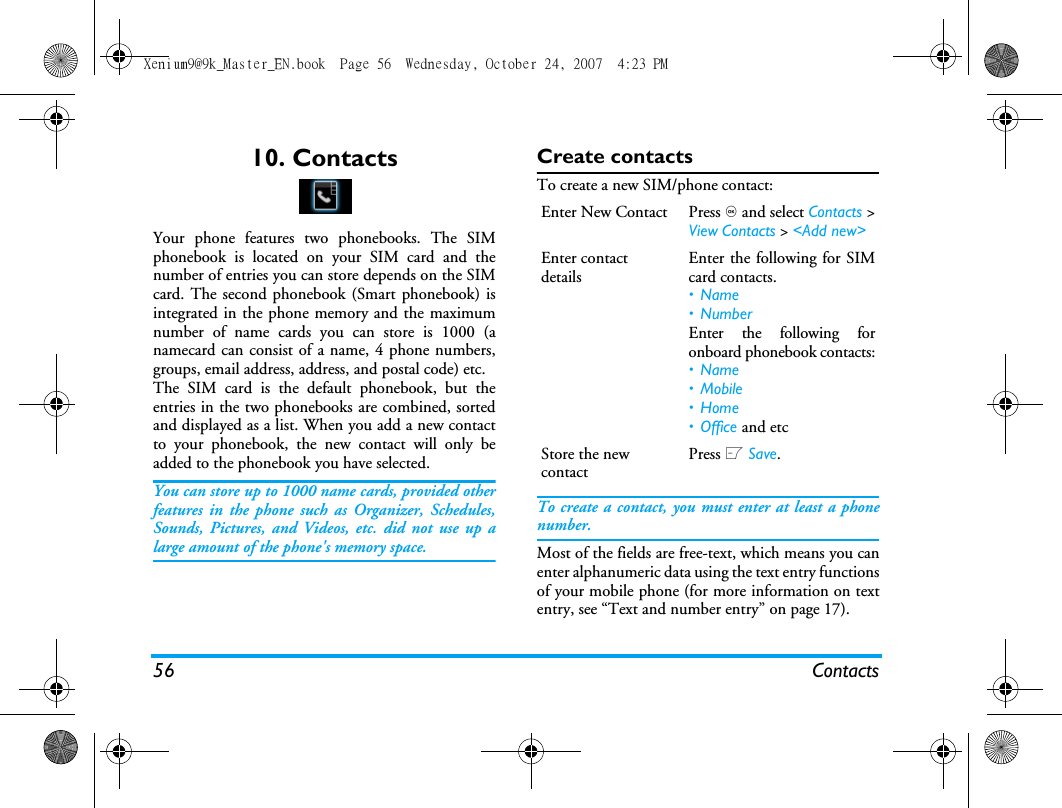

56 Contacts10. ContactsYour phone features two phonebooks. The SIMphonebook is located on your SIM card and thenumber of entries you can store depends on the SIMcard. The second phonebook (Smart phonebook) isintegrated in the phone memory and the maximumnumber of name cards you can store is 1000 (anamecard can consist of a name, 4 phone numbers,groups, email address, address, and postal code) etc.The SIM card is the default phonebook, but theentries in the two phonebooks are combined, sortedand displayed as a list. When you add a new contactto your phonebook, the new contact will only beadded to the phonebook you have selected.You can store up to 1000 name cards, provided otherfeatures in the phone such as Organizer, Schedules,Sounds, Pictures, and Videos, etc. did not use up alarge amount of the phone's memory space.Create contactsTo create a new SIM/phone contact:To create a contact, you must enter at least a phonenumber.Most of the fields are free-text, which means you canenter alphanumeric data using the text entry functionsof your mobile phone (for more information on textentry, see “Text and number entry” on page 17).Enter New Contact Press , and select Contacts >View Contacts > <Add new>Enter contact detailsEnter the following for SIMcard contacts.•Name• NumberEnter the following foronboard phonebook contacts:•Name• Mobile•Home• Office and etcStore the new contactPress L Save.Xenium9@9k_Master_EN.book  Page 56  Wednesday, October 24, 2007  4:23 PM

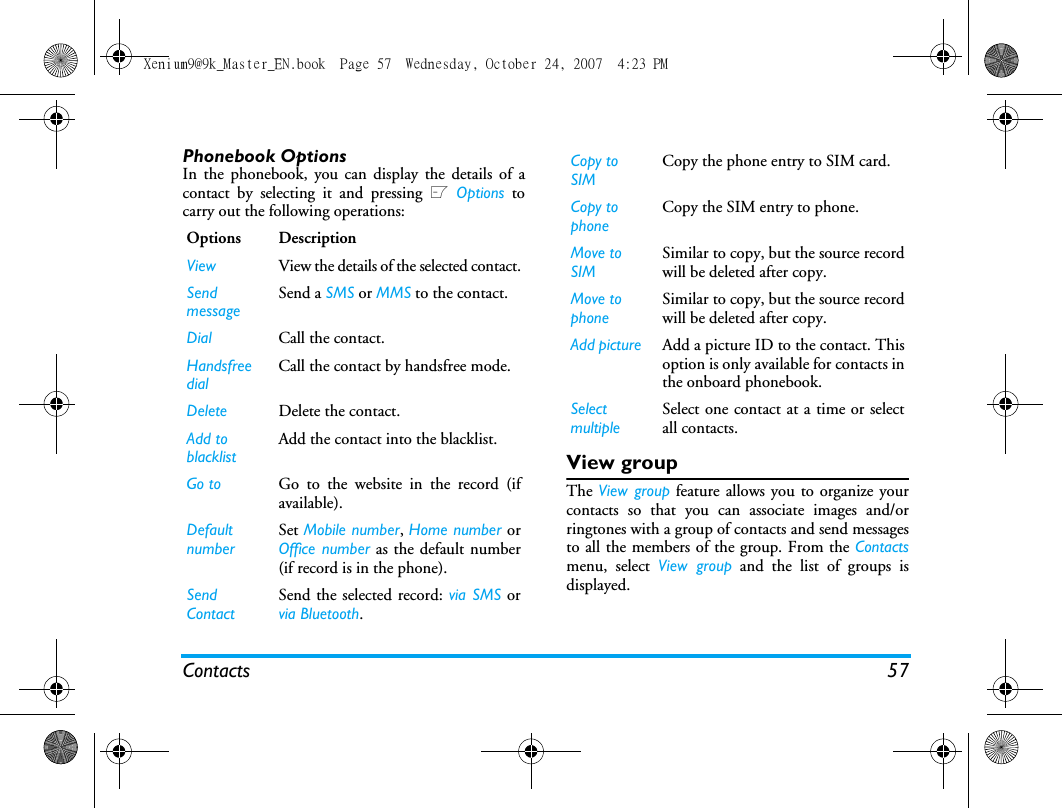

Contacts 57Phonebook OptionsIn the phonebook, you can display the details of acontact by selecting it and pressing L Options tocarry out the following operations:View groupThe View group feature allows you to organize yourcontacts so that you can associate images and/orringtones with a group of contacts and send messagesto all the members of the group. From the Contactsmenu, select View group and the list of groups isdisplayed.Options DescriptionView View the details of the selected contact.SendmessageSend a SMS or MMS to the contact.Dial Call the contact.Handsfree dialCall the contact by handsfree mode.Delete Delete the contact.Add to blacklistAdd the contact into the blacklist.Go to Go to the website in the record (ifavailable).Default numberSet Mobile number, Home number orOffice number as the default number(if record is in the phone).Send ContactSend the selected record: via SMS orvia Bluetooth.Copy to SIMCopy the phone entry to SIM card.Copy to phoneCopy the SIM entry to phone.Move to SIMSimilar to copy, but the source recordwill be deleted after copy.Move to phoneSimilar to copy, but the source recordwill be deleted after copy.Add picture Add a picture ID to the contact. Thisoption is only available for contacts inthe onboard phonebook.SelectmultipleSelect one contact at a time or selectall contacts.Xenium9@9k_Master_EN.book  Page 57  Wednesday, October 24, 2007  4:23 PM

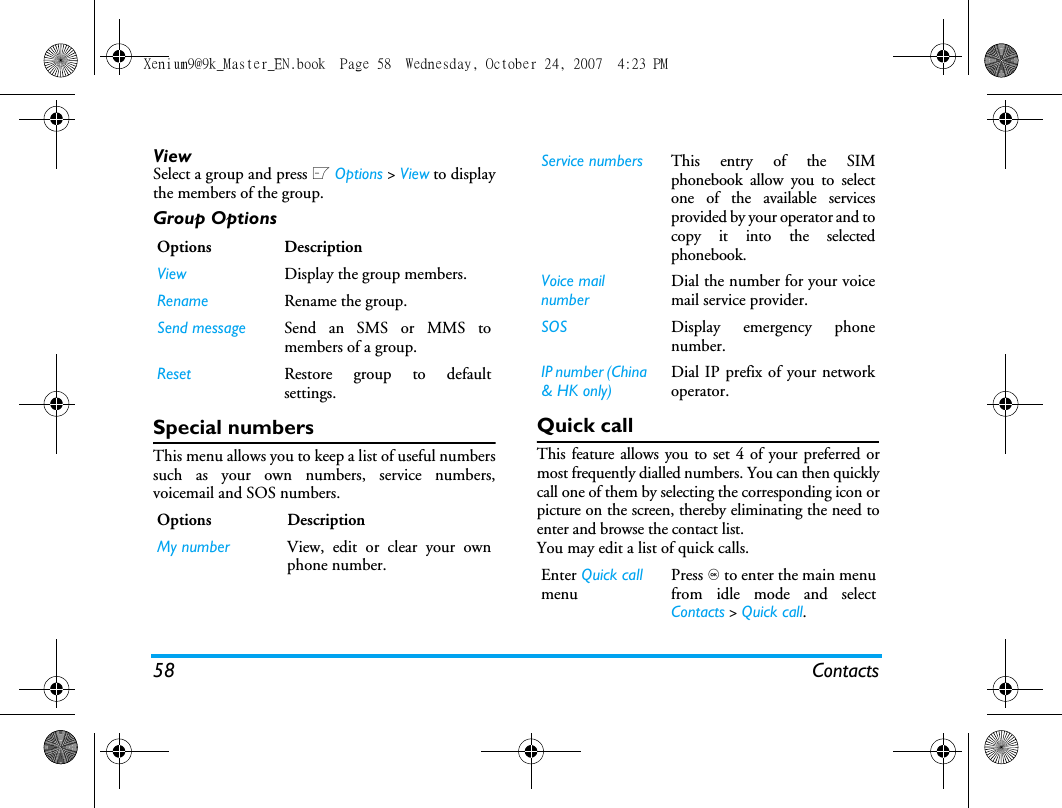

58 ContactsViewSelect a group and press L Options > View to displaythe members of the group.Group OptionsSpecial numbersThis menu allows you to keep a list of useful numberssuch as your own numbers, service numbers,voicemail and SOS numbers.Quick call This feature allows you to set 4 of your preferred ormost frequently dialled numbers. You can then quicklycall one of them by selecting the corresponding icon orpicture on the screen, thereby eliminating the need toenter and browse the contact list.You may edit a list of quick calls.Options DescriptionView Display the group members.Rename Rename the group.Send message Send an SMS or MMS tomembers of a group.Reset Restore group to defaultsettings.Options DescriptionMy number View, edit or clear your ownphone number.Service numbers This entry of the SIMphonebook allow you to selectone of the available servicesprovided by your operator and tocopy it into the selectedphonebook.Voice mail numberDial the number for your voicemail service provider.SOS Display emergency phonenumber.IP number (China & HK only)Dial IP prefix of your networkoperator.Enter Quick call menuPress , to enter the main menufrom idle mode and selectContacts > Quick call.Xenium9@9k_Master_EN.book  Page 58  Wednesday, October 24, 2007  4:23 PM

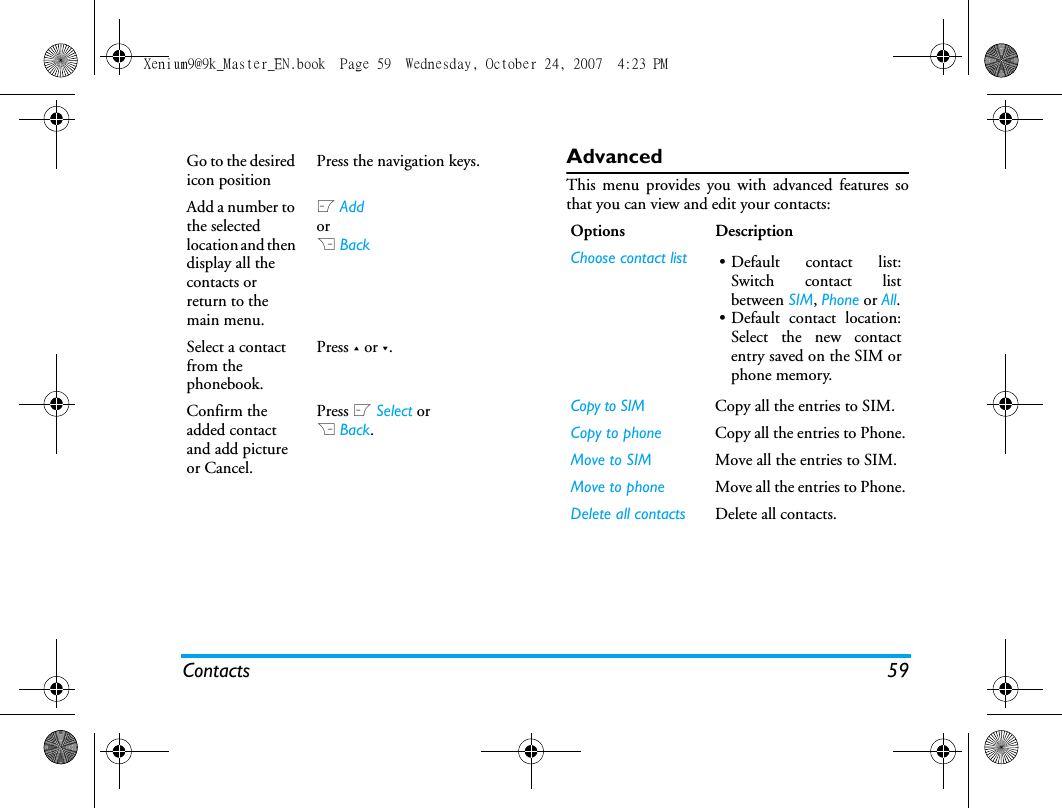

Contacts 59AdvancedThis menu provides you with advanced features sothat you can view and edit your contacts:Go to the desired icon positionPress the navigation keys.Add a number to the selected location and then display all the contacts or return to the main menu.L Add or R BackSelect a contact from the phonebook.Press + or -.Confirm the added contact and add picture or Cancel.Press L Select orR Back.Options DescriptionChoose contact list • Default contact list:Switch contact listbetween SIM, Phone or All.• Default contact location:Select the new contactentry saved on the SIM orphone memory.Copy to SIM Copy all the entries to SIM.Copy to phone Copy all the entries to Phone.Move to SIM Move all the entries to SIM. Move to phone Move all the entries to Phone.Delete all contacts Delete all contacts.Xenium9@9k_Master_EN.book  Page 59  Wednesday, October 24, 2007  4:23 PM

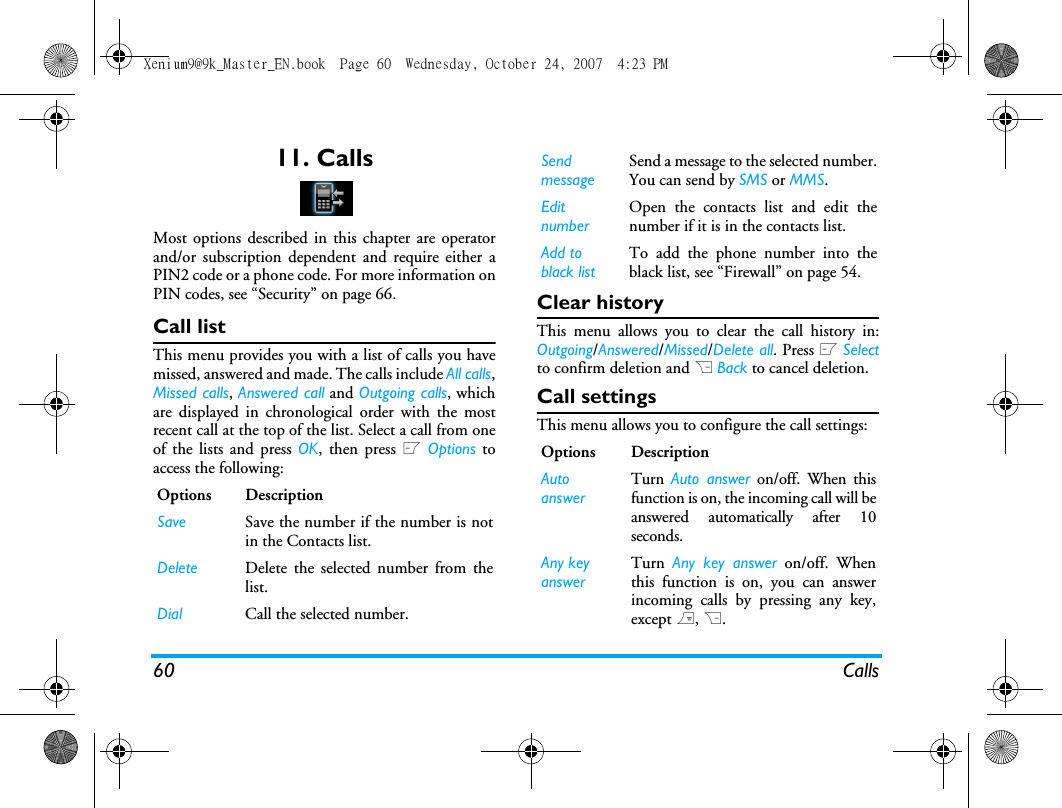

60 Calls11. CallsMost options described in this chapter are operatorand/or subscription dependent and require either aPIN2 code or a phone code. For more information onPIN codes, see “Security” on page 66.Call listThis menu provides you with a list of calls you havemissed, answered and made. The calls include All calls,Missed calls, Answered call and Outgoing calls, whichare displayed in chronological order with the mostrecent call at the top of the list. Select a call from oneof the lists and press OK, then press L Options toaccess the following:Clear historyThis menu allows you to clear the call history in:Outgoing/Answered/Missed/Delete all. Press L Selectto confirm deletion and R Back to cancel deletion.Call settingsThis menu allows you to configure the call settings:Options DescriptionSave Save the number if the number is notin the Contacts list.Delete Delete the selected number from thelist.Dial Call the selected number.Send messageSend a message to the selected number.You can send by SMS or MMS.Edit numberOpen the contacts list and edit thenumber if it is in the contacts list.Add to black listTo add the phone number into theblack list, see “Firewall” on page 54.Options DescriptionAuto answerTurn  Auto answer on/off. When thisfunction is on, the incoming call will beanswered automatically after 10seconds.Any keyanswerTurn  Any key answer on/off. Whenthis function is on, you can answerincoming calls by pressing any key,except ), R.Xenium9@9k_Master_EN.book  Page 60  Wednesday, October 24, 2007  4:23 PM

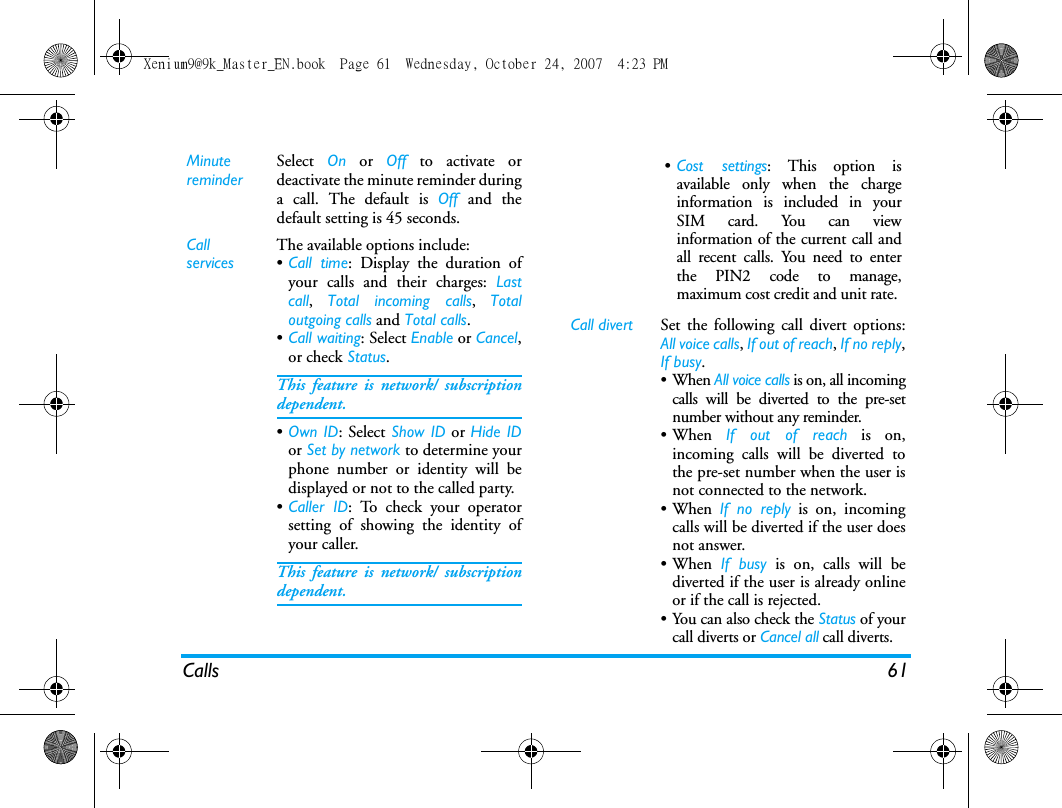

Calls 61MinutereminderSelect  On or Off to activate ordeactivate the minute reminder duringa call. The default is Off and thedefault setting is 45 seconds.Call servicesThe available options include:•Call time: Display the duration ofyour calls and their charges: Lastcall,  Total incoming calls,  Totaloutgoing calls and Total calls.•Call waiting: Select Enable or Cancel,or check Status.This feature is network/ subscriptiondependent.•Own ID: Select Show ID or Hide IDor Set by network to determine yourphone number or identity will bedisplayed or not to the called party.•Caller ID: To check your operatorsetting of showing the identity ofyour caller.This feature is network/ subscriptiondependent.•Cost settings: This option isavailable only when the chargeinformation is included in yourSIM card. You can viewinformation of the current call andall recent calls. You need to enterthe PIN2 code to manage,maximum cost credit and unit rate. Call divert Set the following call divert options:All voice calls, If out of reach, If no reply,If busy. •When All voice calls is on, all incomingcalls will be diverted to the pre-setnumber without any reminder. •When  If out of reach is on,incoming calls will be diverted tothe pre-set number when the user isnot connected to the network. •When If no reply is on, incomingcalls will be diverted if the user doesnot answer. •When If busy is on, calls will bediverted if the user is already onlineor if the call is rejected.•You can also check the Status of yourcall diverts or Cancel all call diverts.Xenium9@9k_Master_EN.book  Page 61  Wednesday, October 24, 2007  4:23 PM

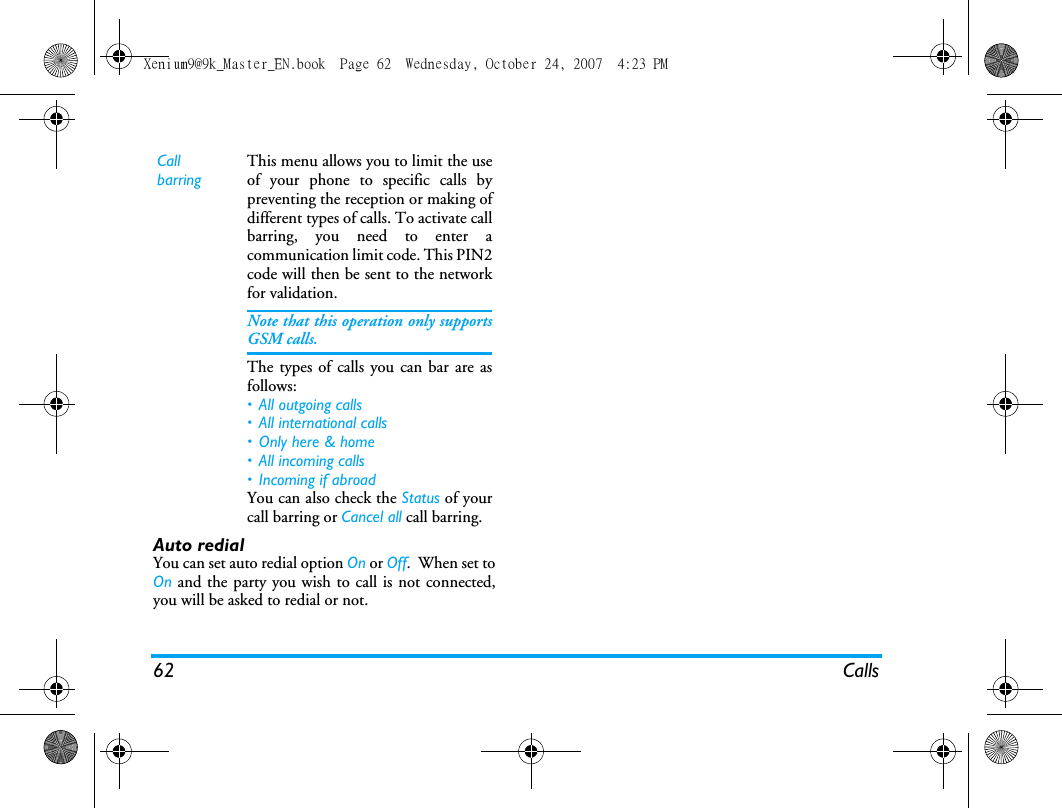

62 CallsAuto redialYou can set auto redial option On or Off.  When set toOn and the party you wish to call is not connected,you will be asked to redial or not.  Call barringThis menu allows you to limit the useof your phone to specific calls bypreventing the reception or making ofdifferent types of calls. To activate callbarring, you need to enter acommunication limit code. This PIN2code will then be sent to the networkfor validation.Note that this operation only supportsGSM calls. The types of calls you can bar are asfollows:• All outgoing calls• All international calls• Only here & home• All incoming calls• Incoming if abroadYou can also check the Status of yourcall barring or Cancel all call barring. Xenium9@9k_Master_EN.book  Page 62  Wednesday, October 24, 2007  4:23 PM

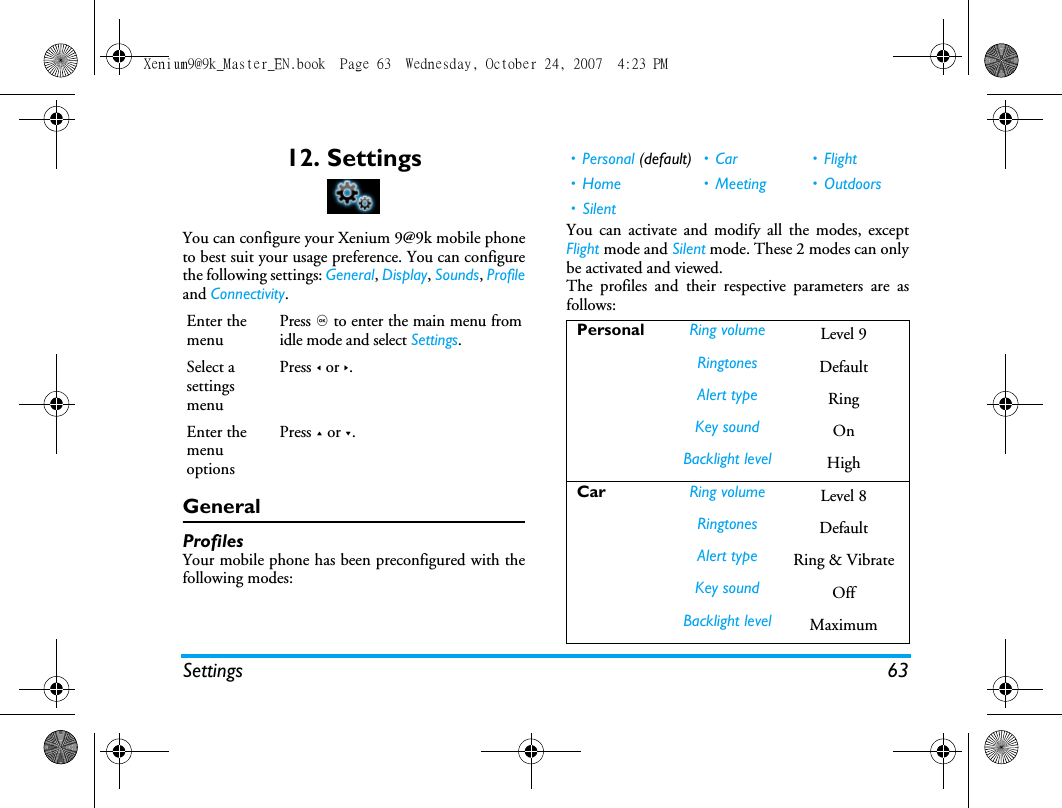

Settings 6312. SettingsYou can configure your Xenium 9@9k mobile phoneto best suit your usage preference. You can configurethe following settings: General, Display, Sounds, Profileand Connectivity.GeneralProfilesYour mobile phone has been preconfigured with thefollowing modes: You can activate and modify all the modes, exceptFlight mode and Silent mode. These 2 modes can onlybe activated and viewed.The profiles and their respective parameters are asfollows:Enter the menuPress , to enter the main menu fromidle mode and select Settings.Select a settings menuPress < or >.Enter the menu optionsPress + or -.•Personal (default) • Car • Flight • Home • Meeting • Outdoors• SilentPersonal Ring volume Level 9Ringtones DefaultAlert type RingKey sound OnBacklight level HighCar Ring volume Level 8Ringtones DefaultAlert type Ring & VibrateKey sound OffBacklight level MaximumXenium9@9k_Master_EN.book  Page 63  Wednesday, October 24, 2007  4:23 PM

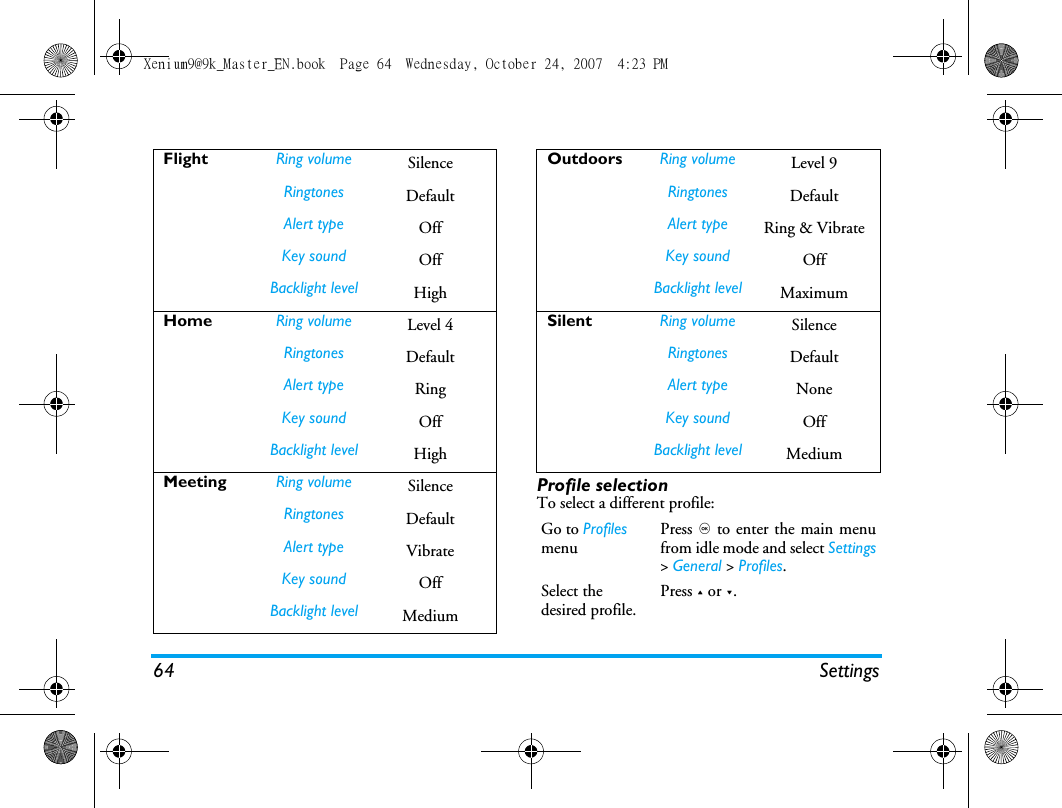

64 SettingsProfile selectionTo select a different profile:Flight Ring volume SilenceRingtones DefaultAlert type OffKey sound OffBacklight level HighHome Ring volume Level 4Ringtones DefaultAlert type RingKey sound OffBacklight level HighMeeting Ring volume SilenceRingtones DefaultAlert type VibrateKey sound OffBacklight level MediumOutdoors Ring volume Level 9Ringtones DefaultAlert type Ring & VibrateKey sound OffBacklight level MaximumSilent Ring volume SilenceRingtones DefaultAlert type NoneKey sound OffBacklight level MediumGo to Profiles menuPress , to enter the main menufrom idle mode and select Settings> General > Profiles. Select the desired profile.Press + or -.Xenium9@9k_Master_EN.book  Page 64  Wednesday, October 24, 2007  4:23 PM

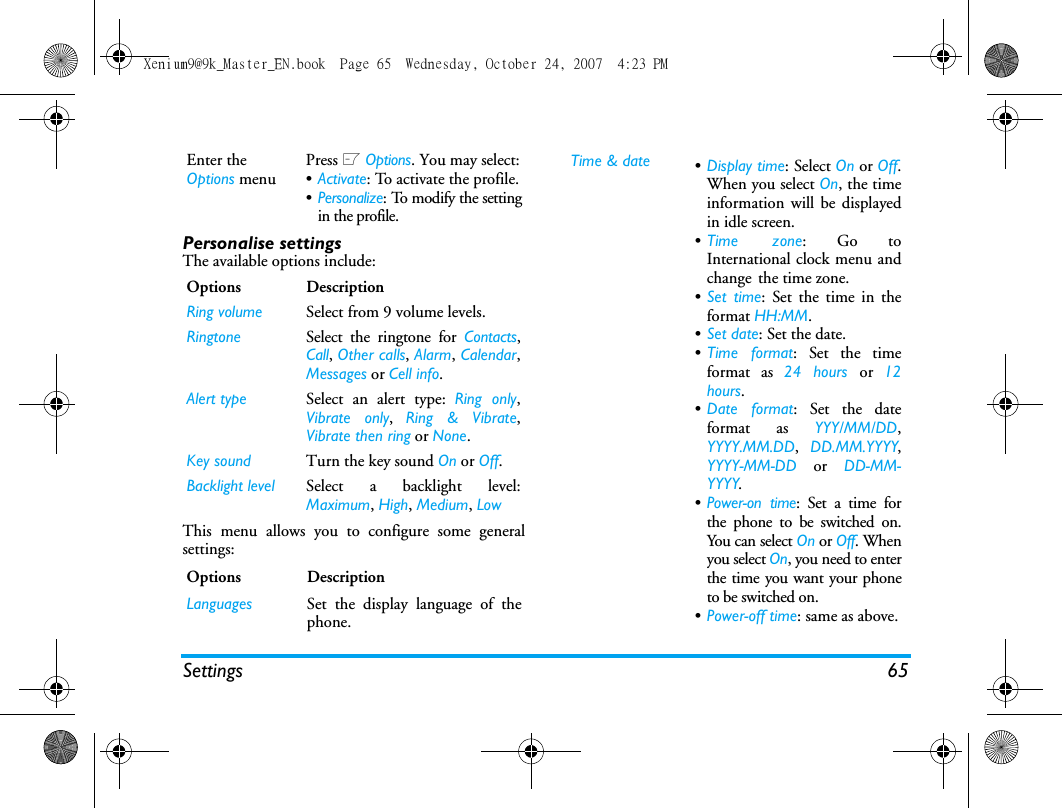

Settings 65Personalise settingsThe available options include:This menu allows you to configure some generalsettings:Enter the Options menuPress L Options. You may select:•Activate: To activate the profile.•Personalize: To modify the settingin the profile.Options DescriptionRing volume Select from 9 volume levels.Ringtone Select the ringtone for Contacts,Call, Other calls, Alarm, Calendar,Messages or Cell info.Alert type Select an alert type: Ring only,Vibrate only,  Ring & Vibrate,Vibrate then ring or None.Key sound Turn the key sound On or Off.Backlight level Select a backlight level:Maximum, High, Medium, LowOptions DescriptionLanguages Set the display language of thephone.Time & date •Display time: Select On or Off.When you select On, the timeinformation will be displayedin idle screen.•Time zone: Go toInternational clock menu andchange the time zone.•Set time: Set the time in theformat HH:MM.•Set date: Set the date.•Time format: Set the timeformat as 24 hours or  12hours.•Date format: Set the dateformat as YYY/MM/DD,YYYY.MM.DD,  DD.MM.YYYY,YYYY-MM-DD or DD-MM-YYYY.•Power-on time: Set a time forthe phone to be switched on.You can select On or Off. Whenyou select On, you need to enterthe time you want your phoneto be switched on. •Power-off time: same as above.Xenium9@9k_Master_EN.book  Page 65  Wednesday, October 24, 2007  4:23 PM

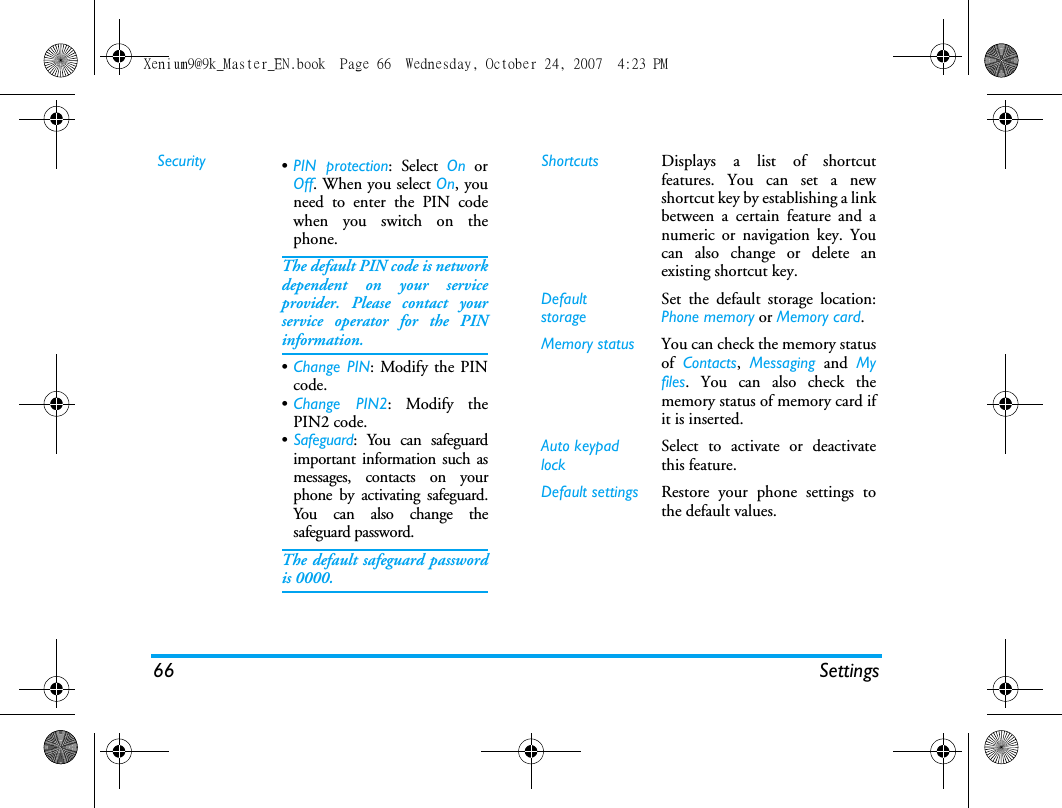

66 SettingsSecurity •PIN protection: Select On orOff. When you select On, youneed to enter the PIN codewhen you switch on thephone. The default PIN code is networkdependent on your serviceprovider. Please contact yourservice operator for the PINinformation.•Change PIN: Modify the PINcode.•Change PIN2: Modify thePIN2 code.•Safeguard: You can safeguardimportant information such asmessages, contacts on yourphone by activating safeguard.You can also change thesafeguard password.The default safeguard passwordis 0000.Shortcuts Displays a list of shortcutfeatures. You can set a newshortcut key by establishing a linkbetween a certain feature and anumeric or navigation key. Youcan also change or delete anexisting shortcut key.DefaultstorageSet the default storage location:Phone memory or Memory card.Memory status You can check the memory statusof  Contacts,  Messaging and Myfiles. You can also check thememory status of memory card ifit is inserted.Auto keypad lockSelect to activate or deactivatethis feature.Default settings Restore your phone settings tothe default values. Xenium9@9k_Master_EN.book  Page 66  Wednesday, October 24, 2007  4:23 PM

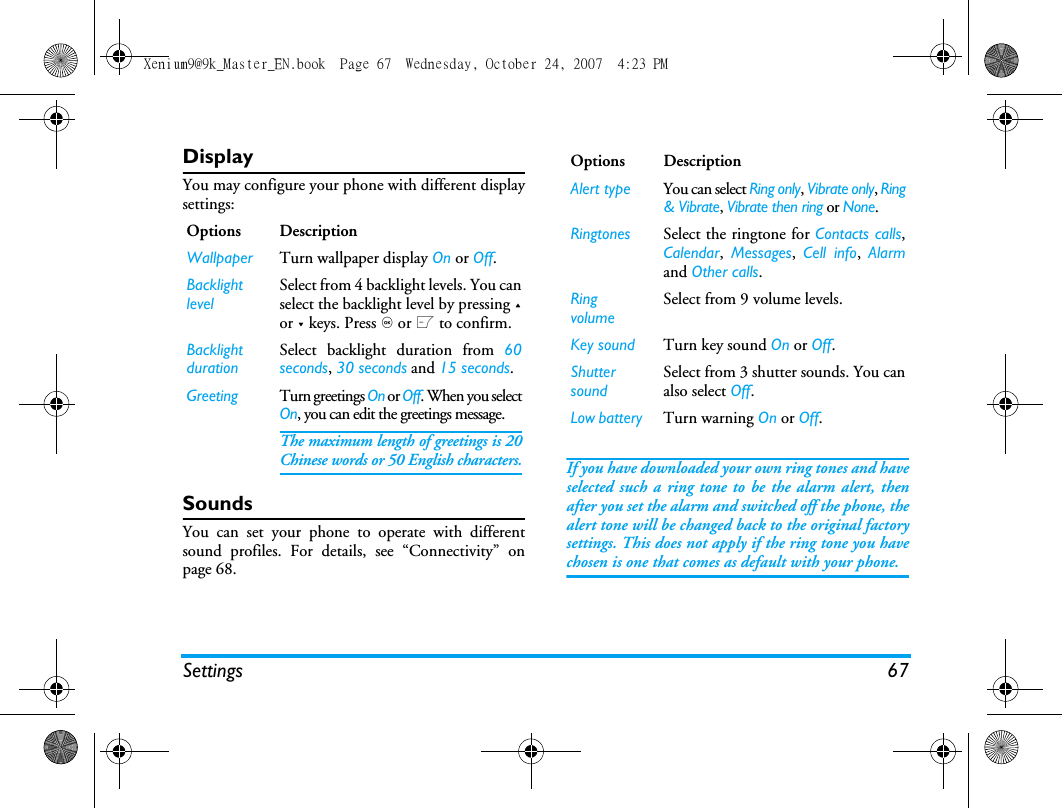

Settings 67DisplayYou may configure your phone with different displaysettings:SoundsYou can set your phone to operate with differentsound profiles. For details, see “Connectivity” onpage 68.If you have downloaded your own ring tones and haveselected such a ring tone to be the alarm alert, thenafter you set the alarm and switched off the phone, thealert tone will be changed back to the original factorysettings. This does not apply if the ring tone you havechosen is one that comes as default with your phone.Options DescriptionWallpaper Turn wallpaper display On or Off.Backlight levelSelect from 4 backlight levels. You canselect the backlight level by pressing +or - keys. Press , or L to confirm. Backlight durationSelect backlight duration from 60seconds, 30 seconds and 15 seconds.Greeting Turn greetings On or Off. When you selectOn, you can edit the greetings message. The maximum length of greetings is 20Chinese words or 50 English characters.Options DescriptionAlert type You can select Ring only, Vibrate only, Ring& Vibrate, Vibrate then ring or None.Ringtones Select the ringtone for Contacts calls,Calendar,  Messages,  Cell info,  Alarmand Other calls.Ring volumeSelect from 9 volume levels.Key sound Turn key sound On or Off.Shutter soundSelect from 3 shutter sounds. You canalso select Off.Low battery Turn warning On or Off.Xenium9@9k_Master_EN.book  Page 67  Wednesday, October 24, 2007  4:23 PM

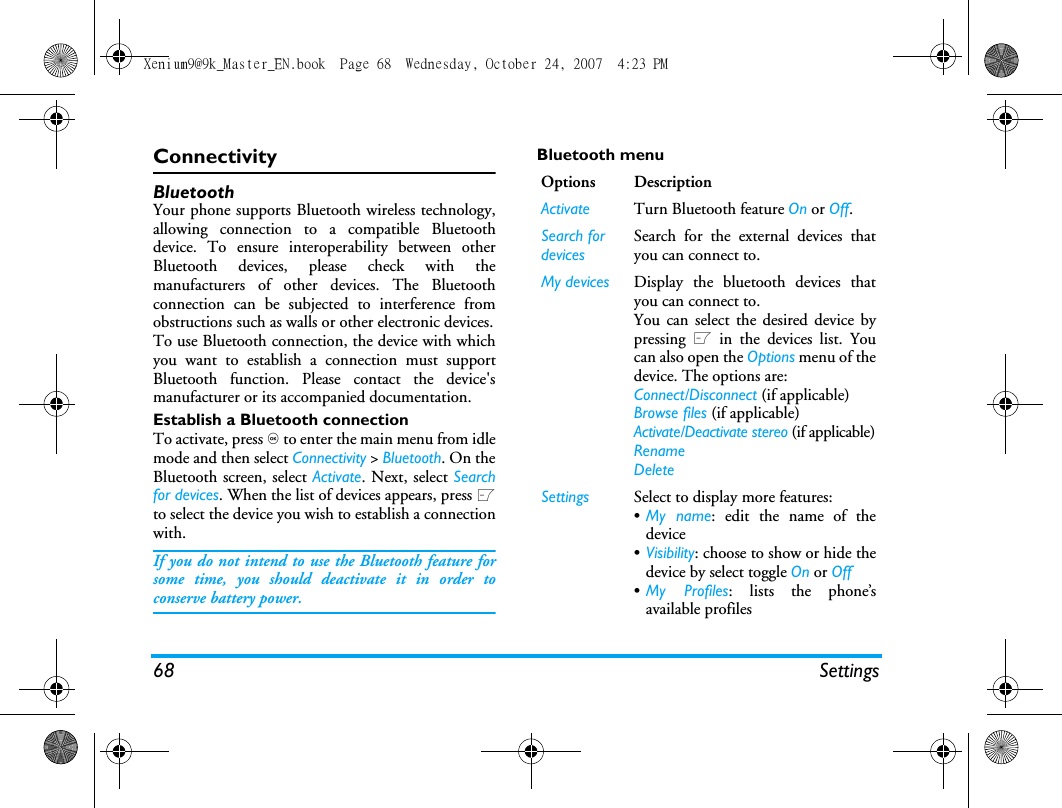

68 SettingsConnectivityBluetoothYour phone supports Bluetooth wireless technology,allowing connection to a compatible Bluetoothdevice. To ensure interoperability between otherBluetooth devices, please check with themanufacturers of other devices. The Bluetoothconnection can be subjected to interference fromobstructions such as walls or other electronic devices.To use Bluetooth connection, the device with whichyou want to establish a connection must supportBluetooth function. Please contact the device'smanufacturer or its accompanied documentation.Establish a Bluetooth connectionTo activate, press , to enter the main menu from idlemode and then select Connectivity > Bluetooth. On theBluetooth screen, select Activate. Next, select Searchfor devices. When the list of devices appears, press Lto select the device you wish to establish a connectionwith.If you do not intend to use the Bluetooth feature forsome time, you should deactivate it in order toconserve battery power.Bluetooth menuOptions DescriptionActivate Turn Bluetooth feature On or Off. Search for devicesSearch for the external devices thatyou can connect to.My devices Display the bluetooth devices thatyou can connect to.You can select the desired device bypressing L in the devices list. Youcan also open the Options menu of thedevice. The options are: Connect/Disconnect (if applicable)Browse files (if applicable)Activate/Deactivate stereo (if applicable)RenameDeleteSettings Select to display more features:•My name: edit the name of thedevice•Visibility: choose to show or hide thedevice by select toggle On or Off•My Profiles: lists the phone’savailable profilesXenium9@9k_Master_EN.book  Page 68  Wednesday, October 24, 2007  4:23 PM

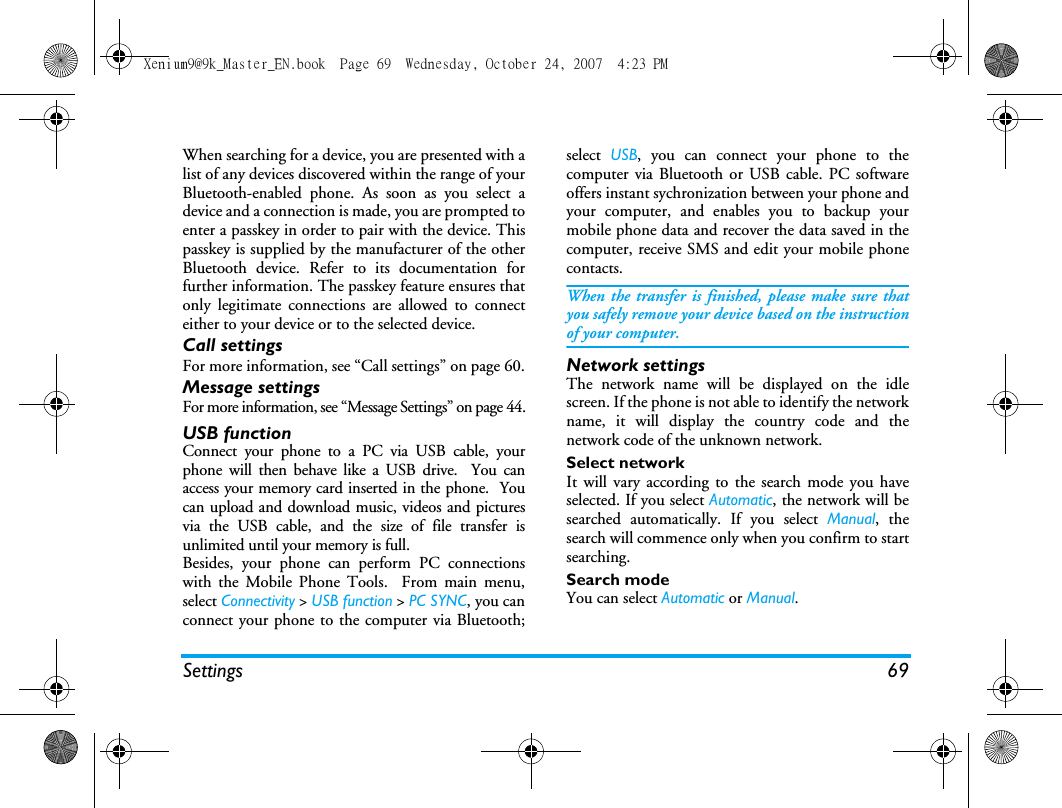

Settings 69When searching for a device, you are presented with alist of any devices discovered within the range of yourBluetooth-enabled phone. As soon as you select adevice and a connection is made, you are prompted toenter a passkey in order to pair with the device. Thispasskey is supplied by the manufacturer of the otherBluetooth device. Refer to its documentation forfurther information. The passkey feature ensures thatonly legitimate connections are allowed to connecteither to your device or to the selected device.Call settingsFor more information, see “Call settings” on page 60.Message settingsFor more information, see “Message Settings” on page 44.USB functionConnect your phone to a PC via USB cable, yourphone will then behave like a USB drive.  You canaccess your memory card inserted in the phone.  Youcan upload and download music, videos and picturesvia the USB cable, and the size of file transfer isunlimited until your memory is full.Besides, your phone can perform PC connectionswith the Mobile Phone Tools.  From main menu,select Connectivity > USB function > PC SYNC, you canconnect your phone to the computer via Bluetooth;select  USB, you can connect your phone to thecomputer via Bluetooth or USB cable. PC softwareoffers instant sychronization between your phone andyour computer, and enables you to backup yourmobile phone data and recover the data saved in thecomputer, receive SMS and edit your mobile phonecontacts.When the transfer is finished, please make sure thatyou safely remove your device based on the instructionof your computer.Network settingsThe network name will be displayed on the idlescreen. If the phone is not able to identify the networkname, it will display the country code and thenetwork code of the unknown network.Select networkIt will vary according to the search mode you haveselected. If you select Automatic, the network will besearched automatically. If you select Manual, thesearch will commence only when you confirm to startsearching. Search modeYou can select Automatic or Manual.Xenium9@9k_Master_EN.book  Page 69  Wednesday, October 24, 2007  4:23 PM

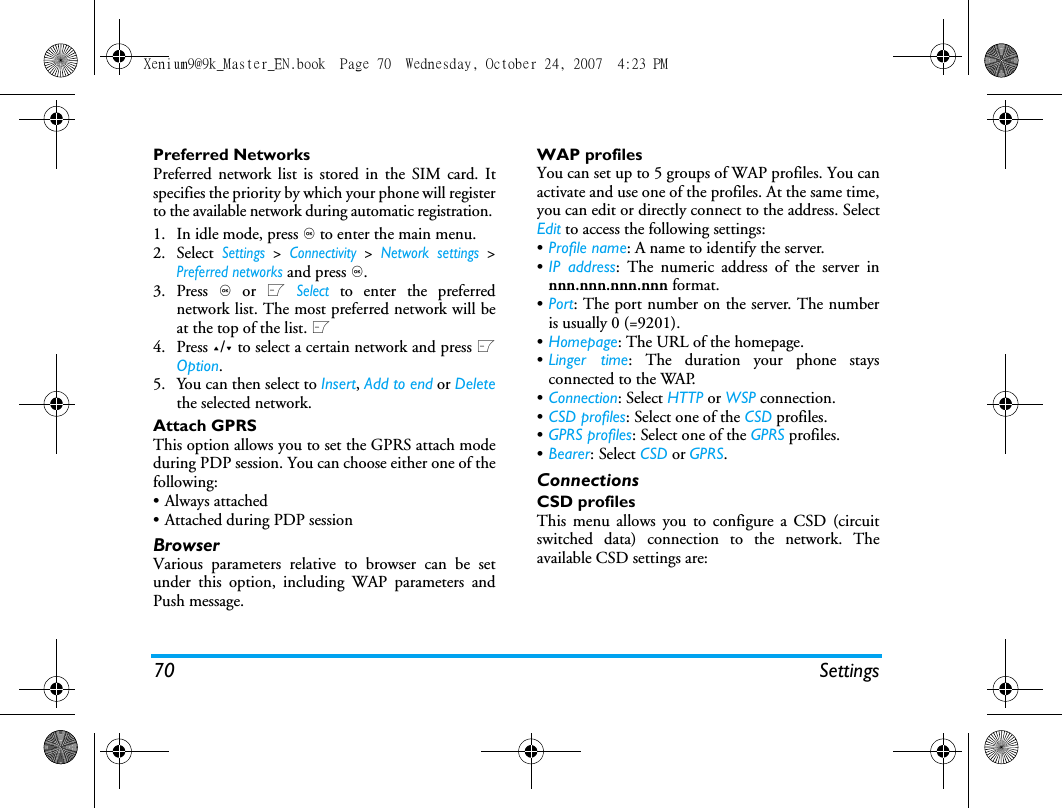

70 SettingsPreferred NetworksPreferred network list is stored in the SIM card. Itspecifies the priority by which your phone will registerto the available network during automatic registration. 1. In idle mode, press , to enter the main menu. 2. Select Settings > Connectivity > Network settings >Preferred networks and press ,.3. Press , or L Select to enter the preferrednetwork list. The most preferred network will beat the top of the list. L4. Press +/- to select a certain network and press LOption.5. You can then select to Insert, Add to end or Deletethe selected network.Attach GPRSThis option allows you to set the GPRS attach modeduring PDP session. You can choose either one of thefollowing:• Always attached• Attached during PDP sessionBrowserVarious parameters relative to browser can be setunder this option, including WAP parameters andPush message.WAP profiles You can set up to 5 groups of WAP profiles. You canactivate and use one of the profiles. At the same time,you can edit or directly connect to the address. SelectEdit to access the following settings:•Profile name: A name to identify the server.•IP address: The numeric address of the server innnn.nnn.nnn.nnn format.•Port: The port number on the server. The numberis usually 0 (=9201).•Homepage: The URL of the homepage.•Linger time: The duration your phone staysconnected to the WAP.•Connection: Select HTTP or WSP connection.•CSD profiles: Select one of the CSD profiles.•GPRS profiles: Select one of the GPRS profiles.•Bearer: Select CSD or GPRS. ConnectionsCSD profilesThis menu allows you to configure a CSD (circuitswitched data) connection to the network. Theavailable CSD settings are:Xenium9@9k_Master_EN.book  Page 70  Wednesday, October 24, 2007  4:23 PM

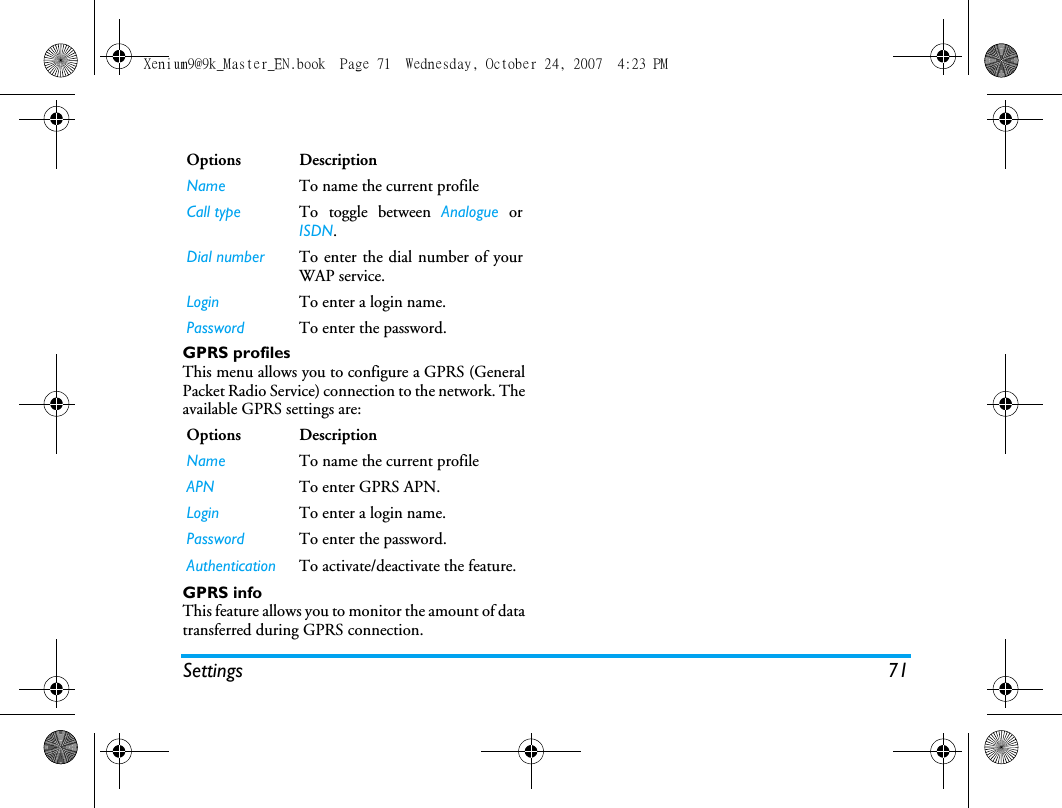

Settings 71GPRS profilesThis menu allows you to configure a GPRS (GeneralPacket Radio Service) connection to the network. Theavailable GPRS settings are:GPRS infoThis feature allows you to monitor the amount of datatransferred during GPRS connection.Options DescriptionName To name the current profileCall type To toggle between Analogue orISDN.Dial number To enter the dial number of yourWAP service. Login To enter a login name.Password To enter the password.Options DescriptionName To name the current profileAPN To enter GPRS APN.Login To enter a login name.Password To enter the password.Authentication To activate/deactivate the feature.Xenium9@9k_Master_EN.book  Page 71  Wednesday, October 24, 2007  4:23 PM

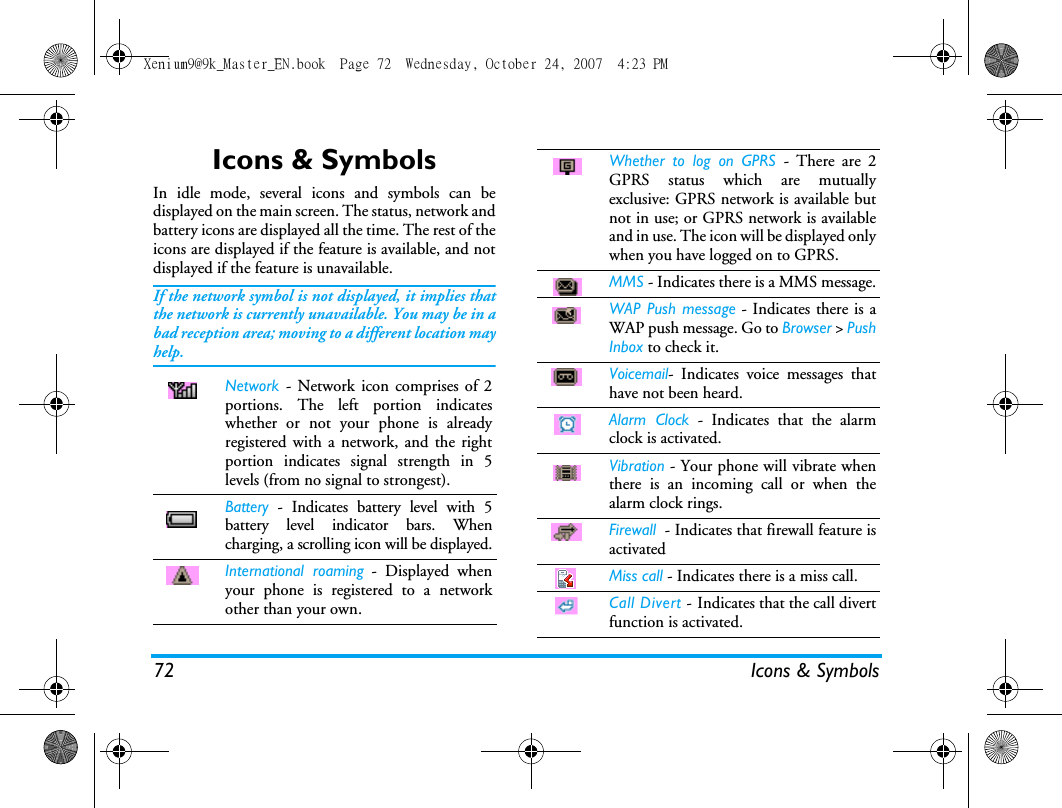

72 Icons & SymbolsIcons & SymbolsIn idle mode, several icons and symbols can bedisplayed on the main screen. The status, network andbattery icons are displayed all the time. The rest of theicons are displayed if the feature is available, and notdisplayed if the feature is unavailable.If the network symbol is not displayed, it implies thatthe network is currently unavailable. You may be in abad reception area; moving to a different location mayhelp.Network  - Network icon comprises of 2portions. The left portion indicateswhether or not your phone is alreadyregistered with a network, and the rightportion indicates signal strength in 5levels (from no signal to strongest).Battery - Indicates battery level with 5battery level indicator bars. Whencharging, a scrolling icon will be displayed.International roaming - Displayed whenyour phone is registered to a networkother than your own.Whether to log on GPRS - There are 2GPRS status which are mutuallyexclusive: GPRS network is available butnot in use; or GPRS network is availableand in use. The icon will be displayed onlywhen you have logged on to GPRS.MMS - Indicates there is a MMS message.WAP Push message - Indicates there is aWAP push message. Go to Browser > PushInbox to check it.Voicemail- Indicates voice messages thathave not been heard.Alarm Clock - Indicates that the alarmclock is activated.Vibration - Your phone will vibrate whenthere is an incoming call or when thealarm clock rings.Firewall  - Indicates that firewall feature isactivatedMiss call - Indicates there is a miss call.Call Divert - Indicates that the call divertfunction is activated.Xenium9@9k_Master_EN.book  Page 72  Wednesday, October 24, 2007  4:23 PM

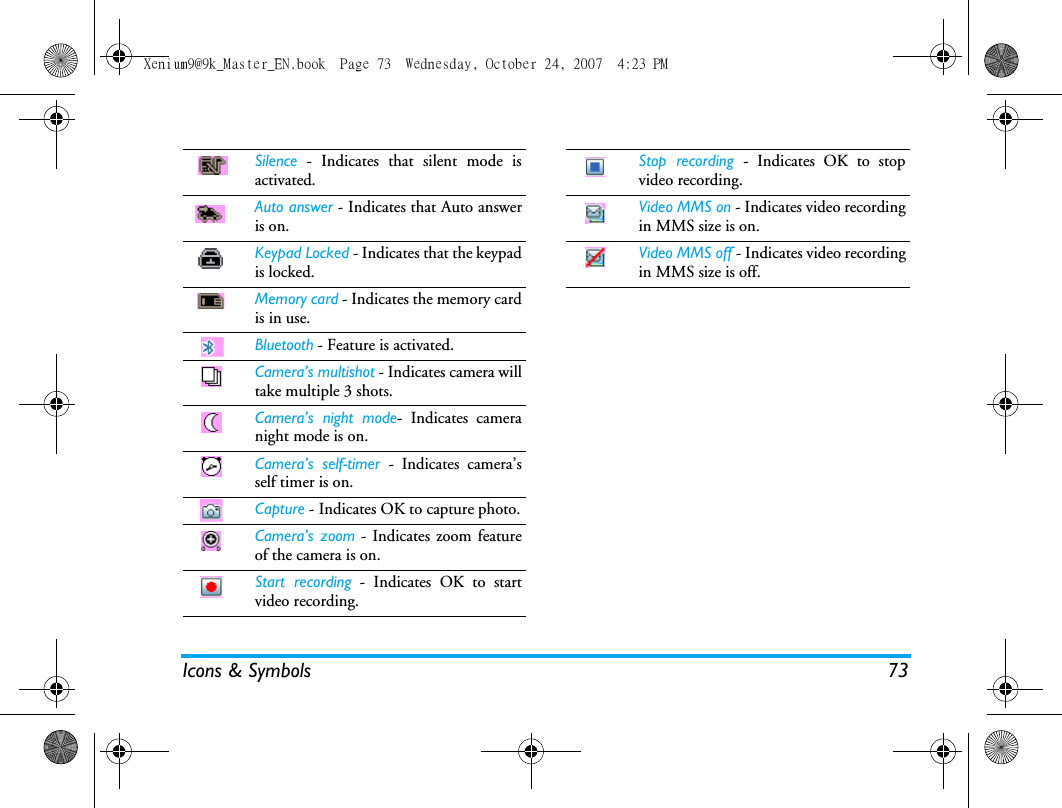

Icons & Symbols 73Silence - Indicates that silent mode isactivated.Auto answer - Indicates that Auto answeris on.Keypad Locked - Indicates that the keypadis locked.Memory card - Indicates the memory cardis in use.Bluetooth - Feature is activated.Camera’s multishot - Indicates camera willtake multiple 3 shots.Camera’s night mode- Indicates cameranight mode is on.Camera’s self-timer - Indicates camera’sself timer is on.Capture - Indicates OK to capture photo.Camera’s zoom - Indicates zoom featureof the camera is on.Start recording - Indicates OK to startvideo recording.Stop recording - Indicates OK to stopvideo recording.Video MMS on - Indicates video recordingin MMS size is on.Video MMS off - Indicates video recordingin MMS size is off.Xenium9@9k_Master_EN.book  Page 73  Wednesday, October 24, 2007  4:23 PM

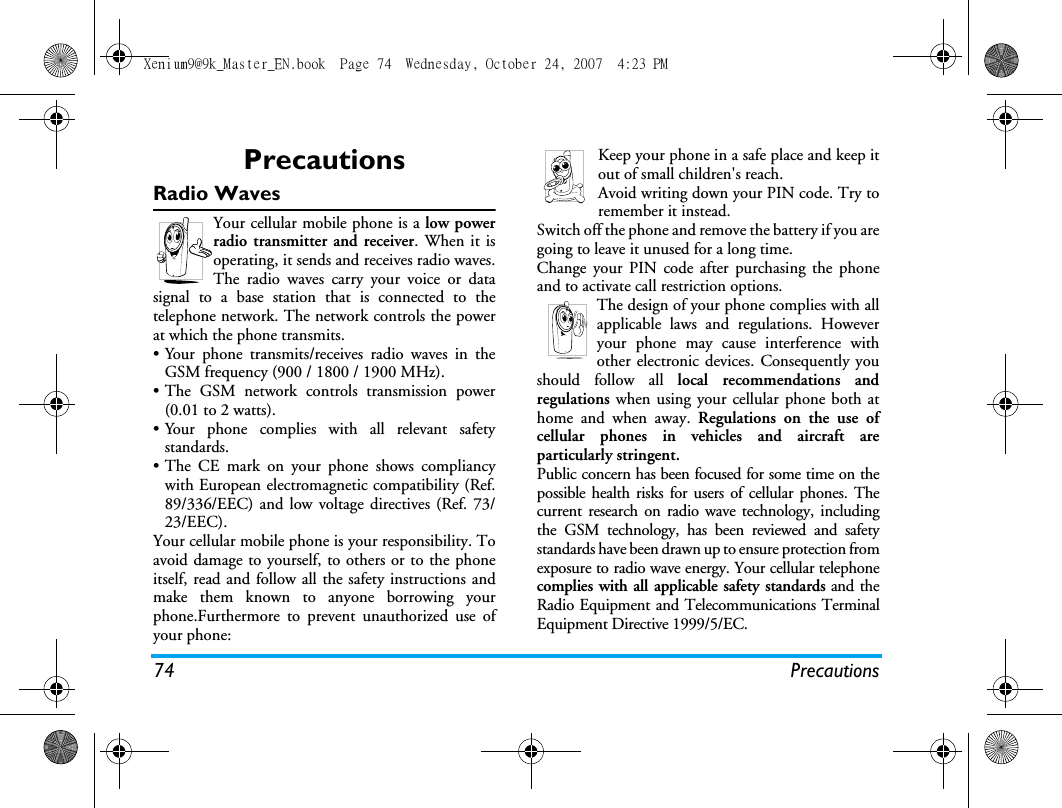

74 PrecautionsPrecautionsRadio WavesYour cellular mobile phone is a low powerradio transmitter and receiver. When it isoperating, it sends and receives radio waves.The radio waves carry your voice or datasignal to a base station that is connected to thetelephone network. The network controls the powerat which the phone transmits.• Your phone transmits/receives radio waves in theGSM frequency (900 / 1800 / 1900 MHz).• The GSM network controls transmission power(0.01 to 2 watts).• Your phone complies with all relevant safetystandards.• The CE mark on your phone shows compliancywith European electromagnetic compatibility (Ref.89/336/EEC) and low voltage directives (Ref. 73/23/EEC).Your cellular mobile phone is your responsibility. Toavoid damage to yourself, to others or to the phoneitself, read and follow all the safety instructions andmake them known to anyone borrowing yourphone.Furthermore to prevent unauthorized use ofyour phone:Keep your phone in a safe place and keep itout of small children's reach.Avoid writing down your PIN code. Try toremember it instead. Switch off the phone and remove the battery if you aregoing to leave it unused for a long time.Change your PIN code after purchasing the phoneand to activate call restriction options.The design of your phone complies with allapplicable laws and regulations. Howeveryour phone may cause interference withother electronic devices. Consequently youshould follow all local recommendations andregulations when using your cellular phone both athome and when away. Regulations on the use ofcellular phones in vehicles and aircraft areparticularly stringent.Public concern has been focused for some time on thepossible health risks for users of cellular phones. Thecurrent research on radio wave technology, includingthe GSM technology, has been reviewed and safetystandards have been drawn up to ensure protection fromexposure to radio wave energy. Your cellular telephonecomplies with all applicable safety standards and theRadio Equipment and Telecommunications TerminalEquipment Directive 1999/5/EC.Xenium9@9k_Master_EN.book  Page 74  Wednesday, October 24, 2007  4:23 PM

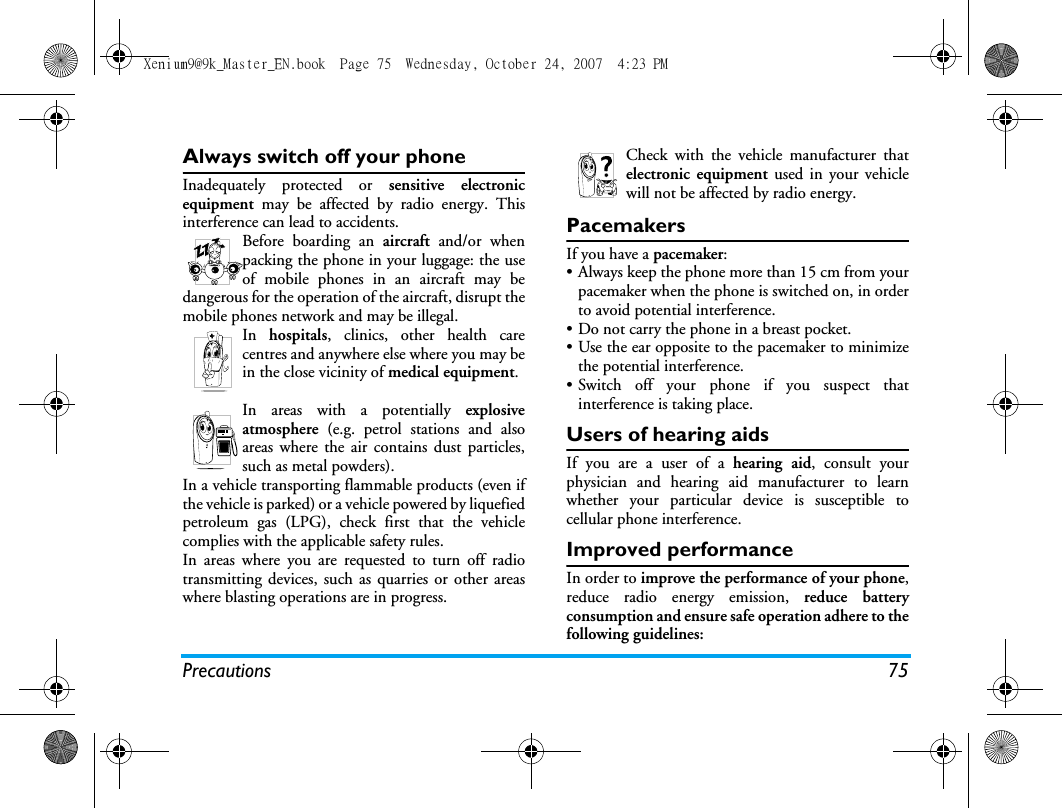

Precautions 75Always switch off your phoneInadequately protected or sensitive electronicequipment may be affected by radio energy. Thisinterference can lead to accidents.Before boarding an aircraft and/or whenpacking the phone in your luggage: the useof mobile phones in an aircraft may bedangerous for the operation of the aircraft, disrupt themobile phones network and may be illegal.In  hospitals, clinics, other health carecentres and anywhere else where you may bein the close vicinity of medical equipment.In areas with a potentially explosiveatmosphere (e.g. petrol stations and alsoareas where the air contains dust particles,such as metal powders).In a vehicle transporting flammable products (even ifthe vehicle is parked) or a vehicle powered by liquefiedpetroleum gas (LPG), check first that the vehiclecomplies with the applicable safety rules.In areas where you are requested to turn off radiotransmitting devices, such as quarries or other areaswhere blasting operations are in progress.Check with the vehicle manufacturer thatelectronic equipment used in your vehiclewill not be affected by radio energy.PacemakersIf you have a pacemaker:• Always keep the phone more than 15 cm from yourpacemaker when the phone is switched on, in orderto avoid potential interference.• Do not carry the phone in a breast pocket.• Use the ear opposite to the pacemaker to minimizethe potential interference.• Switch off your phone if you suspect thatinterference is taking place.Users of hearing aidsIf you are a user of a hearing aid, consult yourphysician and hearing aid manufacturer to learnwhether your particular device is susceptible tocellular phone interference.Improved performanceIn order to improve the performance of your phone,reduce radio energy emission, reduce batteryconsumption and ensure safe operation adhere to thefollowing guidelines:Xenium9@9k_Master_EN.book  Page 75  Wednesday, October 24, 2007  4:23 PM

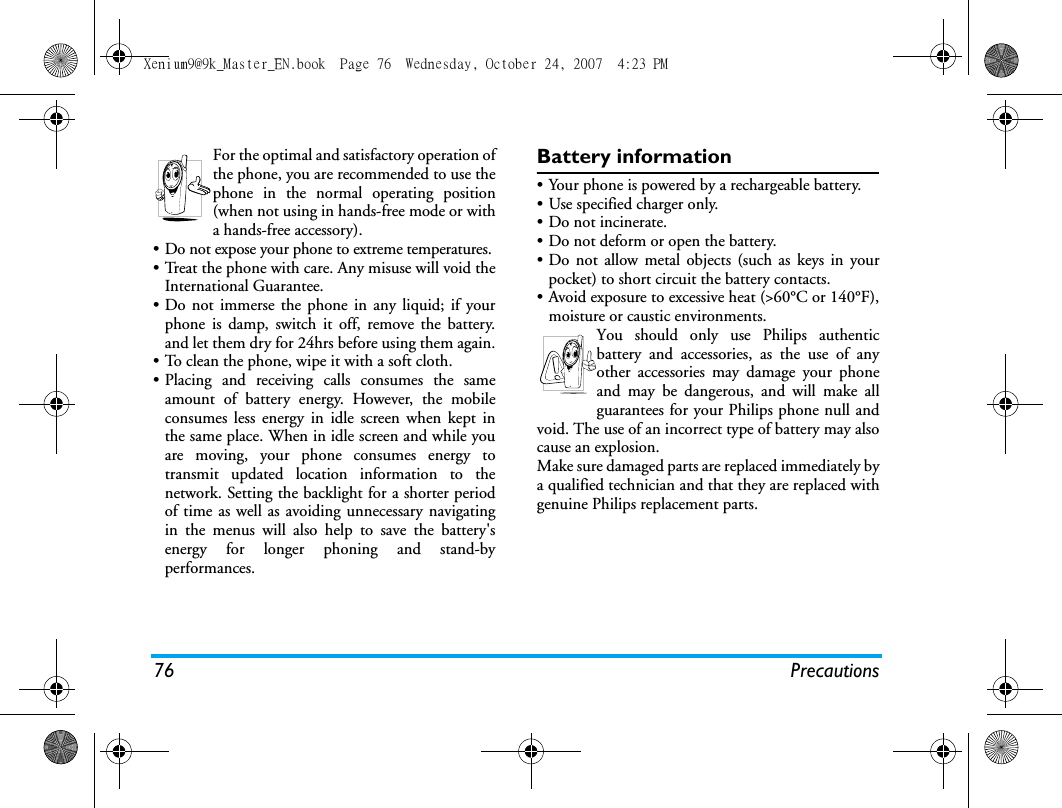

76 PrecautionsFor the optimal and satisfactory operation ofthe phone, you are recommended to use thephone in the normal operating position(when not using in hands-free mode or witha hands-free accessory).• Do not expose your phone to extreme temperatures.• Treat the phone with care. Any misuse will void theInternational Guarantee.• Do not immerse the phone in any liquid; if yourphone is damp, switch it off, remove the battery.and let them dry for 24hrs before using them again.• To clean the phone, wipe it with a soft cloth.• Placing and receiving calls consumes the sameamount of battery energy. However, the mobileconsumes less energy in idle screen when kept inthe same place. When in idle screen and while youare moving, your phone consumes energy totransmit updated location information to thenetwork. Setting the backlight for a shorter periodof time as well as avoiding unnecessary navigatingin the menus will also help to save the battery'senergy for longer phoning and stand-byperformances.Battery information• Your phone is powered by a rechargeable battery.• Use specified charger only.• Do not incinerate.• Do not deform or open the battery.• Do not allow metal objects (such as keys in yourpocket) to short circuit the battery contacts.• Avoid exposure to excessive heat (>60°C or 140°F),moisture or caustic environments.You should only use Philips authenticbattery and accessories, as the use of anyother accessories may damage your phoneand may be dangerous, and will make allguarantees for your Philips phone null andvoid. The use of an incorrect type of battery may alsocause an explosion.Make sure damaged parts are replaced immediately bya qualified technician and that they are replaced withgenuine Philips replacement parts.Xenium9@9k_Master_EN.book  Page 76  Wednesday, October 24, 2007  4:23 PM

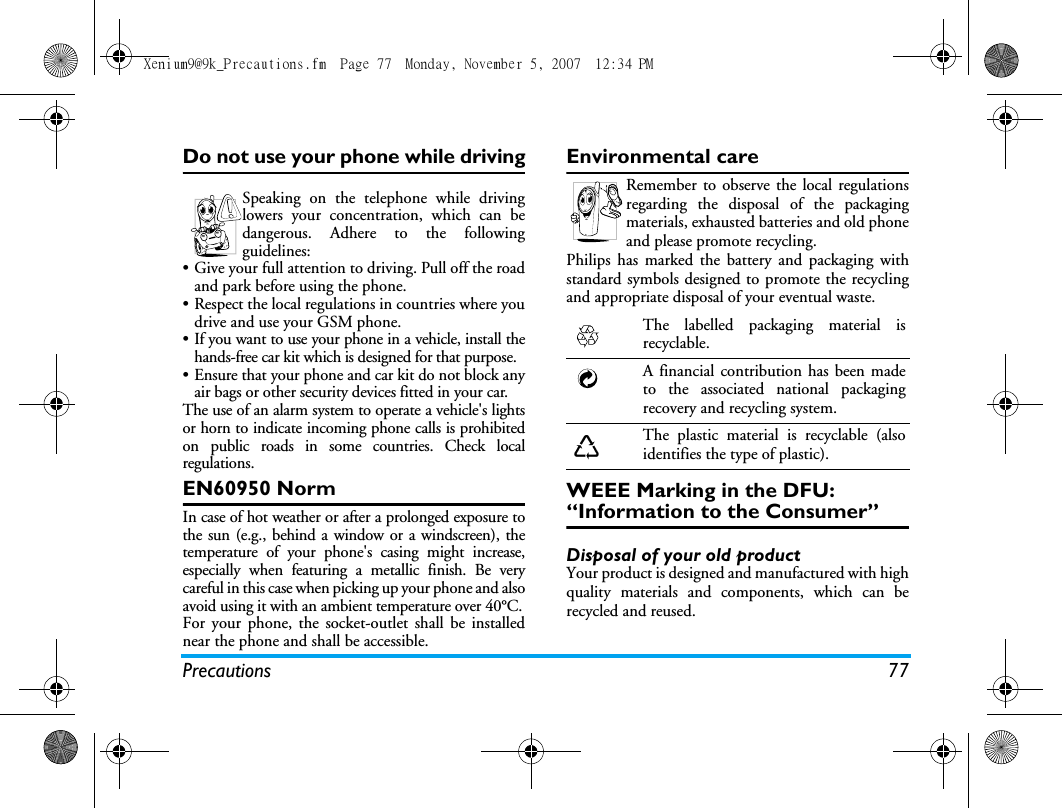

Precautions 77Do not use your phone while drivingSpeaking on the telephone while drivinglowers your concentration, which can bedangerous. Adhere to the followingguidelines:• Give your full attention to driving. Pull off the roadand park before using the phone.• Respect the local regulations in countries where youdrive and use your GSM phone.• If you want to use your phone in a vehicle, install thehands-free car kit which is designed for that purpose.• Ensure that your phone and car kit do not block anyair bags or other security devices fitted in your car.The use of an alarm system to operate a vehicle's lightsor horn to indicate incoming phone calls is prohibitedon public roads in some countries. Check localregulations.EN60950 NormIn case of hot weather or after a prolonged exposure tothe sun (e.g., behind a window or a windscreen), thetemperature of your phone's casing might increase,especially when featuring a metallic finish. Be verycareful in this case when picking up your phone and alsoavoid using it with an ambient temperature over 40°C.For your phone, the socket-outlet shall be installednear the phone and shall be accessible. Environmental careRemember to observe the local regulationsregarding the disposal of the packagingmaterials, exhausted batteries and old phoneand please promote recycling.Philips has marked the battery and packaging withstandard symbols designed to promote the recyclingand appropriate disposal of your eventual waste.WEEE Marking in the DFU: “Information to the Consumer”Disposal of your old productYour product is designed and manufactured with highquality materials and components, which can berecycled and reused. The labelled packaging material isrecyclable.A financial contribution has been madeto the associated national packagingrecovery and recycling system.The plastic material is recyclable (alsoidentifies the type of plastic).Xenium9@9k_Precautions.fm  Page 77  Monday, November 5, 2007  12:34 PM

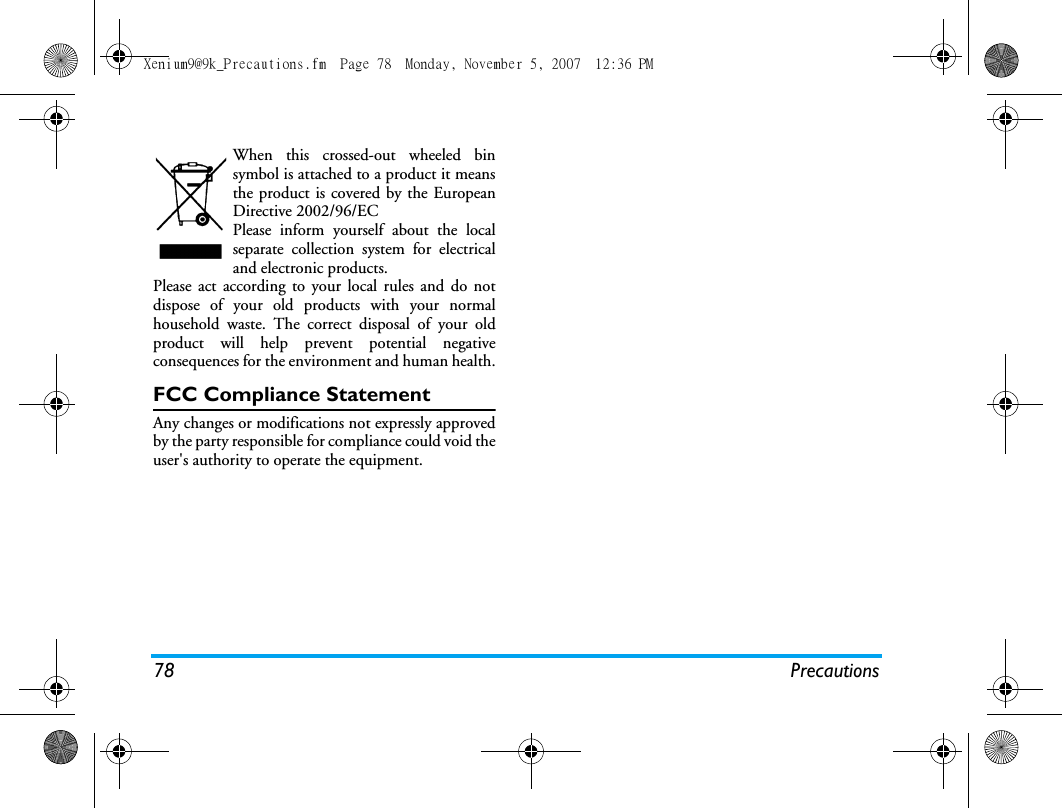

78 PrecautionsWhen this crossed-out wheeled binsymbol is attached to a product it meansthe product is covered by the EuropeanDirective 2002/96/ECPlease inform yourself about the localseparate collection system for electricaland electronic products.Please act according to your local rules and do notdispose of your old products with your normalhousehold waste. The correct disposal of your oldproduct will help prevent potential negativeconsequences for the environment and human health.FCC Compliance StatementAny changes or modifications not expressly approvedby the party responsible for compliance could void theuser's authority to operate the equipment.Xenium9@9k_Precautions.fm  Page 78  Monday, November 5, 2007  12:36 PM

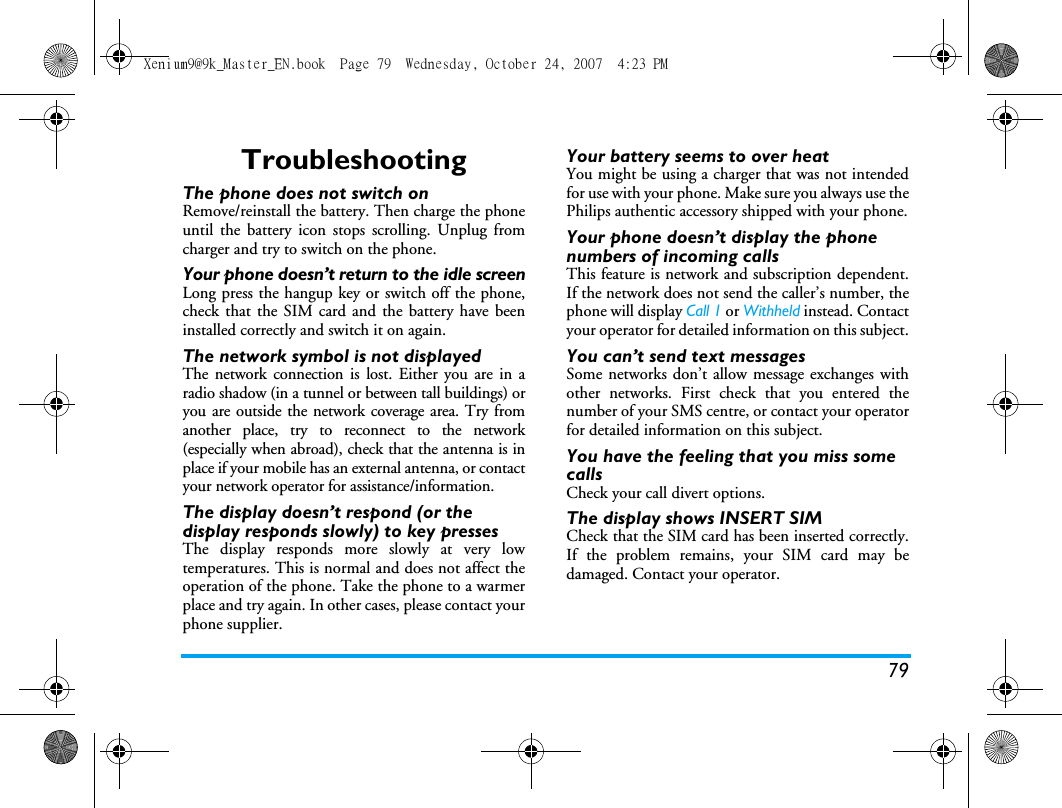

79TroubleshootingThe phone does not switch onRemove/reinstall the battery. Then charge the phoneuntil the battery icon stops scrolling. Unplug fromcharger and try to switch on the phone.Your phone doesn’t return to the idle screenLong press the hangup key or switch off the phone,check that the SIM card and the battery have beeninstalled correctly and switch it on again.The network symbol is not displayedThe network connection is lost. Either you are in aradio shadow (in a tunnel or between tall buildings) oryou are outside the network coverage area. Try fromanother place, try to reconnect to the network(especially when abroad), check that the antenna is inplace if your mobile has an external antenna, or contactyour network operator for assistance/information.The display doesn’t respond (or the display responds slowly) to key pressesThe display responds more slowly at very lowtemperatures. This is normal and does not affect theoperation of the phone. Take the phone to a warmerplace and try again. In other cases, please contact yourphone supplier.Your battery seems to over heatYou might be using a charger that was not intendedfor use with your phone. Make sure you always use thePhilips authentic accessory shipped with your phone.Your phone doesn’t display the phone numbers of incoming callsThis feature is network and subscription dependent.If the network does not send the caller’s number, thephone will display Call 1 or Withheld instead. Contactyour operator for detailed information on this subject.You can’t send text messagesSome networks don’t allow message exchanges withother networks. First check that you entered thenumber of your SMS centre, or contact your operatorfor detailed information on this subject.You have the feeling that you miss some callsCheck your call divert options.The display shows INSERT SIM Check that the SIM card has been inserted correctly.If the problem remains, your SIM card may bedamaged. Contact your operator.Xenium9@9k_Master_EN.book  Page 79  Wednesday, October 24, 2007  4:23 PM

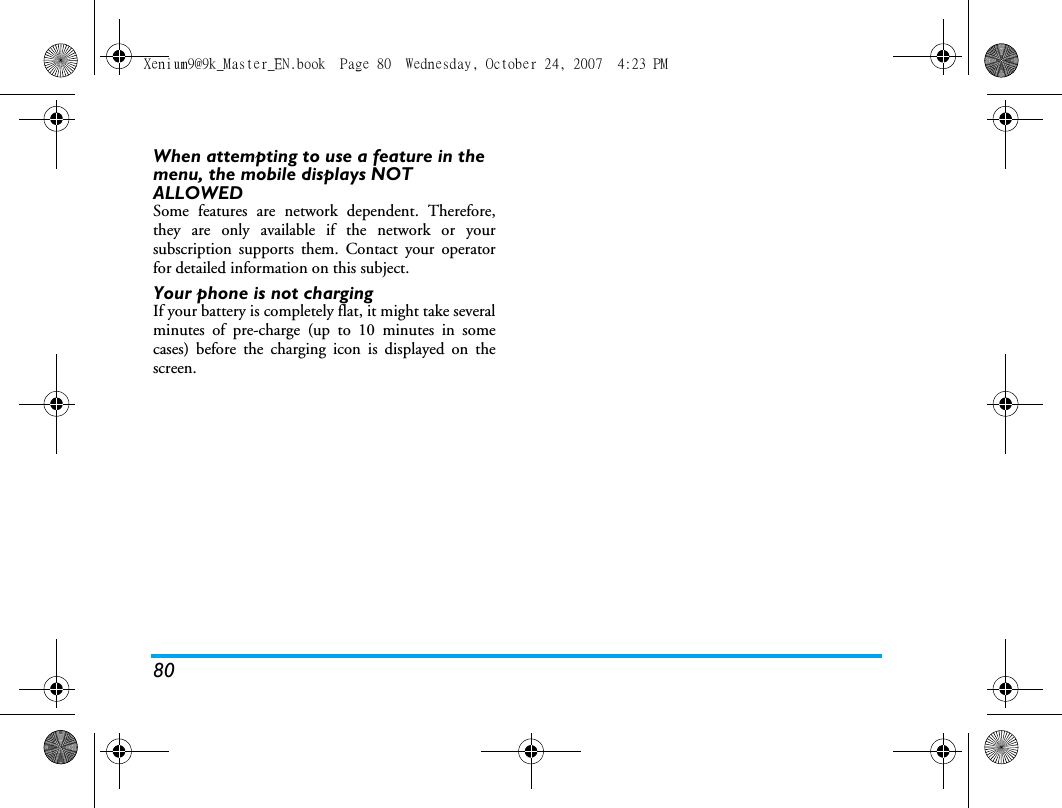

80When attempting to use a feature in the menu, the mobile displays NOT ALLOWEDSome features are network dependent. Therefore,they are only available if the network or yoursubscription supports them. Contact your operatorfor detailed information on this subject.Your phone is not chargingIf your battery is completely flat, it might take severalminutes of pre-charge (up to 10 minutes in somecases) before the charging icon is displayed on thescreen.Xenium9@9k_Master_EN.book  Page 80  Wednesday, October 24, 2007  4:23 PM

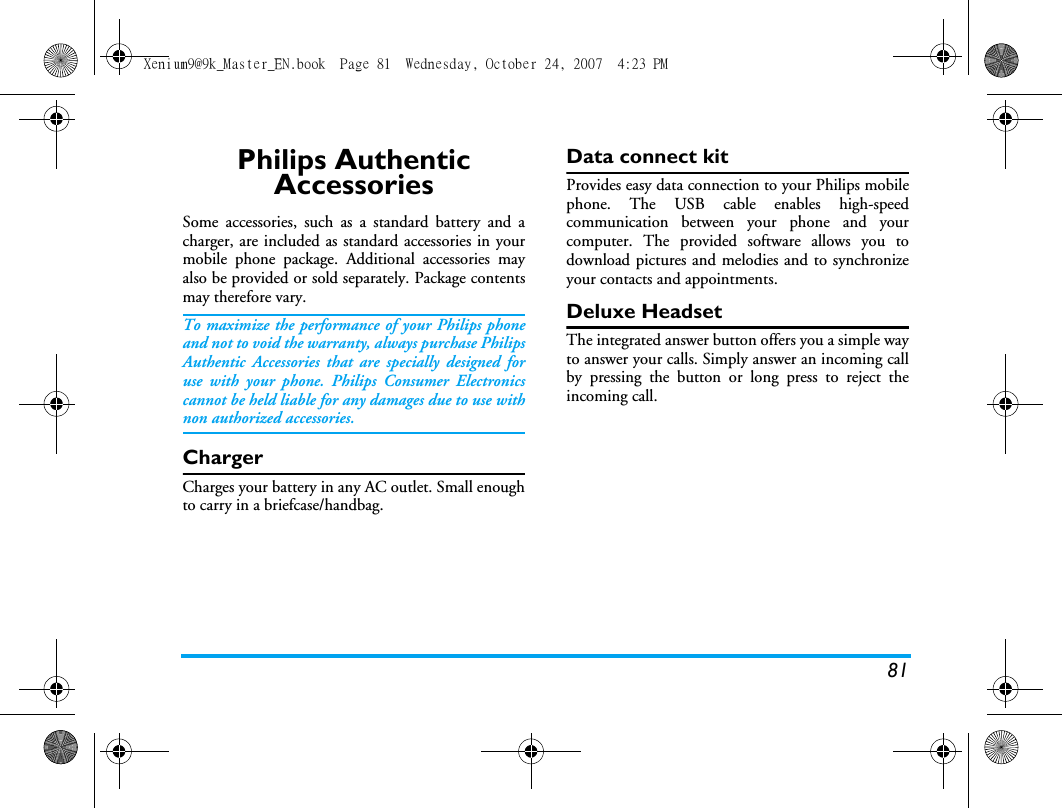

81Philips Authentic AccessoriesSome accessories, such as a standard battery and acharger, are included as standard accessories in yourmobile phone package. Additional accessories mayalso be provided or sold separately. Package contentsmay therefore vary.To maximize the performance of your Philips phoneand not to void the warranty, always purchase PhilipsAuthentic Accessories that are specially designed foruse with your phone. Philips Consumer Electronicscannot be held liable for any damages due to use withnon authorized accessories.ChargerCharges your battery in any AC outlet. Small enoughto carry in a briefcase/handbag.Data connect kitProvides easy data connection to your Philips mobilephone. The USB cable enables high-speedcommunication between your phone and yourcomputer. The provided software allows you todownload pictures and melodies and to synchronizeyour contacts and appointments.Deluxe HeadsetThe integrated answer button offers you a simple wayto answer your calls. Simply answer an incoming callby pressing the button or long press to reject theincoming call.Xenium9@9k_Master_EN.book  Page 81  Wednesday, October 24, 2007  4:23 PM

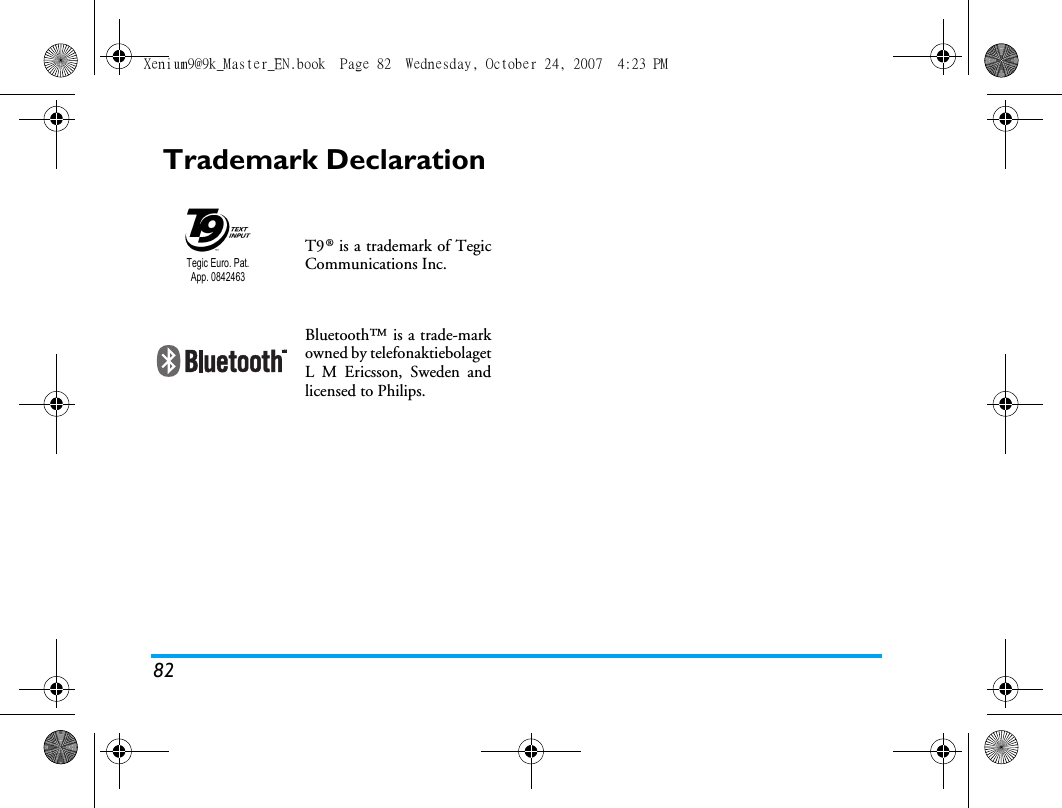

82Trademark DeclarationT9® is a trademark of TegicCommunications Inc.Bluetooth™ is a trade-markowned by telefonaktiebolagetL M Ericsson, Sweden andlicensed to Philips.Tegic Euro. Pat. App. 0842463Xenium9@9k_Master_EN.book  Page 82  Wednesday, October 24, 2007  4:23 PM

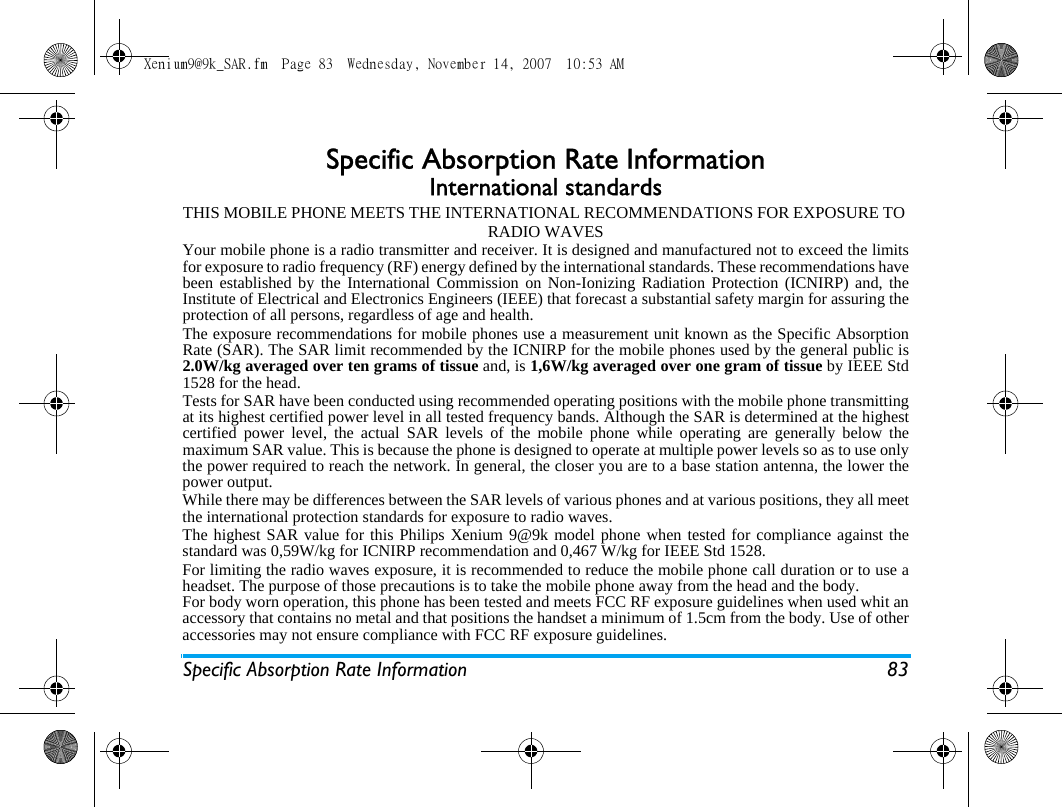

Specific Absorption Rate Information 83Specific Absorption Rate InformationInternational standardsTHIS MOBILE PHONE MEETS THE INTERNATIONAL RECOMMENDATIONS FOR EXPOSURE TO RADIO WAVESYour mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limitsfor exposure to radio frequency (RF) energy defined by the international standards. These recommendations havebeen established by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and, theInstitute of Electrical and Electronics Engineers (IEEE) that forecast a substantial safety margin for assuring theprotection of all persons, regardless of age and health.The exposure recommendations for mobile phones use a measurement unit known as the Specific AbsorptionRate (SAR). The SAR limit recommended by the ICNIRP for the mobile phones used by the general public is2.0W/kg averaged over ten grams of tissue and, is 1,6W/kg averaged over one gram of tissue by IEEE Std1528 for the head.Tests for SAR have been conducted using recommended operating positions with the mobile phone transmittingat its highest certified power level in all tested frequency bands. Although the SAR is determined at the highestcertified power level, the actual SAR levels of the mobile phone while operating are generally below themaximum SAR value. This is because the phone is designed to operate at multiple power levels so as to use onlythe power required to reach the network. In general, the closer you are to a base station antenna, the lower thepower output. While there may be differences between the SAR levels of various phones and at various positions, they all meetthe international protection standards for exposure to radio waves. The highest SAR value for this Philips Xenium 9@9k model phone when tested for compliance against thestandard was 0,59W/kg for ICNIRP recommendation and 0,467 W/kg for IEEE Std 1528. For limiting the radio waves exposure, it is recommended to reduce the mobile phone call duration or to use aheadset. The purpose of those precautions is to take the mobile phone away from the head and the body.For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used whit anaccessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. Use of otheraccessories may not ensure compliance with FCC RF exposure guidelines.Xenium9@9k_SAR.fm  Page 83  Wednesday, November 14, 2007  10:53 AM

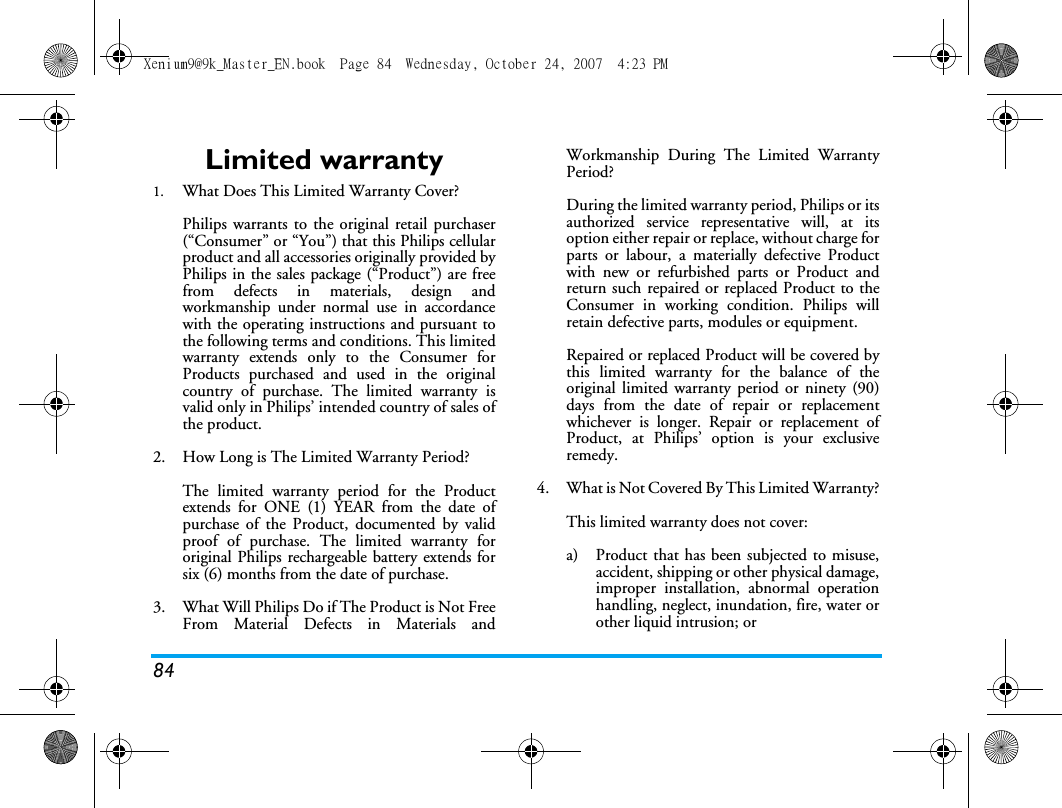

84Limited warranty1.  What Does This Limited Warranty Cover?Philips warrants to the original retail purchaser(“Consumer” or “You”) that this Philips cellularproduct and all accessories originally provided byPhilips in the sales package (“Product”) are freefrom defects in materials, design andworkmanship under normal use in accordancewith the operating instructions and pursuant tothe following terms and conditions. This limitedwarranty extends only to the Consumer forProducts purchased and used in the originalcountry of purchase. The limited warranty isvalid only in Philips’ intended country of sales ofthe product.2.  How Long is The Limited Warranty Period?The limited warranty period for the Productextends for ONE (1) YEAR from the date ofpurchase of the Product, documented by validproof of purchase. The limited warranty fororiginal Philips rechargeable battery extends forsix (6) months from the date of purchase.3.  What Will Philips Do if The Product is Not FreeFrom Material Defects in Materials andWorkmanship During The Limited WarrantyPeriod?During the limited warranty period, Philips or itsauthorized service representative will, at itsoption either repair or replace, without charge forparts or labour, a materially defective Productwith new or refurbished parts or Product andreturn such repaired or replaced Product to theConsumer in working condition. Philips willretain defective parts, modules or equipment.Repaired or replaced Product will be covered bythis limited warranty for the balance of theoriginal limited warranty period or ninety (90)days from the date of repair or replacementwhichever is longer. Repair or replacement ofProduct, at Philips’ option is your exclusiveremedy.4.  What is Not Covered By This Limited Warranty?This limited warranty does not cover:a)  Product that has been subjected to misuse,accident, shipping or other physical damage,improper installation, abnormal operationhandling, neglect, inundation, fire, water orother liquid intrusion; orXenium9@9k_Master_EN.book  Page 84  Wednesday, October 24, 2007  4:23 PM

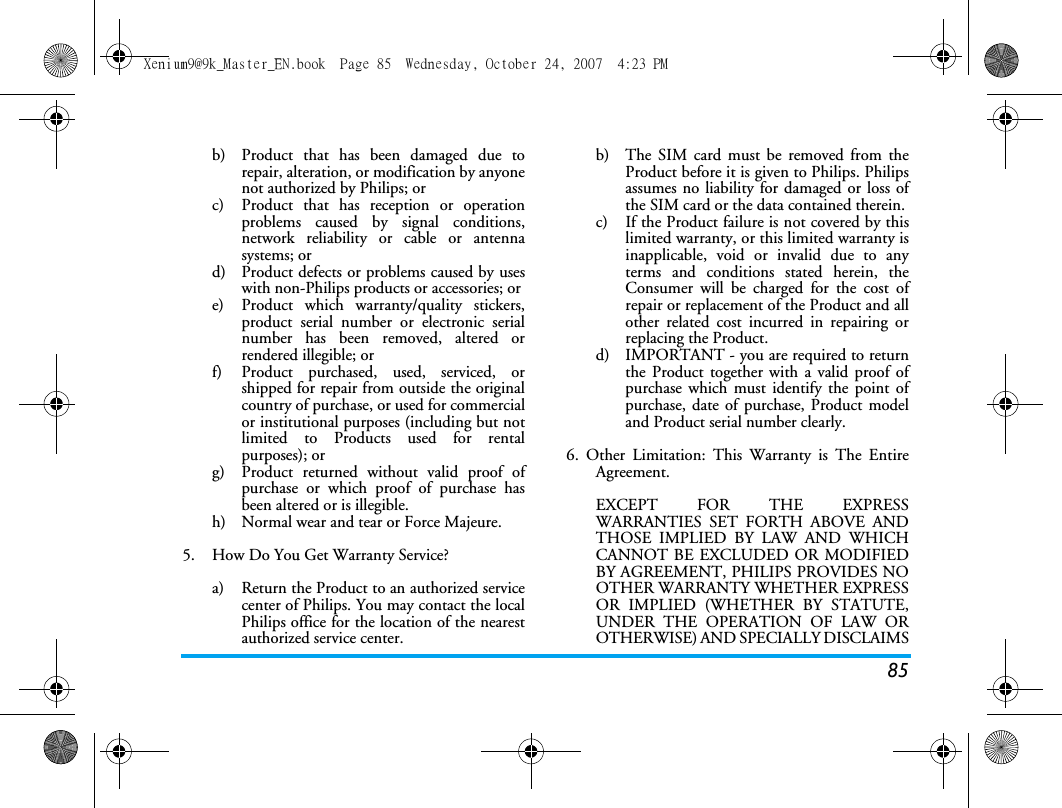

85b)  Product that has been damaged due torepair, alteration, or modification by anyonenot authorized by Philips; orc)  Product that has reception or operationproblems caused by signal conditions,network reliability or cable or antennasystems; ord)  Product defects or problems caused by useswith non-Philips products or accessories; or e)  Product which warranty/quality stickers,product serial number or electronic serialnumber has been removed, altered orrendered illegible; or f)  Product purchased, used, serviced, orshipped for repair from outside the originalcountry of purchase, or used for commercialor institutional purposes (including but notlimited to Products used for rentalpurposes); or g)  Product returned without valid proof ofpurchase or which proof of purchase hasbeen altered or is illegible.h) Normal wear and tear or Force Majeure.5.  How Do You Get Warranty Service?a)  Return the Product to an authorized servicecenter of Philips. You may contact the localPhilips office for the location of the nearestauthorized service center.b) The SIM card must be removed from theProduct before it is given to Philips. Philipsassumes no liability for damaged or loss ofthe SIM card or the data contained therein.c) If the Product failure is not covered by thislimited warranty, or this limited warranty isinapplicable, void or invalid due to anyterms and conditions stated herein, theConsumer will be charged for the cost ofrepair or replacement of the Product and allother related cost incurred in repairing orreplacing the Product.d)  IMPORTANT - you are required to returnthe Product together with a valid proof ofpurchase which must identify the point ofpurchase, date of purchase, Product modeland Product serial number clearly.6. Other Limitation: This Warranty is The EntireAgreement.EXCEPT FOR THE EXPRESSWARRANTIES SET FORTH ABOVE ANDTHOSE IMPLIED BY LAW AND WHICHCANNOT BE EXCLUDED OR MODIFIEDBY AGREEMENT, PHILIPS PROVIDES NOOTHER WARRANTY WHETHER EXPRESSOR IMPLIED (WHETHER BY STATUTE,UNDER THE OPERATION OF LAW OROTHERWISE) AND SPECIALLY DISCLAIMSXenium9@9k_Master_EN.book  Page 85  Wednesday, October 24, 2007  4:23 PM

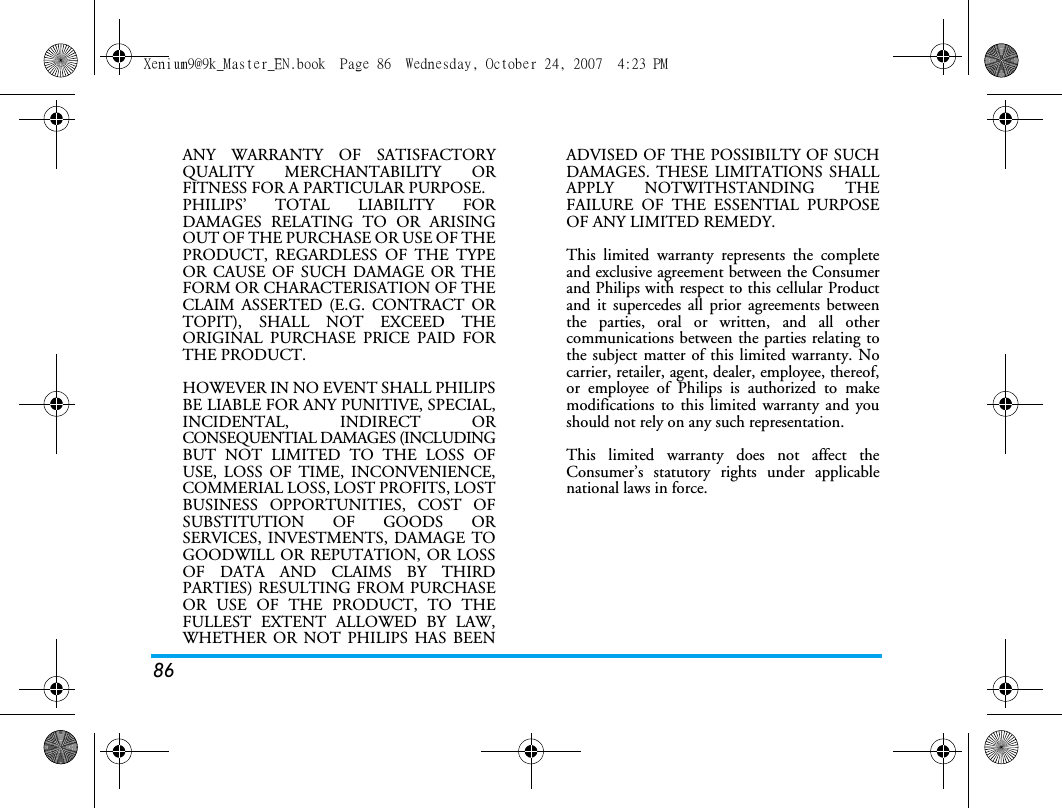

86ANY WARRANTY OF SATISFACTORYQUALITY MERCHANTABILITY ORFITNESS FOR A PARTICULAR PURPOSE.PHILIPS’ TOTAL LIABILITY FORDAMAGES RELATING TO OR ARISINGOUT OF THE PURCHASE OR USE OF THEPRODUCT, REGARDLESS OF THE TYPEOR CAUSE OF SUCH DAMAGE OR THEFORM OR CHARACTERISATION OF THECLAIM ASSERTED (E.G. CONTRACT ORTOPIT), SHALL NOT EXCEED THEORIGINAL PURCHASE PRICE PAID FORTHE PRODUCT.HOWEVER IN NO EVENT SHALL PHILIPSBE LIABLE FOR ANY PUNITIVE, SPECIAL,INCIDENTAL, INDIRECT ORCONSEQUENTIAL DAMAGES (INCLUDINGBUT NOT LIMITED TO THE LOSS OFUSE, LOSS OF TIME, INCONVENIENCE,COMMERIAL LOSS, LOST PROFITS, LOSTBUSINESS OPPORTUNITIES, COST OFSUBSTITUTION OF GOODS ORSERVICES, INVESTMENTS, DAMAGE TOGOODWILL OR REPUTATION, OR LOSSOF DATA AND CLAIMS BY THIRDPARTIES) RESULTING FROM PURCHASEOR USE OF THE PRODUCT, TO THEFULLEST EXTENT ALLOWED BY LAW,WHETHER OR NOT PHILIPS HAS BEENADVISED OF THE POSSIBILTY OF SUCHDAMAGES. THESE LIMITATIONS SHALLAPPLY NOTWITHSTANDING THEFAILURE OF THE ESSENTIAL PURPOSEOF ANY LIMITED REMEDY.This limited warranty represents the completeand exclusive agreement between the Consumerand Philips with respect to this cellular Productand it supercedes all prior agreements betweenthe parties, oral or written, and all othercommunications between the parties relating tothe subject matter of this limited warranty. Nocarrier, retailer, agent, dealer, employee, thereof,or employee of Philips is authorized to makemodifications to this limited warranty and youshould not rely on any such representation.This limited warranty does not affect theConsumer’s statutory rights under applicablenational laws in force.Xenium9@9k_Master_EN.book  Page 86  Wednesday, October 24, 2007  4:23 PM

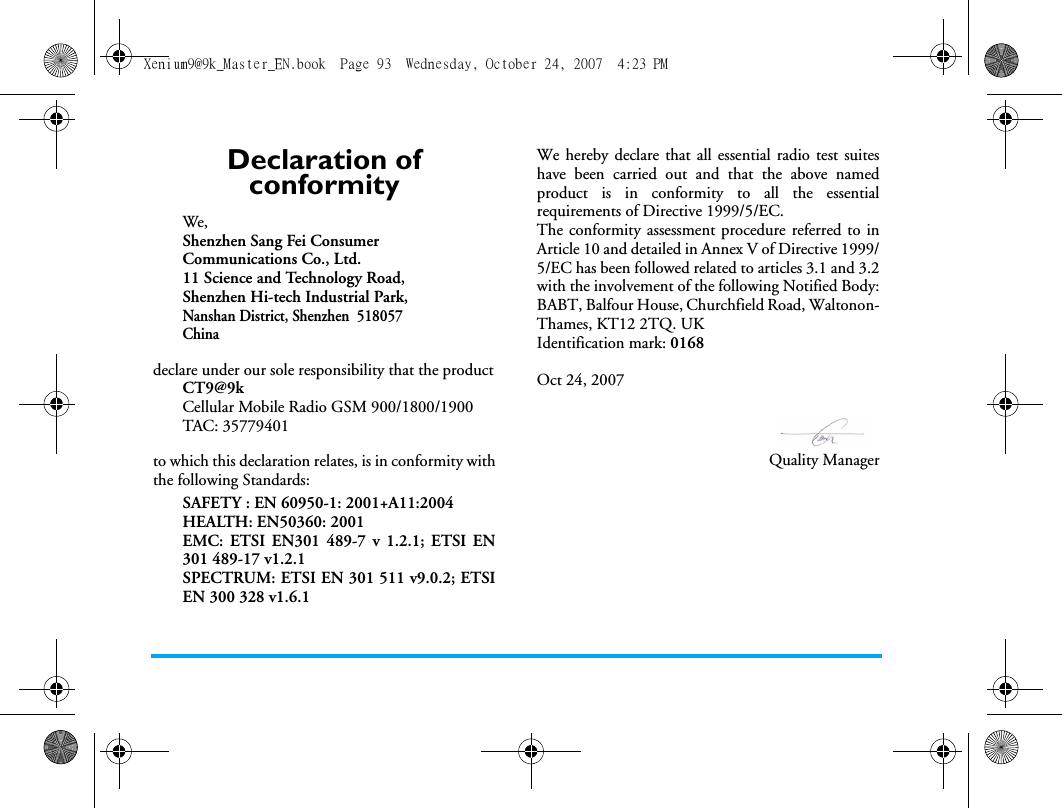

Declaration of conformityWe, Shenzhen Sang Fei ConsumerCommunications Co., Ltd.11 Science and Technology Road,Shenzhen Hi-tech Industrial Park,Nanshan District, Shenzhen  518057Chinadeclare under our sole responsibility that the productCT9@9kCellular Mobile Radio GSM 900/1800/1900TAC: 35779401to which this declaration relates, is in conformity withthe following Standards:SAFETY : EN 60950-1: 2001+A11:2004HEALTH: EN50360: 2001EMC: ETSI EN301 489-7 v 1.2.1; ETSI EN301 489-17 v1.2.1 SPECTRUM: ETSI EN 301 511 v9.0.2; ETSIEN 300 328 v1.6.1 We hereby declare that all essential radio test suiteshave been carried out and that the above namedproduct is in conformity to all the essentialrequirements of Directive 1999/5/EC.The conformity assessment procedure referred to inArticle 10 and detailed in Annex V of Directive 1999/5/EC has been followed related to articles 3.1 and 3.2with the involvement of the following Notified Body:BABT, Balfour House, Churchfield Road, Waltonon-Thames, KT12 2TQ. UKIdentification mark: 0168Oct 24, 2007Quality ManagerXenium9@9k_Master_EN.book  Page 93  Wednesday, October 24, 2007  4:23 PM
