Sang Fei Consumer Communications CTX520 GSM/GPRS/EDGE 850/900/1800/1900 digital mobile phone with Bluetooth User Manual X520 Master EN

Shenzhen Sang Fei Consumer Communications Co., Ltd. GSM/GPRS/EDGE 850/900/1800/1900 digital mobile phone with Bluetooth X520 Master EN

Contents

Revised Manual

Discover Your PhonePhilips continuously strives to improve itsproducts.Therefore, Philips reserves the rights torevise this user guide or withdraw it at any timewithout prior notice. Philips provides this userguide “as is” and does not accept, except asrequired by applicable law, liability for any error,omission or discrepancy between this user guideand the product described. The device is meant tobe connected to GSM/GPRS networks.How to ...Pick up key 262K colourTFT LCDLeft softkeyBack of phone: Camera lensHeadset, charger, and data cable Side volume keysNavigationkeysMicro SDcard slotRight softkeyHang up andon/off keyAlphanumerickeypadAAAbattery capMicrophoneSwitch the phone On/OffLong press and release ).Enter your PIN codeEnter your PIN code using thekeypad and press , toconfirm.Lock/unlock the keypadLong press *.Make a call Enter the phone number usingthe keypad and press (.End a call Press ).Answer a call When the phone rings, press (.Activate/deactivate handsfree modeDuring a call, press RLoudsp.to activate the handsfreemode.When there is an incomingcall, press LOptions, then selectAccept with handsfree and press,.Mute a call When the phone rings, pressRSilent.X520_Master_EN.book Page 0 Tuesday, October 14, 2008 2:04 PM

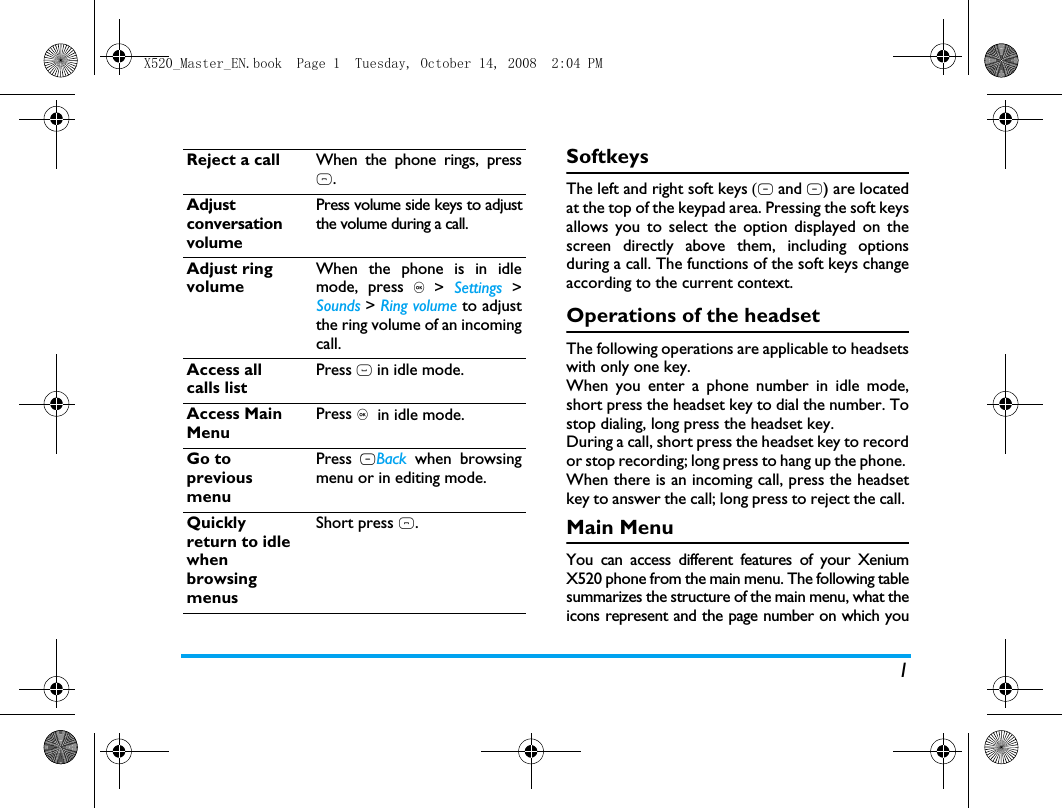

1SoftkeysThe left and right soft keys (L and R) are locatedat the top of the keypad area. Pressing the soft keysallows you to select the option displayed on thescreen directly above them, including optionsduring a call. The functions of the soft keys changeaccording to the current context. Operations of the headsetThe following operations are applicable to headsetswith only one key. When you enter a phone number in idle mode,short press the headset key to dial the number. Tostop dialing, long press the headset key. During a call, short press the headset key to recordor stop recording; long press to hang up the phone. When there is an incoming call, press the headsetkey to answer the call; long press to reject the call. Main MenuYou can access different features of your XeniumX520 phone from the main menu. The following tablesummarizes the structure of the main menu, what theicons represent and the page number on which youReject a call When the phone rings, press).Adjust conversation volumePress volume side keys to adjustthe volume during a call.Adjust ring volumeWhen the phone is in idlemode, press , > Settings >Sounds > Ring volume to adjustthe ring volume of an incomingcall.Access all calls listPress ( in idle mode.Access Main MenuPress , in idle mode.Go to previous menuPress RBack when browsingmenu or in editing mode.Quickly return to idle when browsing menusShort press ).X520_Master_EN.book Page 1 Tuesday, October 14, 2008 2:04 PM

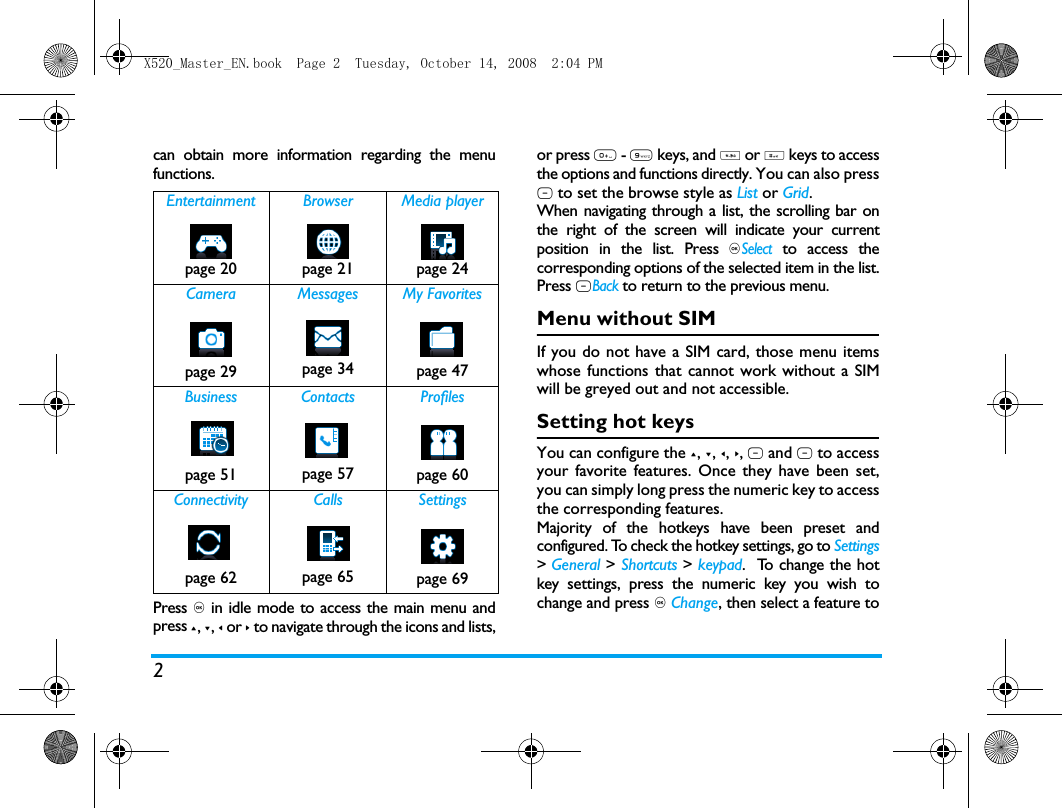

2can obtain more information regarding the menufunctions.Press , in idle mode to access the main menu andpress +, -, < or > to navigate through the icons and lists,or press 0 - 9 keys, and * or # keys to accessthe options and functions directly. You can also pressL to set the browse style as List or Grid.When navigating through a list, the scrolling bar onthe right of the screen will indicate your currentposition in the list. Press ,Select to access thecorresponding options of the selected item in the list.Press RBack to return to the previous menu. Menu without SIMIf you do not have a SIM card, those menu itemswhose functions that cannot work without a SIMwill be greyed out and not accessible. Setting hot keysYou can configure the +, -, <, >, L and R to accessyour favorite features. Once they have been set,you can simply long press the numeric key to accessthe corresponding features.Majority of the hotkeys have been preset andconfigured. To check the hotkey settings, go to Settings> General > Shortcuts > keypad. To change the hotkey settings, press the numeric key you wish tochange and press , Change, then select a feature toEntertainment Browser Media playerpage 20 page 21 page 24Camera Messages My Favoritespage 29 page 34 page 47Business Contacts Profilespage 51 page 57 page 60Connectivity Calls Settingspage 62 page 65 page 69X520_Master_EN.book Page 2 Tuesday, October 14, 2008 2:04 PM

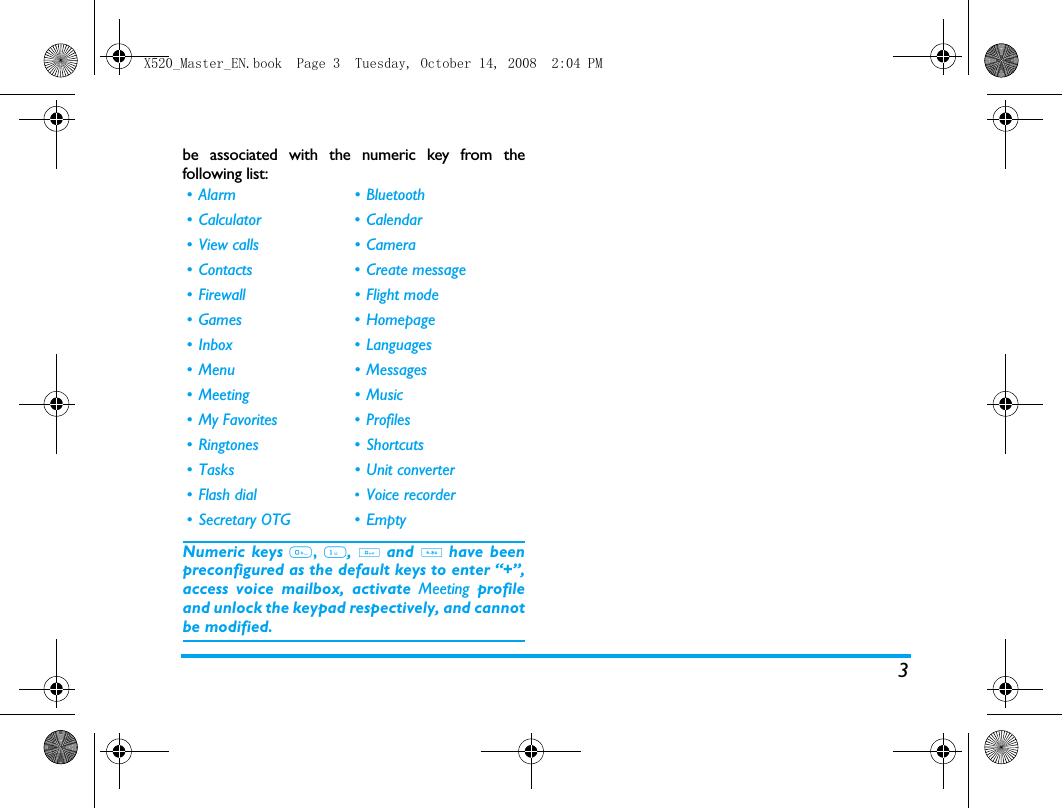

3be associated with the numeric key from thefollowing list:Numeric keys 0, 1, # and * have beenpreconfigured as the default keys to enter “+”,access voice mailbox, activate Meeting profileand unlock the keypad respectively, and cannotbe modified.• Alarm • Bluetooth• Calculator • Calendar• View calls • Camera• Contacts • Create message• Firewall • Flight mode•Games •Homepage•Inbox •Languages• Menu • Messages• Meeting • Music•My Favorites • Profiles•Ringtones •Shortcuts• Tasks • Unit converter•Flash dial •Voice recorder• Secretary OTG • EmptyX520_Master_EN.book Page 3 Tuesday, October 14, 2008 2:04 PM

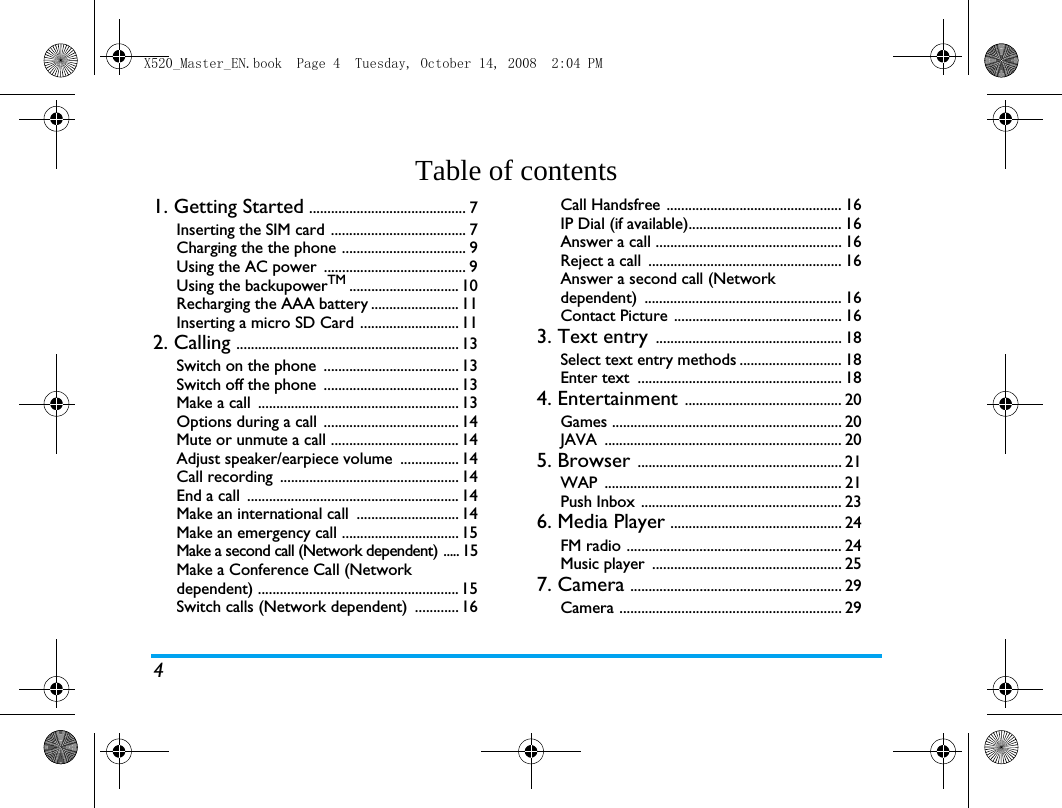

4Table of contents1. Getting Started ........................................... 7Inserting the SIM card ..................................... 7Charging the the phone .................................. 9Using the AC power ....................................... 9Using the backupowerTM .............................. 10Recharging the AAA battery ........................ 11Inserting a micro SD Card ........................... 112. Calling ............................................................. 13Switch on the phone ..................................... 13Switch off the phone ..................................... 13Make a call ....................................................... 13Options during a call ..................................... 14Mute or unmute a call ................................... 14Adjust speaker/earpiece volume ................ 14Call recording ................................................. 14End a call .......................................................... 14Make an international call ............................ 14Make an emergency call ................................ 15Make a second call (Network dependent) ..... 15Make a Conference Call (Network dependent) ....................................................... 15Switch calls (Network dependent) ............ 16Call Handsfree ................................................ 16IP Dial (if available).......................................... 16Answer a call ................................................... 16Reject a call ..................................................... 16Answer a second call (Network dependent) ...................................................... 16Contact Picture .............................................. 163. Text entry ................................................... 18Select text entry methods ............................ 18Enter text ........................................................ 184. Entertainment ........................................... 20Games ............................................................... 20JAVA ................................................................. 205. Browser ........................................................ 21WAP ................................................................. 21Push Inbox ....................................................... 236. Media Player ............................................... 24FM radio ........................................................... 24Music player .................................................... 257. Camera .......................................................... 29Camera ............................................................. 29X520_Master_EN.book Page 4 Tuesday, October 14, 2008 2:04 PM

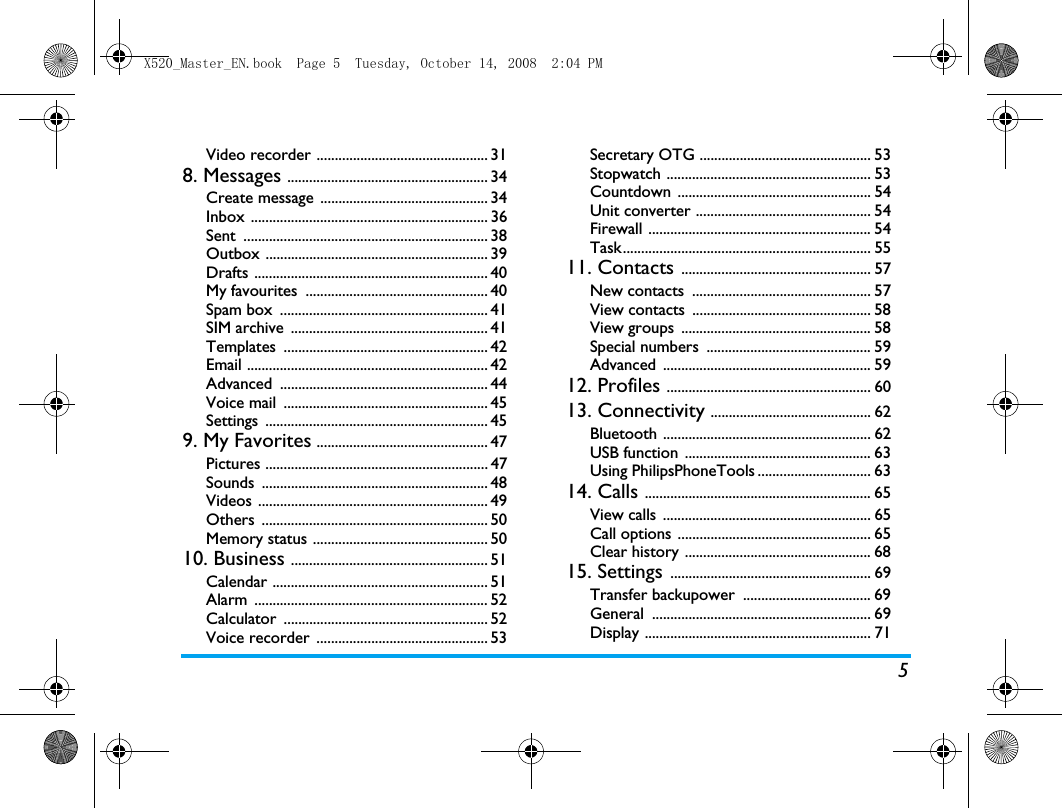

5Video recorder ............................................... 318. Messages ....................................................... 34Create message .............................................. 34Inbox ................................................................. 36Sent ................................................................... 38Outbox ............................................................. 39Drafts ................................................................ 40My favourites .................................................. 40Spam box ......................................................... 41SIM archive ...................................................... 41Templates ........................................................ 42Email .................................................................. 42Advanced ......................................................... 44Voice mail ........................................................ 45Settings ............................................................. 459. My Favorites ............................................... 47Pictures ............................................................. 47Sounds .............................................................. 48Videos ............................................................... 49Others .............................................................. 50Memory status ................................................ 5010. Business ...................................................... 51Calendar ........................................................... 51Alarm ................................................................ 52Calculator ........................................................ 52Voice recorder ............................................... 53Secretary OTG ............................................... 53Stopwatch ........................................................ 53Countdown ..................................................... 54Unit converter ................................................ 54Firewall ............................................................. 54Task.................................................................... 5511. Contacts .................................................... 57New contacts ................................................. 57View contacts ................................................. 58View groups .................................................... 58Special numbers ............................................. 59Advanced ......................................................... 5912. Profiles ........................................................ 6013. Connectivity ............................................ 62Bluetooth ......................................................... 62USB function ................................................... 63Using PhilipsPhoneTools ............................... 6314. Calls .............................................................. 65View calls ......................................................... 65Call options ..................................................... 65Clear history ................................................... 6815. Settings ....................................................... 69Transfer backupower ................................... 69General ............................................................ 69Display .............................................................. 71X520_Master_EN.book Page 5 Tuesday, October 14, 2008 2:04 PM

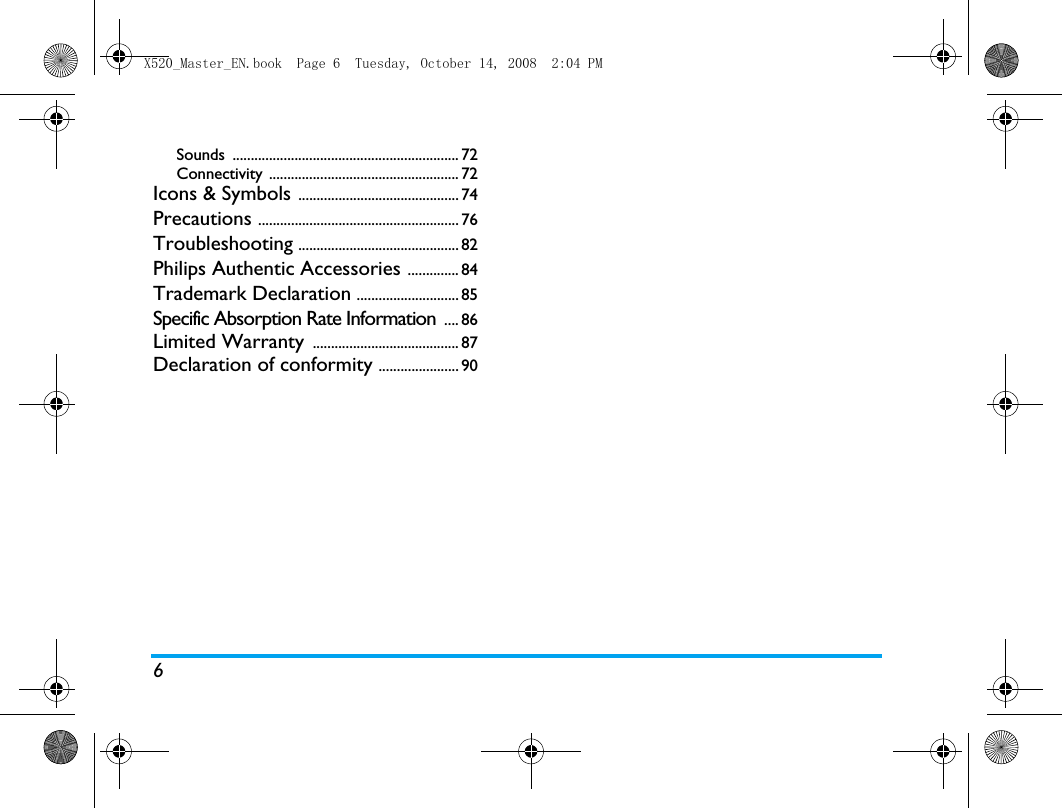

6Sounds .............................................................. 72Connectivity .................................................... 72Icons & Symbols ............................................ 74Precautions ....................................................... 76Troubleshooting ............................................ 82Philips Authentic Accessories .............. 84Trademark Declaration ............................ 85Specific Absorption Rate Information .... 86Limited Warranty ........................................ 87Declaration of conformity ...................... 90X520_Master_EN.book Page 6 Tuesday, October 14, 2008 2:04 PM

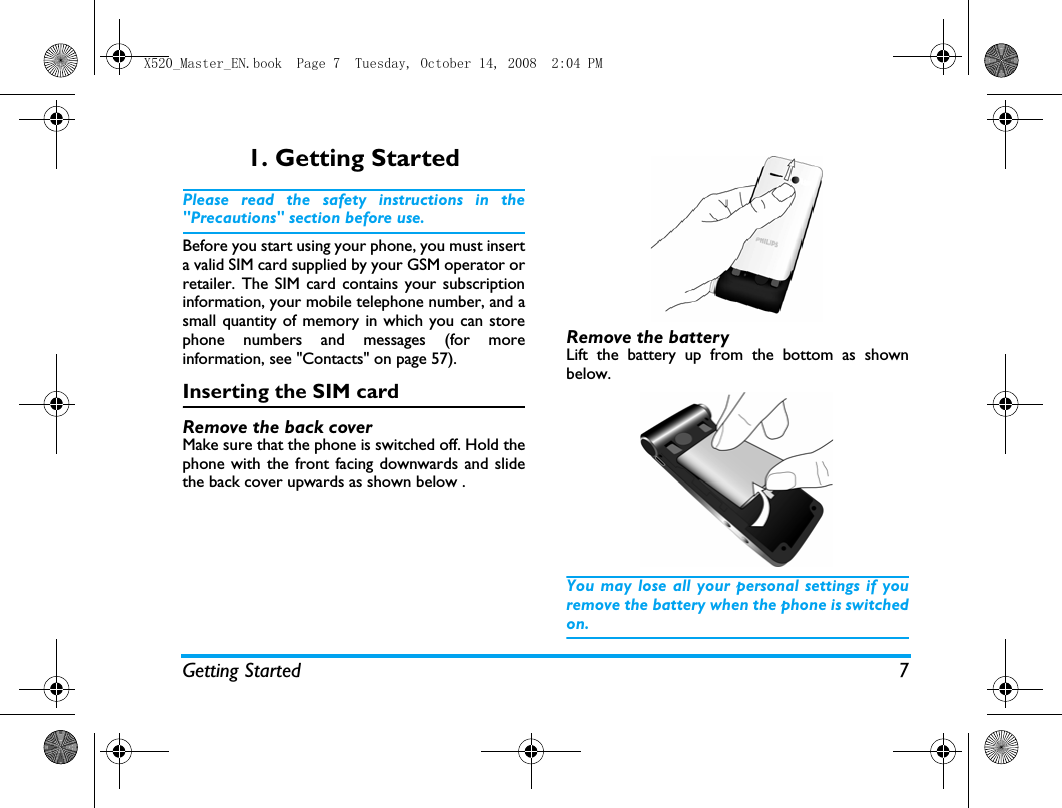

Getting Started 71. Getting StartedPlease read the safety instructions in the"Precautions" section before use.Before you start using your phone, you must inserta valid SIM card supplied by your GSM operator orretailer. The SIM card contains your subscriptioninformation, your mobile telephone number, and asmall quantity of memory in which you can storephone numbers and messages (for moreinformation, see "Contacts" on page 57). Inserting the SIM cardRemove the back coverMake sure that the phone is switched off. Hold thephone with the front facing downwards and slidethe back cover upwards as shown below .Remove the batteryLift the battery up from the bottom as shownbelow.You may lose all your personal settings if youremove the battery when the phone is switchedon.X520_Master_EN.book Page 7 Tuesday, October 14, 2008 2:04 PM

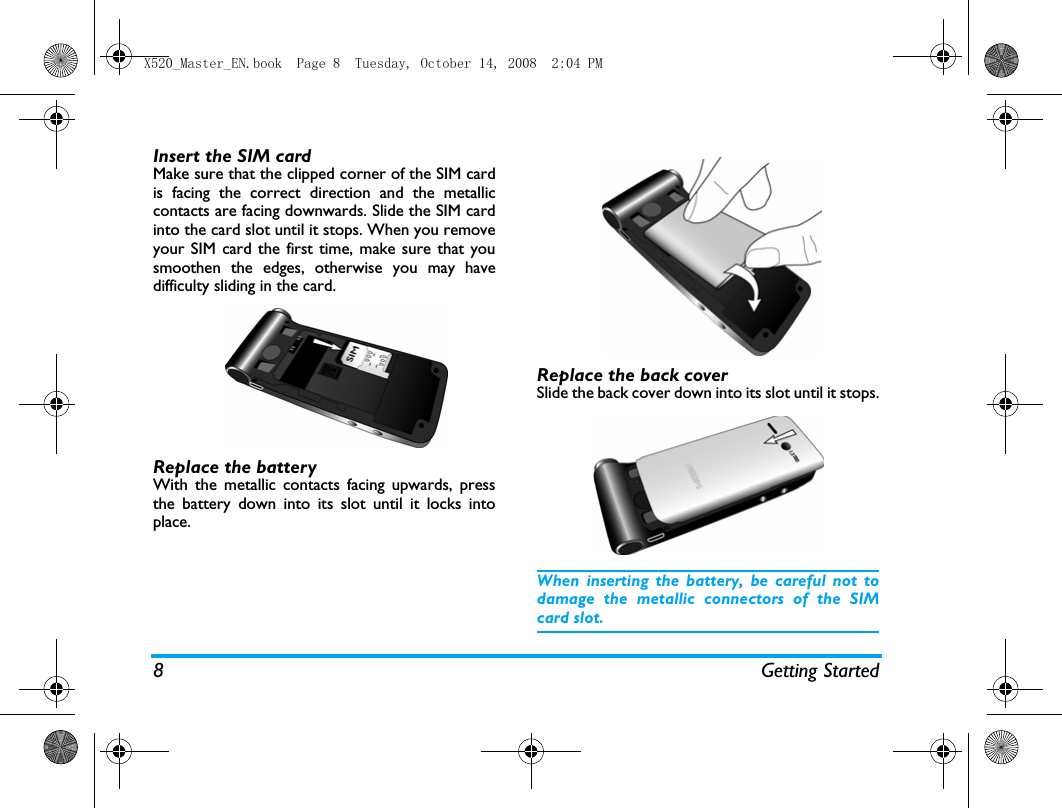

8 Getting StartedInsert the SIM cardMake sure that the clipped corner of the SIM cardis facing the correct direction and the metalliccontacts are facing downwards. Slide the SIM cardinto the card slot until it stops. When you removeyour SIM card the first time, make sure that yousmoothen the edges, otherwise you may havedifficulty sliding in the card.Replace the batteryWith the metallic contacts facing upwards, pressthe battery down into its slot until it locks intoplace.Replace the back coverSlide the back cover down into its slot until it stops.When inserting the battery, be careful not todamage the metallic connectors of the SIMcard slot.X520_Master_EN.book Page 8 Tuesday, October 14, 2008 2:04 PM

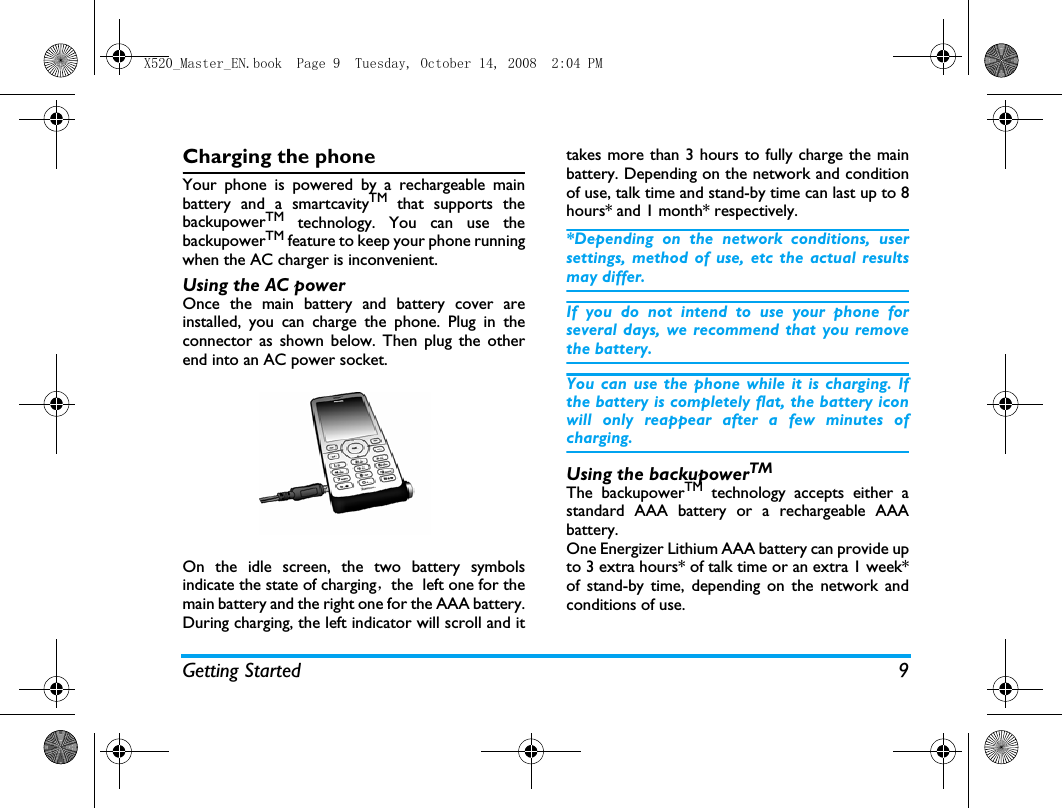

Getting Started 9Charging the phoneYour phone is powered by a rechargeable mainbattery and a smartcavityTM that supports thebackupowerTM technology. You can use thebackupowerTM feature to keep your phone runningwhen the AC charger is inconvenient.Using the AC power Once the main battery and battery cover areinstalled, you can charge the phone. Plug in theconnector as shown below. Then plug the otherend into an AC power socket.On the idle screen, the two battery symbolsindicate the state of charging，the left one for themain battery and the right one for the AAA battery.During charging, the left indicator will scroll and ittakes more than 3 hours to fully charge the mainbattery. Depending on the network and conditionof use, talk time and stand-by time can last up to 8hours* and 1 month* respectively.*Depending on the network conditions, usersettings, method of use, etc the actual resultsmay differ. If you do not intend to use your phone forseveral days, we recommend that you removethe battery.You can use the phone while it is charging. Ifthe battery is completely flat, the battery iconwill only reappear after a few minutes ofcharging.Using the backupowerTM The backupowerTM technology accepts either astandard AAA battery or a rechargeable AAAbattery. One Energizer Lithium AAA battery can provide upto 3 extra hours* of talk time or an extra 1 week*of stand-by time, depending on the network andconditions of use. X520_Master_EN.book Page 9 Tuesday, October 14, 2008 2:04 PM

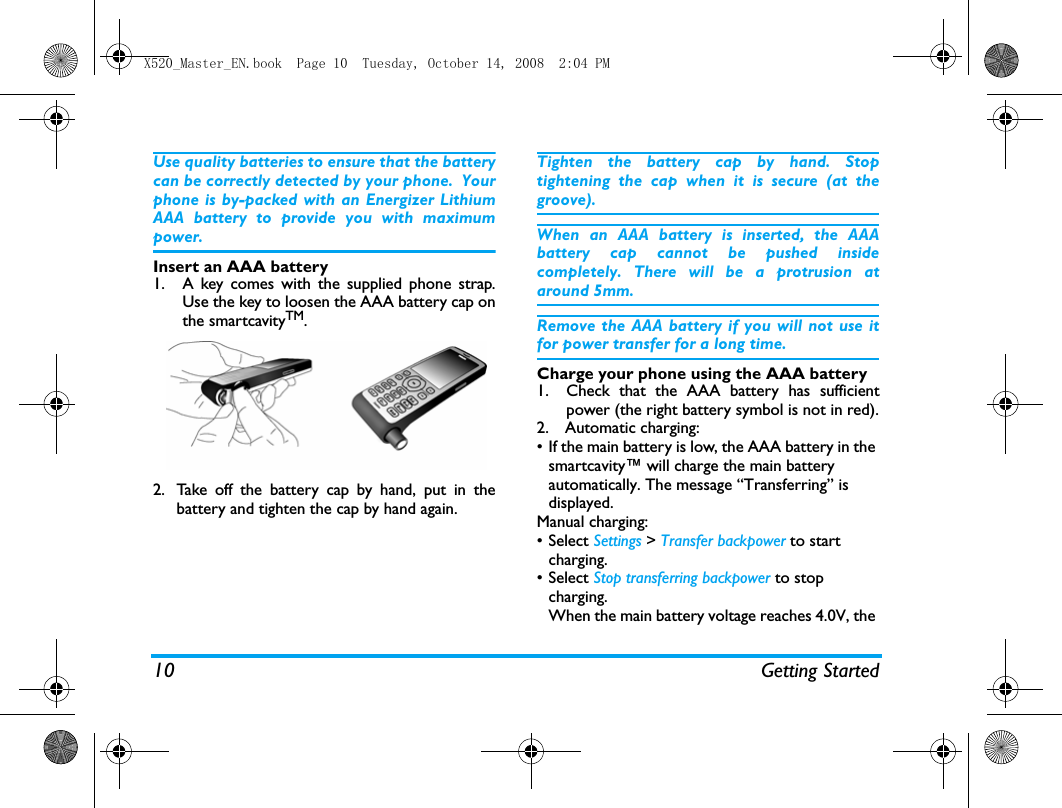

10 Getting StartedUse quality batteries to ensure that the batterycan be correctly detected by your phone. Yourphone is by-packed with an Energizer LithiumAAA battery to provide you with maximumpower. Insert an AAA battery1. A key comes with the supplied phone strap.Use the key to loosen the AAA battery cap onthe smartcavityTM. 2. Take off the battery cap by hand, put in thebattery and tighten the cap by hand again.Tighten the battery cap by hand. Stoptightening the cap when it is secure (at thegroove). When an AAA battery is inserted, the AAAbattery cap cannot be pushed insidecompletely. There will be a protrusion ataround 5mm.Remove the AAA battery if you will not use itfor power transfer for a long time. Charge your phone using the AAA battery1. Check that the AAA battery has sufficientpower (the right battery symbol is not in red).2. Automatic charging: • If the main battery is low, the AAA battery in the smartcavity™ will charge the main battery automatically. The message “Transferring” is displayed.Manual charging:• Select Settings > Transfer backpower to start charging.• Select Stop transferring backpower to stop charging.When the main battery voltage reaches 4.0V, the X520_Master_EN.book Page 10 Tuesday, October 14, 2008 2:04 PM

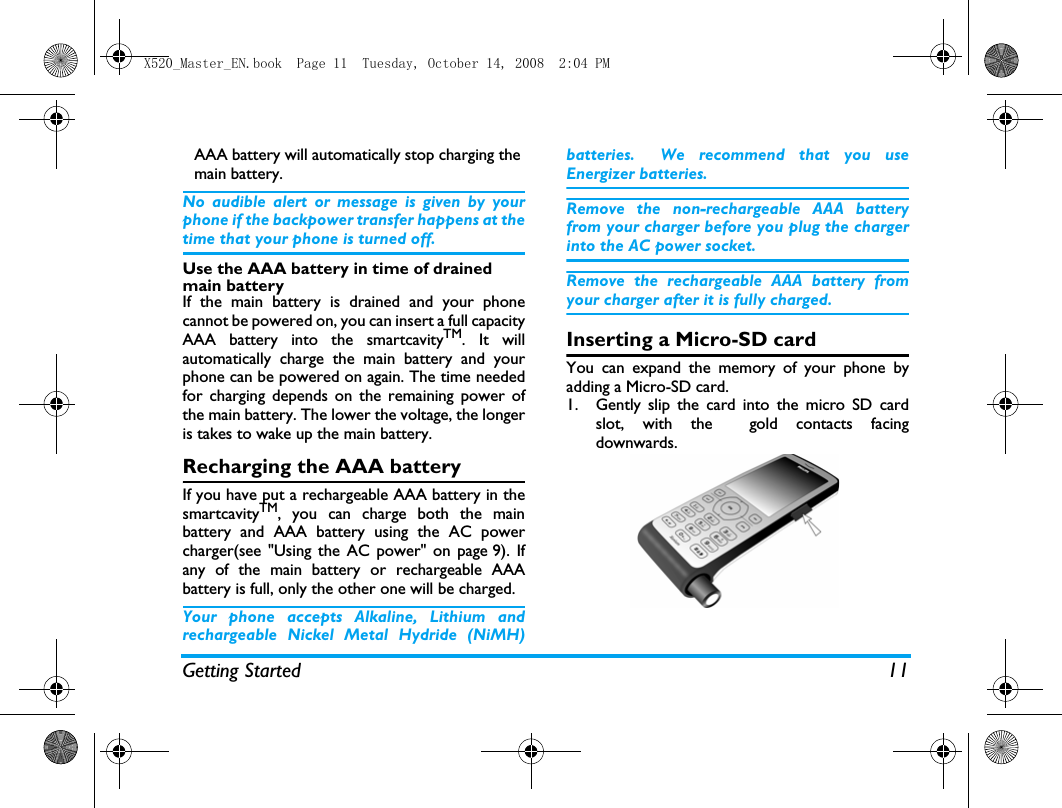

Getting Started 11AAA battery will automatically stop charging the main battery.No audible alert or message is given by yourphone if the backpower transfer happens at thetime that your phone is turned off.Use the AAA battery in time of drained main batteryIf the main battery is drained and your phonecannot be powered on, you can insert a full capacityAAA battery into the smartcavityTM. It willautomatically charge the main battery and yourphone can be powered on again. The time neededfor charging depends on the remaining power ofthe main battery. The lower the voltage, the longeris takes to wake up the main battery. Recharging the AAA batteryIf you have put a rechargeable AAA battery in thesmartcavityTM, you can charge both the mainbattery and AAA battery using the AC powercharger(see "Using the AC power" on page 9). Ifany of the main battery or rechargeable AAAbattery is full, only the other one will be charged. Your phone accepts Alkaline, Lithium andrechargeable Nickel Metal Hydride (NiMH)batteries. We recommend that you useEnergizer batteries. Remove the non-rechargeable AAA batteryfrom your charger before you plug the chargerinto the AC power socket. Remove the rechargeable AAA battery fromyour charger after it is fully charged. Inserting a Micro-SD card You can expand the memory of your phone byadding a Micro-SD card. 1. Gently slip the card into the micro SD cardslot, with the gold contacts facingdownwards.X520_Master_EN.book Page 11 Tuesday, October 14, 2008 2:04 PM

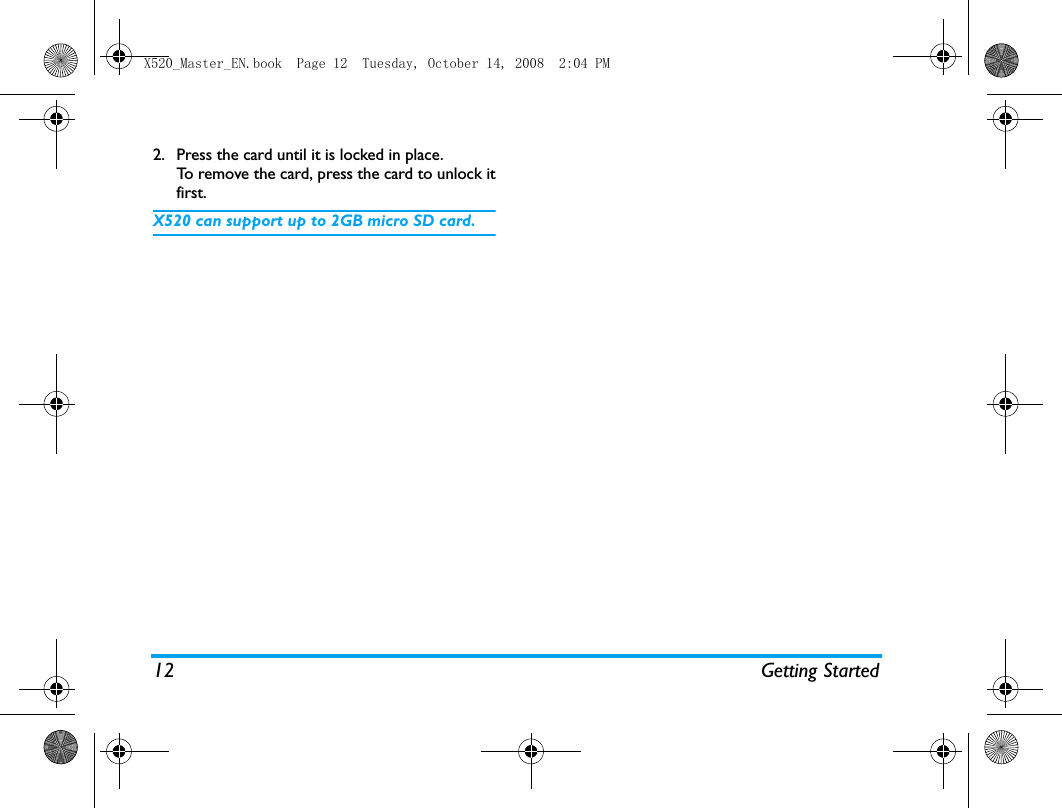

12 Getting Started2. Press the card until it is locked in place.To remove the card, press the card to unlock itfirst. X520 can support up to 2GB micro SD card.X520_Master_EN.book Page 12 Tuesday, October 14, 2008 2:04 PM

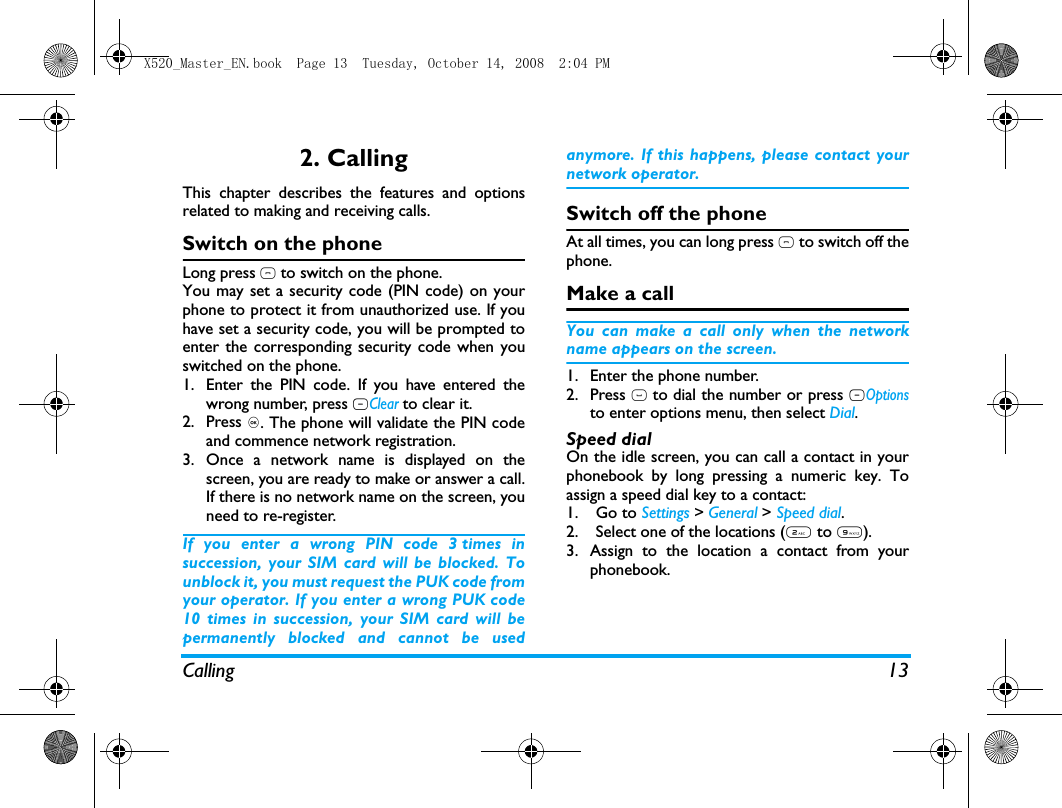

Calling 132. CallingThis chapter describes the features and optionsrelated to making and receiving calls.Switch on the phoneLong press ) to switch on the phone.You may set a security code (PIN code) on yourphone to protect it from unauthorized use. If youhave set a security code, you will be prompted toenter the corresponding security code when youswitched on the phone. 1. Enter the PIN code. If you have entered thewrong number, press RClear to clear it.2. Press ,. The phone will validate the PIN codeand commence network registration. 3. Once a network name is displayed on thescreen, you are ready to make or answer a call.If there is no network name on the screen, youneed to re-register. If you enter a wrong PIN code 3 times insuccession, your SIM card will be blocked. Tounblock it, you must request the PUK code fromyour operator. If you enter a wrong PUK code10 times in succession, your SIM card will bepermanently blocked and cannot be usedanymore. If this happens, please contact yournetwork operator.Switch off the phoneAt all times, you can long press ) to switch off thephone.Make a callYou can make a call only when the networkname appears on the screen. 1. Enter the phone number.2. Press ( to dial the number or press LOptionsto enter options menu, then select Dial.Speed dialOn the idle screen, you can call a contact in yourphonebook by long pressing a numeric key. Toassign a speed dial key to a contact:1. Go to Settings > General > Speed dial.2. Select one of the locations (2 to 9).3. Assign to the location a contact from yourphonebook.X520_Master_EN.book Page 13 Tuesday, October 14, 2008 2:04 PM

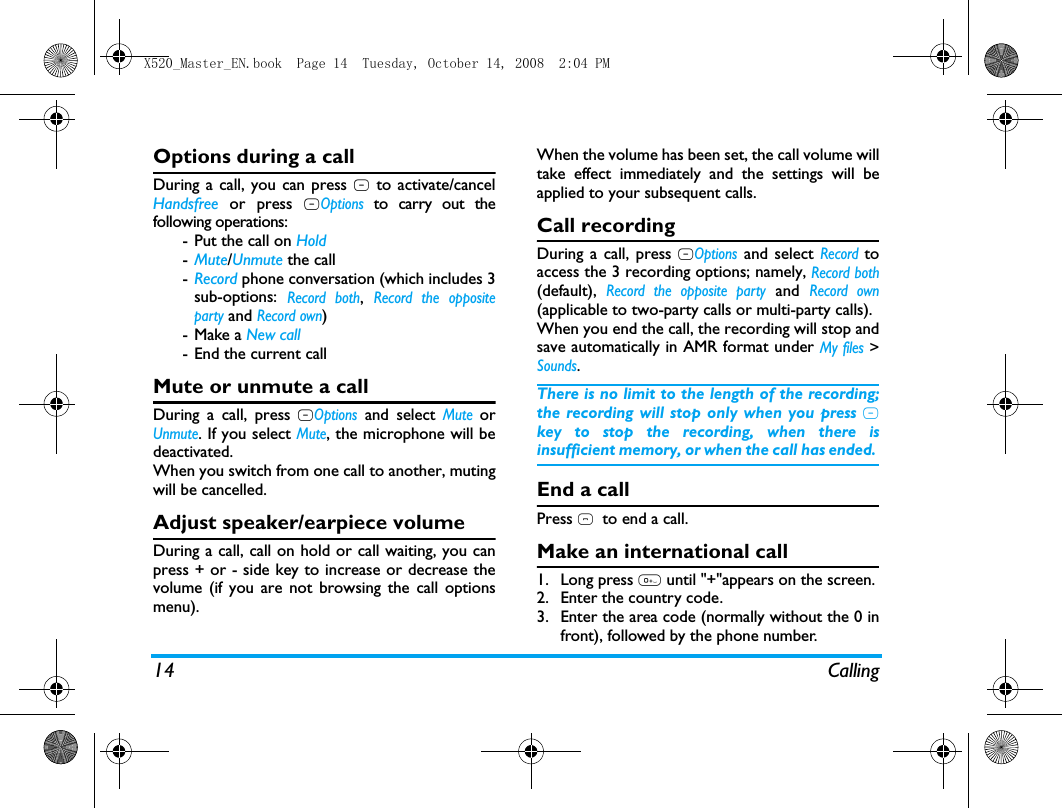

14 CallingOptions during a callDuring a call, you can press R to activate/cancelHandsfree or press LOptions to carry out thefollowing operations:- Put the call on Hold-Mute/Unmute the call-Record phone conversation (which includes 3sub-options: Record both, Record the oppositeparty and Record own)- Make a New call- End the current callMute or unmute a callDuring a call, press LOptions and select Mute orUnmute. If you select Mute, the microphone will bedeactivated.When you switch from one call to another, mutingwill be cancelled. Adjust speaker/earpiece volumeDuring a call, call on hold or call waiting, you canpress + or - side key to increase or decrease thevolume (if you are not browsing the call optionsmenu).When the volume has been set, the call volume willtake effect immediately and the settings will beapplied to your subsequent calls. Call recordingDuring a call, press LOptions and select Record toaccess the 3 recording options; namely, Record both(default), Record the opposite party and Record own(applicable to two-party calls or multi-party calls).When you end the call, the recording will stop andsave automatically in AMR format under My files >Sounds.There is no limit to the length of the recording;the recording will stop only when you press Rkey to stop the recording, when there isinsufficient memory, or when the call has ended. End a callPress ) to end a call.Make an international call1. Long press 0 until "+"appears on the screen.2. Enter the country code.3. Enter the area code (normally without the 0 infront), followed by the phone number. X520_Master_EN.book Page 14 Tuesday, October 14, 2008 2:04 PM

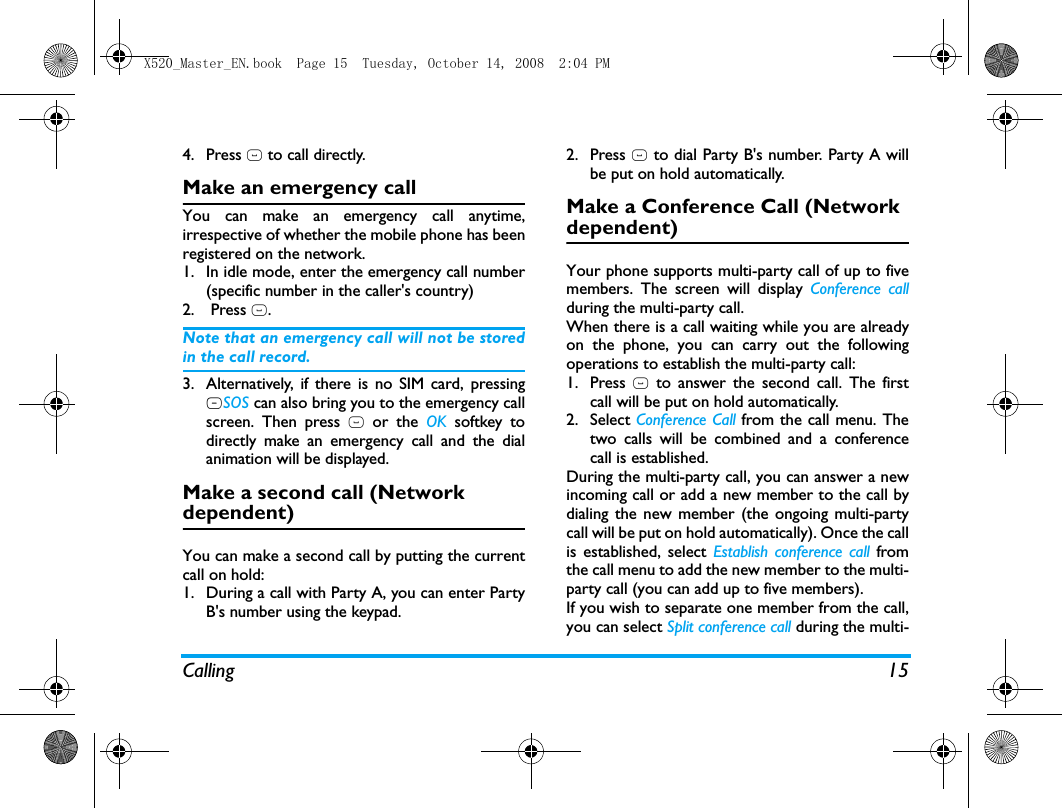

Calling 154. Press ( to call directly.Make an emergency callYou can make an emergency call anytime,irrespective of whether the mobile phone has beenregistered on the network. 1. In idle mode, enter the emergency call number(specific number in the caller's country)2. Press (.Note that an emergency call will not be storedin the call record. 3. Alternatively, if there is no SIM card, pressingRSOS can also bring you to the emergency callscreen. Then press ( or the OK softkey todirectly make an emergency call and the dialanimation will be displayed.Make a second call (Network dependent)You can make a second call by putting the currentcall on hold: 1. During a call with Party A, you can enter PartyB's number using the keypad. 2. Press ( to dial Party B's number. Party A willbe put on hold automatically. Make a Conference Call (Network dependent)Your phone supports multi-party call of up to fivemembers. The screen will display Conference callduring the multi-party call.When there is a call waiting while you are alreadyon the phone, you can carry out the followingoperations to establish the multi-party call:1. Press ( to answer the second call. The firstcall will be put on hold automatically. 2. Select Conference Call from the call menu. Thetwo calls will be combined and a conferencecall is established. During the multi-party call, you can answer a newincoming call or add a new member to the call bydialing the new member (the ongoing multi-partycall will be put on hold automatically). Once the callis established, select Establish conference call fromthe call menu to add the new member to the multi-party call (you can add up to five members).If you wish to separate one member from the call,you can select Split conference call during the multi-X520_Master_EN.book Page 15 Tuesday, October 14, 2008 2:04 PM

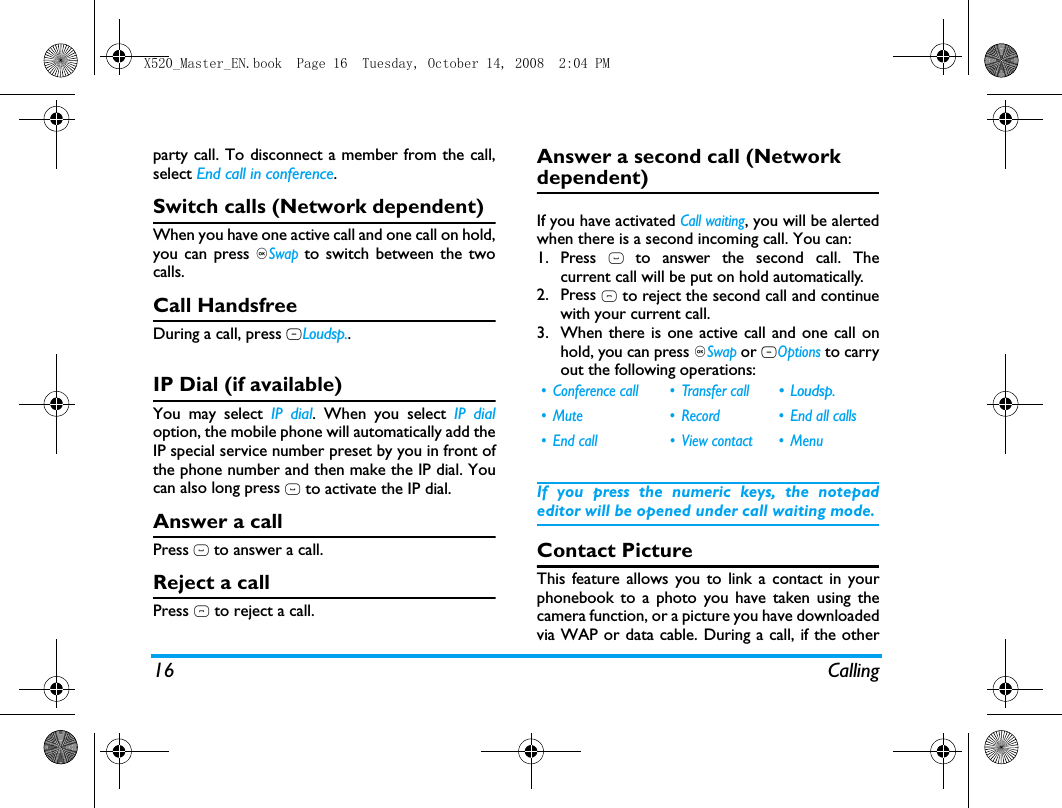

16 Callingparty call. To disconnect a member from the call,select End call in conference.Switch calls (Network dependent)When you have one active call and one call on hold,you can press ,Swap to switch between the twocalls. Call HandsfreeDuring a call, press RLoudsp..IP Dial (if available)You may select IP dial. When you select IP dialoption, the mobile phone will automatically add theIP special service number preset by you in front ofthe phone number and then make the IP dial. Youcan also long press ( to activate the IP dial.Answer a callPress ( to answer a call.Reject a callPress ) to reject a call.Answer a second call (Network dependent) If you have activated Call waiting, you will be alertedwhen there is a second incoming call. You can: 1. Press ( to answer the second call. Thecurrent call will be put on hold automatically.2. Press ) to reject the second call and continuewith your current call.3. When there is one active call and one call onhold, you can press ,Swap or LOptions to carryout the following operations:If you press the numeric keys, the notepadeditor will be opened under call waiting mode. Contact PictureThis feature allows you to link a contact in yourphonebook to a photo you have taken using thecamera function, or a picture you have downloadedvia WAP or data cable. During a call, if the other• Conference call • Transfer call •Loudsp.• Mute • Record • End all calls• End call • View contact • MenuX520_Master_EN.book Page 16 Tuesday, October 14, 2008 2:04 PM

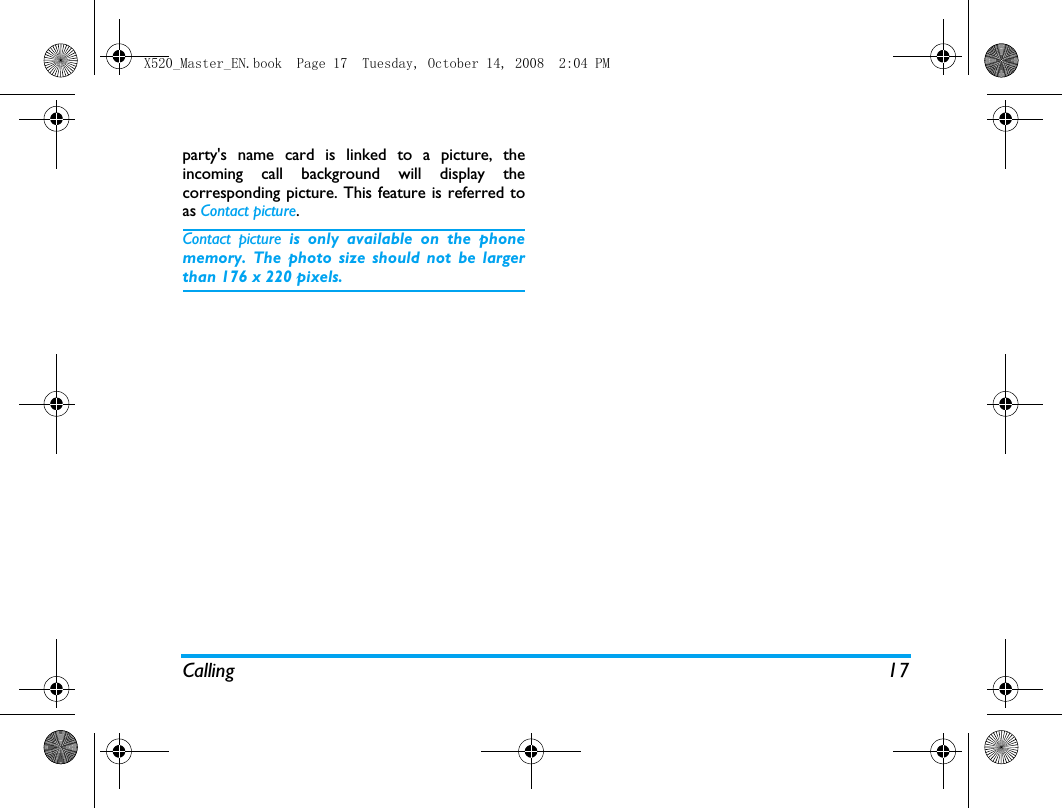

Calling 17party's name card is linked to a picture, theincoming call background will display thecorresponding picture. This feature is referred toas Contact picture.Contact picture is only available on the phonememory. The photo size should not be largerthan 176 x 220 pixels.X520_Master_EN.book Page 17 Tuesday, October 14, 2008 2:04 PM

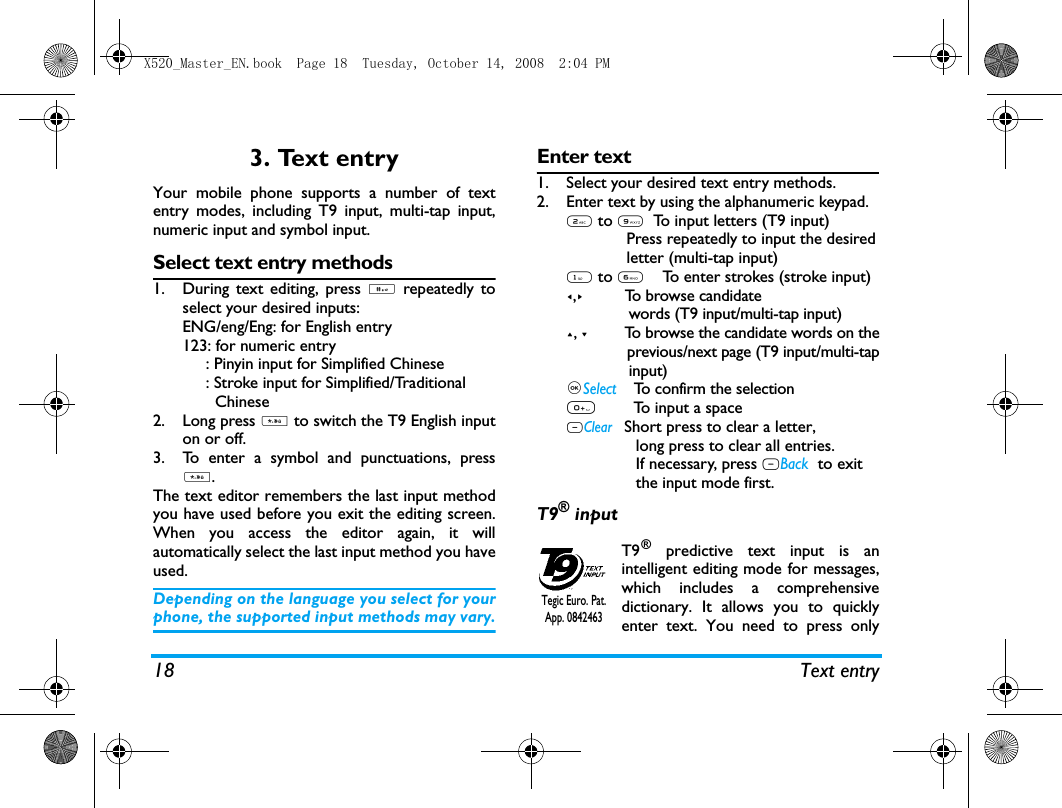

18 Text entry3. Text entryYour mobile phone supports a number of textentry modes, including T9 input, multi-tap input,numeric input and symbol input. Select text entry methods1. During text editing, press # repeatedly toselect your desired inputs:ENG/eng/Eng: for English entry123: for numeric entry : Pinyin input for Simplified Chinese : Stroke input for Simplified/Traditional Chinese 2. Long press * to switch the T9 English inputon or off. 3. To enter a symbol and punctuations, press*.The text editor remembers the last input methodyou have used before you exit the editing screen.When you access the editor again, it willautomatically select the last input method you haveused. Depending on the language you select for yourphone, the supported input methods may vary.Enter text1. Select your desired text entry methods.2. Enter text by using the alphanumeric keypad.2 to 9 To input letters (T9 input) Press repeatedly to input the desired letter (multi-tap input)1 to 6 To enter strokes (stroke input)<,> To browse candidate words (T9 input/multi-tap input)+, - To browse the candidate words on the previous/next page (T9 input/multi-tap input),Select To confirm the selection0 To input a spaceRClear Short press to clear a letter, long press to clear all entries. If necessary, press RBack tto exit the input mode first.T9® inputT9® predictive text input is anintelligent editing mode for messages,which includes a comprehensivedictionary. It allows you to quicklyenter text. You need to press onlyTegic Euro. Pat. App. 0842463X520_Master_EN.book Page 18 Tuesday, October 14, 2008 2:04 PM

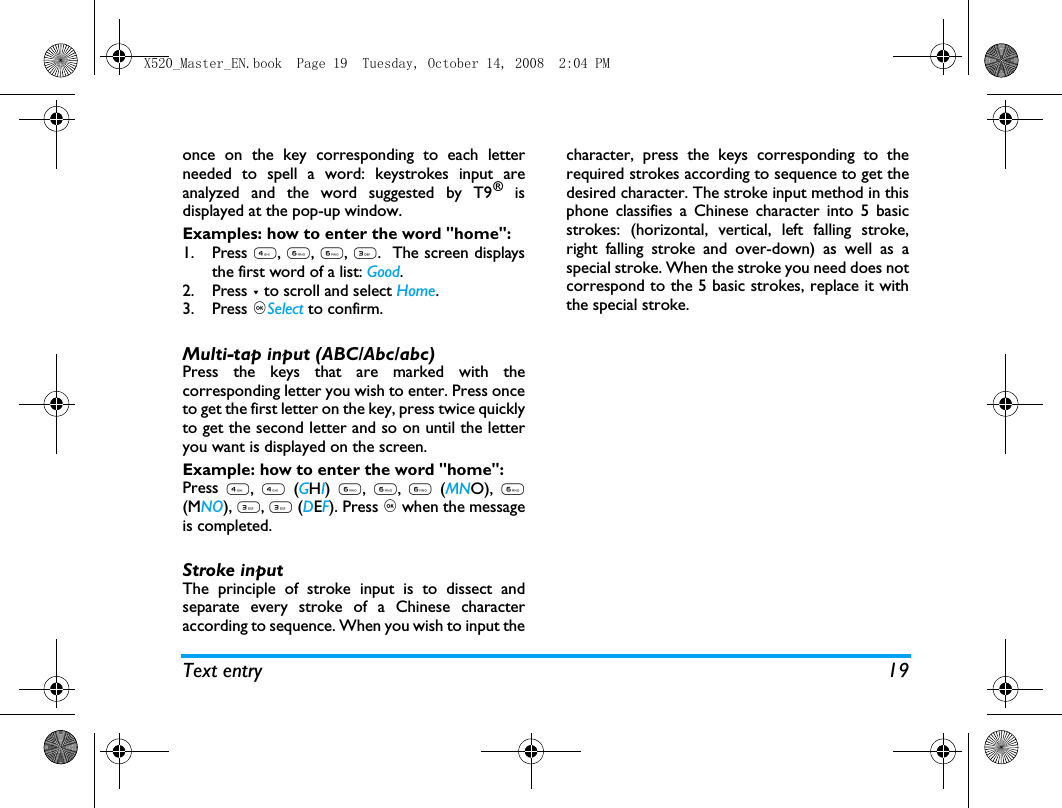

Text entry 19once on the key corresponding to each letterneeded to spell a word: keystrokes input areanalyzed and the word suggested by T9® isdisplayed at the pop-up window. Examples: how to enter the word "home":1. Press 4, 6, 6, 3. The screen displaysthe first word of a list: Good.2. Press - to scroll and select Home.3. Press ,Select to confirm.Multi-tap input (ABC/Abc/abc)Press the keys that are marked with thecorresponding letter you wish to enter. Press onceto get the first letter on the key, press twice quicklyto get the second letter and so on until the letteryou want is displayed on the screen.Example: how to enter the word "home":Press 4, 4 (GHI) 6, 6, 6 (MNO), 6(MNO), 3, 3 (DEF). Press , when the messageis completed.Stroke input The principle of stroke input is to dissect andseparate every stroke of a Chinese characteraccording to sequence. When you wish to input thecharacter, press the keys corresponding to therequired strokes according to sequence to get thedesired character. The stroke input method in thisphone classifies a Chinese character into 5 basicstrokes: (horizontal, vertical, left falling stroke,right falling stroke and over-down) as well as aspecial stroke. When the stroke you need does notcorrespond to the 5 basic strokes, replace it withthe special stroke. X520_Master_EN.book Page 19 Tuesday, October 14, 2008 2:04 PM

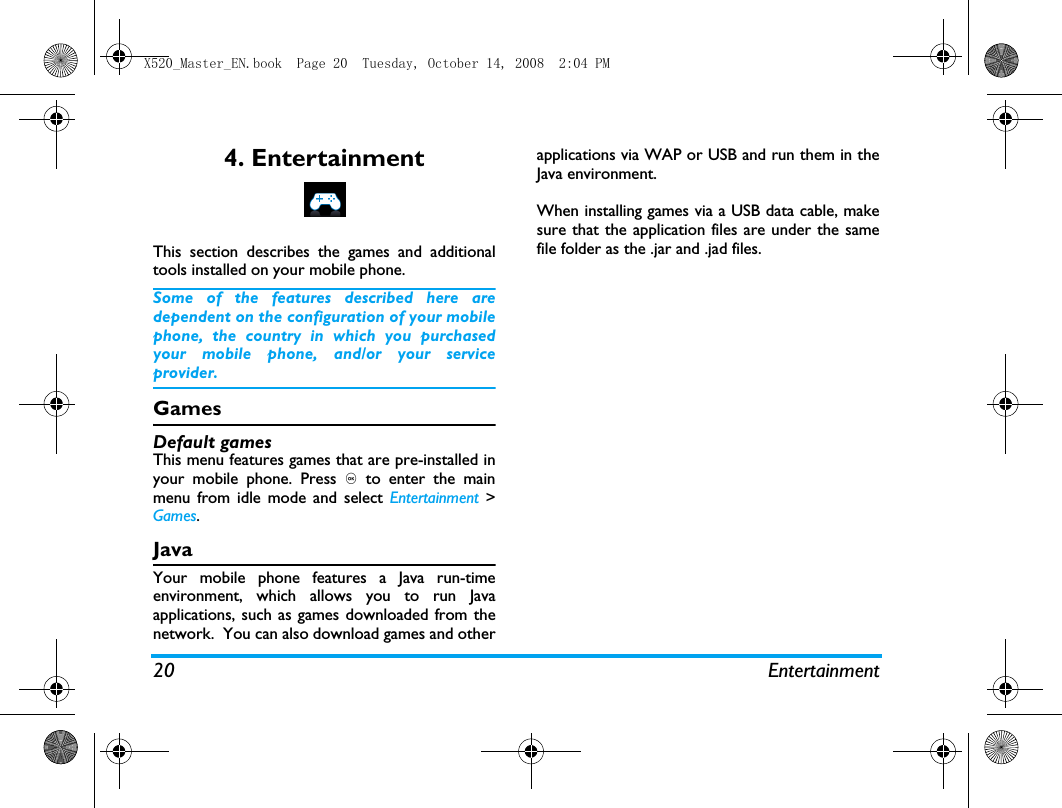

20 Entertainment4. EntertainmentThis section describes the games and additionaltools installed on your mobile phone.Some of the features described here aredependent on the configuration of your mobilephone, the country in which you purchasedyour mobile phone, and/or your serviceprovider.GamesDefault gamesThis menu features games that are pre-installed inyour mobile phone. Press , to enter the mainmenu from idle mode and select Entertainment >Games.JavaYour mobile phone features a Java run-timeenvironment, which allows you to run Javaapplications, such as games downloaded from thenetwork. You can also download games and otherapplications via WAP or USB and run them in theJava environment.When installing games via a USB data cable, makesure that the application files are under the samefile folder as the .jar and .jad files.X520_Master_EN.book Page 20 Tuesday, October 14, 2008 2:04 PM

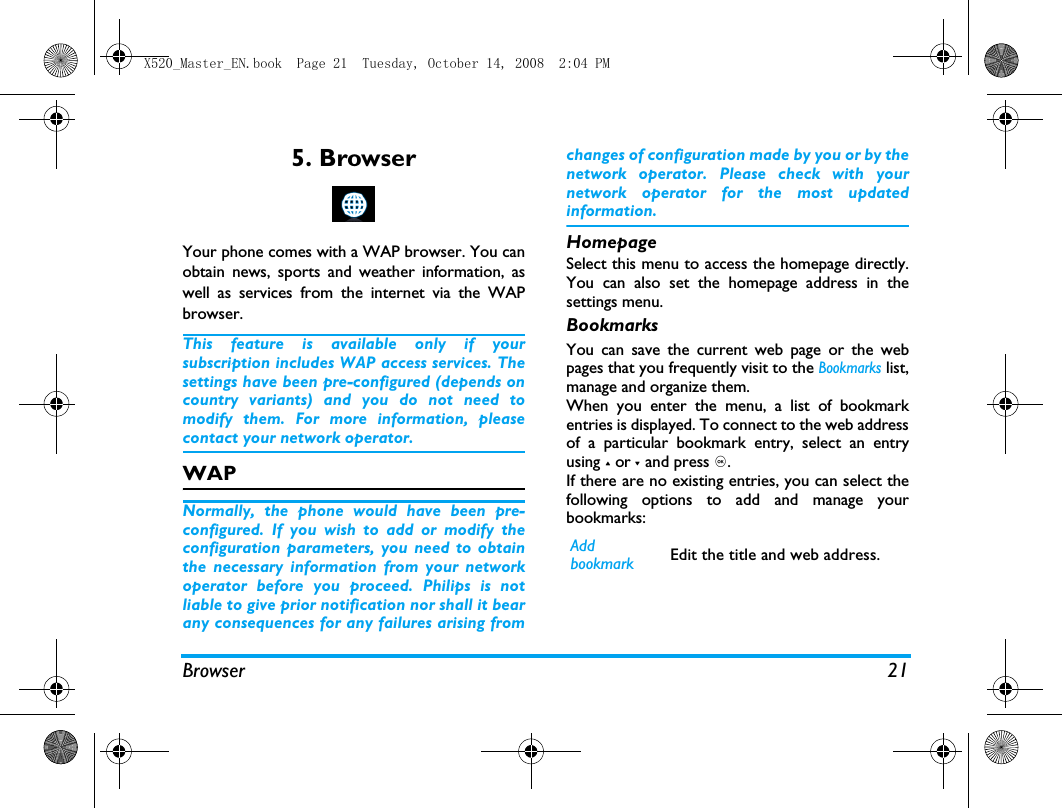

Browser 215. BrowserYour phone comes with a WAP browser. You canobtain news, sports and weather information, aswell as services from the internet via the WAPbrowser. This feature is available only if yoursubscription includes WAP access services. Thesettings have been pre-configured (depends oncountry variants) and you do not need tomodify them. For more information, pleasecontact your network operator. WAP Normally, the phone would have been pre-configured. If you wish to add or modify theconfiguration parameters, you need to obtainthe necessary information from your networkoperator before you proceed. Philips is notliable to give prior notification nor shall it bearany consequences for any failures arising fromchanges of configuration made by you or by thenetwork operator. Please check with yournetwork operator for the most updatedinformation.HomepageSelect this menu to access the homepage directly.You can also set the homepage address in thesettings menu. BookmarksYou can save the current web page or the webpages that you frequently visit to the Bookmarks list,manage and organize them. When you enter the menu, a list of bookmarkentries is displayed. To connect to the web addressof a particular bookmark entry, select an entryusing + or - and press ,.If there are no existing entries, you can select thefollowing options to add and manage yourbookmarks:Add bookmark Edit the title and web address. X520_Master_EN.book Page 21 Tuesday, October 14, 2008 2:04 PM

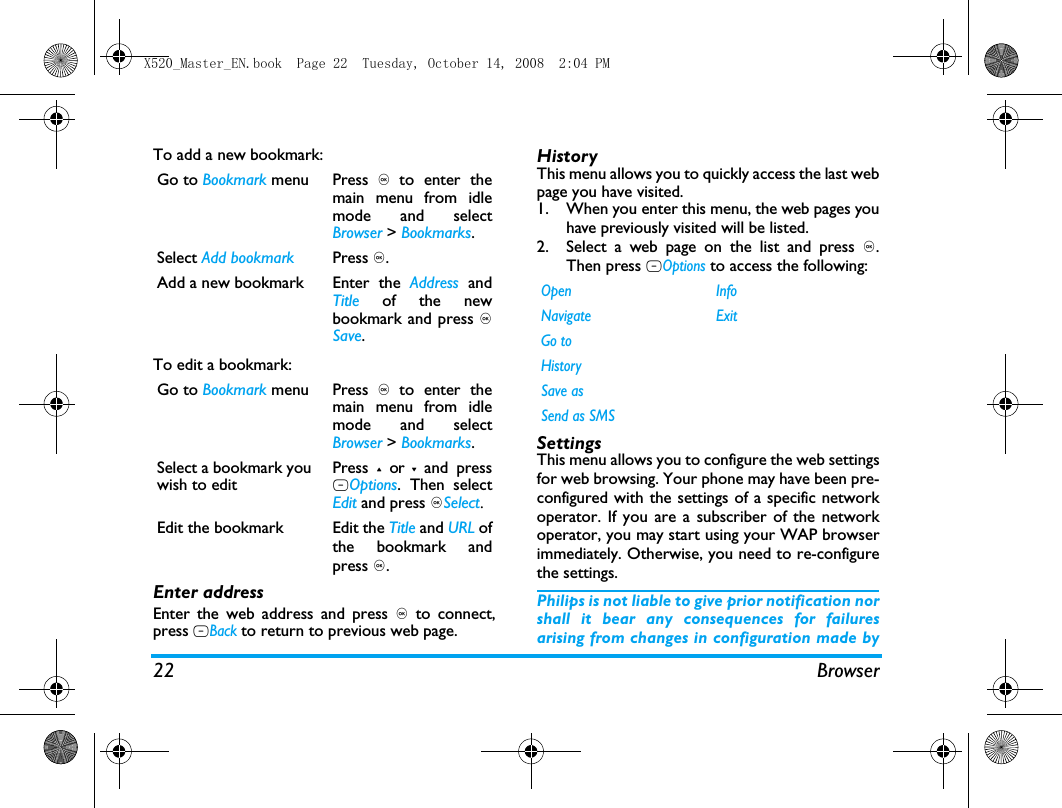

22 BrowserTo add a new bookmark:To edit a bookmark:Enter addressEnter the web address and press , to connect,press RBack to return to previous web page.HistoryThis menu allows you to quickly access the last webpage you have visited. 1. When you enter this menu, the web pages youhave previously visited will be listed.2. Select a web page on the list and press ,.Then press LOptions to access the following:SettingsThis menu allows you to configure the web settingsfor web browsing. Your phone may have been pre-configured with the settings of a specific networkoperator. If you are a subscriber of the networkoperator, you may start using your WAP browserimmediately. Otherwise, you need to re-configurethe settings. Philips is not liable to give prior notification norshall it bear any consequences for failuresarising from changes in configuration made byGo to Bookmark menu Press , to enter themain menu from idlemode and selectBrowser > Bookmarks.Select Add bookmark Press ,.Add a new bookmark Enter the Address andTitle of the newbookmark and press ,Save.Go to Bookmark menu Press , to enter themain menu from idlemode and selectBrowser > Bookmarks.Select a bookmark youwish to editPress + or - and pressLOptions. Then selectEdit and press ,Select.Edit the bookmark Edit the Title and URL ofthe bookmark andpress ,.Open InfoNavigate ExitGo toHistorySave asSend as SMSX520_Master_EN.book Page 22 Tuesday, October 14, 2008 2:04 PM

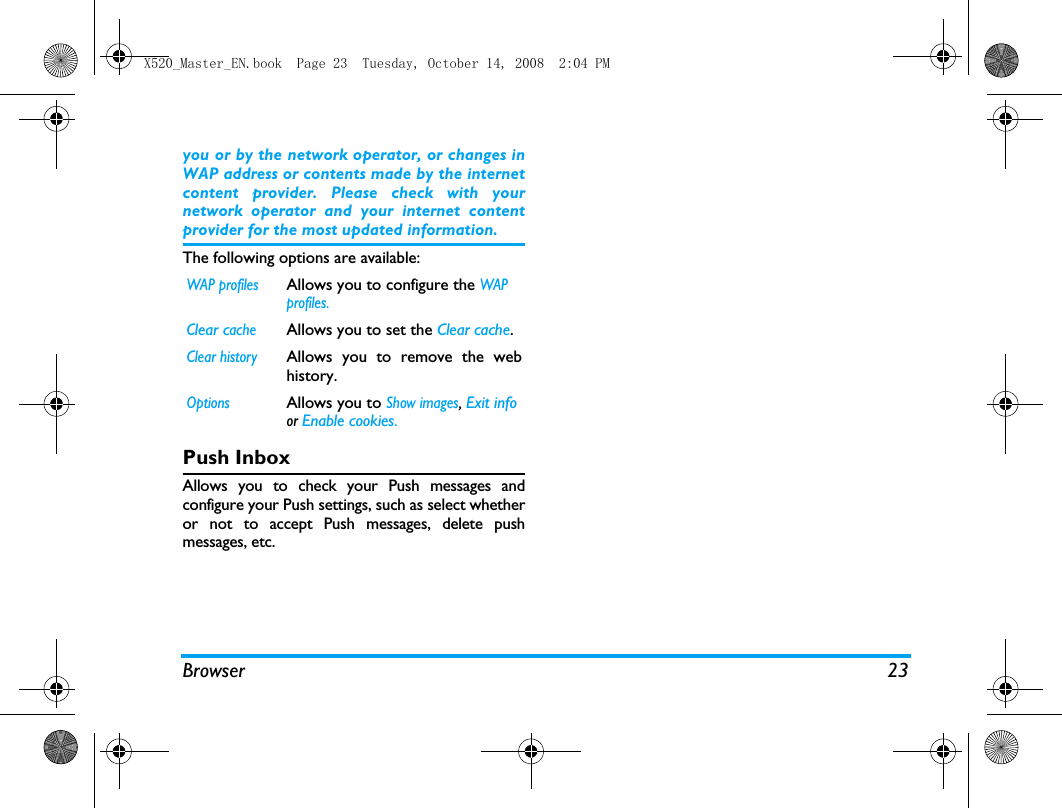

Browser 23you or by the network operator, or changes inWAP address or contents made by the internetcontent provider. Please check with yournetwork operator and your internet contentprovider for the most updated information.The following options are available:Push InboxAllows you to check your Push messages andconfigure your Push settings, such as select whetheror not to accept Push messages, delete pushmessages, etc. WAP profilesAllows you to configure the WAP profiles.Clear cacheAllows you to set the Clear cache. Clear historyAllows you to remove the webhistory.OptionsAllows you to Show images, Exit info or Enable cookies. X520_Master_EN.book Page 23 Tuesday, October 14, 2008 2:04 PM

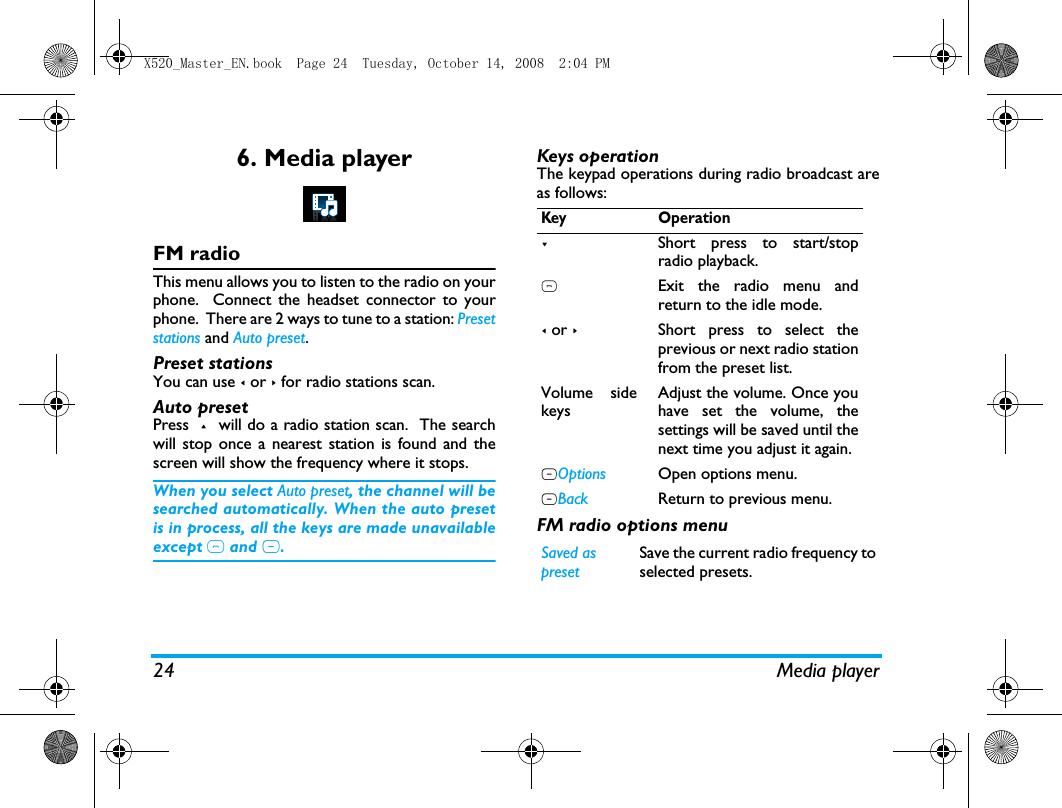

24 Media player6. Media playerFM radioThis menu allows you to listen to the radio on yourphone. Connect the headset connector to yourphone. There are 2 ways to tune to a station: Presetstations and Auto preset. Preset stationsYou can use < or > for radio stations scan. Auto presetPress + will do a radio station scan. The searchwill stop once a nearest station is found and thescreen will show the frequency where it stops. When you select Auto preset, the channel will besearched automatically. When the auto presetis in process, all the keys are made unavailableexcept ) and R. Keys operationThe keypad operations during radio broadcast areas follows: FM radio options menuKey Operation-Short press to start/stopradio playback.)Exit the radio menu andreturn to the idle mode.< or >Short press to select theprevious or next radio stationfrom the preset list. Volume sidekeysAdjust the volume. Once youhave set the volume, thesettings will be saved until thenext time you adjust it again. LOptions Open options menu.RBack Return to previous menu. Saved as presetSave the current radio frequency toselected presets.X520_Master_EN.book Page 24 Tuesday, October 14, 2008 2:04 PM

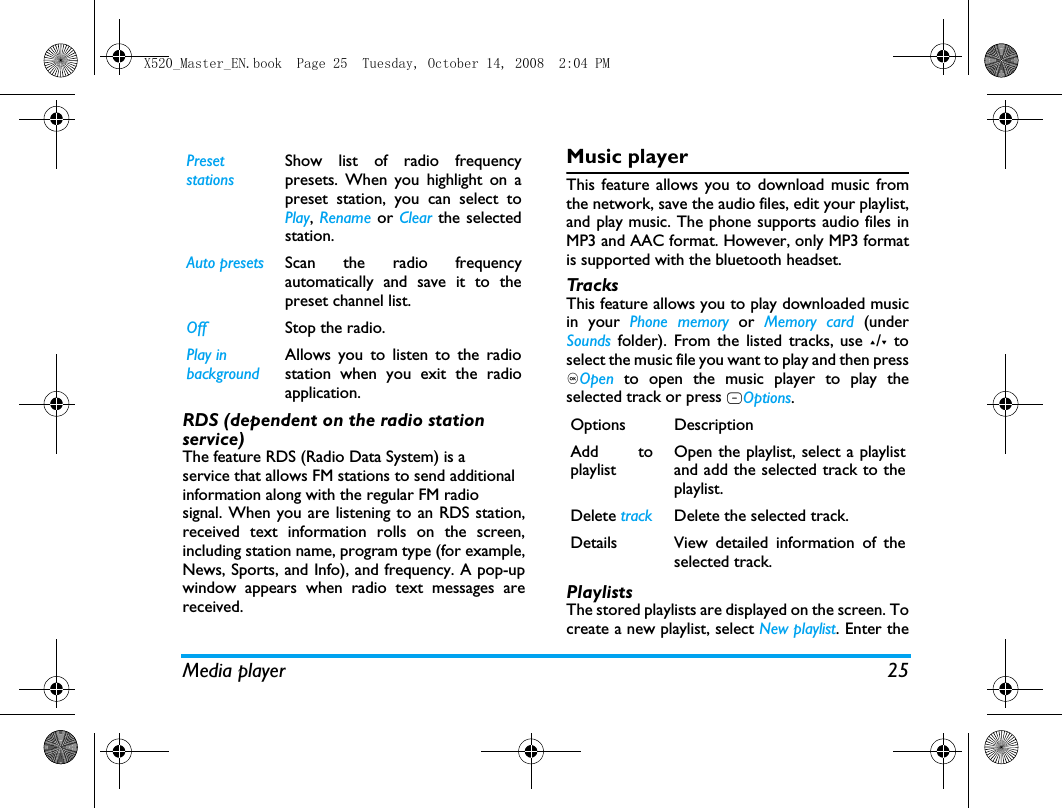

Media player 25RDS (dependent on the radio station service)The feature RDS (Radio Data System) is aservice that allows FM stations to send additionalinformation along with the regular FM radiosignal. When you are listening to an RDS station,received text information rolls on the screen,including station name, program type (for example,News, Sports, and Info), and frequency. A pop-upwindow appears when radio text messages arereceived.Music playerThis feature allows you to download music fromthe network, save the audio files, edit your playlist,and play music. The phone supports audio files inMP3 and AAC format. However, only MP3 formatis supported with the bluetooth headset.TracksThis feature allows you to play downloaded musicin your Phone memory or Memory card (underSounds folder). From the listed tracks, use +/- toselect the music file you want to play and then press,Open to open the music player to play theselected track or press LOptions.PlaylistsThe stored playlists are displayed on the screen. Tocreate a new playlist, select New playlist. Enter thePreset stationsShow list of radio frequencypresets. When you highlight on apreset station, you can select toPlay, Rename or Clear the selectedstation.Auto presets Scan the radio frequencyautomatically and save it to thepreset channel list.Off Stop the radio. Play in backgroundAllows you to listen to the radiostation when you exit the radioapplication. Options DescriptionAdd toplaylistOpen the playlist, select a playlistand add the selected track to theplaylist.Delete track Delete the selected track.Details View detailed information of theselected track.X520_Master_EN.book Page 25 Tuesday, October 14, 2008 2:04 PM

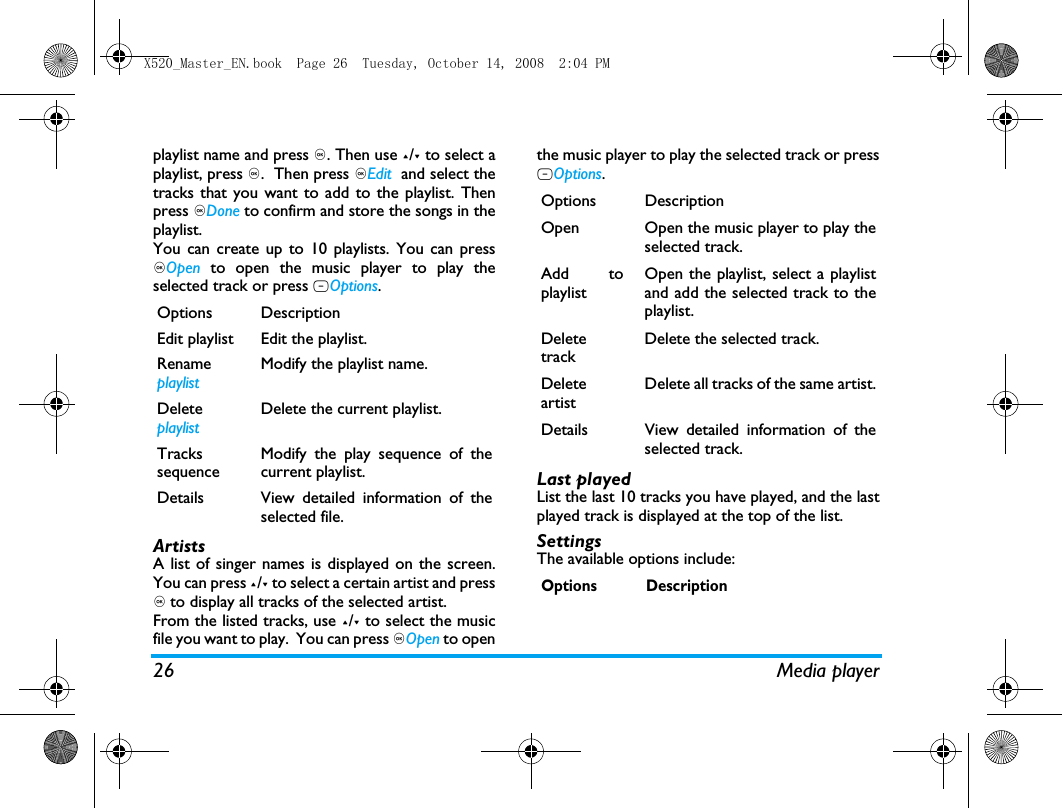

26 Media playerplaylist name and press ,. Then use +/- to select aplaylist, press ,. Then press ,Edit and select thetracks that you want to add to the playlist. Thenpress ,Done to confirm and store the songs in theplaylist.You can create up to 10 playlists. You can press,Open to open the music player to play theselected track or press LOptions. ArtistsA list of singer names is displayed on the screen.You can press +/- to select a certain artist and press, to display all tracks of the selected artist.From the listed tracks, use +/- to select the musicfile you want to play. You can press ,Open to openthe music player to play the selected track or pressLOptions. Last playedList the last 10 tracks you have played, and the lastplayed track is displayed at the top of the list.SettingsThe available options include: Options DescriptionEdit playlist Edit the playlist.RenameplaylistModify the playlist name.DeleteplaylistDelete the current playlist.TrackssequenceModify the play sequence of thecurrent playlist.Details View detailed information of theselected file.Options DescriptionOpen Open the music player to play theselected track.Add toplaylistOpen the playlist, select a playlistand add the selected track to theplaylist.DeletetrackDelete the selected track.DeleteartistDelete all tracks of the same artist.Details View detailed information of theselected track.Options DescriptionX520_Master_EN.book Page 26 Tuesday, October 14, 2008 2:04 PM

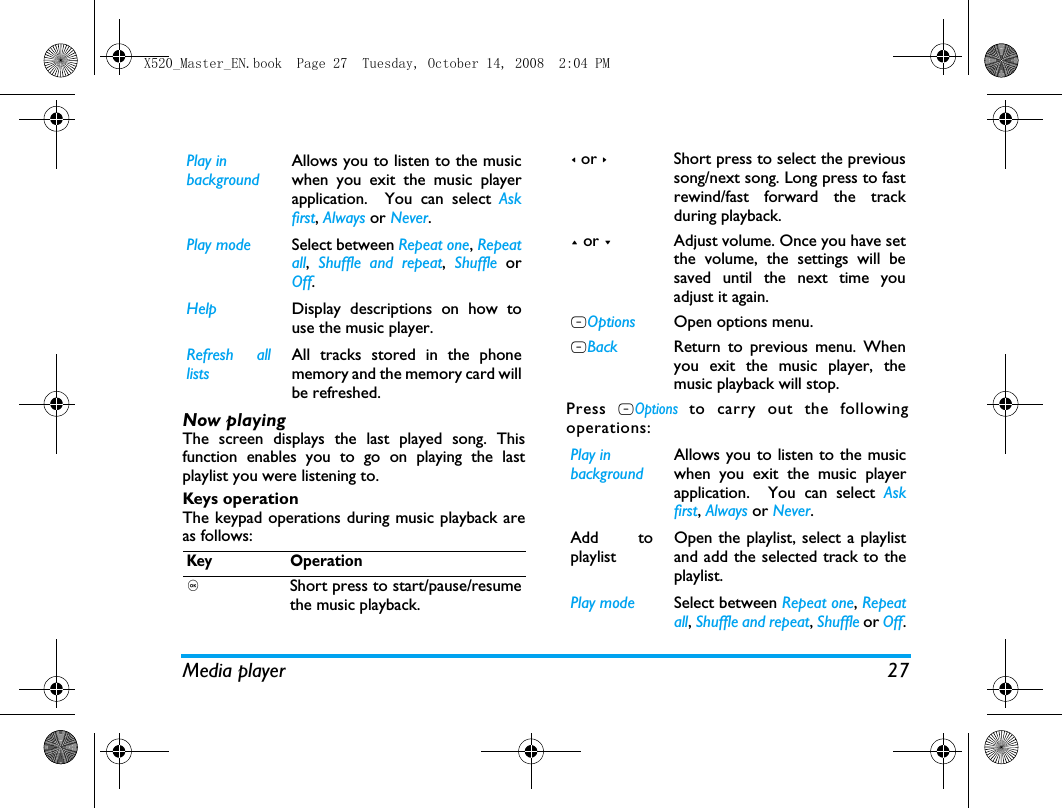

Media player 27Now playingThe screen displays the last played song. Thisfunction enables you to go on playing the lastplaylist you were listening to.Keys operationThe keypad operations during music playback areas follows: Press LOptions to carry out the followingoperations:Play in backgroundAllows you to listen to the musicwhen you exit the music playerapplication. You can select Askfirst, Always or Never.Play mode Select between Repeat one, Repeatall, Shuffle and repeat, Shuffle orOff.Help Display descriptions on how touse the music player.Refresh alllistsAll tracks stored in the phonememory and the memory card willbe refreshed.Key Operation,Short press to start/pause/resumethe music playback.< or >Short press to select the previoussong/next song. Long press to fastrewind/fast forward the trackduring playback. + or -Adjust volume. Once you have setthe volume, the settings will besaved until the next time youadjust it again. LOptions Open options menu.RBack Return to previous menu. Whenyou exit the music player, themusic playback will stop.Play in backgroundAllows you to listen to the musicwhen you exit the music playerapplication. You can select Askfirst, Always or Never.Add toplaylistOpen the playlist, select a playlistand add the selected track to theplaylist.Play mode Select between Repeat one, Repeatall, Shuffle and repeat, Shuffle or Off.X520_Master_EN.book Page 27 Tuesday, October 14, 2008 2:04 PM

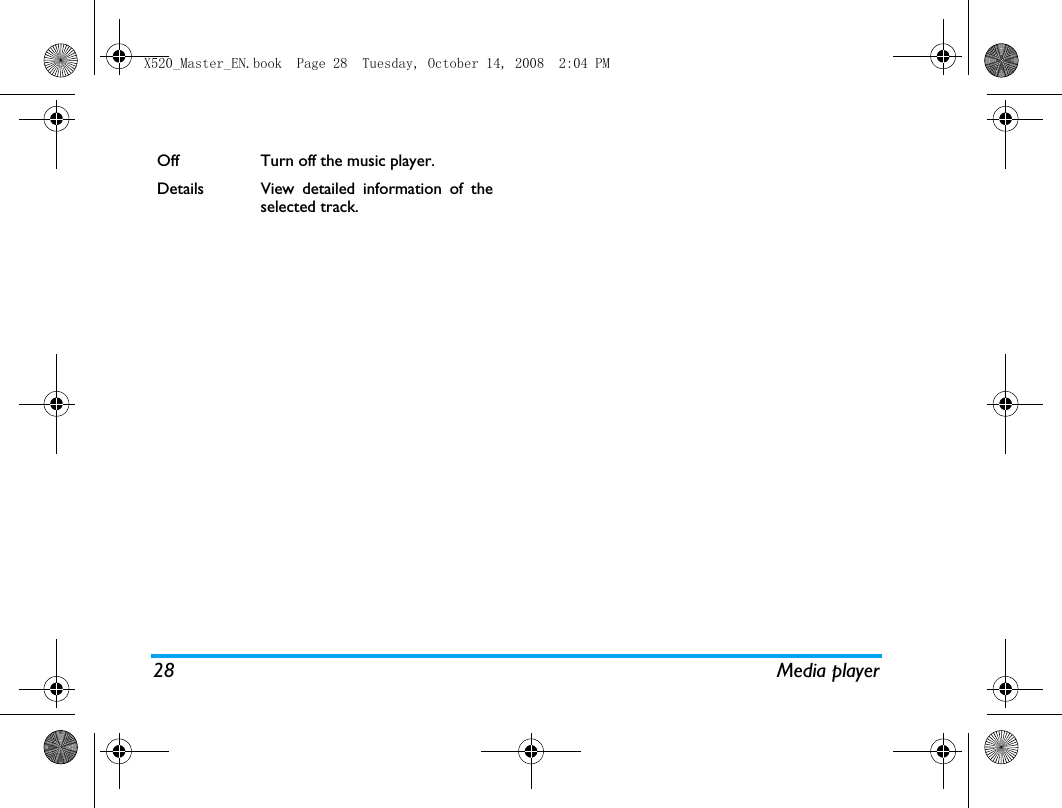

28 Media playerOff Turn off the music player.Details View detailed information of theselected track.X520_Master_EN.book Page 28 Tuesday, October 14, 2008 2:04 PM

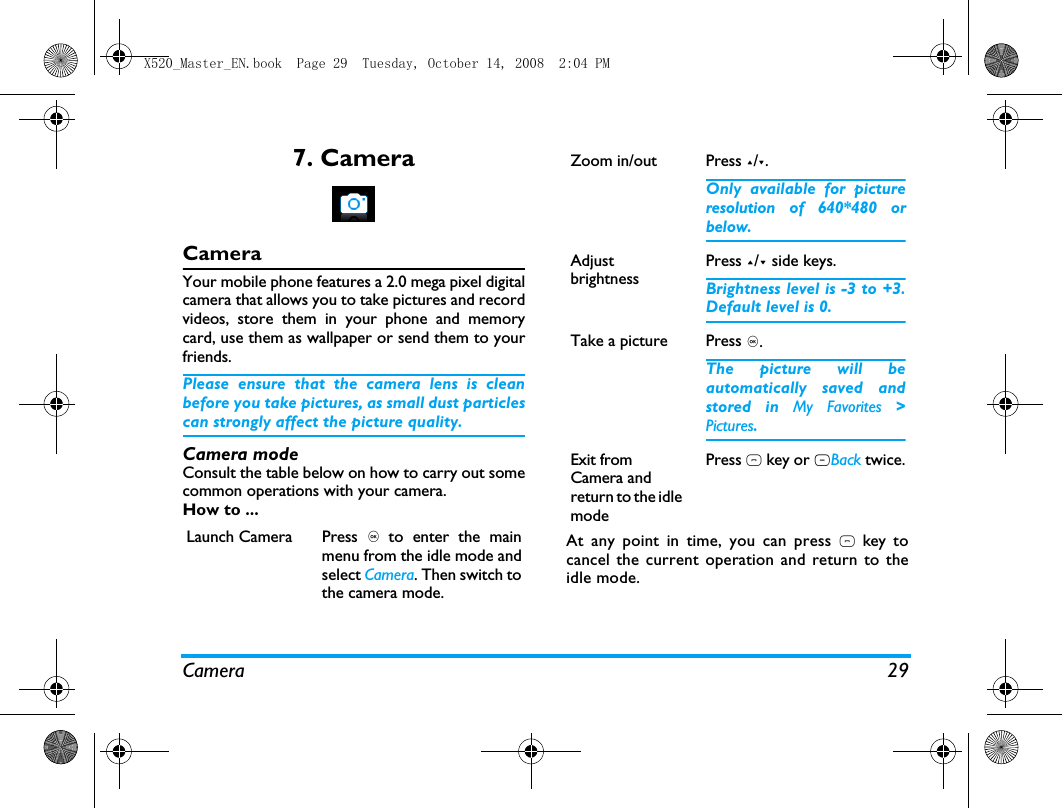

Camera 297. CameraCameraYour mobile phone features a 2.0 mega pixel digitalcamera that allows you to take pictures and recordvideos, store them in your phone and memorycard, use them as wallpaper or send them to yourfriends.Please ensure that the camera lens is cleanbefore you take pictures, as small dust particlescan strongly affect the picture quality.Camera modeConsult the table below on how to carry out somecommon operations with your camera.How to ...At any point in time, you can press ) key tocancel the current operation and return to theidle mode.Launch Camera Press , to enter the mainmenu from the idle mode andselect Camera. Then switch tothe camera mode.Zoom in/out Press +/-.Only available for pictureresolution of 640*480 orbelow.Adjust brightnessPress +/- side keys.Brightness level is -3 to +3.Default level is 0. Take a picture Press ,.The picture will beautomatically saved andstored in My Favorites >Pictures. Exit from Camera and return to the idle modePress ) key or RBack twice.X520_Master_EN.book Page 29 Tuesday, October 14, 2008 2:04 PM

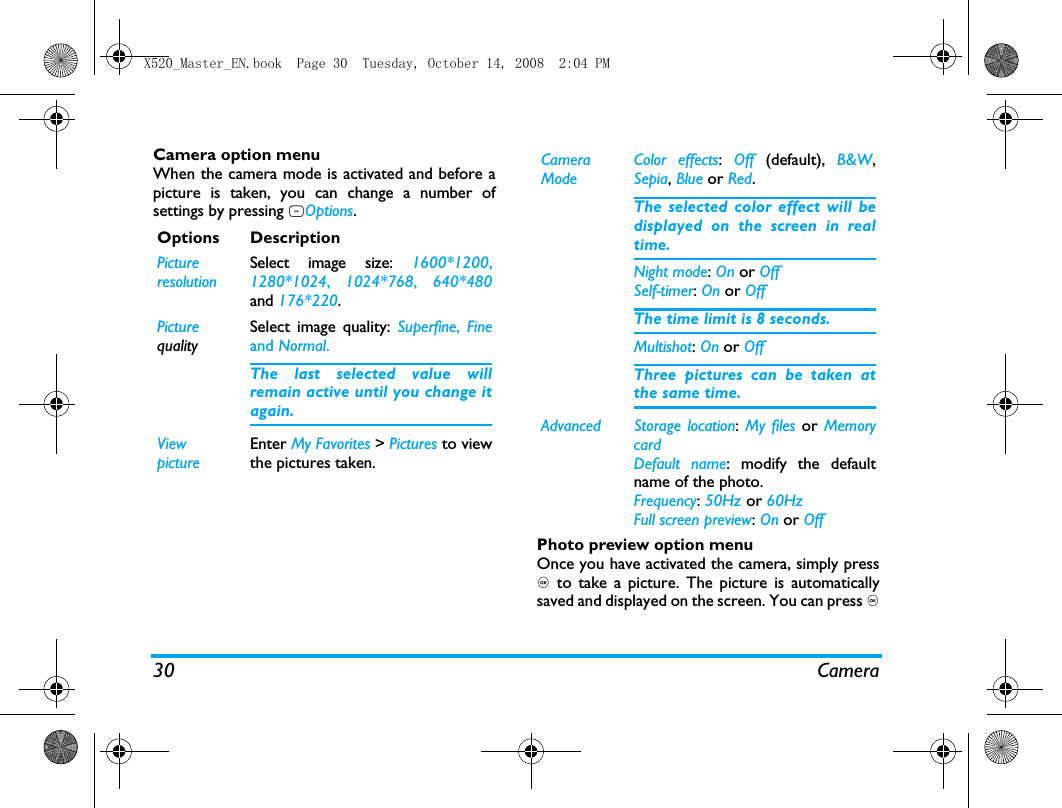

30 CameraCamera option menuWhen the camera mode is activated and before apicture is taken, you can change a number ofsettings by pressing LOptions.Photo preview option menuOnce you have activated the camera, simply press, to take a picture. The picture is automaticallysaved and displayed on the screen. You can press ,Options DescriptionPictureresolutionSelect image size: 1600*1200,1280*1024, 1024*768, 640*480and 176*220.Picture qualitySelect image quality: Superfine, Fineand Normal.The last selected value willremain active until you change itagain.ViewpictureEnter My Favorites > Pictures to viewthe pictures taken.Camera ModeColor effects: Off (default), B&W,Sepia, Blue or Red. The selected color effect will bedisplayed on the screen in realtime. Night mode: On or OffSelf-timer: On or OffThe time limit is 8 seconds. Multishot: On or OffThree pictures can be taken atthe same time.Advanced Storage location: My files or MemorycardDefault name: modify the defaultname of the photo.Frequency: 50Hz or 60HzFull screen preview: On or OffX520_Master_EN.book Page 30 Tuesday, October 14, 2008 2:04 PM

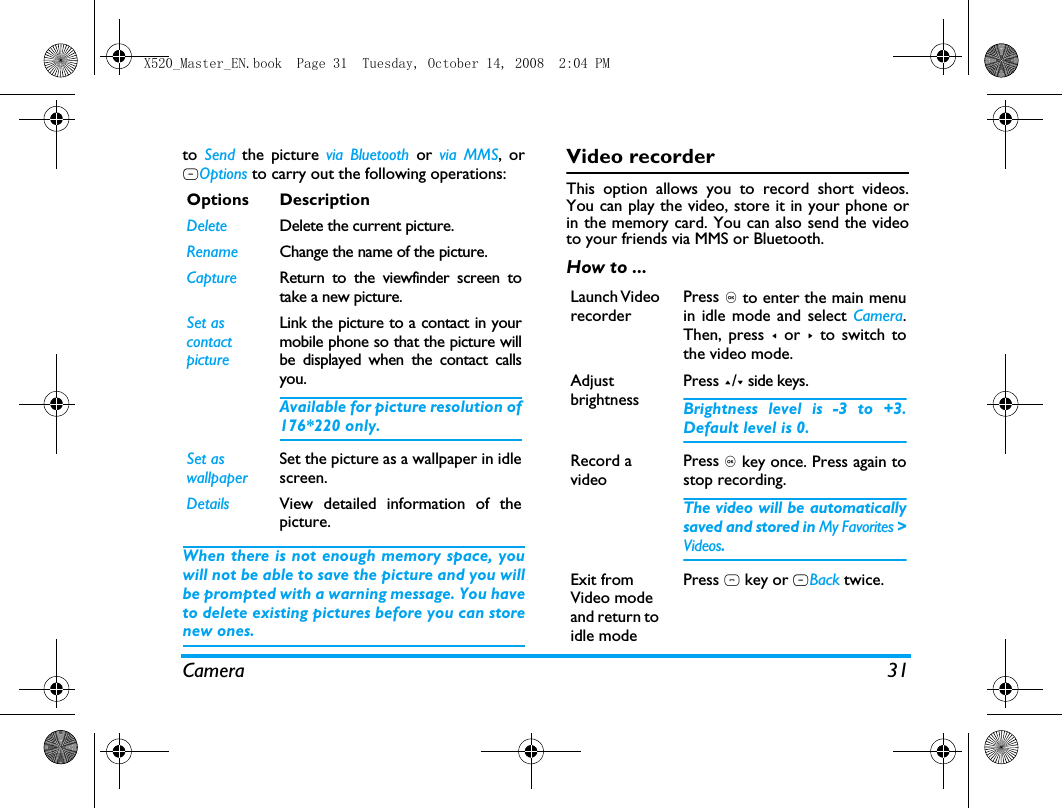

Camera 31to Send the picture via Bluetooth or via MMS, orLOptions to carry out the following operations: When there is not enough memory space, youwill not be able to save the picture and you willbe prompted with a warning message. You haveto delete existing pictures before you can storenew ones. Video recorderThis option allows you to record short videos.You can play the video, store it in your phone orin the memory card. You can also send the videoto your friends via MMS or Bluetooth. How to ...Options DescriptionDelete Delete the current picture.Rename Change the name of the picture.Capture Return to the viewfinder screen totake a new picture.Set as contact pictureLink the picture to a contact in yourmobile phone so that the picture willbe displayed when the contact callsyou.Available for picture resolution of176*220 only.Set as wallpaperSet the picture as a wallpaper in idlescreen.Details View detailed information of thepicture.Launch Video recorderPress , to enter the main menuin idle mode and select Camera.Then, press < or > to switch tothe video mode.Adjust brightnessPress +/- side keys.Brightness level is -3 to +3.Default level is 0. Record a videoPress , key once. Press again tostop recording.The video will be automaticallysaved and stored in My Favorites >Videos. Exit from Video mode and return to idle modePress ) key or RBack twice.X520_Master_EN.book Page 31 Tuesday, October 14, 2008 2:04 PM

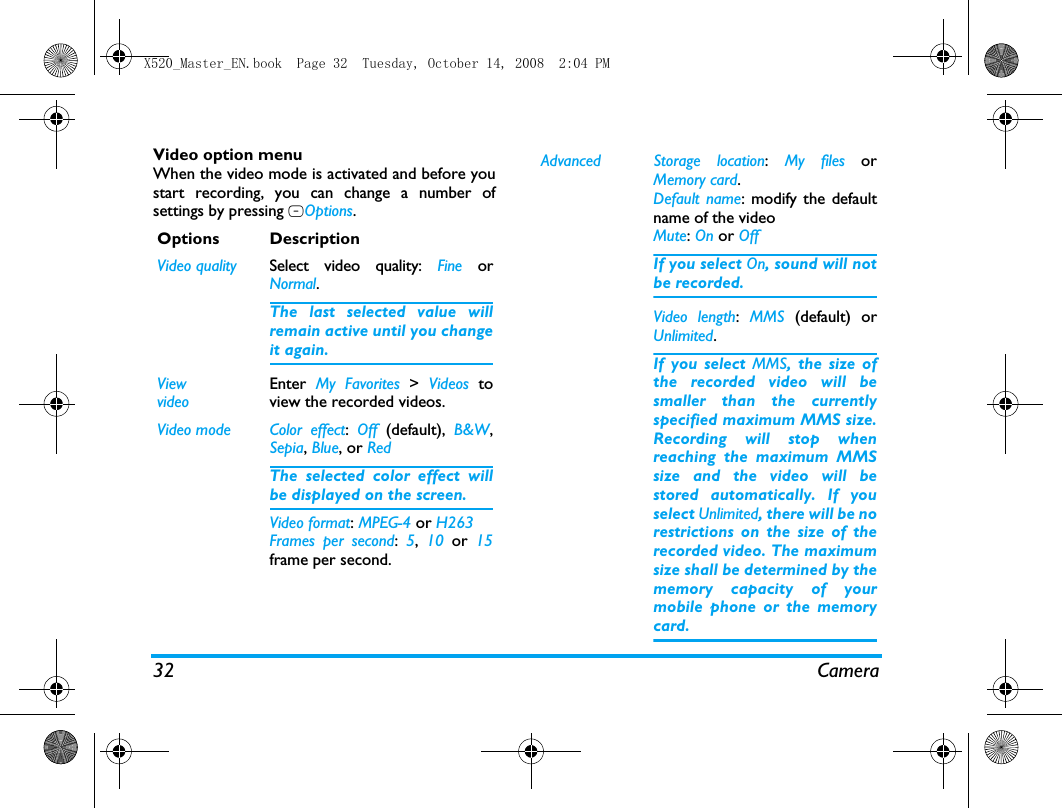

32 CameraVideo option menuWhen the video mode is activated and before youstart recording, you can change a number ofsettings by pressing LOptions.Options DescriptionVideo quality Select video quality: Fine orNormal.The last selected value willremain active until you changeit again.ViewvideoEnter My Favorites > Videos toview the recorded videos.Video mode Color effect: Off (default), B&W,Sepia, Blue, or RedThe selected color effect willbe displayed on the screen. Video format: MPEG-4 or H263Frames per second: 5, 10 or 15frame per second.Advanced Storage location: My files orMemory card.Default name: modify the defaultname of the videoMute: On or OffIf you select On, sound will notbe recorded.Video length: MMS (default) orUnlimited.If you select MMS, the size ofthe recorded video will besmaller than the currentlyspecified maximum MMS size.Recording will stop whenreaching the maximum MMSsize and the video will bestored automatically. If youselect Unlimited, there will be norestrictions on the size of therecorded video. The maximumsize shall be determined by thememory capacity of yourmobile phone or the memorycard.X520_Master_EN.book Page 32 Tuesday, October 14, 2008 2:04 PM

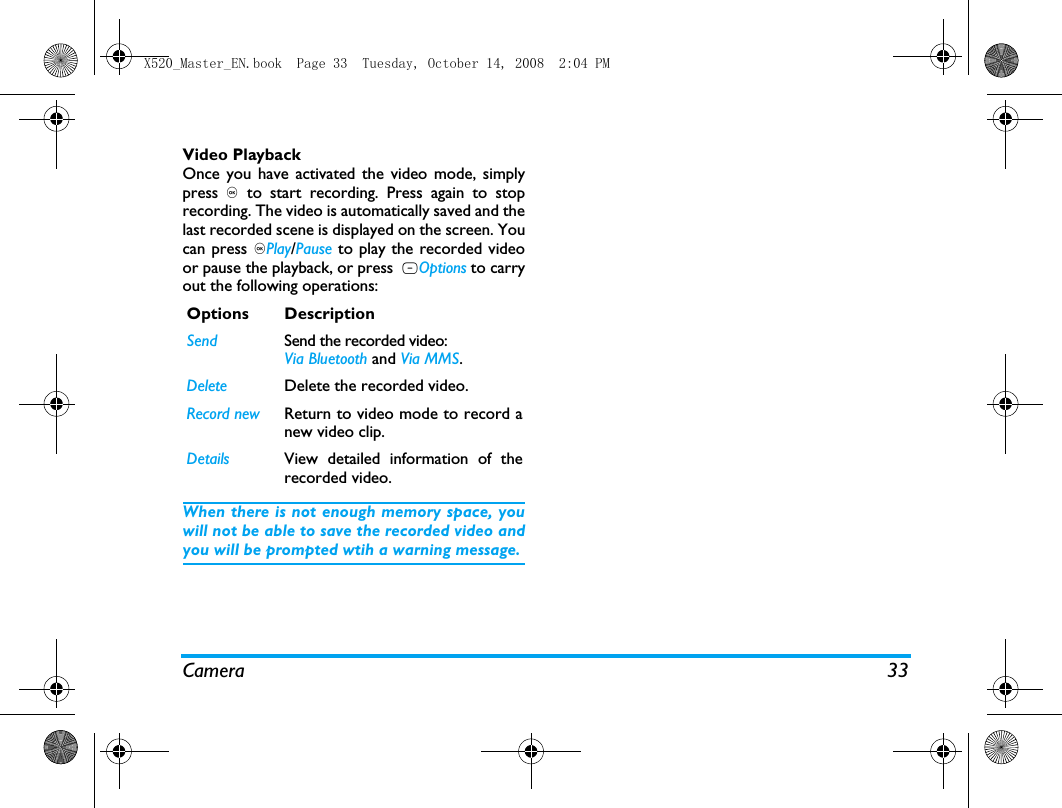

Camera 33Video PlaybackOnce you have activated the video mode, simplypress , to start recording. Press again to stoprecording. The video is automatically saved and thelast recorded scene is displayed on the screen. Youcan press ,Play/Pause to play the recorded videoor pause the playback, or press LOptions to carryout the following operations:When there is not enough memory space, youwill not be able to save the recorded video andyou will be prompted wtih a warning message. Options DescriptionSend Send the recorded video: Via Bluetooth and Via MMS.Delete Delete the recorded video.Record new Return to video mode to record anew video clip.Details View detailed information of therecorded video.X520_Master_EN.book Page 33 Tuesday, October 14, 2008 2:04 PM

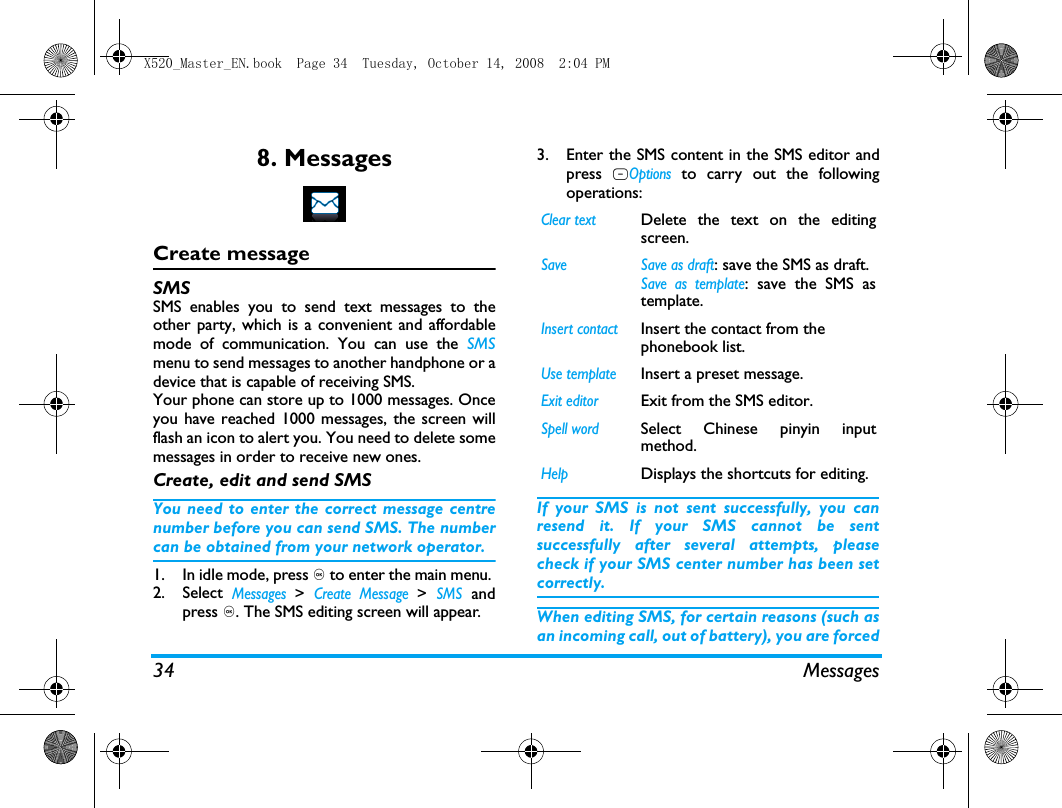

34 Messages8. MessagesCreate messageSMSSMS enables you to send text messages to theother party, which is a convenient and affordablemode of communication. You can use the SMSmenu to send messages to another handphone or adevice that is capable of receiving SMS. Your phone can store up to 1000 messages. Onceyou have reached 1000 messages, the screen willflash an icon to alert you. You need to delete somemessages in order to receive new ones. Create, edit and send SMSYou need to enter the correct message centrenumber before you can send SMS. The numbercan be obtained from your network operator. 1. In idle mode, press , to enter the main menu. 2. Select Messages > Create Message > SMS andpress ,. The SMS editing screen will appear. 3. Enter the SMS content in the SMS editor andpress LOptions to carry out the followingoperations: If your SMS is not sent successfully, you canresend it. If your SMS cannot be sentsuccessfully after several attempts, pleasecheck if your SMS center number has been setcorrectly. When editing SMS, for certain reasons (such asan incoming call, out of battery), you are forcedClear textDelete the text on the editingscreen. Save Save as draft: save the SMS as draft.Save as template: save the SMS astemplate.Insert contactInsert the contact from the phonebook list.Use templateInsert a preset message.Exit editorExit from the SMS editor.Spell wordSelect Chinese pinyin inputmethod.HelpDisplays the shortcuts for editing.X520_Master_EN.book Page 34 Tuesday, October 14, 2008 2:04 PM

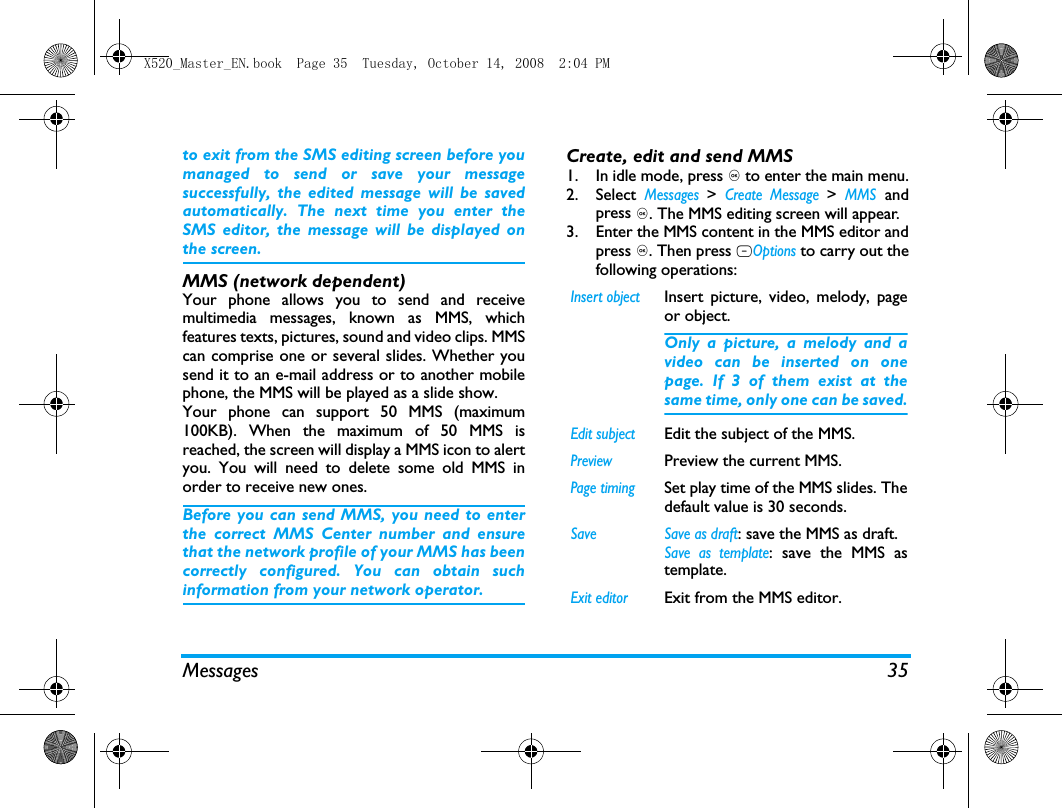

Messages 35to exit from the SMS editing screen before youmanaged to send or save your messagesuccessfully, the edited message will be savedautomatically. The next time you enter theSMS editor, the message will be displayed onthe screen. MMS (network dependent)Your phone allows you to send and receivemultimedia messages, known as MMS, whichfeatures texts, pictures, sound and video clips. MMScan comprise one or several slides. Whether yousend it to an e-mail address or to another mobilephone, the MMS will be played as a slide show. Your phone can support 50 MMS (maximum100KB). When the maximum of 50 MMS isreached, the screen will display a MMS icon to alertyou. You will need to delete some old MMS inorder to receive new ones.Before you can send MMS, you need to enterthe correct MMS Center number and ensurethat the network profile of your MMS has beencorrectly configured. You can obtain suchinformation from your network operator. Create, edit and send MMS1. In idle mode, press , to enter the main menu.2. Select Messages > Create Message > MMS andpress ,. The MMS editing screen will appear. 3. Enter the MMS content in the MMS editor andpress ,. Then press LOptions to carry out thefollowing operations: Insert objectInsert picture, video, melody, pageor object. Only a picture, a melody and avideo can be inserted on onepage. If 3 of them exist at thesame time, only one can be saved.Edit subjectEdit the subject of the MMS.PreviewPreview the current MMS.Page timingSet play time of the MMS slides. Thedefault value is 30 seconds.Save Save as draft: save the MMS as draft.Save as template: save the MMS astemplate.Exit editorExit from the MMS editor.X520_Master_EN.book Page 35 Tuesday, October 14, 2008 2:04 PM

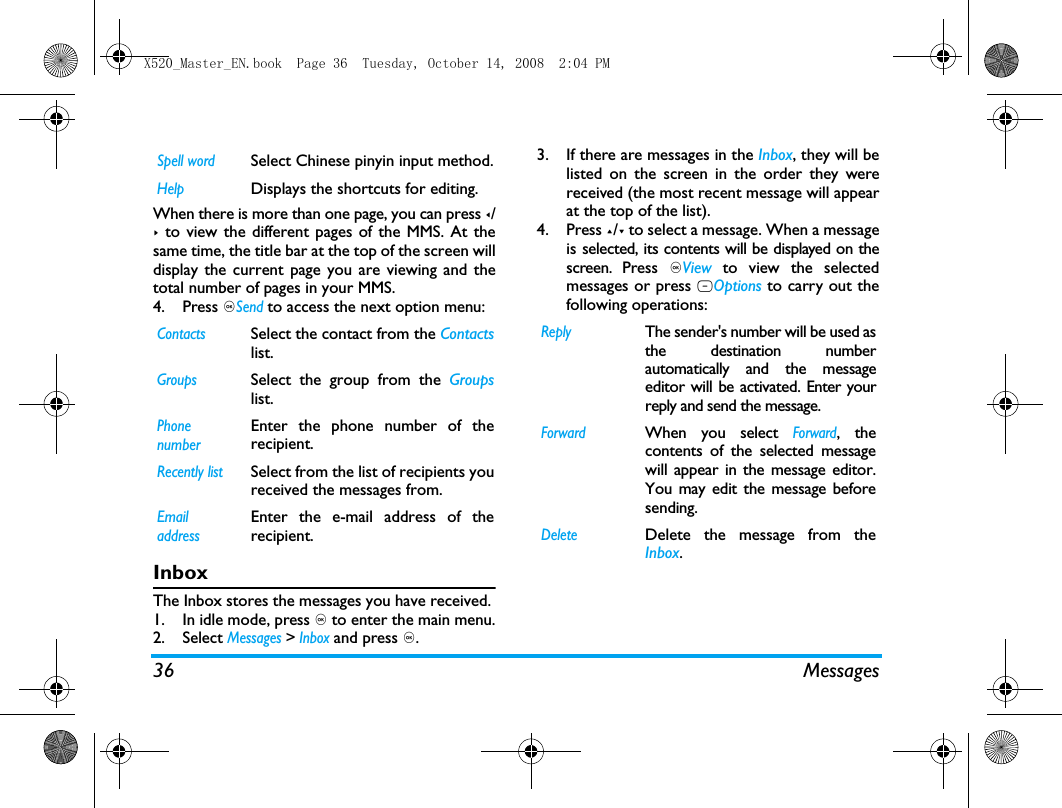

36 MessagesWhen there is more than one page, you can press </> to view the different pages of the MMS. At thesame time, the title bar at the top of the screen willdisplay the current page you are viewing and thetotal number of pages in your MMS. 4. Press ,Send to access the next option menu:InboxThe Inbox stores the messages you have received. 1. In idle mode, press , to enter the main menu.2. Select Messages > Inbox and press ,.3. If there are messages in the Inbox, they will belisted on the screen in the order they werereceived (the most recent message will appearat the top of the list).4. Press +/- to select a message. When a messageis selected, its contents will be displayed on thescreen. Press ,View to view the selectedmessages or press LOptions to carry out thefollowing operations:Spell wordSelect Chinese pinyin input method.HelpDisplays the shortcuts for editing.ContactsSelect the contact from the Contactslist.GroupsSelect the group from the Groupslist.Phone numberEnter the phone number of therecipient.Recently listSelect from the list of recipients youreceived the messages from.Email addressEnter the e-mail address of therecipient.ReplyThe sender's number will be used asthe destination numberautomatically and the messageeditor will be activated. Enter yourreply and send the message.ForwardWhen you select Forward, thecontents of the selected messagewill appear in the message editor.You may edit the message beforesending. DeleteDelete the message from theInbox.X520_Master_EN.book Page 36 Tuesday, October 14, 2008 2:04 PM

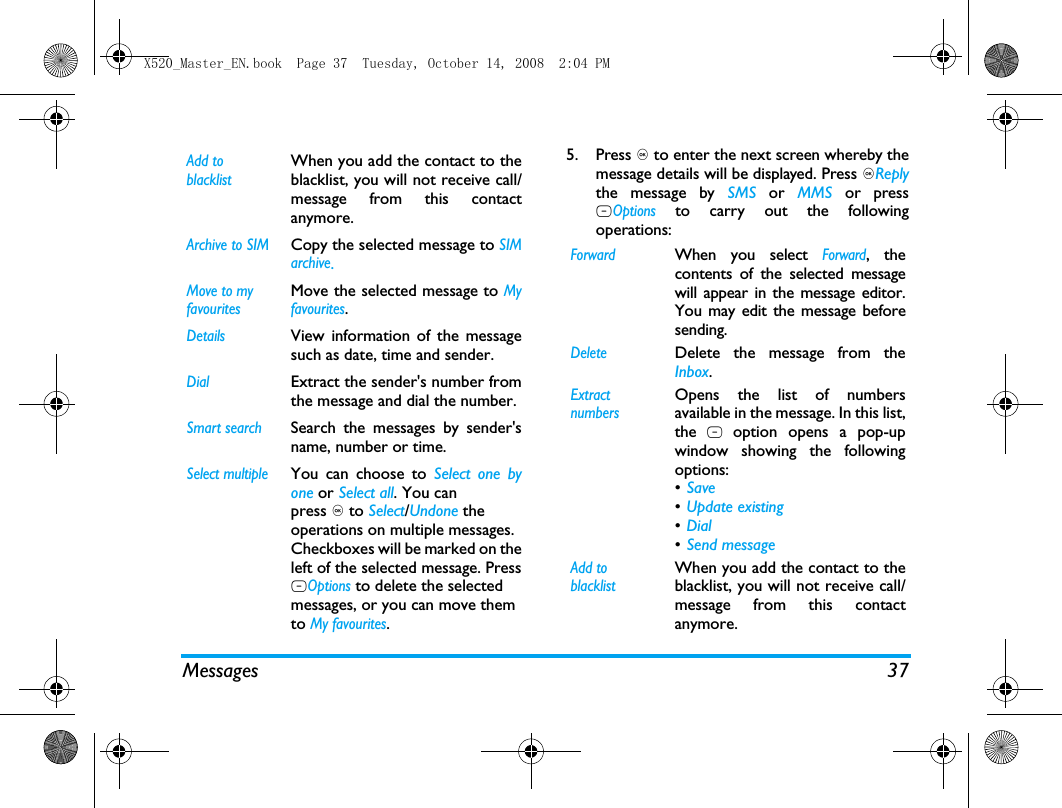

Messages 375. Press , to enter the next screen whereby themessage details will be displayed. Press ,Replythe message by SMS or MMS or pressLOptions to carry out the followingoperations:Add to blacklistWhen you add the contact to theblacklist, you will not receive call/message from this contactanymore.Archive to SIMCopy the selected message to SIMarchive.Move to my favouritesMove the selected message to Myfavourites.DetailsView information of the messagesuch as date, time and sender.DialExtract the sender's number fromthe message and dial the number.Smart searchSearch the messages by sender'sname, number or time.Select multipleYou can choose to Select one byone or Select all. You canpress , to Select/Undone theoperations on multiple messages.Checkboxes will be marked on theleft of the selected message. PressLOptions to delete the selectedmessages, or you can move themto My favourites. ForwardWhen you select Forward, thecontents of the selected messagewill appear in the message editor.You may edit the message beforesending. DeleteDelete the message from theInbox.Extract numbersOpens the list of numbersavailable in the message. In this list,the L option opens a pop-upwindow showing the followingoptions:•Save •Update existing •Dial •Send message Add to blacklistWhen you add the contact to theblacklist, you will not receive call/message from this contactanymore.X520_Master_EN.book Page 37 Tuesday, October 14, 2008 2:04 PM

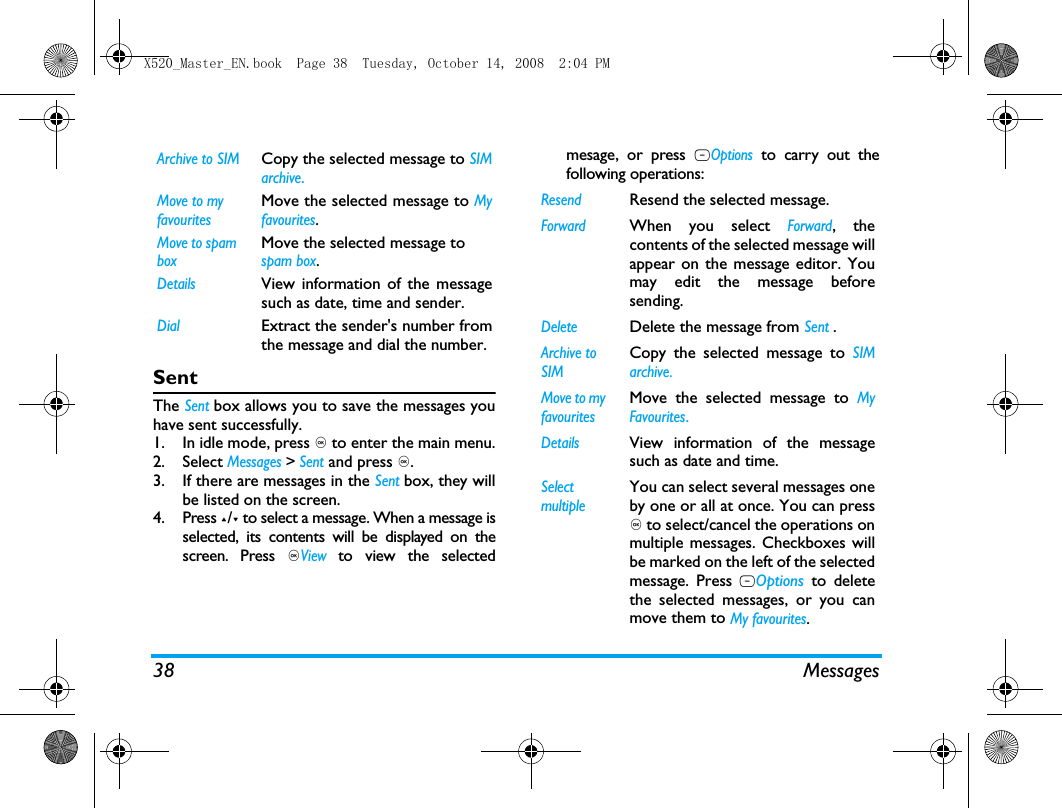

38 MessagesSentThe Sent box allows you to save the messages youhave sent successfully. 1. In idle mode, press , to enter the main menu.2. Select Messages > Sent and press ,.3. If there are messages in the Sent box, they willbe listed on the screen. 4. Press +/- to select a message. When a message isselected, its contents will be displayed on thescreen. Press ,View to view the selectedmesage, or press LOptions to carry out thefollowing operations:Archive to SIMCopy the selected message to SIMarchive.Move to my favouritesMove the selected message to Myfavourites.Move to spam boxMove the selected message to spam box.DetailsView information of the messagesuch as date, time and sender.DialExtract the sender's number fromthe message and dial the number.ResendResend the selected message.ForwardWhen you select Forward, thecontents of the selected message willappear on the message editor. Youmay edit the message beforesending. DeleteDelete the message from Sent .Archive to SIMCopy the selected message to SIMarchive.Move to my favouritesMove the selected message to MyFavourites.DetailsView information of the messagesuch as date and time.Select multipleYou can select several messages oneby one or all at once. You can press, to select/cancel the operations onmultiple messages. Checkboxes willbe marked on the left of the selectedmessage. Press LOptions to deletethe selected messages, or you canmove them to My favourites.X520_Master_EN.book Page 38 Tuesday, October 14, 2008 2:04 PM

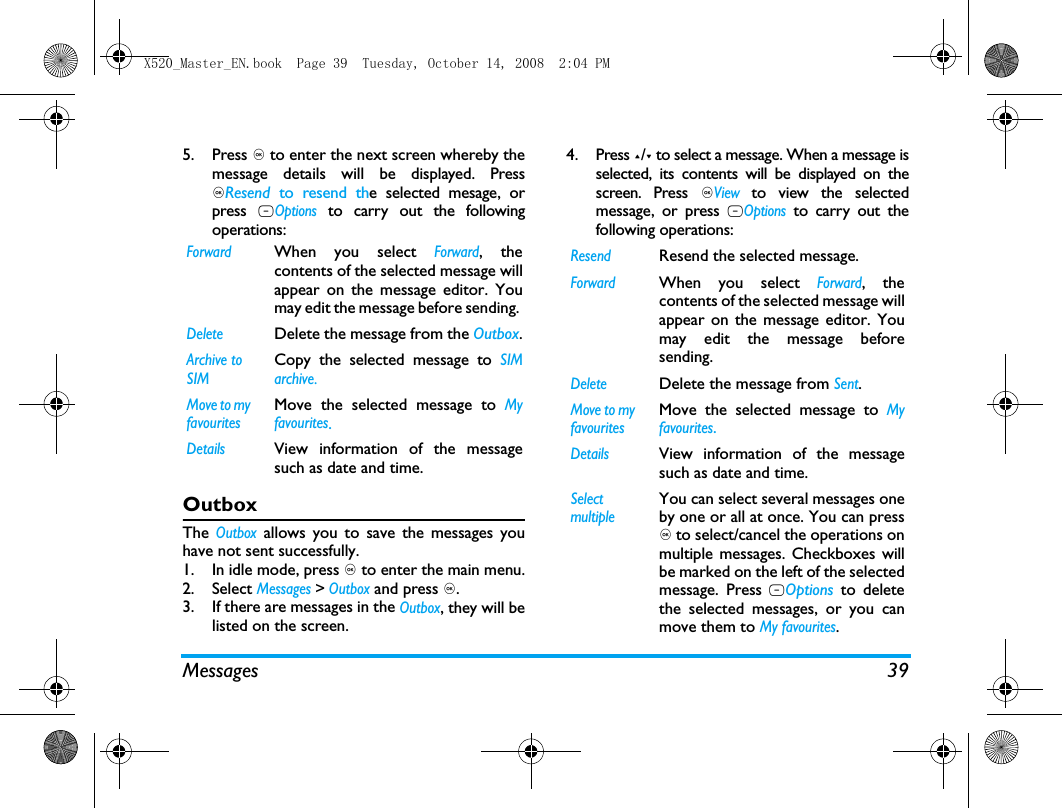

Messages 395. Press , to enter the next screen whereby themessage details will be displayed. Press,Resend to resend the selected mesage, orpress LOptions to carry out the followingoperations:OutboxThe Outbox allows you to save the messages youhave not sent successfully. 1. In idle mode, press , to enter the main menu.2. Select Messages > Outbox and press ,.3. If there are messages in the Outbox, they will belisted on the screen. 4. Press +/- to select a message. When a message isselected, its contents will be displayed on thescreen. Press ,View to view the selectedmessage, or press LOptions to carry out thefollowing operations:ForwardWhen you select Forward, thecontents of the selected message willappear on the message editor. Youmay edit the message before sending. DeleteDelete the message from the Outbox.Archive to SIMCopy the selected message to SIMarchive.Move to my favouritesMove the selected message to Myfavourites.DetailsView information of the messagesuch as date and time.ResendResend the selected message.ForwardWhen you select Forward, thecontents of the selected message willappear on the message editor. Youmay edit the message beforesending. DeleteDelete the message from Sent.Move to my favouritesMove the selected message to Myfavourites.DetailsView information of the messagesuch as date and time.Select multipleYou can select several messages oneby one or all at once. You can press, to select/cancel the operations onmultiple messages. Checkboxes willbe marked on the left of the selectedmessage. Press LOptions to deletethe selected messages, or you canmove them to My favourites.X520_Master_EN.book Page 39 Tuesday, October 14, 2008 2:04 PM

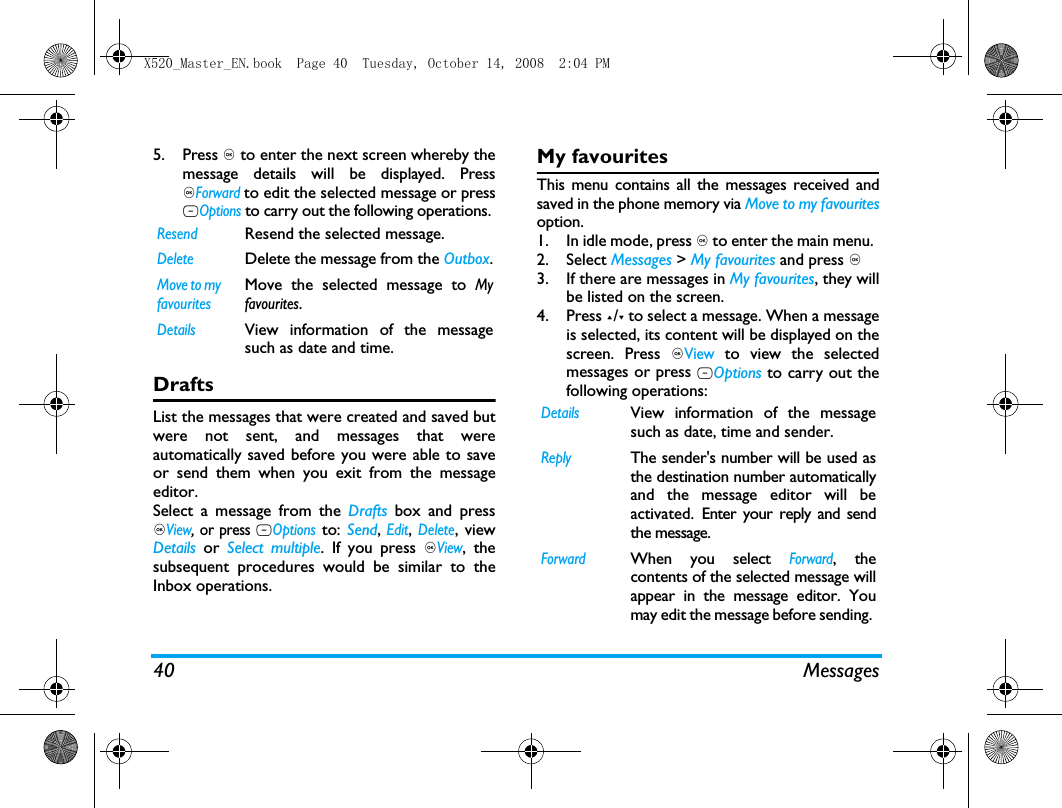

40 Messages5. Press , to enter the next screen whereby themessage details will be displayed. Press,Forward to edit the selected message or pressLOptions to carry out the following operations. DraftsList the messages that were created and saved butwere not sent, and messages that wereautomatically saved before you were able to saveor send them when you exit from the messageeditor. Select a message from the Drafts box and press,View, or press LOptions to: Send, Edit, Delete, viewDetails or Select multiple. If you press ,View, thesubsequent procedures would be similar to theInbox operations.My favouritesThis menu contains all the messages received andsaved in the phone memory via Move to my favouritesoption. 1. In idle mode, press , to enter the main menu. 2. Select Messages > My favourites and press ,.3. If there are messages in My favourites, they willbe listed on the screen. 4. Press +/- to select a message. When a messageis selected, its content will be displayed on thescreen. Press ,View to view the selectedmessages or press LOptions to carry out thefollowing operations:ResendResend the selected message.DeleteDelete the message from the Outbox.Move to my favouritesMove the selected message to Myfavourites.DetailsView information of the messagesuch as date and time.DetailsView information of the messagesuch as date, time and sender.ReplyThe sender's number will be used asthe destination number automaticallyand the message editor will beactivated. Enter your reply and sendthe message.ForwardWhen you select Forward, thecontents of the selected message willappear in the message editor. Youmay edit the message before sending. X520_Master_EN.book Page 40 Tuesday, October 14, 2008 2:04 PM

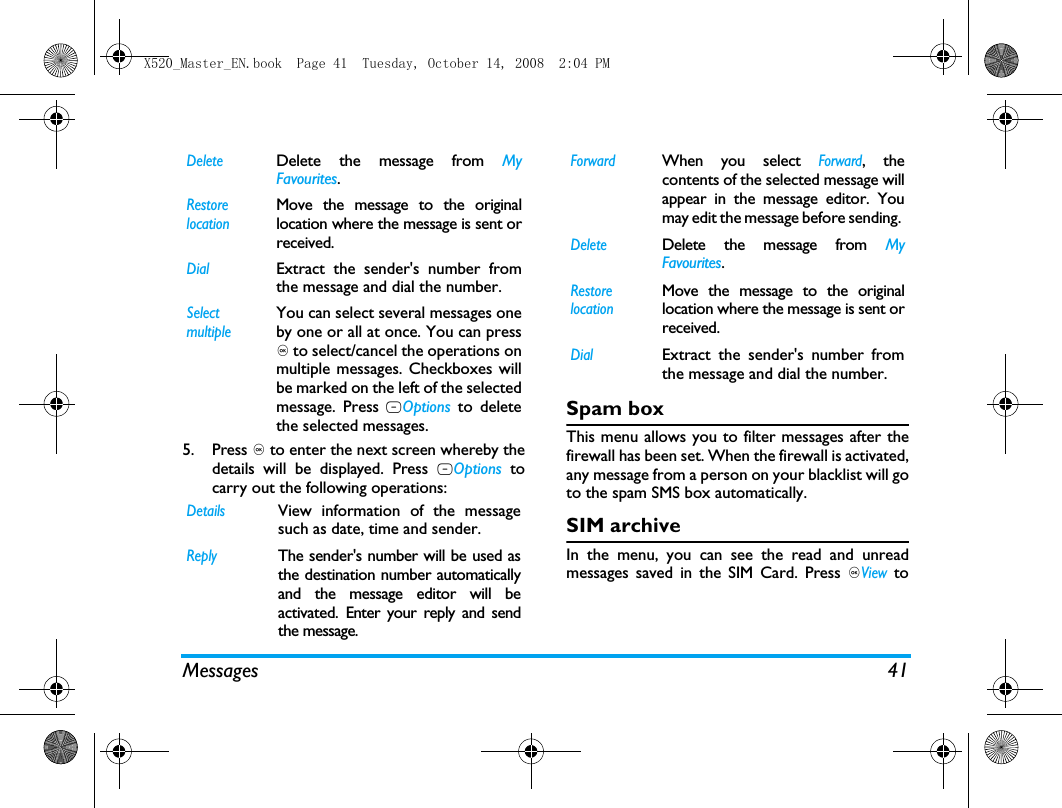

Messages 415. Press , to enter the next screen whereby thedetails will be displayed. Press LOptions tocarry out the following operations:Spam boxThis menu allows you to filter messages after thefirewall has been set. When the firewall is activated,any message from a person on your blacklist will goto the spam SMS box automatically.SIM archiveIn the menu, you can see the read and unreadmessages saved in the SIM Card. Press ,View toDeleteDelete the message from MyFavourites.Restore locationMove the message to the originallocation where the message is sent orreceived.DialExtract the sender's number fromthe message and dial the number.Select multipleYou can select several messages oneby one or all at once. You can press, to select/cancel the operations onmultiple messages. Checkboxes willbe marked on the left of the selectedmessage. Press LOptions to deletethe selected messages.DetailsView information of the messagesuch as date, time and sender.ReplyThe sender's number will be used asthe destination number automaticallyand the message editor will beactivated. Enter your reply and sendthe message.ForwardWhen you select Forward, thecontents of the selected message willappear in the message editor. Youmay edit the message before sending. DeleteDelete the message from MyFavourites.Restore locationMove the message to the originallocation where the message is sent orreceived.DialExtract the sender's number fromthe message and dial the number.X520_Master_EN.book Page 41 Tuesday, October 14, 2008 2:04 PM

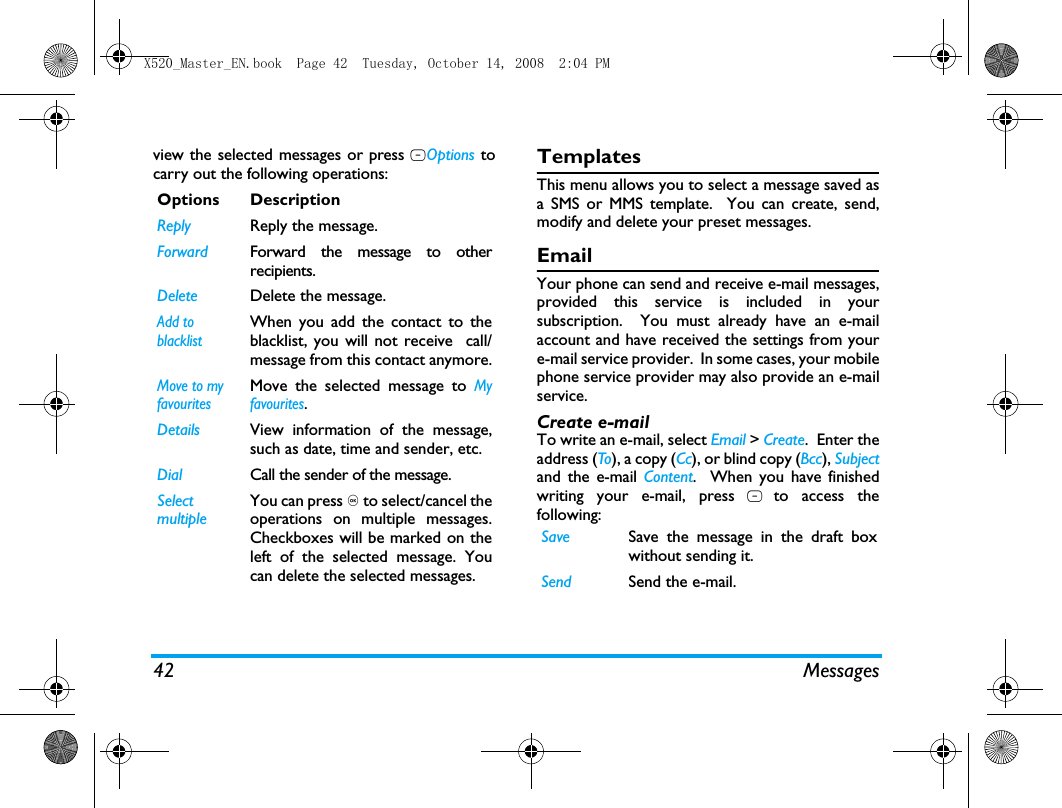

42 Messagesview the selected messages or press LOptions tocarry out the following operations: TemplatesThis menu allows you to select a message saved asa SMS or MMS template. You can create, send,modify and delete your preset messages.EmailYour phone can send and receive e-mail messages,provided this service is included in yoursubscription. You must already have an e-mailaccount and have received the settings from youre-mail service provider. In some cases, your mobilephone service provider may also provide an e-mailservice.Create e-mailTo write an e-mail, select Email > Create. Enter theaddress (To), a copy (Cc), or blind copy (Bcc), Subjectand the e-mail Content. When you have finishedwriting your e-mail, press L to access thefollowing:Options DescriptionReply Reply the message.Forward Forward the message to otherrecipients.Delete Delete the message.Add to blacklistWhen you add the contact to theblacklist, you will not receive call/message from this contact anymore.Move to my favouritesMove the selected message to Myfavourites.Details View information of the message,such as date, time and sender, etc.Dial Call the sender of the message.Select multipleYou can press , to select/cancel theoperations on multiple messages.Checkboxes will be marked on theleft of the selected message. Youcan delete the selected messages.Save Save the message in the draft boxwithout sending it.Send Send the e-mail.X520_Master_EN.book Page 42 Tuesday, October 14, 2008 2:04 PM

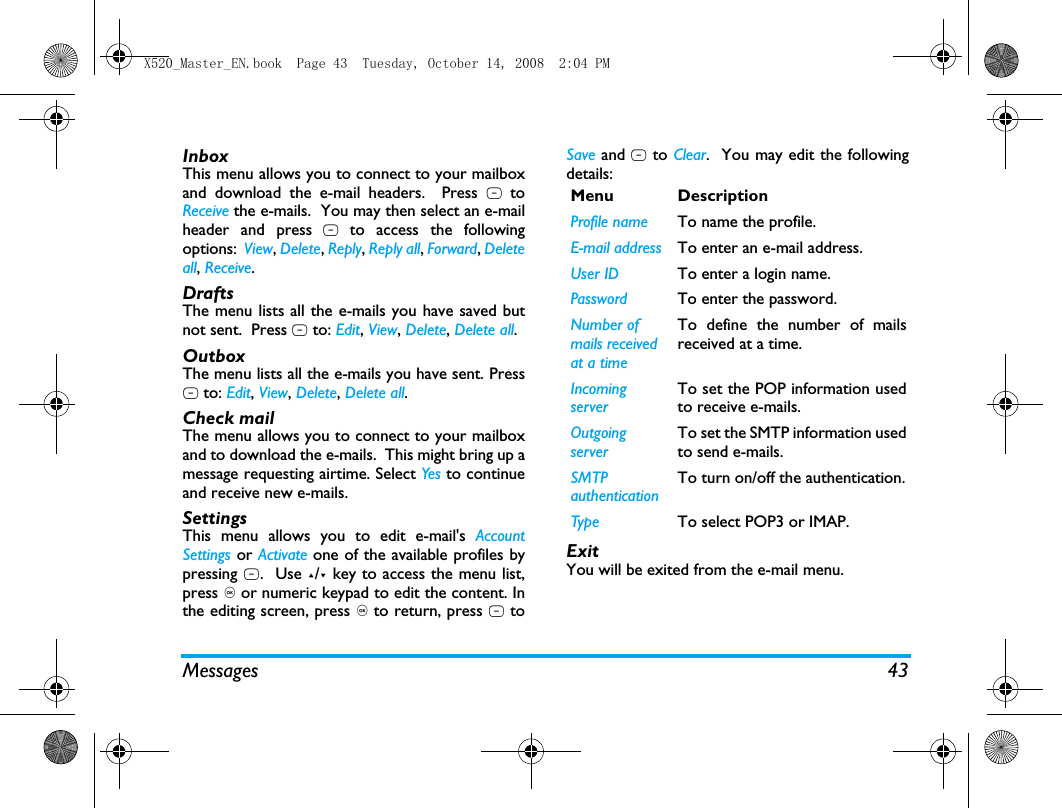

Messages 43InboxThis menu allows you to connect to your mailboxand download the e-mail headers. Press L toReceive the e-mails. You may then select an e-mailheader and press L to access the followingoptions: View, Delete, Reply, Reply all, Forward, Deleteall, Receive.DraftsThe menu lists all the e-mails you have saved butnot sent. Press L to: Edit, View, Delete, Delete all.OutboxThe menu lists all the e-mails you have sent. PressL to: Edit, View, Delete, Delete all.Check mailThe menu allows you to connect to your mailboxand to download the e-mails. This might bring up amessage requesting airtime. Select Yes to continueand receive new e-mails.SettingsThis menu allows you to edit e-mail's AccountSettings or Activate one of the available profiles bypressing L. Use +/- key to access the menu list,press , or numeric keypad to edit the content. Inthe editing screen, press , to return, press L toSave and R to Clear. You may edit the followingdetails:ExitYou will be exited from the e-mail menu.Menu DescriptionProfile name To name the profile.E-mail address To enter an e-mail address.User ID To enter a login name.Password To enter the password.Number of mails received at a timeTo define the number of mailsreceived at a time.Incoming serverTo set the POP information usedto receive e-mails.Outgoing serverTo set the SMTP information usedto send e-mails.SMTP authenticationTo turn on/off the authentication.Type To select POP3 or IMAP.X520_Master_EN.book Page 43 Tuesday, October 14, 2008 2:04 PM

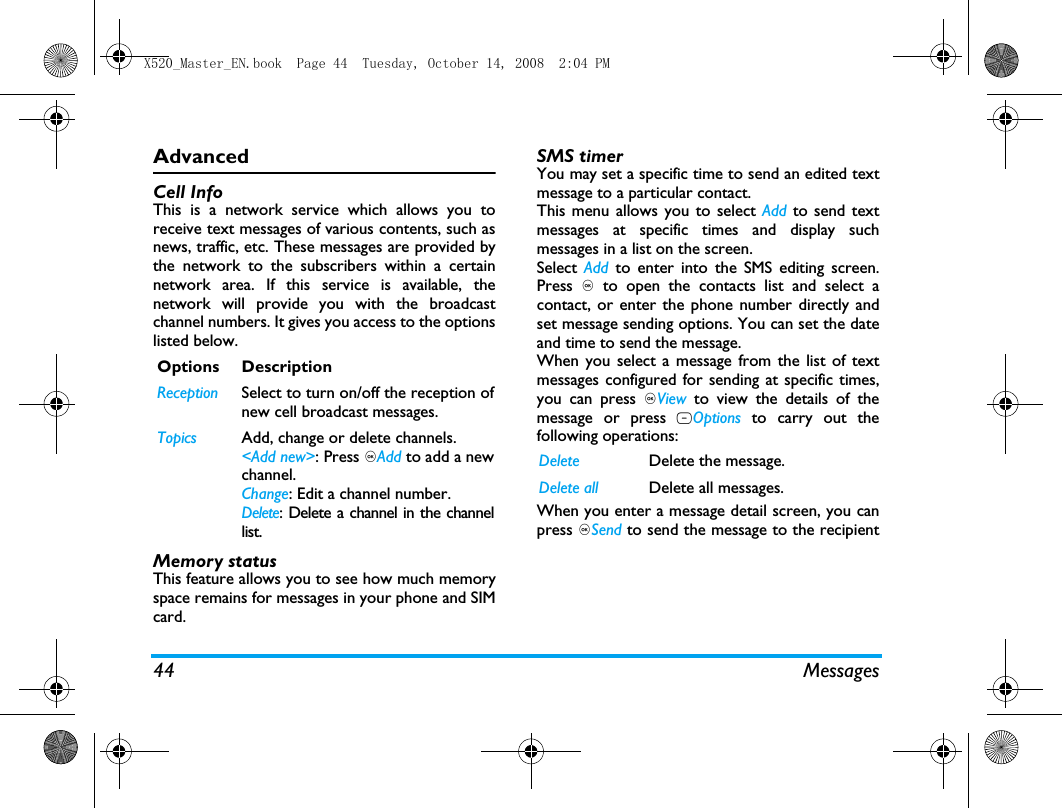

44 MessagesAdvancedCell InfoThis is a network service which allows you toreceive text messages of various contents, such asnews, traffic, etc. These messages are provided bythe network to the subscribers within a certainnetwork area. If this service is available, thenetwork will provide you with the broadcastchannel numbers. It gives you access to the optionslisted below.Memory statusThis feature allows you to see how much memoryspace remains for messages in your phone and SIMcard.SMS timerYou may set a specific time to send an edited textmessage to a particular contact.This menu allows you to select Add to send textmessages at specific times and display suchmessages in a list on the screen. Select Add to enter into the SMS editing screen.Press , to open the contacts list and select acontact, or enter the phone number directly andset message sending options. You can set the dateand time to send the message.When you select a message from the list of textmessages configured for sending at specific times,you can press ,View to view the details of themessage or press LOptions to carry out thefollowing operations: When you enter a message detail screen, you canpress ,Send to send the message to the recipientOptions DescriptionReception Select to turn on/off the reception ofnew cell broadcast messages.Topics Add, change or delete channels.<Add new>: Press ,Add to add a newchannel.Change: Edit a channel number.Delete: Delete a channel in the channellist. Delete Delete the message.Delete all Delete all messages.X520_Master_EN.book Page 44 Tuesday, October 14, 2008 2:04 PM

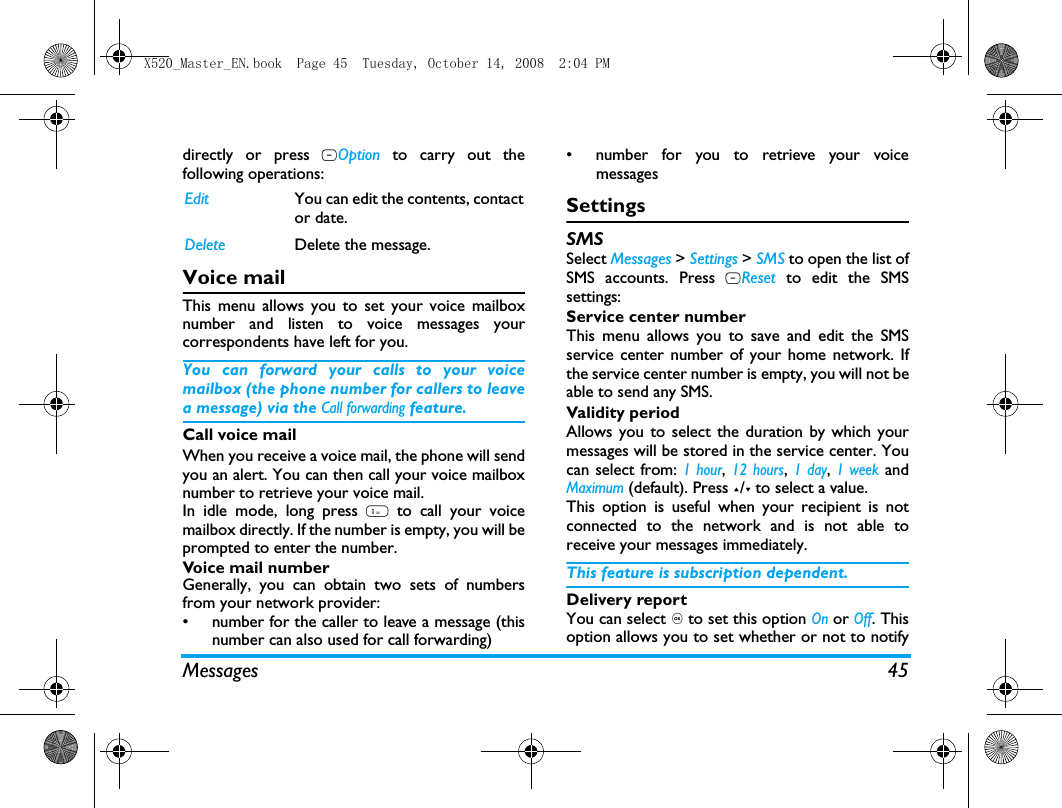

Messages 45directly or press LOption to carry out thefollowing operations: Voice mailThis menu allows you to set your voice mailboxnumber and listen to voice messages yourcorrespondents have left for you.You can forward your calls to your voicemailbox (the phone number for callers to leavea message) via the Call forwarding feature. Call voice mailWhen you receive a voice mail, the phone will sendyou an alert. You can then call your voice mailboxnumber to retrieve your voice mail. In idle mode, long press 1 to call your voicemailbox directly. If the number is empty, you will beprompted to enter the number. Voice mail numberGenerally, you can obtain two sets of numbersfrom your network provider: • number for the caller to leave a message (thisnumber can also used for call forwarding)• number for you to retrieve your voicemessagesSettingsSMSSelect Messages > Settings > SMS to open the list ofSMS accounts. Press LReset to edit the SMSsettings:Service center numberThis menu allows you to save and edit the SMSservice center number of your home network. Ifthe service center number is empty, you will not beable to send any SMS.Validity periodAllows you to select the duration by which yourmessages will be stored in the service center. Youcan select from: 1 hour, 12 hours, 1 day, 1 week andMaximum (default). Press +/- to select a value. This option is useful when your recipient is notconnected to the network and is not able toreceive your messages immediately. This feature is subscription dependent. Delivery reportYou can select , to set this option On or Off. Thisoption allows you to set whether or not to notifyEdit You can edit the contents, contactor date.Delete Delete the message.X520_Master_EN.book Page 45 Tuesday, October 14, 2008 2:04 PM

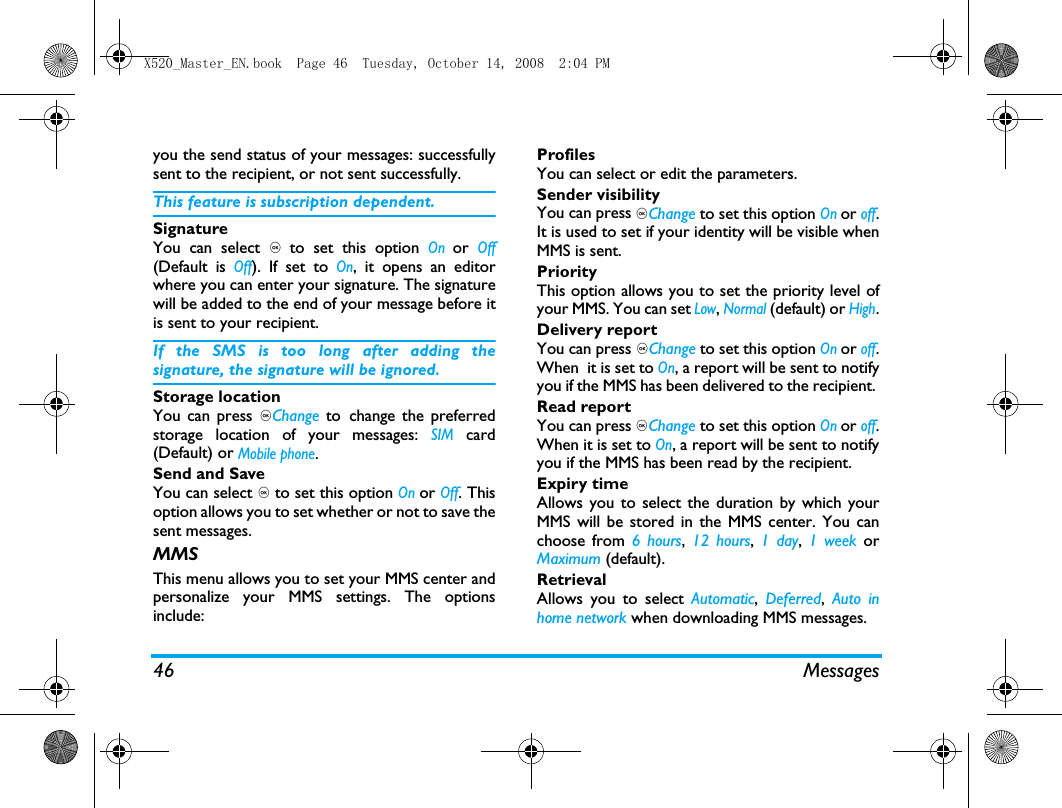

46 Messagesyou the send status of your messages: successfullysent to the recipient, or not sent successfully. This feature is subscription dependent. SignatureYou can select , to set this option On or Off(Default is Off). If set to On, it opens an editorwhere you can enter your signature. The signaturewill be added to the end of your message before itis sent to your recipient. If the SMS is too long after adding thesignature, the signature will be ignored. Storage locationYou can press ,Change to change the preferredstorage location of your messages: SIM card(Default) or Mobile phone.Send and SaveYou can select , to set this option On or Off. Thisoption allows you to set whether or not to save thesent messages.MMSThis menu allows you to set your MMS center andpersonalize your MMS settings. The optionsinclude: ProfilesYou can select or edit the parameters.Sender visibilityYou can press ,Change to set this option On or off.It is used to set if your identity will be visible whenMMS is sent.PriorityThis option allows you to set the priority level ofyour MMS. You can set Low, Normal (default) or High.Delivery reportYou can press ,Change to set this option On or off.When it is set to On, a report will be sent to notifyyou if the MMS has been delivered to the recipient. Read reportYou can press ,Change to set this option On or off.When it is set to On, a report will be sent to notifyyou if the MMS has been read by the recipient. Expiry timeAllows you to select the duration by which yourMMS will be stored in the MMS center. You canchoose from 6 hours, 12 hours, 1 day, 1 week orMaximum (default). RetrievalAllows you to select Automatic, Deferred, Auto inhome network when downloading MMS messages.X520_Master_EN.book Page 46 Tuesday, October 14, 2008 2:04 PM

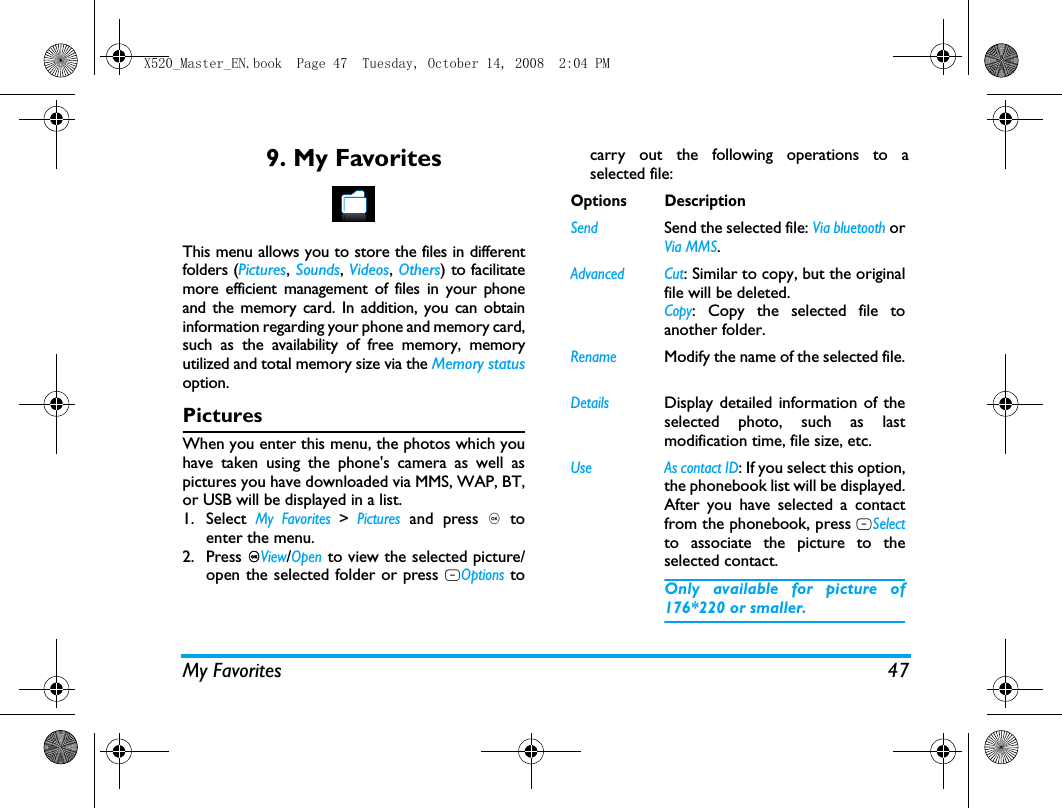

My Favorites 479. My FavoritesThis menu allows you to store the files in differentfolders (Pictures, Sounds, Videos, Others) to facilitatemore efficient management of files in your phoneand the memory card. In addition, you can obtaininformation regarding your phone and memory card,such as the availability of free memory, memoryutilized and total memory size via the Memory statusoption. PicturesWhen you enter this menu, the photos which youhave taken using the phone's camera as well aspictures you have downloaded via MMS, WAP, BT,or USB will be displayed in a list. 1. Select My Favorites > Pictures and press , toenter the menu.2. Press ,View/Open to view the selected picture/open the selected folder or press LOptions tocarry out the following operations to aselected file:Options DescriptionSend Send the selected file: Via bluetooth orVia MMS.Advanced Cut: Similar to copy, but the originalfile will be deleted.Copy: Copy the selected file toanother folder.RenameModify the name of the selected file.DetailsDisplay detailed information of theselected photo, such as lastmodification time, file size, etc. Use As contact ID: If you select this option,the phonebook list will be displayed.After you have selected a contactfrom the phonebook, press LSelectto associate the picture to theselected contact. Only available for picture of176*220 or smaller.X520_Master_EN.book Page 47 Tuesday, October 14, 2008 2:04 PM

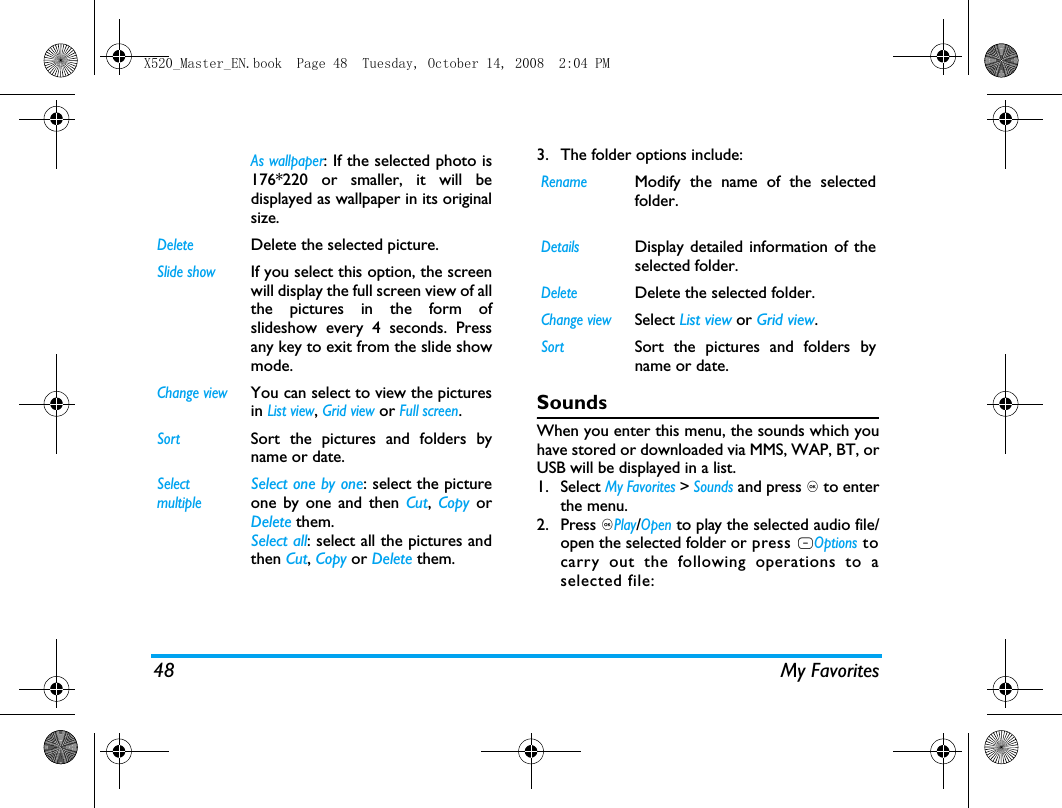

48 My Favorites3. The folder options include: SoundsWhen you enter this menu, the sounds which youhave stored or downloaded via MMS, WAP, BT, orUSB will be displayed in a list. 1. Select My Favorites > Sounds and press , to enterthe menu.2. Press ,Play/Open to play the selected audio file/open the selected folder or press LOptions tocarry out the following operations to aselected file:As wallpaper: If the selected photo is176*220 or smaller, it will bedisplayed as wallpaper in its originalsize. DeleteDelete the selected picture.Slide showIf you select this option, the screenwill display the full screen view of allthe pictures in the form ofslideshow every 4 seconds. Pressany key to exit from the slide showmode. Change viewYou can select to view the picturesin List view, Grid view or Full screen.SortSort the pictures and folders byname or date.SelectmultipleSelect one by one: select the pictureone by one and then Cut, Copy orDelete them.Select all: select all the pictures andthen Cut, Copy or Delete them.RenameModify the name of the selectedfolder.DetailsDisplay detailed information of theselected folder. DeleteDelete the selected folder.Change viewSelect List view or Grid view.SortSort the pictures and folders byname or date.X520_Master_EN.book Page 48 Tuesday, October 14, 2008 2:04 PM

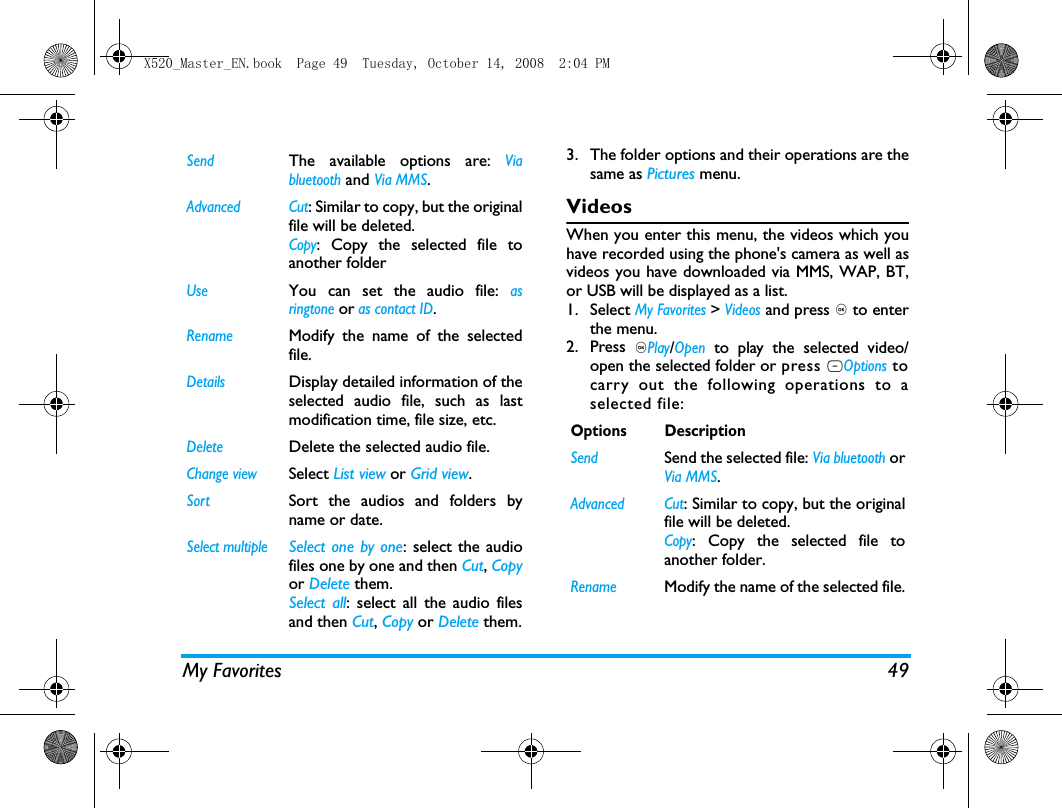

My Favorites 493. The folder options and their operations are thesame as Pictures menu.VideosWhen you enter this menu, the videos which youhave recorded using the phone's camera as well asvideos you have downloaded via MMS, WAP, BT,or USB will be displayed as a list.1. Select My Favorites > Videos and press , to enterthe menu.2. Press ,Play/Open to play the selected video/open the selected folder or press LOptions tocarry out the following operations to aselected file:SendThe available options are: Viabluetooth and Via MMS.Advanced Cut: Similar to copy, but the originalfile will be deleted.Copy: Copy the selected file toanother folderUseYou can set the audio file: asringtone or as contact ID. RenameModify the name of the selectedfile.DetailsDisplay detailed information of theselected audio file, such as lastmodification time, file size, etc. DeleteDelete the selected audio file.Change viewSelect List view or Grid view.SortSort the audios and folders byname or date.Select multipleSelect one by one: select the audiofiles one by one and then Cut, Copyor Delete them.Select all: select all the audio filesand then Cut, Copy or Delete them.Options DescriptionSendSend the selected file: Via bluetooth orVia MMS.Advanced Cut: Similar to copy, but the originalfile will be deleted.Copy: Copy the selected file toanother folder.RenameModify the name of the selected file.X520_Master_EN.book Page 49 Tuesday, October 14, 2008 2:04 PM

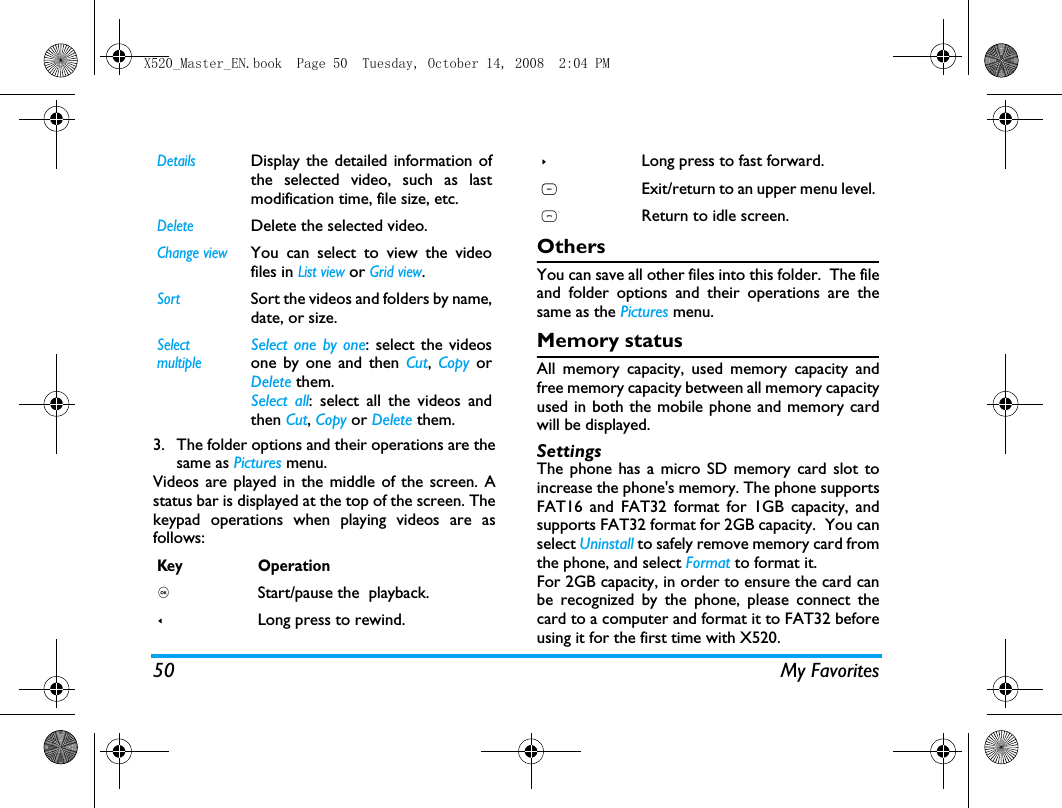

50 My Favorites3. The folder options and their operations are thesame as Pictures menu.Videos are played in the middle of the screen. Astatus bar is displayed at the top of the screen. Thekeypad operations when playing videos are asfollows: OthersYou can save all other files into this folder. The fileand folder options and their operations are thesame as the Pictures menu.Memory statusAll memory capacity, used memory capacity andfree memory capacity between all memory capacityused in both the mobile phone and memory cardwill be displayed.SettingsThe phone has a micro SD memory card slot toincrease the phone's memory. The phone supportsFAT16 and FAT32 format for 1GB capacity, andsupports FAT32 format for 2GB capacity. You canselect Uninstall to safely remove memory card fromthe phone, and select Format to format it.For 2GB capacity, in order to ensure the card canbe recognized by the phone, please connect thecard to a computer and format it to FAT32 beforeusing it for the first time with X520.DetailsDisplay the detailed information ofthe selected video, such as lastmodification time, file size, etc. DeleteDelete the selected video.Change viewYou can select to view the videofiles in List view or Grid view.SortSort the videos and folders by name,date, or size.SelectmultipleSelect one by one: select the videosone by one and then Cut, Copy orDelete them.Select all: select all the videos andthen Cut, Copy or Delete them.Key Operation, Start/pause the playback.<Long press to rewind.>Long press to fast forward.RExit/return to an upper menu level.)Return to idle screen.X520_Master_EN.book Page 50 Tuesday, October 14, 2008 2:04 PM

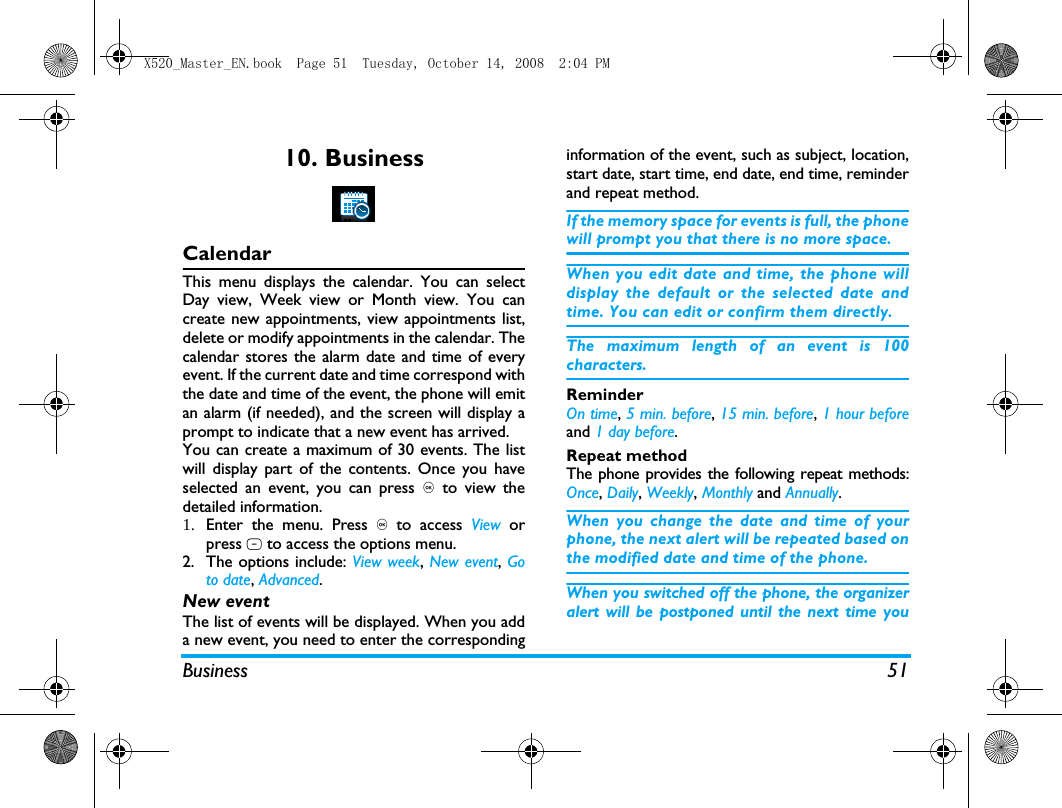

Business 5110. BusinessCalendarThis menu displays the calendar. You can selectDay view, Week view or Month view. You cancreate new appointments, view appointments list,delete or modify appointments in the calendar. Thecalendar stores the alarm date and time of everyevent. If the current date and time correspond withthe date and time of the event, the phone will emitan alarm (if needed), and the screen will display aprompt to indicate that a new event has arrived. You can create a maximum of 30 events. The listwill display part of the contents. Once you haveselected an event, you can press , to view thedetailed information.1. Enter the menu. Press , to access View orpress L to access the options menu.2. The options include: View week, New event, Goto date, Advanced.New eventThe list of events will be displayed. When you adda new event, you need to enter the correspondinginformation of the event, such as subject, location,start date, start time, end date, end time, reminderand repeat method.If the memory space for events is full, the phonewill prompt you that there is no more space. When you edit date and time, the phone willdisplay the default or the selected date andtime. You can edit or confirm them directly. The maximum length of an event is 100characters. ReminderOn time, 5 min. before, 15 min. before, 1 hour beforeand 1 day before.Repeat methodThe phone provides the following repeat methods:Once, Daily, Weekly, Monthly and Annually.When you change the date and time of yourphone, the next alert will be repeated based onthe modified date and time of the phone. When you switched off the phone, the organizeralert will be postponed until the next time youX520_Master_EN.book Page 51 Tuesday, October 14, 2008 2:04 PM

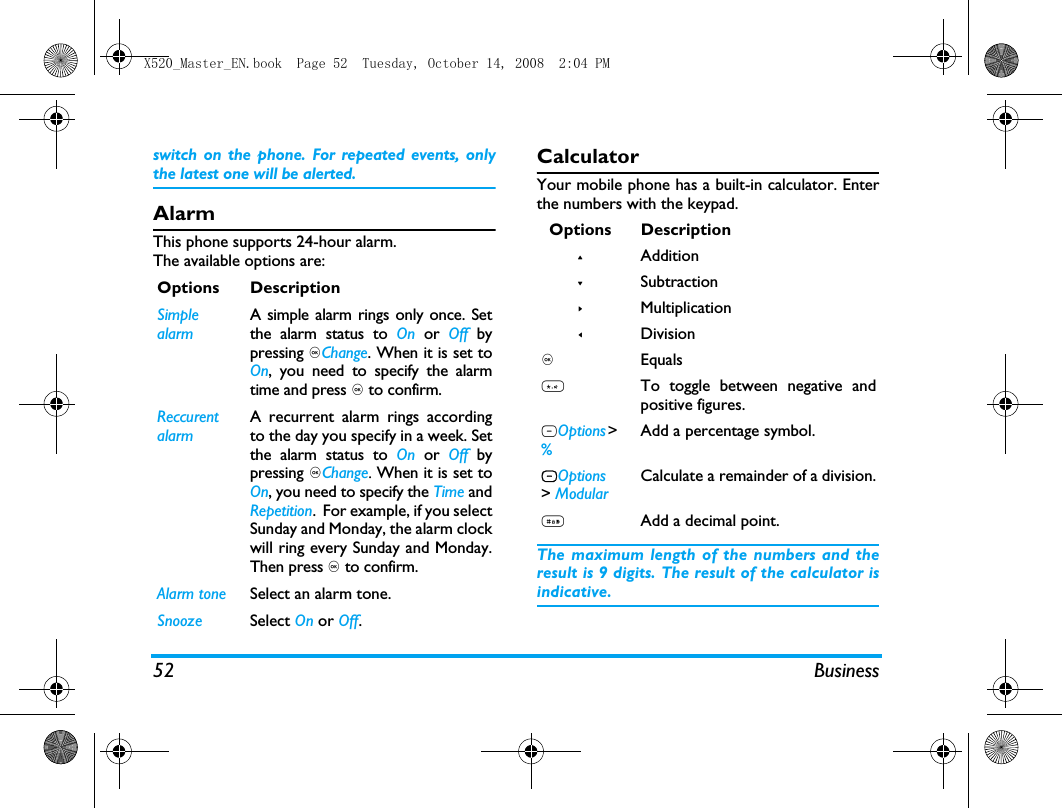

52 Businessswitch on the phone. For repeated events, onlythe latest one will be alerted. AlarmThis phone supports 24-hour alarm.The available options are:CalculatorYour mobile phone has a built-in calculator. Enterthe numbers with the keypad.The maximum length of the numbers and theresult is 9 digits. The result of the calculator isindicative.Options DescriptionSimple alarmA simple alarm rings only once. Setthe alarm status to On or Off bypressing ,Change. When it is set toOn, you need to specify the alarmtime and press , to confirm.Reccurent alarmA recurrent alarm rings accordingto the day you specify in a week. Setthe alarm status to On or Off bypressing ,Change. When it is set toOn, you need to specify the Time andRepetition. For example, if you selectSunday and Monday, the alarm clockwill ring every Sunday and Monday.Then press , to confirm.Alarm tone Select an alarm tone.Snooze Select On or Off.Options Description+Addition-Subtraction>Multiplication<Division, Equals*To toggle between negative andpositive figures.LOptions > % Add a percentage symbol.LOptions > ModularCalculate a remainder of a division.#Add a decimal point.X520_Master_EN.book Page 52 Tuesday, October 14, 2008 2:04 PM

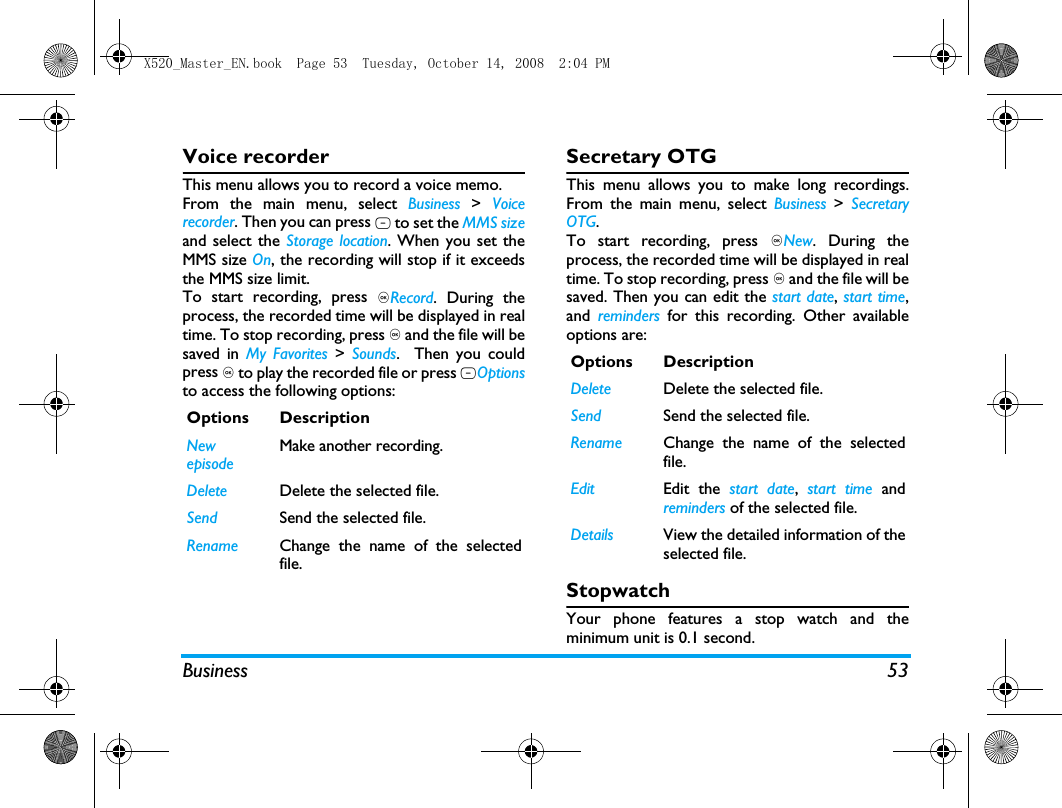

Business 53Voice recorderThis menu allows you to record a voice memo.From the main menu, select Business > Voicerecorder. Then you can press L to set the MMS sizeand select the Storage location. When you set theMMS size On, the recording will stop if it exceedsthe MMS size limit.To start recording, press ,Record. During theprocess, the recorded time will be displayed in realtime. To stop recording, press , and the file will besaved in My Favorites > Sounds. Then you couldpress , to play the recorded file or press LOptionsto access the following options: Secretary OTGThis menu allows you to make long recordings.From the main menu, select Business > SecretaryOTG.To start recording, press ,New. During theprocess, the recorded time will be displayed in realtime. To stop recording, press , and the file will besaved. Then you can edit the start date, start time,and reminders for this recording. Other availableoptions are:StopwatchYour phone features a stop watch and theminimum unit is 0.1 second.Options DescriptionNew episodeMake another recording.Delete Delete the selected file.Send Send the selected file.Rename Change the name of the selectedfile.Options DescriptionDelete Delete the selected file.Send Send the selected file.Rename Change the name of the selectedfile.Edit Edit the start date, start time andreminders of the selected file.Details View the detailed information of theselected file.X520_Master_EN.book Page 53 Tuesday, October 14, 2008 2:04 PM

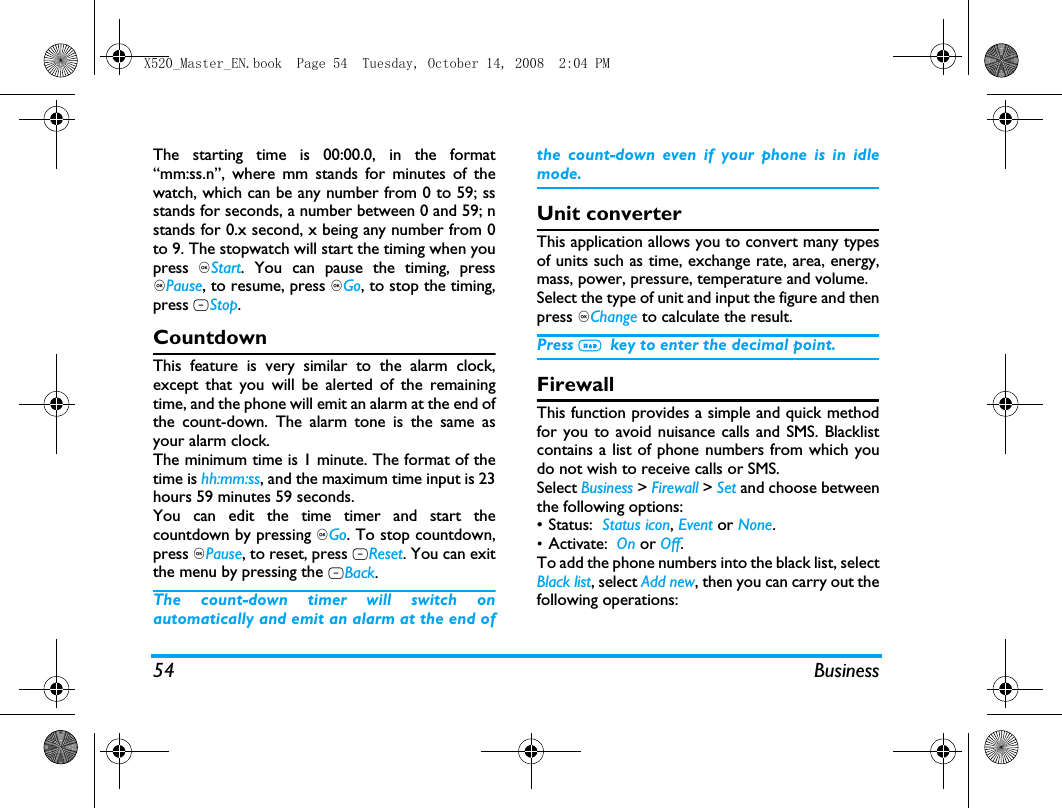

54 BusinessThe starting time is 00:00.0, in the format“mm:ss.n”, where mm stands for minutes of thewatch, which can be any number from 0 to 59; ssstands for seconds, a number between 0 and 59; nstands for 0.x second, x being any number from 0to 9. The stopwatch will start the timing when youpress ,Start. You can pause the timing, press,Pause, to resume, press ,Go, to stop the timing,press RStop.CountdownThis feature is very similar to the alarm clock,except that you will be alerted of the remainingtime, and the phone will emit an alarm at the end ofthe count-down. The alarm tone is the same asyour alarm clock.The minimum time is 1 minute. The format of thetime is hh:mm:ss, and the maximum time input is 23hours 59 minutes 59 seconds. You can edit the time timer and start thecountdown by pressing ,Go. To stop countdown,press ,Pause, to reset, press LReset. You can exitthe menu by pressing the RBack.The count-down timer will switch onautomatically and emit an alarm at the end ofthe count-down even if your phone is in idlemode.Unit converterThis application allows you to convert many typesof units such as time, exchange rate, area, energy,mass, power, pressure, temperature and volume.Select the type of unit and input the figure and thenpress ,Change to calculate the result.Press # key to enter the decimal point.FirewallThis function provides a simple and quick methodfor you to avoid nuisance calls and SMS. Blacklistcontains a list of phone numbers from which youdo not wish to receive calls or SMS.Select Business > Firewall > Set and choose betweenthe following options:• Status: Status icon, Event or None.•Activate: On or Off.To add the phone numbers into the black list, selectBlack list, select Add new, then you can carry out thefollowing operations:X520_Master_EN.book Page 54 Tuesday, October 14, 2008 2:04 PM

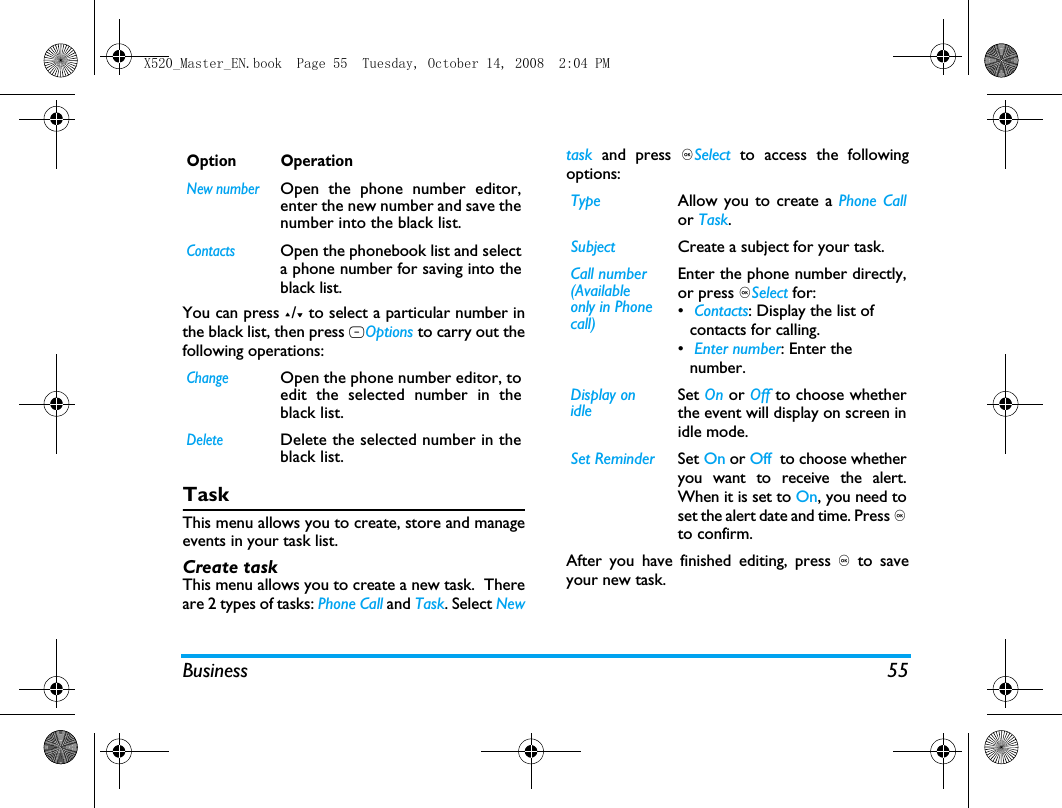

Business 55You can press +/- to select a particular number inthe black list, then press LOptions to carry out thefollowing operations:Task This menu allows you to create, store and manageevents in your task list. Create taskThis menu allows you to create a new task. Thereare 2 types of tasks: Phone Call and Task. Select Newtask and press ,Select to access the followingoptions:After you have finished editing, press , to saveyour new task. Option OperationNew numberOpen the phone number editor,enter the new number and save thenumber into the black list.ContactsOpen the phonebook list and selecta phone number for saving into theblack list.ChangeOpen the phone number editor, toedit the selected number in theblack list.DeleteDelete the selected number in theblack list.Type Allow you to create a Phone Callor Task. Subject Create a subject for your task.Call number (Available only in Phone call)Enter the phone number directly,or press ,Select for:• Contacts: Display the list of contacts for calling.• Enter number: Enter the number. Display on idleSet On or Off to choose whetherthe event will display on screen inidle mode.Set Reminder Set On or Off to choose whetheryou want to receive the alert.When it is set to On, you need toset the alert date and time. Press ,to confirm.X520_Master_EN.book Page 55 Tuesday, October 14, 2008 2:04 PM

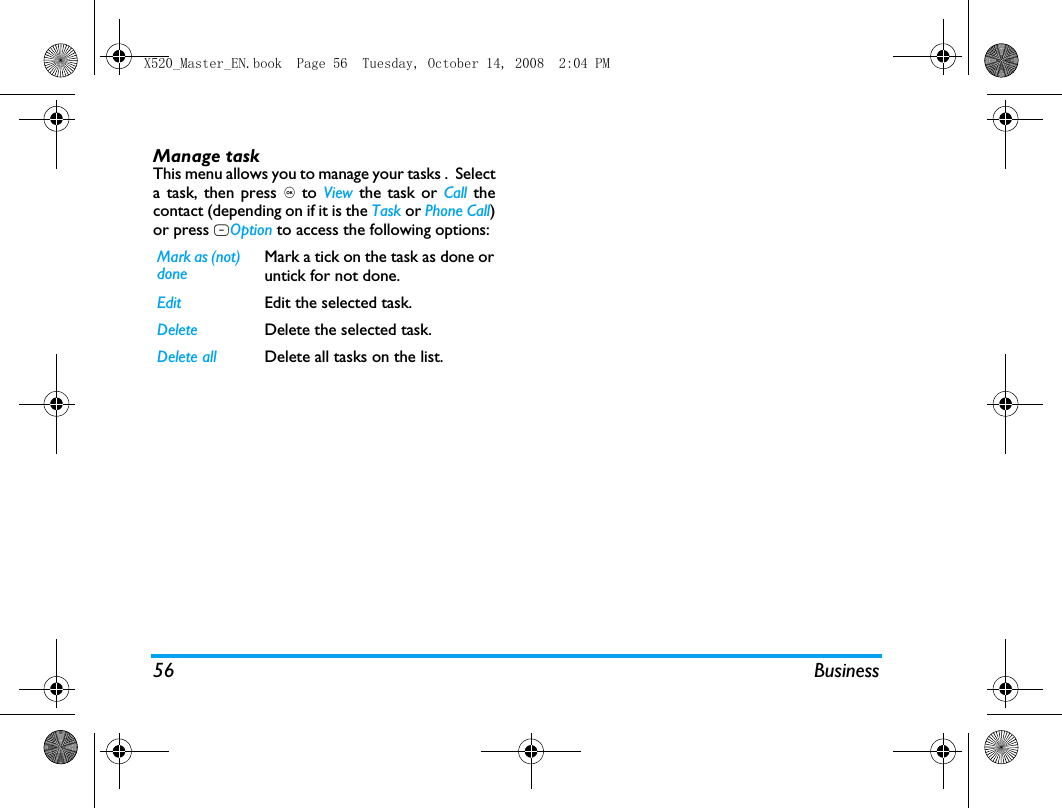

56 BusinessManage taskThis menu allows you to manage your tasks . Selecta task, then press , to View the task or Call thecontact (depending on if it is the Task or Phone Call)or press LOption to access the following options: Mark as (not) doneMark a tick on the task as done oruntick for not done.Edit Edit the selected task.Delete Delete the selected task.Delete all Delete all tasks on the list.X520_Master_EN.book Page 56 Tuesday, October 14, 2008 2:04 PM

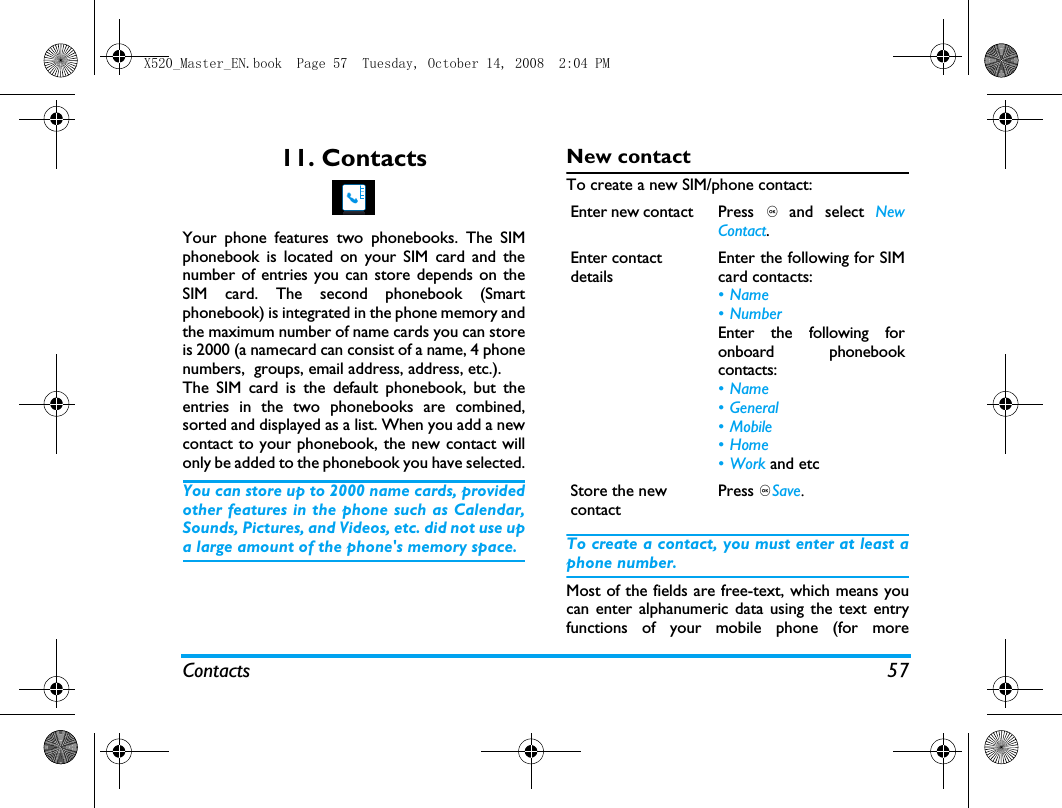

Contacts 5711. ContactsYour phone features two phonebooks. The SIMphonebook is located on your SIM card and thenumber of entries you can store depends on theSIM card. The second phonebook (Smartphonebook) is integrated in the phone memory andthe maximum number of name cards you can storeis 2000 (a namecard can consist of a name, 4 phonenumbers, groups, email address, address, etc.).The SIM card is the default phonebook, but theentries in the two phonebooks are combined,sorted and displayed as a list. When you add a newcontact to your phonebook, the new contact willonly be added to the phonebook you have selected.You can store up to 2000 name cards, providedother features in the phone such as Calendar,Sounds, Pictures, and Videos, etc. did not use upa large amount of the phone's memory space.New contactTo create a new SIM/phone contact:To create a contact, you must enter at least aphone number.Most of the fields are free-text, which means youcan enter alphanumeric data using the text entryfunctions of your mobile phone (for moreEnter new contact Press , and select NewContact.Enter contact detailsEnter the following for SIMcard contacts:•Name•NumberEnter the following foronboard phonebookcontacts:•Name•General• Mobile•Home•Work and etcStore the new contactPress ,Save.X520_Master_EN.book Page 57 Tuesday, October 14, 2008 2:04 PM

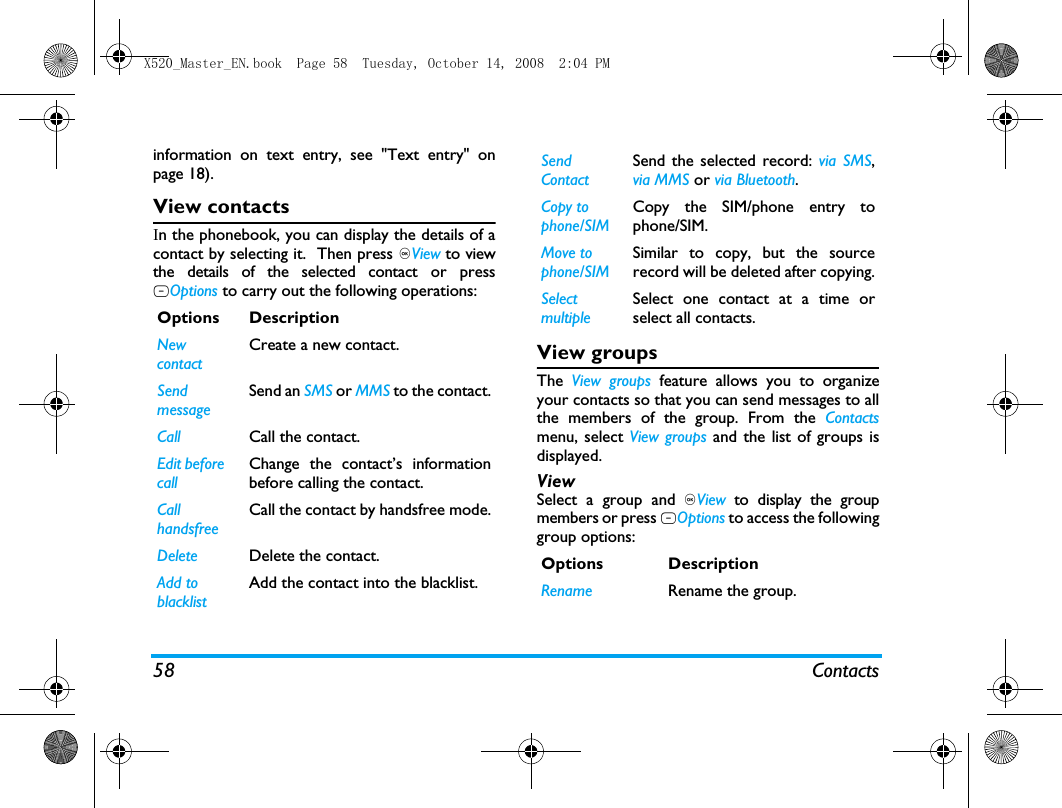

58 Contactsinformation on text entry, see "Text entry" onpage 18).View contactsIn the phonebook, you can display the details of acontact by selecting it. Then press ,View to viewthe details of the selected contact or pressLOptions to carry out the following operations:View groupsThe View groups feature allows you to organizeyour contacts so that you can send messages to allthe members of the group. From the Contactsmenu, select View groups and the list of groups isdisplayed.ViewSelect a group and ,View to display the groupmembers or press LOptions to access the followinggroup options:Options DescriptionNew contactCreate a new contact.SendmessageSend an SMS or MMS to the contact.Call Call the contact.Edit before callChange the contact’s informationbefore calling the contact.Call handsfree Call the contact by handsfree mode.Delete Delete the contact.Add to blacklistAdd the contact into the blacklist.Send ContactSend the selected record: via SMS,via MMS or via Bluetooth.Copy to phone/SIMCopy the SIM/phone entry tophone/SIM.Move to phone/SIMSimilar to copy, but the sourcerecord will be deleted after copying.SelectmultipleSelect one contact at a time orselect all contacts.Options DescriptionRename Rename the group.X520_Master_EN.book Page 58 Tuesday, October 14, 2008 2:04 PM

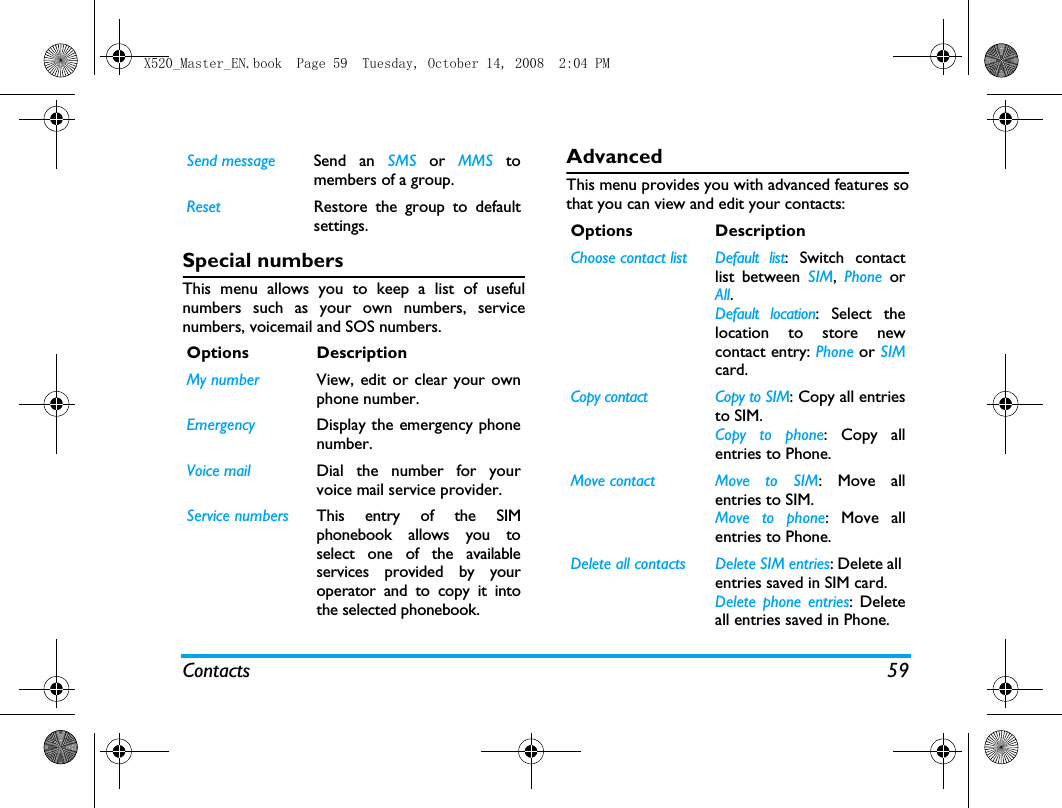

Contacts 59Special numbersThis menu allows you to keep a list of usefulnumbers such as your own numbers, servicenumbers, voicemail and SOS numbers.AdvancedThis menu provides you with advanced features sothat you can view and edit your contacts:Send message Send an SMS or MMS tomembers of a group.Reset Restore the group to defaultsettings.Options DescriptionMy number View, edit or clear your ownphone number.Emergency Display the emergency phonenumber.Voice mail Dial the number for yourvoice mail service provider.Service numbers This entry of the SIMphonebook allows you toselect one of the availableservices provided by youroperator and to copy it intothe selected phonebook.Options DescriptionChoose contact list Default list: Switch contactlist between SIM, Phone orAll.Default location: Select thelocation to store newcontact entry: Phone or SIMcard.Copy contact Copy to SIM: Copy all entriesto SIM.Copy to phone: Copy allentries to Phone.Move contact Move to SIM: Move allentries to SIM. Move to phone: Move allentries to Phone.Delete all contacts Delete SIM entries: Delete all entries saved in SIM card. Delete phone entries: Deleteall entries saved in Phone.X520_Master_EN.book Page 59 Tuesday, October 14, 2008 2:04 PM

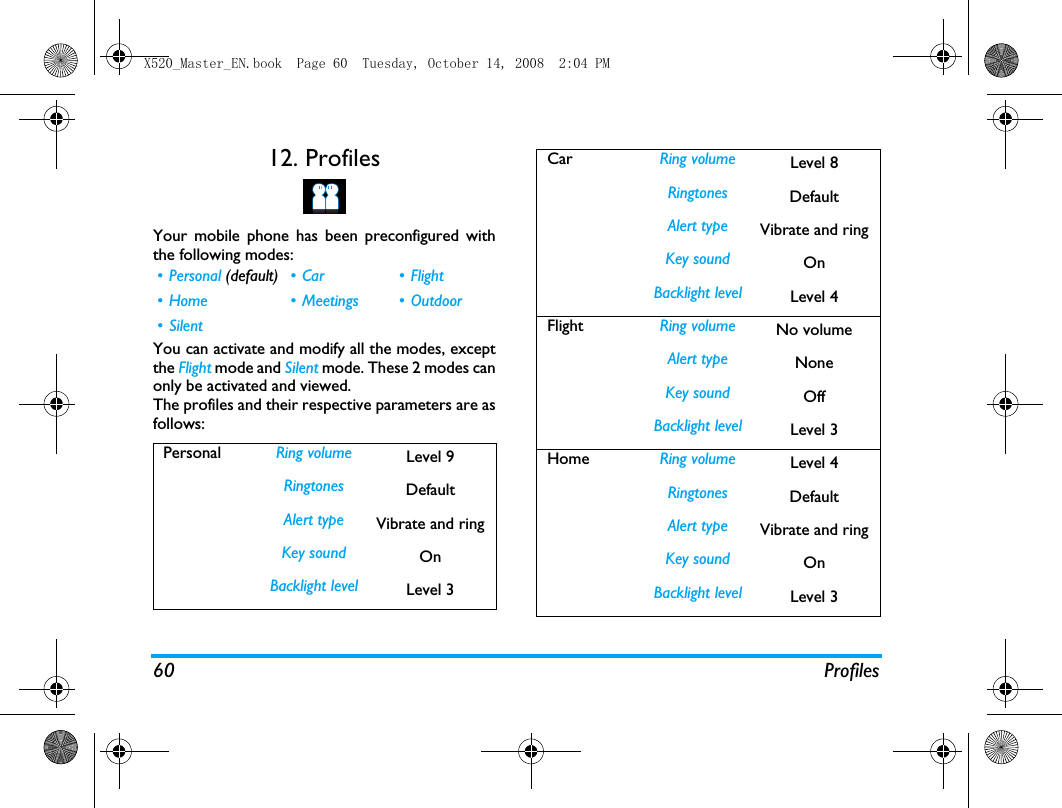

60 Profiles12. ProfilesYour mobile phone has been preconfigured withthe following modes: You can activate and modify all the modes, exceptthe Flight mode and Silent mode. These 2 modes canonly be activated and viewed.The profiles and their respective parameters are asfollows:•Personal (default) • Car • Flight • Home • Meetings • Outdoor• SilentPersonal Ring volume Level 9Ringtones DefaultAlert type Vibrate and ringKey sound OnBacklight level Level 3Car Ring volume Level 8Ringtones DefaultAlert type Vibrate and ringKey sound OnBacklight level Level 4Flight Ring volume No volumeAlert type NoneKey sound OffBacklight level Level 3Home Ring volume Level 4Ringtones DefaultAlert type Vibrate and ringKey sound OnBacklight level Level 3X520_Master_EN.book Page 60 Tuesday, October 14, 2008 2:04 PM

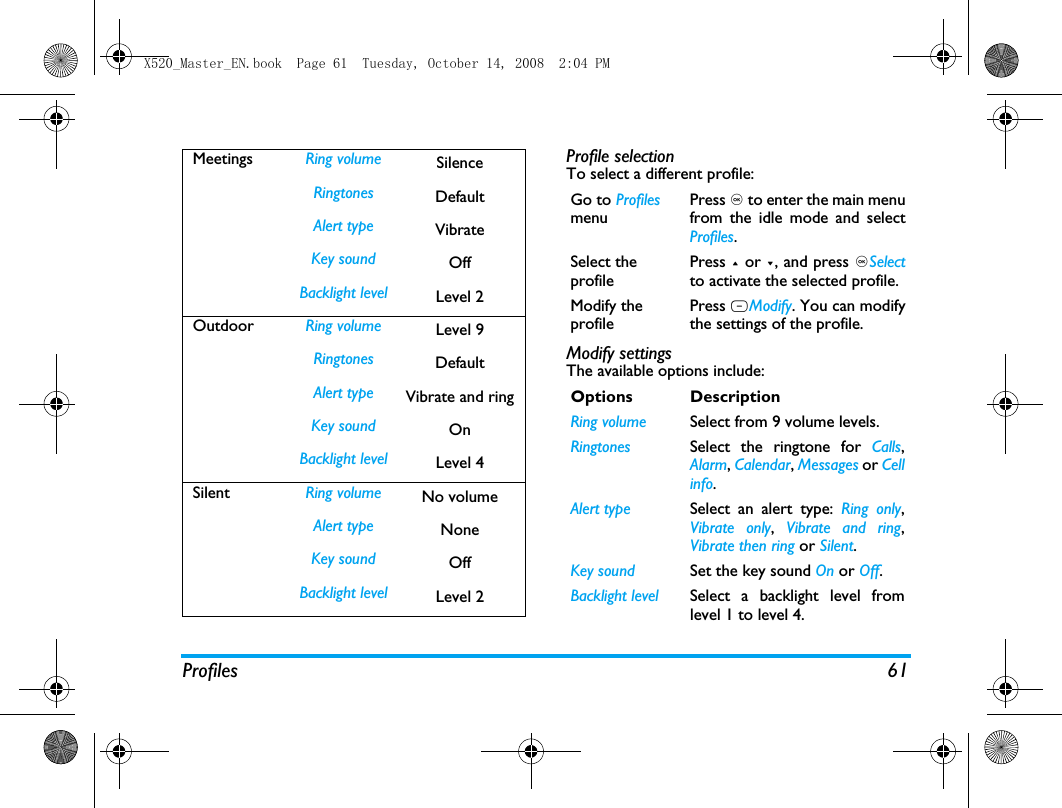

Profiles 61Profile selectionTo select a different profile:Modify settingsThe available options include:Meetings Ring volume SilenceRingtones DefaultAlert type VibrateKey sound OffBacklight level Level 2Outdoor Ring volume Level 9Ringtones DefaultAlert type Vibrate and ringKey sound OnBacklight level Level 4Silent Ring volume No volumeAlert type NoneKey sound OffBacklight level Level 2Go to Profiles menuPress , to enter the main menufrom the idle mode and selectProfiles. Select the profilePress + or -, and press ,Selectto activate the selected profile.Modify the profilePress LModify. You can modifythe settings of the profile.Options DescriptionRing volume Select from 9 volume levels.Ringtones Select the ringtone for Calls,Alarm, Calendar, Messages or Cellinfo.Alert type Select an alert type: Ring only,Vibrate only, Vibrate and ring,Vibrate then ring or Silent.Key sound Set the key sound On or Off.Backlight level Select a backlight level fromlevel 1 to level 4.X520_Master_EN.book Page 61 Tuesday, October 14, 2008 2:04 PM

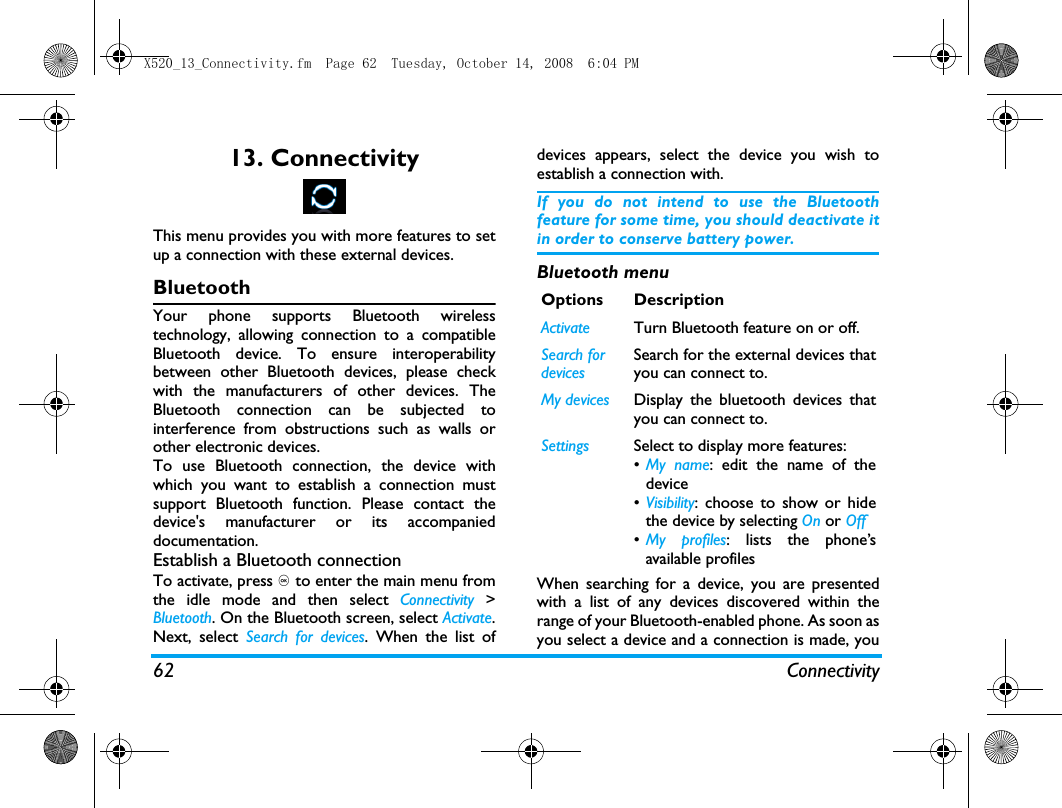

62 Connectivity13. ConnectivityThis menu provides you with more features to setup a connection with these external devices.BluetoothYour phone supports Bluetooth wirelesstechnology, allowing connection to a compatibleBluetooth device. To ensure interoperabilitybetween other Bluetooth devices, please checkwith the manufacturers of other devices. TheBluetooth connection can be subjected tointerference from obstructions such as walls orother electronic devices.To use Bluetooth connection, the device withwhich you want to establish a connection mustsupport Bluetooth function. Please contact thedevice's manufacturer or its accompanieddocumentation.Establish a Bluetooth connectionTo activate, press , to enter the main menu fromthe idle mode and then select Connectivity >Bluetooth. On the Bluetooth screen, select Activate.Next, select Search for devices. When the list ofdevices appears, select the device you wish toestablish a connection with.If you do not intend to use the Bluetoothfeature for some time, you should deactivate itin order to conserve battery power.Bluetooth menuWhen searching for a device, you are presentedwith a list of any devices discovered within therange of your Bluetooth-enabled phone. As soon asyou select a device and a connection is made, youOptions DescriptionActivate Turn Bluetooth feature on or off. Search for devicesSearch for the external devices thatyou can connect to.My devices Display the bluetooth devices thatyou can connect to.Settings Select to display more features:•My name: edit the name of thedevice•Visibility: choose to show or hidethe device by selecting On or Off•My profiles: lists the phone’savailable profilesX520_13_Connectivity.fm Page 62 Tuesday, October 14, 2008 6:04 PM

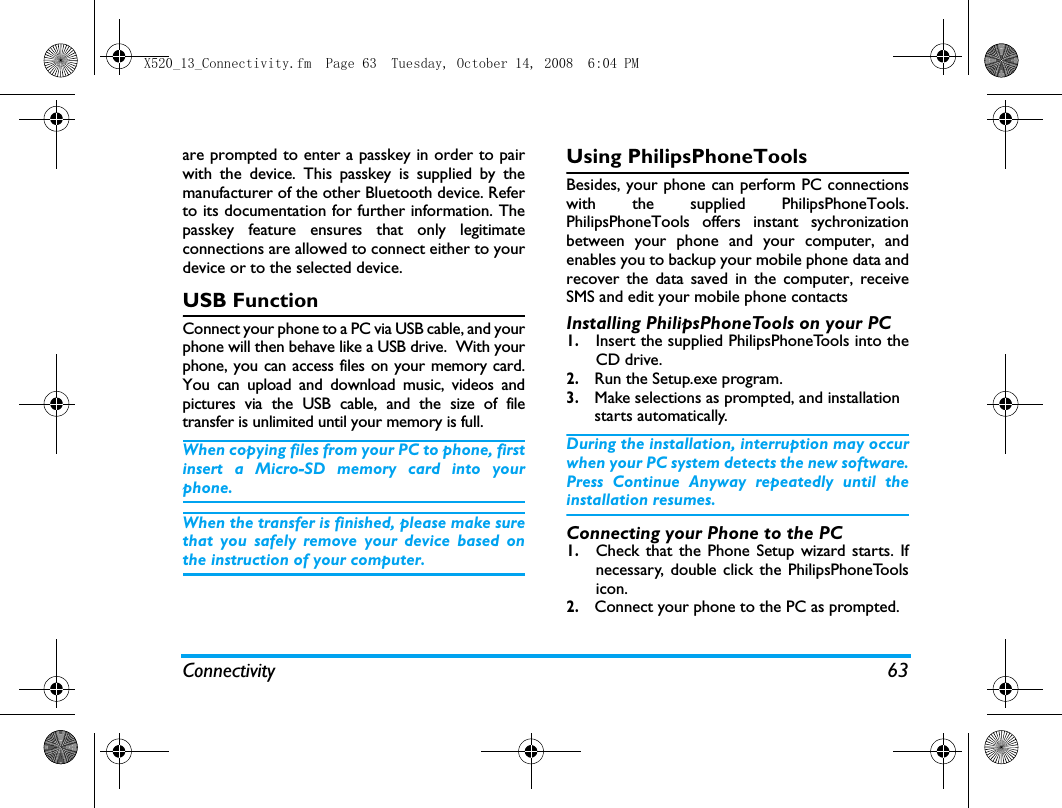

Connectivity 63are prompted to enter a passkey in order to pairwith the device. This passkey is supplied by themanufacturer of the other Bluetooth device. Referto its documentation for further information. Thepasskey feature ensures that only legitimateconnections are allowed to connect either to yourdevice or to the selected device.USB FunctionConnect your phone to a PC via USB cable, and yourphone will then behave like a USB drive. With yourphone, you can access files on your memory card.You can upload and download music, videos andpictures via the USB cable, and the size of filetransfer is unlimited until your memory is full.When copying files from your PC to phone, firstinsert a Micro-SD memory card into yourphone. When the transfer is finished, please make surethat you safely remove your device based onthe instruction of your computer.Using PhilipsPhoneToolsBesides, your phone can perform PC connectionswith the supplied PhilipsPhoneTools.PhilipsPhoneTools offers instant sychronizationbetween your phone and your computer, andenables you to backup your mobile phone data andrecover the data saved in the computer, receiveSMS and edit your mobile phone contactsInstalling PhilipsPhoneTools on your PC1.Insert the supplied PhilipsPhoneTools into theCD drive.2. Run the Setup.exe program. 3. Make selections as prompted, and installation starts automatically. During the installation, interruption may occurwhen your PC system detects the new software.Press Continue Anyway repeatedly until theinstallation resumes.Connecting your Phone to the PC 1.Check that the Phone Setup wizard starts. Ifnecessary, double click the PhilipsPhoneToolsicon.2. Connect your phone to the PC as prompted.X520_13_Connectivity.fm Page 63 Tuesday, October 14, 2008 6:04 PM

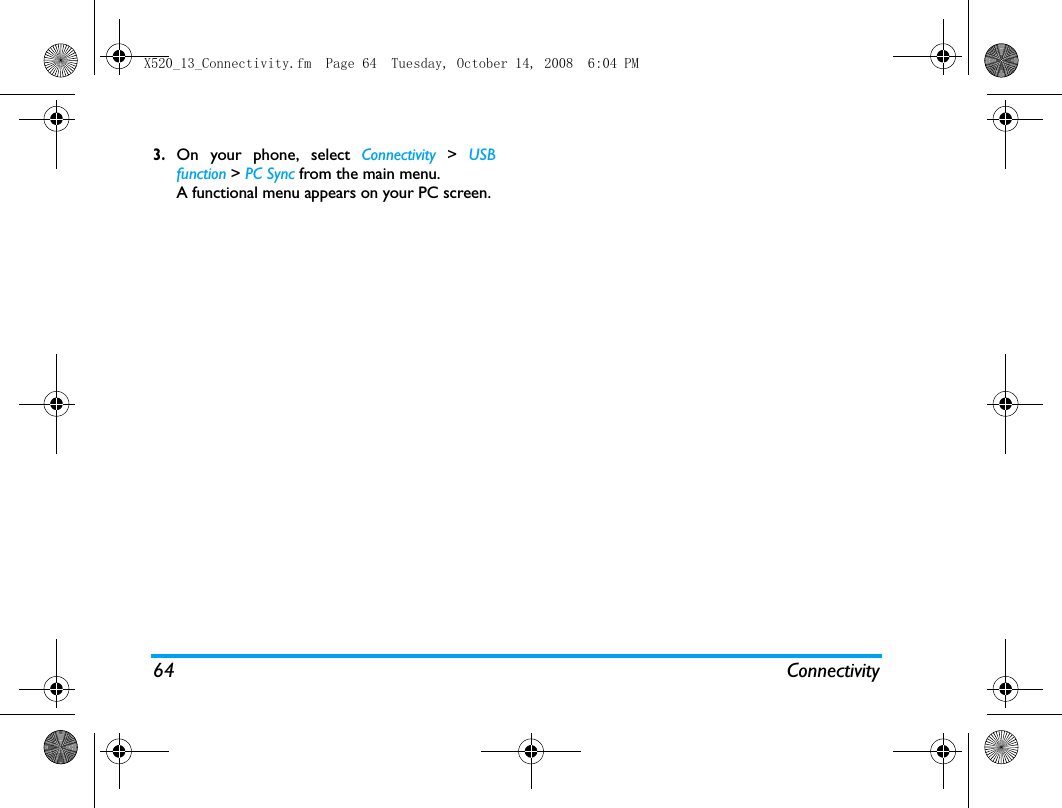

64 Connectivity3.On your phone, select Connectivity > USBfunction > PC Sync from the main menu. A functional menu appears on your PC screen. X520_13_Connectivity.fm Page 64 Tuesday, October 14, 2008 6:04 PM

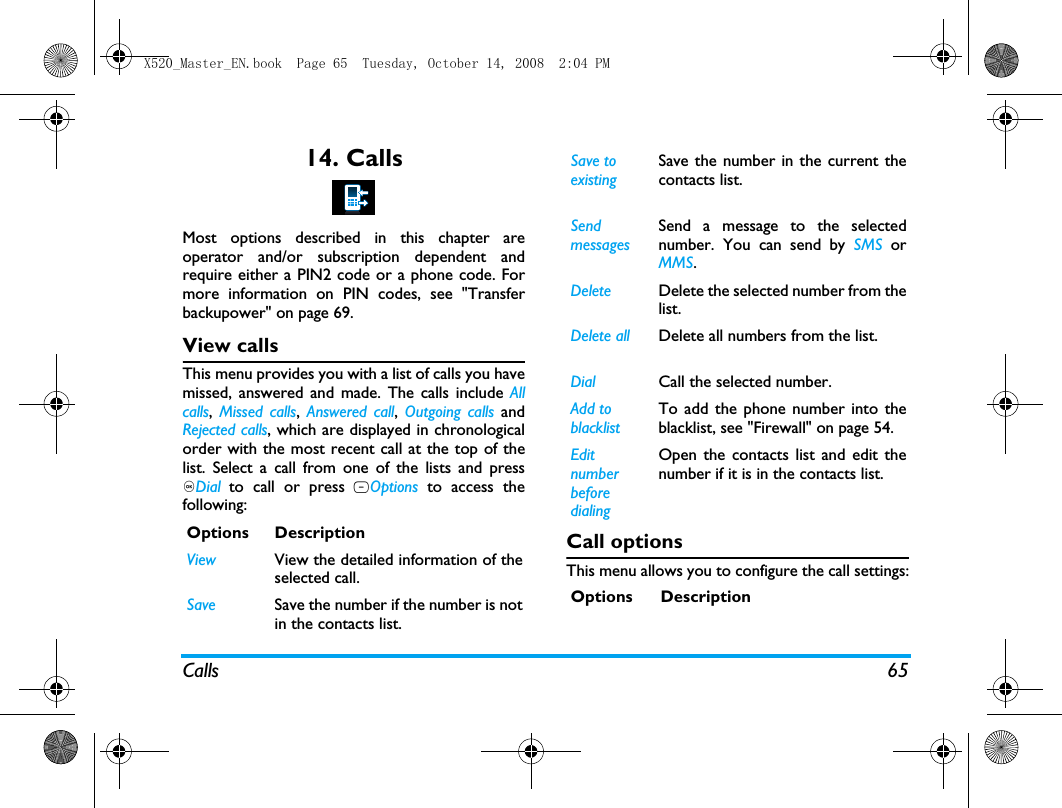

Calls 6514. CallsMost options described in this chapter areoperator and/or subscription dependent andrequire either a PIN2 code or a phone code. Formore information on PIN codes, see "Transferbackupower" on page 69.View callsThis menu provides you with a list of calls you havemissed, answered and made. The calls include Allcalls, Missed calls, Answered call, Outgoing calls andRejected calls, which are displayed in chronologicalorder with the most recent call at the top of thelist. Select a call from one of the lists and press,Dial to call or press LOptions to access thefollowing:Call optionsThis menu allows you to configure the call settings:Options DescriptionView View the detailed information of theselected call.Save Save the number if the number is notin the contacts list.Save to existingSave the number in the current thecontacts list.Send messagesSend a message to the selectednumber. You can send by SMS orMMS.Delete Delete the selected number from thelist.Delete all Delete all numbers from the list.Dial Call the selected number.Add to blacklistTo add the phone number into theblacklist, see "Firewall" on page 54.Edit number before dialingOpen the contacts list and edit thenumber if it is in the contacts list.Options DescriptionX520_Master_EN.book Page 65 Tuesday, October 14, 2008 2:04 PM

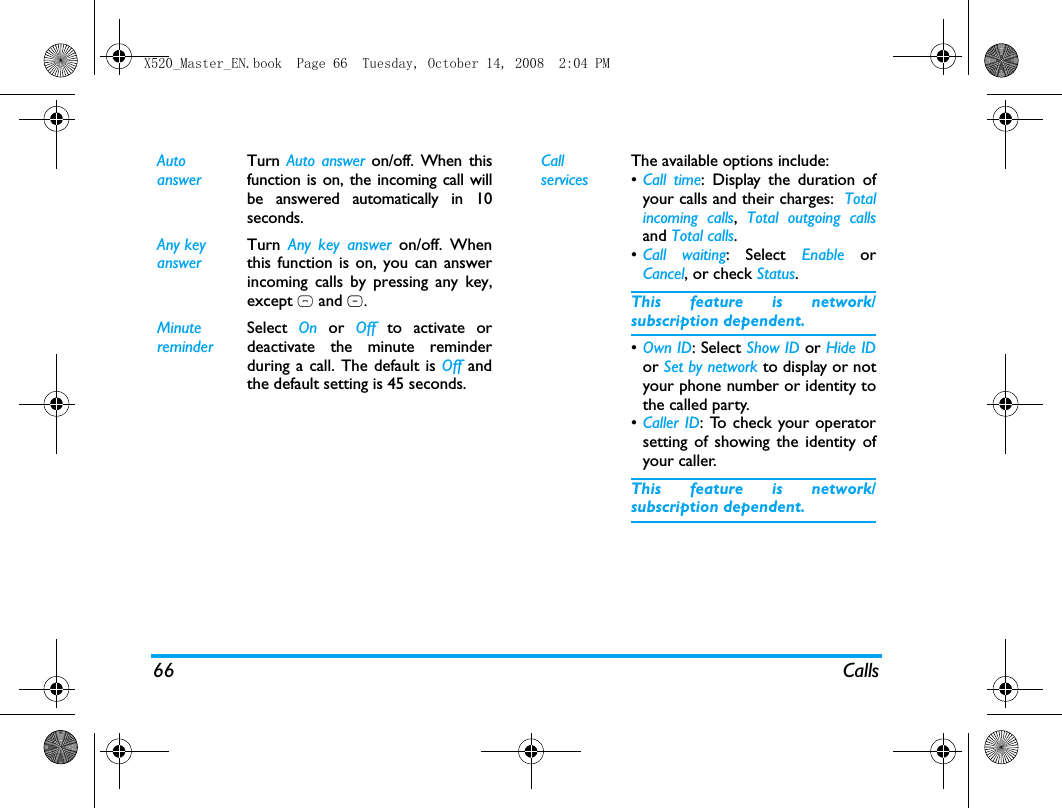

66 CallsAuto answerTurn Auto answer on/off. When thisfunction is on, the incoming call willbe answered automatically in 10seconds.Any keyanswerTurn Any key answer on/off. Whenthis function is on, you can answerincoming calls by pressing any key,except ) and R.MinutereminderSelect On or Off to activate ordeactivate the minute reminderduring a call. The default is Off andthe default setting is 45 seconds.Call servicesThe available options include:•Call time: Display the duration ofyour calls and their charges: Totalincoming calls, Total outgoing callsand Total calls.•Call waiting: Select Enable orCancel, or check Status.This feature is network/subscription dependent.•Own ID: Select Show ID or Hide IDor Set by network to display or notyour phone number or identity tothe called party.•Caller ID: To check your operatorsetting of showing the identity ofyour caller.This feature is network/subscription dependent.X520_Master_EN.book Page 66 Tuesday, October 14, 2008 2:04 PM

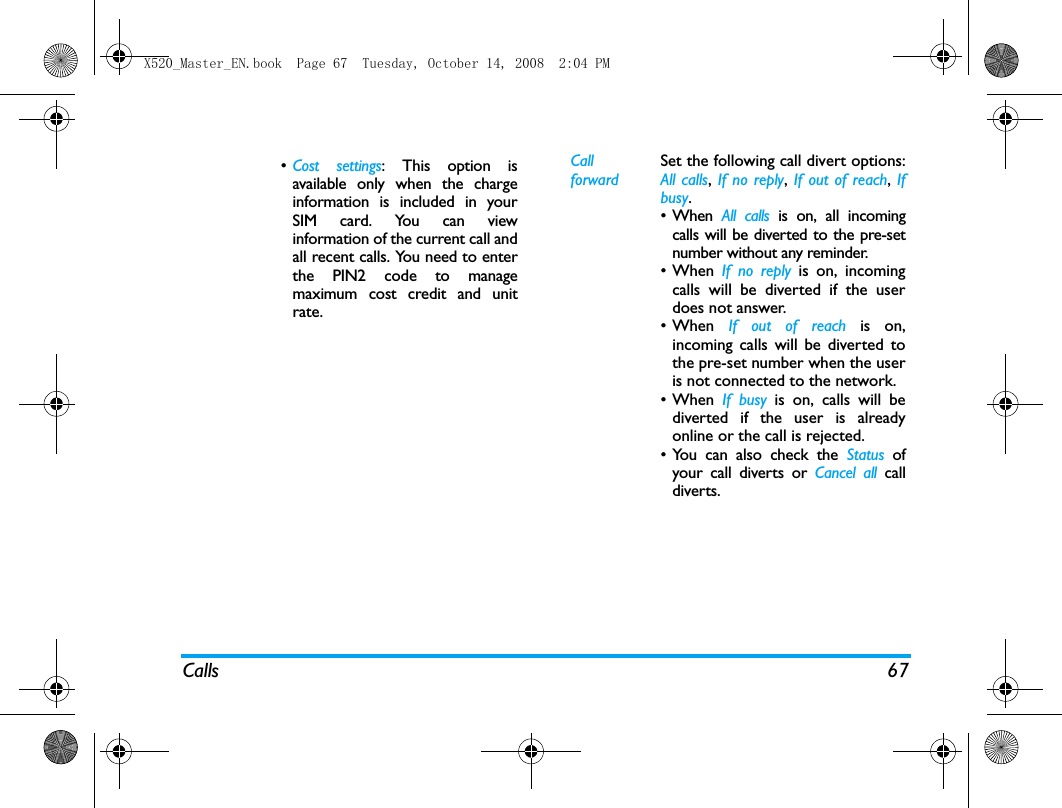

Calls 67•Cost settings: This option isavailable only when the chargeinformation is included in yourSIM card. You can viewinformation of the current call andall recent calls. You need to enterthe PIN2 code to managemaximum cost credit and unitrate. Call forwardSet the following call divert options:All calls, If no reply, If out of reach, Ifbusy. • When All calls is on, all incomingcalls will be diverted to the pre-setnumber without any reminder. •When If no reply is on, incomingcalls will be diverted if the userdoes not answer. •When If out of reach is on,incoming calls will be diverted tothe pre-set number when the useris not connected to the network.•When If busy is on, calls will bediverted if the user is alreadyonline or the call is rejected.• You can also check the Status ofyour call diverts or Cancel all calldiverts.X520_Master_EN.book Page 67 Tuesday, October 14, 2008 2:04 PM

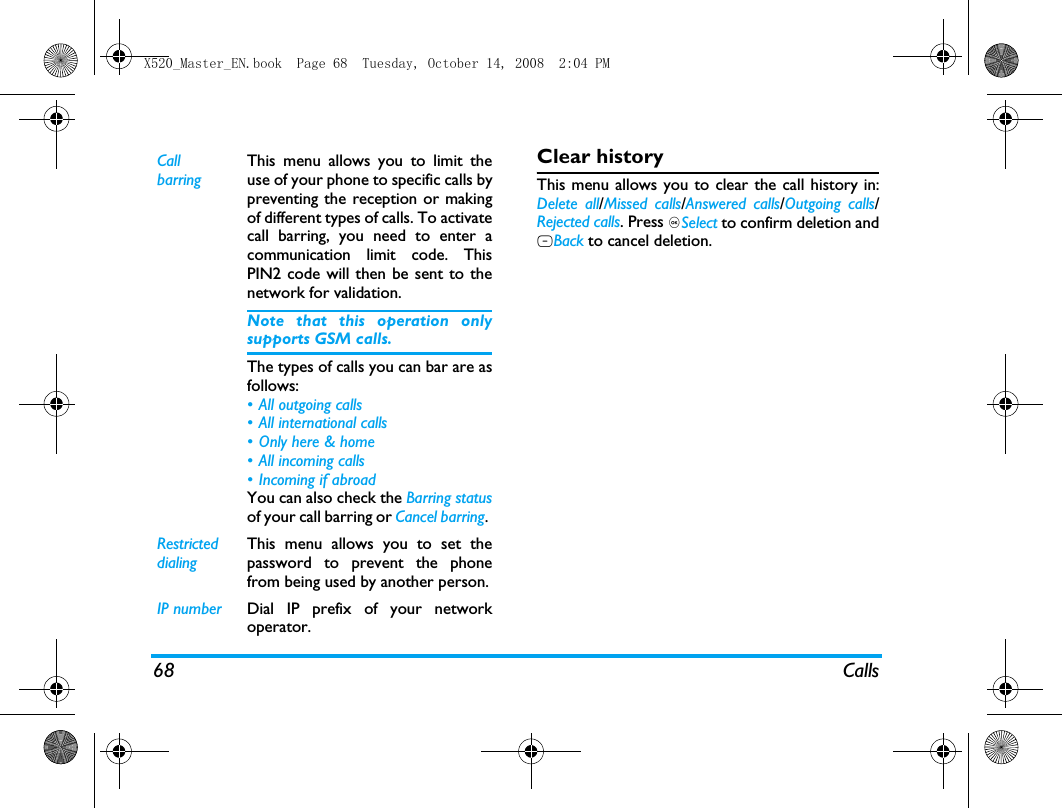

68 CallsClear historyThis menu allows you to clear the call history in:Delete all/Missed calls/Answered calls/Outgoing calls/Rejected calls. Press ,Select to confirm deletion andRBack to cancel deletion.Call barringThis menu allows you to limit theuse of your phone to specific calls bypreventing the reception or makingof different types of calls. To activatecall barring, you need to enter acommunication limit code. ThisPIN2 code will then be sent to thenetwork for validation.Note that this operation onlysupports GSM calls. The types of calls you can bar are asfollows:• All outgoing calls• All international calls• Only here & home• All incoming calls• Incoming if abroadYou can also check the Barring statusof your call barring or Cancel barring. Restricted dialingThis menu allows you to set thepassword to prevent the phonefrom being used by another person.IP number Dial IP prefix of your networkoperator.X520_Master_EN.book Page 68 Tuesday, October 14, 2008 2:04 PM

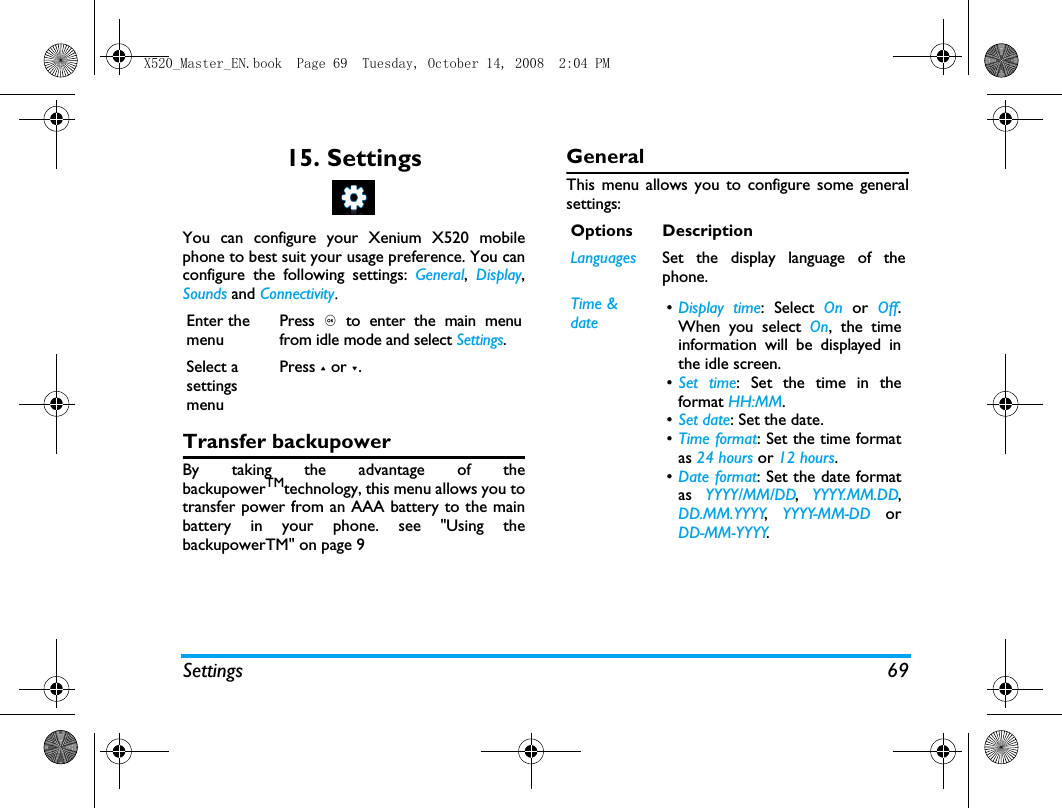

Settings 6915. SettingsYou can configure your Xenium X520 mobilephone to best suit your usage preference. You canconfigure the following settings: General, Display,Sounds and Connectivity.Transfer backupowerBy taking the advantage of thebackupowerTMtechnology, this menu allows you totransfer power from an AAA battery to the mainbattery in your phone. see "Using thebackupowerTM" on page 9GeneralThis menu allows you to configure some generalsettings:Enter the menuPress , to enter the main menufrom idle mode and select Settings.Select a settings menuPress + or -.Options DescriptionLanguages Set the display language of thephone.Time & date •Display time: Select On or Off.When you select On, the timeinformation will be displayed inthe idle screen.•Set time: Set the time in theformat HH:MM.•Set date: Set the date.•Time format: Set the time formatas 24 hours or 12 hours.•Date format: Set the date formatas YYYY/MM/DD, YYYY.MM.DD,DD.MM.YYYY, YYYY-MM-DD orDD-MM-YYYY.X520_Master_EN.book Page 69 Tuesday, October 14, 2008 2:04 PM

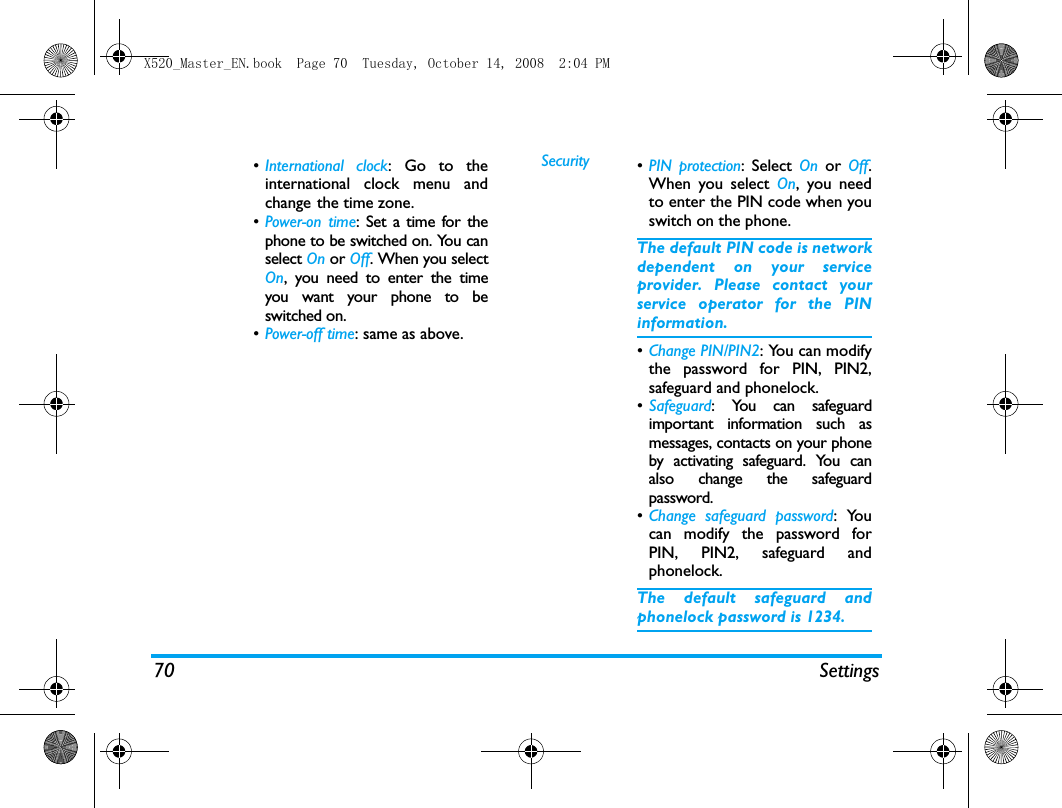

70 Settings•International clock: Go to theinternational clock menu andchange the time zone.•Power-on time: Set a time for thephone to be switched on. You canselect On or Off. When you selectOn, you need to enter the timeyou want your phone to beswitched on. •Power-off time: same as above.Security •PIN protection: Select On or Off.When you select On, you needto enter the PIN code when youswitch on the phone. The default PIN code is networkdependent on your serviceprovider. Please contact yourservice operator for the PINinformation.•Change PIN/PIN2: You can modifythe password for PIN, PIN2,safeguard and phonelock.•Safeguard: You can safeguardimportant information such asmessages, contacts on your phoneby activating safeguard. You canalso change the safeguardpassword.•Change safeguard password: Youcan modify the password forPIN, PIN2, safeguard andphonelock.The default safeguard andphonelock password is 1234.X520_Master_EN.book Page 70 Tuesday, October 14, 2008 2:04 PM

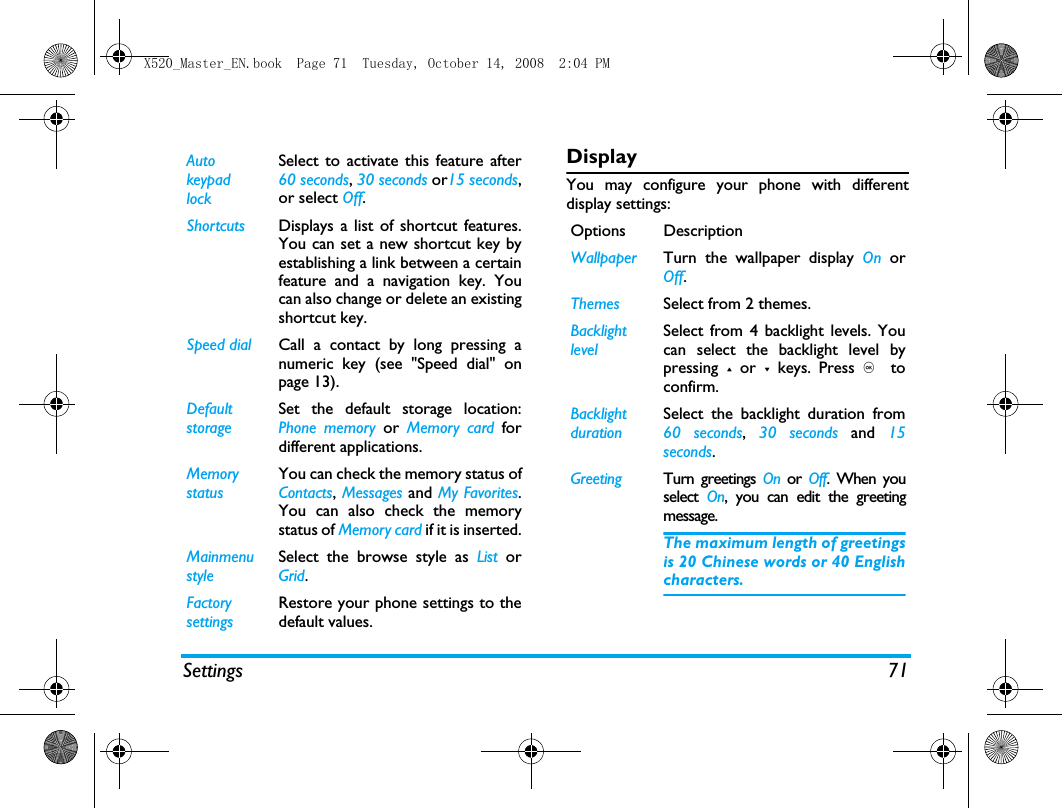

Settings 71DisplayYou may configure your phone with differentdisplay settings:Auto keypad lockSelect to activate this feature after60 seconds, 30 seconds or15 seconds,or select Off.Shortcuts Displays a list of shortcut features.You can set a new shortcut key byestablishing a link between a certainfeature and a navigation key. Youcan also change or delete an existingshortcut key.Speed dial Call a contact by long pressing anumeric key (see "Speed dial" onpage 13).DefaultstorageSet the default storage location:Phone memory or Memory card fordifferent applications.Memory statusYou can check the memory status ofContacts, Messages and My Favorites.You can also check the memorystatus of Memory card if it is inserted.Mainmenu styleSelect the browse style as List orGrid.Factory settingsRestore your phone settings to thedefault values. Options DescriptionWallpaper Turn the wallpaper display On orOff.Themes Select from 2 themes.Backlight levelSelect from 4 backlight levels. Youcan select the backlight level bypressing + or - keys. Press , toconfirm. Backlight durationSelect the backlight duration from60 seconds, 30 seconds and 15seconds.Greeting Turn greetings On or Off. When youselect On, you can edit the greetingmessage. The maximum length of greetingsis 20 Chinese words or 40 Englishcharacters.X520_Master_EN.book Page 71 Tuesday, October 14, 2008 2:04 PM

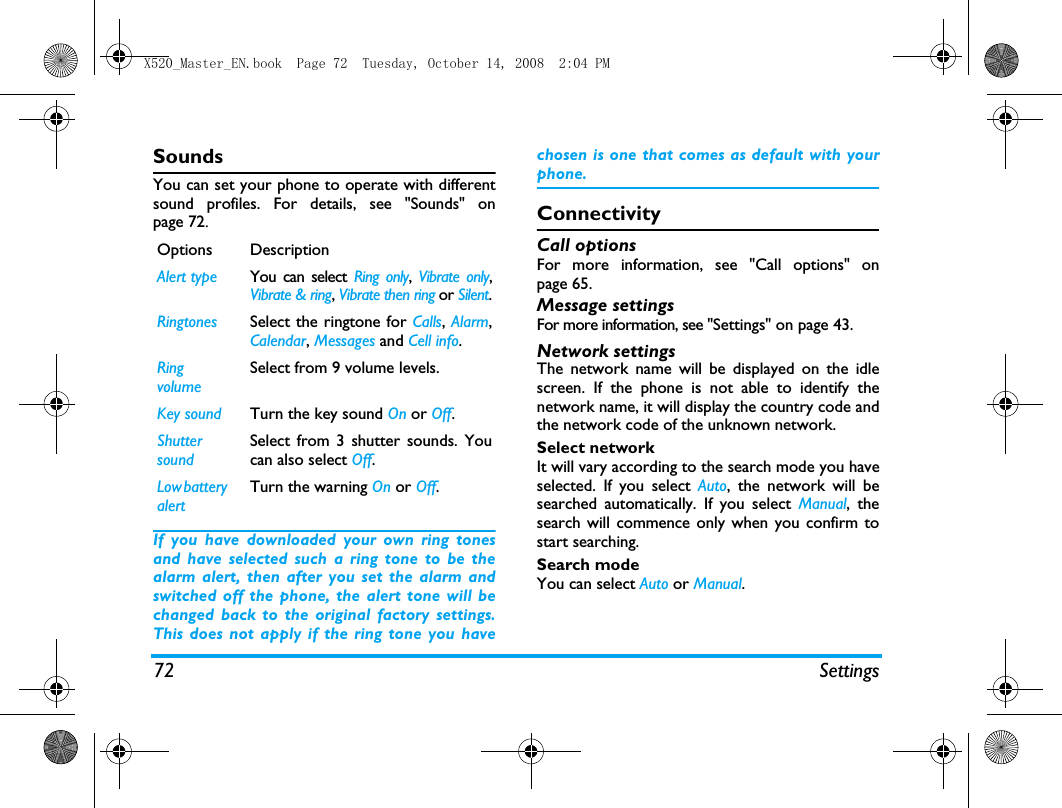

72 SettingsSoundsYou can set your phone to operate with differentsound profiles. For details, see "Sounds" onpage 72.If you have downloaded your own ring tonesand have selected such a ring tone to be thealarm alert, then after you set the alarm andswitched off the phone, the alert tone will bechanged back to the original factory settings.This does not apply if the ring tone you havechosen is one that comes as default with yourphone.ConnectivityCall optionsFor more information, see "Call options" onpage 65.Message settingsFor more information, see "Settings" on page 43.Network settingsThe network name will be displayed on the idlescreen. If the phone is not able to identify thenetwork name, it will display the country code andthe network code of the unknown network.Select networkIt will vary according to the search mode you haveselected. If you select Auto, the network will besearched automatically. If you select Manual, thesearch will commence only when you confirm tostart searching. Search modeYou can select Auto or Manual.Options DescriptionAlert type You can select Ring only, Vibrate only,Vibrate & ring, Vibrate then ring or Silent.Ringtones Select the ringtone for Calls, Alarm,Calendar, Messages and Cell info.Ring volumeSelect from 9 volume levels.Key sound Turn the key sound On or Off.Shutter soundSelect from 3 shutter sounds. Youcan also select Off.Low battery alertTurn the warning On or Off.X520_Master_EN.book Page 72 Tuesday, October 14, 2008 2:04 PM

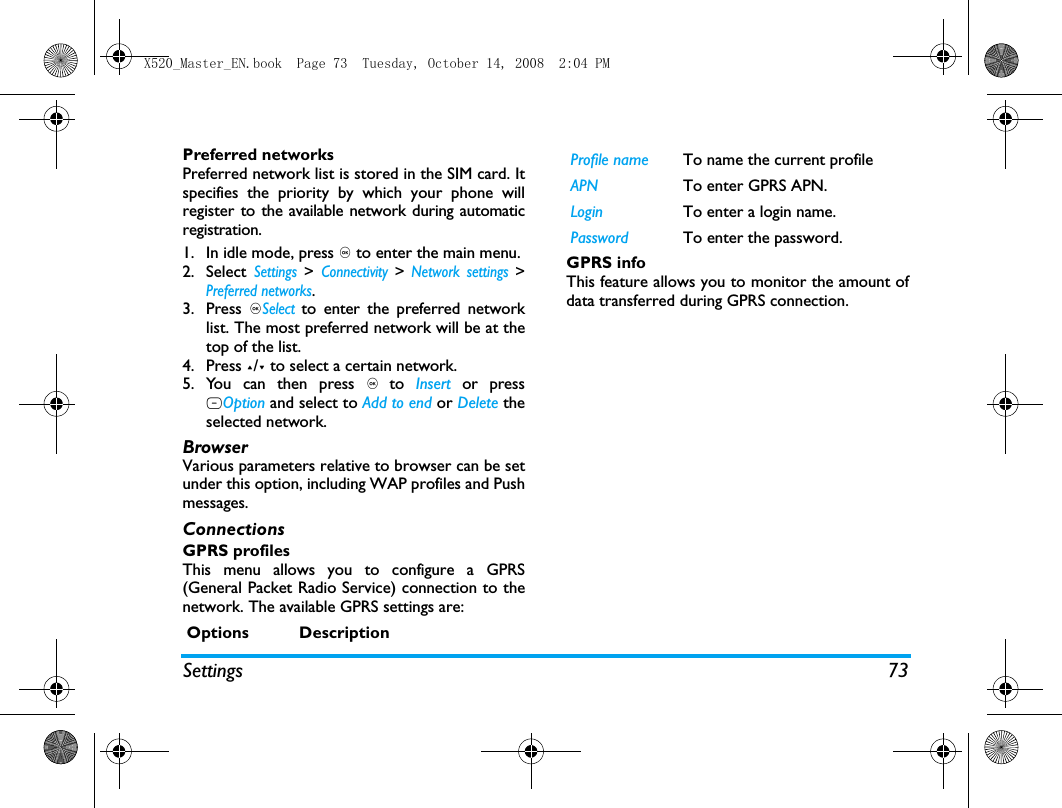

Settings 73Preferred networksPreferred network list is stored in the SIM card. Itspecifies the priority by which your phone willregister to the available network during automaticregistration. 1. In idle mode, press , to enter the main menu. 2. Select Settings > Connectivity > Network settings >Preferred networks.3. Press ,Select to enter the preferred networklist. The most preferred network will be at thetop of the list. 4. Press +/- to select a certain network.5. You can then press , to Insert or pressLOption and select to Add to end or Delete theselected network.BrowserVarious parameters relative to browser can be setunder this option, including WAP profiles and Pushmessages.ConnectionsGPRS profilesThis menu allows you to configure a GPRS(General Packet Radio Service) connection to thenetwork. The available GPRS settings are:GPRS infoThis feature allows you to monitor the amount ofdata transferred during GPRS connection.Options DescriptionProfile name To name the current profileAPN To enter GPRS APN.Login To enter a login name.Password To enter the password.X520_Master_EN.book Page 73 Tuesday, October 14, 2008 2:04 PM

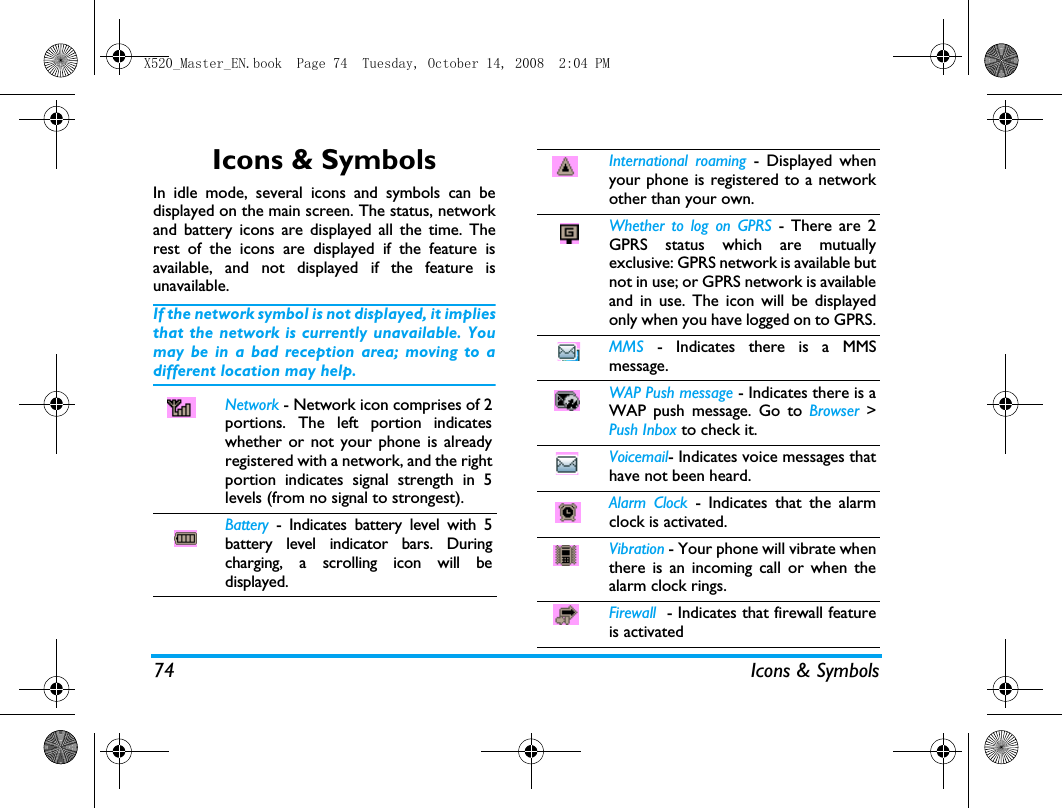

74 Icons & SymbolsIcons & SymbolsIn idle mode, several icons and symbols can bedisplayed on the main screen. The status, networkand battery icons are displayed all the time. Therest of the icons are displayed if the feature isavailable, and not displayed if the feature isunavailable.If the network symbol is not displayed, it impliesthat the network is currently unavailable. Youmay be in a bad reception area; moving to adifferent location may help.Network - Network icon comprises of 2portions. The left portion indicateswhether or not your phone is alreadyregistered with a network, and the rightportion indicates signal strength in 5levels (from no signal to strongest).Battery - Indicates battery level with 5battery level indicator bars. Duringcharging, a scrolling icon will bedisplayed.International roaming - Displayed whenyour phone is registered to a networkother than your own.Whether to log on GPRS - There are 2GPRS status which are mutuallyexclusive: GPRS network is available butnot in use; or GPRS network is availableand in use. The icon will be displayedonly when you have logged on to GPRS.MMS - Indicates there is a MMSmessage.WAP Push message - Indicates there is aWAP push message. Go to Browser >Push Inbox to check it.Voicemail- Indicates voice messages thathave not been heard.Alarm Clock - Indicates that the alarmclock is activated.Vibration - Your phone will vibrate whenthere is an incoming call or when thealarm clock rings.Firewall - Indicates that firewall featureis activatedX520_Master_EN.book Page 74 Tuesday, October 14, 2008 2:04 PM

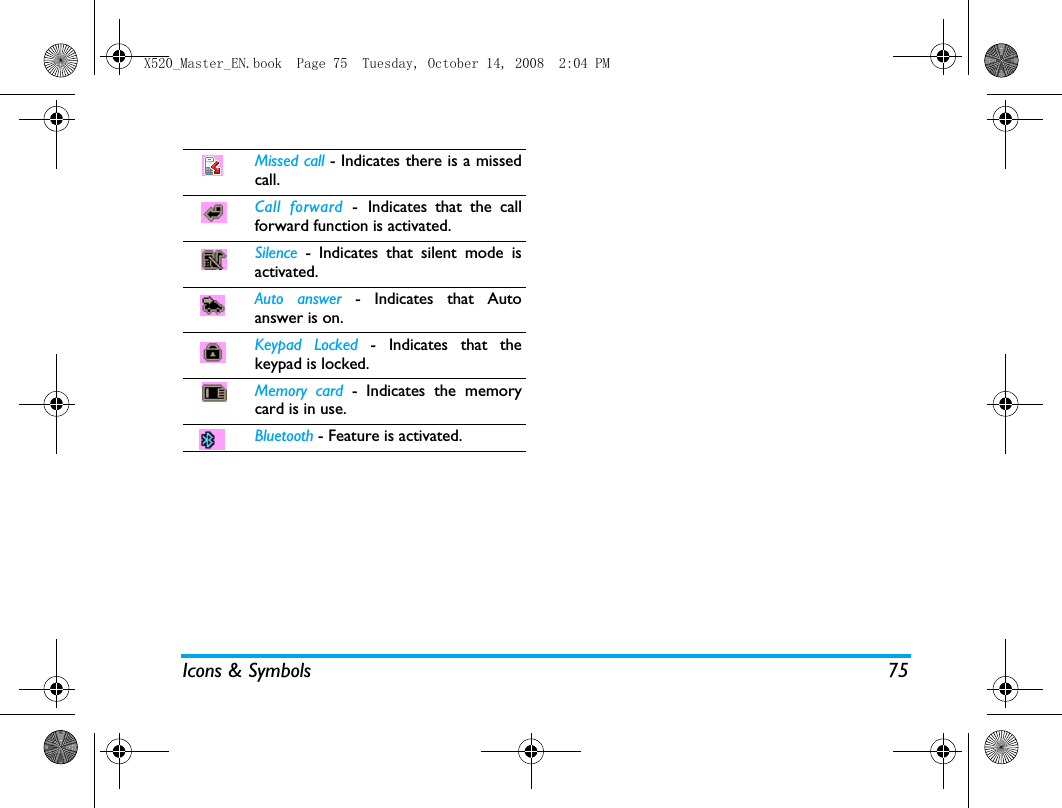

Icons & Symbols 75Missed call - Indicates there is a missedcall.Call forward - Indicates that the callforward function is activated.Silence - Indicates that silent mode isactivated.Auto answer - Indicates that Autoanswer is on.Keypad Locked - Indicates that thekeypad is locked.Memory card - Indicates the memorycard is in use.Bluetooth - Feature is activated.X520_Master_EN.book Page 75 Tuesday, October 14, 2008 2:04 PM

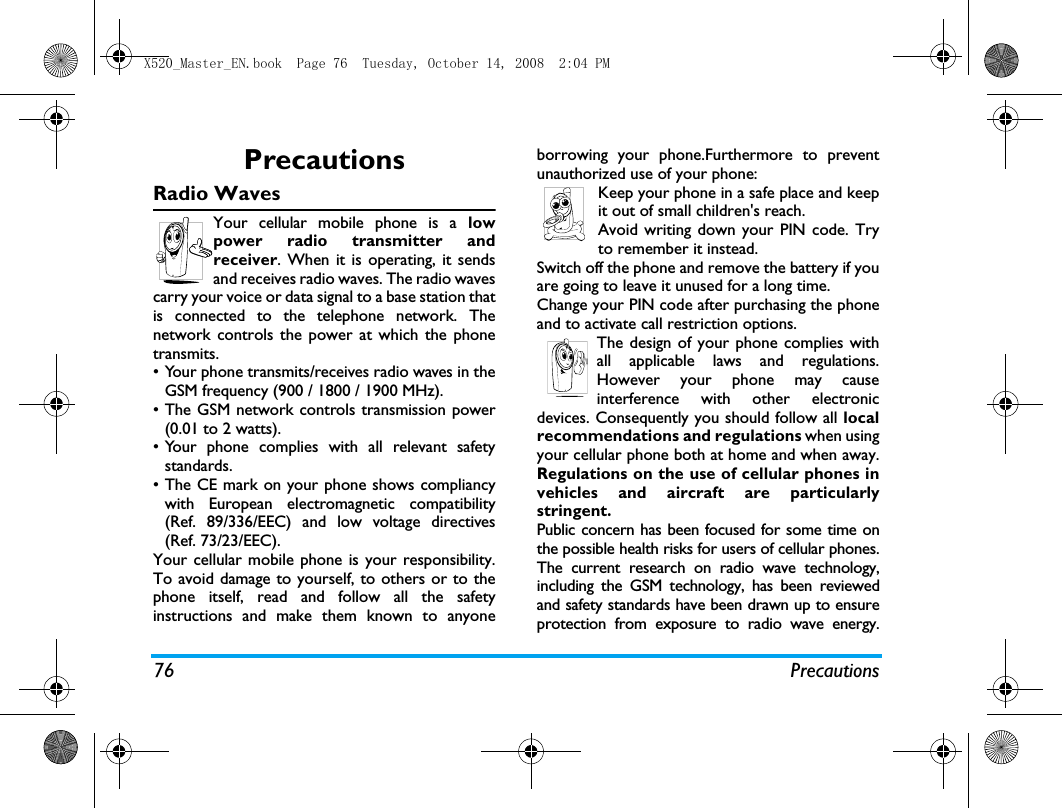

76 PrecautionsPrecautionsRadio WavesYour cellular mobile phone is a lowpower radio transmitter andreceiver. When it is operating, it sendsand receives radio waves. The radio wavescarry your voice or data signal to a base station thatis connected to the telephone network. Thenetwork controls the power at which the phonetransmits.• Your phone transmits/receives radio waves in theGSM frequency (900 / 1800 / 1900 MHz).• The GSM network controls transmission power(0.01 to 2 watts).• Your phone complies with all relevant safetystandards.• The CE mark on your phone shows compliancywith European electromagnetic compatibility(Ref. 89/336/EEC) and low voltage directives(Ref. 73/23/EEC).Your cellular mobile phone is your responsibility.To avoid damage to yourself, to others or to thephone itself, read and follow all the safetyinstructions and make them known to anyoneborrowing your phone.Furthermore to preventunauthorized use of your phone:Keep your phone in a safe place and keepit out of small children's reach.Avoid writing down your PIN code. Tryto remember it instead. Switch off the phone and remove the battery if youare going to leave it unused for a long time.Change your PIN code after purchasing the phoneand to activate call restriction options.The design of your phone complies withall applicable laws and regulations.However your phone may causeinterference with other electronicdevices. Consequently you should follow all localrecommendations and regulations when usingyour cellular phone both at home and when away.Regulations on the use of cellular phones invehicles and aircraft are particularlystringent.Public concern has been focused for some time onthe possible health risks for users of cellular phones.The current research on radio wave technology,including the GSM technology, has been reviewedand safety standards have been drawn up to ensureprotection from exposure to radio wave energy.X520_Master_EN.book Page 76 Tuesday, October 14, 2008 2:04 PM

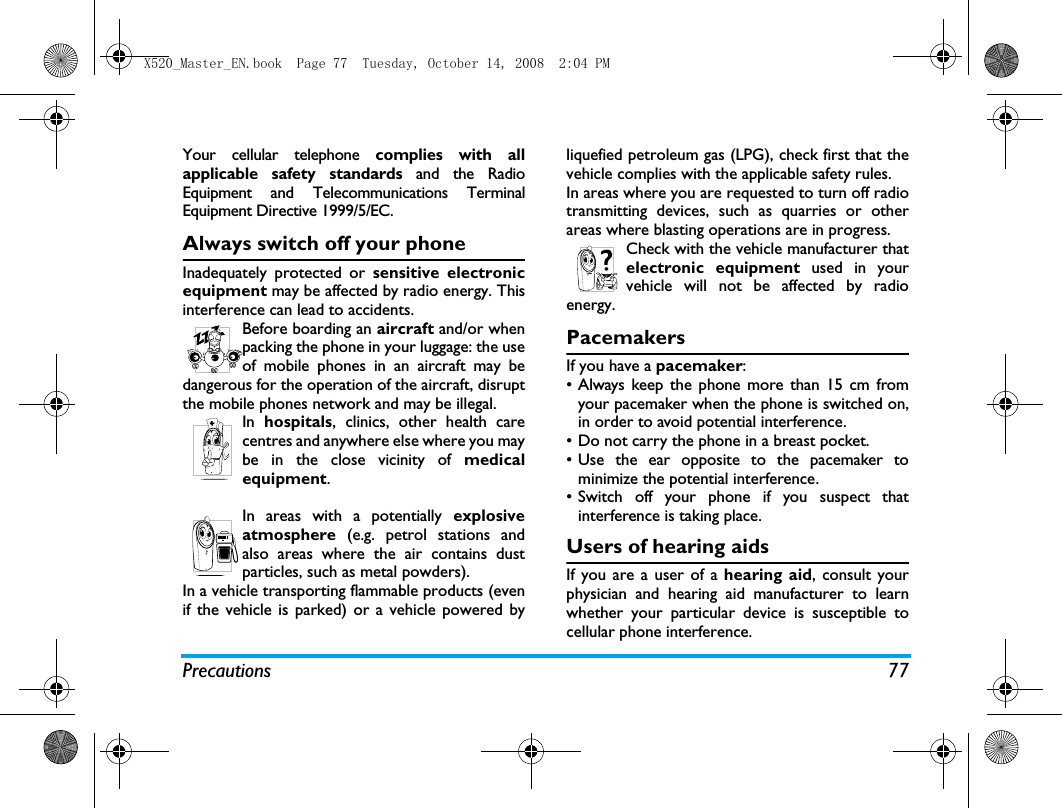

Precautions 77Your cellular telephone complies with allapplicable safety standards and the RadioEquipment and Telecommunications TerminalEquipment Directive 1999/5/EC.Always switch off your phoneInadequately protected or sensitive electronicequipment may be affected by radio energy. Thisinterference can lead to accidents.Before boarding an aircraft and/or whenpacking the phone in your luggage: the useof mobile phones in an aircraft may bedangerous for the operation of the aircraft, disruptthe mobile phones network and may be illegal.In hospitals, clinics, other health carecentres and anywhere else where you maybe in the close vicinity of medicalequipment.In areas with a potentially explosiveatmosphere (e.g. petrol stations andalso areas where the air contains dustparticles, such as metal powders).In a vehicle transporting flammable products (evenif the vehicle is parked) or a vehicle powered byliquefied petroleum gas (LPG), check first that thevehicle complies with the applicable safety rules.In areas where you are requested to turn off radiotransmitting devices, such as quarries or otherareas where blasting operations are in progress.Check with the vehicle manufacturer thatelectronic equipment used in yourvehicle will not be affected by radioenergy.PacemakersIf you have a pacemaker:• Always keep the phone more than 15 cm fromyour pacemaker when the phone is switched on,in order to avoid potential interference.• Do not carry the phone in a breast pocket.• Use the ear opposite to the pacemaker tominimize the potential interference.• Switch off your phone if you suspect thatinterference is taking place.Users of hearing aidsIf you are a user of a hearing aid, consult yourphysician and hearing aid manufacturer to learnwhether your particular device is susceptible tocellular phone interference.X520_Master_EN.book Page 77 Tuesday, October 14, 2008 2:04 PM

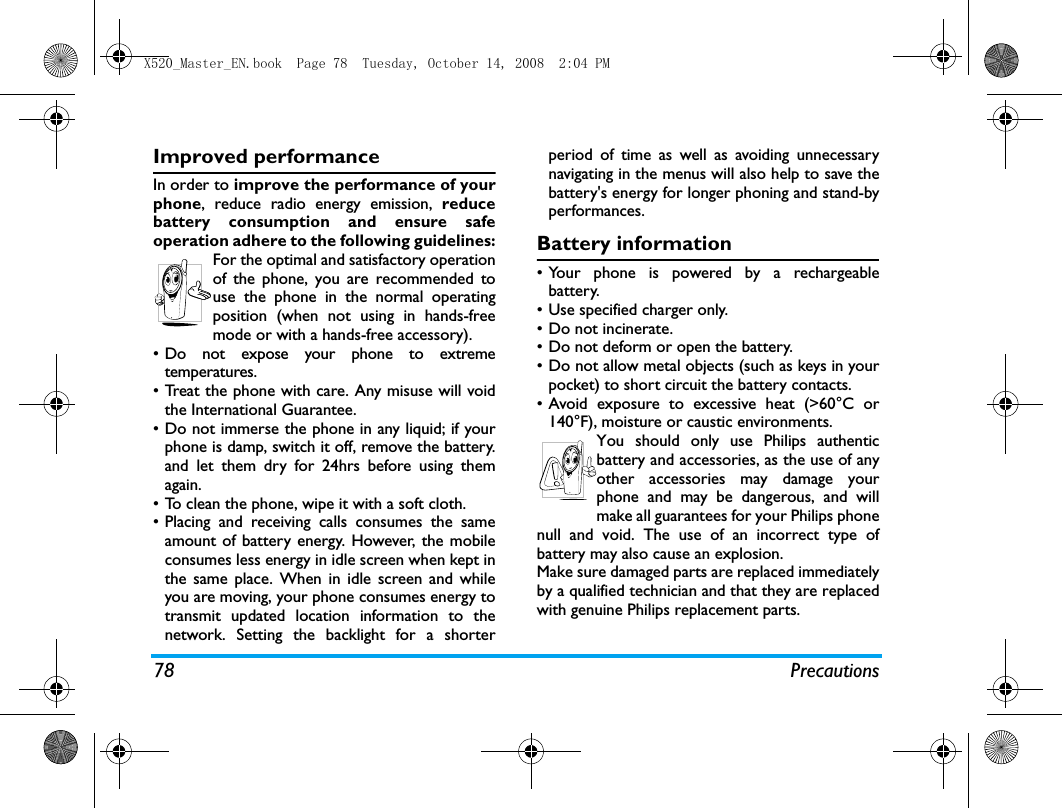

78 PrecautionsImproved performanceIn order to improve the performance of yourphone, reduce radio energy emission, reducebattery consumption and ensure safeoperation adhere to the following guidelines:For the optimal and satisfactory operationof the phone, you are recommended touse the phone in the normal operatingposition (when not using in hands-freemode or with a hands-free accessory).• Do not expose your phone to extremetemperatures.• Treat the phone with care. Any misuse will voidthe International Guarantee.• Do not immerse the phone in any liquid; if yourphone is damp, switch it off, remove the battery.and let them dry for 24hrs before using themagain.• To clean the phone, wipe it with a soft cloth.• Placing and receiving calls consumes the sameamount of battery energy. However, the mobileconsumes less energy in idle screen when kept inthe same place. When in idle screen and whileyou are moving, your phone consumes energy totransmit updated location information to thenetwork. Setting the backlight for a shorterperiod of time as well as avoiding unnecessarynavigating in the menus will also help to save thebattery's energy for longer phoning and stand-byperformances.Battery information• Your phone is powered by a rechargeablebattery.•Use specified charger only.• Do not incinerate.• Do not deform or open the battery.• Do not allow metal objects (such as keys in yourpocket) to short circuit the battery contacts.•Avoid exposure to excessive heat (>60°C or140°F), moisture or caustic environments.You should only use Philips authenticbattery and accessories, as the use of anyother accessories may damage yourphone and may be dangerous, and willmake all guarantees for your Philips phonenull and void. The use of an incorrect type ofbattery may also cause an explosion.Make sure damaged parts are replaced immediatelyby a qualified technician and that they are replacedwith genuine Philips replacement parts.X520_Master_EN.book Page 78 Tuesday, October 14, 2008 2:04 PM

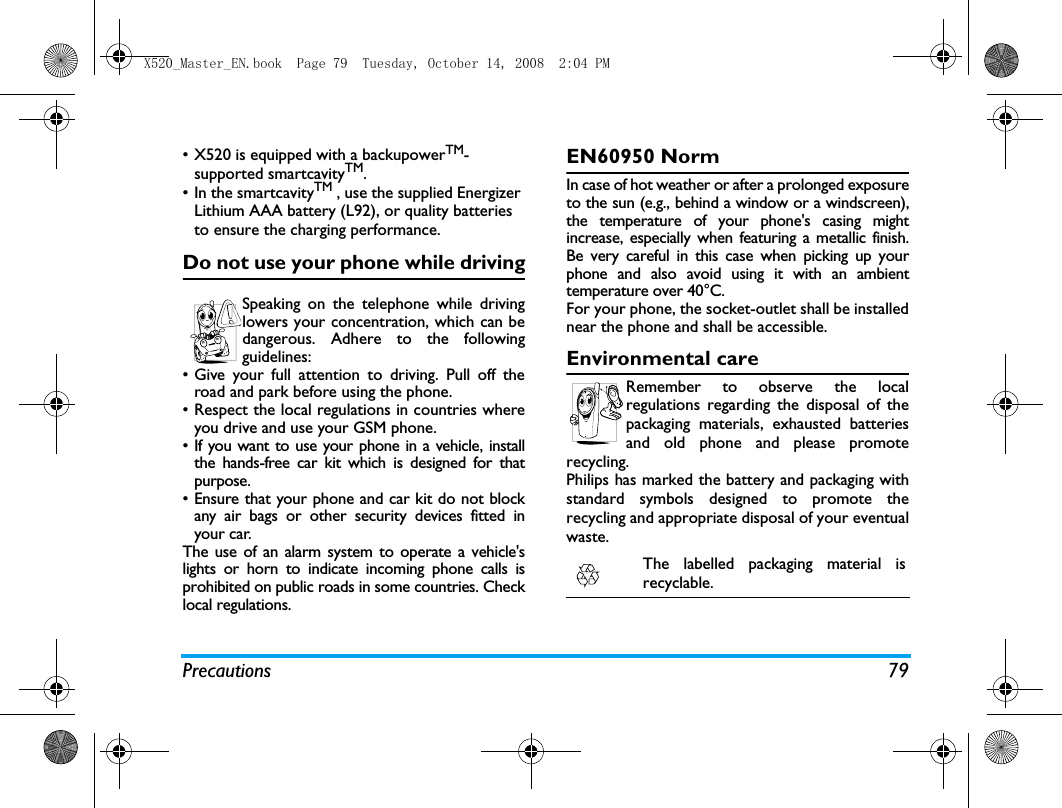

Precautions 79• X520 is equipped with a backupowerTM-supported smartcavityTM.• In the smartcavityTM , use the supplied Energizer Lithium AAA battery (L92), or quality batteries to ensure the charging performance.Do not use your phone while drivingSpeaking on the telephone while drivinglowers your concentration, which can bedangerous. Adhere to the followingguidelines:• Give your full attention to driving. Pull off theroad and park before using the phone.• Respect the local regulations in countries whereyou drive and use your GSM phone.• If you want to use your phone in a vehicle, installthe hands-free car kit which is designed for thatpurpose.• Ensure that your phone and car kit do not blockany air bags or other security devices fitted inyour car.The use of an alarm system to operate a vehicle'slights or horn to indicate incoming phone calls isprohibited on public roads in some countries. Checklocal regulations.EN60950 NormIn case of hot weather or after a prolonged exposureto the sun (e.g., behind a window or a windscreen),the temperature of your phone's casing mightincrease, especially when featuring a metallic finish.Be very careful in this case when picking up yourphone and also avoid using it with an ambienttemperature over 40°C.For your phone, the socket-outlet shall be installednear the phone and shall be accessible. Environmental careRemember to observe the localregulations regarding the disposal of thepackaging materials, exhausted batteriesand old phone and please promoterecycling.Philips has marked the battery and packaging withstandard symbols designed to promote therecycling and appropriate disposal of your eventualwaste.The labelled packaging material isrecyclable.X520_Master_EN.book Page 79 Tuesday, October 14, 2008 2:04 PM

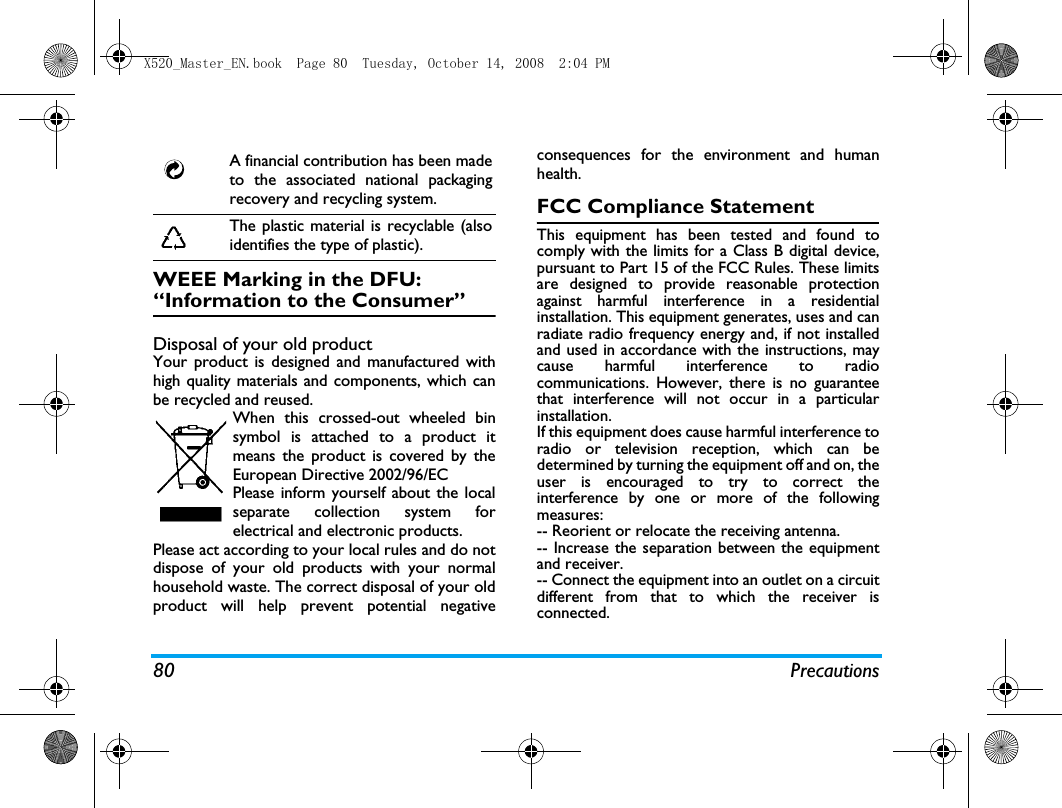

80 PrecautionsWEEE Marking in the DFU: “Information to the Consumer”Disposal of your old productYour product is designed and manufactured withhigh quality materials and components, which canbe recycled and reused. When this crossed-out wheeled binsymbol is attached to a product itmeans the product is covered by theEuropean Directive 2002/96/ECPlease inform yourself about the localseparate collection system forelectrical and electronic products.Please act according to your local rules and do notdispose of your old products with your normalhousehold waste. The correct disposal of your oldproduct will help prevent potential negativeconsequences for the environment and humanhealth.FCC Compliance StatementThis equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protectionagainst harmful interference in a residentialinstallation. This equipment generates, uses and canradiate radio frequency energy and, if not installedand used in accordance with the instructions, maycause harmful interference to radiocommunications. However, there is no guaranteethat interference will not occur in a particularinstallation. If this equipment does cause harmful interference toradio or television reception, which can bedetermined by turning the equipment off and on, theuser is encouraged to try to correct theinterference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipmentand receiver. -- Connect the equipment into an outlet on a circuitdifferent from that to which the receiver isconnected. A financial contribution has been madeto the associated national packagingrecovery and recycling system.The plastic material is recyclable (alsoidentifies the type of plastic).X520_Master_EN.book Page 80 Tuesday, October 14, 2008 2:04 PM

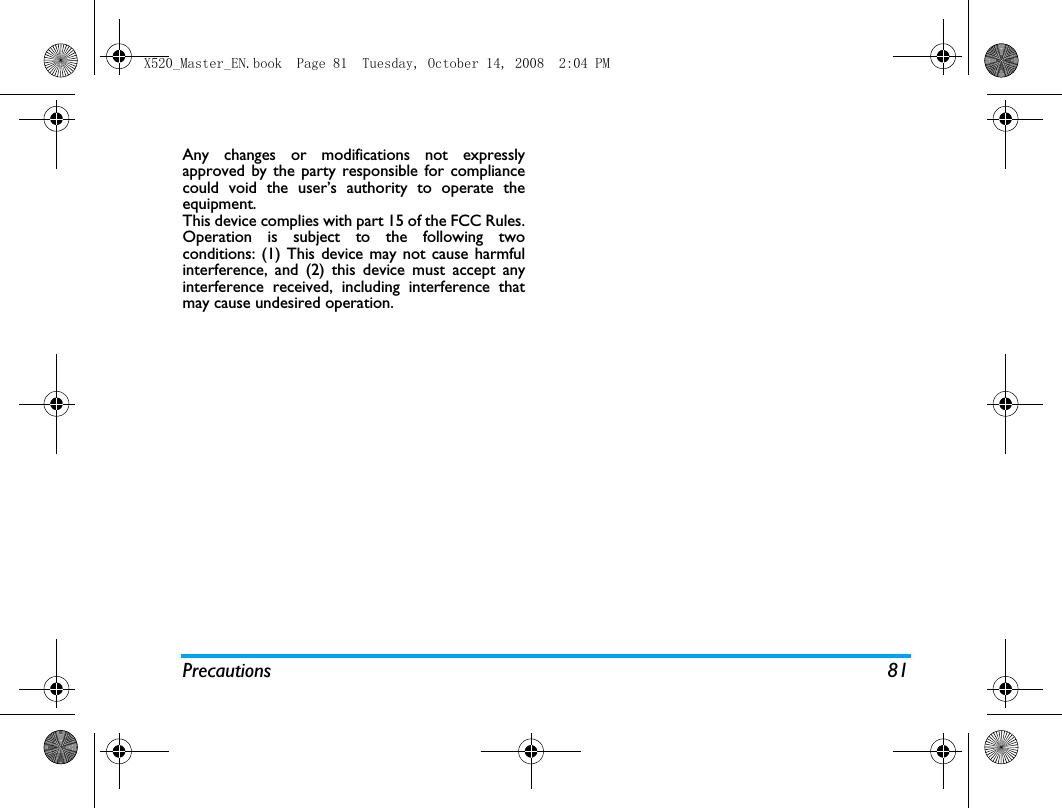

Precautions 81Any changes or modifications not expresslyapproved by the party responsible for compliancecould void the user’s authority to operate theequipment.This device complies with part 15 of the FCC Rules.Operation is subject to the following twoconditions: (1) This device may not cause harmfulinterference, and (2) this device must accept anyinterference received, including interference thatmay cause undesired operation.X520_Master_EN.book Page 81 Tuesday, October 14, 2008 2:04 PM

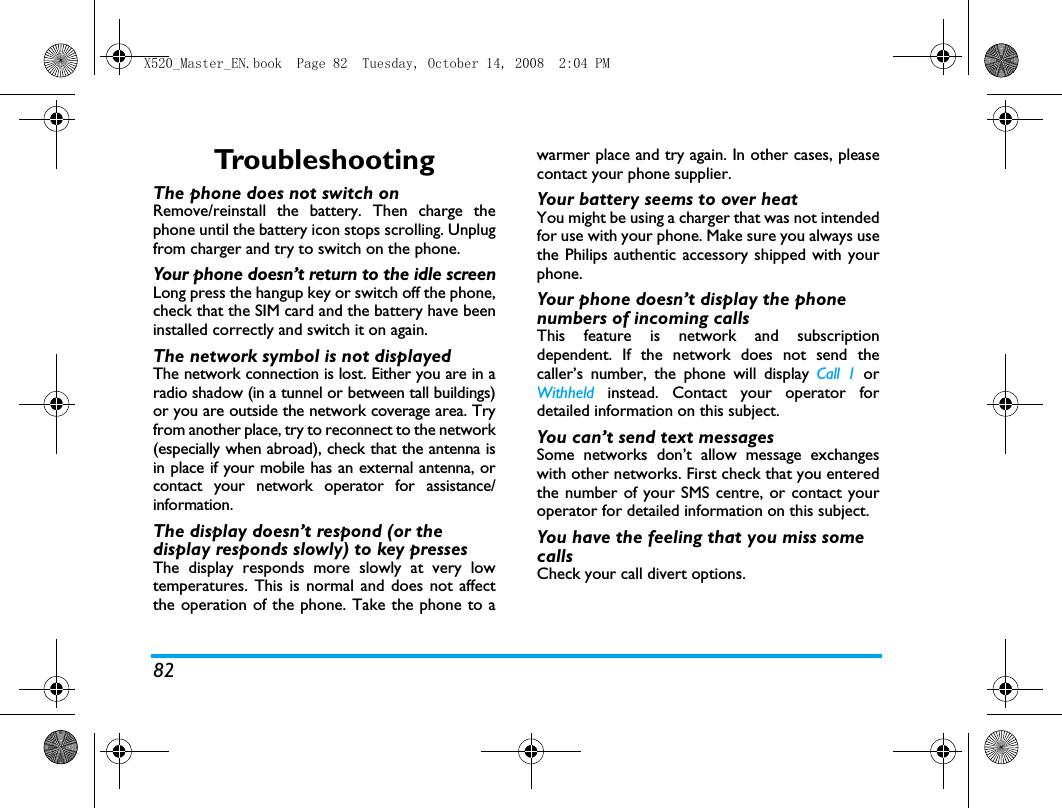

82Tro u b l e s h o o t i n gThe phone does not switch onRemove/reinstall the battery. Then charge thephone until the battery icon stops scrolling. Unplugfrom charger and try to switch on the phone.Your phone doesn’t return to the idle screenLong press the hangup key or switch off the phone,check that the SIM card and the battery have beeninstalled correctly and switch it on again.The network symbol is not displayedThe network connection is lost. Either you are in aradio shadow (in a tunnel or between tall buildings)or you are outside the network coverage area. Tryfrom another place, try to reconnect to the network(especially when abroad), check that the antenna isin place if your mobile has an external antenna, orcontact your network operator for assistance/information.The display doesn’t respond (or the display responds slowly) to key pressesThe display responds more slowly at very lowtemperatures. This is normal and does not affectthe operation of the phone. Take the phone to awarmer place and try again. In other cases, pleasecontact your phone supplier.Your battery seems to over heatYou might be using a charger that was not intendedfor use with your phone. Make sure you always usethe Philips authentic accessory shipped with yourphone.Your phone doesn’t display the phone numbers of incoming callsThis feature is network and subscriptiondependent. If the network does not send thecaller’s number, the phone will display Call 1 orWithheld instead. Contact your operator fordetailed information on this subject.You can’t send text messagesSome networks don’t allow message exchangeswith other networks. First check that you enteredthe number of your SMS centre, or contact youroperator for detailed information on this subject.You have the feeling that you miss some callsCheck your call divert options.X520_Master_EN.book Page 82 Tuesday, October 14, 2008 2:04 PM

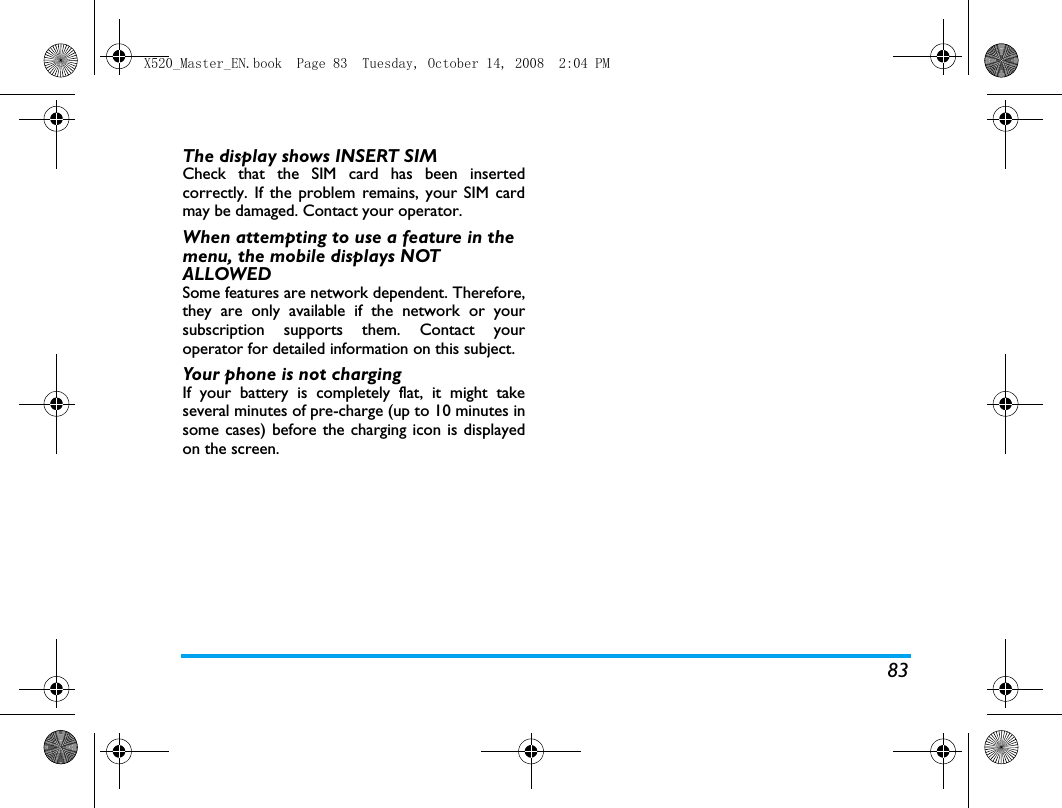

83The display shows INSERT SIM Check that the SIM card has been insertedcorrectly. If the problem remains, your SIM cardmay be damaged. Contact your operator.When attempting to use a feature in the menu, the mobile displays NOT ALLOWEDSome features are network dependent. Therefore,they are only available if the network or yoursubscription supports them. Contact youroperator for detailed information on this subject.Your phone is not chargingIf your battery is completely flat, it might takeseveral minutes of pre-charge (up to 10 minutes insome cases) before the charging icon is displayedon the screen.X520_Master_EN.book Page 83 Tuesday, October 14, 2008 2:04 PM

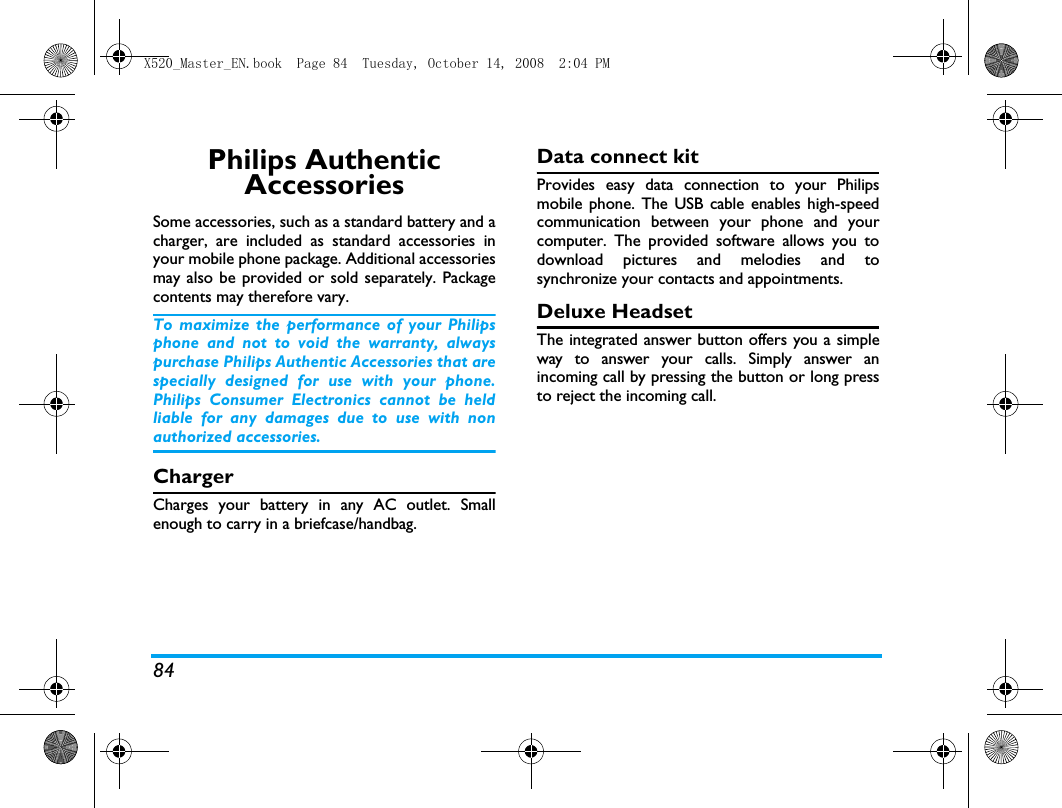

84Philips Authentic AccessoriesSome accessories, such as a standard battery and acharger, are included as standard accessories inyour mobile phone package. Additional accessoriesmay also be provided or sold separately. Packagecontents may therefore vary.To maximize the performance of your Philipsphone and not to void the warranty, alwayspurchase Philips Authentic Accessories that arespecially designed for use with your phone.Philips Consumer Electronics cannot be heldliable for any damages due to use with nonauthorized accessories.ChargerCharges your battery in any AC outlet. Smallenough to carry in a briefcase/handbag.Data connect kitProvides easy data connection to your Philipsmobile phone. The USB cable enables high-speedcommunication between your phone and yourcomputer. The provided software allows you todownload pictures and melodies and tosynchronize your contacts and appointments.Deluxe HeadsetThe integrated answer button offers you a simpleway to answer your calls. Simply answer anincoming call by pressing the button or long pressto reject the incoming call.X520_Master_EN.book Page 84 Tuesday, October 14, 2008 2:04 PM

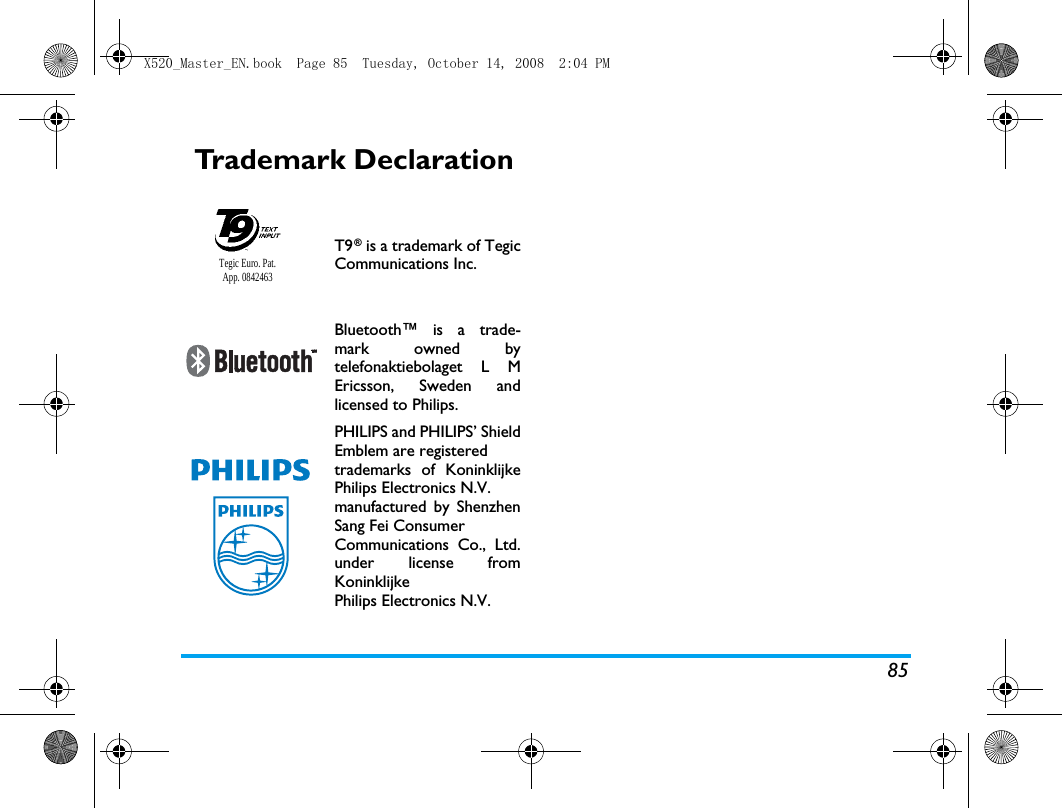

85Trademark DeclarationT9® is a trademark of TegicCommunications Inc.Bluetooth™ is a trade-mark owned bytelefonaktiebolaget L MEricsson, Sweden andlicensed to Philips.PHILIPS and PHILIPS’ ShieldEmblem are registered trademarks of KoninklijkePhilips Electronics N.V. manufactured by ShenzhenSang Fei Consumer Communications Co., Ltd.under license fromKoninklijke Philips Electronics N.V.Tegic Euro. Pat. App. 0842463X520_Master_EN.book Page 85 Tuesday, October 14, 2008 2:04 PM

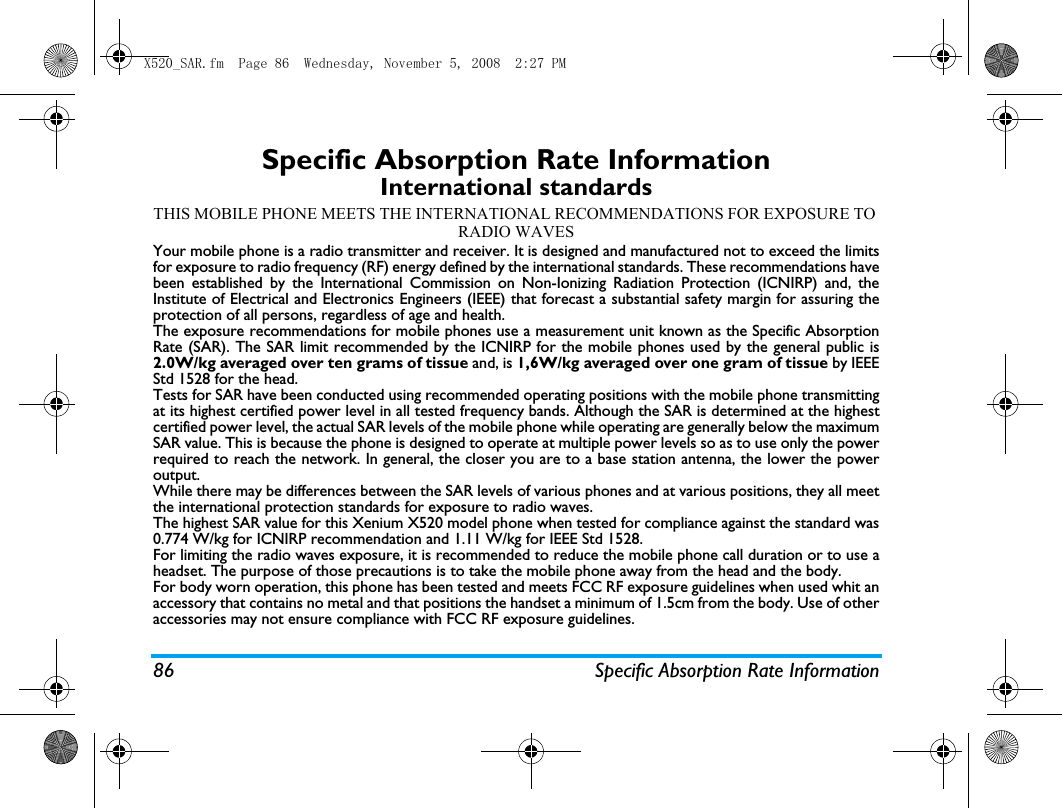

86 Specific Absorption Rate InformationSpecific Absorption Rate InformationInternational standardsTHIS MOBILE PHONE MEETS THE INTERNATIONAL RECOMMENDATIONS FOR EXPOSURE TO RADIO WAVESYour mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limitsfor exposure to radio frequency (RF) energy defined by the international standards. These recommendations havebeen established by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and, theInstitute of Electrical and Electronics Engineers (IEEE) that forecast a substantial safety margin for assuring theprotection of all persons, regardless of age and health.The exposure recommendations for mobile phones use a measurement unit known as the Specific AbsorptionRate (SAR). The SAR limit recommended by the ICNIRP for the mobile phones used by the general public is2.0W/kg averaged over ten grams of tissue and, is 1,6W/kg averaged over one gram of tissue by IEEEStd 1528 for the head.Tests for SAR have been conducted using recommended operating positions with the mobile phone transmittingat its highest certified power level in all tested frequency bands. Although the SAR is determined at the highestcertified power level, the actual SAR levels of the mobile phone while operating are generally below the maximumSAR value. This is because the phone is designed to operate at multiple power levels so as to use only the powerrequired to reach the network. In general, the closer you are to a base station antenna, the lower the poweroutput. While there may be differences between the SAR levels of various phones and at various positions, they all meetthe international protection standards for exposure to radio waves. The highest SAR value for this Xenium X520 model phone when tested for compliance against the standard was0.774 W/kg for ICNIRP recommendation and 1.11 W/kg for IEEE Std 1528. For limiting the radio waves exposure, it is recommended to reduce the mobile phone call duration or to use aheadset. The purpose of those precautions is to take the mobile phone away from the head and the body.For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used whit anaccessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. Use of otheraccessories may not ensure compliance with FCC RF exposure guidelines.X520_SAR.fm Page 86 Wednesday, November 5, 2008 2:27 PM

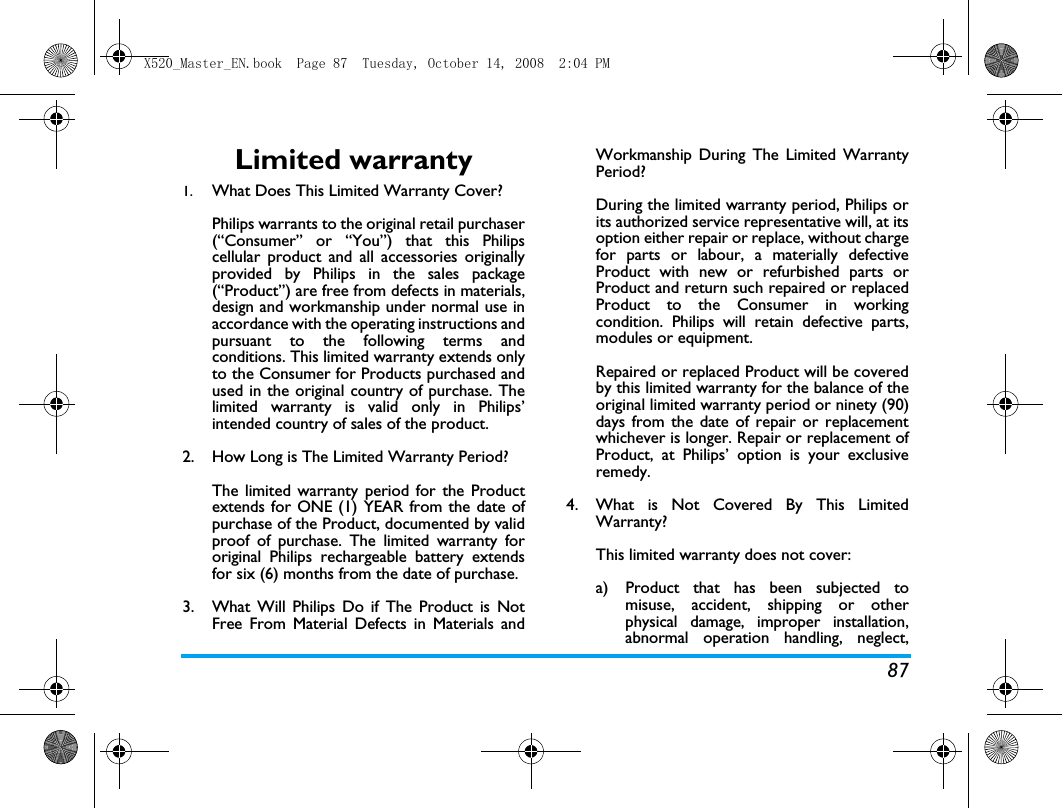

87Limited warranty1. What Does This Limited Warranty Cover?Philips warrants to the original retail purchaser(“Consumer” or “You”) that this Philipscellular product and all accessories originallyprovided by Philips in the sales package(“Product”) are free from defects in materials,design and workmanship under normal use inaccordance with the operating instructions andpursuant to the following terms andconditions. This limited warranty extends onlyto the Consumer for Products purchased andused in the original country of purchase. Thelimited warranty is valid only in Philips’intended country of sales of the product.2. How Long is The Limited Warranty Period?The limited warranty period for the Productextends for ONE (1) YEAR from the date ofpurchase of the Product, documented by validproof of purchase. The limited warranty fororiginal Philips rechargeable battery extendsfor six (6) months from the date of purchase.3. What Will Philips Do if The Product is NotFree From Material Defects in Materials andWorkmanship During The Limited WarrantyPeriod?During the limited warranty period, Philips orits authorized service representative will, at itsoption either repair or replace, without chargefor parts or labour, a materially defectiveProduct with new or refurbished parts orProduct and return such repaired or replacedProduct to the Consumer in workingcondition. Philips will retain defective parts,modules or equipment.Repaired or replaced Product will be coveredby this limited warranty for the balance of theoriginal limited warranty period or ninety (90)days from the date of repair or replacementwhichever is longer. Repair or replacement ofProduct, at Philips’ option is your exclusiveremedy.4. What is Not Covered By This LimitedWarranty?This limited warranty does not cover:a) Product that has been subjected tomisuse, accident, shipping or otherphysical damage, improper installation,abnormal operation handling, neglect,X520_Master_EN.book Page 87 Tuesday, October 14, 2008 2:04 PM

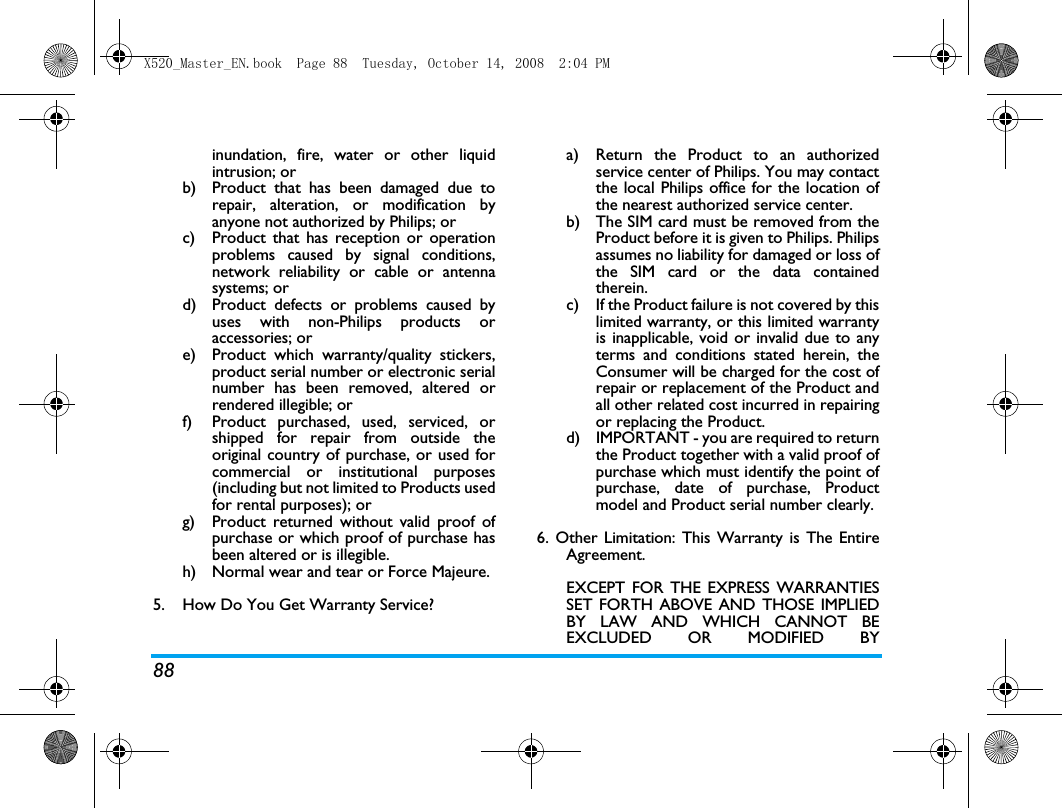

88inundation, fire, water or other liquidintrusion; orb) Product that has been damaged due torepair, alteration, or modification byanyone not authorized by Philips; orc) Product that has reception or operationproblems caused by signal conditions,network reliability or cable or antennasystems; ord) Product defects or problems caused byuses with non-Philips products oraccessories; or e) Product which warranty/quality stickers,product serial number or electronic serialnumber has been removed, altered orrendered illegible; or f) Product purchased, used, serviced, orshipped for repair from outside theoriginal country of purchase, or used forcommercial or institutional purposes(including but not limited to Products usedfor rental purposes); or g) Product returned without valid proof ofpurchase or which proof of purchase hasbeen altered or is illegible.h) Normal wear and tear or Force Majeure.5. How Do You Get Warranty Service?a) Return the Product to an authorizedservice center of Philips. You may contactthe local Philips office for the location ofthe nearest authorized service center.b) The SIM card must be removed from theProduct before it is given to Philips. Philipsassumes no liability for damaged or loss ofthe SIM card or the data containedtherein.c) If the Product failure is not covered by thislimited warranty, or this limited warrantyis inapplicable, void or invalid due to anyterms and conditions stated herein, theConsumer will be charged for the cost ofrepair or replacement of the Product andall other related cost incurred in repairingor replacing the Product.d) IMPORTANT - you are required to returnthe Product together with a valid proof ofpurchase which must identify the point ofpurchase, date of purchase, Productmodel and Product serial number clearly.6. Other Limitation: This Warranty is The EntireAgreement.EXCEPT FOR THE EXPRESS WARRANTIESSET FORTH ABOVE AND THOSE IMPLIEDBY LAW AND WHICH CANNOT BEEXCLUDED OR MODIFIED BYX520_Master_EN.book Page 88 Tuesday, October 14, 2008 2:04 PM

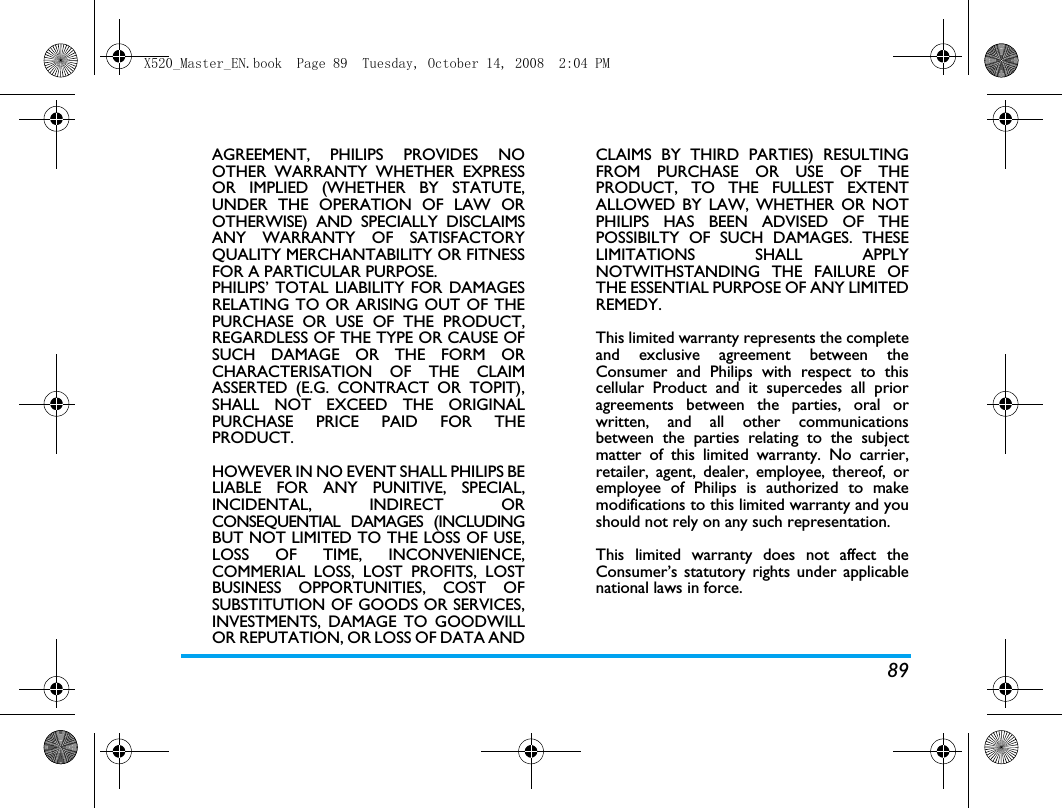

89AGREEMENT, PHILIPS PROVIDES NOOTHER WARRANTY WHETHER EXPRESSOR IMPLIED (WHETHER BY STATUTE,UNDER THE OPERATION OF LAW OROTHERWISE) AND SPECIALLY DISCLAIMSANY WARRANTY OF SATISFACTORYQUALITY MERCHANTABILITY OR FITNESSFOR A PARTICULAR PURPOSE.PHILIPS’ TOTAL LIABILITY FOR DAMAGESRELATING TO OR ARISING OUT OF THEPURCHASE OR USE OF THE PRODUCT,REGARDLESS OF THE TYPE OR CAUSE OFSUCH DAMAGE OR THE FORM ORCHARACTERISATION OF THE CLAIMASSERTED (E.G. CONTRACT OR TOPIT),SHALL NOT EXCEED THE ORIGINALPURCHASE PRICE PAID FOR THEPRODUCT.HOWEVER IN NO EVENT SHALL PHILIPS BELIABLE FOR ANY PUNITIVE, SPECIAL,INCIDENTAL, INDIRECT ORCONSEQUENTIAL DAMAGES (INCLUDINGBUT NOT LIMITED TO THE LOSS OF USE,LOSS OF TIME, INCONVENIENCE,COMMERIAL LOSS, LOST PROFITS, LOSTBUSINESS OPPORTUNITIES, COST OFSUBSTITUTION OF GOODS OR SERVICES,INVESTMENTS, DAMAGE TO GOODWILLOR REPUTATION, OR LOSS OF DATA ANDCLAIMS BY THIRD PARTIES) RESULTINGFROM PURCHASE OR USE OF THEPRODUCT, TO THE FULLEST EXTENTALLOWED BY LAW, WHETHER OR NOTPHILIPS HAS BEEN ADVISED OF THEPOSSIBILTY OF SUCH DAMAGES. THESELIMITATIONS SHALL APPLYNOTWITHSTANDING THE FAILURE OFTHE ESSENTIAL PURPOSE OF ANY LIMITEDREMEDY.This limited warranty represents the completeand exclusive agreement between theConsumer and Philips with respect to thiscellular Product and it supercedes all prioragreements between the parties, oral orwritten, and all other communicationsbetween the parties relating to the subjectmatter of this limited warranty. No carrier,retailer, agent, dealer, employee, thereof, oremployee of Philips is authorized to makemodifications to this limited warranty and youshould not rely on any such representation.This limited warranty does not affect theConsumer’s statutory rights under applicablenational laws in force.X520_Master_EN.book Page 89 Tuesday, October 14, 2008 2:04 PM

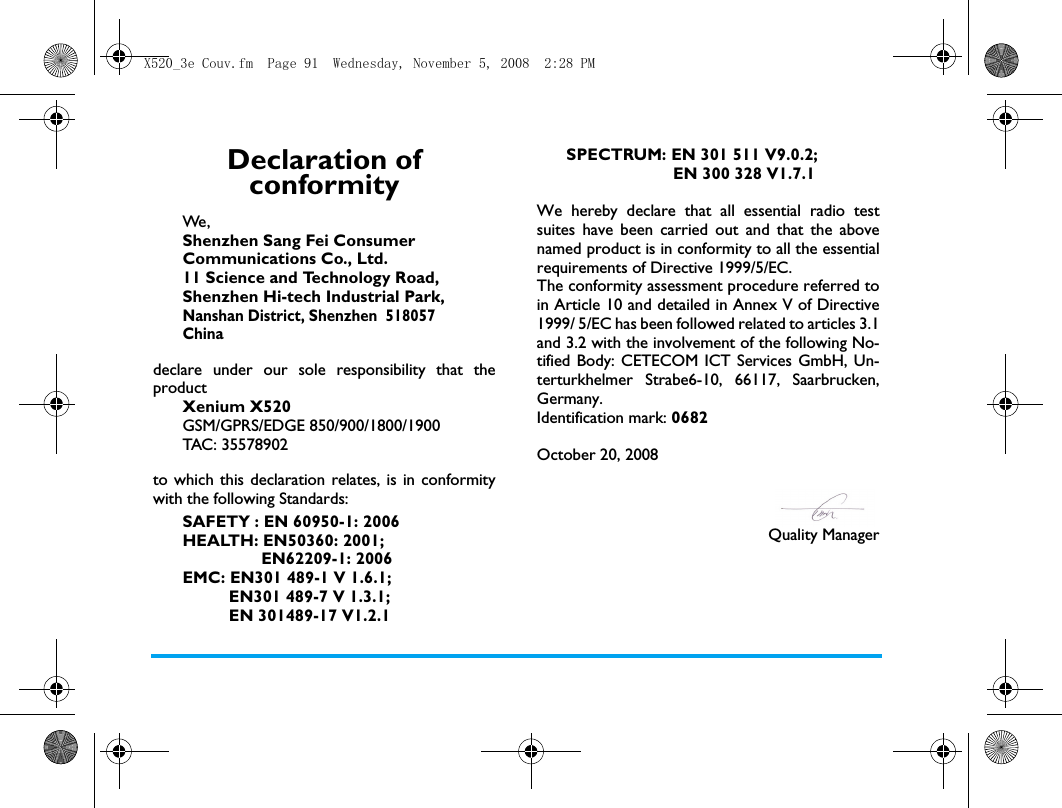

Declaration of conformityWe, Shenzhen Sang Fei ConsumerCommunications Co., Ltd.11 Science and Technology Road,Shenzhen Hi-tech Industrial Park,Nanshan District, Shenzhen 518057Chinadeclare under our sole responsibility that theproductXenium X520GSM/GPRS/EDGE 850/900/1800/1900TAC: 35578902to which this declaration relates, is in conformitywith the following Standards:SAFETY : EN 60950-1: 2006HEALTH: EN50360: 2001; EN62209-1: 2006 EMC: EN301 489-1 V 1.6.1; EN301 489-7 V 1.3.1; EN 301489-17 V1.2.1 SPECTRUM: EN 301 511 V9.0.2; EN 300 328 V1.7.1 We hereby declare that all essential radio testsuites have been carried out and that the abovenamed product is in conformity to all the essentialrequirements of Directive 1999/5/EC.The conformity assessment procedure referred toin Article 10 and detailed in Annex V of Directive1999/ 5/EC has been followed related to articles 3.1and 3.2 with the involvement of the following No-tified Body: CETECOM ICT Services GmbH, Un-terturkhelmer Strabe6-10, 66117, Saarbrucken,Germany.Identification mark: 0682October 20, 2008Quality ManagerX520_3e Couv.fm Page 91 Wednesday, November 5, 2008 2:28 PM
