Sang Fei Consumer Communications CTX603 GSM/GPRS/EDGE Digital Mobile Phone User Manual X603 EN to SP Book
Shenzhen Sang Fei Consumer Communications Co., Ltd. GSM/GPRS/EDGE Digital Mobile Phone X603 EN to SP Book
Users Manual
Philips continuously strives to improve its products. Due to software upgrading, some contents in this user guide
may be different from your product.Philips reserves the rights to revise this user guide or withdraw it at any
time without prior notice. Please take your product as standard.
TFT LCD
Right soft key
Hang up and
Power on/off key.
Volume +/-
Key
Left soft key
Camera key
Back of phone:
5.0MP camera lens
Charger/ USB port and
Headset connector
Pick up key
Navigation and , key
Alphanumeric keypad
Lock/Unlock key
Your phone
Your phone 1
Home screen
Your phone’s home screen consists of the following
areas:
Keys
Learn about the main keys.
Dashboard displays
On the home screen, you can slide the sidebar to
switch between different displays.
Customize functional displays:
1
Go to Settings>General>Dashboard to enter
display list.
2
Tap Check/Uncheck to change display menu.
3
Press L to confirm setting.
Stylus
While the first time you turn on the phone, you are
asked to do calibration for the stylus. Thus, strokes
or taps by the stylus will be precisely displayed on
the screen. (Or go to Settings> General>Pen
calibration).
Key Definition Function
(
Dial Make or answer a call.
,Navigation
and
Confirm
Move the navigation keys +,
-, < or > ; Press to confirm
your selection.
)Hang-up/
Power/
Exit
End a call;
Hold to turn on/off the
phone; Return to idle screen.
Status Bar
Shortcuts
Dashboard
Side bar
LLeft soft
key
Select the options on the
screen.
RRight soft
key
Select the options on the
screen.
2 Your phone
Icons & symbols
Learn about the icons and symbols on the screen.
Icons Definition Function
Silent Your phone will not ring
when receiving a call.
Vibration
only
Your phone will vibrate when
receiving a call.
Battery The bars indicate the battery
level.
SMS You have a new message.
MMS You have a new multimedia
message.
Wap
message
You have received a Wap
push message.
Missed call You have missed a call.
Call diverts All your incoming voice calls
are being forwarded to a
number.
Bluetooth Bluetooth is activated.
Bluetooth
headset
The Bluetooth headset is
connected.
Headset The headset is plugged into
the phone.
Alarm The alarm clock is activated.
Roaming Displayed when your phone
is registered to a network
other than your own
(especially when you’re
abroad).
Home zone A zone designated by your
network operator. Contact
your service provider for
details.
GSM
network
your phone is connected to a
GSM network.The more bars
are shown the better the
reception is.
GPRS
attach
your phone is connected to a
GPRS network.
EDGE
attach
your phone is connected to a
EDGE network.
Profile General mode is activated.
Memory
card
The memory card is in use.
Table of contents 3
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . 4
Insert SIM card and Charge the battery . . . . . . . 4
Insert a Micro SD card (Memory card) . . . . . . . 6
Connect to your PC . . . . . . . . . . . . . . . . . . . . . . 6
Customize your phone . . . . . . . . . . . . . . . . . . . . 7
Basic function . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Use basic call functions . . . . . . . . . . . . . . . . . . . . 8
Receive and send messages. . . . . . . . . . . . . . . . . 9
Enter text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Manage your phonebook . . . . . . . . . . . . . . . . . 11
MultiMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Media player . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . 15
FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Business applications . . . . . . . . . . . . . . . . . . . 18
Manage your calendar . . . . . . . . . . . . . . . . . . . . 18
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Read E-books . . . . . . . . . . . . . . . . . . . . . . . . . . 20
File management . . . . . . . . . . . . . . . . . . . . . . . . 20
Use blacklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Check world clock . . . . . . . . . . . . . . . . . . . . . . 21
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Currency converter . . . . . . . . . . . . . . . . . . . . . 22
Ideas Telcel & Diversion . . . . . . . . . . . . . . . .23
Ideas Telcel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Diversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Time&Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Calls setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Java setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Network setting . . . . . . . . . . . . . . . . . . . . . . . . 26
Safety & Precaution . . . . . . . . . . . . . . . . . . . . .27
Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 28
Trademark Declaration . . . . . . . . . . . . . . . . . . . 29
FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . 30
RF Exposure Information (SAR) . . . . . . . . . . . . 30
Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . 31
Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . .33
Table of contents
4 Getting started
Congratulations on your purchase and welcome to
Philips!
To get the most of your product and enjoy all
Philips has to offer, register your product at:
www. philips. com/welcome
More details about your product, please access:
www.philips.com/support
Note: Please read the safety instructions in the "Safety &
Precaution" section before use.
Insert SIM card and Charge the
battery
Learn about installing SIM card and charging the
battery for the first use.

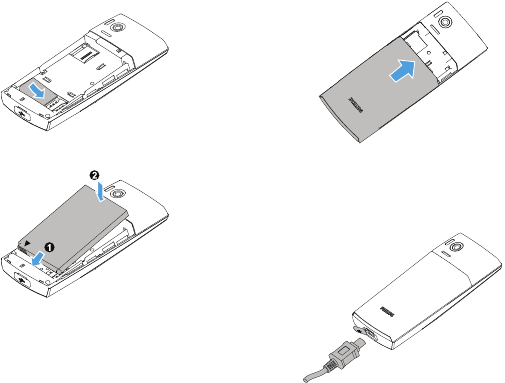

Insert SIM card
Follow the steps below to insert your SIM card.
Remember to turn off your mobile phone before
removing the back cover.

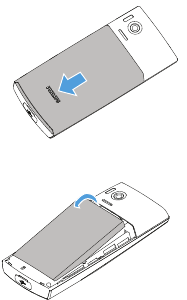

1
Remove the back cover.
2
Take out the battery.
Getting started
Getting started 5
3
Insert the SIM card.
4
Install the battery.
5
Replace the back cover.
Charge the battery
A new battery is partially charged. The battery icon
in the upper-right corner shows the battery level of
charging status.
6 Getting started
Note:
•
You can user the phone while it is charging.
•
Keeping the charger plugged to the mobile phone when
the battery is fully charged will not damage the battery.
The only way to turn off the charger is to unplug it, so it
is advisable to use an easily accessible power socket.
•
If you do not intend to use your phone for several days,
we recommend that you remove the battery.
•
If a fully charged battery left unused, it will lost its charge
over time.
•
If a battery is being used for the first time or the battery
has not been used for a prolonged period, it may take
longer time to recharge.
Insert a Micro SD card (Memory
card)
You can expand the memory of your phone by
adding a micro-SD card.
1
Unlock the memory card cover.
2
Align your micro-SD card with the slot. Put it in
place.
3
Press down the card holder and pull it until it is
locked.
Connect to your PC
Data communication software (Mobile Phone
Tools) offers instant sychronization between your
phone and your computer. You can use the
software for the data synchronization between your
phone and PC, like phonebook, calendar, SMS
messages, and audio/video/picture files.
Install MobilePhoneTools on your PC
1
Insert the supplied Data communication
software into the CD drive.
2
Run the autorun.exe program.
3
Make selections as prompted, and installation
starts automatically.
Getting started 7
Connecting your Phone to the PC
1
Connect your phone to the PC by using
supplied USB cable or through the Bluetooth.
2
When using the USB cable for connection,
select COM port on your phone.
3
On your PC, double click the MobilePhoneTools
icon, then the connected icon is displayed.
Customize your phone
Customize your phone to match your preferences.
Set time & date
1
Check that your phone is turned on. Enter the
PIN code if required.
2
On the home screen, go to Menu>Settings>
Time & date.
3
Select Set time/Set date: Enter the digits or
move navigation key + or - until you reach the
desired digits.
Note:
•
The PIN code is preconfigured and communicated to
you by your network operator or retailer.
•
If you enter an incorrect PIN code three times in
succession, your SIM card will be blocked. To unblock it,
you must request the PUK code from your operator.
•
If you enter an incorrect PUK code ten times in
succession, the SIM card will be locked permanently.
When this happens, please contact your network
operator or retailer.
Profiles
The profiles are defined for several scenes. They
consist of the settings for ringtones, volume, and
others. With preset profiles, you can easily adjust
the settings as desired.
1
Go to Menu>Settings>Profiles, press ,
Select the profile.
2
Press L and select Personalise to modify the
profile.
To activate Silent mode, long press # on the
home screen.
Note: If you select Flight mode, you disable the connection
between your phone and your mobile phone network.
8 Basic function
Use basic call functions
Learn to make or answer a call and use basic call
functions.
Make a call
1
Enter the phone number.
2
Press
(
to dial the number.
3
Press )
to hang up.
Note: For international calls, long press
0
to enter the
"+" sign for the international prefix.
Answer and end a call
1
Press , to answer the call (Press the side
volume key to adjust the volume).
2
Press R to select H-Free mode.
3
Press ) to hang up.
Note: You can use the supplied headset to answer or end a
call.
Make a conference call
If network applicable, you can handle two or more
calls, or make a conference call.
1
During a call, enter a phone number, and then
press
(
to dial the number. The second
number is dialled.
2
The first call is put on hold at this time.
3
You can press , to toggle between 2 calls.
4
To end the call, select Options>End single call
or End all calls.
Use speed dial
On the home screen, you can call a number by long
pressing a numeric key.
To assign a contact to a speed-dial key:
1
Enter into Settings > General > Speed dials to
turn on the speed dial.
2
Choose a numeric key in Set number.
3
Press , to add a phone number.
Basic function
Basic function 9
Make an emergency call
Without a SIM card in phone, you can press R to
make the emergency call.
In Europe, the standard emergency number is 112;
in the UK, it is 999.
Receive and send messages
You can use the Messaging menu to send text
message, multimedia message and E-mails.
Send a SMS message
1
Select Menu>Messaging>Create SMS.
2
Write your text message.
3
Press , to send the message.
Send a MMS message
1
Select Menu>Messaging>Create MMS.
2
Edit contents, and press LOptions to add
multimedia contents (image, sound, video, audio,
attachment or bookmark text).
3
Press , Send to enter the contact number
(To), a copy (Cc), a blind copy (Bcc) and
subject.
4
Press L to send the Multimedia message.
Note: Copyright protected pictures and sound cannot be
sent by MMS.
Send an E-mail
1
Go to Messaging>Email > Email accounts.
After setting up a new account, press , to
activate it.
2
Go to Write e-mail, enter the address (To), a
copy (Cc), a blind copy (Bcc), subject and
attachments.
3
Edit the E-mail content.
4
Press L to send the E-mail.
Note: Consult your mail service provider for the mail
server configuration.
Receive E-mails
Select Email>Send and receive, you can receive E-
mails from the Internet.
To receive E-mails automatically:
1
Go to Email > Email accounts > Options >
Edit > Advance settings.
10 Basic function
2
In Account settings>Check interval, select
your desired time span.Your mail box will be
checked automatically after each time span.
Enter text
Your mobile phone supports a number of text entry
methods, including T9 input, English input, numeric
input and symbol input.
Keys:
Note: Depending on the language you select for your
phone, the supported input methods may vary.
Introduction of input methods:
Keys Function
#Select input method.
*Long press to switch T9 English input
on or off.
*Enter symbols and punctuations.
0 Insert a space.
Input method Function
English input Press the keys that are marked
with the letter you wish to enter.
Press once to get the first letter
on the key, press twice quickly to
get the second letter and so on
until the letter you want is
displayed on the screen.
T9® predictive
text input
You need to press only once on
the key corresponding to each
letter needed to spell a word:
keystrokes input are analyzed
and the word suggested by T9®
is displayed at the pop-up
window.
Numeric input Press the numeric key to enter a
number.
Basic function 11
Manage your phonebook
Learn about basic phonebook function.
Add a new contact
Method one:
1
Go to Contacts>Options>Advanced.
2
In Choose contact list > Default contact
location, select a location. .
3
On the home screen, enter a number. Press ,
Save the number, add details as desired.
4
Press L to finish saving.
Method two:
1
Go to Contacts>Options>New contact.
2
Press , edit a new contact.
3
Press L to finish saving.
Note: For contacts on the smart phonebook, you can add
detailed information, like home number, office number,
contact pictures and ringtone.
Search for a contact
1
Go to Contacts>Options>Advanced>Choose
contact list. Select your desired phonebook.
2
Go to Contacts.
3
Enter the first few letters of the name in the
search bar. (For example “John Henry” enter
JH)
4
Select the contact from the list.
Manage your contacts
You can copy or move contacts between the SIM
card and phone, or delete contacts. Go to
Contacts>Options>Advanced, select the desired
option.
1
Set group:
Go to Contacts>Options>Group, you can
renemae the group. For different groups, you
can use different ringtones for identification,
and send messages to a group.
2
Add contacts to a group:
-
Go to Contacts.
-
Press LOptions>Select multiple>Add to
group to add members for the group.
12 Basic function
Back-up your phonebook
You can back up all your contacts as .udx files in
your phone or memory card.
Back up contact information:
1
Go to Tools > Information backup, in
Contacts>Backup to memory, select Phone
or Memory card.
2
Select your desired folder, edit a file name, and
press , to finish backing up the file.
Restore contact information:
1
Go to Tools > Information backup, and select
Contacts>Restore from memory, find the
back-up file.
2
Press , Select to restore the contacts to
where it is.
Special numbers
You can keep a list of useful numbers on your
phone, such as own numbers, service numbers,
voicemail and emergency numbers.
Go to Contacts>Options>Special numbers
Function Definition
My numbers Edit the phone number and name.
Service
numbers
Contact your network operator for
more information.
Voice mail Set your voice mail server number,
as well as retrieve your voice mails.
Consult the network operator for
the account information.
On the idle screen, long press 1 to
dial the voice mail number.
Emergency
numbers
Edit your emergency phone number.
MultiMedia 13
Media player
Save MP3,WMA, WAV, AAC,AAC+,MIDI and AMR
music files under the Audio folder on your phone
and memory card.
Play music
1
Go to Music player>All songs, select your
desired song in the folder.
2
Using the following keys to control playback:
Player settings
Go to Music player>Settings:
•
Shuffle: Play music files in the folder randomly.
•
Repeat: Repeat one (play current file
repeatedly); Repeat all (play all the files in the
folder repeatedly).
•
Music in background: Continue to play music
after exiting the music player.
•
Source: Play audio files from your phone or
memory card.
•
Refresh all lists: Refresh all songs in your list.
To turn off the music player on the idle screen
Press ), and then press ,.
Note: When listening to music, adjust the volume to a
moderate level. Continuous exposure to high volume may
impair your hearing.
Function Definition
,/ Pause and resume playback.
,/Stop playback.
Select previous track.
Select next track.
Press volume key to adjust volume.
RReturn to the previous menu.
)Go to the home screen.
MultiMedia
14 MultiMedia
Camera
Learn about camera function. Let you take photos
as desired by using your phone.
Take a photo
1
Go to Menu>Camera, select camera mode.
2
Aim the lens at the subject.
-
Move navigation key
<
or
>
to increase or
decrease the brightness
-
Press the side volume key to zoom in or out.
3
Press , to take a photo.
4
Press R to exit.
All the photos taken are saved to My files>Phone
or Memory>Pictures.
View photos
Go to View picture,
1
View photos: Move navigation key , to select a
photo.
2
Press the side volume key to zoom in or out a
photo. After zooming in a photo, move the
navigation key +, -,
<
or
>
to slide the screen.
3
Rotate photos: press , to rotate a photo.
4
Press Lto set photo as full-screen wallpaper..
Camera settings
While using the camera, pressLto select settings:
Icon Option Function
View picture View the photos you have
taken.
Capture
mode
Switch the picture mode.
Scene mode Select a scene to take a
photo.
Image size Select image size.
Flash Use the flash to increase the
brightness.
AF Range Adjust the auto focus range.
Face
detaction
Set ideal exposure and
clarity of face.
Self-timer Select a time span for auto
photographing.
ISO Select a ISO value.
White
balance
Remove the effects on
colors by surrounding.
MultiMedia 15
Note: To zoom in or out a photo, please ensure that the
photo is taken in a size equal to or greater than 640x480.
Video recorder
Learn about video recorder function. Let you
record a video clip as desired by using your phone.
Record a video
1
Go to Menu>Camera, select video recorder
mode.
2
Aim the lens at the subject.
3
Press , to record a video clip.
4
Press R to exit.
All the videos recorded are saved to My
files>Phone or Memory>Videos.
Play a video clip
Go to View video,
1
Press , start or pause playing a video clip.
2
Move navigation key < or > fast rewind or
forward.
3
Press volume key
to adjust volume.
4
Press L to change to full screen mode.
5
PressR exit.
Effects Add special effects to the
photos.
Storage Select default storage
location.
quality
Set image quality.
AF zone Adjust the auto focus zone.
AE Meter Select how to highlight
different areas in a photo.
Sharpness Sharpen or blur the borders
between objects.
Contrast Adjust the contrast.
Saturation Make colors more or less
pronounced.
Time Stamp Diaplay time on photos.
Shutter
sound
Select the shutter sound.
Anti-flicker Adjust the camera
sensitivity to a range of
avaliable light.
Restore Restore to default settings.
16 MultiMedia
Video recorder settings
While using the video recorder, pressLto select
settings:
Other setting, see Camera settings on page 14.
Note: To send a video clip via E-mail, the file size should
equal to smaller than 90K.To send a video clip via MMS, the
file size should equal to samller then 300K.
FM radio
Lear about listening to radio programs by using a FM
radio.
Listen to a radio station
1
Plug the supplied headset into your phone.
2
Go to Multimedia>FM radio, press L
Options>Auto presets. It starts scanning
automatically and save the available channels.
3
Move the navigation key < or > to select a
station.
4
Press R to exit.
FM radio settings
Go to LOptions>Settings:
•
Radio in Background: Continue playback after
exit FM radio.
•
Loud speaker: Listen to radio through the
speaker.
•
RDS: Activate RDS services (depend on the
radio station service).
When you are listening to a RDS station, your
phone displays the following details: station name,
Icon Option Function
View videos View the videos you have
recorded.
Video size Select Video size.
Recording
limit
Set the Record limit.
AF mode Adjust the auto focus mode.
Record
Audio
Select to record audio while
take a video.
MultiMedia 17
program type (for example, News, Sports and Info),
and frequency.
To turn off the FM radio on the home screen
Press ), and then press ,.
Record radio programs
You can record a radio program when listen to it.
1
Go to LOptions>Record.
2
Press , to start recording, press , to stop
recording.
3
A file name is generated for the recording file,
Press , to save the file.
The files recorded are saved to My files>Phone or
Memory>Audio.
18 Business applications
Manage your calendar
You can create your to-do list and make a plan on
your calendar.
Create your to-do list
1
Go to Tools>Calendar select a date, and then
press LOptions>New event.
2
Edit reminder settings.
3
Press L to save the task.
4
To change your to-do list, select the task, and
then press LOptions to edit the task.。
Check your to-do list
You can check your to-do list in weekly or monthly
view. Go to Tools>Calendar, press , to view
your to-do list.
Check the calendar
Go to Tools>Calendar, you can check the
calendar.
Notes
You can save up to 5 text notes, and display them
on the home screen.
1
In Tools>Notes , press, to add text memo or
draw images as desired.
2
To turn over a page, drag to lift its lower right
corner.
3
Press , to save the editing, .
4
To delete the notes, press LDelete.
Business applications
Business applications 19
Alarm
Learn about how to set and use an alarm. You can
set up to five alarms.
Set an alarm
1
Go to Tools>Alarm.
2
Select an alarm, press , to edit the alarm.
3
Press L to finish setting the alarm.
Turn off an alarm
1
Go to Tools>Alarm.
2
Select the alarm you want to turn off.
3
Move the navigation key
to select
Off
.
Stop an alarm
When the alarm rings,
•
Select Stop: The alarm stops.
•
Select Snooze: The alarm will sound again after
the set Snooze mode interval.
Bluetooth
Your phone can connect to a compatible Bluetooth
device for exchanging data.
Connect to a Bluetooth device
1
Go to Tools>Bluetooth>Activation, turn on
the Bluetooth function.
2
Select Find devices, a list of available Bluetooth
devices appears.
3
Select the device you wish to connect.
4
Enter your Bluetooth password to start pairing
(0000 by default).The pairing is made if your
pairing request is accepted by the other part.
Send files via Bluetooth
1
Go to My files, select the file you want to send.
2
Press LOptions>Send>Via Bluetooth.
3
Select a device.
4
Press , to start send the file.
Receive files via Bluetooth
1
Go to Bluetooth>Setting>Visibility, make
your phone visible to other Bluetooth devices.
2
Enter the password and accept the request.
20 Business applications
3
Press L to start receiving the file. The files
received are saved to My files>Phone or
Memory>Others.
Note: If you do not use the Bluetooth feature for some
time, you should deactivate it in order to conserve battery
power.
Read E-books
You can read E-books (.txt file) on your phone.
Start reading an E-book
1
Go to Tools>Text reader.
2
Select the .txt file you wish to read.
3
Press , to start reading.
Go to Options>Global settings>Encoding, select
the encoding suitable to your language.
Reading setup
Go to Options, you can setup the following:
•
Find: Find specific words in the file.
•
Jump to: Go to the beginning, middle,or end of
the file. Or, skip to the certain percentage of the
file.
•
Add bookmark: Add current page to
bookmark.
•
Go to bookmark: Read the page saved as
bookmark.
•
Delete bookmark: Delete the page saved as
bookmark.
•
Settings: Set font size, scroll screen
automatically or read E-book on full screen.
File management
Learn about how to use and manage your files and
folders.
Use your files
1
Set a photo as contact picture or wallpaper:
-
Open My files>Pictures, select a photo.
-
PressLOptions>Use as>contact picture
or Wallpaper.
2
Set an audio file as ringtone:
-
Select an audio file.
-
PressLOptions>Use as>Incoming call
ringtone.
Business applications 21
Note: To set photos you have taken as contact picture,
select Contact pictures in Image size.
Share your files
You can share your photos, audio or video files with
others via MMS, E-mail or Bluetooth.
1
Select your desired photos, audio or video files.
2
Press LOptions>Send.
Note: To send files via E-mail, the file size should smaller
90K.
Manage your files
You can copy, move or delete a file in a folder.
1
Open a folder, press LOptions>Select
multiple>Select all or Select one by one,enter
multiple selection list.
2
Press , Check or Uncheck.
3
Go to Done to finish copying, moving or
deleting.
Use blacklist
Learn about how to set the blacklist, you can reject
the incoming calls or messages from those
included in the blacklist.
Activate blacklist
1
Go to Tools>Blacklist>Activation.
2
Move the navigation key to activate blacklist
function.
Add a phone number to blacklist
1
Go to Blacklist>Blacklist.
2
Edit the blacklist, add contacts by entering a
phone number or select a contact from
phonebook or Call list.
22 Business applications
Check world clock
Learn about how to check time & date of cities in
other countries.
Set world clock
Select Settings>Time&Date>World clock,
1
In Local settings/Foreign settings, press the
navigation key < or > to select a city.
2
Press LOptions to turn on/off Daylight
saving.
3
In Switch clocks, switch clock.
Note: Alarms, reminders, programmed events are time
zone independent.
Calculator
Use the numeric keys to calculate on the phone.
Currency converter
1
Go to Tools>Currency converter, enter the
rate.
2
Enter the sum of money in Local. Press L to
confirm.
Note: The result of the calculator is indicative only.
Ideas Telcel & Diversion 23
Ideas Telcel
You can use this function to browse the Internet.
Consult your network operator for the service
subscription, data account information and settings.
Access web sites
1
Go to Ideas Telcel.
2
Select Enter address, enter your desired
websites.
3
Press , to access the website.
Set homepage
1
Go to Ideas Telcel, browse a website.
2
Select Options, save current website as
Homepage. You can set the websites you usually
used as homepage.
Add bookmarks
1
Go to Ideas Telcel, browse a website.
2
Select Options, add current website to
Bookmarks. You can add your favorite websites
to bookmarks.
Diversion
Learn about how to use Juegos applications and play
games. Your phone is preloaded with some Juegos
and applications.
Install Juegos
1
Connect your phone to a PC via supplied USB
cable.
2
Save .jar file to My files>Others.
3
Install the Juegos.
Play Juegos
1
Go to Diversion>more games.
2
Select a game from the list.
3
Press , to start playing the game.
Ideas Telcel & Diversion
24 Settings
Profiles
See “Profiles” on page 7.
General
Display
Function Definition
Language Select a language for your phone.
Fast key Set a navigation key as a direct
access to a menu.
Speed dial Call a contact by long pressing a
numeric key.
Predictive dial Select turn on/off predictive dial.
Memory
status
Check the memory occupancy of
information of different memory
storage.
Auto keypad
lock
Set an idle time span for the keypad
to be locked.
Auto power Set time for the phone to be
switched on/off automatically.
Dashboard Select the dashboard displays to be
shown on the home screen.
Pen
calibration
See “Stylus” on page 1.
Default factory
setting
Restore your phone settings to the
default values. You need to enter
your phone lock password (1122 by
default).
Function Definition
Wallpaper Select an image as the wall paper of
your phone.
Backlight
level
Select the brightness of backlight.
Backlight
duration
Select the duration of backlight.
Backlight auto
set
Select whether adjust the blacklight
automatically.
Greeting Select whether to show greetings
when your phone is turned on.
Settings
Settings 25
Time&Date
Sound
Security
Show profile
name
Select turn on/off profile name.
Show operator
name
Select turn on/off operator name.
Font size Select font size.
Function Definition
Time display
mode
Select time display types.
Set time Time setting.
Set date Date setting.
Time format Select time format types.
Date format Select date format types.
World clock See “Set world clock” on page 22.
Function Definition
Incoming call
Ringtone
Select a ringtone for incoming calls.
Ring type Select ring types.
Ring volume Adjust the volume of rings.
Key sound Select whether the key sounds
when pressed.
Message alert Set alert mode.
Tap vibration Select whether there is
accompanying vibration for each
tap.
Shutter
sound
Select shutter sounds for your
camera.
Battery low
warning
Select whether a warning tone is
emitted when the battery level is
low.
Function Definition
PIN protection Set PIN or PIN2 password protection for
your SIM card. (The PIN or PIN2 are
provided by the network operator.)
Change PIN/PIN2 Change your PIN and PIN2 passwords as
desired.
Privacy protection Set password protection for the information
stored on your phone.
26 Settings
Calls setting Java setting
Network setting
Function Definition
Any key
answer
Answer an incoming call by
pressing any keys (except)).
Call forward Forward incoming calls to your
voice mailbox or another phone
number.
Call waiting Get informed of an incoming call
when on phone.(network
dependent)
Call service Set call services.
Call barring Set limits to your incoming and
outgoing calls.
Auto redial Keep redialing the number that fails
to go through.
Restricted
dialing
Restricted your outgoing calls to
certain numbers (PIN2 code
required).
Call time
reminder
Get reminded after the call time
span once or repeatedly.
Function Definition
Java audio Set the volume level.
Java vibration Turn the vibration on or off.
Java backlight Turn the backlight on or off.
Java network Select a Java network (service
subscription-dependent).
Heap size Display allowed maximum size for
Java memory.
Function Definition
Select network Select thenetwork for your phone.
Select mode Select network mode.
Preferred
networks
Select your preferred network.
GPRS
connection
Select how to search the network.
Data account Select GSM data or GPRS.
Safety & Precaution 27
Safety & Precaution
Precaution
Keep your phone away from small children
Keep your phone and all accessories out of the reach of small
children. Small parts may cause choking or serious injury if
swallowed.
Radio Waves
Your phone transmits/receives radio waves in the GSM frequency
(900/1800/1900MHz).
Check with the vehicle manufacturer that electronic equipment
used in your vehicle will not be affected by radio energy.
Your cellular telephone complies with all applicable safety standards
and the Radio Equipment and Telecommunications Terminal
Equipment Directive 1999/5/EC.
Switch off your phone...
Turn off the phone when in an aircraft.The use of mobile phones in
an aircraft may be dangerous for the operation of the aircraft,
disrupt the mobile phones network and may be illegal.
In hospitals, clinics, other health care centers and anywhere else
where you may be in the close vicinity of medical equipment.
In areas with a potentially explosive atmosphere (e.g. petrol stations
and also areas where the air contains dust particles, such as metal
powders).In a vehicle transporting flammable products or a vehicle
powered by liquefied petroleum gas (LPG).In quarries or other areas
where blasting operations are in progress.
Your mobile phone and your car
Avoid using your phone while driving and obey all regulations that
restrict the use of mobile phones while driving. Use hands free
accessories to increase your safety when possible. Ensure that your
phone and car kit do not block any air bags or other security devices
fitted in your car.
Handle your phone carefully and sensibly
For the optimal and satisfactory operation of the phone you are
recommended to use the phone in the normal operating position.
•
Do not expose your phone to extreme temperatures.
•
Do not immerse the phone in any liquid; if your phone is damp,
switch it off, remove the battery and let them dry for 24hrs before
using them again.
•
To clean the phone, wipe it with a soft cloth.
Protect batteries from damage
You should only use Philips Authentic Accessories, as the use of
any other accessories may damage your phone and may be
dangerous, and will make all guarantees for your Philips phone null and
void. The use of an unspecified type of battery may also cause an
explosion.
Make sure damaged parts are replaced immediately by a qualified
technician and that they are replaced with genuine Philips replacement
parts.
•
Your phone is powered by a rechargeable battery.
•
Use specified charger only.
•
Do not incinerate.
•
Do not deform or open the battery.
•
Do not allow metal objects (such as keys in your pocket) to short
circuit the battery contacts.
•
Avoid exposure to excessive heat (>60° C or 140° F), moisture or
caustic environments.
Environmental care
Remember to observe the local regulations regarding the disposal
of the packaging materials, exhausted batteries and old phone and
please promote their recycling.Philips has marked the battery and
packaging with standard symbols designed to promote the recycling and
appropriate disposal of your eventual waste.
:The labelled packaging material is recyclable.
:A financial contribution has been made to the associated national
packaging recovery and recycling system.
:The plastic material is recyclable (also identifies the type of plastic).
28 Safety & Precaution
WEEE Marking in the DFU: “Information to the Consumer”
Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of your old
products with your normal household waste. The correct disposal of
your old product will help prevent potential negative consequences for
the environment and human health.
This device may contain commodities, technology or software subject to
export laws and regulations from the US and other countries. Diversion
contrary to law is prohibited.
Tips
Pacemakers
If you have a pacemaker:
•
Always keep the phone more than 15 cm from your pacemaker
when the phone is switched on, in order to avoid potential
interference.
•
Do not carry the phone in a breast pocket.
•
Use the ear opposite to the pacemaker to minimize the potential
interference.
•
Switch off your phone if you suspect that interference is taking place.
Hearing aids
If you are a user of a hearing aid, consult your physician and hearing aid
manufacturer to learn whether your particular device is susceptible to
cellular phone interference.
EN 60950 Norm
In hot weather or after prolonged exposure to the sun (e.g., behind a
window or a windscreen), the temperature of your phone's casing might
increase. Be very careful in this case when picking up your phone and also
avoid using it with an ambient temperature over 40° C.
How to prolong the battery life of your phone
To have your mobile phone function properly, sufficient battery power
is important. For the power-saving purpose, do the following, if
applicable:
•
Turn off the Bluetooth function of your phone.
•
Set the backlight level and duration of your phone to a low value.
•
Turn on the auto keypad lock, turn off the key sounds, tap vibration,
or vibration alerts.
•
Turn off your phone if there is no coverage. Otherwise, the phone
will keep searching for network, and drain your battery power.
Troubleshooting
The phone does not switch on
Remove/reinstall the battery. Then charge the phone until the battery
icon stops scrolling. Unplug the charger and try to switch the mobile on.
The display shows BLOCKED when you switch on the phone
Somebody tried to use your phone but didn’t know the PIN code nor
the unblocking code (PUK). Contact your service provider.
The display shows IMSI failure
This problem is related to your subscription. Contact your operator.
Your phone doesn’t return to idle screen
Long press the hang-up key or switch off the phone, check that the SIM
card and the battery are installed correctly and switch it on again.
The network symbol is not displayed
The network connection is lost. Either you are in a radio shadow (in a
tunnel or between tall buildings) or you are outside the network
coverage area. Try from another place, try to reconnect to the network
(especially when abroad), check that the antenna is in place if your mobile
has an external antenna, or contact your network operator for
assistance/information.
The display doesn’t respond (or the display responds slowly) to
key presses
The display responds more slowly at very low temperatures. This is
normal and does not affect the operation of the phone. Take the phone
to a warmer place and try again. In other cases please contact your
phone supplier.
Safety & Precaution 29
Your battery seems to over heat
You might be using a charger that was not intended for use with your
phone. Make sure you always use the Philips authentic accessory shipped
with your phone.
Your phone doesn’t display the phone numbers of incoming
calls
This feature is network and subscription dependent. If the network
doesn’t send the caller’s number, the phone will display Call 1 or
Withheld instead. Contact your operator for detailed information on
this subject.
You can’t send text messages
Some networks don’t allow message exchanges with other networks.
First check that you have entered the number of your SMS centre, or
contact your operator for detailed information on this subject.
You can’t receive and/or store JPEG pictures
A picture may not be accepted by your mobile phone if it is too large, if
its name is too long, or if it doesn’t have the correct file format.
You feel that you have missed some calls
Check your call divert options.
When charging, the battery icon shows no bar and the outline
is flashing
Only charge the battery in an environment where the temperature does
not go below 0°C (32°F) or above 50°C (113°F).
In other cases please contact your phone supplier.
The display shows SIM failure
Check that the SIM card has been inserted correctly. If the problem
persists, your SIM card may be damaged. Contact your operator.
When attempting to use a feature in the menu, the display
shows NOT ALLOWED
Some features are network dependent. They are only available,
therefore, if the network or your subscription supports them. Contact
your operator for detailed information on this subject.
The display shows INSERT YOUR SIM CARD
Check that the SIM card has been inserted correctly. If the problem
persists, your SIM card may be damaged. Contact your operator.
The autonomy of your phone seems lower than indicated on
the user guide
The autonomy is linked to your settings (e.g., ringer volume, backlight
duration) and the features you use. To increase the autonomy, and
whenever possible, you must deactivate features you do not use.
Your phone doesn’t work well in your car
A car contains many metallic parts that absorb electromagnetic waves
which can affect the phone’s performance. A car kit is available to
provide you with an external antenna and enables you to make and
receive phone calls without handling the handset.
Notes: Check with the local authorities whether or not you are allowed
to use the phone while driving.
Your phone is not charging
If the battery is completely flat, it might take several minutes of pre-
charge (up to 5 minutes in some cases) before the charging icon is
displayed on the screen.
The picture captured with the phone camera is not clear
Make sure that the camera lens on both sides is clean.
Trademark Declaration
T9®T9 ® is a registered trademark of Nuance
Communications, Inc..
JAVA JAVA is a trademark of Sun Microsystems, Inc.
Bluetooth™ Bluetooth™ is a trade-mark owned by
telefonaktiebolaget L M Ericsson, Sweden and licensed
to Philips.
Philips PHILIPS and PHILIPS’ Shield Emblem are registered
trademarks of Koninklijke Philips Electronics N.V.
manufactured by Shenzhen Sang Fei Consumer
Communications Co., Ltd. under license from
Koninklijke Philips Electronics N.V..
The temperature range for this device is 5°C ~ 40°C.
30 Safety & Precaution
FCC Regulations
This mobile phone complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1
This device may not cause harmful interference.
2.
This device must accept any interference received, including
Interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for exposure
to radio waves.
This phone is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted
using standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency
bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below
the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC
when tested for use at the ear is 0.555 W/kg and when worn on the
body, as described in this user guide, is 1.06 W/kg (Body-worn
measurements differ among phone models, depending upon available
accessories and FCC requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on FCC ID: VQRCTX603.
For body worn operation, this phone has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and the positions the handset a minimum of 1.5 cm from the body. Use
of other accessories may not ensure compliance with FCC RF exposure
guidelines. If you do no t use a body-worn accessory and are not holding
the phone at the ear, position the handset a minimum of 1.5 cm from
your body when the phone is switched on.
This device is compliance with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in
accordance with the measurement methods and procedures specified in
OET Bulletin 65 Supplement C.
Safety & Precaution 31
Limited warranty
1
What Does This Limited Warranty Cover?
Philips warrants to the original retail purchaser (“Consumer” or “You”)
that this Philips cellular product and all accessories originally provided by
Philips in the sales package (“Product”) are free from defects in materials,
design and workmanship under normal use in accordance with the
operating instructions and pursuant to the following terms and
conditions. This limited warranty extends only to the Consumer for
Products purchased and used in the original country of purchase. The
limited warranty is valid only in Philips’ intended country of sales of the
product.
2.
How Long is The Limited Warranty Period?
The limited warranty period for the Product extends for ONE (1) YEAR
from the date of purchase of the Product, documented by valid proof of
purchase. The limited warranty for original Philips rechargeable battery
extends for six (6) months from the date of purchase.
3.
What Will Philips Do if The Product is Not Free From Material
Defects in Materials and Workmanship During The Limited
Warranty Peri od ?
During the limited warranty period, Philips or its authorized service
representative will, at its option either repair or replace, without charge
for parts or labour, a materially defective Product with new or
refurbished parts or Product and return such repaired or replaced
Product to the Consumer in working condition. Philips will retain
defective parts, modules or equipment.
Repaired or replaced Product will be covered by this limited warranty
for the balance of the original limited warranty period or ninety (90) days
from the date of repair or replacement whichever is longer. Repair or
replacement of Product, at Philips’ option is your exclusive remedy.
4.
What is Not Covered By This Limited Warranty?
This limited warranty does not cover:
a) Product that has been subjected to misuse, accident, shipping or other
physical damage, improper installation, abnormal operation handling,
neglect, inundation, fire, water or other liquid intrusion; or
b) Product that has been damaged due to repair, alteration, or
modification by anyone not authorized by Philips; or
c) Product that has reception or operation problems caused by signal
conditions, network reliability or cable or antenna systems; or
d) Product defects or problems caused by uses with non-Philips products
or accessories; or
e) Product which warranty/quality stickers, product serial number or
electronic serial number has been removed, altered or rendered illegible;
or
f) Product purchased, used, serviced, or shipped for repair from outside
the original country of purchase, or used for commercial or institutional
purposes (including but not limited to Products used for rental
purposes); or
g) Product returned without valid proof of purchase or which proof of
purchase has been altered or is illegible.
h)Normal wear and tear or Force Majeure.
5.
How Do You Get Warranty Service?
a) Return the Product to an authorized service center of Philips. You may
contact the local Philips office for the location of the nearest authorized
service center.
b)The SIM card must be removed from the Product before it is given to
Philips. Philips assumes no liability for damaged or loss of the SIM card or
the data contained therein.
c)If the Product failure is not covered by this limited warranty, or this
limited warranty is inapplicable, void or invalid due to any terms and
conditions stated herein, the Consumer will be charged for the cost of
repair or replacement of the Product and all other related cost incurred
in repairing or replacing the Product.
d) IMPORTANT - you are required to return the Product together with
a valid proof of purchase which must identify the point of purchase, date
of purchase, Product model and Product serial number clearly.
6.
Other Limitation: This Warranty is The Entire Agreement.
EXCEPT FOR THE EXPRESS WARRANTIES SET FORTH ABOVE AND
THOSE IMPLIED BY LAW AND WHICH CANNOT BE EXCLUDED
OR MODIFIED BY AGREEMENT, PHILIPS PROVIDES NO OTHER
WARRANTY WHETHER EXPRESS OR IMPLIED (WHETHER BY
STATUTE, UNDER THE OPERATION OF LAW OR OTHERWISE)
32 Safety & Precaution
AND SPECIALLY DISCLAIMS ANY WARRANTY OF SATISFACTORY
QUALITY MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
PHILIPS’ TOTAL LIABILITY FOR DAMAGES RELATING TO OR
ARISING OUT OF THE PURCHASE OR USE OF THE PRODUCT,
REGARDLESS OF THE TYPE OR CAUSE OF SUCH DAMAGE OR THE
FORM OR CHARACTERISATION OF THE CLAIM ASSERTED (E.G.
CONTRACT OR TOPIT), SHALL NOT EXCEED THE ORIGINAL
PURCHASE PRICE PAID FOR THE PRODUCT.
HOWEVER IN NO EVENT SHALL PHILIPS BE LIABLE FOR ANY
PUNITIVE, SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO
THE LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERIAL
LOSS, LOST PROFITS, LOST BUSINESS OPPORTUNITIES, COST OF
SUBSTITUTION OF GOODS OR SERVICES, INVESTMENTS,
DAMAGE TO GOODWILL OR REPUTATION, OR LOSS OF DATA
AND CLAIMS BY THIRD PARTIES) RESULTING FROM PURCHASE
OR USE OF THE PRODUCT, TO THE FULLEST EXTENT ALLOWED
BY LAW, WHETHER OR NOT PHILIPS HAS BEEN ADVISED OF THE
POSSIBILTY OF SUCH DAMAGES. THESE LIMITATIONS SHALL
APPLY NOTWITHSTANDING THE FAILURE OF THE ESSENTIAL
PURPOSE OF ANY LIMITED REMEDY.
This limited warranty represents the complete and exclusive agreement
between the Consumer and Philips with respect to this cellular Product
and it supercedes all prior agreements between the parties, oral or
written, and all other communications between the parties relating to
the subject matter of this limited warranty. No carrier, retailer, agent,
dealer, employee, thereof, or employee of Philips is authorized to make
modifications to this limited warranty and you should not rely on any
such representation.
This limited warranty does not affect the Consumer’s statutory rights
under applicable national laws in force.
Tips & tricks 33
Optimizing your Philips Xenium
battery performance
Here are some steps to help you optimize your Philips
Xenium’s battery performance.
How to optimize the standby and talk time
of your phone?
•
Always ensure that your phone profile is
appropriately set to meet your actual usage. Profile
setting significantly impacts the phone’s battery
performance. In general, Outdoor Mode is the most
power-draining setting while Silent Mode consumes
the least amount of power.
•
If you’re using a Xenium phone with a dual SIM
feature, try to activate the 2 SIM cards only when
absolutely necessary. If you are in a country with
single coverage, deactivate the non-covered SIM to
prolong battery usage.
•
If you’re not using applications like Bluetooth, WIFI,
GPS and JAVA, turn them off. And be sure to lock
your phone to prevent accidental pressing of the
keys with the auto-lock feature.
•
Adjust the intensity and duration of your display
screen’s backlight to low or medium level and for
the shortest duration. In general, the lower the
backlight level and the shorter the duration, the
more power you will save.
•
Avoid using or placing your phone near magnetic
objects (eg. a radio or television) or on metal
surfaces, which will impact the network connection
and ultimately drain power from your battery.
How to extend your battery’s life?
•
Full charging and full running down of your battery
will extend its life. Charge the battery once the low-
battery warning comes on.
•
Temperature will impact battery usage. Over time,
heat will degrade your battery’s performance. Keep
your phone out of the sun or a hot car. If in low
temperature, place your phone in a warmer place
(eg. your pocket), as battery capacity decreases as
the temperature drops.
•
Always use authentic accessories as they enable
your battery to perform at its peak. Non-authentic
accessories (eg. chargers) can damage your battery
and even your phone.
Tips & tricks
