Sang Fei Consumer Communications CTX830 GSM/GPRS/EDGE Digital Mobile Phone User Manual X830 EN Book

Shenzhen Sang Fei Consumer Communications Co., Ltd. GSM/GPRS/EDGE Digital Mobile Phone X830 EN Book

Users Manual

Philips continuously strives to improve its products. Due to software upgrading, some contents in this user guidemay be different from your product.Philips reserves the rights to revise this user guide or withdraw it at anytime without prior notice.  Please take your product as standard.TFT LCDPower on/off key,Unlock/lock keySide volume keyCamera keyPick-up keyCharger/USB port &headset connectorBack of phone:5.0MPcamera lensHang-up keyLight sensorYour phone

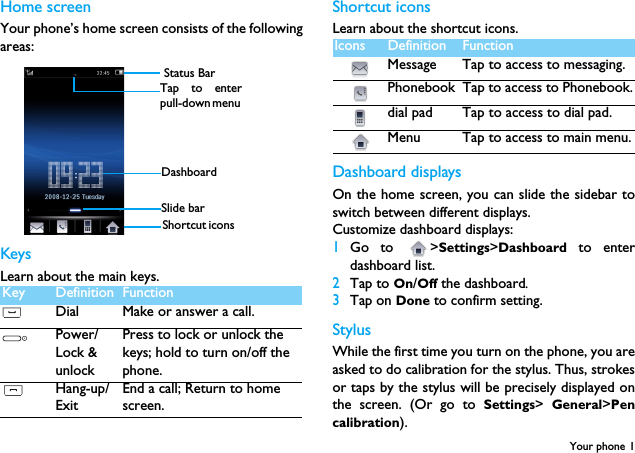

Your phone 1Home screenYour phone’s home screen consists of the followingareas:KeysLearn about the main keys.Shortcut iconsLearn about the shortcut icons.Dashboard displaysOn the home screen, you can slide the sidebar toswitch between different displays.Customize dashboard displays:1Go to  >Settings>Dashboard to enterdashboard list.2Tap to On/Off the dashboard.3Tap on Done to confirm setting.StylusWhile the first time you turn on the phone, you areasked to do calibration for the stylus. Thus, strokesor taps by the stylus will be precisely displayed onthe screen. (Or go to Settings>  General>Pencalibration).Key Definition Function(Dial Make or answer a call.*Power/Lock & unlockPress to lock or unlock the keys; hold to turn on/off the phone. )Hang-up/ExitEnd a call; Return to home screen. Status Bar Shortcut icons Slide barTap to enterpull-down menu DashboardIcons Definition FunctionMessage Tap to access to messaging.Phonebook Tap to access to Phonebook.dial pad Tap to access to dial pad.Menu Tap to access to main menu.

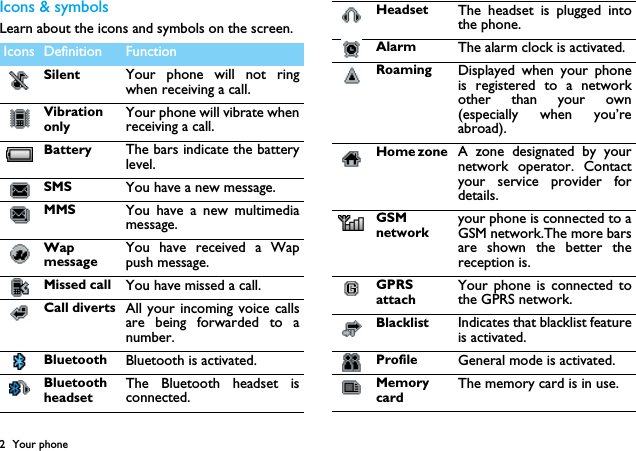

2 Your phoneIcons & symbolsLearn about the icons and symbols on the screen. Icons Definition FunctionSilent Your phone will not ringwhen receiving a call. VibrationonlyYour phone will vibrate whenreceiving a call. Battery The bars indicate the batterylevel. SMS You have a new message.MMS You have a new multimediamessage.WapmessageYou have received a Wappush message. Missed call  You have missed a call.Call diverts All your incoming voice callsare being forwarded to anumber.Bluetooth Bluetooth is activated.BluetoothheadsetThe Bluetooth headset isconnected.Headset  The headset is plugged intothe phone.Alarm  The alarm clock is activated.Roaming Displayed when your phoneis registered to a networkother than your own(especially when you’reabroad).Home zone  A zone designated by yournetwork operator. Contactyour service provider fordetails.GSMnetworkyour phone is connected to aGSM network.The more barsare shown the better thereception is.GPRSattachYour phone is connected tothe GPRS network.Blacklist Indicates that blacklist featureis activated.Profile General mode is activated.MemorycardThe memory card is in use.

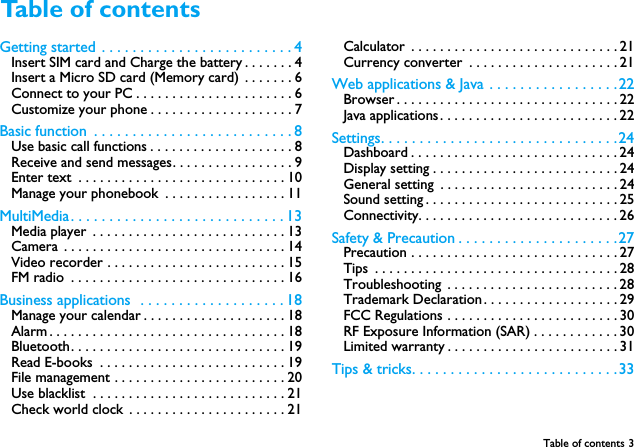

Table of contents 3Getting started  . . . . . . . . . . . . . . . . . . . . . . . . . 4Insert SIM card and Charge the battery . . . . . . . 4Insert a Micro SD card (Memory card)  . . . . . . . 6Connect to your PC . . . . . . . . . . . . . . . . . . . . . . 6Customize your phone . . . . . . . . . . . . . . . . . . . . 7Basic function  . . . . . . . . . . . . . . . . . . . . . . . . . . 8Use basic call functions . . . . . . . . . . . . . . . . . . . . 8Receive and send messages. . . . . . . . . . . . . . . . . 9Enter text  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Manage your phonebook  . . . . . . . . . . . . . . . . . 11MultiMedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Media player  . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Camera  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . 15FM radio  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Business applications  . . . . . . . . . . . . . . . . . . . 18Manage your calendar . . . . . . . . . . . . . . . . . . . . 18Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Bluetooth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Read E-books  . . . . . . . . . . . . . . . . . . . . . . . . . . 19File management . . . . . . . . . . . . . . . . . . . . . . . . 20Use blacklist  . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Check world clock . . . . . . . . . . . . . . . . . . . . . . 21Calculator  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Currency converter  . . . . . . . . . . . . . . . . . . . . . 21Web applications & Java  . . . . . . . . . . . . . . . . .22Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Java applications . . . . . . . . . . . . . . . . . . . . . . . . . 22Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Display setting . . . . . . . . . . . . . . . . . . . . . . . . . . 24General setting  . . . . . . . . . . . . . . . . . . . . . . . . . 24Sound setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Safety & Precaution . . . . . . . . . . . . . . . . . . . . .27Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Tips  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Troubleshooting  . . . . . . . . . . . . . . . . . . . . . . . . 28Trademark Declaration . . . . . . . . . . . . . . . . . . . 29FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . 30RF Exposure Information (SAR) . . . . . . . . . . . . 30Limited warranty . . . . . . . . . . . . . . . . . . . . . . . . 31Tips & tricks. . . . . . . . . . . . . . . . . . . . . . . . . . .33Table of contents

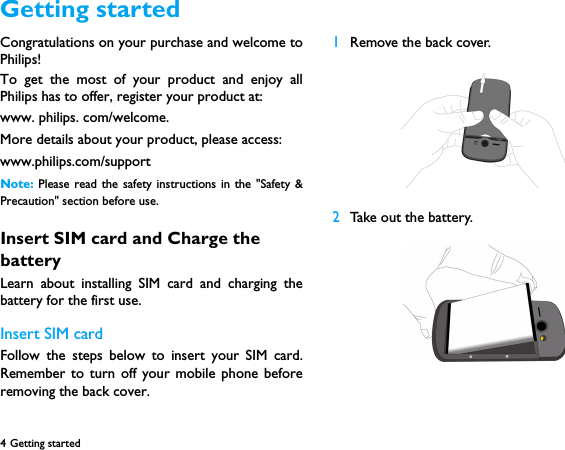

4 Getting started  Congratulations on your purchase and welcome toPhilips!To get the most of your product and enjoy allPhilips has to offer, register your product at:www. philips. com/welcome.More details about your product, please access:www.philips.com/supportNote:  Please read the safety instructions in the "Safety &Precaution" section before use. Insert SIM card and Charge the batteryLearn about installing SIM card and charging thebattery for the first use.Insert SIM cardFollow the steps below to insert your SIM card.Remember to turn off your mobile phone beforeremoving the back cover. 1Remove the back cover.  2Take out the battery.Getting started

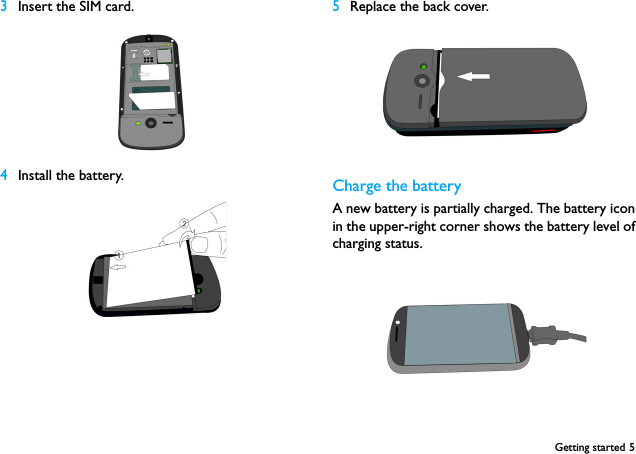

Getting started 53Insert the SIM card. 4Install the battery.5Replace the back cover. Charge the batteryA new battery is partially charged. The battery iconin the upper-right corner shows the battery level ofcharging status.

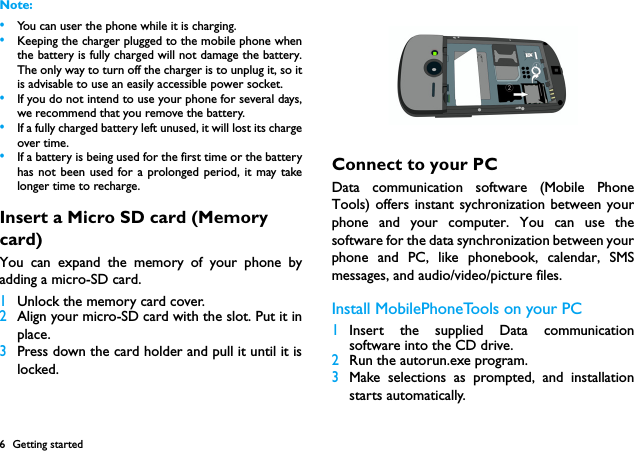

6 Getting startedNote: •You can user the phone while it is charging.•Keeping the charger plugged to the mobile phone whenthe battery is fully charged will not damage the battery.The only way to turn off the charger is to unplug it, so itis advisable to use an easily accessible power socket. •If you do not intend to use your phone for several days,we recommend that you remove the battery.•If a fully charged battery left unused, it will lost its chargeover time.•If a battery is being used for the first time or the batteryhas not been used for a prolonged period, it may takelonger time to recharge.Insert a Micro SD card (Memory card)You can expand the memory of your phone byadding a micro-SD card.1Unlock the memory card cover.2Align your micro-SD card with the slot. Put it inplace.3Press down the card holder and pull it until it islocked.Connect to your PCData communication software (Mobile PhoneTools) offers instant sychronization between yourphone and your computer. You can use thesoftware for the data synchronization between yourphone and PC, like phonebook, calendar, SMSmessages, and audio/video/picture files. Install MobilePhoneTools on your PC1Insert the supplied Data communicationsoftware into the CD drive.2Run the autorun.exe program.3Make selections as prompted, and installationstarts automatically.

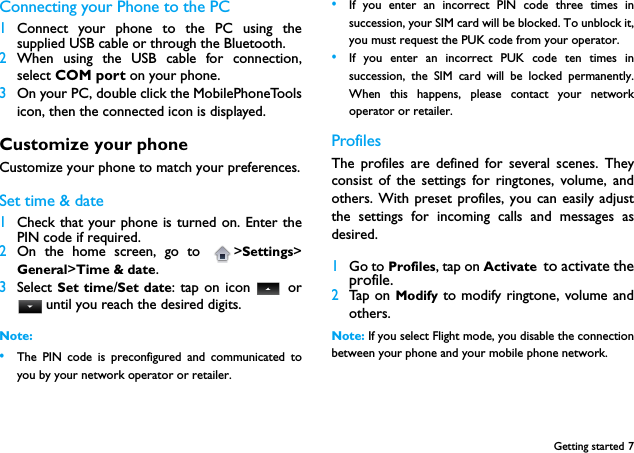

Getting started 7Connecting your Phone to the PC 1Connect your phone to the PC using thesupplied USB cable or through the Bluetooth. 2When using the USB cable for connection,select COM port on your phone.  3On your PC, double click the MobilePhoneToolsicon, then the connected icon is displayed. Customize your phoneCustomize your phone to match your preferences.Set time & date 1Check that your phone is turned on. Enter thePIN code if required.2On the home screen, go to  >Settings>General>Time & date.3Select Set time/Set date: tap on icon   or until you reach the desired digits.Note: •The PIN code is preconfigured and communicated toyou by your network operator or retailer.•If you enter an incorrect PIN code three times insuccession, your SIM card will be blocked. To unblock it,you must request the PUK code from your operator.•If you enter an incorrect PUK code ten times insuccession, the SIM card will be locked permanently.When this happens, please contact your networkoperator or retailer.ProfilesThe profiles are defined for several scenes. Theyconsist of the settings for ringtones, volume, andothers. With preset profiles, you can easily adjustthe settings for incoming calls and messages asdesired.  1Go to Profiles, tap on Activate to activate theprofile.2Tap on Modify to modify ringtone, volume andothers.Note: If you select Flight mode, you disable the connectionbetween your phone and your mobile phone network.

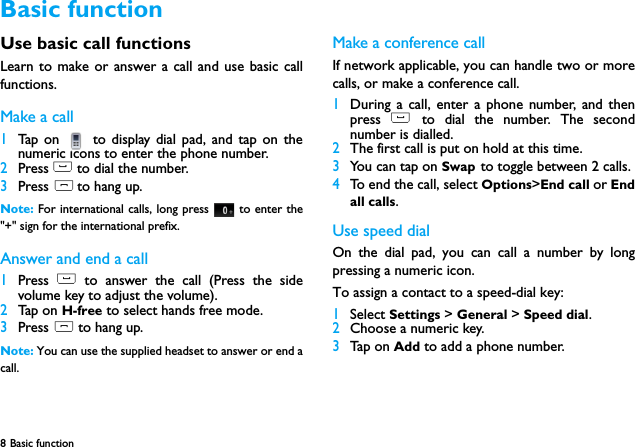

8 Basic function  Use basic call functionsLearn to make or answer a call and use basic callfunctions.Make a call1Tap on   to display dial pad, and tap on thenumeric icons to enter the phone number.2Press ( to dial the number.3Press ) to hang up.Note: For international calls, long press   to enter the"+" sign for the international prefix.Answer and end a call 1Press  ( to answer the call (Press the sidevolume key to adjust the volume).2Tap on H-free to select hands free mode.3Press ) to hang up.Note: You can use the supplied headset to answer or end acall.Make a conference callIf network applicable, you can handle two or morecalls, or make a conference call.1During a call, enter a phone number, and thenpress  ( to dial the number. The secondnumber is dialled.2The first call is put on hold at this time.3You can tap on Swap to toggle between 2 calls.4To end the call, select Options>End call or Endall calls.Use speed dialOn the dial pad, you can call a number by longpressing a numeric icon.To assign a contact to a speed-dial key:1Select Settings > General > Speed dial.2Choose a numeric key.3Tap on Add to add a phone number.Basic function

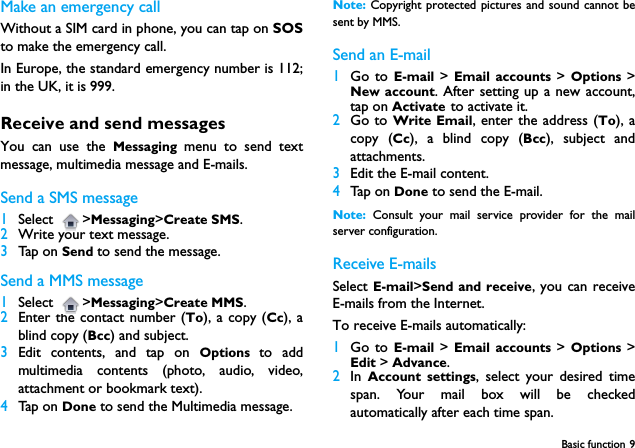

Basic function 9Make an emergency callWithout a SIM card in phone, you can tap on SOSto make the emergency call. In Europe, the standard emergency number is 112;in the UK, it is 999.Receive and send messagesYou can use the Messaging menu to send textmessage, multimedia message and E-mails.Send a SMS message1Select >Messaging>Create SMS.2Write your text message.3Tap on Send to send the message.Send a MMS message1Select >Messaging>Create MMS. 2Enter the contact number (To), a copy (Cc), ablind copy (Bcc) and subject.3Edit contents, and tap on Options  to addmultimedia contents (photo, audio, video,attachment or bookmark text).4Tap on Done to send the Multimedia message.Note: Copyright protected pictures and sound cannot besent by MMS.Send an E-mail1Go to E-mail  >  Email accounts >  Options  >New account. After setting up a new account,tap on Activate to activate it.2Go to Write Email, enter the address (To), acopy (Cc), a blind copy (Bcc), subject andattachments.3Edit the E-mail content.4Tap on Done to send the E-mail.Note:  Consult your mail service provider for the mailserver configuration.Receive E-mailsSelect E-mail>Send and receive, you can receiveE-mails from the Internet.To receive E-mails automatically:1Go to E-mail  >  Email accounts >  Options  >Edit > Advance. 2In  Account settings, select your desired timespan. Your mail box will be checkedautomatically after each time span.

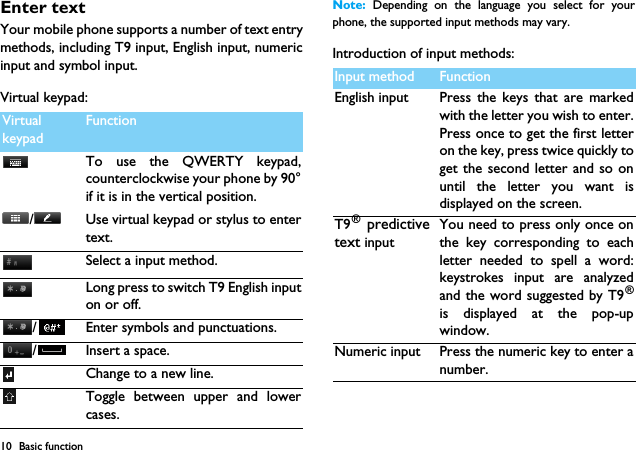

10 Basic functionEnter textYour mobile phone supports a number of text entrymethods, including T9 input, English input, numericinput and symbol input.Virtual keypad:Note:  Depending on the language you select for yourphone, the supported input methods may vary.Introduction of input methods:VirtualkeypadFunctionTo use the QWERTY keypad,counterclockwise your phone by 90°if it is in the vertical position./ Use virtual keypad or stylus to entertext.Select a input method.Long press to switch T9 English inputon or off./ Enter symbols and punctuations./ Insert a space.Change to a new line.Toggle between upper and lowercases.Input method FunctionEnglish input Press  the  keys that are markedwith the letter you wish to enter.Press once to get the first letteron the key, press twice quickly toget the second letter and so onuntil the letter you want isdisplayed on the screen.T9® predictivetext inputYou need to press only once onthe key corresponding to eachletter needed to spell a word:keystrokes input are analyzedand the word suggested by T9®is displayed at the pop-upwindow.Numeric input Press the numeric key to enter anumber.

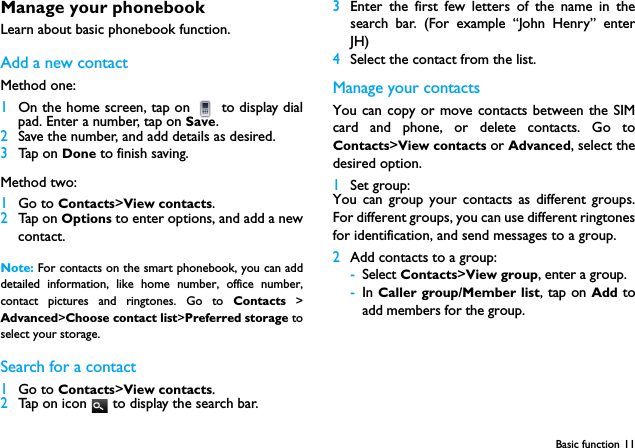

Basic function 11Manage your phonebookLearn about basic phonebook function.Add a new contactMethod one:1On the home screen, tap on   to display dialpad. Enter a number, tap on Save.2Save the number, and add details as desired.3Tap on Done to finish saving.Method two:1Go to Contacts>View contacts.2Tap on Options to enter options, and add a newcontact.Note: For contacts on the smart phonebook, you can adddetailed information, like home number, office number,contact pictures and ringtones. Go to Contacts >Advanced>Choose contact list>Preferred storage toselect your storage. Search for a contact1Go to Contacts>View contacts.2Tap on icon   to display the search bar.3Enter the first few letters of the name in thesearch bar. (For example “John Henry” enterJH)4Select the contact from the list.Manage your contactsYou can copy or move contacts between the SIMcard and phone, or delete contacts. Go toContacts>View contacts or Advanced, select thedesired option.1Set group:You can group your contacts as different groups.For different groups, you can use different ringtonesfor identification, and send messages to a group. 2Add contacts to a group:-Select Contacts>View group, enter a group.-In Caller group/Member list, tap on Add  toadd members for the group.

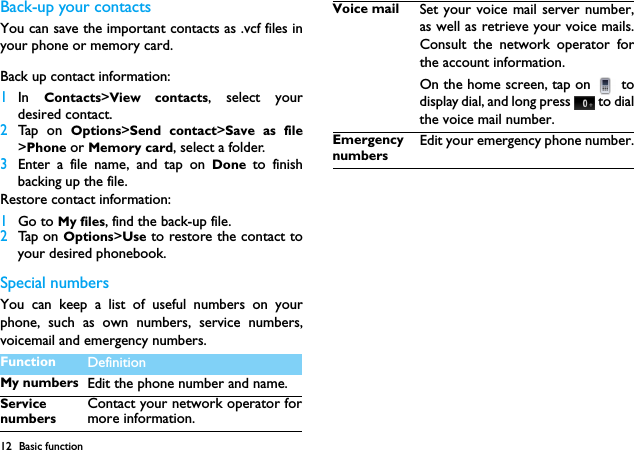

12 Basic functionBack-up your contactsYou can save the important contacts as .vcf files inyour phone or memory card. Back up contact information:1In  Contacts>View contacts, select yourdesired contact.2Tap on Options>Send contact>Save as file>Phone or Memory card, select a folder.3Enter a file name, and tap on Done  to finishbacking up the file.Restore contact information:1Go to My files, find the back-up file.2Tap on Options>Use to restore the contact toyour desired phonebook. Special numbersYou can keep a list of useful numbers on yourphone, such as own numbers, service numbers,voicemail and emergency numbers.Function DefinitionMy numbers Edit the phone number and name.Service numbersContact your network operator formore information.  Voice mail Set your voice mail server number,as well as retrieve your voice mails.Consult the network operator forthe account information.  On the home screen, tap on   todisplay dial, and long press   to dialthe voice mail number.Emergency numbersEdit your emergency phone number.

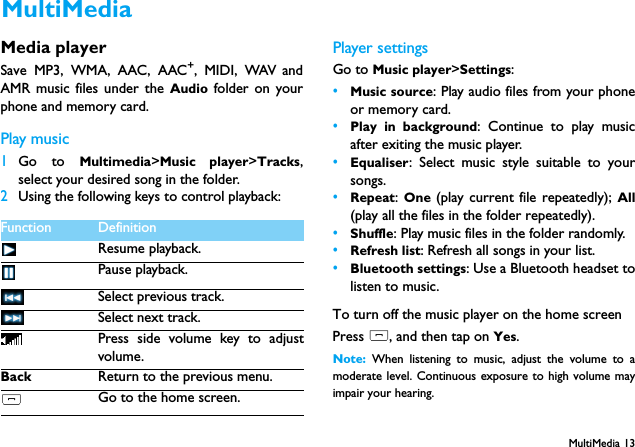

MultiMedia 13Media playerSave MP3, WMA, AAC, AAC+, MIDI, WAV andAMR music files under the Audio folder on yourphone and memory card. Play music1Go to Multimedia>Music player>Tracks,select your desired song in the folder.2Using the following keys to control playback:Player settingsGo to Music player>Settings:•Music source: Play audio files from your phoneor memory card.•Play in background: Continue to play musicafter exiting the music player.•Equaliser: Select music style suitable to yoursongs. •Repeat: One (play current file repeatedly); All(play all the files in the folder repeatedly).•Shuffle: Play music files in the folder randomly.•Refresh list: Refresh all songs in your list.•Bluetooth settings: Use a Bluetooth headset tolisten to music.To turn off the music player on the home screenPress ), and then tap on Yes.Note:  When listening to music, adjust the volume to amoderate level. Continuous exposure to high volume mayimpair your hearing. Function DefinitionResume playback.Pause playback.Select previous track.Select next track.Press side volume key to adjustvolume.Back Return to the previous menu.)Go to the home screen.MultiMedia

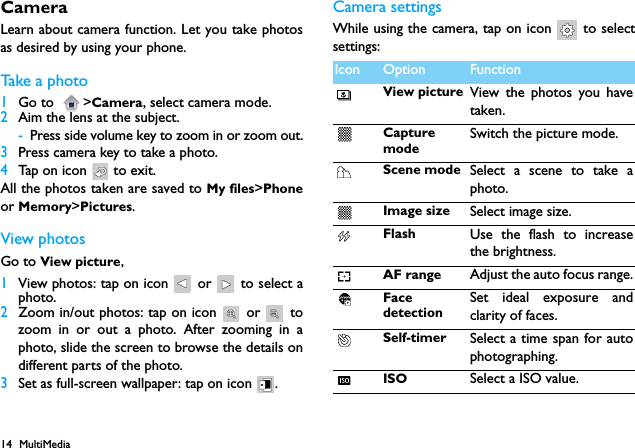

14 MultiMediaCameraLearn about camera function. Let you take photosas desired by using your phone.Take a photo1Go to  >Camera, select camera mode.2Aim the lens at the subject.-Press side volume key to zoom in or zoom out.3Press camera key to take a photo.4Tap on icon   to exit.All the photos taken are saved to My files>Phoneor Memory>Pictures.View photosGo to View picture,1View photos: tap on icon   or   to select aphoto.2Zoom in/out photos: tap on icon   or   tozoom in or out a photo. After zooming in aphoto, slide the screen to browse the details ondifferent parts of the photo. 3Set as full-screen wallpaper: tap on icon  .Camera settingsWhile using the camera, tap on icon   to selectsettings:Icon Option FunctionView picture View the photos you havetaken.CapturemodeSwitch the picture mode.Scene mode Select a scene to take aphoto.Image size Select image size.Flash Use the flash to increasethe brightness.AF range Adjust the auto focus range.FacedetectionSet ideal exposure andclarity of faces.Self-timer Select a time span for autophotographing.ISO Select a ISO value.

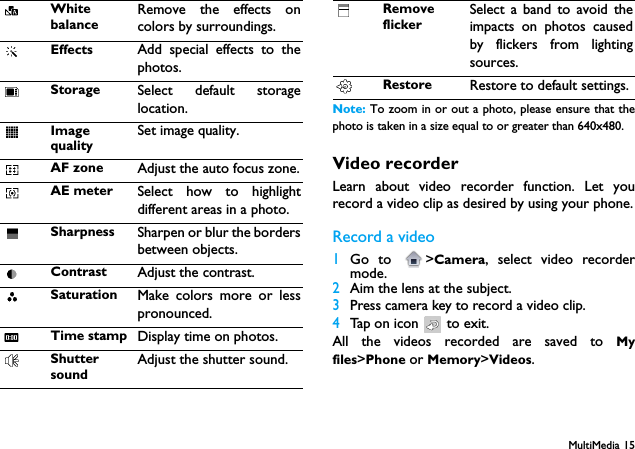

MultiMedia 15Note: To zoom in or out a photo, please ensure that thephoto is taken in a size equal to or greater than 640x480.Video recorderLearn about video recorder function. Let yourecord a video clip as desired by using your phone.Record a video1Go to  >Camera, select video recordermode.2Aim the lens at the subject.3Press camera key to record a video clip.4Tap on icon   to exit.All the videos recorded are saved to Myfiles>Phone or Memory>Videos.WhitebalanceRemove the effects oncolors by surroundings.Effects Add special effects to thephotos.Storage Select default storagelocation.ImagequalitySet image quality.AF zone Adjust the auto focus zone.AE meter Select how to highlightdifferent areas in a photo.Sharpness Sharpen or blur the bordersbetween objects.Contrast Adjust the contrast.Saturation Make colors more or lesspronounced.Time stamp Display time on photos.ShuttersoundAdjust the shutter sound.RemoveflickerSelect a band to avoid theimpacts on photos causedby flickers from lightingsources.Restore Restore to default settings.

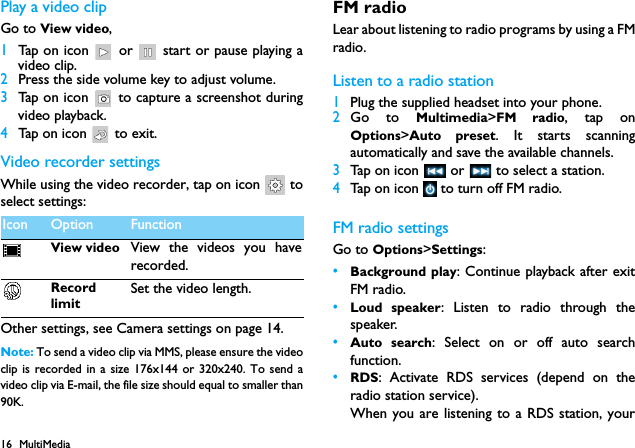

16 MultiMediaPlay a video clipGo to View video,1Tap on icon   or   start or pause playing avideo clip.2Press the side volume key to adjust volume.3Tap on icon   to capture a screenshot duringvideo playback.4Tap on icon   to exit.Video recorder settingsWhile using the video recorder, tap on icon   toselect settings:Other settings, see Camera settings on page 14.Note: To send a video clip via MMS, please ensure the videoclip is recorded in a size 176x144 or 320x240. To send avideo clip via E-mail, the file size should equal to smaller than90K.FM radioLear about listening to radio programs by using a FMradio.Listen to a radio station1Plug the supplied headset into your phone.2Go to Multimedia>FM radio, tap onOptions>Auto preset. It starts scanningautomatically and save the available channels.3Tap on icon   or   to select a station.4Tap on icon   to turn off FM radio.FM radio settingsGo to Options>Settings:•Background play: Continue playback after exitFM radio.•Loud speaker: Listen to radio through thespeaker.•Auto search: Select on or off auto searchfunction.•RDS: Activate RDS services (depend on theradio station service).When you are listening to a RDS station, yourIcon Option FunctionView video View the videos you haverecorded.RecordlimitSet the video length.

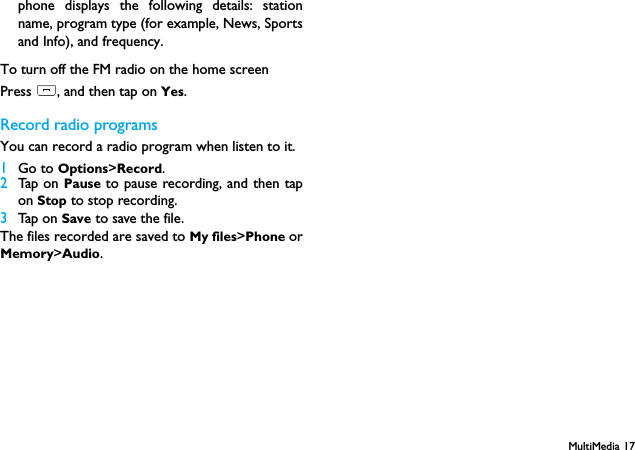

MultiMedia 17phone displays the following details: stationname, program type (for example, News, Sportsand Info), and frequency.To turn off the FM radio on the home screenPress ), and then tap on Yes.Record radio programsYou can record a radio program when listen to it.1Go to Options>Record.2Tap on Pause to pause recording, and then tapon Stop to stop recording.3Tap on Save to save the file.The files recorded are saved to My files>Phone orMemory>Audio.

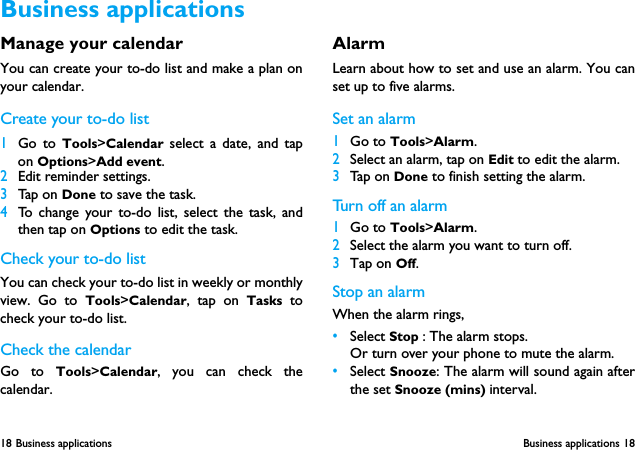

18 Business applications  Business applications 18Manage your calendarYou can create your to-do list and make a plan onyour calendar.Create your to-do list1Go to Tools>Calendar select a date, and tapon Options>Add event.2Edit reminder settings. 3Tap on Done to save the task.4To change your to-do list, select the task, andthen tap on Options to edit the task.Check your to-do listYou can check your to-do list in weekly or monthlyview. Go to Tools>Calendar, tap on Tasks tocheck your to-do list.Check the calendarGo to Tools>Calendar, you can check thecalendar.Alarm Learn about how to set and use an alarm. You canset up to five alarms.Set an alarm  1Go to Tools>Alarm.2Select an alarm, tap on Edit to edit the alarm.3Tap on Done to finish setting the alarm.Turn off an alarm1Go to Tools>Alarm.2Select the alarm you want to turn off.3Tap on Off.Stop an alarmWhen the alarm rings,•Select Stop : The alarm stops.Or turn over your phone to mute the alarm.•Select Snooze: The alarm will sound again afterthe set Snooze (mins) interval.Business applications

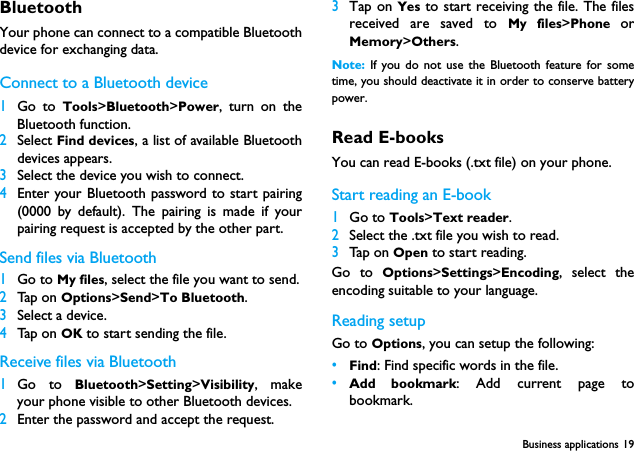

Business applications 19BluetoothYour phone can connect to a compatible Bluetoothdevice for exchanging data.Connect to a Bluetooth device 1Go to Tools>Bluetooth>Power, turn on theBluetooth function. 2Select Find devices, a list of available Bluetoothdevices appears.3Select the device you wish to connect.4Enter your Bluetooth password to start pairing(0000 by default). The pairing is made if yourpairing request is accepted by the other part.Send files via Bluetooth1Go to My files, select the file you want to send.2Tap on Options>Send>To Bluetooth.3Select a device.4Tap on OK to start sending the file.Receive files via Bluetooth1Go to Bluetooth>Setting>Visibility, makeyour phone visible to other Bluetooth devices.2Enter the password and accept the request.3Tap on Yes to start receiving the file. The filesreceived are saved to My files>Phone  orMemory>Others.Note:  If you do not use the Bluetooth feature for sometime, you should deactivate it in order to conserve batterypower.Read E-booksYou can read E-books (.txt file) on your phone.Start reading an E-book1Go to Tools>Text reader.2Select the .txt file you wish to read.3Tap on Open to start reading.Go to Options>Settings>Encoding, select theencoding suitable to your language. Reading setupGo to Options, you can setup the following:•Find: Find specific words in the file. •Add bookmark: Add current page tobookmark.

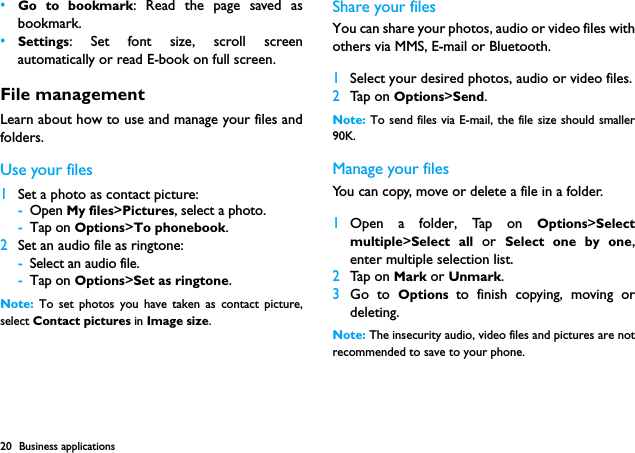

20 Business applications•Go to bookmark: Read the page saved asbookmark.•Settings: Set font size, scroll screenautomatically or read E-book on full screen.File managementLearn about how to use and manage your files andfolders.Use your files1Set a photo as contact picture:-Open My files>Pictures, select a photo.-Tap on Options>To phonebook.2Set an audio file as ringtone:-Select an audio file.-Tap on Options>Set as ringtone.Note:  To set photos you have taken as contact picture,select Contact pictures in Image size.Share your filesYou can share your photos, audio or video files withothers via MMS, E-mail or Bluetooth.1Select your desired photos, audio or video files.2Tap on Options>Send.Note: To send files via E-mail, the file size should smaller90K. Manage your filesYou can copy, move or delete a file in a folder.1Open a folder, Tap on Options>Selectmultiple>Select all or  Select one by one,enter multiple selection list.2Tap on Mark or Unmark.3Go to Options  to finish copying, moving ordeleting.Note: The insecurity audio, video files and pictures are notrecommended to save to your phone.

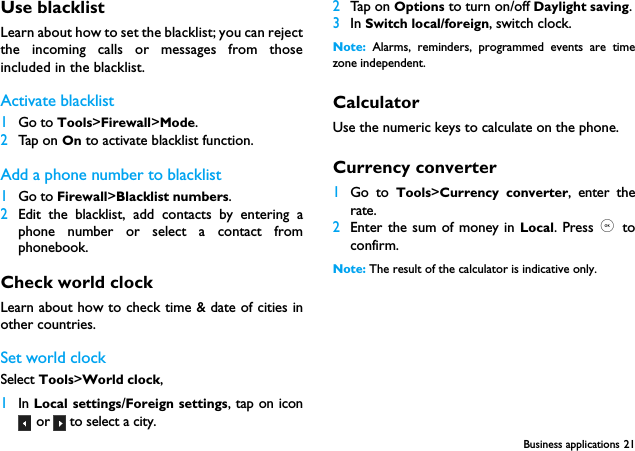

Business applications 21Use blacklistLearn about how to set the blacklist; you can rejectthe incoming calls or messages from thoseincluded in the blacklist.Activate blacklist1Go to Tools>Firewall>Mode.2Tap on On to activate blacklist function. Add a phone number to blacklist1Go to Firewall>Blacklist numbers.2Edit the blacklist, add contacts by entering aphone number or select a contact fromphonebook.Check world clockLearn about how to check time & date of cities inother countries.Set world clockSelect Tools>World clock,1In Local settings/Foreign settings, tap on icon or   to select a city.2Tap on Options to turn on/off Daylight saving.3In Switch local/foreign, switch clock.Note:  Alarms, reminders, programmed events are timezone independent.CalculatorUse the numeric keys to calculate on the phone.Currency converter1Go to Tools>Currency converter, enter therate.2Enter the sum of money in Local. Press ,  toconfirm.Note: The result of the calculator is indicative only.

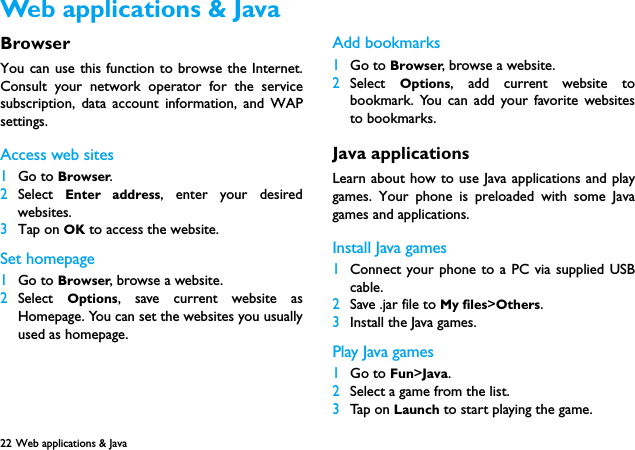

22 Web applications & Java  BrowserYou can use this function to browse the Internet.Consult your network operator for the servicesubscription, data account information, and WAPsettings. Access web sites1Go to Browser.2Select  Enter address, enter your desiredwebsites.3Tap on OK to access the website.Set homepage1Go to Browser, browse a website.2Select  Options, save current website asHomepage. You can set the websites you usuallyused as homepage.Add bookmarks1Go to Browser, browse a website.2Select  Options, add current website tobookmark. You can add your favorite websitesto bookmarks.Java applicationsLearn about how to use Java applications and playgames. Your phone is preloaded with some Javagames and applications. Install Java games1Connect your phone to a PC via supplied USBcable.2Save .jar file to My files>Others.3Install the Java games.Play Java games1Go to Fun>Java.2Select a game from the list.3Tap on Launch to start playing the game. Web applications & Java

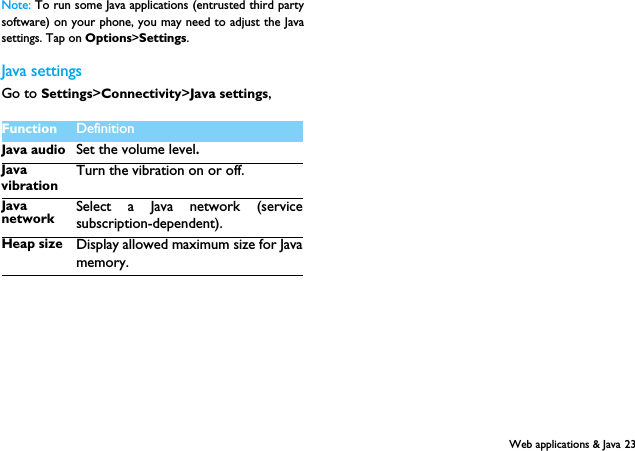

Web applications & Java 23Note: To run some Java applications (entrusted third partysoftware) on your phone, you may need to adjust the Javasettings. Tap on Options>Settings.Java settingsGo to Settings>Connectivity>Java settings,Function Definition Java audio Set the volume level.JavavibrationTurn the vibration on or off.JavanetworkSelect a Java network (servicesubscription-dependent).Heap size Display allowed maximum size for Javamemory.

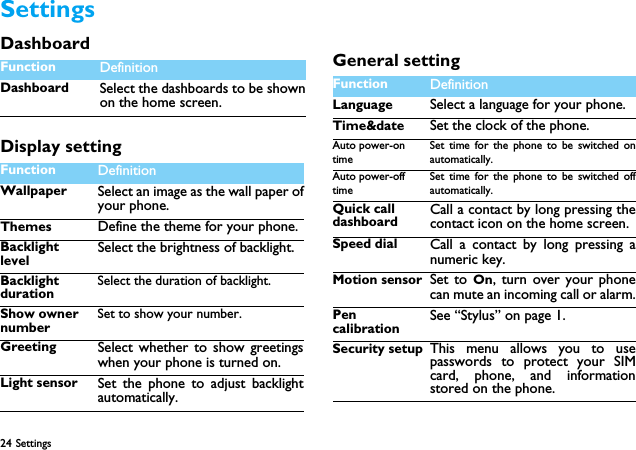

24 Settings  DashboardDisplay settingGeneral settingFunction Definition Dashboard Select the dashboards to be shownon the home screen.Function Definition Wallpaper Select an image as the wall paper ofyour phone. Themes Define the theme for your phone.BacklightlevelSelect the brightness of backlight.Backlight durationSelect the duration of backlight.Show owner numberSet to show your number.Greeting Select whether to show greetingswhen your phone is turned on.Light sensor Set the phone to adjust backlightautomatically.Function Definition Language Select a language for your phone.Time&date Set the clock of the phone.Auto power-on timeSet time for the phone to be switched onautomatically. Auto power-off timeSet time for the phone to be switched offautomatically. Quick call dashboardCall a contact by long pressing thecontact icon on the home screen.Speed dial Call a contact by long pressing anumeric key.Motion sensor Set to On, turn over your phonecan mute an incoming call or alarm.Pen calibrationSee “Stylus” on page 1. Security setup This menu allows you to usepasswords to protect your SIMcard, phone, and informationstored on the phone. Settings

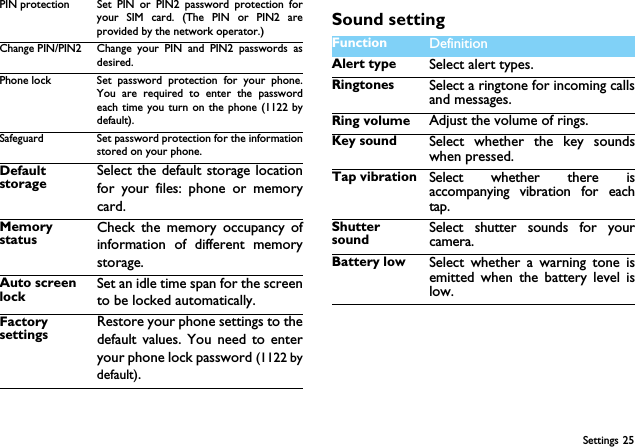

Settings 25Sound settingPIN protection Set PIN or PIN2 password protection foryour SIM card. (The PIN or PIN2 areprovided by the network operator.)Change PIN/PIN2 Change your PIN and PIN2 passwords asdesired.Phone lock Set password protection for your phone.You are required to enter the passwordeach time you turn on the phone (1122 bydefault).Safeguard Set password protection for the informationstored on your phone.Default storageSelect the default storage locationfor your files: phone or memorycard.Memory statusCheck the memory occupancy ofinformation of different memorystorage.Auto screen lockSet an idle time span for the screento be locked automatically. Factory settingsRestore your phone settings to thedefault values. You need to enteryour phone lock password (1122 bydefault).Function Definition Alert type Select alert types.Ringtones Select a ringtone for incoming callsand messages.Ring volume Adjust the volume of rings.Key sound Select whether the key soundswhen pressed.Tap vibration Select whether there isaccompanying vibration for eachtap.Shutter soundSelect shutter sounds for yourcamera.Battery low Select whether a warning tone isemitted when the battery level islow.

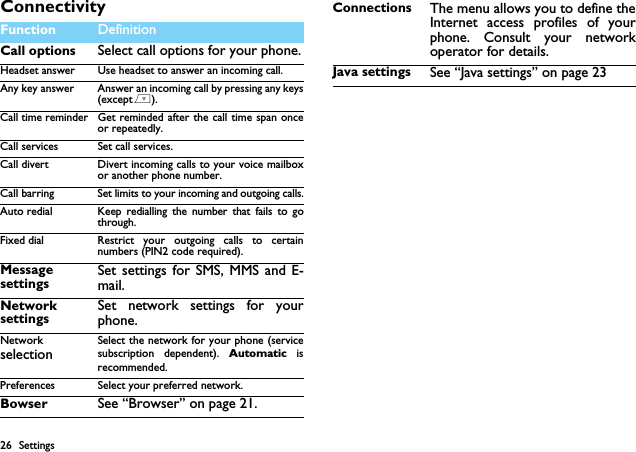

26 SettingsConnectivityFunction Definition Call options Select call options for your phone.Headset answer Use headset to answer an incoming call.Any key answer Answer an incoming call by pressing any keys(except)).Call time reminder Get reminded after the call time span onceor repeatedly.Call services Set call services.Call divert Divert incoming calls to your voice mailboxor another phone number.Call barring Set limits to your incoming and outgoing calls.Auto redial Keep redialling the number that fails to gothrough.Fixed dial Restrict your outgoing calls to certainnumbers (PIN2 code required).Message settingsSet settings for SMS, MMS and E-mail.Network settingsSet network settings for yourphone.Network selectionSelect the network for your phone (servicesubscription dependent). Automatic isrecommended.Preferences Select your preferred network.Bowser See “Browser” on page 21.Connections The menu allows you to define theInternet access profiles of yourphone. Consult your networkoperator for details.Java settings See “Java settings” on page 23

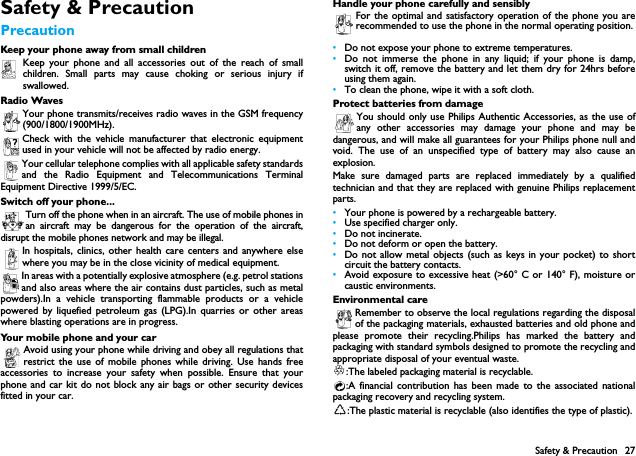

Safety & Precaution 27Safety & PrecautionPrecautionKeep your phone away from small childrenKeep your phone and all accessories out of the reach of smallchildren. Small parts may cause choking or serious injury ifswallowed.Radio WavesYour phone transmits/receives radio waves in the GSM frequency(900/1800/1900MHz).Check with the vehicle manufacturer that electronic equipmentused in your vehicle will not be affected by radio energy.Your cellular telephone complies with all applicable safety standardsand the Radio Equipment and Telecommunications TerminalEquipment Directive 1999/5/EC.Switch off your phone...Turn off the phone when in an aircraft. The use of mobile phones inan aircraft may be dangerous for the operation of the aircraft,disrupt the mobile phones network and may be illegal.In hospitals, clinics, other health care centers and anywhere elsewhere you may be in the close vicinity of medical equipment.In areas with a potentially explosive atmosphere (e.g. petrol stationsand also areas where the air contains dust particles, such as metalpowders).In a vehicle transporting flammable products or a vehiclepowered by liquefied petroleum gas (LPG).In quarries or other areaswhere blasting operations are in progress.Your mobile phone and your carAvoid using your phone while driving and obey all regulations thatrestrict the use of mobile phones while driving. Use hands freeaccessories to increase your safety when possible. Ensure that yourphone and car kit do not block any air bags or other security devicesfitted in your car.Handle your phone carefully and sensiblyFor the optimal and satisfactory operation of the phone you arerecommended to use the phone in the normal operating position.•Do not expose your phone to extreme temperatures.•Do not immerse the phone in any liquid; if your phone is damp,switch it off, remove the battery and let them dry for 24hrs beforeusing them again.•To clean the phone, wipe it with a soft cloth.Protect batteries from damageYou should only use Philips Authentic Accessories, as the use ofany other accessories may damage your phone and may bedangerous, and will make all guarantees for your Philips phone null andvoid. The use of an unspecified type of battery may also cause anexplosion.Make sure damaged parts are replaced immediately by a qualifiedtechnician and that they are replaced with genuine Philips replacementparts.•Your phone is powered by a rechargeable battery.•Use specified charger only.•Do not incinerate.•Do not deform or open the battery.•Do not allow metal objects (such as keys in your pocket) to shortcircuit the battery contacts.•Avoid exposure to excessive heat (>60° C or 140° F), moisture orcaustic environments.Environmental careRemember to observe the local regulations regarding the disposalof the packaging materials, exhausted batteries and old phone andplease promote their recycling.Philips has marked the battery andpackaging with standard symbols designed to promote the recycling andappropriate disposal of your eventual waste.:The labeled packaging material is recyclable.:A financial contribution has been made to the associated nationalpackaging recovery and recycling system.:The plastic material is recyclable (also identifies the type of plastic).

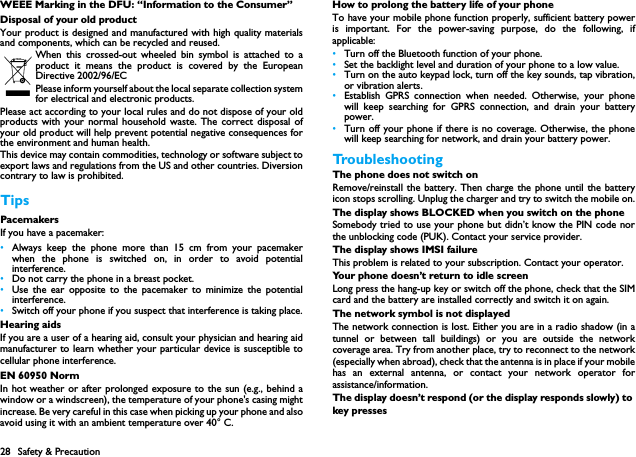

28 Safety & PrecautionWEEE Marking in the DFU: “Information to the Consumer”Disposal of your old productYour product is designed and manufactured with high quality materialsand components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to aproduct it means the product is covered by the EuropeanDirective 2002/96/ECPlease inform yourself about the local separate collection systemfor electrical and electronic products.Please act according to your local rules and do not dispose of your oldproducts with your normal household waste. The correct disposal ofyour old product will help prevent potential negative consequences forthe environment and human health.This device may contain commodities, technology or software subject toexport laws and regulations from the US and other countries. Diversioncontrary to law is prohibited.TipsPacemakersIf you have a pacemaker:•Always keep the phone more than 15 cm from your pacemakerwhen the phone is switched on, in order to avoid potentialinterference.•Do not carry the phone in a breast pocket.•Use the ear opposite to the pacemaker to minimize the potentialinterference.•Switch off your phone if you suspect that interference is taking place.Hearing aidsIf you are a user of a hearing aid, consult your physician and hearing aidmanufacturer to learn whether your particular device is susceptible tocellular phone interference.EN 60950 NormIn hot weather or after prolonged exposure to the sun (e.g., behind awindow or a windscreen), the temperature of your phone's casing mightincrease. Be very careful in this case when picking up your phone and alsoavoid using it with an ambient temperature over 40° C.How to prolong the battery life of your phone To have your mobile phone function properly, sufficient battery poweris important. For the power-saving purpose, do the following, ifapplicable:•Turn off the Bluetooth function of your phone. •Set the backlight level and duration of your phone to a low value. •Turn on the auto keypad lock, turn off the key sounds, tap vibration,or vibration alerts. •Establish GPRS connection when needed. Otherwise, your phonewill keep searching for GPRS connection, and drain your batterypower. •Turn off your phone if there is no coverage. Otherwise, the phonewill keep searching for network, and drain your battery power. TroubleshootingThe phone does not switch onRemove/reinstall the battery. Then charge the phone until the batteryicon stops scrolling. Unplug the charger and try to switch the mobile on.The display shows BLOCKED when you switch on the phoneSomebody tried to use your phone but didn’t know the PIN code northe unblocking code (PUK). Contact your service provider.The display shows IMSI failureThis problem is related to your subscription. Contact your operator.Your phone doesn’t return to idle screenLong press the hang-up key or switch off the phone, check that the SIMcard and the battery are installed correctly and switch it on again.The network symbol is not displayedThe network connection is lost. Either you are in a radio shadow (in atunnel or between tall buildings) or you are outside the networkcoverage area. Try from another place, try to reconnect to the network(especially when abroad), check that the antenna is in place if your mobilehas an external antenna, or contact your network operator forassistance/information.The display doesn’t respond (or the display responds slowly) to key presses

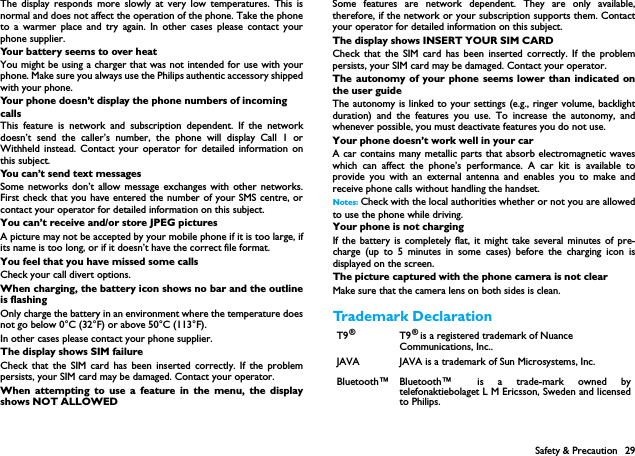

Safety & Precaution 29The display responds more slowly at very low temperatures. This isnormal and does not affect the operation of the phone. Take the phoneto a warmer place and try again. In other cases please contact yourphone supplier.Your battery seems to over heatYou might be using a charger that was not intended for use with yourphone. Make sure you always use the Philips authentic accessory shippedwith your phone.Your phone doesn’t display the phone numbers of incoming callsThis feature is network and subscription dependent. If the networkdoesn’t send the caller’s number, the phone will display Call 1 orWithheld instead. Contact your operator for detailed information onthis subject.You can’t send text messagesSome networks don’t allow message exchanges with other networks.First check that you have entered the number of your SMS centre, orcontact your operator for detailed information on this subject.You can’t receive and/or store JPEG picturesA picture may not be accepted by your mobile phone if it is too large, ifits name is too long, or if it doesn’t have the correct file format.You feel that you have missed some callsCheck your call divert options.When charging, the battery icon shows no bar and the outlineis flashingOnly charge the battery in an environment where the temperature doesnot go below 0°C (32°F) or above 50°C (113°F).In other cases please contact your phone supplier.The display shows SIM failureCheck that the SIM card has been inserted correctly. If the problempersists, your SIM card may be damaged. Contact your operator.When attempting to use a feature in the menu, the displayshows NOT ALLOWEDSome features are network dependent. They are only available,therefore, if the network or your subscription supports them. Contactyour operator for detailed information on this subject.The display shows INSERT YOUR SIM CARDCheck that the SIM card has been inserted correctly. If the problempersists, your SIM card may be damaged. Contact your operator.The autonomy of your phone seems lower than indicated onthe user guideThe autonomy is linked to your settings (e.g., ringer volume, backlightduration) and the features you use. To increase the autonomy, andwhenever possible, you must deactivate features you do not use.Your phone doesn’t work well in your carA car contains many metallic parts that absorb electromagnetic waveswhich can affect the phone’s performance. A car kit is available toprovide you with an external antenna and enables you to make andreceive phone calls without handling the handset.Notes: Check with the local authorities whether or not you are allowedto use the phone while driving.Your phone is not chargingIf the battery is completely flat, it might take several minutes of pre-charge (up to 5 minutes in some cases) before the charging icon isdisplayed on the screen.The picture captured with the phone camera is not clearMake sure that the camera lens on both sides is clean.Trademark DeclarationT9®T9 ® is a registered trademark of Nuance Communications, Inc..JAVA JAVA is a trademark of Sun Microsystems, Inc.Bluetooth™ Bluetooth™ is a trade-mark owned bytelefonaktiebolaget L M Ericsson, Sweden and licensedto Philips.

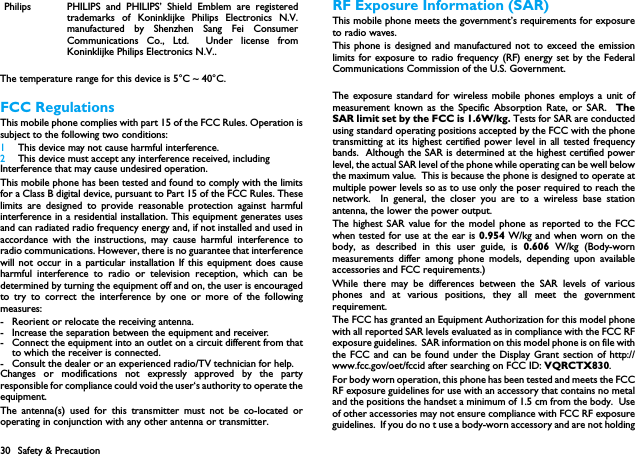

30 Safety & PrecautionThe temperature range for this device is 5°C ~ 40°C.FCC RegulationsThis mobile phone complies with part 15 of the FCC Rules. Operation issubject to the following two conditions: 1 This device may not cause harmful interference.2 This device must accept any interference received, includingInterference that may cause undesired operation.This mobile phone has been tested and found to comply with the limitsfor a Class B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates usesand can radiated radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference toradio communications. However, there is no guarantee that interferencewill not occur in a particular installation If this equipment does causeharmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouragedto try to correct the interference by one or more of the followingmeasures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from thatto which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the partyresponsible for compliance could void the user‘s authority to operate theequipment.The antenna(s) used for this transmitter must not be co-located oroperating in conjunction with any other antenna or transmitter.RF Exposure Information (SAR)This mobile phone meets the government’s requirements for exposureto radio waves.This phone is designed and manufactured not to exceed the emissionlimits for exposure to radio frequency (RF) energy set by the FederalCommunications Commission of the U.S. Government.  The exposure standard for wireless mobile phones employs a unit ofmeasurement known as the Specific Absorption Rate, or SAR.  TheSAR limit set by the FCC is 1.6W/kg. Tests for SAR are conductedusing standard operating positions accepted by the FCC with the phonetransmitting at its highest certified power level in all tested frequencybands.  Although the SAR is determined at the highest certified powerlevel, the actual SAR level of the phone while operating can be well belowthe maximum value.  This is because the phone is designed to operate atmultiple power levels so as to use only the poser required to reach thenetwork.  In general, the closer you are to a wireless base stationantenna, the lower the power output.The highest SAR value for the model phone as reported to the FCCwhen tested for use at the ear is 0.954 W/kg and when worn on thebody, as described in this user guide, is 0.606 W/kg (Body-wornmeasurements differ among phone models, depending upon availableaccessories and FCC requirements.)While there may be differences between the SAR levels of variousphones and at various positions, they all meet the governmentrequirement.The FCC has granted an Equipment Authorization for this model phonewith all reported SAR levels evaluated as in compliance with the FCC RFexposure guidelines.  SAR information on this model phone is on file withthe FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: VQRCTX830.For body worn operation, this phone has been tested and meets the FCCRF exposure guidelines for use with an accessory that contains no metaland the positions the handset a minimum of 1.5 cm from the body.  Useof other accessories may not ensure compliance with FCC RF exposureguidelines.  If you do no t use a body-worn accessory and are not holdingPhilips PHILIPS and PHILIPS’ Shield Emblem are registeredtrademarks of Koninklijke Philips Electronics N.V.manufactured by Shenzhen Sang Fei ConsumerCommunications Co., Ltd.  Under license fromKoninklijke Philips Electronics N.V..

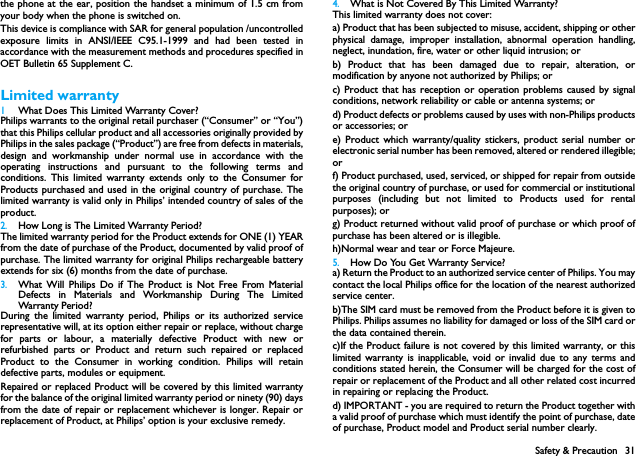

Safety & Precaution 31the phone at the ear, position the handset a minimum of 1.5 cm fromyour body when the phone is switched on.This device is compliance with SAR for general population /uncontrolledexposure limits in ANSI/IEEE C95.1-1999 and had been tested inaccordance with the measurement methods and procedures specified inOET Bulletin 65 Supplement C.Limited warranty1 What Does This Limited Warranty Cover?Philips warrants to the original retail purchaser (“Consumer” or “You”)that this Philips cellular product and all accessories originally provided byPhilips in the sales package (“Product”) are free from defects in materials,design and workmanship under normal use in accordance with theoperating instructions and pursuant to the following terms andconditions. This limited warranty extends only to the Consumer forProducts purchased and used in the original country of purchase. Thelimited warranty is valid only in Philips’ intended country of sales of theproduct.2.How Long is The Limited Warranty Period?The limited warranty period for the Product extends for ONE (1) YEARfrom the date of purchase of the Product, documented by valid proof ofpurchase. The limited warranty for original Philips rechargeable batteryextends for six (6) months from the date of purchase.3.What Will Philips Do if The Product is Not Free From MaterialDefects in Materials and Workmanship During The LimitedWarranty Period ?During the limited warranty period, Philips or its authorized servicerepresentative will, at its option either repair or replace, without chargefor parts or labour, a materially defective Product with new orrefurbished parts or Product and return such repaired or replacedProduct to the Consumer in working condition. Philips will retaindefective parts, modules or equipment.Repaired or replaced Product will be covered by this limited warrantyfor the balance of the original limited warranty period or ninety (90) daysfrom the date of repair or replacement whichever is longer. Repair orreplacement of Product, at Philips’ option is your exclusive remedy.4.What is Not Covered By This Limited Warranty?This limited warranty does not cover:a) Product that has been subjected to misuse, accident, shipping or otherphysical damage, improper installation, abnormal operation handling,neglect, inundation, fire, water or other liquid intrusion; orb) Product that has been damaged due to repair, alteration, ormodification by anyone not authorized by Philips; orc) Product that has reception or operation problems caused by signalconditions, network reliability or cable or antenna systems; ord) Product defects or problems caused by uses with non-Philips productsor accessories; or e) Product which warranty/quality stickers, product serial number orelectronic serial number has been removed, altered or rendered illegible;or f) Product purchased, used, serviced, or shipped for repair from outsidethe original country of purchase, or used for commercial or institutionalpurposes (including but not limited to Products used for rentalpurposes); or g) Product returned without valid proof of purchase or which proof ofpurchase has been altered or is illegible.h)Normal wear and tear or Force Majeure.5.How Do You Get Warranty Service?a) Return the Product to an authorized service center of Philips. You maycontact the local Philips office for the location of the nearest authorizedservice center.b)The SIM card must be removed from the Product before it is given toPhilips. Philips assumes no liability for damaged or loss of the SIM card orthe data contained therein.c)If the Product failure is not covered by this limited warranty, or thislimited warranty is inapplicable, void or invalid due to any terms andconditions stated herein, the Consumer will be charged for the cost ofrepair or replacement of the Product and all other related cost incurredin repairing or replacing the Product.d) IMPORTANT - you are required to return the Product together witha valid proof of purchase which must identify the point of purchase, dateof purchase, Product model and Product serial number clearly.

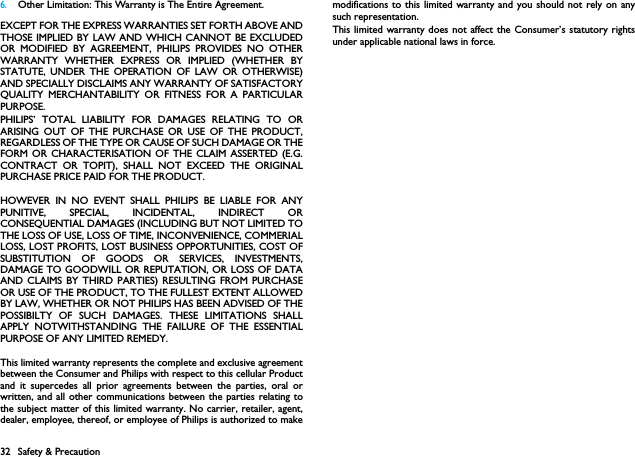

32 Safety & Precaution6.Other Limitation: This Warranty is The Entire Agreement.EXCEPT FOR THE EXPRESS WARRANTIES SET FORTH ABOVE ANDTHOSE IMPLIED BY LAW AND WHICH CANNOT BE EXCLUDEDOR MODIFIED BY AGREEMENT, PHILIPS PROVIDES NO OTHERWARRANTY WHETHER EXPRESS OR IMPLIED (WHETHER BYSTATUTE, UNDER THE OPERATION OF LAW OR OTHERWISE)AND SPECIALLY DISCLAIMS ANY WARRANTY OF SATISFACTORYQUALITY MERCHANTABILITY OR FITNESS FOR A PARTICULARPURPOSE.PHILIPS’ TOTAL LIABILITY FOR DAMAGES RELATING TO ORARISING OUT OF THE PURCHASE OR USE OF THE PRODUCT,REGARDLESS OF THE TYPE OR CAUSE OF SUCH DAMAGE OR THEFORM OR CHARACTERISATION OF THE CLAIM ASSERTED (E.G.CONTRACT OR TOPIT), SHALL NOT EXCEED THE ORIGINALPURCHASE PRICE PAID FOR THE PRODUCT.HOWEVER IN NO EVENT SHALL PHILIPS BE LIABLE FOR ANYPUNITIVE, SPECIAL, INCIDENTAL, INDIRECT ORCONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TOTHE LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERIALLOSS, LOST PROFITS, LOST BUSINESS OPPORTUNITIES, COST OFSUBSTITUTION OF GOODS OR SERVICES, INVESTMENTS,DAMAGE TO GOODWILL OR REPUTATION, OR LOSS OF DATAAND CLAIMS BY THIRD PARTIES) RESULTING FROM PURCHASEOR USE OF THE PRODUCT, TO THE FULLEST EXTENT ALLOWEDBY LAW, WHETHER OR NOT PHILIPS HAS BEEN ADVISED OF THEPOSSIBILTY OF SUCH DAMAGES. THESE LIMITATIONS SHALLAPPLY NOTWITHSTANDING THE FAILURE OF THE ESSENTIALPURPOSE OF ANY LIMITED REMEDY.This limited warranty represents the complete and exclusive agreementbetween the Consumer and Philips with respect to this cellular Productand it supercedes all prior agreements between the parties, oral orwritten, and all other communications between the parties relating tothe subject matter of this limited warranty. No carrier, retailer, agent,dealer, employee, thereof, or employee of Philips is authorized to makemodifications to this limited warranty and you should not rely on anysuch representation.This limited warranty does not affect the Consumer’s statutory rightsunder applicable national laws in force.

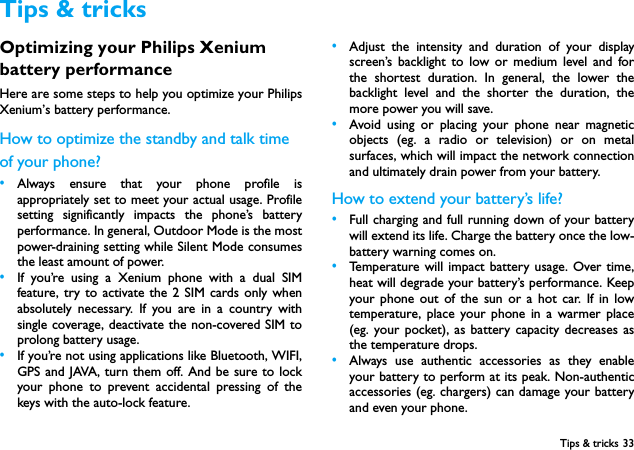

Tips & tricks 33Optimizing your Philips Xenium battery performanceHere are some steps to help you optimize your PhilipsXenium’s battery performance.How to optimize the standby and talk time of your phone?•Always ensure that your phone profile isappropriately set to meet your actual usage. Profilesetting significantly impacts the phone’s batteryperformance. In general, Outdoor Mode is the mostpower-draining setting while Silent Mode consumesthe least amount of power.  •If you’re using a Xenium phone with a dual SIMfeature, try to activate the 2 SIM cards only whenabsolutely necessary. If you are in a country withsingle coverage, deactivate the non-covered SIM toprolong battery usage.•If you’re not using applications like Bluetooth, WIFI,GPS and JAVA, turn them off. And be sure to lockyour phone to prevent accidental pressing of thekeys with the auto-lock feature.•Adjust the intensity and duration of your displayscreen’s backlight to low or medium level and forthe shortest duration. In general, the lower thebacklight level and the shorter the duration, themore power you will save. •Avoid using or placing your phone near magneticobjects (eg. a radio or television) or on metalsurfaces, which will impact the network connectionand ultimately drain power from your battery.How to extend your battery’s life?•Full charging and full running down of your batterywill extend its life. Charge the battery once the low-battery warning comes on.•Temperature will impact battery usage. Over time,heat will degrade your battery’s performance. Keepyour phone out of the sun or a hot car. If in lowtemperature, place your phone in a warmer place(eg. your pocket), as battery capacity decreases asthe temperature drops.•Always use authentic accessories as they enableyour battery to perform at its peak. Non-authenticaccessories (eg. chargers) can damage your batteryand even your phone.Tips & tricks
