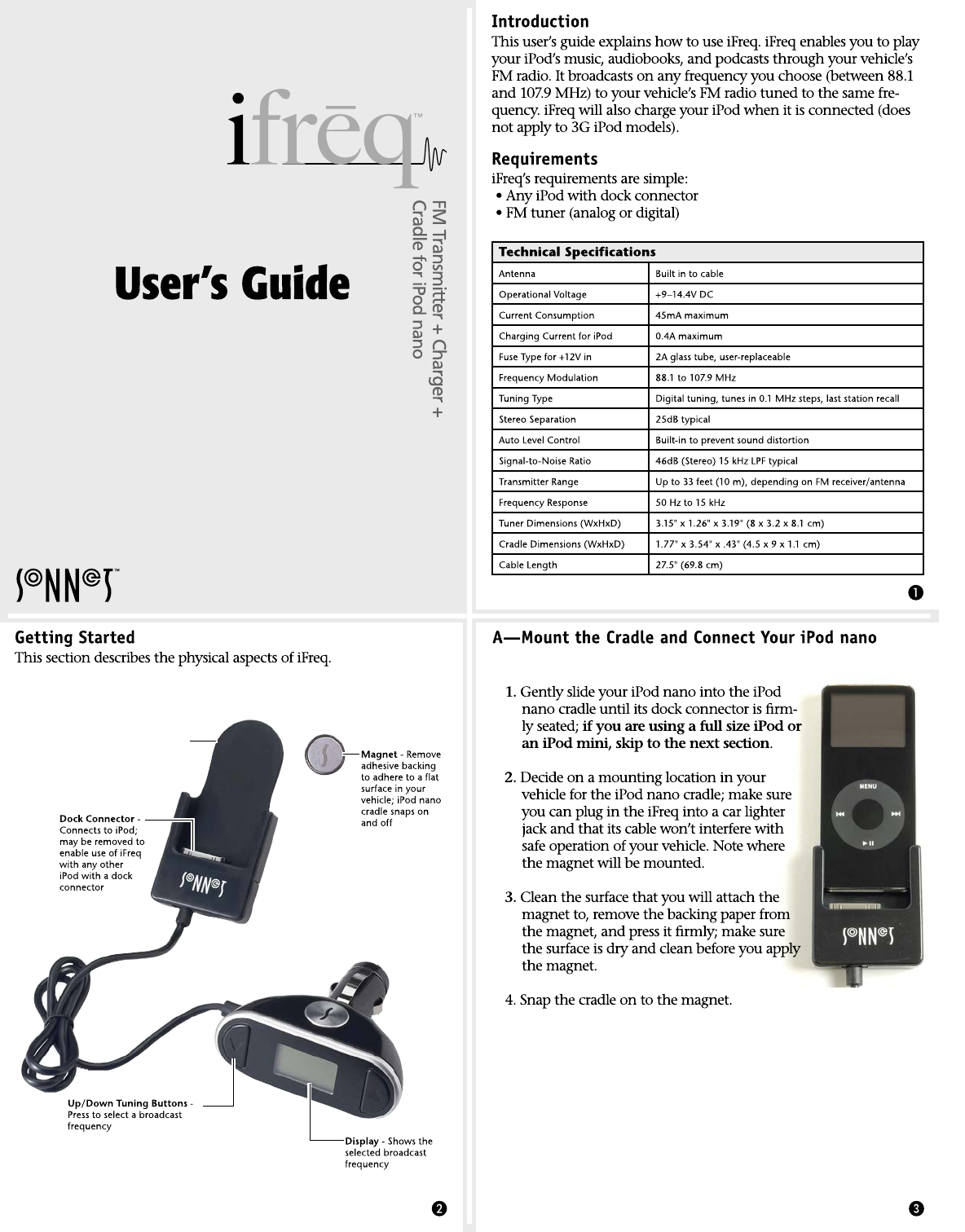

Introduction
This user’s guide explains how to use iFreq. iFreq enables you to play
your iPod’s music, audiobooks, and podcasts through your vehicle’s
FM radio. It broadcasts on any frequency you choose (between 88.1
and 107.9 MHz) to your vehicle’s FM radio tuned to the same fre-
quency. iFreq will also charge your iPod when it is connected (does
not apply to 3G iPod models).
Requirements
iFreq’s requirements are simple:
• Any iPod with dock connector
• FM tuner (analog or digital)
Technical Specifications
Antenna Built in to cable
Operational Voltage +9–14.4V DC
Current Consumption 45mA maximum
Charging Current for iPod 0.4A maximum
Fuse Type for +12V in 2A glass tube, user-replaceable
Frequency Modulation 88.1 to 107.9 MHz
Tuning Type Digital tuning, tunes in 0.1 MHz steps, last station recall
Stereo Separation 25dB typical
Auto Level Control Built-in to prevent sound distortion
Signal-to-Noise Ratio 46dB (Stereo) 15 kHz LPF typical
Transmitter Range Up to 33 feet (10 m), depending on FM receiver/antenna
Frequency Response 50 Hz to 15 kHz
Tuner Dimensions (WxHxD) 3.15" x 1.26" x 3.19" (8 x 3.2 x 8.1 cm)
Cradle Dimensions (WxHxD) 1.77" x 3.54" x .43" (4.5 x 9 x 1.1 cm)
Cable Length 27.5" (69.8 cm)
iPod nano cradle - secures dock
connector and holds iPod nano

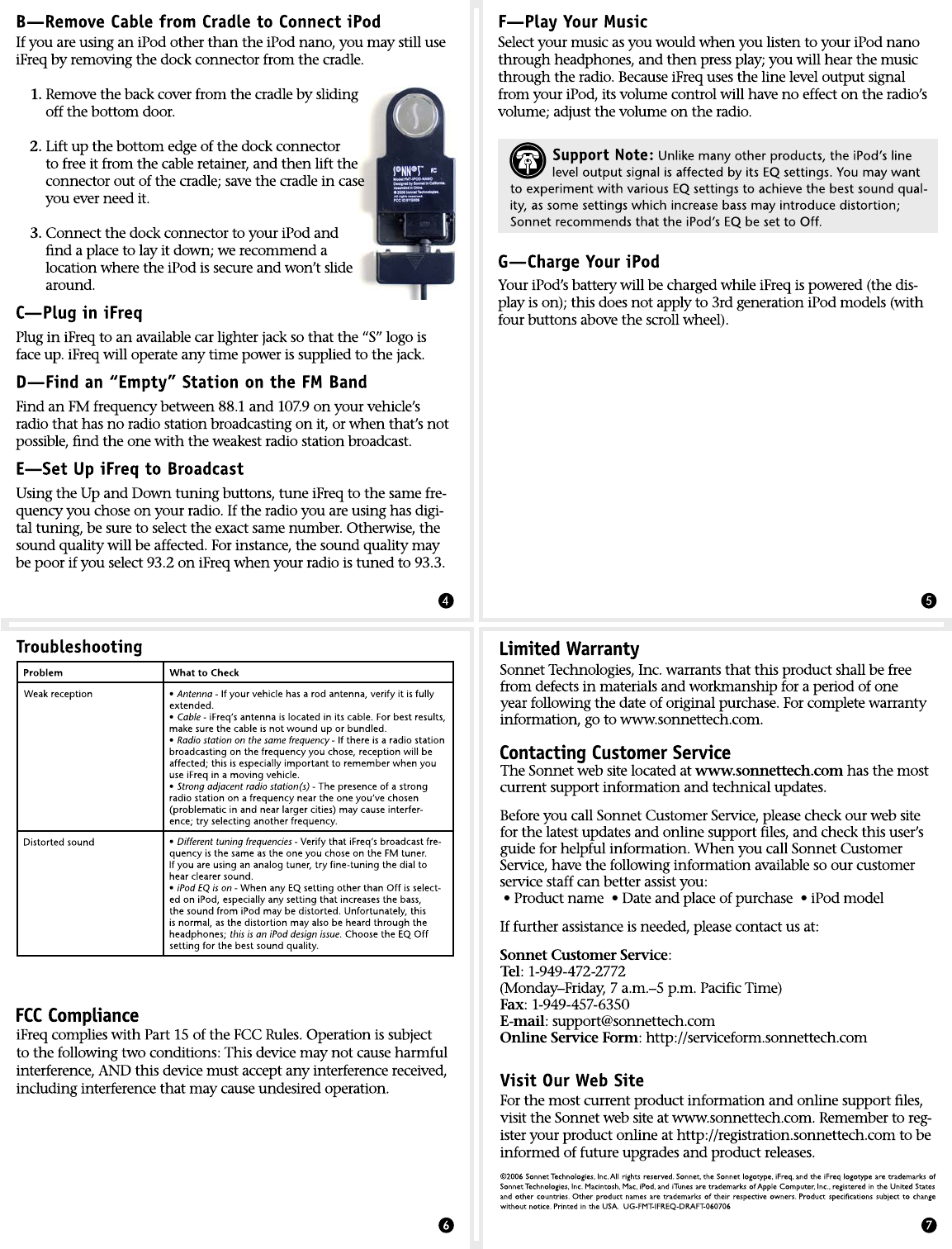

![](/img.php?id=678102&img=bg2.png)
Notice : The changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority
to operate the equipment.
