Sangean Electronics H200 WATERPROOF BLUETOOTH SPEAKER User Manual
Sangean Electronics Inc WATERPROOF BLUETOOTH SPEAKER
User manual
![](/img.php?id=3189195&img=bg1.png)
Version 1
H200
GB
![](/img.php?id=3189195&img=bg2.png)
GB
1

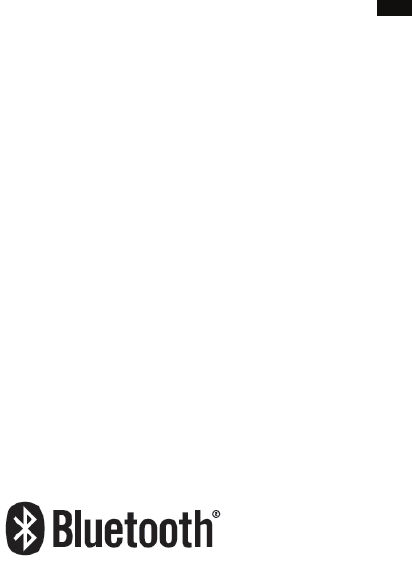

The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by SANGEAN
ELECTRONICS INC. is under license.
![](/img.php?id=3189195&img=bg3.png)
2
![](/img.php?id=3189195&img=bg4.png)
GB
3

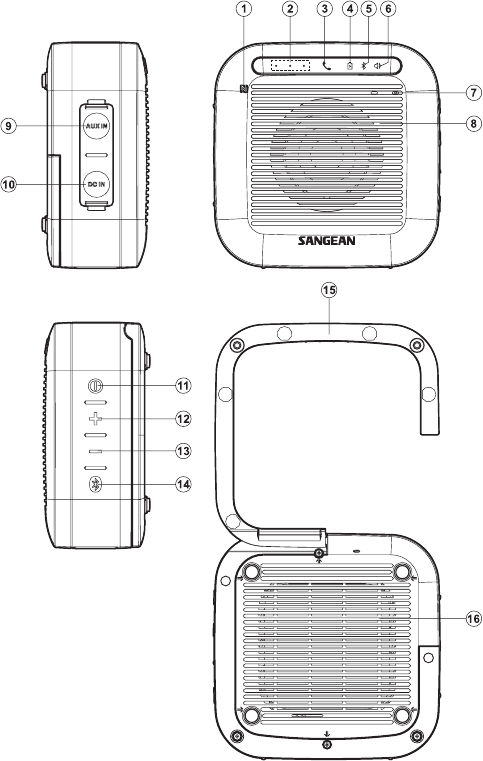

Controls
1
2
9
10
11
12
13
14
15
16
3
4
5
6
7
8
Aux in socket
DC In
Power button
Volume up button
Volume down button
Bluetooth button
Folding handle
Passive speaker
NFC detection tag
Battery status indicator
Call answer-hangup button/Call
indicator
Battery charging indicator
Bluetooth status indicator
Max volume indicator
Microphone
Powered Speaker
Charging the unit
This unit operates on a built-in Lithium-ion battery that can be recharged
either using the USB charging port or from a USB power adaptor (not
included) with a rated output of DC 5V, 1000mA.
The rst time using your H200 speaker, connect it to DC (mains) power
and fully charge the battery. When the battery is in charging mode, the
battery charging indicator light will be in solid red. After the battery is
fully charged, the red battery charging indicator will turn off.
Note:
You can begin using the speaker while charging. Please be aware that
in this case make sure the USB power source can provide 5V 1A of
electrical current. If not, it may damage the USB power source.
1. Connect the (supplied) micro USB plug to the micro USB charging
port on the left hand side of the unit.
2. Connect the (supplied) standard USB plug end of the cable to a
power USB port on a computer or other USB charging device. When
the battery is charging, the battery indicator light will be solid red. If
the indicator light fades away this indicates that the battery is fully
charged and battery charging will be stopped.
![](/img.php?id=3189195&img=bg5.png)
4
Power on the speaker
There are two ways to power on your speaker.
● You can press and hold the Power button to turn on the speaker.
● In addition, the speaker can be powered on via NFC: Turn on the
NFC feature on your NFC-enabled device > Hold your NFC-enabled
device directly against the H200’s NFC tag for 2 seconds. Once the
speaker is powered on successfully, the speaker will make a sound to
conrm the power is on.
Note:
Some devices may ask for conrmation from the user.
Pairing and connecting a device to the speaker
Pairing and playing your Bluetooth device for the rst time
You need to pair your Bluetooth device with your H200 before you
can auto-link to play/stream Bluetooth music through your Bluetooth
speaker. Paring creates a `bond' so the two devices can recognize each
other.
1. Turn on the speaker. The Bluetooth status indicator ( ) on the
speaker will ash a fast blue to show the speaker is discoverable.
2. Activate Bluetooth on your device according to the device's user
manual to link to the speaker. Locate the Bluetooth device list and
select the device named ‘H200’. With some mobile devices (which
are equipped with earlier versions than BT2.1 Bluetooth device), you
may need to input the pass code “0000”.
3. Once connected, there will be a confirmation tone sound and the
Bluetooth icon will turn a solid blue. You can simply select and play
any music from your source device. Volume control can be adjusted
from your source device, or directly on H200. (Note: If the maximum
volume of the speaker has been reached, the indicator for ‘MAX
VOL.’ marked on the front panel will stay solid red for 2 seconds.)
![](/img.php?id=3189195&img=bg6.png)
GB
5
4. Use the controls on your device to play/pause and navigate tracks.
Note:
1. If 2 Bluetooth devices are pairing for the rst time, both will search for
the H200, it will show its available on both devices. However, if one
device links with the speaker rst, then the other Bluetooth device will
not nd the speaker on its list.
2. If you take your source device out of range, the connection will
be temporarily disconnected to your speaker. Your speaker will
automatically reconnect if the source device is brought back in
range within 1 minute. Otherwise you need to manually reconnect
your device again to the speaker. Be aware that during the period of
disconnection, no other Bluetooth device can pair or link with your
speaker.
3. If ‘H200’ shows in your Bluetooth device list but your device cannot
connect with it, please delete the H200 item from your list and pair
the device with the speaker again following the steps described
previously.
4. Bluetooth/NFC connectivity performance may vary depending on
the connected Bluetooth devices. Please refer to the Bluetooth
capabilities of your device before connecting to your speaker. All
features may not be supported on some paired Bluetooth/NFC
devices.
5. The effective operation range between the system and the paired
device is approximately 10 meters (30 feet).
6. Any obstacles between the system and the device can reduce the
operational range.
![](/img.php?id=3189195&img=bg7.png)
6
Pairing additional devices
Before pairing another device to the speaker, you need to make the
speaker discoverable.
1. Press and release the Bluetooth button to disconnect from your
Bluetooth device. The Bluetooth status indicator ( ) blinks a fast
ashing blue.
2. Activate Bluetooth on your device according to the device's user
manual to link to the speaker. Locate the Bluetooth device list and
select the device named ‘H200’. With some mobile devices which are
equipped with earlier versions than BT2.1 Bluetooth device, you may
need to input the pass code “0000”.
3. Once connected, there will be a confirmation tone sound and the
Bluetooth icon will remain in solid blue. You can simply select and
play any music from your source device.
Speaker memory and reconnecting a device
The H200 can memorize up to 2 paired devices. When the memory
exceeds this amount, the earliest paired device will be erased from the
speaker. If your Bluetooth device was already paired with the speaker
previously, the unit will memorize your Bluetooth device and will
attempt to reconnect with a device that is in the memory that was last
connected. If the last connected device is not available, the speaker will
be discoverable.
Disconnecting your Bluetooth device
Press and release the Bluetooth button on the H200 to disconnect with
your Bluetooth device or turn off Bluetooth function on your Bluetooth
device to disable the connection. There will be a confirmation tone
sound and the Bluetooth status indicator ( ) on the speaker will ash a
fast blue to show the speaker is discoverable again for pairing.
![](/img.php?id=3189195&img=bg8.png)
GB
7
Pairing and playing your device via NFC
Your speaker is equipped with wireless NFC (Near Field
Communication) feature, allowing NFC-enabled devices to pair and play
the music with your H200. For non-NFC devices, please refer to the
above sections for standard Bluetooth pairing.
1. Turn on the NFC feature on your device.
2.
paired with a device, ‘Connecting H200…’ or a similar message is
shown on your NFC-enabled device. There will be a conrmation tone
sound and the Bluetooth icon will illuminate in solid blue. (Important:
Please make sure the screen of your playing device is on and
unlocked to allow NFC to work.)
3. Use the controls on your device to play/pause and navigate tracks.
Note:
1. If you would like to link another Bluetooth device for the rst time via
NFC, disconnect the existing linked Bluetooth device rst.
2. The location of the NFC detection area is not the same on all devices.
When connecting with other Bluetooth devices via NFC, refer to the
user guide of the device for more information and location of the NFC
detection area.
3. Some metallic cases or covers for mobile phones may reduce the
sensitivity of NFC. Make sure you remove it before activating the NFC
function.
Touch the NFC area of your playing device
directly against the NFC tag marked on
the front panel of your H200. The speaker
will automatically be switched on and
connect your NFC-enabled device. (If
you pair with the H200 for the first time,
some NFC-enabled device will be asked
permission to link with the speaker). Once
![](/img.php?id=3189195&img=bg9.png)
8
Disconnecting your NFC-enabled device
To disconnect your device, simply touch your device directly against the
speaker’s tag again on the front panel. There will be a conrmation tone
sound and the Bluetooth status indicator ( ) on the speaker will ash a
fast blue to show the speaker is discoverable.
Playing music via auxiliary input socket
A 3.5mm Auxiliary input socket is provided on the left hand side of the
unit to permit an audio signal to be fed into the unit from any devices
that features a headphone or audio output, such as an iPod, MP3 or CD
player.
1. Connect a stereo or mono audio source (for
example, iPod, MP3 or CD player) to the
Auxiliary input socket.
2. Adjust the Volume control on your iPod,
MP3 or CD player to ensure you have an
adequate signal and then adjust the volume
on the speaker to your preferred listening
level.
Note:
When the Aux in socket is connected to an
audio device the Bluetooth function will be
disabled to minimize power consumption.
![](/img.php?id=3189195&img=bga.png)
GB
9
Using the H200 as a hands-free speaker phone
The H200 can be used as a hands-free accessory for your phone.
When music is playing through your H200 and you receive a call on
your phone it can pause the music automatically to allow you to answer
your phone.
1. Pair your device to the speaker via Bluetooth as described in the
previous sections.
2. If you receive a call while playing music through your H200, the Call
indicator ( ) will ash a fast yellow.
3. Press and release the Call answer-hangup button to answer your
phone call and then the Call indicator ( ) will remain a solid yellow.
Speak in the direction of the built-in microphone.
4. Press the Volume up/down buttons to adjust the volume to your liking.
Note that a very high volume setting may decrease sound quality.
5. Press and release the Call answer-hangup button to end the phone
call. The music on the speaker will continue to play.
Note:
If you cannot answer/hang up your phone via your H200, it may be
necessary to check whether the ‘Phone audio’ setting is activated on
your Bluetooth –enabled device.
Battery management
To check the current battery charge level, press and hold the Power
button to turn on the speaker and battery status indicator is shown in
solid green indicating the current battery life:
( ): battery is fully charged (more than 70% of battery capacity)
( ): battery is medium charged (between 30%- 70% of battery
capacity)
( ): battery Charging is needed (less than 30% of batterycapacity)
![](/img.php?id=3189195&img=bgb.png)
10
Safety information for the internal
rechargeable Lithium-ion battery
The internal rechargeable lithium-ion battery used in this device is able
to supply power for a long period of time. However, even lithium-ion
batteries reach a point where they cannot be recharged. If the battery
does not recharge after several attempts, it may be drained (has a low
charge), please contact info@sangean.com.tw for repair information.
However, if you do not want us to replace the battery, you will need
to dispose of used batteries/device in accordance to the laws and
regulations in your area. In addition, you can contact your local
electronics retailers or recycling center for disposal.
User Safety Precautions
● Ensure that the room temperature range is 0°C–45°C
(32°-113°Fahrenheit) before charging the battery.
● Do not attempt to disassemble the plastic covering or any parts of the
device, as the materials inside may be toxic and may damage skin
and clothes.
● Do not puncture, crush, modify, throw or cause any unnecessary
shock to your battery, as the battery used in this device may present
a risk of re, explosion, or chemical burn if mistreated.
● Do not leave, charge or use the battery in a car under direct sunlight,
near re or a heated source.
● Do not immerse or throw the battery in water/seawater.
● Do not use or charge the battery if it appears to be abnormally hot,
discolored, deformed or abnormal conditions are detected during use,
charge or storage.
● Do not leave a charging battery unattended. Keep the battery away
from babies and children.
![](/img.php?id=3189195&img=bgc.png)
GB
11
For United States:
Cautions to the user
The changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
RF exposure statements
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20cm (8 inches) from all persons and
must not be co-located or operating in conjunction with any other
antenna or transmitter. No change to the antenna or the device is
permitted. Any change to the antenna or the device could result in
the device exceeding the RF exposure requirements and void user’s
authority to operate the device.
Note:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guaranty that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
These servicing instructions are for use by qualied service personnel only.
To reduce the risk of the electric shock, do not perform any servicing other
than that contained in the operating instructions unless you are qualied to
so.
![](/img.php?id=3189195&img=bgd.png)
12
Specications
Amplier
Output power
Frequency response
Aux In
Input sensitivity
Speaker
Speaker
Passive speaker
Bluetooth
Bluetooth specication
Prole Support
Bluetooth Audio CODEC
Transmitting Power
Line of sight range
Built-in Battery
Battery
General
DC-IN
Power consumption
Charging current
Charging time
Storage temperature
Operating temperature
Weight
1.5W
100Hz~20kHz
250mVrms @100Hz
57mm 4 ohm 3W Full range
93x93mm
Bluetooth® Ver 4.1
A2DP, HFP,HSP
SBC, MP3
Specication Power Class 2
10 meters/30 feet
Rechargeable Lithium-ion battery 18650
3.7V 2200mAh
Micro USB jack 5V 1A
5V 0.5A (Charging in power OFF mode)
5V 1A (Charging in power ON mode)
0.5A
5 hours
-20°C~ 60°C
-10°C ~ 45°C
1.12 lbs (510g)
![](/img.php?id=3189195&img=bge.png)
GB
13
Sangean reserves the right to amend the specication without notice.
If at any time in the future you should need to dispose of this product
please note that: Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice. (Waste Electrical
and Electronic Equipment Directive)
