PLEASE RETAIN
We suggest you record the model, type and serial
numbers below. They are located on the silver rating
plate on your cleaner. For prompt and complete
service information, always refer to these numbers
when inquiring about service.
Model & Type
Serial No.
date of purchase.
Heavy Duty
Upright Vacuum Cleaner
Household Type
Ownerʼs Guide
Model S634
IMPORTANT
Do
not
return this product to
the store. Call 1-800-800-8975*
Monday - Friday, 8 am to 7:30
pm CST and 10 am to 6:30 pm
Saturday or visit our web site,
www.sanitairevac.com for any
of the following:
• assembly problems
• replacement of broken or missing
items
• to order replacement parts and
accessories
• to locate the nearest Sanitaire
Warranty Station
*En Mexico llame al (55) 5343-4384
www.sanitairevac.com
Part No. 75325
(12/04)
©2004 Electrolux Home Care Products Ltd. Printed in U.S.A.
2
Index
Important Safeguards
..................................
2
Service Information
......................................
2
Assemble
.....................................................
3
Use
...............................................................
4
Dust Bag
...................................................
4-5
Brush Roll Belt
..........................................
5-6
Brush Roll
....................................................
6
Headlight
......................................................
6
Warranty
.......................................................
7
GENERAL INFORMATION
To reduce the risk of electric shock,
this appliance
has a polarized plug (one blade is wider than the other).
The plug will fi t in a polarized outlet only one way. If the
plug does not fi t fully in the outlet, reverse the plug. If it
still does not fi t, con tact a qualifi ed electrician to install
the proper outlet. Do not change the plug in any way.
The bag may have come dislodged in shipping. Check
the bag to insure proper seating before attempting to
use the cleaner. Do not operate the cleaner without a
dust bag or the fi lters.
The cleaner is designed to pick up dirt and dust particles.
Avoid picking up hard or sharp objects with the cleaner
to avoid bag breakage, hose clogging, or possible motor
damage.
Service Information
The instructions in this booklet serve as a guide to
routine maintenance. If additional service is required,
telephone toll free:
USA: 1-800-800-8975
Mexico: (55) 5343-4384
Canada: 1-800-800-8975
If you prefer, you can write to Electrolux Home Care
Products North America, Consumer Service, P.O. Box
3900 Peoria, Illinois 61612, USA.
I
n Canada write to
E
lectrolux Home Care Products North America, 866
Langs Drive, Cambridge, Ontario N3H 2N7. Refer to
The Sanitaire Limited Warranty for com plete service
information.
DO NOT OIL the motor or the brush roll at
any time. The bearings are permanently
lubricated and sealed.
IMPORTANT
SAFEGUARDS
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS
BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fi re, electric shock, or injury:
•
Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in.
Turn off the
switch and unplug the electrical cord when not in use and before
servicing.
•
Do not allow to be used as a toy. Close attention is necessary
when used by or near children.
•
Use only as described in this manual. Use only manufacturerʼs
recommended attachments.
•
Do not use with damaged cord or plug. If vacuum cleaner is
not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center
before using.
•
Do not pull or carry by cord, use cord as a handle, close a door
on cord, or pull cord around sharp edges or corners. Do not
run vacuum cleaner over cord. Keep cord away from heated
surfaces.
•
Do not use extension cords or outlets with inadequate current
carrying capacity.
•
Turn off all controls before unplugging.
•
Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
•
Do not handle plug or vacuum cleaner with wet hands.
•
Do not put any object into openings. Do not use with any
opening blocked; keep free of dust, lint, hair, and anything that
may reduce airfl ow.
•
This vacuum cleaner creates suction and contains a revolving
brush roll. Keep hair, loose clothing, fi ngers, and all parts of
body away from openings and moving parts.
•
Do not pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
•
Do not use without dust bag in place.
•
Belt pulleys can become hot during normal use. To prevent
burns, avoid touching the belt pulley when servicing the drive
belt.
•
Use extra care when cleaning on stairs.
•
Do not use to pick up fl ammable or combustible liquids such as
gasoline, or use in areas where they may be present.
•
Store your cleaner in a cool, dry area.
•
Keep your work area well lighted.
•
Unplug electrical appliances before vacuuming them.
SAVE THESE
INSTRUCTIONS
3

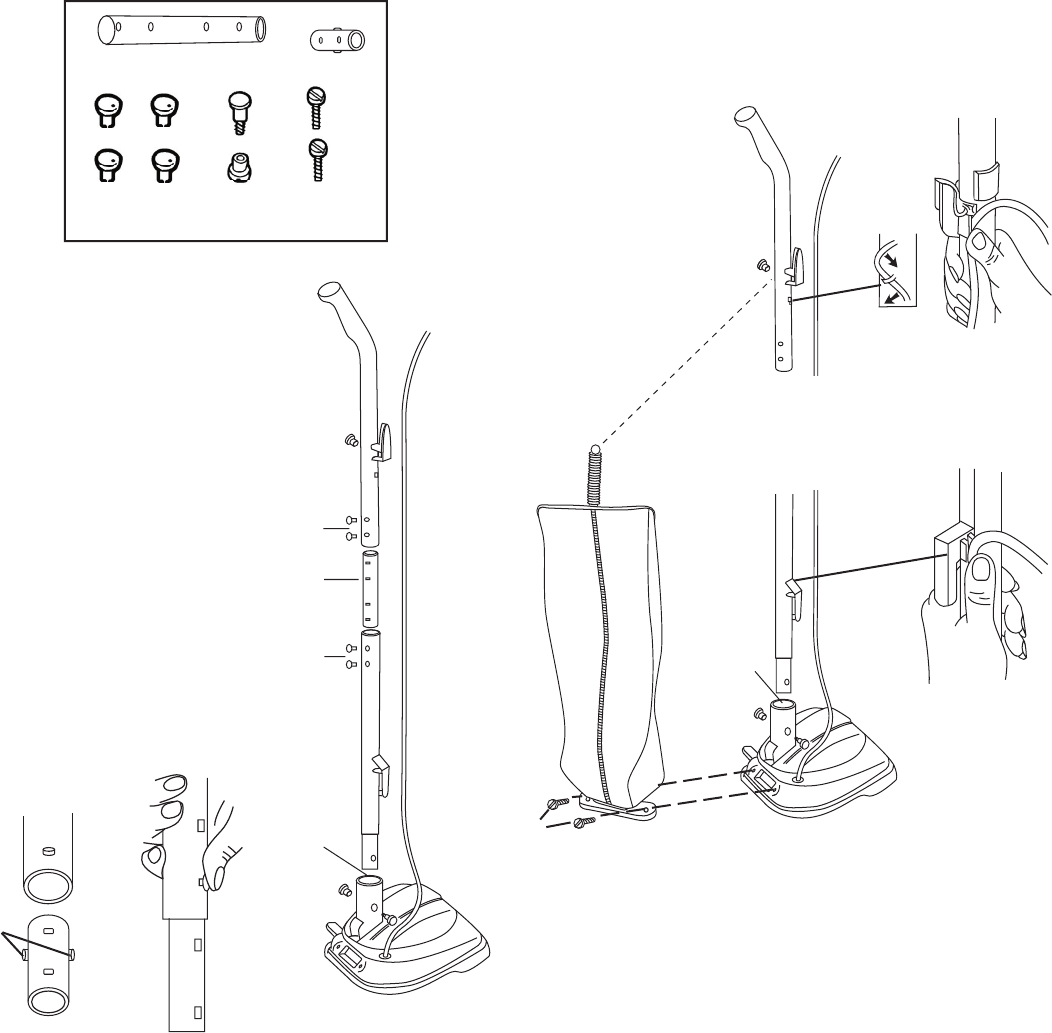

HOW TO ASSEMBLE
CAUTION: Completely assemble vacuum cleaner before
using.
Handle styles may vary. One handle has four snap pins on
the back side of the handle, the other handle has two snap
pins on each side. The cord hooks may be different.
Step 3
Handle Socket
Push handle into handle socket E so handle grip curves
away from the cleaner. Align the holes, insert the 2-part bolt
C and tighten.
Step 2
Fastener
Push fastener B into a hole and
apply thumb pressure so fastener
snaps into position. Secure second
fastener. Repeat steps 1 and 2
to complete the assembly of the
handle. See Detail B.
Step 1
Handle Connector
Push connector A into the upper
handle and align holes. One
connector, shown, is fl at on one
side and the 4 pins snap into one
side. The connector in Detail A
has 2 snap pins on each side and
alignment tabs that slide into the
handle.
Detail A
Detail B
B
A
B
E
C –
Assembly Packet
Tab
D - BAG
SCREWS
C - 2-PART
BOLT
B -
FASTENER
A - CONNECTOR
Step 4
Outer Bag
Hold outer bag with zipper away from handle.
Important:
To provide a good gasket seal, the bag coupling must
seat fi rmly against the motor base and not overlap the
furniture guard.
Start the bag screws D by hand, then tighten
with a screwdriver.
Step 5
Bag Support
Loop the spring F onto the bag support G, located to the back of
the upper cord hook.
Step 6
Cord Storage
Secure the cord in the guide below the upper cord hook as
shown or secure the cord into the side of the upper cord
hook.
Secure cord into lower cord hook. Pull up on cord to tighten
but leave slack near the base so the cord does not strain when
the handle is lowered for use. Wrap the cord around the cord
hooks. Fasten the plug to the cord to prevent unwinding.
D
E
Upper Cord
Hook
Upper
Guide
Lower Cord
Hook
C–
F
G
G
G
G
G
4
How To Use
The upright vacuum cleaner is designed to be used on
multiple types of carpeting.
Do not attempt to use the
upright vacuum cleaner on bare fl oors,
as damage to the
fl oor covering may result. Above the fl oor cleaning tools are
available (optional).
Cleaner Height Setting
WARNING: Avoid injury. Keep loose clothing, hair, fi ngers,
and all other parts of body away from any
moving part (such as the revolving brush).
Turn off the switch and unplug the cleaner
before changing the cleaner height setting.
The front of the cleaner has an adjustment that raises or
lowers the cleaner base to match the type of carpet. With
the cleaner cord unplugged, set the adjustment to lowest
setting for maximum cleaning. If the cleaner is diffi cult to
push, move adjustment to next highest setting until cleaner
is comfortable to push. The brush roll must reach the carpet
for effective cleaning.
Make each adjustment with cleaner switch off and
cord disconnected from outlet.
For ease in moving the
adjustment knob, place handle in operating position and tilt
cleaner back to remove weight from front wheels.

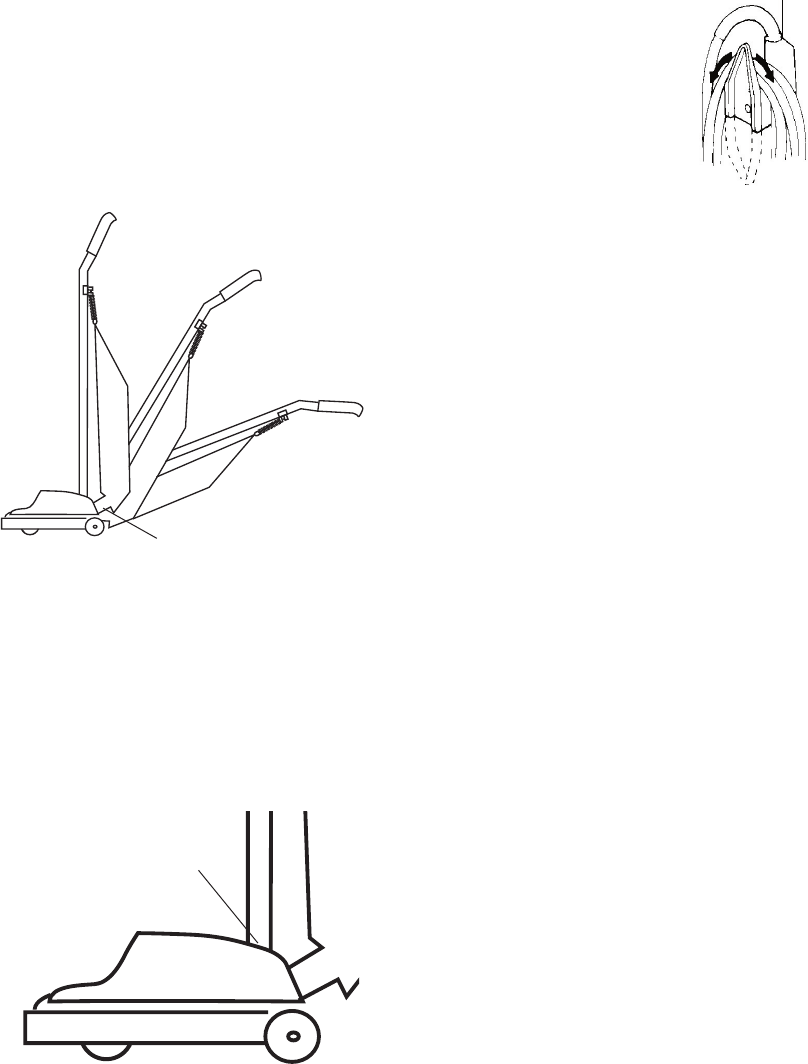

Handle Adjustment
With the tip of the foot, press down to release the handle lock
located at the left rear side of the cleaner. Move the handle
and adjust it to the desired position for (1) storing upright, (2)
operating the cleaner at a comfortable height for the user,
and (3) cleaning underneath low furniture.
Handle Lock
1. Store
2. Use
3. Clean
3. Clean
Underneath
ON/OFF
Power Switch
The power switch is mounted on the motor hood. A push
with the foot turns the motor ON; push again to turn the
motor OFF.
Cord Storage
The cleaner has two convenient cord storage hooks attached
to the handle. However, some models feature a quick release
cord hook on the upper handle. A downward twist of the cord
hook frees the cord for quick removal. With either style, wind
the cord around the hooks for storage. Fasten the plug to the
cord to prevent unwinding.
HOW TO MAINTAIN
The instructions given in this booklet serve as a guide to
routine maintenance. To avoid unnecessary service calls,
check the bag, belt and brush roll often.
Disposable Dust Bags
Paper bags play a very important role in the effi ciency of a
vacuum cleaner. The purpose of a paper bag is to trap dirt.
But at the same time the bag must be porous enough to allow
air to pass through. If the paper bag becomes clogged, no
air can pass through the cleaner and no cleaning can take
place, regardless of how powerful the unit is. Change the dust
bag frequently. Some fi ne particles can restrict airfl ow very
quickly and will decrease performance even before the bag
appears to be full. For that reason, when vacuuming carpet
fresheners or cleaners, powder, plaster dust, or similar fi ne
substances, the bag may need to be changed more often.
UP
THROAT
BOTTOM
UP
THROAT
BOTTOM
HAUT
GORGE
BAS
5

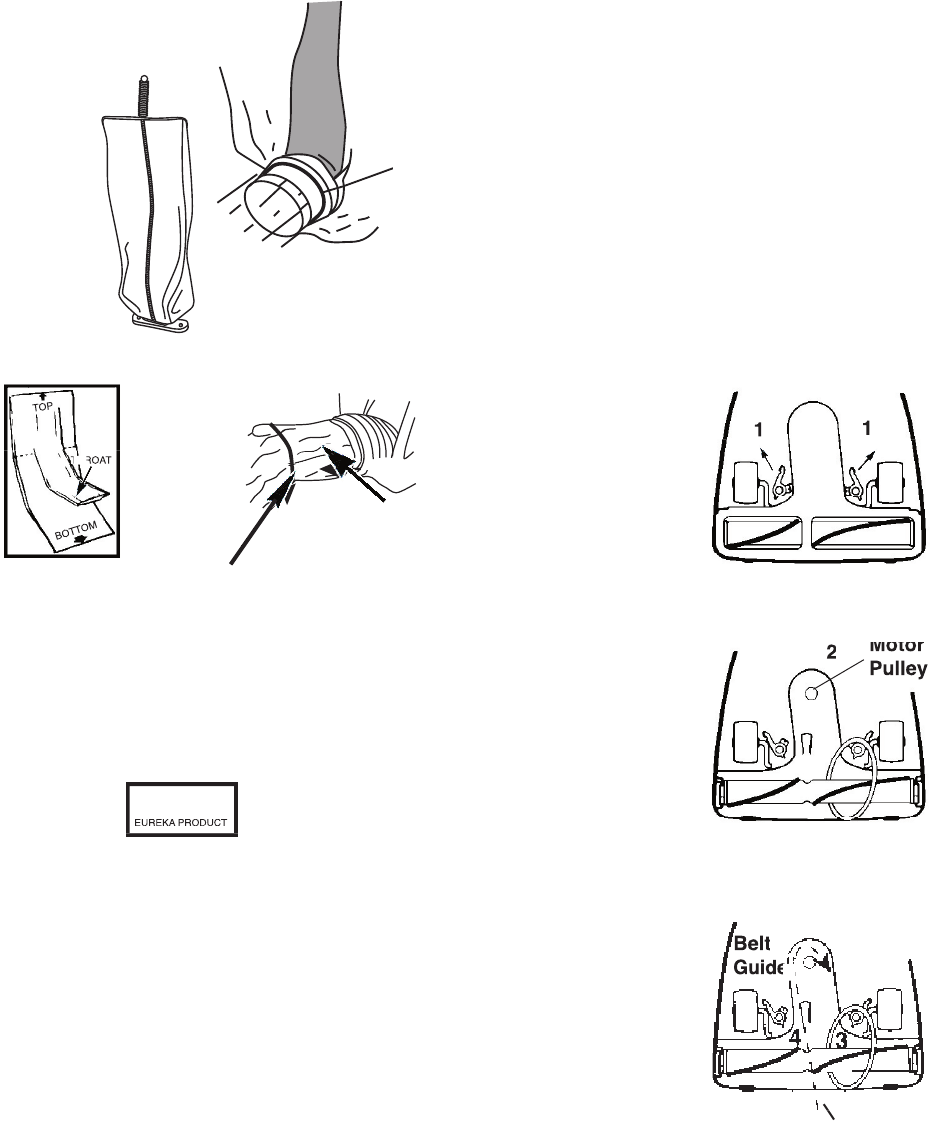

How To Change Disposable Dust Bag–Style F
& G, PN 54924A
CAUTION
: Turn off the switch and unplug the electrical
cord before changing dust bag. Never operate
the vacuum cleaner without the dust bag.
Cleaner Care
CAUTION
:
Turn off the switch and unplug the electrical
cord before cleaning unit.
To keep the vacuum cleaner looking new, it can be wiped with
a damp cloth and a mild soap solution, then thoroughly dried.
Never use any type of chemical as chemicals can damage
the cleaner. When not in use, the cleaner should be stored
in a clean, dry place.
Ask for GENUINE EUREKA dust bags – Style F & G.
Look for the symbol.
Look for the symbol.
GENUINE
Look for the symbol.
EUREKA PRODUCT
Look for the symbol.
6. Roll up coil spring.
7. Place paper bag into outer bag.
NOTE: Be certain there are no folds
at the top or bottom of the
paper bag.
8. Lift zipper
4. Unfold
new bag.
3. Pull bag
throat off
sleeve.
1. Pull
zipper
down
5. Place bag
throat on
sleeve.
TOP
BOTTOM
BOTTOM
THROAT
THROAT
THROAT
2. Roll down
coil spring.

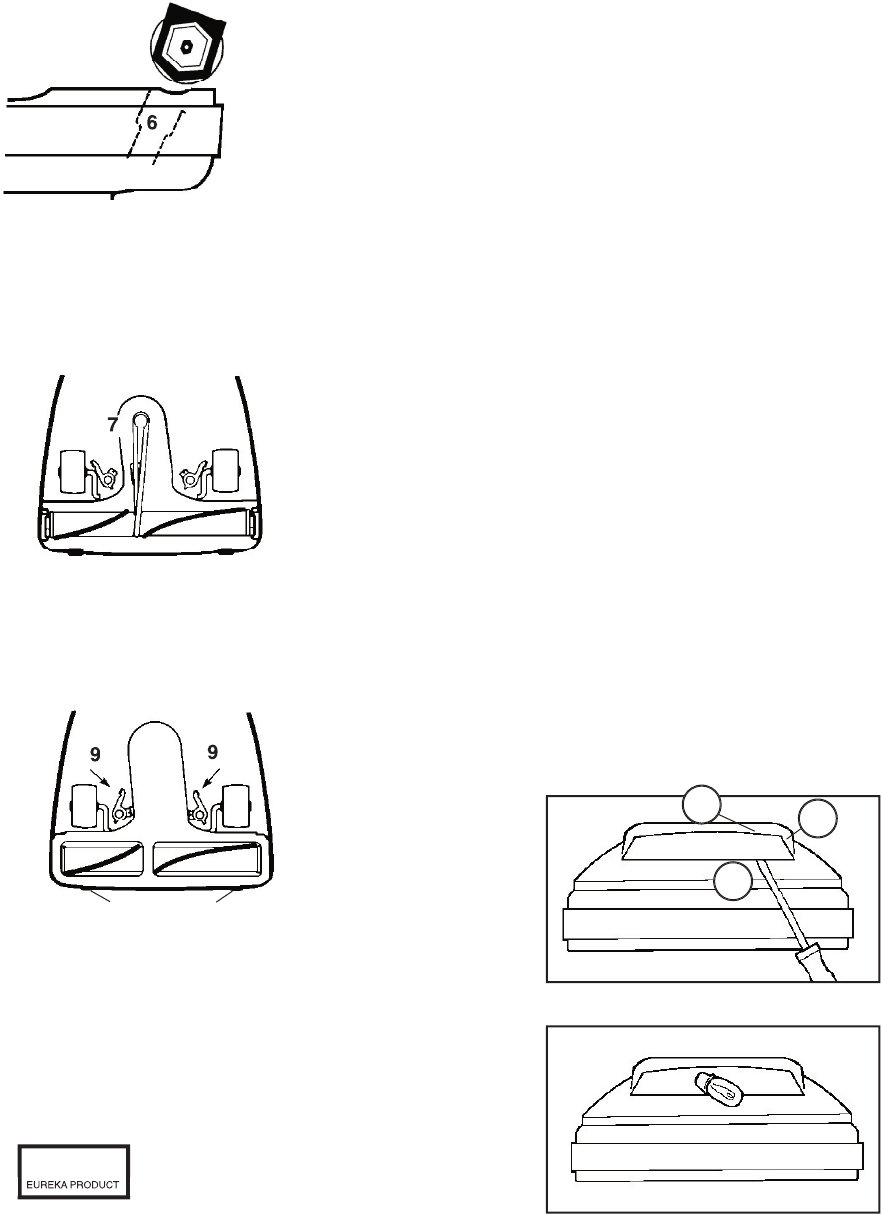

Brush Roll Belt
The brush roll belt on the upright vacuum cleaner drives the
brush to agitate, sweep, and comb the carpet nap. The belt
should be checked regularly to be sure it is in good condition.
Replace the belt if it is stretching, cracking, or slipping. Cut
away any hair or thread wound around the brush roll or the
belt pulley because the buildup could cause the belt to rotate
unevenly.
How To Replace A Worn Belt, Style RD,
PN 52100A
CAUTION
:
Turn off the switch and unplug the electrical
cord before replacing belt. Belt pulleys can
become hot during normal use. To prevent
injury, avoid touching the belt pulley when
servicing the drive belt.
IMPORTANT: Improper installation of the brush roll
or brush roll belt could cause carpet or
cleaner damage.
1
1
1. Release cam locks.
Belt
Guide
Guide
Guide
Check for brush wear, see Brush Roll instructions.
3. Place new belt around brush roll.
4. Align brush roll pulley with belt
guide.
Brush Roll Pulley
Motor
Motor
Pulley
2
2. Pull up on belt to rotate it off the motor pulley. Lift
up on brush roll and remove worn belt.
6
Ask for GENUINE EUREKA replacement belts, Style RD
No. 52100A.
6
5
5. Place rubber end cap covers over both end caps (fl at
side against end cap). Align holes and secure. Then,
slant brush roll forward so end caps are in line with
slots in cleaner base.
6. Push brush roll into base.
9
9
9
8
8
8. Place slots of bottom plate over tabs of cleaner
base.
9. Seat and secure cam locks
7
7
7. Place lower side of belt into belt guide and pull to
stretch the belt around the left side of the motor
pulley. Rotate pulley to secure belt into groove.
How To Replace A Worn Belt
(c
ontinued)
Look for the symbol.
Look for the symbol.
GENUINE
Look for the symbol.
EUREKA PRODUCT
Look for the symbol.
Brush Roll
The rotating brush roll sweeps and combs the carpet nap.
Keep the brush roll free from hair and threads so it will con-
tinue brushing. When the bristles of the brush roll no longer
touch a straight edge held against the bottom plate, the
brush roll is ineffective because the bristles no longer touch
the carpet nap. To maintain the most effective cleaning, the
brush roll should be replaced.
Headlight Bulb
(Standard on most models),
PN 40009A
CAUTION
:
Turn off the switch and unplug the electrical
cord before replacing headlight bulb.
Headlight style varies by model. Locate the notches that
release the tabs at either (1) top, (2) side, or (3) bottom of
the lens, as illustrated. Place a screwdriver into one notch;
twist or pry the screwdriver to release the lens. Repeat for
the second notch on the opposite side.
Rotate the bulb socket forward. Push bulb in and turn to
remove. Secure new bulb into socket and rotate bulb socket
backward.
Replace the lens tabs into the top or the bottom of the hood
opening. Rotate lens to position and press down at notch
until the lens locks into position.
CAUTION
: Use 25 watt replacement bulb, only.
Ask for GENUINE EUREKA replacement bulb, 40009A.
1
2
3
W
hat This Warranty Covers
What This Warranty Covers
W
Your Sanitaire cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of two years.
The warranty is granted only to the original purchaser and members of his or her immediate household. The warranty is subject to the following
provisions.
W
hat This Warranty Does Not Cover
What This Warranty Does Not Cover
W
•
Parts of the cleaner that require replacement under normal use, such as disposable dust bags, fi lters, drive belts, light bulbs, and brush roll
bristles.
•
Damages or malfunctions caused by negligence, abuse, or use not in accordance with the Ownerʼs Guide.
•
Defects or damages caused by unauthorized service or the use of other than Genuine Eureka/Sanitaire parts.
W
hat Electrolux Home Care Products North America Will Do
What Electrolux Home Care Products North America Will Do
W
Electrolux Home Care Products North America will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty.
As a matter of warranty policy, Electrolux Home Care Products North America will not refund the consumerʼs purchase price.
E
xtended Warranty for Upright Cleaner
Extended Warranty for Upright Cleaner
E
The base of the Sanitaire Upright cleaner is warranted for fi ve years from the original date of purchase.
E
xtended Warranty for SYSTEM_PRO Uprights
Extended Warranty for SYSTEM_PRO Uprights
E
The suction motor for SYSTEM_PRO upright cleaners is warranted for fi ve years from the original date of purchase.
W
arranty Registration
Warranty Registration
W
Please fi ll out and return the warranty registration card accompanying your cleaner.
O
btaining Warranty Service
To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Sanitaire Authorized Warranty
Station. You will fi nd the nearest location in the Yellow Pages, under “Vacuum Cleaners–Service and Repair.” Be certain that the Warranty Station
is “Sanitaire Au tho rized.” For the location of the nearest Sanitaire Authorized Warranty Station or for service information, telephone toll free:
USA: 1-800-800-8975
Mexico: (55) 5343-4384
Canada: 1-800-800-8975
If you prefer, you can write to Electrolux Home Care Products North America, Service Division, P.O. Box 3900, Peoria, Illinois 61612, USA. In
Canada write to Electrolux Home Care Products North America, 866 Langs Drive, Cambridge, Ontario N3H 2N7.
If it is necessary to ship the cleaner outside your community to obtain warranty repair, you must pay the shipping charges to the Sanitaire Au tho rized
Warranty Station. Re turn shipping charges will be paid by the Warranty Station. When returning parts for repair, please in clude the model, type,
and serial numbers from the data plate on the cleaner.
F
urther Limitations and Exclusions
Any warranty that may be implied in connection with your purchase or use of the cleaner, including any warranty of Merchantability or any
warranty for Fitness For A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitations may not apply to you.
Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall Electrolux be liable for any consequential
or incidental damages you may incur in connection with your purchase or use of the cleaner. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specifi c legal rights. You may also have other rights which vary by state.
Q
uestions & Answers about Genuine Eureka/Sanitaire Products
Q:
Why should I use only Genuine Eureka/Sanitaire paper bags, belts, and parts in my Eureka/Sanitaire vacuum cleaner?
A: Using Genuine Sanitaire Products, which are made to our exacting specifi cations and engineered with emphasis on quality,
performance, and customer sat is fac tion, ensures the long life and cleaning effi ciency of your vacuum clean er. Overall, this
saves you money and helps to keep your home clean.
Q:
How can I be sure I am using only Genuine Eureka/Sanitaire products in my vacuum cleaner?
A: Typically, packaged products and paper bags can be identifi ed by a Eureka or Sanitaire logo. For further iden ti fi ca tion
assistance, you may call our toll-free number, 1-800-800-8975, for the lo ca tion of a nearby Eureka/Sanitaire Authorized
Warranty Station.
Q:
Are there any differences between “made to fi t” or “imitation” and Genuine Eureka/Sanitaire paper bags, belts, and parts?
A: Yes, there are some very important differences in materials, quality, and reliability. Many customers have mistakenly
purchased “imitation” paper bags and parts while thinking they purchased genuine. Unfortunately, many of these cus tom ers
discovered the differences after they experienced related dif fi cul ties.
For Genuine Sanitaire Value, Accept No Imitations!
ELECTROLUX HOME CARE PRODUCTS NORTH AMERICA
Bloomington, Illinois 61701
THE SANITAIRE LIMITED WARRANTY
GEN U INE
EUREKA PRODUCT
Household Warranty
www.sanitairevac.com

Navigation menu
