OWNER'S MANUAL If SAN SU
19" WIDE TFT LCD TELEVISION
WITH DIGITAL TUNER
DLC 19
uDIGITAL
coco
coco
o o o o
o ,o o o
D_
iiiiiiiiii[i[!i!i!!!i!__i_i_!___i_i_______i___ii__________i_i_i_i_i_i_i_i_i_i_iiiiii___________i_i____ii_____i_i_i!i!i!!!iiiiiiiiiiiiii]
I ATTENTION 1
if you purchase a universal remote control from your local retailer, please contact the remote
manufacturer for the required programming code.
__m Air/Cable MODE SELECTION 7
When shipped from the factory, the Tuning Band menu option is set to the "Cable" (Cable Television) |
:d::/f n:i:Usi:gCabl:TV, se his menu option to the "Air" positionL____ - ................................................................................J
IF CONTACTWITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVETHE MODEL NUMBER READY PRIOR TO THE CALL
CUSTOMER SERVICE - 1-800-289-0980
ORLON WEBSITE
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
Before operating the unit, please read this manual thoroughly.

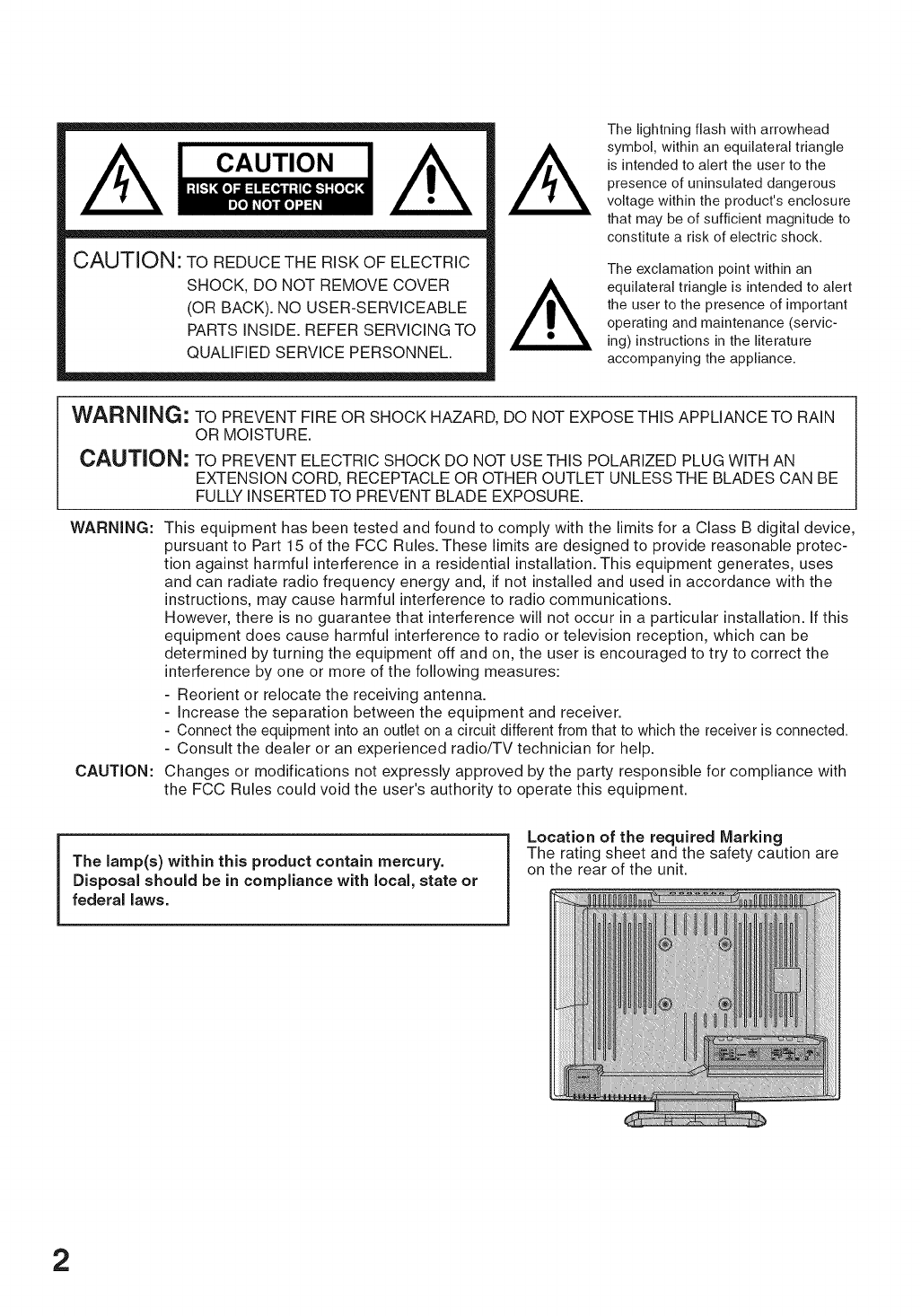

A cAo,,o./k
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
AThe lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servic-
ing) instructions in the literature
accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING:
CAUTION:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance with
the FCC Rules could void the user's authority to operate this equipment.
The lamp(s) within this product contain mercury.
Disposal should be in compliance with local, state or
federal laws.
Location of the required Marking
The rating sheet and the safety caution are
on the rear of the unit.
2
I PORTANT SAFETY I STRUCTI
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a clean dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician to replace the obsolete receptacle.
10) Protect the power cord from being walked on or pinched particularly at plug, and the point where it exits
from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the PORTABLECARTWARNING
manufacturer, or sold with the apparatus. When a cart is used, use caution (symbolprovidedby RETAC)
when moving the cart/apparatus combination to avoid injury from tip-over. _'-t'_
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or S3126A
plug damage, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such a vases,
should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as
contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
3
! PORTANT SAFETY INSTRUCTIONS
19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the
National Electrical Code, ANSl/NFPA 70, provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
GROUND _._.. j
CLAMR
NEC-NATIONAL ELECTRICAL CODE
S2898A
ANTENNA LEAD
IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
20) When replacement parts are required, be sure the service technician uses replacement parts specified by
the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21 Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.
23) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume
sound may cause hearing or speaker damage.
24) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker
overheating and fire.
25) This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be con-
nected to the grounding system of the building, as close to the point of cable entry as practical.
4
! PORTANT SAFETY INSTRUCTIONS
CONDENSATION
Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if
the temperature of the room rises suddenly. When this happens, player's performance will be impaired. To prevent this, let the
player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises
gradually.
Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner, in such cases,
change the location of the player.
HOW TO HANDLE THE LCD PANEL
. Do not press hard or jolt the LCD panel, it may cause the LCD panel glass to break and injury may occur.
. if the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin
inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or
touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
Possible Adverse Effects on LCD Panel: if a fixed (non-moving) pattern remains on the LCD Panel for long periods of time,
the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of
damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is
displaying the following formats or images:
.Fixed images, such as stock tickers, video game patterns, TV station Iogos, and websites.
. Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3)
display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black
bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility
for these symptoms.
.LCD Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the
screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
.Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some equipment
placed too near this unit may cause interference.
.Effect on infrared devices - There may be interference while using infrared devices such as infrared cordless headphones.
SAFETY P ECAUTI
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating.
Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm
(4 inches) free space around the entire unit.
Notes when mounting the LCD TV on awall
A
_lOcm_
.When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the LCD TV and the wall.
Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the interior of the unit to overheat,
resulting in damage to the unit.
. if the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV for advice, and have the
equipment professionally installed, incomplete or improper installation may cause injury to you, and/or damage to the LCD
TV.
.Bracket holes: To attach a wall mounting bracket (not supplied) remove the screws and attached where indicated in the
drawing below.
5

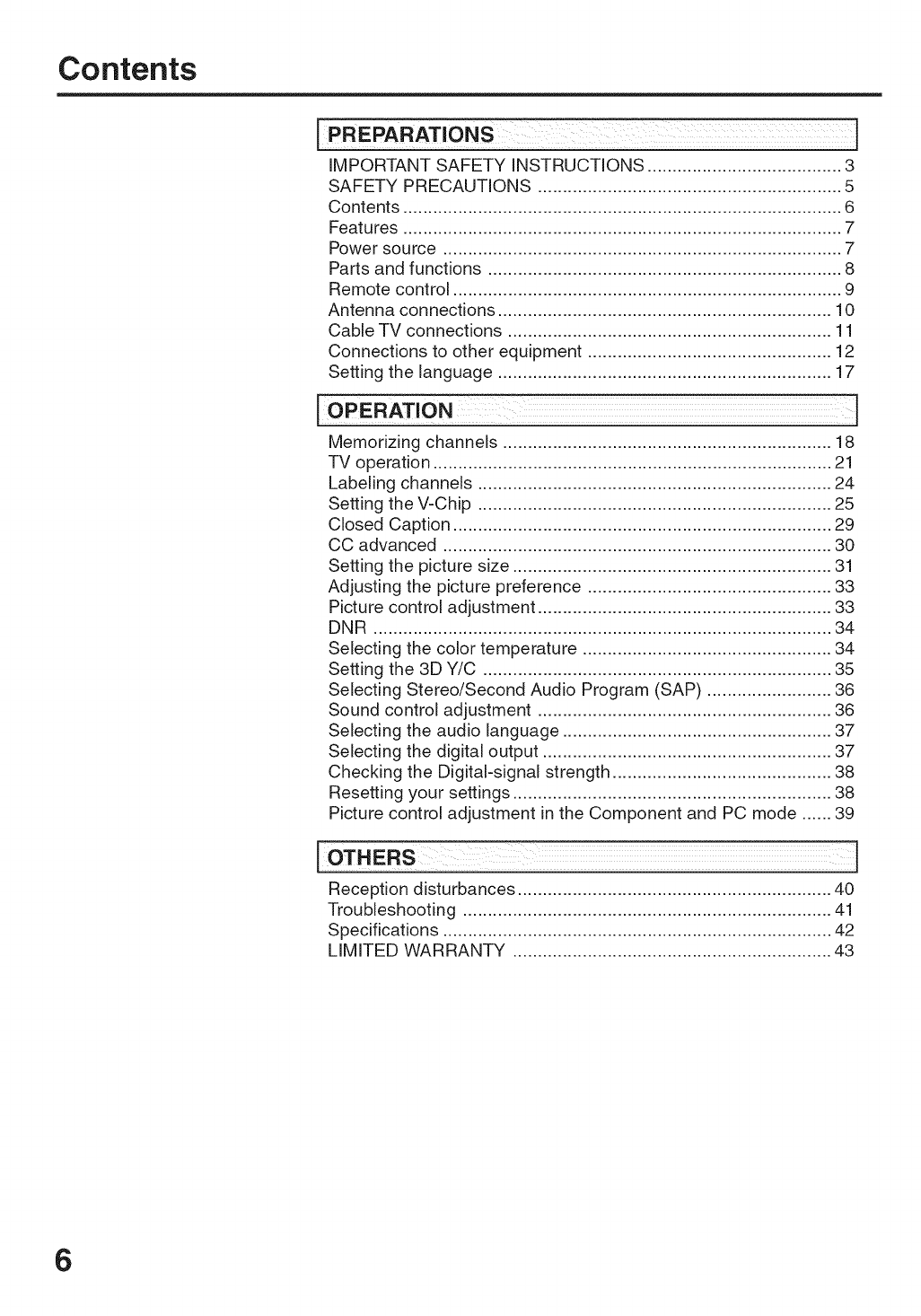

Contents
iPREPARATIONS j
IMPORTANT SAFETY INSTRUCTIONS ....................................... 3
SAFETY PRECAUTIONS ............................................................. 5
Contents ........................................................................................ 6

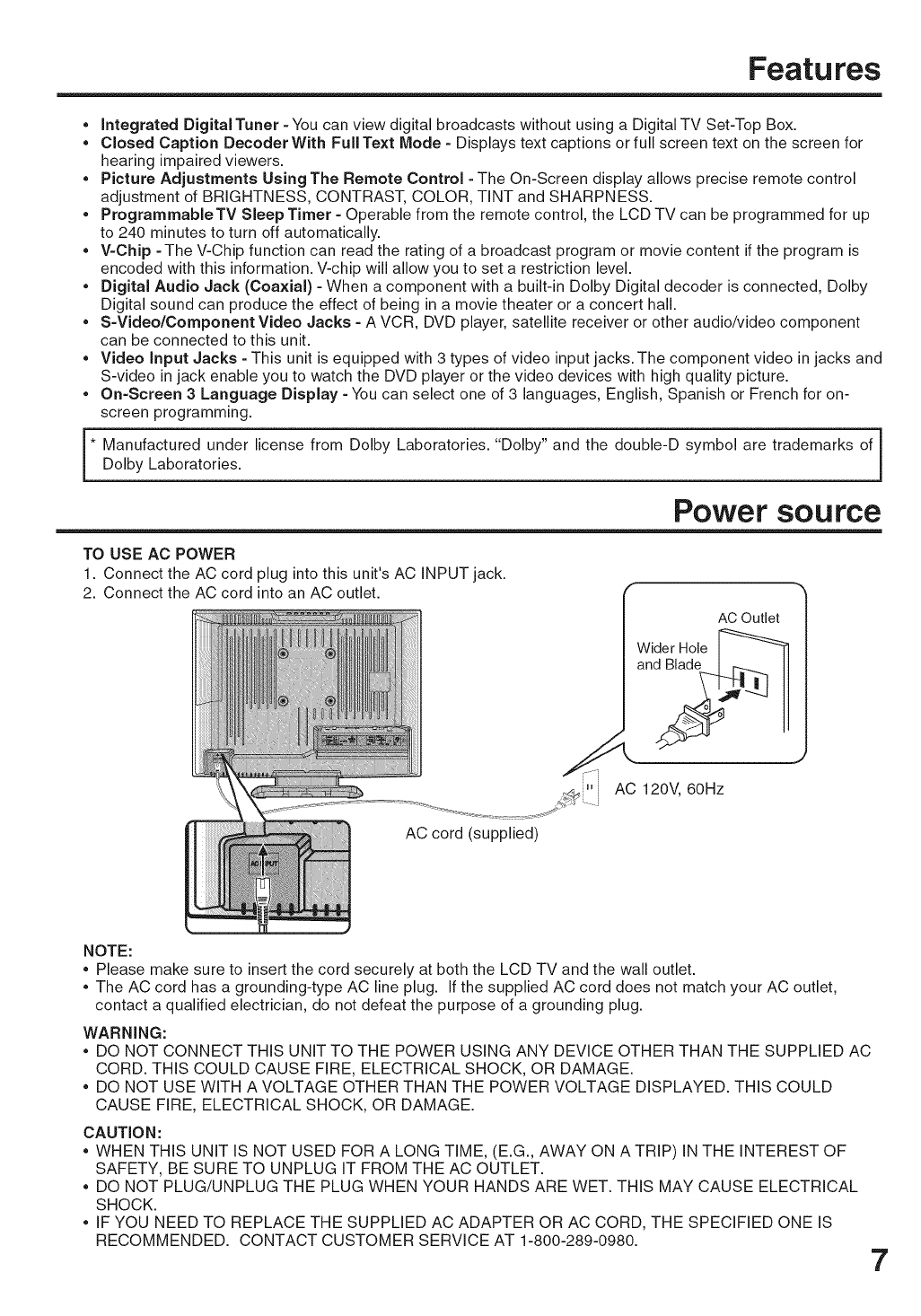

Features ........................................................................................ 7
Power source ................................................................................ 7
Parts and functions ....................................................................... 8

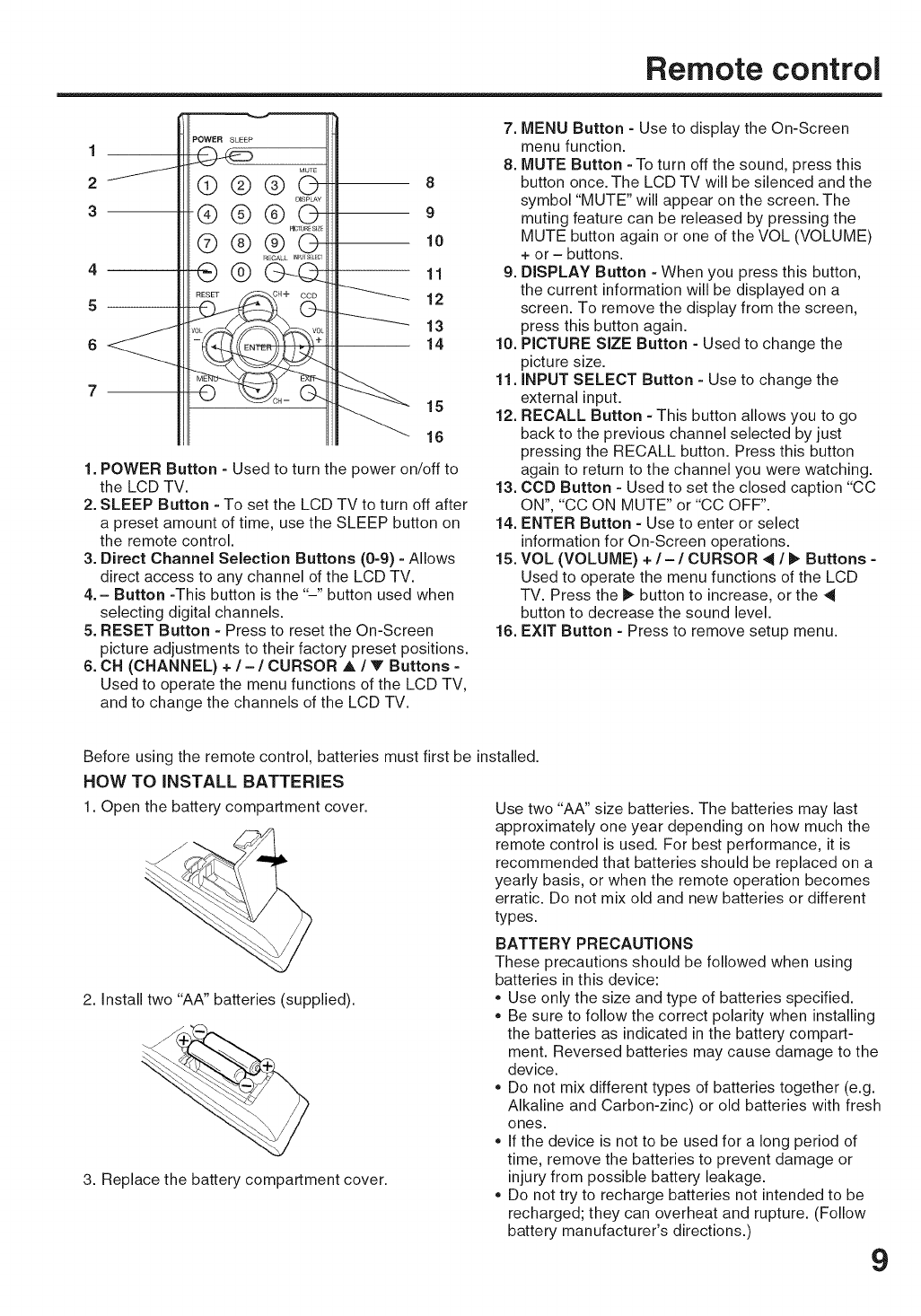

Remote control .............................................................................. 9
Antenna connections ................................................................... 10
Cable TV connections ................................................................. 11

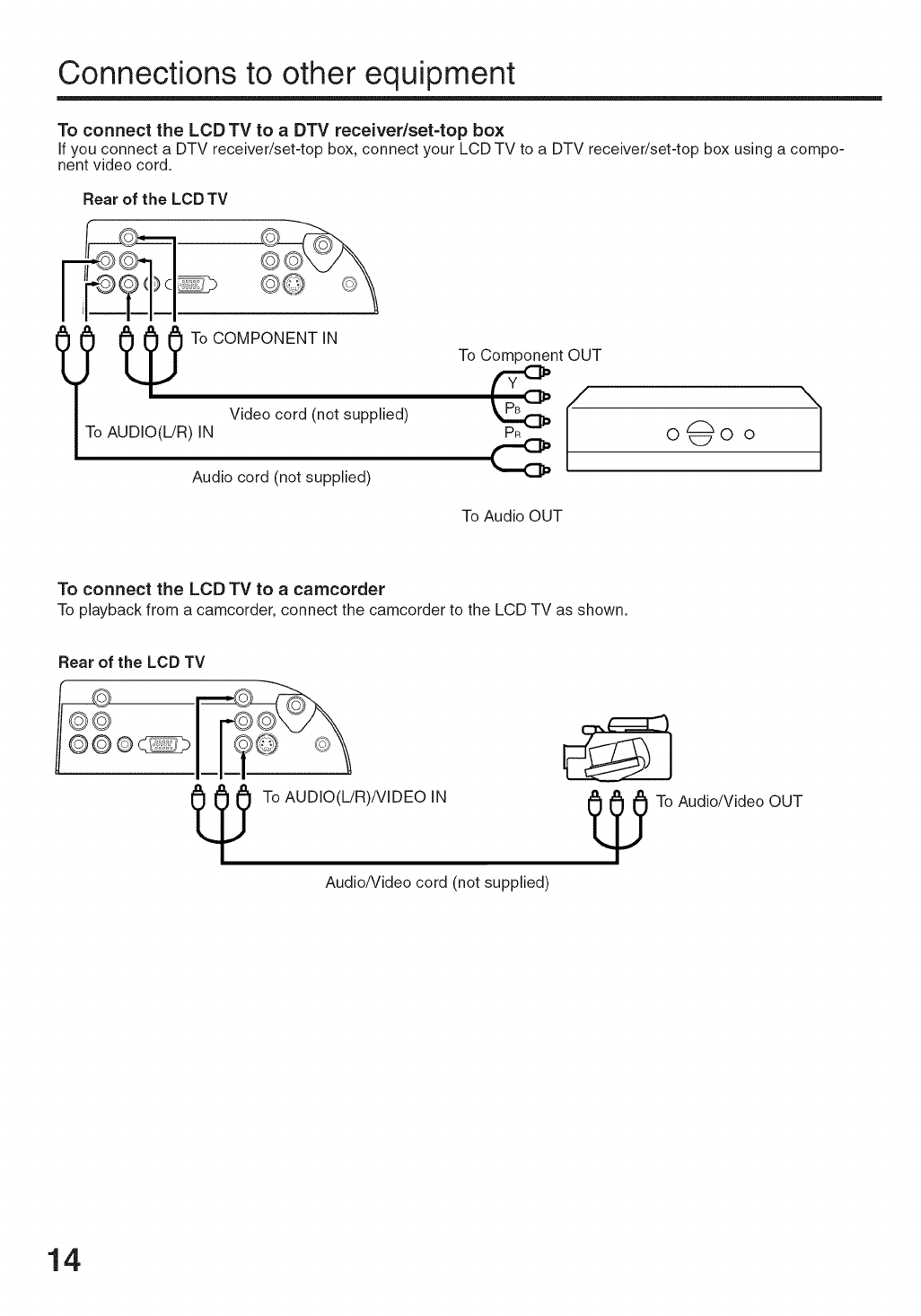

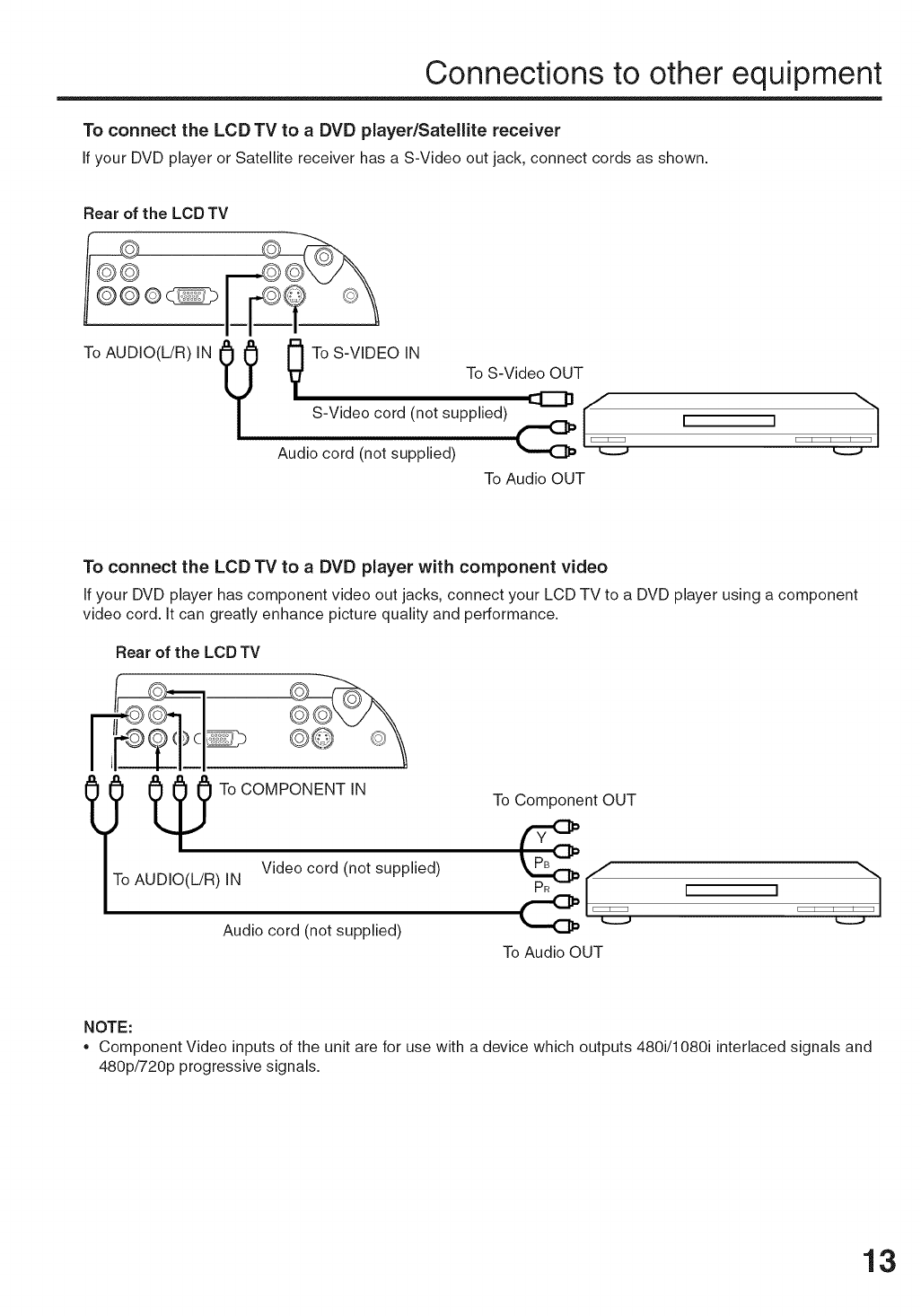

Connections to other equipment ................................................. 12

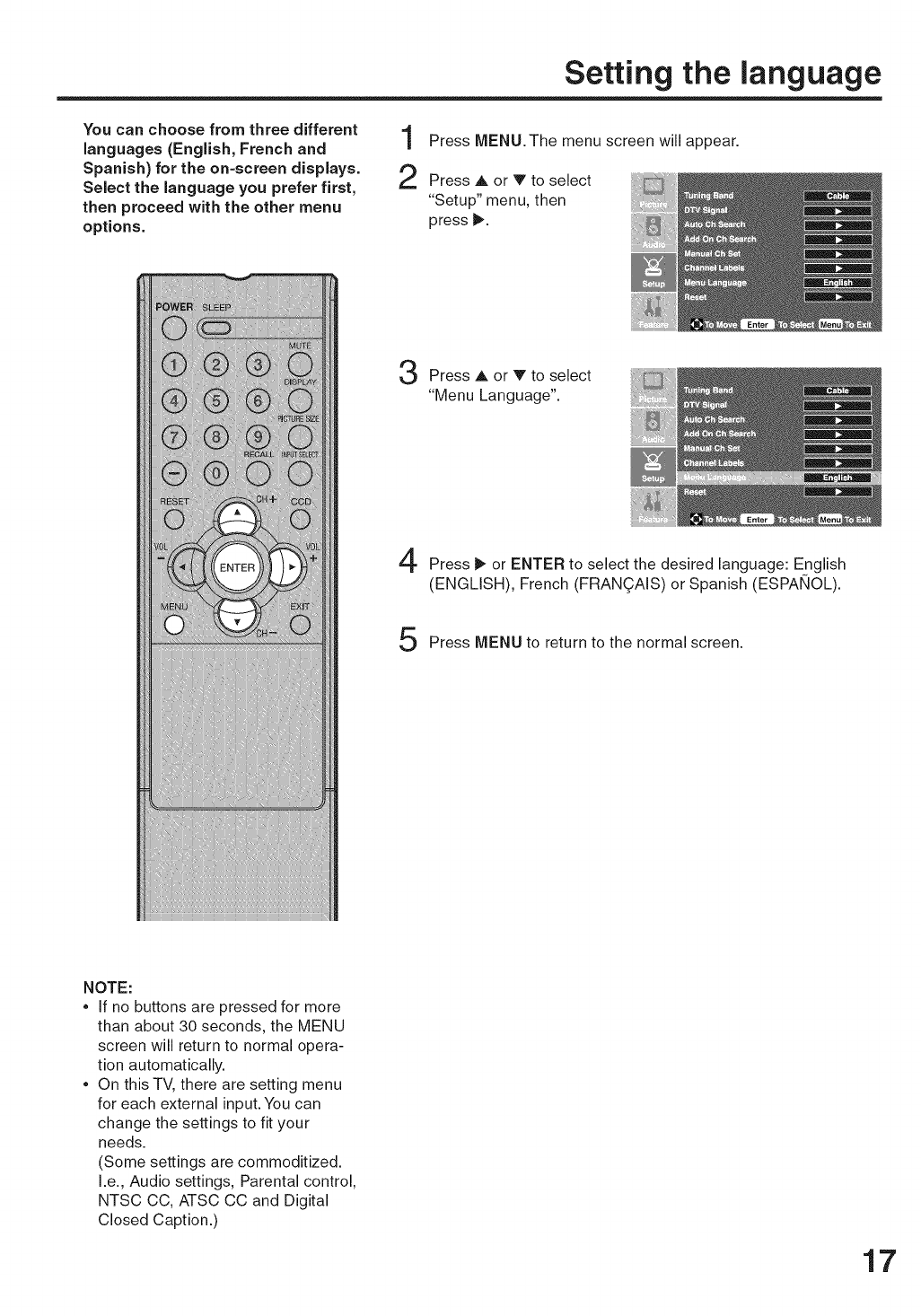

Setting the language ................................................................... 17
[OPERATION_
Memorizing channels .................................................................. 18

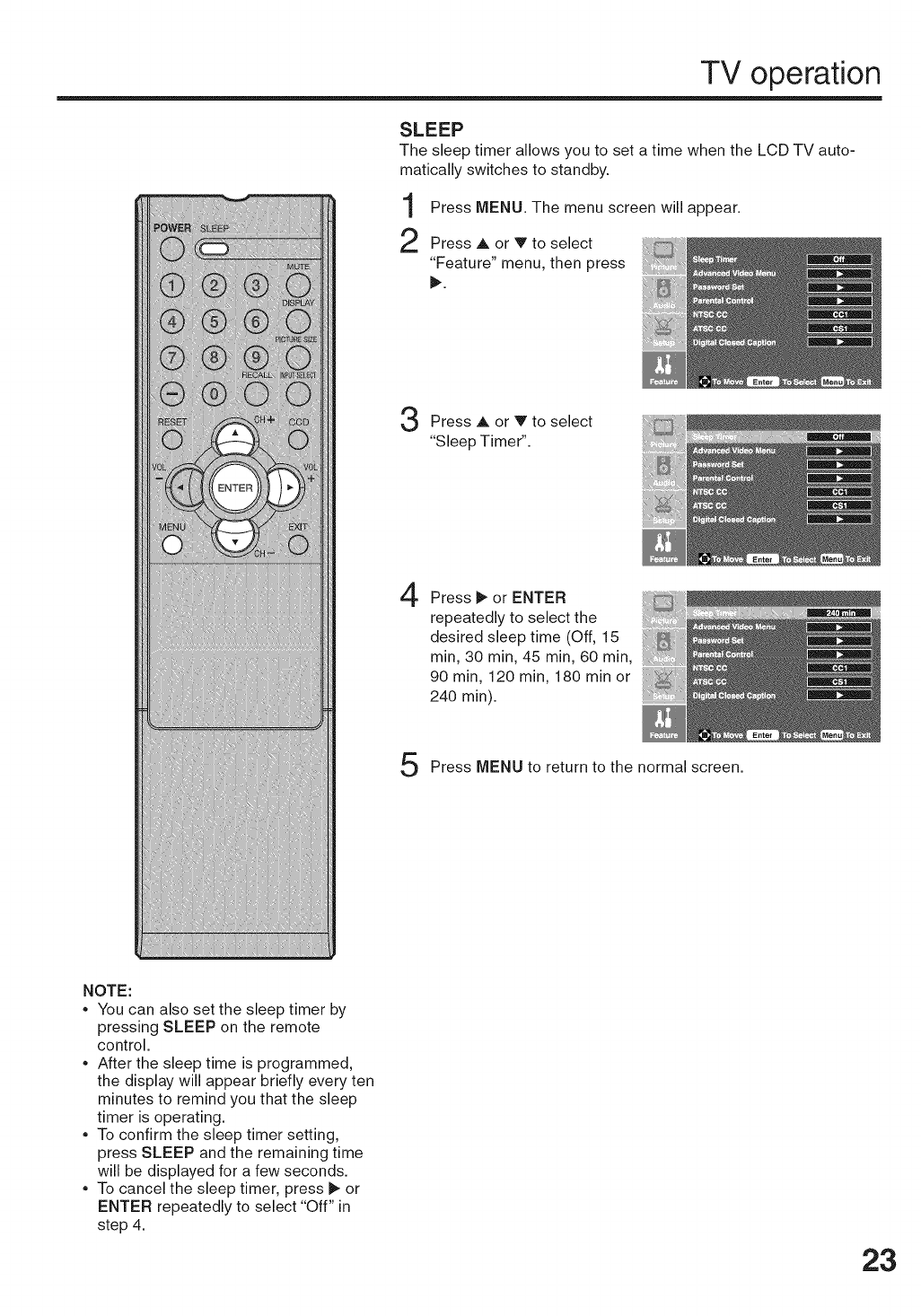

TV operation ................................................................................ 21
Labeling channels ....................................................................... 24

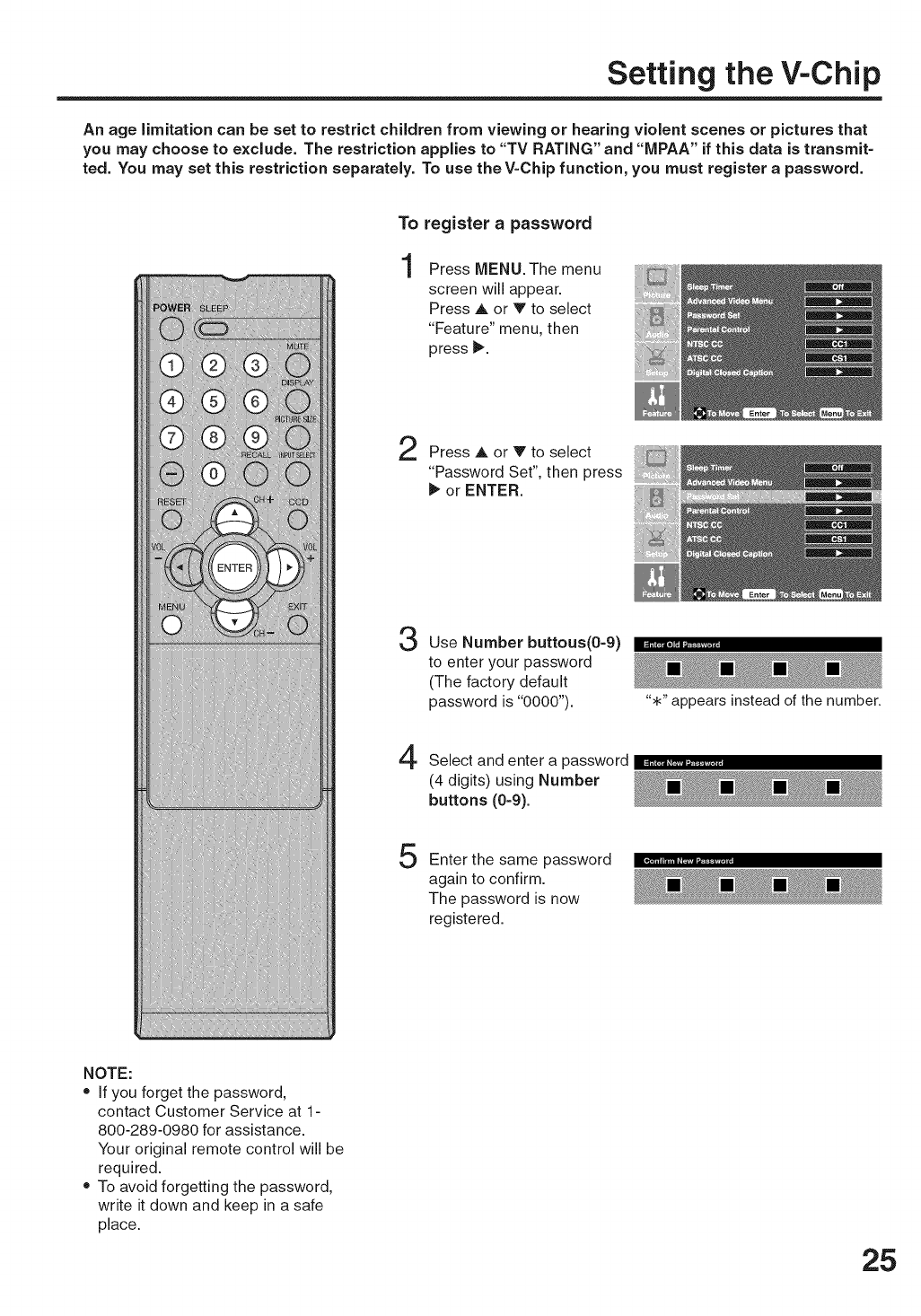

Setting the V-Chip ....................................................................... 25
Closed Caption ............................................................................ 29
CC advanced .............................................................................. 30

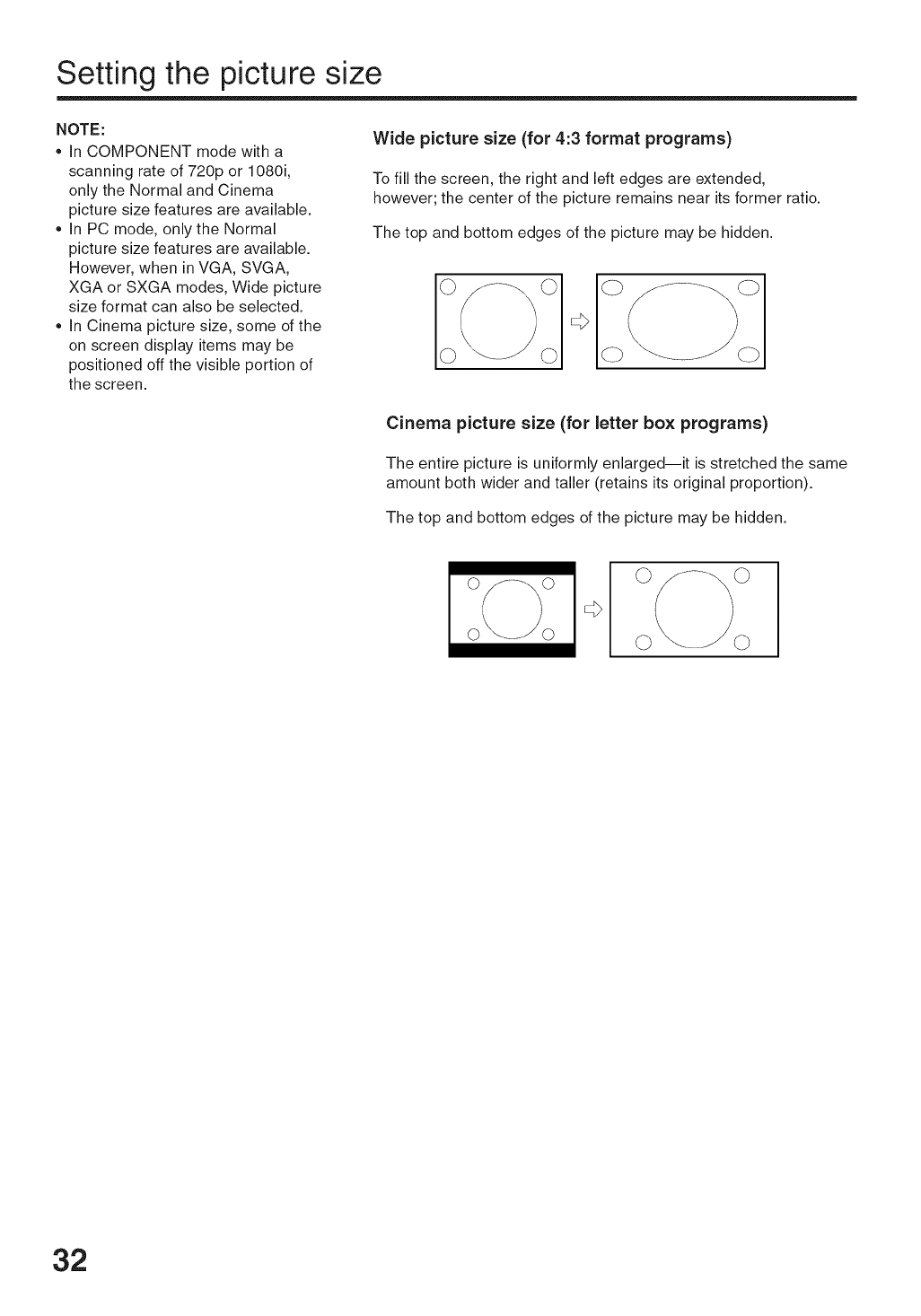

Setting the picture size ................................................................ 31
Adjusting the picture preference ................................................. 33
Picture control adjustment ........................................................... 33

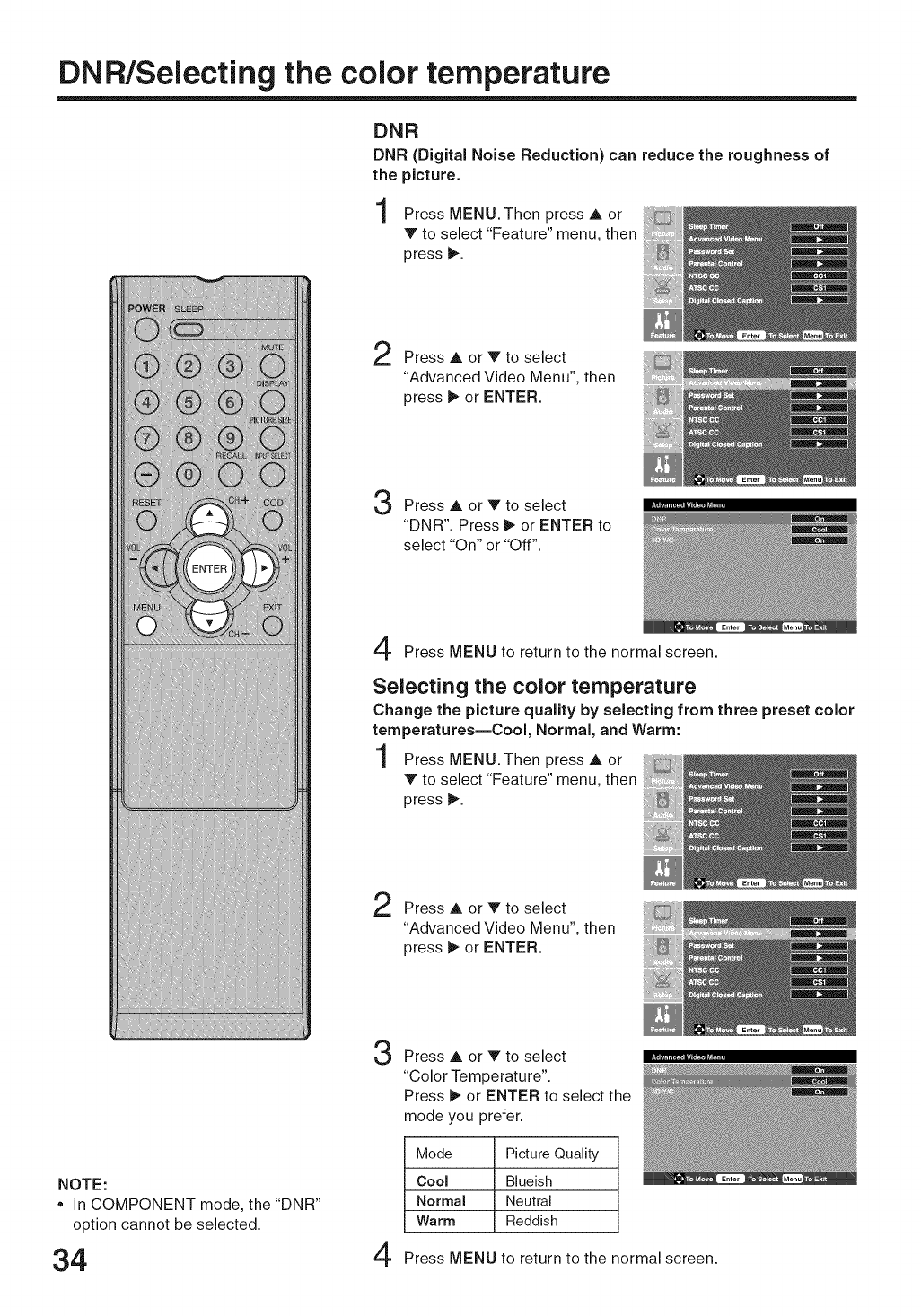

DNR ............................................................................................ 34
Selecting the color temperature .................................................. 34
Setting the 3D Y/C ...................................................................... 35

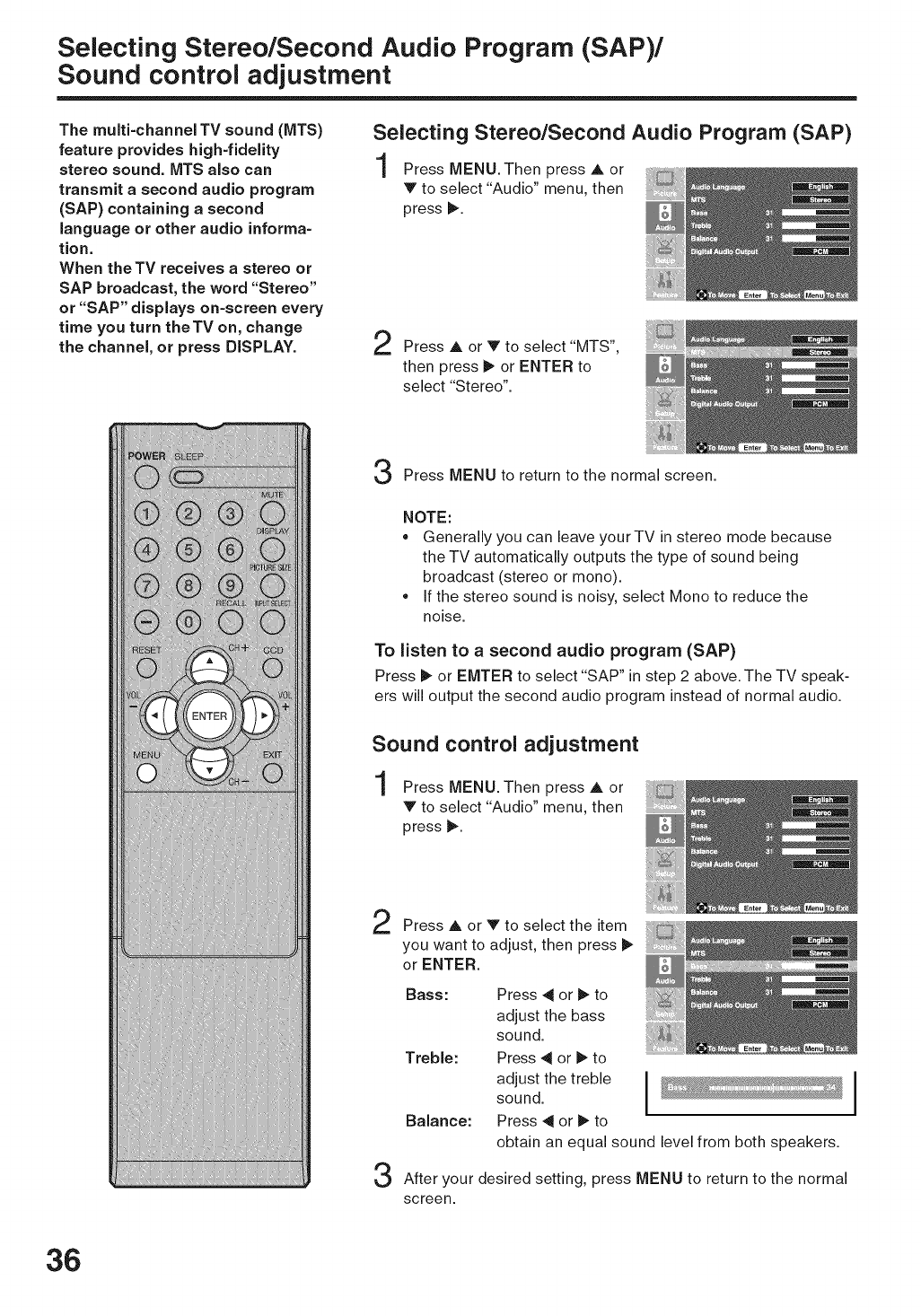

Selecting Stereo/Second Audio Program (SAP) ......................... 36
Sound control adjustment ........................................................... 36
Selecting the audio language ...................................................... 37
Selecting the digital output .......................................................... 37
Checking the Digital-signal strength ............................................ 38
Resetting your settings ................................................................ 38
Picture control adjustment in the Component and PC mode ...... 39
Reception disturbances ............................................................... 40
Troubleshooting .......................................................................... 41
Specifications .............................................................................. 42
LIMITED WARRANTY ................................................................ 43
6
Features
•Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
•Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
hearing impaired viewers.
•Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control
adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
•ProgrammableTV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up
to 240 minutes to turn off automatically.
•V-Chip -The V-Chip function can read the rating of a broadcast program or movie content if the program is
encoded with this information. V-chip will allow you to set a restriction level.
•Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby
Digital sound can produce the effect of being in a movie theater or a concert hall.
•S-Video/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component
can be connected to this unit.
•Video Input Jacks - This unit is equipped with 3 types of video input jacks. The component video in jacks and
S-video in jack enable you to watch the DVD player or the video devices with high quality picture.
•On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-
screen programming.
* Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of
Dolby Laboratories.
Power source
TO USE AC POWER
1. Connect the AC cord plug into this unit's AC INPUT jack.
2. Connect the AC cord into an AC outlet. f
AC Outlet
Wider Hole
_ J
AC 120V, 60Hz
AC cord (supplied)
NOTE:
• Please make sure to insert the cord securely at both the LCD TV and the wall outlet.
• The AC cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet,
contact a qualified electrician, do not defeat the purpose of a grounding plug.
WARNING:
• DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD
CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
• DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.
• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980. 7
functions
Top
VOLUME
+/- buttons
MENU POWER
button button
CHANNEL INPUT
A/T buttons button
-- POWER indicator
Remote sensor
Rear side
AC INPUT jack
COMPONENT IN jacks PC IN jacks
PC AUDIO IN jack AUDIO (L/R) IN
jacks
HEADPHONE jack
RF (ANT) IN jack
S-VIDEO IN jack
To display the menu screen.
Press MENU button to display the menu screen.
CHANNEL A!V buttons and VOLUME +/- buttons can be used to select the desired setting during the menu
screen operations.
8
Remote control
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
1. POWER Button = Used to turn the power on/off to
the LCD TV.
2. SLEEP Button =To set the LCD TV to turn off after
a preset amount of time, use the SLEEP button on
the remote control.
3. Direct Channel Selection Buttons (0-9) =Allows
direct access to any channel of the LCD TV.
4.- Button =This button is the "-" button used when
selecting digital channels.
5. RESET Button - Press to reset the On-Screen
picture adjustments to their factory preset positions.
6. CH (CHANNEL) + /-/CURSOR A /V Buttons =
Used to operate the menu functions of the LCD TV,
and to change the channels of the LCD TV.
7. MENU Button = Use to display the On-Screen
menu function.
8. MUTE Button =To turn off the sound, press this
button once. The LCD TV will be silenced and the
symbol "MUTE" will appear on the screen. The
muting feature can be released by pressing the
MUTE button again or one of the VOL (VOLUME)
+ or - buttons.
9. DISPLAY Button - When you press this button,
the current information will be displayed on a
screen. To remove the display from the screen,
press this button again.
10. PICTURE SIZE Button =Used to change the
picture size.
11. INPUT SELECT Button = Use to change the
external input.
12. RECALL Button - This button allows you to go
back to the previous channel selected by just
pressing the RECALL button. Press this button
again to return to the channel you were watching.
13. CCD Button = Used to set the closed caption "CC
ON", "CC ON MUTE" or "CC OFF".
14. ENTER Button - Use to enter or select
information for On-Screen operations.
15. VOL (VOLUME) + /-/CURSOR 4 /_ Buttons =
Used to operate the menu functions of the LCD
TV. Press the _ button to increase, or the 4
button to decrease the sound level.
16. EXIT Button = Press to remove setup menu.
Before using the remote control, batteries mustfirst be installed.
HOW TO iNSTALL BATTERIES
1. Open the battery compartment cover.
2. install two "AA" batteries (supplied).
3. Replace the battery compartment cover.
Use two "AA" size batteries. The batteries may last
approximately one year depending on how much the
remote control is used. For best performance, it is
recommended that batteries should be replaced on a
yearly basis, or when the remote operation becomes
erratic. Do not mix old and new batteries or different
types.
BATTERY PRECAUTIONS
These precautions should be followed when using
batteries in this device:
• Use only the size and type of batteries specified.
• Be sure to follow the correct polarity when installing
the batteries as indicated in the battery compart-
ment. Reversed batteries may cause damage to the
device.
• Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh
ones.
• if the device is not to be used for a long period of
time, remove the batteries to prevent damage or
injury from possible battery leakage.
Do not try to recharge batteries not intended to be
recharged; they can overheat and rupture. (Follow
battery manufacturer's directions.) 9
Antenna connections
Ifyou are using an indoor or outdoor antenna, followthe instructions belowthat correspond to your antenna
system, if you are using aCable TV service, see page 11 for Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
_"_ Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
Antenna Antenna
Ji k Ji k If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
| Coaxial _ 300-75 ohm _:" 1_;_____
| Cable _ Matching
I Transformer
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin=lead wires)
_ _ Connect the UHF 300 ohm twin-lead wire to the
Combiner (not supplied). Connect the VHF 300
Antenna
Jack r._ ohm twin-lead wire to the 300-75 ohm Matching
Transformer. Attach the Transformer to the Com-
biner, then attach the Combiner to the Antenna
Jack.
Combiner_
| UHF 300 ohm @ I_
/ , ,_VHF 300 ohm
300-75 ohm Matching Transformer
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin=lead wires)
'_ _" Connect the VHF 75 ohm cable and UHF 300 ohm
Antenna @ twin-lead wire to the Combiner (not supplied).
Jack _ Attach the Combiner to the Antenna Jack.
Combiner_
| o 3oo
10
Cable TV connections
This TV has an extended tuning range and can tune most cable channels without using aCable TV
Converter box. Some cable companies offer "premium pay channels" where the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device which is
generally provided by the Cable TV company.
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
_ A'j'a_crkna "
/750h.
Coaxial Cable
For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly to
the Antenna Jack on the back of the TV.
FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the
incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable,
connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the
connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel
3 or 4) and use the Converter/Descrambler box to select channels.
Incoming
75 ohm Antenna
Cable TV Jack
Cable _.j Converter/ [ 75 ohm Cable to TV
Descrambler _ "_"-1 _Y.d22J
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH
SCRAMBLED PREMIUM CHANNELS
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the
use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from
the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the
"B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the "A" position, tune
you r TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler
box to tune scrambled channels.
I ncoming _ Converter/ L "]
75 ohm _ Descrambler F_ Antenna |
Cable TV _ _ IJack I
Cable _. . _ 75 oh.._mCable to TV _ I
11
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to the LCD TV is
dependent on the model and features of each component. Check the Owner's Manual provided with each
component for the location of video and audio inputs and outputs.
The connection diagrams below are offered as suggestions. You may need to modify them to accommodate
your particular assortment of components. The diagrams are intended to show component video and audio
interconnections only.
To connect the LCD TV to a VCR
Rear of the LCD TV
To AUDIO(L/R)/VIDEO IN
Audio/Video cord (not supplied)
To Audio/Video OUT
To connect the LCD TV to a VCR with an S=Video cord
If you connect aVCR with a S-VIDEO cord to the S-VIDEO IN jack on the rear of the LCD TV, you must also
connect the audio cords to the AUDIO(L!R) IN jacks on the rear of the LCD TV. The S-VIDEO cord only carries
the video signal. The audio signal is separate.
Rear of the LCDTV
_______@
@@
@@o@
To AUDIO(L!R)IN ?
(_To To S-Video OUT
S-VIDEO IN
/X
S-Video cord (not supplied) _ [I I ]
f-c> I |
Audio cord (not supplied) _ ,=%==,, , ,
To Audio OUT
NOTE:
• When the S-video cord and the video cord are connected to each jack at the same time, the S-video cord
takes precedence over the video cord.
12
Connections to other equipment
To connect the LCD TV to a DVD player/Satellite receiver
Ifyour DVD playeror Satellite receiver has a S-Video out jack, connect cords as shown.
Rear of the LCDTV
__.@
@@
@@©
To AUDIO(L/R)IN ?
_To To S-Video OUT
S-VIDEO IN
S-Video cord (not supplied) _ j
Audio cord (not supplied)
To Audio OUT
[ ]
To connect the LCD TV to a DVD player with component video
If your DVD player has component video out jacks, connect your LCD TV to a DVD player using a component
video cord. It can greatly enhance picture quality and performance.
Rear of the LCD TV
_To _ 1 To COMPONENT IN
AUDIO(L/R) IN Video cord (not supplied)
Audio cord (not supplied)
To Component OUT
To Audio OUT
Iii i i/
NOTE:
• Component Video inputs of the unit are for use with a device which outputs 480i/1080i interlaced signals and
480p/720p progressive signals.
13
Connections to other equipment
To connect the LCD TV to a DTV receiver/set-top box
If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a compo-
nent video cord.
Rear of the LCDTV
_o _l To COMPONENT IN
Video cord (not supplied)
AUDIO(k/R) IN
Audio cord (not supplied)
To Component OUT
_ o_o o
To Audio OUT
To connect the LCD TV to a camcorder
To playback from a camcorder, connect the camcorder to the LCDTV as shown.
Rear of the LCD TV
©_©_
To AUDIO(L/R)NIDEO IN
Audio/Video cord (not supplied)
To Audio/Video OUT
14
Connections to other equipment
To connect the LCD TV to a Game
The LCD TV can also be used as a TV device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for
additional information.
Rear of the LCD TV
To AUDJO(L/R)/VIDEO IN
I
Audio/Video cord (not supplied)
TV GAME I
To Audio/Video OUT
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, or etc. as shown below.
Rear of the LCD TV
Coaxial Digital Audio Output (_
1
Coaxial digital cable
(notsupplied)
To Coaxial Digital Audio input
_V--I ©
Iooo_ o o o 1_1
AV Amplifier with built-in di
surround decoder as listed above
Front
Speaker
Subwoofer (Right)
(Left)Front_ (_ [ TM /, /_€
Speaker
_ _ (Right_r
NOTE:
• This unit will not work in conjunction with DTS audio. There will be no sound output if connected to an AV
amplifier with a built-in DTS decoder.
• Coaxial digital audio output is active only when receiving digital broadcasting, not when receiving analog
broadcasting.
15
Connections to other equipment
To connect the LCD TV to a PC (Personal Computer)
Before you connect this LCD TV to your PC, change the adjustment of your PC's Resolution and Refresh rate
(60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the
VGA connector PC MONITOR on the back of the LCD TV. Attach the connectors firmly with the screws on the
plug. In case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia
computer and to the AUDIO connector of the PC AUDIO IN jack of the LCD TV.
Press INPUT SELECT on the remote control to select PC mode.
Switch on the computer. The LCD TV can operate as the computer monitor.
Rear of the LCD TV
PC
AUDIO
IN jack
PC
VGA cable (not supplied)
Audio cord (not supplied)
Monitor Display modes
MODE Resolution Refresh rate
VGA 640x480 60Hz
VGA 720x400 70Hz
WVGA 848x480 60Hz
SVGA 800x600 60Hz
XGA 1024x768 60 Hz
WXGA 1280x768 60 Hz
WXGA 1280x720 60Hz
To return to normal mode
Press INPUT SELECT again.
NOTE:
• The on-screen displays will have a different appearance in PC mode than in TV mode.
• If there is no video signal from the PC when the unit is in PC mode, "NO SIGNAl" will appear on the TV-
screen.
16
Setting the language
You can choose from three different
languages (English, French and
Spanish) for the on=screen displays.
Select the language you prefer first,
then proceed with the other menu
options.
Press MENU.The menu screen will appear.
Press A or V to select
"Setup" menu, then
press _'.
Press A or V to select
"Menu Language".
4
5
Press _ or ENTER to select the desired language: English
(ENGLISH), French (FRAN(_AIS) or Spanish (ESPANOL).
Press MENU to return to the normal screen.
NOTE:
• If no buttons are pressed for more
than about 30 seconds, the MENU
screen will return to normal opera-
tion automatically.
• On this TV, there are setting menu
for each external input. You can
change the settings to fit your
needs.
(Some settings are commoditized.
I.e., Audio settings, Parental control,
NTSC CC, ATSC CC and Digital
Closed Caption.)
17
Memorizing channels
This TV is equipped with achannel memory feature which allows channels to skip up or down to the
next channel set into memory, skipping over unwanted channels. Before selecting channels, they must
be programmed into theTV's memory.To use this TV with an antenna, set theTuning Band menu option
to the Air mode. When shipped from the factory, this menu option is in the Cable mode.
Air/Cable selection
Press MENU. The menu screen will appear.
Press A or V to select
"Setup" menu, then press I_.
Press A or V to select
"Tuning Band".
Press 1_ or ENTER to select
"Air" or "Cable".
Press MENU to return to the normal screen.
NOTE:
• It may take a few seconds for a
digital channel picture to appear
on screen after being selected.
18
CABLE CHART
The chart below is typical of many cable system channel allocations.
Number on this TV 14 15 16 17 18 19 20 2t 22
Corresponding CABLE channel A B C D E F G H I
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
J K L M N O P Q R S T U V W AA BB CC DD
41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58
EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS TT UU VV
59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76
WW AAA BBB CCC DDD EEE FFF GGG HHH III JJJ KKK LLL MMM NNN OOO PPP QQQ
77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94
RRR SSS TTT UUU VVVWWWXXX YYY ZZZ 86 87 88 89 90 9t 92 93 94
95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112
A-5 A-4 A-3 A-2 A-1 100 101 102 103 104 105 106 107 108 109 110 111 112
113 114 115 116 117 118 119 120 121 122 123 124 125 01
113 114 115 116 117 t18 119 120 121 122 123 124 125 5A
Memorizing channels
Automatic channel search
1
2
Press MENU. The menu screen will appear.
Press ,& or V to select "Setup"
menu, then press _.
Press A or V to select "Auto Ch
Search".
3Press _ or ENTER. The TV will
begin memorizing all the
channels available in your area.
It may take from 15 minutes
to 30 minutes to complete memorizing digital cable
channels.
Depending on the reception condition, a BAR display may
not advance for several minutes, please be patient.
Add on channel search
This feature searches only blank, unregistered channels.
1
2
Press MENU. The menu screen will appear.
Press A or V to select "Setup"
menu, then press _.
Press A or V to select "Add On
Ch Search".
NOTE:
• Memorizing channels is best
accomplished during evening
"PRIMETIME" hours, as more
stations are broadcasting digital
signals. Memorizing channels can
only be accomplished while a
station is broadcasting a digital
signal to set that channel into
memory.
• If you are unsure of the digital
channels available in your area, you
may visit www.antennaweb.org to
receive a list based on your
address or zip code. Should you
require further assistance you may
call our toll-free customer service
line at 1-800-289-0980.
• New digital channels may be added
to your area periodically, it is
recommended to perform the "Add
On Ch Search" procedure regularly.
3Press _, or ENTER. The TV will
begin searching only blank,
unregistered channels.
It may take from 15 minutes
to 30 minutes to complete memorizing digital cable
channels.
Depending on the reception condition, a BAR display may
not advance for several minutes, please be patient.
19
Memorizing channels
Manual Ch Set
Youcan select the channel that you want to skip.
1
2
3
Press MENU. The menu screen will appear.
Press A or V to select
"Setup'menu, then press _.
A or V to select "Manual :_'
Press
il i!?i!!_;!J'iiiiiiil
Ch Set", then press _* or
ENTER.
Manual Ch Set menu will
appear.
Press A or V to select the
channel that you want to skip,
then press ENTER.
Press MENU to return to the normal screen.
2O
TV operation
1
2
3
4
To turn on the TV, press POWER.
Adjust the volume level by
pressing VOL + or -. The volume
level will be indicated on the
screen by white bars. As the
volume level increases, so do the
number of bars. If the volume
decreases, the number of white
bars also decreases.
Set the Tuning Band menu
option to the appropriate
position (see page 18).
Press the Direct Channel
Selection (0=9,-) buttons to select
the channel.
TO SELECT ANALOG CHANNELS
1-9: Press 0 twice, then 1-9 as
needed. Example, to select channel 2, press 0, 0, 2.
10-99: Press 0, then the remaining 2 digits. Example, to
select channel 12, press 0, 1,2.
100-125: Press the 3 digits in order. Example, to select
channel 120, press 1,2, 0.
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the - button, followed by the
remaining 3 digits.
Example, to select channel 015-001, press 0, 1,5, -, 0, 0, 1.
• If a channel is selected with only audio content, "AUDIO
ONLY" will be displayed on the screen.
• If a channel is selected with a weak digital signal, "DIGITAL
CHANNEL SIGNAL STRENGTH IS LOW" will be displayed
on the screen.
If the digital channel has the same analog channel, you way
be able to watch the same channel with analog.
• If a channel is selected to which you have not subscribed,
"DIGITAL CHANNEL IS ENCRIPTED" will be displayed on
the screen.
NOTE:
• If a channel with no broadcast is
selected, the sound will automatically
be muted.
• It may take a few seconds for a digital
channel picture to appear on screen
after being selected.
VHF/UHF/CABLE CHANNELS
Air
VHF
2-13
UHF
14-69
Cable
VHF
2-13
STD/H RC/I RC
14-36 (A) (W)
37-59 (AA) (WW)
60-85 (AAA) (ZZZ)
86-94 (86) (94)
95-99 (A-5) (A-1)
100-125 (100)(125)
01 (5A)
21
TV operation
To select the video input source
Press INPUT SELECT to view a signal from another device
connected to your LCD TV, such as a VCR or DVD player. You can
select ANT, Composite, S-video, Component or PC depending on
which input jacks you used to connect your devices.
NOTE:
• The TV is capable of holding a still
video image or On screen display
image on your TV screen indefinitely. If
you leave the still video image or On
screen display image displayed on
your TV for an extended period of
time, you risk permanent damage to
your TV screen.
• When the TV receives an analog
signal, DISPLAY shows only analog
information.
• After 10 seconds, DISPLAY screen will
return to normal TV-operation auto-
matically, when a Digital signal is
received.
After 4 seconds, DISPLAY screen will
return to normal TV-operation auto-
matically, when a Analog signal is
received.
22
CH +/-
Press and release CH+/-. The channel
automatically stops at the next channel
set into memory.
For proper operation, before selecting
channels, they should be set into the
memory. See pages 18 and 19
"Memorizing channels".
DISPLAY
Press DISPLAY to display the current information on the screen.
When the TV receives a digital signal, the
digital information will appear.
• Channel number
• Broadcast program name
• Station name
• Program guide
• Audio language
• V-CHIP RATING
When the TV receives a analog signal,
the analog information will appear.
• Channel number orVIDEO mode
selected
Channel label (if preset)
• Stereo or SAP (second audio program)
audio status
Content rating
Press DISPLAY again to clear the call display.
RECALL
This button allows you to go back to the
last channel selected by pressing
RECALL. Press RECALL again to return
to the last channel you were watching.
MUTE
Press MUTE to switch off the sound. The
TV's sound will be silenced and "MUTE"
will briefly appear on the screen. The
sound can be switched back on by
pressing this button again or the VOL +
or-.
TV operation
SLEEP
The sleep timer allows you to set a time when the LCD TV auto-
matically switches to standby.
Press MENU. The menu screen will appear.
Press A or V to select
"Feature" menu, then press
Press A or V to select
"Sleep Timer".
4Press _ or ENTER
repeatedly to select the
desired sleep time (Off, 15
min, 30 min, 45 min, 60 min,
90 min, 120 min, 180 min or
240 min).
Press MENU to return to the normal screen.
NOTE:
• You can also set the sleep timer by
pressing SLEEP on the remote
control.
• After the sleep time is programmed,
the display will appear briefly every ten
minutes to remind you that the sleep
timer is operating.
• To confirm the sleep timer setting,
press SLEEP and the remaining time
will be displayed for a few seconds.
• To cancel the sleep timer, press I_ or
ENTER repeatedly to select "Off" in
step 4.
23
Labeling channels
Channel labels appear over the
channel number display each time
you turn on theTV, select a
channel, or press DISPLAY.
You can choose any seven
characters to identify achannel.
To
1
2
3
create channel labels
Press MENU, then press
A or V to select "Setup"
menu, then press _.
Press A or Y to select
"Channel Labels", then
press _ or ENTER.
The "Channel Labels" menu
will appear.
Press A or Y to select a
channel you want to label.
4Press 4 or _ to enter a
character in the first space.
Press A or V repeatedly
until the character you want
appears on the screen.
The characters rotation r= <-> A...Z <-->0...9 <_
L> <___J
as follows: _ < > SPACE
5
6
If the character which you desire appears, press _.
Repeat this step to enter the rest of the characters.
If you would like a blank space in the label name, you must
choose the empty space from the list of characters.
When you finish inputting the label name, press MENU to
return to the normal screen.
Repeat steps 1-5 for other channel. You can assign a label to
each channel.
24
Setting the V-Chip
An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that
you may choose to exclude. The restriction applies to "TV RATING" and "MPAA" if this data is transmit-
ted. You may set this restriction separately. To use the V=Chip function, you must register a password.
To register a password
1Press MENU. The menu
screen will appear.
Press A or V to select
"Feature" menu, then
press _.
Press A or V to select
"Password Set", then press
I_ or ENTER.
3Use Number buttous(0=9)
to enter your password
(The factory default
password is "0000"). "_" appears instead of the number.
Select and enter a password ....................
(4 digits) using Number
buttons (0=9).
5Enter the same password
again to confirm.
The password is now
registered.
NOTE:
" If you forget the password,
contact Customer Service at 1-
800-289-0980 for assistance.
Your original remote control will be
required.
• To avoid forgetting the password,
write it down and keep in a safe
place.
25
Setting the V-Chip
To set the V=Chip
Press MENU.
Press ,& or V to select "Feature"
menu, then press P,.
2
3
Press A or V to select "Parental ....................
Control", then press 1_or ENTER.
Use Number buttons (0-9) to
enter your password. The Parental
Control Menu appears.
Press A or V to select "US ....................
Ratings", then press _, or ENTER.
To use theTV after theTV is
protected.
When a program is received that is
blocked by the V-Chip, press DISPLAY
and MENU at the same time.
The protection will be temporarily
overridden. If the TV is turned off, or the
channel is changed the V-Chip
restriction will be reactivated.
NOTE:
• The V-Chip function is activated only
on programs and input sources that
include a rating signal.
4
5
Press A/V/4/_ to select the .......................
desired rating, then press ENTER.
TV RATING
NONE : TV RATING is not set
TV-Y : All children
TV-Y7 : 7 years old and above
TV-G : General audience
TV-PG : Parental guidance
TV-14 : 14 years old and above
TV-MA : 17 years old and above
FV (Fantasy Violence)
L (Language)
S (Sex)
V (Violence)
D (Dialogue)
MPAA (Motion Picture Association of America)
NONE : MPAAis not set.
G : All ages
PG : Parental guidance
PG-13 : Parental guidance less than 13 years old
R : Under 17 years old Parental guidance suggested
NC-17 : 17 years old and above
X : Adult only
Press MENU to return to the normal screen.
26
Setting the V-Chip
To change the password
Press MENU.TheTV menu screen will appear.
Press A or V to select
"Feature" menu, then
press _'.
Press A or V to select
"Password Set", then press
or ENTER.
Use Number buttons (0=9) .......................
to enter your password.
5
6
Enter a new password
using Number buttons
(0-9).
Enter the same password
again to confirm.
The password is now
registered.
27
Setting the V-Chip
Downloading the additional V=Chip rating system
As a supplement to the standard V-Chip rating system, your
television will be able to download an additional rating system, if
such a system becomes available in the future.
To download the additional V=Chip rating system
(when available)
Press MENU in the digital channel.
Press ,& or V to select "Feature"
menu, then press _,.
2
3
Press A or V to select "Parental ...................
Control", then press I1_or ENTER.
Use Number buttons (0-9) to
enter your password. The Parental
Control Menu appears.
Press A or V to select "Advanced
Rating", then press _ to select
"On".
The "Advanced Parental Lock"
option appear.
NOTE:
• You can only download the additional
V-Chip rating system when your TV is
receiving a digital signal.
• When you download the additional
rating system, it may take some time
for the download to occur.
• The V-Chip rating information and
system are not determined or
controlled by the TV.
• The standard V-Chip rating system is
available whether your TV is receiving
a digital signal or not, and will block
both analog and digital programs. To
set the restriction level using the
standard V-Chip rating system, select
US Ratings in step 3.
• The downloadable V-Chip rating
system is an evolving technology, and
availability, content, and format may
vary.
• You cannot select this feature if the TV
is not receiving a digital signal for the
current station.
28
4
5
6
Press A or V to select "Advanced ....................
Parental Lock", then press I_ or
ENTER.
If the TV is not storing the additional rating system, the TV will
begin downloading it, which may take some time to be
completed.
Set your preferred content rating limits for the additional rating
system.
Closed Caption
WHAT iS CLOSED CAPTiONiNG?
This television has the capability to decode and display Closed Captioned television programs. Closed Captioning
will display text on the screen for hearing impaired viewers or it will translate and display text in another language.
Captions: This Closed Caption Mode will display text on the
screen in English or another language. Generally, Closed Captions
in English are transmitted on CC1 and Closed Captions in other
languages are transmitted on CC2.
Text: The Text Closed Caption Mode will usually fill 1/2 of the screen
with a programming schedule or other information.
1
2
Press MENU. Press A or V to select "Feature" menu, then
press _.
Press A or V to select "NTSC CC" or "ATSC CC".
When you select "NTSC CC",
you can choose CC1, CC2,
CC3, CC4, TEXT1, TEXT2,
TEXT3, TEXT4 and OFR
When you select "ATSC
CC", you can choose from
CS1, CS2, CS3, CS4, CS5,
CS6 and OFR
3
4
NOTE:
• Depending on the broad
cast signal, some Analog
Captions will function with a Digital broadcast signal.
Press _, or ENTER to select the desired Closed Caption mode.
NOTE:
• To turn the Closed Caption feature off, select "OFF".
Press MENU to return to the normal screen.
NOTE:
• If the program or video you selected is not closed-captioned, no captions will display on-screen.
• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the
Closed Caption feature to "OFF".
• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.
• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with
Closed Captioning, especially with live programs. This is because during live programs, captions are also
entered live. These transmissions do not allow time for editing.
• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may
interfere with Closed Captions.
• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may
appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use
an outdoor antenna.
29
CO advanced
When you have selected CUSTOM
as the display method, you can
adjust the various setting listed
below as follows:
This feature is designed to customize Digital Captions only.
Press MENU. The menu screen will appear.
Press A or V to select
"Feature" menu, then press I_.
3Press A or V to select
"Digital Closed Ception",
then press _ or ENTER.
The Digital Closed Caption
menu will appear.
Press A or V to select
"Style", then press I_ or
ENTER to select "Custom".
Press A or V to select desired .- ..............
setting, then press ENTER.
NOTE:
• Do not set the Closed Caption "Text
Color" and "Background Color" as
the same color or you will not be
able to see the text.
• Do not set both the "Text Opacity"
and the "Background Opacity" to
"Transparent" or you will not be able
to see the text.
30 6
You can select from among the following items and parameters.
Size: Small, Standard, Large
Font: Default, Font 1, Font 2, Font 3, Font 4, Font 5,
Font 6, Font 7,
Text Color: Red, Green, Blue, Yellow, Magenta, Cyan,
Black, White
Text Opacity: Transparent, Translucent, Solid, Flashing
Background Color: Auto, Black, White, Red, Green, Blue,
Yellow, Magenta, Cyan
Background Opacity: Transparent, Translucent, Solid,
Flashing
Edge Effect: None, Raised, Depressed, Uniform, Left
Shadow, Right Shadow
Edge Color: Red, Green, Blue, Yellow, Magenta, Cyan,
Black, White
Press MENU to return to the normal screen.
Setting the picture size
You can view 480i and 480p format
programs in avariety of picture
sizes= Normal, Zoom, Wide and
Cinema.
Selecting the picture size
Press MENU. Press A or V to
select "Picture" menu, then
press _.
2Press A or V to select "Picture
Size", then press _ or ENTER
to select the desired picture size,
as described below and on the
next page.
Press MENU to return to the normal screen.
Normal picture size
In some cases, this image will display the size of standard 4:3 with
a gray side bar.
Zoom picture size (for letter box programs with
subtitles)
To fill the width of the screen, it is extended horizontally. However; it
is only slightly extended at the top and the bottom.
The top and bottom edges of the picture may be hidden.
|ABCDEFG m
C>
NOTE:
• Some High Definition and/or Digital
broadcasts may not allow you to
change the picture size.
31
Setting the picture size
NOTE:
• In COMPONENT mode with a
scanning rate of 720p or 1080i,
only the Normal and Cinema
picture size features are available.
• In PC mode, only the Normal
picture size features are available.
However, when in VGA, SVGA,
XGA or SXGA modes, Wide picture
size format can also be selected.
• In Cinema picture size, some of the
on screen display items may be
positioned off the visible portion of
the screen.
Wide picture size (for 4:3 format programs)
To fill the screen, the right and left edges are extended,
however; the center of the picture remains near its former ratio.
The top and bottom edges of the picture may be hidden.
Cinema picture size (for letter box programs)
The entire picture is uniformly enlarged--it is stretched the same
amount both wider and taller (retains its original proportion).
The top and bottom edges of the picture may be hidden.
32
Adjustingthe picturepreference/Picturecontroladjustment
You can select four picture
modes--Vivid, Standard, Movie
and User--as described in the
following table:
Adjusting the picture preference
Press MENU.Then press ,L or V
to select "Picture" menu, then
press _.
Press A or V to select "Picture
Mode".
Press _- or ENTER to select the
item you want to adjust.
4
Mode Picture Quality
Vivid Bright and dynamic picture (factory-set)
Standard Standard picture quality (factory-set)
Movie Movie-like picture setting (factory-set)
User Your personal preferences (set by you; see "Picture
control adjustment" below).
After your desired setting, press MENU to return to the normal
screen.
Picture control adjustment
Press MENU.Then press ,L or V
to select "Picture" menu, then
press _.
2Press A or V to select the item you
want to adjust, then press _ or
ENTER.
Press 4 or _ to adjust the setting.
NOTE:
• The CONTRAST default setting is
set to maximum at the factory.
I
Contrast decrease contrast increase contrast
Brightness decrease brightness increase brightness
Sharpness makes picture softer makes picture clearer
Color be pale color be brilliant color
Tint be reddish color be greenish color
After your desired setting, press MENU to return to the
normalscreen 33
DNPJSelecting the color temperature
DNR
DNR (Digital Noise Reduction) can reduce the roughness of
the picture.
Press MENU.Then press A or
V to select "Feature" menu, then
press _.
Press A or V to select
"Advanced Video Menu", then
press I_ or ENTER.
Press A or V to select
"DNR". Press i_ or ENTER to
select "On" or "Off".
Press MENU to return to the normal screen.
Selecting the color temperature
Change the picture quality by selecting from three preset color
temperatures--Cool, Normal, and Warm:
Press MENU.Then press A or
V to select "Feature" menu, then
press _.
Press A or V to select
"Advanced Video Menu", then
press I_ or ENTER.
NOTE:
• In COMPONENT mode, the "DNR"
option cannot be selected.
34
3
4
Press A or V to select
"Color Temperature".
Press I_ or ENTER to select the
mode you prefer.
Mode Picture Quality
Cool Blueish
Normal Neutral
Warm Reddish
Press MENU to return to the normal screen.
Setting the 3D Y/C
Setting the 3D Y/C
3DY/C reduces visible interference in yourTV picture.This
is useful when receiving a broadcast with a weak signal
(especially a Cable channel) or playing a video cassette or disc
damaged by repeated use.
Press MENU.Then press A or
V to select "Feature" menu, then
press _.
Press A or V to select
"Advanced Video Menu", then
press I_ or ENTER.
Press MENU to return to the normal screen.
35
Selecting Stereo/Second Audio Program (SAP)/
Sound control adjustment
The multi=channel TV sound (MTS)
feature provides high=fidelity
stereo sound. WiTSalso can
transmit asecond audio program
(SAP) containing asecond
language or other audio informa=
tion.
When theTV receives astereo or
SAP broadcast, the word "Stereo"
or "SAP" displays on=screen every
time you turn theTV on, change
the channel, or press DISPLAY.
Selecting Stereo/Second Audio Program (SAP)
Press MENU. Then press A or
V to select "Audio" menu, then
press _.
Press A or V to select "MTS",
then press i_ or ENTER to
select "Stereo".
Press MENU to return to the normal screen.
NOTE:
• Generally you can leave yourTV in stereo mode because
the TV automatically outputs the type of sound being
broadcast (stereo or mono).
If the stereo sound is noisy, select Mono to reduce the
noise.
To listen to a second audio program (SAP)
Press _ or EMTER to select "SAP" in step 2 above. The TV speak-
ers will output the second audio program instead of normal audio.
Sound control adjustment
Press MENU. Then press A or
V to select "Audio" menu, then
press _.
2
3
Press A or V to select the item
you want to adjust, then press I1_
or ENTER.
BaSS :
Treble:
Balance:
Press 4 or _ to
adjust the bass
sound.
Press 4 or I_ to
adjust the treble I
sound. I
Press _ or _, to
obtain an equal sound level from both speakers.
After your desired setting, press MENU to return to the normal
screen.
36
Selecting the audio language/
Selecting the digital output
Selecting the audio language
When two or more audio languages are included in a digital
signal, you can select one of the audio language.
Press MENU. Then press A or
V to select "Audio" menu, then
press i_.
2Press A or V to select "Audio
Language". Then press I_ or
ENTER to select your desired
language.
Press MENU to return to the normal screen.
Selecting the digital output
You can choose the format of the digital audio output signal.
Press MENU. Then press A or
V to select "Audio" menu, then
press _.
2Press A or V to select "Digital
Audio Output", then press t_ or
ENTER to select "PCM" or
"RAW".
Press MENU to return to the normal screen.
37
Checking the Digital-signal strength/
Resetting your settings
Checking the Digital-signal strength
This TV will allow you to view the digital signal meter for
digital channels.
Press MENU.Then press A or T
to select "Setup" menu, then
press _.
Press A or V to select "DTV
Signal".
Press _, or ENTER to check the
Digital-signal strength.
Press MENU to return to the normal screen.
Resetting your settings
The Reset function returns your settings to the factory set-
tings.
Press MENU.Then press A or V
to select "Setup" menu, then
press _,.
Press A or V to select"Reset".
NOTE:
• Signal meter feature is not
available for analog channels.
• After 180 seconds, SIGNAL
METER screen will return to
normal TV-operation automatically.
38
3
4
Press _, or ENTER to return your settings to the factory
settings.
Press MENU to return to the normal screen.
Picture control adjustment in the Component and PC mode
You can adjust to optimize the
performance of the TV in the
Component and PC mode.
Example: Adjust the H-Pos in the component mode.
Press iNPUT SELECT repeatedly to select the component
mode.
2Press MENU during the
component mode. Then press
A or V to select "Feature"
menu, then press _.
Press A or V to select
"Component Set", then press
or ENTER.
Press A or V to select
"H-Pos", then press _ or
ENTER.
Press _ or _ to adjust the
setting.
NOTE:
• If no buttons are pressed for more
than approx. 30 seconds, the Menu-
screen will return to normal Monitor-
screen automatically.
• The "Component Set" and "PC Set"
settings are not effective for normal
mode, or other input modes.
6
H-Pos:
V=Pos:
Clock:
Phase:
Auto adjust
(PC Setting only):
Setting:
To adjust the horizontal position of the
image on the PC Monitor-screen.
To adjust the vertical position of the
image on the PC Monitor-screen.
To minimize any vertical bars or stripes
visible on the screen background.
This must be adjusted after the frequency
of your PC has been set to 60hz to
optimize pic ture quality (page 16).
To optimize "H-Pos", "V-Pos", "Clock"
and "Phase" automatically.
To return your settings to the factory
settings.
Press MENU to return to the normal screen.
39
Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/
UHF antenna. Outdoor antennas are recommended for best results. The most common types of
television interference are shown below, if one of these symptoms appear when the TV is connected
to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV from the power source before cleaning.
The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other
furniture. Use caution when cleaning or wiping the plastic parts.
4O
Troubleshooting
service outlet
SYMPTOMS
Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or
problems persist. Be sure all connections are properly made when using with other units.
TV does not
operate.
Poorsound
or no sound.
Poor picture
or no picture.
Poor
reception on
some
channels.
Poor color or
no color.
wobbles or
drifts.
Digital
broadcast-
ing screen
2r2b)2m:.............
POSSIBLE SOLUTIONS
,Make sure the power cord is plugged in.
,Try another AC outlet.
,Power is off, check fuse or circuit breaker.
•Unplug unit for an hour, then plug it back in.
,Station or CABLE experiencing problems,
tune to another station.
•Check sound adjustments (Volume and Mute).
,Check for sources of possible interference.
,Station or CABLE experiencing problems,
tune to another station.
,Make sure channels are set into memory.
Check antenna or CABLE connections,
adjust antenna.
Check for sources of possible interference.
Check picture control adjustments.
Station or CABLE experiencing problems,
tune to another station.
Make sure channels are set into memory.
Station is weak, adjust antenna to receive
desi red station.
Check for sources of possible interference.
Station or CABLE experiencing problems,
tune to another station.
Make sure channels are set into memory.
Check picture control adjustments.
Check antenna or CABLE connections,
adjust antenna.
Check for sources of possible interference.
i _Station or CABLE experiencing problems,
tune to another station.
Make sure channels are set into memory.
CABLE company is scrambling signal.
Adjust antenna.
,Check digital signal strength.
No CATV
reception.
POSSIBLE SOLUTIONS
,Check all CABLE connections.
Set Air/Cable menu option to the Cable mode.
,Station or CABLE system problems, try
another station.
Horizontal or ,Check antenna connections, adjust or
diagonal bars re-direct antenna.
on screen. ,Check for sources of possible interference.
,Make sure Air/Cable menu option is in the
No reception appropriate mode.
above
channel 13. ,If using antenna, check UHF antenna
connections.
No Remote
operation.
Batteries are weak, dead or inserted incorrectly.
Remote is out of range, move closer to TV
(within 15 feet).
Make sure Remote is aimed at sensor.
Confirm there are no obstructions between
the Remote and the TV.
Make sure the power cord is plugged in.
TV shuts off. _ Sleep Timer is set.
Power interrupted.
Closed -
Caption is
not activated.
TV is not
shown in your
language.
TV station experiencing problems or program
tuned is not closed captioned. Try another
channel.
Check CABLE connection or VHF/UHF
antenna, reposition or rotate antenna.
Set closed caption decoder in the menu.
Select proper language in the menu options.
€.- fJSANSUI
FOR CUSTOME R SERVICE, ADDITIONAL1 _-_:90_8_PERATING ASSISTANCE PLEASE CALL:
WHEN CALLING CUSTOMER SERWCE- PLEASE HA VE YOUR MODEL NUMBER READY |
|
OR WRITE TO: |
ORLON SALES, iNC. |
3471 N. UNION DR. |
OLNEY, ILLINOIS 62450 |
II
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT |
_, www.orionsalesinc.com J
41
Specifications
Power supply: AC 120V 60 Hz
Power consumption: Operation: 55 W
Stand by: 1 W
Weight: 13.5 Ibs (6.1 kg)
Dimensions: Width: 19 inches (483 ram)
Height: 15-9/16 inches (396 mm)
Depth: 7-1/2 inches (190 ram)
Inputs: VIDEO:
AUDIO:
S-VIDEO:
COMPONENT:
1 V (p-p)/75 ohms
-8 dBm/50k ohms
Y: 1 V (p-p), 75 ohms
C: 0.286 V (p-p), 75 ohms
Y: 1 V (p-p), 75 ohms
PR: 0.7V (p-p), 75 ohms
PB: 0.7V (p-p), 75 ohms
Digital audio out: 0.5 Vp-p 75 ohms terminated
PC Monitor input: Mini-Dsub 15pin x 1
Type: 18.95 inches (481.4 mm diagonal)
Number of Pixels: 1440 (H) x 900 (V)
Viewing angle: Left/Right: 80/80 degree
Up/Down: 80/80 degree
Antenna input: VHF/UHF/CABLE In 75 ohm coaxial
Tuner type: NTSC standard
ATSC standard (8VSB), QAM
Receiving channels: VHF
UHF
CABLE
2-13
14-69
14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-125 (100)-(125)
01 (5A)
Speaker: 1-3/16 inches (30 ram) x 2-13/16 inches (71 ram), 8 ohms x 2
Sound output power: 1.5W+ 1.5W
ACCESSORIES: Remote control
Batteries (UM-3) x 2
AC Cord
Designs and specifications are subject to change without notice.
42
IJSANSUI®
LIMITED WARRANTY
19" WiDE LCD TELEViSiON
ORION warrants this product to be free from manufacturing defects in material and workmanship under
normal use and conditions for a period of 90 days from date of original purchase in the United States.
Should service be necessary under this warranty for any reason due to a manufacturing defect or
malfunction during the first 90 days from date of original purchase, ORION will provide carry-in service only by
an ORION authorized Independent Service Center at no charge. Also, if an original part fails due to
manufacturing defect in material and workmanship within one year from date of original purchase we will
replace the defective part, provided the defect or malfunction is verified along with dated proof of purchase.
There are ORION authorized Independent Service Centers located throughout the country. For the one
nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. ORION will not
be liable for damages incurred in shipment of the unit. If there are no ORION authorized Independent Service
Centers in your area please call - 1-888-296-7466 for assistance.
Note: This warranty is void if the product is:
(a) Damaged through negligence, misuse, abuse, or accident.
(b) Used in a commercial application or rentals.
(c) Modified or repaired by anyone other than an Independent Service Center authorized by ORLON to effect
warranty repairs to the class of product or by the ORLON Factory Service Center.
(d) Damaged because it is improperly connected to the equipment of other manufacturers.
This warranty does not cover:
(a) Damage to equipment not properly connected to the product.
(b) Costs incurred in the shipping of the product to an ORLON authorized Independent Service Center or
ORLON Factory Service Center.
(c) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow
operating instructions provided with the product.
(d) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's
manual.
(e) Signal reception problems caused by external antenna or cable systems.
THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER
AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A
PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF
ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL
APPLY TO THIS PRODUCT THEREAFTER. ORLON MAKES NO WARRANTY AS TO THE FITNESS OF THE
PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.
UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH
THE USE OFTHIS PRODUCT.
THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM
STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR
EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO
YOU.
ORION SALES, iNC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
43
IllIIIllllllllllllllllIIlUIIllIIIIll
J33F0201A SH 07/07 [] Printed in Thailand

Navigation menu
