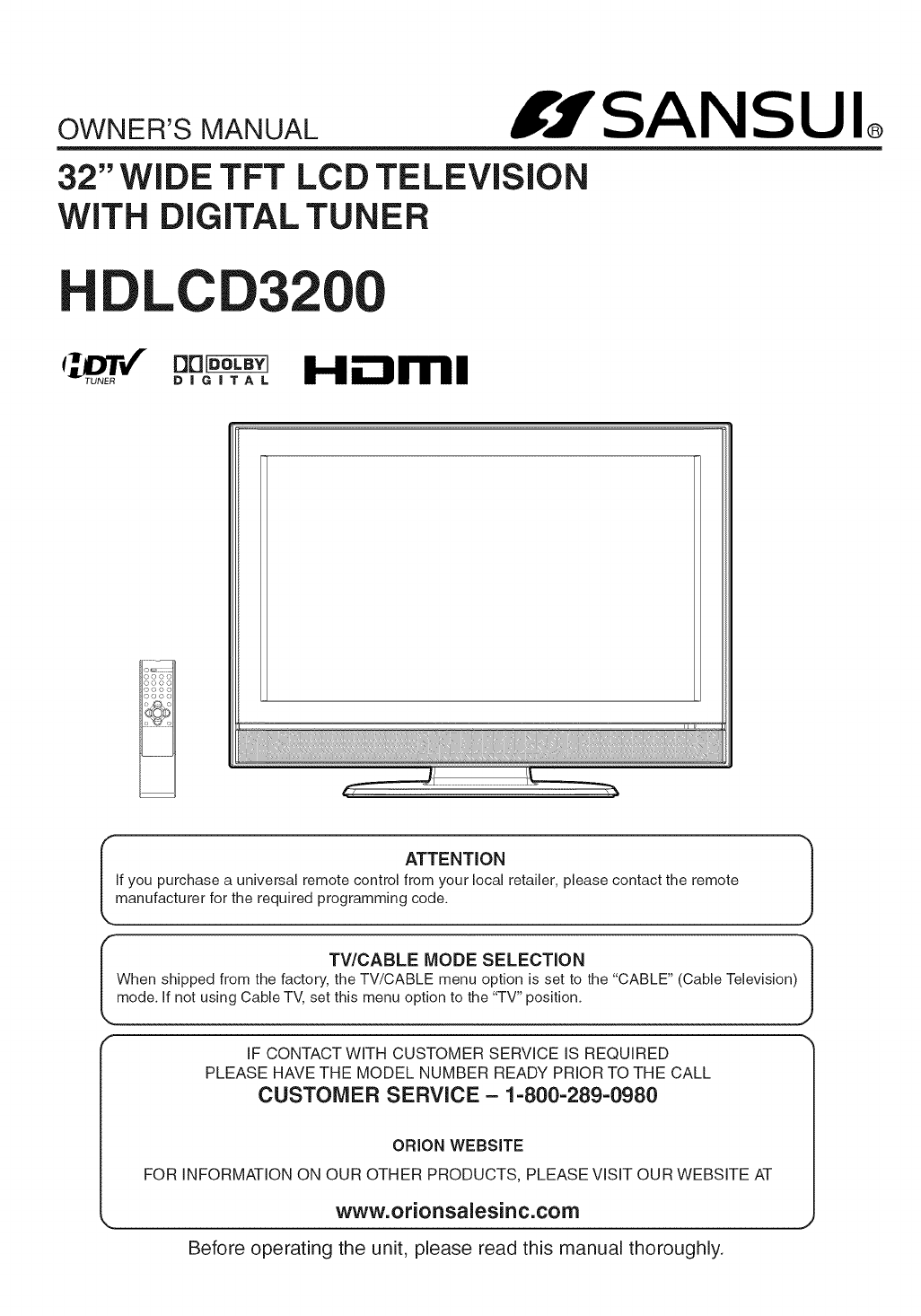

OWNER'S MANUAL If SAN SU

32" WIDE TFT LCD TELEVISION

WITH DIGITAL TUNER

DLC

DiGiTAL

ooo

:_ o o o

:_ ooo

I ATTENTION 1

if you purchase a universal remote control from your local retailer, please contact the remote

manufacturer for the required programming code.

___m TV/OABLE MODE SELECTION 7

When shipped from the factory, the TV/CABLE menu option is set to the "CABLE" (Cable Television)|

ode. If not using Cable TV,_____setthismenu option to the "TV" position. JJ

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED

PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

CUSTOMER SERVICE - 1-800-289-0980

ORLON WEBSITE

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

A cAo,,o./k

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

AThe lightning flash with arrowhead

symbol, within an equilateral triangle

is intended to alert the user to the

presence of uninsulated dangerous

voltage within the product's enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance (servic-

ing) instructions in the literature

accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE

FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING:

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-

tion against harmful interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the partly responsible for compliance with

the FCC Rules could void the user's authority to operate this equipment.

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

I PORTANT SAFETY I STRUCTI

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the PORTABLECARTWARNING

manufacturer, or sold with the apparatus. When a cart is used, use caution (symbolprovidedby RETAC)

when moving the cart/apparatus combination to avoid injury from tip-over. _'-t'_

13) Unplug this apparatus during lightning storms or when unused for long

periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or S3126A

plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such a vases,

shall be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside

antenna system, extreme care should be taken to keep from touching such power lines or circuits, as

contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short

out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

! PORTANT SAFETY INSTRUCTIONS

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is

grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the

National Electrical Code, ANSl/NFPA 70, provides information with respect to proper grounding of the mast

and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding

conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for

the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

GROUND _._.. j

CLAMR

NEC-NATIONAL ELECTRICAL CODE

S2898A

ANTENNA LEAD

IN WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

20) When replacement parts are required, be sure the service technician uses replacement parts specified by

the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21 Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to

determine that the unit is in proper operating condition.

22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from

the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's

manual of the other equipment carefully and follow the instructions when making any connections.

23) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume

sound may cause hearing or speaker damage.

24) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker

overheating and fire.

25) This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be con-

nected to the grounding system of the building, as close to the point of cable entry as practical.

! PORTANT SAFETY INSTRUCTIONS

CONDENSATION

Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if

the temperature of the room rises suddenly. When this happens, player's performance will be impaired. To prevent this, let the

player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises

gradually.

Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner, in such cases,

change the location of the player.

HOW TO HANDLE THE LCD PANEL

. Do not press hard or jolt the LCD panel, it may cause the LCD panel glass to break and injury may occur.

. if the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin

inflammation.

if the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or

touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Possible Adverse Effects on LCD Panel: if a fixed (non-moving) pattern remains on the LCD Panel for long periods of time,

the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of

damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is

displaying the following formats or images:

.Fixed images, such as stock tickers, video game patterns, TV station Iogos, and websites.

.Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3)

display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black

bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility

for these symptoms.

.LCD Panel are manufactured using an extremely high level of precision technology, however sometimes parts of the screen

may be missing picture elements or have luminous spots.

This is not a sign of a malfunction.

.Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some equipment

placed too near this unit may cause interference.

.Effect on infrared devices - There may be interference while using infrared devices such as infrared cordless headphones.

SAFETY P ECAUTI

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating.

Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm

(4 inches) free space around the entire unit. A

_lOcm_

Notes when mounting the LCDTV on awall

. When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the LCD TV and the wall.

Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the interior of the unit to overheat,

resulting in damage to the unit.

.if the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV for advice, and have the

equipment professionally installed, incomplete or improper installation may cause injury to you and/or the LCD TV.

. Bracket holes: To attach a wall mounting bracket (not supplied) here, remove the screws.

_.____J" ....................................ii _ 5

Contents

iPREPARATIONS _ j

IMPORTANT SAFETY INSTRUCTIONS ....................................... 3

SAFETY PRECAUTIONS ............................................................. 5

Contents ........................................................................................ 6

Features ........................................................................................ 7

Power source ................................................................................ 7

Parts and functions ....................................................................... 8

Remote control .............................................................................. 9

Antenna connections ................................................................... 10

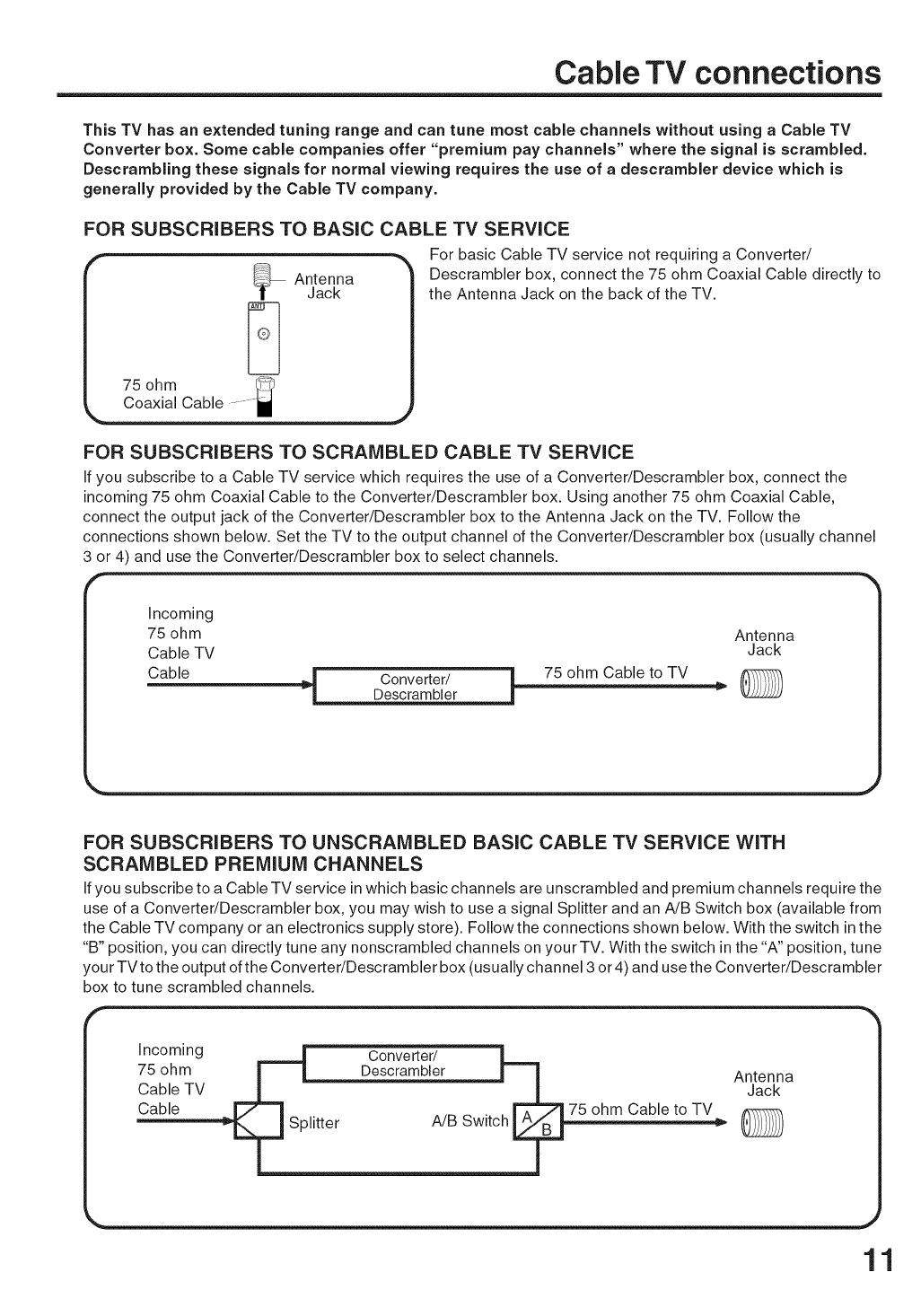

Cable TV connections ................................................................. 11

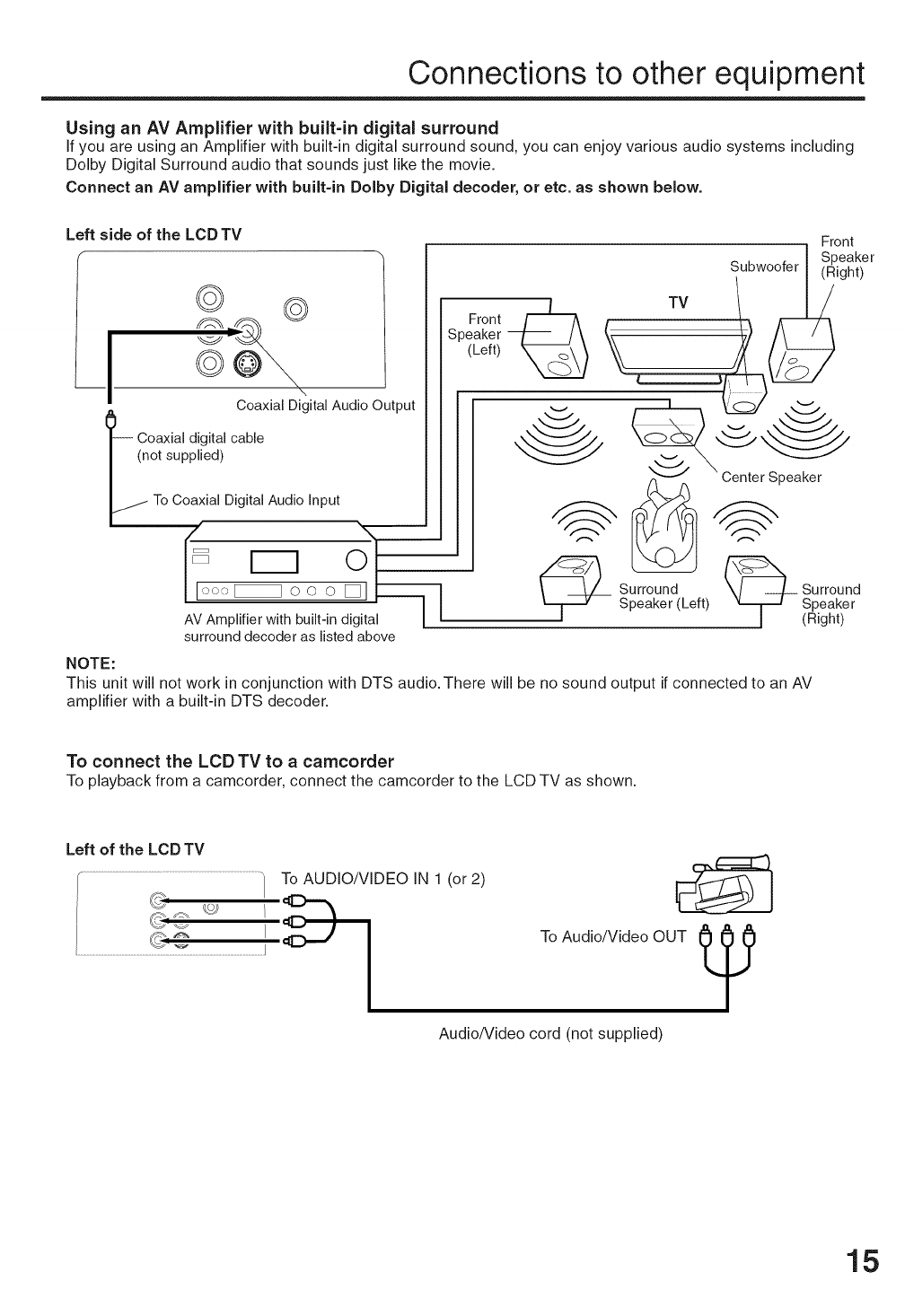

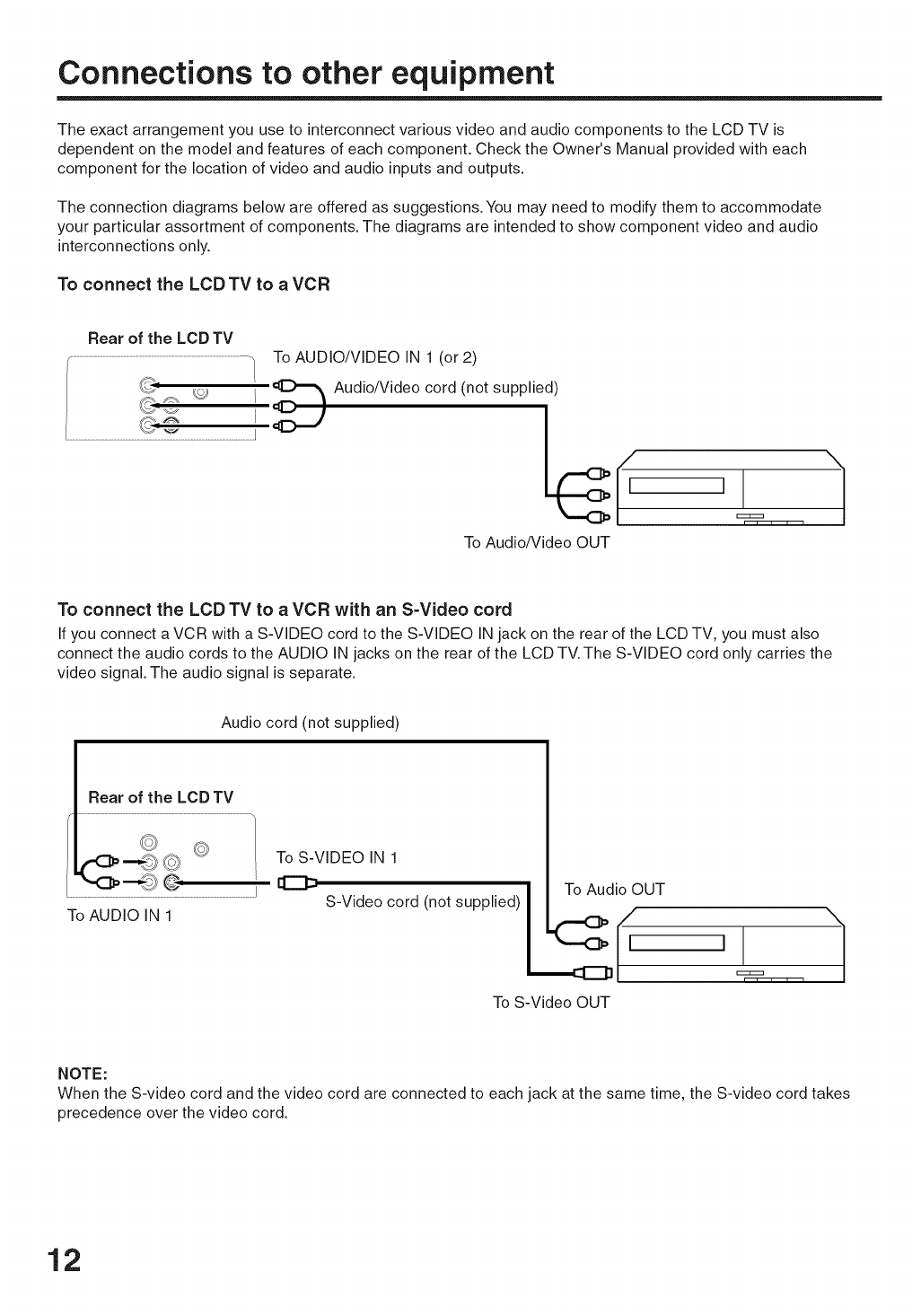

Connections to other equipment ................................................. 12

Setting the language ................................................................... 17

[ OPERATION 1

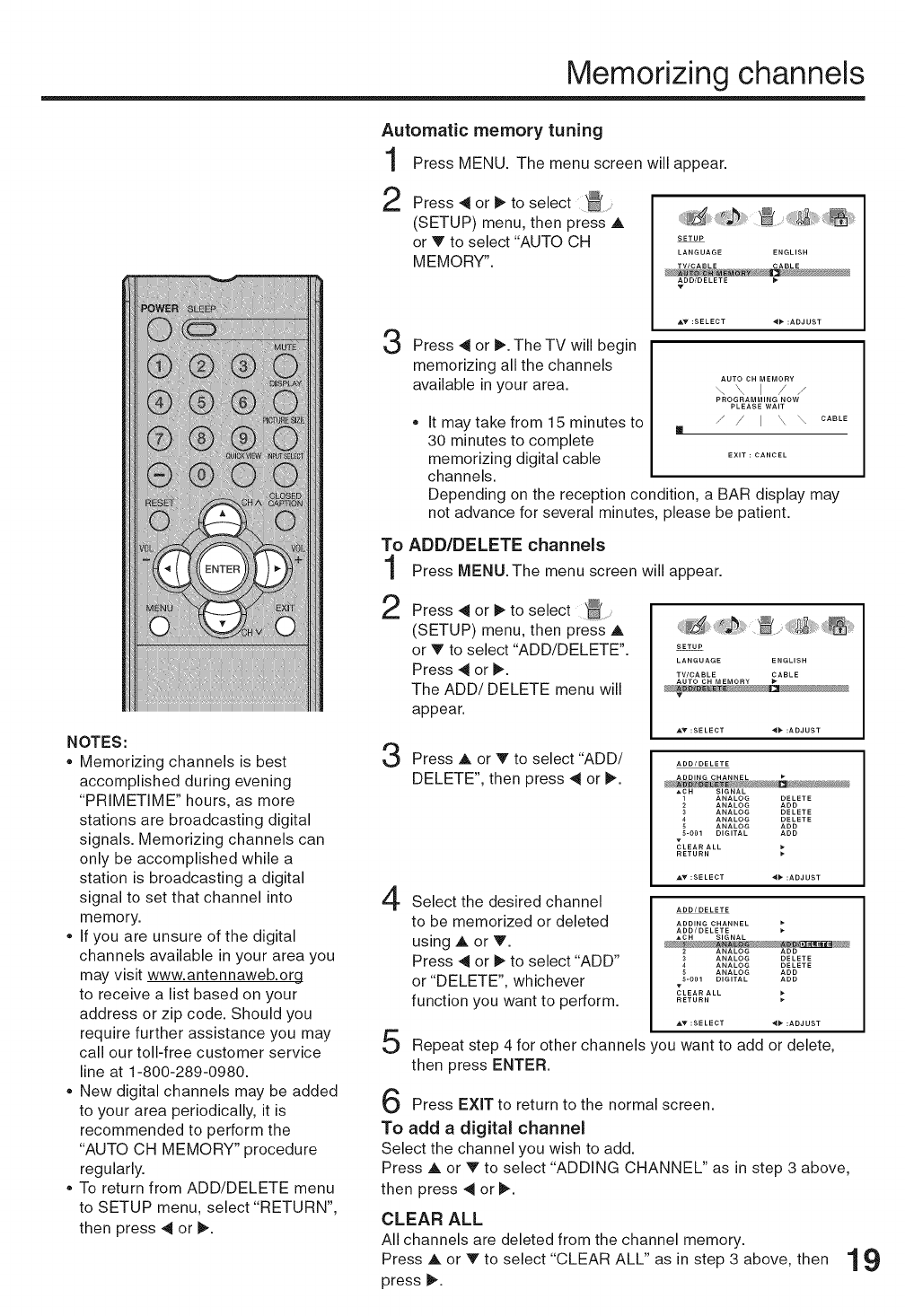

Memorizing channels .................................................................. 18

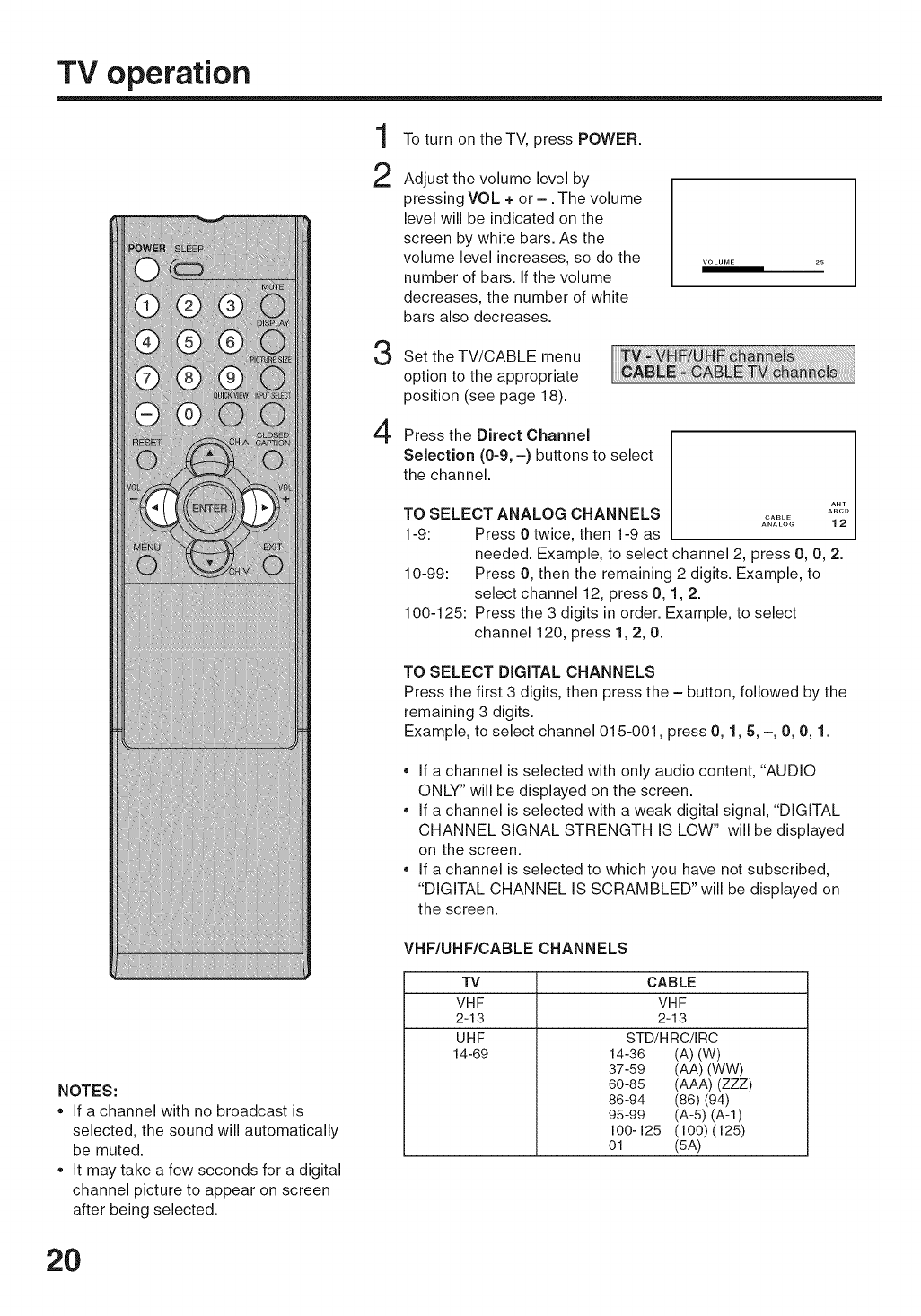

TV operation ................................................................................ 20

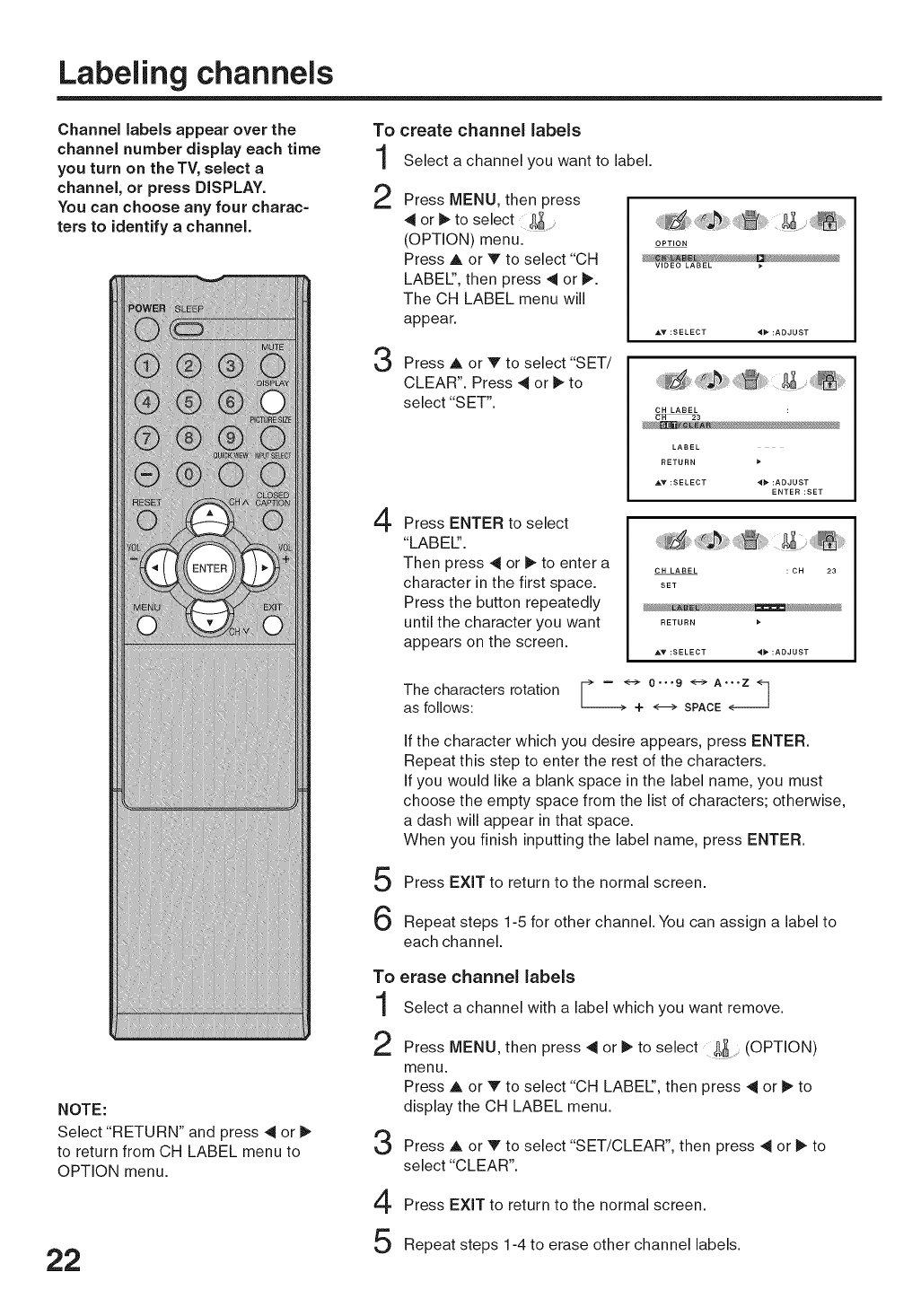

Labeling channels ....................................................................... 22

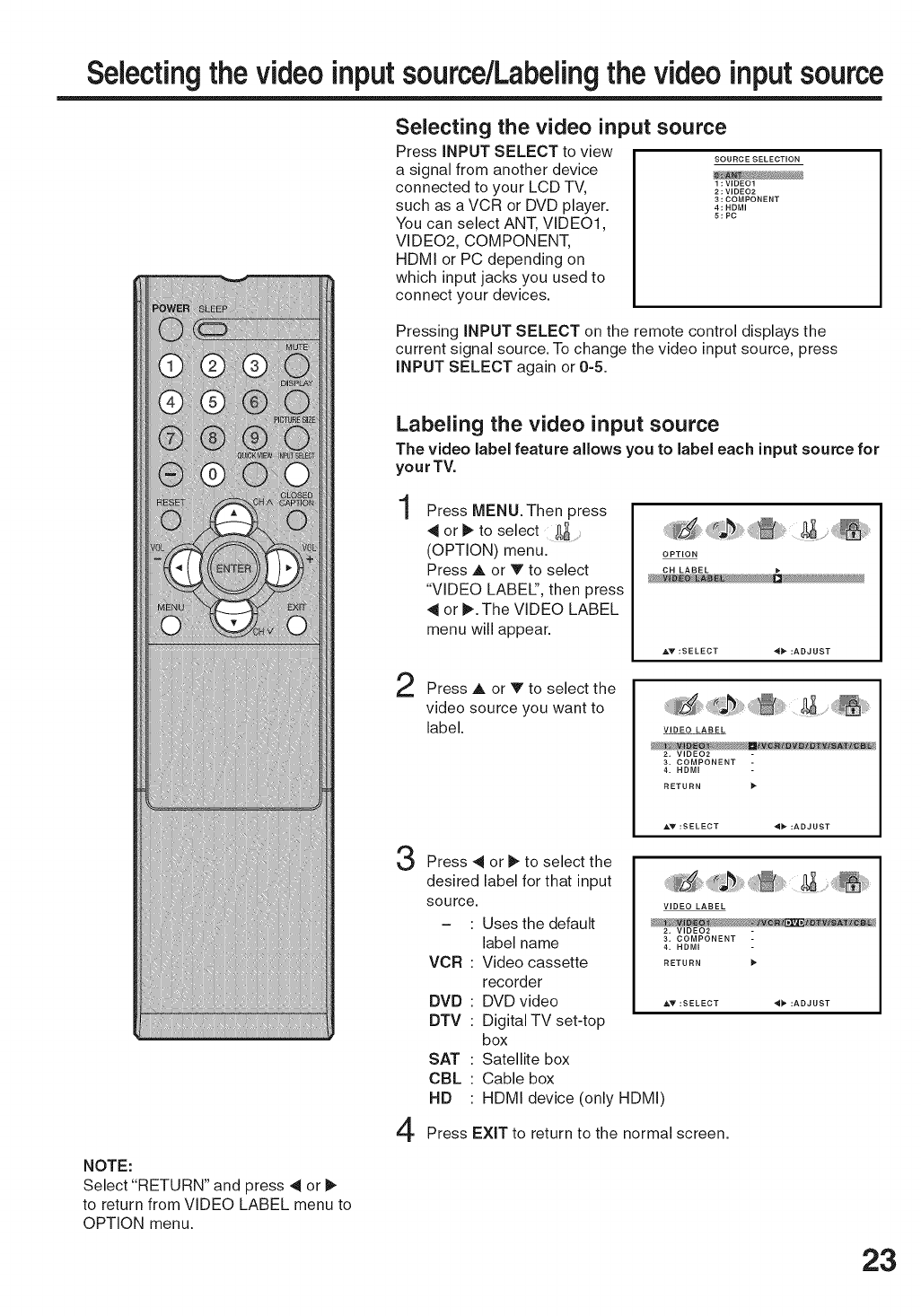

Selecting the video input source ................................................. 23

Labeling the video input source .................................................. 23

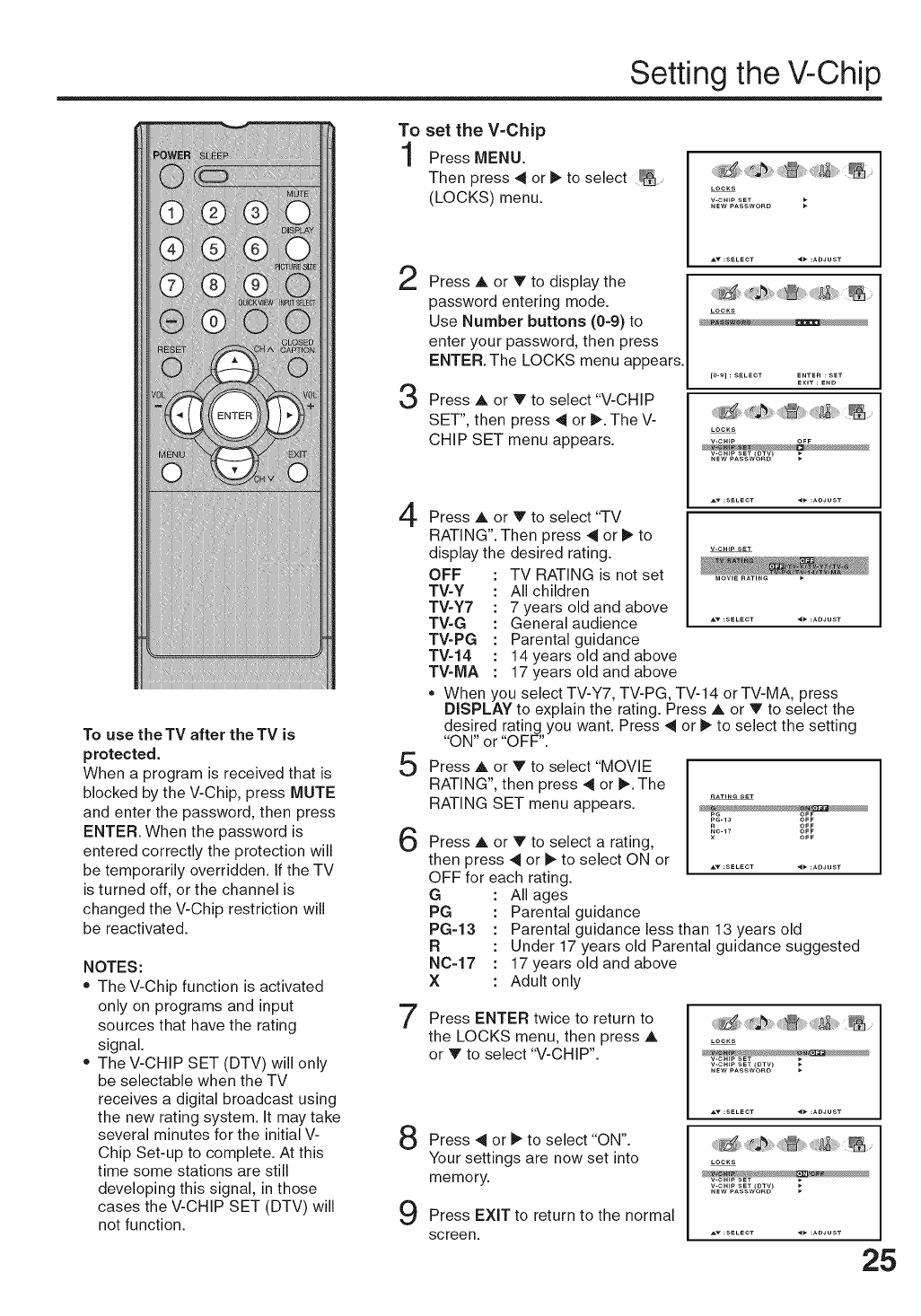

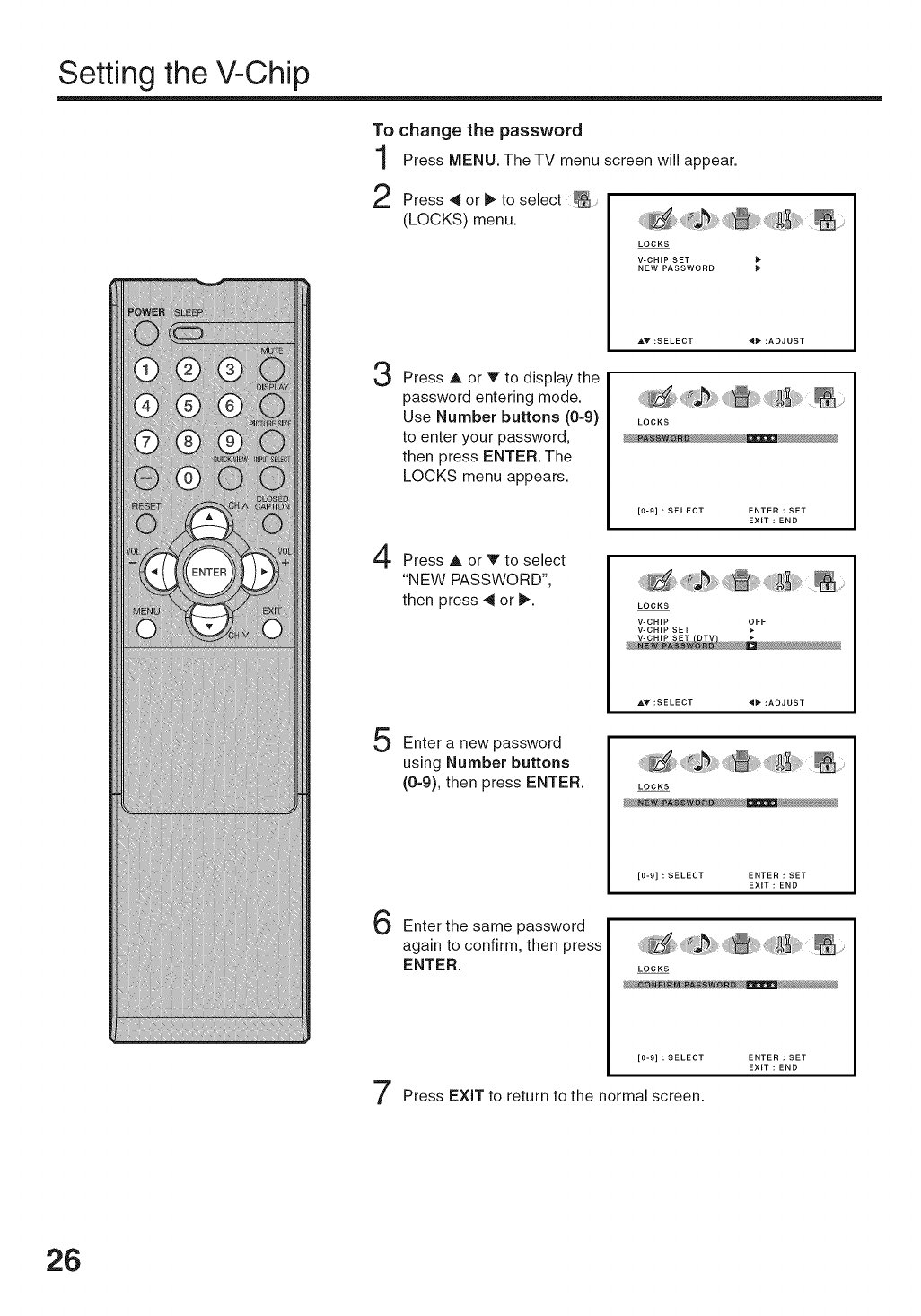

Setting the V-Chip ....................................................................... 24

Closed Caption ............................................................................ 27

CC advanced .............................................................................. 28

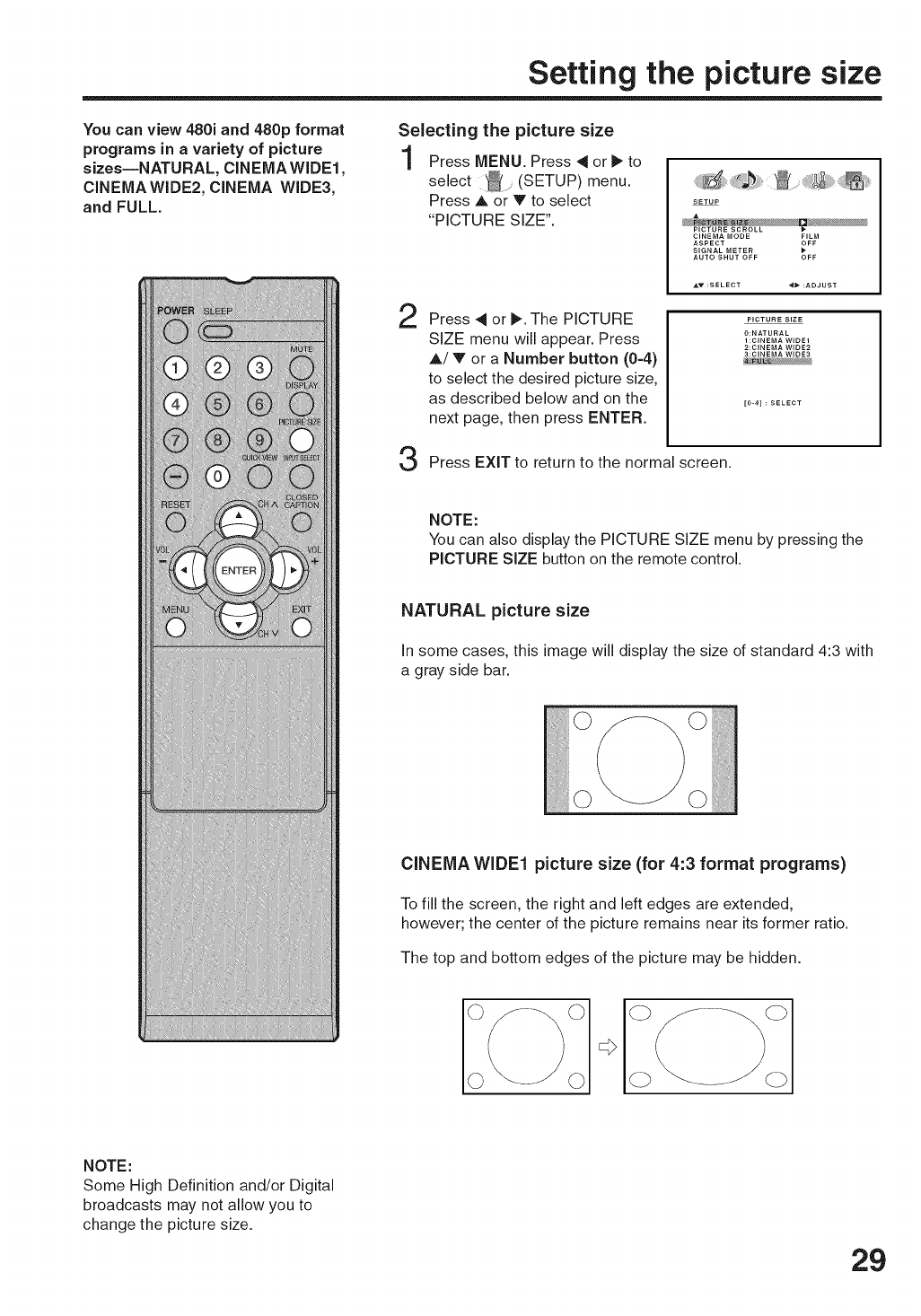

Setting the picture size ................................................................ 29

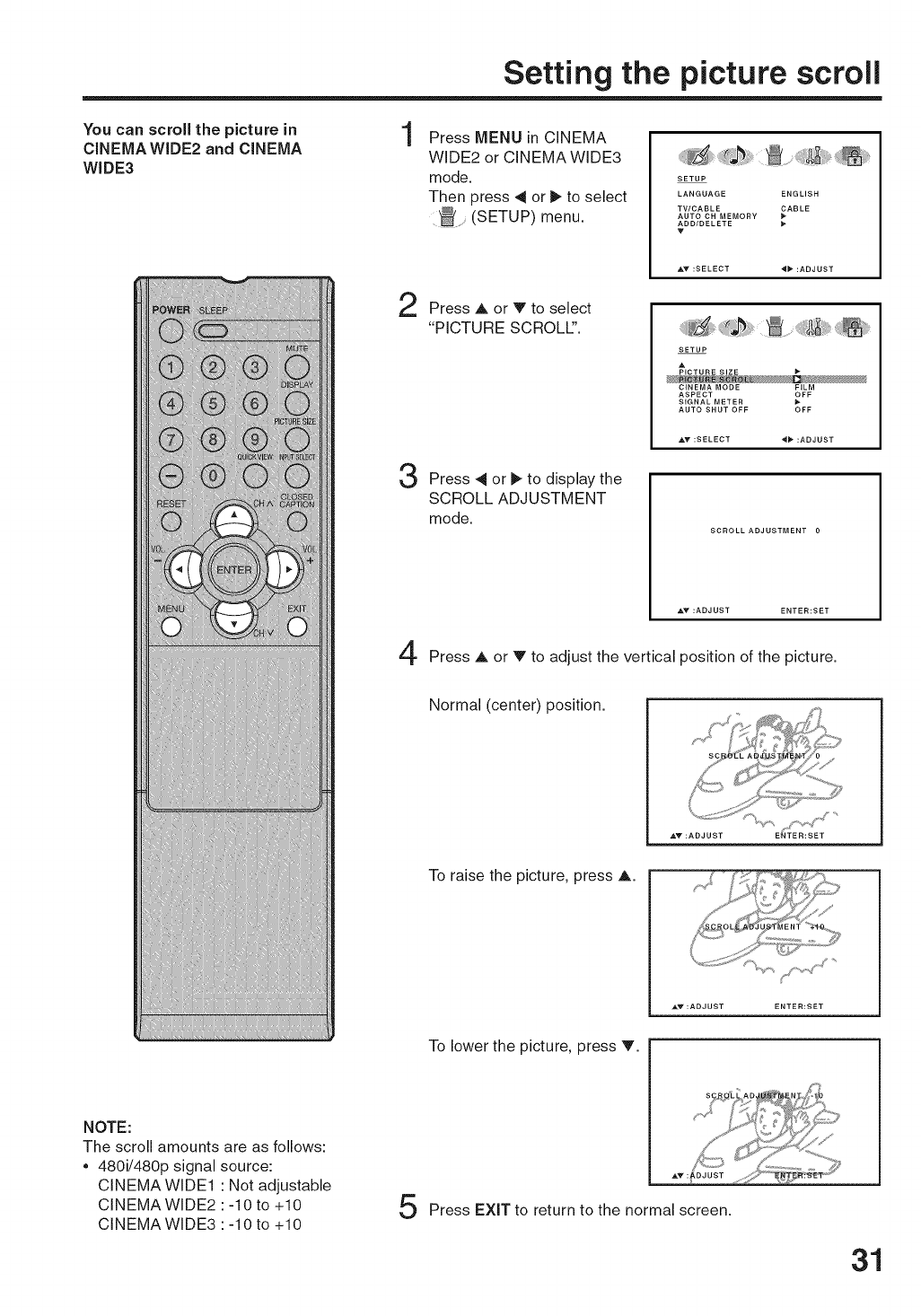

Setting the picture scroll .............................................................. 31

Selecting the cinema mode ......................................................... 32

Using the aspect feature ............................................................. 32

Adjusting the picture preference ................................................. 33

Picture control adjustment ........................................................... 33

Selecting the color temperature .................................................. 34

Adjusting the backlighting ........................................................... 34

Resetting your picture adjustments ............................................. 35

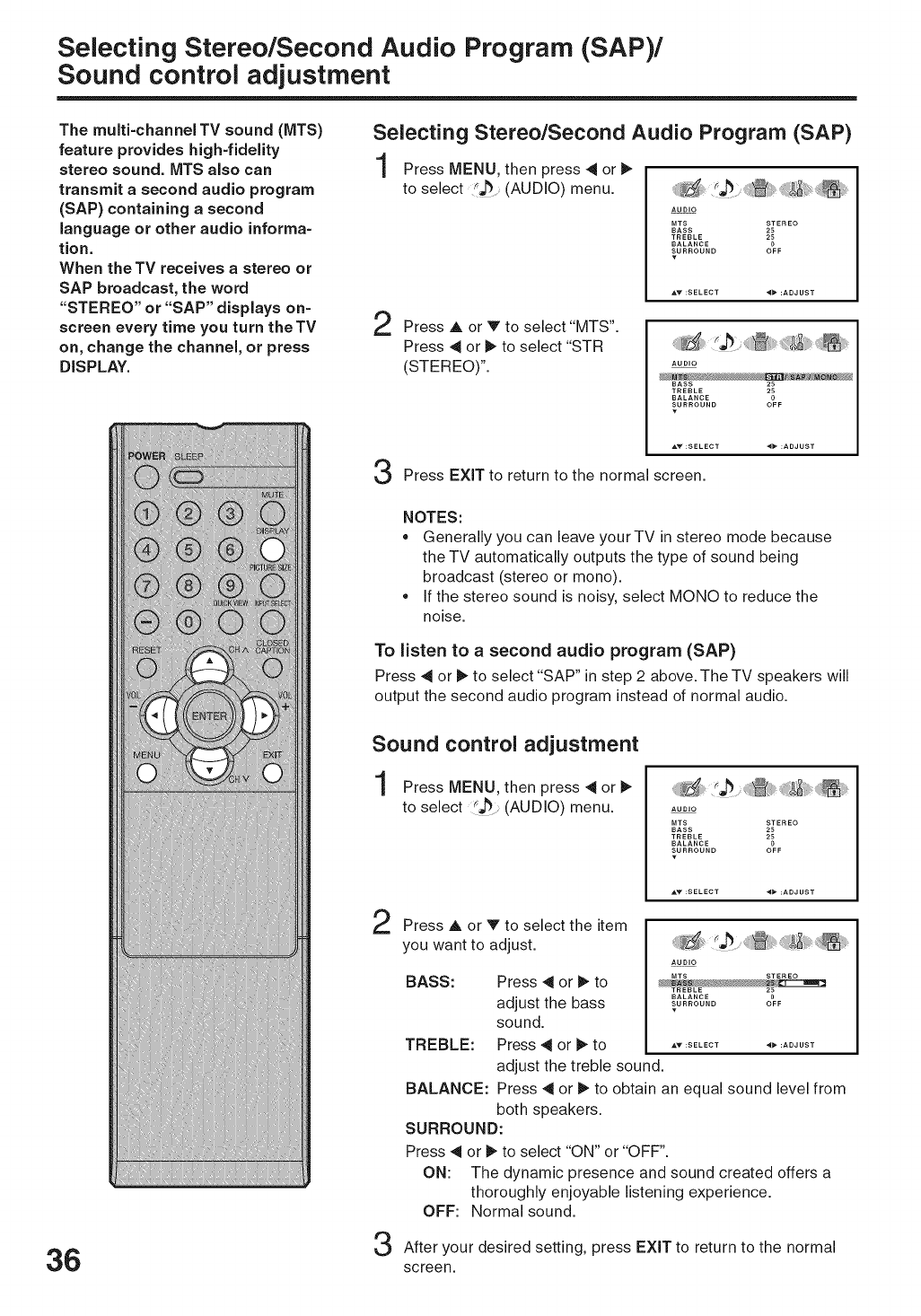

Selecting Stereo/Second Audio Program (SAP) ......................... 36

Sound control adjustment ........................................................... 36

Selecting the HDMI audio input source ....................................... 37

Selecting the audio language ...................................................... 37

Selecting the digital output .......................................................... 38

Resetting your audio adjustments ............................................... 38

Checking the Digital-signal strength ............................................ 39

Setting the auto shut off .............................................................. 40

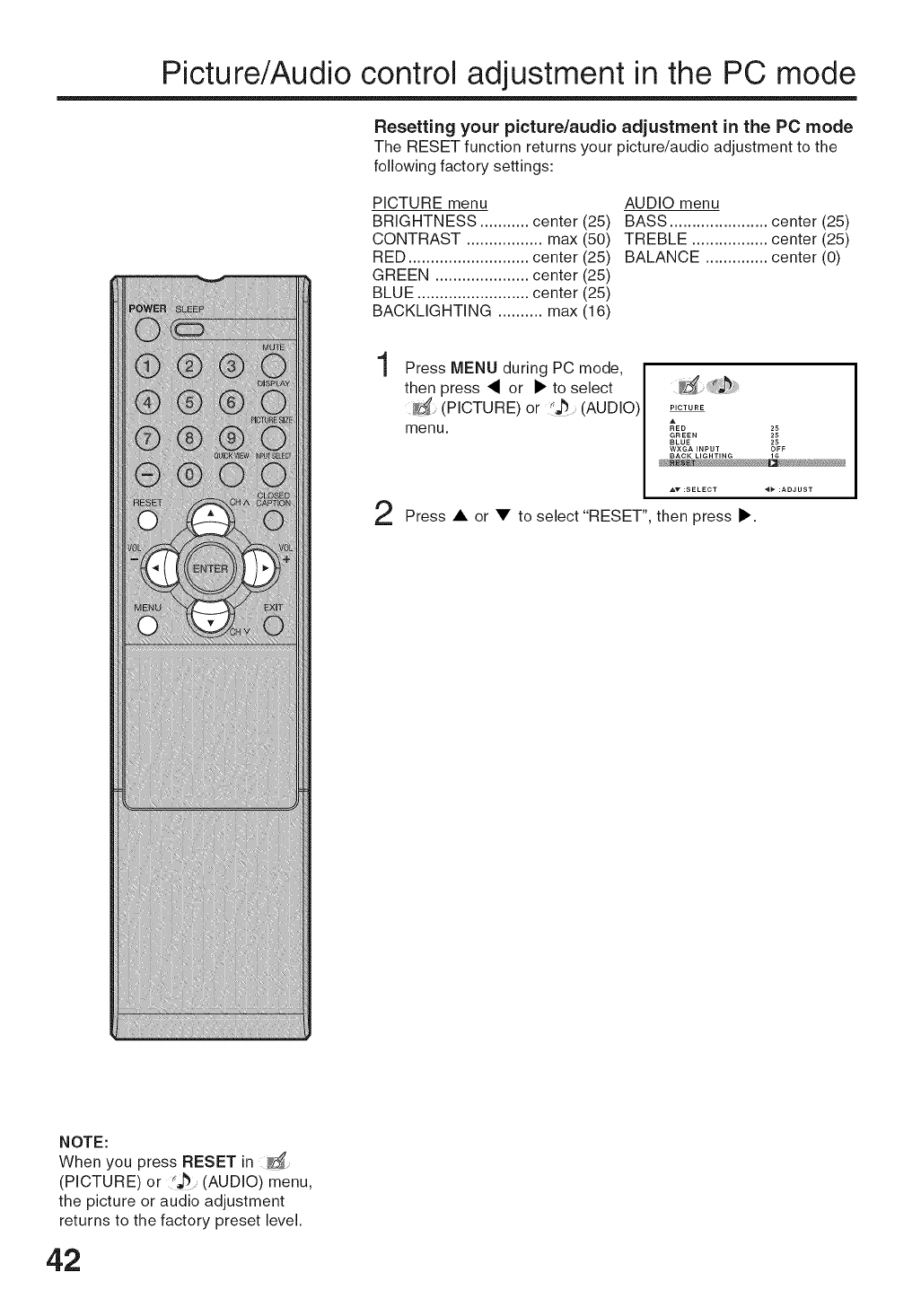

Picture/Audio control adjustment in the PC mode ....................... 41

OTHERS

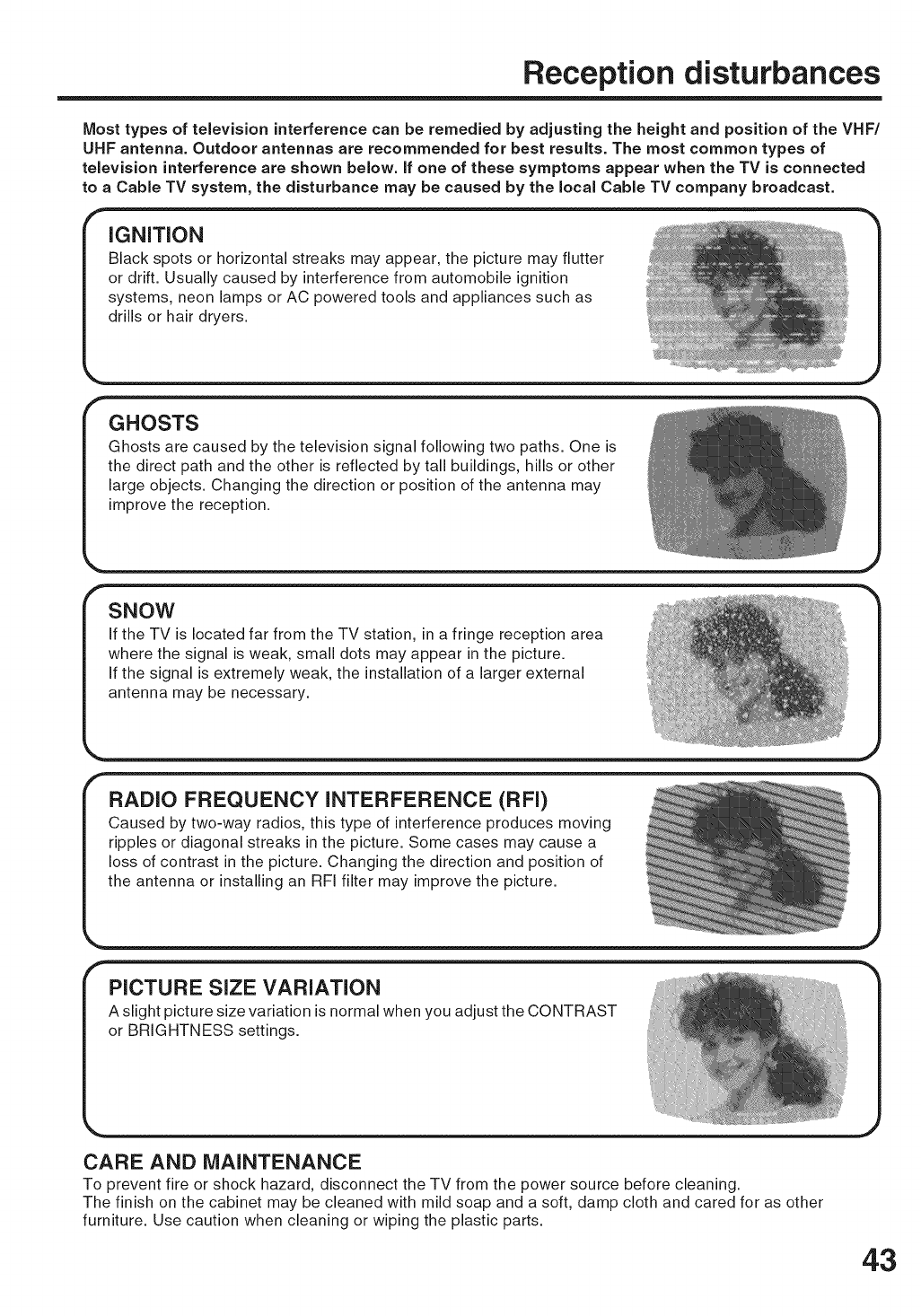

Reception disturbances ............................................................... 43

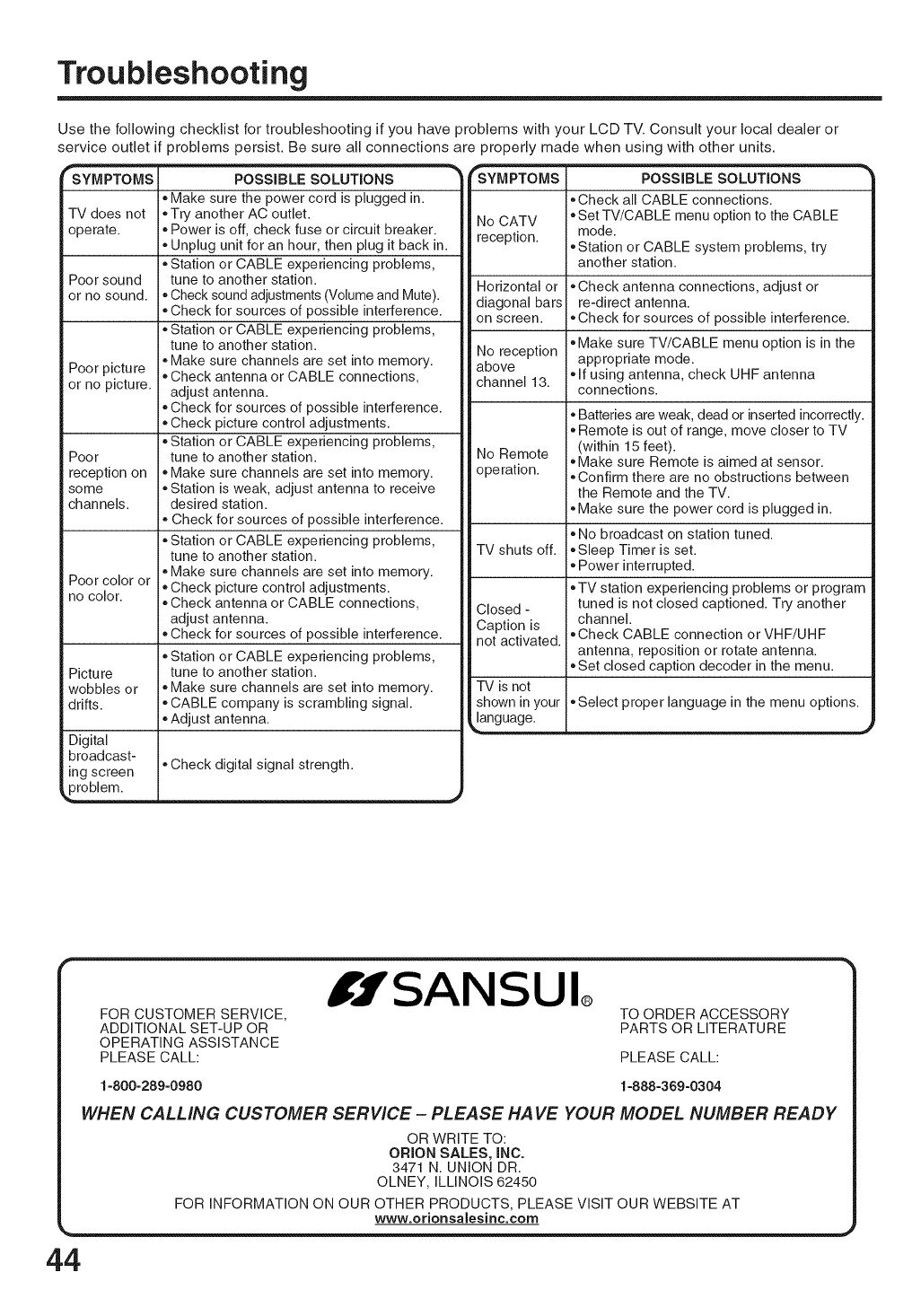

Troubleshooting ........................................................................... 44

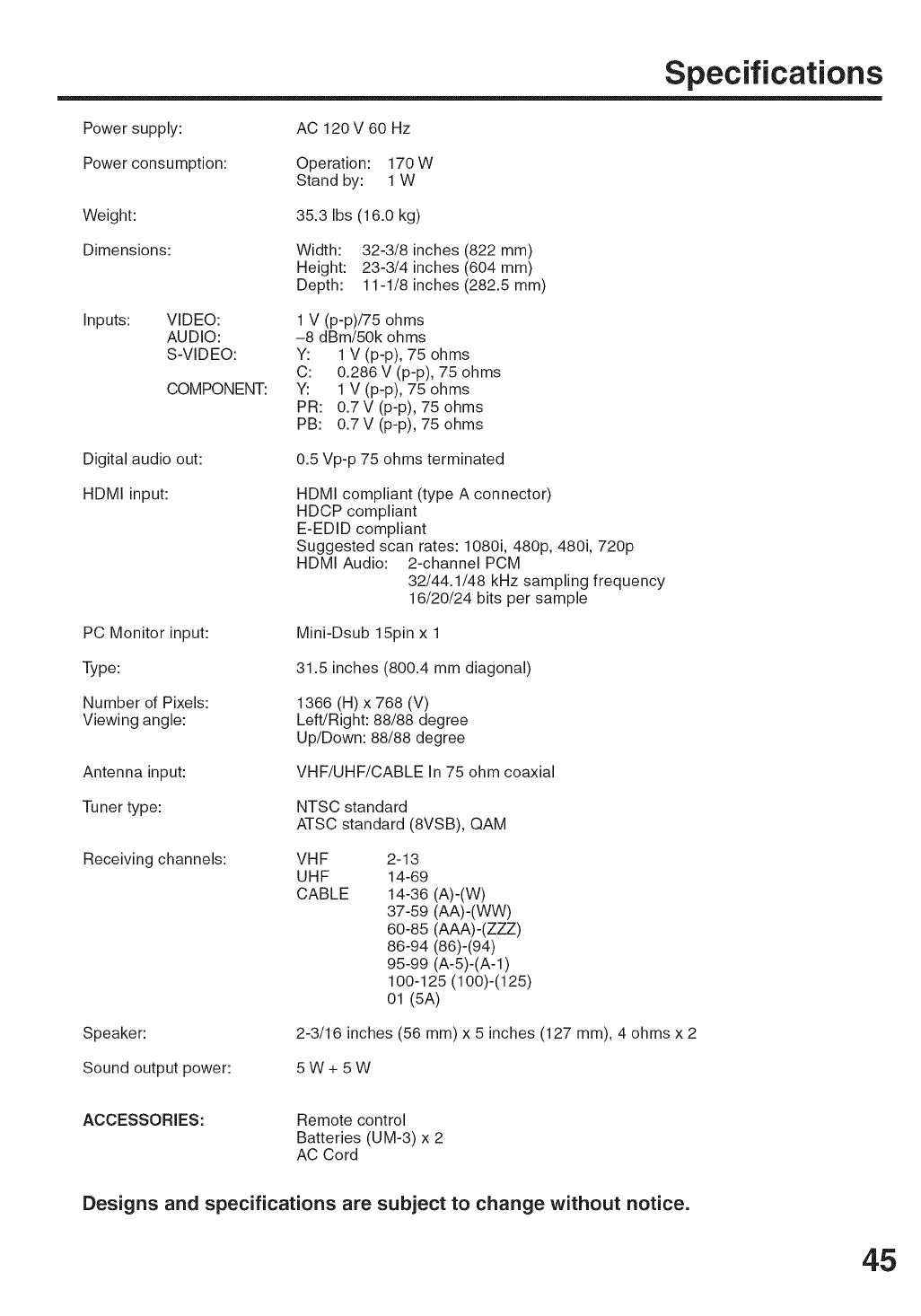

Specifications .............................................................................. 45

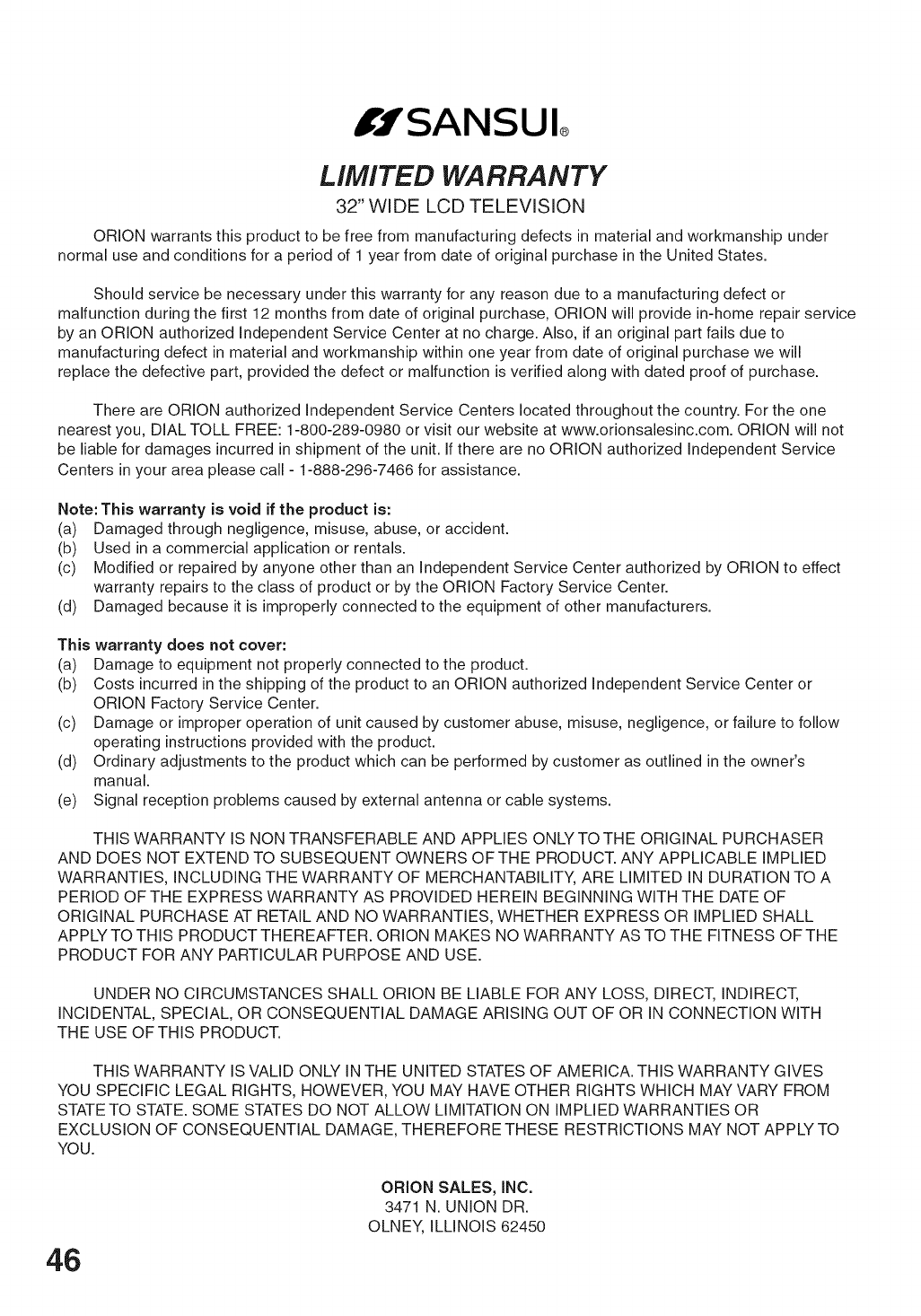

LIMITED WARRANTY ................................................................. 46

Features

• Integrated Digital Tuner - You can view digital broadcasting without using a Digital TV Set-Top Box.

• Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for

hearing impaired viewers.

•Picture Adjustments Using The Remote Control -The On-Screen display allows precise remote control

adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

•Programmable TV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up

to 120 minutes to turn off automatically.

• V-Chip -The V-Chip function can read the rating of a broadcast program or movie content if the program is

encoded with this information. V-chip will allow you to set a restriction level.

• Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby

Digital sound can produce the effect of being in a movie theater or a concert hall.

• S-Video/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component

can be connected to this unit.

• Video Input Jacks - This unit is equipped 3 types of video input jacks. The component video in jacks and

S-video in jack enable you to watch the DVD player or the video devices with high quality picture.

• On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-

screen programming.

* Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of

Dolby Laboratories.

Power source

TO USE AC POWER

1. Connect the AC cord plug into this unit's AC IN jack.

2. Connect the AC cord into an AC outlet.

_ii .................................................................................................] Re Outlet

:I_ ; /_ Wider Hole

flj i / andB adeI

.-_ _ _-- ,-_/,-_":: AC 120V, 60Hz

i Lt, L...... J

/ACcord

(supplied)

:: i:# I_ .....

NOTES:

• Please make sure to insert the cord securely at both the LCD TV and the wall outlet.

• The AC cord has a grounding-type AC line plug. If the supplied AC cord does not match you AC outlet,

contact a qualified electrician, do not defeat the purpose of a grounding plug.

WARNING:

• DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC

CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD

CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

CAUTION:

• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF

SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.

• DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL

SHOCK.

• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS

RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980. 7

Parts and functions

Top MENU button

CHANNEL A/V buttons

\ I INPUT button

VOLUME +/- butt°nsx _ / / /POWER button

To display the menu screen.

Press MENU button to display the menu

screen.

CHANNEL A/V buttons and VOLUME +/-

buttons can be used to select the desired

setting during the menu screen operations.

Rear

Remote sensor

Left side

POWER indicator

O©©--

COAXIAL DIGITAL

AUDIO OUT jack

RF( T) IN jacks

AVl IN jacks

PC IN jacks

PC/HDMI AUIDIO IN jacks

-- HDMI IN jacks

COMPONENT IN jacks

AV2 IN jacks

Remote control

1. POWER Button = Used to turn the LCD TV.

2. SLEEP Button =To set the LCD TV to turn off after

a preset amount of time, use the SLEEP button on

the remote control.

3. Direct Channel Selection Buttons (0-9) =Allows

direct access to any channel of the LCD TV.

4.- Button =This button is the "-" button used when

selecting digital channels.

5. RESET Button - Press to reset the On-Screen

picture adjustments to their factory preset positions.

6. CH (CHANNEL)^/v/CURSOR A/V Buttons =

Used to operate the menu functions of the LCD TV,

and to change the channels of the LCD TV.

7. MENU Button = Use to display the On-Screen

menu function.

8. MUTE Button =To turn off the sound, press this

button once. The LCD TV will be silenced and the

symbol "MUTE" will appear on the screen. The

muting feature can be released by pressing the

MUTE button again or one of the VOL (VOLUME)

+ or - buttons.

9. DISPLAY Button - When you press this button,

the current information will be displayed on a

screen. To remove the display from the screen,

press this button again.

10. PICTURE SIZE Button =Press to display

PICTURE SIZE menu.

11. INPUT SELECT Button = Press to display

SOURCE SELECTION menu.

12. QUICK VIEW Button =This button allows you to

go back to the previous channel selected by just

pressing the QUICK VIEW button. Press this

button again to return to the channel you were

watching.

13. CLOSED CAPTION Button - Displays text

captions or full screen text on the screen for

hearing impaired viewers.

14. ENTER Button - Use to enter or select

information for On-Screen operations.

15. VOL (VOLUME) +/-/CURSOR 4 /_" Buttons =

Used to operate the menu functions of the LCD

TV. Press the I_ button to increase, or the 4

button to decrease the sound level.

16. EXIT Button =Press to remove setup menu.

Before using the remote control, batteries must first be installed.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two "AA" batteries (supplied).

3. Replace the battery compartment cover.

Use two "AA" size batteries. The batteries may last

approximately one year depending on how much the

remote control is used. For best performance, it is

recommended that batteries should be replaced on a

yearly basis, or when the remote operation becomes

erratic. Do not mix old and new batteries or different

types.

BATTERY PRECAUTIONS

These precautions should be followed when using

batteries in this device:

• Use only the size and type of batteries specified.

• Be sure to follow the correct polarity when installing

the batteries as indicated in the battery compart-

ment. Reversed batteries may cause damage to the

device.

• Do not mix different types of batteries together (e.g.

Alkaline and Carbon-zinc) or old batteries with fresh

ones.

• If the device is not to be used for a long period of

time, remove the batteries to prevent damage or

injury from possible battery leakage.

Do not try to recharge batteries not intended to be

recharged; they can overheat and rupture. (Follow

battery manufacturer's directions.) 9

Antenna connections

ifyou are using an indoor or outdoor antenna, followthe instructions below that correspond to your antenna

system, if you are using aCable TV service, see page 11 for Cable TV connections.

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin=lead wire)

""_ Connect the 75 ohm cable from the combination

Antenna Antenna VHF/UHF antenna to the antenna jack.

| Jack Jack

_ _ If your combination VHF/UHF antenna has a 300

ohm twin-lead wire, the use of the 300-75 ohm

matching transformer may be necessary.

/750hmL__ _

| Coaxial _ 300-75 oh

| Cable _ Matching

_ Transformer

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin=lead wires)

_ _ Connect the UHF 300 ohm twin-lead wire to the

Combiner (not supplied). Connect the VHF 300

Antenna

Jack ohm twin-lead wire to the 300-75 ohm Matching

TTransformer. Attach the Transformer to the Com-

biner, then attach the Combiner to the Antenna

Jack.

Combiner

| UHF 300 ohm _ I-_-._T-

/ , ,_VHF 300 ohm

300-75 ohm Matching Transformer

Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin=lead wires)

" _" Connect the VHF 75 ohm cable and UHF 300 ohm

Antenna @ twin-lead wire to the Combiner (not supplied).

Jack _ Attach the Combiner to the Antenna Jack.

Combiner_

| o 3oo

Cable TV connections

This TV has an extended tuning range and can tune most cable channels without using aCable TV

Converter box. Some cable companies offer "premium pay channels" where the signal is scrambled.

Descrambling these signals for normal viewing requires the use of a descrambler device which is

generally provided by the Cable TV company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

|75 ohm _

For basic Cable TV service not requiring a Converter/

Descrambler box, connect the 75 ohm Coaxial Cable directly to

the Antenna Jack on the back of the TV.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the

incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable,

connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the

connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel

3 or 4) and use the Converter/Descrambler box to select channels.

Incoming

75 ohm Antenna

Cable TV Jack

Cable _.j Converter/ i. 75 ohm Cable to TV

Descrambler _ "_"-1 _2222J

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH

SCRAMBLED PREMIUM CHANNELS

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the

use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from

the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the

"B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the "A" position, tune

your TV tothe output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler

box to tune scrambled channels.

I ncoming _ Converter/ L "]

75 ohm _ Descrambler r_ Antenna I

Cable TV _ _ IJack I

Cable _. . r'?"'=?l 75 oh.._mCable to TV _ I

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to the LCD TV is

dependent on the model and features of each component. Check the Owner's Manual provided with each

component for the location of video and audio inputs and outputs.

The connection diagrams below are offered as suggestions.You may need to modify them to accommodate

your particular assortment of components. The diagrams are intended to show component video and audio

interconnections only.

To connect the LCD TV to a VCR

To AUDIO/VIDEO IN 1 (or 2)

_ Audio/Video cord (not supplied)

To Audio/Video OUT /

To connect the LCD TV to a VCR with an S=Video cord

If you connect a VCR with a S-VIDEO cord to the S-VIDEO IN jack on the rear of the LCD TV, you must also

connect the audio cords to the AUDIO IN jacks on the rear of the LCD TV. The S-VIDEO cord only carries the

video signal. The audio signal is separate.

Audio cord (not supplied)

Rear of the LCD TV

To AUDIO IN 1

To S-VIDEO IN 1

C3:J

S-Vide°c°rd n°tsupp'ied>I To Audio OUT ' _ /

To S-Video OUT

NOTE:

When the S-video cord and the video cord are connected to each jack at the same time, the S-video cord takes

precedence over the video cord.

Connections to other equipment

To connect the LCD TV to a DVD player/Satellite receiver

Ifyour DVD player or Satellite receiver has a S-Video out jack, connect cords as shown.

Audio cord (not supplied)

Rear of the LCD TV

To AUDIO IN 1

©To S-VIDEO IN 1

S-Video cord (not supplied) To Audio OUT

To S-Video OUT

To connect the LCD TV to a DVD player with component video

If your DVD player has component video out jacks, connect your LCD TV to a DVD player using a component

video cord. It can greatly enhance picture quality and performance.

Left side of the LCDTV

El To COMPONENT IN

_ To Component OUT

----_ Ivideo cord (not supplied) _To AUDIO pBC_ K""

...........................IN2 I_ t

Audio cord (not supplied) _ i i i i_/

To Audio OUT

NOTE:

Component Video inputs of the unit are for use with a device which outputs 480i/1080i interlaced signals and

480p/720p progressive signals.

Connections to other equipment

To connect the LCD TV to a DTV receiver/set-top box

If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a compo-

nent video cord.

Left side of the LCDTV

m To COMPONENT IN

To AUDIO

IN2

To Component OUT

Video cord (not supplied) _PR _

Audio cord (not supplied) (_

o@o o /

To Audio OUT

To connect the LCD TV to a HDMI or a DVI device

The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital

video from a DVI device.

When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only the video signal. Separate

analog audio cords are required.

Left side of the LCDTV

©©©

(not supplied)

Audio cord

| HDMI - to - DVI adapter cable

(not supplied) To DVI output

HDMI cable (type A connector) i"

(not supplied) To HDMI out

DVI device

HDMI device

NOTE:

You must choose an appropriate setting for each connection (see "Selecting the HDMI audio input source" on

page 37).

Connections to other equipment

Using an AV Amplifier with built-in digital surround

Ifyou are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including

Dolby Digital Surround audio that sounds just like the movie.

Connect an AV amplifier with built-in Dolby Digital decoder, or etc. as shown below.

Left side of the LCD TV

©@

Coaxial Digital Audio Output

-- Coaxial digital cable

(not supplied)

To Coaxial Digital Audio Input

I_ V-'-I ©

IAIv_A_mp_th%;t-_2I 1

surround decoder as listed above

NOTE:

This unit will not work in conjunction with DTS audio.There will be no sound output if connected to an AV

amplifier with a built-in DTS decoder.

To connect the LCD TV to a camcorder

To playback from a camcorder, connect the camcorder to the LCDTV as shown.

Left of the LCD TV

To AUDIO/VIDEO IN 1 (or 2)

To Audio/Video OUT !_

Audio/Video cord (not supplied)

Connections to other equipment

To connect the LCD TV to a Game

The LCD TV can also be used as a TV device for many video games. However, due to the wide variety of

signals generated by these devices and subsequent hook-up variations required, they have not all been

included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for

additional information.

Rear of the LCD TV

To AUDIO/VIDEO IN 1 (or 2)

TV GAME

To Audio/Video OUT (_

Audio/Video cord (not supplied)

To connect the LCD TV to a PC (Personal Computer)

Before you connect this LCD TV to your PC, change the adjustment of your PC's Resolution and Refresh rate

(60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the

VGA connector PC MONITOR on the back of the LCD TV. Attach the connectors firmly with the screws on the

plug. In case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia

computer and to the AUDIO connector of the PC/HDMI AUDIO IN jacks of the LCD TV.

Press INPUT SELECT on the remote control to select PC mode.

Switch on the computer. The LCD TV can operate as the computer monitor.

Left side of the LCDTV

To PC IN

PC/HDMI

AUDIO

iN jacks

©©©

Monitor Display modes

111

VGA cable (not supplied)

Audio cord (not supplied)

MODE Resolution Refresh rate

VGA 640x480 60Hz

VGA 720x400 70Hz

WVGA 848x480 60Hz

SVGA 800x600 60Hz

XGA 1024x768 60 Hz

WXGA 1280x768 60 Hz

WXGA 1280x720 60Hz

To return to normal mode

Press INPUT SELECT again.

NOTES:

• The on-screen displays will have a different appearance in PC mode than in TV mode.

• When you select WXGA or WVGA mode, see the WXGA INPUT to ON in the PC PICTURE menu (see page

41).

• If there is no video signal from the PC when the unit is in PC mode, "NO SIGNAl" will appear on the TV-

screen for approx. 10 seconds.

Setting the language

You can choose from three different

languages (English, French and

Spanish) for the on=screen displays.

On-screen language selection

(step 3) will automatically appear on

the screen when you press MENU

initially. Select the language you

prefer first, then proceed with the

other menu options.

Press MENU. The menu screen will appear.

Press 4 or _ to select

(SETUP) menu.

SETUP

LANGUAGE ENGLISH

TV/CABLE _ABLE

AUTO CH MEMORY

ADD/DELETE

_kV :SELECT _" :ADJUST

Press A or V to select

"LANGUAGE".

SETUP

ADD/DELETE

&Y :SELECT "_ :ADJUST

Press _ or I_ to select the desired language: English

(ENGLISH), French (FRAN(_AIS) or Spanish (ESPAKIOL).

Press EXiT to return to the normal screen.

NOTE:

If no buttons are pressed for more than

about 60 seconds, the MENU screen

will return to normal operation

automatically.

Memorizing channels

This TV is equipped with a channel memory feature which allows channels to skip up or down to the

next channel set into memory, skipping over unwanted channels. Before selecting channels, they must

be programmed into the TV's memory. To use this TV with an antenna, set the TV/CABLE menu option to

the TV mode. When shipped from the factory, this menu option is in the CABLE mode.

TV/CABLE selection

Press MENU. The menu screen will appear.

2 Press 41 or _ to select

(SETUP) menu.

LANGUAGE ENGLISH

TV/CABLE EARLE

AUTO CH MEMORY

ADD/DELETE

AV :SELECT 4_ :ADJUST

Press A or V to select

"TV/CABLE".

LANGUAGE ENGLISH

AUTO CH MEMORY

ADD/DELETE

AV :SELECT 4_ :ADJUST

Press 4 or _, to select

"TV" or "CABLE".

LANGUAGE ENGLISH

AUTO CH MEMORY

ADD/DELETE

AV :SELECT _" :ADJUST

Press EXiT to return to the normal screen.

NOTE:

It may take a few seconds for a

digital channel picture to appear on

screen after being selected.

CABLE CHART

The chart below is typical of many cable system channel allocations.

NumberonthisTV 14 15 16 17 18 19 20 2t 22

Cor_sponding CABLE channel A B C D E F G H I

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

J K L M N O P Q R S T U V W AA BB CC DD

41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS TT UU VV

59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76

WW AAA BBB CCC DDD EEE FFF GGG HHH III JJJ KKK LLL MMM NNN OOO PPP QQQ

77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94

RRR SSS TTT UUU VVVWWWXXX YYY ZZZ 86 87 88 89 90 9t 92 93 94

95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112

A-5 A-4 A-3 A-2 A-1 100 101 102 103 104 105 106 107 108 109 110 111 112

113 114 115 116 117 118 119 120 121 122 123 124 125 01

113 114 115 116 117 t18 119 120 121 122 123 124 125 5A

Memorizing channels

Automatic memory tuning

2 Press _ or _ to select _

(SETUP) menu, then press A

or V to select "AUTO CH

MEMORY".

NOTES:

• Memorizing channels is best _,_

accomplished during evening

"PRIMETIME" hours, as more

stations are broadcasting digital

signals. Memorizing channels can

only be accomplished while a

station is broadcasting a digital

to set that channel into 4signal

memory.

• If you are unsure of the digital

channels available in your area you

may visit www.antennaweb.org

to receive a list based on your

address or zip code. Should you

require further assistance you may

call our toll-free customer service

line at 1-800-289-0980.

• New digital channels may be added

to your area periodically, it is

recommended to perform the

"AUTO CH MEMORY" procedure

regularly.

• To return from ADD/DELETE menu

to SETUP menu, select "RETURN",

then press 4 or I_.

Press MENU. The menu screen will appear.

Press ,_ or I_. The TV will begin

memorizing all the channels

available in your area.

SETUP

LANGUAGE ENGLISH

TV/CABLE CABLE

_DD/DELETE

• It may take from 15 minutes to m

30 minutes to complete

memorizing digital cable ...........

channels.

Depending on the reception condition, a BAR display may

not advance for several minutes, please be patient.

ADD/DELETE channels

Press MENU. The menu screen will appear.

AT :SELECT 41@- :ADJUST

AUTO CH MEMORY

\ \ I / /

PROGRAMMING NOW

PLEASE WAIT

//I \ _ CABLE

Press 4 or t) to select ......

(SETUP) menu, then press A

or V to select "ADD/DELETE".

Press _1or _,.

The ADD/DELETE menu will

appear.

SETUP

LANGUAGE ENGLISH

TV/CABLE _ABLE

AUTO CH MEMORY

Press A or V to select "ADD/

DELETE", then press 4 or _.

Select the desired channel

to be memorized or deleted

using A or V.

Press 4 or _ to select "ADD"

or "DELETE", whichever

function you want to perform.

Repeat step 4 for other channels'

then press ENTER.

ADD/DELETE

ADDING CHANNEL

ACH SIGNAL

1 ANALOG DELETE

2 ANALOG ADD

3 ANALOG DELETE

ANALOG DELETE

ANALOG ADD

5-001 DIGITAL ADD

_LEARALL

RETURN

ADD/DELETE

ADDING CHANNEL

ADD/DELETE

ACH SIGNAL

2 ANALOG ADD

ANALOG DELETE

5 ANALOG ADD

5-001 DIGITAL ADD

CLEARALL

RETURN

AV:SELECT 4@-:ADJUST

_ou want to add or delete,

Press EXIT to return to the normal screen.

To add a digital channel

Select the channel you wish to add.

Press A or V to select "ADDING CHANNEL" as in step 3 above,

then press 4 or _.

CLEAR ALL

All channels are deleted from the channel memory.

Press A or _' to select "CLEAR ALL" as in step 3 above, then

press @. 19

TV operation

To turn on the TV, press POWER.

Adjust the volume level by

pressing VOL + or -. The volume

level will be indicated on the

screen by white bars. As the

volume level increases, so do the

number of bars. If the volume

decreases, the number of white

bars also decreases.

Set the TV/CABLE menu

option to the appropriate

position (see page 18).

Press the Direct Channel 12

Selection (0=9,-) buttons to select

the channel.

TO SELECT ANALOG CHANNELS _I_'% A%

1-9: Press 0 twice, then 1-9 as

needed. Example, to select channel 2, press 0, 0, 2.

10-99: Press 0, then the remaining 2 digits. Example, to

select channel 12, press 0, 1, 2.

100-125: Press the 3 digits in order. Example, to select

channel 120, press 1,2, 0.

TO SELECT DIGITAL CHANNELS

Press the first 3 digits, then press the - button, followed by the

remaining 3 digits.

Example, to select channel 015-001, press 0, 1,5, -, 0, 0, 1.

• If a channel is selected with only audio content, "AUDIO

ONLY" will be displayed on the screen.

• If a channel is selected with a weak digital signal, "DIGITAL

CHANNEL SIGNAL STRENGTH IS LOW" will be displayed

on the screen.

• If a channel is selected to which you have not subscribed,

"DIGITAL CHANNEL IS SCRAMBLED" will be displayed on

the screen.

NOTES:

• If a channel with no broadcast is

selected, the sound will automatically

be muted.

• It may take a few seconds for a digital

channel picture to appear on screen

after being selected.

VHF/UHF/CABLE CHANNELS

VHF

2-13

UHF

14-69

CABLE

VHF

2-13

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1)

100-125 (100)(125)

01 (5A)

TV operation

OH A/V

Press and release CH A or V. The channel

automatically stops at the next channel set

into memory.

For proper operation, before selecting

channels, they should be set into the memory.

See pages 18 and 19 "Memorizing channels".

ANT

ABCD

CABLE

ANALOG 1 2

DISPLAY

Press DISPLAY to display the current information on the screen.

When the TV receives a digital signal, the

digital information will appear.

Channel number

Broadcast program name

Station name _ Remaining time

Audio language _ Program guide

V-CHIP RATING _ V-Chip mark

, Sleep time , Picture size

When the TV receives a analog signal, the

analog information will appear.

Channel number or VIDEO mode selected

, Channel label (if preset)

* Stereo or SAP (second audio program)

audio status

* Content rating

* Sleep time

* Picture size

Press DISPLAY again to clear the call display.

NOTES:

• The TV is capable of holding a still

video image or On screen display

image on your TV screen indefinitely. If

you leave the still video image or On

screen display image displayed on

your TV for an extended period of

time, you risk permanent damage to

your TV screen.

• When the TV receives an analog

signal, DISPLAY shows only analog

information.

• After 10 seconds, DISPLAY screen will

return to normal TV-operation auto-

matically, when a Digital signal is

received.

After 4 seconds, DISPLAY screen will

return to normal TV-operation auto-

matically, when a Analog signal is

received.

QUICK VIEW

This button allows you to go back to the last

channel selected by pressing QUICKVIEW.

Press QUICK VIEW again to return to the last

channel you were watching.

MUTE

Press MUTE to switch off the sound. The TV's

sound will be silenced and "MUTE" will briefly

appear on the screen. The sound can be

switched back on by pressing this button again

or the VOL + or -.

ANT

ASCD

CABLE

ANALOG 1 0

SLEEP

To set the TV to turn off after a preset amount

of time, press SLEEP on the remote control. SL_Po'o'2E"

The clock will count up 10 minutes for each

press of the SLEEP button (OFF, 0hl0m .....

lh50m, 2h00m). After the sleep time is

programmed, the display will appear briefly

every ten minutes to remind you that the sleep

timer is operating. To confirm the sleep timer setting, press SLEEP and the

remaining time will be displayed for a few seconds. To cancel the sleep timer,

press SLEEP repeatedly until the display turns to 0h00m.

Labeling channels

Channel labels appear over the To

channel number display each time "t

you turn on theTV, select a!

channel, or press DISPLAY. r_

You can choose any four charac= ,K_

ters to identify achannel.

create channel labels

Select a channel you want to label.

Press MENU, then press

4 or _, to select

(OPTION) menu.

Press A or V to select "CH

LABEl", then press _ or _.

The CH LABEL menu will

appear.

OPTION

VIDEO LABEL _*

Press A or V to select "SET/

CLEAR". Press 4 or l_ to

select "SET".

_LAB_

LABEL

RETURN

AV :SELECT _ :ADJUST

ENTER:SET

Press ENTER to select

"LABEl".

Then press 4 or _ to enter a

character in the first space.

Press the button repeatedly

until the character you want

appears on the screen.

CH LABEL :CH 23

SET

RETURN

The characters rotation _> - <-> 0-..9 <->A..-Z <-7

/ J

as follows: --_- + _ SPACE ._--

If the character which you desire appears, press ENTER.

Repeat this step to enter the rest of the characters.

If you would like a blank space in the label name, you must

choose the empty space from the list of characters; otherwise,

a dash will appear in that space.

When you finish inputting the label name, press ENTER.

Press EXiT to return to the normal screen.

Repeat steps 1-5 for other channel. You can assign a label to

each channel.

NOTE:

Select "RETURN" and press 4 or _"

to return from CH LABEL menu to

OPTION menu.

erase channel labels

Select a channel with a label which you want remove.

Press MENU, then press 4 or _ to select &_ (OPTION)

menu.

Press A or V to select "CH LABEl", then press 4 or I_ to

display the CH LABEL menu.

Press A or V to select "SET/CLEAR", then press _ or I_ to

select "CLEAR".

Press EXiT to return to the normal screen.

Repeat steps 1-4 to erase other channel labels.

Selectingthe videoinputsource/Labelingthe videoinputsource

Selecting the video input source

Press iNPUT SELECT to view

a signal from another device

connected to your LCD TV,

such as a VCR or DVD player.

You can select ANT, VIDEO1,

VIDEO2, COMPONENT,

HDMI or PC depending on

which input jacks you used to

connect your devices.

SOURCE SELECTION

1:VIDEO1

2:VIDEO2

3:COMPONENT

4:HDMI

5:PC

Pressing iNPUT SELECT on the remote control displays the

current signal source. To change the video input source, press

iNPUT SELECT again or 0=5.

NOTE:

Select "RETURN" and press 4 or I_

to return from VIDEO LABEL menu to

OPTION menu.

Labeling the video input source

The video label feature allows you to label each input source for

your TV.

1Press MENU. Then press

4 or _ to select

(OPTION) menu.

Press A or V to select

"VIDEO LABEl", then press

4 or I_.The VIDEO LABEL

menu will appear.

Press A or V to select the

video source you want to

label.

Press _ or I_ to select the

desired label for that input

source.

VCR

DVD

DTV

SAT

CBL

Uses the default

label name

Video cassette

recorder

DVD video

Digital TV set-top

box

Satellite box

Cable box

HDMI device (only HDMI)

OPT[ON

CH LABEL _-

AY :SELECT 4_ :ADJUST

VIDEO LABEL

2, VIDEO2

3. COMPONENT

.HDM[

RETURN

AV :SELECT _:ADJUST

VIDEO LABEL

2, VIDEO2

3. COMPONENT

4. HDM[

RETURN

AY :SELECT d_ :ADJUST

Press EXiT to return to the normal screen.

Setting the V-Chip

An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that

you may choose to e×clude. The restriction applies to "TV RATING" and "MOVIE RATING" if this data is

transmitted. You may set this restriction separately. To use the V-Chip function, you must register a

password.

To register a password

Press MENU. The menu

screen will appear.

Then press _l or _ to select

(LOCKS) menu.

LOCKS

V-CHIP SET t_

NEW PASSWORD i_

_,V :SELECT _" :ADJUST

2Press A or V to display the

password entering mode.

LOCKS

[0-9] : SELECT ENTER :SET

EXIT : END

Select and enter a password

(4 digits) using Number

buttons (0=9), then press

ENTER.

Enter the same password

again to confirm, then press

ENTER.

The password is now

registered and the LOCKS

menu will appear on the

screen.

LOCKS

[0-9] : SELECT ENTER : SET

EXIT : END

"*" appears instead of the number.

LOCKS

[0-9] : SELECT ENTER : SET

EXIT :END

NOTES:

• If you forget the password,

contact Customer Service at 1-

800-289-0980 for assistance.

Your original remote control will be

required.

• To avoid forgetting the password,

write it down and keep in a safe

place.

Setting the V-Chip

To set the V-Chip

Press MENU.

Then press 4 or I!_to select _ ....

(LOCKS) menu.

Press A or V to display the

password entering mode.

Use Number buttons (0-9) to

enter your password, then press

ENTER. The LOCKS menu appears.

Press A or V to select "V-CHIP

SET", then press 4 or _-.The V-

CHIP SET menu appears.

To use theTV after theTV is

protected.

When a program is received that is

blocked by the V-Chip, press MUTE

and enter the password, then press

ENTER. When the password is

entered correctly the protection will

be temporarily overridden. If the TV

is turned off, or the channel is

changed the V-Chip restriction will

be reactivated.

NOTES:

• The V-Chip function is activated

only on programs and input

sources that have the rating

signal.

• The V-CHIP SET (DTV) will only

be selectable when the TV

receives a digital broadcast using

the new rating system. It may take

several minutes for the initial V-

Chip Set-up to complete. At this

time some stations are still

developing this signal, in those

cases the V-CHIP SET (DTV) will

not function.

LOCKS

V-CHtP SET

NEW PASSWORC

LOCKS

[o-_] : SELECT ENTER : SET

EXIT : END

LOCKS

V-CHIP OFF

V-CHIP SET(CTV)

NEW PASSWORC

Parental guidance less than 13 years old

Under 17 years old Parental guidance suggested

17 years old and above

Adult only

Press ENTER twice to return to

the LOCKS menu, then press A

or V to select "V-CHIP". LOCKS

V-CHIP SET

V-CHIP SET (CTV)

NEW PASSWORC

Press _ or _ to select "ON".

Your settings are now set into

memory.

Press EXiT to return to the normal

screen.

LOCKS

V-CmP SET

V-CHIP SET (CTV)

NEW PASSWORC

Press A or V to select a rating,

then press 4 or I_ to select ON or

OFF for each rating.

G : All ages

PG : Parental guidance

PG-13 :

NC-17 :

Press A or V to select "MOVIE

RATING", then press 4 or I_.The

RATING SET menu appears.

R OFF

NC-17 OFF

X OFF

Press A or V to select "TV

RATING". Then press 4 or I_ to

display the desired rating.

OFF : TV RATING is not set

TV-Y : All children

TV-Y7 : 7 years old and above

TV-G : General audience ..................

TV-PG : Parental guidance

TV-14 : 14 years old and above

TV-MA : 17 years old and above

• When you select TV-Y7, TV-PG, TV-14 or TV-MA, press

DISPLAY to explain the rating. Press A or V to select the

desired rating you want. Press 4 or I_ to select the setting

"ON" or "OFF".

Setting the V-Chip

To change the password

Press MENU.The TV menu screen will appear.

2Press _ or II_to select _ .....

(LOCKS) menu.

3Press A or V to display the

password entering mode.

Use Number buttons (0-9)

to enter your password,

then press ENTER. The

LOCKS menu appears.

LOCKS

V-CHIP SET

NEW PASSWORD t_

_.V :SELECT _ :ADJUST

LOCKS

_l_Bm

[0-9] : SELECT ENTER : SET

EXIT : END

4Press A or V to select

"NEW PASSWORD",

then press 4 or _. LOCKS

V-CHIP _FF

V-CHIP SET

V-CHIP SET DTV

• .V :SELECT _ :ADJUST

5Enter a new password

using Number buttons

(0-9), then press ENTER. LOCKS

[0-9] : SELECT ENTER : SET

EXIT : END

Enter the same password

again to confirm, then press

ENTER. LOCKS

[0-9] : SELECT ENTER : SET

EXIT : END

Press EXiT to return to the normal screen.

Closed Caption

WHAT IS CLOSED CAPTiONiNG?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning

will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

Captions: This Closed Caption Mode will display text on the

screen in English or another language. Generally, Closed Captions

in English are transmitted on C1 and Closed Captions in other

languages are transmitted on C2.

Text: The Text Closed Caption Mode will usually fill 1/2 of the screen

with a programming schedule or other information.

Tune the TV to the desired program.

2Press MENU, then press 4 or _ to display the (SETUP)

menu.

Press ,L or V to select "ANALOG CAPTION" or DIGITAL

CAPTION".

NOTE:

You can also display the ANALOG CAPTION menu by pressing

the CLOSED CAPTION button on the remote control.

When an Analog signal is

received, you can choose C1,

C2, T1,T2 and OFR SETUP

DIGITAL CAPTION OFF

CC ADVANCED

When a Digital signal is

received, you can choose

from CS1, CS2, CS3, CS4, SETUP

CS5, CS6 and OFE ANALOG CAPTION OFF

NOTE:

Depending on the broad- ,_v :SELECT _l_, :ADJUST

cast signal, some Analog Captions will function with a Digital

broadcast signal.

Press 4 or _ to select the desired Closed Caption mode.

NOTE:

To turn the Closed Caption feature off, select "OFF".

Press EXit to return to the normal screen.

NOTES:

• If the program or video you selected is not closed-captioned, no captions will display on-screen.

• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the

Closed Caption feature to "OFF".

• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.

• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.

• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with

Closed Captioning, especially with live programs. This is because during live programs, captions are also

entered live. These transmissions do not allow time for editing.

• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may

interfere with Closed Captions.

• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may

appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use

an outdoor antenna. Am

CC advanced

Closed Captions are factory

preset however you can adjust

them individually as follows:

This feature is designed to customize Digital Captions only.

Press MENU. The menu screen will appear.

2 Press 4 or _ to select _ .........

(SETUP) menu.

Press A or V to select "CC

ADVANCED", then press

4or_.

The CC ADVANCED menu

will appear.

Press A or V to select the

item you want to adjust, then

press 4 or _.

Press A or V to select desired

setting, then press ENTER.

SETUP

LANGUAGE ENGLISH

TV/CABLE _ABLE

AUTO CH MEMORY

ADD/DELETE

A'_ :SELECT 4b* :ADJUST

SETUP

ANALOG CAPTION OFF

DIGITAL CAPTION OFF

_,v :SELECT 4_- :ADJUST

CC ADVANCED

TEXT EDGE

BACKGROUND COLOR _

TEXT SIZE

STANDARD

LARGE

You can select from among the following items and parameters.

NOTE:

Do not set the Closed Caption "TEXT

COLOR" and "BACKGROUND

COLOR" as the same color or you will

not be able to see the text. 6

TEXT SIZE:

TEXT TYPE:

TEXT COLOR:

TEXT EDGE:

BACKGROUND

AUTO, SMALL, STANDARD, LARGE

AUTO, DEFAULT, MONO W. SERIF, PROR

W. SERIF, MONO W/O SERIF, PROR W/O

SERIF, CASUAL, CURSIVE, SMALL

CAPITALS

AUTO, BLACK, WHITE, RED, GREEN,

BLUE, YELLOW, MAGENTA, CYAN

AUTO, NONE, RAISED, DEPRESSED,

UNIFORM, LEFT DROPSHADOW, RIGHT

DROPSHADOW

COLOR: AUTO, BLACK, WHITE, RED,

GREEN, BLUE, YELLOW,

MAGENTA, CYAN

Press EXiT to return to the normal screen.

Setting the picture size

You can view 480i and 480p format

programs in avariety of picture

sizes--NATURAL, CINEMA WIDE1,

CINEMA WIDE2, CINEMA WIDE3,

and FULL.

Selecting the picture size

Press MENU. Press 4 or _ to

select _ (SETUP) menu.

Press A or V to select

"PICTURE SIZE".

2Press 4 or _. The PICTURE

SIZE menu will appear. Press

A! V or a Number button (0=4)

to select the desired picture size,

as described below and on the

next page, then press ENTER.

SETUP

CINEMA MODE FILM

ASPECT OFF

SIGNAL METER

AUTO SHUT OFF OFF

PICTURE SIZE

0:NATURAL

1 :CINEMA WIDE1

2:CINEMA WIDE2

3:CINEMA WIDE3

[0-4] : SELECT

Press EXIT to return to the normal screen.

NOTE:

You can also display the PICTURE SiZE menu by pressing the

PICTURE SIZE button on the remote control.

NATURAL picture size

In some cases, this image will display the size of standard 4:3 with

a gray side bar.

CINEMA WIDE1 picture size (for 4:3 format programs)

To fill the screen, the right and left edges are extended,

however; the center of the picture remains near its former ratio.

The top and bottom edges of the picture may be hidden.

NOTE:

Some High Definition and/or Digital

broadcasts may not allow you to

change the picture size.

Setting the picture size

NOTES:

• The PICTURE SIZE feature is not

available for some program

formats (such as 1080i or 720p).

Such formats will display in FULL.

• The PICTURE SIZE feature is in

the PC mode only for NATURAL or

FULL.

• In CINEMAWIDE2 picture size,

some of the on screen display

items may be positioned off the

visible portion of the screen. You

can use Picture Scroll, as

explained on the right, to view off

screen items.

CINEMA WIDE2 picture size (for letter box programs)

The entire picture is uniformly enlarged--it is stretched the same

amount both wider and taller (retains its original proportion).

The top and bottom edges of the picture may be hidden. To view

the hidden areas, it is possible to make the picture scroll (see

page 31 ).

CINEMA WIDE3 picture size (for letter box programs

with subtitles)

To fill the width of the screen, it is extended horizontally. However; it

is only slightly extended at the top and the bottom.

The top and bottom edges of the picture may be hidden. To view

the hidden areas (such as subtitles or captions), it is possible to

make the picture scroll (see page 31).

FULL picture size (for 16:9 source programs)

FULL will displaythe picture at the maximumsize.

Setting the picture scroll

You can scroll the picture in

CINEMA WIDE2 and CINEMA

WIDE3

1Press MENU in CINEMA

WIDE2 or CINEMA WIDE3

mode.

Then press 4 or _ to select

(SETUP) menu.

SETUP

LANGUAGE ENGLISH

TV/CABLE _ABLE

AUTO CH MEMORY

ADD/DELETE

2Press A or V to select

"PICTURE SCROLl".

_ICTURE SIZE

CINEMA MODE FILM

ASPECT OFF

SIGNAL METER

AUTO SHUT OFF OFF

3Press 41 or I_ to display the

SCROLL ADJUSTMENT

mode.

Press A or V to adjust the vertical position of the picture.

Normal (center) position.

To raise the picture, press A.

To lower the picture, press V.

NOTE:

The scroll amounts are as follows:

• 480i/480p signal source:

CINEMA WIDE1 : Not adjustable

CINEMA WIDE2 : -10 to +10

CINEMA WIDE3 : -10 to +10 5Press EXiT to return to the normal screen.

Selecting the cinema mode/Using the aspect feature

Selecting the cinema mode

A smoother motion may be obtained by setting the Picture

Mode to Film when you view a DVD from the DVD player

connected with the component input.

Press MENU, then press 4 or I_

to select _ (SETUP) menu.

Press A or V to select CINEMA

MODE, then press 4 or t_ to

select "FILM".

SETUP

LANGUAGE ENGLISH

TV/CABLE CABLE

AUTO CH MEMORY

ADD/DELETE

_i_',_,,,_i_ii_,,_ ,,_iii_,,_i_i!i_,

SETUP

PICTURE SIZE

PICTU RE SCROLL

ASPECT OFF

SIGNAL METER

AUTO SHUT OFF OFF

Press EXIT to return to the normal screen.

NOTE:

If the signal does not include aspect

information, the picture size you

selected on page 29 is displayed.

To set the CINEMA MODE to VIDEO :

Press 4 or _ to select "VIDEO" in step 2 above.

Using the aspect feature

When the ASPECT feature is set to ON and the TV receives a

480i signal, the picture size is automatically selected (as

described in the following table).

Press MENU, then press _ or

to select (SETUP) menu.

_i!_J! ¸¸ iiiii_ii_ _ iii!_!i i_, ii_i!

SETUP

LANGUAGE ENGLISH

TV/CABLE CABLE

AUTO CH MEMORY

ADD/DELETE I_

Press A or V to select

"ASPECT", then press 4 or _, to

select "ON" or "OFF". SETUP

PICTURE SCROLL

CINEMA MODE FILM

SIGNAL METER

AUTO SHUT OFF OFF

Press EXIT to return to the normal screen.

Automatic aspect size

Aspect ratio of signal source (When ASPECT is ON)

4:3 Normal NATURAL

16:9 Full FULL

4:3 Letter box CINEMA WIDE

Not defined User-set mode

Adjustingthe picturepreference/Picturecontroladjustment

You can select four picture

modes--SPORTS, STANDARD,

MOVIE, and MEMORY--as de-

scribed in the following table:

Adjusting the picture preference

Press MENU, then press 4 or

to select (PICTURE) menu.

Press A or V to select

"PICTURE PREFERENCE".

Press _ or _ to select the item you

want to adjust.


PICTURE PREFERENCE SPORTS

BRIGHTNESS 25

CONTRAST 50

COLOR 25

TINT 0

SHARPNESS 2

_v :SELECT 4_ :ADJUST

COLOR 25

TINT

SHARPNESS 25

COLOR 25

TINT

SHARPNESS 25

Mode Picture Quality

SPORTS Bright and dynamic picture (factory-set)

STANDARD Standard picture quality (factory-set)

MOVIE Movie-like picture setting (factory-set)

MEMORY Your personal preferences (set by you; see "Picture

control adjustment" below).

After your desired setting, press EXIT to return to the normal

screen.

Picture control adjustment

Press MENU, then press _ or ll_to

select (PICTURE) menu.

Press A or V to select the item you

want to adjust.

Press 4 or _ to adjust the setting.


PICTURE PREFERENCE SPORTS

BRIGHTNESS 25

CONTRAST 50

COLOR 25

TINT

SHARPNESS 25

A_ :SELECT 4_ :ADJUST


PICTURE PREFERENCE SPORTS

COLOR 205

TINT

SHARPNESS 25

NOTE:

The CONTRAST default setting is

set to maximum at the factory. 3

BRIGHTNESS decrease brightness increase brightness

CONTRAST decrease contrast increase contrast

COLOR be pale color be brilliant color

TINT be reddish color be greenish color

SHARPNESS makes picture softer makes picture clearer

After your desired setting, press EXIT to return to the normal

screen. 33

Selecting the color temperature/

Adjusting the backlighting

Selecting the color temperature

Change the picture quality by selecting from three preset color

temperatures=COOL, MEDIUM, and WARM:

Press MENU, then press 4 or

to select (PICTURE) menu.


PICTURE PREFERENCE SPORTS

BRIGHTNESS 25

CONTRAST 50

COLOR 25

TINT 0

SHARPNESS 25

_T :SELECT _b- :ADJUST

2Press A or V to select "COLOR

TEMPERATURE".

Press 4 or _ to select the mode

you prefer.

Mode Picture Quality

COOL Blueish

MEDIUM Neutral

WARM Reddish

RESET

AY :SELECT _* :ADJUST

Press EXiT to return to the normal screen.

Adjusting the backlighting

The BACKLIGHTING feature adjusts the screen brightness for

improved picture clarity.

Press MENU, then press 4 or

to select (PICTURE) menu.


PICTURE PREFERENCE SPORTS

BRIGHTNESS 25

CONTRAST 50

COLOR 25

TINT 0

SHARPNESS 25

2Press A or V to select

"BACKLIGHTING".

Press 4 or 1_to adjust the

setting.


COLOR

TEMPERATURE COOL

RESET

After your desired setting, press EXIT to return to the normal

screen.

Resetting your picture adjustments

The RESET function returns your

picture quality adjustments to the

following factory settings:

PICTUREPREFERENCE...... SPORTS

BRIGHTNESS......................center (25)

CONTRAST............................max(50)

COLOR ................................center (25)

TINT ..............................center (0)

SHARPNESS..............center (25)

COLORTEMPERATURE... COOL

Press MENU, then press 4 or

to select (PICTURE) menu.

Press A or V to select

"RESET", and then press _.


PICTURE PREFERENCE SPORTS

BRIGHTNESS 25

CONTRAST 50

COLOR 25

TINT 0

SHARPNESS 2

_v/:SELECT 4_ :ADJUST


_OLOR

TEMPERATURE COOL

BACK LIGHTING 16

NOTE:

When you press RESET in the _

(PICTURE) menu, the picture

adjustment returns to the factory

preset level.

Selecting Stereo/Second Audio Program (SAP)/

Sound control adjustment

The multi-channel TV sound (MTS)

feature provides high=fidelity

stereo sound. MTS also can

transmit asecond audio program

(SAP) containing asecond

language or other audio informa=

tion.

When the TV receives astereo or

SAP broadcast, the word

"STEREO" or "SAP" displays on=

screen every time you turn theTV

on, change the channel, or press

DISPLAY.

Selecting Stereo/Second Audio Program (SAP)

Press MENU, then press 4 or l_

to select (AUDIO) menu.

AUDIO

MTS STEREO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

&_ :SELECT "_" :ADJUST

Press A or V to select"MTS".

Press 4 or _ to select "STR

(STEREO)". AUDIO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

Press EXIT to return to the normal screen.

NOTES:

• Generally you can leave yourTV in stereo mode because

the TV automatically outputs the type of sound being

broadcast (stereo or mono).

If the stereo sound is noisy, select MONO to reduce the

noise.

To listen to a second audio program (SAP)

Press 4 or _, to select "SAP" in step 2 above. The TV speakers will

output the second audio program instead of normal audio.

Sound control adjustment

Press MENU, then press 4 or

to select (AUDIO) menu.

AUDIO

MTS STEREO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

Press A or V to select the item

you want to adjust.

BASS: Press 41or I1_to

adjust the bass

sound.

TREBLE: Press 4 or _ to

AUDIO

MTS STEREO

TREBLE 25

BALANCE 0

SURROUND OFF

adjust the treble sound.

BALANCE: Press 41 or _ to obtain an equal sound level from

both speakers.

SURROUND:

Press _ or _ to select "ON" or "OFF".

ON: The dynamic presence and sound created offers a

thoroughly enjoyable listening experience.

OFF: Normal sound.

@j)_ _._ After your desired setting, press EXIT to return to the normal

_U screen.

Selecting the HDIVli audio input source/

Selecting the audio language

Selecting the HD{Vll audio input source

When you use HDMi AUDIO IN jacks with HDMi or DVI device,

you must select HDMi audio input source from "HDMF' or "DVI'.

Press MENU.Then press _ or

I_ to select (AUDIO) menu.

2Press A or T to select"HDMr',

then press 4 or _ to select

"HDMr' or "DVr'.

HDMh When you connect the

HDMI device to the TV,

select this setting.

DVh When you connect the

AUDIO

MTS STEREO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

AUDIO

AUDIO LANGUAGE

DIGITAL OUTPUT PBM

RESET

DVI device to the TV with analog audio cords, select

this setting.

Press EXiT to return to the normal screen.

Selecting the audio language

When two or more audio languages are included in a digital

signal, you can select one of the audio language.

Press MENU, then press ,9 or

to select (AUDIO) menu.

AUDIO

MTS STEREO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

Press A or V to select "AUDIO

LANGUAGE".

Then press l_ to display the

AUDIO LANGUAGE menu.

_,h ii

AUDIO

_DMI HDMI

RESET

Press A /V or Number button

(0-7) to select your desired

language, then press ENTER.

AUDIO LANGUAGE

1. ENGLISH 2

2. FRENCH

3. SPANISH

4. NOINFO

5. NOINFO

6. NOINFO

7. NOINFO

[0-7]:SELECT

SET:ENTER

Press EXIT to return to the normal screen.

Selecting the digital output/

Resetting your audio adjustments

Selecting the digital output

You can choose the format of the digital audio output signal.

Press MENU, then press 4 or I_

to select (AUDIO) menu.

AUDIO

MTS STEREO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

2Press A or V to select "DIGITAL

OUTPUT", then press 4 or I_ to

select "PCM" or "DOLBY

DIGITAl".

AUDIO

_,'......... ;DO,

Press EXiT to return to the normal screen.

Resetting your audio adjustments

The RESET function returns the audio adjustments to the

following factory settings:

BASS ................. center (25)

TREBLE ............ center (25)

BALANCE ........... center (0)

Press MENU, then press 4 or

to select (AUDIO) menu.

Press A or V to select

"RESET", and then press I_.

AUDIO

MTS STEREO

BASS 25

TREBLE 25

BALANCE 0

SURROUND OFF

AUDIO

_D_, _D_,

AUDIO LANGUAGE

DIGITAL OUTPUT PCM

NOTE:

When you press RESET in

(AUDIO) menu, the audio

adjustment returns to the factory

preset levels.

Checking the Digital-signal strength

This TV will allow you to view the

digital signal meter for digital

channels.

Press MENU, then press 4 or 1_

to select (SETUP) menu.

SETUP

LANGUAGE ENGLISH

TV/CABLE _ABLEAUTO CH MEMORY

ADD/DELETE

Press A or Y to select

"SIGNAL METER".

SETUP

_ICTURE SIZE

PICTURE SCROLL

CINEMA MODE FILM

ASPECT OFF

AUTO SHUT OFF OFF

Press 4 or P, to check the

Digital-signal strength.

SIGNAL METER

CHANNEL(DIGITAL) 23-077

__) 100

Press EXiT to return to the normal screen.

NOTES:

• Signal meter feature is not

available for analog channels.

• After 240 seconds, SIGNAL

METER screen will return to

normal TV-operation automatically.

Setting the auto shut off

in case of "AUTO SHUT OFF"

feature is "ON", if astation being

viewed stops broadcasting, the TV

will automatically shut itself off

after 15 minutes.

Press MENU, then press _ or

to select _ (SETUP) menu.

Press A or V to select "AUTO

SHUT OFF".

Press 4 or II, to select "ON"

or "OFF".

SETUP

LANGUAGE ENGLISH

TV/CABLE _ABLE

AUTO CH MEMORY

ADD/DELETE

SETUP

_ICTURE SIZE

PICTURE SCROLL

CINEMA MODE FILM

ASPECT OFF

SIGNAL METER •

SETUP

_ICTURE SIZE

PICTURE SCROLL

CINEMA MODE FILM

ASPECT OFF

SIGNAL METER •

Press EXIT to return to the normal screen.

Picture/Audio control adjustment in the PC mode

PC Monitor Menu

There are a number of picture and audio settings you can adjust to

optimize the performance of the TV in PC mode.

Press INPUT SELECT repeatedly to select PC mode.

Press MENU.The PC Monitor Menu will appear.

PICTURE Menu AUDIO Menu


BRIGHTNESS

CONTRAST

NOR POSITION

VER POSITION

PHASE

CLOCK

AUDIO

BASS 2S

TREBLE 2S

BALANCE 0

SURROUND OFF

RESET

NOTES:

• If you wish to change the on-

screen language, follow the

steps 1 - 5 on page 17.

• If no buttons are pressed for

more than approx. 60 seconds,

the PC Monitor Menu-screen

will return to normal Monitor-

screen automatically.

• The PC Monitor Menu settings

are not effective for normal

mode, or external input mode.

Example: Adjust the contrast.

Press MENU during PC mode, then press 4 or _ to select

(PICTURE) menu.

Press A or V to select CONTRAST.

Press 4 or _, to adjust the setting.

Press EXIT to return to the normal screen.

Picture menu setting:

BRIGHTNESS:

CONTRAST:

HOR POSITION:

VER POSITION:

PHASE:

CLOCK:

RED/GREEN/BLUE:

WXGA INPUT:

BACKLIGHT:

To adjust the brightness of

PC Monitor-screen.

To adjust the contrast of PC

Monitor-screen.

To adjust the horizontal

position of the image on the

PC Monitor-screen.

To adjust the vertical position

of the image on the PC

Monitor-screen.

This must be adjusted after

the frequency of your PC has

been set to 60hz to optimize

picture quality (page 16).

To minimize any vertical bars

or stripes visible on the

screen background.

To adjust the color temperature

Set to ON, when you select

the WXGA mode on the PC.

To adjust the screen brightness

for improved picture clarity.

Audio menu setting:

BASS/TREBLE/BALANCE: To adjust the sound

quality of PC mode.

SURROUND: To turn on or off the

surround effect in PC

mode.

Picture/Audio control adjustment in the PC mode

Resetting your picture/audio adjustment in the PC mode

The RESET function returns your picture/audio adjustment to the

following factory settings:

PICTURE menu

BRIGHTNESS ........... center (25)

CONTRAST ................. max (50)

RED ........................... center (25)

GREEN ..................... center (25)

BLUE ......................... center (25)

BACKLIGHTING .......... max (16)

AUDIO menu

BASS ...................... center (25)

TREBLE ................. center (25)

BALANCE .............. center (0)

Press MENU during PC mode,

then press '_ or 1_ to select

(PICTURE) or %b (AUDIO)

menu.


_ED 25

GREEN 25

BLUE 25

WXGA INPUT OFF

BACK LIGHTING 16

Press • or • to select "RESET", then press _'.

NOTE:

When you press RESET in

(PICTURE) or (AUDIO) menu,

the picture or audio adjustment

returns to the factory preset level.

Reception disturbances

Most types of television interference can be remedied by adjusting the height and position of the VHF/

UHF antenna. Outdoor antennas are recommended for best results. The most common types of

television interference are shown below, if one of these symptoms appear when the TV is connected

to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

iGNiTiON

GHOSTS

Ghosts are caused by the television signal following two paths. One is

the direct path and the other is reflected by tall buildings, hills or other

large objects. Changing the direction or position of the antenna may

improve the reception.

fSNOW

If the TV is located far from the TV station, in a fringe reception area

where the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external

antenna may be necessary.

fPICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST

or BRIGHTNESS settings.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV from the power source before cleaning.

The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other

furniture. Use caution when cleaning or wiping the plastic parts.

Troubleshooting

Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or

service outlet if problems persist. Be sure all connections are properly made when using with other units.

SYMPTOMS

TV does not

operate.

Poorsound

or no sound.

Poor pictu re

or no picture.

Poor

reception on

some

channels.

Poor color or

no color.

Pictu re

wobbles or

drifts.

Digital

broadcast-

ing screen

problem.

POSSIBLE SOLUTIONS

.Make sure the power cord is plugged in.

.Try another AC outlet.

.Power is off, check fuse or circuit breaker.

.Unplug unit for an hour, then plug it back in.

.Station or CABLE experiencing problems,

tune to another station.

•Check sound adjustments (Volume and Mute).

.Check for sources of possible interference.

.Station or CABLE experiencing problems,

tune to another station.

.Make sure channels are set into memory.

.Check antenna or CABLE connections,

adjust antenna.

.Check for sources of possible interference.

.Check picture control adjustments.

.Station or CABLE experiencing problems,

tune to another station.

.Make sure channels are set into memory.

.Station is weak, adjust antenna to receive

desired station.

.Check for sources of possible interference.

.Station or CABLE experiencing problems,

tune to another station.

.Make sure channels are set into memory.

.Check picture control adjustments.

.Check antenna or CABLE connections,

adjust antenna.

.Check for sources of possible interference.

.Station or CABLE experiencing problems,

tune to another station.

.Make sure channels are set into memory.

.CABLE company is scrambling signal.

.Adjust antenna.

.Check digital signal strength.

No CATV

reception.

POSSIBLE SOLUTIONS

.Check all CABLE connections.

•Set TV/CABLE menu option to the CABLE

mode.

.Station or CABLE system problems, try

another station.

Horizontal or .Check antenna connections, adjust or

diagonal bars re-direct antenna.

on screen. .Check for sources of possible interference.

.Make sure TV/CABLE menu option is in the

No reception appropriate mode.

above .If using antenna, check UHF antenna

channel 13. connections.

No Remote

operation.

TV shuts off.

Closed -

Caption is

not activated.

TV is not

shown in your

language.

*Batteries are weak, dead or inserted incorrectly.

.Remote is out of range, move closer to TV

(within 15 feet).

.Make sure Remote is aimed at sensor.

.Confirm there are no obstructions between

the Remote and the TV.

.Make sure the power cord is plugged in.

.No broadcast on station tuned.

.Sleep Timer is set.

.Power interrupted.

.TV station experiencing problems or program

tuned is not closed captioned. Try another

channel.

.Check CABLE connection or VHF/UHF

antenna, reposition or rotate antenna.

.Set closed caption decoder in the menu.

.Select proper language in the menu options.

fgSANSUl®

FOR CUSTOMER SERVICE,

ADDITIONAL SET-UP OR

OPERATING ASSISTANCE

PLEASE CALL:

TO ORDER ACCESSORY

PARTS OR LITERATURE

PLEASE CALL:

1-800-289-0980 1-888-369-0304

WHEN CALLING CUSTOMER SERVICE- PLEASE HA VE YOUR MODEL NUMBER READY

OR WRITE TO:

ORLON SALES, INC.

3471 N. UNION DR.

OLNEY, iLLINOiS 62450

FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

www.orionsaiesinc.com

Specifications

Power supply: AC 120V 60 Hz

Power consumption: Operation: 170 W

Stand by: 1 W

Weight: 35.3 Ibs (16.0 kg)

Dimensions: Width: 32-3/8 inches (822 mm)

Height: 23-3/4 inches (604 mm)

Depth: 11-1/8 inches (282.5 mm)

Inputs: VIDEO:

AUDIO:

S-VIDEO:

COMPONENT:

1 V (p-p)/75 ohms

-8 dBm/50k ohms

Y: 1 V (p-p), 75 ohms

C: 0.286 V (p-p), 75 ohms

Y: 1 V (p-p), 75 ohms

PR: 0.7V (p-p), 75 ohms

PB: 0.7V (p-p), 75 ohms

Digital audio out: 0.5 Vp-p 75 ohms terminated

HDMI input: HDMI compliant (type A connector)

HDCP compliant

E-EDID compliant

Suggested scan rates: 1080i, 480p, 480i, 720p

HDMI Audio: 2-channel PCM

32/44.1/48 kHz sampling frequency

16/20/24 bits per sample

PC Monitor input: Mini-Dsub 15pin x 1

Type: 31.5 inches (800.4 mm diagonal)

Number of Pixels:

Viewing angle: 1366 (H) x 768 (V)

Left/Right: 88/88 degree

Up/Down: 88/88 degree

Antenna input: VHF/UHF/CABLE In 75 ohm coaxial

Tuner type: NTSC standard

ATSC standard (8VSB), QAM

Receiving channels: VHF

UHF

CABLE

2-13

14-69

14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-125 (100)-(125)

01 (5A)

Speaker: 2-3/16 inches (56 ram) x 5 inches (127 ram), 4 ohms x 2

Sound output power: 5W+5W

ACCESSORIES: Remote control

Batteries (UM-3) x 2

AC Cord

Designs and specifications are subject to change without notice.

IJSANSUI

LIMITED WARRANTY

32" WIDE LCD TELEVISION

ORION warrants this product to be free from manufacturing defects in material and workmanship under

normal use and conditions for a period of 1 year from date of original purchase in the United States,

Should service be necessary under this warranty for any reason due to a manufacturing defect or

malfunction during the first 12 months from date of original purchase, ORLON will provide in-home repair service

by an ORLON authorized Independent Service Center at no charge. Also, if an original part fails due to

manufacturing defect in material and workmanship within one year from date of original purchase we will

replace the defective part, provided the defect or malfunction is verified along with dated proof of purchase.

There are ORLON authorized Independent Service Centers located throughout the country. For the one

nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. ORLON will not

be liable for damages incurred in shipment of the unit. If there are no ORLON authorized Independent Service

Centers in your area please call - 1-888-296-7466 for assistance.

Note: This warranty is void if the product is:

(a) Damaged through negligence, misuse, abuse, or accident.

(b) Used in a commercial application or rentals.

warranty repairs to the class of product or by the ORLON Factory Service Center.

(d) Damaged because it is improperly connected to the equipment of other manufacturers.

This warranty does not cover:

(a) Damage to equipment not properly connected to the product.

(b) Costs incurred in the shipping of the product to an ORLON authorized Independent Service Center or

ORION Factory Service Center.

operating instructions provided with the product.

(d) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's

manual.

(e) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER

AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OFTHE PRODUCT. ANY APPLICABLE IMPLIED

WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A

PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF

ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL

APPLY TO THIS PRODUCT THEREAFTER. ORLON MAKES NO WARRANTY AS TO THE FITNESS OF THE

PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.

UNDER NO CIRCUMSTANCES SHALL ORLON BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH

THE USE OFTHIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM

STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR

EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO

YOU.

ORLON SALES, iNC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

Memo

IIllllllIHIIlUIIN

J32D0101A SH 07/02 [] Printed in Thailand

Sansui HDLCD3200 User Manual LCD TELEVISION Manuals And Guides L0811562

SANSUI LCD Television Manual L0811562 SANSUI LCD Television Owner's Manual, SANSUI LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
